Sony TRV21, CCS-TRV29, TRV211, TRV19, TRV119 User Manual
Specifications and Main Features
Specifications:
- Video recording system: Dual rotary heads, Helical scanning, FM system
- Audio recording system: Rotary heads
- Video signal: Color NTSC Standard, EIA
- Usable cassette: Cassette for video recording, 8 mm format, standard 8 mm
- Recording/Playback time:
- SP mode: 2h (IHR NUMBER P6-120)
- LP mode: 4h ( P6-120 cassette)
- Fastforward and Rewind time: Roughly 5min (P6-120).
- Image device: CCD (Charge Coupled Device)
- Viewfinder:
- CCD-TRV11, TRV21, TRV211: Monochrome
- CCD-TRV19, TRV29, TRV119: Color
- Lens: Zoom lens power, Combined, F1.8-2.7
- Filter diameter: 1/4 of an inch (87mm)
- Zoom:
- CCD-TRV11/trv19/trv119: 12 times, optical,
- CCD-TRV21/ TRV29: 12 times, optical, 24 times, digital
- Focal distance:
- f= “A> — 2 Winches (5.4 ~ 64.8 mm)
- 35 mm still camera specification
- For 9 CCD-TRV11/TRV19/TRV119; 39 - 468
- To 9X CCD-TRV21/TRV29/TRV211; 47 - 564mm
- Color temperature: Automatic
- Minimum illumination:
- For 9 CCD-TRV11/TRV19/TRV119 Beams: at F12 0.8 Ix
- To 9X CCD-TRV21/TRV29/TRV211; 3 Ix at F12 1.8
- Illumination range:
- 9 CCD-TRV11/TRV19/TRV119: 0.8 to 100,000 Ix
- CCD-TRV21 s trv29 s Trv211: 4 to 100,000 Ix
- Maximum recommended illumination: 100 Ix and above
- LCD screen:
- 2.5 inch across the diagonal
- 61380 total number of dots (279 x 220).

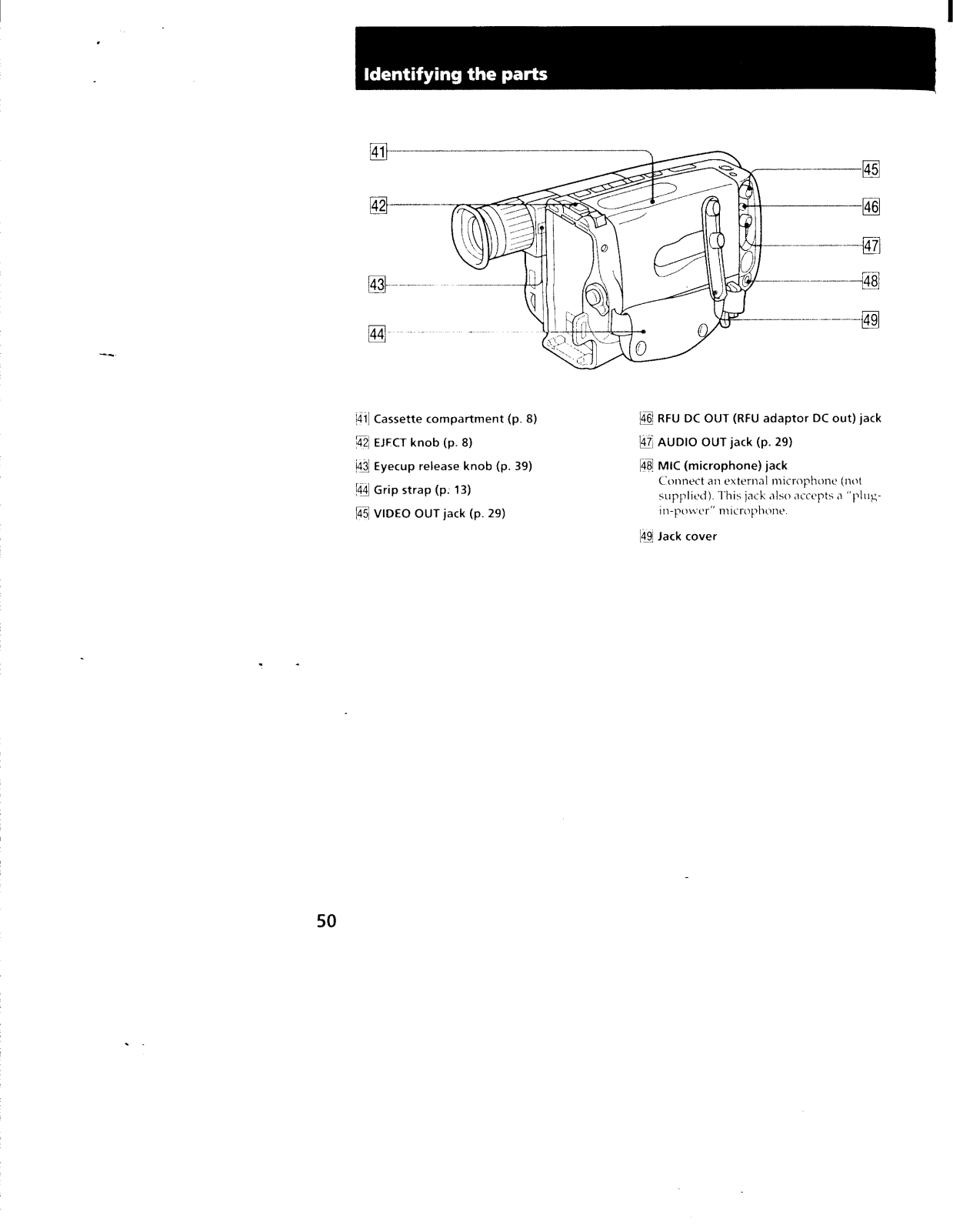

- Input and Output connectors:
- Video output: Phono jack, 1 Vp-p, 75 Q, unbalanced
- Audio output: Monaural, Phono jack, 327 mV, (at load impedance 47 kQ)
- Earphone jack: Mini-jack
- LANC control jack: Stereo mini-minijack
- MIC jack: Minijack, 0.388 mV, low impedance
- Power requirements: 7.5 V (AC power adaptor)
- Average power consumption (During camera recording using LCD):
- CCD-TRV11/TRV19/TRV119: 4.7W
- CCD-TRV21/TRV29/TRV211: 5W
- Operating temperature: 32 to 104 degrees Fahrenheit (0 degree to 40 degrees Celsius)
- Storage temperature: -4 to +140 degree Fahrenheit (-20 degree to +60 degree Celsius)
- Dimensions: Approximately 402x444x210 millimeters (113 x 106 x 210 millimeters)
- Mass:
- CCD-TRV11/TRV19/TRV119: 1 lb, 13 oz when converted to kilograms is 850g
- CCD-TRV21/TRV29/TRV211: 1 lb, 14 oz when converted to kilograms is 860g
Main Features:
- Superior picture and sound quality which makes it easy to capture life moments
- DIGITAL ZOOM option (only applicable for CCD-TRV21/TRV29/TRV211)
- Multiple options on the camera including SP mode, LP mode, and Other recording type features
- The use of the camera is quite simple as it has easy controls and an easy to read display
- Monitoring shooting features built in are self monitoring
- Will work with a number of power sources from a battery pack, AC power supply, or from a Car battery
Frequently Asked Questions
Q: What is the method used to charge the battery pack for the Handycam?
A: This is accomplished by connecting the AC power adaptor to the mains socket while placing the battery pack correctly on the adaptor and lastly rotating the selector to CHARGE.

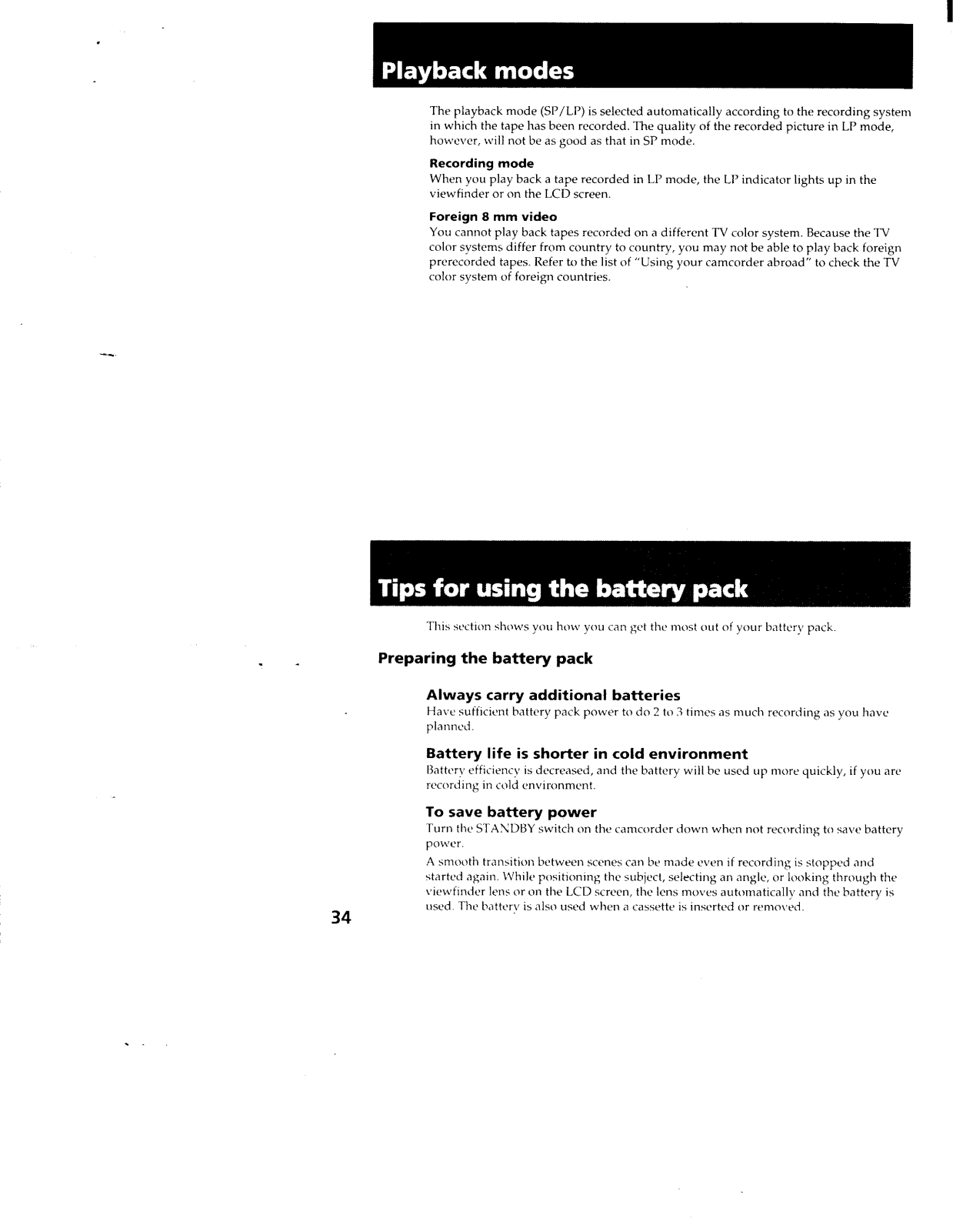

Q: What factors distinguish SP recording mode from its LP counterpart?
A: Within an SP mode, playback recording is on a standard qualitative range, however, LP mode allows performance on a lower qualitatively performing range.

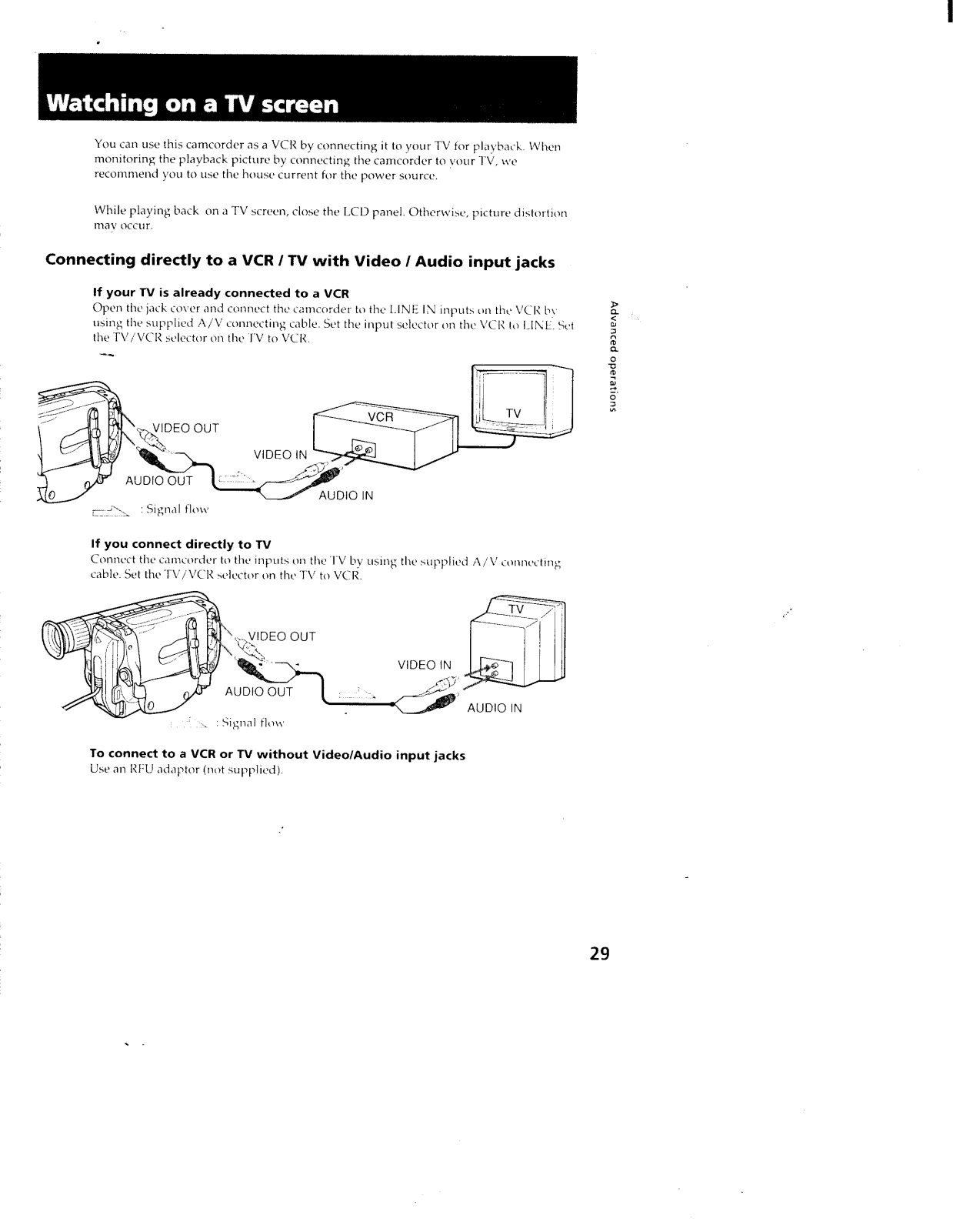

Q: Is it viable to connect my Handycam model to a standard big screen TV?
A: Indeed, it is possible to connect it to any big screen TV by using the A/V connecting cable that is included in the pack whichever allows viewing of the recorded content.

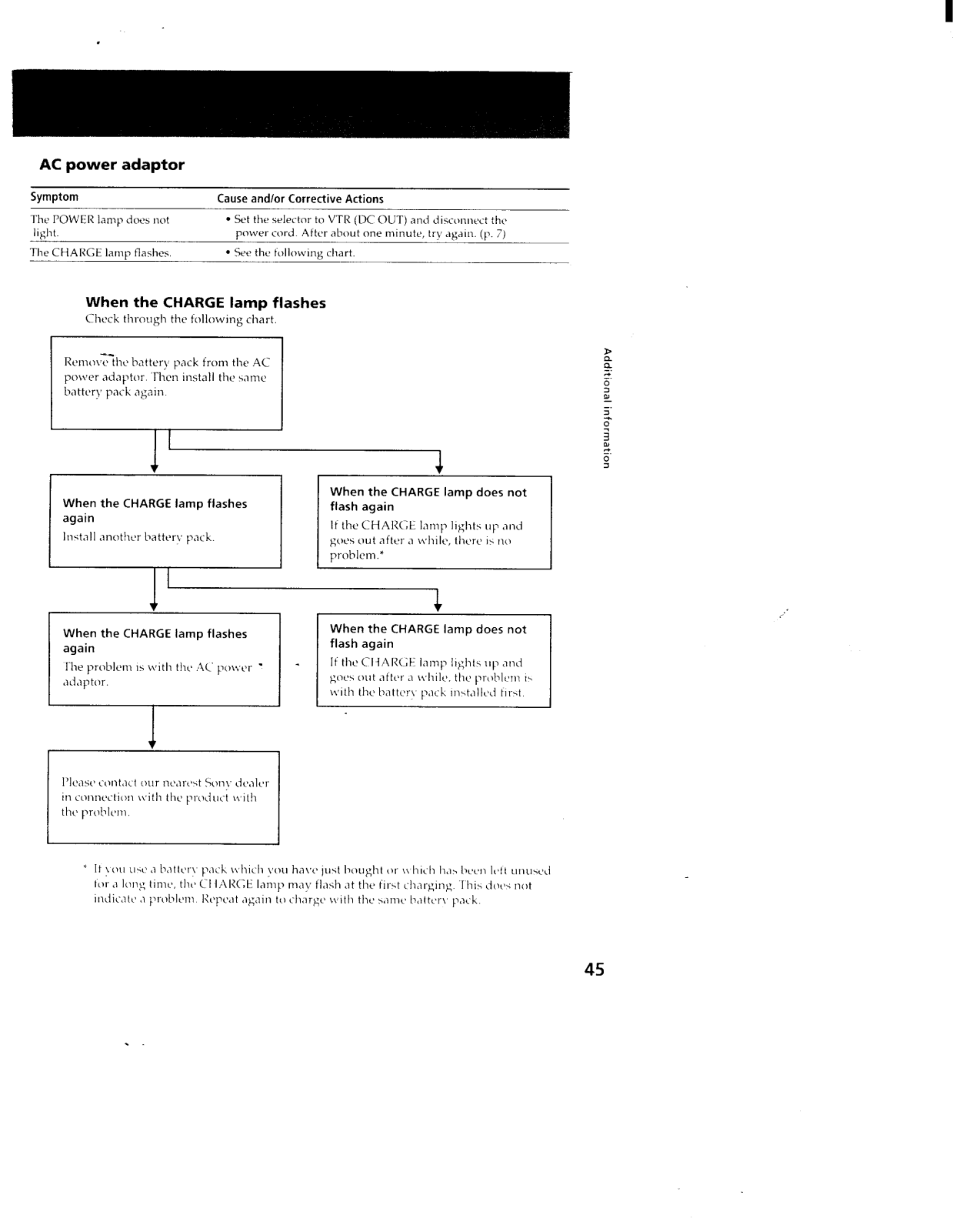

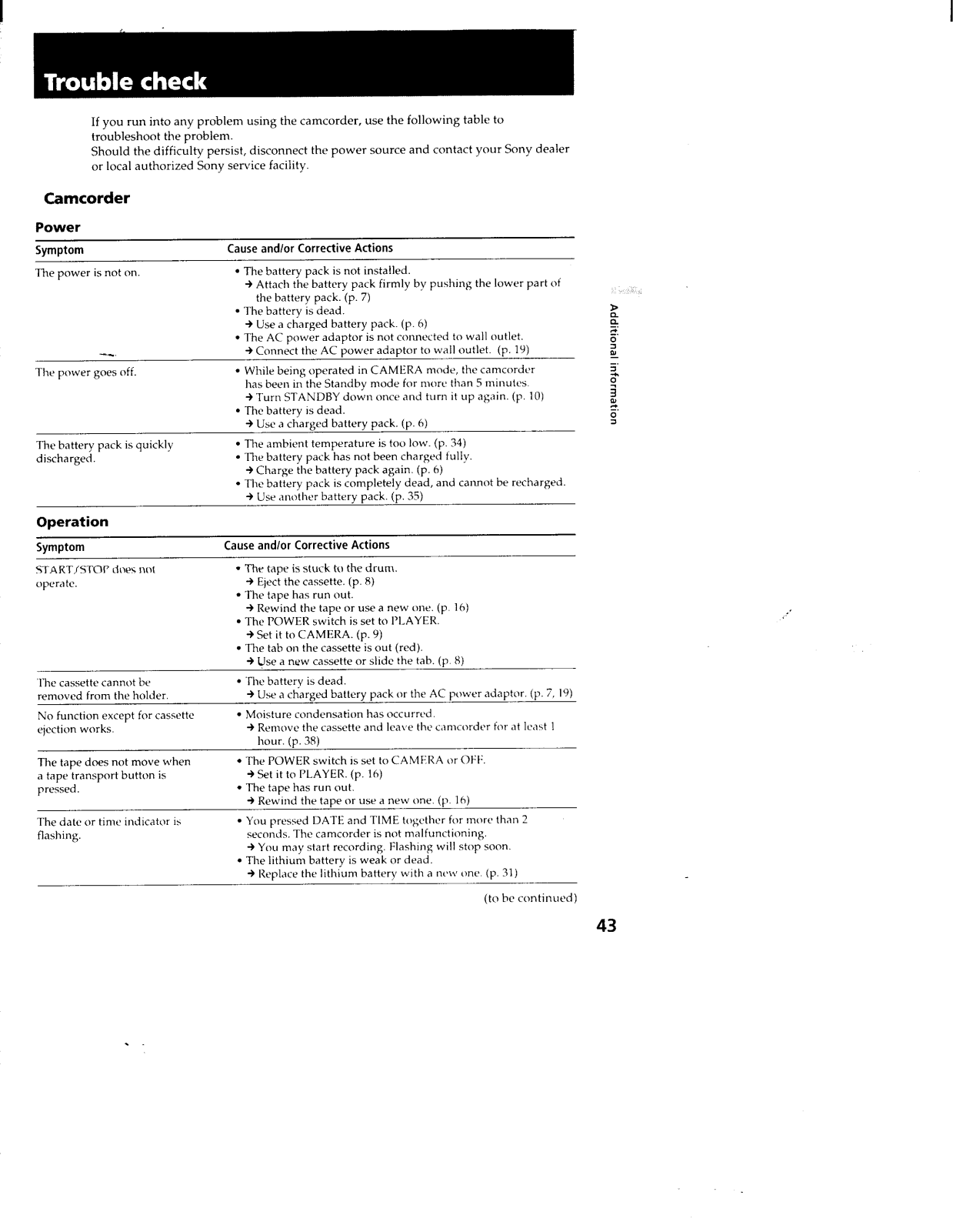

Q: I don’t have my power lamp glowing, what could be the issues I could be facing?
A: The possible issues could be your battery pack not installed appropriately or charged, alternatively your AC power adaptor is not plugged into the wall.
Q: Is it possible to set any custom data or time using my camcorder?
A: While the recorder is in use in CAMERA mode, users can hold the DATE(+) and set the TIME(NEXT) Buttons until the year flashes on the indicator and for setting rest date and time these buttons can be used.
Q: This seems to be a very advanced and high end camera, what are the illumination requirements with respects to the recording?
A: Minimum illumination for models CCD-TRV11, CCD-TRV19, and CCD-TRV119 is 0.8 Ix at F 1.8: 3 Ix at F 1.8 for CCD-TRV21, CCD-TRV29 and CCD-TRV211 respectively.

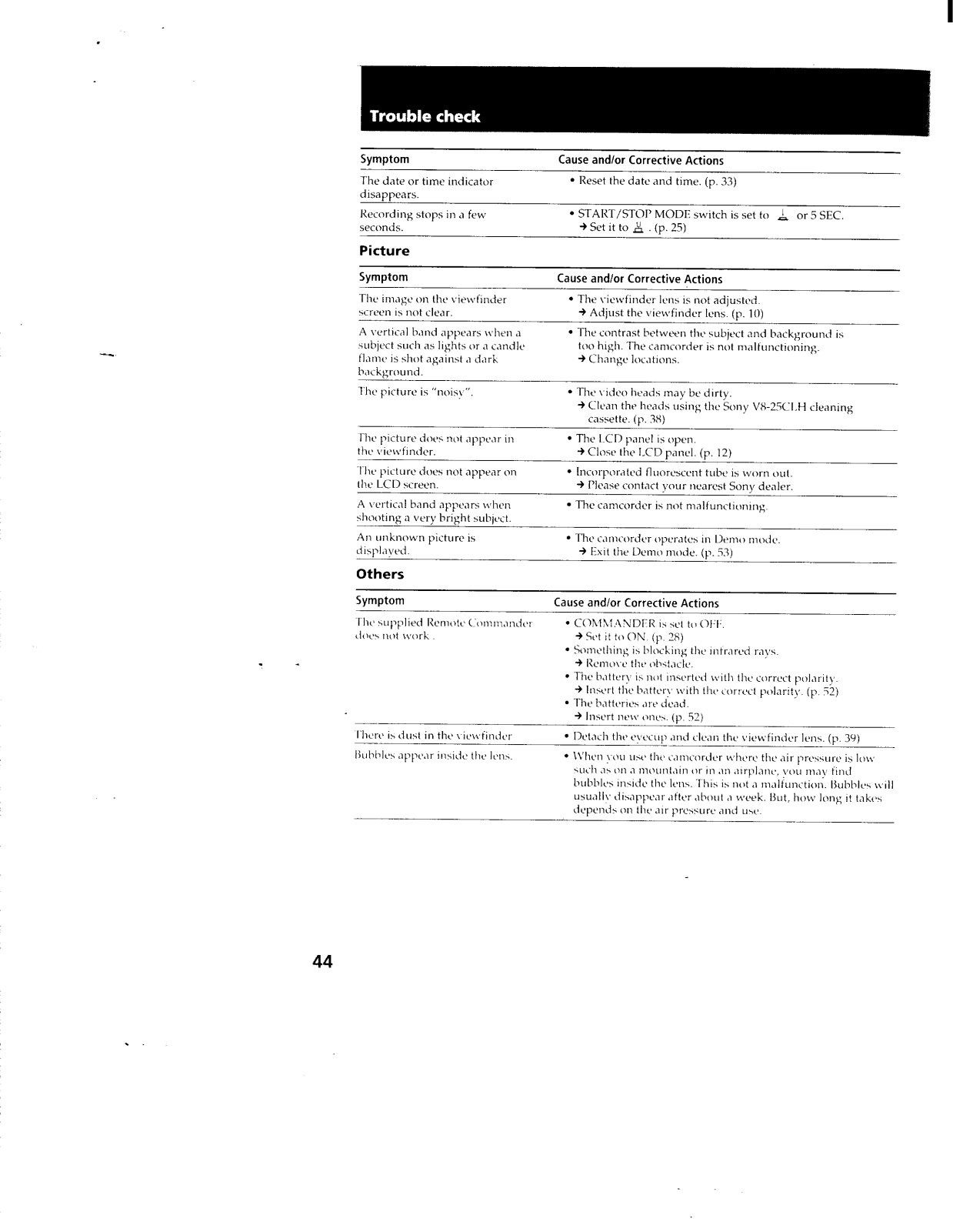

Q: What is the method I can employ to clean the video heads?
A: To clean your device's video heads, use the Sony V8-25CLH cleaning cassette whenever there is noise or blurred images during playback.
Q: Is it feasible and permissible to operate the camcorder in a cold environment?
A: Yes, it is possible to operate camcorders in cold conditions, but you should be aware that in colder conditions, the batteries may become less efficient which can shorten the recording duration.
