Sony Trinitron KV-AR21, KV-BT21, KV-BM14, Trinitron, KV-HW21 Operating Instructions Manual

Download

Page 1

4-098-370-11(1)

Tr initron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

KV-AR21

N60

Page 2

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110-240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

Do not place any objects on the TV. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

Page 3

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

Page 4

x Securing the TV

To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps. (2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at the rear of your TV.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

Page 5

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV top control, front and

rear panels............................................. 8

Using the remote control and

basic functions ...................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Enjoying stereo or bilingual

programs ............................................. 12

Menu Adjustment

Introducing the menu system .......... 13

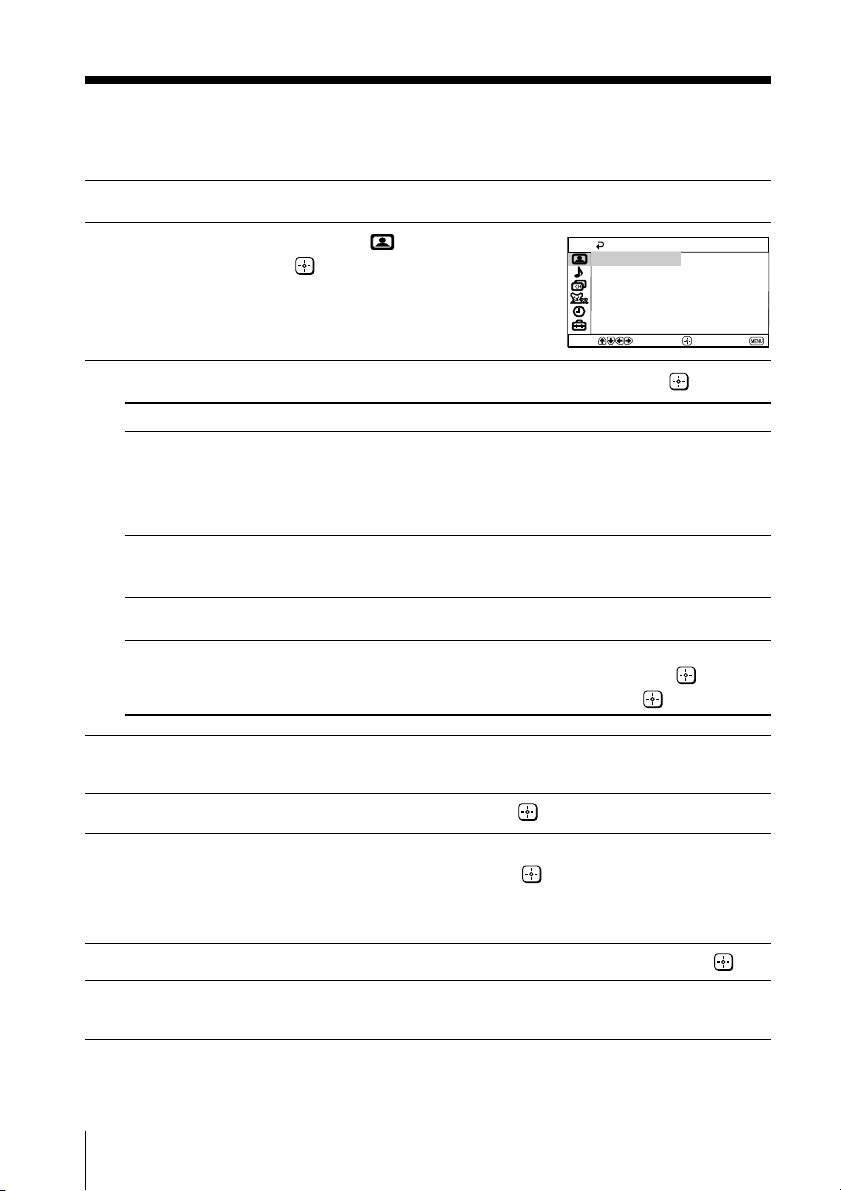

Changing the “Video” setting.......... 16

Changing the “Audio” setting ......... 17

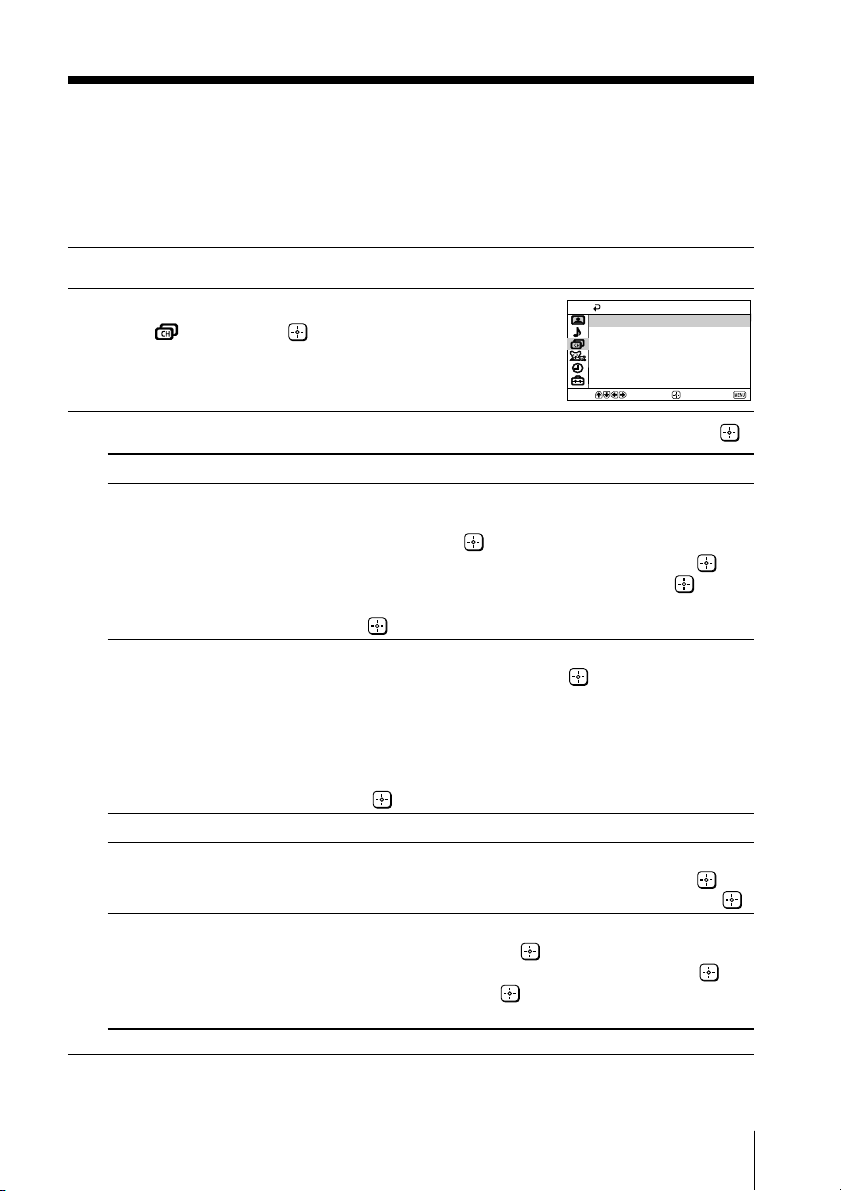

Changing the “Channel Setup”

setting .................................................. 19

Changing the “Channel Block”

setting .................................................. 20

Changing the “Timer” setting.......... 21

Changing the “Setup” setting .......... 22

Additional Information

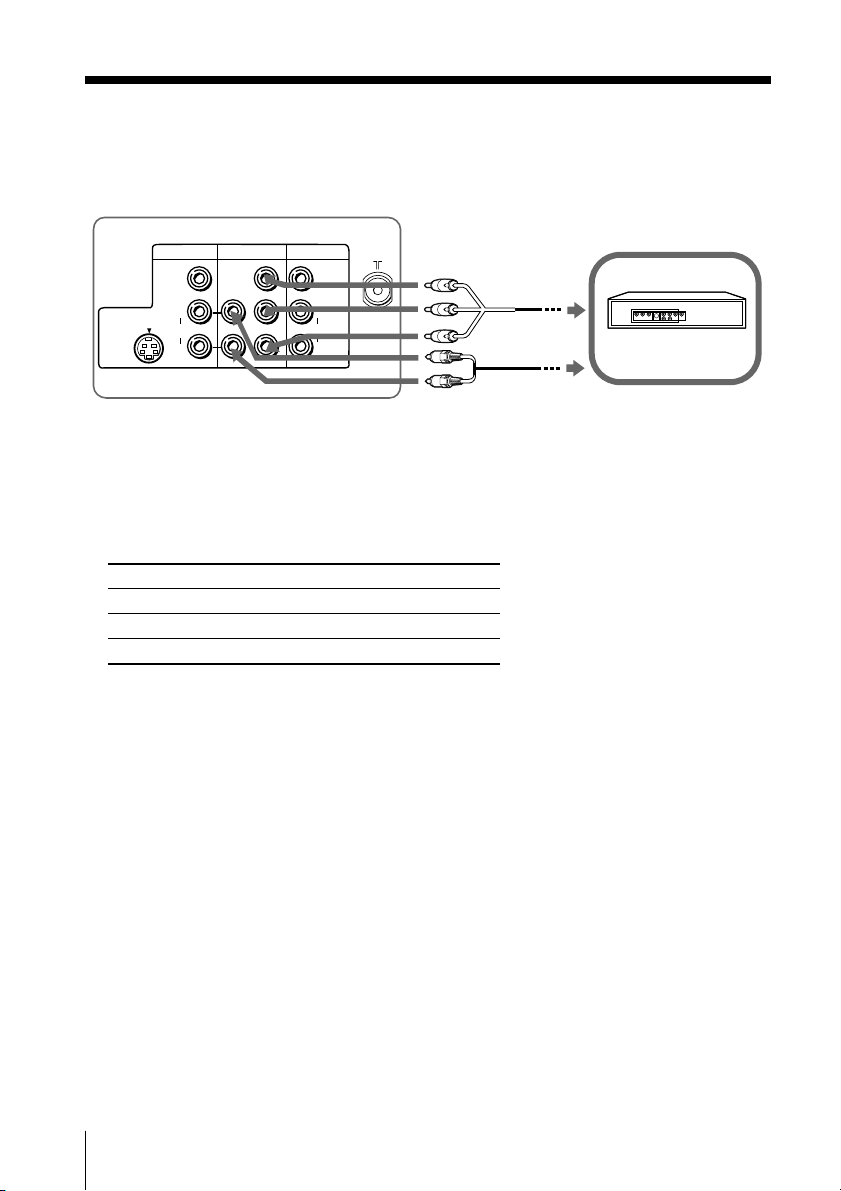

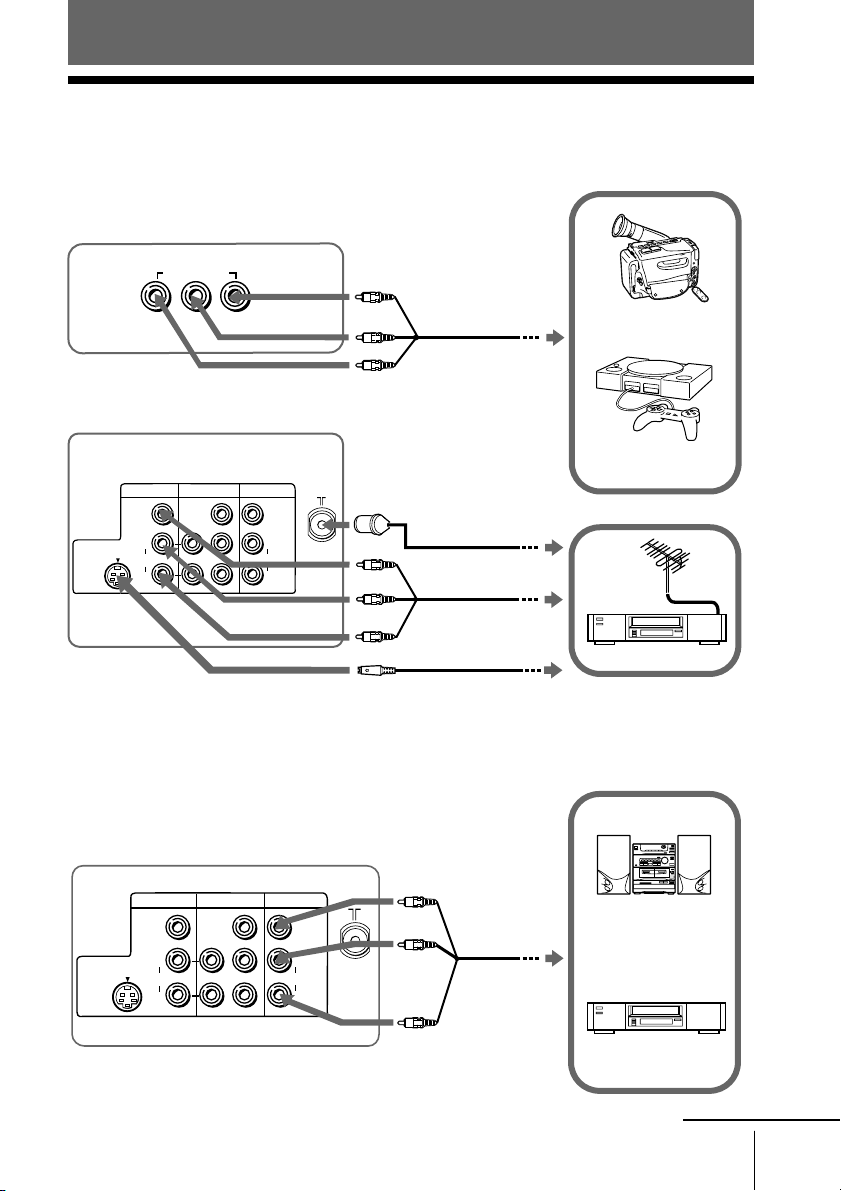

Connecting optional components ... 23

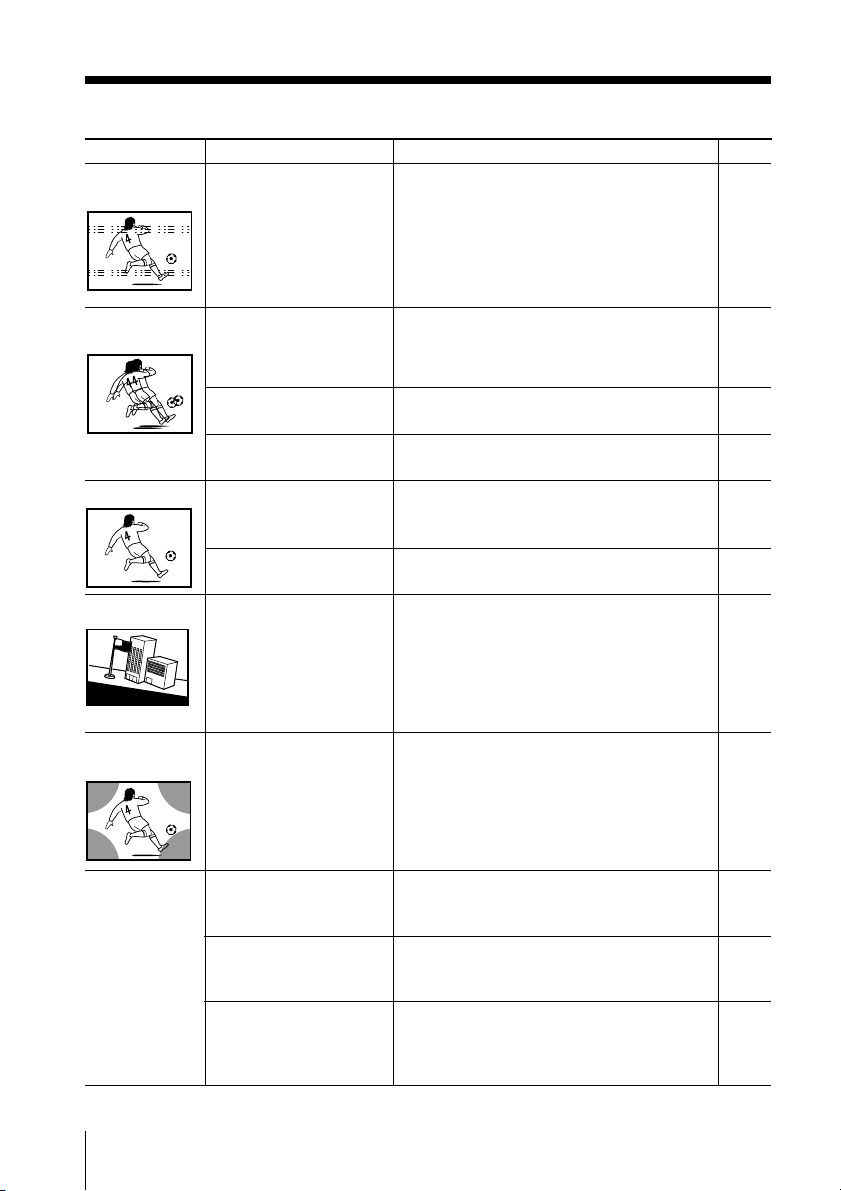

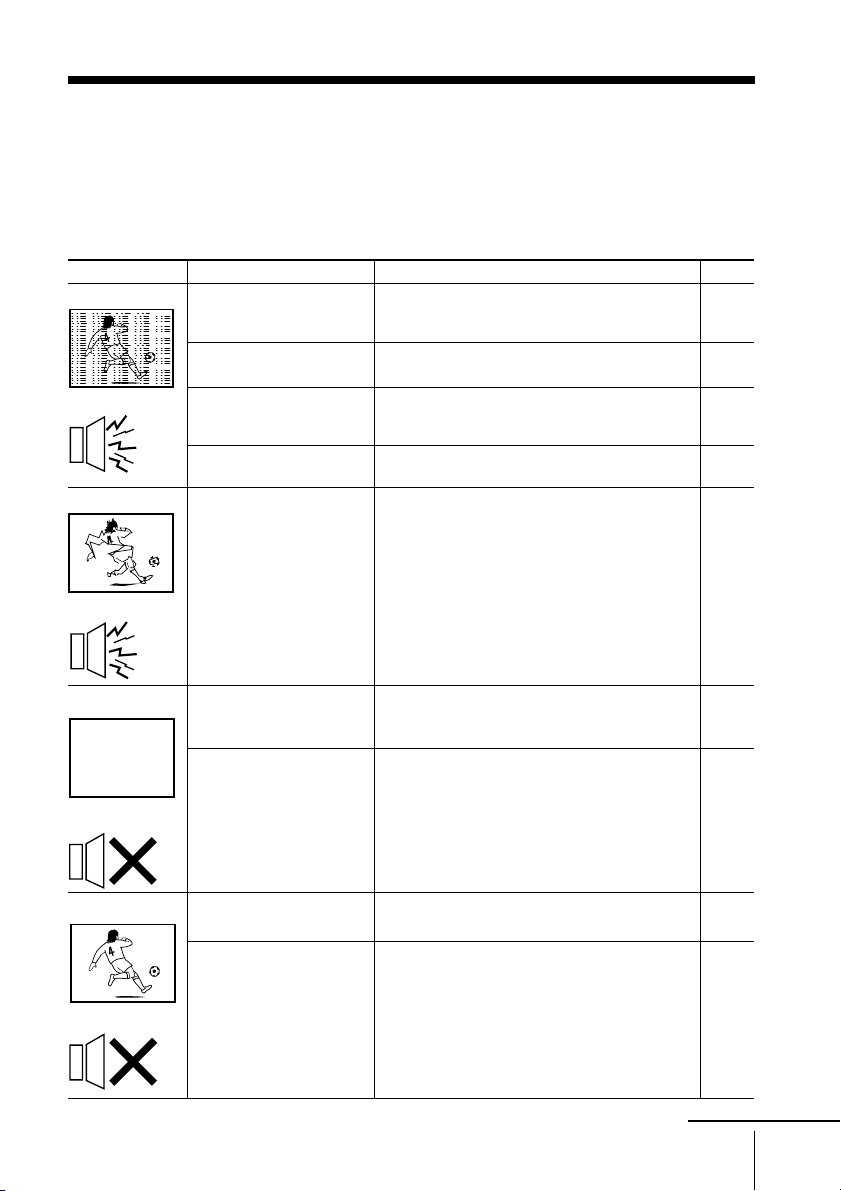

Troubleshooting ................................. 25

Specifications ..................... Back Cover

Page 6

Installation

x Getting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components (see page 23).

Step 3

Plug in the power cord, then press ! on the TV to turn it on.

Note

• The 1 (standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Step 4

Move

[ VOL ]

6 Installation

Select

[TV/VIDEO]

End

Set up the TV by following the instructions of the “Initial Setup” menu (see page 7).

[MENU]

Page 7

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear. You may change the menu language and preset the TV channels automatically using the buttons on the top control panel.

Tip

• The MENU, and V/v/B/b buttons on the remote control can also be used for the operations below.

Installation

Press VOLUME +/– to select the desired

menu language, then press TV/VIDEO.

Initial Setup

Language:

English

The selected menu language appears.

Select

[TV/VIDEO]

End

[MENU]

Press VOLUME +/– to select “Yes”, then

press TV/VIDEO to preset the channels

Move

automatically or select “No” to skip automatic channel presetting.

Once you select “Yes”, your TV will start searching for all the available channels.

If the message “No channel found. Please

Initial Setup

First please connect cable/  antenna

Start Auto Program now?

Move

Select

Yes

[TV/VIDEO]

End

connect cable/antenna.” appears, check your TV connections, then press TV/VIDEO.

Press VOLUME +/– to select “No”, then

press TV/VIDEO. This menu will not appear again the next time you turn on the TV by pressing !.

To allow this menu to appear again, select “Yes”, then press TV/VIDEO.

Tips

•You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.

•You can also set up your TV by pressing the MENU button on the top control panel for about five seconds or using the menu system (see page 13).

Initial Setup

Display this menu next time?

Yes No



Select

Move

[TV/VIDEO]

[MENU]

Installation

Page 8

Overview of Controls

x TV top control, front and rear panels

TV top control panel

SOUND MODE

TV/VIDEO VOLUME

CHANNEL

POWER



TV rear panel

(MONO)

TV front panel

VIDEO 2 INPUT

VIDEO

(MONO)

AUDIO

VIDEO 1 IN

VIDEO

(MONO)

S VIDEO

VIDEO 3 IN

AUDIO

MONITOR OUT

VIDEO

(MONO)

AUDIO

qdqfqg

Button/Terminal Function Page

1 ! Turn off or turn on the TV. 6 2 Remote control sensor. – 3 Wake Up indicator. 21 3 1 Standby indicator. 6 4 i Headphone jack. – 5 VIDEO 2 INPUT Video input terminal 2. 23 6 POWER Turn off temporarily or turn on the TV. – 7 CHANNEL +/– Select channel number. – 8 VOLUME +/– Adjust volume. – 9 TV/VIDEO Select TV or video input. 23

Menu operations

8 VOLUME +/– Select and adjust items. – 9 TV/VIDEO Confirm selected items. – 0 MENU Display or cancel the menu. –

qa SOUND MODE Select sound mode options with a 5-Band Graphic 11

Equalizer display.

qs 8 Antenna input terminal. 23 qd MONITOR OUT Monitor output terminal. 23 qf VIDEO 3 IN Component video input terminal. 24 qg VIDEO 1 IN Video input terminal 1. 23

8 Overview of Controls

Page 9

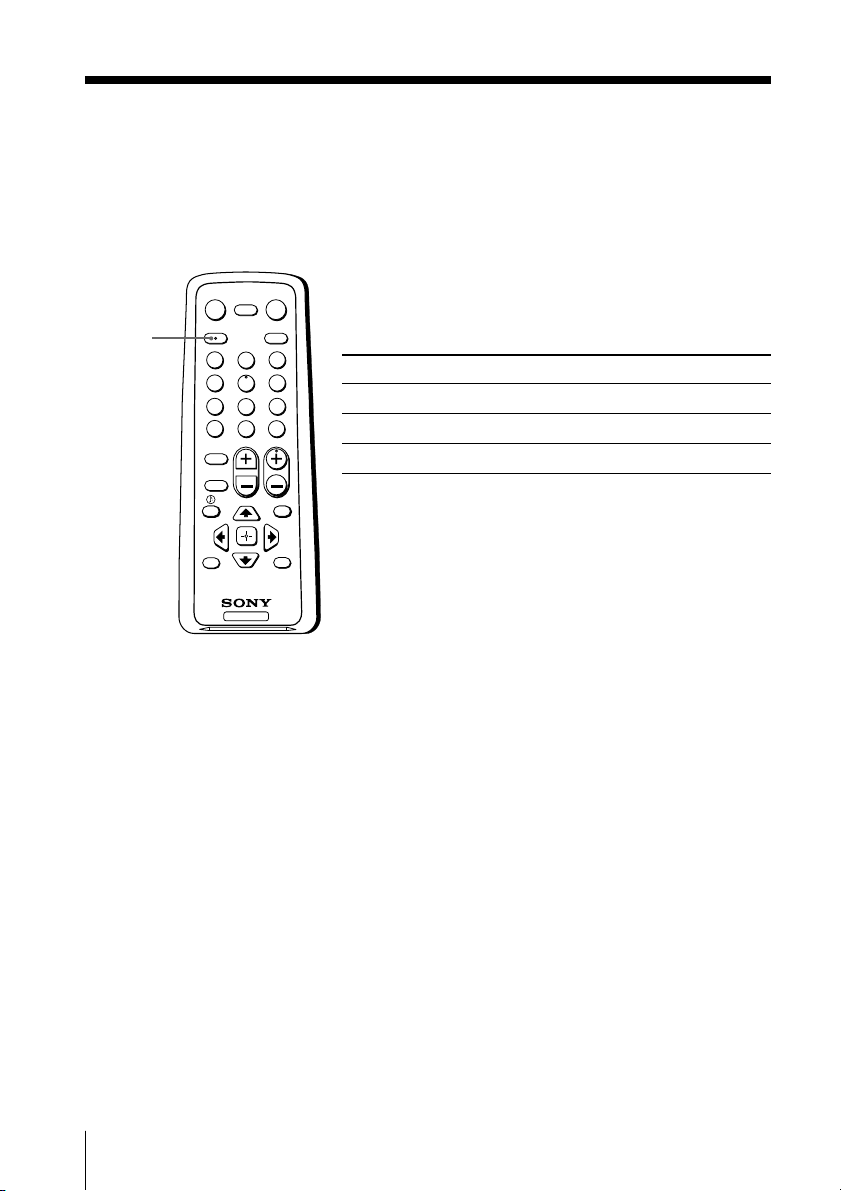

x Using the remote control and basic

functions

POWER

DISPLAY

0 qa qs

MUTING

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

RESET

TV/VIDEOMTS/SAP

5 6

SLEEP

8 9

Overview of Controls

Button Description Page

1 POWER Turn off temporarily or turn on the TV. – 2 TV/VIDEO Select TV or video input. 23 3 0–9 Input numbers. – 4 ENT Confirm input numbers. – 5 CH +/– Select channel number. – 6 VOL +/– Adjust volume. – 0 MUTING

Mute the sound. –

qa DISPLAY Display on-screen information. – qd JUMP Jump to previous channel number. –

continue

Overview of Controls

Page 10

continued

Button Description Page

qf PICTURE MODE Select picture mode options. 11 qg SOUND MODE Select sound mode options with a 5-Band Graphic 11

qh Select audio effect mode options:

qk RESET Set TV to factory setting while adjusting items in –

Menu operations

7 MENU Display or cancel the menu. 15 8 Confirm selected items. 15 qj V, v, B, b Select and adjust items. 15

Timer operations

9 SLEEP Set TV to turn off automatically. –

Stereo/bilingual operations

qs MTS/SAP Select stereo/bilingual mode. 12

SRS and symbol are trademarks of SRS Labs, Inc. SRS technology is incorporated under license from SRS Labs, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 4482866. “BBE” and BBE symbol are trademarks of BBE Sound, Inc.

Equalizer display.

“Effect Off”, “Simulated” (stereo-like monaural – sound), “SRS” (three dimensional surround).

an on-screen menu.

10 Overview of Controls

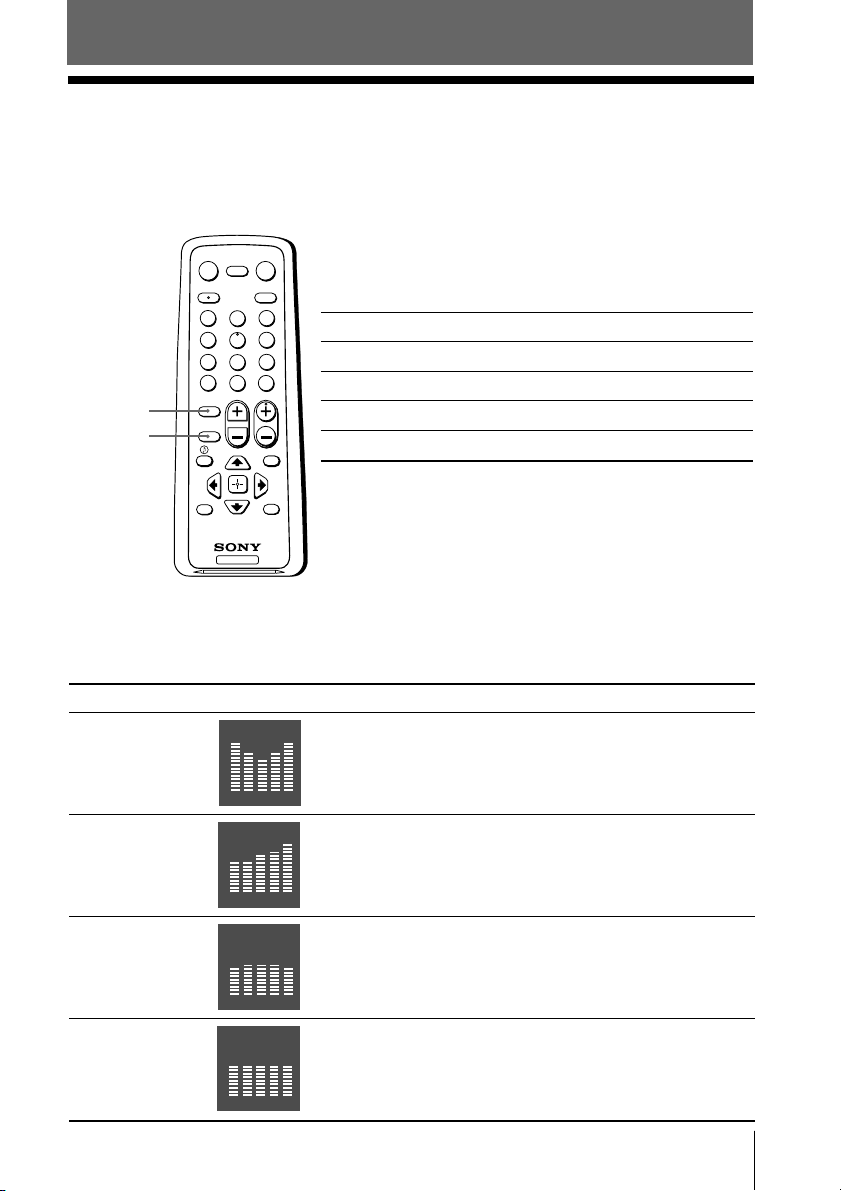

Page 11

Advanced Operations

x Selecting the picture and sound

modes

You can select picture and sound modes and adjust the setting to your personal preference.

Selecting the picture mode

Press PICTURE MODE to select the desired picture mode.

Select To view

“Vivid” contrast and sharp pictures.

“Standard” standard pictures.

“Movie” finely detailed pictures.

“Sports” bright pictures.


MODE

SOUND

MODE

DISPLAY

MUTING

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

RESET

POWER

TV/VIDEOMTS/SAP

SLEEP

Selecting the sound mode

Press SOUND MODE on the remote control (or the top control panel) to select the desired sound mode with a 5-Band Graphic Equalizer display.

Select To listen to

“Movie” dynamic and clear sound that emphasizes the low and

“News” sound that emphasizes vocals.

Movie

high tones.

100 300 1k 3k 8k

News

100 300 1k 3k 8k

“Soft” soft, natural and relaxing sounds.

“Standard” standard flat sounds.

Soft

100 300 1k 3k 8k

Standard

100 300 1k 3k 8k

Advanced Operations

Page 12

x Enjoying stereo or bilingual

programs

You can enjoy stereo sound or bilingual programs of MTS stereo system by using MTS/SAP button.

Select stereo or bilingual programs

Press MTS/SAP until you receive the sound you want.

Select To listen to

“Stereo” stereo broadcast sound.

“Auto SAP” SAP broadcast sound.

“Mono” monaural sound.

MTS/SAP

DISPLAY

MUTING

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

RESET

POWER

TV/VIDEOMTS/SAP

SLEEP

Notes

• When select “Auto SAP”, non-SAP program sound will be same as “Stereo” mode sound.

• If the stereo signal is very weak, the stereo broadcast sound may become noisy. To reduce the noise select “Mono”.

12 Advanced Operations

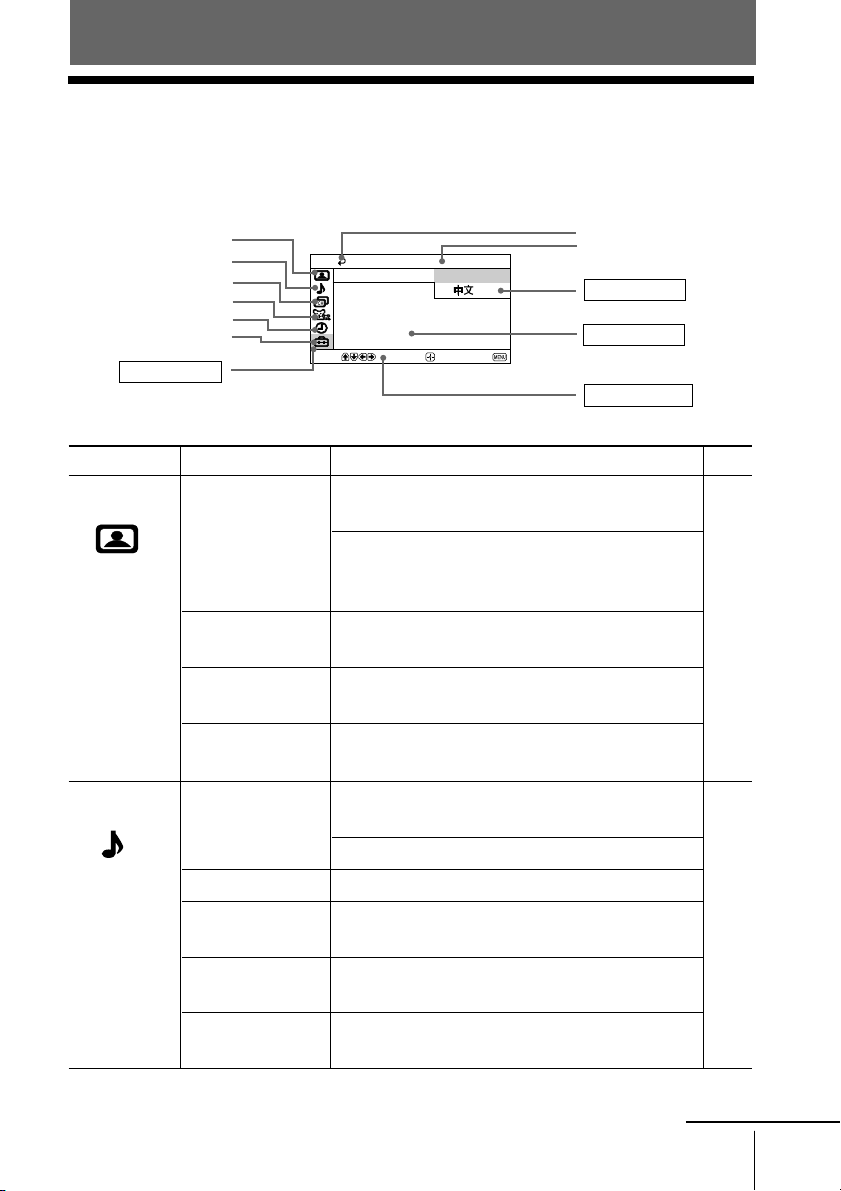

Page 13

Menu Adjustment

x Introducing the menu system

The MENU button lets you open a menu and change the settings of your TV. The following is an overview of the menu system.

Video icon

Audio icon

Channel Setup icon

Channel Block icon

Timer icon

Setup icon

Menu level 1

Level 1

“Video”

“Audio”

Level 2

“Mode”

“Picture Controls”

“Color Temp.”

“VM”

“Intelligent Picture”

“Mode”

“Sound Controls”

“Balance”

“Steady Sound”

“Effect”

“MTS”

Return icon

Setup Language: English 16:9 Enhanced: 

Caption Vision:

Video Label

Move

Select

End

Name of the current menu

Menu level 3

Menu level 2

User Guidance

Level 3/Function

Select the picture mode:

“Vivid” t “Standard” t “Movie” t “Sports”

Adjust the picture mode option:

“Picture” t “Brightness” t “Color” t

“Hue” t “Sharpness”

Adjust white color tint:

“Cool” t “Neutral” t “Warm”

Sharpen picture definition:

“High” t “Low” t “Off”

Optimize picture quality:

“On” t “Off”

Select the sound mode:

“Movie” t “News” t “Soft” t “Standard”

Adjust sound frequency settings.

Select to emphasize the left and right speakers.

Adjust volume automatically:

“On” t “Off”

Select audio effect mode:

“Off” t “Simulated” t “SRS”

Select stereo/bilingual mode:

“Stereo” t “Auto SAP” t “Mono”

Page

continue

Menu Adjustment

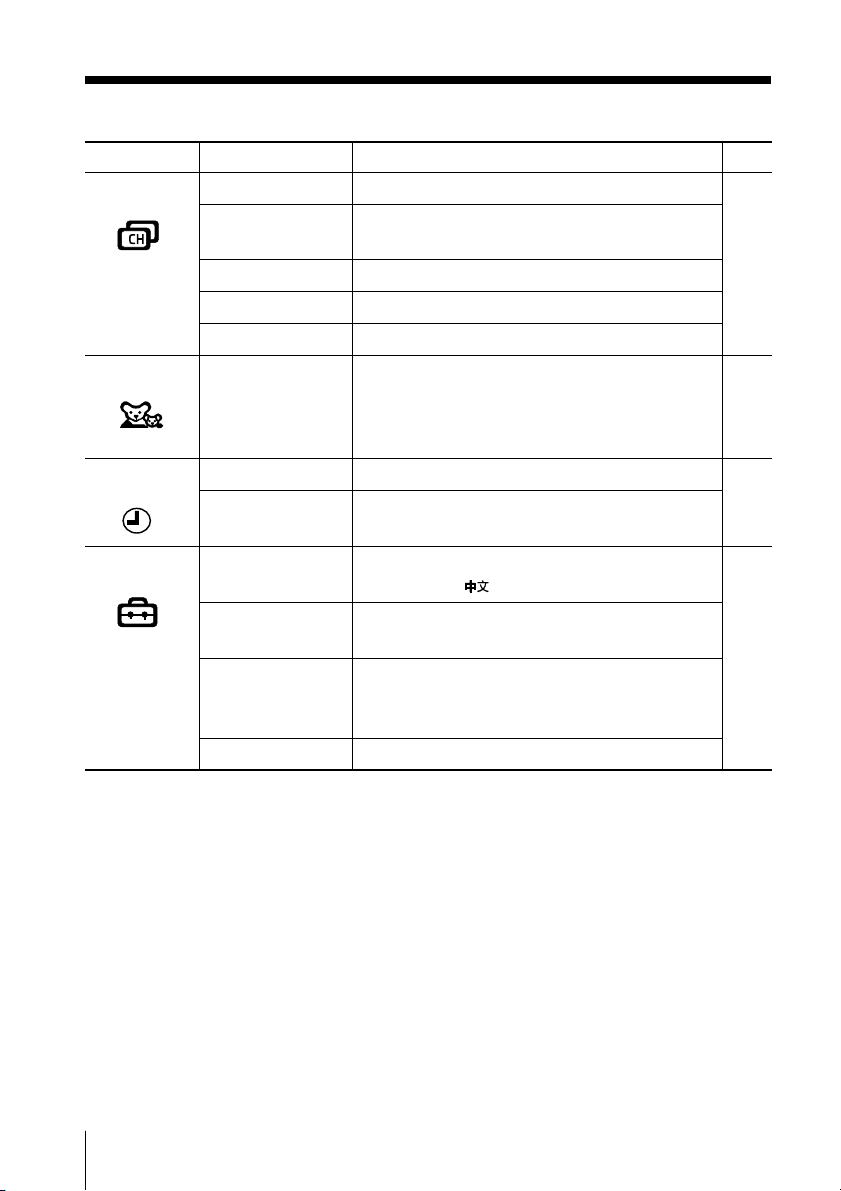

Page 14

continued

Level 1

“Channel Setup”

“Channel Block”

“Timer”

“Setup”

Level 2

“Favorite Channels”

“Cable”

“Auto Program”

“Channel Skip/Add”

“Channel Label”

–

“Sleep”

“Wake Up Timer”

“Language”

“16:9 Enhanced”

“Caption Vision”

“Video Label”

Level 3/Function

Quick access to favorite channels.

Watch cable TV programs:

“On” t “Off”

Preset channels automatically.

Skip unwanted channels or add new ones.

Label the channel number.

Block unwanted channels.

Set TV to turn off automatically.

Set TV to turn on automatically.

Change the menu language:

“English” t “ ” (Chinese)

Change the picture size:

“On” t “Off”

Select the closed caption mode:

“Off” t “CC1/2/3/4” t “Text1/2/3/4” t

“Info”

Label the connected equipment.

Page

14 Menu Adjustment

Page 15

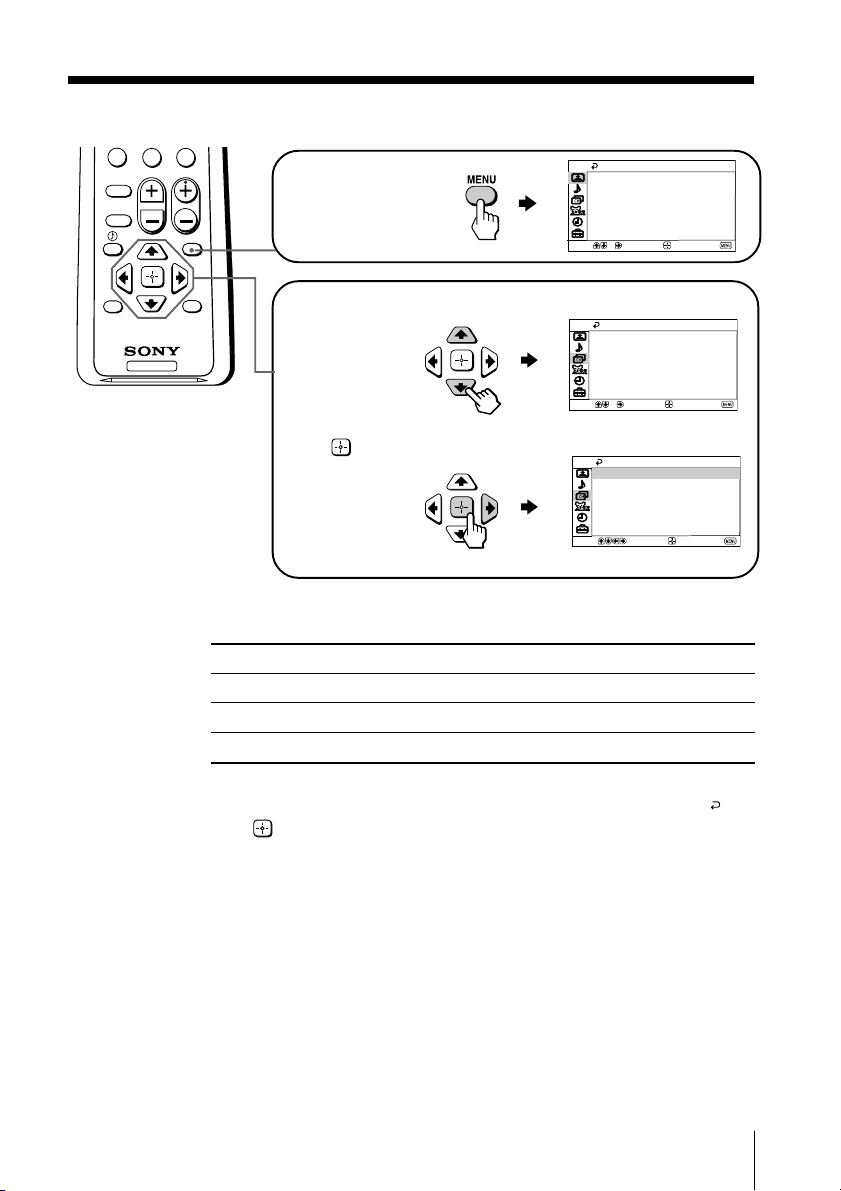

How to use the menu

Move

End

Video

Color Temp.: VM: Intelligent Picture:

Vivid

High

Cool

Picture Controls

Select

Mode:

Move

End

Channel Setup

Auto Program Channel Skip/Add Channel Label

Cable:

Select

Favorite Channels

Move

End

Channel Setup

Auto Program Channel Skip/Add Channel Label

Cable:

Select

Favorite Channels

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

Press MENU to display the menu.

RESET

SLEEP

Press V or v to select the desired item.

Press

(or b) to confirm your selection and go to the next level.

Other menu operations

Adjust the setting value

Move to the next/previous menu level

Cancel the menu

Tips

• If you want to exit from Menu level 2 to Menu level 1, press V or v until the return icon ( ) is highlighted, then press .

• The MENU, TV/VIDEO and VOLUME +/– buttons on the top control panel can also be used for the operations above (see page 8).

Press

V, v, B or b.

B or b.

MENU.

Menu Adjustment

Page 16

x Changing the “Video” setting

The “Video” menu allows you to adjust the picture settings.

Press MENU.

Make sure the “Video” icon ( ) is

selected, then press .

Press V or v to select the desired item (e.g., “Mode”), then press .

Select To

“Mode” choose either “Vivid”, “Standard”, “Movie” or

“Color Temp.” adjust white color tint. (Color Temperature) Choose either “Cool” (blue tint), “Neutral” (neutral

“VM” sharpen picture definition. (Velocity Modulation) Choose either “High”, “Low” or “Off”.

“Intelligent Picture” optimize picture quality.

“Sports” (see page 11).

Tip

•You can adjust the setting to your personal preference in the “Picture Controls” option.

tint) or “Warm” (red tint).

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

Video

Mode:

Picture Controls Color Temp.: VM:  Intelligent Picture: On

Move

Select

Vivid

Cool High

End

Adjusting the “Picture Controls” items

Press v to select “Picture Controls”, then press .

Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,

“Hue” (color tones) or “Sharpness”, then press

Pressing RESET button on the remote control will set your TV to the factory settng.

Press V,v,B or b to adjust the setting of your selected item, then press .

Repeat the above steps to adjust other items.

The adjusted settings will be memorized.

Note

• Reducing “Sharpness” can also reduce picture noise.

16 Menu Adjustment

Page 17

x Changing the “Audio” setting

Balance Steady Sound:  Effect: Off

Off

MTS: Stereo

Sound Controls

Movie

Mode:

Audio

Select

End

Move

The “Audio” menu allows you to adjust the sound settings.

Press MENU.

Press V or v to select the “Audio”

icon (

Press V or v to select the desired item (e.g., “Mode”), then press .

Select To

“Mode” choose either “Movie”, “News”, “Soft” or

“Balance” Press v or B to emphasize the left speaker.

“Steady Sound” adjust the volume of all channel numbers and

“Effect” choose either “Off”, “Simulated” or “SRS”

“MTS” choose either “Stereo”, “Auto SAP” or “Mono”. (Multi-Channel TV Sound) Tip

), then press .

“Standard” (see page 11).

Tip

•You can adjust the setting to your personal preference in the “Sound Controls” option (see page 18).

Press V or b to emphasize the right speaker.

video inputs automatically. Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

(see page 10).

•You can also access the setting by pressing the MTS/SAP button on the remote control (see page 12).

continue

Menu Adjustment

Page 18

Sound Controls

Select

End

Move

Mode:

Movie

100 300 1k 3k 8k

continued

Adjusting the “Sound Controls” items

The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings to your personal preference in the menu.

Press v to select “Sound Controls”, then

press .

Press b or B to select the desired sound frequency, then press V or v to

adjust the setting and press .

The adjusted settings will be memorized. Pressing RESET button on the remote control will set your TV to the factory setting.

Notes

• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency will affect lower pitched sound.

•You may display the settings directly using the SOUND MODE button on the top control panel (see page 8) or the remote control (see page 10).

18 Menu Adjustment

Page 19

x Changing the “Channel Setup”

Auto Program Channel Skip/Add Channel Label

Cable:

Favorite Channels

Channel Setup

Select

End

Move

setting

The “Channel Setup” menu allows you to quickly access favorite channels, receive cable TV programs, preset channels automatically, skip unwanted channels or add new ones and label the channel number.

Press MENU.

Press V or v to select the “Channel Setup”

icon ( ), then press .

Press V or v to select the desired item (e.g., “Favorite Channels”), then press .

Select To

“Favorite Channels” quickly access favorite channels.

(1) Press V or v to select the position you want to set a favorite

channel, then press . (2) Press V or v to select the desired channel, then press . To use “Favorite Channels”: Exit all menus and press . Press V or v to move the cursor to the desired channel number and press .

“Cable” receive cable TV programs.

Press V or v to select “On”, then press . If you select “Cable: On”, you will be able to receive 125 cable

TV channels. If there are no cable TV channels, you will receive VHF broadcast channels only. To receive only VHF and UHF broadcast channels, select “Off”, then press .

“Auto Program” preset channels automatically.

“Channel Skip/Add” skip unwanted channels or add new ones.

“Channel Label” label the channel number.

(1) Press V or v to select the desired channel, then press . (2) Press V or v to select either “Skip” or “Add”, then press .

(1) Select “Channel” and press .

Press V or v to select the channel number, then press . (2)

Select “Label” and press , then press V or v to select

alphanumeric characters for the label.

Note

•You can skip over channels that have been skipped by pressing CH +/–. You can still use the 0-9 buttons to directly tune to skipped channels.

Menu Adjustment

Page 20

x C

hanging the “Channel Block”

setting

The “Channel Block” menu allows you to block unwanted channels.

Press MENU.

Press V or v to select the “Channel Block”

icon ( ), then press .

Press V or v to select the desired channel, then press .

Press V or v to select “Block” or “Allow”, then press .

Notes

• When you first enter the “Channel Block” menu, the channel highlighted is the current

channel that is being viewed.

• When a channel is blocked, the word “Blocked” and lock symbol ( ) will appear on the

black screen.

• “Channel Block” is disabled when in video mode.

Channel Block

2: Allow 3: Allow 4: Allow 5: Allow 6: Allow

Select channel to block

Move

Select

End

20 Menu Adjustment

Page 21

x Changing the “Timer” setting

The “Timer” menu allows you to set TV to turn off and turn on automatically.

Press MENU.

Press V or v to select the “Timer” icon ( ),

then press

Timer Sleep: Wake Up Timer:

Off Off

Move

Press V or v to select the desired item (e.g., “Sleep”), then press .

Select To

“Sleep” set TV to turn off automatically.

“Wake Up Timer” set TV to turn on automatically.

Notes

•You can also cancel “Sleep” and “Wake Up Timer” by turning off the TV’s main power.

• If no buttons or controls are pressed for more than one hour after the TV is turned on using the “Wake Up Timer”, the TV automatically goes into standby mode.

Press V or v to select the desired period of time (max. of 90 minutes), then press .

Press V or v to select the desired period of time (max. of 12 hours), then press . After the selected length of time, the TV switches on automatically and “Wake Up Timer” will appear on

the screen.

The indicator on the TV lights up amber once you set the “Wake Up Timer”.

Select

End

Menu Adjustment

Page 22

x C

hanging the “Setup” setting

The “Setup” menu allows you to change the menu language, change the picture size, select the closed caption mode and label the connected equipment.

Press MENU.

Press V or v to select the “Setup” icon

( ), then press .

Setup Language: 16:9 Enhanced: Caption Vision: Video Label

English Off Off

Move

Press V or v to select the desired item (e.g., “Language”), then press .

Select To

“Language” change the menu language.

“16:9 Enhanced” change the picture size.

“Caption Vision” select the closed caption mode.

“Video Label” label the connected equipment.

Press V or v to select either “English” or “ ” (Chinese), then press .

Choose either “On” or “Off”.

Press V or v to select either “Off”, “CC1/2/3/4” (printed dialogue and sound effects), “Text1/2/3/4” (network/station information) or “Info” (name of current program and remaining time).

(1) Select “Video Input” and press .

Press V or v to select the input you want to label, then press .

(2)

Select “Label” and press , then press V or v to select the label options: ”Video 1/2/3”, “VCR”, “Cable”, “DVD” or

* You may customize the video label by entering alphanumeric characters.

Select

“Customize”*.

End

22 Menu Adjustment

Page 23

Additional Information

x Connecting optional components

Connecting to VIDEO 2 INPUT and VIDEO 1 IN terminals

TV front panel

VIDEO 2 INPUT

VIDEO

(MONO)

TV rear panel

VIDEO 1 IN VIDEO 3 IN

VIDEO

(MONO) (MONO)

S VIDEO

AUDIO AUDIO

AUDIO

MONITOR OUT

VIDEO

Audio/Video cable

(not supplied)

Antenna cable

(not supplied)

Audio/Video cable

(not supplied)

Camcorder

Video game

equipment

S Video cable

(not supplied)

VCR

Note

• When both S VIDEO and VIDEO for VIDEO 1 IN are connected at the same time, S VIDEO is automatically selected. To view VIDEO, disconnect the S video cable.

Connecting to MONITOR OUT terminal

TV rear panel

VIDEO 1 IN VIDEO 3 IN

VIDEO

(MONO) (MONO)

S VIDEO

AUDIO AUDIO

MONITOR OUT

VIDEO

Audio system

Audio/Video

cable

(not supplied)

VCR

continue

Additional Information

Page 24

continued

Connecting to VIDEO 3 IN terminal

TV rear panel

S VIDEO

VIDEO 1 IN VIDEO 3 IN

VIDEO

(MONO)

AUDIO AUDIO

MONITOR OUT

VIDEO

(MONO)

Component video

cable

(not supplied)

DVD player

Audio cable

(not supplied)

Notes

• If your DVD player can output interlace and progressive mode signals, select the interlace

output when connecting to VIDEO 3 IN on your TV. Your TV can receive either 525i/60Hz or 625i/50Hz interlace signals.

• Some DVD player terminals may be labeled differently:

Connect To (on the DVD player)

Y (green) Y

CB (blue) CB, PB, Cb or B-Y

CR (red) CR, PR, Cr or R-Y

• If you select “Video 3” on your TV screen, the signal from the MONITOR OUT will not be

output properly. This does not indicate a malfunction.

24 Additional Information

Page 25

x Troubleshooting

If you find any problem while viewing your TV, please check the following guide. If any problem persists, contact your Sony dealer.

Troubleshooting guide

Symptom

Snowy picture

Noisy sound

Distorted picture

Noisy sound

No picture

No sound

Possible cause

• The connection is loose or the cable is damaged.

• The antenna setup is inappropriate.

• Channel presetting is inappropriate or incomplete.

• Signal transmission is low.

•Broadcast signals are too strong.

• The power cord, antenna or VCR is not connected.

• The TV is not turned on.

Solutions

• Check the antenna cable and connection on the TV, VCR and at the wall.

• Check the antenna setup. Contact a Sony dealer for advice.

•Preset the channel again.

•Try using a booster.

•Turn off or disconnect the booster if it is in use.

• Check the power cord, antenna and VCR connections.

•Press POWER.

•Press ! (main power) on the TV to turn off the TV for about five seconds, then turn it on again.

Page

–

8, 9

Good picture

No sound

• The volume level is too low.

• The sound is muted.

•Press VOL + to increase the volume level.

•Press MUTING to cancel the muting.

Additional Information

continue

Page 26

continued

Dotted lines or stripes

Possible causeSymptom Solutions Page

• There is local interference from cars, neon signs, hair dryers, power generators, etc.

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup. Contact a Sony dealer for advice.

–

Double images or “ghosts”

No color

Picture slant

Good morning!

Abnormal color patches

TV cannot receive stereo broadcast sound.

Stereo broadcast sound swithches on and off or is distorted.

•Broadcast signals are reflected by nearby mountains or buildings.

• The antenna setup is inappropriate.

• Use of a booster is inappropriate.

• The color level setting is too low.

• The antenna setup is inappropriate.

• The magnetic disturbance from external speakers or other equipment, or the direction of the earth’s magnetic field may affect the TV.

• The stereo reception setting is inappropriate.

•

Connection is loose or the cable is damaged.

•

The antenna setup is inappropriate.

• Use a highly directional antenna.

• Check the antenna setup. Contact a Sony dealer for advice.

•Turn off or disconnect the booster if it is in use.

•

Display the “Video” menu and select the desired picture mode, then adjust the “Color” level in “Picture Controls”.

• Check the antenna setup. Contact a Sony dealer for advice.

• Keep external speakers or other electrical equipment away from the TV.

• Keep external speakers or other equipment away from the TV. Do not move the TV while the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15 minutes, then turn it on again to demagnetize the TV.

•Press MTS/SAP until “Stereo” appears on the screen.

• Check the antenna cable and connection on the TV, VCR and at the wall.

• Check the antenna setup. Contact a Sony dealer for advice.

–

26 Additional Information

Page 27

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

TV cabinet creaks.

A small “boom” sound is heard when the TV is turned on.

Possible causeSymptom

•Your TV’s selfdiagnosis function indicates the possible problems.

•

Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

•

The TV’s demagnetizing function is working. This does not indicate a malfunction.

Solutions

• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to turn off your TV. Contact your nearest Sony service center.

—

Page

–

Additional Information

Page 28

x Specifications

KV-AR21N60

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual system

Channel coverage

8 (Antenna)

Audio output (Speaker)

Number of terminal

VIDEO

AUDIO

S VIDEO

VIDEO 3 IN

i (Headphone)

Picture tube

Tube size

Viewing screen size

Dimensions (w/h/d)

Mass

Design and specifications are subject to change without notice.

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

NTSC3.58

MTS

VHF : 2 to 13 UHF : 14 to 69 CATV : 1 to 125

75-ohm external terminal

10 W + 10 W

Input: 2 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 2 Output: 1 Phono jacks; 500 mVrms

Input: 1 Y: 1 Vp-p, 75 ohms,

Input: 1 Phono jacks;

Output: 1 Stereo minijack

21 in.

545 mm

507 mm

589 × 463 × 479 mm

27 kg

unbalanced, sync negative C: 0.286 Vp-p, 75 ohms

Y: 1 Vp-p, 75 ohms, sync negative C

B: 0.7 Vp-p, 75 ohms

R: 0.7 Vp-p, 75 ohms

Audio: 500 mVrms

Note

Measured diagonally

Sony Corporation

28 Additional Information
