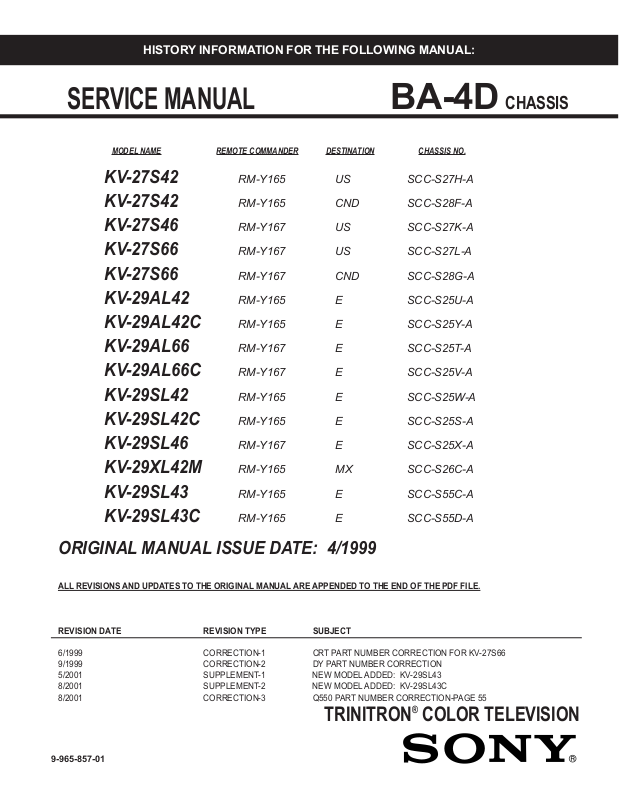

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
SERVICE MANUAL
MODEL NAME REMOTE COMMANDER DESTINATION CHASSIS NO.
KV-27S42
KV-27S42
KV-27S46
KV-27S66
KV-27S66
KV-29AL42
KV-29AL42C
KV-29AL66
KV-29AL66C
KV-29SL42
RM-Y165 US SCC-S27H-A
RM-Y165 CND SCC-S28F-A
RM-Y167 US SCC-S27K-A
RM-Y167 US SCC-S27L-A
RM-Y167 CND SCC-S28G-A
RM-Y165 E SCC-S25U-A
RM-Y165 E SCC-S25Y-A
RM-Y167 E SCC-S25T-A
RM-Y167 E SCC-S25V-A
RM-Y165 E SCC-S25W-A
BA-4D
CHASSIS
KV-29SL42C
KV-29SL46
KV-29XL42M
KV-29SL43
KV-29SL43C
RM-Y165 E SCC-S25S-A
RM-Y167 E SCC-S25X-A
RM-Y165 MX SCC-S26C-A
RM-Y165 E SCC-S55C-A
RM-Y165 E SCC-S55D-A
ORIGINAL MANUAL ISSUE DATE: 4/1999
ALL REVISIONS AND UPDATES TO THE ORIGINAL MANUAL ARE APPENDED TO THE END OF THE PDF FILE.
REVISION DATE REVISION TYPE SUBJECT
6/1999 CORRECTION-1 CRT PART NUMBER CORRECTION FOR KV-27S66
9/1999 CORRECTION-2 DY PART NUMBER CORRECTION
5/2001 SUPPLEMENT-1 NEW MODEL ADDED: KV-29SL43
8/2001 SUPPLEMENT-2 NEW MODEL ADDED: KV-29SL43C
8/2001 CORRECTION-3 Q550 PART NUMBER CORRECTION-PAGE 55
9-965-857-01
TRINITRON® COLOR TELEVISION
Page 2
SERVICE MANUAL
MODEL COMMANDER DEST CHASSIS NO.
BA-4D
CHASSIS
KV-27S42
KV-27S42
KV-27S46
KV-27S66
KV-27S66
KV-29AL42
KV-29AL42C
KV-29AL66
KV-29AL66C
KV-29SL42
KV-29SL42C
KV-29SL46
KV-29XL42M
RM-Y165 US SCC-S27H-A
RM-Y165 CND SCC-S28F-A
RM-Y167 US SCC-S27K-A
RM-Y167 US SCC-S27L-A
RM-Y167 CND SCC-S28G-A
RM-Y165 E SCC-S25U-A
RM-Y165 E SCC-S25Y-A
RM-Y167 E SCC-S25T-A
RM-Y167 E SCC-S25V-A
RM-Y165 E SCC-S25W-A
RM-Y165 E SCC-S25S-A
RM-Y167 E SCC-S25X-A
RM-Y165 MX SCC-S26C-A
MICROFILM
RM-Y167KV-29AL66
TRINITRON® COLOR TV
Page 3
KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/
29AL66C/29SL42/29SL42C/29SL46/29XL42M
KV-27S42 KV-27S66 KV-29AL42C KV-29AL66 KV-29SL42
Power Requirements 120V,60Hz 120V,60Hz 50/60Hz 50/60Hz 50/60Hz
Number of input/outputs
1)
Video
S Video
Audio
2)
3)
Audio Out
4)
12 231, 2(KV-29SL46)
11 111
12 231, 2(KV-29SL46)
11 111
Monitor Out -- -1-
Speaker Output(W) 5WX2 5WX2 10WX2 10WX2 5WX2
Power Consumption(W) 150W (KV-27S66)
In Use (Max) 140W 140W (KV-27S46) 170W 180W 140W
In Standby 2W 2W 3W 3W 3W
Dimensions(W/H/D)
(mm) 660.4X598 660.4X598 767.4X579.7 767.4X579.7 660.4X598
X505.5mm X505.5mm X547.7mm X547.7mm X505.5mm
(in.) 26x23
9/16
x20in 26x23
SPECIFICATIONS
KV-29SL46
KV-27S46 KV-29AL42 KV-29AL66C KV-29XL42M
KV-29SL42C
120-220V 120-220V 120-220V
9/16
x20in 30
1/4
7/8
X22
x21
5/8
in 30
1/4
7/8
X22
x21
5/8
in 26x23
9/16
x20in
Mass (Kg) 39kg 39kg 42kg 42kg 39kg
(lbs) 86lbs 86lbs 93lbs 93lbs 86lbs
1)
T elevision system
American TV standard/NTSC
Channel coverage
1 Vp-p 75 ohms unbalanced, sync negative
2)
Y: 1 Vp-p 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
3)
500 mVrms (100% modulation), Impedance: 47 kilohms
4)
More than 408 mVrms at the maximum volume setting (variable)
More than 408 mVrms (fix); Impedance: 5 kilohms
VHF:2-13 / UHF:14-69 / CATV:1-125
Picture tube
Trinitron® tube
Visible screen size
27-inch picture measured diagonally
29-inch picture measured diagonally
Antenna
75 ohm external antenna terminal for VHF/UHF
Supplied accessories
Remote Commander with 2 size AA (R6) batteries
RM-Y167 (KV-29AL66/29AL66C/29SL46/27S46/27S66)
RM-Y165 (KV-29AL42/29AL42C/27S42/29XL42M/29SL42/29SL42C)
( ) SRS (SOUND RETRIEVAL SYSTEM)
Optional accessories
Connecting
Cables: VMC-810S/820S, VMC-720M.
YC-15V/20V , RK-74A
The ( ) SRS (SOUND RETRIEVAL SYSTEM) is manufactured by Sony Corporation under license from SRS Labs,
Inc. It is covered by U.S. Patent No. 4,748,669. Other U.S.
and foreign patents pending.
TV Stand: SU-27A4
U/V Mixer: EAC-66
Design and specifications are subject to change without notice.
— 2 —
The word ‘SRS’ and the SRS symbol ( ) are registered
trademarks of SRS Labs, Inc.
BBE and BBE symbol are trademarks of BBE Sound, Inc.
and are licensed by BBE Sound, Inc. under U.S. Patent
No. 4,638,258 and 4,482,866.
Page 4
KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/
29AL66C/29SL42/29SL42C/29SL46/29XL42M
TABLE OF CONTENTS
Section Title Page
Warnings and Cautions ..................................................................................................................................... 4
Self-Diagnostic Function ................................................................................................................................... 4
Safety Check-Out Instructions ........................................................................................................................... 7
1. GENERAL ............................................................................................................................................................ 8
2. DISASSEMBLY
2-1. Rear Cover Removal
2-2. Rear Cover Removal
2-3. Rear Cover Removal
2-4. Control Switch Removal
2-5. Chassis Assembly Removal (KV-27S46/27S66/29SL42/29C/29SL46/29XL42M) ............................................. 12
2-6. Chassis Assembly Removal
2-7. Service Position ..................................................................................................................................... 12
2-8. Picture Tube Removal ........................................................................................................................... 13
3. SET-UP ADJUSTMENTS
3-1. Beam Landing ....................................................................................................................................... 14
3-2. Convergence .......................................................................................................................................... 1 5

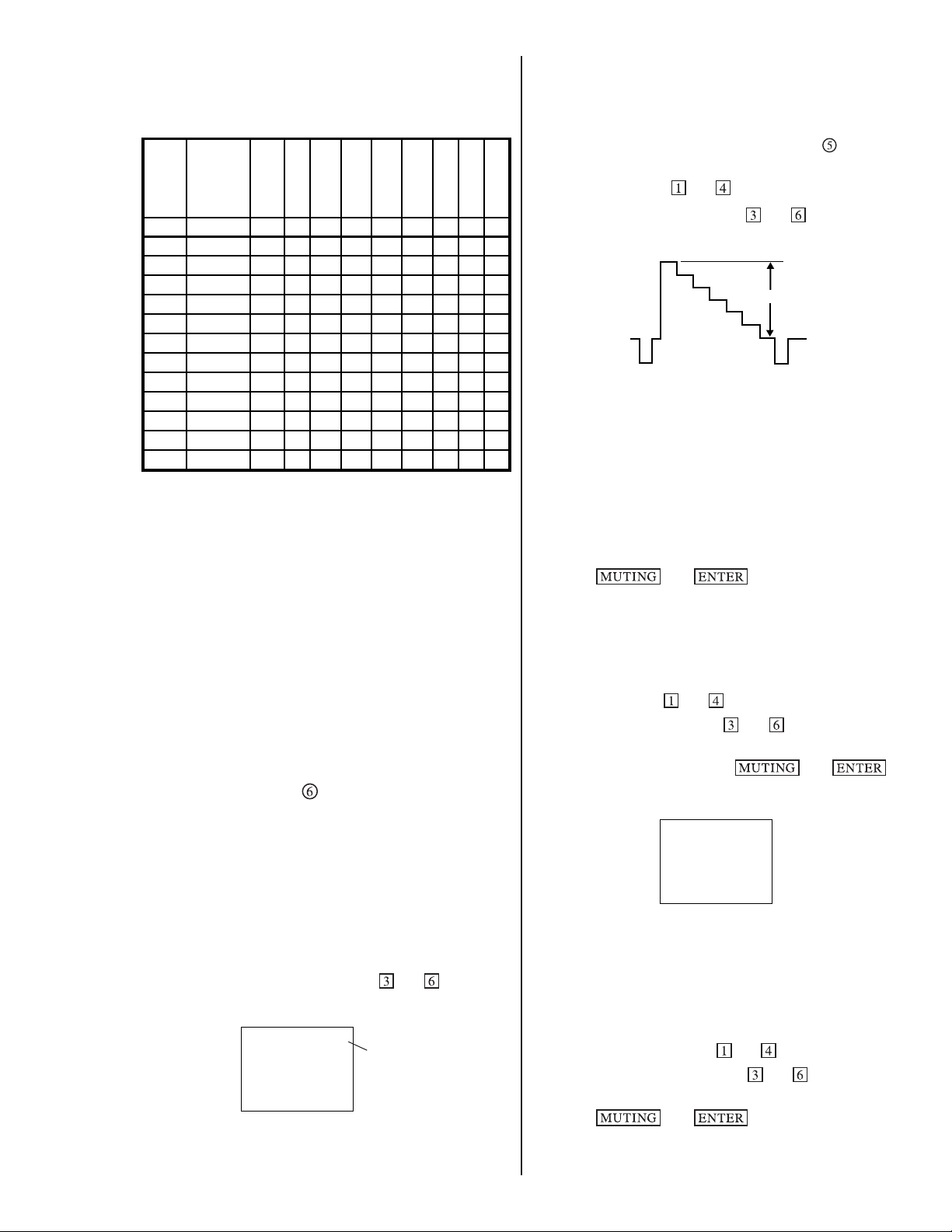

3-3. Focus ..................................................................................................................................................... 16
3-4. Screen (G2)............................................................................................................................................ 16
3-5. Method of Setting the Service Adjustment Mode ...................................................................................16
3-6. White Balance Adjustments .................................................................................................................. 16
(KV-27S46/27S66) .............................................................................................................. 11
(KV-29SL42/29C/29SL46/29XL42M) .................................................................................. 11
(KV-29AL42/42C/29AL66/66C) .......................................................................................... 11
(KV-29AL42/42C/29AL66/66C) .................................................................................... 11
(KV-29AL42/42C/29Al66/66C) .............................................................................. 12
4. SAFETY RELATED ADJUSTMENTS
4-1.
R582 and R584 Confirmation Method (HV Hold-Down Confirmation and Readjustments) .......... 1 7
4-2. B+ Voltage Confirmation and Adjustment ............................................................................................. 17
5. CIRCUIT ADJUSTMENTS
5-1. Setting the Service Adjustment Mode.................................................................................................... 19
5-2. Memory Write Confirmation Method ..................................................................................................... 1 9
5-3. Adjust Buttons and Indicators ............................................................................................................... 1 9
5-4. A Board Adjustments ............................................................................................................................. 21
6. DIAGRAMS

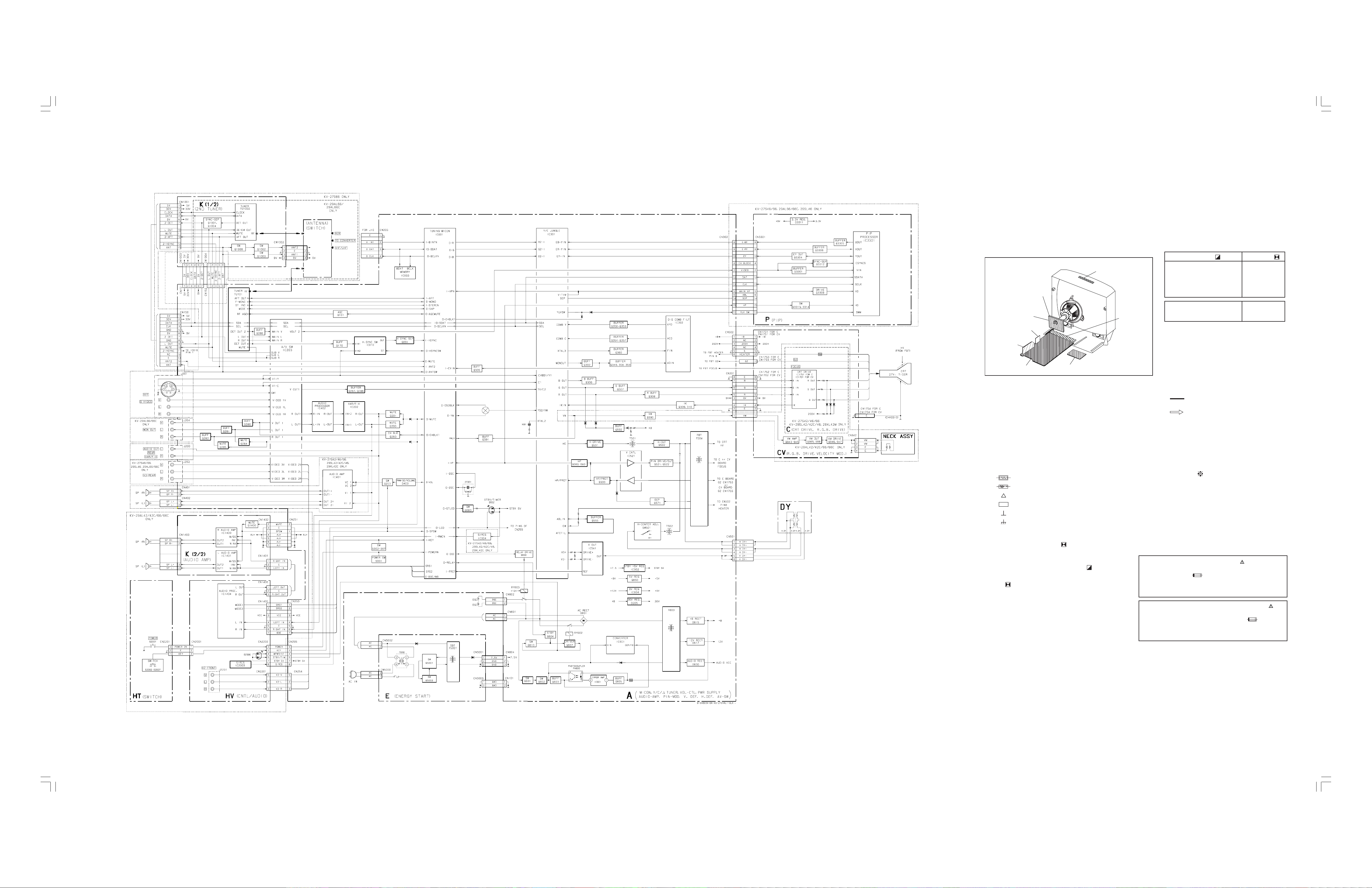

6-1. Block Diagram ............................................................................................................................... ........ 2 3
6-2. Circuit Board Location ........................................................................................................................... 2 6
6-3. Printed Wiring Boards and Schematic Diagrams ................................................................................. 2 6

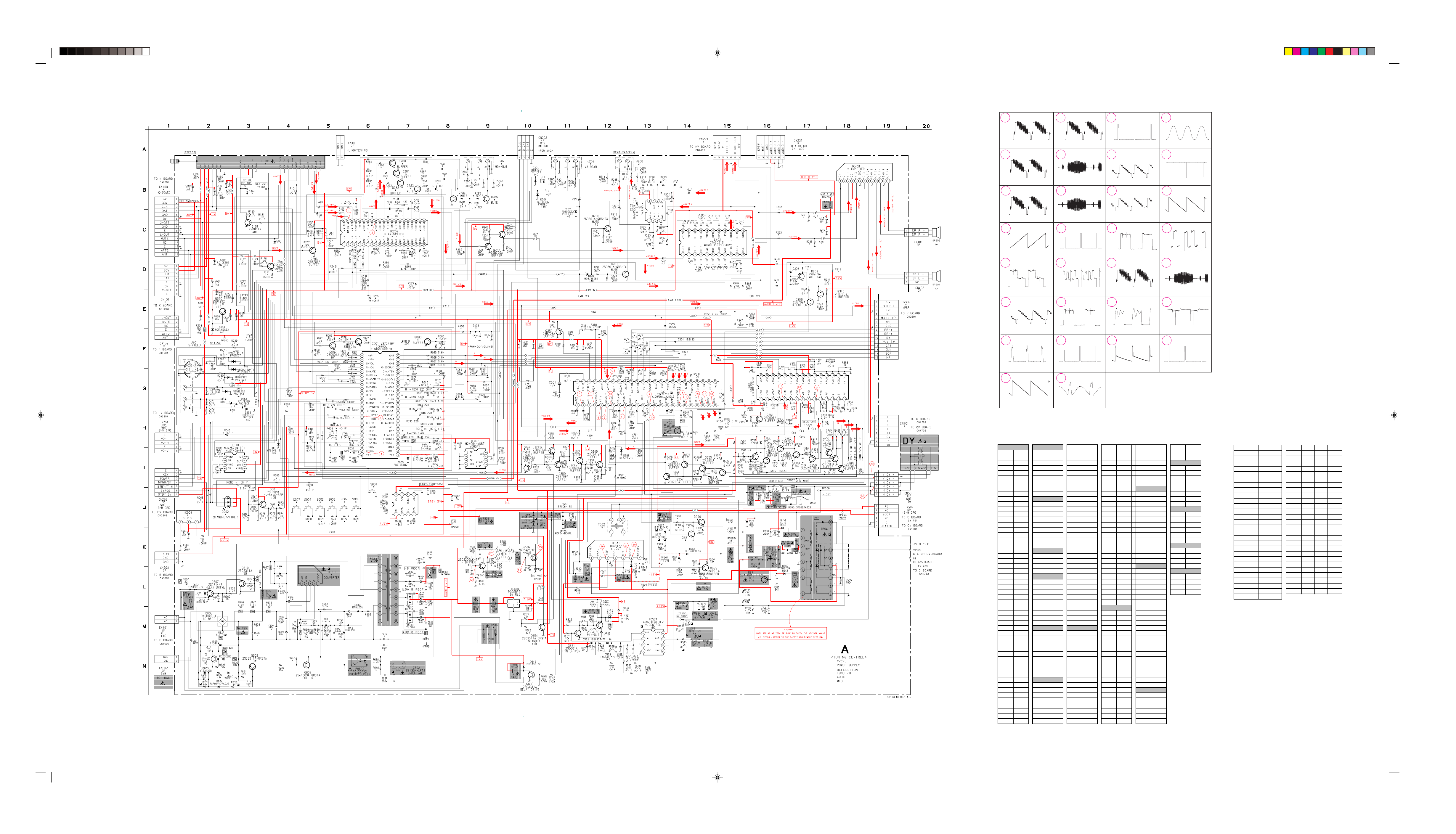

• A Board .............................................................................................................................................. 27

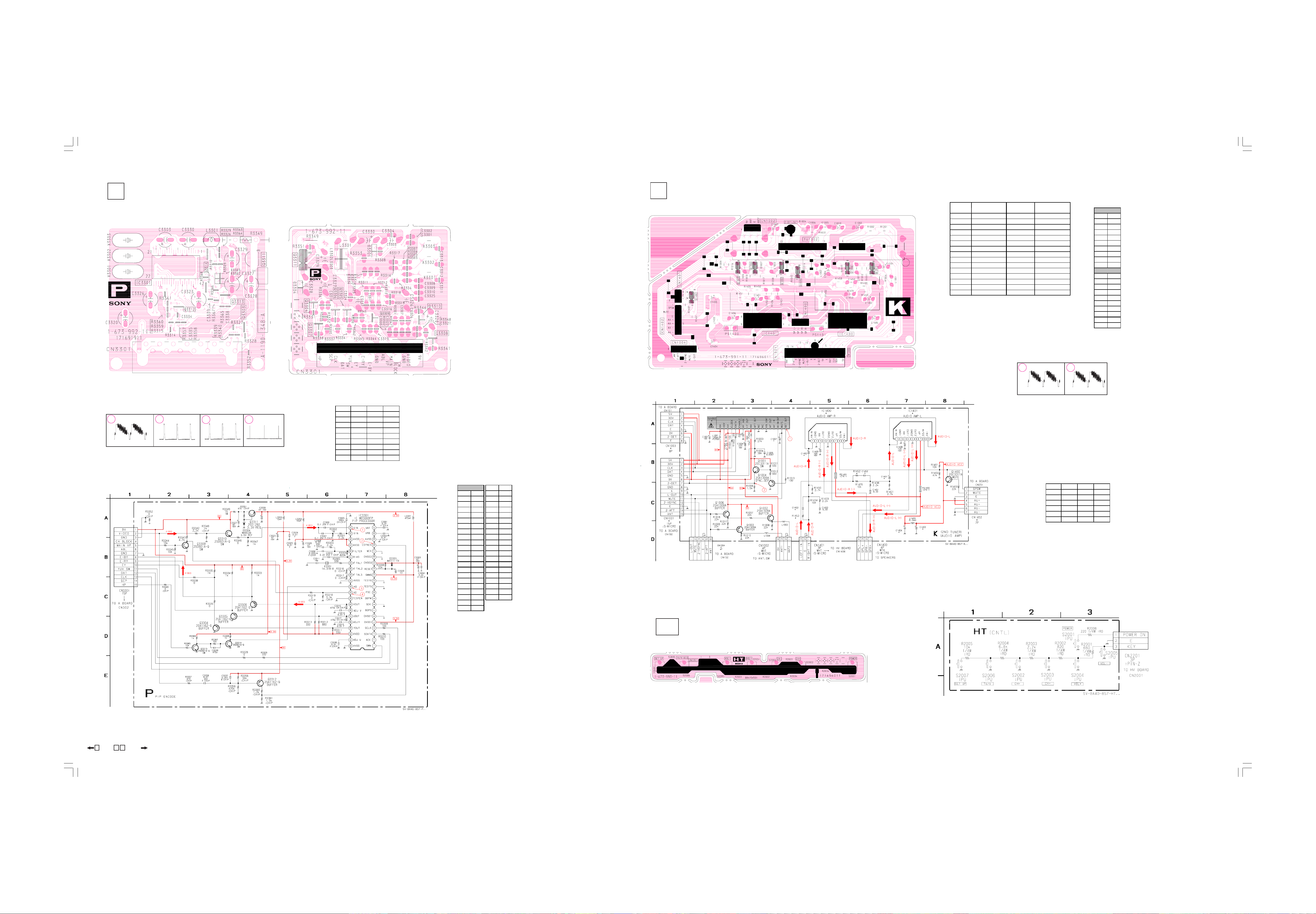

• P Board .............................................................................................................................................. 3 5
• K Board .............................................................................................................................................. 3 7
• HT Board............................................................................................................................................ 3 7

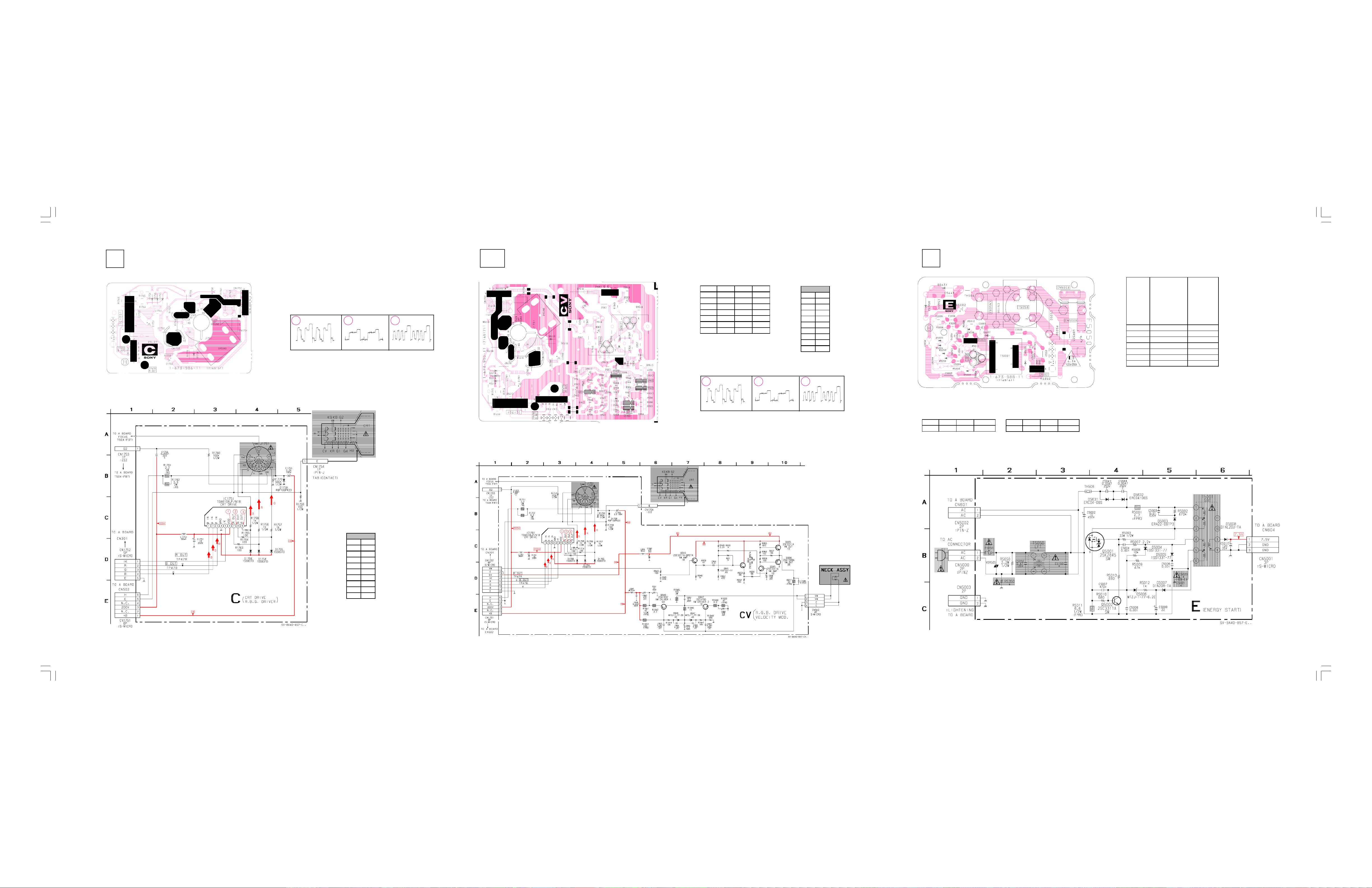

• C Board.............................................................................................................................................. 3 9
• CV Board............................................................................................................................................ 40
• E Board .............................................................................................................................................. 4 2

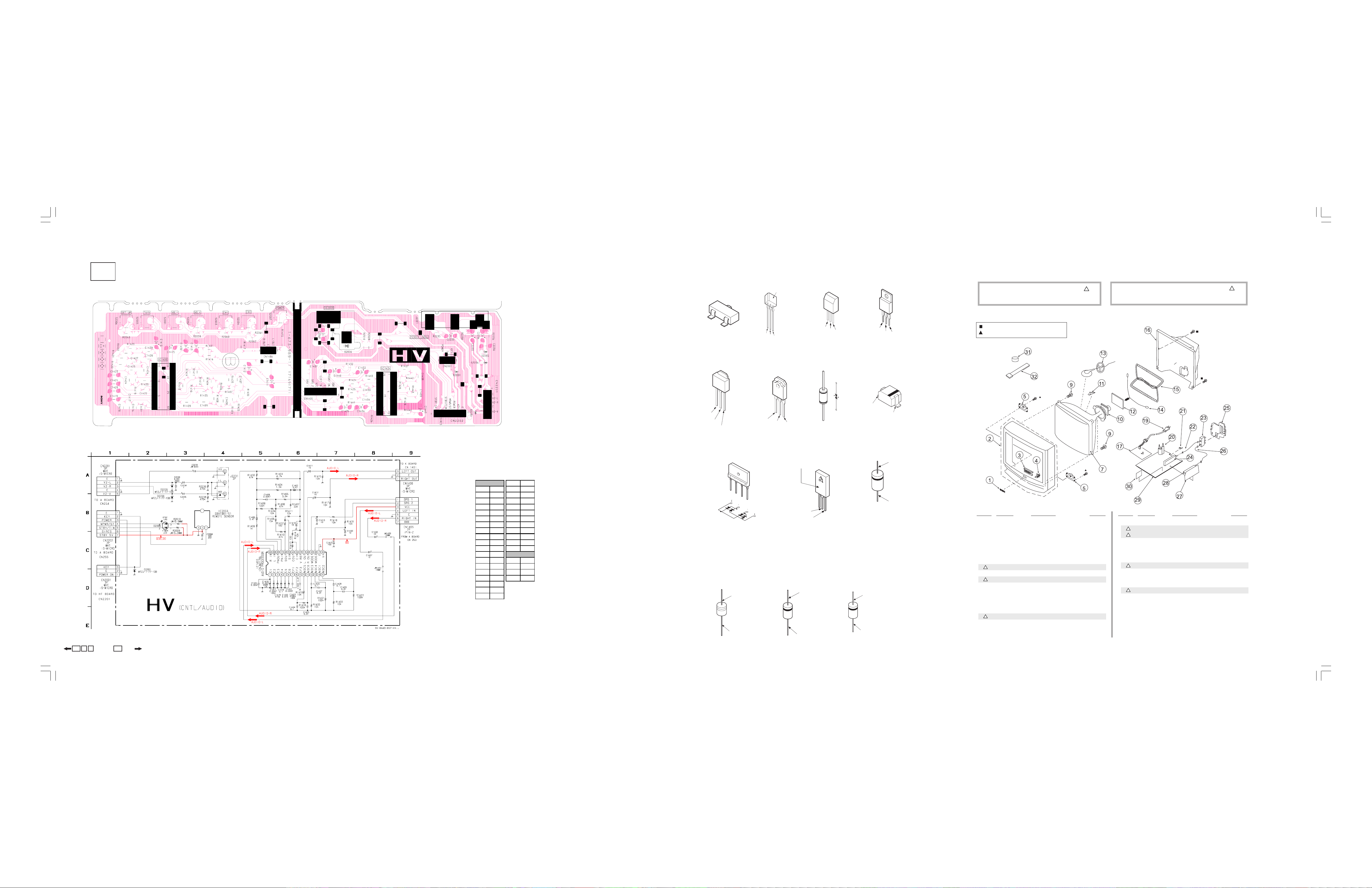

• HV Board............................................................................................................................................ 43
6-4. Semiconductors .................................................................................................................................... 45

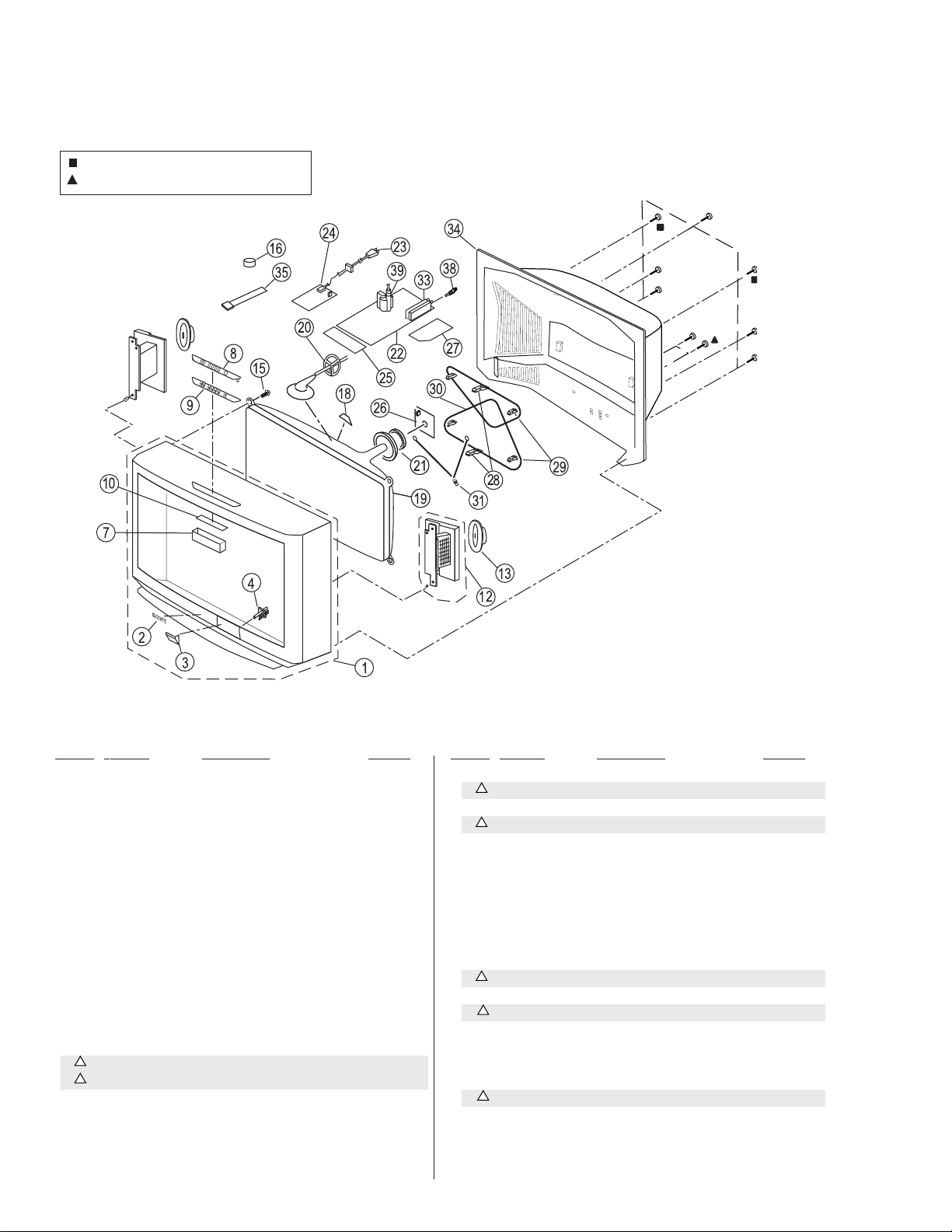

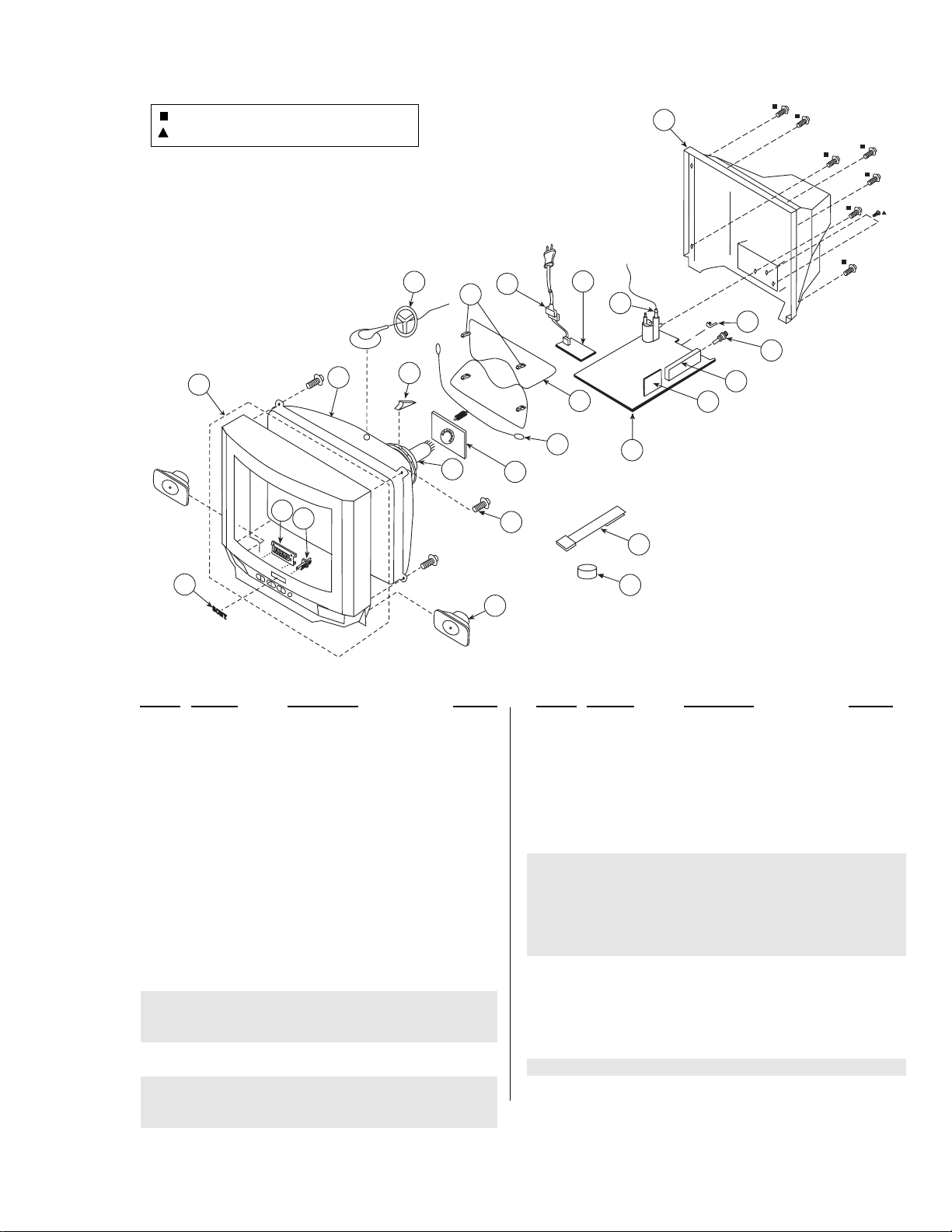

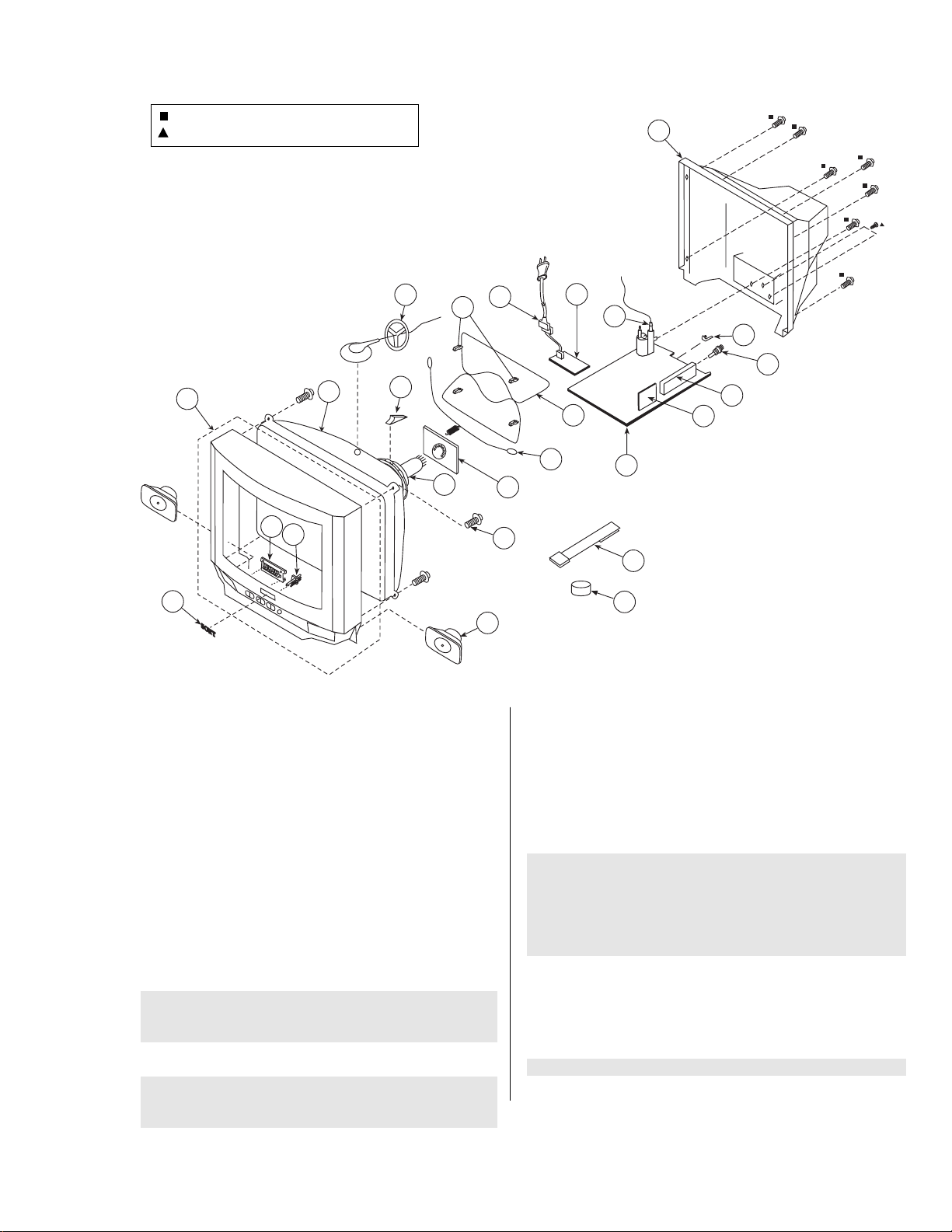

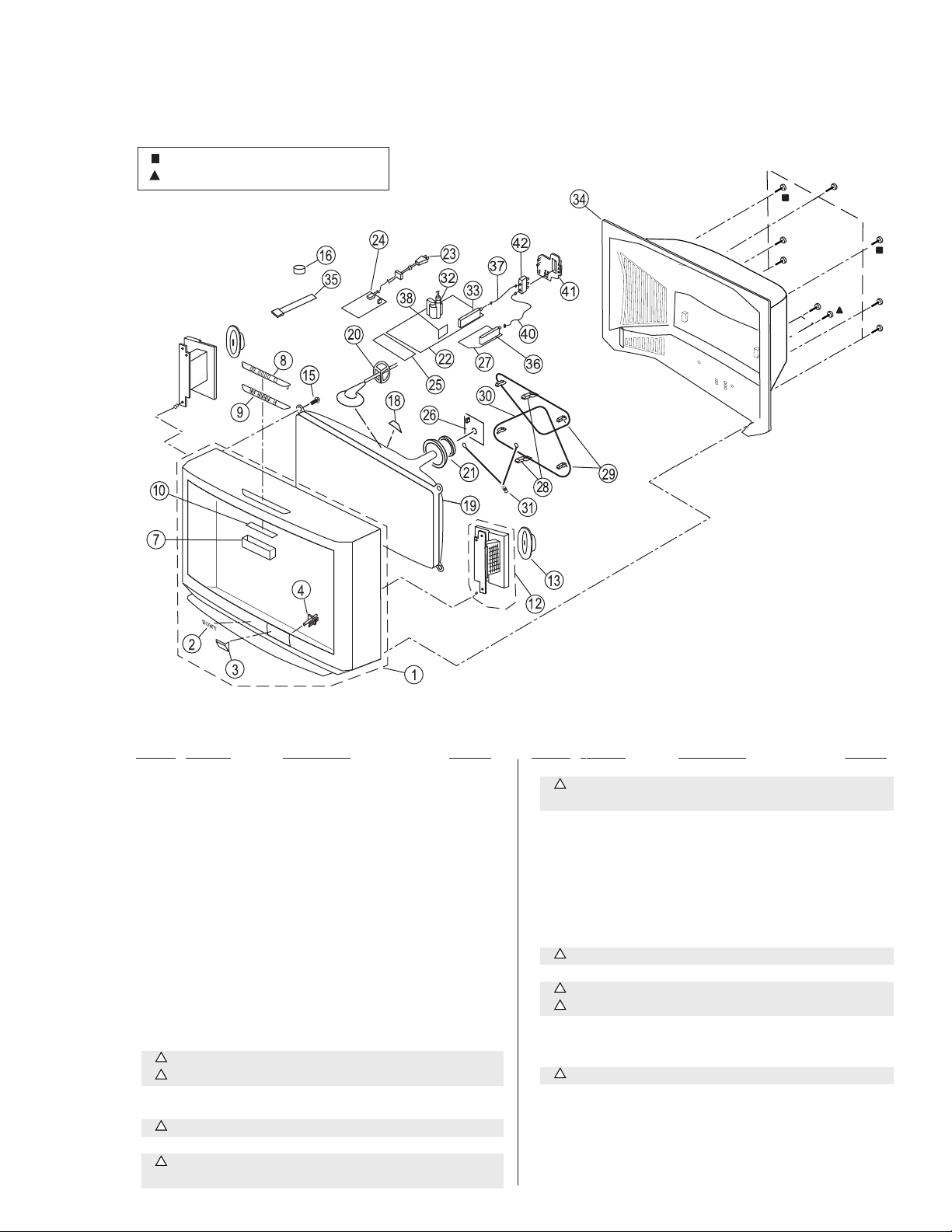

7. EXPLODED VIEW
7-1. Chassis (KV-27S66) .............................................................................................................................. 4 6
7-2. Chassis (KV-27S42/27S46/27SL42/42C/29SL46/29XL42M) .............................................................. 4 7
7-3. Chassis (KV-29AL42/29AL42C) ............................................................................................................ 48
7-4. Chassis (KV-29AL66/66C) .................................................................................................................... 4 9
8. ELECTRICAL P ARTS LIST
...................................................................................................................................................50
— 3 —
