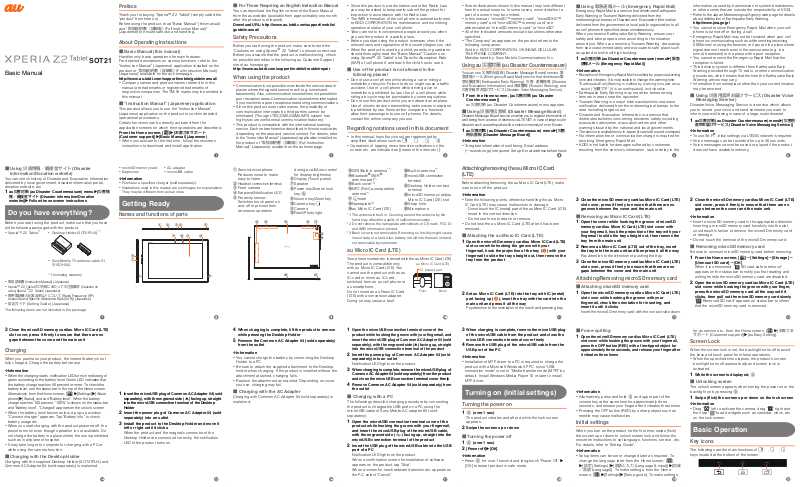

Preface

Thank you for buying "XperiaTM Z2 Tablet" (simply called the
"product" from here on).
Before using the product, read "Basic Manual" (this manual)
and "取扱説明書（詳細版） (Full Instruction Manual)"
(Japanese) to ensure safe use and handling.

About Operating Instructions

■ Basic Manual (this manual)

Handles only basic operations for main features.
For detailed descriptions on various functions, refer to the
"Instruction Manual" (Japanese) application installed on the
product or "取扱説明書（詳細版） (Full Instruction Manual)
(Japanese)" available on the au homepage.

http://www.au.kddi.com/support/mobile/guide/manual/

･ Company names and product names referred to in this

manual are trademarks or registered trademarks of
respective companies. The TM, ® marks may be omitted in
this manual.

■ "Instruction Manual" (Japanese) application

This product allows you to use the "Instruction Manual"
(Japanese) application on the product to confirm detailed
operational procedures.
Certain functions can be directly activated from the
application screens on which their operations are described.

From the Home screen, [ ]X[お客さまサポート
(Customer support)]X[Basic Manual] (Japanese)

･ When you activate for the first time, follow the onscreen

instructions to download and install application.

a

■ For Those Requiring an English Instruction Manual

You can download the English version of the Basic Manual
from the au website (available from approximately one month
after the product is released).

Download URL: http://www.au.kddi.com/support/mobile/
guide/manual/

Safety Precautions

Before you start using the product, make sure to read the
"Cautions on using Xperia
Before you assume that the product is malfunctioning, check
for possible remedies in the following au Customer Support
site of au homepage:

http://www.au.kddi.com/support/mobile/trouble/repair

TM

Z2 Tablet" to ensure correct use.

When using the product

･ Communication is not possible even inside the service area in

places where the signal does not reach (e.g. tunnels and
basements). Also, communication is sometimes not possible in
poor reception areas. Communication is sometimes interrupted
if you move into a poor reception areas during communications.

･ Since this product uses radio waves, the possibility of

communication intercepts by third parties cannot be
eliminated (Though LTE/CDMA/GSM/UMTS system has
highly secure confidential communication features).

･ This product is compatible with the international roaming

service. Each network service described in this manual varies
depending on the area and service content. For details, refer
to the "Instruction Manual" (Japanese) application installed on
the product or "取扱説明書（詳細版） (Full Instruction
Manual)" (Japanese) available on the au homepage.

bcdef

･ Since this product is a radio station under the Radio Law,

you may be asked to temporarily submit the product for
inspection in accordance with the Radio Law.

･ The IMEI information of the cell phone is automatically sent

to KDDI CORPORATION for maintenance and monitoring
operational status of your cell phone.

･ Take care not to inconvenience people around you when

you use the product in a public place.

･ Before you start using the product overseas, check the

relevant laws and regulations of the country/region you visit.

･ When the product is used by a child, parents or guardians

should thoroughly read the "Basic Manual" "Cautions on
using Xperia
(SAR) of cell phones" and teach the child how to use it.

TM

Z2 Tablet" and "Specific Absorption Rate

■ Use of the product is not allowed in the

following places!

･ Do not use a cell phone while driving a car or riding a

motorbike or bicycle. Failure to do so might cause a traffic
accident. Use of a cell phone while driving a car or
motorbike is prohibited by law. Use of a cell phone while
riding a bicycle may be punishable by some regulations.

･ Do not use this product while you are aboard an airplane.

Use of electric devices transmitting radio waves in airplane
is prohibited by law. Some airline companies, however,
allow their passengers to use cell phones. For details,
contact the airline company you use.

Regarding notations used in this document

･ In this manual, keys (key icons) are represented by

simplified illustrations such as x, y, r, P.

･ Operations of tapping menu items/icons/buttons on the

screen etc. are indicated as [(name of the item etc.)].

･ Screen illustrations shown in this manual may look different

from the actual screens. In some cases, minor details or a
part of a screen may be omitted.

･ In this manual, "microSD

memory card" and "microSDXC
abbreviated as "microSD memory card" or "microSD".

･ All of the indicated amounts exclude tax unless otherwise

specified.

･ "The Company" as appears on the product refers to the

following companies:
Sold by: KDDI CORPORATION, OKINAWA CELLULAR
TELEPHONE COMPANY
Manufactured by: Sony Mobile Communications Inc.

Using au

You can use

急速報メール
急地震速報

and Evacuation Information) and

災害用音声お届けサービス

1 From the Home screen, [au災害対策 (au Disaster

■ Using 災害用伝言板 (Disaster Message Board)

Disaster Message Board service enables you to register information of
well-being from an area of distress via LTE NET in case of large-scale
disaster such as earthquake with a seismic intensity of over 6 lower.

災害対策

災害用伝言板

(Emergency Rapid Mail) service that distributes

(Earthquake Early Warning),

Countermeasure)]

au災害対策 (au Disaster Countermeasure) menu appears.

TM

memory card", "microSDHCTM

TM

memory card" are

(au Disaster Countermeasure)

(Disaster Message Board) service,

災害・避難情報

津波警報

(Disaster Voice Messaging Service).

(Tsunami Warning), and

緊
緊

(Disaster

1 au災害対策 (au Disaster Countermeasure) menuX[災害

用伝言板 (Disaster Message Board)]

❖Information

･ To register information of well-being, E-mail address

(〜ezweb.ne.jp) is required. Set up E-mail address beforehand.

■ Using 緊急速報メール (Emergency Rapid Mail)

Emergency Rapid Mail is a service that distributes Earthquake
Early Warning or Tsunami Warning delivered from the
meteorological bureau or Disaster and Evacuation Information
delivered from the government or local public organization to all
au cell phones in specified areas simultaneously.
When you receive Earthquake Early Warning, ensure your
safety and take proper action according to the situation
around you. When you receive a Tsunami Warning, draw away
from sea coast immediately and evacuate to safe place such
as upland or well-built high building.

1 au災害対策 (au Disaster Countermeasure) menuX[緊急

速報メール (Emergency Rapid Mail)]

❖Information

Reception of Emergency Rapid Mail is notified by a special warning

･

tone and vibration. It is not possible to change the warning tone.

*Earthquake Early Warning is notified by warning tone and voice

sound ("地震です" (It is an earthquake)), and vibration.

･ Earthquake Early Warning may not arrive before strong

tremors in areas near the epicenter.

･ Tsunami Warning is a major tidal wave/seismic sea wave

notification delivered from the meteorological bureau to the
area including target coast.

･ Disaster and Evacuation Information is a service that

distributes bulletins concerning residents' safety including
evacuation advisories, evacuation orders and other
warnings issued by the national and local governments.
The service is available only in Japan (it cannot be used overseas).

･
･ No information fee or communication charge is required for

receiving Emergency Rapid Mail.

･ KDDI is not liable for damages suffered by customers

resulting from the service's information, lack or delay in the

information caused by transmission or system breakdowns,
or other events that are outside the responsibility of KDDI.

･ Refer to the Japan Meteorological Agency web page for details

about distribution of Earthquake Early Warning.

http://www.jma.go.jp/

･ You cannot receive Emergency Rapid Mail when your cell

phone is turned off or during a call.

･ Emergency Rapid Mail may not be received when your cell

phone is communicating such as while sending/receiving
SMS/e-mail or using the browser, or if you are in a place where
signal does not reach even in the service area (e.g. in a
tunnel, basement) or in a place with a poor reception.

･ You cannot receive the Emergency Rapid Mail that the

reception is failed.

･ This delivery system is different from Earthquake Early

Warning provided through TV, radio, or other communication
procedures, which means that the time the Earthquake Early
Warning arrives may vary.

･ Information from someplace other than your current location

may be received.

■ Using 災害用音声お届けサービス (Disaster Voice

Messaging Service)

Disaster Voice Messaging Service is a service which allows
you to record your voice and send someone you want to
inform your well-being in case of a large-scale disaster.

1

au

災害対策

音声お届けサービス

❖Information

･ To u s e W i - Fi
･ Voice message can be recorded for up to 30 seconds.
･ Voice messages cannot be saved or played if the product

does not have available memory.

(au Disaster Countermeasure) menuX[

(Disaster Voice Messaging Service)]

®

, initial settings via LTE/3G network is required.

災害用

■ Using 災害情報／義援金サイト (Disaster

information/Donation website)

You can check history of Disaster and Evacuation Information
delivered by local government, disaster information portal,
donation website, etc.

1

au

災害対策

報／義援金サイト

website)]

(au Disaster Countermeasure) menuX[

X

Follow the onscreen instructions

(Disaster information/Donation

災害情

Do you have everything?

Before your start using the product, make sure that you have
all the following packaged with the product.

･ XperiaTM Z2 Tablet*1･ Desktop Holder (SOT21PUA)

･ Sony Mobile TV antenna cable 01

（01SOHSA）

*1 Including warranty

･

取扱説明書

･

･

･ 設定ガイド (Setting Guide) (Japanese)

The following items are not included in the package.

(Instruction Manual) (Japanese)
XperiaTM Z2 Tablet
using Xperia

携帯電話機の比吸収率などについて

exposure and Specific Absorption Rate (SAR)) (Japanese)

のご利用にあたっての注意事項

TM

Z2 Tablet) (Japanese)

(Cautions on

(Radio Frequency (RF)

*1

･ microSD memory card
･ Earphones

❖Information

･ Purchase a specified charger (sold separately).
･ Illustrations used in this manual are just images for explanations.

They may be different from actual ones.

･ AC adapter
･ microUSB cable

Getting Ready

Names and functions of parts

bcd

a

i j lk

f

g

hh

e

a Second microphone:

Reduces noise to make
easy to listen.
Headset connection terminal

b
c Front camera

d Earpiece/Notification LED
e Proximity sensor:

Switches touch panel on
and off to prevent from
erroneous operation

m qon

during a call/Auto-control
for display brightness

f Display (Touch panel)
g Speaker
h Power key/Screen lock

key:P

i Volume key/Zoom key
j Camera key:k
k Camera
l Flash/Photo light

p

t

u

m GPS/Built-in antenna
n Bluetooth®/Wi-Fi®

antenna part

o Back cover
p NFC (FeliCa compatible)

q mark
r Nameplate
s au Micro IC Card (LTE)

*1 The antenna is built in. Covering around the antenna by the

*2 Do not remove the nameplate with stickers of CE mark, FCC ID

r
s

*3 Back cover is not removable. Removing so forcibly might cause

*1

antenna

*2

hand may affect the quality of call/communication.

and IMEI information printed.

loss of data or a fault. Also, battery is built into the main unit and
not removable by customers.

*1

*1

*3

t Built-in antenna
u microUSB connection

terminal

v Desktop Holder contact

terminal

w microSD memory card/au

Micro IC Card (LTE) slot

x Strap hole
y Microphone

*1

au Micro IC Card (LTE)

Your phone number etc. is recorded in the au Micro IC Card (LTE).
The product is compatible only
with au Micro IC Card (LTE). You
cannot use the product with an au
IC-card or micro au IC card
switched from an au cell phone or
au smartphone.
Do not insert an au Nano IC Card
(LTE) with a conversion adapter.
Doing so may cause a fault.

au Micro IC Card (LTE)

IC (metal) part

Front Back

Attaching/removing the au Micro IC Card
(LTE)

Before attaching/removing the au Micro IC Card (LTE), make
sure to turn off the product.

❖Information

･ Note the following points, otherwise handling the au Micro

IC Card (LTE) may cause malfunction or damage.

･ Do not touch the IC (metal) part of the au Micro IC Card (LTE).
･ Insert in the correct direction.
･ Do not use force to attach or remove.

･ Do not lose the au Micro IC Card (LTE) after it has been

removed.

■ Attaching the au Micro IC Card (LTE)

1 Open the microSD memory card/au Micro IC Card (LTE)

slot cover while hooking the groove with your
fingernail, hook the projection of the tray ( ) with your
fingernail to slide the tray straight out, then remove the
tray from the product

2 Set au Micro IC Card (LTE) into the tray with IC (metal)

part facing up ( ), insert the tray with the card into the
main unit and press it all the way

Pay attention to the orientation of the notch and pressing tray.

3 Close the microSD memory card/au Micro IC Card (LTE)

slot cover, press it firmly to ensure that there are no
grooves between the cover and the main unit

■ Removing au Micro IC Card (LTE)

1

Open the cover while hooking the groove of microSD
memory card/au Micro IC Card (LTE) slot cover with
your fingernail, hook the projection of the tray with your
fingernail to slide the tray straight out, then remove the
tray from the main unit

2 Remove au Micro IC Card (LTE) out of the tray, insert

the tray into the main unit and then press it all the way

Pay attention to the direction of pushing the tray.

3 Close the microSD memory card/au Micro IC Card (LTE)

slot cover, press it firmly to ensure that there are no
gaps between the cover and the main unit

Attaching/Removing microSD memory card

■ Attaching microSD memory card

1 Open the microSD memory card/au Micro IC Card (LTE)

slot cover while hooking the groove with your
fingernail, check the orientation for inserting, and
insert it until it clicks

Insert the microSD memory card with the contact side down.

2 Close the microSD memory card/au Micro IC Card (LTE)

slot cover, press it firmly to ensure that there are no
gaps between the cover and the main unit

❖Information

･ Insert a microSD memory card in the appropriate direction.

Inserting a microSD memory card forcefully into the slot
could result in failure to remove the microSD memory card
or damage.

･ Do not touch the terminal of the microSD memory card.

■ Removing microSD memory card

Be sure to unmount microSD memory card before removing.

1 From the Home screen, [ ]→[Settings] →[S torage]→

[Unmount SD card]→[OK]

When it is unmounted, " SD card safe to remove"
appears on the status bar to notify you that reading and
writing from/to the microSD memory card are disabled.

2 Open the microSD memory card/au Micro IC Card (LTE)

slot cover while hooking the groove with your finger,
press the microSD memory card all the way until it
clicks, then pull out the microSD memory card slowly

" Removed SD card" appears on status bar to inform
that the microSD memory card is removed.

ijklmgh

3 Close the microSD memory card/au Micro IC Card (LTE)

slot cover, press it firmly to ensure that there are no
gaps between the cover and the main unit

Charging

When you purchase your product, the internal battery is not
fully charged. Charge the battery before use.

❖Information

･ When the charging starts, notification LED turns in red/orange/

green according to the battery level. Green LED indicates that
the battery charge reaches 90 percent or more. To check the
battery level, see the status bar in the top of the Home screen.
Alternatively, from the Home screen, [ ]X[Settings]X[About
phone]X[Status] and see "Battery level". When the battery
charge reaches 100 percent, "100%" is shown on the status bar
and "Battery level" , "Charged" appears on the unlock screen.

･ When the battery level becomes low, a pop-up window

"Connect charger" appears. Tap "Battery info" to check
battery usage etc.

･ When you start charging with the product powered off, the

power turns on even though operation is not available. Do
not charge the battery in a place where the use is prohibited
such as in airplane or hospital.

･ It may take longer to complete for charging with a PC or

while using the camera function.

■ Charging with the Desktop Holder

Charging with the supplied Desktop Holder (SOT21PUA) and
Common AC Adapter 04 (sold separately) is explained.

1

Insert the microUSB plug of Common AC Adapter 04 (sold
separately), with the engraved side (

into the microUSB connection terminal of the Desktop
Holder

▲

) facing up, straight

2 Insert the power plug of Common AC Adapter 04 (sold

separately) into an outlet

3 Install the product to the Desktop Holder and move it

left or right until it clicks

When the product and the magnetic connector of the
Desktop Holder are connected correctly, the notification
LED of the product turns on.

4 When charging is complete, lift the product to remove

while pressing the Desktop Holder

5 Remove the Common AC Adapter 04 (sold separately)

from the outlet

❖Information

･ You cannot charge the battery by connecting the Desktop

Holder to a PC.

･ Be sure to attach the supplied attachment to the Desktop

holder when charging. If the product is installed without the
attachment attached, charging fails.

･ Replace the attachment as required. Depending on cover

you use, charging may fail.

■ Charging with the AC Adapter

Charging with Common AC Adapter 04 (sold separately) is
explained.

pqrstno

1

Open the microUSB connection terminal cover of the
product while hooking the groove with your fingernail, and
insert the microUSB plug of Common AC Adapter 04 (sold
separately), with the engraved side (
into the microUSB connection terminal of the product

▲

) facing up, straight

2 Insert the power plug of Common AC Adapter 04 (sold

separately) into an outlet

Notification LED lights on the product.

3 When charging is complete, remove the microUSB plug of

Common AC Adapter 04 (sold separately) from the product
and close the microUSB connection terminal cover firmly

4 Remove Common AC Adapter 04 (sold separately) from

the outlet

■ Charging with a PC

The followings describe charging procedure by connecting
the product to chargeable USB port on a PC using the
microUSB cable of Sony Mobile AC adapter 05 (sold
separately).

1 Open the microUSB connection terminal cover of the

product while hooking the groove with your fingernail,
and insert the microUSB plug of the microUSB cable,
with the engraved side ( ) facing up, straight into the
microUSB connection terminal of the product

2 Insert the USB plug of the microUSB cable into the USB

port of a PC

Notification LED lights on the product.
When a confirmation screen for installation of software
appears on the product, tap "Skip".
When a screen for new hardware detection etc. appears on
the PC, select "Cancel".

3 When charging is complete, remove the microUSB plug

of the microUSB cable from the product and close the
microUSB connection terminal cover firmly

4 Remove the USB plug of the microUSB cable from the

USB port of the PC

❖Information

･ Installation of MTP driver to a PC is required to charge the

product with a Microsoft Windows XP PC, since "USB
connection mode" is set to "Media transfer mode (MTP)" by
default. Install Windows Media Player 10 or later to install
MTP driver.

Turning on (Initial settings)

Turning the power on

1 P (over 1 sec)

The product vibrates and after a while the lock screen
appears.

2 Swipe the screen up or down

■ Turning the power off

1 P (over 1 sec)
2 [Power off]X[OK]

❖Information

･ Press P for over 1 second and long-touch "Power Off" X

[OK] to restart product in safe mode.

■ Force-quitting

1

Open the microSD memory card/au Micro IC Card (LTE)
slot cover while hooking the groove with your fingernail,
press the OFF button (RED) with a fine-tipped object for
approximately three seconds, and release your finger after
it vibrates three times

❖Information

･

Alternatively, press and hold P and upper part of the
volume key at the same time for approximately three
seconds, and release your finger after it vibrates three times.

･

Pressing the OFF button (RED) by a sharp object such as
needle may cause malfunction.

Initial settings

When you turn on the product for the first time, swipe (flick)
the screen up or down to unlock screen lock and follow the
onscreen instructions to set language, functions, service, etc.
For details, refer to "Setting Guide".

❖Information

･ Setup items can be set or changed later as required. To

change the language later, from the Home screen, [ ]

X[設定 (Settings)]X[言語と入力 (Language & input)]X[地域
／言語 (Language)]. To make settings, from the Home

screen, [ ]X[Settings]X[Setup guide]. To make settings

for au service etc., from the Home screen, [ ]X[お客さま
サポート (Customer support)]X[au Easy Setting].

Screen Lock

When the screen lock is set, the backlight turns off to avoid
the keys and touch panel from false operations.
･ When the specified time elapses, the product's screen

backlight turns off automatically and screen lock is
activated.

1 While the screen is displayed, P

■ Unlocking screen

The unlock screen appears when turning the power on or the
backlight on by pressing P.

1 Swipe (flick) the screen up or down on the lock screen

❖Information

･ Drag " " left to activate the camera, drag " " right and

then tap " "to add widgets such as calendar, clock, etc.
on the lock screen.

Basic Operation

Key icons

The followings are the main functions of x, y, r
keys located at the bottom of the screen.

xx y

r

x

Back

y

Home

r

Recently
used
applications

Return to the previous screen. Close a dialog
box, menu, or the Notifications panel.

Display the Home screen.
Long-touch and drag it to " " to activate
"Google" application.

Display recently used applications on a list and
activate or delete them from the list. Also, you
can use and set small apps.

Using the touch panel

The display on the product is a touch panel operated by
touching it with your finger.

■ Tap/Double-tap

Tap: Gently touch a screen and then immediately release your
finger. Double tap: Tap the same position twice.

■ Long-touch

Keep touching an item with your finger.

■ Slide

While your finger is gently touching the screen, trace it to the
desired direction to move over.

■ Flick (swipe)

Operate the screen by quickly moving (flicking) your finger
up, down, right, or left.

■ Pinch

Touch the screen with two fingers and widen (pinch-out) or
narrow (pinch-in) the fingers' distance.

■ Drag

Keep touching an item or icon, trace it to the desired direction
to move.

Home screen

Home screen consists of multiple screens. Slide/flick left or
right to switch them. The center screen is the default screen to
operate. Tap y to return to the Home screen any time.
a Home screen position

Indicates which screen of the
five Home screens you are in.

b Widgets
c Wallpapers
d Shortcuts (Applications)
e Media folders

(WALKMAN, Movies, Album,
PlayStation Mobile, Fm radio,
TV

a

b

c

d

e

d d

g

f 基本機能フォルダ (Basic functions folder)

(Settings, LISMO, YouTube, Maps, Alarm & clock,
Calendar, Osaifu-Keitai, SMS)

g Application key

Adding to Home screen/Editing Home screen

You can change wallpaper or theme of the Home screen and
add/delete/move shortcuts of applications, widgets, folders,
etc. on the Home screen.
･ You can add wallpapers by downloading from websites.

1 Long-touch an area of the Home screen where no icons

are displayed

Alternatively, pinch-in on the Home screen.

2 Widgets Add a widget on the Home

Apps Add a shortcut of an

Wallpapers Album Select an image from albums

b

f

Live
Wallpapers

screen.

application, a setting screen,
etc. on the Home screen.

to set as a wallpaper.
･ To set image range, drag

etc. to adjust cropping area
and tap "Crop".

Select a content from albums
to set as a wallpaper.

Wallpapers (XperiaTM's

Wallpaper)

Themes Set the Home screen image or

Select an image to set as a
wallpaper.
･ Images displayed to the

right of "Albums"/"Live
Wallpapers" are "Xperia
Wallpaper".

the unlock screen image.

TM

's

■ Adding a folder

1 From the Home screen, long-touch an icon
2 Drag the icon onto another icon

■ Deleting shortcuts/widgets/folders

1 From the Home screen, long-touch an icon or a folder

you want to delete

appears at the bottom of the screen.

2 Drag the icon or the folder to " "

To delete a folder, tap "Delete". It also deletes shortcuts etc.
in the folder.

❖Information

･ Long-touch a shortcut, widget, or folder icon to move.

Using the Applications screen

You can call up functions from the Applications screen.
Application icons installed to the product are also displayed.

･

When you tap application icons to use respective functions, you
may incur communication charges depending on the function.

■ Starting an application

1 From the Home screen, [ ]

The Applications screen appears.
Slide or flick left or right to switch the Applications screen.

2 Tap an application to use

Some applications are stored in a folder.

■ Main applications

, Phone, Contacts Play Store

, E-mail, SMS , Camera, Album

Browser Maps

Settings , Google, Voice

Search

Calendar Basic Manual

■ Downloading applications

You can download applications such as convenient tools and
games from the Google Play and install them to use on the product.
･ To use Google Play, you need to set a Google account. For

details, refer to "Setting Guide".

■ Deleting (uninstalling) applications

Before deleting installed applications, back up contents
related to the application that you want to save including data
saved in the application.

❖Information

･ Some applications may not be deleted.

Knowing the status of the product

■ Status bar

The status bar is located at the top of the product screen. On
the left of the status bar, notification icons appear to inform
missed calls, new mails, operations in progress, etc., and on
the right, status icons appear to indicate the status of the
product.

■ Examples of notification icon

New Gmail message

New PC mail message

New E mail (@ezweb.ne.jp) message

New SMS/Receiving notification service message,
New Receiving notification

*1

Talking

/ Calling*1/ Receiving

Missed call

USB connecting

®

open network available

Wi-Fi

*1 Appears when switched to another screen such as the Home screen.

■ Main status icons

, Signal level (Level 4, Out of service area)

, Data communication status (LTE available, 3G

available)

, Battery level (100%, Charging)

, Silent mode (Vibration, Mute)

Airplane mode is activated.

®

,Wi-Fi

connected, Wi-Fi®communicating

■ Notification panel

If any notification icons are displayed, slide down the status
bar to open the Notification panel. You can check details of
notification icons or start corresponding applications.

❖Information

･ To delete a notification, tap "Clear" or flick the notification left

or right to delete from the list.

･

Some notifications may not be deleted depending on the content.

･ When you set screen lock to "Swipe", slide the status bar

downward to check the Notification panel without unlocking
the screen.

■ Notification LED

Notification LED informs charging prompt, battery level while
charging, missed calls, new mails, etc. by turning on or
flashing.

Status Description

Red The battery is charging when the remaining

Orange The battery is charging when the remaining

battery level is 14% or lower.

battery level is 15% - 89%.

uv

Status Description

Green The battery is charging when the remaining

Flashing
red

Flashing
white

*1 Notification LED flashes when backlight turned off and lock

screen is displayed.

❖Information

･ When the remaining battery is not sufficient for turning the

product ON, pressing P makes LED flash red three times.

･ When you start charging with the product powered off, the

notification LED turns in red. When the status of battery
appears on the display, however, the notification LED lights
in color for indicating the battery level.

battery level is 90% or higher.

The remaining battery level is 14% or lower.

Indicates missed call, New Gmail message, new
SMS message.

*1

■ Checking own phone number

1 From the Home screen, [ ]X[Settings]
2 [About phone]X[Status]

The phone number of the product is shown under "My phone number".

❖Information

･ Alternatively, from the Home screen, [ ] X[Contacts]X

[Myself] to check your phone number.
For the first activation of Contacts, tap "Done" on the Setup
wizard screen.

■ Setting the Silent Mode

Set the ringtone volume to 0. Note that setting the product to
Silent mode does not mute sounds for shutter, playback of

video or music, alarm, etc. And adjusting the volume of
"Ringtone & notifications" in Sound settings or pressing upper
part of volume key cancels Silent mode.

1 P (over 1 sec)
2 []/[]

Tap " " to set mute (ringtone volume 0) and tap " " to set vibrator.

❖Information

･ Alternatively, slide the status bar downward X[]/[] to

set Silent mode.

■ Setting Airplane mode

When airplane mode is set, all wireless functions (phone,
packet communication, Wi-Fi
NFC Reader/Writer, P2P function) are turned off.

®

function, Bluetooth® function,

1 P (over 1 sec) u[Airplane mode]

❖Information

･ Slide the status bar downward X Tap "Airplane" to switch the

airplane mode on or off.

Entering characters

Use software keyboard to enter characters.
The software keyboard appears when you tap the entry field
for registering a contact, composing a mail, etc.

■ Switching keyboards

To input Japanese, use "XperiaTM Japanese keyboard"
switching five input types of "Phonepad", "QWERTY
keyboard", "Japanese syllabary", "Kana handwriting", "Kanji
handwriting".

1 Tap a character input box

wxyzA

2 Long-touch or flick up " "

Tap " " for Kanji handwriting.

3 []/[]/[]/[]/[]

The keyboard switches to Phonepad/QWERTY keyboard/
Japanese syllabary/Kana handwriting/Kanji handwriting.

❖Information

･ Word suggestions or direct conversion candidates for the

entered characters appear. Tap a word to enter.

･ Tap " " to delete the character before the cursor.
･ Long-touch or flick up " " to enter symbols, facemarks

etc. from the displayed list. Tap " " for Kanji handwriting.

･ On the Phonepad, you can enter characters by flicking a

key up/down/left/right besides repeatedly tapping the key
(toggle input).

･ Tap " " at the bottom left of the screen to hide the software

keyboard.

Support

Introduction of related accessories

For details, refer to the instruction manual for each device.

･ Desktop Holder (SOT21PUA)
･ Sony Mobile TV antenna cable 01(01SOHSA)
･ Sony Mobile AC adapter 05 (EP880) (sold separately)
･ Common AC Adapter 04 (0401PWA) (sold separately)

❖Information

･

For the latest information on accessories, visit the au homepage
(http://www.au.kddi.com/) or contact the Customer Service
Center.

DEFGHBC

･ Accessories described on this page can be purchased from

the au Online Shop.

http://auonlineshop.kddi.com/

Troubleshooting

Before you assume that the product is malfunctioning, check
the following:

Symptom What you should check

Power is not turned
on even though P
is pressed.

The power goes off. Is the battery running out?

The power turns off
while activation
screen is displayed.

The screen freezes
and the power
cannot be turned
off.

Is the internal battery charged?
Is P pressed for over 1 second?

Is the battery running out?

Open the microSD memory card/au
Micro IC Card (LTE) slot cover while
hooking the groove with your
fingernail, press the OFF button (RED)
with a fine-tipped object for
approximately three secondsu
release your finger after it vibrates
three times. Alternatively, press and
hold P and upper part of volume key
at the same time for approximately
three seconds, and release your
finger after it vibrates three times.

Symptom What you should check

(Out of service

area) appears.

Cannot charge the
battery (Notification
LED does not light,
the battery icon
does not change
into charging).

Cannot operate key/
touch panel.

Cannot operate
touch panel as
intended.

Charging is not
complete.

A message such as
"charge the battery"
appears.

Is the product out of the service area
or in an area where the signal is weak?

Is the built-in antenna covered with
hand?

Is the specified charging equipment
(sold separately) attached properly?

Is the power turned on?

Is "Screen lock" set?

Turn off the power and then turn it on
again.

Are you operating with gloved hands?

Are you operating with a fingernail or
foreign object on the operating
screen?

Is the temperature of the product
raised or very low?

The battery is almost dead.

Symptom What you should check

Battery usage time
is short.

The screen
backlight turns off
in a short while.

Display is dark. Is "Brightness" set to dark?

Screen response is
slow when you tap
on the screen/press
the keys.

Cannot recognize a
microSD memory
card.

For more details, visit au Customer Support site of au homepage.

http://www.au.kddi.com/support/mobile/trouble/repair

Is the battery fully charged? Charge
until the notification LED turns green.

Is the internal battery end-of-life?

Is the product used for a long period
at places where (out of range)
appears?

Is set "Sleep" period too short?

Is the proximity sensor covered by
fingers or sticker?

When a large amount of data is saved
in the product or transferring large­size data between the product and
microSD memory card, the screen
response may be delayed.

Is the microSD memory card inserted
properly?

Is the microSD memory card unmounted?

Updating Software

You can update the product to the most recent software for
optimal performance and to get the latest enhancements.
･ You are charged for data communication when connecting to

the Internet from the product by using packet communication.

･ You are recommended to back up your data before

updating software.

･ For details, visit http://www.sonymobile.co.jp/support/ or

refer to the "Instruction Manual" (Japanese) application or
"取扱説明書（詳細版） (Full instruction manual)" (Japanese)

available on au homepage.

■ Downloading and updating software

Update files can be downloaded from the Internet web site via
wireless communication into the product directly.
･ To download software updates only via Wi-Fi

Home screen, [ ]X[ツール (Tool)]X[Update
Center]X[]X[Settings]X Mark "Update via Wi-Fi only". If
you unmark "via Wi-Fi only" for updating, note that when Wi-

®

Fi

communication becomes unstable, packet
communication takes the place automatically, which may
apply communication fees.

1 From the Home screen, [ ]X[ツール (Tool)]X[Update

Center]

2 Tap "System" tabX[]

■ Connecting to a PC for updating software

You can update software using PC Companion to be installed
from the product.
･ Install PC Companion to your PC beforehand.

®

, from the

Forinquiries,call:

Forgeneralinformationandcharges

Fromfixe d-li nephones:



007 7-7-111

Forlossortheftandoperationinformation

Fromfixe d-li nephones:



0077-7-113

Incaseabovenumbersarenotavailable(tollfree).



0120-977- 033



0120-977- 699

CustomerServiceCenter

Fromaucellphones:

157

withoutareacode

Fromaucellphones:

113

withoutareacode



(exceptOkinawa)

(Okinawa)

(tollfree)

(tollfree)

Securecellphonesupportcenter

Forloss,theft,damage.

Fromaland-linephone/anaucellphone,

0120-925-919

Businesshours9:00−21:00(7daysaweek)

Soldby:KDDICORPORATION,
OKINAWACELLULARTELEPHONECOMPANY
Manufacturedby:SonyMobileCommunicationsInc.

(tollfree)

CellphoneandPHSoperatorscollectand recycleunusedtelephones,
batteriesandbatterychargersatstoresbearingthelogoregardless
of brand and manufacturer to protect the environment andreuse
valuableresources.

April2014,1stEdition

XXXX-XXXX.1

After-sales service

■ When asking for repair

For repair, contact Secure cell phone support center.

During the
warranty
period

Outside the
warranty
period

❖Information

･ Before handing in the product for repair, make a backup of

the contents of memory since they may disappear during
repair. Note that the Company shall not be liable for any
damages and loss of income should the contents of
memory be altered or lost.

･ Recycled parts that meet the Company's quality standards

are sometimes used for repair.

･ Collected au cell phones by Replacement cell phone

delivery service which you used before are recycled to cell
phones for replacement after repairs. Also replaced parts
by au after-sales service are collected and recycled by
KDDI. They are not returned to customers.

■ Performance parts for repair

The Company retains performance parts for repair of the
Xperia
after discontinuation of production. "Performance parts for
repair" refers to parts required for maintaining the functions of
the product.

Repairs will be done based on the terms of
services of the free-of-charge repair warranty
described on the warranty card.

We shall repair the product for a charge as
requested by the customer if repair renders it
usable.

TM

Z2 Tablet main unit and its peripherals for four years

I

■ Warranty card

At the store of purchase, thoroughly check and read the name
of the retailer, date of purchase and other necessary details
filled in on the warranty card, and be sure to keep it in a safe
place.

■ Secure cell phone support plus LTE

An after-sales service membership program on a monthly
basis called "Secure cell phone support plus LTE" (monthly
fee: 380 yen tax excluded) is available for using your au cell
phone for a long time without worries. This service expands
coverage for many troubles including malfunction, theft and
loss. For details of this service, refer to au homepage or
contact Secure cell phone support center.

❖Information

･ You can apply for membership only at the time of

purchasing your au cell phone.

･ Once you cancel the membership, you cannot reapply for it

until you purchase an au cell phone next time.

･ Note that when changing the model or purchasing an extra

cell phone, this service only covers the most recently
purchased au cell phone.

･ When an au cell phone is handed over to you or someone

else, the Secure cell phone support plus LTE membership is
also handed over to the successor of the cell phone.

･ When you get a new au cell phone by changing the model

or purchasing an extra cell phone, the "Secure cell phone
support plus"/"Secure cell phone support plus LTE"
membership for the old au cell phone is automatically
canceled.

･ Service contents are subject to change without notice.

JKLMN

■ au Micro IC Card (LTE)

The au Micro IC Card (LTE) is lent to you by au. In case of loss
or damage, the card will be replaced at your expense. When
malfunction is suspected, or in case of theft or loss, contact
an au shop or PiPit.

■ After-sales service

If you are unsure about anything regarding after-sales service,
contact the following service contact.

Customer Service Center (for service canceling procedure
or operation in case of loss or theft)

From a land-line phone, 0077-7-113 (toll free)
From an au cell phone, 113 without area code (toll free)

Secure cell phone support center (for loss, theft, damage)

From a land-line phone/From an au cell phone,

Business hours 9:00 – 21:00 (7 days a week)

0120-925-919 (toll free)

■ au after-sales service information

Replacement cell phone delivery service

Secure cell phone support plus LTE members

Spontaneous failure 1st year
Spontaneous failure 2nd

year or later
Partially damage, water

soak, irreparable damage,
theft or loss

Free of charge

Customer charge
1st: 5,000 yen
2nd: 8,000 yen

Non-Secure cell phone support plus LTE members

Spontaneous failure 1st year
Spontaneous failure 2nd

year or later
Partially damage, water

soak, irreparable damage,
theft or loss

Holding over and repair

Secure cell phone support plus LTE members

Spontaneous failure 1st year
Spontaneous failure 2nd

year or later

Partially damage

Water soak, irreparable
damage

Theft, loss No recompense

Non-Secure cell phone support plus LTE members

Spontaneous failure 1st year
Spontaneous failure 2nd

year or later

Water soak, irreparable
damage

Theft, loss

* Charge amounts are all tax excluded

No recompense

Free of charge
Free of charge (three-year

warranty)
Customer charge

Upper limit: 5,000 yen
Customer charge

10,000 yen

Free of charge

Actual costPartially damage

No recompense
(model change)

❖Information
Replacement cell phone delivery service

･

When you have trouble with your au cell phone, replacement
cell phone (same model, same color) is delivered by calling
to. Return your damaged cell phone within 14 days after
replacement cell phone is delivered.

･ Available up to twice in a year from the day you use this

service as a start day. If you do not use this service in the
past year at the subscription to this service, it will be 1st and
if you use, it will be 2nd.

* For details, refer to au homepage.

Holding over and repair

･ Damages and malfunctions intentionally caused by the

customer as well as those due to modification (e.g.
disassembly, change of parts, painting, etc.) by the
customer are not covered by this service.

･ You cannot receive a refund for replacement of the outer

casing due to stains, scratches, paint removal, etc. on the
outer casing.

Main specifications

Display Approx. 6.4 inches

TRILUMINOS
Approx. 16.77 million colors

1,080 x 1,920 dots

Weight Approx. 214 g (with internal

battery)

Dimension (W x H x T) Approx. 92 mm x 179 mm x

6.5 mm (thickest part approx.

6.8 mm)

®

Display for mobile

Continuous
call time

Continuous
stand-by
time

Charging time Using Common AC Adapter 04

Continuous Full Seg
watching time

Continuous 1Seg
viewing time

Continuous tethering
time

Wi-Fi
maximum connection
number

❖Information

･ The continuous call time, continuous stand-by time, 

continuous Full Seg watching time, continuous 1Seg
viewing time and continuous tethering time may drop to less
than half depending on the battery charging status, usage
environment such as temperature, reception condition at the
location where the product is used, and the function
settings.

In Japan Approx. 1,420 min.
Overseas

(GSM)
In Japan Approx. 710 hours (LTE)

Overseas
(GSM)

®

tethering

Approx. 870 min.

Approx. 740 hours (3G)
Approx. 830 hours

(sold separately): Approx.
160 min.

Approx. 4 hours 00 min.

Approx. 5 hours 30 min.

Approx. 660 min. (LTE on WAN)
Approx. 890 min. (3G on WAN)

10
