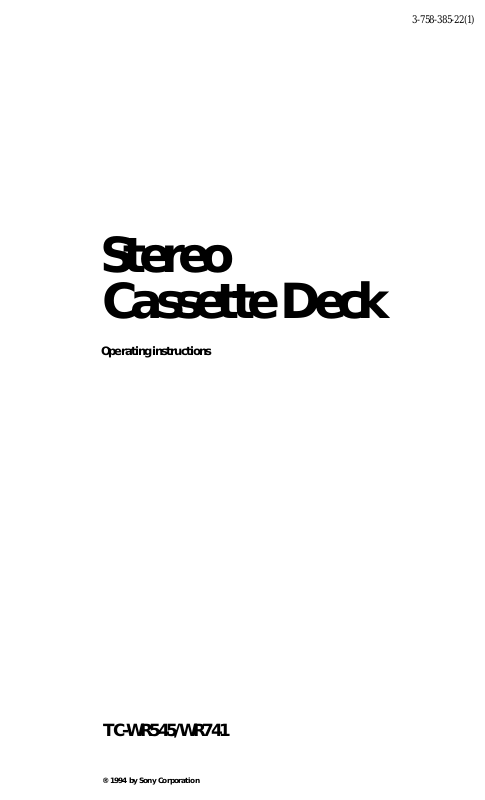

Stereo
Cassette Deck
3-758-385-22(1)
Operating instructions
TC-WR545/WR741
® 1994 by Sony Corporation
WARNING
Owner's Record
The model and serial numbers are located on the rear of the
unit. Record the serial number in the space provided below.
Refer to them whenever you call upon your Sony dealer
regarding this product.
Model No. Serial No.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
A
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
REFER SERVICING TO QUAURED SERVICE PERSONNEL.
A
DO NOT OPEN
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
This symbol is intended to alert the
user to the presence of uninsulated
"dangerous voltage" within the
product's enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
— Connect the equipment into an outlet on a circuit different
firom that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
For the customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
This apparatus complies with the Class B limits for radio
noise emissions set out in Radio Interference Regulations.
NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM
A moulded plug complying with BS1363 is fitted to this
equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced, a
5 AMP fuse approved by ASTA or BSI to BS 1362, (i.e.
marked with ^ or ^ mark) must be used.
If the plug supplied with this equipment has a detachable
fuse cover, be sure to attach the fuse cover after you
change the fuse. Never use the plug without the fuse
cover. If you should lose the fuse cover, please contact
your nearest Sony service station.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
INFORMATION
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause hannful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and
receiver.
IMPORTANT
If the plug supplied is not suitable for the socket outlets in
your home, it should be cut off and an appropriate plug
fitted in accordance with the following instructions.
The wires in this mains lead are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured
black. The wire which is coloured brown must be
connected to the terminal which is marked with the letter
L or coloured red. Do not connect either wire to the earth
terminal in the plug which is marked by the letter E or by
the safety earth symbol -A- or coloured green or grecn-and-
yellow.
WARNING
To prevent shock hazard, do not insert the plug cut off from
the mains lead into a socket outlet. This plug cannot be used
and should be destroyed.
Chapter 1 Getting Started
Table of Contents Features
Chapter 1 Getting Started
Features..................................................................................3
Precautions
Unpacking..............................................................................4
Hooking up the system............................................................. 5
Identifying the parts on the front panel
Chapter 2 Playback
Playing back............................................................................7
Playing back both decks in succession — Relay Play
Locating a selection — Multi-AMS
Playing back automatically after rewinding—Auto Play... 10
Playing back selections in a specified order
Chapters Recording
Recording (only on deck B).....................................................12
Automatic bias current and recording level calibration
Inserting a blank space during recording
Chapter 4 Other Operations
Dubbing a tape
Dubbing only specific portions
Dubbing selections in a specified order
.............................................................................
Checking the supplied accessories
Notes on installation
Checking the operating voltage
Before you begin
Hooking up an amplifier
(Automatic Music Sensor)
— RMS playback (TC-WR545 only)
RMS programming using a Sony stereo receiver
remote commander
Adjusting the recording level
Recording FM broadcasts with the Dolby NR system
(TC'WR545only)............................................................. 13
What is the Dolby HX PRO system? (TC-WR545 only) ..13
Protecting a recording
CrC-WR545only)
—Record Muting............................................................. 15
......................................................................
— RMS dubbing CTC-WR545 only).................................18
...........................................................
...............................................................
.....................................................
..........................................................
.......................................................
............................................................
........................................
............................................
........................................
...................
..................................................
.................................
.............................................
................................................
4
4
4
4
5
5
6
8
9
10
11
13
13
14
16
17
For higher quality recording/playback
• B and C type Dolby* NR systems which reduce tape noise.
• Dolby HX PRO* system for higher linearity in the tape's
high-range response during recording (TC-WR545 only).
• Automatic calibration to obtain the best recording
conditions for every tape (TC-WR545 only).
For your convenience
•Automatic tape type detection during playback and
recording.
•A relay fonction for long playback.
• Synchronized dubbing at normal or high speed.
• Muiti-AMS function for easy access to spedfic selections.
• RMS function for playing back or recording specific
selections in the order you want (TC-WR545 only).
For easier operation
•Twin easy-to-read digital counters showing the elapsed
recording or playing time on each deck.
Differences between the models
This instruction manual covers the TC-WR545 and TCWR741. The TC-WR545 has the following features which
are not found in the TC-WR741.
•Automatic calibration function
•RMS function
•MPX FILTER switch
•Dolby HX PRO* system
•PHONES jack
Note: All illustrations in this manual show the TC-WR545.
* Dolby noise reduction and HX Pro headroom extension
manufactured under license from Dolby Laboratories Licensing
Corporation. HX Pro originated by Bang & Olufsen.
"DOLBY", the double-D symbol □□ and "HX PRO" are trademarks
of Dolby Laboratories Licensit^ Corporation.
Chapter 5 Additional Information
Maintenance..........................................................................19
Cleaning the heads and tape path
Demagnetizing the heads
Qeaning the cabinet
Specifications
Troubleshooting guide............................................................21
........................................................................
..........................................................
........................................
..................................................
19
19
19
20
Precautions Unpacking
On safety
•Should any solid object or liquid fall into the cabinet,
unplug the unit and have it checked by qualified personnel
before operating it any further.
•Unplug the unit from the wall outlet if it will not be used
for a long time. To disconnect the cord, pull it out by
grasping the plug. Never pull the cord itself.
•The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet, even if
the unit itself has been turned off
On operation
•When the unit is not used, turn the power off to conserve
energy and to extend the useful life of your unit.
• Because of a safety mechanism, the function buttons will
not operate if the cassette holder is not completely closed, if
there is no cassette in the cassette holder, or if a cassette has
been incorrectly inserted into the cassette holder.
On head cleaning
The head and tape path should be cleaned after every ten
hours of operation. Dirty heads and a dirty tape path may
cause:
— loss of high-frequency response
— loss of sound volume
— sound drop-out
Checking the Supplied Accessories
Make sure that the following supplied accessories are
included with your unit.
•Audio connecting cords (2)
Notes on installation
•Place the unit with the front panel facing you in a location
with adequate air circulation to prevent overheating of the
unit.
• Do not place the unit:
— near heat sources such as radiators or air ducts.
— in places subject to direct sunlight, excessive dust,
mechanical vibration or shock.
— in an inclined position.
— on a rug or other soft surfaces that would block the
ventilation holes on the bottom of the unit.
Do not throw away the carton and the packing material
They will come in handy when transporting the unit or
shipping it for servicing.
If you have any questions or problems concerning your unit,
please contact your nearest Sony dealer.
For the customers in the U. S. A.
For detailed safety precautions, see the leaflet "IMPORTANT
SAFEGUARDS".
Checking the Operating Voltage
•Operate the unit only on 120 V AC, 60 Hz (U.S.A. and
Canada model), 240 V AC, 50 Hz (U.K. model) or 240 V
AC, 50/60 Hz (Australia model).
»Before connecting the unit to an AC outlet, be sure that the
operating voltage of your unit is identical with that of your
local power supply.
Hooking Up the System
Before You Begin
•Turn off the power to all equipment to be connected before
making any connection.
•Note that the red plug of the supplied connecting cord is
for right-channel (R) coimection and the white plug for leftchannel (L) connection.
•The connecting cords should be fully inserted into the jacks.
A loose connection may cause hum pickup.
White
L©^c(fHBEa>;
R©^ci@jj]3>s
Red
«
----------
Hooking Up an Amplifier
Signal flow
TC-WR545/WR741
to an AC outlet
mp ^©L
^©R
for
recording
Amplifier
to a wall outlet
Identifying the Parts on the Front Panel
(The illustration shows the TC-WR545.)
For details, refer to the page number(s) indicated in
parentheses.
Q] POWER switch
[U DeckA
H COUNTER RESET button (deck A)
El RMS** operation buttons (TC-WR545 only) (pages 10,11
and 18)
RMS/START button
SET button
CHECK button
DISPLAY button
fsl Display panel
m AUTO CAL button (TC-WR545 only) (page 14)
111 COUNTER RESET button (deck B)
m SYNCHRO DUBBING buttons (page 16)
HIGH button
NORMAL button
[9| REC (recording) LEVEL control (pages 12 and 13)
E3 DeckB
US BALANCE control (page 12)
m ^ (eject) button (deck B)
Il3 Tape operation buttons
I (leftward fast-winding)/AMS***/RMS**- button
• (rightward fast-winding)/AMS***/RMS**+ button
■ (stop)/(RMS**) CLEAR button
■O (reverse play)/(RMS**) BACK button
t> (forward play)/(RMS**) FRONT button
II PAUSE button (deck B ordy)
O REC MUTE (record muting) button (deck B only)
(page 15)
# REC (recording) button (deck B only)
M MPX FILTER switch (TC-WR545 only) (pages 13)
m DOLBY NR (Dolby noise reduction) switch (pages 7 and
12)
m DIR (direction) MODE switch (pages 7,8,12 and 16)
0 PHONES jack (stereo phone jack) (TC-WR545 only)
01 = (eject) button (deck A)
* Remote control sei\sor
You can remotely control this cassette deck with:
— A remote commander that came with a Sony amplifier
or receiver if it has the □ mark and cassette deck control
capabQity.
— Any optional Sony remote commander with the B mark
and cassette deck control capability.
** Random Music Sensor (TC-WR545 only)
*** Automatic Music Sensor
Playing Back
Follow the procedure below to play back a cassette on deck A or B.
4 3
Turn on the amplifier and select the tape
function.
Insert a cassette.
5 Press O or >> to start playback.
To play back from the front side, press .
To playback from the reverse side, press O .
The tape direction lights up to show the side you
are listening.
To stop playback, press the ■ button.
To stop playback momentarily, press the II button
(only on deck B).
To restart play, press the II, or l>- button.
To fastwind a tape rightward, press the ►► button in
stop mode.
To fastwind a tape leftward, press the « button in
stop mode.
□
Set DOLBY NR to the same position that
was used when the cassette was
recorded.
DOLBY NR
JO
Set DIR MODE.
To play back to the
end of one side only
To play back both
sides continuousl)T*
DIR MODE
DIR MODE
ran
Specifying the tape type is unnecessary
The deck has an automatic tape-t3rpe detection system.
To begin recording during playback
While holding down the -<1 or D>- button, press the 9
button.
The unit immediately begins recording without stopping the
tape. This function is useful when editing previously
recorded material.
When both decks A and B are in playback mode
Only playback fiem deck A will be audible.
What is the Dolby NR system?
The Dolby NR (noise reduction) system reduces tape hiss
noise in low-level, high-frequency signals by boosting the
signals during recording and lowering them during
playback.
Note
The Dolby HX PRO system works only during recording, not
during playback (TC-WR545 only).
^ After pla)dng back five times, the deck
automatically stops.
Loading...
