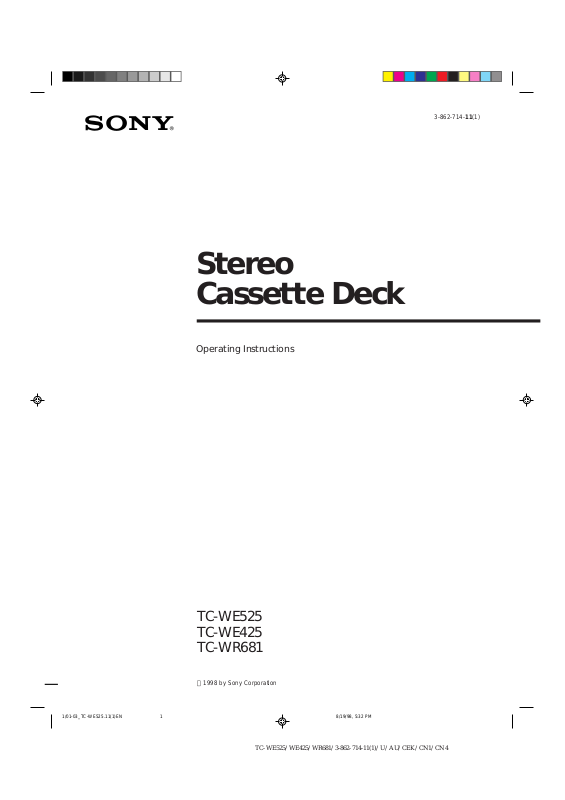

Page 1
Ster eo
Cassette Deck
3-862-714-11(1)
Operating Instructions
ENEN
TC-WE525
TC-WE425
TC-WR681
1998 by Sony Corporation
1
Page 2
WARNING
To prevent fire or shock
hazard, do not expose
the unit to rain or
moisture.
NOTICE FOR THE CUSTOMERS IN THE
U.S.A.
This symbol is intended
to alert the user to the
presence of uninsulated
“dangerous voltage”
within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended
to alert the user to the
presence of important
operating and
maintenance (servicing)
instructions in the
literature accompanying
the appliance.
INFORMATION
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority
to operate this equipment.
Welcome!
Thank you for purchasing the Sony
Stereo Cassette Deck. Before operating
the unit, please read this manual
thoroughly and retain it for future
reference.
About This Manual
The instructions in this manual are for
models TC-WE525, TC-WE425 and
TC-WR681. Check your model number
by looking at the rear panel of your tape
deck. In this manual, the TC-WE525 is
the model used for illustration
purposes. Any difference in operation is
clearly indicated in the text, for
example, “TC-WE525 only.”
Type of differences
Model
Feature
Pitch control
PHONES jack
CD Synchro-
Recording
The power switch
The power switch is different,
depending on the place you purchased
the tape deck.
WE525
•
•
•
WE425
•
•
WR681
Owner’s Record
The model and serial numbers are
located on the rear panel of the unit.
Record the serial number in the space
provided below. Refer to them
whenever you call upon your Sony
dealer regarding this product.
Model No.
Serial No.
Where purchased The power switch
U.S.A. 1/u
Other countries U
Convention
The following icon is used in this
manual:
Indicates hints and tips for
z
making the task easier.
2
Page 3
TABLE OF CONTENTS
Getting Started
Unpacking 4
Hooking Up the System 4
Playing a Tape 5
Recording on a Tape 6
Advanced Recording Operations
Adjusting the Recording Level Automatically (Auto Rec Level) 8
Fading In and Out (Fader) 9
Dubbing a Tape 9
Inserting a Blank Space During Recording (Record Muting) 10
Synchro-Recording With a CD Player Through a Monaural (2P) Mini-plug Cord
(TC-WE525/WE425 only) 11
Additional Information
Precautions 13
Notes on Cassette Tapes 13
Cleaning 14
Troubleshooting 15
Specifications 16
Index 17
3
Page 4
Getting Started
Ç
ç
REC OUT IN
LINE
OUTIN
L
R
TAPE
L
R
L
R
Getting Started
Unpacking
Check that you received the following items:
• Audio connecting cords (2)
Hooking Up the System
Hookups
• Connecting the tape deck to an amplifier
Connect the amplifier to the LINE IN/OUT connectors
using the supplied audio connecting cords.
When connecting an audio connecting cord, be sure to
match the color-coded cord to the appropriate jacks on the
components: Red (right) to Red and White (left) to White.
Be sure to make connections firmly to avoid hum and
noise.
Connect the tape deck to the amplifier as shown below.
This section describes how to hook up the tape deck to
an amplifier. Be sure to turn off the power of each
component before making the connections.
To purchasers of the TC-WR681
For information on connecting your tape deck to the
TA-AV581 Amplifier, refer to the Operating Instructions
included with the TA-AV581.
To purchasers of the TC-WE525/WE425
Follow the instructions below to connect your tape deck to
an amplifier.
TC-WE525/WE425
Ç
ç
to an AC
outlet
REC
OUT
TAPE
IN
Amplifier
to a
wall outlet
CONTROL
A1
AmplifierTape deck
ç: Signal flow
• Connecting the tape deck to a CD player equipped
with CONTROL A1 connectors (TC-WE525/WE425 only)
For information on connections through the CONTROL
A1 connectors, refer to the pamphlet included with this
manual.
Connecting the AC power cord
Connect the AC power cord to an AC outlet.
Where do I go next?
Now you’re ready to use your tape deck.
For basic operations, go to pages 5 to 7; for advanced
operations, go to the sections starting from page 8.
CD player
ç: Signal flow
4
Page 5
Basic Operations
Playing a Tape
32 4
Basic Operations
DIRECTION MODE
RELAY
Aa
ØON øOFF
PITCH CONTROL
+–
• See page 4 for hookup
information.
• You can use either deck for
playback.
z To locate the beginning of
a tape and start playback
automatically (Auto Play)
Press 0 while holding
down ·. For the reverse
side, press ) while holding
down ª.
z To play a tape recorded
with the Dolby NR*
system
Set DOLBY NR to the same
position that the tape was
recorded in—B or C.
z What is the Dolby NR
system?
The Dolby NR (noise
reduction) system eliminates
tape hiss noise by boosting
low-level signals in the highfrequency range during
recording, then lowering
them during playback. Type
C provides greater noise
reduction than type B.
z You can connect the
headphones to PHONES
(TC-WE525/WE425 only)
* Dolby noise reduction
manufactured under license
from Dolby Laboratories
Licensing Corporation.
MEMORY
ª·
COUNTER
DOLBY NR
BC
OFF
0
p
ª·
PAUSE
PRr
RESET
START(DECK BP)
REC MUTING
)
DUBBING A B
HIGH/NORMAL
§
MEMORYAB
REC
AUTO REC LEVEL
4
3
2
1
0
FADER ARL
π SYNCHRO
PHONES
5
6
7
8
9
10
RESET
0)
p
§
Turn on the amplifier and select the tape deck position.
1
Press 1/u (or U), and then press §
2
and insert a cassette.
With the side you want to play
facing you
Set DIRECTION MODE.
3
To play back Set to
One side only A
Both sides continuously* a
Both decks in succession*
RELAY
* The deck automatically stops after playing back five times.
Press ·.
4
The deck starts playing. Adjust the volume on the amplifier.
Do not turn off the deck during operation.
To
Stop playing p
Start playback from the reverse side ª
Pause (deck B only) PAUSE P. Press the button again to
Fast-forward or rewind ) or 0
Take out the cassette § after stopping playing
Press
resume play.
Basic Operations
“DOLBY“ and the double-D
symbol a are trademarks of
Dolby Laboratories Licensing
Corporation.
z To adjust the pitch (Pitch Control function) (TC-WE525 only)
ØON øOFF
PITCH CONTROL
–
Push in the PITCH CONTROL button to activate Pitch Control
function and turn the control clockwise to raise the pitch or
counter-clockwise to lower it.
You can adjust the pitch during playback on deck A or normalspeed dubbing.
+
5
Page 6
Basic Operations
Basic Operations
Recording on a Tape
32 45
DIRECTION MODE
RELAY
Aa
ØON øOFF
PITCH CONTROL
+–
• See page 4 for hookup
information.
• Use deck B (on your right
hand side) for recording.
• See "Dubbing a Tape" (page
9) to make a copy of the
tape.
MEMORY
ª·
COUNTER
DOLBY NR
BC
OFF
0
p
ª·
PAUSE
PRr
RESET
REC MUTING
START(DECK BP)
)
DUBBING A B
HIGH/NORMAL
§
MEMORYAB
REC
AUTO REC LEVEL
4
3
2
1
0
FADER ARL
π SYNCHRO
PHONES
5
RESET
0)
p
§
Turn on the amplifier and play the program source you want
1
to record.
Press 1/u (or U), and then press §
2
and insert a cassette into deck B.
With the side you want to record
facing you
6
7
8
9
10
Set DIRECTION MODE.
3
To record on
Set to
Only one side A
Both sides* a
* Recording stops when the tape reaches the end of reverse side.
Press REC r.
4
· lights up for recording on the side facing you. If it doesn’t,
press · once.
The tape deck automatically adjusts the recording level
(see page 8). After the AUTO indicator lights up continuously,
stop playing the program source. If you wish to adjust the
recording level manually, see “To adjust the recording level
manually” on page 7.
6
Page 7
Basic Operations
z To protect recordings
against accidental erasure
Break out the record-protect
tab(s) (see page 13).
z The Dolby HX PRO*
system automatically
works during recording
Distortion and noise in the
high-frequency response are
reduced to produce highquality sound that can be
enjoyed even during
playback on other tape decks.
Press PAUSE P or ·.
5
Recording starts.
Start playing the program source.
6
Do not turn off the deck during operation.
To
Stop recording
Start recording from the reverse side ª twice in Step 5
Pause PAUSE P. Press the button again to
Take out the cassette § after stopping recording
Use these switches (controls) to perform additional
operations
MEMORY
ª·
DOLBY NR
BC
OFF
COUNTER
0
p ª·
RESET
MEMORYAB
DUBBING A B
HIGH/NORMAL
START(DECK BP)
)
PAUSE
REC MUTING
REC
PRr
§
RESET
0)
p
§
Press
p
resume recording.
AUTO REC LEVEL
5
4
6
3
7
2
9
1
0
10
FADER ARL
π
SYNCHRO
PHONES
8
Basic Operations
* HX Pro headroom extension
originated by Bang & Olufsen
and manufactured under license
from Dolby Laboratories
Licensing Corporation.
“DOLBY“, the double-D symbol
a and “HX PRO” are
trademarks of Dolby
Laboratories Licensing
Corporation.
DOLBY NR
REC LEVEL
To record with the Dolby NR system
Set DOLBY NR to B or C before you start recording.
To adjust the recording level manually
After pressing REC r in Step 4 on page 6, turn
REC LEVEL so that the peak level meters reach
the recommended level for the corresponding
tape type. After completing the adjustment, stop
playing the program source, then continue the
procedure from Step 5.
–10–20–
30
–
∞
dB
L
R
For type I or
type II tape
For type IV tape
4
8
+
+40
–
7
Page 8
Advanced Recording Operations
Advanced Recording Operations
Adjusting the Recording Level
Automatically (Auto Rec Level)
The Auto Rec Level function automatically measures
the peak signal level and adjusts the recording level
accordingly.
AUTO indicator
0)
0
)
ª·
pª·
+–
p
§§
PRr
REC LEVEL
5
4
6
3
7
8
2
9
1
0
10
z You should adjust the recording level manually with
REC LEVEL in the following cases:
—The recording level cannot be adjusted properly due
to excessive noise in the program source.
—The program source level is too low and the recording
level does not increase.
During a quiet passage in a program source such as
classical music, the recording level may not increase
for some time. If a high sound level is expected later
on in the track, play that portion first so that the right
adjustment can be obtained.
—The recording level does not decrease for a long time.
The Auto Rec Level function may not work properly
when you try to record sound produced by a graphic
equalizer that has extremely high-level signals.
PAUSE P REC r·
ARL
1 Follow Steps 1 to 3 of “Recording on a Tape” on
page 6.
Make sure that record-protect tabs on the cassette
have not been removed.
2 Press REC r.
The AUTO indicator flashes and the deck
automatically adjusts the recording level. The
AUTO indicator lights up continuously after the
recording level has been adjusted.
3 Press PAUSE P or ·.
Recording starts.
To cancel the Auto Rec Level function
Press ARL or turn REC LEVEL so that the AUTO indicator
goes off. If you do either of these during recording,
recording will continue but with the Auto Rec Level function
turned off.
To stop recording
Press p.
z To record with the optimum recording level
• To prevent changes in the recording level after
recording starts, press REC r while playing the
highest sound level portion of the program source to
be recorded. The result is a more natural-sounding
recording.
• If you play the entire program source after the AUTO
indicator has stopped flashing and is lit continuously,
the deck will set the recording level for the portion of
the program source with the highest signal level.
z Recording level setting remains even after the
recording has ended
After you have finished recording with the Auto Rec
Level function, the AUTO indicator remains on and the
recording level setting remains the same. To cancel the
setting, do one of the following:
• Press ARL to turn off the AUTO indicator
• Turn REC LEVEL
• Turn the deck off.
z What is the Auto Rec Level function?
The Auto Rec Level function automatically sets the
recording level according to the peak signal level of the
program source. While the AUTO indicator is flashing,
the deck sets the recording level as high as possible
without causing distortion. If the signal level rises
excessively after the start of recording, the deck
gradually decreases the recording level.
8
Page 9
Advanced Recording Operations
Fading In and Out (Fader)
You can gradually increase the recording level at the
beginning of a recording (fade in) or gradually
decrease the recording level at the end of a recording
(fade out).
It is convenient to use this function, for example, when
the tape reaches to its end and you don’t want the track
to be cut off abruptly.
AUTO indicator
0)
0
)
ª·
pª·
+–
p
§§
PRr
To Do the following:
Fade in 1 Follow Steps 1 to 4 of “Recording on a
Fade out Press FADER when you want to start
Tape” on page 6.
2 Press FADER. During fade-in, the
AUTO indicator flashes. When the
fade-in has completed, the AUTO
indicator goes off. (The AUTO
indicator lights continuously if the
Auto Rec Level function is on.)
fading out while recording. When the
fade-out has completed, “REC” flashes
in the display and the deck pauses.
FADER
4
3
2
1
0
5
6
7
8
9
10
Dubbing a Tape
You can copy a tape in deck A to a tape in deck B at
normal or high speed.
4
3
2
1
0)
0
)
ª·
pª·
+–
DIRECTION MODE
p
§§
PAUSE P
p
PRr
ª / ·
HIGH/NORMAL
1 Insert the recorded cassette into deck A and a
blank cassette into deck B.
Make sure the record-protect tabs on the cassette
in deck B have not been removed.
2 Select the side(s) to be recorded on.
To record on
One side A
Both sides a.
Set DIRECTION MODE to
Recording on the reverse side on
deck B starts independently of
playback on deck A.
RELAY.
Recording on the reverse side on
deck B starts simultaneously with
playback of the reverse side on
deck A.
0
5
6
7
8
9
10
Note
Fade-in or fade-out is not possible when REC LEVEL is set to
0 (minimum).
3 Select the dubbing speed.
To select
Normal speed
High speed
“HIGH” or “NORM” appears in the display.
The tape deck changes to dubbing standby.
Press HIGH/NORMAL
Once
Twice
4 Select the side from which to start dubbing.
To record from
The front side ·
The reverse side ª
Press
5 Press PAUSE P to start dubbing.
To stop dubbing
During
Normal-speed dubbing
High-speed dubbing
Press
p on deck B
p on either deck
(Continued)
9
Page 10
Advanced Recording Operations
z During high-speed dubbing
Only p is operative.
Inserting a Blank Space During
z You don‘t have to adjust the recording level or
select the Dolby NR system during dubbing
Dubbing is automatically performed with the same
recording level and Dolby NR system as the original in
deck A. If, however, you want to monitor the sound
during normal-speed dubbing, set DOLBY NR to match
the tape in deck A (see page 5).
z You can adjust the pitch of the playback on deck A
(TC-WE525 only)
See page 5.
Note
If a TV set is placed near the tape deck, noise may occur
during high-speed dubbing. In that case, turn the television
set off or move it away from the tape deck.
Dubbing only specific portions
You can do this only during the normal-speed
dubbing.
1 Press p on deck A at the portion you want to
skip.
Deck B changes to recording pause.
2 Locate the point you want to resume recording on
deck A, then stop the tape.
3 Press PAUSE P to resume dubbing.
Recording (Record Muting)
You can insert a blank space of 4 seconds between each
track or erase unwanted portions on a tape.
5
4
6
3
7
8
2
9
1
0
0)
0
)
ª·
p
+–
p
§§
PAUSE P REC MUTING R
ª·
PRr
1 Start recording.
2 Press REC MUTING R where you want to insert a
blank space.
“REC” flashes in the display and a blank is
recorded on the tape.
After 4 seconds, P lights up and the tape deck
changes to recording pause.
3 Press PAUSE P or · to resume recording.
z If you want to insert a blank space longer than
4 seconds
Hold down REC MUTING R as long as you want.
After 4 seconds, “REC” flashes faster.
When you release REC MUTING R, P lights up and the
tape deck changes to recording pause.
Press PAUSE P or · to resume recording.
10
·
10
Page 11
Synchro-Recording With a CD
Player Through a Monaural (2P)
Mini-plug Cord (TC-WE525/
WE425 only)
By pressing SYNCHRO, you can perform synchrorecording on your tape deck with a Sony CD player
connected to the CONTROL A1 connector through an
optional monaural (2P) mini-plug cord (connecting
cord for CONTROL A1) (see page 4). The monaural
(2P) mini-plug cord supports advanced functions not
possible with the commander-based CD synchrorecording function on previous models. Further
information on the various operations made possible
by a monaural (2P) mini-plug cord is provided in the
pamphlet attached to this manual.
DIRECTION MODE SYNCHRO
ª / ·
Advanced Recording Operations
If your CD player has the Peak Search function:
The SYNCHRO button indicator lights up and the CD
player locates the highest signal level among the tracks
to be recorded as the tape deck adjusts the recording
level. When the recording level adjustment is
completed, CD Synchro-Recording starts automatically.
If your CD player does not have the Peak Search
function:
The CD player changes to play pause and deck B to
recording pause. Press PAUSE P on deck B to start
Synchro-Recording. Adjust the recording level
automatically (see page 8) before pressing SYNCHRO.
To stop CD Synchro-Recording
Press p on deck B or the CD player.
z You can use an optional remote to operate the CD
player
To start CD play, press P twice; to pause CD play, press
P once; to locate a CD track, press = or +.
5
4
6
3
7
8
2
9
1
0
0)
0
)
ª·
pª·
+–
p
§§
PRr
10
1 Set the source selector on the amplifier to CD
player.
2 Insert a CD into the CD player.
3 Select the play mode (CONTINUE, SHUFFLE, or
PROGRAM) of the CD player.
4 Insert a cassette into deck B.
To record on Set DIRECTION MODE to
AOnly one side
Both sides
a or RELAY
5 Select the side(s) to be recorded on.
6 Press SYNCHRO.
z If the SYNCHRO button indicator goes off after
flashing three times
The tape cannot be recorded on because the recordprotect tab(s) on the selected side(s) of the cassette has
(have) been removed.
z Length of tape used for recording
Tracks on a CD differ in length. Classical music CDs
and others often have tracks that exceed the recording
time of a single cassette side. In this case, record the
tape manually.
z When recording from the middle of the tape
A tape that is inserted and has not been played or
recorded on is assumed by the deck to be a new tape,
even if the present location is in the middle of the tape.
The deck will transport the tape for 10 seconds before
starting CD Synchro-Recording to bypass the portion
corresponding with the leader. To begin CD SynchroRecording without the ten-seconds delay, play or record
on the tape for a few seconds before starting the CD
Synchro-Recording procedure.
(Continued)
7 Select the side you want to start recording from
on deck B.
To record from Press
The front side ·
The reverse side ª
11
Page 12
Advanced Recording Operations
z If the tape ends during CD Synchro-Recording on
the front side of the tape (· lights up) and
DIRECTION MODE is set to a or RELAY
Recording of the track ends immediately, the tape
direction is reversed, and recording starts again from
the beginning of the track. If the tape ends on the
reverse side of the tape (ª lights up), CD SynchroRecording stops and the CD player stops playing.
Notes
• To prevent interruption of the recording process, do not
press any operation buttons on the CD player during CD
Synchro-Recording.
• Certain operation buttons on the tape deck are disabled
during CD Synchro-Recording.
12
Page 13
Additional Information
Additional Information
Precautions
On safety
• Do not disassemble the cabinet — this may result in an
electrical shock. Refer servicing to qualified personnel
only.
• Should any solid object or liquid fall into the cabinet,
unplug the tape deck and have it checked by qualified
personnel before operating it any further.
On power sources
• Before operating the tape deck, check that the operating
voltage of the tape deck is identical with your local power
supply. The operating voltage is indicated on the
nameplate at the rear of the tape deck.
• The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet, even if
the unit itself has been turned off.
• If you are not going to use the tape deck for a long time,
be sure to disconnect the tape deck from the wall outlet.
To disconnect the AC power cord, grasp the plug itself;
never pull the cord.
• AC power cord must be changed only at the qualified
service shop.
On operation
• Because of a safety mechanism, the function buttons will
not operate if the cassette holder is not completely closed,
if there is no cassette in the cassette holder, or if a cassette
has been incorrectly inserted into the cassette holder.
• Be sure to stop the tape before turning off the tape deck.
Otherwise, the tape may be damaged.
Notes on Cassette Tapes
To protect a recording on side A or B
Break out the respective tab.
Side A
Tab for side B
To record on a tape with a missing record-protect tab
Cover the respective tab hole with adhesive tape.
When you are using a type II or type IV tape, be careful not
to cover the detector slots that the deck uses to determine
the tape type.
Type II
Tab for side A
Type IV
On placement
• Place the tape deck in a location with adequate ventilation
to prevent heat build-up in the tape deck.
• Do not place the tape deck:
— on a soft surface such as a rug that might block the
ventilation holes on the bottom.
— in a location near heat sources.
— in a place subject to direct sunlight.
— in an inclined position.
— in a place subject to excessive dust or mechanical shock.
On cleaning the tape deck
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do not
use any type of abrasive pad, scouring powder or solvent
such as alcohol or benzine.
If you have any questions or problems concerning your
tape deck, please consult your nearest Sony dealer.
Detector slots
Detector slots
On tapes longer than 90 minutes
We do not recommend the use of tapes longer than
90 minutes except for a long continuous recording or
playback. They are very thin and tend to stretch easily.
On handling cassettes
• To prevent the heads and tape path from getting dirty,
avoid touching the tape surface of a cassette.
• Place cassettes away from equipment with magnets, such
as speakers and amplifiers, which may cause tape
distortion or erase the recordings.
• Do not expose cassettes to direct sunlight, extremely cold
temperature, or moisture.
13
Page 14
Additional Information
Cleaning
Head assembly
Pinch rollers
Capstans
Erasing head
Recording/playback head
Demagnetizing the heads
After 20 to 30 hours of use, or when you notice a
hissing sound or loss of high frequencies, demagnetize
the heads with a commercially available demagnetizer
for tape decks. Please refer to the instructions of the
demagnetizer.
RELAY
Aa
+–
)
0)0
p
ª·
p ª·
OFFBC
PRr
§§
§
2
Cleaning the heads and tape path
Clean the heads and tape path of the tape deck after
every 10 hours of operation to guard against:
• low-quality sound
• a decrease in sound level
• excessive wow or flutter
• sound dropout
• incomplete erasure
• impairment of recording function
To ensure better recording, we recommend that you
clean the heads and tape path before every recording.
1 Press § to open the cassette holder. Grasp the
front cover on both sides and gently lift to remove
it.
2 With the tape deck turned off, wipe the heads, the
pinch rollers and the capstans with a cotton swab
slightly moistened with alcohol or a commercially
available cleaning fluid for tape decks.
14
3 Replace the front cover.
Page 15
Troubleshooting
If you’ve experienced any of the following difficulties
while using the tape deck, use this troubleshooting
guide to help you remedy the problem. Should the
problem persist, consult your nearest Sony dealer.
The function buttons do not work.
/ The tape deck has been just turned on and does
not operate for about 3 seconds. Wait until P
stops flashing.
/ Check that the cassette is inserted correctly and
the cassette holder is closed completely.
The tape deck does not play or record.
/ There is no cassette in the cassette holder.
/ The tape has come to the end.
/ The tape is slack. Take up the tape slack.
/ The record-protect tab has been removed from
the cassette (see page 13).
/ Make sure the amplifier setting is correct.
/ Check that the tape deck connections are
secure.
/ The heads and tape path are dirty. Clean them
(see page 14).
/ The recording/playback head is magnetized.
Demagnetize it (see page 14).
Additional Information
The DOLBY NR function does not work properly during
playback.
/ The Pitch Control function is on and the
frequency characteristics of the sound is
altered. Push the PITCH CONTROL button
again to turn off the function (TC-WE525 only).
There is excessively loud tape transport noise during
fast-forwarding or rewinding.
/ This noise is caused by the cassette and is not a
mechanical problem.
§ does not work.
/ There has been a power failure or the power
cord has been disconnected during tape
operation. Reconnect the power.
There is a short break in sound output during playback.
/ You pressed ), 0, or p on one deck while
the other deck was playing.
Or you pressed PAUSE P, ·, or ª on deck B
while deck A was playing.
”--E--“ appears in the display.
/ All the operation buttons and controls on the
deck do not work.
Turn off the deck, then turn it on.
There is excessive wow, flutter or sound drop-out.
/ The capstans and pinch rollers are dirty. Clean
them (see page 14).
There is a decrease in sound level, sound drop-out, or
poor reproduction of high frequencies./The tape does not
erase completely./Noise increases.
/ The recording/playback or erasing head and
tape path are dirty. Clean them (see page 14).
/ The recording/playback or erasing head is
magnetized. Demagnetize it (see page 14).
There is hum or noise.
/ The tape deck is placed near a TV or VCR.
Move the tape deck away from the TV or VCR.
/ The tape deck is placed on or under the
amplifier. Move the tape deck away from the
amplifier.
There is an unbalanced tone.
/ Check that DOLBY NR position is the same as
when the tape was recorded.
/ The tape deck is placed near a TV or VCR.
Move the tape deck away from the TV or VCR.
The tape stops before the tape has been fully rewound.
/ The tape is slack. Take up the tape slack.
/ The cassette shell is bent. Use another cassette.
15
Page 16
Additional Information
Specifications
System
Recording system
4-track 2-channel stereo
Fast-winding time (approx.)
100 sec. (with Sony C-60 cassette)
General
Power requirements
Where purchased Power requirements
U.S.A.
U.K., China and certain
countries in Asia
Australia
120 V AC, 60 Hz
220 – 230 V AC, 50/60 Hz
240 V AC, 50/60 Hz
Bias
AC bias
Signal-to-noise ratio (at peak level and weighted with Dolby NR off)
Type I tape, Sony Type I (NORMAL): 55 dB
Type II tape, Sony Type II (HIGH): 57 dB
Type IV tape, Sony Type IV (METAL): 58 dB
S/N ratio improvement (approximate values)
With Dolby B NR on: 5 dB at 1 kHz, 10 dB at 5 kHz
With Dolby C NR on: 15 dB at 500 Hz, 20 dB at 1 kHz
Harmonic distortion
0.4% (with Type I tape, Sony Type I (NORMAL):
160 nWb/m 315 Hz, 3rd H.D.)
1.8% (with Type IV tape, Sony Type IV (METAL):
250 nWb/m 315 Hz, 3rd H.D.)
Frequency response (Dolby NR off)
Type I tape, Sony Type I (NORMAL): 30 – 16,000 Hz
(±3 dB, IEC)
Type II tape, Sony Type II (HIGH): 30 – 17,000 Hz
(±3 dB, IEC)
Type IV tape, Sony Type IV (METAL): 30 – 19,000 Hz
(±3 dB, IEC)
30 – 13,000 Hz (±3 dB, –4 dB recording)
Type I tape, Sony Type I (NORMAL): 20 – 17,000 Hz
(±6 dB)
Type II tape, Sony Type II (HIGH): 20 – 18,000 Hz
(±6 dB)
Type IV tape, Sony Type IV (METAL): 20 – 20,000 Hz
(±6 dB)
Power consumption
18 W
Dimensions (approx) (w/h/d)
Model for U.K. and Australia:
430 × 120 × 310 mm (17 × 4 3/4 × 12 1/4 in.)
Model for other countries:
430 × 120 × 290 mm
including projecting parts and controls
Mass (approx.)
4 kg (8 lbs 13 oz)
Supplied accessories
Audio connecting cords (2 phono plugs - 2 phono
plugs) (2)
Optional accessory
Remote commander RM-J920
For more information on the availability of the remote
commander, contact your nearest Sony dealer.
Design and specifications are subject to change without
notice.
16
Wow and flutter
±0.15% W. Peak (IEC)
0.1% W. RMS (NAB)
±0.2% W. Peak (DIN)
Inputs
Line inputs (phono jacks)
Sensitivity: 0.16 V
Input impedance: 47 kilohms
Outputs
Line outputs (phono jacks)
Rated output level: 0.5 V at a load impedance of
47 kilohms
Load impedance: Over 10 kilohms
Headphones (stereo phone jack) (TC-WE525/WE425 only)
Output level: 0.25 mW at a load impedance of
32 ohms
Page 17
Index
Index
A, B
Accessories
optional 16
supplied 4, 16
Adjusting
recording level automatically. See Auto rec
level
recording level manually 7
volume 5
Audio connecting cord 4, 16
Auto play 5
Auto rec level 8
C
Cassette. See Tape
CD Synchro-Recording 11
Cleaning
cabinet 13
heads and tape path 14
Connecting. See Hooking up
D, E, F, G
Difference among the models 3
Dolby HX PRO system 7
Dolby NR system 5, 7
Dubbing
high-speed dubbing 9
normal-speed dubbing 9, 10
only specific portions 10
Fader 9
Fading
in. See Fader
out. See Fader
H, I, J, K, L, M, N, O
Heads
cleaning 14
demagnetizing 14
Hooking up
hookups 4
overview 4
Insert
blank space 10
cassette 5, 6
Locating
beginning of the tape 5
Monaural (2P) mini-plug cord 4, 11
Index
T, U, V, W, X, Y, Z
Tape
ejecting 5, 7
notes 13
path cleaning 14
protect the recording 13
type 13
Troubleshooting 15
Unpacking 4
Names of Controls
Buttons
ARL (automatic recording level adjustment) 8
FADER 9
HIGH/NORMAL 9
PAUSE P 5, 7 – 10, 15
PITCH CONTROL 5
REC r (recording) 6 – 8
REC MUTING R (record muting) 10
SYNCHRO 11
§ (eject) 5 – 7, 14, 15
p (stop) 5, 7 – 11, 15
· (forward play) 5 – 11, 15
ª (reverse play) 5, 7, 9, 11, 15
), 0 (fast-forwarding and rewinding) 5, 15
Switches
DIRECTION MODE 5, 6, 9, 11
DOLBY NR 5, 7, 10, 15
1/u (or U) (power) 5, 6
Controls
PITCH CONTROL 5
REC (recording) LEVEL 7 – 9
Jacks
CONTROL A1 4
LINE IN 4
LINE OUT 4
PHONES 5
Others
AUTO indicator 6, 8, 9
Cassette holder 5, 6, 14
Peak level meters 7
P, Q, R, S
Pitch control function 5
Playing
auto play 5
basic play 5
Record muting 10
Recording
basic recording 6
CD Synchro-Recording 11
Remote commander 16
Specifications 16
17
Page 18
Index
18
Page 19
Index
19
Page 20
Index
Sony Corporation Printed in China
20
Loading...
