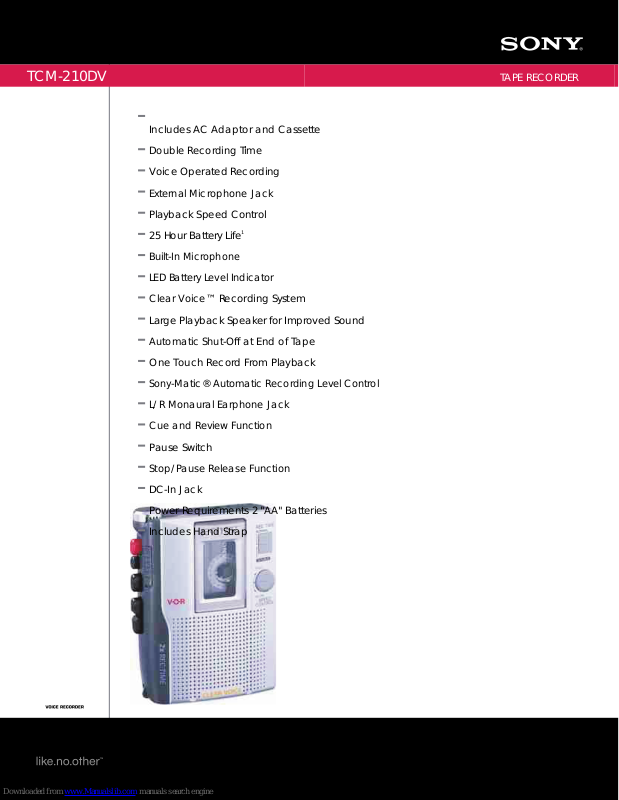

Sony TCM-210DV Marketing Specifications

TCM-210DV

TAPE RECORDER

Includes AC Adaptor and Cassette

Double Recording Time

Voice Operated Recording

External Microphone Jack

Playback Speed Control

25 Hour Battery Life

1

Built-In Microphone

LED Battery Level Indicator

Clear Voice

™ Recording System

Large Playback Speaker for Improved Sound

Automatic Shut

-Off at End of Tape

One Touch Record From Playback

Sony-Matic® Automatic Recording Level Control

L/R Monaural Earphone Jack

Cue and Review Function

Pause Switch

Stop/Pause Release Function

DC-

In Jack

Power Requirements 2 "AA" Batteries

Includes Hand Strap

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com

Last Updated: 07/02/2008

TCM-210DV

TAPE RECORDER

Please visit the Dealer Network for current information at

www.sony.com/dn

Features

Includes AC Adaptor and Cassette to conserve batteries and

provide virtually unlimited recording and playback time when
an AC power source is available

Double Recording Time gives you the option of recording on a
standard cassette at either normal speed or half the normal
speed, for extended recording or dictation sessions

Voice Operated Recording activates the recorder only when
audible sound is present, conserving tape and eliminating
soundless passages

External Microphone Jack allows connection of an external
microphone for special recording applications

Playback Speed Control lets you adjust playing speed as
much as +30% or -15% for easier review of recorded
information

25 Hour Battery Life is made possible by advanced

technology which extends battery power beyond previous
limits

1

Built-In Microphone for extra convenience eliminates the need
for an external microphone in many situations

LED Battery Level Indicator provides visible indication of
battery power remaining

Clear Voice™ Recording System sound system enhances
voice quality during recording and playback for greater clarity

Large Playback Speaker for Improved Sound lets you and
others hear playback without an earphone

Automatic Shut-Off at End of Tape helps reduce mechanical
wear, reduces battery consumption, and lets you know when
you have reached the end of the tape

One Touch Record From Playback for simplified quick
play/record operation

Sony-Matic® Automatic Recording Level Control uses
advanced circuitry to ensure correct recording level

L/R Monaural Earphone Jack provide sound in both ears when
using an optional stereo headset

Cue and Review Function provides sound during fast forward
and rewind modes to help find specific passages

Pause Switch temporarily halts recording or playback without
leaving that mode, and resumes at the flick of a button

Stop/Pause Release Function automatically turns off the
pause switch whenever the stop button is pressed, to prevent
loss of recording

DC-In Jack

permits two-way power operation, using available

replaceable batteries or optional AC power adapter

Power Requirements 2 "AA" Batteries

Includes Hand Strap provides a secure, convenient band to

hold onto or carry the unit.

Specifications

General

Type of Use: Portable Voice Recorder
Recording Media: Standard Audio Cassette
Recording and Playback Times: up to 180 minutes (mono)

Audio

Recording System: 2-Track, 1-Channel Standard Cassette
Microphone: Built-in
Frequency Range: 250-6300Hz
Tape Speed: 2 Speeds (4.8cm/s, 2.4cm/sec)

Audio Features

Recording Features: Voice Operated Recording (VOR), Clear

Voice

™ Sound System, One-Touch Record, Sony-Matic

®

Automatic Recording Level

Convenience

Automatic Shut-off:

Yes

Convenience Features

Search Features:

Cue and Review

Hardware

Display: N/A

Power

Output Power: 350mW
Power Requirements: 120V AC Adaptor (Optional)
Battery Life (Approx.): Rec/Play: 25 Hours Continuous Recording

w/Sony Alkaline Batteries (optional)

Battery Type: "AA" x 2

Speaker

Type: Built-in
Speaker Dimensions: 2" (50mm) diameter

Inputs and Outputs

Microphone Input: 1
DC-In:

3V

Headphone Output(s): 1 (Mini)

Dimensions

Weight: 6 oz (169 g)
Measurements: W 3 3/8" x H 4 1/2" x D 1 3/8" (86.9 x 116.3 x

36.5mm) including projecting parts and controls

Supplied Accessories

AC-E30HG AC Adaptor
Tape (HF60 x 1)

Color:

Silver

UPC Code:

027242621992

1. Actual battery time may vary based upon usage pattern.
