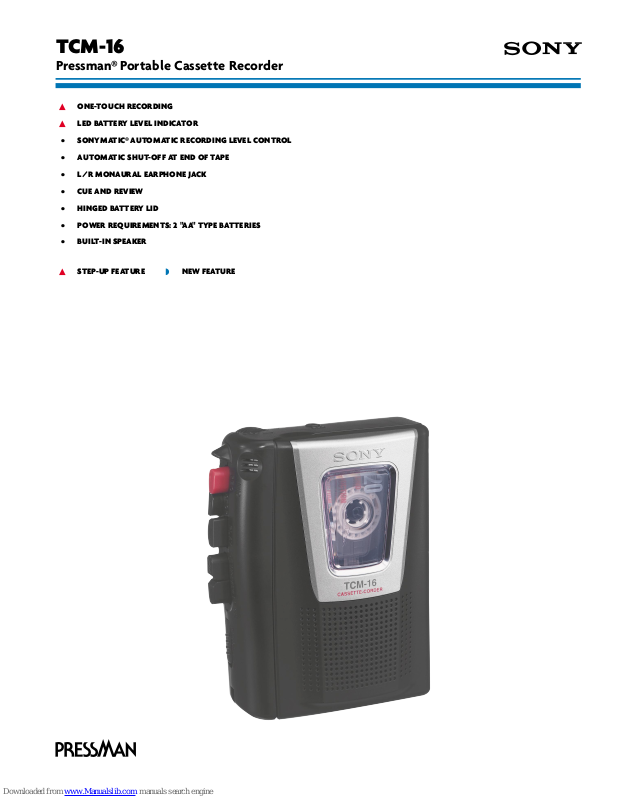

Sony TCM-16 Operating Instructions (primary manual) Specifications

TCM-16

Pressman®Portable Cassette Recorder

▲ ONE-TOUCH RECORDING
▲ LED BATTERY LEVEL INDICATOR

• SONYMATIC®AUTOMATIC RECORDING LEVEL CONTROL

• AUTOMATIC SHUT-OFF AT END OF TAPE

• L/R MONAURAL EARPHONE JACK

• CUE AND REVIEW

• HINGED BATTERY LID

• POWER REQUIREMENTS: 2 "AA" TYPE BATTERIES

• BUILT-IN SPEAKER

▲ STEP-UP FEATURE ◗ NEW FEATURE

TCM-16

Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002

features

▲

ONE TOUCH RECORDING

for simplified, quick play/record operation

▲

LED BATTERY LEVEL INDICATOR

provides a visible signal of the battery

power remaining

• SONYMATIC®AUTOMATIC RECORDING LEVEL CONTROL

uses advanced
circuitry to ensure correct recording sound levels for the particular
situation

• AUTOMATIC SHUT-OFF AT END OF TAPE

pops up buttons to conserve
battery power, reduces mechanical wear, and alerts you that the end of
the tape has been reached

• L/R MONAURAL EARPHONE JACK

provides sound in both ears when

using with an optional stereo headset

• CUE AND REVIEW

provides sound during Fast Forward and Rewind modes

to help find specific passages

• HINGED BATTERY LID

helps prevent accidental loss

• BUILT-IN SPEAKER

has excellent quality to monitor tape playback

specifications

RECORDING SYSTEM:

2 track, 1 channel (standard cassette)

FREQUENCY RESPONSE:

250 - 6300 Hz

SPEAKER:

1 7⁄16" (36mm) dia.

POWER REQUIREMENTS:

DC 3V with "AA" x 2 batteries

BATTERY LIFE:

Rec/Play: Approx. 11 hours with Sony alkaline batteries

COLOR:

Black

DIMENSIONS (WHD):

3 5⁄8" x 4 1⁄2" x 1 7⁄16" (91 x 112 x 36mm)

WEIGHT:

6 oz (170g) w/out batteries

©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony,
Pressman and Sonymatic are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
