Sony VPL-X2000U, VPL-X2000E, VPL-X2000M, IFB-X2000E, PSS-2000 Service Manual

SERVICE MANUAL

R

MODEL

...............

VPL-X2000U VPL-X2000E VPL-X2000M

DEST.

..........

US/CND

AEP

E

MODEL

...............

IFB-X2000E PSS-2000 SU-PJ2000

DEST.

..........

AEP

WORLD

LCD DATA PROJECTOR

! W ARNING

This manual is intended for qualified service personnel only. To reduce the risk of electric shock, fire or injuly, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.

WARNING!!

AN ISOLATION TRANSFORMER SHOULD BE USED DURING ANY SERVICE TO AVOID POSSIBLE SHOCK HAZARD, BECAUSE OF LIVE CHASSIS. THE CHASSIS OF THIS RECEIVER IS DIRECTLY CONNECTED TO THE AC POWER LINE.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION!!

AFIN D’EVITER TOUT RISQUE D’ELECTROCUTION PROVENANT D’UN CHÁSSIS SOUS TENSION, UN TRANSFORMATEUR D’ISOLEMENT DOIT ETRE UTILISÉ LORS DE TOUT DÉPANNAGE. LE CHÁSSIS DE CE RÉCEPTEUR EST DIRECTEMENT RACCORDÉ Á L’ALIMENTATION SECTEUR.

ATTENTION AUX COMPOSANTS RELATIFS ÁLA

SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET PAR UNE MAPQUE ! SUR LES SCHÉMAS DE PRINCIPE, LES VUES EXPLOSÉES ET LES LISTES DE PIECES CONT D’UNE IMPORTANCE CRITIQUE POUR LA SÉCURITÉ DU FONCTIONNEMENT. NE LES REMPLACER QUE PAR DES COMPOSANTS SONY DONT LE NUMÉRO DE PIÉCE EST INDIQUÉ DANS LE PRÉSENT MANUEL OU DANS DES SUPPLÉMENTS PUBLIÉS PAR SONY.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-

003.

For the customers in the United Kingdom

WARNING THIS APPARATUS MUST BE EARTHED

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth Blue : Neutral

Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol Y or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Voor de klanten in Nederland

Bij dit produkt zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

The socket-outlet should be installed near the equipment and be easily accessible.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

English

W ARNING

3

(GB)

GB

English

Table of Contents

Overview

Precautions ............................................................... 4 (GB)

Features..................................................................... 6 (GB)

Location and Function of Controls......................... 8 (GB)

Front .............................................................................. 8 (GB)

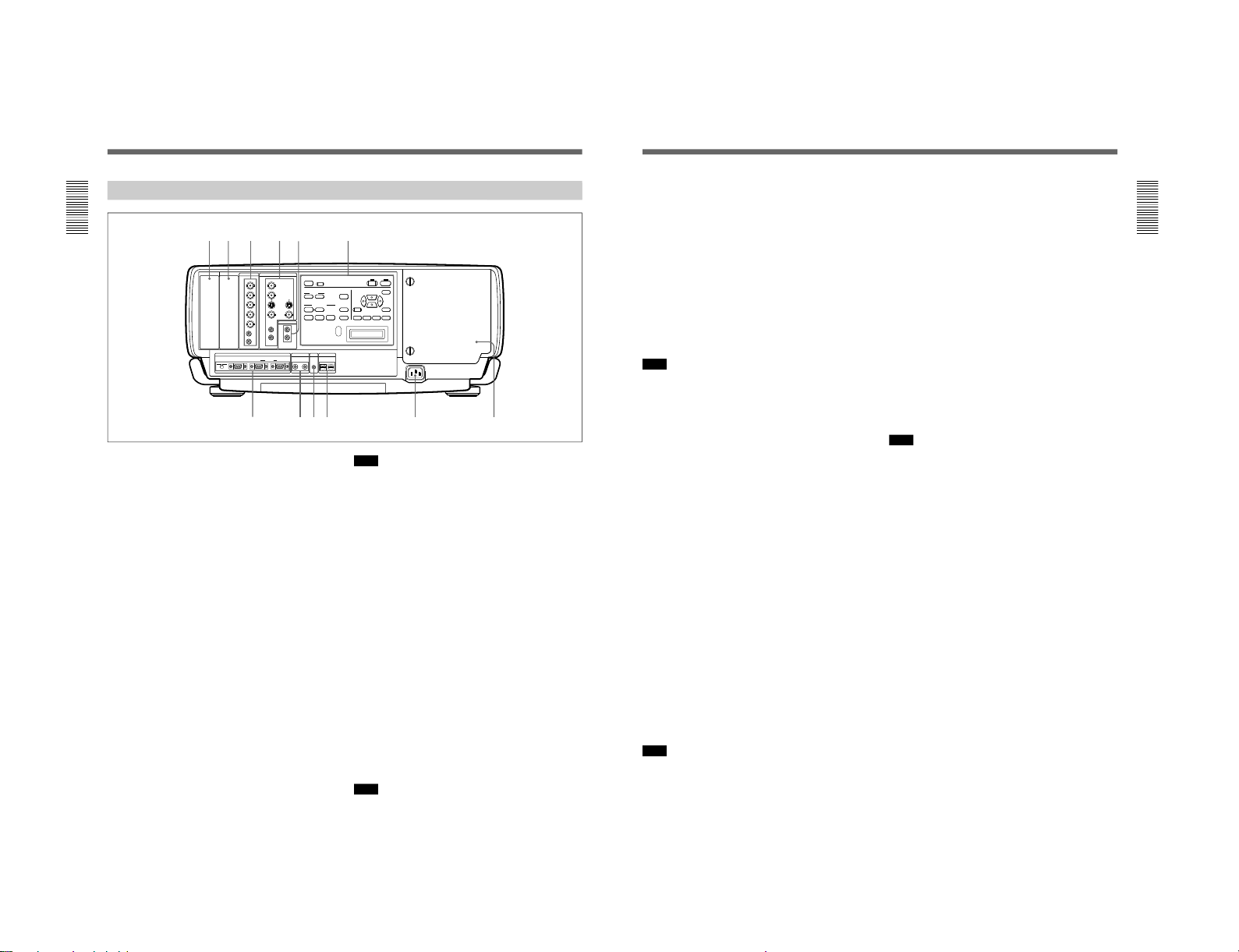

Rear ............................................................................. 12 (GB)

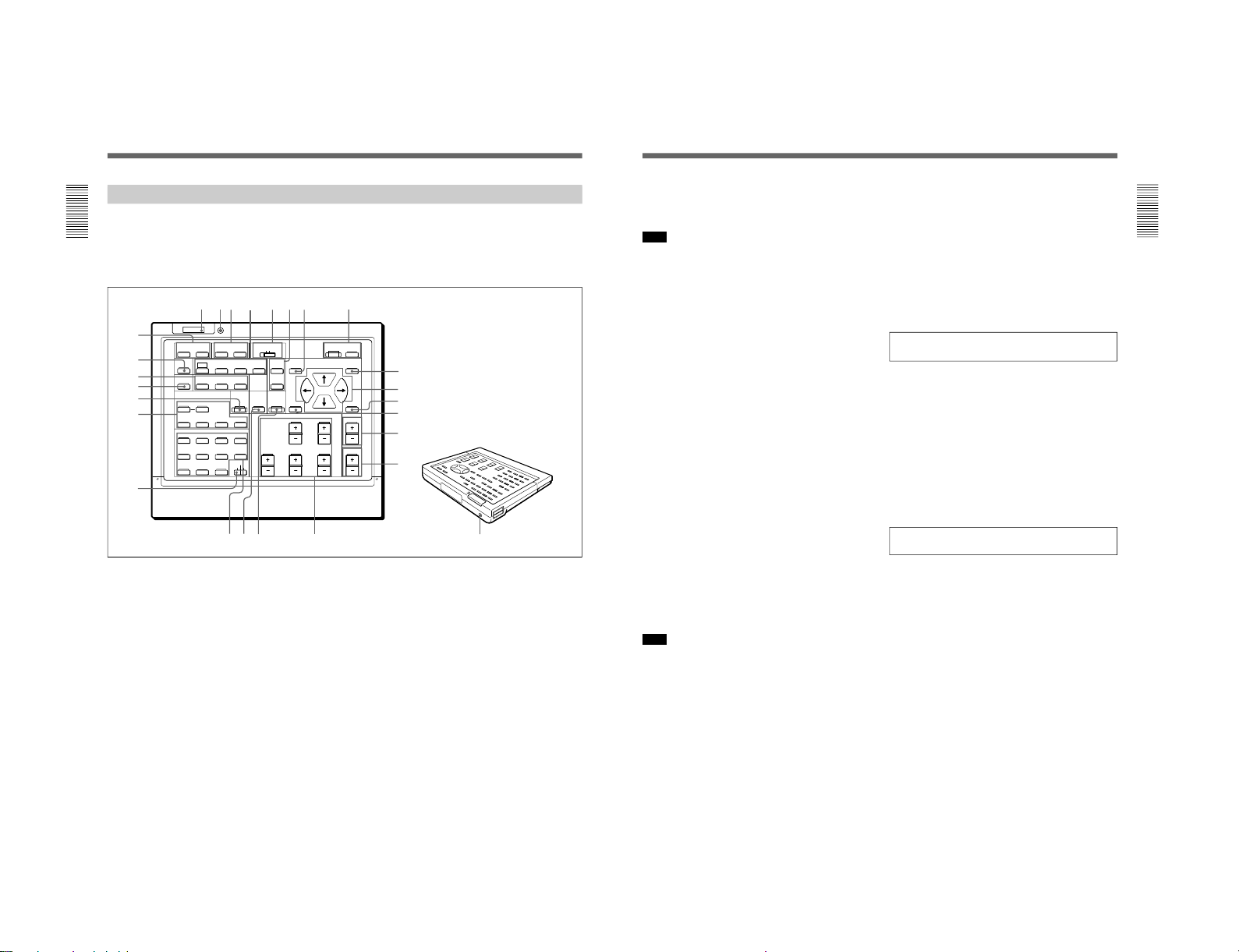

Remote Commander ................................................... 14 (GB)

Setting up and projecting

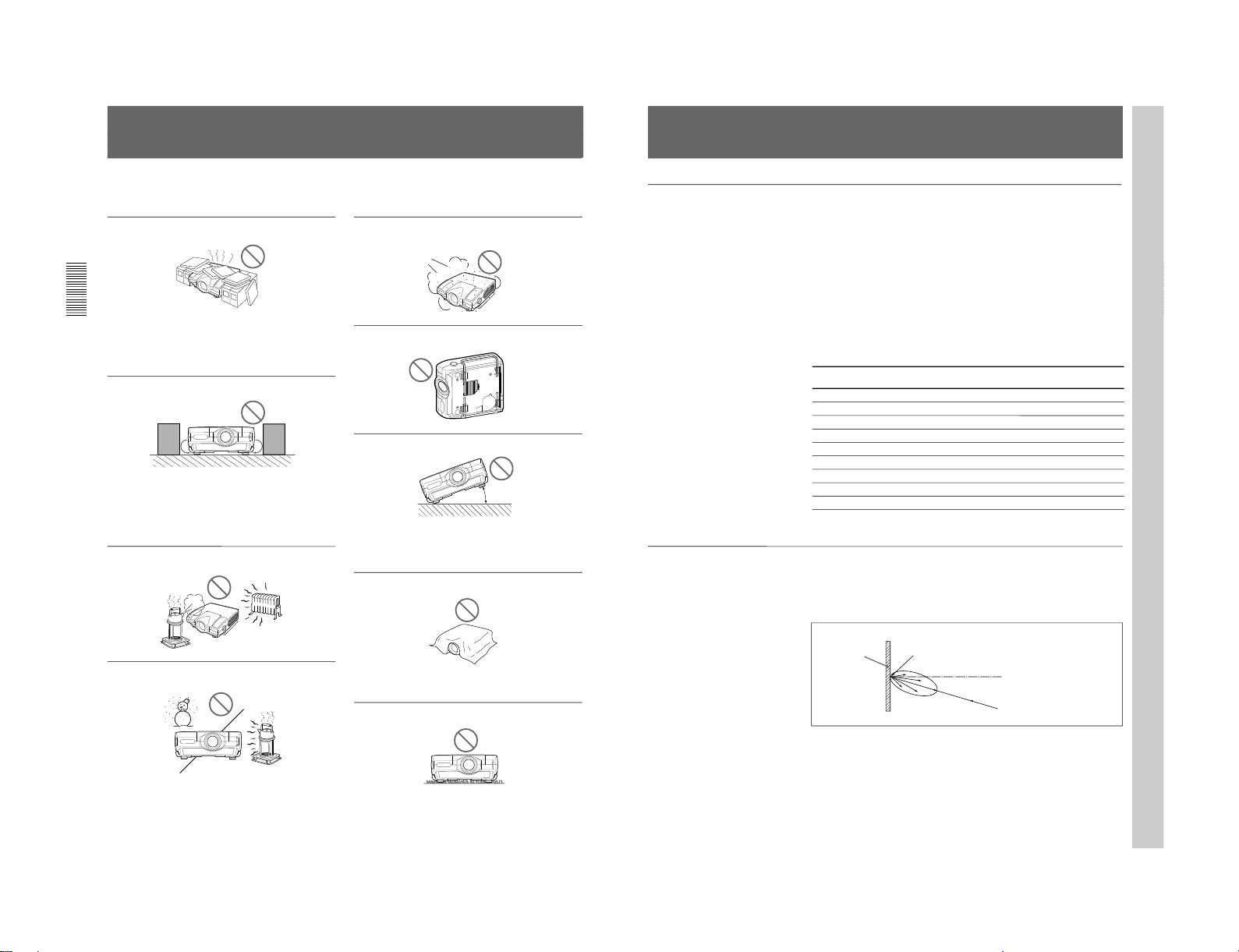

Precautions on Installation.................................... 18 (GB)

Installing the Projector on the Floor..................... 19 (GB)

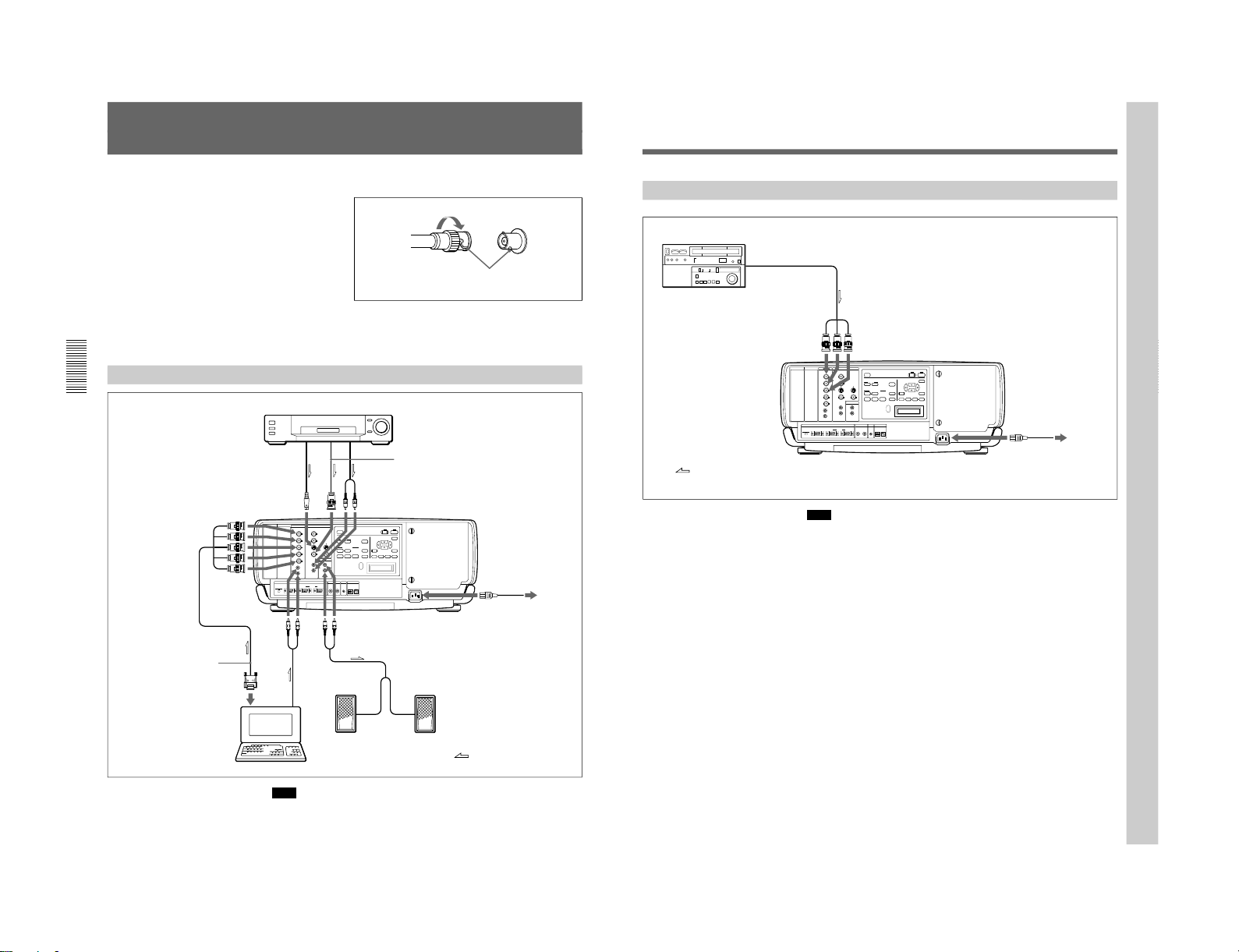

Connecting with a Computer or a VCR ................ 20 (GB)

Projecting ................................................................ 21 (GB)

Adjustments and settings using the menu

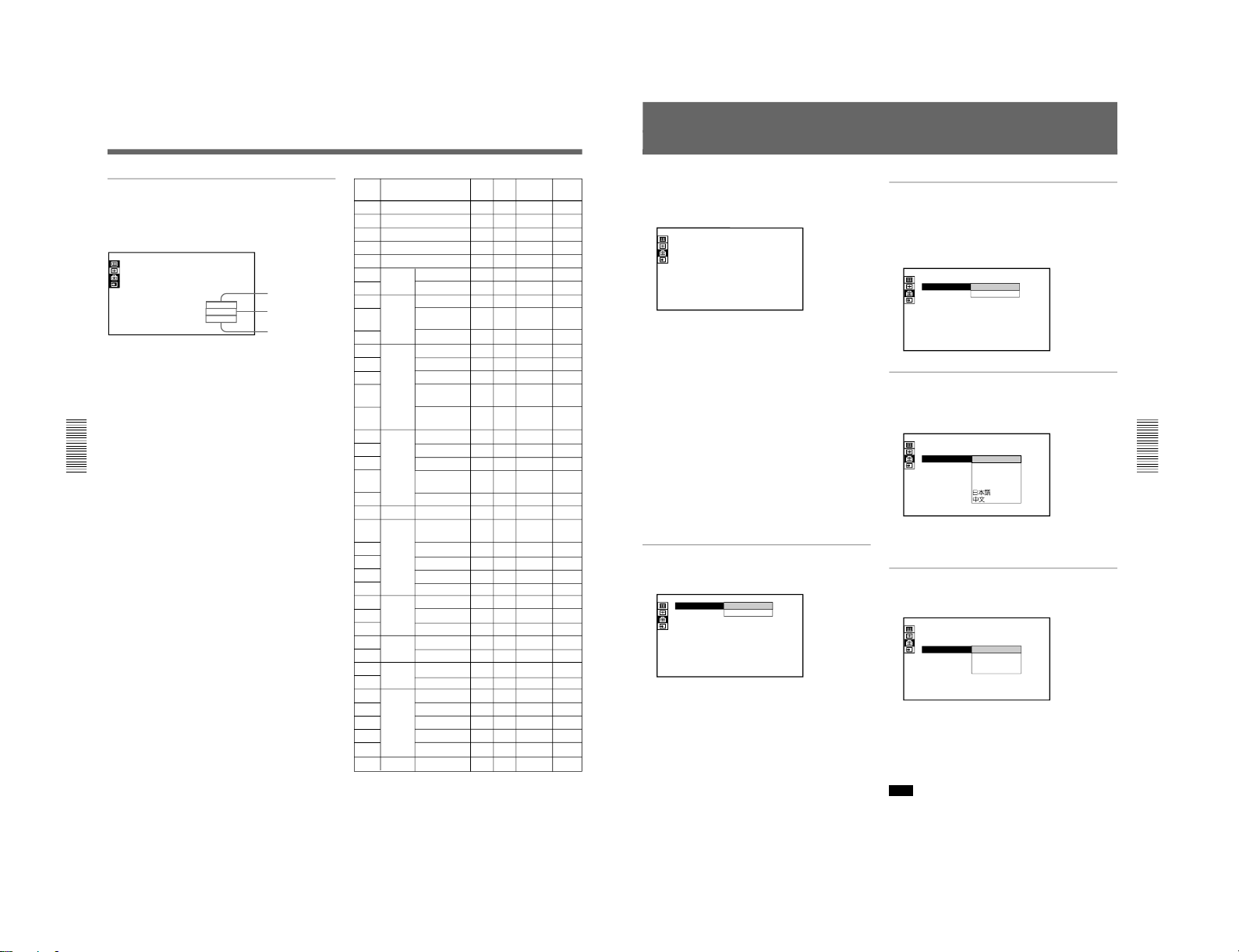

Using the Menu....................................................... 24 (GB)

The PICTURE CTRL Menu ..................................... 25 (GB)

The INPUT SETTING Menu .................................... 27 (GB)

The SET SETTING Menu ........................................ 30 (GB)

The SIGNAL SELECT Menu ................................... 32 (GB)

Installation/connection examples/Index number setting

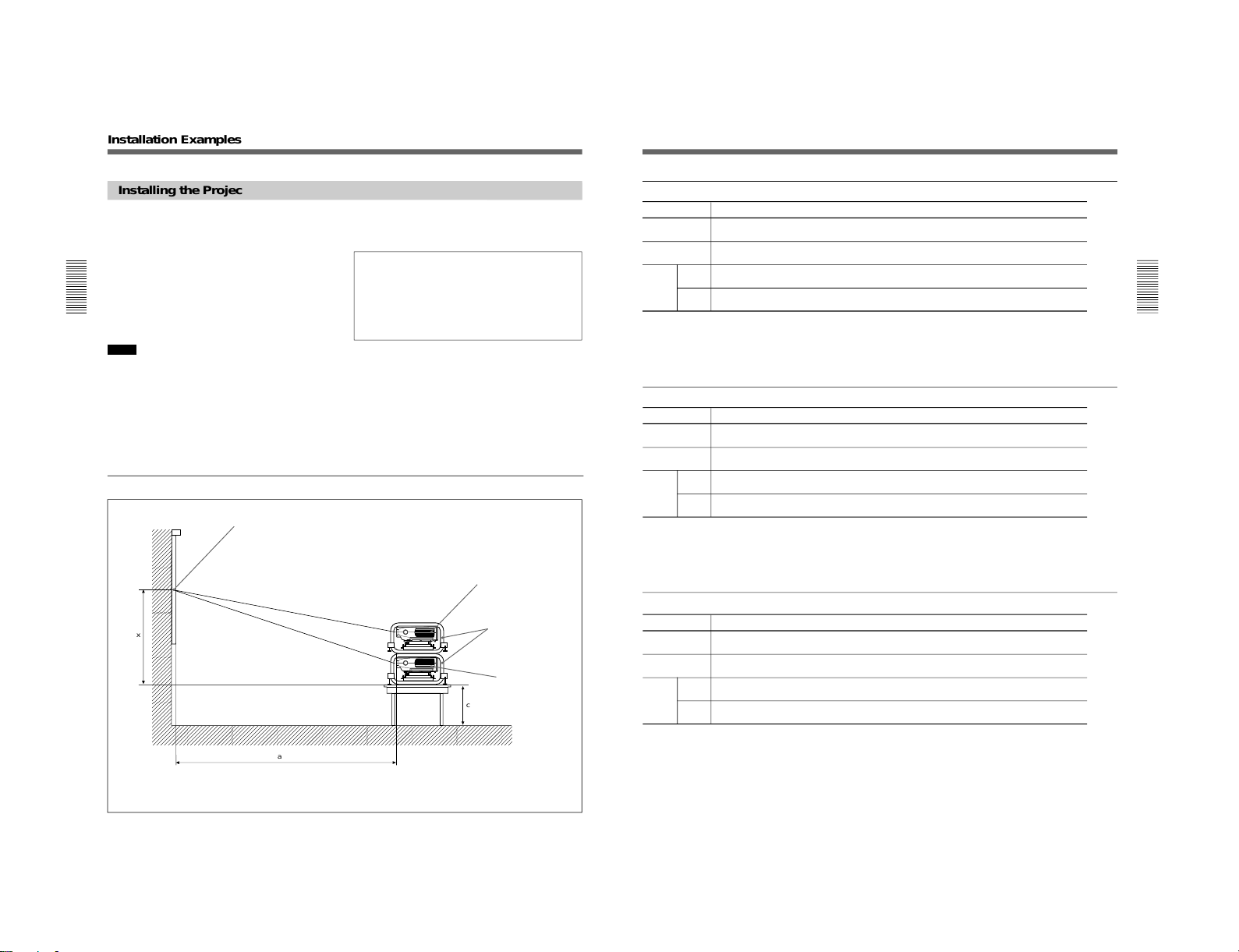

Installation Examples............................................. 33 (GB)

About the Picture Size................................................. 33 (GB)

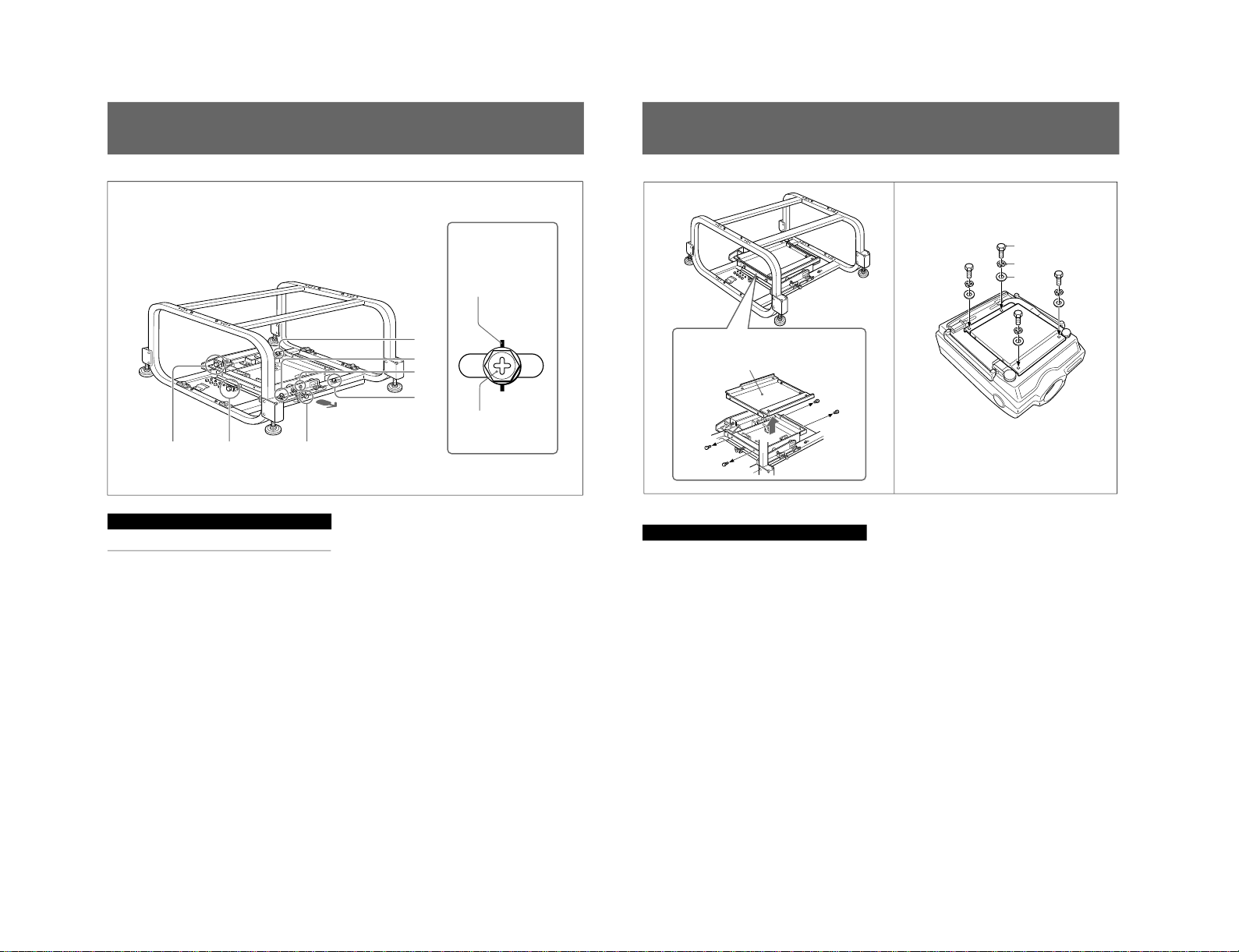

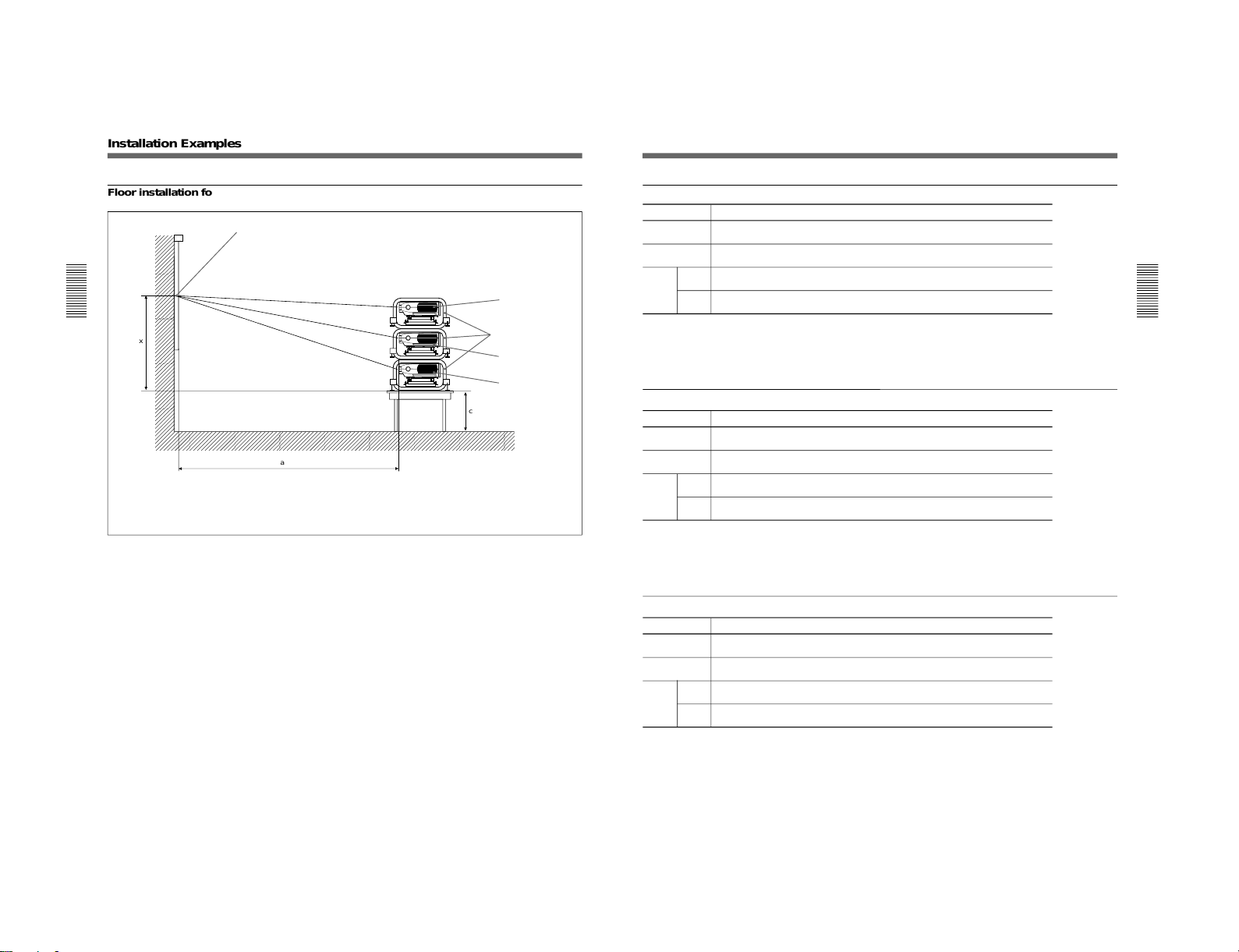

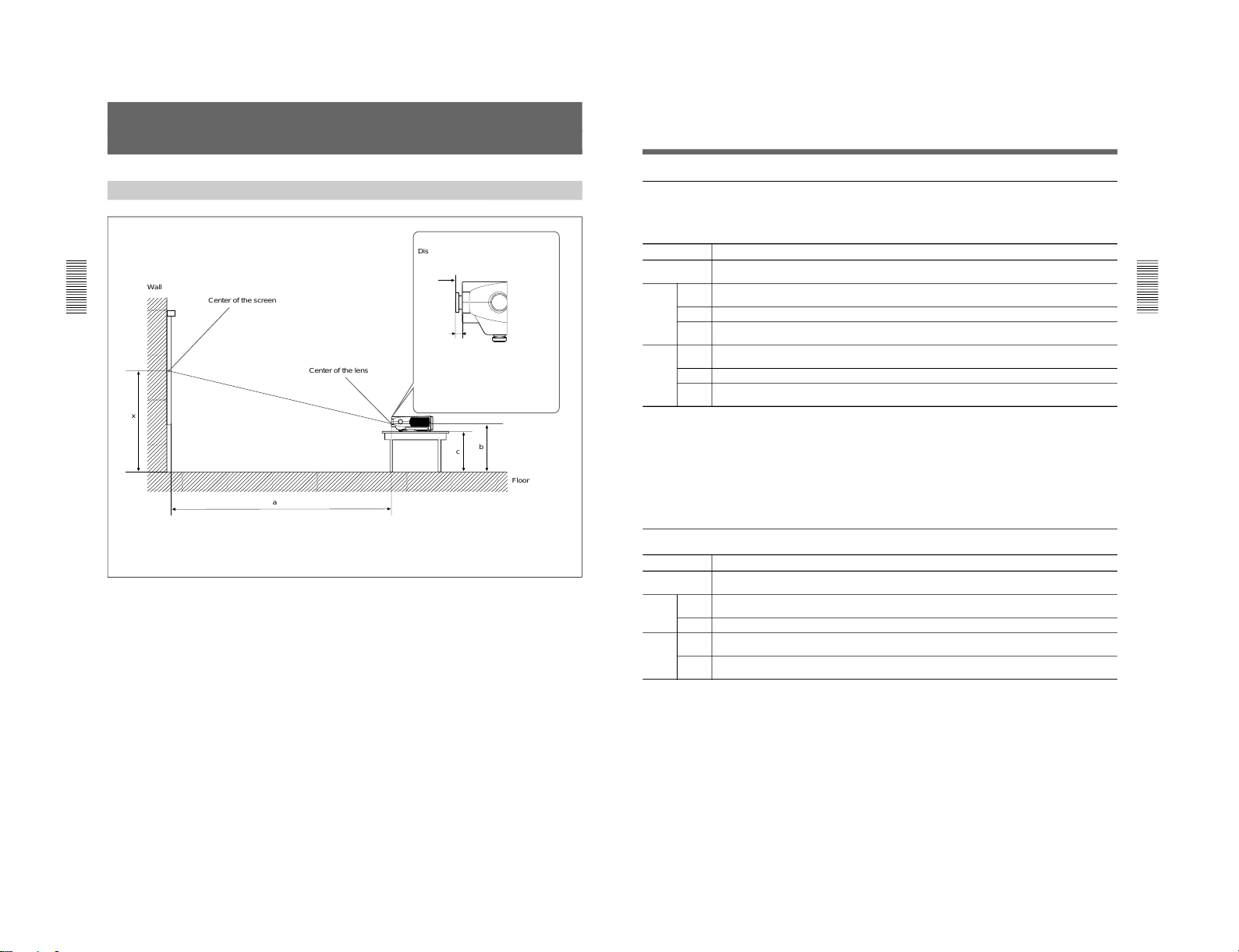

Floor Installation ......................................................... 34 (GB)

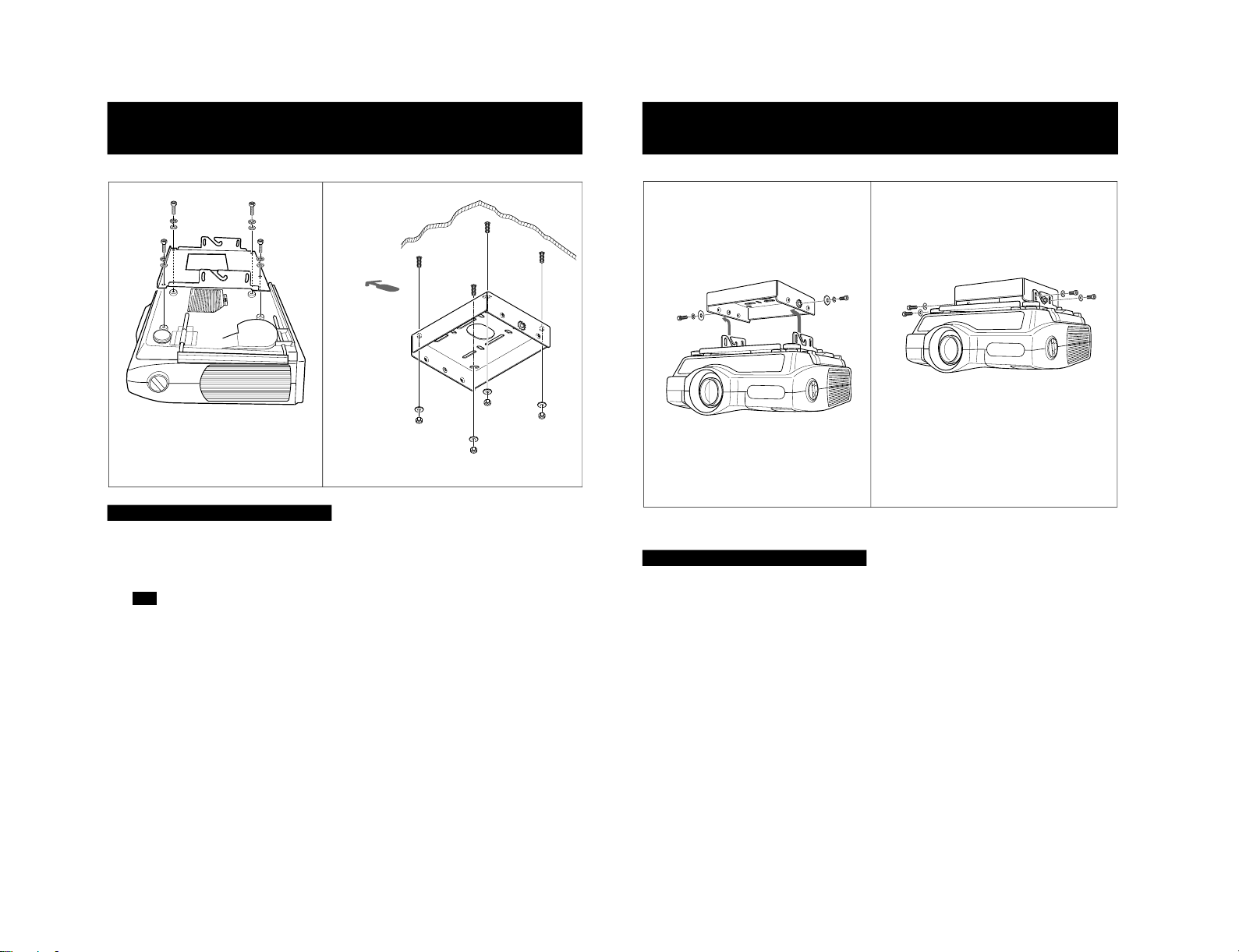

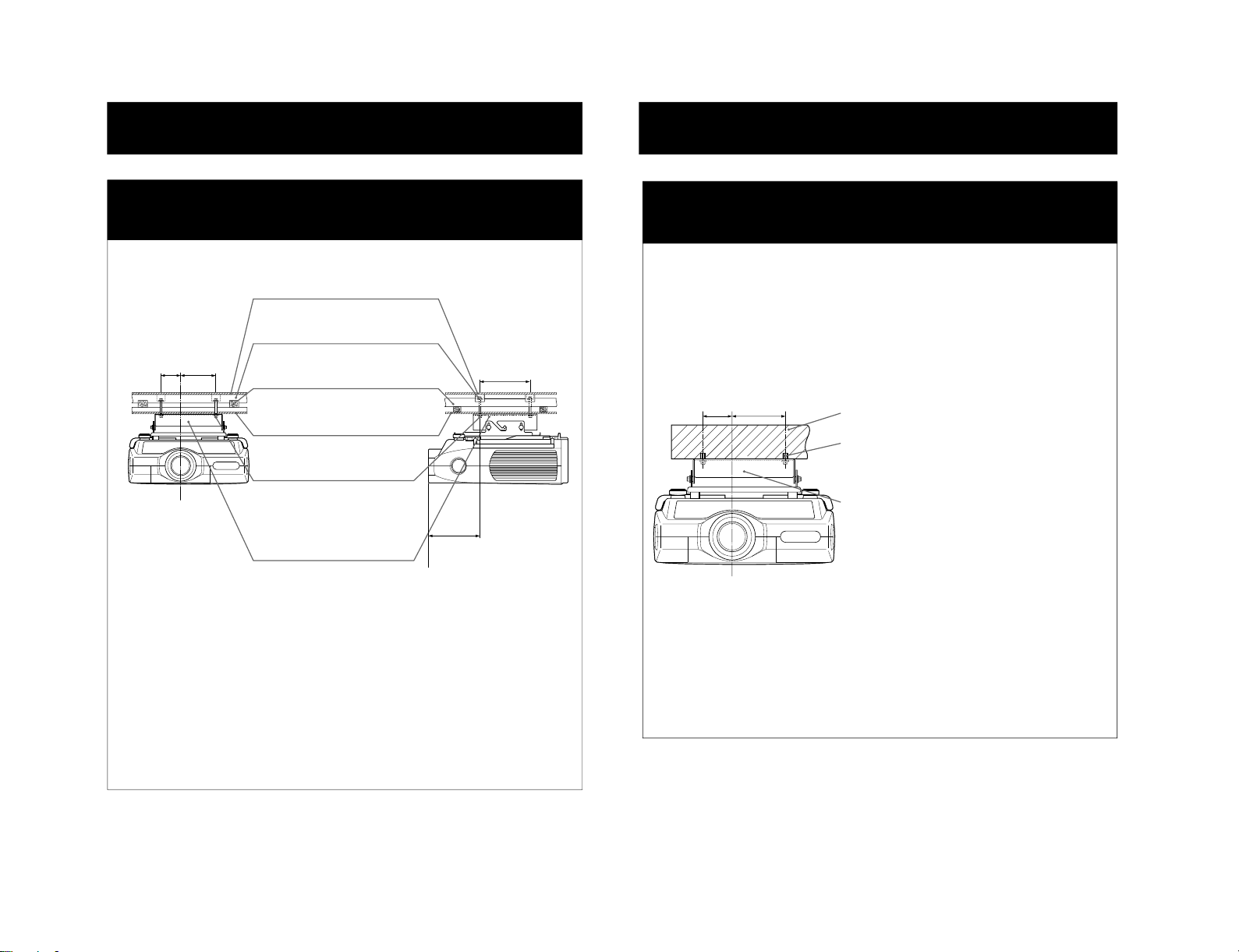

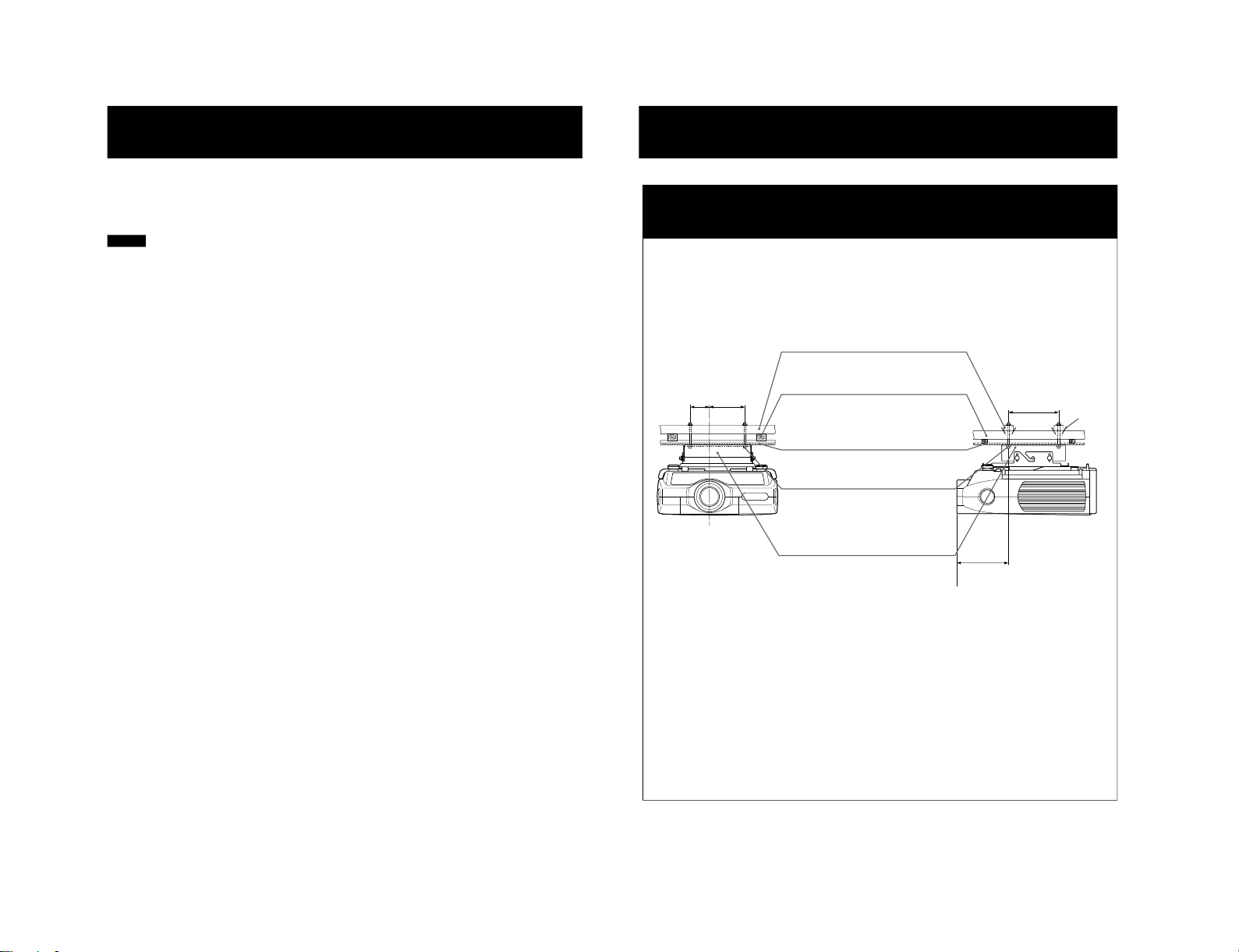

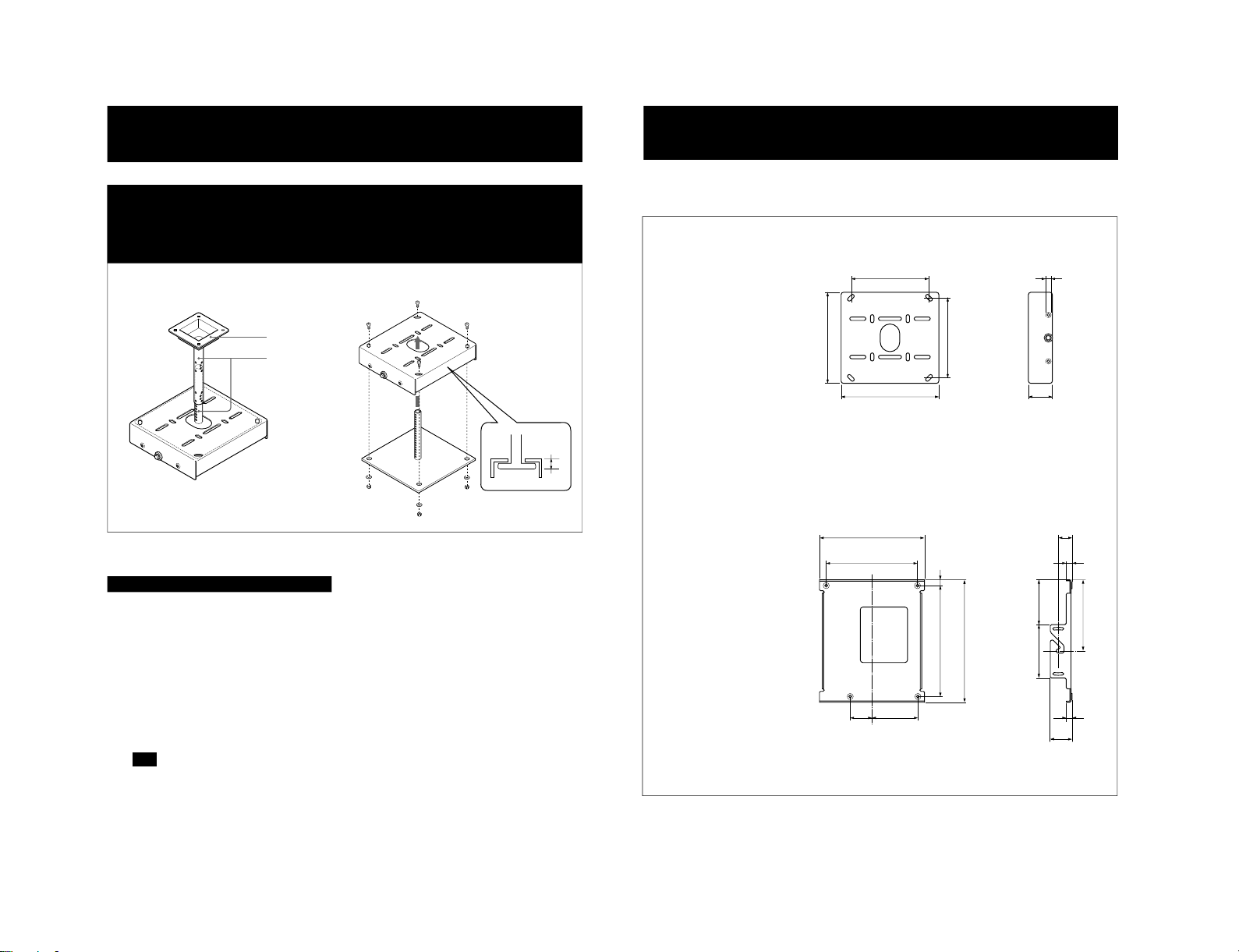

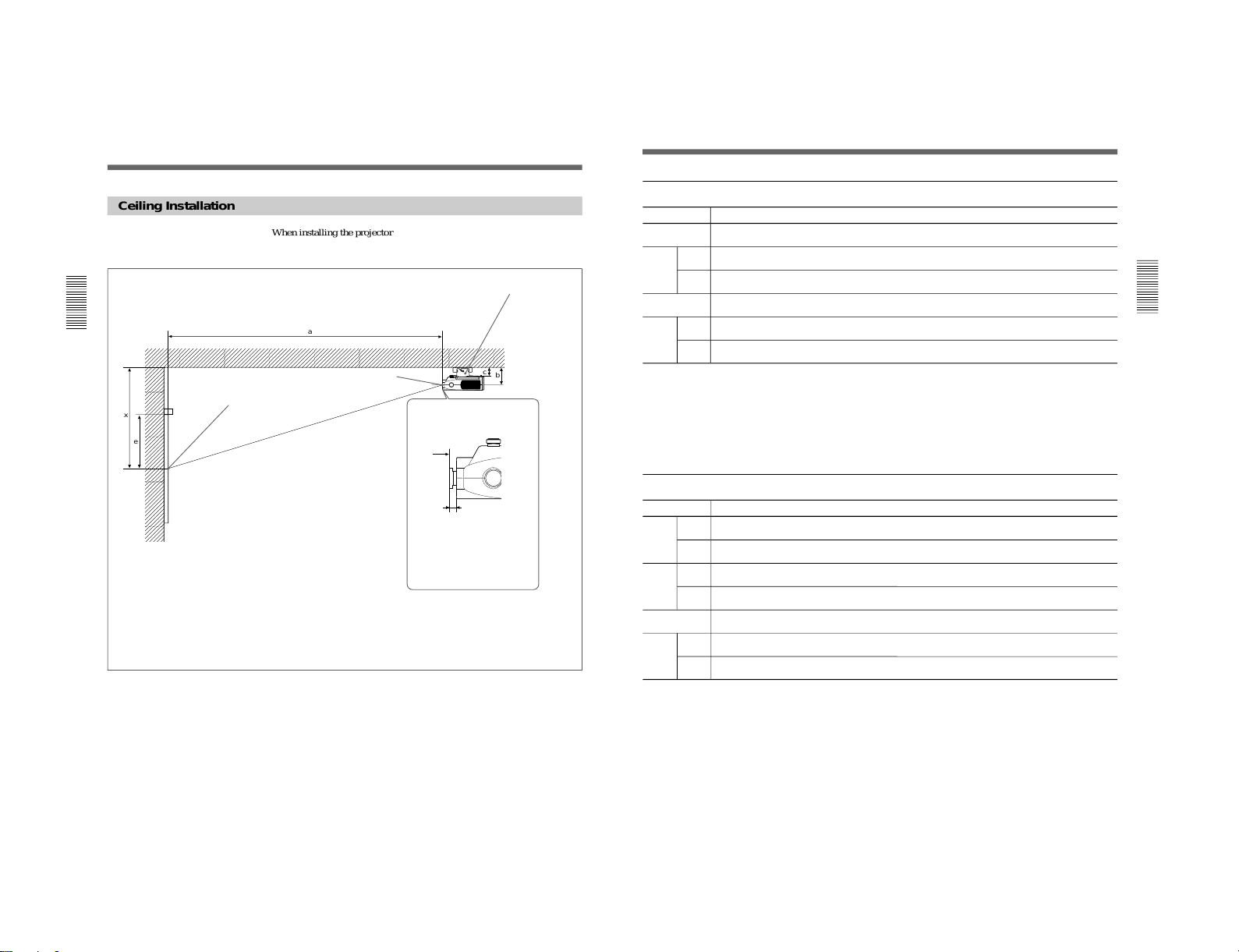

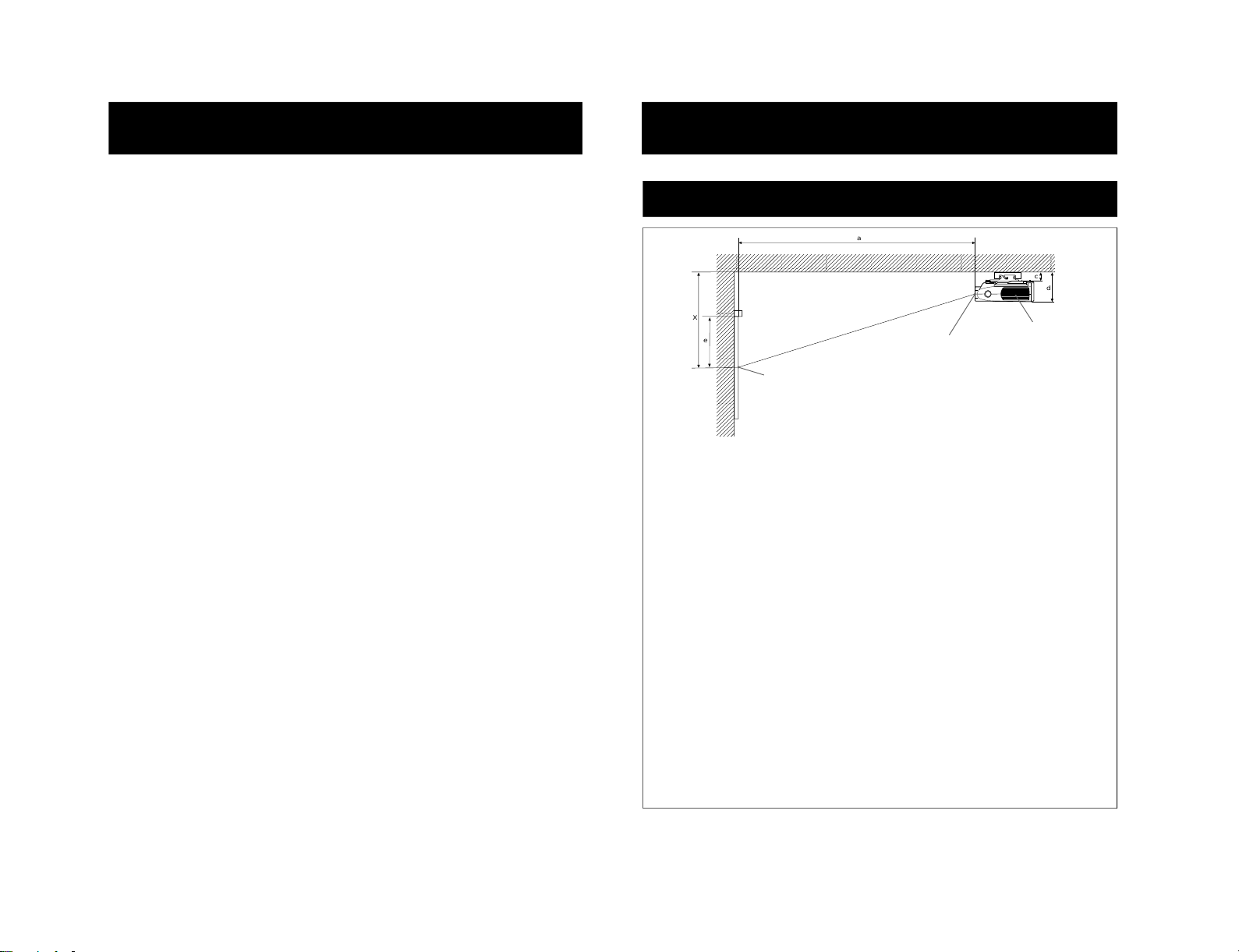

Ceiling Installation...................................................... 38 (GB)

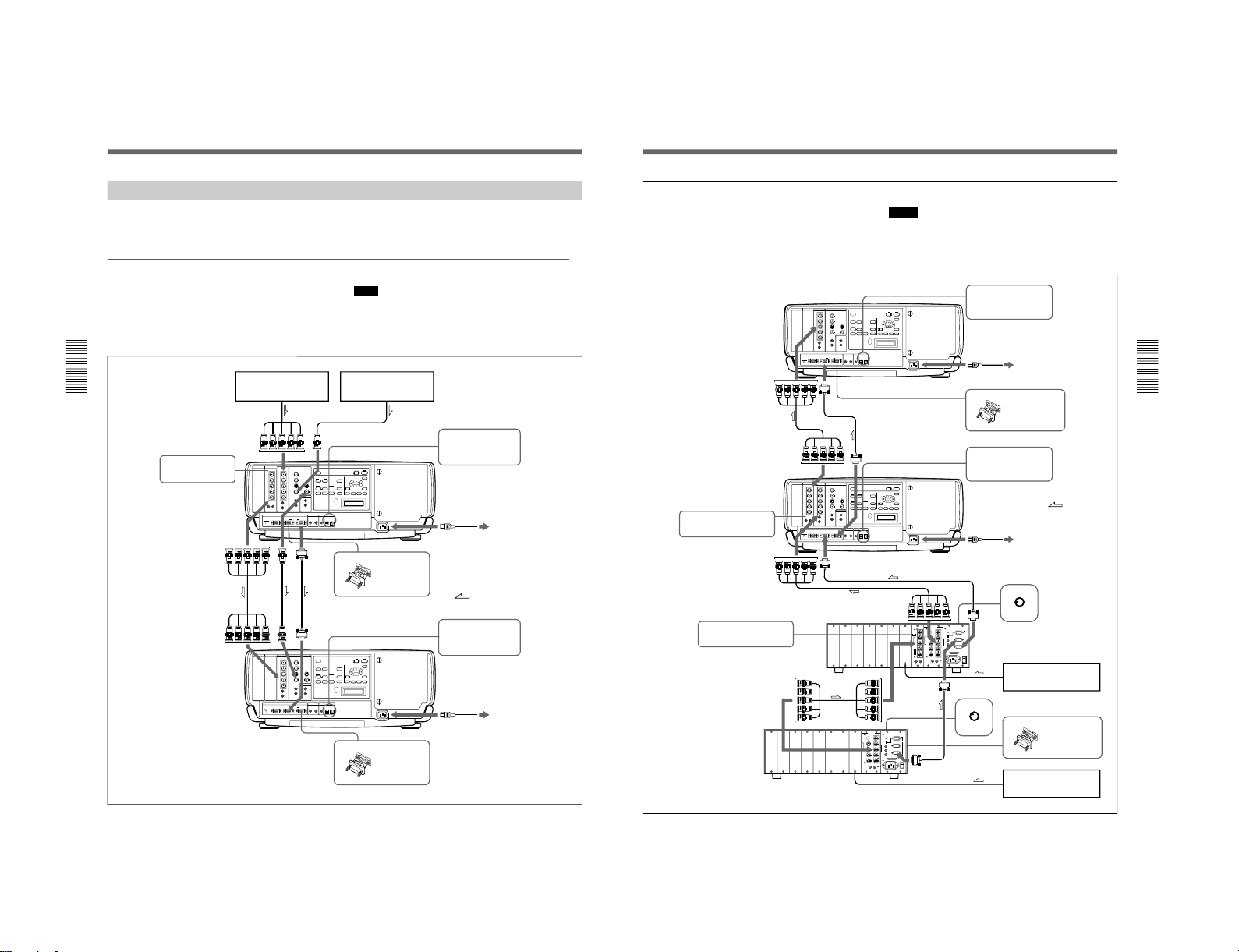

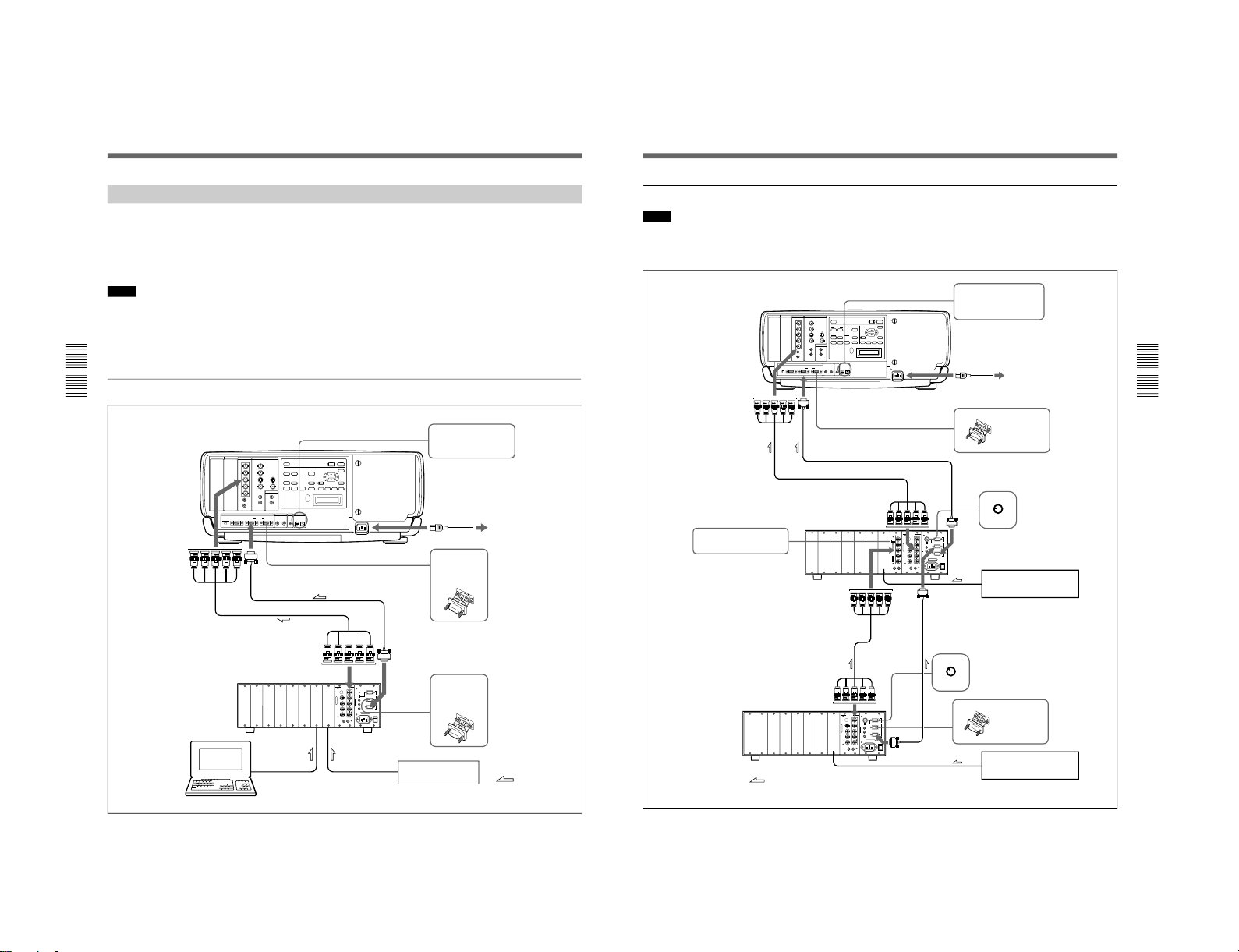

Connection Examples ............................................ 42 (GB)

Connecting 15k RGB/Component Equipment............ 42 (GB)

Connecting the Switcher ............................................. 43 (GB)

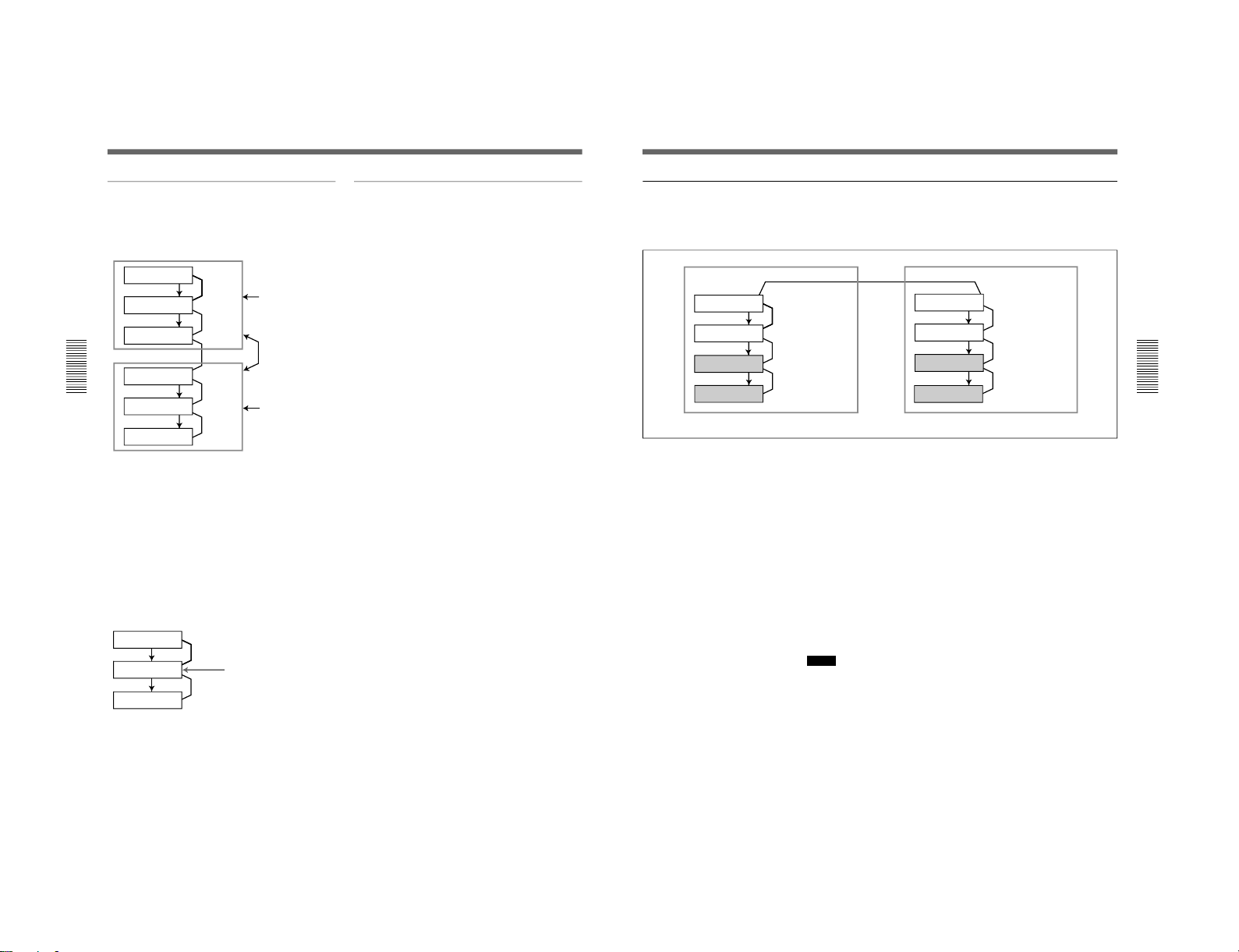

Confirming the System Construction.......................... 44 (GB)

Setting the Index Numbers .................................... 45 (GB)

Maintenance

Maintenance............................................................ 48 (GB)

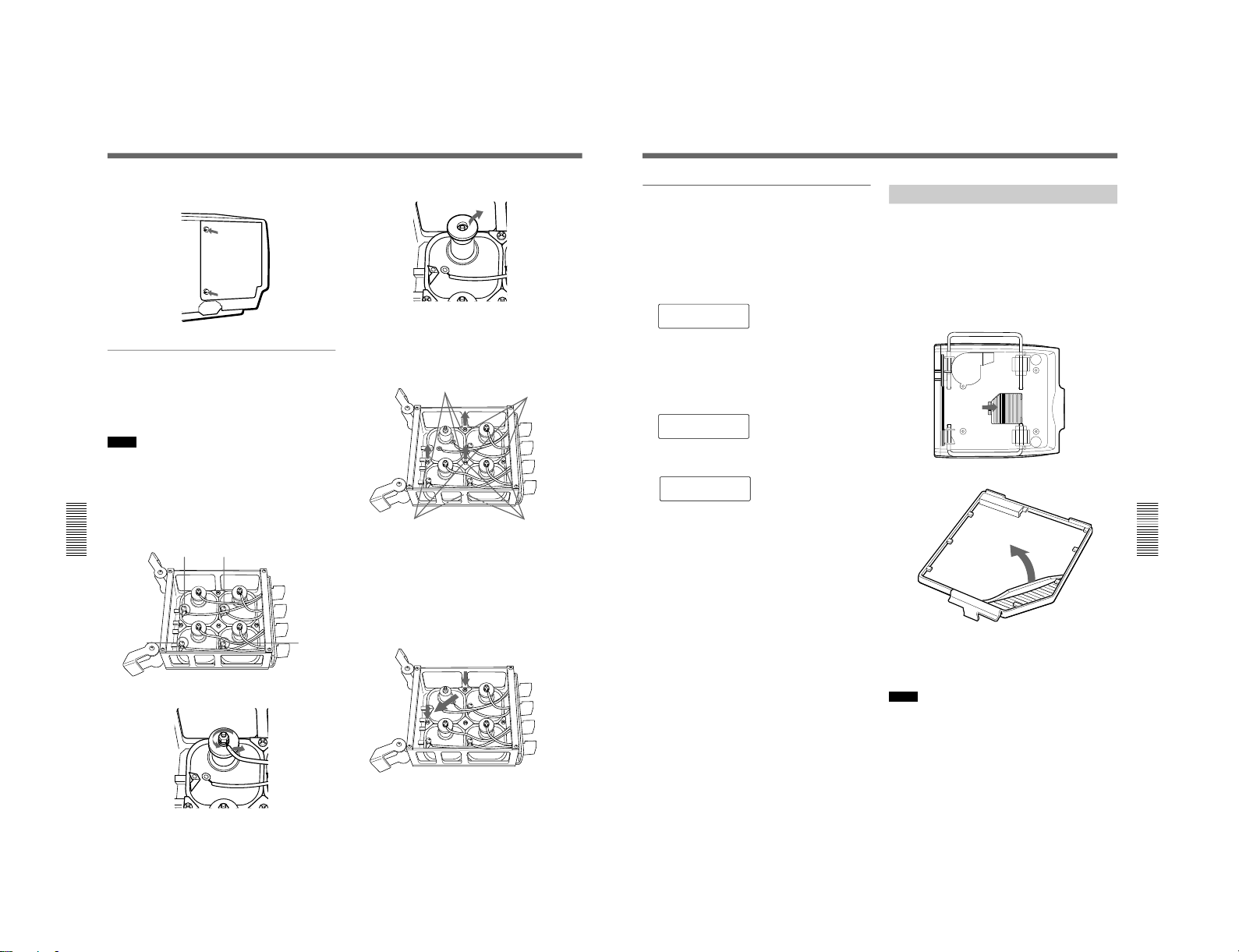

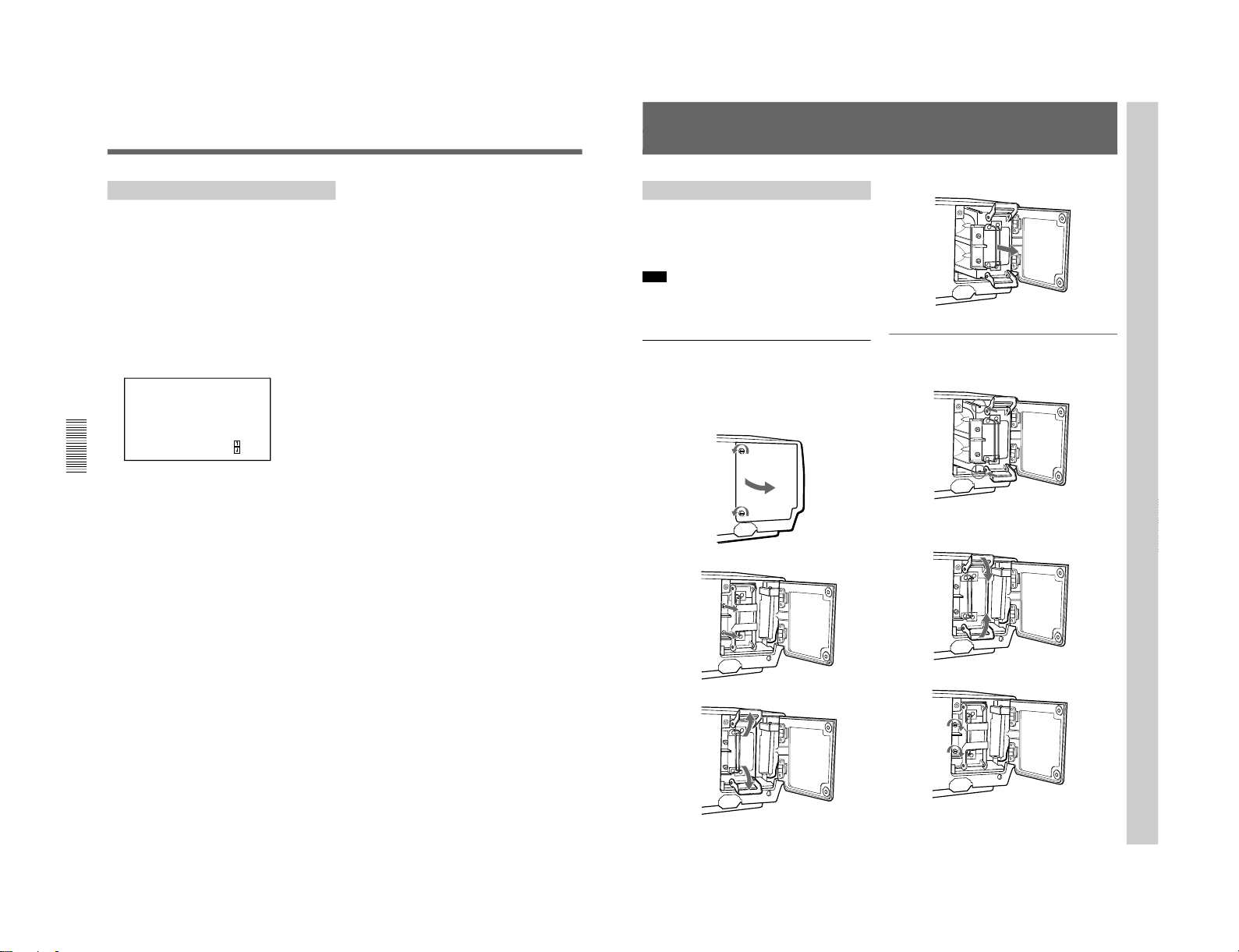

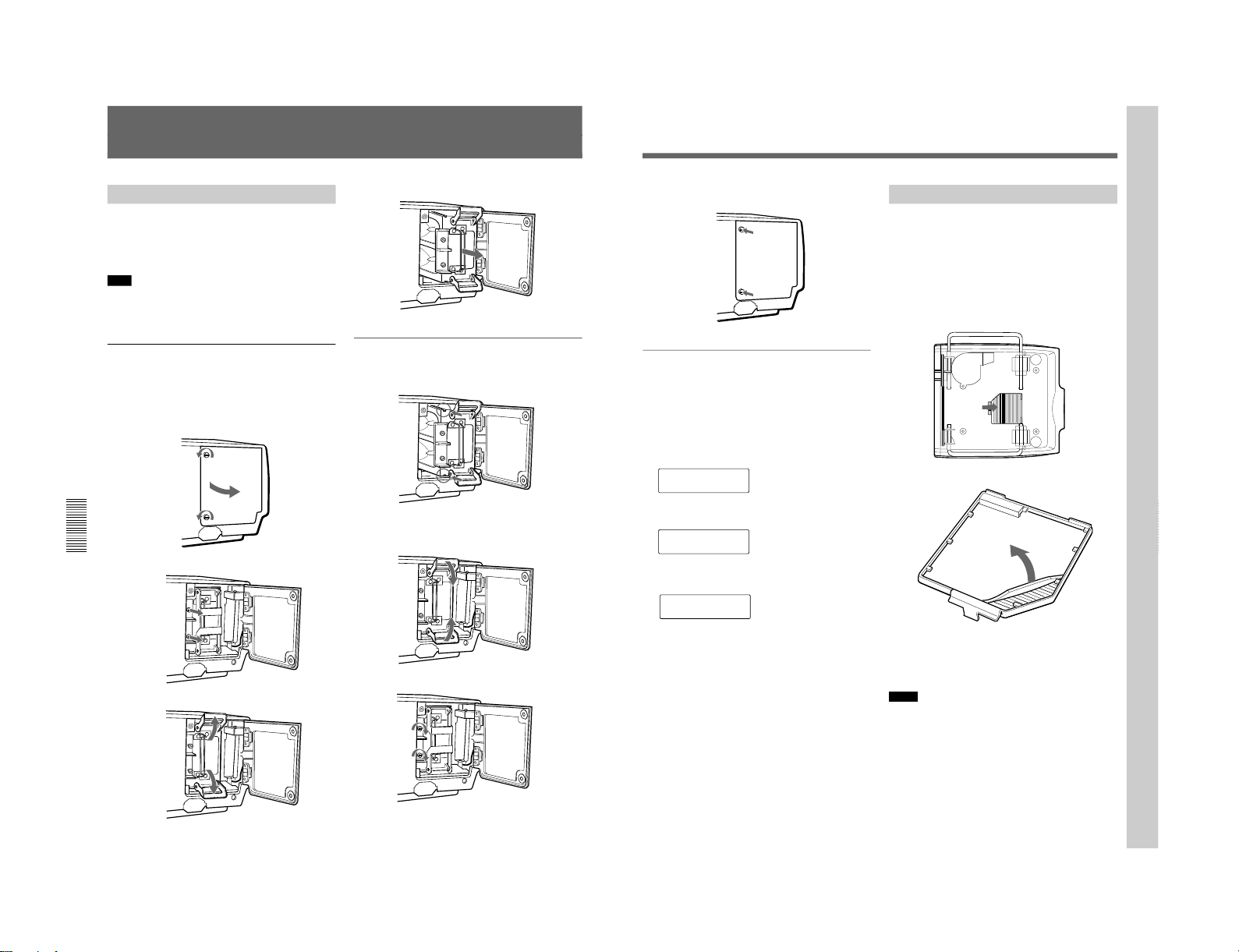

Replacing the Lamp .................................................... 48 (GB)

Cleaning the Air Filter................................................. 49 (GB)

Troubleshooting ..................................................... 50 (GB)

Others

Specifications ......................................................... 52 (GB)

Index ........................................................................ 59 (GB)

4

(GB)

Precautions

On safety

•Check that the operating voltage of your unit is identical with the voltage of your local power supply. If voltage adaptation is required, consult with qualified Sony personnel.

•Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified Sony personnel before operating it further.

•Unplug the unit from the wall outlet if it is not to be used for several days.

•To disconnect the cord, pull it out by the plug. Never pull the cord itself.

•The wall outlet should be near the unit and easily accessible.

•The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

•Do not look into the lens while the lamp is on.

•Do not place your hand or objects near the ventilation holes — the air coming out is hot.

On installation

•When the projector is mounted on the ceiling, the Sony PSS-2000 Projector Suspension Support must be used for installation.

•Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes. Leave space of more than 30 cm (11

7

/8 inches) between the wall and the projector. Be aware that room heat rises to the ceiling; check that the temperature near the installation location is not excessive.

•Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity, mechanical vibration or shock.

On illumination

•To obtain the best picture, the front of the screen should not be exposed to direct lighting or sunlight.

•Ceiling-mounted spot lighting is recommended. Use a cover over fluorescent lamps to avoid lowering the contrast ratio.

•Cover any windows that face the screen with opaque draperies.

•It is desirable to install the projector in a room where floor and walls are not of light-reflecting material. If the floor and walls are of reflecting material, it is recommended that the carpet and wall paper be changed to a dark color.

5

(GB)

On preventing internal heat build-up

•After turning off the power, the cooling fan runs for about six minutes while the ON indicator flashes in green. The indicator flashes quickly for 30 seconds. During that time, you will not be able to turn the power back on with the ON key.

Caution

The projector is equipped with ventilation holes (intake) at the bottom/ front side and ventilation holes (exhaust) at the left/right side. Do not block or place anything near these holes, or internal heat build-up may occur, causing picture degradation or damage to the projector.

On cleaning

•To keep the cabinet looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents, such as thinner, benzene, or abrasive cleansers, since these will damage the cabinet.

•Avoid touching the lens. To remove dust on the lens, use a soft dry cloth. Do not use a damp cloth, detergent solution, or thinner.

•Clean the air filter in every 100 hours.

On repacking

•Save the original shipping carton and packing material; they will come in handy if you ever have to ship your unit. For maximum protection, repack your unit as it was originally packed at the factory.

Overview

1-3

1-4

6

(GB)

Features

High brightness, high picture quality

• High brightness

Adopting four 120 W UHP lamps and newly developed optical system povides high brightness (light output 2400 of ANSI lumen) and excellent uniformity on the picture.

• High resolution

Thanks to use of three 1.8-inch XGA

1)

panels with approximately 790,000

pixels, the projector can project the sharp picture with the resolution of 1024 × 768 pixels.

• DRC (Digital Reality Creation)

The DRC technology allows you to obtain a finer, more detailed picture with four-times higher density than the conventional video picture.

Accepts various input signals

This projector has a built-in high performance scan converter which converts the input signals to display the 15 k RGB, HDTV, VGA

1)

,

SVGA

1)

, XGA1), SXGA

1)

and UXGA1) (fV = 60 Hz) signals as well as the

video signals of the composite, S video and component.

System expandability and versatility

The projector has RS-232C/422A/PJ COM interface connectors for communication. By combining the interface boards and signal interface switcher (not supplied), VPL-X2000U/X2000E/X2000M projection systems can be greatly expanded. This projector also has the group and device index functions for using multiple projectors in one system.

Easy and flexible setup

• Sony’s original APA (Auto Pixel Alignment) function

You can obtain the clearest picture automatically by simply pressing the APA key when the signal is input from a computer.

• Easy setup with external equipment

This projector has 39 preset data for input signals in the memory. You can get a picture properly on the screen by connecting equipment and pressing the APA key.

1) VGA, SVGA, XGA, SXGA and UXGA are the registered trademarks of the International Business Machines Corporation, U.S.A.

..........................................................................................................................................................................................................

7

(GB)

• Flexible setup

The lens shift function allows you to install the projector in a wide range of locations, without worrying about keystone distortion (the picture going out of square). The power focus and power zoom functions also let you change the size of the projection screen without having to move the projector.

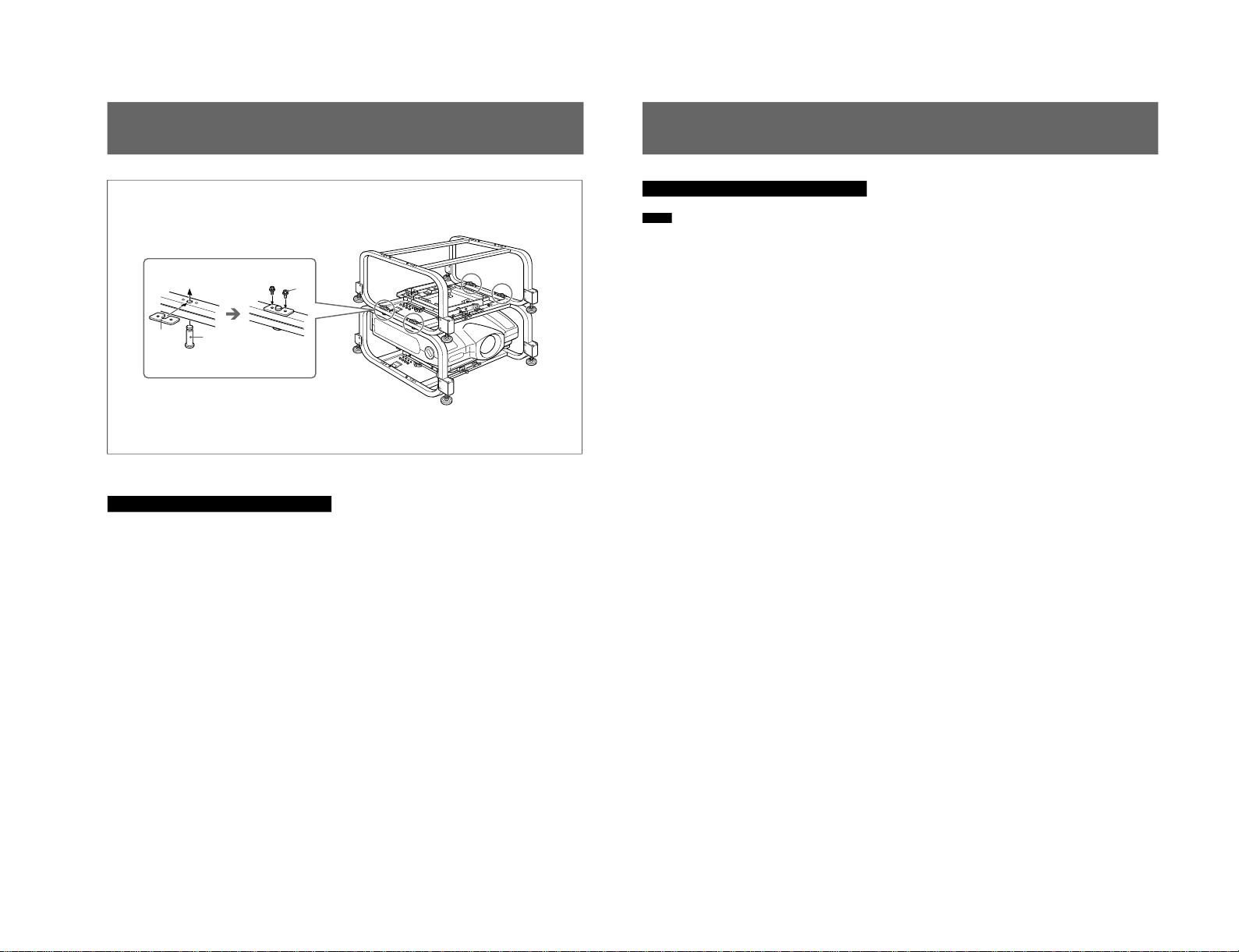

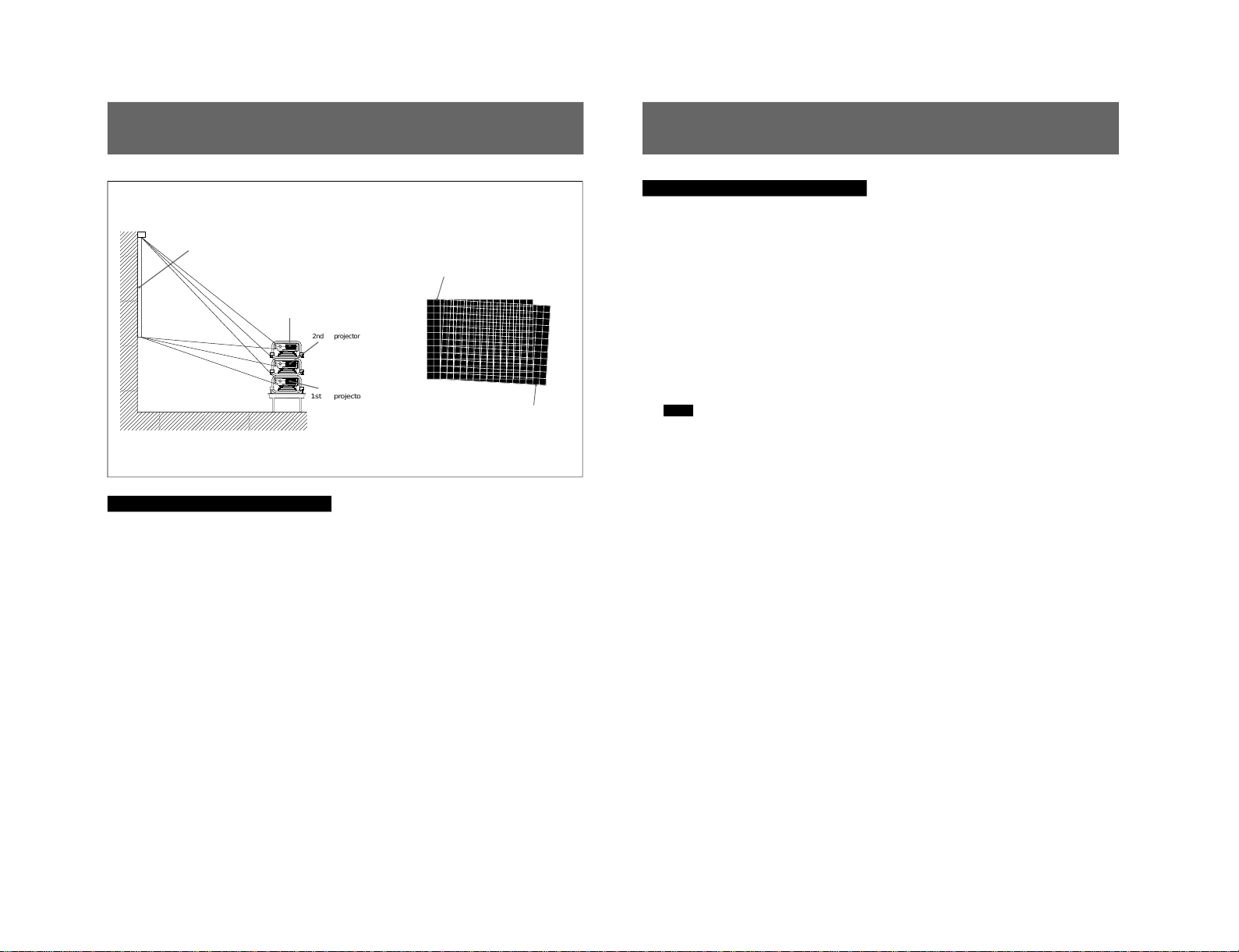

• Stack installation

Thanks to the lens shift function, up to three projectors can be stacked, which improves the brightness of the image.

• Fail safe function

The projector uses four lamps for light source. Even if one of them has burnt out, you can still use the projector. If two lamps have burnt out, the projector will automatically enter into standby mode.

8

(GB)

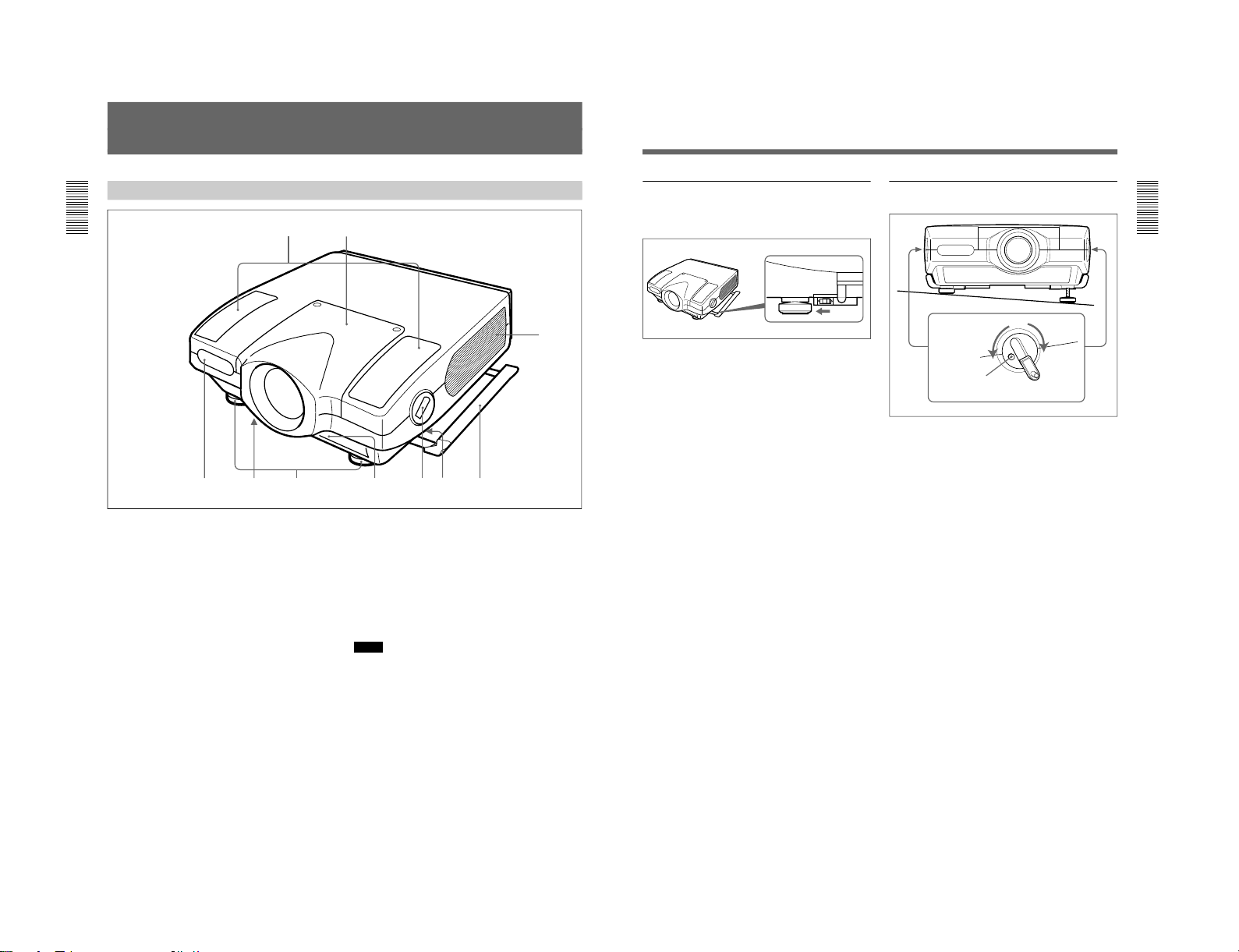

Location and Function of Controls

Front

!º

379

12

8546

1 Lens mount part

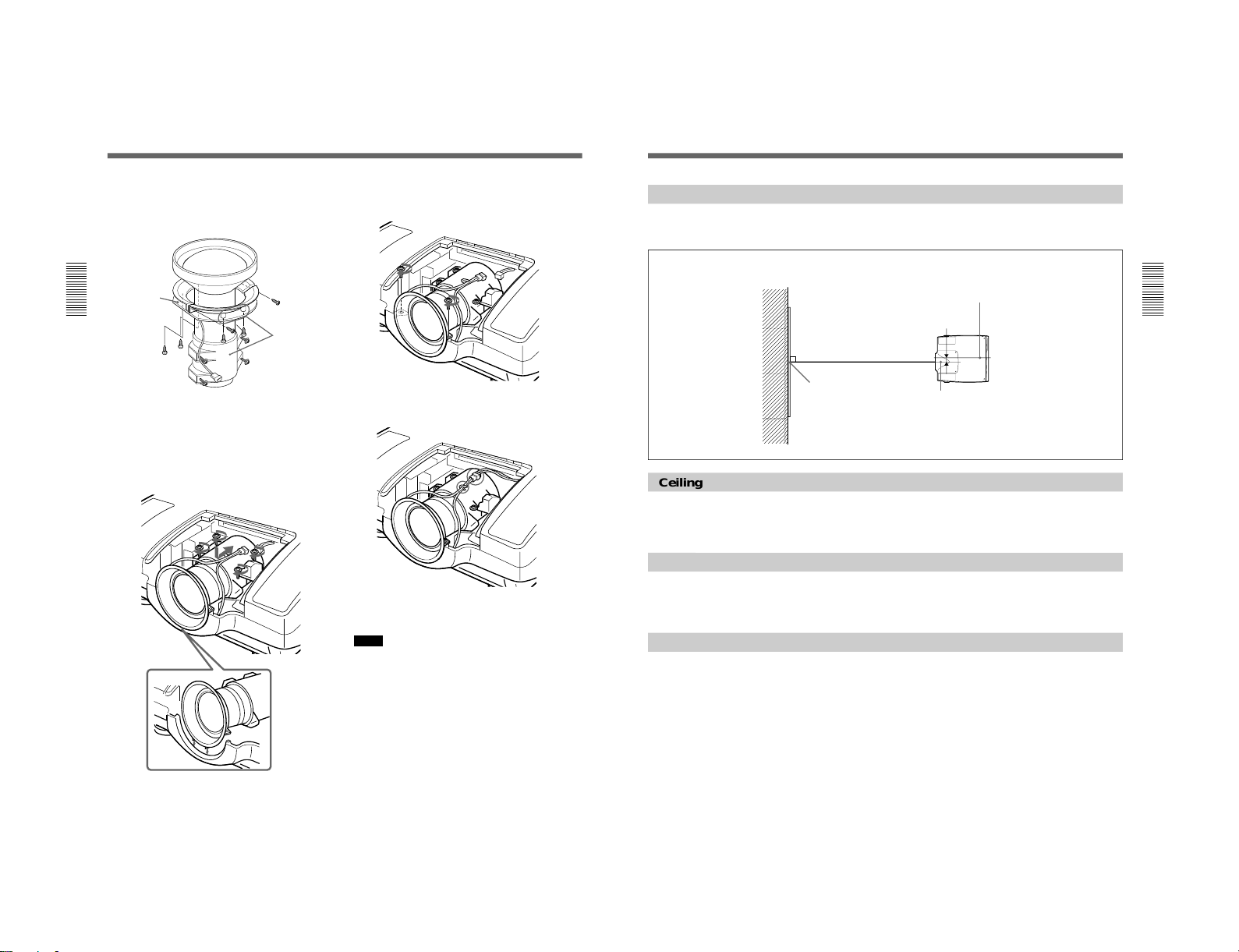

When attaching the optional lens, consult with the Sony service personnel.

2 Speaker

3 Front remote control detector

4 Bottom ventilation holes (intake)

Do not block the holes.

5 Adjusters

Use the adjusters to keep the projector level if it is installed on an uneven surface.

6 Front ventilation holes (intake)

Do not block the holes.

7 Adjuster button and lever

Press the button to raise the lever for adjusting the height of the adjuster.

8 Handle lever (left and right sides)

Use the lever for putting away the carrying handle.

9 Carrying handle (left and right sides)

Pull out the handle for carrying the projector.

!º Left and right side ventilation holes (exhaust)

Do not place anything within the 30 cm (11

7

/8 inches)

range from these holes or block them.

Notes

•Do not block the ventilation holes, or internal heat build-up may occur, causing fire or damage to the projector.

•Do not place anything near the ventilation holes or touch these holes as the temperature will be very high.

9

(GB)

Using the carrying handles

Pull out to use for carrying the projector. To put away the handle, slide the handle lever forward.

Using the adjusters

1

Press the adjuster button. The adjuster lever comes out.

2

Turn the lever to adjust the height so that the projector becomes level.

3

Replace the adjuster lever after use.

Adjuster button

To raise the projector

To lower the projector

1-5

1-6

10

(GB)

+

–

LIGHT

ON

STANDBY

PIC AUDIO

VIDEO

POWER SAVING

COVER FAIL

FAN FAIL

LAMP FAIL

12 34

HIGH TEMP

SELECT

VOLUME

INPUT A INPUT B INPUT C

APA

MENU

ENTERRESET

RESET

PATTERN

ZOOM SHIFT FOCUS

MUTING

SYS SET

+

INPUT SELECT

123

4

!• !¶ !§

!∞

!¢ !£ !™ !¡

!º

5 6

7

89

Location and Function of Controls

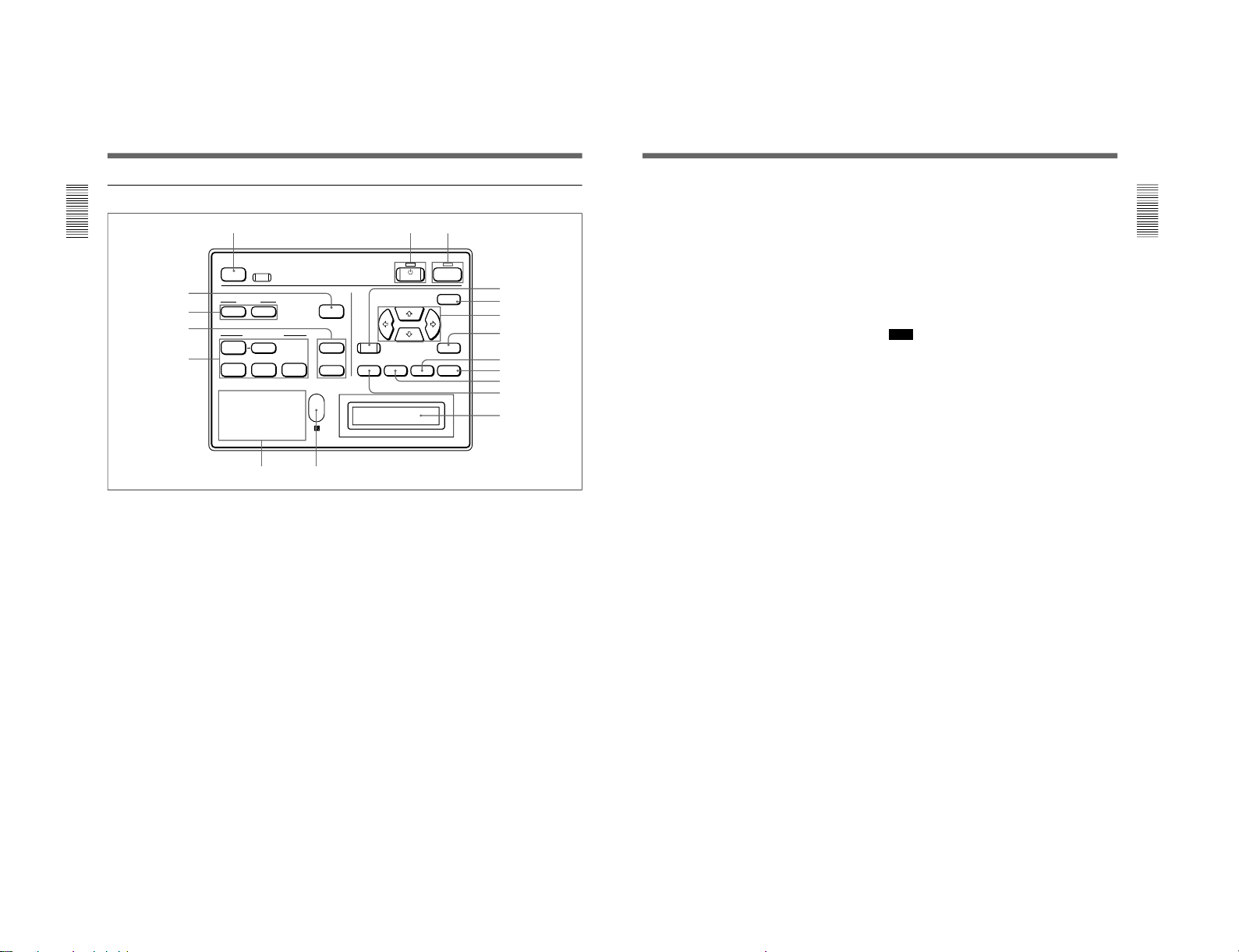

Control panel

1 ON key and indicator

Press to turn on the power of the projector. The indicator lights when the key is pressed. The indicator flashes for about six minutes after the power is turned off by pressing the STANDBY key, as the fan runs for six minutes to cool down the inside of the projector. The indicator flashes quickly for 30 seconds, during which you will not be able to turn the power back on with the ON key.

2 STANDBY key and indicator

Press to make the projector enter standby mode. The indicator lights to indicate that the projector is in standby mode.

3 LIGHT key

Illuminates the key indicators in orange when the projector is turned on. Illuminates the indicators for the relative keys in green when this key is pressed during operation. Press again to turn off the indicators.

Pressing this key and the RESET key simultaneously has the same function as the SYS SET key on the Remote Commander. Use when the PC-3000 signal interface switcher is used in the system or the system connections are changed.

4 APA (Auto Pixel Alignment) key

Adjusts the position of the picture on the screen automatically so that the picture is clearly visible when the signals are input from a computer.

5 MUTING keys

Cut off the picture or sound temporarily.

PIC: Press to cut off the picture. Press again to

restore the picture.

AUDIO: Press to cut off the sound output from the

speakers or the AUDIO OUT jacks. Press again or press the VOLUME + key to restore the sound.

6 VOLUME +/– keys

Adjust the volume of the built-in speakers and output level of the AUDIO OUT jacks.

+ : Increases the volume. – : Decreases the volume.

11

(GB)

7 INPUT SELECT keys

Select the input signal.

VIDEO: Selects the video signal input from the

VIDEO or S VIDEO connectors and the audio signal input from the AUDIO IN L/R jacks. To switch the S VIDEO and VIDEO connectors, use the SELECT key.

SELECT: Each time you press this key, the input

video signal is switched between the VIDEO and S VIDEO connectors.

INPUT A: Selects the audio and video signals input

from the INPUT A connectors.

INPUT B: Selects the signal input from the

connectors on the optional interface board which is installed in the INPUT B section. When the IFB-12A interface board is installed and the output mode is selected on the IFB-12A, the key does not function.

INPUT C: Selects the signal input from the

connectors on the optional interface board which is installed in the INPUT C section.

Note on the VPL-X2000E model

The optional IFB-X2000E interface board is required to select VIDEO.

8 Indicators

POWER SAVING: Lights when the projector is in

power saving mode. When POWER SAVING in the SET SETTING menu is set to ON, the projector goes into the power saving mode if no signal is input for 10 minutes. Although the lamp goes out, the cooling fan keeps running. In the power saving mode, only the STANDBY key functions for the first 30 seconds. The power saving mode is canceled when a signal is input or any key is pressed.

COVER FAIL: Lights when the lamp cover or air

filter cover is not secured firmly.

FAN FAIL: Lights when the fan is broken. HIGH TEMP: Lights when temperature inside the

projector becomes unusually high.

LAMP FAIL: When the lamp life has reached the

end, the indicator of that lamp lights.

9 Rear remote control detector

!º Message display window

Displays the signal status, timer and error messages about the input signals.

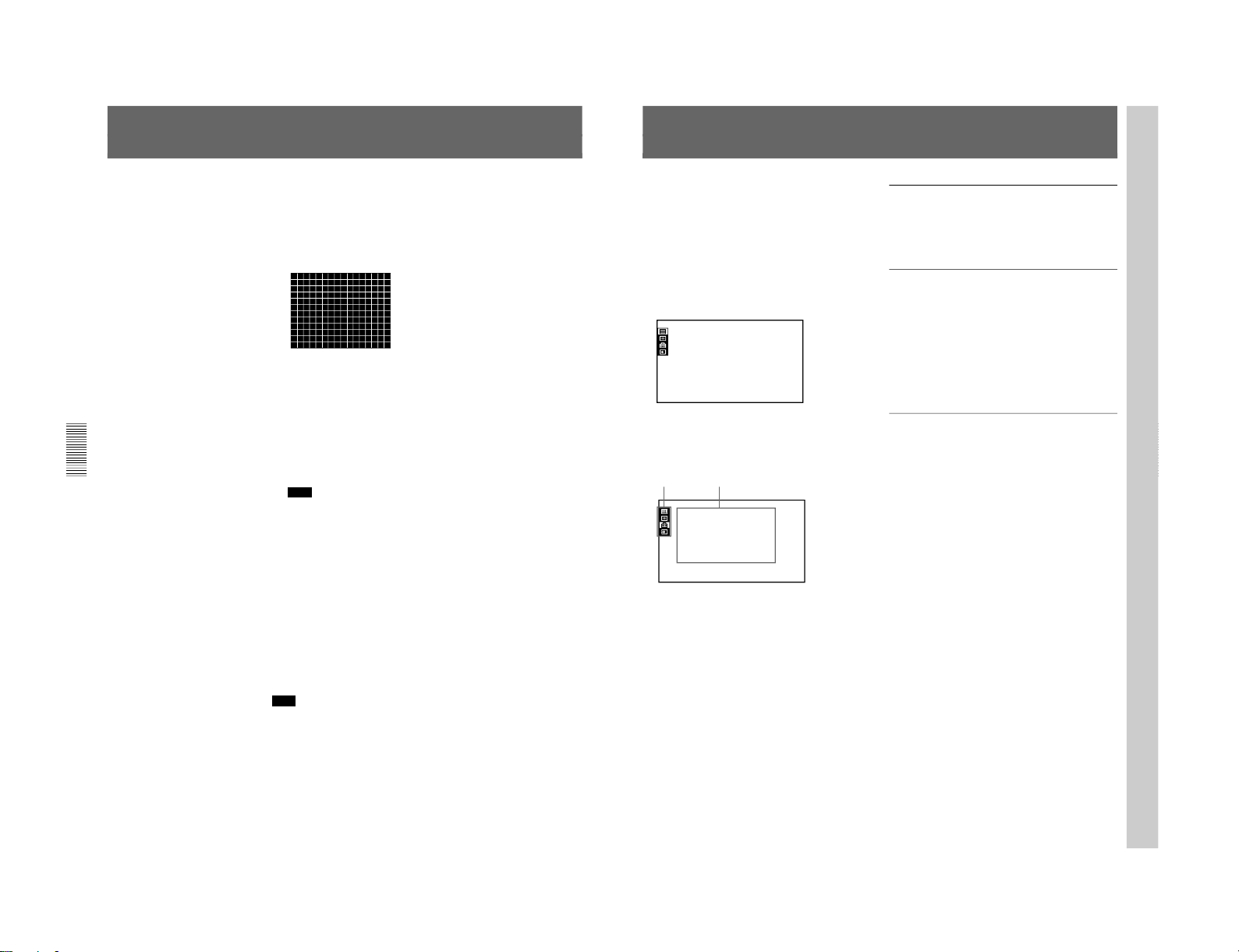

!¡ PATTERN key

Displays a HATCH pattern on the screen for focus, zoom, and shift adjustments. Press again to turn off the HATCH pattern.

!™ ZOOM key

Enters the zoom adjustment mode. When the key is pressed, the relative keys light in green. Next adjust the zoom using the arrow keys.

V: Enlarges the picture size. v: Reduces the picture size.

Note

If the VPLL-2075, VPLL-2014 or VPLL-2009 optional lens is installed, you cannot adjust the zoom.

!£ FOCUS key

Enters the focus adjustment mode. When the key is pressed, the relative keys light in green. Next adjust the focus using the arrow keys.

V: Focuses on a forward picture. v: Focuses on a picture further back.

!¢ SHIFT (lens shift) key

Enters the shift adjustment mode. When the key is pressed, the relative keys light in green. Next adjust the vertical position of the picture using the arrow keys.

V: Moves the picture upward. v: Moves the picture downward.

!∞ ENTER key

Stores the settings in the menu.

!§ Arrow keys (V/v/B/b)

Used to adjust the picture after pressing the ZOOM, FOCUS or SHIFT key. Also used to move the cursor or adjust the value in the menu.

!¶ MENU key

Displays the menu on the screen. When the key is pressed, the relative keys light in green. Press again to turn off the menu.

!• RESET key

Resets the adjusted value of an item to its factory preset value. This key functions when the menu or a setting item is displayed on the screen.

12

(GB)

R/R-Y Y

C

8

VIDEO8VIDEO

VIDEO

AUDIO

IN

VIDEO

G/Y

B/B-Y

SYNC

/HD

VD

AUDIO

IN

L

(MONO)

LRL

R

(MONO)

R

RS- 232C

RS- 422A

RS-232C/422A RS-485IN OUT IN OUT

LIGHT

APA

VIDEO

INPUT A INPUT B INPUT C

PCI AUDIO

VOLUME

SELECT

VIDEO/ S VIDEO

INPUT SELECT

RESET

ENTER

MENU

FOCUSSHIFTZOOM

PATTERN

POWER SAVING

LAMP FAIL

12 34

COVER FAIL

FAN FAIL

HIGHT TEMP

MUTING

PLUG IN POWER

IN

OUT

0 0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

6

5 4 312

789!º !¡ !™

+

Location and Function of Controls

Rear

1 Control panel

For details, see pages 10 (GB) and 11 (GB).

2 AUDIO OUT L/R jacks (phono type)

Connect to external active speakers. The volume of the speakers can be controlled by the VOLUME keys on the Remote Commander or the control panel.

3 VIDEO connectors

Connect to external video equipment, such as a VCR.

Y IN/C IN (BNC type): Connect to the Y and C

video outputs of the video equipment.

S VIDEO IN (mini DIN 4-pin): Connects to the Y/C

video output of the video equipment.

S VIDEO OUT (mini DIN 4-pin): Used as loop-

through output via the Y/C IN connectors or the S VIDEO IN connector.

VIDEO IN (BNC type): Connects to the composite

video output connector of the video equipment.

VIDEO OUT (BNC type): Used as loop-through

output of the VIDEO IN connector.

AUDIO IN L (MONO)/R jacks (phono type):

Connect to the audio output jacks of equipment, such as a VCR. For stereo equipment, use both the L and R jacks; for monaural equipment, use the L (MONO) jack only.

Note

If you have video equipment connected to both the Y/ C IN and S VIDEO IN connectors, the signal from the Y/C IN connectors are selected prior to the S VIDEO IN connector. When projecting video connected to the S VIDEO IN connector, be sure not to connect any cable to the Y/C IN connectors.

Note on the VPL-X2000E model

The optional IFB-X2000E interface board is required for using the VIDEO connectors.

4 INPUT A connectors

RGB input connectors (R/R-Y/P

R

, G/Y, B/B-Y/PB,

SYNC/HD, VD) (BNC type): Connect to the

video outputs of equipment such as a computer or a video camera. According to the connected equipment, the RGB, component (R-Y, Y, B-Y) or HDTV (P

R

, Y, P

B

)

signal is selected.

AUDIO IN L (MONO)/R jacks (phono type):

Connect to the audio output jacks of equipment such as a computer or a video camera. For stereo equipment, use both the L and R jacks; for monaural equipment, use the L (MONO) jack only.

Note

The INPUT A connectors do not function when the PC-3000 signal interface switcher is connected.

13

(GB)

5 Signal interface board attachment part (INPUT B)

Optional signal interface board can be attached according to your requirements. If you install the IFB12A interface board to this section and select the output mode, you can output the signal input through the INPUT A connectors.

For details on installing the interface boards, consult with qualified Sony personnel.

6 Signal interface board attachment part (INPUT C)

Optional signal interface board can be attached according to your requirements.

Note

You cannot select the output mode when attaching the IFB-12A interface board.

7 REMOTE connectors

Used to expand system capability.

RS-232C/RS-422A select switch: Selects according

to the interface connected to the RS-232C/RS422A connector.

RS-232C/RS-422A connector (D-sub 9-pin,

female): Connect to a computer to operate the

projector from the computer.

PJ COM IN/OUT connectors (D-sub 9-pin,

female): The connectors conform to the RS-485

standards and are used to expand system capability for Sony projectors.

For details on connections, see the PJ COM protocol manual for Sony projectors.

8 CONTROL S IN/OUT jacks (stereo minijack)

Connect to the control S jacks of other Sony equipment.

CONTROL S IN/PLUG IN POWER (DC 5 V

output) jack: Connects to the CONTROL S OUT

jack of the supplied Remote Commander when using as a wired Remote Commander. In this case, you do not need to install the batteries in the Remote Commander, since the power is supplied from this jack.

CONTROL S OUT jack: Outputs the control S

signal.

Note

When connecting the remote commander cable to the CONTROL S IN jack, the remote control detectors will not function.

9 TRIG (trigger output) jack (monaural minijack)

The signal is transmitted from this jack to the connected equipment whether the projector is on or off. (This is not a power source for external equipment.) Approximately 12 V DC signal is output when the projector power is on. The signal is 0 volt level output when the projector power is off.

!º DEVICE INDEX switch

Set the device index number of the projector when using multiple projectors. You can set the numbers between “01” and “99”. It is set to “01” at the factory. You can also set the group index number in the menu for system setup.

Note

Do not set the device index number to “00”. If you do, the projector will be operated only with the keys on the control panel.

!¡ AC IN socket

Connect the supplied AC Power cord.

!™ Lamp cover

1-7

1-8

14

(GB)

Location and Function of Controls

Remote Commander

The Remote Commander can be used as a wireless or wired Remote Commander. The keys on the Remote Commander with the same names function the same as those on the control panel of the projector.

For details on control panel keys on the projector, see pages 10 (GB) and 11 (GB).

1 ON/STANDBY keys

2 MEMORY key

The key does not function with this projector.

3 CENT R/B keys

The keys do not function with this projector.

4 COMMAND ON/OFF key

No keys except for the LIGHT button on the Remote Commander function when this switch is set to OFF. This saves battery power.

5 RGB keys

Adjust the picture.

APA: The key functions the same as the APA key on

the control panel.

SELECT

VIDEO MEMORY

SWITCHER INDEX

PIC ONAUDIO OFF

PATTERN

FOCUS

ZOOM

SHIFT

NORMAL

MUTING

STATUS

LCD LENS CONTROL

ON

COMMAND

OFF

SIZE

DOT PHASE

APA

SHIFT

RGB

R

B

CENT

ONSTANDBY

MEMORY

MENU

VIDEO

INPUT SELECT

ADBC

BLKG

SYS SET

RESET

FUNCTION

1423

5867

9

10/0(ALL)

SW NO/

OFF/GROUP

SWITCHER/VIDEO MEMORY/INDEX

ENTER

POSITION

BRIGHT

CONTR

PICTURE CONTROL

HUE

COLOR

SHARP

VOL

VIDEO/S VIDEO

LIGHT

!¢

!£

!™

!¡

!º

9

!∞

!§

!ª

!¶

!•

@¢

@∞

@£ @™

@¡

@º

56784

3

2

1

DOT PHASE: Press to adjust the phase of the LCD

panels and the input signals (except for 15k RGB/ video/HDTV signals). After pressing this key, adjust the position of the picture using the four arrow keys so that the clearest picture is obtained.

SIZE: Enters the size adjustment mode for the input

signal. Next adjust the horizontal size of the picture using the arrow keys.

B: to reduce horizontal size b: to expand horizontal size

SHIFT: Enters the shift adjustment mode for the

input signal. Next adjust the position of the picture using the four arrow keys. The picture shifts in the direction of the arrow on the pressed key.

@§

15

(GB)

6 STATUS ON/OFF keys

Press OFF to eliminate the on-screen display. Press ON to restore the on-screen display.

Note

The menus and warning messages appear even if the OFF key is pressed.

7 Transmission indicator

The light goes on each time a key is pressed. If the indicator does not light, replace the batteries.

8 LIGHT button

Illuminates the key indicators when the COMMAND switch is set to ON. If the switch is set to OFF, only the COMMAND switch is illuminated. If you do not press any key on the Commander for more than 30 seconds, the key indicators turn off automatically. The indicators also turn off if you press the LIGHT button again.

9 MUTING keys

!º NORMAL key

The key does not function with this projector.

!¡ LCD LENS CONTROL keys

Press one of the ZOOM, SHIFT and FOCUS keys and then the arrow keys (V or v).

!™ PATTERN key

!£ SYS SET (system set) key

When the PC-3000 signal interface switcher is used in the system or the system connections are changed, press this key.

Note

After connecting the PC-3000 switcher and pressing the SYS SET key, the input channel is set to SW1-1 when connecting a single switcher, or to SW1-2 when connecting two or more switchers.

!¢ INPUT SELECT keys

The D key does not function with this projector.

!∞ SWITCHER/VIDEO MEMORY/INDEX select switch

Selects the function of the SWITCHER/VIDEO MEMORY/INDEX keys.

SWITCHER: selects the input from the PC-3000 switcher. VIDEO MEMORY: The position does not function with this projector. INDEX: selects a projector by its index number when multiple projectors are used.

!§ SWITCHER/VIDEO MEMORY/INDEX keys

When the SWITCHER/VIDEO MEMORY/ INDEX select switch is set to SWITCHER

When the PC-3000 switcher is connected to the projector, press a number key (1 to 8) to select the input from the switcher. Number key 9 does not function. To select an input when multiple switchers are connected, press the SW NO/OFF/GROUP key. Next press the switcher number (1 to 8) and the input number (1 to 8) in sequence. Be sure to press the keys one after another within 2 seconds. e.g. To select input 4 of switcher 2, press the keys as follows:

SW NO n 2 n 4.

When the SWITCHER/VIDEO MEMORY/ INDEX select switch is set to INDEX

Used to specify the device or group index number.

!¶ BLKG (blanking) adjustment key

Enters the blanking adjustment mode. Next, press V/v key to select the position to be adjusted on the screen, and then adjust the position using the B/b keys.

!• RESET key

!ª PICTURE CONTROL +/– keys

Adjust the picture conditions: CONTR (contrast), BRIGHT (brightness), COLOR, HUE and SHARP (sharpness).

@º VOL (volume) +/– keys

@¡ POSITION +/– keys

These keys do not function with this projector.

(Continued)

16

(GB)

@™ FUNCTION key

The key does not function with this projector.

@£ ENTER key

@¢ Arrow keys

@∞ MENU key

@§ CONTROL S OUT jack

Connect the supplied remote control cable to this jack and to the CONTROL S IN jack of the projector for wired remote control operation. When the Commander is connected to the CONTROL S IN/PLUG IN POWER jack of the projector via the remote control cable (stereo), the power for the Remote Commander is supplied from the projector.

Location and Function of Controls

17

(GB)

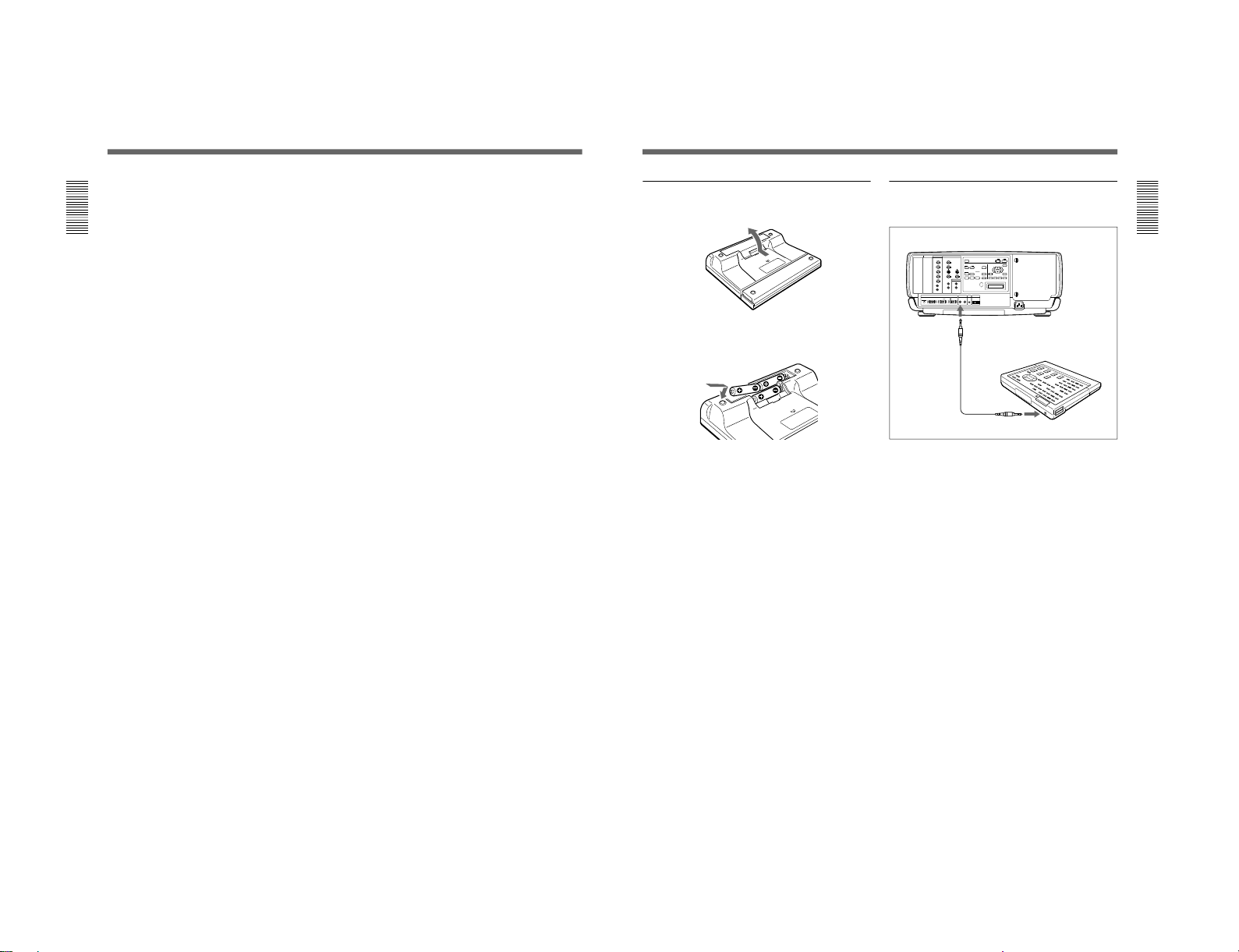

Battery installation

1

Push to open the lid.

2

Install three R6 (size AA) batteries (supplied) with the polarities correctly aligned.

3

Replace the lid.

Notes on batteries

•Make sure that the battery orientation is correct when inserting batteries.

•Do not mix old battery with new one, or different types of batteries.

•If you will not use the Remote Commander for a long time, remove the batteries to avoid damage from battery leakage. If batteries have leaked, remove them, wipe the battery compartment dry and replace the batteries with new ones.

Notes on wireless Remote Commander operation

•Be sure that there is nothing to obstruct the infrared beam between the Remote Commander and the projector.

•The operation range is limited. The shorter the distance between the Remote Commander and the projector, the wider the angle within which the commander can control the projector.

•The remote control detectors on the projector do not operate when connecting the remote commander cable to the CONTROL S IN jack. If you wish to use the Remote Commander as a wireless Remote Commander, be sure to remove the remote commander cable from both the Remote Commander and the projector.

To connect the Remote Commander to the projector

Note on wired Remote Commander operation using the supplied remote commander cable (stereo)

You do not need to install the batteries since the power is supplied from the CONTROL S IN jack on the projector. In this case, the batteries are not consumed.

Be sure to install the battery from the ’ side.

0 0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

Rear

to CONTROL S IN

Remote commander cable (supplied)

Remote Commander

to CONTROL S OUT

1-9

1-10

18

(GB)

Do not install the projector in an illventilated place

The projector is equipped with ventilation holes for intake on the bottom and front and ventilation holes for exhaust on the left and right sides to prevent internal heat build-up. Do not block these ventilation holes and allow adequate air circulation at an installation location.

Do not place any object beside the projector

If you put something beside the ventilation holes on the sides, the exhaust may be inhaled into the projector through the ventilation holes (intake) at the bottom, causing the internal temperature to rise and thereby activating the protection circuit. Install the projector so that the exhaust is not blocked.

Do not install the projector in a location where temperature or humidity is very high

Avoid installing the projector in a location where temperature may rise or fall rapidly

Be careful of air-conditioning and heating in a room where the projector is installed, as sudden changes in temperature may lead to moisture condensation and cause damage to the projector.

Precautions on Installation

Do not install the projector in the following situations. These installations may cause malfunction or damage to the projector.

Avoid installing the projector in a location subject to excessive dust

Do not use the projector while laying it on its side

Do not tilt the projector when in use

Avoid tilting the projector more than 20 degrees or installing it other than on the floor and ceiling. Such installations may cause malfunctions such as color irregularity or shortening of lamp life.

Do not cover the ventilation holes (exhaust)

Do not cover the front ventilation holes; otherwise, internal heat may build up.

Do not install the projector on a deep-pile carpet

If you install the projector on a deep-pile carpet, the ventilation holes (intake) at the bottom may be blocked, causing an internal heat build-up.

20°

19

(GB)

R/R-Y Y

C

8 VIDEO

VIDEO

AUDIO IN

VIDEO G/Y

B/B-

Y

SYNC /HD

VD

AUDIO

IN

L

(MONO)

L

R

L

R

(MON

O)

R

RS- 232C

RS- 422A

RS-232C/422A RS-485IN OUT INOUT

LIGHT

APA

VIDEO

INPUT AINPUT BINPUT C

PCIAUDIO

VOLUME

SELECT

VIDEO/ S VI

DEO

INPUT SELECT

RESET

ENTER

MENU

FOCUSSHIFTZOOM

PATTERN

POWER SAVING

LAMP FAIL

12 34

COVER

F

AIL

FAN FAIL

HIGHT TEMP

MUTING

PLUG IN POWER

IN

OUT

0

INPUT CINPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL STRIG

DEVICE INDEX

+

–

R/R-YY

C

8

VIDEO

8

VIDEO

AUDIO

IN

VIDEO G/Y

B/B-Y

SYNC /HD

VD

AUDIO

IN

L

(MONO)

L

R

L

R

(MONO)

R

RS- 232C

RS- 422A

RS-232C/422A

RS-485IN OUT INOUT

LIGHT

APA

VIDEO

INPUT AINPUT BINPUT C

PCIAUDIO

VOLUME

SELECT

VIDEO/ S VIDEO

INPUT SELECT

RESET

ENTER

MENU

FOCUSSHIFTZOOM

PATTERN

POWER SAVING

LAMP FAIL

12 34

COVER FAIL FAN FAIL

HIGHT TEMP

MUTING

PLUG IN POWER

IN

OUT

0

INPUT CINPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL STRIG

DEVICE INDEX

+

–

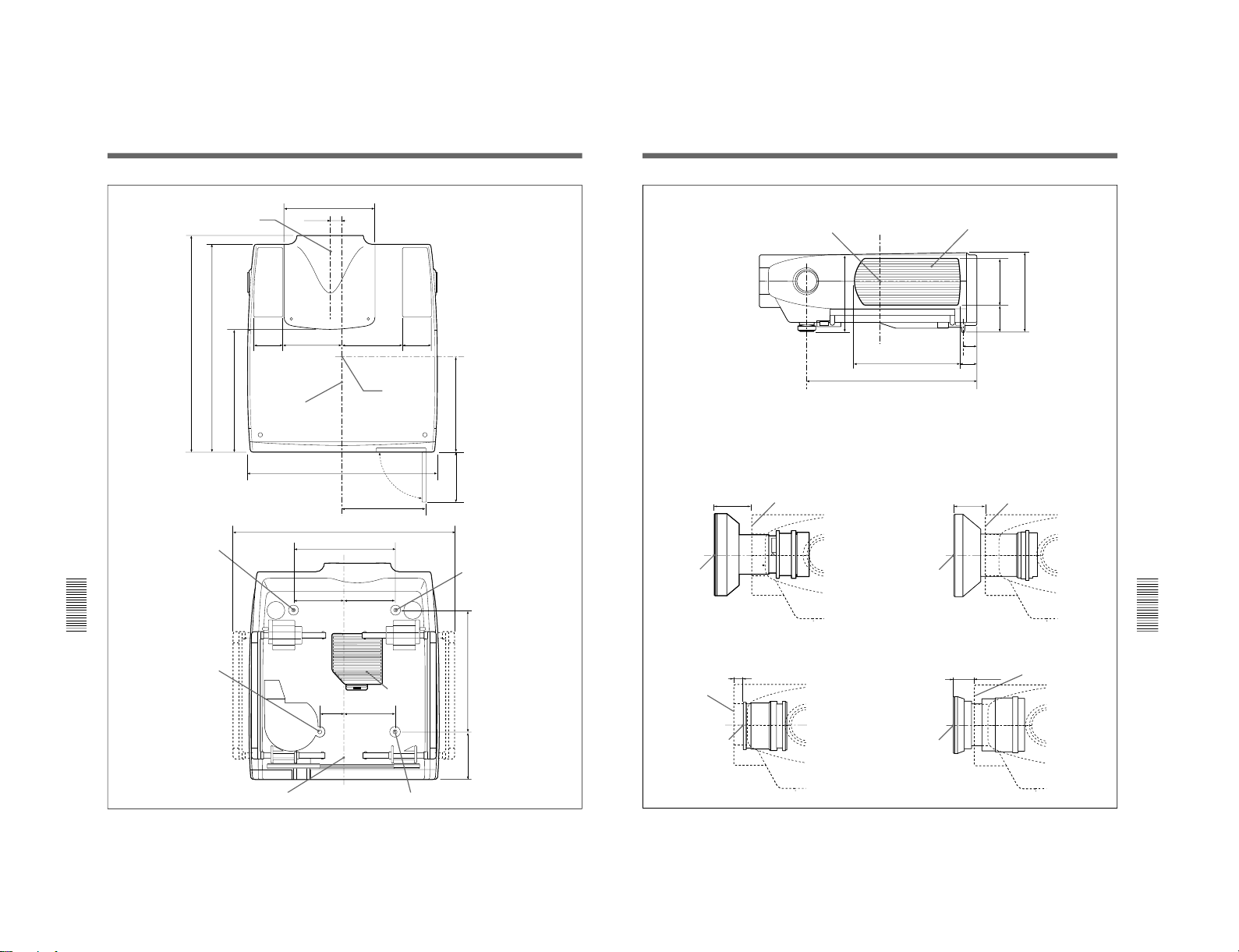

Installing the Projector on the Floor

This section describes the installation arrangements for installing the projector on the floor. For details on installation examples, see pages 34

(GB) to 37 (GB). For ceiling installation, consult with qualified Sony personnel (see page 38 (GB)).

Horizontal center of the screen

Vertical center of the screen

Installation area

Projection distance

Install the projector so that the tip of the lens is within this area.

The distance between the lens and the screen varies depending on the size of the screen and the attached lens. Use the tables on pages 35 (GB) to 37 (GB).

Adjust the vertical and horizontal positioning of the projector.

Vertical positioning (side view)

Screen

Adjustable range

You can adjust the angle of projection by performing the shift adjustment (page 23 (GB)).

• Install the projector so that the center of the lens is between just above the bottom edge of the screen and the center of the screen.

• When using the VPLL-2009, make sure that the center of the lens is aligned with the vertical center of the screen.

Horizontal positioning (top view)

Screen

Center of the projector

38 mm (1

1

/

2

inches)

Center of the lens

Adjust the horizontal positioning of the projector so that the center of the lens is aligned with the horizontal center of the screen.

Setting up and projecting

20

(GB)

0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

1

Connecting with a Computer or a VCR

This section describes how to connect the projector with a computer, VCR, and external active speakers. For details on how to connect other

equipment, see pages 42 (GB) to 44 (GB).

Also refer to the instruction manuals of the equipment to be connected.

When making connections, be sure to:

•turn off all equipment before making any connections.

•use the proper cables for each connection.

•insert the plugs of the cables properly; plugs that are not fully inserted often generate noise. When pulling out a cable, be sure to pull it out by the plug, not the cable itself.

Note on the VPL-X2000E model

The optional IFB-X2000E interface board is required for using the VIDEO connectors.

Note

Set INPUT-A in the SIGNAL SELECT menu to RGB.

For details, see page 32 (GB).

VCR

to S VIDEO OUT

to VIDEO OUT

to AUDIO OUT

S video cable (not supplied)

Video cable (not supplied)

Audio cable (not supplied)

Rear

to a wall outlet

AC power cord (supplied)

to AC IN

SMF-400 Monitor cable (5BNC˜HD D-sub 15-pin) (not supplied) Use the optional ADP-20 Signal adapter when connecting with a Macintosh computer.

Computer

Audio cable (not supplied)

Active speakers

Signal flow

Audio cable (not supplied)

21

(GB)

Projecting

1

Press the ON key on the Remote Commander or the control panel.

The ON indicator lights in green.

2

Turn on the power of equipment connected to the projector. Press the INPUT SELECT keys on the Remote Commander or the control panel to select the input source.

VIDEO: Selects the video signal input from the VIDEO or S VIDEO

connectors and the audio signal input from the AUDIO IN L/R jacks. To switch the VIDEO or S VIDEO connectors, use the SELECT key.

SELECT: Each time you press this key, the input signal is switched

between VIDEO and S VIDEO.

INPUT A: Selects the audio and video signals input from the INPUT

A connectors.

INPUT B: Selects the signal input from the connectors on the optional

interface board which is installed in the INPUT B section.

INPUT C: Selects the signal input from the connectors on the optional

interface board which is installed in the INPUT C section.

(Continued)

0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

SELECT

VIDEO MEMORY SWITCHERINDEX

PIC ONAUDIO OFF

PATTERN

FOCUS

ZOOM

SHIFT

NORMAL

MUTING

STATUS

LCD LENS CONTROL

ON

COMMAND

OFF

SIZE

DOT PHASE

APA

SHIFT

RGB

R

B

CENT

ONSTANDBY

MEMORY

MENU

VIDEO

INPUT SELECT

ADBC

BLKG

SYS SET

RESET

PUNCTION

1423

5867

9

10/0(ALL)

SW NO/

OFF/GBOUP

SWITCHER/VIDEO MEMORY /INDEX NO

ENTER

POSITION

BRIGHT

CONTR

PICTURE CONTROL

HUE

COLOR

SHARP

VOLUME

VIDEO/S VIDEO

LIGHT

+

–

ON

STANDBY

PIC AUDIO

VIDEO

POWER SAVING COVER FAIL

FAN FAIL

LAMP FAIL

12 34

HIGHT TEMP

SELECT

VOLUME

INPUT A INPUT B INPUT C

APA

MENU

ENTERRESET

PATTERN

ZOOM SHIFT FOCUS

MUTING

INPUT SELECT

LIGHT

RESET

SYS SET

+

Rear remote control detector

STANDBY indicator

ON indicator

1 4,5,6,7

7 4,6

5

2

4,6 1

4,5,6,7

7 5

3,8

2

2 2

1-11

1-12

22

(GB)

When you input the signal from equipment connected to the PC-3000 signal interface switcher (not supplied), set the SWITCHER/VIDEO MEMORY/INDEX select switch on the Remote Commander to the SWITCHER position and press the number keys to select the input. When multiple switchers are connected, press the SW NO/OFF/ GROUP key, then press the number keys to select the input.

Note

Press the SYS SET key when you make the system connections using the PC-3000 switcher.

Note on the VPL-X2000E model

The optional IFB-X2000E is required for selecting VIDEO.

3

Press the PATTERN key on the Remote Commander or the control panel to display the HATCH pattern.

4

Press the FOCUS key then the V or v key on the Remote Commander or the control panel to adjust the focus.

“FOCUS” appears on the screen during adjustment.

5

Press the ZOOM key then the V or v key on the Remote Commander or the control panel to adjust the picture size.

“ZOOM” appears on the screen during adjustment.

Note

If the optional VPLL-2075, VPLL-2014 or VPLL-2009 lens is installed, you cannot adjust the zoom.

6

Press the FOCUS and arrow keys on the Remote Commander or the control panel to adjust the focus again.

“FOCUS” appears on the screen during adjustment.

Projecting

23

(GB)

7

Press the SHIFT key then the arrow keys on the Remote Commander or the control panel to adjust the vertical position of the picture.

“PICTURE SHIFT” appears on the screen during adjustment.

8

Press the PATTERN key again to clear the HATCH pattern.

To

Adjust the volume Cut off the sound

Cut off the picture

Note

Do not look into the lens when the projector lamp is on.

To turn off the power

1

Press the STANDBY key on the Remote Commander or the control panel.

The ON indicator flashes in green and the cooling fan keeps running for about six minutes to reduce the internal heat. The ON indicator flashes quickly for 30 seconds. During this time, you will not be able to turn the power back on. After about 30 seconds, you can turn on the power with the ON key.

When the fan stops running, the STANDBY indicator lights in red.

Note

To extend the lamp life, do not turn off the power for at least 10 minutes after turning on the power.

Press

the VOLUME +/– keys. the AUDIO MUTING key (also cuts off the signal output

from the AUDIO OUT jacks.) To restore the sound, press the AUDIO MUTING key again or press the VOLUME + key.

the PIC MUTING key. To restore the picture, press the PIC MUTING key again.

24

(GB)

The projector is equipped with an on-screen menu for making various adjustments and settings. Unadjustable items are not displayed in the menu.

To change the language used in the menu, see page 30 (GB).

1

Press the MENU key. The menu display appears. The menu presently selected is highlighted in yellow.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE: COLOR TEMP:

DRC:

80 50 50 50 50 OFF LOW

COLOR SYS: AUTO

HIGH

VIDEO

2

Use the V or v key to select a menu, then press the b or the ENTER key.

The setting items of the selected menu are displayed.

SET SETTING

STATUS: SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING

:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:0101

ON ON ENGLISH FLOOR-FRONT OFF FRONT&REAR

INPUT-A

3

Make setting or adjustment on an item.

For details on setting individual items, see the relevant menu pages.

Using the Menu

Menus

Setting items

To erase the menu display

Press the MENU key. The menu display also disappears automatically if no key is pressed for one minute.

To reset settings that have been adjusted

Press the RESET key. “Reset complete!” appears on the screen and the settings appearing on the screen will be reset to their factory preset values.

Items that can be reset are as follows:

CONTRAST, BRIGHT, COLOR, HUE, SHARP, DOT PHASE, SIZE, SHIFT and BLANKING.

About the memory of the settings

The settings are automatically stored in the projector memory.

25

(GB)

Adjustments and settings using the menu

The PICTURE CTRL menu is used for adjusting the picture. Unadjustable items are not displayed in the menu.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE: COLOR TEMP:

DRC:

80

50

OFF

LOW

COLOR SYS: AUTO

HIGH

VIDEO

Operation

1. Select an item

Use the V or v key to select the item, then press the b or the ENTER key.

2. Adjust an item

•When changing the adjustment level:

To increase the number, press the V or b key. To decrease the number, press the v or B key. Press the ENTER key to restore the original screen.

•When changing the setting:

Press the V or v key to change the setting, then press the B or the ENTER key. The original screen is restored.

CONTRAST

Adjusts the picture contrast.

CONTRAST: 80

The higher the setting, the greater the contrast. The lower the setting, the lower the contrast.

BRIGHT (Brightness)

Adjusts the picture brightness.

BRIGHT: 80

The higher the setting, the brighter the picture. The lower the setting, the darker the picture.

The PICTURE CTRL Menu

COLOR

Adjusts color intensity.

COLOR: 50

The higher the setting, the greater the intensity. The lower the setting, the lower the intensity.

HUE

Adjusts skin tones.

HUE: 50

At high settings, the picture becomes greenish. At low settings, the picture becomes purplish.

SHARP (Sharpness)

Adjusts the picture sharpness.

SHARP: 80

The higher the setting, the sharper the picture. The lower the setting, the softer the picture.

D. (Dynamic) PICTURE

Emphasizes the black color.

HIGH

OFF

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP:

D.PICTURE:

COLOR TEMP: DRC:

80

50

COLOR SYS: AUTO

HIGH

VIDEO

ON

OFF

ON: Emphasizes the black color to produce a bolder

“dynamic” picture.

OFF: Reproduces the dark portions of the picture

accurately, in accordance with the source signal.

1-13

1-14

26

(GB)

COLOR TEMP (temperature)

Adjusts the color temperature.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE:

DRC:

80

50

OFF

HIGH

COLOR SYS: AUTO

HIGH

VIDEO

HIGH

COLOR TEMP:

LOW

HIGH: Makes the white color bluish. LOW: Makes the white color reddish.

COLOR SYS (system)

Selects the color system of the input signal.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE: COLOR TEMP:

DRC:

80

50

OFF

HIGH

AUTO

HIGH

VIDEO

AUTO

NTSC3.58

PAL

SECAM

NTSC4.43

PAL-M

COLOR SYS:

Normally, set to AUTO. If the picture is distorted or colorless, select the color system (NTSC

3.58

/PAL/SECAM/NTSC

4.43

/PAL-M)

according to the input signal.

GAMMA MODE

Select either position to obtain an optimum picture.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR TEMP:

80

50

HIGH

GRAPHICS

INPUT-A

GAMMA MODE:GRAPHICS

TEXT

GRAPHICS: Improves the reproduction of half

tones. Photos can be reproduced in natural tones.

TEXT: Contrasts black and white. Suitable for

images with lots of text.

The PICTURE CTRL Menu

DRC (Digital Reality Creation)

Selects the level of DRC effects.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE: COLOR TEMP:

80

50

OFF

LOW

COLOR SYS: AUTO

HIGH

VIDEO

DRC:

HIGH

LOW

HIGH: Increases the DRC effects. LOW: Decreases the DRC effects.

Input signals and adjustable/setting items

Item

CONTRAST BRIGHT COLOR HUE

SHARP D. PICTURE COLOR

TEMP COLOR

SYS GAMMA

MODE DRC

Y: Adjustable/can be set N: Not adjustable/cannot be set

Input signal

Video

or

S video

Y Y Y Y

(NTSC

3.58/

4.43

1)

only)

Y Y Y

Y

N

Y

15k

RGB

Y Y N N

N N Y

N

Y

Compo-

nent

Y Y Y N

Y Y Y

N

Y

RGB

(preset)

Y Y N N

N N Y

N

Y

N

RGB (preset) (HDTVY/P

B/PR

) Y Y Y Y

Y

N Y

N

RGB

(not

preset)

Y Y N N

N N Y

N

Y

N

1) NTSC

4.43

is the color system used when playing back a video recorded in

NTSC color system on a NTSC

4.43

system VCR.

..........................................................................................................................................................................................................

27

(GB)

The INPUT SETTING menu is used to change the settings of the input signal. Unadjustable items, which vary according to the input signal, are not displayed in the menu.

INPUT SETTING

DOT PHASE: SIZE SHIFT

8 H:1344 H:123 V:123

1024x768 NO . 2 3 n

20

INPUT-A

Operation

1. Select an item

Use the V or v key to select the item, then press the b or the ENTER key.

2. Adjust an item

•When changing the adjustment level:

To increase the number, press the V or b key. To decrease the number, press the v or B key. Press the ENTER key to restore the original screen.

•When changing the setting:

Press the V or v key to change the setting, then press the B or the ENTER key. The original screen is restored.

DOT PHASE

Adjusts the phase of the LCD panel and the input signal when H FILTER is set to OFF. Adjust the value to obtain the clearest picture.

DOT PHASE: 8

The INPUT SETTING Menu

SIZE

Adjusts the horizontal size of the picture.

SIZE

H:1344

As the setting for H increases, the horizontal size of the picture becomes larger, and as the setting decreases, the size becomes smaller. Adjust the setting according to the input signal. Use the B or b key to adjust the horizontal size.

SHIFT

Adjusts the position of the picture.

SHIFT

H:123 V:123

H adjusts the horizontal position of the picture, and V adjusts the vertical position. As the setting for H increases, the picture moves to the right, and as the setting decreases, it moves to the left. As the setting for V increases, the picture moves up, and as the setting decreases, it moves down. Use the B or b key to adjust the horizontal position and the V or v key for the vertical position.

SCAN CONV (converter)

Converts the signal to display the picture according to the screen size.

INPUT SETTING

DOT PHASE: SIZE SHIFT

8 H:1056 H:123 V:123 ON

800x600 NO . 1 7

INPUT-A

SCAN CONV: ON

OFF

n

21

ON: Displays the picture according to the screen

size. The picture will lose some clarity.

OFF: Displays the picture while matching one pixel

of input picture element to that of the LCD. The picture will be clear but the picture size will be smaller.

28

(GB)

ASPECT

Sets the aspect ratio of the picture. When inputting 16:9 (squeezed) signal from equipment such as a DVD player, set to 16:9.

INPUT SETTING

SHIFT BLANKING TOP

H:123 V:123 4:3

VIDEO/60 NO. 1

VIDEO

ASPECT: 4:3

16:9

n

22

4:3: When the picture with ratio 4:3 is input 16:9: When the picture with ratio 16:9 (squeezed) is

input.

H FILTER

Corrects the vertical bands that appear on the picture.

INPUT SETTING

DOT PHASE: SIZE SHIFT SCAN CONV:

H:1266

8 H:123 V:123

ON OFF

1280x1024

NO . 3 7

INPUT-A

H FILTER: OFF

ON

n

23

The vertical bands may occur when an RGB signal with horizontal resolution of more than 1024 × 768 pixels is input. In such cases, set to ON. The picture will loose some clarity, but the vertical bands will be reduced. Set to OFF to associate a dot of the input signal with a pixel of the LCD.

BLANKING

Adjusts if excess signals are seen with the picture, or the whole picture is not seen clearly.

INPUT SETTING

DOT PHASE: SIZE SHIFT SCAN CONV:



8 H:1056 H:123 V:123 ON

NO .

0

INPUT-A

BLANKING

n

24

800×600

The INPUT SETTING Menu

Select BLANKING, then press the ENTER key to display the blanking adjustment screen.

BLANKING TOP: RIGHT:

LEFT:

126

BOTTOM: 2 3 4

57 34

Use the V or v key to select the part to be adjusted, and the B or b key to adjust.

Input signals and adjustable/setting items

Item

DOT PHASE

SIZE SHIFT SCAN CONV

ASPECT H FILTER

BLANKING

Y: Adjustable/can be set N: Not adjustable/cannot be set

Input signal

Video or

S video

N

N Y N

Y N

Y (TOP and BOTTOM

only)

15k

RGB

N

N Y N

Y N

Y

(TOP

and

BOTTOM

only)

Compo-

nent

N

N Y N

Y N

Y (TOP and BOTTOM

only)

RGB

(preset)

Y

(except

for

HDTV)

Y Y Y

(Only for

lower

resolution

than

SVGA)

N Y

(Higher

resolution

than

XGA)

Y

(HDTV-

GBR, HDTVY/P

B/PR

only)

RGB

(not preset)

Y

Y Y Y

N Y

(Higher resolution than XGA)

Y

29

(GB)

Memory No.

1 2 3 4 5 6 7 8 9

10 11 12 13 14

15

16 17 18 19

20 21 22

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

* VESA is a registered trademark of Video Electronics

Standard Association.

INPUT MEMORY No.

The upper number indicates the memory number of the current input signal. The lower number indicates the user memory number.

INPUT SETTING

DOT PHASE: SIZE SHIFT

8 H:1048 H:123 V:123

1024x768 NO. 1

INPUT-A

n 23

About the memory function

The adjustment data for 39 types of input signals are preset at the factory (preset memory). When a signal is input to the projector, the signal type is automatimally detected and the data for the signal is called from the memory to display an optimum picture. The data can be adjusted in the INPUT SETTING menu and the adjusted data will be saved as user memory. When you save more than 200 user memories, the newest one always overwrites the oldest one. The saved user memory number is displayed in the INPUT SETTING menu as n NO. ππ. When an RGB signal other than the preset signals is input to the projector, the memory number is displayed as 0 and the closest option is automatically selected from the preset 39 types of signals.

Type of input signal

Memory number

User memory number

Preset signal

Video 60 Hz Video 50 Hz 15k RGB (60 Hz) 15k RGB (50 Hz) HDTV 640 × 350 VGA-1 (VGA350)

VESA* 85(VGA350)

640 × 400 NEC PC98

VGA-2 (TEXT) /VESA70

VESA 85 (VGA400)

640 × 480 VGA VESA60

Mac 13 VGA VESA 72 VGA VESA 75

(IBM M3) VGA VESA 85

(IBM M4)

800 × 600 SVGA VESA 56

SVGA VESA 60 SVGA VESA 72 SVGA VESA 75

(IBM M5)

SVGA VESA 85 832 × 624 Mac 16 1024 × 768 XGA VESA 43

(8514)

XGA VESA 60

XGA VESA 70

XGA VESA 75

XGA VESA 85 1152 × 864 VESA 70

VESA 75

VESA 85 1152 × 900 SUN LO

SUN HI 1280 × 960 VESA 60

VESA 75 1280 × 1024

SXGA VESA 43

SGI-5

SXGA VESA 60

SXGA VESA 75

SXGA VESA 85 1600 × 1200

UXGA VESA 60

fH (kHz)

15.73

15.63

15.73

15.63

33.75

31.47

37.86

24.82

31.47

37.86

31.47

35.00

37.86

37.50

43.27

35.16

37.88

48.08

46.88

53.67

49.72

35.52

48.36

56.48

60.02

68.68

64.00

67.50

77.49

61.80

71.71

60.00

75.00

46.43

53.32

63.97

79.98

91.15

75.00

fV (Hz)

59.94

50.00

59.94

50.00

60.00

70.09

85.08

54.42

70.09

85.08

59.94

66.67

72.81

75.00

85.01

56.25

60.32

72.19

75.00

85.06

74.55

86.96

60.00

69.96

75.03

85.00

70.02

75.00

85.06

65.96

76.05

60.00

75.00

86.87

50.06

60.01

75.03

85.02

60.00

Sync

—

— S on G S on G S on Y/G H-pos V-neg H-pos V-neg H-neg V-neg H-neg V-pos

H-neg V-pos H-neg V-neg S on G H-neg V-neg H-neg V-neg

H-neg V-neg

H-pos V-pos H-pos V-pos H-pos V-pos H-pos V-pos

H-pos V-pos H-neg V-neg H-pos V-pos

H-neg V-neg H-neg V-neg H-pos V-pos H-pos V-pos H-pos V-pos H-pos V-pos H-pos V-pos H-neg V-neg C-neg H-pos V-pos H-pos V-pos H-pos V-pos S on G H-pos V-pos H-pos V-pos H-pos V-pos H-pos V-pos

Horizontal size

— — — —

1235

800 832 848 800

832 800

— 832 840

832

1024 1056 1040 1056

1048 1152 1264

1344 1328 1312 1376 1308 1422 1394 1283 1256 1440 1382 1272 1260 1272 1266 1296 1352

1-15

1-16

30

(GB)

The SET SETTING menu is used for changing the initial settings of the projector. Unadjustable items are not displayed in the menu.

SET SETTING

SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING

:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:

01 01

ON ON ENGLISH FLOOR-FRONT

FRONT&REAR

INPUT-A

STATUS:AT

OFF

Operation

1. Select an item

Use the V or v key to select the item, then press the b key or the ENTER key.

2. Adjust an item

•When changing the adjustment level:

To increase the number, press the V or b key. To decrease the number, press the v or B key. Press the ENTER key to restore the original screen.

•When changing the setting:

Press the V or v key to change the setting, then press the B or the ENTER key. The original screen is restored.

STATUS

Sets up the on-screen display.

SET SETTING

SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING

:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:0101

ON ON ENGLISH FLOOR-FRONT

FRONT&REAR

INPUT-A

STATUS:

OFF

ON

OFF

ON: Shows all of the on-screen displays. OFF: Turns off the on-screen displays except for the

menus and warning messages.

The SET SETTING Menu

SPEAKER

Set to OFF to cut off the sound of the internal speaker when external speakers are connected. When set to OFF, “SPEAKER OFF” appears on the screen when you turn on the power.

SET SETTING

STATUS: LANGUAGE:

INSTALLATION: POWER SAVING

:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:

01 01

ON ON ENGLISH FLOOR-FRONT OFF FRONT&REAR

INPUT-A

ON OFF

SPEAKER:

LANGUAGE

Selects the language used in the menu and on-screen displays.

01 01

POWER SAVING

: OFF

FRONT&REAR

CEILING-FRONT

FLOOR-FRONT

SET SETTING

STATUS: SPEAKER:

LANGUAGE:

SIRCS RECEIVER: GROUP INDEX: DEVICE INDEX:

ON ON ENGLISH FRANCAIS DEUTSCH ITALIANO ESPANOL

INPUT-A

INSTALLATION

:

Available languages are: English, French, German, Italian, Spanish, Japanese and Chinese.

INSTALLATION

Reverses the picture horizontally or vertically.

SET SETTING

STATUS: SPEAKER: LANGUAGE:

POWER SAVING: SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:

01 01

ON ON ENGLISH FLOOR-FRONT

OFF

FRONT&REAR

INPUT-A

INSTALLATION:

CEILING-FRONT

FLOOR-FRONT FLOOR-REAR

CEILING-REAR

FLOOR-FRONT: The picture is not reversed. CEILING-FRONT: The picture is reversed

horizontally and vertically.

FLOOR-REAR:

The picture is reversed horizontally.

CEILING-REAR: The picture is reversed

vertically.

Note

In case of using a mirror, be careful of installation since the picture may be reversed.

31

(GB)

POWER SAVING

When set to ON, the projector goes into the power saving mode and the lamp for light source turns off if no signal is input for about 10 minutes. The power saving mode is canceled when a signal is input or any key is pressed.

SET SETTING

STATUS: SPEAKER: LANGUAGE: INSTALLATION:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:0101

ON ON ENGLISH FLOOR-FRONT

OFF

FRONT&REAR

INPUT-A

OFF ON

POWER SAVING

:

SIRCS RECEIVER

Selects the remote control detectors to be activated. Change the setting if the wireless Remote Commander does not work properly due to the influence of the fluorescent lamp, etc.

SET SETTING

STATUS: SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING:

GROUP INDEX: DEVICE INDEX:0101

ON ON ENGLISH FLOOR-FRONT OFF FRONT&REAR

INPUT-A

SIRCS RECEIVER

:

FRONT&REAR FRONT REAR OFF

FRONT & REAR: Activates both the front and rear

detectors.

FRONT: Activates the front detector only. REAR: Activates the rear detector only. OFF: Activates neither the front nor rear detector.

Note

When set to OFF, the wireless Remote Commander does not function. Use the keys on the control panel or the wired Remote Commander.

GROUP INDEX

Groups multiple projectors or switchers to operate them simultaneously.

GROUP INDEX: 0 1

You can set the group index number to the desired number between 01 and 99.

DEVICE INDEX

Displays the index number set with the INDEX switches on the rear of the projector. You cannot set the device index number with this menu.

SET SETTING

STATUS: SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING: SIRCS RECEIVER: GROUP INDEX: 0 1

01

ON ON ENGLISH FLOOR-FRONT OFF FRONT&REAR

INPUT-A

DEVICE INDEX:

For details for setting the number, see page 45 (GB).

32

(GB)

The SIGNAL SELECT Menu is used for selecting the input signal. Depending on the interface board installed in the projector, some items may not be displayed in the menu.

SIGNAL SELECT

INPUT-A: INPUT-B: INPUT-C:

RGB RGB RGB

INPUT-A

Operation

Use the V or v key to select the input, then press the ENTER key.

INPUT-A

Selects audio and video signals input from the INPUT A connectors. You can select the RGB, component or HDTV (YP

BPR

) signal.

SIGNAL SELECT

INPUT-B: INPUT-C:

RGB RGB RGB

INPUT-A RGB COMPONENT YP

BPR

INPUT-A:

Note

When the PC-3000 signal interface switcher is connected to the INPUT A connectors, you cannot select the item.

The SIGNAL SELECT Menu

INPUT-B

Selects the input signal from the connectors on the optional IFB-12A interface board installed in the INPUT B section. You can select the RGB, component, HDTV (YP

BPR

), video or S video signal.

SIGNAL SELECT

INPUT-A: INPUT-C:

RGB RGB RGB

INPUT-B RGB

COMPONENT VIDEO S-VIDEO YP

BPR

INPUT-B:

Note

This item is not displayed when the optional interface board other than the IFB-12A is installed in the INPUT B section, or when the output mode is selected on the IFB-12A.

INPUT-C

Selects the input signal from the connectors on the optional IFB-12A interface board installed in the INPUT C section. You can select the RGB, component, HDTV (YP

BPR

), video or S video signal.

SIGNAL SELECT

INPUT-A: INPUT-B:

RGB RGB RGB

INPUT-C

INPUT-C:

RGB COMPONENT VIDEO S-VIDEO YP

BPR

Note

This item is not displayed when the optional interface board other than the IFB-12A is installed in the INPUT C section.

33

(GB)

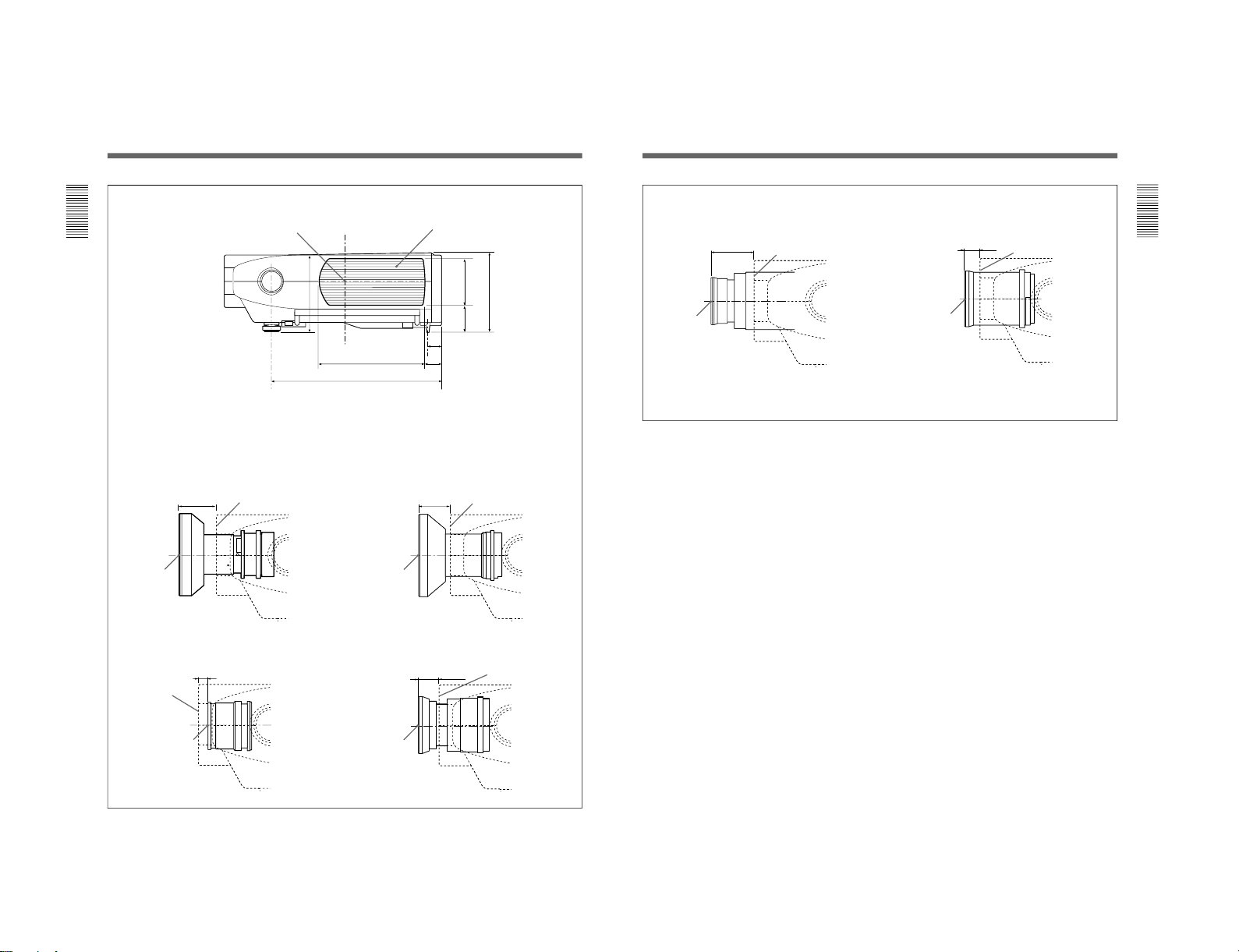

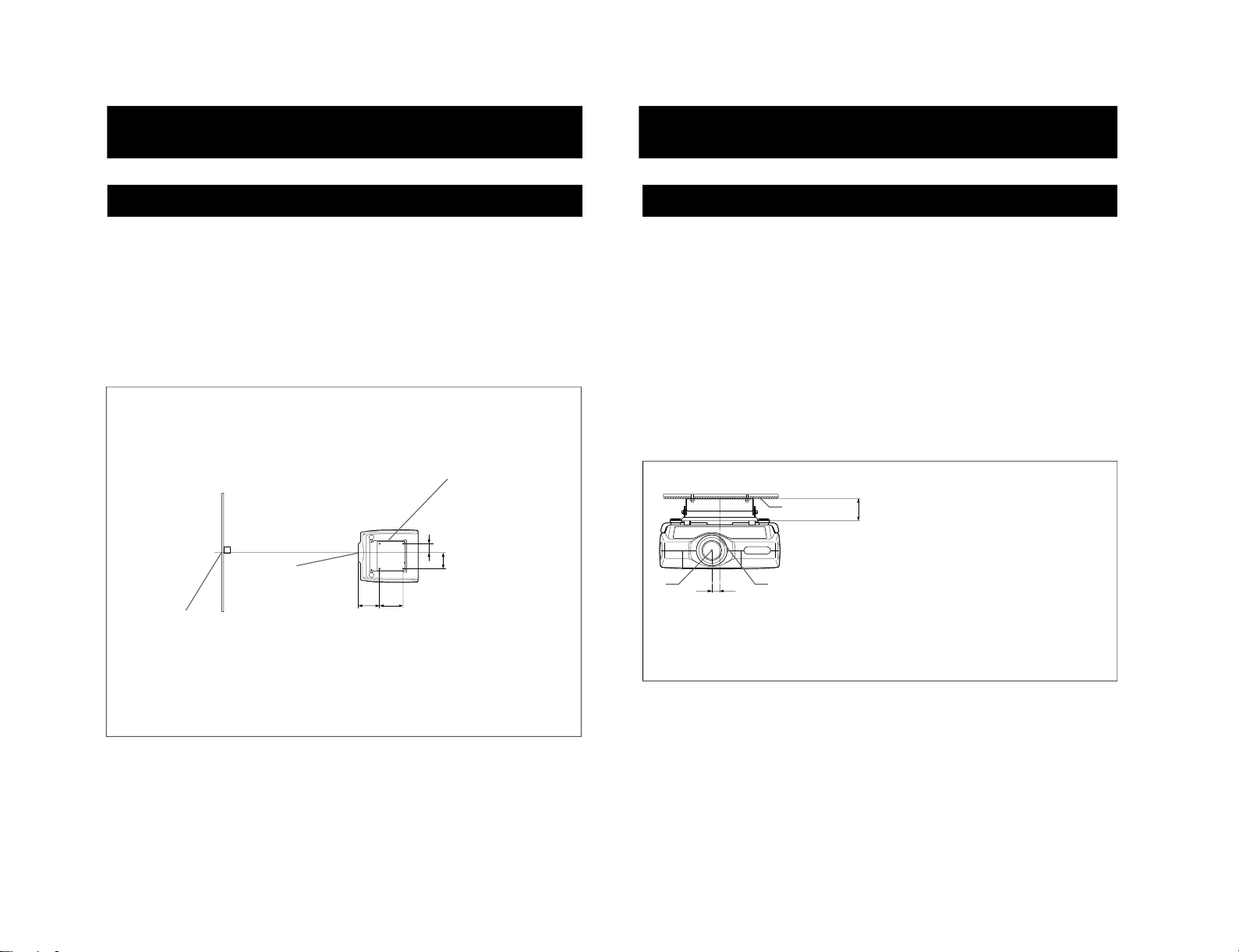

Installation/Connection examples/Index number setting

Installation Examples

When you install the projector, be sure to adjust the horizontal positioning of the projector so that the center of the lens is aligned with the horizontal center of the screen.

About the Picture Size

The on-screen picture size changes according to the setting of SCAN CONV in the INPUT SETTING menu. Note that the projection distance also changes depending on the picture size.

Top view

Wall

Screen

Cente of the screen

38 mm (1

1

/2 inches)

Center of the projector

Center of the lens

1-17

1-18

34

(GB)

Floor Installation

a

x

b

c

Wall

Center of the screen

Center of the lens

Floor

a: distance between the screen and the center of the lens b: distance between the floor and the center of the lens c: distance between the floor and the bottom of the

adjusters of the projector

x: free

Distance between the front of the cabinet and the center of the lens

VPLL-2009: 70.6 mm (2

7

/8 inches)

VPLL-2014: 63 mm (2

1

/2 inches) VPLL-Z2019: – 25.4 mm (– 1 inch) VPLL-Z2025: 42.4 mm (1

11

/16 inches)

VPLL-Z2039: 84.5 mm (3

3

/8 inches)

VPLL-2075: 29.5 mm (1

3

/16 inches)

Installation Examples

a

35

(GB)

Unit: mm (inches)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 35.079/1.814) – 134 b (minimum) = x – (SS/1.814 × 0.5) b (maximum) = x + (SS/1.814 × 0.5) c (minimum) = x – (SS/1.814 × 0.5 + 142.5) c (maximum) = x – (SS/1.814 × – 0.5 + 141.5)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

640 1410 1800 2190 2770 3350 3730 4700 5670 6630 7600 8570 9530

(25 1/4) (55

5

/8) (70 7/8) (86 1/4) (109

1

/8) (132) (146 7/8) (185 1/8) (223

3

/8) (261 1/8) (299 1/4) (337

1

/2) (375 1/4)

Min.

x–11 x–22 x–28 x–33 x–41 x–50 x–55 x–69 x–83 x–96 x–110 x–124 x–138

(x–

7

/16) (x–7/8) (x–1 1/8) (x–1

5

/16)(x–1 11/16) (x–2) (x–2 1/4) (x–2

3

/4) (x–3 3/8) (x–3 7/8) (x–4

3

/8) (x–5) (x–5 1/2)

b Center x

Max.

x+11 x+22 x+28 x+33 x+41 x+50 x+55 x+69 x+83 x+96 x+110 x+124 x+138

(x+7/16) (x+7/8) (x+1

1

/8) (x+1 5/16)(x+1 11/16) (x+2) (x+2

1

/4) (x+2 3/4) (x+3 3/8) (x+3

7

/8) (x+4 3/8) (x+5) (x+5 1/

2

)

Min.

x–154 x–165 x–170 x–176 x–184 x–192 x–198 x–211 x–225 x–239 x–253 x–267 x–280

(x–6 1/8) (x–6 1/

2

) (x–6 3/4) (x–7) (x–7 1/4) (x–7

5

/8) (x–7 7/8) (x–8 3/8) (x–8

7

/8) (x–9 1/2) (x–10) (x–10 1/2)(x–11

1

/8)

c Center x–142 (x–5

5

/8)

Max.

x–130 x–119 x–114 x–108 x–100 x–92 x–86 x–73 x–59 x–45 x–31 x–17 x–4

(x–5 1/

4

) (x–4 3/4) (x–4 1/2) (x–4 3/8) (x–4) (x–3

5

/8) (x–3 1/2) (x–2

7

/8) (x–2 3/8) (x–1 13/16) (x–1 1/4) (x–

11

/16) (x–5/32)

When using the VPLL-2009 fixed short focus lens

Make sure that the center of the lens is aligned with the vertical center of the screen.

When using the VPLL-2014 fixed short focus lens

Unit: mm (inches)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 52.244/1.814) – 123 b (minimum) = x – (SS/1.814 × 9.0) c (minimum) = x – (SS/1.814 × 9.0 + 151.0)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

1030 2180 2760 3330 4200 5060 5640 7080 8520 9960 11400 12840 14280

(40 5/8) (85 7/8) (108

3

/4) (131 1/8) (165 3/8) (199

1

/4) (222 1/8) (278 7/8) (335 1/2) (392

1

/4) (448 7/8) (505 5/8) (562

3

/8)

Min.

x–198 x–397 x–496 x–595 x–744 x–893 x–992 x–1240 x–1488 x–1736 x–1984 x–2232 x–2480

b

(x–

77/8) (x–

155/8) (x–19 5/8)(x–23 1/2)(x–29

3

/8)(x–35 1/4)(x–39 1/8)(x–48 7/

8

)(x–58 5/8)(x–68 3/8)(x–78 1/4) (x–88) (x–97

3

/4)

Max. x

Min.

x–349 x–548 x–647 x–746 x–895 x–1044 x–1143 x–1391 x–1639 x–1887 x–2135 x–2383 x–2631

c

(x–13

7

/8)(x–21 5/8)(x–25 1/2) (x–29

1

/2)(x–35 1/4)(x–41 1/8)(x–45 1/8)(x–54

7

/8)(x–64 5/8)(x–74 3/8)(x–84

1

/8) (x–93 7/8)(x–103 5/8)

Max.

x–142

(x–5

5

/8)

a

36

(GB)

Installation Examples

When using the VPLL-Z2019 1.3-times zoom standard focus lens

Unit: mm (inches)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

Min.

1490 3080 3870 4670 5860 7050 7850 9840 11820 13810 15800 17790 19780

a

(58

3

/4) (121 3/8) (152

1

/2) (184) (230 3/4) (277 5/

8

) (309 1/8) (387 1/2) (465 1/2) (543

7

/8) (622 1/8) (700 1/2) (778

7

/8)

Max.

1890 3880 4880 5870 7370 8860 9860 12350 14840 17330 19810 22300 24790

(74 1/2) (152

7

/8) (192 1/4) (2311/4) (290 1/4) (348

7

/8) (388 1/4) (486 3/8) (584

3

/8) (682 3/8) (780 1/8) (878

1

/8) (976 1/8)

Min.

x–287 x–573 x–717 x–860 x–1075 x–1290 x–1433 x–1791 x–2150 x–2508 x–2866 x–3225 x–3583

b

(x–

11

3

/8) (x–

225/8) (x–28 1/4)(x–33 7/

8

)(x–42 3/8)(x–50 7/8)(x–56 1/2)(x–70

5

/8)(x–84 3/4)(x–98 3/4)(x–112

7

/8)(x–127)(x–141 1/8)

Max. x

Min.

x–442 x–728 x–872 x–1015 x–1230 x–1445 x–1588 x–1946 x–2305 x–2663 x–3021 x–3380 x–3738

c

(x–17

1

/2)(x–28 3/4)(x–34 3/

8

) (x–40) (x–48 1/2) (x–57)

(x–62

5

/8) (x–76 3/4) (x–90 3/4)(x–104

7

/8)(x–11831/32)(x–133 1/8)

(x–1471/4)

Max.

x–142

(x–5 5/8)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 70.383/1.814) – 102) × 1.025 a (maximum) = ((SS × 92.644/1.814) – 104) × 0.975 b (minimum) = x – (SS/1.814 × 13.0) c (minimum) = x – (SS/1.814 × 13.0 + 155.0)

When using the VPLL-Z2025 1.6-times zoom long focus lens

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

Min.

3980 5020 6060 7620 9180 10220 12830 15430 18030 20630 23230 25830

a

(156

3

/4) (197

11

/16) (238 5/8) (300 1/8) (361 1/

2

) (402 1/2) (505 1/4) (607 5/8) (709

15

/16) (812 3/8) (914 3/4) (1017

1

/8)

Max.

6160 7750 9330 11710 14080 15660 19620 23580 27540 31500 35460 39420

(242

5

/8) (305 1/4) (367 3/8) (4611/

8

) (554 1/2) (616 5/8) (772 5/8) (928

1

/2) (1084 1/2)(1240 3/8)(1396

1

/4)(1552 1/4)

Min.

x–573 x–717 x–860 x–1075 x–1290 x–1433 x–1791 x–2150 x–2508 x–2866 x–3225 x–3583

b

(x–

225/8) (x–28 1/4)(x–33 7/

8

)(x–42 3/8)(x–50 7/8)(x–56 1/2)(x–70

5

/8)(x–84 3/4)(x–98 3/4)(x–112

7

/8)(x–127)(x–141 1/8)

Max. x

Min.

x–728 x–872 x–1015 x–1230 x–1445 x–1588 x–1946 x–2305 x–2663 x–3021 x–3380 x–3738

c

(x–28

3

/4)(x–34 3/

8

) (x–40) (x–48 1/2) (x–57)

(x–62

5

/8) (x–76 3/4) (x–90 3/4) (x–104

7

/8)(x–11831/32)(x–133 1/8)

(x–1471/4)

Max.

x–142

(x–5 5/8)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 92.078/1.814) – 176) × 1.025 a (maximum) = ((SS × 147.324/1.814) – 175) × 0.975 b (minimum) = x – (SS/1.814 × 13.0) c (minimum) = x – (SS/1.814 × 13.0 + 155.0)

37

(GB)

When using the VPLL-2075 fixed long focus lens

When using the VPLL-Z2039 1.5-times zoom long focus lens

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

Min.

6360 7990 9620 12070 14510 16150 20220 24300 28380 32460 36540 40620

a

(250

1

/2) (314 5/8) (378 7/

8

) (475 3/8) (571 3/8) (636) (796

1

/4) (956 7/8) (1117 1/2)(1278

1

/8)(1438 7/8)(1599 1/2)

Max.

9150 11480 13810 17300 20790 23120 28940 34760 40570 46390 52210 58030

(360 3/8) (452 1/

8

) (543 7/8) (6811/4) (818 5/8) (910

3

/8) (1139 5/8)(1368 3/4)(1597

1

/2)(1826 5/8)(2055 7/8)(2284 15/

16

)

Min.

x–573 x–717 x–860 x–1075 x–1290 x–1433 x–1791 x–2150 x–2508 x–2866 x–3225 x–3583

b

(x–

225/

8

) (x–28 1/4)(x–33 7/8)(x–42 3/8)(x–50

7

/8)(x–56 1/2)(x–70 5/8)(x–84

3

/4)(x–98 3/4)(x–112 7/8)(x–127)(x–141

1

/8)

Max. x

Min.

x–728 x–872 x–1015 x–1230 x–1445 x–1588 x–1946 x–2305 x–2663 x–3021 x–3380 x–3738

c

(x–28

3

/4)(x–34 3/8) (x–40) (x–48

1

/2) (x–57)

(x–62 5/8) (x–76

3

/4) (x–90 3/4)(x–104 7/8)(x–11831/32)(x–133

1

/8)

(x–1471/4)

Max.

x–142

(x–5 5/8)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 144.368/1.814) – 163) × 1.025 a (maximum) = ((SS × 216.549/1.814) – 163) × 0.975 b (minimum) = x – (SS/1.814 × 13.0) c (minimum) = x – (SS/1.814 × 13.0 + 155.0)

Unit: mm (inches)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 269.100/1.814) + 163 b (minimum) = x – (SS/1.814 × 13.0) c (minimum) = x – (SS/1.814 × 13.0 + 155.0)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

12030 15000 17960 22410 26860 29830 37250 44660 52080 59500 66910 74330

(473 11/16) (590

5

/8) (707 1/4) (882 1/2) (1057 5/

8

)(1174 5/8)(1466 3/4)(1758 1/2)(2050

3

/4)(2342 7/8)(2634 5/8)(2926

3

/4)

Min.

x–573 x–717 x–860 x–1075 x–1290 x–1433 x–1791 x–2150 x–2508 x–2866 x–3225 x–3583

b

(x–

22

5

/8) (x–

281/4) (x–33 7/8)(x–42 3/

8

)(x–50 7/8)(x–56 1/2)(x–70 5/8)(x–84

3

/4)(x–98 3/4)(x–112 7/8)(x–127)(x–141

1

/8)

Max. x

Min.

x–728 x–872 x–1015 x–1230 x–1445 x–1588 x–1946 x–2305 x–2663 x–3021 x–3380 x–3738

c

(x–28

3

/4)(x–34 3/8) (x–40) (x–48

1

/2) (x–57)

(x–62 5/8) (x–76

3

/4) (x–90 3/4)(x–104 7/8)(x–118

31

/32)(x–1331/8)(x–147 1/4)

Max.

x–142

(x–5

5

/8)

a

1-19

1-20

38

(GB)

a

e

x

b

c

Ceiling Installation

When installing the projector on the ceiling, use the PSS-2000 Projector Suspension Support. For ceiling installation, ask for qualified Sony personnel only.

Installation Examples

Center of the screen

Wall

Center of the lens

PSS-2000 Projector Suspension Support (not supplied)

Ceiling

a: Distance between the screen and the center of the lens b: Distance between the ceiling and the center of the lens c: Distance between the ceiling and the mounting surface of the suspension bracket e: Distance between the top of the available screen range and the center of the screen x: Distance between the ceiling and the center of the screen

Distance between the front of the cabinet and the center of the lens

VPLL-2014: 63 mm (2

1

/2 inches) VPLL-Z2019: – 25.4 mm (– 1 inch) VPLL-Z2025: 42.4 mm (1

11

/16 inches)

VPLL-Z2039: 84.5 mm (3

3

/8 inches)

VPLL-2075: 29.5 mm (1

3

/16 inches)

a

39

(GB)

When using the VPLL-2014 fixed short focus lens

When using the PSS-2000 Projector Suspension Support: c =104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 52.244/1.814) – 123 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 9.0 + 139.6)

Unit: mm (inches)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

1030 2180 2760 3330 4200 5060 5640 7080 8520 9960 11400 12840 14280

(40 5/

8

) (85 7/8) (108 3/4) (131 1/8) (165

3

/8) (199 1/4) (222 1/8) (278

7

/8) (335 1/2) (392 1/4) (448 7/8) (505

5

/8) (562 3/8)

Min.

c+131

b

(c+5

1

/4)

Max.

c+140

(c+5 1/2)

305 610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(12 1/8) (24

1

/8) (30) (36) (45) (54

1

/8) (60) (75 1/8) (90

1

/8) (105 1/8) (120 1/16) (135

1

/8) (150 1/8)

Min.

c+131

x

(c+5

1

/4)

Max.

c+338 c+536 c+636 c+735 c+884 c+1033 c+1132 c+1380 c+1628 c+1876 c+2124 c+2372 c+2620

(c+13 3/8)(c+21 1/8)(c+25 1/

8

) (c+29) (c+34 7/8)(c+40 3/4)(c+44

5

/8)(c+54 3/8)(c+64 1/8)(c+73

7

/8)(c+83 3/4)(c+93 1/2)(c+103 1/4)

When using the VPLL-Z2019 1.3-times zoom standard focus lens

When using the PSS-2000 Projector Suspension Support: c =104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 70.383/1.814) – 102) × 1.025 a (maximum) = ((SS × 92.644/1.814) – 104) × 0.975 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 13.0 + 143.6)

Unit: mm (inches)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

Min.

1490 3080 3870 4670 5860 7050 7850 9840 11820 13810 15800 17790 19780

a

(58

3

/4) (121

3

/8) (152 1/2) (184) (230

3

/4) (277 5/8) (309 1/8) (387 1/2) (465

1

/2) (543 7/8) (622 1/8) (700

1

/2) (778 7/8)

Max.

1890 3880 4880 5870 7370 8860 9860 12350 14840 17330 19810 22300 24790

(74 1/2) (152 7/8) (192 1/4) (231

1

/4) (290 1/4) (348 7/8) (388 1/4) (486

3

/8) (584 3/8) (682 3/8) (780

1

/8) (878 1/8) (976 1/8)

Min.

c+131

b

(c+5

1

/4)

Max.

c+144

(c+5 3/4)

305 610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(12 1/8) (24

1

/8) (30) (36) (45) (54

1

/8) (60) (75

1

/8) (90 1/8) (105 1/8) (120 1/16) (135

1

/8) (150 1/8)

Min.

c+131

x

(c+5

1

/4)

Max.

c+430 c+717 c+860 c+1003 c+1218 c+1433 c+1577 c+1935 c+2293 c+2652 c+3010 c+3368 c+3726 (c+17) (c+28 1/4)(c+33

7

/8)(c+39 1/2) (c+48)

(c+56

1

/2) (c+62 1/8) (c+76 1/4) (c+90 3/8)(c+104

1

/2)(c+118 5/32)(c+132 5/8)(c+146

3

/4)

a

e

40

(GB)

Installation Examples

When using the VPLL-Z2025 1.6-times zoom long focus lens

When using the VPLL-Z2039 1.5-times zoom long focus lens

When using the PSS-2000 Projector Suspension Support: c =104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 92.078/1.814) – 176) × 1.025 a (maximum) = ((SS × 147.324/1.814) – 175) × 0.975 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 13.0 + 143.6)

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

Min.

3980 5020 6060 7620 9180 10220 12830 15430 18030 20630 23230 25830

a

(156

3

/4) (197 11/16) (238 5/8) (300

1

/8) (361 1/2) (402 1/2) (505

1

/4) (607 5/8) (709 15/16) (812 3/8) (914

3

/4) (1017 1/8)

Max.

6160 7750 9330 11710 14080 15660 19620 23580 27540 31500 35460 39420

(242 5/8) (305 1/4) (367

3

/8) (4611/8) (554 1/2) (616

5

/8) (772 5/8) (928 1/2) (1084 1/2)(1240

3

/8)(1396 1/4)(1552 1/4)

Min.

c+131

b

(c+5

1

/4)

Max.

c+144

(c+5 3/4)

610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(24 1/8) (30) (36) (45) (54

1

/8) (60) (75

1

/8) (90 1/8) (105 1/8) (120 1/

16

) (135 1/8) (150 1/8)

Min.

c+131

x

(c+5

1

/4)

Max.

c+717 c+860 c+1003 c+1218 c+1433 c+1577 c+1935 c+2293 c+2652 c+3010 c+3368 c+3726

(c+28 1/4)(c+33

7

/8)(c+39 1/2) (c+48)

(c+56

1

/2) (c+62 1/8) (c+76 1/4) (c+90 3/

8

)(c+104 1/2)(c+118 5/32)(c+132 5/8)(c+146

3

/4)

When using the PSS-2000 Projector Suspension Support: 104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 144.368/1.814) – 163) × 1.025 a (maximum) = ((SS × 216.549/1.814) – 163) × 0.975 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 13.0 + 143.6)

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

Min.

6360 7990 9620 12070 14510 16150 20220 24300 28380 32460 36540 40620

a

(250

1

/2) (314 5/

8

) (378 7/8) (475 3/8) (571 3/8) (636) (796

1

/4) (956 7/8) (1117

1

/2)(1278 1/8)(1438 7/8)(1599 1/2)

Max.

9150 11480 13810 17300 20790 23120 28940 34760 40570 46390 52210 58030

(360 3/

8

) (452 1/8) (543 7/8) (6811/4) (818

5

/8) (910 3/8) (1139 5/8)(1368

3

/4)(1597 1/2)(1826 5/8)(2055 7/8)(2284

15

/16)

Min.

c+131

b

(c+5

1

/4)

Max.

c+144

(c+5 3/

4

)

610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(24 1/8) (30) (36) (45) (54

1

/8) (60) (75

1

/8) (90 1/8) (105

1

/8) (120 1/16) (135 1/8) (150

1

/8)

Min.

c+131

x

(c+5

1

/4)

Max.

c+717 c+860 c+1003 c+1218 c+1433 c+1577 c+1935 c+2293 c+2652 c+3010 c+3368 c+3726

(c+28 1/4)(c+33 7/8)(c+39 1/2) (c+48)

(c+56 1/2) (c+62 1/8) (c+76

1

/4) (c+90 3/8)(c+104 1/2)(c+118 5/

32

)(c+132 5/8)(c+146 3/4)

e

41

(GB)

When using the VPLL-2075 fixed long focus lens

When using the PSS-2000 Projector Suspension Support: c =104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 269.100/1.814) + 163 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 13.0 + 143.6)

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

12030 15000 17960 22410 26860 29830 37250 44660 52080 59500 66910 74330

(473 11/16) (590

5

/8) (707 1/4) (882 1/2) (1057

5

/8)(1174 5/8)(1466 3/4)(1758

1

/2)(2050 3/4)(2342 7/8)(2634 5/8)(2926

3

/4)

Min.

c+131

b

(c+5

1

/4)

Max.

c+144

(c+5 3/4)

610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(24 1/8) (30) (36) (45) (54

1

/8) (60) (75

1

/8) (90 1/8) (105

1

/8) (120 1/16) (135 1/8) (150 1/

8

)

Min.

c+131

x

(c+5

1

/4)

Max.

c+717 c+860 c+1003 c+1218 c+1433 c+1577 c+1935 c+2293 c+2652 c+3010 c+3368 c+3726

(c+28 1/4)(c+33 7/8)(c+39 1/2) (c+48)

(c+56 1/2) (c+62 1/8) (c+76

1

/4) (c+90 3/8)(c+104 1/2)(c+118 5/

32

)(c+132 5/8)(c+146 3/4)

a

e

1-21

1-22

42

(GB)

0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

1

Connecting 15k RGB/Component Equipment

Note

Switch the input signal with the INPUT-A item in the SIGNAL SELECT menu.

For details, see page 32 (GB).

For details on how to connect a computer, VCR or external active speakers, see page 20 (GB). Also refer to the instruction manual of the equipment to be connected.

When making connections, be sure to:

•turn off all equipment before making any connections.

•use the proper cables for each connection.

•insert the plugs of the cables properly; plugs that are not fully inserted may generate noise. When pulling out a cable, be sure to pull it out from the plug, not the cable itself.

Connection Examples

Connecting a BNC connector

2 Turn to the right.

1 Align the pins with the pin holes

and push in the plug into the socket.

15k RGB/component equipment

to RGB/component output

Monitor cable (BNC type)

Rear

to a wall outlet

AC power cord (supplied)

to AC IN

Signal flow

43

(GB)

0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

OUT PUT

SW NO

RS-232C/422A

REMOTE

RS-232C RS-422A

RS-485 IN

RS-485 OUT



1

Connecting the Switcher

Use the optional PC-3000 Signal Interface Switcher for connecting various video equipment. The input can be selected by pressing the SWITCHER/VIDEO MEMORY/INDEX keys on the Remote Commander.

For selecting the input from the switcher, see page 15 (GB).

Notes

•When you select the input from the switcher, be sure to set the SWITCHER/VIDEO MEMORY/INDEX select switch to the SWITCHER position.

•When connecting the switcher, use the wired Remote Commander. If you use the wireless Remote Commander, activate the remote control detector on only one unit of the equipment connected through the PJ COM connector. For the other equipment, set SIRCS RECEIVER in the SET SETTING menu to OFF to deactivate the remote control detectors.

For details, see page 31 (GB).

•After all the connections are complete, attach the terminator (supplied) to the PJ COM connector on both the projector and switcher to which nothing is connected.

Device index number: 01

Rear

to INPUT A

SIC-10 connecting cable (5BNC ˜ 5BNC) (not supplied)

to OUTPUT

PC-3000 switcher

Computer, etc.

to PJ COM IN

RCC-5G/10G/30G connecting cable (not supplied)

to PJ COM OUT

Attach the supplied terminator.

to the wall outlet

AC power cord (supplied)

to AC IN

Signal flow

VCR, etc.

Attach the terminator (supplied with the PC-3000).

44

(GB)

Connection Examples

Confirming the System Construction

After all the connections are complete, confirm that equipment of the system is properly setup.

1

Connect the AC cords of all equipment to the AC outlets.

2

Press the SYS SET key on the Remote Commander. You can also press the LIGHT and RESET keys simultaneously on the control panel for the same effect. Information on the system construction and the settings of the interface boards, etc. are automatically confirmed. Then the message disappears.

Note

When you want to use the projector without connecting the switcher after using the switcher in the system connections, it is necessary to confirm the system construction again by pressing the SYS SET key or the LIGHT and RESET keys after all the connections are complete. If you press the key(s), “Master Switcher not exist” appears, but the system construction is automatically recognized.

When a system error is detected

The following messages are displayed on the screen and display window:

Message

Master Switcher not exist.

Same DEVICE INDEX for Projector detected.

Same DEVICE INDEX for Switcher detected.

Remedy

Set the switcher that outputs the signal to the projector to number 1.

Change either number of the projectors that have the same number.

Change either number of the switchers that have the same number.

Note

If the switcher is in standby mode, the message appears only in the message display window.

45

(GB)

Setting the Index Numbers

When you connect multiple projectors in your system, you have to set the group index and device index numbers for each projector.

To set the group index number

If you set the same group index number for multiple projectors, you can operate multiple projectors and switchers simultaneously (such as input selection) by designating the number. The group index number can be set in the menu.

For group index number setting, see page 31 (GB).

To set the device index number

If you set the device index number, you can control each projector individually with the supplied Remote Commander. The device index number can be set with the DEVICE INDEX switches on the rear of the projector. It is set to “01” at the factory. If only one projector is connected, set it to “01.”

Notes

•Do not set the same device index number for the projectors in the same system.

•Do not set the number to “00.” If you do, the projector will be operated only with the keys on the control panel. It cannot be controlled with the wired or wireless Remote Commander, or with an external equipment to which the PJ COM connectors are connected.

0

1

Ten’s digit Unit’s digit

1-23

1-24

46

(GB)

Setting the Index Numbers

Notes on setting of the index number

•Set the same group index number for all equipment of the same system connection (those on the signal route between the signal source and the projector).

For setting the group index number, see “GROUP INDEX” on page 31 (GB).

•Set the correct group and device index numbers and the switcher number.

Do not set the same device index number or the same switcher number in one group. For example, if there are different pieces of equipment with the switcher number 1, the error message will appear when the SYS SET key is pressed.

•Set the switcher that outputs the signal to the projector to number 1.

Set the same group index number.

Set the different group index number for two systems.

Set the same group index number.

Set this switcher to 1.

Notes on connections when two or more switchers are used

•Mount the IFB-12A interface board to the slot 1 of the number n switcher and connect the output connector of the number (n+1) switcher to the IFB-12A.

•You can attach the IFB-12A signal interface board (when the IN/OUT switch is set to OUT) only to the number 1 switcher.

PC-3000

Projector

PC-3000

Projector

Signal flow

PJ COM

Signal flow

PJ COM

PC-3000

Projector

47

(GB)

To select the projector by designating the index numbers

When the switchers and projectors are connected as illustrated, select the desired projector by pressing the keys on the Remote Commander as shown below.

Example:

To select all the projectors

GROUP n ALL n ENTER n ALL n ENTER Projectors A, B, C and D are selected.

To select projectors with device index 01 from all the groups

GROUP n ALL n ENTER n 1 n ENTER Projectors A and C are selected.

To select a projector with device index 01 from group index 02

GROUP n 2 n ENTER n 1 n ENTER Projector C is selected.

To select all the projectors from group index 02

GROUP n 2 n ENTER n ALL n ENTER Projectors C and D are selected.

Notes

•Set the group index and device index numbers correctly. If more than two projectors are set to the same group index and device index numbers, an error message will be displayed when the SYS SET key is pressed.

•If the group index is a tens digit number, press the GROUP key before each press of the number key.

Example:

To select a projector with device index 13 of group index 12 GROUP n 1 n GROUP n 2 n ENTER n 1 n 3 n ENTER

Number 2 switcher

Device index 01

Group index 02Group index 01

PC-3000

Projector A

Projector B

PC-3000

Projector C

Projector D

PJ COM

Signal flow

Number 2 switcher

Number 1 switcher

Device index 02

Device index 01

Number 1 switcher

Device index 02

48

(GB)

Replacing the Lamp

When the lamp has burnt out, the LAMP FAIL indicators at the rear of the projector light. In this case, replace the lamp with a new LMP-Q2000 Projector Lamp (not supplied).

Note

Immediately after turning off the power, the lamp is extremely hot. Wait at least one hour before changing the lamp to give it enough time to cool down.

To remove the lamp

1

Press the STANDBY key to set the projector to standby mode, and unplug the power cord.

2

Remove the two screws with a coin or similar object, or a screwdriver, to open the lamp cover.

3

Loosen the two screws that fasten the lamp.

4

Fold out the levers up and down.

Maintenance

5

Pull out the lamp by holding the handles.

To install a new lamp

1

Mount the lamp with the grooves on the top and bottom aligned with the guides on the projector.

2

Push the lamp completely until it clicks. Fold down the levers to fix the lamp to the projector.

3

Tighten the two screws to secure the lamp.

49

(GB)

Maintenance

4

Replace the lamp cover and push to tighten the two screws to fix the cover.

To reset the use time of the lamps in the message display window

1

Plug in the power cord and set the projector to standby mode.

2

Press the LIGHT, B, b and ENTER keys on the control panel in sequence. Press each key within 5 seconds.

3

Press the V or v key to display ALL.

4

Press the ENTER key.

5

Press the ENTER key again to reset the time. The reset mode will be automatically cancelled.

TIMER RESET? LAMP: 1

TIMER RESET? LAMP: ALL

TIMER RESET?? LAMP: ALL

Cleaning the Air Filter

The air filter should be cleaned in every 100 hours. When it becomes difficult to remove the dust from the filter, replace the filter with a new one.

1

Turn off the power of the projector and unplug the power cord.

2

Remove the air filter cover on the bottom of the projector.

3

Remove the air filter.

4

Remove the dust from the filter with a vacuum cleaner.

5

Attach the air filter and replace the cover.

Notes

•If the air filter is excessively dirty, wash it with mild detergent solution and dry it in a shaded place.

•Be sure to attach the air filter cover firmly; the power will not be turned on if it is not closed securely.

1-25

1-26

50

(GB)

Cause

The power has been turned off and on with the ON key at a short interval.

The lamp cover is detached. The air filter cover is detached.

Cable is disconnected.

Input selection is not correct.

Either the picture or the sound is cut off.

Noise may appear on the background depending on the combination of the numbers of dot input from the connector and numbers of pixel on the LCD panel.

Monaural sound is being input through the INPUT A/B/C connector.

Setting for INPUT-A, INPUT-B or INPUT-C in the SIGNAL SELECT menu is incorrect.

Setting for INPUT-A in the SIGNAL SELECT menu is incorrect.

Setting for INPUT-B in the SIGNAL SELECT menu is incorrect.

Setting for INPUT-C in the SIGNAL SELECT menu is incorrect.

The sync signal is incorrect.

STATUS in the SET SETTING menu is set to OFF.

Picture has not been adjusted properly.

The color system of the input signal is not set correctly.

The lamp is nearing the end of its life.

Contrast or brightness has not been adjusted properly.

The picture is out of focus. Moisture condensation has occurred

on the lens.

If the projector appears to be operating erratically, try to diagnose and correct the problem, using the following guide. If the problem still persists, consult with qualified Sony personnel.

Symptom

The power is not turned on.

No picture and no sound.

No picture or no sound.

The picture is noisy.

When inputting sound through the INPUT A/B/C connector, sound comes through one channel only.

The picture from INPUT A/B/C connector is colored strange.

“Please check INPUT-A in SIGNAL SELECT” appears in spite of inputting the correct signal from INPUT A.

“Please check INPUT-B in SIGNAL SELECT” appears in spite of inputting the correct signal from INPUT B.

“Please check INPUT-C in SIGNAL SELECT” appears in spite of inputting the correct signal from INPUT C.

“NO INPUT” appears when 15k RGB or component signal is input.

On-screen displays do not appear.

Color balance is not correct.

The picture is too dark.

The picture is not clear.

Troubleshooting

Remedy

Wait for about 30 seconds before turning on the power

(see page 10 (GB))

. Attach the lamp cover securely. Attach the air filter cover securely

(see page

49 (GB))

.

Check that the proper connections have been made

(see pages 20 (GB), 42 (GB) and 43

(GB))

.

Select the input source correctly in the SIGNAL SELECT menu

(see page 32 (GB))

.

Press the MUTING key to cancel the muting function

(see page 10 (GB))

.

Change the desktop pattern on the connected computer.

Input stereo sound.

Set INPUT-A, INPUT-B or INPUT-C in the SIGNAL SELECT menu correctly according to the input signal

(see page 32 (GB))

.

Set INPUT-A in the SIGNAL SELECT menu correctly according to the input signal

(see

page 32 (GB))

.

Set INPUT-B in the SIGNAL SELECT menu correctly according to the input signal

(see

page 32 (GB))

.

Set INPUT-C in the SIGNAL SELECT menu correctly according to the input signal

(see

page 32 (GB))

.

Input the correct sync singal (composite sync or sync on G singal (sync on Y for component singal)).

Set STATUS in the SET SETTING menu to ON

(see page 30 (GB))

.

Adjust the picture

(see pages 25 and 26 (GB))

.

Set COLOR SYS in the PICTURE CTRL menu to match the color system of the input

signal

(see page 26 (GB))

.

Replace the lamp with a new one

(see page

48 (GB))

.

Adjust CONTRAST or BRIGHT in the PICTURE CTRL menu properly

(see page 25

(GB))

.

Adjust the focus

(see page 22 (GB))

.

Leave the projector for about two hours with the power on

(see page 18 (GB))

.

51

(GB)

Symptom

The Remote Commander does not work.

The wireless Remote Commander does not function.

INPUT A cannot be selected.

The COVER FAIL indicator lights.

The LAMP FAIL indicator lights.

The FAN indicator lights.

The HIGH TEMP indicator lights.

When you press the ZOOM, SHIFT or FOCUS key, “LENS CONTROL is locked! Do you wish to unlock ?” appears.

Cause

The batteries are exhausted.

The remote commander cable is connected to the Remote Commander although you are using it as a wireless Remote Commander.

The fluorescent lamp influences on the Remote Commander detector.

You have selected a wrong index number.

You have set the index number to “00”.

The SIRCS RECEIVER setting is not correct.

The switcher is not connected, but is recognized to be connected.

The lamp cover or air filter cover is detached.

The lamp with the same number of the indicator has reached the end of its life.

The fan is broken.

The internal temperature is unusually high.

The lens control function is locked.

Remedy

Replace the batteries with new ones

(see

page 17 (GB))

.

Disconnect the remote control cable.

Change the setting of SIRCS RECEIVER in the SET SETTING menu

(see page 31 (GB))

.

Select the correct index number

(see pages 31

(GB) and 45 (GB))

.

Select the correct index number

(see page 45

(GB))

.

Change the setting of SIRCS RECEIVER in the SET SETTING menu

(see page 31 (GB))

.

If the PJ COM connector is connected to something other than the terminator, remove it then press the SYS SET key.

Attach the lamp cover or air filter cover securely

(see pages 48 (GB) and 49 (GB))

.

Replace the lamp

(see page 48 (GB))

.

Consult with qualified Sony personnel.

Check to see if nothing is blocking the ventilation holes.

Consult with qualified Sony service personnel.

Caution messages

Use the list below to check the meaning of the messages displayed on the screen.

Message

High Temperature! Power off in 1 min.

Frequency is out of range!

Please check INPUT-A in SIGNAL SELECT.

Please check INPUT-B in SIGNAL SELECT.

Please check INPUT-C in SIGNAL SELECT.

Meaning

Internal temperature becomes too high.

The frequency of the input signal is out of the acceptable range.

You have input the RGB signal from the computer when INPUT-A in the SIGNAL SELECT menu is set to COMPONENT or YP

BPR

.

You have input the RGB signal from the computer when INPUT-B in the SIGNAL SELECT menu is set to COMPONENT or YP

BPR

.

You have input the RGB signal from the computer when INPUT-C in the SIGNAL SELECT menu is set to COMPONENT or YP

BPR

.

Remedy

Turn off the power. (If not, the power is automatically turned off about one minute later.) Check to see if nothing is blocking the ventilation holes.

Input a signal that is within the range of the frequency.

Set INPUT-A correctly.

Set INPUT-B correctly.

Set INPUT-C correctly.

52

(GB)

Optical characteristics

Projection system 3 LCD panels, 1 lens, 3-primary

color optical shutter system

LCD panel 1.8-inch XGA LCD panel,

2,359,296 pixels (786,432 pixels × 3)

Lens Option Light output ANSI lumen

1)

2,400 lm

Lamp 120 W UHP × 4

Electrical characteristics

Color system NTSC

3.58

/PAL/SECAM/NTSC

4.43

/ PAL-M system, switched automatically

Resolution 600 horizontal TV lines (video

input)

1024 × 768 dots (RGB input)

Acceptable computer signal

fH: 15 to 94 kHz fV: 40 to 120 Hz

Speakers Max. 5 W + 5 W, 90 × 50 mm

(3

5

/8 × 2 inches), stereo

Input/Output

CONTROL S IN/PLUG IN POWER: Stereo

minijack, 5 Vp-p, plug in power, DC 5 V, maximum output 60 mA

OUT: Stereo minijack, 5 Vp-p

REMOTE RS-232C/422A

D-sub 9-pin (female)

(For details, see “Pin assignment” on page 54 (GB).)

PJ COM IN: D-sub 9-pin (male)

OUT: D-sub 9-pin (female)

(For details, see “Pin assignment” on page 54 (GB).)

TRIG Minijack

Power on: DC 12 V, output

impedance: 4.7 kilohms

Power off: 0 V

Specifications

S VIDEO (priority to Y IN/C IN) (only for VPLX2000U/X2000M)

IN: Mini DIN 4-pin type (male)

Y (luminance): 1 Vp-p ± 2 dB sync negative, 75 ohms terminated C (chrominance): Burst 0.286 Vp-p ± 2 dB (NTSC), 75 ohms terminated Burst 0.3 Vp-p ± 2 dB (PAL), 75 ohms terminated

OUT: Loop-through mini DIN 4-

pin type (male) Loop-through output from the S VIDEO IN connector

Y IN: BNC type

1 Vp-p ± 2 dB sync negative, 75 ohms terminated

C IN: BNC type

Burst 0.286 Vp-p ± 2 dB (NTSC), 75 ohms terminated Burst 0.3 Vp-p ± 2 dB (PAL), 75 ohms terminated

VIDEO (only for VPL-X2000U/X2000M)

IN: BNC type

Composite video, 1 Vp-p ± 2 dB sync negative, 75 ohms terminated

OUT: Loop-through BNC type

Loop-through output from the VIDEO IN connector

AUDIO IN (only for VPL-X2000U/X2000M)

Phono type (stereo)

500 mVrms, impedance more than 47 kilohms

INPUT A Analog RGB/component: BNC

type

R/R-Y: 0.7 Vp-p ± 2 dB positive,

75 ohms terminated

G: 0.7 Vp-p ± 2 dB positive, 75

ohms terminated

G with sync/Y: 1 Vp-p ± 2 dB sync

negative, 75 ohms terminated

B/B-Y: 0.7 Vp-p ± 2 dB positive,

75 ohms terminated

SYNC/HD: Composite sync: 0.6–8

Vp-p, high impedance, sync positive/negative Horizontal sync: 0.6–8 Vp-p, high impedance, sync positive/ negative

1) ANSI lumen is a measuring method of American National Standard IT 7.228.

..........................................................................................................................................................................................................

53

(GB)

Others

VD: Vertical sync: 0.6–8 Vp-p,

high impedance, sync positive/ negative

AUDIO IN: Phono type (stereo)

500 m Vrms, impedance more than 47 kilohms

HDTV (Y/P

B/PR

): BNC type Y: 1 Vp-p ± 2dB positive, 75 ohms Tri-level sync: ± 0.3 Vp-p Bi-level sync: 0.3 Vp-p P

B/PR

: 0.35 Vp-p ± 2dB positive,

75 ohms

HDTV (GBR): BNC type

G with sync: 1 Vp-p ± 2 dB, 75 ohms Tri-level sync: ± 0.3 Vp-p Bi-level sync: 0.3 Vp-p B/R: 0.7 Vp-p ± 2dB positive, 75 ohms

AUDIO OUT (variable out)

Phono type, Max. 1 Vrms

When input is 500 mVrms: impedance less than 5 kilohms

Safety regulations

VPL-X2000U: UL1950, c-UL

(CSA No. 950), FCC Class A, IC Class A

VPL-X2000E/X2000M: EN60 950

(TÜV), CE, C-Tick

General

Dimensions 562 × 237 × 649 mm (22

1

/4 × 9 3/

8

× 25 5/8 inches) (w/h/d)

Mass Approx. 34.5 kg (76 lb 1 oz)

(excluding the optional lens)

Power requirements

VPL-X2000U: AC 100 to 120 V/

220 to 240 V, 50/60 Hz

1)

VPL-X2000E/X2000M: AC 220 to

240 V, 50/60 Hz

Power consumption

Approx. 770 W (Standby mode: 15W

for VPL-X2000U/X2000M, 20 W for VPL-X2000E)

Heat dissipation 2628 BTU Operating temperature

0°C to 40°C (32°F to 104°F)

Operating humidity

35% to 85% (no condensation)

Storage temperature

–20°C to +60°C (–4°F to +140°F) Storage humidity 10% to 90% Supplied Accessories

Remote Commander RM-PJ1001 (1)

Size AA (R6) batteries (3)

Remote commander cable (stereo)

(15 m) (1) AC power cord (1) Terminator for the PJ COM

connector (1) Lens ring (1) Operating Instructions (1) Installation Manual for Dealers (1) Warranty (only for VPL-X2000U)

(1)

Design and specifications are subject to change without notice.

Optional accessories

Projector Lamp LMP-Q2000 (for replacement) Interface Board

IFB-12A (Analog RGB/component/HDTV/

composite video/S video input with 5BNC type connectors)

IFB-20 (Analog RGB input with D-sub 9-pin type

connector)

IFB-21 (Analog RGB input/output with HD D-sub

15-pin type connector)

IFB-30 (Digital RGB input with D-sub 9-pin type

connector)

IFB-50 (serial digital video input/output with BNC

type connector)

IFB-1000 (Composite video input with BNC type

connector/S video input with mini DIN 4-pin type connector)

IFB-X2000E (Composite video input with phono

jacks/S video input with mini DIN 4-pin type

connector) (only for VPL-X2000E) Signal Interface Switcher PC-3000 Interface Unit IFU-1271/1271M SIC Cable

SIC-10/20A/20C/21/22/23/24/24A/25/26/26A/30/ 31/M1/M5/M15/M25/M50

9-pin remote cable (for PJ COM)

RCC-5G/10G/30G

1) UL listed for 120 V operation.

..........................................................................................................................................................................................................

(continued)

1-27

1-28

54

(GB)

Monitor Cable

SMF-400 (HD D-sub 15-pin (female) ˜ 5BNC

(female))

SMF-401 (HD D-sub 15-pin (female) ˜ HD D-

sub 15-pin (female))

Signal Adapter

ADP-10 (D-sub 9-pin ˜ HD D-sub 15-pin (for

SIC Cable))

ADP-20 (Macintosh ˜ VGA) Remote Commander RM-PJ3000S Remote Control Receiver RM-PJ10 Projection Lens Fixed short focus lens VPLL-2009 Fixed short focus lens VPLL-2014

1.3-times zoom standard focus lens VPLL-Z2019

1.6-times zoom long focus lens VPLL-Z2025

1.5-times zoom long focus lens VPLL-Z2039 Fixed long focus lens VPLL-2075 Projector Stand SU-PJ2000 (for stacking) Projector Suspension Support PSS-2000 Screens VPS-80FH (80-inch, flat) VPS-100FH (100-inch, flat) VPS-120FH (120-inch, flat)

Some of the items may not be available in some areas. For details, please consult your nearest Sony office.

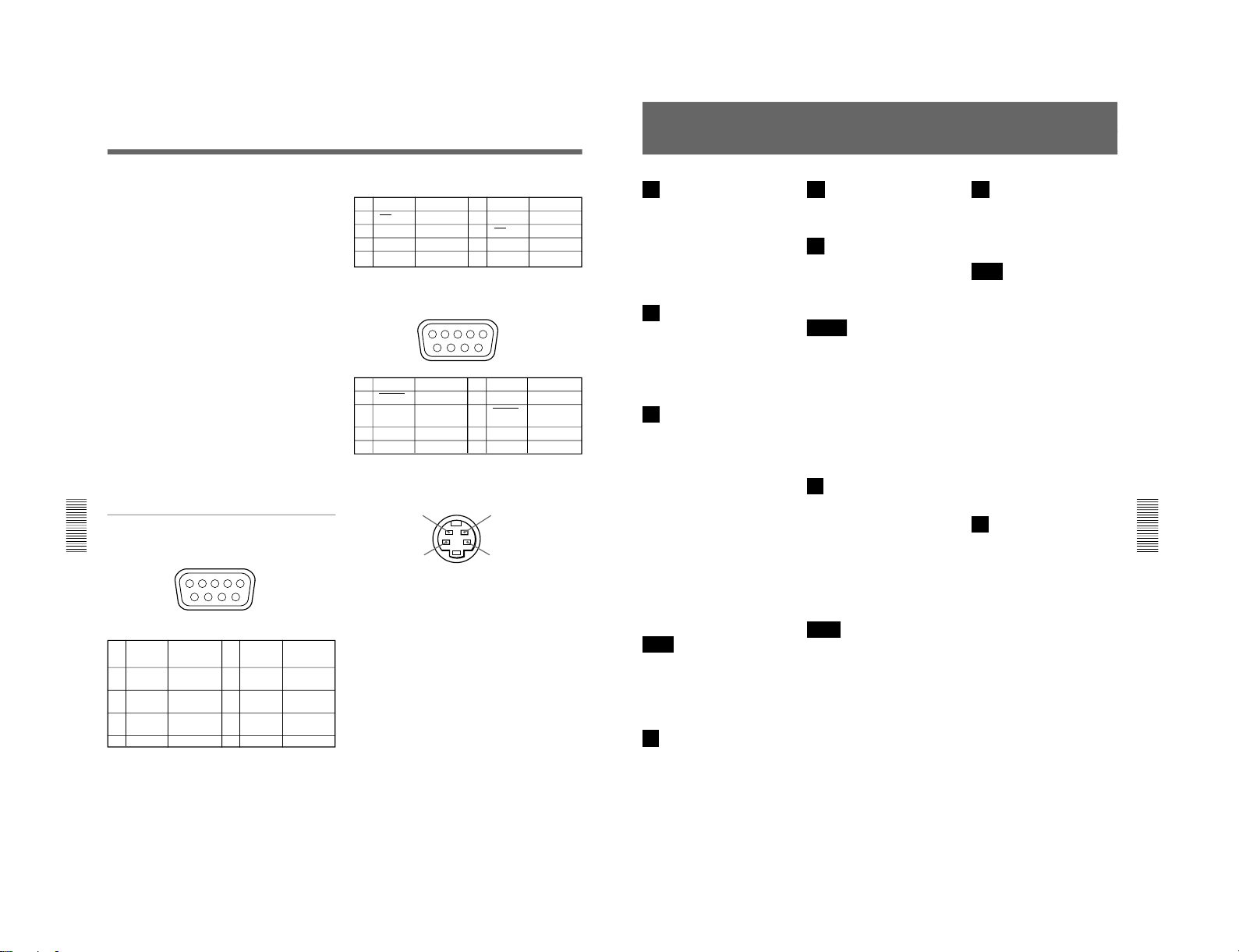

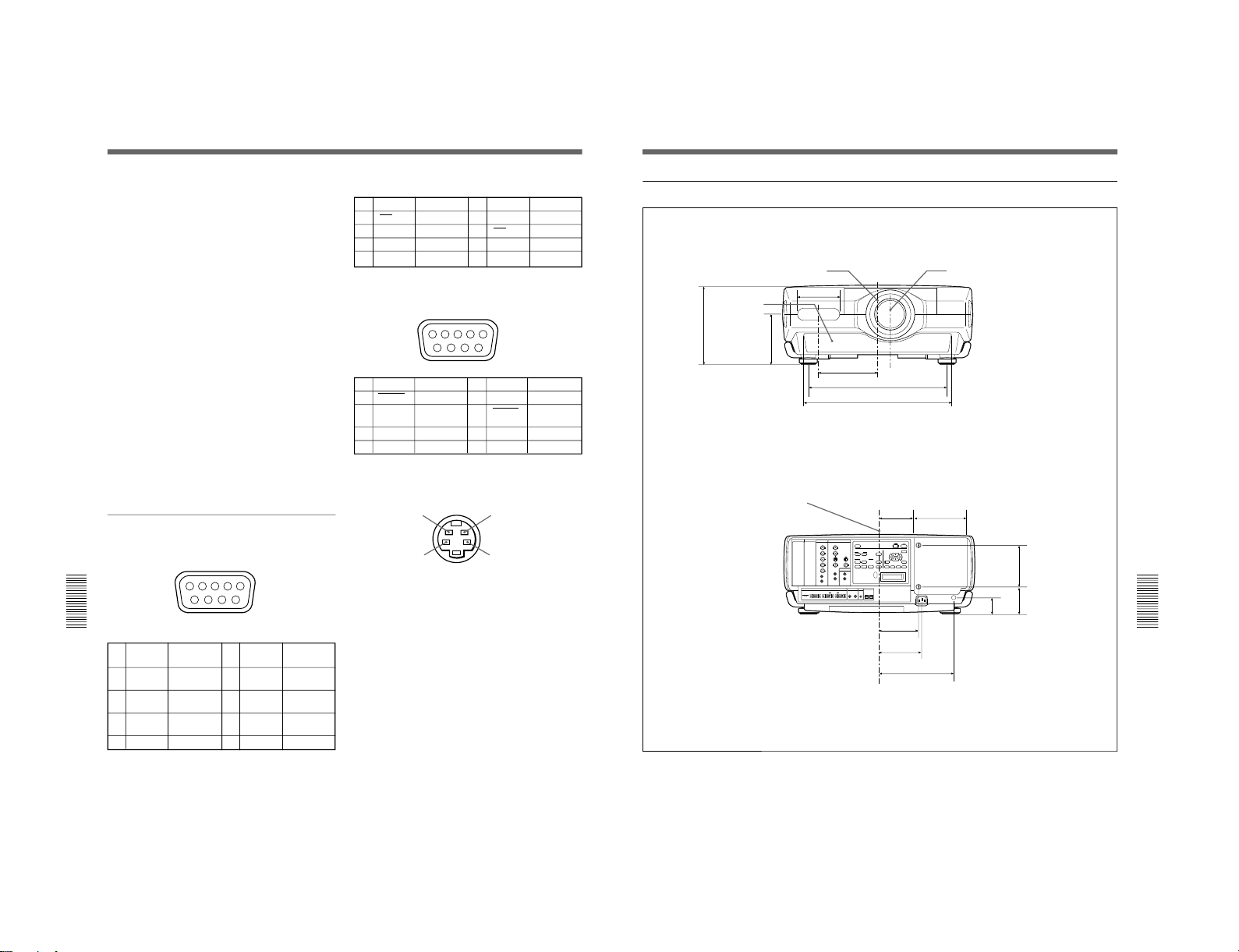

Pin assignment

RS-232C/422A connector (D-sub 9-pin, female)

RS-232C

1 NC 6 DSR* Data Set

Ready

2

RD

Receive Data

7 RTS** Request

to Send

3TD

Transmit Data

8

CTS

** Clear to

Send

4 DTR*

Data Terminal

9NC

Ready

5 GND Ground

* Circuit between pins 4 and 6 is short-circuited in the

projector.

** Circuit between pins 7 and 8 is short-circuited in the

projector.

RS-422A

1 GND Ground 6 GND Ground 2

TX

Transmit 7 TX Transmit

3 RX Receive 8

RX

Receive 4 GND Ground 9 GND Ground 5NC

PJ COM connector (D-sub 9-pin, female)

1 GND Ground 6 GND Ground 2 BUSY Busy 7 Busy 3 TX/RX 8

TX/RX

4 GND Ground 9 GND Ground 5NC

Specifications

12345

6789

S VIDEO connector (mini DIN 4-pin)

Chrominance

GND

Luminance

GND

Tramsmit/ Receive

Tramsmit/

Receive

BUSY

12345

6789

55

(GB)

Dimensions

Front

Rear

0 0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

Center of the projector Center of the lens

Center of the projector

Unit: mm (inches)

437.4 (17

1

/4)

410.3 (16

1

/4)

174.5 (6

7

/8)

149 (5

7

/

8

)

158 (6 1/4)102 (4 1/8)

114.5 (4

5

/8)

126 (5)

220.2 (8

3

/4)

47

(1

7

/

8

)

73

(2

7

/

8

)

139.5

(5

1

/

2

)

Ventilation hole (intake)

237 (9

3

/

8

)

125 (5)

56

(GB)

Specifications

Top (excluding the lens)

Bottom (excluding the lens)

Center of the projector

Center of the lens

Center of projection balance

Hole for attaching the suspension support

Center of the projector

Hole for attaching the suspension support

Hole for attaching the

suspension support

Unit: mm (inches)

Ventilation hole (intake)

274 (10

7

/8)

38 (1

1

/2)

179 (7

1

/8) 179 (7 1/8)

86

(3

1

/2)

562 (22

1

/

4

)

295 (11

5

/

8

)

371 (14

5

/

8

)

623.5 (24

5

/

8

)

649 (25

5

/

8

)

304 (12)

152 (6)

72

(2

7

/8)

360 (14

1

/

4

)149 (5

7

/

8

)

86

(3

1

/2)

152 (6) 152 (6)

665 (26

1

/4)

251 (10)

145 (5

3

/

4

)

57

(GB)

Side (excluding the lens)

Dimensions from the front of the cabinet to the center of the lens

When installing the VPLL-2009 fixed short focus lens

Center of projection balance

Ventilation hole (left side: exhaust)

Front of the cabinet

When installing the VPLL-Z2019 1.3-times zoom standard focus lens

Front of the cabinet

When installing the VPLL-2014 fixed short focus lens

Front of the cabinet

When installing the VPLL-Z2025 1.6-times zoom long focus lens

Front of the cabinet

Center of the lens

70.6 (2

7

/8)

63 (2

1

/2)

– 25.4 (– 1)

42.4 (1

11

/16)

Unit: mm (inches)

509 (20

1

/8)

314 (12

3

/8)

55.7 (2

1

/4)

47 (1

7

/8)

237 (9

3

/

8

)

139 (5

1

/

2

)

79

(3

1

/

8

)

230 (9

1

/

8

)

1-29

1-30

58

(GB)

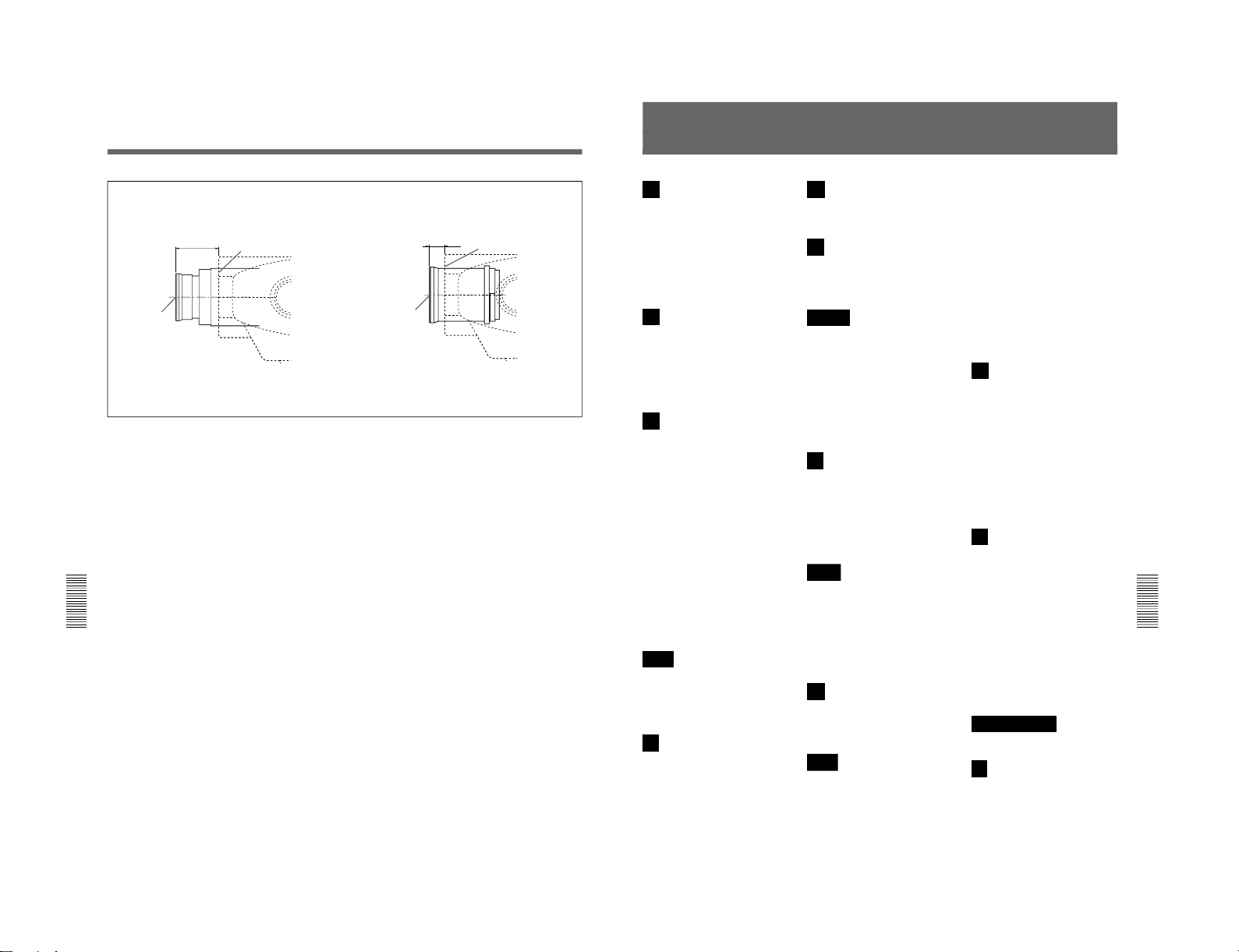

When installing the VPLL-2075 fixed long focus lens

Specifications

When installing the VPLL-Z2039 1.5-times+ zoom long focus lens

Front of the cabinet

Center of the lens

29.5 (1

3

/16)

Unit: mm (inches)

Front of the cabinet

Center of the lens

84.5 (3

3

/8)

59

(GB)

A

Adjusters 9 (GB) Adjusting

picture 25 (GB) picture size/shift 27 (GB)

zoom 22 (GB) Air filter 49 (GB) ASPECT 28 (GB) AUDIO MUTING 23 (GB)

B

Battery

Installation 17 (GB)

notes 17 (GB) BLANKING 28 (GB) BNC connector 42 (GB) BRIGHT 25 (GB)

C

Carrying handles 9 (GB) Caution messages 51 (GB) COLOR 25 (GB) COLOR SYS (System) 26 (GB) COLOR TEMP 26 (GB) Connections

active speakers 20 (GB)

BNC Connector 42 (GB)

computer 20 (GB)

15k RGB/component equipment

42 (GB)

Remote Commander 17 (GB)

switcher 43 (GB)

VCR 20 (GB) CONTRAST 25 (GB) Cut off

the picture 23 (GB)

the sound 23 (GB)

D, E

D. (Dynamic) PICTURE 25 (GB) Device index 31 (GB), 45 (GB) DOT PHASE 27 (GB) DRC (Digital Reality Creation) 26 (GB)

F

fH (Horizontal frequency) 29 (GB) FOCUS 22 (GB) fV (Vertical frequency) 29 (GB)

Index

G

GAMMA MODE 26 (GB) Group index 31 (GB), 45 (GB)

H

Handle lever 9 (GB) H FILTER 28 (GB) HUE 25 (GB)

I, J, K

INPUT-A 32 (GB) INPUT-B 32 (GB) INPUT-C 32 (GB) INPUT MEMORY No. 29 (GB) INPUT SETTING menu 27 (GB) Input signal selection 21 (GB) Installation examples

on a ceiling 38 (GB) on a floor 19 (GB), 34 (GB)

L

Lamp replacement 48 (GB) LANGUAGE 30 (GB) Location and function of controls

control panel 10 (GB) front 8 (GB) rear 12 (GB) Remote Commander 14 (GB)

M, N

Menu

Clearing the menu display 24 (GB) INPUT SETTING menu 27 (GB) PICTURE CTRL menu 25 (GB) SET SETTING menu 30 (GB) SIGNAL SELECT menu 32 (GB) Using the menu 24 (GB)

Moisture condensation 18 (GB)

O

On-screen display 30 (GB) On-screen messages 51 (GB) Optional accessories 53 (GB)

P, Q

PC-3000 Signal Interface Switcher

43 (GB)

PIC MUTING 23 (GB) PICTURE CTRL menu 25 (GB) PICTURE SHIFT 23 (GB) Pin assignment 54 (GB) PJ COM connector 43 (GB) Power

turn on 21 (GB)

turn off 23 (GB) POWER SAVING 31 (GB) Precautions 4 (GB) Precautions on installation 18 (GB) Projecting 21 (GB) PSS-2000 Projector Suspension Support

38 (GB)

R

Remote Commander

battery installation 17 (GB)

connecting to the projector 17 (GB)

location and function of controls

14 (GB)

notes 17 (GB) Remote control detector

front 8 (GB)

rear 11 (GB) Reset

resetting the item 24 (GB) RS-232C/422A connector 13 (GB)

S

SCAN CONV 27 (GB) Screen size 35 (GB) – 41 (GB) SET SETTING menu 30 (GB) SHARP 25 (GB) SHIFT 27 (GB) SIGNAL SELECT menu 32 (GB) SIRCS RECEIVER 31 (GB) SIZE 27 (GB) SPEAKER 30 (GB) Specifications 52 (GB) STATUS 30 (GB) Supplied accessories 53 (GB)

T, U, V, W, X, Y

Troubleshooting 50 (GB)

Z

ZOOM 22 (GB)

LCD Data Projector

3-865-345-11(1)

VPL-X2000U VPL-X2000E VPL-X2000M

Installation Manual for Dealers Manuel d’installation destiné aux revendeurs Manual de instalación para proveedores

GB FR ES

 1998 by Sony Corporation

1-31

1-32

T able of contens

2

(GB)

Table of Contents

English

Precautions ............................................................... 4 (GB)

Prepararations

Dimensions (Necessary Clearance for Installation and

Maintenance)............................................................. 6 (GB)

Location and Function of Controls....................... 10 (GB)

Front ............................................................................ 10 (GB)

Rear ............................................................................. 14 (GB)

Remote Commander ................................................... 16 (GB)

Installations

Precautions on Installation.................................... 20 (GB)

Tips on the Screen ................................................. 21 (GB)

Before Installing the Projector .............................. 23 (GB)

Attaching the Lens ..................................................... 23 (GB)

Checking the Horizontal Position of the Picture......... 25 (GB)

Ceiling Installation Using the PSS-2000 .................... 25 (GB)

Installation for Twin/Triple Stacking .......................... 25 (GB)

Changing the Polarity According to the Installation

Condition ............................................................... 25 (GB)

Installation Examples............................................. 26 (GB)

Floor Installation ......................................................... 26 (GB)

Ceiling Installation...................................................... 30 (GB)

Installing the Projectors Using the SU-PJ2000

Projector Stand....................................................... 34 (GB)

Connections/Index number setting

Connection Examples ............................................ 38 (GB)

Connecting with a Computer, VCR or Active

Speakers ................................................................. 38 (GB)

Connecting 15k RGB/Component Equipment............ 39 (GB)

Connecting the Switcher ............................................. 40 (GB)

Connecting Multiple Projectors .................................. 42 (GB)

Confirming the System Construction.......................... 44 (GB)

Setting the Index Numbers .................................... 45 (GB)

3

(GB)

GB

English

Adjustments

Adjusting the Picture ............................................. 48 (GB)

Using the Menu....................................................... 49 (GB)

The PICTURE CTRL Menu ..................................... 50 (GB)

The INPUT SETTING Menu .................................... 52 (GB)

The SET SETTING Menu ........................................ 55 (GB)

The SIGNAL SELECT Menu ................................... 57 (GB)

The SERVICE MODE Menus .................................. 58 (GB)

The INFORMATION Menu........................................ 59 (GB)

The SERVICE SETTING Menu................................. 60 (GB)

The W/B ADJUST Menu ............................................ 61 (GB)

Restoring the USER MODE ....................................... 62 (GB)

Others

Maintenance............................................................ 63 (GB)

Replacing the Lamp .................................................... 63 (GB)

Cleaning the Air Filter................................................. 65 (GB)

Troubleshooting ..................................................... 66 (GB)

Specifications ......................................................... 68 (GB)

Index ........................................................................ 71 (GB)

4

(GB)

Precautions

On safety

•Check that the operating voltage of your unit is identical with the voltage of your local power supply. If voltage adaptation is required, consult with qualified Sony personnel.

•Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified Sony personnel before operating it further.

•Unplug the unit from the wall outlet if it is not to be used for several days.

•To disconnect the cord, pull it out by the plug. Never pull the cord itself.

•The wall outlet should be near the unit and easily accessible.

•The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

•Do not look into the lens while the lamp is on.

•Do not place your hand or objects near the ventilation holes — the air coming out is hot.

•Carry and handle the projector by more than two people due to an incident of an injury.

•Avoid using an extension cord with a low voltage limited since it may cause the short-circuit and physical incidents.

•To carry the projector, be sure to use the carrying handle. Do not hold other parts of the projector, especially the lens, nor catch your finger between the handle, floor, and the projector.

•Do not catch your finger between the unit and surface of the floor when moving the projector installed on the floor.

•Be careful not to catch your finger in the cooling fan.

•Do not carry the projector by holding the cover of the cabinet.

•Do not carry the projector with the cabinet on and with its cover open.

On installation

•When the projector is mounted on the ceiling, the Sony PSS-2000 Projector Suspension Support must be used for installation.

•Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes. Leave space of more than 30 cm (11

7

/

8

inches) between the wall and the projector. Be aware that room heat rises to the ceiling; check that the temperature near the installation location is not excessive.

•Install the projector on the floor or ceiling. Any other installation causes a mulfunction such as color irregularity or shortening lamp life.

•Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity, mechanical vibration or shock.

•To avoid moisture condensation, do not install the unit in a location where the temperature may rise rapidly.

•Do not install the projector on the low ceiling.

•Be sure to secure the cabinet cover firmly when installing to the ceiling firmly.

5

(GB)

On illumination

•To obtain the best picture, the front of the screen should not be exposed to direct lighting or sunlight.

•Ceiling-mounted spot lighting is recommended. Use a cover over fluorescent lamps to avoid lowering the contrast ratio.

•Cover any windows that face the screen with opaque draperies.

•It is desirable to install the projector in a room where floor and walls are not of light-reflecting material. If the floor and walls are of reflecting material, it is recommended that the carpet and wall paper be changed to a dark color.

On preventing internal heat build-up

•After turning off the power, the cooling fan runs for about six minutes while the ON indicator flashes in green. The indicator flashes quickly for 30 seconds. During that time, you will not be able to turn the power back on with the ON key.

Caution

The projector is equipped with ventilation holes (intake) at the bottom/ front side and ventilation holes (exhaust) at the left/right side. Do not block or place anything near these holes, or internal heat build-up may occur, causing picture degradation or damage to the projector.

On cleaning

•To keep the cabinet looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents, such as thinner, benzene, or abrasive cleansers, since these will damage the cabinet.

•Avoid touching the lens. To remove dust on the lens, use a soft dry cloth. Do not use a damp cloth, detergent solution, or thinner.

•Clean the air filter in every 100 hours.

On repacking

•Save the original shipping carton and packing material; they will come in handy if you ever have to ship your unit. For maximum protection, repack your unit as it was originally packed at the factory.

1-33

1-34

6

(GB)

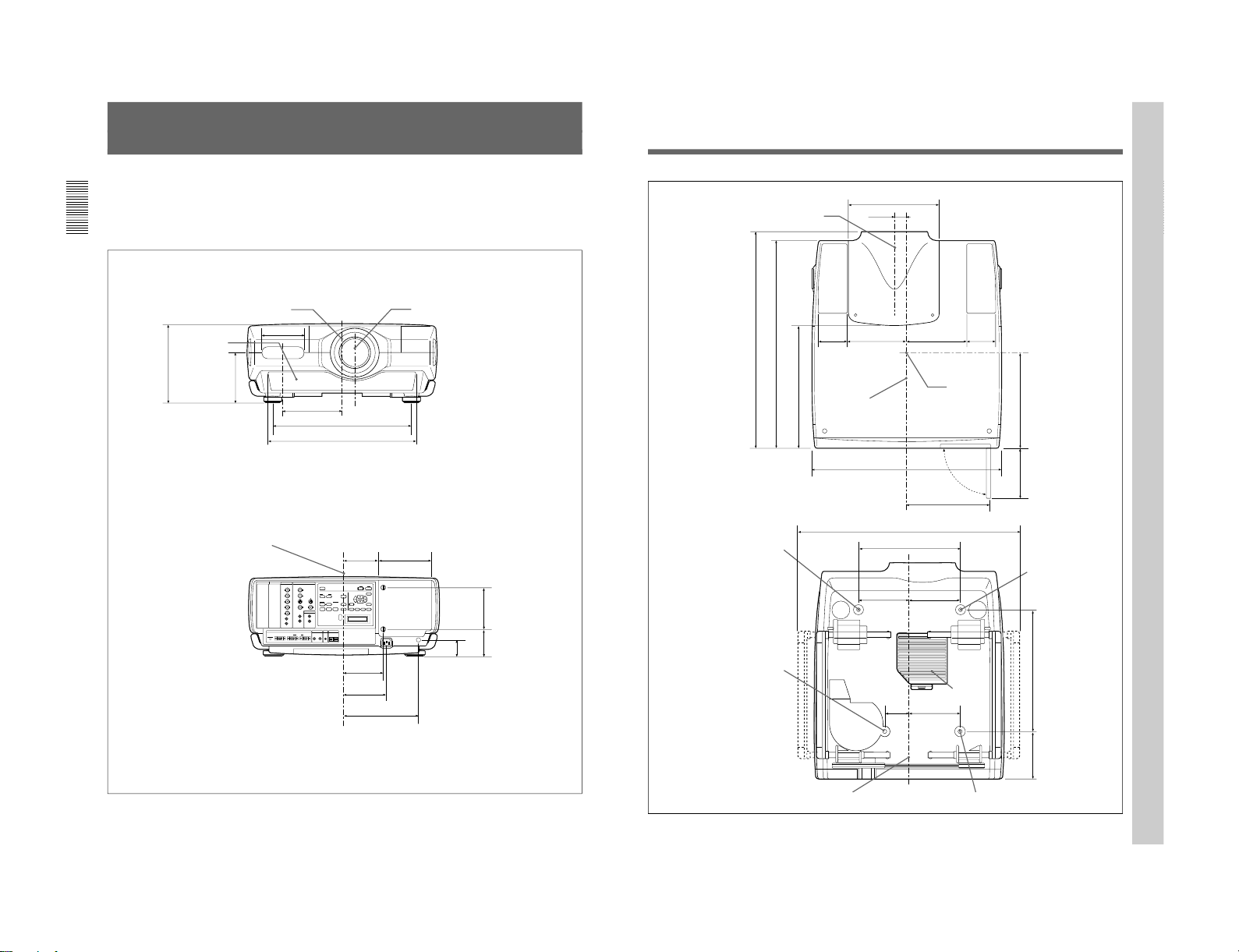

Make sure to provide enough room for maintenance service. Install the projector, making referrence to the dimensions below. Also, there should be an enough space around the exhaust and intake holes without blocking them.

Dimensions (Necessary Clearance for Installation and Maintenance)

A space required around the unit is as follows:

Front: about 50 cm (19

11

/16 inches)

Rear: about 30 cm (11

13

/16 inches)

Side: about 30 cm (11

13

/16 inches)

Front

Rear

0 0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

Center of the projector

Ventilation hole (intake)

Center of the lens

Center of the projector

437.4 (17

1

/4)

410.3 (16

1

/4)

174.5 (6

7

/8)

149 (5

7

/

8

)

158 (6

1

/4)102 (4

1

/8)

114.5 (4

5

/8)

126 (5)

220.2 (8

3

/4)

47

(1

7

/

8

)

73

(2

7

/

8

)

139.5

(5

1

/

2

)

237 (9

3

/

8

)

Unit: mm (inches)

125 (5)

7

(GB)

Top (excluding the lens)

Bottom (excluding the lens)

Center of the projector

Center of the lens

Center of projection balance

Hole for attaching the suspension support

Center of the projector

Hole for attaching the suspension support

Unit: mm (inches)

Ventilation hole (intake)

274 (10 7/8)

38 (1

1

/2)

179 (7

1

/8) 179 (7 1/8)86(3

1

/2)

562 (22

1

/4)

295 (11

5

/

8

)

371 (14

5

/

8

)

623.5 (24

5

/

8

)

649 (25

5

/

8

)

304 (12)

152 (6)

72

(2

7

/8)

360 (14

1

/

4

)149 (5

7

/

8

)

86

(3

1

/2)

152 (6) 152 (6)

Preparations

145 (5

3

/

4

)

251 (10)

665 (26

1

/4)

8

(GB)

Dimensions (Necessary Clearance for Installation and Maintenance)

Side (excluding the lens)

Dimensions from the front of the cabinet to the center of the lens

When installing the VPLL-2009 fixed short focus lens

Center of projection balance

Ventilation hole (left side: exhaust)

Front of the cabinet

When installing the VPLL-Z2019 1.3-times zoom standard focus lens

Front of the cabinet

When installing the VPLL-2014 fixed short focus lens

Front of the cabinet

When installing the VPLL-Z2025 1.6-times zoom long focus lens

Front of the cabinet

Center of the lens

70.6 (2

7

/8)

63 (2

1

/2)

– 25.4 (– 1)

42.4 (1

11

/16)

Unit: mm (inches)

509 (20

1

/8)

314 (12

3

/8)

55.7 (2

1

/4)

47 (1

7

/8)

237 (9

3

/

8

)

139 (5

1

/

2

)

79

(3

1

/

8

)

230 (9

1

/

8

)

9

(GB)

When installing the VPLL-2075 fixed long focus lens

When installing the VPLL-Z2039 1.5-times zoom long focus lens

Front of the cabinet

Center of the lens

29.5 (1

3

/16)

Unit: mm (inches)

Front of the cabinet

Center of the lens

84.5 (3

3

/8)

1-35

1-36

10

(GB)

Location and Function of Controls

Front

!º

379

12

8546

1 Lens mount part

When attaching the optional lens, consult with the Sony service personnel.

2 Speaker

3 Front remote control detector

4 Bottom ventilation holes (intake)

Do not block the holes.

5 Adjusters

Use the adjusters to keep the projector level if it is installed on an uneven surface.

6 Front ventilation holes (intake)

Do not block the holes.

7 Adjuster button and lever

Press the button to raise the lever for adjusting the height of the adjuster.

8 Handle lever (left and right sides)

Use the lever for putting away the carrying handle.

9 Carrying handle (left and right sides)

Pull out the handle for carrying the projector.

!º Left and right side ventilation holes (exhaust)

Do not place anything within the 30 cm (11

7

/8 inches)

range from these holes or block them.

Notes

•Do not block the ventilation holes, or internal heat build-up may occur, causing fire or damage to the projector.

•Do not place anything near the ventilation holes or touch these holes as the temperature will be very high.

11

(GB)

Using the carrying handles

Pull out to use for carrying the projector. To put away the handle, slide the handle lever forward.

Using the adjusters

1

Press the adjuster button. The adjuster lever comes out.

2

Turn the lever to adjust the height so that the projector becomes level.

3

Replace the adjuster lever after use.

Adjuster button

To raise the projector

To lower the projector

12

(GB)

Location and Function of Controls

+

–

LIGHT

ON

STANDBY

PIC AUDIO

VIDEO

POWER SAVING

COVER FAIL

FAN FAIL

LAMP FAIL

12 34

HIGH TEMP

SELECT

VOLUME

INPUT A INPUT B INPUT C

APA

MENU

ENTERRESET

RESET

PATTERN

ZOOM SHIFT FOCUS

MUTING

SYS SET

+

INPUT SELECT

1

23

4

!• !¶ !§

!∞

!¢ !£ !™ !¡

!º

5 6

7

89

Control panel

1 ON key and indicator

Press to turn on the power of the projector. The indicator lights when the key is pressed. The indicator flashes for about six minutes after the power is turned off by pressing the STANDBY key, as the fan runs for six minutes to cool down the inside of the projector. The indicator flashes quickly for 30 seconds, during which you will not be able to turn the power back on with the ON key.

2 STANDBY key and indicator

Press to make the projector enter standby mode. The indicator lights to indicate that the projector is in standby mode.

3 LIGHT key

Illuminates the key indicators in orange when the projector is turned on. Illuminates the indicators for the relative keys in green when this key is pressed during operation. Press again to turn off the indicators.

Pressing this key and the RESET key simultaneously has the same function as the SYS SET key on the Remote Commander. Use when the PC-3000 signal interface switcher is used in the system or the system connections are changed.

4 APA (Auto Pixel Alignment) key

Adjusts the position of the picture on the screen automatically so that the picture is clearly visible when the signals are input from a computer.

5 MUTING keys

Cut off the picture or sound temporarily.

PIC: Press to cut off the picture. Press again to

restore the picture.

AUDIO: Press to cut off the sound output from the

speakers or the AUDIO OUT jacks. Press again or press the VOLUME + key to restore the sound.

6 VOLUME +/– keys

Adjust the volume of the built-in speakers and output level of the AUDIO OUT jacks.

+ : Increases the volume. – : Decreases the volume.

13

(GB)

7 INPUT SELECT keys

Select the input signal.

VIDEO: Selects the video signal input from the

VIDEO or S VIDEO connectors and the audio signal input from the AUDIO IN L/R jacks. To switch the S VIDEO and VIDEO connectors, use the SELECT key.

SELECT: Each time you press this key, the input

video signal is switched between the VIDEO and S VIDEO connectors.

INPUT A: Selects the audio and video signals input

from the INPUT A connectors.

INPUT B: Selects the signal input from the

connectors on the optional interface board which is installed in the INPUT B section. When the IFB-12A interface board is installed and the output mode is selected on the IFB-12A, the key does not function.

INPUT C: Selects the signal input from the

connectors on the optional interface board which is installed in the INPUT C section.

Note on the VPL-X2000E

The optional IFB-X2000E interface board is required to select VIDEO.

8 Indicators

POWER SAVING: Lights when the projector is in

power saving mode. When POWER SAVING in the SET SETTING menu is set to ON, the projector goes into the power saving mode if no signal is input for 10 minutes. Although the lamp goes out, the cooling fan keeps running. In the power saving mode, only the STANDBY key functions for the first 30 seconds. The power saving mode is canceled when a signal is input or any key is pressed.

COVER FAIL: Lights when the lamp cover or air

filter cover is not secured firmly.

FAN FAIL: Lights when the fan is broken. HIGH TEMP: Lights when temperature inside the

projector becomes unusually high.

LAMP FAIL: When the lamp life has reached the

end, the indicator of that lamp lights.

9 Rear remote control detector

!º Message display window

Displays the signal status, timer and error messages about the input signals.

!¡ PATTERN key

Displays a HATCH pattern on the screen for focus, zoom, and shift adjustments. Press again to turn off the HATCH pattern.

!™ ZOOM key

Enters the zoom adjustment mode. When the key is pressed, the relative keys light in green. Next adjust the zoom using the arrow keys.

V: Enlarges the picture size. v: Reduces the picture size.

Note

If the VPLL-2075, VPLL-2014 or VPLL-2009 optional lens is installed, you cannot adjust the zoom.

!£ FOCUS key

Enters the focus adjustment mode. When the key is pressed, the relative keys light in green. Next adjust the focus using the arrow keys.

V: Focuses on a forward picture. v: Focuses on a picture further back.

!¢ SHIFT (lens shift) key

Enters the shift adjustment mode. When the key is pressed, the relative keys light in green. Next adjust the vertical position of the picture using the arrow keys.

V: Moves the picture upward. v: Moves the picture downward.

!∞ ENTER key

Stores the settings in the menu.

!§ Arrow keys (V/v/B/b)

Used to adjust the picture after pressing the ZOOM, FOCUS or SHIFT key. Also used to move the cursor or adjust the value in the menu.

!¶ MENU key

Displays the menu on the screen. When the key is pressed, the relative keys light in green. Press again to turn off the menu.

!• RESET key

Resets the adjusted value of an item to its factory preset value. This key functions when the menu or a setting item is displayed on the screen.

1-37

1-38

14

(GB)

Location and Function of Controls

Rear

1 Control panel

For details, see pages 12 (GB) and 13 (GB).

2 AUDIO OUT L/R jacks (phono type)

Connect to external active speakers. The volume of the speakers can be controlled by the VOLUME keys on the Remote Commander or the control panel.

3 VIDEO connectors

Connect to external video equipment, such as a VCR.

Y IN/C IN (BNC type): Connect to the Y and C

video outputs of the video equipment.

S VIDEO IN (mini DIN 4-pin): Connects to the Y/C

video output of the video equipment.

S VIDEO OUT (mini DIN 4-pin): Used as loop-

through output via the Y/C IN connectors or the S VIDEO IN connector.

VIDEO IN (BNC type): Connects to the composite

video output connector of the video equipment.

VIDEO OUT (BNC type): Used as loop-through

output of the VIDEO IN connector.

AUDIO IN L (MONO)/R jacks (phono type):

Connect to the audio output jacks of equipment, such as a VCR. For stereo equipment, use both the L and R jacks; for monaural equipment, use the L (MONO) jack only.

Note

If you have video equipment connected to both the Y/ C IN and S VIDEO IN connectors, the signal from the Y/C IN connectors are selected prior to the S VIDEO IN connector. When projecting video connected to the S VIDEO IN connector, be sure not to connect any cable to the Y/C IN connectors.

Note on the VPL-X2000E model

The optional IFB-X2000E interface board is required for using the VIDEO connectors.

4 INPUT A connectors

RGB input connectors (R/R-Y/P

R

, G/Y, B/B-Y/P

B

,

SYNC/HD, VD) (BNC type): Connect to the

video outputs of equipment such as a computer or a video camera. According to the connected equipment, the RGB or component (R-Y, Y, B-Y) or HDTV (P

R

, Y, PB)

signal is selected.

AUDIO IN L (MONO)/R jacks (phono type):

Connect to the audio output jacks of equipment such as a computer or a video camera. For stereo equipment, use both the L and R jacks; for monaural equipment, use the L (MONO) jack only.

Note

The INPUT A connectors do not function when the PC-3000 signal interface switcher is connected.

R/R-Y Y

C

8

VIDEO

8

VIDEO

AUDIO

IN

VIDEO

G/Y

B/B-Y

SYNC

/HD

VD

AUDIO

IN

L

(MONO)

LRL

R

(MONO)

R

RS-

232C

RS- 422A

RS-232C/422A RS-485IN OUT IN OUT

LIGHT

APA

VIDEO

INPUT A INPUT B INPUT C

PCI AUDIO

VOLUME

SELECT

VIDEO/ S VIDEO

INPUT SELECT

RESET

ENTER

MENU

FOCUSSHIFTZOOM

PATTERN

POWER SAVING

LAMP FAIL

12 34

COVER FAIL

FAN FAIL

HIGHT TEMP

MUTING

PLUG IN POWER

IN

OUT

0 0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

6 5 4

3 12

789!º !¡ !™

+

15

(GB)

9 TRIG (trigger output) jack (monaural minijack)

The signal is transmitted from this jack to the connected equipment whether the projector is on or off. (This is not a power source for external equipment.) When the power is on, the TRIG jack transmits approximately 12 V trigger signal to external equipment connected to the projector. This signal is useful when you connect a system integrator, etc., to the projector; you can pull down an electric screen, draw an electric curtain, or dim lights at the same time as you turn on the projector power. (You cannot use the trigger signal as a power source.) This jack outputs 0 V DC when the power is off.

!º DEVICE INDEX switch

Set the device index number of the projector when using multiple projectors. You can set the numbers between “01” and “99”. It is set to “01” at the factory. You can also set the group index number in the menu for system setup.

Note

Do not set the device index number to “00”. If you do, the projector will be operated only with the keys on the control panel.

!¡ AC IN socket

Connect the supplied AC Power cord.

!™ Lamp cover

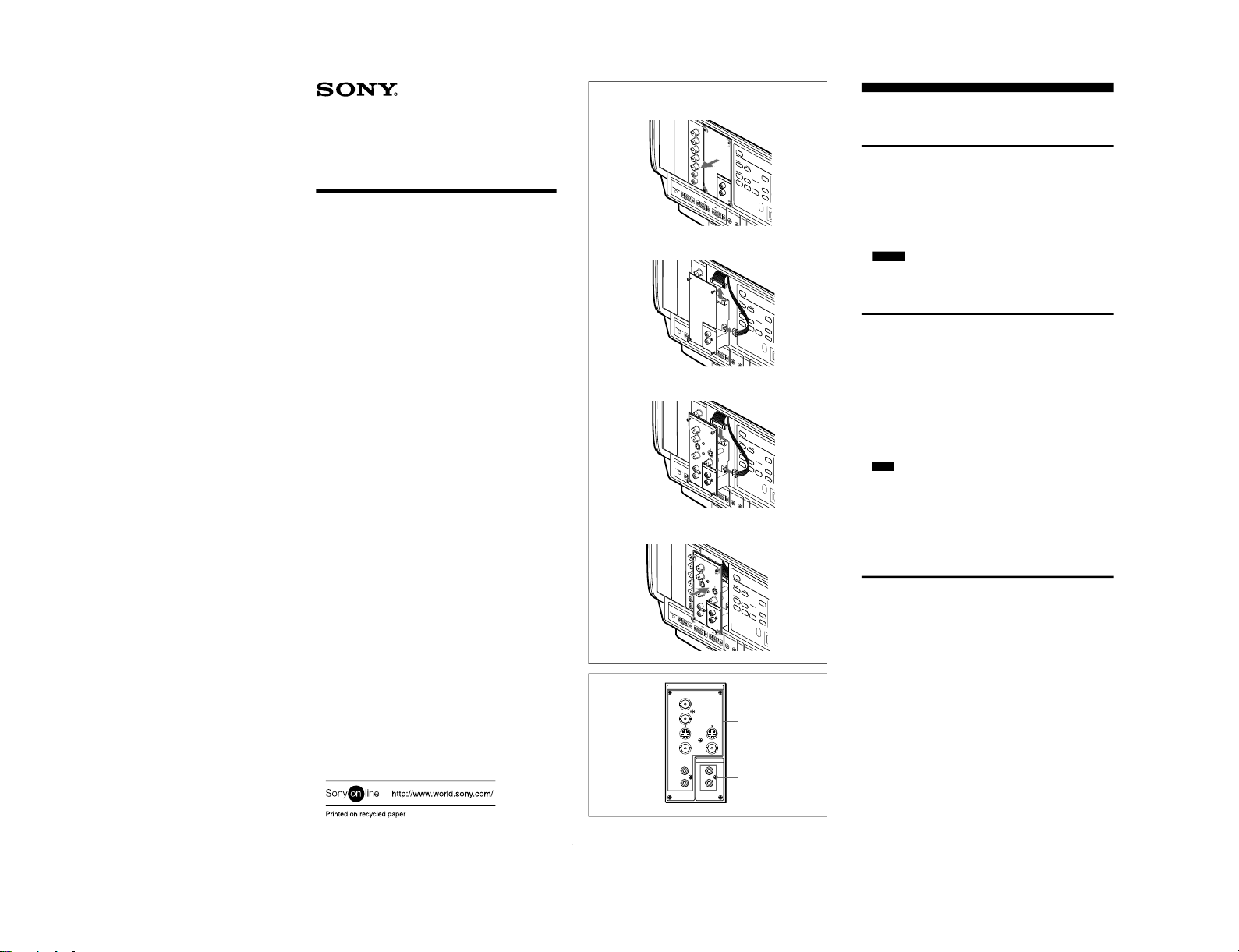

5 Signal interface board attachment part

(INPUT B)

Optional signal interface board can be attached according to your requirements. If you install the IFB12A interface board to this section and select the output mode, you can output the signal input through the INPUT A connectors.

For details on installing the interface boards, consult with qualified Sony personnel.

6 Signal interface board attachment part (INPUT C)

Optional signal interface board can be attached according to your requirements.

Note

You cannot select the output mode when attaching the IFB-12A interface board.

7 REMOTE connectors

Used to expand system capability.

RS-232C/RS-422A select switch: Selects according

to the interface connected to the RS-232C/RS422A connector.

RS-232C/RS-422A connector (D-sub 9-pin,

female): Connect to a computer to operate the

projector from the computer.

PJ COM IN/OUT connectors (D-sub 9-pin,

female): The connectors conform to the RS-485

standards and are used to expand system capability for Sony projectors.

For details on connections, see the PJ COM protocol manual for Sony projectors.

8 CONTROL S IN/OUT jacks (stereo minijack)

Connect to the control S jacks of other Sony equipment.

CONTROL S IN/PLUG IN POWER (DC 5 V

output) jack: Connects to the CONTROL S OUT

jack of the supplied Remote Commander when using as a wired Remote Commander. In this case, you do not need to install the batteries in the Remote Commander, since the power is supplied from this jack.

CONTROL S OUT jack: Outputs the control S

signal.

Note

When connecting the remote commander cable to the CONTROL S IN jack, the remote control detectors will not function.

16

(GB)

Location and Function of Controls

Remote Commander

The Remote Commander can be used as a wireless or wired Remote Commander. The keys on the Remote Commander with the same names function the same as those on the control panel of the projector.

For details on control panel keys on the projector, see pages 12 (GB) and 13 (GB).

1 ON/STANDBY keys

2 MEMORY key

The key does not function with this projector.

3 CENT R/B keys

The keys do not function with this projector.

4 COMMAND ON/OFF key

No keys except for the LIGHT button on the Remote Commander function when this switch is set to OFF. This saves battery power.

5 RGB keys

Adjust the picture.

APA: The key functions the same as the APA key on

the control panel.

DOT PHASE: Press to adjust the phase of the LCD

panels and the input signals (except for 15k RGB/ video/HDTV signals). After pressing this key, adjust the position of the picture using the four arrow keys so that the clearest picture is obtained.

SIZE: Enters the size adjustment mode for the input

signal. Next adjust the horizontal size of the picture using the arrow keys.

B: to reduce horizontal size b: to expand horizontal size

SHIFT: Enters the shift adjustment mode for the

input signal. Next adjust the position of the picture using the four arrow keys. The picture shifts in the direction of the arrow on the pressed key.

SELECT

VIDEO MEMORY

SWITCHER INDEX

PIC ONAUDIO OFF

PATTERN

FOCUS

ZOOM

SHIFT

NORMAL

MUTING

STATUS

LCD LENS CONTROL

ON

COMMAND

OFF

SIZE

DOT PHASE

APA

SHIFT

RGB

R

B

CENT

ONSTANDBY

MEMORY

MENU

VIDEO

INPUT SELECT

ADBC

BLKG

SYS SET

RESET

FUNCTION

1423

5867

9

10/0(ALL)

SW NO/

OFF/GROUP

SWITCHER/VIDEO MEMORY/INDEX

ENTER

POSITION

BRIGHT

CONTR

PICTURE CONTROL

HUE

COLOR

SHARP

VOL

VIDEO/S VIDEO

LIGHT

!¢

!£

!™

!¡

!º

9

!∞

!§

!ª

!¶

!•

@¢

@∞

@£ @™

@¡

@º

56784

3

2

1

@§

17

(GB)

6 STATUS ON/OFF keys

Press OFF to eliminate the on-screen display. Press ON to restore the on-screen display.

Note

The menus and warning messages appear even if the OFF key is pressed.

7 Transmission indicator

The light goes on each time a key is pressed. If the indicator does not light, replace the batteries.

8 LIGHT button

Illuminates the key indicators when the COMMAND switch is set to ON. If the switch is set to OFF, only the COMMAND switch is illuminated. If you do not press any key on the Commander for more than 30 seconds, the key indicators turn off automatically. The indicators also turn off if you press the LIGHT button again.

9 MUTING keys

!º NORMAL key

The key does not function with this projector.

!¡ LCD LENS CONTROL keys

Press one of the ZOOM, SHIFT and FOCUS keys and then the arrow keys (V or v).

!™ PATTERN key

!£ SYS SET (system set) key

When the PC-3000 signal interface switcher is used in the system or the system connections are changed, press this key.

Note

After connecting the PC-3000 switcher and pressing the SYS SET key, the input channel is set to SW1-1 when connecting a single switcher, or to SW1-2 when connecting two or more switchers.

!¢ INPUT SELECT keys

The D key does not function with this projector.

!∞ SWITCHER/VIDEO MEMORY/INDEX select switch

Selects the function of the SWITCHER/VIDEO MEMORY/INDEX keys.

SWITCHER: selects the input from the PC-3000 switcher. VIDEO MEMORY: The position does not function with this projector. INDEX: selects a projector by its index number when multiple projectors are used.

!§ SWITCHER/VIDEO MEMORY/INDEX keys

When the SWITCHER/VIDEO MEMORY/ INDEX select switch is set to SWITCHER

When the PC-3000 switcher is connected to the projector, press a number key (1 to 8) to select the input from the switcher. Number key 9 does not function. To select an input when multiple switchers are connected, press the SW NO/OFF/GROUP key. Next press the switcher number (1 to 8) and the input number (1 to 8) in sequence. Be sure to press the keys one after another within 2 seconds. e.g. To select input 4 of switcher 2, press the keys as follows:

SW NO n 2 n 4.

When the SWITCHER/VIDEO MEMORY/ INDEX select switch is set to INDEX

Used to specify the device or group index number.

!¶ BLKG (blanking) adjustment key

Enters the blanking adjustment mode. Next, press the V/v key to select the position to be adjusted on the screen, and then adjust the position using the B/b keys.

!• RESET key

!ª PICTURE CONTROL +/– keys

Adjust the picture conditions: CONTR (contrast), BRIGHT (brightness), COLOR, HUE and SHARP (sharpness).

@º VOL (volume) +/– keys

@¡ POSITION +/– keys

These keys do not function with this projector.

(Continued)

1-39

1-40

18

(GB)

@™ FUNCTION key

The key does not function with this projector.

@£ ENTER key

@¢ Arrow keys

@∞ MENU key

@§ CONTROL S OUT jack

Connect the supplied remote control cable to this jack and to the CONTROL S IN jack of the projector for wired remote control operation. When the Commander is connected to the CONTROL S IN/PLUG IN POWER jack of the projector via the remote control cable (stereo), the power for the Remote Commander is supplied from the projector.

Location and Function of Controls

19

(GB)

Battery installation

1

Push to open the lid.

2

Install three R6 (size AA) batteries (supplied) with the polarities correctly aligned.

3

Replace the lid.

Notes on batteries

•Make sure that the battery orientation is correct when inserting batteries.

•Do not mix old battery with new one, or different types of batteries.

•If you will not use the Remote Commander for a long time, remove the batteries to avoid damage from battery leakage. If batteries have leaked, remove them, wipe the battery compartment dry and replace the batteries with new ones.

Notes on wireless Remote Commander operation

•Be sure that there is nothing to obstruct the infrared beam between the Remote Commander and the projector.

•The operation range is limited. The shorter the distance between the Remote Commander and the projector, the wider the angle within which the commander can control the projector.

•The remote control detectors on the projector do not operate when connecting the remote commander cable to the CONTROL S IN jack. If you wish to use the Remote Commander as a wireless Remote Commander, be sure to remove the remote commander cable from both the Remote Commander and the projector.

To connect the Remote Commander to the projector

Note on wired Remote Commander operation using the supplied remote commander cable (stereo)

You do not need to install the batteries since the power is supplied from the CONTROL S IN jack on the projector. In this case, the batteries are not consumed.

Be sure to install the battery from the ’ side.

Rear

to CONTROL S IN

Remote commander cable (supplied)

Remote Commander

to CONTROL S OUT

0 0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

20

(GB)

Precautions on Installation

Do not install the projector in the following situations. These installations may cause malfunction or damage to the projector.

Do not install the projector in an illventilated place

The projector is equipped with ventilation holes for intake on the bottom and front and ventilation holes for exhaust on the left and right sides to prevent internal heat build-up. Do not block these ventilation holes and allow adequate air circulation at an installation location.

Do not place any object beside the projector

If you put something beside the ventilation holes on the sides, the exhaust may be inhaled into the projector through the ventilation holes (intake) at the bottom, causing the internal temperature to rise and thereby activating the protection circuit. Install the projector so that the exhaust is not blocked.

Do not install the projector in a location where temperature or humidity is very high

Avoid installing the projector in a location where temperature may rise or fall rapidly

Be careful of air-conditioning and heating in a room where the projector is installed, as sudden changes in temperature may lead to moisture condensation and cause damage to the projector.

Avoid installing the projector in a location subject to excessive dust

Do not use the projector while laying it on its side

Do not tilt the projector when in use

Avoid tilting the projector more than 20 degrees or installing it other than on the floor and ceiling. Such installations may cause malfunctions such as color irregularity or shortening of lamp life.

Do not cover the ventilation holes (exhaust)

Do not cover the front ventilation holes; otherwise, internal heat may build up.

Do not install the projector on a deep-pile carpet

If you install the projector on a deep-pile carpet, the ventilation holes (intake) at the bottom may be blocked, causing an internal heat build-up.

20°

21

(GB)

Installations

Screen size

The screen size is the diagonal length of the screen in inches, while the aspect ratio of the screen is 3:4. The ratio of the screen height, width, and diagonal is 3:4:5. If you use a screen with 3:4 aspect ratio whose size is not given in the table below, you can calculate the screen height and width from the screen size (inches) as follows. Calculate at the conversion rate of 25.4 mm to the inch.

Height (mm) = Screen size × 25.4 ×

3

/

5

Width (mm) = Screen size × 25.4 ×

4

/

5

Screen size and dimensions

Tips on the Screen

Screen sizes (inches)

(Diagonal) Height (mm) Width (mm)

60 914 1219 80 1219 1626 100 1524 2032 120 1829 2438 150 2286 3048 180 2743 3658 200 3048 4064 250 3810 5080 300 4572 6096

Types of screen

Front projection screen for floor installation

The bead screen is recommended. A screen of this type reflects the brightest light.

Bead screen

Center of the screen

Brightest picture

Projector

1-41

1-42

22

(GB)

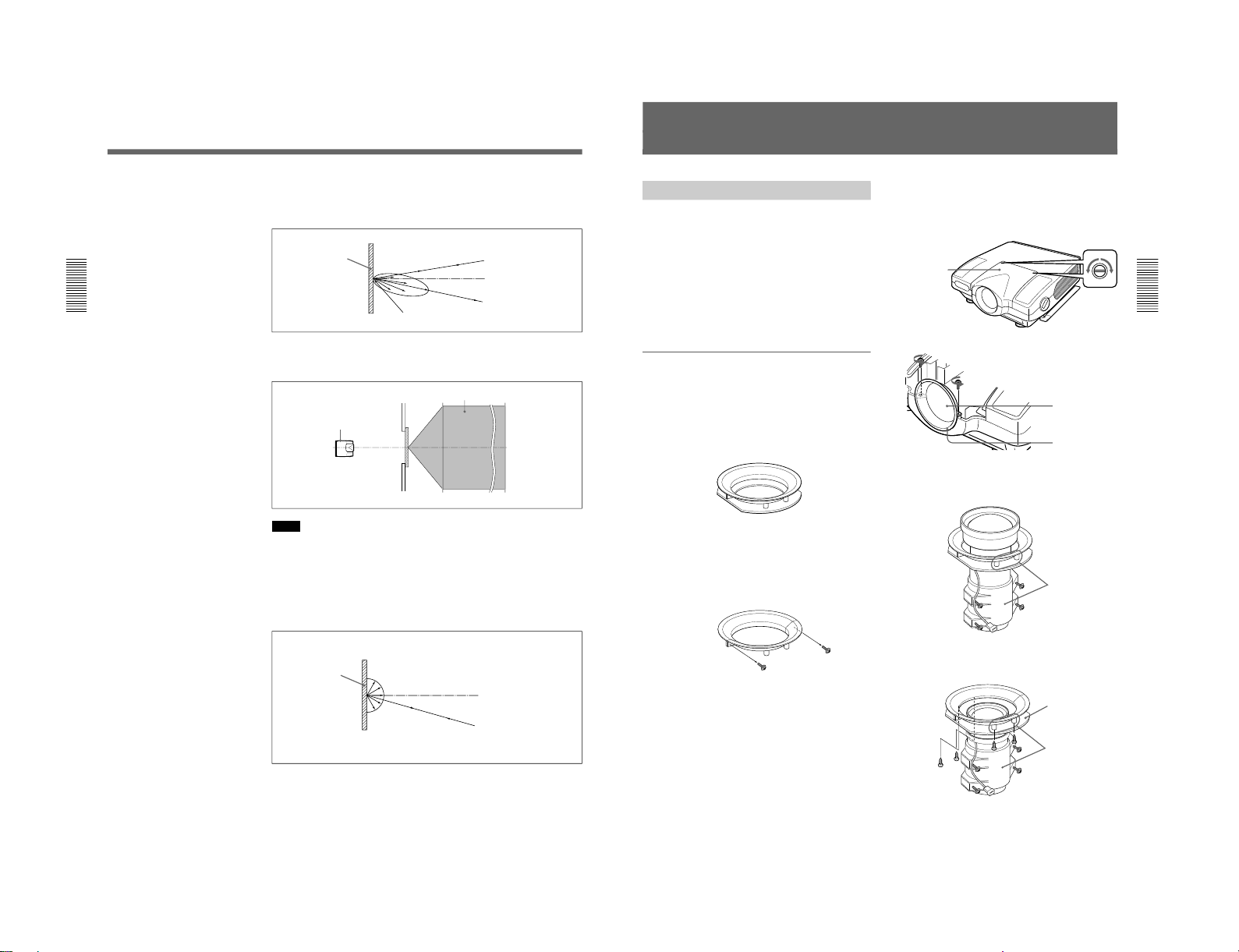

Front projection screen for ceiling installation

The silver screen is recommended. You can get a picture that is two to four times brighter than that of the white screen.

Rear projection screen

The rear projection screen is recommended for a bright and clear fullscreen picture projection since the sunlight has little effect on the screen.

Notes

•A moiré pattern may occur in accordance with the pitch of the screen.

•Be sure to confirm the picture quality before installation.

White screen

When viewers watch the projected picture in a wide area, you can obtain a picture that appears equally bright from all parts of the room using the white screen for both floor and ceiling installations.

Projector

Center of the screen

Silver screen

Projector

Screen

Horizontal viewing area

Projector

Brightest picture

Tips on the Screen

White screen

23

(GB)

Before Installing the Projector

Attaching the Lens

Attach one of the following types of optional lenses to the projector according to your purpose.

• VPLL-2009 fixed short focus lens

• VPLL-2014 fixed short focus lens

• VPLL-Z2019 1.3-times zoom standard focus lens

• VPLL-Z2025 1.6-times zoom long focus lens

• VPLL-Z2039 1.5-times zoom long focus lens

• VPLL-2075 fixed long focus lens

To attach the lens, follow the steps below.

Before attaching the lens

The lens ring used for the lens and the attaching method vary depending on the types of lenses. Check your lens type by referring below.

Unit type lens ring (supplied with the projector)

The unit type lens ring is used for the VPLL-Z2025, VPLL-Z2039 and VPLL-2075.

Assembly type lens ring (attached to the projector)

The assembly type lens ring is used for the VPLL2014, VPLL-2009 and VPLL-Z2019. For the VPLL2014 and VPLL-2009, disassemble the ring by removing the screws before attaching. For VPLL-Z2019, attach the lens ring without disassembling.

1

Turn the screws on the lens attachment part either clockwise or counterclockwise by 90 degrees with a screwdriver, then remove the cover from the lens attachment part.

2

Remove the lens ring and the lens hole cover.

3

Attach the lens ring to the lens.

For VPLL-Z2025, VPLL-Z2039 and VPLL-2075

For VPLL-Z2019

Attach the lens washer to the lens ring with the four screws.

Cover of the lens attachment part

Lens hole cover

Lens ring

(continued)

This side faces upward when attached to the projector.

Washer attached

to the lens

Tighten the two screws on the rear sides.

24

(GB)

For VPLL-2014 and VPLL-2009

1 Disassemble the lens ring and attach it to the lens. 2 Attach the lens washer to the lens ring with the

four screws.

4

Mount the lens onto the projector. 1 Install the lens onto the projector, and push the

lens until it touches the stopper.

2 Secure the lens by tightening the four screws. 3 Fit the projections on the lens ring to the

groove on the projector.

This side faces upward when attached to the

projector. Tighten the two screws on the rear sides.

Before Installing the Projector

5

Tighten the two screws on the lens ring to secure the ring firmly.

6

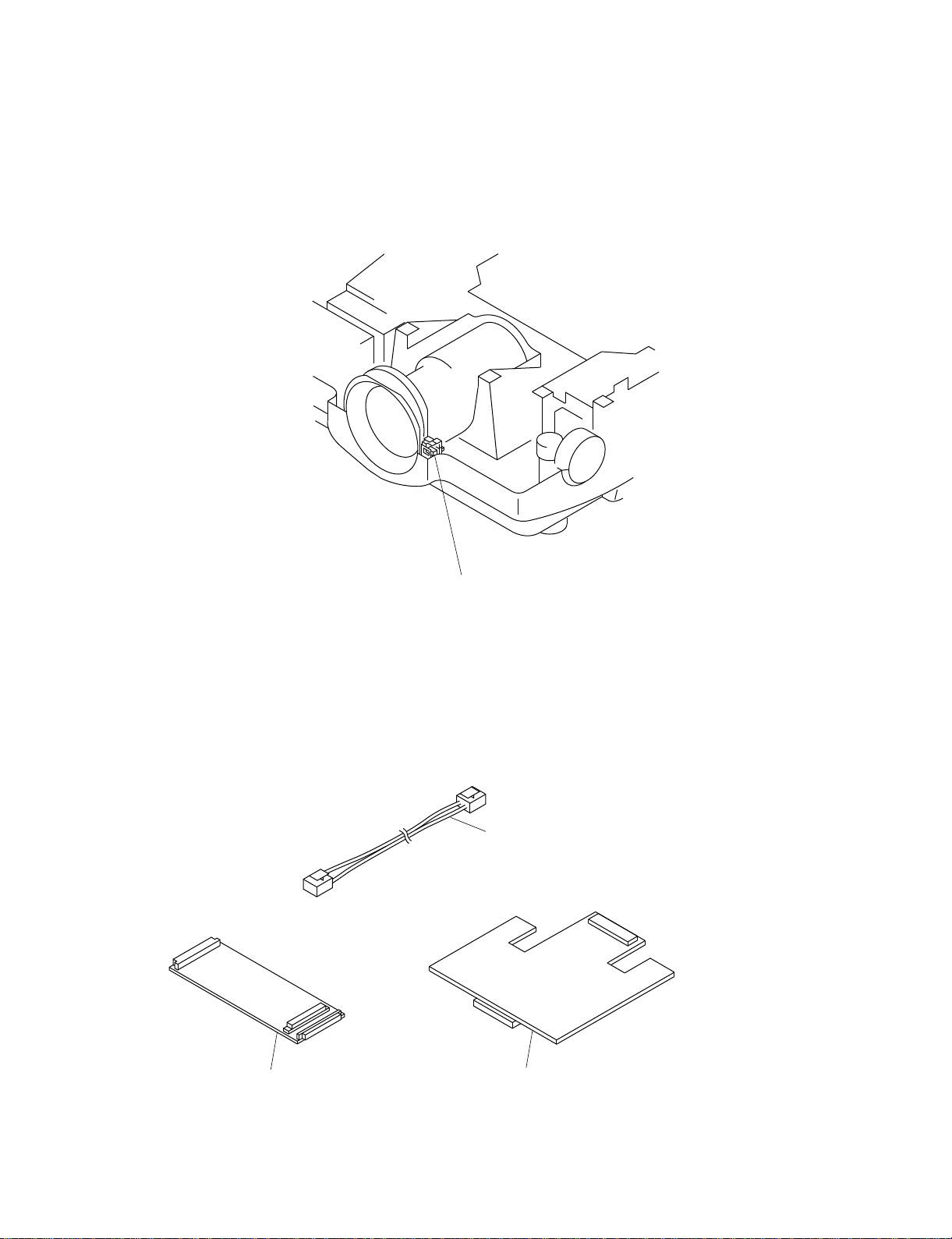

Attach the connector from the lens to the projector and fix it with the cable harness.

7

Replace the cover for the lens attachment part and tighten the screws.

Notes

•When attaching the lens, be careful not to overtighten the screws.

•The lens scratches easily, so when handling it, always place it gently on a stable and level surface in a horizontal position.

•Avoid touching the lens surface.

1

2

1

2

3

Washer attached to the lens

25

(GB)

Checking the Horizontal Position of the Picture

Install the projector so that the center of the lens is aligned with the horizontal center of the screen.

Wall

Center of the screen

Screen

Horizontal positioning (top view)

38 mm (1 1/2 inches)

Center of the projector

Center of the lens

Ceiling Installation Using the PSS-2000

Refer to the Operating Instructions supplied with the PSS-2000 projector suspension support.

Installation for Twin/Triple Stacking

Refer to the Operating Instructions supplied with the SU-PJ2000 projector stand.

Changing the Polarity According to the Installation Condition

The polarity of the projector is adjusted at the factory to use the projector for front projection on the floor. When the projector is installed on the ceiling, it is necessary to change the setting of INSTALLATION in the SET SETTING menu to project the picture properly.

For details, see page 55 (GB).

1-43

1-44

26

(GB)

a

x

b

c

Wall

Center of the screen

Center of the lens

Floor

Distance between the front of the cabinet and the center of the lens

a

Installation Examples

Floor Installation

VPLL-2009: 70.6 mm (2

7

/8 inches)

VPLL-2014: 63 mm (2

1

/2 inches) VPLL-Z2019: – 25.4 mm (– 1 inch) VPLL-Z2025: 42.4 mm (1

11

/16 inches)

VPLL-Z2039: 84.5 mm (3

3

/8 inches)

VPLL-2075: 29.5 mm (1

3

/16 inches)

a: distance between the screen and the center of the lens b: distance between the floor and the center of the lens c: distance between the floor and the bottom of the adjusters of the projector x: free

27

(GB)

Unit: mm (inches)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 35.079/1.814) – 134 b (minimum) = x – (SS/1.814 × 0.5) b (maximum) = x + (SS/1.814 × 0.5) c (minimum) = x – (SS/1.814 × 0.5 + 142.5) c (maximum) = x – (SS/1.814 × – 0.5 + 141.5)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

640 1410 1800 2190 2770 3350 3730 4700 5670 6630 7600 8570 9530

(25 1/4) (55

5

/8) (70 7/8) (86 1/4) (109

1

/8) (132) (146 7/8) (185 1/8) (223

3

/8) (261 1/8) (299 1/4) (337

1

/2) (375 1/4)

Min.

x–11 x–22 x–28 x–33 x–41 x–50 x–55 x–69 x–83 x–96 x–110 x–124 x–138

(x–

7

/16) (x–7/8) (x–1 1/8) (x–1

5

/16)(x–1 11/16) (x–2) (x–2 1/4) (x–2

3

/4) (x–3 3/8) (x–3 7/8) (x–4

3

/8) (x–5) (x–5 1/2)

b Center x

Max.

x+11 x+22 x+28 x+33 x+41 x+50 x+55 x+69 x+83 x+96 x+110 x+124 x+138

(x+7/16) (x+7/8) (x+1

1

/8) (x+1 5/16)(x+1 11/16) (x+2) (x+2

1

/4) (x+2 3/4) (x+3 3/8) (x+3

7

/8) (x+4 3/8) (x+5) (x+5 1/

2

)

Min.

x–154 x–165 x–170 x–176 x–184 x–192 x–198 x–211 x–225 x–239 x–253 x–267 x–280

(x–6 1/8) (x–6 1/

2

) (x–6 3/4) (x–7) (x–7 1/4) (x–7

5

/8) (x–7 7/8) (x–8 3/8) (x–8

7

/8) (x–9 1/2) (x–10) (x–10 1/2)(x–11

1

/8)

c Center x–142 (x–5

5

/8)

Max.

x–130 x–119 x–114 x–108 x–100 x–92 x–86 x–73 x–59 x–45 x–31 x–17 x–4

(x–5 1/

4

) (x–4 3/4) (x–4 1/2) (x–4 3/8) (x–4) (x–3

5

/8) (x–3 1/2) (x–2

7

/8) (x–2 3/8) (x–1 13/16) (x–1 1/4) (x–

11

/16) (x–5/32)

When using the VPLL-2009 fixed short focus lens

Make sure that the center of the lens is aligned with the vertical center of the screen.

When using the VPLL-2014 fixed short focus lens

Unit: mm (inches)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 52.244/1.814) – 123 b (minimum) = x – (SS/1.814 × 9.0) c (minimum) = x – (SS/1.814 × 9.0 + 151.0)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

1030 2180 2760 3330 4200 5060 5640 7080 8520 9960 11400 12840 14280

(40 5/8) (85 7/8) (108

3

/4) (131 1/8) (165 3/8) (199

1

/4) (222 1/8) (278 7/8) (335 1/2) (392

1

/4) (448 7/8) (505 5/8) (562

3

/8)

Min.

x–198 x–397 x–496 x–595 x–744 x–893 x–992 x–1240 x–1488 x–1736 x–1984 x–2232 x–2480

b

(x–

77/8) (x–

155/8) (x–19 5/8)(x–23 1/2)(x–29

3

/8)(x–35 1/4)(x–39 1/8)(x–48 7/

8

)(x–58 5/8)(x–68 3/8)(x–78 1/4) (x–88) (x–97

3

/4)

Max. x

Min.

x–349 x–548 x–647 x–746 x–895 x–1044 x–1143 x–1391 x–1639 x–1887 x–2135 x–2383 x–2631

c

(x–13

7

/8)(x–21 5/8)(x–25 1/2)(x–29

1

/2) (x–35 1/4)(x–41 1/8)(x–45 1/8)(x–54

7

/8)(x–64 5/8)(x–74 3/8) (x–84

1

/8)(x–93 7/8)(x–103 5/8)

Max.

x–142

(x–5

5

/8)

a

28

(GB)

Installation Examples

When using the VPLL-Z2019 1.3-times zoom standard focus lens

Unit: mm (inches)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

Min.

1490 3080 3870 4670 5860 7050 7850 9840 11820 13810 15800 17790 19780

a

(58

3

/4) (121 3/8) (152

1

/2) (184) (230 3/4) (277 5/

8

) (309 1/8) (387 1/2) (465 1/2) (543

7

/8) (622 1/8) (700 1/2) (778

7

/8)

Max.

1890 3880 4880 5870 7370 8860 9860 12350 14840 17330 19810 22300 24790

(74 1/2) (152

7

/8) (192 1/4) (2311/4) (290 1/4) (348

7

/8) (388 1/4) (486 3/8) (584

3

/8) (682 3/8) (780 1/8) (878

1

/8) (976 1/8)

Min.

x–287 x–573 x–717 x–860 x–1075 x–1290 x–1433 x–1791 x–2150 x–2508 x–2866 x–3225 x–3583

b

(x–

11

3

/8) (x–

225/8) (x–28 1/4)(x–33 7/

8

)(x–42 3/8)(x–50 7/8)(x–56 1/2)(x–70

5

/8)(x–84 3/4)(x–98 3/4)(x–112

7

/8)(x–127)(x–141 1/8)

Max. x

Min.

x–442 x–728 x–872 x–1015 x–1230 x–1445 x–1588 x–1946 x–2305 x–2663 x–3021 x–3380 x–3738

c

(x–17

1

/2)(x–28 3/4)(x–34 3/

8

) (x–40) (x–48 1/2) (x–57)

(x–62

5

/8) (x–76 3/4) (x–90 3/4)(x–104

7

/8)(x–11831/32)(x–133 1/8)

(x–1471/4)

Max.

x–142

(x–5 5/8)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 70.383/1.814) – 102) × 1.025 a (maximum) = ((SS × 92.644/1.814) – 104) × 0.975 b (minimum) = x – (SS/1.814 × 13.0) c (minimum) = x – (SS/1.814 × 13.0 + 155.0)

When using the VPLL-Z2025 1.6-times zoom long focus lens

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

Min.

3980 5020 6060 7620 9180 10220 12830 15430 18030 20630 23230 25830

a

(156

3

/4) (197

11

/16) (238 5/8) (300 1/8) (361 1/

2

) (402 1/2) (505 1/4) (607 5/8) (709

15

/16) (812 3/8) (914 3/4) (1017

1

/8)

Max.

6160 7750 9330 11710 14080 15660 19620 23580 27540 31500 35460 39420

(242

5

/8) (305 1/4) (367 3/8) (4611/

8

) (554 1/2) (616 5/8) (772 5/8) (928

1

/2) (1084 1/2)(1240 3/8)(1396

1

/4)(1552 1/4)

Min.

x–573 x–717 x–860 x–1075 x–1290 x–1433 x–1791 x–2150 x–2508 x–2866 x–3225 x–3583

b

(x–

225/8) (x–28 1/4)(x–33 7/

8

)(x–42 3/8)(x–50 7/8)(x–56 1/2)(x–70

5

/8)(x–84 3/4)(x–98 3/4)(x–112

7

/8)(x–127)(x–141 1/8)

Max. x

Min.

x–728 x–872 x–1015 x–1230 x–1445 x–1588 x–1946 x–2305 x–2663 x–3021 x–3380 x–3738

c

(x–28

3

/4)(x–34 3/

8

) (x–40) (x–48 1/2) (x–57)

(x–62

5

/8) (x–76 3/4) (x–90 3/4) (x–104

7

/8)(x–11831/32)(x–133 1/8)

(x–1471/4)

Max.

x–142

(x–5 5/8)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 92.078/1.814) – 176) × 1.025 a (maximum) = ((SS × 147.324/1.814) – 175) × 0.975 b (minimum) = x – (SS/1.814 × 13.0) c (minimum) = x – (SS/1.814 × 13.0 + 155.0)

29

(GB)

When using the VPLL-2075 fixed long focus lens

When using the VPLL-Z2039 1.5-times zoom long focus lens

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

Min.

6360 7990 9620 12070 14510 16150 20220 24300 28380 32460 36540 40620

a

(250

1

/2) (314 5/8) (378 7/

8

) (475 3/8) (571 3/8) (636) (796

1

/4) (956 7/8) (1117 1/2)(1278

1

/8)(1438 7/8)(1599 1/2)

Max.

9150 11480 13810 17300 20790 23120 28940 34760 40570 46390 52210 58030

(360 3/8) (452 1/

8

) (543 7/8) (6811/4) (818 5/8) (910

3

/8) (1139 5/8)(1368 3/4)(1597

1

/2)(1826 5/8)(2055 7/8)(2284 15/

16

)

Min.

x–573 x–717 x–860 x–1075 x–1290 x–1433 x–1791 x–2150 x–2508 x–2866 x–3225 x–3583

b

(x–

225/

8

) (x–28 1/4)(x–33 7/8)(x–42 3/8)(x–50

7

/8)(x–56 1/2)(x–70 5/8)(x–84

3

/4)(x–98 3/4)(x–112 7/8)(x–127)(x–141

1

/8)

Max. x

Min.

x–728 x–872 x–1015 x–1230 x–1445 x–1588 x–1946 x–2305 x–2663 x–3021 x–3380 x–3738

c

(x–28

3

/4)(x–34 3/8) (x–40) (x–48

1

/2) (x–57)

(x–62 5/8) (x–76

3

/4) (x–90 3/4) (x–104 7/8)(x–11831/32)(x–133

1

/8)

(x–1471/4)

Max.

x–142

(x–5 5/8)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 144.368/1.814) – 163) × 1.025 a (maximum) = ((SS × 216.549/1.814) – 163) × 0.975 b (minimum) = x – (SS/1.814 × 13.0) c (minimum) = x – (SS/1.814 × 13.0 + 155.0)

Unit: mm (inches)

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 269.100/1.814) + 163 b (minimum) = x – (SS/1.814 × 13.0) c (minimum) = x – (SS/1.814 × 13.0 + 155.0)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

12030 15000 17960 22410 26860 29830 37250 44660 52080 59500 66910 74330

(473 11/16) (590

5

/8) (707 1/4) (882 1/2) (1057 5/

8

)(1174 5/8)(1466 3/4)(1758 1/2)(2050

3

/4)(2342 7/8)(2634 5/8)(2926

3

/4)

Min.

x–573 x–717 x–860 x–1075 x–1290 x–1433 x–1791 x–2150 x–2508 x–2866 x–3225 x–3583

b

(x–

22

5

/8) (x–

281/4) (x–33 7/8)(x–42 3/

8

)(x–50 7/8)(x–56 1/2)(x–70 5/8)(x–84

3

/4)(x–98 3/4)(x–112 7/8)(x–127)(x–141

1

/8)

Max. x

Min.

x–728 x–872 x–1015 x–1230 x–1445 x–1588 x–1946 x–2305 x–2663 x–3021 x–3380 x–3738

c

(x–28

3

/4)(x–34 3/8) (x–40) (x–48

1

/2) (x–57)

(x–62 5/8) (x–76

3

/4) (x–90 3/4) (x–104 7/8)(x–118

31

/32)(x–1331/8)(x–147 1/4)

Max.

x–142

(x–5

5

/8)

a

1-45

1-46

30

(GB)

Installation Examples

a

e

x

b

c

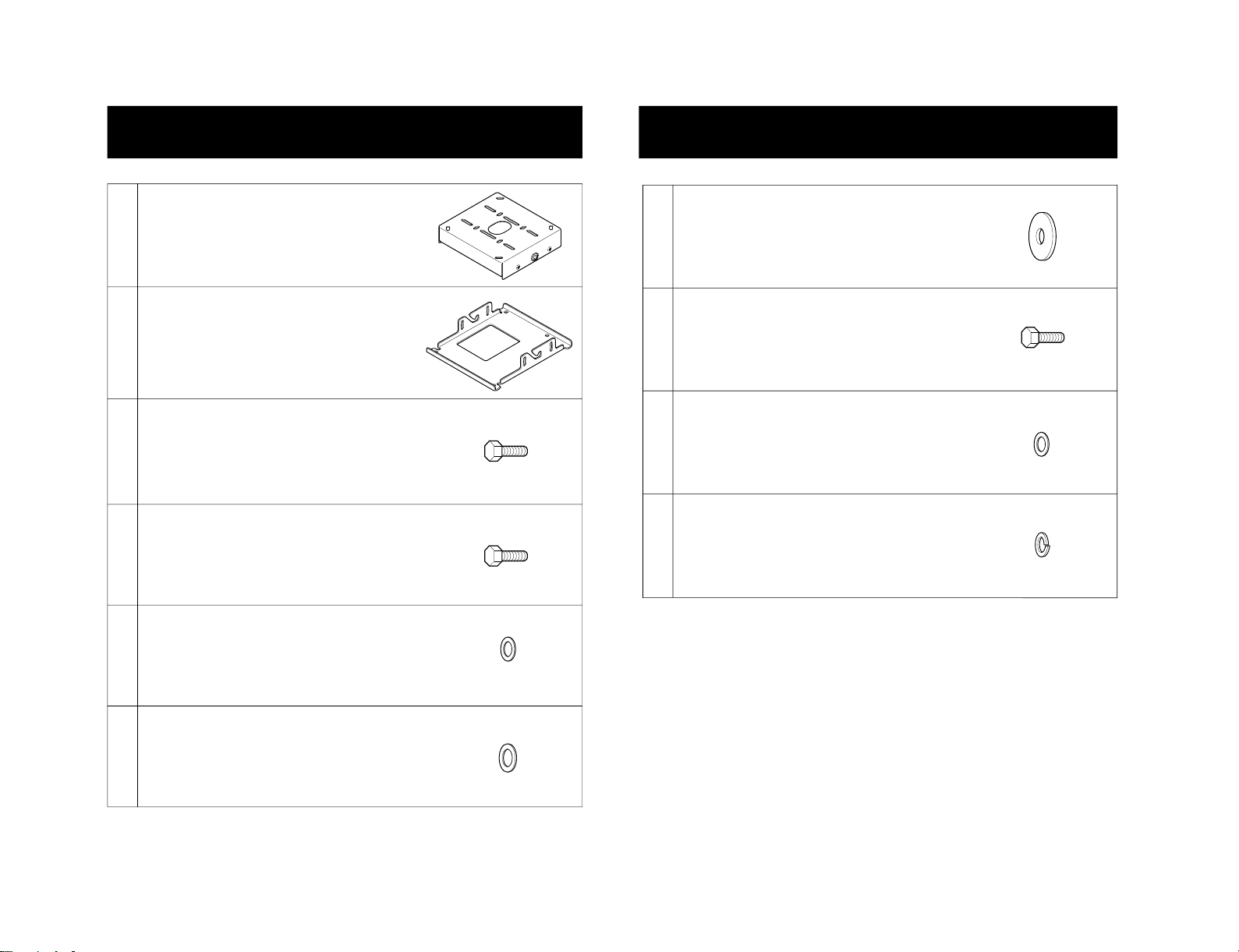

Ceiling Installation

When installing the projector on the ceiling, use the PSS-2000 Projector Suspension Support. For ceiling installation, ask for qualified Sony personnel only.

Center of the screen

Wall

Center of the lens

PSS-2000 Projector Suspension Support (not supplied)

Ceiling

a: Distance between the screen and the center of the lens b: Distance between the ceiling and the center of the lens c: Distance between the ceiling and the mounting surface of the suspension bracket e: Distance between the top of the available screen range and the center of the screen x: Distance between the ceiling and the center of the screen

Distance between the front of the cabinet and the center of the lens

VPLL-2014: 63 mm (2

1

/2 inches) VPLL-Z2019: – 25.4 mm (– 1 inch) VPLL-Z2025: 42.4 mm (1

11

/16 inches)

VPLL-Z2039: 84.5 mm (3

3

/8 inches)

VPLL-2075: 29.5 mm (1

3

/16 inches)

a

31

(GB)

When using the VPLL-2014 fixed short focus lens

When using the PSS-2000 Projector Suspension Support: c =104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 52.244/1.814) – 123 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 9.0 + 139.6)

Unit: mm (inches)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

1030 2180 2760 3330 4200 5060 5640 7080 8520 9960 11400 12840 14280

(40 5/

8

) (85 7/8) (108 3/4) (131 1/8) (165

3

/8) (199 1/4) (222 1/8) (278

7

/8) (335 1/2) (392 1/4) (448 7/8) (505

5

/8) (562 3/8)

Min.

c+131

b

(c+5

1

/4)

Max.

c+140

(c+5 1/2)

305 610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(12 1/8) (24

1

/8) (30) (36) (45) (54

1

/8) (60) (75 1/8) (90

1

/8) (105 1/8) (120 1/16) (135

1

/8) (150 1/8)

Min.

c+131

x

(c+5

1

/4)

Max.

c+338 c+536 c+636 c+735 c+884 c+1033 c+1132 c+1380 c+1628 c+1876 c+2124 c+2372 c+2620

(c+13 3/8)(c+21 1/8)(c+25 1/

8

) (c+29) (c+34 7/8)(c+40 3/4)(c+44

5

/8)(c+54 3/8)(c+64 1/8)(c+73

7

/8)(c+83 3/4)(c+93 1/2)(c+103 1/4)

When using the VPLL-Z2019 1.3-times zoom standard focus lens

When using the PSS-2000 Projector Suspension Support: c =104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 70.383/1.814) – 102) × 1.025 a (maximum) = ((SS × 92.644/1.814) – 104) × 0.975 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 13.0 + 143.6)

Unit: mm (inches)

Screen size (inches) 40 80 100 120 150 180 200 250 300 350 400 450 500

Min.

1490 3080 3870 4670 5860 7050 7850 9840 11820 13810 15800 17790 19780

a

(58

3

/4) (121

3

/8) (152 1/2) (184) (230

3

/4) (277 5/8) (309 1/8) (387 1/2) (465

1

/2) (543 7/8) (622 1/8) (700

1

/2) (778 7/8)

Max.

1890 3880 4880 5870 7370 8860 9860 12350 14840 17330 19810 22300 24790

(74 1/2) (152 7/8) (192 1/4) (231

1

/4) (290 1/4) (348 7/8) (388 1/4) (486

3

/8) (584 3/8) (682 3/8) (780

1

/8) (878 1/8) (976 1/8)

Min.

c+131

b

(c+5

1

/4)

Max.

c+144

(c+5 3/4)

305 610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(12 1/8) (24

1

/8) (30) (36) (45) (54

1

/8) (60) (75

1

/8) (90 1/8) (105 1/8) (120 1/16) (135

1

/8) (150 1/8)

Min.

c+131

x

(c+5

1

/4)

Max.

c+430 c+717 c+860 c+1003 c+1218 c+1433 c+1577 c+1935 c+2293 c+2652 c+3010 c+3368 c+3726 (c+17) (c+28 1/4)(c+33

7

/8)(c+39 1/2) (c+48)

(c+56

1

/2) (c+62 1/8) (c+76 1/4) (c+90 3/8)(c+104

1

/2)(c+118 5/32)(c+132 5/8)(c+146

3

/4)

a

e

32

(GB)

Installation Examples

When using the VPLL-Z2025 1.6-times zoom long focus lens

When using the VPLL-Z2039 1.5-times zoom long focus lens

When using the PSS-2000 Projector Suspension Support: c =104.7 (4

1

/

8

), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 92.078/1.814) – 176) × 1.025 a (maximum) = ((SS × 147.324/1.814) – 175) × 0.975 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 13.0 + 143.6)

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

Min.

3980 5020 6060 7620 9180 10220 12830 15430 18030 20630 23230 25830

a

(156

3

/4) (197

11

/16) (238 5/8) (300 1/8) (361

1

/2) (402 1/2) (505 1/4) (607 5/

8

) (709 15/16) (812 3/8) (914 3/4) (1017

1

/8)

Max.

6160 7750 9330 11710 14080 15660 19620 23580 27540 31500 35460 39420

(242

5

/8) (305 1/4) (367 3/8) (461

1

/8) (554 1/2) (616 5/8) (772 5/8) (928

1

/2) (1084 1/2)(1240 3/8)(1396

1

/4)(1552 1/4)

Min.

c+131

b

(c+5

1

/4)

Max.

c+144

(c+5 3/4)

610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(24

1

/8) (30) (36) (45) (54

1

/8) (60) (75 1/8) (90

1

/8) (105 1/8) (120 1/16) (135 1/

8

) (150 1/8)

Min.

c+131

x

(c+5

1

/4)

Max.

c+717 c+860 c+1003 c+1218 c+1433 c+1577 c+1935 c+2293 c+2652 c+3010 c+3368 c+3726

(c+28 1/4)(c+33 7/8)(c+39

1

/2) (c+48)

(c+56 1/2) (c+62

1

/8) (c+76 1/4) (c+90 3/8)(c+104 1/2)(c+118

5

/32)(c+132 5/8)(c+146 3/4)

When using the PSS-2000 Projector Suspension Support: 104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a (minimum) = ((SS × 144.368/1.814) – 163) × 1.025 a (maximum) = ((SS × 216.549/1.814) – 163) × 0.975 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 13.0 + 143.6)

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

Min.

6360 7990 9620 12070 14510 16150 20220 24300 28380 32460 36540 40620

a

(250

1

/2) (314 5/8) (378 7/8) (475

3

/8) (571 3/8) (636) (796

1

/4) (956 7/8) (1117 1/2)(1278 1/

8

)(1438 7/8)(1599 1/2)

Max.

9150 11480 13810 17300 20790 23120 28940 34760 40570 46390 52210 58030

(360 3/8) (452 1/8) (543

7

/8) (6811/4) (818 5/8) (910

3

/8) (1139 5/8)(1368 3/4)(1597 1/

2

)(1826 5/8)(2055 7/8)(2284 15/16)

Min.

c+131

b

(c+5

1

/4)

Max.

c+144

(c+5 3/4)

610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(24 1/8) (30) (36) (45) (54

1

/8) (60) (75

1

/8) (90 1/8) (105 1/8) (120

1

/16) (135 1/8) (150 1/8)

Min.

c+131

x

(c+5

1

/4)

Max.

c+717 c+860 c+1003 c+1218 c+1433 c+1577 c+1935 c+2293 c+2652 c+3010 c+3368 c+3726

(c+28 1/

4

)(c+33 7/8)(c+39 1/2) (c+48)

(c+56

1

/2) (c+62 1/8) (c+76 1/4) (c+90

3

/8)(c+104 1/2)(c+118 5/32)(c+132 5/

8

)(c+146 3/4)

e

33

(GB)

When using the VPLL-2075 fixed long focus lens

When using the PSS-2000 Projector Suspension Support: c =104.7 (4

1

/8), x (minimum) = e

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) a = (SS × 269.100/1.814) + 163 e = SS × 0.3 × 25.4 x (maximum) = c + (SS/1.814 × 13.0 + 143.6)

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

a

12030 15000 17960 22410 26860 29830 37250 44660 52080 59500 66910 74330

(473 11/16) (590

5

/8) (707 1/4) (882 1/2) (1057

5

/8)(1174 5/8)(1466 3/4)(1758

1

/2)(2050 3/4)(2342 7/8)(2634 5/8)(2926

3

/4)

Min.

c+131

b

(c+5

1

/4)

Max.

c+144

(c+5 3/4)

e

610 762 914 1143 1372 1524 1905 2286 2667 3048 3429 3810

(24 1/8) (30) (36) (45) (54

1

/8) (60) (75

1

/8) (90 1/8) (105

1

/8) (120 1/16) (135 1/8) (150 1/

8

)

Min.

c+131

x

(c+5

1

/4)

Max.

c+717 c+860 c+1003 c+1218 c+1433 c+1577 c+1935 c+2293 c+2652 c+3010 c+3368 c+3726

(c+28 1/4)(c+33 7/8)(c+39 1/2) (c+48)

(c+56 1/2) (c+62 1/8) (c+76

1

/4) (c+90 3/8)(c+104 1/2)(c+118 5/

32

)(c+132 5/8)(c+146 3/4)

1-47

1-48

34

(GB)

a

x

c

Installation Examples

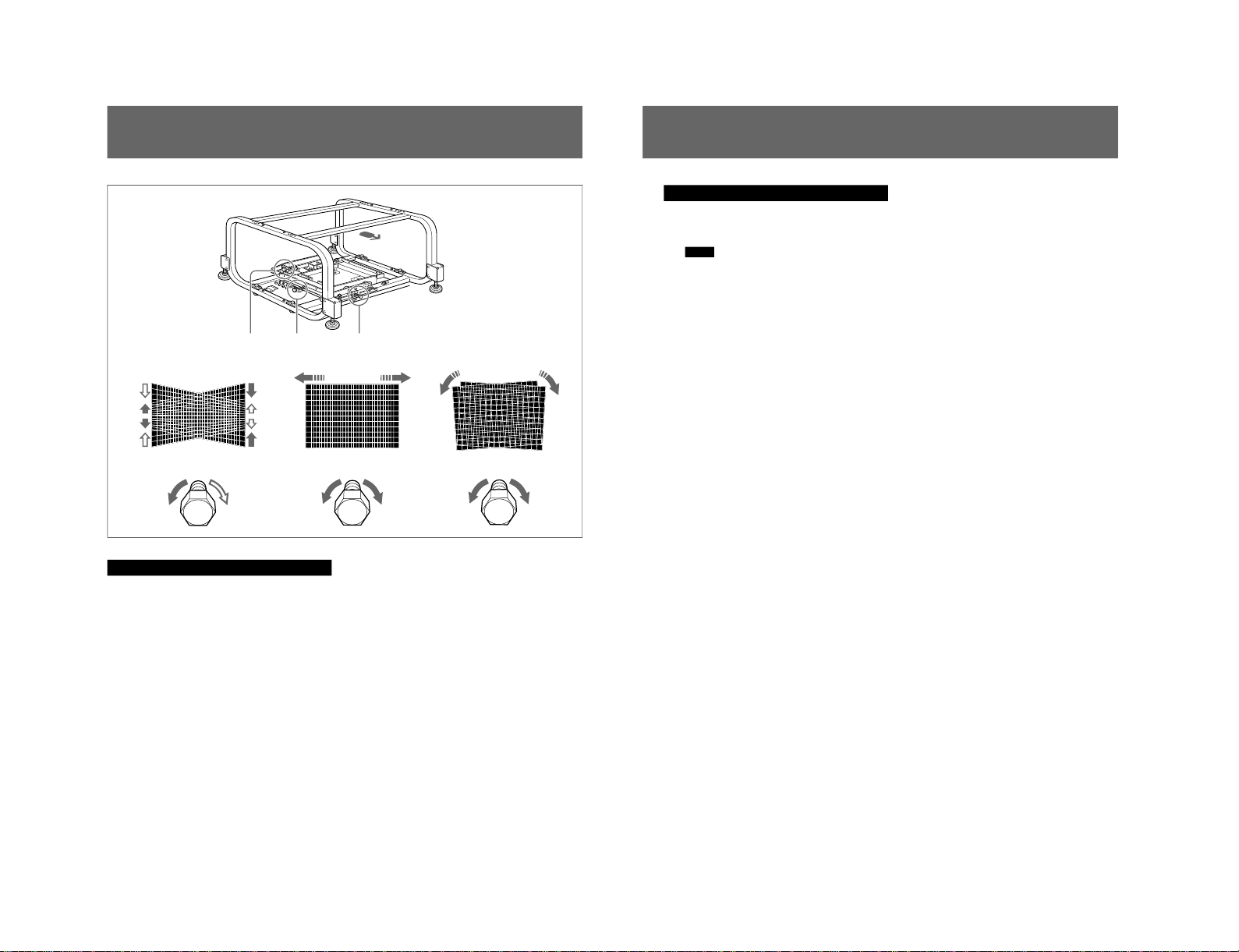

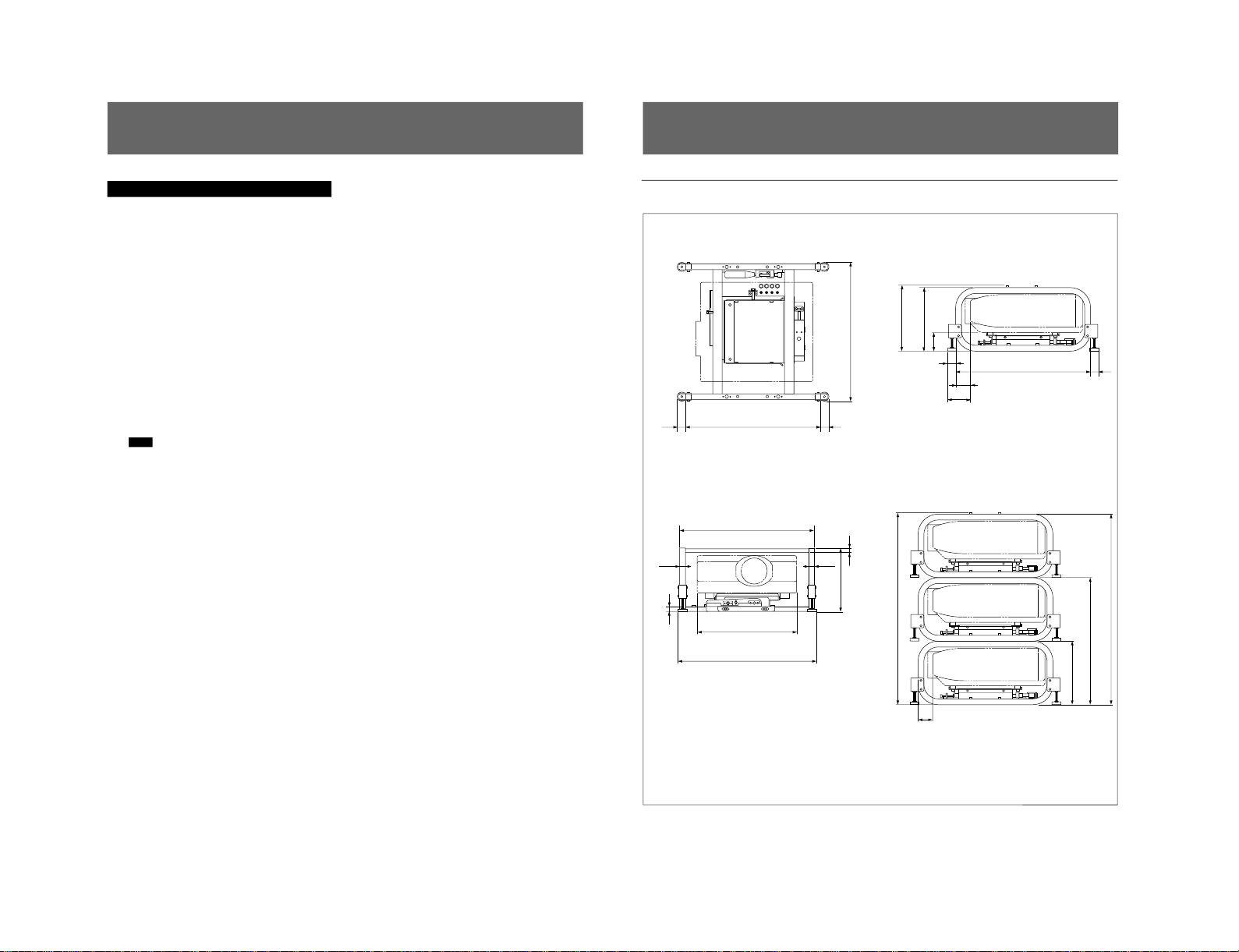

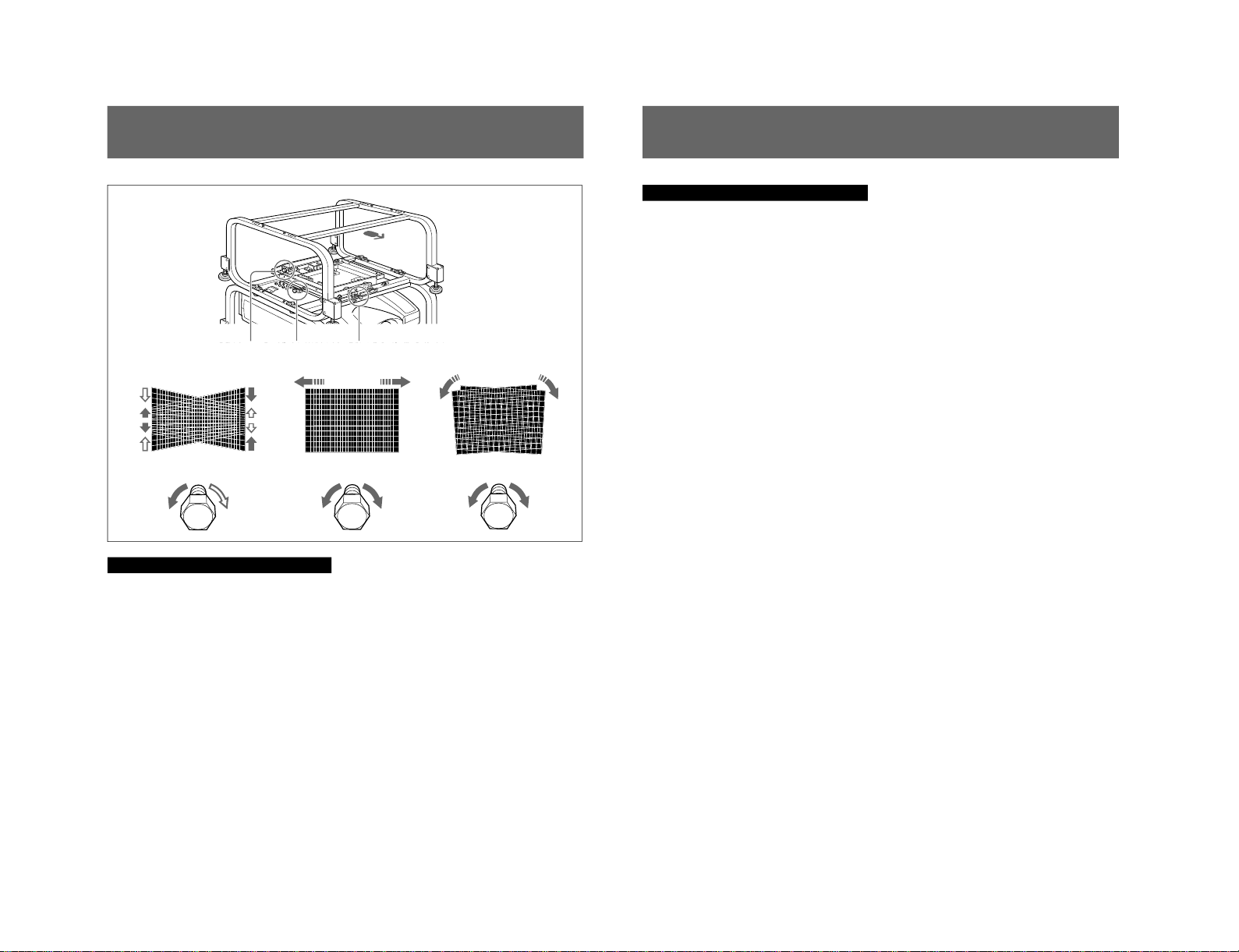

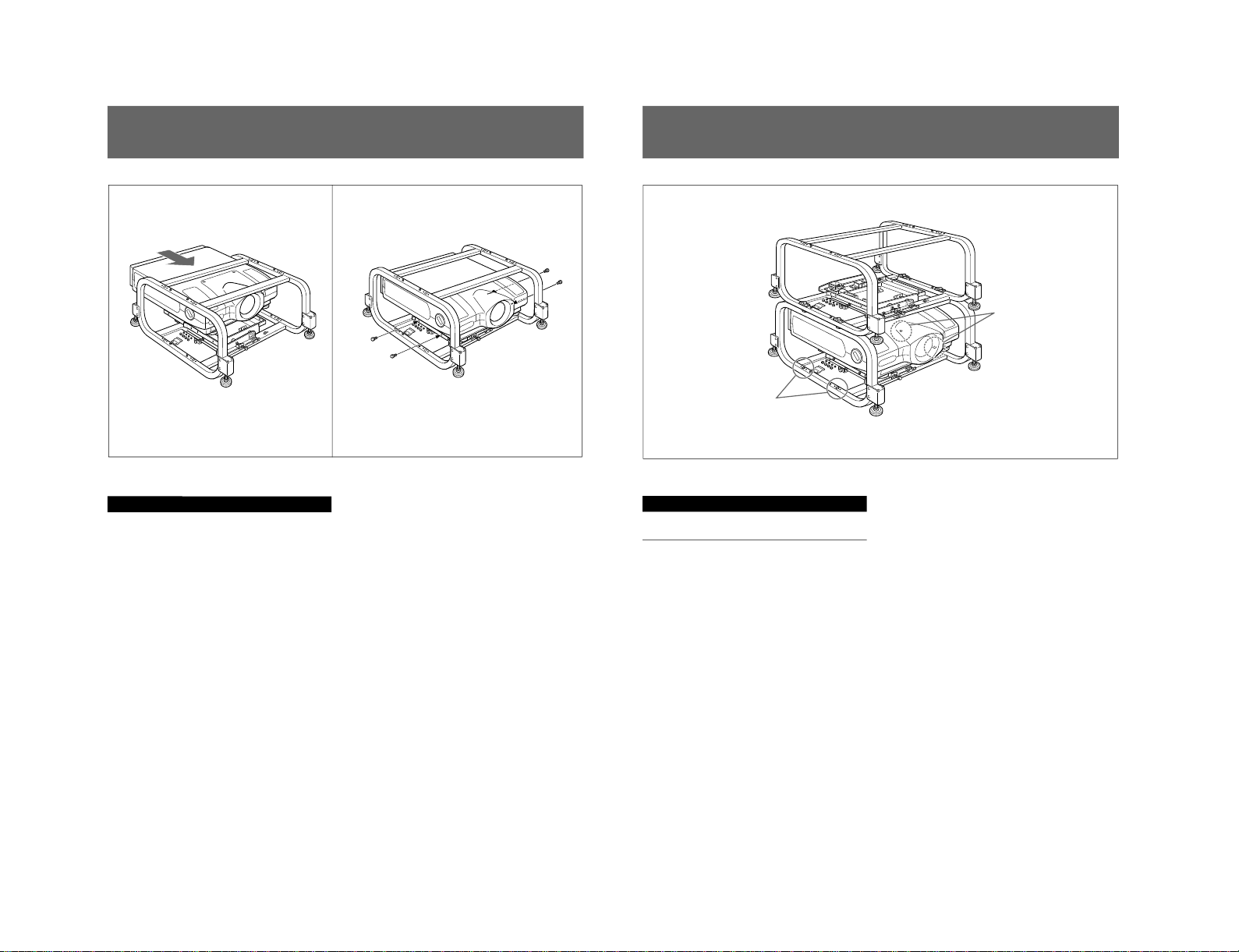

Installing the Projectors Using the SU-PJ2000 Projector Stand

Note on stacking

To properly align the pictures from both projectors, set the zoom to the center of the adjustment range. 1 Install the projector following the “a” value in the

stacking example.

2 Use the zoom to align the pictures from the first

and second projectors so that they fill the screen.

When installing the projectors using the SU-PJ2000 projector stand for stacking, install the projectors following the installation measurements below.

Available screen size for stacking

When attaching the VPLL-Z2019, VPLL-Z2025 and VPLL-Z2039 lens (not supplied), 80 to 500-inches screens are available for twin stack installation, and 100 to 500-inches screens are available for triple stack installation.

Notes

•If the VPLL-2009, VPLL-2014 or VPLL-2075 optional lens is mounted, you cannot perform stack installation.

•For safety and maintenance purposes, install the projectors away from the wall. Leave a minimum space of 30 cm (11

7

/8 inches) from both sides and a

minimum space of 70 cm (27

5

/8 inches) from the

rear.

For details on how to install the SU-PJ2000 projector stand, refer to the installation manual supplied with the SUPJ2000 projector stand.

Wall

Center of the screen

Center of the lens

2nd projector

SU-PJ2000 projector stand

1st projector

Floor installation

a: distance between the screen and the center of the lens c: distance between the floor and the bottom of the 1st projector stand x: distance between the center of the screen and the bottom of the 1st projector stand

Floor

35

(GB)

When using the VPLL-Z2019 1.3-times zoom standard focus lens

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

a

3710 4650 5600 7020 8430 9380 11740 14110 16470 18840 21200 23560

(146 1/8) (183 1/8) (220

1

/2) (276 7/16) (332) (369

3

/8) (462 3/8) (555 5/8) (648 5/8) (741

7

/8) (834 3/4) (927 3/4)

c*

40 192 345 573 802 954 1335 1716 2097 2478 2859 3240

(1 5/8) (7

5

/8) (13 5/8) (22 5/8) (31 5/

8

) (37 5/8) (52 5/8) (67 5/8) (82

5

/8) (97 5/8) (112 5/8) (127

5

/8)

Min.

570

x

(22

1

/2)

Max.

804 947 1090 1305 1520 1664 2022 2380 2739 3097 3455 3813

(31 3/4) (37 3/8) (43) (51

1

/2)(59 7/8) (65 5/8)(

79

5

/8)(

93 3/4)(

107 7/8) (122) (136

1

/8) (150 1/4)

* “c” is the minimum value for the picture not to be projected on the floor.

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) c = SS × 0.30 × 25.4 – 569.6 a = SS × 85.777/1.814 – 76 x (maximum) = SS/1.814 × 13.0 + 230.6

When using the VPLL-Z2025 1.6-times zoom long focus lens

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

a

4530 5710 6890 8660 10420 11600 14540 17490 20430 23370 26320 29260

(178 3/

8

) (224 7/8) (271 3/8) (341) (410

3

/8) (456 3/4) (572 5/8) (688

3

/4) (804 1/2) (920 1/4) (1036 3/8)(1152

1

/8)

c*

40 192 345 573 802 954 1335 1716 2097 2478 2859 3240

(1 5/8) (7 5/8) (13 5/8) (22

5

/8) (31 5/8) (37 5/8) (52 5/

8

) (67 5/8) (82 5/8) (97 5/8) (112

5

/8) (127 5/8)

Min.

570

x

(22

1

/2)

Max.

804 947 1090 1305 1520 1664 2022 2380 2739 3097 3455 3813

(31 3/4) (37

3

/8) (43) (51 1/2)(59 7/8) (65

5

/8)(

79 5/8)(

93 3/4)(

107

7

/8) (122) (136 1/8) (150 1/

4

)

* “c” is the minimum value for the picture not to be projected on the floor.

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) c = SS × 0.30 × 25.4 – 569.6 a = SS × 106.811/1.814 – 176 x (maximum) = SS/1.814 × 13.0 + 230.6

When using the VPLL-Z2039 1.5-times zoom long focus lens

Unit: mm (inches)

Screen size (inches) 80 100 120 150 180 200 250 300 350 400 450 500

a

6840 8590 10340 12970 15590 17340 21720 26100 30470 34850 39230 43600

(269 3/8) (338 1/

4

) (407 1/4) (510 3/4) (613 7/8) (682

7

/8) (855 1/4) (1027 3/4)(1199

7

/8)(1372 1/4)(1544 3/4)(1716 3/4)

c*

40 192 345 573 802 954 1335 1716 2097 2478 2859 3240

(1 5/8) (7

5

/8) (13 5/8) (22 5/8) (31

5

/8) (37 5/8) (52 5/8) (67 5/

8

) (82 5/8) (97 5/8) (112 5/8) (127

5

/8)

Min.

570

x

(22

1

/2)

Max.

804 947 1090 1305 1520 1664 2022 2380 2739 3097 3455 3813

(31 3/4) (37 3/8) (43) (51

1

/2)(59 7/8) (65 5/8)(

79 5/8)(

93 3/4)(

107 7/8) (122) (136

1

/8) (150 1/4)

* “c” is the minimum value for the picture not to be projected on the floor.

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) c = SS × 0.30 × 25.4 – 569.6 a = SS × 158.802/1.814 – 163 x (maximum) = SS/1.814 × 13.0 + 230.6

36

(GB)

a

x

c

Installation Examples

Floor installation for triple-stacking

Center of the screen

Center of the lens

2nd projector

SU-PJ2000 projector stand

1st projector

Wall

3rd projector

Floor

a: distance between the screen and the center of the lens c: distance between the floor and the bottom of the 1st projector stand x: distance between the center of the screen and the bottom of the 1st projector stand

37

(GB)

When using the VPLL-Z2019 1.3-times zoom standard focus lens

Unit: mm (inches)

Screen size (inches) 100 120 150 180 200 250 300 350 400 450 500

a

4650 5600 7020 8430 9380 11740 14110 16470 18840 21200 23560

(183 1/8) (220 1/2) (276

7

/16) (332) (369 3/8) (462 3/

8

) (555 5/8) (648 5/8) (741 7/8) (834

3

/4) (927 3/4)

c*

0 0 221 450 602 983 1364 1745 2126 2507 2888

(0) (0) (8

3

/4) (17 3/4) (23 3/4) (38

3

/4) (53 3/4) (68 3/4) (83

3

/4) (98 3/4) (113 3/4)

Min.

922

x

(36

3

/8)

Max.

947 1090 1305 1520 1664 2022 2380 2739 3097 3455 3813

(37 3/8) (43) (51 1/2)

(

59 7/8) (65 5/8)(

79 5/8)(

93

3

/4)(

107 7/8) (122) (136 1/

8

) (150 1/4)

* “c” is the minimum value for the picture not to be projected on the floor.

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) c = SS × 0.30 × 25.4 – 921.6 a = SS × 85.777/1.814 – 76 x (maximum) = SS/1.814 × 13.0 + 230.6

When using the VPLL-Z2025 1.6-times zoom long focus lens

Unit: mm (inches)

Screen size (inches) 100 120 150 180 200 250 300 350 400 450 500

a

5710 6890 8660 10420 11600 14540 17490 20430 23370 26320 29260

(224

7

/8) (271 3/8) (341) (410 3/

8

) (456 3/4) (572 5/8) (688 3/4) (804

1

/2) (920 1/4) (1036 3/8)(1152

1

/8)

c*

0 0 221 450 602 983 1364 1745 2126 2507 2888

(0) (0) (8 3/4) (17

3

/4) (23 3/4) (38 3/4) (53

3

/4) (68 3/4) (83 3/4) (98 3/

4

) (113 3/4)

Min.

922

x

(36

3

/8)

Max.

947 1090 1305 1520 1664 2022 2380 2739 3097 3455 3813

(37 3/8) (43) (51

1

/2)(59 7/8) (65

5

/8)(

79 5/8)(

93 3/4)(

107 7/8) (122) (136

1

/8) (150 1/4)

* “c” is the minimum value for the picture not to be projected on the floor.

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) c = SS × 0.30 × 25.4 – 921.6 a = SS × 106.811/1.814 – 176 x (maximum) = SS/1.814 × 13.0 + 230.6

When using the VPLL-Z2039 1.5-times zoom long focus lens

Unit: mm (inches)

Screen size (inches) 100 120 150 180 200 250 300 350 400 450 500

a

8590 10340 12970 15590 17340 21720 26100 30470 34850 39230 43600

(338 1/4) (407

1

/4) (510 3/4) (613 7/8) (682 7/8) (855

1

/4) (1027 3/4)(1199 7/8)(1372

1

/4)(1544 3/4)(1716 3/4)

c*

0 0 221 450 602 983 1364 1745 2126 2507 2888

(0) (0) (8

3

/4) (17 3/4) (23

3

/4) (38 3/4) (53 3/4) (68

3

/4) (83 3/4) (98 3/4) (113

3

/4)

Min.

922

x

(36

3

/8)

Max.

947 1090 1305 1520 1664 2022 2380 2739 3097 3455 3813

(37 3/8) (43) (51

1

/2)(59 7/8) (65 5/8)(

79

5

/8)(

93 3/4)(

107 7/8) (122) (136

1

/8) (150 1/4)

* “c” is the minimum value for the picture not to be projected on the floor.

To calculate the installation measurement (unit: mm)

SS: screen size measured diagonally (inches) c = SS × 0.30 × 25.4 – 921.6 a = SS × 158.802/1.814 – 163 x (maximum) = SS/1.814 × 13.0 + 230.6

1-49

1-50

38

(GB)

0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

1

Connecting with a Computer, VCR or Active Speakers

Note

Set INPUT-A in the SIGNAL SELECT menu to RGB.

For details, see page 57 (GB).

Also refer to the instruction manual of the equipment to be connected.

When making connections, be sure to:

•turn off all equipment before making any connections.

•use the proper cables for each connection.

•insert the plugs of the cables properly; plugs that are not fully inserted may generate noise. When pulling out a cable, be sure to pull it out from the plug, not the cable itself.

Note on the VPL-X2000E model

The optional IFB-X2000E interface board is required for using the VIDEO connectors.

Connection Examples

Connecting a BNC connector

2 Turn to the right.

1 Align the pins with the pin holes

and push in the plug into the socket.

to a wall outlet

VCR

to S VIDEO OUT

to VIDEO OUT

to AUDIO OUT

S video cable (not supplied)

Video cable (not supplied)

Audio cable (not supplied)

Rear

AC power cord (supplied)

to AC IN

SMF-400 Monitor cable (5BNC˜HD D-sub 15pin) (not supplied) Use the optional ADP-20 signal adapter when connecting with a Macintosh computer.

Computer

Audio cable (not supplied)

Active speakers

Signal flow

Audio cable

(not supplied)

39

(GB)

0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

1

Connecting 15k RGB/Component Equipment

Note

Switch the input signal with the INPUT-A item in the SIGNAL SELECT menu.

For details, see page 57 (GB).

15k RGB/component equipment

to RGB/component output

Monitor cable (BNC type)

Rear

to a wall outlet

AC power cord (supplied)

to AC IN

Signal flow

Connections/Index number setting

40

(GB)

0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

OUT PUT

SW NO

RS-232C/422A

REMOTE

RS-232C RS-422A

RS-485 IN

RS-485 OUT



1

Connection Examples

Connecting the Switcher

Use the optional PC-3000 Signal Interface Switcher for connecting various video equipment. The input can be selected by pressing the SWITCHER/VIDEO MEMORY/INDEX keys on the Remote Commander.

For selecting the input from the switcher, see page 17 (GB).

Notes

•When you select the input from the switcher, be sure to set the SWITCHER/VIDEO MEMORY/INDEX select switch to the SWITCHER position.

•When connecting the switcher, use the wired Remote Commander. If you use the wireless Remote Commander, activate the remote control detector on only one unit of the equipment connected through the PJ COM connector. For the other equipment, set SIRCS RECEIVER in the SET SETTING menu to OFF to deactivate the remote control detectors.

For details, see page 56 (GB).

•After all the connections are complete, attach the terminator (supplied) to the PJ COM connector on both the projector and switcher to which nothing is connected.

Device index number: 01

Rear

to INPUT A

SIC-10 connecting cable (5BNC ˜ 5BNC) (not supplied)

to OUTPUT

PC-3000 switcher

Computer, etc.

to PJ COM IN

RCC-5G/10G/30G connecting cable (not supplied)

to PJ COM OUT

Attach the supplied terminator.

to the wall outlet

AC power cord (supplied)

to AC IN

Signal flow

VCR, etc.

Attach the terminator (supplied with the PC-3000).

To connect a single switcher

41

(GB)

0

1

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

SW NO

OUT PUT

RS-232C/422A

REMOTE

RS-485 IN

RS-485 OUT

RS-232C RS-422A

RS-232C/422A

REMOTE

RS-232C RS-422A

RS-485 IN

RS-485 OUT

OUT PUT

1

234

5

86

7

SW NO.

1

234

5

86

7

SW NO.

To connect two switchers

Notes

•Set the device index number of the projector to be connected to the switcher to 01.

•Set the SW NO switch on the switcher to be connected to the projector to 1. Install the IFB-12A interface board onto the switcher, and set the IN/OUT switch on the IFB-12A to IN.

Rear

Device index number: 01

to the wall outlet

AC power cord (supplied)

to AC IN

Attach the supplied terminator.

SIC-10 connecting cable (5BNC ˜ 5BNC) (not supplied)

to OUTPUT

RCC-5G/10G/30G connecting cable (not supplied)

to PJ COM OUT

PC-3000 switcher SW NO switch: 1

Computer

IFB-12A IN/OUT switch: IN

to PJ COM IN

to IFB-12A installed in the switcher

PC-3000 switcher: SW NO switch: 2

Signal flow

Computer

to OUTPUT

RCC-5G/10G/30G connecting cable (not supplied)

SIC-10 connecting cable (5BNC ˜ 5BNC) (not supplied)

to PJ COM OUT

Attach the terminator (supplied with the PC-3000).

1-51

1-52

42

(GB)

0

1

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

0

2

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

Connection Examples

Following are examples of multiple projectors installed onto the optional SU-PJ2000 projector stand, such as by stacking.

Connecting Multiple Projectors

For details on the SU-PJ2000 projector stand, refer to the installation manual supplied with it.

When not using the switcher

Install the optional IFB-12A interface board in the first projector. Set the IN/OUT switch on the IFB-12A to OUT.

For details on the IFB-12A interface board, refer to the operating instructions supplied with it.

Note

Installing the interface board and setting up the switch must be done while the power of the projector is off.

Computer

VCR, etc.

IFB-12A IN/OUT switch: OUT

Device index number: 01

Rear

to a wall outlet

AC power cord (supplied)

to AC IN

Attach the supplied terminator.

SIC-10 connecting cable (5BNC ˜ 5BNC) (not supplied)

Video cable (not supplied)

RCC-5G/10G/30G connecting cable (not supplied)

Device index number: 02

Signal flow

Rear

to a wall outlet

AC power cord (supplied)

to AC IN

Attach the supplied terminator.

43

(GB)

0

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

0

1

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

:

1

234

5

86

7

SW NO.

1

234

5

86

7

SW NO.

2

OUT PUT

SW NO

OUT PUT

RS-232C/422A

REMOTE

RS-485 IN

RS-485 OUT

RS-232C RS-422A

RS-232C/422A

REMOTE

RS-232C RS-422A

RS-485 IN

RS-485 OUT

When using the switcher

When connecting two PC-3000 switchers, up to 15 inputs can be selected as the input from the switchers. Install the IFB-12A interface board in the first switcher (on which you set the SW NO switch to 1) and set the IN/OUT switch on the board to IN.

Notes

•Be sure to set the switcher number.

•Be sure to turn off the power of the projector when setting up the device index number and connecting cables.

Device index number: 02

to a wall outlet

AC power cord (supplied)

to AC IN

Attach the supplied terminator.

SIC-10 connecting cable (5BNC ˜ 5BNC) (not supplied)

RCC-5G/10G/30G connecting cable (not supplied)

IFB-12A IN/OUT switch: OUT

to OUTPUT

to PJ COM OUT

PC-3000 switcher SW NO switch: 1

to PJ COM INto IFB-12A installed in the switcher

PC-3000 switcher SW NO switch: 2

Device index number: 01

Computer

IFB-12A IN/OUT switch: IN

Computer

Signal flow

to a wall outlet

AC power cord (supplied)

to AC IN

to PJ COM OUT

to OUTPUT

Rear

Attach the terminator (supplied with the PC-3000).

44

(GB)

Connection Examples

Confirming the System Construction

After all the connections are complete, confirm that equipment of the system is properly setup.

1

Connect the AC cords of all equipment to the AC outlets.

2

Press the SYS SET key on the Remote Commander. You can also press the LIGHT and RESET keys simultaneously on the control panel for the same effect. Information on the system construction and the settings of the interface boards, etc. are automatically confirmed. Then the message disappears.

Note

When you want to use the projector without connecting the switcher after using the switcher in the system connections, it is necessary to confirm the system construction again by pressing the SYS SET key or the LIGHT and RESET keys after all the connections are complete. If you press the key(s), “Master Switcher not exist” appears, but the system construction is automatically recognized.

When a system error is detected

The following messages are displayed on the screen and display window:

Message

Master Switcher not exist.

Same DEVICE INDEX for Projector detected.

Same DEVICE INDEX for Switcher detected.

Remedy

Set the switcher that outputs the signal to the projector to number 1.

Change either number of the projectors that have the same number.

Change either number of the switchers that have the same number.

Note

If the switcher is in standby mode, the message appears only in the message display window.

45

(GB)

Setting the Index Numbers

When you connect multiple projectors in your system, you have to set the group index and device index numbers for each projector.

To set the group index number

If you set the same group index number for multiple projectors, you can operate multiple projectors and switchers simultaneously (such as input selection) by designating the number. The group index number can be set in the menu.

For group index number setting, see page 56 (GB).

To set the device index number

If you set the device index number, you can control each projector individually with the supplied Remote Commander. The device index number can be set with the DEVICE INDEX switches on the rear of the projector. It is set to “01” at the factory. If only one projector is connected, set it to “01.”

Notes

•Do not set the same device index number for the projectors in the same system.

•Do not set the number to “00.” If you do, the projector will be operated only with the keys on the control panel. It cannot be controlled with the wired or wireless Remote Commander, or with an external equipment to which the PJ COM connectors are connected.

0

1

Ten’s digit Unit’s digit

1-53

1-54

46

(GB)

Setting the Index Numbers

Notes on setting of the index number

•Set the same group index number for all equipment of the same system connection (those on the signal route between the signal source and the projector).

For setting the group index number, see “GROUP INDEX” on page 56 (GB).

•Set the correct group and device index numbers and the switcher number.

Do not set the same device index number or the same switcher number in one group. For example, if there are different pieces of equipment with the switcher number 1, the error message will appear when the SYS SET key is pressed.

•Set the switcher that outputs the signal to the projector to number 1.

Set the same group index number.

Set the different group index number for two systems.

Set the same group index number.

Set this switcher to 1.

Notes on connections when two or more switchers are used

•Mount the IFB-12A interface board to the slot 1 of the number n switcher and connect the output connector of the number (n+1) switcher to the IFB-12A.

•You can attach the IFB-12A signal interface board (when the IN/OUT switch is set to OUT) only to the number 1 switcher.

PC-3000

Projector

PC-3000

Projector

Signal flow

PJ COM

Signal flow

PJ COM

PC-3000

Projector

47

(GB)

To select the projector by designating the index numbers

When the switchers and projectors are connected as illustrated, select the desired projector by pressing the keys on the Remote Commander as shown below.

Example:

To select all the projectors

GROUP n ALL n ENTER n ALL n ENTER Projectors A, B, C and D are selected.

To select projectors with device index 01 from all the groups

GROUP n ALL n ENTER n 1 n ENTER Projectors A and C are selected.

To select a projector with device index 01 from group index 02

GROUP n 2 n ENTER n 1 n ENTER Projector C is selected.

To select all the projectors from group index 02

GROUP n 2 n ENTER n ALL n ENTER Projectors C and D are selected.

Notes

•Set the group index and device index numbers correctly. If more than two projectors are set to the same group index and device index numbers, an error message will be displayed when the SYS SET key is pressed.

•If the group index is a tens digit number, press the GROUP key before each press of the number key.

Example:

To select a projector with device index 13 of group index 12 GROUP n 1 n GROUP n 2 n ENTER n 1 n 3 n ENTER

Number 2 switcher

Device index 01

Group index 02Group index 01

PC-3000

Projector A

Projector B

PC-3000

Projector C

Projector D

PJ COM

Signal flow

Number 2 switcher

Number 1 switcher

Device index 02

Device index 01

Number 1 switcher

Device index 02

48

(GB)

Adjusting the Picture

This section describes how to adjust the focus, size and vertical position of the picture when the projector is installed on the floor. For twin/triple stack installation, refer to the Installation Manual supplied with the SU-PJ2000 projector stand.

1

Press the PATTERN key on the Remote Commander or the control panel to display the HATCH pattern.

2

Press the FOCUS key then the V or v key on the Remote Commander or the control panel to adjust the focus.

“FOCUS” appears on the screen during adjustment.

3

Press the ZOOM key then the V or v key on the Remote Commander or the control panel to adjust the picture size.

“ZOOM” appears on the screen during adjustment.

Note

If the optional VPLL-2075, VPLL-2014 or VPLL-2009 lens is installed, you cannot adjust the zoom.

4

Press the FOCUS and arrow keys on the Remote Commander or the control panel to adjust the focus again.

“FOCUS” appears on the screen during adjustment.

5

Press the SHIFT key then the arrow keys on the Remote Commander or the control panel to adjust the vertical position of the picture.

“PICTURE SHIFT” appears on the screen during adjustment.

6

Press the PATTERN key again to clear the HATCH pattern.

Note

Do not look into the lens when the projector lamp is on.

49

(GB)

Using the Menu

Adjustments

The projector is equipped with an on-screen menu for making various adjustments and settings. Unadjustable items are not displayed in the menu.

To change the language used in the menu, see page 55 (GB).

1

Press the MENU key. The menu display appears. The menu presently selected is highlighted in yellow.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE: COLOR TEMP:

DRC:

80 50 50 50 50 OFF LOW

COLOR SYS: AUTO

HIGH

VIDEO

2

Use the V or v key to select a menu, then press the b or the ENTER key.

The setting items of the selected menu are displayed.

SET SETTING

STATUS: SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING

:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:0101

ON ON ENGLISH FLOOR-FRONT OFF FRONT&REAR

INPUT-A

3

Make setting or adjustment on an item.

For details on setting individual items, see the relevant menu pages.

Menus

Setting items

To erase the menu display

Press the MENU key. The menu display also disappears automatically if no key is pressed for one minute.

To reset settings that have been adjusted

Press the RESET key. “Reset complete!” appears on the screen and the settings appearing on the screen will be reset to their factory preset values.

Items that can be reset are as follows:

CONTRAST, BRIGHT, COLOR, HUE, SHARP, DOT PHASE, SIZE, SHIFT and BLANKING.

About the memory of the settings

The settings are automatically stored in the projector memory.

1-55

1-56

50

(GB)

The PICTURE CTRL Menu

The PICTURE CTRL menu is used for adjusting the picture. Unadjustable items are not displayed in the menu.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE: COLOR TEMP:

DRC:

80

50

OFF

LOW

COLOR SYS: AUTO

HIGH

VIDEO

Operation

1. Select an item

Use the V or v key to select the item, then press the b or the ENTER key.

2. Adjust an item

•When changing the adjustment level:

To increase the number, press the V or b key. To decrease the number, press the v or B key. Press the ENTER key to restore the original screen.

•When changing the setting:

Press the V or v key to change the setting, then press the B or the ENTER key. The original screen is restored.

CONTRAST

Adjusts the picture contrast.

CONTRAST: 80

The higher the setting, the greater the contrast. The lower the setting, the lower the contrast.

BRIGHT (Brightness)

Adjusts the picture brightness.

BRIGHT: 80

The higher the setting, the brighter the picture. The lower the setting, the darker the picture.

COLOR

Adjusts color intensity.

COLOR: 50

The higher the setting, the greater the intensity. The lower the setting, the lower the intensity.

HUE

Adjusts skin tones.

HUE: 50

At high settings, the picture becomes greenish. At low settings, the picture becomes purplish.

SHARP (Sharpness)

Adjusts the picture sharpness.

SHARP: 80

The higher the setting, the sharper the picture. The lower the setting, the softer the picture.

D. (Dynamic) PICTURE

Emphasizes the black color.

HIGH

OFF

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP:

D.PICTURE:

COLOR TEMP: DRC:

80

50

COLOR SYS: AUTO

HIGH

VIDEO

ON

OFF

ON: Emphasizes the black color to produce a bolder

“dynamic” picture.

OFF: Reproduces the dark portions of the picture

accurately, in accordance with the source signal.

51

(GB)

COLOR TEMP (temperature)

Adjusts the color temperature.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE:

DRC:

80

50

OFF

HIGH

COLOR SYS: AUTO

HIGH

VIDEO

HIGH

COLOR TEMP:

LOW

HIGH: Makes the white color bluish. LOW: Makes the white color reddish.

COLOR SYS (system)

Selects the color system of the input signal.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE: COLOR TEMP:

DRC:

80

50

OFF

HIGH

AUTO

HIGH

VIDEO

AUTO

NTSC3.58

PAL

SECAM

NTSC4.43

PAL-M

COLOR SYS:

Normally, set to AUTO. If the picture is distorted or colorless, select the color system (NTSC

3.58

/PAL/SECAM/NTSC

4.43

/PAL-M)

according to the input signal.

GAMMA MODE

Select either position to obtain an optimum picture.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR TEMP:

80

50

HIGH

GRAPHICS

INPUT-A

GAMMA MODE:GRAPHICS

TEXT

GRAPHICS: Improves the reproduction of half

tones. Photos can be reproduced in natural tones.

TEXT: Contrasts black and white. Suitable for

images with lots of text.

DRC (Digital Reality Creation)

Selects the level of DRC effects.

PICTURE CTRL

CONTRAST: BRIGHT: COLOR: HUE: SHARP: D.PICTURE: COLOR TEMP:

80

50

OFF

LOW

COLOR SYS: AUTO

HIGH

VIDEO

DRC:

HIGH

LOW

HIGH: Increases the DRC effects. LOW: Decreases the DRC effects.

Input signals and adjustable/setting items

Item

CONTRAST BRIGHT COLOR HUE

SHARP D. PICTURE COLOR

TEMP COLOR

SYS GAMMA

MODE DRC

Y: Adjustable/can be set N: Not adjustable/cannot be set

Input signal

Video

or

S video

Y Y Y Y

(NTSC

3.58/

4.43

1)

only)

Y Y Y

Y

N

Y

15k

RGB

Y Y N N

N N Y

N

Y

Compo-

nent

Y Y Y

N

Y Y Y

N

Y

RGB

(preset)

Y

Y N N

N N

Y

N

Y

N

RGB (preset) (HDTV-

Y/P

B/PR

) Y Y Y Y

Y N Y

N

RGB

(not

preset)

Y

Y N N

N N

Y

N

Y

N

1) NTSC

4.43

is the color system used when playing back a video recorded in

NTSC color system on a NTSC

4.43

system VCR.

..........................................................................................................................................................................................................

52

(GB)

The INPUT SETTING Menu

The INPUT SETTING menu is used to change the settings of the input signal. Unadjustable items, which vary according to the input signal, are not displayed in the menu.

INPUT SETTING

DOT PHASE: SIZE SHIFT

8 H:1344 H:123 V:123

1024x768 NO . 2 3 n

20

INPUT-A

Operation

1. Select an item

Use the V or v key to select the item, then press the b or the ENTER key.

2. Adjust an item

•When changing the adjustment level:

To increase the number, press the V or b key. To decrease the number, press the v or B key. Press the ENTER key to restore the original screen.

•When changing the setting:

Press the V or v key to change the setting, then press the B or the ENTER key. The original screen is restored.

DOT PHASE

Adjusts the phase of the LCD panel and the input signal when H FILTER is set to OFF. Adjust the value to obtain the clearest picture.

DOT PHASE: 8

SIZE

Adjusts the horizontal size of the picture.

SIZE

H:1344

As the setting for H increases, the horizontal size of the picture becomes larger, and as the setting decreases, the size becomes smaller. Adjust the setting according to the input signal. Use the B or b key to adjust the horizontal size.

SHIFT

Adjusts the position of the picture.

SHIFT

H:123 V:123

H adjusts the horizontal position of the picture, and V adjusts the vertical position. As the setting for H increases, the picture moves to the right, and as the setting decreases, it moves to the left. As the setting for V increases, the picture moves up, and as the setting decreases, it moves down. Use the B or b key to adjust the horizontal position and the V or v key for the vertical position.

SCAN CONV (converter)

Converts the signal to display the picture according to the screen size.

INPUT SETTING

DOT PHASE: SIZE SHIFT

8 H:1056 H:123 V:123 ON

800x600 NO . 1 7

INPUT-A

SCAN CONV: ON

OFF

n

21

ON: Displays the picture according to the screen

size. The picture will lose some clarity.

OFF: Displays the picture while matching one pixel

of input picture element to that of the LCD. The picture will be clear but the picture size will be smaller.

53

(GB)

ASPECT

Sets the aspect ratio of the picture. When inputting 16:9 (squeezed) signal from equipment such as a DVD player, set to 16:9.

INPUT SETTING

SHIFT BLANKING TOP

H:123 V:123 4:3

VIDEO/60 NO. 1

VIDEO

ASPECT: 4:3

16:9

n

22

4:3: When the picture with ratio 4:3 is input 16:9: When the picture with ratio 16:9 (squeezed) is

input.

H FILTER

Corrects the vertical bands that appear on the picture.

INPUT SETTING

DOT PHASE: SIZE SHIFT SCAN CONV:

H:1266

8 H:123 V:123

ON OFF

1280x1024

NO . 3 7

INPUT-A

H FILTER: OFF

ON

n

23

The vertical bands may occur when an RGB signal with horizontal resolution of more than 1024 × 768 pixels is input. In such cases, set to ON. The picture will loose some clarity, but the vertical bands will be reduced. Set to OFF to associate a dot of the input signal with a pixel of the LCD.

BLANKING

Adjusts if excess signals are seen with the picture, or the whole picture is not seen clearly.

INPUT SETTING

DOT PHASE: SIZE SHIFT SCAN CONV:

8 H:1056 H:123 V:123 ON

NO .

0

INPUT-A

BLANKING

n

24

800×600

Select BLANKING, then press the ENTER key to display the blanking adjustment screen.

BLANKING TOP: RIGHT:

LEFT:

126

BOTTOM: 2 3 4

57 34

Use the V or v key to select the part to be adjusted, and the B or b key to adjust.

Input signals and adjustable/setting items

Item

DOT PHASE

SIZE SHIFT SCAN CONV

ASPECT H FILTER

BLANKING

Y: Adjustable/can be set N: Not adjustable/cannot be set

Input signal

Video or

S video

N

N Y N

Y N

Y (TOP and BOTTOM

only)

15k

RGB

N

N Y N

Y N

Y

(TOP

and

BOTTOM

only)

Compo-

nent

N

N Y N

Y N

Y (TOP and BOTTOM

only)

RGB

(preset)

Y

(except

for

HDTV)

Y Y Y

(Only for

lower

resolution

than

SVGA)

N Y

(Higher

resolution

than

XGA)

Y

(HDTV-

GBR,

HDTV-

Y/P

B/PR

only)

RGB

(not preset)

Y

Y Y Y

N Y

(Higher resolution than XGA)

Y

1-57

1-58

54

(GB)

The INPUT SETTING Menu

Memory No.

1 2 3 4 5 6 7 8 9

10 11 12 13 14

15

16 17 18 19

20 21 22

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

* VESA is a registered trademark of Video Electronics

Standard Association.

INPUT MEMORY No.

The upper number indicates the memory number of the current input signal. The lower number indicates the user memory number.

INPUT SETTING

DOT PHASE: SIZE SHIFT

8 H:1048 H:123 V:123

1024x768 NO. 1

INPUT-A

n 23

About the memory function

The adjustment data for 39 types of input signals are preset at the factory (preset memory). When a signal is input to the projector, the signal type is automatimally detected and the data for the signal is called from the memory to display an optimum picture. The data can be adjusted in the INPUT SETTING menu and the adjusted data will be saved as user memory. When you save more than 200 user memories, the newest one always overwrites the oldest one. The saved user memory number is displayed in the INPUT SETTING menu as n NO. ππ. When an RGB signal other than the preset signals is input to the projector, the memory number is displayed as 0 and the closest option is automatically selected from the preset 39 types of signals.

Type of input signal

Memory number

User memory number

Preset signal

Video 60 Hz Video 50 Hz 15k RGB (60 Hz) 15k RGB (50 Hz) HDTV 640 × 350 VGA-1 (VGA350)

VESA* 85(VGA350)

640 × 400 NEC PC98

VGA-2 (TEXT) /VESA70

VESA 85 (VGA400)

640 × 480 VGA VESA60

Mac 13 VGA VESA 72 VGA VESA 75

(IBM M3) VGA VESA 85

(IBM M4)

800 × 600 SVGA VESA 56

SVGA VESA 60 SVGA VESA 72 SVGA VESA 75

(IBM M5)

SVGA VESA 85 832 × 624 Mac 16 1024 × 768 XGA VESA 43

(8514)

XGA VESA 60

XGA VESA 70

XGA VESA 75

XGA VESA 85 1152 × 864 VESA 70

VESA 75

VESA 85 1152 × 900 SUN LO

SUN HI 1280 × 960 VESA 60

VESA 75 1280 × 1024

SXGA VESA 43

SGI-5

SXGA VESA 60

SXGA VESA 75

SXGA VESA 85 1600 × 1200

UXGA VESA 60

fH (kHz)

15.73

15.63

15.73

15.63

33.75

31.47

37.86

24.82

31.47

37.86

31.47

35.00

37.86

37.50

43.27

35.16

37.88

48.08

46.88

53.67

49.72

35.52

48.36

56.48

60.02

68.68

64.00

67.50

77.49

61.80

71.71

60.00

75.00

46.43

53.32

63.97

79.98

91.15

75.00

fV (Hz)

59.94

50.00

59.94

50.00

60.00

70.09

85.08

54.42

70.09

85.08

59.94

66.67

72.81

75.00

85.01

56.25

60.32

72.19

75.00

85.06

74.55

86.96

60.00

69.96

75.03

85.00

70.02

75.00

85.06

65.96

76.05

60.00

75.00

86.87

50.06

60.01

75.03

85.02

60.00

Sync

—

— S on G S on G S on Y/G H-pos V-neg H-pos V-neg H-neg V-neg H-neg V-pos

H-neg V-pos H-neg V-neg S on G H-neg V-neg H-neg V-neg

H-neg V-neg

H-pos V-pos H-pos V-pos H-pos V-pos H-pos V-pos

H-pos V-pos H-neg V-neg H-pos V-pos

H-neg V-neg H-neg V-neg H-pos V-pos H-pos V-pos H-pos V-pos H-pos V-pos H-pos V-pos H-neg V-neg C-neg H-pos V-pos H-pos V-pos H-pos V-pos S on G H-pos V-pos H-pos V-pos H-pos V-pos H-pos V-pos

Horizontal size

— — — —

1235

800 832 848 800

832 800

— 832 840

832

1024 1056 1040 1056

1048 1152 1264

1344 1328 1312 1376 1308 1422 1394 1283 1256 1440 1382 1272 1260 1272 1266 1296 1352

55

(GB)

The SET SETTING Menu

The SET SETTING menu is used for changing the initial settings of the projector. Unadjustable items are not displayed in the menu.

SET SETTING

SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING

:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:

01 01

ON ON ENGLISH FLOOR-FRONT

FRONT&REAR

INPUT-A

STATUS:AT

OFF

Operation

1. Select an item

Use the V or v key to select the item, then press the b key or the ENTER key.

2. Adjust an item

•When changing the adjustment level:

To increase the number, press the V or b key. To decrease the number, press the v or B key. Press the ENTER key to restore the original screen.

•When changing the setting:

Press the V or v key to change the setting, then press the B or the ENTER key. The original screen is restored.

STATUS

Sets up the on-screen display.

SET SETTING

SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING

:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:0101

ON ON ENGLISH FLOOR-FRONT

FRONT&REAR

INPUT-A

STATUS:

OFF

ON

OFF

ON: Shows all of the on-screen displays. OFF: Turns off the on-screen displays except for the

menus and warning messages.

SPEAKER

Set to OFF to cut off the sound of the internal speaker when external speakers are connected. When set to OFF, “SPEAKER OFF” appears on the screen when you turn on the power.

SET SETTING

STATUS: LANGUAGE:

INSTALLATION: POWER SAVING

:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:

01 01

ON ON ENGLISH FLOOR-FRONT OFF FRONT&REAR

INPUT-A

ON OFF

SPEAKER:

LANGUAGE

Selects the language used in the menu and on-screen displays.

01 01

POWER SAVING

: OFF

FRONT&REAR

CEILING-FRONT

FLOOR-FRONT

SET SETTING

STATUS: SPEAKER:

LANGUAGE:

SIRCS RECEIVER: GROUP INDEX: DEVICE INDEX:

ON ON ENGLISH FRANCAIS DEUTSCH ITALIANO ESPANOL

INPUT-A

INSTALLATION

:

Available languages are: English, French, German, Italian, Spanish, Japanese and Chinese.

INSTALLATION

Reverses the picture horizontally or vertically.

SET SETTING

STATUS: SPEAKER: LANGUAGE:

POWER SAVING: SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:

01 01

ON ON ENGLISH FLOOR-FRONT

OFF

FRONT&REAR

INPUT-A

INSTALLATION:

CEILING-FRONT

FLOOR-FRONT FLOOR-REAR

CEILING-REAR

FLOOR-FRONT: The picture is not reversed. CEILING-FRONT: The picture is reversed

horizontally and vertically.

FLOOR-REAR:

The picture is reversed horizontally.

CEILING-REAR: The picture is reversed

vertically.

Note

In case of using a mirror, be careful of installation since the picture may be reversed.

56

(GB)

The SET SETTING Menu

POWER SAVING

When set to ON, the projector goes into the power saving mode and the lamp for light source turns off if no signal is input for about 10 minutes. The power saving mode is canceled when a signal is input or any key is pressed.

SET SETTING

STATUS: SPEAKER: LANGUAGE: INSTALLATION:

SIRCS RECEIVER

: GROUP INDEX: DEVICE INDEX:0101

ON ON ENGLISH FLOOR-FRONT

OFF

FRONT&REAR

INPUT-A

OFF ON

POWER SAVING

:

SIRCS RECEIVER

Selects the remote control detectors to be activated. Change the setting if the wireless Remote Commander does not work properly due to the influence of the fluorescent lamp, etc.

SET SETTING

STATUS: SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING:

GROUP INDEX: DEVICE INDEX:0101

ON ON ENGLISH FLOOR-FRONT OFF FRONT&REAR

INPUT-A

SIRCS RECEIVER

:

FRONT&REAR FRONT REAR OFF

FRONT & REAR: Activates both the front and rear

detectors.

FRONT: Activates the front detector only. REAR: Activates the rear detector only. OFF: Activates neither the front nor rear detector.

Note

When set to OFF, the wireless Remote Commander does not function. Use the keys on the control panel or the wired Remote Commander.

GROUP INDEX

Groups multiple projectors or switchers to operate them simultaneously.

GROUP INDEX: 0 1

You can set the group index number to the desired number between 01 and 99.

DEVICE INDEX

Displays the index number set with the INDEX switches on the rear of the projector. You cannot set the device index number with this menu.

SET SETTING

STATUS: SPEAKER: LANGUAGE: INSTALLATION: POWER SAVING: SIRCS RECEIVER: GROUP INDEX: 0 1

01

ON ON ENGLISH FLOOR-FRONT OFF FRONT&REAR

INPUT-A

DEVICE INDEX:

For details for setting the number, see page 45 (GB).

57

(GB)

The SIGNAL SELECT Menu

The SIGNAL SELECT Menu is used for selecting the input signal. Depending on the interface board installed in the projector, some items may not be displayed in the menu.

SIGNAL SELECT

INPUT-A: INPUT-B: INPUT-C:

RGB RGB RGB

INPUT-A

Operation

Use the V or v key to select the input, then press the ENTER key.

INPUT-A

Selects audio and video signals input from the INPUT A connectors. You can select the RGB, component or HDTV (YP

BPR

) signal.

SIGNAL SELECT

INPUT-B: INPUT-C:

RGB RGB RGB

INPUT-A RGB COMPONENT YP

BPR

INPUT-A:

Note

When the PC-3000 signal interface switcher is connected to the INPUT A connectors, you cannot select the item.

INPUT-B

Selects the input signal from the connectors on the optional IFB-12A interface board installed in the INPUT B section. You can select the RGB, component, HDTV (YP

BPR

), video or S video signal.

SIGNAL SELECT

INPUT-A: INPUT-C:

RGB RGB RGB

INPUT-B RGB

COMPONENT VIDEO S-VIDEO YP

BPR

INPUT-B:

Note

This item is not displayed when the optional interface board other than the IFB-12A is installed in the INPUT B section, or when the output mode is selected on the IFB-12A.

INPUT-C

Selects the input signal from the connectors on the optional IFB-12A interface board installed in the INPUT C section. You can select the RGB, component, HDTV (YP

BPR

), video or S video signal.

SIGNAL SELECT

INPUT-A: INPUT-B:

RGB RGB RGB

INPUT-C

INPUT-C:

RGB COMPONENT VIDEO S-VIDEO YP

BPR

Note

This item is not displayed when the optional interface board other than the IFB-12A is installed in the INPUT C section.

1-59

1-60

58

(GB)

Follow the steps below for entering into the SERVICE MODE. The SERVICE MODE is available even when only one of the four lamps for light source functions. Accordingly, you can enter into the mode even if the projector is in standby mode. Confirm that STATUS is not displayed on the screen.

Operation when the projector is on

1

Press the keys on the control panel in the following order:

ENTER key, ENTER key, V key, v key, ENTER key

The following screen appears.

Do you wish to enter into the SERVICE MODE?

YES: NO:

2

Press the V key. The projector enters into the SERVICE MODE.

3

Press the MENU key. The SERVICE MODE select menu appears. When the projector enters into the SERVICE MODE, “S” appears on the upper-left corner of the screen.

INFORMATIONS

fH: fV: SYNC: ROM VER.: OPERATION TIMER: LAMP TIMER1: LAMP TIMER2: LAMP TIMER3:

01234h 01234h

LAMP TIMER4: 01234h

15.7kHz

120.0Hz CPOS/– /–

1.00 01234h 01234h

VIDEO

4

Press the V or v key to select the menu, then press the b key or the ENTER key. The selected menu appears.

SERVICE SETTINGS

LENS CONTROL: DIRECT POWER ON: ON DELAY: RS-232C/422A: PJ COM:

OFF

38.4K

INPUT-A ON OFF

5

Make setting or adjustment on the item.

For details on setting individual items, see pages 59 (GB) to 62 (GB).

The SERVICE MODE Menus

Operation when the projector is in standby mode

1

Press the keys on the control panel in the following order:

ENTER key, ENTER key, V key, v key, ENTER key

The following message appears in the display window of the control panel.

2

Press the V key.

3

Press the ON key within 5 seconds. The projector enters into the SERVICE MODE.

4

Follow the steps 3 to 5 on the left.

Enter into SERVICE? 

YES 

NO

Press ON key now.

59

(GB)

There are three menus in the SERVICE MODE: INFORMATION, SERVICE SETTING, and W/B ADJUST menus.

The INFORMATION Menu

The INFORMATION menu shows the information about the current input signal and the number of operated hours of the projector and lamp.

INFORMATIONS

fH: fV: SYNC: ROM VER: OPERATION TIMER: LAMP TIMER1: LAMP TIMER2: LAMP TIMER3:

01234h 01234h

LAMP TIMER4: 01234h

15.7kHz

120.0Hz CPOS/–/–

1.00 01234h 01234h

VIDEO

fH (Horizontal frequency)

Indicates the horizontal frequency of the input signal. The value is not absolute but is only used as a reference.

fV (Vertical frequency)

Indicates the vertical frequency of the input signal. The value is not absolute but is only used as a reference.

SYNC

Indicates the type and the polarity of the sync signal. The indications show the polarity of the composite or horizontal sync signal, vertical sync signal and sync on G signal from the left to the right. CPOS: The polarity of the composite sync signal is

positive.

CNEG: The polarity of the composite sync signal is

negative.

POS: The polarity of the sync signal is positive. NEG: The polarity of the sync signal is negative. SonG: Sync on green signal – : No sync signal is input.

ROM VER.

Indicates the ROM version number of the projector.

OPERATION TIMER

Indicates the total number of hours for which the projector has been operated.

LAMP TIMER 1–4

Indicates the total number of hours for which the lamp currently used has been operated. The number of hours of the lamp that has burnt out is indicated in red.

60

(GB)

The SERVICE MODE Menus

The SERVICE SETTING Menu

The SERVICE SETTING menu is for the settings to be adjusted before operation.

SERVICE SETTINGS

LENS CONTROL: DIRECT POWER ON: ON DELAY: RS-232C/422A: PJ COM:

ON OFF OFF

38.4K

INPUT-A

Operation

1. Select an item

Use the V or v key to select the item, then press the b or the ENTER key.

2. Change the setting

Press the V or v key to change the setting.

3. Restore the original screen

Press the B or the ENTER key. The original screen is restored.

LENS CONTROL

When set to OFF, the SHIFT, FOCUS and ZOOM keys on the Remote Commander and the control panel do not function. To activate the keys, set to ON.

SERVICE SETTINGS

DIRECT POWER ON: ON DELAY: RS-232C/422A: PJ COM:

OFF

38.4K

INPUT-A ON OFF

LENS CONTROL:

DIRECT POWER ON

Set to ON when you want to turn on the projector by simply plugging in the AC power cord.

SERVICE SETTINGS

LENS CONTROL:

DIRECT POWER ON:

ON DELAY: RS-232C/422A: PJ COM:

38.4K

INPUT-A ON OFF ON

ON DELAY

When connecting multiple projectors, set to ON to turn on the projectors sequentially one by one. The delay time depends on the device index number on each projector.

SERVICE SETTINGS

LENS CONTROL: DIRECT POWER ON:

ON DELAY:

RS-232C/422A: PJ COM:

38.4K

INPUT-A ON OFF ON

OFF ON

RS-232C/422A

Sets the data transmission rate of the RS-232C/422A connector.

SERVICE SETTINGS

LENS CONTROL: DIRECT POWER ON: ON DELAY:

RS-232C/422A:

PJ COM: 38.4K

INPUT-A ON OFF OFF

38.4K

19.2K 9600

Note

Set the same data transmission rate for all the projectors and computers.

PJ COM

Sets the data transmission rate of the PJ COM connector.

SERVICE SETTINGS

LENS CONTROL: DIRECT POWER ON: ON DELAY: RS-232C/422A:

PJ COM: 38.4K

INPUT-A ON OFF OFF

38.4K

19.2K 9600

Note

Set the data transmission rate of all equipment connected via the PJ COM connector to the same rate.

61

(GB)

The W/B ADJUST Menu

The W/B ADJUST menu sets the values of the COLOR TEMP in the PICTURE CTRL menu.

W/B ADJUSTS

HIGH LOW

SAVE TO MEMORY

INPUT-A

Operation

1. Select the COLOR TEMP item to be set

Use the V or v key to select HIGH or LOW, then press the b or ENTER key. The projector enters into GAIN/BIAS adjustment mode.

HIGH GAIN

G: B:

R: 128

128 128

INPUT-A

2. Select the item to be adjusted

Use the v key to select the item. Each time the v key is pressed, the selected color item appears in the following order.

R (GAIN) → G (GAIN) → B (GAIN) ↑↓ B (BIAS) ←G (BIAS) ← R (BIAS)

3. Adjust an item

To increase the number, press the b key. To decrease the number, press the B key.

4. Restore the original screen

Press the ENTER key. The original screen is restored.

To cancel the adjusted values

Turn off the projector. The saved data in the memory will be retrieved when the projector is turned on again.

HIGH

Changes the color temperature of the COLOR TEMP’s HIGH setting value in the PICTURE CONTROL menu.

HIGH GAIN

G: B:

R: 128

128 128

INPUT-A

LOW

Changes the color temperature of the COLOR TEMP’s LOW setting value in the PICTURE CONTROL menu.

LOW GAIN

G: B:

R: 128

128 128

INPUT-A

SAVE TO MEMORY

Saves the settings of HIGH and LOW levels of COLOR TEMP if you select SAVE TO MEMORY with the V or v key and press the ENTER key.

W/B ADJUSTS

HIGH LOW

INPUT-A

SAVE TO MEMORY

1-61

1-62

62

(GB)

The SERVICE MODE Menus

Restoring the USER MODE

Normally, once you turn off the power using the STANDBY key on the Remote Commander after making adjustments, the USER MODE is automatically restored when you turn on the power again. To restore the USER MODE before turning off the power, follow the steps below.

1

Press the keys on the control panel in the following order:

ENTER key, ENTER key, V key, v key, ENTER key

The following screen appears.

Do you wish to return to the USER MODE?

YES: NO:

2

Press the V key. The projector goes back into the USER MODE. You cannot display the SERVICE MODE menus.

63

(GB)

Replacing the Lamp

When the lamp has burnt out, the LAMP FAIL indicators at the rear of the projector light. In this case, replace the lamp with a new LMP-Q2000 projector lamp (not supplied).

Note

Immediately after turning off the power, the lamp is extremely hot. Wait at least one hour before changing the lamp to give it enough time to cool down.

To remove the lamp unit

1

Press the STANDBY key to set the projector to standby mode, and unplug the power cord.

2

Remove the two screws with a coin or similar object, or a screwdriver, to open the lamp cover.

3

Loosen the two screws that fasten the lamp.

4

Fold out the levers up and down.

Maintenance

5

Pull out the lamp by holding the handles.

To install a new lamp

1

Mount the lamp with the grooves on the top and bottom aligned with the guides on the projector.

2

Push the lamp completely until it clicks. Fold down the levers to fix the lamp to the projector.

3

Tighten the two screws to secure the lamp.

Others

(continued)

64

(GB)

4

Replace the lamp cover and push to tighten the two screws to fix the cover.

To replace a burnt lamp

If a lamp has burnt out, the FAIL LAMP indicator of that lamp lights. Check the number of the burnt lamp, and replace it with a new LMP-S2000 projector lamp (not supplied).

Notes

•When replacing two or more lamps, replace the lamps one after another paying attention to the connections.

•When replacing a lamp, be careful not to overtighten the screws.

1

Remove the screw for the lamp to be replaced. Example: To replace Lamp 1

2

Remove the hexagonal nut to disconnect the cable.

Maintenance

Screw for Lamp 1

Screw for Lamp 2

Screw for Lamp 3

Screw for Lamp 4

3

Remove the lamp heat sink.

4

Remove the lamp weights. The positions of the weights to be removed vary depending on Lamp 1–4.

5

Remove the lamp, and install a new lamp.

6

Secure the lamp by performing the steps above in reverse order. Tighten the screw for the lamp while pressing the lamp against the lower left corner.

Remove these weights to replace Lamp 1.

Remove these weights to replace Lamp 2.

Remove these weights to replace Lamp 3.

Remove these weights to replace Lamp 4.

65

(GB)

Cleaning the Air Filter

The air filter should be cleaned in every 100 hours. When it becomes difficult to remove the dust from the filter, replace the filter with a new one.

1

Turn off the power of the projector and unplug the power cord.

2

Remove the air filter cover on the bottom of the projector.

3

Remove the air filter.

4

Remove the dust from the filter with a vacuum cleaner.

5

Attach the air filter and replace the cover.

Notes

•If the air filter is excessively dirty, wash it with mild detergent solution and dry it in a shaded place.

•Be sure to attach the air filter cover firmly; the power will not be turned on if it is not closed securely.

To reset the number of operated hours of the lamps in the message display window

1

Plug in the power cord and set the projector to standby mode.

2

Press the LIGHT, B, b and ENTER keys on the control panel in sequence. Press each key within 5 seconds.

3

Press the V or v key to display 1, 2, 3, 4 or ALL. To reset the number of operated hours for Lamp 1, 2, 3 or 4, respectively, display 1, 2, 3 or 4. To reset the number of operated hours for all the lamps at the same time, display ALL.

4

Press the ENTER key.

5

Press the ENTER key again. The projector will exit the reset mode if ALL was selected in step 3. If you selected 1, 2, 3 or 4, the display returns to that in step 3. Go to step 6.

6

To exit the reset mode, display EXIT and press the ENTER key. If you want to reset the number of operated hours of other lamps, repeat steps 3 to 6.

TIMER RESET? LAMP: 1

TIMER RESET? LAMP: ALL

TIMER RESET?? LAMP: ALL

1-63

1-64

66

(GB)

If the projector appears to be operating erratically, try to diagnose and correct the problem, using the following guide. If the problem still persists, consult with qualified Sony personnel.

Symptom

The power is not turned on.

No picture and no sound.

No picture or no sound.

The picture is noisy.

When inputting sound through the INPUT A/B/C connector, sound comes through one channel only.

The picture from INPUT A/B/C connector is colored strange.

“Please check INPUT-A in SIGNAL SELECT” appears in spite of inputting the correct signal from INPUT A.

“Please check INPUT-B in SIGNAL SELECT” appears in spite of inputting the correct signal from INPUT B.

“Please check INPUT-C in SIGNAL SELECT” appears in spite of inputting the correct signal from INPUT C.

“NO INPUT” appears when 15k RGB or component signal is input.

On-screen displays do not appear.

Color balance is not correct.

The picture is too dark.

The picture is not clear.

Troubleshooting

Cause

The power has been turned off and on with the ON key at a short interval.

The lamp cover is detached. The air filter cover is detached.

Cable is disconnected.

Input selection is not correct.

Either the picture or the sound is cut off.

Noise may appear on the background depending on the combination of the numbers of dot input from the connector and numbers of pixel on the LCD panel.

Monaural sound is being input through the INPUT A/B/C connector.

Setting for INPUT-A, INPUT-B or INPUT-C in the SIGNAL SELECT menu is incorrect.

Setting for INPUT-A in the SIGNAL SELECT menu is incorrect.

Setting for INPUT-B in the SIGNAL SELECT menu is incorrect.

Setting for INPUT-C in the SIGNAL SELECT menu is incorrect.

The sync signal is incorrect.

STATUS in the SET SETTING menu is set to OFF.

Picture has not been adjusted properly.

The color system of the input signal is not set correctly.

The lamp is nearing the end of its life.

Contrast or brightness has not been adjusted properly.

The picture is out of focus. Moisture condensation has occurred

on the lens.

Remedy

Wait for about 30 seconds before turning on the power

(see page 12 (GB))

. Attach the lamp cover securely. Attach the air filter cover securely

(see page

65 (GB))

.

Check that the proper connections have been made

(see pages 38 (GB) – 43 (GB))

.

Select the input source correctly in the SIGNAL SELECT menu

(see page 57 (GB))

.

Press the MUTING key to cancel the muting function

(see page 12 (GB))

.

Change the desktop pattern on the connected computer.

Input stereo sound.

Set INPUT-A, INPUT-B or INPUT-C in the SIGNAL SELECT menu correctly according to the input signal

(see page 57 (GB))

.

Set INPUT-A in the SIGNAL SELECT menu correctly according to the input signal

(see

page 57 (GB))

.

Set INPUT-B in the SIGNAL SELECT menu correctly according to the input signal

(see

page 57 (GB))

.

Set INPUT-C in the SIGNAL SELECT menu correctly according to the input signal

(see

page 57 (GB))

.

Input the correct sync singal (composite sync or sync on G singal (sync on Y for component singal)).

Set STATUS in the SET SETTING menu to ON

(see page 55 (GB))

.

Adjust the picture

(see pages 50 and 51 (GB))

.

Set COLOR SYS in the PICTURE CTRL menu correctly to match the color system of the input signal

(see page 51 (GB))

.

Replace the lamp with a new one

(see page

64 (GB))

.

Adjust CONTRAST or BRIGHT in the PICTURE CTRL menu properly

(see page 50

(GB))

.

Adjust the focus

(see page 48 (GB))

.

Leave the projector for about two hours with the power on

(see page 20 (GB))

.

67

(GB)

Symptom

The Remote Commander does not work.

The wireless Remote Commander does not function.

INPUT A cannot be selected.

The COVER FAIL indicator lights.

The LAMP FAIL indicator lights.

The FAN indicator lights.

The HIGH TEMP indicator lights.

When you press the ZOOM, SHIFT or FOCUS key, “LENS CONTROL is locked! Do you wish to unlock ?” appears.

Cause

The batteries are exhausted.

The remote control cable is connected to the Remote Commander although you are using it as a wireless Remote Commander.

The fluorescent lamp influences on the Remote Commander detector.

You have selected a wrong index number.

You have set the index number to “00”.

The SIRCS RECEIVER setting is not correct.

The switcher is not connected, but is recognized to be connected.

The lamp cover or air filter cover is detached.

The lamp with the same number of the indicator has reached the end of its life.

The fan is broken.

The internal temperature is unusually high.

The lens control function is locked.

Remedy

Replace the batteries with new ones

(see

page 19 (GB))

.

Disconnect the remote control cable.

Change the setting of SIRCS RECEIVER in the SET SETTING menu

(see page 56 (GB))

.

Select the correct index number

(see pages 45

(GB) and 56 (GB))

.

Select the correct index number

(see page 45

(GB))

.

Change the setting of SIRCS RECEIVER in the SET SETTING menu

(see page 56 (GB))

.

If the PJ COM connector is connected to something other than the terminator, remove it then press the SYS SET key.

Attach the lamp cover or air filter cover securely

(see pages 63 (GB) and 65 (GB))

.

Replace the lamp

(see page 64 (GB))

.

Consult with qualified Sony personnel.

Check to see if nothing is blocking the ventilation holes.

Consult with qualified Sony service personnel.

Caution messages

Use the list below to check the meaning of the messages displayed on the screen.

Message

High Temperature! Power off in 1 min.

Frequency is out of range!

Please check INPUT-A in SIGNAL SELECT.

Please check INPUT-B in SIGNAL SELECT.

Please check INPUT-C in SIGNAL SELECT.

Meaning

Internal temperature becomes too high.

The frequency of the input signal is out of the acceptable range.

You have input the RGB signal from the computer when INPUT-A in the SIGNAL SELECT menu is set to COMPONENT or YP

BPR

.

You have input the RGB signal from the computer when INPUT-B in the SIGNAL SELECT menu is set to COMPONENT or YP

BPR

.

You have input the RGB signal from the computer when INPUT-C in the SIGNAL SELECT menu is set to COMPONENT or YP

BPR

.

Remedy

Turn off the power. (If not, the power is automatically turned off about one minute later.) Check to see if nothing is blocking the ventilation holes.

Input a signal that is within the range of the frequency.

Set INPUT-A correctly.

Set INPUT-B correctly.

Set INPUT-C correctly.

68

(GB)

Specifications

Optical characteristics

Projection system 3 LCD panels, 1 lens, 3-primary

color optical shutter system

LCD panel 1.8-inch XGA LCD panel,

2,359,296 pixels (786,432 pixels × 3)

Lens Option Light output ANSI lumen

1)

2,400 lm

Lamp 120 W UHP × 4

Electrical characteristics

Color system NTSC

3.58

/PAL/SECAM/NTSC

4.43

/ PAL-M system, switched automatically

Resolution 600 horizontal TV lines (video

input)

1024 × 768 dots (RGB input)

Acceptable computer signal

fH: 15 to 94 kHz fV: 40 to 120 Hz

Speakers Max. 5 W + 5 W, 90 × 50 mm

(3

5

/8 × 2 inches), stereo

Input/Output

CONTROL S IN/PLUG IN POWER: Stereo

minijack, 5 Vp-p, plug in power, DC 5 V, maximum output 60 mA

OUT: Stereo minijack, 5 Vp-p

REMOTE RS-232C/422A

D-sub 9-pin (female)

(For details, see “Pin assignment” on page 70 (GB).)

PJ COM IN: D-sub 9-pin (male)

OUT: D-sub 9-pin (female)

(For details, see “Pin assignment” on page 70 (GB).)

TRIG Minijack

Power on: DC 12 V, output

impedance: 4.7 kilohms

Power off: 0 V

S VIDEO (priority to Y IN/C IN) (only for VPLX2000U/X2000M)

IN: Mini DIN 4-pin type (male)

Y (luminance): 1 Vp-p ± 2 dB sync negative, 75 ohms terminated C (chrominance): Burst 0.286 Vp-p ± 2 dB (NTSC), 75 ohms terminated Burst 0.3 Vp-p ± 2 dB (PAL), 75 ohms terminated

OUT: Loop-through mini DIN 4-

pin type (male) Loop-through output from the S VIDEO IN connector

Y IN: BNC type

1 Vp-p ± 2 dB sync negative, 75 ohms terminated

C IN: BNC type

Burst 0.286 Vp-p ± 2 dB (NTSC), 75 ohms terminated Burst 0.3 Vp-p ± 2 dB (PAL), 75 ohms terminated

VIDEO (only for VPL-X2000U/X2000M)

IN: BNC type

Composite video, 1 Vp-p ± 2 dB sync negative, 75 ohms terminated

OUT: Loop-through BNC type

Loop-through output from the VIDEO IN connector

AUDIO IN (only for VPL-X2000U/X2000M)

Phono type (stereo)

500 mVrms, impedance more than 47 kilohms

INPUT A Analog RGB/component: BNC

type

R/R-Y: 0.7 Vp-p ± 2 dB positive,

75 ohms terminated

G: 0.7 Vp-p ± 2 dB positive, 75

ohms terminated

G with sync/Y: 1 Vp-p ± 2 dB sync

negative, 75 ohms terminated

B/B-Y: 0.7 Vp-p ± 2 dB positive,

75 ohms terminated

SYNC/HD: Composite sync: 0.6–8

Vp-p, high impedance, sync positive/negative Horizontal sync: 0.6–8 Vp-p, high impedance, sync positive/ negative

1) ANSI lumen is a measuring method of American National Standard IT 7.228.

..........................................................................................................................................................................................................

69

(GB)

VD: Vertical sync: 0.6–8 Vp-p,

high impedance, sync positive/ negative

AUDIO IN: Phono type (stereo)

500 m Vrms, impedance more than 47 kilohms

HDTV (Y/P

B/PR

): BNC type Y: 1 Vp-p ± 2dB positive, 75 ohms Tri-level sync: ± 0.3 Vp-p Bi-level sync: 0.3 Vp-p P

B/PR

: 0.35 Vp-p ± 2dB positive,

75 ohms

HDTV (GBR): BNC type

G with sync: 1 Vp-p ± 2 dB, 75 ohms Tri-level sync: ± 0.3 Vp-p Bi-level sync: 0.3 Vp-p B/R: 0.7 Vp-p ± 2dB positive, 75 ohms

AUDIO OUT (variable out)

Phono type, Max. 1 Vrms

When input is 500 mVrms: impedance less than 5 kilohms

Safety regulations

VPL-X2000U: UL1950, c-UL

(CSA No. 950), FCC Class A, IC Class A

VPL-X2000E/X2000M: EN60 950

(TÜV), CE, C-Tick

General

Dimensions 562 × 237 × 649 mm (22

1

/4 × 9 3/

8

× 25 5/8 inches) (w/h/d)

Mass Approx. 34.5 kg (76 lb 1 oz)

(excluding the optional lens)

Power requirements

VPL-X2000U: AC 100 to 120 V/

220 to 240 V, 50/60 Hz

1)

VPL-X2000E/X2000M: AC 220 to

240 V, 50/60 Hz

Power consumption

Approx. 770 W (Standby mode: 15W

for VPL-X2000U/X2000M, 20 W for VPL-X2000E)

Heat dissipation 2628 BTU Operating temperature

0°C to 40°C (32°F to 104°F)

Operating humidity

35% to 85% (no condensation)

Storage temperature

–20°C to +60°C (–4°F to +140°F) Storage humidity 10% to 90% Supplied Accessories

Remote Commander RM-PJ1001 (1)

Size AA (R6) batteries (3)

Remote commander cable (stereo)

(15 m) (1) AC power cord (1) Terminator for the PJ COM

connector (1) Lens ring (1) Operating Instructions (1) Installation Manual for Dealers (1) Warranty (only for VPL-X2000U)

(1)

Design and specifications are subject to change without notice.

Optional accessories

Projector Lamp LMP-Q2000 (for replacement) Projector Lamp LMP-S2000 (for replacement) Interface Board

IFB-12A (Analog RGB/component/HDTV/

composite video/S video input with 5BNC type connectors)

IFB-20 (Analog RGB input with D-sub 9-pin type

connector)

IFB-21 (Analog RGB input/output with HD D-sub

15-pin type connector)

IFB-30 (Digital RGB input with D-sub 9-pin type

connector)

IFB-50 (serial digital video input/output with BNC

type connector)

IFB-1000 (Composite video input with BNC type

connector/S video input with mini DIN 4-pin type connector)

IFB-X2000E (Composite video input with phono

jacks/S video input with mini DIN 4-pin type

connector) (only for VPL-X2000E) Signal Interface Switcher PC-3000 Interface Unit IFU-1271/1271M SIC Cable

SIC-10/20A/20C/21/22/23/24/24A/25/26/26A/30/ 31/M1/M5/M15/M25/M50

9-pin remote cable (for PJ COM)

RCC-5G/10G/30G

1) UL listed for 120 V operation.

..........................................................................................................................................................................................................

(continued)

1-65

1-66

70

(GB)

Specifications

Monitor Cable

SMF-400 (HD D-sub 15-pin (female) ˜ 5BNC

(female))

SMF-401 (HD D-sub 15-pin (female) ˜ HD D-

sub 15-pin (female))

Signal Adapter

ADP-10 (D-sub 9-pin ˜ HD D-sub 15-pin (for

SIC Cable))

ADP-20 (Macintosh ˜ VGA) Remote Commander RM-PJ3000S Remote Control Receiver RM-PJ10 Projection Lens Fixed short focus lens VPLL-2009 Fixed short focus lens VPLL-2014

1.3-times zoom standard focus lens VPLL-Z2019

1.6-times zoom long focus lens VPLL-Z2025

1.5-times zoom long focus lens VPLL-Z2039 Fixed long focus lens VPLL-2075 Projector Stand SU-PJ2000 (for stacking) Projector Suspension Support PSS-2000 Screens VPS-80FH (80-inch, flat) VPS-100FH (100-inch, flat) VPS-120FH (120-inch, flat)

Some of the items may not be available in some areas. For details, please consult your nearest Sony office.

Pin assignment

RS-232C/422A connector (D-sub 9-pin, female)

RS-232C

1 NC 6 DSR* Data Set

Ready

2

RD

Receive Data

7 RTS** Request

to Send

3TD

Transmit Data

8

CTS

** Clear to

Send

4 DTR*

Data Terminal

9NC

Ready

5 GND Ground

* Circuit between pins 4 and 6 is short-circuited in the

projector.

** Circuit between pins 7 and 8 is short-circuited in the

projector.

RS-422A

1 GND Ground 6 GND Ground 2

TX

Transmit 7 TX Transmit

3 RX Receive 8

RX

Receive 4 GND Ground 9 GND Ground 5NC

PJ COM connector (D-sub 9-pin, female)

1 GND Ground 6 GND Ground 2 BUSY Busy 7 Busy 3 TX/RX 8

TX/RX

4 GND Ground 9 GND Ground 5NC

12345

6789

S VIDEO connector (mini DIN 4-pin)

Chrominance

GND

Luminance

GND

Tramsmit/ Receive

Tramsmit/

Receive

BUSY

12345

6789

71

(GB)

A

Adjusters 11 (GB) Adjusting

picture 50 (GB) picture size/shift 52 (GB)

zoom 48 (GB) Air filter 65 (GB) ASPECT 53 (GB) AUDIO MUTING 12 (GB)

B

Battery

Installation 19 (GB)

notes 19 (GB) BLANKING 53 (GB) BNC connector 38 (GB) BRIGHT 50 (GB)

C

Carrying handles 11 (GB) Caution messages 67 (GB) COLOR 50 (GB) COLOR SYS (System) 51 (GB) COLOR TEMP 51 (GB) Connections

active speakers 38 (GB)

BNC connector 38 (GB)

computer 38 (GB)

multiple projectors 42 (GB)

15k RGB/component equipment 39 (GB)

Remote Commander 19 (GB)

switcher 40 (GB)

VCR 38 (GB) CONTRAST 50 (GB) Cut off

the picture 12 (GB)

the sound 12 (GB)

D, E

D. (Dynamic) PICTURE 50 (GB) Device index 45 (GB), 47 (GB), 56 (GB) DIRECT POWER ON 60 (GB) DOT PHASE 52 (GB) DRC (Digital Reality Creation) 51 (GB)

F

fH (Horizontal frequency) 59 (GB) FOCUS 48 (GB) fV (Vertical frequency) 59 (GB)

Index

G

GAMMA MODE 51 (GB) Group index 45 (GB), 47 (GB), 56 (GB)

H

Handle lever 11 (GB) H FILTER 53 (GB) HIGH 61 (GB) HUE 50 (GB)

I, J, K

INPUT-A 57 (GB) INPUT-B 57 (GB) INPUT-C 57 (GB) INPUT MEMORY No. 54 (GB) INPUT SETTING menu 52 (GB) Input signal selection 13 (GB) Installation examples

on a ceiling 30 (GB) on a floor 26 (GB), 34 (GB) triple-stacking 36 (GB) twin-stacking 34 (GB)

L

Lamp replacement 63 (GB) LAMP TIMER 59 (GB) LANGUAGE 55 (GB) LENS CONTROL 60 (GB) Location and function of controls

control panel 12 (GB) front 10 (GB) rear 14 (GB) Remote Commander 16 (GB)

LOW 61 (GB)

M, N

Menu

Clearing the menu display 49 (GB) INPUT SETTING menu 52 (GB) PICTURE CTRL menu 50 (GB) SET SETTING menu 55 (GB) SIGNAL SELECT menu 57 (GB) Using the menu 49 (GB)

Moisture condensation 20 (GB)

O

ON DELAY 60 (GB) On-screen messages 67 (GB) OPERATION TIMER 59 (GB) Optional accessories 69 (GB)

P, Q

PC-3000 Signal Interface Switcher

40 (GB) PIC MUTING 12 (GB) PICTURE CTRL menu 50 (GB) PICTURE SHIFT 48 (GB) Pin assignment 70 (GB) PJ COM 60 (GB) PJ COM connector 15 (GB) Polarity 25 (GB)

Changing the polarity according to the

installtion condition 25 (GB)

Power

turn on 12 (GB)

turn off 12 (GB) POWER SAVING 56 (GB) Precautions 4 (GB) Precautions on installation 20 (GB) PSS-2000 Projector Suspension Support

30 (GB)

R

Remote Commander

battery installation 19 (GB)

connecting to the projector 19 (GB)

location and function of controls

16 (GB)

notes 19 (GB) Remote control detector

front 10 (GB)

rear 13 (GB) Reset

resetting the item 49 (GB) Restoring the USER MODE 62 (GB) RS-232C/422A 60 (GB) RS-232C/422A connector 15 (GB)

(continued)

72

(GB)

S

SAVE TO MEMORY 61 (GB) SCAN CONV 52 (GB) Screen size 21 (GB) SERVICE mode

entering into the SERVICE mode 58 (GB)

SERVICE MODE menu

INFORMATION menu 59 (GB) SERVICE SETTING menu 60 (GB)

W/B ADJUST menu 61 (GB) SET SETTING menu 55 (GB) SHARP 50 (GB) SHIFT 52 (GB) SIGNAL SELECT menu 57 (GB) SIRCS RECEIVER 56 (GB) SIZE 52 (GB) SPEAKER 55 (GB) Specifications 68 (GB) STATUS (on-screen display) 55 (GB) Supplied accessories 69 (GB) SYNC 59 (GB)

T , U, V

Type of screen 21 (GB) Troubleshooting 66 (GB)

W, X, Y

W/B ADJUST 61 (GB)

Z

ZOOM 48 (GB)

Index

1-67

1-68

Interface Board

Operating Instructions

IFB-X2000E

3-865-115-11 (1)

English

The IFB-X2000E interface board is designed to be mounted on Sony VPLX2000E LCD data projectors so that composite video or S video (Y/C) signals and audio signals from video equipment can be input/output.

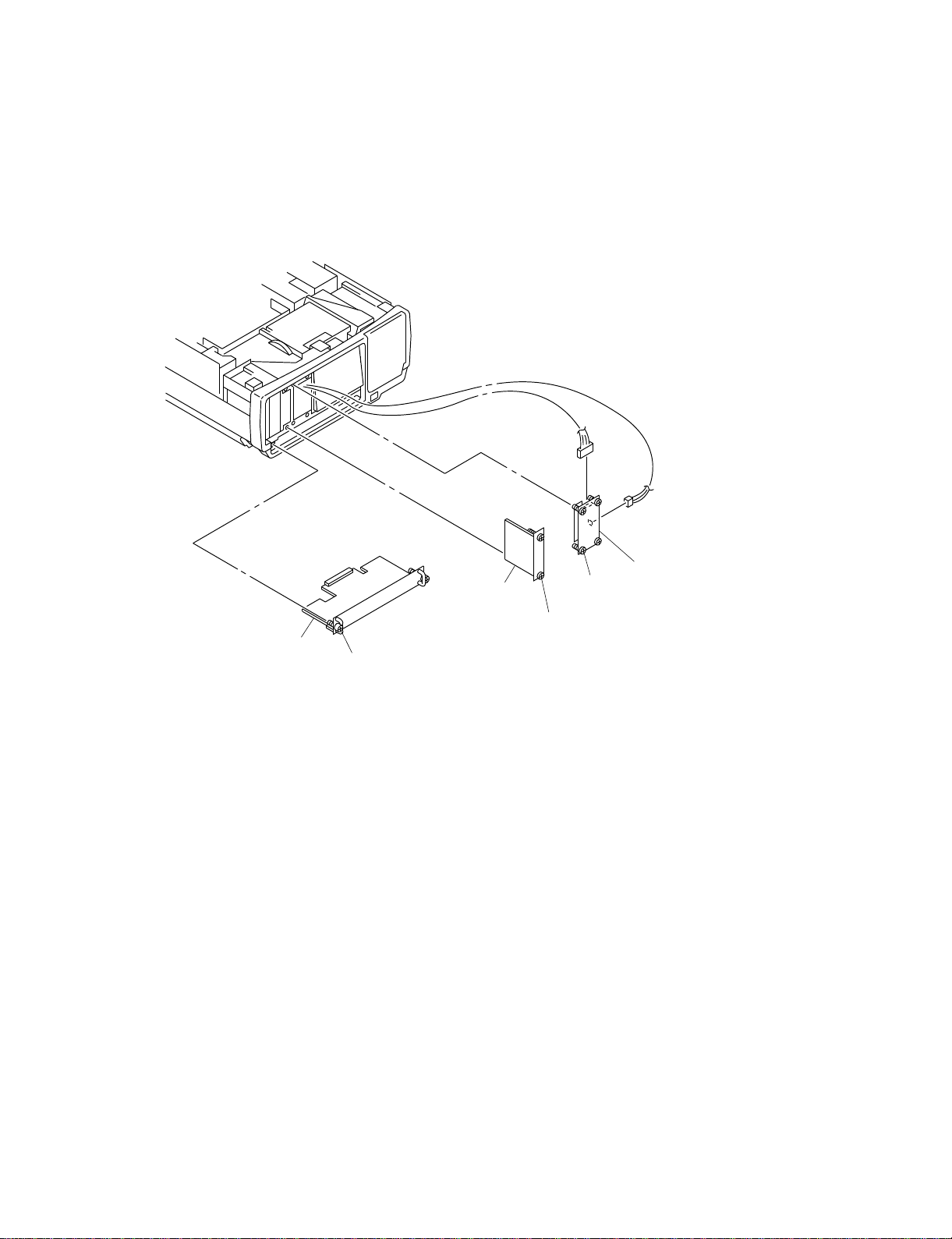

Mounting the IFB-X2000E A

Before installing the board, be sure to turn off the power of the projector and disconnect the projector power cable from the wall outlet.

1 Pull out the AUDIO OUT plate on the rear of the projector by

loosening the four screws with a screwdriver.

2 Disconnect the 12-pin and 4-pin cable connectors from the AUDIO

OUT plate to remove the plate.

3 Insert the two connectors into the connector plugs on the interface

board.

4 Insert the interface board into the rear panel of the projector.

Caution

Make sure that the wire is not caught between the opening of the projector and the board.

5 Tighten the four screws on the interface board.

Location and Function of Parts B

1 VIDEO connectors

Y IN/C IN (BNC-type): Connect to the Y and C video outputs of the

video equipment.

S VIDEO IN (mini DIN 4-pin): Connects to the Y/C video output of the

video equipment.

S VIDEO OUT (mini DIN 4-pin): Used as loop-through output via the Y/

C IN connectors or the S VIDEO IN connector.

VIDEO IN (BNC type): Connects to the composite video output

connector of the video equipment.

VIDEO OUT (BNC type): Used as loop-through output of the VIDEO IN

connector.

AUDIO IN L (MONO)/R jacks (phono type): Connect to the audio

output jacks of equipment, such as a VCR, etc. For stereo equipment, use both the L and R jacks; for monaural equipment, use the L (MONO) jack only.

Note

If you have video equipment connected to both the Y/C IN and S VIDEO IN connectors, the signal from the Y/C IN connectors are selected prior to the S VIDEO IN connector. When projecting video connected to the S VIDEO IN connector, be sure not to connect any cable to the Y/C IN connectors.

2 AUDIO OUT L/R jacks (phono type)

Connect to external active speakers. The volume of the speakers can be controlled by the VOLUME keys of the projector.

Specifications

S VIDEO (priority to Y IN/C IN)

IN: Mini DIN 4-pin type (male)

Y (luminance): 1 Vp-p ± 2 dB sync negative, 75 ohms terminated C (chrominance): Burst 0.286 Vp-p ± 2 dB (NTSC), 75 ohms terminated Burst 0.3 Vp-p ± 2 dB (PAL), 75 ohms terminated

OUT: Loop-through mini DIN 4-pin type (male), Loop-through output

from the S VIDEO IN connector Y IN: BNC type, 1 Vp-p ± 2 dB sync negative, 75 ohms terminated C IN: BNC type, Burst 0.286 Vp-p ± 2 dB (NTSC), 75 ohms

terminated, Burst 0.3 Vp-p ± 2 dB (PAL), 75 ohms terminated

VIDEO

IN: BNC type, Composite video, 1 Vp-p ± 2 dB sync negative, 75 ohms

terminated OUT: Loop-through BNC type, Loop-through output from the VIDEO IN

connector

AUDIO IN

Phono type (stereo), 500 mVrms, impedance more than 47 kilohms

AUDIO OUT (variable out)

Phono type, Max. 1 Vrms, When input is 500 mVrms: impedance less

than 5 kilohms

Design and specifications are subject to change without notice.

A

1

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

INPUT A

AUDIO OUT

2

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

INPUT A

AUDIO OUT

3

REMOTE CONTROL S TRIG

DEVICE INDEX

+

–

INPUT A

VIDEO

AUDIO OUT

4

REMOTE CONTROL S TRIG

DEVICE INDEX

INPUT A

VIDEO

AUDIO OUT

+

–

B

Y

C

S

VIDEOSVIDEO

VIDEO

AUDIO

IN

VIDEO

LRL

R

(MONO)

IN

OUT

VIDEO

AUDIO OUT

1

2

 1998 by Sony Corporation

3-865-453-01(1)

PSS-2000

Projector

Suspension Support

Installation manual for Dealers

Operating Instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.

1-69

1-70

2

Maximum load: 50 kg (110 lb 6 oz)

The PSS-2000 suspension support is designed for use with Sony LCD Data projectors the VPL-X2000U/E/M.

Caution

• For installation, consult with qualifies Sony personnel.

• The ceiling should be capable of supporting a weight of at least 250 kg (551 lb 2 oz); if not, the ceiling must be reinforced.

• When you attach the bracket directly to the ceiling, use commercially available M10 bolts with nuts and washers, depending on the ceiling. Use of other bolts, nuts, and washers other than M10 may present a danger of falling.

• Be sure to assemble and attach the bracket in the order indicated; otherwise the projector may fall, resulting in grievous bodily injury or even death.

• The PSS-2000 suspension support is designed for use with Sony LCD data projector. Never use it for another purpose.

English

4

Table of contents

Parts List ................................................................................................................................................................... 6

Installation Diagram ..................................................................................................................................................8

Attaching to the Ceiling ...........................................................................................................................................12

Installation Examples .............................................................................................................................................. 16

Specifications .......................................................................................................................................................... 22

6

Parts List

Parts number

4-047-766-01

(a)

(e)

(b)

(c)

(d)

(f)

Base box (1)

Bolt M6 × 12 (4) Parts number

4-056-754-01

Washer M8 (2) Parts number

4-047-748-01

Washer M6 (4) Parts number

4-056-755-01

Bolt M8 × 20 (2)

Suspension bracket (1)

7

(g)

Spacer (2) Parts number

4-056-753-01

Bolt M10 × 25 (4) Parts number

4-068-372-01

(h)

(i)

(j)

Washer M10 (4) Parts number

4-068-371-01

Spring washer M10 (4) Parts number

4-068-373-01

1-71

1-72

8

Installation Diagram

For details of screen size and installation measurement for projection, refer to the Operating Manual or Installation Manual for Dealers of the projector.

9

Side view

Ceiling

Projector

Center of Screen

Center of lens

Wall

a: Distance between the center of lens and the screen

c: Distance between the ceiling and the mounting surface of the suspension bracket: 104.7 mm (4

1

/8 inches)

d: Distance between the top of the projector and the ceiling: 330.3 mm ( 13 inches)

e: Distance from the top edge of available projected picture to the center of screen

x: Distance between the ceilig and the center of the screen

a

d

c

X

e

10

T op view

Installation Diagram

Align the center of the lens with the center of the screen.

Center of lens

Center of the Screen

Units : mm (inches)

Base box

Front of the cabinet

227.1

(8

15

/16)

165 (6

1

/2)

89 (3

1

/2)

254

(10)

11

The lens is offset 38 mm (1

1

/2 inches) to the left from the center of the projector. When mounting, take care to align the center of the lens with the center of the screen; not the center of the projector.

Front view

c: Distance between the ceiling and the mounting surface of the

suspension bracket:

104.7

mm (4 1/8 inches)

32

38 mm (1

1

/2 inches)

1

c

1

Ceiling

Center of projector

2

3

Center of lens

1-73

1-74

12

Attaching to the Ceiling

English

1

Turn the projector upside down and attach the suspension bracket (b). Use M10 × 25 bolts (h), M10 spring washers (j) and M10 washers (i).

Note

When attaching the bracket, be careful not to overtighten the bolts.

2

Attach the base box (a) to the ceiling. Use M10 bolts, nuts and washers (not supplied).

Screen forward

2

(a)

1

(b)

(h)

(j)

(j) (i)

(h)

(i)

(j)

(h)

(i)

Bottom of projector

(i)

(j)

(h)

14

3

Attaching to the ceiling

4

English

3

Tighten loosely two bolts M8 × 20 (c), washers (e) and spacers (g) to the base box hinge pins (a). Hang the projector with the suspension bracket (b) on the base box hinge pins (two bolts M8 × 20 (c)).

4

Attach four bolts M6 × 12 (d) and washers M6 (f), tighten all bolts M6 × 12 (d) (angle holding) and two bolts M8 × 20 (c) (attached in step 3) to secure the projector to the screen angle.

5

After having secured the projector, adjust the position of the screen and projected image using SHIFT function of the projector.

(b)

(f)

(d)

(f)

(d)

(a)

(f)

(d)

(b)

(f)

(d)

(c)

(g)

(e)

(c)

(g)

(e)

16

Installation Examples

The following illustrations show the projector suspension support attached to with the ceiling. Installation is different depending on the material of ceiling.

Caution

Before installation, check that the maximum ceiling loading is in excess of 250 kg (551 lb 2 oz).

17

For wooden ceiling

Units : mm (inches)

For-one-story house or uppermost floor

89

(3

1

/2)

165

(6 1/2)

227.1

(8

15

/16)

254 (10)

Center of lens

Nail

Roof beam (2” x 8”)

Reinforcing material

Ceiling line

M10 bolt with nut and washer

Base box

Front of the cabinet

1-75

1-76

18

Installation Examples

For other floors

Units : mm (inches)

254 (10)

89

(3

1

/2)

Center of lens

165

(6

1

/2)

M10 bolt with nut and washer

Ceiling line

Roof beam (2” x 8”)

Joist (2” x 8”)

Floor line

Base box

227.1

(8

15

/16)

Front of the cabinet

19

For concrete celing

Place bolts at least 100 mm (4 inches) away from wall.

Base box

Center of lens

89

(3

1

/2)

165

(6

1

/2)

Concrete ceiling

Anchor for concrete (over 10 mm;

13

/32 inch dia.)

20

Installation Examples

English

1

Attach the upper part of the PSS-10 to the ceiling. (See the PSS-10 installation manual for details.)

2

Insert the lower part of the PSS-10 into the hole in the base box and secure them using the M10 bolts, M10 washers, and M10 nuts supplied with the PSS-10.

3

Adjust the length and secure the upper and lower parts of the PSS-10. (See the PSS-10 installation manual for details.)

Note

The distance between the projector and the ceiling will be decreased by 5.5 mm (

7

/

32

inch) (A) from the installation measurements of the PSS-10 when the PSS-2000 and the PSS-10 are used together.

Using PSS-2000 and PSS-10

3

1

(a)

PSS-10

(a)

2

(a)

(A)

22

Dimensions

Specifications

Base box

(a)

Suspension bracket

(b)

Units : mm (inches)

254

(10)

320.7

(12

5

/8)

298.4

(11

3

/

4

)

76.2 (3)

15.9 (

5

/8)

350

(13

25

/32)

44.4

(1

3

/4)

69.8

(2

3

/4)

254

(10)

177.8 (7)

25.5

(1)

239.5 (9

7

/

16

)

360 (14

3

/

16

)

411 (16

3

/

16

)

304

(11

31

/32)

150.6

(5

15

/

16

)

17.9

(

23

/32)

72

(2

27

/

32

)

152

(5 31/32)

17.9

(

23

/32)

1-77

1-78

23

Mass : Approx. 5.5 kg (12 lb 2 oz) Loading: Maximum 50 kg (110 lb 4 oz)

Design and specifications are subject to change without notice.

 1998 by Sony Corporation

Installation manual

3-865-454-01(1)

SU-PJ2000

Projector Stand

1-79

1-80

3

English

Table of contents

Overview ................................................................... 6

Parts List ................................................................... 8

Installation Diagram .................................................. 9

Installation ............................................................... 10

Aligning projectors................................................... 20

Specifications .......................................................... 44

6

Maximum load of one projector stand: Up to 50 kg (110 lb 4 oz) per projector

The SU-PJ2000 projector stand is designed for use with Sony LCD data projector VPL-X2000U/E/M. You can stack up to three stands.

Caution

You can attach only one projector to one projector stand.

English

Overview

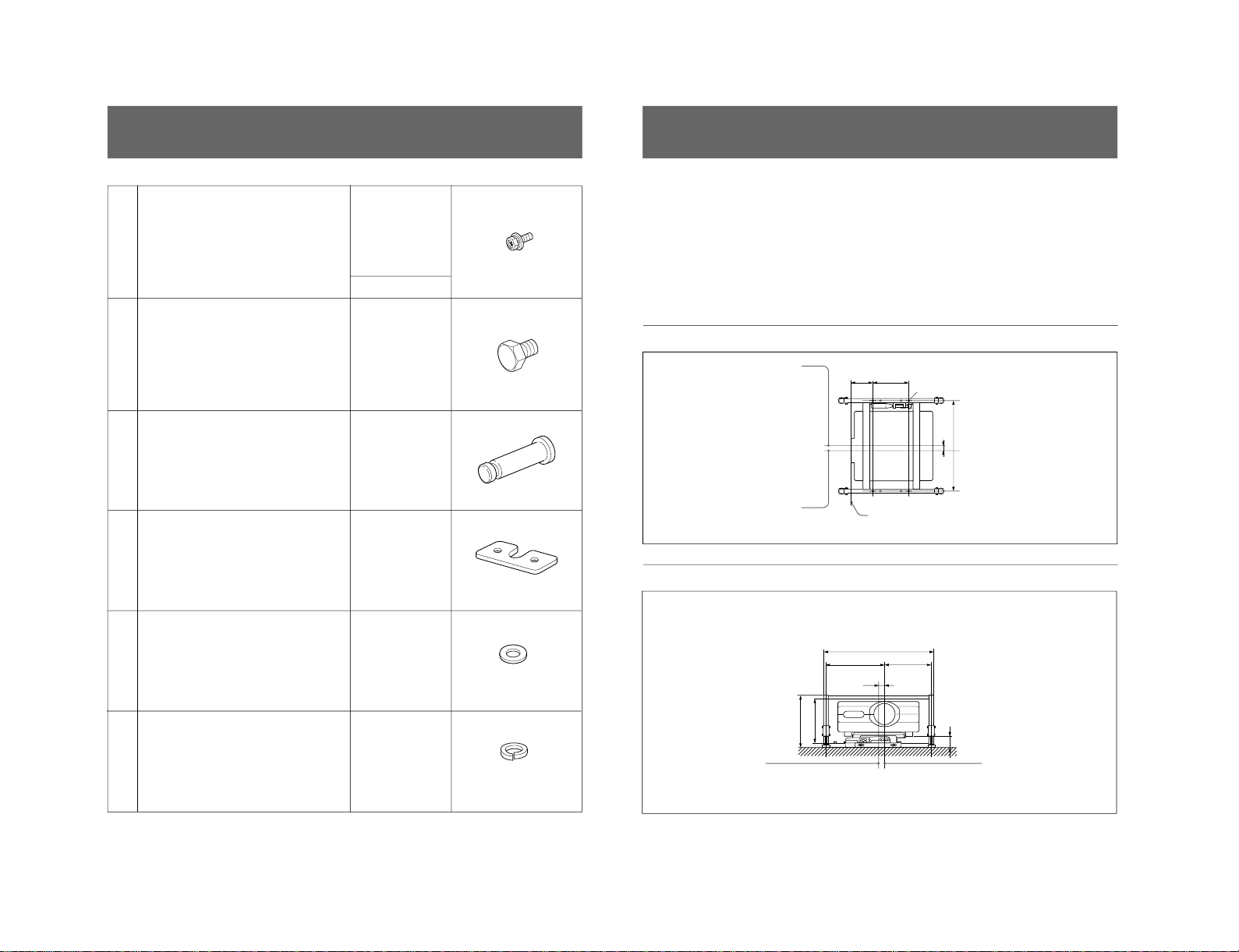

8

Screw M6 × 14 (8)

Parts number

(a)

Parts List

Screw M10 × 20 (4)

Shaft stack (4)

Bracket stack (4)

4-068-379-01

4-068-383-01

4-068-382-01

(b)

(c)

(d)

4-068-381-01

Flat washer M10 (4)

4-068-378-01

(e)

Spring washer M10 (4)

4-068-380-01

(f)

9

Installation Diagram

For details of screen size and installation measurement for projection, refer to the Installation Manual of the projector.

Front view

321(12 3/4)

38

(1

1

/2)

300(11

7

/

8

)

Center of the lens

Unit : mm (inches)

75.6 (3)

352 (13

7

/

8

)

Top view

38 (1

1

/

2

)

Center of the projector, Center of the projector stand

Front of the cabinet

Center of the lens

Center of the projector, Center of the projector stand

718 (28

3

/

8

)

Unit : mm (inches)

397(15 3/4)

180(7

1

/8)

280(11

1

/8)

4 –∅18 (HOLE)

750(29

5

/8)

1-81

1-82

10

a

c

d

b

AB C

Installation

1

a, b, c

,

d

Mark

Screw

English

Attaching the projector to the projector stand

1

Loosen the screws a, b, c, d, and be sure that the each screw is positioned to the mark line. To move the screws to the correct position, turn the knobs A, B, C.

To move screw a: turn the knob A. To move screws b, c: turn the knob B. To move screw d: turn the knob C.

(Continued)

Screen side

12

2

3

Mounting plate

English

2

Remove the mounting plate from the projector stand. Remove the screws (4) with the Phillips head screwdriver.

3

Turn over the projector, then turn over the mounting plate and attach it to the projector aligning the projections of the mounting plate with the holes of the projector. Fix the plate with the supplied screw M10 × 20 (b) (4), flat washer M10 (e) (4) and spring washer M10 (f) (4) by using the wrench attached to the stand.

(Continued)

(b)

Installation

(e)

(f)

14

4

5

English

4

Re-position the projector with the mounting plate attached so that it faces in the original direction. Then, slide the projector into the tray of the projector stand from the rear, using the guides.

5

Slide the projector in until the mounting plate stops (foremost position). Use the screws (4) removed in step 2.

Installation

16

2

English

Stacking the projector stand

You can stack up to three SU-PJ2000 projector stands.

1

Put the 1st projector stand with the projector at the place they are to be used. Place the stand on a flat surface facing the screen.

2

Display the HATCH pattern of the projector, adjust the horizontal and vertical positioning and fix the A (4) with the commercially available bolts (M14) and washers (M14).

3

Follow to the steps 1 to 3 of “Attaching the projector to the projector stand” (page 10) for 2nd and 3rd projectors.

4

Stack the 2nd projector stand on the 1st stand.

(Continued)

Installation

A

1-83

1-84

18

(a)

(d)

(c)

Installation

5

English

5

Fix the 1st and 2nd stands. Insert the shaft stack (c) from the under side and fix the projector stand with the bracket stack (d). Fix the bracket stack with the supplied screws M6 × 14 (a) (8) .

6

Triple stack: Stack the 3rd projector stand on the 2nd stand and fix them as step 5.

7

Attach the projectors to the 2nd and 3rd projector stands.

20

Aligning projectors

English

Notes

• When adjusting with the Remote Commander, set a different index number on each projector, and designate the projector to be operated with the Remote Commander.

• For details on the following operations of the projector, see the Installation Manual for Dealers of the VPL-X2000U/E/M.

-Setting the index number.

-Entering into the service mode.

-Adjusting the picture.

-Adjusting the focus.

• Complete the adjustment on the 1st projector as the pictures of the 2nd and 3rd projectors are aligned with the picture of the 1st projector.

1

Press the ON key of the Remote Commander or the control panel for all projectors. The ON indicator lights in green.

2

Enter into the SERVICE MODE for all projectors.

3

Put the lens cap on the 2nd and 3rd projectors or mute the picture by pressing the MUTING key.

4

Press the PATTERN key for the 1st projector on the Remote Commander or the control panel to display the HATCH pattern.

5

Adjust the focus with the FOCUS + or – key on the Remote Commander or the control panel.

6

Adjust the screen size using the ZOOM + or – key on the Remote Commander or the control panel, and adjust the vertical positioning using the SHIFT + or – key.

(Continued to page 24)

24

Aligning projectors

English

7

Adjust the picture precisely as follows.

A Adjusting the vertical picture size

a The left side of the picture is enlarged and right side is

shortened, when the knob A is turned counterclockwise.

b The right side of the picture is enlarged and left side is

shortened, when the knob A is turned clockwise.

B Adjusting the horizontal picture size (adjustment range is ±15

mm) c The picture moves leftward, when the knob B is turned

counterclockwise.

d The picture moves rightward, when the knob B is turned

clockwise.

C Adjusting the incline of the picture (adjustment range is

±2.5°) e The picture turns rightward, when the knob C is turned

counterclockwise.

f The picture turns leftward, when the knob C is turned

clockwise.

(Continued to page 26)

CBA

ABC

a

b

ab

cd

c

d

e

f

ef

a

b

a

b

a

7

26

English

8

After completing the adjustment of the 1st projector, tighten the screws (4) of the 1st projector stand.

Notes

• If the HATCH pattern is not displayed properly on the screen, or is out of focus after the adjustments above, repeat steps 5 and 6 to adjust finely.

• Be sure not to readjust the 1st projector after completing the adjustments to it. When aligning all pictures, adjust the 2nd or 3rd projector to align its picture with that of the 1st projector.

(Continued to page 28)

Aligning projectors

1-85

1-86

28

Aligning projectors

English

9

Remove the lens cap on the 2nd projector or release the muting by pressing the MUTING key.

10

Press the PATTERN key for the 1st projector on the Remote Commander or the control panel to display the HATCH pattern in cyan.

11

Press the PATTERN key for the 2nd projector on the Remote Commander or the control panel to display the HATCH pattern in yellow.

(Continued to page 30)

9

Wall

Center of the screen

3rd projector

2nd projector

1st projector

Picture of the 2nd projector (yellow)

Picture of the 1st projector (cyan)

30

Aligning projectors

English

Align the picture of the 2nd projector with that of the 1st projector for the following adjustments. When both pictures are aligned correctly, the HATCH pattern is displayed in white.

12

Adjust the focus for the 2nd projector.

13

Adjust the picture size and the vertical positioning.

Picture size

Adjust it using the ZOOM + or – key on the Remote Commander or the control panel.

Vertical positioning

Adjust it using the SHIFT + or – key on the Remote Commander or the control panel.

Notes

• Be sure not to readjust the focus after aligning both pictures.

• Be sure not to readjust the 1st projector while adjusting the 2nd projector.

(Continued to page 34)

34

Aligning projectors

English

14

Adjust the picture precisely as follows.

A Adjusting the vertical picture size

a The left side of the picture is enlarged and right side is

shortened, when the knob A is turned counterclockwise.

b The right side of the picture is enlarged and left side is

shortened, when the knob A is turned clockwise.

B Adjusting the horizontal picture size (adjustment range is ±15

mm) c The picture moves leftward, when the knob B is turned

counterclockwise.

d The picture moves rightward, when the knob B is turned

clockwise.

C Adjusting the incline of the picture (adjustment range is

±2.5°) e The picture turns rightward, when the knob C is turned

counterclockwise.

f The picture turns leftward, when the knob C is turned

clockwise.

(Continued to page 36)

!¢

CBA

ABC

a

b

ab

cd

c

d

e

f

ef

a

b

a

b

a

36

Aligning projectors

English

15

Triple stack: Remove the lens cap from the 3rd projector or release the muting by pressing the MUTING key. Put the lens cap on the 2nd projector or mute the picture by pressing the MUTING key. Then press the PATTERN key for 3rd projector on the Remote Commander or the control panel to display the HATCH pattern in yellow.

16

Adjust the focus for 3rd projector aligning the picture of the 3rd projector with that of the 1st projector.

17

Adjust the picture size and the vertical positioning.

Picture size

Adjust it using the ZOOM + or – key on the Remote Commander or the control panel.

Vertical positioning

Adjust it using the SHIFT + or – key on the Remote Commander or the control panel.

18

Adjust the picture precisely as follows. (See page 34.)

A Adjusting the vertical picture size

a The left side of the picture is enlarged and right

side is shortened, when the knob A is turned counterclockwise.

b The right side of the picture is enlarged and left

side is shortened, when the knob A is turned clockwise.

B Adjusting the horizontal picture size (adjustment range

is ±15 mm) c The picture moves leftward, when the knob B is

turned counterclockwise.

d The picture moves rightward, when the knob B is

turned clockwise.

C Adjusting the incline of the picture (adjustment range

is ±2.5°) e The picture turns rightward, when the knob C is

turned counterclockwise.

f The picture turns leftward, when the knob C is

turned clockwise.

(Continued to page 40)

1-87

1-88

40

Aligning projectors

English

19

After completing the adjustment, project the input signals from the 2nd and 3rd projectors, be sure to align the pictures. After that, tighten the screws (each 4).

20

Press the PATTERN keys for all projectors on the Remote Commander or the control panel to clear the HATCH pattern.

21

Project the input signals from all projectors. If the projected pictures are not aligned properly, check the following and adjust the settings.

1 Make sure that all the settings in the INPUT SETTING

menu are the same.

2 Adjust the DOT PHASE in the INPUT SETTING menu. 3 Adjust the H value of SHIFT in the INPUT SETTING

menu.

Note

When adjusting one projector, put the lens cap on the other projector or mute the picture by pressing the MUTING key.

44

Dimensions

Specifications

768 (30

1

/

4

)

45

(1

13

/16)

750

(29

5

/8)

352 (13

7

/

8

)

126(5)

550(21

3

/4)

768(30

1

/4)

145 (5

3

/

4

)

352 (13

7

/

8

)

Front

Top

Unit : mm (inches)

Side

32

(1 5/

16

)

750(29

5

/

8

)

45

(1

13

/16)

750(29

5

/8)

29

(1

3

/16)

29

(1

3

/16)

32

(1

5

/16)

360 (14

1

/

4

)

45

(1 13/16)

45

(1

13

/16)

81(3

1

/4)

1064 (42)

81(3

1

/4)

352 (13

7

/

8

)

704 (27

3

/

4

)

1056 (41

5

/

8

)

45

English

Mass Approx. 32kg (70 lb 9 oz) Maximum load of one projector stand

Up to 50 kg (110 lb 4 oz) per projector

Accessory Screw M6 × 14 (8)

Screw M10 × 20 (4) Shaft stack (4) Bracket stack (4) Flat washer M10 (4) Spring washer M10 (4) The eight spare bolts are attached on the lower tray of the projector stand. Use these spare bolts if necessary.

Design and specifications are subject to change without notice.

1-89

SERVICE INFORMATIONS

2-1. CIRCUIT BOARDS LOCATION

SECTION 2

N

GAA

GAB

GC

UC

GB

V

BC

UB

UA

C

QB

QA

BB

BA

GM

XB

GF

M

H

XC

XA

BM

2-1

2-2. PRECAUTIONS ON ELECTRICAL MEASUREMENTS

(1) A lens cover detection switch (UC board) is provided at the part for attaching the projection lens to prevent power from

being supplied when the lens hood is disconnected. When performing electrical measurements with the lens hood open, fix the switch with adhesive tape and clear the protect so that power is supplied. To attach the lens hood removed, be sure to remove the adhesive tape.

Lens cover switch

(2) When the C board is removed, various protect functions operate and no power is supplied. Before beginning electrical

measurements, clear the protect functions.

1Connect Pin #º (CVR-PRT-CB) and Pin !¶ (SUB+5V) of CN4002 of the BC board using a 1 kΩ resistor. 2Connect Pin !§ (FAN PROT), Pin 3 (GND), Pin !¶ (TEMP PROT), and Pin 4 of CN3602 of the BB board using

wiring.

Be sure to disconnect them after completing measurements.

(3) Use the following servicing tools.

Cable (3pin) (1-900-244-53) Use when inserting the following extension board / XE board (A-1501-122-A) into the GAA and GAB boards.

2-2

XE board (A-1501-122-A) For boards BC,GAA,GAB,GB,and QA

XTA board (A-1390-928-A) For boards BA and BB

2-3. COVER REMOVAL

Two hood holders

4 Hood assy

1 Turn of the two fasteners(A)

2 Lens cover assy

3 Turn of the three fasteners

Two hood holders

CN5048

CN5049

2-3

2-4. M,QA AND QB BOARDS REMOVAL

CN8501

CN8502

6 M board

5 Two screws

(M3 screw S2 )

2 QA board

3 Four screws

4 QB board

(Prevention screw +B3x12)

1 Two screws (Prevention screw +B3x12)

2-4

Sony VPL-X2000U, VPL-X2000E, VPL-X2000M, IFB-X2000E, PSS-2000 Service Manual

TABLE OF CONTENTS

2-1. CIRCUIT BOARDS LOCATION

2-2. PRECAUTIONS ON ELECTRICAL MEASUREMENTS

2-3. COVER REMOVAL

2-4. M,QA AND QB BOARDS REMOVAL
