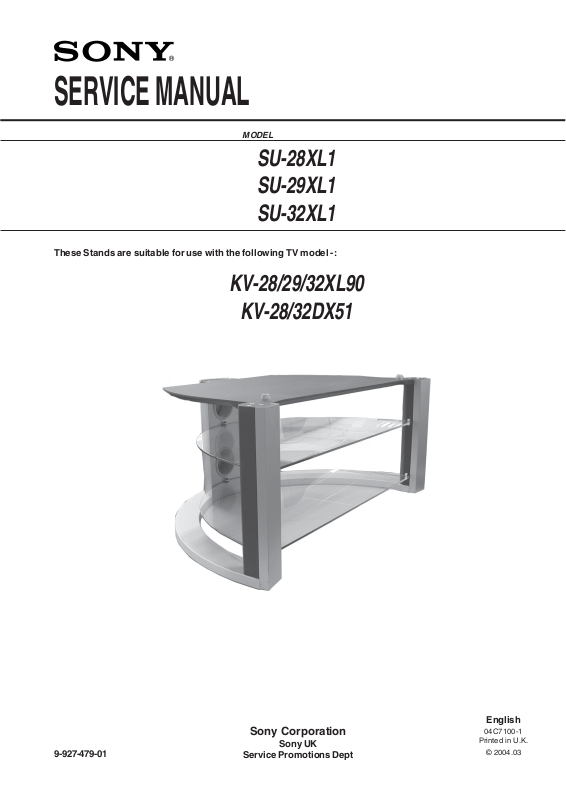

SONY SU-28XL1, SU-29XL1, SU-32XL1 Service Manual

SERVICE MANUAL

MODEL

SU-28XL1 SU-29XL1 SU-32XL1

These Stands are suitable for use with the following TV model -:

KV-28/29/32XL90

KV-28/32DX51

9-927-479-01

Sony Corporation

Sony UK

Service Promotions Dept

- 1 -

English

04C7100-1

Printed in U.K.

Exploded View

Note :

Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

REF.NO PART.NO DESCRIPTION REMARK REF.NO PART.NO DESCRIPTION REMARK

1 *2-059-492-01 SCREW (3.5X16) 2 *4-087-899-01 HOLDER, SHELF 3 *4-088-231-01 GLASS SHELF SUPPORT 4 *4-089-980-01 TAPE, SAFETY 5 *4-094-101-01 TV LOCATOR 6 *4-094-442-01 FOOT REAR LEG 7 *4-094-448-01 SCREW 4X25 8 *4-094-450-01 SCREW WOOD 7X50 9 *4-206-181-01 SCREW 3.5X13 10 *2-025-244-01 TOP PLATE 28 (SU-28XL1)

*2-023-981-01 TOP PLATE 29 (SU-29XL1) *4-103-144-01 TOP PLATE 32 (SU-32XL1)

11 *4-103-145-01 FRONT LEG COVER RIGHT

12 *4-103-146-01 COVER REAR LEG 13 *4-103-147-01 CABLE PASS 14 *4-103-149-01 MAGNET COVER REAR LEG 15 *4-103-150-01 FRONT LEG RIGHT 16 *4-103-151-01 REAR LEG 17 *2-025-246-01 GLASS SHELF 28 (SU-28XL1)

*2-023-982-01 GLASS SHELF 29 (SU-29XL1)

*4-103-152-01 GLASS SHELF 32 (SU-32XL1) 18 *4-103-153-01 FRONT LEG LEFT 19 *2-025-247-01 BOTTOM LOOP 28 (SU-28XL1)

*2-023-983-01 BOTTOM LOOP 29 (SU-29XL1)

*4-103-154-01 BOTTOM LOOP 32 (SU-32XL1) 20 *4-103-155-01 FRONT LEG COVER LEFT
