Page 1
SS-CT60AV/CT70AV/RC60AV/
RC70AV/RS60/RS60AV/RS70AV
SERVICE MANUAL
Ver 1.0 2001.06
• SS-CT60AV/RS60AV are center
& rear speakers in MHC-DX60AV.
• SS-CT70AV/RS70AV are center
& rear speakers in MHC-RG70AV.
• SS-RS60 is rear speaker in MHCRG60.
SS-RC60AV/RC70AV are composed of following models.
COMPONENT MODEL NAME
SS-RC60AV SS-RC70AV
Center Speaker SS-CT60AV SS-CT70AV
Rear Speaker SS-RS60AV SS-RS70AV
SPECIFICATIONS
[SS-CT60AV/CT70AV]
Speaker system Full range,bass-reflex type,magnetically
Speaker units
Full range: 8 cm,cone type
Nominal impedance 6 ohms
Dimensions (w/h/d) Approx.220 × 105 × 200 mm
Mass Approx.1.2 kg net per speaker
Photo: SS-CT60AVPhoto: SS-RS60
shielded type
US Model
AEP Model
SS-CT70AV/SS-RC70AV/SS-RS60/SS-RS70AV
E Model
SS-CT60AV/SS-RC60AV/SS-RS60AV
UK Model
SS-RS60
[SS-RS60/RS60AV/RS70AV]
Speaker system Full range,bass-reflex type
Speaker units
Full range: 8 cm,cone type
Nominal impedance 6 ohms
Dimensions (w/h/d) Approx.180 × 105 × 200 mm
Mass Approx.1.0 kg net per speaker
Design and specifications are subject to change without notice.
SPEAKER SYSTEM
9-873-231-01 Sony Corporation
2001F0500-1 Home Audio Company
C 2001.6 Shinagawa Tec Service Manual Production Group
Page 2
SS-CT60AV/CT70AV/RC60AV/RC70AV/RS60/RS60AV/RS70AV
d
EXPLODED VIEWS AND PARTS LIST
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color

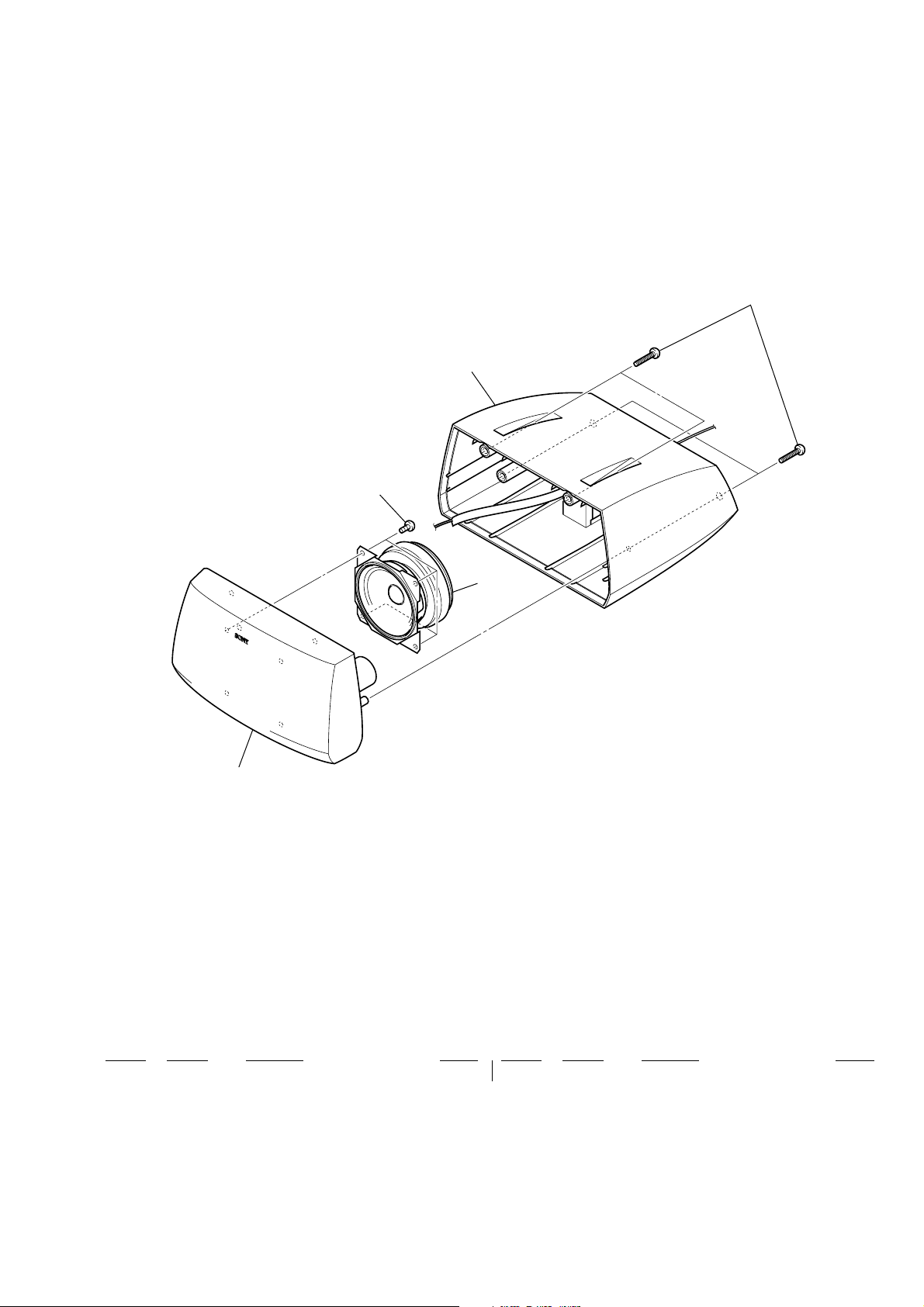

(1) SS-CT60AV/CT70AV
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference number in the exploded views are not supplied.
not supplied
not supplie
1
not supplied
SP1
Ref. No. Part No. Description Remark
1 7-685-648-79 SCREW +BVTP 3X12 SP1 1-544-926-11 SPEAKER (7cm)
Ref. No. Part No. Description Remark
2
Page 3
SS-CT60AV/CT70AV/RC60AV/RC70AV/RS60/RS60AV/RS70AV
(2) SS-RS60/RS60AV/RS70AV
not supplied
not supplied
not supplied
51
SP2
Ref. No. Part No. Description Remark
51 7-685-648-79 SCREW +BVTP 3X12 SP2 1-544-927-11 SPEAKER (7cm)
Ref. No. Part No. Description Remark
3
Page 4
SS-CT60AV/CT70AV/RC60AV/RC70AV/RS60/RS60AV/RS70AV
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2001.06 New
