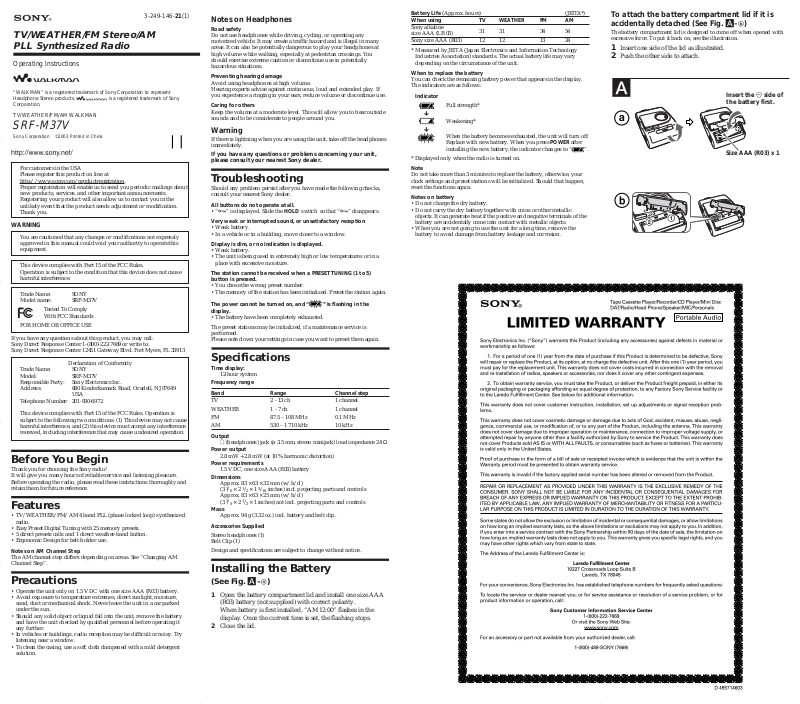

Sony SRF-M37V User Manual

3-249-146-21(1)

TV/WEATHER/FM Stereo/AM PLL Synthesized Radio

Operating Instructions

“WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products. Corporation.

TV/WEATHER/FM/AM WALKMAN

is a registered trademark of Sony

SRF-M37V

For customers in the USA Please register this product on line at http://www.sony.com/productregistration. Proper registration will enable us to send you periodic mailings about new products, services, and other important announcements. Registering your product will also allow us to contact you in the unlikely event that the product needs adjustment or modification. Thank you.

WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

Trade Name: SONY Model name: SRF-M37V

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

If you have any questions about this product, you may call: Sony Direct Response Center 1-(800)-222-7669 or write to: Sony Direct Response Center 12451 Gateway Blvd. Fort Myers, FL 33913

Trade Name: SONY Model: SRF-M37V Responsible Party: Sony Electronics Inc. Address: 680 Kinderkamack Road, Oradell, NJ 07649

Telephone Number: 201-930-6972

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Before You Begin

Thank you for choosing the Sony radio! It will give you many hours of reliable service and listening pleasure. Before operating the radio, please read these instructions thoroughly and retain them for future reference.

Features

• TV/WEATHER/FM/AM 4 band PLL (phase locked loop) synthesized radio.

• Easy Preset Digital Tuning with 25 memory presets.

•5 direct presets calls and 1 direct weather-band button.

• Ergonomic Design for belt-holder use.

Notes on AM Channel Step

The AM channel step differs depending on areas. See “Changing AM Channel Step”.

Precautions

• Operate the unit only on 1.5 V DC with one size AAA (R03) battery.

• Avoid exposure to temperature extremes, direct sunlight, moisture, sand, dust or mechanical shock. Never leave the unit in a car parked under the sun.

• Should any solid object or liquid fall into the unit, remove the battery and have the unit checked by qualified personnel before operating it any further.

• In vehicles or buildings, radio reception may be difficult or noisy. Try listening near a window.

• To clean the casing, use a soft cloth dampened with a mild detergent solution.

Declaration of Conformity

USA

Notes on Headphones

Road safety

Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in many areas. It can also be potentially dangerous to play your headphones at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage

Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to people around you.

Warning

If there is lightning when you are using the unit, take off the headphones immediately.

If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.

Troubleshooting

Should any problem persist after you have made the following checks, consult your nearest Sony dealer.

All buttons do not operate at all.

•“-” is displayed. Slide the HOLD switch so that “-” disappears. Very weak or interrupted sound, or unsatisfactory reception

• Weak battery.

• In a vehicle or in a building, move closer to a window.

Display is dim, or no indication is displayed.

• Weak battery.

• The unit is being used in extremely high or low temperatures or in a place with excessive moisture.

The station cannot be received when a PRESET TUNING (1 to 5) button is pressed.

• You chose the wrong preset number.

• The memory of the station has been initialized. Preset the station again.

The power cannot be turned on, and “ display.

• The battery have been completely exhausted.

The preset stations may be initialized, if a maintenance service is performed. Please note down your settings in case you want to preset them again.

” is flashing in the

Specifications

Time display:

12-hour system

Frequency range Band Range Channel step

TV 2 - 13 ch 1 channel WEATHER 1 - 7 ch 1 channel FM 87.5 – 108 MHz 0.1 MHz AM 530 – 1 710 kHz 10 kHz

Output

i (headphones) jack (ø 3.5 mm, stereo minijack) load impedance 24 Ω

Power output

2.8 mW + 2.8 mW (at 10 % harmonic distortion)

Power requirements

1.5 V DC, one size AAA (R03) battery

Dimensions

Approx. 83 × 63 × 32 mm (w/h/d)

/8 × 2 1/

× 1 5/16 inches) incl. projecting parts and controls

/8 × 2 1/

× 1 inches) not incl. projecting parts and controls

Approx. 83 × 63 × 25 mm (w/h/d) (3

Mass

Approx. 94 g (3.32 oz.) incl. battery and belt clip.

Accessories Supplied

Stereo headphones (1) Belt Clip (1)

Design and specifications are subject to change without notice.

Installing the Battery

(See Fig. A– )

1 Open the battery compartment lid and install one size AAA

(R03) battery (not supplied) with correct polarity. When battery is first installed, “AM 12:00” flashes in the display. Once the current time is set, the flashing stops.

2 Close the lid.

Battery Life (Approx. hours) (JEITA*) When using TV WEATHER FM AM

Sony alkaline size AAA (LR 03)

Sony size AAA (R03) 12 12 13 24 * Measured by JEITA (Japan Electronics and Information Technology

Industries Association) standards. The actual battery life may vary depending on the circumstance of the unit.

When to replace the battery

You can check the remaining battery power that appears in the display. The indicators are as follows:

Indicator

Full strength*

Weakening*

31 31 34 54

When the battery becomes exhausted, the unit will turn off. Replace with new battery. When you press POWER after installing the new battery, the indicator changes to “ ”.

* Displayed only when the radio is turned on.

Note

Do not take more than 3 minutes to replace the battery, otherwise, your clock settings and preset stations will be initialized. Should that happen, reset the functions again.

Notes on battery

• Do not charge the dry battery.

• Do not carry the dry battery together with coins or other metallic objects. It can generate heat if the positive and negative terminals of the battery are accidentally come into contact with metallic objects.

• When you are not going to use the unit for a long time, remove the battery to avoid damage from battery leakage and corrosion.

To attach the battery compartment lid if it is accidentally detached (See Fig. A– )

The battery compartment lid is designed to come off when opened with excessive force. To put it back on, see the illustration.

1 Insert one side of the lid as illustrated. 2 Push the other side to attach.

Insert the # side of the battery first.

Size AAA (R03) x 1

VOL*

i (headphones) jack

TV/WB/FM SENS DX LOCAL

* There is a tactile dot on/beside Vol, TUNE/TIME

SET +, and the number 2 button.

BAND

PRESET TUNING 1-5*

POWER Belt clip

HOLD

CLOCK

TUNE/TIME SET*

Preventing Accidental Change

— HOLD Function

Slide HOLD in the direction of the arrow. “-” is displayed, indicating that all the function buttons are locked.

To cancel HOLD, slide HOLD in the opposite direction of the arrow so that “-” disappears.

Setting the Clock

The display will flash “AM 12:00” when the battery is first inserted.

1 Hold down CLOCK for more than 2 seconds.

The beep sounds and the hour flashes in the display.

2 Press TUNE/TIME SET + or – until the correct hour appears in

the display.

Each press changes the digit(s) by one. When you keep the button pressed, the digit(s) change rapidly.

3 Press CLOCK.

The beep sounds and the minute starts to flash. Repeat step 2 to set the minute. After setting the minute, press CLOCK again. The two beeps sound and the clock starts from 0 seconds.

12-hour system: “AM 12:00” = midnight

“PM 12:00” = noon

Changing AM Channel Step

The AM channel step differs depending on areas. The channel step of this unit is factory-set to 10 kHz. Change the settings as shown below to be able to listen to the radio.

Area Channel step

North and South American countries 10kHz Other countries 9kHz

Note

When the AM channel step is changed, the preset stations for AM will be initialized.

1 Press POWER to turn off the power. 2 While holding down CLOCK, keep pressing POWER for more

than 5 seconds.

Two short beeps sound, and the AM channel step will be changed. “AM 9” (or “AM 10”) is displayed for about 2 seconds. If you proceed to step 2 again, the channel step changes again.

2 Press the preset tuning 1 to 5 button you wish to preset for

more than a few seconds.

You will hear two confirmation beeps and preset number appears in the display.

To preset another station, repeat these steps. To change the preset station, tune in to the desired station and hold down the preset tuning 1 to 5 button. The new station will replace the previous station on the preset button.

Example:Display window when you preset FM

90.0 MHz in the preset tuning 2 button for FM2.

Tuning in a Preset Station

1 Press POWER. 2 Press BAND or WB to select the band. 3 Press the desired preset tuning button. 4 Adjust the volume using VOL.

Note

Holding down the desired preset tuning button for more than a few seconds will replace the previous station on the preset tuning button with the station you tuned in to.

Using the Belt Clip (See Fig. C)

Use the belt clip when attaching the unit to your belt. To detach the belt clip, see fig. C- To attach the belt clip, see fig. C- .

Using the Belt Clip

To detach

Improving the Reception

TV/WEATHER/FM:

Extend the headphones cord which functions as the TV/ WEATHER/FM antenna (See Fig. B-

AM: Rotate the unit horizontally for optimum reception.

A ferrite bar antenna is built-in the unit (See Fig.B-

Set TV/WB/FM SENS to LOCAL if interference is prevalent and reception is too strong. Under normal conditions, set it to DX.

Playing the Radio

— Manual Tuning 1 Connect the headphones to the i (headphones) jack.

2 Press POWER to turn on the radio. 3 Press BAND to select the band.

Each press changes the band as follows:

AM FM1 FM2

To change the band to WEATHER, press WB. You can return to the previous frequency by pressing BAND.

FM1 and FM2 are differentiated only for Preset tuning. For Manual tuning of FM stations, select either band.

Each band memorizes the frequency you had tuned previously.

4 Press TUNE/TIME SET + or – to tune in to the desired station.

Two short beeps sound when the minimum frequency of each band is received during tuning.

5 Adjust the volume using VOL.

To turn off the radio, press POWER.

To attach

Presetting Your Favorite Station

— Preset Tuning

You can preset up to 10 stations in FM (5 stations in FM1, 5 stations in FM2), and 5 stations in each AM, TV, WEATHER.

Presetting a station

1 Follow steps 1 to 4 in “Playing the Radio” and manually tune

in to the station you wish to preset.
