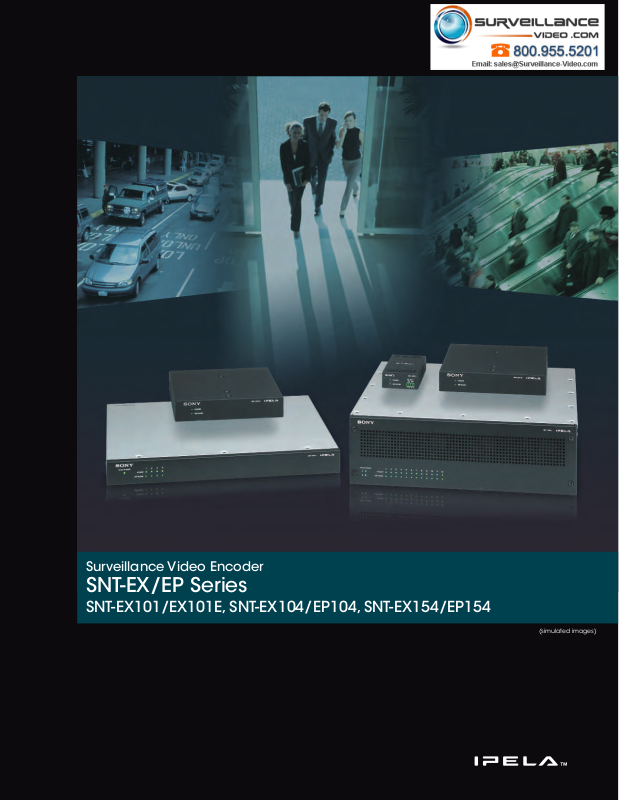

Surveillance Video Encoder
SNT-EX/EP Series
SNT-EX101/EX101E, SNT-EX104/EP104, SNT-EX154/EP154
(simulated images)
SNT-EX/EP Series
Stunning video and audio brought to you by the IPELA series of visual communication products that encompass the three-pronged concept of “Reality,”“Intelligence,” and “Usability.” IPELA is
the identity symbolizing the Sony vision for the workplace of the future, connecting people, places, and information with reality that has never before been achieved. IPELA products let you share, understand, and experience as if you are actually there, when in fact, you are miles away. It allows you to quickly grasp a situation to make better business decisions.
Reality
•High Frame Rate
•Visibility Enhancer
•XDNR
Intelligence Usability
• Audio Detection |
• 3 codecs with Dual |
• Voice Alert |
Streaming |
• Tamper Alarm |
• 4 IP & MAC Address |
• DEPA Advanced |
Support* |
|
Real audiovisual communication over networks – this is business communication of the future,this is business communication brought to you today,this is“IPELA.”
* Available on SNT-EX104/EP104/EX154/EP154
With the SNT-EX/EP Series,
Your Analog Cameras Will Be Reborn
Sony’s SNT-EX/EP Series includes a full lineup of video encoders designed to meet various system requirements. There’s a choice of 1-channel and 4-channel standalone models, as well as 1U and 3U Rack Stations that accept 4-channel blades − all of which can dual-stream H.264/JPEG, H.264/ MPEG-4, or MPEG-4/JPEG video at full 30/25 fps (NTSC/PAL) in up to D1 resolution.
These video encoders not only convert analog video signals to a digital video stream for IP-based networks, but also improve the picture quality of the original signals with state-of-the-art imageenhancing technology. What’s more, the SNT-EX Series also incorporates advanced security features such as DEPA Advanced™ intelligent video and audio analytics.
The SNT-EX/EP Series is the ideal choice when migrating from an existing analog camera system to an IP-based monitoring system with intelligence technology, even in the most demanding application environments, such as education, transportation, factories, healthcare facilities, public venues, and airports.
Scalability |
Blade Type Encoder |
Full |
Full Function |
|
|
|
|
SNT-EX154 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
(4CH) |
Full |
|
|
|
|
|
||
Basic |
Basic Function |
|
|
|
|
Blade Type Encoder |
|
|
|
|
|
|
|
|
|
|
SNT-EP154 |
|
|
Rack Station |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|||
Blade Type |
|
|
|
(4CH) |
Basic |
|
|
SNT-RS3U (Up to 48CH) |
||||
|
|
|
|
|
|
|
||||||
|
|
|
Blade Type Encoder |
|
|
|
|
|
||||
(Space saving, |
|
|
|
|
|
|
|
|
||||
|
|
|
SNT-EX154 |
|
|
|
|
|
||||
scalable solution) |
|
|
|
|
|
|
|
|
||||
|
|
|
(4CH) |
Full |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
Blade Type Encoder |
|
Rack Station |
|
|
|
|
|
|
|
|
|
|
SNT-EP154 |
|
|
|
|
||
|
|
|
|
|
|
|
SNT-RS1U (Up to 16CH) |
|
|
|||
|
|
|
|
|
|
(4CH) |
Basic |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
||
Box Type |
|
Box Type Encoder |
Full |
|
|
Full |
|
|
|
|||
(Standalone, |
|
(AC24V) |
|
|
Box Type Encoder |
|
|
|
||||
quick solution) |
|
SNT-EX101 (1CH) |
SNT-EX104 (4CH) |
|
|
|
||||||
|
|
|
|
Box Type Encoder |
Full |
Box Type Encoder |
Basic |
|
|
|
||
|
|
|
|
(PoE) |
|
|
|
|
|
|||
|
|
|
|
SNT-EX101E (1CH) |
SNT-EP104 (4CH) |
|
|
Number of |
||||
|
|
|
|
|
|
|
|
|
|
|
|
Channels |
|
|
|
|
1CH |
|
|
4CH |
|
16CH |
|
48CH |
|
|
|
|
|
|
|
Full Function |
|
|
Basic Function |
|||
Key Features |
|
|
|
|
|
|
|
|
||||
|
1CH Box |
|
4CH Box |
4CH Blade |
4CH Box |
4CH Blade |
||||||
|
|
|
|
SNT-EX101 |
SNT-EX101E |
SNT-EX104 |
SNT-EX154 |
SNT-EP104 |
SNT-EP154 |
|||
XDNR |
|
|
|
• |
|
• |
• |
|
• |
• |
|
• |
Visibility Enhancer |
|
• |
|
• |
• |
|
• |
• |
|
• |
||
DFI |
|
|
|
• |
|
• |
• |
|
• |
• |
|
• |
Super-Impose |
|
• |
|
• |
• |
|
• |
• |
|
• |
||
Privacy Masking |
|
• |
|
• |
• |
|
• |
• |
|
• |
||
DEPA Advanced |
|
• |
|
• |
• |
|
• |
|
|
|
||
Voice Alert |
|
• |
|
• |
• |
|
• |
|
|
|
||
Local Storage |
|
• |
|
• |
• |
|
|
|
|
|
||
PTZ Control |
|
• |
|
• |
• |
|
• |
|
|
|
||
RS422 |
|
|
|
• |
|
• |
|
|
|
|
|
|
RS485 |
|
|
|
• |
|
• |
• |
|
• |
|
|
|
Coaxitron |
|
• |
|
• |
• |
|
• |
|
|
|
||
AC24V power |
|
• |
|
|
|
|
|
|
|
|
||
PoE |
|
|
|
|
|
• |
|
|
|
|
|
|
2
FEATURES
High-quality Images Based on Advanced Technology
The SNT-EX/EP Series delivers clearer and brighter, high-quality images thanks to state-of-the-art image-enhancing technology.
Visibility Enhancer
The SNT-EX/EP Series includes Visibility Enhancer technology. This tone-correction technology optimizes the visibility of a scene by increasing brightness in darker areas of the scene and compressing the brighter areas. The result is sharper, clearer images and a higher level of visibility − all of which are critical for security surveillance.
OFF |
ON |
(Actual images) |
|
|
XDNR (eXcellent Dynamic Noise Reduction)
Incorporating newly developed XDNR technology, these video encoders can provide clear images while at the same time minimizing motion blur under low illumination. What’s more, when both XDNR and Visibility Enhancer are turned on, the video encoders can achieve four times the sensitivity compared to when they are off.
This technology is ideal for any outdoor surveillance monitoring, such as a car parked at night.
OFF |
ON |
(Actual images) |
|
|
Dynamic Frame Integration (DFI)
Incorporating Dynamic Frame Integration (DFI) technology, the SNT-EX/EP Series can reproduce clear images that contain both still and moving objects. DFI technology detects movement within the image and reproduces those areas with minimal blurring, while − at the same time − areas with little or no movement are displayed naturally with minimal jagged edges. DFI also ensures clear images in low light conditions.
Without DFI |
With DFI |
(Actual images) |
|
|
System Flexibility
Three Codecs − H.264, MPEG-4, and JPEG Support
Each model supports the H.264, MPEG-4, and JPEG compression formats at full 30/25 fps in D1 resolution. The industry-standard JPEG compression format is the best choice for high-quality still images. MPEG-4 provides clear moving images efficiently over networks when bandwidth and storage are limited. While H.264 provides twice the efficiency of MPEG-4, for when bandwidth and storage is even more limited.
Dual-encoding Capability
With its dual-encoding capability, the SNT-EX/EP Series can generate any two formats from H.264, MPEG-4, and JPEG simultaneously. This flexibility allows you to maximize your network and storage resources.
1st Stream |
2nd Stream |
Examples |
|
Codec |
Codec |
||
|
|||
H.264 |
H.264 |
1st stream at high frame rate for live |
|
monitoring that requires clear moving. |
|||
|
|
||
MPEG-4 |
MPEG-4 |
2nd at low frame rate stream for recording |
|
that needs to meet storage capability. |
|||
|
|
||
|
|
|
|
MPEG-4 |
H.264 |
For the system that has limited decoding |
|
capability |
|||
|
|
||
|
|
|
|
JPEG |
H.264 |
|
|
|
|
For the system that requires JPEG Images |
|
JPEG |
MPEG-4 |
|
|
|
|
|
Intelligence
DEPA Advanced − Intelligent Video and Audio Analytics*1 (SNT-EX Series)
Incorporating DEPA Advanced technology, the SNT-EX Series offers intelligent video and audio analytics. With this feature, the video encoders can trigger an alarm based on userdefined rules. This allows users to further refine the criteria for triggering an alarm, making the overall system more efficient.
Alarm! |
|
Images + |
Alarm! |
Camera |
Pre Filter |
Recorder |
|
Post Filter |
(Simulated images) |
|
|
• Intelligent Motion Detection
With this feature, the SNT-EX Series can trigger an alarm based on up to three user-defined rules, such as intrusion across a virtual border utilizing edge VMF or a beam intrusion detector*7
3
