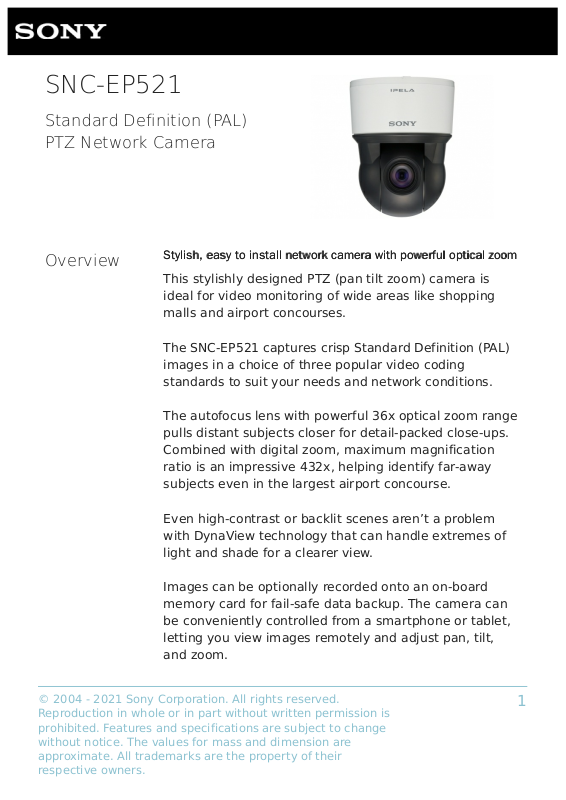

Sony SNC-EP521 User Manual
SNC-EP521
Standard Definition (PAL)
PTZ Network Camera
Overview
Stylish, easy to install network camera with powerful optical zoom
© 2004 - 2021 Sony Corporation. All rights reserved. |
1 |
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners.
Features
The SNC-EP521 is easy to install, with HPoE (High Power over Ethernet) sharing power and data signals over the same cable to reduce infrastructure costs and labour.
Detail-packed close-ups with 36x optical zoom
© 2004 - 2021 Sony Corporation. All rights reserved. |
2 |
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners.
Image processing is performed by the camera, reducing the load on the recorder compared with conventional analytic systems.
Simpler installation with HPoE
© 2004 - 2021 Sony Corporation. All rights reserved. |
3 |
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners.
|
|
|
|
|
|
|
|
|
Minimum |
Color: 1.4 lx (F1.6, AGC On, |
|
|
1/50 s, 50 IRE) |
||
|
Illumination (50 |
||
|
B/W: 0.15 lx (F1.6,AGC On, |
||
|
IRE) |
||
|
1/50 s, 50 IRE, Night Mode) |
||
|
|
||
|
|
|
|
|
Minimum |
Color: 0.9 lx (F1.6, AGC On, |
|
|
1/50 s, 30 IRE) |
||
|
Illumination (30 |
||
|
B/W: 0.1 lx (F1.6, AGC On, |
||
|
IRE) |
||
|
1/50 s, 30 IRE, Night Mode) |
||
|
|
||
|
|
|
|
|
Dynamic Range |
Theoretically 92 dB by |
|
|
DynaView Technology |
||
|
|
||
|
|
|
|
|
S/N Ratio (Gain 0 |
50 dB (Gain 0 dB) |
|
|
dB) |
||
|
|
|
|
|
|
|
|
|
Gain |
Auto/Manual (-3 to +28 dB) |
|
|
|
|
|
|
Shutter Speed |
1/1 s to 1/10,000 s |
|
|
|
|
|
|
Exposure Control |
Full auto, Shutter priority, Iris |
|
|
priority, Manual |
||
|
|
||
|
|
|
|
|
White Balance |
Auto, ATW, Indoor, Outdoor, |
|
|
One-push, Manual, Sodium |
||
|
|
vapour lamp |
|
|
|
|
|
|
Lens |
Auto-focus zoom lens |
|
|
|
|
|
|
Powered Zoom |
Yes |
|
|
|
|
|
|
Zoom Ratio |
Optical zoom 36x |
|
|
Digital zoom 12x |
||
|
|
Total zoom 432x |
|
|
|
|
|
|
Powered Focus |
Yes |
|
|
|
|
|
|
Auto Focus |
Yes |
|
Horizontal Viewing
© 2004 - 2021 Sony Corporation. All rights reserved. |
4 |
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners.
|
|
|
|
|
|
Angle |
57.8° to 1.7° |
||
|
|
|
|
|
|
Vertical Viewing |
43.4° to 1.3° |
||
|
Angle |
|||
|
|
|
|
|
|
|
|
|
|
|
Focal Length |
f = 3.4 mm to 122.4 mm |
||
|
|
|
|
|
|
F-Number |
F1.6 (Wide) to F4.5 (Tele) |
||
|
|
|
|
|
|
Minimum Object |
10 mm (Wide) to 1500 mm |
||
|
Distance |
(Tele) |
||
|
|
|
|
|
|
Pan/Tilt Angle |
340 |
° endless rotation/105 ° |
|
|
(powered) |
|||
|
|
|
|
|
|
|
|
|
|
|
Pan Speed |
300 |
°/s (max.) |
|
|
|
|
|
|
|
Tilt Speed |
300 |
°/s (max.) |
|
|
|
|
|
|
|
Number of Preset |
256 |
|
|
|
Positions |
|
|
|
|
|
|
|
|
Number of Tour |
5 |
|
Programs |
||
|
||
|
|
Camera Features
|
Day/Night |
True D/N |
|
|
|
Wide-D |
Dyna View |
|
|
|
|
|
|
|
|
Noise Reduction |
NR |
|
|
|
|
|
|
|
|
Image Stabilizer |
Electronic |
|
|
|
|
|
|
|
|
Privacy Masking |
24 |
|
|
|
(number) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Privacy Masking |
|
|
|
|
|
|
|
|
© 2004 - 2021 Sony Corporation. All rights reserved. |
5 |
|||
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners.
