SONY SM-BDD-0013E-01, BDPT-1001, BPX-2001 Service Manual

Download
SM-BDD-0013E-01
BDPT-1001 BPX-2001 BD DRIVE SERVICE MANUAL
1st edition
CS Department
Published in Japan © 2007. 09
Reproduction Prohibited
1.5 k
0.15 F
AC voltmeter (0.75 V)
To Exposed Metal Parts on Set
Earth Ground
BD/DVD/CD drive
rear-side view
here
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.
3. Look for unauthorize d re placement parts, particu larly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.
4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.
5. Check the power cable for cracks and abrasion. Recommend the replacement of any such power cable to the customer.
6. ChecktheB+voltagetoseeitisatthevaluesspecied.
7. Check the metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers.). Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments.
2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A)
CAUTION
Ensure that this product is disconnected from the power plug before the laser protective housing is removed.
CLASS 1M LASER RADIATION WHEN OPEN DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
This label is located on the BD/DVD/CD Drive laser protective housing inside the enclosure.
SPECIAL COMPONENT NOTICE
The components identified by mark contain confidential information. Strictly follow the instructions whenever the components are repaired and/or replaced.
CAUTION:
The use of optical instruments with this product will increase eye hazard.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK
OR DOTTED
!
LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
CAUTION
Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.
Lithium Batteries
If an equipment is provided with a replaceable lithium battery, the following applies:
– if the battery is placed in an OPERATOR ACCESS AREA,
there shall be a warning close to the battery or in both the operating and the service instructions:
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉURITÉ!!
– if the battery is placed elsewhere in the equipment, there shall
be a warning close to the battery or in the service instructions.
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE
0
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
– 2 –
Reproduction Prohibited
TABLE OF CONTENTS
1. CIRCUIT DIAGRAM
1-1. BL1-001 Board ............................................. 1-2
1-2. BL2-001 Board ............................................. 1-2
1-3. BMD-001 Board (1/4) .................................. 1-3
1-4. BMD-001 Board (2/4) .................................. 1-4
1-5. BMD-001 Board (3/4) .................................. 1-5
1-6. BMD-001 Board (4/4) .................................. 1-6
1-7. BMD-002 Board (1/3) .................................. 1-7
1-8. BMD-002 Board (2/3) .................................. 1-8
1-9. BMD-002 Board (3/3) .................................. 1-9
2. PRINTED WIRING BOARDS
2-1. BL1-001 Board ............................................. 2-1
2-2. BL2-001 Board ............................................. 2-1
2-3. BMD-001 Board (Side A) ............................ 2-2
2-4. BMD-001 Board (Side B) ............................ 2-3
2-5. BMD-002 Board (Side A) ............................ 2-4
2-6. BMD-002 Board (Side B) ............................ 2-5
3. EXPLODED VIEWS
3-1. Loading Complete Assy Section .................. 3-1
3-2. Loading Block Assy Section ........................ 3-2
3-3. Base Frame Complete Assy Section ............. 3-3
3-4. Top Frame Complete Assy Section .............. 3-4
3-5. Front Arm Assy Section................................ 3-5
3-6. Optical Pick-up Section ................................ 3-6
4. ELECTRICAL PARTS LIST
BL1-001 Board ............................................. 4-1
BL2-001 Board ............................................. 4-1
BMD-001 Board ........................................... 4-1
BMD-002 Board ........................................... 4-4
– 3 –
Reproduction Prohibited
SECTION 1
CIRCUIT DIAGRAM
Note on Schematic Diagram:
• All capacitors are in mF unless otherwise noted.
pF: mmF 50 WV or less are not indicated except for
electrolytics and tantalums.
• All resisto rs are in W and otherwise specied.
• % : indicates tolerance.
1
/4 W or less unless
Note:
T h e c o m p o n e n t s identified by mark dotted line with mark
!
or
!
are critical for safety.
Replace only with part
number specied.
Note:
Les composants identiés
par une marque ! sont
critiques pour la sécurité.
Ne les remplacer q u e
par une piéce portant le numéro spécié.
1-1
Reproduction Prohibited
CN100
BL1-001 BOARD
CN101
JL100
R100
R101
R104
R102
SE101
SE100
R105
R106
C103
R110
IC100
C105
C106
R112
R113
C107
R114
S100
S101
S102
Q100
JL101
R109
Q101
R111
C104
R107
R108
C100
R103
C101
C102
BL2-001 BOARD
CN200
R200
D200
JL200
JL201
1-1. BL1-001 BOARD
1-2. BL2-001 BOARD
1-2
Reproduction Prohibited
C266
C265
C264
C263
C262
C261
C260
C259
C270
R114
CL112
CL111
CL109
C111
C102
C110
C108
R112
R110
R278
R277
CN103
CN102
C269
Q104
C114
R103
Q507
C107
L100
C109
R113
Q508
L103
C238
R126
R243
R244
R245
R246 C103
C255
C257
C256 C258
CN101
C254
JL110
CL106
CL105
CL104
CL103
CL102
C251
CL101
JL109
CN104
C237
Q107
Q105
C234
C252
C253
Q106
R102
C244
C235
C236
C273
R101
CN100
CL117
CL116
CL115
R281
R100
CL113
CL114
C250
R121
R122
C113
R605
C115
C141
C140
C139
R163
R231
R258
D100
R214
R204
D101
C243
C245
R260
C126
R199
R201
Q109
R259
Q102
Q103
L101
R162
C136
C274
C117
CL135
IC103
R600
R601
C156
CL138
CL140
CL137
CL136
R232
C159
C154
R187
C157
R606
CL144
CL143
R607
C158
C155
CL142
C161
C162
R233
R602
R603
R241
C198
CL153
CL152
CL186
R250
C242
C241
R284
R285
CL187
CL146
C119
C176
C195
R251
R249
R242
C194
R209
R223
R210
R211
C175
R224
IC108
CL145
R222
CL184
CL185
C240
C239
R282
R283
R181
C144
R171
R180
C135
C134
C133
JL108
R711
R217
R268
R269
R270
R272
R273
R218
R219
R271
C106
C105
C104
CL100
R104
R119
R118
R124
R139
R111
C101
R129
CL110
C193
C192
C191
C190
C179
CL148
CL149
CL150
CL151
C178
R230
R229
R228
R227
R240
R226
R234
R235
R236
R237
R238
R239
C183
C184
C185
C186
C187
R202 R203
C197
C203
C207
C222
R215
R206
R212
R625
R626
R627
CL155
CL157
CL159
CL163
CL165
JL166
CL169
CL168
CL170
JL175
JL176
R109
R108
R107
R106
R105
CL160
CL161
CL162
CL177
CL178
JL179
C218
CL183
CL182
C233
C223
C225
FL104
C224
R127
R133
R288
R289
R290
R291
R292
R293
C231
C228
C227
FL103
C226
C232
C219
C196
C199
CL154
CL156
R265
R267
C215
R299
R298
R297
R296
R295
R294
R136
R135
JL158
JL162
JL164
C120
R134
C118
R141 R147
JL133
C122
C127
R150IC101
CL128
X101
R193
R140 R130
C116
R125 R128
R132
R131
C124
C121
R137
R138
C221
CL167
R213
C182
C189
C181
C188
C200
C209
C206
C213
C217
C180
IC110
BMD-001 BOARD (1/4)
IC103
IC108
IC110

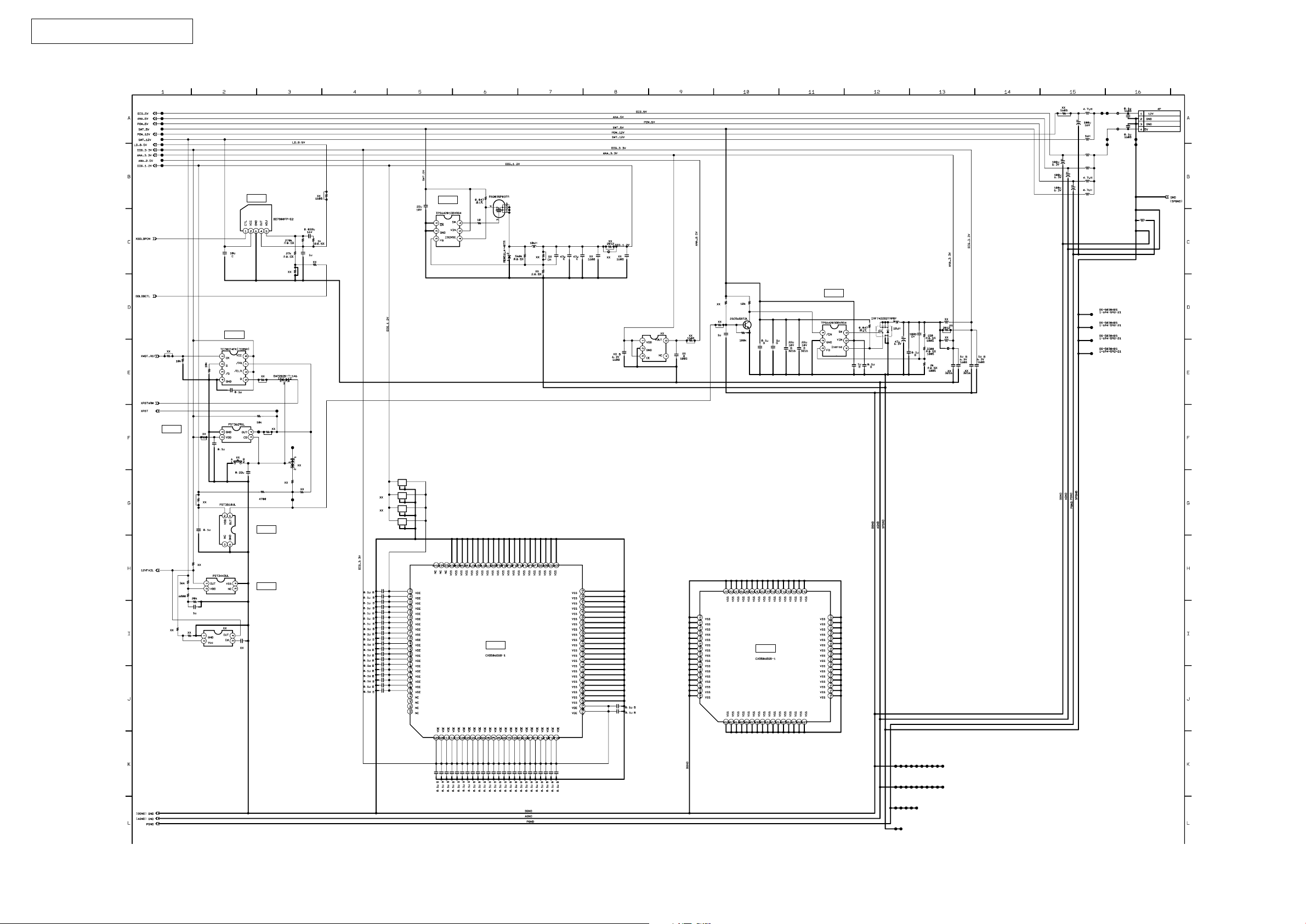

1-3. BMD-001 BOARD (1/4)
The components identied by
mark
or dotted line with mark
!
are critical for safety.
!
Replace only with part number specied.
Les composants identiés par une
marque
sont critiques pour
!
la sécurité. Ne les remplacer que par une piéce portant le numéro spécié.
1-3
Reproduction Prohibited
IC304
IC300
IC300
IC309
IC303
IC310
BMD-001 BOARD (2/4)
R441
R308
C306
C324
C343
R333
R335
R346
C346
C342
R341
C345
R344
C337
C341
C400
R309
R310
R311
CL303
CL304
CL339
CL340
CL341
CL342
CL345
CL344
CL343
CL358
CL360
CL361
CL363
CL357
CL356
R307
R306
R305
R304
R303
R302
CL321
CL320
CL319
CL318
CL317
CL316
CL314
CL313
CL312
CL441
C457
CL311
CL310
CL315
CN300
C458
R301
C301
C300
CL322
CL323
CL324
CL325
CL434
CL326
CL435
CL335
CL302
C303
C304
R312
C308
C309
C310
R315
C311
C313
C312
C399
R326
C322
C323
C326
C321
C314
R384
R405
C334
C336
CL372
CL373
CL374
C401
C402
CL367
CL368
CL369
CL390
CL371
R432
R433
CL376
CL302
CL375 CL301
CL377
R408
R444
CL305
CL430
R360
CL384
CL386
CL382
R321
R322
R327
R328
R330
IC300
R378
R377
R376
R375
R374
CL436
CL431
CL432
CL392
CL450
CL400
CL399
CL398
C369
CL397
C368
CL396
C367
CL395
C366
CL402
R372
R371
R370
R369
R368
R367
RB312
C352
CL370
C339
R349
R348
R350
R343
R363
R358
R361
R354
C355
CL378
CL359
C329
C359
RB309
R352
C320
CL300
R440
R439
Q300
D301
D300
R323
R325
CL354
CL353
CL352
R397
CL351
R411
CL350
R336
CL349
R399
CL348
R409
CL347
CL346
R324
C319
C318
C316
C317
C315
C307
RB308
R351
C377
CL306
C305
IC301
R472
C461
R313
R355
CL389
R364
R362
R365
R332
R329
C325
R383
R382
R381
R380
R359
R357
R438
R437
R436
R435
C351
C350
C349
C348
C344
C340
C358
C360
C361
C362
C363
C365
CL433
CL385
CL387
CL388
CL393
R340
R338
C357
C356
C354
C353
R391
R392
R389
R347
IC303
R345
R342
C335
C333
C332
C331
C330
C328
C327
CL379
CL380
CL383
R452
R366
R337
R339
CL365
CL362
CL364
R300
R388
R373
R356
R387
R386
CL437 CL438
CL439
CL440
C376
C375
C374
C373
C372
C371
C370
R406
R434
S300
RB301
C382
RB300
FB301
RB303
C392
C391
RB302
C381
C380
C390
R401
C389
R459 R460
R458
R417
R412
CL442
CL443
CL444
CL445
R422
R421
R471
R415
R418
RB305
RB306
RB307
R426
R427
R425
R424
R423
R463
R414
R320
R803
C404
C405
C406
C403
R446
R447
R448
R445
R398
R396
R449
C379
R450
IC308
IC310
C383
R453 R454
R331
R379
R451
C364
C386
CL405
R393
R390
C387
R400
R402
R403
R404
X301
C395
C396
R811
R443
C397
IC314
R410
R416
CL413
IC300
CL414
CL415
CL416
CL417
CL418
CL419
CL420
CL421
CL422
CL423
CL424
CL425
CL426
CL427
CL428
CL429
CL406
CL407
CL408
CL409
CL410
CL411
CL412
CL330
CL329
CL328
CL327
CN301
R430
R419
R431
R420
R470
RB304
R461
C450
C451
C452
C453
C454
C456
C460
C455
R462
R429R442R464
R465 R413
IC309
IC300
IC300
1-4. BMD-001 BOARD (2/4)
1-4
The components identied by
mark
or dotted line with mark
!
are critical for safety.
!
Replace only with part number specied.
Les composants identiés par une
marque
sont critiques pour
!
la sécurité. Ne les remplacer que par une piéce portant le numéro spécié.
Reproduction Prohibited
BMD-001 BOARD (3/4)
R907
IC509
R555
C506
Q506
JL500
JL501
JL502
JL503
JL504
JL505
JL506
JL507
JL508
JL509
JL510
R508
C505
R511
R529
R554
IC501
C509
R505
IC502
C513
R507
R548
R513
R504
C535
IC300
C534
C533
C532
C527
C528
C529
C530
C531
C515
IC505
R552
CL521
R516
IC500
R546
R512
CL519
C510
S500
CL520
C512
R498
CL518
FL500
D502
IC507
C508
R553
D500
C537
C539
C541
C543
C570
C536
C538
C540
C542
C544
C546
C548
C550
C549
C552
C556
C554
C558
C562
C560
C564
C568
C566
C572
C574
C576
C578
C580
JL514
JL518
JL521
JL524
JL527
JL529
JL531
JL533
JL535
JL537
JL513
JL517
JL520
JL523
JL526
JL528
JL530
JL532
JL534
JL536
JL512
JL516
JL511
JL515
JL519
JL522
JL525
C545
C547
C551
C553
C555
C557
C559
C561
C563
C565
C567
C569
C571
C573
C575
C577
C579
C581
C609
C616
R522
R521
C652
R520
L505
R556
L504
FB557
C649
C619
C618
C648
R524
L507
C610
JL540
JL541
L506
L511
L510
L509
L508
C611
C612
C613
JL542
JL543
C651
FB528
FB527
C650
CN502
JL538
JL539
L514
ET501
ET502
ET503
ET504
ET505
ET506
ET507
IC506
C500
C501
R906
C523
R510
Q501
R518
R509
C606
C607 C608
IC508
R523
Q502
L503
C614 C615
C605
R502
R503
IC503
Q500
C507
L500
D501
R500
C514
FB499
C516C504C503
R514
R509
R515
FL501
FL502
FL503
C603
C602
C601
C600
C599
C598
C597
C596
C595
C594
C593
C592
C591
C590
C589
C604
IC300
C588
C587
C586
C585
C584
C583
R547
IC509
IC507
IC500
IC501
IC300
IC300
IC506
IC503
IC508
1-5. BMD-001 BOARD (3/4)
1-5
Reproduction Prohibited
R517
R519
C638
R540
R539
R538
R537
R536
R535
R534
R533
R532
C637
C636
R531
R530
C635
CL533
CL534
CL535
CL532
R543
CL537
CL538
CL536
R545
C642
C646
C645
C627
C626
IC504
R542
R541
C629
C628
R544
C647
C617
C620
C639
C621
C640
C641
C622
C623
C624
C625
R551
R550
R549
CL522
CL523
CL524
CL525
C634
C633
CL526
CL527
CL528
CL529
CL530
CL531
C644
C643
C632
C631
C630
BMD-001 BOARD (4/4)
IC504
1-6. BMD-001 BOARD (4/4)
1-6
Reproduction Prohibited
BMD-002 BOARD (1/3)
IC110
IC108
IC103
IC110
C266
C265
C264
C263
C262
C261
C260
C259
C270
R114
C101
R129
C111
R111
C102
C110
C108
R112
R119
R118
R110
CN103
R120
CN102
IC111
C255 C257
C256 C258
R272
C251
C237
R101
CL117
CL116
CL115
R281
R121
R122
C113
C141
R163
C115
C136
CL135
C135
C134
C133
C140
C139
R144
R171
C234
C252
C253
R231
R201
R204
C126
R214
D100
R258
R199
Q109
R162
L101
C117
R158
R157
C274
R100
C250
CL190
CL113
CL114
R102
C235
C236
C273
C244
CN104
CN100
R273
R218
R219
CN101
CL191
CL192 CL106
CL105
CL104
CL103
CL102
CL101
R150
Q107
Q105
Q106
R271
R217
C269
R243
C106
R244
C105
R245
C104
R246
C103
R268
R269
R270
JL109
JL108
R104
R156
Q104
R125
R153
R126
Q111
R152
L103
C238
R103
Q110
C107
R113 R151
L100
C109
CL140
CL138
CL137
CL136
CL144
CL143
CL142
IC103
R140
R141
C156
C159
R187
C154
C157
R145
R146
C158 C155
C162
C119
C175
R224
R211
CL188
R210
R209
R223
IC108
C194
C195
R251
R249
CL189
R206
R212
R147
R148
R149
CL155
CL160
CL161
CL162
R215 R213
C197
R202 R203
C187
C186
C185
C184
R239
R238
R237
R236
R235
R230
R229
R228
R227
C183
C182
C189
C181
R240
C178
C180
CL151
CL150
CL149
CL148
C179
C193
C200
C209
C206
C213
C217
FL103
R292
R290
R288
R289
R127
C224
FL104
C231
C232
C233
CL183
C222
C218
JL179
JL176
JL175
CL170
CL169
CL168
CL166
CL165
CL163
CL159
CL157
CL167
C203
C207
CL178
CL177
R105
R106
R107
R108
R109
CL182
C223
C226
C225
R133
R291
R293
C227
C228
C192
C191
C190
C188
C196
C199
R265
R267
C215
R299
R298
R297
R296
R295
R294
R136
R135
C219
C221
CL154
JL158
JL162
JL164
CL156
R234
R226
R242
C198
R250
CL153
C242
C241
R284
R285
R241 R143
CL152
CL186
CL187
C176
CL146
CL145
CL184 CL185
R142
R282
R283
C239
C240
R222
R233
C161
R181 R180
C144
R232
Q103
R259
R260
D101
C243
C245
Q102
R124
R154
R155
Q112
R139
R278
R277
CL100
CL112
CL111
CL110
CL109
1-7. BMD-002 BOARD (1/3)
The components identied by
mark
or dotted line with mark
!
are critical for safety.
!
Replace only with part number specied.
Les composants identiés par une
marque
sont critiques pour
!
la sécurité. Ne les remplacer que par une piéce portant le numéro spécié.
1-7
Reproduction Prohibited
IC300
IC300
IC304
IC300
IC300
IC310
IC300
IC300
IC309
IC303
R441
R308
CL314
R307
R306
R305
R304
R303
R302
CL321
CL320
CL319
CL318
CL317
CL316
CL313
CL441
CL322
CL315
CL310
CL311
R301
C457
C458
CN300
CL323
CL324
CL434
CL326
CL435
CL335
C302
C303
C304
R312
R472
C306
C308
C309
C310
R473
R315
R384
CL362
CL364
CL365
CL367
CL368
CL369
R432
CL301
CL302
CL375
CL376
C401
C402
CL305
R433
R444
R408
CL430
CL377
CL379
CL380
CL383
CL384
CL386
R360
R321
R322
R327
R328
R330
R478
R489
CL382
R337
R339
CL390
CL371
CL372
CL373
CL374
C334
C336
R452
R366
R476
R378
R377
R376
R375
R374
R372
R371
R370
R406 R434
S300
R369
R368
R367
R383
R382
R381
R380
R359
R357
R438
R437
R338
R340
R436
R435
R475
C335
R347
R342
R389
C340
C344
C347
C348
C349
C350
C351
C327
C328
C330
C331
C332
C333
C353
C354
C356
C357
R391
R392
C358
C360
C361
C362
C363
C365
CL463
CL433
CL385
CL387
CL388
CL393
C313
C312
C314
R326
C321
C322
C323
C465
C399
C326
C311
CL325
CL312
D300
R323
R325
D301
R324
R439
R440
R397
R411
R336
R399
R409
CL300
CL453
CL454
CL455
CL456
CL354
CL353
CL352
CL351
CL350
CL349
CL348 CL347
CL346
R331
R453
R485
IC310
R451
C383
R449
R396
X301
C395
R416
CN301
R463
R423
R424
R425
R426
R427
R430
R419
R431
R420
R421
R471
CL445
CL444
CL443
CL442
R412
R417
R458
R461
R462
C450
C451
C452
C453
C454
C456
C460
C455
R470
R415
R418
R422
C396
R443
R398
C386
CL405
R393
R400
R402
R403
R404
CL458
CL459
CL406
CL407
CL408
CL409
CL410
CL411
CL412
CL429
CL428
CL427
CL426
CL425
CL424
CL423
CL422
CL421
CL420
CL419
CL418
CL417 CL416
CL415
CL414
CL413
CL437
R487
R486
R488
CL438
CL439
CL440
R300
C375
C374
C372
C371
C370
R388
R387
R386
C382
C392
FB301
R401
R479
R480
R481
R482
R483
R484
RB304
RB307
RB306
RB305
RB303
C391
C390
C389
RB300
RB301
RB315 RB316RB314RB313
IC309
C381
RB302
C380
R465
R464
R459
R460
R442
CL436
CL431
CL432
CL392
CL450
CL400
CL399
CL398
RB312
CL370
IC303
C339
C352
RB309
RB308
C307
R352
R351
R349
R343
R348
R350
R363
R361
R354
C355
CL378
R358
CL397 C368 CL396 C367 CL395 C366
C369
CL402
R332
R329
C325
C359
C329
CL359
R379
IC304
C337
R344
R346
R333
C343
RB317
R474
CL363
CL361
CL360
CL358
C466
C305
C315
C316
C467
CL343
CL342
CL341
CL462
CL461
CL460
CL304
CL303
R309
R310
R311
R335
C342
C346
C464
C341
C463
C400
C462
R373
R356
C364
Q300

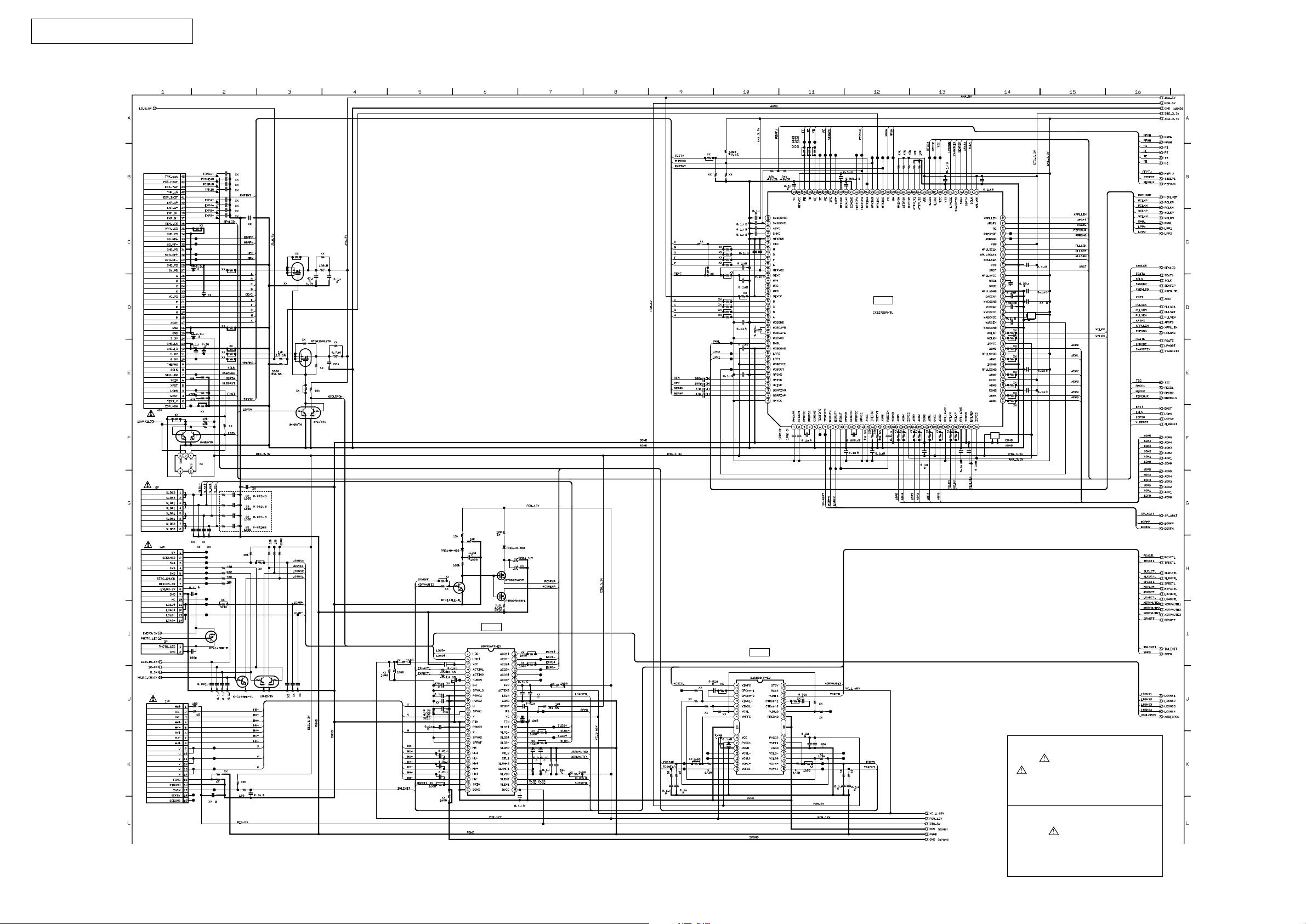

BMD-002 BOARD (2/3)
1-8. BMD-002 BOARD (2/3)
1-8
The components identied by
mark
or dotted line with mark
!
are critical for safety.
!
Replace only with part number specied.
Les composants identiés par une
marque
sont critiques pour
!
la sécurité. Ne les remplacer que par une piéce portant le numéro spécié.
Reproduction Prohibited
BMD-002 BOARD (3/3)
IC509
IC507
IC500
IC510
IC501
IC300
IC300
IC508
IC503
IC509
C506
R508
R511
C511
R532
IC507
R530
R504
R552
D502
C508
IC500
IC501
R516
CL521
CL518
CL520
D500
R512
CL519
R546
C510
S500
C512
R505
R537
IC503
C507
R503
R502
Q500
L500
R500
C514
FB500
C516
C502
C504
C503R506
D501
R514
R515
R531
IC506
C500
C501
R510
R518
R509
Q503
C523
R536
C605
C606
C607 C608
IC508
Q502
R523
L503
C609
C616
C652
R522
R521
R520
L505
R556
L504
FB557
C649
C648
JL546
JL547
JL548
JL549
L514
L508
C613
C612
C611
C610
C650
FB527
L507
R524
L506
FB528
C651
CN502
C618
C619
C614 C615
JL538
JL540
JL541
JL539
JL542
L511
L510
L509
JL543
FL500
FL501
FL502
FL503
IC300
C584
C583
JL513
JL517
JL520
JL523
JL526
JL528
JL530
JL532
JL534
JL536
JL514
JL518
JL521
JL524
JL527
JL529
JL531
JL533
JL535
JL537
JL512
JL516
JL519
JL522
JL525
JL511
JL515
R513
R553
IC510
IC511
R547
C509
R535
R534
R538
R533
C653
C535
C534
C533
C532
C531
C530
C529
C528
C527
C537
C539
C541
C543
C545
C547
C551
C553
C555
C557
C559
C536
C538
C540
C542
C544
C546
C548
C549
C550
C552
C554
C556
C558
C560
C562
C564
C566
C568
C570
C572
C574
C576
C578
C580
IC300
R557
R558
C655
R539
C505
R529
R554
JL500
JL501
JL502
JL503
JL504
JL505
JL506
JL507
JL508
JL509
JL510
1-9. BMD-002 BOARD (3/3)
1-9
Reproduction Prohibited
1
A
B
C
D
E
F
G
H
2 3 4 5 6 7

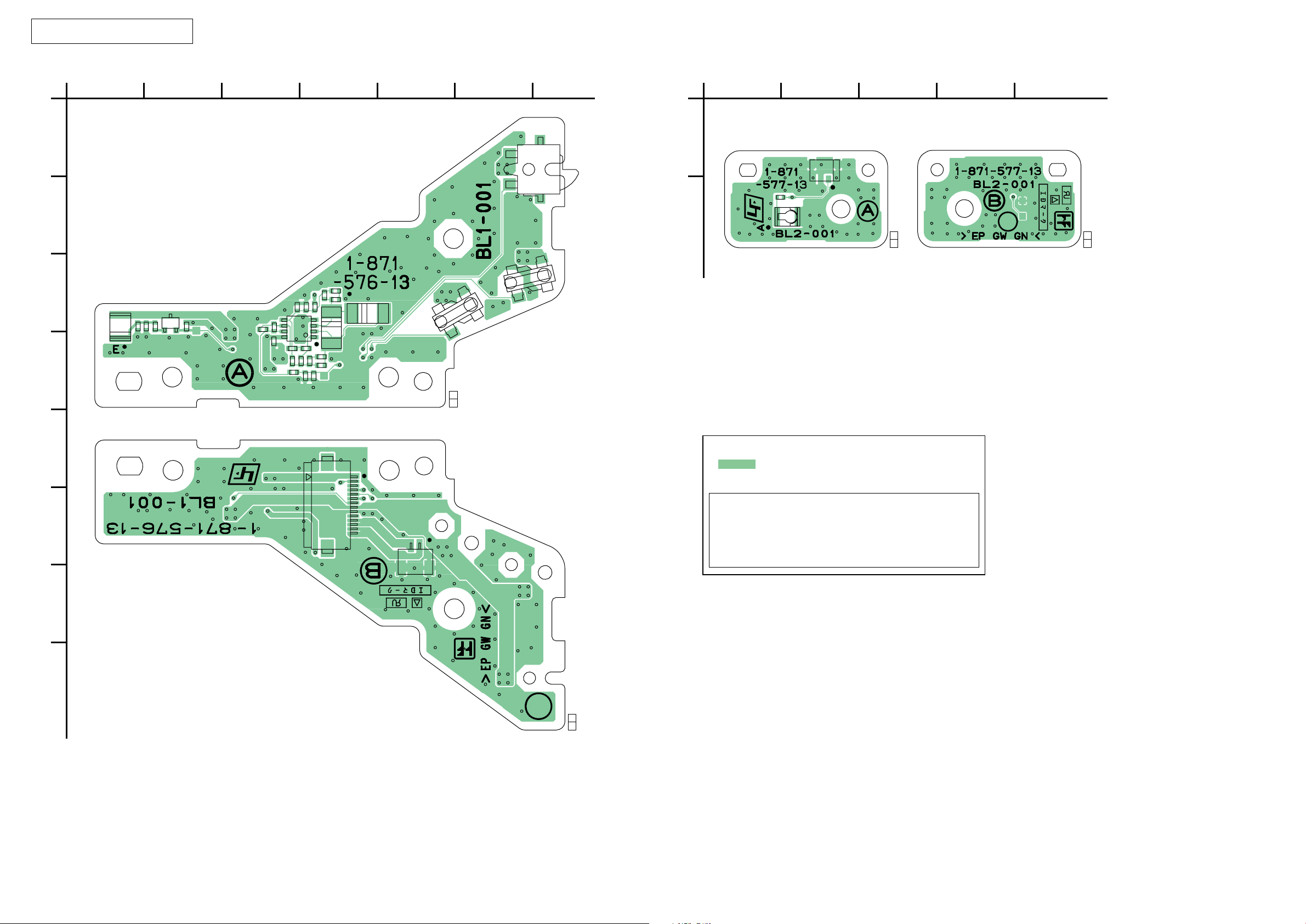

BL1-001 BOARD (SIDE B)
BL1-001 BOARD (SIDE A)
1-871-576-
1-871-576-
Q101
Q100
R111
C104
R109
R107
R112
C101
C107
C105
R104
R100
C100
C106
R101
SE101
S101
S100
SE100
R102
S102
CN101
CN100
R103
R113
IC100
R114
R110 C103
R105
R108
R106
C102
13
23
13
23
1
A
B
2 3 4 5
CN200
R200
D200
BL2-001 BOARD (SIDE A)
BL2-001 BOARD (SIDE B)
1-871-577-
1-871-577-
13
23
13
23
SECTION 2
PRINTED WIRING BOARDS
2-1. BL1-001 BOARD 2-2. BL2-001 BOARD
Note on Printed Wiring Boards:
• :Patternfromthesidewhichenablesseeing.  (Theotherlayer’spatternsarenotindicated.)
 Caution:  Patternfaceside:Partsonthepatternfacesideseen  (SideB) fromthepatternfaceareindicated.  Partsfaceside: Partsonthepartsfacesideseen  (SideA) fromthepartsfaceareindicated.
2-1
Reproduction Prohibited
1
A
B
C
D
E
F
G
2345678910111213
R323
R409
R439
R401
RB303
R453
IC310
IC308
R454
RB302
R450
C379
R449
C383
R404
R402
C397
IC314
R406
R434
S300
R398
X301
IC304
C405
R448
C403
R447
R445
R393
C395
R396 C396
C404
R320
RB300 RB301
IC300
R325
D301
D300
C455
CN102
R376
R345
C325
R392
R361
R112
C196
C199
R363
R358
R348
CN103
C102 C108 C110
R391
R135
R136
R294
R295
R296
R297
R298
R299
R309
R310
R311
R302
R303
R306
R307
C621
C620
C617
C638
C636
IC504
R906
L505
FB557
L504
D100
R510
R556
L503
C614
C616
IC508
C500
C126
R259
R603
C241
C195
Q102
C198
R250
R209
R222
R602
R211
R210
R249
R251
D502
R513
R512
R498
C512
IC501
C510
IC500
R268
C236
R218
R273
R272
R217
R271
R269
C235
C234
R518
R509
C615
Q106
C627
R214
R544
R106
R105
R107
R181
C158
C157
IC103
C274
C141
C140C139
R605
R101
C186
R100
R281
C250
C187
R626
R627
R102
CN100
C136
R162
C305
R313
C461
IC505
C513
R507
R505
C253
R270
C244
L101
C161
C162
R109
R108
R212
R213
R215
R206
C155
C240
R180
R545
R308
R541
R542
R543
C222
IC110
C209
C213
D101
R223
Q103
R233
C144
R121
R122
C113
R907
C197
ET505
C203
C207
R118
R119
R111
R104
R277
R278
R110
R227
C339
R343
R349
R114
R350
R354
C355
R228
R229
R230
R235
R236
R237
R238
R239
R226
ET504
R260
C633
ET502
R199
Q109
R201
R284
R552
R283
R601
R600
R171
C133
IC301
IC502
L514
C252
CN101
C251
C254
ET506
R711
Q105
R219
C273
R548
C515
R504
C134
D500
C154
R187
S500
R547
C509
R546
R258
C644 C632
C630
IC506
C501
C649
C619
C508
IC507
R553
R204
R522
R521
C523
R520
C608
C607
C606
C605
Q501
C648
C618
C652
C609
R523
Q502
R531
R530
ET503
C457
C458
R540
R538
R536
R534
R532
C623C641
C310
C322
C321 C314
C312
C313
RB309
R364
R365
R362
R389
C303
R347
R375
R327
CN301
ET507
R423
R360
R422
R412
R374
C304
R312
C357
C356
C362
R332
R329
C329
C359
C377
R355
R321
R322
R368
R367
R380
R381
R437
R438
C349
C350
C344
R326
C215
C331
C332
C335
C311
C309
R315
C337
C341
R344
C200
C190
C191
C192
C193
R625
IC303
C361
R417
R421
R420
R419
R431
R430
R424
R425
R426
R427
R442
R458
R460
R462
R459
C402
C401
R408
R432
R433
R444
C389C380
C391
C392
C381
C382
R451
R331
R403
R400
R811
R410
R300
R803
R446
R390
C387
C406
ET501
RB306
RB307
IC309
Q300
FB301
C390
R461
1-871-575-
14
24
34
BMD-001 BOARD (SIDE A)
2-3. BMD-001 BOARD (SIDE A)
2-2
Reproduction Prohibited
1
A
B
C
D
E
F
G
2 3 4 5 6 7 8 9 10 11 12 13
R524
FB527
C610
L507
L506
R472
C650
CN502
C651
FB528
C613
L511
L509
Q107
C611
L510
C239
R232
C159
C156
C135
R163
R554
C185
C184
C189
R234
R139 R124
C101
C269
C178
C180
Q507
C107
Q508
R103
C238
C114
R126
R113
R265
R267
C179
C183
R240
C505
C506
IC509
R508
R282
C612
IC108
R147
C122
R141
C118
C124
R137
C629
C628
C226
C223
C233 C232 C231
L103
L100
FL103
C109
C228 C227
R293
R292
C642
C645
C626
C635
C637
C647
CN300
R441
R379
R386
C538
R388
C374
C556
R305
C548
R301
C373
C560
C601
C602
C603
C533
FL502
C534
C535
C537
C306
C342
R333
R335
C346
C541
C578
C577
C539
C532
C551
C559
C555
C553
C348
C557
C351
C371
C542
C317
C343
C323
C307
R352
C340
R202
RB312
C300
R378
R377 R328 R330
R366
R452
R405
R336
R397
R399
C315
C573
C550
C399 C372
R324
C576
C561
C575
C590
C565
C591
FL500
C570
C567
C536
C302
R342
R351
RB308
C588
C589
C569
C571
C572
C549
C319
C544
C568
R443
C386
C554
R138
C121
R193
R140
R131
R132
IC101
R128
X101
R241
R285
R515
C507
R503
Q500
R502
IC503
D501
R506
R514
C503
R516
C242
R606
C115
R511
C182
C181
C188
R129
C111
C260
C259
C261
C262
C263
C264
C265
C266
C270
C255
C256
C257
C258
R555
Q506
Q104
C218
C104
C103
C175
R224
C194
R242
R243
R245
R246
R529
R231
C117
R607
R244
C105
C119
C176
C106
C504
C516
C243
C245
R150
C127
R134
C120
C116
R125
R130
R533
R535
R537
R539
R519
R517 C640 C622 C624
C540
R387
C558
C625
C639
C634
C643
C631
R551
R550
R549
C646
R127
R133
R288
R289
R290
R291
C224
C219
C217
C221
R346
C308
R304
FL503
C564
C301
C552
C324 C370
C352
C604
C326
C328
R341
C206
C375
C345
C400
C333
C327
C330
R203
C354
R435
C360
C358
C365
C363
R359
R357
R383
C595
C547
C531
C527
C545
C528
C530
C543
FL501
C594
C529
C593
C592
C574
C316
R411
R382
R372
R370
C353
R340
R338
C369
C368
C367
C366
C454
C460
C456
C452
C450
C451
C453
R464
R429
R413
R465
C334
R339
R337
R440
C376
R384
C562
RB305
RB304
C566
C336
R470
R471
R415
R463
R414
R416
R418
R369
R371
R436
C546
C600
C599
C598
C597
C596
C587
C586
C585
C584
C583
C581
C580
C563
C579
C318
C364
R373
R356
C320
C225
FL104
L500
R500
FB499
C514
L508
C237
CN104
BMD-001 BOARD (SIDE B)
1-871-575-
14
24
34
2-4. BMD-001 BOARD (SIDE B)
2-3
Reproduction Prohibited
1
A
B
C
D
E
F
G
2345678910111213
1-874-277-
13
23
33
BMD-002 BOARD (SIDE A)
R400
R401
R402
R403
R210
R404
R211
R212
R406
R213
R408
R214
R215
R409
R217
R218
R219
C273
R412
R222
R223
R417
R419
R226
R227
R228
R229
R420
R421
R422
R423
R230
R424
R425
R426
R427
R233
R235
R236
R237
R238
R239
C200
R430
R431
R432
R433
C203
R434
C207
R437
R438
R439
C209
C401
R249
C402
R442
C213
R443
R444
R250
C215
R251
R449
R258
C605
R259
C606
C607
C608
C609
R451
C222
R453
R260
R458
R459
R268
C614
R269
C615
C616
R460
C618
C619
R461
R462
R270
C234
R271
C235
R272
C236
R273
R277
R278
C240
C241
R472
R473
C244
R474
R281
R475
R283
R284
C250
C251
C252
C253
R483
R485
R486
R487
R294
R488
R295
R296
Q102
R297
Q103
R298
Q105
R299
Q106
C648
Q109
C455
C649
C457
Q300
C458
C652
Q112
L101
RB300 RB301
Q502
RB302
Q503
RB303
C274
RB306RB307
RB309
RB316
RB317
L503
L504
L505
L514
FB301
R100
R101
R102
R104
R105
R106
R107
R108
R109
R300
R302
R303
R110
R111
R306
R112
R307
R308
R114
R309
R118
R119
R310
CN100
R504
CN101
R311
R505
R312
CN102
CN103
R120
R315
R509
R121
R122
R510
CN301
R512
R513
R321
R322
R323
R518
R325
R326
R327
R135
R329
R136
R520
R521
R522
R523
R331
R332
C102
R333
R140
R335
R141
R142
R143
C108
R144
R147
R530
R148
R531
R149
R532
C303
C304
C110
R536
R343
C113
R537
R150
C309
R346
R347
R348
C500
R154
R349
C501
R155
R156
R157
C310
R158
X301
C311
C312
C313
C314
R350
C508
C509
R546
FB557
R547
R354
R162
C126
R358
C510
C512
C321
C322
R552
C323
R553
R360
S300
R361
C325
R556
R363
C133
C134
C329
R171
C136
R367
R368
C139
C523
S500
C140
C335
C141
R374
C144
R180
R375
C339
R181
R376
R187
C342
C344
R380
R381
C346
C154
C155
C157
C158
R389
R199
C351
D100
R391
D101
C355
C161
R392
C356
C162
C357
R393
C359
R396 R398
D300
C361
D301
C362
D500
JL546
D502
JL547
JL548
JL549
IC103
C186
C187
IC300
C380
C381
C382
IC303
C383
C190
IC304
IC110
C191
IC111
C192
C193
IC309
C389
C195
C196
C197
IC500
C198
C199
IC501
C390
IC310
C391
C392
IC506
IC507
IC508
C395
C396
R201
R204
R206
R209
2-5. BMD-002 BOARD (SIDE A)
2-4
Reproduction Prohibited
1
A
B
C
D
E
F
G
2 3 4 5 6 7 8 9 10 11 12 13
BMD-002 BOARD (SIDE B)
1-874-277-
13
23
33
R411
R415
R416
R224
R418
R231
R232
R234
R240
R435
R241
R436
R242
C206
R243
R244
R245
R246
C400
R440
R441
C217
C218
C219
C221
R452
C223
C224
C225
C226
C227C228
C610
R265
C611
C612
R267
C613
C231
C232
R463
C233
R464
R465
C237
C238
C239
R470
R471
C242
C243
C245
R282
R476
R478
R285
R479
R288
R289
R480
R481
R482
R290
R484
R291
C255
R292
C256
R293
C257
C258
C259
R489
Q104
C450
C451
C452
Q107
C453
C260
C454
C261
C262
C456
C263
C264
C265
C266
C650
Q110
C651
C269
Q111
C653
L100
C460
C655
C462
C463
L103
C464
Q500
C270
C465
C466
C467
RB304
RB305
RB308
RB312
RB313
FL103
RB314
L500
FL104
RB315
L506
L507
L508
L509
L510
L511
FL500
FL501
FL502
FL503
R103
FB500
R301
R304
R305
R113
R500
R502
R503
R506
CN104
R508
R124
R125
R126
R127
CN300
R129
R511
R514
R515
R516
FB527
FB528
R324
R133
R328
CN502
R139
R524
R330
C101
C103
C104
C105
R529
C106
R336
C107
R337
R338
R339
C109
R145
R146
C302
R533
R340
R534
C111
R535
C305
C306
R342
C307
C308
R344
R538
C115
R151
R539
R152
C117
R153
C119
C502
C503
C504
C505
C506
C507
R351
C315
R352
C316
R356
R357
R163
R359
C511
C514
C516
R554
C326
R557
C327
R558
C328
C135
R366
R369
C330
C331
C332
C333
C527
R370
C528
C334
R371
C529
C336
R372
C337
R373
R377
R378
C530
R379
C531
C532
C533
C340
C534
C341
C535
C536
C343
C537
C538
C539
R382
C347
R383
C348
R384
C349
C156
R386
R387
C540
R388
C159
C541
C542
C543
C350
C544
C545
C352
C546
C353
C547
C548
C354
C549
C358
R397
C550
C551
R399
C552
C553
C360
C554
C555
C556
C363
C557
C364
C558
C365
C559
C366
C367
C368
C369
C175
C176
C178
C560
D501
C179
C562
C370
C564
C371
C566
C372
C180
C374
C568
C181
C375
C182
C183
C184
C185
C188
IC108
C570
C189
C572
C574
C576
C578
C386
C194
C580
IC503
C583
C584
IC509
C399
IC510
IC511
R202
R203
2-6. BMD-002 BOARD (SIDE B)
2-5
Reproduction Prohibited
1
2
3
4
4
5
5
6
8
7
9
SECTION 3
EXPLODED VIEWS
NOTE:
• Themechanicalpartswithnoreference  numberintheexplodedviewsarenotsupplied.
• Accessoriesaregiveninthelastofthis  partslist.
3-1. LOADING COMPLETE ASSY SECTION
Thecomponentsidentiedby mark
ordottedlinewithmark
!
arecriticalforsafety.
!
Replaceonlywithpartnumber specied.
Lescomposantsidentiésparune marque
sontcritiquespour
!
lasécurité. Nelesremplacerqueparunepiéce portantlenumérospécié.
NOTE:
•SCClassication: S:SuppliedpartsU:Unsuppliedparts
CAUTION
Useofcontrolsoradjustmentsorperformance ofproceduresotherthanthosespeciedherein mayresultinhazardousrediationexposure.
SPECIAL COMPONENT NOTICE
Thecomponentsidentied bymark contain condentialinformation. Strictly follow theinstructions wheneverthe componentsarerepairedand/orreplaced.
• LOADING COMPLETE ASSY
SC Ref. No. Part No. Description Remark
1 9-910-001-47 LOADING COMPLETE ASSY
S
!
U 2 A-1203-908-A LOADING BLOCK ASSY S 3 2-894-364-02 SPRING (MD), LEAF S 4 3-948-339-12 SCREW, TAPPING U 5 3-074-552-02 0 PLATE 2 MAIN 2X5 S TITE
S 6 1-834-594-11 CABLE, FLEXIBLE FLAT (FFC-60) S 7 2-698-708-02 CUSHION (PWB) S 8 S 9 X-2177-119-1 SHIELD ASSY (MD)
• LOADING COMPLETE ASSY (1.5G)
SC Ref. No. Part No. Description Remark
1 A-1433-712-A LOADING COMPLETE ASSY (1.5G)
S
!
U 2 A-1203-908-A LOADING BLOCK ASSY S 3 2-894-364-02 SPRING (MD), LEAF S 4 3-948-339-12 SCREW, TAPPING U 5 3-074-552-02 0 PLATE 2 MAIN 2X5 S TITE
S 6 1-834-594-11 CABLE, FLEXIBLE FLAT (FFC-60) S 7 2-698-708-02 CUSHION (PWB) S 8 S 9 X-2177-119-1 SHIELD ASSY (MD)
A-1267-249-A BMD-001 COMPL (SERVICE)
A-1433-743-A BMD-002 COMPL (SERVICE)
3-1
Reproduction Prohibited
51
52
53
54
55
55
55
62
56
61
57
59
60
58

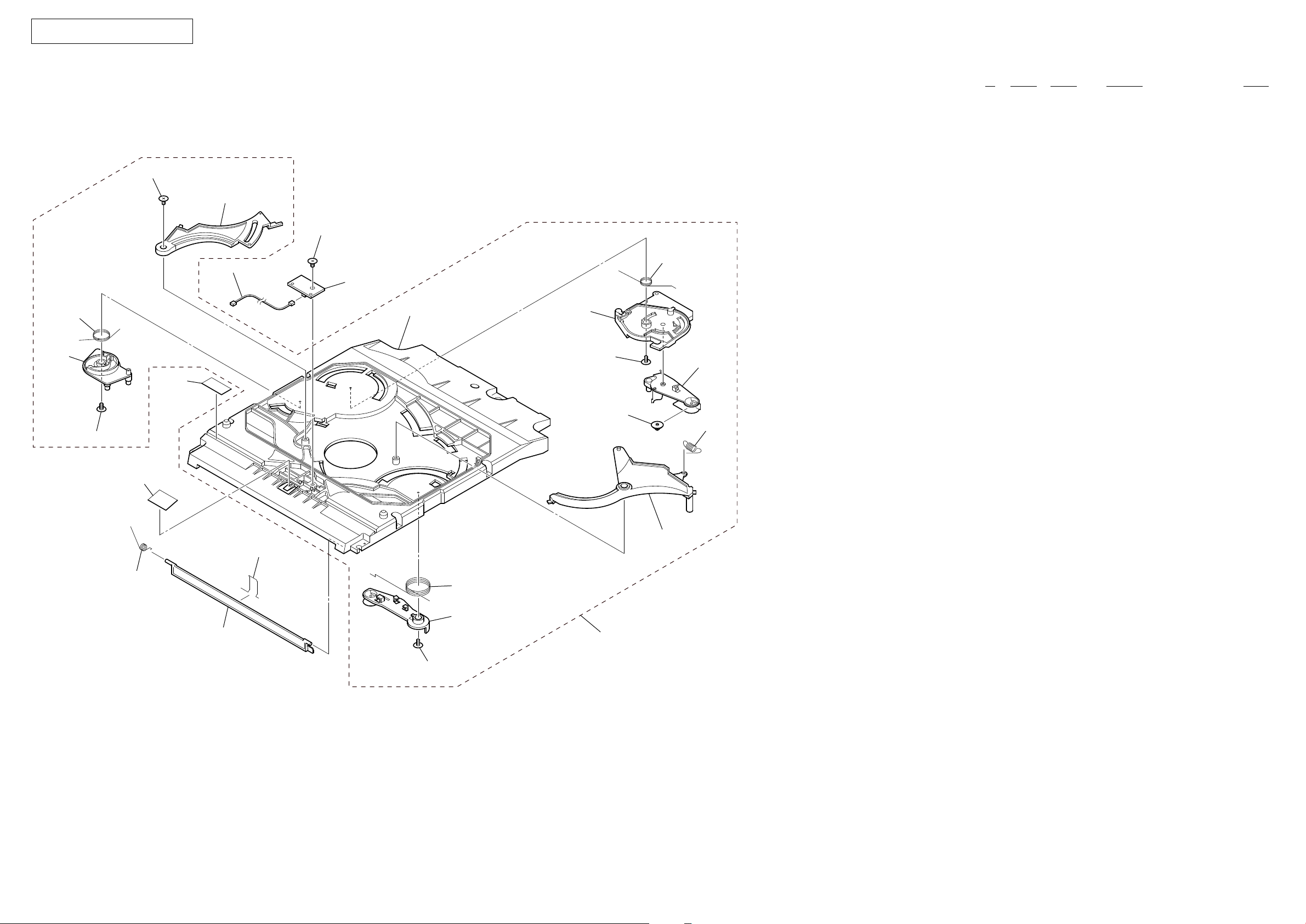

3-2. LOADING BLOCK ASSY SECTION
SC Ref. No. Part No. Description Remark
S 51 9-910-001-52 COVER ASSY, TOP U 52 2-698-683-01 YOKE (CHUCK PULLEY) U 53 1-471-407-11 MAGNET U 54 2-698-682-02 PULLEY, CHUCK S 55 3-948-339-12 SCREW, TAPPING
S 56 A-1204-033-A FRAME COMPLETE ASSY, TOP S 57 2-647-360-61 SCREW (B2), TAPPING S 58 A-1204-035-C ARM ASSY, FRONT U 59 A-1203-909-A FRAME COMPLETE ASSY, BASE S 60 2-888-817-01 LABEL, LASER CAUTION
S 61 3-069-212-01 TAPE, HARNESS STOPPER S 62 A-1204-038-B PULLEY ASSY, CHUCK
3-2
Reproduction Prohibited
117
101
102
135
103
104
104
#1
104
104
104
105
106
107
107
136
108
109
110
111
112
113
112
119
123
114
115
116
118
OPTICAL PICK-UP SECTION
120
121
122
124
124
125
134
126
127
128
129
130
131
132
133

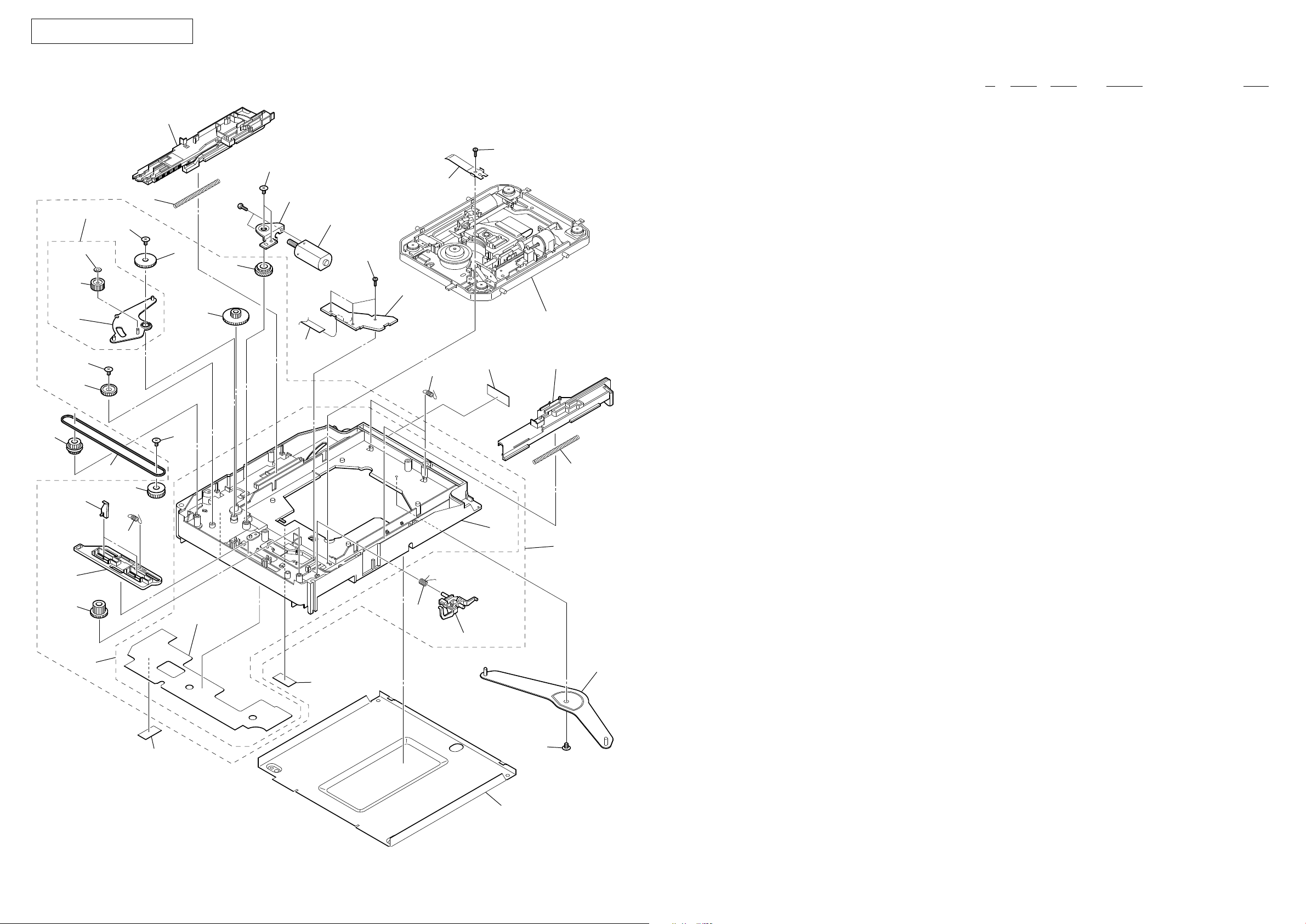

3-3. BASE FRAME COMPLETE ASSY SECTION
SC Ref. No. Part No. Description Remark
U 101 X-2149-112-1 ARM SUB ASSY, SWING U 102 2-698-620-01 GEAR (SWING ARM) U 103 2-698-633-01 WASHER (GEAR) S 104 2-059-635-11 SCREW U 105 2-698-466-01 GEAR (A)
U 106 2-698-467-01 GEAR (CAM DRIVING) U 107 2-698-652-01 SPRING (SLIDE CAM), COMPRESSION S 108 2-698-624-02 CAM (L), SLIDE S 109 2-698-629-01 BRACKET, MOTOR S 110 X-2149-103-1 MOTOR ASSY, LOADING
U 111 2-698-465-01 WHEEL, WORM U 112 2-647-360-61 SCREW (B2), TAPPING U 113 2-698-630-01 SPRING (BU HOLDER), LEAF S 114 A-1267-250-A BL1-001 COMPL (SERVICE) S 115 1-833-249-11 CABLE, FLEXIBLE FLAT (FFC-014)
U 116 2-698-653-01 SPRING (BU HOLDER), EXTENSION S 117 2-890-570-01 LABEL, SERIAL NUMBER S 118 2-698-625-02 CAM (R), SLIDE U 119 2-698-626-02 FRAME, BASE U 120 2-698-664-01 SPRING (SHUTTER ARM), TORSION
U 121 2-698-623-01 ARM, SHUTTER S 122 2-698-628-01 ARM, LINK S 123 A-1203-919-D BASE FRAME ASSY S 124 3-069-212-01 TAPE, HARNESS STOPPER U 125 2-698-631-02 SHEET (BASE FRAME)
U 126 2-698-617-01 GEAR (SHAFT R) U 127 2-698-621-01 SLIDER (SHUTTER), LOCK U 128 2-698-622-01 LEVER (SHUTTER), LOCK U 129 2-698-654-02 SPRING (LOCK SLIDER), EXTENSION U 130 2-698-618-01 GEAR (BELT)
S 131 2-698-651-01 BELT (FRONT ARM) S 132 2-698-650-01 GEAR (SHAFT L) U 133 2-698-619-01 GEAR (IDLER) S 134 2-698-666-01 COVER, BOTTOM S 135 A-1203-920-A ARM ASSY, SWING
U 136 A-1204-032-B FRAME SUB ASSY, BASE S #1 7-627-554-38 SCREW, PRECISION +P 2X1.8 TYPE1
3-3
Reproduction Prohibited
151
151
151
151
151
154
155
156
157
158
159
160
171
161
162
163
164
165
166
167
168
169
170
152
153
3-4. TOP FRAME COMPLETE ASSY SECTION
SC Ref. No. Part No. Description Remark
S 151 2-059-635-11 SCREW U 152 2-698-660-02 ARM (REAR GUIDE), LOCK U 153 2-698-686-01 SPRING (LOCK ARM), TORSION U 154 2-698-656-02 ARM (L), CHUCK S 155 1-964-978-11 HARNESS, 2PIN CONNECTOR (LED)
U 156 A-1205-601-A BL2-001 COMPL U 157 2-698-655-03 FRAME, TOP U 158 2-699-485-01 SPRING (REAR GUIDE ARM), TORSION U 159 2-698-661-02 ARM, REAR GUIDE U 160 2-889-123-03 ARM (A), DETECTION
U 161 2-698-687-01 SPRING (CHUCK ARM), EXTENSION U 162 2-698-657-04 ARM (R), CHUCK U 163 2-698-685-01 SPRING (SUPPORT ARM), TORSION U 164 2-698-658-01 ARM, SUPPORT U 165 2-698-663-01 SHUTTER
U 166 2-889-118-01 HOOK (SHUTTER) U 167 2-698-665-01 SPRING (SHUTTER), TORSION U 168 2-889-128-02 SHEET, FRAME TOP S 169 3-069-212-01 TAPE, HARNESS STOPPER U 170 A-1204-034-H FRAME ASSY, TOP
U 171 2-698-662-01 ROLLER (REAR GUIDE)
3-4
Reproduction Prohibited
201
204
205
206
206
208
207
209
211
210
213
210
213
212
209
209
209
202
202
203
3-5. FRONT ARM ASSY SECTION
SC Ref. No. Part No. Description Remark
U 201 2-698-697-02 LOCK (FRONT ARM L) U 202 2-698-699-03 SPRING (LOCK FA), TORSION U 203 2-698-688-04 BRACKET (FRONT ARM) U 204 2-698-698-02 LOCK (FRONT ARM R) U 205 2-698-694-01 ARM (FB), LINK
U 206 2-698-633-01 WASHER (GEAR) U 207 2-698-710-01 SPRING (FRONT ARM), TORSION U 208 2-698-693-01 ARM (FA), LINK U 209 2-698-691-02 GEAR (FRONT ARM) U 210 2-698-692-02 GEAR (ROLLER)
U 211 2-698-690-02 ARM (R), FRONT U 212 2-698-689-02 ARM (L), FRONT U 213 2-698-695-02 ROLLER, RUBBER
3-5
Reproduction Prohibited
254
255
256
252
252
251
253
253
3-6. OPTICAL PICK-UP SECTION
SC Ref. No. Part No. Description Remark
251 8-820-372-03 DEVICE, OPTICAL KEM400AAA/J1NP1
S
!
S 252 2-698-669-01 SCREW, STEP S 253 2-698-668-01 INSULATOR S 254 2-698-627-01 HOLDER, BU S 255 1-833-247-11 CABLE, FLEXIBLE FLAT (FFC-019)
S 256 1-833-248-13 CABLE, FLEXIBLE FLAT (FFC-045)
3-6
Thecomponentsidentiedby mark0ordottedlinewithmark
arecriticalforsafety.
0
Replaceonlywithpartnumber specied.
Lescomposantsidentiésparune marque0sontcritiquespour lasécurité. Nelesremplacerqueparunepiéce portantlenumérospécié.
Reproduction Prohibited
SECTION 4
ELECTRICAL PARTS LIST
NOTE:
• Duetostandardization,replacementsin  thepartslistmaybedefferentfromthe  partsspeciedinthediagramsorthe  componentsusedontheset.
• RESISTORS
Thecomponentsidentiedby mark
ordottedlinewithmark
!
arecriticalforsafety.
!
Replaceonlywithpartnumber
specied.  METAL:Metal-lmresistor.  F:nonammable
• SEMICONDUCTORS  Ineachcase,u:m,forexample:  uA..:mA..uPA..:mPA..  uPB..:mPB..uPC..:mPC..uPD..:mPD..
Lescomposantsidentiésparune
marque
sontcritiquespour
!
lasécurité.
Nelesremplacerqueparunepiéce
portantlenumérospécié.
• CAPACITORS  uF:mF
• COILS
 Whenindicatingpartsbyreference  number,pleaseincludetheboard.
 uH:mH
SC Ref. No. Part No. Description Remark
S A-1267-250-A BL1-001 COMPL (SERVICE)
< CONNECTOR >
U CN100 CONNECTOR, FFC/FPC (ZIF) 14P U CN101 CONNECTOR 2P
< TRANSISTOR >
U Q100 TRANSISTOR 2SC4081T106Q U Q101 PHOTO SENSOR CPT-184S-C-TU-BCD
< RESISTOR >
U R107 METAL CHIP 100K 0.5% 1/16W U R109 METAL CHIP 1K 0.5% 1/16W U R111 METAL CHIP 10K 0.5% 1/16W
< SWITCH >
U S100 SWITCH, PUSH (1 KEY) U S101 SWITCH, PUSH (1 KEY) U S102 SWITCH, PUSH (1 KEY)
*****************************************************************
U BL2-001 COMPL
< CONNECTOR >
U CN200 PIN, CONNECTOR 2P
< DIODE >
U D200 LED CL-200IR-X-TU
< RESISTOR >
U R200 METAL CHIP 220 0.5% 1/16W
*****************************************************************
*************
*************
SPECIAL COMPONENT NOTICE
Thecomponentsidentied bymark contain condentialinformation. Strictly follow theinstructions wheneverthe componentsarerepairedand/orreplaced.
NOTE:
 •SCClassication: S:Suppliedparts U:Unsuppliedparts
SC Ref. No. Part No. Description Remark
U C106 CERAMIC CHIP 0.001uF 10% 50V U C107 CERAMIC CHIP 47uF 20% 6.3V U C108 CERAMIC CHIP 0.1uF 10% 10V U C109 CERAMIC CHIP 0.1uF 10% 10V U C110 CERAMIC CHIP 0.1uF 20% 16V
U C113 CERAMIC CHIP 0.1uF 10% 10V U C114 SHORT CHIP 0 U C115 CERAMIC CHIP 0.1uF 20% 16V U C117 CERAMIC CHIP 0.1uF 20% 16V U C119 CERAMIC CHIP 0.1uF 20% 16V
U C126 CERAMIC CHIP 2.2uF 20% 16V U C133 CERAMIC CHIP 22uF 20% 16V U C135 CERAMIC CHIP 0.1uF 20% 16V U C136 CERAMIC CHIP 470PF 10% 50V U C139 CERAMIC CHIP 0.01uF 10% 25V
U C140 CERAMIC CHIP 0.01uF 10% 25V U C141 CERAMIC CHIP 0.01uF 10% 25V U C144 CERAMIC CHIP 0.1uF 10% 10V U C154 CERAMIC CHIP 0.01uF 10% 25V U C155 CERAMIC CHIP 0.1uF 20% 16V
U C156 CERAMIC CHIP 0.1uF 20% 16V U C157 CERAMIC CHIP 0.1uF 10% 10V U C158 CERAMIC CHIP 0.1uF 20% 16V U C161 CERAMIC CHIP 0.1uF 20% 16V U C162 CERAMIC CHIP 10uF 10% 16V
U C175 CERAMIC CHIP 0.01uF 10% 25V U C176 CERAMIC CHIP 0.1uF 10% 10V U C178 CERAMIC CHIP 0.1uF 10% 10V U C179 CERAMIC CHIP 0.1uF 10% 10V U C180 CERAMIC CHIP 0.1uF 10% 10V
U C181 CERAMIC CHIP 0.1uF 10% 10V U C182 CERAMIC CHIP 0.1uF 10% 10V U C183 CERAMIC CHIP 0.1uF 10% 10V U C184 CERAMIC CHIP 0.1uF 10% 10V U C185 CERAMIC CHIP 0.1uF 10% 10V
SC Ref. No. Part No. Description Remark
U C196 CERAMIC CHIP 100PF 5% 50V U C197 CERAMIC CHIP 0.1uF 10% 10V U C198 CERAMIC CHIP 10uF 10% 16V U C199 CERAMIC CHIP 100PF 5% 50V U C200 CERAMIC CHIP 0.1uF 10% 10V
U C203 CERAMIC CHIP 0.1uF 10% 10V U C206 CERAMIC CHIP 0.1uF 10% 10V U C207 CERAMIC CHIP 0.001uF 10% 50V U C209 CERAMIC CHIP 0.022uF 10% 16V U C213 CERAMIC CHIP 0.1uF 10% 10V
U C215 CERAMIC CHIP 0.1uF 10% 10V U C217 CERAMIC CHIP 0.1uF 10% 10V U C218 CERAMIC CHIP 0.1uF 10% 10V U C219 CERAMIC CHIP 0.1uF 10% 10V U C221 CERAMIC CHIP 0.1uF 10% 10V
U C222 CERAMIC CHIP 0.1uF 10% 10V U C223 CERAMIC CHIP 0.22uF 10% 6.3V U C224 CERAMIC CHIP 0.1uF 10% 10V U C225 CERAMIC CHIP 100PF 5% 50V U C226 CERAMIC CHIP 0.1uF 10% 10V
U C227 CERAMIC CHIP 0.1uF 10% 10V U C228 CERAMIC CHIP 0.1uF 10% 10V U C232 CERAMIC CHIP 0.1uF 10% 10V U C233 CERAMIC CHIP 0.1uF 10% 10V U C234 CERAMIC CHIP 0.1uF 10% 10V
U C235 CERAMIC CHIP 0.1uF 10% 10V U C236 CERAMIC CHIP 0.1uF 10% 10V U C237 CERAMIC CHIP 100PF 5% 50V U C238 CERAMIC CHIP 22uF 20% 16V U C239 CERAMIC CHIP 0.1uF 10% 10V
U C240 CERAMIC CHIP 0.1uF 10% 10V U C241 CERAMIC CHIP 0.1uF 10% 10V U C242 CERAMIC CHIP 0.1uF 10% 10V U C243 ELECT CHIP 220uF 20% 16V U C244 CERAMIC CHIP 0.001uF 10% 50V
U C250 CERAMIC CHIP 0.1uF 10% 10V U C251 CERAMIC CHIP 0.1uF 10% 10V U C254 CERAMIC CHIP 0.1uF 10% 10V U C273 CERAMIC CHIP 0.1uF 10% 10V U C300 CERAMIC CHIP 0.1uF 10% 10V
U C301 CERAMIC CHIP 0.1uF 10% 10V U C302 CERAMIC CHIP 0.1uF 10% 10V U C303 CERAMIC CHIP 0.1uF 10% 10V U C304 CERAMIC CHIP 0.33uF 20% 10V U C306 CERAMIC CHIP 0.1uF 10% 10V
U C307 CERAMIC CHIP 470PF 10% 50V U C308 CERAMIC CHIP 0.1uF 10% 10V U C310 CERAMIC CHIP 0.0068uF 10% 16V U C311 CERAMIC CHIP 0.1uF 10% 10V U C312 CERAMIC CHIP 0.001uF 10% 50V
SC Ref. No. Part No. Description Remark
U C321 CERAMIC CHIP 1uF 20% 6.3V U C322 CERAMIC CHIP 0.22uF 10% 6.3V U C323 CERAMIC CHIP 0.1uF 10% 10V U C324 CERAMIC CHIP 0.1uF 10% 10V U C325 CERAMIC CHIP 10uF 20% 16V
U C326 CERAMIC CHIP 0.1uF 10% 10V U C327 CERAMIC CHIP 22PF 5% 50V U C328 CERAMIC CHIP 22PF 5% 50V U C329 CERAMIC CHIP 0.1uF 10% 10V U C330 CERAMIC CHIP 22PF 5% 50V
U C331 CERAMIC CHIP 220PF 10% 50V U C332 CERAMIC CHIP 220PF 10% 50V U C333 CERAMIC CHIP 0.022uF 10% 16V U C334 CERAMIC CHIP 0.1uF 10% 10V U C335 CERAMIC CHIP 0.0047uF 10% 50V
U C336 CERAMIC CHIP 0.1uF 10% 10V U C340 CERAMIC CHIP 220PF 10% 50V U C341 CERAMIC CHIP 0.0015uF 10% 50V U C342 CERAMIC CHIP 0.0033uF 10% 16V U C343 CERAMIC CHIP 0.1uF 10% 10V
U C345 CERAMIC CHIP 0.1uF 10% 10V U C348 CERAMIC CHIP 0.1uF 10% 10V U C349 CERAMIC CHIP 0.1uF 10% 10V U C350 CERAMIC CHIP 0.1uF 10% 10V U C351 CERAMIC CHIP 0.1uF 10% 10V
U C352 CERAMIC CHIP 0.1uF 10% 10V U C353 CERAMIC CHIP 0.001uF 10% 50V U C354 CERAMIC CHIP 0.001uF 10% 50V U C356 CERAMIC CHIP 0.001uF 10% 50V U C357 CERAMIC CHIP 0.001uF 10% 50V
U C358 CERAMIC CHIP 0.068uF 10% 10V U C359 CERAMIC CHIP 0.1uF 10% 10V U C360 CERAMIC CHIP 0.001uF 10% 50V U C361 CERAMIC CHIP 0.0068uF 10% 16V U C362 CERAMIC CHIP 0.0068uF 10% 16V
U C363 CERAMIC CHIP 0.0068uF 10% 16V U C364 CERAMIC CHIP 0.1uF 10% 10V U C365 CERAMIC CHIP 0.0068uF 10% 16V U C366 CERAMIC CHIP 0.1uF 10% 10V U C367 CERAMIC CHIP 0.1uF 10% 10V
U C368 CERAMIC CHIP 0.1uF 10% 10V U C369 CERAMIC CHIP 0.1uF 10% 10V U C370 CERAMIC CHIP 0.1uF 10% 10V U C371 CERAMIC CHIP 0.1uF 10% 10V U C372 CERAMIC CHIP 0.1uF 10% 10V
U C373 CERAMIC CHIP 0.1uF 10% 10V U C374 CERAMIC CHIP 0.1uF 10% 10V U C375 CERAMIC CHIP 0.1uF 10% 10V U C376 CERAMIC CHIP 0.1uF 10% 10V U C380 CERAMIC CHIP 0.1uF 10% 10V
S
< CAPACITOR >
U C101 CERAMIC CHIP 0.1uF 10% 10V U C102 CERAMIC CHIP 0.1uF 10% 10V U C103 CERAMIC CHIP 0.001uF 10% 50V U C104 CERAMIC CHIP 0.001uF 10% 50V U C105 CERAMIC CHIP 0.001uF 10% 50V
A-1267-249-A BMD-001 COMPL (SERVICE)
**************
U C186 CERAMIC CHIP 0.1uF 10% 10V U C187 CERAMIC CHIP 0.1uF 10% 10V U C188 CERAMIC CHIP 0.001uF 10% 50V U C189 CERAMIC CHIP 0.1uF 10% 10V U C190 CERAMIC CHIP 47PF 5% 50V
U C191 CERAMIC CHIP 47PF 5% 50V U C192 CERAMIC CHIP 100PF 5% 50V U C193 CERAMIC CHIP 100PF 5% 50V U C194 CERAMIC CHIP 0.01uF 10% 25V U C195 CERAMIC CHIP 0.1uF 10% 10V
4-1
U C313 CERAMIC CHIP 0.001uF 10% 50V U C314 CERAMIC CHIP 0.01uF 10% 25V U C315 CERAMIC CHIP 0.1uF 10% 10V U C316 CERAMIC CHIP 0.1uF 10% 10V U C317 CERAMIC CHIP 0.1uF 10% 10V
U C318 CERAMIC CHIP 0.1uF 10% 10V U C319 CERAMIC CHIP 0.1uF 10% 10V U C320 CERAMIC CHIP 0.1uF 10% 10V
U C381 CERAMIC CHIP 0.1uF 10% 10V U C382 CERAMIC CHIP 0.1uF 10% 10V U C383 CERAMIC CHIP 0.1uF 10% 10V U C386 CERAMIC CHIP 0.1uF 10% 10V U C389 CERAMIC CHIP 0.1uF 10% 10V
U C390 CERAMIC CHIP 0.1uF 10% 10V U C391 CERAMIC CHIP 0.1uF 10% 10V U C392 CERAMIC CHIP 0.1uF 10% 10V
Reproduction Prohibited
SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark
U C395 CERAMIC CHIP 15PF 5% 50V U C396 CERAMIC CHIP 15PF 5% 50V U C399 CERAMIC CHIP 0.1uF 10% 10V U C400 CERAMIC CHIP 0.1uF 10% 10V U C401 CERAMIC CHIP 0.0068uF 10% 16V
U C402 CERAMIC CHIP 0.0068uF 10% 16V U C450 CERAMIC CHIP 100PF 5% 50V U C451 CERAMIC CHIP 100PF 5% 50V U C452 CERAMIC CHIP 100PF 5% 50V U C453 CERAMIC CHIP 100PF 5% 50V
U C454 CERAMIC CHIP 100PF 5% 50V U C455 CERAMIC CHIP 0.1uF 10% 10V U C456 CERAMIC CHIP 100PF 5% 50V U C457 CERAMIC CHIP 0.1uF 10% 10V U C458 CERAMIC CHIP 0.1uF 10% 10V
U C460 CERAMIC CHIP 100PF 5% 50V U C500 CERAMIC CHIP 1uF 10% 6.3V U C501 CERAMIC CHIP 0.47uF 10% 6.3V U C503 CERAMIC CHIP 100PF 5% 50V U C504 CERAMIC CHIP 100uF 20% 6.3V
U C505 CERAMIC CHIP 1uF 10% 16V U C506 CERAMIC CHIP 10uF 20% 16V U C507 CERAMIC CHIP 22uF 20% 16V U C508 CERAMIC CHIP 0.1uF 10% 10V U C509 CERAMIC CHIP 0.1uF 10% 10V
U C557 CERAMIC CHIP 0.1uF 10% 10V U C558 CERAMIC CHIP 0.1uF 10% 10V U C559 CERAMIC CHIP 0.1uF 10% 10V U C560 CERAMIC CHIP 0.1uF 10% 10V U C561 CERAMIC CHIP 0.1uF 10% 10V
U C562 CERAMIC CHIP 0.1uF 10% 10V U C563 CERAMIC CHIP 0.1uF 10% 10V U C564 CERAMIC CHIP 0.1uF 10% 10V U C565 CERAMIC CHIP 0.1uF 10% 10V U C566 CERAMIC CHIP 0.1uF 10% 10V
U C567 CERAMIC CHIP 0.1uF 10% 10V U C568 CERAMIC CHIP 0.1uF 10% 10V U C569 CERAMIC CHIP 0.1uF 10% 10V U C570 CERAMIC CHIP 0.1uF 10% 10V U C571 CERAMIC CHIP 0.1uF 10% 10V
U C572 CERAMIC CHIP 0.1uF 10% 10V U C573 CERAMIC CHIP 0.1uF 10% 10V U C574 CERAMIC CHIP 0.1uF 10% 10V U C575 CERAMIC CHIP 0.1uF 10% 10V U C576 CERAMIC CHIP 0.1uF 10% 10V
U C577 CERAMIC CHIP 0.1uF 10% 10V U C578 CERAMIC CHIP 0.1uF 10% 10V U C579 CERAMIC CHIP 0.1uF 10% 10V U C580 CERAMIC CHIP 0.1uF 10% 10V U C581 CERAMIC CHIP 0.1uF 10% 10V
SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark
U C616 CERAMIC CHIP 100PF 5% 50V U C617 CERAMIC CHIP 0.1uF 10% 10V U C620 CERAMIC CHIP 0.1uF 10% 10V U C621 CERAMIC CHIP 0.1uF 10% 10V U C622 CERAMIC CHIP 0.1uF 10% 10V
U C623 CERAMIC CHIP 0.1uF 10% 10V U C624 CERAMIC CHIP 0.1uF 10% 10V U C625 CERAMIC CHIP 0.1uF 10% 10V U C626 CERAMIC CHIP 0.1uF 10% 10V U C627 CERAMIC CHIP 0.1uF 10% 10V
U C628 CERAMIC CHIP 0.1uF 10% 10V U C629 CERAMIC CHIP 0.1uF 10% 10V U C630 CERAMIC CHIP 0.1uF 10% 10V U C631 CERAMIC CHIP 0.1uF 10% 10V U C632 CERAMIC CHIP 0.1uF 10% 10V
U C633 CERAMIC CHIP 0.1uF 10% 10V U C634 CERAMIC CHIP 0.1uF 10% 10V U C635 CERAMIC CHIP 0.1uF 10% 10V U C636 CERAMIC CHIP 0.1uF 10% 10V U C637 CERAMIC CHIP 0.1uF 10% 10V
U C638 CERAMIC CHIP 0.1uF 10% 10V U C639 CERAMIC CHIP 0.1uF 10% 10V U C640 CERAMIC CHIP 0.1uF 10% 10V U C641 CERAMIC CHIP 0.1uF 10% 10V U C642 CERAMIC CHIP 0.1uF 10% 10V
< FILTER >
U FL103 FILTER, EMI REMOVAL (SMD) U FL104 FILTER, EMI REMOVAL (SMD) U FL500 FILTER, EMI REMOVAL (SMD) U FL501 FILTER, EMI REMOVAL (SMD) U FL502 FILTER, EMI REMOVAL (SMD)
U FL503 FILTER, EMI REMOVAL (SMD)
< IC >
U IC103 IC BD7956FS-E2 U IC108 IC BA5888FP-E2 U IC110 IC CXA2720R-TL U IC300 IC CXD5063GG-1 U IC303 IC NJM13403V(TE2)
U IC304 U IC309 IC K4S641632K-UC75T U IC310 IC MX25L1005MC-12G U IC500 IC PST3629UL U IC501 IC PST3814UL
U IC503 IC TPS64201DBVRG4 U IC504 IC CXD5064R-T6 U IC506 IC MM3292FNRE U IC507 IC TC7WH74FK(TE85R) U IC508 IC TPS64203DBVRG4
U C510 CERAMIC CHIP 0.1uF 10% 10V U C512 CERAMIC CHIP 0.22uF 10% 6.3V U C523 CERAMIC CHIP 1uF 20% 6.3V U C527 CERAMIC CHIP 0.1uF 10% 10V U C528 CERAMIC CHIP 0.1uF 10% 10V
U C529 CERAMIC CHIP 0.1uF 10% 10V U C530 CERAMIC CHIP 0.1uF 10% 10V U C531 CERAMIC CHIP 0.1uF 10% 10V U C532 CERAMIC CHIP 0.1uF 10% 10V U C533 CERAMIC CHIP 0.1uF 10% 10V
U C534 CERAMIC CHIP 0.1uF 10% 10V U C535 CERAMIC CHIP 0.1uF 10% 10V U C536 CERAMIC CHIP 0.1uF 10% 10V U C537 CERAMIC CHIP 0.1uF 10% 10V U C538 CERAMIC CHIP 0.1uF 10% 10V
U C539 CERAMIC CHIP 0.1uF 10% 10V U C540 CERAMIC CHIP 0.1uF 10% 10V U C541 CERAMIC CHIP 0.1uF 10% 10V U C542 CERAMIC CHIP 0.1uF 10% 10V U C543 CERAMIC CHIP 0.1uF 10% 10V
U C544 CERAMIC CHIP 0.1uF 10% 10V U C545 CERAMIC CHIP 0.1uF 10% 10V U C546 CERAMIC CHIP 0.1uF 10% 10V U C547 CERAMIC CHIP 0.1uF 10% 10V U C548 CERAMIC CHIP 0.1uF 10% 10V
U C549 CERAMIC CHIP 0.1uF 10% 10V U C550 CERAMIC CHIP 0.1uF 10% 10V U C551 CERAMIC CHIP 0.1uF 10% 10V U C552 CERAMIC CHIP 0.1uF 10% 10V U C553 CERAMIC CHIP 0.1uF 10% 10V
U C554 CERAMIC CHIP 0.1uF 10% 10V U C555 CERAMIC CHIP 0.1uF 10% 10V U C556 CERAMIC CHIP 0.1uF 10% 10V
U C583 CERAMIC CHIP 0.1uF 10% 10V U C584 CERAMIC CHIP 0.1uF 10% 10V U C585 CERAMIC CHIP 0.1uF 10% 10V U C586 CERAMIC CHIP 0.1uF 10% 10V U C587 CERAMIC CHIP 0.1uF 10% 10V
U C588 CERAMIC CHIP 0.1uF 10% 10V U C589 CERAMIC CHIP 0.1uF 10% 10V U C590 CERAMIC CHIP 0.1uF 10% 10V U C591 CERAMIC CHIP 0.1uF 10% 10V U C592 CERAMIC CHIP 0.1uF 10% 10V
U C593 CERAMIC CHIP 0.1uF 10% 10V U C594 CERAMIC CHIP 0.1uF 10% 10V U C595 CERAMIC CHIP 0.1uF 10% 10V U C596 CERAMIC CHIP 0.1uF 10% 10V U C597 CERAMIC CHIP 0.1uF 10% 10V
U C598 CERAMIC CHIP 0.1uF 10% 10V U C599 CERAMIC CHIP 0.1uF 10% 10V U C600 CERAMIC CHIP 0.1uF 10% 10V U C601 CERAMIC CHIP 0.1uF 10% 10V U C602 CERAMIC CHIP 0.1uF 10% 10V
U C603 CERAMIC CHIP 0.1uF 10% 10V U C604 CERAMIC CHIP 0.1uF 10% 10V U C605 CERAMIC CHIP 0.1uF 10% 10V U C606 CERAMIC CHIP 1uF 10% 10V U C607 CERAMIC CHIP 22uF 20% 10V
U C608 CERAMIC CHIP 22uF 20% 10V U C609 TANTAL. CHIP 47uF 20% 6.3V U C610 ELECT CHIP 100uF 20% 16V U C611 ELECT CHIP 100uF 20% 6.3V U C612 ELECT CHIP 100uF 20% 6.3V
U C613 ELECT CHIP 100uF 20% 6.3V U C614 CERAMIC CHIP 1uF 10% 10V U C615 CERAMIC CHIP 0.1uF 10% 10V
U C643 CERAMIC CHIP 0.1uF 10% 10V U C644 CERAMIC CHIP 0.1uF 10% 10V U C645 CERAMIC CHIP 0.1uF 10% 10V U C646 CERAMIC CHIP 0.1uF 10% 10V U C647 CERAMIC CHIP 0.1uF 10% 10V
U C648 CERAMIC CHIP 1uF 10% 6.3V U C649 CERAMIC CHIP 1uF 10% 6.3V U C650 CERAMIC CHIP 0.1uF 10% 16V U C651 CERAMIC CHIP 0.1uF 10% 16V U C652 CERAMIC CHIP 0.1uF 10% 10V
< CONNECTOR >
CN100 CONNECTOR, FFC/FPC (ZIF) 19P
U
!
U! CN101 CONNECTOR, FFC/FPC (ZIF) 14P U! CN102 CONNECTOR, FFC/FPC (ZIF) 8P U! CN103 CONNECTOR, FFC/FPC (ZIF) 45P U CN104 PIN, CONNECTOR 2P
U! CN301 CONNECTOR, FFC/FPC (ZIF) 60P U CN502 PIN, CONNECTOR (PC BOARD) 4P
< DIODE >
U D100 DIODE RR264M-400 U D101 DIODE RR264M-400 U D500 DIODE DAP202K-T-146 U D501 DIODE RB051LA-40TR U D502 DIODE DAP202K-T-146
< FERRITE BEAD >
U FB301 FERRITE, EMI (SMD) (1608) U FB499 FERRITE, EMI (SMD) (2012) U FB527 FERRITE, EMI (SMD) U FB528 FERRITE, EMI (SMD) U FB557 FERRITE, EMI (SMD) (2012)
U IC509 IC BD7800FP-E2
< COIL >
U L100 COIL, CHOKE 150uH U L101 COIL, CHOKE 10uH U L103 COIL, CHOKE 4.7uH U L500 COIL, CHOKE 10uH U L503 COIL, CHOKE 10uH
U L506 COIL, CHOKE 1uH U L507 COIL, CHOKE 4.7uH U L508 COIL, CHOKE 4.7uH U L509 COIL, CHOKE 4.7uH U L510 INDUCTOR (EMI FERRITE) (2012)
U L511 INDUCTOR (EMI FERRITE) (2012) U L514 INDUCTOR (EMI FERRITE) (2012)
< TRANSISTOR >
U Q102 FET RTR025N03TL U Q103 FET RTR025N03TL U Q104 TRANSISTOR UMH4NTN U Q105 TRANSISTOR DTC144EE-TL U Q106 TRANSISTOR UMH11NTN
U Q107 TRANSISTOR DTA143EE-TL U Q109 TRANSISTOR UMH11NTN U Q500 FET RSQ035P03TR U Q501 TRANSISTOR DTC144EE-TL U Q502 FET IRF7422D2TRPBF
U Q506 TRANSISTOR DTC115EETL U Q507 FET RTQ035P02TR U Q508 FET RTQ035P02TR
4-2
Reproduction Prohibited
SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark
< RESISTOR >
U R101 RES-CHIP 68 5% 1/16W U R102 RES-CHIP 180 5% 1/16W U R104 SHORT CHIP 0 U R105 RES-CHIP 10K 5% 1/16W U R106 RES-CHIP 10K 5% 1/16W
U R107 RES-CHIP 47K 5% 1/16W U R108 RES-CHIP 47K 5% 1/16W U R109 RES-CHIP 47K 5% 1/16W U R110 RES-CHIP 10K 5% 1/16W U R111 SHORT CHIP 0
U R112 SHORT CHIP 0 U R114 SHORT CHIP 0 U R118 SHORT CHIP 0 U R119 SHORT CHIP 0 U R121 RES-CHIP 10K 5% 1/16W
U R122 RES-CHIP 100 5% 1/16W U R124 METAL CHIP 12K 0.5% 1/16W U R126 RES-CHIP 1K 5% 1/16W U R127 SHORT CHIP 0 U R129 SHORT CHIP 0
U R133 SHORT CHIP 0 U R135 SHORT CHIP 0 U R136 SHORT CHIP 0 U R139 METAL CHIP 3.3K 0.5% 1/16W U R163 METAL CHIP 0.33 1% 1/2W
U R171 SHORT CHIP 0 U R180 METAL CHIP 0.56 5% 1/3W U R181 METAL CHIP 0.56 5% 1/3W U R187 METAL CHIP 10K 0.5% 1/16W U R199 SHORT CHIP 0
U R201 SHORT CHIP 0 U R202 METAL CHIP 12K 0.5% 1/16W U R203 METAL CHIP 24K 0.5% 1/16W U R204 RES-CHIP 10K 5% 1/16W U R206 SHORT CHIP 0
U R212 METAL CHIP 1.8K 0.5% 1/16W U R214 RES-CHIP 15K 5% 1/16W U R217 RES-CHIP 10K 5% 1/16W U R218 RES-CHIP 100 5% 1/16W U R219 RES-CHIP 100 5% 1/16W
U R222 METAL CHIP 1 5% 1/3W U R224 SHORT CHIP 0 U R226 SHORT CHIP 0 U R227 SHORT CHIP 0 U R228 SHORT CHIP 0
U R229 SHORT CHIP 0 U R230 SHORT CHIP 0 U R231 SHORT CHIP 0 U R232 SHORT CHIP 0 U R233 SHORT CHIP 0
U R234 SHORT CHIP 0 U R235 SHORT CHIP 0 U R236 SHORT CHIP 0 U R237 SHORT CHIP 0 U R238 SHORT CHIP 0
U R240 SHORT CHIP 0
U R241 METAL CHIP 1 5% 1/3W U R242 SHORT CHIP 0 U R243 METAL CHIP 22 5% 1/10W U R244 METAL CHIP 22 5% 1/10W U R245 METAL CHIP 22 5% 1/10W
U R246 METAL CHIP 22 5% 1/10W U R258 RES-CHIP 680K 5% 1/16W U R259 METAL CHIP 5.6 5% 1/3W U R260 METAL CHIP 100 5% 1W U R265 METAL CHIP 22K 0.5% 1/16W
U R267 METAL CHIP 22K 0.5% 1/16W U R268 RES-CHIP 10K 5% 1/16W U R269 RES-CHIP 10K 5% 1/16W U R270 RES-CHIP 2.2K 5% 1/16W U R271 RES-CHIP 100 5% 1/16W
U R272 RES-CHIP 100 5% 1/16W U R273 RES-CHIP 100 5% 1/16W U R277 RES-CHIP 47K 5% 1/16W U R278 RES-CHIP 47K 5% 1/16W U R282 RES-CHIP 10 5% 1/16W
U R283 RES-CHIP 10 5% 1/16W U R284 RES-CHIP 10 5% 1/16W U R285 RES-CHIP 10 5% 1/16W U R288 SHORT CHIP 0 U R289 SHORT CHIP 0
U R290 SHORT CHIP 0 U R291 SHORT CHIP 0 U R292 SHORT CHIP 0 U R293 SHORT CHIP 0 U R294 SHORT CHIP 0
U R295 SHORT CHIP 0 U R296 SHORT CHIP 0 U R297 SHORT CHIP 0 U R298 SHORT CHIP 0 U R299 SHORT CHIP 0
U R300 METAL CHIP 2.2K 0.5% 1/16W U R301 RES-CHIP 47K 5% 1/16W U R302 RES-CHIP 47K 5% 1/16W U R303 RES-CHIP 47K 5% 1/16W U R304 RES-CHIP 47K 5% 1/16W
U R305 RES-CHIP 47K 5% 1/16W U R307 RES-CHIP 47K 5% 1/16W U R309 RES-CHIP 33 5% 1/16W U R310 RES-CHIP 33 5% 1/16W U R311 RES-CHIP 33 5% 1/16W
U R312 METAL CHIP 3.3K 0.5% 1/16W U R315 METAL CHIP 12K 0.5% 1/16W U R320 RES-CHIP 10K 5% 1/16W U R324 RES-CHIP 10K 5% 1/16W U R326 METAL CHIP 100K 0.5% 1/16W
U R329 METAL CHIP 47K 0.5% 1/16W U R331 SHORT CHIP 0 U R332 METAL CHIP 47K 0.5% 1/16W U R333 SHORT CHIP 0 U R336 RES-CHIP 47K 5% 1/16W
U R337 RES-CHIP 10K 5% 1/16W U R339 RES-CHIP 4.7K 5% 1/16W U R341 SHORT CHIP 0
U R342 METAL CHIP 4.7K 0.5% 1/16W U R343 METAL CHIP 4.7K 0.5% 1/16W U R344 RES-CHIP 470 5% 1/16W U R346 RES-CHIP 1.5K 5% 1/16W U R348 METAL CHIP 4.7K 0.5% 1/16W
U R349 METAL CHIP 22K 0.5% 1/16W U R350 METAL CHIP 22K 0.5% 1/16W U R351 METAL CHIP 4.7K 0.5% 1/16W U R352 METAL CHIP 10K 0.5% 1/16W U R354 METAL CHIP 4.7K 0.5% 1/16W
U R355 SHORT CHIP 0 U R357 RES-CHIP 4.7K 5% 1/16W U R358 METAL CHIP 4.7K 0.5% 1/16W U R359 RES-CHIP 1K 5% 1/16W U R360 RES-CHIP 100 5% 1/16W
U R361 METAL CHIP 22K 0.5% 1/16W U R363 METAL CHIP 22K 0.5% 1/16W U R365 SHORT CHIP 0 U R366 METAL CHIP 47K 0.5% 1/16W U R367 RES-CHIP 100 5% 1/16W
U R368 RES-CHIP 100 5% 1/16W U R369 RES-CHIP 100 5% 1/16W U R370 RES-CHIP 100 5% 1/16W U R371 RES-CHIP 100 5% 1/16W U R372 RES-CHIP 100 5% 1/16W
U R374 RES-CHIP 47K 5% 1/16W U R375 RES-CHIP 47K 5% 1/16W U R376 RES-CHIP 47K 5% 1/16W U R377 RES-CHIP 47K 5% 1/16W U R378 RES-CHIP 47K 5% 1/16W
U R379 SHORT CHIP 0 U R380 RES-CHIP 4.7K 5% 1/16W U R381 RES-CHIP 4.7K 5% 1/16W U R382 RES-CHIP 4.7K 5% 1/16W U R383 RES-CHIP 4.7K 5% 1/16W
U R384 RES-CHIP 47K 5% 1/16W U R386 RES-CHIP 47K 5% 1/16W U R387 RES-CHIP 47K 5% 1/16W U R388 RES-CHIP 47K 5% 1/16W U R389 METAL CHIP 10K 0.5% 1/16W
U R391 METAL CHIP 10K 0.5% 1/16W U R392 METAL CHIP 10K 0.5% 1/16W U R393 RES-CHIP 33 5% 1/16W U R396 RES-CHIP 1K 5% 1/16W U R397 RES-CHIP 47K 5% 1/16W
U R398 RES-CHIP 1M 5% 1/16W U R399 RES-CHIP 47K 5% 1/16W U R400 RES-CHIP 33 5% 1/16W U R401 RES-CHIP 33 5% 1/16W U R402 RES-CHIP 33 5% 1/16W
U R403 RES-CHIP 33 5% 1/16W U R404 RES-CHIP 33 5% 1/16W U R405 RES-CHIP 47K 5% 1/16W U R408 METAL CHIP 47K 0.5% 1/16W U R409 RES-CHIP 47K 5% 1/16W
U R411 RES-CHIP 47K 5% 1/16W U R415 RES-CHIP 10K 5% 1/16W U R416 RES-CHIP 82 5% 1/16W
U R418 RES-CHIP 1K 5% 1/16W U R419 RES-CHIP 82 5% 1/16W U R420 RES-CHIP 82 5% 1/16W U R421 RES-CHIP 82 5% 1/16W U R422 RES-CHIP 22 5% 1/16W
U R423 RES-CHIP 82 5% 1/16W U R424 SHORT CHIP 0 U R425 RES-CHIP 82 5% 1/16W U R426 RES-CHIP 82 5% 1/16W U R427 RES-CHIP 22 5% 1/16W
U R430 RES-CHIP 82 5% 1/16W U R431 RES-CHIP 82 5% 1/16W U R432 METAL CHIP 4.7K 0.5% 1/16W U R433 METAL CHIP 4.7K 0.5% 1/16W U R434 RES-CHIP 47K 5% 1/16W
U R435 RES-CHIP 1K 5% 1/16W U R436 RES-CHIP 1K 5% 1/16W U R437 RES-CHIP 1K 5% 1/16W U R438 RES-CHIP 1K 5% 1/16W U R442 RES-CHIP 10K 5% 1/16W
U R443 RES-CHIP 10K 5% 1/16W U R444 METAL CHIP 47K 0.5% 1/16W U R449 RES-CHIP 47K 5% 1/16W U R452 RES-CHIP 47K 5% 1/16W U R453 RES-CHIP 47K 5% 1/16W
U R454 RES-CHIP 47K 5% 1/16W U R458 SHORT CHIP 0 U R459 RES-CHIP 10K 5% 1/16W U R460 RES-CHIP 10K 5% 1/16W U R461 RES-CHIP 100 5% 1/16W
U R462 RES-CHIP 100 5% 1/16W U R463 RES-CHIP 100K 5% 1/16W U R464 RES-CHIP 10K 5% 1/16W U R465 RES-CHIP 10K 5% 1/16W U R470 SHORT CHIP 0
U R471 SHORT CHIP 0 U R498 SHORT CHIP 0 U R502 RES-CHIP 10 5% 1/16W U R503 METAL CHIP 0.047 1% 1/4W U R504 RES-CHIP 47K 5% 1/16W
U R506 METAL CHIP 560K 0.5% 1/16W U R508 METAL CHIP 330K 0.5% 1/16W U R509 RES-CHIP 10K 5% 1/16W U R510 SHORT CHIP 0 U R511 METAL CHIP 27K 0.5% 1/16W
U R512 SHORT CHIP 0 U R514 METAL CHIP 180K 0.5% 1/16W U R515 METAL CHIP 560K 0.5% 1/16W U R516 RES-CHIP 10K 5% 1/16W U R517 RES-CHIP 22K 5% 1/16W
U R518 RES-CHIP 10K 5% 1/16W U R519 RES-CHIP 22K 5% 1/16W U R520 METAL CHIP 2K 0.5% 1/16W U R521 METAL CHIP 3.3K 0.5% 1/16W U R522 METAL CHIP 150 0.5% 1/16W
U R523 METAL CHIP 0.047 1% 1/4W U R524 SHORT CHIP 0 U R529 SHORT CHIP 0
4-3
Reproduction Prohibited
SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark
U R530 RES-CHIP 10K 5% 1/16W U R531 RES-CHIP 10K 5% 1/16W U R532 RES-CHIP 10K 5% 1/16W U R533 RES-CHIP 10K 5% 1/16W U R534 RES-CHIP 10K 5% 1/16W
U R535 RES-CHIP 10K 5% 1/16W U R536 RES-CHIP 10K 5% 1/16W U R537 RES-CHIP 10K 5% 1/16W U R538 RES-CHIP 10K 5% 1/16W U R539 RES-CHIP 10K 5% 1/16W
U R540 RES-CHIP 10K 5% 1/16W U R541 SHORT CHIP 0 U R542 SHORT CHIP 0 U R543 SHORT CHIP 0 U R544 RES-CHIP 100 5% 1/16W
U R545 RES-CHIP 100 5% 1/16W U R546 SHORT CHIP 0 U R547 SHORT CHIP 0 U R549 RES-CHIP 47K 5% 1/16W U R550 RES-CHIP 47K 5% 1/16W
U R551 RES-CHIP 47K 5% 1/16W U R552 SHORT CHIP 0 U R553 RES-CHIP 10K 5% 1/16W U R555 RES-CHIP 10K 5% 1/16W U R556 SHORT CHIP 0
U C115 CERAMIC CHIP 0.1uF 20% 16V U C117 CERAMIC CHIP 0.1uF 20% 16V U C119 CERAMIC CHIP 0.1uF 20% 16V U C126 CERAMIC CHIP 2.2uF 20% 16V U C133 CERAMIC CHIP 22uF 20% 16V
U C135 CERAMIC CHIP 0.1uF 20% 16V U C136 CERAMIC CHIP 470PF 10% 50V U C139 CERAMIC CHIP 0.01uF 10% 25V U C140 CERAMIC CHIP 0.01uF 10% 25V U C141 CERAMIC CHIP 0.01uF 10% 25V
U C144 CERAMIC CHIP 0.1uF 10% 10V U C154 CERAMIC CHIP 0.01uF 10% 25V U C155 CERAMIC CHIP 0.1uF 20% 16V U C156 CERAMIC CHIP 0.1uF 20% 16V U C157 CERAMIC CHIP 0.1uF 10% 10V
U C158 CERAMIC CHIP 0.1uF 20% 16V U C161 CERAMIC CHIP 0.1uF 20% 16V U C162 CERAMIC CHIP 10uF 20% 16V U C175 CERAMIC CHIP 0.01uF 10% 25V U C176 CERAMIC CHIP 0.1uF 10% 10V
U C178 CERAMIC CHIP 0.1uF 10% 10V U C179 CERAMIC CHIP 0.1uF 10% 10V U C180 CERAMIC CHIP 0.1uF 10% 10V U C181 CERAMIC CHIP 0.1uF 10% 10V U C182 CERAMIC CHIP 0.1uF 10% 10V
SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark
U C227 CERAMIC CHIP 0.1uF 10% 10V U C228 CERAMIC CHIP 0.1uF 10% 10V U C232 CERAMIC CHIP 0.1uF 10% 10V U C233 CERAMIC CHIP 0.1uF 10% 10V U C235 CERAMIC CHIP 0.1uF 10% 10V
U C236 CERAMIC CHIP 0.1uF 10% 10V U C237 CERAMIC CHIP 100PF 5% 50V U C238 CERAMIC CHIP 22uF 20% 10V U C239 CERAMIC CHIP 0.1uF 10% 10V U C240 CERAMIC CHIP 0.1uF 10% 10V
U C241 CERAMIC CHIP 0.1uF 10% 10V U C242 CERAMIC CHIP 0.1uF 10% 10V U C243 ELECT CHIP 220uF 20% 16V U C244 CERAMIC CHIP 0.001uF 10% 50V U C251 CERAMIC CHIP 0.1uF 10% 10V
U C273 CERAMIC CHIP 0.1uF 10% 10V U C302 CERAMIC CHIP 0.1uF 10% 10V U C303 CERAMIC CHIP 0.33uF 20% 10V U C305 CERAMIC CHIP 0.1uF 10% 10V U C306 CERAMIC CHIP 0.1uF 10% 10V
U C307 CERAMIC CHIP 470PF 10% 50V U C308 CERAMIC CHIP 0.1uF 10% 10V U C310 CERAMIC CHIP 0.0068uF 10% 16V U C311 CERAMIC CHIP 0.1uF 10% 10V U C312 CERAMIC CHIP 0.001uF 10% 50V
U C360 CERAMIC CHIP 0.001uF 10% 50V U C361 CERAMIC CHIP 0.0068uF 10% 16V U C362 CERAMIC CHIP 0.0068uF 10% 16V U C363 CERAMIC CHIP 0.0068uF 10% 16V U C364 CERAMIC CHIP 0.1uF 10% 10V
U C365 CERAMIC CHIP 0.0068uF 10% 16V U C366 CERAMIC CHIP 0.1uF 10% 10V U C367 CERAMIC CHIP 0.1uF 10% 10V U C368 CERAMIC CHIP 0.1uF 10% 10V U C369 CERAMIC CHIP 0.1uF 10% 10V
U C370 CERAMIC CHIP 0.1uF 10% 10V U C371 CERAMIC CHIP 0.1uF 10% 10V U C372 CERAMIC CHIP 0.1uF 10% 10V U C374 CERAMIC CHIP 0.1uF 10% 10V U C375 CERAMIC CHIP 0.1uF 10% 10V
U C380 CERAMIC CHIP 0.1uF 10% 10V U C381 CERAMIC CHIP 0.1uF 10% 10V U C382 CERAMIC CHIP 0.1uF 10% 10V U C383 CERAMIC CHIP 0.1uF 10% 10V U C386 CERAMIC CHIP 0.1uF 10% 10V
U C389 CERAMIC CHIP 0.1uF 10% 10V U C390 CERAMIC CHIP 0.1uF 10% 10V U C391 CERAMIC CHIP 0.1uF 10% 10V U C392 CERAMIC CHIP 0.1uF 10% 10V U C399 CERAMIC CHIP 0.1uF 10% 10V
< NETWORK RESISTOR >
U RB300 RES, NETWORK 33X4 (1005) U RB301 RES, NETWORK 33X4 (1005) U RB302 RES, NETWORK 33X4 (1005) U RB303 RES, NETWORK 33X4 (1005) U RB304 CONDUCTOR, NETWORK 0X4 (1005)
U RB305 CONDUCTOR, NETWORK 0X4 (1005) U RB306 CONDUCTOR, NETWORK 0X4 (1005) U RB307 CONDUCTOR, NETWORK 0X4 (1005) U RB308 RES, NETWORK 4.7KX4 (1005) U RB309 RES, NETWORK 4.7KX4 (1005)
U RB312 RES, NETWORK 4.7KX4 (1005)
< VIBRATOR >
U X301 VIBRATOR, CRYSTAL (33.8688MHz)
*****************************************************************
S
< CAPACITOR >
U C101 CERAMIC CHIP 0.1uF 10% 10V U C102 CERAMIC CHIP 0.1uF 10% 10V U C103 CERAMIC CHIP 0.001uF 10% 50V U C104 CERAMIC CHIP 0.001uF 10% 50V U C105 CERAMIC CHIP 0.001uF 10% 50V
U C106 CERAMIC CHIP 0.001uF 10% 50V U C107 CERAMIC CHIP 47uF 20% 6.3V U C108 CERAMIC CHIP 0.1uF 10% 10V U C109 CERAMIC CHIP 0.1uF 10% 10V U C110 CERAMIC CHIP 0.1uF 20% 16V
U C113 CERAMIC CHIP 0.1uF 10% 10V
A-1433-743-A BMD-002 COMPL (SERVICE)
*************
U C183 CERAMIC CHIP 0.1uF 10% 10V U C184 CERAMIC CHIP 0.1uF 10% 10V U C185 CERAMIC CHIP 0.1uF 10% 10V U C186 CERAMIC CHIP 0.1uF 10% 10V U C187 CERAMIC CHIP 0.1uF 10% 10V
U C188 CERAMIC CHIP 0.001uF 10% 50V U C189 CERAMIC CHIP 0.1uF 10% 10V U C190 CERAMIC CHIP 47PF 5% 50V U C191 CERAMIC CHIP 47PF 5% 50V U C192 CERAMIC CHIP 100PF 5% 50V
U C193 CERAMIC CHIP 100PF 5% 50V U C194 CERAMIC CHIP 0.01uF 10% 25V U C195 CERAMIC CHIP 0.1uF 10% 10V U C196 CERAMIC CHIP 100PF 5% 50V U C197 CERAMIC CHIP 0.1uF 10% 10V
U C198 CERAMIC CHIP 10uF 20% 16V U C199 CERAMIC CHIP 100PF 5% 50V U C200 CERAMIC CHIP 0.1uF 10% 10V U C203 CERAMIC CHIP 0.1uF 10% 10V U C206 CERAMIC CHIP 0.1uF 10% 10V
U C207 CERAMIC CHIP 0.001uF 10% 50V U C209 CERAMIC CHIP 0.022uF 10% 16V U C213 CERAMIC CHIP 0.1uF 10% 10V U C215 CERAMIC CHIP 0.1uF 10% 10V U C217 CERAMIC CHIP 0.1uF 10% 10V
U C218 CERAMIC CHIP 0.1uF 10% 10V U C219 CERAMIC CHIP 0.1uF 10% 10V U C221 CERAMIC CHIP 0.1uF 10% 10V U C222 CERAMIC CHIP 0.1uF 10% 10V U C223 CERAMIC CHIP 0.22uF 10% 6.3V
U C224 CERAMIC CHIP 0.1uF 10% 10V U C225 CERAMIC CHIP 100PF 5% 50V U C226 CERAMIC CHIP 0.1uF 10% 10V
U C313 CERAMIC CHIP 0.001uF 10% 50V U C314 CERAMIC CHIP 0.47uF 10% 6.3V U C315 CERAMIC CHIP 100PF 10% 50V U C316 CERAMIC CHIP 0.1uF 10% 10V U C321 CERAMIC CHIP 0.1uF 10% 10V
U C322 CERAMIC CHIP 1uF 10% 6.3V U C323 CERAMIC CHIP 0.1uF 10% 10V U C325 CERAMIC CHIP 10uF 20% 16V U C326 CERAMIC CHIP 0.1uF 10% 10V U C327 CERAMIC CHIP 22PF 5% 50V
U C328 CERAMIC CHIP 22PF 5% 50V U C329 CERAMIC CHIP 0.1uF 10% 10V U C330 CERAMIC CHIP 22PF 5% 50V U C331 CERAMIC CHIP 220PF 10% 50V U C332 CERAMIC CHIP 220PF 10% 50V
U C333 CERAMIC CHIP 0.022uF 10% 16V U C335 CERAMIC CHIP 0.0047uF 10% 50V U C340 CERAMIC CHIP 220PF 10% 50V U C341 CERAMIC CHIP 0.0015uF 10% 50V U C342 CERAMIC CHIP 0.0033uF 10% 16V
U C343 CERAMIC CHIP 0.1uF 10% 10V U C347 CERAMIC CHIP 0.1uF 10% 10V U C348 CERAMIC CHIP 0.1uF 10% 10V U C349 CERAMIC CHIP 0.1uF 10% 10V U C350 CERAMIC CHIP 0.1uF 10% 10V
U C351 CERAMIC CHIP 0.1uF 10% 10V U C352 CERAMIC CHIP 0.1uF 10% 10V U C353 CERAMIC CHIP 0.001uF 10% 50V U C354 CERAMIC CHIP 0.001uF 10% 50V U C356 CERAMIC CHIP 0.001uF 10% 50V
U C357 CERAMIC CHIP 0.001uF 10% 50V U C358 CERAMIC CHIP 0.001uF 10% 50V U C359 CERAMIC CHIP 0.1uF 10% 10V
U C400 CERAMIC CHIP 0.1uF 10% 10V U C401 CERAMIC CHIP 0.0068uF 10% 16V U C402 CERAMIC CHIP 0.0068uF 10% 16V U C455 CERAMIC CHIP 0.1uF 10% 10V U C457 CERAMIC CHIP 0.1uF 10% 10V
U C458 CERAMIC CHIP 0.1uF 10% 10V U C462 CERAMIC CHIP 0.1uF 10% 10V U C463 CERAMIC CHIP 0.1uF 10% 10V U C464 CERAMIC CHIP 0.1uF 10% 10V U C465 CERAMIC CHIP 0.1uF 10% 10V
U C466 CERAMIC CHIP 0.1uF 10% 10V U C467 CERAMIC CHIP 0.1uF 10% 10V U C502 CERAMIC CHIP 47uF 20% 6.3V U C504 CERAMIC CHIP 47uF 20% 6.3V U C505 CERAMIC CHIP 1uF 10% 16V
U C506 CERAMIC CHIP 10uF 20% 16V U C507 CERAMIC CHIP 22uF 20% 10V U C508 CERAMIC CHIP 0.1uF 10% 10V U C509 CERAMIC CHIP 0.1uF 10% 10V U C510 CERAMIC CHIP 0.1uF 10% 10V
U C511 CERAMIC CHIP 0.022uF 10% 16V U C512 CERAMIC CHIP 0.22uF 10% 6.3V U C523 CERAMIC CHIP 1uF 20% 6.3V U C527 CERAMIC CHIP 0.1uF 10% 10V U C528 CERAMIC CHIP 0.1uF 10% 10V
U C529 CERAMIC CHIP 0.1uF 10% 10V U C530 CERAMIC CHIP 0.1uF 10% 10V U C531 CERAMIC CHIP 0.1uF 10% 10V U C532 CERAMIC CHIP 0.1uF 10% 10V U C533 CERAMIC CHIP 0.1uF 10% 10V
U C534 CERAMIC CHIP 0.1uF 10% 10V U C535 CERAMIC CHIP 0.1uF 10% 10V U C536 CERAMIC CHIP 0.1uF 10% 10V
4-4
Reproduction Prohibited
SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark
U C537 CERAMIC CHIP 0.1uF 10% 10V U C538 CERAMIC CHIP 0.1uF 10% 10V U C539 CERAMIC CHIP 0.1uF 10% 10V U C540 CERAMIC CHIP 0.1uF 10% 10V U C541 CERAMIC CHIP 0.1uF 10% 10V
U! CN102 CONNECTOR, FFC/FPC (ZIF) 8P U! CN103 CONNECTOR, FFC/FPC (ZIF) 45P U CN104 PIN, CONNECTOR 2P U! CN301 CONNECTOR, FFC/FPC (ZIF) 60P U CN502 PIN, CONNECTOR (PC BOARD) 4P
U Q105 TRANSISTOR DTC144EE-TL U Q106 TRANSISTOR UMH2NTN U Q107 TRANSISTOR DTA143EE-TL U Q109 TRANSISTOR DTC144EE-TL U Q111 FET RTQ035P02TR
U R278 RES-CHIP 470K 5% 1/16W U R282 RES-CHIP 10 5% 1/16W U R283 RES-CHIP 10 5% 1/16W U R284 RES-CHIP 10 5% 1/16W U R285 RES-CHIP 10 5% 1/16W
U C542 CERAMIC CHIP 0.1uF 10% 10V U C543 CERAMIC CHIP 0.1uF 10% 10V U C544 CERAMIC CHIP 0.1uF 10% 10V U C545 CERAMIC CHIP 0.1uF 10% 10V U C546 CERAMIC CHIP 0.1uF 10% 10V
U C547 CERAMIC CHIP 0.1uF 10% 10V U C548 CERAMIC CHIP 0.1uF 10% 10V U C549 CERAMIC CHIP 0.1uF 10% 10V U C550 CERAMIC CHIP 0.1uF 10% 10V U C551 CERAMIC CHIP 0.1uF 10% 10V
U C552 CERAMIC CHIP 0.1uF 10% 10V U C553 CERAMIC CHIP 0.1uF 10% 10V U C554 CERAMIC CHIP 0.1uF 10% 10V U C555 CERAMIC CHIP 0.1uF 10% 10V U C556 CERAMIC CHIP 0.1uF 10% 10V
U C557 CERAMIC CHIP 0.1uF 10% 10V U C558 CERAMIC CHIP 0.1uF 10% 10V U C559 CERAMIC CHIP 0.1uF 10% 10V U C560 CERAMIC CHIP 0.1uF 10% 10V U C562 CERAMIC CHIP 0.1uF 10% 10V
U C564 CERAMIC CHIP 0.1uF 10% 10V U C566 CERAMIC CHIP 0.1uF 10% 10V U C568 CERAMIC CHIP 0.1uF 10% 10V U C570 CERAMIC CHIP 0.1uF 10% 10V U C572 CERAMIC CHIP 0.1uF 10% 10V
U C574 CERAMIC CHIP 0.1uF 10% 10V U C576 CERAMIC CHIP 0.1uF 10% 10V U C578 CERAMIC CHIP 0.1uF 10% 10V U C580 CERAMIC CHIP 0.1uF 10% 10V U C583 CERAMIC CHIP 0.1uF 10% 10V
U C584 CERAMIC CHIP 0.1uF 10% 10V U C605 CERAMIC CHIP 0.1uF 10% 10V U C606 CERAMIC CHIP 1uF 10% 10V U C607 CERAMIC CHIP 22uF 20% 10V U C608 CERAMIC CHIP 22uF 20% 10V
U C609 TANTAL. CHIP 47uF 20% 6.3V U C610 ELECT CHIP 100uF 20% 16V U C611 ELECT CHIP 100uF 20% 6.3V U C612 ELECT CHIP 100uF 20% 6.3V U C613 ELECT CHIP 100uF 20% 6.3V
U C614 CERAMIC CHIP 1uF 10% 10V U C615 CERAMIC CHIP 0.1uF 10% 10V U C616 CERAMIC CHIP 100PF 5% 50V U C648 CERAMIC CHIP 1uF 10% 6.3V U C649 CERAMIC CHIP 1uF 10% 6.3V
U C650 CERAMIC CHIP 0.1uF 10% 16V U C651 CERAMIC CHIP 0.1uF 10% 16V U C652 CERAMIC CHIP 0.1uF 10% 10V U C653 CERAMIC CHIP 1uF 10% 10V
< CONNECTOR >
CN100 CONNECTOR, FFC/FPC (ZIF) 19P
U
!
U! CN101 CONNECTOR, FFC/FPC (ZIF) 14P
< DIODE >
U D100 DIODE RR264M-400 U D101 DIODE RR264M-400 U D501 DIODE RB051LA-40TR U D502 DIODE DAP202K-T-146
< FERRITE BEAD >
U FB301 FERRITE, EMI (SMD) (1608) U FB527 FERRITE, EMI (SMD) U FB528 FERRITE, EMI (SMD) U FB557 FERRITE, EMI (SMD) (2012)
< FILTER >
U FL103 FILTER, EMI REMOVAL (SMD) U FL104 FILTER, EMI REMOVAL (SMD) U FL500 FILTER, EMI REMOVAL (SMD) U FL503 FILTER, EMI REMOVAL (SMD)
< IC >
U IC103 IC BD7956FS-E2 U IC108 IC BA5888FP-E2 U IC110 IC CXA2720R-TL U IC300 IC CXD5065GB-1 U IC303 IC NJM13403V(TE2)
U IC304 U IC309 IC K4S641632K-UC75T U IC310 IC MX25L1005MC-12G U IC500 IC PST3629UL U IC501 IC PST3810UL
U IC503 IC TPS64201DBVRG4 U IC507 IC TC7WH74FK(TE85R) U IC508 IC TPS64203DBVRG4 U IC509 IC BD7800FP-E2 U IC510 IC PST3443UL
< COIL >
U L100 COIL, CHOKE 150uH U L101 COIL, CHOKE 10uH U L103 COIL, CHOKE 4.7uH U L500 COIL, CHOKE 10uH U L503 COIL, CHOKE 10uH
U L506 COIL, CHOKE 1uH U L507 COIL, CHOKE 4.7uH U L508 COIL, CHOKE 4.7uH U L509 COIL, CHOKE 4.7uH U L510 INDUCTOR (EMI FERRITE) (2012)
U L511 INDUCTOR (EMI FERRITE) (2012) U L514 INDUCTOR (EMI FERRITE) (2012)
< TRANSISTOR >
U Q102 FET RTR025N03TL U Q103 FET RTR025N03TL U Q104 TRANSISTOR UMH2NTN
U Q112 TRANSISTOR UMH2NTN U Q500 FET RSQ035P03TR U Q502 FET IRF7422D2TRPBF U Q503 TRANSISTOR 2SC5658T2L
< RESISTOR >
U R101 RES-CHIP 68 5% 1/16W U R102 RES-CHIP 180 5% 1/16W U R105 RES-CHIP 10K 5% 1/16W U R106 RES-CHIP 10K 5% 1/16W U R107 RES-CHIP 47K 5% 1/16W
U R108 RES-CHIP 47K 5% 1/16W U R109 RES-CHIP 47K 5% 1/16W U R110 RES-CHIP 10K 5% 1/16W U R121 RES-CHIP 10K 5% 1/16W U R122 RES-CHIP 100 5% 1/16W
U R124 METAL CHIP 12K 0.5% 1/16W U R126 RES-CHIP 1K 5% 1/16W U R139 METAL CHIP 3.3K 0.5% 1/16W U R153 RES-CHIP 10K 5% 1/16W U R154 RES-CHIP 10K 5% 1/16W
U R155 RES-CHIP 10K 5% 1/16W U R157 METAL CHIP 47K 0.5% 1/16W U R158 METAL CHIP 47K 0.5% 1/16W U R163 METAL CHIP 0.33 1% 1/2W U R180 METAL CHIP 0.56 5% 1/3W
U R181 METAL CHIP 0.56 5% 1/3W U R187 METAL CHIP 10K 0.5% 1/16W U R202 METAL CHIP 12K 0.5% 1/16W U R203 METAL CHIP 24K 0.5% 1/16W U R204 RES-CHIP 10K 5% 1/16W
U R212 METAL CHIP 1.8K 0.5% 1/16W U R214 RES-CHIP 15K 5% 1/16W U R217 RES-CHIP 10K 5% 1/16W U R218 RES-CHIP 100 5% 1/16W U R219 RES-CHIP 100 5% 1/16W
U R222 METAL CHIP 1 5% 1/3W U R241 METAL CHIP 1 5% 1/3W U R243 METAL CHIP 22 5% 1/10W U R244 METAL CHIP 22 5% 1/10W U R245 METAL CHIP 22 5% 1/10W
U R246 METAL CHIP 22 5% 1/10W U R258 RES-CHIP 680K 5% 1/16W U R259 METAL CHIP 5.6 5% 1/3W U R260 METAL CHIP 100 5% 1W U R265 METAL CHIP 22K 0.5% 1/16W
U R267 METAL CHIP 22K 0.5% 1/16W U R268 RES-CHIP 10K 5% 1/16W U R269 RES-CHIP 10K 5% 1/16W U R270 RES-CHIP 2.2K 5% 1/16W U R272 RES-CHIP 100 5% 1/16W
U R273 RES-CHIP 100 5% 1/16W U R277 RES-CHIP 47K 5% 1/16W
U R301 RES-CHIP 47K 5% 1/16W U R302 RES-CHIP 47K 5% 1/16W U R303 RES-CHIP 47K 5% 1/16W U R304 RES-CHIP 47K 5% 1/16W U R305 RES-CHIP 47K 5% 1/16W
U R307 RES-CHIP 47K 5% 1/16W U R309 RES-CHIP 33 5% 1/16W U R310 RES-CHIP 33 5% 1/16W U R311 RES-CHIP 33 5% 1/16W U R315 METAL CHIP 12K 0.5% 1/16W
U R324 RES-CHIP 10K 5% 1/16W U R326 METAL CHIP 10K 0.5% 1/16W U R329 METAL CHIP 47K 0.5% 1/16W U R332 METAL CHIP 47K 0.5% 1/16W U R335 METAL CHIP 3K 0.5% 1/16W
U R336 RES-CHIP 47K 5% 1/16W U R342 METAL CHIP 4.7K 0.5% 1/16W U R343 METAL CHIP 4.7K 0.5% 1/16W U R344 RES-CHIP 470 5% 1/16W U R346 RES-CHIP 1.5K 5% 1/16W
U R348 METAL CHIP 4.7K 0.5% 1/16W U R349 METAL CHIP 22K 0.5% 1/16W U R350 METAL CHIP 22K 0.5% 1/16W U R351 METAL CHIP 4.7K 0.5% 1/16W U R354 METAL CHIP 4.7K 0.5% 1/16W
U R357 RES-CHIP 1K 5% 1/16W U R358 METAL CHIP 4.7K 0.5% 1/16W U R359 RES-CHIP 1K 5% 1/16W U R360 RES-CHIP 100 5% 1/16W U R361 METAL CHIP 22K 0.5% 1/16W
U R363 METAL CHIP 22K 0.5% 1/16W U R366 METAL CHIP 47K 0.5% 1/16W U R367 RES-CHIP 100 5% 1/16W U R368 RES-CHIP 100 5% 1/16W U R369 RES-CHIP 100 5% 1/16W
U R370 RES-CHIP 100 5% 1/16W U R374 RES-CHIP 47K 5% 1/16W U R375 RES-CHIP 47K 5% 1/16W U R376 RES-CHIP 47K 5% 1/16W U R377 RES-CHIP 47K 5% 1/16W
U R378 RES-CHIP 47K 5% 1/16W U R379 SHORT CHIP 0 U R380 RES-CHIP 4.7K 5% 1/16W U R381 RES-CHIP 4.7K 5% 1/16W U R382 METAL CHIP 4.7K 0.5% 1/16W
U R383 METAL CHIP 4.7K 0.5% 1/16W U R384 RES-CHIP 47K 5% 1/16W U R386 RES-CHIP 47K 5% 1/16W U R387 RES-CHIP 47K 5% 1/16W U R388 RES-CHIP 47K 5% 1/16W
U R389 METAL CHIP 10K 0.5% 1/16W U R391 METAL CHIP 10K 0.5% 1/16W U R392 METAL CHIP 10K 0.5% 1/16W
4-5
Reproduction Prohibited
SC Ref. No. Part No. Description Remark SC Ref. No. Part No. Description Remark
U R397 RES-CHIP 47K 5% 1/16W U R399 RES-CHIP 47K 5% 1/16W U R400 RES-CHIP 33 5% 1/16W U R401 RES-CHIP 33 5% 1/16W U R402 RES-CHIP 33 5% 1/16W
U R521 METAL CHIP 3.3K 0.5% 1/16W U R522 METAL CHIP 150 0.5% 1/16W U R523 METAL CHIP 0.047 1% 1/4W U R533 RES-CHIP 20K 5% 1/16W U R534 RES-CHIP 36K 5% 1/16W
U R403 RES-CHIP 33 5% 1/16W U R404 RES-CHIP 33 5% 1/16W U R408 METAL CHIP 47K 0.5% 1/16W U R409 RES-CHIP 47K 5% 1/16W U R411 RES-CHIP 47K 5% 1/16W
U R416 RES-CHIP 82 5% 1/16W U R419 RES-CHIP 82 5% 1/16W U R420 RES-CHIP 82 5% 1/16W U R421 RES-CHIP 82 5% 1/16W U R422 RES-CHIP 22 5% 1/16W
U R423 RES-CHIP 82 5% 1/16W U R424 RES-CHIP 22 5% 1/16W U R425 RES-CHIP 82 5% 1/16W U R426 RES-CHIP 82 5% 1/16W U R427 RES-CHIP 22 5% 1/16W
U R430 RES-CHIP 82 5% 1/16W U R431 RES-CHIP 82 5% 1/16W U R432 METAL CHIP 4.7K 0.5% 1/16W U R433 METAL CHIP 4.7K 0.5% 1/16W U R434 RES-CHIP 47K 5% 1/16W
U R435 RES-CHIP 1K 5% 1/16W U R436 RES-CHIP 1K 5% 1/16W U R437 RES-CHIP 1K 5% 1/16W U R438 RES-CHIP 1K 5% 1/16W U R442 RES-CHIP 10K 5% 1/16W
U R536 RES-CHIP 100K 5% 1/16W U R537 RES-CHIP 4.7K 5% 1/16W U R538 RES-CHIP 6.8K 5% 1/16W U R539 METAL CHIP 1K 0.5% 1/16W U R553 RES-CHIP 10K 5% 1/16W
< NETWORK RESISTOR >
U RB300 RES, NETWORK 33X4 (1005) U RB301 RES, NETWORK 33X4 (1005) U RB302 RES, NETWORK 33X4 (1005) U RB303 RES, NETWORK 33X4 (1005) U RB304 RES, NETWORK 33X4 (1005)
U RB305 RES, NETWORK 33X4 (1005) U RB306 RES, NETWORK 33X4 (1005) U RB307 RES, NETWORK 33X4 (1005) U RB308 RES, NETWORK 4.7KX4 (1005) U RB309 RES, NETWORK 4.7KX4 (1005)
U RB312 RES, NETWORK 4.7KX4 (1005)
< VIBRATOR >
U X301 VIBRATOR, CERAMIC (33.868MHz)
U R443 RES-CHIP 47K 5% 1/16W U R444 METAL CHIP 47K 0.5% 1/16W U R449 RES-CHIP 47K 5% 1/16W U R452 RES-CHIP 47K 5% 1/16W U R453 RES-CHIP 47K 5% 1/16W
U R459 RES-CHIP 10K 5% 1/16W U R460 RES-CHIP 10K 5% 1/16W U R463 RES-CHIP 100K 5% 1/16W U R464 RES-CHIP 10K 5% 1/16W U R465 RES-CHIP 10K 5% 1/16W
U R472 METAL CHIP 3K 0.5% 1/16W U R473 METAL CHIP 3K 0.5% 1/16W U R474 METAL CHIP 75 0.5% 1/16W U R475 METAL CHIP 18K 0.5% 1/16W U R476 RES-CHIP 47K 5% 1/16W
U R485 RES-CHIP 47K 5% 1/16W U R486 RES-CHIP 47K 5% 1/16W U R487 RES-CHIP 47K 5% 1/16W U R488 RES-CHIP 47K 5% 1/16W U R502 RES-CHIP 10 5% 1/16W
U R503 METAL CHIP 0.047 1% 1/4W U R504 RES-CHIP 10K 5% 1/16W U R506 METAL CHIP 560K 0.5% 1/16W U R508 METAL CHIP 270K 0.5% 1/16W U R509 RES-CHIP 10K 5% 1/16W
U R511 METAL CHIP 27K 0.5% 1/16W U R516 RES-CHIP 10K 5% 1/16W U R520 METAL CHIP 2K 0.5% 1/16W
4-6
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
