Network Video Monitoring

& CCTV Product Guide 2005

Smarter security solutions from Sony

www.venta-visual.com

Crta. Santa Catalina Km. 1,200
c. Torre de los Morenos, 128
30012 - Murcia

Tel. [phone]
Fax. [phone]

Apartado de Correos, 40031

Madrid

Tel. [phone]
Fax. [phone]

Cortesía de :

www.venta-visual.com

ventavisual

Network Video Monitoring

■ Network Video Cameras p 04

■ Network Video Recorders and Servers p 08

■ Network Video Software and Peripherals p 11

www.sonybiz.net/networkvideo

CCTV Solutions

■ Video Cameras p 12

■ Video Recorders and Control Devices p 19

■ Video Monitors p 22

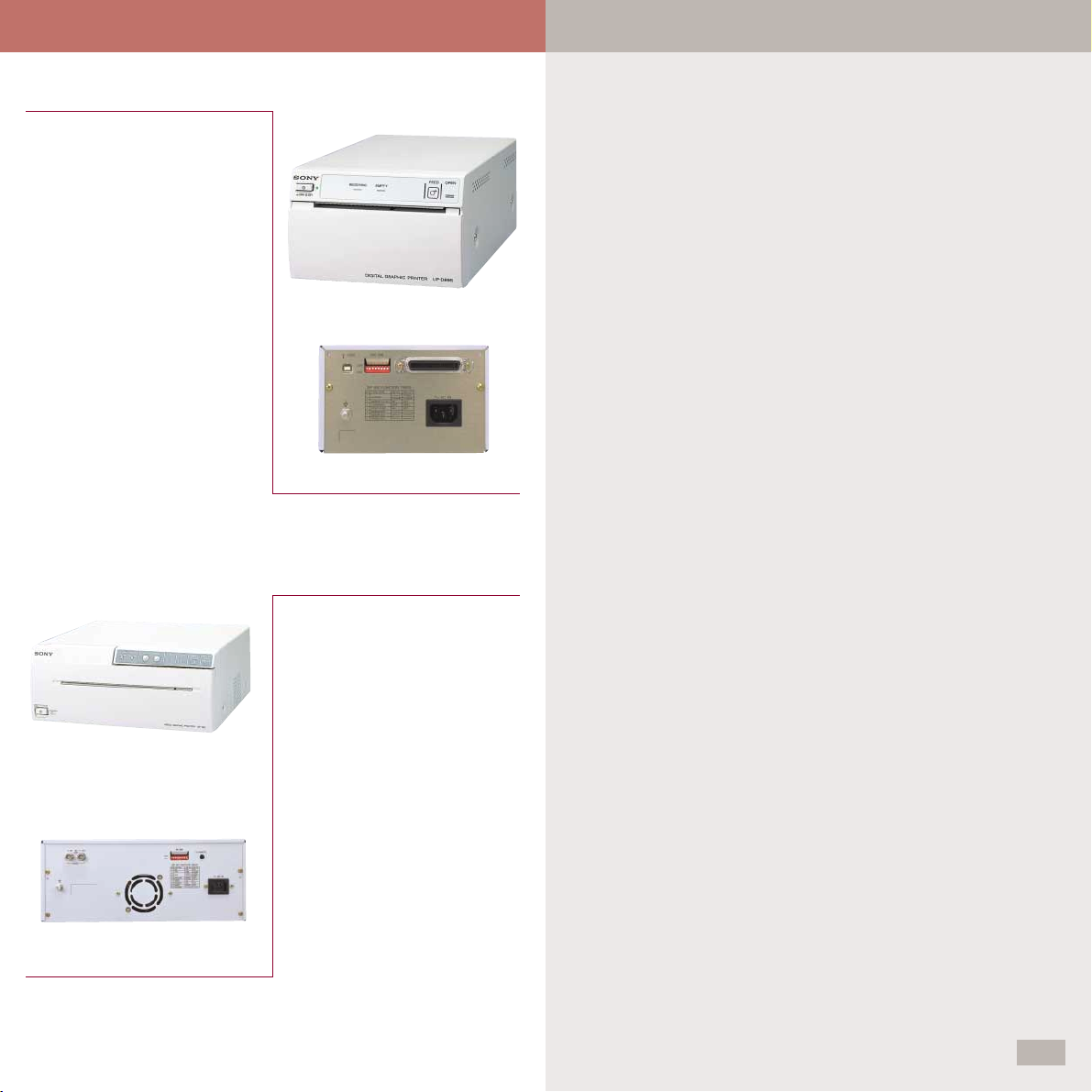

■ Printers p 23

www.sonybiz.net/cctv

■ Specifications p 25

■ System Examples p 46

Create a safer, more secure environment

Today more than ever, Closed Circuit Television (CCTV) is
playing a vital role in the safeguarding of people, property
and other assets.

With increasing public awareness of the threats of terrorism,
assault, vandalism and theft, the security of every citizen
is a higher priority than ever for public authorities as well
as commercial organisations. From banks, offices, hospitals
and schools to shopping malls, airports, stations and other
public areas, a discreet monitoring presence offers the
valuable round-the-clock reassurance of a safer, more
secure environment.

As a leader in CCTV and network video monitoring, Sony
offers a complete range of products that make it easier than
ever to create exactly the right solution to meet your current
and future needs.

From latest-generation network video cameras, file servers
and RealShot camera management software to digital video
recorders, monitors, printers and accessories, you’ll find that
every Sony CCTV product has been designed with
performance, reliability and ease of integration in mind.

Whether you’re looking to expand your existing CCTV
installation or create an all-new network-based monitoring
solution with powerful image distribution and control
capabilities, Sony products can enhance the value of your
current investments while delivering flexible new monitoring
possibilities. Best of all, every CCTV product comes with the
back-up and peace of mind that you’d expect from Sony.

Visit us at www.sonybiz.net for more information on our
complete range of CCTV and video surveillance products as
well as case studies, white papers, special offers and more.
Alternatively, talk to your local Sony office or security
systems specialist. They’ll be delighted to tell you more
about the capabilities of Sony CCTV products and help you
create a video monitoring solution that’s flexible, reliable and
remarkably cost-effective.

Contents

Network Video Cameras

■ IP network colour video camera with
auto iris vari-focal lens (focal length:

3.5 to 8.0 mm)

■ 1/3 type CCD sensor with
ExwaveHAD™ technology offers
extremely high sensitivity of 0.5 lux
at F1.0

■ Full motion video - up to 25 fps at
VGA resolution (640 x 480) thanks
to M-JPEG picture compression

■ Embedded IP server and web page
for simple set-up and control

■ Embedded activity detection and
alarm trigger functions

■ PAL composite video output for local
analogue viewing or recording

SNC-CS3P

Network Video Camera

■ Precise, high-speed pan/tilt/zoom
mechanism with integral 18x auto­focus zoom lens

■ High quality and high sensitivity
(0.7 lux, F1.4) with ExwaveHAD

™

technology

■ Day/Night function

■ Added functionality provided through

Compact Flash slot and Memory
Stick slot for image storage or
Wireless LAN (IEEE802.11b) through
optional Sony wireless LAN card
(SNCA-CFW1) for greater installation
flexibility

■ Half duplex audio through built-in
or external microphone input and
audio line out

■ Unattended operation thanks
to built-in motion detection

SNC-RZ25P

JPEG/MPEG-4 Network Video
Pan-Tilt-Zoom Camera

4-5

■ IP network colour video camera with
integrated Direct Drive pan/tilt/zoom
mechanism and autofocus lens with
25x optical zoom

■ High quality full motion colour video ­up to 25 fps at VGA resolution
(640 x 480) thanks to M-JPEG picture
compression

■ PC card slot for onboard event
storage or optional Wireless LAN

■ Embedded web server and web page
for simple set-up and control

■ Day/night function switches to black
& white mode in low light conditions
for greater sensitivity

■ Activity detection and automatic
picture store/send for unattended
operation

Network Video Cameras

SNC-RZ30P

Network Video Pan-Tilt-Zoom
Camera

■ IP network colour video camera with
integrated 18x optical zoom lens for
excellent resolution of fine detail

■ 1/4 type CCD sensor with
ExwaveHAD™ technology offers
extremely high sensitivity: 0.7 lux in
colour mode, 0.01 lx (F1.4, 50 IRE,
Slow Shutter OFF) in B/W mode

■ Power-over-Ethernet allows power
to be supplied via the Ethernet CAT5
cable

■ Added functionality via on-board
PC card slot for onboard event
storage or optional Wireless LAN for
greater installation flexibility

■ Day/night function switches to black
& white mode in low light conditions
for greater sensitivity

■ PAL composite video output for local
analogue viewing or recording

SNC-Z20P

Network Video Camera

Network Video Cameras

■ All-in-one JPEG/MPEG-4 network
colour video camera with integrated
Pan-Tilt control capability (Pan: -70 to
+70 degrees / Tilt: -70 to 0 degrees
and 3x optical zoom)

■ Wireless transmission through
optional Sony wireless LAN card
(SNCA-CFW1)

■ High quality image transmission even
over limited bandwidth network
connection (e.g. only 500 kbps
needed for 25 images per second)

■ 1/4 type, 330K pixels progressive
scan CCD for superb picture detail

■ Two-way audio communication
enhances appeal for remote
monitoring applications

■ Smart motion detection permits
unattended operation

■ External sensor input, alarm output
and E-mail alarm notification function

Product available beginning March 2005.

SNC-P5

Network MPEG-4 Video
Pan-Tilt Camera

■ All-in-one JPEG/MPEG-4 network
colour video camera with embedded
IP server and web page for simple
set-up and control

■ High quality image transmission
even over limited bandwidth network
connection (e.g. only 500 kbps
needed for 25 images per second)

■ 1/4 type, 330K pixels progressive
scan CCD for superb picture detail

■ Two-way audio communication
enhances appeal for remote
monitoring applications

■ Smart motion detection enables
unattended operation

■ External sensor input, alarm output
and E-mail alarm notification function

SNC-P1

MPEG-4 Network Video Camera

6-7

■ JPEG/MPEG-4 network colour video
camera integrated in IP66 compliant
rugged aluminium cast housing and
polycarbonate cover for protection
against rain and vandalism

■ Power-over-Ethernet allows power
to be supplied via an Ethernet CAT5
cable

■ Removable infrared filter delivers
clear Black & White pictures at night
or under IR illumination

■ Multicasting capability supported
and Adaptive Rate Control for stable
image transmission

■ Half duplex audio through built-in
or external microphone input and
audio line out

■ Built-in motion vector activity
detection permits unattended
operation

■ Analogue composite video output

Network Video Cameras

SNC-DF70P

Day/Night Network Mini-Fixed
Dome Camera

■ JPEG/MPEG-4 network colour video
camera with integral dome enclosure

■ Built-in CS Mount auto iris vari-focal
lens (f=3 to 8 mm from F1.0) for
optimised coverage of any viewing
area

■ Multicasting capability supported
and Adaptive Rate Control for stable
image transmission

■ Half duplex audio through built-in or
external microphone input and audio
line out

■ Built-in motion vector activity
detection permits unattended
operation

■ PAL composite video output for local
analogue viewing or recording

SNC-DF40P

Network Mini-Fixed Dome Camera

Network Video Recorders and Servers

■ Converts four analogue video signals
to M-JPEG digital format for IP
transmission (single channel for
SNT-V501)

■ Simple integration of analogue video
cameras into IP networks

■ Onboard picture storage reduces
network bandwidth overheads

■ Supports wireless transmission
(optional) for areas where cabled
network coverage is difficult or
non-existent

■ Built-in activity detection enables
unattended operation

■ Can be used as a standalone event
recorder

■ High refresh rates provide full motion
video (25 fps) at VGA resolution

SNT-V501/V504

Video Network Station

■ Scalable application server with
500 GB storage capacity- ideal
for networked video recording

■ Dual Ethernet ports
(100/1000 Mbit/s)

■ Allows onward distribution of video
recordings using built-in DVD burner
(DVD-ROM/-R/-RW/RAM
CD-ROM/-R/-RW)

■ Compact size, ultra-slim 1U rack
mount

■ Intel Pentium 4 Processor, 2.4 GHz
CPU with 512 MB RAM

■ WindowsXP

™

Professional operating

system pre-installed

FSV-IPM1

Network Video Recorder

9-98-9

■ All-in-one JPEG/MPEG-4 network
colour video camera with embedded
IP server and web page for simple
set-up and control

■ Wireless LAN connection for easy
installation (SNC-M1W only)

■ Incorporates 1/4 type, 310k pixels
(VGA) CMOS sensor

■ Two-way audio transmission (built-in
microphone, external microphone
input and audio line output for active
speakers)

■ Sends email to specified address on
alarm trigger

■ Simple to install

Network Video Cameras

SNC-M1/M1W

MPEG-4 Video Network Camera

■ All-in-one JPEG/MPEG-4 network
colour video camera with integrated
Pan-Tilt control capability (Pan: -60 to
+60 degrees / Tilt: +10 to –60
degrees)

■ Wireless LAN connection for easy
installation (SNC-M3W only)

■ Incorporates 1/4 type, 310k pixels
(VGA) CMOS sensor

■ Two-way audio transmission (built-in
microphone, external microphone
input and audio line output for active
speakers)

■ Sends email to specified address on
alarm trigger

■ Simple to install

SNC-M3/M3W

MPEG-4 Video Network
Pan-Tilt Camera

SNT-V501

SNT-V504

Network Video Softwares and Peripherals

■ Networked intercom system

■ Ideal for monitoring building

entrances or doorways by providing
combined intercom and alarm
functionality

■ Integrates seamlessly with Realshot

™

Manager for audio recording and
monitoring

■ 2 Inputs for control of other building
functions (e.g. ‘Talk’ and ’Door’
buttons)

■ Audio input via on-board microphone
or Line input

■ Audio out through Headphone/Line
Out

RSM-AIC

Stand-Alone Audio Network System

■ Management software to control,
monitor and manage networked
video installations on single or
multiple sites

■ Tailor made on-screen layouts offer
intuitive, interactive representation of
entire surveillance/monitoring system

■ Full Server/Client support - optional
Client software allows monitoring of
unlimited number of sites and
cameras while RSM web client
allows monitoring from any PC on
the network

■ Extremely flexible video recording
functionality, recording up to 350 fps

■ Advanced search GUI makes it quick
and easy to retrieve recordings

■ I/O functionality to manage alarms,
doors and other switch operated
devices

■ One year PrimeSupport telephone
helpline

IMZ-RS Series

RealShot Manager Monitoring
and Control Software

10-11

■ Scalable, ‘all-in-one’ network video
recording server with RealShot

™

Manager pre-installed which
manages/records up to 9
(FSV-RSM9) or 16 (FSV-RSM16)
networked video sources

■ Ideal for server-client architecture,
allowing remote access to live and
recorded pictures via network

■ Unattended recording over long
periods thanks to 500 GB storage
capacity: e.g. 10 days recording
for 9 cameras at 6 fps, 24hrs/day
at CIF resolution

■ Dual Ethernet ports

(100/1000 Mbit/s)

■ Compact size, ultra-slim 1U rack
mount

■ Allows onward distribution of video
recordings using built-in DVD burner
(DVD-ROM/+R/-RW /RAM CD-ROM/
+R/-RW)

Network Video Recorders and Servers

FSV-RSM9/FSV-RSM16

9-channel/16-channel Network

Video Recorder

■ Ideal application server for hard
drive space demanding applications
such as video surveillance systems

■ Ultra-slim 1U rack mount

■ 1000 GB (4 x 250 GB) Hot-

swappable hard drives

■ Hardware RAID, user area RAID 0,
1 and 5, OS area RAID 0+1

■ Intel Pentium 4 Processor, 2.4 GHz
CPU with 512 MB RAM

■ 24x CD-ROM drive

■ Dual 10 BaseT/100 BaseTX/1000

BaseT Ethernet ports for
uninterrupted performance in the
event of one port failing

■ Embedded SCSI interface for
backup devices

FSVM51000W

Network Application Server

Video Cameras

■ 1/3 type IT CCD offering 480 lines of
horizontal resolution

■ Wide dynamic range with DynaView
technology - ideal for obtaining clear
colour images under severe lighting
conditions

■ Day/Night mode - increases camera
sensitivity allowing images to be
viewed even in low light conditions

■ White balance: ATW PRO/ATW/
3200K/5600K/MANUAL/DUAL WB
switchable - Dual white balance
mode gives high quality colour
reproduction of indoor and outdoor
scenes under different colour
temperatures

■ Built-in activity detection and alarm
trigger functions

■ On-screen set up menu supports
Privacy Zone Masking function and
two preset memories for camera
setting

SSC-DC593P/SSC-DC598P

Day/Night Video Camera

■ Extremely wide dynamic range with
DynaView

TM

technology for clear

images even with strong backlight

■ 1/3 type CCD offering 480 TV lines
and high sensitivity of 0.8 lux

■ CCD IRIS function removes need
for expensive automatic lens

■ Auto Tracing White (ATW) function
ensures consistent colour balance

■ Turbo AGC function - boost gain to
24dB for better resolution of subject

■ In-built activity detection/alarm

■ Privacy zone masking

■ Gamma correction for precise image

setting

SSC-DC573P/
SSC-DC578P

Dynaview Colour Video Camera

12-13

■ 1/2 type IT CCD with ExwaveHAD
technology offers extremely high
sensitivity (0.8 lux at F1.2, 50 IRE)
and low smear level (-120 dB)

■ 470 lines of horizontal resolution

■ Smart Control for fast backlight

compensation

■ ATW PRO/ATW/AWB/preset colour
temperature settings - ATW PRO
mode ensures reliable white balance
control based on the absolute colour
temperature of the object (The
effective operational colour range is
2500 K to 6000 K)

■ SSC-DC50AP supports single cable
operation (video/sync/power triple
multiplex transmission) for easy
installation with the optional
YS-W170P/W270P camera adaptor

Video Cameras

SSC-DC50AP/SSC-DC54AP/SSC-DC58AP

CCD Colour Video Camera

■ Used with SSC-DC50AP

■ Transmits DC power and video/sync

signal between the adaptor and
camera over a single coaxial cable

■ Up to four cameras can be
connected (one camera for
YS-W170P)

■ Internal or external synchronisation
with MPX-VS or MPX-VD

■ Maximum cable length: 600 m with
RG-11A/U (7C-2V) coaxial cable

YS-W170P/YS-W270P

Camera Adaptor

SSC-DC58AP

SSC-DC598PSSC-DC593P

SSC-DC573P

SSC-DC578P

SSC-DC54APSSC-DC50AP

YS-W170P

YS-W270P

Video Cameras

■ 1/3 type IT CCD with SuperHAD
technology offering 480 lines of
horizontal resolution

■ High sensitivity - 0.8 lux at F1.2
(50 IRE)

■ Backlight compensation
(ON/OFF switchable)

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000)

■ CCD IRIS function allows for the use
of low cost manual iris lenses

■ Auto Tracing White Balance (ATW)
and Turbo AGC (ON/OFF
switchable)

SSC-DC372P/SSC-DC378P

High Resolution Colour Camera

■ 1/3 type IT SuperHAD CCD offering
330 lines of horizontal resolution

■ High sensitivity - 0.6 lux at F1.2
(50 IRE)

■ Backlight compensation and ATW
supported

■ BLC and Turbo AGC (ON/OFF
switchable)

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000s)

■ AC 220-240 V power operation

SSC-DC198P

Standard Resolution Colour
Camera

14-15

■ Day/Night camera providing
optimised sensitivity in both day and
night shooting scenarios with
near-infrared sensitivity in night-mode

■ State-of-the-Art SuperExwave

™

CCD technology achieving extremely
high sensitivity levels - minimum
illumination of 0.55 lux at F1.2 in
colour mode and 0.05 lux at F1.2 in
B/W mode.

■ Newly-developed innovative DSP
technology generating a horizontal
resolution of 540 TV lines

■ New slim and stylish design

■ External Day/Night control input and

Day/Night control output terminal

■ Wide Auto Tracing White Range –
ATW Pro & ATW





Video Cameras

SSC-E473P/SSC-E478P

High Resolution Day/Night Camera

■ State-of-the-Art SuperExwave™ CCD
technology achieving extremely high
sensitivity levels providing a minimum
illumination of 0.55 lux at F1.2

■ Newly-developed innovative DSP
technology generating a horizontal
resolution of 540 TV lines

■ New slim and stylish design

■ Wide Auto Tracing White Range –

ATW Pro & ATW

■ Backlight compensation and Turbo
AGC: ON/OFF switchable

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000s)

SSC-E453P/
SSC-E458P

High Resolution Colour Camera

SSC-E473P

SSC-E478P

SSC-DC372P

SSC-DC378P

SSC-E453P

SSC-E458P

Video Cameras

■ 1/3 type IT SuperHAD CCD
technology providing 380 lines of
horizontal resolution

■ High sensitivity - 0.06 lux at F1.2
(50 IRE)

■ Backlight compensation (ON/OFF
switchable)

■ Turbo AGC (up to 24 dB): ON/OFF
switchable

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000)

■ CCD IRIS function allows for the use
of low cost manual iris lenses

SSC-M183CE/SSC-M188CE

Black and White Camera

■ Rugged aluminum cast housing and
polycarbonate cover

■ 1/4 type IT SuperHAD CCD offering
480 lines of horizontal resolution

■ Built-in CS Mount auto iris vari-focal
lens (f=3 to 8 mm from F1.0)

■ Day/Night function through
removable IR filter to switch from
colour to black and white mode with
IR corrective lens for clear pictures
under IR illumination

■ High sensitivity of 0.9 lux (F1.0, 50
IRE, AGC ON) in colour and 0.2 lux
(F1.0, 50 IRE, AGC ON) in B&W

■ Rain-proof (IP66 compliant)

SSC-CD73VP

Day/Night Mini Fixed Dome
Camera

■ 1/4 type IT SuperHAD CCD offering
480 lines of horizontal resolution

■ Built-in CS Mount auto iris vari-focal
lens (f=3 to 8 mm from F1.0)

■ High sensitivity of 0.9 lux (F1.0,
50 IRE, AGC ON)

■ Turbo AGC (6 dB more gain than
conventional gain): TURBO/
NORMAL/OFF switchable

■ Backlight compensation (ON/OFF
switchable)

■ ATW (2,200 to 10,000K)

SSC-CD43VP

Colour Mini Fixed Dome
Camera

16-17

■ Low cost standard resolution colour
camera - 330 lines of horizontal
resolution

■ High sensitivity - 0.6 lux at F1.2
(50 IRE)

■ Backlight compensation and ATW
supported

■ BLC and Turbo AGC: ON/OFF
switchable

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000s)

■ DC 12V power operation

Video Cameras

SSC-DC172P

Standard Resolution Colour
Camera

■ 1/3 type IT CCD with ExwaveHAD
technology providing extremely high
sensitivity - 0.07 lux at F1.2 (50 IRE)

■ 570 lines of horizontal resolution

■ Backlight compensation (ON/OFF

switchable)

■ Turbo AGC (up to 24 dB): ON/OFF
switchable

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000)

■ CCD IRIS function allows for the use
of low cost manual iris lenses

SSC-M383CE/
SSC-M388CE

Black and White Camera

SSC-M383CE SSC-M388CE

SSC-M183CE SSC-M188CE

Video Recorders

■ Built-in 6 channel multiplexer function
providing full frame rate monitoring
per camera in multi-screen display

■ High picture quality M-JPEG
compression with large 320 GB
storage capacity

■ Built-in network interface

■ Embedded Activity Detection

■ Five advanced search methods

■ Image downloading via

CompactFlash slot

HSR-X206P

6-channel Digital Surveillance
Recorder

■ Hard disk recorder with built-in
multiplexing capability – up to 16
camera inputs (9 with HSR-X209P)
can be recorded and monitored
independently

■ High resolution (more than 500 TV
Lines) & high picture quality
recording and playback

■ Large-capacity 320 GB (2 x 160 GB)
HDDs (ATA/ATAPI-5 Standard)

■ High refresh rate of 50 fields per
second

■ Network capability through optional
network card

■ Intelligent search functions

HSR-X209P/X216P

Multi-channel Digital
Surveillance Recorder

18-19

■ Easy set-up: no video or lens
adjustment

■ Pan, tilt & zoom functionality

■ Quiet operation

■ 40x zoom ratio

■ Six position presets with battery

back-up

■ Auto sleep function

Video Cameras

EVI-D100P

Pan-Tilt-Zoom Colour
Video Camera

■ 1/4 type IT Exview HAD CCD
offering 460 lines of horizontal
resolution

■ High zoom ratio AF lens (18x optical
+ 12x digital zoom)

■ Excellent low-light sensitivity (min.
illumination less than 1 lux)

■ Wide range pan/tilt
(340° pan / 120° tilt)

■ Desktop or ceiling mount installation
using E-Flip function

■ Full remote control support via
RS-232C or RS-422

■ Auto day/night function

EVI-D70P/
EVI-D70PW

Pan-Tilt-Zoom Colour/
Monochrome Video Camera

HSR-X209P

HSR-X216P

EVI-D70P

EVI-D70PW

Video Recorders and Control Devices

■ 4 different time lapse
recording/playback modes

■ Adaptive Picture Control (APC)

■ Fast forward and rewind: 100

seconds with an entire E-180 tape

■ Multiple recording modes such as
Auto Repeat Recording, Timer
Recording, Alarm Recording and
Series Recording

■ Record check, alarm log and alarm
scan capabilities

■ Optional RS-232C/RS-485 interface

SVT-N72P

Time-Lapse Video Recorder

■ Sony 'RealAction' technology allows
high density recording of 16.6 fields
per second in 24-hour mode

■ Maximum 96-hour time lapse
recording mode is available with a
180-minute tape

■ Adaptive Picture Control (APC)

■ Audio recording in 6, 18, 30-hour

modes (E-180) and in 8, 24, 40-hour
modes (E-240)

■ Multiple recording modes such as
Auto Repeat Recording, Timer
Recording, Alarm Recording and
Series Recording

■ Record check, alarm log and alarm
scan capabilities

SVT-RA96P

Time-Lapse Video Recorder

20-21

■ Graphic, back-lit, 320 x 240 pixel
touch panel display

■ Allows customisation of up to 30 site
maps

■ Three-axel joystick allows simple
manual Pan-Tilt-Zoom control

■ Two independent RS-485 telemetry
control ports to interface with the
most common high speed domes

■ Manufactured by Videotec S.R.L.

■ For use with:

• HSR-X209P

• HSR-X216P

• YS-DX516P

Video Recorders

HSR-DCT

Video and Telemetry Virtual
Control Panel

■ 3, 12, 24 hour recording/playback
modes (E-180)

■ Compact size - only 240 mm (91⁄2
inches) wide

■ Adaptive Picture Control (APC)

■ Audio recording in 3, 12 or 24 hour

modes

■ Record check, alarm log, alarm scan
capabilities

SVT-N24

Time-Lapse Video Recorder

Printers

■ A5 size print in approx. 22 seconds

■ 2048 dots thermal head and high

resolution of 300 dpi

■ 8 bit (256 gradations) for each colour

■ RGB, Y/C, and composite video

inputs

■ Wired and wireless remote controls
with the optional RM-5500 remote
control

■ External control via RS-232C
interface

UP-51MD

Colour Video Printer

■ Resolution of 403 dpi for high picture
quality

■ Photo-quality prints with Sony dye
sublimation printing technology

■ A6 size colour print in approximately
19 seconds

■ Compact design

■ USB interface (Version 2.0)

■ Resize-to-fit feature allows users to

enlarge images of VGA (640 x 480
dots), SVGA (800 x 600 dots) and
XGA (1024 x 768 dots) to
approximately 1,520 x 1,144 dots
size image

*

or approximately 2,000

x 1,520 dots size image

**

* When using the UPC-21S print media

**

When using the UPC-21L print media

UP-D23MD

Digital Colour Printer

■ Resolution of 403 dpi for high picture
quality

■ Photo-quality prints with Sony dye
sublimation printing technology

■ A6 size colour print in approx.
17 seconds

■ Compact design

■ 2 or 4 split prints mode (four frame

memories capability)

■ Accepts and outputs an analogue
RGB, S-Video (Y/C) or composite
video signal

UP-21MD

Colour Video Printer

22-23

■ 20-inch colour video monitor
(viewable area, measured diagonally)

■ Trinitron CRT provides a high
resolution of 600 TV lines

■ Beam current feedback circuit for
stable colour reproduction

■ Two selectable composite and Y/C
inputs

■ Colour temperatures can be selected
from high, low or users’ preset data
(adjustable between 5,000K and
10,000K)

■ Parallel remote control capability

Video Monitors

SSM-20L1

Colour Video Monitor

■ 14-inch colour video monitor
(viewable area, measured diagonally)

■ Trinitron CRT provides a high
resolution of 600 TV lines

■ Beam current feedback circuit for
stable colour reproduction

■ Two selectable composite and Y/C
inputs

■ Colour temperatures can be selected
from high, low or users’ preset data
(adjustable between 5,000K and
10,000K)

■ Parallel remote control capability

SSM-14L1

Colour Video Monitor

Specifications

24-25

■ USB (version 1.0) and Parallel
(IEEE1284) interfaces

■ Resize-to-fit feature to enlarge
images for printing

■ Resolution of 325 dpi and 256 steps
of grey level for high picture quality

■ High-speed printing of approximately

3.8 seconds

■ Multiple print modes available for
a variety of applications

■ Compact, space-saving design

Printers

UP-D895

Digital Black & White Printer

■ Thermal video graphic printer with
256 steps of gray level

■ Large print size - EIA standard
(NTSC): 184 x 243 mm at side
direction print mode, 190 x 144 mm
at normal direction print mode; CCIR
standard (PAL): 181 x 243 mm at side
direction print mode, 190 x 142 mm
at normal direction print mode

■ High-speed printing of 12 seconds

■ Multiple print modes; Standard, Side

and 2-split (different images) print
modes

UP-960CE

Black & White Video Graphic
Printer

Specifications Specifications

26-27

Network Video CamerasNetwork Video Cameras

GENERAL
Mass 1.2 kg (2 lb. 10 oz.) Approx. 800 g (2 lb. 10 oz.)
Dimensions (W x H x D) 140 x 175 x 144 mm (5 5⁄8" x 7" x 5 3⁄4") 80 x 77 x 177 mm (5 5⁄8" x 3" x 7")
Power requirements DC 12 V via AC adaptor (100 to 240 V) DC 24 V AC 50/60 Hz, 12 V DC, PoE
Power consumption 21.6 W 9 W max.
Operating temperature 0 °C to +40 °C (32 °F to 104 °F) 0 °C to +40 °C (32 °F to 104 °F)
Storage temperature -20 °C to +60 °C (-4 °F to 140 °F) -20 °C to +60 °C (-4 °F to 140 °F)
Operating humidity 20% to 80% Non-condensing 20% to 80% Non-condensing
Storage humidity 20% to 95% Non-condensing 20% to 95%, Non-condensing

IMAGE DATA
Compression M-JPEG M-JPEG
Compression ratio 1/5 ~ 1/60 (10 steps) 1/5 ~ 1/60 (10 steps)
Image Resolution 736 x 544 (Auto), 736 x 544 (Frame), 736 x 544 (Auto), 736 x 544 (Frame),

736 x 544 (Field), 736 x 544 (Field),
640 x 480 (Auto), 640 x 480 (Frame), 640 x 480 (Auto), 640 x 480 (Frame),
640 x 480 (Field), 320 x 240, 160 x 120 640 x 480 (Field), 320 x 240,160 x 120

Frame rate Max. 25 fps (640 x 480) Max. 25 fps (640 x 480)

CAMERA
Imager 1/6 type Interline Transfer SuperHAD CCD 1/4 type ExwaveHAD CCD
Pixels 800,000 440,000
Electronic shutter 1 /3 to 1/10,000 sec Auto/Manual (1 to 1/10,000 sec)
Exposure Auto [Full Auto (including backlight Auto, Shutter-priority,Iris-priority,

compensation), Shutter-priority, Manual (Backlight compensation is

Iris-priority] and manual switchable except in Manual mode)

White balance Auto, ATW, Indoor, Outdoor, Auto, Indoor,Outdoor, One Push

One-push (trigger command), Manual White Balance, ATW,Manual
EV Compensation -1.75 to +1.75 (15 steps) –
Iris Auto/Manual (F1.6 to close) Auto/Manual (F1.4 to Close)
Gain Auto/Manual (-3 dB to 28 dB) Auto/Manual (-3 dB to 28 dB)
Focus mode Auto/Manual (Near, Far, One-push Auto Focus)

Auto/Manual (Near, Far, One Push Auto Focus)

LENS
Zoom Ratio 25 x optical zoom, 300 x with digital zoom x 18 (infinite)
Horizontal viewing angle 2.0° to 45° 2.7° to 48°
Focal length f = 2.4 mm to 60 mm f = 4.1 mm to 73.8 mm
F-number F1.6 (Wide), F2.7 (Tele) F1.4 (Wide), F3.0 (Tele)
Minimum object distance Tele: 800 mm,Wide: 30 mm Tele: 800 mm, Wide:10 mm

(factory preset is 290 mm)

PAN/TILT
Pan angle -170° to +170° –
Pan speed 2 sec./340° –
Tilt angle -25° to +90° –
Tilt speed 1.5 sec./115° –

INTERFACES
Ethernet 10 Base-T / 100 Base-Tx (RJ-45) 10 Base-T/100 Base-TX (RJ-45)
PCMCIA Type II x 2 Type II x1
Sensor and I/O Sensor input x 3, Sensor output x 2 Sensor input: make contact (photo coupler

input electrically isolated from the camera)
Alarm output 1 and 2: 24 V DC or less,
1 A (mechanical relay outputs
electrically isolated from the camera)

Video Output Analogue composite (BNC x 1) VIDEO OUT:BNC, 1.0 Vp-p, 75 Ω,

unbalanced, sync negative

Serial I/F RS-232C/RS-485 transparent port RS-232C transparent port

ANALOGUE VIDEO OUTPUT
Signal system PAL PAL
Sync system Internal Internal
Horizontal resolution 480 TV lines 460 TV lines
S/N ratio Better than 48 dB 50 dB
Minimum illumination Colour: 3 lux at F1.6 (50 IRE), Colour: 0.7 lux or less

B&W: 0.18 lux at F1.6 (50 IRE) (AE mode, slow shutter off)

B&W: 0.01 lux
(F1.4, 50IRE, Slow shutter OFF)

SYSTEM/NETWORK
CPU 32 bit RISC Embedded processor 32-bit RISC processor
Embedded flash memory 32 MB (includes 8 MB alarm buffer) 8 MB
RAM 32 MB (includes 8 MB alarm buffer) 32 MB (incl. built-in image

memory of about 8 MB)

Browser MS Internet Explorer v 5.5 and 6.0 MS Internet Explorer v 5.5 and 6.0

(Windows98/ME/NT4.0/2000) (Windows98/98SE/ME/NT4.0/2000/XP)

Pocket PC Internet Explorer.

(Pocket PC 2002)
Security IP-filtering, Password protection IP-filtering, Password protection
Protocols supported TCP/IP, HTTP, ARP, ICMP, DHCP, TCP/IP, HTTP, ARP, ICMP, DHCP,

FTP, SMTP and SNMP (Standard MIB) FTP, DNC, NTPand SNMP (MIB-2)

Supplied accessories Ceiling mount kit, AC power adaptor, CD-ROM (setup program and

AC power cable, CD-Rom (Set up User guide), Wire rope, Shoulder
programme and User’sguide), I/O receptacle, screw M4, Installation Manual
Installation manual, Ferrite core

Optional accessories MSA-64A Memory Stick (64 MB) Memory Stick MSA-128 A (128 MB)

MSAC-PC2 Memory Stick/PC Card Adaptor Memory Stick PC card adaptor MSAC-PC3

Wide conversation lens VCL-0637H

SNC-RZ30P SNC-Z20P

SNC-CS3P

GENERAL
Mass Approx. 650 g (1 lb. 7 oz.)
Dimensions (W x H x D) 57 x 70 x 159 mm (2

1

⁄

4

" x 2

3

⁄

4

" x 6

1

⁄

4

")
Power requirements AC 24 V / DC 12 V
Power consumption 7 W max.
Operating temperature -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature -40 °C to +60 °C (-40 °F to 140 °F)
Operating humidity 20% to 80%, Non-condensing
Storage humidity 20% to 95%, Non-condensing

IMAGE DATA
Compression M-JPEG
Compression ratio 1/5 ~ 1/60 (10 steps)
Image Resolution 736 x 544 (Auto), 736 x 544 (Frame),

736 x 544 (Field),
640 x 480 (Auto), 640 x 480 (Frame),
640 x 480 (Field), 320 x 240, 160 x 120

Frame rate Max. 25 fps (640 x 480)

CAMERA
Imager 1/3 type ExwaveHAD CCD
Pixels 440,000 (752 x 582)
Electronic shutter 1/50 to 1/100,000 sec
Exposure BLC
White balance ATW
EV Compensation –
Iris Auto
Gain AGC
Focus mode –

LENS
Zoom Ratio –
Horizontal viewing angle W 73.9° x 56.3° T 33.8° x 25.8°
Focal length Vari-focal (focal length: 3.5 to 8.0 mm)
F-number F1.0
Minimum object distance 500 mm

PAN/TILT
Pan angle –
Pan speed –
Tilt angle –
Tilt speed –

INTERFACES
Ethernet 10 Base-T/100 Base-TX (RJ-45)
PCMCIA –
Sensor and I/O Sensor input: make contact (photo coupler

input electrically isolated
from the camera)
Alarm output 1 and 2: 24 V DC or less,
1 A (mechanical relay outputs
electrically isolated from the camera)

Video Output

VIDEO OUT: BNC,1.0 Vp-p, 75 Ω, unbalanced,
sync negative

Serial I/F RS-232C transparent port

ANALOGUE VIDEO OUTPUT
Signal system PAL
Sync system Internal
Horizontal resolution 480 TV lines
S/N ratio More than 50 dB
Minimum illumination 0.5 lux at F1.0

SYSTEM/NETWORK
CPU 32-bit RISC processor
Embedded flash memory 8 MB
RAM 32 MB (incl. the built-in image memory

of about 8 MB)

Browser MS Internet Explorer v 5.5 and 6.0

(Windows98/98SE/ME/NT4.0/2000/XP)

Pocket PC Internet Explorer (Pocket PC 2002)
Security IP-filtering, Password protection
Protocols supported TCP/IP, HTTP, ARP, ICMP, DHCP, FTP, DNC,

NTP and SNMP (MIB-2)
Supplied accessories CD-ROM (setup program and User guide),

Installation Manual
Optional accessories –

For specifications and further information about the SNC-RZ25P Network Video
Camera, please visit our Internet site www.sonybiz.net/networkvideo

Specifications Specifications

28-29

Network Video CamerasNetwork Video Cameras

SNC-DF70P SNC-DF40P

SNC-P1

GENERAL
Image device 1/4-type progressive scan CCD
Number of effective pixels 659 x 494 (H x V)
Electronic shutter 1 to 1/10000 s
Slow shutter 1,1/2, 1/4, 1/8, 1/15, 1/30 s (On/Off selectable)
Exposure mode Auto, Shutter priority, Manual
White balance Auto, Indoor, Outdoor, One-push, Manual
Gain 0, 6, 12, 18 dB
Minimum illumination 3.0 lx

LENS
Type Fixed focal lens
Focal length f=3.8 mm
Viewing angle Horizontal: 53.4°, Vertical:40.0°
F-number F2.0
Minimum object distance 50 cm

SYSTEM/NETWORK
Compression format MPEG-4/JPEG selectable
Image size (H x V)

MPEG-4 mode 640 x 480,480 x 360, 384 x 288,

320 x 240, 256 x 192, 160 x 120

JPEG mode 640 x 480, 480 x 360, 384 x 288,

320 x 240, 256 x 192, 160 x 120

Maximum frame rate

MPEG-4 mode Max.30 fps, 320 x 240,

Max. 15 fps, 640 x 480

JPEG mode Max. 30 fps, 320 x 240,

Max. 18 fps, 640 x 480
Audio compression G.711 (64 Kbps)/G.726 (40, 32, 24,16 Kbps)
Number of clients

MPEG-4 mode 10 clients
JPEG mode 20 clients

Protocols TCP/IP, UDP, RTP, RTCP,ARP, ICMP, HTTP, FTP, SMTP, DHCP, DNS, NTP and PPPoE,

SNMP

INTERFACES
Ethernet 100Base-TX/10Base-T (RJ-45)
Video output Mini-jack
Built-in microphone Electret condenser microphone
External microphone input Mini-jack, Plug-in power, 2.2 K ohm, Unbalanced
Line output Mini-jack
Sensor in 1
Alarm out 1

GENERAL
Mass Approx. 225 g (8 oz)
Dimensions (W x H x D) 99.5 x 35 x 138.5 mm (4 x 1 7/16 x 5 1/2 inches) without projection
Power requirements DC 12 V
Power consumption 3.5 W
Operating temperature 0 to +35 °C (32 to 95 °F)
Storage temperature -20 to +60 °C (-4 to +140 °F)
Operating humidity 20 to 80%, non-condensing
Storage humidity 20 to 95%, non-condensing
Supplied accessories AC adaptor (x1)

CD-ROM (x1, setup program and user guide)
Stand (x1)

CAMERA
Image device 1/4-type SuperHAD CCD
Number of effective pixels 752 x 582 (H x V)
Electronic shutter 1/50 to 1/10000 s
Gain control Auo:ON/OFF switchable (up to 18 dB)
Exposure control Auto, Back-Light-Compensation(BLC)
White balance mode ATW
Lens mount CS mount
Lens type x2.7 Vari-focal auto iris lens
Horizontal viewing angle 66.6 to 26.9 degrees
Focal length f=3.0 to 8.0 mm
F number F=1.0
Iris CCD iris
Minimum object distance 200 mm
Other functions Motion detection Motion detection

Day/Night function

Image size (H x V) 640 x 480, 480 x 360, 384 x 288, 320 x 240, 256 x 192, 160 x 120
Compression format MPEG-4/JPEG selectable
Maximum frame rate (MPEG-4 mode) Max. 25 fps (320 x 240)

(JPEG mode) Max. 25 fps (320 x 240)

AUDIO
Compression format G.711 (64 Kbps) / G.726 (40, 32, 24, 16 Kbps)

NETWORK
Protocols TCP/IP, UDP, RTP, RTCP, ARP,ICMP, DHCP, DNS, HTTP, FTP,SMTP
Number of clients JPEG: 20 users, MPEG-4: 10 users

INTERFACE
Ethernet 100Base-TX/10Base-T (RJ-45)
Analogue video output Composite video (1.0 Vp-p)
Monitor output 2-Pin connector
I/O port Sensor in (1), Alarm out (2)
External microphone input Mini-jack, 2.4 VDC plug-in power,4.7 kΩ
Audio line output Mini-jack (Monoaural), max output level: 1 Vrms

ANALOGUE VIDEO OUTPUT
Signal system PAL (Composite)
Horizontal resolution 480 TV lines
S/N ratio 50 dB
Minimum illumination (Colour) 0.9 lx (AGC On, F1.0, 50IRE) 0.8 lx (AGC On, F1.0, 50IRE)

(Black and White) 0.2 lx (AGC On, F1.0) –

GENERAL
Mass Approx. Approx. 1,500 g (3 lb 5 oz) 750 g (1 lb 10 oz)
Dimensions (W x H x D) 165 x 135 x 166 mm 124 x 132 x 126 mm

(6 1/2 x 5 3/8 x 6 5/8 inches) (5 x 5 1/4 x 5 inches)

without projection ports without projection ports
Power requirements AC24 V 50/60 Hz, DC12 V,POE
Power consumption 8 W 7.5 W
Operating temperature -10 to +50 ºC (14 to 122 ºF)
Storage temperature -20 to +60 °C (-4 to +140 °F)
Operating humidity 20 to 80%,non-condensing
Storage humidity 20 to 95%, non-condensing

SUPPLIED ACCESSORIES

CD-ROM (setup program, users guide), CD-ROM (setup program, users guide),

Monitor cables (2), AC power code, Monitor cables (2), AC power code,

Wire rope, Screws (2), Installation manual Wire rope, Screws (2),Dome cover screw,

Installation manual

SYSTEM REQUIREMENTS
Operating system Microsoft®Windows®2000/XP
Processor Intel

®

Pentium®III, 1 GHz or higher

(Recommendation: Pentium IV, 2GHz or higher)
Memory 256 MB RAM minimum
Web browser Microsoft Internet Explorer®version 5.5 or 6.0

Specifications Specifications

30-31

Network Video CamerasNetwork Video Cameras

SNC-M1 SNC-M1W

SNC-M3 SNC-M3W

CAMERA

Image device 1/4-type CMOS 1/4-type CMOS
Number of effective pixels (H x V)

652 x 482 652 x 482
Pan range – – + 60 to -60 degrees
Tilt range – – + 10 to -60 degrees
Lens type Fixed focal lens Fixed focal lens
Focal length f=3.7 mm f=3.7 mm
Viewing angle Horizontal: 51.0°, Vertical:38.9° Horizontal: 51.0°, Vertical: 38.9°
Minimum object distance 80 cm 80 cm

VIDEO

Compression format MPEG-4, JPEG MPEG-4, JPEG
Image size (H x V)

MPEG-4 mode 640 x 480, 320 x 240, 160 x 120 640 x 480, 320 x 240, 160 x 120
JPEG mode 640 x 480, 320 x 240, 160 x 120 640 x 480, 320 x 240, 160 x 120

Maximum frame rate

MPEG-4 mode Max. 30 fps (320 x 240) Max. 30 fps (320 x 240)
JPEG mode Max. 30 fps (320 x 240) Max. 30 fps (320 x 240)

AUDIO

Audio compression G.726 (40, 32, 24, 16 Kbps) G.726 (40, 32, 24, 16 Kbps)
Built-in microphone Electret condenser microphone Electret condenser microphone

NETWORK

Protocols TCP/IP,ARP, ICMP, DHCP, DNS, HTTP, FTP, SMTP, NTP TCP/IP, ARP, ICMP, DHCP, DNS, HTTP, FTP, SMTP, NTP

WIRELESS LAN

Standard – IEEE802.11b (2.4 GHz) – IEEE802.11b (2.4 GHz)
Transmission speed

–

11Mbps/5.5Mbps/2Mbps/ – 11Mbps/5.5Mbps/2Mbps/
1Mbps (Auto Switch) 1Mbps (Auto Switch)

Security – WEP (64/128 bits) – WEP (64/128 bits)

INTERFACES

Ethernet 100Base-TX/10Base-T (RJ-45) 100Base-TX/10Base-T (RJ-45)
External microphone input Mini-jack, 2.4 VDC plug-in power, 2.2 k ohm Mini-jack, 2.4 VDC plug-in power, 2.2 k ohm
Audio line output Mini-jack Mini-jack

GENERAL

Mass Approx. 230 g (8 oz) Approx. 240 g (8 oz) Approx. 380 g (13 oz) Approx. 390 g (14 oz)
Dimensions (Dia. x H) 110 x 68.5 mm (4 3/8 x 2 3/4 inches) 110 x 104 mm (4 3/8 x 4 1/8 inches)

(excludes projection port) (excludes projection port)
Power requirements DC 5 V DC 5 V
Power consumption 2.7 W 3.5 W 6.7 W 7.5 W
Operating temperature 0 to +40 °C (32 to 104 °F) 0 to +40 °C (32 to 104 °F)
Storage temperature -20 to +60 °C (-4 to +140 °F) -20 to +60 °C (-4 to +140 °F)
Operating humidity 20 to 80%, non-condensing 20 to 80%, non-condensing
Storage humidity 20 to 95%, non-condensing 20 to 95%, non-condensing

SUPPLIED ACCESSORIES

AC adaptor AC adaptor

Stand Stand

Wire Wire

Rubber foot Wall-mount bracket

CD-ROM (users guide, supplied program) Rubber foot

Installation manual CD-ROM (users guide, supplied program)

Installation manual

SYSTEM REQUIREMENTS

Operating system Microsoft®Windows®2000/XP Microsoft®Windows®2000/XP
Processor Intel

®

Pentium®III, 1 GHz or higher Intel®Pentium®III, 1 GHz or higher

(Recommendation: Pentium IV, 2GHz or higher) (Recommendation: Pentium IV, 2GHz or higher)
Memory 256 MB RAM minimum 256 MB RAM minimum
Web browser Microsoft Internet Explorer®version 5.5 or 6.0 Microsoft Internet Explorer®version 5.5 or 6.0

Specifications Specifications

32-33

Network Video Recorders and ServersNetwork Video Recorders and Servers

SNT-V501 SNT-V504 FSV-RSM9/FSV-RSM16

FSVM51000W

ANALOGUE VIDEO INTERFACE

Video input (1) Analogue composite (BNC x 1),1.0 Vp-p,

(4) Analogue composite (BNC x 1),1.0 Vp-p,

75 Ω, unbalanced, sync negative Auto sensing 75 Ω, unbalanced, sync negative

Auto sensing

Video ouput Through video output:Analogue composite Analogue composite

(BNC x 1),1.0 Vp-p,

(BNC x 1),1.0 Vp-p, 75 Ω, unbalanced, 75 Ω, unbalanced, sync negative

sync negative (QUAD/Single selectable)
System/Network CPU 32-bit RISC processor RAM 32 MB (including 8 MB alarm buffer)
Flash memory 8 MB
Image size 704 x 480, 640 x 480, 320 x 240, 160 x 120 pixels
Compression method JPEG
Compression ratio Approx. 1/5 to 1/60 (10 steps) *The compression ratio is based

on an image of 24 bits/picture element (8 bits for each R, G and B)

Frame rate Max. 30 fps (640 x 480) Max. 30 fps (640 x 480), 30 fps

(320 x 240) per video input
Protocols TCP/IP, ARP, ICMP, HTTP, FTP (server/client),SMTP, DHCP, DNS, NTP, SNMP (MIB-2)
Number of clients Max. 50

INTERFACES
Ethernet 100BASE-TX / 10BASE-T (RJ-45)
Sensor input (1) 3.3 to 24 V DC device supported, (4) 3.3 to 24 V DC device supported,

photo coupler inputs electrically photo coupler inputs electrically

isolated from this unit isolated from this unit
Alarm output (2) 24 V DC or less, 1 A, mechanical relay outputs electrically isolated from the camera
Serial interface RS-485/RS-232C (for camera control or transparency function)
PC card slot PCMCIA Type II (1)

GENERAL
Mass Approx. 650 g (1 lb 7 oz) Approx. 710 g (1 lb 9 oz)
Dimensions (W/H/D) 128 x 40 x 150 mm (5 1/8 x 1 5/8 x 6 inches) excluding protruding parts
Power requirement DC 12 V or AC 24 V
Power consumption 10.0 W max. 14.0 W max.
Operating temperature -10 to 50 °C (14 °F to 122 °F) When PC card is attached:-10 to 40 °C (14 to 104°F)
Storage temperature -20 to 60 °C (-4 to 140 °F)
Operating humidity 20 to 80 %, Non-condensing
Storage humidity 20 to 95 %, Non-condensing
Supplied accessories

CD-ROM (setup program and User's Guide) (1),

I/O receptacle (1), Installation manual (1)

SYSTEM
Chipset ServerWorks GC-SL+CSB6
CPU Intel Pentium 4, 2.4GHz/533MHz front-side bus
Memory 512 MB PC-2100 DDR266 CL2 with ECC registered
OS Windows XP Professional
Pre-installed software

*1

RealShot Manger version 2.0, RealShot Manager License File

*1

Installed or bundled at configuration center

INTERFACES
Serial RS-232C, 9-pin x1
Keyboard, Mouse PS/2 x 2
USB 1.1 Front x 2, Rear x 1
Graphic VGA(15-pin) x 1
LAN RJ-45 x 2(10/100 x 1, 10/100/1000 x 1)

ONBOARD CONTROLLER
IDE ATA100
RAID 2-channel IDE RAID 0, 1 SPAN
Graphic ATI Range XL, SMB VRAM

HDD
Capacity 500 GB (250 GB x 2)

DISC BAYS
HDD 3.5 inch x 2
FDD Drive 3.5 inch x 1

GENERAL
Operating temperature 10°C to 35°C (50°F to 95°F)
Operating humidity 20% to 80%
Dimensions(WxHxD) 430 x 43 x 400 mm(17 x 1 3/4 x 15 3/4 inches)
Mass approx. 8.0 kg(17lb 10oz)
Rated voltage 100-127, 220-240 V
Rated current 100 to 127V: 5.5 A, 200 to 240 V: 2.75 A
Power consumption 200 W
Frequency 50/60 Hz
Supplied accessories Rack mounting kit(1), Ethernet cable(1), FSV-IPM1 System Utility CD-ROM, Windows XP

Professional Installation CD, RealShot Manager 2.0 CD, RealShot Manager License FD,
FSV-IPM1 Installation Guide, Rubber foot(4)

SAFETY STANDARD/EMC INFORMATION
Safety standard CSA C22.2 No.60950 3rd /UL 60950 3rd IEC 60950 3rd EN 60950 3rd Low voltage directive
EMC FCC47 CFR Part 15 Class A IC ICES-003 Class A

EMC Directive 89/336/EEC EN55022 Class A, EN55024 VCCI Class A JEITA

Main Function Application Server
System Specifications 1000 GB (4x hot-swappable 250 GB

Ultra ATA-100 drives)
CPU Intel Pentium 4, 2.4 GHz processor
Memory 512 MB RAM STD (up to 4GB RAM optional)
Memory Slots DIMM x 4 sockets
Hard Disk Capacity 1000 GB (250 GB x 4) Hot-swappable
HDD Interface ATA (IDE)
HDD Raid Level Hardware RAID : RAID 0,1,5 (O/S : 0+1)
User Area Capacity (GB) 480 GB (RAID 5),320 GB (RAID 1),

640 GB (RAID 0)
Operating System Windows 2000 Server preinstalled (incl. 5 CAL)
System Management Recovery CDs
Network Transport Protocol TCP/IP
Network File Protocols N/A
Network Client Types N/A
Supported Languages Dutch, English, French, German, Italian, Japanese,Korean, Spanish, Swedish,

Chinese (simplified), Chinese (traditional)
Network Connection Dual auto-sensing 10 BaseT/100 BaseTX/1000 BaseT

with fail-over and load balancing (RJ-45 connectors)
Network Security N/A
Interface outside Interface front : USB 2.0 x 2 Interface rear : RS-232C x 1 (D-sub 9pin)

PS/2 x 2 (Keyboard, Mouse) VGA Monitor SCSI (68 pin,VHDCI)

Ethernet Network (RJ-45) x 2 AC – Power in
Interface inside PCI expansion slot x 2 (short card size x 2), mini PCI for SCSI x 1 for tape device
Windows Network Integration N/A
Form Factor 19" rack-mountable (1U height)
Operating Environment Temperature: 10 to 35 °C
CD-ROM Slim 24x CDROM
Front Display LCD : 12 x2 character type LCD
Rated Voltage AC 100-240 V, 50/60 Hz
Rated Current 6A
Dimensions (W x H x D) 440 x 43.5 x 612 mm
Weight 14 kg (31lb.)
Operating Relative Humidity 20 - 80 % (non-condensing)
Safety Requirements EU TUV-GS Mark
Accessories Hot Swappable HDD (250 GB)

Specifications Specifications

34-35

Video CamerasVideo Cameras

Camera Adaptors

SSC-DC50AP SSC-DC54AP SSC-DC58AP

YS-W270P YS-W170P

SSC-DC593P SSC-DC598P

Pickup device 1/2 type Interline

Transfer CCD
Picture Elements (H x V) 752 x 582
Lens mount C and CS adj.
Signal system/scanning system PAL 625/2:1
Colour mode AWB/ATW/ AWB/ATW/ ATW PRO/

ATW PRO/ ATW PRO/ ATW/AWB/

PRESET 5,600 °K PRESET 5,600 °K PRESET 5,600 °K
Sync system Internal/External
External sync VS and VBS/ AC Line Lock, AC Line Lock,

MPX VS VS and VBS VS and VBS
V-Phase control No ±90° ±90°
H-Phase control Yes
Horizontal resolution 470 TV lines
S/N Ratio (AGC OFF,Weight ON) Better than 50 dB
Min. illumination 0.4 lux at F1.2 (30 IRE)
(Turbo AGC ON) 0.8 lux at F1.2 (50 IRE)
Video output Composite,

BNC (1)

Y/C, Mini-Din (1)

Operating temperature -10 to 50 °C

(14 to 122 °F)

Storage temperature -40 to 60 °C

(-40 to 140 °F)

Power requirements 1) Multiplexing with AC 24 V, 50 Hz AC 220 to 240 V, 50 Hz

YS-W170P/W270P

2) DC 12 V power
supply

Power consumption 1) 5.5 W supplied 6.0 W 5.5 W

from YS-W170P/W270P

2) 4.5 W at DC 12 V
Mass 600 g (1 lb. 5 oz.) 600 g (1 lb. 5 oz.) 900 g (2 lb.)
Dimensions (W x H x D) 64 x 57 x 137 mm 64 x 57 x 137 mm 64 x 57 x 162 mm

(2

1

⁄2" x 2 1⁄

4

" x 5

3

⁄

8

") (2

1

⁄2" x 2 1⁄

4

" x 5

3

⁄

8

") (2

1

⁄

2

" x 2

1

⁄

4

" x 6

1

⁄

8

")

Supplied accessories Lens connector (x1)

Lens mount cap (x1)

Operation manual (x1)

Video output BNC (8), composite video BNC (2), composite video
Video input Camera In, BNC (4) Camera In, BNC (1)
External sync VS or VD-W
Internal sync VS or VD-W
Max. cable length 300 m using RG-59B/U

500 m using RG-6A/U

600 m using RG-11A/U
Cable compensation 3-Position
Power requirement AC 220 to 240 V, 50 Hz
Power consumption 49.5 W 15 W
Operating temp. -10 to 50 °C (14 to 104 °F)
Mass 3.6 kg (7 lb. 15 oz.) 1.9 kg (4 lb. 3 oz.)
Dimensions (W x H x D) 424 x 52 x 345 mm 212 x 52 x 345 mm

(16

3

⁄

4

"x 2

1

⁄

8

" x 13

5

⁄

8

") (8

3

⁄

8

"x 2

1

⁄

8

" x 13

5

⁄

8

")

Image device 1/3 type Interline

Transfer CCD

with DynaView technology
Picture elements 752 x 582
(H x V)
Sensing area 1/3 type format

(4.8 x 3.6 mm)
Signal system PAL
Sync. System Internal/External
Horizontal 480 TV lines
resolution
Lens mount CS
Minimum Colour: 0.8 lux at F1.4
illumination (50 IRE)

B/W: 0.07 lux at F1.4

(50 IRE)

AGC OFF/MANUAL/NORMAL/

TURBO selectable

Shutter 1/60 (1/50) to 1/10000

(8steps) OFF/MANUAL/

CCD IRIS selectable
White Balance ATW PRO/ATW/
(WB) 3200K/5600K/

MANUAL/DUAL WB
Backlight DYNAVIEW/SPOT/
Compensation WEIGHT/OFF
(BLC) switchable
Day/Night mode COLOUR/AUTO/

EXTERNAL/B&W
Activity detection ON / OFF switchable
Zone masking ON / OFF switchable

(with Area setting function)

Variable Gamma OFF / SCENE1 / SCENE2 /

SCENE3 / SCENE4

selectable

Camera Title Up to 24 characters

ON / OFF switchable

S/N ratio More than 50 dB

(AGC OFF,Weight ON)
Video out 1.0 Vp-p, BNC (1)
Remote Control RS-485
Operating -10 to 50 °C
temperature (-40 to 122 °F)
Storage -40 to 60 °C
temperature (-40 to 140 °F)
Power AC 24 V ±10%, 50 Hz AC 220 V to 240 V
requirements or DC 12 V ±10% ±10%, 50 Hz
Power 5.8 W 5.6 W
consumption
Mass 500 g (1 lb. 2 oz.)
Auto iris lens DC/video servo switchable
Dimensions 70 x 57 x 129 mm
(W x H x D) (2

7

⁄

8

" x 2

1

⁄

4

" x 5

1

⁄

8

")
Supplied Lens mount cap (x1) Lens mount cap (x1)
accessories Menu operations (x1) Menu operations (x1)

Operation manual (x1) Operation manual (x1)

AC power cable (x1)

Specifications

36-37

Video Cameras

Specifications

Video Cameras

SSC-DC573P SSC-DC578P SSC-E453P SSC-E458P SSC-E473P SSC-E478P

Image device 1/3 type CCD
Picture elements (H x V) 752 x 582
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system PAL standard
Sync system INT/Line Lock
Horizontal resolution 480 TV lines
Lens mount CS
Minimum illumination 0.8 lx at F1.4 (50 IRE, AGC ON)
AGC NORMAL/TURBO/MANUAL/OFF selectable
CCD IRIS ON/OFF switchable, 1/50 to 1/100,000 s
Electric shutter 1/50 to 1/10,000 s, 8 steps
White Balance (WB) ATW-PRO/ATW/3200K/5600K/MANUAL/DUAL WB selectable
Back-Light Compensation (BLC) DYNAVIEW/SPOT/WEIGHT/OFF selectable
S/N ratio More than 50 dB (AGC OFF,WEIGHT ON)
Dynamic range 52 dB
Variable Gamma Curve Scene 1/Scene 2/Scenc 3/Scene 4/Off selectable
Aperture Soft/Normal/Sharp selectable
Camera title Up to 24 characters
User preset Two presets
Video out BNC, 1.0 Vp-p, 75 Ω, sync negative
Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
Storage temperature -40 °C to 60 °C (-40 °F to 140 °F)
Power requirements AC 24 V ±10 %, 50 Hz or DC 12 V ±10 % AC 220 to 240 V ±10 %, 50 Hz
Power consumption 4 W
Auto iris lens DC/Video Servo switchable
Mass 480 g (1 lb 1 oz)
Dimensions (W x H x D) 70 x 57 x 129 mm (27/8x 21/4x 51/8inches)
Supplied accessories Lens mount cap (1), Operating instructions (1),

Menu operations (1), AC power cable (1, SSC-DC578P only)

Image device 1/3 type Interline Transfer CCD with SuperExwave
Picture elements (H x V) 752 x 582
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system PAL standard
Sync system INT/Line Lock
Horizontal resolution 540 TV lines
Lens mount CS
Minimum illumination 0.55 lux at F1.2 Colour: 0.55 lx at F1.2

(50 IRE, AGC ON,Turbo mode) (50 IRE, AGC ON, Turbo mode)

/B&W: 0.05 lx at F1.2

(50 IRE, AGC ON,Turbo mode)
Day/Night function - Auto/Manual selectable
AGC TURBO/OFF switchable
CCD IRIS ON/OFF switchable, 1/50 to 1/100,000 s
White Balance (WB) Auto White Balance Pro(ATW Pro) /Auto Wite Balance(ATW)
Backlight Compensation ON/OFF switchable

(BLC)
S/N ratio More than 50 dB (AGC OFF, WEIGHT ON)
Video out BNC, 1.0 Vp-p, 75 Ω,sync negative
Auto iris lens DC servo
Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
Storage temperature -40 °C to 60 °C (-40 °F to 140 °F)
Power requirements AC 24 V ±10%, 50 Hz AC 220 V to 240 V AC 24 V ±10%, 50 Hz

AC 220 V to 240 V

or DC 12 V ±10% ±10%, 50 Hz or DC 12 V ±10% ±10%, 50 Hz
Power consumption 3.5 W 4.0 W
Mass 360g (12 oz) 390 g (13 oz) 380 g (13 oz) 400g (14 oz)
Mass including front 440g (15oz) 470 g (1 lb) 460 g (1 lb 1 oz)

480g (1 lb 8 oz)

& rear covers
Dimensions (W x H x D) 60 x 53 x 118 mm 60 x 53 x 124 mm

(2 3/8 x 2 1/8 x 4 3/4 inches) (2 3/8 x 2 1/8 x 5 inches)

Dimensions including 60 x 53 x 240 mm 60 x 53 x 246 mm
front and rear covers (2 3/8 x 2 1/8 x 9 1/2 inches) (2 3/8 x 2 1/8 x 9 3/4 inches)

Supplied accessories Lens mount cap (1), Operating instructions (1), Front cover(1),

Rear cover(1), Screws(2), Lens mount cap (1), Operating instructions (1),Front cover (1),

Rear cover (1), Screws (2), Power cable (1) (SSC-E458P & E478P)

Specifications

38-39

Video Cameras

Specifications

Video Cameras

SSC-DC372P SSC-DC378P SSC-DC198P

SSC-DC172P

Image device 1/3 type SuperHAD CCD 1/3 type CCD
Picture elements (H x V) 752 x 582
500 x 582
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system PAL
Sync system Internal Line Lock
Horizontal resolution 480 TV lines
330 TV lines
Lens mount CS mount
Minimum illumination 0.8 lx at F1.2 (50 IRE, Turbo mode)

0.3 lux at F1.2 (30 IRE, AGC ON,AGC ON, Turbo mode)

0.6 lux at F1.2 (50 IRE, AGC ON,Turbo mode)

3.0 lux at F1.2 (100 IRE, AGC ON,Turbo mode)

AGC ON (Turbo mode, up to 24 dB) ON/OFF switchable

or OFF switchable
CCD IRIS 1/50 to 1/100,000 s
White Balance (WB) Auto-Tracing White Balance
Back-Light Compensation (BLC) ON or OFF switchable
S/N ratio 50 dB or more (AGC OFF, Weight ON)
Video out BNC, 1.0 Vp-p, 75 1/2, sync negative
Auto iris lens DC servo
DC/video servo switchable
Operating temperature -10°C to 50°C (14°F to 122°F)
Storage temperature -40°C to 60°C (-40°F to 140°F)
Power requirements DC 12 V ±10% AC 220 to 240 V ±10%, 50 Hz
Power consumption 3.2 W 4.0 W 3.7 W
Mass 355 g (13 oz) 385 g (14 oz) 390 g (14 oz.)
Dimensions (W x H x D) 60 x 54 x 120 mm (2

3

/

8

x 2

1

/

4

x 4

3

/

4

inches)

Supplied accessories Lens mount cap (x 1), Lens mount cap (x 1), Lens mount cap (x1)

Operating instructions (x 1)Operating instructions (x 1), Operation manual (x1)

Power cable (x 1)

Image device 1/3 type Interline Transfer CCD
Picture elements (H x V) 500 x 582
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system PAL standard
Sync. System Internal
Horizontal resolution 330 TV lines
Lens mount CS
Minimum illumination 0.6 lx at F1.2 (50 IRE, AGC ON,Turbo mode)
AGC TURBO/OFF switchable
CCD IRIS ON/OFF switchable (1/50 to 1/100,000 s)
White Balance (WB) Auto White Balance (ATW)
Back-Light ON/OFF switchable
Compensation (BLC)
S/N ratio More than 50 dB (AGC OFF, WEIGHT ON)
Video out BNC, 1.0 Vp-p, 75 Ω, sync negative
Auto iris lens DC servo
Operating temperature -10°C to 50°C (14°F to 122°F)
Storage temperature -40°C to 60°C (-40°F to 140°F)
Power requirements DC 12 V ±10%
Power consumption 3.0 W
Mass 355 g (12 oz)
Dimensions (W x H x D) 60 x 54 x 120 mm (2

3

/

8 x 2

1

/

4 x 4

3

/

4 inches)

Supplied Accessories Lens mount cap (x 1), Operating instructions (x 1)

Image device

1/3 type Interline Transfer CCD
Picture elements (H x V) 752 x 582
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system CCIR standard
Sync. System INT/LL LL
Horizontal resolution 570 TV lines
Lens mount CS
Minimum illumination

0.04 lux at F1.2 (30 IRE, AGC ON,Turbo mode)

0.07 lux at F1.2 (50 IRE, AGC ON,Turbo mode)

0.3 lux at F1.2 (100 IRE, AGC ON,Turbo mode)
AGC ON/OFF (switchable)
Shutter ON/OFF (switchable), 1/50 to 1/100,000 s
Backlight ON/OFF switchable
Compensation (BLC)
S/N ratio More than 50 dB
(AGC OFF,Weight ON)
Video out 1.0 Vp-p; 75 Ω, sync. negative
Operating temperature -10 to 50 °C (14 to 122 °F)
Storage temperature -40 to 60 °C (-40 to 140 °F)
Power requirements AC 24 V ±10%, 50 Hz or DC 12 V ±10% AC 220 V to 240 V ±10%, 50 Hz
Power consumption 2.6 W
Mass 360 g (13 oz.) 390 g (14 oz.)
Auto iris lens DC/video servo switchable
Dimensions (W x H x D) 60 x 54 x 120 mm (2 3⁄8" x 2 1⁄4" x 4 3⁄4")
Supplied accessories Lens mount cap (x1) Operation manual (x1)

Image device

1/3 type Interline Transfer CCD
Picture elements (H x V) 500 x 582
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system CCIR standard
Sync. System INT/LL LL
Horizontal resolution 380 TV lines
Lens mount CS
Minimum illumination

0.03 lux at F1.2 (30 IRE, AGC ON,Turbo mode)

0.06 lux at F1.2 (50 IRE, AGC ON,Turbo mode)

0.25 lux at F1.2 (100 IRE, AGC ON,Turbo mode)
AGC ON/OFF (switchable)
Shutter ON/OFF (switchable), 1/50 to 1/100,000 s
Backlight ON/OFF switchable
Compensation (BLC)
S/N ratio More than 50 dB
(AGC OFF,Weight ON)
Video out 1.0 Vp-p; 75 Ω, sync. negative
Operating temperature -10 to 50 °C (14 to 122 °F)
Storage temperature -40 to 60 °C (-40 to 140 °F)
Power requirements AC 24 V ±10%, AC 220 V

50 Hz or to 240 V ±10%,

DC 12 V ±10% 50 Hz
Power consumption 2.5 W
Mass 360 g (13 oz.) 390 g (14 oz.)
Auto iris lens DC/video servo switchable
Dimensions (W x H x D) 60 x 54 x 120 mm (2 3⁄8" x 2 1⁄4" x 4 3⁄4")
Supplied accessories Lens mount cap (x1) Operation manual (x1)

SSC-M383CE SSC-M388CE

SSC-M183CE SSC-M188CE

Specifications

40-41

Video Recorders

HSR-X206P

HSR-X209P / HSR-X216P

Specifications

Video Cameras

SSC-CD73VP SSC-CD43VP

EVI-D100P EVI-D70P/D70PW

Picture device 1⁄4 type Interline Transfer SuperHAD CCD
Picture Elements (H x V) 752 x 582
Built-in lens f = 3.0 to 8.0 mm, F1.0 Auto iris
Lens mount CS Mount
View angle (D, H, V) (H): 66.6 ° (wide), 26.9 ° (tele) (V): 49.3° (wide), 20.1° (tele)
Focus length

Minimum object distance: 0.2 m
Signal system/ PAL color system
scanning system
White Balance ATW
Sync. system Internal (DC 12 V/AC 24 V)/

Line lock (AC 24 V only) switchable
External sync. AC line lock (for AC 24 V)
V-phase control ±90 °
Horizontal resolution 480 TV lines
S/N ratio More than 50 dB
(AGC OFF,weight ON)
Min. illumination Colour: 0.9 lux 0.9 lux (AGC ON)
(Turbo AGC ON) (F1.0, 50 IRE, AGC ON)

B&W: 0.2 lux

(F1.0, 50 IRE, AGC ON)
AGC ON (Turbo mode)/OFF switchable
Iris control mode Auto Iris Lens
Video output 1.0 Vp-p, 75 Ω, negative sync.
Weather proof IP66 —
Operating temperature -20° C to +50 °C (-4° F to +122° F)
Operating humidity 20 % to 80 % (non condensing)
Input voltage AC 24 V/DC 12 V
Power consumption 3.5 W 3.3 W
Mass Approx 870 g (1lb. 14 oz.) Approx 440 g (16 oz.)
Dimensions (W x H x D) Base: 147 x 111 x 148 mm Base: 121 x 123 x 106 mm

Bubble: 94 mm (ø) Bubble: 91 mm (ø)

Optional accessories YT-ICB73V YT-ICB43V

In-ceiling bracket In-ceiling bracket

Video Signal PAL
Image Sensor 1/4 type SuperHAD CCD
Effective Pixels 752 (H) x 582 (V)
Horizontal Resolution 460 TV lines (Wide end)
Lens x10 Optical Zoom, x40 with Digital Zoom, 18x zoom,f=4.1 mm (Wide) to 73.8 (Tele),

f = 3.1 to 31, F 1.8 to 2.9 F1.4 to F3.0
Horizontal Angle of View 6.6° to 65° 2.7° (Tele end) to 48° (Wide end)
Minimum Object Distance 100 mm (Wide end), 600 mm (Tele end) 10 mm (Wide end), 800 mm (Tele end)
Minimum Illumination 3.5 lux (F1.8) 1 lux (F1.4)
Auto Exposure Auto/Manual/Priority AE, Exposure compensation,

Backlight Compensation
Shutter Speed 1 ⁄ 3 to 1 ⁄ 10,000 s 1 to 1/10,000 s
Gain — Auto/Manual (-3 to +28 dB, 2 dB steps)
White Balance Auto, ATW, Manual,One Push, 3200K, 5800K Auto/ATW/Indoor/Outdoor/One push/Manual
Effects Mirror Image, Still Image on Field Memory, Neg. Art, Black & White

Pastel Image, Negative/Positive Reversal,
Sepia Image, Monochrome Image, Enhanced Contrast,
Mosaic Image, Vertical Stretch, Horizontal Stretch,
Motion Image on Still Image, Continuous Still Image,
Motion Images on Binaried Still Image, After-image

Lag of Moving Object
S/N Ratio More than 50 dB
Position preset — 6 positions
Pan/Tilt Horizontal: ± 100° (Max. speed: 300°/s), Pan: ±170° (Max. speed: 100°/s),

Vertical: ± 25° (Max. speed:125°/s) Tilt: -30° to +90° (Max. speed:90°/s)

(in 0.07° increments)
Video Output VBS, Y/C
Control Terminal — RS-232C (8-pin mini DIN) control

(VISCA)/RS-422 (9-pin)

control (VISCA), baud rate:

9.6 Kb/s, 38.4 Kb/s
Power Requirements DC 10.8 to 13.0 V DC 10.8 to 13.2 V
Power Consumption Max. 13.2 W (at 12 V DC) 12 W
Operating Temperature 0 to 40 °C (32 to 104 °F) 0 to 40 °C (32 to 104 °F)
Storage Temperature -20 to 60 °C (-4 to 140 °F) -20 to +60 °C (-4 to +140 °F)
Dimensions (W x H x D) 113 x 120 x 132 mm 132 x 144 x 144 mm

(4 1⁄2x 4 3⁄4x 5 1⁄4) (5 1⁄4x 5 3⁄4x 5 3⁄4inches)
Mass 860 g (1 lb. 14 oz.) 950 g (2 lb. 2 oz.)
Supplied accessories AC Adaptor (x1), IR Remote AC adaptor, IR remote commander unit,

Commander unit (x1), Velcro tape (x1), Ceiling bracket, Operating instructions

Operation manual (x1)

Mass 6.4 kg (14 lb 1 oz)
Dimensions 420 (W) x 96 (H) x 376 (D) mm (16 5/8 x 3 7/8 x 14 7/8 inches)
Power requirements AC 220 to 240 V,50/60 Hz
Power consumption 32 W
Operating temperature 5 to 40 °C ( 41 to 104 °F)
Operating humidity Less than 80 %
HDD capacity 320 GB (160 GB x 2)
Input 6 channels,VBS, VS (BNC) 1.0 Vp-p,75 Ω, unbalanced
Output (Loop through) 6 channels, VBS, VS (BNC) 1.0 Vp-p, 75 Ω, unbalanced
Monitor output 1 1 channel, VBS, VS (BNC) 1.0 Vp-p, 75 Ω, unbalanced
Monitor output 2 1 channel, VBS,VS (BNC) 1.0 Vp-p, 75 Ω, unbalanced
Video compression Motion-JPEG
Picture quality mode HYPER: 52 kB/picture, SUPER: 44 kB/picture,HIGH: 32 kB/picture,

MID: 24 kB/picture, LOW: 17 kB/picture
Picture resolution 720 x 288 pixels (Field mode)
Horizontal resolution More than 500 TV lines (Hyper mode)
Signal to noise ratio 48 dB (typical, Hyper mode)
MIC input 1 channel monaural (Mini jack), -60 dB, 10 kΩ, unbalanced
Line input 1 channel monaural (Phono jack), -8 dB, 27 kΩ, unbalanced
Line output 1 channel Monaural (Phono jack), -8 dB, 600 Ω, unbalanced
Signal to noise ratio 40 dB (typical)
Distortion Less than 4 % at 1 kHz
Ethernet 100Base-TX/10Base-T
Alarm in 1-6 Normal open, Low active
Sensor Alarm out 1-6 Open collector, Low active
Remote 1 / Remote 2 2-wire type with resistance-based identification system
Alarm out Open collector, Low active
Alarm reset Incl. video loss reset, normal open,Low active
Clock set in Normal open, Low active
Clock set out Non rec out
Warning out 5 V/5.7 kΩ, Low active
Disk full out 5 V/5.7 kΩ, Low active
Alarm full out 5 V/5.7 kΩ, Low active
External timer in Normal open, Low active
Supplied Accessories AC power code (1) Power cord tie (1) Rack mount kit (1)

Operation Manual (1) Ferrite core (4)
Optional Accessories MSH-M32N/M64N/M128N Memory Stick Duo,

MSAC-MCF1 Memory Stick Duo Adaptor for Compact Flash Slot

HDD capacity 320 GB/HDD Unit (160 GB: up to 2 HDDs)
Playback During Recording Yes
Video signal CCIR standard, PAL colour
Recording system N/A
Compression Motion JPEG
Recording/Playback time 2686 hours in High mode or 1653 hours in Hyper mode (1-channel input, 1 picture/s)
Fast forward/Rewind time N/A
Video Input 9 channels (16 for the HSR-X216P), VBS,VS (BNC) : 1.0 Vp-p, 75 Ω, unbalanced
Video Output 9 channels (16 for the HSR-X216P), VBS,VS (BNC), 1.0 Vp-p, 75 Ω, unbalanced
Loop out connector BNC (9) (16 for the HSR-X216P)
Split screen display 4 patterns (6 for the HSR-X216P)
Quality mode Hyper, Super, High, Mid and Low modes (selectable)
Horizontal resolution More than 500 TV lines (Hyper mode)
S/N ratio 40 dB (typical)
Mass 7.0 kg (15 lb. 7 oz.)
Dimensions (W x H x D) 420 x 96 x 376 mm (16 5/8" x 3 7/8" x 14 7/8")
Power AC 120 V ±10%, 60 Hz ±10%
Power consumption AC 120 V ±10%,
requirements 60 Hz ±10%: 30 W
Operating temperature 5 to 40 °C (41 to 104 °F)
Usable tape N/A
Parallel input/ —
output connector
Control terminal RS-232C, 9 pin D-sub, RS-485 terminal,

Series terminal, Remote terminal, SW OUT terminal

Audio
Mic input 1 channel Monaural (Mini jack), -60 dBs, 10 kΩ, unbalanced
Audio input 1 channel Monaural (Phono Jack), -8 dBs, 27 kΩ, unbalanced
Audio output 1 channel Monaural (Phono Jack), -8 dBs, 600 Ω, unbalanced
Audio S/N ratio 40 dB (typical)
Supplied accessories AC power cord (1) Power cord tie (1) Rack mount kit (1) Operation manual (1)
Optional accessories MSA-8A/16A/32A/64A/128A Memory Stick MSX-256/512/1G Memory Stick PRO

MSAC-PC2 Memory Stick Adaptor MSAC-PC3 Memory Stick/Memory Stick PRO
Adaptor

Specifications

42-43

Video Monitors

Specifications

Video Recorders

HSR-DCT

Dimensions (W x H x D) 298 x 210 x 210 mm
Power supply 12 V DC 1A
Power consumption 15 W
Operating temperature 0° to 45 °C (32° to 113°F)
PTZ control Joystick, 3 axis proportional
Display 320 x 240 pixels back-lit by white LED
Languages Italian, English, French and German

Expandable to 12
Security Three passwords (Connection, Set-up, Alarm reset)
Customisation Up to 30 user maps
Macro function keys Max. 20
INTERFACES
Serial I/F 3x RS-485 (RJ11 connectors):

One line for Sony HSR-X209P/X216P,

Two lines for two independent telemetry daisy chain

up to 999 telemetry receivers

1x RS-232C for PC connection (layout creation,

keyboard set-up and firmware update)
SUPPORTED PROTOCOLS
Speed Dome control Dome Elmo D7720B

Dome Ernitec Saturn

Dome JVC TK-C675, TK-C676

Dome Panasonic 600 and 850

Dome Pelco Spectra and Lite (Protocol D)

Dome Samsung SCC64-1P

Dome Sensormatic Delta Dome II

Dome Star

Dome VCL VC5S-ORBM
Supplied Accessories Instruction Manual, wide range power supply,

3 power cables, 6 telephone cables,

6 shunt boxes RJ jack

Tape format VHS
Tape speed 23.39 mm/s (3-hour mode) 11.70 mm/s (6 or 8-hour mode)
Fast forward/rewind time — Approx. 100 seconds (with an E-180 tape)
Recording system Rotary 4-Head Helical Scanning System
Video Input BNC: 1.0 Vp-p, 75 Ω, unbalanced
Video Output BNC: 1.0 Vp-p, 75 Ω,75 Ω, unbalanced
Recording modes 3, 12, 24 Hrs. 3, 12, 24, 48, 72 Hrs 6, 18, 30, 48, 72, 96 Hrs

(with an E-180 tape) (with an E-180 tape) (with an E-180 tape)

Record interval (Approx.) 1/50 to 0.18 s 1/50 to 0.5 s 1/50 to 0.34 s
Mic input ø 3.5 mm Mini-jack, -60 dB, 10 kΩ
Audio recording 3, 12, 24 Hour Mode 3, 12, 24 Hour Mode 6, 18, 30 Hour Mode
Audio input -8 dB, 27 kΩ(phono jack)
Audio output -8 dB, 600 Ω(phono jack)
Audio S/N ratio 42 dB 40 dB 40 dB
Horizontal resolution 350 TV lines (B/W) 350 TV lines (B/W) 350 TV lines (B/W)

300 TV lines (Colour) 240 TV lines (Colour) 240 TV lines (Colour)
S/N Ratio 43 dB 44 dB 42 dB
Control terminal ø 3.5 mm Mini-jack RS-232C/RS-485 interface
Time/date Yes
Built-in timer Yes 7-Day/8-Event 7-Day/8-Event
Alarm input Low level
Alarm output +5 V,5.7 kΩ(Low active)
Alarm REC. speed 3, 12 Hrs. 3, 12, 24 Hrs. E-180 type: 6, 18 Hrs.

or No change or No change or No change

E-240 type: 8, 24 Hrs.

or No change
Alarm search No Yes
Alarm scan Yes
Alarm log Yes
Operating temperature 5 to 40 °C (41 to 104 °F)
Power requirement AC 220 to 240 V,50/60 Hz
Power consumption 18 W 14 W 16 W
Mass 3.8 kg (8 lb. 6 oz.) 4.3 kg (9 lb. 6 oz.) 4.3 kg (9 lb. 6 oz.)
Dimensions 240 x 96.5 x 333 mm 420 x 100 x 300 mm 420 x 100 x 300 mm
(W x H x D) (9 1⁄2" x 3 7⁄8" x 13 1⁄8") (16 5⁄8" x 4" x 11 7⁄8") (16 5⁄8" x 4" x 11 7⁄8")
Supplied accessories AC power cable (x1) Operation manual (x1)
Optional accessories SVT-RM10 Remote control unit SVT-RS100 Interface board (RS-232C/RS-485)

SVT-N24P SVT-N72P SVT-RA96P

Colour system NTSC, PAL
Power requirements AC 100 to 240 V, 50/60 Hz
Power consumption (Typical) 68 W 75 W
Operating temperature 0 to 35 °C (32 to 95 °F)
Storage temperature -10 to 40 °C (14 to 104 °F)
Operating humidity 35 to 85% (No condensation)
Storage humidity 0 to 90%
Dimensions (W x H x D) Approx. 346 x 340 x 414 mm Approx. 449 x 441 x 502 mm

(13 5⁄8x 13 1⁄2x 16 3⁄8 inches) (17 3⁄4x 17 3⁄8x 19 7⁄8inches)
Mass Approx.15.0 kg (33 lb. 1 oz.) Approx. 28.0 kg (61 lb. 12 oz.)
CRT CRT type*: 14-inch Trinitron, AG pitch:0.25 mm CRT type*: 20-inch Trinitron, AG pitch: 0.4 mm

Phosphor: P-22, Effective picture size (4:3) Phosphor: P-22, Effective picture size (4:3)

267.5 (W) x 200.6 (H) mm, 340.0 (Diagonal) mm 385.8 (W) x 290.6 (H) mm, 481.3 (Diagonal) mm
Centre Resolution (Y/C input 4:3) 600 TV lines
Frequency response 8.0 MHz ( 0 -6 ) dB
Scanning frequency 1 5.734 kHz (NTSC), 15.625 kHz (PAL)
Normal scan 7% overscan
Linearity Horizontal: Less than 8% (typical), Vertical:Less than 7% (typical)
Convergence Centre: 0.4 mm (Typical), Centre: 0.5 mm (Typical),

Peripheral: 0.5 mm (Typical) Peripheral: 0.7 mm (Typical)
Raster size stability Horizontal: 1.0% (typical), Vertical:1.5% (typical)
HV regulation 3.5% (typical) 4.0% (typical)
Colour temperature D65/D93/User adjustable
Input/Output
Line A Composite: Loop-through BNC, 1.0 Vp-p +3 dB/-6 dB,

sync negative, automatic 75 Ω termination

Y/C**: Loop-through Mini Din 4-pin, automatic 75 Ω termination

Y: 1.0 Vp-p, sync negative

Audio: Phono jack, -5 dBu 47 kΩor higher

Line B Composite: Loop-through BNC, 1.0 Vp-p, sync negative,

automatic 75 Ω termina tion

Y/C**: Mini Din 4-pin, automatic 75 Ω termination

Y: 1.0 Vp-p +3 dB/-6 dB,sync negative

C: 0.286 Vp-p (NTSC), 0.3 Vp-p (PAL) 75 Ω termination

Audio: Phono jack, -5 dBu 47 kΩor higher

Remote Parallel remote: Modular 8-pin (Fixed)
Audio output 0.8 W (Distortion: Less than 5%)
Regulation Compliance UL-1950, CSA-950, EN 60950, VCCI class A, FCC class A,

IC class A, C-Tick,CE (LVD), CE (EMC), JEITA,DHHS,

DNHW, CCC, KTL,BSMI

* Viewable area, measured diagonally
** The Y/C input has priority over the composite input

SSM-14L1 SSM-20L1

Specifications

44-45

Printers

Specifications

Printers

Printing method Dye sublimation printing
Resolution 300 dpi 403 dpi 403 dpi (thermal head)
Gradation 256 levels 256 levels YMC image process using 8bits/

256 gradations per colour,

Over 16.7 million Over 16.7 million

approx. 16.7 million

colours per dot colours per dot colours per dot

Effective print pixels 1920 x 1176 dots S Size 1524 x 1176 dots S size 1520 x 1144 dots

L Size 1524 x 1458 dots L size 2000 x 1520 dots

Media size A5 Size 100 x 90 mm A6 S Size 100 x 90 mm S size 100 x 90 mm

(5 7⁄8" x 8 3⁄8") (4" x 3 5⁄8") (4" x 3 5⁄8")

A6 L Size 144 x 100 mm L size 144 x 100 mm

(5 3⁄4" x 4") (5 3⁄4" x 4")

Print area S Size : 117.0 x 170.9 mm S Size 95.8 x 72.7mm S size Full 95.8 x 72.1 mm

(Full print mode) (3 4⁄5" x 2 4⁄5")

L Size 127 .4 x 16 5.1 mm L Size 126.9 x 91.9 mm L size Full 126 x 95.8 mm

(Full print mode) (5 1⁄25" x 3 4⁄5")

Printing time UPC-510 (Colour Media): UPC-21S approx. UPC-21S approx.

approx. 22 seconds 17 seconds 19 seconds

UPC-540 UPC-21L approx. (High-speed mode)

(Self Laminating Media): 25 seconds UPC-21L approx.

approx. 33 seconds 29 seconds

(High-speed mode)

Picture memory Eight frame memories Four Frame Memories* 18 Mbytes

(Two Frame Memories)

Inputs/Outputs Video, S-Video, RGB —

Control terminals RM-5500, Special mini, Special mini, Stereo mini, USB (Revision 2.0)

Stereo mini, Footswitch, D-sub 9-pin

RS-232C (D-Sub,25-pin)

Power requirements AC 100 to 120V, 50/60 Hz —

AC 220 to 240, 50/60Hz

Power consumption 2.8 A AC 100 to 120 V: 1.8 A;

AC 220 to 240 V: 1.0 A

Mass 14 kg (31 lb) 6.5 kg (14 lb. 5 oz.) Approx. 6.5 kg

(14 lb. 5 oz.)
Dimensions 370 x 125 x 475 mm 212 x 125 x 395 mm 212 x 125 x 395 mm
(W x H x D) (14 5⁄8" x 5" x 18 3⁄4") (8 3⁄8" x 5" x 15 5⁄8") (8 3⁄8" x 5" x 15 5⁄8")
Driver Software — —

Windows 98/Me,
Windows 2000/XP

Safety Standards UL 1950, UL 2601-1, UL2601-1, CSA C22.2 UL60950+CSA C22.2

CSA C22.2 No. No.601.1, EN60601-1 No.950+UL2601-1
950, No. 601.1 +CSA C22.2

EN 60950, EN 60601-1 No.601.1

EN60950+EN60601-1,
IEC60601-1+IEC60950

Supplied accessories Ink Ribbon Holder (x1) AC power cable (x1) Print tray (L tray) (x1)

AC power cable (x1) Operation manual (x1) CD-ROM (x1)

Paper tray (x1) Print tray (x1)

Thermal head

Print tray (x1) Colour Print Pack

cleaning cartridge (x1)

Colour Print Pack (20 prints) (10 prints) Caution sheet 'Before Using

Operation manual (x1) this Printer' (x1)

USB connecting cable

(Hi-speed USB Revision 2.0) (x1)

Stoppers (x2)

Optional accessories UPC-540/540MD UPC-21S UPC-21S

Self-laminating Colour Print Pack Colour Print Pack

Colour Print Pack (102 prints) (240 prints) (240 prints)

UPC-510 UPC-21L UPC-21L

Colour Print Pack Colour Print Pack Colour Print Pack

(200 prints) (200 prints) (200 prints)

UPA-50RH Ink Ribbon Holder RM-5500 UPA-21SA

RM-5500 Wired/Wireless Wired/Wireless Slide Adaptor

Remote Commander Remote Control Unit

RM-91 Remote Control Unit RM-91 Remote Control Unit

FS-30 Foot Switch UPA-21SA Slide Adaptor

All print quantity numbers are measured in default setting. All non-metric weights and measures are approximate.
* Eight frame memories will be available soon.

UP-51MD/1 UP-21MD UP-D23MD

Printing method Direct thermal printing
Thermal head 162 dpi 325 dpi
Gradation 256 grey levels
Effective print pixels (CCIR) 1280 x 607 dots Max. 1280 x 4096 dots

(EIA) 1280 x 507 dots

Print area (CCIR) (Standard mode and Wide 1 mode) Max. 100 x 320 mm (4 x 12 5⁄8")

(EIA) Standard mode:

190 x 142 mm (7 1⁄2" x 5 5⁄8")

Side mode:

181 x 243 mm (7 1⁄4" x 9 5⁄8")

Standard mode:

190 x 144 mm (7 1⁄2" x 5 3⁄4")

Side mode:

184 x 243 mm (7 1⁄4" x 9 5⁄8")

Printing time Approx. 12 seconds per screen Approx. 3.9 seconds

(1280 x 960 dots)

Approx. 5.1 seconds

(1280 x 1280 dots)
Picture memory 2048 x 1024 x 8 bit 8 MB
Inputs/Outputs Video Parallel (IEEE 1284) /

USB (version 1.0)
Control terminals Stereo mini —
Power requirements AC 220 to 240 V, 120 V, 50/60 Hz 100-120 V, 220-240 V, 50/60 Hz
Power consumption AC 220 to 240 V: 1.3 A; Approx. 120 W

120 V: 2.4 A Approx. 20 W (stand-by mode)
Mass 8 kg (17 lb. 10 oz.) Approx. 3.4 kg (7 lb. 8 oz.)
Dimensions 316 x 132 x 305 mm 154 (W) x 105 (H) x 260 (D) mm
(W x H x D) (12 1⁄2" x 5 1⁄4" x 12 1⁄8") (6 1⁄8 x 4 1⁄4 x 10 1⁄4 inches)
Driver Software — Parallel (IEEE 1284):

Windows 95/98/ME/2000,

Windows NT 4.0

USB (version 1.0):

Windows 98/ME/2000

Safety Standards EN60950, EN60601-1, UL: UL 1950, UL 2601-1 CSA:

CE (MDD, EMC. LVD) CSA C22.2 No. 950, No. 601.1

TUV: EN 60950, EN 60601-1

CE: LVD, MDD CCIB: GB 4943

Supplied accessories BNC cable 1.5 m (x1) Driver Software (1)

AC power cable (x1) AC Power Cord (x1)

Operation manual (x1) Operation Manual (x1)

UPP-110HG print pack (x1) UPP-110HG

Head cleaning sheet (x1) High Glossy Print Media (x1)

Head Cleaning Sheet (x1)

Optional accessories UPP-210HD Type II UPP-110HG

High Density Print Paper High Glossy Print Media

(126 prints) (110 mm x 18 m) (x1)

UPP-210SE Type II UPP-110HD

Normal Density Print Paper High Density Print Media

(126 prints) (110 mm x 20 m) (x1)

RM-91 Remote Control Unit UPP-110S Normal Type Print Media

FS-20 Foot Switch (110 mm x 20 m) (x1)

UP-960CE UP-D895

System ExamplesSystem Examples

Hard Disk Recording (HSR-X206P)

Network Video Monitoring - Small Installation

Network Video Monitoring - Medium Sized Installation

Day/Night and Remote Controlled Operation (SSC-DC593P)

Day/Night signal OUT

Activity Detection OUT

RS-485 Remote

Control

AC 24 V or
DC 12 V power supply

AC outlet

Monitor

Monitor

Monitor

Hard Disk Recorder

Cameras

Cameras

Cameras

Cameras

Monitor and record

on desktop PC

External alarm
inputs or outputs
through RSM-I08

Audio recording

through RSM-AIC

Audio recording
through RSM-AIC

Audio recording

through RSM-AIC

PC

LAN

LAN

LAN

LAN

LAN

WAN

LAN

VIDEO IN (composite)

Video IN

Video OUT

Monitor OUT

Monitor OUT

RSM Servers

RSM Clients

RSM Client

RSM Client
at central
control room

RSM Client

Web Client

Web Client

VPN Gateway

VPN Gateway

VPN Gateway

VPN Gateway

RealShot Manager software running on a standalone PC allows viewing, recording
and management of images from up to 32 cameras. Images from all cameras can
be viewed on-screen simultaneously, while RealShot Manager also allows remote
configuration and control of camera functions such as image quality, resolution and
PTZ.

Network Video Monitoring - Multiple Sites Installation

Multiple sites at a number of different locations can be linked across a WAN
(Wide Area Network) or the Internet. A VPN (Virtual Private Network) gateway at
each site location ensures that camera images, alarm signals and audio can be
sent securely over public networks. Cameras can be controlled by authorised users
at any location using RSM client software running on a standard PC connected to
the network. Simple viewing of camera images is also possible via a PC and web
browser with no additional software required.

Attaching one or more RealShot Manager (RSM) servers (FSV-RSM9/
FSV-RSM16) to a network allows storage and management of images from up to
32 connected cameras. ‘Live’ or recorded images can be viewed on any client PC
running RSM or a standard web browser, connected via either LAN or the Internet.
Audio and signals from existing alarm sensors can be carried across the same
network using the RSM-AIC and RSM-I08, eliminating the need for additional
cabling.

46-47
