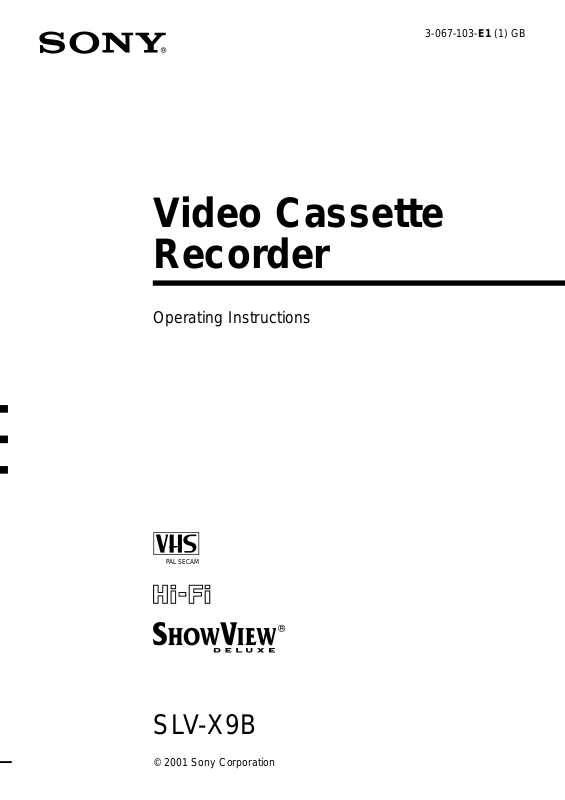

3-067-103-E1 (1) GB
Video Cassette
Recorder
Operating Instructions
PAL SECAM
SLV-X9B
© 2001 Sony Corporation
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
Mains lead must only be changed at a qualified service shop.
Precautions
Safety
•This unit operates on 220 – 240 V AC, 50 Hz. Check that the unit’s operating voltage is identical with your local power supply.
•If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.
•The unit is not disconnected from the mains as long as it is connected to the mains, even if the unit itself has been turned off.
•Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.
Installing
•Allow adequate air circulation to prevent internal heat buildup.
•Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.
•Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.
•Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.
•Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers.
•Do not place heavy objects on the unit.
•If the unit is brought directly from a cold to a warm location, moisture may condense inside the VCR and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit.
Caution
Television programmes, films, video tapes and other materials may be copyrighted. Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmitter and/or programme owner.
Compatible colour systems
•This VCR is designed to record using the PAL (B/G) and SECAM colour systems and play back using the PAL (B/G) and SECAM colour systems. Recording of video sources based on other colour systems cannot be guaranteed.
•Tapes recorded with the MESECAM colour system can be played back on this VCR using a TV or a colour monitor supporting the SECAM colour system.
SHOWVIEW is a registered trademark of Gemstar Development Corporation. The SHOWVIEW system is manufactured under license from Gemstar Development Corporation.
Power consumption during standby:
•Power consumption during standby at “FULL” of Power save mode 1.2 W
Reduction and phase-out of halogenated flame retardant:
•Halogenated flame retardant not used in print wired boards of main portions.
•Halogenated flame retardant not used in Front panel and Rear panel.
Complete abolition of polystyrene foam:
•Cushion materials formed by corrugated board used in packaging materials.
is included as an indication of Sony’s consideration toward the environment.
2 WARNING
Table of contents
Getting Started
4 Index to parts and controls
9Step 1 : Unpacking
10Step 2 : Setting up the remote commander
14 Step 3 : Connecting the VCR
20Step 4 : Tuning your TV to the VCR
23Step 5 : Setting up the VCR with the Auto Set Up function
25 Step 6 : Setting the Set-Top Box
32Selecting a language
33Presetting channels
38Changing/disabling programme positions
43 Setting the clock
47 Setting the Canal Plus decoder
Additional Operations
70 Playing/searching at various speeds
72Setting the recording duration time
73Synchronized Recording
75Checking/changing/cancelling timer settings
77Recording stereo and bilingual programmes
79Searching using the Accès Smart function
81Storing, searching and deleting programme information (Accès Smart Plus)
86Searching using the index function
87Adjusting the picture
89Reducing the VCR’s power consumption
90Changing menu options
Started Getting
Basic Operations
52 Playing a tape
54 Recording TV programmes
58Recording TV programmes using the Dial Timer
63Recording TV programmes using the ShowView system
67Recording TV programmes using the timer
Editing
93Connecting to a VCR or stereo system
95Basic editing
96Audio dubbing
Additional Information
97 Troubleshooting
102 Specifications
104 Index
Back Cover
Quick Start Guide
Table of contents 3
Refer to the pages indicated in parentheses ( ) for details.
Front panel
A?/1(marche/veille) switch (20)
BTape compartment
CRemote sensor (10)
DA(eject) button (52)
EShuttle ring (70)
FH(play) button (52) (70)
GJOG button (71)
HENR z(record) button (95)
IX(pause) button (52) (95)
Jxbutton (52) (95)
KM(fast-forward) button (52) (70)
Lm(rewind) button (52) (70)
MPROG (Dial Timer) control (58)
NCHAINE +/– buttons (71) (87)
ODOUBLAGE SON button (96)
PREGLAGE AUTO (Auto Set Up)/ REGL CANAL button (20) (23)
QENR SYNCHRO (Synchronized Recording) button (74)
Rt LIGNE-2 G (left) o D (right)
jacks (covered) (93) (94)
How to open the jack cover
1Press the bottom of the cover.
2Hook your finger on the top edge of the cover and pull it open.
4 Index to parts and controls
Display window
|
|
|
|
|
|
Getting |
SYNCHRO |
MAGN |
PDC EP |
STB |
TV |
Started |
|
STEREO |
NICAM |
|
VPS SPLP |
OPC |
|
|
|
RR |
|
|
|
|
|
ATimer indicator (60) (64) (68)
BSYNCHRO indicator (74)
CSTEREO indicator (77)
DNICAM indicator (77)
E (smartlink) indicator (16)
FMAGN (video) indicator (15) (55)
GVPS (Video Programme System)/ PDC (Programme Delivery Control) indicator (65)
HTape speed indicators (54)
ISTB (Set-Top Box) indicator (54)
JOPC (Optimum Picture Control) indicator (88)
KTV indicator (56)
LAudio dubbing indicator (96)
MTracking indicator (87)
NTime counter/clock/line/programme position indicator (52) (54) (95)
ORemaining time indicator (55)
PRR (Reality Regenerator) indicator (87)
QTape/recording indicator (55)
continued
Index to parts and controls 5
Rear panel
AMains lead (14) (15)
BDECODER/t LINE-3 IN DECODEUR/tENTREE LIGNE- 3 connector (18) (19) (47) (73) (94)
CAERIAL IN
ANTENNE ENTREE connector (14) (15)
DAERIAL OUT
ANTENNE SORTIE connector (14) (15)
Ei LINE-1 (TV)
i LIGNE-1 (TV) connector (15) (47)
F (audio out) R/D (right) L/G (left) jacks
GSTB CONTROL
CONTROLEUR STB jack (17) (18)
6 Index to parts and controls
Remote commander
1 2 3
4 5 6
7 8 9
0
AZEJECT button (52)
BCHOIX ENTREE (input select) button (56) (68) (95)
WIDE button (for TV) (12)
CCHOIX SON button (12) (77)
D×2 button* (70)
EyRALENTI (slow) button* (70)
FSP (Standard Play)/LP (Long Play) button (54)
G AFFICH (display) button (12) (55)
H- (ten’s digit) button (11) (56)
I2(volume) +/– buttons (for TV) (12)
Jz ENR (record) button (55) (72)
KMENU button (43) (75)
LXPAUSE/M button (43) (52)
xSTOP (stop)/m button (43) (52) mRET (rewind)/< button (52) (70)
MAV (fast-forward)/, button (52) (70)
HLECTURE/OK button (43) (52)
*FASTEXT buttons (for TV)
continued
Index to parts and controls
Started Getting
7
1 2 3
4 5 6
7 8 9
0
M[TV] / [MAGN] (TV/video) remote control switch (10)
N?/1(marche/veille) switch (11) (64)
OCOMPT/DUREE REST (counter/ remain) button (55)
/ (Teletext) button (for TV) (12)
PDOUBL SON (audio dubbing) button (96)
a TV power on/TV mode select button (for TV) (12)
Q./>RECHER INDEX (index
search) buttons* (86)
RANNUL/0 button (52) (63) (75)
St TV/MAGN (TV/video) button (11) (15) (55)
TProgramme number buttons (11) (56)
USTB (Set-Top Box) button (54) (64) (68)
VCHAINE (programme) +/– buttons (11) (34) (54)
c/C Teletext page access buttons (for TV) (12)
W MINUTERIE (timer) button (63) (67)
XACCES SMART button (79)
* FASTEXT buttons (for TV)
8 Index to parts and controls
Check that you have received the following items with the VCR:
• Remote commander • Aerial cable
• R6 (size AA) batteries |
• Set-Top Box controller |
Started Getting
Unpacking 9
Inserting the batteries
Insert two R6 (size AA) batteries by matching the + and
– on the batteries to the diagram inside the battery compartment.
Insert the negative (–) end first, then push in and down until the positive (+) end clicks into position.
Using the remote commander
You can use this remote commander to operate this VCR and a Sony TV. Buttons on the remote commander marked with a dot (•) can be used to operate your Sony TV. If the TV does not have the symbol near the remote sensor, this remote commander will not operate the TV.
Remote sensor
[TV] / [MAGN]
1 2 3
4 5 6
7 8 9
0
To operate |
Set [TV] / [MAGN] to |
|
|
the VCR |
[MAGN] and point at the remote sensor at the VCR |
|
|
a Sony TV |
[TV] and point at the remote sensor at the TV |
|
|
10 Setting up the remote commander
|
|
|
?/1 |
WIDE |
|
|
/ |
CHOIX SON |
|
|
a |
FASTEXT buttons |
|
|
|
AFFICH |
|
|
t TV/MAGN |
1 |
2 |
3 |
|
4 |
5 |
6 |
Programme |
7 |
8 |
9 |
number |
buttons |
|||
-/-- |
0 |
|
|
CHAINE +/–/ c/C
2 +/–
Started Getting
TV control buttons
To |
|
Press |
|
||
|
|
|
|
|
|
Set the TV to standby mode |
|
?/1 |
|
|
|
|
|
|
|
||
Select an input source: aerial in or line in |
|
tTV/MAGN |
|
|
|
|
|
|
|
||
Select the TV’s programme position |
|
Programme number buttons, |
|
|
|
|
|
-, CHAINE +/– |
|
||
|
|
|
|
||
|
|
continued |
|
||
|
|
|
|||
|
Setting up the remote commander |
|
11 |
||
|
|
||||
|
|
|
|
|
|
To |
Press |
|
|
Adjust the volume of the TV |
2+/– |
|
|
Switch to TV (Teletext off) |
a (TV) |
|
|
Switch to Teletext |
/ (Teletext) |
|
|
Select the sound |
CHOIX SON |
|
|
Use FASTEXT |
FASTEXT buttons |
|
|
Call up the on-screen display |
AFFICH |
|
|
Change the Teletext page |
c/C |
|
|
Switch to/from wide mode of a Sony wide TV (For |
WIDE |
other manufactures’ wide TVs, see “Controlling |
|
other TVs with the remote commander” below.) |
|
|
|
Notes
•With normal use, the batteries should last about three to six months.
•If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from battery leakage.
•Do not use a new battery together with an old one.
•Do not use different types of batteries together.
•Some buttons may not work with certain Sony TVs.
Controlling other TVs with the remote commander
The remote commander is preprogrammed to control non-Sony TVs. If your TV is listed in the following table, set the appropriate manufacturer’s code number.
1 Set [TV] / [MAGN] at the top of the remote commander to [TV].
2 Hold down ?/1, and enter your TV’s code number using the programme number buttons. Then release ?/1.
Now you can use the following TV control buttons to control your TV:
?/1, tTV/MAGN, programme number buttons, - (ten’s digit), CHAINE +/–, 2+/–, a (TV), / (Teletext), FASTEXT buttons, WIDE*, MENU*, M/m/</,*, and OK*.
* These buttons may not work with all TVs.
12 Setting up the remote commander
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.
To switch to wide mode, see the footnotes below this table for the applicable code numbers.
Manufacturer |
Code number |
|
|
Sony |
01*1, 02 |
|
|
Akai |
68 |
|
|
Ferguson |
52 |
|
|
Grundig |
10*1, 11*1 |
Hitachi |
24 |
|
|
JVC |
33 |
|
|
Loewe |
45 |
|
|
Mivar |
09, 70 |
|
|
NEC |
66 |
|
|
Nokia |
15, 16, 69*3 |
|
|
Manufacturer |
Code number |
|
|
Panasonic |
17*1, 49 |
|
|
Philips |
06*1, 07*1, 08*1 |
|
|
Saba |
12, 13 |
|
|
Samsung |
22, 23 |
|
|
Sanyo |
25 |
|
|
Sharp |
29 |
|
|
Telefunken |
36 |
|
|
Thomson |
43*2 |
|
|
Toshiba |
38 |
|
|
*1 Press WIDE to switch the wide picture mode on or off.
*2 Press WIDE, then press 2+/– to select the wide picture mode you want.
*3 Press WIDE. The menu appears on the TV screen. Then, press M/m/</, to select the wide picture you want and press OK.
Tip
•When you set your TV’s code number correctly while the TV is turned on, the TV turns off automatically.
Notes
•If you enter a new code number, the code number previously entered will be erased.
•If the TV uses a different remote control system from the one programmed to work with the VCR, you cannot control your TV with the remote commander.
•When you replace the batteries of the remote commander, the code number may change. Set the appropriate code number every time you replace the batteries.
Started Getting
Setting up the remote commander 13
If your TV has a PERITEL connector, see page 15.
•Connection to your TV with an aerial cable only, see this page.
•Connection to your TV and Set-Top Box, see page 17.
•Connection to your TV and decoder, see page 47.
If your TV does not have a PERITEL connector
ANTENNE ENTREE
ANTENNE SORTIE
Mains lead |
ANTENNE |
|
|
to mains |
ENTREE |
|
|
|
Aerial cable (supplied) |
: Signal flow |
|
1
2
3
Disconnect the aerial cable from |
AERIAL |
|
your TV and connect it to |
ANTENNE |
|
IN |
||
ANTENNE ENTREE on the rear |
ENTREE |
|
|
||
panel of the VCR. |
OUT |
|
|
SORTIE |
|
Connect ANTENNE SORTIE of |
IN |
|
the VCR and the aerial input of |
ENTREE |
|
AERIAL |
||
your TV using the supplied aerial |
||
ANTENNE OUT |
||
cable. |
SORTIE |
|
|
Connect the mains lead to the mains.
Note
•When you connect the VCR and your TV only with an aerial cable, you have to tune your TV to the VCR (see page 20).
14 Connecting the VCR
If your TV has a PERITEL connector
|
|
|
ANTENNE ENTREE |
|
|
|
iLIGNE-1 |
ANTENNE |
|
|
|
(TV) |
|
|
|
Mains lead |
SORTIE |
ANTENNE |
|
|
|
|||
|
|
|
|
|
|
to mains |
|
|
ENTREE |
|
|
|
|
|
|
|
|
Aerial cable (supplied) |
|
|
|
|
|
PERITEL |
|
: Signal flow |
|
PERITEL cable (not supplied) |
|
1 |
Disconnect the aerial cable from |
|
||
|
|
|||
|
your TV and connect it to |
IN |
||
|
ANTENNE ENTREE on the rear |
ENTREE |
||
|
AERIAL |
|||
|
panel of the VCR. |
|||
|
ANTENNE OUT |
|||
|
|
|
|
SORTIE |
2 |
Connect ANTENNE SORTIE of |
IN |
||
|
the VCR and the aerial input of |
ENTREE |
||
|
AERIAL |
|||
|
your TV using the supplied aerial |
|||
|
ANTENNE OUT |
cable. |
SORTIE |
|
Started Getting
3
4
Connect LIGNE-1 (TV) on the VCR and the PERITEL connector on the TV with the optional PERITEL cable.
This connection improves picture and sound quality. Whenever you want to watch the VCR picture, press t TV/MAGN to display the MAGN indicator in the display window.
Connect the mains lead to the mains.
Note
•If the TV is connected to the LIGNE-1 (TV) connector, setting the RF channel to OFF is recommended. In the OFF position, only the signal from the aerial is output through the ANTENNE SORTIE connector (see page 22).
continued
Connecting the VCR 15
About the SMARTLINK features
If the connected TV complies with
SMARTLINK, MEGALOGIC*1, EASYLINK*2, Q-Link*3, EURO
VIEW LINK*4, or T-V LINK*5, this VCR automatically runs the
SMARTLINK function after you complete the steps on the previous page (the indicator appears in the VCR’s display window when you turn on the TV). You can enjoy the following SMARTLINK features.
•Preset Download
You can download your TV tuner preset data to this VCR and tune the VCR according to that data in Auto Set Up. This greatly simplifies the Auto Set Up procedure. Be careful not to disconnect the cables or exit the Auto Set Up function during the procedure.
See “Setting up the VCR with the Auto Set Up function” on page 23.
•TV Direct Rec
You can easily record what you are watching on the TV. For details, see “Recording what you are watching on the TV (TV Direct Rec)” on page 56.
•One Touch Play
With One Touch Play, you can start playback automatically without turning on the TV. For details, see “Starting playback automatically with one button (One Touch Play)” on page 53.
•One Touch Menu
You can turn on the VCR and TV, set the TV to the video channel, and display the VCR’s on-screen display automatically by pressing MENU on the remote commander.
•One Touch Timer
You can turn on the VCR and TV, set the TV to the video channel, and display the timer recording menu (the METHODE DE PROGRAMMATION menu, the MINUTERIE menu, or the SHOWVIEW
menu) automatically by pressing MINUTERIE on the remote commander.
You can set which timer recording menu is displayed using OPTIONS PROGRAMM. in the OPTIONS-2 menu (see page 91).
•Automatic Power Off
You can have the VCR turn off automatically, if the VCR is not used after you turn off the TV.
*1 “MEGALOGIC” is a registered trademark of Grundig Corporation. *2 “EASYLINK” is a trademark of Philips Corporation.
*3 “Q-Link” is a trademark of Panasonic Corporation.
*4 “EURO VIEW LINK” is a trademark of Toshiba Corporation. *5 “T-V LINK” is a trademark of JVC Corporation.
Note
• Not all TVs respond to the functions above.
16 Connecting the VCR
Connection to your TV and Set-Top Box (STB)
Set-Top Box (STB) refers to a satellite or digital tuner.
If your STB has a PERITEL connector, see page 18.
If your STB does not have a PERITEL connector
Set the CONNEX. STB setting to RF (see page 26).
STB |
Aerial cable (not supplied) |
|
|
||
CONTROLEUR |
ANTENNE |
|
STB |
ENTREE |
|
STB controller’s |
|
|
side view |
|
|
(supplied) |
|
|
iLIGNE-1 |
ANTENNE |
|
SORTIE |
||
(TV) |
||
ANTENNE |
||
|
||
|
ENTREE |
|
|
Aerial cable (supplied) |
PERITEL
|
|
|
|
|
|
|
|
|
|
: Signal flow |
PERITEL cable* (not supplied) |
|||
|
|
|
|
Started Getting
*If your TV does not have a PERITEL connector, the PERITEL cable connected to the VCR is not required.
continued
Connecting the VCR 17
If your STB has a PERITEL connector
The illustration below shows an example of connecting the STB to DECODEUR/ ENTREE LIGNE-3. In this case, set the CONNEX. STB setting to LIGNE3 (see page 26).
STB
STB controller’s Side view (supplied)
: Signal flow
PERITEL cable |
(supplied with the STB) |
CONTROLEUR |
DECODEUR/ |
||
t ENTREE LIGNE-3 |
|||
STB |
|||
|
|
||
|
ANTENNE |
||
|
ENTREE |
|
|
i LIGNE- |
ANTENNE |
|
|
1 (TV) |
|
||
SORTIE |
ANTENNE |
||
|
ENTREE
Aerial cable
(supplied)
PERITEL
PERITEL cable (not supplied)
You can watch programmes from the Set-Top Box connected to this VCR on your TV even when the VCR is turned off using the Line Through function. When you turn on the STB, this VCR automatically sends the signal from the STB to the TV without turning itself on.
1 Set DECODEUR/LIGNE3 to LIGNE3 in the OPTIONS-2 menu.
2 Set VEILLE ECO to NON or PARTIELLE in the OPTIONS-2 menu.
3 Turn off the VCR.
To watch a programme from the STB, turn on the STB and the TV.
For details, see page 25.
Note
•You cannot watch programmes from your STB on the TV while recording unless you record a programme from your STB.
18 Connecting the VCR
Additional connections
To a stereo system
You can improve sound quality by connecting a stereo system to the (audio out) R/D L/G jacks as shown on the right.
R/D L/G
LINE IN
Audio cable (not supplied) : Signal flow
To use the Line Through function when connecting to video equipment other than a Set-Top Box
DECODEUR/ |
|
|
|
SORTIE |
|||
t ENTREE |
|||
LIGNE-3 |
LIGNE |
Using the Line Through
function, you can watch
programmes from other equipment connected to this
VCR on the TV even when the VCR is turned off. When you turn on the other
equipment, this VCR automatically sends the signal from the other equipment to the TV without turning itself on.
1 Connect the other equipment to the DECODEUR/ENTREE LIGNE-3 connector as shown above.
2 Set DECODEUR/LIGNE3 to LIGNE3 in the OPTIONS-2 menu.
3 Set VEILLE ECO to NON or PARTIELLE in the OPTIONS-2 menu.
4 Turn off the VCR.
To watch a programme, turn on the other equipment and the TV.
Note
•You cannot watch programmes on the TV while recording unless you are recording a programme from other equipment.
Started Getting
Connecting the VCR 19
If your TV has a PERITEL connector, see page 22.
If your TV does not have a PERITEL connector
Follow the steps below so that your TV will properly receive the video signals from your VCR.
?/1 REGL CANAL
CHAINE +/–
1 |
|
|
Press ?/1(marche/veille) to turn on the VCR. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
REGLAGE Press REGL CANAL on the VCR lightly. |
||
AUTO |
The currently set RF channel appears in the display window.
The VCR signal is output through this channel to the TV.
REGL CANAL
3
4
Turn on your TV and select a programme position for the VCR picture.
This programme position will now be referred to as the video channel.
REGLAGE Press REGL CANAL.
AUTO
The TV system appears in the display window.
REGL CANAL
20 Tuning your TV to the VCR
5 |
CHAINE |
Press CHAINE +/– (repeatedly) to select the appropriate TV system |
|
for your area.
Select “L” for the L TV system (SECAM), or “G” for the B/G TV system (PAL).
6 |
Tune the TV to the same channel |
|
|
shown in the VCR display window so |
|
|
that the picture on the right appears |
MAGNETOSCOPE SONY |
|
clearly on the TV screen. |
|
|
Refer to your TV manual for TV |
|
|
tuning instructions. |
|
|
If you select the wrong TV system in |
|
|
step 5, the picture on the right may |
|
|
|
|
|
not appear. Select the appropriate TV system and tune the TV |
|
|
again. |
|
|
If the picture does not appear clearly, see “To obtain a clear picture |
|
|
from the VCR” below. |
|
|
|
|
7 |
REGLAGE Press REGL CANAL. |
|
AUTO |
|
You have now tuned your TV to the VCR. Whenever you want to play a tape, set the TV to the video channel.
REGL CANAL
To check to see if the TV tuning is correct
Set the TV to the video channel and press CHAINE +/– on the VCR. If the TV screen changes to a different programme each time you press
CHAINE +/–, the TV tuning is correct.
To obtain a clear picture from the VCR
If the screen does not appear clearly in step 6 above, go to step 7 to finish this procedure once. Then start again from step 2. After pressing REGL CANAL in step 2, press CHAINE +/– while the RF channel is displayed, so that another RF channel appears. Then tune the TV to the new RF channel so that a clear picture appears.
continued
Tuning your TV to the VCR
Started Getting
21
If your TV has a PERITEL connector
?/1 REGL CANAL
CHAINE +/–
1 |
Press ?/1(marche/veille) to turn on the VCR. |
|
2 |
REGLAGE |
AUTO |
REGL CANAL
Press REGL CANAL on the VCR lightly.
The currently set RF channel appears in the display window. The VCR signal is output through this channel to the TV.
3 |
CHAINE |
Press CHAINE +/– to set the RF channel to OFF, and press REGL |
|
CANAL again.
REGLAGE
AUTO
RF channel set up is complete.
REGL CANAL
22 Tuning your TV to the VCR
Before using the VCR for the first time, set up the VCR using the Auto Set Up function. With this function, you can set the TV channels, guide channels for the ShowView system, and VCR clock automatically.
REGLAGE AUTO
REGLAGE Hold down REGLAGE AUTO on the VCR for more than three seconds.
AUTO
The VCR automatically turns on, starts searching for all of the receivable channels, and presets them in the appropriate order for
REGL CANAL your local area (according to the TV system you selected in “Tuning your TV to the VCR”).
If you want to change the order of the channels or disable unwanted programme positions, see “Changing/disabling programme positions” on page 38.
If you use the SMARTLINK connection, the Preset Download function starts and the indicator flashes in the display window during download.
After the search or download is complete, the current time appears in the display window for any stations that transmit a time signal. If the time does not appear, set the clock manually (see page 43).
To cancel the Auto Set Up function
Press REGLAGE AUTO.
Tip
•If you want to change the language for the on-screen display from the one preset in the Auto Set up function, see page 32.
continued
Setting up the VCR with the Auto Set Up function
Started Getting
23
Notes
•Do not cancel the Auto Set Up function. If you do, repeat the steps above.
•The Auto Set Up function may require a long time to complete (approximately 15 to 18 minutes).
•Whenever you operate the Auto Set Up function, some of the settings (ShowView, timer, etc.) will be reset. If this happens, you have to set them again.
24 Setting up the VCR with the Auto Set Up function
If you did not connect a Set-Top Box (STB), skip this step.
Before you start…
•Turn on the VCR and the TV.
•Set the TV to the video channel.
•Connect the STB controller, remove the protection sticker on the STB controller and place it on top of the STB, so that it hangs out over the infrared receptor on the STB front (see page 17).
•Refer to “Index to parts and controls” for button locations.
1 |
Press MENU, then press M/m to |
REGLAGES |
|
|
|||
MENU |
highlight REGLAGES and press OK. |
SET-TOP BOX |
|
|
|
REGLAGE DES CHAINES |
|
|
|
HORLOGE |
|
|
|
LANGUE |
|
|
|
RETOUR |
|
LECTURE |
|
SELECTIONNER |
: |
|
|
REGLER |
: OK |
OK |
|
|
SORTIE : MENU |
|
|
|
|
2 |
Press M/m to highlight SET-TOP |
SET-TOP BOX |
|
|
|||
|
BOX, then press OK. |
CONNEX. STB |
NON |
|
|
RETOUR |
|
LECTURE |
|
|
|
OK |
|
|
|
|
|
SELECTIONNER |
: |
|
|
REGLER |
: OK |
|
|
|
SORTIE : MENU |
3 |
Press M/m/</, to highlight |
SET-TOP BOX |
|
|
|||
|
CONNEX. STB and press OK. |
CONNEX. STB |
NON |
|
LECTURE |
RETOUR |
RF |
|
|
LIGNE3 |
|
|
|
|
|
|
OK |
|
|
|
|
SELECTIONNER |
: |
|
|
CONFIRMER |
: OK |
SORTIE : MENU
Started Getting
continued
Setting the Set-Top Box 25
4
LECTURE
OK
• |
If you connect the STB using the |
SET-TOP BOX |
|
|
|
aerial cable: |
CONNEX. STB |
|
RF |
|
Press M/m/, to select RF and |
N˚ CODE MARQUE STB |
--- |
|
|
N˚ CHAÎNE |
|
06 |
|
|
press OK. |
RETOUR |
|
|
|
|
|
|
|
|
Press M/m to highlight |
|
|
|
|
N° CHAÎNE and press OK. Enter |
SELECTIONNER |
: |
|
|
the appropriate number using M/m |
REGLER |
: OK |
SORTIE : MENU |
|
|
|
||
|
and press OK. |
|
|
|
•If you connect the STB using the PERITEL cable:
Press M/m/, to select LIGNE3 and press OK.
SET-TOP BOX
CONNEX. STB |
LIGNE3 |
N˚ CODE MARQUE STB |
--- |
RETOUR |
|
SELECTIONNER :
REGLER : OK
SORTIE : MENU
5
LECTURE
OK
1 2 3
4 5 6
7 8 9
0
Press M/m to highlight N° CODE MARQUE STB and press OK. Enter the appropriate number using the programme number buttons, then press OK. Refer to the table on page 27 for Set-Top Box brand number.
Press MENU to exit the menu.
SET-TOP BOX |
|
|
|
CONNEX. STB |
|
RF |
|
N˚ CODE MARQUE STB |
123 |
|
|
N˚ CHAÎNE |
|
06 |
|
RETOUR |
|
|
|
SELECTIONNER |
: |
|
|
REGLER |
: OK |
SORTIE |
: MENU |
|
|
MENU
Notes
•If your VCR is connected to the STB by the aerial cable, enter the programme number of the VCR corresponding to the channel where you have set up the STB output in step 4.
•You cannot watch programmes from your STB on the TV while recording unless you record a programme from your STB.
•It is recommended to connect your STB to the DECODEUR/ENTREE LIGNE-3 connector.
•For some STB, in order to avoid any conflict between the STB controller and the VCR remote commander, be careful not to point the remote commander towards the STB and the VCR at the same time.
•If VEILLE ECO is set to TOTAL, you cannot watch or record programmes from your STB during standby mode. Set VEILLE ECO in the OPTIONS-2 menu to NON or PARTIELLE.
26 Setting the Set-Top Box
Set-Top Box brand number
To control the STB, enter the appropriate number corresponding to your STB brand.
Some STBs may not operate at all with this VCR.
STB brand |
Code numbers |
|
|
|
|
ABC |
025, 028 |
|
|
|
|
ABsat |
134, 843 |
|
|
|
|
Akai |
526 |
|
|
|
|
Alba |
102, 265, 373, |
|
|
432, 466, 526, |
|
|
624 |
|
|
|
|
Allantide |
344 |
|
|
|
|
Amstrad |
091, 224, 263, |
|
|
349, |
472, 520, |
|
686, 700 |
|
|
|
|
Andover |
555 |
|
|
|
|
Ankaro |
228, 231, 380, |
|
|
530 |
|
|
|
|
Anttron |
194, 432 |
|
|
|
|
Arcon |
283, 379 |
|
|
|
|
Armstrong |
254 |
|
|
|
|
Asat |
384 |
|
|
|
|
AST |
332, 361, 362 |
|
|
|
|
Astra |
119, 384, 529 |
|
|
|
|
Astro |
184, 369, 531, |
|
|
559, 595 |
|
|
|
|
Audio Ton |
375 |
|
|
|
|
Avalon |
407 |
|
|
|
|
Axis |
377, 380 |
|
|
|
|
Birmingham |
287 |
|
Cable |
|
|
Communications |
|
|
|
|
|
British Telecom |
014, 116 |
|
|
|
|
Barcom |
228 |
|
|
|
|
Best |
228, 380 |
|
|
|
|
STB brand |
Code numbers |
|
|
Blaupunkt |
184 |
|
|
Boca |
254, 524, 840 |
|
|
Brain Wave |
343 |
|
|
British Sky |
858 |
Broadcasting |
|
|
|
Brunor |
420 |
|
|
Bush |
078, 102, 265 |
|
|
BT |
526, 679, 721 |
|
|
Cabletime |
172, 282, 388, |
|
459 |
|
|
Cambridge |
267, 355, 526 |
|
|
Camundosat |
104 |
|
|
Canal+ |
864 |
|
|
Canal Satellite |
864 |
|
|
Channel Master |
373 |
|
|
CityCom |
829 |
|
|
Clyde |
097 |
|
|
CME |
091, 119, 184, |
|
211 |
|
|
CNT |
531 |
|
|
Comtec |
277 |
|
|
Connexions |
104, 407, 469 |
|
|
Conrad |
618 |
|
|
Contec |
377 |
|
|
Cryptovision |
611 |
|
|
Crown |
254 |
|
|
Cyrus |
211 |
|
|
Daewoo |
384 |
|
|
continued
Setting the Set-Top Box
Started Getting
27
STB brand |
Code numbers |
|
|
D-box |
734 |
|
|
DDC |
373 |
|
|
Diskxpress |
228 |
|
|
DNT |
211, 407, 469 |
|
|
Drake |
279, 470 |
|
|
Dynasat |
690 |
|
|
Echostar |
181, 407, 465 |
|
|
EEC |
344 |
|
|
EIF |
428, 685 |
|
|
Einhell |
344 |
|
|
Elta |
375 |
|
|
Emanon |
432 |
|
|
Emme Esse |
708 |
|
|
Engel |
461 |
|
|
Eurodec |
535, 537 |
|
|
Europa |
708 |
|
|
Fenner |
728 |
|
|
Ferguson |
078, 194, 347, |
|
625, 722 |
|
|
Fidelity |
263, 686 |
|
|
Finlux |
119, 355, 408, |
|
425, 466, 525 |
|
|
Fraba Sat |
596 |
|
|
Fracarro |
060 |
|
|
France Telecom |
462 |
|
|
Freecom |
346, 432, 745 |
|
|
FTE |
277, 342, 422 |
|
|
FTE Humax |
874 |
|
|
Fuba |
183, 228, 308, |
|
309, 380, 407, |
|
425, 428, 432, |
|
720 |
|
|
Galaxis |
375, 377, 844, |
|
845 |
|
|
STB brand |
Code numbers |
|
|
Galaxisat |
332 |
|
|
GEC |
097 |
|
|
Gold Box |
864 |
|
|
Goldstar |
346 |
|
|
Gooding |
582 |
|
|
Grothusen |
346 |
|
|
Grundig |
151,184, 339, |
|
474, 582, 761, |
|
540 |
|
|
G-Sat |
194 |
|
|
Harting und |
344 |
Helling |
|
|
|
Hinari |
194 |
|
|
Hirschmann |
184, 344, 407, |
|
408, 409, 513, |
|
584, 592, 683, |
|
762 |
|
|
Hitachi |
466 |
|
|
Houston |
679 |
|
|
Humax |
059 |
|
|
Huth |
231, 254, 375, |
|
528, 600, 805 |
|
|
HyperVision |
630 |
|
|
Ikusi Allsat |
379 |
|
|
Imperial |
265, 496 |
|
|
IRTE |
620 |
|
|
ITS |
632 |
|
|
ITT |
119, 183 |
|
|
Jerrold |
014, 025, 287 |
|
|
Johansson |
343 |
|
|
JOK |
721 |
|
|
JSR |
375 |
|
|
JVC |
526, 582 |
|
|
28 Setting the Set-Top Box
STB brand |
Code numbers |
|
|
Kathrein |
103, 134, 184, |
|
211, 342, 369, |
|
453, 491, 515, |
|
564, 592, 633, |
|
636 |
|
|
Key West |
805 |
|
|
König |
103, 183, 184 |
|
|
Kosmos |
342, 346 |
|
|
Kreiselmeyer |
184 |
|
|
Kyostar |
432 |
|
|
La Sat |
435, 475, 524, |
|
531, 618 |
|
|
Lasat |
833 |
|
|
Lenco |
346, 384, 422, |
|
432, 461 |
|
|
Lion |
364 |
|
|
Lupus |
380 |
|
|
Luxor |
119, 183, 584 |
|
|
Macab |
535, 597 |
|
|
Magnavox |
043 |
|
|
Manhattan |
466, 531 |
|
|
Maranz |
211 |
|
|
Maspro |
103, 339, 347, |
|
761 |
|
|
Matsui |
355, 582 |
|
|
MediaSat |
864 |
|
|
Mediamarkt |
254 |
|
|
Memphis |
377 |
|
|
Micro |
344 |
Technology |
|
|
|
Minerva |
582 |
|
|
Mintec |
589 |
|
|
MNet |
030 |
|
|
Morgan’s |
254, 524, 840 |
|
|
STB brand |
Code numbers |
|
|
Multistar |
342, 475 |
|
|
Muratto |
346 |
|
|
Navex |
343 |
|
|
NEC |
189 |
|
|
Neusat |
703, 845 |
|
|
Newhaus |
231 |
|
|
Next-Wave |
743 |
|
|
Nikko |
371 |
|
|
Nokia |
692, 034, 119, |
|
183, 339, 408, |
|
425, 466, 584, |
|
734, 832 |
|
|
Nordmende |
283, 373, 625 |
|
|
Oceanic |
597 |
|
|
Orbit |
361, 362 |
|
|
Orbitec |
596 |
|
|
Oxford |
355 |
|
|
Pace |
078, 194, 339, |
|
347, 466, 802, |
|
806, 858 |
|
|
Pal |
848 |
|
|
Palcom |
308, 309 |
|
|
Palladium |
582 |
|
|
Panasonic |
225 |
|
|
Panda |
466 |
|
|
Philips |
630, 144, 211, |
|
339, 466, 474, |
|
582, 721, 761, |
|
864 |
|
|
Phoenix |
377 |
|
|
Phonotrend |
799 |
|
|
Pioneer |
155, 271, 544, |
|
864 |
|
|
ProVision |
595 |
|
|
Promax |
466 |
|
|
continued
Setting the Set-Top Box
Started Getting
29
STB brand |
Code numbers |
|
|
Prosat |
496 |
|
|
PTT Telecom |
224 |
|
|
PVP Stereo |
014 |
Visual Matrix |
|
|
|
Pyxis |
842 |
|
|
Quadral |
373, 530, 639 |
|
|
Radiola |
211 |
|
|
Radix |
407, 893, 764 |
|
|
RFT |
211, 231, 552 |
|
|
Saba |
265, 347, 364, |
|
531, 586, 701, |
|
720, 745 |
|
|
Sabre |
466 |
|
|
Sagem |
831 |
|
|
Sakura |
377 |
|
|
Salora |
119, 183, 210 |
|
|
Samsung |
283 |
|
|
SAT |
332, 361, 362, |
|
472 |
|
|
Satbox |
386 |
|
|
Satcom |
224 |
|
|
Satec |
194, 339 |
|
|
Satmaster |
283 |
|
|
SatPartner |
343, 346, 432, |
|
513, 531, 703, |
|
720, 745 |
|
|
Schwaiger |
194, 515 |
|
|
Scientific Atlanta |
019, 028, 288 |
|
|
Seemann |
407, 589, 637 |
|
|
SEG |
380, 432, 529, |
|
753 |
|
|
Siemens |
184 |
|
|
Skymaster |
530, 639 |
|
|
STB brand |
Code numbers |
|
|
Sony |
286, 289, 293, |
|
650, 715 |
|
|
Stella |
104 |
|
|
STVI |
428 |
|
|
STS |
167 |
|
|
Sunstar |
524, 805 |
|
|
Tandberg |
742 |
|
|
Tantec |
308, 309, 347, |
|
466 |
|
|
Tatung |
156 |
|
|
TechniSat |
272, 273, 331, |
|
420, 469, 552, |
|
559, 596 |
|
|
Teco |
384 |
|
|
Telecom |
104 |
|
|
Telefunken |
432 |
|
|
Teleka |
254, 624, 683 |
|
|
Telemax |
435 |
|
|
Teleservice |
292 |
|
|
Televes |
596 |
|
|
Tensai |
632 |
|
|
Thomson |
466, 864 |
|
|
Thorens |
597 |
|
|
Tonna |
679 |
|
|
TPS |
831 |
|
|
Triad |
332, 344, 346, |
|
361, 362 |
|
|
Triasat |
425 |
|
|
Tristar |
277 |
|
|
Tudi |
297 |
|
|
Uniden |
205, 803, 842 |
|
|
Unisat |
377 |
|
|
United Cable |
014 |
|
|
30 Setting the Set-Top Box
