Sony SLV-T2000 Operating Instructions

3-860-334-11 (1)

Video Cassette
Recorder

Operating Instructions

PAL

HH

H

HH

SLV-T2000

©1997 by Sony Corporation

Index

Index

A, B

Accessories supplied 4
Adjusting

picture 50

tracking 50
Aerial hookup 9
AFT (Auto Fine Tuning) 21
ATP 14
Audio track 48
Audio dubbing 57

C

Cancelling timer settings 44
Changing timer settings 44
Cleaning the video

heads 62
Clock setting 27
Colour system 2
Connecting

the VCR and your TV 9

to a stereo system 11

to a TV with a EURO-AV

connector 10
Counter 30, 32

D

Dubbing. See Editing

E, F

EASY SET UP 14
EURO-AV connection
10
Editing 54

G

G-CODE

recording 35

setting up 22
Guide channel

setting 35

H

Hi8 video system 65
Hi-fi audio sound 48

I, J, K

Index

searching 49

L

Language selecting 18
LP mode 32

M

Monitoring

during playback 53
during recording 32

N

NICAM broadcasts 46
Normal audio track 48

O

OPC (Optimum Picture
Control) 50

P

PDC (Programme Delivery
Control) 40

Picture adjustment. See
Adjusting

Playback 29

at various speeds 41
skip 41
slow motion 42

Presetting channels 14, 19

Q

Quick timer 43

R

Recording 31

bilingual
programmes 46

saving 33
stereo programmes 46
using G-CODE 35
While watching another

programme 33
Remote commander 5
RF channel 12

S

Safety tab 33
Searching

at various speeds 41

using the index

function 49
SP mode 32

T, U

Timer recording 35, 38, 43

cancelling timer

settings 44

changing timer

settings 44

checking timer

settings 44

daily/weekly

recording 36, 40

overlapping timer

recordings 45

using G-CODE 35
Tracking adjustment. See

Adjusting

V, W, X, Y, Z

VPS (Video Programme
System) 40

Z

ZWEITON broadcasts 46

Sony Corporation Printed in Japan

WARNING

To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.

Precautions

Safety

• This unit operates on 220 – 240 V AC, 50 Hz.
Check that the unit’s operating voltage is
identical with your local power supply.

• If anything falls into the cabinet, unplug the
unit and have it checked by qualified
personnel before operating it any further.

• The unit is not disconnected from the mains
as long as it is connected to the mains outlet,
even if the unit itself has been turned off.

• Unplug the unit from the wall outlet if you
do not intend to use it for an extended
period of time. To disconnect the cord, pull
it out by the plug, never by the cord.

Installing

• Allow adequate air circulation to prevent
internal heat buildup.

• Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation
slots.

• Do not install the unit near heat sources
such as radiators or air ducts, or in a place
subject to direct sunlight, excessive dust,
mechanical vibration or shock.

• Do not install the unit in an inclined
position. It is designed to be operated in a
horizontal position only.

• Keep the unit and cassettes away from
equipment with strong magnets, such as
microwave ovens or large loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to
a warm location, moisture may condense
inside the VCR and cause damage to the
video head and tape. When you first install
the unit, or when you move it from a cold to
a warm location, wait for about one hour
before operating the unit.

Caution

Television programmes, films, video tapes and
other materials may be copyrighted.
Unauthorized recording of such material may
be contrary to the provisions of the copyright
laws. Also, use of this recorder with cable
television transmission may require
authorization from the cable television
transmitter and/or programme owner.

Colour system

This VCR is designed to record and playback
using the PAL colour system. Recording of
video sources based on other colour systems
cannot be guaranteed.

Introduction

2

Table of contents

Getting Started

4 Step 1: Unpacking
5 Step 2: Setting up the remote commander

9 Step 3: Connecting the VCR
12 Step 4: Tuning your TV to the VCR
14 Step 5: Setting up the VCR with EASY SET UP
18 Manual setup —

Selecting a language, Presetting channels, Setting up G-CODE*,
Changing programme positions, Setting the clock

Getting Started

Basic Operations

29 Playing a tape
31 Recording TV programmes
35 Recording TV programmes using

G-CODE

38 Setting the timer manually

Additional Operations

41 Playing/searching at various

speeds

43 Recording TV programmes using

the quick timer

44 Checking/changing/cancelling

timer settings

46 Recording stereo and bilingual

programmes

49 Searching using the index

function (VHS deck only)

50 Adjusting the picture

(VHS deck only)

* G-CODE is a trademark applied for by Gemstar Development Corp. G-CODE system is

manufactured under license from Gemstar Development Corporation.

51 Changing menu options
53 Using the 8 mm deck and VHS

deck at the same time

Editing

54 One button dubbing
55 Cut editing
57 Audio dubbing (VHS deck only)
59 Editing with another VCR

Additional Information

62 Troubleshooting
65 H (high eight) video system
66 Specifications
67 Index to parts and controls
Back cover

Index

Introduction

3

Getting Started

Step 1

Unpacking

Check that you have received the following items with the VCR:

• Remote commander

• R6 (size AA) batteries

• Aerial cable

• Audio / video cable

• S-video cable

• Mains lead (2)

• 21-pin adaptor

Checking your model name

The instructions in this manual are for the 2 models : SLV-T2000MN,
T2000AS. Check your model number by looking at the rear panel of
your unit. The SLV-T2000AS is the model used for illustration
purposes. Any difference in operation is clearly indicated in the text,
for example, “SLV-T2000MN only.”

Getting Started4

Step 2

Setting up the remote commander

Inserting the batteries

Insert two R6 (size AA)
batteries by matching the + and
– on the batteries to the
diagram inside the battery
compartment.

Using the remote commander

You can use this remote
commander to operate this
VCR and a Sony TV. Buttons
on the remote commander
marked with a dot (•) can be
used to operate your Sony TV.

Remote
sensor

TV / VIDEO

Getting Started

To operate

the VCR
a Sony TV

Set TV / VIDEO to

VIDEO and point at the remote sensor on the VCR
TV and point at the remote sensor on the TV

continued

Getting Started

5

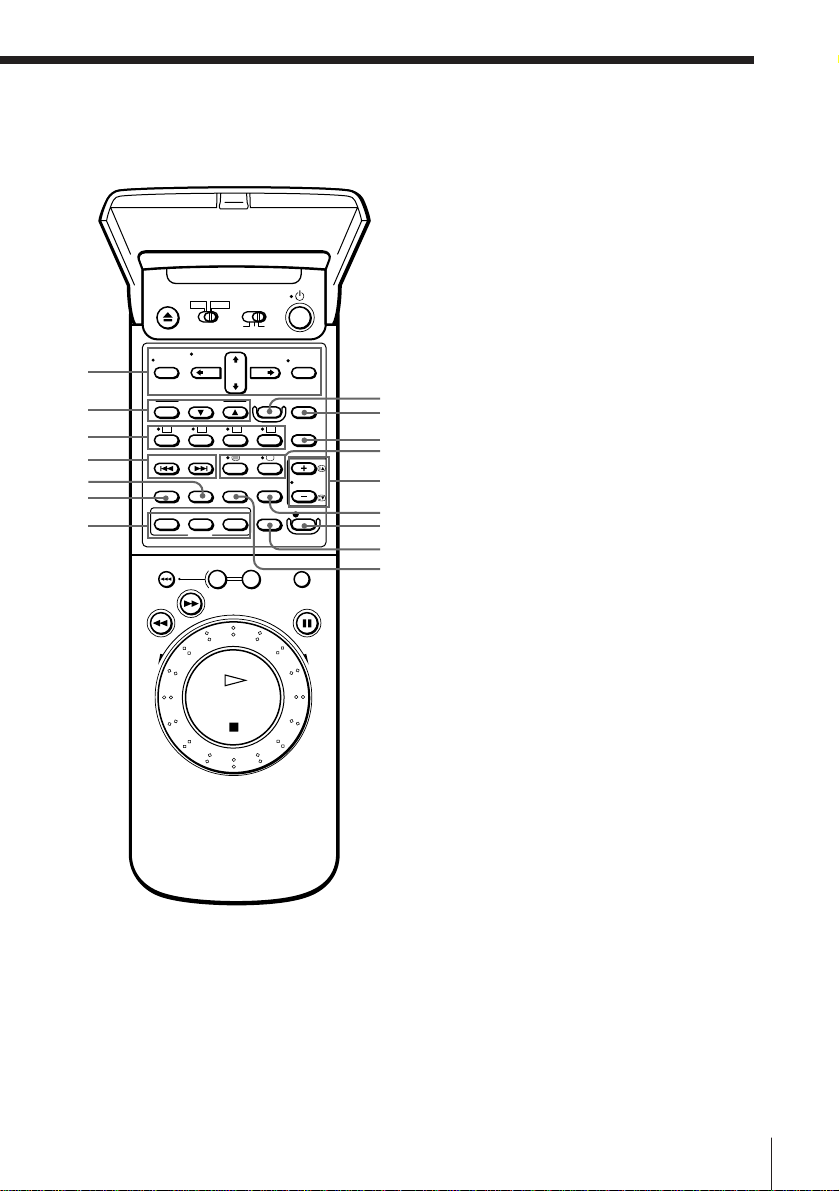

Step 2 : Setting up the remote commander (continued)

Menu button

FASTEXT buttons

TV control buttons

V
u

AUDIO
MONITOR

DISPLAY

;

TV/VIDEO
Programme

number
buttons

PROG+/–/
√ /◊
VOL+/–

To

Turn the TV into standby or active mode
Select an input source of the TV either from

aerial in or from line in
Select the programme position of the TV

Adjust the volume of the TV
Switch to TV (Teletext off)
Switch to Teletext
Select the sound
Use FASTEXT
Call up on-screen display
Change the Teletext page
Operate TV menu options

Notes

• With normal use, the batteries should last about three to six months.

• If you do not use the remote commander for an extended period of time, remove
the batteries to avoid possible damage from battery leakage.

• Do not use a new battery with an old one.

• Do not use different types of batteries.

Getting Started6

Press

u (on/standby)
TV/VIDEO

Programme number buttons
PROG +/–

VOL +/–

; (TV)
V (Teletext)

AUDIO MONITOR
FASTEXT buttons
DISPLAY
√ /◊
Menu button

Setting the COMMAND MODE switch

To remotely control the Sony VCR
with this remote commander, set
COMMAND MODE on the
remote commander to the same
position as that on the VCR.
Usually set to VTR 3. Change the
position as shown below to
control other Sony VCRs:

VTR 1: For Sony Betamax format VCRs
VTR 2: For Sony 8mm format VCRs
VTR 3: For Sony VHS format VCRs

COMMAND
MODE

Controlling other TVs with the remote commander

The remote commander is
preprogrammed to control non­Sony TVs. If your TV is listed in
the table on the next page, set the
appropriate manufacturer’s code
number.

u

TV /
VIDEO

1 Set TV / VIDEO at the top of the remote commander to TV .
2 Hold down u , and enter your TV’s code number(s) using the number

buttons. Then release u .
Now you can use the following TV control buttons to control your TV:

u (on/standby), TV / VIDEO , programme number buttons, PROG +/
–, VOL +/–, ; (TV), V (Teletext), FASTEXT buttons and WIDE with
some TVs.

Getting Started

continued

Getting Started

7

Step 2 : Setting up the remote commander (continued)

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until
you find the one that works with your TV.

To make wide mode settings, see the footnotes below this table for the
applicable code numbers.

Manufacturer

Sony
Aiwa
Akai
Blaupunkt
Brionvega
C.G.M
Colonad
Dual
Emerson
Fenner
Ferguson
Gold Star
Grundig
Hitachi
Hyper
Inno-Hit
Irradio
ITT
JVC
Loewe
Mitsubishi
Mivar

Code number

01*1, 02, 03, 04, 05
32
68
10, 21
40
09
03
44
03, 04
30, 31
52
03, 04, 17

1

10*1, 11*
24
31
41
20
15, 16, 69*
33*

3

1

45
27*1, 28*1, 50*1, 51*
09

Manufacturer

NEC
Nokia
Nordmende
Orion
Panasonic
Philips
Phonola
Pioneer
Saba
Samsung
Sanyo
Schneider
Seleco
Sharp
Siemens
Sinudyne
TEAC
Telefunken
Thomson
Toshiba

1

White Westinghouse

Code number

66
15, 16, 69*

3

35, 42
47, 48
17*1, 49
06*1, 07*1, 08*
18, 19
26
12, 13
22, 23
25
46
14
29
39
37
67
36

2

43*
38
34

*1Press WIDE to switch the wide picture mode on or off.
*2Press WIDE, then press VOL +/– to select the wide picture mode you want.
*3Press WIDE. The menu appears on the TV screen. Then, press

CURSOR > /. /? // to select the wide picture you want and press EXECUTE.

1

Notes

• If the TV uses a different remote control system from the one programmed to work
with the VCR, you cannot control your TV with the remote commander.

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote commander, the code number
automatically resets to 01 (Sony). Reset the appropriate code number.

Getting Started8

AERIAL

OUT

IN

Step 3

Connecting the VCR

AERIAL IN

AERIAL OUT

: Signal flow

Aerial cable

AC IN

1 Disconnect the aerial cable from your TV

and connect it to AERIAL IN on the rear
panel of the VCR.

2 Connect AERIAL OUT of the VCR and

the aerial input of your TV using the
supplied aerial cable.

3 Connect AC IN of the VCR to the mains

using the supplied mains lead.

to mains

AERIAL IN

AERIAL

OUT

IN

Getting Started

continued

Getting Started

9

Step 3 : Connecting the VCR (continued)

Additional connections

To a TV that has a EURO-AV (Scart)
connector

This additional connection improves
picture and sound quality. Connect the
TV as shown on the right. Whenever
you want to watch the VCR picture,
press TV/VIDEO on the remote
commander (or TV/VTR on the VCR) to
display the VTR indicator in the display
window. When you connect using the
EURO-AV cable, set the RF
MODULATOR option in the SET UP
MENU to OFF. (page 51)

Notes

• If your TV has a EURO-AV connector, set the LINE 1 VIDEO OUT menu option to
NORM. This hookup allows you to display subtitles, but the VCR does not
transmit Y/C signals.

• If your TV has a EURO-AV connector and is S-VIDEO compatible, set the LINE 1
VIDEO OUT menu option to S. This hookup does not allow you to display
subtitles, and some TVs may only display a black-and-white screen. If this is the
case, set the TV to S-VIDEO input.

VMC-2121 EURO-AV cable (not supplied)

: LINE-1 (TV)

EURO-AV
(Scart)

To a TV using a 21-pin adaptor
(supplied)

If your TV doesn’t have a EURO-AV
connector, connect your TV using the
21-pin adaptor as shown on the right.

To a TV that has an audio/video
connector

Getting Started10

: LINE-1 (TV)

Audio/video cable (supplied)

LINE OUT

21-pin
adaptor
(LINE OUT)

Audio/video cable (supplied)

LINE IN

LINE IN

To a TV that has an S-VIDEO
connector

The S-VIDEO connection in addition
to the audio / video connection can
improve picture quality.

Note

If your TV has an S-VIDEO / VIDEO selector switch, set this to the S-VIDEO position
to view the picture from the S-VIDEO connector.

To a stereo system

You can improve sound quality by
connecting a stereo system as shown
on the right.

LINE OUT

S VIDEO

Audio/video cable (supplied)

Audio cable (not supplied)

S VIDEO
IN

S-Video cable
(supplied)

LINE INLINE OUT

LINE
IN

Getting Started

Getting Started

11

Step 4

Tuning your TV to the VCR

If you have connected your VCR to the TV using the EURO-AV cable, skip
this step.

Make sure to match the COMMAND MODE of the VCR and the remote
commander. This VCR and remote commander are set to VTR3 at the
factory.

ON/STANDBY

PROGRAM +/–

COMMAND
MODE

1 Press ON/STANDBY to turn on the VCR.

ON/STANDBY

RF-CH

2 Press RF-CH on the VCR.

RF-CH

The factory-preset RF channel appears in the display window.
The VCR signal is output through this channel to the TV.

RF

3 Turn on your TV and select a programme position for the VCR

picture.
This channel will now be referred to as the video channel.

4 Tune the TV to the same channel as that

shown in the display window so that
the picture on the right appears on the
TV screen.

Refer to your TV manual for tuning
instructions.

If the picture does not appear clearly,
see “To obtain a clear picture from the
VCR” on the next page.

Getting Started12

5 Press RF-CH.

RF-CH

You have now tuned your TV to the VCR. From now on, whenever
you want to play a tape, set the TV to the video channel.

To check to see if the TV tuning is correct

Set the TV to the video channel and press PROGRAM +/– on the VCR. If
the TV screen changes to a different programme each time you press
PROGRAM +/–, the TV tuning is correct.

To obtain a clear picture from the VCR

If the picture does not appear clearly in step 4 on the previous page, press
PROGRAM +/– in step 4, so that another RF channel appears. Then tune
the TV to the new RF channel until a clear picture appears.

For the SLV-T2000AS.

Channel number
in the display
window

28
29
30
31
32
33
34
35
36
37
38
39
40
41

Corresponding TV
channel

AS28*
AS29
AS30
AS31
AS33
AS34
AS35*
AS36
AS37
AS38
AS39
AS41
AS42
AS43

Channel number
in the display
window

42
43
44
45
46
47
48
49
50
51
52
53
54
55

Corresponding TV
channel

AS44*
AS45
AS46
AS47
AS49
AS50
AS51
AS52*
AS53
AS54
AS55
AS57
AS58
AS59

Getting Started

* For the SLV-T2000AS, try these channels first.

Getting Started

13

Step 5

Setting up the
VCR with EASY
SET UP

Before using the VCR for the first time,
set up the VCR using the EASY SET UP
function. With this function, you can set
the language for the on-screen display,
TV channels, guide channels for
G-CODE, and the VCR clock, guided by
the sequence indicated on the TV screen.

EASY SET UP

1 Press u to turn on the VCR.
2 Turn on your TV and set it to the video channel.

u

EXECUTE
CURSOR

> /. /? //

3 Press EASY SET UP on the VCR.

EASY

SET UP

4 Press CURSOR > /. to highlight the

CURSOR

EXECUTE

Getting Started14

To cancel the EASY SET UP function, press
EASY SET UP again.

desired language, then press EXECUTE.
ATP starts searching for all the receivable

channels and sorts the located channels.

For SLV-T2000AS

On-screen
channel number

C2
C3

C4
S44
S46

S1

S6

C5

C6

C7

C8

C9

C10
C11
C12
C28
C29
C30
C31

C31, C32

C32
C33
C34
C35
C36
C37
C38
C39
C39
C40
C41
C42
C43
C44
C45

C45, C46

C46
C47
C48
C49
C50
C51
C52

C52, C53

C53
C54
C55
C56
C57
C58
C59
C59

Corresponding
TV channel

AS0
AS1
AS2
AS3
AS4
AS5

AS5A

AS6
AS7
AS8
AS9

AS9A

AS10
AS11
AS12
AS28
AS29
AS30
AS31
AS32
AS33
AS34
AS35
AS36
AS37
AS38
AS39
AS40
AS41
AS42
AS43
AS44
AS45
AS46
AS47
AS48
AS49
AS50
AS51
AS52
AS53
AS54
AS55
AS56
AS57
AS58
AS59
AS60
AS61
AS62
AS63
AS64

On-screen
channel number

C60
C61
C62
C63
C64

S1 - S41

S42 - S46

For SLV-T2000MN

On-screen
channel number

C2
C3
C4
C5
C6
C7
C8

C9
C10
C11
C12

C21 - C69

S1 - S41

S42 - S46

Corresponding
TV channel

AS65
AS66
AS67
AS68
AS69

S1 - S41

S01 - S05

Corresponding
TV channel

NZ1
NZ2
NZ3
NZ4
NZ5
NZ6
NZ7
NZ8

NZ9
NZ10
NZ11

E21 - E69

S1 - S41

S01 - S05

continued

Getting Started

Getting Started

15

Step 5 : Setting up the VCR with EASY SET UP (continued)

When all the channels are preset, the
following screen appears.

5 Using CURSOR > /. /? // , set G-CODE guide channels and

CURSOR

6 Press EXECUTE.

EXECUTE

change the programme positions. (If not necessary, skip this step.)
The setting procedures are the same as those described in “Manual

setup — Setting up G-CODE” on page 22 and ”Manual setup —
Changing programme positions” on page 25.

The following screen appears.

Getting Started16

CURSOR

1 Press CURSOR >/. to set the day.

The day of the week is set
automatically.

2 Press CURSOR / to highlight the

month and set the month using
CURSOR > /. .

3 Set the year, hour and minutes in

sequence, using CURSOR / to
highlight the item to be set, and
CURSOR > /. to select the digits.

EXECUTE

7 Press EXECUTE .

A programme position appears on the TV
screen.

Note

• Do not exit EASY SET UP while the VCR is presetting channels. If you do, repeat
EASY SET UP from the beginning.

Getting Started

Getting Started

17

Manual setup —
Selecting a
language

MENU

You can change the on-screen display
language from the one you selected with
EASY SET UP.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (I) to LANGUAGE and

CURSOR

EXECUTE

press EXECUTE.

2 Press CURSOR > /. to highlight the

CURSOR

EXECUTE

desired language, then press EXECUTE.

EXECUTE
CURSOR

> /. /? //

Getting Started18

Manual setup —
Presetting
channels

MENU

If some channels could not be preset
using EASY SET UP, you can preset
them manually.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

CURSOR

MENU

move the cursor (I) to TUNER PRESET
and press EXECUTE.

EXECUTE

1 Press MENU, then press CURSOR >/. to

2 Press CURSOR >/. /? // to move the

CURSOR

cursor (I) to NORMAL/CATV, then
highlight NORM.

To preset CATV channels, highlight CATV.

EXECUTE

Getting Started

CURSOR
> /. /? //

PROG+/–

3 Press CURSOR >/. to move the cursor

CURSOR

(I) to CHANNEL SET.

continued

Getting Started

19

Manual setup –– Presetting channels (continued)

4 Press PROG +/– to select the programme

PROG

position.

Selected programme
position

5 Press CURSOR / to start tuning.

CURSOR

The VCR starts searching for a channel and
displays the first one it finds on the TV
screen. Press CURSOR ? // repeatedly
until the channel you want is displayed.

Please refer to the channel chart on page

15.
If you know the number of the channel you want, press the

programme number buttons. For example, for channel 43, first
press “4” and then press “3.”

6 To allocate another channel to another programme position, repeat

steps 4 and 5.

EXECUTE

7 Press EXECUTE.

Getting Started20

Disabling unwanted programme positions

After tuning the TV channels, you can disable unused programme positions.
The disabled positions will be skipped later when you press the PROG +/–
buttons.

1 In step 4 on the previous page, press programme number button “0”

twice to display the number “0” beside CHANNEL SET.

2 Press EXECUTE.

If the picture is not clear

Normally, the Auto Fine Tuning (AFT) function automatically tunes in
channels clearly. If, however, the picture is not clear, you may also use the
manual tuning function.

1 Press PROG +/– to select the programme number for which you cannot

obtain a clear picture.

2 Press MENU, then select TUNER PRESET and press EXECUTE.
3 Select FINE TUNING. The fine tuning meter appears.

Selected programme
position

4 Press CURSOR ? // to get a clearer picture, then press EXECUTE.

Note that the AFT (Auto Fine Tuning) setting switches to OFF.

Note

• The menu disappears automatically if you don’t proceed for more than a few
minutes.

Getting Started

Getting Started

21

Manual setup —
Setting up
G-CODE

G-CODE is a feature that simplifies
programming the VCR to make timer
recordings. To use G-CODE, each
programme position needs to be
matched with its G-CODE guide
channel. If the guide channels were not
preset in the EASY SET UP procedure,
you need to set them manually. To get
the guide channel numbers, look in the
programme guide for your area that
features G-CODE numbers.

• If you want to record satellite
broadcasts using G-CODE, see page

24.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

CURSOR

MENU

EXECUTE

move the cursor (I) to SET UP CH AND
G-CODE and press EXECUTE.

When using the EASY SET UP procedure,
skip this step.

The preset channels are displayed on the
screen. The guide channels also appear if
the VCR detected them in EASY SET UP.
“---” in the GUIDE CH column means that
the guide channel has not been preset.

1 Press MENU, then press CURSOR >/. to

MENU

EXECUTE

CURSOR
> /. /? //

Getting Started22

2 Press CURSOR >/. to move the cursor

CURSOR

(I) to the row on which you want to set the
guide channel.

To display other pages for programme
positions 6 to 60, press CURSOR > /.
repeatedly.

3 Press CURSOR / twice to highlight the

CURSOR

guide channel column.

4 Press CURSOR >/. to select the guide

CURSOR

channel number assigned in the
programme guide.

5 Press CURSOR / to confirm the setting.

CURSOR

Getting Started

6 To set the guide channel of another station, repeat steps 2 to 5.

If you want to change the programme positions of the stations,
proceed to step 2 of “Manual setup –– Changing programme
positions” on page 25.

EXECUTE

7 Press EXECUTE.

continued

Getting Started

23

Manual setup — Setting up G-CODE (continued)

Setting up G-CODE for satellite broadcasts

When your satellite tuner is connected via the AERIAL IN connector, first
you have to set the programme position for each satellite channel using the
TUNER PRESET menu. Then set the guide channel number for each
satellite channel using the SET UP CH AND G-CODE menu.

If your satellite tuner is connected via the LINE-1 (TV) connector, you don’t
have to set programme positions nor guide channel numbers for satellite
channels. Skip the following operations.

1 Turn on the satellite tuner.
2 Press MENU, then select TUNER PRESET and press EXECUTE.
3 Press PROG +/– to select a programme position you want to use for

watching a satellite channel.

4 Select CHANNEL SET, then press CURSOR

/ to tune the VCR to the satellite tuner.
The channel number displayed beside

CHANNEL SET is used for receiving all
satellite broadcasts from the satellite tuner.

5 Press PROG +/– to select another programme position for another

satellite channel, and press the programme number buttons to enter the
same channel number as the one displayed in step 4.

Repeat this step for all satellite channels.

6 Set the guide channel number for each programme position assigned to

the satellite channel, following the procedures in “Manual setup ––
Setting up G-CODE” on page 22.

Notes

• The menu disappears automatically if you don’t proceed for more than a few
minutes.

• If you inadvertently entered a guide channel number, press CURSOR >/.
repeatedly to reset the ”GUIDE CH” column to “---.” “---” appears between 1 and

255.

• The VCR does not allow entering the guide channel number, if the same number
has been set.

• When you record a satellite broadcast using G-CODE, you need to select the
desired channel on the satellite tuner manually.

Getting Started24

Manual setup ––
Changing
programme
positions

After setting the channels and G-CODE
guide channels, you can change the
programme positions as you like.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

e.g. Moving the programme position from 4 to 1.

MENU

EXECUTE

Getting Started

CURSOR
> /. /? //

1 Press MENU, then press CURSOR >/. to

CURSOR

MENU

move the cursor (I) to SET UP CH AND
G-CODE and press EXECUTE.

When using the EASY SET UP procedure,
skip this step.

EXECUTE

2 Press CURSOR >/. to move the cursor

CURSOR

(I) to the row on which you want to
change the programme position, then
press CURSOR / .

To display other pages for programme
positions 6 to 60, press CURSOR > /.
repeatedly.

3 Press CURSOR >/. until the selected

CURSOR

channel and guide channel row moves to
the desired programme position.

continued

Getting Started

25

Manual setup –– Changing programme positions (continued)

4 Press CURSOR ? to confirm the setting.

The two rows exchange the positions.

5 To change the programme position of another station, repeat steps 2

to 4.

EXECUTE

6 Press EXECUTE.

Getting Started26

Manual setup —
Setting the clock

You must set the time and date on the
VCR to be able to use the timer
recording features properly. You can set
the clock manually.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (I) to CLOCK SET and

CURSOR

EXECUTE

press EXECUTE.
When using the EASY SET UP procedure,

skip this step.

2 Press CURSOR >/. to set the day.

CURSOR

The day of the week is set automatically.

MENU

EXECUTE

Getting Started

CURSOR
> /. /? //

3 Press CURSOR / to highlight the month

CURSOR

and set the month using CURSOR > /. .

continued

Getting Started

27

Manual setup — Setting the clock (continued)

4 Set the year, hour and minutes in

CURSOR

EXECUTE

5 Press EXECUTE to start the clock.

Tip

• To change the digits during setting, press CURSOR ? to return to the item to be

Note

• The menu disappears automatically if you don’t proceed for more than a few

sequence, using CURSOR / to highlight
the item to be set, and CURSOR > /. to
select the digits.

changed, and select the digits using CURSOR > /. .

minutes.

Getting Started28

Basic Operations

Playing a tape

6 EJECT

TAPE
RETURN

COUNTER
RESET

-

HI-SPEED
REW

P PAUSE
Æ PLAY

Video8

VHS

p STOP
CLICK

SHUTTLE
ring

1 Turn on your TV and set it to the video channel.
2 Press either Video8 or VHS whichever you want to play back the

tape.

3 Insert a tape.

The unit turns on automatically. The tape starts playing
automatically if its safety tab has been removed. (VHS deck only)

4 Press ÆPLAY.

PLAY

When the tape reaches the end, it will rewind automatically.

Basic Operations

continued

Basic Operations

29

Playing a tape (continued)

Additional tasks

To

Stop play
Pause play
Resume play after pause
Search forward
Search backward
Fast-forward the tape
Rewind the tape
High-speed rewind

(8mm deck only)
Eject the tape

Press

p STOP
P PAUSE*
P PAUSE or Æ PLAY
) FF during playback
0 REW during playback
) FF during stop
0 REW during stop

- HI-SPEED REW

6 EJECT

When you playback 8mm tape, noise appears during still,
slow, and picture search.

* If more than 30 seconds (8mm deck) or 5 minutes (VHS deck) have passed after you

pressed P PAUSE, the VCR automatically returns to playback mode.

T o use the time counter

At the point the tape that you want to find later, press COUNTER RESET.
The counter in the display window resets to “0H00M00S.” Search for the
point afterwards by referring to the counter.

H M S

Basic Operations

30

To display the counter on the TV screen, press DISPLAY.

Notes

• The counter resets to “0H00M00S” whenever a tape is reinserted.

• The counter stops counting when it comes to a portion with no recording.

• If you have connected your TV to your VCR using the EURO-AV cable, make sure
to set the LINE 1 VIDEO OUT option in the SET UP MENU to NORM. However, if
your TV has a S input setting, then set the LINE 1 VIDEO OUT option in the SET
UP MENU to S.

Tips

• To rewind or advance the tape to the point that you have reset the counter to
“0H00M00S”, press TAPE RETURN.

• You can eject a tape even when the power is off. When you press 6 EJECT, the unit
turns on automatically. After ejecting a tape, the unit turns off again.

Recording TV

SP VTRSP

programmes

DISPLAY

COUNTER/
REMAIN

PROG +/–

r REC

TAPE SPEED
SP/LP (VHS)

Video8

VHS

TAPE SELECT
(VHS deck only)

1 Turn on your TV and set it to the video channel.

To record from a decoder, turn it on.

2 Press either Video8 or VHS for the deck you want to use.
3 Insert a VHS tape with its safety tab in place or an 8 mm tape with

the safety switch slid back so that the red portion does not show.

4 Press PROG +/– to select the programme position you want to

PROG

record.

Basic Operations

continued

Basic Operations

31

Recording TV programmes (continued)

LP VTRSP

TAPE SPEED

5 Press TAPE SPEED to select the tape speed, SP or LP. (VHS deck

SP/LP

(VHS)

only)
LP provides recording time twice as long as SP; however, SP

produces better picture and audio quality.
When recording with 8mm tape, the VCR records in SP mode

automatically. You cannot record in LP mode with 8mm tape.

6 Press r REC to start recording.

REC

T o stop r ecor ding

Press p STOP.

T o check the r emaining tape length

Press DISPLAY. The white bar indicates the approximate length of tape
remaining. With the display on, press COUNTER/REMAIN to check the
remaining time. Each time you press COUNTER/REMAIN, the time
counter and the remaining time appear alternately. The remaining time also
appears in the display window.

Time counter

Remaining tape length

When you use the tape with more than 3-hour recording, set TAPE SELECT
according to the tape type. (VHS deck only)

Tape type

E-300
E-240/E-260
E-195 or less

Set the switch to

E300
E240
E195

Remaining time

Basic Operations

32

T o watch another TV pr ogramme while r ecor ding

1 Press TV/VIDEO on the remote commander (or TV/VTR on the VCR)

to turn off the VTR indicator in the display window.

2 Select another programme position on the TV.

T o save a r ecor ding

8 mm tapes

Video tapes have a safety switch
to protect against accidental
recording. To prevent accidental
erasure of a recording, slide out
the switch on the cassette so that
the red portion is visible. A tape

Write protected

with its safety switch in this
position ejects if you try to record
on it.

To re-record on a tape, slide the switch so that the red portion is not visible.

VHS tapes

Video tapes have a safety tab to protect against accidental recording. To
prevent accidental erasure of a recording, break off the safety tab with a
screwdriver or other tool. A tape with its safety tab removed ejects if you try
to record on it.

To record on a tape with its safety tab removed, cover the tab hole.

Write enabled

Basic Operations

Safety tab

Adhesive tape

T o select tape speeds

When recording, you can select either SP or LP. When playing back, the
VCR automatically detects the tape speed. See the table below for the
maximum recording/playback time in each speed.

8 mm tape

Tape type

E5-120
E5/P5-90
E5/P5-60
E5/P5-30

Maximum recording / playback time
SP

2 hrs.
1 hr. 30 min.
1 hr.
30 min.

LP (playback only)

4 hrs.
3 hrs.
2 hrs.
1 hr.

continued

Basic Operations

33

Recording TV programmes (continued)

VHS tape

Tape type

E-300
E-240
E-180
E-120
E-60

If you use types other than those listed above, the remaining tape length
may not be displayed correctly.

Tips

• You can select a video source from the LINE-1 (TV) or the LINE-2 IN VIDEO/
AUDIO L/R jacks using INPUT SELECT.

• The display appears on the TV screen indicating information about the tape, but the
information won’t be recorded on the tape.

• To select programme positions, you can also use the programme number buttons on
the remote commander. For two-digit numbers, press the -/-- (ten’s digit) button
followed by the number buttons.

• If you don’t want to watch TV while recording, you can turn off the TV. When
using a decoder, make sure to leave it on.

Notes

• If you have connected your TV to your VCR using the EURO-AV cable, make sure
to set the LINE 1 VIDEO OUT option in the SET UP MENU to NORM.

However, if your TV has a S input setting, then set the LINE 1 VIDEO OUT option
in the SET UP MENU to S.

• You cannot watch a PAY-TV programme while recording another PAY-TV
programme.

• You cannot record TV programmes using both the 8 mm deck and the VHS deck at
the same time.

• You cannot record a video source from the one input connector using both the
8 mm deck and the VHS deck at the same time.

• If you insert a VHS tape with its safety tab removed or an 8mm tape with the safety
switch slid to show the red portion, and press r REC, the VCR automatically ejects
the tape. To record, cover the tab hole of the VHS tape or slide the switch of the 8
mm tape so that the red portion is not visible.

• When the tape comes to an end, the VCR automatically rewinds the tape to the
beginning.

Maximum recording / playback time
SP

5 hrs.
4 hrs.
3 hrs.
2 hrs.
1hr.

LP

10 hrs.
8 hrs.
6 hrs.
4 hrs.
2hrs.

Basic Operations

34

Recording TV
programmes
using G-CODE

Just enter the programme’s G-CODE
number listed in the TV programme
guide. The date, times and programme
position of that programme are set
automatically. You can preset up to
eight programmes at a time.

Befor e you star t…

• Check that the VCR clock is set to the
correct time.

• Insert a VHS tape with its safety tab in
place or an 8mm tape with the safety
switch slid so that the red portion does
not show. Make sure the tape is
longer than the total recording time.

• Turn on your TV and set it to the
video channel.

• Set the guide channels (page 22).

• When using a decoder or a satellite
tuner, turn it on.

Video8

VHS

u

G-CODE

Programme
number
buttons

SET

Basic Operations

CURSOR
> /. /? //

TIMER REC
ON/OFF

TIMER CLEAR

1 Press either Video8 or VHS which is set in

the SET UP MENU.

G-CODE

2 Press G-CODE.

TAPE SPEED
SP/LP (VHS)

continued

Basic Operations

35

Recording TV programmes using G-CODE (continued)

123

3 Press the programme number buttons to

456
789

0

4 Press TAPE SPEED to select SP or LP.

TAPE SPEED

SP/LP

(VHS)

enter the programme’s G-CODE number.
If you make a mistake, press TIMER

CLEAR and re-enter the correct number.

(VHS tape)
When you record with an 8 mm tape, skip

this step.

5 Press CURSOR ? // to select ONCE,

DAILY or WEEKLY:

CURSOR

To record

Only once
Every day Monday to Friday
Once a week

Display

ONCE
DAILY
WEEKLY

6 Press SET.

SET

The date, start and stop times, programme
position, and tape speed appear on the TV
screen.

If you want to turn on the VPS/PDC
function, see “Timer recording with VPS/
PDC signals” on page 40.

If the information is not correct, press TIMER CLEAR to cancel the
setting.

7 To enter another setting, repeat steps 2 to 6.
8 Press TIMER REC ON/OFF to turn off the VCR.

Basic Operations

36

TIMER REC

ON/OFF

The TIMER REC indicator appears in the display window and the
VCR stands by for recording.

T o stop r ecor ding

To stop the VCR while recording, press TIMER REC ON/OFF.

T o recor d satellite br oadcasts

If you connect a satellite tuner and the VCR, you can record satellite
programmes.

1 Turn on the satellite tuner.
2 On the satellite tuner, select the satellite programme for which you wish

to make a timer setting.

3 Repeat the steps described above.
4 Keep the satellite tuner turned on until the VCR finishes recording the

satellite programme for which you have made a timer setting.

T o use the VCR after setting the timer

To use the VCR before a timer recording begins, just press TIMER REC ON/
OFF. The TIMER REC indicator turns off and press u to turn on the VCR.
Remember to press TIMER REC ON/OFF to reset the VCR after using the
VCR.

You can also do the following tasks while the VCR is recording:

• Reset the counter.

• Display tape information on the TV screen.

• Check the timer settings.

• Watch another TV programme.

Tip

• To cancel the procedure, press G-CODE before pressing SET.

Notes

• If the VCR beeps repeatedly, this means that:
– The G-CODE number is incorrect.
– ONCE, DAILY, or WEEKLY was selected incorrectly. You cannot select DAILY or

WEEKLY for a programme that airs more than seven days ahead.

• You cannot set the timer recording on both the 8 mm deck and VHS deck, since you

have to select the deck before you make the setting. If one deck has been already
standing by for timer recording, select that deck for timer recording.

• While one deck is standing by for timer recording or proceeding timer recording,

another deck can only play back a recorded tape and record the line input source.

Basic Operations

Basic Operations

37

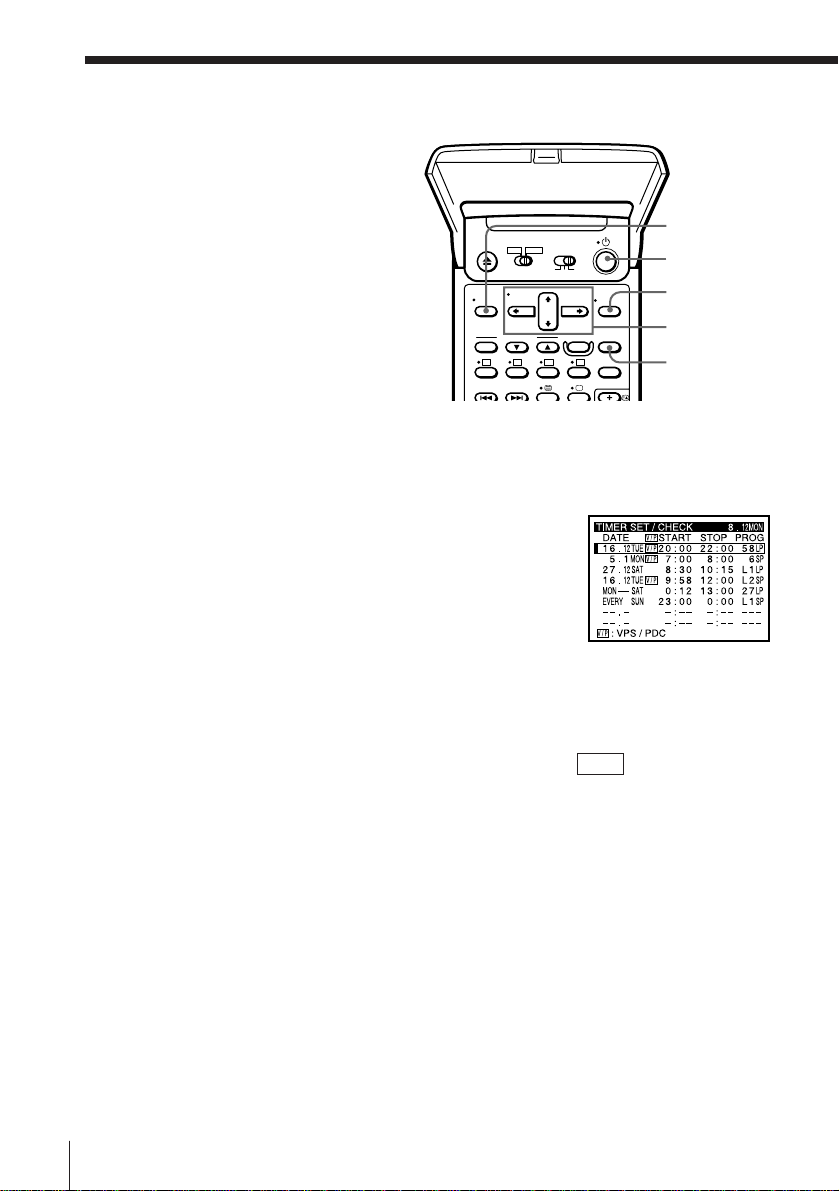

Setting the timer
manually

If G-CODE is not available in your area,
follow the instructions below to set the
timer to record programmes.

You can preset up to eight programmes
at a time.

Befor e you star t…

• Check that the VCR clock is set to the
correct time.

• Insert a VHS tape with its safety tab in
place or an 8 mm tape with the safety
switch slid so that the red portion does
not show. Make sure the tape is
longer than the total recording time.

• Turn on your TV and set it to the
video channel.

• When using a decoder or a satellite
tuner, turn it on.

MENU

EXECUTE

CURSOR
> /. /? //
TIMER REC
ON/OFF

INPUT
SELECT

1 Press either Video8 or VHS which is set in the SET UP MENU.

MENU

2 Press MENU and select TIMER SET/

CHECK, then press EXECUTE.

CURSOR

EXECUTE

Basic Operations

38

3 Set the date, start and stop times,

CURSOR

programme position, and tape speed
(VHS deck only) :

1 Press CURSOR / to highlight each

item in turn.

2 Press CURSOR > /. to set each item.
To correct a setting, press CURSOR ? to

return to that setting and reset.
To record the same programme every day or the same day every

week, press CURSOR . while the date is highlighted. For details,
see “Daily/weekly recording” on the next page.

If you want to use the VPS/PDC function, press CURSOR >/. to
turn on V/P in the “ V/P “ position. For details, see “Timer
recording with VPS/PDC signals” on the next page.

To record from other sources connected to the LINE-1(TV) or the
LINE-2 IN jacks, press INPUT SELECT to display “L1” or “L2” in
the “PROG” position.

4 Press CURSOR / to confirm the setting.

CURSOR

EXECUTE

5 Press EXECUTE.

The cursor (I) appears at the top of the line. To enter another
setting, move the cursor to the next line and repeat step 3.

Basic Operations

TIMER REC

6 Press TIMER REC ON/OFF to turn off the VCR.

ON/OFF

The TIMER REC indicator appears in the display window and the
VCR stands by for recording.

To record from a decoder or other source, leave the connected
equipment switched on.

T o stop r ecor ding

To stop the VCR while recording, press TIMER REC ON/OFF.

continued

Basic Operations

39

Setting the timer manually (continued)

Daily/weekly r ecording

In step 3 on the previous page, press CURSOR . to select the recording
pattern. Each time you press CURSOR . , the indication changes as shown
below.

the current date n SUN-SAT n MON-SAT n MON-FRI n EVERY SAT .....

n EVERY MON n EVERY SUN n 1 month later n (dates count down)
n the current date

Timer r ecor ding with VPS/PDC signals

The broadcast systems transmit VPS (Video Programme System)(SLV­T2000AS only) or PDC (Programme Delivery Control) signals with its TV
programmes. These signals ensure that your timer recordings are made
regardless of broadcast delay, early starts or broadcast interruptions.

In step 3 on the previous page, press CURSOR >/. to turn on/off the V/P
indicator after you set the recording date. If you do not want to set the VPS/
PDC function, turn off the V/P indicator.

You can also use the VPS/PDC function for a source connected to the LINE-1
(TV) and the LINE-2 IN jacks.

Tips

• To set the programme position, you can also use the PROG +/– or programme
number buttons.

• To set the tape speed, you can also use TAPE SPEED. (VHS deck only)

Notes

• If you record TV programmes which is not with VPS/PDC signals using the timer
and VPS/PDC function, your timer recordings may not be made correctly.

• When setting the timer with VPS/PDC signals, enter the start and stop times
exactly as indicated in the TV programme guide, otherwise the VPS/PDC function
won’t work.

• If the VPS/PDC signal is too weak or the broadcasting station failed to transmit
VPS/PDC signals, the VCR will start recording at the set time without using the
VPS/PDC function.

• You cannot make setting for timer recording on both 8 mm deck and VHS deck,
since you have to select the deck before you make setting. If one deck has been
already standing by for timer recording, select that deck for timer recording.

• While one deck is standing by for timer recording or proceeding timer recording,
another deck can only play back a recorded tape and record the line input source.

Basic Operations

40

Additional Operations

Playing/searching
at various speeds

SKIP

) FF

0 REW

CLICK
SHUTTLE ring

Playback options

Fast-for ward/rewind
View the pictur e during fast-

forward or rewind
Skip a scene

Rewind and start play

Operation

During stop, pr ess ) FF or 0 REW.
During fast-for ward, hold ) FF down. During rewind, hold

0 REW down.
During playback, pr ess SKIP . Pressing once skips about 30

seconds.
During stop, hold 0 REW on the VCR, and pr ess Æ PLAY on

the VCR.

continued

Additional Operations 41

Playing/searching at various speeds (continued)

Using the CLICK SHUTTLE ring

With the CLICK SHUTTLE ring, you can operate a variety of playback
options.

During playback or pause, turn the CLICK SHUTTLE ring clockwise or
counter clockwise. Each change in the CLICK SHUTTLE ring position
changes the playback mode, and the cor responding mark appears on the TV
screen for a few seconds in the following way if the on-scr een display
function is on:

Playback mode Normal speed Double speed High speed

Mark on the TV screen

Slow motion Pause Slow motion

High speed Double speed Normal speed
in reverse in reverse in reverse

in reverse

T o resume nor mal playback

Press Æ PLAY.

Tip

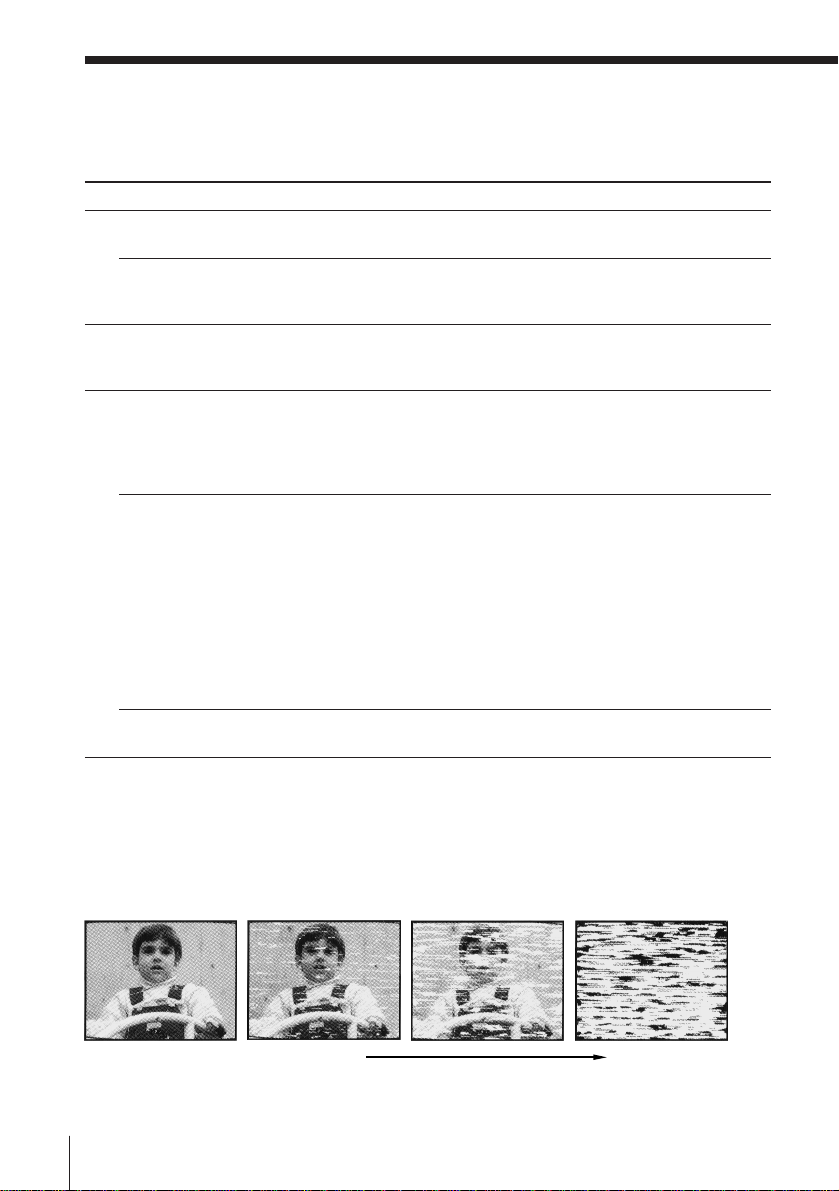

• Adjust the pictur e using $ /4 TRACKING if (VHS deck only) :

– Streaks appear while playing in slow motion.
– Bands appear at the top or bottom while pausing.
– The pictur e shakes while pausing.

Notes

• The playback sound is muted during these operations.

• In the LP mode, noise may appear or ther e may be no colour .

• The colour of the pictur e may not be r eproduced nor mally while playing back a tape
at various speeds or pausing.

• T apes recorded in the LP mode on other VCRs can be played back on this VCR but
the pictur e quality cannot be guaranteed.

• If the playback mode mark doesn’ t appear on the TV scr een, pr ess DISPLAY.

Additional Operations42

Recording TV
programmes
using the quick
timer

After star ting recording in the nor mal
way, you can have the VCR stop
recording automatically after a specified
duration.

1 While recording, press QUICK TIMER once.

2 Press QUICK TIMER repeatedly to set the duration.

Each press advances the time in incr ements of 30 minutes.

VHS deck

8 mm deck

The duration decr eases minute by minute to 0:00, then the VCR stops
recording and tur ns of f automatically .

T o extend the duration

Press QUICK TIMER repeatedly to set to the new duration.

QUICK TIMER

0:00 0:30 1:00 10:30 11:00

0:00 0:30 1:00 2:30 3:00

T o stop r ecor ding

To stop the VCR while r ecor ding, press TIMER REC ON/OFF.

Tip

• Y ou can also set the quick timer and star t recording during the stop mode.

Additional Operations 43

Checking/
changing/
cancelling timer
settings

Befor e you star t...

• T urn on your TV and set it to the
video channel.

1 Pr ess either VHS or V ideo8 whichever you set the timer for .
2 Press TIMER REC ON/OFF to turn off the TIMER REC indicator.
3 Press u to tur n on the VCR.
4 Press MENU, then select TIMER SET/CHECK.

• If you want to change a setting, go on to the
next step.

• If you do not need to change the settings,
press EXECUTE and TIMER REC ON/OFF,
then tur n off the VCR to r eturn to r ecording
standby.

5 Press CURSOR >/. to select the setting you want to change or cancel:

• To change the setting, pr ess CURSOR ? / / to highlight the item
you want to change, and pr ess CURSOR >/. to r eset it.
To cancel the VPS/PDC function, tur n off the V/P indicator.
Then, press CURSOR / repeatedly until the cursor ( I) appears at the
top of the line.

• To cancel the setting, pr ess TIMER CLEAR.

6 Press EXECUTE.

If any settings r emain, pr ess TIMER REC ON/OFF. The VCR turns of f
and returns to r ecording standby .

MENU

u

EXECUTE

CURSOR
> /. /? //

TIMER CLEAR

Additional Operations44

When the timer settings overlap

The programme that star ts first has priority and the second pr ogramme
starts recording only after the first pr ogramme has finished. If the
programmes star t at the same time, the pr ogramme listed first in the menu
has priority.

Programme 1

Programme 2

Programme 1

Programme 2

20 seconds

Will be cut off

20 seconds will be cut off

Additional Operations 45

Recording stereo and bilingual
programmes

In ZWEITON (German stereo) system (SLV-T2000MN
only)

This VCR automatically receives and r ecords ster eo and bilingual
programmes based on the ZWEITON system. When a ster eo or bilingual
programme is r eceived, the STEREO or MAIN/L indicator appears in the
display window .

T o select bilingual sound while r ecor ding

Press AUDIO MONITOR to select the sound you want.

To listen to

Main
Sub
Main and sub

In NICAM system (SLV-T2000MN only)

This VCR receives and r ecords ster eo and bilingual pr ogrammes based on
the NICAM system (the NICAM indicator appears). When a ster eo or
bilingual programme is r eceived, the STEREO or MAIN/L indicator appears
in the display window .

To record a NICAM programme, NICAM in the SET UP MENU should be
set to ON (initial setting). T o check the menu setting, see page 51.

On-screen display

MAIN
SUB
MAIN/SUB

Display window

MAIN/L
SUB/R
MAIN/L, SUB/R

T o select the sound while r ecor ding

Press AUDIO MONITOR to select the sound you want.

Stereo programme

To listen to

Stereo
Standar d sound*

* Usually the mixed sound of left and right channels (monaural) (VHS deck only)

Additional Operations46

On-screen display

STEREO
No indicator

Display window

STEREO
No indicator

Bilingual programme
To listen to

Main
Sub
Main and sub
Standar d sound*

* Usually the main sound (monaural) (VHS deck only)

On-screen display

MAIN
SUB
MAIN/SUB
No indicator

Display window

MAIN/L
SUB/R
MAIN/L, SUB/R
No indicator

Selecting the sound during playback

Press AUDIO MONITOR to select the sound you want.

Stereo programme
To listen to

Stereo
Left channel
Right channel
Standar d sound*

* Usually the main sound (monaural) (VHS deck only)

Bilingual programmes
8 mm tape

To listen to

Main
Sub
Main and sub

On-screen display

STEREO
LCH
RCH
No indicator

On-screen display

MAIN
SUB
MAIN/SUB

Display window

STEREO
MAIN/L
SUB/R
No indicator

Display window

MAIN/L
SUB/R
MAIN/L, SUB/R

VHS tape
To listen to

Main
Sub
Main and sub
Standar d sound

On-screen display

LCH
RCH
STEREO
No indication

Display window

MAIN/L
SUB/R
MAIN/L, SUB/R
No indication

Additional Operations 47

Recording stereo and bilingual programmes (continued)

How sound is recorded on a video tape

This VCR records sound onto two dif ferent tracks. High-fidelity sound
(usually ster eo) is r ecorded onto the main track (VHS tape) or the standar d
(AFM) track (8 mm tape) along with the pictur e. Monaural sound is
recorded onto the nor mal audio track along the edge of the tape (VHS tape).

8 mm tape

Standard (AFM and video) track: Hi-fi (stereo) sound and video signals

VHS tape

Normal audio track: Standard (monaural)
sound

Main track: Hi-fi sound and video signals

Notes

• T o listen to playback sounds in ster eo, you must use the LINE-1(TV) or LINE OUT
connections.

• When you play a tape r ecorded in monaural, the sound is hear d in monaural
regardless of the AUDIO MONITOR setting.

• If the AUDIO MONITOR button does not function, check that VHS AUDIO MIX in
the SET UP MENU is set to OFF.

Additional Operations48

Searching using
the index
function (VHS
deck only)

The VCR marks the tape with an index
signal at the point wher e each r ecording
begins. Use these signals as r efer ences
to find a specific r ecording. The VCR
can sear ch up to 99 index signals ahead
of or behind the cur rent position.

1 Insert an indexed tape into the VCR.
2 Press =/+ INDEX SEARCH repeatedly to specify how many

index signals ahead or behind you want to sear ch:

• To sear ch ahead, pr ess + INDEX
SEARCH.

• To sear ch backwar ds, pr ess = INDEX
SEARCH.

The VCR starts sear ching and the index
number on the TV scr een counts down to zer o.
Playback star ts automatically fr om that point.

= /+
INDEX
SEARCH

(VHS)

T o stop sear ching

Press p STOP.

Note

• No index signal will be added when r ecording star ts from recor ding pause.
However, an index signal will be marked if you change the channel during
recording pause.

Additional Operations 49

Adjusting the picture (VHS deck only)

Adjusting the tracking

Although the VCR automatically adjusts the tracking when playing a tape
(the AUTO TRACKING indicator flashes in the display window , then lights
steadily), distor tion may occur if the tape was r ecorded in poor condition. If
so, manually adjust the tracking.

Press $ /4 TRACKING to display the tracking
meter. The distor tion should disappear as you
press one of the two buttons. If you cannot get a
clear pictur e with manual adjustment, pr ess
TRACKING AUTO/MANU (VHS) to return to
automatic adjustment.

Tracking meter

About Optimum Picture Control (OPC)

Optimum Picture Control (OPC) automatically
improves recording and playback quality by
adjusting the VCR to the condition of the video
heads and tape. T o maintain better pictur e quality ,
we recommend that you set VHS OPC to ON in
the SET UP MENU (with the OPC indicator in the
display window lit).

OPC playback

The OPC function automatically works on all types of tapes, including r ental
tapes and tapes that wer e not r ecorded with OPC.

OPC recor ding

Whenever you inser t a tape and first star t recording, the VCR adjusts to the
tape using the OPC function (the OPC indicator flashes rapidly). This
adjustment is r etained until the tape is ejected.

T o deactivate the OPC

Press MENU and select SET UP MENU, then set VHS OPC to OFF. The OPC
indicator in the display window goes of f.

Note

• There is a delay of a few seconds befor e the VCR actually star ts recording while the

VCR analyses the tape. T o avoid the delay , first set the VCR to r ecording pause (the
OPC indicator flashes slowly) and pr ess r REC to have the VCR analyse the tape
(the OPC indicator flashes rapidly). After the OPC indicator stops flashing, pr ess
P P AUSE to start recording immediately . If you want to star t recording quickly
without using the OPC function, first set the VCR to r ecording pause (the OPC
indicator flashes slowly) and pr ess P PAUSE to start recording.

Additional Operations50

Changing menu options

1 Pr ess MENU, then select SET UP MENU.
2 Press CURSOR >/. to select the option to

change, then pr ess CURSOR ? // to
change the setting.

3 Press EXECUTE to r eturn to the original

screen.

Menu choices

Initial settings ar e indicated in bold print.

Menu option

TIMER REC

NICAM
(SLV -T2000MN only)

DIMMER

RF MODULATOR

LINE 1 VIDEO OUT

Video8 AUDIO LINE
IN

SL V-T2000MN

SL V-T2000AS

Set this option to

Video8 to select the 8 mm deck for timer r ecording.

VHS to select the VHS deck for timer r ecording.
ON to listen to and r ecord stereo/bilingual programmes that ar e

broadcast on the NICAM system and r ecor ded.
OFF when you do not wish to use the NICAM system and when
recording an 8 mm standar d sound.
For details, see page 46.

ON to dim the VCR display.

OFF to brighten it.
ON if you have connected the VCR to your TV using only the aerial

cable.
OFF if you have connected the VCR to your TV using the EURO-A V , S
or AV cable.

NORM when using a EURO-A V cable.
S when using a EURO-A V cable connected to a TV with an S
connection.

ST to listen to and r ecord stereo sound using and the LINE IN jacks
when selected the 8 mm deck.
BIL to listen to and r ecor d bilingual pr ogrammes using the LINE IN
jack when selected the 8 mm deck.

continued

Additional Operations 51

Changing menu options (continued)

Menu option

VHS AUDIO MIX

VHS OPC

Set this option to

ON to listen to the hi-fi and normal audio tracks at the same time when
selected the VHS deck. The AUDIO MONITOR button becomes
inoperable.
OFF to select the sound using the AUDIO MONITOR button when
selected the VHS deck.

ON to activate the OPC (Optimum Pictur e Contr ol) when selected the
VHS deck.
OFF to deactivate it.
For details, see page 50.

Additional Operations52

Using the 8 mm deck and VHS deck at
the same time

Video8 VHS

Using one deck while the other is playing back a tape

1 Pr ess Video8 or VHS to select the deck that is not in use.
2 Use the selected deck.

Using one deck while the other is recording

1 Pr ess Video8 or VHS to select the deck that is not in the r ecording

mode.

2 Use the selected deck.

Using one deck while the other is standing by for
timer recording or proceeding timer recording

1 Pr ess Video8 or VHS to select the deck that is not in use.
2 Use the selected deck.

While one deck is standing by for timer r ecording or pr oceeding timer
recording, the other deck can only play back a r ecorded tape and r ecor d the
line input sour ce.

Note

Y ou cannot r ecord two TV pr ogrammes at the same time, or use both decks at the
same time to r ecord one line input sour ce.

Additional Operations 53

Editing

One button dubbing

One button dubbing is a way of editing
the entire tape contents to another tape
automatically from one deck to the
other.

Befor e you star t editing

• Turn on your TV and set it to the
video channel.

1 Insert a source tape into one deck and a tape for recording into the

other deck.

2 Press Video8 ÷ or VHS to select the editing direction.

“Video8 ÷ ” means that the recording is made from the 8 mm tape to
the VHS tape.

“ VHS” means that the recording is made from the VHS to the 8 mm
tape.

3 Press SP/LP (VHS) button to select TAPE SPEED of the VHS tape when

you record from the 8mm tape to the VHS tape.
When you record from the VHS tape to the 8 mm tape, skip this step.

4 Press DUBBING.

The VCR rewinds both tapes to the beginning, and starts dubbing
automatically. When either tape reaches the end, the VCR rewinds both
tapes to the beginning, and ejects them. And then, the power turns off
automatically.

Video8÷ VHS

DUBBING

SP/LP (VHS)

T o stop editing

Press the p STOP button.

Notes

• When editing from VHS tape to 8 mm tape, note the following:

- If editing is proceeding with a VHS tape that you have recorded, the tape may be
automatically ejected. In this case, check the safety tab. If the tab is removed,
cover the tab hole with adhesive tape and after recording, remove the tape to
protect the recording. Make sure of the direction for recording so that you won’t
accidentally erase an important recording.

- If the safety switch on the 8 mm tape to be used as an original tape is slid out so
that the red portion is visible, the tape is automatically ejected. In this case, slide
the switch back in place so that the red portion is not visible. Make sure of the
direction for recording.

• Noise may appear at the beginning part of the edited tape.

• If the playback deck play blank for 5 minutes, both decks automatically stop,
rewind tapes to the beginning, and eject them. And then, the power turns off
automatically.

Editing54

Cut editing

You can edit VCR recording from one
deck to the other with cutting your
unwanted event.

Befor e you star t editing

• Turn on your TV and set it to the
video channel.

1 Insert a source tape into one deck and a tape for recording into the

other deck.
Locate the recording start point by rewinding or fast-forwarding.

2 Press Video8 or VHS to select the recording deck.

When you select VHS, press SP/LP (VHS) button to select TAPE SPEED
of the VHS tape.

3 Press EDIT ON (DIR)/OFF to select the editing direction.

Each pressing of the button changes as follows:

“Video8 ÷ VHS” means that the recording is made from the 8 mm
tape to the VHS tape.

“Video8 VHS” means that the recording is made from the VHS to
the 8 mm tape.

4 Press EDIT STANDBY/START.

The playback deck enters the playback pause mode and the recording
deck enters the recording pause mode. The indicator above the button
flashes.

5 Press EDIT STANDBY/START again.

Both decks release the pause and starts editing. The indicator above the
button lights.

6 Press EDIT STANDBY/START at the beginning of the unwanted event.

Both decks enter the pause mode. The indicator above the button
flashes.

Video8

EDIT ON(DIR) /OFF

EDIT STANDBY/START

SP/LP
(VHS)

EDIT STOP

VHS

CLICK SHUTTLE
ring

continued

Editing 55

Cut editing (continued)

7 Select the playback deck and turn the CLICK SHUTTLE ring on the

VCR until the unwanted event ends.

8 Press EDIT STANDBY/START again when a desired event appears on

the screen.
Editing starts. The indicator above the button lights.

9 Repeat steps 6 to 8 to cut other unwanted events.
10

When editing is finished, press EDIT STOP.

11

Press EDIT ON(DIR)/OFF so that the Video8 ÷ VHS or Video8
VHS indicator goes off.

T o stop the VCR while editing

Press EDIT STOP.

Notes

• When editing from VHS tape to 8 mm tape, note the following:

- If editing is proceeding with a VHS tape that you have recorded, the tape may be
automatically ejected. In this case, check the safety tab. If the tab is removed,
cover the tab hole with adhesive tape and after recording, remove the tape to
protect the recording. Make sure of the direction for recording so that you won’t
accidentally erase an important recording.

- If the safety switch on the 8 mm tape to be used as an original tape is slid out so
that the red portion is visible, the tape is automatically ejected. In this case, slide
the switch back in place so that the red portion is not visible. Make sure of the
direction for recording.

• Noise may appear at the beginning part of the edited tape.

• When you press P PAUSE or EDIT STANDBY/START while editing from the 8mm
tape to the VHS tape, the picture may turn obscure.

Editing56

Audio dubbing
(VHS deck only)

This feature lets you record over the
normal audio track. The monaural
sound previously recorded is replaced
while the original hi-fi sound remains
unchanged. Use this feature to add
commentary to a tape that you have
recorded with a camcorder.

Befor e you star t editing…

• Turn on your TV and set it to the
video channel.

• Press INPUT SELECT to display “L2”
in the display window.

AUDIO DUB
(VHS)

COUNTER
RESET

VHS

Audio dubbing indicator

P PAUSE

1 Insert the source tape into the stereo system (or the playback VCR).

Search for the point to start playback and set it to playback pause.

2 Press VHS to select the VHS deck.
3 Insert a prerecorded tape with its safety tab in place into this

(recording) VCR. Search for the end of the section to be replaced and
press P PAUSE.

4 Press COUNTER RESET on this VCR to reset the counter to

“0H00M00S.”

5 Rewind the prerecorded tape to the beginning of the section to be

replaced.
The VCR pauses.

6 Press AUDIO DUB (VHS).

The audio dubbing indicator lights up.

continued

Editing 57

Audio dubbing (VHS deck only) (continued)

7 To start editing, press the P PAUSE buttons on this VCR and the stereo

system (or other VCR) at the same time.
When the counter reaches “0H00M00S,” audio dubbing stops

automatically.

T o stop while editing

Press the p STOP buttons on this VCR and the stereo system (or other VCR).

T o listen to both the hi-fi and nor mal audio

Set VHS AUDIO MIX to ON in the SET UP MENU (page 52). Use this
feature to listen to dubbed audio over the original hi-fi audio. When VHS
AUDIO MIX is set to ON, the AUDIO MONITOR button does not function.
Remember to reset VHS AUDIO MIX to OFF after playing the tape.

Editing58

Editing with another VCR

How to hook up to record on this unit

This unit (Recorder)

S VIDEO

LINE-2 IN

Other VCR (Player)

LINE OUT

Audio/video cable (supplied)

S-video cable (supplied)

: Signal flow

How to hook up to record on another VCR

This unit (Player)

TV

S VIDEO OUT

TV

LINE OUT

: Signal flow

S VIDEO

Other VCR (Recorder)

S VIDEO IN

S-video cable (supplied)

Audio/video cable (supplied)

LINE IN

continued

Editing 59

Editing with another VCR (continued)

Tips

• Make sure you connect the plugs to jacks of the same colour.

• If the other VCR is a monaural type, leave the red plug unconnected.

• When connection is made using the EURO-AV connector, if the other VCR doesn’t
have a EURO-AV (Scart) connector, use the VMC-2106 EURO-AV connecting cable.

• When recording on this VCR, you can connect the other VCR into LINE-1 (TV)
using LINE IN jack of the 21-pin adaptor. In this case, press INPUT SELECT to
display “L1” in the display window.

Operation (when recording on this VCR)

Befor e you star t editing

• Press INPUT SELECT to display “L2” in the display window.

• Press TAPE SPEED to select the recording tape speed (SP/LP) (VHS deck
only).

• If the other (playback) VCR has an EDIT function, set it to ON.

INPUT SELECT

r REC

TAPE SPEED
SP/LP (VHS)

P PAUSE

p STOP

1 Insert the source tape into the other (playback) VCR. Search for the

point to start playback and set it to playback pause.

2 Insert a tape for recording into this (recording) VCR. Search for the

point to start recording and press P PAUSE.
The VCR enters playback pause mode.

3 Press r REC on this VCR to set it to recording pause.
4 To start editing, press the P PAUSE buttons on both VCRs to release the

VCRs from pause.
For best results, press the pause on the playback VCR just before

Editing60

pressing P PAUSE button on this VCR.

T o stop editing

Press the p STOP buttons on both VCRs.

Tips

• To make your editing more precise, release the VCRs from pause by pressing
P PAUSE buttons on the VCRs, not on the remote comander.

• To cut out unwanted events while editing, press P PAUSE on this VCR when an
unwanted event begins. When it ends, press P PAUSE again to resume recording.

Editing 61

Additional Information

Troubleshooting

If you have any questions or pr oblems not cover ed below , please consult your near est Sony
service facility.

Symptom

The ON/STANDBY switch
does not function.

The power is turned on but the

Power

VCR does not operate.

The clock has stopped and
“-:--” lights in the display

Clock

window.
The playback pictur e does not

appear on the TV scr een.

The picture is not clear .

Playback

The picture rolls ver tically
during picture sear ch.

Remedy

• Connect the mains lead secur ely.

• Moisture condensation has occur red. Turn the power
off, unplug the mains lead and leave the VCR to dr y
for over one hour .

• The clock stops if the VCR is disconnected fr om the
mains for mor e than one hour . Reset the clock (and
timer).

• Make sure the TV is set to the video channel. If you
are using a monitor , set it to video input.

• If the VCR is connected to the TV only with the aerial
cable, make sur e that the RF MODULATOR option in
the SET UP MENU is set to ON.

• Adjust the tracking with the $/4 TRACKING buttons.
(VHS deck only)

• The video heads ar e dirty (see below). Clean the video
heads using the Sony video head cleaning cassette. If
this cleaning cassette is not available in your ar ea, have
the heads cleaned at your near est Sony ser vice facility
(a standar d service charge will be r equired). Do not
use a commer cially available wet-type cleaning
cassette, as it may damage the video heads.

• The video heads may have to be r eplaced. Consult
your local Sony ser vice facility for mor e infor mation.

• Adjust the ver tical hold contr ol on the TV or monitor .

Symptoms caused by contaminated video heads

• Normal picture

initial terminal

62

Additional Information

• Unclear picture• Rough picture

• No picture (or
black & white
screen appears)

Symptom

The picture has no sound.
The sound is unstable or has an

echo.

No TV pr ogramme appears
on the TV scr een.

TV r eception is poor .

The tape starts playing as soon
as it is inserted.

Recording Playback

The tape is ejected when you
press r REC.

Nothing happens when you
press r REC.

The timer does not operate.

Timer recording

Timer recording cannot be
made by one deck.

Remedy

• The tape is defective. Use a new tape.

• When you play a tape with the same sound r ecorded
on both the hi-fi and nor mal sound tracks, make sur e
the VHS AUDIO MIX option in the SET UP MENU is
set to OFF.

• Make sure the TV is set to the video channel. If you
are using a monitor , set it to video input.

• If the VCR is connected to the TV using only the aerial
cable, make sur e that the RF MODULATOR option in
the SET UP MENU is set to ON.

• Adjust the TV aerial.

• If the VCR is connected to the TV using only the aerial
cable, set the RF MODULATOR option in the SET UP
MENU is set to ON.

• The safety tab of the VHS tape has been r emoved. To
record on this tape, cover the tab hole.

• Check that the safety tab of the VHS has not been
removed, or that the safety switch of the 8 mm tape
has not been slid to show the r ed portion.

• Make sure the tape is not at its end.

• Select the cor rect sour ce with the INPUT SELECT
button. Select a pr ogramme position when r ecor ding
TV pr ogrammes; select “L1” or “L2” when r ecording
from other equipment.

• Check that the clock is set.

• Make sure a tape has been inser ted.

• Check that the safety tab of the VHS has not been
removed, or that the safety switch of the 8 mm tape
has not been slid to show the r ed portion.

• Make sure the tape is not at its end.

• Make sure a pr ogramme has been set for timer
recording.

• Make sure your timer settings have not alr eady passed
the cur rent time.

• Check that the decoder is turned on.

• Check that the satellite tuner is turned on.

• The clock stops if the VCR is disconnected fr om the
mains for mor e than one hour . Reset the clock and
timer.

• Make sure to use the deck which you have selected
TIMER REC option in the SET UP MENU.

continued

Additional Information

63

Troubleshooting (continued)

Symptom

A tape cannot be inserted.

The remote commander does
not function.

The tracking indicator does not
appear on the scr een.

Y ou cannot contr ol other TVs.

Others

The VCR needs to be cleaned.

Remedy

• Check that a tape isn’ t already in the tape

compartment.

• Make sure you ar e pointing the r emote commander at

the remote sensor on the VCR.

• Replace all the batteries in the r emote commander with

new ones if they ar e weak.

• Set COMMAND MODE selectors on both the VCR and

the remote commander to the same positions.

• Make sur e the TV / VIDEO r emote contr ol switch is

set cor rectly.

• The recording condition of the tape is ver y poor and

tracking cannot be adjusted.

• Set your TV’s code number . The code number r esets to

01 when you r eplace the batteries of the r emote
commander.

• Clean the cabinet, panel and contr ols with a dr y , soft

cloth, or a soft cloth slightly moistened with a mild
deter gent solution. Do not use any type of solvent,
such as alcohol or benzine.

64

Additional Information

H (high eight) video system

Both H and standar d h cassette tapes can be used with this VCR. Refer to
the charts below for the compatibility between the H video system and
the standar d h system.

When playing a tape/r ecor ding on a tape

This VCR automatically detects the type of tape, either H or standar d h .
When playing back, this VCR also automatically detects the tape speed
(either SP or LP) the tape was r ecorded in.

Tape type

H tape
Standar d h tape

Recording format

H (high eight)
h (standar d 8 mm)

Playback mode

H (high eight)
h (standar d 8 mm)

Saving a r ecor ding

Slide out the switch on the cassette so that the r ed colour appears.
To re-record on the cassette, slide the switch back.

Notes

• H recording or playback can only be done using a H tape.

• Y ou cannot make H format recordings on standar d h tapes.

Additional Information

65

Specifications

System

Channel coverage

SLV-T2000MN:
VHF R1 to R12, E2 to E12, NZ1 to NZ9
UHF E21 to E69, R21 to R69
CATV S01 to S05, S1 to S41
SLV-T2000AS:
VHF AS0 to AS12, AS5A, AS9A
UHF AS28 to AS69
CATV S01 to S05, S1 to S41

RF output signal

UHF channels 28 to 69

Aerial out

75-ohm asymmetrical aerial socket

Inputs and outputs

: LINE-1 (TV)

21-pin
Video input: pin 20
Audio input: pins 2 and 6
Video output: pin 19
Audio output: pins 1 and 3

DECODER

21-pin
Video input: pin 20
Audio input: pins 2 and 6

LINE-2 IN

S VIDEO, 4-pin mini DIN
Y: 1 Vp-p, 75 ohms, unbalanced, sync negative
C: 0.3 Vp-p, colour burst, 75 ohms, unbalanced
VIDEO IN, phono jack (1)
Input signal: 1 Vp-p, 75 ohms, unbalanced, sync

negative
AUDIO IN, phono jack (2)
Input level: 327 mVrms
Input impedance: more than 47 kilohms

LINE OUT

S VIDEO, 4-pin mini DIN
Y: 1 Vp-p, 75 ohms, unbalanced, sync negative
C: 0.3 Vp-p, colour burst, 75 ohms, unbalanced
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced,

sync negative
AUDIO OUT, phono jack (2)
Standard output level: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms

General

Power requirements

220 – 240 V AC, 50 Hz

Power consumption

37 W

Operating temperature

5°C to 40°C

Storage temperature

–20°C to 60°C

Dimensions

Approx. 430 × 109 × 387 mm (w/h/d)
including projecting parts and controls

Mass

Approx. 7.2 kg

Supplied accessories

Remote commander (1)
R6 (size AA) batteries (2)
Aerial cable (1)
Audio /video cable (1)
S-video cable (1)
Mains lead (2)
21-pin adaptor (1)

Design and specifications are subject to change
without notice.

66

Additional Information

Index to parts and controls

Refer to the pages indicated in par entheses ( ) for details.

Front panel

14235 6 7

! !¢ !`098!£ !“

1 ON/STANDBY switch/indicator

(12)

2 8 mm 6 EJECT button (30)
3- High speed r ewind V ideo8

button (30)

4 8 mm tape compartment
5 DUBBING/Video8 ÷ / VHS

buttons (54)

6 VHS tape compartment
7 VHS 6 EJECT button (30)

8 CLICK SHUTTLE ring (42)
9Æ PLAY button (29)
!… p STOP button (30)
!` P PAUSE button (30)
!“ 0 REW button (30)
!£ ) FF button (30)
!¢ LINE-2 IN VIDEO/AUDIO L/R

jacks (59)
LINE-2 S VIDEO connector (59)

!∞ Remote sensor (5)

continued

Additional Information

67

Index to parts and controls (continued)

Front panel, with cover opened

134256

!ƒ !¢ !£ !“!⁄! 987!` 0

1 Video8 button (29)
2 TV/VTR button (33)
3 AUDIO DUB (VHS) button (57)
4 COUNTER RESET button (30)
5 VHS button (29)
6 PROGRAM +/– buttons (13)
7 TAPE SELECT switch

(VHS deck only) (32)

8 REC button (32)
9 TIMER REC (ON/OFF) button (36)

!… QUICK TIMER button (43)
!` TAPE SPEED SP /LP (VHS) button

(32)

!“ RF-CH button (12)
!£ EASY SET UP button (14)
!¢ EDIT STOP button (56)
!∞ EDIT STANDBY / START button

(55)

!⁄ EDIT ON (DIR) / OFF button (55)
!ƒ COMMAND MODE switch (12)

68

Additional Information

Rear panel

1 2 3 4

6

1 AERIAL OUT connector (9)
2: LINE-1 (TV) connector (10)
3 DECODER connector

5

4 AC IN connector (9)
5 LINE OUT AUDIO /

VIDEO jacks (10)
LINE OUT S VIDEO
connector (11)

6 AERIAL IN connector (9)

continued

Additional Information

69

Index to parts and control (continued)

Display window

1

234

H M S

!¥

1 8 mm tape indicator
2 8 mm tape speed indicator
3 VTR indicator
4 REMAIN indicator (32)
5 DEW indicator (62)
6 Video8 indicator
7 VPS/PDC indicator (40)
8 VHS indicator
9 MAIN/L/SUB/R indicator (46)

5

6

7

VPS PDCDEWREMAIN

!ƒ

89

VHSVTRSP LP video8

MAIN/L

NICAM
RF

!⁄

0

STEREO OPC SP LP

SUB/R

!

!¢

!… STEREO indicator (46)
!` OPC indicator (50)
!“ VHS speed indicator (32)
!£ VHS tape indicator
!¢ Channel indicator (31)
!∞ NICAM indicator (46)
!⁄ RF indicator (12)
!ƒ Clock/quick timer r emaining time

(43)

!¥ T ime counter/clock (30)

!`

!“

!£

70

Additional Information

Remote commander

16EJECT button (30)

1
2
3
4
5

6

7
8

9
0
!`

!“
!£

!¢

2 TV / VIDEO remote contr ol

switch (5)

3; V TV Teletext buttons (6)
4 COUNTER RESET button (30)
5 TAPE RETURN button (30)
6 Programme number buttons (6, 35)
7 -/-- (ten’s digit) button (34)
8 SET button (36)
9- HI-SPEED REW (Video8)

button (30)

!… ) FF button (30)
!` 0 REW button (30)
!“ CLICK SHUTTLE ring (42)
!£ Æ PLAY button (29)
!¢ p STOP button (30)

continued

Additional Information

71

Index to parts and control (continued)

!
!⁄
!ƒ

!¥
!»
@…
@`
@“
@£

@¢
@

@⁄
@ƒ
@¥

@»

!∞ COMMAND MODE switch (7)
!⁄ u (on/standby) switch (6)
!ƒ AUDIO MONITOR button (6, 47)
!¥ DISPLAY button (6)
!» WIDE button (for TV) (8)
@… TV/VIDEO button (6)
@` COUNTER / REMAIN button (32)
@“ INPUT SELECT button (34, 57)
@£ G-CODE button (35)
@¢ PROG +/– buttons (6, 13)

√/◊ Teletext page access buttons

(for TV)

@∞ VOL +/– buttons (for TV) (6)
@⁄ Video8 button (29 )
@ƒ SKIP button (41)
@¥ VHS button (29)
@» P PAUSE button (30)

72

Additional Information

Remote commander (In the lid)

1

2
3
4

5
6
7

8
9
0
!`

!“
!£

!¢
!
!⁄

1 Menu buttons (6, 51)

MENU button
CURSOR > /. /? // buttons
EXECUTE button

2$/4 TRACKING AUTO/MANU

(VHS) buttons (VHS deck only)
(50)

3 F ASTEXT buttons (6)
4= /+ INDEX SEARCH

buttons (49)

5 COUNTER RESET button (30)
6 TAPE RETURN button (30)
7 EDIT buttons (55)

ON (DIR) / OFF button
STANDBY / START button
STOP button

8 TIMER REC ON /OFF button (36)
9 TIMER CLEAR button (36)
!… AUDIO DUB (VHS) button (57)
!` ; V TV Teletext buttons (6)
!“ PROG +/– buttons (6)

√/◊ Teletext page access buttons

(for TV)

!£ INPUT SELECT button (34, 57)
!¢ r REC button (32)
!∞ TAPE SPEED SP/LP (VHS) button

(32)

!⁄ COUNTER / REMAIN button (32)

Additional Information

73

74

Additional Information

Additional Information

75
