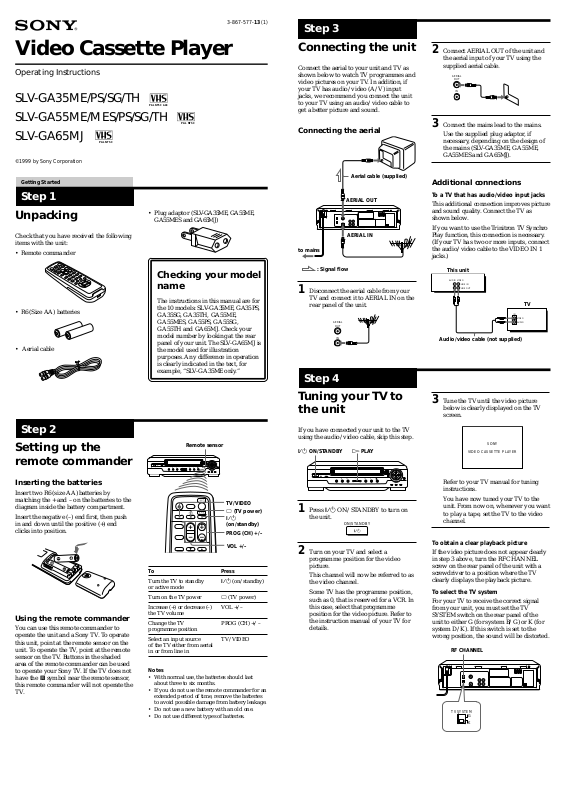

Page 1
3-867-577-13 (1)
ON/STANDBY
SONY
VIDEO CASSETTE PLAYER
Step 3
Video Cassette Player
Operating Instructions
SLV-GA35ME/PS/SG/TH
SLV-GA55ME/MES/PS/SG/TH
SLV-GA65MJ
©1999 by Sony Corporation
Getting Started
Step 1
Unpacking
Check that you have received the following
items with the unit:
• Remote commander
PAL NTSC
PAL NTSC 4.43
PAL NTSC
• Plug adaptor (SLV-GA35ME, GA55ME,
GA55MES and GA65MJ)
Connecting the unit
Connect the aerial to your unit and TV as
shown below to watch TV programmes and
video pictures on your TV. In addition, if
your TV has audio/video (A/V) input
jacks, we recommend you connect the unit
to your TV using an audio/video cable to
get a better picture and sound.
Connecting the aerial
Aerial cable (supplied)
AERIAL OUT
AERIAL IN
AERIAL IN
to mains
2 Connect AERIAL OUT of the unit and
the aerial input of your TV using the
supplied aerial cable.
AERIAL
OUT
IN
3 Connect the mains lead to the mains.
Use the supplied plug adaptor, if
necessary, depending on the design of
the mains (SLV-GA35ME, GA55ME,
GA55MES and GA65MJ).
Additional connections
To a TV that has audio/video input jacks
This additional connection improves picture
and sound quality. Connect the TV as
shown below.
If you want to use the Trinitron TV Synchro
Play function, this connection is necessary.
(If your TV has two or more inputs, connect
the audio/video cable to the VIDEO IN 1
jacks.)
• R6 (Size AA) batteries
• Aerial cable
Step 2
Setting up the
remote commander
Checking your model
name
The instructions in this manual are for
the 10 models: SLV-GA35ME, GA35PS,
GA35SG, GA35TH, GA55ME,
GA55MES, GA55PS, GA55SG,
GA55TH and GA65MJ. Check your
model number by looking at the rear
panel of your unit. The SLV-GA65MJ is
the model used for illustration
purposes. Any difference in operation
is clearly indicated in the text, for
example, “SLV-GA35ME only.”
Remote sensor
: Signal flow
1 Disconnect the aerial cable from your
TV and connect it to AERIAL IN on the
rear panel of the unit.
AERIAL
OUT
IN
Step 4
Tuning your TV to
the unit
If you have connected your unit to the TV
using the audio/video cable, skip this step.
?/1 ON/STANDBY
H PLAY
This unit
AUDIO VIDEO
LINE IN
LINE OUT
TV
IN
VIDEO
AUDIO
Audio/video cable (not supplied)
3 Tune the TV until the video picture
below is clearly displayed on the TV
screen.
Inserting the batteries
Insert two R6 (size AA) batteries by
matching the + and – on the batteries to the
diagram inside the battery compartment.
Insert the negative (–) end first, then push
in and down until the positive (+) end
clicks into position.
Using the remote commander
You can use this remote commander to
operate the unit and a Sony TV. To operate
this unit, point at the remote sensor on the
unit. To operate the TV, point at the remote
sensor on the TV. Buttons in the shaded
area of the remote commander can be used
to operate your Sony TV. If the TV does not
have the g symbol near the remote sensor,
this remote commander will not operate the
TV.
TV/VIDEO
a (TV power)
?/1
(on/standby)
PROG (CH) +/–
VOL +/–
To
Turn the TV to standby
or active mode
Turn on the TV power
Increase (+) or decrease (–)
the TV volume
Change the TV
programme position
Select an input source
of the TV either from aerial
in or from line in
Notes
• With normal use, the batteries should last
about three to six months.
• If you do not use the remote commander for an
extended period of time, remove the batteries
to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
Press
?/1 (on/standby)
a (TV power)
VOL +/–
PROG (CH) +/–
TV/VIDEO
1 Press ?/1 ON/STANDBY to turn on
the unit.
2 Turn on your TV and select a
programme position for the video
picture.
This channel will now be referred to as
the video channel.
Some TV has the programme position,
such as 0, that is reserved for a VCR. In
this case, select that programme
position for the video picture. Refer to
the instruction manual of your TV for
details.
Refer to your TV manual for tuning
instructions.
You have now tuned your TV to the
unit. From now on, whenever you want
to play a tape, set the TV to the video
channel.
To obtain a clear playback picture
If the video picture does not appear clearly
in step 3 above, turn the RF CHANNEL
screw on the rear panel of the unit with a
screwdriver to a position where the TV
clearly displays the playback picture.
To select the TV system
For your TV to receive the correct signal
from your unit, you must set the TV
SYSTEM switch on the rear panel of the
unit to either G (for system B/G) or K (for
system D/K). If this switch is set to the
wrong position, the sound will be distorted.
RF CHANNEL
TV SYSTEM
G
K
Page 2
Operations
Playing/searching at various speeds
H PLAY
m 3 REW
x STOP
A EJECT
M # FF
X PAUSE
NTSC PB
COLOR
SYSTEM
Z EJECT
DISPLAY
3/# SEARCH
y SLOW
X PAUSE
M FF
H PLAY
x STOP
m REW
1 Turn on your TV and set it to the video
channel.
2 Insert a tape.
(SLV-GA35ME/PS/SG/TH)
The unit turns on, and starts playing
automatically.
(SLV-GA55ME/MES/PS/SG/TH and
GA65MJ)
The unit turns on, and starts playing
automatically if you insert a tape with
its safety tab removed.
3 Press H PLAY (if playback did not
start in step 2).
PLAY
When the tape reaches the end, it will
rewind automatically.
Additional tasks
Playback options
Stop play
Pause play
Resume play after
pause
Fast-forward the tape
Rewind the tape
View the picture
during fast-forward
or rewind
Play at high speed
Play in slow motion
Rewind and start play
Eject the tape
Resume normal
playback
Operation
Press x STOP.
Press X PAUSE.
Press X PAUSE or
H PLAY.
Press M FF (M # FF
on the unit) during stop.
Press m REW
(m 3 REW on the unit)
during stop.
During fast-forward, hold
M FF (M # FF on the
unit) down.
During rewind, hold
m REW (m 3 REW on
the unit) down.
• During playback or
pause, press
# SEARCH or
3 SEARCH.
• During playback or
pause, hold down
M FF (M # FF on
the unit) or m REW
(m 3 REW on the
unit).
When you release the
button, normal
playback resumes.
During playback or
pause, press y SLOW .
During stop, press H
PLAY on the unit while
holding down
m 3 REW on the unit.
Press Z EJECT.
Press H PLAY.
To set the colour system
If streaks appear during playback, set
COLOR SYSTEM on the unit to conform to
the system that the tape was recorded in.
(Normally set the switch to AUTO.)
If your tape was
recorded in
PAL
NTSC
MESECAM
Set COLOR SYSTEM to
PAL/MESECAM
NTSC
PAL/MESECAM
To play an NTSC-recorded tape
Set NTSC PB on the unit according to the
colour system of your TV.
If your TV is
PAL
NTSC 4.43
NTSC 3.58
Set NTSC PB to
ON PAL TV
NTSC 4.43
NTSC 3.58
(SLV-GA55ME/MES/PS/
SG/TH and GA65MJ only)
To view the tape status on the screen
Press DISPLAY.
The following information appears on the
TV screen.
LINE 1
STEREO
Remaining
tape length
–
SE
::
SP
000
Tape speed*
* Appears for a few seconds when the DISPLAY
button is pressed and when the mode is
changed.
Time counter
22
To turn the display off, press DISPLAY
again.
Notes
• The sound is muted during playback at various
speeds and pause.
• You can eject a tape even when the power is
off. When you press Z EJECT, the unit turns on
automatically. After ejecting the tape, the unit
turns off again.
• When the pause mode lasts for more than
approximately five minutes, the unit will
automatically enter the playback mode.
• Tapes recorded in the LP mode of NTSC system
on other VCRs can be played back on this unit,
but the picture quality cannot be guaranteed.
• The counter resets to “0:00:00” whenever a tape
is inserted.
• The counter stops counting when it comes to a
portion with no recording.
• If a tape has portions recorded in both PAL and
NTSC systems, the time counter reading will
not be correct. This is due to the difference
between the counting cycles of the two colour
systems.
• Streaks or snow cannot be eliminated
completely in the various playback operations,
especially in the slow motion mode.
• On screen symbols may shake while playing or
searching at various speeds.
• Depending on your TV, the following may
occur while playing an NTSC-recorded tape:
– the picture is black and white,
– the picture shakes,
– no picture appears on the TV screen,
– black streaks appear horizontally on the TV
screen, and
– the colour density increases or decreases.
Turning on the unit and TV to start playback (Trinitron TV Synchro Play)
You can only use this function if your TV is
made by Sony (Trinitron TV).
How to connect to use this function
Connect the unit and TV with the audio/
video cable. Be sure to connect the audio/
video cable to the VIDEO IN 1 jacks on the
TV if the TV has two inputs or more. The
TV must be placed where it will respond to
the remote commander while you are
pointing it at the unit.
Operation
Make sure that the TV’s power is in standby
mode.
Adjusting the picture
Although the unit automatically adjusts the
picture when playing a tape, distortions or
noise may occur if the tape was recorded in
poor condition. If so, manually adjust the
resolution, colour and tracking.
RESOLUTION CONTROL II
buttons
STD PICT
AUTO/MANU
V/v NORMAL/
SLOW/STILL ADJUST
M/m/</,
Resolution
Control II
STANDARD
Adjusting the resolution and
colour
1 While playing a tape, press M/m/</
, RESOLUTION CONTROL II (up/
down/left/right button on the unit) to
display the RESOLUTION CONTROL
II menu.
The RESOLUTION CONTROL II
buttons light up.
RESOLUTION CONTROL II
C
•••••
O
••••
•••
+
L
O
••••••
•••••
RESOLUTION
R
2 Press </, RESOLUTION
CONTROL II (left/right button on the
unit) to get a clearer picture.
3 Press M/m RESOLUTION CONTROL
II (up/down button on the unit) to get
the best picture colour.
Wait for several seconds until the
RESOLUTION CONTROL II menu
disappears.
To resume the automatic adjustment
Press STANDARD PICTURE on the remote
commander (STD PICT on the unit) so that
the RESOLUTION CONTROL II buttons
turn off.
Press TRINITRON TV SYNCHRO PLAY
and hold the remote commander in place
for about two seconds.
The unit and TV turn on, and the TV is set
to the video channel. If there is a tape in the
unit, playback starts automatically.
Notes
• If the Trinitron TV Synchro Play function does
not work properly:
– Wait a few moments, and press the button
again.
– Replace both of the batteries in the remote
commander with new ones, and press the
button again.
Note that this function may not operate some
Sony TVs because of the remote commander’s
signal limitations.
• Do not press TRINITRON TV SYNCHRO
PLAY while playing back a video tape. If you
do so, the TV’s input source will momentarily
switch to the TV’s tuner.
Adjusting the tracking
Press V/v TRACKING NORMAL/SLOW/
STILL ADJUST to obtain the best possible
picture. The distortion should disappear as
you press one of the two buttons. If you
cannot get a clear picture with manual
adjustment, press TRACKING AUTO/
MANU to return to automatic adjustment.
About Optimum Picture
Control (OPC) (SLV-GA35ME/PS/
SG/TH only)
Optimum Picture Control (OPC)
automatically improves playback quality by
adjusting the unit to the condition of the
video heads and tape.
The OPC function automatically works on
all types of tapes, including rental tapes and
the tapes that were not recorded with OPC.
About Adaptive Picture
Control (APC) (SLV-GA55ME/
MES/PS/SG/TH and SLV-GA65MJ
only)
Adaptive Picture Control (APC)
automatically improves recording and
playback quality by adjusting the unit to the
condition of the video heads and tape.
APC playback
The APC function automatically works on
all types of tapes, including rental tapes and
tapes that were not recorded with APC.
APC recording
Whenever you insert a tape and first start
recording, the unit adjusts to the tape using
the APC function. This adjustment is
retained until the tape is ejected.
Tip
• Adjust the picture using V/v NORMAL/
SLOW/STILL ADJUST if:
– streaks appear while playing in slow motion
– the picture shakes while pausing
Notes
• The auto tracking function works
automatically when you play back a tape just
after inserting it.
• There is a delay of a few seconds before the
unit actually starts recording while the unit
analyses the tape. To avoid the delay, first set
the unit to recording pause and press z REC to
have the unit analyse the tape. After ten
seconds, press X PAUSE to start recording
immediately. If you press X PAUSE before ten
seconds, the APC function is cancelled.
• While playing a MESECAM recorded tape,
you cannot adjust the colour using the
RESOLUTION CONTROL II function.
• Sufficient picture quality may not be obtained
when playing back tapes recorded on another
VCR or tapes in poor condition.
• When a tape recorded with the copyguard
system is played back, intermittent distortion
may appear in the upper portion of the picture.
However, this is not a malfunction of the unit.
Page 3
Editing with another unit
(SLV-GA55ME/MES/PS/SG/TH
and GA65MJ only)
Editing (when recording on
this unit)
You can make a copy of a tape using this
unit for recording or playback. The unit
cannot record TV programmes directly since
it does not have a TV tuner.
Synchronised recording
(SLV-GA55ME/MES/PS/SG/TH
and GA65MJ only)
To prepare the Synchronised
recording
SYNCHRO REC
TAPE SPEED
How to connect to record on
this unit
TV
This unit (Recorder)
LINE IN
Other VCR (Player)
LINE OUT
VMC-710HG/720HG audio/video cable
(not supplied)
: Signal flow
Tip
• Use a commercially available connecting cable
such as the Sony VMC-710HG/720HG. If the
other VCR has the AUDIO L and R jacks, use a
connecting cable such as the Sony VMC910HG (3-phono to 2-phono).
Notes
• Make sure you connect the plugs to jacks of the
same colour.
• If you connected this unit to both the LINE IN
and LINE OUT jacks of the other VCR, select
the input correctly to prevent a humming
noise.
• Make sure you set the CONNECT LINE-1
switch to OTHERS.
z RECX PAUSE
TAPE SPEED
Before you start editing
• Turn on your TV and set it to the video
channel.
1 Set TAPE SPEED to select the tape
speed (SP or LP for the PAL colour
system, and SP or EP for the NTSC
colour system).
LP provides a recording time twice as
long as SP. EP provides a recording time
three times as long as SP.
However, SP produces better picture
quality.
2 Insert a source tape with its safety tab
removed into the other (playback) VCR.
Search for the point to start playback
and set it to playback pause.
3 Insert a tape with its safety tab in place
into this (recording) unit. Search for the
point to start recording and press
X PAUSE.
4 Press z REC on this unit to set it to
recording pause.
5 To start editing, press the X PAUSE
buttons on both units at the same time.
To stop editing
Press the x STOP buttons on both units.
To check the remaining tape length
Press DISPLAY.
The white bar indicates the approximate
length of the tape recording.
LINE 1
STEREO
Remaining tape
–
SE
::
000
length
22
Time counter
The Synchronised Recording feature
enables you to record from the connected
equipment such as a satellite tuner, a cable
TV decoder or a TV that has a timer
function. Once you set the timer on the
other equipment, the unit will start
recording the programme synchronised
with the timer.
How to connect to use this
function
Connect the other equipment to the LINE
IN jack of this unit.
This unit (Recorder)
CONNECT
LINE-1
TV
OTHERS
LINE IN
TV, Satellite tuner, etc.
LINE OUT
VMC-710HG/720HG audio/video cable
(not supplied)
: Signal flow
Setting the CONNECT LINE-1 switch
When you connect the other equipment to
the LINE IN jacks, set the CONNECT LINE1 switch on the rear of the unit following
the table below to allow better signal
transmission to your TV.
If the unit is
connected to
TV
Satellite, cable TV
decoder, etc.
Set the CONNECT LINE-1
switch to
TV
OTHERS
1 Set the timer on the equipment to the
time of the programme you want to
record, then turn the equipment off.
2 Insert a tape with its safety tab in place.
Make sure the tape is longer than the
total recording time.
3 Set TAPE SPEED to select the tape
speed (SP or LP for the PAL colour
system, and SP or EP for the NTSC
colour system).
4 Hold SYNCHRO REC down for more
than two seconds.
The SYNCHRO REC button lights up
and the unit stands by for recording.
The unit automatically turns on and starts
recording when it receives audio/video
signals from the connected equipment.
To cancel the Synchronised recording
Press SYNCHRO REC so that the button’s
light turns off.
To stop recording
Press x STOP while recording.
The unit automatically stops recording
when the tape reaches the end or when the
other equipment stops transmitting the
audio/video signals.
Notes
• Some TVs or other equipment automatically
turn off in a certain time if you do not operate
it after it turns on with the timer. In this case
the Synchronised Recording also stops
automatically.
• The Synchronised Recording starts and stops
according to the signals from the connected
equipment. Refer also to the instruction
manual of the connected equipment for its
timer function.
• Some equipment keeps transmitting signals
even though the power is off. In this case, the
Synchronised Recording feature does not work
because the unit will not be able to know when
to start recording.
To turn the display off, press DISPLAY
again.
To save a recording
To prevent accidental erasure, break off the
safety tab as illustrated. To record on a tape
again, cover the tab hole with adhesive tape.
Safety tab
Tips
• To edit more precisely, press the X PAUSE
buttons on the units to release pause.
• To cut out unwanted scenes while editing,
press X PAUSE on this unit when an unwanted
scene begins. When that scene ends, press
X PAUSE again to resume recording.
Page 4
Additional Information
Warning
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
The mains lead must only be changed at a
qualified service shop.
Precautions
Safety
• This unit operates on 110 – 240 V AC,
50/60 Hz. Check that the unit’s operating
voltage is identical with your local power
supply.
• If anything falls into the cabinet, unplug the
unit and have it checked by qualified
personnel before operating it any further.
• The unit is not disconnected from the mains as
long as it is connected to the mains, even if the
unit itself has been turned off.
• Unplug the unit from the mains if you do not
intend to use it for an extended period of time.
To disconnect the cord, pull it out by the plug,
never by the cord.
Installing
• Allow adequate air circulation to prevent
internal heat buildup.
• Do not place the unit on surfaces (r ugs,
blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation slots.
• Do not install the unit near heat sources such
as radiators or air ducts, or in a place subject to
direct sunlight, excessive dust, mechanical
vibration or shock.
• Do not install the unit in an inclined position.
It is designed to be operated in a horizontal
position only.
• Keep the unit and cassettes away from
equipment with strong magnets, such as
microwave ovens or large loudspeakers.
• Do not place heavy objects on the unit.
Specifications
System
Colour system
PAL, MESECAM, NTSC 4.43
NTSC 3.58 (SLV-GA55ME/MES/PS/SG/TH and
GA65MJ
only)
RF output signal
UHF channels 30 to 39
(B/G, D/K)
Aerial out
75-ohm asymmetrical aerial socket
Inputs and outputs
LINE IN (SLV-GA55ME/MES/PS/SG/TH and
GA65MJ)
VIDEO IN, phono jack (1)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO IN, phono jack (1)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO OUT, phono jack (1)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
• If the unit is brought directly from a cold to a
warm location, moisture may condense inside
the unit and cause damage to the video head
and tape. When you first install the unit, or
when you move it from a cold to a warm
location, wait for about one hour before
operating the unit.
Caution
Television programmes, films, video tapes, and
other materials may be copyrighted. Unauthorized
recording of such material may be contrary to the
provisions of the copyright laws. Also, use of this
recorder with cable television transmission may
require authorization from the cable television
transmitter and/or programme owner.
Compatible colour systems
• Check the colour systems of your unit using
the table below.
Model name
SLV-GA55ME/
MES/PS/SG/TH
SLV-GA65MJ
SLV-GA35ME/
PS/SG/TH
Recording of video sources based on other
colour systems cannot be guaranteed.
• To play back tapes recorded with the PAL and
MESECAM colour systems, you need a TV or
colour monitor compatible with these systems.
• Tapes recorded with the NTSC colour system
can be played back on this unit using a TV or a
colour monitor for the PAL colour system.
Colour system
Recording
PAL
MESECAM
NTSC 4.43
NTSC 3.58
Playback
PAL
MESECAM
NTSC 4.43
NTSC 3.58
PAL
MESECAM
NTSC 4.43
General
Power requirements
110 – 240 V AC, 50/60 Hz
Power consumption
10 W (SLV-GA35ME/PS/SG/TH)
12 W (SLV-GA55ME/MES/PS/SG/TH and
GA65MJ)
Operating temperature
5°C to 40°C
Storage temperature
–20°C to 60°C
Dimensions
Approx. 355 × 96 × 293 mm (w/h/d)
including projecting parts and controls
Mass
Approx. 3.8 kg
Supplied accessories
Remote commander (1)
R6 (Size AA) batteries (2)
Aerial cable (1)
Plug adaptor
(SLV-GA35ME, GA55ME, GA55MES and GA65MJ only)
(1)
Design and specifications are subject to change without
notice.
Troubleshooting
If you have any questions or problems not covered below, please consult your nearest Sony
service facility.
Symptom
The ?/1 ON/STANDBY switch does
not function.
The power is turned on but the
unit does not operate.
The unit enters standby mode
or turns off automatically.
Power
The playback picture does not
appear on the TV screen.
The picture is not clear.
Playback
The picture rolls vertically
during picture search.
The picture has no sound.
The tape starts playing as soon
as it is inserted.
The tape is ejected when you
press z REC.
Recording*
Nothing happens when you
press z REC.
A tape cannot be inserted.
The remote commander does
not function.
The unit needs to be cleaned.
Others
The indicator lights on the unit are flashing.
The RESOLUTION CONTROL II
menu appears automatically.
* SLV-GA55ME/MES/PS/SG/TH and GA65MJ only
Auto head cleaner
The unit incorporates an auto head cleaner which cleans the video heads when
a tape is loaded or unloaded. When the heads are not sufficiently clean, even
after a tape has been loaded/unloaded several times, use a video head cleaning
cassette.
Remedy
• Connect the mains lead securely.
• Moisture condensation has occured. Turn the power
off, unplug the mains lead and leave the unit to dry
for over an hour.
• The auto safety system is triggered to protect your
tape and the unit’s mechanism when there is
something wrong with the tape or when the
mechanism is overloaded. Press ?/1 ON/STANDBY
to restart the unit. If the unit does not work after
pressing ?/1 ON/STANDBY again, disconnect the
mains lead from the mains. Wait for at least 15
seconds. Then reconnect the mains, and press
?/1 ON/STANDBY again. If the unit still does not
work, please consult your nearest Sony service
facility.
• Make sure the TV is set to the video channel. If you
are using a monitor, set it to video input.
• Adjust the tracking with the V/v NORMAL/SLOW/
STILL ADJUST buttons.
• Make sure the COLOR SYSTEM switch is set to the
position corresponding to the colour system which
the tape was recorded with.
• The video heads are dirty (see below). Clean the
video heads using the Sony T-25CLD, T-25CLW or
E-25CLDR video head cleaning cassette. If these
cleaning cassettes are not available in your area, have
the heads cleaned at your nearest Sony service facility
(a standard service charge will be required). Do not
use a commercially available liquid type cleaning
cassette, as it may damage the video heads.
• The video heads may have to be replaced. Consult
your local Sony service facility for more information.
• Adjust the vertical hold control on the TV or monitor.
• The tape is defective.
• If you made A/V connections, check the audio cable
connection.
• The safety tab has been removed. To record on this
tape, cover the tab hole.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
• Check that a tape is not already in the tape
compartment.
• Make sure you are pointing the remote commander at
the remote sensor on the unit.
• Replace all the batteries in the remote commander
with new ones if they are weak.
• Clean the cabinet, panel, and controls with a dry soft
cloth, or a soft cloth slightly moistened with a mild
detergent solution. Do not use any type of solvent,
such as alcohol or benzine.
• The demonstration mode has been turned on. Cancel
the demonstration mode by pressing STD PICT.
Demonstration mode
The demonstration mode will
activate when you press STD PICT
and the RESOLUTION CONTROL II
down button on the unit at the same
time.
When demonstration mode starts
during playback, RESOLUTION
CONTROL II menu appears and the
level of picture adjustment changes
automatically.
When demonstration mode starts during
power off and Synchronised Recording
off, the indicator lights on the unit flash.
To cancel the demonstration mode
Press STD PICT.
Symptoms caused by contaminated video heads
• Normal picture • Rough picture • Unclear picture
initial
contamination
• No picture (or
black & white
screen appears)
terminal
Sapphire tape cleaner
The unit incorporates a sapphire tape cleaner which cleans a video tape when it
is loaded. This cleaner can prevent the video heads from contamination by
removing dust or mold from a tape with the sapphire edge.
Sony Corporation
Loading...
