Sony SA-SPC5 Operating Instructions Manual

Additional Information

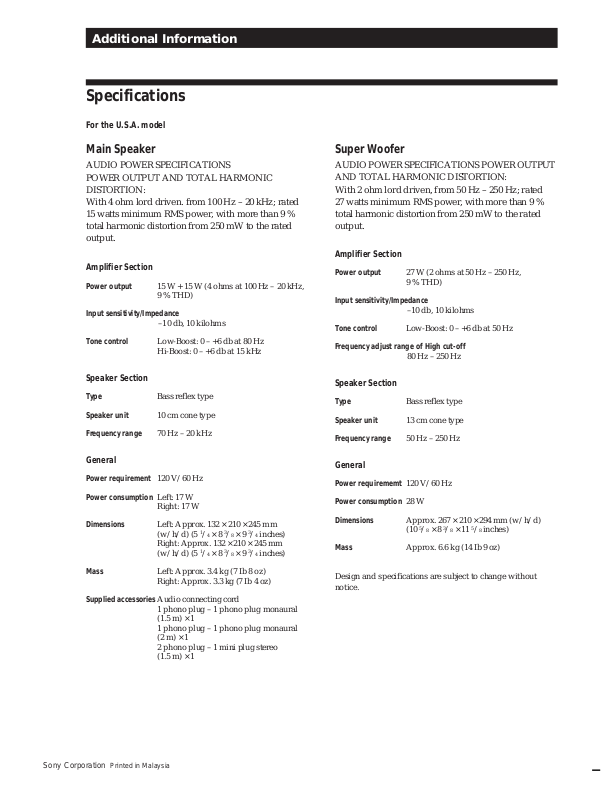

Specifications

For the U.S.A. model

Main Speaker

AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 4 ohm lord driven. from 100 Hz – 20 kHz; rated
15 watts minimum RMS power, with more than 9 %
total harmonic distortion from 250 mW to the rated
output.

Amplifier Section

Power output 15 W + 15 W (4 ohms at 100 Hz – 20 kHz,

9 % THD)

Input sensitivity/Impedance

–10 db, 10 kilohms

Tone control Low-Boost: 0 – +6 db at 80 Hz

Hi-Boost: 0 – +6 db at 15 kHz

Speaker Section

Type Bass reflex type
Speaker unit 10 cm cone type
Frequency range 70 Hz – 20 kHz

Super Woofer

AUDIO POWER SPECIFICATIONS POWER OUTPUT
AND TOTAL HARMONIC DISTORTION:
With 2 ohm lord driven, from 50 Hz – 250 Hz; rated
27 watts minimum RMS power, with more than 9 %
total harmonic distortion from 250 mW to the rated
output.

Amplifier Section

Power output 27 W (2 ohms at 50 Hz – 250 Hz,

9 % THD)

Input sensitivity/Impedance

–10 db, 10 kilohms

Tone control Low-Boost: 0 – +6 db at 50 Hz
Frequency adjust range of High cut-off

80 Hz – 250 Hz

Speaker Section

Type Bass reflex type
Speaker unit 13 cm cone type
Frequency range 50 Hz – 250 Hz

General

Power requirement 120 V/60 Hz
Power consumption Left: 17 W

Right: 17 W

Dimensions Left: Approx. 132 × 210 × 245 mm

(w/h/d) (5 1/4 × 8 3/8 × 9 3/4 inches)
Right: Approx. 132 × 210 × 245 mm
(w/h/d) (5 1/4 × 8 3/8 × 9 3/4 inches)

Mass Left: Approx. 3.4 kg (7 Ib 8 oz)

Right: Approx. 3.3 kg (7 Ib 4 oz)

Supplied accessories Audio connecting cord

1 phono plug – 1 phono plug monaural
(1.5 m) × 1
1 phono plug – 1 phono plug monaural
(2 m) × 1
2 phono plug – 1 mini plug stereo
(1.5 m) × 1

General

Power requirememt 120 V/60 Hz
Power consumption 28 W
Dimensions Approx. 267 × 210 × 294 mm (w/h/d)

(10 5/8 × 8 3/8 × 11 5/8 inches)

Mass Approx. 6.6 kg (14 Ib 9 oz)

Design and specifications are subject to change without
notice.

Sony Corporation Printed in Malaysia

3-860-131-13 (1)

Active Monitor
Speaker System

Operating Instructions

SA-SPC5
