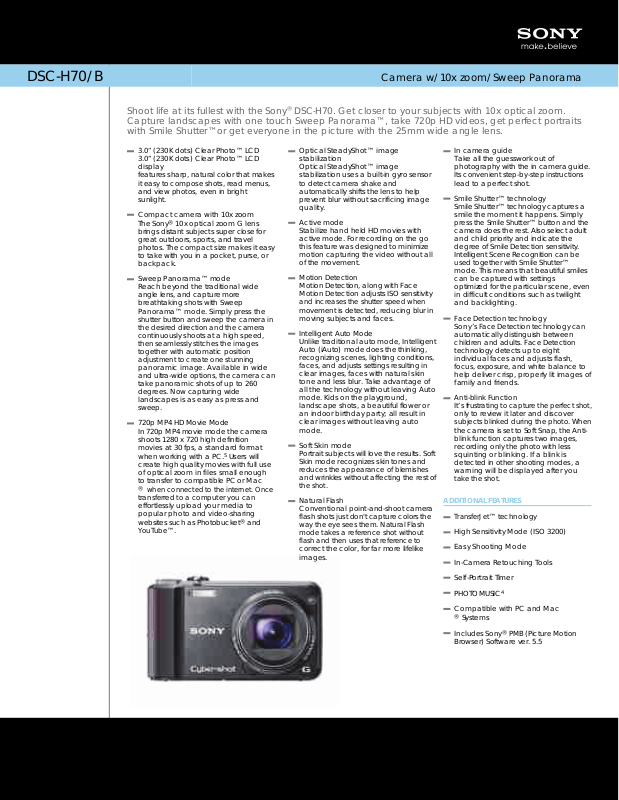

DSC-H70/B
Camera w/10x zoom/Sweep Panorama
Shoot life at its fullest with the Sony DSC-H70. Get closer to your subjects with 10x optical zoom.
Capture landscapes with one touch Sweep Panorama™ , take 720p HD videos, get perfect portraits
with Smile Shutter™ or get everyone in the picture with the 25mm wide angle lens.
®
3.0” (230K dots) Clear Photo™ LCD
3.0” (230K dots) Clear Photo™ LCD
display
features sharp, natural color that makes
it easy to compose shots, read menus,
and view photos, even in bright
sunlight.
Compact camera with 10x zoom
The Sony 10x optical zoom G lens
brings distant subjects super close for
great outdoors, sports, and travel
photos. The compact size makes it easy
to take with you in a pocket, purse, or
backpack.
®
Sweep Panorama™ mode
Reach beyond the traditional wide
angle lens, and capture more
breathtaking shots with Sweep
Panorama™ mode. Simply press the
shutter button and sweep the camera in
the desired direction and the camera
continuously shoots at a high speed,
then seamlessly stitches the images
together with automatic position
adjustment to create one stunning
panoramic image. Available in wide
and ultra-wide options, the camera can
take panoramic shots of up to 260
degrees. Now capturing wide
landscapes is as easy as press and
sweep.
720p MP4 HD Movie Mode
In 720p MP4 movie mode the camera
shoots 1280 x 720 high definition
movies at 30 fps, a standard format
when working with a PC. Users will
create high quality movies with full use
of optical zoom in files small enough
to transfer to compatible PC or Mac
when connected to the internet. Once
transferred to a computer you can
effortlessly upload your media to
popular photo and video-sharing
websites such as Photobucket and
YouTube
™ .
5
®
®
Optical SteadyShot™ image
stabilization
Optical SteadyShot™ image
stabilization uses a built-in gyro sensor
to detect camera shake and
automatically shifts the lens to help
prevent blur without sacrificing image
quality.
Active mode
Stabilize hand held HD movies with
active mode. For recording on the go
this feature was designed to minimize
motion capturing the video without all
of the movement.
Motion Detection
Motion Detection, along with Face
Motion Detection adjusts ISO sensitivity
and increases the shutter speed when
movement is detected, reducing blur in
moving subjects and faces.
Intelligent Auto Mode
Unlike traditional auto mode, Intelligent
Auto (iAuto) mode does the thinking,
recognizing scenes, lighting conditions,
faces, and adjusts settings resulting in
clear images, faces with natural skin
tone and less blur. Take advantage of
all the technology without leaving Auto
mode. Kids on the playground,
landscape shots, a beautiful flower or
an indoor birthday party; all result in
clear images without leaving auto
mode.
Soft Skin mode
Portrait subjects will love the results. Soft
Skin mode recognizes skin tones and
reduces the appearance of blemishes
and wrinkles without affecting the rest of
the shot.
Natural Flash
Conventional point-and-shoot camera
flash shots just don't capture colors the
way the eye sees them. Natural Flash
mode takes a reference shot without
flash and then uses that reference to
correct the color, for far more lifelike
images.
In camera guide
Take all the guesswork out of
photography with the in camera guide.
Its convenient step
-by-
step instructions
lead to a perfect shot.
Smile Shutter
™ technology
Smile Shutter™ technology captures a
smile the moment it happens. Simply
press the Smile Shutter
™
button and the
camera does the rest. Also select adult
and child priority and indicate the
degree of Smile Detection sensitivity.
Intelligent Scene Recognition can be
used together with Smile Shutter
™
mode. This means that beautiful smiles
can be captured with settings
optimized for the particular scene, even
in difficult conditions such as twilight
and backlighting.
Face Detection technology
Sony’
s Face Detection technology can
automatically distinguish between
children and adults. Face Detection
technology detects up to eight
individual faces and adjusts flash,
focus, exposure, and white balance to
help deliver crisp, properly lit images of
family and friends.
Anti-blink Function
It’
s frustrating to capture the perfect shot,
only to review it later and discover
subjects blinked during the photo. When
the camera is set to Soft Snap, the Antiblink function captures two images,
recording only the photo with less
squinting or blinking. If a blink is
detected in other shooting modes, a
warning will be displayed after you
take the shot.
ADDITIONAL FEATURES
TransferJet
™ technology
High Sensitivity Mode (ISO 3200)
Easy Shooting Mode
In-Camera Retouching Tools
Self-Portrait Timer
PHOTOMUSIC
4
Compatible with PC and Mac
Systems
®
Includes Sony
PMB (Picture Motion
Browser) Software ver. 5.5
®
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 03/07/2011
DSC-H70/B
Camera w/10x zoom/Sweep Panorama
Please visit the Dealer Source for more information
at www.sony.com/dealersource
Specifications
Convenience Features
Power Save Mode: Standard / Stamina / Off
Media/Battery Indicator:
Yes / Yes
Red-Eye Reduction:
Auto / On / Off
Erase/Protect:
Erase: Single / Select / Date /
Folder, Protect: Single / Select / Date / Folder
Inputs and Outputs
HD Output:
HDMI
LCD Display
Histogram:
Yes
LCD Type: 3.0" Clear Photo LCD (230K dots)
Grid Display:
Yes (Off / On)
Angle Adjustment:
No
Brightness Control:
STILL: Normal / Bright, MOVIE:
Normal, Auto Bright
Flash
Flash Coverage: ISO Auto: Approx. 0.25-Approx.
3.6m (Approx. 0.82'-Approx. 11.8') (W)
/ Approx. 1.0-Approx. 2.3m (Approx. 3.28'Approx. 7.55') (T),
ISO3200: up to Approx. 7.1m (Approx. 23.3')
(W) / Approx. 4.5m (Approx. 14.8') (T)
Flash Modes:
Auto / Flash On / Slow Synchro /
Flash Off
Viewfinder
Type:
None
Diopter Adjustment:
No
Optics/Lens
Aperture:
iAuto (F3.5/F8.0 (W), 2 steps with ND
Filter) / Program Auto (F3.5/F8.0 (W), 2 steps
with ND Filter) / Manual (F3.5/F8.0 (W), 2 steps
with ND Filter)
Filter Diameter:
No
Smart Zoom® Technology: 10M: Approx. 12x
(Total), 5M: Approx.17x (Total), VGA: Approx.
72x (Total), 16:9 (2M): Approx. 24x (Total)
Digital Zoom: Smart Zoom / Precision Digital
Zoom / Off
Optical Zoom:
10x
Minimum Focus Distance:
iAuto (W: Approx. 5cm
(0.16') to Infinity, T: Approx. 100cm (3.28') to
Infinity)
Focal Length (35mm equivalent):
Still 16:9: 27270mm / Still 4:3: 25-250mm / Movie 16:9: 30300mm / Movie 4:3: 37-370mm
Lens Construction:
10 elements in 7 groups
(including 4 aspheric elements)
Lens Type:
Sony G Lens
Aperture (Max.):
F3.5 (W)-5.5 (T)
Aspheric Elements:
4
Power
Battery Type:
LITHIUM ION NP-BG1 3.6V
Battery Capacity: typical: 3.4Wh (960mAh),
minimum: 3.3Wh (910mAh)
Power Consumption (in Operation): Approx. 1.2W
Power Requirements:
Battery Charger: AC 100V to
240V, 50/60 Hz, 2W
Software
Supplied Software: Windows
? PMB(Picture
Motion Browser) Ver. 5.3, PMB Portable Ver 5.2
for Windows, Ver. 1.2 for Mac.
Advanced Features
Image Stabilization: Optical SteadyShot™
Image Stabilization with Active Mode
®
In
-Camera Editing: Trimming / Red Eye
Correction / Unsharp Masking
Face Detection:
8 Faces (Auto / Off / Child
Priority / Adult Priority / Key Selected Face
Memory)
Anti Motion Blur:
No
Background Defocus:
No
Blink Detection:
Yes
Dustproof: No
Embedded GPS: No
Intelligent Auto:
Yes
Shockproof: No
Smile Shutter
™ technology:
Yes
Superior Auto:
No
Sweep Panorama: Sweep Panorama
Tracking Focus:
Yes (Face only)
Waterproof: No
Drive System
Burst Mode:
Approx 1 fps at 16.1MP (Maximum 3
shots)
Self-
timer:
Off / 10sec. / 2sec. / portrait1 /
portrait2
Shutter Speeds:
iAuto (2" - 1/1,600) / Program
Auto (1" - 1/1,600) / Manual (30"-1/1600)
Interface
PictBridge Compatible: No
TransferJet:
Send: Yes (Single / Select , U2 / CEH /
CN2 Versions), Receive: Yes (U2 / CEH / CN2
Versions)
HD Output:
HDMI
SD Output:
Yes
USB Port(s):
Yes
- Multi Use Terminal
Memory Card Slot: MS Duo and SD/SDHC/SDXC
Compatible
Party Shot Compatible:
Yes
Imaging Sensor
Processor:
BIONZ™
Imaging Sensor: 1/2.3" (7.75 mm) Super HAD
CCD
Effective Picture Resolution:
16.1MP
Pixel Gross: 16.4MP
Color Filter System: RGB primary color filters
Exposure System
D-Range Optimizer: Standard / Plus / Off
ISO: Auto / 80 / 100 / 200 / 400 / 800 / 1600 /
3200
Noise Reduction:
Clear RAW NR / NR Slow Shutter
Scene Mode(s):
High Sensitivity / Soft snap /
Landscape / Twilight Portrait / Twilight /
Gourmet / Beach / Snow / Fireworks / Pet /
Soft Skin
White Balance Mode:
Auto (Intelligent) /
Daylight / Cloudy / Fluorescent 1 (White
Fluorescent Lighting) / Fluorescent 2 (Natural
White Fluorescent Lighting) / Fluorescent 3 (Day
White Fluorescent Lighting) / Incandescent /
Flash / One Push
Exposure Compensation: Plus / Minus 2.0EV, 1 /
3EV step
Metering Modes:
Multi Pattern / Center Weighted /
Spot
Recording
Media Type: optional “Memory Stick Duo” (No
movie recording), optional “Memory Stick PRO
Duo” (Mark 2 only for movie recording),
optional “Memory Stick PRO-HG Duo”,
optional SD Memory Card (Class 4 or higher),
optional SDHC Memory Card (Class 4 or
higher), optional SDXC Memory Card (Class 4
or higher)
Microphone/Speaker:
Mono / Mono
Still Image Max Effective Resolution: Approx. 16.1
Megapixels
Video Mode: 1,280 x 720 (Fine) Approx 9Mbps
Approx 30fps, Progressive
1,280 x 720 (Standard) Approx 6Mbps Approx
30fps, Progressive
640 x 480 (VGA) Approx 3Mbps Approx 30fps,
Progressive
Panorama Still Image Size: 7,152 x 1,080
(260deg) / 4,912 x 1,080 (178deg) / 4,912 x
1,920 (178deg) / 3,424 x 1,920 (124deg)
Still Image Size 16:9:
12M (4,608 x 2,592) / 2M
(1,920 x 1,080)
Still Image Size 4:3:
16M (4,608 x 3,456), 10M
(3,648 x 2,736), 5M (2,592 x 1,944), VGA (640 x
480)
Video Format: MP4 / MPEG-4 Visual
Sweep Multi Angle Image Size: No
Still Image Mode: JPEG
Still Image Size 3:2: No
Photo Capture from Movie: No
Dual Record:
No
Audio Format: MPEG-4 AAC-LC
Focus Control
AF Illuminator: Auto / Off
AF Modes:
9 points AF (Under Face Undetected) /
Center Weighted AF / Spot AF
Dimensions
Weight: 6.8 oz (194g)
Measurements:
W x H x D: 4" x 2 3/8" x 1
3/16" (101.6mm x 57.6mm x 28.6mm)
Supplied Accessories
Battery (NP-BG1)
Battery charger (BC
-CSGD)
Multi Connector Cable
Wrist Strap
CD-
ROM
Color: Black
UPC Code: 027242808690
1. PMB requires Microsoft
Windows
XP SP3/ Windows Vista
SP2/Windows 7 environments not supported. Not supported by
Mac OS.
2. Uploading directly to the web requires PMB Portable software and USB
cable (included), and PC with internet connectivity. Windows
XP
SP3 64-bit and Starter Edition and Windows Vista
Starter Edition
environments not supported.
3. Tracks longer than five minutes will be reduced to five minutes.
4. Movie recording is limited to 29 minute segments.
5. TransferJet
™
enabled media (sold separately) and TransferJet
™
technology required in both devices. Interoperability and
compatibility among TransferJet
™
enabled devices may vary.
© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, Cyber-shot, Optical
SteadyShot, BIONZ, Xtra Fine LCD, Smile Shutter, TransferJet, and
DVDirect logo are trademarks of Sony. PlayStation is a trademark of
Sony Computer Entertainment. Microsoft, Windows, and Windows Vista
are trademarks of Microsoft Corporation. Blu-ray Disc is a trademark.
HDMI is a trademark of HDMI Licensing LLC. iMovie, Mac, and the Works
with iMovie logo and the Mac logo are trademarks of Apple Computer,
Inc. All other trademarks are trademarks of their respective owners.
other trademarks are trademarks of their respective owners.
® ® ® ® ®
®
Loading...
