1
2
3
5
4
Charging Installing the app on the
1 2 3 4
Attaching the unit Starting cooling or warming Using the silicone coated sticker
smartphone and performing
the initial setup

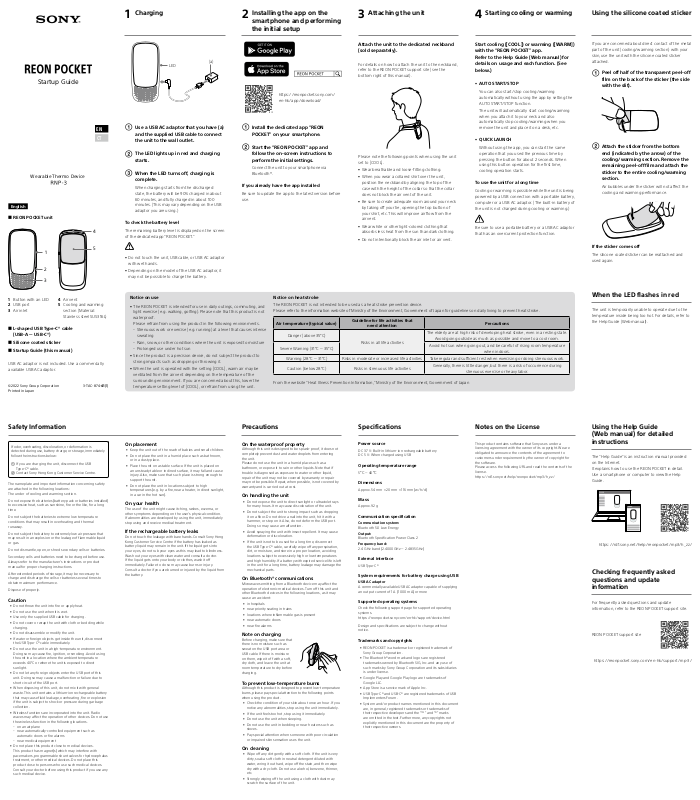

Startup Guide
Wearable Thermo Device
English
REON POCKET unit
EN
CT
LED
Use a USB AC adaptor that you have (a)
(a)
and the supplied USB cable to connect
the unit to the wall outlet.
The LED lights up in red and charging
starts.
When the LED turns off, charging is
complete.
When charging starts from the discharged
state, the battery will be 90% charged in about
60 minutes, and fully charged in about 100
minutes. (This may vary depending on the USB
adaptor you are using.)
To check the battery level
The remaining battery level is displayed on the screen
of the dedicated app “REON POCKET.”
• Do not touch the unit, USB cable, or USB AC adaptor
with wet hands.
• Depending on the model of the USB AC adaptor, it
may not be possible to charge the battery.
https://reonpocket.sony.com/
en-hk/app/download/
Install the dedicated app “REON
POCKET” on your smartphone.
Start the “REON POCKET” app and
follow the on-screen instructions to
perform the initial settings.
Connect the unit to your smartphone via
Bluetooth®.
If you already have the app installed
Be sure to update the app to the latest version before
use.
Attach the unit to the dedicated neckband
(sold separately).
For details on how to attach the unit to the neckband,
refer to the REON POCKET support site (see the
bottom right of this manual).
Please note the following points when using the unit
set to [COOL].
• Wear breathable and loose-fitting clothing.
• When you wear a collared shirt over the unit,
position the neckband by aligning the top of the
case with the height of the collar so that the collar
does not block the air vent of the unit.
• Be sure to create adequate room around your neck
by taking off your tie, opening the top button of
your shirt, etc. This will improve air flow from the
air vent.
• Wear white or other light-colored clothing that
absorbs less heat from the sun than dark clothing.
• Do not intentionally block the air inlet or air vent.
Start cooling ([COOL]) or warming ([WARM])
with the “REON POCKET” app.
Refer to the Help Guide (Web manual) for
details on usage and each function. (See
below.)
• AUTO START/STOP
You can also start/stop cooling/warming
automatically without using the app by setting the
AUTO START/STOP function.
The unit will automatically start cooling/warming
when you attach it to your neck and also
automatically stop cooling/warming when you
remove the unit and place it on a desk, etc.
• QUICK LAUNCH
Without using the app, you can start the same
operation that you used the previous time by
pressing the button for about 2 seconds. When
using this button operation for the first time,
cooling operation starts.
To use the unit for a long time
Cooling or warming is possible while the unit is being
powered by a USB connection with a portable battery,
computer or a USB AC adaptor. (The built-in battery of
the unit is not charged during cooling or warming.)
Be sure to use a portable battery or a USB AC adaptor
that has an overcurrent protection function.
If you are concerned about direct contact of the metal
part of the unit (cooling/warming section) with your
skin, use the unit with the silicone coated sticker
attached.
Peel off half of the transparent peel-off
film on the back of the sticker (the side
with the slit).
Attach the sticker from the bottom
end (indicated by the arrow) of the
cooling/warming section. Remove the
remaining peel-off film and attach the
sticker to the entire cooling/warming
section.
Air bubbles under the sticker will not affect the
cooling and warming performance.
If the sticker comes off
The silicone coated sticker can be reattached and
used again.
1 Button with an LED
2 USB port
3 Air inlet
4 Air vent
5 Cooling and warming
section (Material:
Stainless steel SUS316L)
L-shaped USB Type-C® cable
(USB-A — USB-C®)
Silicone coated sticker
Startup Guide (this manual)
USB AC adaptor is not included. Use a commercially
available USB AC adaptor.
©2022 Sony Group Corporation
Printed in Japan
3-TAC-874-41(1)
Safety Information
If odor, overheating, discoloration, or deformation is
detected during use, battery charge, or storage, immediately
follow the instructions below:
If you are charging the unit, disconnect the USB
Type-C® cable.
Contact Sony Hong Kong Customer Service Centre.
The nameplate and important information concerning safety
are attached in the following locations:
The under of cooling and warming section.
Do not expose the batteries (battery pack or batteries installed)
to excessive heat, such as sunshine, fire or the like, for a long
time.
Do not subject the batteries to extreme low temperature
conditions that may result in overheating and thermal
runaway.
Do not subject the battery to extremely low air pressure that
may result in an explosion or the leakage of flammable liquid
or gas.
Do not dismantle, open, or shred secondary cells or batteries.
Secondary cells and batteries need to be charged before use.
Always refer to the manufacturer’s instructions or product
manual for proper charging instructions.
After extended periods of storage, it may be necessary to
charge and discharge the cells or batteries several times to
obtain maximum performance.
Dispose of properly.
Caution
• Do not throw the unit into fire or apply heat.
• Do not use the unit when it is wet.
• Use only the supplied USB cable for charging.
• Do not cover or wrap the unit with cloth or bedding while
charging.
• Do not disassemble or modify the unit.
• If water or foreign objects get inside the unit, disconnect
the USB Type-C® cable immediately.
• Do not use the unit in a high-temperature environment.
Doing so may cause fire, ignition, or smoking. Avoid using
the unit in a location where the ambient temperature
exceeds 40°C or where the unit is exposed to direct
sunlight.
• Do not let any foreign objects enter the USB port of this
unit. Doing so may cause a malfunction or failure due to
short circuit of the USB port.
• When disposing of this unit, do not mix it with general
waste. This unit contains a lithium-ion rechargeable battery
that may cause fluid leakage, overheating, fire or explosion
if the unit is subject to shock or pressure during garbage
collection.
• Wireless functions are incorporated into the unit. Radio
waves may affect the operation of other devices. Do not use
the wireless function in the following locations.
– on an airplane
– near automatically-controlled equipment such as
automatic doors or fire alarms
– near medical equipment
• Do not place this product close to medical devices.
This product has magnet(s) which may interfere with
pacemakers, programmable shunt valves for hydrocephalus
treatment, or other medical devices. Do not place this
product close to persons who use such medical devices.
Consult your doctor before using this product if you use any
such medical device.
Notice on use
• The REON POCKET is intended for use in daily outings, commuting, and
light exercise (e.g. walking, golfing). Please note that this product is not
waterproof.
Please refrain from using the product in the following environments.
– Strenuous work or exercise (e.g. running) at a level that causes intense
sweating
– Rain, snow, or other conditions where the unit is exposed to moisture
– Prolonged use under hot sun
• Since the product is a precision device, do not subject the product to
strong impacts such as dropping or throwing it.
• When the unit is operated with the setting [COOL], warm air may be
ventilated from the air vent depending on the temperature of the
surrounding environment. If you are concerned about this, lower the
temperature setting level of [COOL], or refrain from using the unit.
Precautions Specifications
On placement
• Keep the unit out of the reach of babies and small children.
• Do not place the unit in a humid place such as bathroom,
or in a dusty place.
• Place the unit on a stable surface. If the unit is placed on
an unsteady table or inclined surface, it may fall and cause
injury. Also, make sure that such place is strong enough to
support the unit.
• Do not place the unit in locations subject to high
temperatures (e.g. by a fire, near a heater, in direct sunlight,
in a car in the hot sun).
On your health
The use of the unit might cause itching, rashes, eczema, or
other symptoms depending on the user’s physical condition.
If abnormalities are developed by using the unit, immediately
stop using and receive medical treatment.
If the rechargeable battery leaks
Do not touch the leakage with bare hands. Consult Sony Hong
Kong Customer Service Centre if the battery has leaked as
battery liquid may remain in the unit. If the liquid gets into
your eyes, do not rub your eyes as this may lead to blindness.
Wash out your eyes with clean water and consult a doctor.
If the liquid gets onto your body or clothes, wash it off
immediately. Failure to do so may cause burns or injury.
Consult a doctor if you are burned or injured by the liquid from
the battery.
On the waterproof property
Although this unit is designed to be splash-proof, it does not
completely prevent dust and water droplets from entering
the unit.
Please do not use the unit in a humid place such as a
bathroom, or expose it to rain or other liquids. Note that if
trouble is diagnosed as exposure to water or other liquid,
repair of the unit may not be covered by warranty or repair
may not be possible. Repair, when possible, is not covered by
warranty and is carried out at cost.
On handling the unit
• Do not expose the unit to direct sunlight or ultraviolet rays
for many hours. It may cause discoloration of the unit.
• Do not subject the unit to strong impact such as dropping
it on a floor. Do not drive a nail into the unit, hit it with a
hammer, or step on it. Also, do not deform the USB port.
Doing so may cause a malfunction.
• Avoid spraying the unit with insect repellent. It may cause
deformation or discoloration.
• If the unit is not to be used for a long time, disconnect
the USB Type-C® cable, carefully wipe off any perspiration,
dirt, or moisture, and store in a proper location, avoiding
locations subject to excessively high or low temperatures
and high humidity. If a battery with expired service life is left
in the unit for a long time, battery leakage may damage the
mechanical parts.
On Bluetooth® communications
Microwaves emitting from a Bluetooth device may affect the
operation of electronic medical devices. Turn off this unit and
other Bluetooth devices in the following locations, as it may
cause an accident:
• in hospitals
• near priority seating in trains
• locations where inflammable gas is present
• near automatic doors
• near fire alarms
Note on charging
Before charging, make sure that
there is no moisture such as
sweat on the USB port area or
USB cable. If there is moisture
on them, wipe it off with a soft,
dry cloth, and leave the unit at
room temperature to dry before
charging.
To prevent low-temperature burns
Although this product is designed to prevent low-temperature
burns, please pay special attention to the following points
when using the product.
• Check the condition of your skin about once an hour. If you
notice any abnormalities, stop using the unit immediately.
• If the unit feels too hot, stop using it immediately.
• Do not use the unit when sleeping.
• Do not use the unit in bedding or near heaters such as
stoves.
• Pay special attention when someone with poor circulation
or impaired skin sensation uses the unit.
On cleaning
• Wipe off any dirt gently with a soft cloth. If the unit is very
dirty, soak a soft cloth in neutral detergent diluted with
water, wring it out hard, wipe off the stain, and then wipe
dry with a dry cloth. Do not use alcohol, benzene, thinner,
etc.
• Strongly wiping off the unit using a cloth with dust may
scratch the surface of the unit.
Notice on heat stroke
The REON POCKET is not intended to be used as a heat stroke prevention device.
Please refer to the information website of Ministry of the Environment, Government of Japan for guidelines on daily living to prevent heat stroke.
Air temperature (typical value)
Danger (above 35°C)
Severe Warning (31°C — 35°C)
Guideline for life activities that
need attention
Risks in all life activities
Precautions
The elderly are at high risk of developing heat stroke, even in a resting state.
Avoid going outside as much as possible and move to a cool room.
Avoid hot sun when going out, and be careful of rising room temperature
when indoors.
Warning (28°C — 31°C) Risks in moderate or increased life activities Take regular and sufficient rest when exercising or doing strenuous work.
Caution (below 28°C) Risks in strenuous life activities
Generally, there is little danger, but there is a risk of occurrence during
strenuous exercise or heavy labor.
From the website “Heat Illness Prevention Information,” Ministry of the Environment, Government of Japan
Notes on the License
Power source
DC 3.7 V: Built-in lithium-ion rechargeable battery
DC 5 V: When charged using USB
Operating temperature range
5°C — 40°C
Dimensions
Approx. 54 mm × 20 mm × 116 mm (w/h/d)
Mass
Approx. 92 g
Communication specification
Communication system:
Bluetooth 5.0 Low Energy
Output:
Bluetooth Specification Power Class 2
Frequency band:
2.4 GHz band (2.4000 GHz — 2.4835 GHz)
External interface
USB Type-C®
System requirements for battery charge using USB
USB AC adaptor
A commercially available USB AC adaptor capable of supplying
an output current of 1 A (1 000 mA) or more
Supported operating systems
Check the following support page for supported operating
systems.
https://reonpocket.sony.com/en-hk/support/device.html
Design and specifications are subject to change without
notice.
Trademarks and copyrights
• REON POCKET is a trademark or registered trademark of
Sony Group Corporation.
• The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Sony Group Corporation and its subsidiaries
is under license.
• Google Play and Google Play logo are trademarks of
Google LLC.
• App Store is a service mark of Apple Inc.
• USB Type-C® and USB-C® are registered trademarks of USB
Implementers Forum.
• System and/or product names mentioned in this document
are, in general, registered trademarks or trademarks of
their respective developers and the “™” and “®” marks
are omitted in the text. Furthermore, any copyrights not
explicitly mentioned in this document are the property of
their respective owners.
This product contains software that Sony uses under a
licensing agreement with the owner of its copyright. We are
obligated to announce the contents of the agreement to
customers under requirement by the owner of copyright for
the software.
Please access the following URL and read the contents of the
license.
https://rd1.sony.net/help/reonpocket/rnp3/h_zz/
When the LED flashes in red
The unit is temporarily unable to operate due to the
temperature inside being too hot. For details, refer to
the Help Guide (Web manual).
Using the Help Guide
(Web manual) for detailed
instructions
The “Help Guide” is an instruction manual provided
on the Internet.
It explains how to use the REON POCKET in detail.
Use a smartphone or computer to view the Help
Guide.
https://rd1.sony.net/help/reonpocket/rnp3/h_zz/
Checking frequently asked
questions and update
information
For frequently asked questions and update
information, refer to the REON POCKET support site.
REON POCKET support site
https://reonpocket.sony.com/en-hk/support/rnp-3/
1
2
3
5
4
充電 在智能電話安裝應用程式並完成
1 2 3 4
安裝本裝置 開始冷暖調溫 使用矽膠塗層貼
初始設定
繁體中文
REONPOCKET裝置
入門指南
穿戴式冷暖調溫裝置
EN
CT
LED燈
使用閣下的USB交流電源供應器(a)以及本
(a)
產品隨附的USB電線，連接本裝置至牆上插
座。
LED燈會亮起紅燈並開始充電。
LED燈熄滅代表充電已完成。
在電池耗盡的情況下開始充電，大約60分鐘後電池
便會充滿90%，大約100分鐘後便會完全充滿電。
（惟可能因所使用的USB交流電源供應器而異。）
如何查看電池電量
剩餘電量水平會顯示在專用應用程式「REONPOCKET」的
畫面上。
https://reonpocket.sony.com/zhhant-hk/app/download/
在智能電話安裝專用應用程式「REON
POCKET」。
啟動「REONPOCET」應用程式，並跟從畫面
指示完成初始設定。
本裝置透過藍牙®連接智能電話。
如已安裝應用程式
請務必更新至最新版本後才使用。
把裝置組裝到專用頸帶上（需另行購買）。
有關組裝裝置至頸帶上的詳情，請參閱REONPOCKET支
援網站（請見本說明書底部右方）。
以［COOL］設定使用本裝置時，請注意以下事項。
請穿着通風鬆身的衣物。
•
如使用本裝置時，穿著有領襯衫，為免衣領阻塞排氣
•
口，外殼頂端應接近衣領頂部。
請除下領帶或解開頸喉鈕，令頸部四周更加鬆動。有
•
助排氣口的空氣流動。
請穿着白色等難以吸收陽光的淺色衣物。
•
切勿刻意阻塞入氣口或排氣口。
•
以「REONPOCKET」應用程式開始冷暖調溫
（［CO O L］ 或 ［W A R M］）。
有關用法和各功能的詳情，請參閱說明指南（網
上說明書）。（請見下方。）
AUTOSTART/STOP
•
您亦可透過設定AUTOSTART/STOP功能，無需使用應
用程式即可自動開始或停止降溫或加暖。
裝置戴到頸上時，便會自動開始冷暖調溫，如除下裝
置放到桌上等地方，冷暖調溫便會自動停止。
快速啟用
•
只要按下按鍵大約2秒，無需使用應用程式即可展開
同一套操作程序。首次使用此按鍵操作時，會啟動降
溫程序。
如要長時間使用本裝置
透過USB連線以便攜電池、電腦或USB交流電源供應器為
本裝置供電期間，可以使用降溫或加暖功能。（冷暖調溫
期間，裝置的內置電池不會充電。）
請務必使用具有過流保護功能的便攜電池或USB交流電
源供應器。
如擔心裝置的金屬部分（冷暖調溫部分）與皮膚直接接
觸，可使用裝置時請貼上矽膠塗層貼。
剝走矽膠塗層貼背面（有縫隙的一面）一半透
明可剝除薄膜。
從冷暖調溫部分的底端（箭咀所示部分）貼上
矽膠塗層貼。移除剩餘的可剝除薄膜，把矽
膠塗層貼貼上整個冷暖調溫部分。
矽膠塗層貼底下的氣泡不會影響降溫和保暖性能。
如果矽膠塗層貼剝落
可重新貼上重用。
1 設有LED燈的按鍵
2 USB接口
3 入氣口
L型USBType-C®電線（USB-A—USB-C
矽膠塗層貼
入門指南（本說明書）
4 排氣口
5 冷暖調溫部分（物料：不
鏽鋼SUS316L）
®）
本商品並無附帶USB交流電源供應器。請使用市面有售
的USB交流電源供應器。
切勿濕手觸摸本裝置、USB電線或USB交流電源供應
•
器。
某些型號的USB交流電源供應器可能無法充電。
•
使用須知
REONPOCKET適用於日常外出、通勤和輕度運動（如散步、打哥爾夫球）。
•
請注意，此產品並不防水。
請勿在以下環境使用本產品。
–大量出汗的劇烈工作或運動（如跑步）
–雨、雪或其他會令裝置受潮的環境
–烈日下長時間使用
本產品是精密裝置，切勿讓本產品受到強烈衝擊，例如掉落或投擲。
•
本裝置設定以［COOL］運行時，會視乎四周環境的溫度，從排氣口排出暖空
•
氣。如果在意，請降低［COOL］的溫度水平，或停止使用本裝置。
中暑須知
REONPOCKET不適合用來防止中暑。
關於預防中暑的日常生活指南，請參閱日本政府環境省的資訊網站。
空氣溫度（正常數值） 需特別注意的生活活動準則 注意事項
危險（超過35℃）
嚴重警告（31℃—35℃） 避免烈日當空時外出，身處室內亦應小心室溫提升。
所有生活活動均有風險
即使靜止不動，長者亦有極高機會中暑。請儘量避免外出，並應前往涼爽的房間。
警告（28℃—31℃） 一般風險或生活活動風險提高 做運動或處理劇烈工作時，應定時充分休息。
小心（低於28℃） 劇烈的生活活動會有風險 一般來說，此情況風險不高，但劇烈運動時或勞動時仍可能有危險。
引用自日本政府環境省網站「熱疾病預防資訊」
如果LED燈亮起紅燈
由於內部過熱，裝置暫時無法運作。詳情請參閱說明指
南 （ 網 上 說 明 書 ）。
安全資訊
如果在使用、電池充電或存放期間偵測到異味、過熱、變色或
變形，請立即按照以下指示操作：
如正在為裝置充電，請拔掉USBType-C®電線。
聯絡索尼香港客戶服務中心。
標示牌和有關安全的重要資訊位於下列位置：
冷暖調溫部分底部。
切勿將電池（電池組或已安裝的電池）長時間暴露於過熱的環境，
例如陽光、火源等等。
切勿讓通用電池處於極低溫的環境，否則可能導致過熱和熱失
控。
請勿將電源置於極低氣壓的環境之中，否則或會導致爆炸，或令
易燃液體或氣體滲漏。
切勿拆卸、打開或切碎充電式鈕扣型電池或通用電池。
使用前需要對充電式鈕扣型電池和通用電池充電。請務必參閱製
造商說明或產品手冊的正確充電說明。
長時間存放後，可能需要對鈕扣型電池或通用電池多次充電和放
電，才能達到最佳效能。
妥善處置。
注意
切勿將本裝置投入火中或加熱。
•
如本裝置潮濕未乾，切勿使用。
•
只能使用附帶的USB電線充電。
•
充電時，切勿用布或寢具覆蓋或包裹本裝置。
•
切勿拆解或改裝本裝置。
•
如果水或異物進入裝置，請立即拔掉USBType-C
•
切勿在高溫環境使用本裝置。這樣做可能會導致火災、起火或
•
出煙。避免在環境溫度超過40℃或陽光直接照射的地方使用。
切勿讓任何異物進入本裝置的USB接口。這樣做可能會導致故
•
障，或因USB接口短路而失靈。
如棄置本裝置，切勿混合其他一般廢物。本裝置內含鋰離子充
•
電電池，如果在收集垃圾的過程中裝置受到撞擊或受壓，鋰電
池或會導致液體滲漏、過熱、起火或爆炸。
本裝置具備無線電功能。無線電波可能會影響其他裝置的操
•
作。切勿在下列地方開啓無線功能。
–飛機內
–靠近自動控制設備，如自動門或火警警鐘
–醫療設備附近
請勿將本產品放在靠近醫療裝置的地方。本產品有磁鐵，可能
•
會干擾心臟起搏器、腦積水治療用可調式引流閥，或其他醫療
裝置。請勿將本產品放在靠近此類醫療裝置使用者的地方。若
您有使用此類醫療裝置，請在使用本裝置前諮詢醫生的意見。
關於放置
本裝置應保存在嬰兒幼孩拿不到的地方。
•
切勿將本裝置放置在浴室等潮濕地方，亦請勿放置在多塵地
•
方。
請將本裝置放於平穩的表面。如果將本裝置放於不平穩的桌上
•
或斜面上，裝置或會倒下，令人受傷。此外，請確保用於放置
本裝置的地方結實穩陣。
切勿放置本裝置於高溫環境中（例如，靠近熱源、加熱器、陽
•
光直射、陽光充足的車內）。
健康使用
視乎使用者的身體狀況，使用本裝置可能導致發癢、皮疹、濕疹
或其他症狀。如上述症狀為使用本裝置後出現，請立即停止使用
並接受治療。
電線。
®
如果充電電池漏液
切勿用手直接觸碰漏液。如果電池漏液，請洽詢索尼香港客戶服
務中心，因為電池液體可能殘留在裝置中。如果液體流入眼睛，
切勿揉眼睛，否則可能造成失明。請用清水沖洗眼睛，並且就
醫。
如果液體接觸到身體或衣服，請立即沖洗乾淨。否則可能造成燙
傷或傷害。如因接觸電池液體而造成燙傷或傷害，請即就醫。
注意事項 規格
關於防水效能
雖然本裝置設計上為防濺水，但無法完全阻截灰塵和水滴進入裝
置內。
請勿在浴室等潮濕地方使用本裝置，亦請勿讓裝置暴露在雨中或
其他液體。請注意：如被判斷為因直接接觸水份或其他液體而導
致故障，則有可能超出保養服務範圍，或可能根本無法維修。如
果可以維修，而該維修卻非保養範圍內，則需另外付款維修。
關於操作裝置
請勿將本裝置暴露在直射陽光或紫外線下數小時。這樣可能會
•
導致本裝置變色。
不要讓本裝置受到強烈撞擊（如掉在地板上）。不要將釘子釘入
•
本裝置、用錘子敲擊或踩踏本裝置。此外，切勿使USB接口變
形。這會導致故障。
避免使用殺蟲劑噴灑本裝置。這樣做可能導致變形或變色。
•
如果長時間不使用本裝置，請拔掉USBType-C
•
去汗水、污垢或濕氣，並存放在適當的位置，避免溫度過高過
低、濕度過高的地方。如果將過期電池長時間留在裝置中，電
池漏液可能會損壞機械部件。
電線，小心擦
®
關於藍牙®通訊
藍牙裝置所放射的微波可能影響電子醫療裝置的運作。為免發生
意外，如處於下列地方，請關閉本機和其他藍牙裝置：
醫院內
•
火車內的關愛座附近
•
有可燃性氣體的其他地點
•
自動門附近
•
火警鐘附近
•
充電須知
充電前，請確保USB接口部分或USB
電線沒有濕氣，例如汗水。如果有
濕氣，請用乾軟布擦乾，並將裝置
放於室溫環境，乾透後才充電。
如何避免低溫燙傷
雖然本產品設計上可避免低溫燙傷，但使用本產品時亦請務必注
意以下事項。
大約每小時檢查一次皮膚狀態。如有任何異常，請立即停止使
•
用本裝置。
如果覺得裝置太熱，請立即停止使用。
•
睡覺時，請勿使用。
•
切勿在寢具內或暖爐等加熱設備附近使用本裝置。
•
如血液循環不良或皮膚感覺受損，使用本裝置時應份外留意。
•
清潔須知
用軟布輕輕擦走灰塵。如果污垢太多，則先把軟布浸入用水稀
•
釋的中性洗潔精中，然後用力扭乾軟布擦拭污垢，再以乾布擦
乾。切勿使用酒精、輕油和天拿水等等。
如果擦布沾有灰塵的情況下用力擦拭，有可能會傷及裝置表
•
面。
電源
DC3.7V：內置鋰離子充電電池
DC5V：使用USB充電時
運作溫度範圍
5℃—40℃
尺寸
大約54毫米×20毫米×116毫米（闊/高/長）
質量
大約92克
通訊規格
通訊系統：
低功耗藍牙5.0
輸出：
藍牙規格電源等級2
頻段：
2.4GHz波段（2.4000GHz—2.4835GHz）
外部介面
USBType-C
使用USB為電池充電的系統要求
USB交流電源供應器
能提供1A（1000mA）或以上輸出電流的市售USB交流電源供應器
支援的作業系統
請查閱以下支援頁面，了解所支援的作業系統。
https://reonpocket.sony.com/zh-hant-hk/support/device.html
設計和規格若有變更，恕不另行通知。
商標與版權
REONPOCKET為SonyGroupCorporation所擁有的商標或註冊商
•
標。
•藍牙®
GroupCorporation及其子公司針對此類標示的使用已獲得授
權。
GooglePlay和GooglePlay商標為GoogleLLC.所擁有的商標。
•
AppStore為AppleInc.所擁有的服務商標。
•
USBType-C
•
標。
普遍而言，本文件提及的系統和/或產品名稱均是註冊商標，
•
並由其各自的開發商所擁有，而文章中會省略「™」和「®」標
記。此外，任何本文未有明確提及的版權，均是其各自擁有人
的財產。
®
字樣與商標為BluetoothSIG,Inc.所擁有的註冊商標；Sony
和USB-C
是USBImplementersForum的註冊商
®
®
關於授權的注意事項
本產品包含Sony依據其與軟體著作權所有人簽訂的授權合約而使
用的軟體。根據軟件版權所有人的要求，我們必須向客戶公佈合
約內容。
請到訪下列網址，閱讀授權內容。
https://rd1.sony.net/help/reonpocket/rnp3/h_zz/
有關詳細指引，請參閱使用說明指
南（網 上 說 明 書）
「說明指南」是一份可供上網查閱的指引說明書。
該指南會詳盡解釋應如何使用REONPOCKET。
請使用智能電話或電腦閱覽說明指南。
https://rd1.sony.net/help/reonpocket/rnp3/h_zz/
查閱常見問題和最新資訊
有關常見問題和最新資訊，請參考REONPOCKET支援網
站。
REONPOCKET支援網站
https://reonpocket.sony.com/zh-hant-hk/support/rnp-3/
Loading...
