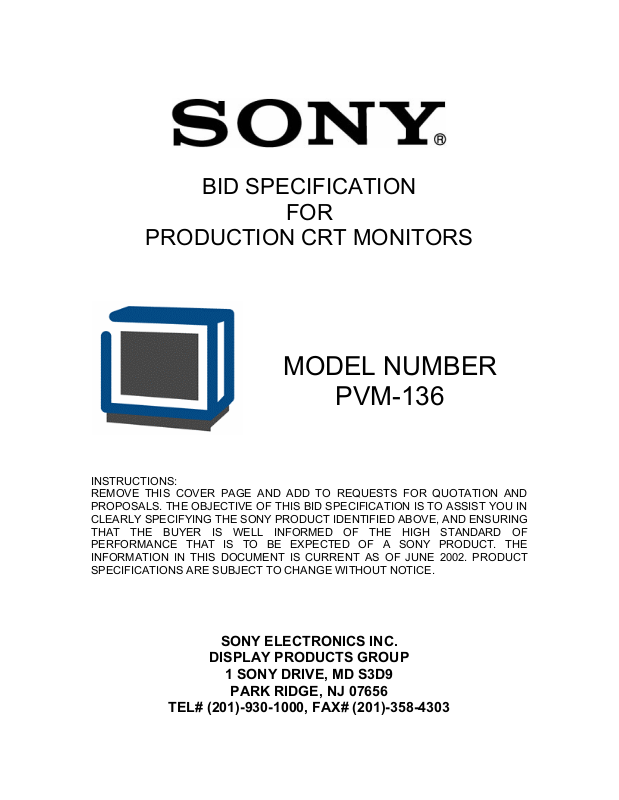

BID SPECIFICATION

FOR

PRODUCTION CRT MONITORS

MODEL NUMBER

PVM-136

INSTRUCTIONS:
REMOVE THIS COVER PAGE AND ADD TO REQUESTS FOR QUOTATION AND
PROPOSALS. THE OBJECTIVE OF THIS BID SPECIFICATION IS TO ASSIST YOU IN
CLEARLY SPECIFYING THE SONY PRODUCT IDENTIFIED ABOVE, AND ENSURING
THAT THE BUYER IS WELL INFORMED OF THE HIGH STANDARD OF
PERFORMANCE THAT IS TO BE EXPECTED OF A SONY PRODUCT. THE
INFORMATION IN THIS DOCUMENT IS CURRENT AS OF JUNE 2002. PRODUCT
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

SONY ELECTRONICS INC.

DISPLAY PRODUCTS GROUP

1 SONY DRIVE, MD S3D9

PARK RIDGE, NJ 07656

TEL# [phone], FAX# [phone]

1.0 General Information

The purpose of this information is to provide the specification for a product whose
primary purpose is the reproduction of video and / or computer graphics
information for one or more viewers.

This reproduction of this information is to be accomplished via a direct-view CRT
monitor. This document provides the minimum specifications for this device.

The performance comparison of displays is not only technical in nature, but is
also subjective to the user, when viewed in the final display environment. It is
recommended that devices meeting the requirements of this specification be
compared in the user’s application and environment, if possible.

2.0 Description

This product shall be classified as a direct-view CRT black and white monitor, or
production display. This device shall be directly compatible with video sources,
without the use of external devices to provide this compatibility.

This device shall employ the use of a high resolution CRT for optimum display of
high- resolution sources.

Encased in a durable metal casing, this device shall employ a shape that allows
for rack mounting in a 19” EIA standard rack, using an optional rackmount kit.

3.0 Source Compatibility / Suitability for Application

This device shall be directly compatible with the following sources:

EIA (525 in 60 fields)
CCIR (625 in 50 fields)
Component Video (50 or 60 Hz)

With the addition of optional modules, serial digital video and audio sources shall
be available to this device.
