Sony PR711-711T-E User Manual

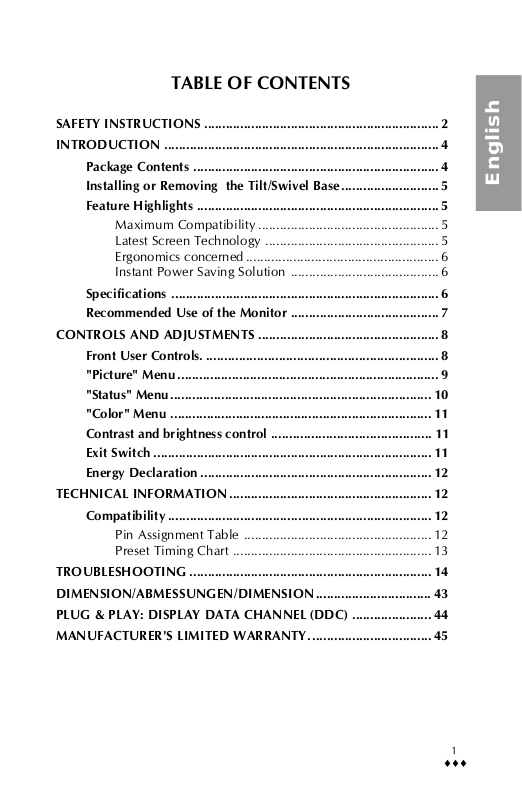

TABLE OF CONTENTS
English8188
SAFETY INSTRUCTIONS ................................................................. 2
INTRODUCTION ............................................................................ 4
Package Contents .................................................................... 4
Installing or Removing the Tilt/Swivel Base........................... 5
Feature Highlights ................................................................... 5
Maximum Compatibility .................................................. 5
Latest Screen Technology ................................................ 5
Ergonomics concerned ..................................................... 6
Instant Power Saving Solution ......................................... 6
Specifications .......................................................................... 6
Recommended Use of the Monitor ......................................... 7
CONTROLS AND ADJUSTMENTS ..................................................8
Front User Controls. ................................................................ 8
"Picture" Menu ........................................................................9
"Status" Menu ........................................................................ 10
"Color" Menu ........................................................................ 11
Contrast and brightness control ............................................ 11
Exit Switch ............................................................................. 11
Energy Declaration ................................................................12
TECHNICAL INFORMATION........................................................ 12
Compatibility .........................................................................12
Pin Assignment Table .................................................... 12
Preset Timing Chart ....................................................... 13
TROUBLESHOOTING ................................................................... 14
DIMENSION/ABMESSUNGEN/DIMENSION................................ 43
PLUG & PLAY: DISPLAY DATA CHANNEL (DDC) ...................... 44
MANUFACTURER'S LIMITED WARRANTY.................................. 45
English
1
♦♦♦
SAFETY INSTRUCTIONS
1. Please read carefully all of these instructions below and keep the
manual for later use.
2. Please install the swivel base below this product before it comes into
English
use.
3. The voltage ratings and the rated frequency are on the overlay centered
at rear side of this product. Do not connect with any source of other
voltage or frequency and please follow all warnings and instructions
marked on the product.
4. Unplug this product from the wall outlet before cleaning and use a
damp cloth to clean it. Do not use liquid cleaners or aerosol cleaners.
5. Do not expose this product to rain or moisture.
6. Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
7. Do not block or cover ventilating openings with cloth or other material.
Neither should this product be placed near or over a radiator or a
heat register, nor should the product be placed in a built-in installation
unless proper ventilation is provided.
8. This product is equipped with a 3-wire grounding type plug. This
plug will only fit into a grounding-type power outlet. This is a safety
feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug. Choose a Tandem Blade
attachment plug configuration power cord for 230V AC input.
Due to the safety requirements of different areas, please select a
suitable power cord according to the following rules, in addition to
the electric rating:
A. Northern America area: Please select a UL listed and CSA certified
power cord.
B. Germany: Please select a VDE certified power cord.
C. Nordic countries: Please select a power cord certified by SEMKO,
NEMKO, DEMKO or FIMKO.
D. The other areas: Please select a power cord suitable to the local
power system and power outlet.
2
♦♦♦
SAFETY INSTRUCTIONS
Usually a suitable power cord is provided by the manufacturer, while
this product is sold. However, this product is sometimes, resold or
transported to another area of different power system and safety
requirements, please pay attention to the selection of a suitable power
cord.
The plug on the power cord is intended to serve as the disconnect
device, the scoket-outlet shall be installed near the equipment and
shall be easily accessible.
9. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
10. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electric shock. Never spill liquid of
any kind on the product.
11. Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risk.
Refer all servicing to service personnel.
12. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions.
English8388
English
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally, when the operating
instructions are followed, adjust only those controls that are covered
by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive
work by a qualified technician to restore the product to normal
operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance, indicating
a need for service.
3
♦♦♦
INTRODUCTION
Introduction
The monitor is a multiple frequency high-resolution color monitor for IBM
compatible PC's or Macintosh and workstation systems. The monitor is
equipped with microprocessor based intelligence and multiple frequency
English
scanning capability, allowing it to provide maximum compatibility for various
system platforms.
The monitor uses the latest screen technology including a 0.25mm Aperture
Grille CRT to display crisp text and vivid color graphics with a max. resolution
up to 1600 x 1200 pixels. Furthermore, it supports VESA 85Hz modes to
provide a flicker free display. The full-function digital control and On-Screen
Display (OSD) system provides easy adjustment of image geometry and
color settings for different display modes with the precision of a fixed
frequency monitor.
The design of the monitor is also ergonomics concerned. In addition to the
friendly controls and user comfort features, the emission level of the electric and magnetic field is kept low to meet the Swedish MPR II and TCO
standards.
The monitor is also equipped with energy saving functions; it is compatible
with the VESA power saving standards. The lowest power consumption is
Package Contents
less than 8 W.
The following lists all of the items included in the monitor package box.
Please save the original box and packing materials for future transportation
or shipment of the monitor.
4
♦♦♦
Rear View
Front View
Power
Cord
User's Manual
USER'S MANUAL
BENUTZERHANDBUCH
Manuel de l'utlisateur
PR711/PR711T
INTRODUCTION
English8588
Installing or Removing the Tilt/Swivel Base
1.Turn off the system and all attached peripherals.
2.Carefully set the monitor upside down.
Remove the Tilt/Swivel Base:
1.Squeeze and hold the latches.
2.Pull the tilt/swivel base to the rear of
the monitor and lift to remove the base.
Installing the Tilt/Swivel Base:
1.Align the base with the slots on the bottom of the monitor and insert the tilt/
swivel base into the slots.
2.Push the tilt/swivel base firmly toward the front of the monitor until the
latches click into the locked position.
Feature Highlights
Maximum Compatibility
Automatically scans all horizontal frequencies between 30kHz and 95kHz,
and all vertical frequencies between 50 Hz and 160 Hz.
Supports multiple operating platforms such as IBM compatible PC's or
Macintosh computers (with optional adapter).
Multiple graphic standards with high refresh rates:
640 x 480/160Hz, 800 x 600/147Hz, 1024 x 768/117Hz, 1280 x 1024/
85Hz, 1600 x 1200/75Hz.
Supports wide range of graphics standards including VGA, Super VGA,
8514/A, XGA, Mac II 13" (640 x 480), Mac 16" (832 x 624), Mac 21"
(1152 x 870), as well as all VESA standards.
Install
Remove
English
Latest Screen Technology
0.25 mm Aperture Grille 17" CRT (43.1 cm) for maximum clarity and
detailed pictures.
Special anti-reflection, anti-glare and anti-static coating of the screen face
provides better focus, contrast and color performance.
Cylindrical screen reduces image distortion and glare.
Full feature digital control and multi-lingual OSD system allows easy
adjustment of geometry and color. Furthermore the monitor provides
even advanced adjustments like trapezoid, parallelogram, side-pin, pin-
balance, convergence and rotation which allow the user to fine-tune the
screen image.
5
♦♦♦
