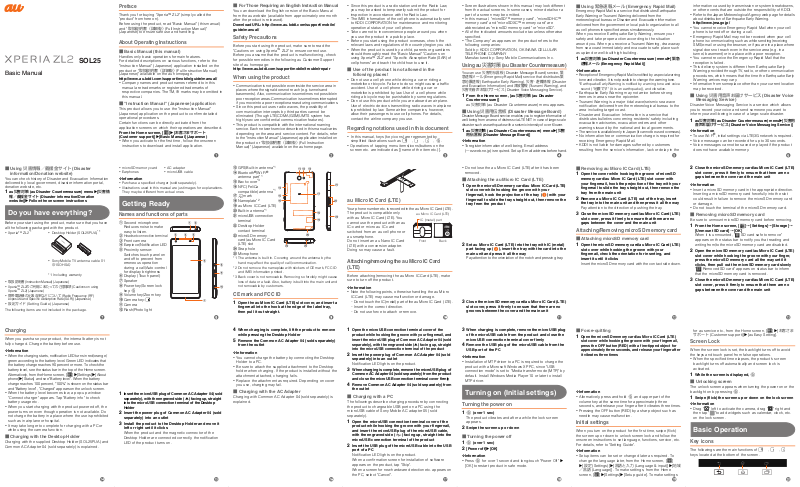

SOL25
Basic Manual
■Using (Disaster information/Donation website)
You can check history of Disaster and Evacuation Information delivered by local government, disaster information portal, donation website, etc.
1au (au Disaster Countermeasure) menuX[
(Disaster information/Donation website)]XFollow the onscreen instructions
Do you have everything?
Before your start using the product, make sure that you have all the following packaged with the product.
XperiaTM ZL2*1 |
Desktop Holder (SOL25PUA)*1 |
Sony Mobile TV antenna cable 0101SOHSA
*1 Including warranty
(Instruction Manual) (Japanese)
XperiaTM ZL2 (Cautions on using XperiaTM ZL2) (Japanese)
(Radio Frequency (RF) exposure and Specific Absorption Rate (SAR)) (Japanese)
(Setting Guide) (Japanese)
The following items are not included in the package.
g
Preface
Thank you for buying "XperiaTM ZL2" (simply called the "product" from here on).
Before using the product, read "Basic Manual" (this manual)
and " (Full Instruction Manual)" (Japanese) to ensure safe use and handling.
About Operating Instructions
■ Basic Manual (this manual)
Handles only basic operations for main features.
For detailed descriptions on various functions, refer to the "Instruction Manual" (Japanese) application installed on the
product or " (Full Instruction Manual) (Japanese)" available on the au homepage. http://www.au.kddi.com/support/mobile/guide/manual/
Company names and product names referred to in this manual are trademarks or registered trademarks of respective companies. The TM, ® marks may be omitted in this manual.
■ "Instruction Manual" (Japanese) application
This product allows you to use the "Instruction Manual" (Japanese) application on the product to confirm detailed operational procedures.
Certain functions can be directly activated from the application screens on which their operations are described.
From the Home screen, [ ]X[ (Customer support)]X[Basic Manual] (Japanese)
When you activate for the first time, follow the onscreen instructions to download and install application.
a
microSD memory card |
AC adapter |
Earphones |
microUSB cable |
Information
Purchase a specified charger (sold separately).
Illustrations used in this manual are just images for explanations. They may be different from actual ones.
Getting Ready
Names and functions of parts
aSecond microphone: |
a b |
Reduces noise to make |
|
easy to listen. |
c d e |
bHeadset connection terminal |
cFront camera
dEarpiece/Notification LED eProximity sensor:
Switches touch panel on and off to prevent from erroneous operation during a call/Auto-control for display brightness
fDisplay (Touch panel)
gSpeaker
hPower key/Screen lock key:P
iVolume key/Zoom key
jCamera key:k
kCamera
lFlash/Photo light
f
h
i
j
g
h
Charging
When you purchase your product, the internal battery is not fully charged. Charge the battery before use.
Information
When the charging starts, notification LED turns in red/orange/ green according to the battery level. Green LED indicates that the battery charge reaches 90 percent or more. To check the
battery level, see the status bar in the top of the Home screen.
Alternatively, from the Home screen, [ ]X[Settings]X[About phone]X[Status] and see "Battery level". When the battery charge reaches 100 percent, "100%" is shown on the status bar and "Battery level" , "Charged" appears on the unlock screen.
When the battery level becomes low, a pop-up window "Connect charger" appears. Tap "Battery info" to check battery usage etc.
When you start charging with the product powered off, the power turns on even though operation is not available. Do not charge the battery in a place where the use is prohibited such as in airplane or hospital.
It may take longer to complete for charging with a PC or while using the camera function.
■ Charging with the Desktop Holder
Charging with the supplied Desktop Holder (SOL25PUA) and Common AC Adapter 04 (sold separately) is explained.
1Insert the microUSB plug of Common AC Adapter 04 (sold
separately), with the engraved side (▲) facing up, straight into the microUSB connection terminal of the Desktop Holder
2Insert the power plug of Common AC Adapter 04 (sold separately) into an outlet
3Install the product to the Desktop Holder and move it left or right until it clicks
When the product and the magnetic connector of the Desktop Holder are connected correctly, the notification LED of the product turns on.
■ For Those Requiring an English Instruction Manual
You can download the English version of the Basic Manual from the au website (available from approximately one month after the product is released).
Download URL: http://www.au.kddi.com/support/mobile/ guide/manual/
Safety Precautions
Before you start using the product, make sure to read the "Cautions on using XperiaTM ZL2" to ensure correct use. Before you assume that the product is malfunctioning, check for possible remedies in the following au Customer Support site of au homepage: http://www.au.kddi.com/support/mobile/trouble/repair
When using the product
Communication is not possible even inside the service area in places where the signal does not reach (e.g. tunnels and basements). Also, communication is sometimes not possible in poor reception areas. Communication is sometimes interrupted if you move into a poor reception areas during communications.
Since this product uses radio waves, the possibility of communication intercepts by third parties cannot be eliminated (Though LTE/CDMA/GSM/UMTS system has highly secure confidential communication features).
This product is compatible with the international roaming service. Each network service described in this manual varies depending on the area and service content. For details, refer to the "Instruction Manual" (Japanese) application installed on
the product or " (Full Instruction Manual)" (Japanese) available on the au homepage.
Since this product is a radio station under the Radio Law, you may be asked to temporarily submit the product for inspection in accordance with the Radio Law.
The IMEI information of the cell phone is automatically sent to KDDI CORPORATION for maintenance and monitoring operational status of your cell phone.
Take care not to inconvenience people around you when you use the product in a public place.
Before you start using the product overseas, check the relevant laws and regulations of the country/region you visit.
When the product is used by a child, parents or guardians should thoroughly read the "Basic Manual" "Cautions on using XperiaTM ZL2" and "Specific Absorption Rate (SAR) of cell phones" and teach the child how to use it.
■ Use of the product is not allowed in the following places!
Do not use a cell phone while driving a car or riding a motorbike or bicycle. Failure to do so might cause a traffic accident. Use of a cell phone while driving a car or motorbike is prohibited by law. Use of a cell phone while riding a bicycle may be punishable by some regulations.
Do not use this product while you are aboard an airplane. Use of electric devices transmitting radio waves in airplane is prohibited by law. Some airline companies, however, allow their passengers to use cell phones. For details, contact the airline company you use.
Regarding notations used in this document
In this manual, keys (key icons) are represented by simplified illustrations such as x, y, r, P.
Operations of tapping menu items/icons/buttons on the screen etc. are indicated as [(name of the item etc.)].
b |
c |
mGPS/Built-in antenna*1
nBluetooth®/Wi-Fi® antenna part*1
oBack cover*3
pNFC (FeliCa compatible) antenna*1
qmark
rNameplate*2
sau Micro IC Card (LTE)
tBuilt-in antenna*1
umicroUSB connection terminal
vDesktop Holder contact terminal
wmicroSD memory card/au Micro IC Card (LTE) slot
xStrap hole
yMicrophone
|
k l m |
|
|
|
|
n |
|
u |
|
|
|
|
|
|
|
|
|
o |
q |
|
|
|
|
|
|
au Micro IC Card (LTE) |
|
|
|
p |
|
v |
|
|
|
|
|
|
Your phone number etc. is recorded in the au Micro IC Card (LTE). |
||
|
r |
w |
The product is compatible only |
au Micro IC Card (LTE) |
|
|
|
with au Micro IC Card (LTE). You |
IC (metal) part |
||
|
s |
|
|||
|
|
cannot use the product with an au |
|||
|
|
|
|
|
|
|
|
|
IC-card or micro au IC card |
|
|
|
t |
|
switched from an au cell phone or |
|
|
|
|
au smartphone. |
|
|
|
|
|
|
|
|
|
|
|
|
Do not insert an au Nano IC Card |
Front |
Back |
x |
y |
|
(LTE) with a conversion adapter. |
|
|
|
|
|
Doing so may cause a fault. |
|
|
*1 The antenna is built in. Covering around the antenna by the hand may affect the quality of call/communication.
*2 Do not remove the nameplate with stickers of CE mark, FCC ID and IMEI information printed.
*3 Back cover is not removable. Removing so forcibly might cause loss of data or a fault. Also, battery is built into the main unit and not removable by customers.
CE mark and FCC ID
1Open the au Micro IC Card (LTE) slot cover, and insert a fingernail into the hook at the edge of the label tray, then pull it out straight.
Attaching/removing the au Micro IC Card (LTE)
Before attaching/removing the au Micro IC Card (LTE), make sure to turn off the product.
Information
Note the following points, otherwise handling the au Micro IC Card (LTE) may cause malfunction or damage.
Do not touch the IC (metal) part of the au Micro IC Card (LTE).
Insert in the correct direction.
Do not use force to attach or remove.
i |
j |
4When charging is complete, lift the product to remove while pressing the Desktop Holder
5Remove the Common AC Adapter 04 (sold separately) from the outlet
Information
You cannot charge the battery by connecting the Desktop Holder to a PC.
Be sure to attach the supplied attachment to the Desktop holder when charging. If the product is installed without the attachment attached, charging fails.
Replace the attachment as required. Depending on cover you use, charging may fail.
■ Charging with the AC Adapter
Charging with Common AC Adapter 04 (sold separately) is explained.
1Open the microUSB connection terminal cover of the product while hooking the groove with your fingernail, and insert the microUSB plug of Common AC Adapter 04 (sold
separately), with the engraved side (▲) facing up, straight into the microUSB connection terminal of the product
2Insert the power plug of Common AC Adapter 04 (sold separately) into an outlet
Notification LED lights on the product.
3When charging is complete, remove the microUSB plug of Common AC Adapter 04 (sold separately) from the product and close the microUSB connection terminal cover firmly
4Remove Common AC Adapter 04 (sold separately) from the outlet
■ Charging with a PC
The followings describe charging procedure by connecting the product to chargeable USB port on a PC using the microUSB cable of Sony Mobile AC adapter 05 (sold separately).
1Open the microUSB connection terminal cover of the product while hooking the groove with your fingernail,
and insert the microUSB plug of the microUSB cable, with the engraved side () facing up, straight into the microUSB connection terminal of the product
2Insert the USB plug of the microUSB cable into the USB port of a PC
Notification LED lights on the product.
When a confirmation screen for installation of software appears on the product, tap "Skip".
When a screen for new hardware detection etc. appears on the PC, select "Cancel".
Screen illustrations shown in this manual may look different from the actual screens. In some cases, minor details or a part of a screen may be omitted.
In this manual, "microSDTM memory card", "microSDHCTM memory card" and "microSDXCTM memory card" are abbreviated as "microSD memory card" or "microSD".
All of the indicated amounts exclude tax unless otherwise specified.
"The Company" as appears on the product refers to the following companies:
Sold by: KDDI CORPORATION, OKINAWA CELLULAR TELEPHONE COMPANY
Manufactured by: Sony Mobile Communications Inc.
Using au (au Disaster Countermeasure)
You can use (Disaster Message Board) service,(Emergency Rapid Mail) service that distributes(Earthquake Early Warning), (Disaster and Evacuation Information) and (Tsunami Warning), and(Disaster Voice Messaging Service).
1From the Home screen, [au (au Disaster
Countermeasure)]
au (au Disaster Countermeasure) menu appears.
■ Using (Disaster Message Board)
Disaster Message Board service enables you to register information of well-being from an area of distress via LTE NET in case of large-scale disaster such as earthquake with a seismic intensity of over 6 lower.
1au (au Disaster Countermeasure) menuX[(Disaster Message Board)]
Information
To register information of well-being, E-mail address ( ezweb.ne.jp) is required. Set up E-mail address beforehand.
d
Do not lose the au Micro IC Card (LTE) after it has been removed.
■ Attaching the au Micro IC Card (LTE)
1Open the microSD memory card/au Micro IC Card (LTE)
slot cover while hooking the groove with your
fingernail, hook the projection of the tray () with your fingernail to slide the tray straight out, then remove the tray from the product
2Set au Micro IC Card (LTE) into the tray with IC (metal) part facing up (), insert the tray with the card into the main unit and press it all the way
Pay attention to the orientation of the notch and pressing tray.
3Close the microSD memory card/au Micro IC Card (LTE) slot cover, press it firmly to ensure that there are no grooves between the cover and the main unit
k
3When charging is complete, remove the microUSB plug of the microUSB cable from the product and close the microUSB connection terminal cover firmly
4Remove the USB plug of the microUSB cable from the USB port of the PC
Information
Installation of MTP driver to a PC is required to charge the product with a Microsoft Windows XP PC, since "USB connection mode" is set to "Media transfer mode (MTP)" by default. Install Windows Media Player 10 or later to install MTP driver.
Turning on (Initial settings)
Turning the power on
1P(over 1 sec)
The product vibrates and after a while the lock screen appears.
2Swipe the screen up or down
■ Turning the power off
1P(over 1 sec)
2[Power off]X[OK]
Information
Press Pfor over 1 second and long-touch "Power Off" X [OK] to restart product in safe mode.
■ Using (Emergency Rapid Mail)
Emergency Rapid Mail is a service that distributes Earthquake Early Warning or Tsunami Warning delivered from the meteorological bureau or Disaster and Evacuation Information delivered from the government or local public organization to all au cell phones in specified areas simultaneously.
When you receive Earthquake Early Warning, ensure your safety and take proper action according to the situation around you. When you receive a Tsunami Warning, draw away from sea coast immediately and evacuate to safe place such as upland or well-built high building.
1au (au Disaster Countermeasure) menuX[(Emergency Rapid Mail)]
Information
Reception of Emergency Rapid Mail is notified by a special warning tone and vibration. It is not possible to change the warning tone.
*Earthquake Early Warning is notified by warning tone and voice
sound (" " (It is an earthquake)), and vibration.
Earthquake Early Warning may not arrive before strong tremors in areas near the epicenter.
Tsunami Warning is a major tidal wave/seismic sea wave notification delivered from the meteorological bureau to the area including target coast.
Disaster and Evacuation Information is a service that distributes bulletins concerning residents' safety including evacuation advisories, evacuation orders and other warnings issued by the national and local governments.
The service is available only in Japan (it cannot be used overseas).
No information fee or communication charge is required for receiving Emergency Rapid Mail.
KDDI is not liable for damages suffered by customers resulting from the service's information, lack or delay in the
e
■ Removing au Micro IC Card (LTE)
1Open the cover while hooking the groove of microSD memory card/au Micro IC Card (LTE) slot cover with your fingernail, hook the projection of the tray with your fingernail to slide the tray straight out, then remove the tray from the main unit
2Remove au Micro IC Card (LTE) out of the tray, insert the tray into the main unit and then press it all the way
Pay attention to the direction of pushing the tray.
3Close the microSD memory card/au Micro IC Card (LTE) slot cover, press it firmly to ensure that there are no gaps between the cover and the main unit
Attaching/Removing microSD memory card
■ Attaching microSD memory card
1Open the microSD memory card/au Micro IC Card (LTE) slot cover while hooking the groove with your fingernail, check the orientation for inserting, and insert it until it clicks
Insert the microSD memory card with the contact side down.
l
■ Force-quitting
1Open the microSD memory card/au Micro IC Card (LTE) slot cover while hooking the groove with your fingernail, press the OFF button (RED) with a fine-tipped object for approximately three seconds, and release your finger after it vibrates three times
Information
Alternatively, press and hold Pand upper part of the volume key at the same time for approximately three seconds, and release your finger after it vibrates three times.
Pressing the OFF button (RED) by a sharp object such as needle may cause malfunction.
Initial settings
When you turn on the product for the first time, swipe (flick) the screen up or down to unlock screen lock and follow the onscreen instructions to set language, functions, service, etc. For details, refer to "Setting Guide".
Information
Setup items can be set or changed later as required. To change the language later, from the Home screen, [ ] X[ (Settings)]X[ (Language & input)]X[
(Language)]. To make settings, from the Home screen, [ ]X[Settings]X[Setup guide]. To make settings
information caused by transmission or system breakdowns, or other events that are outside the responsibility of KDDI.
Refer to the Japan Meteorological Agency web page for details about distribution of Earthquake Early Warning. http://www.jma.go.jp/
You cannot receive Emergency Rapid Mail when your cell phone is turned off or during a call.
Emergency Rapid Mail may not be received when your cell phone is communicating such as while sending/receiving SMS/e-mail or using the browser, or if you are in a place where signal does not reach even in the service area (e.g. in a tunnel, basement) or in a place with a poor reception.
You cannot receive the Emergency Rapid Mail that the reception is failed.
This delivery system is different from Earthquake Early Warning provided through TV, radio, or other communication procedures, which means that the time the Earthquake Early Warning arrives may vary.
Information from someplace other than your current location may be received.
■Using (Disaster Voice
Messaging Service)
Disaster Voice Messaging Service is a service which allows you to record your voice and send someone you want to inform your well-being in case of a large-scale disaster.
1au (au Disaster Countermeasure) menuX[(Disaster Voice Messaging Service)]
Information
To use Wi-Fi®, initial settings via LTE/3G network is required.
Voice message can be recorded for up to 30 seconds.
Voice messages cannot be saved or played if the product does not have available memory.
f
2Close the microSD memory card/au Micro IC Card (LTE) slot cover, press it firmly to ensure that there are no gaps between the cover and the main unit
Information
Insert a microSD memory card in the appropriate direction. Inserting a microSD memory card forcefully into the slot could result in failure to remove the microSD memory card or damage.
Do not touch the terminal of the microSD memory card.
■ Removing microSD memory card
Be sure to unmount microSD memory card before removing.
1From the Home screen, [ ]→[Settings]→[Storage]→ [Unmount SD card]→[OK]
When it is unmounted, " SD card safe to remove" appears on the status bar to notify you that reading and
writing from/to the microSD memory card are disabled.
2Open the microSD memory card/au Micro IC Card (LTE) slot cover while hooking the groove with your finger, press the microSD memory card all the way until it
clicks, then pull out the microSD memory card slowly
" Removed SD card" appears on status bar to inform that the microSD memory card is removed.
3Close the microSD memory card/au Micro IC Card (LTE) slot cover, press it firmly to ensure that there are no gaps between the cover and the main unit
m
for au service etc., from the Home screen, [ ]X[(Customer support)]X[au Easy Setting].
Screen Lock
When the screen lock is set, the backlight turns off to avoid the keys and touch panel from false operations.
When the specified time elapses, the product's screen backlight turns off automatically and screen lock is activated.
1 While the screen is displayed, P
■ Unlocking screen
The unlock screen appears when turning the power on or the backlight on by pressing P.
1 Swipe (flick) the screen up or down on the lock screen
Information
Drag " " left to activate the camera, drag " " right and then tap " "to add widgets such as calendar, clock, etc. on the lock screen.
Basic Operation
Key icons
The followings are the main functions of x, y, r keys located at the bottom of the screen.
x y r
n |
o |
p |
q |
r |
s |
t |
x |
Return to the previous screen. Close a dialog |
Back |
box, menu, or the Notifications panel. |
|
|
y |
Display the Home screen. |
Home |
Long-touch and drag it to " " to activate |
|
"Google" application. |
|
|
r |
Display recently used applications on a list and |
Recently |
activate or delete them from the list. Also, you |
used |
can use and set small apps. |
applications |
|
|
|
Using the touch panel
The display on the product is a touch panel operated by touching it with your finger.
■ Tap/Double-tap
Tap: Gently touch a screen and then immediately release your finger. Double tap: Tap the same position twice.
■ Long-touch
Keep touching an item with your finger.
■ Slide
While your finger is gently touching the screen, trace it to the desired direction to move over.
■ Flick (swipe)
Operate the screen by quickly moving (flicking) your finger up, down, right, or left.
■ Pinch
Touch the screen with two fingers and widen (pinch-out) or narrow (pinch-in) the fingers' distance.
u
Status |
Description |
|
|
Green The battery is charging when the remaining battery level is 90% or higher.
Flashing The remaining battery level is 14% or lower. red
Flashing Indicates missed call, New Gmail message, new white SMS message.*1
*1 Notification LED flashes when backlight turned off and lock screen is displayed.
Information
When the remaining battery is not sufficient for turning the product ON, pressing Pmakes LED flash red three times.
When you start charging with the product powered off, the notification LED turns in red. When the status of battery appears on the display, however, the notification LED lights in color for indicating the battery level.
■ Checking own phone number
1From the Home screen, [ ]X[Settings]
2[About phone]X[Status]
The phone number of the product is shown under "My phone number".
Information
Alternatively, from the Home screen, [ ] X[Contacts]X [Myself] to check your phone number.
For the first activation of Contacts, tap "Done" on the Setup wizard screen.
■ Setting the Silent Mode
Set the ringtone volume to 0. Note that setting the product to Silent mode does not mute sounds for shutter, playback of
B
For inquiries, call: Customer Service Center
For general information and charges (toll free)
From fixed-line phones: |
From au cell phones: |
|
|
0077-7-111 |
157without area code |
|
For loss or theft and operation information (toll free)
From fixed-line phones: |
From au cell phones: |
|
|
0077-7-113 |
113without area code |
|
In case above numbers are not available (toll free).
0120-977-033 (except Okinawa)
0120-977-699 (Okinawa)
Secure cell phone support center
For loss, theft, damage.
From a land-line phone/an au cell phone,
0120-925-919 (toll free)
Business hours 9:00 21:00 (7 days a week)
Cell phone and PHS operators collect and recycle unused telephones, batteries and battery chargers at stores bearing thelogo regardless of brand and manufacturer to protect the environment and reuse valuable resources.
Sold by: KDDI CORPORATION, |
April 2014, 1st Edition |
OKINAWA CELLULAR TELEPHONE COMPANY |
|
Manufactured by: Sony Mobile Communications Inc. |
XXXX-XXXX.1 |
■ Drag
Keep touching an item or icon, trace it to the desired direction to move.
Home screen
Home screen consists of multiple screens. Slide/flick left or right to switch them. The center screen is the default screen to operate. Tap yto return to the Home screen any time.
aHome screen position |
a |
|
|
|
|
||||
Indicates which screen of the |
|
|
|
|
|||||
|
|
|
|
||||||
five Home screens you are in. b |
|
|
|
|
|||||
bWidgets |
|
|
|
|
|
|
|
|
|
cWallpapers |
|
|
|
|
|
|
|
|
|
dShortcuts (Applications) |
c |
|
|
|
|
|
|
|
|
eMedia folders |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
(WALKMAN, Movies, Album, |
|
|
|
|
|
|
|
|
|
PlayStation Mobile, Fm radio, |
d |
|
|
|
|
|
b |
||
|
|
|
|
||||||
TV |
|
|
|
|
|
|
|
|
|
|
e |
|
|
|
|
|
|
f |
|
|
|
|
|
|
d g d
v
video or music, alarm, etc. And adjusting the volume of "Ringtone & notifications" in Sound settings or pressing upper part of volume key cancels Silent mode.
1P(over 1 sec)
2[ ]/[ ]
Tap " " to set mute (ringtone volume 0) and tap " " to set vibrator.
Information
Alternatively, slide the status bar downward X[ ]/[ ] to set Silent mode.
■ Setting Airplane mode
When airplane mode is set, all wireless functions (phone, packet communication, Wi-Fi® function, Bluetooth® function, NFC Reader/Writer, P2P function) are turned off.
1 P(over 1 sec) u[Airplane mode]
Information
Slide the status bar downward X Tap "Airplane" to switch the airplane mode on or off.
Entering characters
Use software keyboard to enter characters.
The software keyboard appears when you tap the entry field for registering a contact, composing a mail, etc.
■ Switching keyboards
To input Japanese, use "XperiaTM Japanese keyboard" switching five input types of "Phonepad", "QWERTY keyboard", "Japanese syllabary", "Kana handwriting", "Kanji handwriting".
1 Tap a character input box
C
After-sales service
■ When asking for repair
For repair, contact Secure cell phone support center.
During the |
Repairs will be done based on the terms of |
warranty |
services of the free-of-charge repair warranty |
period |
described on the warranty card. |
|
|
Outside the |
We shall repair the product for a charge as |
warranty |
requested by the customer if repair renders it |
period |
usable. |
|
|
Information
Before handing in the product for repair, make a backup of the contents of memory since they may disappear during repair. Note that the Company shall not be liable for any damages and loss of income should the contents of memory be altered or lost.
Recycled parts that meet the Company's quality standards are sometimes used for repair.
Collected au cell phones by Replacement cell phone delivery service which you used before are recycled to cell phones for replacement after repairs. Also replaced parts by au after-sales service are collected and recycled by KDDI. They are not returned to customers.
■ Performance parts for repair
The Company retains performance parts for repair of the XperiaTM ZL2 main unit and its peripherals for four years after discontinuation of production. "Performance parts for repair" refers to parts required for maintaining the functions of the product.
I
f (Basic functions folder) (Settings, LISMO, YouTube, Maps, Alarm & clock, Calendar, Osaifu-Keitai, SMS)
gApplication key
Adding to Home screen/Editing Home screen
You can change wallpaper or theme of the Home screen and add/delete/move shortcuts of applications, widgets, folders, etc. on the Home screen.
You can add wallpapers by downloading from websites.
1Long-touch an area of the Home screen where no icons are displayed
Alternatively, pinch-in on the Home screen.
2 |
Widgets |
|
Add a widget on the Home |
|
|
|
screen. |
|
|
|
|
|
Apps |
|
Add a shortcut of an |
|
|
|
application, a setting screen, |
|
|
|
etc. on the Home screen. |
|
|
|
|
|
Wallpapers |
Album |
Select an image from albums |
|
|
|
to set as a wallpaper. |
|
|
|
To set image range, drag |
|
|
|
etc. to adjust cropping area |
|
|
|
and tap "Crop". |
|
|
|
|
|
|
Live |
Select a content from albums |
|
|
Wallpapers |
to set as a wallpaper. |
|
|
|
|
w
2Long-touch or flick up " "
Tap " " for Kanji handwriting.
3[ ]/[ ]/[ ]/[ ]/[ ]
The keyboard switches to Phonepad/QWERTY keyboard/ Japanese syllabary/Kana handwriting/Kanji handwriting.
Information
Word suggestions or direct conversion candidates for the entered characters appear. Tap a word to enter.
Tap " " to delete the character before the cursor.
Long-touch or flick up " " to enter symbols, facemarks etc. from the displayed list. Tap " " for Kanji handwriting.
On the Phonepad, you can enter characters by flicking a key up/down/left/right besides repeatedly tapping the key (toggle input).
Tap " " at the bottom left of the screen to hide the software keyboard.
Support
Introduction of related accessories
For details, refer to the instruction manual for each device.
Desktop Holder (SOL25PUA)
Sony Mobile TV antenna cable 01(01SOHSA)
Sony Mobile AC adapter 05 (EP880) (sold separately)
Common AC Adapter 04 (0401PWA) (sold separately)
Information
For the latest information on accessories, visit the au homepage (http://www.au.kddi.com/) or contact the Customer Service Center.
D
■ Warranty card
At the store of purchase, thoroughly check and read the name of the retailer, date of purchase and other necessary details filled in on the warranty card, and be sure to keep it in a safe place.
■ Secure cell phone support plus LTE
An after-sales service membership program on a monthly basis called "Secure cell phone support plus LTE" (monthly fee: 380 yen tax excluded) is available for using your au cell phone for a long time without worries. This service expands coverage for many troubles including malfunction, theft and loss. For details of this service, refer to au homepage or contact Secure cell phone support center.
Information
You can apply for membership only at the time of purchasing your au cell phone.
Once you cancel the membership, you cannot reapply for it until you purchase an au cell phone next time.
Note that when changing the model or purchasing an extra cell phone, this service only covers the most recently purchased au cell phone.
When an au cell phone is handed over to you or someone else, the Secure cell phone support plus LTE membership is also handed over to the successor of the cell phone.
When you get a new au cell phone by changing the model or purchasing an extra cell phone, the "Secure cell phone support plus"/"Secure cell phone support plus LTE" membership for the old au cell phone is automatically canceled.
Service contents are subject to change without notice.
J
Wallpapers |
(XperiaTM's |
Select an image to set as a |
|
Wallpaper) |
wallpaper. |
|
|
Images displayed to the |
|
|
right of "Albums"/"Live |
|
|
Wallpapers" are "XperiaTM's |
|
|
Wallpaper". |
|
|
|
Themes |
|
Set the Home screen image or |
|
|
the unlock screen image. |
|
|
|
■ Adding a folder
1From the Home screen, long-touch an icon
2Drag the icon onto another icon
■ Deleting shortcuts/widgets/folders
1From the Home screen, long-touch an icon or a folder you want to delete
appears at the bottom of the screen.
2Drag the icon or the folder to " "
To delete a folder, tap "Delete". It also deletes shortcuts etc. in the folder.
Information
Long-touch a shortcut, widget, or folder icon to move.
Using the Applications screen
You can call up functions from the Applications screen. Application icons installed to the product are also displayed.
When you tap application icons to use respective functions, you may incur communication charges depending on the function.
x
Accessories described on this page can be purchased from the au Online Shop.
http://auonlineshop.kddi.com/
Troubleshooting
Before you assume that the product is malfunctioning, check the following:
Symptom |
What you should check |
Power is not turned |
Is the internal battery charged? |
on even though P |
|
Is Ppressed for over 1 second? |
|
is pressed. |
|
The power goes off. |
Is the battery running out? |
|
|
The power turns off |
Is the battery running out? |
while activation |
|
screen is displayed. |
|
|
|
The screen freezes |
Open the microSD memory card/au |
and the power |
Micro IC Card (LTE) slot cover while |
cannot be turned off. |
hooking the groove with your |
|
fingernail, press the OFF button (RED) |
|
with a fine-tipped object for |
|
approximately three secondsu |
|
release your finger after it vibrates |
|
three times. Alternatively, press and |
|
hold Pand upper part of volume key |
|
at the same time for approximately |
|
three seconds, and release your |
|
finger after it vibrates three times. |
|
|
E
■ au Micro IC Card (LTE)
The au Micro IC Card (LTE) is lent to you by au. In case of loss or damage, the card will be replaced at your expense. When malfunction is suspected, or in case of theft or loss, contact an au shop or PiPit.
■ After-sales service
If you are unsure about anything regarding after-sales service, contact the following service contact.
Customer Service Center (for service canceling procedure or operation in case of loss or theft)
From a land-line phone, 0077-7-113 (toll free) From an au cell phone, 113 without area code (toll free)
Secure cell phone support center (for loss, theft, damage)
From a land-line phone/From an au cell phone,
0120-925-919 (toll free) Business hours 9:00 – 21:00 (7 days a week)
■ au after-sales service information
Replacement cell phone delivery service
Secure cell phone support plus LTE members
Spontaneous failure 1st year |
Free of charge |
Spontaneous failure 2nd |
|
year or later |
Customer charge |
Partially damage, water |
1st: 5,000 yen |
soak, irreparable damage, |
2nd: 8,000 yen |
theft or loss |
|
|
|
K
■ Starting an application
1From the Home screen, [ ]
The Applications screen appears.
Slide or flick left or right to switch the Applications screen.
2Tap an application to use
Some applications are stored in a folder.
■ Main applications
, |
Phone, Contacts |
|
Play Store |
|
|
|
|
, |
E-mail, SMS |
, |
Camera, Album |
|
|
|
|
|
Browser |
|
Maps |
|
|
|
|
|
Settings |
, |
Google, Voice |
|
|
|
Search |
|
|
|
|
|
Calendar |
|
Basic Manual |
|
|
|
|
■ Downloading applications
You can download applications such as convenient tools and games from the Google Play and install them to use on the product.
To use Google Play, you need to set a Google account. For details, refer to "Setting Guide".
■ Deleting (uninstalling) applications
Before deleting installed applications, back up contents related to the application that you want to save including data saved in the application.
Information
Some applications may not be deleted.
|
y |
|
|
|
|
Symptom |
What you should check |
|
(Out of service |
Is the product out of the service area |
|
area) appears. |
or in an area where the signal is weak? |
|
|
|
|
|
Is the built-in antenna covered with |
|
|
hand? |
|
|
|
|
Cannot charge the |
Is the specified charging equipment |
|
battery (Notification |
(sold separately) attached properly? |
|
LED does not light, |
|
|
the battery icon |
|
|
does not change |
|
|
into charging). |
|
|
|
|
|
Cannot operate key/ |
Is the power turned on? |
|
touch panel. |
|
|
Is "Screen lock" set? |
||
|
||
|
|
|
|
Turn off the power and then turn it on |
|
|
again. |
|
|
|
|
Cannot operate |
Are you operating with gloved hands? |
|
touch panel as |
|
|
Are you operating with a fingernail or |
||
intended. |
||
foreign object on the operating |
||
|
||
|
screen? |
|
|
|
|
Charging is not |
Is the temperature of the product |
|
complete. |
raised or very low? |
|
|
|
|
A message such as |
The battery is almost dead. |
|
"charge the battery" |
|
|
appears. |
|
|
|
|
Knowing the status of the product
■ Status bar
The status bar is located at the top of the product screen. On the left of the status bar, notification icons appear to inform missed calls, new mails, operations in progress, etc., and on the right, status icons appear to indicate the status of the product.
■ Examples of notification icon
New Gmail message
New PC mail message
New E mail (@ezweb.ne.jp) message
New SMS/Receiving notification service message, New Receiving notification
Talking*1/ Calling*1/ Receiving
Missed call
USB connecting
Wi-Fi®open network available
*1 Appears when switched to another screen such as the Home screen.
■ Main status icons
, Signal level (Level 4, Out of service area)
|
|
z |
|
|
|
||
Symptom |
What you should check |
||
Battery usage time |
Is the battery fully charged? Charge |
||
is short. |
until the notification LED turns green. |
||
|
|
||
|
Is the internal battery end-of-life? |
||
|
|
||
|
Is the product used for a long period |
||
|
at places where |
(out of range) |
|
|
appears? |
|
|
|
|
||
The screen |
Is set "Sleep" period too short? |
||
backlight turns off |
|
|
|
in a short while. |
|
|
|
|
|
||
Display is dark. |
Is "Brightness" set to dark? |
||
|
|
||
|
Is the proximity sensor covered by |
||
|
fingers or sticker? |
|
|
|
|
||
Screen response is |
When a large amount of data is saved |
||
slow when you tap |
in the product or transferring large- |
||
on the screen/press |
size data between the product and |
||
the keys. |
microSD memory card, the screen |
||
|
response may be delayed. |
||
|
|
||
Cannot recognize a |
Is the microSD memory card inserted |
||
microSD memory |
properly? |
|
|
card. |
|
|
|
Is the microSD memory card unmounted? |
|||
|
|||
|
|
|
For more details, visit au Customer Support site of au homepage. http://www.au.kddi.com/support/mobile/trouble/repair
F
Non-Secure cell phone support plus LTE members
Spontaneous failure 1st year
Spontaneous failure 2nd
year or later
No recompense
Partially damage, water soak, irreparable damage, theft or loss
Holding over and repair
Secure cell phone support plus LTE members
Spontaneous failure 1st year Free of charge
Spontaneous failure |
2nd |
Free of charge (three-year |
year or later |
|
warranty) |
|
|
|
Partially damage |
|
Customer charge |
|
Upper limit: 5,000 yen |
|
|
|
|
|
|
|
Water soak, irreparable |
Customer charge |
|
damage |
|
10,000 yen |
|
|
|
Theft, loss |
|
No recompense |
Non-Secure cell phone support plus LTE members |
||
|
|
|
Spontaneous failure |
1st year |
Free of charge |
|
|
|
Spontaneous failure |
2nd |
|
year or later |
|
|
|
|
Actual cost |
Partially damage |
|
|
|
|
|
Water soak, irreparable |
|
|
damage |
|
|
|
|
|
Theft, loss |
|
No recompense |
|
(model change) |
|
|
|
|
|
|
|
* Charge amounts are all tax excluded
L
G
Information
Replacement cell phone delivery service
When you have trouble with your au cell phone, replacement cell phone (same model, same color) is delivered by calling to. Return your damaged cell phone within 14 days after replacement cell phone is delivered.
Available up to twice in a year from the day you use this service as a start day. If you do not use this service in the past year at the subscription to this service, it will be 1st and if you use, it will be 2nd.
*For details, refer to au homepage.
Holding over and repair
Damages and malfunctions intentionally caused by the customer as well as those due to modification (e.g. disassembly, change of parts, painting, etc.) by the customer are not covered by this service.
You cannot receive a refund for replacement of the outer casing due to stains, scratches, paint removal, etc. on the outer casing.
Main specifications
Display |
Approx. 6.4 inches |
|
TRILUMINOS® Display for mobile |
|
Approx. 16.77 million colors |
|
|
|
1,080 x 1,920 dots |
|
|
Weight |
Approx. 214 g (with internal |
|
battery) |
|
|
Dimension (W x H x T) |
Approx. 92 mm x 179 mm x |
|
6.5 mm (thickest part approx. |
|
6.8 mm) |
|
|
|
M |
, |
Data communication status (LTE available, 3G |
|
available) |
|
|
, |
Battery level (100%, Charging) |
|
|
, |
Silent mode (Vibration, Mute) |
|
|
|
Airplane mode is activated. |
|
|
, |
Wi-Fi®connected, Wi-Fi®communicating |
■ Notification panel
If any notification icons are displayed, slide down the status bar to open the Notification panel. You can check details of notification icons or start corresponding applications.
Information
To delete a notification, tap "Clear" or flick the notification left or right to delete from the list.
Some notifications may not be deleted depending on the content.
When you set screen lock to "Swipe", slide the status bar downward to check the Notification panel without unlocking the screen.
■ Notification LED
Notification LED informs charging prompt, battery level while charging, missed calls, new mails, etc. by turning on or flashing.
Status |
Description |
Red |
The battery is charging when the remaining |
|
battery level is 14% or lower. |
|
|
Orange |
The battery is charging when the remaining |
|
battery level is 15% - 89%. |
|
|
|
A |
Updating Software
You can update the product to the most recent software for optimal performance and to get the latest enhancements.
You are charged for data communication when connecting to the Internet from the product by using packet communication.
You are recommended to back up your data before updating software.
For details, visit http://www.sonymobile.co.jp/support/ or refer to the "Instruction Manual" (Japanese) application or
" (Full instruction manual)" (Japanese) available on au homepage.
■ Downloading and updating software
Update files can be downloaded from the Internet web site via wireless communication into the product directly.
To download software updates only via Wi-Fi®, from the
Home screen, [ ]X[ (Tool)]X[Update
Center]X[]X[Settings]X Mark "Update via Wi-Fi only". If you unmark "via Wi-Fi only" for updating, note that when WiFi® communication becomes unstable, packet
communication takes the place automatically, which may apply communication fees.
1From the Home screen, [ ]X[ (Tool)]X[Update
Center]
2Tap "System" tabX[ ]
■ Connecting to a PC for updating software
You can update software using PC Companion to be installed from the product.
Install PC Companion to your PC beforehand.
H
Continuous |
In Japan |
Approx. 1,420 min. |
call time |
Overseas |
Approx. 870 min. |
|
(GSM) |
|
|
|
|
Continuous |
In Japan |
Approx. 710 hours (LTE) |
stand-by |
|
Approx. 740 hours (3G) |
time |
|
|
Overseas |
Approx. 830 hours |
|
|
(GSM) |
|
|
|
|
Charging time |
Using Common AC Adapter 04 |
|
|
|
(sold separately): Approx. |
|
|
160 min. |
|
|
|
Continuous Full Seg |
Approx. 4 hours 00 min. |
|
watching time |
|
|
|
|
|
Continuous 1Seg |
Approx. 5 hours 30 min. |
|
viewing time |
|
|
|
|
|
Continuous tethering |
Approx. 660 min. (LTE on WAN) |
|
time |
|
Approx. 890 min. (3G on WAN) |
|
|
|
Wi-Fi® tethering |
10 |
|
maximum connection |
|
|
number |
|
|
|
|
|
Information |
|
|
The continuous call time, continuous stand-by time, continuous Full Seg watching time, continuous 1Seg viewing time and continuous tethering time may drop to less than half depending on the battery charging status, usage environment such as temperature, reception condition at the location where the product is used, and the function settings.
N
