VAIO Digital Studio System Reference Manual
NOTICE
© 2001 Sony Electronics Inc. Reproduction in
whole or in part without written permission is
prohibited. All rights reserved. This manual and the
software described herein, in whole or in part, may
not be reproduced, translated, or reduced to any
machine-readable form without prior written
approval.
SONY ELECTRONICS INC. PROVIDES NO
WARRANTY WITH REGARD TO THIS
MANUAL, THE SOFTWARE, OR OTHER
INFORMATION CONTAINED HEREIN AND
HEREBY EXPRESSLY DISCLAIMS ANY
IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE WITH REGARD TO
THIS MANUAL, THE SOFTWARE, OR SUCH
OTHER INFORMATION. IN NO EVENT SHALL
SONY ELECTRONICS INC. BE LIABLE FOR
ANY INCIDENTAL, CONSEQUENTIAL, OR
SPECIAL DAMAGES, WHETHER BASED ON
TORT, CONTRACT, OR OTHERWISE, ARISING
OUT OF OR IN CONNECTION WITH THIS
MANUAL, THE SOFTWARE, OR OTHER
INFORMATION CONTAINED HEREIN OR THE
USE THEREOF.
Sony Electronics Inc. reserves the right to make any
modification to this manual or the information
contained herein at any time without notice. The
software described herein is governed by the terms
of a separate user license agreement.
This product contains software owned by Sony and
licensed by third parties. Use of such software is
subject to the terms and conditions of license
agreements enclosed with this product. Some of the
software may not be transported or used outside the
United States. Software specifications are subject to
change without notice and may not necessarily be
identical to current retail versions.
Updates and additions to software may require an
additional charge. Subscriptions to online service
providers may require a fee and credit card
information. Financial services may require prior
arrangements with participating financial
institutions.
Sony, VAIO, the VAIO logo, VAIO Digital Studio,
VAIO Smart, VisualFlow, Media Bar, MovieShaker,
DVgate, PictureGear, and i.LINK are trademarks or
registered trademarks of Sony.
Memory Stick and are trademarks of Sony
Corporation.
Intel, Pentium, and Celeron are trademarks or
registered trademarks of the Intel Corporation.
Microsoft, Windows, and the Windows logo are
trademarks or registered trademarks of Microsoft
Corporation. PS/2 is a registered trademark of IBM
Corporation.
All other trademarks are trademarks or registered
trademarks of their respective owners.
Owner’s Record
The model number and serial number are located on
either the front or back panel of your Sony VAIO
computer. Record the model and serial number in
the space provided here, and keep in a secure
location. Refer to the model and serial numbers
when you call your Sony Service Center.
Model Number:
Serial Number:
iii
Safety Information and
Caution
Your computer’s installed optical drives may vary,
depending on the system configuration you have
purchased. See the Specifications sheet for details
on your installed optical drives.
DVD-RW Laser Diode Properties
Laser Output
Wave Length
1.3 mW
(CD-Read)
1.1 mW (DVDRead)
42.8 mW
(DVD-Write)
21.9 mW
(CD-Write)
650-660 nm
(DVD)
773-797 nm
(CD)
❑ To prevent fire or shock hazard, do not expose
your desktop to rain or moisture. To avoid
electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
❑ Never install modem or telephone wiring
during a lightning storm.
❑ Never install telephone jacks in wet locations
unless the jack is specifically designed for
wet locations.
❑ Never touch uninsulated telephone wire or
terminals unless the telephone line has been
disconnected at the network interface.
❑ Use caution when installing or modifying
telephone lines.
❑ Avoid using the modem during an electrical
storm.
❑ Do not use the modem or a telephone to
report a gas leak in the vicinity of the leak.
❑ The socket outlet shall be installed near the
equipment and shall be easily accessible.

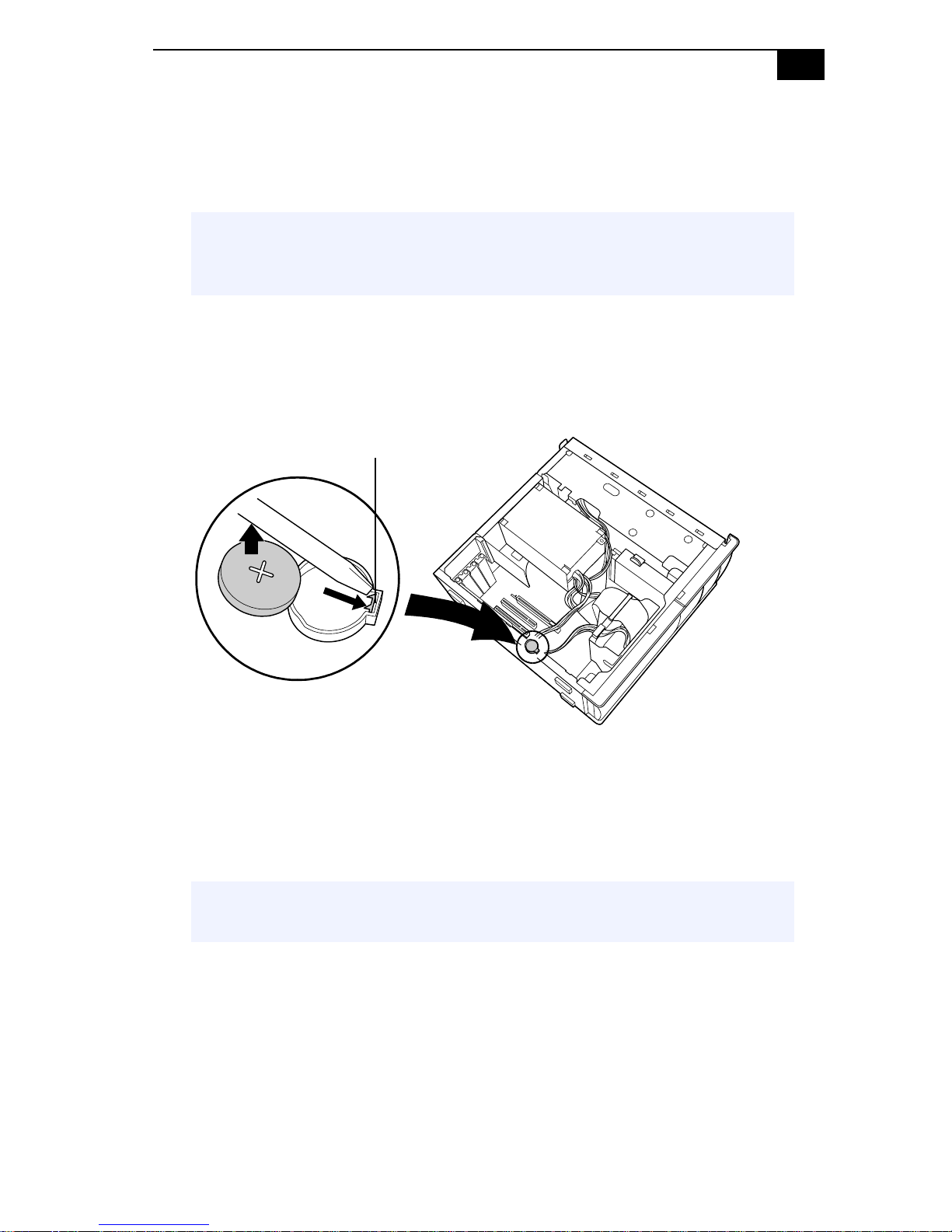

! To change the backup battery,
please contact your nearest Sony
Service Center.
DVD-ROM Laser Diode Properties
Laser Output
Wave Length
0.41–0.45 mW
(DVD)
0.12–0.176 mW
(CD)
640–660 nm
(DVD)
770–810 nm (CD)
CD-RW Laser Diode Properties
Laser Output
Wave Length
1.0 mW (Read)
35–53 mW
(Write)
778–787 nm
CD-ROM Laser Diode Properties
! Caution: The use of optical
instruments with this product
will increase eye hazard. As the
laser beam used in this product
is harmful to the eyes, do not
attempt to disassemble the
drive cabinet. Refer servicing to
qualified personnel only.
! Danger: Visible and invisible
laser radiation when open.
Avoid direct exposure to beam.
! For DVD-RW or CD-RW:
Danger—Visible and invisible
laser radiation when open.
Avoid direct exposure to beam.
Laser Output
Wave Length
0.2 mW
760-810 nm
iv
VAIO Digital Studio System Reference Manual
! Caution: For ADSL, HomePNA and
V.90 modem models; to reduce the
risk of fire, use only No. 26 AWG or
larger telecommunication line
cord.
❑ Pour prévenir tout risque d’incendie ou
d’électrocution, garder cet appareil à l’abri de
la pluie et de l’humidité.
❑ Pour prévenir tout risque d’électrocution, ne
pas ouvrir le châssis de cet appareil et ne
confier son entretien qu’à une personne
qualifiée.
❑ Ne jamais effectuer l’installation de fil
modem ou téléphone durant un orage
électrique.
❑ Ne jamais effectuer l’installation d’une prise
téléphonique dans un endroit mouillé à moins
que la prise soit conçue à cet effet.
❑ Ne jamais toucher un fil téléphonique à
découvert ou un terminal à moins que la ligne
téléphonique n’ait été débranché de
l’interface réseau.
❑ Soyez très prudent lorsque vous installez ou
modifiez les lignes téléphoniques.
❑ Évitez d’utiliser le modem durant un orage
électrique.
❑ N'utilisez pas le modem ni le téléphone pour
prévenir d'une fuite de gaz vous êtes près de
la fuite.
❑ L’appareil doit être le plus près possible
d’une prise murale pour en faciliter l’accès.
! Danger : Radiation laser visible et
invisible si ouvert. Évitez
l’exposition directe au faisceau.
! Pour les DVD-RW ou CD-RW :
Danger — Radiation laser visible
et invisible si ouvert. Évitez
l'exposition directe au faisceau.
! Attention : Pour ADSL, HomePNA,
et V.90 modele modem; afin de
réduire les risques d'incendie,
n'utilisez qu'un cordon de
communication N0. 26 AWG ou
plus gros.
For questions regarding your product or for the
Sony Service Center nearest you, call
1-888-476-6972 in the United States or
1-800-961-7669 in Canada.
Sony Customer Support can be reached at
http://www.sony.com/pcsupport.
! Pour changer la pile de rechange,
veuillez contacter votre centre de
service Sony le plus près.
! Avertissement : L'utilisation
d'instruments optiques avec ce
produit augmente les risques pour
les yeux. Puisque le faisceau laser
utilisé dans ce produit est
dommageable pour les yeux, ne
tentez pas de désassembler le
boîtier. Adressez-vous à un agent
de service qualifié.
v
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: PCV-7733
Responsible
Party:
Address: 680 Kinderkamack Rd
Telephone: 201-930-6972
This phone number is for FCC-related matters
only.
This device complies with Part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
Sony Electronics Inc.
Oradell, NJ 07649
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
❑ Reorient or relocate the receiving antenna.
❑ Increase the separation between the
equipment and the receiver.
❑ Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
❑ Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Only peripherals (computer input/output devices,
terminals, printers, etc.) that comply with FCC
Class B limits may be attached to this computer
product. Operation with noncompliant peripherals
is likely to result in interference to radio and
television reception.
All cables used to connect peripherals must be
shielded and grounded. Operation with cables,
connected to peripherals, that are not shielded and
grounded, may result in interference to radio and
television reception.
vi
VAIO Digital Studio System Reference Manual
FCC Part 68
This equipment complies with Part 68 of the FCC
rules. The FCC Ringer Equivalence Number (REN)
for this equipment is 0.79B. If requested, this
information must be provided to the telephone
company.
This modem uses the USOC RJ-11 telephone jack.
The REN is used to determine the quantity of
devices which may be connected to the telephone
line. Excessive RENs on the telephone line may
result in the devices not ringing in response to an
incoming call. In most, but not all areas, the sum of
the RENs should not exceed five (5.0). To be certain
of the number of devices that may be connected to
the line, as determined by the total RENs, contact
the telephone company to determine the maximum
REN for the calling area.
If the terminal equipment causes harm to the
telephone network, the telephone company will
notify you in advance that temporary
discontinuance of service may be required. But if
advance notice is not practical, the telephone
company will notify the customer as soon as
possible. Also, you will be advised of your right to
file a complaint with the FCC if you believe it is
necessary.
The telephone company may make changes in its
facilities, equipment, operations or procedures that
could affect the operations of the equipment. If this
happens, the telephone company will provide
advance notice in order for you to make the
necessary modifications in order to maintain
uninterrupted service.
If trouble is experienced with this modem, for
repair or warranty information, please contact 1888-4-SONY-PC, or write to the Sony Customer
Information Center, 12451 Gateway Blvd., Fort
Myers, FL 33913. If the trouble is causing harm to
the telephone network, the telephone company may
request that you remove the equipment from the
network until the problem is resolved.
Repair of this equipment should be made only by a
Sony Service Center or Sony authorized agent. For
the Sony Service Center nearest you, call 1-888-4SONY-PC (1-888-476-6972).
This equipment cannot be used on public coin
service provided by the telephone company.
Connection to Party Line Service is subject to state
and possible provincial tariffs. (Contact the state or
provincial utility service commission, public
service commission, or corporation commission for
information.)
Telephone Consumer
Protection Act of 1991
(United States)
The Telephone Consumer Protection Act of 1991
makes it unlawful for any person to use a computer
or other electronic device to send any message via a
telephone facsimile machine unless such message
clearly contains, in a margin at the top or bottom of
each transmitted page or on the first page of the
transmission, the date and time it is sent and an
identification of the business, other entity, or
individual sending the message, and the telephone
number of the sending machine or such business,
other entity, or individual.
In order to program this information into your
facsimile machine, see your fax software
documentation.
Telephone Consumer
Guidelines (Canada)
Please refer to your telephone directory under
‘Privacy Issues’ and/or ‘Terms of Service.’ For
more detailed information, please contact:
CRTC
Terrasses de la Chaudiére, Tour centrale
1 promenade du Portage, 5 étage Hull PQ K1A
0N2.
This Class B digital apparatus complies with
Canadian ICES-003.
Cet àppareil numérique de la classe B est conforme
à la norme NMB-003 du Canada.
Disposal of Lithium Battery
vii
You can return your unwanted lithium batteries to
your nearest Sony Service Center or Factory
Service Center.
✍ In some areas the disposal of lithium
batteries in household or business trash
may be prohibited.
For the Sony Service Center nearest you, call
1-888-476-6972 in the United States or
1-800-961-7669 in Canada.
! Do not handle damaged or leaking
lithium batteries.
! Danger of explosion if battery is
incorrectly replaced. Replace only
with the same or equivalent type
recommended by the
manufacturer. Discard used
batteries according to the
manufacturer’s instructions.
! Une batterie non conforme
présente un danger d'explosion.
La remplacer seulement par une
batterie identique ou de type
équivalent recommandé par le
fabricant. Évacuer les batteries
usées selon les directives du
fabricant.
! La manutention incorrecte du
module de batterie de cet
appareil présente un risque
d'incendie ou de brûlures
chimiques. Ne pas démonter,
incinérer ou exposer à une
température de plus de 100°C.
Évacuer promptement la
batterie usée. Garder hors de
portée des enfants.
! The battery pack used in this
device may present a fire or
chemical burn hazard if
mistreated. Do not disassemble,
heat above 212°F (100°C), or
incinerate. Dispose of used
battery promptly. Keep away
from children.
! Ne pas manipuler les batteries
au lithium qui fuient ou sont
endommagées.
viii
VAIO Digital Studio System Reference Manual
Industry Canada Notice
NOTICE: The Industry Canada label identifies
certified equipment. This certification means that
the equipment meets certain telecommunications
network protective, operational and safety
requirements as prescribed in the appropriate
Terminal Equipment Technical Requirements
document(s). The Department does not guarantee
the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should
ensure that it is permissible to be connected to the
facilities of the local telecommunications company.
The equipment must also be installed using an
acceptable method of connection.
The customer should be aware that compliance with
the above conditions may not prevent degradation
of service in some situations.
Repairs to certified equipment should be
coordinated by a representative designated by the
supplier. Equipment malfunctions or any repairs or
alterations made by the user to this equipment may
give the telecommunications company cause to
request that the user disconnect the equipment.
Users should ensure for their own protection that
the electrical ground connections of the power
utility, telephone lines and internal metallic water
pipe system, if present, are connected together. This
precaution may be particularly important in rural
areas.
CAUTION: Users should not attempt to make such
connections themselves, but should contact the
appropriate electrical inspection authority, or
electrician, as appropriate.
NOTICE: The Ringer Equivalence Number (REN)
assigned to each terminal device provides an
indication of the maximum number of terminals
allowed to be connected to a telephone interface.
The termination on an interface may consist of any
combination of devices subject only to the
requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed 5. The
Ringer Equivalence Number for this equipment is
0.79B.
Avis de l’Industrie Canada
AVIS : L’étiquette d’Industrie Canada identifie le
matériel homologué.
Cette étiquette certifie que le matériel est conforme
aux normes de protection, d’exploitation et de
sécurité des réseaux de télécommunications,
comme le prescrivent les documents concernant les
exigences techniques relatives au matériel terminal.
Le Ministère n’assure toutefois pas que le matériel
fonctionnera à la satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit
s’assurer qu’il est permis de le raccorder aux
installations de l’entreprise locale de
télécommunication. Le matériel doit également être
installé en suivant une méthode acceptée de
raccordement. L’abonné ne doit pas oublier qu’il est
possible que la conformité aux conditions énoncées
ci-dessus n’empêche pas la dégradation du service
dans certaines situations.
Les réparations de matériel homologué doivent être
coordonnées par un représentant désigné par le
fournisseur. L’entreprise de télécommunications
peut demander à l’utilisateur de débrancher un
appareil à la suite de réparations ou de
modifications effectuées par l’utilisateur ou à cause
de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer
que tous les fils de mise à la terre de la source
d’énergie électrique, des lignes téléphoniques et des
canalisations d’eau métalliques, s’il y en a, sont
raccordés ensemble. Cette précaution est
particulièrement importante dans les régions
rurales.
Avertissement : L’utilisateur ne doit pas tenter de
faire ces raccordements lui-même; il doit avoir
recours à un service d’inspection des installations
électriques, ou à un électricien, selon le cas.
AVIS : L’indice d’équivalence de la sonnerie (IES)
assigné à chaque dispositif terminal indique le
nombre maximal de terminaux qui peuvent être
raccordés à une interface.
La terminaison d’une interface téléphonique peut
consister en une combination de quelques
dispositifs, à la seule condition que la somme
d’indices d’équivalence de la sonnerie de tous les
dispositifs n’excède pas 5. L’indice d’équivalence
de la sonnerie de ce matériel est de 0.79B.
Contents
NOTICE ....................................................................................................... ii
Owner’s Record................................................................................... ii
Safety Information and Caution ...................................................... iii
Regulatory Information.......................................................................v
FCC Part 68 ......................................................................................... vi
Telephone Consumer Protection Act of 1991 (United States) ..... vi
Telephone Consumer Guidelines (Canada)................................... vi
Disposal of Lithium Battery ............................................................ vii
Industry Canada Notice.................................................................. viii
Avis de l’Industrie Canada............................................................. viii
Chapter 1 — Identifying Components................................1
Front View ...................................................................................................2
Drives.....................................................................................................3
Buttons and Switches ..........................................................................4
Indicators...............................................................................................5
Connectors ............................................................................................6
Rear View .....................................................................................................7
Icons .......................................................................................................8
I/O Connectors ..................................................................................10
Expansion Slots ..................................................................................14
Chapter 2 — Configuring Your System ............................15
Accessing the BIOS Setup Utility............................................................16

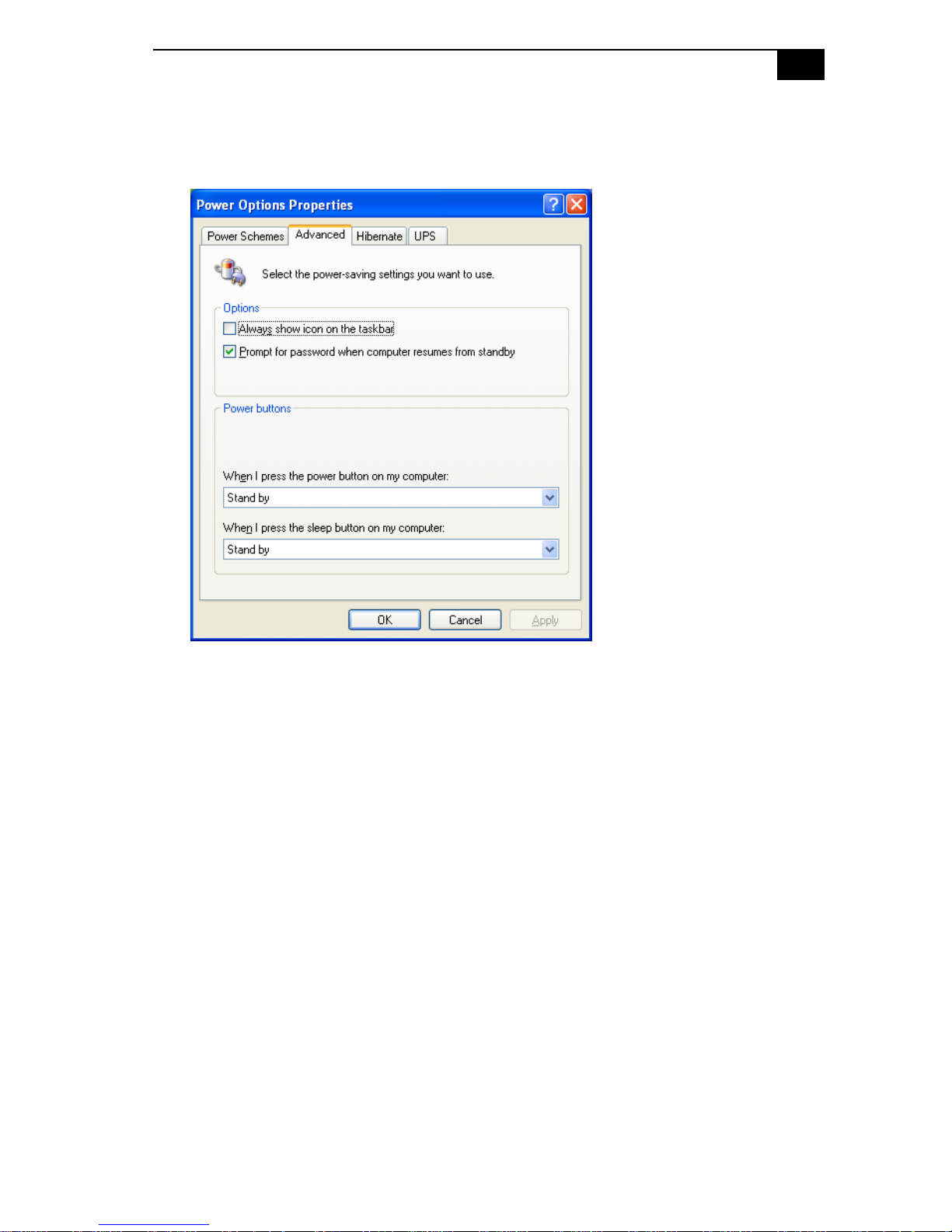

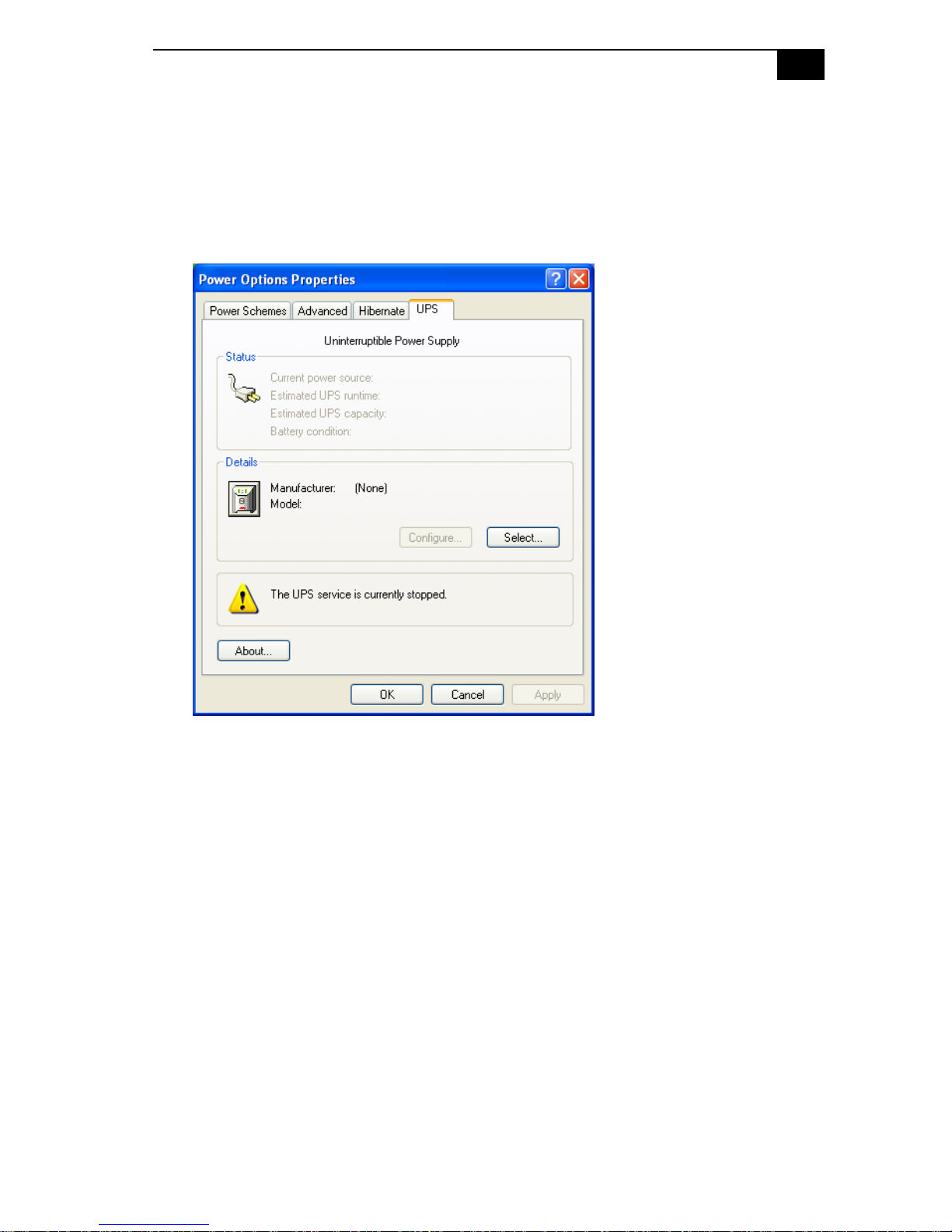

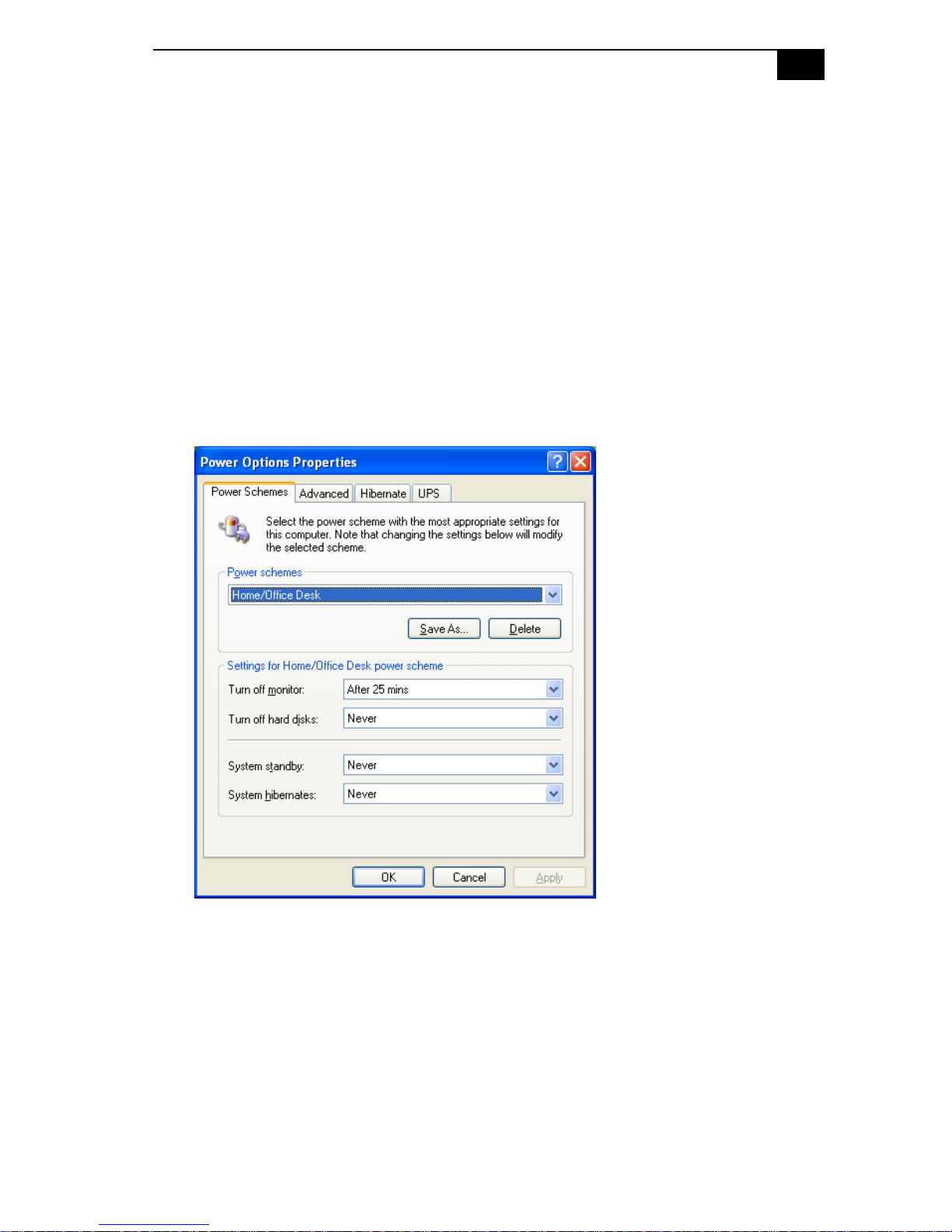

Changing the Display's Power Management Settings.........................17
ix
x
VAIO Digital Studio System Reference Manual
Chapter 3 — Removing, Installing, and Replacing
Components....................................................................... 23

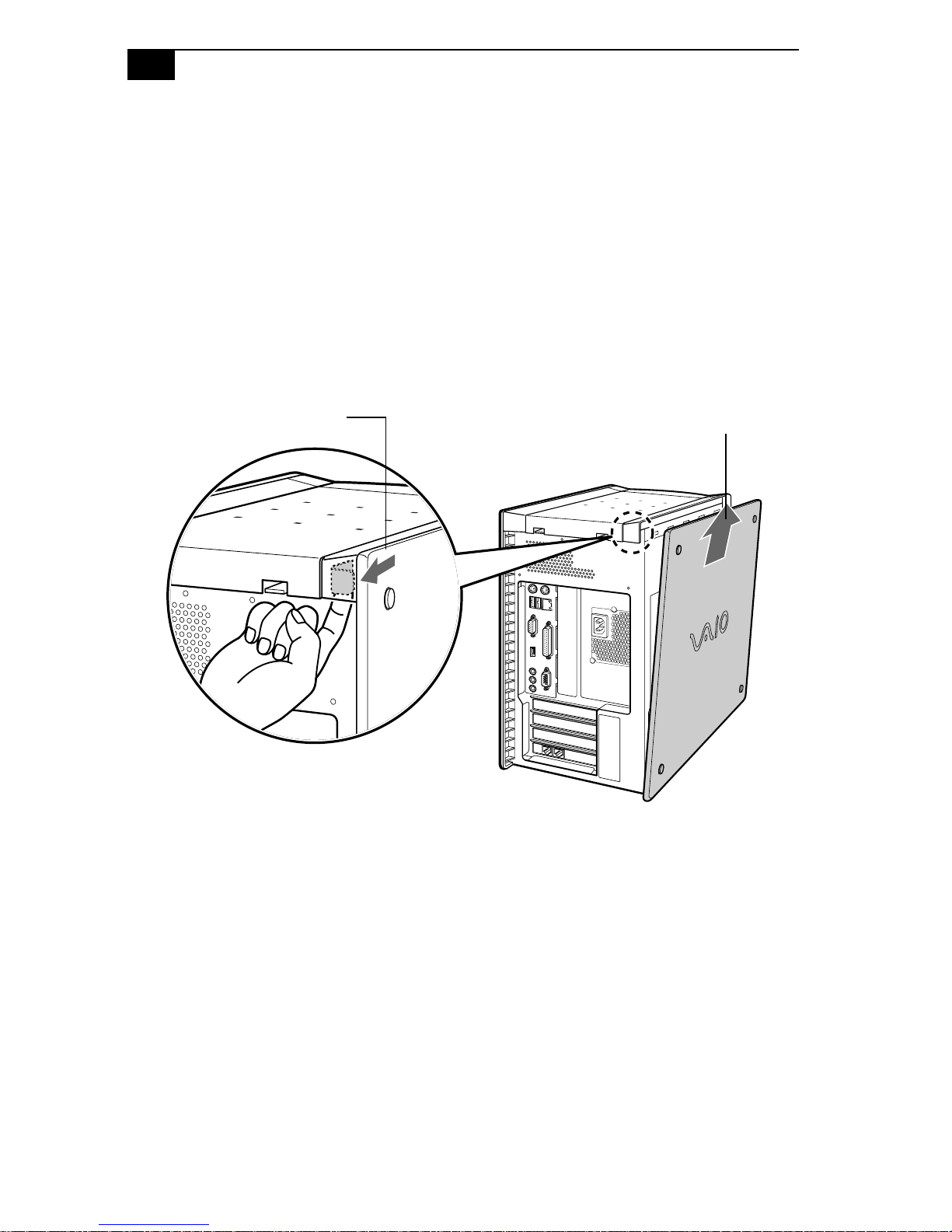

Removing the Side Cover .......................................................................24

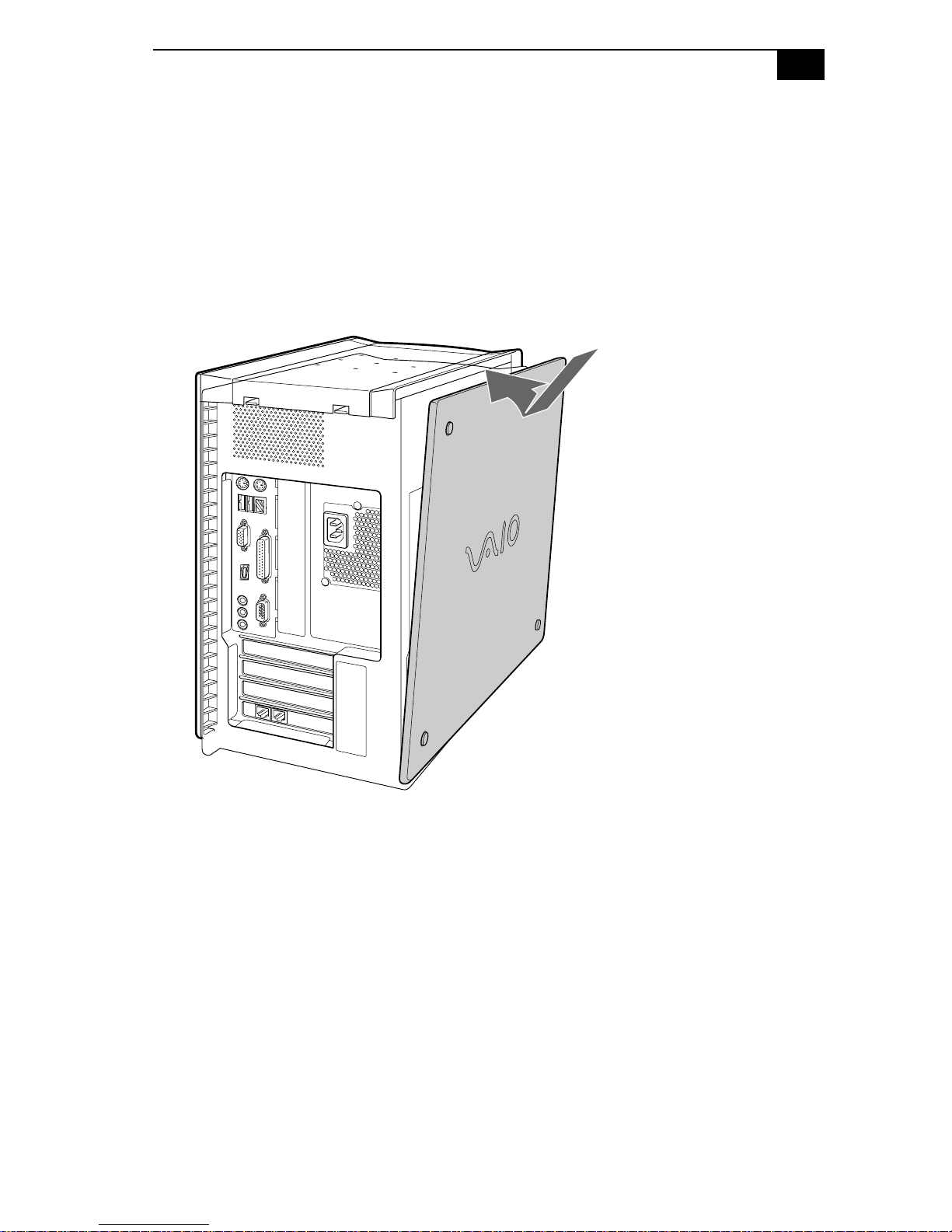

Replacing the Side Cover ........................................................................25

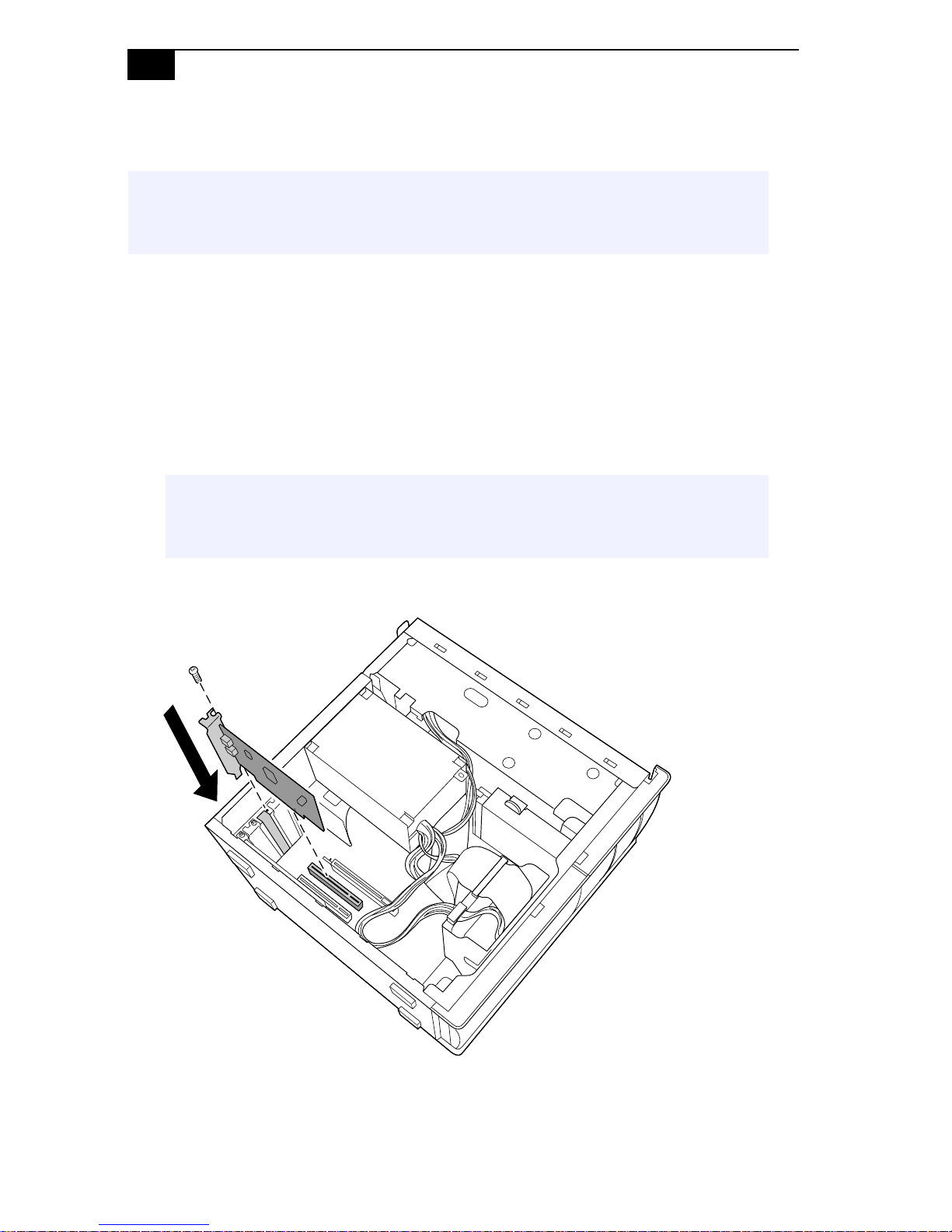

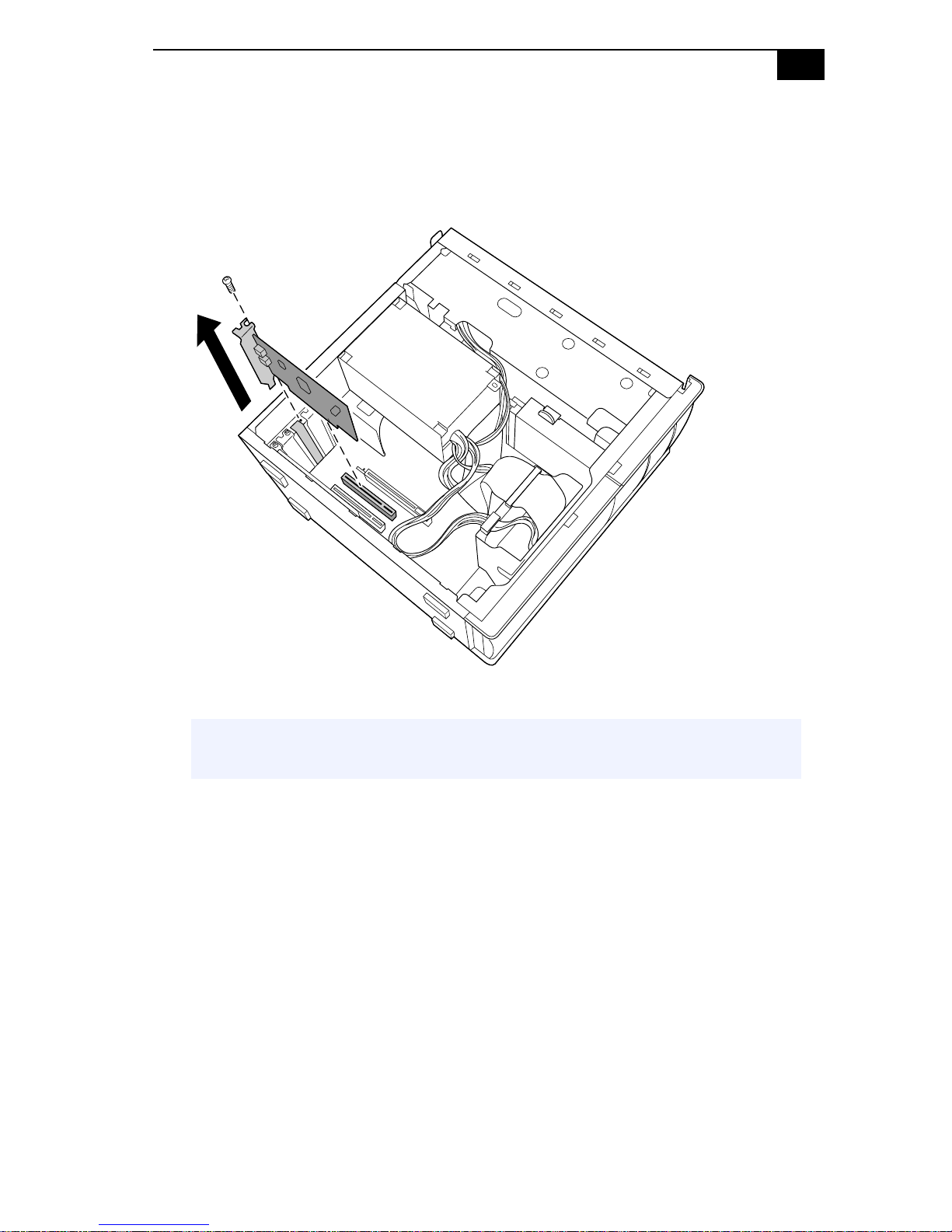

Removing a PCI Add-in Card ................................................................26
Installing a PCI Add-In Card .................................................................28

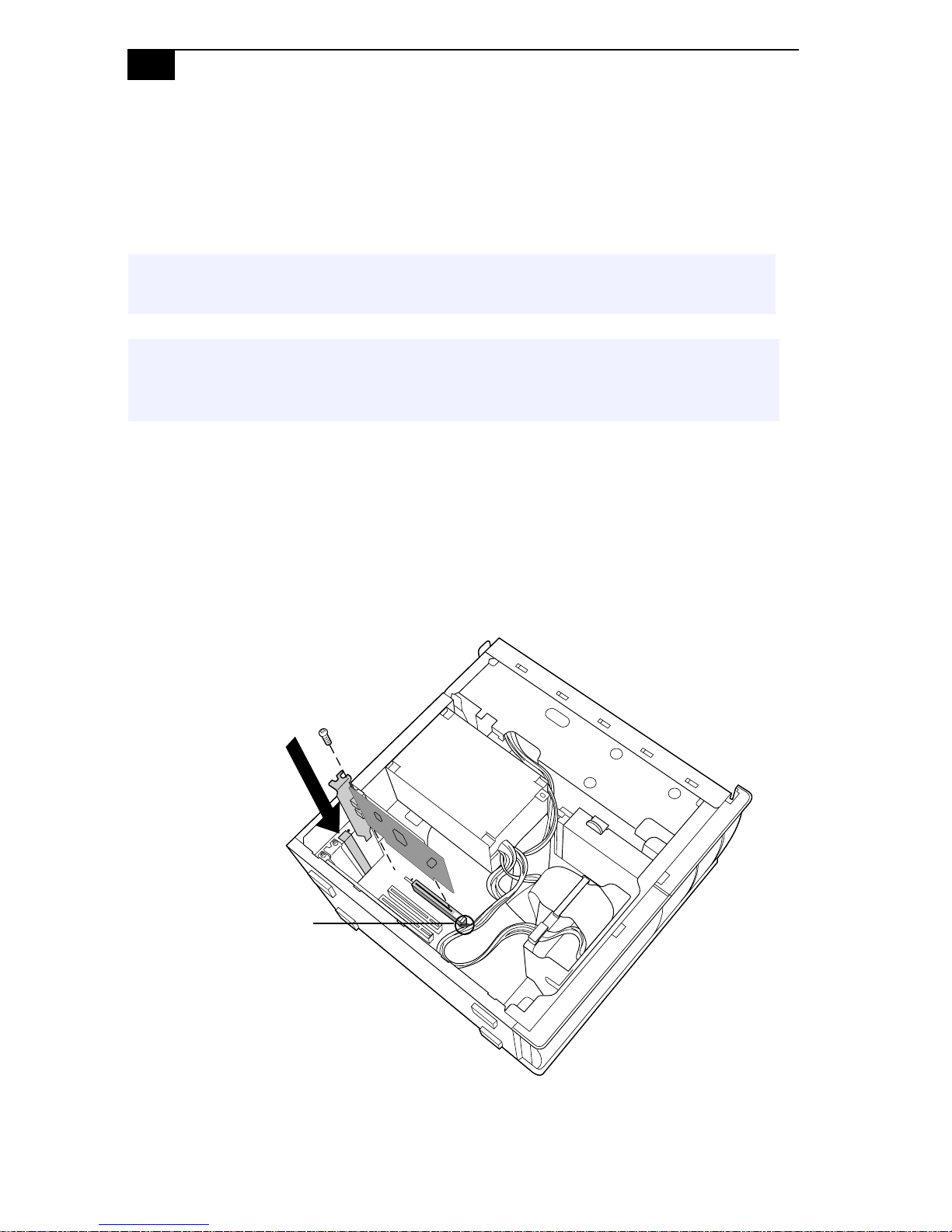

Installing an Add-On AGP Card ............................................................30
Replacing the Lithium Battery ...............................................................32

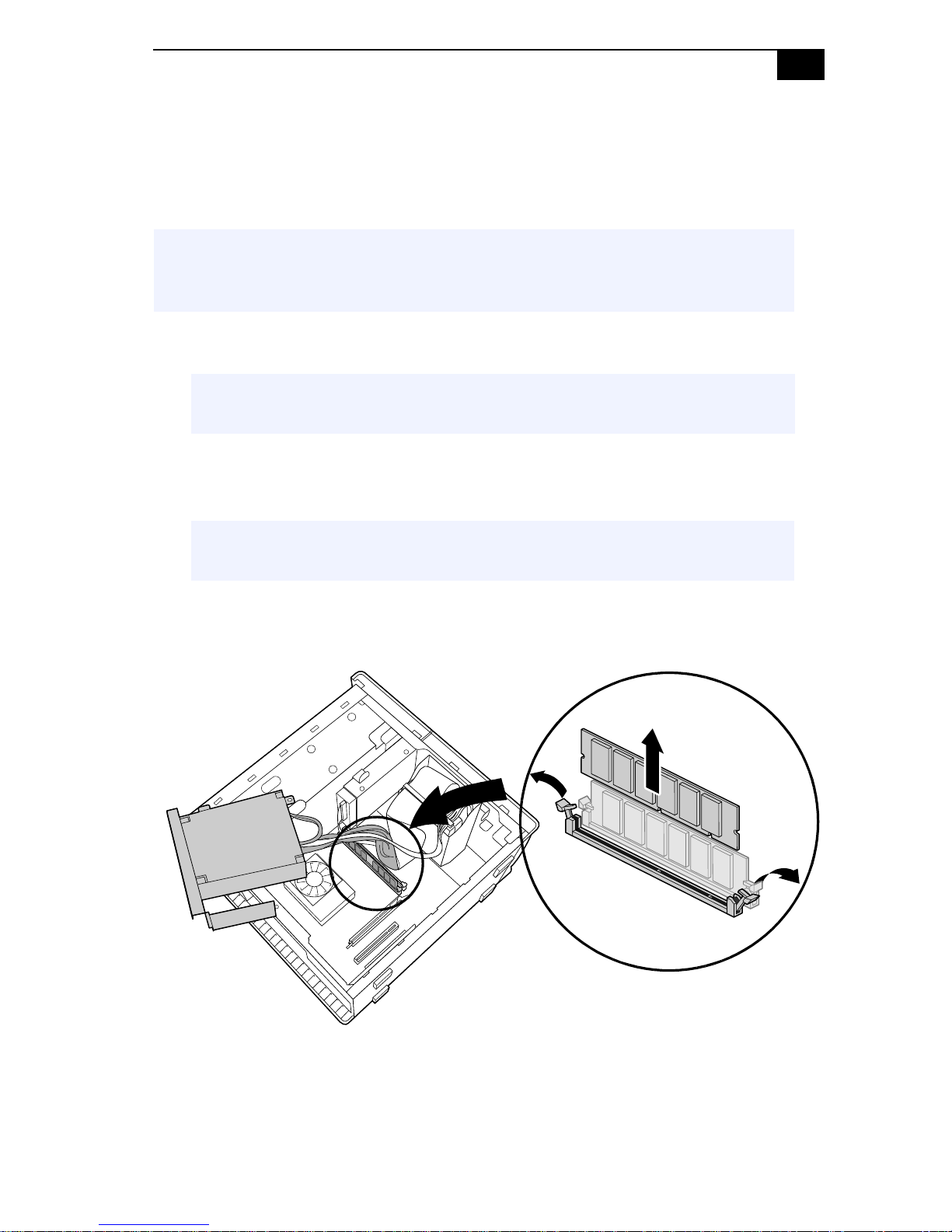

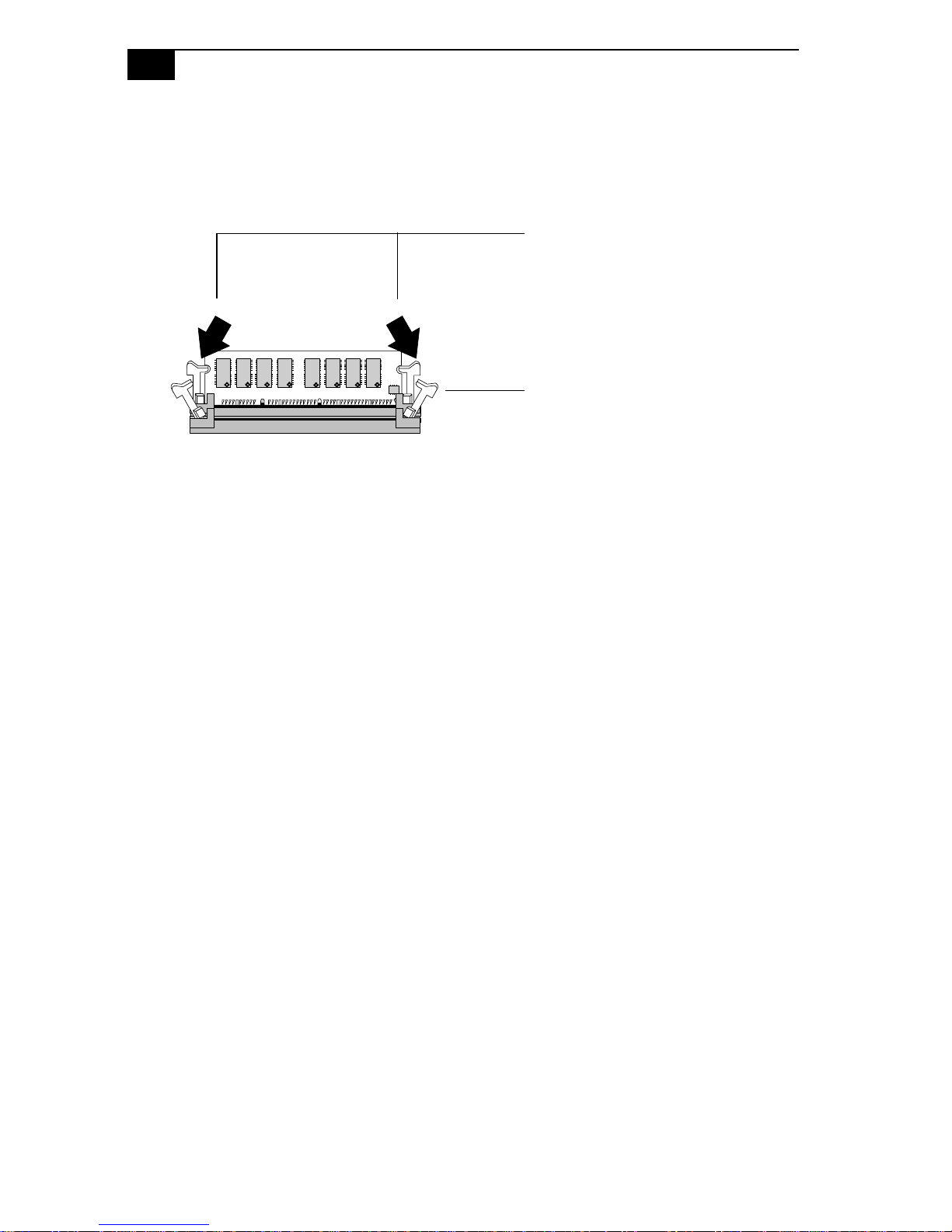

Removing a Memory Module ................................................................35
Installing System Memory ......................................................................37

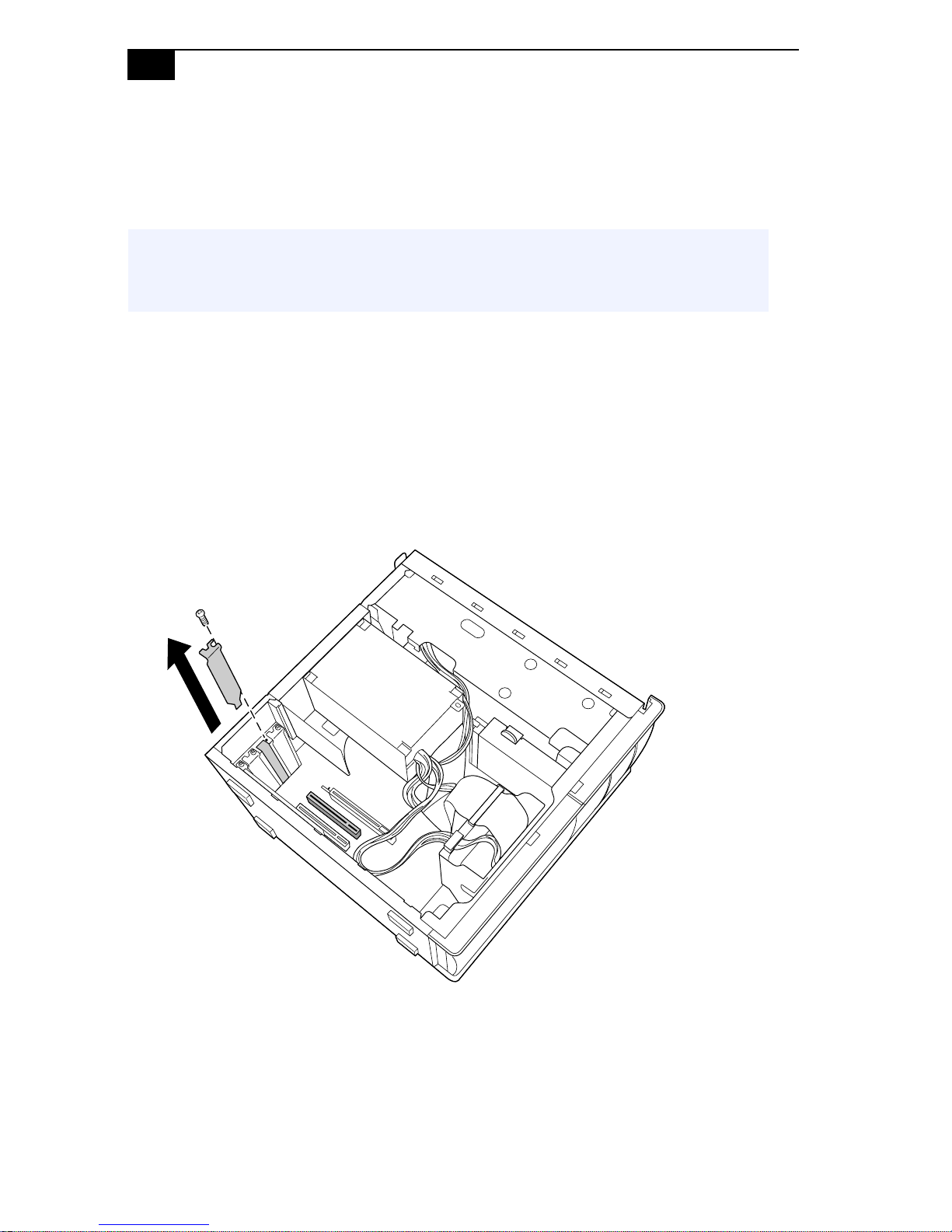

Removing a Slot Cover.............................................................................40

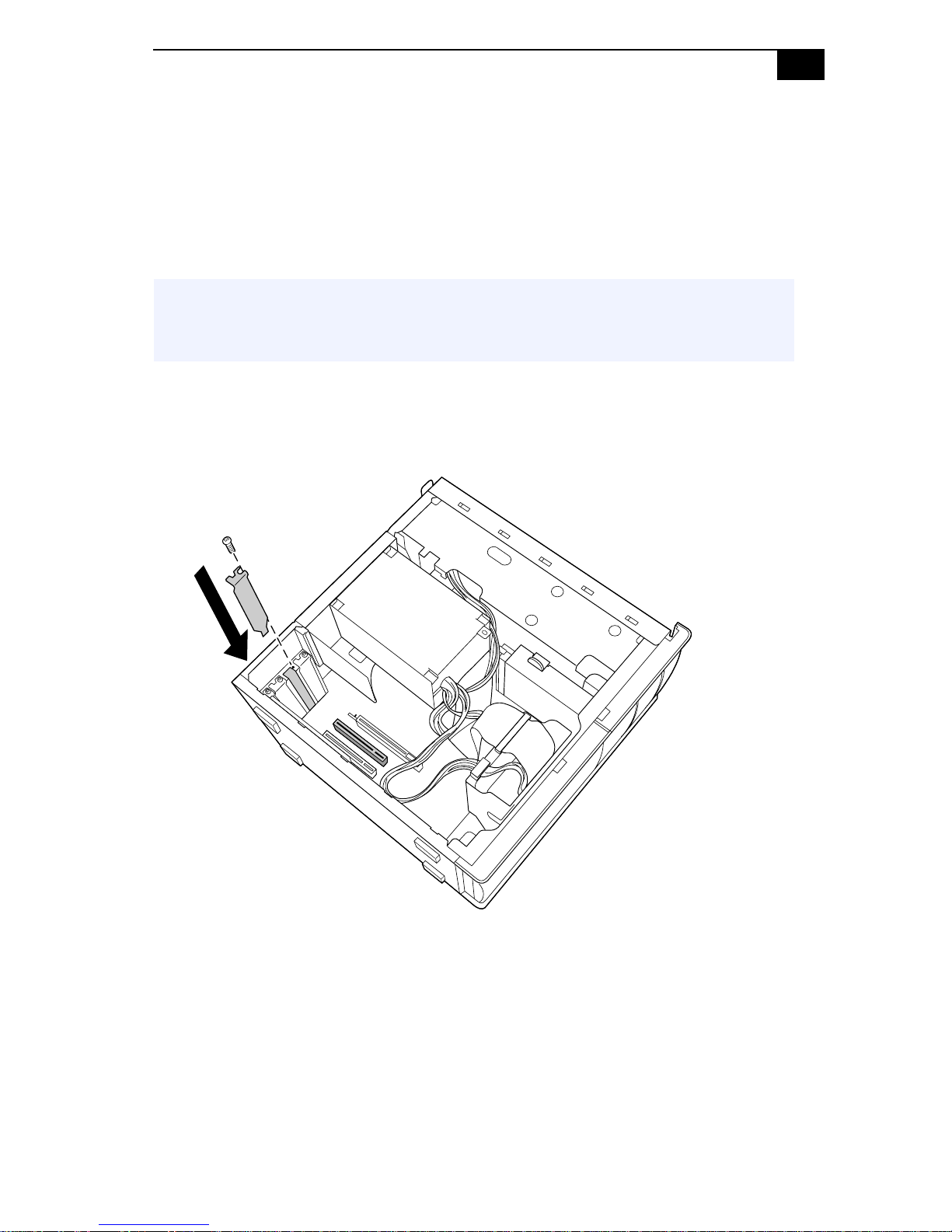

Covering an Open I/O Slot ....................................................................41

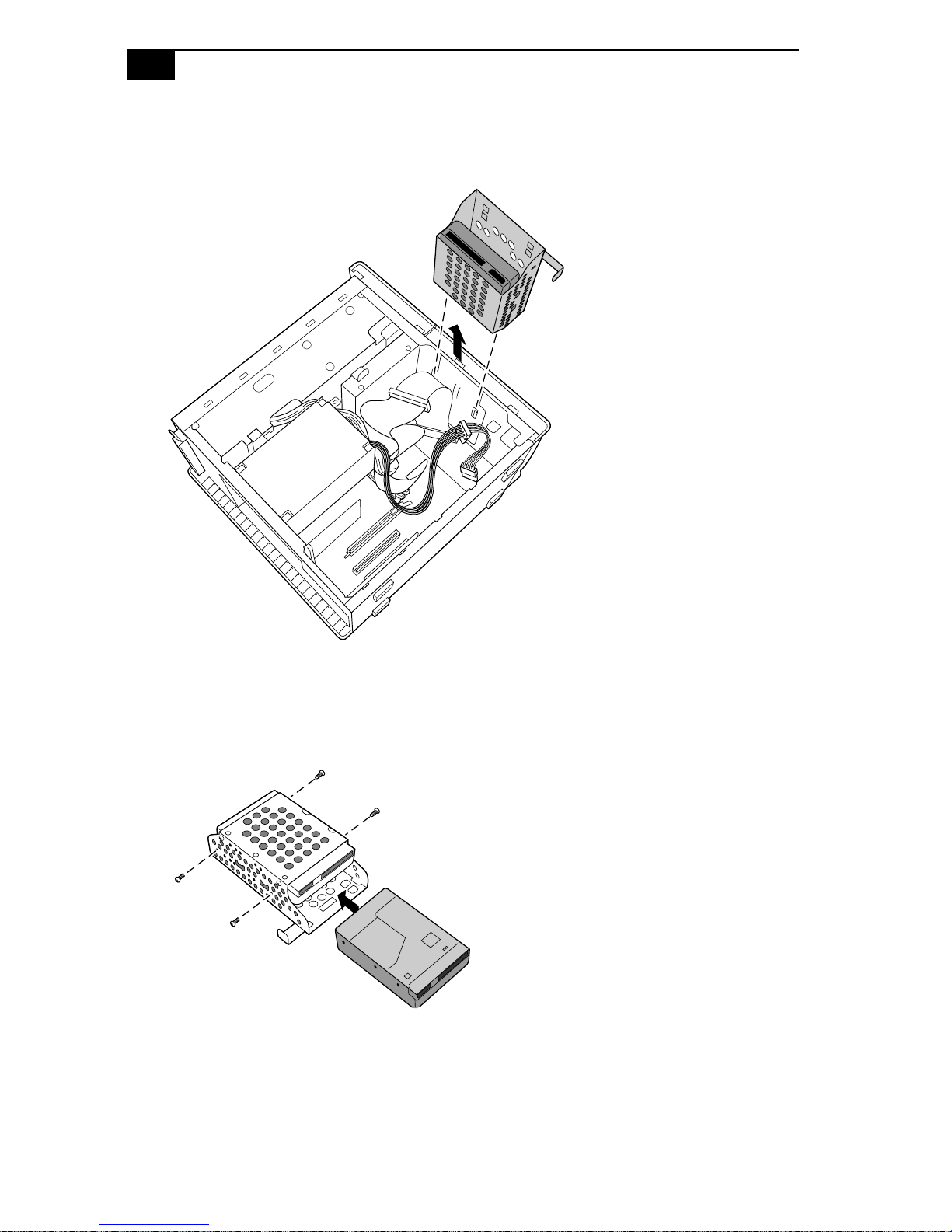

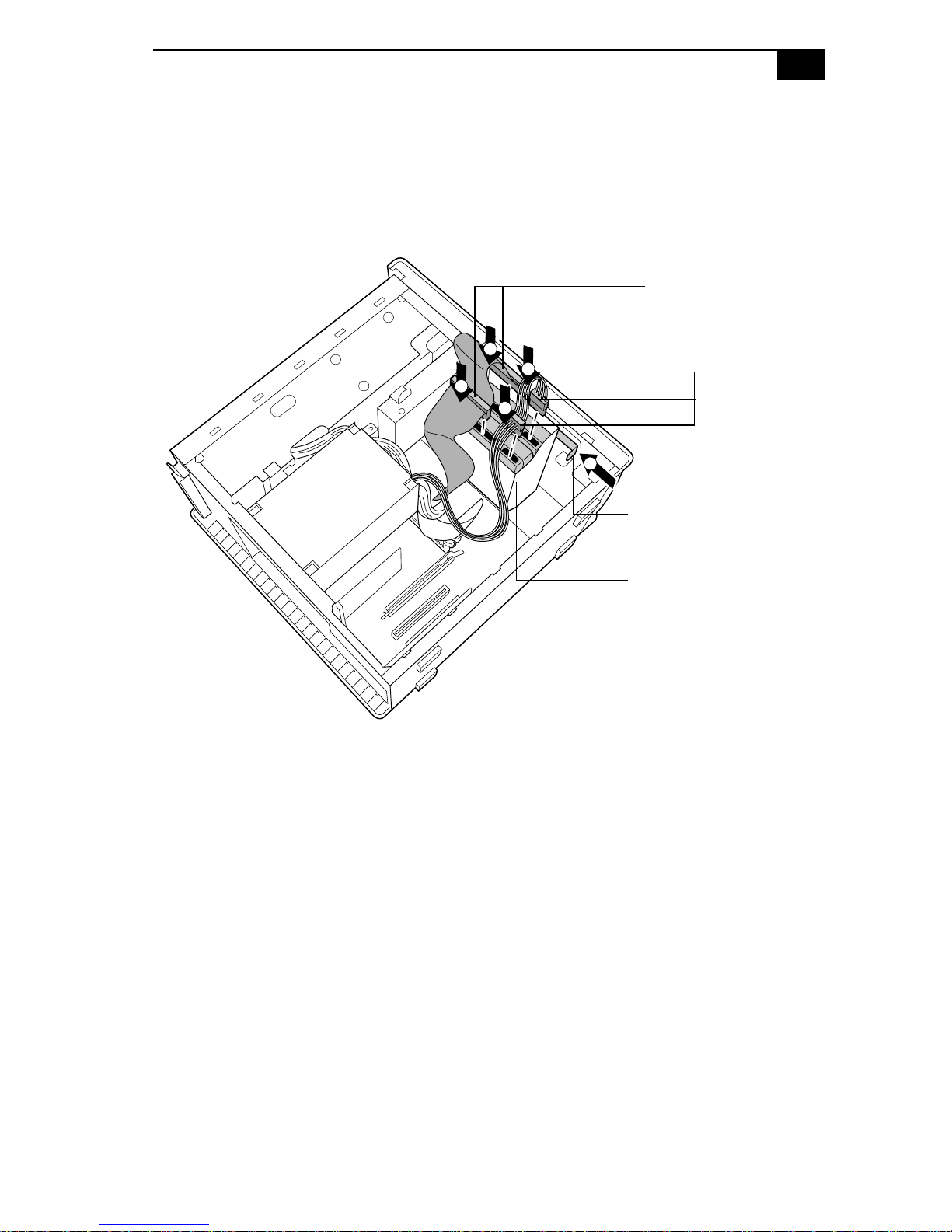

Installing a 3.5-inch Internal Hard Disk Drive......................................42
To identify additional hard disk space ...........................................46

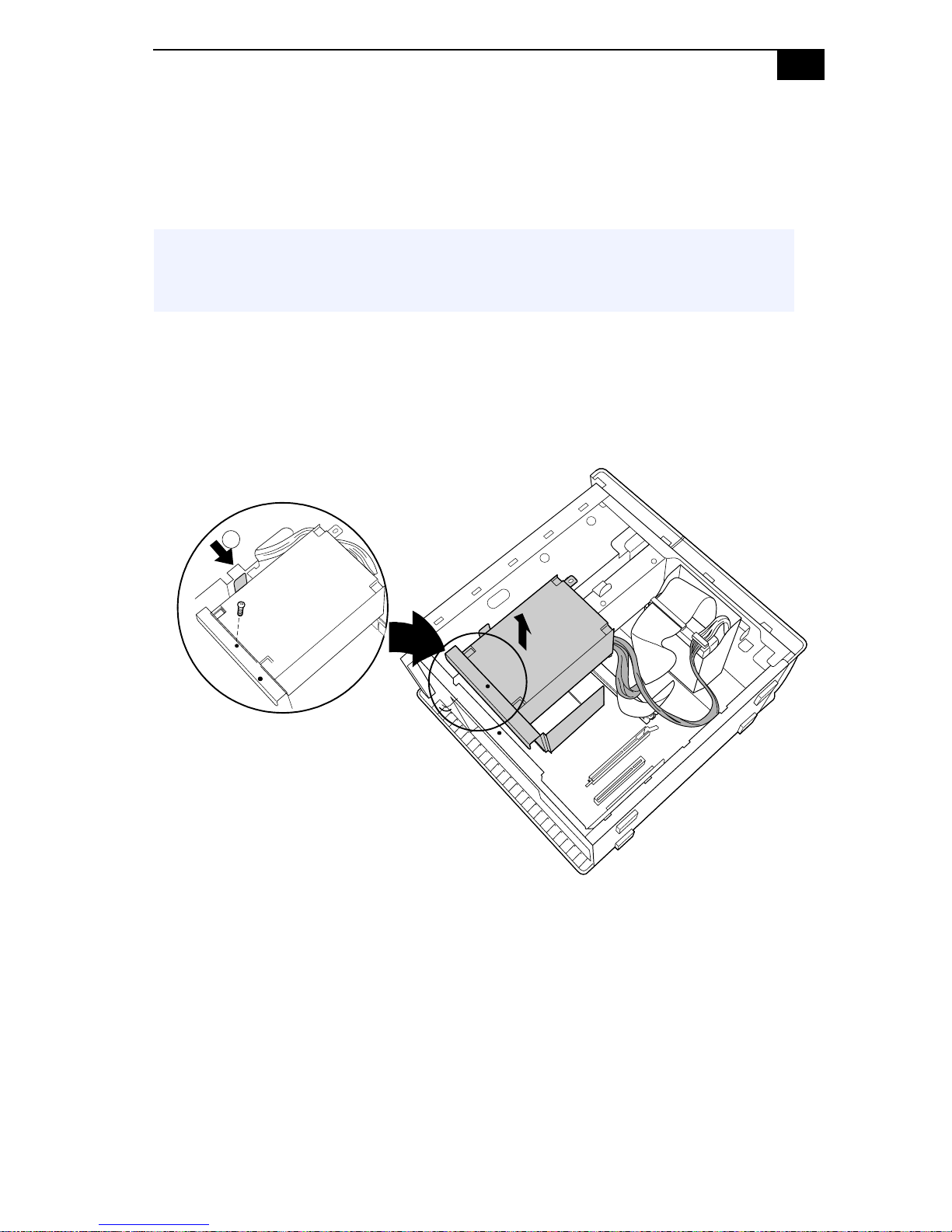

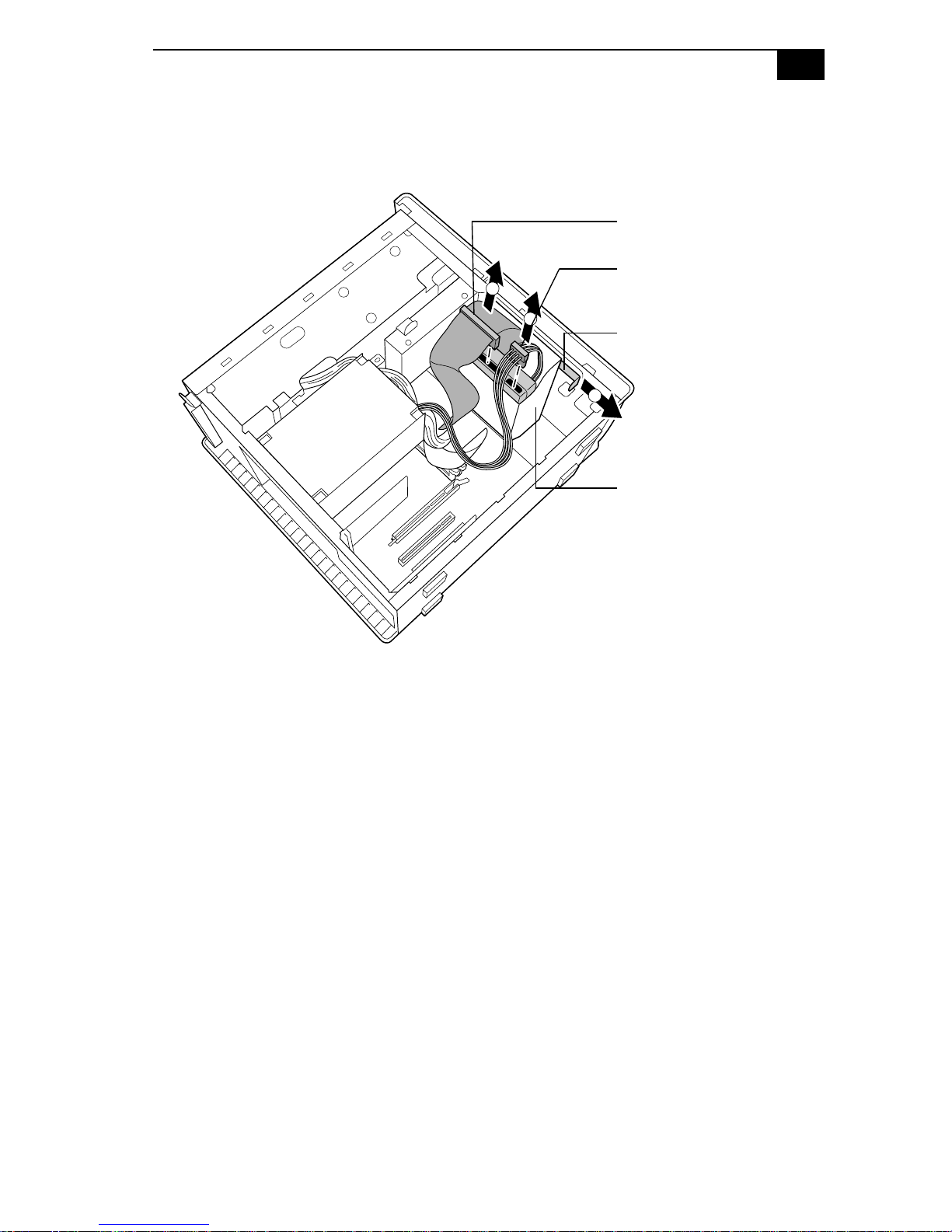

Removing the Power Supply...................................................................47
Replacing the Power Supply ...................................................................48

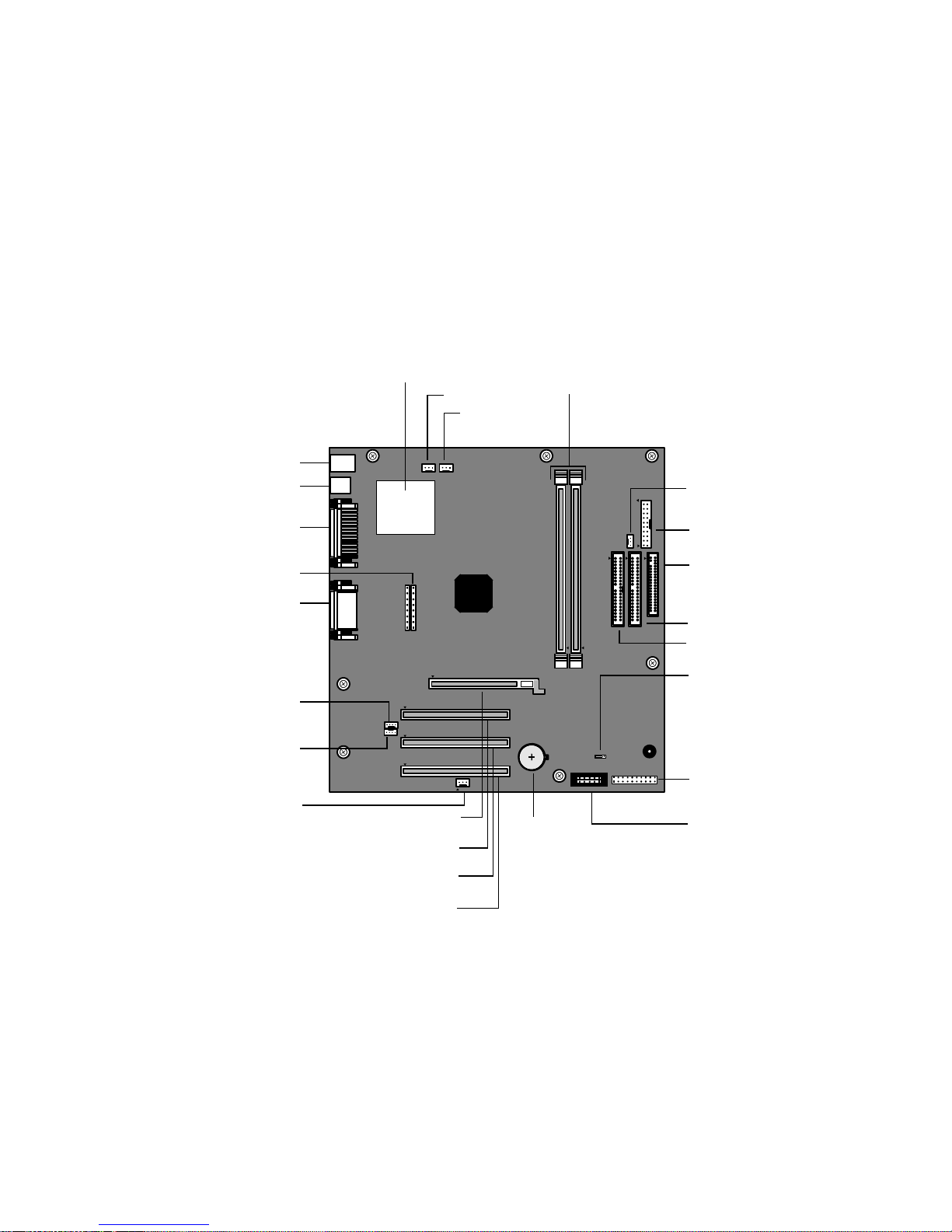

Chapter 4 — System Board ............................................... 49
Memory Module (DIMM) Slots ..............................................................50

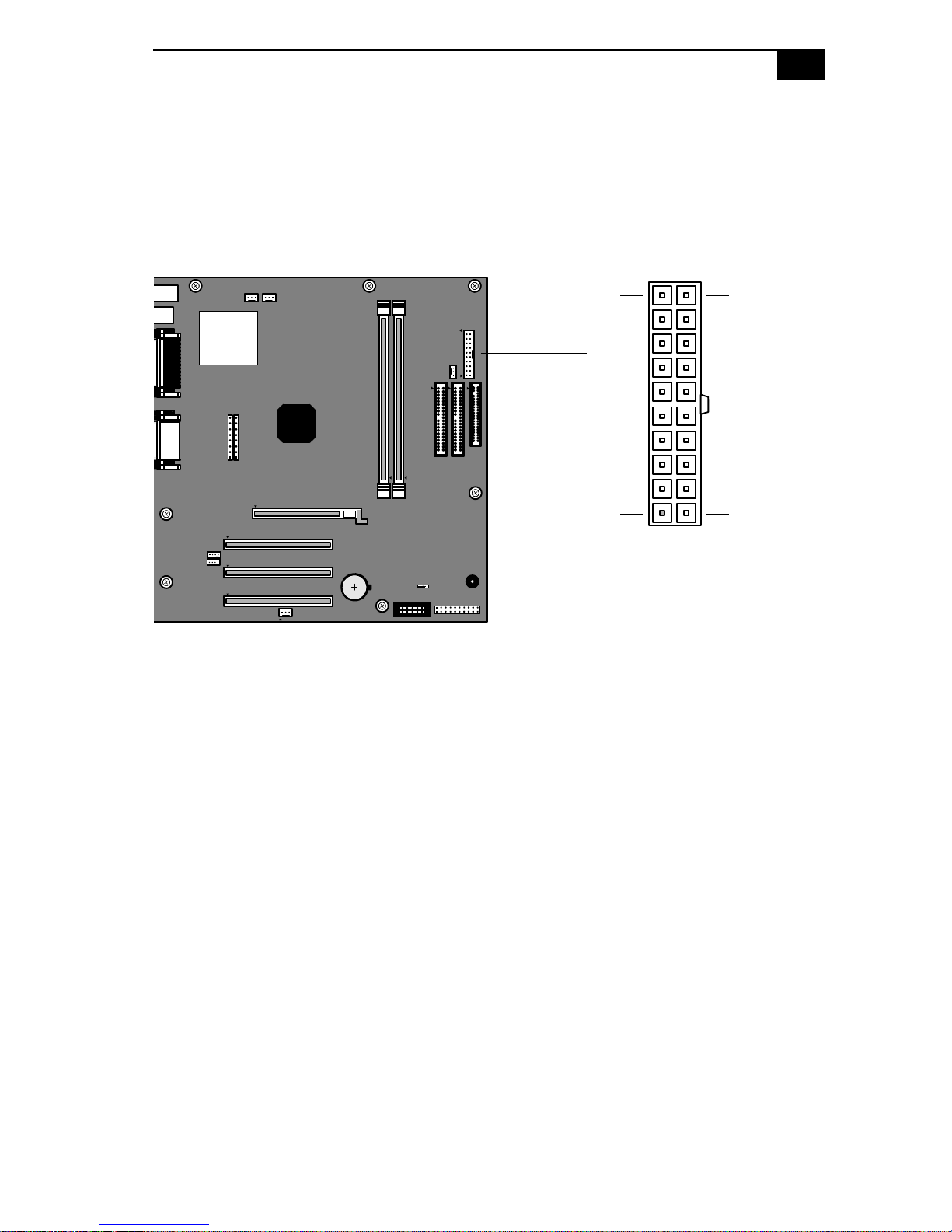

Power Supply Header ..............................................................................51
CLR CMOS Jumper...................................................................................52
Chapter 5 — CMOS Setup Options ................................... 53
Main Screen ...............................................................................................55
Advanced Screen ......................................................................................57
Power Screen..............................................................................................58
Boot Screen ................................................................................................59
Exit Screen ..................................................................................................60
Chapter 6 — Miscellaneous Technical Information......... 61
User and Supervisor Passwords ............................................................62
Beep Code Error Messages .....................................................................63
PCI Configuration Status and Error Messages ....................................64
DMA Channel Assignments ...................................................................65
System I/O Address Map ......................................................................66
Memory Map ............................................................................................68
IRQ Settings ..............................................................................................69
xi
Chapter 7 — Specifications................................................71
Processor ....................................................................................................71
Chipset ......................................................................................................71
PCI Bus ......................................................................................................71
AGP Bus ....................................................................................................71
Memory Modules ....................................................................................72
Memory Configurations .........................................................................72
L2 Cache ....................................................................................................72
Graphics ....................................................................................................72
Audio .........................................................................................................73
Communications .....................................................................................73
I/O and Expansion Slots .........................................................................74
Floppy Disk Drive and Controller ........................................................74
Hard Drives and Controller ...................................................................74
Optical Drives ...........................................................................................75
System BIOS .............................................................................................75
Index .................................................................................. 77
xii
VAIO Digital Studio System Reference Manual
Chapter 1
Identifying Components
The following sections identify and describe each component that is
visible from the exterior of the VAIO Digital Studio™ computer. Internal
components are identified in the appropriate section of this manual.
1
2
VAIO Digital Studio System Reference Manual
Front View
Drives
Identifying Components
Optical disc drive #1
Optical disc drive #2
Floppy disk drive
3
DRIVE
Drive Description
Optical disc drive #1 See Specifications sheet for details.
Optical disc drive #2 See Specifications sheet for details.
Floppy disk drive 3.5-inch, 1.44 MB.
* The Specifications sheet is supplied with your computer's original documentation.
*
*
4
VAIO Digital Studio System Reference Manual
Buttons and Switches
Optical disc eject
Floppy disk eject
DRIVE
Power on/off
Button or switch Description
Optical disc eject button
Automatically opens and closes the assigned
optical drive tray.
Floppy disk eject button Ejects a floppy disk.
Power on/off switch Turns system power on, off, or into Stand by
mode.
Indicators
DRIVE
Identifying Components
Floppy disk drive access
Hard disk drive access
Optical disc drive access
5
Power/Stand by
Indicator Description
Floppy disk drive access
indicator
On (green) indicates floppy disk drive
activity.
Hard disk drive access indicator On (red) indicates hard disk drive activity.
Optical drive access indicator On (red) indicates optical disc activity.
Power/Stand by indicator Stand by (amber) indicates the computer
is in Stand by mode.
On (blue) indicates the computer is out of
Stand by mode, ready to use.
Off (no color) indicates the computer is
turned off or in Hibernation mode.
6
VAIO Digital Studio System Reference Manual
Connectors
DRIVE
USB1, USB2 ports
i.LINK port
Connector Description
i.LINK® port
(IEEE1394)
*
Connects to a digital device that has a 4-pin i.LINK
connector.
USB1, USB2 ports Connects to USB devices.
* To connect to a 6-pin i.LINK device, use the i.LINK port on the back of the system. A 6-pin i.LINK
connector can supply power from the computer to the device if the device also has a 6-pin i.LINK port.
A 4-pin i.LINK connector cannot supply power to the device.
Rear View
Mouse
Keyboard
USB3
USB4
Ethernet
Monitor
KEYBOARD
USB
MONITOR
Identifying Components
MOUSE
PRINTER
7
AC Input port
Printer
i.LINK port
Serial
Headphones
Line In
Mic
i.LINK
S400
HEADPHONES
SERIAL
LINE IN
MIC
4
3
2
1
LINE
Line Telephone
TELEPHONE
8
Icons
VAIO Digital Studio System Reference Manual
KEYBOARD
MOUSE
USB
MONITOR
PRINTER
i.LINK
S400
HEADPHONES
SERIAL
LINE IN
MIC
Icon Label Area
Icon Description
Mouse port
Keyboard port
Universal Serial Bus (USB) port
Ethernet port (for LAN connection only)
4
3
2
1
LINE
TELEPHONE
Icon Label Area
Serial port
Icon Description
Printer/Parallel port
i.LINK® (IEEE1394) port
Headphones jack
Line In jack (audio)
Mic (microphone) jack
Monitor port
Line jack
Identifying Components
9
Telephon e j ack
* In models with an HPNA modem, the telephone jack does not exist.
*
10
VAIO Digital Studio System Reference Manual
I/O Connectors
The following section identifies the various I/O connectors.
Keyboard and Mouse Ports
The keyboard and mouse ports are physically identical and have the
same pinout. They are standard 6-pin PS/2® compatible female ports.
2
3
46
5
1
USB Ports
The USB ports are standard 4-pin USB ports. Two USB ports are located at
the front, and two at the rear of the system.
Serial Ports
The serial port is a standard 9-pin DB-9 male port.
6
1
9
5
Identifying Components
Printer/Parallel Port
The printer/parallel port is a standard 25-pin DB-25 female port.
11
25
14
13
1
Monitor Port
The monitor port is a standard 15-pin female high-density
VGA-type port.
10
15
11
5
1
6
12
Mic, Line In, and Headphones Jacks
VAIO Digital Studio System Reference Manual
The microphone, line in, and headphones jacks are physically identical,
but have different connections. They are standard 3.5 mm stereo minijacks.
Headphones Line In Mic
Connector Description
Headphones 1.0 Vrms (typical).
Mic Electret condenser microphone input.
Line In 1.0 Vrms (typical), 10 Kohm impedance.
Telephone and Line Jacks
The telephone and line jacks are physically identical and have identical
connections. They are standard RJ-11 female phone jacks. However, the
line jack is for connecting to a telephone line that comes from the wall,
and the telephone jack is for connecting the computer to a telephone.
Your computer has only one RJ-11 female phone jack if you have a
HomePNA modem installed. The modem installed on your computer
may differ depending on the configuration you purchased.
Line Phone
✍ Accidentally plugging a phone line from the wall into the modem’s telephone jack, and a
telephone into the line jack, does not damage the modem card or telephone equipment.
However, the modem will not work correctly.
Identifying Components
13
i.LINK (IEEE1394) Ports
The 6-pin i.LINK® port on the back of the system can supply power from
the computer to a device if the device also has a 6-pin i.LINK port. The
6-pin port supplies 10 V to 12 V and a maximum power of 6 watts.
✍ i.LINK is a trademark of Sony used only to designate that a product contains an IEEE1394
connection. The i.LINK connection may vary, depending on the software applications,
operating system and compatible i.LINK devices. All products with an i.LINK connection may
not communicate with each other.
✍ Refer to the documentation that came with your compatible i.LINK device for information on
operating conditions and proper connections. Before connecting compatible i.LINK PC
peripherals to your system, such as an optical disk or hard disk drive, confirm their operating
system compatibility and required operating conditions.
The 4-pin i.LINK port at the bottom of the front panel does not supply
power.
6-pin i.LINK port
(IEEE1394)
On back of
system
4-pin i.LINK port
(IEEE1394)
At bottom of
front panel
Ethernet Port
The Ethernet port on the rear of the system is used to connect to a
100BASE-TX/10BASE-T Ethernet network.
Ethernet
On back of
system
14
VAIO Digital Studio System Reference Manual
Expansion Slots
There are three PCI slots, two of which are available for expansion (PCI
No. 2 and No. 3). The other PCI slot is occupied by the fax/modem card
(PCI No. 1). There is one AGP slot that is available for expansion.
Slot No. 4 (AGP)
Slot No. 3 (PCI)
Slot No. 2 (PCI)
Slot No. 1 (PCI)
Chapter 2
Configuring Your System
This chapter contains information on configuring your system.
Configuring your system can consist of the following:
❑ Making changes to the BIOS settings.
❑ Making changes to the display's power management settings.
15
16
VAIO Digital Studio System Reference Manual
Accessing the BIOS Setup Utility
You must access the BIOS Setup Utility to make changes to the BIOS
settings (see “CMOS Setup Options” on page 53 for information on BIOS
settings).
! Before rebooting the system, save and close all open files, and exit open
applications.
1 Reboot your computer by selecting Shut Down... from the Start
menu, then selecting Restart.
2 When the Sony logo appears, press F2.
3 The AwardBIOS Setup Utility screen appears.
Each menu presents options for modifying the system configuration.
Use the left and right arrow keys to select a menu from the menu bar.
Use the up and down arrow keys to select items within a menu. Once
an item is highlighted, use the plus/minus (+/-) keys to modify a
setting.
If an item has a triangle ( ) to its left, this indicates that a sub-menu of
options is available. Press ENTER to access a sub-menu. If a submenu contains items with a triangle, there is another layer of options
from which to select.
4 Once you select an option, press ESC to back out of each menu until
you reach the top level, where the menu bar appears.
5 To exit the BIOS setup utility, press ESC from any top-level screen and
follow the prompts.
Configuring Your System
17
Changing the Display's Power Management
Settings
A display that has power management capability is designed to operate
on reduced power or shut itself off after the system has been idle for a
specified period of time.

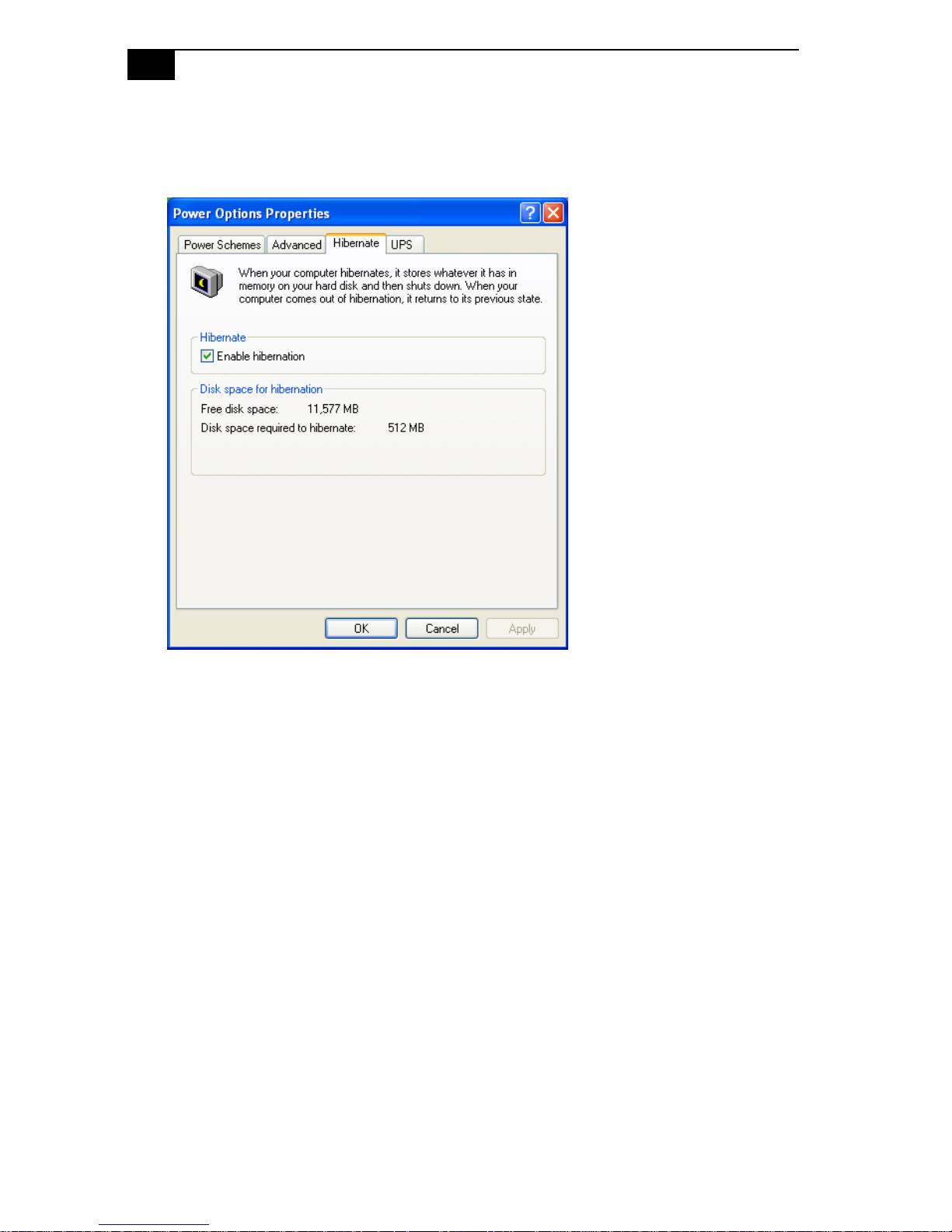

1 From the Start menu, point to Settings, Control Panel, then click
Power Options.
The Power Options Properties dialog box opens, with the Power
Schemes tab displayed.
2 Select the power scheme that is most appropriate for the way you use
your computer.
To change a power scheme, change the settings for Turn off monitor,
Turn off hard disks, System stand by, and System hibernates.
18
VAIO Digital Studio System Reference Manual
The Turn off monitor option allows you to specify the period of
inactivity (in minutes) that you want to elapse before your monitor
turns off when your computer is running on AC power. The display
reactivates when you move the mouse or press a key.
The Turn off hard disks option allows you to specify the period of
inactivity (in minutes) that you want to elapse before your hard disks
turn off when your computer is running on AC power.
The System stand by option allows you to specify the period of
inactivity (in minutes) that you want to elapse before your computer
goes on Stand by when your computer is running on AC power.
Power is reactivated when you click the left mouse button or press
spacebar on the keyboard.
The System hibernates option allows you to specify the period of
inactivity (in minutes) before your computer goes into the hibernate
state. Power is reactivated when you push the power button.
3 To save a new power scheme, first modify the settings, click Save As,
type a descriptive name, and then click OK.
4 Click the Advanced tab.
Configuring Your System
19
5 Select the desired settings.
20
VAIO Digital Studio System Reference Manual
6 Click the Hibernate tab.
7 Select the settings most appropriate for your system.
Configuring Your System
8 Click the UPS tab.
The UPS tab enables you to select and configure an Uninterruptible
Power Supply (UPS) device for your system.
21
9 Select and configure the settings most appropriate for your system
and click OK. For more information about configuring a UPS device,
refer to your Microsoft® Windows® XP operating system online
Help.
22
VAIO Digital Studio System Reference Manual
Chapter 3
Removing, Installing, and
Replacing Components
This chapter describes removing, installing, and replacing major
components for upgrading, reconfiguring, and troubleshooting the
components.
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.
✍ Systems differ by model, so your system may appear different from the illustrations in this
chapter.
23
24
VAIO Digital Studio System Reference Manual
Removing the Side Cover
You must remove the side cover to access the system board, add-in cards,
power supply, battery, memory, and internal drives.
1 From the rear of the unit, pull the metal tab shown in the next
diagram.
2 Pull the top of the side cover away from the unit about two inches,
then gently lift out the side cover.
Pull tab towards rear to
release front panel
Rotate top out a few
inches, then lift out
Removing, Installing, and Replacing Components
25
Replacing the Side Cover
1 From the rear of the unit, align the bottom of the side cover so that it
slips into the lip on the bottom of the unit.
2 Push the top of the side cover up against the top of the unit until the
side cover snaps into position.
26
VAIO Digital Studio System Reference Manual
Removing a PCI Add-in Card
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut down
the computer, and unplug the power cord.
1 Remove the side cover (see “Removing the Side Cover” on page 24).
2 Disconnect any cables attached to the add-in card you want to
remove.
3 Remove the screw that secures the add-in card to the chassis.
! Hold the add-in card by its edges and do not touch any components or
connector contacts on the card. Static electricity in your body may
damage sensitive components on the card. As a precaution, touch any
exposed metal part on the metal chassis (preferably the metal part on
the power supply) before handling an add-in card to discharge any static
electricity in your body.
Removing, Installing, and Replacing Components
4 Remove the add-in card from the PCI slot and store the card in an
anti-static wrapper for future use.
27
✍ Grasp the card with one hand on each end, and gently pull up as you rock the card
from side to side.
5 If you do not replace the card or install another add-in card, install a
slot cover over the vacant slot at the rear of the chassis (see “Covering
an Open I/O Slot” on page 41).
6 Replace the side cover (see “Replacing the Side Cover” on page 25).
28
VAIO Digital Studio System Reference Manual
Installing a PCI Add-In Card
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.
1 Remove the side cover (see “Removing the Side Cover” on page 24).
2 Locate an available expansion slot.
3 Remove the slot cover adjacent to the selected slot (see “Removing a
Slot Cover” on page 40).
4 Insert the add-in card into the PCI slot. Use a gentle rocking motion,
pressing down until the card is fully seated.
✍ Align the card's bracket so that the bottom of the bracket fits into the slot at the
bottom of the chassis. Make sure that the top of the bracket fits snugly against the
chassis lip after the card is fully inserted.
Removing, Installing, and Replacing Components
29
5 Replace the screw that secures the card.
6 Attach any necessary cables to the card (see the instructions that came
with the add-in card).
7 Replace the side cover (see “Replacing the Side Cover” on page 25).
8 Turn on the computer and follow any instructions that came with the
add-in card.
30
VAIO Digital Studio System Reference Manual
Installing an Add-On AGP Card
Your computer has one open AGP expansion slot. This slot enables you to
install an AGP card to enhance your system’s graphics capabilities. The
length of the AGP card should not exceed 9.05 inches.
✍ Installing an AGP card disables the internal graphics. Your system supports AGP 4X
enabled graphics cards.
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut down
the computer, and unplug the power cord.
1 Remove the side cover (see “Removing the Side Cover” on page 24).
2 Remove the slot cover from the AGP slot (see “Removing a Slot
Cover” on page 40).
3 Press down on the end latch (see diagram) before inserting the AGP
card.
Press down on latch
before inserting card
4 Firmly insert the AGP card into the slot.
Removing, Installing, and Replacing Components
31
5 Lift up the end latch if the latch does not automatically lock back into
place.
6 Secure the AGP card with the screw removed in step 2.
7 Replace the side cover (see “Replacing the Side Cover” on page 25).
8 Attach the monitor cable to the monitor port on the AGP card.
9 Turn on the computer.
10 Follow the instructions that came with the AGP card to install the
AGP card driver.
32
VAIO Digital Studio System Reference Manual
Replacing the Lithium Battery
You may need to replace the lithium battery if your computer consistently
loses the date or time settings after turning it off. The lithium battery has
a typical life of three years, after which the battery may be too weak to
power the CMOS memory.
! When you remove the lithium battery, all values stored in the CMOS memory
(BIOS setup values and Plug and Play values) may be lost. Although the
computer can hold the charge for a short time while replacing the battery, it
is safer to assume that the settings will be lost. When the values are lost, the
BIOS values revert to their factory-default settings (see “Accessing the BIOS
Setup Utility” on page 16).
Do not handle damaged or leaking batteries.
The lithium battery may explode if mistreated. Do not disassemble it or
dispose of it in fire.
1 Reboot your computer by selecting Shut Down... from the Start
menu, and then selecting Restart.
2 If the error message “Error: Check date and time settings” appears
during the reboot sequence, press F2 during the reboot process to
access the BIOS Setup Utility. Otherwise it is not necessary to replace
the battery at this time, and you can skip all remaining steps.
3 Compare all the BIOS options to their default settings (see “CMOS
Setup Options” on page 53). Make a list of all the BIOS options that
are different from their default values. Refer to this list when you
restore the BIOS settings later.
4 Select Exit Discarding Changes from the main menu using the right
arrow key.
5 Press Enter, type Y when prompted to discard changes, then press
Enter to exit the BIOS Setup Utility.
6 Turn off the computer.
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.
7 Remove the side cover (see “Removing the Side Cover” on page 24).
Removing, Installing, and Replacing Components
33
8 If necessary, remove any add-in cards (see “Installing an Add-On
AGP Card” on page 30) to gain access to the battery. You may also
need to disconnect some cables.
! Touch any exposed metal part of the chassis to discharge static
electricity in your body before handling an add-in card or other
sensitive electronic component.
9 Use a small flathead screwdriver or your finger to push in (not down)
against the small tab at one end of the battery holder to pop out the
battery.
Push in (not down) on
tab to pop out battery
10 Gently lift out the battery and dispose of it according to the
instructions that came with the new battery.
11 Insert the new battery into the battery holder, with the plus (+) side
up, and press down until the battery is secure.
✍ The Sony CR2032 battery is recommended. Using a type of battery other than a
CR2032 may present a risk of fire or explosion.
12 Replace any add-in cards that were removed.
13 Reconnect any cables that were disconnected.
14 Replace the side cover (see “Replacing the Side Cover” on page 25).
15 Reconnect the power cord and turn on the computer.
34
VAIO Digital Studio System Reference Manual
16 If the error message “Error: Check date and time settings.” appears
during the reboot sequence, press F2 during the reboot process to
access the BIOS Setup Utility. If no error message displays, the
computer’s BIOS settings were retained during the battery
replacement and you can skip the remaining steps.
17 Refer to the list you made in step 3 and restore any non-default BIOS
settings (see “CMOS Setup Options” on page 53).
18 Select Exit Saving Changes from the main menu using the right arrow
key.
19 Press Enter, type Y when prompted to discard changes, then press
Enter to exit the BIOS Setup Utility.
The computer’s BIOS settings are now restored.
Removing, Installing, and Replacing Components
35
Removing a Memory Module
You may need to remove a memory module if you change the memory
configuration or replace a bad module.
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.
1 Remove the side cover (see “Removing the Side Cover” on page 24).
✍ The memory modules are located beneath the power supply. You need to remove
the power supply to reach the memory modules.
2 Remove the power supply (see “Removing the Power Supply” on
page 47).
! Touch any exposed metal part of the chassis to discharge static
electricity in your body before handling the memory module.
3 Locate the memory module you wish to remove.
36
VAIO Digital Studio System Reference Manual

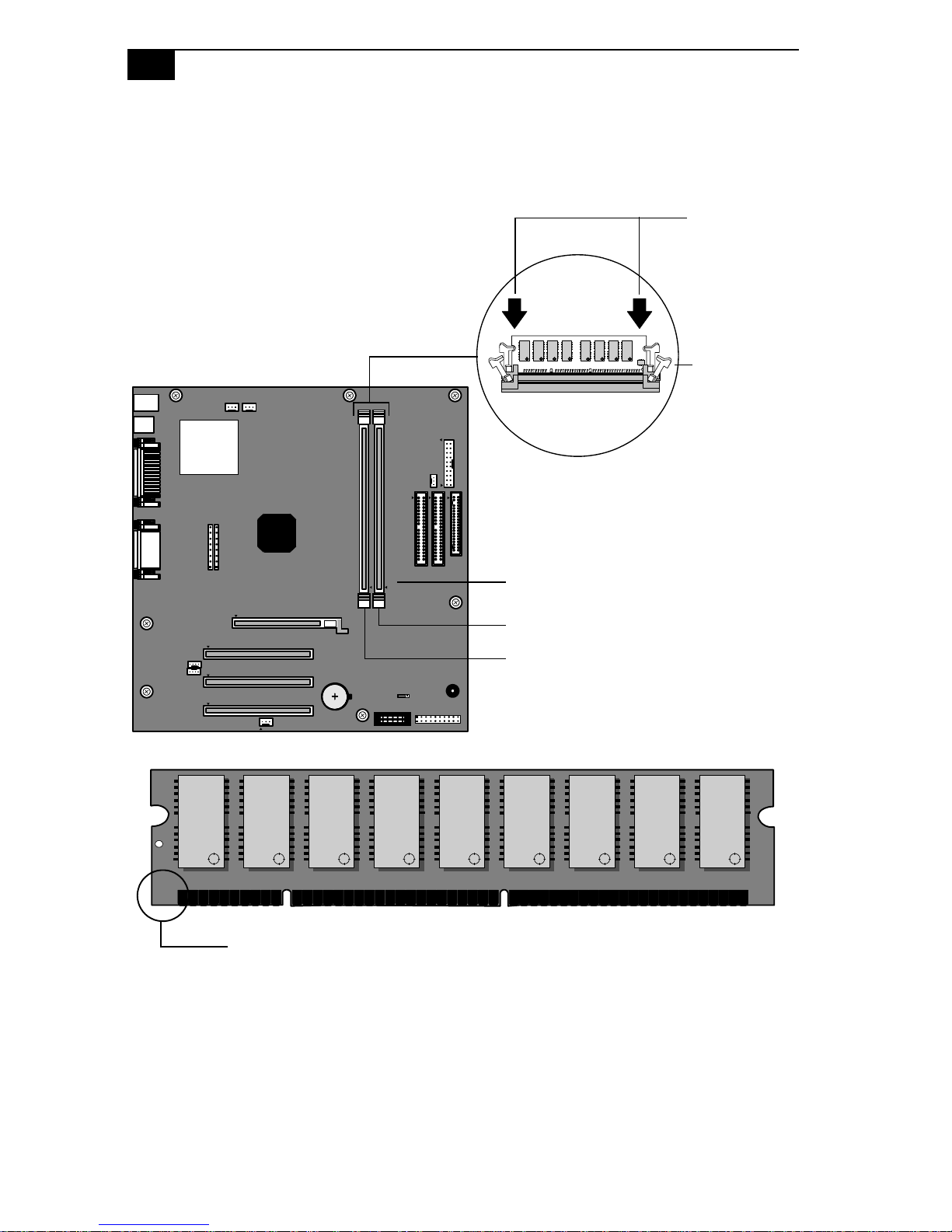

4 Reach around each side of the power supply and push down the
handle on each side of the memory module to eject the module from
its slot.
Push out
Handles
5 Grasp one edge of the memory module and lift out. Store the module
in a static-free bag.
Removing, Installing, and Replacing Components
37

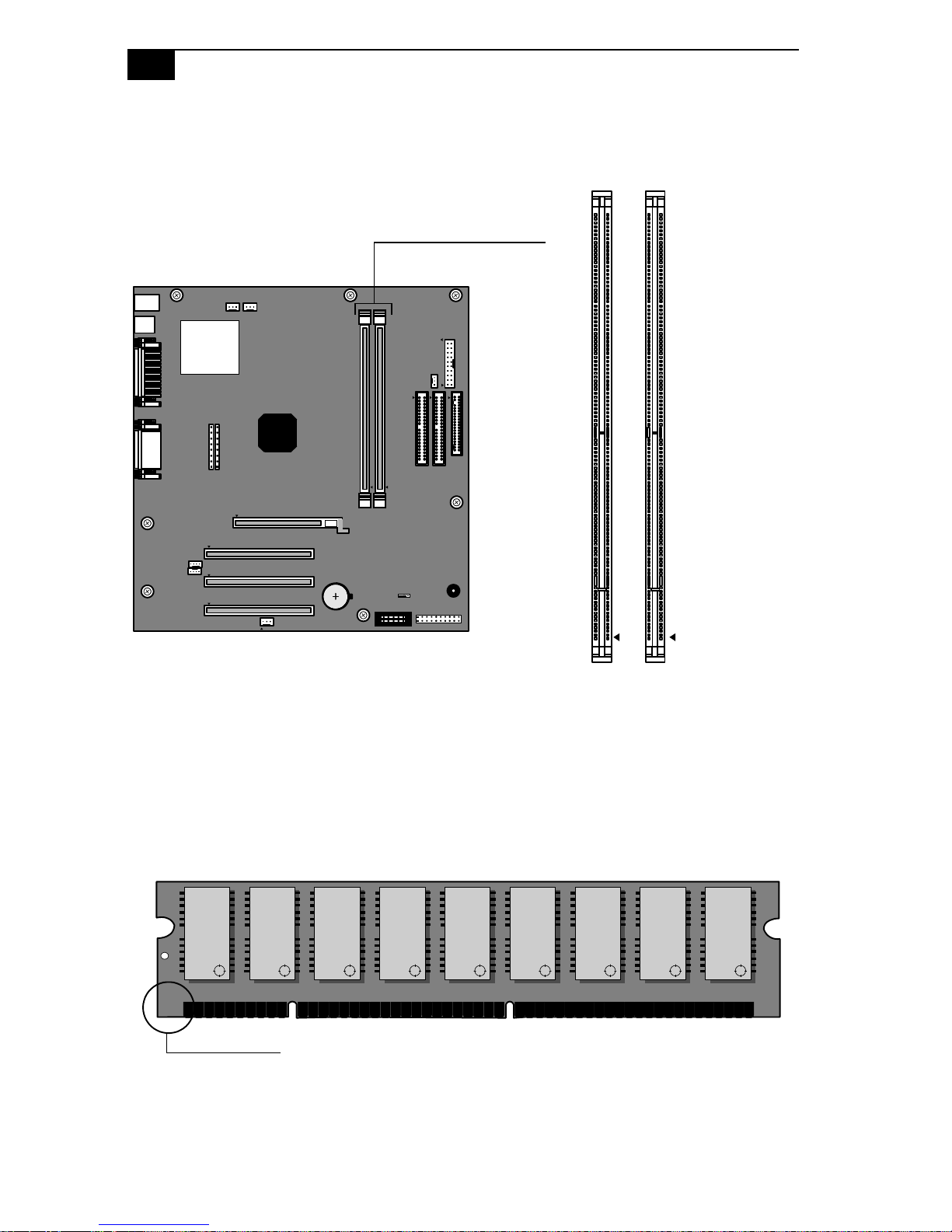

Installing System Memory
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.
1 Choose the size of the memory module and configuration as shown
in the following table. Memory modules can vary in size and speed
between sockets. The minimum memory size is 8 MB. The maximum
memory size is 512 MB. The BIOS automatically detects the type, size
and speed of the memory modules.
Memory module configurations (MB)
DIMM1 DIMM2
0, 8, 16, 32, 64, 128, 256 0, 8, 16, 32, 64, 128, 256
*
* Your computer ships with at least 128 MB. SDRAM is expandable to
512 MB. Your model may ship with more than 128 MB SDRAM
depending on the configuration you purchased.
✍ Use only 133 Mhz unbuffered FSB-supported memory. PC133 (CL3) does not
support EDO memory or buffered SDRAM memory.
2 Remove the side cover (see “Removing the Side Cover” on page 24).
3 Remove the power supply (see “Removing the Power Supply” on
page 47).
4 If necessary, remove the memory module you wish to replace (see
“Removing a Memory Module” on page 35).
! Touch any exposed metal part of the chassis to discharge static
electricity in your body before handling a memory module.
5 If necessary, remove any previously installed AGP cards.
6 Remove the new memory module(s) from its anti-static package.
Hold the memory module only by its edges to prevent staticelectricity damage.
38
VAIO Digital Studio System Reference Manual
7 Align the module over the appropriate slot, noting the location of pin
1 on the module and pin 1 on the slot.
Press down
here
Handles
Pin 1 side
DIMM 2
DIMM 1
Memory module (DIMM)
1111
Indicates pin 1
8 Carefully but firmly insert the edge of the module into the slot.
Removing, Installing, and Replacing Components
39
9 Press down firmly and evenly at both corners until the module is
fully seated.
✍ When the module is fully seated, the handles on each side are straight up and
locked into the slot on each side of the module. If the handles are not totally
straight upright, continue to press down on each side of the module until the
handles lock into place.
10 Replace the power supply (see “Replacing the Power Supply” on
page 48).
11 Replace the side cover (see “Replacing the Side Cover” on page 25).
12 Reconnect the power cord and turn on the computer.
Your computer automatically recognizes the extra memory and will
configure itself accordingly when you turn on the computer. No further
action is required.
40
VAIO Digital Studio System Reference Manual
Removing a Slot Cover
You remove a slot cover when you install an add-in card that occupies a
previously-empty slot.
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.
1 Remove the side cover (see “Removing the Side Cover” on page 24).
2 Locate the slot whose cover you want to remove.
3 Lay the system on its side.
4 Remove the screw from the slot cover.
5 Remove the loose slot cover and retain it for future use.
Removing, Installing, and Replacing Components
41
Covering an Open I/O Slot
Slot covers prevent air from escaping through the empty hole. If air
escapes, the components inside the computer cannot be properly cooled.
This may damage some components, especially the main processor
(which generates the most heat).
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.
1 Slide the tip of the slot cover (removed earlier) between the chassis
and system board.
2 Push the slot cover down until it rests firmly on the lip in the chassis.
All add-in card brackets and slot covers rest on this lip.
3 Replace the screw (removed earlier) to secure the I/O slot cover.
42
VAIO Digital Studio System Reference Manual
Installing a 3.5-inch Internal Hard Disk Drive
Your system comes with an available bay to hold an additional 3.5-inch
hard disk drive. The drive you install must not require front panel access.
The hard disk drive access light blinks when either internal drive is
active.
✍ Some models, such as Configure-to-Order (CTO) systems, may already have a
second hard disk drive installed.
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.

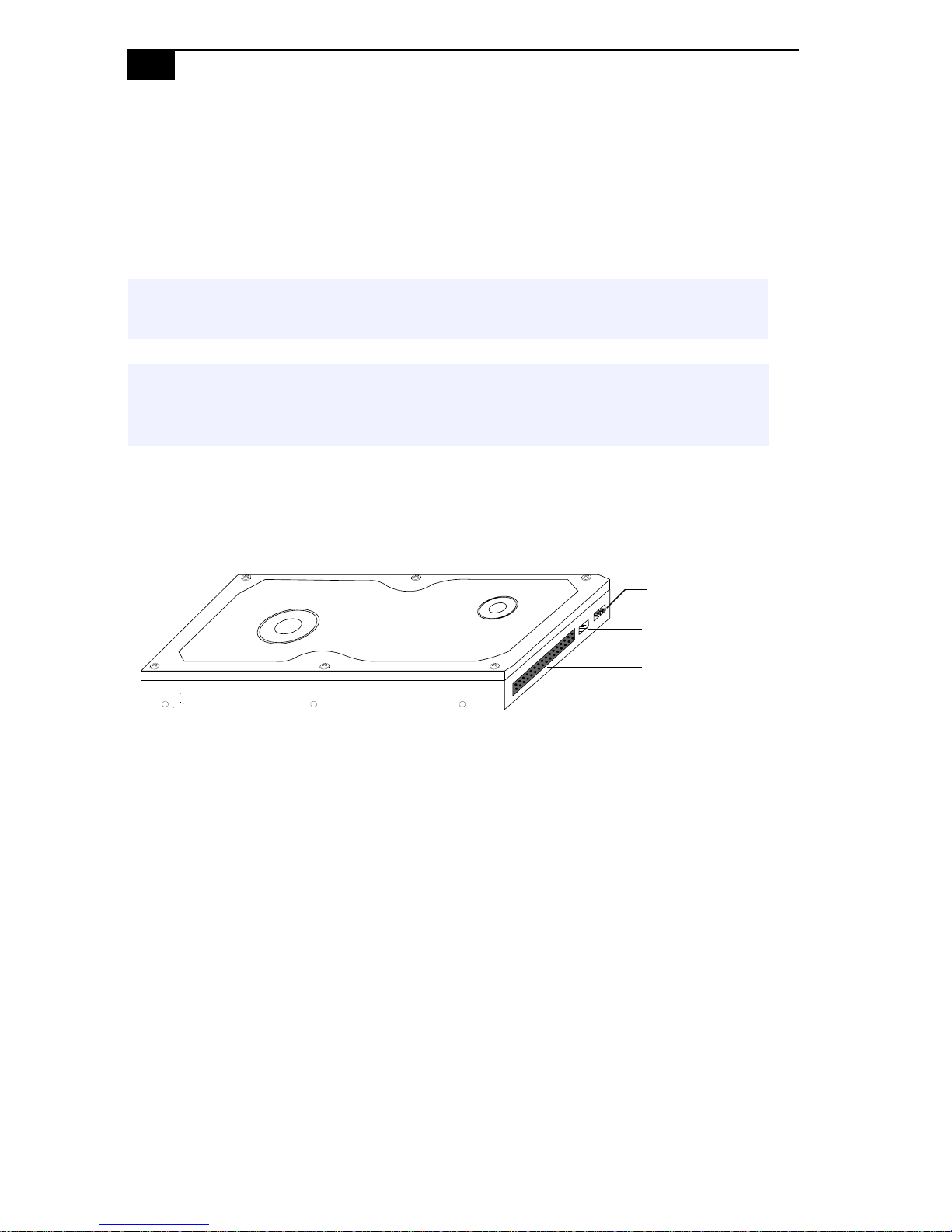

1 Configure the jumpers on the new drive as a slave device (see your
drive’s documentation for configuration instructions).
Power connector
Jumpers
Drive connector
2 Remove the side cover (see “Removing the Side Cover” on page 24).
Removing, Installing, and Replacing Components
3 Disconnect the drive connector (A in diagram).
A
43
Drive connector
Power supply connector
B
Tab
C
Disk drive holder
4 Disconnect the power connector (B in diagram).
5 Pull out on the tab (C) that secures the drive holder to the chassis.
44
VAIO Digital Studio System Reference Manual
6 Slide the drive holder up and out.
7 Slide the new drive into the bottom part of the drive holder and align
the holes on each side of the drive holder.
8 Secure the drive to the drive holder using screws in each of the two
holes on each side of the drive holder (screws are provided with the
new drive). Do not overtighten the screws.
Removing, Installing, and Replacing Components
9 Slide the drive holder back into the chassis so that the edge of the
holder is flush with the chassis.
10 Push in on the tab (A) to securely latch the holder to the chassis.
Drive connectors
45
C
E
B
D
A
Power connectors
Tab
Disk drive holder
11 Connect the inner drive cable connector (B) to the first drive.
12 Connect the outer drive cable connector (C) to the second drive.
13 Connect the first power connector (D) to the first drive.
14 Connect the second power connector (E) to the second drive.
15 Replace the side cover (see “Replacing the Side Cover” on page 25).
16 Reconnect the power cord to the system and then turn on your
computer.
46
VAIO Digital Studio System Reference Manual
To identify additional hard disk space
When you initialize the new hard disk drive, it must be configured as an
extended partition in Windows NT file system (NTFS) format.
1 Log on in Windows® as Administrator.
2 Click Start in the Windows taskbar and right-click on My Computer.
A shortcut menu appears.
3 Select Manage. The Computer Management window appears.
4 From the file directory on the right, go to Storage and then select Disk
Management.
5 Right-click on the newly installed, unformatted drive (Disk label
identified with red marking), and from the shortcut menu, select
Initialize Disk.
6 Click on the Unallocated area of the drive and then right-click to
display the shortcut menu.
7 Select New Partition. The New Partition wizard appears.
8 Follow the onscreen instructions to complete the process.
The Windows® XP operating system recognizes the new hard disk drive
and applies the NTFS file system format.
Removing, Installing, and Replacing Components
47
Removing the Power Supply
You remove the power supply when you insert a memory module (see
“Installing System Memory” on page 37).
! Before opening the system unit, save and close all open files, exit all open
applications, turn off the power to all attached peripheral devices, shut
down the computer, and unplug the power cord.
1 Remove the screw that secures the power supply to the rear of the
chassis.
2 Pull the tab (A) that latches the power supply to the chassis.
A
3 Slide the power supply up until the power supply clears the chassis.
4 Rotate the power supply upside down and rest it on top of the chassis
where the hard drive is located.
48
VAIO Digital Studio System Reference Manual
Replacing the Power Supply
1 Rotate the power supply down and slide it into the chassis along the
rails to each side of the chassis until the tab snaps into position.
2 Replace the screw that secures the power supply to the rear of the
chassis.
Chapter 4
System Board
This chapter identifies and describes components on the system board.
Keyboard, Mouse
USB3, USB4,
Ethernet
Printer (top)
Monitor, i.LINK
i.LINK Header
(to front panel)
Serial (top)
Mic in, Line in,
Line out
Aux-In
(not used)
CD-In
WOL_CON
(not used)
Processor
Slot No. 4 (AGP)
Slot No. 3 (PCI)
CPU Fan
CPU Therm
Memory
Battery
Power Supply
Fan
Power Supply
Floppy Disk
Primary IDE
Secondary IDE
CMOS Clear
Front Panel
Header
USB Header
(to front panel)
Slot No. 2 (PCI)
Slot No. 1 (PCI)
49
50
VAIO Digital Studio System Reference Manual
Memory Module (DIMM) Slots
DIMM1
DIMM2
Both sides of each Dual Inline Memory Module (DIMM) look very
similar. The side with pin 1 has a small "1" to the left of pin 1. Be sure to
orient a DIMM correctly in the DIMM slot (a small triangle on the slot
indicates pin 1).
Memory module (DIMM)
1111
Indicates pin 1
System Board
Power Supply Header
The power supply header on the system board connects to the power
supply connector labelled P1.
51
10
20
111
52
VAIO Digital Studio System Reference Manual

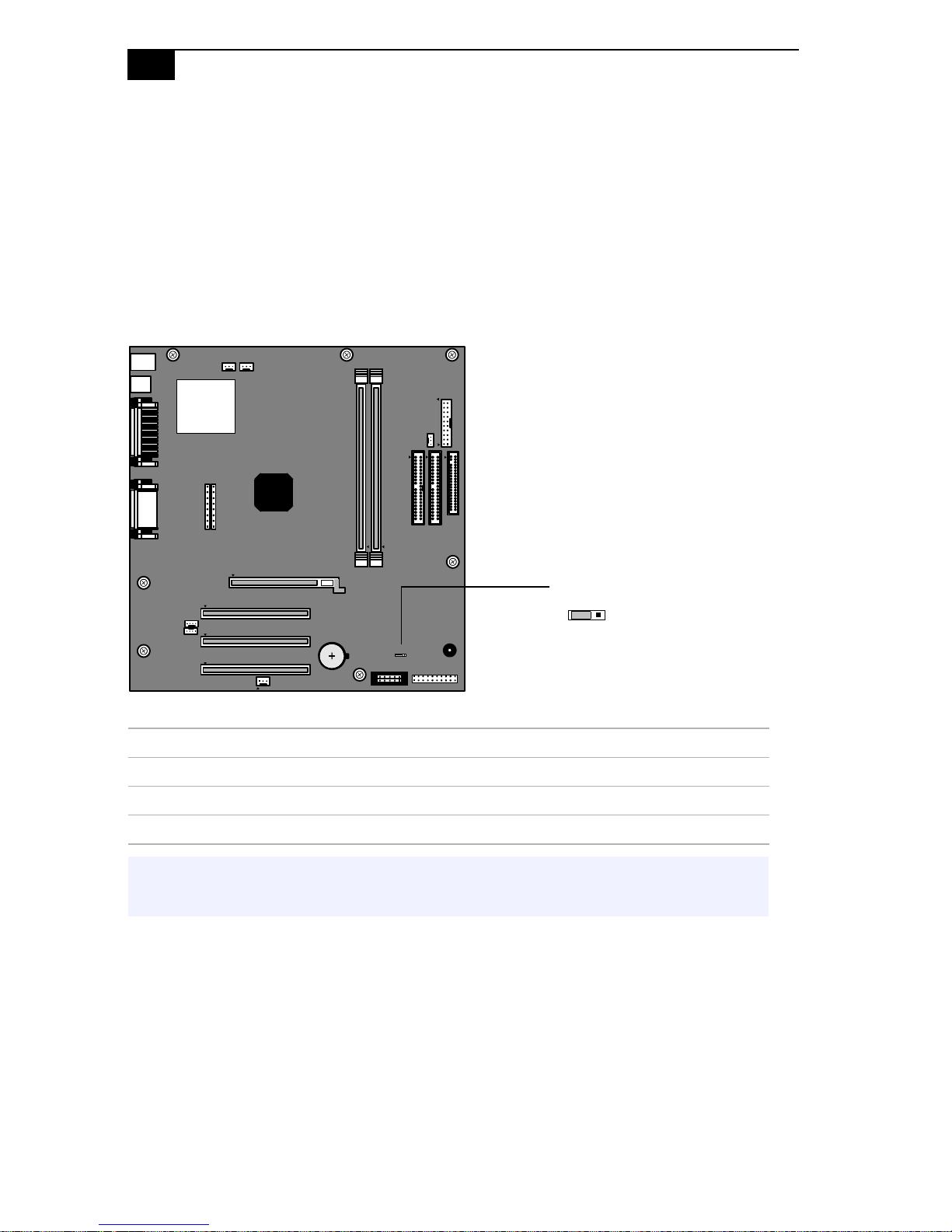

CLR CMOS Jumper
There is one user-configurable jumper for CMOS Clear.
The computer ships with CMOS Clear in the Normal position. Do not
change the position of this jumper unless directed by a technical support
person.
CMOS Clear
12 3
CMOS Clear Jumper settings
Jumper Plug Position Function
1-2 Normal
2-3 Clear
✍ The configuration jumpers should never need changing unless otherwise directed by a
technical support or service technician.
Chapter 5
CMOS Setup Options
This chapter describes each screen in the Award BIOS Setup Utility (see
“Accessing the BIOS Setup Utility” on page 16).
The Award BIOS setup has five menu items on the menu bar. These are:
❑ Main
❑ Advanced
❑ Power
❑ Boot
❑ Exit
Options that you can change are enclosed in brackets. Text that is not
enclosed in brackets cannot be changed.
A small triangle ( ) indicates that there is a sub-menu with additional
information and options. Press Enter to display the sub-menu. The
information and options in a sub-menu are context-sensitive (they appear
or disappear, depending on which options you select).
The item shown in [brackets] in this guide is the default option. The
option shown in [brackets] on the screen is the option currently set for
your system.
The other available options for each item are shown without brackets
directly below the default option in this guide. The available options are
listed in the order they occur when you press the + key.
Use the left and right arrow keys to choose a menu item. Use the up and
down arrow keys to select an option. Press Enter to display a list of
options, or press the + or - key to cycle through the other options.
If you display the list of options, use the up and down arrow keys to
select an option in the list, then press Enter to choose the selection.
Press Esc to go back to the main menu.
53
54
VAIO Digital Studio System Reference Manual
Press F10 to save the changes and exit, or press Esc to discard the
changes.
Follow the on-screen prompts for other choices. The bottom of the screen
presents a summary of the keys to use for navigation and control.
CMOS Setup Options
Main Screen
System Time [00:00:00]
System Date [01/01/2001]
55
Primary Master (see
Primary Slave (see
Secondary Master (see
Secondary Slave (see
Supervisor Password [Disabled]
User Password [Disabled]
Installed Memory See Specifications sheet for details.
BIOS Revision 1002
“IDE Sub-Menus”
“IDE Sub-Menus”
“IDE Sub-Menus”
“IDE Sub-Menus”
on page 56)
on page 56)
on page 56)
on page 56)
*
* The Specifications sheet is supplied with your computer’s original documentation.
56
VAIO Digital Studio System Reference Manual
IDE Sub-Menus
Type [Auto]
Translation Method
Cylinders
Heads
Sectors
CHS Capacity
†
†
‡
*
Maximum LBA Capacity
*
*
User Type HDD
CD-ROM
LS-120
ZIP-100
MO
Other ATAPI Device
None
[LBA]
Large
Normal
Match Partition Table
Manual
[1024]
[255]
[63]
8422 MB
30735 MB
Multi-Sector Transfers
*
[Maximum]
Disabled
2 Sectors
4 Sectors
8 Sectors
16 Sectors
32 Sectors
SMART Monitoring
*
[Disabled]
Enabled
PIO Mode
ULTRA DMA Mode
Set Device As
**
†
††
[4]
[5]
[Auto]
Floppy
Hard Disk
* This option appears when Type is set to User Type HDD. Actual capacity depends on product.
† This option appears when Type is set to Auto or User Type HDD.
‡ This option appears when Type is set to Auto or User Type HDD.
** This option appears when Type is not set to None.
†† This option appears when Type is set to ZIP-100 or MO.
Advanced Screen
CMOS Setup Options
57
CPU Speed See Specifications sheet for details.
I/O Device Configuration
Onboard AC97 Audio Controller [Enabled]
Disabled
Onboard 1394 Controller [Enabled]
Disabled
Onboard LAN Controller [Enabled]
Disabled
Onboard Serial Port 1 [3F8H/IRQ4]
2F8H/IRQ3
3E8H/IRQ4
2E8H/IRQ10
Disabled
Onboard Parallel Port [378H/IRQ7]
278H/IRQ5
Disabled
3BCH/IRQ7
Parallel Port Mode [Normal]
EPP
ECP
ECP+EPP
*
PCI Configuration
Slot 1 IRQ [Auto]
to NA
Slot 3 IRQ 3
4
5
7
9
10
11
12
14
15
Onboard LAN Boot ROM [Disabled]
Enabled
* The Specifications sheet is supplied with your computer’s original documentation.
58
VAIO Digital Studio System Reference Manual
Power Screen
Power Up Control
AC Power Loss Restart [Disabled]
Enabled
Power Up On Modem Act [Disabled]
Enabled
Wake On LAN [Disabled]
Enabled
Hardware Monitor
MB Temperature [(displays actual temperature)]
Ignore
CPU Temperature [(displays actual temperature)]
Ignore
CPU Fan Speed [(displays actual RPM)]
Ignore
Power Fan Speed [(displays actual RPM)]
Ignore
VCORE Voltage [(displays actual voltage)]
Ignore
+3.3V Voltage [(displays actual voltage)]
Ignore
+5V Voltage [(displays actual voltage)]
Ignore
+12V Voltage [(displays actual voltage)]
Ignore
-12V Voltage [(displays actual voltage)]
Ignore
CMOS Setup Options
Boot Screen
1. ATAPI CD-ROM [(displays installed drive)]
Disabled
2. Removable Device [Legacy Floppy]
LS120
ZIP-100
ATAPI MO
Disabled
3. IDE Hard Drive [(displays installed drive)]
Disabled
4. Other Boot Device [Disabled]
Network
SCSI Boot Device
Silent Boot [Enabled]
Disabled
59
60
VAIO Digital Studio System Reference Manual
Exit Screen
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Chapter 6
Miscellaneous Technical
Information
This chapter contains information on the following subjects:
❑ User and Supervisor password
❑ Beep code error messages
❑ PCI configuration status and error messages
❑ DMA channel assignments
❑ System I/O address map
❑ Memory map
❑ IRQ settings
61
62
VAIO Digital Studio System Reference Manual
User and Supervisor Passwords
The system allows you to specify up to two passwords (a User password
and a Supervisor password) in the CMOS Setup Utility. The User
password is required; the Supervisor password is optional.
Access to the CMOS Setup Utility depends on which passwords were
previously set, as indicated next.
If you set these passwords... ...the following passwords are required:
User password only User password is required at bootup.
Supervisor password only No password is required at bootup.
Supervisor password is required by most
setup options.
Both passwords User password is required at bootup.
Supervisor password is required by most
setup options.
Miscellaneous Technical Information
63
Beep Code Error Messages
During a normal bootup, a single short beep signifies that the system is
OK. Other beep patterns signify errors. The number of beeps indicates the
specific error that occurred.
The Sony Online Support technical representative needs to know how
many beeps your system produces if there is an error, so be sure to count
the number of beeps before calling for support.
64
VAIO Digital Studio System Reference Manual
PCI Configuration Status and Error Messages
The following is a list of status and error messages that may appear on
your system from time to time.
Message Meaning
Floppy Disk Controller
Resource Conflict
CMOS Checksum Error,
CMOS Cleared
CMOS Data Invalid,
CMOS Cleared
Parallel Port Resource Conflict The parallel port has requested a resource that
PCI Error Log is Full This message is displayed when more than 15
PCI I/O Port Conflict Two devices requested the same resource,
PCI IRQ Conflict Two devices requested the same resource,
PCI Memory Conflict Two devices requested the same resource,
Primary Boot Device Not
Found
The floppy disk controller has requested a
resource that is already in use.
The CMOS data was reinitialized due to a
CMOS checksum error.
Invalid entry in the CMOS.
is already in use.
PCI conflict errors are detected. No additional
PCI errors can be logged.
resulting in a conflict.
resulting in a conflict.
resulting in a conflict.
The designated primary boot device (hard disk
drive, floppy disk drive, CD-ROM drive, or
network drive) could not be found.
Primary IDE Controller
Resource Conflict
Primary Input Device Not
Found
Primary Output Device Not
Found
Secondary IDE Controller
Resource Conflict
Serial Port 1 Resource Conflict Serial port 1 has requested a resource that is
Static Device Resource Conflict A device has requested a resource that is
System Board Device Resource
Conflict
The primary IDE controller has requested a
resource that is already in use.
The designated primary input device
(keyboard, mouse, or other, if input is
redirected) could not be found.
The designated primary output device (display,
serial port, or other, if input is redirected) could
not be found.
The secondary IDE controller has requested a
resource that is already in use.
already in use.
already in use.
A device has requested a resource that is
already in use.
Miscellaneous Technical Information
65
DMA Channel Assignments
This shows the factory default values. The Windows® operating system
reassigns resources to best meet the needs of a particular configuration.
DMA
Channel
Channel 4 Direct memory access controller
Channel 2 Standard floppy disk controller
Default Assignment
66
VAIO Digital Studio System Reference Manual
System I/O Address Map
Address Range (hex) Description
0x00000000-0x00000CF7 PCI bus
0x00000000-0x00000CF7 Direct memory access controller
0x00000010-0x0000001F Motherboard resources
0x00000020-0x00000021 Programmable interrupt controller
0x00000022-0x0000002D Motherboard resources
0x00000030-0x0000003F Motherboard resources
0x00000040-0x00000043 System timer
0x00000044-0x0000005F Motherboard resources
0x00000060-0x00000060 Standard 101/102-Key or Microsoft® Natural
PS/2® Keyboard
0x00000061-0x00000061 System speaker
0x00000062-0x00000063 Motherboard resources
0x00000064-0x00000064 Standard 101/102-Key or Microsoft Natural
PS/2 Keyboard
0x00000065-0x0000006F Motherboard resources
0x00000070-0x00000073 System CMOS/real time clock
0x00000074-0x0000007F Motherboard resources
0x00000080-0x00000090 Direct memory access controller
0x00000091-0x00000093 Motherboard resources
0x00000094-0x0000009F Direct memory access controller
0x000000A0-0x000000A1 Programmable interrupt controller
0x000000A2-0x000000BF Motherboard resources
0x000000C0-0x000000DF Direct memory access controller
0x000000E0-0x000000EF Motherboard resources
0x000000F0-0x000000FF Numeric data processor
0x00000170-0x00000177 Secondary IDE Channel
0x000001F0-0x000001F7 Primary IDE Channel
0x00000274-0x00000277 ISAPNP Read Data Port
0x00000279-0x00000279 ISAPNP Read Data Port
0x00000376-0x00000376 Secondary IDE Channel
0x00000378-0x0000037F Printer Port (LPT1)
0x000003B0-0x000003BB Intel® 82815 Graphics Controller
0x000003C0-0x000003DF Intel® 82815 Graphics Controller
0x000003F2-0x000003F5 Standard floppy disk controller
Miscellaneous Technical Information
Address Range (hex) Description
0x000003F6-0x000003F6 Primary IDE Channel
0x000003F7-0x000003F7 Standard floppy disk controller
0x000003F8-0x000003FF Communications Port (COM1)
0x000004D0-0x000004D1 Motherboard resources
0x00000A79-0x00000A79 ISAPNP Read Data Port
0x00000D00-0x0000FFFF PCI bus
0x0000B000-0x0000B01F Intel® 82801BA/BAM USB Universal Host
Controller – 2444
0x0000B400-0x0000B41F Intel® 82801BA/BAM USB Universal Host
Controller – 2442
0x0000B800-0x0000B80F Intel® 82801BA Bus Master IDE Controller
0x0000D000-0x0000D0FF Realtek RTL8139 Family PCI Fast Ethernet NIC
0x0000D400-0x0000D4FF Lucent Win Modem
67
0x0000D800-0x0000D807 Lucent Win Modem
0x0000E000-0x0000E0FF SoundMAX® Integrated Digital Audio
0x0000E100-0x0000E13F SoundMAX Integrated Digital Audio
0x0000E400-0x0000E47F Motherboard resources
0x0000E800-0x0000E81F Motherboard resources
0x0000EC00-0x0000EC3F Motherboard resources
✍ I/O addresses that may be used by add-in cards are not listed.
68
VAIO Digital Studio System Reference Manual
Memory Map
Address range Default configuration
0x0000-0x9FFFF System board
0xF0000-0xFFFFF System board
0x100000-0x1FEFFFFF System board
0xFEC00000-0xFEC000FF System board
0xFEE00000-0xFEE00FFF System board
0xA0000-0xBFFFF PCI bus
0xA0000-0xBFFFF Intel® 82815 Graphics Controller
0xC8000-0xDFFFF PCI bus
0x1FF00000-0xFFFFFFFF PCI bus
0xF8000000-0xFBFFFFFF Intel® 82815 Graphics Controller
0xF7800000-0xF787FFFF Intel® 82815 Graphics Controller
0xF7000000-0xF70000FF Lucent Win Modem
0xF6800000-0xF68000FF Realtek RTL8139 Family PCI Fast Ethernet NIC
0xF6000000-0xF60007FF Texas Instruments OHCI Compliant
IEEE 1394 Host Controller
0xF5800000-0xF5803FFF Texas Instruments OHCI Compliant
IEEE 1394 Host Controller
0xFFF80000-0xFFFFFFFF Motherboard resources
0xFFB80000-0xFFBFFFFF Motherboard resources
Miscellaneous Technical Information
IRQ Settings
IRQ Description
IRQ 0 System timer
IRQ 1 Standard 101/102-Key or Microsoft® Natural PS/2® Keyboard
IRQ 4 Communications Port (COM1)
IRQ 6 Standard floppy disk controller
IRQ 8 System CMOS/real time clock
IRQ 12 PS/2® Compatible Mouse
IRQ 13 Numeric data processor
IRQ 14 Primary IDE Channel
IRQ 15 Secondary IDE Channel
IRQ 17 SoundMAX® Integrated Digital Audio
IRQ 18 Texas Instruments OHCI Compliant IEEE 1394 Host Controller
69
IRQ 19 Intel® 82801BA/BAM USB Universal Host Controller - 2442
IRQ 21 Realtek RTL8139 Family PCI Fast Ethernet NIC
IRQ 22 Microsoft ACPI-Compliant System
IRQ 23 Lucent Win Modem
IRQ 23 Intel® 82801BA/BAM USB Universal Host Controller - 2444
70
VAIO Digital Studio System Reference Manual
Chapter 7
Specifications
This chapter describes the technical specifications for your
VAIO Digital Studio™ computer.
Processor
See Specifications sheet for details.
*
Chipset
Intel 815E chipset
PCI Bus
PCI Level 2.2, 33 MHz zero wait state
3 PCI slots, 2 open. Not all PCI slots are available for expansion.
(See Specifications sheet for details.)
*
AGP Bus
AGP interface specification, rev. 2.0 compliance (supports 2x/4x)
1 AGP slot (open)
* The Specifications sheet is supplied with your computer's original documentation.
71
72
VAIO Digital Studio System Reference Manual
Memory Modules
Installed memory See Specifications sheet for details.
Maximum memory 512 MB (256 MB in each socket)
Voltage 3.3 V memory only
Pins 168-pins with gold-plated contacts
Memory type 3.3 V PC-133 MHz unrestricted CS latency 2,
unbuffered, 64 bits (Non-ECC) SDRAM DIMM modules
**
Memory Configurations
DIMM1
0, 8, 16, 32, 64, 128, 256 0, 8, 16, 32, 64, 128, 256
* Your computer is shipped with at least 128 MB. SDRAM is expandable to 512 MB. Computer SDRAM is
*
unbuffered DIMM, specification Rev. 1.0 or later. Supports SDRAM memory. Does not support EDO
memory or buffered DIMM memory. Memory can be installed in either socket. Memory size can vary
between sockets. DIMMs can be single- or double-sided. DIMMs must be 3.3 V unbuffered 4-clock,
between sockets. 64 bit or 72 bit 133 MHz SDRAM modules.
DIMM2
*
L2 Cache
Installed 256 KB
Graphics
Chipset Intel 815E Graphics
Video memory Shared with system memory (up to 11 MB)
Resolution (displayed resolution depends on the video monitor you use)
True color (24 bits) Up to 1280 x 1024 at 85 Hz non-interfaced
High color (16 bits) Up to 1280 x 1024 at 85 Hz non-interfaced
256 colors (8 bits) Up to 1600 x 1200 at 75 Hz non-interfaced
* The use of 1024 x 768 True color (24 bits) or High color (16 bits) at 75 Hz or lower refresh rate is
recommended for video playback applications.
*
** The Specifications sheet is supplied with your computer's original documentation.
Audio
Sound chip Analog Devices AD 1881A
Wave synthesis Software synthesis
Audio sampling rate Up to 48 kHz at 16 bits
Rear panel connectors Mic (for microphone)
Line In (from stereo audio source)
Headphones (for stereo headphones)
Communications
Specifications
73
Modem
(Installed modem may
vary, depending on the
system configuration
purchased.)
Fax 14.4 Kbps maximum
i.LINK® (IEEE1394) 400 Mbps, OHCI chipset
Ethernet 10BASE-T/100BASE-TX
* This modem is capable of downloading at 56 Kbps. Your phone service, online service, or Internet Service
Provider may not support this technology or operate at this speed.
† This modem is capable of transferring data at 10 Mbps (HomePNA) and downloading at 56 Kbps / 14.4
Kbps (Modem) using V.90 technology. Your phone service, online service, or Internet Service Provider,
however, may not support this technology or operate at this speed.
V.90 compatible data/fax modem
BROADCOM® BCM4211 TECHNOLOGY/V.90
COMPATIBLE DATA/FAX MODEM (REN = 0.0B)
10 Mbps/1 Mbps data transfer rate
HomePNA 2.0 compatible
*
†
74
VAIO Digital Studio System Reference Manual
I/O and Expansion Slots
Serial ports One high-speed NS16C550-compatible port
Parallel port One high-speed bi-directional Centronics-
compatible port with ECP and EPP modes
Modem ports Two RJ-11 connectors (for line and phone)
USB ports USB 1 and USB2 (on front panel)
USB3 and USB4 (on rear panel)
PCI slots Two available slots. Not all PCI slots are available
for expansion. (See Specifications sheet for
details.)
AGP slot One available slot. Maximum length for add-in
cards is 9.05 inches
IDE headers Primary and secondary
(each supports two ATA-100 IDE drives)
**
i.LINK® (IEEE1394)
ports
Floppy Disk Drive and Controller
Drive Description
Floppy disk controller 82077-compatible (supports up to 2.88 MB)
Floppy disk drive 3.5-inch, 1.44 MB
One 4-pin port on front panel
One 6-pin port on rear panel
Hard Drives and Controller
Drive Description
EIDE controller Supports up to four EIDE drives (supports PIO Mode 4
EIDE drives and Ultra DMA/100 Mode drives)
IDE hard drive
* Bus-mastering EIDE driver installed.
*
See Specifications sheet for details.**
**
The Specifications sheet is supplied with your computer's original documentation.
Specifications
Optical Drives
Drive Description
Optical disc drive #1 See Specifications sheet for details.
Optical disc drive #2 See Specifications sheet for details.
**
**
System BIOS
Make and model Award-based
ROM 2 Mb flash-ROM
Passwords User and supervisor passwords supported
Power management APM 1.2
Advanced features ACPI-1.0 compliant hardware for use with APM and
PNP BIOS APIs
Plug and Play devices Supported with steerable DMA channels and
interrupts
*
75
Special features PC-99 compliant, multi-boot, PCI add-in card
auto-configure
* Flash-ROM update utility is available from Sony's Web site at http://www.sony.com/pcsupport.
** The Specifications sheet is supplied with your computer's original documentation.
76
VAIO Digital Studio System Reference Manual
Index
A
add-in card
installing
removing 26
address map, system 66
audio specifications 73
28
B
battery - See lithium battery
beep codes
BIOS setup utility 16
advanced screen 57
boot screen 59
exit screen 60
main screen 55
options 53
power screen 58
screens 53
BIOS specifications 75
63
C
CD-RW drive
location of
performance of discs 3, 75
CMOS - See BIOS
CMOS Clear configuration jumper
codes, beeps 63
communications, specifications 73
computer
lithium battery
configuration jumper, CMOS Clear 52
configuring
BIOS setup utility
power management 17
3
52
vii
16
connectors
i.LINK
USB 6
cover
for slot
removing 24
replacing 25
covering I/O slot 41
CPU - See processor
6
40
D
DIMM - See memory module
display, power management
disposal of lithium battery vii
DMA channel assignments 65
drives
installing additional 3.5-inch
drive 42
DVD-ROM drive
performance of discs
17
3, 75
E
error messages
beep codes
PCI configuration 64
expansion slots 14
specifications for 74
expansion slots - See slots
63
F
fax/modem - See communications
front view
buttons and switches 4
connectors 5, 6
drives 3
indicators 5
2
77
78
VAIO Digital Studio System Reference Manual
G
graphics controller - See graphics
graphics specifications
72
H
headphones connector 12
I
i.LINK connector 6, 13
I/O
address map
66
slot specifications 74
I/O connectors
headphones
12
i.LINK 13
keyboard 10
line 12
line in 12
mic 12
monitor 11
mouse 10
printer 11
serial 10
telephone 12
USB 10
I/O slot covering 41
icons, description of 8
IEEE1394 - See i.LINK
installing
3.5-inch hard disk drive
42
add-in card 28
system memory 37
IRQ settings 69
K
keyboard connector 10
M
map - See I/O address map and
memory map
memory - See system memory
memory module
connector
50
removing 35
specifications for 72
messages
63
error
status and error 64
mic connector 12
microprocessor - See processor
modem - See communications
monitor - See display
monitor connector
11
mouse connector 10
P
passwords, user and supervisor 62
power management, configuring 17
printer connector 11
R
RAM - See system memory
rear view
removing
replacing cover 25
replacing lithium battery 32
resolution - See graphics
7
I/O connectors 10
icons 8
add-in card
26
cover 24
memory module 35
slot cover 40
L
L2 cache specifications 72
line in connector 12
lithium battery
disposal
replacing 32
safety precautions vii
vii
S
serial connector 10
setup, BIOS 16
slot - See I/O slot
slot cover, removing
specifications
AGP bus
audio 73
71
40
Index
79
BIOS 75
chipset 71
communications 73
DIMM configurations 72
floppy disk drive and controller 74
graphics 72
hard drives and controllers 74
I/O and expansion slots 74
L2 cache 72
memory module 72
optical drives 75
PCI bus 71
processor 71
system BIOS 75
status and error messages 64
supervisor password 62
system board
configuration jumper
memory module connector 50
system I/O address map 66
system memory, installing 37
52
T
telephone connector 12
U
USB connectors 6, 10
user password 62
80
