Sony PCV-L640 - Vaio Slimtop Computer Reference Manual [en, fr]

Page 1

Page 2

Notice to Users

© 2000 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machinereadable form without prior written approval.

SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.

Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions.

Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions.

Sony, VAIO, the VAIO logo, VAIO Smart, VAIO Digital Studio, VAIO Slimtop, Media Park, DVgate, Media Bar, Handycam, Mavica, PictureGear, i.LINK, and Memory Stick are trademarks of Sony. Intel, Pentium, and Celeron are trademarks of Intel Corporation. Microsoft, Windows, and the Windows 98 logo are registered trademarks of Microsoft Corporation.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

All other trademarks are trademarks or registered trademarks of their respective owners.

Owner’s Record

The model number and serial number are located on the back of your VAIO Record the serial number in the space provided here. Refer to the model and serial number when you call your Sony Service Center.

Model Number: PCV-L640 Serial Number:________________________

computer.

Page 3

iii

VAIO Computer Reference Manual

Safety Information and Caution

CD-RW Laser Diode Properties

Max. Laser output (read)

UJDA310V UJDA310T UJDA320

1.8 mW 1.8 mW 1.8 mW

Max. Laser output (write)

UJDA310V UJDA310T UJDA320

21 mW 21 mW 21 mW

Wavelength

UJDA310V UJDA310T UJDA320

To change the backup battery, contact your nearest Sony Service Center.

Caution - The use of optical instruments with this product will increase eye hazard. As the laser beam used in this product is harmful to the eyes, do not attempt to disassemble the drive cabinet. Refer servicing to qualified personnel only.

Danger - Visible and invisible laser radiation when open. Avoid direct exposure to beam.

For CD-RW: Danger - Invisible laser radiation when open. Avoid direct exposure to beam.

773-797 nm 773-797 nm 780-795 nm

To prevent fire or shock hazard, do

❑

not expose your desktop to rain or moisture.To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Never install modem or telephone

❑

wiring during a lightning storm. Never install telephone jacks in wet

❑

locations unless the jack is specifically designed for wet locations.

Never touch uninsulated telephone

❑

wire or terminals unless the telephone line has been disconnected at the network interface.

Use caution when installing or

❑

modifying telephone lines. Avoid using the modem during an

❑

electrical storm. Do not use the modem or a telephone

❑

to report a gas leak in the vicinity of the leak.

The socket outlet shall be installed

❑

near the equipment and shall be easily accessible.

Caution: For ADSL modem models, to reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Page 4

Pour prévenir tout risque d’incendie

❑

ou d’électrocution, garder cet appareil à l’abri de la pluie et de l’humidité.

Pour prévenir tout risque

❑

d’électrocution, ne pas ouvrir le châssis de cet appareil et ne confier son entretien qu’à une personne qualifiée.

Ne jamais effectuer l’installation de fil

❑

modem ou téléphone durant un orage électrique.

Ne jamais effectuer l’installation

❑

d’une prise téléphonique dans un endroit mouillé à moins que la prise soit conçue à cet effet.

Ne jamais toucher un fil téléphonique

❑

à découvert ou un terminal à moins que la ligne téléphonique n’ait été débranché de l’interface réseau.

Soyez très prudent lorsque vous

❑

installez ou modifiez les lignes téléphoniques.

Évitez d’utiliser le modem durant un

❑

orage électrique. N'utilisez pas le modem ni le

❑

téléphone pour prévenir d'une fuite de gaz vous êtes près de la fuite.

L’appareil doit être le plus près

❑

possible d’une prise murale pour en faciliter l’accès.

Pour changer la pile de rechange, veuillez contacter votre centre de service Sony le plus près.

Avertissement - L'utilisation d'instruments optiques avec ce produit augmente les risques pour les yeux. Puisque le faisceau laser utilisé dans ce produit est dommageable pour les yeux, ne tentez pas de désassembler le boîtier. Adressez-vous à un agent de service qualifié.

Danger : Radiation laser visible et invisible si ouvert. Évitez l’exposition directe au faisceau.

Pour les CD-RW : Danger : Radiation laser visible et invisible si ouvert. Évitez l'exposition directe au faisceau.

Attention : Pour ADSL modele modem, afin de réduire les risques d'incendie, n'utilisez qu'un cordon de communication N0. 26 AWG ou plus gros.

For questions regarding your product or for the Sony Service Center nearest you, call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada.

Sony Customer Support can be reached at www.sony.com.pcsupport.

Page 5

VAIO Computer Reference Manual

Regulatory Information

Declaration of Conformity

Trade Name: SONY Model No.: PCV-L640 Responsible Party: Sony Electronics Inc. Address: 1 Sony Drive

Park Ridge, NJ 07656 Telephone: 201-930-6970 This phone number is for FCC-related matters

only. This device complies with Part 15 of FCC Rules.

Operation is subject to the two following conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: :

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Only peripherals (computer input/output devices, terminals, printers, etc.) that comply with FCC Class B limits may be attached to this computer product. Operation with noncompliant peripherals is likely to result in interference to radio and television reception.

All cables used to connect peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded, may result in interference to radio and television reception.

Reorient or relocate the receiving

❑

antenna. Increase the separation between the

❑

equipment and the receiver. Connect the equipment into an outlet

❑

on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced

❑

radio/TV technician for help.

Page 6

FCC Part 68

This equipment complies with Part 68 of the FCC rules. The FCC Ringer Equivalence Number (REN) for this equipment is 0.7. If requested, this information must be provided to the telephone company.

This modem uses the USOC RJ-11 telephone jack.

The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operations of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service.

Repair of this equipment should be made only by a Sony Service Center or Sony authorized agent. For the Sony Service Center nearest you, call 1-888-4SONYPC (1-888-476-6972).

This equipment cannot be used on public coin service provided by the telephone company. Connection to Party Line Service is subject to state and possible provincial tariffs. (Contact the state or provincial utility service commission, public service commission, or corporation commission for information.)

Telephone Consumer Protection Act of 1991 (United States)

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains, in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity, or individual sending the message, and the telephone number of the sending machine or such business, other entity, or individual.

In order to program this information into your facsimile, see your fax software documentation

If trouble is experienced with this modem, for repair or warranty information, please contact 1-888-4SONY-PC, or write to the Sony Customer Information Center, 12451 Gateway Blvd., Fort Myers, FL 33913. If the trouble is causing harm to the telephone network, the telephone company may request that you remove the equipment from the network until the problem is resolved.

Page 7

vii

VAIO Computer Reference Manual

Telephone Consumer Guidelines (Canada)

Please refer to your telephone directory under ‘Privacy Issues’ and/or ‘Term s o f Service.’ For more detailed information, please contact:

CRTC Terrasses de la Chaudiére, Tour centrale 1 promenade du Portage, 5 étage Hull PQ K1A 0N2.

This Class B digit al apparatus complies wi th Canadian ICES-003.

Cet àppareil numérique de la classe B est conforme à la norme N M B-003 du Canada.

DISPOSAL OF LITHIUM ION BATTERY

You can return your unwanted lithium ion batteries to your nearest Sony Service Center or Factory Service Center.

In some areas the disposal of lithium

✍

ion batteries in household or business trash may be prohibited.

For the Sony Service Center nearest you, call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada.

Do not handle damaged or leaking lithium ion batteries.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble,

heat above 212°F (100°C) or

incinerate. Dispose of used battery promptly. Keep away from children.

Ne pas manipuler les batteries au lithium-ion qui fuient ou sont endommagées.

Une batterie non conforme présente un danger d'explosion. La remplacer seulement par une batterie identique ou de type équivalent recommandé par le fabricant. Évacuer les batteries usées selon les directives du fabricant.

La manutention incorrecte du module de batterie de cet appareil présente un risque d'incendie ou de brûlures chimiques. Ne pas démonter, incinérer ou exposer à une température de plus de 100°C. Évacuer promptement la batterie usée. Garder hors de portée des enfants.

Page 8

viii

INDUSTRY CANADA NOTICE

NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the userís satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection.

The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Equipment malfunctions or any repairs or alterations made by the user to this equipment may give the telecommunications company cause to request that the user disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electrical inspection authority, or electrician, as appropriate.

NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on

an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. The Ringer Equivalence Number for this equipment is 0.7.

AVIS DE L’INDUSTRIE CANADA

AVIS : L’étiquette d’Industrie Canada identifie le matériel homologué.

Cette étiquette certifie que le matériel est conforme aux normes de protection, d’exploitation et de sécurité des réseaux de télécommunications, comme le prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’entreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de raccordement. L’abonné ne doit pas oublier qu’il est possible que la conformité aux conditions énoncées cidessus n’empêche pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur. L’entreprise de télécommunications peut demander à l’utilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau métalliques, s’il y en a, sont raccordés

Page 9

ensemble. Cette précaution est particulièrement importante dans les régions rurales.

Avertissement: L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service d’inspection des installations électriques, ou à un électricien, selon le cas.

AVI S: L’indice d’équivalence de la sonnerie (IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface.

La terminaison d’une interface téléphonique peut consister en une combination de quelques dispositifs, à la seule condition que la somme d’indices d’équivalence de la sonnerie de tous les dispositifs n’excède pas

5. L’indice d’équivalence de la sonnerie de ce matériel est de 0.7.

VAIO Computer Reference Manual

Page 10

Page 11

Contents

Notice to Users .................................................................................... ii

Safety Information and Caution ...................................................... iii

Regulatory Information.......................................................................v

FCC Part 68 ......................................................................................... vi

Telephone Consumer Protection Act of 1991 (United States) ..... vi

Telephone Consumer Guidelines (Canada).................................. vii

DISPOSAL OF LITHIUM ION BATTERY ....................................vii

INDUSTRY CANADA NOTICE....................................................viii

AVIS DE L’INDUSTRIE CANADA ..............................................viii

Chapter 1 — Identifying Components

Front View .......................................................................................2

Drives ...................................................................................................3

Buttons and Switches .........................................................................4

Indicators ..............................................................................................5

Connectors ...........................................................................................6

Slots .......................................................................................................7

Rear View ........................................................................................8

I/O Connectors ....................................................................................9

Chapter 2 — Configuring Your System

Accessing the CMOS Setup Utility.............................................. 14

Changing the Display's Power Management Settings .............15

Configuring the System Board ....................................................17

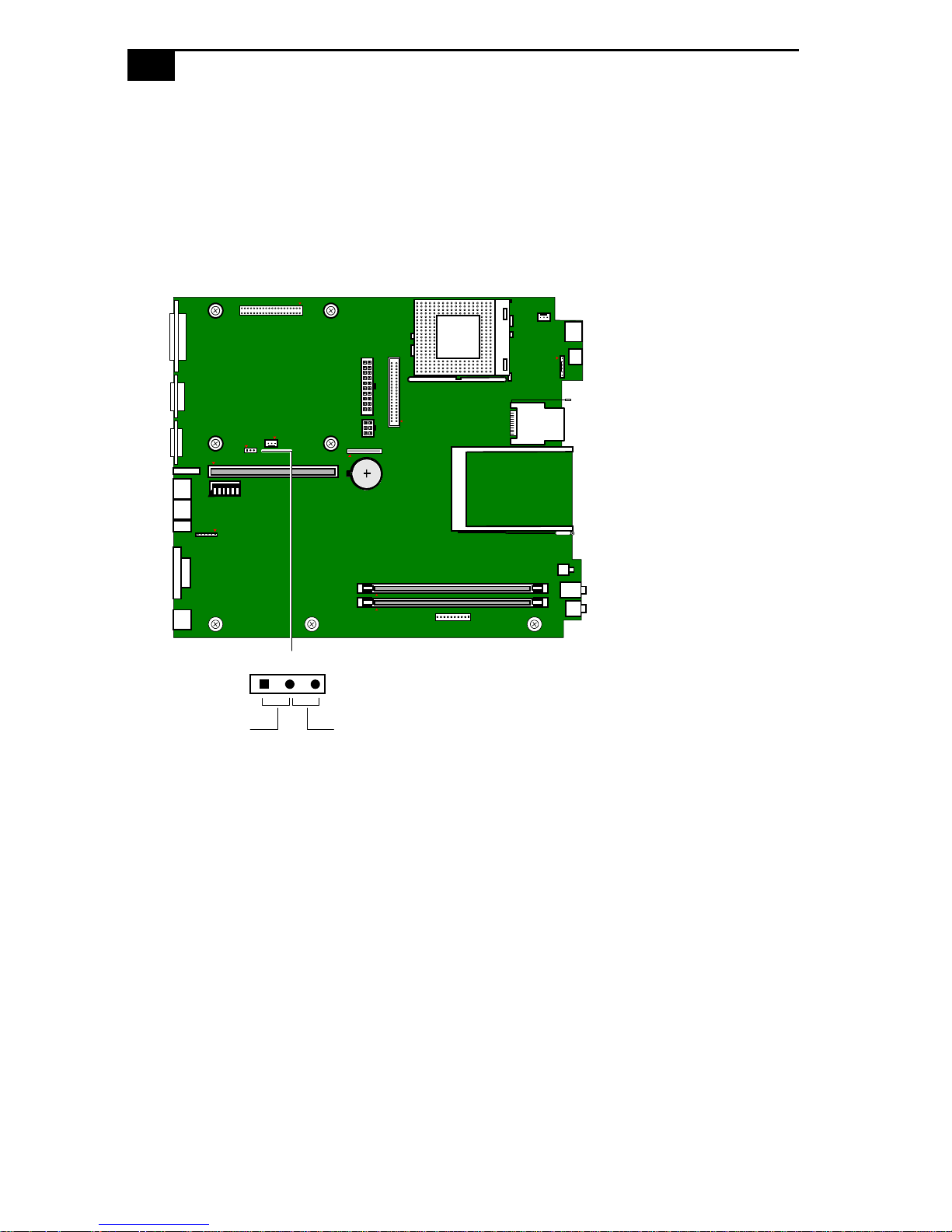

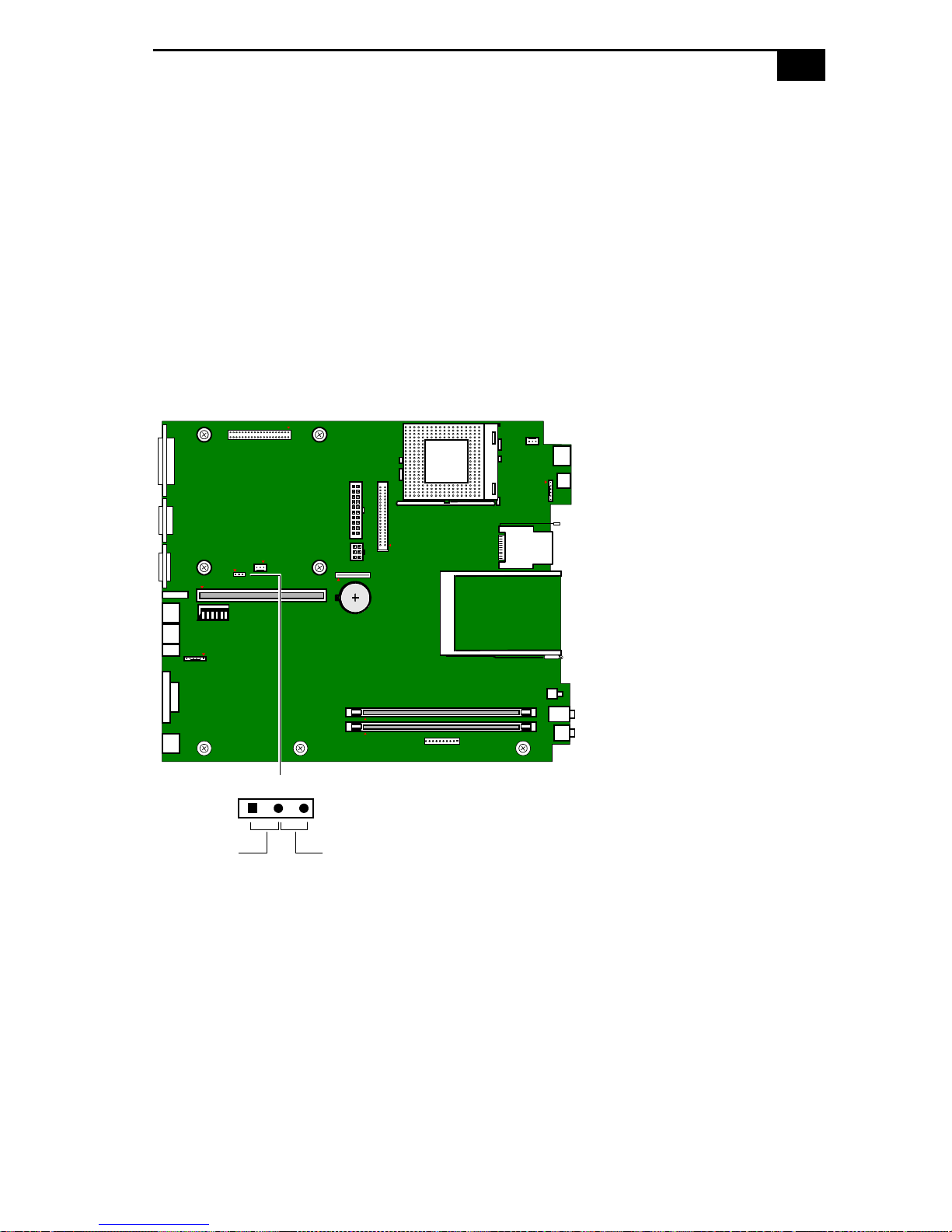

CMOS Jumper ....................................................................................17

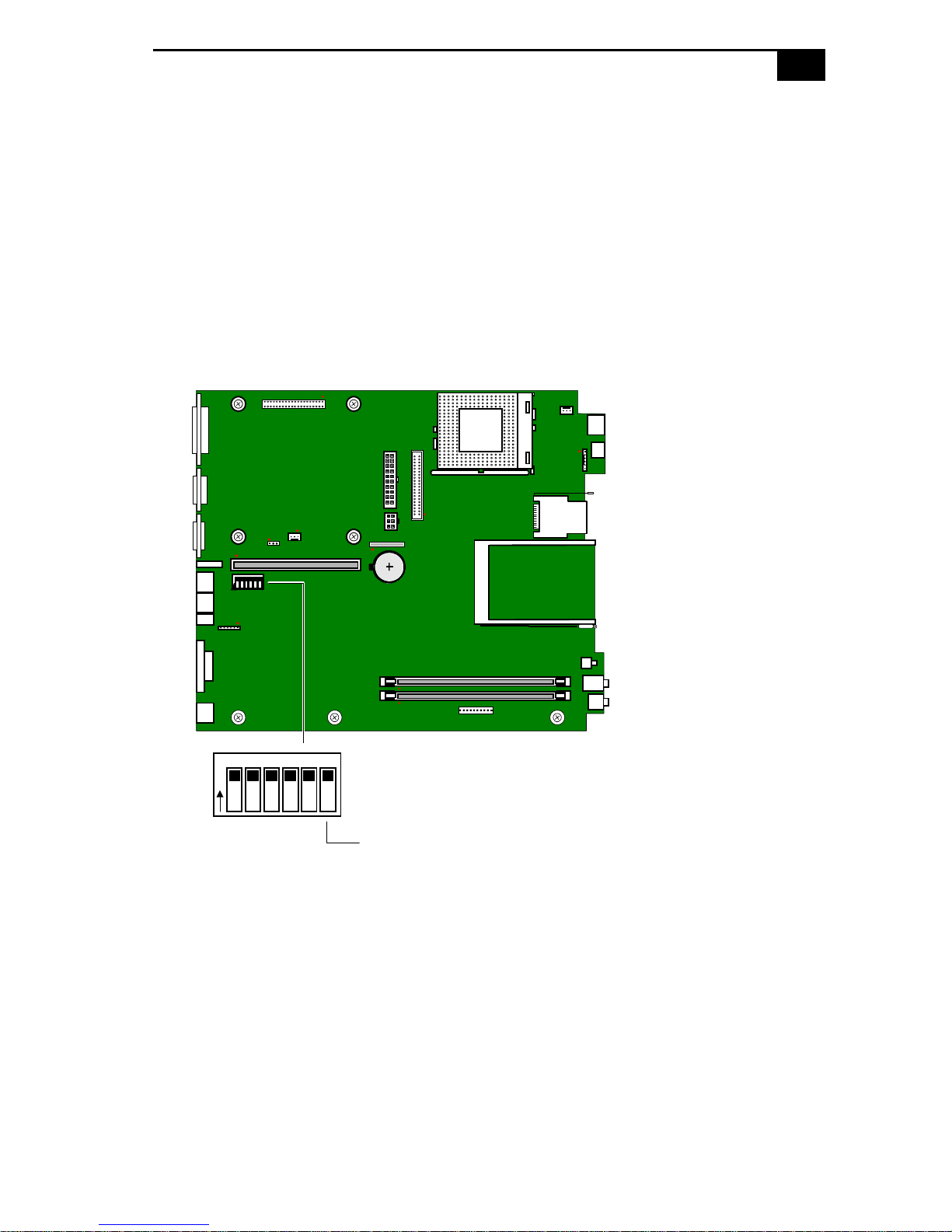

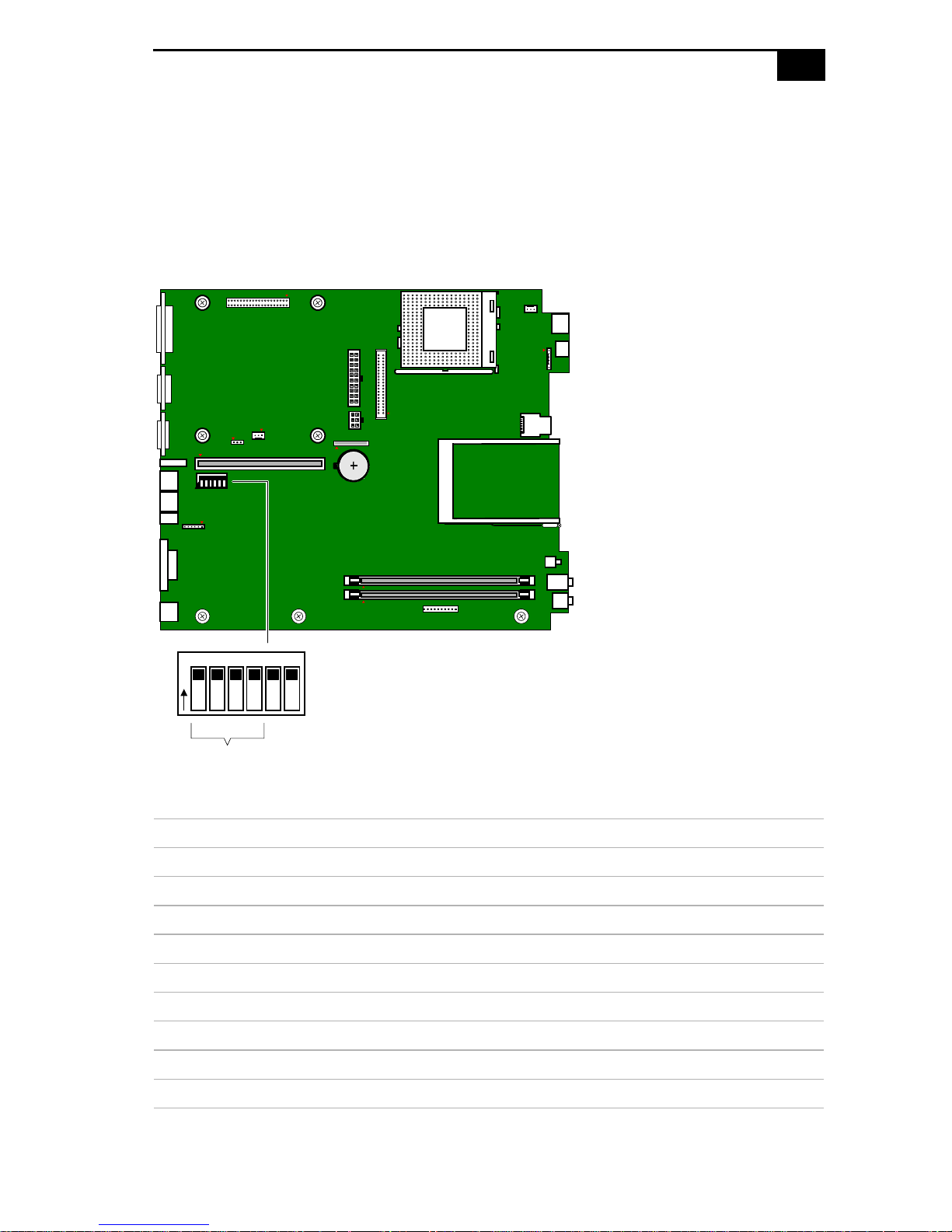

CPU Frequency Ratio Multiplier Switches ....................................19

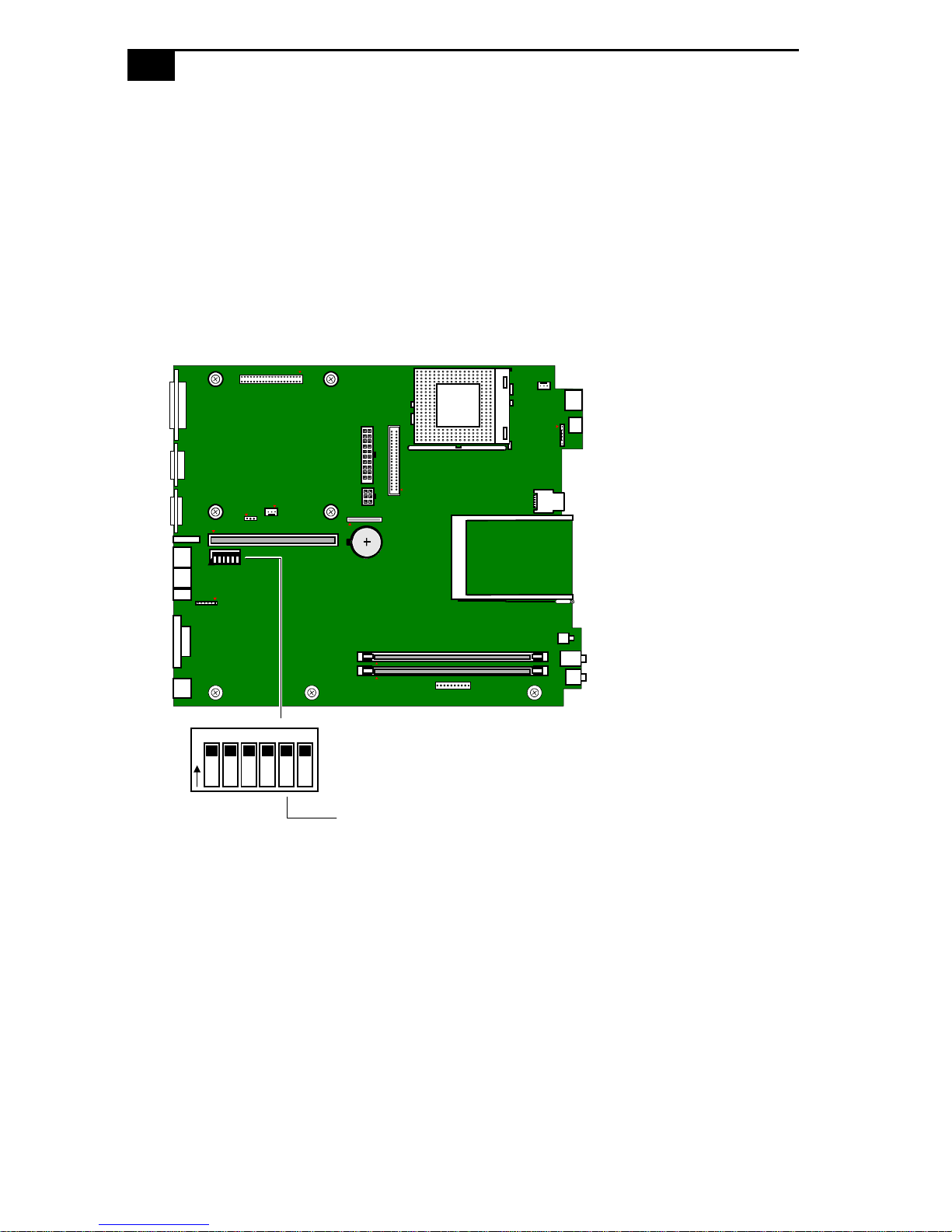

AGP_INT Switch................................................................................20

VGA Switch ........................................................................................21

Page 12

xii

VAIO Slimtop™ Reference Manual

Chapter 3 — Removing, Installing, and Replacing Components

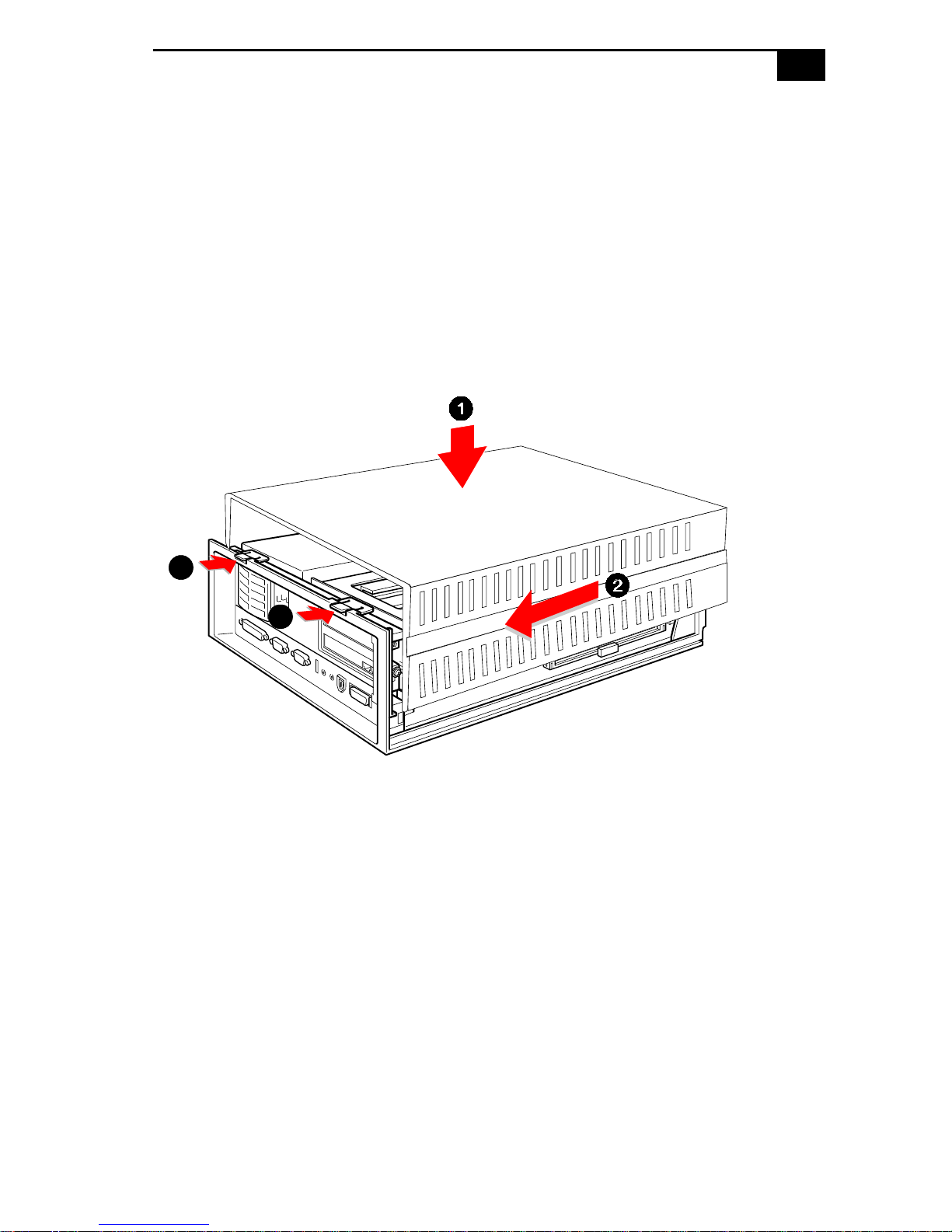

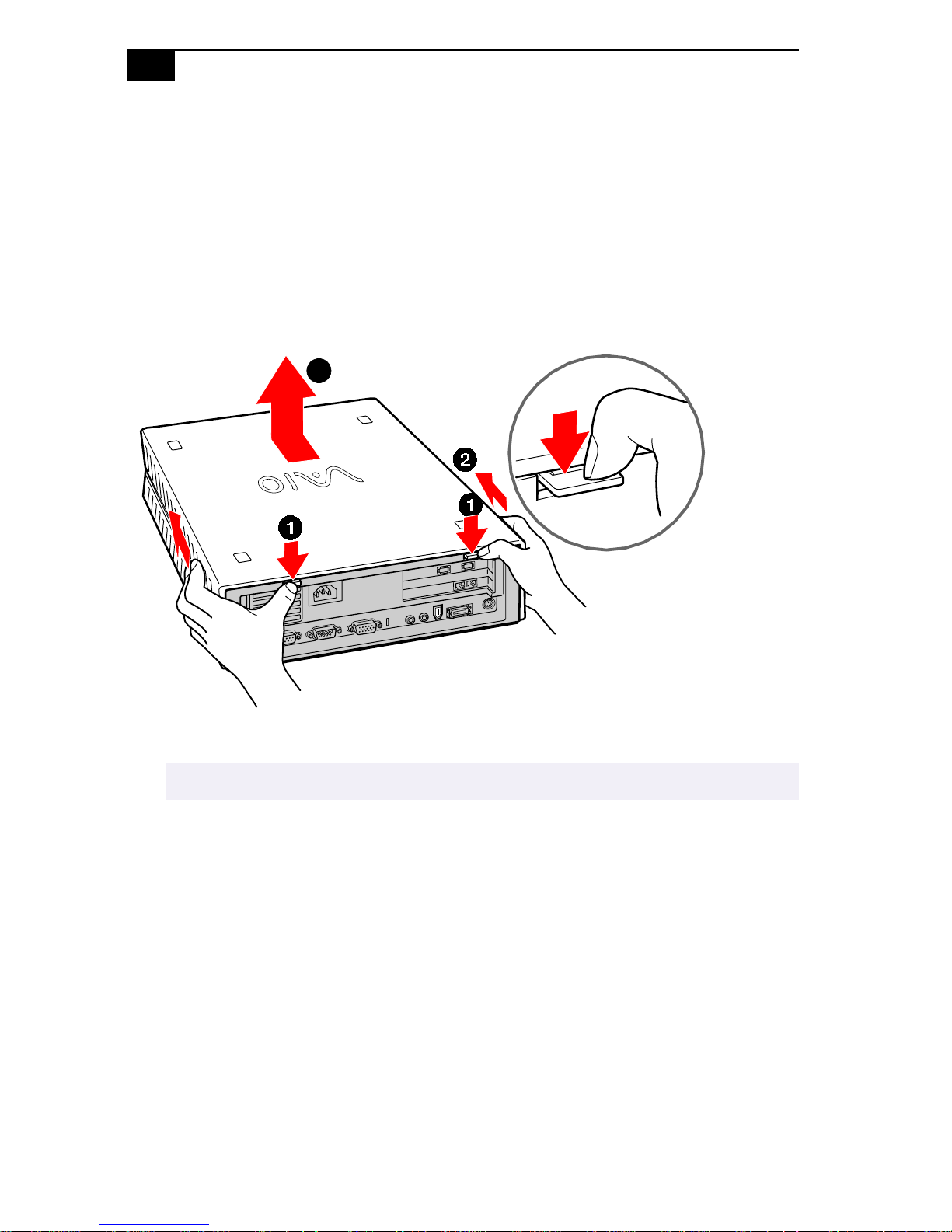

Removing the System Cover .......................................................24

Replacing the System Cover ........................................................25

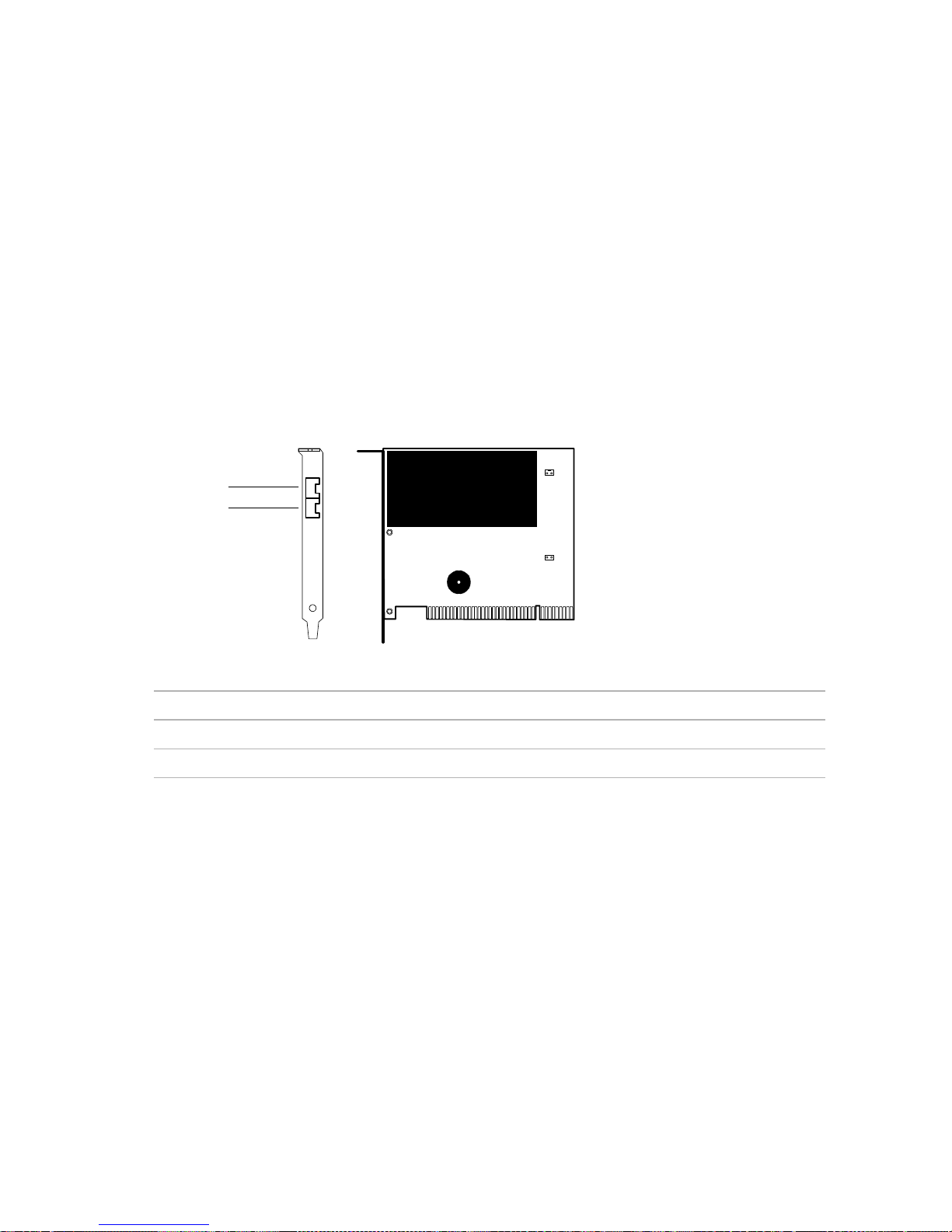

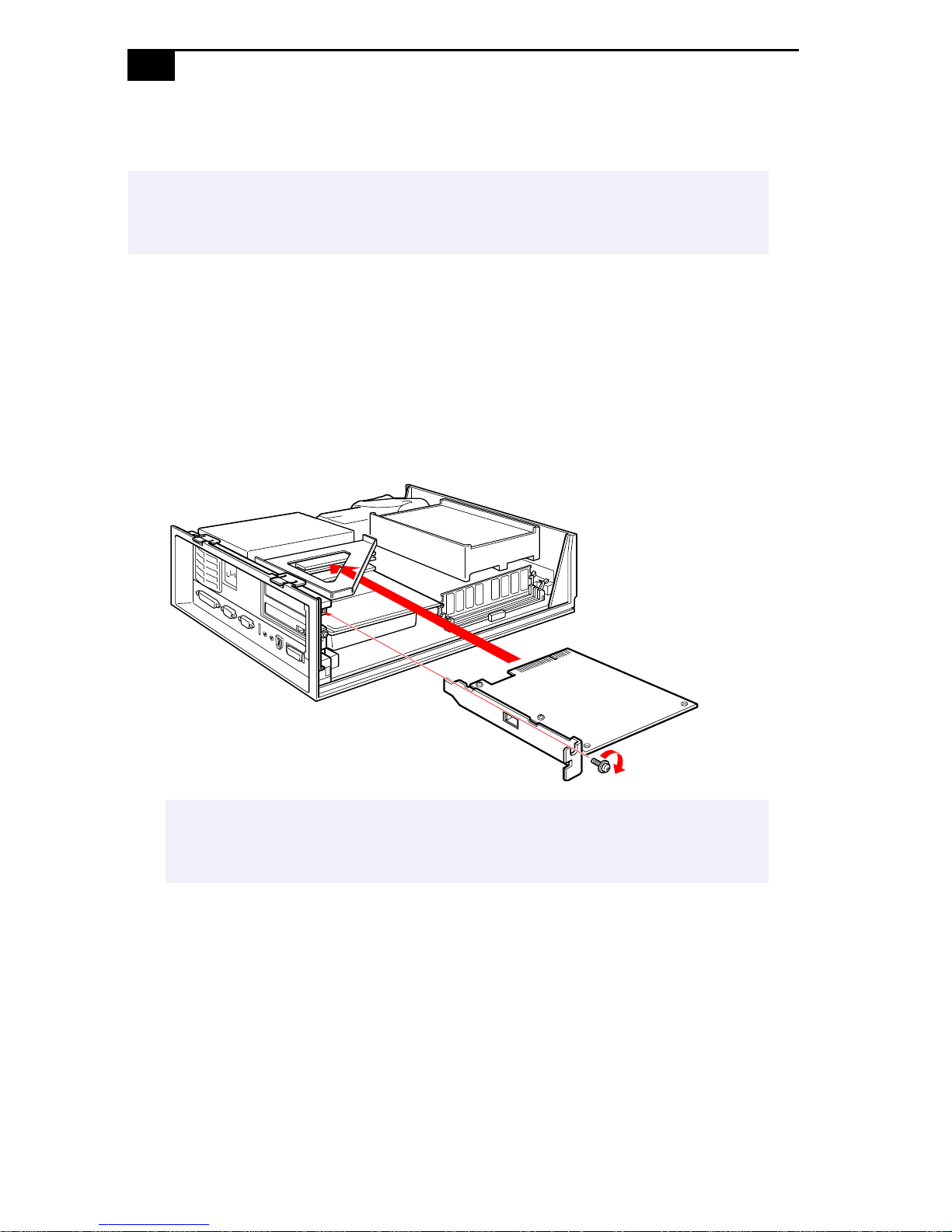

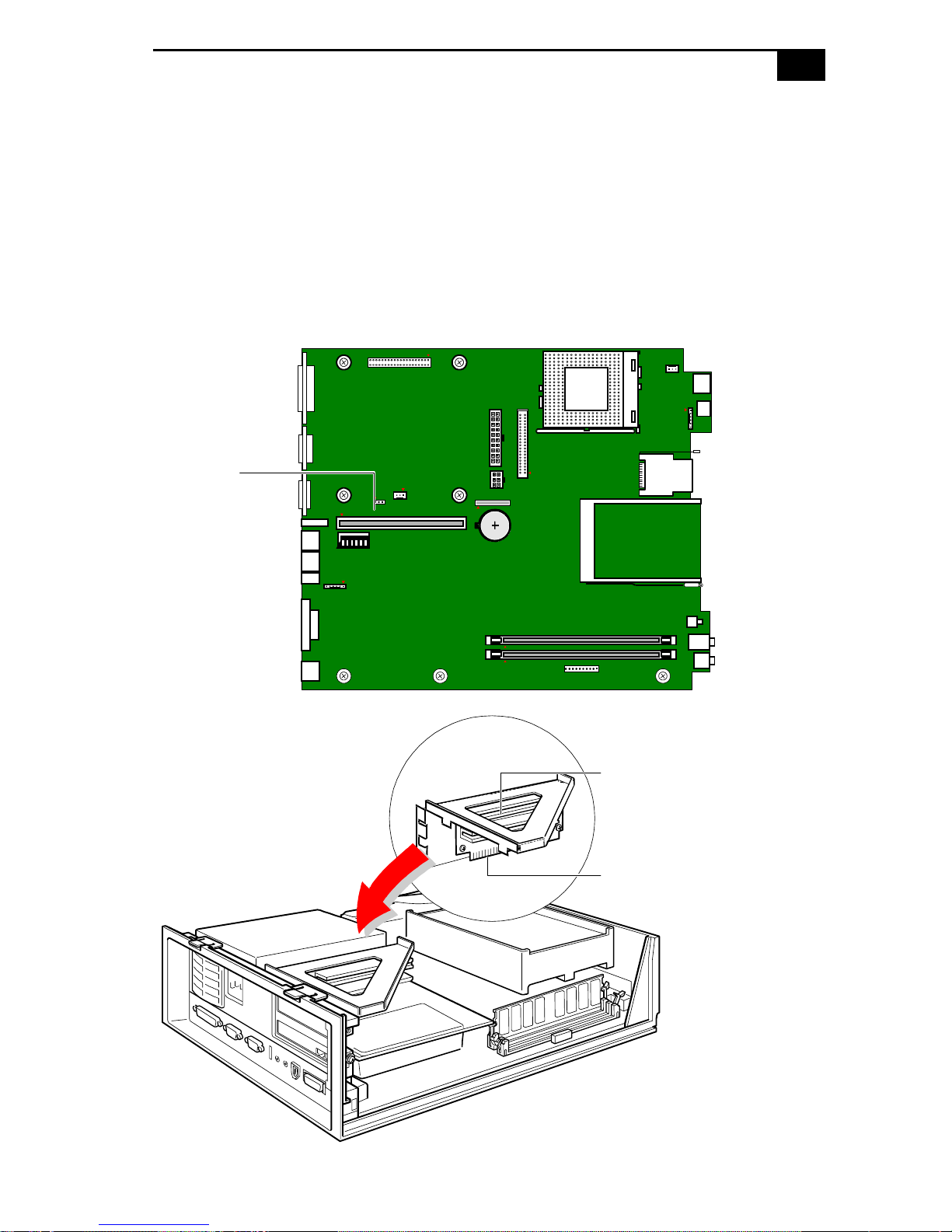

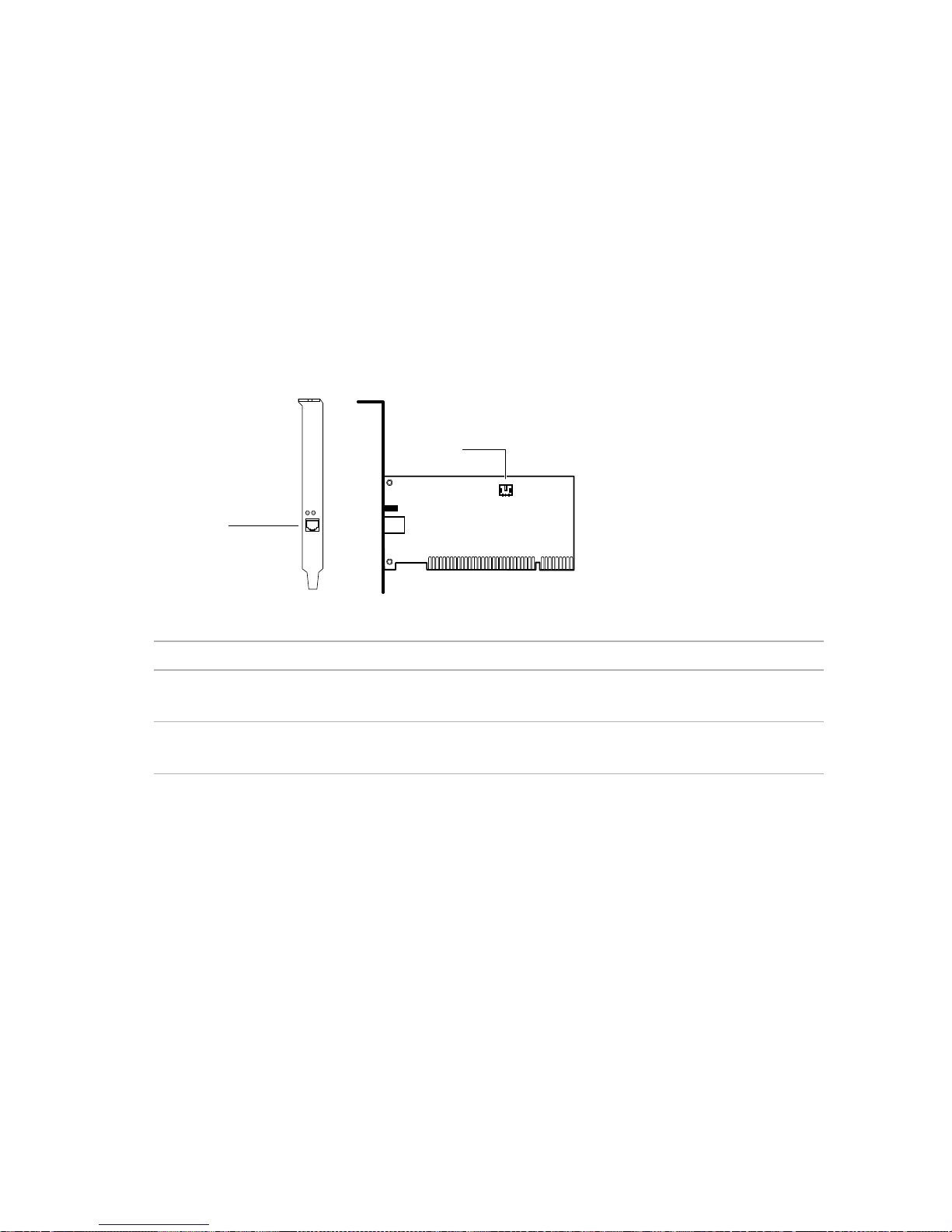

Installing an Add-In Card ............................................................26

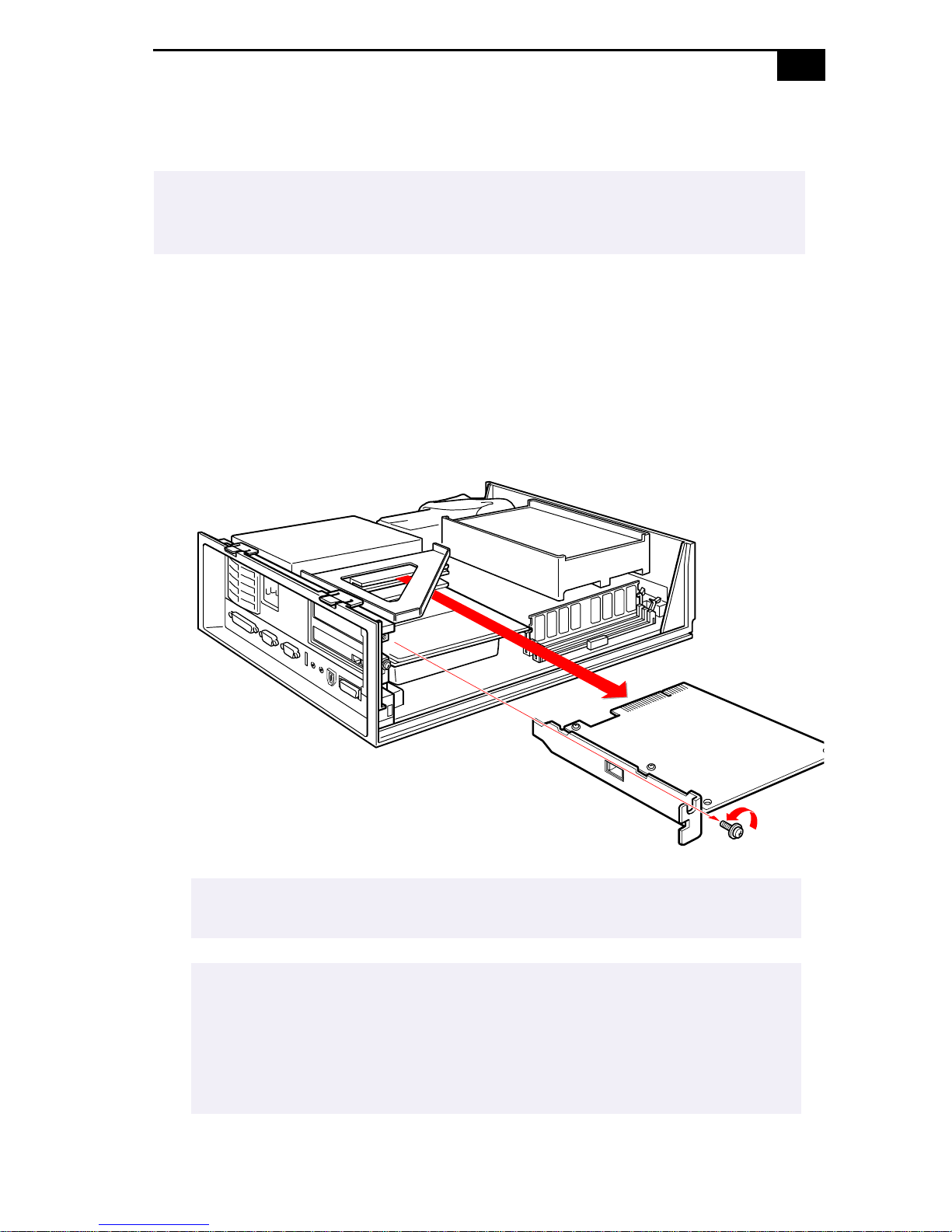

Removing an Add-in Card ...........................................................27

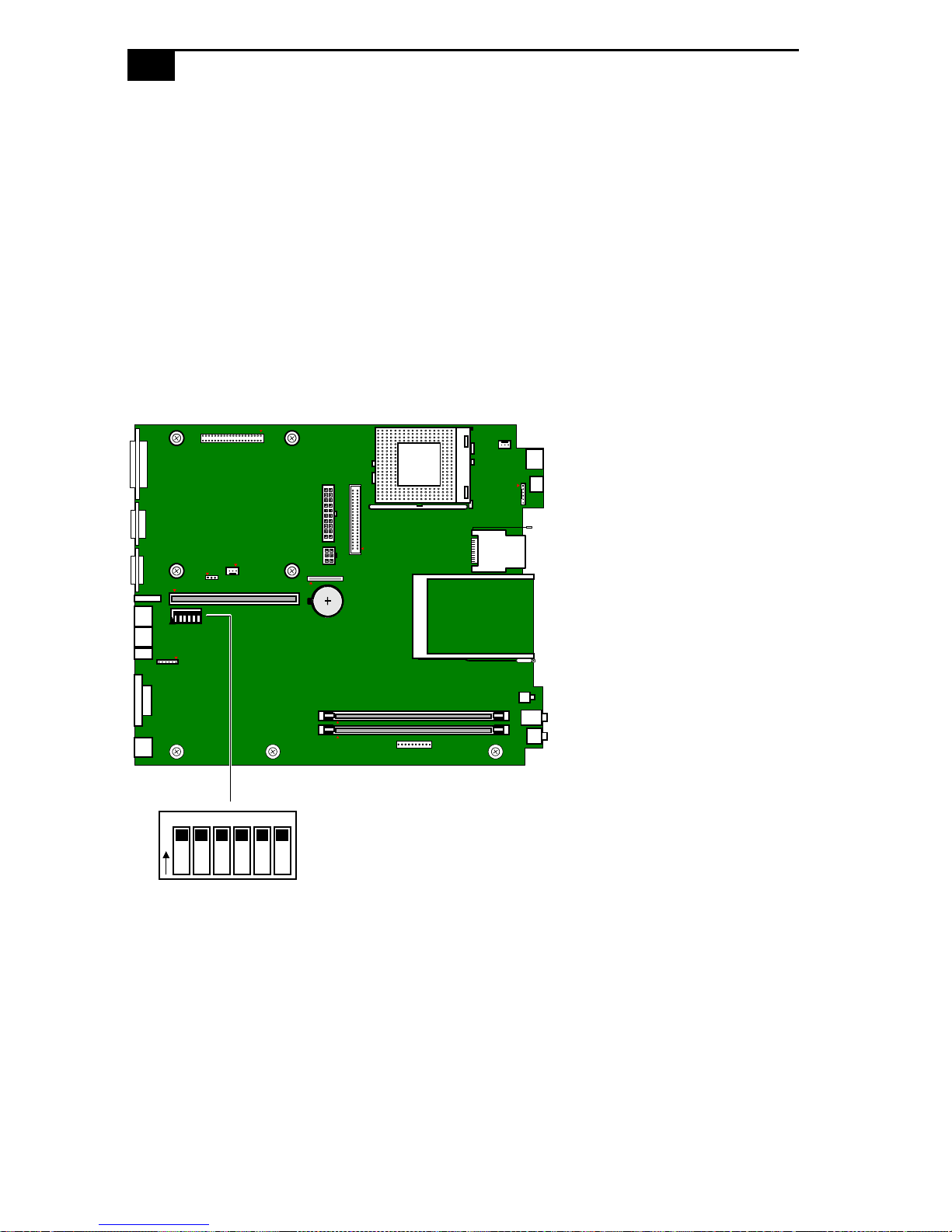

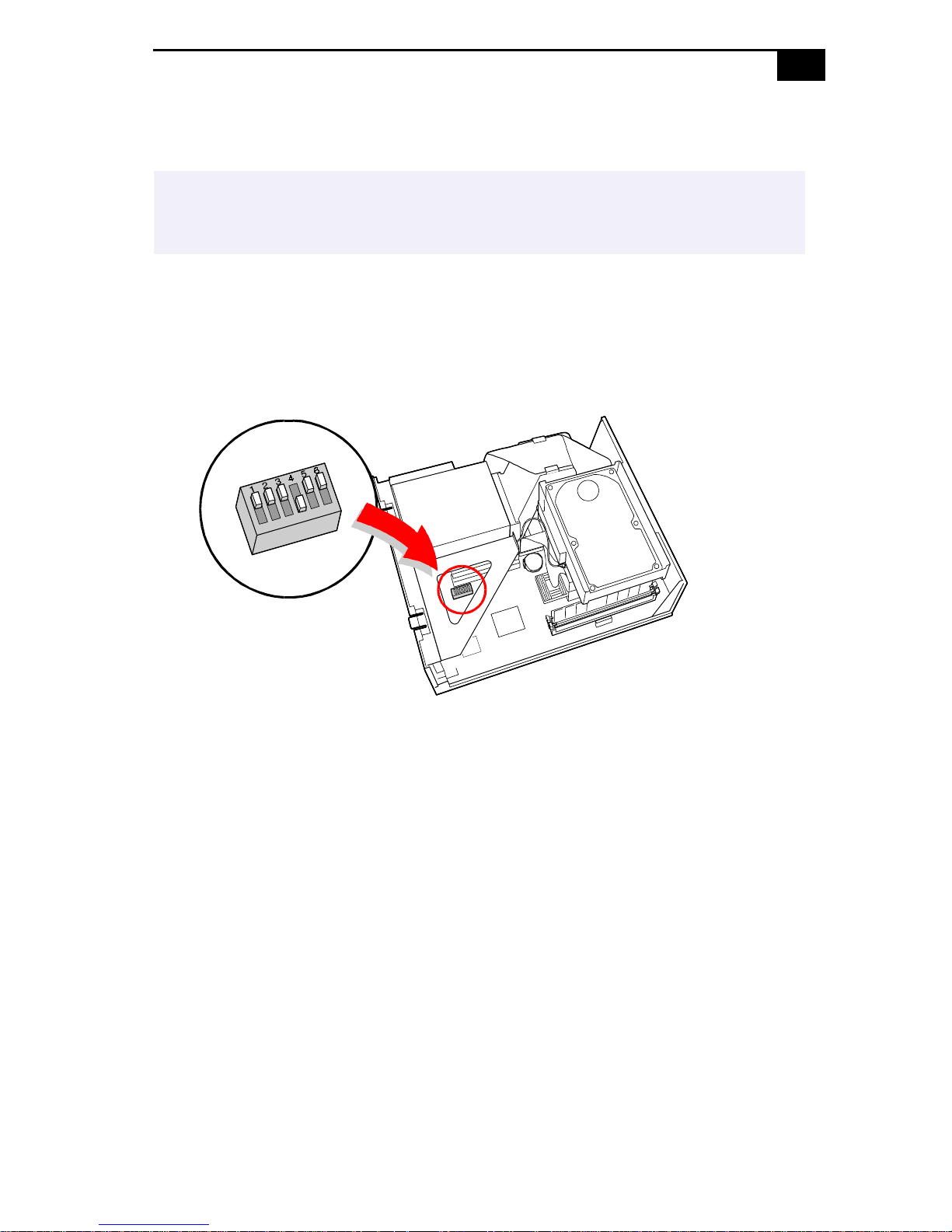

Setting the Configuration Switches ............................................29

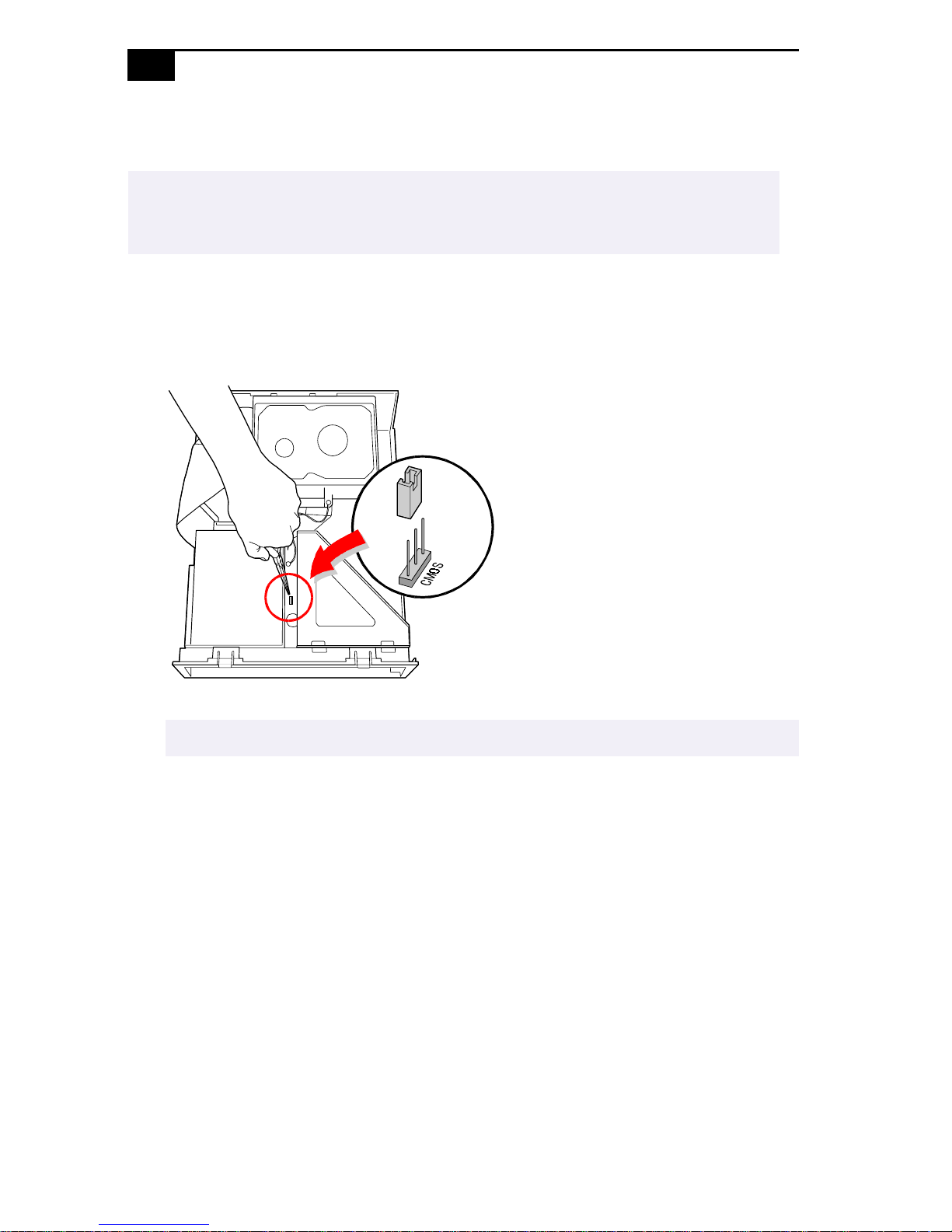

Setting the CMOS Jumper ............................................................30

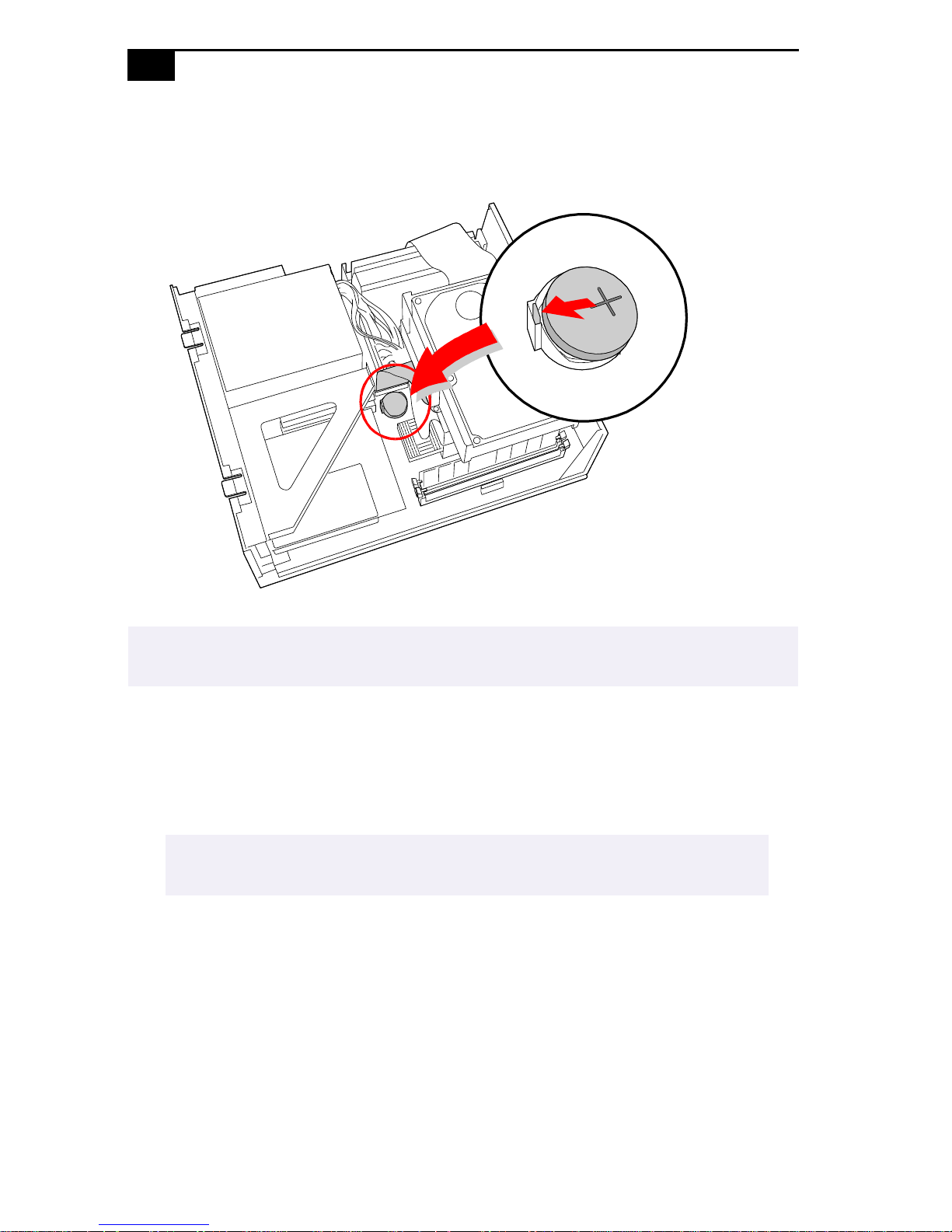

Replacing the Lithium Battery .....................................................31

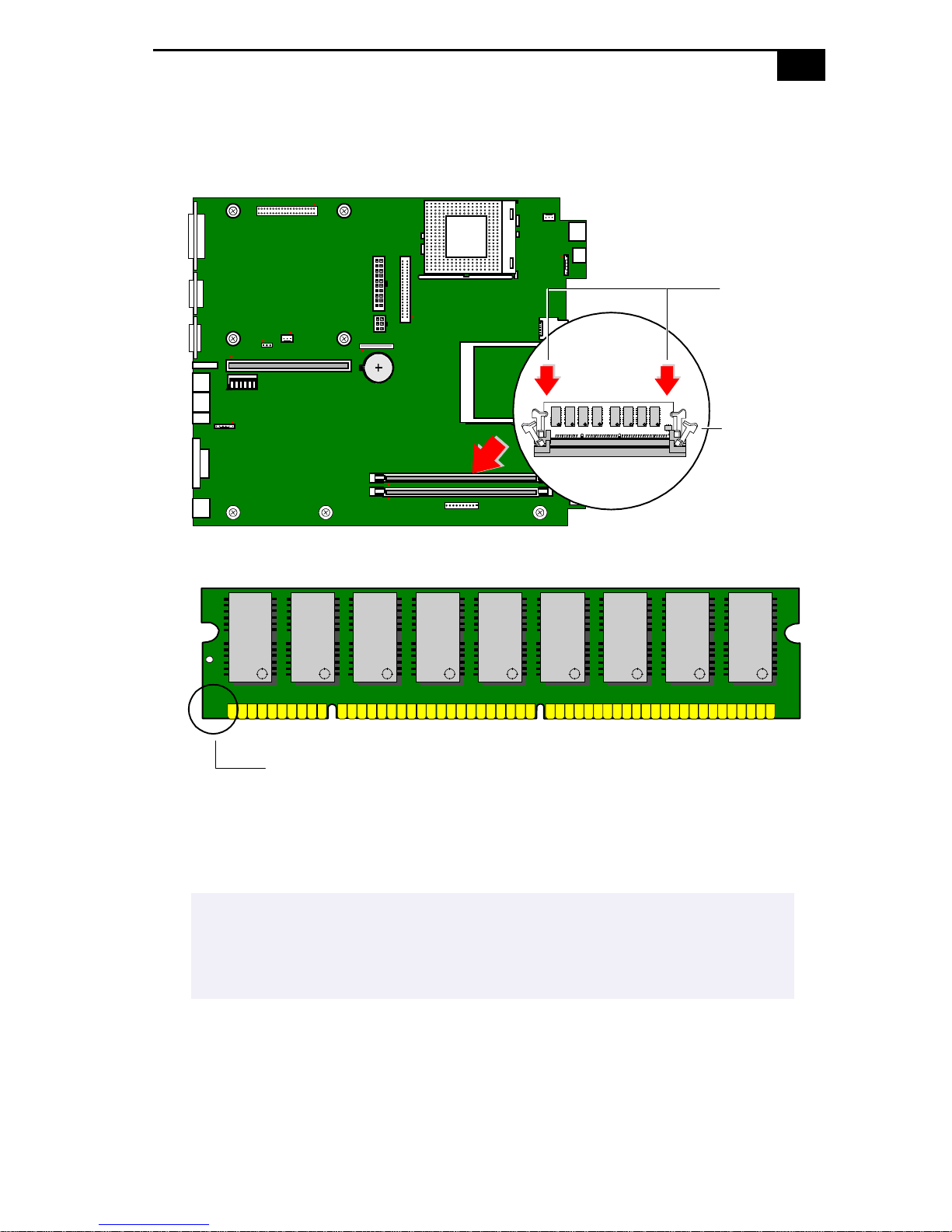

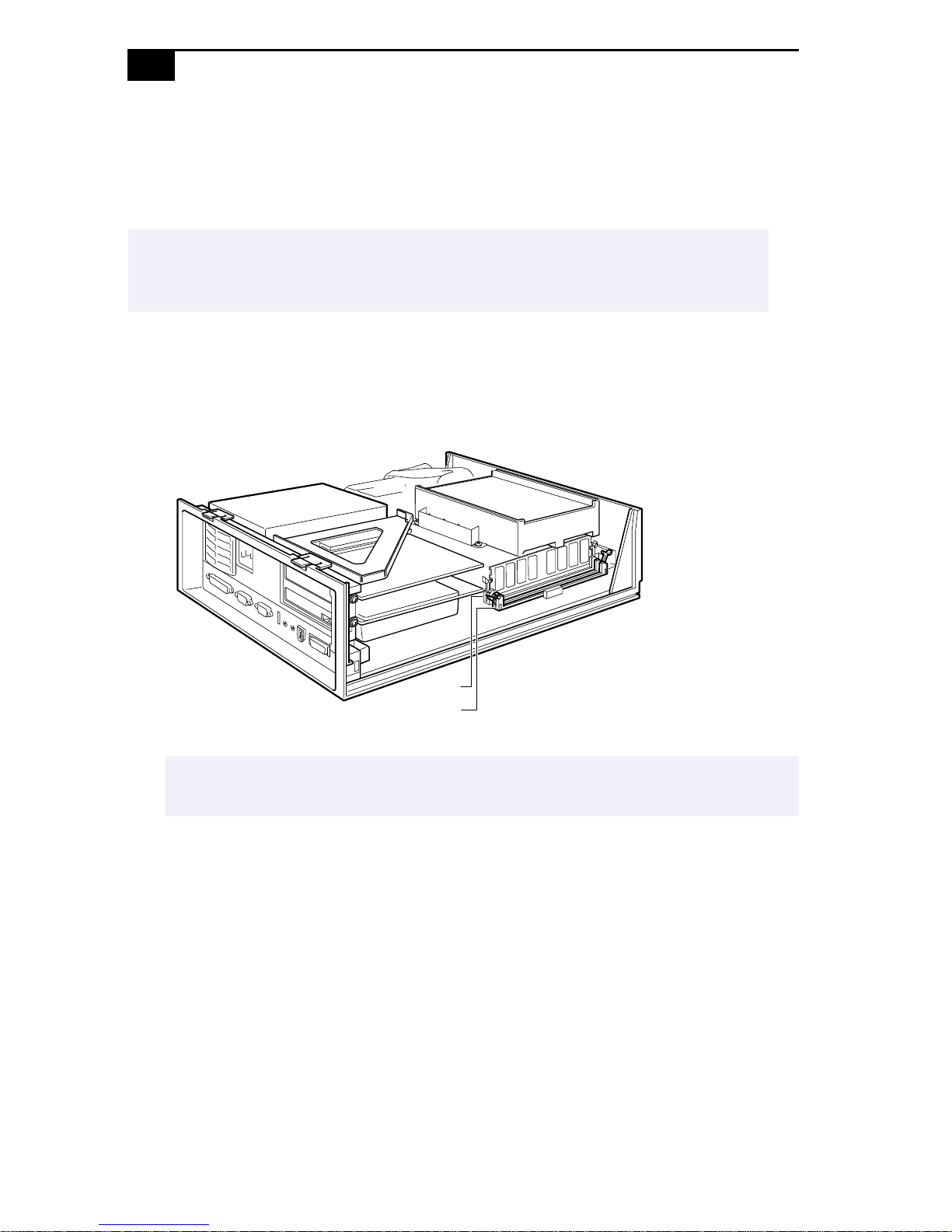

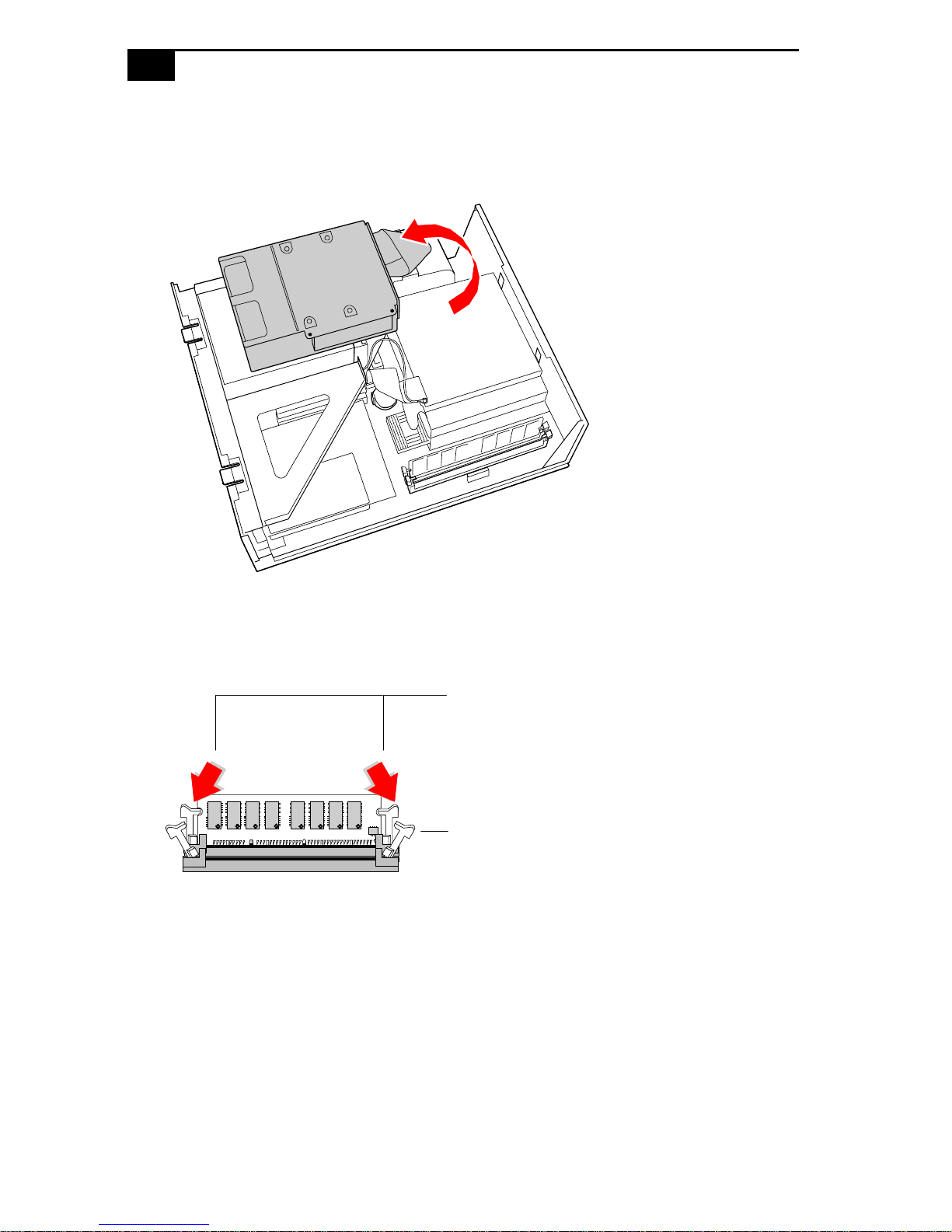

Installing System Memory ...........................................................34

Removing a Memory Module .....................................................36

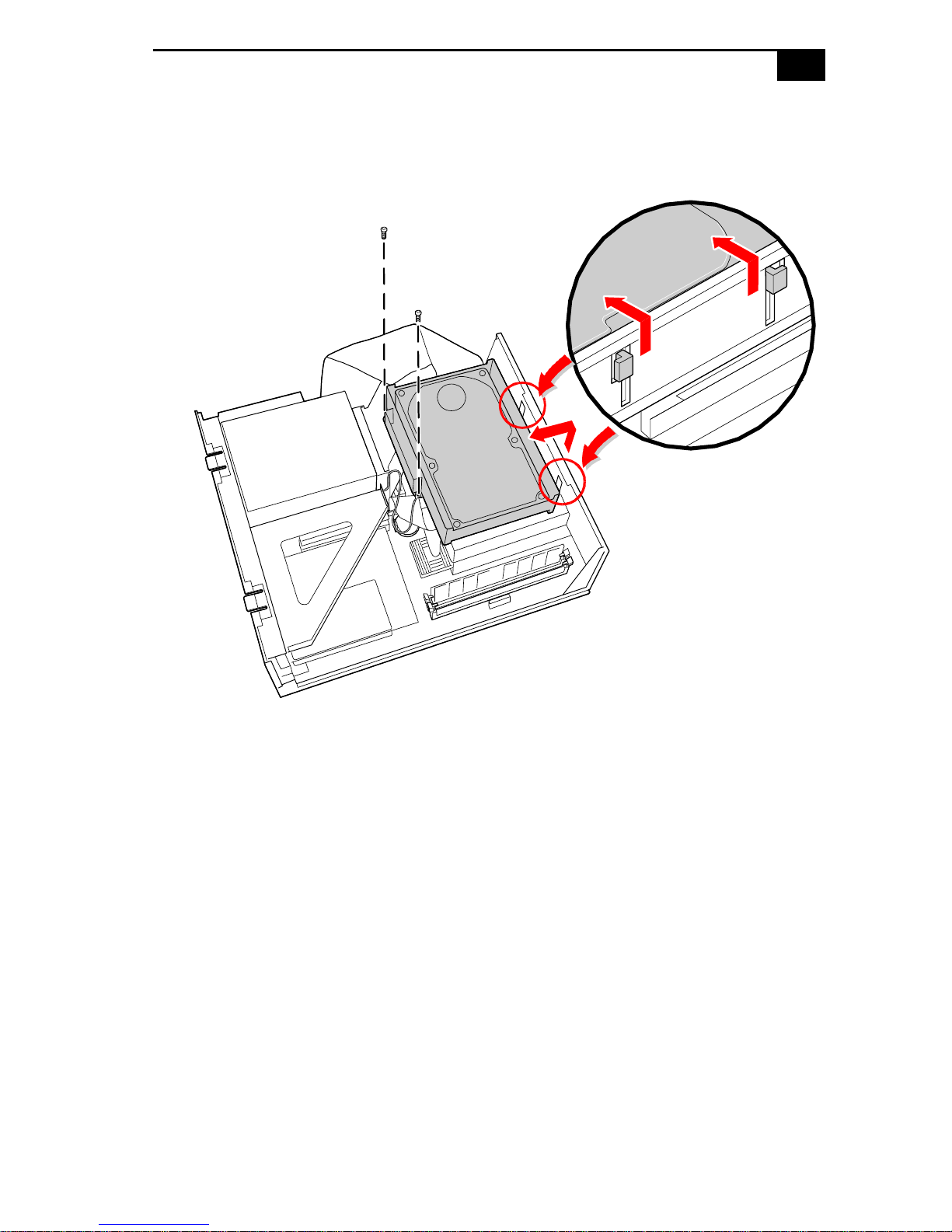

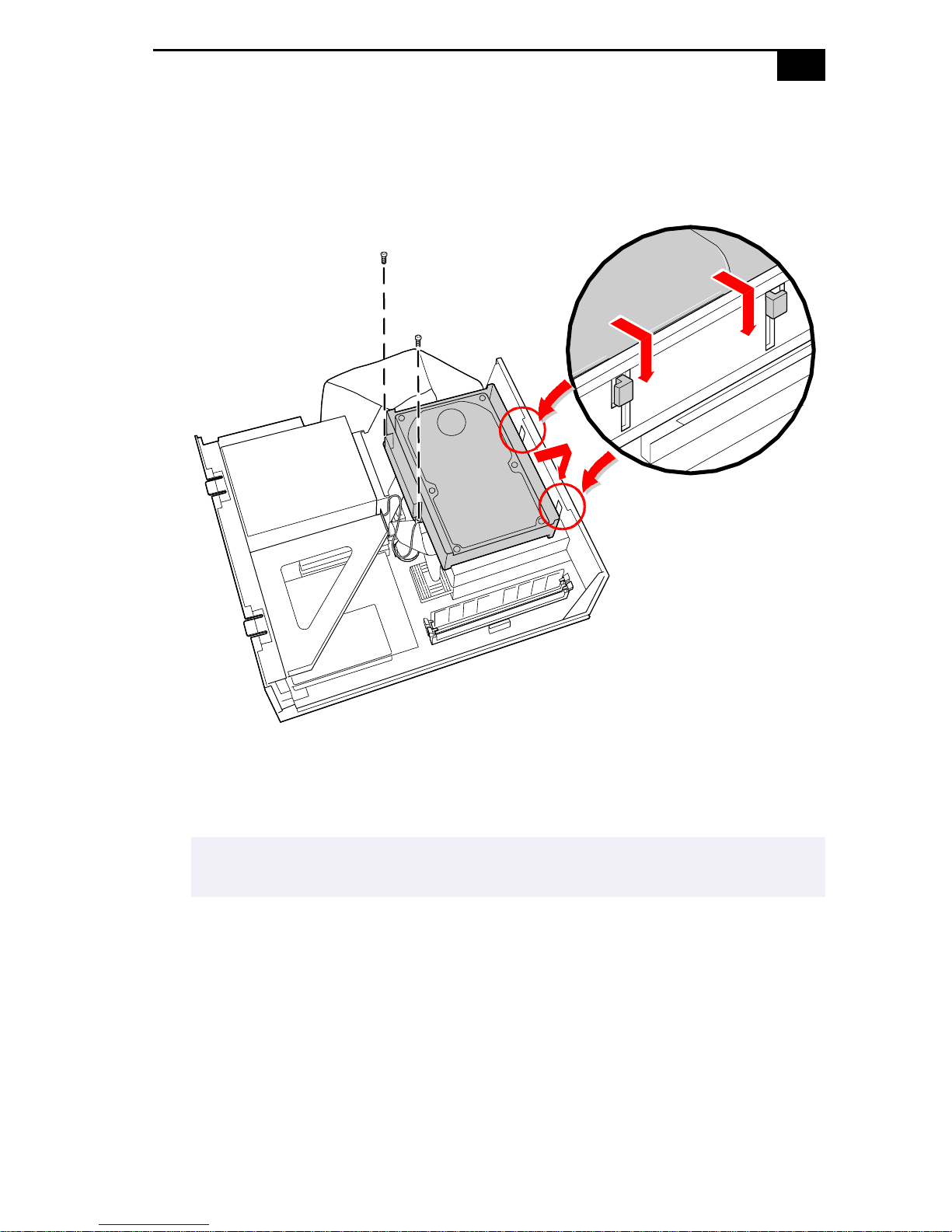

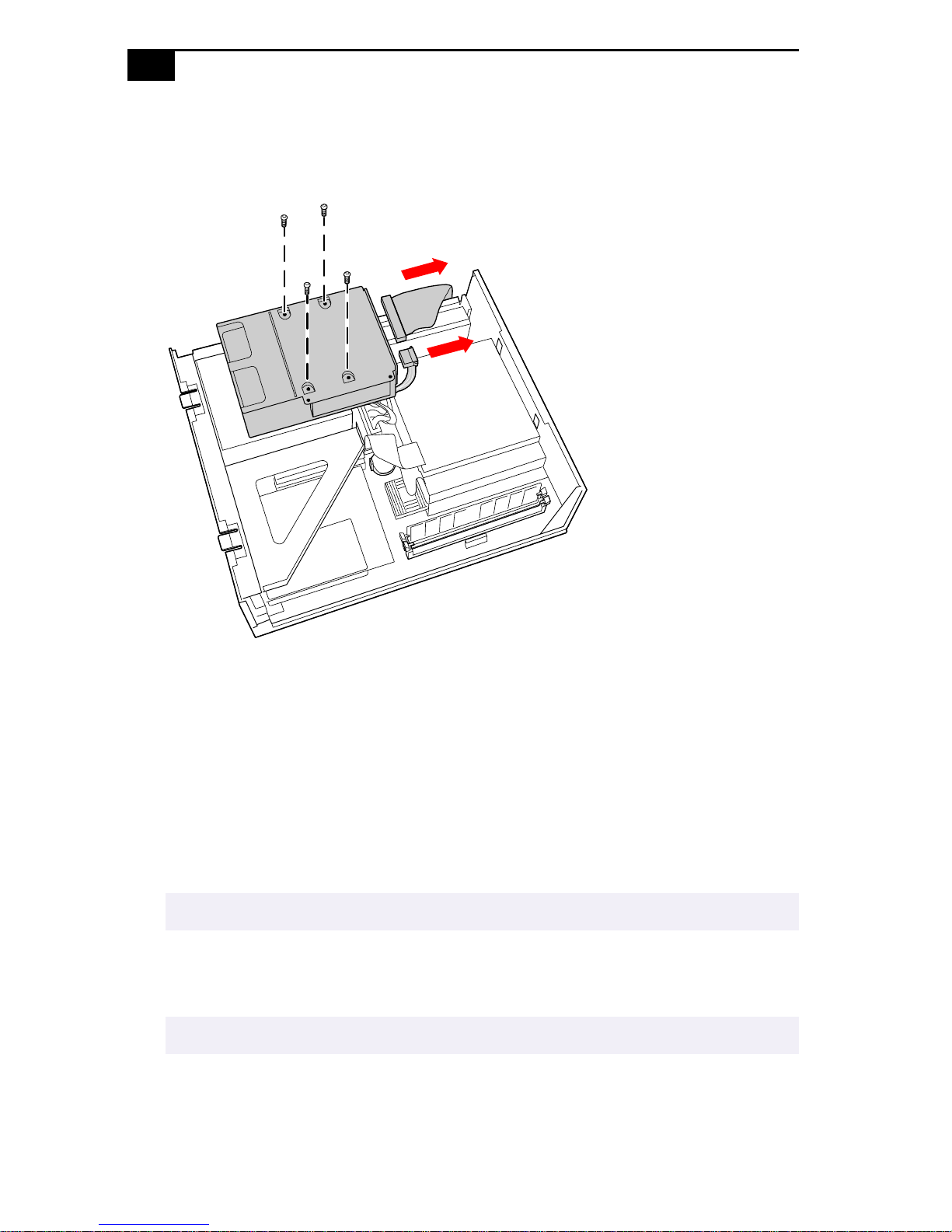

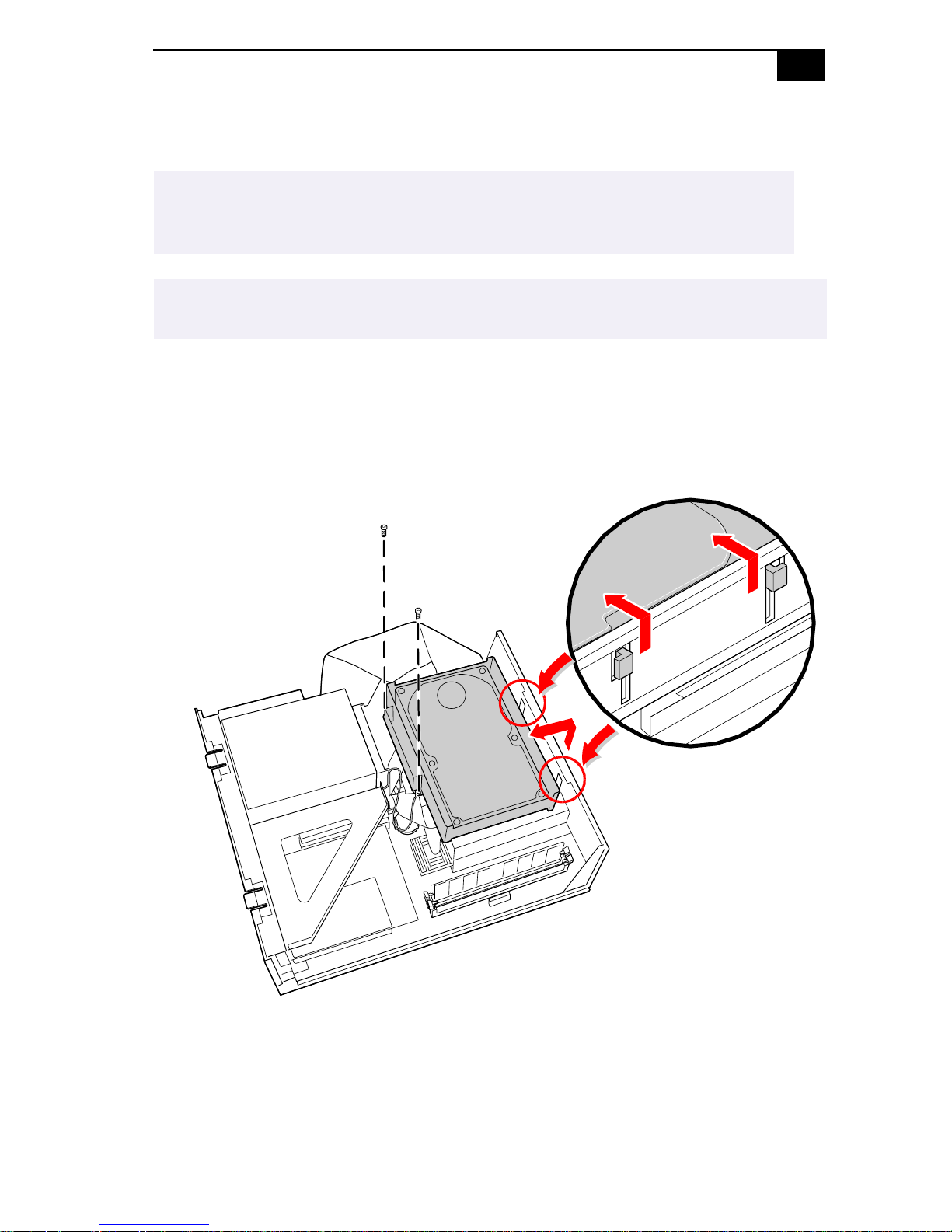

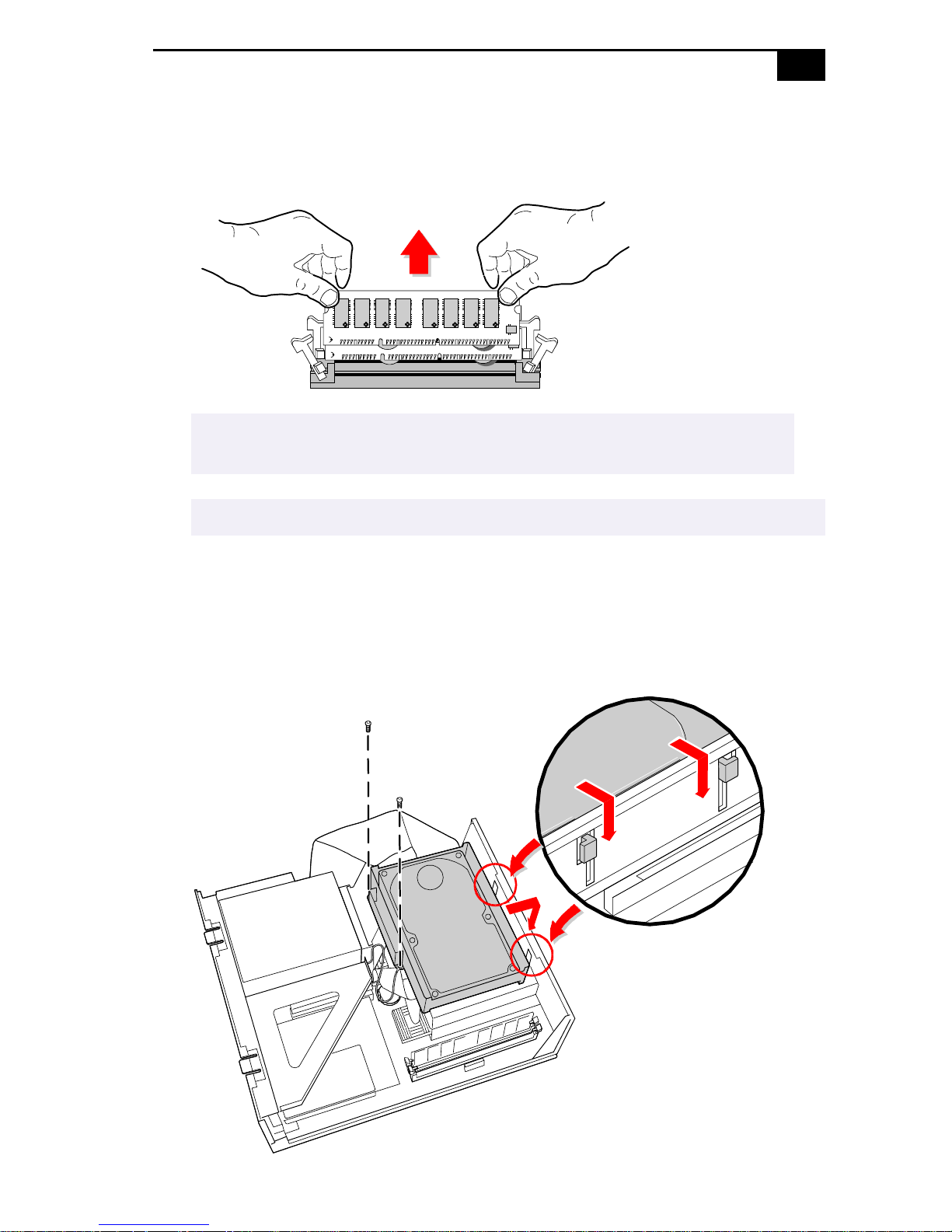

Replacing the Hard Drive ...........................................................41

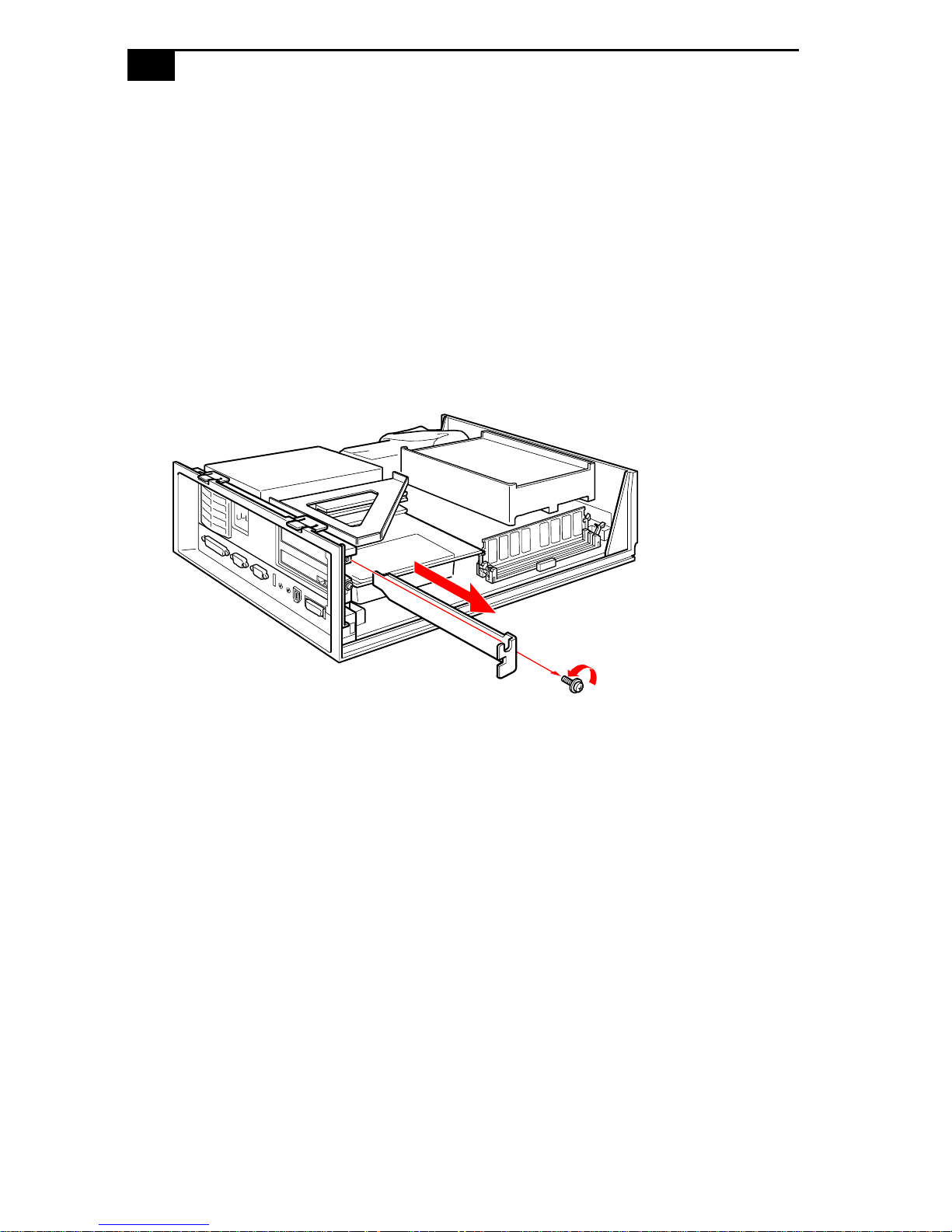

Removing a Slot Cover..................................................................44

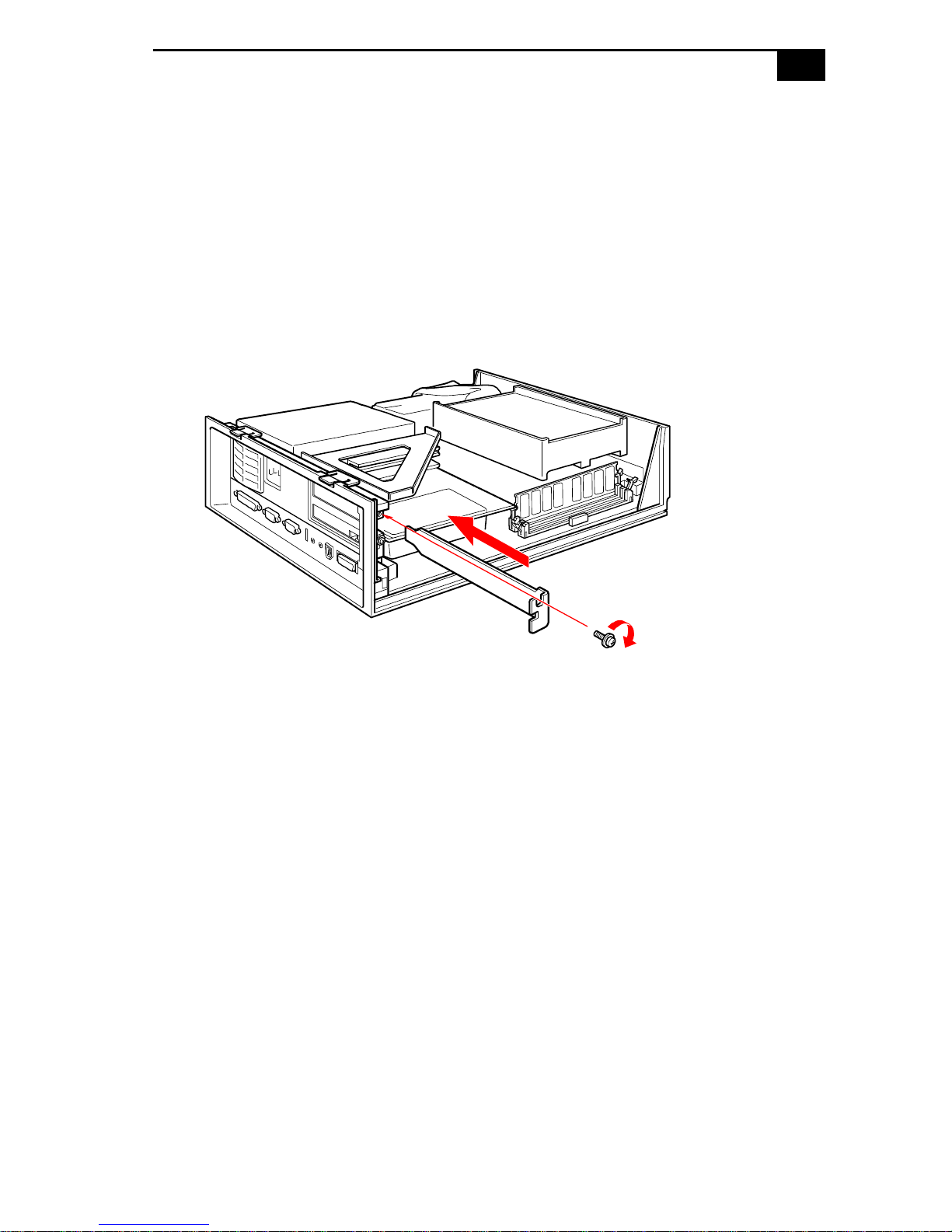

Covering an Open I/O Slot ..........................................................45

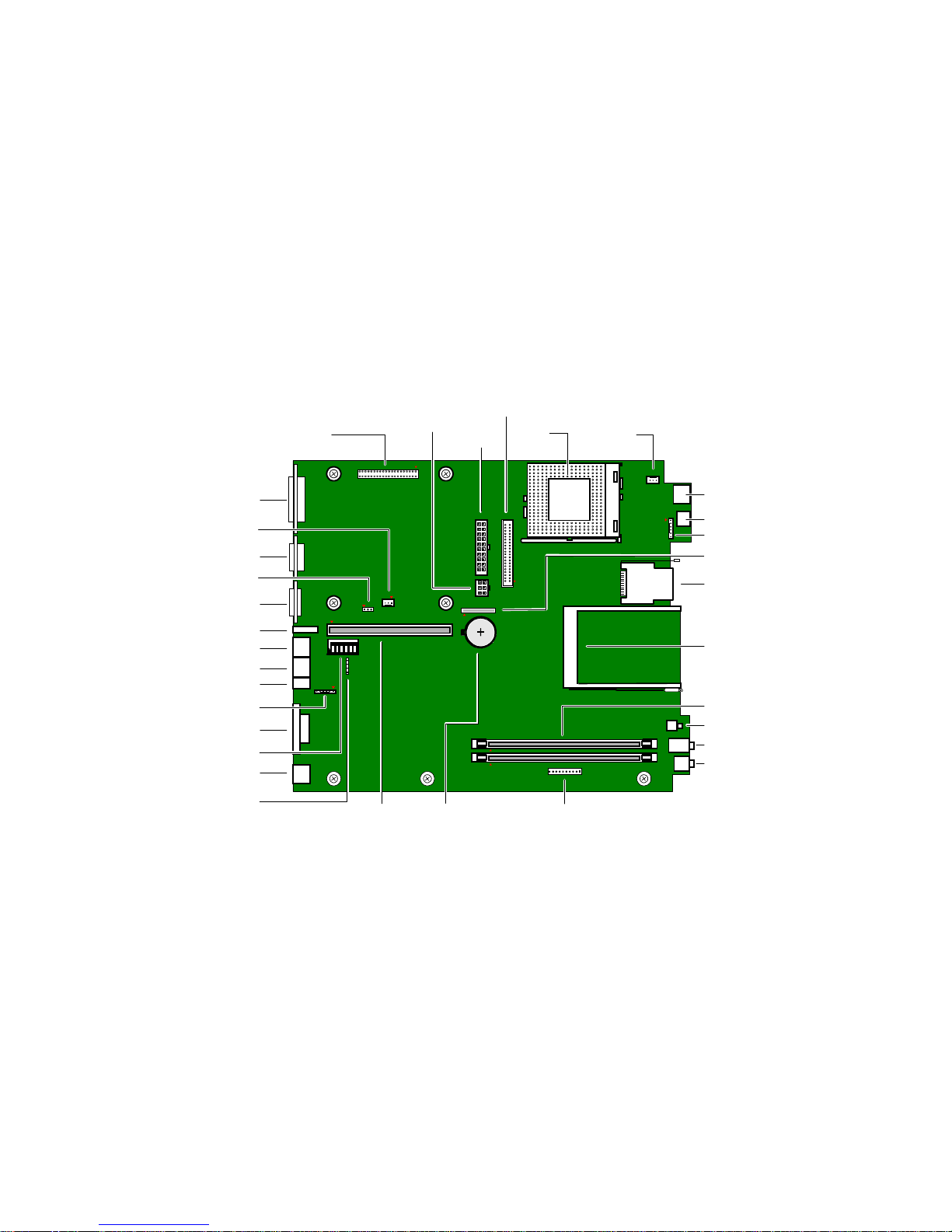

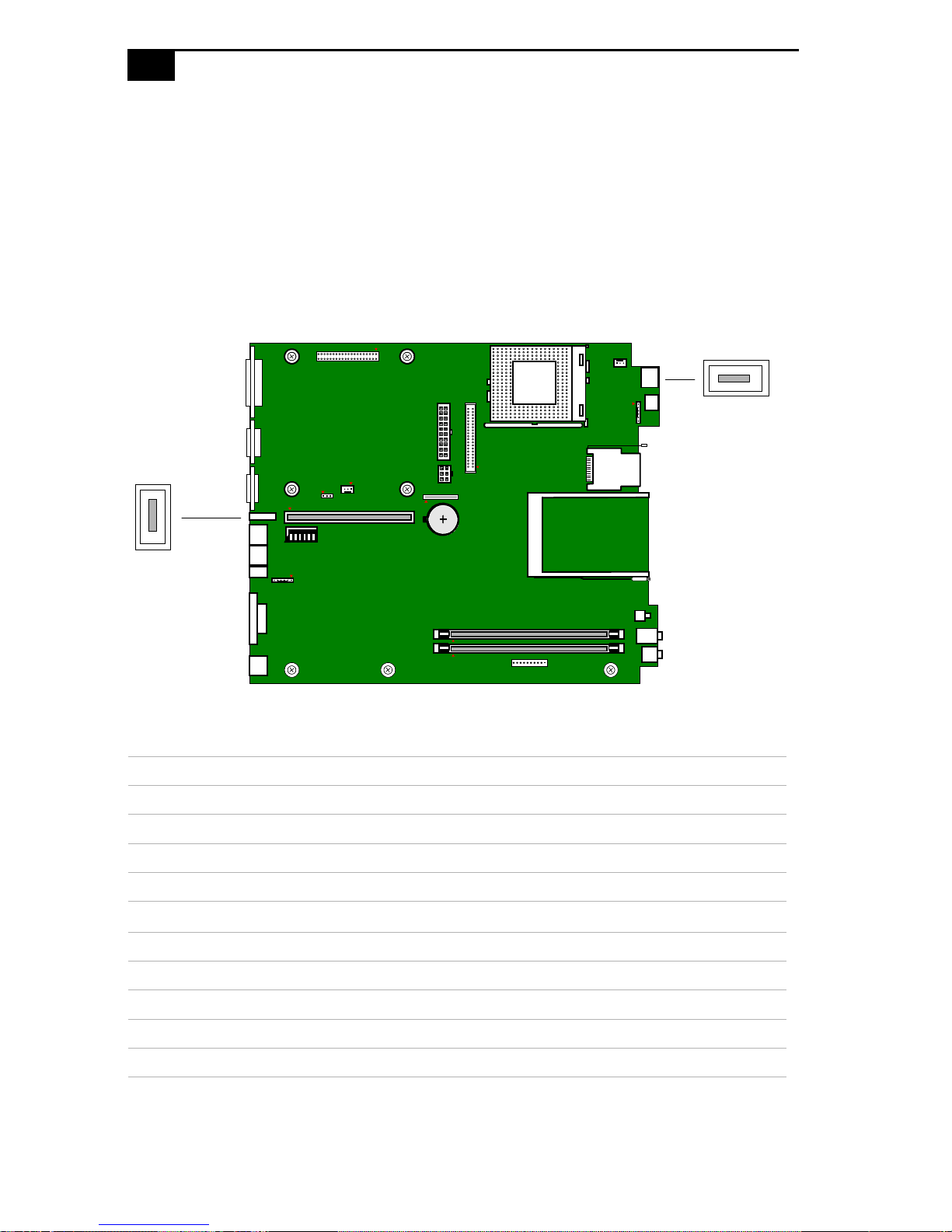

Chapter 4 — System Board

Connectors ......................................................................................48

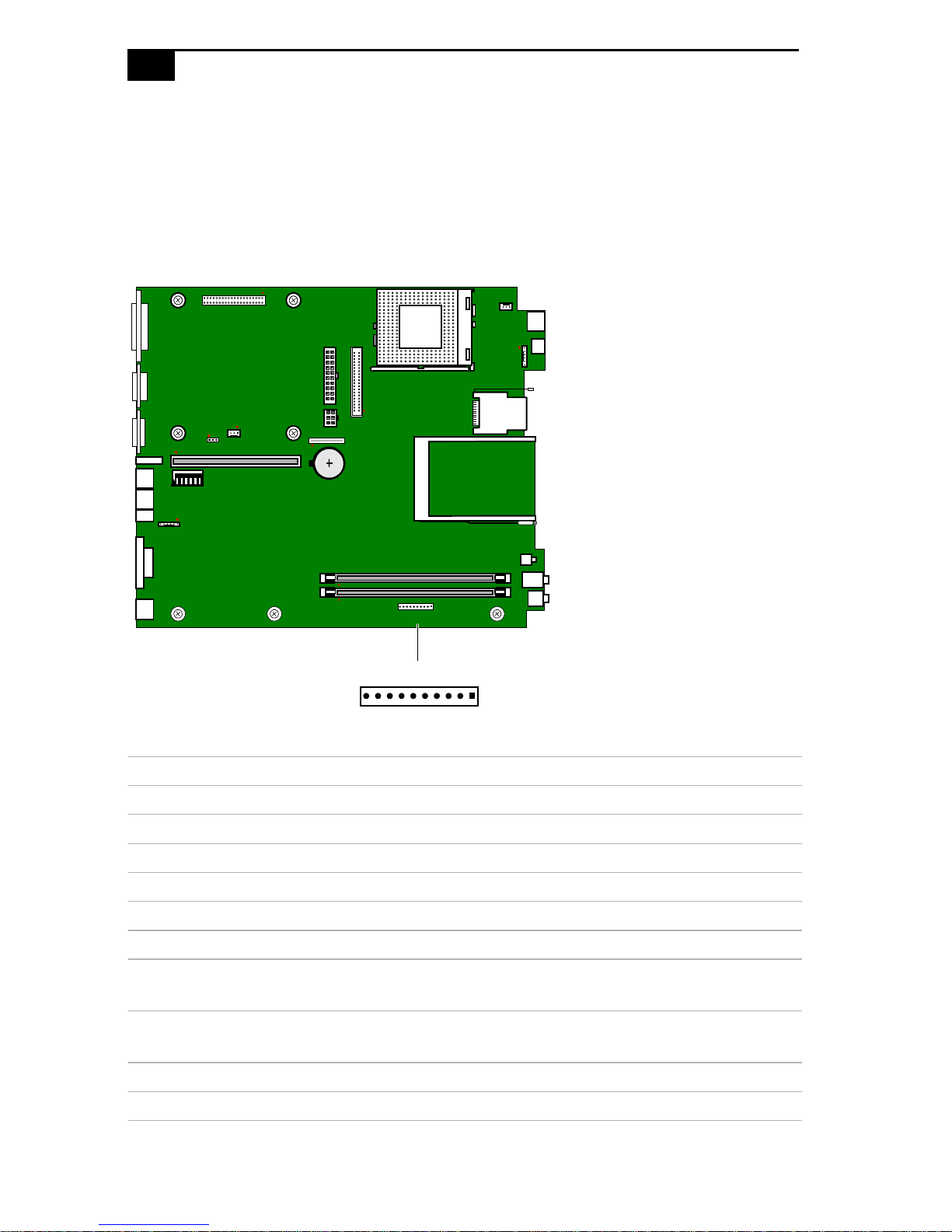

Front Panel Header............................................................................48

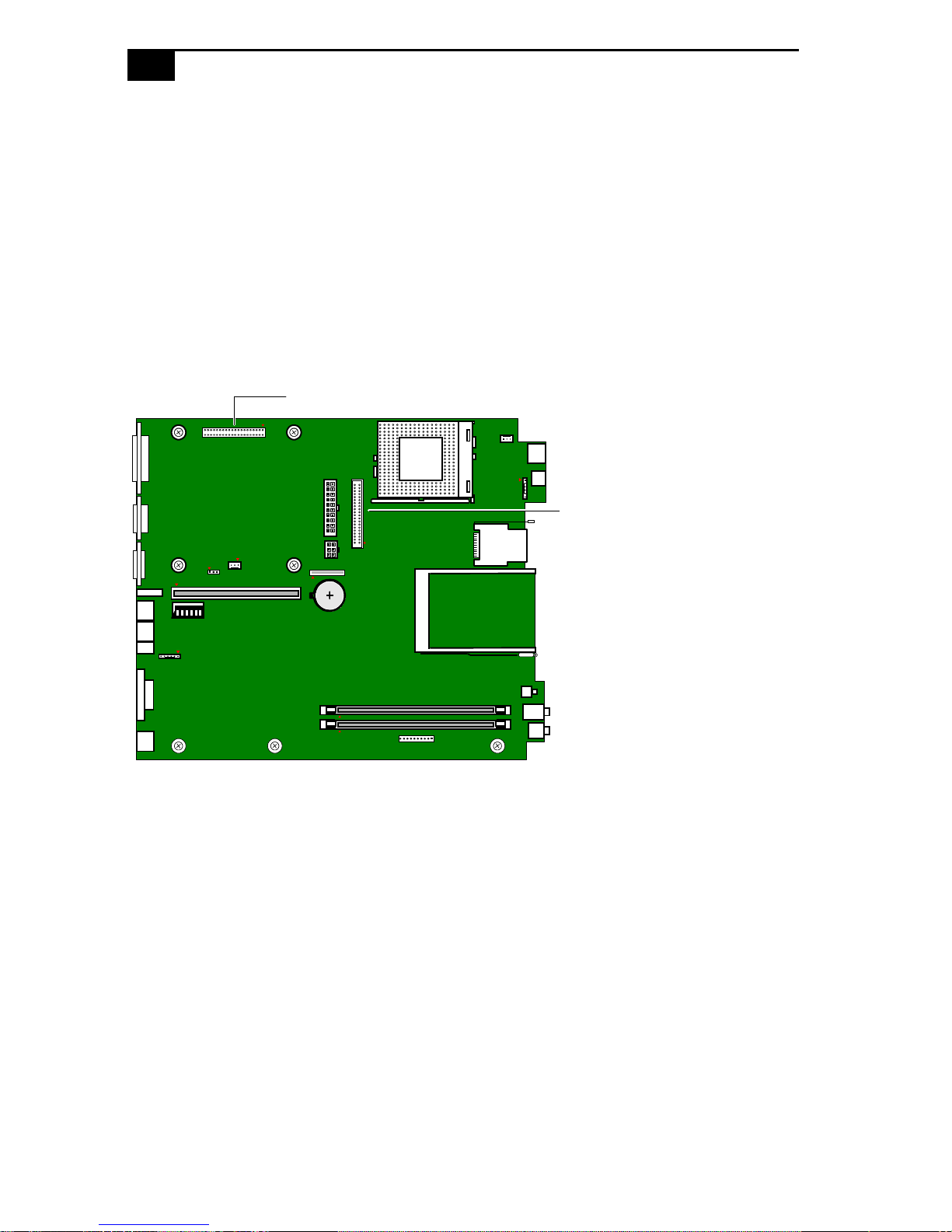

Diskette Drive (FLOPPY) Connector ..............................................49

IDE Connectors .................................................................................50

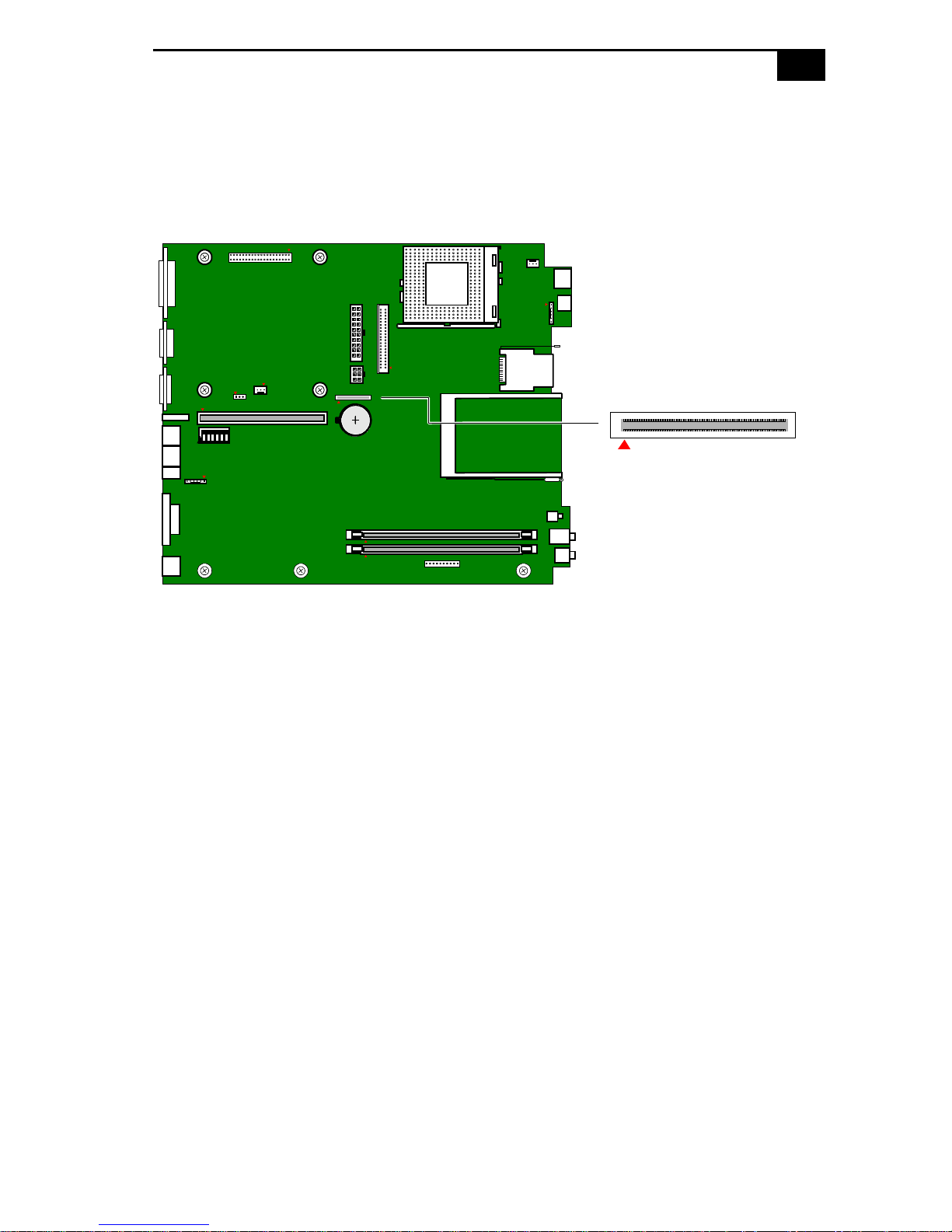

PCI Slot Connectors...........................................................................51

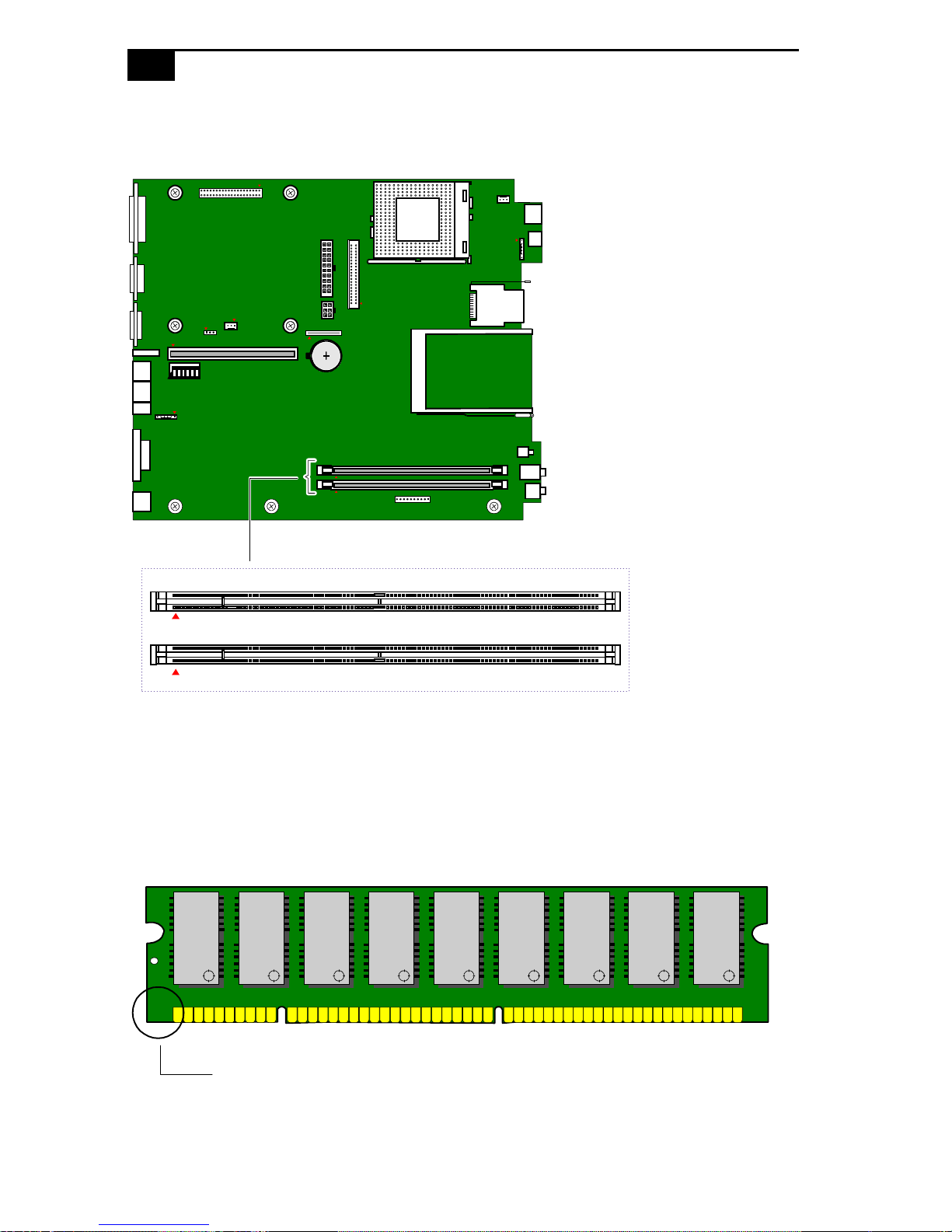

Memory Module (DIMM) Connectors ..........................................52

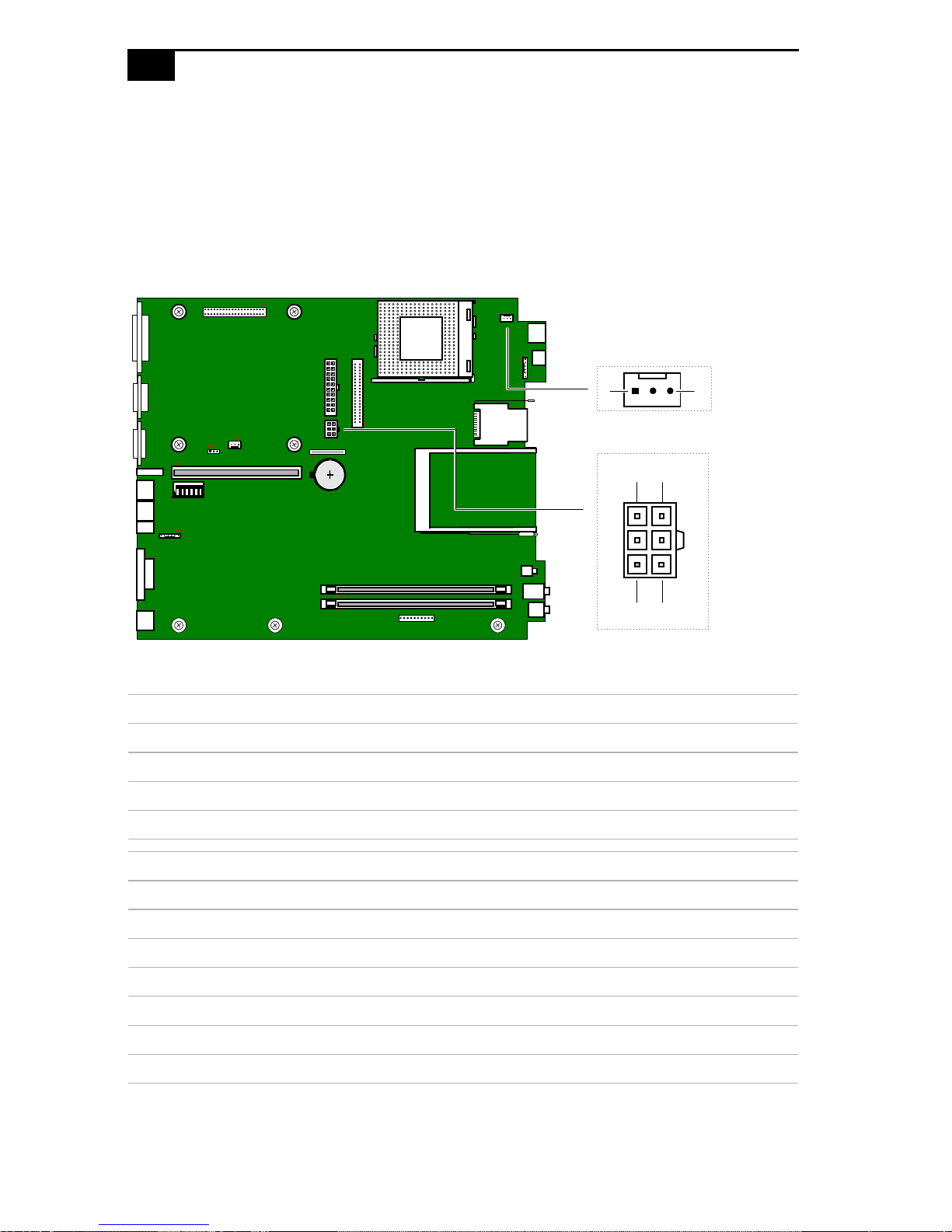

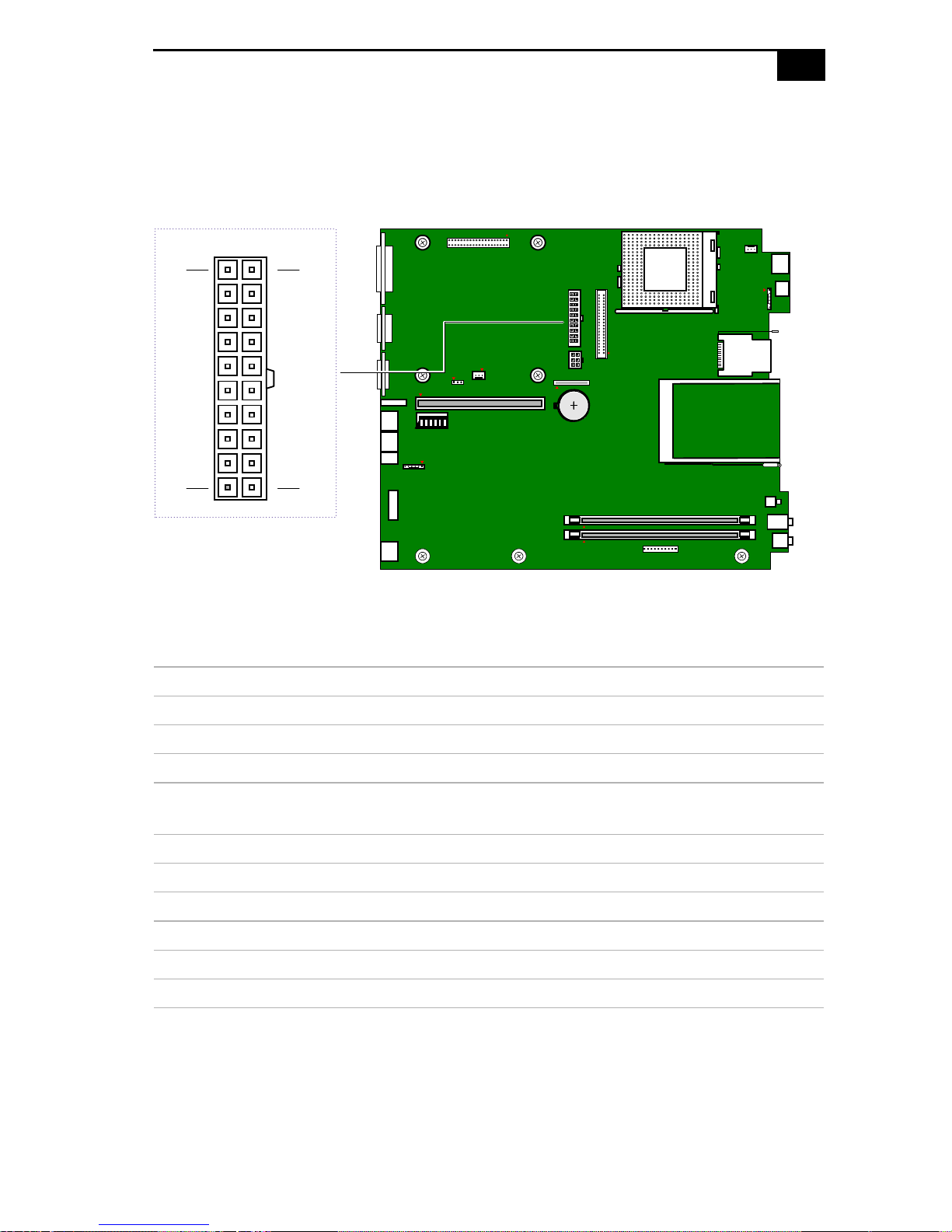

Power (ATX PWR) Connector .........................................................53

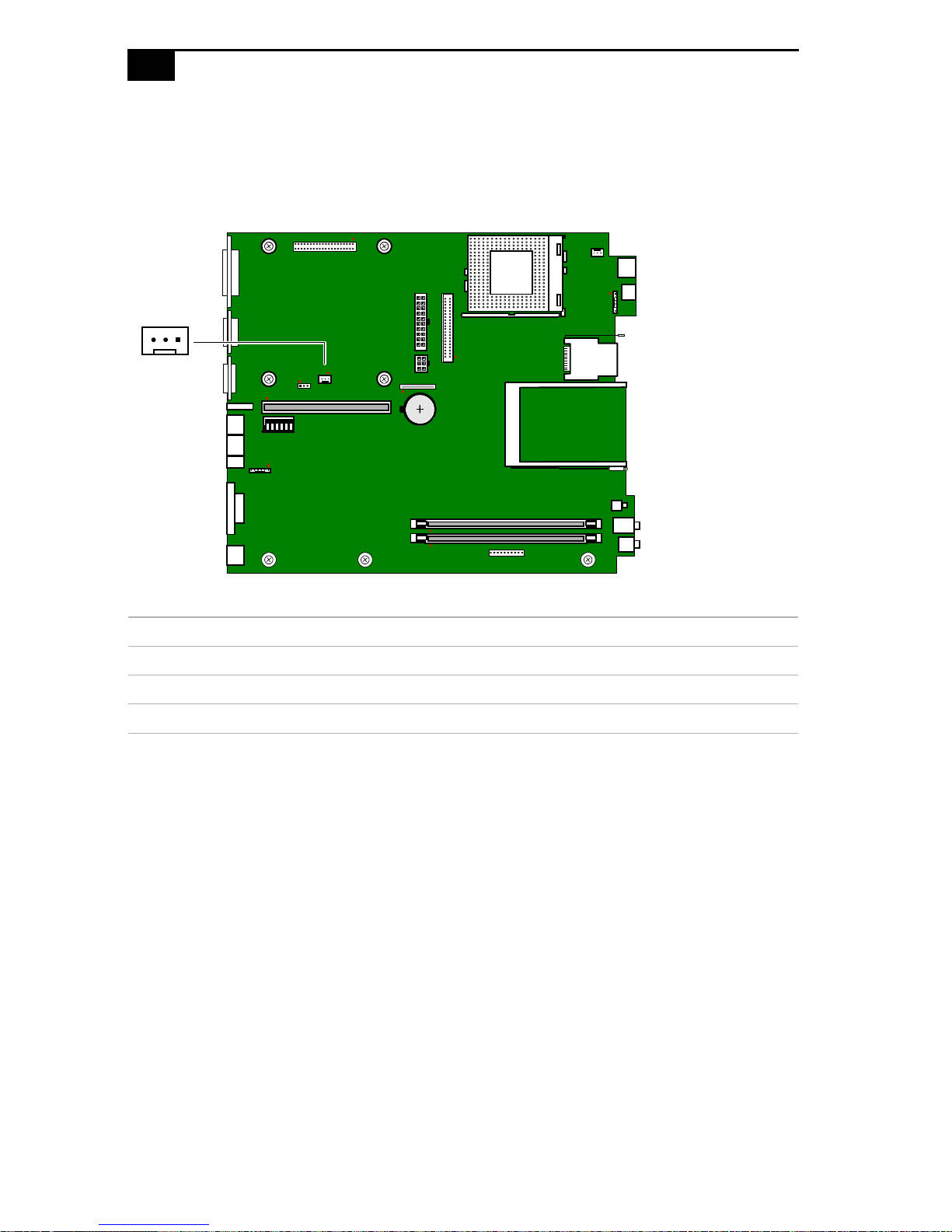

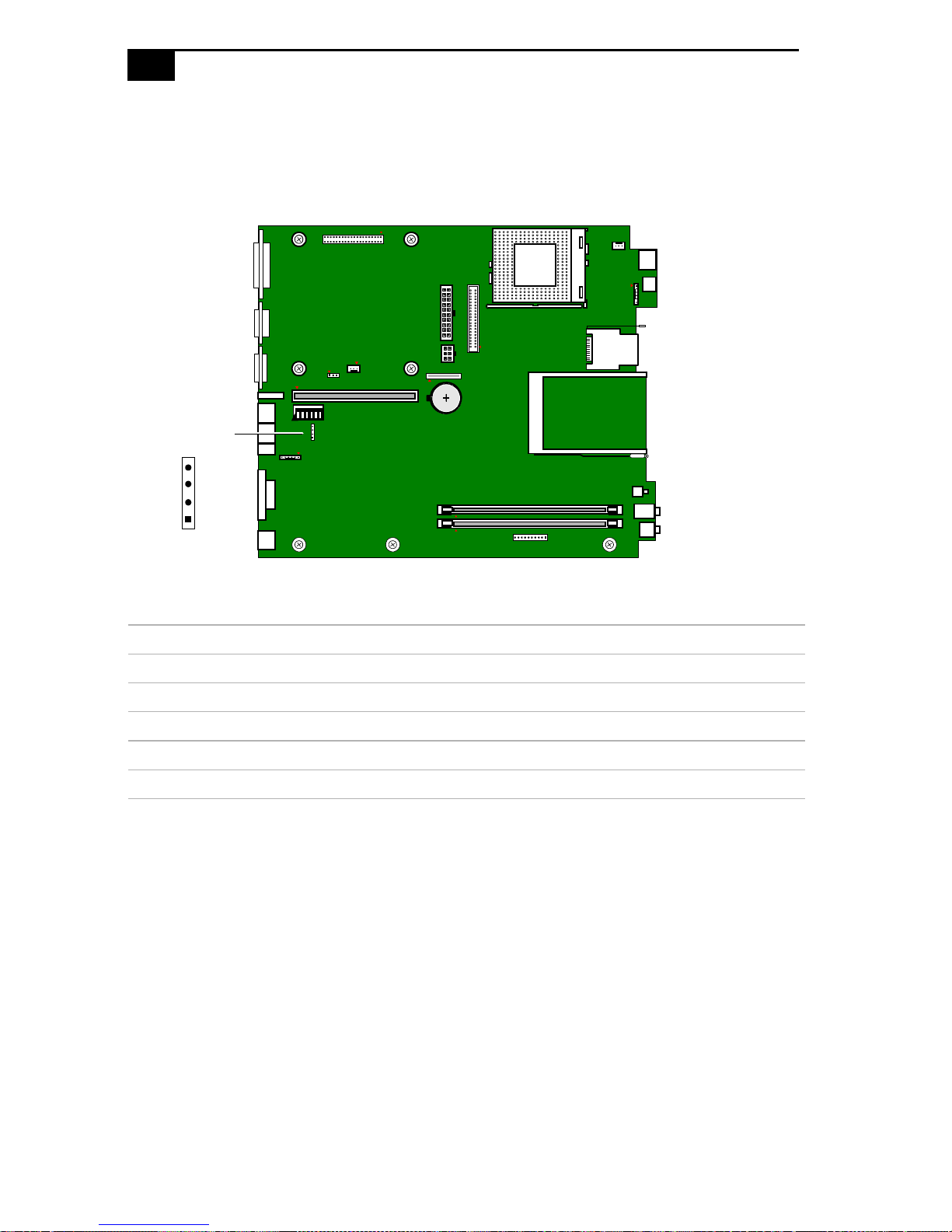

Fan (CPU FAN, CTRL PWR) Connectors ......................................54

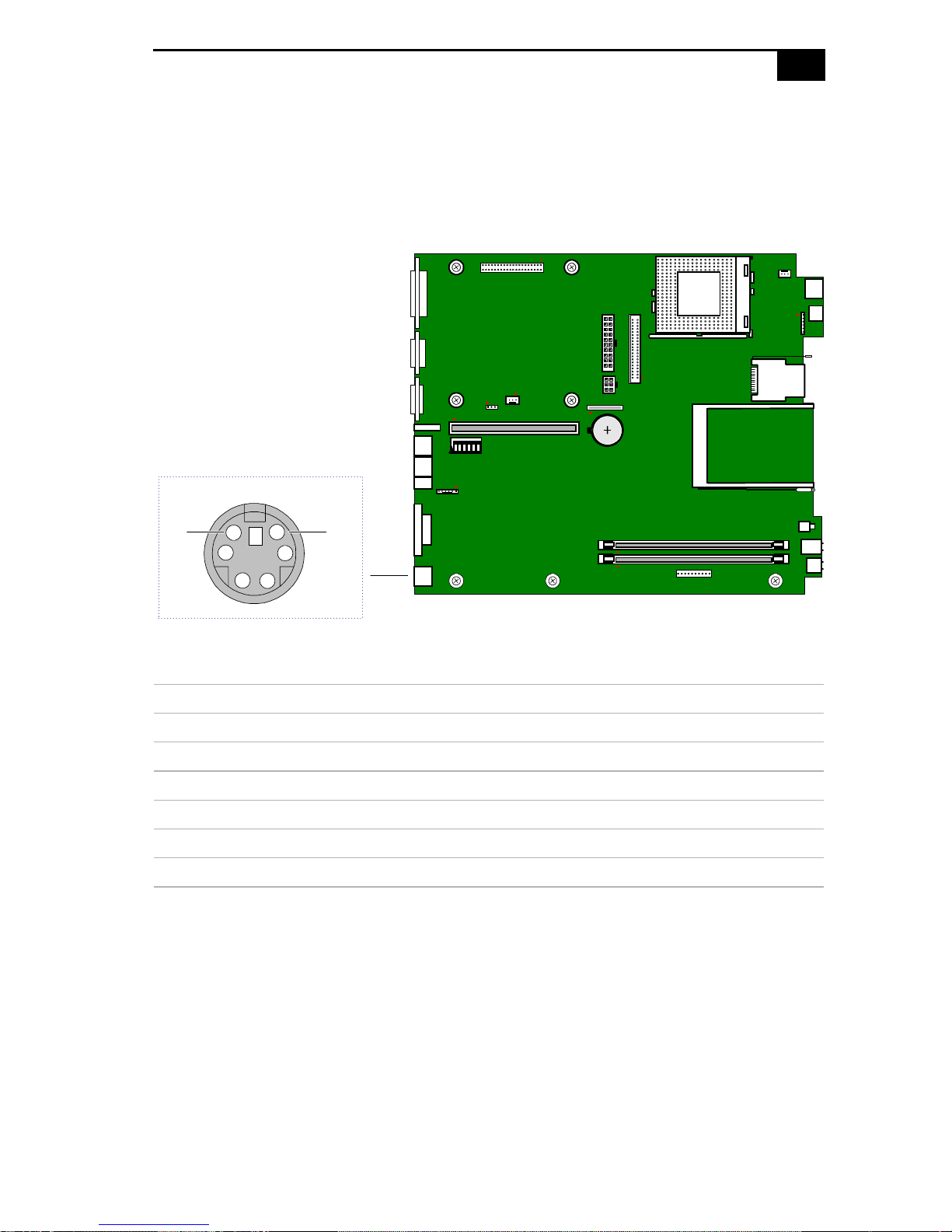

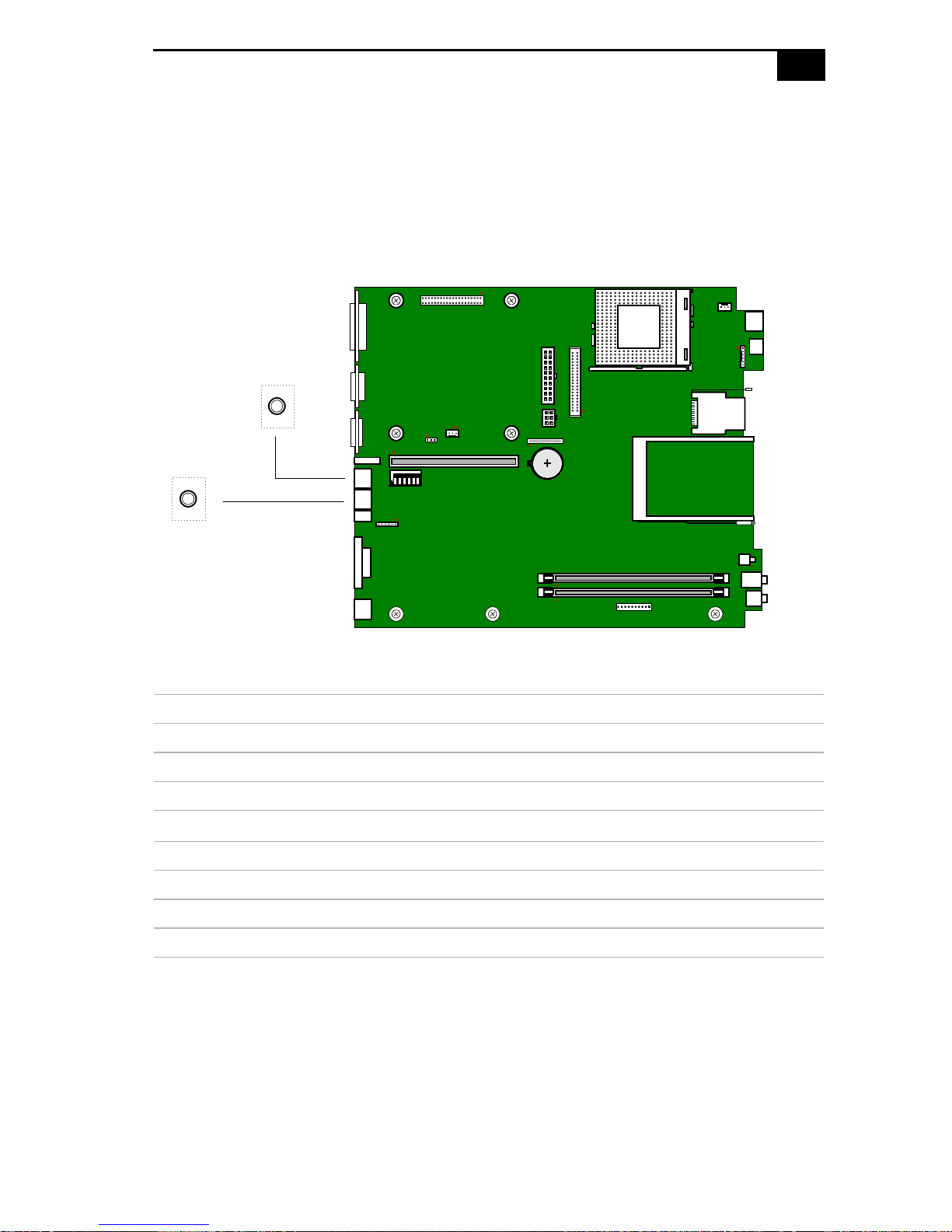

Keyboard/Mouse (KB/MOUSE) Connector ................................55

USB Connectors .................................................................................56

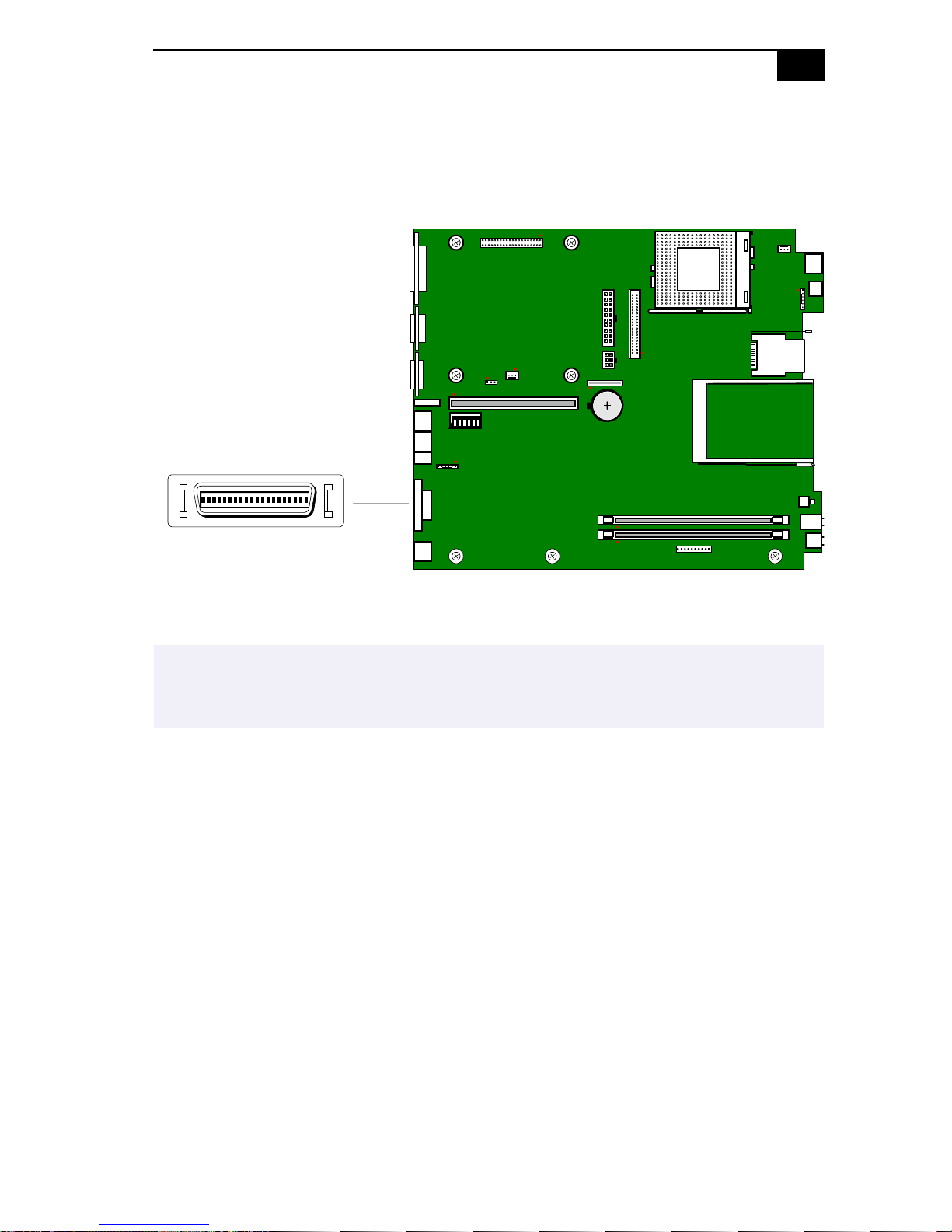

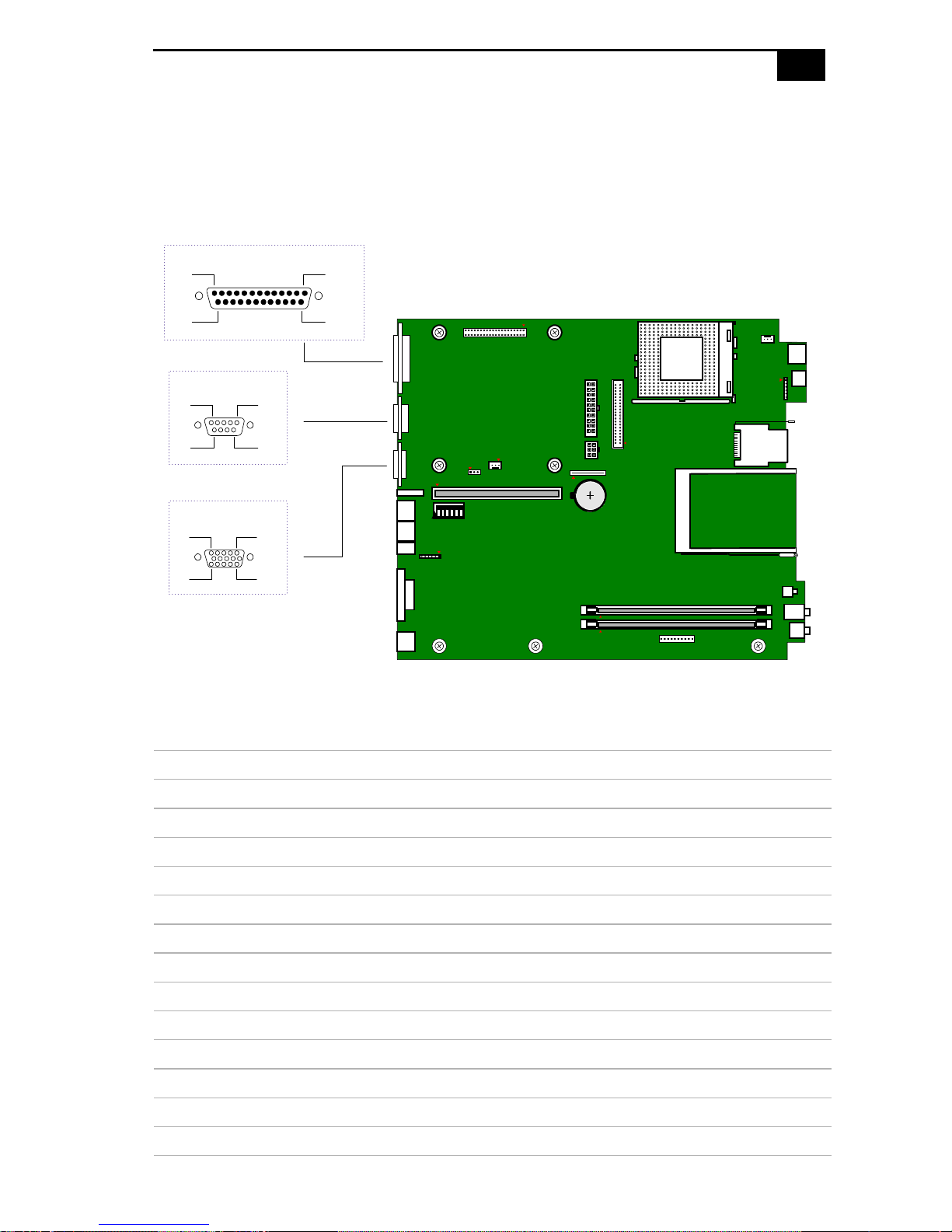

PRINTER, SERIAL, and VGA MONITOR Connectors ...............57

LCD Connector ..................................................................................59

Wake On LAN (WOL_CON) Connector .......................................60

LINE IN and LINE OUT Connectors .............................................61

PHONE and MIC Connectors .........................................................62

Sony Memory Stick Slot Connector ................................................63

i.LINK Interface Header Connectors .............................................64

i.LINK Connectors ............................................................................65

Auxiliary Audio In Connector .........................................................66

Configuration Jumper and Switches ..........................................67

CMOS Jumper ...................................................................................67

Configuration Switches (SW)...........................................................68

Page 13

Contents

Chapter 5 — Fax/Modem Card

Chapter 6 — Ethernet Card

Chapter 7 — CMOS Setup Options

STANDARD CMOS SETUP Screen ............................................76

BIOS FEATURES SETUP Screen.................................................. 77

CHIPSET FEATURES SETUP Screen.......................................... 80

POWER MANAGEMENT SETUP Screen..................................82

PNP AND PCI SETUP Screen .....................................................84

LOAD SETUP DEFAULTS Screen ..............................................86

SUPERVISOR PASSWORD Screen .............................................86

USER PASSWORD Screen............................................................86

xiii

IDE HDD AUTO DETECTION Screen.......................................86

SAVE & EXIT SETUP Screen........................................................86

EXIT WITHOUT SAVING Screen ...............................................86

Chapter 8 — Miscellaneous Technical Information

About User and Supervisor Passwords .....................................88

Beep Code Error Messages ..........................................................89

PCI Configuration Status and Error Messages .........................90

DMA Channel Assignments ....................................................... 91

IRQ Assignments ........................................................................ 92

System I/O Address Map ............................................................93

Memory Map.................................................................................. 95

Chapter 9 — Specifications

Processor .......................................................................................97

Chipset ...........................................................................................97

PCI Bus ..........................................................................................97

Memory Modules (DIMMs) .......................................................97

DIMM Configurations ..................................................................98

L2 Cache ......................................................................................... 98

Graphics ........................................................................................98

Page 14

xiv

VAIO Slimtop™ Reference Manual

Audio ...............................................................................................99

Communications ..........................................................................99

I/O and Expansion Slots .............................................................99

i.LINK Interface ...........................................................................100

Ethernet Interface ........................................................................100

Drives and Controllers ...............................................................100

System CMOS .............................................................................101

Page 15

Chapter 1 Identifying Components

The following sections identify and describe each component that is visible from the exterior of the VAIO identified in Chapters 3, 4, and 5 of this manual.

Computer. Internal components are

Page 16

VAIO Slimtop™ Reference Manual

Front View

Flip-down panel

FD DISC HD

SHA0001.VSD

Page 17

Drives

Identifying Components

FD DISC HD

Floppy disk driveCD-RW disc drive

SHA0002.VSD

Drive Description

Diskette drive 3.5-inch, 1.44 Mbyte. CD-RW drive

CD-ROM disc read: 20X (maximum performance). CD-R disc read: 20X (maximum performance). CD-R disc write: 4X (maximum performance). CD-RW disc read: 14X (maximum performance). CD-RW disc write: 4X (maximum performance).

* The CD-RW/CD-R/CD-ROM data transfer standard 1X rate is 150 kbytes/s. Data on a CD-RW is read at a

variable transfer rate, ranging from 6X at the innermost track to 14X at the outermost track. The average data transfer rate is 10X (1500 kbytes/s). Data on a CD-R/CD-ROM is read at a variable transfer rate, ranging from 8X at the innermost track to 20X at the outermost track. The average data transfer rate is 14X (2100 kbytes/s). Data on a CD-RW/CD-R is written at a constant transfer rate of 2X or 4X, depending on the speed and media type you select.

Page 18

VAIO Slimtop™ Reference Manual

Buttons and Switches

Power on/off Floppy disk eject

Manual eject hole

FD DISC HD

CD-RW disc eject

Button or switch Description

Power/Standby switch Turns system power on and off. Floppy disk eject button Ejects a diskette.

SHA0003.VSD

CD-RW disc eject button

Automatically opens the CD-RW tray.

Emergency eject hole Ejects an optical disc.

Page 19

Indicators

Power on/off

Identifying Components

Diskette drive access indicator

CD-RW drive access indicator

FD DISC HD

Hard drive access indicator

SHA0004.VSD

Indicator Description

Power/Standby indicator Standby (amber) indicates the computer is in

standby mode. On (green) indicates the computer is out of standby mode, ready to use. Off (no color) indicates the computer is

turned off. Diskette drive access indicator On (green) indicates diskette drive activity. CD-RW drive access indicator On (amber) indicates optical disc activity. Hard disk drive access

On (green) indicates hard disk drive activity. indicator

Page 20

VAIO Slimtop™ Reference Manual

Connectors

FD DISC HD

MIC

PHONES

VOLUME

USBi.LINK

SHA0005.VSD

Connector Description

MIC Connects to microphone. PHONES Connects to headphones. i.LINK

(IEEE-1394)

Connects to digital devices that have a 4-pin i.LINK

connector. USB Connects to USB devices. VOLUME Controls headphone volume.

* To connect to a 6-pin i.LINK device, use the i.LINK connector on the back of the system. A 6-pin i.LINK

connector can supply power from the computer to the device if the device also has a 6-pin i.LINK connector. A 4-pin i.LINK connector cannot supply power to the device.

Page 21

Slots

Identifying Components

FD DISC H D

PC Card

Slot

Memory Stick

Media Slot

SHA0006.VSD

Slot Description

PC Card Slot Accommodates one Type I or Type II PCMCIA

card.

Memory Stick

Media Slot Accommodates Memory Stick media.

Page 22

VAIO Slimtop™ Reference Manual

Rear View

Power LINE

ETHERNET

PRINTER SERIAL MONITOR

USB LINE I.LINK

USB

OUTIN

Connector Description

Power AC input power.

LINE PHONE

S400

i.LINK

LINE OUT

LINE IN

LCD KEYBOARD

LCD

KEYBOARD

PHONE

SHA0007.VSD

ETHERNET Connects to RJ-45 Ethernet connector. LINE Connects to phone cable from wall jack. PHONE Connects to telephone. PRINTER Connects to parallel device. SERIAL Connects to serial device. MONITOR Connects to VGA monitor (optional). USB Connects to USB devices. LINE IN Connects to output connector on audio device. LINE OUT Connects to input connector on audio device. i.LINK (IEEE-1394)

Connects to digital device that has a 6-pin i.LINK connector.

LCD Connects to VAIO Slimtop

™

LCD monitor.

KEYBOARD Connects to keyboard.

* To connect to a 6-pin i.LINK device, use the i.LINK connector on the back of the system. A 6-pin i.LINK

connector can supply power from the computer to the device if the device also has a 6-pin i.LINK connector. A 4-pin i.LINK connector cannot supply power to the device.

Page 23

Identifying Components

I/O Connectors

The following section identifies the various I/O connectors.

PRINTER Port

The PRINTER port is a standard 25-pin DB-25 female connector assigned as LPT1.

13 1

25 14

KY0005.VSD

SERIAL Port

The SERIAL port is a standard 9-pin DB-9 male connector assigned as COM1.

KY0057.VSD

MONITOR

The MONITOR connector is a standard 15-pin female high-density VGAtype connector.

SHA0009.VSD

Page 24

VAIO Slimtop™ Reference Manual

USB Connectors

A USB connector is located on the front and real panels.

Rear panel

Front panel

KY0003.VSD

PHONE, MIC, LINE IN, and LINE OUT

The PHONES, MIC, LINE IN, and LINE OUT jacks are physically identical, but have different connections. They are standard 3.5 mm stereo mini-jacks. The PHONES and MIC jacks are located on the front panel. The LINE IN and LINE OUT jacks are located on the rear panel.

PHONES MIC

Front panel

LINE IN LINE OUT

Rear panel

Connector Description

PHONES 1.0 Vrms output (typical) at 31 mW (32 ohm) output (max). MIC Electret condenser microphone input. LINE IN 1.0 Vrms input (max), 50 Kohm impedance. LINE OUT 1.0 Vrms out (max).

KY0013.VSD

Page 25

Identifying Components

i.LINK (IEEE-1394)

The 6-pin i.LINK (IEEE-1394) connector on the rear panel can supply power from the computer to a device if the device also has a 6-pin i.LINK connector. The connector supplies 10V to 12V. The total power supplied by the 6-pin i.LINK connector cannot exceed 6 watts.

6-pin i.LINK (IEEE-1394)

4-pin i.LINK (IEEE-1394)

On rear panel

On front panel

KY0087.VSD

Ethernet

The Ethernet connector on the rear panel connects to a 10Base-T/100Base-TX Fast Ethernet network via an RJ-45 connector.

MAN009.VSD

LCD

The LCD connector is a 40-pin female MDR-type connector.

KY0004.VSD

Do not connect any LCD monitor other than the Sony VAIO Slimtop LCD monitor.

KEYBOARD/MOUSE

The KEYBOARD/MOUSE connector is a mini DIN-type female connector that can be used for the supplied VAIO Smart convertible keyboard with wheel mouse, and a standard PS/2 keyboard.

2 5

KY0002.VS

Page 26

LINE and PHONE

VAIO Slimtop™ Reference Manual

The LINE and PHONE jacks are physically identical and have identical connections. They are standard RJ-11 female phone jacks. However, the LINE jack is for connecting to a telephone line that comes from the wall jack, and the PHONE jack is for connecting the computer to a telephone.

LINE PHONE

KY0014.VSD

Accidentally plugging a phone line from the wall into the modem’s PHONE jack, and a

✍

telephone into the LINE jack, will not damage the modem card or telephone equipment. However, the modem will not work correctly.

Page 27

Chapter 2 Configuring Your System

This chapter contains information on configuring your system. Configuring your system can consist of the following:

Making changes to the CMOS settings

❑

Making changes to the display's power management settings

❑

Changing the system board jumper position

❑

Page 28

VAIO Slimtop™ Reference Manual

Accessing the CMOS Setup Utility

You must access the CMOS Setup Utility to make changes to the CMOS settings (see “CMOS Setup Options” on page 75 for information on CMOS settings).

Before rebooting the system, save any open files and exit Windows®.

Reboot the system. The following message appears during the initial

boot sequence:

Press TAB to show the POST screen, DEL to enter SETUP

Press DEL after the progress bar starts.

Use the arrow keys to select an item from the main menu.

Press Enter to display the options for the selected item.

Use the arrow keys to select an option.

Press Page Up or Page Down to modify the setting.

Press ESC to return to the main menu.

Select SAVE & EXIT SETUP, type Y, then press Enter. Follow the

onscreen prompts.

Page 29

Configuring Your System

Changing the Display's Power Management Settings

A display that has power management capability is designed to operate on reduced power or shut itself off after the system has been idle for a specified period of time.

From the

Click the Power Management icon.

The Power Management Properties dialog box opens, with the Power Schemes tab displayed.

Start

menu, point to Settings, then click Control Panel.

Select the power scheme that is most appropriate for the way you use

your computer. To change a power scheme, change the settings for System standby,

Tur n off monitor, and Tu rn off hard di sks. The System standby option allows you to specify the period of

inactivity (in minutes) that you want to elapse before your computer goes on standby when your computer is running on AC power. Power is reactivated when you move the mouse or press a key.

Page 30

VAIO Slimtop™ Reference Manual

The Turn off monitor option allows you to specify the period of inactivity (in minutes) that you want to elapse before your monitor turns off when your computer is running on AC power. The display reactivates when you move the mouse or press a key.

The Turn off hard disks option allows you to specify the period of inactivity (in minutes) that you want to elapse before your hard disks turn off when your computer is running on AC power.

To save a new power scheme, first modify the settings, click

type a descriptive name, and then click Click the Advanced tab.

Save As

Select the desired settings, and then click OK.

Page 31

Configuring Your System

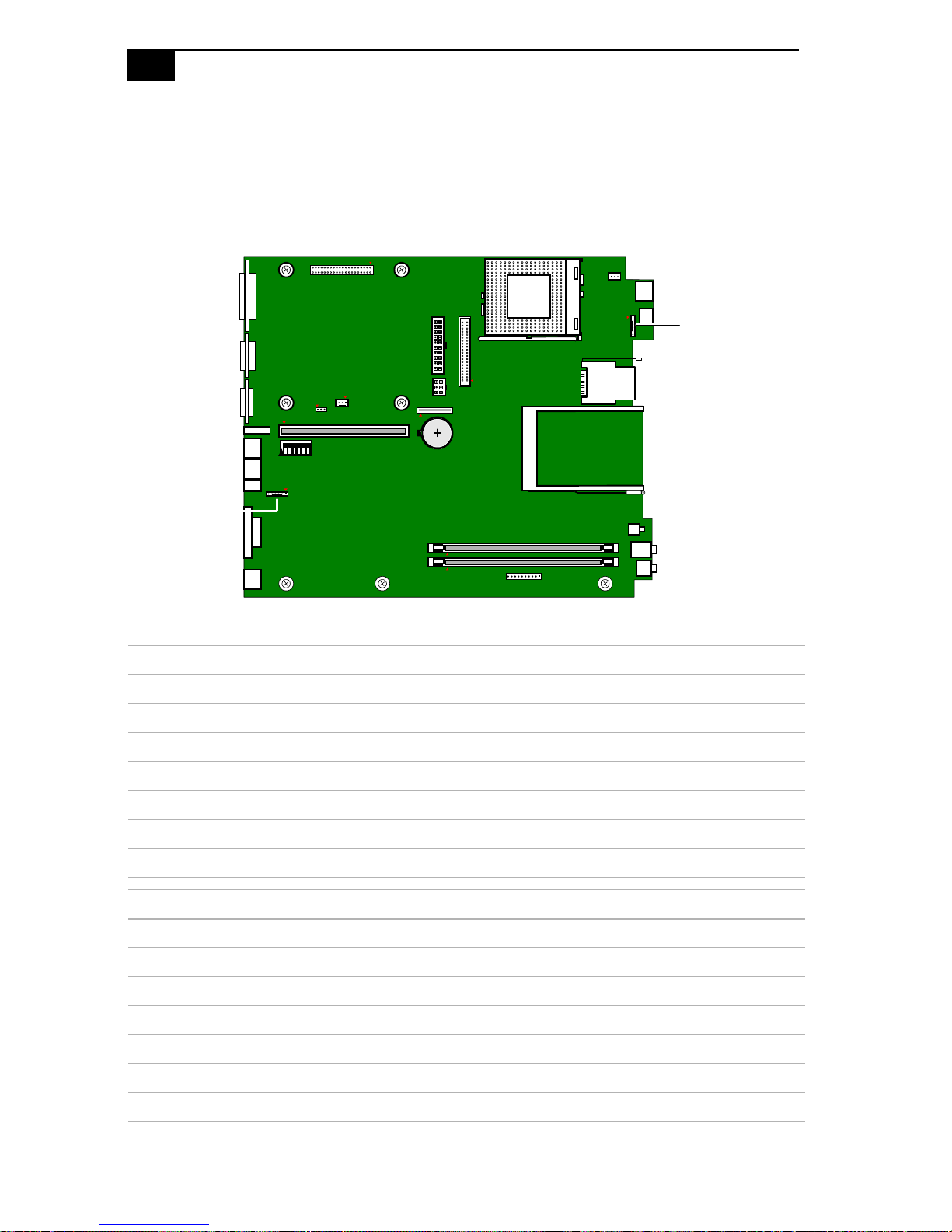

Configuring the System Board

The system board contains the following configuration settings:

CMOS jumper

❑

CPU Multiplier switches

❑

AGP_INT switch

❑

VGA switch

❑

The configuration jumpers should never need changing unless otherwise directed by a

✍

technical support or service technician.

Before opening the system, save any open files, exit Windows, turn off the

power of the computer and all attached peripherals, and unplug the power cord.

CMOS Jumper

The CMOS jumper provides two modes of operation: Normal mode, and Clear CMOS mode.

Normal mode allows normal access to the BIOS Setup Utility. The Central Processing Unit (CPU) input clock is forced to remain at 100 MHz (fast mode), and the Basic Input/Output System (BIOS) uses the User CMOS settings (as opposed to the System CMOS settings). The CMOS and NVRAM settings are only cleared if the checksum test returns false. Access to specific setup fields is controlled by a supervisor password or user password.

The Clear CMOS mode removes the password that is stored in CMOS. No other parameters are cleared.

Page 32

VAIO Slimtop™ Reference Manual

To change the CMOS jumper, perform the following steps:

Remove the system cover (see “Removing the System Cover” on

page 24).

Set the jumper as directed by a service technician (also see “CMOS

Jumper” on page 67).

123456

O N

123

CMOS ClearNormal

Reinstall the system cover (see “Replacing the System Cover” on

page 25).

Page 33

Configuring Your System

CPU Frequency Ratio Multiplier Switches

The computer ships with the FREQ Ratio multiplier set to X6.0 (see SW table for positions of SW 1 through 4). Changing the FREQ Ratio multiplier will not change the speed of your CPU. Do not change the position of any switch unless directed by a technical support person.

123456

O N

123456

O N

FREQ Ratio

OFF

MAN006.VSD

FREQ Ratio SW 1 SW 2 SW 3 SW 4

X3.0 ON OFF ON ON X3.5 OFF OFF ON ON X4.0 ON ON OFF ON X4.5 OFF ON OFF ON X5.0 ON OFF OFF ON X5.5 OFF OFF OFF ON X6.0 (default)ONONONOFF X6.5 OFFONONOFF X7.0 ON OFF ON OFF

Page 34

VAIO Slimtop™ Reference Manual

AGP_INT Switch

You can enable or disable the onboard AGP interrupt. To enable or disable the AGP_INT, perform the following steps:

Remove the system cover (see “Removing the System Cover” on

page 24).

Set the switch to ON (Enable) or OFF (Disable). The default is ON

(see also “Configuration Switches (SW)” on page 68).

123456

O N

123456

O N

Reinstall the system cover (see “Replacing the System Cover” on

OFF

AGP_INT switch

page 25).

Page 35

Configuring Your System

VGA Switch

You can enable or disable the onboard VGA controller if you install a VGA PCI add-in card.

To enable or disable the onboard VGA, perform the following steps:

Remove the system cover (see “Removing the System Cover” on

page 24).

Set the VGA switch (SW6) to ON (Enable) or OFF (Disable). The

default is ON (also see “Configuration Switches (SW)” on page 68).

123456

O N

123456

O N

Reinstall the system cover (see “Replacing the System Cover” on

OFF

VGA switch

page 25).

KY0

Page 36

Page 37

Chapter 3 Removing, Installing, and Replacing Components

This chapter describes removing, installing, and replacing major components for upgrading, reconfiguring, and troubleshooting the components.

Before opening the system unit, save any open files, exit Windows, turn off

the power of the computer and all attached peripherals, and then unplug the power cord.

Page 38

VAIO Slimtop™ Reference Manual

Removing the System Cover

You must remove the system cover to access the system board, add-in cards, power supply, battery, and internal drives.

From the rear of the unit, push down on the two tabs that secure the

system cover to the chassis. Slide the system cover back. The panel slides back about ½ inch.

✍

This works best if the spacers are installed on the unit, or the unit sits on a rubber mat.

Lift straight up to remove it.

KY0064B.VSD

Page 39

Removing, Installing, and Replacing Components

Replacing the System Cover

Position the system cover over the chassis such that the front portion

of the system cover extends past the front of the unit. Carefully lower the system cover down over the chassis. The rear of

the system cover should be about ½ inch in from the rear of the unit. Carefully slide the system cover back until the tabs snap into place.

Check the front to make sure all drives and connectors are correctly aligned.

KY0077.VSD

Page 40

VAIO Slimtop™ Reference Manual

Installing an Add-In Card

Before opening the system unit, save any open files, exit Windows, turn off

the power of the computer and all attached peripherals, and then unplug the power cord.

Remove the system cover (see “Removing the System Cover” on

page 24).

Remove the slot cover adjacent to the selected slot connector on the

system board (see “Removing a Slot Cover” on page 44). Insert the add-in card into the PCI slot connector. Use a gentle rocking

motion, pressing down until the card is fully seated.

✍

Align the card's bracket so that the bottom of the bracket fits into the slot at the bottom of the chassis. Assure that the top of the bracket fits snugly against the chassis lip after the card is fully inserted.

Attach any necessary cables to the card (see the instructions that came

with the add-in card). Replace the system cover (see “Replacing the System Cover” on

page 25). Turn on the computer and follow any instructions that came with the

add-in card.

KY0070.VSD

Page 41

Removing, Installing, and Replacing Components

Removing an Add-in Card

Before opening the system unit, save any open files, exit Windows, turn off

the power of the computer and all attached peripherals, and then unplug the power cord.

Remove the system cover (see “Removing the System Cover” on

page 24).

Disconnect any cables attached to the add-in card.

Remove the screw that secures the add-in card to the chassis.

Remove the add-in card from the PCI slot connector and store the

card in an anti-static wrapper for future use.

✍

Grasp the card with one hand on each end, and gently pull up as you rock the card from side to side.

Hold the add-in card by its edges and do not touch any components or

connector contacts on the card. Static electricity in your body may damage sensitive components on the card. As a precaution, touch any exposed metal part on the metal chassis (preferably the metal part on the power supply) before handling an add-in card to discharge any static electricity in your body.

Page 42

VAIO Slimtop™ Reference Manual

If you do not replace the card or install another add-in card, install a slot cover over the vacant slot at the rear of the chassis (see “Covering

an Open I/O Slot” on page 45).

Replace the system cover (see “Replacing the System Cover” on page 25).

Page 43

Removing, Installing, and Replacing Components

Setting the Configuration Switches

Before opening the system unit, save any open files, exit Windows, turn off

the power of the computer and all attached peripherals, and then unplug the power cord.

Remove any add-in cards (see “Removing an Add-in Card” on

page 27). Set the switches as needed (see “Configuring the System Board” on

page 17).

Replace any add-in card removed in step 1 (see “Installing an Add-In

Card” on page 26).

MAN008.VSD

Page 44

VAIO Slimtop™ Reference Manual

Setting the CMOS Jumper

Before opening the system unit, save any open files, exit Windows, turn off

the power of the computer and all attached peripherals, and then unplug the power cord.

Remove the system cover (see “Removing the System Cover” on

page 24).

Use long-nose pliers to reposition the CMOS jumper as needed.

✍

Do not change the position of this jumper unless directed by a service technician.

Replace the system cover (see “Replacing the System Cover” on

page 25).

MAN007.VSD

Page 45

Removing, Installing, and Replacing Components

Replacing the Lithium Battery

You may need to replace the lithium battery if your computer consistently loses the date or time settings after turning it off. The lithium battery has a typical life of three years, after which the battery may be too weak to power the CMOS memory.

Sony recommends that you use an authorized service dealer to replace the

lithium battery. However, if you wish to replace the battery yourself, read the following cautions, notes, and procedure.

When you remove the lithium battery, all values stored in the CMOS memory

(BIOS setup values and Plug and Play values) may be lost. Although the computer can hold the charge for a short time while replacing the battery, it is safer to assume that the settings will be lost. When the values are lost, the BIOS values revert to their factory-default settings (see “Accessing the

CMOS Setup Utility” on page 14).

Do not handle damaged or leaking batteries.

The lithium battery may explode if mistreated. Do not disassemble it or

dispose of it in fire.

Reboot your computer by selecting Shut Down... from the Start

menu, and then selecting Restart the computer. If the error message “Error: Check date and time settings” appears

during the reboot sequence, press F3, then press F2 during the reboot process to access the BIOS Setup Utility. Otherwise it is not necessary to replace the battery at this time, and you can skip all remaining steps.

Compare all the BIOS options to their default settings (see “CMOS

Setup Options” on page 75). Make a list of all the BIOS options that

are different from their default values. You will refer to this list when you restore the BIOS settings later.

Press ESC, then select Exit from the main menu using the right arrow

key. The Exit Discarding Changes is automatically selected (it is the first item in the list).

Press Enter, type N when prompted to save, then press Enter to exit

the BIOS Setup Utility. Turn off the computer and unplug the power cord.

Remove the system cover (see “Removing the System Cover” on

page 24).

Page 46

VAIO Slimtop™ Reference Manual

Carefully reach under the ribbon cable with your finger and push on the battery-eject lever (see diagram). One side of the battery pops up.

Be carefull not to dislodge the ribbon cable. If it becomes dislodged, you may

have to bring the unit in to a Sony-authorized service dealer.

Remove the battery with your finger and thumb and dispose of the

battery according to the instructions that came with the new battery. Insert the new battery into the battery holder, with the plus (+) side

up, and press down until the battery feels secure.

✍

The Sony CR2032 battery is recommended. Using a type of battery other than a CR2032 may present a risk of fire or explosion.

Replace the system cover (see “Replacing the System Cover” on

page 25). Reconnect the power cord and turn on the computer.

KY0

If the error message “Error: Check date and time settings.” appears

during the reboot sequence, press DEL to access the CMOS Setup Utility. If no error message displays, the computer’s CMOS settings were retained during the battery replacement and you can skip the remaining steps.

Page 47

Removing, Installing, and Replacing Components

Refer to the list you made in step 3 and restore any non-default

CMOS settings (see “CMOS Setup Options” on page 75). Select SAVE & EXIT SETUP from the main menu using the arrow

keys, then press Enter. Type Y, then press Enter to save the changes and exit the CMOS Setup

Utility. The computer’s CMOS settings are now restored.

Page 48

VAIO Slimtop™ Reference Manual

Installing System Memory

Before opening the system unit, save any open files, exit Windows, turn off

the power of the computer and all attached peripherals, and then unplug the power cord.

If necessary, remove the memory module you wish to replace (see

“Removing a Memory Module” on page 36).

Remove the new memory module(s) from its anti-static package.

Hold the memory module only by its edges to prevent staticelectricity damage.

Choose the size of the memory module and configuration as shown

in the following table. Memory modules can vary in size and speed between sockets. The minimum memory size is 8 MB. The maximum memory size is 256 MB. The BIOS automatically detects the type, size, and speed of the memory modules.

Memory module configurations (MB)

DIMM1 DIMM2

0, 8, 16, 32, 64, 128 0, 8, 16, 32, 64, 128

Touch any exposed metal part of the chassis to discharge static electricity in

your body before handling a memory module.

✍

Use only 100 MHz FSB-supported memory. Do not mix 66 MHz memory with 100 MHz memory. Supports SDRAM memory. Does not support EDO memory or buffered DIMM memory.

Page 49

Removing, Installing, and Replacing Components

Align the module over the appropriate socket, noting the location of

pin 1 on the module and pin 1 on the socket.

Press down here

123456

O N

Pin 1 side

DIMM2

DIMM1

Memory module (DIMM)

Indicates pin 1

Carefully but firmly insert the edge of the module into the socket.

Press down firmly and evenly at both corners until the module is

fully seated.

Handles

OM04586.VS

✍

When the module is fully seated, the handles on each side are straight up and locked into the slot on each side of the module. If the handles are not totally straight upright, continue to press down on each side of the module until the handles lock into place.

Replace the system cover (see “Replacing the System Cover” on

page 25).

Your computer automatically recognizes the extra memory and configures itself accordingly when you turn it on. No further action is required.

Page 50

VAIO Slimtop™ Reference Manual

Removing a Memory Module

You may need to remove a memory module if you change the memory configuration or replace a bad module.

Before opening the system unit, save any open files, exit Windows, turn off

the power of the computer and all attached peripherals, and then unplug the power cord.

Remove the system cover (see “Removing the System Cover” on

page 24).

Locate the memory module you wish to remove.

DIMM 1

DIMM 2

✍

If the memory module you wish to remove is DIMM #2, skip steps 3 to 5. Otherwise, continue.

KY0073.VSD

Page 51

Removing, Installing, and Replacing Components

Remove the two screws that secure the hard drive carrier to the

diskette drive housing.

Lift up the hard drive carrier about ½ inch (until the tabs reach the

stops), then pull sideways (away from the front panel) until the hard drive carrier is clear.

MAN002A.VSD

Page 52

VAIO Slimtop™ Reference Manual

Flip the hard drive carrier upside down and let it rest on the power supply while you remove DIMM #1.

Push out the handle on each side of the memory module to eject the

module from its socket.

Push out

Handles

MAN003.VSD

KY0042.VSD

Page 53

Removing, Installing, and Replacing Components

Lift the memory module out by grasping it by its edges. Store the

module in a static-free bag.

Touch any exposed metal part of the chassis to discharge static

electricity in your body before handling the memory module.

✍

If the memory module you removed is DIMM #2, stop. Otherwise, continue.

Flip the hard drive carrier back to its normal position.

Insert the drive carrier tabs into the chassis slots, then slip the drive

carrier down until the holes in the hard drive carrier align with the holes in the diskette drive carrier.

MAN002B.VSD

Page 54

VAIO Slimtop™ Reference Manual

Replace the two screws that secure the hard drive carrier to the diskette drive housing.

✍

Be sure you reattach the ground wire located at each screw.

Replace the system cover (see “Replacing the System Cover” on page 25).

Page 55

Removing, Installing, and Replacing Components

Replacing the Hard Drive

Before opening the system unit, save any open files, exit Windows, turn off

the power of the computer and all attached peripherals, and then unplug the power cord.

✍

Be sure to back up any files on your hard drive that you want to preserve before you replace the drive.

Remove the system cover (see “Removing the System Cover” on

page 24).

Remove the two screws that secure the hard drive carrier to the

diskette drive housing.

Lift the hard drive carrier about ½ inch (until it reaches the stops),

then pull sideways (away from the front panel) until the drive carrier is clear.

MAN002A.VSD

Page 56

VAIO Slimtop™ Reference Manual

Unplug the ribbon cable and power supply cable from the hard drive connectors.

Remove the four screws that secure the hard drive to the bottom of

the drive carrier. Remove the hard drive from the drive carrier.

Set the jumpers on the new hard drive to be the Primary Master IDE

drive (refer to the instructions that came with your new hard drive). Insert the new hard drive into the drive carrier.

Replace the four screws that secure the drive to the drive carrier.

✍

Be sure you reattach the ground tab at the position shown in the illustration.

Reconnect the ribbon cable and power supply cable to the new hard

drive.

✍

Be sure to insert the ribbon cable inside the plastic stress-relief slots on the drive carrier.

MAN004.VSD

Page 57

Removing, Installing, and Replacing Components

Insert the drive carrier tabs into the chassis slots, then slip the drive

carrier down until the holes in the hard drive carrier align with the holes in the diskette drive carrier.

Route the longest ground wire through the white plastic cable-tie.

Replace the two screws that secure the hard drive carrier to the

diskette drive carrier.

✍

Be sure to reattach the ground wire at each screw location. You might need long-nose pliers to reach the ground wire closest to the drive’s power-supply connector.

Replace the system cover (see “Replacing the System Cover” on

page 25).

MAN002B.VSD

Page 58

VAIO Slimtop™ Reference Manual

Removing a Slot Cover

You remove a slot cover when you install an add-in card that occupies a previously-empty slot.

Lay the system on its side with the open side facing up and the slot

covers facing you. Locate the slot of the cover you want to remove.

Remove the screw from the slot cover.

Carefully remove the loose slot cover and retain it for future use.

KY0069.VSD

Page 59

Removing, Installing, and Replacing Components

Covering an Open I/O Slot

Slot covers prevent air from escaping through the empty hole. If air escapes, the components inside the computer cannot be properly cooled. This may damage some components, especially the main processor (which generates the most heat).

Fit the bottom end of the slot cover (removed earlier) between the

chassis and system board.

Push the slot cover in until it rests firmly on the lip in the chassis. All

add-in card brackets and slot covers rest on this lip. Replace the screw (removed earlier) to secure the I/O slot cover.

KY0076.VSD

Page 60

Page 61

Chapter 4 System Board

This chapter identifies each component on the system board and provides a detailed description of each connector and jumper on the system board.

Printer

Wake On LAN

Serial

CMOS

VGA Monitor

USB1

Line In

Line Out

i.LINK

IEEE-1394

LCD Monitor

Config. SW

Keyboard/Mouse

Auxiliary Audio In

(not used)

CTRL

Primary IDE CPU

123456

O N

PCI Riser Slot Battery

PWR

Secondary IDE

Power

Front Panel

header

CPU Fan

USB2

i.LINK IEEE-1394

Floppy

Sony Memory Stick

PCMCIA Socket

Memory Volume Phone Mic

OM04581.VSD

Page 62

VAIO Slimtop™ Reference Manual

Connectors

Front Panel Header

The front panel header is a 10-pin header that provides connections to various front panel functions.

123456

O N

Front panel header

KY0031.VSD

Pin # Name Description

1 +5 +5V from power supply. 2 LED (DVD-ROM) Connects to LED on DVD-ROM. 3 LED (FDD) Connects to LED on floppy disk drive. 4 LED (HDD) Connects to LED on IDE hard disk drive. 5 LED (MODEM) Connects to LED on modem card. 6 Reserved Not used. 7 LED3 Connects to Standby/Sleep (red) signal from

power supply.

8 LED4 Connects to Power (green) anode signal from

power supply. 9 POWER SW Connects to power switch. 10 GND Connects to signal ground.

Page 63

System Board

Diskette Drive (FLOPPY) Connector

The FLOPPY connector is a 26-pin connector for a slim notebook-type diskette drive.

123456 O N

FLOPPY

OM04701H.VSD

Page 64

VAIO Slimtop™ Reference Manual

IDE Connectors

There are two IDE (Integrated Drive Electronics) connectors: a Primary IDE and a Secondary IDE connector.

The Primary IDE connector is a 40-pin 2.54 mm pitch header-type connector for the 3.5-inch hard disk drive.

The Secondary IDE connector is a 50-pin 2 mm pitch header-type connector for the slim notebook-type CD-RW drive. The audio from the CD-RW passes through the Secondary IDE connector.

Primary IDE

Secondary IDE

123456

O N

OM04701G.VSD

Page 65

System Board

PCI Slot Connectors

The system board contains one PCI Riser slot connector for a PCI riser card. The PCI riser card in turn provides two PCI slot connectors for PCI add-in cards. The PCI slot connectors are occupied by the Ethernet card (slot #1) and the fax/modem card (slot #2).

The PCI slots in the riser card support 32-bit 5V and Universal (3.3/5V) PCI add-in cards.

PCI slot for

riser card

123456

O N

OM04599B.V

Two PCI slot connectors

PCI riser card (plugs into PCI connector on system board)

KY0091.VSD

Page 66

VAIO Slimtop™ Reference Manual

Memory Module (DIMM) Connectors

123456

O N

DIMM1

DIMM2

OM04710A.VSD

Both sides of each Dual Inline Memory Module (DIMM) look very similar. The side with pin 1 has a small "1" to the left of pin 1. Be sure to orient a DIMM correctly in the DIMM connector (a small triangle on the connector indicates pin 1).

Memory module (DIMM)

1111

Indicates pin 1

OM04908B.VSD

Page 67

System Board

Power (ATX PWR) Connector

The ATX PWR connector is a 20-pin Molex-type header connector that provides power to the system board.

ATX PWR

123456

O N

Power connector

Pin # Name Pin # Name

1+3.3V 11+3.3V 2 +3.3V 12 -12V 3GND 13GND 4 +5V 14 PS-ON# (power supply

remote on/off control) 5GND 15GND 6 +5V 16 GND 7GND 17GND 8 PWRGD (power good) 18 NC

OM04701I.VSD

9 +5VSB 19 +5V 10 +12V 20 +5V

Page 68

VAIO Slimtop™ Reference Manual

Fan (CPU FAN, CTRL PWR) Connectors

The CPU Fan connector is a 1 x 3-pin straight header connector that controls the CPU cooling fan.

The CTRL PWR connector is a 2 x 3-pin connector that controls the power supply cooling fan. It connects to P3 from the power supply.

CPU Fan

CTRL PWR

123456 O N

CPU Fan connector

Pin Signal Name

1GND 2 FAN_CTRL (+12V) 3FAN_SEN

CTRL PWR connector

Pin Signal Name

KY0034.VSD

1Fan M 2Fan C

33.3V sense 4NC (key) 5 Reserved 6 Reserved

* Power supply provides 12V to this pin when system is in Power On mode (for fastest fan speed), and 6V

when system is in Suspend mode (to reduce fan noise).

Page 69

System Board

Keyboard/Mouse (KB/MOUSE) Connector

The combination keyboard/mouse connector is a 6-pin female PS/2® type (mini-DIN) connector that can accommodate the supplied VAIO Smart convertible keyboard and wheel mouse, or a PS/2 keyboard only.

123456

O N

KB/MOUSE

Keyboard/Mouse connector

Pin Signal Name

1 Keyboard data 2 Mouse data 3GND 4 +5V (fused) 5Keyboard clock 6 Mouse clock

KY0032.VSD

Page 70

VAIO Slimtop™ Reference Manual

USB Connectors

There are two USB ports that permit connection of two USB peripheral devices directly to the system without having to use an external hub. If more USB devices are needed, connect an external hub to either USB1 or USB2.

USB1 is a standard USB connector accessible from the rear panel. USB2 is a standard USB connector accessible from the front panel.

USB1

USB2

123456 O N

USB1 connector (rear panel)

Pin Signal Name

1Power 2USBP0# 3USBP0 4GND

USB2 connector (front panel)

Pin Signal Name

1Power

KY0033.VSD

2USBP1# 3USBP1 4GND

Page 71

System Board

PRINTER, SERIAL, and VGA MONITOR Connectors

The SERIAL connector is a DB-9 male connector. The PRINTER connector is a DB-25 female connector. The VGA MONITOR connector is a 15-pin D-sub female connector.

13 1

25 14

VGA MONITOR

15 11

PRINTER

SERIAL

123456

O N

OM04701D.VS

PRINTER connector

Pin Signal Name Pin Signal Name

1 STROBE# 14 AUTO FEED# 2 DATA BIT 0 15 FAULT# 3 DATA BIT 1 16 INIT# 4 DATA BIT 2 17 SLCT IN# 5DATA BIT 3 18GND 6DATA BIT 4 19GND 7DATA BIT 5 20GND 8DATA BIT 6 21GND 9DATA BIT 7 22GND 10 ACK# 23 GND 11 BUSY 24 GND 12 ERROR 25 GND 13 SELECT

Page 72

VAIO Slimtop™ Reference Manual

SERIAL 1 connector

Pin Signal Name

1DCD 2RXD# 3TXD# 4DTR# 5GND 6DSR 7RTS 8CTS 9RI

VGA MONITOR connector

Pin Signal Name

1RED 2GREEN 3BLUE 4GND 5 DDC GND 6RED GND 7GREEN GND 8 BLUE GND 9NC 10 GND 11 GND 12 SDA 13 HORIZONTAL SYNC 14 VERTICAL SYNC 15 SCL

Page 73

System Board

LCD Connector

The LCD connector is a 40-pin MDR-type connector for the Sony VAIO Slimtop LCD monitor.

123456

O N

LCD

Do not connect any LCD other than the Sony VAIO Slimtop LCD monitor that

came with the PCV-L640. The Sony VAIO Slimtop LCD monitor that came with the PCV-L620/L630 is not compatible with the PCV-L640 system.

KY0094.VSD

Page 74

VAIO Slimtop™ Reference Manual

Wake On LAN (WOL_CON) Connector

The WOL_CON connector is a 3-pin header connector that provides the Wake On LAN function to JP1 on the Ethernet card.

WOL_CON

123456 O N

Wake On LAN connector

Pin Signal

1+5V SB 2GND 3WOL signal

KY0096.VSD

Page 75

System Board

LINE IN and LINE OUT Connectors

The LINE IN and LINE OUT jacks are stereo mini-jacks (3.5 mm) that connect to a stereo audio device (not an audio source from a video device). Connect a stereo audio output jack to the LINE IN jack, and the LINE OUT jack to a stereo audio input jack.

LINE IN

LINE OUT

LINE IN jack

Pin Signal

Sleeve GND Tip Audio-Left In Ring Audio-Right In

LINE OUT jack

Pin Signal

Sleeve GND Tip Audio-Left Out

123456

O N

KY0058.VSD

Ring Audio-Right Out

Page 76

VAIO Slimtop™ Reference Manual

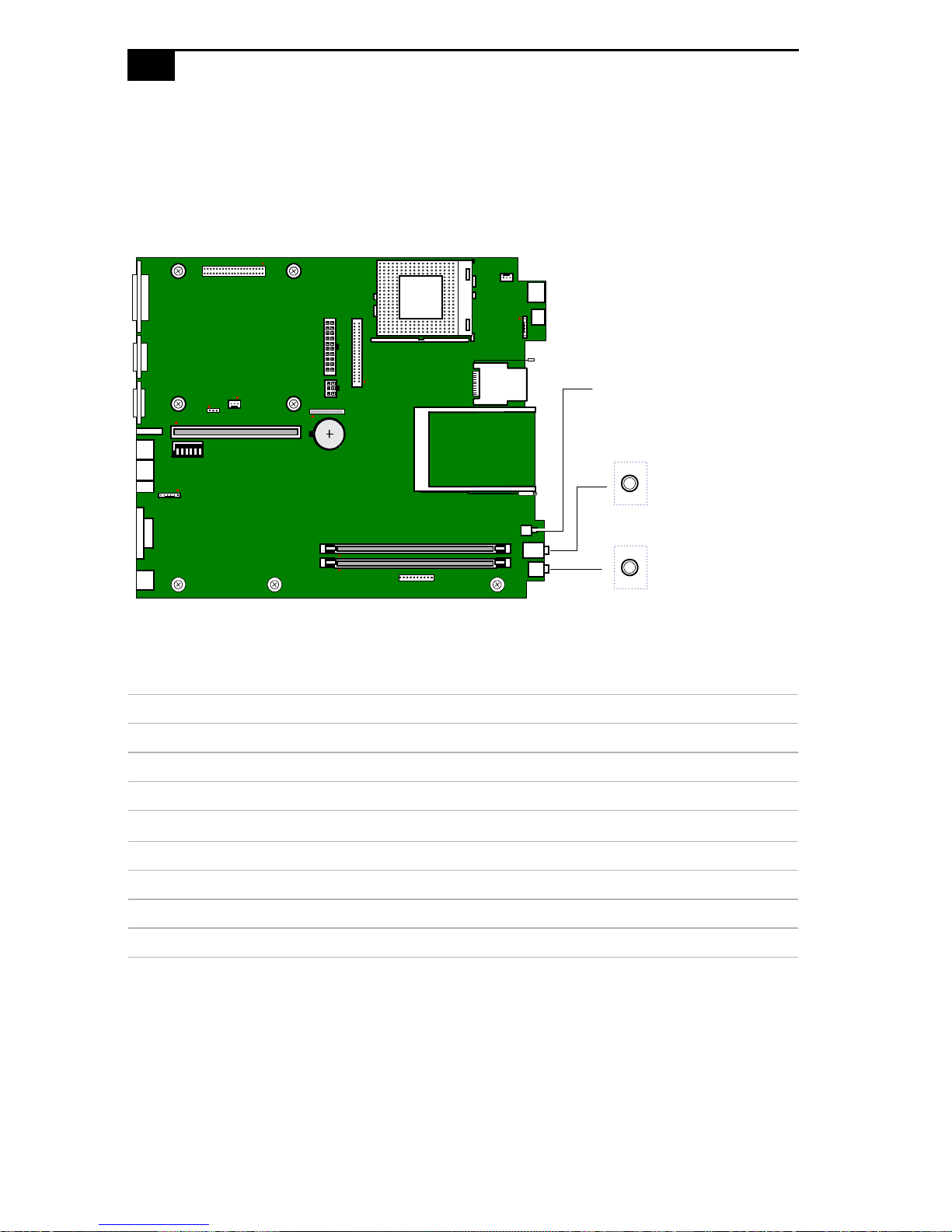

PHONE and MIC Connectors

The PHONES jack is a stereo mini-jack (3.5 mm) that connects to headphones. The MIC jack is a stereo mini-jack (3.5 mm) that connects to a microphone.

123456 O N

Volume control knob

PHONES

PHONES jack

Pin Signal

Sleeve GND Tip Left out Ring Right out

MIC jack

Pin Signal

Sleeve GND Tip Microphone mono in Ring Electret bias voltage

MIC

KY0058A.VSD

Page 77

System Board

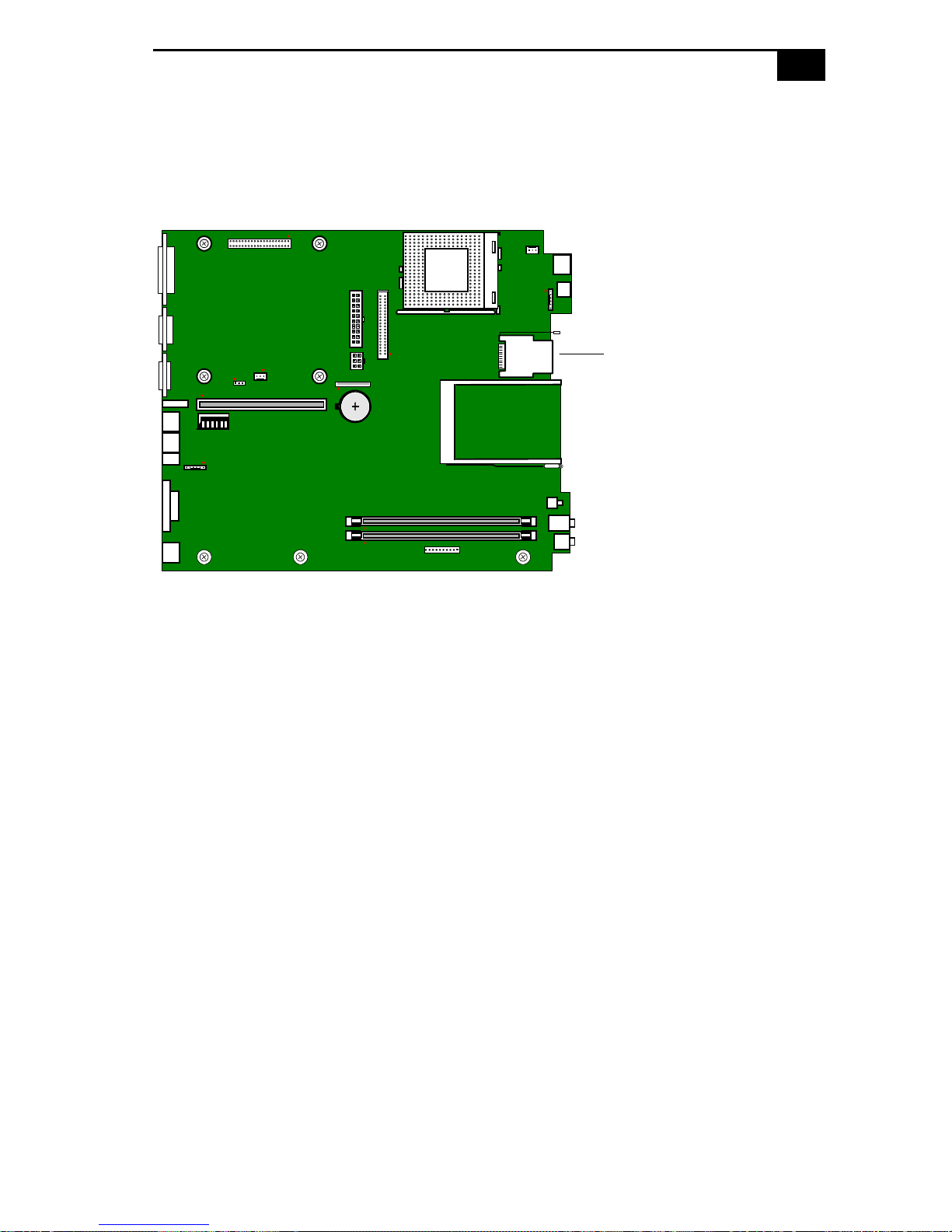

Sony Memory Stick Slot Connector

The Sony Memory Stick slot connector is a 10-pin MCR 103-10S connector.

Sony Memory Stick

123456 O N

KY0097.VSD

Page 78

VAIO Slimtop™ Reference Manual

i.LINK Interface Header Connectors

The system board has two i.LINK (IEEE-1394) interface header connectors. A cable connects each 6-pin header connector to the riser card.

IEEE-1394 (front panel)

123456

O N

IEEE-1394

(rear panel)

IEEE-1394 interface header connector (rear panel)

Pin Signal Name

1Ground 2TA1+ 3TA14TB1+ 5TB16Ground

IEEE-1394 interface header connector (front panel)

Pin Signal Name

1Ground 2TPA2+ 3TPA2-

MAN001.VS

4TPB2+ 5TPB26Ground

Page 79

System Board

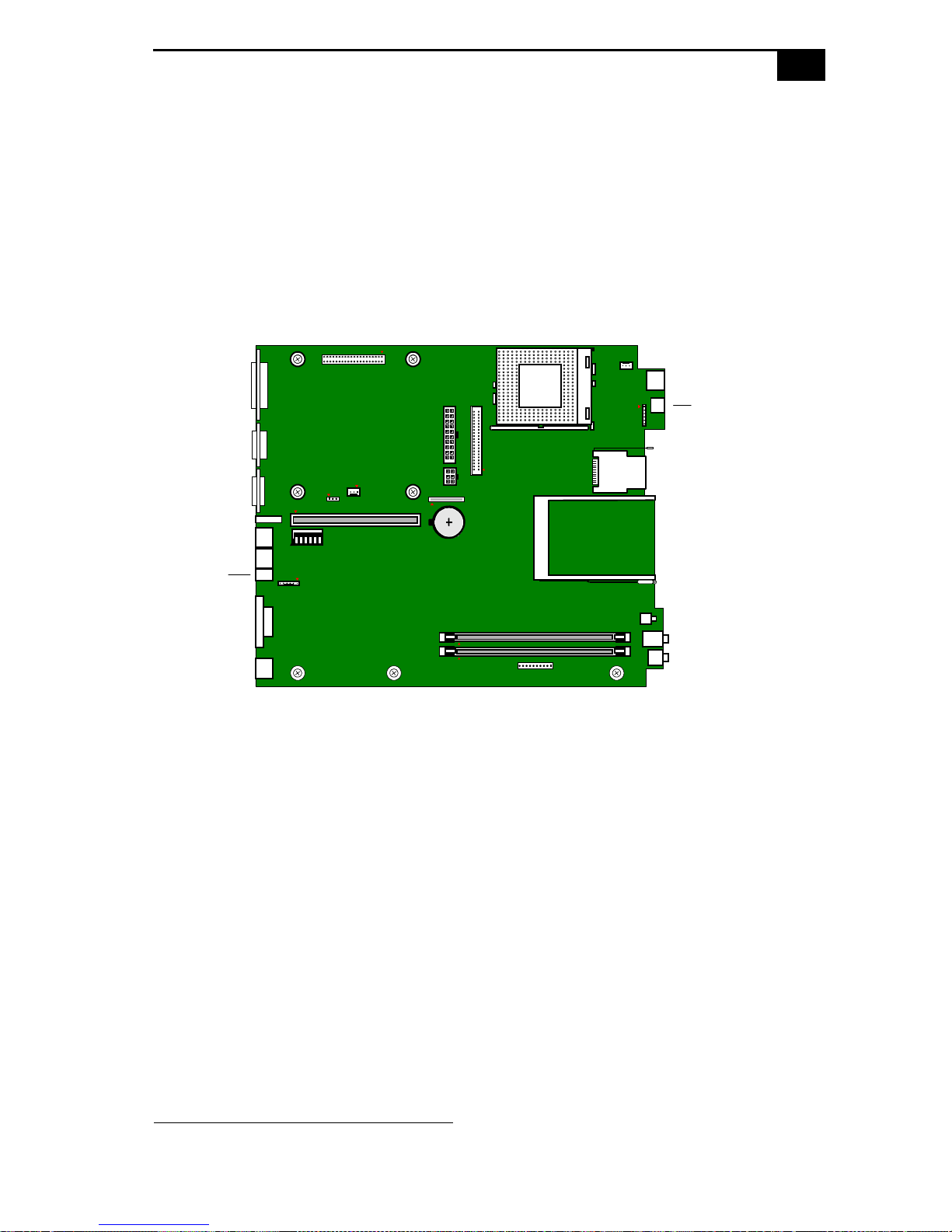

i.LINK Connectors

The system board has two i.LINK (IEEE-1394) connectors: a 4-pin connector is accessible from the front panel, and a 6-pin connector is accessible from the rear panel. Use the front-panel connector to connect to devices that use a 4-pin i.LINK (IEEE-1394) connector. Use the rear-panel connector to connect to devices that use a 6-pin connector.

i.LINK (IEEE-1394)

i.LINK (front panel)

i.LINK

(rear panel)

123456

O N

MAN001A.VS

* A 6-pin i.LINK connector can supply power from the computer to the device if the device also has a

6-pin i.LINK connector. A 4-pin i.LINK connector cannot supply power to a device.

Page 80

VAIO Slimtop™ Reference Manual

Auxiliary Audio In Connector

The system board has an Auxiliary Audio In connector that is not used.

123456

O N

Auxiliary Audio In

(not used)

Auxiliary Audio In connector (not used)

Pin Signal Name

1 Audio, left channel 2Ground 3Ground 4 Audio, right channel

MAN011.VSD

Page 81

System Board

Configuration Jumper and Switches

There is one configuration jumper (CMOS), and a bank of six configuration switches (1-6) that sets the CPU speed multiplier, AGP interrupt state (AGP_INT), and on-board VGA state (VGA).

CMOS Jumper

A jumper cap is installed on pins 1 and 2 (Normal) of the CMOS jumper when the computer is shipped. Do not move the jumper cap to the CMOS Clear position unless directed by a Sony-authorized technical support person.

123456

O N

123

CMOS ClearNormal

KY0059.VSD

Page 82

VAIO Slimtop™ Reference Manual

Configuration Switches (SW)

A 6-switch dual inline package (DIP) provides configuration settings for FREQ Ratio (CPU multiplier), AGP_INT (AGP Interrupt) Enable/ Disable, and onboard VGA Enable/Disable. The CPU determines the CPU core frequency.

The computer ships with AGP_INT (SW 5) set to OFF (Disable) and VGA (SW 6) set to OFF (Disable), and with the FREQ Ratio multiplier set to X6.0 (see SW table for positions of SW 1 through 4). Do not change the position of any switch unless directed by a Sony-authorized technical support person.

123456

O N

123456

O N

MAN005.VSD

Page 83

System Board

Function SW 1 SW 2 SW 3 SW 4 SW 5 SW6

AGP_INT Enable N/A N/A N/A N/A ON N/A AGP_INT Disable N/A N/A N/A N/A OFF N/A VGA Enable N/A N/A N/A N/A N/A ON VGA Disable N/A N/A N/A N/A N/A OFF FREQ Ratio = X3.0 ON OFF ON ON N/A N/A FREQ Ratio = X3.5 OFF OFF ON ON N/A N/A FREQ Ratio = X4.0 ON ON OFF ON N/A N/A FREQ Ratio = X4.5 OFF ON OFF ON N/A N/A FREQ Ratio = X5.0 ON OFF OFF ON N/A N/A FREQ Ratio = X5.5 OFF OFF OFF ON N/A N/A FREQ Ratio = X6.0 ON ON ON OFF N/A N/A FREQ Ratio = X6.5 OFF ON ON OFF N/A N/A

FREQ Ratio = X7.0 ON OFF ON OFF N/A N/A FREQ Ratio = X7.5 OFF OFF ON OFF N/A N/A FREQ Ratio = X8.0 ON ON OFF OFF N/A N/A

Page 84

Page 85

Chapter 5 Fax/Modem Card

The K56flex™ technology/V.90-compatible data fax/modem card occupies PCI slot #2 in the Riser card. The fax/modem card has two RJ-11 jacks that are accessible from the rear panel: one to connect a telephone line, and one to connect a phone.

TELEPHONE

LINE

Name Connector Type Description

TELEPHONE RJ-11 Connects to phone. LINE RJ-11 Connects to telephone line.

KY0038.VSD

Page 86

Page 87

Chapter 6 Ethernet Card

The Ethernet card occupies PCI slot #1 in the Riser card. The Ethernet card has one connector that is accessible from the rear panel.

JP1

Ethernet

MAN010.VSD

Name Connector Type Description

Ethernet RJ-45 Connects to 10Base-T/100Base-TX Fast

Ethernet network.

JP1 3-pin header Connects to WOL_CON (Wake On

LAN) connector on system board.

Page 88

Page 89

Chapter 7 CMOS Setup Options

This chapter describes each screen in the CMOS SETUP UTILITY (see

“Accessing the CMOS Setup Utility” on page 14).

The CMOS Setup Utility presents the following menu items on the main screen:

STANDARD CMOS SETUP

❑

BIOS FEATURES SETUP

❑

CHIPSET FEATURES SETUP

❑

POWER MANAGEMENT SETUP

❑

PNP AND PCI SETUP

❑

LOAD SETUP DEFAULTS

❑

SUPERVISOR PASSWORDS

❑

USER PASSWORD

❑

IDE HDD AUTO DETECTION

❑

SAVE & EXIT SETUP

❑

EXIT WITHOUT SAVING

❑

Use the arrow keys to choose a menu item. Press Enter to display the item’s options. Use the arrow keys to select an option. Use the Page Up or Page Down keys to modify a setting.

Press Esc to go back to the main menu. Press F10 to save the changes and exit, or press Esc to discard the changes. Follow the on-screen prompts for other choices. The bottom of the screen presents a summary of the keyboard keys to use for navigation and control.

The current setting is shown in [brackets] unless the item cannot be modified. Items beneath the current setting indicate available settings.

Page 90

VAIO Slimtop™ Reference Manual

STANDARD CMOS SETUP Screen

Date (mm:dd:yy) [Sat, Oct 16 1999] Time (hh:mm:ss) [14 : 52: 53] HARD DISKS

Primary Master Primary Slave Secondary Master Secondary Slave

TYPE [Auto]

None User

MODE [AUTO]

NORMAL LBA LARGE

Drive A [1.44M, 3.5 in.]

2.88M, 3.5 in. None 360K, 5.25 in.

1.2M, 5.25 in. 720K, 3.5 in.

Drive B [None]

360K, 5.25 in.

1.2M, 5.25 in. 720K, 3.5 in.

1.44M, 3.5 in.

2.88M, 3.5 in.

Floppy 3 Mode Support [Disabled]

Drive A Drive B Both

Video [EGA/VGA]

CGA 40 CGA 80 MONO

Halt On [All, But Keyboard]

All, But Diskette All, But Disk/Key All Errors No Errors

Page 91

BIOS FEATURES SETUP Screen

CMOS Setup Options

CPU Internal Core Speed 700MHz

Boot Virus Detection [Enabled]

Disabled

Processor Serial Number [Disabled]

Enabled

BIOS Update [Enabled]

Disabled

Quick Power On Self Test [Enabled]

Disabled

HDD Sequence SCSI/IDE First: [IDE]

SCSI

Boot Sequence [CDROM,A,C]

D,A E,A F,A C only LS/ZIP ,C LAN,A,C A,C C,A A,CDROM,C CDROM,C,A

Floppy Disk Access Control [R/W]

Read Only

IDE HDD Block Mode Sectors [HDD MAX]

Disabled 2 4 8 16 32

* MHz denotes microprocessor internal clock speed. Other factors may affect application perfor-

mance.

Page 92

VAIO Slimtop™ Reference Manual

HDD S.M.A.R.T. capability [Disabled]

Enabled

Silent Boot [Enabled]

Disabled

Boot Up Sound [Disabled]

Enabled

Boot Up Volume

[Medium] High Mute Low

PCI/VGA Palette Snoop [Disabled]

Enabled

Video ROM BIOS Shadow [Enabled]

Disabled

C8000 - CBFFF Shadow [Disabled]

Enabled

CC000 - CFFFF Shadow [Disabled]

Enabled

D0000 - D3FFF Shadow [Disabled]

Enabled

D4000 - D7FFF Shadow [Disabled]

Enabled

D8000 - DBFFF Shadow [Disabled]

Enabled

DC000 - DFFFF Shadow [Disabled]

Boot Up NumLock Status [Off]

Typematic Rate Setting [Disabled]

* Becomes enabled only when Boot Up Sound is enabled.

Enabled

Page 93

Typematic Rate (Chars/Sec): [6]

8 10 12 15 20 24 30

Typematic Delay (Msec) [250]

500 750 1000

Security Option [System]

Setup

PS/2 Mouse Function Control [Auto]

Enabled

CMOS Setup Options

Page 94

VAIO Slimtop™ Reference Manual

CHIPSET FEATURES SETUP Screen

SDRAM Configuration [By SPD]

Disabled 7ns (143MHz) 8ns (125MHz)

SDRAM CAS Latency

[2T] 3T

SDRAM RAS to CAS Delay

[2T] 3T

SDRAM RAS Precharge Time

[2T] 3T

SDRAM Idle Timer

[8T] 10T 12T 16T 32T Infinite 0T 2T 4T

SDRAM MA Wait State [Normal]

Slow Fast

Graphics Aperture Size [64MB]

128MB 256MB 4MB 8MB 16MB 32MB

Video Memory Cache Mode [UC]

USWC

PCI 2.1 Support [Enabled]

Disabled

DRAM are 64 (Not 72) bits wide

Data Integrity Mode

†

Non-ECC

Onboard FDC Controller [Enabled]

Disabled

* These settings depend on the setting in SDRAM Configuration, and become enabled only when

SDRAM Configuration is Disabled.

† Read only.

Page 95

CMOS Setup Options

Onboard Serial Port 1 [3F8H/IRQ4]

2F8H/IRQ3 3E8H/IRQ4 2E8H/IRQ10 Disabled

Onboard Serial Port 2 [2F8H/IRQ3]

3E8H/IRQ4 2E8H/IRQ10 3F8H/IRQ4

Onboard Parallel Port [378H/IRQ7]

278H/IRQ5 Disabled 3BCH/IRQ7

Parallel Port Mode [Bi-direct]

EPP ECP ECP+EPP

ECP DMA Select

[3] 1

Onboard PCI IDE Enable [Both]

Primary Secondary Disable

IDE Ultra DMA Mode [Auto]

Disable

IDE0 Master PIO/DMA Mode [Auto] IDE0 Slave PIO/DMA Mode 0/0 IDE1 Master PIO/DMA Mode 1/0 IDE1 Slave PIO/DMA Mode 2/0 (each has identical options) 3/1

4/2

* This setting is enabled when Parallel Port Mode is set to ECP or ECP+EPP.

Page 96

VAIO Slimtop™ Reference Manual

POWER MANAGEMENT SETUP Screen

Power Management [User Define]

Disable Min Saving Max Saving

Video Off Option [Suspend -> Off]

Always On

Video Off Method [DPMS OFF]

DPMS Reduce ON Blank Screen V/H SYNC+Blank DPMS Standby

DPMS Suspend ** PM Timers ** HDD Power Down [Disable]

1 Min

2 Min

3 Min

4 Min

5 Min

6 Min

7 Min

8 Min

9 Min

10 Min

11 Min

12 Min

13 Min

14 Min

15 Min

Suspend Mode

** ACPI ** ACPI Mode [S3]

* Enabled only when Power Management is not set to Disable.

[Disable]

30 Sec

1 Min

2 Min

4 Min

8 Min

20 Min

30 Min

40 Min

1 Hour

Page 97

** Power Up Control ** PWR Button < 4 Secs [Soft Off]

Suspend

Automatic Power Up [Disabled]

Everyday By Date

CMOS Setup Options

Time (hh:mm:ss) Alarm

Date Of Month Alarm

†

[ 3: 2: 0]

[1] 2 . . .

31 ** Fan Monitor ** Power Fan Speed [(displays actual RPM)]

Ignore ** Thermal Monitor ** CPU Temperature [(displays actual temperature)]

Ignore MB Temperature [(displays actual temperature)]

Ignore ** Voltage Monitor ** VCORE Voltage [(displays actual voltage)]

Ignore +3.3V Voltage [(displays actual voltage)]

+5V Voltage [(displays actual voltage)]

+12V Voltage [(displays actual voltage)]

-12V Voltage [(displays actual voltage)]

* Displays only when Automatic Power Up is Everyday or By Date. † Displays only when Automatic Power Up is By Date.

Ignore

Page 98

VAIO Slimtop™ Reference Manual

PNP AND PCI SETUP Screen

PNP OS Installed [No]

Yes

Slot 1 IRQ Slot 2 IRQ [Auto]

NA 3 4 5 7 9 10 11 12 14 15

PCI Latency Timer [32] PCI Clock

. . . 255 PCI Clock 0 PCI Clock 1 PCI Clock . . . 31 PCI Clock

IRQ 3 Used By ISA [No/ICU]

Yes

IRQ 4 Used By ISA [No/ICU]

Yes

IRQ 5 Used By ISA [Yes]

No/ICU

IRQ 7 Used By ISA [No/ICU]

Yes

IRQ 9 Used By ISA [No/ICU]

Yes

IRQ 10 Used By ISA [No/ICU]

Yes

IRQ 11 Used By ISA [No/ICU]

Yes

IRQ 12 Used By ISA [No/ICU]

Yes

Page 99

IRQ 14 Used By ISA [No/ICU]

Yes IRQ 15 Used By ISA [No/ICU]

Yes DMA 1 Used By ISA [No/ICU]

Yes DMA 3 Used By ISA [No/ICU]

Yes DMA 5 Used By ISA [No/ICU]

Yes ISA MEM Block BASE [No/ICU]

C800

CC00

D000

D400

D800

DC00

CMOS Setup Options

USB IRQ [Enabled]

Disabled ONB VGA BIOS First [No]

Yes Onboard Audio [Enabled]

Disabled] Onboard Cardbus [Enabled]

Disabled Onboard 1394 [Enabled]

Disabled

Page 100

VAIO Slimtop™ Reference Manual

LOAD SETUP DEFAULTS Screen

Press Enter to load setup defaults except standard CMOS setup.

SUPERVISOR PASSWORD Screen

Press Enter to change, set, or disable the supervisor password. Follow the prompts.

USER PASSWORD Screen

Press Enter to change, set, or disable the user password. Follow the prompts.

IDE HDD AUTO DETECTION Screen

Press Enter to auto-configure the hard disk drives.

SAVE & EXIT SETUP Screen

Press Enter to save changes in the CMOS and exit CMOS Setup Utility. Follow the prompts.

EXIT WITHOUT SAVING Screen

Press Enter to exit CMOS Setup Utility without saving the changes. Follow the prompts.
