Page 1
Page 2
ii
Notice to Users
© 2000 Sony Electronics Inc. All rights
reserved. This manual and the software
described herein, in whole or in part, may not
be reproduced, translated, or reduced to any
machine-readable form without prior written
approval.
SONY ELECTRONICS INC. PROVIDES NO
WARRANTY WITH REGARD TO THIS
MANUAL, THE SOFTWARE, OR OTHER
INFORMATION CONTAINED HEREIN
AND HEREBY EXPRESSLY DISCLAIMS
ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE WITH
REGARD TO THIS MANUAL, THE
SOFTWARE, OR SUCH OTHER
INFORMATION. IN NO EVENT SHALL
SONY ELECTRONICS INC. BE LIABLE
FOR ANY INCIDENTAL,
CONSEQUENTIAL, OR SPECIAL
DAMAGES, WHETHER BASED ON TORT,
CONTRACT, OR OTHERWISE, ARISING
OUT OF OR IN CONNECTION WITH THIS
MANUAL, THE SOFTWARE, OR OTHER
INFORMATION CONTAINED HEREIN OR
THE USE THEREOF.
Sony Electronics Inc. reserves the right to
make any modification to this manual or the
information contained herein at any time
without notice. The software described
herein may also be governed by the terms of
a separate user license agreement.
Sony, VAIO, VAIO Slimtop, Memory Stick,
i.LINK, and the VAIO logo are trademarks of
Sony. Microsoft, Windows, and the Windows
98 logo are registered trademarks of
Microsoft Corporation. Intel and Pentium are
trademarks of Intel Corporation. K56flex is a
trademark of Lucent Technologies Inc. and
Rockwell International. All other trademarks
are trademarks of their respective owners.
Safety Information
Owner’s Record
The model number and serial number are
located on the back of your VAIO computer.
Record the serial number in the space
provided here. Refer to the model and serial
number when you call your Sony Service
Center.
Model Number: PCV-L630
Serial Number:________________________
WARNING
To prevent fire or shock hazard, do
❑
not expose your VAIO computer to
rain or moisture.
Never install modem or telephone
❑
wiring during a lightning storm.
Never install telephone jacks in wet
❑
locations unless the jack is specifically
designed for wet locations.
Never touch uninsulated telephone
❑
wire or terminals unless the telephone
line has been disconnected at the
network interface.
Use caution when installing or
❑
modifying telephone lines.
Avoid using the modem during an
❑
electrical storm.
Do not use the modem or a telephone
❑
to report a gas leak in the vicinity of
the leak.
!
The use of optical instruments
with this product will increase eye
hazard.
Page 3
iii
VAIO Computer Reference Manual
For questions regarding your product, or for
the Sony Service Center nearest you, call:
1-888-476-6972
The phone number shown in the Declaration
of Conformity is for FCC-related matters
only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: PCV-L630
Responsible Party: Sony Electronics Inc.
Address: 1 Sony Drive
Park Ridge, NJ 07656
Telephone: 201-930-6970
This device complies with Part 15 of FCC Rules.
Operation is subject to the two following
conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Connect the equipment into an outlet
❑
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
❑
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Only peripherals (computer input/output
devices, terminals, printers, etc.) that comply
with FCC Class B limits may be attached to
this computer product. Operation with noncompliant peripherals is likely to result in
interference to radio and television reception.
All cables used to connect peripherals must
be shielded and grounded. Operation with
cables, connected to peripherals, that are not
shielded and grounded, may result in
interference to radio and television reception.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
Reorient or relocate the receiving
❑
antenna.
Increase the separation between the
❑
equipment and the receiver.
Page 4
iv
FCC Part 68
This equipment complies with Part 68 of the
FCC rules. The ringer equivalence number
(REN) and the FCC registration number are
printed on the modem board. If requested,
this information must be supplied to the
telephone company.
The REN is used to determine the quantity of
devices which may be connected to the
phone line. Excessive REN's on the telephone
line may result in the devices not ringing in
response to an incoming call. In most, but not
all areas, the sum of the REN's should not
exceed five (5.0). To be certain of the number
of devices that may be connected to the line,
as determined by the total REN's, contact the
telephone company to determine the
maximum REN for the calling area.
This modem uses the USOC RJ-11 telephone
jack.
If this equipment causes harm to the
telephone network, the telephone company
will, when practical, notify you in advance
that temporary discontinuance of service
may be required. If advance notice isn't
practical, the telephone company will notify
you as soon as possible. Also, you will be
advised of your right to file a complaint with
the FCC if you believe it is necessary.
Repair of the modem should be made only
by a Sony Service Center or Sony authorized
agent. For the Sony Service Center nearest
you, call 1-800-222-SONY (1-800-222-7669).
Telephone Consumer
Protection Act of 1991
The Telephone Consumer Protection Act of
1991 makes it unlawful for any person to use
a computer or other electronic device to send
any message via a telephone facsimile
machine unless such message clearly
contains, in a margin at the top or bottom of
each transmitted page or on the first page of
the transmission, the date and time it is sent
and an identification of the business, other
entity, or individual sending the message,
and the telephone number of the sending
machine or such business, other entity, or
individual.
In order to program this information into
your facsimile, see your fax software
documentation.
You are cautioned that any changes or
✍
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
The telephone company may make changes
in its facilities, equipment, operations or
procedures that could affect the operations of
the equipment. If this happens, the telephone
company will notify you in advance, in order
for you to make the necessary modifications
in order to maintain uninterrupted service.
If trouble is experienced with this modem,
for repair or warranty information, please
contact 1-888-4SONYPC, or write to the Sony
Customer Information Center, One Sony
Drive, Park Ridge, NJ 07656.
This equipment cannot be used on
telephone-company-provided coin service.
Connection to Party Line Service is subject to
state tariffs.
Page 5
Contents
Notice to Users .................................................................................... ii
Safety Information .............................................................................. ii
Regulatory Information..................................................................... iii
FCC Part 68 ......................................................................................... iv
Telephone Consumer Protection Act of 1991................................. iv
Chapter 1 — Identifying Components
Front View .......................................................................................2
Drives ...................................................................................................3
Buttons and Switches .........................................................................4
Indicators ..............................................................................................5
Connectors ...........................................................................................6
Slots .......................................................................................................7
Rear View .........................................................................................8
I/O Connectors ....................................................................................9
Expansion Slot ....................................................................................12
Chapter 2 — Configuring Your System
Accessing the CMOS Setup Utility.............................................. 14
Changing the Display's Power Management Settings .............15
Configuring the System Board .................................................... 17
CMOS Jumper ....................................................................................17

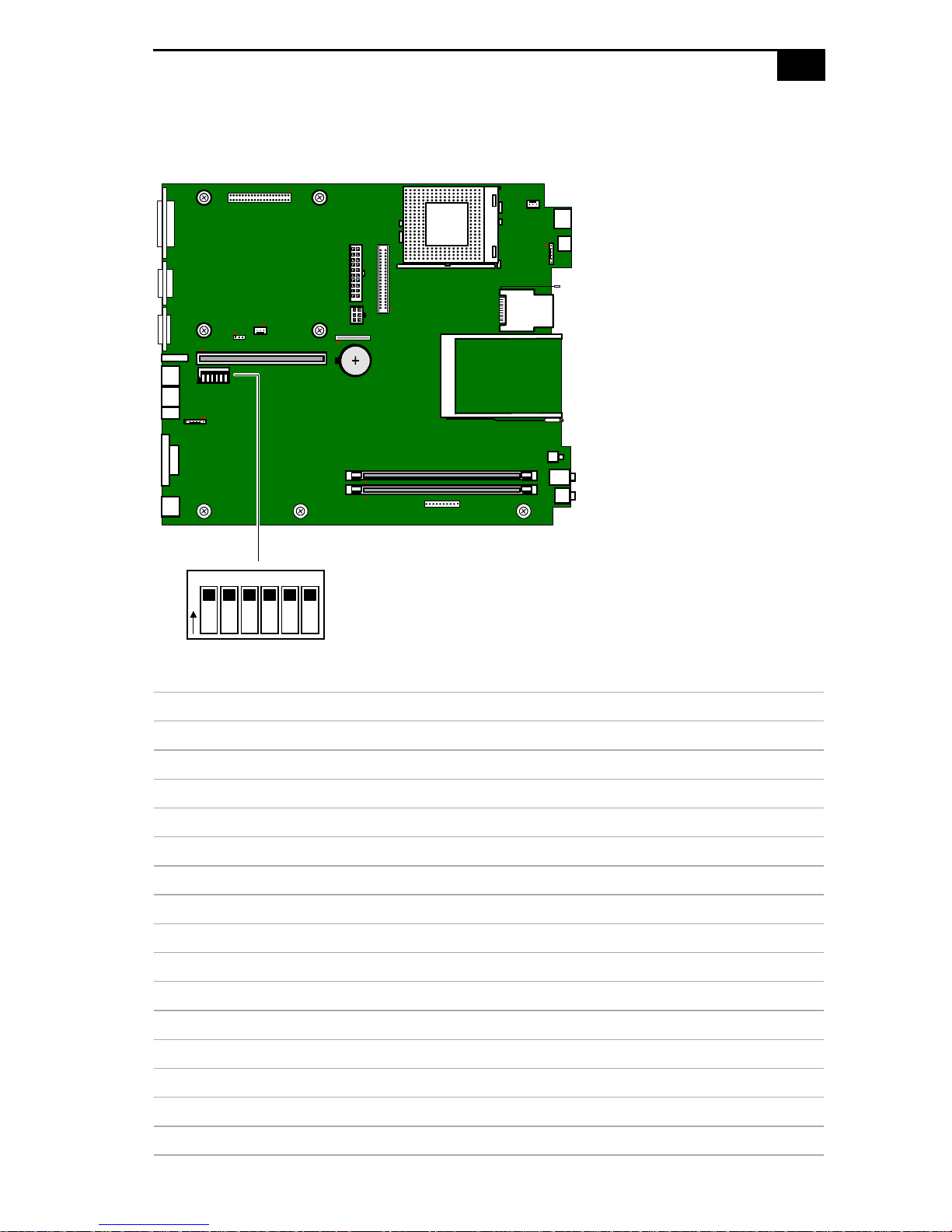

CPU Frequency Ratio Multiplier Switches ....................................19
AGP_INT Switch................................................................................20
VGA Switch ........................................................................................21
v
Page 6
vi
VAIO Computer Reference Manual
Chapter 3 — Removing, Installing, and Replacing
Components

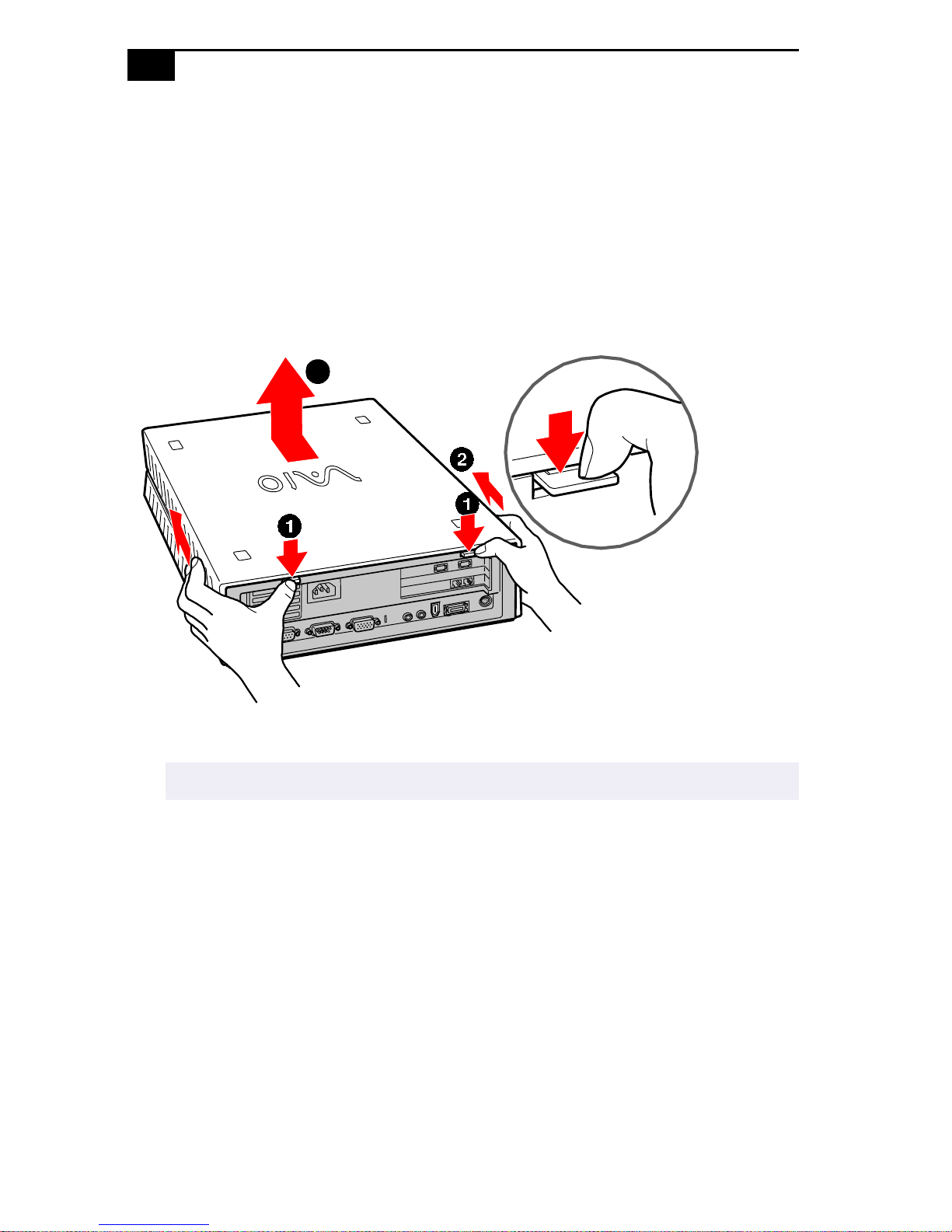

Removing the System Cover .......................................................24
Replacing the System Cover ........................................................25

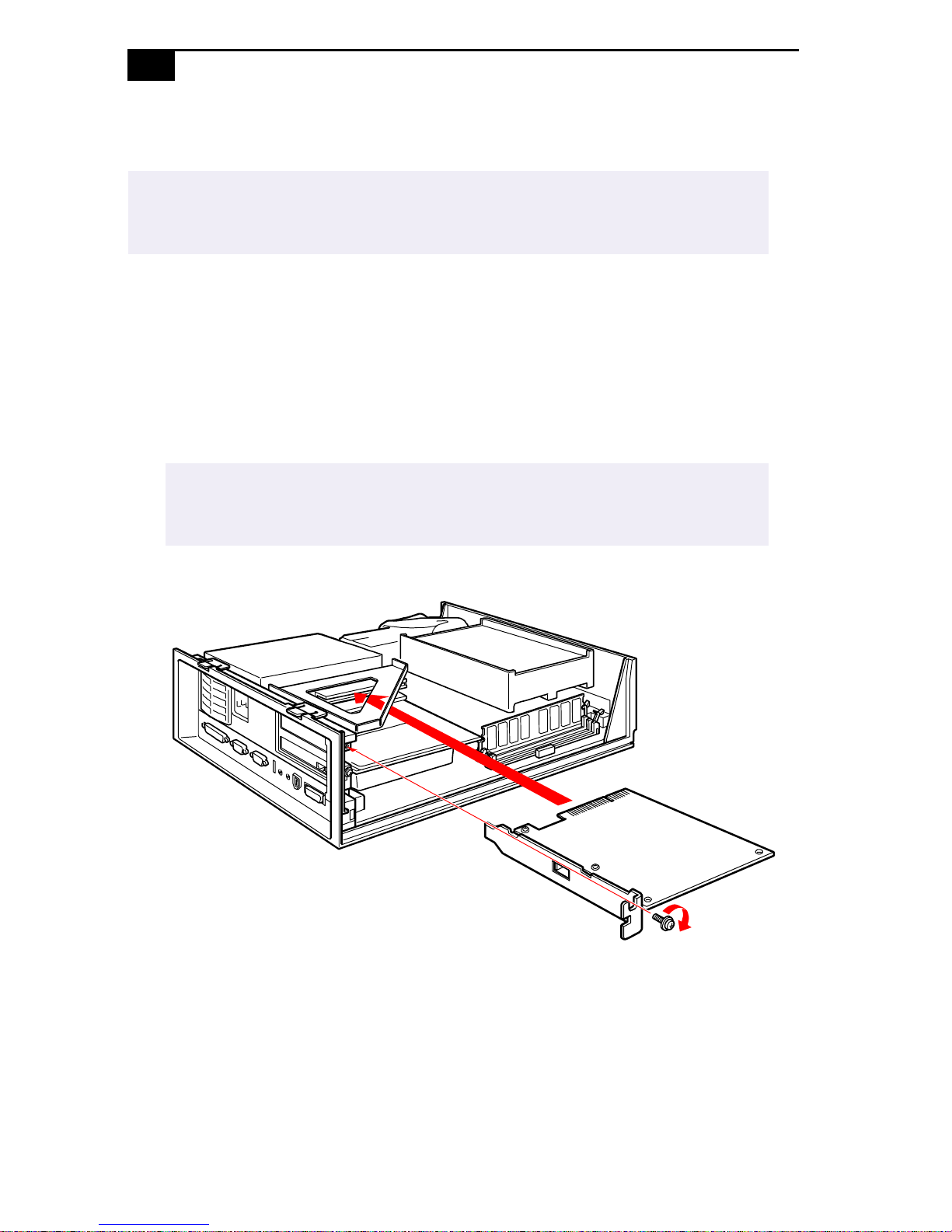

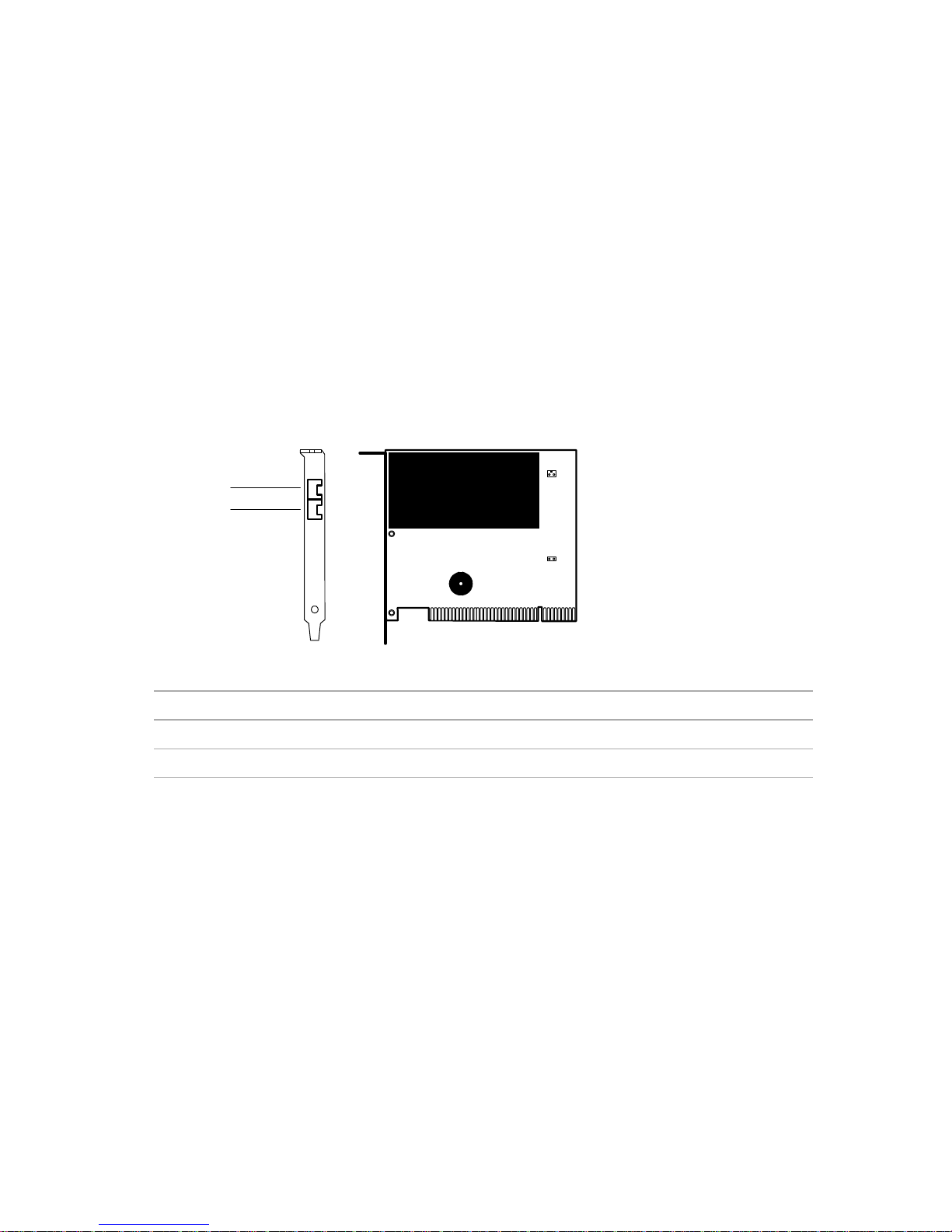

Installing an Add-In Card ............................................................26

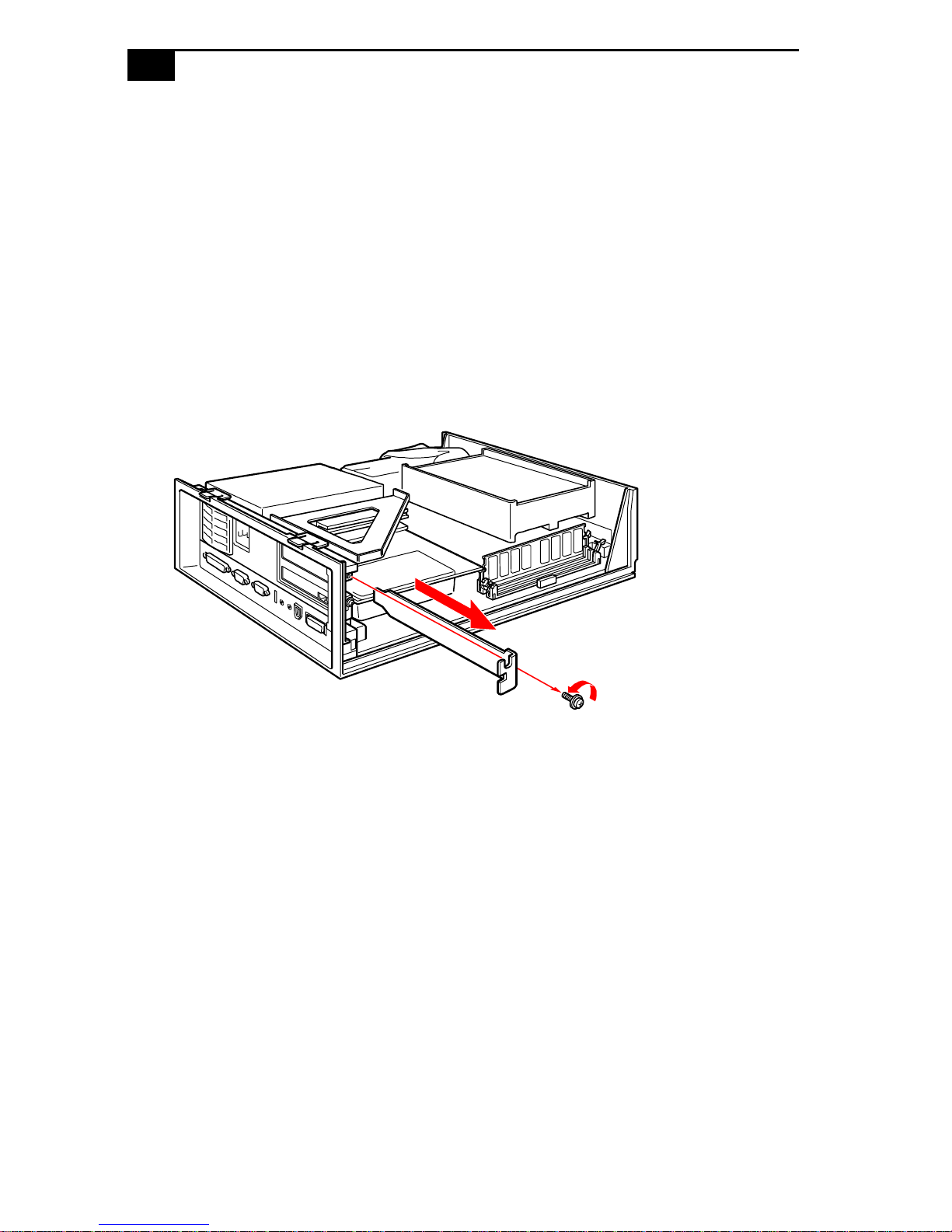

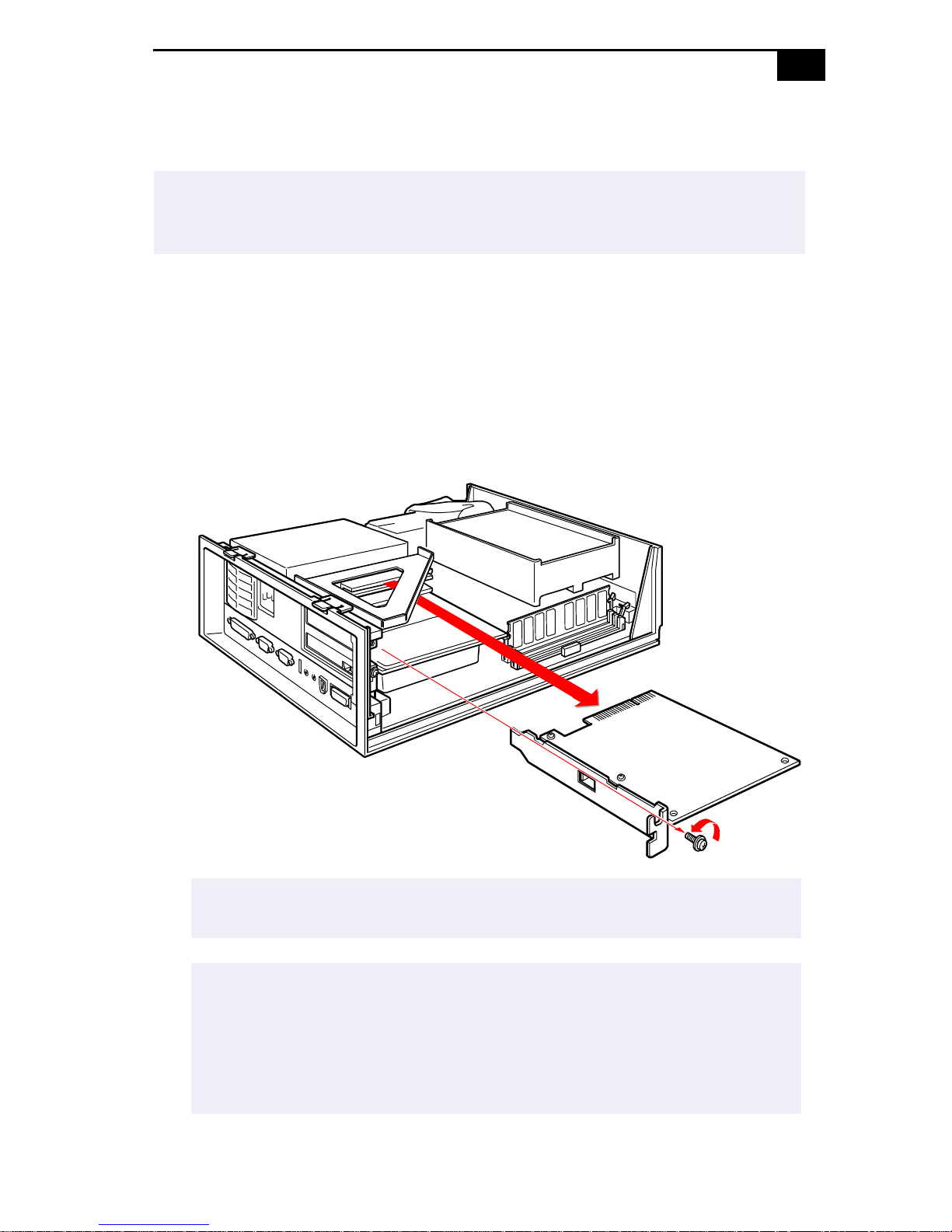

Removing an Add-in Card ...........................................................27

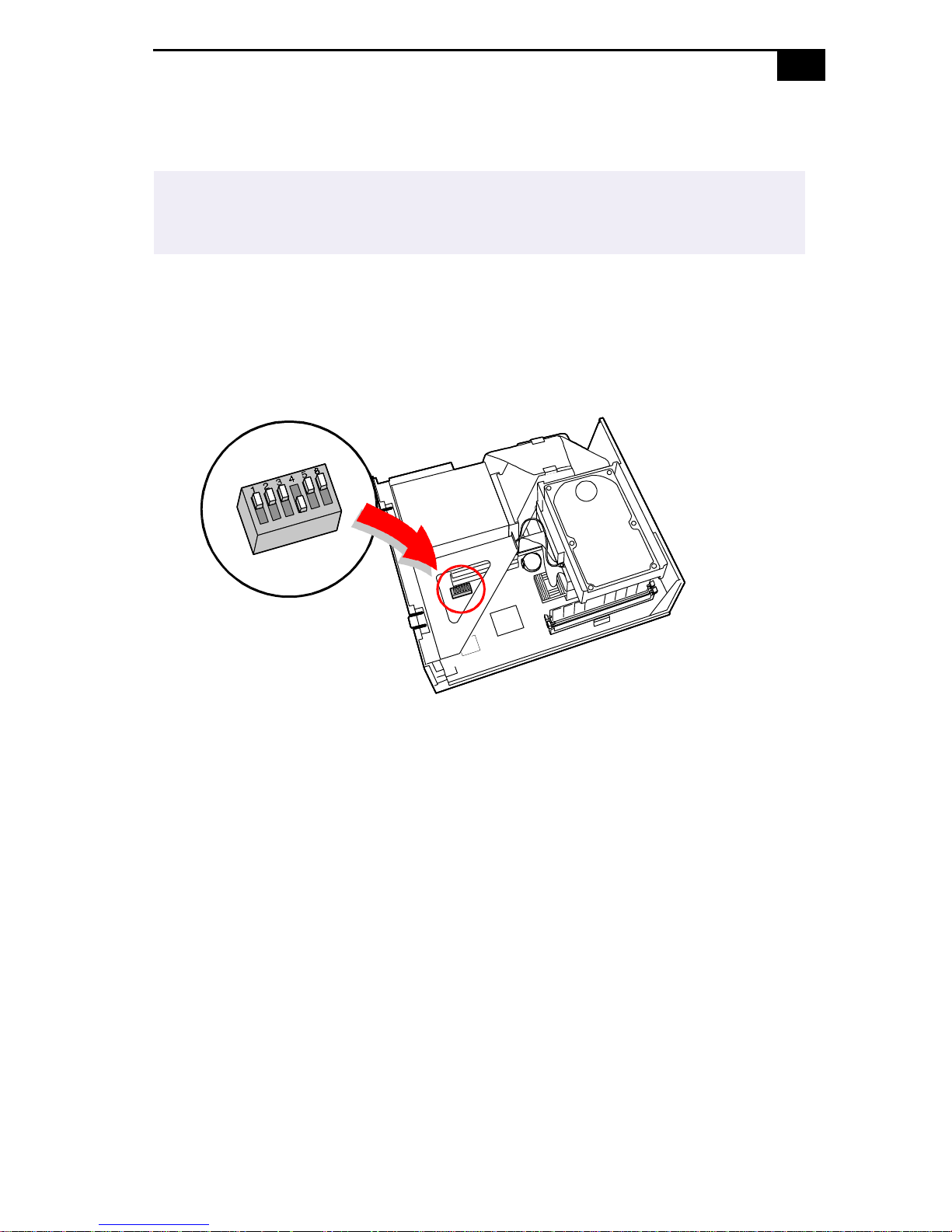

Setting the Configuration Switches ............................................29

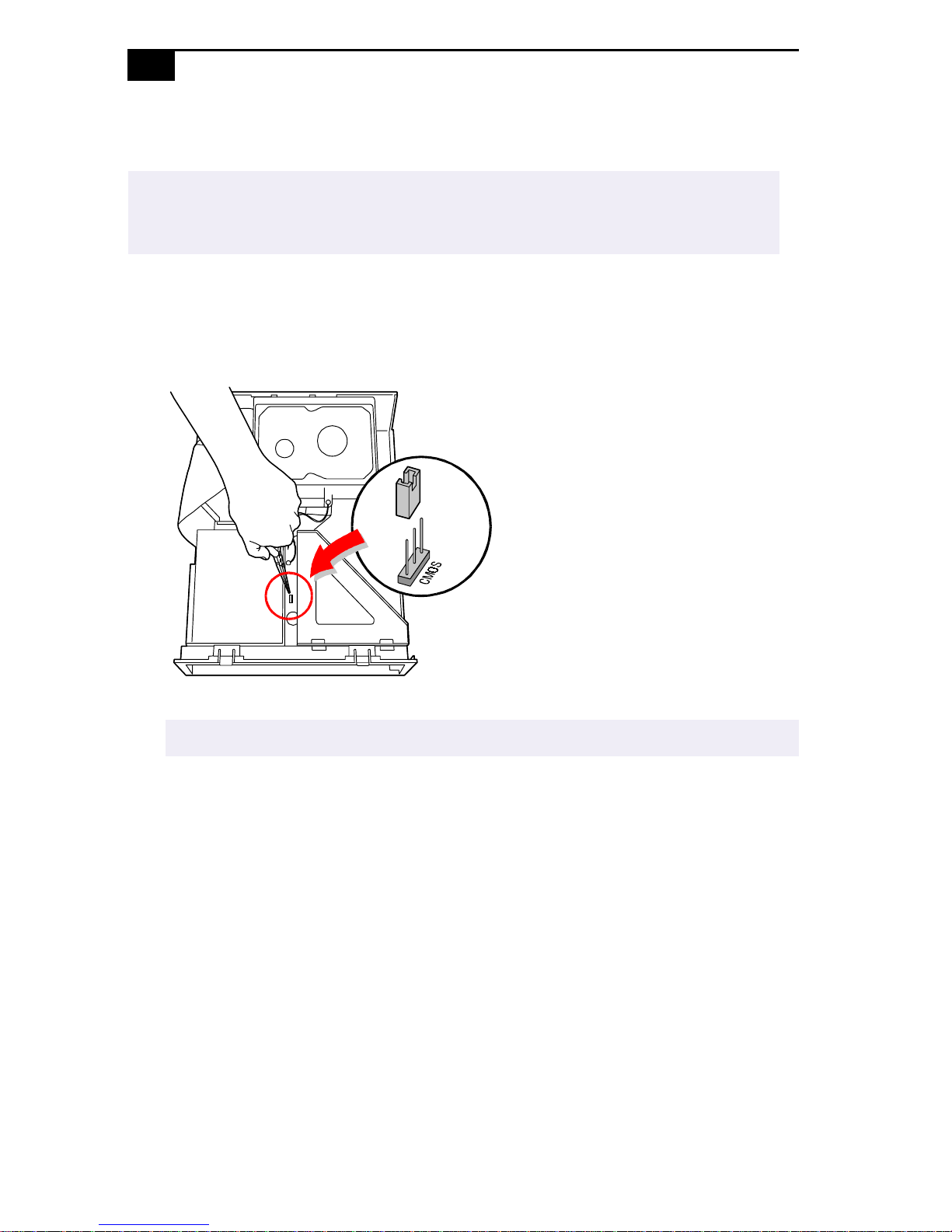

Setting the CMOS Jumper ............................................................30

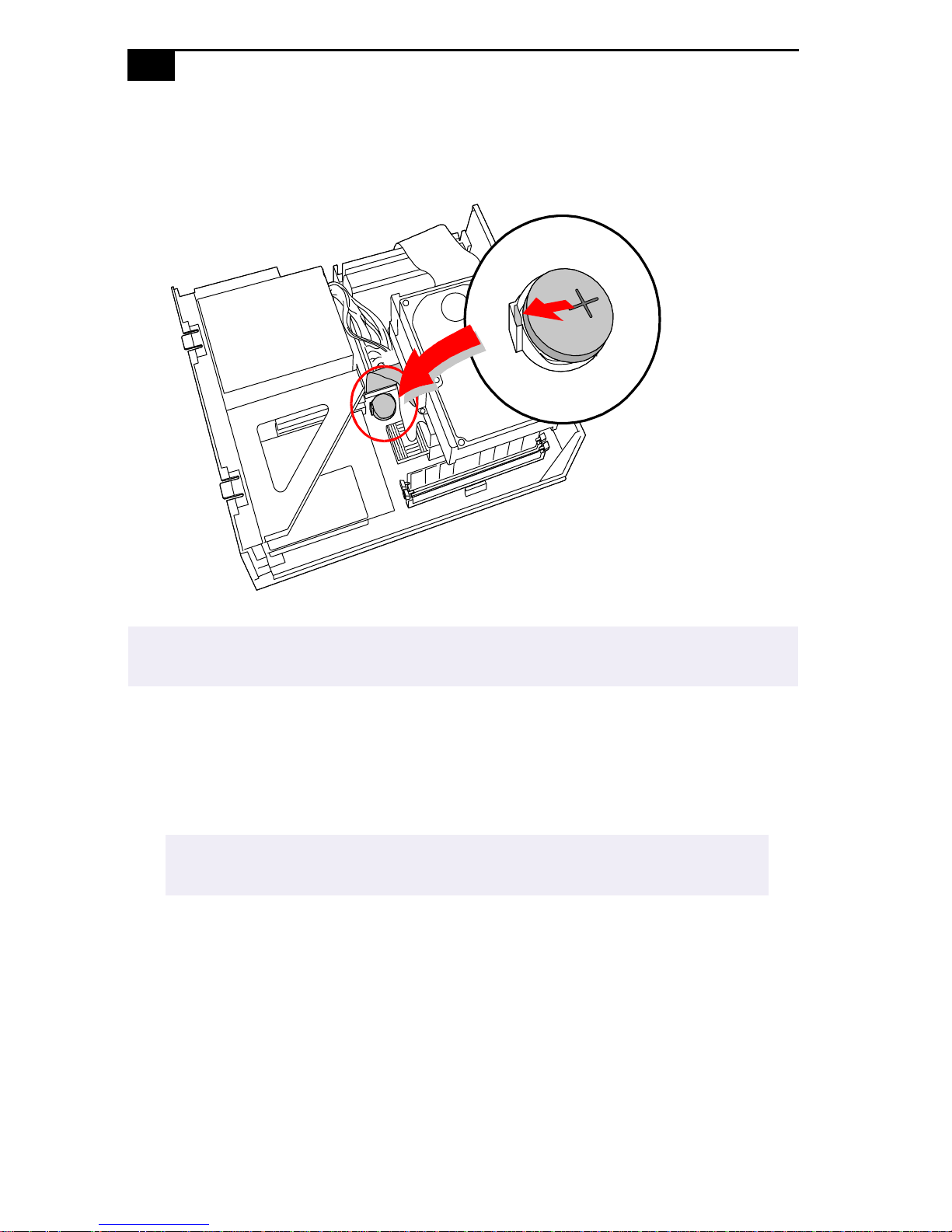

Replacing the Lithium Battery .....................................................31

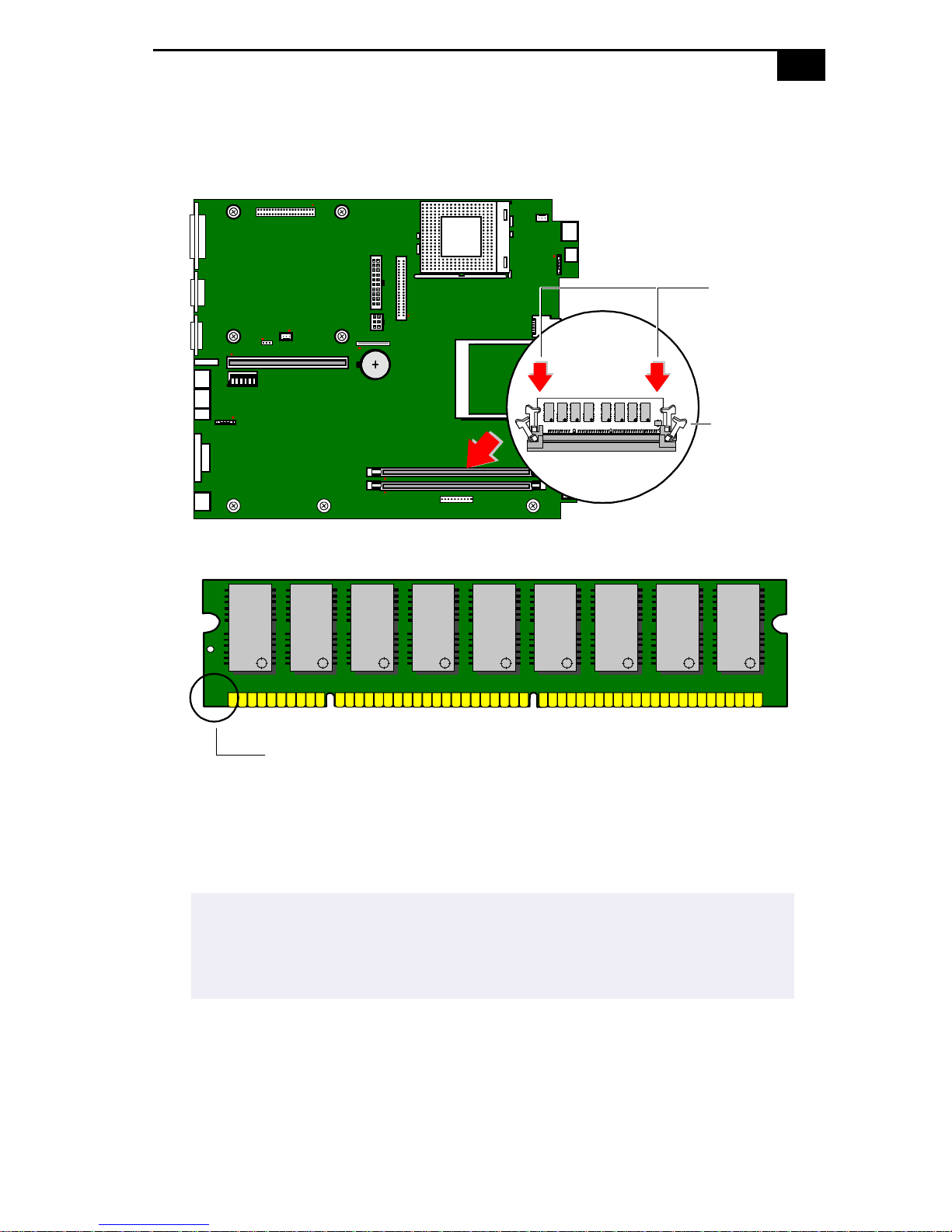

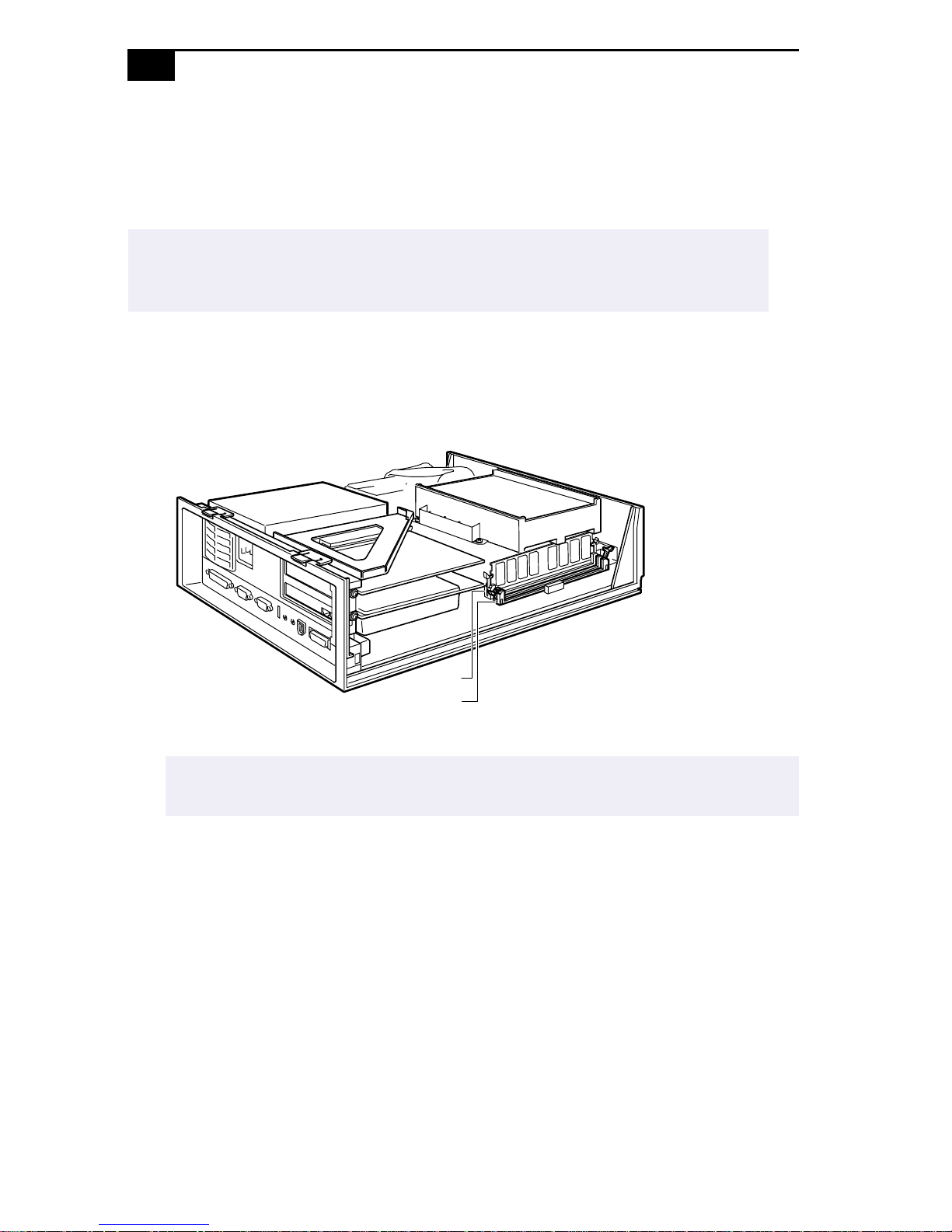

Installing System Memory ...........................................................34

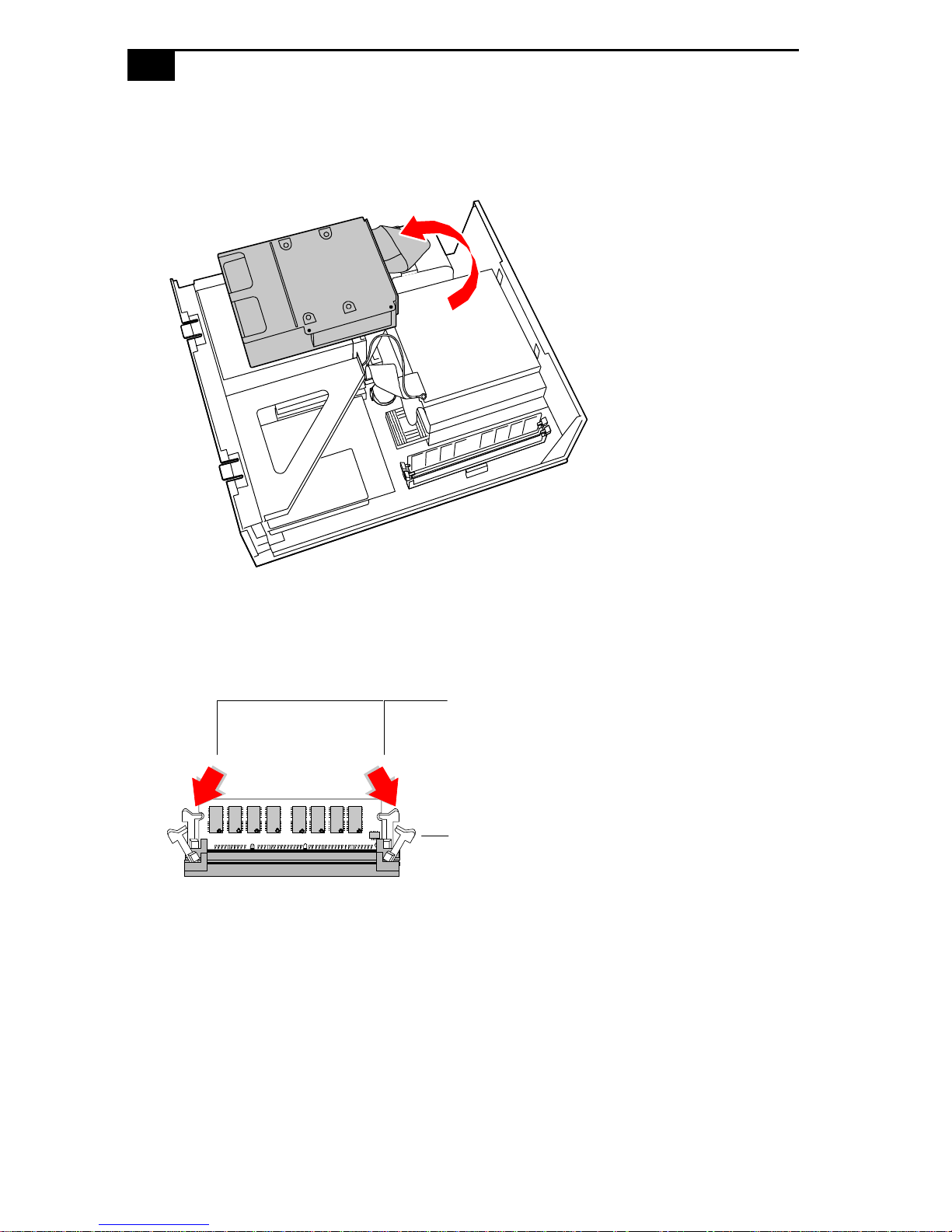

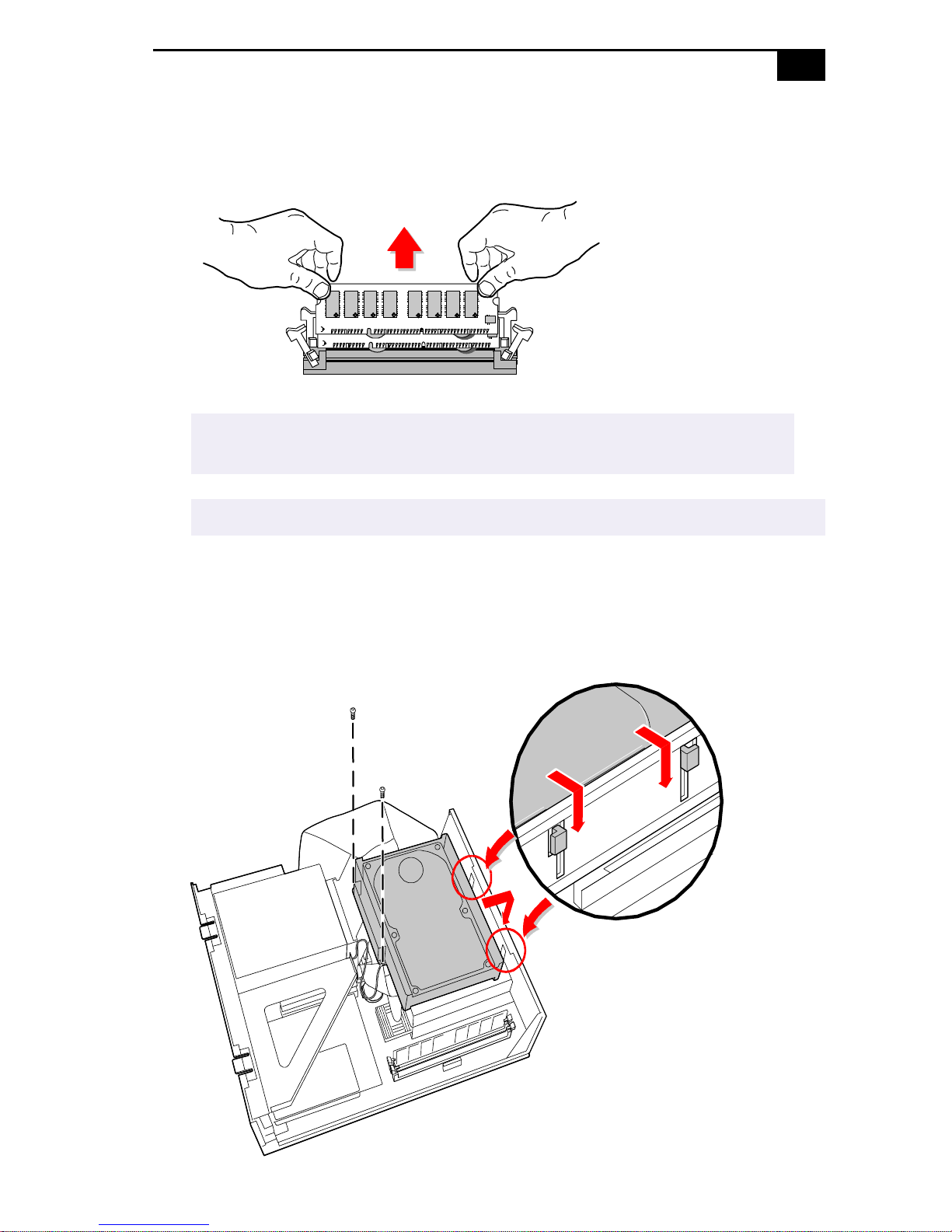

Removing a Memory Module .....................................................36

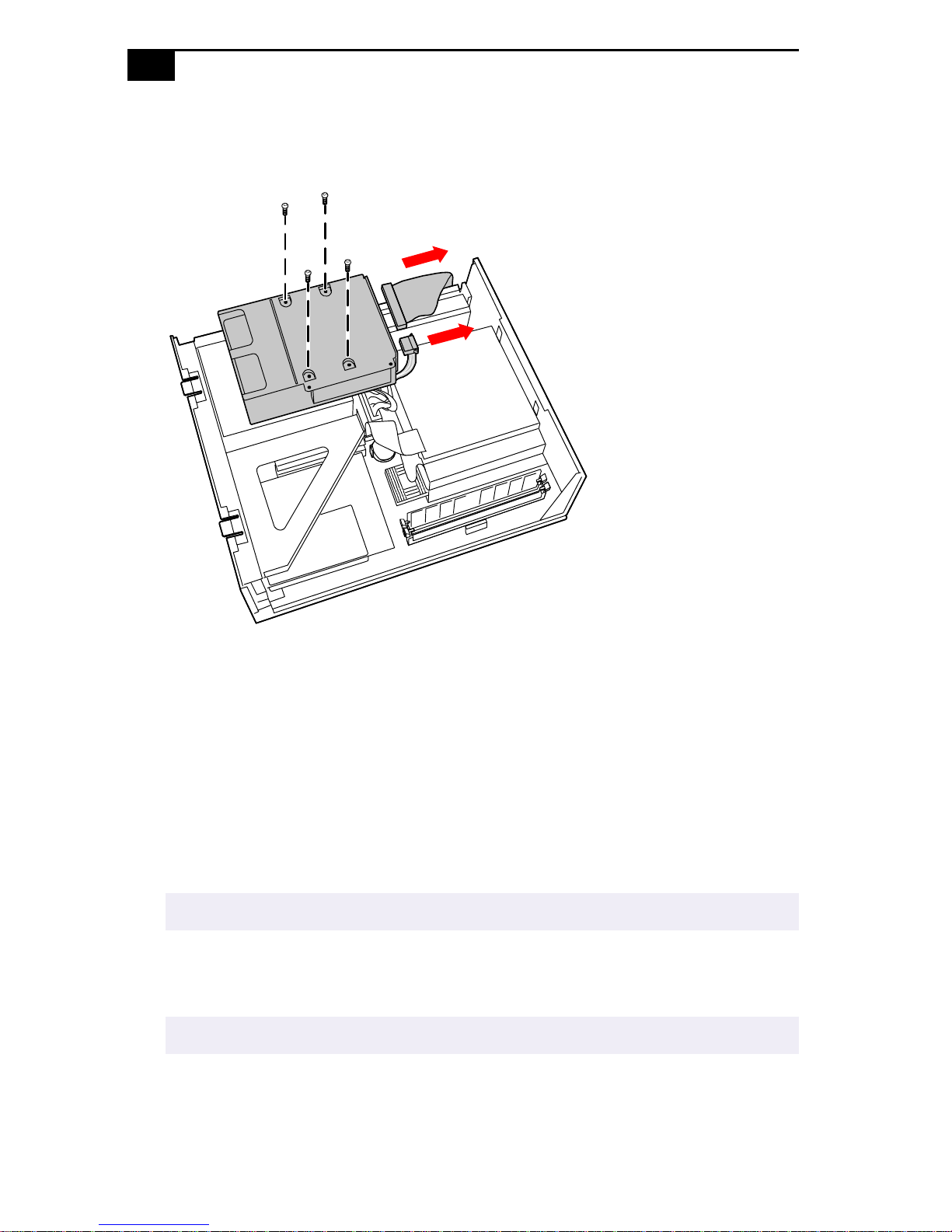

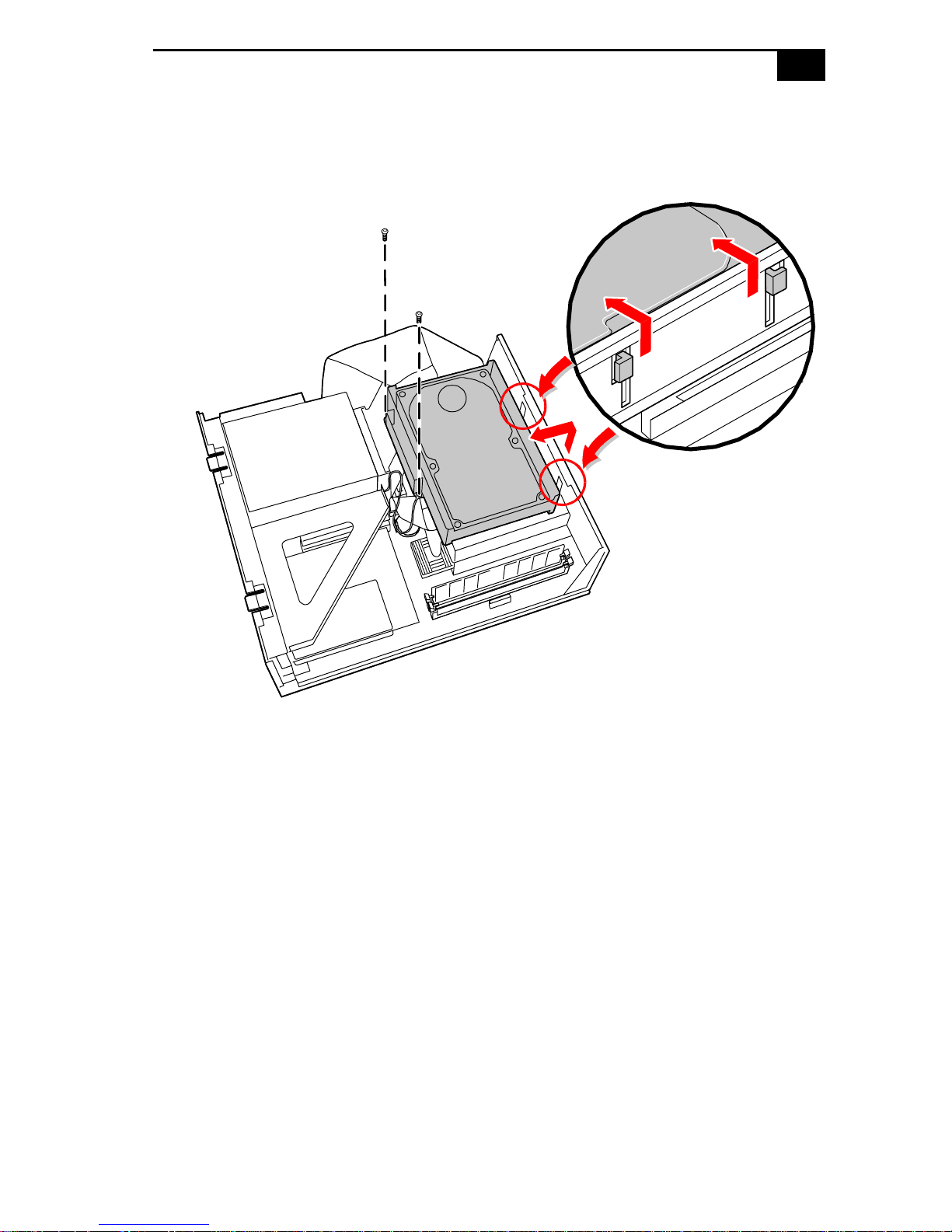

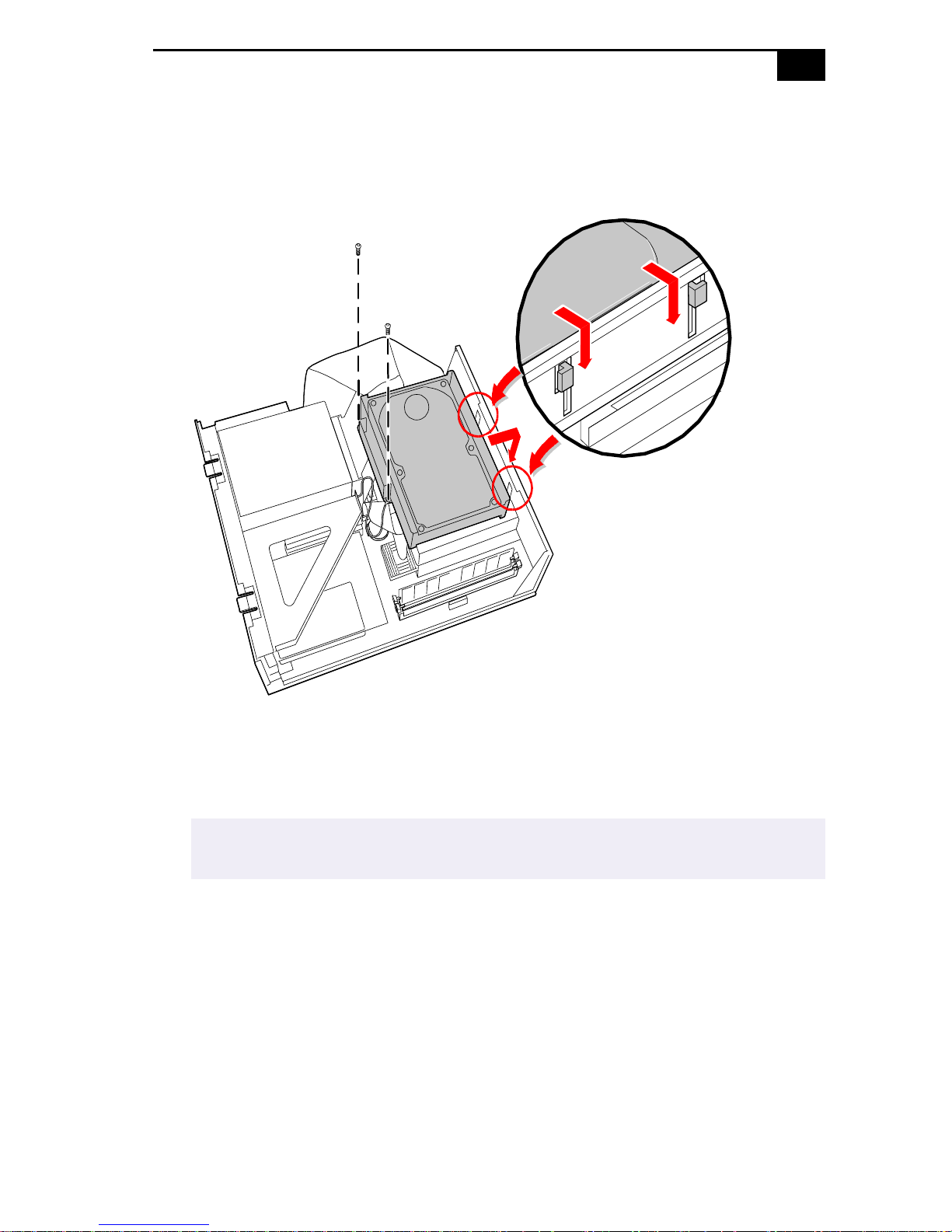

Replacing the Hard Drive ...........................................................41
Removing a Slot Cover..................................................................44
Covering an Open I/O Slot ..........................................................45

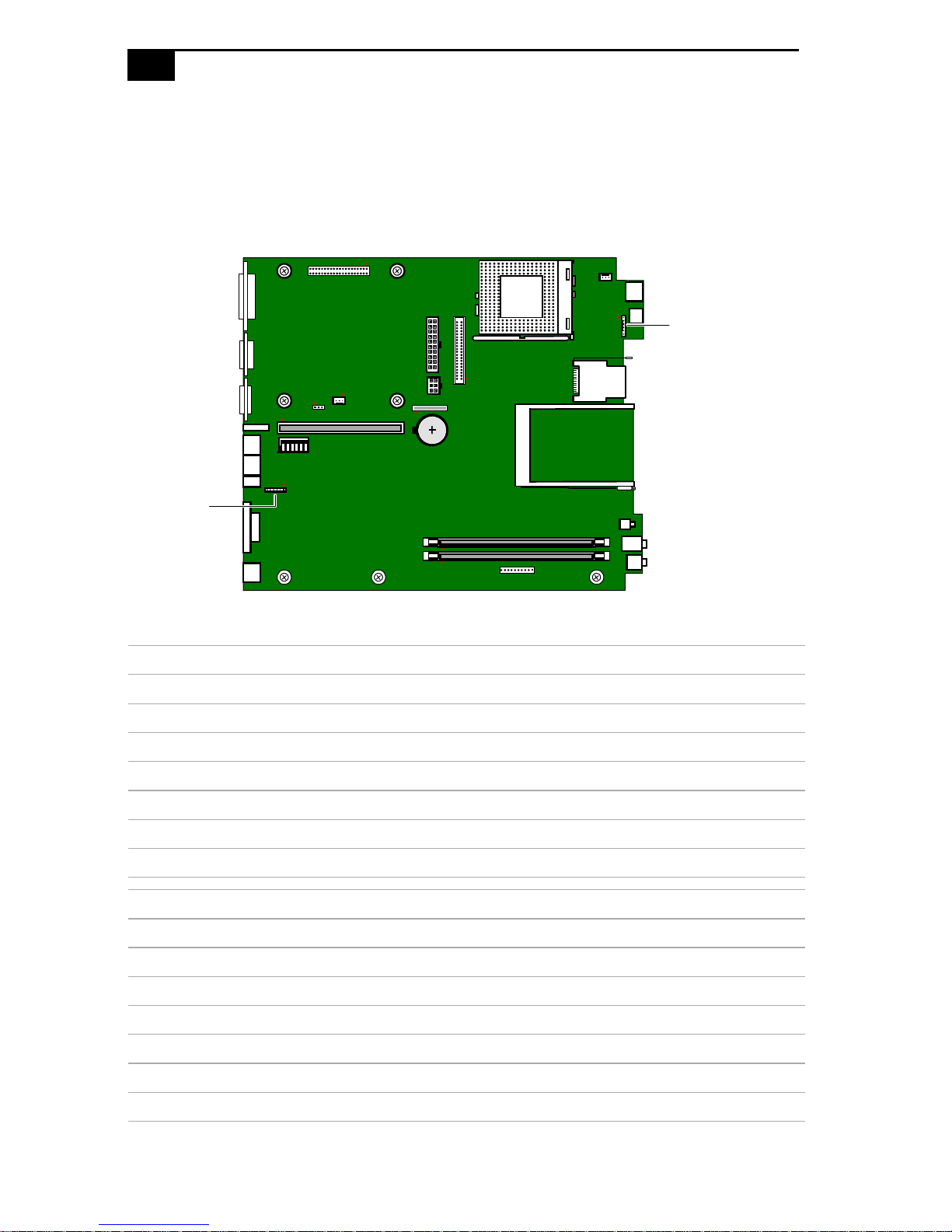

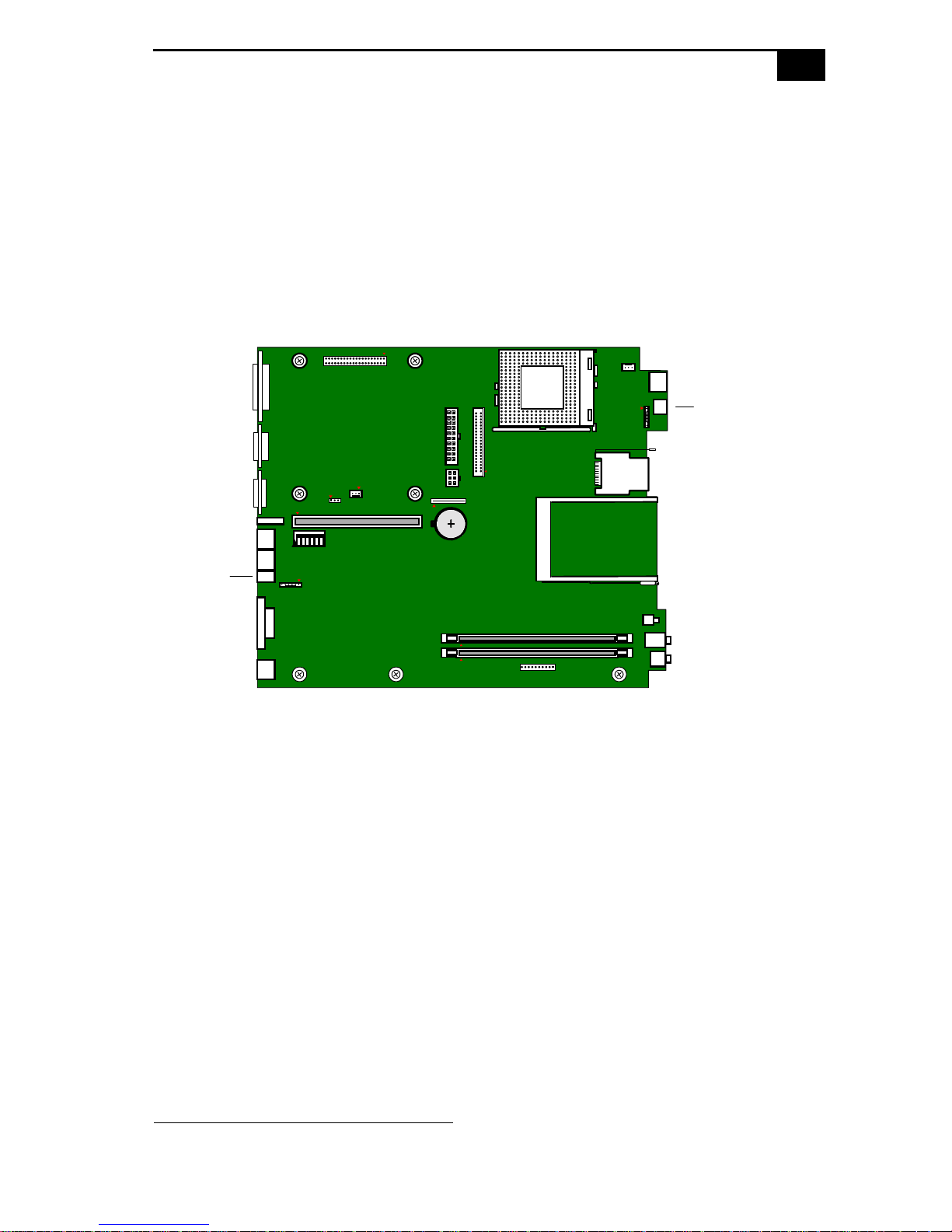

Chapter 4 — System Board

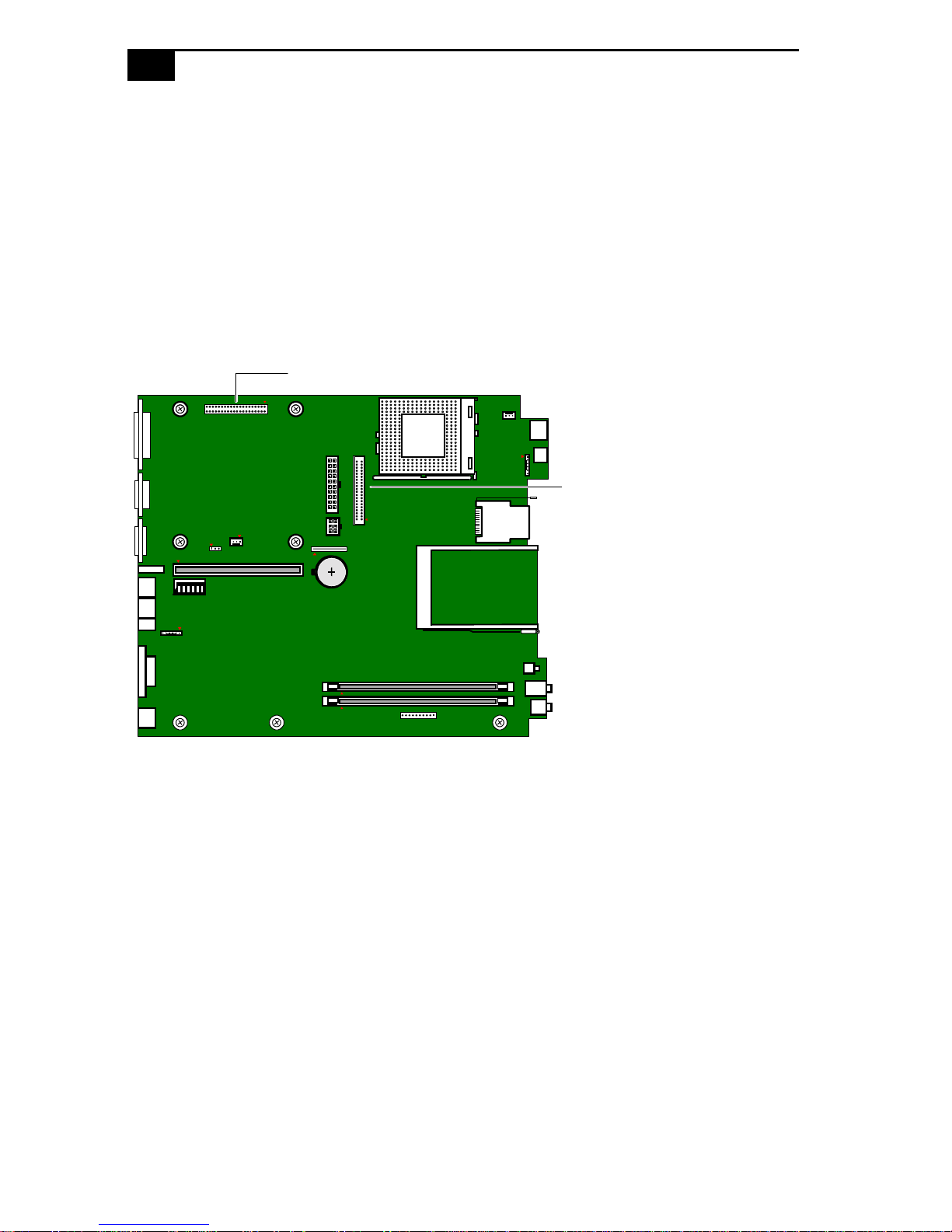

Connectors ......................................................................................48
Front Panel Header............................................................................48
Diskette Drive (FLOPPY) Connector ..............................................49
IDE Connectors .................................................................................50

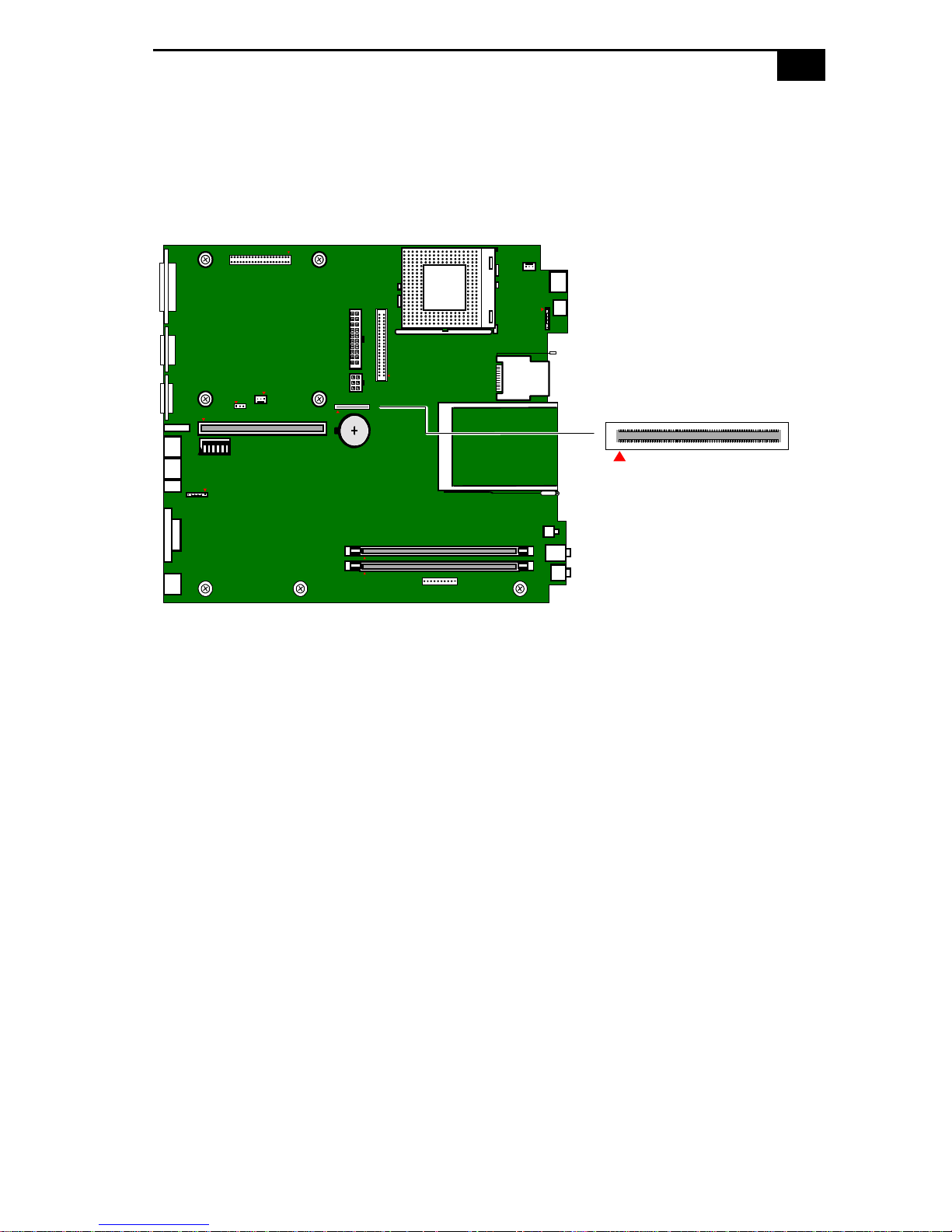

PCI Slot Connectors...........................................................................51
Memory Module (DIMM) Connectors ..........................................52

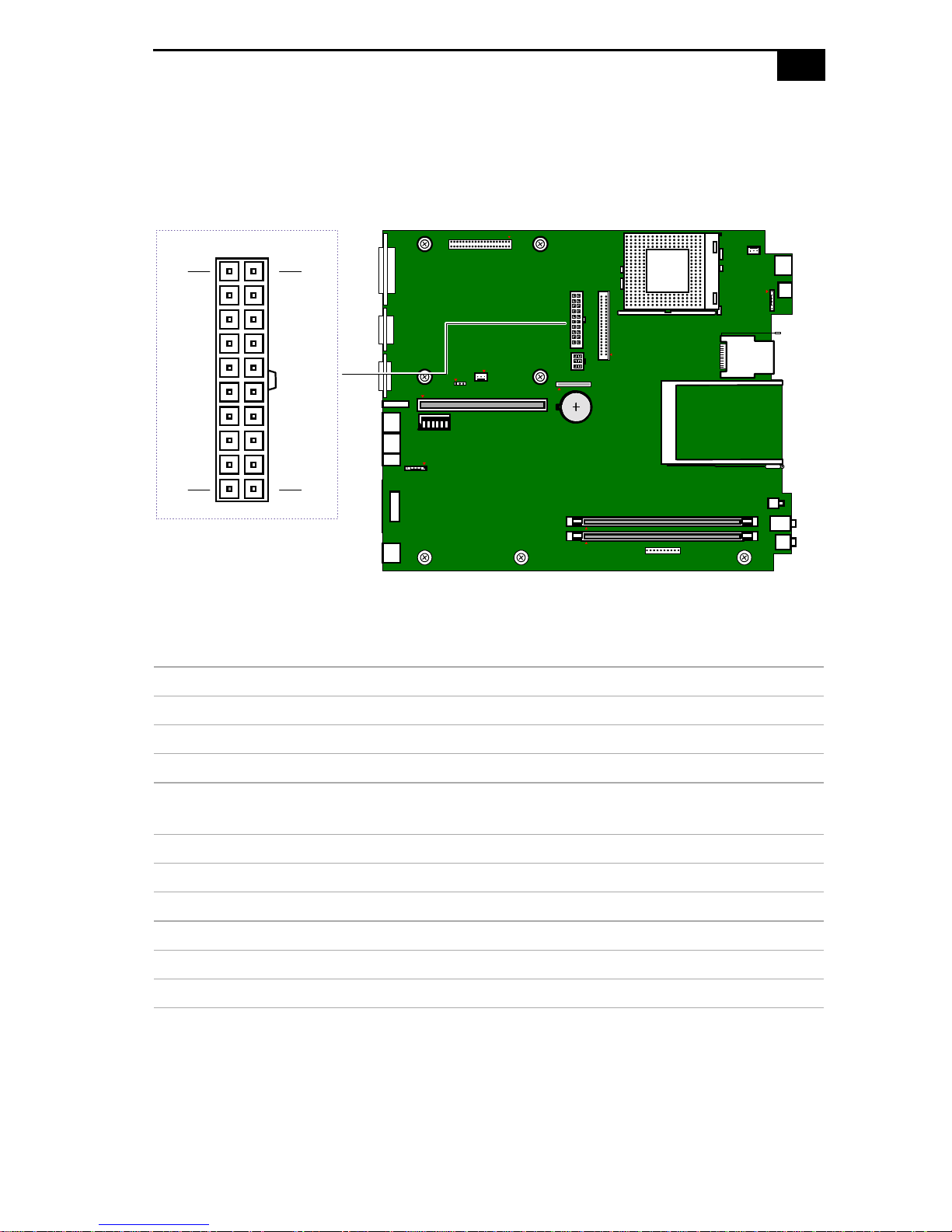

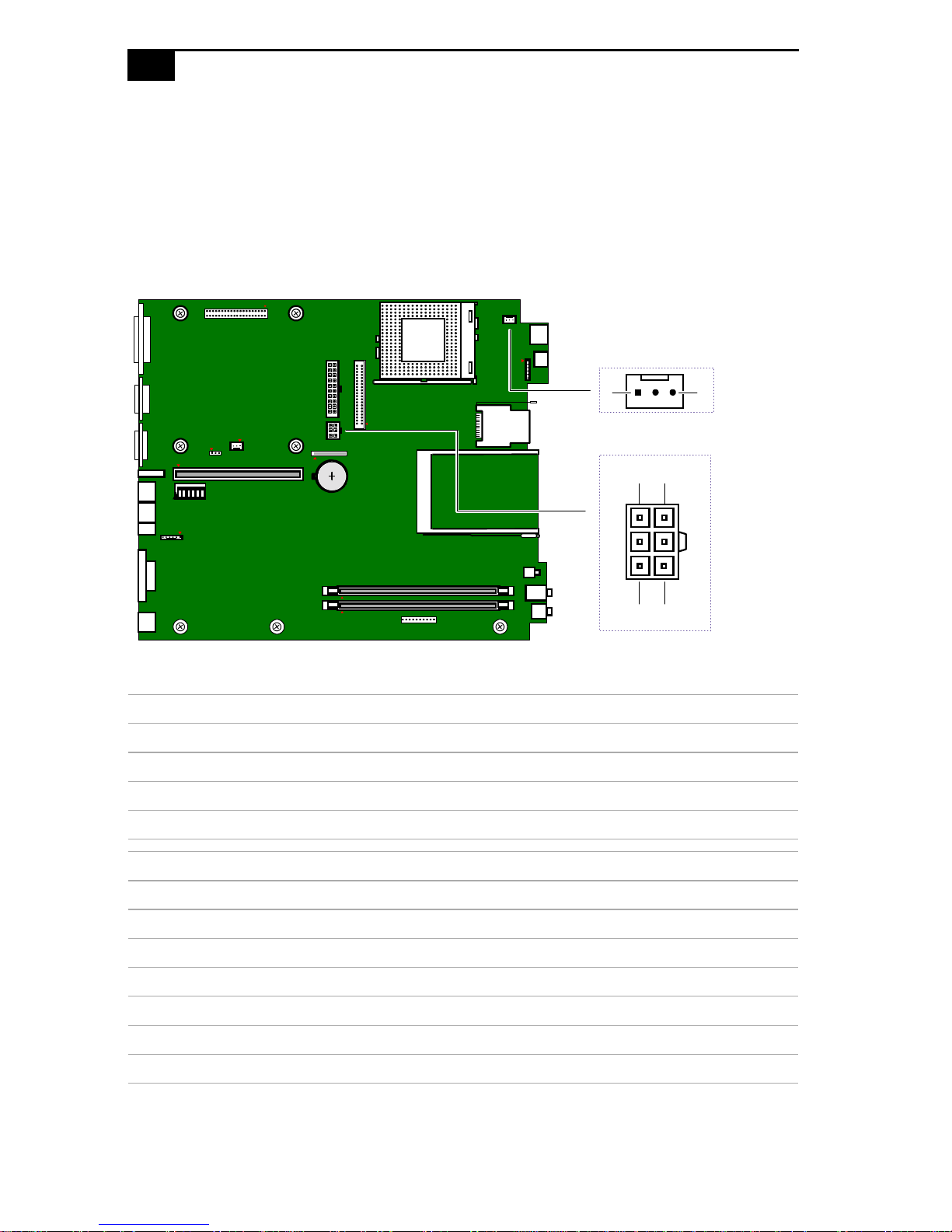

Power (ATX PWR) Connector .........................................................53

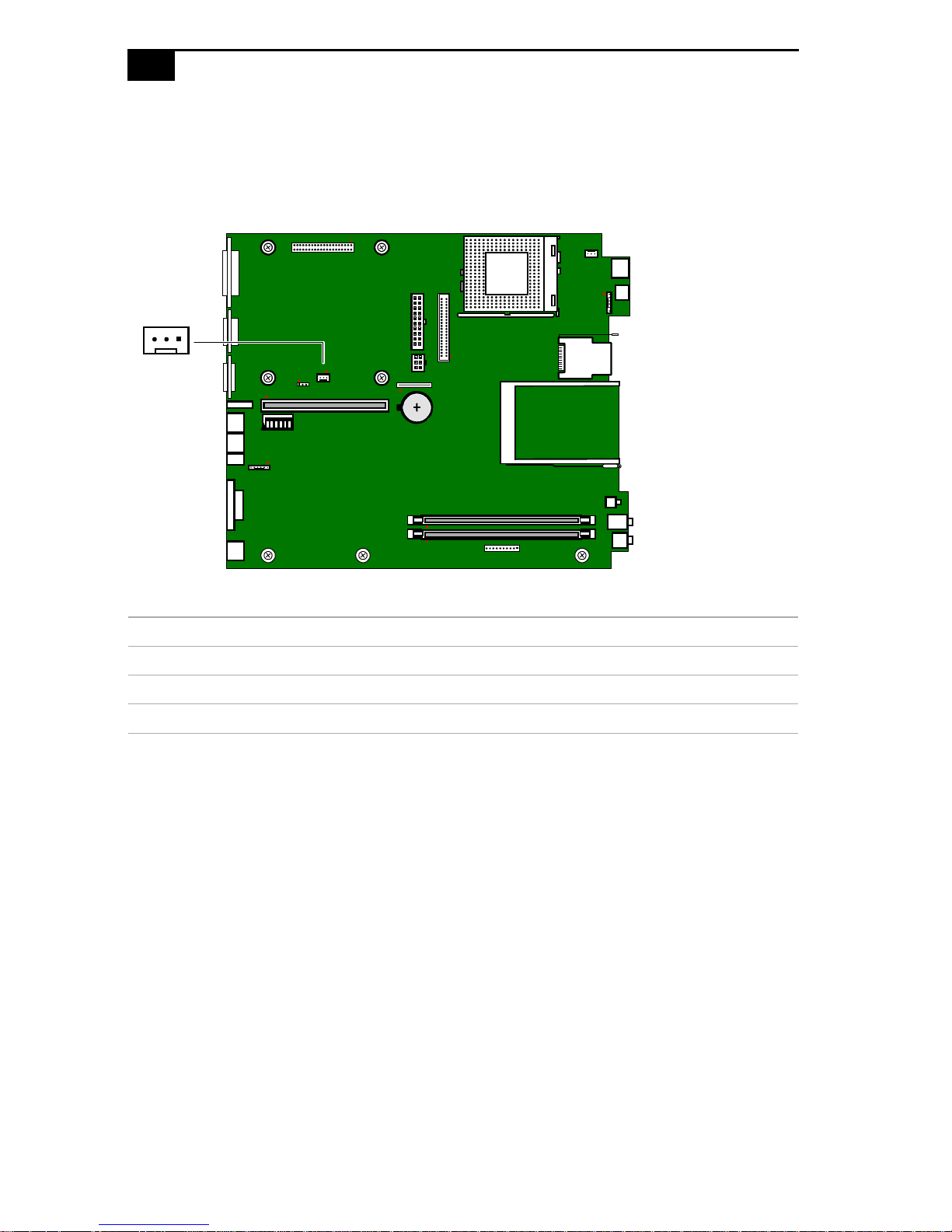

Fan (CPU FAN, CTRL PWR) Connectors ......................................54

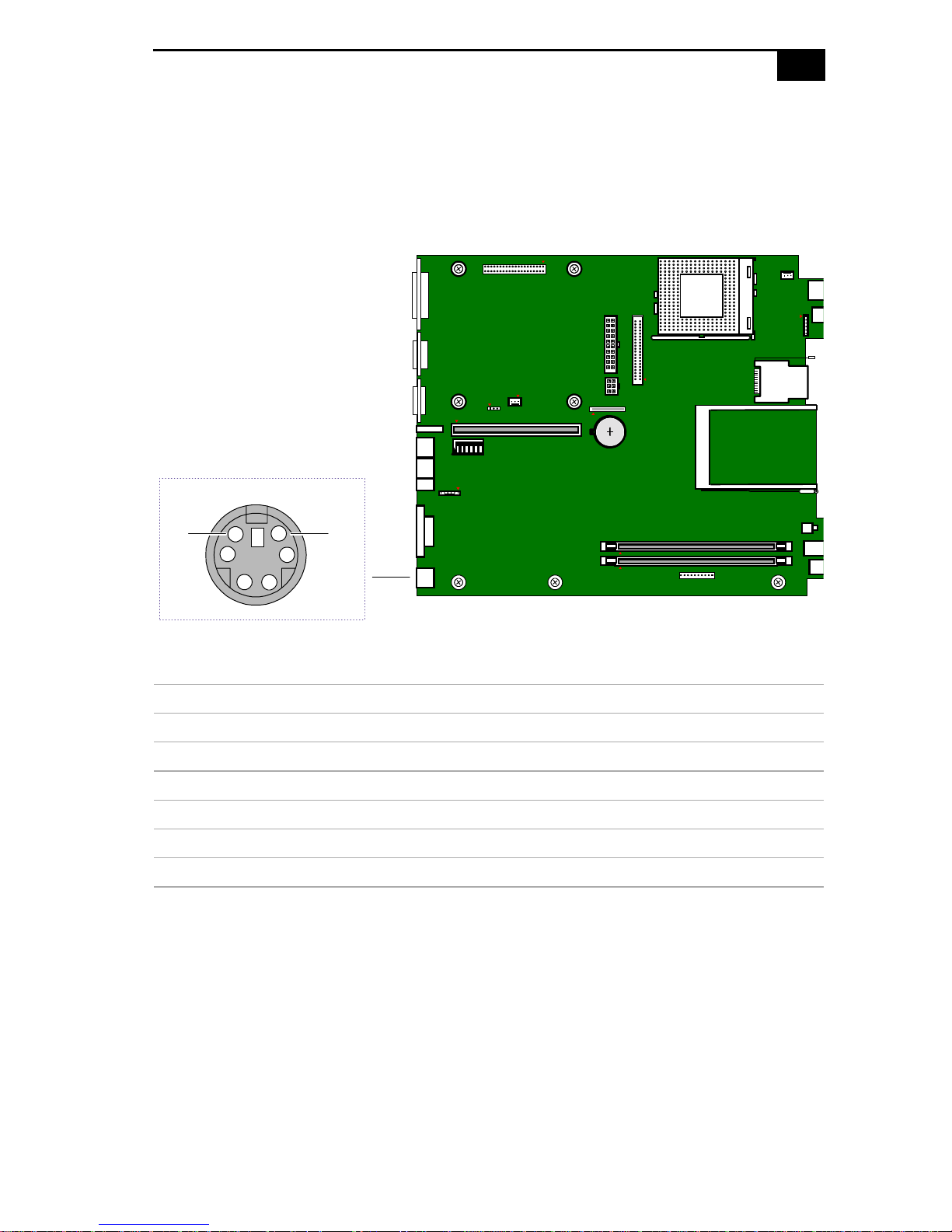

Keyboard/Mouse (KB/MOUSE) Connector ................................55
USB Connectors .................................................................................56

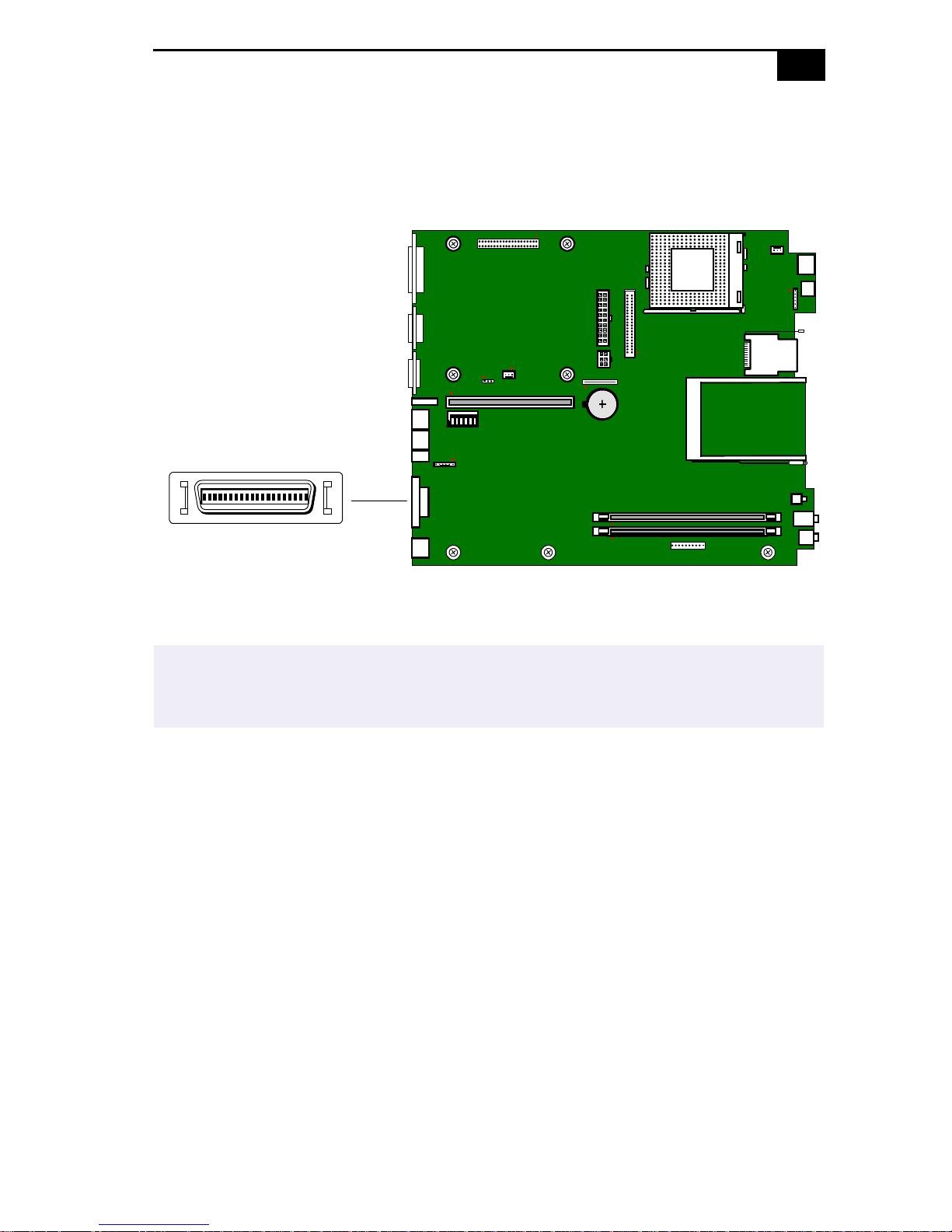

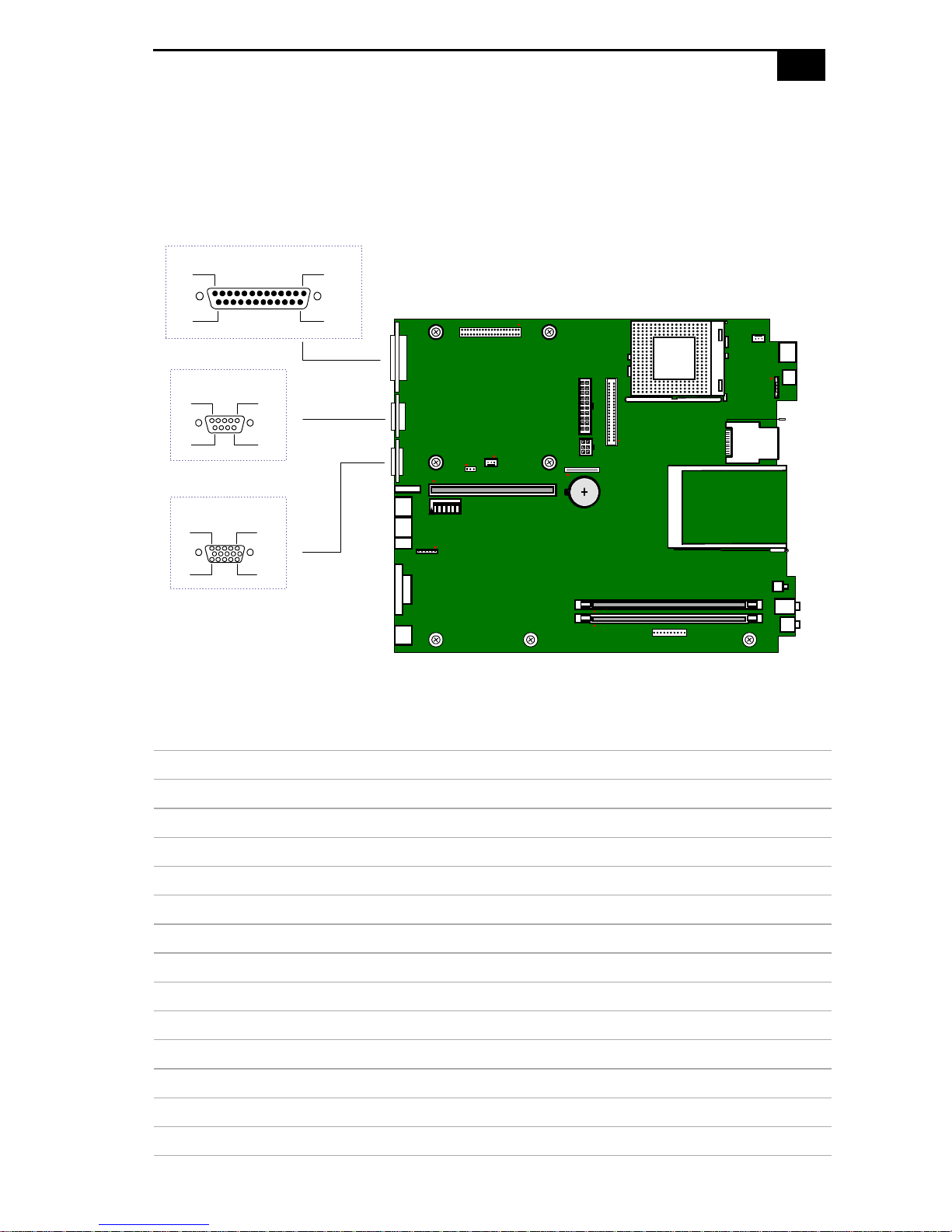

PRINTER, SERIAL, and VGA MONITOR Connectors ...............57
LCD Connector ..................................................................................59
Wake On LAN (WOL_CON) Connector .......................................60
LINE IN and LINE OUT Connectors .............................................61
PHONE and MIC Connectors .........................................................62
Sony Memory Stick Slot Connector ................................................63
i.LINK Interface Header Connectors .............................................64
i.LINK Connectors ............................................................................65
Configuration Jumper and Switches ..........................................66
CMOS Jumper ...................................................................................66
Configuration Switches (SW)...........................................................67
Page 7
Contents
Chapter 5 — Fax/Modem Card
Chapter 6 — CMOS Setup Options
STANDARD CMOS SETUP Screen ............................................74
BIOS FEATURES SETUP Screen.................................................. 75
CHIPSET FEATURES SETUP Screen.......................................... 78
POWER MANAGEMENT SETUP Screen.................................. 80
PNP AND PCI SETUP Screen ..................................................... 82
LOAD SETUP DEFAULTS Screen ..............................................84
SUPERVISOR PASSWORD Screen ............................................. 84
USER PASSWORD Screen............................................................ 84
IDE HDD AUTO DETECTION Screen....................................... 84
SAVE & EXIT SETUP Screen........................................................84
vii
EXIT WITHOUT SAVING Screen ............................................... 84
Chapter 7 — Miscellaneous Technical Information
About User and Supervisor Passwords ..................................... 86
Beep Code Error Messages ..........................................................87
PCI Configuration Status and Error Messages .........................88
DMA Channel Assignments ....................................................... 89
IRQ Assignments ........................................................................ 90
System I/O Address Map ..........................................................91
Memory Map ................................................................................. 93
Chapter 8 — Specifications
Processor ....................................................................................... 95
Chipset ...........................................................................................95
PCI Bus ..........................................................................................95
Memory Modules (DIMMs) .......................................................95
DIMM Configurations ..................................................................96
L2 Cache ......................................................................................... 96
Graphics ........................................................................................ 96
Audio .............................................................................................. 97
Communications .......................................................................... 97
Page 8
viii
VAIO Computer Reference Manual
I/O and Expansion Slots .............................................................97
i.LINK Interface .............................................................................98
Drives and Controllers .................................................................98
System CMOS ...............................................................................98
Page 9
Chapter 1
Identifying Components
The following sections identify and describe each component that is
visible from the exterior of the VAIO
identified in Chapters 3, 4, and 5 of this manual.
®
Computer. Internal components are
1
Page 10
2
D
VAIO Computer Reference Manual
Front View
Flip-down panel
FD DISC HD
SHA0001.VS
Page 11
Drives
Identifying Components
FD DISC HD
Floppy disk driveDVD-ROM disc drive
3
SHA0002.VSD
Drive Description
Diskette drive 3.5-inch, 1.44 Mbyte.
DVD-ROM drive
*
DVD-ROM disc read: 4.8X (maximum performance).
CD-ROM disc read: 24X (maximum performance).
* Data on a DVD-ROM is read at a variable transfer rate, ranging from 2X at the innermost track to 4.8X at
the outermost track (the data transfer standard 1X rate is 1385 kbytes/s). The average data transfer rate
is 3.6X (4986 kbytes/s). Data on a CD-ROM is read at a variable transfer rate, ranging from 10.5X at the
innermost track to 24X at the outermost track (the data transfer standard 1X rate is 150 kbytes/s). The
average data transfer is 18X (2700 kbytes/s).
Page 12
4
VAIO Computer Reference Manual
Buttons and Switches
Power on/off Floppy disk eject
Manual eject hole
DVD-ROM disc eject
FD DISC HD
Button or switch Description
Power/Standby switch Turns system power on and off.
SHA0003.VSD
Floppy disk eject button Ejects a diskette.
DVD-ROM disc eject
button
Automatically opens and closes the DVD-ROM
tray.
Emergency eject hole Ejects an optical disc.
Page 13
Indicators
Power on/off
Identifying Components
Diskette drive access indicator
DVD-ROM drive access indicator
5
FD DISC HD
Hard drive access indicator
SHA0004.VSD
Indicator Description
Power/Standby indicator Standby (amber) indicates the computer is in
standby mode. On (green) indicates the
computer is out of standby mode, ready to
use. Off (no color) indicates the computer is
turned off.
Diskette drive access indicator On (green) indicates diskette drive activity.
DVD-ROM drive access
On (orange) indicates optical disc activity.
indicator
Hard disk drive access
On (green) indicates hard disk drive activity.
indicator
Page 14
6
D
VAIO Computer Reference Manual
Connectors
FD DISC HD
MIC
PHONES
VOLUME
USBi.LINK
SHA0005.VS
Connector Description
MIC Connects to microphone.
PHONES Connects to headphones.
i.LINK
®
(IEEE-1394)
*
Connects to digital device that has a 4-pin i.LINK
connector.
USB Connects to USB devices.
VOLUME Controls headphone volume.
* To connect to a 6-pin i.LINK device, use the i.LINK connector on the back of the system. A 6-pin i.LINK
connector can supply power from the computer to the device if the device also has a 6-pin i.LINK connector.
A 4-pin i.LINK connector cannot supply power to the device.
Page 15
Slots
D
Identifying Components
FD DISC HD
7
PC Card
Slot
Memory Stick
Media Slot
SHA0006.VS
Slot Description
PC Card Slot Accommodates one Type I or Type II PCMCIA
card
Memory Stick
™
Media Slot Accommodates Memory Stick media
Page 16
8
VAIO Computer Reference Manual
Rear View
Power LINE PHONE
PRINTER SERIAL MONITOR
USB LINE I.LINK
S400
OUTIN
LINE PHONE
LCD KEYBOARD
PRINTER SERIAL MONITOR
USB
LCD
i.LINK
LINE OUT
LINE IN
KEYBOARD
SHA0007.VSD
Connector Description
Power AC input power
LINE Connects to phone cable from wall jack
PHONE Connects to telephone
PRINTER Connects to parallel device
SERIAL Connects to serial device
MONITOR Connects to VGA monitor (optional)
USB Connects to USB devices
LINE IN Connects to output connector on audio device
LINE OUT Connects to input connector on audio device
i.LINK (IEEE-1394)
*
LCD Connects to VAIO Slimtop
KEYBOARD Connects to keyboard
* To connect to a 6-pin i.LINK device, use the i.LINK connector on the back of the system. A 6-pin i.LINK
connector can supply power from the computer to the device if the device also has a 6-pin i.LINK
connector. A 4-pin i.LINK connector cannot supply power to the device.
Connects to digital device that has a 6-pin i.LINK
connector
™
LCD monitor
Page 17
Identifying Components
9
I/O Connectors
The following section identifies the various I/O connectors.
PRINTER Port
The PRINTER port is a standard 25-pin DB-25 female connector assigned
as LPT1.
13 1
25 14
KY0005.VSD
SERIAL Port
The SERIAL port is a standard 9-pin DB-9 male connector assigned as
COM1.
51
6
9
KY0057.VSD
MONITOR
The MONITOR connector is a standard 15-pin female high-density VGAtype connector.
SHA0009.VSD
Page 18
10
D
VAIO Computer Reference Manual
USB Connectors
A USB connector is located on the front and real panels.
Rear panel
Front panel
KY0003.VS
PHONE, MIC, LINE IN, and LINE OUT
The PHONES, MIC, LINE IN, and LINE OUT jacks are physically
identical, but have different connections. They are standard 3.5 mm stereo
mini-jacks. The PHONES and MIC jacks are located on the front panel.
The LINE IN and LINE OUT jacks are located on the rear panel.
PHONES MIC
Front panel
LINE IN LINE OUT
Rear panel
KY0013.VSD
Connector Description
PHONES 1.0 Vrms output (typical) at 31 mW (32 ohm) output (max)
MIC Electrolet condenser microphone input
LINE IN 1.0 Vrms input (max), 50 Kohm impedance
LINE OUT 1.0 Vrms out (max)
Page 19
Identifying Components
D
11
i.LINK (IEEE-1394)
The 6-pin i.LINK (IEEE-1394) connector on the rear panel can supply
power from the computer to a device if the device also has a 6-pin i.LINK
connector. The connector supplies 10V to 12V. The total power supplied
by the 6-pin i.LINK connector cannot exceed 6 watts.
6-pin i.LINK
(IEEE-1394)
4-pin i.LINK
(IEEE-1394)
On rear panel
On front panel
LCD
The LCD connector is a 40-pin female MDR-type connector.
Do not connect any LCD monitor other than the Sony VAIO Slimtop LCD monitor.
!
KEYBOARD/MOUSE
The KEYBOARD connector is a mini DIN-type female connector.
1
2 5
6
KY0087.VS
KY0004.VSD
3
4
KY0002.VSD
Page 20
12
VAIO Computer Reference Manual
LINE and PHONE
The LINE and PHONE jacks are physically identical and have identical
connections. They are standard RJ-11 female phone jacks. However, the
LINE jack is for connecting to a telephone line that comes from the wall
jack, and the PHONE jack is for connecting the computer to a telephone.
LINE PHONE
KY0014.VSD
Accidentally plugging a phone line from the wall into the modem’s PHONE jack, and a
✍
telephone into the LINE jack, will not damage the modem card or telephone equipment.
However, the modem will not work correctly.

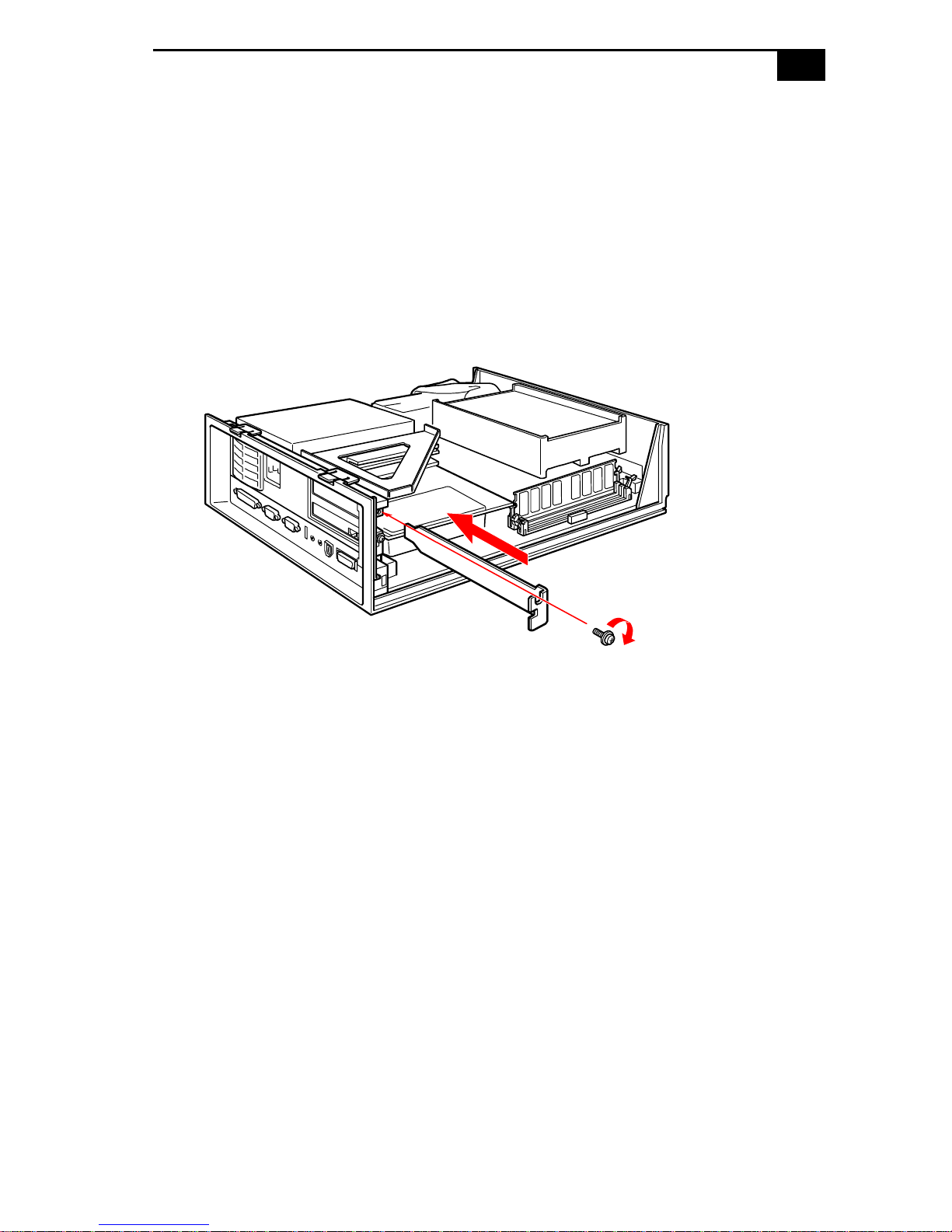

Expansion Slot
One PCI slot is available for expansion, except for some configure-toorder models, which may already use this slot. The other PCI slot is
occupied by the fax/modem card.
PCI Slot
LINE PHONE
PRINTER SERIAL MONITOR
USB LINE I.LINK
S400
OUTIN
LCD KEYBOARD
SHA0008.VSD
Page 21
Chapter 2
Configuring Your System
This chapter contains information on configuring your system.
Configuring your system can consist of the following:
Making changes to the CMOS settings
❑
Making changes to the display's power management settings
❑
Changing the system board jumper position
❑
13
Page 22
14
VAIO Computer Reference Manual
Accessing the CMOS Setup Utility
You must access the CMOS Setup Utility to make changes to the CMOS
settings (see “CMOS Setup Options” on page 73 for information on
CMOS settings).
Before rebooting the system, save any open files and exit Windows®.
!
Reboot the system. The following message appears during the initial
1
boot sequence:
Press TAB to show the POST screen, DEL to enter SETUP
Press DEL after the progress bar starts.
2
Use the arrow keys to select an item from the main menu.
3
Press Enter to display the options for the selected item.
4
Use the arrow keys to select an option.
5
Press Page Up or Page Down to modify the setting.
6
Press ESC to return to the main menu.
7
Select SAVE & EXIT SETUP, type Y, then press Enter. Follow the
8
onscreen prompts.
Page 23
Configuring Your System
15
Changing the Display's Power Management
Settings
A display that has power management capability is designed to operate
on reduced power or shut itself off after the system has been idle for a
specified period of time.
From the
1
Click the Power Management icon.
2
The Power Management Properties dialog box opens, with the
Power Schemes tab displayed.
Start
menu, point to Settings, then click Control Panel.
Select the power scheme that is most appropriate for the way you use
3
your computer.
To change a power scheme, change the settings for System standby,
Turn o ff m o n itor, an d Tu rn of f hard disk s .
The System standby option allows you to specify the period of
inactivity (in minutes) that you want to elapse before your computer
goes on standby when your computer is running on AC power.
Power is reactivated when you move the mouse or press a key.
The Turn off monitor option allows you to specify the period of
Page 24
16
VAIO Computer Reference Manual
inactivity (in minutes) that you want to elapse before your monitor
turns off when your computer is running on AC power. The display
reactivates when you move the mouse or press a key.
The Turn off hard disks option allows you to specify the period of
inactivity (in minutes) that you want to elapse before your hard disks
turn off when your computer is running on AC power.
To save a new power scheme, first modify the settings, click
4
type a descriptive name, and then click
Click the Advanced tab.
5
OK
.
Save As
,
Select the desired settings, and then click OK.
6
Page 25
Configuring Your System

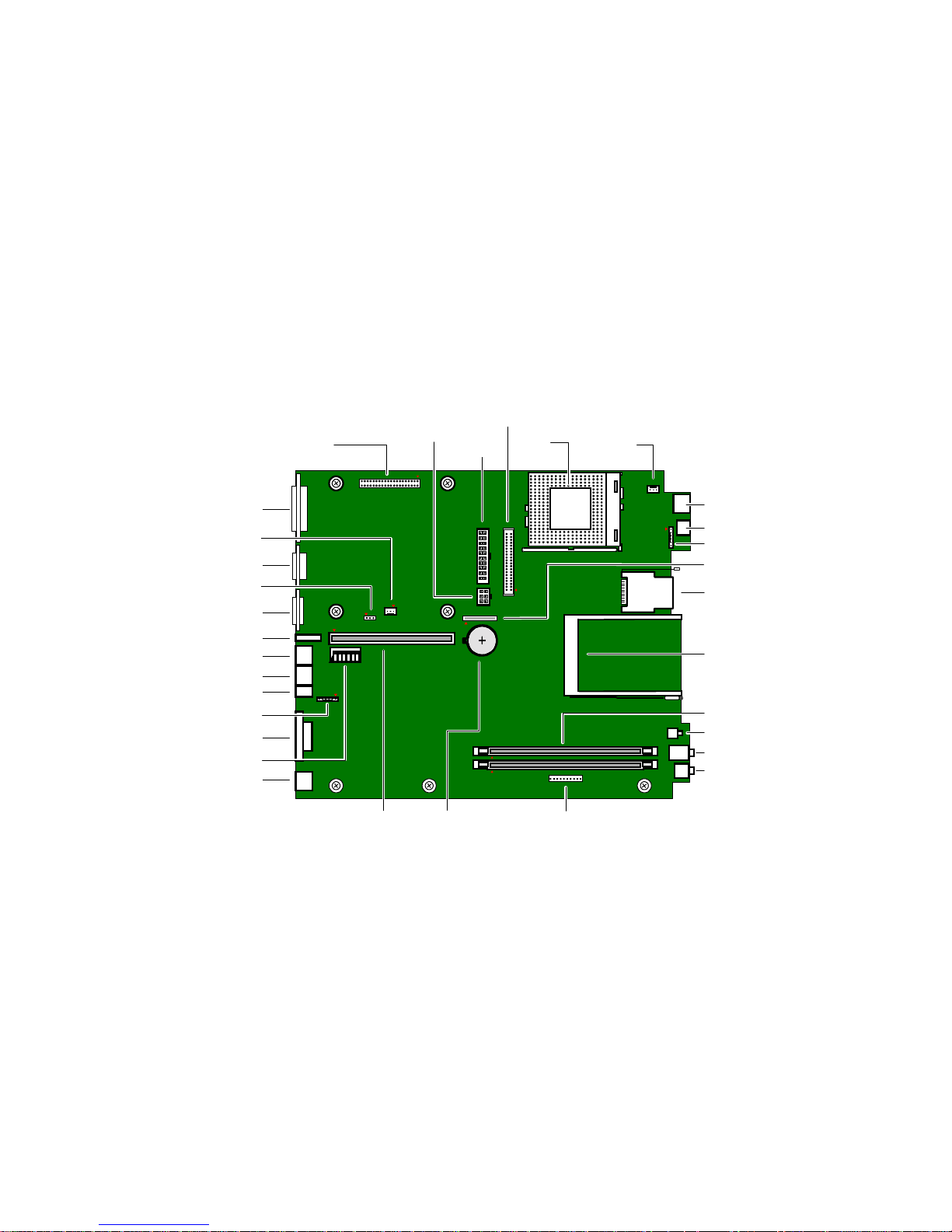

Configuring the System Board
The system board contains the following configuration settings:
CMOS jumper
❑
CPU Multiplier switches
❑
AGP_INT switch
❑
VGA switch
❑
The configuration jumpers should never need changing unless otherwise directed by a
✍
technical support or service technician.
!
Before opening the system, save any open files, exit Windows, turn off the
power of the computer and all attached peripherals, and unplug the
power cord.
17

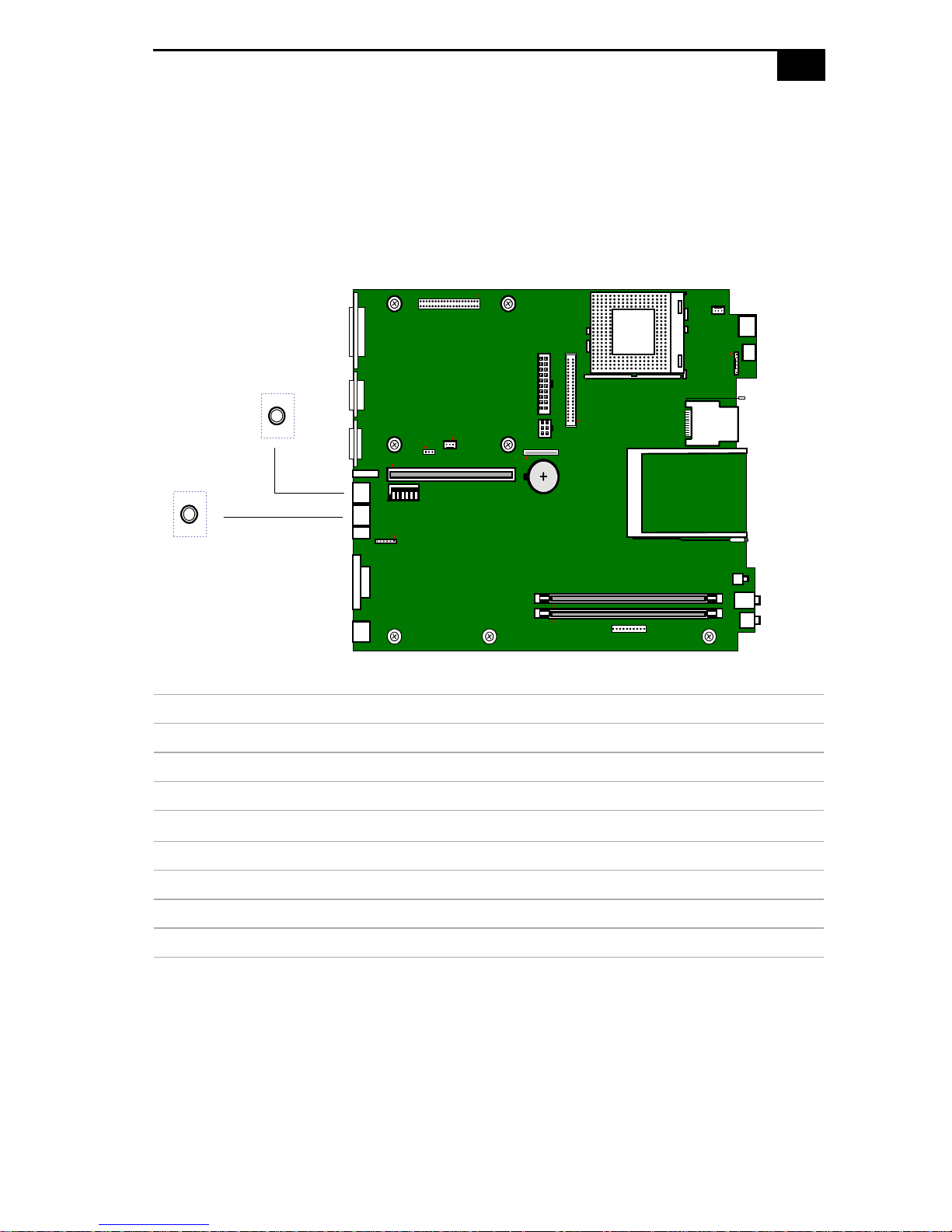

CMOS Jumper
The CMOS jumper provides two modes of operation: Normal mode, and
Clear CMOS mode.
Normal mode allows normal access to the BIOS Setup Utility. The Central
Processing Unit (CPU) input clock is forced to remain at 100 MHz (fast
mode), and the Basic Input/Output System (BIOS) uses the User CMOS
settings (as opposed to the System CMOS settings). The CMOS and
NVRAM settings are only cleared if the checksum test returns false.
Access to specific setup fields is controlled by a supervisor password or
user password.
The Clear CMOS mode removes the password that is stored in CMOS. No
other parameters are cleared.
Page 26
18
VAIO Computer Reference Manual

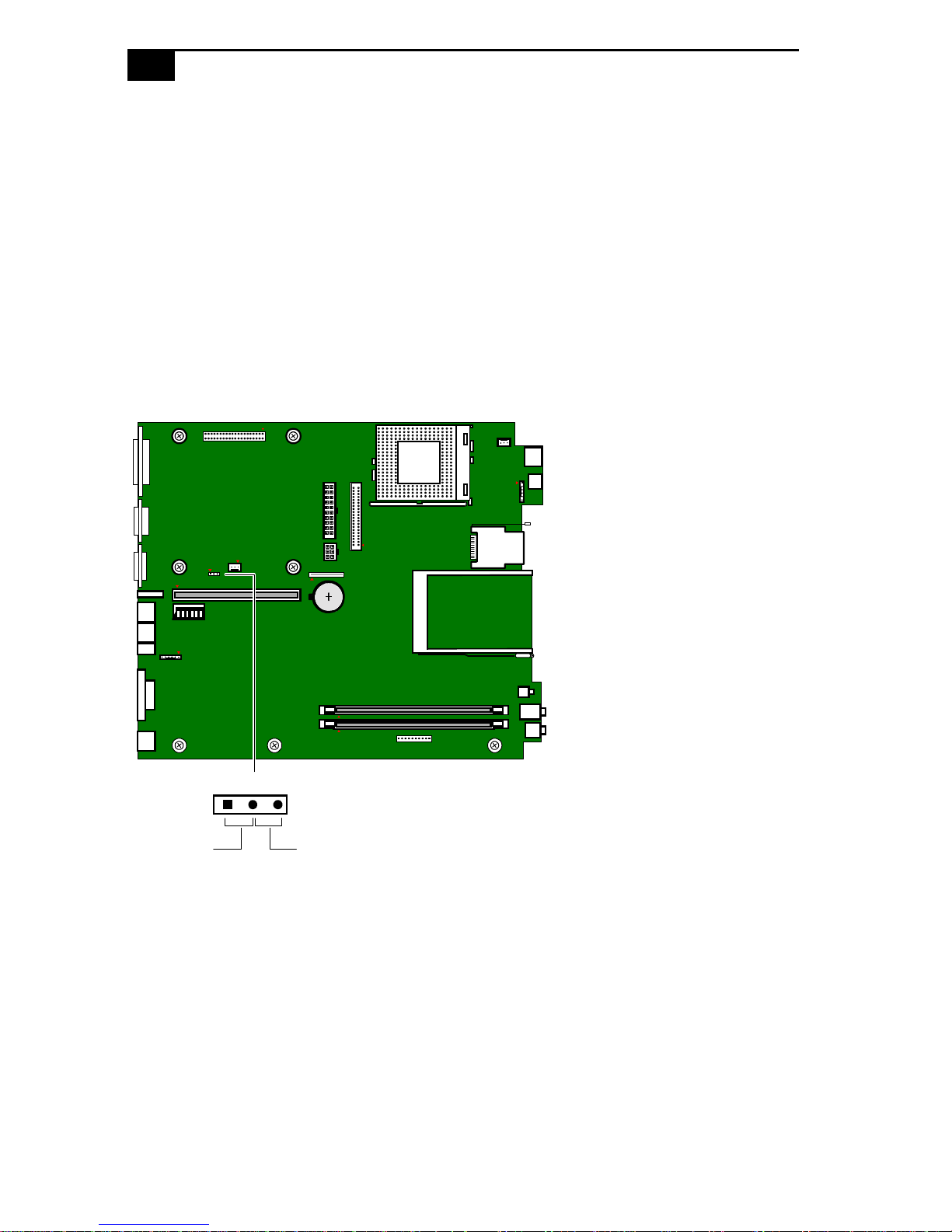

To change the CMOS jumper, perform the following steps:
Remove the system cover (see “Removing the System Cover” on
1
page 24).
Set the jumper as directed by a service technician (also see “CMOS
2
Jumper” on page 66).
123456
O
N
123
CMOS ClearNormal
Reinstall the system cover (see “Replacing the System Cover” on
3
page 25).
KY
Page 27
Configuring Your System
D
19
CPU Frequency Ratio Multiplier Switches
The computer ships with the FREQ Ratio multiplier set to X6.0 (see SW
table for positions of SW 1 through 4). Changing the FREQ Ratio
multiplier will not change the speed of your CPU. Do not change the
position of any switch unless directed by a technical support person.
123456
O
N
SW
123456
O
N
FREQ Ratio
ON
OFF
MAN006.VS
SW
FREQ Ratio SW 1 SW 2 SW 3 SW 4
X3.0 ON OFF ON ON
X3.5 OFF OFF ON ON
X4.0 ON ON OFF ON
X4.5 OFF ON OFF ON
X5.0 ON OFF OFF ON
X5.5 OFF OFF OFF ON
X6.0 (default)ONONONOFF
X6.5 OFFONONOFF
X7.0 ON OFF ON OFF
Page 28
20
D
VAIO Computer Reference Manual
AGP_INT Switch
You can enable or disable the onboard AGP interrupt.
To enable or disable the AGP_INT, perform the following steps:
Remove the system cover (see “Removing the System Cover” on
1
page 24).
Set the switch to ON (Enable) or OFF (Disable). The default is ON
2
(see also “Configuration Switches (SW)” on page 67).
123456
O
N
SW
123456
O
N
Reinstall the system cover (see “Replacing the System Cover” on
3
ON
OFF
AGP_INT switch
page 25).
KY0093.VS
Page 29
Configuring Your System
D
VGA Switch
You can enable or disable the onboard VGA controller if you install a
VGA PCI add-in card.
To enable or disable the onboard VGA, perform the following steps:
Remove the system cover (see “Removing the System Cover” on
1
page 24).
Set the VGA switch (SW6) to ON (Enable) or OFF (Disable). The
2
default is ON (also see “Configuration Switches (SW)” on page 67).
21
123456
O
N
SW
123456
O
N
Reinstall the system cover (see “Replacing the System Cover” on
3
ON
OFF
VGA switch
page 25).
KY0092.VS
Page 30
22
Page 31
Chapter 3
Removing, Installing, and
Replacing Components
This chapter describes removing, installing, and replacing major
components for upgrading, reconfiguring, and troubleshooting the
components.
Before opening the system unit, save any open files, exit Windows, turn off
!
the power of the computer and all attached peripherals, and then unplug the
power cord.
23
Page 32
24
VAIO Computer Reference Manual

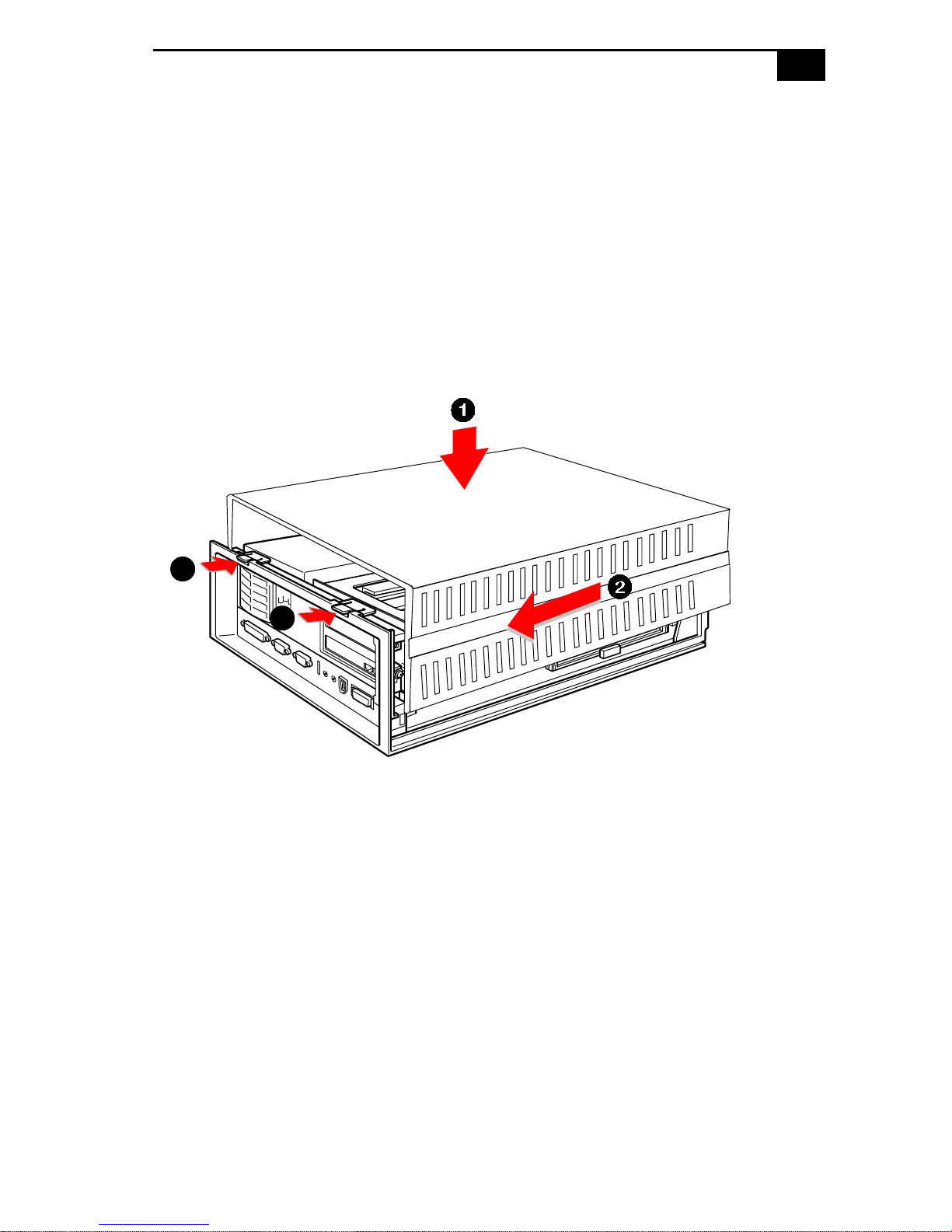

Removing the System Cover
You must remove the system cover to access the system board, add-in
cards, power supply, battery, and internal drives.
From the rear of the unit, push down on the two tabs that secure the
1
system cover to the chassis.
Slide the system cover back. The panel slides back about ½ inch.
2
3
✍
This works best if the spacers are installed on the unit, or the unit sits on a rubber mat.
Lift straight up to remove it.
3
KY0064B.VSD
Page 33
Removing, Installing, and Replacing Components
Replacing the System Cover
Position the system cover over the chassis such that the front portion
1
of the system cover extends past the front of the unit.
Carefully lower the system cover down over the chassis. The rear of
2
the system cover should be about ½ inch in from the rear of the unit.
Carefully slide the system cover back until the tabs snap into place.
3
Check the front to make sure all drives and connectors are correctly
aligned.
25
3
3
KY0077.VSD
Page 34
26
VAIO Computer Reference Manual
Installing an Add-In Card
Before opening the system unit, save any open files, exit Windows, turn off
!
the power of the computer and all attached peripherals, and then unplug the
power cord.
Remove the system cover (see “Removing the System Cover” on
1
page 24).
Remove the slot cover adjacent to the selected slot connector on the
2
system board (see “Removing a Slot Cover” on page 44).
Insert the add-in card into the PCI slot connector. Use a gentle
3
rocking motion, pressing down until the card is fully seated.
✍
Align the card's bracket so that the bottom of the bracket fits into the slot at the
bottom of the chassis. Assure that the top of the bracket fits snugly against the
chassis lip after the card is fully inserted.
Attach any necessary cables to the card (see the instructions that came
4
with the add-in card).
Replace the system cover (see “Replacing the System Cover” on
5
page 25).
Turn on the computer and follow any instructions that came with the
6
add-in card.
KY0070.VSD
Page 35
Removing, Installing, and Replacing Components

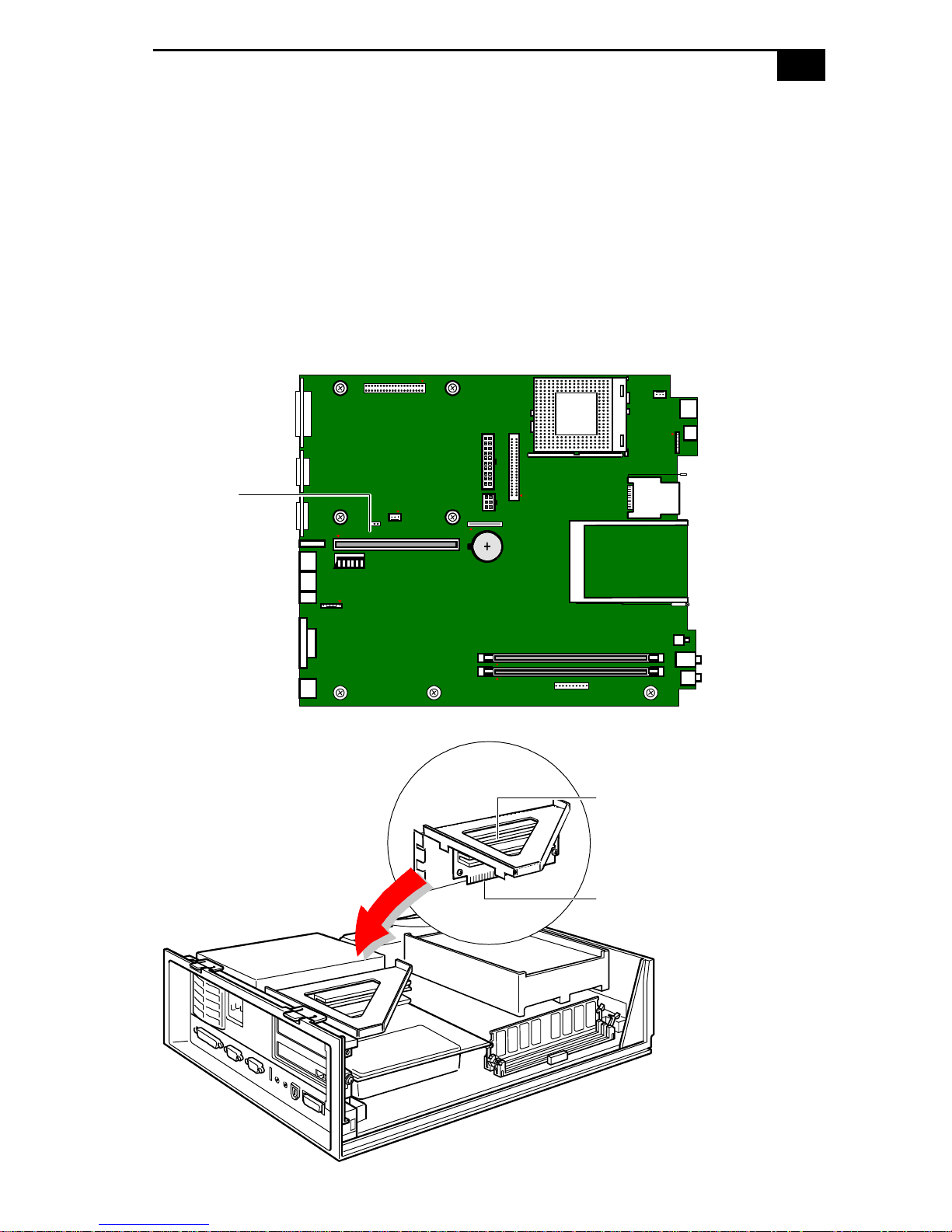

Removing an Add-in Card
Before opening the system unit, save any open files, exit Windows, turn off
!
the power of the computer and all attached peripherals, and then unplug the
power cord.
Remove the system cover (see “Removing the System Cover” on
1
page 24).
Disconnect any cables attached to the add-in card.
2
Remove the screw that secures the add-in card to the chassis.
3
Remove the add-in card from the PCI slot connector and store the
4
card in an anti-static wrapper for future use.
27
✍
Grasp the card with one hand on each end, and gently pull up as you rock the card
from side to side.
Hold the add-in card by its edges and do not touch any components or
!
connector contacts on the card. Static electricity in your body may
damage sensitive components on the card. As a precaution, touch any
exposed metal part on the metal chassis (preferably the metal part on
the power supply) before handling an add-in card to discharge any static
electricity in your body.
KY0071.VSD
Page 36
28
5
6
VAIO Computer Reference Manual
If you do not replace the card or install another add-in card, install a
slot cover over the vacant slot at the rear of the chassis (see “Covering
an Open I/O Slot” on page 45).
Replace the system cover (see “Replacing the System Cover” on
page 25).
Page 37
Removing, Installing, and Replacing Components
Setting the Configuration Switches
Before opening the system unit, save any open files, exit Windows, turn off
!
the power of the computer and all attached peripherals, and then unplug the
power cord.
Remove any add-in cards (see “Removing an Add-in Card” on
1
page 27).
Set the switches as needed (see “Configuring the System Board” on
2
page 17).
29
Replace any add-in card removed in step 1 (see “Installing an Add-In
3
Card” on page 26).
MAN008.VSD
Page 38
30
VAIO Computer Reference Manual
Setting the CMOS Jumper
Before opening the system unit, save any open files, exit Windows, turn off
!
the power of the computer and all attached peripherals, and then unplug the
power cord.
Remove the system cover (see “Removing the System Cover” on
1
page 24).
Use long-nose pliers to reposition the CMOS jumper as needed.
2
✍
Do not change the position of this jumper unless directed by a service technician.
Replace the system cover (see “Replacing the System Cover” on
3
page 25).
MAN007.VSD
Page 39
Removing, Installing, and Replacing Components
31
Replacing the Lithium Battery
You may need to replace the lithium battery if your computer consistently
loses the date or time settings after turning it off. The lithium battery has
a typical life of three years, after which the battery may be too weak to
power the CMOS memory.
Sony recommends that you use an authorized service dealer to replace the
!
Lithium battery. However, if you wish to replace the battery yourself, read
the following cautions, notes, and procedure.
When you remove the lithium battery, all values stored in the CMOS memory
!
(BIOS setup values and Plug and Play values) may be lost. Although the
computer can hold the charge for a short time while replacing the battery, it
is safer to assume that the settings will be lost. When the values are lost, the
BIOS values revert to their factory-default settings (see “Accessing the
CMOS Setup Utility” on page 14).
Do not handle damaged or leaking batteries.
The lithium battery may explode if mistreated. Do not disassemble it or
dispose of it in fire.
Reboot your computer by selecting Shut Down... from the Start
1
menu, and then selecting Restart the computer.
If the error message “Error: Check date and time settings” appears
2
during the reboot sequence, press F3, then press F2 during the reboot
process to access the BIOS Setup Utility. Otherwise it is not necessary
to replace the battery at this time, and you can skip all remaining
steps.
Compare all the BIOS options to their default settings (see “CMOS
3
Setup Options” on page 73). Make a list of all the BIOS options that
are different from their default values. You will refer to this list when
you restore the BIOS settings later.
Press ESC, then select Exit from the main menu using the right arrow
4
key. The Exit Discarding Changes is automatically selected (it is the
first item in the list).
Press Enter, type N when prompted to save, then press Enter to exit
5
the BIOS Setup Utility.
Turn off the computer and unplug the power cord.
6
Remove the system cover (see “Removing the System Cover” on
7
page 24).
Page 40
32
8
VAIO Computer Reference Manual
Carefully reach under the ribbon cable with your finger and push on
the battery-eject lever (see diagram). One side of the battery pops up.
Be carefull not to dislodge the ribbon cable. If it becomes dislodged, you may
!
have to bring the unit in to a Sony-authorized service dealer.
Remove the battery with your finger and thumb and dispose of the
9
battery according to the instructions that came with the new battery.
Insert the new battery into the battery holder, with the plus (+) side
10
up, and press down until the battery feels secure.
✍
The Sony CR2032 battery is recommended. Using a type of battery other than a
CR2032 may present a risk of fire or explosion.
Replace the system cover (see “Replacing the System Cover” on
11
page 25).
Reconnect the power cord and turn on the computer.
12
If the error message “Error: Check date and time settings.” appears
13
during the reboot sequence, press DEL to access the CMOS Setup
Utility. If no error message displays, the computer’s CMOS settings
were retained during the battery replacement and you can skip the
remaining steps.
KY0072.VSD
Page 41
Removing, Installing, and Replacing Components
Refer to the list you made in step 3 and restore any non-default
14
CMOS settings (see “CMOS Setup Options” on page 73).
Select SAVE & EXIT SETUP from the main menu using the arrow
15
keys, then press Enter.
Type Y, then press Enter to save the changes and exit the CMOS Setup
16
Utility.
The computer’s CMOS settings are now restored.
33
Page 42
34
VAIO Computer Reference Manual
Installing System Memory
Before opening the system unit, save any open files, exit Windows, turn off
!
the power of the computer and all attached peripherals, and then unplug the
power cord.
If necessary, remove the memory module you wish to replace (see
1
“Removing a Memory Module” on page 36).
Remove the new memory module(s) from its anti-static package.
2
Hold the memory module only by its edges to prevent staticelectricity damage.
Choose the size of the memory module and configuration as shown
3
in the following table. Memory modules can vary in size and speed
between sockets. The minimum memory size is 8 MB. The maximum
memory size is 256 MB. The BIOS automatically detects the type, size,
and speed of the memory modules.
Memory module configurations (MB)
DIMM1 DIMM2
0, 8, 16, 32, 64, 128 0, 8, 16, 32, 64, 128
Touch any exposed metal part of the chassis to discharge static electricity in
!
your body before handling a memory module.
✍
Use only 100 MHz FSB-supported memory. Do not mix 66 MHz memory with 100 MHz
memory. Supports SDRAM memory. Does not support EDO memory or buffered DIMM
memory.
Page 43
Removing, Installing, and Replacing Components

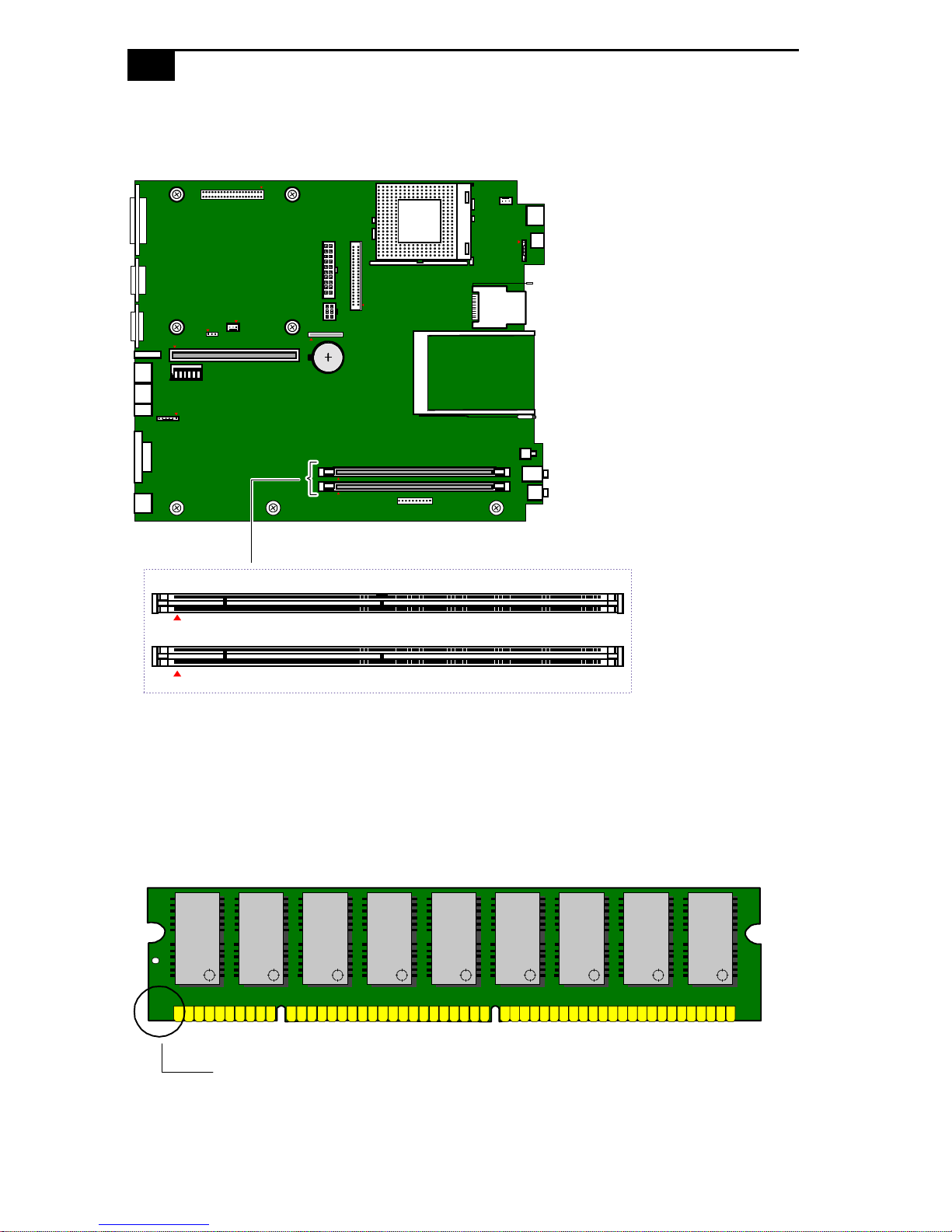

Align the module over the appropriate socket, noting the location of
4
pin 1 on the module and pin 1 on the socket.
Press down
here
123456
O
N
Pin 1 side
35
DIMM2
DIMM1
Memory module (DIMM)
1
Indicates pin 1
Carefully but firmly insert the edge of the module into the socket.
5
Press down firmly and evenly at both corners until the module is
6
fully seated.
Handles
OM04586.VSD
✍
When the module is fully seated, the handles on each side are straight up and
locked into the slot on each side of the module. If the handles are not totally
straight upright, continue to press down on each side of the module until the
handles lock into place.
Replace the system cover (see “Replacing the System Cover” on
7
page 25).
Your computer automatically recognizes the extra memory and
configures itself accordingly when you turn it on. No further action is
required.
Page 44
36
VAIO Computer Reference Manual
Removing a Memory Module
You may need to remove a memory module if you change the memory
configuration or replace a bad module.
Before opening the system unit, save any open files, exit Windows, turn off
!
the power of the computer and all attached peripherals, and then unplug the
power cord.
Remove the system cover (see “Removing the System Cover” on
1
page 24).
Locate the memory module you wish to remove.
2
DIMM 1
DIMM 2
✍
If the memory module you wish to remove is DIMM #2, skip steps 3 to 5. Otherwise,
continue.
KY0073.VSD
Page 45
Removing, Installing, and Replacing Components

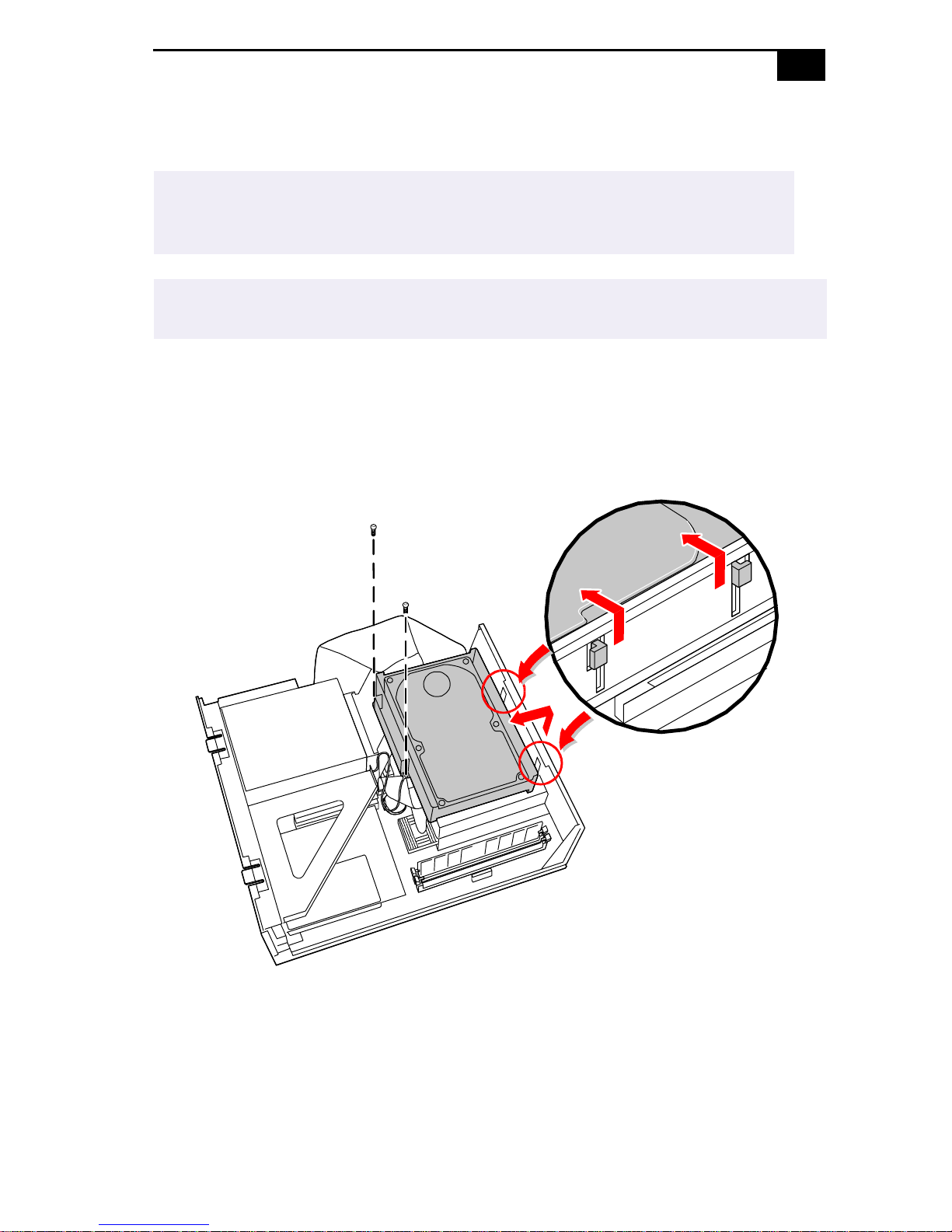

Remove the two screws that secure the hard drive carrier to the
3
diskette drive housing.
37
Lift up the hard drive carrier about ½” (until the tabs reach the stops),
4
then pull sideways (away from the front panel) until the hard drive
carrier is clear.
MAN002A.VSD
Page 46
38
5
VAIO Computer Reference Manual
Flip the hard drive carrier upside down and let it rest on the power
supply while you remove DIMM #1.
Push out the handle on each side of the memory module to eject the
6
module from its socket.
Push out
Handles
MAN003.VSD
KY0042.VSD
Page 47
Removing, Installing, and Replacing Components
Lift the memory module out by grasping it by its edges. Store the
7
module in a static-free bag.
Touch any exposed metal part of the chassis to discharge static
!
electricity in your body before handling the memory module.
✍
If the memory module you removed is DIMM #2, stop. Otherwise, continue.
39
KY0043.VSD
Flip the hard drive carrier back to its normal position.
8
Insert the drive carrier tabs into the chassis slots, then slip the drive
9
carrier down until the holes in the hard drive carrier align with the
holes in the diskette drive carrier.
MAN002B.VSD
Page 48
40
10
11
VAIO Computer Reference Manual
Replace the two screws that secure the hard drive carrier to the
diskette drive housing.
✍
Be sure you reattach the ground wire located at each screw.
Replace the system cover (see “Replacing the System Cover” on
page 25).
Page 49
Removing, Installing, and Replacing Components
41
Replacing the Hard Drive
Before opening the system unit, save any open files, exit Windows, turn off
!
the power of the computer and all attached peripherals, and then unplug the
power cord.
✍
Be sure to back up any files on your hard drive that you want to preserve before you replace
the drive.
Remove the system cover (see “Removing the System Cover” on
1
page 24).
Remove the two screws that secure the hard drive carrier to the
2
diskette drive housing.
Lift the hard drive carrier about ½” (until it reaches the stops), then
3
pull sideways (away from the front panel) until the drive carrier is
clear.
MAN002A.VSD
Page 50
42
4
VAIO Computer Reference Manual
Unplug the ribbon cable and power supply cable from the hard drive
connectors.
Remove the four screws that secure the hard drive to the bottom of
5
the drive carrier.
Remove the hard drive from the drive carrier.
6
Set the jumpers on the new hard drive to be the Primary Master IDE
7
drive (refer to the instructions that came with your new hard drive).
Insert the new hard drive into the drive carrier.
8
Replace the four screws that secure the drive to the drive carrier.
9
✍
Be sure you reattach the ground tab at the position shown in the illustration.
Reconnect the ribbon cable and power supply cable to the new hard
10
drive.
✍
Be sure to insert the ribbon cable inside the plastic stress-relief slots on the drive carrier.
MAN004.VSD
Page 51
Removing, Installing, and Replacing Components
Insert the drive carrier tabs into the chassis slots, then slip the drive
11
carrier down until the holes in the hard drive carrier align with the
holes in the diskette drive carrier.
43
MAN002B.VSD
Route the longest ground wire through the white plastic cable-tie.
12
Replace the two screws that secure the hard drive carrier to the
13
diskette drive carrier.
✍
Be sure to reattach the ground wire at each screw location. You might need long-nose
pliers to reach the ground wire closest to the drive’s power-supply connector.
Replace the system cover (see “Replacing the System Cover” on
14
page 25).
Page 52
44
VAIO Computer Reference Manual
Removing a Slot Cover
You remove a slot cover when you install an add-in card that occupies a
previously-empty slot.
Lay the system on its side with the open side facing up and the slot
1
covers facing you.
Locate the slot of the cover you want to remove.
2
Remove the screw from the slot cover.
3
Carefully remove the loose slot cover and retain it for future use.
4
KY0069.VSD
Page 53
Removing, Installing, and Replacing Components
45
Covering an Open I/O Slot
Slot covers prevent air from escaping through the empty hole. If air
escapes, the components inside the computer cannot be properly cooled.
This may damage some components, especially the main processor
(which generates the most heat).
Fit the bottom end of the slot cover (removed earlier) between the
1
chassis and system board.
Push the slot cover in until it rests firmly on the lip in the chassis. All
2
add-in card brackets and slot covers rest on this lip.
Replace the screw (removed earlier) to secure the I/O slot cover.
3
KY0076.VSD
Page 54
46
Page 55

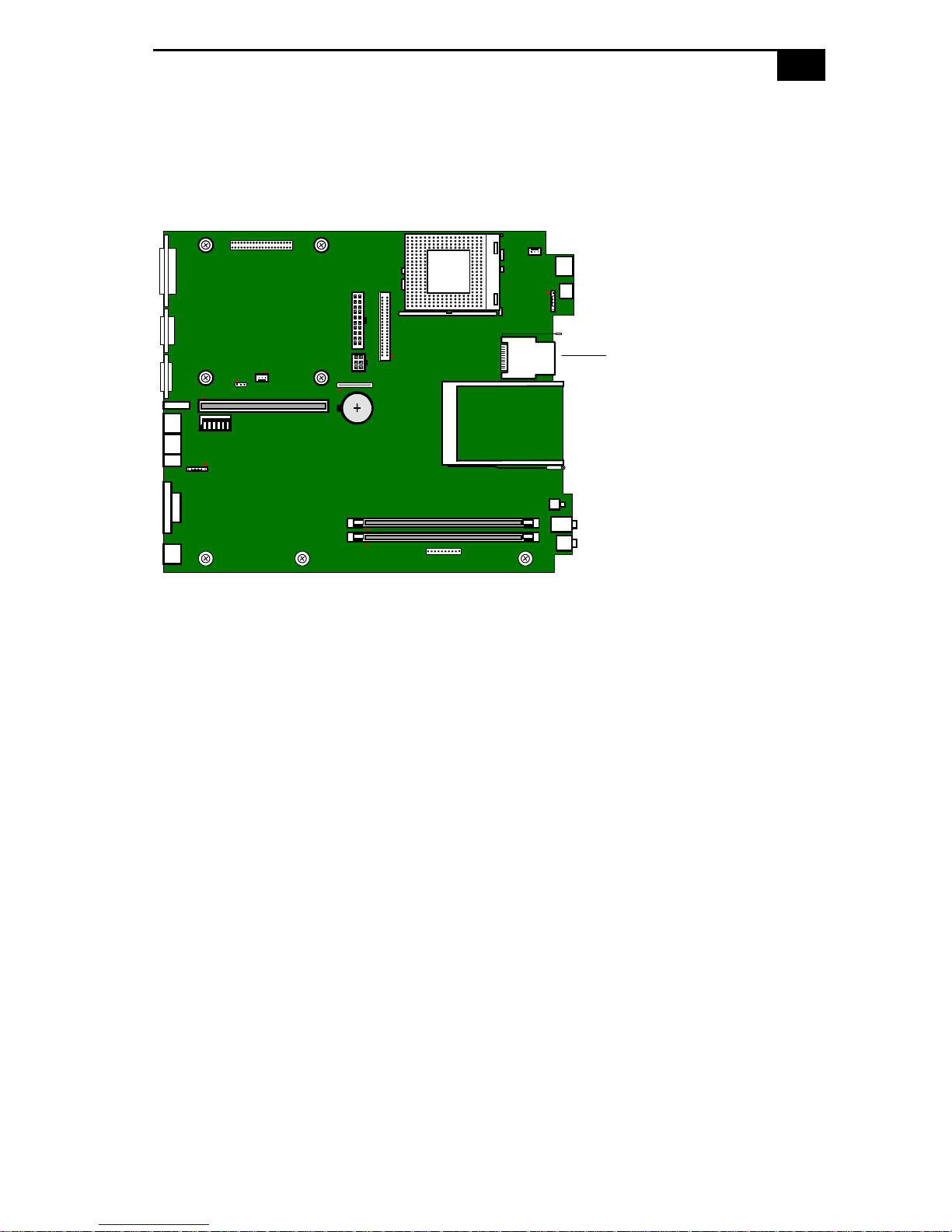

Chapter 4
System Board
This chapter identifies each component on the system board and provides
a detailed description of each connector and jumper on the system board.
Printer
Wake On LAN
Serial
CMOS
VGA Monitor
USB1
Line In
Line Out
i.LINK
IEEE-1394
LCD Monitor
Config. SW
Keyboard/Mouse
CTRL
Primary IDE CPU
123456
O
N
PCI Riser Slot Battery
PWR
Secondary IDE
Power
Front Panel
header
CPU Fan
USB2
i.LINK
IEEE-1394
Floppy
Sony Memory Stick
PCMCIA Socket
Memory
Volume
Phone
Mic
OM04581.VSD
47
Page 56
48
VAIO Computer Reference Manual
Connectors

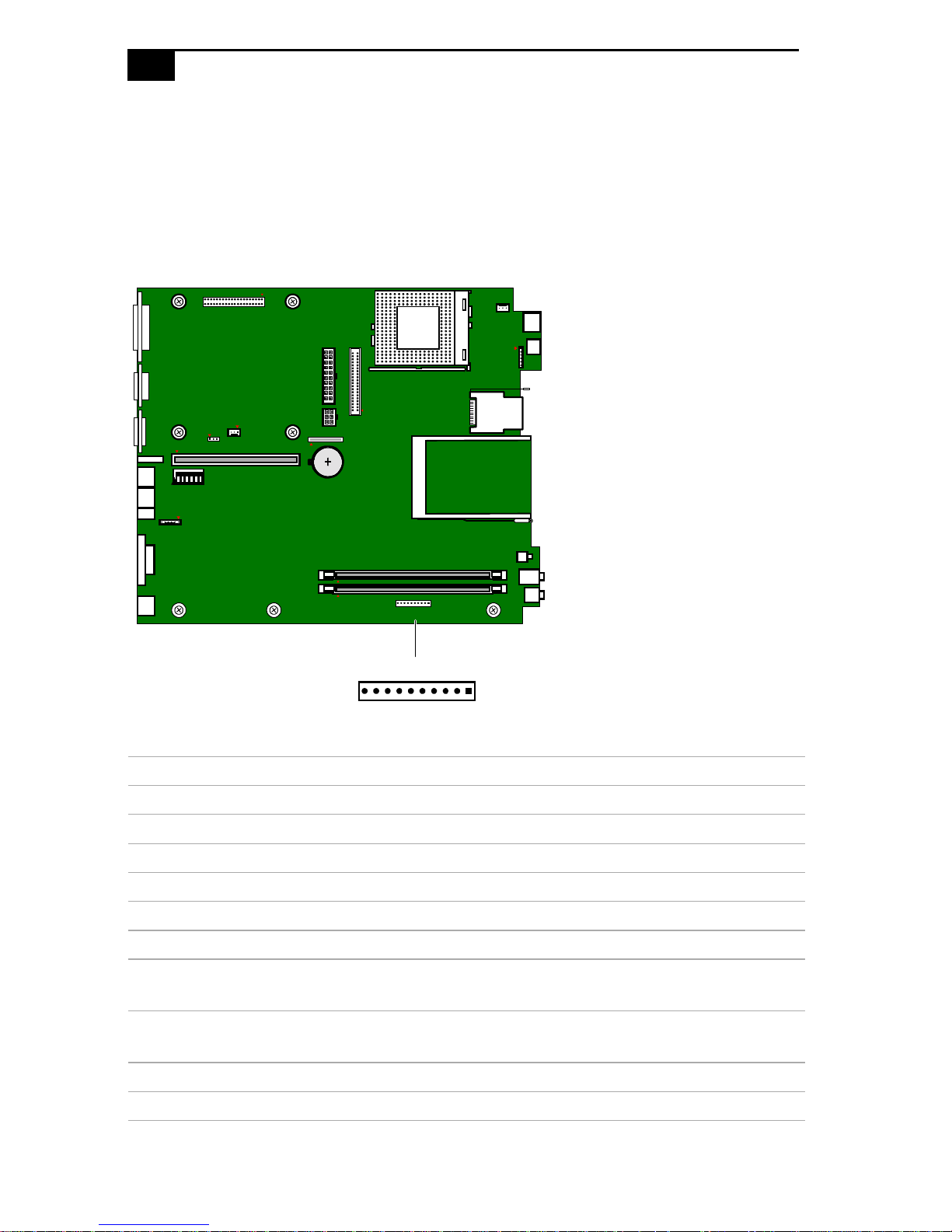

Front Panel Header
The front panel header is a 10-pin header that provides connections to
various front panel functions.
123456
O
N
Front panel header
KY0031.VSD
Pin # Name Description
1 +5 +5V from power supply
2 LED (DVD-ROM) Connects to LED on DVD-ROM
3 LED (FDD) Connects to LED on floppy disk drive
4 LED (HDD) Connects to LED on IDE hard disk drive
5 LED (MODEM) Connects to LED on modem card
6 Reserved (not used)
7 LED3 Connects to Standby/Sleep (red) signal from
power supply
8 LED4 Connects to Power (green) anode signal from
power supply
9 POWER SW Connects to power switch
10 GND Connects to signal ground
Page 57
System Board
Diskette Drive (FLOPPY) Connector
The FLOPPY connector is a 26-pin connector for a slim notebook-type
diskette drive.
123456
O
N
FLOPPY
49
OM04701H.VSD
Page 58
50
D
VAIO Computer Reference Manual
IDE Connectors
There are two IDE (Integrated Drive Electronics) connectors: a Primary
IDE and a Secondary IDE connector.
The Primary IDE connector is a 40-pin 2.54mm pitch header-type
connector for the 3.5 inch hard disk drive.
The Secondary IDE connector is a 50-pin 2mm pitch header-type
connector for the slim notebook-type CD-ROM drive.
Primary IDE
Secondary IDE
123456
O
N
OM04701G.VS
Page 59
System Board
51
PCI Slot Connectors
The system board contains one PCI Riser slot connector for a PCI riser
card. The PCI riser card in turn provides two PCI slot connectors for PCI
add-in cards. One PCI slot connector is available for an add-in PCI card,
except some configure-to-order models, which may already use this slot.
The other PCI slot connector is occupied by the fax/modem card.
The PCI slots in the riser card support 32-bit 5V and Universal (3.3/5V)
PCI add-in cards.
PCI slot for
riser card
123456
O
N
OM04599B.VSD
Two PCI slot connectors
PCI riser card
(plugs into PCI connector
on system board)
KY0091.VSD
Page 60
52
VAIO Computer Reference Manual
Memory Module (DIMM) Connectors
123456
O
N
DIMM1
DIMM2
OM04710A.VSD
Both sides of each Dual Inline Memory Module (DIMM) look very
similar. The side with pin 1 has a small "1" to the left of pin 1. Be sure to
orient a DIMM correctly in the DIMM connector (a small triangle on the
connector indicates pin 1).
Memory module (DIMM)
1111
Indicates pin 1
OM04908B.VSD
Page 61
System Board
Power (ATX PWR) Connector
The ATX PWR connector is a 20-pin Molex-type header connector that
provides power to the ATX system board.
ATX PWR
10
20
123456
O
N
53
1
11
Power connector
Pin # Name Pin # Name
1+3.3V 11+3.3V
2 +3.3V 12 -12V
3GND 13GND
4 +5V 14 PS-ON# (power supply
remote on/off control)
5GND 15GND
6 +5V 16 GND
7GND 17GND
8 PWRGD (power good) 18 NC
OM04701I.VSD
9 +5VSB 19 +5V
10 +12V 20 +5V
Page 62
54
D
VAIO Computer Reference Manual
Fan (CPU FAN, CTRL PWR) Connectors
The CPU Fan connector is a 1 x 3-pin straight header connector that
controls the CPU cooling fan.
The CTRL PWR connector is a 2 x 3-pin connector that controls the power
supply cooling fan. It connects to P3 from the power supply.
CPU Fan
31
CTRL PWR
123456
O
N
CPU Fan connector
Pin Signal Name
1GND
2 FAN_CTRL (+12V)
3FAN_SEN
CTRL PWR connector
Pin Signal Name
63
41
KY0034.VS
1Fan M
2Fan C
*
33.3V sense
4NC (key)
5 Reserved
6 Reserved
* Power supply provides 12V to this pin when system is in Power On mode (for fastest fan speed), and 6V
when system is in Suspend mode (to reduce fan noise).
Page 63
System Board
D
55
Keyboard/Mouse (KB/MOUSE) Connector
The combination keyboard/mouse connector is a 6-pin female PS/2®
type (mini-DIN) connector that can accommodate the supplied VAIO
Smart convertible keyboard and wheel mouse, or a PS/2 keyboard only.
123456
O
N
KB/MOUSE
1
6
Keyboard/Mouse connector
Pin Signal Name
1 Keyboard data
2 Mouse data
3GND
4 +5V (fused)
5Keyboard clock
6 Mouse clock
KY0032.VS
Page 64
56
VAIO Computer Reference Manual

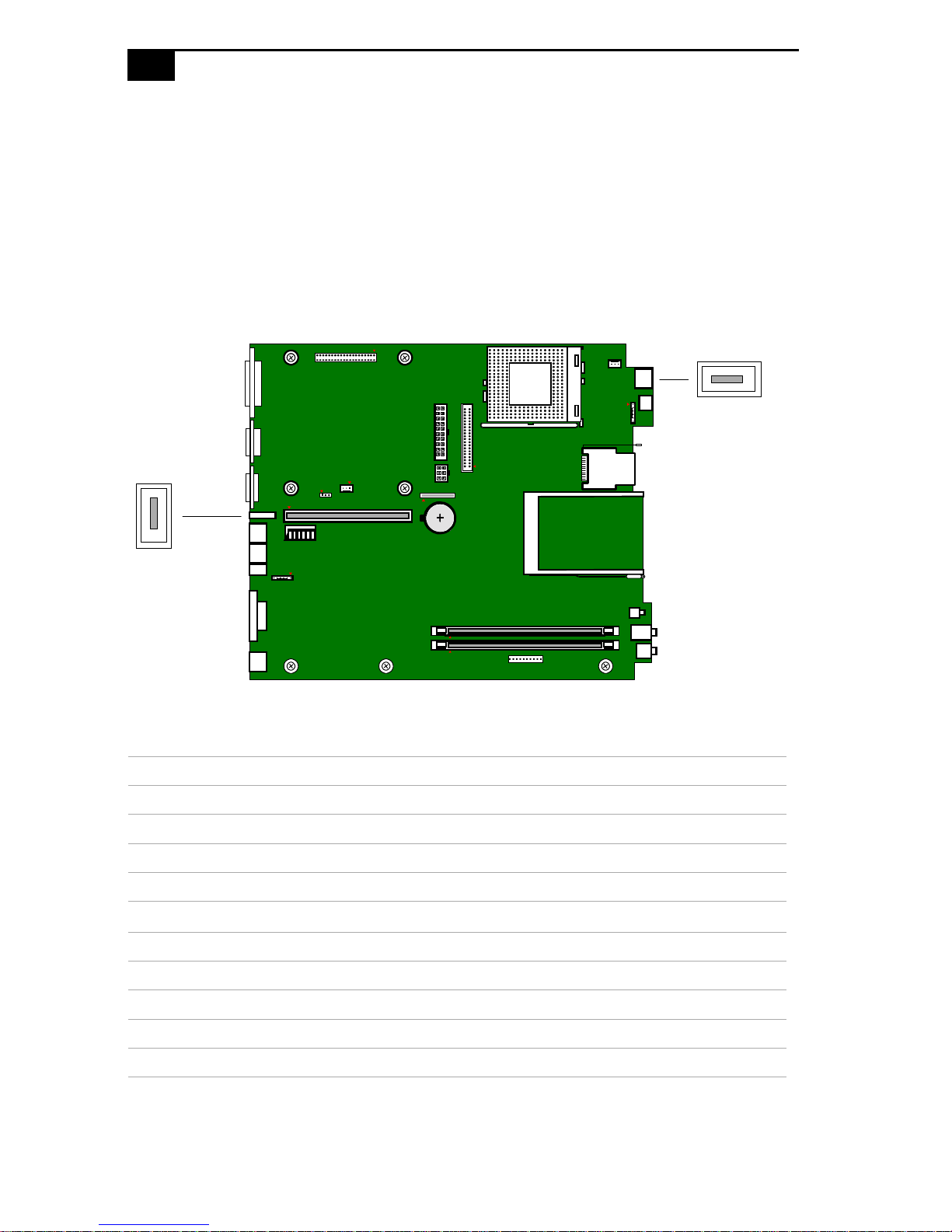

USB Connectors
There are two USB ports that permit connection of two USB peripheral
devices directly to the system without having to use an external hub. If
more USB devices are needed, connect an external hub to either USB1 or
USB2.
USB1 is a standard USB connector accessible from the rear panel. USB2 is
a standard USB connector accessible from the front panel.
USB1
USB2
1234 56
O
N
USB1 connector (rear panel)
Pin Signal Name
1Power
2USBP0#
3USBP0
4GND
USB2 connector (front panel)
Pin Signal Name
KY0033.VSD
1Power
2USBP1#
3USBP1
4GND
Page 65
System Board
57
PRINTER, SERIAL, and VGA MONITOR Connectors
The SERIAL connector is a DB-9 male connector. The PRINTER connector
is a DB-25 female connector. The VGA MONITOR connector is a 15-pin
D-sub female connector.
13 1
25 14
15
69
VGA MONITOR
51
15 11
PRINTER
SERIAL
123456
O
N
OM04701D.VSD
PRINTER connector
Pin Signal Name Pin Signal Name
1 STROBE# 14 AUTO FEED#
2 DATA BIT 0 15 FAULT#
3 DATA BIT 1 16 INIT#
4 DATA BIT 2 17 SLCT IN#
5DATA BIT 3 18GND
6DATA BIT 4 19GND
7DATA BIT 5 20GND
8DATA BIT 6 21GND
9DATA BIT 7 22GND
10 ACK# 23 GND
11 B USY 24 GN D
12 ERROR 25 GND
13 SELECT
Page 66
58
VAIO Computer Reference Manual
SERIAL 1 connector
Pin Signal Name
1DCD
2RXD#
3TXD#
4DTR#
5GND
6DSR
7RTS
8CTS
9RI
VGA MONITOR connector
Pin Signal Name
1RED
2GREEN
3BLUE
4GND
5 DDC GND
6RED GND
7GREEN GND
8 BLUE GND
9NC
10 GND
11 GND
12 SDA
13 HORIZONTAL SYNC
14 VERTICAL SYNC
15 SCL
Page 67
System Board
59
LCD Connector
The LCD connector is a 40-pin MDR-type connector for the Sony VAIO
Slimtop LCD monitor.
123456
O
N
LCD
Do not connect any other LCD other than the Sony VAIO Slimtop LCD monitor
!
that came with the PCV-L630. The Sony VAIO Slimtop LCD monitor that came
with the PCV-L620 is not compatible with the PCV-L630 system.
KY0094.VSD
Page 68
60
VAIO Computer Reference Manual
Wake On LAN (WOL_CON) Connector
The WOL_CON connector is a 3-pin header connector that provides the
Wake On LAN function.
WOL_CON
13
123456
O
N
Wake On LAN connector
Pin Signal
1+5V SB
2GND
3WOL signal
KY0096.VSD
Page 69
System Board
61

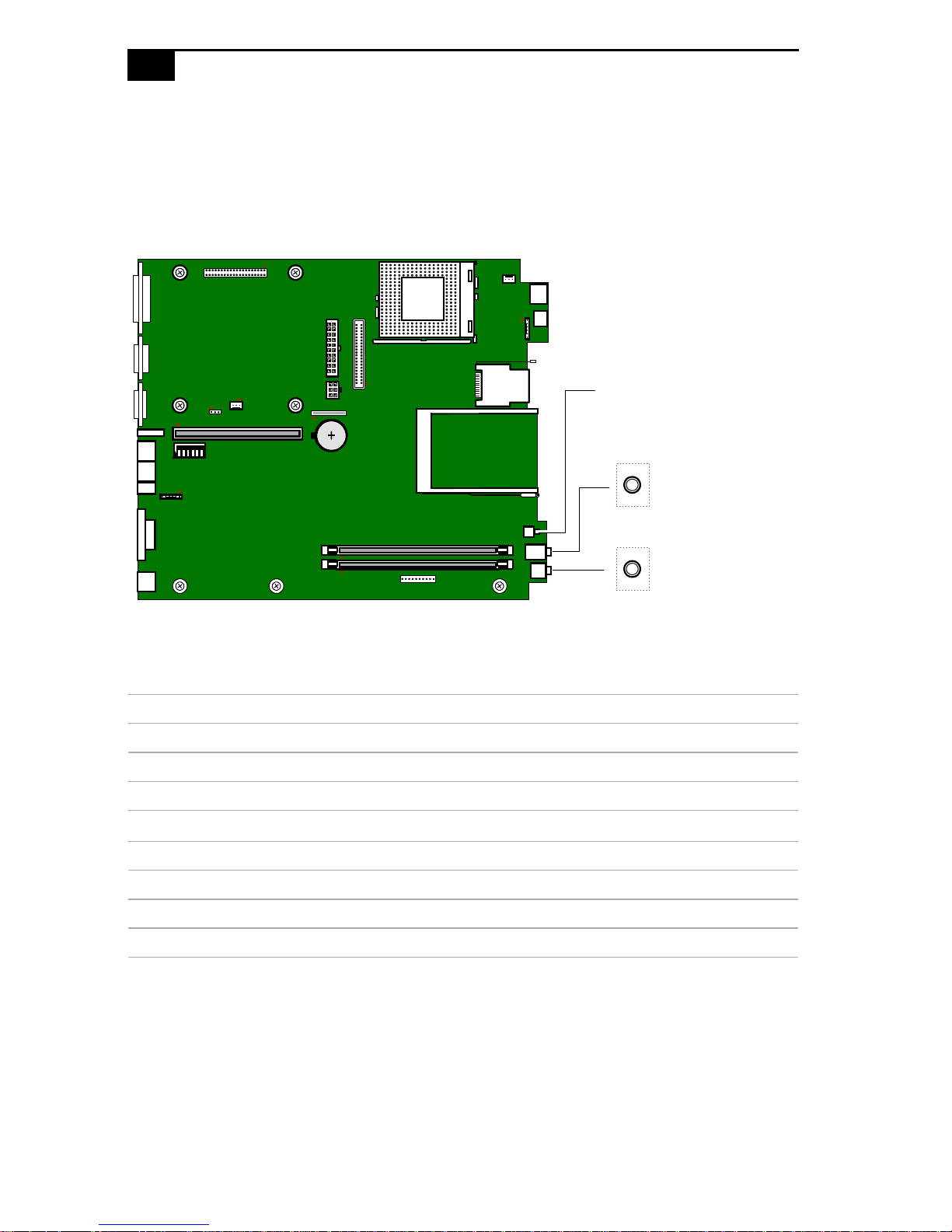

LINE IN and LINE OUT Connectors
The LINE IN and LINE OUT jacks are stereo mini-jacks (3.5 mm) that
connect to a stereo audio device (not an audio source from a video
device). Connect a stereo audio output jack to the LINE IN jack, and the
LINE OUT jack to a stereo audio input jack.
LINE IN
LINE OUT
LINE IN jack
Pin Signal
Sleeve GND
Tip Audio-Left In
Ring Audio-Right In
LINE OUT jack
Pin Signal
Sleeve GND
Tip Audio-Left Out
1234 56
O
N
KY0058.VSD
Ring Audio-Right Out
Page 70
62
VAIO Computer Reference Manual
PHONE and MIC Connectors
The PHONES jack is a stereo mini-jack (3.5 mm) that connects to
headphones. The MIC jack is a stereo mini-jack (3.5 mm) that connects to
a microphone.
123456
O
N
Volume
control knob
PHONES
PHONES jack
Pin Signal
Sleeve GND
Tip Left out
Ring Right out
MIC jack
Pin Signal
Sleeve GND
Tip Microphone mono in
Ring Electret bias voltage
MIC
KY0058A.VSD
Page 71
System Board
D
Sony Memory Stick Slot Connector
The Sony Memory Stick slot connector is a 10-pin MCR 103-10S
connector.
Sony Memory Stick
123456
O
N
63
KY0097.VS
Page 72
64
VAIO Computer Reference Manual
i.LINK Interface Header Connectors
The system board has two i.LINK (IEEE-1394) interface header
connectors. A cable connects each 6-pin header connector to the riser
card.
IEEE-1394
(front panel)
123456
O
N
IEEE-1394
(rear panel)
IEEE-1394 interface header connector (rear panel)
Pin Signal Name
1Ground
2TA1+
3TA1-
4TB1+
5TB1-
6Ground
IEEE-1394 interface header connector (front panel)
Pin Signal Name
1Ground
2TPA2+
3TPA2-
MAN001.VSD
4TPB2+
5TPB2-
6Ground
Page 73
System Board
65
i.LINK Connectors
The system board has two i.LINK (IEEE-1394) connectors: a 4-pin
connector is accessible from the front panel, and a 6-pin connector is
accessible from the rear panel. Use the front-panel connector to connect to
devices that use a 4-pin i.LINK (IEEE-1394) connector. Use the rear-panel
connector to connect to devices that use a 6-pin
connector.
*
i.LINK (IEEE-1394)
i.LINK
(front panel)
i.LINK
(rear panel)
123456
O
N
MAN001A.VS
* A 6-pin i.LINK connector can supply power from the computer to the device if the device also has a
6-pin i.LINK connector. A 4-pin i.LINK connector cannot supply power to a device.
Page 74
66
VAIO Computer Reference Manual
Configuration Jumper and Switches
There is one configuration jumper (CMOS), and a bank of six
configuration switches (1-6) that sets the CPU speed multiplier, AGP
interrupt state (AGP_INT), and on-board VGA state (VGA).
CMOS Jumper
A jumper cap is installed on pins 1 and 2 (Normal) of the CMOS jumper
when the computer is shipped. Do not move the jumper cap to the
CMOS Clear position unless otherwise directed by a technical support
person.
123456
O
N
123
CMOS ClearNormal
KY0059.VSD
Page 75
System Board
67
Configuration Switches (SW)
A 6-switch dual inline package (DIP) provides configuration settings for
FREQ Ratio (CPU multiplier), AGP_INT (AGP Interrupt) Enable/
Disable, and onboard VGA Enable/Disable. The CPU determines the
CPU core frequency.
Page 76
68
VAIO Computer Reference Manual
The computer ships with AGP_INT (SW 5) set to OFF (Disable) and VGA
(SW 6) set to OFF (Disable). The computer ships with the FREQ Ratio
multiplier set to X6.0 (see SW table for positions of SW 1 through 4). Do
not change the position of any switch unless directed by a Sony-
Page 77
System Board
D
69
authorized technical support person.
123456
O
N
SW
123456
O
N
MAN005.VS
SW
Function SW 1 SW 2 SW 3 SW 4 SW 5 SW6
AGP_INT Enable N/A N/A N/A N/A ON N/A
AGP_INT Disable N/A N/A N/A N/A OFF N/A
VGA Enable N/A N/A N/A N/A N/A ON
VGA Disable N/A N/A N/A N/A N/A OFF
FREQ Ratio = X3.0 ON OFF ON ON N/A N/A
FREQ Ratio = X3.5 OFF OFF ON ON N/A N/A
FREQ Ratio = X4.0 ON ON OFF ON N/A N/A
FREQ Ratio = X4.5 OFF ON OFF ON N/A N/A
FREQ Ratio = X5.0 ON OFF OFF ON N/A N/A
FREQ Ratio = X5.5 OFF OFF OFF ON N/A N/A
FREQ Ratio = X6.0 ON ON ON OFF N/A N/A
FREQ Ratio = X6.5 OFF ON ON OFF N/A N/A
FREQ Ratio = X7.0 ON OFF ON OFF N/A N/A
FREQ Ratio = X7.5 OFF OFF ON OFF N/A N/A
FREQ Ratio = X8.0 ON ON OFF OFF N/A N/A
Page 78
70
Page 79
Chapter 5
D
Fax/Modem Card
The K56flex™ technology/V.90-compatible data fax/modem card
occupies PCI slot #1 in the Riser card. The fax/modem card has two RJ-11
jacks that are accessible from the rear panel: one to connect a telephone
line, and one to connect a phone.
TELEPHONE
LINE
Name Connector Type Description
TELEPHONE RJ-11 Connects to phone
LINE RJ-11 Connects to telephone line
KY0038.VS
71
Page 80
72
Page 81
Chapter 6
CMOS Setup Options
This chapter describes each screen in the CMOS SETUP UTILITY (see
“Accessing the CMOS Setup Utility” on page 14).
The CMOS Setup Utility presents the following menu items on the main
screen:
STANDARD CMOS SETUP
❑
BIOS FEATURES SETUP
❑
CHIPSET FEATURES SETUP
❑
POWER MANAGEMENT SETUP
❑
PNP AND PCI SETUP
❑
LOAD SETUP DEFAULTS
❑
SUPERVISOR PASSWORDS
❑
USER PASSWORD
❑
IDE HDD AUTO DETECTION
❑
SAVE & EXIT SETUP
❑
EXIT WITHOUT SAVING
❑
Use the arrow keys to choose a menu item. Press Enter to display the
item’s options. Use the arrow keys to select an option. Use the Page Up or
Page Down keys to modify a setting.
Press Esc to go back to the main menu. Press F10 to save the changes and
exit, or press Esc to discard the changes. Follow the on-screen prompts for
other choices. The bottom of the screen presents a summary of the
keyboard keys to use for navigation and control.
The current setting is shown in [brackets] unless the item cannot be
modified. Items beneath the current setting indicate available settings.
73
Page 82
74
VAIO Computer Reference Manual
STANDARD CMOS SETUP Screen
Date (mm:dd:yy) [Sat, Oct 16 1999]
Time (hh:mm:ss) [14 : 52: 53]
HARD DISKS
Primary Master
Primary Slave
Secondary Master
Secondary Slave
TYPE [Auto]
None
User
MODE [AUTO]
NORMAL
LBA
LARGE
Drive A [1.44M, 3.5 in.]
2.88M, 3.5 in.
None
360K, 5.25 in.
1.2M, 5.25 in.
720K, 3.5 in.
Drive B [None]
360K, 5.25 in.
1.2M, 5.25 in.
720K, 3.5 in.
1.44M, 3.5 in.
2.88M, 3.5 in.
Floppy 3 Mode Support [Disabled]
Drive A
Drive B
Both
Video [EGA/VGA]
CGA 40
CGA 80
MONO
Halt On [All, But Keyboard]
All, But Diskette
All, But Disk/Key
All Errors
No Errors
Page 83
BIOS FEATURES SETUP Screen
CMOS Setup Options
75
CPU Internal Core Speed 500MHz
*
Boot Virus Detection [Enabled]
Disabled
Processor Serial Number [Disabled]
Enabled
BIOS Update [Enabled]
Disabled
Quick Power On Self Test [Enabled]
Disabled
HDD Sequence SCSI/IDE First: [IDE]
SCSI
Boot Sequence [CDROM,A,C]
D,A
E,A
F,A
C only
LS/ZIP ,C
LAN,A,C
A,C
C,A
A,CDROM,C
CDROM,C,A
Floppy Disk Access Control [R/W]
Read Only
IDE HDD Block Mode Sectors [HDD MAX]
Disabled
2
4
8
16
32
* MHz denotes microprocessor internal clock speed. Other factors may affect application perfor-
mance.
Page 84
76
VAIO Computer Reference Manual
HDD S.M.A.R.T. capability [Disabled]
Enabled
Silent Boot [Enabled]
Disabled
Boot Up Sound [Disabled]
Enabled
Boot Up Volume
*
[Medium]
High
Mute
Low
PCI/VGA Palette Snoop [Disabled]
Enabled
Video ROM BIOS Shadow [Enabled]
Disabled
C8000 - CBFFF Shadow [Disabled]
Enabled
CC000 - CFFFF Shadow [Disabled]
Enabled
D0000 - D3FFF Shadow [Disabled]
Enabled
D4000 - D7FFF Shadow [Disabled]
Enabled
D8000 - DBFFF Shadow [Disabled]
Enabled
DC000 - DFFFF Shadow [Disabled]
Boot Up NumLock Status [Off]
Typematic Rate Setting [Disabled]
* Becomes enabled only when Boot Up Sound is enabled.
Enabled
On
Enabled
Page 85
Typematic Rate (Chars/Sec): [6]
8
10
12
15
20
24
30
Typematic Delay (Msec) [250]
500
750
1000
Security Option [System]
Setup
PS/2 Mouse Function Control [Auto]
Enabled
CMOS Setup Options
77
Page 86
78
VAIO Computer Reference Manual
CHIPSET FEATURES SETUP Screen
SDRAM Configuration [By SPD]
Disabled
7ns (143MHz)
8ns (125MHz)
SDRAM CAS Latency
*
[2T]
3T
SDRAM RAS to CAS Delay
*
[2T]
3T
SDRAM RAS Precharge Time
*
[2T]
3T
SDRAM Idle Timer
*
[8T]
10T
12T
16T
32T
Infinite
0T
2T
4T
SDRAM MA Wait State [Normal]
Slow
Fast
Graphics Aperture Size [64MB]
128MB
256MB
4MB
8MB
16MB
32MB
Video Memory Cache Mode [UC]
USWC
PCI 2.1 Support [Enabled]
Disabled
DRAM are 64 (Not 72) bits wide
Data Integrity Mode
†
Non-ECC
Onboard FDC Controller [Enabled]
Disabled
* These settings depend on the setting in SDRAM Configuration, and become enabled only when
SDRAM Configuration is Disabled.
† Read only.
Page 87
CMOS Setup Options
Onboard Serial Port 1 [3F8H/IRQ4]
2F8H/IRQ3
3E8H/IRQ4
2E8H/IRQ10
Disabled
Onboard Serial Port 2 [2F8H/IRQ3]
3E8H/IRQ4
2E8H/IRQ10
3F8H/IRQ4
Onboard Parallel Port [378H/IRQ7]
278H/IRQ5
Disabled
3BCH/IRQ7
Parallel Port Mode [Bi-direct]
EPP
ECP
ECP+EPP
79
ECP DMA Select
*
[3]
1
Onboard PCI IDE Enable [Both]
Primary
Secondary
Disable
IDE Ultra DMA Mode [Auto]
Disable
IDE0 Master PIO/DMA Mode [Auto]
IDE0 Slave PIO/DMA Mode 0/0
IDE1 Master PIO/DMA Mode 1/0
IDE1 Slave PIO/DMA Mode 2/0
(each has identical options) 3/1
4/2
* This setting is enabled when Parallel Port Mode is set to ECP or ECP+EPP.
Page 88
80
VAIO Computer Reference Manual
POWER MANAGEMENT SETUP Screen
Power Management [User Define]
Disable
Min Saving
Max Saving
Video Off Option [Suspend -> Off]
Always On
Video Off Method [DPMS OFF]
DPMS Reduce ON
Blank Screen
V/H SYNC+Blank
DPMS Standby
DPMS Suspend
** PM Timers **
HDD Power Down [Disable]
1 Min
2 Min
3 Min
4 Min
5 Min
6 Min
7 Min
8 Min
9 Min
10 Min
11 Min
12 Min
13 Min
14 Min
15 Min
Suspend Mode
* Enabled only when Power Management is not set to Disable.
*
[Disable]
30 Sec
1 Min
2 Min
4 Min
8 Min
20 Min
30 Min
40 Min
1 Hour
Page 89
** Power Up Control **
PWR Button < 4 Secs [Soft Off]
Suspend
Automatic Power Up [Disabled]
Everyday
By Date
CMOS Setup Options
81
Time (hh:mm:ss) Alarm
Date Of Month Alarm
†
*
[ 3: 2: 0]
[1]
2
.
.
.
31
** Fan Monitor **
Power Fan Speed [(displays actual RPM)]
Ignore
** Thermal Monitor **
CPU Temperature [(displays actual temperature)]
Ignore
MB Temperature [(displays actual temperature)]
Ignore
** Voltage Monitor **
VCORE Voltage [(displays actual voltage)]
Ignore
+3.3V Voltage [(displays actual voltage)]
+5V Voltage [(displays actual voltage)]
+12V Voltage [(displays actual voltage)]
-12V Voltage [(displays actual voltage)]
* Displays only when Automatic Power Up is Everyday or By Date.
† Displays only when Automatic Power Up is By Date.
Ignore
Ignore
Ignore
Ignore
Page 90
82
VAIO Computer Reference Manual
PNP AND PCI SETUP Screen
PNP OS Installed [No]
Yes
Slot 1 IRQ
Slot 2 IRQ [Auto]
NA
3
4
5
7
9
10
11
12
14
15
PCI Latency Timer [32] PCI Clock
.
.
.
255 PCI Clock
0 PCI Clock
1 PCI Clock
.
.
.
31 PCI Clock
IRQ 3 Used By ISA [No/ICU]
Yes
IRQ 4 Used By ISA [No/ICU]
Yes
IRQ 5 Used By ISA [Yes]
No/ICU
IRQ 7 Used By ISA [No/ICU]
Yes
IRQ 9 Used By ISA [No/ICU]
Yes
IRQ 10 Used By ISA [No/ICU]
Yes
IRQ 11 Used By ISA [No/ICU]
Yes
IRQ 12 Used By ISA [No/ICU]
Yes
Page 91
IRQ 14 Used By ISA [No/ICU]
Yes
IRQ 15 Used By ISA [No/ICU]
Yes
DMA 1 Used By ISA [No/ICU]
Yes
DMA 3 Used By ISA [No/ICU]
Yes
DMA 5 Used By ISA [No/ICU]
Yes
ISA MEM Block BASE [No/ICU]
C800
CC00
D000
D400
D800
DC00
CMOS Setup Options
83
USB IRQ [Enabled]
Disabled
ONB VGA BIOS First [No]
Yes
Onboard Audio [Enabled]
Disabled]
Onboard Cardbus [Enabled]
Disabled
Onboard 1394 [Enabled]
Disabled
Page 92
84
VAIO Computer Reference Manual
LOAD SETUP DEFAULTS Screen
Press Enter to load setup defaults except standard CMOS setup.
SUPERVISOR PASSWORD Screen
Press Enter to change, set, or disable the supervisor password. Follow the prompts.
USER PASSWORD Screen
Press Enter to change, set, or disable the user password. Follow the
prompts.
IDE HDD AUTO DETECTION Screen
Press Enter to auto-configure the hard disk drives.
SAVE & EXIT SETUP Screen
Press Enter to save changes in the CMOS and exit CMOS Setup Utility. Follow the
prompts.
EXIT WITHOUT SAVING Screen
Press Enter to exit CMOS Setup Utility without saving the changes. Follow the
prompts.
Page 93
Chapter 7
Miscellaneous Technical
Information
This chapter contains information on the following subjects:
User and Supervisor password
❑
Beep code error messages
❑
PCI configuration status and error messages
❑
DMA channel assignments
❑
IRQ assignments
❑
System I/O address map
❑
Memory map
❑
85
Page 94
86
VAIO Computer Reference Manual
About User and Supervisor Passwords
The system allows you to specify up to two passwords (a User password
and a Supervisor password) in the BIOS Setup Utility. The User password
is required; the Supervisor password is optional.
Access to the BIOS Setup Utility depends on which passwords were
previously set, as indicated next.
If you set these passwords... ...the following passwords are required:
User password only User password is required at bootup.
Supervisor password only No password is required at bootup.
Supervisor password is required by most
setup options.
Both passwords User password is required at bootup.
Supervisor password is required by most
setup options.
Page 95
Miscellaneous Technical Information
87
Beep Code Error Messages
During a normal bootup, a single short beep signifies that the system is
OK. Other beep patterns signify errors. The number of beeps indicates the
specific error that occurred.
The Sony Online Support technical representative will need to know how
many beeps your system produces if there is an error, so be sure to count
the number of beeps before calling for support.
Page 96
88
VAIO Computer Reference Manual
PCI Configuration Status and Error Messages
The following is a list of status and error messages that may appear on
your system from time to time.
Message Meaning
Floppy Disk Controller
Resource Conflict
CMOS Checksum Error,
CMOS Cleared
CMOS Data Invalid,
CMOS Cleared
Parallel Port Resource Conflict The parallel port has requested a resource
PCI Error Log is Full This message is displayed when more than
PCI I/O Port Conflict Two devices requested the same resource,
PCI IRQ Conflict Two devices requested the same resource,
PCI Memory Conflict Two devices requested the same resource,
Primary Boot Device Not
Found
The diskette controller has requested a
resource that is already in use.
The CMOS data was reinitialized due to a
CMOS checksum error.
Invalid entry in the CMOS.
that is already in use.
15 PCI conflict errors are detected. No
additional PCI errors can be logged.
resulting in a conflict.
resulting in a conflict.
resulting in a conflict.
The designated primary boot device (hard
disk drive, diskette drive, DVD-ROM drive,
or network drive) could not be found.
Primary IDE Controller
Resource Conflict
Primary Input Device Not
Found
Primary Output Device Not
Found
Secondary IDE Controller
Resource Conflict
Serial Port 1 Resource Conflict Serial port 1 has requested a resource that is
The primary IDE controller has requested a
resource that is already in use.
The designated primary input device
(keyboard, mouse, or other, if input is
redirected) could not be found.
The designated primary output device
(display, serial port, or other, if input is
redirected) could not be found.
The secondary IDE controller has requested
a resource that is already in use.
already in use.
Page 97
Miscellaneous Technical Information
89
DMA Channel Assignments
This shows the factory default values. Windows 98 reassigns resources to
best meet the needs of a particular configuration.
DMA
Channel
2 Standard diskette drive controller
3 ECP printer port (LPT1) for ECP
4 Direct memory access controller
Default
Assignment
Page 98
90
VAIO Computer Reference Manual
IRQ Assignments
This shows the factory default values. Windows 98 will reassign resources to best meet
✍
the needs of a particular configuration. PCI IRQs can be shared between several PCI
devices.
IRQ # Default Assignment
01 Standard 101/102-key or Microsoft Natural Keyboard
02 Programmable interrupt controller
03 Communications port (COM2)
04 Communications port (COM1)
06 Standard floppy dsk controller
07 Printer port (LPT1)
08 System CMOS/real-time clock
09 Vortex AU8810 multi-function PCI platform
09 Ricoh RL5C475 CardBus controller
09 SCI IRQ used by ACPI bus
09 Intel 82371AB/EB PCI to USB universal host controller
09 ACPI IRQ Holder for PCI IRQ steering
09 Vortex AU8810 PCI audio
09 Lucent WinModem
09 ACPI IRQ holder for PCI IRQ steering
10 Sony OHCI i.LINK(IEEE-1394) PCI host controller
10 ACPI IRQ holder for PCI IRQ steering
11 ACPI IRQ holder for PCI IRQ steering
™
11 Rage
11 Sony PCI to Memory Stick I/F controller
12 WheelMouse1 (PS/2)
13 Numeric data processor
14 Intel 82371AB/EB PCI bus master IDE controller
128 Pro 4XL (English)
®
14 Primary IDE controller (dual FIFO)
15 Intel 82371AB/EB PCI bus master IDE controller
15 Secondary IDE controller (dual FIFO)
Page 99
Miscellaneous Technical Information
System I/O Address Map
91
Address Range
(hex)
0000h - 000Fh Direct memory access controller
0010h-001Fh Motherboard resources
0020h-0021h Programmable interrupt controller
0022h-003Fh Motherboard resources
0040h-0043h System timer
0044h-005Fh Motherboard resources
0060h-0060h Standard 101/102-key or Microsoft Natural Keyboard
0061h-0061h System speaker
0062h-0063h Motherboard resources
0064h-0064h Standard 101/102-key or Microsoft Natural Keyboard
0065h-006Fh Motherboard resources
0070h-0073h System CMOS/real time clock
0074h-007Fh Motherboard resources
0080h-0090h Direct memory access controller
Description
0091h-0093h Motherboard resources
0094h-009Fh Direct memory access controller
00A0h-00A1h Programmable interrupt controller
00A2h-00BFh Motherboard resources
00C0h-00DFh Direct memory access controller
00E0h-00EFh Motherboard resources
00F0h-00FFh Numeric data processor
0170h-0177h Secondary IDE controller (dual FIFO)
0170h-0177h Intel 82371AB/EB PCI bus master IDE controller
01F0h-01F7h Primary IDE controller (dual FIFO)
01F0h-01F7h Intel 82371AB/EB PCI bus master IDE controller
0290h-0297h Motherboard resources
02F8h-02FFh Communications port (COM2)
0376h-0376h Secondary IDE controller (dual FIFO)
0376h-0376h Intel 82371AB/EB PCI bus master IDE controller
0378h-037Bh Printer port (LPT1)
03B0h-03BBh Rage 128 Pro 4XL (English)
03C0h-03DFh Rage 128 Pro 4XL (English)
Page 100
92
VAIO Computer Reference Manual
Address Range
Description
(hex)
03F0h-03F1h Motherboard resources
03F2h-03F5h Standard diskette controller
03F6h-03F6h Primary IDE controller (dual FIFO)
03F6h-03F6h Intel 82371AB/EB PCI bus master IDE controller
03F7h-03F7h Standard diskette controller
03F8h-03FFh Communications port (COM1)
04D0h-04D1h Motherboard resources
0CF8h-0CFFh PCI bus
A000h-A0FFh LT WinModem
A400h-A407h LT WinModem
A800h-A81Fh Intel 82371AB/EB PCI to USB universal host controller
B000h-B007h Primary IDE controller (dual FIFO)
B000h-B00Fh Intel 82371AB/EB PCI bus master IDE controller
B008h-B00Fh Secondary IDE controller (dual FIFO)
B400h-B407h Vortex AU8810 PCI audio
B400h-B407h Vortex AU8810 multi-function PCI platform
B800h-B807h Vortex AU8810 PCI audio
B800h-B807h Vortex AU8810 multi-function PCI platform
D000h-DFFFh
Intel 82443BX Pentium® III processor to AGP controller
D800h-D8FFh Rage 128 Pro 4XL (English)
E400h-E43Fh Motherboard resources
E800h-E80Fh Motherboard resources
