Sony PCG-GRT160 Specification

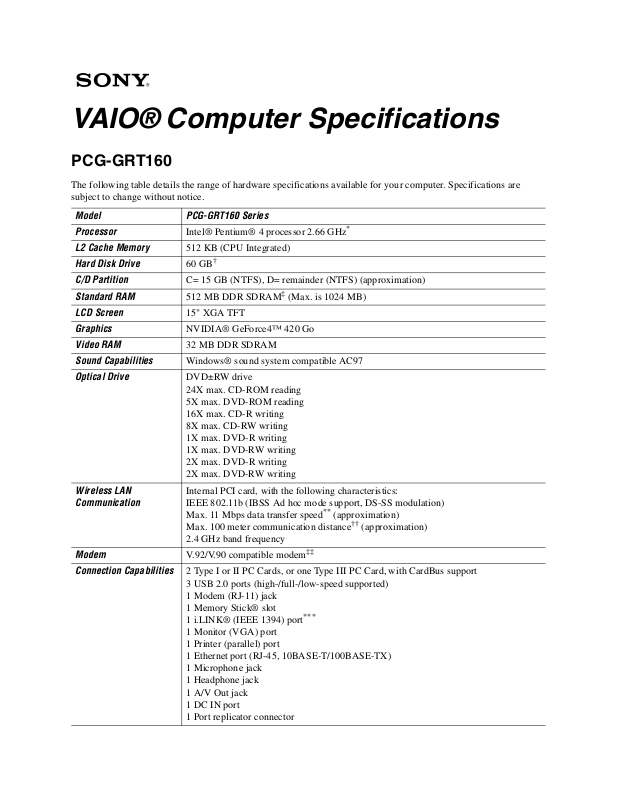

VAIO® Computer Specifications

PCG-GRT160

The following table details the range of hardware specifications available for your computer. Specifications are subject to change without notice.

Model PCG-GRT160 Series

Processor Intel® Pentium® 4 processor 2.66 GHz

L2 Cache Memory 512 KB (CPU Integrated)

Hard Disk Drive 60 GB

C/D Partition C= 15 GB (NTFS), D= remainder (NTFS) (approximation)

Standard RAM 512 MB DDR SDRAM

LCD Screen 15" XGA TFT

Graphics NVIDIA® GeForce4™ 420 Go

Video RAM 32 MB DDR SDRAM

Sound Capabilities Windows® sound system compatible AC97

Optical Drive DVD±RW drive

Wireless LAN Communication

Modem V.92/V.90 compatible modem

Connection Capabilities 2 Type I or II PC Cards, or one Type III PC Card, with CardBus support

†

‡

(Max. is 1024 MB)

24X max. CD-ROM reading 5X max. DVD-ROM reading 16X max. CD-R writing 8X max. CD-RW writing 1X max. DVD-R writing 1X max. DVD-RW writing 2X max. DVD-R writing 2X max. DVD-RW writing

Internal PCI card, with the following characteristics: IEEE 802.11b (IBSS Ad hoc mode support, DS-SS modulation) Max. 11 Mbps data transfer speed Max. 100 meter communication distance

2.4 GHz band frequency

‡‡

3 USB 2.0 ports (high-/full-/low-speed supported) 1 Modem (RJ-11) jack 1 Memory Stick® slot 1 i.LINK® (IEEE 1394) port 1 Monitor (VGA) port 1 Printer (parallel) port 1 Ethernet port (RJ-45, 10BASE-T/100BASE-TX) 1 Microphone jack 1 Headphone jack 1 A/V Out jack 1 DC IN port 1 Port replicator connector

***

(approximation)

††

(approximation)

VAIO® Notebook Specifications

Model PCG-GRT160 Series

Supplied Accessories AC adapter and power cord

Rechargeable battery Wei ght saver

Power Source 19.5V DC/AC 100-240V

Power Management Energy Star® Compliant

Advanced Configuration and Power Interface (ACPI)

Battery Lithium-ion

Dimensions 41.6-49.8 mm H x 327 mm W x 271.6 mm D

(approximately 1.7-2.0" H x 12.9" W x 10.7" D)

Weight 3.4 Kg (approximately 7.5 lbs) with one battery

Operating Temperature 40° F to 95° F (5° C to 35° C)

Operating Humidity 20% to 80% (not condensed), provided that humidity is less than 65% at 95° F (35° C),

hygrometer reading of less than 84° F (29° C)

Storage Temperature -4° F to 140° F (-20° C to 60° C) (temperature gradient less than 18° F (10° C/hour)

Storage Humidity 10% to 90% (not condensed) provided that humidity is less than 20% at 140° F (60° C),

hygrometer reading of less than 95° F (35° C)

* GHz denotes microprocessor internal clock speed; other factors may affect application performance. † GB means one billion bytes when referring to hard drive capacity. Five GB is reserved as a recovery partition. Accessible capacity may

vary. ‡ Your system may contain additional memory installed at the time of purchase. ** Max. dat a communication /transfer speed per IEEE 802.11b standard. Speed will be reduced under certain operating and environmental

conditions. ††Communication distance will be reduced under certain operating and environmental conditions. ‡‡Maximum speed for faxing is 14.4 Kbps. Your modem is capable of downloading at 53 Kbps using V.90/56Kflex. Your online service or

Internet Service Provider may not support this technology or operate at this speed. ***i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary,

depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may

not communicate with each other. Refer to the documentation that came with your compatible i.LINK device for information on operating

conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as CD-RW or hard disk

drive, confirm their operating system compatibility and required operating conditions.
