Sony Notebook
User Guide
PCG-F104K
N
nN
2
Notice to users
© 2001 Sony Corporation. All rights reserved. This manual and the software described herein, in whole or
in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written
approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information
contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for
any particular purpose with regard to this manual, the software or such other information. In no event shall
Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with this manual, the software, or other information
contained herein or to use thereof.
Sony Notebook User Guide
Sony Corporation reserves the right to make any modification to this manual or the information contained
herein at any time without notice. The software described herein is governed by the terms of a separate user
license agreement.
TM
Sony, DVgate, i.LINK
VAIO logo are trademarks of Sony Corporation. The Windows and the Windows 2000 logos are registered
trademarks of Microsoft Corporation.
Intel, MMX, Celeron and Pentium are trademarks of Intel Corporation.
All other trademarks are trademarks of their respective owners.
Specifications are subject to change without notice.
, Mavica, PictureGear, Memory Stick and the Memory Stick logo, VAIO and the
nN
As an Energy Star Partner, Sony has determined that this product meets the Energy Star guidelines for
energy efficiency.
The International Energy Star Office Equipment Program is an international program that promotes energy
saving through the use of computers and their office equipment. The program backs the development and
dissemination of products with functions that effectively reduce energy consumption. It is an open system
in which business proprietors can participate voluntarily. The targeted products are office equipment such
as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among
participating nations.
Energy Star is a U.S. registered mark.
3
Sony Notebook User Guide
nN
4
Safety information
Owner’s record
The model number and serial number are located on the bottom of your Sony notebook. Record the serial
number in the space provided here. Refer to the model and serial number when you call VAIO-Link.
Serial number:________________________
Model number:
PCG-9326
Sony Notebook User Guide
WARNINGS
General
Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
To prevent fire or shock hazard, do not expose your VAIO notebook to rain or moisture.
Avoid using the modem during an electrical storm.
If reporting a gas leak, do not use a modem or a telephone in the vicinity of the leak.
DVD-ROM
The use of the optical instrument installed in your notebook will cause eye hazard. As the laser beam
used in this product is harmful to eyes, do not attempt to disassemble the cabinet. For servicing, refer
to qualified personnel only.
TherearevisibleandinvisibleradiationswhentheDVD-ROMdriveisopen:avoiddirectexposureto
the laser beam.
Audio/Video
Audio and picture distortion may occur if this equipment is positioned in close proximity to any
equipment emitting electromagnetic radiation.
nN
5
Connectivity
Never install modem or telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
Use caution when installing or modifying telephone lines.
Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from
mains voltage, unplug the AC adapter.
Please make sure that the socket outlet is easily accessible.
Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected
at the network interface.
Sony Notebook User Guide
nN
6
Regulatory information
This product conforms to the following European Directives:
73/23/EEC (Low Voltage Directive)
89/336/EEC, 92/31/EEC (EMC Directives)
93/68/EEC (CE Marking Directive)
1999/5/EC (radio equipment and telecommunications terminal equipment Directive)
Sony Notebook User Guide
This product complies with EN 55022 Class B and EN 50082-1 for use in following areas: residential,
commercial and light-industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using
connection cables shorter than 3 metres (9.8 feet)
The DVD-ROM is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety
Standard EN 60825-1. Repair and maintenance only by authorized Sony technicians. Improper repairs and
use can create safety hazards.
CLASS 1
LASER PRODUCT
TO EN 60825-1
nN
7
Disposal of lithium ion batteries
Dispose of properly at end-of-life.
In some areas the disposal of
lithium ion batteries in
household or business waste
may be prohibited.
Please use the public collection
system.
Disposal of lithium ion battery
! Do not handle damaged or leaking Lithium ion batteries. Dispose of promptly and properly.
! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions (see
below).
! The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not
disassemble, heat above 100°C (212°F) or incinerate. Dispose of used battery promptly.
! Keep away from children.
! Your notebook is equipped with an internal backup memory battery. For changing this battery, please contact
Sony Notebook User Guide
VAIO-Link.
Welcome
Sony Notebook User Guide
nN
8
Welcome
Congratulations on purchasing a Sony VAIO notebook. Sony has combined leadingedge technology in audio, video, computing and communications to provide you with
state-of-the-art personal computing.
Here are just some of the features your VAIO notebook has to offer (read the details in
the Specifications chapter of this guide).
Exceptional performance - Your PC includes a fast processor, a fast DVD-ROM
drive and an internal modem.
Portability - The rechargeable battery pack provides hours of use without AC
power.
Sony audio and video quality - A high-resolution LCD screen enables you to take
advantage of today’s advanced multimedia applications, games, and
entertainment software.
Multimedia features - Enjoy the speaker(s) to listen to audio and video CDs.
Windows®- Your system includes the latest operating system from Microsoft.
Communications - Access popular online services, send and receive e-mails,
browse the Internet...
Excellent customer support - If you are experiencing any problems with your
computer, please check the VAIO-Link Website for a possible solution:
http://www.vaio-link.com
Before contacting VAIO-Link, you may try to solve the problem by reading your
User Guide (troubleshooting chapter) or the manuals and Help files for the
peripherals or software.
.
Welcome
About the User Guides
Sony Notebook User Guide
nN
9
About the User Guides
Your Documentation Pack contains paper and online user guides on a Documentation
CD-ROM:
Printed Documentation:
A Getting Started brochure and a Customer Guide, where you will find all the
basic information to start using your notebook;
A complete Regulatory and safety information poster;
A Modem Regulations Flyer applying to the internal modem;
You r Sony Guarantee conditions.
Online Documentation:
1 This User Guide:
Using Your Sony Notebook shows you how to use the standard components of
your system.
Connecting Peripheral Devices explains how you can add functionality by
connecting various peripherals.
Getting Help explains the support options available to you, and offers basic
troubleshooting tips.
Notes on Use provides facts and advice about using your notebook.
Specifications provides details on your computer, drivers and accessories.
Welcome
About the User Guides
Sony Notebook User Guide
nN
10
2 Refer to your Software Guide for information on the bundled software and the
Sony applications.
About the Software is a short description of the features of the software preinstalled on your system.
Customizing your Notebook explains how to set your system and power
management with Sony Notebook Setup, VAIO Action Setup, PowerPanel,
BatteryScope, etc.
Usingthe Product Recovery CD-ROMs explains how to perform a system and an
application recovery.
3 Consult the Online Help files of the software you are using, for detailed
information on features and troubleshooting.
4 Refer to the Microsoft Getting Started manual for more information on
Win dows
®
.
Welcome
Unpacking your notebook
Unpacking your notebook
Remove the following hardware items from the box:
Main unit
nN
11
DVD-ROM drive
(installed at factory)
Product Recovery
CD-ROMs
Documentation Pack
Sony Notebook User Guide
AC adapter
Video cable
Rechargeable
battery pack
Phone plug
(country specific)
(installed at factory)
Phone cable
Floppy disk drive
Weight Saver
Power cord
Welcome
Ergonomic considerations
nN
12
Ergonomic considerations
You will be using your notebook as a portable device in a variety of environments.
Whenever possible, you should attempt to take account of the following ergonomic
considerations to both stationary and portable environments:
Sony Notebook User Guide
Arms at desk level
Wrists relaxed and flat
Position of your computer – Place the computer directly in front of you as you
Compute r positioned directly
in front of you
work. Keep your forearms horizontal, with your wrists in a neutral, comfortable
position while using the keyboard, touchpad, or external mouse. Let your upper
arms hang naturally at your sides. Take breaks during sessions with your
computer. Excessive use of the computer may strain muscles or tendons.
Welcome
Ergonomic considerations
Sony Notebook User Guide
nN
Furniture and posture – Sitinachairwithgoodbacksupport.Adjustthelevelof
the chair so your feet are flat on the floor. A footrest may make you more
comfortable. Sit in a relaxed, upright posture and avoid slouching forward or
leaning far backwards.
Viewing angle of the computer’s display – Usethedisplay’stiltingfeaturetofind
the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt
of the display to the proper position. Adjust the brightness setting of the display
as well.
Lighting – Choose a location where windows and lights do not create glare and
reflection on the display. Use indirect lighting to avoid bright spots on the display.
You can also purchase accessories for your display that help reduce glare. Proper
lighting adds to your comfort and work effectiveness.
Position of an external display – When using an external display, set the display
at a comfortable viewing distance. Make sure the display screen is at eye level or
slightly lower when you are sitting in front of the monitor.
Tilt stands – You use the tilt stands to place the computer at an angle that allows
comfortable typing.
13
Using your notebook
Locating the controls and connectors
nN
14
Using your notebook
This section describes how to start using your computer and how to use your
computer’s internal devices, such as the touchpad, the disk drives and the battery.
Locating the controls and connectors
Sony Notebook User Guide
Right
1 3
PPK buttons (page 44) DVD-ROM drive
2 4
Power button (page 25) Multi-purpose bay
(page 38)
(page 35)
(page 53)
Using your notebook
Locating the controls and connectors
nN
15
AC adapter mains connector
Left
and power cord: hazardous
voltage, according to EN 60950.
Phone cable and connectors are
TNV (Telecommunications
Network Voltage), according to
EN60950.
All other connectors for this
notebook are SELV (Safety Extra
Sony Notebook User Guide
Low Voltage), according to
EN 60950.
S400 i.LINKTM connector
1 4
TV Out Co nnector
2 5
i Headphone connector
3 6
(page 67)
(page 65)
(page 74)
m Micropho ne connector
PC Card slots
Battery bay
(page 75)
(page 41)
(page 20)
Using your notebook
Locating the controls and connectors
Sony Notebook User Guide
Front
!
nN
16
LCD screen
1
Speakers
2
3 7
Keyboard
4
Touchpad
(page 32)
(page 32)
(page 28)
(page 34)
Left/right buttons
5
! Power indicator
6
Battery 1 and 2
indicators
Hard disk drive
8
indicator
(page 34)
(page 25)
(page 31)
(page 31)
Num Lock indicator
9
Caps Lock indicator
10
11
Scroll Lock indicator
(page 31)
(page 31)
(page 31)
Using your notebook
Locating the controls and connectors
nN
17
There is a ventilation slot
Back
located near the USB
connector. Do not cover the
ventilation slot when your
computer is on.
Cover
Sony Notebook User Guide
Phone Line jack
1 5
2 6
Mouse connector
3 7
4
Serial connector
Printer
(page 46)
(page 72)
(page 60)
(page 60)
a Monitor connector
USB connectors
DC In
(page 62)
(page 73)
(page 19)
Using your notebook
Locating the controls and connectors
Sony Notebook User Guide
Bottom
nN
18
Port replicator connector cover Tilt stands
1
Release lever
2
3
Using your notebook
Connecting a power source
nN
19
Use your notebook only with
the supplied AC adapter.
To disconnect your notebook
completely from mains voltage,
unplug the AC adapter.
Please make sure that the
socket outlet is easily
accessible.
Sony Notebook User Guide
See the Compatibility table to
verify which peripheral devices
are compatible with your
notebook.
Connecting a power source
You can use either AC power or a rechargeable battery pack as a power source.
Using the AC adapter
1 Plug the cable attached to the AC adapter into the DC In connector on the
computer.
2 Plug one end of the power cord into the AC adapter.
3 Plug the other end of the power cord into an AC outlet.
Notebook
3
1
DC in
SELV according to EN 60950
AC adapter
(supplied)
Power cord (hazardous voltage
2
according to EN 60950)
(supplied)
Using your notebook
Connecting a power source
nN
20
Using battery power
You can use one or two batteries as a source of power. You can insert the second battery
pack into the multi-purpose bay on the right side of the computer (See Locating the
controls and connectors on page 14). Additional battery packs are available as a
separate option.
The battery pack supplied with your computer is not fully charged at the time of
purchase. Follow the steps below to insert and charge the battery pack.
To insert the battery pack
Sony Notebook User Guide
1 Open the cover of the battery bay.
2 Insert the battery pack into the battery bay on the left side of the computer.
Battery pack
(supplied)
Label facing down
3 Close the cover of the battery bay until it clicks.
Using your notebook
Connecting a power source
Sony Notebook User Guide
nN
To charge the battery pack
21
1 Connect the AC adapter to the computer.
2 Insert the battery pack.
The computer automatically charges the battery (the battery indicator light flashes in
a double blink pattern as the battery charges). When the battery is 85 percent full, the
battery indicator light turns off. This process takes approximately two hours. To charge
the battery completely, continue charging for an additional hour.
There is one battery indicator light on the computer:
Battery indicators
Secondary battery pack
(not supplied)
Battery pack
(supplied)
Using your notebook
Connecting a power source
Battery Indicator Meaning
nN
22
1
2
Battery Indicator Light Status Meaning
On
Sony Notebook User Guide
Single blink
Double blink
Off
Indicates the status of the battery pack in the battery bay on
the left side of the computer.
Indicates the status of the battery pack in the multi-purpose
bay on the right side of the computer.
The computer is using battery power.
The battery is running out of power.
The battery is charging.
The computer is using AC power.
Using your notebook
Connecting a power source
Sony Notebook User Guide
nN
For some software applications and some peripheral devices, your computer may not enter System
Hibernation mode when battery life is low. To avoid loss of data when using battery power, you should save
your data frequently and manually activate a power management mode, such as System Suspend or
System Hibernation.
When the battery is running out of power, both the battery and power indicators blink.
To determine the time the battery lasts, please refer to Displaying battery information in your Software
Guide.
Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues
to charge while you are using the computer.
If the battery level falls to below 10%, you should either attach the AC adapter to recharge the battery or shut
down your computer and insert a fully charged battery.
You can extend battery life by changing the power management modes in the PowerPanel utility. See your
Software guide, under Controlling Power Management.
The battery pack supplied with your computer is a lithium ion battery and can be recharged at any time.
Charging a partially discharged battery does not affect battery life.
The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly
depleted, the battery indicator starts flashing.
When the computer is directly connected to AC power and has a battery pack inserted in the battery bay, it
uses power from the AC outlet.
23
Using your notebook
Connecting a power source
nN
24
! You may lose data if you
remove the battery pack while
the computer is on and not
connected to the AC adapter
or if you remove the battery
while the computer is in
System Suspend mode.
Sony Notebook User Guide
To remove the battery pack
1 Open the cover of the battery bay.
2 Pull out the battery pack.
3 Close the cover of the battery bay.
Using your notebook
Starting your computer
Sony Notebook User Guide
nN
Starting your computer
1 Slide the LCD lock lever in the direction of the arrow, and lift the cover.
LCD lock lever
25
If you press the po wer button for
more than four seconds, the
computer will turn off.
2 Press the power button of the computer until the green power indicator light turns
on.
Power indicator
Power button
3 If necessary, adjust the brightness controls for the LCD display with <Fn>+<F5>.
To increase the brightness, use the up orright arrowkey. To decrease,use the down
or left arrow key.
Using your notebook
Shutting down your computer
nN
26
! To avoid potential loss of data,
follow these steps to shut down
your computer.
Respond to any prompts warning
you to save documents.
If you are unable to shut down
your computer using the steps
described above:
Sony Notebook User Guide
- close all software in use,
- remove the PC Cards if inserted,
- disconnect any USB devices,
then restart the computer.
If the previous steps do not work,
see the Troubleshooting section
of this User Guide.
During a period of inactivity, you
can conserve battery life by using
the System Suspend mode. See
Controlling Power Management
in your Software Guide for further
details.
Shutting down your computer
1 Click the Start button on the Windows
2 Click Shut Down at the bottom of the Start menu to display the Shut Down
Windows dialog box.
3 Select Shut down.
4 Click OK.
5 Waitforyourcomputertoturnoffautomatically.Thepowerindicatorwill
turn off.
6 Turn off any peripheral connected to your computer.
®
taskbar.
Using your notebook
Registering your computer
nN
27
You must connect your phone
line before using any online
services, including the online
registration service.
See Using the modem on
page 46
To access the online
Registration Web page, you
must have a connection to the
Sony Notebook User Guide
Internet.
Registering your computer
You can take advantage of Sony’s commitment to quality customer support and
receive the following benefits by registering your computer with Sony:
VAIO-Link – If you are experiencing any problems with your computer, you can
check the VAIO-Link Website for a possible solution:
http://www.vaio-link.com
Guarantee – Protect your investment. See the Guarantee sheet for the terms and
conditions and please refer to your Customer Service Guide for more information.
Follow these steps to use the Sony Notebook online registration service:
.
1 Click on the Welcome button on your desktop,
2 Click Next,
3 Click Internet,
4 Fill in your Registration card fields,
5 Scroll down to the bottom of the form and click Send,
6 Click OK.
Using your notebook
E
F
Using the keyboard
nN
Using the keyboard
Your keyboard is very similar to a desktop computer’s, but the keyboard has
additional keys that perform specific notebook-related tasks.
28
scape key
unction keys
Print screen key
Correction keys
Sony Notebook User Guide
Shift key
Ctrl key
Fn key
Windows
Alt key
®
key
Numeric keypad area
Application key
Navigation keys
Keys Descriptions
Numeric keypad
area
Contains the keys found on a typical calculator. Use the numeric keypad
area to type numbers or to perform mathematical calculations such as
addition and subtraction. Note that you must press the Num Lock key to
activate the numeric keypad. When you do so, the Num Lock light will
illuminate.
Navigation keys Several keys are devoted to moving the cursor on the screen.
Using your notebook
Using the keyboard
nN
Keys Descriptions
Correction keys The Insert, Back Space,andDelete keys enable you to make corrections
in your documents.
Function keys The twelve function keys along the top of the keyboard are used to
perform designated tasks. For example, in many applications, F1 is the
Help key. The task associatedwith each function keymay vary from one
application to the next.
Escape key The Esc (Escape) key is used to cancel commands.
29
Sony Notebook User Guide
Print Screen key The Print Screen key takes an electronic snapshot of the screen and
places it in the Windows Clipboard. You can then paste the screen shot
into a document and print it.
Operator keys Several keys are always used with at least one other key: Ctrl, Alt,and
Shift.Whenhelddownwithanotherkey,theCtrl (Control) and Alt
(Alternate) keys offer another way to give commands. For example, in
many applications, instead of choosing the Save command from a menu,
you can hold down Ctrl and pressS (referred to as Ctrl+S). The Shift key
is used to produce capital letters or special symbols such as @ and $.
Windows
Fn key The Fn key is used in combination with other keys to issue commands.
®
key The key with the Windows®logo displays the Windows®Start menu;
it’s the equivalent of clicking the Start button on the task bar. See
Combinations and functions with the Windows
details.
See Combinations and functions with the Fn key.
®
key for further
Using your notebook
Using the keyboard
Sony Notebook User Guide
nN
Keys Descriptions
Applications key The Applications key displays a shortcut menu of context-sensitive
choices; pressing this key is the equivalent of clicking the right mouse
button.
Combinations and functions with the Windows®Key
Combinations Functions
+ F1 Displays Windows Help.
+ Tab Switches the selected button on the taskbar.
+ E Displays Windows Explorer.
+F DisplaystheWindows Find: All Files window to find a file or folder.
This is the equivalent of selecting Find and then Files or Folders
from the Start menu.
+Ctrl+F DisplaystheWindows Find: Computer window where you can
locate other computers. This is the equivalent of selecting Find and
then Computer from the Start menu.
30
+ M Minimizes all displayed windows.
Shift + + M Returns all minimized windows to their previous size.
+R DisplaystheRun window. This is the equivalent of selecting Run
from the Start menu.
Fn + + Insert Displays the System Properties window. This is the equivalent of
double-clicking the System icon in the Control Panel.
Using your notebook
Using the keyboard
Indicators
Indicator Functions
Power Power on: lights green.
System Idle mode: lights umber.
System Suspend mode: flashes umber.
nN
31
Battery 1
1
Sony Notebook User Guide
2
Hard disk Lights when data is read from or written to the hard drive. Do not enter
Light On Off
Hard disk
Num Lock
Caps Lock
Indicates the status of the battery inserted in the battery bay on the left
side of the computer.
Indicates the status of the battery inserted in the multi-purpose bay on
the right side of the computer.
System Suspend mode or turn off the computer when this indicator
light is on.
Data is read from or written to the
hard drive.
Do not enter System Suspend
mode or turn off the computer
when this indicator light is on.
Turns on when the number keys
area in the numeric keypad are
active.
Turnsonwhenthelettersappear
in uppercase as you type. The
Shift key lowers the case of typed
letterswhenCapsLockison.
The hard drive is not being
accessed.
Turns off when the alphanumeric
character keys in the keypad area
are active.
Turns off when letters appear in
lower case as you type (unless if
you hold down the Shift key).
Using your notebook
Using the keyboard
Light On Off
Turns off when information moves
across the display normally.
Scroll Lock
Turnsonwhenthescreenscrolls
differently (depends on the
application.Has no effect in many
applications.)
Combinations and functions with the Fn Key
nN
32
Sony Notebook User Guide
Combinations/Feature Functions
Fn + (ESC)
System Suspend
Fn + t (F2)
Display power status
Fn + (F3)
Speaker switch
Fn + 2 (F4)
Speaker volume
Fn + 8 (F5)
Brightness control
Fn + 6 (F6)
Contrast control
Puts the system into System Suspend mode, a power management
state. To return the system to the active state, press any key.
Display power status
Toggles the built-in speaker on and off.
Adjusts the built-in speakers’ volume.
To increase volume, press <Fn>+<F4> and then V or b
To decrease volume, press <Fn>+<F4> and then v or B
Adjusts the brightness of the LCD.
To increase light intensity, press <Fn>+<F5> and then V or b
To decrease light intensity, press <Fn>+<F5> and then v or B
Not available
Using your notebook
Using the keyboard
Sony Notebook User Guide
Combinations/Feature Functions
LCD
Fn + / (F7)
Switch to the
external display
LCD
Fn + / (F8) Toggles between the LCD and both LCD and TV.
Toggles between the LCD, external display (connected to the
Monitor connector) and both LCD and external display.
.
Only LCD
LCD and external display
Only external display
Only LCD h LCD and TV.
See AV d e v i c e s on page 65
Provides for the lowest level of power consumption. When you
Fn + (F12)
System Hibernation
execute this command, the states of the system and of the peripheral
devices are written to the hard disk and the system power is turned
off.
nN
33
Fn + S
System Idle
Puts the system into Idle mode, a power management state. To
return to the active state, press any key.
Using your notebook
Using the touchpad
nN
34
See Mouse Help for
information on touchpad
features, such as clicking both
buttons simultaneously,
adjusting touchpad speed,
Web Assist, Tap Off, and Easy
Launcher functions. To access
Mouse Help, press the Start
button, select Settings, and
then select Control Panel.
Sony Notebook User Guide
Click the Mouse icon and then
click the Help button.
Using the touchpad
The keyboard contains a cursor-pointing device called a touchpad. You can point to,
select, drag, and scroll objects on the screen using the built-in touchpad.
Pointer
Touch pad
Action Description
Point Slide one finger on the touchpad to place the pointer on an item or object.
Click Press the left button once.
Double-click Press the left button twice.
Right-click Press the right button once. In many applications, this action displays a
shortcut menu of context-sensitive choices.
Drag Slide one finger while pressing the left button.
Scroll Move your finger along the right edge of the touchpad to scroll vertically.
Move your finger along the bottom to scroll horizontally. (The scroll function
is available only with applications that support a touchpad scroll feature.)
Right button
Left button
Using your notebook
Using the floppy disk drive
Sony Notebook User Guide
nN
Using the floppy disk drive
The computer comes with the floppy disk drive in the multi-purpose bay.
To insert a diskette
1 Hold the diskette with the label side facing up.
2 Gently push the diskette into the drive until it clicks into place.
Diskette
Floppy disk drive
35
Using your notebook
Using the floppy disk drive
nN
36
If you have difficulty removing a
diskette from the floppy disk
drive, remove the f loppy disk drive
from the multi-purpose bay.
Do not press the Eject button
when the LED indicator is turned
on. Otherwise, data may be lost.
Sony Notebook User Guide
To remove a diskette
When you finish using the diskette, wait until the LED indicator turns off and then
press the Eject button to remove the diskette.
Eject button
LED indicator
To remove the floppy disk drive
1 Turn off the computer.
2 There is a RELEASE lever on the bottom of the computer. Slide this lever in the
direction of the arrow.
.
Drive RELEASE lever on bottom
3 Slidethedriveoutofthemulti-purposebay.
4 Insert the weight saver.
See Using the weight saver on page 53.
Using your notebook
Using the floppy disk drive
nN
To re-insert the floppy disk drive
37
1 Turn off the computer.
2 If another device is in the multi-purpose bay, remove the device. See To remove
the second battery pack.
3 Insert the floppy disk drive into the multi-purpose bay with the metallic part up.
Continue pushing the drive into the bay until the RELEASE lever locks into place.
Multi-purpose bay
Sony Notebook User Guide
Floppy disk drive
Using your notebook
Using the DVD-ROM drive
Sony Notebook User Guide
nN
38
Using the DVD-ROM drive
Your computer is equipped with a DVD-ROM drive.
The DVD-ROM drive plays both DVD-ROM and CD-ROM disks.
To insert a disk
1 Turn on the computer.
2 Press the Eject button to open the DVD-ROM drive. The tray slides out.
Eject button
3 Place a CD-ROM disk in the tray with the label side facing up. Push the disk onto
the hub until the disk clicks into place.
Label facing up
4 Close the tray by pushing it gently.
Using your notebook
Using the DVD-ROM drive
Sony Notebook User Guide
nN
When the computer is in System Suspend or System Hibernation mode, you cannot insert a disk.
Be sure to seat the disk firmly over the disk drive hub fingers. If you do not seat the disk firmly, you could
damage your disk drive and you may not be able to open the tray.
When you finish using a disk, wait until the LED indicator turns off and then press the Eject button to remove
the disk.
When the computer is in System Suspend or System Hibernation mode, you cannot remove a disk. See
the chapter System Suspend Mode for more information about System Suspend and System
Hibernation modes.
If the disk does not come out when you press the Eject button, turn off the computer and insert a thin, pointed
object into the manual eject hole.
To play DVD-ROM disks
39
To achieve optimum performance when playing DVD-ROM disks, you should use the
following recommendations.
Your computer should not be connected to the port replicator while playing DVD
movies or using DVD applications.
Close any open applications before playing a DVD-ROM movie.
Using your notebook
Using the DVD-ROM drive
Sony Notebook User Guide
nN
When playing DVD movies on battery power, set the power management profile to DVD. With other profiles,
the movies are choppy.
Depending on the display setup properties you selected, you may use the <Fn>+<F> command to expand
the screen to full screen size.
Region codes indicators are labeled on the DVD disks to indicate in which region and what type of player can
play the disc. Unless a “2” or “ALL” is labeled on your DVD disk or on the packaging, you cannot play the
disk on this player.
S
Do not try to change the region code setting of the DVD-ROM drive. Any troubles caused by changing the
region code setting of the DVD-ROM drive are out of warranty.
When a DVD video disk is inserted in the DVD-ROM drive, you cannot toggle between LCD and TV by pressing
<Fn>+<F8>.
For additional information on playing DVD video disks, please refer to the Media Bar Help.
40
Using your notebook
Using PC Cards
Sony Notebook User Guide
nN
41
Using PC Cards
Your computer includes two PC Card slots. PC Cards allow you to connect portable
external devices.
To insert a PC Card
Use the lower slot for PC type III Cards.
RELEASE button
! Some devices may not function properly if you repeat Returning to Normal Mode from System Suspend
Mode or System Hibernation mode.
! The computer will return to its original state if you restart it.
Using your notebook
Using PC Cards
Do not force a card into the slot. It
may damage t he connector pins. If
you have difficulty inserting a
card, check that you are inserting
the card with the correct
orientation. See the manual
supplied with your PC Card for
more information on use.
For some PC Cards, if you
Sony Notebook User Guide
alternate between normal power
operation and t he system suspend
or system hibernation power
management modes while the
card is inserted, you may find that
a device connected to your system
is not recognized. Reboot your
system to correct the problem.
Before you remove the PC Card,
click the PC Card icon in the task
tray and close the card. Close any
applications that use the PC Card
before removing the card.
Otherwise, data may be lost.
nN
The PC Card slots can accommodate (at the same time) two Type I, two Type II, or one Type III PC Card. These
slots are compatible with Card Bus port.
Some PC Cards may require that you disable idle devices when using the PC Card. You can use Sony Notebook
Setup to disable devices. See your Software guide, in “Sony Notebook Setup” for details.
Be sure to use the most recent software driver provided by the PC Card manufacturer.
If an “!” mark appears on the Device Manager tab in the System Properties dialog, remove the software driver
and then reinstall it.
You may not be able to use some PC Cards or some functions within the PC Card with this computer.
You do not need to shut down the computer before inserting or removing a PC Card.
42
Insert the PC Card into the PC Card slot, front label facing up. Gently push the card
into the slot until the card is fixed into the connector. The release button will then come
out. Pull the release button, then knock it down towards the slot.
Insert in the directio n
of the arrow
Using your notebook
Using PC Cards
nN
To re move a PC Car d
FollowthestepsbelowtoremoveaPCCardwhileyourcomputerison.IfthePCCard
is not properly removed, your system may malfunction. When your computer is off,
skip steps 1 to 6.
1 Click the Start button on the Windows
Control Panel.
®
taskbar, point to Settings, then click
43
2 Double-click Add/Remove Hardware.
3 Click Next, click Uninstall/Unplug a device,andthenclickNext.
Sony Notebook User Guide
4 Select the name of the appropriate PC Card in the list, and then click Next.
5 Click Next to confirm that you want to unplug the PC Card.
6 Click Finish.
7 Press the PC Card release button.
8 Gently grasp the card and pull it out.
Using your notebook
Using programmable power keys (PPK)
Using programmable power keys (PPK)
Press a programmable power key to start your favorite software without having to
click the shortcuts on the desktop.
Sony Notebook User Guide
PPK default options
Use a programmable key by simply pressing it, or in combination with other keys on
your keyboard: <Shift> + PPK, <Ctrl> + PPK or <Alt> + PPK.
When your computer is off,press PPK, and the system will be powered and launch the
appropriate application.
The factory settings for the buttons are:
Programmable Power Keys
nN
44
Key or
combination
P1 The Club VAIO Web site
P2 E-mail (Outlook Express)
P3 System Suspend Mode (Sleep)
To open or access…
Using your notebook
Using programmable power keys (PPK)
nN
45
Key or
combination
Alt + P1 The VAIO-Link Web site
Shift + P1 The VAIO Web site
Ctrl + P1 Internet Explorer
Ctrl + P3 The EULA
Sony Notebook User Guide
To open or access…
Using your notebook
Using the modem
nN
46
* A country-specific phone plug
is supplied with your
VAIO not ebook, allowing you to
plug the phon e line into the wall
jack.
Your computer cannot be
connected to a coin-operated
telephone, and may not work
with multiple phone lines or a
Sony Notebook User Guide
private branch exchange (PBX).
Some of these connections may
result in excess electrical current
and could cause a malfunction
in the internal modem.
Phone cable and connectors are
TNV (Telecommunications
Network Voltage), according to
EN60950.
Only DTMF (Dual Tone Multi
Frequency) signalling (tone
dialling) is supported.
Using the modem
Your notebook computer is equipped with an internal modem. Before using your
modem, please read the instructions in Configuring the Modem for use in your
Software Guide.
Connecting a phone line
You need to connect a phone line to take advantage of online services and the Internet,
to register your computer and software online, and to contact VAIO-Link.
1 Plug one end of the phone cable into the phone line jack on the computer.
2 Plug the other end into the wall jack. *
Using your notebook
Using Smart Connect and Smart Connect Monitor
nN
47
When you use Smart Connect to
connect two VAIO computers,
you must assign each computer
a unique name by which it can
be identified when the two
computers are networked.
i.LINK™ cables compatible with
your VAIO notebook include
cables with the following part
numbers: VMC-IL4415 (a 1.5
Sony Notebook User Guide
meter cable with a 4-pin
connector at each end), VMCIL4408Series (a 0.8 meter cable
with a 4-pin connector at each
end).
See the Compatibility table to
verify which peripheral devices
are compatible with your
notebook.

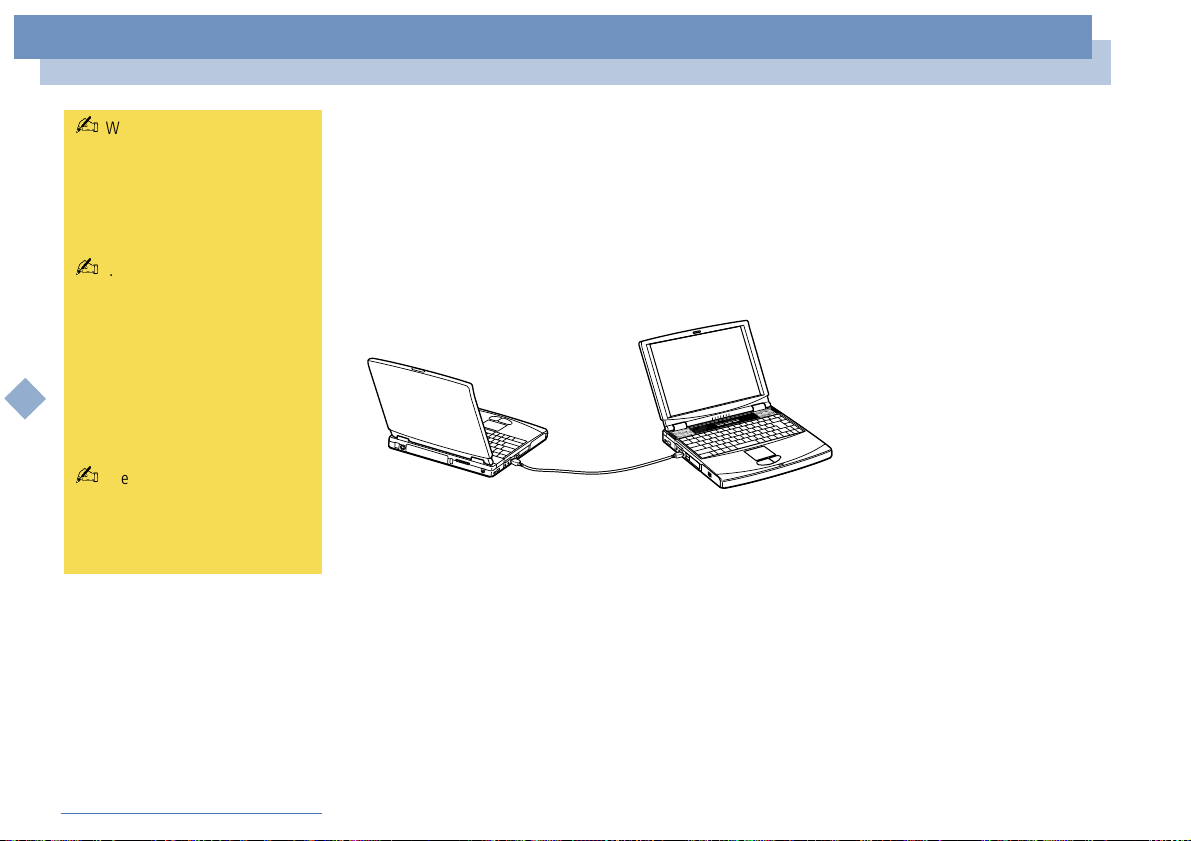

Using Smart Connect and Smart Connect Monitor
With Smart Connect you can copy, edit or delete files on another VAIO computer
(equipped with Smart Connect) connected to your notebook with an i.LINK™ cable.
You can also print a document on a printer connected to another VAIO computer.
See the online documentation of Smart Connect and Smart Connect Monitor for more
information.
i.LINK™ cable
(not supplied)
Using your notebook
Using power saving modes
nN
48
If the battery level falls to
below 10 percent, you should
either attach the AC adapter
to recharge the battery or shut
down your computer and
insert a fully charged battery.
Sony Notebook User Guide
Using power saving modes
When you use a battery as the source of power for your computer, you can take
advantage of power management settings to conserve battery life. In addition to the
normal operating mode, which allows you to turn off specific devices, your computer
has three distinct power saving modes: System Idle, System Suspend and System
Hibernation.
When using battery power, you should be aware that the computer automatically
enters System Hibernation mode when the remaining battery charge drops below 7
percent, regardless of the power management setting you select. See your Software
guide, in Controlling Power Management for more information.
Normal mode
This is the normal state of your computer when it is in use. The green power indicator
light is on in this mode. To save power, you can turn off a specific device such as the
LCD or the hard disk.
System Idle mode
This mode is convenient if you don’t need to useyour computer for a short period. The
hard disk and the video display enter a low power state and the CPU clock and
processor stop. The power indicator light is umber in this mode.
To activate System Idle mode
Press <Fn>+<S>.YoucanalsoenterSystem Idle mode by using the PowerPanel
utility.
To return to Normal mode
Press any key.
Using your notebook
Using power saving modes
nN
49
System Suspend mode
The computer saves the current state of the system in RAM and switches off power to
the CPU. The umber power light flashes in this mode.
If you press the power button for
more than four seconds, the
computer will turn off.
Sony Notebook User Guide
When the computer is in
System Suspend or System
Hibernation mode, you cannot
insert a disk.
To activate System Suspend mode
Press <Fn>+<Esc>, or press the power button quickly. You can also use the
PowerPanel utility to enter System Suspend mode.
To return to Normal mode
Press any key.
System Hibernation mode
The state of the system is saved on the hard disk and power is turned off. The power
indicator light is off in this mode.
To activate System Hibernation mode
Press <Fn>+<F12>. You can also use the PowerPanel utility to enter System
Hibernation mode.
To return to Normal mode
Turn on the computer by pressing the power button. The computer returns to its
previous state.
Steps to return to Normal mode:
System Hibernation b System suspend b System Idle
System Suspend requires less time than System Hibernation.
Power consumption:
System Idle b System Suspend b System Hibernation
System Idle uses more power than System Hibernation.
Using your notebook
Using a second battery pack
nN
50
To determine the time the
battery lasts, see Displaying
battery information in your
Software Guide.
If you attach two battery
packs, you can remove either
of them wi thout shutting down
the computer. When removing
one battery pack, make sure
Sony Notebook User Guide
that the other battery pack's
indicator is on. If the indicator
of the battery pack you are
going to remove is on, rightclick on the task tray and
click the switch discharge
battery menu.
Using a second battery pack
You can purchase a second rechargeable battery pack. With two battery packs, you can
extend the time that you use your computer with battery power. When using two
battery packs, the battery pack youinsert firstcharges first. The battery pack you insert
second charges when the first battery pack is 85 percent full. You can monitor which
battery pack is charging by observing the battery indicator lights.
To insert a second battery pack
1 If the floppy disk drive is in the multi-purpose bay, remove the device.
2 See Using the floppy disk drive on page 35.
3 Insert the battery pack into the multi-purpose bay.
4 The battery 2 indicator light turns on.
Multi-purpose bay
Battery pack
Label facing down
5 Attach the Weight Saver to the computer to stabilize the battery pack. Slide the
eject lever on the bottom of the Weight Saver toward the front of the computer to
lock it. See Using the weight saver on page 53.
Using your notebook
Using a second battery pack
Battery pack
Weight Saver
nN
51
Sony Notebook User Guide
Charging the second battery pack
Keep the battery pack in the computer while it is connected to AC power. The battery
indicator flashes while the battery is charging.
.
Battery pack
(supplied)
Battery indicators
Secondary battery pack
(not supp lied)
Using your notebook
Using a second battery pack
Sony Notebook User Guide
nN
To remove the second battery pack
52
1 There is an eject lever on the bottom of the weight saver. To remove the battery
pack, slide this lever in the direction of the arrow 1, then slide the RELEASE lever
on the bottom of the computer in the direction of the arrow 2.
1
Weight saver EJECT lever on bottom
2
2 Remove the weight saver, and then pull out the battery pack.
3 Reinsert the weight saver.
Using your notebook
Using the weight saver
Sony Notebook User Guide
nN
53
Using the weight saver
The weight saver protects the multi-purpose bay when it is empty.
To attach the weight saver
1 If another device is in the multi-purpose bay, remove the device.
2 Pull out the guide of the weight saver and slide the weight saver in the direction
of the arrow until it clicks.
Weight Saver
(supplied)
Using your notebook
Using the weight saver
Sony Notebook User Guide
nN
To remove the weight saver
54
To remove the weight saver, slide the Eject lever of the weight saver in the direction of
the arrow 1, then slide the RELEASE lever on the bottom of the computer in the
direction of the arrow 2.
1
Weight saver EJECT lever on bottom
2
Connecting peripheral devices
Before you connect peripherals,
turn off the computer and all
peripherals.
Connect the power cord only
after connecting all cables.
Turn on the computer only after
turning on all peripherals.
Sony Notebook User Guide
Connecting peripheral devices
You can add functionality to your computer by connecting or using any of these
peripherals and enjoy the software described in the About the Software user guide:
Port replicator (page 56)
Printer (page 60)
External display (page 62)
AV d ev i ce s (page 65)
Memory Sticks™ (page 66)
Digital video camera recorder (page 67)
MiniDisc® deck with MD Player (page 70)
Universal Serial Bus (USB) device (page 73)
External speakers (page 74)
External microphone (page 75)
nN
55
Connecting peripheral devices
Port replicator
nN
56
The port replicator can be
powered only with the AC
adapter supplied with your
notebook or the optional PCGA-
Port replicator
Your notebook supports the use of an optional port replicator. Attaching a port
replicator enables you to connect additional peripherals to your computer.
AC19V AC adapter. Do not
remove the AC adapter from the
port replicator or the AC outlet
while using the port replicator;
this may cause data damage or
hardware malfunctions.
Sony Notebook User Guide
All connectors are SELV (Safety
Extra Low Voltage) according to
EN60950.
To disconnect your port
Network (ethernet)
1
/
USB
5
(page 73)
replicator completely from the
Printer
mains voltage, unplug the AC
adapter.
When attaching your computer
to the port replicator, do not
Monitor
2
3
/ Mouse/Keyboard
4
Serial
(page 62)
(page 60)
(page 72)
6
7
DC In
(page 60)
(page 58)
attempt to insert or remove the
battery pack. Lifting and turning
the computer with the attached
port replicator may cause a
temporary loss of power.
Please make sure that the socket
outlet is easily accessible.
Connecting peripheral devices
Port replicator
To attach your computer to the port replicator
To supply power to your computer while it is connected to the port replicator, you
must connect the AC adapter directly to the port replicator.
1 Turn off your computer and disconnect all peripherals.
2 On the bottom of the computer, lift the port replicator port cover.
Sony Notebook User Guide
3 Attach the bottom of the computer to the port replicator connector until it clicks.
Port replicator port
Notebook
nN
57
Port replicator
Connecting peripheral devices
Levers
Port replicator
nN
58
When you use the port replicator
for the first time, the installation
of the network driver starts
automatically.
The floppy disk supplied with
your Port Replicator is useless.
Sony Notebook User Guide
4 Plug the cable attached to the AC adapter into the DC IN connector on the port
replicator. Plug the power cord into the AC adapter and an AC outlet.
AC adapter
SELV according to EN 60950
Power cord (hazardous voltage
according to EN 60950)
5 The power indicator light turns green.
Power
Port replicator connector
6 Turn on the computer.
Connecting peripheral devices
Port replicator
To disconnect your computer from the port replicator
1 Turn off your computer and the connected peripherals.
2 Pull the levers on each side of the port replicator to disengage the computer from
the port replicator.
3 Lift the computer away from the port replicator.
4 Close the port replicator connector cover on the bottom of your computer.
nN
59
Sony Notebook User Guide
It is extremely important to close the port replicator connector cover after removing your computer from the
port replicator. If the cover is left open, dirt may get inside and damage the computer.
Connecting peripheral devices
Printer
Printer
You can connect a Windows®-compatible printer to your computer to print
documents.
To connect a printer using the USB connector
You can connect a USB printer compatible with your version of Windows®to your
computer.
Use the symbol to locate the USB port on your computer and printer.
Sony Notebook User Guide
Plug an optional USB printer cable into the USB connector.
nN
60
To Prin terPow er cor d
USB Printer cable (optional or
supplied with the printer)
To connect a printer using the printer connector
Use the symbol to locate the Printer connector. Plug the printer cable (supplied
To USB
with the printer) into this port on the computer.
Connecting peripheral devices
Printer
nN
61
See the manual supplied with
your printer for more
information on installation
and use.
Before using the printer, you
may need to change the
Printer setting in the Sony
Notebook Setup software.
Please refer to Sony
Sony Notebook User Guide
Notebook Setup in the
Software Guide for further
details.
To
Printer Power cord
Printer cable (optional or
supplied with the printer)
Connecting peripheral devices
External display
nN
62
See the manual supplied with
your peripheral for more
information on installation and
use.
Sony Notebook User Guide
External display
You can connect an external display to your notebook. For example, you can use the
computer with any of the following:
Computer display (monitor),
Multimedia computer display,
Projector.
Connected external displays are used as second screens.
On Windows
desktop (Please refer to Using the Dual Display Function in your Software Guide for
further details).
To connect a computer display
®
systems only, you can also use an external display to set up a virtual
1 Use the a symbol on the computer to locate the Monitor connector. Plug the
display cable into this connector.
2 If necessary, plug one end of the display power cord into the display, and the other
end into an AC outlet.
Computer display
Power cord
To Moni to r
Display cable
Connecting peripheral devices
External display
To connect a multimedia computer display
You can connect the notebook to a multimedia computer display that includes built-in
speakers and a microphone.
1 Use the a symbol to locate the Monitor connector. Plug the display cable into this
connector.
2 Use the i symbol to locate the Headphone connector. Plug the speaker cable into
this connector.
3 Use the m symbol to locate the Microphone connector. Plug the microphone cable
Sony Notebook User Guide
into this connector.
To Moni to r
ToTo
m
i
Multimedia computer display
nN
63
RGB signal cable
Power cord
Connecting peripheral devices
External display
nN
64
See the manual supplied with
your projector for more
information on installation
and use.
You may not be able to
display the computer's LCD
and the external display
together, depending on the
types of computer display and
Sony Notebook User Guide
projector used.
Connecting a projector
You can use a projector such as the Sony LCD Projector as an external display.
Projector
To Moni to r
To select a display
RGB signal cable
Audio cable
(not supplied)
Power cord
When you connect an external display to the monitor connector, you can toggle the
output between the notebook LCD screen, the external monitor, or both devices.
Use the <Fn>+<F7> keys to select a display. Please refer to Selecting the Display
Mode in your Software Guide for more information.
To Press Result
Switch to an
external
display
Fn+F 7 Toggles between the LCD, the external display connected to the
Monitor connector, and both the LCD and external display.
Only LCD
LCD and external display
Only external display
Connecting peripheral devices
AV de vices
nN
65
See the manual supplied with
your peripheral for more
information on installation and
use.
If you insert a DVD in your DVD
drive to watch a video on your
TV, the <Fn>+<F8> key
combination might not activate
the function to toggle between
your LCD and TV.
Sony Notebook User Guide
Solution:
1. Eject your DVD from your
computer.
2. Once the DVD is ejected,
toggle between your LCD and
your TV with the combination
<Fn>+<F8>.
Your image displays now on
both LCD and TV. Re-insert your
DVD to launch your DVD
software.
AV dev ices
You can enjoy playing audio/video by connecting AV devices to your computer.
See also the manuals supplied with your AV devices.
To connect a TV
Connect the computer to a TV using audio/video cables. Switch the input channel of
the TV to external input. You also need to set up the TV configuration system.
To AC
To Vi deo Out
To
i
To i
headphone
headphone
To Audio Input To Video Input
Power cord
Video cable
(supplied)
Audio cable
(not supplied)
Connecting peripheral devices
Memory Sticks™
Memory Sticks™
You can enhance the memory of your digital camera or other digital device with
Memory Sticks™. To transfer your data to your computer, insert the Memory Stick™
into the PC Card slot:
1 Once you have stored your data from your digital device, insert the Memory
Stick™ into the optional PC Card Adapter.
2 Insert the PC Card into the slot on your computer (label facing up), push it gently
until the release button ejects completely and put back the release button.
Sony Notebook User Guide
3 The Memory Stick™ is automatically detected by your system and appears in your
My Computer window as a local drive, under the appropriate letter (depending
on the configuration of your computer).
Please refer to your Memory Stick™ user guide for precautions and specifications.
nN
66
Memory Stick PC Card adapter
(optional)
Notebook computer's PC Card slot
Connecting peripheral devices
Digital video camera recorder
Digital video camera recorder
You can connect a digital video camera recorder to the i.LINK™ (IEEE1394) connector
and use the editing features of the DVgate application.
To connect a digital video camera recorder
1 Plug one end of the i.LINK™ cable into the i.LINK™ connector of the computer
and the other end into the DV Out connector on the digital video camera recorder.
Sony Notebook User Guide
Digital video
camera recorder
2 Launch the DVgate application. Please refer to DVgate in your Software Guide for
further details.
To i.LI NK™
To DV Ou t
i.LINK™ cable
nN
67
The Sony digital video camera recorder is taken as example; your digital video camera recorder may need to
be connected differently.
See the manual supplied with your digital video camera recorder for more information on installation and use.
Do not connect more than one digital video camera at a time. The software supplied with your computer will
not recognize multiple cameras.
Connecting peripheral devices
Digital video camera recorder
The software limits the use of more than one digital video camera recorder or i.LINK™ device at the same
time.
On Sony digital video cameras, connectors labeled “DV Out”, “DV In/Out” or “i.LINK™” are i.LINK™-
compatible.
The i.LINK™ connector of your notebook does not supply power to external devices generally powered by
i.LINK™ connectors.
The i.LINK™ connector supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on
the transfer rate of the external device.
Sony Notebook User Guide
The i.LINK™ features available may vary depending on the software applications you use. Please refer to the
documentation that came with your software for more information.
o
See the Compatibility table to verify which peripheral devices are compatible with your notebook.
nN
68
Connecting peripheral devices
Digital video camera recorder
nN
69
See the manual supplied with
your peripheral for more
information on installation and
use.
Sony Notebook User Guide
To use diskettes with the Digital Mavica
The Digital Mavica provides you still images you can copy and edit on your computer,
using PictureGear software.
Notebook
Follow these steps to transfer the images from your Digital Mavica:
3.5" diskette
Digital Mavica
1 Insertthe disketteof the Mavicain theFDD drive of yourcomputer and copy them
into a dedicated folder.
2 Launch the application and open the image to edit or drag and drop it onto the
application shortcut. Make the changes you want to the image.
3 Save it under the new name and format, if needed.
Using Memory Sticks™
If your digital camera includes a Memory Stick™ slot, you can copy images from it to
your computer via a Memory Stick™.
Copy images on the Memory Stick™ and insert it into the optional Memory Stick™/
PC Card Adaptor, then insert the adapter into the PC Card slot of your computer.
Connecting peripheral devices
MiniDisc® deck with MD Player
nN
70
See the manual supplied with your
peripheral for more information
on installation and use.
Refer to your MD deck and CD
player manuals to check the
specifications.
For further information or if you
are not sure of the connection
capabilities of your devices, please
Sony Notebook User Guide
contact your dealer.
To perform a copy using your
computer, you need two
CONTROL A1 or Control A1 II and
one optical cables, which are
maybe sold separately. To
purchase them, please contact
your dealer.
MiniDisc® deck with MD Player
Use the inter-connectivity and common protocols between Sony audio equipment and
your VAIO computer to enjoy the high quality of sound and recordings through optical
data transfer.
When you connect a Sony MD deck equipped with a CONTROL A1 or Control A1 II
terminal to a Sony CD player (equipped with both digital optical output and
CONTROL A1 connector), you can record and edit your MiniDiscs
computer. Please refer to MD Player in your Software Guide for a description of the
software.
MD Player features
To enjoy the MD Player of Media Bar features, you need to connect your computer to
the Control A1 connection of your MiniDisc
®
recorder.
Link your MD deck and CD player with the optical cable and the CONTROL A1 or
Control A1 II cable to enjoy:
Complete editing and assembly functions: change the order of the numbers on
®
via your
your MD;
Use the touchpad or mouse to play and edit MDs, and the keyboard to enter disc
and track titles to display on your MD deck while playing;
Digital output and input without any noise or loss of data;
Drag-and-drop, copy and paste and other functions: your computer is the visual
interface of the MiniDisc
®
recorder.
Connecting peripheral devices
MD Deck with C
A1
MiniDisc® deck with MD Player
nN
71
The Control A1 or Control A1 II
features only work with Sony
devices. For further information,
please refer to your Sony Dealer.
o
See the Compatibility table to
verify which peripheral devices
are compatible with your
notebook.
Sony Notebook User Guide
To connect the MD recorder to your computer
1 Plug the CONTROL A1 or Control A1 II connecting jack to the MD deck using the
CONTROL A1 or Control A1 II connector and the other end to the Serial connector
on your computer.
ontrol
Notebook computer
To Control A1
To Serial
A1 Controller
(optional)
2 Plug the optical cable into the Digital Optical output / input of your MD desk.
3 Turn on all the devices.
4 Launch MD Player to edit the tracks on your MiniDisc
®
.
Connecting peripheral devices
Notebook
External mouse or keyboard
nN
72
For more information on using
the keyboard, See Using the
keyboard on page 28
See the manual supplied with
your mouse or keyboard for
more information on
installation and use.
Before you connect or
disconnect the mouse or
Sony Notebook User Guide
keyboard, turn off the
computer.
Before connecting a mouse to
the Serial port, make sure the
mouse is compatible with a
serial port.
.
External mouse or keyboard
You can connect an external mouse or keyboard to your computer. To connect both a
mouse and a keyboard, use the port replicator (See Port replicator on page 56).
The Mouse/Keyboard connector requires a PS/2-style plug or adapter.
To connect an external mouse or keyboard
Use the / symbol to locate the Mouse/Keyboard connector. Plug the
keyboard cable or mouse cable into this connector with the M mark facing up.
Mouse
or
To Mouse/Keyboard
/
Key boa rd
Connecting peripheral devices
Universal Serial Bus (USB) device
nN
73
You may need to install
software (device drivers)
supplied with your USB device
before using the USB device.
Read the manual supplied with
your USB device carefully for
more information on
installation and use.
You can connect the optional
Sony Notebook User Guide
Sony USB mouse (PCGAUMS1). As the driver for PCGAUMS1 is preinstalled on your
computer, you can use this
PCGA-UMS1 USB mouse by
just connecting it.
See the Compatibility table to
verify which peripheral devices
are compatible with your
notebook.
Universal Serial Bus (USB) device
You can connect a USB device to your computer.
To connect a USB device
Use the symbol to locate the USB connector. Plug one end of the USB cable into
this port and the other end into the USB device.
Notebook
USB device
To USB
USB connecting cable
Connecting peripheral devices
External speakers
nN
74
See the manual supplied with
your peripheral for more
information on installation and
use.
Make sure your speakers are
designed for computer use.
Turn down the volume of the
speakers before you turn them
on.
Sony Notebook User Guide
Do not place diskettes on the
speakers; the s peaker’s magnetic
field may damage the data on
the diskettes.
See the manual supplied with
your speakers for more
information on installation and
use.
External speakers
You can enhance the sound quality of your computer by connecting external speakers.
To connect external speakers
Use the i symbol to locate the Headphone connector. Plug the speaker cable into
this connector.
Speakers
Speaker cable (supplied with speakers)
To Head phone
i
Connecting peripheral devices
External microphone
nN
75
Make sure your microphone is
designed for computer use.
See the manual supplied with
your peripheral for more
information on installation and
use.
Sony Notebook User Guide
External microphone
Your VAIO notebook does not contain an internal microphone. If you need to use a
sound input device, for example to chat on the Internet, you need to plug in an external
microphone.
To connect an external microphone
Use the m to locate the Microphone connector. Plug the microphone cable into this
connector.
Microp hone
To Micropho ne
Getting help
About Sony’s support options
nN
Getting help
This section describes how to get help and support from Sony, as well as
troubleshooting tips for your computer.
See also the online FAQ provided on your Documentation CD-ROM.
About Sony’s support options
76
Sony Notebook User Guide
Sony provides several support options for your computer. When you have questions
about your computer and the pre-installed software, check these places for answers:
Printed documentation supplied with your computer
The Customer Guide explains how to start your computer and use the basic
functions. This guide gives you the information to access VAIO-Link.
The Getting Started gives you a list of the contents in the box and a list of the
specifications of your computer and accessories.
Online user guides supplied with your Documentation CD-ROM
This guide explains how to use your computer, connect peripheral devices. It
gives you a packing list and the list of specifications of your computer and
accessories.
The Software Guide lists the pre-installed software titles and explains how to use
the utility programs and perform basic computer tasks.
The Customer Service Guide gives you complete information on the VAIO-Link
Services.
Getting help
About Sony’s support options
nN
77
You need to plug the phone
line into the modem to use the
communication features
described in this manual.
Sony Notebook User Guide
Other sources of information
The online help files that accompany your pre-installed software contain
instructions on using the software.
VAIO-Link Website: if you haveany problem with your computer, you can access
the VAIO-Link Website. Go to:
http://www.vaio-link.com
VAIO-Link Response Centre: Before contacting VAIO-Link Response Centre, try
to solve the problem by reading your User Guide (troubleshooting chapter) or the
manuals and helpfiles for the peripherals or software (see your Customer Service
Guide for the phone numbers).
Getting help
Troubleshooting
nN
78
When you reconnect devices
(other than USB devices), be
sure to turn off t he computer as
described in Shutting down
your computer. If you turn off
the computer in other ways, it
may result in data loss.
Sony Notebook User Guide
Troubleshooting
This section describes how to solve common problems you may encounter when using
your computer. Many problems have simple solutions, so try these suggestions before
you contact VAIO-Link.
About the computer and software, see page 78
About the display, see page 82
About CD-ROMs and diskettes, see page 82
About sound, see page 84
About the modem, see page 85
About peripherals, see page 86
See also the online FAQ provided on your Documentation CD-ROM.
About the computer and software
My computer does not start
Check that the computer is plugged into a power source and that it is turned on.
Check that the power indicator on the front panel of the computer indicates that
the power is on.
Check that the battery packs are inserted properly and that they are charged.
Make sure there is no diskette in the floppy disk drive.
Confirm that the power cord and all cables are connected firmly.
If you have plugged the computer into an UPS, make sure the UPS is turned on
and working.
Getting help
Troubleshooting
Sony Notebook User Guide
nN
If you are using an external display, check that it is plugged into a power source
and turned on. Check that you have switched to the external display and that the
brightness and contrast controls are adjusted correctly. Please refer to the manual
supplied with your display for details.
Moisture condensation may have occurred. Do not use the computer for at least
one hour and then turn it on.
Whentheinternalbackupbatteryislowonpower,itmaynotbeabletostartyour
system properly.
The message Press <F1> to resume, <F2> to setup would appear at the bottom of
the display. Should this happen, you need to initialize the BIOS.
Follow the steps in The message ‘Press <F1> to resume, <F2> to setup’ appears at
startup.
The message Press <F1> to resume, <F2> to setup appears at startup
If the floppy disk drive is empty, follow the steps below to initialize the BIOS:
79
1 Remove any peripheral devices connected to the computer,
2 Turnthecomputeroffandthenturnitonagain,
3 Turn on the computer and press the F2 key when the Sony logo appears. The BIOS
setup menu screen appears.
4 PressthearrowkeystoselecttheExit menu.
5 Press the arrow keys to select Get Default Values and then press the Enterkey. The
message Load default configuration now? appears.
6 Check that [Yes] is selected and then press the Enter key.
Getting help
Troubleshooting
Sony Notebook User Guide
nN
80
7 PressthearrowkeystoselectExit (Save Changes) and then press Enter.
The message Save configuration changes and exit now? appears.
8 Check that [Yes] is selected, then press the Enter key. The computer will restart.
My computer does not shut down
It is best to shut down your computer using the Shut Down command on the
Win dows
loss of unsaved data. If the Shut Down command does not work properly, followthese
steps:
My computer locks up
®
Start menu. Using other methods, including those listed here, may result in
Restart the computer by pressing <Ctrl>+<Alt>+<Delete> and by choosing Shut
Down.
If this does not work, press the power button and hold it for at least four seconds.
This turns off the power.
Unplug the computer from theAC adapter and remove the battery packfrom your
computer.
If you suspect one application is locking your system, you can try to stop it. To do
this, press <Ctrl>+<Alt>+<Delete> once, click Ta s k M a n a ge r, select the
application or the process that you think is locking your system in the list, and then
click End Task.
If the above method does not work or you do not know which application is
locking your system, try restarting the computer. On the Windows
the Start button, click Shut Down,andthenselectShut Down in the list and click
OK.
If the above method does not work, press the power switch and hold it for at least
four seconds. This turns off the power.
®
taskbar, click
Getting help
Troubleshooting
Sony Notebook User Guide
nN
If your computer locks up while playing a CD-ROM, stop the CD-ROM, and shut
81
down the computer by pressing <Ctrl>+<Alt>+<Delete>, and then click Shut
Down.
My software program locks up or crashes
Contact the software publisher or designated provider for technical support. Please
refer to your Software guide for information on how to contact them.
My mouse does not work
If you are using an external mouse, check that the mouseis plugged into the mouse
connector.
If you have connected an external mouse while your computer is on, you must
restart your computer.
My touchpad interprets a single tap as a double-click
Open the Mouse icon in the Control Panel and change the button assignments in the
Mouse Properties dialog box. One of the buttons is assigned to the double-click action.
About digital video captures and DVgate
While I'm recording images to a digital video device using DVgate, my system displays the
message Recording to DV device failed. Check the power and cable connections to
the DV device and try the operation again…
Close all open applications and restart your computer. Frequent recording of images
to a digital video device while using DVgate sometimes causes this to occur. For more
information on DVgate, see the DVgate online help.
Getting help
Troubleshooting
Sony Notebook User Guide
nN
About the display
My LCD does not display anything
Check that the computer is plugged into a power source and that it is turned on.
Check that the power indicator on the front panel of the computer is on.
Check that the battery packs are inserted properly and that they are charged.
Adjust the brightness of the LCD.
The computer may be in LCD (video) standby mode. Press any key to activate the
display.
The screen image on my external display is not centered or sized properly
Use the controls on your external display to adjust the image. Please refer to the
manual supplied with your display for more information.
About CD-ROMs and diskettes
My DVD-ROM drive tray does not open
Make sure the computer is turned on.
Press the Eject button on the DVD-ROM drive.
If the Eject button does not work, you can open the tray by inserting a sharp,
pointed object into the hole to the right of the Eject button.
82
I cannot play a CD-ROM disk
Make sure the label of the CD-ROM is facing up.
If the CD-ROM disk requires software, make sure the software is installed
according to the program’s instructions.
Getting help
Troubleshooting
DVD Region Code Change
On your computer, the default
DVD region code is "2". Do not
change this setting using the
region code change function in
Windows
software applications. System
malfunctions originating from
the user changing the DVD
Sony Notebook User Guide
region code are beyond the
scope of your warranty and will
result in service charges for
repair.
®
, or using any other
nN
Check the volume of your speakers.
Clean the CD-ROM disk.
Moisture condensation may have occurred. Leave the computer for at least 1 hour
while it is turned on.
I cannot play a DVD-ROM disk
If a region code warning appears when you are using the DVD player, it could be
that the DVD-ROM disk you are trying to play is incompatible with the DVDROM drive in your notebook. The region code is listed on the disk’s packaging.
If you hear sound but cannot get a picture, your computer’s video resolution may
be set too high. For best results, change the resolution in Windows Control Panel/
Display/Settings to 800 x 600 using 8-bit color.
If you see the video but cannot hear any sound, check all of the following:
1 Make sure the mute setting is off in your DVD player.
2 Check the master volume setting in the audio Mixer. If you have connected
speakers externally, check the volume settings in your computer speakers and
check the connections between your speakers and the computer.
3 In the Device Manager, check that the DVD/CD-ROM drivers are installed
properly. To display the Device Manager,clickStart,pointtoSettings and click
Control Panel. Double-click the System icon. On the Hardware tab, click on the
Device Manager button.
83
A dirty or damaged disk may cause the computer to “hang” while it tries to read
the disk. If necessary, reboot the computer, remove the disk, and then check that it
is not dirty or damaged.
Getting help
Troubleshooting
Sony Notebook User Guide
nN
When I double-click an application icon a message such as You must insert the
application CD into your CD-ROM drive appears and the software does not start.
Some titles require specific files that are located on the application’s DVD-ROM /
84
CD-ROM disk. Insert the disk and try starting the program again.
Make sure you place the disk in the tray with the label side facing up.
My floppy disk drive cannot write to a diskette
The diskette is write-protected. Disable the write-protect feature or use a diskette
that is not write-protected.
Check that the diskette is properly inserted into the floppy disk drive.
About sound
My speakers are not producing sound
The built-in speakers may be turned off. Press <Fn>+<F3> to turn on the speakers.
The speaker volume may be turned to the minimum. Press <Fn>+<F4>,andthen
press V or b to increase the volume.
If your computer is powered by battery, check that the battery is inserted properly
andthatitischarged.
If you are using an application that has its own volume control, check that the
volume is turned up.
Check the volume controls in Windows®.
If you use external speakers, check that the speakers are properly connected and
the volume is turned up. If the speakers have a mute button, make sure it is off. If
batteries power the speakers, check that the batteries are inserted properly and
that they are charged.
If you have connected an audio cable to the Headphone connector, disconnect the
cable.
Getting help
Troubleshooting
Sony Notebook User Guide
nN
My microphone does not work
If you are using an external microphone, check that the microphone is plugged into the
Microphone connector.
85
About the modem
My internal modem does not work
Check that the phone line is plugged into your computer.
Check that the phone line is working. You can check the line by plugging in an
ordinary phone and listening for a dial tone.
Check that the phone number the program is dialing is correct.
In the Phone and Modem Options dialog box (Control Panel / Phone and Modem
Options), check that your modem is listed on the Modems tab, and that the
location information is correct on the Dialing Rules tab.
My modem cannot establish a connection
The modem dialing mode may be incompatible with your telephone line.
To verify the modem settings, see Configuring the modem for use in your Software
Guide.
My modem connection is slow
Many factors influence modem connection speed, including telephone line noise or
compatibility with telephone equipment (such as fax machines or other modems). If
you think your modem is not connecting properly to other PC-based modems, fax
machines, or your Internet Service Provider, check the following:
Getting help
Troubleshooting
Sony Notebook User Guide
nN
Have your phone company check that your phone line is free from any line noise.
If your problem is fax-related, check that there are no problems with the fax
86
machine you are calling and that it is compatible with fax modems.
If you are having a problem connecting with your Internet Service Provider, check
that the ISP is not experiencing technical problems.
If you have a second phone line available, try connecting the modem to that line.
About peripherals
I cannot use DV devices. The message DV equipment seems to be disconnected or
turned off appears
Check that the DV device is turned on and that the cables are properly connected.
If you are using multiple i.LINK™ devices, the combination of the connected
devices may cause unstable operation. In this case, turn off the power to all
connected devices and disconnect unused devices. Check the connection and then
turn on the power again.
My PC card is not working
Make sure the PC card is compatible with your version of Windows®.
I cannot print
Check that all the cables of the printer are correctly connected.
Check that your printer is correctly configured and that you have up to date drivers.
If needed, contact your dealer.
The default setting for the printer port mode is correct for most printers. If you
cannot print, try changing the printer port mode. In Sony Notebook Setup, select
the Printer tab. If the printer port mode is set to ECP, change it to bi-directional. If
the printer port mode is set to bi-directional, change it to ECP. Please refer to Sony
Notebook Setup in your Software Guide for details on how to configure the system.
Notes on use
Sony Notebook User Guide
nN
87
Notes on use
This section describes safety guidelines and precautions to help protect your computer
from potential damage.
On upgrading the system
Your notebook and memory modules use high precision components and electronic
connectors' technology. To avoid the invalidation of your Guarantee by mishandling,
it is recommended that:
You contact your dealer to install a new memory module,
You do not install it yourself, if you are not familiar with upgrading memory on
a notebook,
You do not touch the connectors or open the memory panel.
Please call VAIO-Link if you need assistance.
Notes on use
Adding memory
Sony Notebook User Guide
nN
88
Adding memory
In the future you may want to install memory modules to expand the functionality of
your computer. You can increase the memory by installing optional memory modules.
Precautions
On handling
Be careful when adding memory. Mistakes on installation or removal of the memory
module may cause a malfunction.
Electrostatic discharge can damage electronic components. Before touching a memory
expansion board, ensure the following:
HandletheMemoryModulegently.
The procedures described in this instruction manual assume familiarity with the
general terminology associated with personal computers and with the safety
practices and regulatory compliance required for using and modifying electronic
equipment.
Disconnect the system from its power source and from any telecommunications
links, networks, or modems before you open the system or do any of the
procedures described in Installing the memory module. Failure to do so may
result in personal injury or equipment damage.
Electrostatic Discharge (ESD) can damage Memory Modules and other
components. Perform the procedures described in Installing the memory module
only at an ESD workstation. If such a station is not available, do not work in a
carpeted area, and do not handle materials that produce or hold static electricity
(cellophane wrappers, for example). Ground yourself by maintaining contact with
an unpainted metal portion of the chassis while performing the procedure.
Do not open the memory module package until you are ready to install the
module. The package protects the module from ESD.
Notes on use
Adding memory
Sony Notebook User Guide
nN
On keeping
Use the special bag delivered with the memory module or wrap the module in
aluminium foil to protect it from electrostatic discharge.
Donotplacethememorymoduleinplacessubjectto:
Heat sources such as radiators or air ducts,
Direct sunlight,
Excessive dust,
Mechanical vibration or shock,
Strong magnets or speakers that are not magnetically shielded,
Ambient temperature of more than +35°C or less than +5°C,
High humidity.
To remove a memory module
1 Shut down your computer and disconnect all peripheral devices.
2 Unplug your computer and remove the battery pack.
3 Turn your computer upside down and open the cover on the bottom.
89
4 Remove the memory module.
5 Close the cover.
Notes on use
Adding memory
Sony Notebook User Guide
nN
To install a memory module
90
1 Shut down your computer and disconnect all peripheral devices, such as your
printer.
2 Unplug your computer and remove the battery pack(s).
3 Wait until the computer cools down. Then turn your computer upside down and
open the cover on the bottom by unscrewing the screw.
screw: turn counterclockwise
4 Removethememorymodulefromitspackaging.
5 Install the memory module.
Notes on use
Adding memory
Sony Notebook User Guide
1 Pull the tabs in the direction of the arrows.
The memory module is released.
2 Pull the memory module in the direction of the arrow.
nN
91
6 Close the cover and gently tighten the screw.
7 Turn on the computer.
To verify if the installation of the additional memory succeeded, click Start, select
VA I O , select Assistance and click Sony Notebook Setup. Select the About This
Computer tab. If the additional memory is not shown, repeat steps 1-7.
Notes on use
Other precautions
Sony Notebook User Guide
nN
92
Other precautions
On handling the hard disk
The hard disk has a high storage density and reads or writes data in a short time. On
the other hand, it may be easily damaged by mechanical vibration, shock or dust. Keep
theharddiskawayfrommagnets.
Although the hard disk has the safety device in itself to prevent losing data due to
mechanical vibration, shock or dust, you should be careful when handling your
computer. To avoid damaging data:
Do not give a shock to your computer.
Do not place your computer in a location subject to mechanical vibration or in
unstable situation.
Do not move your computer while the power is on.
Do not turn off the power or restart the computer while reading or writing data.
Do not use your computer in a place subject to extreme change of temperature.
If the hard disk is damaged, the data cannot be restored.
Back up data
As you may lose important data once your computer is damaged, you should back up
your data regularly.
Restore the original application programs from the Product Recovery CD-ROM.
See the Windows
®
help for more information on back-up data.
On handling the LCD screen
Do not leave the LCD facing the sun as it can damage the LCD. Be careful when
using the computer near a window.
Notes on use
Other precautions
Sony Notebook User Guide
nN
Do not scratch the LCD or exert pressure on it. This could cause malfunction.
Using the computer in low temperature conditions may produce a residual image
onthescreen.Thisisnotamalfunction.Whenthecomputerreturnstonormal
temperature, the screen returns to normal.
A residual image may appear on the screen if the same image is displayed for a
lengthy period of time. The residual image disappears in a while. You can use a
screen saver to prevent residual images.
The screen becomes warm during operation. This is normal and does not indicate
amalfunction.
The LCD is manufactured using high-precision technology. You may, however, see
tiny black points and/or bright points (red, blue, or green) that continuously
appear on the LCD. This is a normal result of the manufacturing process and does
not indicate a malfunction.
On the power source
Your computer operates on 100V-240V AC 50/60 Hz.
Do not share the AC outlet with other power-consuming equipment, such as a
copying machine or shredder.
You can purchase a power strip with a surge protector. This device prevents
damage to your computer caused by sudden power surges such as those that may
occur during an electrical storm.
Do not place heavy objects on the power cord.
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
Unplug your computer from the wall outlet if you will not be using the computer
for a long time.
When the AC adapter is not used, unplug it from the AC outlet.
Use only the AC adapter supplied. Do not use any other AC adapter.
93
Notes on use
Other precautions
nN
On handling
Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with a mild
detergent solution. Do not use any type of abrasive pad, scouring powder, or
solvent such as alcohol or benzine, as these may damage the finish of your
computer.
Should any solid object or liquid fall into the computer, shut down your computer
and then unplug it. You may want to have the computer checked by qualified
personnel before operating it any further.
Do not drop the computer or place heavy objects on top of the computer.
94
Sony Notebook User Guide
On installation
Do not place your computer in a location subject to:
Heat sources, such as radiators or air ducts,
Direct sunlight,
Excessive dust,
Moisture or rain,
Mechanical vibration or shock,
Strong magnets or speakers that are not magnetically shielded,
Ambient temperature of more than 35º C or less than 10º C,
High humidity.
Do not place electronic equipment near your computer. The computer’s
electromagnetic field may cause a malfunction.
Provide adequate air circulation to prevent internal heat build-up. Do not place
your computer on porous surfaces such as rugs or blankets, or near material such
as curtains or draperies that may block its ventilation slots.
Notes on use
Other precautions
nN
The computer uses high-frequency radio signals and may cause interference to
radio or TV reception. Should this occur, relocate the computer a suitable distance
away from the set.
Use only specified peripheral equipment and interface cables; otherwise,
problems may result.
Do not use cut or damaged connection cables.
Your computer cannot be connected to a coin-operated telephone, and may not
work with a private branch exchange (PBX).
95
Sony Notebook User Guide
On moisture condensation
If the computer is brought directly from a cold location to a warm one, moisture may
condense inside your computer. In this case, allow at least an hour before turning on
your computer. If any problem occurs, unplug your computer and contact VAIO-Link.
On handling diskettes
Do not open the shutter manually and touch the surface of the diskette.
Keep diskettes away from magnets.
Keep diskettes away from direct sunlight and other heat sources.
On handling CD-ROM and DVD-ROM disks
Do not touch the surface of the disk.
Do not drop or bend the disk.
Notes on use
Other precautions
Sony Notebook User Guide
nN
On cleaning CD-ROM and DVD-ROM disks
Fingerprints and dust on the surface of a disk may cause read errors. Proper care
of the disk is essential to maintain its reliability. Do not use solvents such as
benzine, thinner, commercially available cleaners or anti-static spray, as they may
cause damage to the disk.
For normal cleaning, hold the disk by its edge and use a soft cloth to wipe the
surface from the center out.
If the disk is badly soiled, moisten a soft cloth with water, wring it out well, and
use it to wipe the surface of the disk from the center out. Wipe off any remaining
moisture with a dry soft cloth.
On using batteries
Never leave the battery pack in temperatures above 60° C, such as in a car parked
in the sun or under direct sunlight.
Battery life is shorter in a cold environment. This is due to decreased battery
efficiency at low temperatures.
Charge the batteries at temperatures between 10° Cto30° C. Lower temperatures
require a longer charging time.
While the battery is in use or being discharged, the battery pack heats up. This is
normal and is not cause for concern.
Keep the battery pack away from all sources of heat.
Keep the battery pack dry.
Do not open or try to disassemble the battery pack.
Do not expose the battery pack to any mechanical shock.
If you are not using the computer for an extended period of time, remove the
battery pack from the computer to prevent damage to the battery.
96
Notes on use
Other precautions
Sony Notebook User Guide
nN
If, after fully charging the battery pack, the battery power is still low, the battery
pack may be reaching the end of its life and should be replaced.
You do not need to discharge the battery before recharging.
If you have not used the battery pack for a considerable amount of time, recharge
the battery.
On using earphones
Road safety – Do not use earphones while driving, cycling, or operating any
motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can
also be potentially dangerous to play your earphones at high volume while
walking, especially at pedestrian crossings. You should exercise extreme caution
or discontinue use in potentially hazardous situations.
Preventing hearing damage – Avoid using earphones at high volume. Hearing
experts advise against continuous, loud and extended play. If you experience a
ringing in your ears, reduce the volume or discontinue use.
On maintenance
Make sure to disconnect the power cord before cleaning the computer.
Avoid rubbing the LCD screen, as this can damage the screen. Use a soft, dry cloth
to wipe the LCD screen.
Clean the computer with a soft cloth lightly moistened with a mild detergent
solution. Do not use any type ofabrasive pad, scouring powder or solvent such as
alcohol or benzine.
97
Specifications
Specifications
Model Number PCG-F104K
nN
98
Processor
Hard Disk Drive
Sony Notebook User Guide
Standard RAM
Maximum RAM
LCD Screen
L2 Cache Memory
MPEG
Graphics
Sound Capabilities
Diskette Drive
ATI Rage Graphics chip with 8 MB Video RAM and 3D accelerator
Mobile Intel®Pentium®III processor 650 MHz
featuring Intel
MPEG 2 Digital Video Supports full-screen playback
16-bit CD-quality stereo sound
®
SpeedStep™ technology
12.0
GB
MB SDRAM
64
100 MHz
(PC100 compatible)
256
MB
XGA
14.1”
(1024x768) TFT
256
KB
(CPU integration)
3.5” 1.44 MB (removable)
Specifications
Model Number PCG-F104K
nN
99
DVD-ROM / CD-ROM
Drive
Internal modem
Telecommunication
Built-in modem V90/K56Flex (56 Kbps) data/fax
DVD-ROM up to 8x
Laser Diode properties:
Wave Length : 780 and 650 nm
Laser Output: 77.5
PSTN data connectivity
µW
Capabilities
Sony Notebook User Guide
Expansion Capabilities
Built-In Capabilities
Special Buttons
Connection Capabilities
on Notebook
Connection Capabilities
on Port Replicator
Supplied Accessories
Service
Guarantee
Power Requirement
Two PCMCIA type II or one type III Cards and Card Bus support
Stereo speakers, Touchpad
PPK (Programmable Power Keys)
Port replicator, Printer, Monitor, External speakers or Headphone, Serial,
PS/2, 2 x USB, Type II & III PC Cards, i.LINK™ (IEEE1394) S400
LAN (Ethernet), Printer, VGA monitor, Mouse and Keyboard
(USB or PS/2-style), Serial, USB.
DVD-ROM drive, Floppy disk drive, Rechargeable battery,
AC adapter, Video cable, Phone cable, Phone plug, Weight saver
1yearfreeVAIO-LinkService‡
1 year guarantee (parts and labour) ‡
49.5 watts maximum (19.5 V DC/AC100-240V)
Power Management
Energy Star compliant
ACPI (Advanced Configuration & Power Interface).
Specifications
Model Number PCG-F104K
nN
100
Battery
Lithium ion
Dimensions
38.5 mm
265.5 mm
324 mm
→ 46.9 mm
Width
Height
Depth
Weight
with weight saver and
Sony Notebook User Guide
battery
with FDD and battery
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
‡ See our special Guarantee extension conditions.
Specifications are subject to change without notice.
+5°C t +35°C (temperature gradient less than 10°C/hour)
-20°C t+60°C (Temperature gradient less than 10°C/hour)
20% t 80% (Not condensed), provided that humidity is less than 65%
at +35°C (hygrometer reading of less than 29°C)
10% t 90% (Not condensed) provided that humidity is less than 20%
at +60°C ( hygrometer reading of less than 35°C)
3.0 kg
3.23 kg
Loading...
