Before Use
Before Use
Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing.
Documentation
Your documentation includes printed information and user guides to read on your VAIO computer.
Printed Documentation
❑ Welcome mat — Contains an overview of connections, setting up information, etc.
❑ Safety Information — Contains safety guidelines and owner information.
❑ Instant Mode — Provides a guide to use Instant Mode.
Non-printed Documentation
❑ User Guide (this manual) — Contains features of your computer. It also includes information about the software programs
included with your computer, as well as information on solving common problems.
❑ Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer.
To view the online Specifications:
1 Connect to the Internet.
2 Go to the Sony online support Web site at http://esupport.sony.com/EN/VAIO/
at http://www.sony.ca/support
American countries or areas, or at http://esupport.sony.com/ES/VAIO/BR/
for customers in Canada, at http://esupport.sony.com/ES/VAIO/ for customers in Latin
for customers in USA,
for customers in Brazil.
Page 7
7
nN
Before Use
❑ VAIO Recovery Guide — Provides information about restoring individual software programs, software drivers, and drive
partition(s) or your entire hard disk drive to the original factory installed settings.
To access this on-screen guide:
1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAIO Documentation.
3 Click VAI O Recovery Guide.
™
❑ SmartWi
Connection Utility Guide (Selected models only) — Provides information about setting up Bluetooth,
Wireless LAN, and Wireless WAN functionalities.
To access this on-screen guide:
1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAIO Documentation.
3 Click SmartWi Connection Utility Guide.
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations to both stationary and portable environments:
Page 8
8
nN
Before Use
❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your
wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain
muscles or tendons.
❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the
display as well.
Page 9
nN
Before Use
❑ Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare.
Proper lighting adds to your comfort and work effectiveness.
❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
9
Page 10
Getting Started
Getting Started
This section describes how to get started with using your VAIO computer.
!
Before starting your computer for the first time, do not connect any new hardware that did not originally come with your computer. Make sure to start
up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer,
an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
❑ Locating Controls and Ports (page 10)
❑ About the Indicator Lights (page 16)
❑ Connecting a Power Source (page 17)
❑ Using the Battery Pack (page 18)
❑ Shutting Down Your Computer Safely (page 21)
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
10
nN
Page 11
Front
11
nN
Getting Started

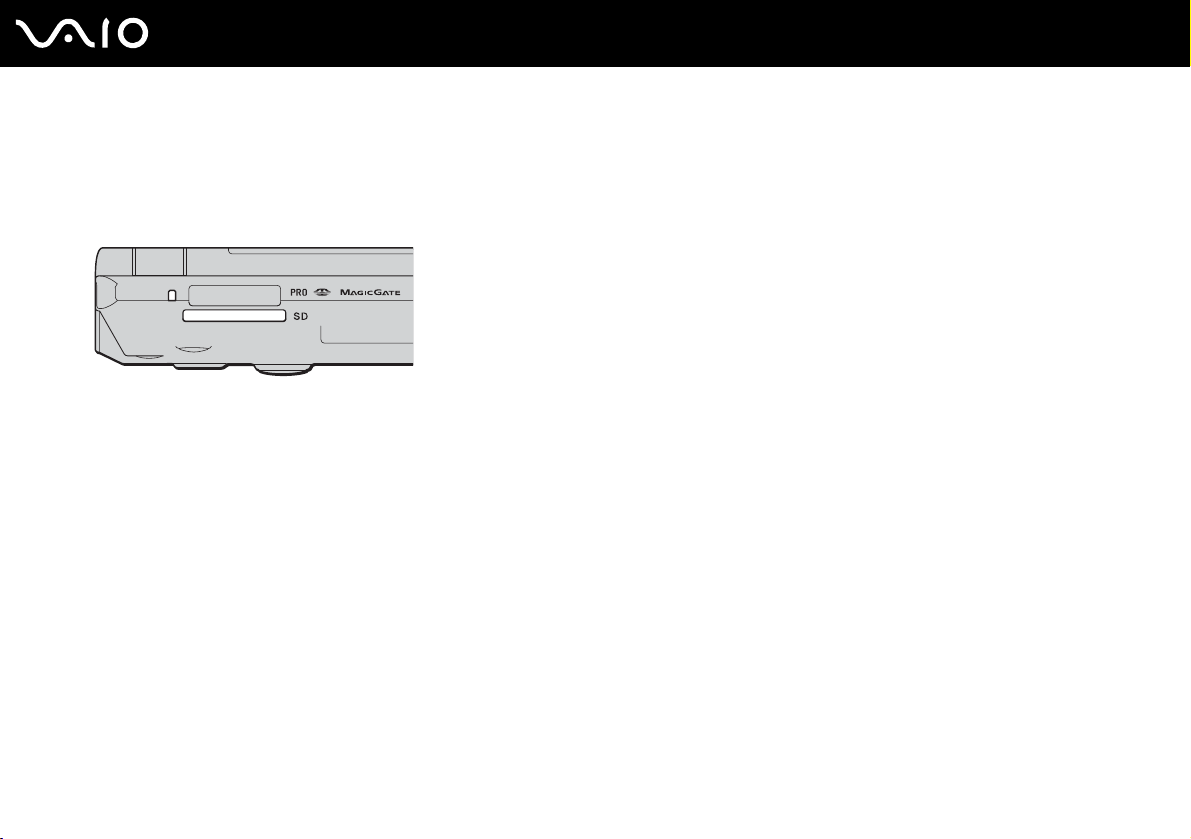

A Media Access indicator (page 16)
B Memory Stick PRO/Duo media slot
C SD memory card/MultiMediaCard (MMC) slot (page 41)
D LCD screen (page 115)
E Keyboard (page 23)
F Touch pad (page 24)
G Fingerprint sensor (page 83)
H WIRELESS switch (page 44)
I Muting button (page 25)
J Volume buttons (page 25)
K Headphones jack (page 61)
L Microphone jack (page 67)
* Your computer supports Memory Stick PRO media and Memory Stick Duo
media with high speed and high capacity capabilities.
*
(page 39)
Page 12
AV MODE button (page 25)
A
B Play/Pause button (page 25)
C Stop button (page 25)
D Previous track button (page 25)
E Next track button (page 25)
F Disc drive eject button (page 25)
G Battery indicator (page 16)
H Hard disk drive indicator (page 16)
I Num lock indicator (page 16)
J Caps lock indicator (page 16)
K Scroll lock indicator (page 16)
L Power button
M Built-in speakers
N Bluetooth indicator (page 16)
O WIRELESS LAN indicator (page 16)
P WWAN indicator
*
(page 16)
Q Muting indicator (page 16)
* On selected models only.
12
nN
Getting Started
Page 13
Back
A Network (Ethernet) port (page 73)
B Battery connector (page 18)
C DC IN port (page 17)
D i.LINK (IEEE 1394) S400 port (page 71)
13
nN
Getting Started
Page 14
Right
A Optical disc drive (page 27)
B Optical disc drive indicator (page 16)
C Manual eject hole (page 141)
D Substitute drive eject button (page 27)
E Monitor (VGA) port (page 62)
F WWAN antenna
* On selected models only.
*
(page 44)
14
nN
Getting Started
Page 15
Left
15
nN
Getting Started
A Hi-Speed USB (USB 2.0) ports
B PC Card slot (page 34)
C PC Card release button (page 36)
D Air vent
E Modem port (page 43)
* Supports high-/full-/low- speeds.
*
(page 68)
Page 16
Getting Started
Bottom
A Air vents
B Port replicator connector (page 58)
C Battery release latch (page 21)
About the Indicator Lights
Your computer is equipped with the following indicator lights.
Indicator Functions
Power 1 Illuminates when the power of the computer is on, blinks when the computer is in Standby mode, and turns off
when the computer is in Hibernate mode or off.
Battery e Illuminates when the computer is using battery power, blinks when the battery pack is running out of power, and
double-blinks when the battery pack is charging.
Media Access Illuminates when data is read from or written to a memory card. (Do not enter Standby mode or turn off the
computer when this indicator is on.) When the indicator is off, the memory card is not being used.
16
nN
Page 17
Getting Started
Indicator Functions
Optical disc drive Illuminates when data is read from or written to the optical disc. When the indicator is off, the optical disc is not
Muting % Illuminates when the volume is turned off.
Hard disk drive
Num lock
Caps lock
Scroll lock
Bluetooth technology
WIRELESS LAN Illuminates when the wireless LAN function is running.
WIRELESS WAN
* On selected models only.
*
being used.
Illuminates when data is read from or written to the hard disk. Do not enter Standby mode or turn off the
computer when this indicator is on.
Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is off.
Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is off.
Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work
with all programs.
Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled.
Illuminates when the wireless WAN function is enabled.
Connecting a Power Source
17
nN
You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.
Page 18
18
nN
Getting Started
Using the AC Adapter
✍
Use your computer only with the supplied AC adapter.
To use the AC adapter
1 Plug one end of the power cord (1) into the AC adapter (3).
2 Plug the other end of the power cord into an AC outlet (2).
3 Plug the cable attached to the AC adapter (3) into the DC IN port (4) on the computer or on the (optional) port replicator.
!
The shape of the DC In plug varies depending on the AC adapter.
✍
To disconnect your computer completely from AC power, unplug the AC adapter.
Make sure that the AC outlet is easily accessible.
If you do not use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 104). This power
saving mode saves the time of shutting down or resuming.
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of purchase.
Page 19
Installing the Battery Pack
To install the battery pack
1 Turn off the computer and close the LCD screen lid.
2 Slide the battery pack into the battery compartment until it clicks into place.
✍
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
!
This computer is designed to operate only with genuine Sony batteries.
Charging the Battery Pack
19
nN
Getting Started
The battery pack supplied with your computer is not fully charged at the time of purchase.
To charge the battery pack
1 Install the battery pack.
2 Connect the AC adapter to the computer.
The computer automatically charges the battery pack (the battery indicator light flashes in a double blink pattern as the
battery pack charges). When the battery pack is about 85% charged, the battery indicator turns off.
Page 20
20
nN
Getting Started
Battery indicator light status Meaning
On The computer is using battery power.
Blinks The battery pack is running out of power.
Double blinks The battery pack is charging.
Off The computer is using AC power.
✍
When the battery pack is running out of power, both the battery and power indicator lights blink.
Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.
If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery pack or shut down your computer and install a fully
charged battery pack.
The battery pack supplied with your computer is a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack
does not affect battery life.
The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly depleted, both the battery and power
indicator lights start flashing.
For some software applications and some peripheral devices, your computer may not enter Hibernate mode even when battery life is low. To avoid loss
of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Standby or
Hibernate. If the battery pack wears out when the computer enters Standby mode, you will lose any unsaved data. Going back to the previous work
state is impossible. To avoid loss of data, you should save your data frequently.
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
Page 21
Getting Started
Removing the Battery Pack
!
You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Standby mode.
To remove the battery pack
1 Turn off the computer and close the LCD screen lid.
2 Slide and hold the battery release latch (1) and slide the battery pack away from the computer.
✍
If the battery pack is stuck by the side spring locks, release one lock and then the other to remove the battery pack.
Shutting Down Your Computer Safely
21
nN
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1 Turn off any peripherals connected to the computer.
Page 22
22
nN
Getting Started
2 Click Start and then Turn Off Computer.
The Turn off computer window appears.
3 Click Turn Off.
4 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
Page 23
Using Your VAIO Computer
This section describes how to get the most out of using your computer.
❑ Using the Keyboard (page 23)
❑ Using the Touch Pad (page 24)
❑ Using Special-function Buttons (page 25)
❑ Using the Optical Disc Drive (page 27)
❑ Using PC Cards (page 34)
❑ Using the Memory Stick Media (page 37)
❑ Using Other Memory Cards (page 41)
❑ Using the Internet (page 43)
❑ Using Wireless LAN (WLAN) (page 44)
❑ Using the Bluetooth Functionality (page 51)
Using the Keyboard
23
nN
Using Your VAIO Computer
Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.
Combinations and Functions with the Fn Key
✍
Some functions are not available before Windows is launched.
Page 24
Combinations/Feature Functions
Fn + F1: wireless switching
Fn + 8 (F5/F6): brightness control Adjusts the LCD brightness of your computer screen.
Fn + /T (F7): display output
Fn + (F10): zoom
Fn + (F12): Hibernate
* On selected models only.
*
Toggles among Bluetooth, Wireless LAN, and Wireless WAN functionalities.
To increase lightness intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6.
To decrease lightness intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.
Toggles among your computer screen, an external display, and simultaneous output to both.
Changes the screen resolution to magnify/restore your computer's screen view.
✍
The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution
to the computer screen with a higher resolution.
This key combination may not work with graphic images as it magnifies the screen view by changing the
resolution.
The location and size of software windows may change when the screen view is magnified or the standard
view is restored because pressing this key combination changes the resolution.
When your computer's screen view is magnified, switching the view to the external display disables the
function and restores the standard view.
Provides for the lowest level of power consumption. When you execute this command, the
states of the system and the peripheral devices are written to the hard disk and the system
power is turned off. To return the system to its original state, use the power button to turn on the
power.
For details on power management, see Using the Power Saving Modes (page 102).
Using the Touch Pad
24
nN
Using Your VAIO Computer
The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the
screen using the touch pad.
Page 25
25
nN
Using Your VAIO Computer
Action Description
Point Slide one finger on the touch pad to place the pointer (2) on an item or object.
Click Press the left button (3) once.
Double-click Press the left button twice.
Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.
Drag Slide one finger on the touch pad while pressing the left button.
Scroll Move your finger along the right edge of the touch pad to scroll vertically. Move your finger along the bottom to scroll
horizontally (the scroll function is available only with applications that support a touch pad scroll feature).
Using Special-function Buttons
Your computer is equipped with special buttons to help you use specific functions of the computer.
The AV MODE, Play/Pause, Stop, Previous track, Next track, and Disc drive eject buttons support Instant Mode. To activate
Instant Mode, the computer must be off. See the printed Instant Mode booklet for more information on the Instant Mode.
Page 26
Special-function button Functions
When Windows is NOT launched:
AV MODE button
Play/Pause button
Stop button
Previous track button
Next track button
Disc drive eject button
Muting button Turns the speaker and microphone volume on and off.
Volume buttons
(Volume up and Volume down)
Activates Instant Mode to enable you immediately to play CDs and DVDs without launching Windows. See
the printed Instant Mode booklet for more information.
When Windows is launched and running:
Launches the WinDVD or VAIO Zone
AV Mode Button Settings utility. To start this utility, press and hold the AV MOD E button. See the help file
on the AV Mode Button Settings utility for more information.
You need administrator rights on the computer to change the AV MODE button assignment.
This button is enabled in Instant Mode as well as when Windows is launched and running.
Starts or pauses DVD playback with the WinDVD or VAIO Zone software or CD playback with the
SonicStage software.
This button is enabled in Instant Mode as well as when Windows is launched and running.
Stops DVD playback with the WinDVD or VAIO Zone software or CD playback with the SonicStage software.
This button is enabled in Instant Mode as well as when Windows is launched and running.
Plays the previous chapter/movie in the DVD during playback with the WinDVD or VAIO Zone software or the
previous song in the CD during playback with the SonicStage software.
This button is enabled in Instant Mode as well as when Windows is launched and running.
Plays the next chapter/movie in the DVD during playback with the WinDVD or VAIO Zone software or the next
song in the CD during playback with the SonicStage software.
Ejects the optical disc drive tray.
If this button does not work, try the substitute drive eject button on the optical disc drive.
Increase and decrease the volume.
*
software by default. You can change this button assignment with the
26
nN
Using Your VAIO Computer
Page 27
27
nN
Using Your VAIO Computer
Special-function button Functions
* Launches the VAIO Zone software if the software is preinstalled on your computer.
Using the Optical Disc Drive
Your computer is equipped with an optical disc drive.
To insert a disc
1 Turn on the computer.
2 Press the disc drive eject button (1) to open the drive.
The tray slides out.
✍
If the disc drive eject button does not work, try the substitute drive eject button on the optical disc drive.
If power supply to the optical disc drive is disabled by VAIO Power Management, it will take a while to eject the drive tray. Note that the substitute drive
eject button is disabled when the optical disc drive is not powered.
When recovering your system, turn on your computer and press the substitute drive eject button on the optical disc drive. Insert your Recovery Disc
into the optical disc drive, turn off the computer, and then turn on the computer again to launch the VAIO Recovery utility.
3 Place a disc in the middle of the tray with the label side facing upward and gently push it until the disc clicks into place.
Page 28
Using Your VAIO Computer
4 Close the tray by pushing it in gently.
!
Do not remove the optical disc when your computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to
malfunction.
✍
If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.
28
nN
Reading and Writing Optical Discs
Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the
type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive
supports.
PR: playable and recordable
P: playable but not recordable
–: not playable nor recordable
Page 29
29
nN
Using Your VAIO Computer
CDROM
DVD±RW/±R DL/RAM PPPPPRPP
DVD±RW/+R DL/RAMPPPPPRPP
DVD±RW
PPPPPRPP
(Supporting DVD±R DL)
DVD±RW
PPPPPRPP
(Supporting DVD+R DL)
Video CDMusic CDCD
Extra
CD-R/RWDVD-
ROM
DVDVideo
DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-
RAM
PR
PR
PR
PR
*1 *2
*1 *2
*1 *2
*1 *2
PR
PR
PR
PR
PR
PR
PR
PR
*5
*5
*5
*5
*6
PR
P
*6
PR
P–
PR
PR
–
*3 *4
*3 *4
CD-RW/DVD-ROM PPPPPRPPPPPP–
DVD-ROM PPPPPPPPPPP–
*1
Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.
*2
Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.
*3
The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with removable cartridge.
*4
Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*5
Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.
*6
Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.
PR: playable and recordable
P: playable but not recordable
–: not playable nor recordable
CDROM
Video CDMusic CDCD
Extra
CD-R/RWDVD-
ROM
DVDVideo
BDROM
DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-
RAM
BD-R
*10
RE
*9
/
Page 30
30
nN
Using Your VAIO Computer
Blu-ray
Disc Drive
*7
Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1
discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB). The Blu-ray disc drive on your computer does not support BD-RE
Version 1.0 discs and Blu-ray cartridge discs.
*8
Writing data to Ultra Speed CD-RW discs is not supported.
*9
BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.
*10
BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.
PPPP
PR
*8
PPP
PR
*1 *2
PR
PR
*5
PR
*6
PR
*6
PR
*7
!
This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side
(non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.
!
Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices
on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee
the compatibility of VAIO CD drives with discs that are not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives).
USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
✍
8cm disc writing is not supported.
Notes on writing data to a disc
❑ To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete
this process, follow the instructions included with your software.
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
Page 31
31
nN
Using Your VAIO Computer
❑ Do not strike or shake your computer while writing data to a disc.
❑ Deactivate the screen saver and exit anti-virus software before writing data to a disc.
❑ Do not use memory-resident utility software while writing data to a disc. This may cause your computer to malfunction.
❑ When using your software application to burn discs, make sure you exit and close all other applications.
❑ Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing errors.
❑ Do not switch power modes while using the preinstalled software and while using the CD burning software.
❑ Never affix an adhesive label to discs. This will affect the use of the disc irreparably.
❑ Connect and use the AC adapter to power your computer or make sure your battery pack is at least 50 percent charged.
❑ Use only Sony Value-added software when writing to CD/DVD media. (Ex: Click to DVD)
Other software programs may not be fully compatible and errors may result.
Notes on playing DVDs
To achieve optimum performance when playing DVDs, you should follow these recommendations.
❑ You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the
help file on such software for details.
❑ Close all open applications before playing a DVD movie.
❑ Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause your computer
to malfunction.
❑ Deactivate the screen saver and exit anti-virus software before playing a disc.
❑ Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices connected, this may
damage your hearing and the speakers. Reduce the volume before playing a DVD.
❑ Do not switch to power saving modes while your computer is playing a DVD.
Page 32
32
nN
Using Your VAIO Computer
❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the
disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code of
your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on your
computer.
!
You can change the DVD region code only a limited number of times. When you have exceeded this number, the drive's DVD region code is permanently
assigned and you will not be able to change it again. Reconfiguring your computer does not reset this count.
If you change the DVD region code while the WinDVD software is running, restart the software or eject the disc and re-insert it to make the new setting
effective.
❑ If your computer has the Wireless LAN functionality and Wireless LAN is activated, playing DVDs may cause some
interruptions in audio and video.
❑ When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers,
make sure you stop the DVD first. Removing a USB-compatible device during DVD (video or audio) playback may cause
a malfunction.
Playing CDs
To play an audio CD
1 Insert a disc into the optical disc drive.
2 If nothing appears on the desktop, then click Start, point to All Programs, and click to start the desired CD software, such
as the SonicStage software.
If the Audio CD window appears, click to select an option.
Page 33
33
nN
Using Your VAIO Computer
Copying Files to CDs
To copy files to a disc
!
Do not strike or shake your computer while writing data to a disc.
1 Insert a blank disc into the optical disc drive.
If the CD Drive window appears, click Take no action and then click OK.
2 Right-click Start and then click Explore.
3 In the Folders panel on the left, locate the file(s) or folder(s) you want to copy, right-click the file(s) or folder(s), point to
*
Send To, and then click the optical disc drive
4 Close the window.
5 Click Start and then My Computer.
6 Click the optical disc drive icon under Devices with Removable Storage. A new window appears with the file(s) or
folder(s) you want to copy listed under Files Ready to Be Written to the CD.
7 In the CD Writing Tasks box, click Write these files to CD.
8 Follow the instructions in the CD Writing Wizard.
* The read/write drive letter designation may vary, depending on your system's hardware configuration.
name.
Playing DVDs
To play a DVD
1 Close all running software applications.
2 Insert a DVD into the optical disc drive.
Page 34
34
nN
Using Your VAIO Computer
3 If nothing appears on the desktop, then click Start, point to All Programs, and click to start the desired DVD software to
play the DVD.
For instructions on how to use the software, see the help file on your DVD software.
Copying Files to DVDs
To copy files to a disc
1 Connect the AC adapter to the computer.
2 Insert a disc into the optical disc drive.
3 If nothing appears on the desktop, then click Start, point to All Programs, and click to start the DVD software you want
to use.
For instructions on how to use the software, see the help file on your DVD software.
Using PC Cards
PC Cards allow you to connect portable external devices to your computer.
Inserting a PC Card
!
Some PC Cards or their functions may not be compatible with your computer.
You do not need to shut down your computer before inserting or removing a PC Card.
To insert a PC Card
1 Push the PC Card release button so that the release button pops out.
2 Push the PC Card release button a second time so that the PC Card slot protector pops out.
Page 35
Using Your VAIO Computer
3 Gently take hold of the protector and pull it out of the slot.

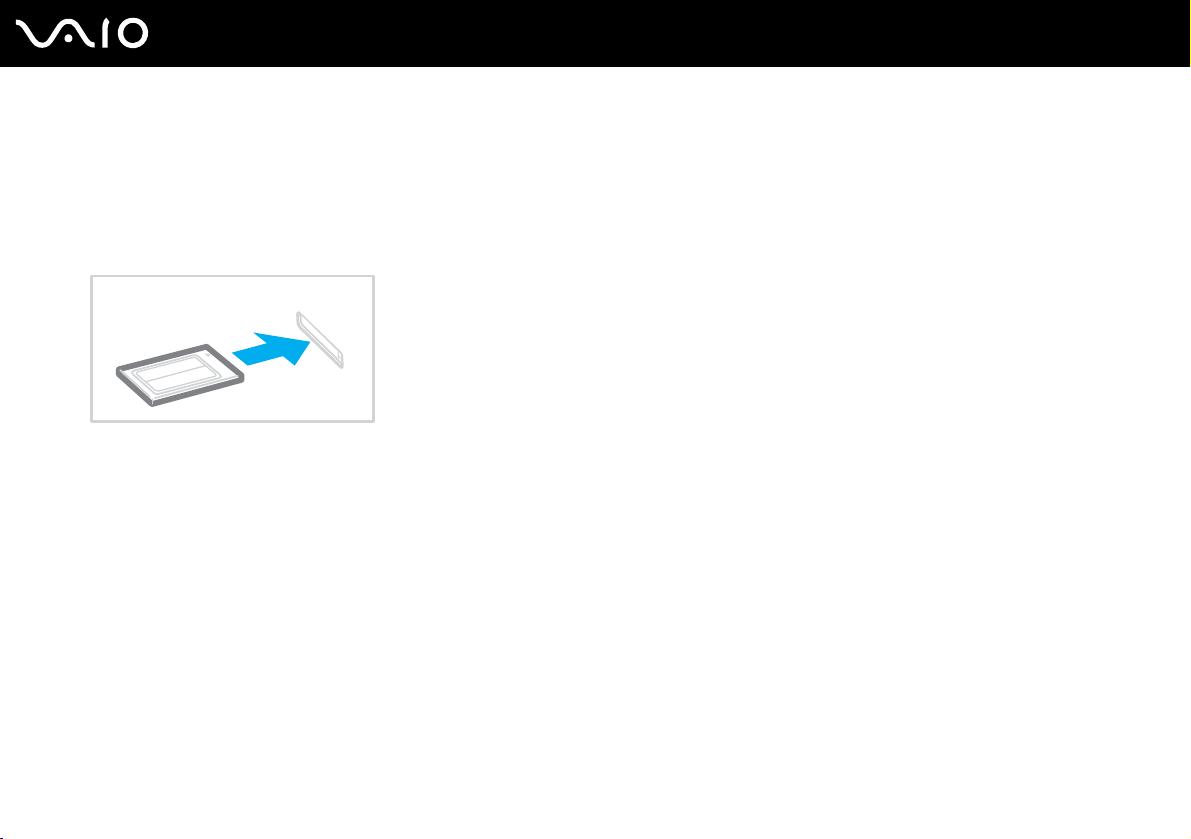

4 Insert the PC Card into the PC Card slot with the front label facing upward.
5 Gently push the PC Card into the slot.
The PC Card is automatically detected by your system.
The Safely Remove Hardware icon appears on the taskbar.
!
Insert the PC Card slot protector to protect against debris entering the slot when not using a PC Card. Before moving your computer, make sure to
insert the PC Card slot protector into the slot.
35
nN
Page 36
36
nN
Using Your VAIO Computer
✍
Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you
alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not
recognized. Restart your system to correct the problem. Restarting will restore the original state of your computer.
While the card is inserted, your computer may not enter Hibernate power management mode. It may enter Standby mode. We recommend that you
remove the card before the computer enters Hibernate mode.
Make sure you use the most recent software driver provided by the PC Card manufacturer.
If an "!" mark appears on the Device Manager tab in the System Properties window, remove the software driver and then reinstall it.
Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC
Card in the correct direction. See the manual that came with your PC Card for more information.
Removing a PC Card
Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not
work properly.
To remove a PC Card
✍
To remove a PC Card when your computer is off, skip steps 1 to 6.
1 Double-click the Safely Remove Hardware icon on the taskbar.
The Safely Remove Hardware window appears.
2 Select the hardware you want to unplug.
3 Click Stop.
The Stop a Hardware Device window appears.
Page 37
37
nN
Using Your VAIO Computer
4 Confirm that the device can be safely removed from the system.
5 Click OK.
A window appears, explaining that it is safe to remove the device.
6 Click Close.
7 Push the PC Card release button so that the release button pops out.
8 Push the PC Card release button a second time so that the PC Card pops out.
9 Gently take hold of the Card and pull it out of the slot.
10 If the PC Card release button is still out, push it back in.
Using the Memory Stick Media
Your computer supports the Memory Stick media. Memory Stick media is a compact, portable, and versatile IC recording
media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile
phones and other devices. Because it is removable, it can be used for external data storage.
For the latest information on Memory Stick media, visit the Sony online support Web site at:
http://esupport.sony.com/EN/VAIO/
http://www.sony.ca/support
http://esupport.sony.com/ES/VAIO/
http://esupport.sony.com/ES/VAIO/BR/
for customers in Canada,
for customers in USA,
for customers in Latin American countries or areas, or
for customers in Brazil.
Page 38
38
nN
Using Your VAIO Computer
!
Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB that are available as of
May 2006. However, not all Memory Stick media that meet the same conditions as the compatible media are guaranteed of compatibility.
Inserting a Memory Stick media with multiple conversion adapters is not guaranteed of compatibility.
MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick media with the MagicGate logo to use
this feature.
Write-protecting a Memory Stick Media
Some versions of Memory Stick media are designed with an erasure prevention switch to protect valuable data from
accidental erasure or overwriting.

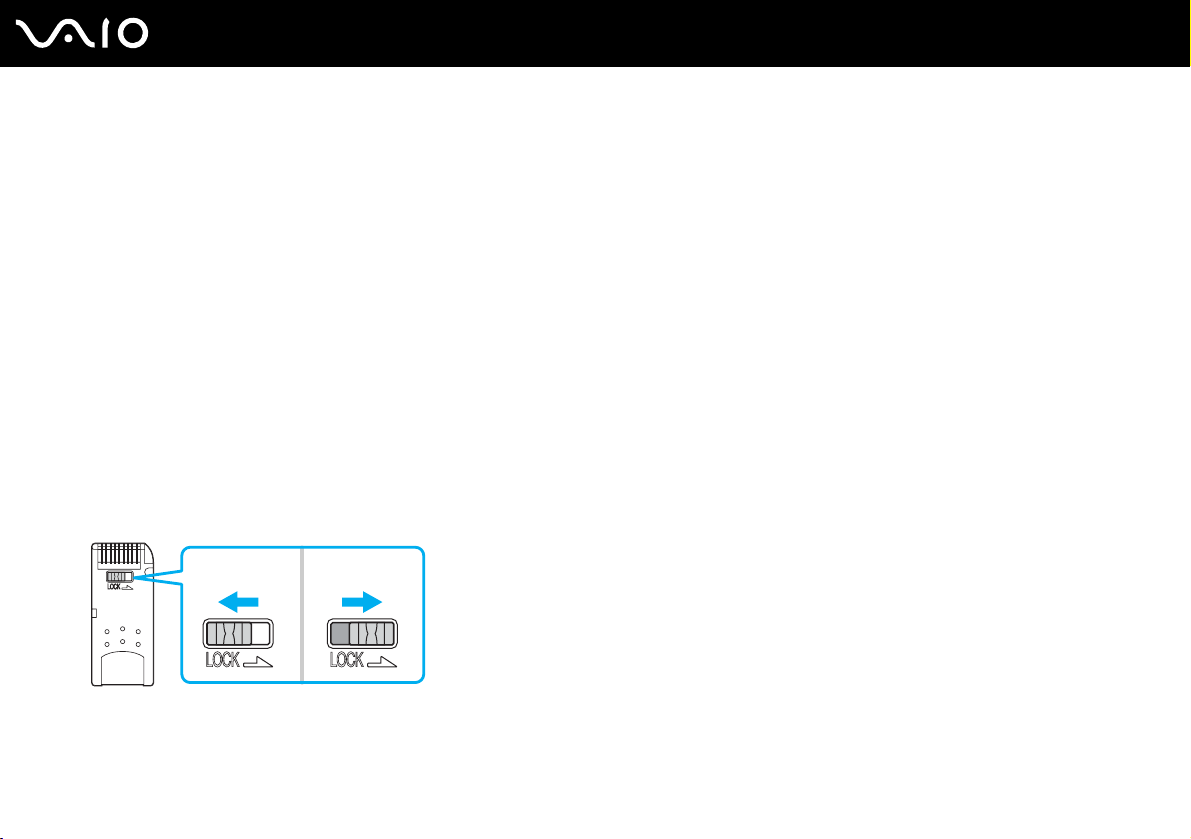

Move the tab horizontally or vertically to set or release write-protection. When the erasure prevention switch is off, data can
be saved on the Memory Stick media. When the erasure prevention switch is on, data can be read from but not saved on the
Memory Stick media.
!
Be sure to use a fine-tipped object to move the tab on the Memory Stick Duo media.
Page 39
39
nN
Using Your VAIO Computer
Inserting a Memory Stick Media
To insert a Memory Stick media
1 Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick PRO/Duo media slot.
2 Carefully slide the Memory Stick media into the slot until it clicks into place.
The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local
drive, under the appropriate letter (depending on the configuration of the computer).
!
Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer
or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly.
Do not insert more than one Memory Stick media into the slot. Inserting the media improperly may damage your computer.
✍
Your computer supports Memory Stick Duo media and is equipped with the Memory Stick PRO/Duo slot that is compatible with both standard- and
duo-size media. For more information on the Memory Stick Duo media, visit the Memory Stick web site at http://www.memorystick.com/en/
You can insert a Memory Stick Duo media directly into the slot.
.
Page 40
Using Your VAIO Computer
To view the contents of the Memory Stick media
1 Click Start and then My Computer to open the My Computer window.
2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.
To format a Memory Stick media
Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details.
!
Formatting the Memory Stick media erases the entire data on the media. Avoid accidental erasure of your valuable data.
Do not remove the Memory Stick media from the slot while formatting the media. This could cause a malfunction.
Be sure to use the preinstalled Memory Stick Formatter software to format a Memory Stick media. In case the media is formatted with the formatting
function of the Windows operating system, the media cannot be recognized by other Memory Stick devices.
Removing a Memory Stick Media
To remove a Memory Stick media
1 Check that the Media Access indicator is off.
2 Push the Memory Stick media in toward the computer.
The Memory Stick media ejects.
3 Pull the Memory Stick media out of the slot.
40
nN
!
Always remove the Memory Stick media gently, or it may pop out unexpectedly.
Do not remove the Memory Stick media while the Media Access indicator is turned on. If you do, you may lose data. Large volumes of data may take
time to load, so be sure the indicator is off before removing the Memory Stick media.
Page 41
41
nN
Using Your VAIO Computer
Using Other Memory Cards
In addition to the Memory Stick PRO/Duo media slot, your computer is equipped with an SD memory card/MultiMediaCard
(MMC) slot to accommodate other memory cards. You can use this slot to transfer data among digital cameras, camcorders,
music players, and other audio/video devices.
Before You Use Memory Cards
The SD memory card/MultiMediaCard (MMC) slot on your computer supports the following memory cards:
❑ MultiMediaCard (MMC)
❑ Secure Digital (SD)
For the latest information on compatible memory cards, visit the Sony online support Web site regularly.
!
Always insert the correct memory card into the SD memory card/MultiMediaCard (MMC) slot.
SDHC memory cards are not supported.
Do not attempt to insert a memory card or memory card adapter of a different type into the slot. An incompatible memory card or memory card adapter
may be difficult to remove from the slot and can cause damage to your computer.
Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.
The SD memory card/MultiMediaCard (MMC) slot on your computer does not support the high-speed data transfer feature of the SD memory card.
Your computer has been tested and found compatible only with major memory card media available as of May 2006. However, not all memory card
media that meet the same conditions as the compatible media are guaranteed of compatibility.
Page 42
Inserting a Memory Card
To insert a memory card

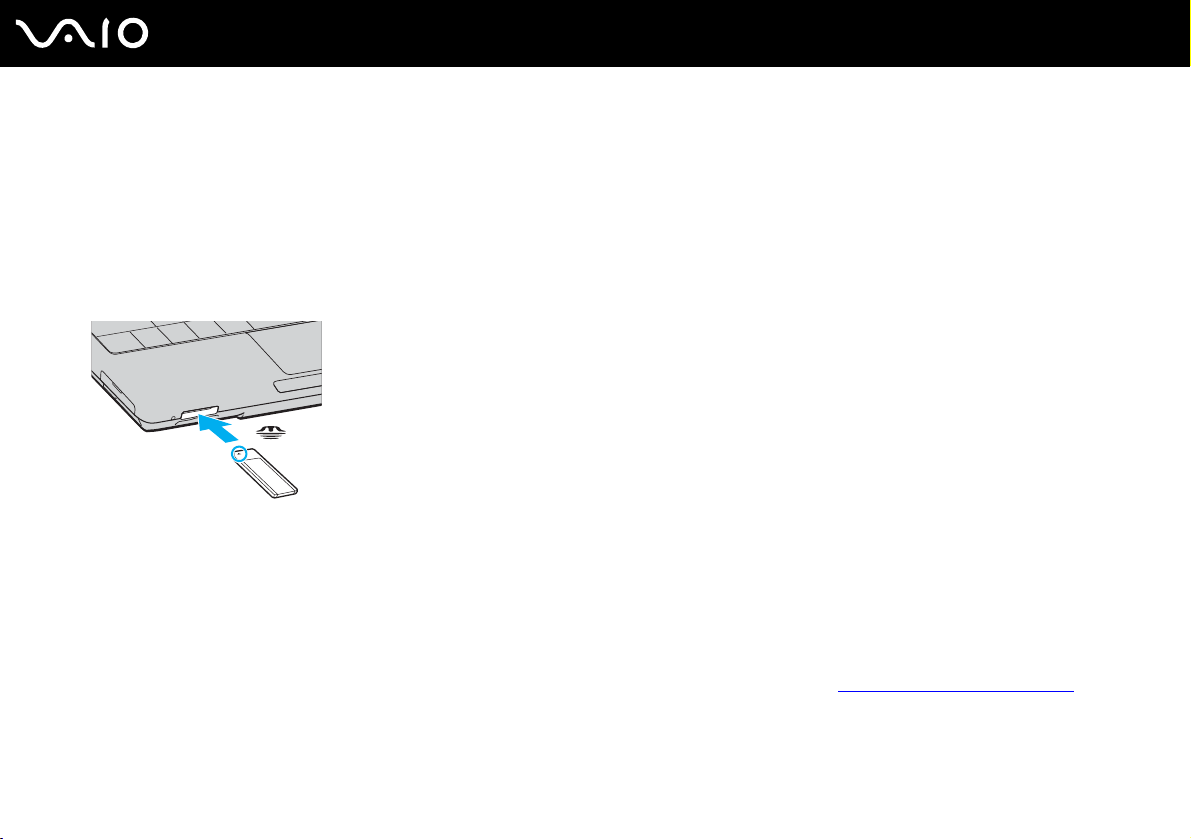

1 Locate the SD memory card/MultiMediaCard (MMC) slot on the front of the computer.
2 Hold the memory card with the arrow facing upward and pointing toward the memory card slot.
3 Carefully slide the memory card into the slot until it clicks into place.
Do not force the card into the slot.
✍
If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
Removing a Memory Card
!
Do not remove a memory card while the Media Access indicator light is on. The card or its data may become damaged.
42
nN
Using Your VAIO Computer
To remove a memory card
1 Check that the Media Access indicator is off.
2 Press the extended part of the memory card, causing it to extend out from the slot.
3 When the card extends, carefully pull it out of the slot.
Page 43
43
nN
Using Your VAIO Computer
Using the Internet
Setting Up a Dial-up Internet Connection
Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (may
not supplied). Once you have set up your telephone cable connection, you're ready to connect to the Internet.
To connect a telephone cable
1 Plug one end of the phone cable (1) into the modem port on the computer.
2 Plug the other end into the wall jack (2).
✍
Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a
private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.
If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.
To set up a dial-up connection to the Internet
1 Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard.
The New Connection Wizard appears.
2 Click Next. If the Location Information window appears, follow the on-screen instructions.
3 If it is not already selected, click to select Connect to the Internet, and click Next.
4 Follow the on-screen instructions.
Page 44
44
nN
Using Your VAIO Computer
Using Wireless LAN (WLAN)
Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each
other through a powerful network. A WLAN is a network in which a user can connect to a local area network (LAN) through
a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.
The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still
access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place
to another.

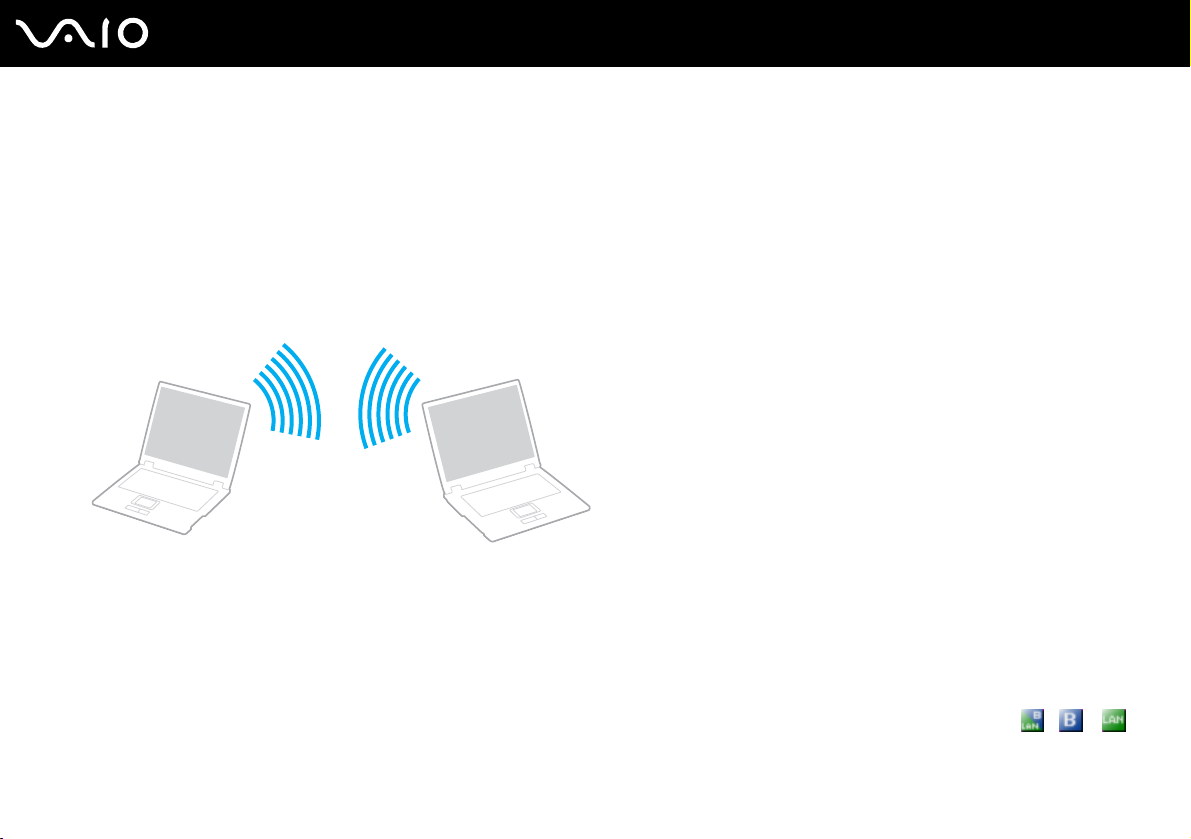

You can communicate without an access point, which means that you can communicate between a limited number of
computers (ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure
network (infrastructure).
❑ Wireless WAN model users
Please see the SmartWi Connection Utility Guide for setting up Wireless LAN and Wireless WAN functionalities.
❑ Other model users
Please see the following for setting up Wireless LAN functionality.
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN functionality, read the Safety Information carefully.
*
WLAN uses the IEEE 802.11a
Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access (WPA). Proposed jointly by the IEEE and
Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based, interoperable security enhancements that increase the level of data
protection and access control for existing Wi-Fi networks. WPA has been designed to be forward compatible with the IEEE 802.11i specification. It
utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user authentication using 802.1X and EAP (Extensible
Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and access points. Besides that, there are other typical
LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication. WPA2,
the second generation of WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11
/b/g standard, which specifies the used technology. The standard includes the encryption methods: Wired Equivalent
Page 45
45
nN
Using Your VAIO Computer
devices, including 802.11b, 802.11a, and 802.11g, multi-band and multi-mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides
government grade security by implementing the National Institute of Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm
and 802.1X-based authentication. WPA2 is backward compatible with WPA.
* See the online Specifications to see whether your model supports the IEEE 802.11a standard.
Wireless LAN devices using the IEEE 802.11a standard and the ones using the IEEE 802.11b or g standard cannot communicate because the frequencies
are different.
IEEE 802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up.
IEEE 802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a Wireless LAN device using the IEEE 802.11b standard.
The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference
from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication
speed, narrower communication range, or broken wireless connections.
The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.
The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with
IEEE 802.11b products.
When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.
Page 46
46
nN
Using Your VAIO Computer

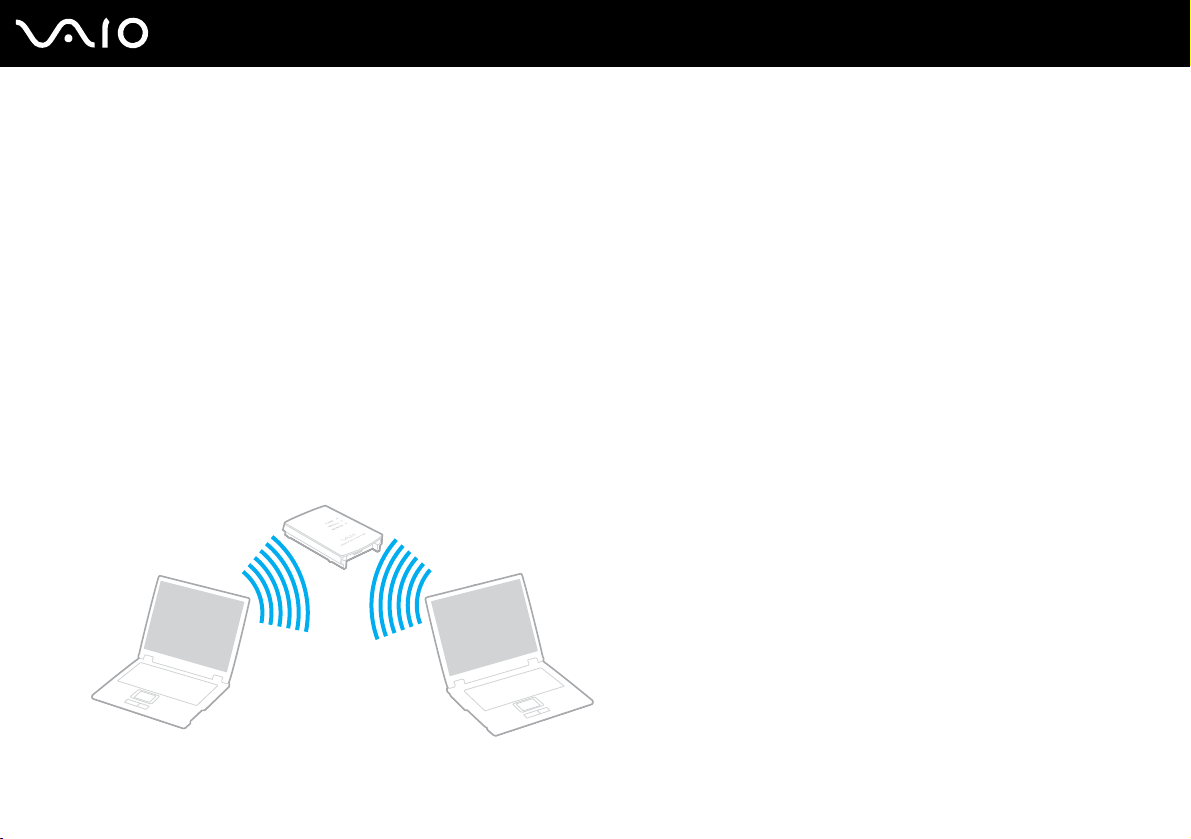

Communicating without an Access Point (Ad-hoc)
An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other
central controller or access point. Each device communicates directly with other devices in the network. You can set up an
ad-hoc network easily at home.
❑ If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected.
❑ If the Wireless connection is initiated by peer Wireless LAN equipment, the Wireless LAN communication will make use
of the channel selected by the peer Wireless LAN equipment.
To communicate without an access point (ad-hoc)
1 Turn on the WIRELESS or WIRELESS LAN switch.
The WIRELESS LAN indicator lights up.
Except in Peru and Venezuela, you cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on
ad-hoc networks.
On models that support the Bluetooth functionality
on the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.
2 Click Start and then Control Panel.
*1
and/or the IEEE 802.11a/b/g standard*1, double-click ( / )
Page 47
47
nN
Using Your VAIO Computer
3 Click Network and Internet Connections.
4 Click Network Connections.
The Network Connections window appears.
5 Right-click Wireless Network Connection, then click Properties.
The Wireless Network Connection Properties window appears.
6 Select the Wireless Networks tab.
7 Click the Add… button.
The Wireless network properties window appears.
*2
8 Enter a network name (SSID)
.
You can choose a 32-digit alphanumeric name.
9 Select Open from the Network Authentication drop-down box.
10 Select WEP from the Data Encryption drop-down box.
11 Deselect the The key is provided for me automatically option button.
Some information becomes visible.
12 Enter the network key
The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal
*2
.
*3
characters long. You can choose
whichever you want.
13 Enter exactly the same network key again for confirmation.
14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the
bottom of the window.
15 Click OK.
Your network name appears in the Preferred networks.
Page 48
Using Your VAIO Computer
16 Click Advanced.
The Advanced window appears.
17 Select the Computer-to-computer (ad hoc) networks only option button.
18 Click Close.
19 Click OK.
The computer is ready to communicate with another computer.
*1
See the online Specifications to see whether your model supports the Bluetooth functionality and/or the IEEE 802.11a/b/g standard.
*2
If you want to communicate between two or more computers, you need to configure all these computers in the exact same way. This means that you need to enter the
same network name and the same network key on all computers as on the first computer you configure.
*3
Hexadecimal: a number representation using the digits 0-9, with their usual meaning, and the letters A-F (or a-f) to represent hexadecimal digits with values of (decimal)
10 to 15.
✍
An ad-hoc network does not support WPA.
To disconnect from a computer-to-computer (ad-hoc) network
1 Click Start and then Control Panel.
2 Click Network and Internet Connections.
3 Click Network Connections.
The Network Connections window appears.
4 In the right panel under LAN or High-Speed Internet, right-click Wireless Network Connection.
5 Click Properties.
The Wireless Network Connection Properties window appears.
6 On the Wireless Networks tab, click Advanced.
The Advanced window appears.
48
nN
Page 49
49
nN
Using Your VAIO Computer
7 Click to select Any available network (access point preferred), and click Close.
8 Click OK.
9 Close the Network Connections window.
10 Turn off the WIRELESS or WIRELESS LAN switch.
Communicating with an Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point, for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central
controller for the Wireless LAN. The access point coordinates transmission and reception from multiple wireless devices
within a specific range.
The access point will select which channel to use on an infrastructure network.
!
For details on how to select the channel that will be used by the access point, see the manual that came with your access point.
Page 50
Using Your VAIO Computer
To connect to a wireless network
1 Make sure an access point is set up.
See the manual that came with your access point for more information.
2 Turn on the WIRELESS or WIRELESS LAN switch.
The WIRELESS LAN indicator lights up.
*
On models that support the Bluetooth functionality
and/or the IEEE 802.11a/b/g standard*, double-click ( / ) on
the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.
3 Click Start and then Control Panel.
4 Click Network and Internet Connections.
5 Click Network Connections.
6 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.
The Wireless Network Connection window appears.
7 Follow the on-screen instructions.
* See the online Specifications to see whether your model supports the Bluetooth functionality and/or the IEEE 802.11a/b/g standard.
To connect to a wireless network (models with the Wireless Setup Utility software only)
Use the Wireless Setup Utility software to guide you through the set up process and provide you with more detailed
information about wireless connections.
1 Make sure an access point is set up.
See the manual that came with your access point for more information.
2 Turn on the WIRELESS or WIRELESS LAN switch.
The WIRELESS LAN indicator lights up.
50
nN
Page 51
51
nN
Using Your VAIO Computer
On models that support the Bluetooth functionality* and/or the IEEE 802.11a/b/g standard*, double-click ( / ) on
the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.
3 Click Start, point to All Programs, and click Wireless Setup Utility.
The Wireless Setup Utility appears.
4 Follow the on-screen instructions.
* See the online Specifications to see whether your model supports the Bluetooth functionality and/or the IEEE 802.11a/b/g standard.
To disconnect from a wireless network
Turn off the WIRELESS or WIRELESS LAN switch.
!
Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.
✍
For WPA-PSK or WPA2-PSK authentication, you must enter a network key of 8 to 64 alphanumeric characters long.
Using the Bluetooth Functionality
You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables and up to 33 feet (10 meters) range in open
space.
❑ Wireless WAN model users
Please see the SmartWi Connection Utility Guide for setting up Bluetooth functionality.
❑ Other model users
Please see the following for setting up Bluetooth functionality.
To connect to a Bluetooth device
1 Turn on the WIRELESS switch.
Page 52
52
nN
Using Your VAIO Computer
2 Double-click ( / ) on the taskbar to display the Wireless Device Switch window.
3 Select the Enable Bluetooth Device option.
4 Click OK.
Notes on using the Bluetooth functionality
❑ The data transfer rate varies, depending on the following conditions:
❑ Obstacles, such as walls, located between devices
❑ Distance between devices
❑ Material used in walls
❑ Proximity to microwaves and cordless telephones
❑ Radio frequency interference and other environmental conditions
❑ Device configuration
❑ Type of software application
❑ Type of operating system
❑ Use of both Wireless LAN and Bluetooth functionalities at the same time on your computer
❑ Size of file being exchanged
❑ Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer
due to electromagnetic interference from the environment.
❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if
standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.
Page 53
53
nN
Using Your VAIO Computer
❑ As general characteristics of Bluetooth technology, video and audio may go out of synchronization if you play videos on
your computer with audio output from the connected Bluetooth device.
❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth
devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth functionality and wireless communication devices, however, may cause radio interference and result
in poorer communication speeds and distances than the standard values.
❑ The Bluetooth functionality may not work depending on the third party devices or the software version used by third party
companies.
❑ As general characteristics of Bluetooth technology, connecting multiple Bluetooth devices to your computer may cause
bandwidth congestion, resulting in poor performance of the devices.
Bluetooth Security
The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.
The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.
✍
The passkey can be different each time, but must be the same at both ends.
For certain devices, such as a mouse, no passkey can be entered.

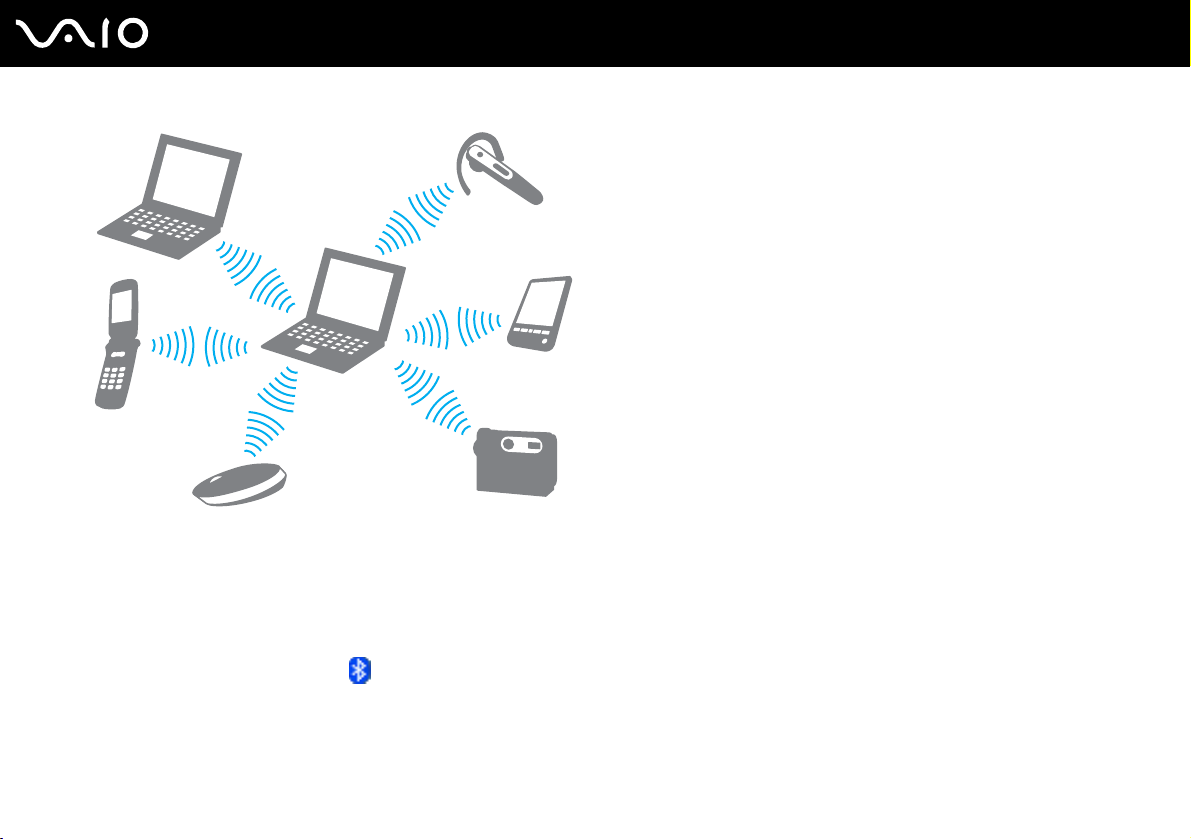

Communicating with Another Bluetooth Device
You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.
Page 54
54
nN
Using Your VAIO Computer
To communicate with another Bluetooth device
To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using
the Bluetooth functionality, see the help file on the Bluetooth utility software.
To see the help file
1 Right-click the Bluetooth icon on the taskbar, and select Help from the menu.
Stopping the Bluetooth Connection
To stop the Bluetooth connection, turn off the WIRELESS switch. The Bluetooth indicator turns off.
Page 55
55
nN
Using Your VAIO Computer
Using the Bluetooth Headset
The Bluetooth headset is available as an optional accessory. It will come in handy during a video conference over the Internet
using instant messaging software, for example Windows Messenger. For details on using the Bluetooth headset, see the
manual that came with your Bluetooth headset.
To connect the headset with your computer
1 Press and hold the headset power button for at least five seconds to turn on the Bluetooth headset.
2 Press and hold the volume buttons for at least five seconds until the indicator light blinks in red and green.
3 Right-click the Bluetooth icon on the taskbar and select Bluetooth Settings from the menu.
The Bluetooth Settings window appears and Add New Connection Wizard automatically starts.
4 If the Add New Connection Wizard window does not appear, click New Connection.
The Add New Connection Wizard window appears.
5 Select Express Mode [Recommended] and then click Next.
The wizard searches for Bluetooth devices in range and lists available devices, if any.
6 Select HBH-608 and then click Next.
The Bluetooth Manager-Bluetooth Security window appears when a connection is established.
7 Enter "0000" for Bluetooth Passkey (PIN) and then click OK.
8 Press the headset power button.
9 Click Finish.
The headset icon appears in the Bluetooth Settings window.
10 Click the headset icon and then press the headset power button.
The computer should now be ready to communicate with the Bluetooth headset.
Page 56
To disconnect the headset from your computer
1 Right-click the Bluetooth icon on the taskbar and select Bluetooth Settings from the menu.
The Bluetooth Settings window appears.
2 Select HBH-608, click Next, and select Disconnect from the Bluetooth menu.
3 Click Yes.
56
nN
Using Your VAIO Computer
Page 57
Using Peripheral Devices
You can add functionality to your computer by using the various ports on the computer.
❑ Connecting a Port Replicator (page 57)
❑ Connecting External Speakers (page 61)
❑ Connecting an External Display (page 62)
❑ Selecting Display Modes (page 65)
❑ Using the Multiple Monitors Function (page 66)
❑ Connecting an External Microphone (page 67)
❑ Connecting a Universal Serial Bus (USB) Device (page 68)
❑ Connecting a Printer (page 70)
❑ Connecting an i.LINK Device (page 71)
❑ Connecting to a Network (LAN) (page 73)
Connecting a Port Replicator
57
nN
Using Peripheral Devices
Attaching a port replicator enables you to connect additional peripherals to your computer, such as a printer and an external
display.
A port replicator may be supplied with your computer, depending on the model you purchased. If not, you can additionally
purchase an optional port replicator.
See the online Specifications to see whether your model is supplied with a port replicator.
Page 58
Using Peripheral Devices

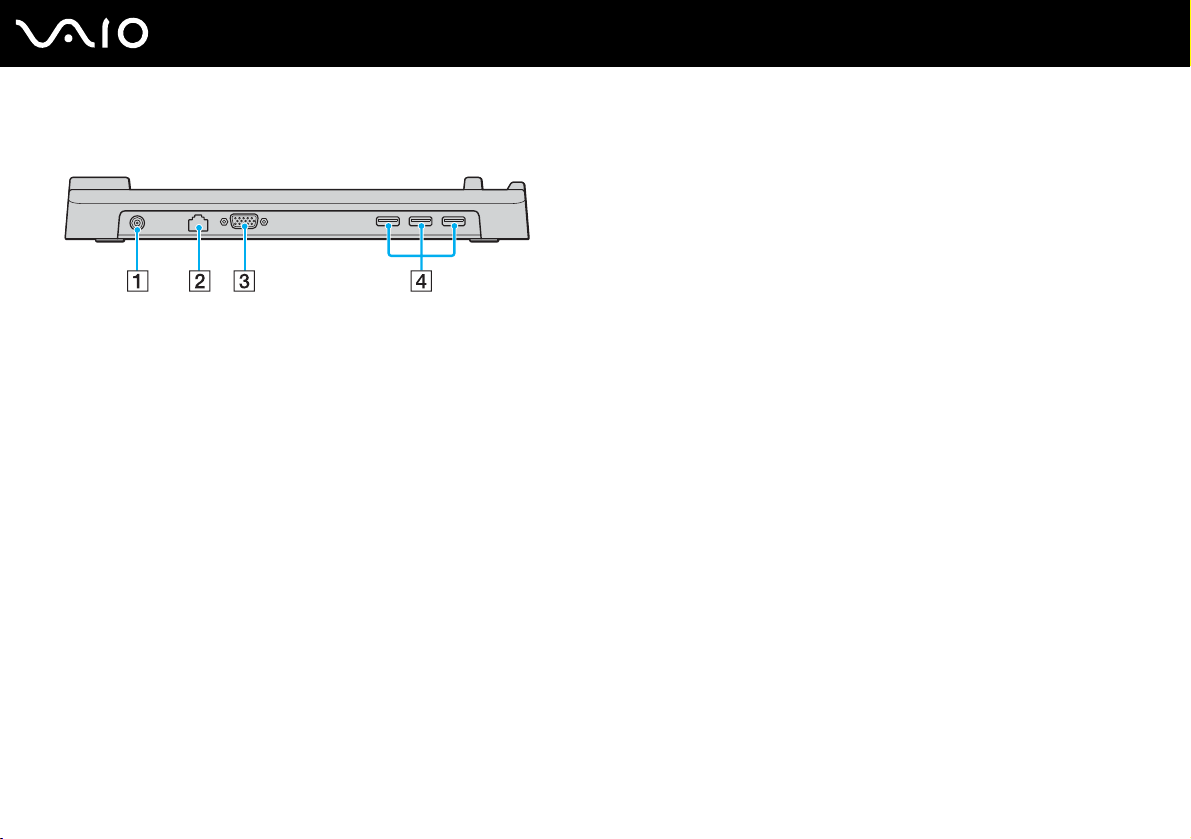

Locating Ports on the Port Replicator
A DC IN port (page 17)
B Network (Ethernet) port (100BASE-TX / 10BASE-T) (page 73)
C Monitor (VGA) port (page 62)
D Hi-Speed USB (USB 2.0) ports
* Supports high-/full-/low- speeds.
!
The port replicator can be powered only through the AC adapter supplied with your computer. Do not unplug the AC adapter from the port replicator
and the AC outlet while using the port replicator; this may cause data damage or hardware malfunctions.
*
(page 68)
Attaching Your Computer to the Port Replicator

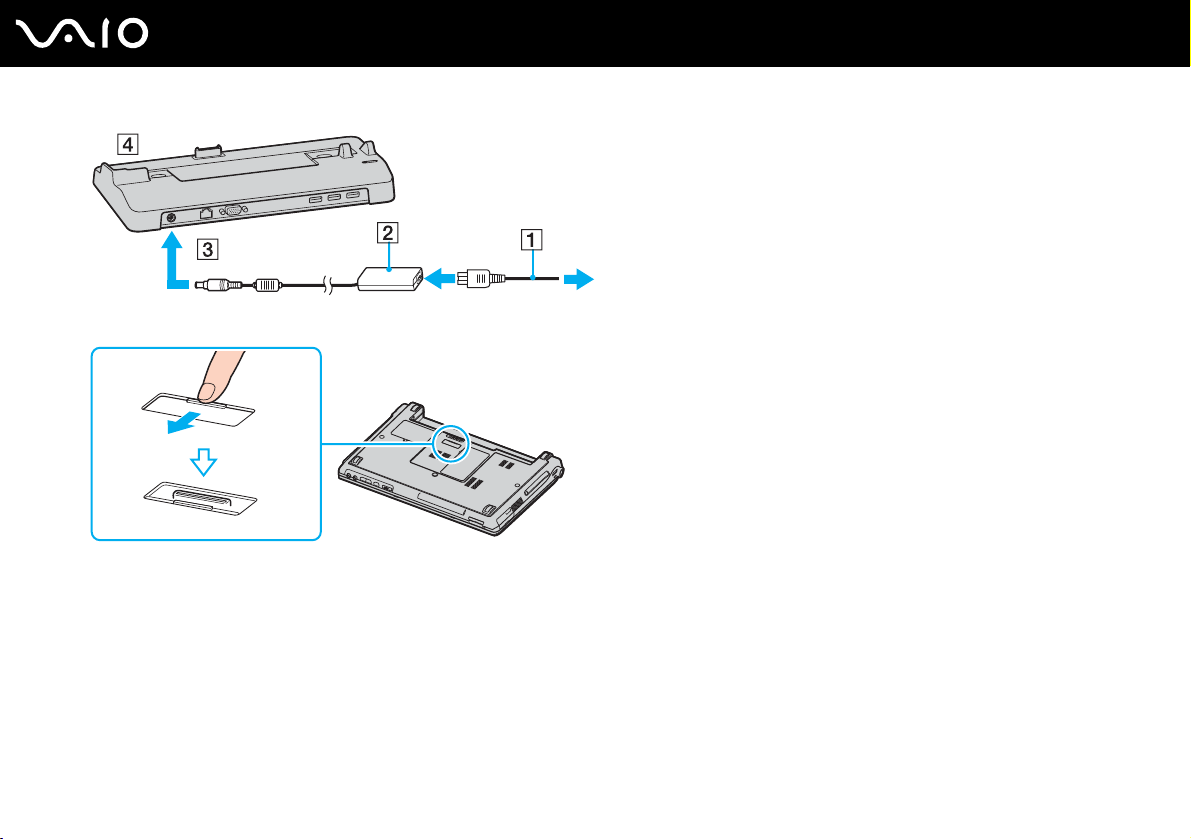

To attach your computer to the port replicator
!
To prevent loss of unsaved data, be sure to turn off your computer before attaching it to the port replicator.
1 Disconnect all peripherals from the computer.
2 Plug the power cord (1) into the AC adapter (2) and an AC outlet.
3 Plug the cable attached to the AC adapter (2) into the DC IN port (3) on the port replicator (4).
58
nN
Page 59
nN
Using Peripheral Devices
4 Open the port replicator connector cover on the bottom of the computer.

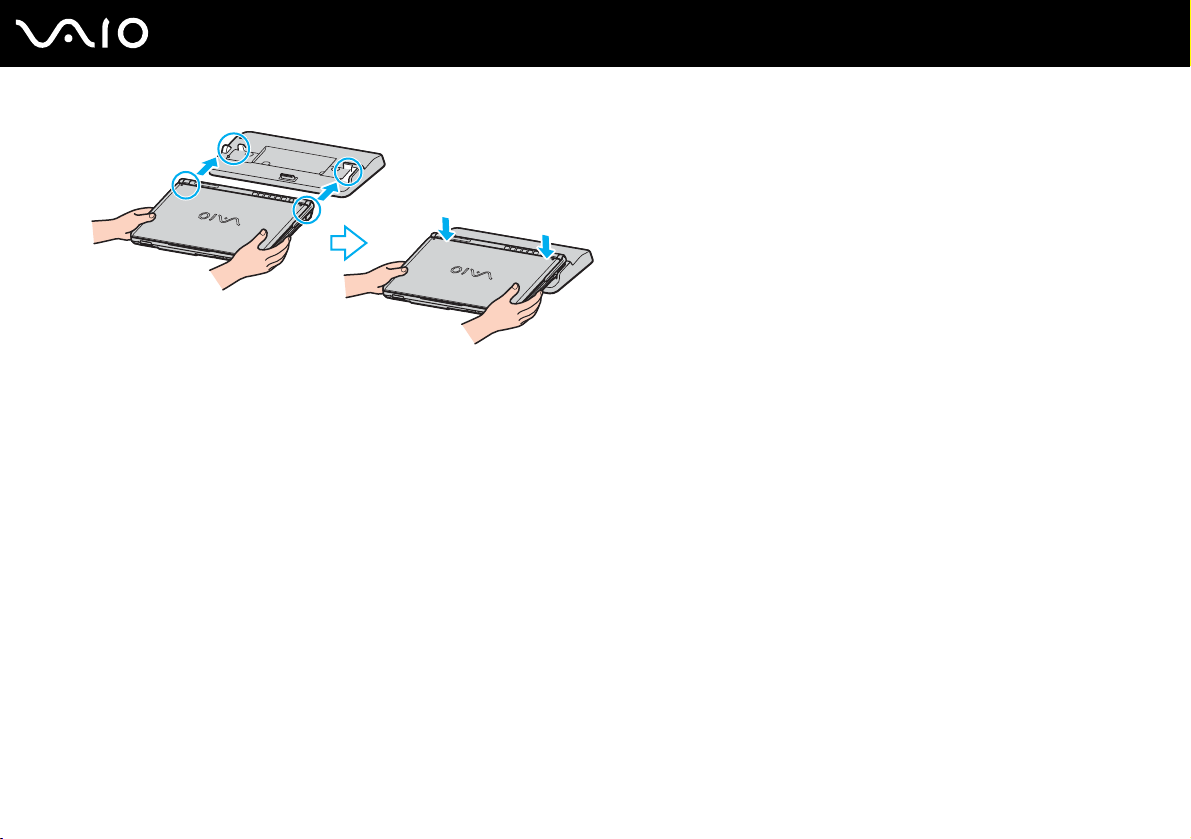

5 Align the bottom connector of the computer with the connector on the port replicator and push down until it clicks into
place.
59
Page 60
Using Peripheral Devices
6 Turn on the computer.
!
Use the AC adapter supplied with your computer.
Do not move your computer while attached to the port replicator; this may detach the port replicator and cause damage to the port replicator and the
computer.
Disconnecting Your Computer from the Port Replicator
!
To prevent loss of unsaved data, be sure to turn off your computer before disconnecting it from the port replicator.
60
nN
To disconnect your computer from the port replicator
1 Turn off the computer and the connected peripherals.

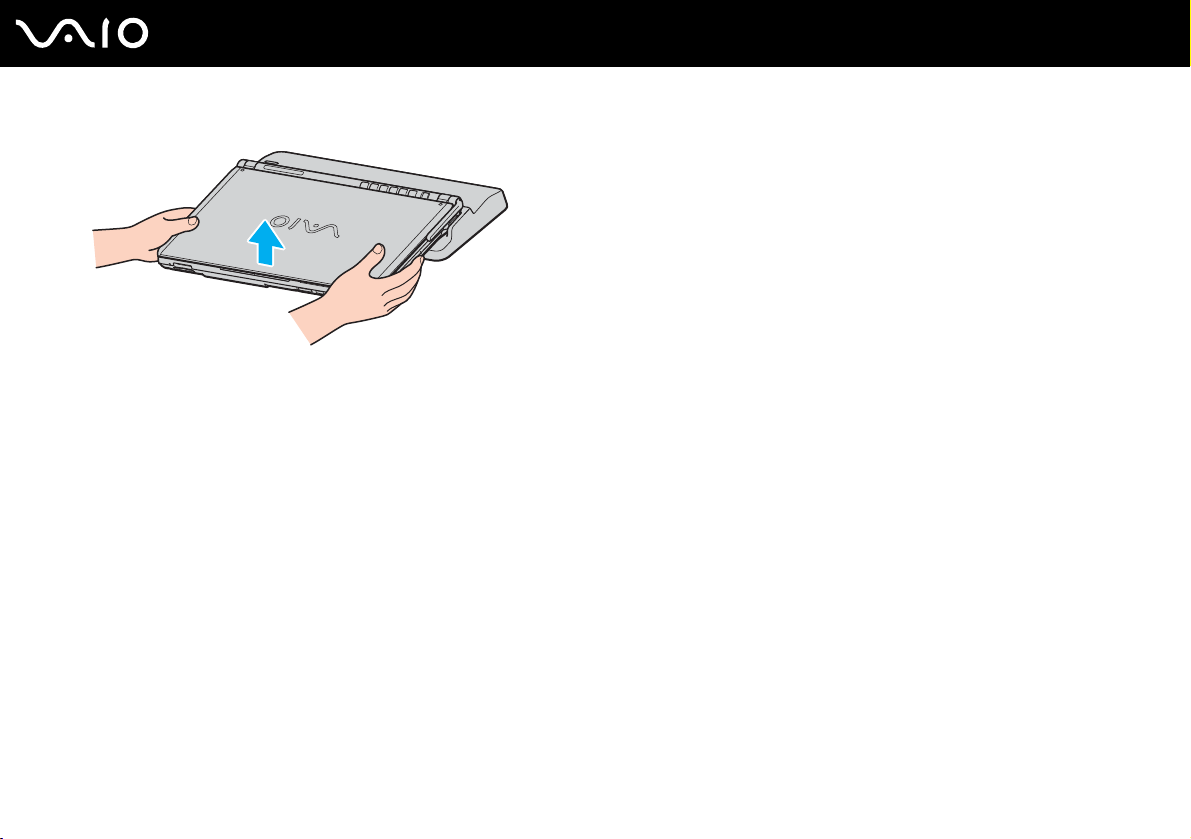

2 Lift the computer away from the port replicator.
Page 61
Using Peripheral Devices
3 Close the port replicator connector cover on the bottom of the computer.
✍
It is extremely important to close the port replicator connector cover after disconnecting your computer from the port replicator. If the cover is left open,
dust may get inside and damage the computer.
To disconnect the port replicator completely from AC power, unplug the AC adapter.
Connecting External Speakers
You can enhance the sound quality of your computer by connecting external speakers.
61
nN

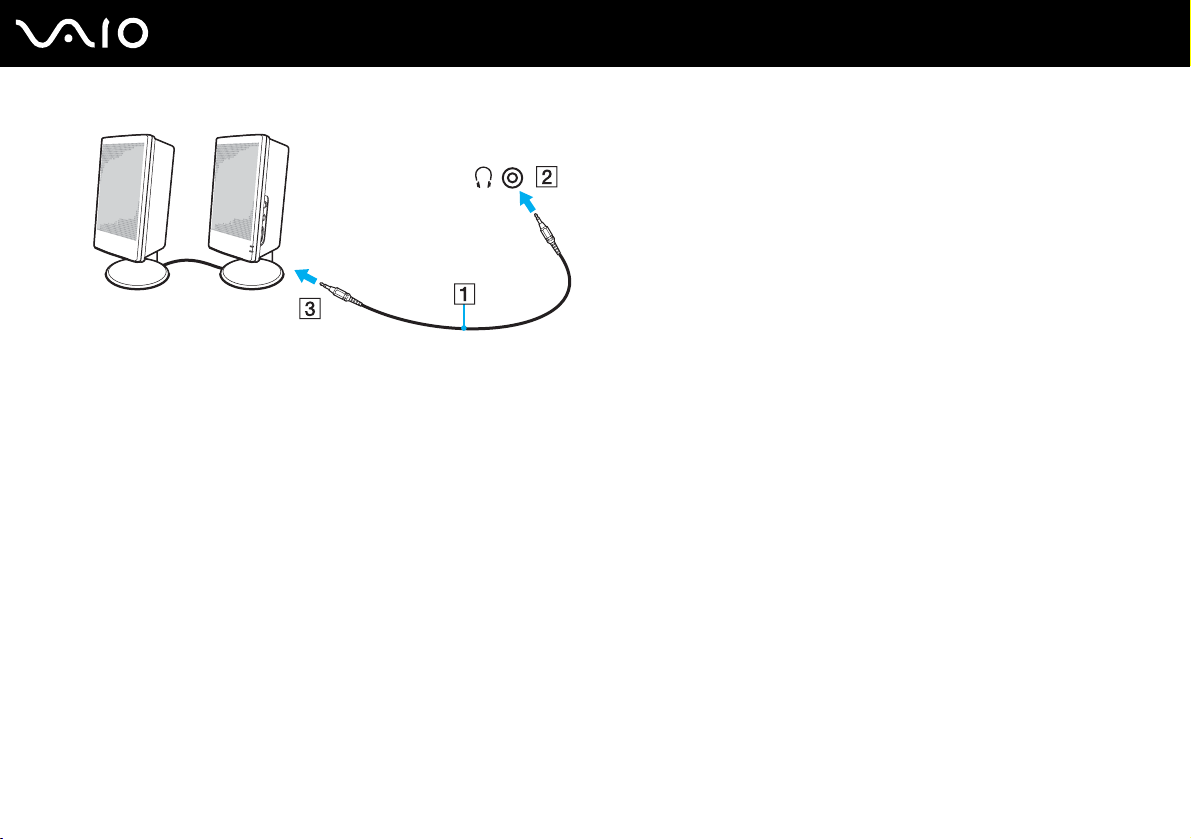

To connect external speakers
1 Plug the speaker cable (1) into the headphones jack (2) i.
2 Plug the other end of the speaker cable to the external speaker (3).
3 Turn down the volume of the speakers before you turn them on.
Page 62
62
nN
Using Peripheral Devices
✍
Make sure your speakers are designed for computer use.
!
Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.
Connecting an External Display
You can connect an external display to your computer. For example, you can use the computer with a computer display or a
projector.
✍
Connect the power cord after connecting all other cables.
Connected external displays are used as secondary screens.
On Windows systems only, you can also use an external display to set up multiple monitors.
Connecting a Computer Display
You can connect a computer display (monitor) either directly to your computer or via the (optional) port replicator.
Page 63
63
nN
Using Peripheral Devices

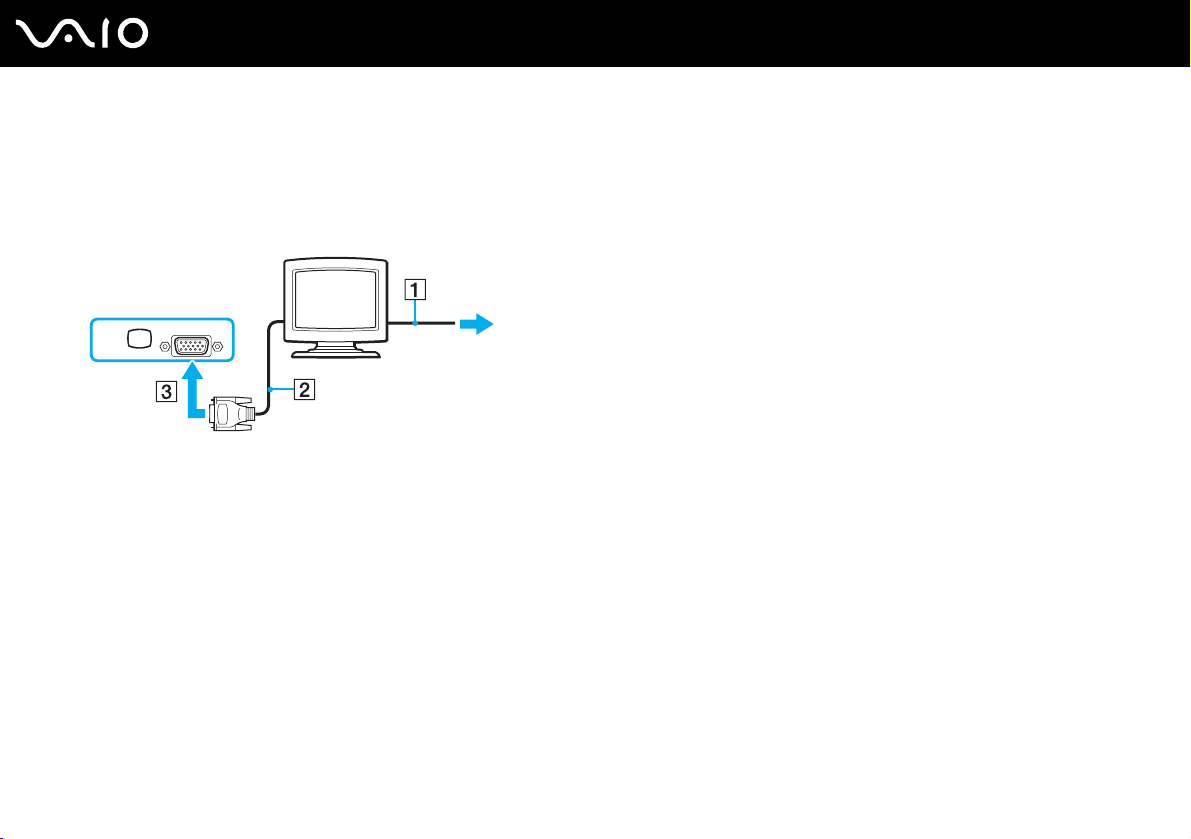

To connect a computer display
1 If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
2 If you want to connect a VGA monitor, plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the
computer or on the port replicator.
Connecting a Multimedia Computer Display
You can connect a multimedia computer display that includes built-in speakers and a microphone directly to your computer
or via the (optional) port replicator.

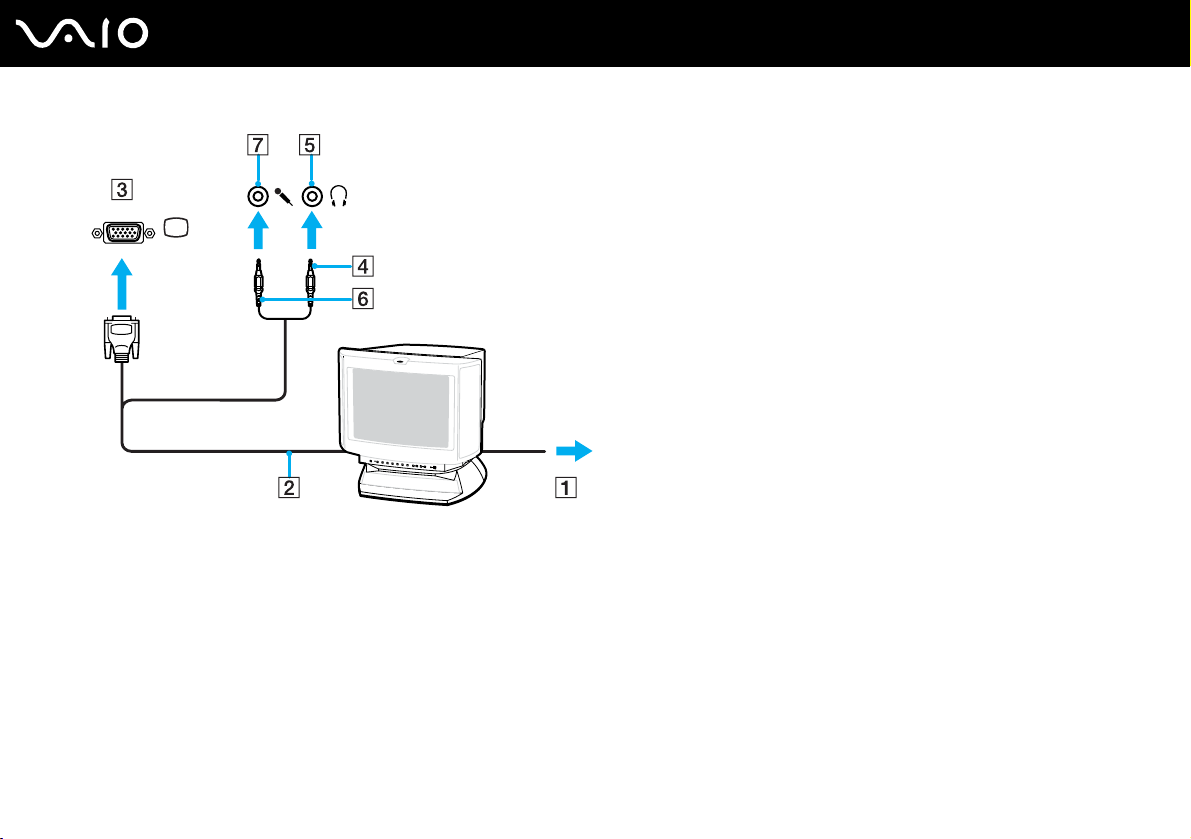

To connect a multimedia computer display
1 Plug the power cord of your multimedia computer display (1) into an AC outlet.
2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the port replicator.
3 Plug the speaker cable (4) into the headphones jack (5) i on the computer.
4 Plug the microphone cable (6) into the microphone jack (7) m on the computer.
Page 64
Using Peripheral Devices
Connecting a Projector
You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the (optional) port
replicator.
64
nN

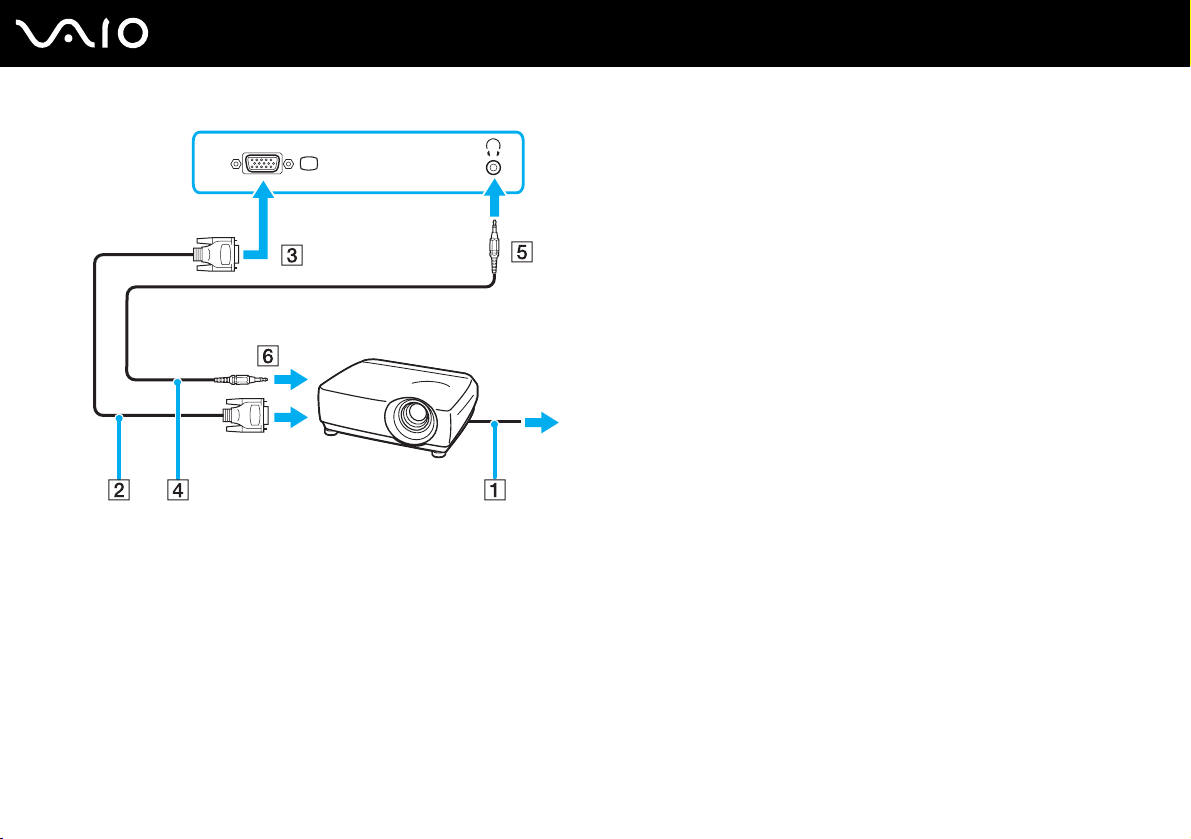

To connect a projector
1 Connect the power cord (1) of your projector into an AC outlet.
2 Plug an RGB signal cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the port replicator.
3 Plug an audio cable (4) (not supplied) into the headphones jack (5) i.
4 Plug the RGB signal cable and the audio cable into the jack and port on the projector (6).
Page 65
65
nN
Using Peripheral Devices
Selecting Display Modes
You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected
to your computer.
If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors
Function (page 66) for more information.
To select a display
1 Right-click on the desktop to display the context menu.
2 Click the menu item for graphic properties.
Page 66
66
nN
Using Peripheral Devices
3 Follow the on-screen instructions to change the settings.
✍
You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.
Before turning on your computer, turn on the peripheral devices.

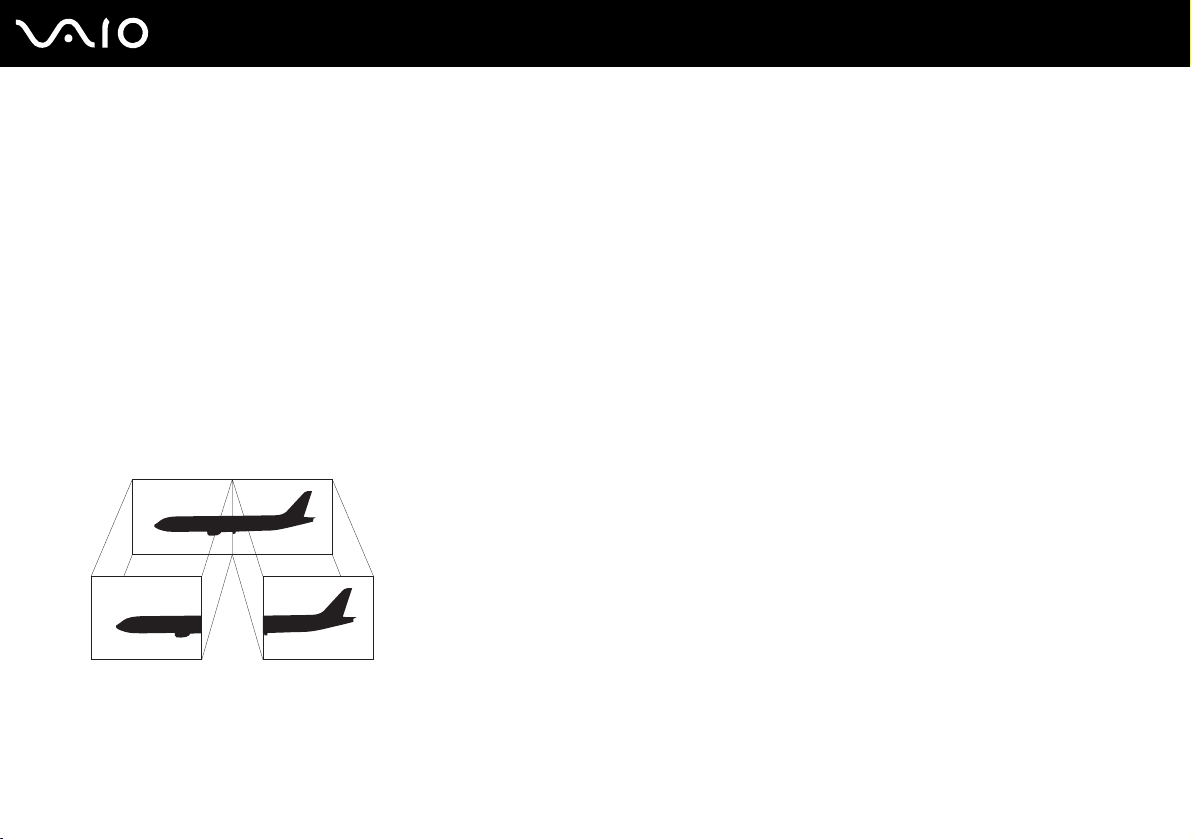

Using the Multiple Monitors Function
The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display attached to the monitor (VGA) port, your computer screen and the external display can function as
a single desktop.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
Page 67
Using Peripheral Devices
✍
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Standby or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may
not return to Normal mode.
If you set different colors on each display, do not divide one single window on two displays; otherwise your software may not work properly.
Set fewer colors or a lower resolution for each display.
To select the Multiple Monitors mode
1 Right-click on the desktop to display the context menu.
2 Click the menu item for graphic properties.
3 Follow the on-screen instructions to change the settings.
✍
Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.
Connecting an External Microphone
67
nN
If you need to use a sound input device (for example, to chat over the Internet) you need to plug in an external microphone.
To connect an external microphone

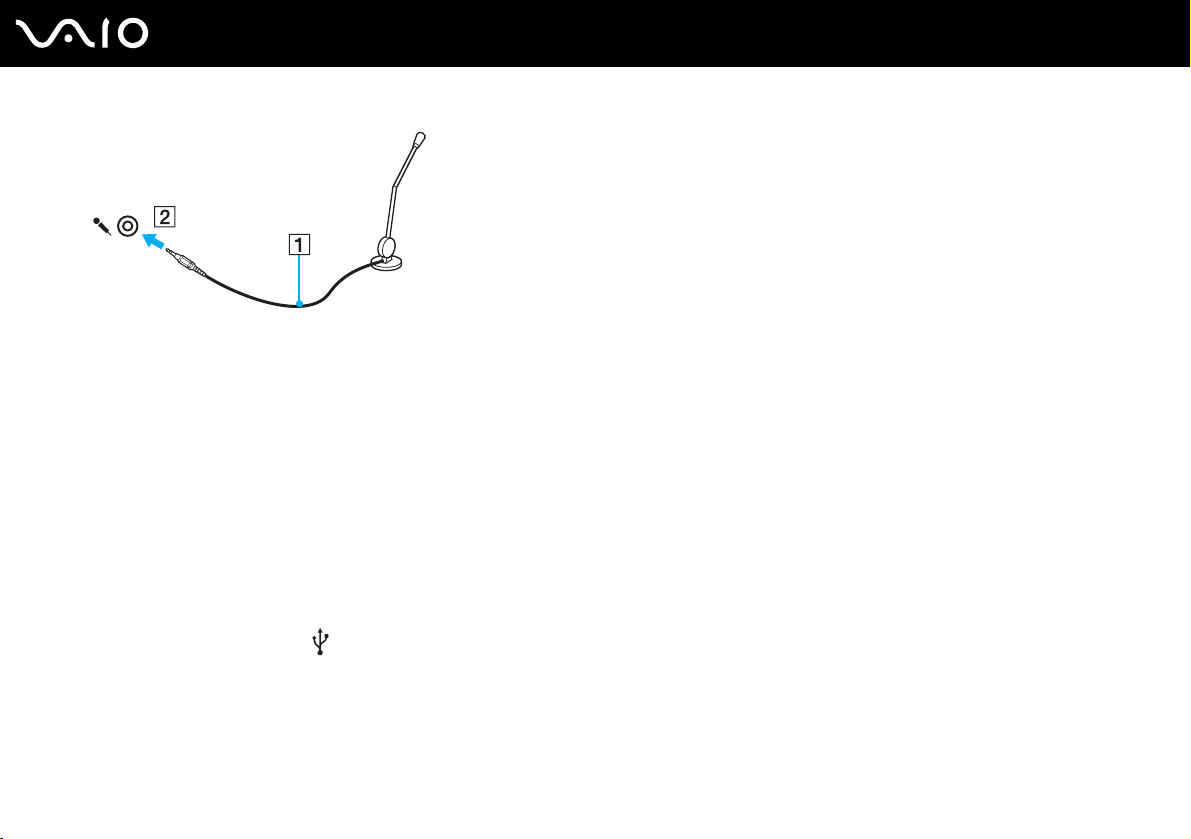

Plug the microphone cable (1) into the microphone jack (2) m.
Page 68
Using Peripheral Devices
✍
Make sure your microphone is designed for computer use.
Connecting a Universal Serial Bus (USB) Device
To prevent your computer and/or USB devices from damage, observe the following:
❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports.
❑ Do not put the computer into a bag or carrying case when it has USB devices connected.
Connecting a USB Mouse
68
nN

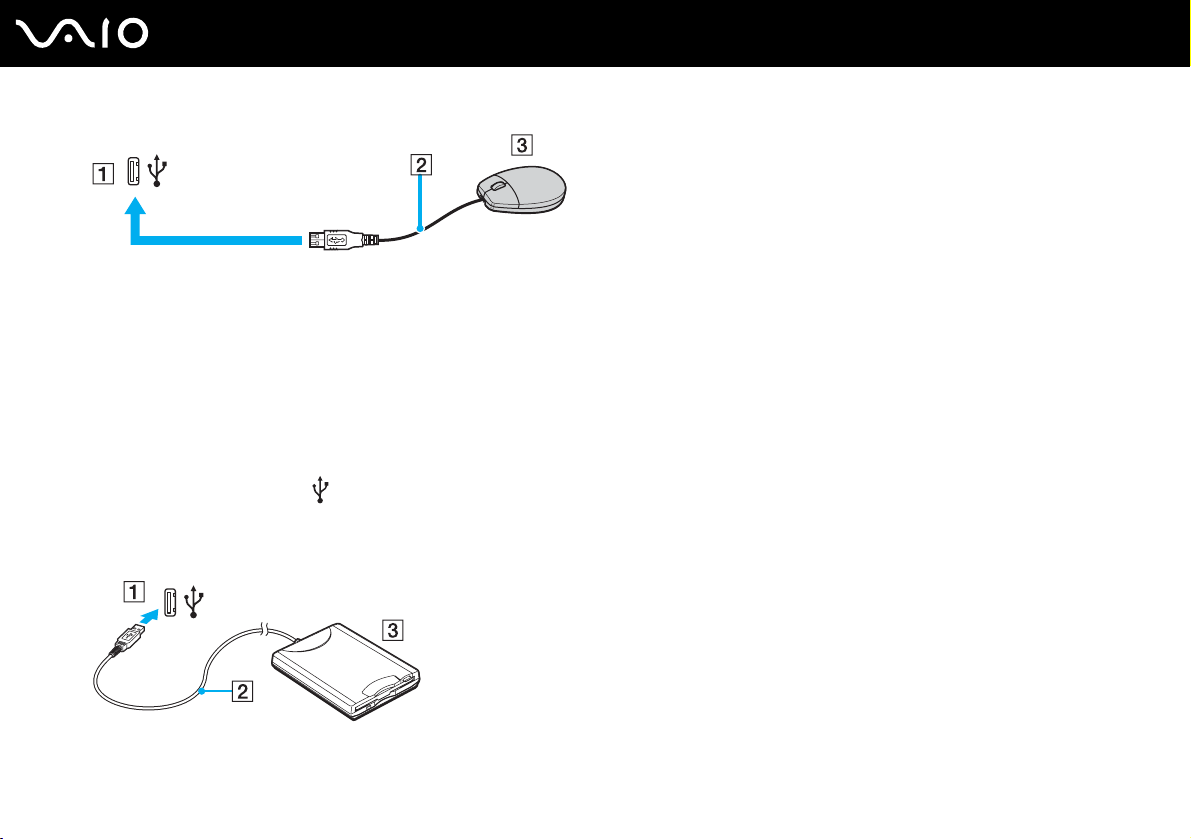

To connect a USB mouse
1 Choose the USB port (1) you prefer to use.
2 Plug the USB mouse cable (2) into the USB port.
You can now use your USB mouse (3).
Page 69
Using Peripheral Devices
✍
The VAIO USB mouse software driver is preinstalled on your computer. As a result, you only need to plug the USB mouse into the USB port and you
can start working.
Connecting a USB Floppy Disk Drive
You can purchase a USB floppy disk drive and connect it to your computer.
To connect a USB floppy disk drive
1 Choose the USB port (1) you prefer to use.
2 Plug the USB floppy disk drive cable (2) into the USB port.
Your USB floppy disk drive (3) is now ready for use.
69
nN
!
When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.
Page 70
70
nN
Using Peripheral Devices
Disconnecting a USB floppy disk drive
You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is
in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.
If the computer is off, you can unplug the USB cable directly from the computer.
To disconnect a USB floppy disk drive
1 Close all programs accessing the floppy disk drive.
2 Double-click the Safely Remove Hardware icon on the taskbar.
The Safely Remove Hardware window appears.
3 Select the floppy disk drive you want to unplug.
4 Click Stop.
The Stop a Hardware device window appears.
5 Make sure the floppy disk drive is selected, and click OK.
A message appears stating it is now safe to remove the hardware device.
6 Click Close to close the Safely Remove Hardware window.
7 Disconnect the floppy disk drive from the computer.
Connecting a Printer
You can connect a Windows-compatible printer to your computer to print documents.
Connecting a Printer Using the USB Port
You can connect a USB printer compatible with your version of Windows to the computer.
Page 71
71
nN
Using Peripheral Devices

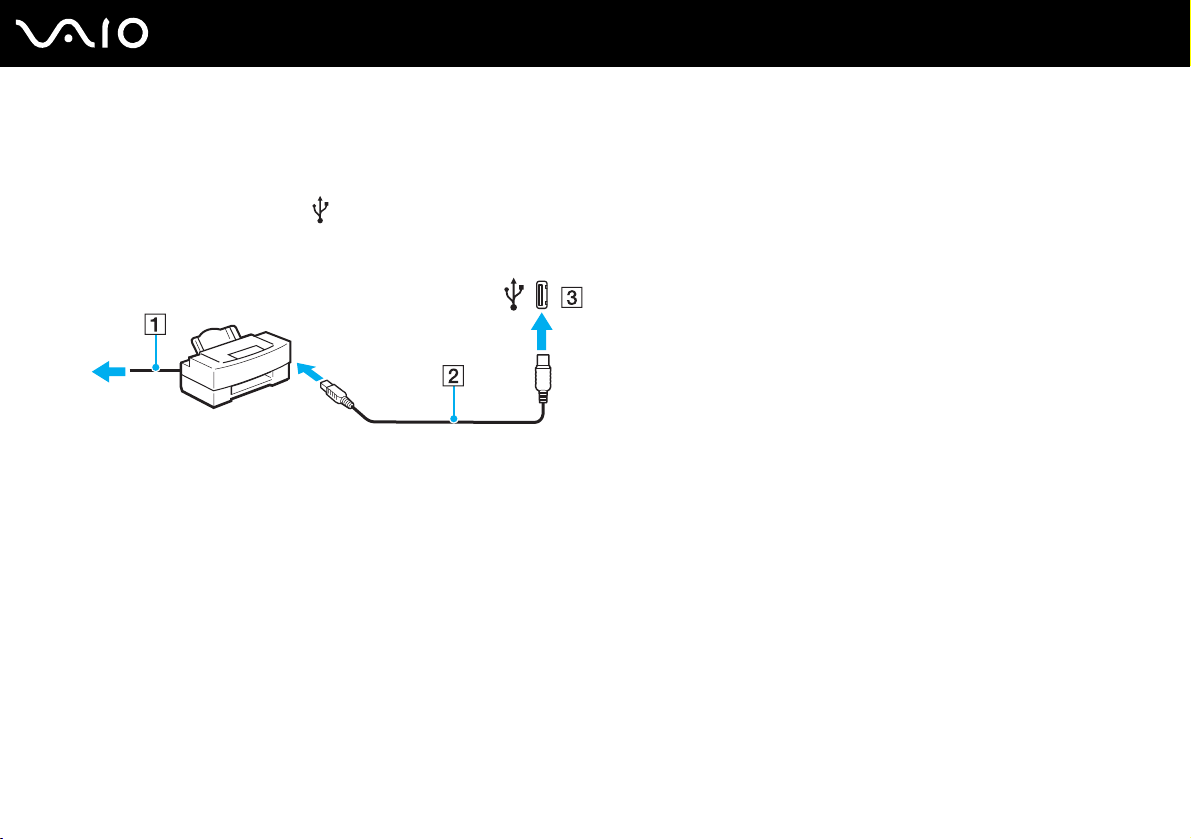

To connect a printer using the USB port
1 Plug the power cord (1) of your printer into an AC outlet.
2 Choose the USB port (3) you prefer to use.
3 Plug one end of a USB printer cable (2) (not supplied) into the USB port and the other end to your printer.
Connecting an i.LINK Device
Notes on connecting i.LINK devices
❑ Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video
camcorder or to connect two VAIO computers in order to copy, delete or edit files.
❑ The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports.
❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of
the external device.
❑ i.LINK cables compatible with your computer include cables with the following part numbers:
VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end) and VMC-IL4408 Series (a 0.8 meter cable with a 4-
pin connector at each end).
❑ The optional i.LINK cables may not be available, depending on the country or area of your residency.
Page 72
72
nN
Using Peripheral Devices
❑ An i.LINK connection with other compatible devices is not fully guaranteed.
❑ The i.LINK connection varies depending on the software applications, operating system, and i.LINK-compatible devices
you use. See the manual that came with your software for more information.
❑ Check the working conditions and OS compatibility of i.LINK-compatible PC peripherals (for example, an HDD or a CD-
RW drive) before you connect them to your computer.
Connecting a Digital Video Camcorder

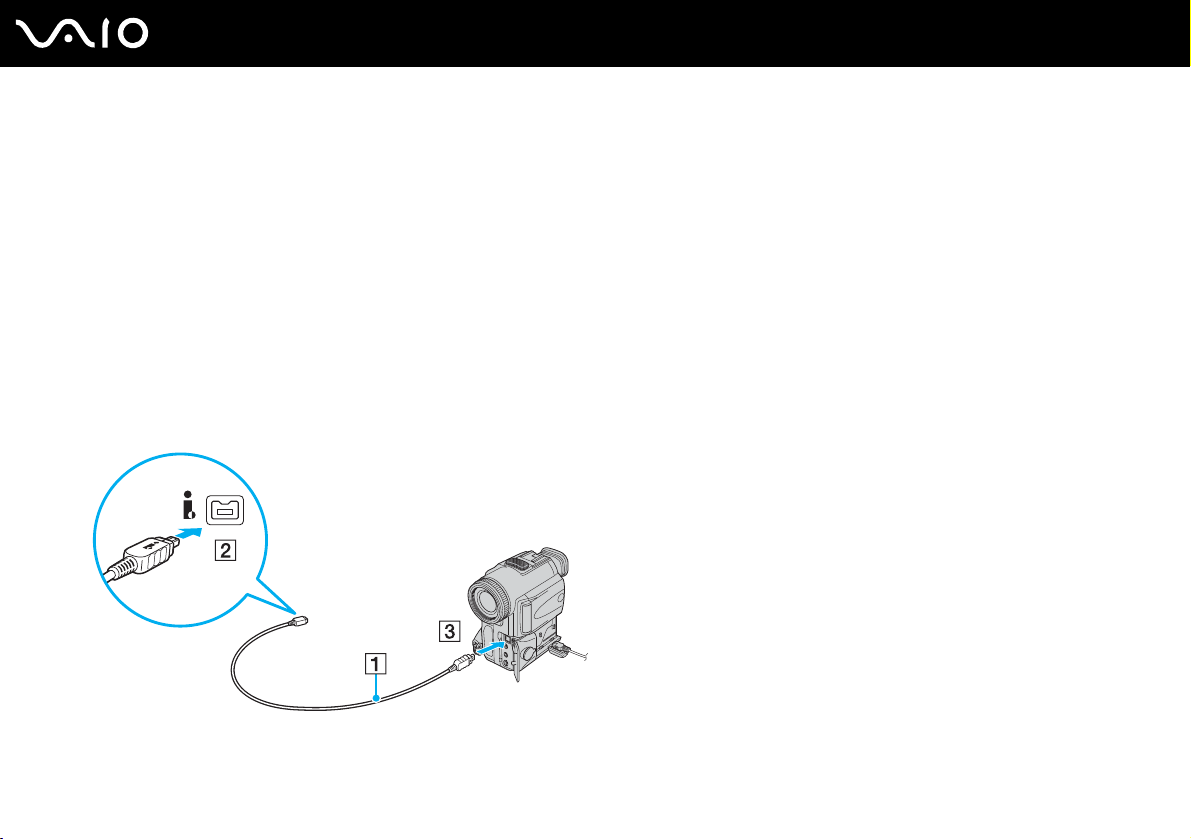

To connect a digital video camcorder
1 Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV
In/Out ports (3) on the digital video camcorder.
2 Launch the DVgate Plus software.
Page 73
73
nN
Using Peripheral Devices
✍
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible.
The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently.
You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

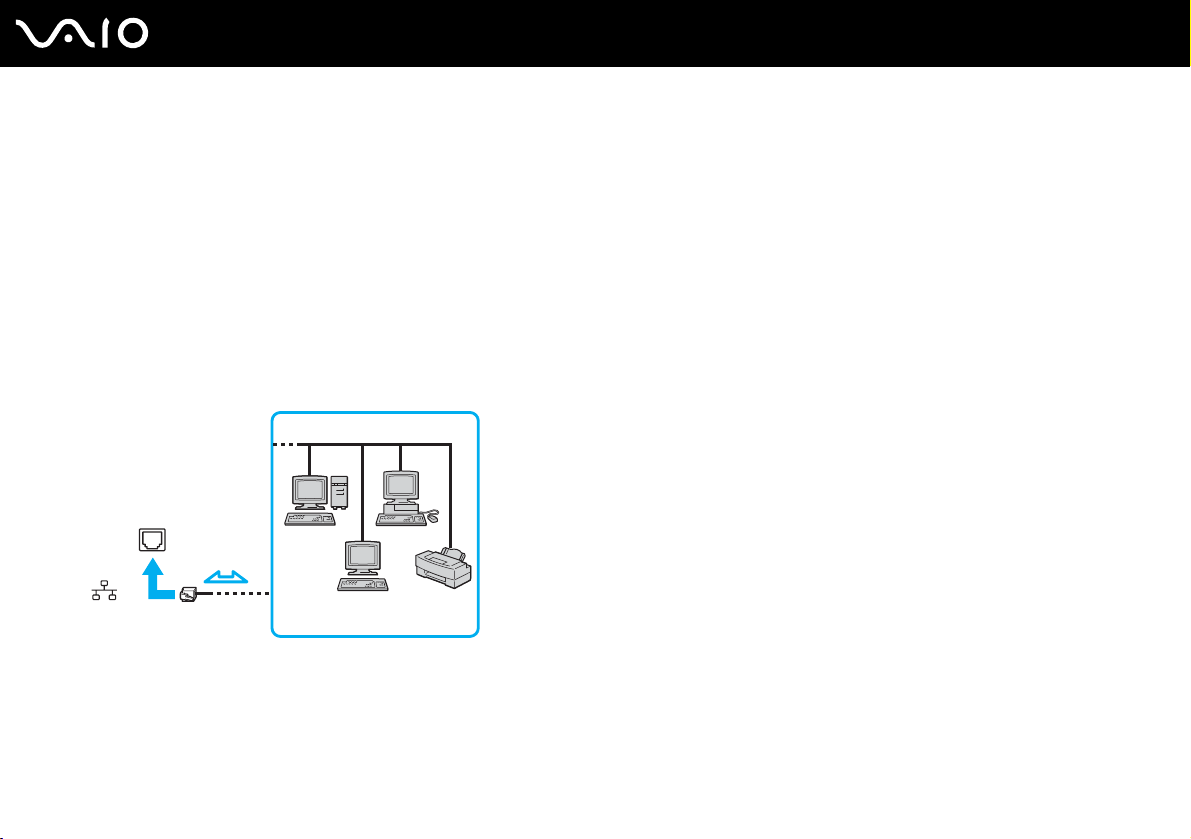

Connecting to a Network (LAN)
You can connect your computer to 100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end
of a network cable (not supplied) to the network (Ethernet) port on the computer or the (optional) port replicator and the other
end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.
✍
Your computer can be connected to the network with the default settings.
Page 74
Using Peripheral Devices
!
Telephone lines cannot be connected to the network (LAN) connector on your computer.
If the network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage,
overheating, or fire.
- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
- Public telephone subscriber line
- PBX (private branch exchange)
!
Do not plug a telephone cable into the network port.
74
nN
Page 75
75
nN
Customizing Your VAIO Computer
Customizing Your VAIO Computer
This section briefly describes how to change the main settings of your computer. Among other things, you will learn how to
use and customize the look of your Sony software and utilities, etc.
❑ Setting the Password (page 75)
❑ Using Fingerprint Authentication (page 83)
❑ Using Trusted Platform Module (TPM) (page 97)
❑ Setting Up Your Computer with VAIO Central (page 101)
❑ Using the Power Saving Modes (page 102)
❑ Managing Power with VAIO Power Management (page 105)
❑ Changing the Performance Setting (page 108)
❑ Protecting the Hard Disk (page 108)
Setting the Password
In addition to the Windows password, you can use BIOS functions to set two types of passwords to protect your computer:
power-on password and hard disk password.
Once you have set the power-on password, you will have to enter the password after the VAIO logo appears to start your
computer. The power-on password will allow you to protect your computer from unauthorized access.
The hard disk password provides additional security for the data stored on your hard disk. If you set the hard disk password,
no other users will be able to access the data without knowing the password, even if the hard disk is installed in another
computer.
Page 76
76
nN
Customizing Your VAIO Computer
Adding the Power-on Password
The power-on password is provided to protect your computer from unauthorized access.
There are two types of the power-on password: machine password and user password. The machine password is provided
for users with administrator rights on the computer to change all the setup options on the BIOS setup screen, as well as to
start the computer. The user password is provided for other ordinary users to allow for changing some of the BIOS setup
options, as well as starting the computer. To set the user password, you must first set the machine password.
!
Once you have set the power-on password, you cannot start your computer without entering the password. Make sure not to forget the password. Write
down your password and keep it safe and private from other people.
If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in
for depot service for password reset.
✍
If you have set the power-on password in conjunction with the fingerprint authentication functionality, you can substitute fingerprint recognition for
password entry when turning on your computer. For more information, see Using Fingerprint Authentication (page 83).
To add the power-on password
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
4 On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
5 At the confirmation prompt, press the Enter key.
Page 77
77
nN
Customizing Your VAIO Computer
✍
The following is to configure your computer to prompt password entry when you turn it on or display the BIOS setup screen.
6 Select Password when Power ON under Security.
Press the space bar to change the setting from Disabled to Enabled.
7 Press the < or , key to select Exit, select Exit (Save Changes) or Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Changing/Removing the Power-on Password
To change or remove the power-on password
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Enter the current password for Enter Password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
When confirmation to save the changes is prompted, press the Enter key.
6 Press the < or , key to select Exit, select Exit (Save Changes) or Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, confirm that Yes is selected and then press the Enter key.
Page 78
78
nN
Customizing Your VAIO Computer
Adding the Hard Disk Password
The hard disk password provides additional security for the data stored on your hard disk. If you enable the hard disk
password, this adds an extra level of security.
When adding the hard disk password, you must set both the master and user passwords. The master password is provided
for users with administrator rights on the computer to reset the user password on the BIOS setup screen. The user password
is provided to lock your hard disk. Once you set the user password, you will have to enter the password along with the poweron password (if set), after the VAIO logo appears.
!
You cannot start your computer with the master password.
If you forget the master password or the keyboard fails, which is critical to password entry, no bypass is possible and the data stored in the hard disk
will not be accessible. There is NO RESET of this password. You will have to replace the hard disk at your own expense and lose all the data stored in
the original hard disk. Make sure to write down the master password and keep it safe and private from other people.
✍
If you have set the hard disk password in conjunction with the fingerprint authentication functionality, you can substitute fingerprint recognition for
password entry when turning on your computer. For more information, see Using Fingerprint Authentication (page 83).
To add the hard disk password
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
Page 79
79
nN
Customizing Your VAIO Computer
3 Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The password entry screen appears.
4 Select Enter Master and User Passwords and press the Enter key.
5 Select Continue on the warning screen and press the Enter key.
6 Enter the master password twice and press the Enter key.
The password should be up to 32 alphanumeric characters (including spaces) long.
7 Enter the user password twice and press the Enter key.
The password should be up to 32 alphanumeric characters (including spaces) long.
8 Press the Enter key when the Setup Notice message appears.
9 Press the Esc key.
10 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Changing the Hard Disk Password
To change the hard disk password
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
Page 80
80
nN
Customizing Your VAIO Computer
3 Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The password entry screen appears.
4 Select Change Master Password or Change User Password and press the Enter key.
5 Enter the current password once and then a new password twice.
6 Press the Enter key.
7 Press the Enter key when the success message appears.
8 Press the Esc key.
9 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Removing the Hard Disk Password
To remove the hard disk password
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
3 Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The password entry screen appears.
4 Select Enter Master and User Password and press the Enter key.
Page 81
81
nN
Customizing Your VAIO Computer
5 Enter the current password for Enter Current Hard Disk Master Password and press the Enter key, leaving everything
else blank.
6 Press the Enter key when the success message appears.
7 Press the Esc key.
8 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Adding the Windows Password
The Windows password comes in handy when you have to share a single computer with other people. By setting the Windows
password, you can protect your user account from unauthorized access.
Entry of the Windows password will be prompted after you select your user account.
!
Make sure not to forget the password. Write down your password and keep it safe and private from other people.
✍
If you have set the Windows password in conjunction with the fingerprint authentication functionality, you can substitute fingerprint recognition for
password entry when turning on your computer. For more information, see Using Fingerprint Authentication (page 83).
To add the Windows password
1 Click Start and then Control Panel.
2 Click the User Accounts icon.
3 Click your user account under or pick an account to change.
4 Click Create a password.
5 In the Type a new password and Type the new password again to confirm fields, enter the password for your account.
6 Click Create Password.
Page 82
82
nN
Customizing Your VAIO Computer
✍
See Help and Support Center for more information on the Windows password.
Changing/Removing the Windows Password
To change the Windows password
1 Click Start and then Control Panel.
2 Click the User Accounts icon.
3 Click your user account under or pick an account to change.
4 Click Change my password.
5 Enter the current password under Type your current password.
6 Enter a new password under Type a new password and the same password under Type the new password again to
confirm.
7 Click Change Password.
To remove the password
1 Click Start and then Control Panel.
2 Click the User Accounts icon.
3 Click your user account under or pick an account to change.
4 Click Remove my password.
5 Enter the current password that you want to remove.
6 Click Remove Password.
Page 83
83
nN
Customizing Your VAIO Computer

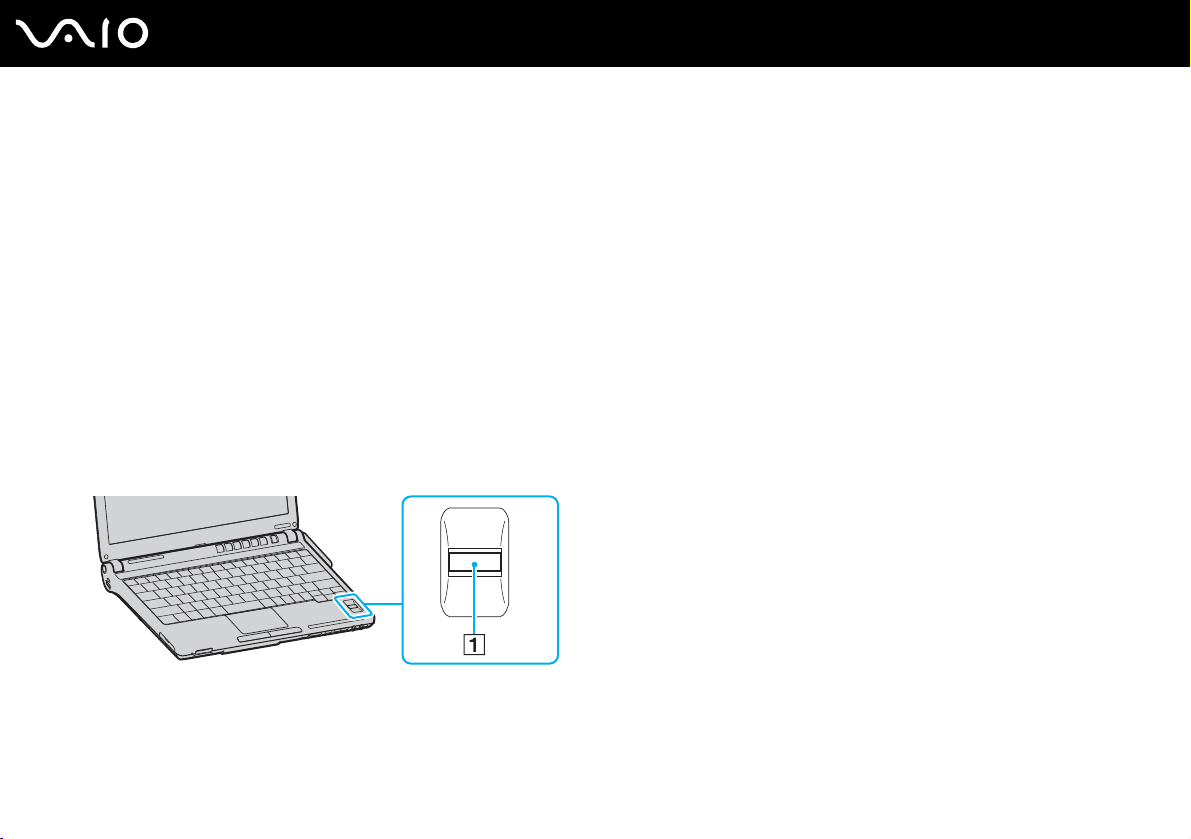

Using Fingerprint Authentication
Your computer is equipped with a fingerprint sensor to provide you with additional convenience. A small horizontal bar located
at the lower right of the keyboard is the sensor of the fingerprint reader and will be referred to as the fingerprint sensor
hereinafter.
Once you have registered your fingerprint(s), the fingerprint authentication functionality offers:
❑ A substitute for password entry
You can log onto your password-protected system without entering the power-on, hard disk, and Windows passwords. If
you share a computer with other people, you can skip user selection as well.
❑ Quick web-site access
Once you have registered your user information (user accounts, passwords, etc.) for web sites in the password bank, you
can substitute fingerprint authentication for entering required information and access the password-protected web sites.
❑ Access to the encrypted (locked) My Safe folder
The My Safe folder is provided to protect your data against unauthorized access. With the fingerprint authentication
functionality, you can decrypt (unlock) this folder to access your data.
❑ Quick application access
Once you have assigned an application to your finger, you can then swipe the finger across the fingerprint sensor to
launch the assigned application.
Precautions on Using Fingerprint Authentication
❑ The fingerprint authentication technology does not assure 100% verification.
Sony assumes no liabilities for any problems and damages arising out of your use of or inability to use the fingerprint
sensor.
❑ The fingerprint authentication technology does not assure complete protection of your data and hardware.
Sony assumes no liabilities for any problems and damages arising out of your use of or inability to use the fingerprint
sensor.
Page 84
84
nN
Customizing Your VAIO Computer
❑ The fingerprint recognition rate depends on your operating conditions and varies among individuals as well.
❑ Make sure to make a backup copy of the data stored on the hard disk, especially in the My Safe folder, before sending
your computer for repair.
Sony assumes no liabilities for any loss or modification of your data that might have occurred during the course of repair.
❑ The hard disk may be initialized and returned after the repair work and, in such a case, you will not be able to restore your
fingerprint templates.
❑ The maintenance and management of data concerning fingerprint authentication must be carried out at your own risk.
Sony assumes no liabilities for any defects arising out of your data maintenance and management.
❑ When enrolling your fingerprint(s), keep the following in mind:
❑ Enroll more than one fingerprint in case of inability to recognize the fingerprint due to injury.
❑ You may not be able to enroll your fingerprint(s) due to some biological factors.
❑ Up to 10 fingerprints can be enrolled per person.
Note that up to 21 fingerprints can be enrolled on a first-come, first-served basis for logging on to your system using
the Boot Security functionality. If you share your computer with other people, you may not be able to use your enrolled
fingerprint to log on to your system.
❑ When swiping your finger across the fingerprint sensor, keep the following in mind:
❑ Place your fingertip flat in the center of the fingerprint sensor.
❑ Scan your fingerprint from the top joint of the finger to the fingertip.
❑ Swipe your finger perpendicularly across the fingerprint sensor.
❑ Keep your finger in contact with the fingerprint sensor while swiping.
❑ Let the fingerprint sensor take about one second to scan your fingerprint.
❑ It may be hard to enroll or recognize your fingerprint if your finger is:
❑ dry or wet
Page 85
Customizing Your VAIO Computer
❑ wrinkled
❑ injured
❑ dirty
❑ The soiled fingerprint sensor may cause poor recognition performance.
❑ Wipe off the fingerprint sensor regularly with a soft cloth.
❑ Use a lens cleaning cloth when the fingerprint sensor is extremely soiled.
❑ Blow off dust with an air blower or a soft brush.
Enrolling a Fingerprint
To use the fingerprint authentication functionality, you must enroll your fingerprint(s) in your computer.
✍
Set the Windows password on your computer before enrollment. See Adding the Windows Password (page 81) for the detailed instructions.
To enroll a fingerprint
!
Up to 21 fingerprints can be enrolled on a first-come, first-served basis for logging on to your system using the Boot Security functionality. If you share
your computer with other people, you may not be able to use your enrolled fingerprint to log on to your system.
1 Click Start, point to All Programs and Protector Suite QL, and then click Welcome.
The Welcome window appears.
2 Click Enroll now.
85
nN
Page 86
Customizing Your VAIO Computer
✍
If the Windows password is not set on your computer, password registration will be prompted.
1 Click OK on the prompt window.
2 Click Yes for confirmation.
3 Enter your password twice and click OK.
3 Click Next.
4 Enter the Windows password and click Next.
5 Select the Run interactive tutorial check box and click Next.
6 Read the tutorial information and click Next.
7 Swipe your finger across the fingerprint sensor four times to perform a swipe test, and then click Next.

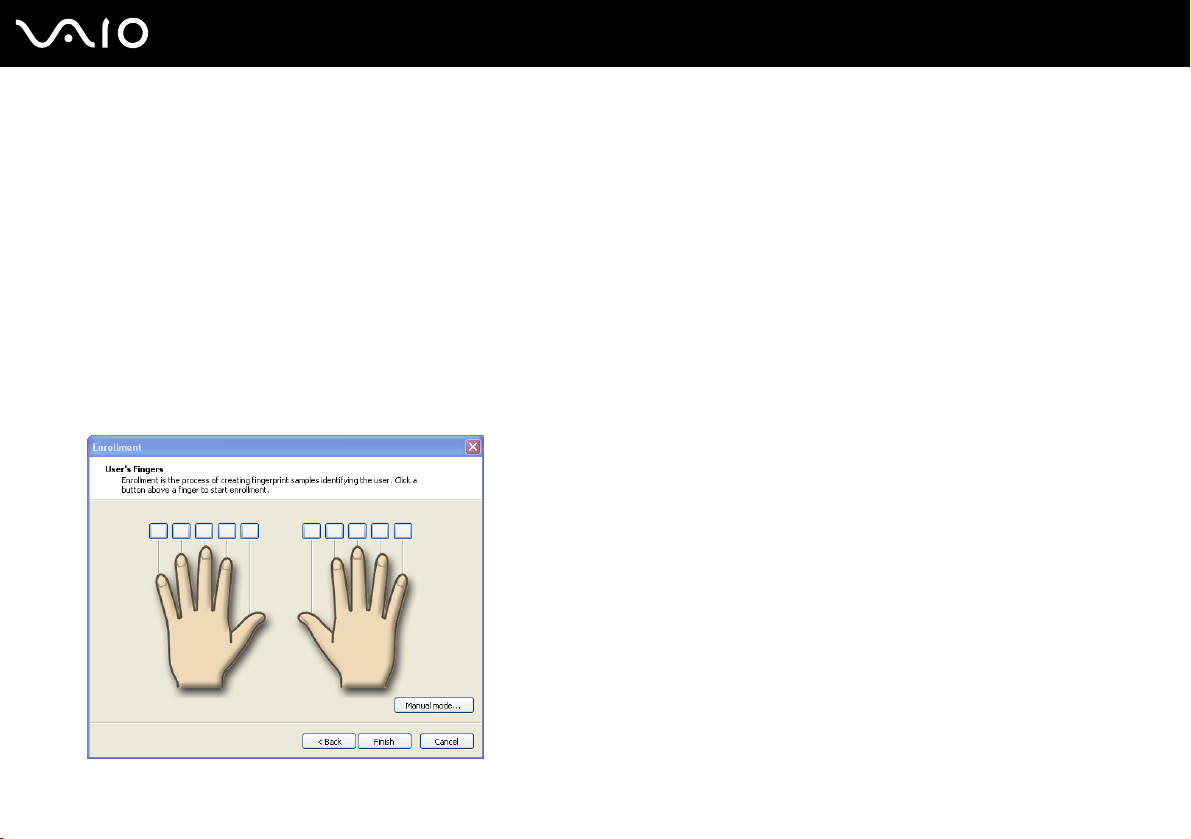

The Enrollment window appears.
86
nN
Page 87
Customizing Your VAIO Computer
✍
See To scan a fingerprint (page 87) for the scan procedure.
8 Click on the finger of which fingerprint you want to enroll.
9 Swipe the finger across the fingerprint sensor three times.
10 Click Finish.
✍
To enroll more fingerprints, repeat steps 7 and 8 above.
If enrollment scan fails in step 8 above, click Manual mode and follow the on-screen instructions to try manual mode enrollment.
To edit or add fingerprint templates, right-click the Protector Suite QL icon on the taskbar.
To scan a fingerprint
1 Place the top joint of your finger on the fingerprint sensor (1).
87
nN
✍
Place your fingertip flat in the center of the fingerprint sensor.

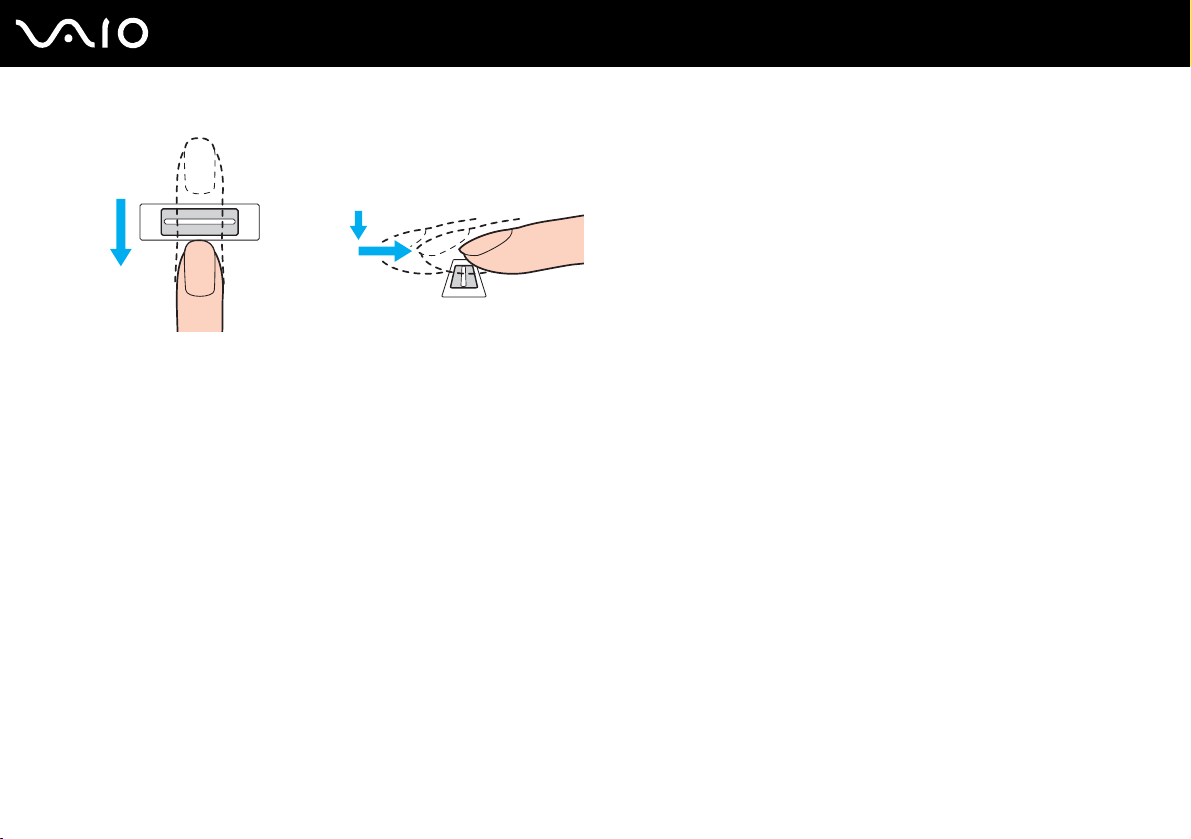

2 Swipe your finger perpendicularly across the fingerprint sensor.
Page 88
nN
Customizing Your VAIO Computer
!
Keep your finger in contact with the fingerprint sensor while swiping.
Fingerprint enrollment may fail if you move your finger too fast or too slow. Take about one second to swipe your finger across the sensor.
Logging Onto Your System
To use the fingerprint authentication functionality in place of password entry to log onto your system, you need to set the
power-on, hard disk, and Windows passwords and configure your computer for fingerprint authentication.
For setting the power-on, hard disk, and Windows passwords, see Setting the Password (page 75).
88
To log onto Windows
If your fingerprints are enrolled for your user account, you will be able to substitute fingerprint recognition for password entry
when logging on to Windows.
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor when the Windows log-on window appears.
Window is launched.
✍
You can log onto to your user account just by swiping the finger with the enrolled fingerprint even if your computer is shared by multiple users.
Page 89
89
nN
Customizing Your VAIO Computer
To configure the computer for fingerprint authentication
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2 Select Settings.
The Protector Suite QL window appears.
3 Click the Boot Security tab.
!
The Boot Security tab is not displayed if you have not set the power-on and hard disk passwords in advance.
4 Select the Enable boot security check box and the Automatic logon after boot verification check box, and then click
OK.
✍
With the Automatic logon after boot verification check box selected, you can start your system and launch Windows by swiping your finger only once.
If only the Enable boot security check box has been selected, you will be prompted to swipe your finger or enter the password before Windows is
launched.
To log onto the system using the Boot Security functionality
1 Turn on the computer.
The authentication window appears following the VAIO logo.
2 Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
Windows is launched.
✍
Alternatively, you can press the Esc key and enter your password.
If only the Enable boot security check box has been selected in step 4 in To configure the computer for fingerprint authentication (page 89), you will
be prompted to swipe your finger or enter the password before Windows is launched.
Page 90
90
nN
Customizing Your VAIO Computer
!
Up to 21 fingerprints can be enrolled on a first-come, first-served basis for logging on to your system using the Boot Security functionality. If you share
your computer with other people, you may not be able to use your enrolled fingerprint to log on to your system.
Using the Password Bank
Once you have registered your user information (user accounts, passwords, etc.) for web sites in the password bank, you
can substitute fingerprint authentication for entering required information and access the password-protected web sites.
Adding an Entry to the Password Bank
To access a password-protected web site using the fingerprint authentication functionality, you need to add a password bank
entry for the web site.
To add an entry to the password bank
1 Visit the desired password-protected web site to display the user account and password entry window.
2 Enter your user information (user account, password, etc.).
3 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
4 Select Register Window.
5 Click Continue on the displayed window.
Upon completion, a message balloon appears at the title bar.
To view or edit the entry, click Registration Details on the message balloon.
!
Never add TPM passwords (see Using Trusted Platform Module (TPM) (page 97)) to the password bank.
Page 91
91
nN
Customizing Your VAIO Computer
Using a Password Bank Entry to Access a Web Site
Once you have added an entry to the password bank, you can use it to access the corresponding password-protected web
site.
To access a password-protected web site
1 Visit the desired password-protected web site to display the user account and password entry window.
A message balloon appears to indicate that you have a password bank entry for the site.
2 Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
3 Click Yes on the confirmation window.
If a security warning window appears, click Yes or OK to proceed.
✍
You can always enter your user information that has been registered in the password bank to access password-protected web sites.
Importing/Exporting Password Bank Entries
You can export/import entries to/from the password bank for a backup or recovery purpose.
To export an entry
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2 Select Settings.
The Protector Suite QL window appears.
3 Click the Registrations tab.
4 Select the desired entry name from the list and click Export.
5 Enter a file name and click Save.
6 Enter a password twice and click OK.
Page 92
nN
Customizing Your VAIO Computer
7 Click OK.
To import an entry
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2 Select Settings.
The Protector Suite QL window appears.
3 Click the Registrations tab.
4 Click Import.
5 Select an exported file and click Open.
6 Enter the password that you used for export and click OK.
7 Click OK.
Using the My Safe Folder
The encrypted My Safe folder is provided to protect your data against unauthorized access. With the fingerprint
authentication functionality, you can decrypt (unlock) this folder to access your data.
Note that you need to initialize and create the folder before you use the My Safe folder for the first time.
92
To show the My Safe icon on the desktop
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2 Select Settings.
The Protector Suite QL window appears.
3 Click the My Safe tab.
4 Click to select the Show My Safe icon on Desktop check box, and then click OK.
Page 93
Customizing Your VAIO Computer
To initialize the My Safe folder
1 Double-click the My Safe icon on the desktop.
2 Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
3 Click Next.
4 Enter a backup password twice and click Next.
The password should be at least 8 alphanumeric characters long.
!
You will need the backup password if the fingerprint sensor fails. Without the backup password, you will not be able to restore your data in the My Safe
folder. Make sure to write down the backup password and keep it safe and private from other people.
5 Specify the folder size and click Finish.
The My Safe folder opens.
!
The maximum size of the My Safe folder is 2 GB.
To lock the My Safe folder
Right-click the My Safe icon on the desktop and select Lock My Safe from the Protector Suite QL menu.
The My Safe folder is locked against unauthorized access.
93
nN
To unlock the My Safe folder
1 Right-click the My Safe icon on the desktop and select Unlock My Safe from the Protector Suite QL menu.
2 Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
The My Safe folder will stay unlocked until you lock it again or restart the computer.
Page 94
nN
Customizing Your VAIO Computer
To resize the My Safe folder
✍
The maximum size of the My Safe folder is 2 GB.
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2 Select Settings.
The Protector Suite QL window appears.
3 Click the My Safe tab.
4 Click Change Size.
The window for changing the folder size appears.
✍
If the My Safe folder is unlocked when you click Change Size in step 4, the window for locking the folder will appear. Click OK to lock the My Safe
folder and close the window.
5 Change the folder size and click OK.
6 Click OK on the Protect Suite QL window.
Using the Application Launcher
94
The application launcher feature is available on your computer for launching your preferred application (executable file) that
is assigned to one of your fingers with the enrolled fingerprint. Once you have assigned an application to your finger, you can
then swipe the finger across the fingerprint sensor to launch the assigned application and eliminate tiresome menu selections.
Assigning an Application to Your Finger
To use the application launcher feature, you must assign an application to your individual fingers in advance.
Page 95
nN
Customizing Your VAIO Computer
To assign an application to your finger
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2 Select Settings.
The Protector Suite QL window appears.
3 Click the Applications tab.
4 Click Add.
The Applications window appears.
!
To add an assignment, you need at least two enrolled fingers left unassigned.
To display the Protector Suite QL menu in Step 1 above, you need at least one enrolled finger kept unassigned.
5 Select one of your enrolled fingers and assign an application, and then click OK.
The Protector Suite QL window appears.
6 Click OK.
Launching an Application with Your Finger
Swipe your finger with your desired application assignment across the fingerprint sensor to launch the corresponding
application.
95
!
Swiping the finger with no application assignment across the fingerprint sensor will display the Protector Suite QL menu.
Changing an Application Assignment to Your Finger
To change an application assignment to your finger
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
Page 96
nN
Customizing Your VAIO Computer
2 Select Settings.
The Protector Suite QL window appears.
3 Click the Applications tab.
4 Select the desired finger and click Edit.
The Applications window appears.
5 Change its assignment and click OK.
The Protector Suite QL window appears.
6 Click OK.
Removing an Application Assignment to Your Finger
To remove an application assignment to your finger
1 Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2 Select Settings.
The Protector Suite QL window appears.
3 Click the Applications tab.
4 Select the desired finger and click Delete.
96
Erasing the Enrolled Fingerprints
Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprints
data enrolled on the fingerprint sensor after erasing the data stored on your hard disk.
To erase the enrolled fingerprints
1 Turn on the computer.
Page 97
97
nN
Customizing Your VAIO Computer
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Press the < or , key to select Security to display the Security tab.
4 Press the
The fingerprint data enrolled on the fingerprint sensor is erased automatically after your system restarts.
m key to select Clear Fingerprint Data and press the Enter key.
Using Trusted Platform Module (TPM)
The embedded Trusted Platform Module (TPM) provides your computer with basic security functions. In combination with the
TPM, you can encrypt and decrypt your data to strengthen computer security against inappropriate access.
TPMs are defined by Trusted Computing Group (TCG) and also called security chips.
Precautions on Using the TPM
❑ Although your computer is provided with the latest TPM security functions, these functions do not assure complete
protection of your data and hardware. Sony Corporation assumes no liabilities for any problems and damages arising out
of your use of the functions.
❑ After you have installed the Infineon TPM Professional Package, you need to set a few TPM passwords on your computer.
Without these passwords, you will not be able to restore any TPM-protected data. Make sure to write down the passwords
and keep them safe and private from other people.
❑ Make sure to make backup copies of the latest emergency recovery archive file and the latest emergency recovery token
file and keep them safe and private from other people before sending your computer for repair. The data stored in the
TPM that are embedded on the motherboard may be lost or corrupted during the course of repair.
❑ During the course of repair, the TPM may be replaced even if there are no problems with the modules. In such a case,
use the backup copies of the emergency recovery archive file and the emergency recovery token file to restore the TPM
configuration.
Page 98
98
nN
Customizing Your VAIO Computer
❑ Make sure to make a backup copy of the data stored on the hard disk before sending your computer for repair. The hard
disk may be initialized and returned after the repair work and, in such a case, you will not be able to restore the data on
the hard disk using the backup copies of the emergency recovery archive file and the emergency recovery token file.
❑ The maintenance and management of TPM-protected data must be carried out at your own risk. Sony Corporation
assumes no liabilities for any defects arising out of your data maintenance and management.
Important Notice
❑ Do not encrypt the Documents and Settings folder.
Encrypting the files in the folders containing basic user keys and others, which are listed later in this section, using the
Encrypting File System (EFS) will disable you to launch your TPM software successfully and decrypt the encrypted data if:
❑ The TPM software has been installed.
❑ The platform has been initialized.
❑ The EFS functionality has been enabled in user initialization process.
With the default settings, the files in the folders below are prevented from encrypting by having system attributes.
Do not change the system attributes of the files in the folders below.
❑ Folders containing basic user keys and others
C:\Documents and Settings\All Users\Application Data\Infineon\TPM Software 2.0\BackupData
C:\Documents and Settings\All Users\Application Data\Infineon\TPM Software 2.0\PlatformKeyData
C:\Documents and Settings\All Users\Application Data\Infineon\TPM Software 2.0\RestoreData
C:\Documents and Settings\<account>\Application Data\Infineon\TPM Software 2.0\UserKeyData
(All folders are invisible by default.)
In addition, encrypting the following folder will disable you to log onto your system.
C:\Documents and Settings\<account>\Local Settings (invisible by default)
❑ Encrypting the archive, backup, and token files will disable emergency restoration.
Encrypting the password reset token and secret files will disable password reset.
Page 99
99
nN
Customizing Your VAIO Computer
❑ Do not encrypt the following folders and files. There will be no way to restore the following folders and files or the archive,
backup, token, password reset token and secret files of your TPM software if you carelessly encrypt them.
Sony Corporation assumes no liability for any troubles and damages arising out of your careless encryption of such
folders and files.
❑ Automatic backup file
Default file name: SPSystemBackup.xml
Default path: None (Clicking Browse displays the My Documents\Security Platform window.)
❑ Storage folder for automatic backup data
Default file name: SPSystemBackup
The folder is created as the subfolder for the SPSystemBackup.xml file.
❑ Token file for decryption
Default file name: SPEmRecToken.xml
Default path: Removable media (FD, USB memory, etc.)
❑ Password reset token file
Default file name: SPPwdResetToken.xml
Default path: Removable media (FD, USB memory, etc.)
❑ Password reset secret file
Default file name: SPPwdResetSecret.xml
Default path: Removable media (FD, USB memory, etc.)
❑ Key and certificate backup file
Default file name: SpBackupArchive.xml
Default path: None (Clicking Browse displays the My Documents\Security Platform window.)
❑ PSD backup file
Default file name: SpPSDBackup.fsb
Default path: None (Clicking Browse displays the My Documents\Security Platform window.)
Page 100
100
nN
Customizing Your VAIO Computer
Configuring the TPM
To use the embedded TPM, you need to:
1 Enable the TPM on the BIOS setup screen.
2 Install the Infineon TPM Professional Package.
3 Initialize and configure the TPM.
Enabling the TPM on the BIOS setup screen
To enable the TPM
1 Turn on your computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Press the < or , key to select Security and then select Enabled for Trusted Platform Support on the Security tab.
4 Press the < or , key to select Exit and then Exit Setup; and press the Enter key.
!
Before enabling the TPM, make sure to set the power-on and hard disk passwords to protect against unauthorized modification of the TPM
configuration.
If the TPM is enabled, it will take longer before the VAIO logo appears due to security checks at computer startup.
✍
You can also disable the TPM and clear the TPM configuration on the BIOS setup screen. Note that you will not be able to access any TPM-protected
data if you clear the TPM ownership. Before clearing the TPM configuration, make sure to make backup copies of the TPM-protected data.
Loading...
