User Guide

Personal Computer

VGN-TX600 Series

N

Contents

Before Use .........................................................................................................................................................................6

Documentation .............................................................................................................................................................6

Ergonomic Considerations...........................................................................................................................................8

Getting Started .................................................................................................................................................................10

Locating Controls and Ports.......................................................................................................................................11

About the Indicator Lights ..........................................................................................................................................18

Connecting a Power Source ......................................................................................................................................20

Using the Battery Pack ..............................................................................................................................................21

Shutting Down Your Computer Safely .......................................................................................................................25

Using Your VAIO Computer .............................................................................................................................................26

Using the Keyboard ...................................................................................................................................................27

Using the Touch Pad .................................................................................................................................................29

Using Special-function Buttons ..................................................................................................................................30

Using the Optical Disc Drive ......................................................................................................................................32

Using PC Cards .........................................................................................................................................................41

Using the Memory Stick Media ..................................................................................................................................45

Using Other Memory Cards .......................................................................................................................................48

Using the Internet.......................................................................................................................................................50

Using Wireless LAN (WLAN) .....................................................................................................................................51

Using the Bluetooth Functionality ..............................................................................................................................61

2

nN

3

nN

Using Peripheral Devices .................................................................................................................................................66

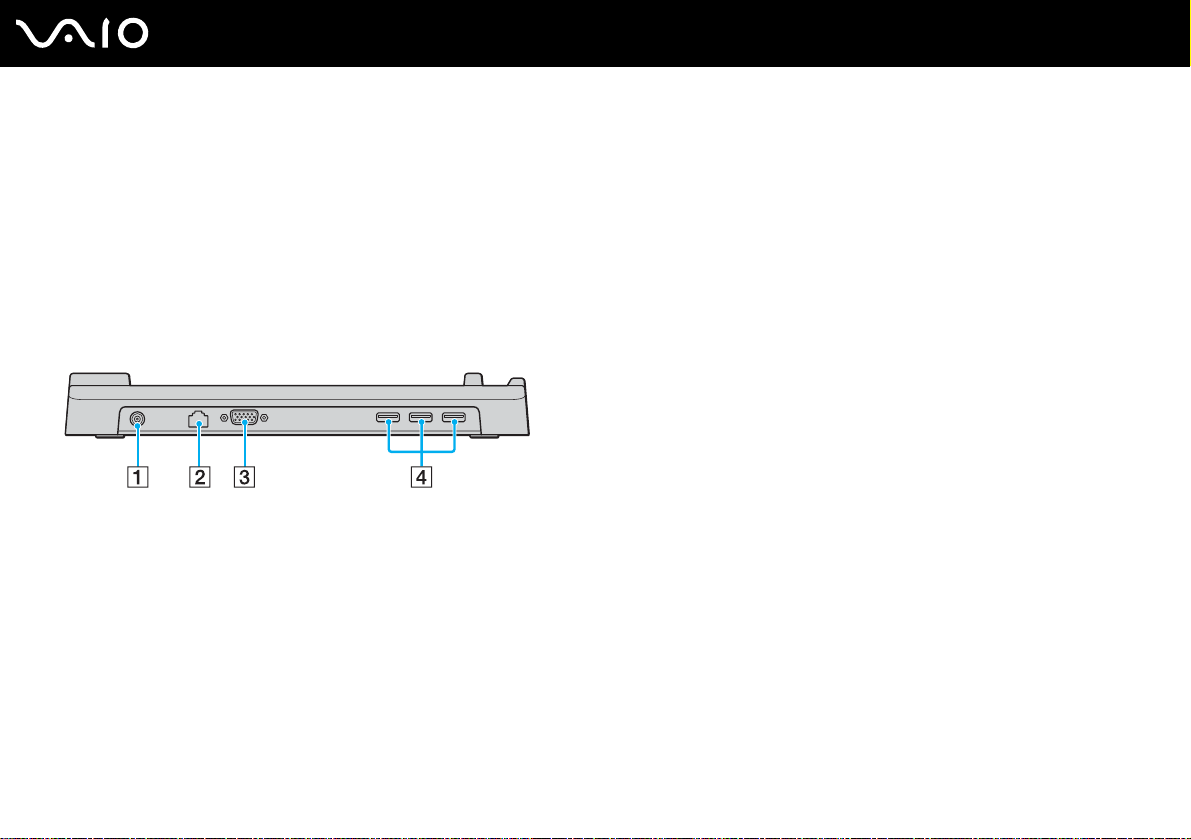

Connecting a Port Replicator .....................................................................................................................................67

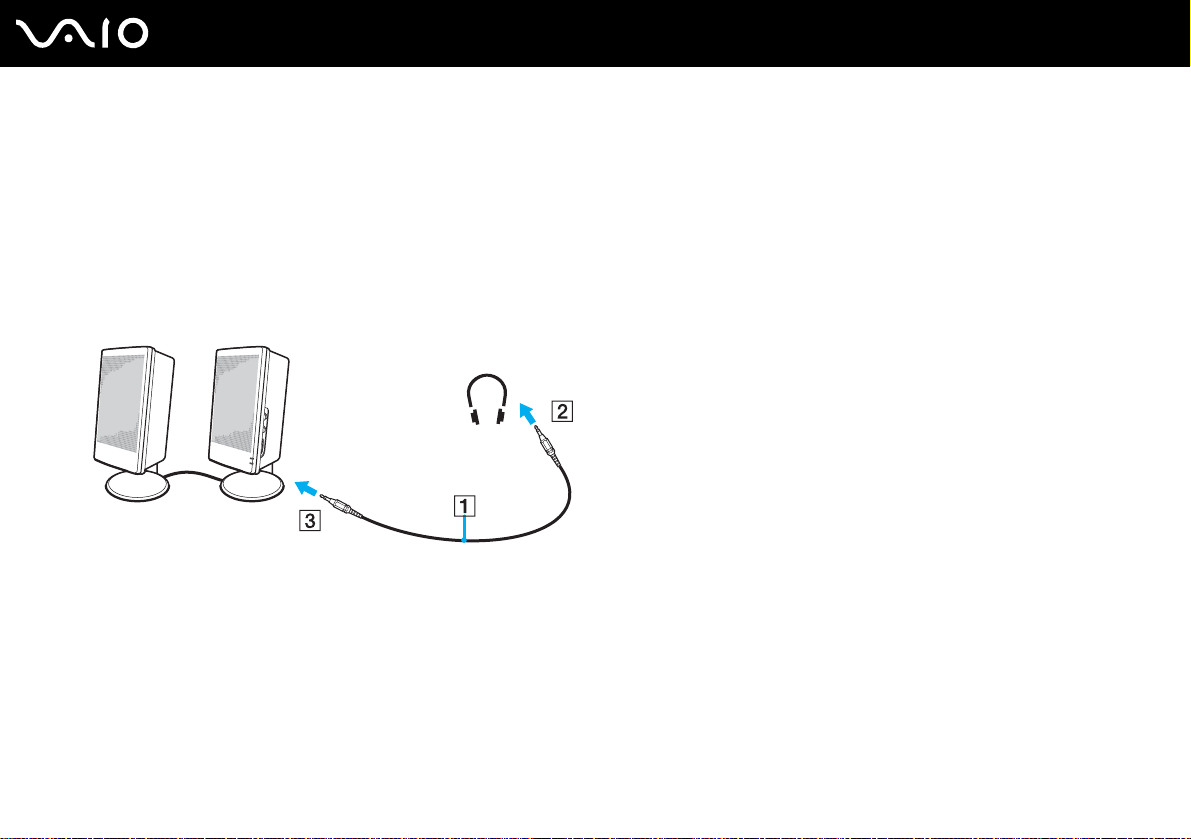

Connecting External Speakers ..................................................................................................................................71

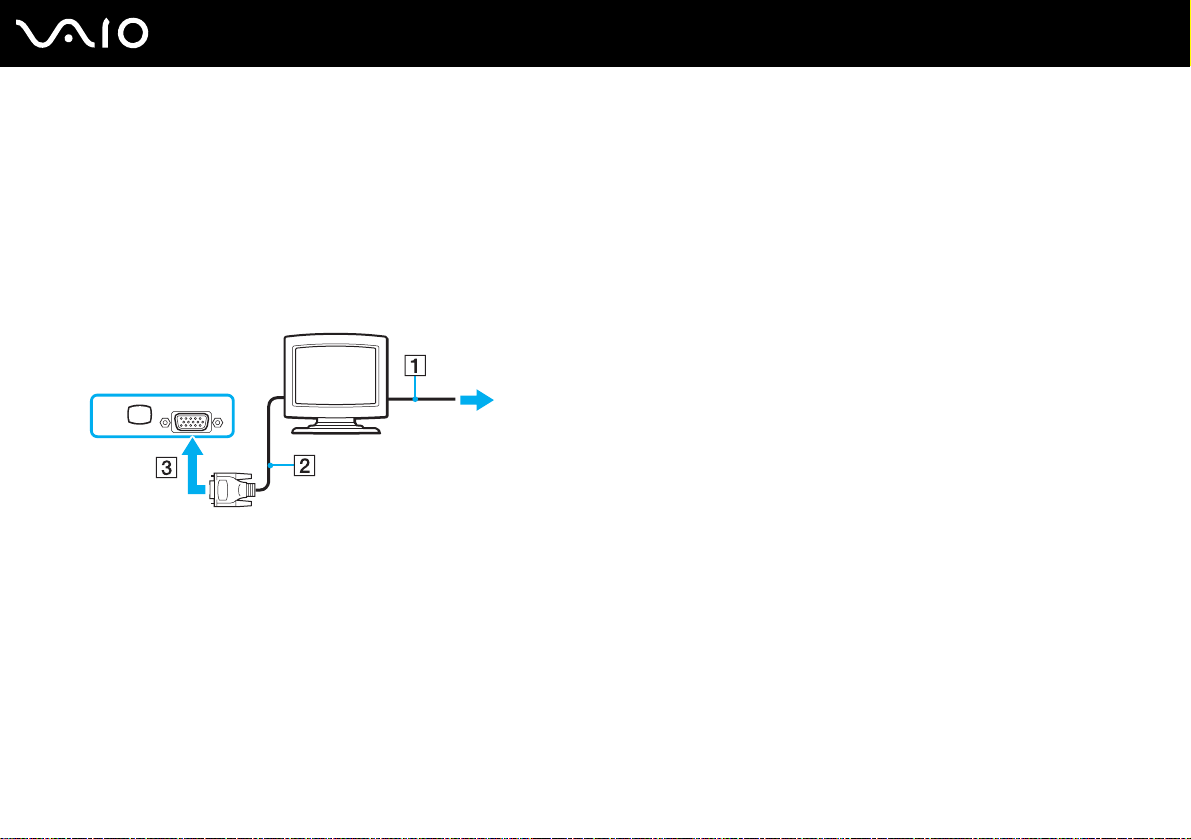

Connecting an External Display.................................................................................................................................72

Selecting Display Modes............................................................................................................................................76

Using the Multiple Monitors Function.........................................................................................................................77

Connecting an External Microphone..........................................................................................................................79

Connecting a Universal Serial Bus (USB) Device......................................................................................................80

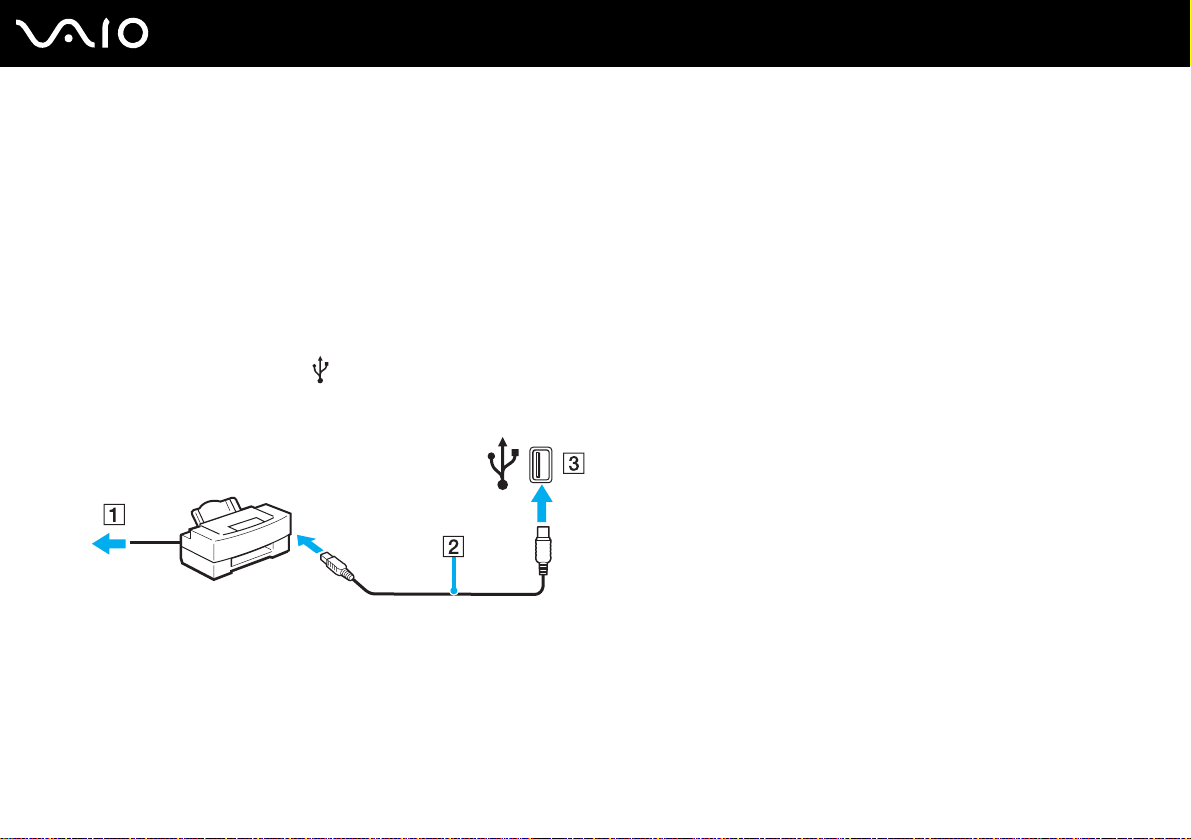

Connecting a Printer ..................................................................................................................................................83

Connecting an i.LINK Device .....................................................................................................................................84

Connecting to a Network (LAN) .................................................................................................................................86

Customizing Your VAIO Computer ..................................................................................................................................88

Setting the Password .................................................................................................................................................89

Setting Up Your Computer with VAIO Central ...........................................................................................................92

Using the Power Saving Modes.................................................................................................................................93

Managing Power with VAIO Power Management ......................................................................................................98

Upgrading Your VAIO Computer....................................................................................................................................101

Adding and Removing Memory................................................................................................................................102

4

nN

Precautions ....................................................................................................................................................................108

On Handling the LCD Screen ..................................................................................................................................109

On Using the Power Source ....................................................................................................................................110

On Handling Your Computer....................................................................................................................................111

On Handling Floppy Disks .......................................................................................................................................113

On Handling Discs ...................................................................................................................................................114

On Using the Battery Pack.......................................................................................................................................115

On Using Headphones.............................................................................................................................................116

On Handling Memory Stick Media............................................................................................................................116

On Handling the Hard Disk ......................................................................................................................................117

Troubleshooting .............................................................................................................................................................118

Computer .................................................................................................................................................................120

System Security .......................................................................................................................................................130

Battery......................................................................................................................................................................133

Internet.....................................................................................................................................................................135

Networking ...............................................................................................................................................................137

Bluetooth Technology ..............................................................................................................................................140

CDs and DVDs.........................................................................................................................................................144

Display .....................................................................................................................................................................148

Printing.....................................................................................................................................................................150

Microphone ..............................................................................................................................................................151

Mouse ......................................................................................................................................................................152

Speakers..................................................................................................................................................................153

Touch Pad................................................................................................................................................................154

5

nN

Keyboard..................................................................................................................................................................156

Floppy Disks ............................................................................................................................................................157

PC Cards .................................................................................................................................................................158

Audio/Video..............................................................................................................................................................159

Memory Stick Media ................................................................................................................................................160

Peripherals...............................................................................................................................................................161

Support Options .............................................................................................................................................................162

Sony Support Information ........................................................................................................................................162

Program Support Information...................................................................................................................................165

nN

Before Use

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing.

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Welcome mat — Contains an overview of connections, setting up information, etc.
❑ Safety information — Contains safety guidelines and owner information.

6

7

nN

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Contains features of your computer. It also includes information about the software

programs included with your computer, as well as information on solving common problems.

❑ Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer.

To view the online Specifications:

1 Connect to the Internet.
2 Go to the Sony online support Web site at http://www.sony.com/pcsupport

at http://www.sony.ca/support

for customers in Canada, or at http://www.sony.com/lapcsupport for customers in Latin

American countries or areas.

❑ VAIO Recovery Options Guide — Provides information about restoring individual software programs, software drivers,

and drive partition(s) or your entire hard disk drive to the original factory installed settings.
To access this online VAIO Recovery Options Guide:

1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAIO Documentation.
3 Click Recovery Guide.

❑ VAIO SmartWi Connection Utility Guide — Provides information about setting up Wireless LAN Wireless WAN

functionalities.
To access this online guide:

1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAIO Documentation.
3 Click VAIO SmartWi Connection Utility Guide.

for customers in USA,

8

nN

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations to both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain
muscles or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

9

nN

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the
display as well.

❑ Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare.
Proper lighting adds to your comfort and work effectiveness.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started

This section describes how to get started with using your VAIO computer.

❑ Locating Controls and Ports (page 11)
❑ About the Indicator Lights (page 18)
❑ Connecting a Power Source (page 20)
❑ Using the Battery Pack (page 21)
❑ Shutting Down Your Computer Safely (page 25)

10

nN

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

!

The following illustrations may appear different from your model, depending on the country or area of your residency.

11

nN

Getting Started

Front

12

nN

Getting Started

A Memory card indicator (page 18)
B Memory Stick media slot

C SD card slot (page 48)
D LCD screen (page 109)
E Keyboard (page 27)
F Touch pad (page 29)
G WIRELESS switch (page 51)
H Mute button (page 30)
I Volume buttons (page 30)
J Headphones jack (page 71)
K Microphone jack (page 79)

* Your computer supports Memory Stick Duo media and Memory Stick PRO

high speed and high capacity capabilities.

*

(page 45)

AV MODE button (page 30)

A
B Play/Pause button (page 30)
C Stop button (page 30)
D Previous track button (page 30)
E Next track button (page 30)
F Eject button (page 30)
G Battery indicator (page 18)
H Hard disk drive indicator (page 18)
I Num lock indicator (page 18)
J Caps lock indicator (page 18)
K Scroll lock indicator (page 18)
L Power button
M Speakers
N Bluetooth indicator (page 18)
O WIRELESS LAN indicator (page 18)

P WWAN indicator

*

(page 18)

Q Mute indicator (page 18)

* On selected models only.

13

nN

Getting Started

Back

A Network (Ethernet) port (page 86)
B Battery connector (page 21)
C DC In port (page 20)

D i.LINK

®

(IEEE1394) S400 port (page 84)

14

nN

Getting Started

Right

A Optical disc drive (page 32)
B Optical disk drive indicator (page 18)
C Manual eject hole (page 144)
D Drive eject button (page 32)
E Monitor (VGA) port (page 72)

F WWAN antenna

* On selected models only.

*

(page 51)

15

nN

Getting Started

Left

16

nN

Getting Started

A Hi-Speed USB (USB 2.0) ports
B PC Card slot (page 41)
C PC Card eject button (page 41)
D Air vent
E Modem port (page 50)

* Supports high-/full-/low- speeds.

*

(page 80)

Bottom

A Air vent
B Port replicator connector (page 67)
C Release latch (page 21)

17

nN

Getting Started

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights.

Indicator Functions

Power 1 Illuminates when the power to the computer is on, blinks in Standby mode, and turns off when the computer is

in Hibernate mode or off.

Battery e Illuminates when the computer is using battery power, blinks when the battery is running out of power, and

Media Access Illuminates when data is read from or written to a memory card. (Do not enter Standby mode or turn

Optical disc drive Illuminates when data is read from or written to the optical disc. When the indicator is off, the optical disc is not

Mute % Illuminates when the volume is turned off.

Hard disk

Num lock

Caps lock

Scroll lock

Bluetooth

double-blinks when the battery is charging.

off the computer when this indicator is on.) When the indicator is off, the memory card is not being used.

being used.

Illuminates when data is read from or written to the hard disk. Do not enter Standby mode or turn off the
computer when this indicator is on.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is off.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps Lock indicator is off.

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scr Lk indicator
is off. The Scr Lk key functions differently depending on the program you are using and does not work with all
programs.

Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled.

18

nN

Indicator Functions

WIRELESS LAN Illuminates when the wireless LAN function is running.

WIRELESS WAN

* On selected models only.

*

Illuminates when the wireless WAN function is running.

19

nN

Getting Started

20

nN

Getting Started

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.

Using the AC Adapter

✍

Use the computer only with the supplied AC adapter.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter.
2 Plug the other end of the power cord into an AC outlet (2).
3 Plug the cable attached to the AC adapter (3) into the DC In port (4) on the computer or on the (optional) port replicator.

!

The shape of the DC In plug varies depending on the AC adapter.

✍

To disconnect the computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not use the AC adapter for a long period of time, put the computer into Hibernate mode. See Using Hibernate Mode (page 96). This power
saving mode saves you the time of shutting down in the normal way.

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.
2 Slide the battery into the battery compartment until it clicks into place.

✍

When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

21

nN

Getting Started

!

This computer is designed to operate only with genuine Sony batteries.

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

To charge the battery pack

1 Install the battery pack.
2 Connect the AC adapter to the computer.

The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery
charges). When the battery is about 85% charged, the battery indicator turns off.

Battery indicator light status Meaning

On The computer is using battery power.

Blinks The battery is running out of power.

Double blinks The battery is charging.

Off The computer is using AC power.

22

nN

Getting Started

✍

When the battery is running out of power, both the battery and power indicator lights blink.

Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully charged
battery.

The battery pack supplied with the computer is a lithium ion battery and can be recharged any time. Charging a partially discharged battery does not
affect battery life.

The battery indicator light is on while you use the battery pack as a power source. When the battery life is nearly depleted, both the battery and power
indicator lights start flashing.

For some software applications and some peripheral devices, the computer may not enter Hibernate mode even when battery life is low. To avoid loss
of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Standby or

Hibernate. If the battery wears out when the computer enters Standby mode, you will lose any unsaved data. Going back to the previous work state is
impossible. To avoid loss of data, you should save your data frequently.

When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

23

nN

Getting Started

Removing the Battery Pack

!

You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the
computer is in Standby mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid.
2 Slide and hold the release latch (1) and slide the battery away from the computer.

✍

If the battery is stuck by the side spring locks, release one lock and then the other to remove the battery.

24

nN

25

nN

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.
2 Click Start and then Turn Off Computer.

The Turn off computer window appears.
3 Click Turn O ff.
4 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically.

The power indicator light turns off.

Using Your VAIO Computer

This section describes how to get the most out of using your computer.

❑ Using the Keyboard (page 27)
❑ Using the Touch Pad (page 29)
❑ Using Special-function Buttons (page 30)
❑ Using the Optical Disc Drive (page 32)
❑ Using PC Cards (page 41)
❑ Using the Memory Stick Media (page 45)
❑ Using Other Memory Cards (page 48)
❑ Using the Internet (page 50)

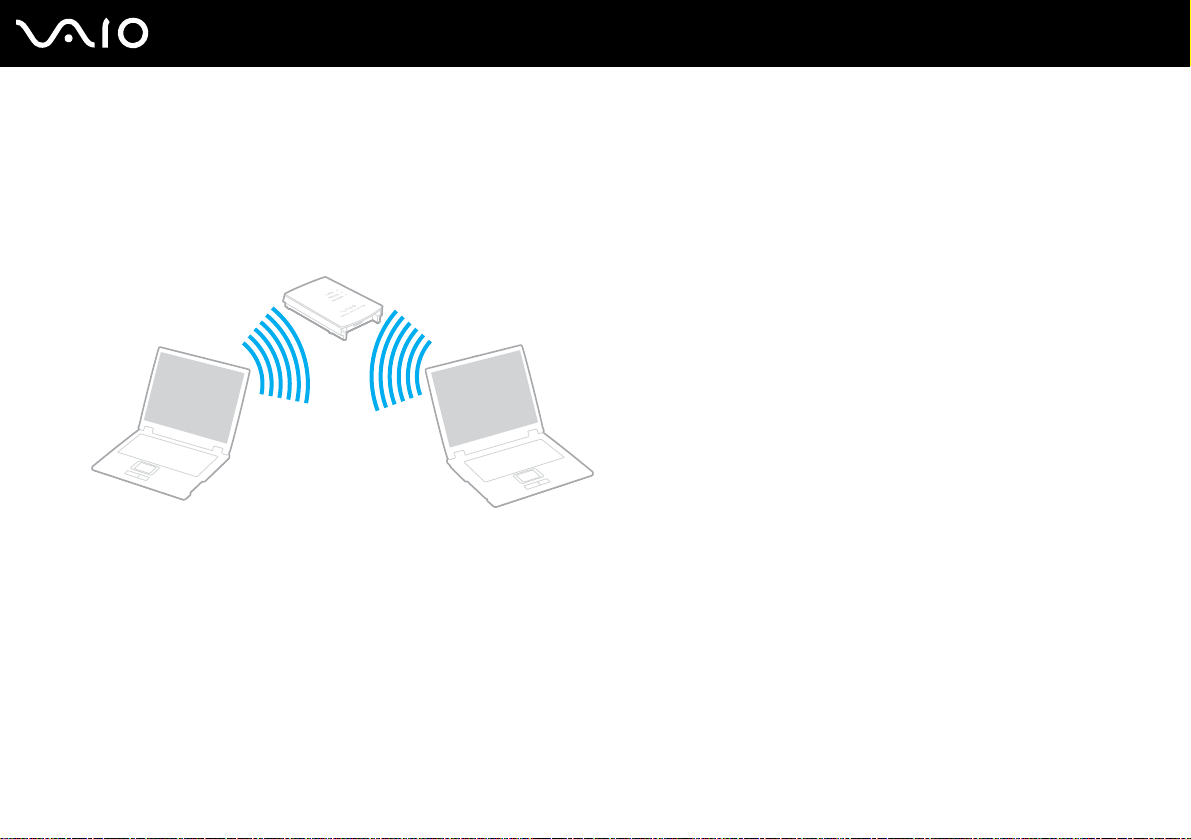

❑ Using Wireless LAN (WLAN) (page 51)
❑ Using the Bluetooth Functionality (page 61)

26

nN

Using Your VAIO Computer

27

nN

Using Your VAIO Computer

Using the Keyboard

Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.
For more information on the standard keys, see Help and Support Center and click on the Customizing your computer

link.

Combinations and Functions with the Fn Key

✍

Some functions are not available until Windows is launched.

Combinations/Feature Functions

Fn + (F1): wireless switching

Fn + 8 (F5/F6): brightness control Adjusts the brightness of the LCD.

Fn + /T (F7): switch to the external display

*

Toggles between Bluetooth, Wireless LAN, and Wireless WAN functionalities.

To increase lightness intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6.
To decrease lightness intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.

Toggles between the LCD, external device (e.g. monitor) and both LCD and external device.

Combinations/Feature Functions

Fn + (F10): zoom

Fn + (F12): Hibernate

* On selected models only.

28

nN

Using Your VAIO Computer

Changes the screen resolution to magnify/restore the screen view.

✍

The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution
to the LCD screen with a higher resolution.
This key combination is disabled during video playback. Make sure to quit such software before pressing
the key combination.
This key combination may not work with graphic images as it magnifies the screen view by changing the
resolution.
The location and size of software windows may change when the screen view is magnified or the standard
view is restored because pressing this key combination changes the resolution.
When the LCD screen view is magnified, switching the view to the external display disables the function
and restores the standard view.

Provides for the lowest level of power consumption. When you execute this command, the
states of the system and the peripheral devices are written to the hard disk and the system
power is turned off. To return the system to its original state, use the power switch to turn on the
power.
For details on power management, see Using the Power Saving Modes (page 93).

29

nN

Using Your VAIO Computer

Using the Touch Pad

The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the
screen using the touch pad.

Action Description

Point Slide one finger on the touch pad to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide one finger while pressing the left button.

Scroll Move your finger along the right edge of the touch pad to scroll vertically. Move your finger along the bottom to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

30

nN

Using Your VAIO Computer

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer.
The AV MODE, Play/Pause, Stop, Previous track, Next track, and Disc drive eject buttons support Instant Mode. When

the computer is off or in Hibernate, only the AV MODE button is enabled. See the printed Instant Mode booklet for more
information on the Instant Mode.

Special-function button Functions

When Windows is NOT launched:

AV MODE button

Play/Pause button

Stop button

Previous track button

Next track button

Activates Instant Mode to enable you immediately to play CDs and DVDs and view the image data stored in
the memory card, such as a Memory Stick media or SD card, without launching Windows. See the printed
Instant Mode booklet for more information.
When Windows is launched and running:
Launches the WinDVD software by default. You can change this button assignment with the AV Mode Button

Settings utility. To start this utility, press and hold the AV MODE button. See the help file on the AV Mode
Button Settings utility for more information.

You need administrator rights on the computer to change the AV MOD E button assignment.

This button is enabled in Instant Mode as well as when Windows is launched and running.
Starts or pauses DVD playback with the WinDVD software or CD playback with the Sonic Stage software.

This button is enabled in Instant Mode as well as when Windows is launched and running.
Stops DVD playback with the WinDVD software or CD playback with the Sonic Stage software.

This button is enabled in Instant Mode as well as when Windows is launched and running.
Plays the previous chapter/movie in the DVD during playback with the WinDVD software or the previous song
in the CD during playback with the Sonic Stage software.

This button is enabled in Instant Mode as well as when Windows is launched and running.
Plays the next chapter/movie in the DVD during playback with the WinDVD software or the next song in the
CD during playback with the Sonic Stage software.

Special-function button Functions

Ejects the drive tray.

Disc drive eject button

Mute button Turns the speaker and microphone volume on and off.

Vol um e buttons

(Volume up and Volume down)

If this button does not work, try the substitute drive eject button on the optical disc drive.

Increase and decrease the volume.

31

nN

Using Your VAIO Computer

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

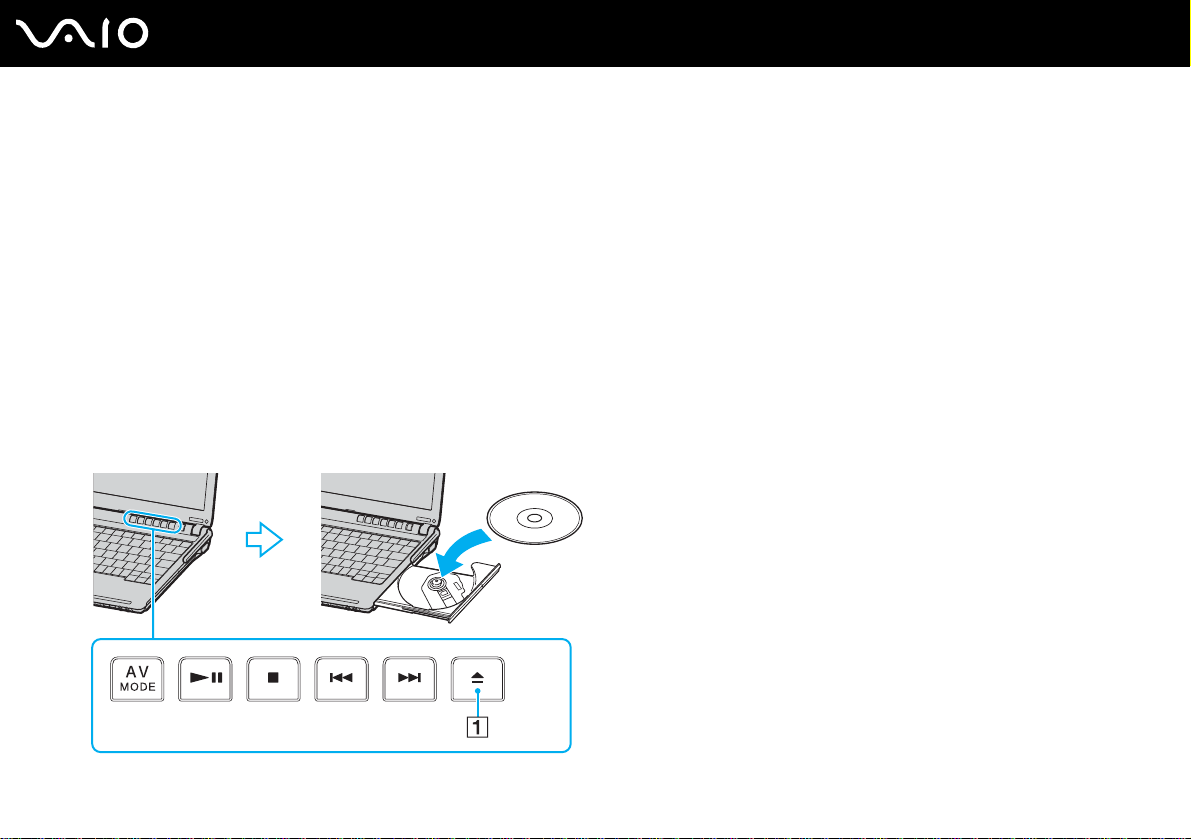

To insert a disc

1 Turn on the computer.
2 Press the drive eject button (1) to open the drive.

The tray slides out.

✍

If power supply to the optical disc drive is disabled by VAIO Power Management, it will take a while to eject the drive tray.

If this button does not work, try the substitute drive eject button on the optical disc drive. Note that the substitute drive eject button is disabled when

the optical disc drive is not powered.

3 Place a disc in the middle of the tray with the label side facing up until the disc clicks into place.

32

nN

Using Your VAIO Computer

4 Close the tray by pushing it in gently.

!

Do not remove the optical disc when the computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction.

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.

33

nN

34

nN

Using Your VAIO Computer

Reading and Writing CDs and DVDs

Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the
type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive
supports.

Optical disc drive Plays Records to

CD-ROM CD, CD-R, and CD-RW —

DVD-ROM DVD and most DVD-R, DVD-RW, DVD+R, DVD+RW

and DVD+R DL (Double Layer)

CD-RW/DVD-ROM CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

DVD+R, DVD+R DL (Double Layer)

DVD±RW CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

DVD+R, DVD+R DL (Double Layer)

* On selected models only.

*

*

and DVD+RW

*

and DVD+RW

!

This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two

sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side

(non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.

—

CD-R and CD-RW

CD-R, CD-RW, DVD-R, DVD-RW, DVD+R,
DVD+R DL (Double Layer)* and DVD+RW

!

Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices

on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee

the compatibility of VAIO CD drives with discs that not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives).

USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.

For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

35

nN

Using Your VAIO Computer

✍

Supports writing to DVD-RW discs compliant with DVD-RW version 1.1/1.2.

Supports writing to DVD-R discs compliant with DVD-R for General version 2.0/2.1.

Supports 8cm disc reading, but does not support 8cm disc writing.

Writing to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

Notes on writing data onto a disc

❑ To make the data on a disc readable on an optical disc drive, you need to close the session when you eject it. To complete

this process, follow the instructions included with your software.
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake the computer while writing data onto a disc.
❑ Deactivate the screen saver and exit anti-virus software before writing data onto a disc.
❑ Do not use memory-resident utility software while writing data to a disc. This may cause the computer to malfunction.
❑ When using your software application to burn discs, make sure you exit and close all other applications.
❑ Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing errors.
❑ Do not switch power modes while using the pre-installed software and while using the CD burning software.
❑ Never put stickers on discs. This will affect the use of the disc irreparably.
❑ Connect and use the AC adapter to power the computer or make sure your battery is at least 50 percent charged.

36

nN

Using Your VAIO Computer

Notes on playing DVDs

To achieve optimum performance when playing DVDs, you should follow these recommendations.
❑ You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the

help file on such software for details.

❑ Close all open applications before playing a DVD movie.
❑ Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause the computer

to malfunction.

❑ Deactivate the screen saver and exit anti-virus software before playing a disc.
❑ Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices connected, this may

damage your hearing and the speakers. Reduce the volume before playing a DVD.

❑ Do not switch power saving modes while the computer is playing a DVD.
❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the

disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code of

your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on this player.

!

You can change the DVD region code only a limited number of times. When you have exceeded this number, the drive's DVD region code is permanently

assigned and you will not be able to change it again. Reconfiguring the computer does not reset this count.

If you change the DVD region code while the WinDVD software is running, restart the software or eject the disc and re-insert it to make the new setting

effective.

❑ If the computer has Wireless LAN and Wireless LAN is activated, playing DVDs may cause some interruptions in audio

and video.

37

nN

Using Your VAIO Computer

❑ When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers,

make sure you stop the DVD first. Removing a USB-compatible device during DVD (video or audio) playback may cause

a malfunction.

38

nN

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert the disc into the optical disc drive.
2 If nothing appears on the desktop once you insert an audio CD disc, then click Start, point to All Programs, and click to

open a CD program, such as the SonicStage software.

If the Audio CD window appears, click to select an option.

nN

Using Your VAIO Computer

Copying Files to CDs

To determine which type of CD your computer supports, see Reading and Writing CDs and DVDs (page 34).

To copy files to a CD-RW or CD-R

!

Do not strike or shake the computer while writing data onto a disc.

1 Insert a blank CD-R or CD-RW disc into the optical disc drive.

If the CD Drive window appears, click Take no action.

2 Open Windows Explorer by pressing the Windows key and the E key simultaneously.
3 In the Folders panel on the left, locate the file(s) or folder(s) you want to copy and either:

*

❑ Right-click the file(s) or folder(s), point to Send To, and click the optical disc drive

❑ Drag the file(s) or folder(s) onto the optical disc drive icon in the Files Stored on This Computer panel.

4 Close Windows Explorer.
5 Click Start and then My Computer.
6 Click the optical disc drive icon under Devices with Removable Storage. A new window appears with the file(s) or

folder(s) you want to copy listed under Files Ready to Be Written to the CD.
7 In the CD Writing Tasks box, click Write these files to CD.
8 Follow the instructions in the CD Writing Wizard.

* The read/write drive letter designation may vary, depending on your system's hardware configuration.

name.

39

40

nN

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all open programs.
2 Insert the DVD into the optical disc drive.
3 Click Start and point to All Programs.
4 Select a DVD software program to play the DVD.

For instructions on how to use a program, see the help guide included with the DVD software program.

Copying Files to DVDs

The DVD writing function is available on selected models only. See the online Specifications to see whether your model is
equipped with an optical disc drive capable of DVD writing.

To copy files to a DVD-R or DVD-RW

1 Connect the AC adapter to the computer.
2 Insert the disc into the optical disc drive.
3 Click Start and point to All Programs.
4 Select a DVD software program you want to use from the submenu.

For instructions on how to use a program, see the help guide included with the DVD software program.

Using PC Cards

PC Cards allow you to connect portable external devices to your computer.

Inserting a PC Card

!

Some PC Cards or their functions may not be compatible with the computer.

You do not need to shut down the computer before inserting or removing a PC Card.

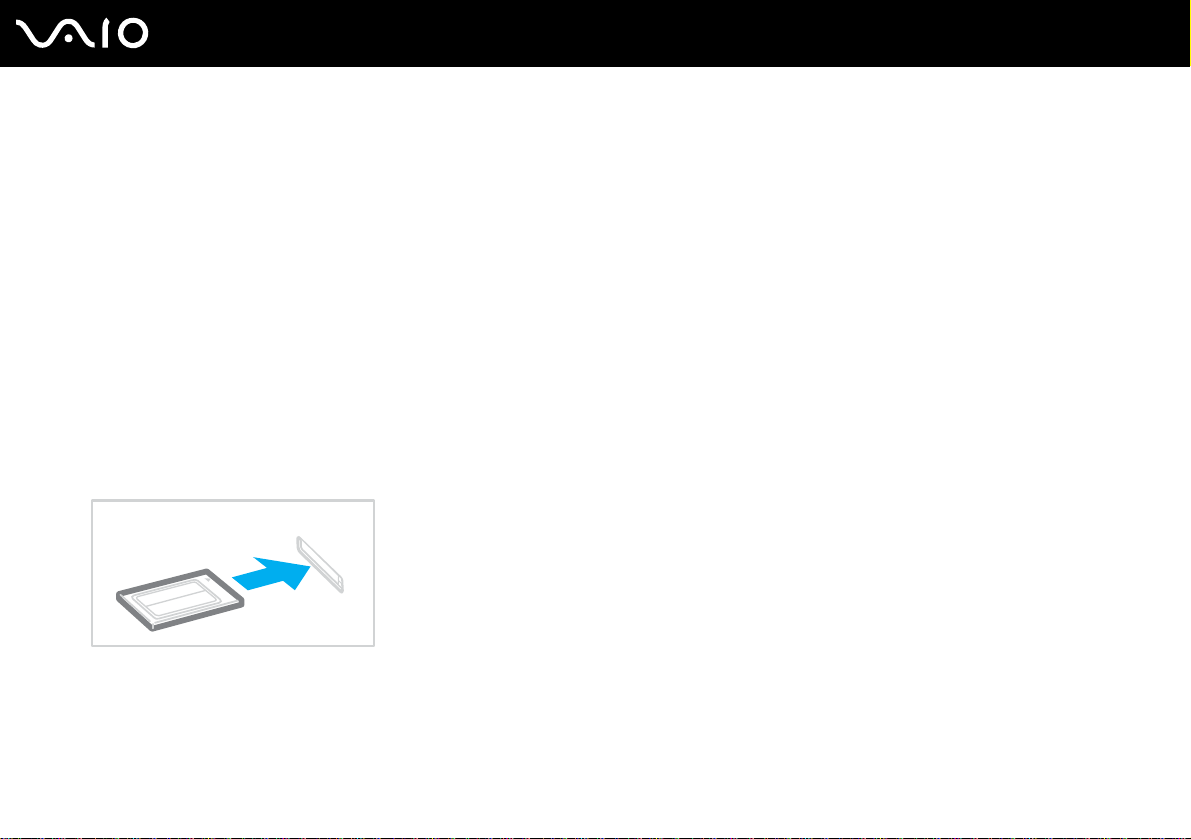

To insert a PC Card

1 Insert the PC Card into the PC Card slot with the front label facing up.
2 Gently push the PC Card into the slot.

The PC Card is automatically detected by your system.

The Safely Remove Hardware icon appears on the taskbar.

41

nN

Using Your VAIO Computer

Using Your VAIO Computer

✍

Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you

alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not

recognized. Restart your system to correct the problem. Restarting will restore the original state of the computer.

While the card is inserted, the computer may not enter Hibernate power management mode. It may enter Standby mode. We recommend that you

remove the card before the computer enters Hibernate mode.

Make sure you use the most recent software driver provided by the PC Card manufacturer.

If an "!" mark appears on the Device Manager tab in the System Properties window, remove the software driver and then reinstall it.

Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC

Card in the correct direction. See the manual supplied with your PC Card for more information on use.

Do not carry the computer while touching the head of a PC Card, because pressure or shock may damage the connector pins.

42

nN

43

nN

Using Your VAIO Computer

Removing a PC Card

Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not
work properly.

To remove a PC Card

✍

To remove a PC Card when the computer is off, skip steps 1 to 7.

!

If you remove the PC Card from the computer when it is still turned on, your system could malfunction and you might lose any unsaved data.

Before you remove the PC Card, click the PC Card icon on the taskbar and close the card. Close any applications that use the PC Card before removing

the card. Otherwise, data may be lost.

1 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.

2 Select the hardware you want to unplug.
3 Click Stop.

The Stop a Hardware Device window appears.
4 Confirm that the device can be safely removed from the system.
5 Click OK.

A window appears, explaining that it is safe to remove the device.

6 Click OK.
7 Click Close.
8 Push the PC Card release button so that the release button pops out.
9 Push the PC Card release button a second time so that the PC Card pops out.

10 Gently take hold of the Card and pull it out of the slot.
11 If the PC Card release button is still out, push it back in.

44

nN

Using Your VAIO Computer

45

nN

Using Your VAIO Computer

Using the Memory Stick Media

Your computer supports the Memory Stick media. Memory Stick media is a compact, portable, and versatile device especially
designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and other
devices. Because it is removable, it can be used for external data storage.

For the latest information on Memory Stick media, visit the Sony online support Web site at http://www.sony.com/pcsupport
for customers in USA, at http://www.sony.ca/support
customers in Latin American countries or areas.

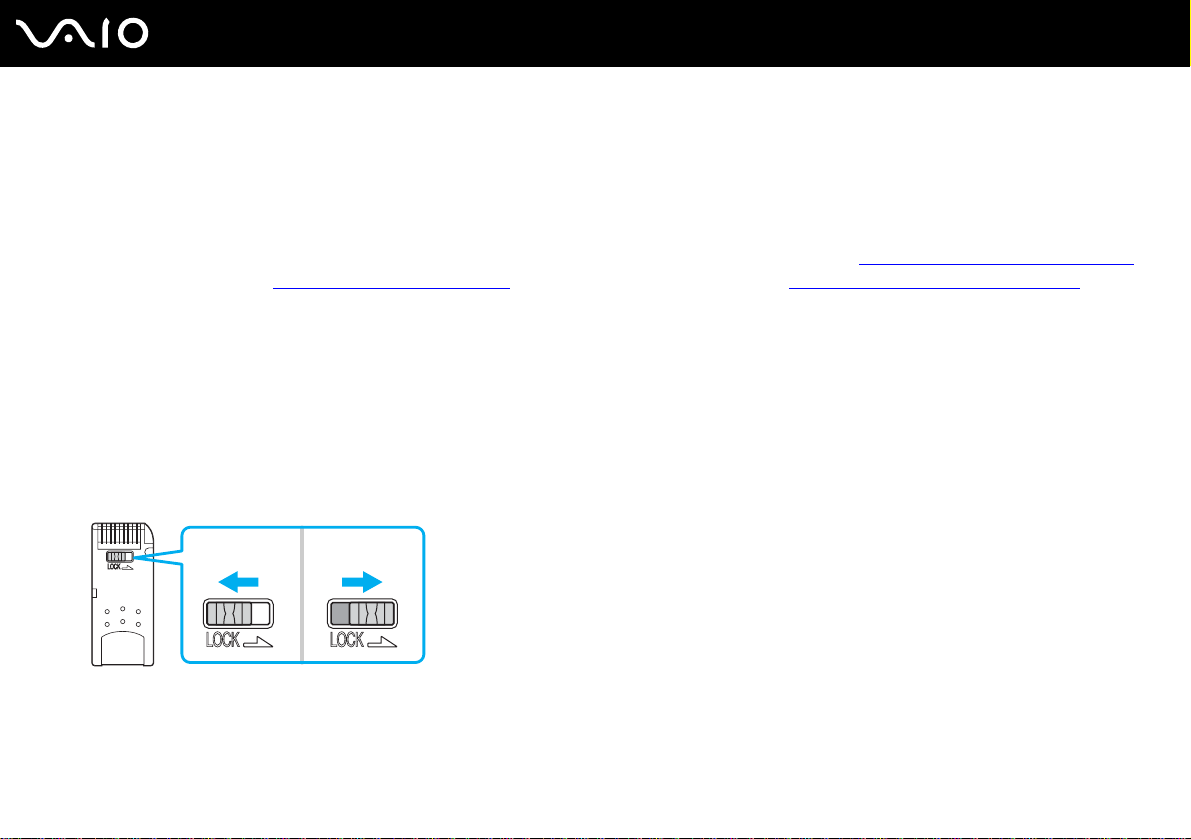

Write-protecting a Memory Stick Media

Some versions of Memory Stick media are designed with an erasure prevention switch to protect valuable data from
accidental erasure or overwriting.

Move the tab horizontally or vertically
be saved on the Memory Stick media. When the erasure prevention switch is on, data can be read from but not saved on the
Memory Stick media.

*

to set or release write-protection. When the erasure prevention switch is off, data can

for customers in Canada, or at http://www.sony.com/lapcsupport for

* Some versions of Memory Stick media do not have an erasure prevention switch.

Using Your VAIO Computer

Inserting a Memory Stick Media

There are two ways you can insert a Memory Stick media into your computer:

❑ Using the Memory Stick media slot;
❑ Using a PC Card slot. To do this, you need an optional PC Card adapter.

You can only insert one Memory Stick media at a time.

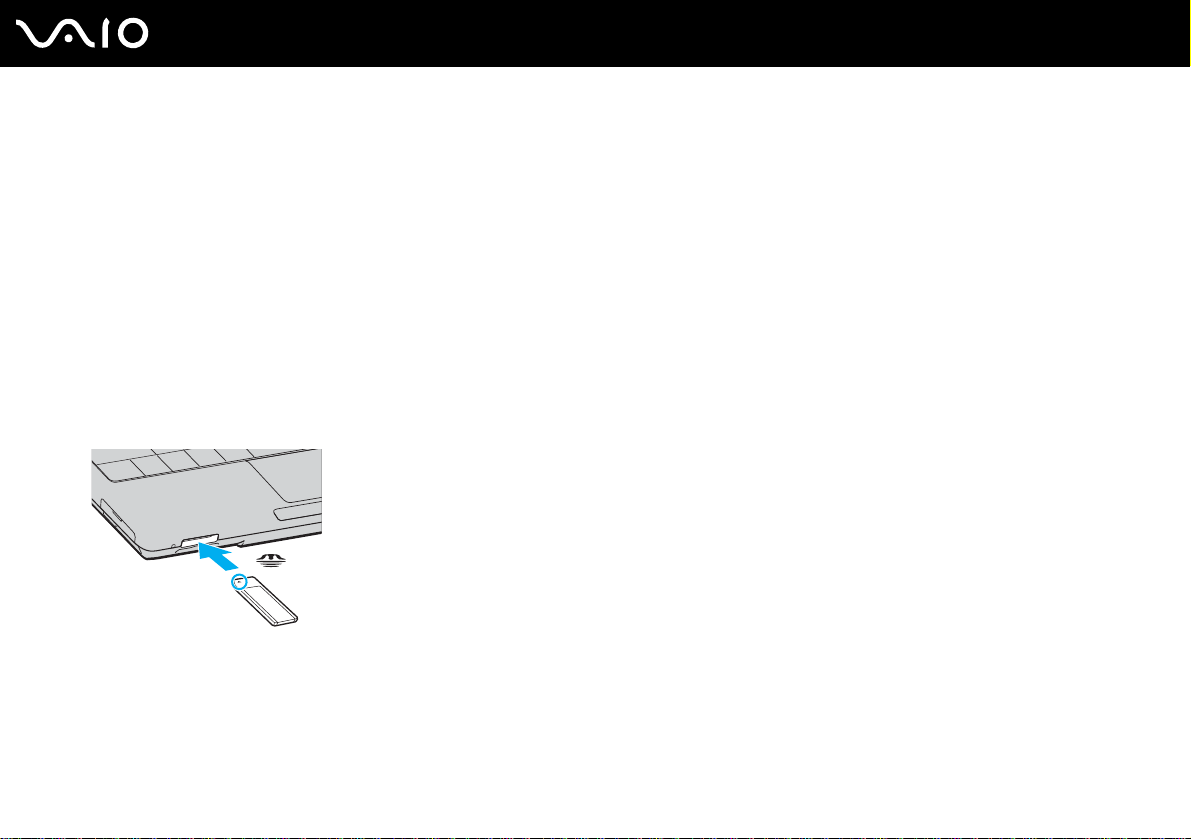

To insert a Memory Stick media using the Memory Stick media slot

1 Insert the Memory Stick media with the arrow facing up and toward the Memory Stick media slot.
2 Carefully slide the Memory Stick media into the slot until it clicks in place.

The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local

drive, under the appropriate letter (depending on the configuration of the computer).

46

nN

!

Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging the computer

or the Memory Stick media, do not force the Memory Stick media into the slot if it does not insert smoothly.

Do not insert more than one Memory Stick media into the Memory Stick media slot. Inserting the media improperly may damage the computer.

Using Your VAIO Computer

✍

The computer supports Memory Stick Duo media and is equipped with the Memory Stick combo slot that is compatible with both standard- and duo-

size media. For more information on Memory Stick Duo media, visit the Memory Stick web site at http://www.memorystick.com/en/

.

To view the contents of the Memory Stick media

1 Click Start and then My Computer to open the My Computer window.

2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.

To format a Memory Stick media

Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details.

Removing a Memory Stick Media

To remove a Memory Stick media using the Memory Stick media slot

1 Check that the Memory Stick media indicator is off.
2 Push the Memory Stick media in toward the computer.

The Memory Stick media ejects.
3 Pull the Memory Stick media out of the slot.

47

nN

!

Always remove the Memory Stick media gently, or it may pop out unexpectedly.

Do not remove the Memory Stick media while the Memory Stick media indicator is turned on. If you do, you may lose data. Large volumes of data may

take time to load, so be sure the indicator is off before removing the Memory Stick media.

48

nN

Using Your VAIO Computer

Using Other Memory Cards

In addition to the Memory Stick media slot, your computer is equipped with an SD card slot to accommodate other memory
cards. You can use this slot to transfer data between digital cameras, camcorders, music players, and other audio/video
devices.

Before You Use Memory Cards

Your computer supports the following memory cards:

❑ Multi Media Card (MMC)
❑ Secure Digital (SD)

For the latest information on compatible memory cards, visit the Sony online support Web site regularly.

!

Always insert the correct memory card into the appropriate memory card slot.

Do not attempt to insert a different memory card or memory card adapter into a different memory card slot. An incompatible memory card or adapter

may be difficult to remove from the wrong slot and can cause damage your computer.

Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.

Inserting a Memory Card

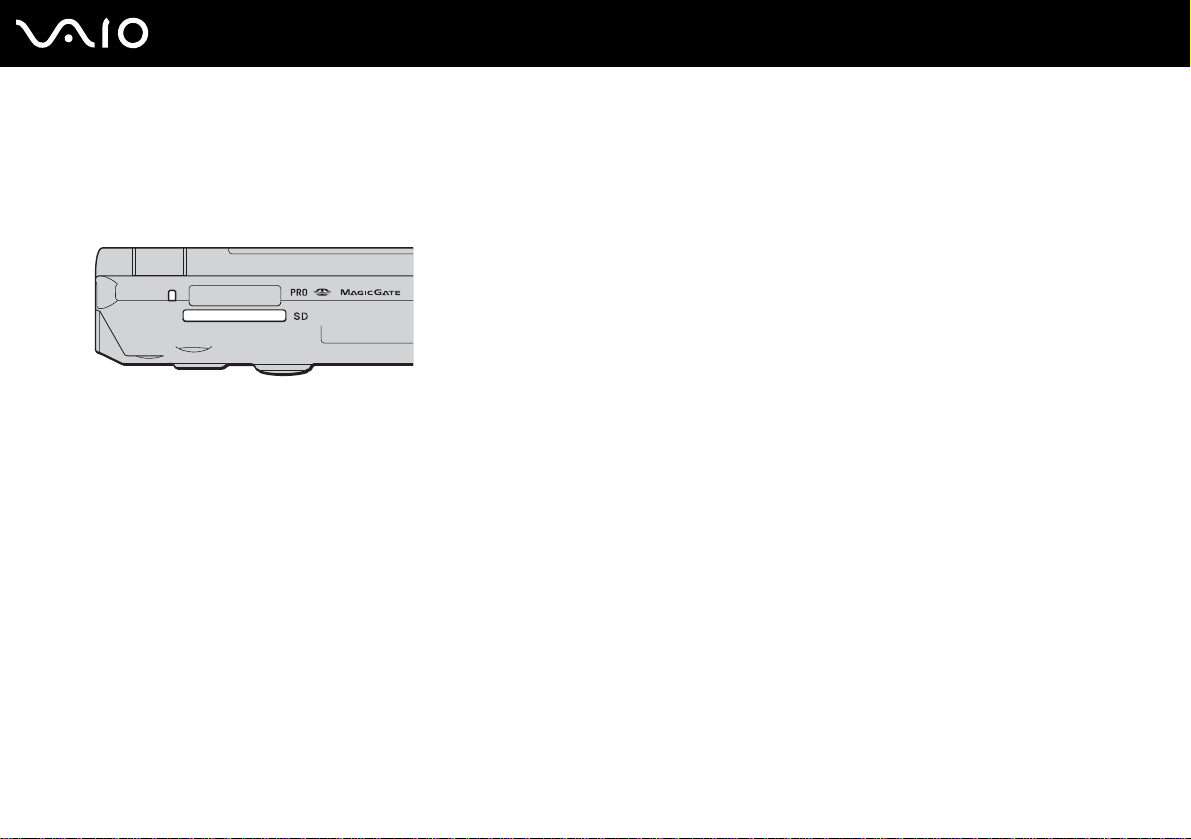

To insert a memory card

1 Locate the SD card slot on the front of the computer.

2 Insert the memory card into the slot, in the direction of the arrow on the media.

Do not force the card into the slot.

✍

If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Removing a Memory Card

!

Do not remove a memory card while the Media Access indicator light is on. The card or its data may become damaged.

49

nN

Using Your VAIO Computer

To remove a memory card

1 Press the extended part of the memory card, causing it to extend out from the slot.
2 When the card extends, carefully pull it out of the slot.

nN

Using Your VAIO Computer

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (not
supplied). Once you set up your telephone cable, you're ready to connect to the Internet.

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer.
2 Plug the other end into the wall jack (2).

✍

The computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a

private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

50

To set up a dial-up connection to the Internet

1 Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard.

The New Connection Wizard appears.

2 Click Next. If the Location Information window appears, follow the on-screen instructions.
3 If it is not already selected, click to select Connect to the Internet, and click Next.
4 Follow the on-screen instructions.

51

nN

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each
other through a powerful network. A WLAN is a network in which a user can connect to a local area network (LAN) through
a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.

The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still
access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place
to another.

You can communicate without an Access Point, which means that you can communicate between a limited number of
computers (ad-hoc). Or you can communicate through an Access Point, which allows you to create a full infrastructure
network (infrastructure).

❑ Users of the models with the Wireless WAN functionality in USA

Please see the VAI O SmartWi Connection Utility Guide for setting up Wireless LAN and Wireless WAN functionalities.
❑ Other users in USA

Please see the following for setting up Wireless LAN functionality.
❑ Users in Canada and Latin American countries or areas

Please see the following for setting up Wireless LAN functionality.

52

nN

Using Your VAIO Computer

✍

WLAN uses the IEEE802.11b/g standard, which specifies the used technology. The standard includes the encryption method: Wired Equivalent Privacy

(WEP), which is a security protocol and WiFi Protected Access (WPA - Proposed jointly by the IEEE and Wi-Fi Alliance, WiFi Protected Access is a

specification of standards based, interoperable security enhancements that increase the level of data protection and access control for existing WiFi

networks. WPA has been designed to be forward compatible with the IEEE802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal

Key Integrity Protocol) in addition to user authentication using 802.1X and EAP (Extensible Authentication Protocol)). Data encryption protects the

vulnerable wireless link between clients and Access Points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as:

password protection, end-to-end encryption, virtual private networks, and authentication.

Wireless LAN devices using the IEEE802.11a standard and the ones using the IEEE802.11b or g standard cannot communicate because the frequencies

are different.

IEEE802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up.

IEEE802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a Wireless LAN device using the IEEE802.11b standard.

53

nN

Using Your VAIO Computer

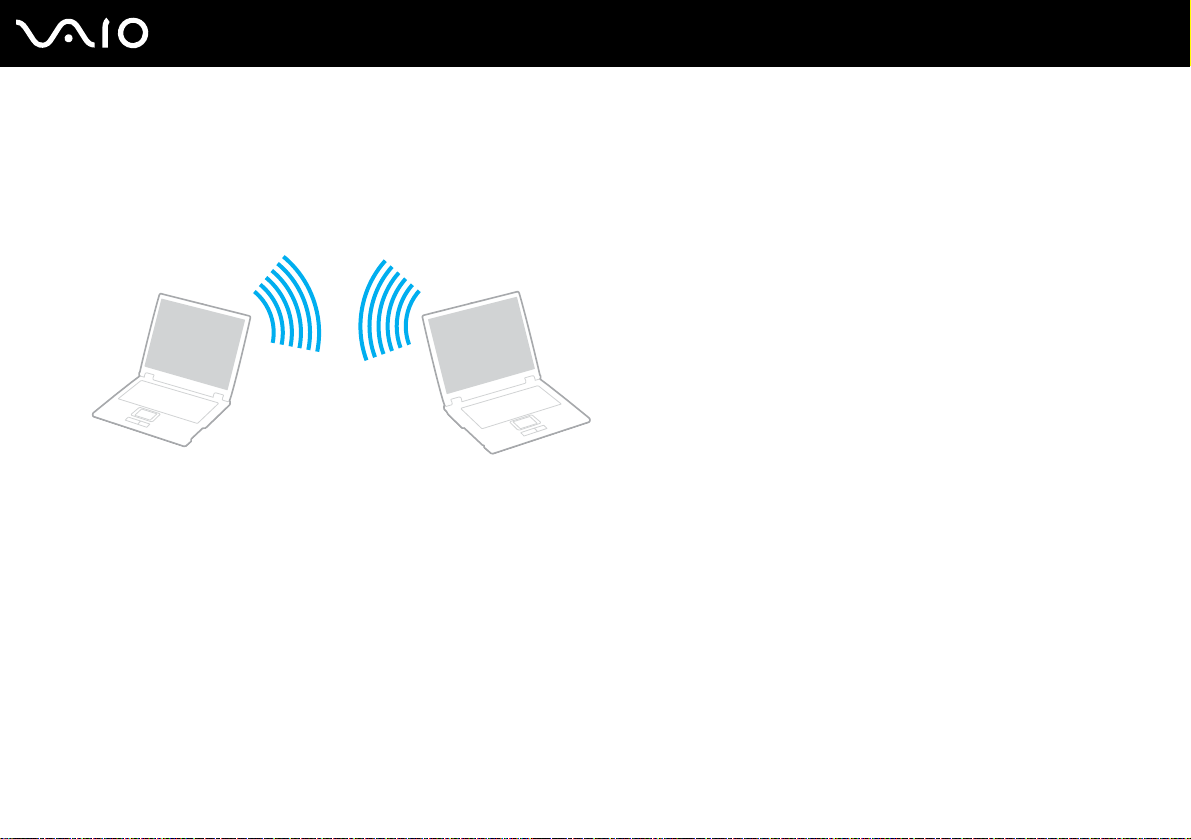

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other
central controller or Access Point. Each device communicates directly with other devices in the network. You can set up an
ad-hoc network easily at home.

To communicate without an Access Point (ad-hoc)

1 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

*1

On models with the Bluetooth functionality

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.
2 Click Start and then Control Panel.
3 Click Network and Internet Connections.
4 Click Network Connections.

The Network Connections window appears.
5 Right-click Wireless Network Connection, then click Properties.

The Wireless Network Connection Properties window appears.
6 Select the Wireless Networks tab.
7 Click the Add… button.

The Wireless network properties window appears.

*2

8 Enter a Network name (SSID)

.

You can choose a 32-digit alphanumeric name.

9 Select Open from the Network Authentication drop-down box.
10 Select WEP from the Data Encryption drop-down box.
11 Deselect the The key is provided for me automatically option button.

Some information becomes visible.
12 Enter the Network key

*2

.

The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal

whatever you want.

, double-click ( / ) on the taskbar to display the Wireless Device

nN

Using Your VAIO Computer

*3

characters long. You can choose

54

55

nN

Using Your VAIO Computer

13 Enter exactly the same Network key again, for confirmation.
14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the

bottom of the screen.
15 Click OK.

Your Network name appears in the Preferred networks.
16 Click Advanced.

The Advanced window appears.

17 Select the Computer-to-computer (ad hoc) networks only option button.
18 Click Close.
19 Click OK.

The computer is ready to communicate with another computer.

*1

See the online Specifications to see whether your model supports the Bluetooth functionality.

*2

If you want to communicate between two or more computers, you need to configure all these computers the exact same way. This means that you need to enter the same
Network name and the same Network key on all computers as on the first computer you configure.

*3

Hexadecimal: A number representation using the digits 0-9, with their usual meaning, plus the letters A-F (or a-f) to represent hexadecimal digits with values of (decimal)
10 to 15.

✍

An ad-hoc network does not support WPA.

Using Your VAIO Computer

To disconnect from a computer-to-computer (ad-hoc) network

1 Click Start and then Control Panel.
2 Click Network and Internet Connections.
3 Click Network Connections.

The Network Connections window appears.
4 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.

The Wireless Network Connection Status window appears.
5 Click Properties.

The Wireless Network Connection Properties window appears.
6 On the Wireless Networks tab, click Advanced.

The Advanced window appears.
7 Click to select Any available network (access point preferred), and click Close.
8 Click OK.
9 Click Close.
10 Turn off the WIRELESS or WIRELESS LAN switch.

56

nN

57

nN

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an Access
Point, for example the Sony Access Point. The Access Point bridges the wireless and wired LAN and acts as a central
controller for the Wireless LAN. The Access Point coordinates transmission and reception from multiple wireless devices
within a specific range.

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the instructions that accompanied the access point for more information.
2 Turn on the WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

3 Click Start and then Control Panel.
4 Click Network and Internet Connections.
5 Click Network Connections.
6 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.

The Wireless Network Connection window appears.
7 Follow the on-screen instructions.

58

nN

Using Your VAIO Computer

To connect to a wireless network (Models with the VAIO Wireless Utility software only)

Use the VAIO Wireless Utility software to guide you through the set up process and provide you with more detailed
information about wireless connections.

1 Make sure an access point is set up.

See the instructions that accompanied the access point for more information.
2 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

*

On models with the Bluetooth functionality

, double-click ( / ) on the taskbar to display the Wireless Device

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.
3 Click Start, point to All Programs, and click VAIO Wireless Utility.

The VAIO Wireless Utility appears.
4 Follow the on-screen instructions.

* See the online Specifications to see whether your model supports the Bluetooth functionality.

To disconnect from a wireless network

Turn off the WIRELESS or WIRELESS LAN switch.

!

Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.

59

nN

✍

The WPA key needs to contain at least 8 characters.

60

nN

Using Your VAIO Computer

Wireless LAN Channel Selection

In an 802.11b/g configuration, channel 1 to 11 can be used.

(a) With an Access Point ("Infrastructure")

❑ The channel used will be the channel selected by the Access Point.

!

For details on how to select the channel that will be used by the Access Point, see the access point manual.

(b) Without an Access Point ("ad-hoc")

❑ If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected.
❑ If the Wireless connection is initiated by a peer Wireless LAN equipment, the Wireless LAN communication will make use

of the channel selected by the peer Wireless LAN equipment.

✍

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference

from other devices that uses the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower

communication speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device

configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the

radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Deploying IEEE802.11b and IEEE802.11g products on the same wireless network may reduce the communication speed due to radio interference.

Taking this into consideration, the IEEE802.11g products are designed to reduce the communication speed to ensure communications with

IEEE802.11b products.

When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

61

nN

Using Your VAIO Computer

Using the Bluetooth Functionality

You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables and up to 32 feet (10 meters) range in open
space.

❑ Users in USA

Please see the VAIO SmartWi Connection Utility Guide for setting up Bluetooth functionality.
❑ Users in Canada and Latin American countries or areas

Please see the following for setting up Bluetooth functionality.

To connect to a Bluetooth device

1 Turn on the WIRELESS switch.

2 Double-click ( / ) on the taskbar to display the Wireless Device Switch window.
3 Select the Enable Bluetooth Device option.
4 Click OK.

62

nN

Using Your VAIO Computer

Notes on using the Bluetooth functionality

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both Wireless LAN and Bluetooth functionalities at the same time on the computer

❑ Size of file being exchanged
❑ Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer

due to electromagnetic interference from the environment.
❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may

not be possible in all situations.

63

nN

Using Your VAIO Computer

❑ The 2.4 GHz band with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length.

Communication speed and distances can be inferior to the standard values. Interference from other devices may also stop

communications. Do not simultaneously use the Bluetooth functionality and wireless communication devices which use

the 2.4 GHz band, such as a wireless LAN PC Card.
❑ The Bluetooth functionality may not work depending on the third party devices or the software version used by third party

companies.

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine whom you choose to
communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.

The first time two Bluetooth devices communicate, a common Passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the Passkey.

nN

Using Your VAIO Computer

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.

64

65

nN

Using Your VAIO Computer

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using
the Bluetooth functionality, see the help file on the Bluetooth Utility software.

To see the help file

1 Right-click the Bluetooth icon on the taskbar and select Bluetooth Settings from the menu.
2 Select Help from the Help menu.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Stopping the Bluetooth Connection

To stop the Bluetooth connection, turn off the WIRELESS switch. The Bluetooth indicator turns off.

Using Peripheral Devices

You can add functionality to your computer by using the various ports on the computer.

❑ Connecting a Port Replicator (page 67)
❑ Connecting External Speakers (page 71)
❑ Connecting an External Display (page 72)
❑ Selecting Display Modes (page 76)
❑ Using the Multiple Monitors Function (page 77)
❑ Connecting an External Microphone (page 79)
❑ Connecting a Universal Serial Bus (USB) Device (page 80)
❑ Connecting a Printer (page 83)
❑ Connecting an i.LINK Device (page 84)
❑ Connecting to a Network (LAN) (page 86)

66

nN

Using Peripheral Devices

67

nN

Using Peripheral Devices

Connecting a Port Replicator

Attaching a port replicator enables you to connect additional peripherals to your computer, such as a printer and an external
display.

A port replicator may be supplied with your computer, depending on the model you purchased. If not, you can additionally
purchase an optional port replicator.

See the online Specifications to see whether your model is supplied with a port replicator.

Locating Ports on the Port Replicator

A DC In port (page 20)
B Network (Ethernet) port (100BASE-TX / 10BASE-T) (page 86)
C Monitor (VGA) port (page 73)

D Hi-Speed USB (USB 2.0) ports

* Supports high-/full-/low- speeds.

!

The port replicator can be powered only through the AC adapter supplied with the computer. Do not unplug the AC adapter from the port replicator and

the AC outlet while using the port replicator; this may cause data damage or hardware malfunctions.

*

(page 80)

✍

The printer port on the port replicator is intended for printer connections only.

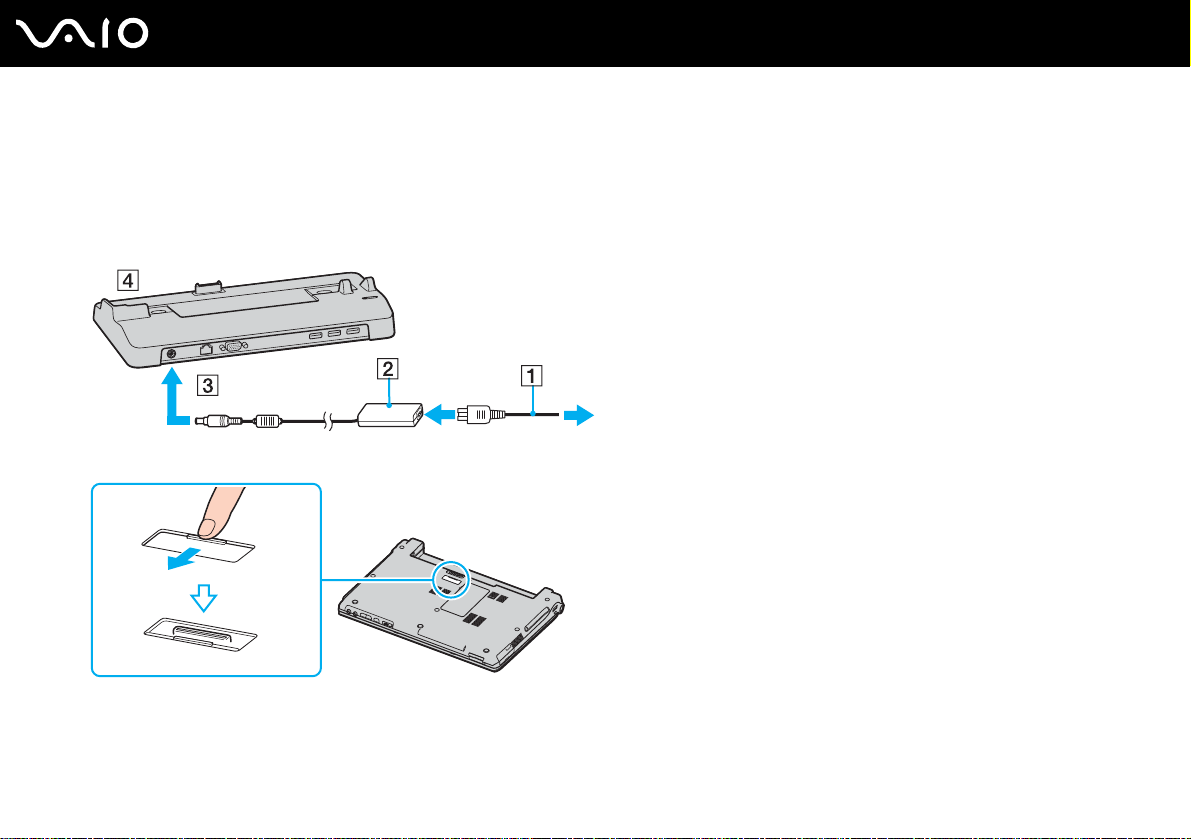

Attaching Your Computer to the Port Replicator

1 Disconnect all peripherals from the computer.
2 Plug the power cord (1) into the AC adapter and an AC outlet.
3 Plug the cable attached to the AC adapter (2) into the DC In port (3) on the port replicator (4).

4 Open the port replicator connector cover.

68

nN

Using Peripheral Devices

nN

Using Peripheral Devices

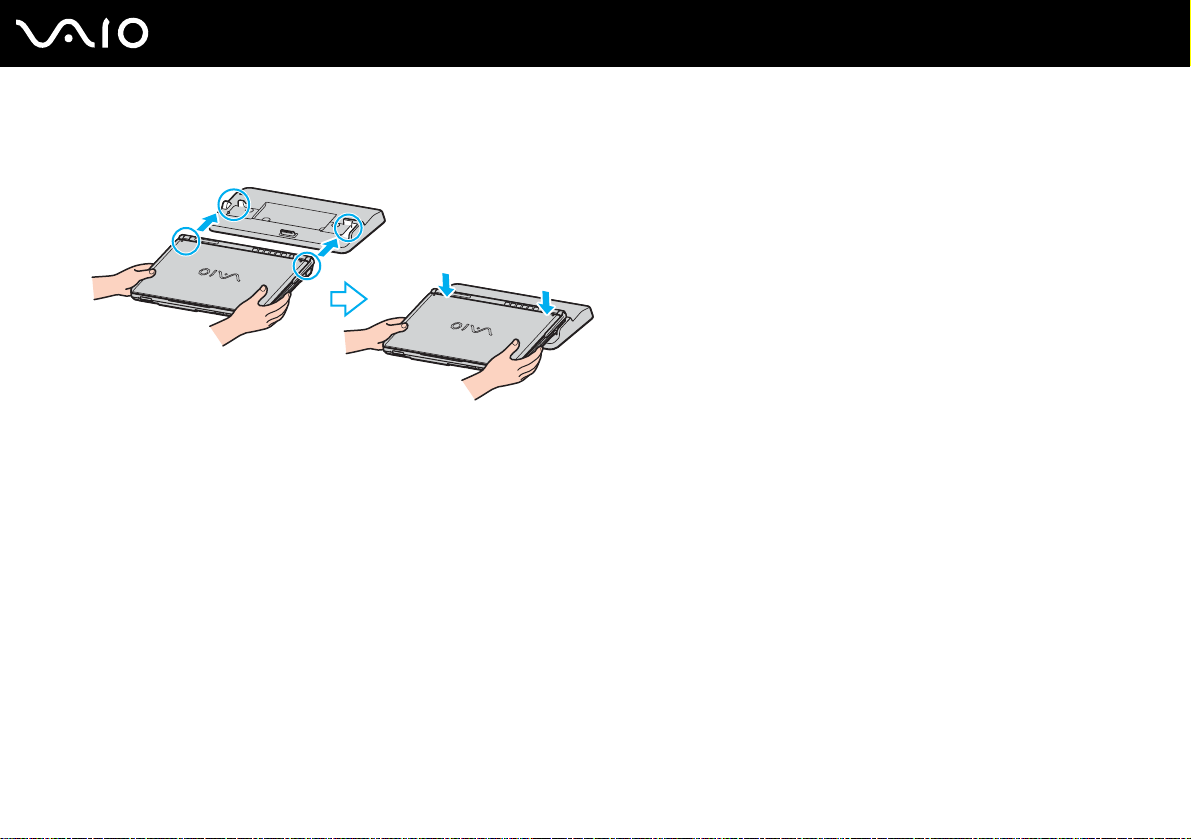

5 Align the bottom connector of the computer with the connector on the port replicator and push down until it clicks into

place.

6 Turn on the computer.

!

Use the AC adapter supplied with the port replicator.

Do not move the computer while attached to the port replicator; this may detach the port replicator and cause damage to the port replicator and the

computer.

69

Using Peripheral Devices

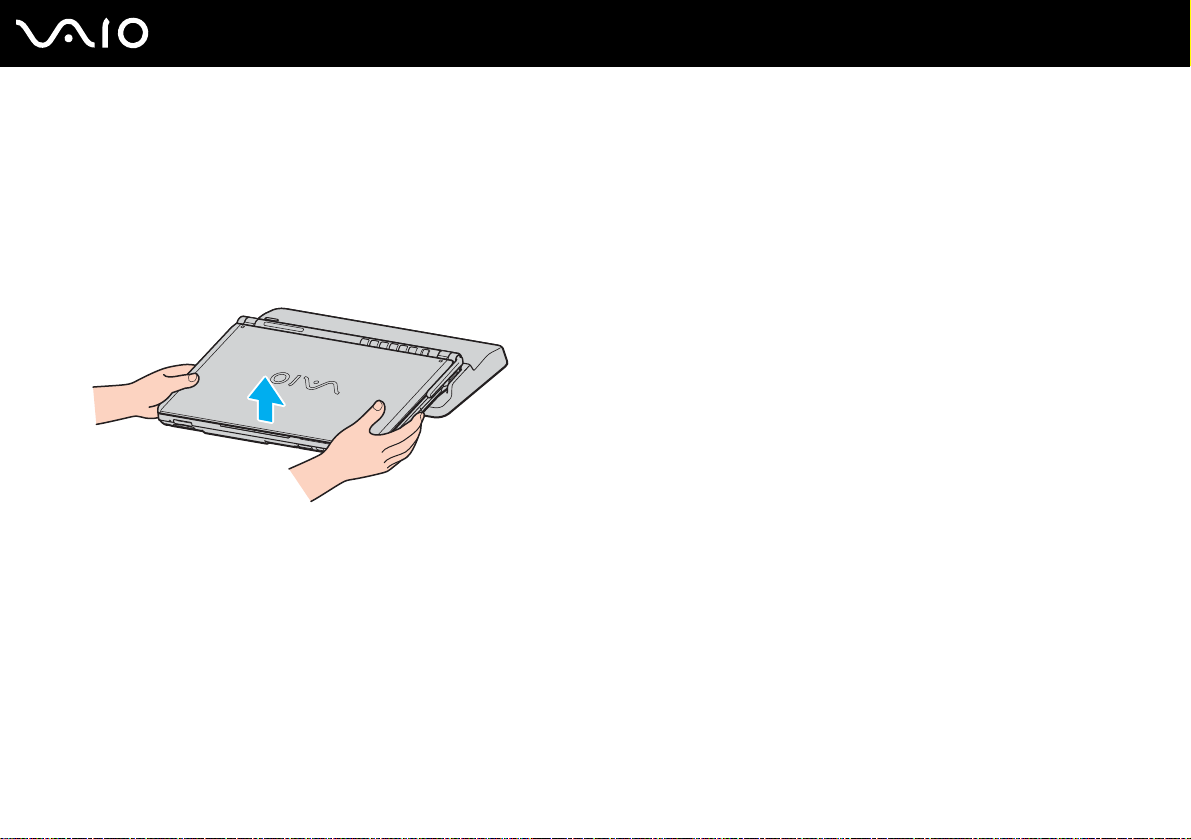

Disconnecting Your Computer from the Port Replicator

!

To prevent loss of unsaved data, be sure to turn off the computer before disconnecting it from the port replicator.

1 Turn off the computer and the connected peripherals.
2 Lift the computer away from the port replicator.

3 Close the port replicator cover on the bottom of the computer.

✍

It is extremely important to close the port replicator connector cover after disconnecting the computer from the port replicator. If the cover is left open,

dust may get inside and damage the computer.

70

nN

To disconnect the port replicator completely from AC power, unplug the AC adapter.

Connecting External Speakers

You can enhance the sound quality of your computer by connecting external speakers.

To connect external speakers

1 Plug the speaker cable (1) into the headphones jack (2) i.
2 Plug the other end of the speaker cable to the external speaker (3).
3 Turn down the volume of the speakers before you turn them on.

✍

Make sure your speakers are designed for computer use.

71

nN

Using Peripheral Devices

!

Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.

72

nN

Using Peripheral Devices

Connecting an External Display

You can connect an external display to your computer. For example, you can use the computer with a computer display or a
projector.

❑ Connecting a Computer Display (page 73)
❑ Connecting a Multimedia Computer Display (page 74)
❑ Connecting a Projector (page 75)

✍

Connect the power cord after connecting all other cables.

Connected external displays are used as second screens.

On Windows systems only, you can also use an external display to set up multiple monitors.

73

nN

Using Peripheral Devices

Connecting a Computer Display

You can connect a computer display (monitor) either directly to your computer or via the (optional) port replicator.

To connect a computer display

1 If necessary, plug one end of the display's power cord (1) into the display, and the other end into an AC outlet.
2 If you want to connect a VGA monitor, plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the

computer or on the port replicator.

!

A video adapter device is required to connect a VGA monitor using the DVI-D port.

74

nN

Using Peripheral Devices

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer or via the
(optional) port replicator.

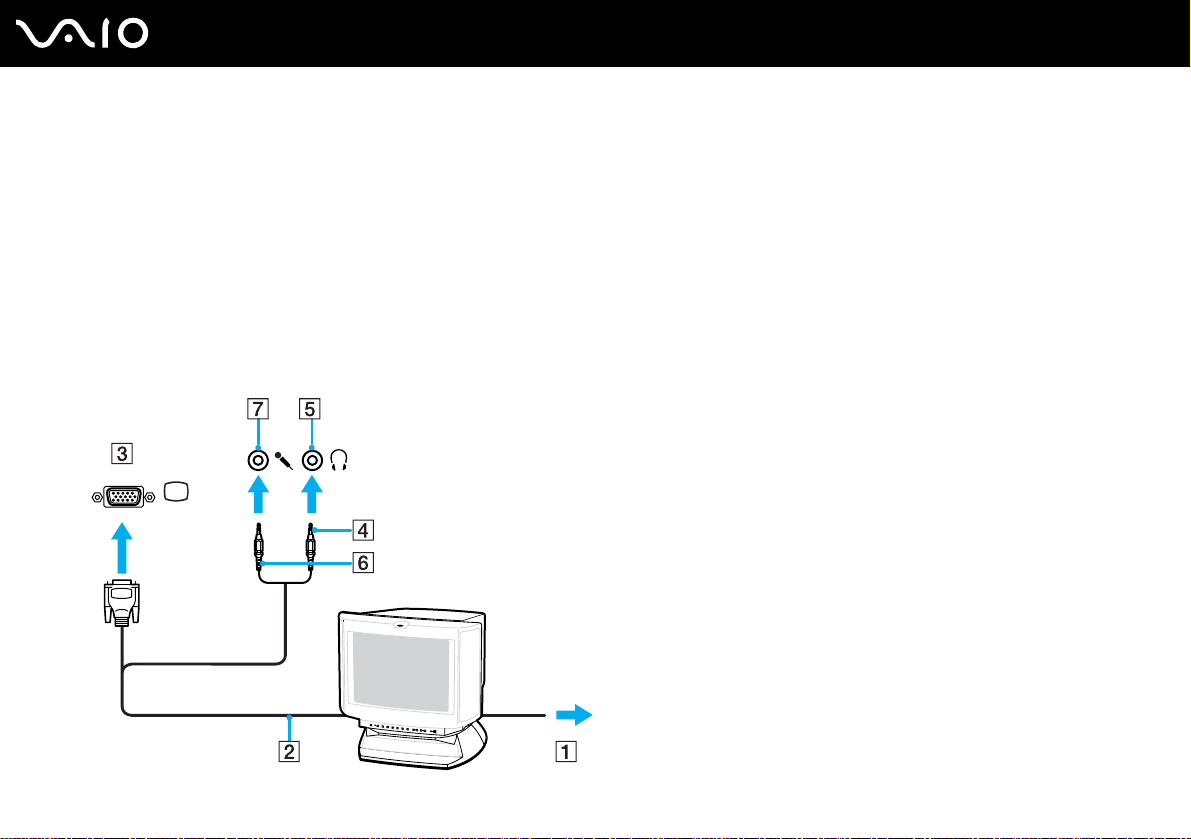

To connect a multimedia computer display

1 Plug the power cord of the multimedia computer display (1) into an AC outlet.
2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the port replicator.
3 Plug the speaker cable (4) into the headphones jack (5) i on the computer.
4 Plug the microphone cable (6) into the microphone jack (7) m on the computer.

Using Peripheral Devices

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the (optional) port
replicator.

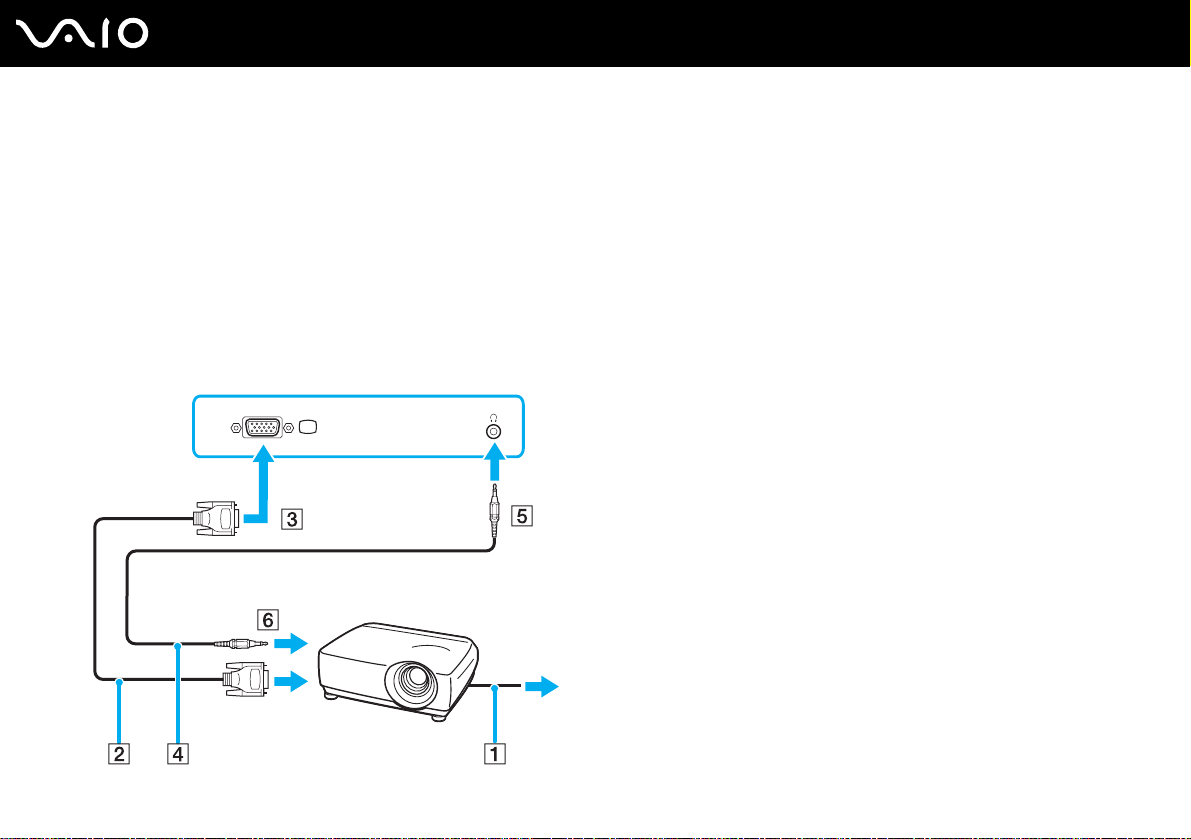

To connect a projector

1 Connect the power cord (1) of the projector into an AC outlet.
2 Plug the RGB signal cable (2) into the monitor (VGA) port (3) a on the computer or on the port replicator.
3 Plug the audio cable (4) (not supplied) into the headphones jack (5) i.
4 Plug the RGB signal cable and the audio cable into the jack and port on the projector (6).

75

nN

76

nN

Using Peripheral Devices

Selecting Display Modes

You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected
to your computer.

If you want to work on the computer's LCD and the external display at the same time, see Using the Multiple Monitors
Function (page 77) for more information.

To select a display

1 Click Start and then Control Panel.
2 Click Appearance and Themes.
3 Click Display.
4 Click the Settings tab.
5 Click Advanced.
6 Click the tab with its name beginning with Intel(R).
7 Click Graphic Properties.
8 Select a display from the Display Devices menu.
9 Click OK.

✍

You may not be able to display on the computer's LCD and the external display or projector at the same time, depending on the type of your external

display or projector.

Before turning on the computer, turn on the peripheral devices.

77

nN

Using Peripheral Devices

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display attached to the monitor (VGA) port, your computer's LCD and the external display can function as
a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that the computer does not enter Standby or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may not

return to Normal mode.

If you set different colors on each display, do not divide one single window on two displays; otherwise your software may not work properly.

Set fewer colors or a lower resolution for each display.

Using Peripheral Devices

To select the Multiple Monitors mode

1 Right-click on the desktop to display the context menu.
2 Point to Graphics Options and click Graphics Properties.
3 Select Extended Desktop from the Display Devices menu.

To change the primary and secondary device settings, use the Primary Device and Secondary Device drop-down lists

under Multiple Display.
4 Click OK.

If the Monitor Settings window appears, click OK.

✍

To deactivate the Multiple Monitors mode, deselect the check box in Step 6.

✍

Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.

78

nN

nN

Using Peripheral Devices

Connecting an External Microphone

If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone.

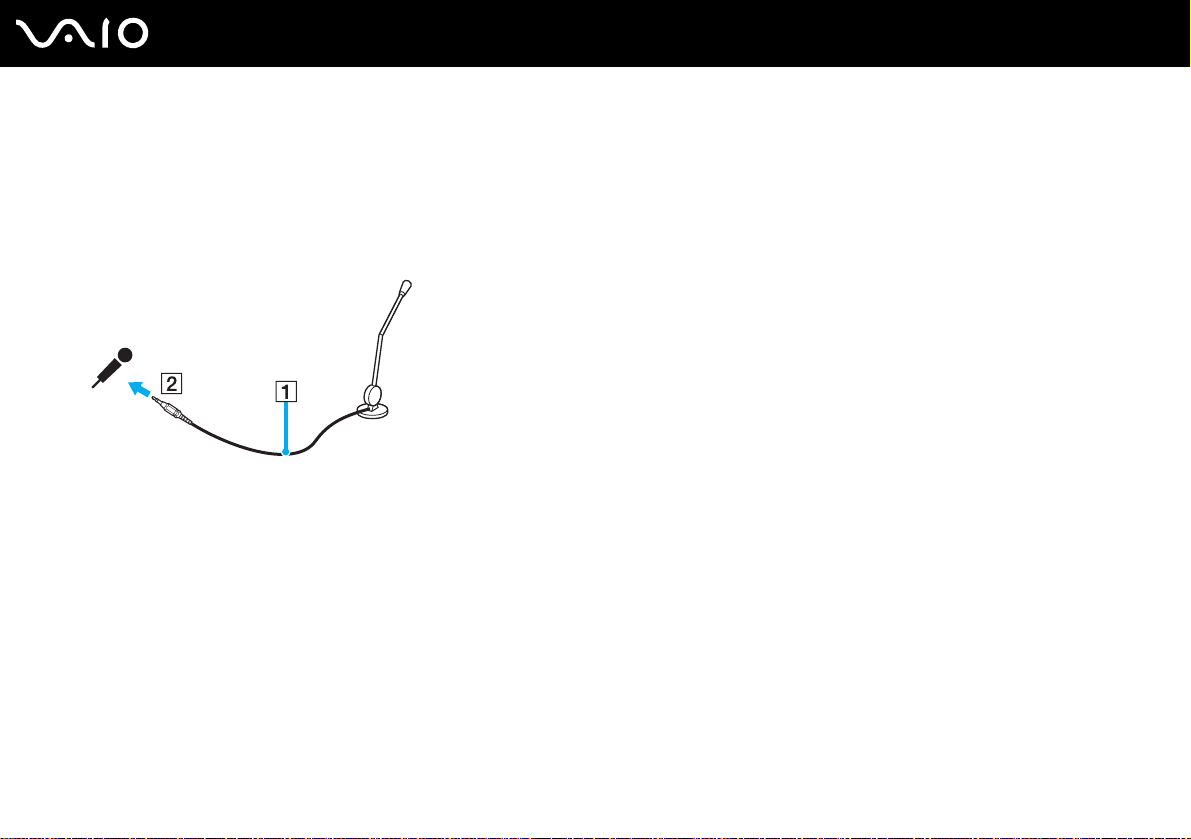

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

79

Using Peripheral Devices

Connecting a Universal Serial Bus (USB) Device

To prevent your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports.
❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

Connecting a USB Mouse

To connect a USB mouse

1 Choose the USB port (1) you prefer to use.
2 Plug the USB mouse cable (2) into the USB port.

You can now use your USB mouse (3).

80

nN

✍

The VAIO USB mouse software driver is preinstalled on the computer. As a result, you only need to plug the USB mouse into the USB port and you can

start working.

Using Peripheral Devices

Connecting a USB Floppy Disk Drive

You can purchase a USB floppy disk drive and connect it to your computer.

To connect a USB floppy disk drive

1 Choose the USB port you prefer to use.
2 Plug the USB floppy disk drive cable into the USB port. The VAIO logo on the disk drive should be facing up.

Your USB floppy disk drive is now ready for use.

!

When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.

81

nN

82

nN

Using Peripheral Devices

Disconnecting a USB floppy disk drive

You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in
a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

If the computer is off, you can unplug the USB cable directly from the computer.

To disconnect a USB floppy disk drive

1 Close all programs accessing the floppy disk drive.
2 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.
3 Select the floppy disk drive you want to unplug.
4 Click Stop.

The Stop a Hardware device window appears.
5 Make sure the floppy disk drive is selected, and click OK.

A message appears stating it is now safe to remove the hardware device.
6 Remove the floppy disk drive from the computer.

Connecting a Printer

You can connect a Windows-compatible printer to your computer to print documents.

Connecting a Printer Using the USB Port

You can connect a USB printer compatible with your version of Windows to the computer.

To connect a printer using the USB port

1 Plug the printer power cord into an AC outlet (1).

2 Choose the USB port (3) you prefer to use.
3 Plug one end of a USB printer cable (2) into the USB port and the other end to your printer.

83

nN

Using Peripheral Devices

84

nN

Using Peripheral Devices

Connecting an i.LINK Device

Notes on connecting i.LINK devices

❑ The computer includes an i.LINK (IEEE1394) port, which you can use to connect to an i.LINK device such as a digital

video camera recorder or to connect two VAIO computers in order to copy, delete or edit files.

❑ The i.LINK port of the computer does not supply power to external devices generally powered by i.LINK ports.
❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of

the external device.
❑ i.LINK cables compatible with the computer include cables with the following part numbers:

VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end), VMC-IL4408 Series (a 0.8 meter cable with a 4-pin

connector at each end).

❑ The optional i.LINK cables may not be available, depending on your country or region.
❑ An i.LINK connection with other compatible devices is not fully guaranteed.
❑ The i.LINK connection varies depending on the software applications, operating system and i.LINK compatible devices

you use. Refer to the manual that came with your software for more information.
❑ Check the working conditions and OS compatibility of i.LINK-compatible PC peripherals (for example, an HDD or CD-RW

drive) before you connect them to the computer.

85

nN

Using Peripheral Devices

Connecting a Digital Video Camera Recorder

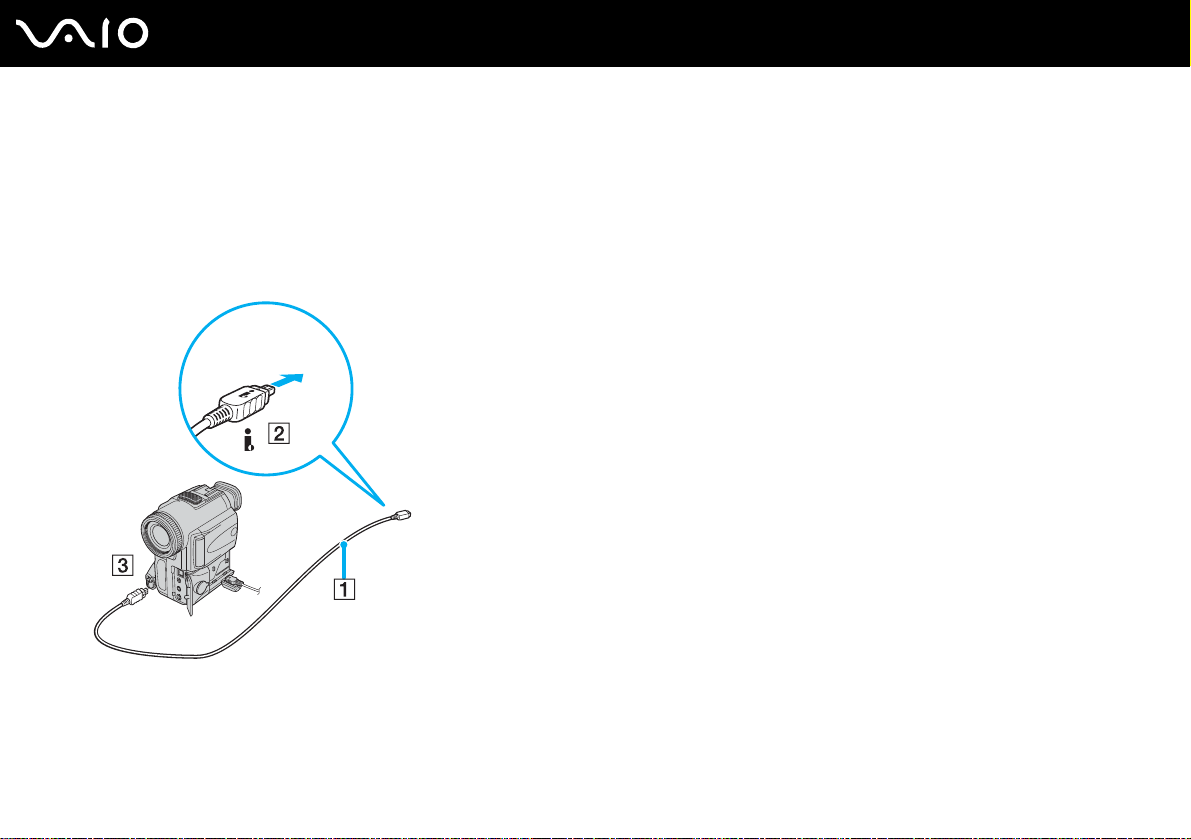

To connect a digital video camera recorder

1 Plug one end of the i.LINK cable (1) into the i.LINK port (2) on the computer and the other end into the DV In/Out ports

(3) on the digital video camera recorder.
2 Launch the DVgate Plus software.

✍

On Sony digital video cameras, ports labeled DV Out, DV In/Out or i.LINK are i.LINK-compatible.

The Sony digital video camera recorder shown here is an example; your digital video camera recorder may need to be connected differently.

You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

86

nN

Using Peripheral Devices

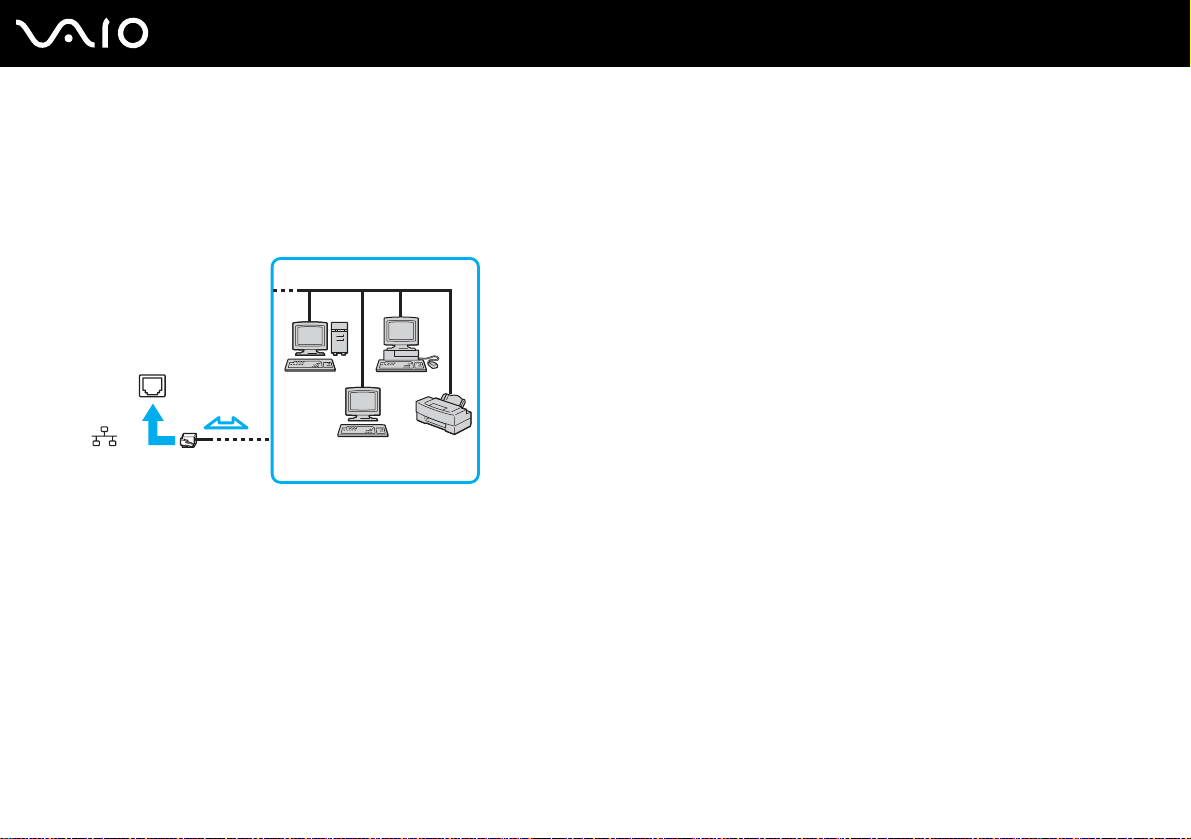

Connecting to a Network (LAN)

You can connect your computer to 100BASE-TX/10BASE-T-type networks via an Ethernet network cable. Connect one end
of an optional network cable to the Network (Ethernet) port on the computer or the (optional) port replicator and the other end
to your network. For detailed settings and devices needed to connect to the network, see your network administrator.

✍

The computer can be connected to the network with the default settings.

Using Peripheral Devices

!

Network and telephone lines cannot be connected to the Network (Ethernet) port on the computer. If the following connectors are connected to the

telephone lines mentioned below, high electric current to the connectors may cause damage, overheating or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Network lines such as 100BASE-TX and 10BASE-T lines

- Public telephone subscriber line

- PBX (private branch exchange)

- Lines other than those mentioned above

!

Do not plug a telephone cable into the network port.

87

nN

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your computer.

❑ Setting the Password (page 89)
❑ Setting Up Your Computer with VAIO Central (page 92)
❑ Using the Power Saving Modes (page 93)
❑ Managing Power with VAIO Power Management (page 98)

88

nN

Customizing Your VAIO Computer

89

nN

Customizing Your VAIO Computer

Setting the Password

Use one of the BIOS functions to set the password.
Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer. In

this way, you can protect your computer from unauthorized access.

90

nN

Customizing Your VAIO Computer

Adding the Power-on Password

!

You cannot start the computer without entering the power-on password. Make sure not to forget the password. Write down your password and keep

it safe and private from other people.

If you forget the power-on password and need assistance to reset, a password reset fee will be charged, and your computer may need to be sent in for

depot service for password reset.

To add the power-on password

1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when VAIO logo appears.
3 Use the < or , key to select Security to display another screen, select Set Machine Password, and then press the

Enter key.
4 On the password entry screen, enter the password twice and press the Enter key.

The password should be up to 7 alphanumeric characters long.

✍

The following is to configure the computer to prompt password entry when you turn it on or display the BIOS setup screen.

5 Select Password When Power ON under Security.

Press the space bar to change the setting from Disabled to Enabled.
6 Use the < or , key to select Exit and then Exit (Save Changes); and press the Enter key.

On the Setup Confirmation screen, confirm that Yes is selected and then press the Enter key.

91

nN

Customizing Your VAIO Computer

Changing/Removing the Power-on Password

To change or remove the power-on password

1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears.

3 Enter the current password for Enter Password:
4 Use the < or , key to select Security to display another screen, select Set Machine Password, and then press the

Enter key.
5 On the password entry screen, enter the current password once and then a new password twice; and press the Enter key.

To remove the password, leave Enter New Password and Confirm New Password blank and press the Enter key.
6 Use the < or , key to select Exit and then Exit (Save Changes); and press the Enter key.

On the Setup Confirmation screen, confirm that Yes is selected and then press the Enter key.

Customizing Your VAIO Computer

Setting Up Your Computer with VAIO Central

The VAIO Central utility allows you to consult system information and specify preferences for system behavior.

To use VAIO Central

1 Click Start, point to All Programs, and click VAIO Central.

The VAIO Central window appears.

2 Select the desired control item and change the settings.
3 Once finished, click OK.

The setting of the desired item has been changed.

✍

Some of the control items will not be visible if you open VAIO Central as a limited user.

92

nN

93

nN

Customizing Your VAIO Computer

Using the Power Saving Modes

When you use a battery as the power source for your computer, you can take advantage of power management settings to
conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer
has two distinct power saving modes: Standby and Hibernate. When using battery power, you should be aware that the
computer automatically enters Hibernate mode when the remaining battery charge becomes short, regardless of the power
management setting you select.

!

If the battery level falls below 10 percent, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully

charged battery.

Using Normal Mode

This is the normal state of the computer when it is in use. The green power indicator light is on in this mode. To save power
while not working, you can turn off a specific device such as the LCD or the hard disk.

94

nN

Customizing Your VAIO Computer

Using Standby Mode

Standby mode turns off the LCD screen and sets the hard disk and the CPU to a low power consumption mode. The umber
power light flashes in this mode.

To activate Standby mode

1 Click Start and then Turn Off Computer.
2 Click Stand By.

To return to Normal mode

Press any key.

!

If you press the power button for more than four seconds, the computer will switch off automatically. You will lose any unsaved data.

✍

When the computer is in Standby mode, you cannot insert a disc.

The computer comes out of Standby mode quicker than out of Hibernate mode.

Standby mode uses more power than Hibernate mode.

You can use VAIO Central to configure the computer to return to Normal mode when you open the LCD screen lid. This power resuming preference

will be lost if you remove both the AC adapter and the battery. See Setting Up Your Computer with VAIO Central (page 92).

!

If the battery runs down when the computer enters Standby mode, you will lose any unsaved data. Going back to the previous work state is impossible.

To avoid loss of data, you should save your data frequently.

If the computer is not used for 25 minutes, it will enter Standby mode. To avoid this, you can change the Standby mode
settings.

To change the Standby mode settings

1 Click Start and then Control Panel.
2 Click Performance and Maintenance.
3 Click Power Options.

The Power Options Properties window appears.
4 Select the Power Schemes tab.
5 Change the System Standby settings.

95

nN

Customizing Your VAIO Computer

nN

Customizing Your VAIO Computer

Using Hibernate Mode

In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. Even when the battery runs
down, no data will be lost. The power indicator light is off in this mode.

To activate Hibernate mode

Press the Fn+F12 keys.
The Hibernating screen appears and the computer enters Hibernate mode.
Alternatively,

1 Click Start and then Turn Off Computer.
2 Click Hibernate.

To return to Normal mode

Turn on the computer by pressing the power button.
The computer returns to its previous state.

!

If you press the power button for more than four seconds, the computer will switch off automatically.

96

Customizing Your VAIO Computer

✍

If you do not use the AC adapter for a long period of time, put the computer into Hibernate mode. This power saving mode saves you the time of shutting

down in the normal way.

When the computer is in Hibernate mode, you cannot insert a disc.

Hibernate mode requires more time than Standby mode to be activated.

It takes more time to return to Normal mode from Hibernate mode than from Standby mode.

Hibernate mode uses less power than Standby mode.

You can use VAIO Central to configure the computer to return to Normal mode when you open the LCD screen lid. This power resuming preference

will be lost if you remove both the AC adapter and the battery. See Setting Up Your Computer with VAIO Central (page 92).

!

Do not move the computer until its power indicator turns off.

The alarm and timer settings do not work in Hibernate mode. They will not automatically bring the computer back into Normal mode.

97

nN

98

nN

Customizing Your VAIO Computer

Managing Power with VAIO Power Management

Power management helps you to set up power schemes for running on AC power or batteries to suit your requirements for
power consumption.

VAIO Power Management is a software application developed exclusively for VAIO computers. With this software
application, you can enhance the Windows power management functions to ensure better operations of your computer and
for longer battery life. For more information on VAIO Power Management, see the help file on the VAIO Power Management
software.

Activating VAIO Power Management

When you start the computer, a power status icon appears on the taskbar. This icon indicates what kind of power source
you are using at that time, for example, AC power. If you double-click this icon, the Power Meter window appears showing
you the power status.

VAIO Power Management functionalities are added to the Windows Power Options Properties.

To activate VAIO Power Management

1 Click Start and then Control Panel.
2 Click Performance and Maintenance.
3 Click Power Options.

The Power Options Properties window appears.
4 Select the VAIO Power Management tab.

To restore the default settings

1 On the VAIO Power Management tab, click Advanced.

The VAIO Power Management window appears.
2 Follow the on-screen instructions to change the settings.

99

nN

Customizing Your VAIO Computer

Activating VAIO Power Management Power Schemes

VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power
management settings that are designed to meet specific power management goals, ranging from maximum power
management to no power management.

To activate a VAIO Power Management power scheme

1 Click Start and then Control Panel.
2 Click Performance and Maintenance.
3 Click Power Options.

The Power Options Properties window appears.
4 Select the Power Schemes tab.
5 Select a power scheme from the Power schemes drop-down list.
6 If you now select the VAIO Power Management tab, you see that the selected power scheme appears to the right of

Power Scheme.
7 If necessary, you can change the items in the list, for example, the brightness of the LCD.
8 Click OK.

The power scheme has been activated.

✍

You must have administrator rights on the computer to set up a power scheme.

For more information on VAIO Power Management and Power Schemes, see the help guide of the VAIO Power Management software.

100

nN

Customizing Your VAIO Computer

VAIO Power Management Viewer

To start VAIO Power Management Viewer

Click on the VAIO Power Management tab.
Alternatively, you can use VAIO Central to start VAIO Power Management Viewer. Double-click the Power Management

folder on the System Information tab in the VAIO Central window, and then double-click the VAIO Power Management
icon. For launching VAIO Central, see Setting Up Your Computer with VAIO Central (page 92).

To change the power scheme

Select the desired power scheme from the drop-down list on VAIO Power Management Viewer.

To view performance with the power scheme modified with VAIO Power Management

When both VAIO Power Management and VAIO Power Management Viewer are running, VAIO Power Management
Viewer shows performance with the power scheme that was modified with VAIO Power Management.

✍

Use VAIO Power Management to set up or modify the power scheme.
