NEX-FS100U
NEX-FS100UK
NXCAM® Super 35mm Sensor Camcorder
A New World of High Quality Video Production Convenience with
the NXCAM Super 35mm Motion Picture Camcorder
Page 2
2
Page 3
INTRODUCT ION
NXCAM Super 35mm Motion Picture Camcorder Providing
Creative Expression in High Quality Video Production
Sony's range of NXCAM® models now includes the NEX-FS100U interchangeable lens camcorder featuring
a Super 35mm sensor. Developed specifically for shooting motion pictures, this high sensitivity, large format
sensor is capable of producing footage with shallow depth of field similar to that of a film camera for a new
level of expression.
For even more creative flexibility, the NEX-FS100U also enables extended continuous recording and
simultaneous recording of HD video footage for instant backup with an HXR-FMU128 Flash Memory Unit. These
and other valuable features make this compact, high performance camera ideal for producing everything
from low budget commercials, music videos and documentaries to wedding videos.
3
Page 4
SENSOR
"Exmor" Super35 CMOS Sensor for Shooting Motion Pictures
Equipped with a large CMOS sensor equivalent in size to Super 35mm film, like that
used in the PMW-F3, the NEX-FS100U enables shooting with similar creative depth of
field as film cameras.
The sensor also features an optimum number of effective pixels for shooting HD
moving images. At a high 60fps in all-pixel scan mode, this allows images to
be captured with less color aliasing, jaggedness and rolling shutter than DSLR
cameras, while providing the sensitivity to shoot at a minimum illumination of
0.28lux*1. Another advantage of Exmor® technology is minimal noise when shooting
low-light scenes.
* 1 When using a fixed shutter speed of 1/30, auto gain and an iris setting of F1.4
The SEL18200 lens supplied with the NEX-FS100UK enables shooting in illumination as low as 1.5lux when
using a fixed shutter speed of 1/30, auto gain and auto iris
Sensitivity
Super 35 (16:9) Four Thirds (4:3)
23.6 mm
13.3 mm
17.3 mm
9.6 mm
2/3”
11.0 mm
8.8 mm
6.6 mm
1/2”
7.9 mm
6.4 mm
4.8 mm
"Exmor" Super35 CMOS Sensor
Gross pixels Approx. 3,530,000 pixels
Effective pixels of moving pictures in 16:9 Approx. 3,370,000 pixels
Effective pixels of moving pictures in 4:3 Approx. 2,530,000 pixels
4
NEX-FS100U
Depth of Field
NEX-FS100U
Full Frame DSLR Camera
Four Thirds Camcorder
Simulated images
Page 5
INTERCHANGEABLE LENSES
E-Mount Interchangeable Lens System
The NEX-FS100U features the E-mount Interchangeable lens system.
Sony's E-mount interchangeable lenses let you enjoy a level of creative freedom
unimaginable with camcorders of the past. All feature precision-crafted optics
with aspherical glass elements for compact high performance, and circular iris
mechanisms for smooth background defocusing. The NEX-FS100UK comes with the
SEL18200(E 18–200mm F3.5–6.3 OSS) lens which boasts 11x zoom power, a quiet AF
motor for cleaner sound recording, and Optical Steady Shot® image stabilization with
an advanced Active mode that lets you take steady handheld shots while walking
around — even without a bulky stabilization rig. An ultracompact SEL16F28 wide-angle
lens and SEL1855 3x zoom lens are also available.
Thanks to the E-mount's short 18mm flange-back distance, using a mount adaptor
allows shooting with a wide range of existing lenses. For example, with the optional
LA-EA1 mount adaptor you can take advantage of the abundant A-mount lenses.
In addition to Sony, there are four major lens manufacturers that will be producing
compatible native E-mount lenses (available Summer 2011).
E-mount lens on
the NEX-FS100U
E-mount lenses
A-mount lenses
Other lenses
LA-EA1 mount
adaptor
Third party adaptor
NEX-FS100U
A-mount lens with
the LA-EA1 adaptor
Cine-style lens with
a third party adaptor
5
Page 6
MODULAR DESIGN
New Design Concept Providing the Flexibility for a Variety of Shooting Styles
Featuring a compact, lightweight body with detachable grip, top handle, and viewfinder,
the NEX-FS100U is ideal for a wide range of shooting situations.
During hand-held shooting, the angle of the grip can be changed as desired,
and start and stop recording with a button on the grip. Secondary record buttons
are also available at two locations, at the top and in front of the camera body.
6
There are 1/4-inch and 3/8-inch screw holes
on both the handle and the bottom of the
camera body for mounting various peripheral
devices, plus three 1/4-inch holes on the top of
the camera body. In addition, there is a tape
measure hook and a focal plane marker for
indicating the image sensor position.
Page 7
Located on the optical axis, the 3.5-inch-type XtraFine™ LCD panel enables easier and more intuitive
framing, especially during hand-held shooting. And the LCD panel can be rotated for stress-free
operation when shooting low-angle scenes and digital signage footage. For easier and more precise
focusing in daylight, the viewfinder comes with a detachable 1.2x magnifier.
7
Page 8
CR E AT ION
1920x1080P Slow and Quick Motion
Recording images at a different frame rate from that used for playback provides
the extra versatility of slow and quick motion shooting. Furthermore, the NEX-FS100U
enables Full HD (1920×1080) progressive slow and quick motion. Frame rates are
selectable from 60fps, 30fps, 15fps, 8fps, 4fps, 2fps and 1fps. So, for example, when
recording at 1080/24p, if the frame rate is set to 60fps, images are recorded in
2.5 times slow motion. This means you can create impressive slow motion scenes
without the need for troublesome editing.
Note: Slow and quick motion shooting is only available in HD progressive mode.
Simultaneous slow and quick motion recording to a memory card and flash
memor y unit (optional HXR-FMU128) is not available.
Slow Motion Mechanism
1sec 1sec 1sec
60p
Capture
1
2 3 5859 60
24p
Format Recording/
Playback
1
2 3
1 2 3 1 2 358 59 60 58 59 60
2.5 times slow
22 23 24 25 26 27 46 47 48 49 59 60 1 2 3
8
Page 9
SAFETY & LO N G R E C O R D I N G

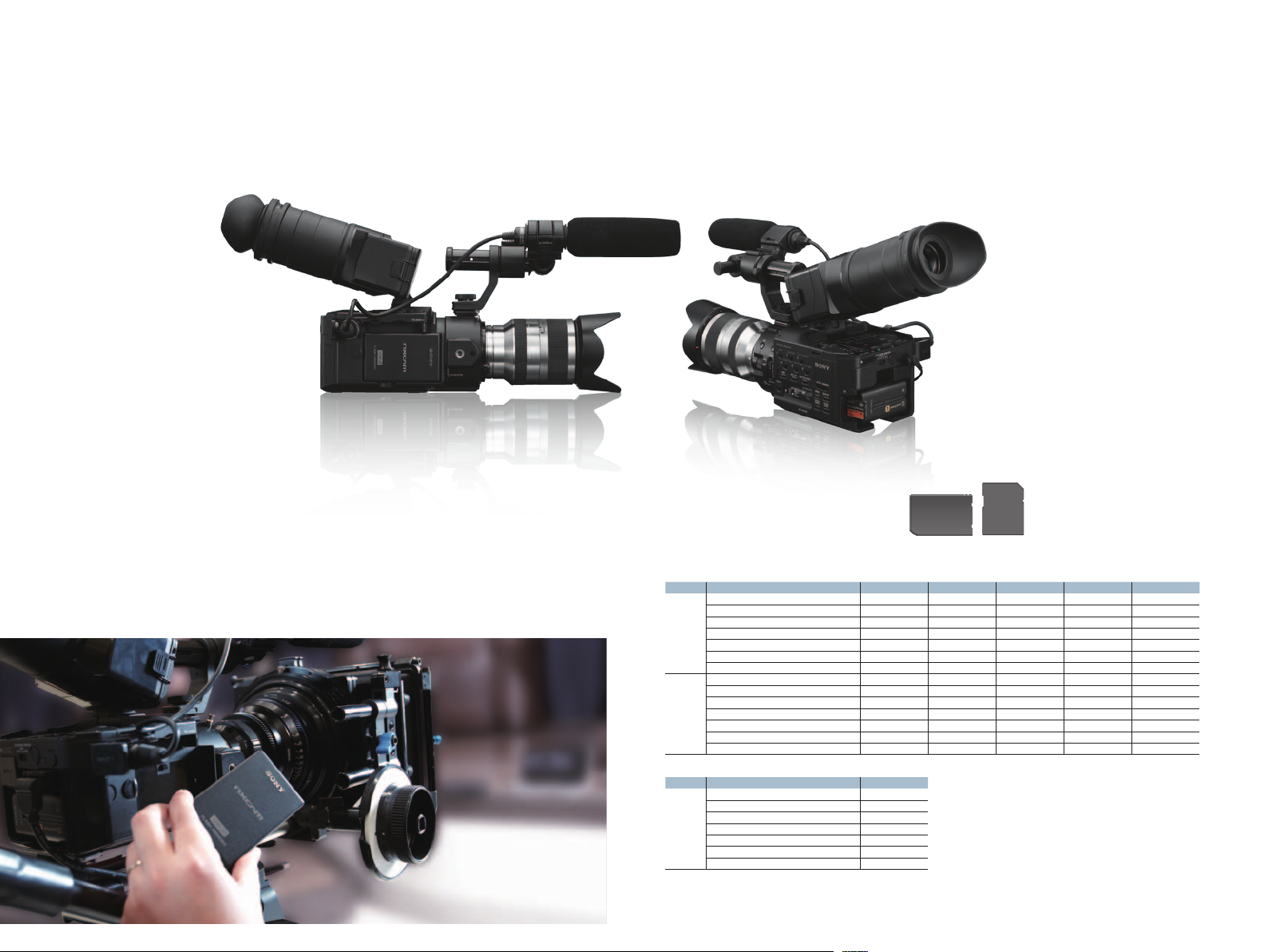

Hybrid Recording
Recording to the directly mountable optional HXR-FMU128 Flash Memory unit allows
continuous recording for over 10 hours without changing the recording medium.
Simultaneous recording using memory card and HXR-FMU128 is also possible for secure
backup when shooting footage that can't be reshot.
Note: HD and SD footage cannot be recorded separately on different recording media.
Compatible Memory Cards Type
*For more information please refer to the specification
sheet on the back of this brochure.
Memory Stick
PRO Duo
SD/SDHC/
SDXC
Memory
TM
Card
Approximate Recording Times*
HD MOVIE
1GB Memory Card 4 min 4 min 6 min 10 min 15 min
2GB Memory Card 8 min 10 min 10 min 20 min 35 min
4GB Memory Card 15 min 20 min 25 min 45 min 70 min
Linear
8GB Memory Card 35 min 40 min 55 min 90 min 145 min
PCM 2ch
16GB Memory Card 70 min 80 min 110 min 185 min 295 min
32GB Memory Card 145 min 170 min 225 min 375 min 590 min
HXR-FMU128 (128GB) [Optional] 600 min 700 min 940 min 1560 min 2460 min
1GB Memory Card 4 min 5 min 7 min 10 min 20 min
2GB Memory Card 9 min 10 min 10 min 25 min 45 min
4GB Memory Card 15 min 20 min 30 min 50 min 90 min
Dolby
8GB Memory Card 35 min 40 min 60 min 105 min 190 min
Digital 2ch
16GB Memory Card 75 min 90 min 120 min 215 min 380 min
32GB Memory Card 150 min 180 min 245 min 440 min 770 min
HXR-FMU128 (128GB) [Optional] 640 min 750 min 1030 min 1830 min 3200 min
SD MOVIE
1GB Memory Card 10 min
2GB Memory Card 25 min
4GB Memory Card 55 min
Dolby
8GB Memory Card 110 min
Digital 2ch
16GB Memory Card 225 min
32GB Memory Card 460 min
HXR-FMU128 (128GB) [Optional] 1910 min
* Recording time varies based on recording conditions.
AVC HD 28M (PS) AVC HD 24M (FX) AVC HD 17M (FH) AVC HD 9M (HQ) AVC HD 5M (LP)
SD 9M (HQ)
9
Page 10
WORKFLOW
NXCAM® Recording Format
Like other NXCAM® series cameras, the new NEX-FS100U uses the highly efficient
AVCHD recording format to capture with excellent image fidelity. Better still, it's ready
to shoot with an incredible maximum frame rate of 1920x1080/60p (28Mbps).
Standard Definition with DVD format (MPEG-2 PS) recording is also possible.
HDMI 1.4 Output with Embedded Time code for 4:2:2 or RGB 4:4:4 Uncompressed
Signal Output
When shooting, the NEX-FS100U provides HDMI 4:2:2 or RGB 4:4:4 uncompressed
output with an embedded SMPTE Time code and embedded 2-3 pull-down markers
for recording on external disc recorders.
Note: Embedding 2-3 pull-down markers enables material originally recorded at 24p
and converted to 60i to be recognized once more as 24p in the HDMI output signal.
RECORDINGFORMAT
RECORDING FORMAT
Formats: HD: AVCHD/SD: MPEG2 PS (NTSC DVD Format)
Formats:
Frame rate: 1920x1080/59.94p, 59.94i, 29.97p, 23.98p
Frame rate:
Audio:
Audio: LPCM/AC3 (2ch) (AC3 only for MPEG2-SD)
1920x1080/59.94p
1920x1080/59.94p
1920x1080/59.94i
1920x1080/59.94i
1920x1080/29.97p
1920x1080/29.97p
1920x1080/23.98p
1920x1080/23.98p
1440x1080/59.94i
1440x1080/59.94i
1280x720/59.94p
1280x720/59.94p
720x480/59.94i
720x480/59.94i
HD: AVCHD/SD: MPEG2 PS (NTSC DVD Format)
1920x1080/59.94p, 59.94i, 29.97p, 23.98p
1280x720/59.94p, 720x480/59.94i
1280x720/59.94p, 720x480/59.94i
LPCM/AC3 (2ch) (AC3 only for MPEG2-SD)
AVCHD
PS
PS
(28Mbps)
(28Mbps)FX(24Mbps)FH(17Mbps)HQ(9Mbps)LP(5Mbps)
○
FX
(24Mbps)
○ ○
○ ○
○ ○
○ ○
FH
(17Mbps)
HQ
(9Mbps)
○ ○
(5Mbps)
LP
MPEG2-SD
MPEG2-SD AVCHD
HQ
HQ
(9Mbp)
(9Mbp)
○
10
RECORDING/PLAYBACK
[HDMI/ Output resolution
HD/SD COMPONENT]
setting
1080p/480i 1080p 1080p 480i
720p/480i 720p 720p 480i
HD 1080i/480i 1080i 1080i 480i
480p 480p 480p 480i
480i 480i 480i 480i
1080p/480i 480i 480i 480i
720p/480i 480i 480i 480i
SD 1080i/480i 480i 480i 480i
480p 480p 480p 480i
480i 480i 480i 480i
HDMI OUT COMPONENT OUT VIDEO OUT
Page 11
FUNCTION
Other Convenient Features
Location Simplification with GPS Technology
A built-in GPS function automatically records location information at the time of a
shoot to AVCHD™ files. The supplied Content Management Utility (CMU) Version 2.0
software can also be used together with map service*. This enables easy confirmation
of exactly where footage was shot, which is particularly useful for location shooting
and when shooting overseas.
Picture Profile™
Six picture profile settings for different shooting conditions are provided as default
settings. Selecting a picture profile for a particular scene offers an easy way to change
image quality.
Last Scene Review
Enables fast, one-touch confirmation of the last recorded scene without operating
multiple buttons.
*Map service requires PC with internet. Service provided
by Google and subject to change without notice.
Expanded Focus
Press a button and this enlarges the center of the displayed image by 2x, a
particularly useful feature when making critical focusing adjustments.
Histogram
Onscreen display of a histogram enables easier exposure adjustment. The histogram
also shows the point where the zebra pattern appears (the zebra point). This enables
confirmation of overall brightness distribution and the brightness level set with the
zebra function. As well as preventing overexposure, this is useful as a guide when
aiming for optimum exposure of certain parts of an image, such as faces.
Peaking
A peaking function draws a defined line around the subject displayed in the LCD
monitor and viewfinder. Peaking sensitivity and color (red, white, yellow) can be
selected to enable more precise focusing.
Markers
Center, aspect, safety zone, guide frame and other markers can be displayed
on the LCD.
Firmware Update
Sony has implemented a firmware update scheme for future functions.
11
Page 12
Sony Opens Up New Era of
Super 35mm Digital Production
12
Page 13
13
Page 14
Optional Accessories
2NP-F970/B
Rechargeable Battery Pack
HXR-FMU128
Flash Memory Unit
ACC-V1BP
Acces sory Kit
(Include NP-FV100 and AC-VQV10)
AC-VQL1BP
AC Adaptor / Charger
UWP-V1, UWP-V2, UWP-V6
UWP-V Series
Wireless Microphone Systems
RM1000BP
LANC Remote Commander
VCT-SP1BP
Camcorder Support
HVL-LBPB
Battery Video Light
RM-1BP
Remote Commander
VCT-SP2BP
Camcorder Support
LPM-770BP
Portable Monitor
MS-HX32A
Memory Stick PRO-HG Duo™ media
MS-MT32G
Memory Stick PRO Duo™ media
(32 GB, 16 GB, 8 GB)
(32 GB, 16 GB, 8 GB, 4 GB, 2 GB)
LC-EX3TH
Transit Case
SF-32N4
SF-32NX
SD / SDHC Memory Card
(32 GB, 16 GB, 8 GB, 4 GB, 2 GB)
(32 GB, 16 GB, 8 GB)
14
Page 15
Specifications Dimensions
Unit: inches (mm)
General
Weight Body only Approx. 2 lb 4oz (1.04 kg)
Dimension (W x H x D) Body only Approx. 5 x 4 x 7 5/8 inch (126.5 x 101.5 x 193.5 mm )
Power requirements Power Requirements (AC adaptor / Battery) 8.4V / 7.2V
Power consumption w/ ECM-XM1 and LCD with normal brightness 5.6W (w/ supplied lens)
Operating temperature +32 to +104 deg F (0 to +40 deg C)
Storage temperature -4 to +140 deg F (-20 to +60 deg C)
Continuous Recording Time Continuous Recording Time Approx. 510 min (NP-F970:fully charged batt.)
Recording format Video Format HD MPEG-4 AVC/H.264 AVCHD format compatible (1080/60p original format)
Recording frame rate* HD PS (28Mbps) 1920x1080/60p, HD FX (24Mbps) 1920x1080/60i, HD FH (17Mbps) 1920x1080/60i, HD HQ (9Mbps)
Recording/Playback time 170 min (2h 50m) with 32GB Memory Stick PRO-HG Duo HX at FX(24Mbps) Linear PCM 2ch recording
Lens (supplied with NEX-FS100UK)
Lens Mount E-mount
Model Name SEL18200
Product Name E 18-200mm F3.5-6.3 OSS
Equivalent 35mm-format focal length 16:9 28.8 - 320mm
Zoom ratio 11.1x
Filter Diameter 67mm
Camera Section
Imaging device "Exmor" Super35 CMOS Sensor
Minimum illumination 0.28 lx (1/30 shutter, IRIS F1.4, Auto GAIN) **
Shutter speed Auto 60i/60p: 1/60-1/2000, 30p: 1/30-1/2000, 24p: 1/48-1/2400
Slow & Quick Motion function Rec Format 1080/60p, 1080/30p, 1080/24p
White balance Auto, Outdoor (5800K), indoor (3200K), One-push (Touch panel)
Inputs/Outputs
Audio input XLR 3-pin (female) (x 2), LINE/MIC/MIC +48 V selectable
Composite output RCA Type (x 1)
Audio output RCA type (CH-1,CH-2)
Component Video Output RCA Type (x 3) via Mini-D jack
USB USB device, mini-AB/Hi-Speed (x 1)
Headphone output Stereo mini jack (x 1) ø3.5mm
Remote Stereo mini-minijack (ø2.5mm)
HDMI output HDMI connector (x 1)
Built-in LCD monitor 3.5 inch-type, XtraFine LCD, approx. 921,600 dots(1920 x 480), 16:9 aspect ratio
Recording Media
Type Memory Stick PRO Duo(Mark2), Memory Stick PRO-HG Duo,Memory Stick PRO-HG Duo HX
Supplied Accessories
* Due to variable bitrate, 28Mbps is the maximum bitrate for HD PS mode, and 24Mbps for HD FX mode. The average bitrate is stated for FH, HQ and LP modes.
** 1.5 lx (w/ supplied lens: auto gain, auto iris, 1/30 shutter speed)
*** Class 4 or higher
w/optional lens w/VF, w/ Battery (NP-F970),
w/large eyecup, w/handle, w/MIC (ECM-XM1),
w/grip, w/o gripbelt
w/optional lens, w/VF, w/large eyecup, w/handle,
w/MIC (ECM-XM1), w/grip, w/o gripbelt
Audio Format HD Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
Gross pixels Approx. 3,530,000 pixels
Effective pixels of moving pictures in 16:9 Approx. 3,370,000 pixels
Effective pixels of moving pictures in 4:3 Approx. 2,530,000 pixels
STD MPEG-2 PS
STD Dolby Digital 2ch, 16bit, 48kHz
4:3 36- 400mm
Manual 60i/30p/60p: 1/3 - 1/10000, 24p: 1/3 - 1/10000
Frame Rate 60fps, 30fps, 15fps, 8fps, 4fps, 2fps, 1fps
Shutter Speed 1/scan frame rate - 1/10000(Manual)
Approx. 6 lb 1oz (2.76 kg)
Approx. 7 1/8 x 7 5/8 x 20 1/2 inch (178 x 192 x 519.5mm)
*When Flash Memory Unit HXR-FMU128 is used, the average power consumption increases about 1.1W
1440x1080/60i, HD LP (5Mbps) 1440x1080/60i, HD FX (24Mbps) 1920x1080/24p, HD FH (17Mbps) 1920x1080/24p, HD FX
(24Mbps) 1920x1080/30p, HD FH (17Mbps) 1920x1080/30p, HD FX (24Mbps) 1280x720/60p, HD FH (17Mbps) 1280x720/60p,
SD/STD HQ (9Mbps) 720x480/60i, SD/STD HQ (9Mbps) 720x480/60i (24p Scan), SD/STD HQ (9Mbps) 720x480/60i (30p Scan)
SD/SDHC/SDXC Memory Card ***
AC-VL1 AC Adaptor/Charger,Power cord(mains lead), NP-F770 InfoLITHIUM Rechargeable
Battery Pack,RMT-845 Wireless Remote Commander, CR2025 Lithium Battery(Installed),
Component video cable, A/V connecting cable, USB cable, VMC-UAM1 USB Adaptor Cable,
Large LCD viewfinder, Large eyecup,ECM-XM1 Microphone, Wind Screen, Handle, Grip, Flash
memory unit jack cover, Body cap (attached to the camcorder), Accessory shoe plate, DK-415
Connecting cord, CMU2.0 Application Software (CD-ROM), Manuals for Interchangeable Lens
Digital HD Video Camera Recorder (CD-ROM), Operating Guide, SEL18200 Zoom lens (supplied
with NEX-FS100UK), Lens hood (supplied with NEX-FS100UK), Front lens cap/rear lens cap
(attached to the lens)(supplied with NEX-FS100UK)
NEX-FS100U
5/8
7
(193.5)
1/2
20
7
1/2
11
5 (126.5)4 (101.5)
(519.5)
5/8
(192)
(292)
(178)
1/8
7
5 (126.5)
(164.5)
1/2
6
HXR-FMU128Body only
3 3/8 (85)
2 1/8
11/16
(54)
(17)
15
Page 16
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/nxcam
V-2497 (MK10846V1)
Reproduction in whole or in part without written permissions is prohibited.
© 2011 Sony Corporation. All rights reserved.
Features and specifications are subject to change without notice.
Sony, the Sony make.believe logo, α, Exmor, NXCAM, Memory Stick, the Memory Stick logo, Memory Stick PRO Duo,
Memory Stick PRO-HG Duo, Optical Steady Shot, and Picture Profile are trademarks of Sony Corporation.
AVCHD and AVCHD logo are trademarks of Panasonic Corporation and Sony Corporation.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Macintosh and Final Cut Pro are trademarks of Apple Inc.
Dolby is a trademark of Dolby Laboratories.
SD, SDHC and SDXC logs are trademarks of SD-3C, LLC.
All other trademarks are the property of their respective owners.
Printed in USA (5/11)
Loading...
