Page 1
SWITCHER PROCESSOR PACK
MVS-8000G-C
MVS8000GS-C
MULTI FORMAT SWITCHER PROCESSOR
MVS-8000G
MVS-8000GSF
MKS-8110G MKS-8111G MKS-8160G MKS-8161M
MKS-8162A MKS-8170G MKS-8210G MKS-8442G
MKS-8450G HK-PSU04 BZS-8200 BZS-8250
BZS-8420 BZS-8500M BZS-8510M BZS-8520M
BZS-8530M BZS-8560
OPERATION MANUAL [English]
1st Edition (Revised 2)
Page 2
WARNING
To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC Rules.
THIS APPARATUS MUST BE EARTHED.
WARNUNG
Um die Gefahr von Bränden oder
elektrischen Schlägen zu verringern, darf
dieses Gerät nicht Regen oder Feuchtigkeit
ausgesetzt werden.
Um einen elektrischen Schlag zu
vermeiden, darf das Gehäuse nicht
geöffnet werden. Überlassen Sie
Wartungsarbeiten stets nur qualifiziertem
Fachpersonal.
DIESES GERÄT MUSS GEERDET
WERDEN.
AVERTISSEMENT
Afin de réduire les risques d’incendie ou
d’électrocution, ne pas exposer cet
appareil à la pluie ou à l’humidité.
Afin d’écarter tout risque d’électrocution,
garder le coffret fermé. Ne confier
l’entretien de l’appareil qu’à un personnel
qualifié.
CET APPAREIL DOIT ÊTRE RELIÉ À LA
TERRE.
For the customers in the U.S.A.
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
For customers in Canada
This Class A digital apparatus complies with Canadian ICES-
003.
Pour les utilisateurs au Canada
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: THIS WARNING IS APPLICABLE FOR USA
ONLY.
If used in USA, use the UL LISTED power cord specified
below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade with ground pin
(NEMA 5-15P Configuration)
Cord Type SJT, three 16 or 18 AWG wires
Length Less than 2.5 m (8 ft 3 in)
Rating Minimum 10 A, 125 V
Using this unit at a voltage other than 120V may require the
use of a different line cord or attachment plug, or both. To
reduce the risk of fire or electric shock, refer servicing to
qualified service personnel.
WARNING: THIS WARNING IS APPLICABLE FOR OTHER
COUNTRIES.
1. Use the approved Power Cord (3-core mains lead) /
Appliance Connector / Plug with earthing-contacts that
conforms to the safety regulations of each country if
applicable.
2. Use the Power Cord (3-core mains lead) / Appliance
Connector / Plug conforming to the proper ratings (Voltage,
Ampere).
2
Page 3
If you have questions on the use of the above Power Cord /
Appliance Connector / Plug, please consult a qualified service
personnel.
WARNUNG
1.Verwenden Sie ein geprüftes Netzkabel (3-adriges
Stromkabel)/einen geprüften Geräteanschluss/einen
geprüften Stecker mit Schutzkontakten entsprechend den
Sicherheitsvorschriften, die im betreffenden Land gelten.
2.Verwenden Sie ein Netzkabel (3-adriges Stromkabel)/einen
Geräteanschluss/einen Stecker mit den geeigneten
Anschlusswerten (Volt, Ampere).
Wenn Sie Fragen zur Verwendung von Netzkabel/
Geräteanschluss/Stecker haben, wenden Sie sich bitte an
qualifiziertes Kundendienstpersonal.
AVERTISSEMENT
1.Utilisez un cordon d’alimentation (câble secteur à 3 fils)/
fiche femelle/fiche mâle avec des contacts de mise à la terre
conformes à la réglementation de sécurité locale applicable.
2.Utilisez un cordon d’alimentation (câble secteur à 3 fils)/
fiche femelle/fiche mâle avec des caractéristiques
nominales (tension, ampérage) appropriées.
Pour toute question sur l’utilisation du cordon d’alimentation/
fiche femelle/fiche mâle ci-dessus, consultez un technicien du
service après-vente qualifié.
For the customers in Europe (MVS-8000G/8000GSF only)
This product with the CE marking complies with both the EMC
Directive and the Low Voltage Directive issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the
following European standards:
• EN60950-1: Product Safety
• EN55103-1: Electromagnetic Interference (Emission)
• EN55103-2: Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following
Electromagnetic Environment: E4 (controlled EMC
environment, ex. TV studio).
Für Kunden in Europa (nur MVS-8000G/8000GSF)
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt die
EMV-Richtlinie sowie die Niederspannungsrichtlinie der
EGKommission.
Angewandte Normen:
• EN60950-1: Sicherheitsbestimmungen
• EN55103-1: Elektromagnetische Verträglichkeit
(Störaussendung)
• EN55103-2: Elektromagnetische Verträglichkeit
(Störfestigkeit)
Für die folgenden elektromagnetischen Umgebungen: E4
(kontrollierter EMV-Bereich, z.B. Fernsehstudio).
• EN60950-1: Sécurité des produits
• EN55103-1: Interférences électromagnétiques (émission)
• EN55103-2: Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans l’environnement
électromagnétique suivant: E4 (environnement EMC contrôlé
ex. studio de télévision).
For the customers in Europe (Optional Board only)
This product with the CE marking complies with the EMC
Directive issued by the Commission of the European
Community.
Compliance with this directive implies conformity to the
following European standards:
• EN55103-1: Electromagnetic Interference (Emission)
• EN55103-2: Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following
Electromagnetic Environment: E4 (controlled EMC
environment, ex. TV studio).
Für Kunden in Europa (Carte optionnelle uniquement)
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt die
EMV-Richtlinie der EG-Kommission.
Angewandte Normen:
• EN55103-1: Elektromagnetische Verträglichkeit
(Störaussendung)
• EN55103-2: Elektromagnetische Verträglichkeit
(Störfestigkeit)
Für die folgende elektromagnetische Umgebung: E4
(kontrollierter EMV-Bereich, z.B. Fernsehstudio).
Pour les clients européens (Nur optionale Zusatzkarten)
Ce produit portant la marque CE est conforme à la Directive
sur la compatibilité électromagnétique (EMC) émise par la
Commission de la Communauté européenne.
La conformité à cette directive implique la conformité aux
normes européennes suivantes:
• EN55103-1: Interférences électromagnétiques (émission)
• EN55103-2: Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans l’environnement
électromagnétique suivant: E4 (environnement EMC contrôlé
ex. studio de télévision).
For the customers in Europe
The manufacturer of this product is Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
The Authorized Representative for EMC and product safety is
Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or guarantee matters
please refer to the addresses given in separate service or
guarantee documents.
This apparatus shall not be used in the residential area.
Pour les clients européens (MVS-8000G/8000GSF
uniquement)
Ce produit portant la marque CE est conforme à la fois à la
Directive sur la compatibilité électromagnétique (EMC) et à la
Directive sur les basses tensions émises par la Commission
de la Communauté européenne.
La conformité à ces directives implique la conformité aux
normes européennes suivantes:
Für Kunden in Europa
Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
Der autorisierte Repräsentant für EMV und Produktsicherheit
ist Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Deutschland. Bei jeglichen Angelegenheiten in
Bezug auf Kundendienst oder Garantie wenden Sie sich bitte
3
Page 4
an die in den separaten Kundendienst- oder
Garantiedokumenten aufgeführten Anschriften.
Dieser Apparat darf nicht im Wohnbereich verwendet werden.
Pour les clients en Europe
Le fabricant de ce produit est Sony Corporation, 1-7-1 Konan,
Minato-ku, Tokyo, Japon.
Le représentant autorisé pour EMC et la sécurité des produits
est Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Allemagne. Pour toute question concernant le
service ou la garantie, veuillez consulter les adresses
indiquées dans les documents de service ou de garantie
séparés.
Ne pas utiliser cet appareil dans une zone résidentielle.
For the customers in Europe, Australia and New Zealand
WARNING
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.
Für Kunden in Europa, Australien und Neuseeland
WARNUNG
Dies ist eine Einrichtung, welche die Funk-Entstörung nach
Klasse A besitzt. Diese Einrichtung kann im Wohnbereich
Funkstörungen verursachen; in diesem Fall kann vom
Betreiber verlangt werden, angemessene Maßnahmen
durchzuführen und dafür aufzukommen.
Pour les utilisateurs en Europe, Australie et NouvelleZélande
AVERTISSEMENT
Il s’agit d’un produit de Classe A. Dans un environnement
domestique, cet appareil peut provoquer des interférences
radio, dans ce cas l’utilisateur peut être amené à prendre des
mesures appropriées.
4
Page 5
Table of Contents
Overview ............................................................................... 6
Features ..................................................................................... 6
Overview of the MVS-8000G Series Components ................... 7
Location and Function of Parts ........................................ 10
Front Panel ..............................................................................10

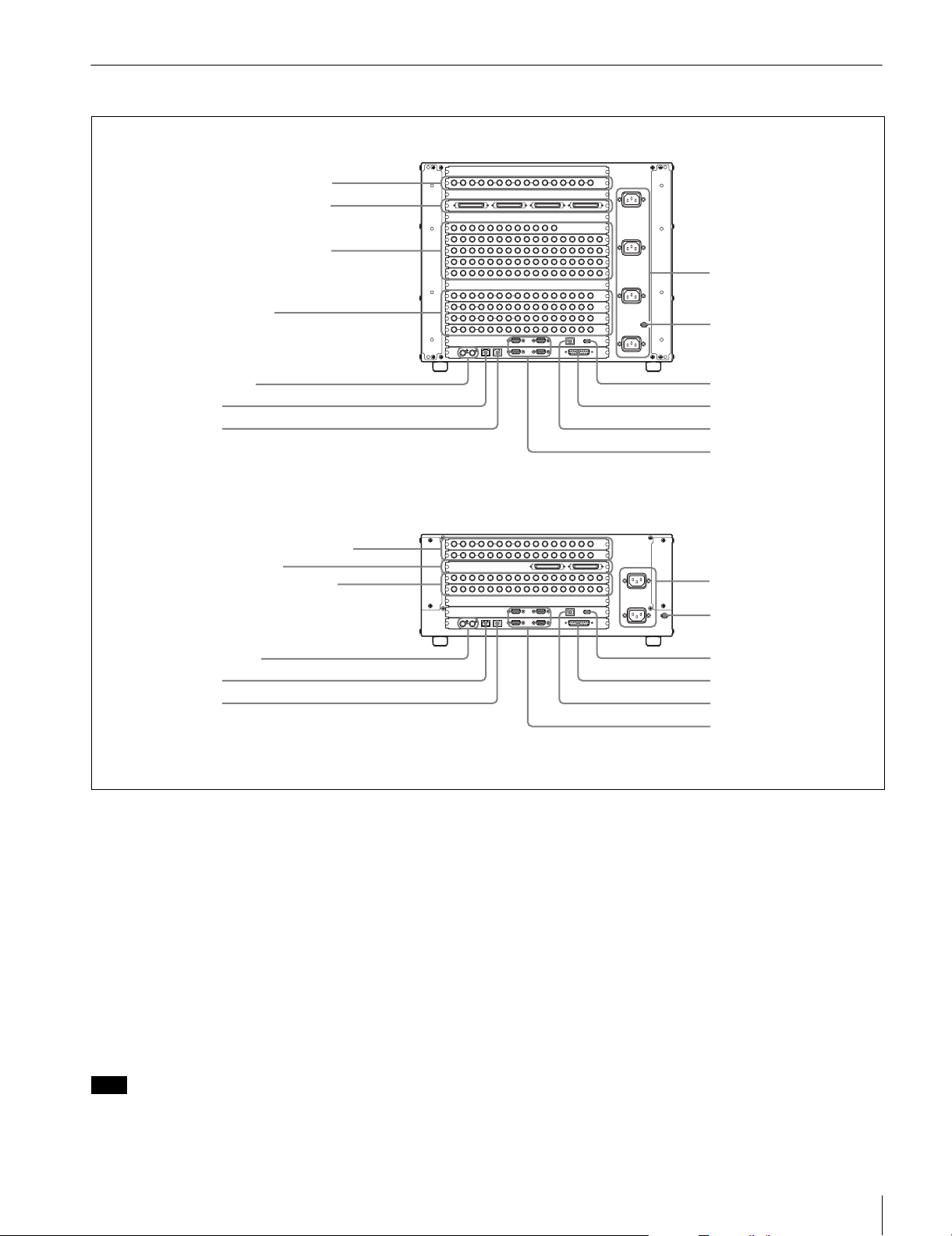

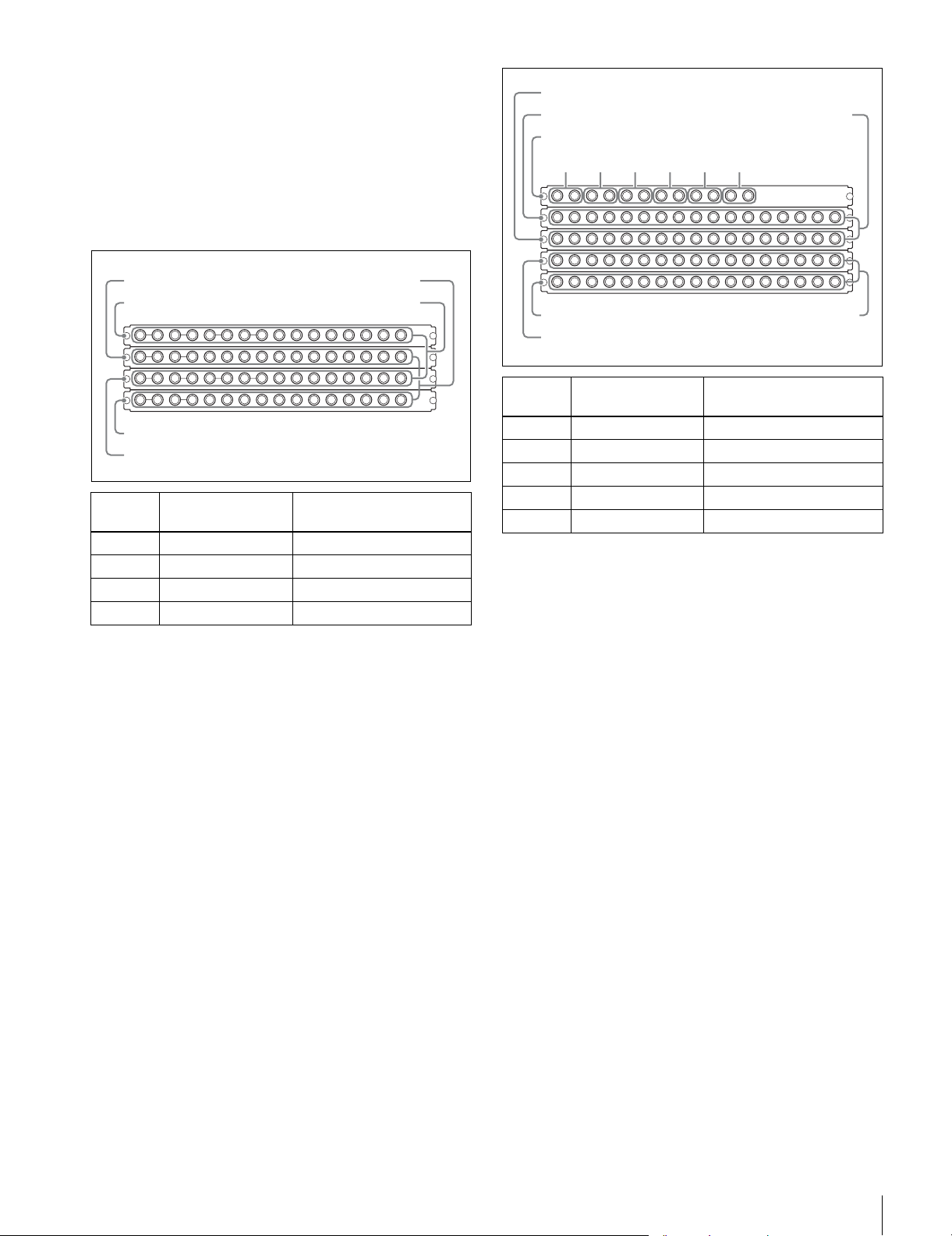

Rear Panel................................................................................11
Example System Configuration ........................................ 15

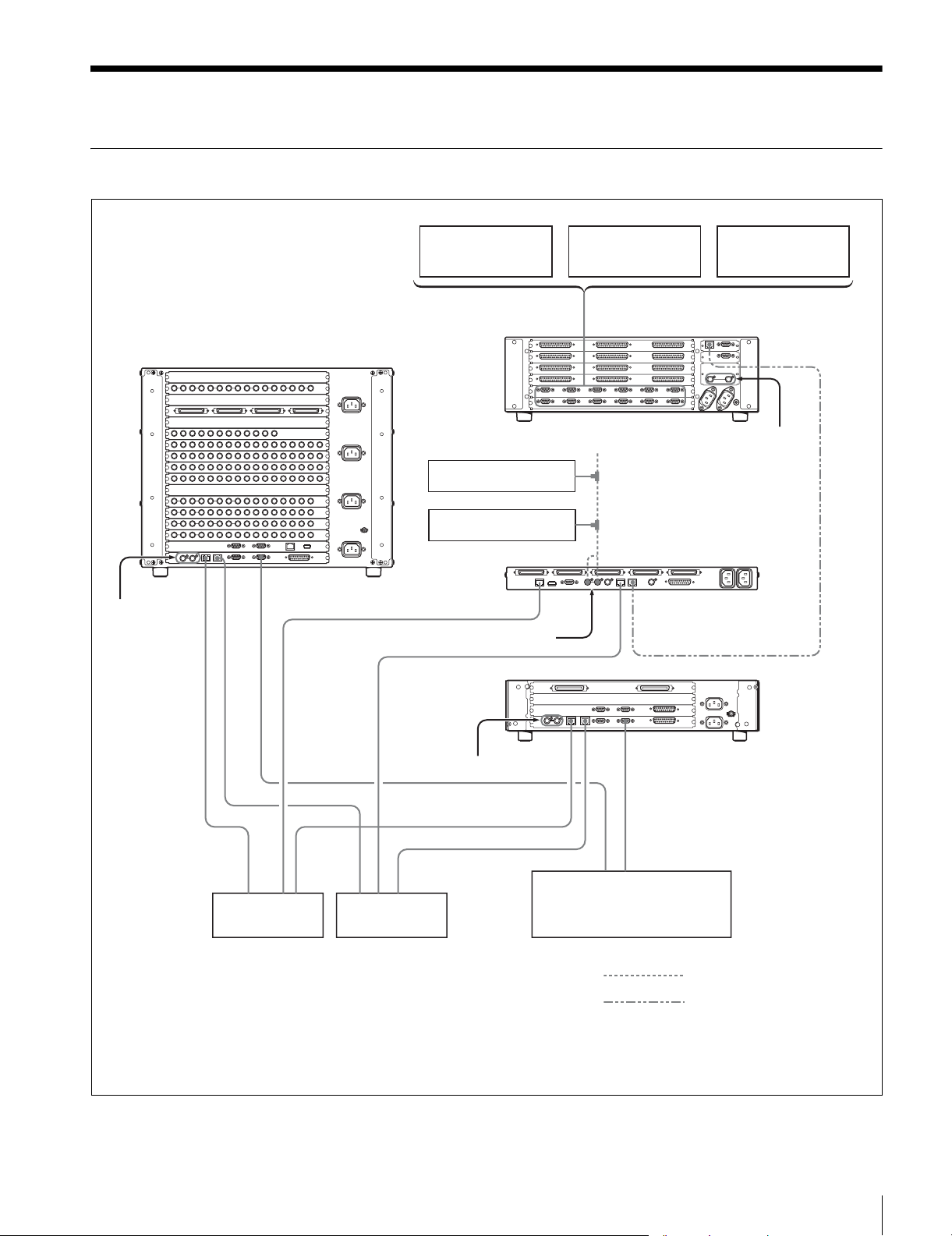

MVS-8000G System Configuration........................................15

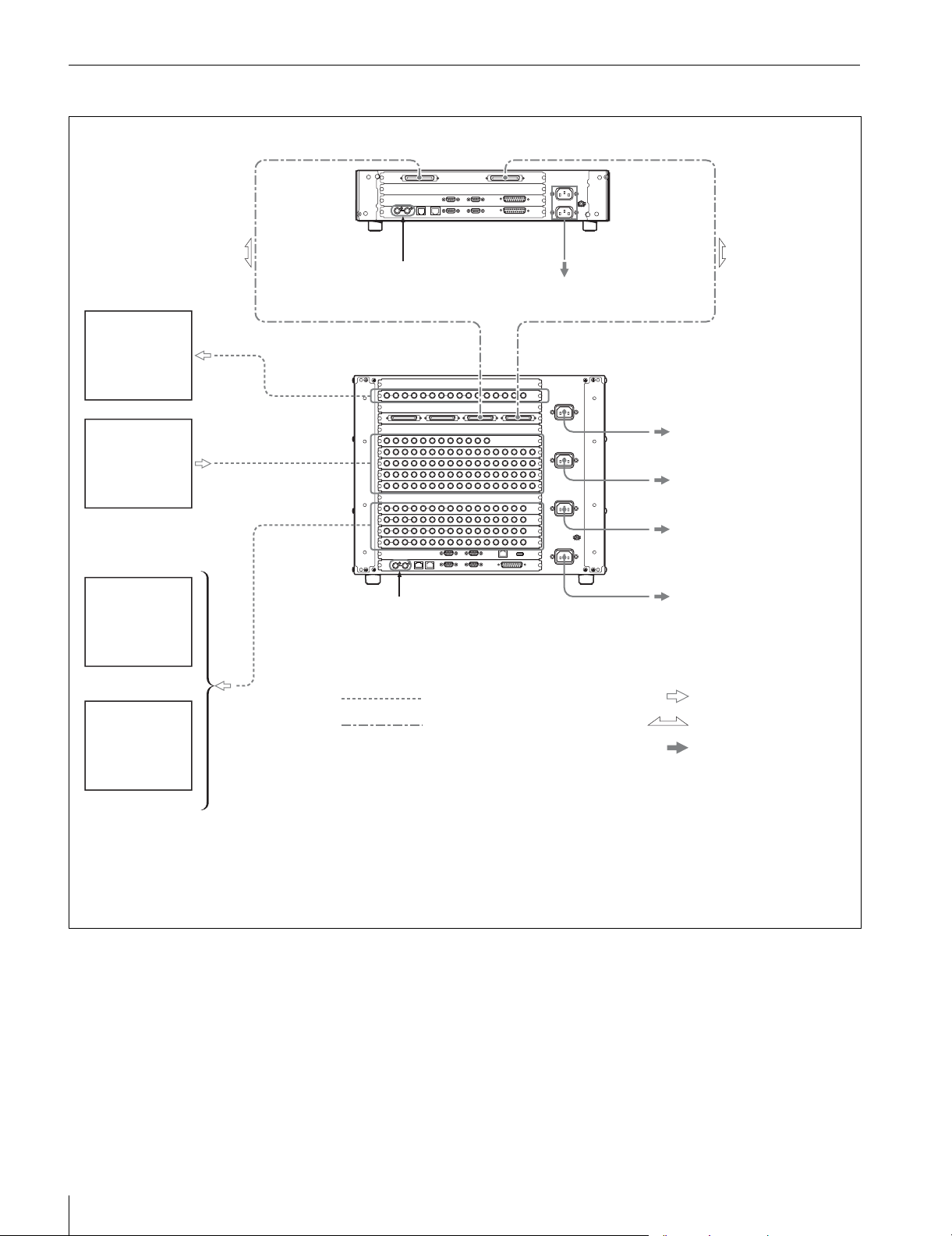

Flow of Video Signals.............................................................16
Power Supply Unit Status Indicators ............................... 17
Specifications..................................................................... 17
MVS-8000G Multi Format Switcher Processor...................... 17
MVS-8000GSF Multi Format Switcher Processor ................. 18
MKS-8110G 17-Input Board................................................... 19
MKS-8111G Additional 12-Input Board ................................ 19
MKS-8160G 24-Output Board Set.......................................... 20
MKS-8161M Monitor Output Board ...................................... 20
MKS-8162A 12-Output Connector Board .............................. 20
MKS-8170G DME Interface Board ........................................ 20
MKS-8210G Mix/Effect Board............................................... 21
MKS-8442G Frame Memory Board ....................................... 21
MKS-8450G Format Converter Board.................................... 21
HK-PSU04 Power Supply Unit............................................... 21
Table of Contents
5
Page 6
Overview
Note
In dual link mode, this function is not available.
The MVS-8000G-C or MVS8000GS-C Switcher
Processor Pack is a high-performance, multi-function
processor for use in an MVS-8000G Multi Format
Switcher system. It has a wide range of application, being
usable in live production systems in studios and ENG/OB
vans as well as in postproduction editing systems.
Features
Multi format support
The MVS-8000G system is available in two
configurations: a multi-format SD/HD configuration and
an SD-only configuration. The SD-only configuration can
be upgraded to the multi-format configuration, and the
multi-format configuration can also be upgraded to the
dual link configuration.
• SD/HD multi format configuration
1080i/60, 1080i/59.94, 1080i/50, 1080PsF/30, 1080PsF/
29.97, 1080PsF/25, 1080PsF/24, 1080PsF/23.976,
720P/59.94, 720P/50, 480i/59.94, 576i/50, 1080P/59.94
(Dual link compatible version*), 1080P/50 (Dual link
compatible version*)
* In dual link compatible version, only 4:2:2 (YCbCr) /10bit format is
supported.
• SD-only configuration
480i/59.94, 576i/50
Key resizer functions
• Magnify, shrink, move, change aspect ratio
• As a standard feature, one resizer channel is provided for
each keyer
• Four resizer channels are provided per M/E bank
(allowing up to 16 channels in the MVS-8000G).
• Snapshots and keyframes
•Crop
Format converter functions
• Input side format converter
Up-converter, down-converter, cross-converter
Eight channels (MKS-8450G: one board), maximum 16
channels (MKS-8450G: two boards)
• Output side format converter
Up-converter, down-converter, cross-converter
Maximum four channels on MVS-8000G (requires at
least one MKS-8450G board, when MKS-8160G
installed).
Maximum two channels on MVS-8000GSF. (requires at
least one MKS-8450G board).
Highly expandable system configuration
By combining option boards, you can configure the
optimum system for your requirements, selecting the
number of inputs and outputs, and the number of M/E
banks. The system’s flexibility guarantees its ability to
meet future expansion requirements.
High-performance keyers
Each M/E bank is equipped with four high-performance
keyers that provide the following standard functions.
• Ability to apply transitions to keyers independently of
the background
• Chroma key and color vector keys in each keyer
• FineKey
• Color mixable matte generator available for both key fill
and key borders
TM
, and key borders up to 8H
Simultaneous output of two programs
Each M/E bank is able to handle two simultaneous
program outputs, with the ability to apply any of the four
keys to program output. This gives the system the ability
to handle a wide range of operating situations, for example
simultaneous transmission of two programs.
Powerful preview functions
The system supports simultaneous output of look-ahead
previews (next preview) and key previews, and also
transition previews.
Extended frame memory functions
• Two-input, eight-output frame memory
• Maintains all MVS-8000A frame memory functions:
freeze function, mask function, reposition function, and
image composition function
• Approximately 5.4 GByte large capacity memory
• Two frame memory option boards can be installed
(MVS-8000G only)
• Includes animation function
• Interface connection for external hard disk drive
provided
(Version 7.20 does not support this function in dual link
mode.)
Links to DME functions
By connecting the unit to an MVE-8000A or MVE-9000
DME Processor Pack with a special cable, you can apply
DME wipes and processed keys and a wide variety of other
DME functions as if they were native switcher functions.
All DME functions can be controlled from the center
control panel of the MVS-8000G system.
6
Overview
Page 7
Backup power supply can be installed
By installing the optional HK-PSU04 Power Supply Unit,
together with the power supply unit preinstalled at the
factory, this provides a backup system. This reduces the
risk of power supply problems, and increases the reliability
of live operations.
High-performance color correction
Installation of the optional MKS-8442G Frame Memory
Board and BZS-8420 Color Corrector Software provides
high-performance, two-channel color correction
functionality.
Note that only one channel can be used for color correction
in dual link mode.
Simple P/P (Program/Preset) functions
Simple mix/effect functions can be added by installing the
BZS-8250 Simple P/P Software option.
The BZS-8250 option supports the following functions.
•Two keyers
• Background transitions and key transitions
Multi Program 2 Mode
By installing the BZS-8200 Multi Program 2 Software
option, you can create two different backgrounds, with
transition effects, in each M/E bank. M/E keyers can be
assigned to these backgrounds for separate keying.
This allows you to create multiple programs within a
single M/E bank by varying the keyer assignments and
background video configuration.
Overview of the MVS-8000G Series Components
MVS-8000G Multi Format Switcher
Processor
This is the main unit cabinet of the MVS-8000G Multi
Format Switcher Processor unit (EIA 8RU size).
By default the main unit alone supports SD only, but it can
be upgraded to multi-format HD/SD by installing a
software upgrade.
• Two M/E banks installed as standard; can be extended to
four M/E banks.
• 17 inputs installed as standard; can be extended to 80
inputs.
• 24 outputs installed as standard; can be extended to 48
outputs.
• Eight reclocked outputs can be added.
• DME I/F option board can be installed.
• Color corrector option software.
• Up to two frame memory option boards can be installed.
• Up to two format converter boards (option) can be
installed. Can be extended to 16 inputs and four outputs.
• Two power supply units fitted as standard.
The following options can be installed, depending on the
system.
Board Name Maximum
installable number
of boards
MKS-8110G 17-Input Board 3
MKS-8111G Additional 12-Input Board 1
MKS-8160G 24-Output Board Set 1
MKS-8161M Monitor Output Board 1
MKS-8170G DME Interface Board 1
MKS-8210G Mix/Effect Board 2
MKS-8442G Frame Memory Board 2
MKS-8450G Format Converter Board 2
HK-PSU04 Power Supple Unit 2
MVS-8000GSF Multi Format Switcher
Processor
This is the main unit cabinet of the MVS-8000GSF multi
format switcher processor unit (EIA 4RU size).
By default the main unit alone supports SD only, but it can
be upgraded to multi-format HD/SD by installing a
software upgrade.
• An M/E bank installed as standard; can be extended to
two M/E banks.
• 17 inputs installed as standard; can be extended to 34
inputs.
• 12 outputs installed as standard; can be extended to 24
outputs.
• Color corrector option software.
• A frame memory option board can be installed.
• Up to two format converter boards (option) can be
installed. Can be extended to 16 inputs and two outputs.
• A power supply unit fitted as standard.
The following options can be installed, depending on the
system.
Board Name Maximum
installable number
of boards
MKS-8110G 17-Input Board 1
MKS-8162A 12-Output Connector
Board
MKS-8210G Mix/Effect Board 1
MKS-8442G Frame Memory Board 1
MKS-8450G Format Converter Board 2
HK-PSU04 Power Supple Unit 1
1
MKS-8110G 17-Input Board
This is a 17-input board. The MVS-8000G has 17 inputs
fitted as standard, and by installing 17 inputs at a time with
Overview
7
Page 8
this board, a maximum of 68 inputs (with three boards
added) can be reached. The MVS-8000GSF has 17 inputs
as standard, and can be extended to 34 inputs (with one
board added).
MKS-8111G Additional 12-Input Board
This is a 12-input extension board. By installing it in the
MVS-8000G, a maximum of 80 inputs can be reached.
(This option cannot be installed in the MVS-8000GSF.)
MKS-8160G 24-Output Board Set
This is a 24-output board set. One set can be installed in the
MVS-8000G only. This option increases the outputs to 48.
HK-PSU04 Power Supply Unit
This is a backup power supply unit. The MVS-8000G is
equipped with two power supply units preinstalled at the
factory, but installing two HK-PSU04 units provides a
fully redundant power supply. The MVS-8000GSF is
equipped with one power supply unit preinstalled at the
factory, but installing another HK-PSU04 unit provides a
fully redundant power supply.
BZS-8200 Multi Program 2 Software
This is software which enables the creation of two
different backgrounds utilizing transition effects in each of
the M/E banks of the MVS-8000G and MVS-8000GSF.
MKS-8161M Monitor Output Board
This is an HD/SD eight-output board for monitoring input
signals. (This output board only carries out reclocking of
the input signal, and no other processing.) One board can
be installed in the MVS-8000G only.
MKS-8162A 12-Output Connector Board
This is a 12-output connector board. One board can be
installed in the MVS-8000GSF only. This option increases
the outputs to 24.
MKS-8170G DME Interface Board
This is an interface board for input/output of video signals
with the MVE-8000A and MVE-9000 Multi Format DME
Processors.
This board allows up to two MVE-8000A or MVE-9000
units to be connected. One board can be installed in the
MVS-8000G only.
MKS-8210G Mix/Effect Board
This is an M/E board. The MVS-8000G has two M/E
banks installed as standard, which can be extended to four
M/E banks by installing this option. The MVS-8000GSF
has one M/E installed as standard, and can be extended to
two M/E banks by installing this option.
MKS-8442G Frame Memory Board
This is a frame memory board. A maximum of two can be
installed in the MVS-8000G. One board only can be
installed in the MVS-8000GSF.
MKS-8450G Format Converter Board
This is a format converter board.
Up to two boards may be installed. Each board provides
format conversion for eight inputs. Input formats can be set
separately for each board.
BZS-8250 Simple P/P Software
This is software which enables simple Program/Preset
functions on the MVS-8000G or MVS-8000GSF. It can be
installed in a MVS-8000G with four M/E banks, but it does
not serve any actual function except in dual link mode.
BZS-8420 Color Corrector Software
This is software which enables high-performance color
correction of two channels. It supports both HD and SD.
The optional MKS-8442G Frame Memory Board must be
installed to use this software.
BZS-8500M Switcher Upgrade Software
This is software to upgrade a standard MVS-8000G (for
SD; with two M/E banks) to support multi-format
switching.
BZS-8510M Switcher Upgrade Software
This is software to upgrade a standard MVS-8000GSF (for
SD; with one M/E bank) to support multi-format
switching.
BZS-8520M M/E Upgrade Software
This is software to upgrade the MKS-8210G board serving
as a third M/E bank of the MVS-8000G or as a second M/
E bank to the MVS-8000GSF, to support multi-format
switching.
BZS-8530M M/E Upgrade Software
This is software to upgrade the MKS-8210G serving as a
fourth M/E bank of the MVS-8000G, to support multiformat switching.
BZS-8560 Switcher Upgrade Software
This software provides an upgrade to the multi-format
MVS-8000G for 1080P support (1080P/59.94 and 1080P/
50).
8
Overview
Page 9
(This option cannot be installed in the MVS-8000GSF.)
To use the dual link configuration it is necessary to install
the MKS-8160G besides the above components.
The pre-installed system is comprised of one M/E bank,
and the installation of two MKS-8210Gs makes it two M/
E banks system.
• In dual link mode it is necessary to install two MKS8442Gs to use the frame memory function.
• In dual link mode it is necessary to install one BZS-8420
besides one MKS-8442G to use the color corrector
function.
In dual link mode the MKS-8450G format converter does
not serve any function.
Overview
9
Page 10
Location and Function of Parts

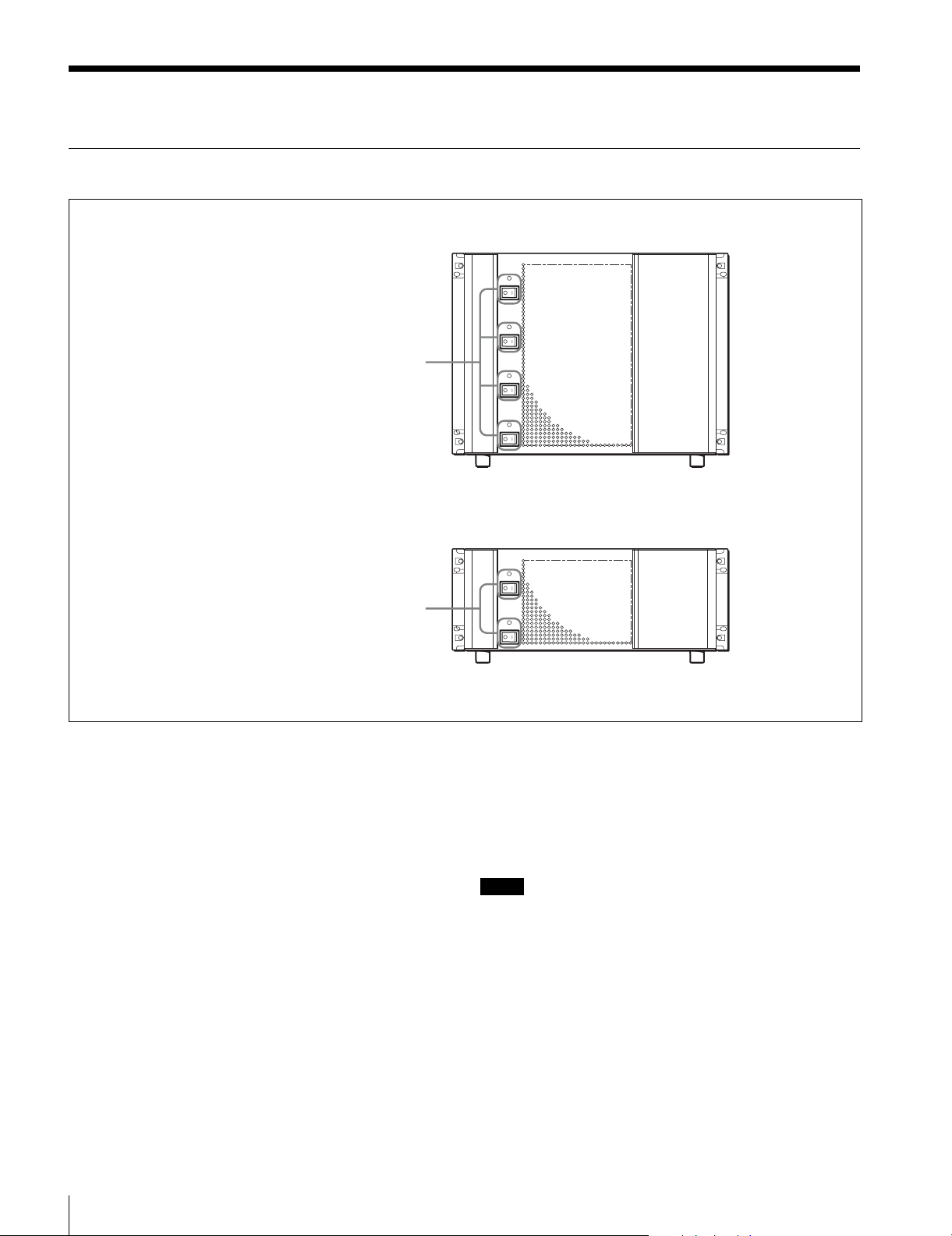

Front Panel
MVS-8000G
POWER A, B, C, D switches and status indicators
MVS-8000GSF
POWER A, B switches and status indicators
POWER A, B, C, D switches and status indicators
The POWER switches turn the unit on and off. The unit is
powered on when the POWER switches are on the “ ? ”
side, and powered off when the POWER switches are on
the “a” side. The status indicators light in green when the
unit is powered on.
• MVS-8000G
Depending on the configuration of your unit when
shipped, the HK-PSU04 Power Supply Unit may not be
installed. In this case, only the POWER A and POWER B
switches are available. There is no POWER C or POWER
D switch.
The unit does not operate until two of the four power
switches (A, B, C and D) are on.
When the HK-PSU04 are installed, operation continues as
long as two power supplies are normal.
installed. In this case, only the POWER A switch is
available. There is no POWER B switch. The unit does not
operate until either of the two power switches (A and B) is
on.
When the HK-PSU04 is installed, operation continues as
long as one power supply is normal.
Notes
• When installing the HK-PSU04 in your unit, be sure to
contact your Sony service representative.
• If a status indicator does not light when you turn a
POWER switch on, there may be a fault in the power
circuits. Turn the POWER switch off and contact your
Sony service representative.
• MVS-8000GSF
Depending on the configuration of your unit when
shipped, the HK-PSU04 Power Supply Unit may not be
10
Location and Function of Parts
Page 11
Rear Panel
MVS-8000G
qdMONITOR OUT 49 to 56 connectors
qsDME 2B, 2A, 1B, and 1A connectors
qaPRIMARY INPUTS 1 to 80 connectors
0OUTPUTS 1 to 48 and FC
1 to 4 connectors
1 - AC IN A, B, C,
and D connectors
2 U terminal
9REF INPUT connectors
8DATA connector
7CTRL connector
MVS-8000GSF
0OUTPUTS 1 to 24 and FC 1, 2 connectors
qsDME 1B and 1A connectors
qaPRIMARY INPUTS 1 to 34 connectors
9REF INPUT connectors
8DATA connector
7CTRL connector
a - AC IN (AC power input)
A, B, C, and D connectors (3-pin): MVS-8000G
A, B connectors (3-pin): MVS-8000GSF
Connect to 100 to 240 V AC power supply with the
optional AC power cords.
MVS-8000G: Depending on the configuration of your unit
when shipped, the HK-PSU04 Power Supply Unit may
not be installed. In that case, the AC IN C and AC IN
D connectors are not used.
MVS-8000GSF: Depending on the configuration of your
unit when shipped, the HK-PSU04 Power Supply Unit
may not be installed. In that case, the AC IN B
connector is not used.
Note
For information about installing an HK-PSU04 Power
Supply Unit, contact your Sony service representative.
3FM DEVICE connector
4GPI connector
5FM DATA connector
6REMOTE 1 to 4 connectors
1 - AC IN A, B
connectors
2 U terminal
3FM DEVICE connector
4GPI connector
5FM DATA connector
6REMOTE 1 to 4 connectors
b U (signal ground) terminal
Connect to the system ground.
c FM (frame memory) DEVICE connector
(IEEE1394 compliant)
This connector is for attaching an external hard disk drive
for frame memory.
For details of hard disk drives that can be used with the
MVS-8000G system, consult your Sony service
representative.
d GPI (General Purpose Interface) connector (D-sub
25-pin)
Connect to external devices for input and output of trigger
signals. Up to eight inputs and eight outputs are possible,
with input and output conditions set on the center control
panel.
Location and Function of Parts
11
Page 12
e FM DATA (frame memory data) connector (RJ-45
compliant)
Connect to an Ethernet* switch. This is a dedicated LAN
connector for image data.
f REMOTE 1 to 4 connectors (D-sub 9-pin, RS-422A
compliant)
These connectors are used to control the auxiliary bus of
the MVS-8000G series from external devices, or to operate
the MVS-8000G/MVS-8000GSF from editing control
systems such as the BVE-9100.
Define the types of the connected devices on the center
control panel.
g CTRL (control) connector (RJ-45 compliant)
Connect to an Ethernet
*
switch.
The MVS-8000G system’s center control panel is
connected in the same way to the Ethernet switch to form
a network for exchange of signals between the devices.
This network is used primarily to control the various
devices from the center control panel of the MVS-8000G
system.
h DATA connector (RJ-45 compliant)
Connect to an Ethernet* switch.
The MVS-8000G system’s center control panel is
connected in the same way to the Ethernet switch to form
a network for exchange of signals between the devices.
This network is used primarily for exchange of various
types of data (key frame effects, snapshots, etc.) and still
pictures of frame memory.
Cautions
• When you connect the FM DATA connector, DATA
connector and CTRL connector of the unit to peripheral
devices, use a shielded-type cable to prevent
malfunction due to radiation noise.
• For safety, do not connect the connector for peripheral
device wiring that might have excessive voltage to the
following port(s).
- FM DATA (frame memory data) connector
- CTRL (control) connector
- DATA connector
Follow the instructions for the above port(s).
* Ethernet is a trademark of Xerox Corporation.
For information about Ethernet switches that can be used in an MVS8000G system, contact your Sony service representative.
VORSICHT
Aus Sicherheitsgründen nicht mit einem PeripheriegerätAnschluss verbinden, der zu starke Spannung für diese
Buchse haben könnte.
: Buchse FM DATA
: Buchse CTRL
: Buchse DATA
Folgen Sie den Anweisungen für die oben aufgeführten
Buchsen.
For more information about Ethernet switch connectors,
see “MVS-8000G System Configuration” (page 15).
For detailed information about setting up the Ethernet
switch, refer to the documentation supplied with the
switch.
i REF INPUT (reference video input) connectors
(BNC-type)
If you wish to synchronize this unit to an external reference
signal, input the reference signal. For an HDTV system,
input an HD tri-level sync signal, black burst signal, or
analog sync signal. For an SDTV system, input a black
burst signal or analog sync signal.
The two connectors have a loop-through configuration.
Signal input to one connector can be output from the other
connector. If you will not be using the loop-through
output, be sure to terminate the unused connector with the
supplied 75Ω terminator.
j OUTPUTS
1 to 48 connectors (BNC-type): MVS-8000G (MKS-
8160G)
1 to 24 connectors (BNC-type): MVS-8000GSF (MKS-
8162A)
These connectors output serial digital signals. You can
assign them freely as program output, preview output,
AUX output, and so on.
Outputs 1, 2, 13 to 16, 25*, 26*, 37 to 40* are each
constituted by two BNC-type connectors, and outputs 3 to
12, 17 to 24, 27 to 36*, 41 to 48* are each constituted by
one BNC-type connector.
Make output assignments on the MVS-8000G system
center control panel.
The number of connectors (slots) varies according to
whether optional MKS-8160G (MVS-8000G) or MKS8162A (MVS-8000GSF) boards are installed.
ATTENTION
Par mesure de sécurité, ne raccordez pas le connecteur
pour le câblage de périphériques pouvant avoir une tension
excessive aux ports suivants.
: FM DATA connecteur
: CTRL connecteur
: DATA connecteur
Suivez les instructions pour les ports ci-dessus.
12
Location and Function of Parts
* These connectors can be integrated into the MVS-8000G only.
Refer to the User’s Guide for information about signals
that may be assigned.
FC1 to 4 (slots 13, 15) connectors (BNC-type): MVS-
8000G (MKS-8160G, MKS-8450G)
FC1 and 2 (slot 2) connectors (BNC-type): MVS-
8000GSF (MKS-8450G)
Page 13
The connectors output signals converted with the format
converter function.
Assign the outputs on the center control panel of the MVS8000G system.

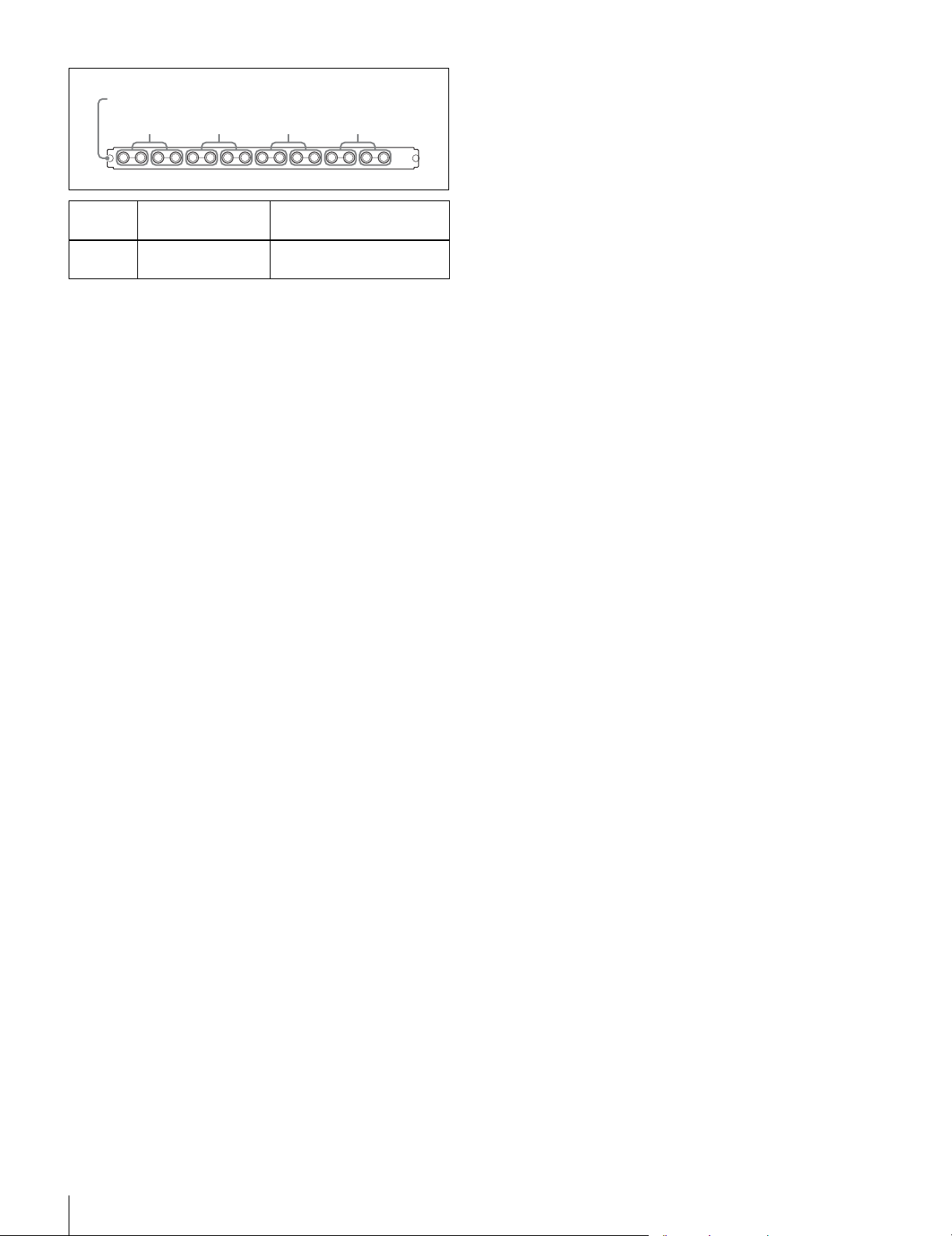

Assignments for dual link operation
For dual link operation (when the BZS-8560 is installed),
the assignment of Link-A and Link-B to the output
connectors is as follows. Note, however, that FC1 to 4 do
not function.
Slot 8
Slot 7
Slot 6 (Odd and even numbers form pairs)
Pair Pair Pair Pair Pair Pair
The same numbers form pairs.
Slot 13
Slot 12
Slot 15
Slot 14
Slot
number
15 OUTPUT 1 to 12 OUTPUT 1 to 12 Link-A
14 OUTPUT 13 to 24 OUTPUT 13 to 24 Link-A
13 OUTPUT 25 to 36 OUTPUT 1 to 12 Link-B
12 OUTPUT 37 to 48 OUTPUT 13 to 24 Link-B
Normal
assignment
The same numbers form pairs.
The same numbers form pairs.
Dual link assignment
The same numbers on slots 15 and 13, and the same
numbers on slots 14 and 12 form pairs. The lower of the
normal assignment numbers is used for Link-A.
k PRIMARY INPUTS
1 to 68 connectors (BNC-type): MVS-8000G (MKS-
8110G)
1 to 34 connectors (BNC-type): MVS-8000GSF (MKS-
8110G)
These connectors allow you to input up to 68 serial digital
video signals (MVS-8000G) or up to 34 serial digital video
signals (MVS-8000GSF).
The number of these connectors (slots) depends on the
number of MKS-8110G boards that are installed in the
unit.
69 to 80 connectors (BNC-type): MVS-8000G (MKS-
8111G)
These provide for an extra 12 serial digital video signals.
Use these connectors when 69 inputs or more are used.
They can be integrated into the MVS-8000G only.
Slot 10
Slot 9
Slot
number
10 INPUT 1 to 17 INPUT 1 to 17 Link-A
9 INPUT 18 to 34 INPUT 1 to 17 Link-B
8 INPUT 35 to 51 INPUT 18 to 34 Link-A
7 INPUT 52 to 68 INPUT 18 to 34 Link-B
6 INPUT 69 to 80 INPUT 35 to 40 Link-A/B
Normal
assignment
The same numbers form pairs.
Dual link assignment
The same numbers on slots 10 and 9, and the same
numbers on slots 8 and 7 form pairs. The lower of the
normal assignment numbers is used for Link-A.
On slot 6, odd and even numbers form a pair, with the odd
number for Link-A and the even number for Link-B.
l DME (Digital Multi Effects input and output)
2B, 2A, 1B and 1A connectors (MDR 68-pin): MVS-
8000G (MKS-8170G)
1A and 1B connectors (MDR 68-pin): MVS-8000GSF
Connect to the MVE-8000A or MVE-9000 with the
special cable supplied with each unit.
You can connect up to two MVE-8000A or MVE-9000
Multi format DME Processor units to the MVS-8000G.
Connect the first unit to the DME 1A/1B connectors and
the second unit to the DME 2A/2B connectors.
m MONITOR OUT connectors 49 to 56 (BNC-type)
(MKS-8161M)
These are used for auxiliary output to a primary input
monitor or external device. These outputs are useful for
outputting a primary input signal with as little delay as
possible.
These connectors can be integrated into the MVS-8000G
only.
Assignments for dual link operation
For dual link operation, the assignment of Link-A and
Link-B to the primary input connectors is as follows.
Assignments for dual link operation
For dual link operation, the assignment of Link-A and
Link-B to the monitor outputs is as follows.
Location and Function of Parts
13
Page 14
Slot 2, Connector pairs are shown below.
Pair Pair PairPair
Slot
number
2 MONITOR OUT 49
Normal
assignment
to 56
Dual link assignment
OUTPUT 25 to 28 Link-A/B
OUT49 and OUT50, OUT51 and OUT52, OUT53 and
OUT54, and OUT55 and OUT56 form pairs, with the odd
number for Link-A and the even number for Link-B.
14
Location and Function of Parts
Page 15
Example System Configuration
MVS-8000G System Configuration
MVS-8000G Multi Format Switcher Processor
DATA
Reference
video signal
b)
CTRL
REMOTE 1
VTR
BKS-R Series
IXS Series
Reference video signal
DDR
MKS-8700 Device Control
Unit Pack
Reference video signal
MKS-8010A System
Control Unit
DATA
b)
CTRL
PERIPH
Audio Mixer
PERIPH
b)
Reference video signal
a)
Ethernet switch
a) It is recommended that the CTRL and DATA LAN networks be
configured by connecting separate Ethernet switches for each
LAN.
Ethernet switch
a)
b)
DATA
CTRL
BVE-9100 Editing
Control System
b) Terminate with the supplied 75Ω terminators.
MVE-8000A-C
DME Processor Pack
Cable with BNC-type connectors
Cross cable
Example System Configuration
15
Page 16
Flow of Video Signals
Monitor
Camera,
VTR,
routing
switcher
Monitor
SWITCHER B
Reference video signal
MONITOR
OUT 49-56
PRIMARY INPUTS 1-80
OUTPUTS 1-48
+FC 1-4
Reference video signal
MVE-8000A-C DME Processor Pack
c)
100 to 240 V AC power supply
DME 1B DME 1A
MVS-8000G Multi Format
Switcher Processor
c)
SWITCHER A
a)
100 to 240 V AC power supply
100 to 240 V AC power supply
100 to 240 V AC power supply
100 to 240 V AC power supply
b)
b)
b)
b)
Cable with BNC-type connectors
Cable with 75-pin connectors
VTR
a) For the AC power cord of the MVE-8000A, refer to the MVE-
8000A Operation Manual.
b) For the AC power cord of this unit, see page 18 (MVS-8000G)
or page 19 (MVS-8000GSF).
Video input signal
Video output signal
Video/key signal
AC power supply
c) Terminate with the supplied 75Ω terminators.
16
Example System Configuration
Page 17
Power Supply Unit Status Indicators
The power supply unit status indicators show the status of
the power supply unit during operation and when the unit
is powered on. Whenever a power error is detected, it is
reflected immediately by the indicator.
Specifications
The following specifications show the reference
performance for this unit and individual option boards/
units.
Design and specifications are subject to change without
notice.
Meaning of status indicator displays
Indicator
color
Green Lit Operating normally −
Red LIt Power supply unit fan
− Not lit Power supply unit
Note
When the unit is powered on, the status indicators may
light momentarily in red and a whining sound may be
heard. This is not a malfunction. Power all of the installed
power supply units on.
Status Description Steps to take
fault
fault
Exchange the
fan unit
Exchange the
power unit
MVS-8000G Multi Format Switcher Processor
General
Power requirements
100 to 240 V ±10% AC, 50/60 Hz
Current consumption
100 V: 12 A, 240 V: 5 A
Peak inrush current
(1) Power ON, current probe method:
100 A (100 V), 180 A (240 V)
(2) Hot switching inrush current,
measured in accordance with
European standard EN55103-1:
165 A (230 V)
Operating temperature
5ºC to 40ºC (41ºF to 104ºF)
Performance guaranteed temperature
10ºC to 35ºC (50ºF to 95ºF)
Storage temperature
−20ºC to +60ºC (−4ºF to +140ºF)
Operating humidity
10% to 90%
Dimensions (w/h/d, excluding projections)
482×354×520 mm
(19×14×20
Mass Approx. 49 kg (108 lb)
(when equipped with all installable
option boards and option power supply
unit)
1
/2 inches)
Remote control connectors
CTRL RJ-45, complies with 100Base-TX
standard
DATA RJ-45, complies with 100Base-TX
standard
REMOTE 1, 2, 3, 4
D-sub 9-pin, female
Comply with RS-422A standard
Data transfer rate: 38.4 Kbps
GPI D-sub 25-pin, female
TTL inputs: 8
Power Supply Unit Status Indicators / Specifications
17
Page 18
Relay contact outputs: 4 (30 V AC/DC,
0.1 A)
Open collector outputs: 4
Reference input
REF INPUT BNC type, 75Ω with loop-through output
HDTV systems:
HD tri-level sync/SDTV analog black
burst/SDTV analog sync
SDTV systems:
Analog black burst/analog sync
Return loss –40 dB
DME input and output
DME 1A, DME 1B, DME 2A and DME 2B
MDR 68-pin
Signal format LVDS
Frame memory input and output
FM DATA RJ-45, complies with 100Base-TX
standard
FM DEVICE Complies with IEEE1394
Video input
Inputs 17 (BNC-type)
Signal format SMPTE292M/SMPTE259M-C/
SMPTE372M
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss −15 dB
Cable length HDTV system: 100 m (5C-FB cable,
BELDEN1694 or equivalent)
SDTV system: 200 m (5C-FB cable,
BELDEN1694 or equivalent)
Video output
Outputs 24 (BNC-type)
1, 2, 13 to 16: BNC 2 outputs
3 to 12, 17 to 24, FC1, FC2: BNC 1
outputs
Signal format SMPTE292M/SMPTE259M-C/
SMPTE372M
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss –15 dB
AC input
AC IN A, B, C, D
3-pin AC connector
Accessories supplied
75Ω terminator (1)
Brackets (4)
Support angles (2)
Screws (+B4×10) (8)
Screws (+PSW4×10) (8)
Operation Manual (1)
Installation Manual (1)
Accessories not supplied
AC power cord (for USA and Canada only) (125 V 10 A
2.4 m (8 ft)) (Part No.: 1-551-812-31)
AC power cord (for Europe only) (250 V 10 A 2.4 m
(8 ft)) (Part No.: 1-782-929-12)
MVS-8000GSF Multi Format Switcher Processor
General
Power requirements
100 to 240 V ±10% AC, 50/60 Hz
Current consumption
100 V: 7 A, 240 V: 3 A
Peak inrush current
(1) Power ON, current probe method: 60
A (100 V), 130 A (240 V)
(2) Hot switching inrush current,
measured in accordance with
European standard EN55103-1: 100 A
(230 V)
Operating temperature
5ºC to 40ºC (41ºF to 104ºF)
Performance guaranteed temperature
10ºC to 35ºC (50ºF to 95ºF)
Storage temperature
−20ºC to +60ºC (−4ºF to +140ºF)
Operating humidity
10% to 90%
Dimensions (w/h/d, excluding projections)
482×176×520 mm (19×7×20
Mass Approx. 28 kg (61 lb 11 oz) (when
equipped with all installable option
boards and option power supply unit)
Remote control connectors
CTRL RJ-45, Complies with 100Base-TX
standard
DATA RJ-45, Complies with 100Base-TX
standard
REMOTE 1, 2, 3, 4
D-sub 9-pin, female
Comply with RS-422A standard
Data transfer rate: 38.4 Kbps
GPI D-sub 25-pin, female
1
/2 inches)
18
Specifications
Page 19
TTL inputs: 8
Relay contact outputs: 4 (30 V AC/DC,
0.1 A)
Open collector outputs: 4
Screws (+B4×10) (8)
Screws (+PSW4×10) (8)
Operation Manual (1)
Installation Manual (1)
Reference input
REF INPUT BNC type, 75Ω with loop-through output
HDTV system: HD tri-level sync/SDTV
analog black burst/SDTV analog sync
SDTV system: Analog black burst/
analog sync
Return loss –40 dB
DME input and output
DME 1A and DME 1B
MDR 68-pin
Signal format LVDS
Frame memory input and output
FM DATA RJ-45, complies with 100Base-TX
standard
FM DEVICE Complies with IEEE1394
Video input
Inputs 17 (BNC-type)
Signal format SMPTE292M/SMPTE259M-C
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss −15 dB
Cable length HDTV system: 100 m (5C-FB cable,
BELDEN1694 or equivalent)
SDTV system: 200 m (5C-FB cable,
BELDEN1694 or equivalent)
Accessories not supplied
AC power cord (for USA and Canada only) (125 V 10 A
2.4 m (8 ft)) (Part No.: 1-551-812-31)
AC power cord (for Europe only) (250 V 10 A 2.4 m
(8 ft)) (Part No.: 1-782-929-12)
MKS-8110G 17-Input Board
General
Power requirements
12 V DC
Power consumption
Max. 10 W
Dimensions (w/d)
274×94 mm (10
Mass Approx. 1 kg (2 lb 3 oz)
Input
Inputs 17 (BNC-type)
Signal format SMPTE292M/SMPTE259M-C/
SMPTE372M
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss −15 dB
Cable length HDTV system: 100 m (5C-FB cable,
BELDEN1694 or equivalent)
SDTV system: 200 m (5C-FB cable,
BELDEN1694 or equivalent)
7
/8×33/4 inches)
Video output
Outputs 12 (BNC-type)
1, 2: BNC 2 outputs
3 to 12, FC1, FC2: BNC 1 outputs
Signal format SMPTE292M/SMPTE259M-C
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss –15dB
AC input
AC IN A, B 3-pin AC connector
Accessories supplied
75Ω terminator (1)
Brackets (4)
Support angles (2)
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is purchased separately)
MKS-8111G Additional 12-Input Board
General
Power requirements
12 V DC
Power consumption
Max. 10 W
Dimensions (w/d)
274×94 mm (10
Mass Approx. 1 kg (2 lb 3 oz)
7
/8×33/4 inches)
Specifications
19
Page 20
Input
Inputs 12 (BNC-type)
Signal format SMPTE292M/SMPTE259M-C/
SMPTE372M
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss −15 dB
Cable length HDTV: 100 m (5C-FB cable,
BELDEN1694 or equivalent)
SDTV: 200 m (5C-FB cable,
BELDEN1694 or equivalent)
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is purchased separately)
MKS-8160G 24-Output Board Set
12 V DC
Power consumption
Max. 10 W
Dimensions (w/d)
274×94 mm (10
Mass Approx. 1 kg (2 lb 3 oz)
7
/8×33/4 inches)
Output
Outputs 8 (BNC-type), each with 2 outputs
Signal format SMPTE292M/SMPTE259M-C/
SMPTE372M
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss –15 dB
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is purchased separately)
General
Power requirements
12 V DC
Power consumption
Max. 70 W
Dimensions (w/d)
OUT board: 317×380 mm
1
(12
/2×15 inches)
CN board: 274×94 mm
7
(10
/8×33/4 inches) (two CN boards
supplied)
Mass Approx. 2.5 kg (5 lb 8 oz)
Output
Outputs 24 (BNC-type)
25, 26, 37 to 40: BNC 2 outputs
27 to 36, 41 to 48, FC1, FC2: BNC 1
outputs
Signal format SMPTE292M/SMPTE259M-C/
SMPTE372M
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss –15 dB
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is purchased separately)
MKS-8162A 12-Output Connector Board
General
Power requirements
12 V DC
Power consumption
Max. 10 W
Dimensions (w/d)
274×94 mm (10
Mass Approx. 1 kg (2 lb 3 oz)
Output
Outputs 12 (BNC-type)
13 to 16: BNC 2 outputs
17 to 24: BNC 1 outputs
Signal format SMPTE292M/SMPTE259M-C
Signal level 0.8 Vp-p ±10%
Signal transfer rate
1.5 Gbps/270 Mbps
Return loss –15 dB
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is purchased separately)
7
/8×33/4 inches)
MKS-8161M Monitor Output Board
General
Power requirements
20
Specifications
MKS-8170G DME Interface Board
Power requirements
12 V DC
Power consumption
Max. 50 W
Page 21
Dimensions (w/d)
317×380 mm (12
Mass Approx. 1.5 kg (3 lb 4 oz)
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is
purchased separately)
1
/2×15 inches)
MKS-8210G Mix/Effect Board
Power requirements
12 V DC
Power consumption
Max. 150 W
Dimensions (w/d)
317×380 mm (12
Mass Approx. 2 kg (4 lb 6 oz)
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is
purchased separately)
1
/2×15 inches)
MKS-8442G Frame Memory Board
Output power: 12 V DC ±0.3 V
Current consumption
10 to 5 A
Secondary power supply
Max. 60 A
Dimensions (w/h/d)
94×83×396 mm (3
Mass Approx. 3 kg (6 lb 9 oz)
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is
purchased separately)
3
/4×33/8×155/8 inches)
Power requirements
12 V DC
Power consumption
Max. 100 W
Dimensions (w/d)
317×380 mm (12
Mass Approx. 2 kg (4 lb 6 oz)
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is
purchased separately)
1
/2×15 inches)
MKS-8450G Format Converter Board
Power requirements
12 V DC
Power consumption
Max. 50 W
Dimensions (w/d)
317×380 mm (12
Mass Approx. 1.5 kg (3 lb 4 oz)
Accessories supplied
Operation and Installation Guide (1)
(supplied only when product is purchased
separately)
1
/2×15 inches)
HK-PSU04 Power Supply Unit
Power requirements
Input power: 100 to 240 V ±10% AC,
50/60 Hz
Specifications
21
Page 22
22
Specifications
Page 23
The material contained in this manual consists of information
that is the property of Sony Corporation and is intended solely
for use by the purchasers of the equipment described in this
manual.
Sony Corporation expressly prohibits the duplication of any
portion of this manual or the use thereof for any purpose other
than the operation or maintenance of the equipment described
in this manual without the express written permission of Sony
Corporation.
