SONY MVC-CD350 SERVICE MANUAL L2 V1.0

MVC-CD350

SERVICE MANUAL

Ver 1.0 2003. 04

Revision History

Link

SPECIFICATIONS

BLOCK DIAGRAMS

LEVEL 2

US Model

PRINTED WIRING BOARDS

SERVICE NOTE

DISASSEMBLY

• For INSTRUCTION MANUAL, refer to SERVICE MANUAL, LEVEL 1 (987622541.pdf).

• Reference No. search on printed wiring boards is available.

On the SY-087 board and the DDX-G3000 COMPLETE ASSEMBLY

This service manual provides the information on the premised of the circuit board replacement service and not intended repair inside the SY-087 board in case of trouble. It is also premised that the mechanism deck DDX-G3000 COMPLETE ASSEMBLY shall be exchanged as an assembly in case of trouble. Therefore, disassembling procedure and exploded view of the DDX-G3000 COMPLETE ASSEMBLY are not shown. The block diagram, printed wiring board, schematic diagram and electrical parts list of the SY-087 board are also not shown. Note that the following pages are lacking intentionally. The following pages are not shown.

SY-087 board

Schematic diagram .............................Pages 4-23 to 4-44

Printed wiring board............................Pages 4-57 to 4-60

Waveforms ...........................................

Mounted parts location ........................

Electrical parts list...............................Pages 5-14 to 5-19

FRAME SCHEMATIC DIAGRAMS

SCHEMATIC DIAGRAMS

DDX-G3000 COMPLETE ASSEMBLY

Disassembly........................................Pages 2-17 to 2-20

Exploded view.....................................Pages 5-8 to 5-9

Page 4-66 Page 4-68

REPAIR PARTS LIST

DIGITAL STILL CAMERA

MVC-CD350

COVER

x Camera [System]

Image device

Total pixels number of camera

Effective pixels number of camera

Lens 3 zoom lens

Exposure control

White balance

File format (DCF compliant)

Recording media

Flash Recommended distance (ISO set to

[Drive]

Readout Non-contact optical readout (using

Laser Wavelength: 779 to 789 nm

6.67 mm (1/2.7 type) color CCD Primary color filter

Approx. 3 338 000 pixels

Approx. 3 207 000 pixels

f = 6.4 – 19.2 mm (9/32 – 25/32 inches) (41 – 123 mm (1 5/8 – 4 7/8 inches) when converted to a 35 mm still c a me ra F3.8 – 3.9

Automatic exposure, Scene selection (7 modes)

Automatic, Daylight, Cloudy, Fluorescent, Inc ande scent, Flash

Still images: Exif Ver. 2.2 JPEG compliant, GIF (for Clip Motion), TIFF, DPOF compatible Audio with still image: MPEG1 compliant (Monaural) Movies: MPEG1 compliant (Monaural)

8 cm CD-R/CD-RW

Auto): 0.8 m to 2.5 m (31 1/2 inches to 8 feet 2 7/16 inches)

semiconductor laser)

Maximum output: 23 mW

SPECIFICATIONS

[Input and Output connectors]

A/V OUT (MONO) (Monaural)

USB jack mini-B

[LCD screen]

LCD panel

Total number of dots

[General]

Used battery pack

Power requirements

Power co nsumption (d uring shoot ing with LCD backlight on)

Operating temperature

Storage temperature

Dimensions

Mass Approx. 522 g (1 lb 2 oz) (including

Built in microphone

Built-in speaker

Exif print Compatible Print Image Matching II Compatible

Minijack Video: 1 Vp-p, 75Ω, unbalanced,

sync negative

Audio: 327 mV (at a 47 k load)

Output impedance 2.2 k

6.2 cm (2.5 type) TFT drive 123 200 (560 × 220) dots

NP-FM50

7.2 V

2.6 W 0°C to +40°C (32°F to +104°F) –20°C to +60°C (4°F to +140°F)

131.7 ××92.3 73.8 mm (5 1/43 × 3/43 inches) (W/H/D, excluding maximum protrusions)

battery pack NP-FM50, disc, and lens cap)

Electret condenser microphone

Dynamic speaker

Ω

x AC-L15A/L15B AC Adaptor

Power re quirements

Current consumption

Power consumption

Output voltage

Operating temperature

Storage temperature

Dimensions (approx.)

Mass (app rox.)

100 – 240 V AC, 50/60 Hz

0.35 – 0.18 A

18 W

8.4 V DC, 1.5 A 0°C to +40°C (32°F to +104°F) –20°C to +60°C (–4°F to +140°F) 56 × 31 × 100mm

×

(2 1/4 1 1/4 4 inches) (w/h/d) excluding projecting parts

190 g (6.7 oz) excluding power cord

×

x NP-FM50 battery pack

Used battery

Maximum voltage

Nominal voltage

Capacity 8.5 Wh (1 180 mAh)

Lithium-ion battery

DC 8.4 V

DC 7.2 V

x Accessories

AC Adaptor (1) Power cord (1) USB cable (1) NP-FM50 battery pack (1) A/V connecting cable (1) 8 cm CD adaptor (1) Mavica disc (2) (CD-R (1), CD-RW (1)) Shoulder strap (1) Lens cap (1) Lens cap strap (1) CD-ROM (SPVD-010) (1) Operating instructions (1)

Design and specifications are subject to change without notice.

— 2 —

MVC-CD350

CAUTION Use of controls or adjustments or performance procedures other than those specified herein may result in hazardous radiation exposure.

WARNING!!

WHEN SERVICING, DO NOT APPROA CH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSER VE FROM A DISTANCE OF MORE THAN 30 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

CAUTION :

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY .

CAUTION:

The use of optical instrument with this product will increase eye hazard.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS P AR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMA TIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

After correcting the original service problem, perform the following safety checks before releasing the set to the customer.

1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are "pinched" or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

5. Check the B+ voltage to see it is at the values specified.

6. Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270˚C during repairing.

• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

SAFETY CHECK-OUT

Unleaded solder

Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!

• Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc.

• Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder.

— 3 —

MVC-CD350

COVER

2-1. PK-069 BOARD······························································2-2 2-2. LCD SECTION ·······························································2-3 2-3. SIDE CABINET SECTION ············································ 2-4 2-4. FP-651 FLEXIBLE BOARD (USB/AV JACKS) ············2-4 2-5. DISCHARGING THE CAPA CIT OR······························2-5 2-6. CABINET (REAR) SECTION ·······································2-6 2-7. DDX-G3000 COMPLETE SECTION ····························2-7 2-8. SY-087 BOARD ······························································2-8 2-9. LENS SECTION ·····························································2-8 2-10. ZOOM LENS ··································································2-9 2-11. FU-164 BOARD······························································2-9 2-12. CONTROL SWITCH BLOCK (RS-310) ·····················2-11 2-13. FLASH UNIT ································································2-12 2-14. BATTERY HOLDER ASSEMBLY ······························2-13 2-15. FILTER SCREW ···························································2-14 2-16. CIRCUIT BOARDS LOCATION ·································2-15 2-17. FLEXIBLE BOARDS LOCATION ······························2-16

• FLASH UNIT SCHEMATIC DIAGRAM ····························4-21

Shematic diagram of the SY-087 board are not shown. Pages from 4-23 to 4-44 are not shown.

4-3. PRINTED WIRING BOARDS

• CD-440 (CCD IMAGER) PRINTED WIRING BOARD ·······················4-47

• PK-069 (LCD DRIVER, TIMING GENERATOR, BACK

LIGHT)

PRINTED WIRING BOARD ·······················4-49

• CK-133 (ZOOM SW) PRINTED WIRING BOARD ·······················4-53

• FP-651 (JACK) FLEXIBLE BOARD·····································4-53

• FU-164 (CHARGER, DC/DC CONVERTER, DD

CONNECTOR)

PRINTED WIRING BOARD ·······················4-55

Printed wiring board of the SY-087 board are not shown. Pages from 4-55 to 4-64 are not shown.

4-4. WAVEFORMS ······························································4-65

Waveforms of the SY-087 board are not shown. Page 4-66 is not shown.

4-5. MOUNTED PARTS LOCATION ·································4-67

Disassembling procedure of DDX-G3000 COMPLETE ASSEMBLY are not shown. Pages from 2-17 to 2-20 are not shown.

HELP (List of caution points is shown here.)

3. BLOCK DIAGRAMS

3-1. OVERALL BLOCK DIAGRAM (1/2) ···························3-1 3-2. OVERALL BLOCK DIAGRAM (2/2) ···························3-3 3-3. POWER BLOCK DIAGRAM (1/2) ································ 3-5 3-4. POWER BLOCK DIAGRAM (2/2) ································ 3-7

4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

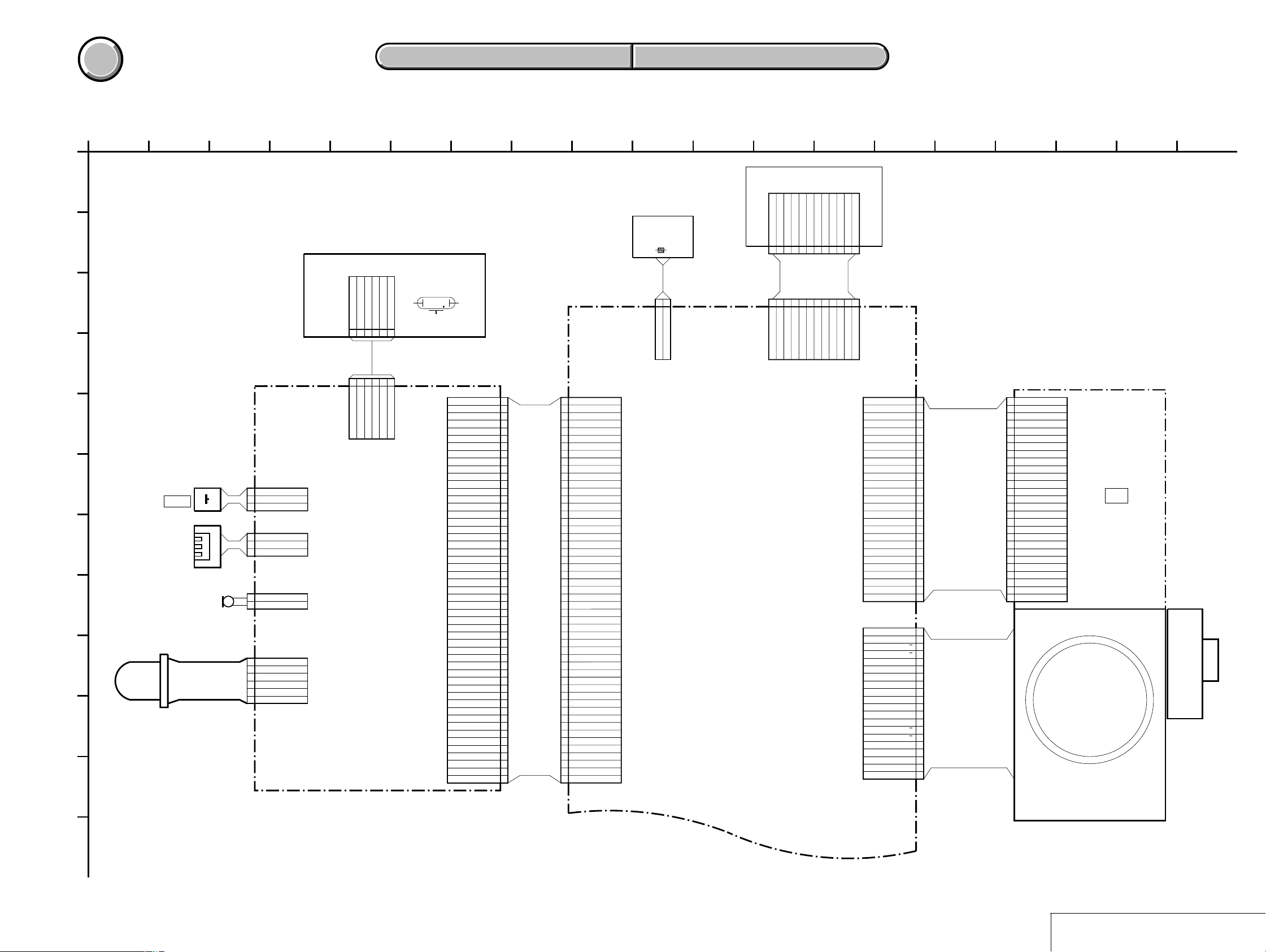

4-1. FRAME SCHEMATIC DIAGRAM (1/2) ······················· 4-1

FRAME SCHEMATIC DIAGRAM (2/2) ·······················4-3

4-2. SCHEMATIC DIAGRAMS

• CD-440 (CCD IMAGER) SCHEMATIC DIAGRAM ······························4-7

• PK-069 (1/2)(LCD DRIVER, TIMING GENERATOR) SCHEMATIC DIAGRAM ······························4-9

• PK-069 (2/2)(BACK LIGHT) SCHEMATIC DIAGRAM ····························4-11

• CK-133 (ZOOM SW) SCHEMATIC DIAGRAM ····························4-13

• FU-164 (1/3) (CHARGER) SCHEMATIC DIAGRAM ····························4-15

• FU-164 (2/3) (DC/DC CONVERTER) SCHEMATIC DIAGRAM ····························4-17

• FU-164 (3/3) (DD CONNECTOR) SCHEMATIC DIAGRAM ····························4-19

• CONTROL SWITCH BLOCK (RS-310) SCHEMATIC DIAGRAM ····························4-21

• FP-651 (JACK) FLEXIBLE SCHEMATIC DIAGRAM ····························4-21

Mounted parts location of the SY-087 board is not shown. Page 4-68 is not shown.

5. REPAIR PARTS LIST

5-1. EXPLODED VIEWS ······················································5-1 5-1-1.OVERALL SECTION ····················································· 5-3 5-1-2.CABINET (FRONT) SECTION ·····································5-4 5-1-3.LENS SECTION ·····························································5-5 5-1-4.SIDE CABINET (S) SECTION,

SIDE CABINET (U) SECTION ····································· 5-6

5-1-5.CABINET (REAR) SECTION ·······································5-7

Exploded view and parts list of DDX-G3000 COMPLETE ASSEMBLY are not shown. Page 5-8 and 5-9 are not shown.

5-2. ELECTRICAL PARTS LIST ········································5-10

Parts list of the SY-087 board are not shown. Pages from 5-14 to 5-19 are not shown.

— 4 —

MVC-CD350

)

COVER

SECTION 1

SERVICE NOTE

1-1. NOTE FOR REPAIR

Make sure that the flat cable and flexible board are not cracked of bent at the terminal. Do not insert the cable insufficiently nor crookedly.

Cut and remove the part of gilt which comes off at the point. (Take care that there are some pieces of gilt left inside)

When remove a connector, don't pull at wire of connector. Be in danger of the snapping of a wire.

When installing a connector, don't press down at wire of connector. Be in danger of the snapping of a wire.

1-2. DISCHARGING OF THE FLASH UNIT’S CHARGING CAPACITOR

The charging capacitor of the FLASH unit is charged up to the maximum 300 V potential. There is a danger of electric shock by this high voltage when the capacitor is handled by hand. The electric shock is caused by the charged voltage which is kept without discharging when the main power of the MVC-CD350 is simply turned off. Therefore, the remaining voltage must be discharged as described below.

1. Preparing the Short Jig

To preparing the short jig. a small clip is attached to each end of a resistor of 1 kΩ /1 W (1-215-869-11). Wrap insulating tape fully around the leads of the resistor to prevent electrical shock.

1 kΩ/1 W

Wrap insulating tape.

2. Discharging the Capacitor

Short circuits between the positive and the negative terminals of charged capacitor with the short jig about 10 seconds.

Capacitor

Screw (M1.7 × 3

Short jig

1-1

MVC-CD350

1-3. NOTES ON HANDLING THE LASER DIODE

[BASE UNIT (DDX-G3000)]

The laser diode may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care.

1. Precaution for Checking Emission of Laser Diode [Base Unit (DDX-G3000)]

Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode.

Optical pick-up (Laser diode)

1-2

1-4. DESCRIPTION ON SELF-DIAGNOSIS DISPLAY

Self-diagnosis display

• C: ss: ss The contents which can be handled by customer, are displayed.

• E: ss: ss The contents which can be handled by engineer, are displayed.

MVC-CD350

Display Code

C:32:01

C:13:01

E:91:01

*1 E:61:00

*1 E:61:10

Note: The error code is cleared if the battery is removed.

*1 : The error display is given in two ways.

Change the disk and turn off the main power then back on.

Replace the CD-R/RW disk.

Checking of flash unit or replacement of flash unit

Checking of lens drive circuit

Countermeasure

Cause

Defective base unit.

• The type of CD-R/RW disk that cannot be used by this machine, is inserted.

• Data is damaged.

Abnormality when flash is being charged.

When failed in the focus initialization.

Caution Display During Error

DRIVE ERROR

DISK ERROR

Flash LED Flash display Flashing at 3.2 Hz

—

1-3E

MVC-CD350

COVER

SECTION 2

DISASSEMBLY

The following flow chart shows the disassembly procedure.

HELP

DISASSEMBLY

HELP

P

K

-0

6

9

DISASSEMBLY

Refer to level 3

Disassembling procedure of BU section

PK-069 board service position

DISASSEMBLY

SY-087

HELP

DISASSEMBLY

HELP

Discharging the Capacitor

PROCEDURE OF REMOVING THE DDX-G3000 COMPLETE SECTION. (PK-069, CD-440, FU-164, SY-087 BOARDS AND CAMERA SECTION CHECK SERVICE POSITION)

HELP

0

4

-

D

C

DISASSEMBLY

4

6

-1

U

F

PK-069, CD-440, FU-164, SY-087 boards and camera section check service position

1 2-1. PK-069 BOARD................................................

2 2-2. LCD SECTION ................................................

3 2-3. SIDE CABINET SECTION...............................

4 2-4. FP-651 FLEXIBLE BOARD.............................

5 2-5. DISCHARGING THE CAPACITOR ..................

6 2-6. CABINET (REAR) SECTION............................

7 2-7. DDX-G3000 COMPLETE SECTION................

8 2-8. SY-087 BOARD................................................

9 2-9. LENS SECTION ..............................................

10 2-11. FU-164 BOARD ...............................................

(page 2-2) (page 2-3) (page 2-4) (page 2-4) (page 2-5) (page 2-6) (page 2-7) (page 2-8) (page 2-8) (page 2-9)

2-1

MVC-CD350

NOTE: F ollo w the disassembly procedure in the numerical order given.

2-1. PK-069 BOARD

1 Six tapping screws (M1.7 × 6) (black)

5 FP-655 flexible board (39P)

6 Flexible board (from the LCD module) (24P)

4 Flexible board (from the back light) (10P)

3 T ape (Z)

PK-069

2 Rear CD lid assembly

Caution

Note: Be careful not to drop.

8 FP-683 flexible board (6P), Plunger solenoid (door lock)

7 Three dowels

Caution

PK-069

FP-683 flexible board

Tape (Z)

PK-069

0 T apping screw (M1.7 × 4) (silver)

qa PK-069 board

9 Loud speaker

(2P)

2-2

2-2. LCD SECTION

e

1

Three tapping screws

×

4) (silver)

(M1.7

2

BL retainer

3

Loud speaker

4

Back light

5

Liquid crystal indicator modul

MVC-CD350

[PK-069 BOARD SERVICE POSITION]

Note : Must be pressed lid open/close detect switch (S307, S308 on PK-069 board) when using the CD-R/RW drive unit.

Liquid crystal indicator module (24P) (CN304)

CPC lid

S307, S308 Lid open/close detect switch. (Note)

AC IN

Adjustment remote commander (RM-95)

Monitor TV

AC power adaptor

AV OUT

DC IN

1

LANC

18

FP-655 flexible board (39P)

1

CPC-9 jig (J-6082-393-C)

18

CN706

1

CN706

18

Back light (10P) (CN201)

PK-069 board

2-3

MVC-CD350

s

2-3. SIDE CABINET SECTION

Caution

3

ES lock screw

×

(M2

1

Open the CD cabinet.

4)

4

FP-651 flexible board

(12P)

FP-651 flexible board

Note: Be careful not to break the flexible board.

2-4. FP-651 FLEXIBLE BOARD (USB/AV JACKS)

4

FP-651 flexible board

(USB/AV jacks)

5

Side cabinet section

3

Side cabinet section

2

Four tapping screw

(M1.7 × 6) (black)

1

Two tapping screws

(M1.7

×

5)

2-4

2

Open the jack cover.

2-5. DISCHARGING THE CAP ACIT OR

1

Screw (M1.7 × 3)

3

Capacitor retainer

4

Discharging the capacitor

Capacitor

2

Two tapes (A)

Caution

Tape (A)

Capacitor

Caution

Note: The power supply capacitor of the flash unit is charged to the high tension voltage as high as 300 V at a maximum. You will get electrical shock when you touch the terminal of the charged capacitor . The charged potential remains even after the main power of the machine is turned off. Discharge the remaining power in the capacitor referring to Service Note

(See page 1-1). High-voltage cautions. Short jig (R: 1kΩ/1W)

MVC-CD350

2-5

MVC-CD350

2-6. CABINET (REAR) SECTION

3

FP-654 flexible board

(40P)

Caution

Note: Be careful not to break the flexible board.

2

Two ES lock screws

×

(M2

4)

4

Cabinet (rear) section

6

Rear CD lid assembly

1

Three ES lock screws

×

(M2

4)

PK-069

7

Cabinet (rear) section

5

Six tapping screws

×

(M1.7

6) (black)

2-6

2-7. DDX-G3000 COMPLETE SECTION

Caution

4

FP-649 flexible board

CD flexible cushion

Ferrite core

1

(20P)

SY-087

CN601

FP-650 flexible board

(27P)

5

CD flexible cushion

6

CD-440

Ferrite core

2

Control switch block

(RS-310) (12P)

A

B

7

FP-653 flexible

board (51P)

B

A

MVC-CD350

Caution

Note: Be careful not to break the flexible board.

SY-087 board

(CN708)

FP-653 flexible board (51P)

8

DDX-G3000 complete section, SY-087 board

Caution

CD-440

FU-164

Control switch block (RS-310)

FP-649 flexible board FP-653 flexible board

FP-650 flexible board

3

Three tapping screws

(M1.7 × 6) (black)

Caution

Precautions during handling

• Do not turn the side of the optical lens downward.

• Hold the frame.

• Do not touch the optical lens surface.

Refer to level 3

Disassembling procedure of DDX-G3000 complete section.

2-7

MVC-CD350

2-8. SY-087 BOARD

1

(39P)

2

FP-656 flexible board (39P)

(from the optical device)

FP-654 flexible board

8

Flexible board (15P)

(from the spindle motor)

4

Harness DS-117 (2P)

(from the DEW sensor)

Caution

Note: Don't pull at harness of

connector.

6

T wo claws

Refrer to level 3

Disassembling procedure of BU section

8

DDX-G3000

complete section

3

Ferrite core

7

Turn over the SY-087 board

in the direction of the arrow.

5

Two screws (M1.7 × 3)

2-9. LENS SECTION

2

T wo dowels

SY-087

9

SY-087 board

3

Lens section

2-8

CD-440

1

Three tapping screws

(M1.7

×

5) (black)

2-10.ZOOM LENS

qd

Zoon lens

2

Protection lens

flexible sheet

4

Three tapping screws

×

(M1.7

5) (silver)

7

Optical filter block

8

CCD seal rubber

0

assembly

CCD block

3

FP-650 flexible

board (20P)

9

Remove the

solderings

Caution

Note: Never remove the lens from the CD board except when it is required in such a case as CCD imager check.

qa

CD heat sink

1

FP-649 flexible board

(27P)

qs

CD-440 board

CD-440

MVC-CD350

5

Lens frame

2-11.FU-164 BOARD

6

Harness (FS-144) (6P)

(from the flash unit)

5

Harness (2P)

(from the microphone)

4

FP-652 flexible board (6P)

(from the laser unit)

Caution

6

Two tapping screws

×

(M1.7

6) (black)

CD-440

Protection lens flexible sheet

7

Harness (3P)

(from the battery terminal board)

9

FU-164 board

D

-440

D

A

C

B

A

FU-164

B

C

D

1

FU sheet

8

FP-653 flexible board

(51P)

3

DC-IN (3P)

2-9

2

Three tapping screws

×

(M1.7

5) (black)

MVC-CD350

[PK-069, CD-440, FU-164, SY-087 BOARDS AND CAMERA SECTION CHECK SERVICE POSITION]

Note: Refer to SERVICE MANUAL level 3 for SY-087 board. Must be pressed lid open/close detect switch (S307, S308 on PK-069 board) when using the CD-R/RW drive unit.

Setting the "Forced Power ON" mode [Forced STILL Power ON]

1) Select page: 0, address: 01, and set data: 01.

2) Select page: D, address: 2F, set data: 00, and press the PAUSE button.

3) Select page: D, address: 21, set data: 07, and press the PAUSE button.

BU section

FP-656 flexible board (39P)

[Forced PLAY Power ON" mode]

1) Select page: 0, address: 01, and set data: 01.

2) Select page: D, address: 2F, set data: 00, and press the PAUSE button.

3) Select page: D, address: 21, set data: 08, and press the PAUSE button.

Flexible board (15P) (from the spindle motor)

FP-654 flexible board (40P)

Exiting the "Forced Power ON" mode

1) Select page: 0, address: 01, and set data: 01.

2) Select page: D, address: 2F, set data: E0, and press the PAUSE button.

3) Select page: D, address: 21, set data: 00, and press the PAUSE button.

4) Select page: 0, address: 01, and set data: 00.

Side cabinet section

CN701

PK-069 board

PK-069

Adjustment remote commander (RM-95)

CPC-9 jig (J-6082-393-C) (Note)

AC power adaptor

AC IN

LANC

18

1

DC IN

FU-164 board

CN721

CN901

CN708

CN001

FU-164

CN051

FP-653 flexible board (51P)

SY-087

18

CN706

CN902

CN101

1

CN707

CN601

CN702

SY-087 board

(Note)

S307, S308 Lid open/close detect switch. (Note)

CK-133 board

FP-649 flexible board (27P)

CD-440 board

Lens section

FP-650 flexible board (20P)

FP-651 flexible board (12P)

PROCEDURE OF REMOVING THE DDX-G3000 COMPLETE SECTION. (PK-069, CD-440, FU-164, SY-087 BOARDS AND CAMERA SECTION CHECK SERVICE POSITION)

1 2-1. PK-069 BOARD................................................

2 2-2. LCD SECTION ................................................

3 2-3. SIDE CABINET SECTION...............................

4 2-4. FP-651 FLEXIBLE BOARD.............................

5 2-5. DISCHARGING THE CAPACITOR ..................

6 2-6. CABINET (REAR) SECTION............................

7 2-7. DDX-G3000 COMPLETE SECTION................

8 2-8. SY-087 BOARD................................................

9 2-9. LENS SECTION ..............................................

10 2-11. FU-164 BOARD ...............................................

(page 2-2) (page 2-3) (page 2-4) (page 2-4) (page 2-5) (page 2-6) (page 2-7) (page 2-8) (page 2-8) (page 2-9)

2-10

Monitor TV

AV OUT

2-12.CONTROL SWITCH BLOCK (RS-310)

3

Notch

2

T wo claws

-440

D

C

4

Side cabinet (U) section

1

Two tapping screws

(M1.7 × 5) (silver)

6

T wo dowels

MVC-CD350

5

Two tapping screws

(M1.7 × 5) (silver)

8

Control switch block

(RS-310)

7

Side cabinet (U) assembly

2-11

MVC-CD350

2-13.FLASH UNIT

Caution

A

CD-440

B

FU-164

7

Flash unit

B

6

Harness (FS-144)(6P)

5

Microphone

retainer

2

(6P), Laser unit

FP-652 flexible board

1

Tapping screw

×

(M1.7

5) (black)

Note:High-voltage cautions.

(See page 1-1)

Caution

Microphone retainer

FP-652 flexible board

FU-164

Flash

Shield ST sheet

Caution

4

Three tapping screws

(M1.7

3

Shield ST sheet

ST electrostatic sheet (1) ST electrostatic sheet (2)

×

5) (black)

9

ST electrostatic

sheet (2)

A

8

ST electrostatic

sheet (1)

Caution

FP-652 flexible board

Flash unit (harness)

Microphone retainer

FU-164

Caution

Capacitor

Tape (A)

0

Two tapes (A)

2-12

qa

Capacitor retainer

qs

Flash unit

2-14.BATTERY HOLDER ASSEMBLY

s

3

Three claws

CD-440

5

4

in the direction of the arrow A.

A

Battery terminal board (3P)

Remove the battery holder assembly

6

Battery holder assembly

1

Three tapping screw

(M1.7 × 5) (silver)

2

Open the battery lid.

MVC-CD350

2-13

MVC-CD350

y

2-15.FILTER SCREW

NOTE:Before starting the following disassembling work, sections 2-9, 2-11, 2-12 and 2-13 must hav e already been completed

beforehand.

6

Battery holder assembly,

Cabinet (front) assembl

1

Microphone

3

ES lock screws

(M2

×

4)

2

Two tapping screws

×

(M1.7

5) (silver)

qs

Name ring

qd

Adhesive name ring sheet

qf

Filter screw

5

(M1.7

8

Remove the filter screw, adhesive name ring sheet, name ring

in the direction of the arrow.

9

T wo dowels

0

Ornamental ring

4

T ripod screw

Four tapping screws

×

5) (silver)

qa

7

Two tapping screws

(M1.7

Cabinet (F) cover

×

5) (silver)

2-14

2-16.CIRCUIT BOARDS LOCATION

CD-440 FU-164 FLASH UNIT PK-069 SY-086

CK-133

CCD IMAGER CHARGER, DC/DC CONVERTER, DD CONNECTOR FLASH UNIT LCD DRIVER, TIMING GENERATOR, BACK LIGHT

CAMERA MODULE, LENS DRIVE, CAMERA DSP, VIDEO AMP, MC CAM, SH DSP, CLK GEN.,

CD-R/RW, DSP, OPTICAL RF SERVO/DRIVE, HI CONTROL, AUDIO AMP, CONNECTOR, DC SUPPLY, FLASH ROM. ZOOM SWITCH

NAME

FUNCTION

CK-133

CD-440

FU-164

PK-069

SY-087

FLASH UNIT

MVC-CD350

2-15

MVC-CD350

8

0

3

2-17.FLEXIBLE BOARDS LOCATION

The flexible boards contained in the BU section and the zoom lens are not shown.

CONTROL SWITCH BLOCK (RS-310)

FP-654

FP-655

FP-68

FP-24

FP-653

FP-652

FP-65

FP-651

FP-649

2-16E

Disassembling procedure of DDX-G3000 COMPLETE ASSEMBLY are not shown. Pages from 2-17 to 2-20 are not shown.

HELP

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.

CABINET (FRONT) SECTION

Control switch block

4

6

-1

U

F

0

4

-4

D

C

(RS-310) FP-694 flexible board

FP-653 flexible board

MVC-CD350

2003.04.11

FP-652 flexible board

CD flexible cushion

FU-164

Ferrite core

FP-650 flexible board

Flash unit (harness)

Microphone retainer

SY-087

CN601

Flash

Microphone retainer

FP-652 flexible board

ST electrostatic sheet (1)

ST electrostatic sheet (2)

Shield ST sheet

FU-164

CD-440

Capacitor

Tape (A)

Protection lens flexible sheet

HELP

MVC-CD350

CABINET (REAR) SECTION

FP-683 flexible board

PK-069

Tape (Z)

DDX-G3000 COMPLETE SECTION

SIDE CABINET SECTION

FP-651 flexible board

Note: Be careful not to break the flexible board.

FP-656 flexible board

Tape (A)

DC motor

Flexible board (from the spindle motor)

HELP

COVER

Link

MVC-CD350

3. BLOCK DIAGRAMS

OVERALL BLOCK DIAGRAM (1/2)

OVERALL BLOCK DIAGRAM (2/2) POEWR BLOCK DIAGRAM (2/2)

POEWR BLOCK DIAGRAM (1/2)

MVC-CD350

COVER

BLOCK DIAGRAMS

3-1. OVERALL BLOCK DIAGRAM (1/2)

LENS BLOCK

CD-440 BOARD

IRIS

FLASH UNIT

FP-652

(FLEXIBLE)

LED901

(AF LED)

LASER UNIT

(SHUTTER)

IRIS

METER

M

H

FOCUS

MOTOR

M

ZOOM

MOTOR

M

FOCUS RESET

SENSOR

LENS TEMP

SENSOR

CN054

MIC901

MIC

IC651

CCD

IMAGER

8-1,14 18,17,12

V1,V2,V3A,V3B,V4,

V5A,V5B,V6,VSHT

IRIS+

12

IRIS-

•

13

1 2 14

+

HALL+

43

•

46

20

|

24

37

|

42

17 15

|

1

|

4

FOCUS A FOCUS A FOCUS B FOCUS B

ZOOM A ZOOM A ZOOM B ZOOM B

19

6

CN101

4

2

•

3

STRB ON STRB CHG XSTB FULL

•

CN054

FU-164 BOARD (1/2)

5

PRELAMP LED

•

6

CN052 CN053

MIC SIG

CN051 CN708

10

(2/11)

IC102

IRIS

DRIVE

(2/11)

IC101

SHUTER

DRIVE

FOCUS

MOTOR

DRIVE

ZOOM

MOTOR

DRIVE

41 43

•

42

49

511

CN651

CCD OUT

H1,H2,RG

11

9

•

10

3

1

2

5

|

8

20

|

10

47

•

48

8

|

5

4

|

1

XFC RST SENS

XZM RST SENS

Q151,152

SECTION 3

3. BLOCK DIAGRAMS

( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.

(2/11)

IC106

10

MSHUT ON MSHUT EN

HR ENO HR DIROA HR DIROB

HR EN1 HR DIR1A HR DIR1B

LED

DRIVE

SY-87 BOARD (1/2)

26

23

|

20

8

|

18

CN601

IRIS

12

DRIVE

HALL

8

AMP

PRELAMP AF ON

SELF TIMER LED

IRIS CONT1 IRIS CONT2

HALL AD

(1/11)

IC601

(3M)

45

(2/11)

IC108

EVR

25

|

14 14

38 46

•

47 49

TG CLK(48.6MHz)

48 41

•

42

XCAM RST

14

•

13

6

2

•

CAMERA

3

•

MODULE

5

10

(CH-122

•

14

|

BOARD)

20

•

24

15

•

1 2

CA AD00

|

CA AD13

CAM HR

CAM VR

MCK12

MSHUT ON

MSHUT EN

HR ENO HR DIROA HR DIROB

HR EN1 HR DIR1A HR DIR1B

XFC RST SENS

XZM RST SENS

27

|

12

8

•

9

96

196

•

246 233

•

234

•

235 237

•

238

•

239 232

•

192

•

236

•

184

(3/11)

IC301

CAMERA DSP

MEMORY CONTROL

VIDEO ENCODER

AUDIO I/F

SHUTTER CONTROL

STROBO CONTROL

HR DQ00

|

32

|

12

HR QCLK

|

16

|

23

3-14

-

32

43

-

48

59

-

77

88

29-22

-

62

69

DATA BUS

ADDRESS BUS

IC302

SDRAM 128Mbit

HR DQ31

181

|

143

HR AQ00 HR AQ11

136

|

123

•

119

116

MC D00 MC D15

65

|

81

MC A01 MC A23

54

|

29

(4/11)

IC504

EEPROM

16Kbit

TG CLK

USB CLK

MC CLK

STRB ON

X581

27MHz

XTAL

OSC

2

(4/11)

4

IC581

11

CLOCK

GENERATOR

16

MC CLK1

XRST SYS

OVERALL

BLOCKDIAGRAM (2/2)

(PAGE 3-4)

248

SYS V

227

CV OUT

215

PANEL R PANEL G

212

•

PANEL B

208

•

204

HDO

225

PANEL V

•

229

AU AIN

278

AU AOUT

272

88 44

USP CLK (48MHz) MC CLK1 (27MHz)

MS DIO, MS BS, MS SCLK

CAM SO, XCAM SCK

HD0

TO

1

PANEL V PANEL R

PANEL G PANEL B

SP+ SP-

(3/11)

71

3

•

4

•

2

EEPROM SO

EEPROM SI

EEPROM SCK

XCAM RST

CAM SO,CAM SCKCAM SO,CAM SCK

CV OUT

AU AIN

AU AOUT

SP+ SP-

BEEPBEEP

MIC SIG

H4 H5 A2 D1 E1 B8

6

•

MC D00

|

MC D15

MC D00

|

MC D15

(3/11)

IC201

VIDEO

AMP

(9/11)

IC252

AUDIO

202 204

164 179

184 187 220 200 199 228 215 214 213

AMP

|

•

(5/11)

IC503

FLASH ROM

32Mbit

62-9760-39

(4/11)

IC501

MC CAM

SH DSP

4

B4

MC A01

2216

MC A22

ADDRESS BUS

MC A01

2516

MC A25

|

DATA BUS

|

207

•

205

37

191

•

190

•

185 198

140

239

•

238

MC D00

|

MC D15

16

MC A01

|

MC A15

15

CDC SO, CDC SCK

XDRVRST

FR SO, FR SI, FR SCK

CAM DD ON

STB CHG

XSTB FULL

SELF TIMER LED

SYS V

XRST SYS

VL 3V

USB D+, USB D-

V OUT

AU OUT

CN707

2

5

•

3

8

11

2

BLOCKDIAGRAM (2/2)

(PAGE 3-3)

3

BLOCKDIAGRAM (2/2)

(PAGE 3-3)

BT101

LITHIUM

BATTERY

(SECONDARY)

FP-651

(FLEXIBLE)

AUDIO SIGNAL VIDEO SIGNAL VIDEO/AUDIO SIGNAL

TO

OVERALL

TO

OVERALL

CN102

USB

J102

A/V OUT(MONO)

3-1 3-2

MVC-CD350

COVER

3. BLOCK DIAGRAMS

3-2. OVERALL BLOCK DIAGRAM (2/2)

SY-087 BOARD (2/2)

TO OVERALL

2

BLOCK DIAGRAM (1/2)

(PAGE 3-2)

(6/11)

IC803

S RAM

2Mbit

(7/11)

IC906

29 45

18

DATA BUS

ADDRESS BUS

CDC SO, SCK

XDRV RST

18

1

25

48

MC D00 – MC D15

2

4

SR D (0) – SR D (15)

16

SR A (0) – SR A (16)

17

DOOR LOCK

16

15

16.934MHz

ACTEN

X801

106825

75 85 177 189 190

BT901

BATTERY

TERMINAL

J901

DC IN

26

IC807

|

CD-R/RW

43

185

45

|

67

215

216

88

203

200

CDC SO, SCK

( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.

CN706

CPC

FOR CHECK

1 2

4

(7/11)

IC901

ENBL

WEFM

CN901

2

5

BASE UNIT

LD DRIVE

LASER DIODE

(6/11)

31 5

LD ON

194

WEFM

107

DSP

CN002

CN001

85

81

10

9

52

64

63

44

45

43

46

47

TO OVERALL BLOCK DIAGRAM (1/2)

(PAGE 3-2)

(2/3)

(7/11)

IC905

CD-R/RW

RF PROCESS

FOCUS

DRIVE

TRACKING

DRIVE

SLED DRIVE

SPINDLE

DRI VE

IC904

(7/11)

37

BATT SIG BATT/XEXT FAST CHARGE

BATT UNREG

BL UNREG1

38

27

28

CAM DD ON

SYS DD ON

D 1.5V

CAM P5V

PANEL 4.6V

D 4.6V

D 3.1V

M 4.6V

CAM 15V CAM -7.5V PANEL -15.3V PANEL -13.5V

DRV 3.1V

91

|

99

18

30

31

34

35

27

26

2 |

11

14

|

19

VL 3V XRST SYS

FR SO, FR SI, FR SCK

STB CHG XSTB FULL

SELF TIMER LED

SYS V

CAM DD ON

CN051

37

36

39

47

45

46

48

26

30

28

29

3

4 8

9 5 7

6 18

|

16 1

2 13 12 11 10 15

14

PD-A – PD-H

FPDO

SLED + SLED -

U V

W

UIN 1, 2 VIN 1, 2 WIN 1, 2

CDC SO, CDC SCK

XLID OPEN

CDC MPXO

EQRF

FE

TE

MCLK

FDO

TDO

SLDO

SPDO

SPFG

ACT

DECEFM

122

132

150

151

114

157

156

158

159

174

3

1

2

3

1

2

3

Q001, 002

IC101

DC/DC CONVERTER

FCS + FCS -

TRK + TRK -

DEW SENS

15

16

13

5

7

6

4

26

22

24

23

48

49 43

44 47 45

46 34

|

36 50

51 39 40 41 42 37

38

CN902

CN709

CN708

21

| |

24

30

|

33

19

39 38

37 36

1

2

13

14

15

9 | 4

1

DD DATA, DD SCK

DEW SENSOR

D403

PD IC

FRONT

MONITOR

FOCUS

COIL

TRACKING

COIL

M901

SLED

MOTOR

M

H

ACV UNREG

M902

SPINDLE MOTOR

TO OVERALL

1

BLOCK DIAGRAM (1/2)

(PAGE 3-1)

77

XRST SYS

24

FR SO

23

FR SI

25

FR SCK

LANC OUT

STB CHG

46

34

XSTB FULL

19

SELF TIMER LED

32

SYS V

DEW SENS

69

(8/11)

IC403

RESET/

BACK UP VCC

VBAT

3

7

VIN

RESET

VOUT

BATT SIG

5

6

Q408

73

14

53

20

21

8

48

76

42

I/F

43

XRESET

BACK UP VCC

IC402

HI CONTROL

DD DATA DD SCK

BATT/XEXT

FAST CHARGE

SYS DD ON

BATT SO

BATT SI

XLID OPEN

MELODY ENV

(8/11)

XAE LOCK SW

MODE DIAL

MODE DIAL 2

FU-164 BOARD (2/2)

KEY AD 0

KEY AD 3

LANC IN

MELODY

XPWR ON XSHTR ON

XPB ON

XSET UP

CN706

CPC

FOR CHECK

55

||

58

39

40

6

79

74

28

29

51

52

1

4

5

2

35

54

60

9

8

7

13

16

15

14

LANC IN

11

LANC OUT

12

MS DIO, MS BS, MS SCLK

PANEL R PANEL G PANEL B

CAM SO, XCAM SCK

BEEP

HDO PANEL V

SP + SP

-

ACV UNREG

MOD

Q406

X401 10MHz

X402

32.768KHz

PANEL COM

HSY BL DC MS DIO

MS BS MS SCLK

CN711

CN721

VG

CK-133 BOARD

10

2

1

4

3

6

5

CN701 CN702 CN303

34

6

32

8

33

7

35

5

21

19

22

18

23

17

23

16

24

19

21

20

4

36

29

11

6

34

7

33

8

32

9

31

39

1

38

2

38

13

27

10

30

KEY AD3

S701, 702

ZOOM SW

CN001

10

2

1

4

3

6

5

POWER SW

SHUTTER SW

MODE DIAL

S002

S006

PK-069 BOARD

8

33

10

31

PANEL R

22

19

PANEL G PANEL B

21

20

21

28

11

29

10

XHD

27

12

XVD

26

13

XSY

9

32

XSYS RST

25

14

BL DC

7

34 28

40

39

27

37

S001

CONTROL SWITCH BLOCK (RS-310)

13

1

2

38

1

14

4

34

5

|

33

6

32

7

BL UNREG

S307 S308

KEY AD0 – KEY AD2

48

47

46

40

39

46

45

42

1

48

2

36

(OPEN/CLOSE)

(1/2)

IC301

LCD DRIVE

(1/2)

IC302

TIMING GENERATOR

4

BL ON

(2/2)

IC201 IC202

BACK LIGHT DRIVE

S304

RESET

S301 – 303, 305, 306 S309 – 311

FUNCTION SW (DISPLAY, UP, DOWN, RIGHT, LEFT, SET,MENU, IMAGE SIZE/DELETE)

20

22

24

COM

27

HCNT, MCLK, CLR, OE,SRT, STBYB, VBC, RESET, GSRT, GPCK, GRES

13

|

24

BL HIGH

SP+, SP-

AUDIO SIGNAL VIDEO SIGNAL VIDEO/AUDIO SIGNAL

CN304

CN201

CN302

CN305

R

•

G

19

•

B

20

21

11

10

12

18

10

LCD901

3INCH COLOR

LCD UNIT

5 |

|

ND901

BACKLIGHT

DOOR LOCK

S901

SP901 SPEAKER

1

2

5

6

3-3 3-4

COVER

3. BLOCK DIAGRAMS

MVC-CD350

3-3. POWER BLOCK DIAGRAM (1/2)

FU-164 BOARD

BT901

BATTERY

TERMINAL

S

J901

DC IN

CN002

BATT UNREG

1

BATT SIG

2

3

ACV UNREG

1

2

BATT/XEXT

3

CN001

FLASH UNIT

FP-652 (FLEXIBLE)

LED901 LASER UNIT

AF LED

CN054

LF001

5

1

2

3

4

Q001, 002

Q003, 004

ST UNREG

5

A 4.9V

1

STB CHG

2

XSTB FULL

3

STRB ON

4

CN054

1

CAM P 5V

2

1

CN052

( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.

BATT/SIG

BATT/XEXT

FAST CHARGE

INIT CHARGE

F005

F001

F002

F003

F004

BATT UNREG

MT UNREG

BL UNREG1

UNREG3

(2/3)

IC101

Q051

SYS DD ON

CAM DD ON

DD XCS

DD DATA DD SCK

DC/DC CONVERTER

56

VCC0

55

VCC1

38

CTL1

LD

26

27

D IN

CLK

28

OUT1

OUT2

OUT4

57

20

IN1

58

21

IN2

60

IN4

23

Q101

SWITCHING

Q102

SWITCHING

Q104

SWITCHING

L103

L104

L106

L119

L113

D 1.5V

CAM P5V

PANEL 4.6V

D 4.6V

BL UNREG1

BATT UNREG

DD SCK

DD DATA

DD XCS

STB CHG

XSTB FULL

STRB ON

BATT SIG

BATT/XEXT

INIT CHARGE

FAST CHARGE

SYS DD ON

CAM DD ON

D 1.5V

D 4.6V

M 4.6V

EVER

45 • 46 • 48

47 29 28 27 43 42 41 37 36 38 39 30 26

3 • 4

31

6 • 7 1 • 2

1

TO POWER BLOCK DIAGRAM (2/2) (SY-087)

(PAGE 3-7)

OUT5

OUT6

OUT7

–INE7

Q105

SWITCHING

61

24

IN5

Q106

SWITCHING

62

25

IN6

Q107

L101

63

2

SWITCHING

D102 RECT

L107

L102

D103 RECT

D104 RECT

L118

L116

Q112

13.5V REG

L117

D 3.1V

M 4.6V

PANEL 13.5V

CAM 15V

CAM –7.5V

PANEL –15.3V

D 3.1V (DRV 3.1V)

PANEL 4.6V

PANEL 13.5V

PANEL –15.3V

CAM P 5V

CAM 15V

CAM –7.5V

D 3.1V

14 • 15

5 10 11

8 • 9

13 12

16 • 17 • 18

CN051

3-5 3-6

MVC-CD350

COVER

3. BLOCK DIAGRAMS

3-4. POWER BLOCK DIAGRAM (2/2)

SY-087 BOARD

BATT SIG

4

BL UNREG1

1

TO POWER BLOCK DIAGRAM (1/2) (SY-087)

(PAGE 3-6)

6 7 5

23 24 25

9 10 11 15 16 14 13

22 26

48 49 21 45 46 50 51

37 38

47 42 41

43 44 39 40

34 35 36

BATT UNREG

DD SCK

DD DATA

DD XCS

STB CHG

XSTB FULL

STRD ON

BATT SIG

BATT/XEXT

INIT CHARGE

FAST CHARGE SYS DD ON

CAM DD ON

D 1.5V

EVER

D 4.6V

M 4.6V

DRV 3.1V

PANEL 4.6V

PANEL 13.5V

PANEL -15.3V

CAM P5V

CAM 15V

CAM -7.5V

D 3.1V

CN708

L703

L702

L701

ACV UNREG

BATT UNREG

D801

Q801

FB801

CAM 3.1V

D 1.5V

D 3.1V

A 3.1V

D 1.5V

IC581

CLOCK

GENERATOR

( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.

D403

EVER ACV UNREG

D 4.6V

(6/11)

M 4.6V

IC803

SRAM

2Mbit

DRV 3.1V

(3/11) (9/11)

IC201

VIDEO

AMP

7

IC504

EEPROM

16Kbit

L252

(4/11)(4/11)

PK-069 BOARD

CN304

VSH

24

VGL

3

VGH

1 4

VDD

LCD901

3INCH

COLOR

LCD

UNIT

23

(8/11)

IC403

REG

DET

RESET

8

CK-133 BOARD

CN721

PANEL 4.6V

PANEL -15.3V

Q408

IF BLOCK

53

6

4

43 42

73 62 14

•

53 63 31

67

68

66

8 48 47

76

BATT SI

BATT SO

XRESET

AVCC

BACK UP VCC

AVREF

BATT IN

BATT SENS

ACV SENS

DD CON SENS

BATT/XEXT

FAST CHARGE

INT CHARGE

SYS DD ON

(8/11)

IC402

MODE CONTROL

STB CHG

XSTB FULL

DD DATA

DD SCK

DD XCS

XPWR ON

POWER LED

46 34

STRB ON

20 21 22

1

17

POWER LED

PANEL 13.5V

ACV UNREG

MT UNREG

XPOWER ON

Q704

LED

DRIVE

A 3.1V

FR XRST

BL DC

EVER

D 3.1V

VL 3V

BL DC

D 3.1V

14 12 13 15 38

5

11

29 16

2

13 18 10

10

9

8

CN707

CN706

FOR CHECK

CN711

26 28 27 25

35 29

11 24

2

CN701

CPC

CN702

D001

(POWER)

24

17

26

15

25

16

23

18

1

38

34

7

13

28

35

6

8

31

CN303

S002

POWER

IC301

LCD

DRIVE

L304

L303

L302

S304

RESET

CHARGE LED

ACCESS LED

BT101

LITHIUM BATTERY

(SECONDARY)

FP-651 (FLEXIBLE)

(RS-310) CONTROL SWITCH BLOCK

IC302

TIMING

GENERATOR

IC201, 202

BACK LIGHT DRIVE

BASE

LD

CN901

DRIVE

131214

(7/11)

IC907

PERIPHERAL

IC

(6/11)

IC808

1

•

2.8V

5

REG

2.8V

4

(6/11)

IC807

CD-R/RW

DSP

ACTEN

203

XDRV RST

88

D 4.6V

M 4.6V DRV 3.1V

(7/11)

IC905

CD-R/RW

RF

PROCESS

IC252

AUDIO

AMP

(3/11)

IC302

SDRAM

128Mbit

(3/11)

IC301

CAMERA

DSP

248 198

STRB ON

XLENS RST LED

ACTEN XDRV RST

2

1

5

4

(7/11)

IC906

(5/11)

IC503

FRASH

ROM

32Mbit

A 3.1V1

(4/11)

IC501

MC CAM

SH DSP

37

198

XDRV RST

CAM DD ON

CAM 15V

CAM -7.5V

CAM DD ON

CAM 3.1V

CAM P5V

D 3.1V

XLENS RST LED

Q601-604

IC601

CAMERA

MODULE

(CH-122 (3M) BOARD)

ZOOM/FOCUS

MOTOR DRIVE

SHUTTER DRIVE

(1/11)

(2/11)

IC101

(2/11)

IC108

EVR

L106

(7/11)

IC901 IC903 IC911

PERIPHERAL

IC

IRIS DRIVE

HALL AMP

L101

Q101

PD

IC

(2/11)

IC102 IC106

MONITOR

(7/11)

IC904

FOCUS/

TRACKING/

SLED/

SPINDLE

DRIVE

CN601

CN101

FRONT

1820

5 4

7

20

Q902,903

37

23 24

ACT

CN651

LENS UNIT

CN902

CD-440 BOARD

ZOOM RESET

SENSOR

FOCUS RESET

SENSOR

10

IC651

CCD

IMAGER

UNIT

M902

SPINDLE

MOTOR

3-7 3-8E

COVER

SECTION 4

PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

4-1. FRAME SCHEMATIC DIAGRAM (1/2)

1

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

810 137

9

11

12

MVC-CD350

1825 15 16

19144 1763

A

CONTROL SWITCH BLOCK (RS-310)

FRAME SCHEMATIC DIAGRM(1/2)

FP-248

FLEXIBLE

B

FLASH UNIT

FLASH

C

6P

A_4.9V

12345

CN054

STB_CHG

STRB_ON

XSTB_FULL

STB_UNREG

ST_GND

6

FS-144

12345

6P

A_4.9V

CN054

STB_CHG

HARNESS

STRB_ON

XSTB_FULL

6

ST_GND

STB_UNREG

CN051

MIC_SIG

MIC_GND

PRELAMP_LED

BL_UNREG1

BATT_UNREG

BL_UNREG1

STB_CHG

XSTB_FULL

STRB_ON

FAST_CHARGE

INIT_CHARGE

BATT_SIG

BATT/XEXT

SYS_DD_ON

DD_SCK

DD_DATA

DD_XCS

CAM_DD_ON

REG_GND

CAM_15V

CAM_-7.5V

PANEL_-15.3V

PANEL_13.5V

CAM_P_5V

PANEL_4.6V

M_4.6V

D_3.1V

D_4.6V

D_1.5V

51P

51

50

49

48

47

46

45

44

GND

43

42

41

40

GND

39

38

37

36

35

GND

FP-653

GND

34

33

GND

FLEXIBLE

32

GND

EVER

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

CN708 MIC_SIG

MIC_GND

PRELAMP_LED BL_UNREG1

BATT_UNREG

BL_UNREG1

GND

STB_CHG

XSTB_FULL

STRB_ON

GND

FAST_CHARGE

INIT_CHARGE

BATT_SIG

BATT/XEXT

GND

EVER

SYS_DD_ON

DD_SCK

DD_DATA

DD_XCS

CAM_DD_ON

REG_GND

D_3.1V

DRV_3.1V

CAM_15V

CAM_-7.5V

PANEL_-15.3V

PANEL_13.5V

CAM_P_5V

D_4.6V

PANEL_4.6V

D_1.5V

M_4.6V

51P

D

E

F

G

H

LED901 LAZER UNIT

DC IN

J901

BT901

BATTERY TERMINAL

MIC901 MIC

MIC

I

AF_LED

FP-652

FLEXIBLE

1 ACV_UNREG

2 ACV_GND

3 BATT/XEXT

CN002

1 BATT_UNREG

2 BATT_SIG

3 BATT_GND

MIC_SIG

1

MIC_GND

2

CN052

6

PRELAMP_LED PRELAMP_LED

5

N.C.

4

N.C.

3

CAM_P_5V

2

CAM_P_5V

1

3PCN001

3P

FU-164 BOARD

2PCN053

6P

J

DEW SENSOR

2P

CN709

DS-117

HARNESS

1

2

REG_GND

DEW_SENS

SY-087 BOARD(1/2)

12P

MODE_DIAL_2

MODE_DIAL

XSET_UP

XAE_LOCK_SW

XSHTR_ON

XPB_ON

CN001

123456789

2

3

1

45678

XPB_ON

XSET_UP

XSHTR_ON

MODE_DIAL

MODE_DIAL_2

XAE_LOCK_SW

12PCN711

N.C.

D_3.1V

XPOWER_LED

9

D_3.1V

XPOWER_LED

N.C.

XPOWER_ON

101112

N.C.

XPOWER_ON

GND

CN601

CCD_OUT

CAM_15V

CAM_-7.5V

VSUB_CONT

CCD_TEMP

CN101

ZOOM_B

ZOOM_A

ZOOM_B

ZOOM_A

Z_SENS_GND

Z_SENS_RST

Z_SENS_VCC

DRIVE+

DRIVE-

FOCUS_B

FOCUS_A

FOCUS_B

FOCUS_A

F_SENS_GND

F_SENS_RST

F_SENS_VCC

BIAS+

HALL+

HALL-

27P

27

GND

26

25

GND

24

GND

23

H1

22

H2

21

GND

20

RG

19

GND

18

V2

17

V4

16

V5A

V5B

V6

V1

V3A

V3B

GND

VSHT

GND

20P

BIAS-

FP-649

15

FLEXIBLE

14

13

12

11

10

9

8

7

6

5

4

3

2

1

2

3

4

5

6

7

8

FP-650

9

FLEXIBLE

10

11

12

13

14

15

16

17

18

19

20

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

1

2

3

4

5

6

7

8

9

GND

CCD_OUT

GND

H1

H2

GND

RG

GND

V2

V4

V5A

V5B

V6

V1

V3A

V3B

GND

VSHT

GND

CAM_15V

CAM_-7.5V

GND

VSUB_CONT

CCD_TEMP

27PCN651

CD-440 BOARD

LENS UNIT

CCD IMAGER

K

L

16

4-1 4-2

FRAME SCHEMATIC DIAGRAM (1/2)

MVC-CD350

COVER

FRAME SCHEMATIC DIAGRAM (2/2)

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

1

A

FRAME SCHEMATIC DIAGRM(2/2)

7

B

C

D

CK-133 BOARD

E

F

40PCN702

XLID_OPEN

REG_GND

EVER

SP-

G

SP+

CHARGE_LED

BL_DC

HSY

VG

PANEL_COM

BL_GND

DOORLOCK

BL_UNREG

PANEL_-15.3V

PANEL_13.5V

PANEL_4.6V

PANEL_3.1V

REG_GND

PANEL_B

PANEL_G

PANEL_R

REG_GND

XSYS_RST

XCS_LCD

D_3.1V

KEY_AD2

KEY_AD1

KEY_AD0

REG_GND

ACCESS_LED

REG_GND

FR_XRESET

123456789

XHD

XVD

CAM_SO

XCAM_SCK

10111213141516171819202122232425262728293031323334353637383940

FP-655

FLEXIBLE

H

123456789

39PCN303

SP-

SP+

REG_GND

XLID_OPEN

CHARGE_LED

1011121314151617181920212223242526272829303132333435363738

VG

HSY

EVER

BL_DC

BL_GND

PANEL_COM

BL_GND

BL_UNREG

DOORLOCK

PANEL_-15.3V

PANEL_4.6V

PANEL_13.5V

PANEL_3.1V

REG_GND

PANEL_B

PANEL_G

PANEL_R

REG_GND

XSYS_RST

XVD

XHD

CAM_SO

XCAM_SCK

XCS_LCD

D_3.1V

KEY_AD2

KEY_AD1

KEY_AD0

REG_GND

ACCESS_LED

39

REG_GND

FR_XRESET

810 13

CN701

40P

N.C

SP+

SP-

REG_GND

BL_DC

VG

HSY

PANEL_COM

BL_GND

BL_UNREG

PANEL_-15.3V

PANEL_13.5V

PANEL_4.6V

PANEL_3.1V

D_3.1V

PANEL_B

PANEL_G

PANEL_R

XVD

XHD

XCS_LCD

CAM_SO

XCAM_SCK

REG_GND

ACCESS_LED

DOORLOCK

CHARGE_LED

EVER

XLID_OPEN

KEY-AD3

KEY_AD2

KEY_AD1

KEY_AD0

REG_GND

XSYS_RST

REG_GND

FR_XRESET

REG_GND

9

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

FLEXIBLE

FP-654

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

SP+

SP-

REG_GND

BL_DC

VG

HSY

PANEL_COM

BL_GND

BL_UNREG

PANEL_-15.3V

PANEL_13.5V

PANEL_4.6V

PANEL_3.1V

D_3.1V

PANEL_B

PANEL_G

PANEL_R

XVD

XHD

XCS_LCD

CAM_SO

XCAM_SCK

REG_GND

ACCESS_LED

DOORLOCK

CHARGE_LED

EVER

XLID_OPEN

KEY-AD3

KEY_AD2

KEY_AD1

KEY_AD0

REG_GND

XSYS_RST

REG_GND

FR_XRESET

REG_GND

39PCN721

11

SY-087 BOARD(2/2)

12

144 1763

REG_GND

AU_OUT

AV_JACK_IN

VIDEOGND

V_OUT

USB_GND

USB_D+

USB_VCC

USB_D-

VL_3V

MPXO

FMDT

DECEFM

REG_GND

XLID_OPEN

CPC_IN

HSY

PANEL_COM

MT_UNREG

LANC_IN

LANC_OUT

BL_DC

MS_SCLK

MS_BS

MS_DIO

N.C.

D_3.1V

1825 15 16

12PCN707

12

11

10

9

8

7

N.C.

6

5

4

3

2

GND

1

18PCN706

1

2

3

4

5

6

7

CPC

8

VG

9

(FOR CHECK)

10

11

12

13

14

15

16

17

18

FP-651

FLEXIBLE

BT101 LITHIUM BATTERY (SECONDARY)

USB_VCC

USB_D-

USB_D+

USB_GND

5P

1

2

3

4

N.C.

5

A/V OUT (MONO)

CN102

(USB)

J102

I

S307

J

S308

K

24PCN304

L

M

16

FRAME SCHEMATIC DIAGRAM (2/2)

(OPEN/CLOSE)

PK-069 BOARD

LCD901 3INCH COLOR LCD UNIT

CN302

2P

SP+

SP-

DOORLOCK

REG_GND REG_GND

10PCN201

VGH2GND3VGL4VGLAC5SPS6EX17MO18MO29PSG10EX211COM12CLS13RES14PSS115PSS216CTR17CLD18SPD19VR20VG21VB22GND23VSHD24VSHA

1

BL_HIGH

10

N.C.

9

ND901 BACK LIGHT

N.C.

8

LED_GND

N.C.

LED

BL_LOW

1234567

D901

(STARTER)

SP901

1

SPEAKER

2

6PCN305

6

FP-683

5

FLEXIBLE

4N.C.

S901

3N.C.

(DOOR LOCK) 2

1

15PCN902

1 SLED+

2 SLED-

3 VH-

4W-

5W+

6V+

7V-

8U+

9U-

10 VH+

11 XLMT

12 LEDGND

FG FG

MM

M901 SLED MOTOR

M902 SPINDLE MOTOR

CN901 39P

13 U

14 V

15 W

38 FCS-

39 FCS+

38FCS-

39FCS+

39P

33 G

34 N.C.

35 OP_TEMP

36 TRK-

37 TRK+

33G

34N.C.

35OP_TEMP

36TRK-

37TRK+

PDSW

28

29 RFSUM

30 E

31 C

32 D

28

29RFSUM

30E

31C

32D

PDSW

4-3 4-4

27 PDGND

27PDGND

26 PDGND

26PDGND

24 F

25 PDVC

FP-656

FLEXIBLE

24F

25PDVC

1 MODAMP

2 ENBL

3 OSCEN

4 WE2

5 WE1

6 LDGND

7 LDGND

8 LDGND

9 VWDC2

10 VWDC1

11 VRDC

12 LDVCC

13 LDVCC

14 LDVCC

15 FPDVC

16 FPDGND

17 FPDGND

18 FPDVCC

19 FPDO

20 PDVCC

21 H

22 A

23 B

1MODAMP

2ENBL

3OSCEN

4WE2

5WE1

6LDGND

7LDGND

8LDGND

9VWDC2

10VWDC1

11VRDC

12LDVCC

13LDVCC

14LDVCC

15FPDVC

16FPDGND

17FPDGND

18FPDVCC

19FPDO

20PDVCC

21H

22A

23B

COVER

Link

MVC-CD350

4-2. SCHEMATIC DIAGRAMS

CD-440 BOARD

PK-069 BOARD (1/2)

(LCD DRIVER, TIMING GENERATOR)

PK-069 BOARD (2/2)

CK-133 BOARD

FU-164 BOARD (1/3)

(CCD IMAGER)

(BACK LIGHT)

(ZOOM SW)

(CHARGER)

FU-164 BOARD (2/3)

FU-164 BOARD (3/3)

CONTROL SWITCH BLOCK

FP-651 FLEXIBLE BOARD

FLASH UNIT

(DC/DC CONVERTER)

(DD CONNECTOR)

WAVEFORMSCOMMON NOTE FOR SCHEMATIC DIAGRAMS

(RS-310)

4-2. SCHEMATIC DIAGRAMS

COVER

4-2. SCHEMATIC DIAGRAMS

THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block)

MVC-CD350

(For schematic diagrams)

• All capacitors are in µF unless otherwise noted. pF : µ

Link

µF. 50 V or less are not indicated except f or electrolytics and tantalums.

• Chip resistors are 1/10 W unless otherwise noted. kΩ=1000 Ω, MΩ=1000 kΩ.

• Caution when replacing chip parts. New parts must be attached after removal of chip. Be careful not to heat the minus side of tantalum capacitor, Because it is damaged by the heat.

• Some chip part will be indicated as follows.

Example C541 L452

22U 10UH TA A 2520

Kinds of capacitor

Temperature characteristics

External dimensions (mm)

• Constants of resistors, capacitors, ICs and etc with XX indicate that they are not used. In such cases, the unused circuits may be indicated.

• Parts with * differ according to the model/destination. Refer to the mount table for each function.

• All variable and adjustable resistors have characteristic curve B, unless otherwise noted.

• Signal name XEDIT→ EDIT PB/XREC → PB/REC

• 2: non flammable resistor

• 5: fusible resistor

• C: panel designation

• A: B+ Line

• B: B– Line

• J : IN/OUT direction of (+,–) B LINE.

• C: adjustment for repair.

• A: VIDEO SIGNAL (ANALOG)

• A: AUDIO SIGNAL (ANALOG)

• A: VIDEO/A UDIO SIGNAL

• A: VIDEO/A UDIO/SER V O SIGNAL

• A: SERVO SIGNAL

• Circled numbers refer to waveforms.

(Measuring conditions voltage and waveform)

• Voltages and waveforms are measured between the measurement points and ground when camera shoots color bar chart of pattern box. They are reference values and reference wave forms. (VOM of DC 10 MΩ input impedance is used)

• Voltage values change depending upon input impedance of VOM used.)

1. Connection

Pattern box

32 cm

Front of the lens

2. Adjust the distance so that the output waveform of Fig. a and the Fig. b can be obtain.

H

Yellow

Cyan

White

Magenta

Green

AABBA=B

Fig. a (Video output terminal output waveform)

Fig.b (Picture on monitor TV)

When indicating parts by reference number, please include the board name.

Note : The components identified by mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

Red

Blue

4-5

COVER

4-2. SCHEMATIC DIAGRAMS CD-440 PRINTED WIRING BOARD

MVC-CD350

4-2. SCHEMATIC DIAGRAMS

1

CD-440 BOARD

A

CCD IMAGER

XX MARK:NO MOUNT

B

TO SY-087 BOARD(1/11) CN601

C

THROUGH THE FP-649 FLEXIBLE

()

(PAGE 4-23 of LEVEL3)

D

CAM_-7.5V

VSUB_CONT

CCD_TEMP

E

For Schematic Diagram

• Refer to page 4-47 for printed wiring board.

NO MARK:REC/PB MODE R :REC MODE P :PB MODE

CN651

27P

1

GND

V5A

V5B

V3A

V3B

GND

VSHT

GND

2

3

4

5

H1

6

H2

7

8

RG

9

10

V2

11

V4

12

13

14

V6

15

V1

16

17

18

19

20

21

22

23

24

25

26

27

CCD_OUT

CAM_15V

TH651

C651

0.22u

R651 100k

L651 100uH

463

D651

MA132WA-(K8).SO

C652

3.3u 35V

B

TA

C653

0.22u B

87

925

1

2

C655

2200p

B

R652 3900

0

C654

0.1u

R9.7 P0

16V

Q651

UNR32A300LS0

B

R654 470k

R655

0

3

R659

C662 XX

0

CH

2SC4250(T5LSONY1)

FB651

R653 3300

Q652

R11.1 P0

R15.1 P0

C656

0.1u 16V

C657 10p

B

C658

0.1u 16V

R11.9/P0

10

B

CH

R11.9 P0

R-0.5P0R-0.5P0R-0.5P0R-0.6P0R-0.6P0R-0.6

6

7V28V19

R-0.5/P0

R15.1/P0

VDD

11

R-0.5/P0

ICX432AQF-13

R14.4/P0

12RG13

V3A

IC651

CCD IMAGER

GND

VOUT

4

C659

0.1u 16V

B

R656

47

GND

14

TA

V3B

IC651

R9.3/P0

SUB

R9.7

C660

22u

16V

4V45

CSUB

15

P0

B

2

3

V5B

V5A

5

16VL17H118

P0

R2.1P0R1.3

P-2.0

R-7.4

0

R657

C661

0.1u 10V

B

P0

1

V6

H2

R658

0

F

G

16

SIGNAL PATH

VIDEO SIGNAL

CHROMA Y/CHROMA

REC

PB

Y

Precautions Upon Replacing CCD imager

AUDIO

SIGNAL

•

The CD-440 board mounted as a repair part is not equipped with a CCD imager. When replacing this board, remove the CCD imager from the

old one and mount it onto the new one. If the CCD imager has been replaced, carry out all the

•

adjustments for the camera section.

•

As the CCD imager may be damaged by static electricity from its structure, handle it carefully like for the MOS IC. In addition, ensure that the receiver is not covered with dusts nor exposed to strong light.

4-7 4-8

CD-440

MVC-CD350

COVER

For Schematic Diagram

• Refer to page 4-49 for printed wiring board.

1

A

PK-069 BOARD(1/2)

LCD DRIVER,TIMING GENERATOR(RGB/TG BLOCK)

XX MARK:NO MOUNT

NO MARK:REC/PB MODE R :REC MODE P :PB MODE

B

SP901

SPEAKER

C

D

TO CK-133 BOARD CN702

THROUGH THE

E

FP-655 FLEXIBLE

(

(PAGE 4-14)

)

F

G

REG_GND

XLID_OPEN

CHARGE_LED

PANEL_COM

BL_GND

BL_UNREG

DOORLOCK

PANEL_-15.3V

PANEL_13.5V

PANEL_4.6V

PANEL_3.1V

REG_GND

PANEL_B

PANEL_G

PANEL_R

REG_GND

XSYS_RST

CAM_SO

XCAM_SCK

XCS_LCD

D_3.1V

KEY_AD2

KEY_AD1

KEY_AD0

REG_GND

ACCESS_LED

REG_GND

FR_XRESET

REG_GND

BL_DC

SP+

SP-

SP+

SP-

EVER

VG

HSY

XVD

XHD

H

I

J

K

L

FP-683

FLEXIBLE

S901

(DOOR LOCK)

M

16

LND301

STATIC_GND

CN305

6P

6DOORLOCK

5DOORLOCK

N.C.

4

N.C.

3

2REG_GND

1REG_GND

4-2. SCHEMATIC DIAGRAMS

7

R304

470

D303

TLAU1008(T05,SOY)

( /CHARGE)

Q301

1

6

2

0.5

S305

R307 1200

UNR32A300LS0

BL_DC

HSY

PANEL_COM

BL_GND

BL_UNREG

TLSU1008(T05,SOY)

(ACCESS)

R381 100k

3.20

Q380

UMF5NTR

SWITCH

S303

LED DRIVE

VG

D302

S309

R303

680

R308 1500

2PCN302

1

2

39PCN303

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

R380 4700

3.2 3.2

3

5

4

R305 1200

S302

R306

1500

S306

D380

1SS355TE-17

2.1

0 4.6

PANEL_4.6V

R311

0

R309

R355

S310 MENU

XX

MAZT082H08S0

Q302

XX

D309

XX

R310

C302

XX

S304

RESET

R383

S311

3300

(Image Size/ Delete)

D304

C331

0.1u B

R350

1k

R351

1M

D301

MAZT082H08S0

R312

XX

R354

XX

L301

100uH

C303 100u

6.3V TA

S307

MAZT082H08S0

B

(OPEN/CLOSE)

D307

0.1

R356

1 3

R313

R314

0

C304

0.1u B

S301

DISPLAY ON/OFF

S308

0

4.0

2.2

XX

R316 470k

2

5

R315

XX

CAM_SO

XCAM_SCK

XCS_LCD

C301

2200p

Q304

XX

4.6

6 4

D308

XX

C305

XX

XC.SAVE

XCAM_SCK

XTG_SO

XCS_LCD

100k

XP.SAVE

XVD

XHD

BGP

BLK

FRP

COM_FRP

XCAM_SCK

XCS_LCD

XTG_SO

CAM_SO

XVD

B

XHD

810 13

R317

XX

1.5

EXT_DA2

37

3.2

XC.SAVE

38

3.2

XSCK

39

2.1

SI

40

3.2

XCS

41

3.1

Vcc1

42

3.1

TRAP_ADJ

R318

±0.5%

C306

C308

43

1.6

LPF_ADJ

44

3.2

XP.SAVE

45

B0.01u

1.9

B_IN

46

B

0.01uC307

1.9

G_IN

47

B0.01u

1.9

R_IN

48

7

L302

10uH

R319

1k

R382

0

HSY

PK-069 BOARD SIDE A PK-069 BOARD SIDE B

9

BGP

BLK

32

0.2

BLACK_IN

IC301

LCD DRIVER

AN12580A-BB

L303

10uH

L304

100uH

C312

4.7u

FRP

25V

TA

COM_FRP

28

29

30

31

0

1.6

FRP

GND3

COM_FRP

IC301

BL_LEV

BGP

C311

R320

XX

B

33

34

35

36

0

1.903.0

C BG

EXT_DA1

R_INJECT

5

6

N.C2N.C3N.C4N.C5N.C6N.C7BIAS8OP_IN+9OP_IN-10OP_OUT11VCO12N.C

1

C332

C310

XX

0.1u

6.3V

B

3.0

37

BGP

38

SWCOM

0.2

39

SW

1.6

40

FRP

1.6

41

COM_FRP

3.2

42

XSCK

3.2

43

TESTI

3.2

44

XCS

2.2

45

SO

0.5

46

SI

47

VSYB

3.2

48

XVD

8

1.5

1.6

1.5

R321 2700

R324

68k

R322

47k

R325

22k

C309

2200p

B

3.2

32

35

36

SYF

POCB

TESTO33TESTO34TESTO

TIMING GENERATOR

10

HDI2HDB3W/H4BL-ON5BL-DET6TESTI7GND8LED9PWM10TESTI11TESTI12CLS

1

3.0

3.1

4.6

C313

0.1u

B

27

7.0

N.C

4

1.6

C314 560p CH

31

GND

IC302

CM7020L1-E2

B

COM_OUT

1

11

C316

0.1u B

25

4.4

13.5

Vcc226Vcc3

3

B_DC_DET

2

G_DC_DET

R_DC_DET

GND2

GND1

VSH

Vcc4

3.0

C315

0.1u B

R327

1M

R326

68k

C317

68p

CH

XC.SAVE

3.2

1.5

3.2

1.6

27

28

29PD30

OSCI

PS/VDD

XC.SAVE

VB

VG

VR

N.C

R328 100k

1SV290(TPL3)

C319

0.001u SL

9

12

C318

100u

6.3V

2.2

24

2.2

23

C320

2.2

0.1u

B

22

2.2

21

C321

0.1u

2.2

B

20

2.2

19

C322

0.1u

B

18

17

4.4

16

13.5

15

14

13

D305

R329

1M L305

6.8uH

XP.SAVE

1.5

3.2

26

25

OSCO

DR.P.SAVE

24

SPD

23

CLD

22

CTR

21

PSS2

20

PSS1

19

RES

18

EX2

17

PSG

16

MODE2

15

MODE1

14

EX1

13

SPS

2.7

144 1763

BL_LEV

BL_DET

BL_ON

PANEL_4.6V

BL_DC

BL_UNREG

BL_GND

R337

10k

C323

6.8u 16V TA

A

C326

C325

XX

B

R338

0

TG24

TG23

TG22

D306

XX

C324

XX

25V

TA

A

R332

0

0.1

1.5

1.6

3.2

2.6

1.6

3.2

0

3.2

R333

XX

TG24

TG23

TG22

TG21

TG20

R334

XX

TG19

TG18

R335

TG17

0

TG16

TG15

TG14

TG13

R331

0

TG12

R336 120k

BL_DET

BL_ON

TG21

TG20

TG19

TG12

TG18

TG17

TG16

TG15

TG14

TG13

Q307

XX

4.5

Q306

XX

46

2

3

1

4.0

R340

XX

R339

XX

BL_LEV

BL_DET

BL_ON

PANEL_4.6V

BL_DC

BL_UNREG

BL_GND

100

R344

R345

R346

R342

0

13.512.9

5

12.9

0.01u

13.5

1u B

C329

C328

R343

1M

R341

1M

C330

R349

0

SIGNAL PATH

CHROMA

REC

PB

0.01u

C327

1u

B

VIDEO SIGNAL

(2/2)

1

VG

PANEL_COM

VSHA

24

23 VSHD

22 GND

21 VB

20 VG

19 VR

18 SPD

17 CLD

16 CTR

PSS2

15

14 PSS1

13 RES

12 CLS

11 COM

10 EX2

9PSG

8 MO2

7 MO1

6 EX1

5SPS

4 VGLAC

3 VGL

2 GND

1 VGH

Y

Y/CHROMA SIGNAL

24PCN304

1825 15 16

AUDIO

LCD901 3INCH COLOR LCD UNIT

PK-069 (1/2)

4-9 4-10

MVC-CD350

COVER

For Schematic Diagram

• Refer to page 4-49 for printed wiring board.

1

PK-069 BOARD(2/2)

A

BACK LIGHT(BL BLOCK)

XX MARK:NO MOUNT

BL_DC

BL_UNREG

B

C

(1/2)

1

BL_GND

PANEL_4.6V

D

E

BL_ON

F

16

BL_LEV

BL_DET

NO MARK:REC/PB MODE

L201

4.7uH

Q202

UN9112J-(K8).SO

BT SWITCH

4.6 4.6

0.1

Q201

UN9214J-(K8).SO

SWITCH

3.1

4-2. SCHEMATIC DIAGRAMS

463

Q203

2SD2216J-QR(K8).SO

SWITING

R205

C201

TA

22k

C203

22u

0.1u

16V

B

R203

560

C206

18p

CH

8.2

7.8

R206

560

7.7

C208

27p

CH

IC201

BACK LIGHT DRIVE

R204

120k

±0.5%

4.2

4.6

1.2

1.0

1

3FB4

0.9

7RT8

C204

2.2u

6.3V TA

IN

DTC

SCP

0.1

F

Q204

UNR32A300LS0

PROTECT SW

5

6

2.4

0.1

C205

2.2u

P

OUT2VCC

C202

0.1

0.01u B

R201

6800

±0.5%

TL5001CDRIC201

*

R202

27k

±0.5%

GND

C209

0.01u B

C207

0.022u B

2.6

PK-069 BOARD SIDE A PK-069 BOARD SIDE B

8107

Q206

FP102-TL

R208 ±0.5%

R207

4700

R210 3300

±0.5%

SWITING

8.2

7.7

C210

10k

XX

R209

1800

±0.5%

6

2

0.9

1

0.4 0.4

R211 1500

L202

22uH

5.1

C211

33u 10V TA

B

D201

XX

R212

47k

Q207

HN1C01FE-Y/GR(TPLR3)

SWITCH

0.91.0

3

5

0.9

4

R213

1500

R214

4700

2

0.1 0.1

L203

82uH

R216 1800

1/10W

C212

1u

F

CPH5504-TL-E

TRANS DRIVE

3

6

1

4

Q205

RN1904FE(TPLR3)

SWITCH

-0.6

4.9

Q209

0.70.9

3

1

5

-0.6

5

2

4.9

4

IC202

BACK LIGHT DRIVE

IC202

NJM2406F-TE2

4.6

45

4.6

C213

0.015u

1.7

123

11

T201 INVERTER TRANSFOMER

5

1

Q210

R219

4.6

MA111-(K8).S0

22k

6

10

9

8

7

6

5

4

3

2

1

BL_HIGH

N.C.

BL_LOW

LED

LED_GND

10PCN201

10

0.14.6

D202

C215

0.1u

C216

12p

3000V

R221

120

R220

470

B

2

3

4

UN9112J-(K8).SO

LED DRIVE

R217 100k

0.3

R218

C214

6800

0.1u B

12925

D901

(STARTER)

ND901 BACK LIGHT

Note : The components identified by mark 0 or dotted

*Note:Pin number and index mark of IC201 are shown as viewed from the bottom

line with mark 0 are critical for safety. Replace only with part number specified.

4-11 4-12

PK-069 (2/2)

MVC-CD350

COVER

For Schematic Diagram

• Refer to page 4-53 for printed wiring board.

4-2. SCHEMATIC DIAGRAMS CK-133 PRINTED WIRING BOARD

A

B

C

D

E

F

G

1

CK-133 BOARD

ZOOM SWITCH

XX MARK:NO MOUNT

TO SY-087 BOARD(10/11) CN721

THROUGH THE FP-654 FLEXIBLE

()

(PAGE 4-42 of LEVEL3)

16

CN701

REG_GND

BL_DC

PANEL_COM

BL_GND

BL_UNREG

PANEL_-15.3V

PANEL_13.5V

PANEL_4.6V

PANEL_3.1V

D_3.1V

PANEL_B

PANEL_G

PANEL_R

XCS_LCD

CAM_SO

XCAM_SCK

REG_GND

ACCESS_LED

DOORLOCK

CHARGE_LED

EVER

XLID_OPEN

KEY-AD3

KEY_AD2

KEY_AD1

KEY_AD0

REG_GND

XSYS_RST

REG_GND

FR_XRESET

REG_GND

N.C.

SP+

SP-

HSY

XVD

XHD

)(

CHROMA

8107

S701 S702

WT

(ZOOM) (INDEX)

R701

1200

VIDEO SIGNAL

925

FB701

0uH

LND701

STATIC_GND

AUDIO

Y

Y/CHROMA

SIGNAL

463

40PCN702

SP+

40

40P

40

39

38

37

36

35

VG

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SP-

REG_GND

XLID_OPEN

CHARGE_LED

EVER

BL_DC

VG

HSY

PANEL_COM

BL_GND

BL_UNREG

DOORLOCK

PANEL_-15.3V

PANEL_13.5V

PANEL_4.6V

PANEL_3.1V

REG_GND

PANEL_B

PANEL_G

PANEL_R

REG_GND

XSYS_RST

XVD

XHD

CAM_SO

XCAM_SCK

XCS_LCD

D_3.1V

KEY_AD2

KEY_AD1

KEY_AD0

REG_GND

ACCESS_LED

REG_GND

FR_XRESET

D701

MAZT082H08S0

TO PK-069 BOARD(1/2) CN303

THROUGH THE FP-655 FLEXIBLE

(PAGE 4-9)

SIGNAL PATH

REC

PB

CK-133

4-13 4-14

COVER

For Schematic Diagram

• Refer to page 4-55 for printed wiring board.

4-2. SCHEMATIC DIAGRAMS FU-164 PRINTED WIRING BOARD

MVC-CD350

A

B

C

D

1

FU-164 BOARD(1/3)

CHARGER(FU BLOCK)

XX MARK:NO MOUNT

J901

DC IN

BT901

BATTERY

( )

TERMINAL

S

LND001

CN001

STATIC_GND

CN002

NO MARK:REC/PB MODE R :REC MODE P :PB MODE

C001

XX

3P

1ACV_UNREG

2ACV_GND

3BATT/XEXT

R001

XX

2W

MAZT082H08S0

3P

1BATT_UNREG

2BATT_SIG

3BATT_GND

D001

R002

1k

C002

XX

463

LF001

8107

925

Note : The components identified by mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

MT_UNREG

BL_UNREG

UNREG_3

REG_GND

ST_UNREG

BATT_UNREG

1

2

REG_GND

(2/3)

(3/3)

R003

2W

R006

10

8.3

Q002

HAT1054R-EL

SWITCH

0

8.1

R004

470k

7.9

8.1

D002

MA8120-TX

C003

XX

0

Q001

SSM3K03FE(TPL3)

SWITCH

7.9

2

1

3

4

7.9

R005

1M

R-1.2 P-1.5

8.3

7

8 5

6

0

8.3

D003

1SS357-TPH3

R008

6800

8.3

R007

1k

Q003

2SB1122-ST-TD

CHARGE SW

Q004

UNR32A300LS0

CHARGE SW

0

F001

1.4A/32V

F002

1.4A/32V

F003

1.4A/32V

F004

1.4A/32V

F005

1.4A/32V

C004

XX

B

BATT_SIG

BATT/XEXT

FAST_CHARGE

E

INIT_CHARGE

STATIC

16

4-15 4-16

FU-164 (1/3)

MVC-CD350

COVER

For Schematic Diagram

• Refer to page 4-55 for printed wiring board.

1

25 15 16

4-2. SCHEMATIC DIAGRAMS FU-164 PRINTED WIRING BOARD

810 137

11

129

144 1763

A

B

FU-164 BOARD(2/3)

DC/DC CONVERTER(DD BLOCK)

XX MARK:NO MOUNT

UNREG_3

BL_UNREG

MT_UNREG

(1/3)

1

REG_GND

NO MARK:REC/PB MODE R :REC MODE P :PB MODE

C103

10u 16V

TA

Q101

CPH5815-TL-E

SWITCHING

R6.6

P6.9

C120

1u

Q102

CPH5815-TL-E

SWITCHING

R6.0

C107

C104

10u

16V

TA

C121

P8.2

1u

1.6

1

2

L103

3

8.3

3

8.3

22uH

5

4

5.0

1

2

L104

33uH

5

4

R150

0

C130

4.7u

C131

4.7u

C138

4.7u

R132

R151

0

C140 10u 10V

TA

0

D_1.5V

BL_UNREG1

CAM_P_5V

C

L119 10uH

Q104

R120

20k

VREF

2.5

BC112

4700p

1.0

11

FB412FB3

IC101

CTL1

38

3.2

C111

0.1u

C110

0.47u

R119

33k

±

BC115

10kR116

2200p

1.2

1.0

9

10

-INE4

+INE5

DC/DC

CONVERTER

IC101

REG_3V

VBAT

39

40

±

B

0.5%

1.0

8

41

D

R110

R135

6800

330

LD

RST

RT

CSCP

R112

±

33k

0.5%

±

0.5%

470R113

330p B

1.2

2.5

C105

13

14

15

16

FB2

-INE3

-INE2

+INE2

R0.7/P0.4

FB1

-INE1

-INS8

IN1

IN2

IN3

IN4

IN5

IN6

DIN

CLK

SEL

C106

0.022u B

CS

34VR35

33

2.4

1.2

C108

0.047u

MB44A120APFV-G-BND-ERE1

CDET

GND

36

37

3.1

C109

0.1u

±

0.5%

E

C102

4700p

R109

B

F

0

R144

R101

G

DD_XCS

DD_DATA

DD_SCK

C142

C101

H

(3/3)

3

I

SYS_DD_ON

EVER

2200

0

0R105

R104

R103

0.1u 33k

R106

0.1u

R108

4.7K

0.6

17

1.2

18

19

1.5

20

5.0

21

22

4.6

23

3.2

24

4.8

25

3.2

26

0

27

3.2

28

0

29

0.6

30

0

31

32

R145

XX

J

R124

-INE5

120k

±

0.5%

R125

15k

R122

12k

±

0.5%

BC119

B

15k

0.01u

4700

8200

4700p

R118

C117

0.8

1.6

5

6

7

FB5

-INE6

+INE6

VIN

VOUT

CS

42

43

44

R126

XX

R123

R121

0.4

1.2

2.5

2

3

1

FB74FB6

DTC6

-INE7

R0.8/P0.6

GND0

64

R3.4 P1.6

out7

63

8.2

OUT6

62

5.0

OUT5

61

R3.6 P3.8

OUT4

60

OUT3

59

R6.0 P8.2

OUT2

58

R6.6 P6.9

OUT1

57

8.3

VCC0

56

VCC1

55

LANC_DC

54

SENSE

53

VCONT

DATA_IN

WAKE_UP

52

51

50

49

LANC_SIG

XCTL2

RESET

DATA_OUT

OUTC3

45

46

47

48

3.0

C116

XX

B

0R153

8.3 R0.5

P0.9

0

1.3

R139

XX

R102

0

R138

XX

5%

VRO

CPH5815-TL-E

SWITCHING

R3.6

P3.8

C122

4.7u B

Q105

CPH5815-TL-E

SWITCHING

5.0

C153

1u

Q106

CPH5812-S-TL-E

SWITCHING

8.2

C154

4.7u B

R152

0

SWITCHING

L101 47uH

C123

2.2u B

4.7

1

2

3

5

4

8.3

3.3

1

2

3

5

4

8.3

4.8

L102 22uH

1

2

3

5

4

8.3

Q107

QS5U16TR

C125

2.2u

4.6 7.8

3

4

2

5

1

R3.4 P1.6

C126

2.2u

C124

1u

4

D102

1SS383(T5RSONY1)

L106

33uH

L107

33uH

1SS383(T5RSONY1)

4.6

23

1

23

1

D104

C127

4.7u

D103

1SS383(T5RSONY1)

4

C128

1u

4

1

23

L113

1uH

C156

C157

C133

4.7u

C134

4.7u

L108

0

C135

4.7u

C129

4.7u

C136

2.2u

10u

4.7u

6.3V TA

A

C137

10u 10V

A

TA

L117 10uH

C146

4.7u 25V

B

TA

L116 10uH

C143

2.2u F

L118

10uH

C147

10u 16V

B

TA

R130

6800

R131

100k

Q112

2SC584600LS0

13.5V REG

15.1

14.0

L120 10uH

13.4

C151

2.2u

25V

TA

PANEL_4.6V

D_4.6V

D_3.1V

(3/3)

4

M_4.6V

CAM_15V

CAM_-7.5V

PANEL_-15.3V

PANEL_13.5V

A

REG_GND

16

FU-164 (2/3)

4-17 4-18

COVER

For Schematic Diagram

• Refer to page 4-55 for printed wiring board.

4-2. SCHEMATIC DIAGRAMS FU-164 PRINTED WIRING BOARD

MVC-CD350

B

C

D

E

F

G

D052

D051

MA8082-(K8).S0

FAST_CHARGE

INIT_CHARGE

BATT_SIG

BATT/XEXT

8107

MIC_SIG

1

MIC_GND

2

CN052

6

PRELAMP_LED

5

PRELAMP_LED

4

N.C.

3

N.C.

2

CAM_P_5V

1

CAM_P_5V

CN054

A_4.9V

1

STB_CHG

2

XSTB_FULL

3

STRB_ON

4

STB_UNREG

5

ST_GND

6

925

2PCN053

6P

MIC901

FP-652

FLEXIBLE

TO FLASH UNIT CN054

THROUGH THE FS-144 HARNESS

(PAGE 4-22)

ST_UNREG

STATIC

REG_GND

BATT_UNREG

FAST_CHARGE

INIT_CHARGE

BATT_SIG

BATT/XEXT

MIC

LND001

LND002

)(

(1/3)

2

LED901

(AF LED)

11

1

463

FU-164 BOARD(3/3)

DD CONNECTOR(CNDD BLOCK)

A

XX MARK:NO MOUNT

NO MARK:REC/PB MODE R :REC MODE P :PB MODE

TO SY-087 BOARD(11/11) CN708

THROUGH THE FP-653 FLEXIBLE

(

(PAGE 4-43 of LEVEL3)

16

CN051

51P

GND

EVER

D_3.1V

D_4.6V

D_1.5V

M_4.6V

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

EVER

SYS_DD_ON

DD_SCK

DD_DATA

DD_XCS

R1.9

P0

REG_GND

BL_UNREG1

D_3.1V CAM_15V CAM_-7.5V

PANEL_-15.3V PANEL_13.5V

CAM_P_5V

D_4.6V

PANEL_4.6V

D_1.5V

M_4.6V

5

P5.0

R0

FAST_CHARGE

INIT_CHARGE

BATT_SIG

BATT/XEXT

3

6

3

1

4

(2/3)

R4.9 P0

5.0

(2/3)

2

R0 P5.0

Q051

RN4904FE(TPLR3)

A_4.9V REG

SIGNAL PATH

REC

PB

MAZT082H08S0

AUDIO

SIGNAL

MIC_SIG

MIC_GND

PRELAMP_LED

BL_UNREG1

BATT_UNREG

BL_UNREG1

STB_CHG

XSTB_FULL

STRB_ON

FAST_CHARGE

INIT_CHARGE

BATT_SIG

BATT/XEXT

)

SYS_DD_ON

DD_SCK

DD_DATA

DD_XCS

CAM_DD_ON

REG_GND

CAM_15V

CAM_-7.5V

PANEL_-15.3V

PANEL_13.5V

CAM_P_5V

PANEL_4.6V

4-19 4-20

FU-164 (3/3)

MVC-CD350

COVER

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

1

3256

4

CONTROL SWITCH BLOCK(RS-310)

A

XX MARK:NO MOUNT

(2nd)

1

3

FUNCTION

S001

(SHUTTER)

ON

OFF

2

(1st)

4

/ P/SCN/SET UP/ /

S006

MODE

R004 6800

A

B

5

SET_UP

8

MOVIE

12PCN001

C

TO SY-087 BOARD(11/11) CN711

(PAGE 4-44 of LEVEL3)

D

CONTROL SWITCH BLOCK(RS-310)is replaced as a block.

16

So that this PRINTED WIRING BOARD is omitted.

1XAE_LOCK_SW

2XSHTR_ON

3XSET_UP

4XPB_ON

5MODE_DIAL_2

6MODE_DIAL

7N.C.

8XPOWER_LED

9D_3.1V

10XPOWER_ON

11N.C.

12GND

6

PLAY

A

7

D001

TLGU1008(TO5.SOY)

(POWER)

XPOWER_ON

10

S002

POWER

4

3

2

1

SCENE

P_AUTO

AUTO

R003 3300

R002 2700

B

C

D

1

FP-651

JACK

XX MARK:NO MOUNT

TO SY-087 BOARD(10/11) CN707

(PAGE 4-42 of LEVEL3)

16

FLEXIBLE

12P

3256

12REG_GND

11AU_OUT

10AV_JACK_IN

9VIDEOGND

8V_OUT

7N.C.

6USB_GND

5USB_D+

4USB_VCC

3USB_D-

2VL_3V

1GND

4

LND001 AU_OUT

LND002 AV_JACK_IN

LND003 VIDEOGND

LND004 V_OUT

LND005 USB_GND

LND006 USB_D+

LND007 USB_VCC

LND008 USB_D-

LND009 VL_3V

LND010 GND

5

3 4

2

(SECONDARY)

BT101

LITHIUM BATTERY

CN102

J102

A/V OUT (MONO)

(USB)

Note : The components identified by mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

1

3 102

4

FLASH UNIT

A

B

C

XX MARK:NO MOUNT

TO FU-164 BOARD(3/3) CN054

THROUGH THE

(

FS-144 HARNESS

(PAGE 4-20)

R003

5.6k

Q001

3LN5015

R001

10k

C001

1u

10V

6PCN054

)

1A_4.9V

2STB_CHG

3XSTB_FULL

4STRB_ON

5STB_UNREG

6ST_GND

R002

10k

C002

0.1u

D001

1SS400

R004

10k

D

Q005

DTC114YE

SWITCH

596

R005

C004

820

0.01u

C003 6800p

R010

1k

Q002

DTA143TE

DTA114YE

Q007

Q003

CPH3205-A

R009

510

R011

78

T001

4

1

3

330

C008

0.1u

5

2

Q004 EMG5

R006 2200

D002

HAU160C030

C005

0.1u

C007 135u

R007

100k

C006

0.022u

R008 100k

L001

Q005

CY25BAJ-8F

XENON TUBE

RS-310/FLASH UNIT/FP-651

Q006

3LNS015

E

16

FLASH UNIT is replaced as a block. So that this PRINTED WIRING BOARD is omitted.

Schematic diagram of the SY-087 board are not shown. Pages from 4-23 to 4-44 are not shown.

4-21 4-22

COVER

Link

MVC-CD350

4-3. PRINTED WIRING BOARDS

CD-440 BOARD

PK-069 BOARD (SIDE A)

PK-069 BOARD (SIDE B)

MOUNTED PARTS LOCATION

CK-133 BOARD

FP-651 FLEXIBLE BOARD

FU-164 BOARD

CIRCUIT BOARDS LOCATION

WAVEFORMSCOMMON NOTE FOR PRINTED WIRING BOARDS

FLEXIBLE BOARDS LOCATION

4-3. PRINTED WIRING BOARDS

COVER

4-3. PRINTED WIRING BOARDS

THIS NOTE IS COMMON FOR WIRING BOARDS (In addition to this, the necessary note is printed in each block)

(For printed wiring boards)

•

: Uses unleaded solder.

• : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated)

• Through hole is omitted.

• Circled numbers refer to waveforms.

• There are a few cases that the part printed on diagram

isn’t mounted in this model.

• C: panel designation

BOARD INFORMATION

board name

CD-440

PK-069

CK-133

FP-651 FU-164

SY-087

parts location

(shown on page)

4-67 4-67

– –

4-67

4-68

waveform

(shown on page)

4-65 4-65

4-66

number of layers

– – –

• Chip parts.

Transistor Diode

C

8 4 4 1 4

8

5

5246

EB

31 21

345

pattern

layers not shown

654

123 12

534

2 to 7 2 to 3 2 to 3

–

2 to 3

2 to 7

54

45

21321321

123

312

43

12

21

34

CSP IC

– – – – –

IC252, IC301, IC302, IC501, IC503, IC601, IC807

MVC-CD350

43

12

3

43

12

31

4625

4

3

12

4-45

MVC-CD350

COVER

4-3. PRINTED WIRING BO ARDS

CD-440 (CCD IMAGER) PRINTED WIRING BOARD

CD-440 BOARD(SIDE A)

A

L651

C652

+

B

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

• : Uses unleaded solder.

26

CN651

2

• Refer to page 4-45 for common note for printed wiring board.

CD-440 BOARD(SIDE B)

27

1

MOUNTED PARTS LOCATION

A

9

1

B

C

16

R653

R656

C659

+

B

C660

FB651

R658

R657

Q651

C661

R652

C654

C655

R655

R654

Q652

C657

C651C653

D651

R659

C662

R651

1-686-557-

11 12

3 4

10

C656

11 12

2

IC651

C658

12

1

5

18

TH651

1-686-557-

12

B

C

12

16

4-47 4-48

CD-440

MVC-CD350

COVER

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

PK-069 (LCD DRIVER, TIMING GENERATOR, BACK LIGHT) PRINTED WIRING BOARD

• Refer to page 4-45 for common note for printed wiring board.

PK-069 BOARD(SIDE A)

A

R203

R206

4

R212

C312

C318

C208

D201

C206

IC201

L303

L304

Q203

R205

8

5

Q204

R217

C214 R218

ECB

L201

+

C205

R201 R202

P

IC202

11223

R220

B

C

D

C302

R310

Q304

R354

64

13

R311

R312

D309

R315

C306

C307

C308

7

48

1

6

12

13

C303

R318

5

8

R336

R338

D306

10

R333

1

R331

C332

12

A

C310

48

13

C325

L302

R337

D308

64

R356

C305

L301

R319

L305

R329

R345

C309

R346

C319

R313

R322

R325

R327

R326

C315

R321

R324

R328

C314

P

+

R382

37

36

IC302

9

C317

25

24

D305

+

C323

+

C324

R344

CN304

124

Q302

3

R355

1

Q201

R309

B

ECB

+

C304

R314

IC301

R320

37

36

4

R316 R317

2

1

C321

C320

C322

24

3

CN303

Q202

C202 C207 C209

R204

25

ECB

R207

C313

C316

1

C311

1

C210

R208

B

+

B

2

Q206

C204

445

D202

C203

R219 C215

Q210

ECB

+

C201

B

C212

B

+

C211

Q209

12

53

R216

Q205

R210

R209

R221

R214 R213

Q207

R211

MOUNTED PARTS LOCATION

• : Uses unleaded solder.

CN305

L202

L203

C213

5

3

T201

6

110

16

10

C216

PK-069

38

39

CN201

E

F

S304

RESET

16

4-49 4-50

123456 7

LND301

C301

CN302

12

C331

R351

R350

(OPEN/CLOSE)

1-686-556-

S307S308

11

MVC-CD350

COVER

• Refer to page 4-45 for common note for printed wiring board.

PK-069 BOARD(SIDE B)

D380

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

• : Uses unleaded solder.

D303

R304

Q301

AK

1

2

3

D302

AK

R303

MOUNTED PARTS LOCATION

A

B

S302

LEFT

/

S303

UP

C

R334

R335

R332

1346

R349

R340

64

C330

R341

1

C326

R339

C329

3

Q307

C328

R342

D

R343

64

Q380

13

R380

R381

C327

Q306

E

D304

D307

R308

D301

S309

RIGHT

/

S311

/

S305

R305

R306

R307

S306

DOWN

/

(Image Size

S310

MENU

R383

S301

DISPLAY

ON/OFF

/DELETE)

1-686-556-

11

F

1234567

16

4-51 4-52

PK-069

MVC-CD350

J102 A/V OUT (MONO)

CN102

USB

BT101

(LITHIUM BATTERY)

FP-651 FLEXIBLE BOARD

1-686-566-

11

COVER

CK-133 (ZOOM SW) PRINTED WIRING BOARD FP-651 (JACK) FLEXIBLE BOARD

CK-133 BOARD(SIDE A)

2

1

CN702

16

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

• : Uses unleaded solder.

• Refer to page 4-45 for common note for printed wiring board.

MOUNTED PARTS LOCATION

CK-133 BOARD(SIDE B)

40

39

CN701

2

1

40

39

R701

D701

LND701

FB701

1-686-559-

11

16

S702

T

ZOOM (INDEX)

W

S701

1-686-559-

11

CK-133/FP-651

CAUTION :

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

4-53 4-54

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

COVER

4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS

FU-164 (CHARGER, DC/DC CONVERTER, DD CONNECTOR) PRINTED WIRING BOARD

• Refer to page 4-45 for common note for printed wiring board.

MVC-CD350

• : Uses unleaded solder.

A

B

C

D

FU-164 BOARD(SIDE A)

1

CN001

3

C133

C122

53

Q104

12

L106

L119

L113

C157

C120

12

Q101

L103

R150

C154

12

35

C130

C138

Q106

L102

L108

+

LF001

+

B

C121

12

35

C135

A

C137

Q102

L104

R151

+

LND001

CN053

16

CN052

56

Q002

14

F002

+

C104

B

351235

C131

A

C140

F001

C153

C103

Q105

L107

F003

+

B

F004

C107

C123

L101

C134

12

C004

R152

CN054

16

3

CN002

1

F005

51

CN051

250

1

1-686-558- 11

FU-164 BOARD(SIDE B)

D052

D051

D001

Q001

R005

L117

+

1

2

3

C125

B

C147

+

4

6

Q051

3

1

C146

C003

R004

4

1

D104

B

C127

4

5

R002

D002

3

2

Q107

L118

R131

C129

3

1

C124

Q112

R130

Q004

D003

C143

2

Q003

1

L116

C136

L120

3

C126

D102

R008

R007

D103

C128

+

C151

R003

R006

A

C102 R109 R144 R101 R103 R105 R104

R108 C142 R106 C101

C001

C002

R001

C110

R110

R135

R126

R112

R119

R120

R124

R113

C105

16

17

C112

R116

C115

R118

C117

R121

IC101

32 49

33

C111

C106

C108

C109

R145

R123

C119

1

48

C116

R125

64

R122

R132

R102

R138

A

C156

+

1-686-558-

C158 R153

R139

A

B

C

D

11

16

123 4

1234

16

Printed wiring board of the SY-087 board are not shown. Pages from 4-57 to 4-64 are not shown.

4-55 4-56

FU-164

COVER

4-4. WAVEFORMS

CD-440 BOARD PK-069 BOARD (SIDE A) PK-069 BOARD (SIDE B)

MVC-CD350

CD-440

1

IC651 1,2,3

124 us

2

IC651 4-8

124 us

3

IC651 0

BOARD

7.4 Vp-p

7.5 Vp-p

PK-069

1

IC301 w;

2H

2

IC301 ws

2H

3

IC301 wf

BOARD

3.5 Vp-p

6

IC301 rj

7

IC301 rk

8

IC302 1

380m Vp-p

H

460m Vp-p

H

124 us

4

IC651 qs

5

IC651 qj,qk

41.1 ns

750m Vp-p

3.4 Vp-p

3.6 Vp-p

4

5

2H

IC301 wj

2H

IC301 rh

3.3 Vp-p

4.1 Vp-p

6.5 Vp-p

360m Vp-p

H

9

0

H

IC302 wh

3.4 Vp-p

85 ns

IC302 rk

3.3 Vp-p

V

4-65

CD-440/PK-069

Wa veforms of the SY-087 board are not shown. Page 4-66 is not shown.

COVER

4-3. PRINTED WIRING BOARDS

MVC-CD350

4-5. MOUNTED PARTS LOCATION

CD-440 BOARD

C651 C-2 C652 A-1 C653 C-2 C654 C-2 C655 C-2

* C656 C-2

C657 B-2

* C658 C-2

C659 B-2 C660 C-1 C661 C-1 C662 B-2

CN651 A-2

D651 C-2

FB651 C-1

* IC651 B-2

L651 A-1

Q651 C-1 Q652 B-2

R651 C-2 R652 C-1 R653 B-2 R654 C-2 R655 C-2 R656 B-2 R657 C-1 R658 C-1 R659 B-2

* TH651 C-1

PK-069 BOARD

C201 B-5 C202 B-3 C203 B-4 C204 C-4 C205 C-4 C206 B-4 C207 B-3 C208 B-4 C209 B-3 C210 C-3 C211 B-5 C212 B-5 C213 C-5 C214 D-4 C215 D-4 C216 D-5 C301 E-6 C302 B-3 C303 B-3 C304 B-3 C305 B-2 C306 C-3 C307 C-3 C308 C-3 C309 C-2 C310 C-1 C311 C-3 C312 C-3 C313 C-3 C314 C-2 C315 C-2 C316 C-3 C317 C-2 C318 C-3 C319 C-2 C320 D-3 C321 D-3 C322 D-3 C323 D-1 C324 D-1 C325 D-1

* C326 D-1 * C327 D-2 * C328 D-1 * C329 D-1 * C330 D-1

C331 F-7 C332 B-1

CN201 E-5 CN302 E-7 CN303 D-3 CN304 E-2 CN305 B-6

D201 C-4 D202 D-4

* D301 E-6 * D302 A-4 * D303 A-5 * D304 E-6

D305 C-2 D306 D-1

* D307 E-6

D308 B-2 D309 B-3

* D380 B-5

IC201 B-4 IC202 D-4 IC301 C-3 IC302 C-1

L201 B-4 L202 B-5 L203 B-5 L301 B-2 L302 B-1

* Q301 A-5

* Q306 D-2 * Q307 D-1 * Q380 D-4

* R303 A-4 * R304 A-5 * R305 F-7 * R306 F-7 * R307 F-6 * R308 F-6

* R332 C-1

* R334 C-1 * R335 C-2

* R339 D-1 * R340 D-1 * R341 D-2 * R342 D-1

L303 C-4 L304 C-4 L305 C-2

Q201 B-3 Q202 B-3 Q203 B-4 Q204 C-4 Q205 D-5 Q206 B-4 Q207 D-4 Q209 C-5 Q210 D-4

Q302 B-3 Q304 B-2

R201 B-4 R202 B-4 R203 B-4 R204 C-3 R205 B-4 R206 B-4 R207 C-3 R208 C-3 R209 D-4 R210 D-5 R211 D-5 R212 C-4 R213 D-5 R214 D-5 R216 C-5 R217 D-4 R218 D-4 R219 D-4 R220 D-4 R221 D-4

R309 B-3 R310 B-3 R311 B-3 R312 B-2 R313 B-2 R314 B-3 R315 B-3 R316 C-3 R317 C-3 R318 C-3 R319 C-2 R320 B-3 R321 C-2 R322 C-2 R324 C-2 R325 C-2 R326 C-2 R327 C-2 R328 C-2 R329 C-2 R331 C-1

R333 C-1

R336 C-1 R337 D-1 R338 D-1

* R343 D-1

R344 D-2 R345 D-2 R346 D-2

* R349 D-1

R350 F-7 R351 F-7 R354 B-2 R355 B-3 R356 B-2

* R380 D-4 * R381 E-4

R382 C-2

* R383 F-5

* S301 F-4 * S302 F-7 * S303 E-7

S304 F-3

* S305 F-7 * S306 F-7

S307 F-7 S308 F-7

* S309 F-6 * S310 F-5 * S311 F-3

T201 C-5

FU-164 BOARD

* C001 B-2 * C002 B-2 * C003 A-4

C004 B-4

* C101 C-2 * C102 C-2

C103 B-3 C104 B-2

* C105 B-2 * C106 D-2

C107 B-3

* C108 D-2 * C109 D-2 * C110 B-2 * C111 D-2 * C112 B-2 * C115 B-2 * C116 D-1 * C117 B-2 * C119 B-1

C120 C-2 C121 C-3 C122 C-1 C123 B-3

* C124 C-3 * C125 B-4 * C126 B-3 * C127 B-3 * C128 C-3 * C129 B-3

C130 D-2 C131 D-3 C133 D-1 C134 C-3 C135 D-2

* C136 B-3

C137 D-2 C138 D-2 C140 D-3

* C142 C-2 * C143 B-3 * C146 B-4 * C147 C-4 * C151 C-3

C153 C-3 C154 C-2

* C156 D-1

C157 D-1

* C158 C-1

CN001 B-2 CN002 B-4 CN051 C-4 CN052 A-3 CN053 A-3 CN054 A-4

* D001 A-4 * D002 B-3 * D003 B-3 * D051 A-4 * D052 A-4 * D102 C-3 * D103 B-3 * D104 B-4

F001 B-3 F002 B-3 F003 B-3 F004 B-3 F005 B-4

* IC101 C-2

L101 C-3 L102 C-2 L103 C-1 L104 C-3

L106 C-1 L107 C-3 L108 D-2 L113 D-1

* L116 B-3 * L117 B-4 * L118 C-3

L119 D-1

* L120 C-3

LF001 B-2

* Q001 B-4

Q002 B-3

* Q003 A-3 * Q004 B-3 * Q051 B-4

Q101 C-2 Q102 C-3 Q104 C-1 Q105 C-3 Q106 C-2

* Q107 C-3 * Q112 C-3

* R001 B-2 * R002 A-3 * R003 A-3 * R004 B-4 * R005 B-4 * R006 A-3 * R007 B-3 * R008 B-3 * R101 C-2 * R102 C-1 * R103 C-2 * R104 C-2 * R105 C-2 * R106 C-2 * R108 C-2 * R109 C-2 * R110 B-2 * R112 B-2 * R113 B-2 * R116 B-2 * R118 B-2 * R119 B-2 * R120 B-2 * R121 B-1 * R122 B-1 * R123 B-1 * R124 B-1 * R125 B-1 * R126 B-2 * R130 C-3 * R131 C-3 * R132 C-1 * R135 B-2 * R138 C-1 * R139 C-1 * R144 C-2 * R145 D-1

R150 D-2 R151 D-3 R152 B-4

* R153 C-1

no mark : side A * mark : side B

Mounted parts location of the SY-087 board is not shown. Page 4-68 is not shown.

4-67E

CD-440/PK-069/FU-164

MVC-CD350

LENS SECTION

COVER

NOTE

5. REPAIR PARTS LIST

NOTE: Characters A to Z of the electrical parts list indicate location of exploded views in which the desired part is shown.

Link

OVERALL SECTION

CABINET (REAR)

SECTION

Link

C

EXPLODED VIEWS

0

4

-4

D

C

AB

CABINET (FRONT)

SECTION

ELECTRICAL PARTS LIST

SIDE CABINET(S), SIDE

CABINET(U) SECTION

ACCESSORIES

PK-069 BOARD

B

C

CK-133 BOARD FU-164 BOARDCD-440 BOARD

CA

5. REPAIR PARTS LIST

COVER

NOTE:

• -XX, -X mean standardized parts, so they may have some differences from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• The mechanical parts with no reference number in the exploded views are not supplied.

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• CAPACITORS: uF: µF

• COILS uH: µH

• RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable

• SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD...

5. REPAIR PARTS LIST

MVC-CD350

When indicating parts by reference number, please include the board name.

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

5-1

COVER

DDX-G3000 complete section (See page 5-8 of Level3)

Cabinet (rear) section (See page 5-7)

Cabinet (front) section (See page 5-4)

Side cabinet (U) section (See page 5-6)

1

4

2

5

6

7

3

5

8

2

A

B

SY-087

Side cabinet (S) section (See page 5-6)

9

COVER

5-1. EXPLODED VIEWS

5-1-1. OVERALL SECTION

ns : not supplied

5. REPAIR PARTS LIST

MVC-CD350

Ref. No. Part No. Description Ref. No. Part No. Description

1 3-073-661-21 LID, CPC 2 3-080-221-11 SCREW (M2), ES LOCK 3 3-078-889-21 SCREW (M1.7) 4 3-078-890-21 SCREW, TAPPING 5 3-080-222-31 SCREW(M1.7), TAPPING, P2

6 3-084-095-01 CUSHION, CD FLEXIBLE 7 1-400-471-11 CORE, FERRITE 8 3-082-802-01 COVER, JACK 9 3-084-648-01 SHEET, PROTECTION, LENS FLEXIBLE

5-3

MVC-CD350

COVER

5-1-2. CABINET (FRONT) SECTION

ns : not supplied

60

66

58

59

61

ns

5. REPAIR PARTS LIST

ns

D

ns

62

69

70

E

56

BT901

72

73

51

ns

A

ns

53

52

64

71

B

56

54

LED901

55

75

C

63

A

D

56

57

56

MIC901

C

FU-164

68

J901

Lens section (See page 5-5)

B

CD-440

E

74

65

67

75

Ref. No. Part No. Description Ref. No. Part No. Description

0 51 1-477-818-31 FLASH UNIT

52 1-962-178-11 HARNESS (FS-144) 53 3-083-690-01 CUSHION, MICROPHONE 54 3-082-830-01 RETAINER, MICROPHONE 55 1-686-567-11 FP-652 FLEXIBLE BOARD

56 3-078-890-21 SCREW, TAPPING 57 3-060-274-01 SCREW, TRIPOD 58 3-082-827-01 SHEET, ADHESIVE, NAME RING 59 3-082-821-01 SCREW, FILTER 60 X-3953-386-1 CABINET (F) ASSY

* 61 4-942-636-01 EMBLEM (NO.3.5), SONY

62 X-3953-385-1 HOLDER ASSY, BATTERY 63 3-080-221-11 SCREW (M2), ES LOCK 64 3-084-318-01 CUSHION (2), MICROPHONE 65 1-686-568-11 FP-653 FLEXIBLE BOARD

66 3-082-822-01 RING, NAME 67 3-082-831-01 SHEET, FU 68 A-7078-666-A FU-164 BOARD COMPLETE 69 3-073-601-21 FOOT, RUBBER 70 3-969-380-01 SPRING, BATTERY

71 3-083-934-01 SHEET, SHIELD, ST 72 3-084-587-01 SHEET (1), ST ELECTROSTATIC 73 3-084-588-01 SHEET (2), ST ELECTROSTATIC 74 3-080-222-11 SCREW(M1.7), TAPPING, P2 75 3-080-222-21 SCREW(M1.7), TAPPING, P2

BT901 1-694-654-11 TERMINAL BOARD, BATTERY J901 1-794-045-61 CONNECTOR, DC-IN LED901 6-500-505-01 DIODE OP5052 (LASER UNIT) MIC901 1-542-312-11 MICROPHONE

Note : The components identified by mark 0 or dotted

5-4

line with mark 0 are critical for safety. Replace only with part number specified.

COVER

5-1-3. LENS SECTION

ns : not supplied

5. REPAIR PARTS LIST

MVC-CD350

101

102

103

101

104

IC651

105

ns

CD-440

106

108

107

Be sure to read “Precautions upon replacing CCD imager” on page 4-7 when changing the CCD imager.

Ref. No. Part No. Description Ref. No. Part No. Description

101 3-078-890-21 SCREW, TAPPING 102 3-082-823-01 FRAME, LENS 103 1-758-620-11 LENS, ZOOM (DE01) 104 1-758-916-11 FILTER BLOCK, OPTICAL 105 3-082-632-01 RUBBER (DG), CCD SEAL

106 3-082-825-01 HEAT SINK, CD 107 A-7078-665-A CD-440 BOARD COMPLETE 108 3-080-222-31 SCREW(M1.7), TAPPING, P2 IC651 A-7016-549-A CCD BLOCK ASSY (CCD IMAGER)

5-5

MVC-CD350

5. REPAIR PARTS LIST

COVER

5-1-4. SIDE CABINET (S) SECTION, SIDE CABINET (U) SECTION

ns : not supplied

156

5. REPAIR PARTS LIST

154

151

155

ns

153

J102

151

157

BT101

152

CN102

: BT101 (Lithium battery) FP-651 flexible board on the mount position. (See page 4-53)

151

Ref. No. Part No. Description Ref. No. Part No. Description

151 3-078-890-21 SCREW, TAPPING 152 1-686-566-11 FP-651 FLEXIBLE BOARD (JACK) 153 3-082-801-01 SHEET METAL, STRAP 154 X-3953-384-1 CABINET (S) ASSY, SIDE 155 1-477-648-11 SWITCH BLOCK, CONTROL (RS-310)

156 X-3953-383-1 CABINET (U) ASSY, SIDE 157 3-084-350-01 SHEET, JACK CN102 1-794-962-11 CONNECTOR, SQUARE TYPE (USB 5P) J102 1-569-950-31 JACK (SMALL TYPE) (A/V OUT (MONO))

5-6

COVER

5-1-5. CABINET (REAR) SECTION

ns : not supplied

5. REPAIR PARTS LIST

MVC-CD350

211

ns

207

A

ns

204

ns

206

203

ns

LCD901

202

A

B

S901

205

ND901

SP901

ns

207

PK-069

208

B

ns

209

207

201

Ref. No. Part No. Description Ref. No. Part No. Description

201 1-686-570-11 FP-655 FLEXIBLE BOARD 202 A-7078-668-A CK-133 BOARD COMPLETE 203 3-078-889-21 SCREW (M1.7) 204 X-3953-381-1 CABINET (REAR) ASSY 205 1-686-885-11 FP-683 FLEXIBLE BOARD

206 3-073-601-21 FOOT, RUBBER 207 3-080-222-11 SCREW(M1.7), TAPPING, P2 208 A-7078-667-A PK-069 BOARD COMPLETE

209 X-3953-382-1 LID ASSY, REAR, CD 210 3-080-222-31 SCREW(M1.7), TAPPING, P2 211 3-068-457-01 SHAFT, STRAP LCD901 1-805-137-51 INDICATOR MODULE LIQUID CRYST

0 ND901 1-518-725-41 TUBU, FLUORESCENT, COLD CATHODE

S901 1-454-988-11 SOLENOID, PLUNGER (DOOR LOCK) SP901 1-825-261-21 LOUD SPEAKER (1.6CM)

Note : The components identified by mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

210

Exploded view and parts list of DDXG3000 COMPLETE ASSEMBLY are not shown. Page 5-8 and 5-9 are not shown.

5-7

MVC-CD350

CD-440 CK-133 FU-164

5-2. ELECTRICAL PARTS LIST

Ref. No. Part No. Description Ref. No. Part No. Description

A-7078-665-A CD-440 BOARD, COMPLETE

*********************

(IC651 is not included in this COMPLETE board)

< CAPACITOR >

C651 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C652 1-113-992-11 TANTAL. CHIP 3.3uF 20% 35V C653 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C654 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C655 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

CN701 1-817-474-11 CONNECTOR, FFC/FPC (ZIF) 40P CN702 1-817-474-11 CONNECTOR, FFC/FPC (ZIF) 40P

D701 8-719-075-15 DIODE MAZT082H08S0

A-7078-668-A CK-133 BOARD, COMPLETE

*********************

< CONNECTOR >

< DIODE >

C656 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C657 1-164-850-11 CERAMIC CHIP 10PF 0.50PF 50V C658 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C659 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C660 1-119-751-11 TANTAL. CHIP 22uF 20% 16V

C661 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V

< CONNECTOR >

CN651 1-784-421-11 CONNECTOR, FFC/FPC (ZIF) 27P

< DIODE >

D651 8-719-066-45 DIODE MA132WA-(K8).SO

< FERRITE BEAD >

FB651 1-414-228-11 FERRITE 0UH

< IC >

IC651 A-7016-549-A CCD BLOCK ASSY (CCD IMAGER)

< COIL >

L651 1-469-528-91 INDUCTOR 100uH

< TRANSISTOR >

Q651 6-550-234-01 TRANSISTOR UNR32A300LS0 Q652 8-729-050-22 TRANSISTOR 2SC4250(T5LSONY1)

< RESISTOR >

R651 1-218-977-11 RES-CHIP 100K 5% 1/16W R652 1-218-960-11 RES-CHIP 3.9K 5% 1/16W R653 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R654 1-218-989-11 RES-CHIP 1M 5% 1/16W R655 1-218-990-11 SHORT CHIP 0

R656 1-218-937-11 RES-CHIP 47 5% 1/16W R657 1-218-990-11 SHORT CHIP 0 R658 1-218-990-11 SHORT CHIP 0 R659 1-218-990-11 SHORT CHIP 0

< THERMISTOR >

TH651 1-810-816-11 THERMISTOR, NTC (1608)

************************************************************

Be sure to read “Precautions upon replacing CCD imager” on page 4-7 when changing the CCD imager.

< FERRITE BEAD >

FB701 1-414-228-11 FERRITE 0UH

< RESISTOR >

R701 1-218-954-11 RES-CHIP 1.2K 5% 1/16W

< SWITCH >

S701 1-771-138-82 SWITCH, KEY BOARD (ZOOM W) S702 1-771-138-82 SWITCH, KEY BOARD (ZOOM T)

************************************************************

A-7078-666-A FU-164 BOARD, COMPLETE

*********************

< CAPACITOR >

C003 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C101 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C102 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C103 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C104 1-104-913-11 TANTAL. CHIP 10uF 20% 16V

C105 1-164-934-11 CERAMIC CHIP 330PF 10% 50V C106 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C107 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C108 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V C109 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V

C110 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C111 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C112 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C115 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C117 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V

C119 1-164-943-11 CER AMIC CHIP 0.01uF 10% 16V C120 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C121 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C122 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C123 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V

C124 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C125 1-127-861-11 CERAMIC CHIP 2.2uF 10% 16V C126 1-127-861-11 CERAMIC CHIP 2.2uF 10% 16V C127 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C128 1-109-982-11 CERAMIC CHIP 1uF 10% 10V

C129 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C130 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C131 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C133 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C134 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V

5-10

Ref. No. Part No. Description Ref. No. Part No. Description

C135 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C136 1-164-505-11 CERAMIC CHIP 2.2uF 16V C137 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C138 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C140 1-104-851-11 TANTAL. CHIP 10uF 20% 10V

LF001 1-411-957-11 FILTER, COMMON MODE

< LINE FILTER >

< TRANSISTOR >

MVC-CD350

FU-164

C142 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C143 1-164-505-11 CERAMIC CHIP 2.2uF 16V C146 1-113-987-11 TANTAL. CHIP 4.7uF 20% 25V C147 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C151 1-113-986-11 TANTAL. CHIP 2.2uF 20% 25V

C153 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C154 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C156 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C157 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V

< CONNECTOR >

* CN001 1-580-056-21 PIN, CONNECTOR (SMD) 3P * CN002 1-580-056-21 PIN, CONNECTOR (SMD) 3P

CN051 1-784-424-21 CONNECTOR, FFC/FPC (ZIF) 51P CN052 1-691-370-11 CONNECTOR, FFC/FPC 6P

* CN053 1-580-055-21 PIN, CONNECTOR (SMD) 2P

CN054 1-778-508-21 PIN, CONNECTOR (PC BOARD) 6P

< DIODE >

D001 8-719-075-15 DIODE MAZT082H08S0 D002 8-719-158-49 DIODE MA8120-TX D003 8-719-027-76 DIODE 1SS357-TPH3 D051 8-719-073-03 DIODE MA8082-(K8).S0 D052 8-719-075-15 DIODE MAZT082H08S0

Q001 8-729-047-68 TRANSISTOR SSM3K03FE(TPL3) Q002 8-729-051-49 TRANSISTOR HAT1054R-EL Q003 8-729-804-41 TRANSISTOR 2SB1122-ST-TD Q004 6-550-234-01 TRANSISTOR UNR32A300LS0 Q051 6-550-179-01 TRANSISTOR RN4904FE(TPLR3)

Q101 6-550-405-01 TRANSISTOR CPH5815-TL-E Q102 6-550-405-01 TRANSISTOR CPH5815-TL-E Q104 6-550-405-01 TRANSISTOR CPH5815-TL-E Q105 6-550-405-01 TRANSISTOR CPH5815-TL-E Q106 6-550-351-01 TRANSISTOR CPH5812-S-TL-E

Q107 6-550-407-01 TRANSISTOR QS5U16TR Q112 6-550-237-01 TRANSISTOR 2SC584600LS0

< RESISTOR >

R002 1-218-953-11 RES-CHIP 1K 5% 1/16W R003 1-216-864-11 METAL CHIP 0 5% 1/16W R004 1-218-985-11 RES-CHIP 470K 5% 1/16W R005 1-218-989-11 RES-CHIP 1M 5% 1/16W R006 1-216-150-91 RES-CHIP 10 5% 1/8W

R007 1-218-953-11 RES-CHIP 1K 5% 1/16W R008 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R101 1-218-990-11 SHORT CHIP 0 R102 1-218-990-11 SHORT CHIP 0 R103 1-218-990-11 SHORT CHIP 0

D102 8-719-081-19 DIODE 1SS383(T5RSONY1) D103 8-719-081-19 DIODE 1SS383(T5RSONY1) D104 8-719-081-19 DIODE 1SS383(T5RSONY1)

< FUSE >

0 F001 1-576-406-21 FUSE 1.4A/32V 0 F002 1-576-406-21 FUSE 1.4A/32V 0 F003 1-576-406-21 FUSE 1.4A/32V 0 F004 1-576-406-21 FUSE 1.4A/32V 0 F005 1-576-406-21 FUSE 1.4A/32V

< IC >

IC101 6-703-429-01 IC MB44A120APFV-G-BND-ERE1

< COIL >

L101 1-419-881-11 INDUCTOR 47uH L102 1-416-669-11 INDUCTOR 22uH L103 1-416-669-11 INDUCTOR 22uH L104 1-416-670-11 INDUCTOR 33uH L106 1-416-670-11 INDUCTOR 33uH

L107 1-416-670-11 INDUCTOR 33uH L108 1-216-295-91 SHORT CHIP 0 L113 1-469-966-21 INDUCTOR 1uH L116 1-469-967-21 INDUCTOR 10uH L117 1-469-967-21 INDUCTOR 10uH

R104 1-218-990-11 SHORT CHIP 0 R105 1-218-990-11 SHORT CHIP 0 R106 1-218-971-11 RES-CHIP 33K 5% 1/16W R108 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R109 1-218-957-11 RES-CHIP 2.2K 5% 1/16W

R110 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W R112 1-208-719-11 METAL CHIP 33K 0.5% 1/16W R113 1-218-949-11 RES-CHIP 470 5% 1/16W R116 1-218-965-11 RES-CHIP 10K 5% 1/16W R118 1-218-964-11 RES-CHIP 8.2K 5% 1/16W

R119 1-208-719-11 METAL CHIP 33K 0.5% 1/16W R120 1-220-198-11 RES-CHIP 20K 5% 1/16W R121 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R122 1-208-709-11 METAL CHIP 12K 0.5% 1/16W R123 1-218-967-11 RES-CHIP 15K 5% 1/16W

R124 1-218-978-11 METAL CHIP 120K 0.5% 1/16W R125 1-218-967-11 RES-CHIP 15K 5% 1/16W R130 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R131 1-218-977-11 RES-CHIP 100K 5% 1/16W R132 1-218-990-11 SHORT CHIP 0

R135 1-208-671-11 METAL CHIP 330 0.5% 1/16W R144 1-218-990-11 SHORT CHIP 0 R150 1-216-295-91 SHORT CHIP 0 R151 1-216-295-91 SHORT CHIP 0 R152 1-218-990-11 SHORT CHIP 0

L118 1-469-967-21 INDUCTOR 10uH L119 1-469-555-21 INDUCTOR 10uH L120 1-469-967-21 INDUCTOR 10uH

R153 1-218-990-11 SHORT CHIP 0

************************************************************

Note : The components identified by mark 0 or dotted

5-11

line with mark 0 are critical for safety. Replace only with part number specified.

MVC-CD350

PK-069

Ref. No. Part No. Description Ref. No. Part No. Description

A-7078-667-A PK-069 BOARD, COMPLETE

*********************

< CAPACITOR >

D305 8-719-084-47 DIODE 1SV290(TPL3) D306 8-719-073-01 DIODE MA111-(K8).S0 D307 8-719-075-15 DIODE MAZT082H08S0 D380 8-719-988-61 DIODE 1SS355TE-17

C201 1-119-751-11 TANTAL. CHIP 22uF 20% 16V C202 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C203 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C204 1-113-600-11 TANTAL. CHIP 2.2uF 20% 6.3V C205 1-164-505-11 CERAMIC CHIP 2.2uF 16V

C206 1-164-856-81 CERAMIC CHIP 18PF 5% 50V C207 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C208 1-164-860-11 CERAMIC CHIP 27PF 5% 50V C209 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C211 1-113-682-11 TANTAL. CHIP 33uF 20% 10V

C212 1-115-156-11 CERAMIC CHIP 1uF 10V C213 1-164-657-11 CERAMIC CHIP 0.015uF 10% 50V C214 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C215 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V

0C216 1-100-371-11 CERAMIC CHIP 12PF 5% 3.15KV

C301 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C303 1-128-964-91 TANTAL. CHIP 100uF 20% 6.3V C304 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C305 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C306 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V

C307 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C308 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C309 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C310 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C312 1-113-987-11 TANTAL. CHIP 4.7uF 20% 25V

C313 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C314 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C315 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C316 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C317 1-164-870-11 CERAMIC CHIP 68PF 5% 50V

C318 1-128-964-91 TANTAL. CHIP 100uF 20% 6.3V C319 1-164-357-11 CERAMIC CHIP 0.001uF 5% 50V C320 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C321 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C322 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C323 1-113-994-11 TANTAL. CHIP 6.8uF 20% 16V C324 1-135-177-21 TANTALUM CHIP 1uF 20% 20V C327 1-127-573-11 CERAMIC CHIP 1uF 10% 16V C328 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C329 1-127-573-11 CERAMIC CHIP 1uF 10% 16V

C330 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C331 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V

< IC >

IC201 8-759-521-35 IC TL5001CDR IC202 8-759-710-82 IC NJM2406F-TE2 IC301 6-702-491-01 IC AN12580A-BB IC302 8-759-714-77 IC LZ9FF474

< COIL >

L201 1-414-753-91 INDUCTOR 4.7uH L202 1-424-674-11 INDUCTOR 22uH L203 1-428-878-11 INDUCTOR 82uH L301 1-412-963-11 INDUCTOR 100uH L302 1-469-525-91 INDUCTOR 10uH

L303 1-469-525-91 INDUCTOR 10uH L304 1-469-528-91 INDUCTOR 100uH L305 1-412-949-21 INDUCTOR 6.8uH

< TRANSISTOR >

Q201 8-729-042-72 TRANSISTOR UN9214J-(K8).SO Q202 8-729-042-59 TRANSISTOR UN9112J-(K8).SO Q203 8-729-037-52 TRANSISTOR 2SD2216J-QR(K8).SO Q204 6-550-234-01 TRANSISTOR UNR32A300LS0 Q205 8-729-053-58 TRANSISTOR RN1904FE(TPLR3)

Q206 8-729-823-84 TRANSISTOR FP102-TL Q207 8-729-053-52 TRANSISTOR N1C01FE-Y/GR(TPLR3) Q209 6-550-065-01 TRANSISTOR CPH5504-TL-E Q210 8-729-042-59 TRANSISTOR UN9112J-(K8).SO Q301 6-550-234-01 TRANSISTOR UNR32A300LS0

Q304 6-550-016-01 TRANSISTOR UMF5NTR Q307 8-729-054-48 TRANSISTOR N1B04FE-Y/GR(TPLR3) Q380 6-550-016-01 TRANSISTOR UMF5NTR

< RESISTOR >

R201 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W R202 1-218-970-11 METAL CHIP 27K 0.5% 1/16W R203 1-218-950-11 RES-CHIP 560 5% 1/16W R204 1-218-978-11 METAL CHIP 120K 0.5% 1/16W R205 1-218-969-11 RES-CHIP 22K 5% 1/16W

R206 1-218-950-11 RES-CHIP 560 5% 1/16W R207 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R208 1-208-707-11 METAL CHIP 10K 0.5% 1/16W R209 1-208-689-11 METAL CHIP 1.8K 0.5% 1/16W R210 1-208-695-11 METAL CHIP 3.3K 0.5% 1/16W

< CONNECTOR >

CN201 1-764-709-11 CONNECTOR, FFC/FPC (LIF) 10P CN302 1-778-506-21 PIN, CONNECTOR (PC BOARD) 2P CN303 1-784-423-21 CONNECTOR, FFC/FPC (ZIF) 39P

* CN304 1-774-261-11 CONNECTOR, FFC (ZIF) 24P

CN305 1-766-336-21 CONNECTOR, FFC/FPC 6P

< DIODE >

D202 8-719-073-01 DIODE MA111-(K8).S0 D301 8-719-075-15 DIODE MAZT082H08S0 D302 8-719-070-91 DIODE TLSU1008(T05,SOY) D303 8-719-070-93 DIODE TLAU1008(T05,SOY) D304 8-719-075-15 DIODE MAZT082H08S0

R211 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R212 1-218-973-11 RES-CHIP 47K 5% 1/16W R213 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R214 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R216 1-216-055-00 METAL CHIP 1.8K 5% 1/10W

R217 1-218-977-11 RES-CHIP 100K 5% 1/16W R218 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R219 1-218-969-11 RES-CHIP 22K 5% 1/16W R220 1-218-949-11 RES-CHIP 470 5% 1/16W R221 1-218-942-11 RES-CHIP 120 5% 1/16W

Note : The components identified by mark 0 or dotted

5-12

line with mark 0 are critical for safety. Replace only with part number specified.

Ref. No. Part No. Description Ref. No. Part No. Description

R303 1-218-951-11 RES-CHIP 680 5% 1/16W R304 1-218-949-11 RES-CHIP 470 5% 1/16W R305 1-218-954-11 RES-CHIP 1.2K 5% 1/16W R306 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R307 1-218-954-11 RES-CHIP 1.2K 5% 1/16W

Electrical parts list of the SY-087 board

A-7078-724-A SY-087 BOARD, COMPLETE (SERVICE)

*******************************

are not shown.

R308 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R311 1-218-990-11 SHORT CHIP 0 R312 1-218-977-11 RES-CHIP 100K 5% 1/16W R313 1-218-970-11 RES-CHIP 27K 5% 1/16W R314 1-218-990-11 SHORT CHIP 0

R316 1-218-985-11 RES-CHIP 470K 5% 1/16W R317 1-218-980-11 RES-CHIP 180K 5% 1/16W R318 1-208-935-11 METAL CHIP 100K 0.5% 1/16W R319 1-218-953-11 RES-CHIP 1K 5% 1/16W R321 1-218-958-11 RES-CHIP 2.7K 5% 1/16W

R322 1-218-973-11 RES-CHIP 47K 5% 1/16W R324 1-218-975-11 RES-CHIP 68K 5% 1/16W R325 1-218-969-11 RES-CHIP 22K 5% 1/16W R326 1-218-975-11 RES-CHIP 68K 5% 1/16W R327 1-218-989-11 RES-CHIP 1M 5% 1/16W

Pages from 5-14 to 5-19 are not shown.

************************************************************

MVC-CD350

PK-069

R328 1-218-977-11 RES-CHIP 100K 5% 1/16W R329 1-218-989-11 RES-CHIP 1M 5% 1/16W R333 1-218-990-11 SHORT CHIP 0 R334 1-218-990-11 SHORT CHIP 0 R337 1-218-965-11 RES-CHIP 10K 5% 1/16W

R340 1-218-973-11 RES-CHIP 47K 5% 1/16W R341 1-218-989-11 RES-CHIP 1M 5% 1/16W R344 1-218-941-81 RES-CHIP 100 5% 1/16W R345 1-218-941-81 RES-CHIP 100 5% 1/16W R346 1-218-941-81 RES-CHIP 100 5% 1/16W

R349 1-218-990-11 SHORT CHIP 0 R350 1-218-953-11 RES-CHIP 1K 5% 1/16W R351 1-218-989-11 RES-CHIP 1M 5% 1/16W R354 1-218-965-11 RES-CHIP 10K 5% 1/16W R380 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R381 1-218-977-11 RES-CHIP 100K 5% 1/16W R382 1-218-990-11 SHORT CHIP 0 R383 1-218-959-11 RES-CHIP 3.3K 5% 1/16W

< SWITCH >

S301 1-771-138-82 SWITCH, KEY BOARD (DISPLAY) S302 1-771-138-82 SWITCH, KEY BOARD (LEFT) S303 1-771-138-82 SWITCH, KEY BOARD (UP) S304 1-692-088-11 SWITCH, TACTILE (REST) S305 1-771-138-82 SWITCH, KEY BOARD (SET)

S306 1-771-138-82 SWITCH, KEY BOARD (DOWN) S307 1-762-805-21 SWITCH, PUSH (1 KEY) (LID OPEN) S308 1-762-805-21 SWITCH, PUSH (1 KEY) (LID CLOSE) S309 1-771-138-82 SWITCH, KEY BOARD (RLGHT) S310 1-771-138-82 SWITCH, KEY BOARD (MENU)

S311 1-771-138-82 SWITCH, KEY BOARD (SIZU)

< TRANSFORMER >

0 T201 1-435-786-31 TRANSFORMER, INVERTER ************************************************************

5-13

Note : The components identified by mark 0 or dotted

line with mark 0 are critical for safety. Replace only with part number specified.

MVC-CD350

Checking supplied accessories.

Make sure that the following accessories are supplied with your camcorder.

Power cord (Main lead)(1)

0

1-790-107-22

(Fig. A)

(Fig. B)

(Fig. A) Lens cap (1)

(X-3953-430-1)

(Fig. B) Lens cap strap (1)

3-067-797-01

A/V connecting cable (1.5m) (1) 1-824-111-11

Other accessories

3-081-835-11 MANUAL, INSTRUCTION(ENGLISH)

AC power adaptor (1) (AC-L15A/L15B)

0

1-477-533-31

8 cm CD adaptor (D adaptor) (1) 3-063-085-01

CD-ROM (SPVD-010(I)) (1) 3-078-943-03

Note : The components identified by mark 0 or dotted

Shoulder strap (1) 3-071-638-01

USB cable (1) 1-827-038-11

line with mark 0 are critical for safety. Replace only with part number specified.

NP-FM50 battery pack (1) (not supplied)

5-20E

MVC-CD350

9-876-225-31

Sony EMCS Co.

— 86 —

2003D1600-1

Published by DI Customer Center

Reverse

987622531.pdf

Revision History

Ver.

1.0

Date

2003.04

History

Official Release

Contents

—

S.M. Rev.

issued

—

SONY MVC-CD350 SERVICE MANUAL L2 V1.0

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

TABLE OF CONTENTS

SERVICE NOTE

DISASSEMBLY

PROCEDURE OF REMOVING THE DDX-G3000 COMPLETE SECTION. (PK-069, CD-440, FU-164, SY-087 BOARDS AND CAMERA SECTION CHECK SERVICE POSITION)

2-1. PK-069 BOARD

qa PK-069 board

2-2. LCD SECTION

2-3. SIDE CABINET SECTION

2-4. FP-651 FLEXIBLE BOARD (USB/AV JACKS)

Side cabinet section

2-5. DISCHARGING THE CAP ACIT OR

Discharging the capacitor

2-6. CABINET (REAR) SECTION

Cabinet (rear) section

2-7. DDX-G3000 COMPLETE SECTION

2-8. SY-087 BOARD

2-9. LENS SECTION

SY-087 board

Lens section

2-10.ZOOM LENS

2-11.FU-164 BOARD

2-12.CONTROL SWITCH BLOCK (RS-310)

2-13.FLASH UNIT

2-14.BATTERY HOLDER ASSEMBLY

2-15.FILTER SCREW

2-16.CIRCUIT BOARDS LOCATION

2-17.FLEXIBLE BOARDS LOCATION

HELP

CABINET (FRONT) SECTION

CABINET (REAR) SECTION

DDX-G3000 COMPLETE SECTION

SIDE CABINET SECTION

3. BLOCK DIAGRAMS

3-1. OVERALL BLOCK DIAGRAM (1/2)

3-2. OVERALL BLOCK DIAGRAM (2/2)

3-3. POWER BLOCK DIAGRAM (1/2)

3-4. POWER BLOCK DIAGRAM (2/2)

PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

4-1. FRAME SCHEMATIC DIAGRAM (1/2)

FRAME SCHEMATIC DIAGRAM (2/2)

4-2. SCHEMATIC DIAGRAMS

CD-440

PK-069 (1/2)

PK-069 (2/2)

CK-133

FU-164 (1/3)

FU-164 (2/3)

FU-164 (3/3)

RS-310/FLASH UNIT/FP-651

4-3. PRINTED WIRING BOARDS

CD-440

PK-069

FU-164

4-4. WAVEFORMS

CD-440

PK-069

4-5. MOUNTED PARTS LOCATION

5. REPAIR PARTS LIST

5-1. EXPLODED VIEWS

5-1-1. OVERALL SECTION

5-1-2. CABINET (FRONT) SECTION

5-1-3. LENS SECTION

5-1-4. SIDE CABINET (S) SECTION, SIDE CABINET (U) SECTION

5-1-5. CABINET (REAR) SECTION

CD-440 CK-133 FU-164

5-2. ELECTRICAL PARTS LIST

PK-069

Revision History
