Sony MS04 MBX-143 Schematics
1
hexainf@hotmail.com
2
3
4
5
6
7
8

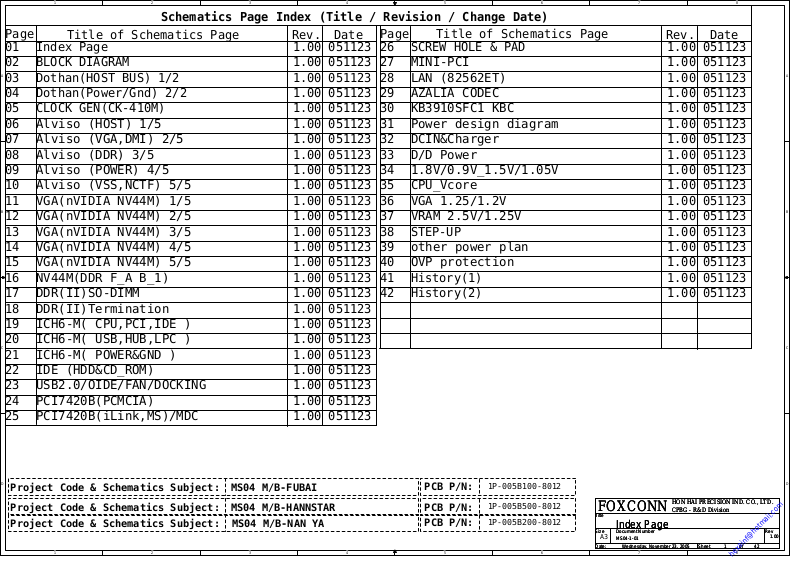

Schematics Page Index (Title / Revision / Change Date)
Page
01
02
A A
03
04
05
06
07
08
09
10
11
B B
12
13
14
15
16
17
18
19
20
C C
21
22
23
24
25
Index Page
BLOCK DIAGRAM
Dothan(HOST BUS) 1/2
Dothan(Power/Gnd) 2/2
CLOCK GEN(CK-410M)
Alviso (HOST) 1/5
Alviso (VGA,DMI) 2/5
Alviso (DDR) 3/5
Alviso (POWER) 4/5
Alviso (VSS,NCTF) 5/5
VGA(nVIDIA NV44M) 1/5
VGA(nVIDIA NV44M) 2/5
VGA(nVIDIA NV44M) 3/5
VGA(nVIDIA NV44M) 4/5
VGA(nVIDIA NV44M) 5/5
NV44M(DDR F_A B_1)
DDR(II)SO-DIMM
DDR(II)Termination
ICH6-M( CPU,PCI,IDE )
ICH6-M( USB,HUB,LPC )
ICH6-M( POWER&GND )
IDE (HDD&CD_ROM)
USB2.0/OIDE/FAN/DOCKING
PCI7420B(PCMCIA)
PCI7420B(iLink,MS)/MDC
Title of Schematics Page
Rev.
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
Date
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
Page
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Title of Schematics Page
SCREW HOLE & PAD
MINI-PCI
LAN (82562ET)
AZALIA CODEC
KB3910SFC1 KBC
Power design diagram
DCIN&Charger
D/D Power
1.8V/0.9V_1.5V/1.05V
CPU_Vcore
VGA 1.25/1.2V
VRAM 2.5V/1.25V
STEP-UP
other power plan
OVP protection
History(1)
History(2)
Rev.
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
Date
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
051123
D D
Project Code & Schematics Subject:
Project Code & Schematics Subject:
Project Code & Schematics Subject:
1
2
MS04 M/B-FUBAI
MS04 M/B-HANNSTAR
MS04 M/B-NAN YA
3
4
PCB P/N:
PCB P/N:
PCB P/N:
5
1P-005B100-8012
1P-005B500-8012
1P-005B200-8012
6
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
Index Page
Index Page
Index Page
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
MS04-1-01
MS04-1-01
MS04-1-01
Date: Sheet
Date: Sheet
Date: Sheet
7
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
of
142Wednesday, November 23, 2005
of
142Wednesday, November 23, 2005
of
142Wednesday, November 23, 2005
8
1.00
1.00
1.00
1
2
3
4
5
6
7
8
MS04(915PM/GM+Gfx Block Diagram)
4Mx32bx2pcs
DDR Video-RAM
A A
Panel Connector
WSXGA+
PAGE 14
VGA
D-type-15p
PAGE 14
LVDS
CRT
PAGE 16
nVIDIA
NV44M(G3-64)
BGA-533
PAGE 11,12,13,14,15
Ext. Mic In
Jack
HEAD
PHONE
JACK
PCIE X16
LVDS
CRT
LM4863
Int. Speaker
B B
CRT
1.0 Walt x 2
Amplifier
TSSOP-20
PAGE 29
ALC260
Codec
LQFP-48
PAGE 29
CPU
Dothan/Yonah
Processor
Micro-FCBGA-478
(Socket 479 Pin)
PAGE 3,4
FSB
533 MHZ
(4.3GB/S)
North Bridge
Alviso(915PM/GM,910GML)
PCBGA 1257
4X133MHZ
PAGE 6,7,8,9,10
Line in / Line out / SPDIF
RJ11
PCMCIA
Conn.
PAGE 24
Port
Replicator
Connector
C C
MS PRO/DUO
PAGE 25
i.LINK
PAGE 25
RJ45
MDC 1.5
Modem
12 pin
PAGE 25
TI PCI7420B
CardBus
CardReader
i.LINK
GHK 288
PAGE 24,25
Magnetics
Pluse H0068
PAGE 28
SWITCH
PI3L110Q
PAGE 28
AZALIA
33MHZ, 3.3V PCI BUS
MINI-PCI
TYPE IIIB
PAGE 27
INTEL LAN PHY
82562ET
10/100M
SSOP-48
PAGE 28
South Bridge
ICH6-M
BGA 609
PAGE 19,20,21
ENE KB3910SFC1
EC+KBC
LQFP-176
DMI
(Direct Media Interface)
LPC
Ethernet
USB 2.0 X 3
PAGE 23
Symbol ahead of value for
ALL
D D
915PM +
NV44M
915GM or
910GML
910GML
915PM +
NV44M
or 915GM
NC components
NC_
NV_
AL_
LNC_
HMNC_
1
FAN for
FAN for
VGA
VGA
PAGE 23
BOM configuration
2
FAN for
CPU
PAGE 23
3
Lid Switch
& LED
PAGE 30 PAGE 30 PAGE 30 PAGE 30 PAGE 30
Int. K/B(89Keys)
& 2 X Quick Keys
4
PAGE 30
Power
Button
5
PS/2
XBUS
Touchpad
Clock Gen.
CK-410M
(IDT-CV125/
ICS954206BG)
TSSOP-56
PAGE 5
400/533 MHZ
400/533 MHZ
IDE ATA 100
SMB Channel 1
SMB Channel 2
Flash BIOS
1MB
6
USB 2.0 X 3
USB 2.0
BATT CONN.
PAGE 32
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
X,TAL
14.318MHZ
Thermal Sensor
F75384S
(CPU/Alviso)
SO-8
PAGE 6
Thermal Sensor
F75383M
(VGA)
uSOP8
PAGE 15
Thermal Sensor
LM75BIM-3
(DDR)
SO-8
PAGE 17
FOXCONN
FOXCONN
FOXCONN
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
MS04-1-01
MS04-1-01
MS04-1-01
A3
7
SO-DIMM 0
400/533 MHZ
DDR(II)
PAGE 17
200 pin
SO-DIMM 1
400/533 MHZ
DDR(II)
PAGE 17
200 pin
USB 2.0
CONN.X3
PAGE 23
OIDE
PAGE 23
PATA HDD
(Master)
PAGE 22
PATA ODD
(Slave)
PAGE 22
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
of
242Wednesday, November 23, 2005
of
242Wednesday, November 23, 2005
of
242Wednesday, November 23, 2005
8
1.00
1.00
1.00
1
hexainf@hotmail.com
A A
B B
+VCCP
R428 56R428 56
R142 150R142 150
R135 39R135 39
R420 200/FR420 200/F
R438 NC_54.9/FR438 NC_54.9/F
R436 NC_54.9/FR436 NC_54.9/F
C C
R146 27.4/FR146 27.4/F
R144 680R144 680
PM_THRMTRIP#
should connect to
ICH6-M and ALVISO
without T-ing (No
stub)
D D
H_IERR#
XDP_TDI
XDP_TMS
H_PWRGD
XDP_TDO
H_CPURST#
XDP_TCK
XDP_TRST#
2
H_A#[31..3]6
H_REQ#[4..0]6
Place near
CPU.
3
U30A
U30A
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_ADSTB#06
H_ADSTB#16
H_ADS#6
H_BREQ#06
H_BPRI#6
H_BNR#6
H_LOCK#6
H_HIT#6
H_HITM#6
H_DEFER#6
T21 PADT21 PAD
T158 PADT158 PAD
T157 PADT157 PAD
T160 PADT160 PAD
H_TRDY#6
H_RS#[2..0]6
H_A20M#19
H_FERR#19
H_IGNNE#19
H_PWRGD19
H_SMI#19
CLK_XDP_BCLK5
CLK_XDP_BCLK#5
T25 PADT25 PAD
T159 PADT159 PAD
PM_SYSRST#20
H_INTR19
H_NMI19
H_STPCLK#19
H_CPUSLP#6,19
H_DPSLP#19
H_DPRSTP#19
H_THERMDA5
H_THERMDC5
PM_THRMTRIP#7,19
H_ADSTB#0
H_ADSTB#1
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_ADS#
H_IERR#
H_BREQ#0
H_BPRI#
H_BNR#
H_LOCK#
H_HIT#
H_HITM#
H_DEFER#
XDP_BPM#0
XDP_BPM#1
XDP_BPM#2
XDP_BPM#3
H_TRDY#
H_RS#0
H_RS#1
H_RS#2
H_A20M#
H_FERR#
H_IGNNE#
H_PWRGD
H_SMI#
XDP_TCK
XDP_TDO
XDP_TDI
XDP_TMS
XDP_TRST#
CLK_XDP_BCLK
CLK_XDP_BCLK#
XDP_BPM#5
XDP_BPM#4
H_INTR
H_NMI
H_STPCLK#
H_CPUSLP#
H_DPSLP#
H_DPRSTP#
H_THERMDA
H_THERMDC
PM_THRMTRIP#
PROCHOT#
AA3
AA2
AF4
AC4
AC7
AC3
AD3
AE4
AD2
AB4
AC6
AD5
AE2
AD6
AF3
AE1
AF1
AE5
A13
A12
C12
C11
B13
A16
A15
B10
A10
B18
A18
C17
B17
P4
U4
V3
R3
V2
W1
T4
W2
Y4
Y1
U1
Y3
U3
R2
P3
T2
P1
T1
N2
A4
N4
J3
L1
J2
K3
K4
L4
C8
B8
A9
C9
M3
H1
K1
L2
C2
D3
A3
E4
B4
A7
D1
D4
C6
A6
B7
G1
A3#
A4#
A5#
A6#
A7#
A8#
A9#
A10#
A11#
A12#
A13#
A14#
A15#
A16#
A17#
A18#
A19#
A20#
A21#
A22#
A23#
A24#
A25#
A26#
A27#
A28#
A29#
A30#
A31#
ADSTB0#
ADSTB1#
REQ0#
REQ1#
REQ2#
REQ3#
REQ4#
ADS#
IERR#
BREQ0#
BPRI#
BNR#
LOCK#
HIT#
HITM#
DEFER#
BPM0#
BPM1#
BPM2#
BPM3#
TRDY#
RS0#
RS1#
RS2#
A20M#
FERR#
IGNNE#
PWRGOOD
SMI#
TCK
TDO
TDI
TMS
TRST#
ITP_CLK0
ITP_CLK1
PREQ#
PRDY#
DBR#
LINT0
LINT1
STPCLK#
SLP#
DPSLP#
DPRSTP#
THERMDA
THERMDC
THERMTRIP#
PROCHOT#
Dothan Processor
Dothan Processor
Dothan
Dothan
REQUEST
REQUEST
PHASE
PHASE
SIGNALS
SIGNALS
ERROR
ERROR
SIGNALS
SIGNALS
ARBITRATION
ARBITRATION
PHASE
PHASE
SIGNALS
SIGNALS
SNOOP PHASE
SNOOP PHASE
SIGNALS
SIGNALS
RESPONSE
RESPONSE
PHASE
PHASE
SIGNALS
SIGNALS
PC
PC
COMPATIBILITY
COMPATIBILITY
SIGNALS
SIGNALS
DIAGNOSTIC
DIAGNOSTIC
& TEST
& TEST
SIGNALS
SIGNALS
EXECUTION
EXECUTION
CONTROL
CONTROL
SIGNALS
SIGNALS
THERMAL DIODE
THERMAL DIODE
1 OF 3
1 OF 3
4
DATA
DATA
PHASE
PHASE
SIGNALS
SIGNALS
D10#
D11#
D12#
D13#
D14#
D15#
D16#
D17#
D18#
D19#
D20#
D21#
D22#
D23#
D24#
D25#
D26#
D27#
D28#
D29#
D30#
D31#
D32#
D33#
D34#
D35#
D36#
D37#
D38#
D39#
D40#
D41#
D42#
D43#
D44#
D45#
D46#
D47#
D48#
D49#
D50#
D51#
D52#
D53#
D54#
D55#
D56#
D57#
D58#
D59#
D60#
D61#
D62#
D63#
DSTBN0#
DSTBP0#
DSTBN1#
DSTBP1#
DSTBN2#
DSTBP2#
DSTBN3#
DSTBP3#
DINV0#
DINV1#
DINV2#
DINV3#
DBSY#
DRDY#
BCLK1
BCLK0
INIT#
RESET#
DPWR#
D0#
D1#
D2#
D3#
D4#
D5#
D6#
D7#
D8#
D9#
A19
A25
A22
B21
A24
B26
A21
B20
C20
B24
D24
E24
C26
B23
E23
C25
H23
G25
L23
M26
H24
F25
G24
J23
M23
J25
L26
N24
M25
H26
N25
K25
Y26
AA24
T25
U23
V23
R24
R26
R23
AA23
U26
V24
U25
V26
Y23
AA26
Y25
AB25
AC23
AB24
AC20
AC22
AC25
AD23
AE22
AF23
AD24
AF20
AE21
AD21
AF25
AF22
AF26
H_DSTBN#0
C23
H_DSTBP#0
C22
H_DSTBN#1
K24
H_DSTBP#1
L24
H_DSTBN#2
W25
H_DSTBP#2
W24
H_DSTBN#3
AE24
H_DSTBP#3
AE25
H_DINV#0
D25
H_DINV#1
J26
H_DINV#2
T24
H_DINV#3
AD20
H_DBSY#
M2
H_DRDY#
H2
CLK_CPU_BCLK#
B14
CLK_CPU_BCLK
B15
H_INIT#
B5
H_CPURST#
B11
H_DPWR#
C19
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
5
H_DSTBN#0 6
H_DSTBP#0 6
H_DSTBN#1 6
H_DSTBP#1 6
H_DSTBN#2 6
H_DSTBP#2 6
H_DSTBN#3 6
H_DSTBP#3 6
H_DINV#0 6
H_DINV#1 6
H_DINV#2 6
H_DINV#3 6
H_DBSY# 6
H_DRDY# 6
CLK_CPU_BCLK# 5
CLK_CPU_BCLK 5
H_INIT# 19
H_CPURST# 6
H_DPWR# 6
H_D#[63..0] 6
PROCHOT#
6
+VCCP
+VCCP
R44456R444
56
R441 NC_2.2KR441 NC_2.2K
PLT_RST#7,11,19,22,30
+VCCP
R503 2.2KR503 2.2K
PM_THRMTRIP#
Q26
Q26
1
Q27
Q27
1
2N7002
2N7002
Q28
Q28
1
7
+ECVCC
+ECVCC
R447
R447
8.2K
8.2K
NC_MMBT3904
NC_MMBT3904
2 3
R322
R322
47K
47K
THERMTRIP1#
32
0.1U/16V
0.1U/16V
MMBT3904
MMBT3904
2 3
C478
C478
8
H_PROCHOT# 30
THERMTRIP1# 30,33
1
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
Dothan(HOST BUS) 1/2
Dothan(HOST BUS) 1/2
Dothan(HOST BUS) 1/2
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MS04-1-01
MS04-1-01
MS04-1-01
A3
Date: Sheet
Date: Sheet
2
3
4
5
6
Date: Sheet
7
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
of
342Wednesday, November 23, 2005
of
342Wednesday, November 23, 2005
of
342Wednesday, November 23, 2005
8
1.00
1.00
1.00
1
R103
R468
R468
27.4/F
27.4/F
R467
R467
54.9/F
54.9/F
R103
27.4/F
27.4/F
A A
+1_5VRUN
12
C681
C681
0.01U/16V
0.01U/16V
12
C190
C190
10U/6.3V_0805
10U/6.3V_0805
B B
12
C220
C220
10U/6.3V_0805
10U/6.3V_0805
12
C123
C123
10U/6.3V_0805
10U/6.3V_0805
12
C189
C189
10U/6.3V_0805
10U/6.3V_0805
C C
D D
+VCCP
12
C143
C143
0.1U/50V_0603
0.1U/50V_0603
12
C187
C187
10U/6.3V_0805
10U/6.3V_0805
12
C177
C177
10U/6.3V_0805
10U/6.3V_0805
12
C152
C152
10U/6.3V_0805
10U/6.3V_0805
12
C216
C216
10U/6.3V_0805
10U/6.3V_0805
12
C217
C217
0.1U/50V_0603
0.1U/50V_0603
1
12
VHCORE
12
C194
C194
10U/6.3V_0805
10U/6.3V_0805
VHCORE
12
C249
C249
10U/6.3V_0805
10U/6.3V_0805
VHCORE
12
C178
C178
10U/6.3V_0805
10U/6.3V_0805
VHCORE
12
C614
C614
10U/6.3V_0805
10U/6.3V_0805
12
C242
C242
0.1U/50V_0603
0.1U/50V_0603
C692
C692
10U/6.3V_0805
10U/6.3V_0805
R99
R99
54.9/F
54.9/F
12
C221
C221
10U/6.3V_0805
10U/6.3V_0805
12
C170
C170
10U/6.3V_0805
10U/6.3V_0805
12
C112
C112
10U/6.3V_0805
10U/6.3V_0805
12
C139
C139
10U/6.3V_0805
10U/6.3V_0805
12
C114
C114
0.1U/50V_0603
0.1U/50V_0603
2
COMP0
COMP1
COMP2
COMP3
Place pulldown resistors
within 0.5" of COMP pins
12
12
12
12
12
C144
C144
2
C612
C612
10U/6.3V_0805
10U/6.3V_0805
C631
C631
10U/6.3V_0805
10U/6.3V_0805
C169
C169
10U/6.3V_0805
10U/6.3V_0805
C675
C675
10U/6.3V_0805
10U/6.3V_0805
0.1U/50V_0603
0.1U/50V_0603
12
C676
C676
10U/6.3V_0805
10U/6.3V_0805
12
C252
C252
10U/6.3V_0805
10U/6.3V_0805
12
C155
C155
10U/6.3V_0805
10U/6.3V_0805
Total caps = 2633 uF
ESR = 15m ohm/5 // 5m ohm/25 // 5m ohm/15
+VCCP
12
C707
C707
+
+
150U/10V_7343
150U/10V_7343
R116
R116
NC_1K
NC_1K
12
12
12
12
C113
C113
0.1U/50V_0603
0.1U/50V_0603
3
R170
R170
NC_1K
NC_1K
C191
C191
10U/6.3V_0805
10U/6.3V_0805
C213
C213
10U/6.3V_0805
10U/6.3V_0805
C254
C254
10U/6.3V_0805
10U/6.3V_0805
3
TEST1
TEST2
VHCORE
12
C255
C255
10U/6.3V_0805
10U/6.3V_0805
VHCORE
12
C241
C241
10U/6.3V_0805
10U/6.3V_0805
VHCORE
12
C156
C156
10U/6.3V_0805
10U/6.3V_0805
12
C142
C142
0.1U/50V_0603
0.1U/50V_0603
+VCCP
R181
R181
1K/F
1K/F
Max Length 0.5 inch
R180
R180
2K/F
2K/F
+1_5VRUN
12
C251
C251
10U/6.3V_0805
10U/6.3V_0805
12
C137
C137
10U/6.3V_0805
10U/6.3V_0805
12
C138
C138
10U/6.3V_0805
10U/6.3V_0805
12
C218
C218
0.1U/50V_0603
0.1U/50V_0603
4
T155PADT155PAD
T11 PADT11 PAD
T153PADT153PAD
T152PADT152PAD
T169 PADT169 PAD
T167 PADT167 PAD
T3 PADT3 PAD
T154 PADT154 PAD
12
C182
C182
10U/6.3V_0805
10U/6.3V_0805
12
C181
C181
10U/6.3V_0805
10U/6.3V_0805
12
C628
C628
10U/6.3V_0805
10U/6.3V_0805
12
C248
C248
0.1U/50V_0603
0.1U/50V_0603
4
COMP0
COMP1
COMP2
COMP3
H_GTLREF
TEST1
TEST2
TP_CPU_NC1
TP_NC_2
TP_NC_3
TP_NC_4
TP_NC_5
TP_VCCA3
TP_VCCA2
TP_VCCA1
VHCORE
12
C219
C219
0.1U/50V_0603
0.1U/50V_0603
AD26
AC26
AA11
AA13
AA15
AA17
AA19
AA21
AB10
AB12
AB14
AB16
AB18
AB20
AB22
AC11
AC13
AC15
AC17
AC19
AD10
AD12
AD14
AD16
AD18
AE11
AE13
AE15
AE17
AE19
AF10
AF12
AF14
AF16
AF18
P25
P26
AB2
AB1
AF7
AC1
E26
D18
D20
D22
E17
E19
E21
G21
H22
K22
V22
W21
Y22
AA5
AA7
AA9
AB6
AB8
AC9
AD8
AE9
AF8
C5
F23
B2
C3
N1
B1
F26
D6
D8
E5
E7
E9
F6
F8
F18
F20
F22
G5
H6
J5
J21
U5
V6
W5
Y6
U30B
U30B
COMP0
COMP1
COMP2
COMP3
GTLREF0
TEST1
TEST2
NC1
RSVD2
RSVD3
RSVD4
RSVD5
VCCA3
VCCA2
VCCA1
VCCA0
VCC00
VCC01
VCC02
VCC03
VCC04
VCC05
VCC06
VCC07
VCC08
VCC09
VCC10
VCC11
VCC12
VCC13
VCC14
VCC15
VCC16
VCC17
VCC18
VCC19
VCC20
VCC21
VCC22
VCC23
VCC24
VCC25
VCC26
VCC27
VCC28
VCC29
VCC30
VCC31
VCC32
VCC33
VCC34
VCC35
VCC36
VCC37
VCC38
VCC39
VCC40
VCC41
VCC42
VCC43
VCC44
VCC45
VCC46
VCC47
VCC48
VCC49
VCC50
VCC51
VCC52
VCC53
VCC54
VCC55
VCC56
VCC57
VCC58
VCC59
VCC60
VCC61
VCC62
VCC63
VCC64
VCC65
VCC66
VCC67
VCC68
VCC69
VCC70
VCC71
Dothan Processor
Dothan Processor
5
Dothan
Dothan
2 OF 3
2 OF 3
POWER,
POWER,
GROUND,
GROUND,
RESERVED
RESERVED
SIGNALS
SIGNALS
5
VSS00
VSS01
VSS02
VSS03
VSS04
VSS05
VSS06
VSS07
VSS08
VSS09
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65
VSS66
VSS67
VSS68
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74
VSS75
VSS76
VSS77
VSS78
VSS79
VSS80
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
VSS95
VSS96
VSS97
VSS98
VSS99
A2
A5
A8
A11
A14
A17
A20
A23
A26
B3
B6
B9
B12
B16
B19
B22
B25
C1
C4
C7
C10
C13
C15
C18
C21
C24
D2
D5
D7
D9
D11
D13
D15
D17
D19
D21
D23
D26
E3
E6
E8
E10
E12
E14
E16
E18
E20
E22
E25
F1
F4
F5
F7
F9
F11
F13
F15
F17
F19
F21
F24
G2
G6
G22
G23
G26
H3
H5
H21
H25
J1
J4
J6
J22
J24
K2
K5
K21
K23
K26
L3
L6
L22
L25
M1
M4
M5
M21
M24
N3
N6
N22
N23
N26
P2
P5
P21
P24
R1
R4
6
+VCCP
H_VID0
H_VID035
H_VID135
H_VID235
H_VID335
H_VID435
H_VID535
CPU_BSEL05,7
CPU_BSEL15,7
6
R88 0R88 0
H_VID1
R87 0R87 0
H_VID2
R86 0R86 0
H_VID3
R85 0R85 0
H_VID4
R84 0R84 0
H_VID5
R83 0R83 0
R633 NC_54.9/FR633 NC_54.9/F
R634 NC_54.9/FR634 NC_54.9/F
PSI#35
R442 0R442 0
R440 0R440 0
PSI#
Same
Length
VCCSENSE
VSSSENSE
7
U30C
U30C
D10
VCCP0
D12
VCCP1
D14
VCCP2
D16
VCCP3
E11
VCCP4
Dothan
E13
E15
F10
F12
F14
F16
K6
L5
L21
M6
M22
N5
N21
P6
P22
R5
R21
T6
T22
U21
P23
W4
E2
F2
F3
G3
G4
H4
AE7
AF6
C16
C14
E1
R6
R22
R25
T3
T5
T21
T23
T26
U2
U6
U22
U24
V1
V4
V5
V21
V25
W3
W6
W22
Dothan Processor
Dothan Processor
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
Date: Sheet
Date: Sheet
Date: Sheet
Dothan
VCCP5
VCCP6
3 OF 3
3 OF 3
VCCP7
VCCP8
VCCP9
VCCP10
POWER, GROUND AND NC
POWER, GROUND AND NC
VCCP11
VCCP12
VCCP13
VCCP14
VCCP15
VCCP16
VCCP17
VCCP18
VCCP19
VCCP20
VCCP21
VCCP22
VCCP23
VCCP24
VCCQ0
VCCQ1
VID0
VID1
VID2
VID3
VID4
VID5
VCCSENSE
VSSSENSE
BSEL0
BSEL1
PSI
VSS100
VSS101
VSS102
VSS103
VSS104
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
7
VID
VID
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
Dothan(Power/Gnd) 2/2
Dothan(Power/Gnd) 2/2
Dothan(Power/Gnd) 2/2
MS04-1-01
MS04-1-01
MS04-1-01
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
VSS161
VSS162
VSS163
VSS164
VSS165
VSS166
VSS167
VSS168
VSS169
VSS170
VSS171
VSS172
VSS173
VSS174
VSS175
VSS176
VSS177
VSS178
VSS179
VSS180
VSS181
VSS182
VSS183
VSS184
VSS185
VSS186
VSS187
VSS188
VSS189
VSS190
VSS191
8
W23
W26
Y2
Y5
Y21
Y24
AA1
AA4
AA6
AA8
AA10
AA12
AA14
AA16
AA18
AA20
AA22
AA25
AB3
AB5
AB7
AB9
AB11
AB13
AB15
AB17
AB19
AB21
AB23
AB26
AC2
AC5
AC8
AC10
AC12
AC14
AC16
AC18
AC21
AC24
AD1
AD4
AD7
AD9
AD11
AD13
AD15
AD17
AD19
AD22
AD25
AE3
AE6
AE8
AE10
AE12
AE14
AE16
AE18
AE20
AE23
AE26
AF2
AF5
AF9
AF11
AF13
AF15
AF17
AF19
AF21
AF24
442Wednesday, November 23, 2005
442Wednesday, November 23, 2005
442Wednesday, November 23, 2005
8
of
of
of
1.00
1.00
1.00
1
hexainf@hotmail.com
FSC FSB FSA CPU SRC PCI
1 0 1 100 100 33
0 0 1 133 100 33
0 1 1 166 100 33
0 1 0 200 100 33
0 0 0 266 100 33
1 0 0 333 100 33
A A
1 1 0 400 100 33
1 1 1 RSVD 100 33
Length as short
as possible.
B B
CPU_BSEL14,7
CPU_BSEL04,7
CLK_KBCPCI30
C C
CLK_CB4824
CLK_USB4820
PCLK_MINI27
PCLK_CB24
PCLK_FWH30
CLK_ICHPCI19
PCLK_JIG30
18P_50V_J_N
18P_50V_J_N
12
C706
C706
0402
0402
12
C694
C694
NC_10P
NC_10P
12
C693
C693
NC_10P
NC_10P
12
C700
C700
18P_50V_J_N
18P_50V_J_N
0402
0402
2
12
C701
C701
10P_50V_J_N
10P_50V_J_N
0402
0402
R473 12.1/FR473 12.1/F
R472 12.1/FR472 12.1/F
12
C702
C702
18P_50V_J_N
18P_50V_J_N
0402
0402
Placed within
500mils of Y1
+3VRUN
R206
R206
10K
10K
R481 47_J 0402R481 47_J 0402
+3VRUN
12
C696
C696
18P_50V_J_N
18P_50V_J_N
0402
0402
SMB_CLK_RUN17,20
SMB_DATA_RUN17,20
12
C698
C698
18P_50V_J_N
18P_50V_J_N
0402
0402
3
R_+V3.3S_CLKVDD
12
C260
C260
0.047U/10V
0.047U/10V
L5030-14.318MHZ/+-30ppm/20pF
L5030-14.318MHZ/+-30ppm/20pF
1 2
12
R646
R646
124
124
R624 0R624 0
R479 33R479 33
1 2
R482 33R482 33
R485 33R485 33
R475 33R475 33
R209 10KR209 10K
R477 33R477 33
Y4
Y4
C705
C705
33P
33P
R625
R625
NC_10K
NC_10K
R182
R182
2.2/F
2.2/F
C261
C261
10U/16V_1206
10U/16V_1206
12
C704
C704
33P
33P
U2_XTALIN
U2_XTALOUT
SELPSB0_CLK
CPU_BSEL1
R_CPU_BSEL0
R_CLK_KBCPCI
R_PCLK_MINI
R_PCLK_CB
R_PCLK_FWH
R_CLK_ICHPCI
R_PCLK_JIG
SMB_CLK_RUN
SMB_DATA_RUN
R464
R464
475/F
475/F
+V3.3S_CLKVDD
21
28
34
42
37
38
50
49
12
16
53
56
46
47
39
13
29
45
51
4
12
C258
C258
0.047U/10V
0.047U/10V
U33
U33
VDD_SRC0
VDD_SRC1
VDD_SRC2
VDD_CPU
VDD_A
VSS_A
XTAL_IN
XTAL_OUT
FSA/USB_48
FSB_TEST_MODE
FSC/TEST_SEL
5
PCI5
4
PCI4
3
PCI3
PCI2
9
PCIF1
8
PCIF0/ITP_EN
SCLOCK
SDATA
IREF
VSS_48
VSS_SRC
VSS_CPU
2
VSS_PCI0
6
VSS_PCI1
VSS_REF
IDTCV125 / ICS954206BG
IDTCV125 / ICS954206BG
SM bus Address :
1101001 (ICH6)
For clock generator
12
7
VDD_PCI1
CPU_2_ITP/SRC_7
C259
C259
0.047U/10V
0.047U/10V
1
VDD_48
VDD_REF
VDD_PCI0
PCI_STOP#
CPU_STOP#
CPU1
CPU1#
CPU0
CPU0#
CPU2_ITP/SRC7#
SRC6
SRC6#
SRC5
SRC5#
SRC4
SRC4#
SRC3
SRC3#
SRC2
SRC2#
SRC1
SRC1#
SRC0
SRC0#
DOT96
DOT96#
VTT_PWRGD#/PD
REF
R207
R207
2.2/F
2.2/F
12
5
C265
C265
0.047U/10V
0.047U/10V
12
11
48
55
54
CPU1
41
CPU#1
40
CPU0
44
CPU#0
43
R_CLK_XDP_BCLK
36
R_CLK_XDP_BCLK#
35
33
32
PCIE5
31
PCIE#5
30
26
27
R_CLK_PCIE_ICH
24
R_CLK_PCIE_ICH#
25
R_CLK_PCIE_PEG
22
R_CLK_PCIE_PEG#
23
19
20
R_DREFSSCLK
17
R_DREFSSCLK#
18
DOT96
14
DOT96#
15
CLK_EN#
10
R_CLK_ICH14
52
+3VRUN
12
C256
C256
0.047U/10V
0.047U/10V
C266
C266
0.047U/10V
0.047U/10V
3
4
3
4
3
4
3
4
3
4
4
3
4
3
4
3
4
3
R478 47_J 0402R478 47_J 0402
1 2
+3VRUN
C257
C257
10U/16V_1206
10U/16V_1206
C268
C268
10U/16V_1206
10U/16V_1206
RP73
RP73
2
1
4P2R-S-33
4P2R-S-33
RP75
RP75
2
1
4P2R-S-33
4P2R-S-33
RP71
RP71
2
1
NC_4P2R-S-33
NC_4P2R-S-33
RP79
RP79
2
1
NC_4P2R-S-10K
NC_4P2R-S-10K
RP68
RP68
2
1
4P2R-S-33
4P2R-S-33
T162PAD T162PAD
T161PAD T161PAD
RP69
RP69
1
2
4P2R-S-33
4P2R-S-33
RP70
RP70
1
2
NV_4P2R-S-33
NV_4P2R-S-33
T166PAD T166PAD
T165PAD T165PAD
RP72
RP72
1
2
AL_4P2R-S-33
AL_4P2R-S-33
RP74
RP74
1
2
AL_4P2R-S-33
AL_4P2R-S-33
12
C699
C699
NC_10P
NC_10P
R474
R474
2.2/F
2.2/F
PM_STPPCI# 20
STP_CPU# 20,35
6
L_+3VRUN_410M
12
C274
C274
0.047U/10V
0.047U/10V
CLK_MCH_BCLK 6
CLK_MCH_BCLK# 6
CLK_CPU_BCLK 3
CLK_CPU_BCLK# 3
CLK_XDP_BCLK 3
CLK_XDP_BCLK# 3
CLK_MCH_3GPLL 7
CLK_MCH_3GPLL# 7
CLK_PCIE_ICH 20
CLK_PCIE_ICH# 20
CLK_PCIE_PEG 11
CLK_PCIE_PEG# 11
DREFSSCLK 7
DREFSSCLK# 7
DREFCLK 7
DREFCLK# 7
CLK_EN# 30,35
CLK_ICH14 20
12
C270
C270
0.047U/10V
0.047U/10V
C695
C695
1 2
0.047U/10V
0.047U/10V
7
L13
L13
1 2
HCB2012K-121T30
HCB2012K-121T30
C887
C887
0.01U/16V
0.01U/16V
For EMI
near L13
L14
L14
1 2
HCB2012K-121T30
HCB2012K-121T30
C710
C710
10U/16V_1206
10U/16V_1206
Alviso Chip
HOST
CPU
+1_5VRUN
Alviso Chip
ICH6
DMI
Graphic
NV44M
ALVISO SSCK
R184 NV_0R184 NV_0
R210 NV_0R210 NV_0
8
+3VRUN
CLK_XDP_BCLK
CLK_XDP_BCLK#
CLK_MCH_BCLK
CLK_MCH_BCLK#
CLK_CPU_BCLK
CLK_CPU_BCLK#
CLK_MCH_3GPLL
CLK_MCH_3GPLL#
CLK_PCIE_ICH
CLK_PCIE_ICH#
CLK_PCIE_PEG
CLK_PCIE_PEG#
DREFCLK
DREFCLK#
DREFSSCLK
DREFSSCLK#
DREFCLK#
DREFSSCLK#
For NV44M & Alviso option
R_CLK_KBCPCI
R_PCLK_MINI
R460 NC_49.9/FR460 NC_49.9/F
R458 NC_49.9/FR458 NC_49.9/F
R465 49.9/FR465 49.9/F
R463 49.9/FR463 49.9/F
R471 49.9/FR471 49.9/F
R469 49.9/FR469 49.9/F
R457 49.9/FR457 49.9/F
R455 49.9/FR455 49.9/F
R459 49.9/FR459 49.9/F
R456 49.9/FR456 49.9/F
R462 NV_49.9/FR462 NV_49.9/F
R461 NV_49.9/FR461 NV_49.9/F
R470 AL_49.9/FR470 AL_49.9/F
R466 NV_0R466 NV_0
R185 AL_49.9/FR185 AL_49.9/F
R183 NV_0R183 NV_0
R631 AL_49.9/FR631 AL_49.9/F
R632 AL_49.9/FR632 AL_49.9/F
R626 NC_10KR626 NC_10K
R627 NC_10KR627 NC_10K
R448
R448
4.7K
4.7K
+3VRUN
H_THERMDA3
12
C672
C672
2200P/50V
2200P/50V
D D
1
2
3
H_THERMDC3
OVT_EC#20,30
4
R453 0R453 0
R454
R454
4.7K
4.7K
R717
R717
NC_10K
NC_10K
5
SM bus Address :
1001101(EC)
For F75384S
U32
U32
2
DXP
SMBCLK
DXN
SMBDATA
THERM#4ALERT#
VCC
F75384S
F75384S
Place Thermal-Sensor
near CPU & GMCH.
C655
C655
0.1U/16V
0.1U/16V
3
1
GND
8
7
6
5
6
+3VRUN+3VRUN
R450
R450
10K
10K
R449
R449
10K
10K
SMB_THRM_CLK 15,17,30
SMB_THRM_DATA 15,17,30
PM_THRM# 30
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
CLOCK GEN(CK-410M)
CLOCK GEN(CK-410M)
CLOCK GEN(CK-410M)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MS04-1-01
MS04-1-01
MS04-1-01
A3
Date: Sheet
Date: Sheet
Date: Sheet
7
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
1.00
1.00
1.00
of
542Wednesday, November 23, 2005
of
542Wednesday, November 23, 2005
of
542Wednesday, November 23, 2005
8
1
2
3
4
5
6
7
8
H_XRCOMP
A A
R480
R480
24.9/F
24.9/F
T/S = 10/20mil
H_D#[63..0]3
+VCCP
R476
R476
54.9/F
54.9/F
H_XSCOMP
+VCCP
R483
R483
221/F
221/F
H_XSWING
B B
C C
+VCCP
+VCCP
R484
R484
100/F
100/F
R220
R220
100/F
100/F
R502
R502
24.9/F
24.9/F
R488
R488
54.9/F
54.9/F
R221
R221
221/F
221/F
H_YRCOMP
C703
C703
0.1U/16V
0.1U/16V
1 2
H_YSCOMP
H_YSWING
C313
C313
0.1U/16V
0.1U/16V
1 2
T/S = 10/20mil
T/S = 10/20mil
T/S = 10/20mil
H_D#[63..0]
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
H_XRCOMP
H_XSCOMP
H_XSWING
H_YRCOMP
H_YSCOMP
H_YSWING
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
W6
W8
W7
W1
W3
W2
E4
E1
F4
H7
E2
F1
E3
D3
K7
F2
J7
J8
H6
F3
K8
H5
H1
H2
K5
K6
J4
G3
H3
J1
L5
K4
J5
P7
L7
J3
P5
L3
U7
V6
R6
R5
P3
T8
R7
R8
U8
R4
T4
T5
R1
T3
V8
U6
U3
V5
U2
U1
Y5
Y2
V4
Y7
Y3
Y6
C1
C2
D1
T1
L1
P1
U34A
U34A
HD0#
HD1#
HD2#
HD3#
HD4#
HD5#
HD6#
HD7#
HD8#
HD9#
HD10#
HD11#
HD12#
HD13#
HD14#
HD15#
HD16#
HD17#
HD18#
HD19#
HD20#
HD21#
HD22#
HD23#
HD24#
HD25#
HD26#
HD27#
HD28#
HD29#
HD30#
HD31#
HD32#
HD33#
HD34#
HD35#
HD36#
HD37#
HD38#
HD39#
HD40#
HD41#
HD42#
HD43#
HD44#
HD45#
HD46#
HD47#
HD48#
HD49#
HD50#
HD51#
HD52#
HD53#
HD54#
HD55#
HD56#
HD57#
HD58#
HD59#
HD60#
HD61#
HD62#
HD63#
HXRCOMP
HXSCOMP
HXSWING
HYRCOMP
HYSCOMP
HYSWING
ALVISO
ALVISO
HOST
HOST
HA3#
HA4#
HA5#
HA6#
HA7#
HA8#
HA9#
HA10#
HA11#
HA12#
HA13#
HA14#
HA15#
HA16#
HA17#
HA18#
HA19#
HA20#
HA21#
HA22#
HA23#
HA24#
HA25#
HA26#
HA27#
HA28#
HA29#
HA30#
HA31#
HADS#
HADSTB0#
HADSTB1#
HVREF
HBNR#
HBPRI#
BREQ0#
HCPURST#
HCLKINN
HCLKINP
HDBSY#
HDEFER#
HDINV#0
HDINV#1
HDINV#2
HDINV#3
HDPWR#
HDRDY#
HDSTBN0#
HDSTBN1#
HDSTBN2#
HDSTBN3#
HDSTBP0#
HDSTBP1#
HDSTBP2#
HDSTBP3#
HEDRDY#
HHIT#
HHITM#
HLOCK#
HPCREQ#
HREQ0#
HREQ1#
HREQ2#
HREQ3#
HREQ4#
HRS0#
HRS1#
HRS2#
HCPUSLP#
HTRDY#
G9
C9
E9
B7
A10
F9
D8
B10
E10
G10
D9
E11
F10
G11
G13
C10
C11
D11
C12
B13
A12
F12
G12
E12
C13
B11
D13
A13
F13
F8
B9
E13
J11
A5
D5
E7
H10
AB1
AB2
C6
E6
H8
K3
T7
U5
G6
F7
G4
K1
R3
V3
G5
K2
R2
W4
F6
D4
D6
B3
A11
A7
D7
B8
C7
A8
A4
C5
B4
G8
B5
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_ADS#
H_ADSTB#0
H_ADSTB#1
H_BNR#
H_BPRI#
H_BREQ#0
H_CPURST#
CLK_MCH_BCLK#
CLK_MCH_BCLK
H_DBSY#
H_DEFER#
H_DINV#0
H_DINV#1
H_DINV#2
H_DINV#3
H_DPWR#
H_DRDY#
H_DSTBN#0
H_DSTBN#1
H_DSTBN#2
H_DSTBN#3
H_DSTBP#0
H_DSTBP#1
H_DSTBP#2
H_DSTBP#3
TP_H_EDRDY#
H_HIT#
H_HITM#
H_LOCK#
TP_H_PCREQ#
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_RS#0
H_RS#1
H_RS#2
H_CPUSLP#_GMCH
H_TRDY#
H_ADS# 3
H_ADSTB#0 3
H_ADSTB#1 3
H_BNR# 3
H_BPRI# 3
H_BREQ#0 3
H_CPURST# 3
CLK_MCH_BCLK# 5
CLK_MCH_BCLK 5
H_DBSY# 3
H_DEFER# 3
H_DPWR# 3
H_DRDY# 3
H_HIT# 3
H_HITM# 3
H_LOCK# 3
T173
T173
PAD
PAD
H_TRDY# 3
H_A#[3..31] 3
T49
T49
PAD
PAD
R195 0R195 0
+VCCP
HVREF
H_DINV#[3..0] 3
H_DSTBN#[3..0] 3
H_DSTBP#[3..0] 3
H_REQ#[4..0] 3
H_RS#[2..0] 3
H_CPUSLP# 3,19
R214
R214
100/F
100/F
R213
R213
200/F
200/F
Place Cap. near GMCH
within 100 mils.
C292
C292
0.1U/16V
0.1U/16V
1 2
D D
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
Alviso (HOST) 1/5
Alviso (HOST) 1/5
Alviso (HOST) 1/5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MS04-1-01
MS04-1-01
MS04-1-01
A3
Date: Sheet
Date: Sheet
1
2
3
4
5
6
Date: Sheet
7
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
of
642Wednesday, November 23, 2005
of
642Wednesday, November 23, 2005
of
642Wednesday, November 23, 2005
8
1.00
1.00
1.00
1
hexainf@hotmail.com
A A
+1_8VSUS_DDR2
R242
R242
80.6/F
80.6/F
B B
R243
R243
80.6/F
80.6/F
R228
R228
NC_40.2/F
NC_40.2/F
Route as
short as
possible.
C C
+1_8VSUS_DDR2
D D
DMI_TXN[1..0]20
DMI_TXP[1..0]20
DMI_RXN[1..0]20
DMI_RXP[1..0]20
M_RCOMPN
M_RCOMPP
R229
R229
NC_40.2/F
NC_40.2/F
It's point to point,
55ohm trace, keep as
short as possible.
DDRDIMM_VREF
R255 0R255 0
R253
R253
NC_1K/F
NC_1K/F
R254 NC_0R254 NC_0
R252
R252
NC_1K/F
NC_1K/F
+3VSUS
84
3
+
+
2
-
-
1
M_CLK_DDR017
M_CLK_DDR117
M_CLK_DDR317
M_CLK_DDR417
M_CLK_DDR#017
M_CLK_DDR#117
M_CLK_DDR#317
M_CLK_DDR#417
C360
C360
0.1U/16V
0.1U/16V
1 2
1
U16A
U16A
NC_LMV358AM8X
NC_LMV358AM8X
T124PAD T124PAD
T86PAD T86PAD
T71PAD T71PAD
T82PAD T82PAD
T118PAD T118PAD
T70PAD T70PAD
T123PAD T123PAD
PAD
PAD
T91
T91
T80PAD T80PAD
PAD
PAD
T90
T90
PAD
PAD
T79
T79
M_CKE017,18
M_CKE117,18
M_CKE217,18
M_CKE317,18
M_CS#017,18
M_CS#117,18
M_CS#217,18
M_CS#317,18
M_ODT017,18
M_ODT117,18
M_ODT217,18
M_ODT317,18
C354
C354
0.1U/16V
0.1U/16V
1 2
2
DMI_TXN0
DMI_TXN1
DMI_TXP0
DMI_TXP1
DMI_RXN0
DMI_RXN1
DMI_RXP0
DMI_RXP1
M_CLK_DDR0
M_CLK_DDR1
TP_SMCK2
M_CLK_DDR3
M_CLK_DDR4
TP_SMCK5
M_CLK_DDR#0
M_CLK_DDR#1
TP_SMCK#2
M_CLK_DDR#3
M_CLK_DDR#4
TP_SMCK#5
M_CKE0
M_CKE1
M_CKE2
M_CKE3
M_CS#0
M_CS#1
M_CS#2
M_CS#3
M_OCDCOMP0
M_OCDCOMP1
M_ODT0
M_ODT1
M_ODT2
M_ODT3
M_RCOMPN
M_RCOMPP
SMDDR_VREF
SMXSLEW
SMYSLEW
PEG_TXN0
PEG_TXN1
PEG_TXN2
PEG_TXN3
PEG_TXN4
PEG_TXN5
PEG_TXN6
PEG_TXN7
PEG_TXN8
PEG_TXN9
PEG_TXN10
PEG_TXN11
PEG_TXN12
PEG_TXN13
PEG_TXN14
PEG_TXN15
5
+
+
6
-
-
2
U34C
U34C
AA31
DMIRXN0
AB35
DMIRXN1
AC31
DMIRXN2
AD35
DMIRXN3
Y31
DMIRXP0
AA35
DMIRXP1
AB31
DMIRXP2
AC35
DMIRXP3
AA33
DMITXN0
AB37
DMITXN1
AC33
DMITXN2
AD37
DMITXN3
Y33
DMITXP0
AA37
DMITXP1
AB33
DMITXP2
AC37
DMITXP3
AM33
SM_CK0
AL1
SM_CK1
AE11
SM_CK2
AJ34
SM_CK3
AF6
SM_CK4
AC10
SM_CK5
AN33
SM_CK0#
AK1
SM_CK1#
AE10
SM_CK2#
AJ33
SM_CK3#
AF5
SM_CK4#
AD10
SM_CK5#
AP21
SM_CKE0
AM21
SM_CKE1
AH21
SM_CKE2
AK21
SM_CKE3
AN16
SM_CS0#
AM14
SM_CS1#
AH15
SM_CS2#
AG16
SM_CS3#
AF22
SM_OCDCOMP0
AF16
SM_OCDCOMP1
AP14
SM_ODT0
AL15
SM_ODT1
AM11
SM_ODT2
AN10
SM_ODT3
AK10
SMRCOMPN
AK11
SMRCOMPP
AF37
SMVREF0
AD1
SMVREF1
AE27
SMXSLEWIN
AE28
SMXSLEWOUT
AF9
SMYSLEWIN
AF10
SMYSLEWOUT
C277 NV_0.1U/16VC277 NV_0.1U/16V
1 2
C278 NV_0.1U/16VC278 NV_0.1U/16V
1 2
C282 NV_0.1U/16VC282 NV_0.1U/16V
1 2
C283 NV_0.1U/16VC283 NV_0.1U/16V
1 2
C287 NV_0.1U/16VC287 NV_0.1U/16V
1 2
C289 NV_0.1U/16VC289 NV_0.1U/16V
1 2
C294 NV_0.1U/16VC294 NV_0.1U/16V
1 2
C296 NV_0.1U/16VC296 NV_0.1U/16V
1 2
C300 NV_0.1U/16VC300 NV_0.1U/16V
1 2
C302 NV_0.1U/16VC302 NV_0.1U/16V
1 2
C311 NV_0.1U/16VC311 NV_0.1U/16V
1 2
C317 NV_0.1U/16VC317 NV_0.1U/16V
1 2
C323 NV_0.1U/16VC323 NV_0.1U/16V
1 2
C324 NV_0.1U/16VC324 NV_0.1U/16V
1 2
C330 NV_0.1U/16VC330 NV_0.1U/16V
1 2
C337 NV_0.1U/16VC337 NV_0.1U/16V
1 2
7
U16B
U16B
NC_LMV358AM8X
NC_LMV358AM8X
ALVISO
ALVISO
DMIDDR MUXING
DMIDDR MUXING
CFG/RSVDPMCLKNC
CFG/RSVDPMCLKNC
DREF_SSCLKN
DREF_SSCLKP
PEG_TXN_C0
PEG_TXN_C1
PEG_TXN_C2
PEG_TXN_C3
PEG_TXN_C4
PEG_TXN_C5
PEG_TXN_C6
PEG_TXN_C7
PEG_TXN_C8
PEG_TXN_C9
PEG_TXN_C10
PEG_TXN_C11
PEG_TXN_C12
PEG_TXN_C13
PEG_TXN_C14
PEG_TXN_C15
3
G16
CFG0
H13
CFG1
G14
CFG2
F16
CFG3
F15
CFG4
G15
CFG5
E16
CFG6
D17
CFG7
J16
CFG8
D15
CFG9
E15
CFG10
D14
CFG11
E14
CFG12
H12
CFG13
C14
CFG14
H15
CFG15
J15
CFG16
H14
CFG17
G22
CFG18
G23
CFG19
D23
CFG20
G25
RSVD21
G24
RSVD22
J17
TESTIN
A31
RSVD24
A30
RSVD25
D26
RSVD26
D25
RSVD27
J23
BM_BUSY#
J21
EXT_TS0#
H22
EXT_TS1#
F5
THRMTRIP#
AD30
PWROK
AE29
RSTIN#
DREF_CLKN
DREF_CLKP
A24
A23
C37
D37
AP37
NC1
AN37
NC2
AP36
NC3
AP2
NC4
AP1
NC5
AN1
NC6
B1
NC7
A2
NC8
B37
NC9
A36
NC10
A37
NC11
AC Coupling Cap
Close GMCH or
Gfx
FOR 915PM
3
+VCCP
R215
R215
10K
10K
CFG0
CPU_BSEL1
CPU_BSEL0
CFG3
CFG4
CFG6
CFG7
CFG8
CFG9
CFG10
CFG11
CFG12
CFG13
CFG14
CFG15
CFG16
CFG17
CFG18
CFG19
CFG20
C849 0.1U/16VC849 0.1U/16V
PM_BMBUSY#
PM_EXTTS#0
PM_EXTTS#1
IMVP_PWRGD
PLTRST#_R
DREFCLK#
DREFCLK
DREFSSCLK#
DREFSSCLK
TP_NC1
TP_NC2
TP_NC3
TP_NC4
TP_NC5
TP_NC6
TP_NC7
TP_NC8
TP_NC9
TP_NC10
TP_NC11
PEG_TXN_C[15..0] 11
4
T50
T50
PAD
PAD
T47
T47
PAD
PAD
T37
T37
PAD
PAD
T57
T57
PAD
PAD
T36
T36
PAD
PAD
Low=DDR2
T41
T41
PAD
PAD
T38
T38
PAD
PAD
High=DDR1
T45
T45
PAD
PAD
T56
T56
PAD
PAD
T32
T32
PAD
PAD
CFG[3-17] Default H
T54
T54
PAD
PAD
T60
T60
PAD
PAD
CFG[18,19]Default L
T59
T59
PAD
PAD
T52 PADT52 PAD
T46 PADT46 PAD
T40 PADT40 PAD
T55
T55
T51
T51
T30
T30
T34
T34
T42
T42
R241 100R241 100
PEG_TXP0
PEG_TXP1
PEG_TXP2
PEG_TXP3
PEG_TXP4
PEG_TXP5
PEG_TXP6
PEG_TXP7
PEG_TXP8
PEG_TXP10
PEG_TXP11
PEG_TXP12
PEG_TXP13
PEG_TXP14
PEG_TXP15
PAD
PAD
PAD
PAD
PAD
PAD
PAD
PAD
PAD
PAD
PM_BMBUSY# 20
R445 0R445 0
DREFCLK# 5
DREFCLK 5
DREFSSCLK# 5
DREFSSCLK 5
T187
T187
PAD
PAD
T185
T185
PAD
PAD
T186
T186
PAD
PAD
T184
T184
PAD
PAD
T188
T188
PAD
PAD
T183
T183
PAD
PAD
T174
T174
PAD
PAD
T171
T171
PAD
PAD
T170
T170
PAD
PAD
T168
T168
PAD
PAD
T172
T172
PAD
PAD
C275 NV_0.1U/16VC275 NV_0.1U/16V
C276 NV_0.1U/16VC276 NV_0.1U/16V
C279 NV_0.1U/16VC279 NV_0.1U/16V
C281 NV_0.1U/16VC281 NV_0.1U/16V
C284 NV_0.1U/16VC284 NV_0.1U/16V
C286 NV_0.1U/16VC286 NV_0.1U/16V
C291 NV_0.1U/16VC291 NV_0.1U/16V
C293 NV_0.1U/16VC293 NV_0.1U/16V
C298 NV_0.1U/16VC298 NV_0.1U/16V
C299 NV_0.1U/16VC299 NV_0.1U/16V
C309 NV_0.1U/16VC309 NV_0.1U/16V
C312 NV_0.1U/16VC312 NV_0.1U/16V
C320 NV_0.1U/16VC320 NV_0.1U/16V
C322 NV_0.1U/16VC322 NV_0.1U/16V
C326 NV_0.1U/16VC326 NV_0.1U/16V
C331 NV_0.1U/16VC331 NV_0.1U/16V
4
VGA_DDCCLK14
VGA_DDCDATA14
GM_BLUE14
GM_GREEN14
GM_RED14
VSYNC14
HSYNC14
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
CPU_BSEL1 4,5
CPU_BSEL0 4,5
R211
R211
2.2K
2.2K
+VCCP
R44675R446
R567,R570,571
75
< 500 mils
to Alviso.
PM_THRMTRIP# 3,19
IMVP_PWRGD 20,30
PLT_RST# 3,11,19,22,30
PEG_TXP_C0
PEG_TXP_C1
PEG_TXP_C2
PEG_TXP_C3
PEG_TXP_C4
PEG_TXP_C5
PEG_TXP_C6
PEG_TXP_C7
PEG_TXP_C8
PEG_TXP_C9PEG_TXP9
PEG_TXP_C10
PEG_TXP_C11
PEG_TXP_C12
PEG_TXP_C13
PEG_TXP_C14
PEG_TXP_C15
R212
R212
2.2K
2.2K
R205
R205
NC_150/F
NC_150/F
5
CLK_MCH_3GPLL#5
CLK_MCH_3GPLL5
Low=DMIx2
High=DMIx4
R204
R204
NC_150/F
NC_150/F
INV_EN14
LCDVCC_EN14,15
GM_ODD_CLKIN-14
GM_ODD_CLKIN+14
GM_EVEN_CLKIN-14
GM_EVEN_CLKIN+14
GM_ODD_RXIN0-14
GM_ODD_RXIN1-14
GM_ODD_RXIN2-14
GM_ODD_RXIN0+14
GM_ODD_RXIN1+14
GM_ODD_RXIN2+14
GM_EVEN_RXIN0-14
GM_EVEN_RXIN1-14
GM_EVEN_RXIN2-14
GM_EVEN_RXIN0+14
GM_EVEN_RXIN1+14
GM_EVEN_RXIN2+14
5
PAD
PAD
PAD
PAD
R203
R203
NC_150/F
NC_150/F
PAD
PAD
T43
T43
PAD
PAD
T33
T33
PAD
PAD
T39
T39
PAD
PAD
T44
T44
PAD
PAD
T48
T48
PEG_TXP_C[15..0] 11
+2_5VRUN_ALV
T53
T53
T58
T58
CLK_MCH_3GPLL#
CLK_MCH_3GPLL
FOR 915GM
R198 AL_0R198 AL_0
R199 AL_0R199 AL_0
R201 AL_39R201 AL_39
R200 AL_39R200 AL_39
R216 255/FR216 255/F
FOR 915GM
I2CC_SCL
I2CC_SDA
R196 AL_0R196 AL_0
R208 1.5KR208 1.5K
R190 10KR190 10K
R189 10KR189 10K
R188 NC_2.2KR188 NC_2.2K
R187 NC_2.2KR187 NC_2.2K
FOR EDID LCD .
6
H24
H25
AB29
AC29
A15
C16
A17
J18
B15
B16
B17
E24
E23
E21
D21
C20
B20
A19
B19
H21
G21
J20
E25
F25
C23
C22
F23
F22
F26
C33
C31
F28
F27
B30
B29
C25
C24
B34
B33
B32
A34
A33
B31
C29
D28
C27
C28
D27
C26
PM_EXTTS#0
PM_EXTTS#1
I2CC_SDA
I2CC_SCL
6
U34F
U34F
SDVOCTRL_DATA
SDVOCTRL_CLK
GCLKN
GCLKP
TVDAC_A
TVDAC_B
TVDAC_C
TV_REFSET
TV_IRTNA
TV_IRTNB
TV_IRTNC
DDCCLK
DDCDATA
BLUE
BLUE#
GREEN
GREEN#
RED
RED#
VSYNC
HSYNC
REFSET
LBKLT_CTRL
LBKLT_EN
LCTLA_CLK
LCTLB_DATA
LDDC_CLK
LDDC_DATA
LVDD_EN
LIBG
LVBG
LVREFH
LVREFL
LACLKN
LACLKP
LBCLKN
LBCLKP
LADATAN0
LADATAN1
LADATAN2
LADATAP0
LADATAP1
LADATAP2
LBDATAN0
LBDATAN1
LBDATAN2
LBDATAP0
LBDATAP1
LBDATAP2
ALVISO
ALVISO
7
MISC
MISC
TV VGA LVDS
TV VGA LVDS
EXP_COMPI
EXP_ICOMPO
EXP_RXN0
EXP_RXN1
EXP_RXN2
EXP_RXN3
EXP_RXN4
EXP_RXN5
EXP_RXN6
EXP_RXN7
EXP_RXN8
EXP_RXN9
EXP_RXN10
EXP_RXN11
EXP_RXN12
EXP_RXN13
EXP_RXN14
EXP_RXN15
EXP_RXP0
EXP_RXP1
EXP_RXP2
EXP_RXP3
EXP_RXP4
EXP_RXP5
EXP_RXP6
EXP_RXP7
EXP_RXP8
EXP_RXP9
EXP_RXP10
EXP_RXP11
EXP_RXP12
EXP_RXP13
EXP_RXP14
EXP_RXP15
EXP_TXN0
EXP_TXN1
EXP_TXN2
EXP_TXN3
EXP_TXN4
EXP_TXN5
EXP_TXN6
EXP_TXN7
PCI-EXPRESS GRAPHICS
PCI-EXPRESS GRAPHICS
EXP_TXN8
EXP_TXN9
EXP_TXN10
EXP_TXN11
EXP_TXN12
EXP_TXN13
EXP_TXN14
EXP_TXN15
EXP_TXP0
EXP_TXP1
EXP_TXP2
EXP_TXP3
EXP_TXP4
EXP_TXP5
EXP_TXP6
EXP_TXP7
EXP_TXP8
EXP_TXP9
EXP_TXP10
EXP_TXP11
EXP_TXP12
EXP_TXP13
EXP_TXP14
EXP_TXP15
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
Alviso (VGA,DMI) 2/5
Alviso (VGA,DMI) 2/5
Alviso (VGA,DMI) 2/5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MS04-1-01
MS04-1-01
MS04-1-01
A3
Date: Sheet
Date: Sheet
Date: Sheet
7
D36
D34
E30
F34
G30
H34
J30
K34
L30
M34
N30
P34
R30
T34
U30
V34
W30
Y34
D30
E34
F30
G34
H30
J34
K30
L34
M30
N34
P30
R34
T30
U34
V30
W34
E32
F36
G32
H36
J32
K36
L32
M36
N32
P36
R32
T36
U32
V36
W32
Y36
D32
E36
F32
G36
H32
J36
K32
L36
M32
N36
P32
R36
T32
U36
V32
W36
8
+V1.5S_PCIE
R487
R487
24.9/F
VCC3G_PCIE_R
PEG_RXN0
PEG_RXN1
PEG_RXN2
PEG_RXN3
PEG_RXN4
PEG_RXN5
PEG_RXN6
PEG_RXN7
PEG_RXN8
PEG_RXN9
PEG_RXN10
PEG_RXN11
PEG_RXN12
PEG_RXN13
PEG_RXN14
PEG_RXN15
PEG_RXP0
PEG_RXP1
PEG_RXP2
PEG_RXP3
PEG_RXP4
PEG_RXP5
PEG_RXP6
PEG_RXP7
PEG_RXP8
PEG_RXP9
PEG_RXP10
PEG_RXP11
PEG_RXP12
PEG_RXP13
PEG_RXP14
PEG_RXP15
PEG_TXN0
PEG_TXN1
PEG_TXN2
PEG_TXN3
PEG_TXN4
PEG_TXN5
PEG_TXN6
PEG_TXN7
PEG_TXN8
PEG_TXN9
PEG_TXN10
PEG_TXN11
PEG_TXN12
PEG_TXN13
PEG_TXN14
PEG_TXN15
PEG_TXP0
PEG_TXP1
PEG_TXP2
PEG_TXP3
PEG_TXP4
PEG_TXP5
PEG_TXP6
PEG_TXP7
PEG_TXP8
PEG_TXP9
PEG_TXP10
PEG_TXP11
PEG_TXP12
PEG_TXP13
PEG_TXP14
PEG_TXP15
24.9/F
PEG_RXN[15..0] 11
PEG_RXP[15..0] 11
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
742Wednesday, November 23, 2005
742Wednesday, November 23, 2005
742Wednesday, November 23, 2005
8
1.00
1.00
1.00
of
of
of
1
2
3
4
5
6
7
8
A A
M_A_DQ[63..0]17
B B
C C
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
AG35
AH35
AL35
AL37
AH36
AJ35
AK37
AL34
AM36
AN35
AP32
AM31
AM34
AM35
AL32
AM32
AN31
AP31
AN28
AP28
AL30
AM30
AM28
AL28
AP27
AM27
AM23
AM22
AL23
AM24
AN22
AP22
AM9
AL9
AL6
AP7
AP11
AP10
AL7
AM7
AN5
AN6
AN3
AP3
AP6
AM6
AL4
AM3
AK2
AK3
AG2
AG1
AL3
AM2
AH3
AG3
AF3
AE3
AD6
AC4
AF2
AF1
AD4
AD5
U34B
U34B
SADQ0
SADQ1
SADQ2
SADQ3
SADQ4
SADQ5
SADQ6
SADQ7
SADQ8
SADQ9
SADQ10
SADQ11
SADQ12
SADQ13
SADQ14
SADQ15
SADQ16
SADQ17
SADQ18
SADQ19
SADQ20
SADQ21
SADQ22
SADQ23
SADQ24
SADQ25
SADQ26
SADQ27
SADQ28
SADQ29
SADQ30
SADQ31
SADQ32
SADQ33
SADQ34
SADQ35
SADQ36
SADQ37
SADQ38
SADQ39
SADQ40
SADQ41
SADQ42
SADQ43
SADQ44
SADQ45
SADQ46
SADQ47
SADQ48
SADQ49
SADQ50
SADQ51
SADQ52
SADQ53
SADQ54
SADQ55
SADQ56
SADQ57
SADQ58
SADQ59
SADQ60
SADQ61
SADQ62
SADQ63
ALVISO
ALVISO
SA_BS0#
SA_BS1#
SA_BS2#
SA_DM0
SA_DM1
SA_DM2
SA_DM3
SA_DM4
SA_DM5
SA_DM6
SA_DM7
SA_DQS0
SA_DQS1
SA_DQS2
SA_DQS3
SA_DQS4
SA_DQS5
SA_DQS6
SA_DQS7
SA_DQS0#
SA_DQS1#
SA_DQS2#
SA_DQS3#
SA_DQS4#
SA_DQS5#
SA_DQS6#
SA_DQS7#
SA_MA0
SA_MA1
SA_MA2
SA_MA3
SA_MA4
SA_MA5
SA_MA6
SA_MA7
SA_MA8
SA_MA9
SA_MA10
SA_MA11
SA_MA12
SA_MA13
DDR SYSTEM MEMORY A
DDR SYSTEM MEMORY A
SA_CAS#
SA_RAS#
SA_RCVENIN#
SA_RCVENOUT#
SA_WE#
AK16
AL21
AJ37
AP35
AL29
AP24
AP9
AP4
AJ2
AD3
AK36
AP33
AN29
AP23
AM8
AM4
AJ1
AE5
AK35
AP34
AN30
AN23
AN8
AM5
AH1
AE4
AL17
AP17
AP18
AM17
AN18
AM18
AL19
AP20
AM19
AL20
AM16
AN20
AM20
AM15
AN15
AP16
AF29
AF28
AP15
M_A_BS#1
M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_CAS#
M_A_RAS#
M_A_WE#
M_A_BS#0
AK15
M_A_BS#0 17,18
M_A_BS#1 17,18
M_A_BS#2 17,18 M_B_BS#2 17,18
M_A_DM[7..0] 17 M_B_DM[7..0] 17
M_A_DQS[7..0] 17 M_B_DQS[7..0] 17
M_A_DQS#[7..0] 17 M_B_DQS#[7..0] 17
M_A_A[13..0] 17,18 M_B_A[13..0] 17,18
M_A_CAS# 17,18
M_A_RAS# 17,18
T97
T97
PAD
PAD
M_A_WE# 17,18
M_B_DQ[63..0]17
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
AE31
AE32
AG32
AG36
AE34
AE33
AF31
AF30
AH33
AH32
AK31
AG30
AG34
AG33
AH31
AJ31
AK30
AJ30
AH29
AH28
AK29
AH30
AH27
AG28
AF24
AG23
AJ22
AK22
AH24
AH23
AG22
AJ21
AG10
AG9
AG8
AH8
AH11
AH10
AK9
AK6
AH5
AK8
AK4
AG5
AG4
AD8
AD9
AH4
AG6
AE8
AD7
AC5
AB8
AB6
AA8
AC8
AC7
AA4
AA5
U34G
U34G
SBDQ0
SBDQ1
SBDQ2
SBDQ3
SBDQ4
SBDQ5
SBDQ6
SBDQ7
SBDQ8
SBDQ9
SBDQ10
SBDQ11
SBDQ12
SBDQ13
SBDQ14
SBDQ15
SBDQ16
SBDQ17
SBDQ18
SBDQ19
SBDQ20
SBDQ21
SBDQ22
SBDQ23
SBDQ24
SBDQ25
SBDQ26
SBDQ27
SBDQ28
SBDQ29
SBDQ30
SBDQ31
SBDQ32
SBDQ33
SBDQ34
SBDQ35
SBDQ36
SBDQ37
AJ9
SBDQ38
SBDQ39
AJ7
SBDQ40
SBDQ41
AJ4
SBDQ42
SBDQ43
SBDQ44
AJ8
SBDQ45
AJ5
SBDQ46
SBDQ47
SBDQ48
SBDQ49
SBDQ50
SBDQ51
SBDQ52
SBDQ53
SBDQ54
SBDQ55
SBDQ56
SBDQ57
SBDQ58
SBDQ59
SBDQ60
SBDQ61
SBDQ62
SBDQ63
ALVISO
ALVISO
SB_BS0#
SB_BS1#
SB_BS2#
SB_DM0
SB_DM1
SB_DM2
SB_DM3
SB_DM4
SB_DM5
SB_DM6
SB_DM7
SB_DQS0
SB_DQS1
SB_DQS2
SB_DQS3
SB_DQS4
SB_DQS5
SB_DQS6
SB_DQS7
SB_DQS0#
SB_DQS1#
SB_DQS2#
SB_DQS3#
SB_DQS4#
SB_DQS5#
SB_DQS6#
SB_DQS7#
SB_MA0
SB_MA1
SB_MA2
SB_MA3
SB_MA4
SB_MA5
SB_MA6
SB_MA7
SB_MA8
SB_MA9
SB_MA10
SB_MA11
SB_MA12
SB_MA13
DDR SYSTEM MEMORY B
DDR SYSTEM MEMORY B
SB_CAS#
SB_RAS#
SB_RCVENIN#
SB_RCVENOUT#
SB_WE#
AJ15
AG17
AG21
AF32
AK34
AK27
AK24
AJ10
AK5
AE7
AB7
AF34
AK32
AJ28
AK23
AM10
AH6
AF8
AB4
AF35
AK33
AK28
AJ23
AL10
AH7
AF7
AB5
AH17
AK17
AH18
AJ18
AK18
AJ19
AK19
AH19
AJ20
AH20
AJ16
AG18
AG20
AG15
AH14
AK14
AF15
AF14
AH16
M_B_BS#0
M_B_BS#1
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_CAS#
M_B_RAS#
M_B_WE#
M_B_BS#0 17,18
M_B_BS#1 17,18
M_B_CAS# 17,18
M_B_RAS# 17,18
T93
T93
PAD
PAD
T98
T98
PAD
PAD
M_B_WE# 17,18
D D
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
Alviso (DDR) 3/5
Alviso (DDR) 3/5
Alviso (DDR) 3/5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MS04-1-01
MS04-1-01
MS04-1-01
A3
Date: Sheet
Date: Sheet
1
2
3
4
5
6
Date: Sheet
7
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
of
842Wednesday, November 23, 2005
of
842Wednesday, November 23, 2005
of
842Wednesday, November 23, 2005
8
1.00
1.00
1.00
5
hexainf@hotmail.com
MCH_VTT
1.05V, But not same as VCCP.
12
C288
C288
NC_0.1U/16V
NC_0.1U/16V
12
C318
C318
0.1U/50V_0603
0.1U/50V_0603
12
C297
C297
0.1U/50V_0603
0.1U/50V_0603
12
C315
C315
0.1U/50V_0603
0.1U/50V_0603
12
C314
C314
10U/6.3V_0805
10U/6.3V_0805
D D
12
C332
C332
NC_0.1U/16V
NC_0.1U/16V
MCH_VTT
12
C872
C872
+
+
NC_470U/2.5V_7343
NC_470U/2.5V_7343
C C
+2_5VRUN_ALV
12
C871
C871
+
+
AL_150U/10V_7343
AL_150U/10V_7343
B B
+VCCP
12
C295
C295
2.2U/10V_0603
2.2U/10V_0603
+VCCP
A A
12
C307
C307
NC_0.1U/16V
NC_0.1U/16V
12
12
+
+
NC_470U/2.5V_7343
NC_470U/2.5V_7343
12
C301
C301
4.7U/10V_0805
4.7U/10V_0805
12
C319
C319
NC_0.1U/16V
NC_0.1U/16V
C325
C325
NC_0.1U/16V
NC_0.1U/16V
C873
C873
12
C305
C305
NC_0.1U/16V
NC_0.1U/16V
12
C336
C336
NC_0.1U/16V
NC_0.1U/16V
+1_5VRUN
1 2
1 2
1 2
1 2
12
C684
C684
2.2U/10V_0603
2.2U/10V_0603
12
C306
C306
NC_0.1U/16V
NC_0.1U/16V
5
L41
L41
10UH
10UH
L42
L42
10UH
10UH
L16
L16
1UH
1UH
L15
L15
1UH
1UH
FOR EMI
12
C310
C310
NC_0.1U/16V
NC_0.1U/16V
12
C725
C725
2.2U/10V_0603
2.2U/10V_0603
+V1.5S_DPLLA
12
C690
C690
0.1U/16V
0.1U/16V
+V1.5S_DPLLB
12
C272
C272
0.1U/16V
0.1U/16V
VCCA_HPLL
12
C722
C722
0.1U/16V
0.1U/16V
VCCA_MPLL
12
C720
C720
0.1U/16V
0.1U/16V
12
C682
C682
4.7U/10V_0805
4.7U/10V_0805
12
C303
C303
0.1U/16V
0.1U/16V
MCH_VTT
12
C304
C304
0.1U/16V
0.1U/16V
12
C339
C339
NC_0.1U/16V
NC_0.1U/16V
12
12
+
+
12
+
+
12
+
+
12
+
+
D20
D20
1 2
SCS500V-40
SCS500V-40
+VCCP
12
C327
C327
NC_0.1U/16V
NC_0.1U/16V
C723
C723
0.1U/16V
0.1U/16V
C677
C677
470U/2.5V_7343
470U/2.5V_7343
+2_5VRUN_ALV
C697
C697
470U/2.5V_7343
470U/2.5V_7343
C714
C714
470U/2.5V_7343
470U/2.5V_7343
C715
C715
470U/2.5V_7343
470U/2.5V_7343
Route VSSA_CRTDAC from GMCH to
Caps lead then to GND plane.
+2_5VRUN_ALV
R486
R486
10/F_0603
10/F_0603
C686 0.47U/6.3VC686 0.47U/6.3V
1 2
12
C316
C316
0.1U/16V
0.1U/16V
C685 0.47U/6.3VC685 0.47U/6.3V
1 2
C716 0.22U/10VC716 0.22U/10V
1 2
C708 0.22U/10VC708 0.22U/10V
1 2
4
12
C329
C329
10U/6.3V_0805
10U/6.3V_0805
12
C285
C285
NC_0.1U/16V
NC_0.1U/16V
R630 NV_0R630 NV_0
For 915GM
Place FB within
3" of GMCH.
L43
L43
AL_BLM11A121S
AL_BLM11A121S
C683
C683
AL_22000P_0805_3P
AL_22000P_0805_3P
1 2
L_V_SYNC
123
12
C687
C687
AL_0.1U/16V
AL_0.1U/16V
NC_22000P/16V
NC_22000P/16V
Place Caps within
250mil of GMCH.
Select 2 or 3pin
Cap after BB.
12
C267
C267
AL_0.1U/16V
AL_0.1U/16V
VCCP_GMCH_CAP1
VCCP_GMCH_CAP2
VCCP_GMCH_CAP3
VCCP_GMCH_CAP4
4
12
C308
C308
10U/6.3V_0805
10U/6.3V_0805
12
C290
C290
NC_0.1U/16V
NC_0.1U/16V
C_V_SYNC
12
C280
C280
AL_10U/6.3V_0805
AL_10U/6.3V_0805
C842
C842
W20
W18
AC2
AC1
AA1
AA2
G19
W11
M11
W10
M10
R29
N29
M29
K29
V28
U28
T28
R28
P28
N28
M28
K28
H28
G28
V27
U27
T27
R27
P27
N27
M27
K27
H27
K26
H26
K25
K24
K23
K22
K21
U20
T20
K20
V19
U19
K19
V18
T18
K18
K17
B23
C35
F19
E19
H20
K13
K12
V11
U11
T11
R11
P11
N11
K11
V10
U10
T10
R10
P10
N10
K10
T29
J29
L28
J28
L27
J27
J25
J13
L11
J10
Y9
W9
U9
R9
P9
N9
M9
L9
J9
N8
M8
N7
M7
N6
M6
A6
N5
M5
N4
M4
N3
M3
N2
M2
B2
V1
N1
M1
G1
VCC0
VCC1
VCC2
VCC3
VCC4
VCC5
VCC6
VCC7
VCC8
VCC9
VCC10
VCC11
VCC12
VCC13
VCC14
VCC15
VCC16
VCC17
VCC18
VCC19
VCC20
VCC21
VCC22
VCC23
VCC24
VCC25
VCC26
VCC27
VCC28
VCC29
VCC30
VCC31
VCC32
VCC33
VCC34
VCC35
VCC36
VCC37
VCC38
VCC39
VCC40
VCC41
VCC42
VCC43
VCC44
VCC45
VCC46
VCC47
VCC48
VCCH_MPLL1
VCCH_MPLL0
VCCA_DPLLA
VCCA_DPLLB
VCCA_HPLL
VCCA_MPLL
VCCA_CRTDAC0
VCCA_CRTDAC1
VSSA_CRTDAC
VCC_SYNC
VTT0
VTT1
VTT2
VTT3
VTT4
VTT5
VTT6
VTT7
VTT8
VTT9
VTT10
VTT11
VTT12
VTT13
VTT14
VTT15
VTT16
VTT17
VTT18
VTT19
VTT20
VTT21
VTT22
VTT23
VTT24
VTT25
VTT26
VTT27
VTT28
VTT29
VTT30
VTT31
VTT32
VTT33
VTT34
VTT35
VTT36
VTT37
VTT38
VTT39
VTT40
VTT41
VTT42
VTT43
VTT44
VTT45
VTT46
VTT47
VTT48
VTT49
VTT50
VTT51
U34H
U34H
ALVISO
ALVISO
VCCA_TVDACA0
VCCA_TVDACA1
VCCA_TVDACB0
VCCA_TVDACB1
VCCA_TVDACC0
VCCA_TVDACC1
VCCD_TVDAC
VCCDQ_TVDAC
VCCD_LVDS0
VCCD_LVDS1
VCCD_LVDS2
POWER
POWER
VCCTX_LVDS0
VCCTX_LVDS1
VCCTX_LVDS2
VCCA_3GPLL0
VCCA_3GPLL1
VCCA_3GPLL2
3
VCCA_TVBG
VSSA_TVBG
VCCA_LVDS
VCCHV0
VCCHV1
VCCHV2
VCCSM0
VCCSM1
VCCSM2
VCCSM3
VCCSM4
VCCSM5
VCCSM6
VCCSM7
VCCSM8
VCCSM9
VCCSM10
VCCSM11
VCCSM12
VCCSM13
VCCSM14
VCCSM15
VCCSM16
VCCSM17
VCCSM18
VCCSM19
VCCSM20
VCCSM21
VCCSM22
VCCSM23
VCCSM24
VCCSM25
VCCSM26
VCCSM27
VCCSM28
VCCSM29
VCCSM30
VCCSM31
VCCSM32
VCCSM33
VCCSM34
VCCSM35
VCCSM36
VCCSM37
VCCSM38
VCCSM39
VCCSM40
VCCSM41
VCCSM42
VCCSM43
VCCSM44
VCCSM45
VCCSM46
VCCSM47
VCCSM48
VCCSM49
VCCSM50
VCCSM51
VCCSM52
VCCSM53
VCCSM54
VCCSM55
VCCSM56
VCCSM57
VCCSM58
VCCSM59
VCCSM60
VCCSM61
VCCSM62
VCCSM63
VCCSM64
VCCA_SM0
VCCA_SM1
VCCA_SM2
VCCA_SM3
VCC3G0
VCC3G1
VCC3G2
VCC3G3
VCC3G4
VCC3G5
VCC3G6
VCCA_3GBG
VSSA_3GBG
3
F17
E17
D18
C18
F18
E18
H18
G18
D19
H17
B26
B25
A25
A35
B22
B21
A21
AM37
AH37
AP29
AD28
AD27
AC27
AP26
AN26
AM26
AL26
AK26
AJ26
AH26
AG26
AF26
AE26
AP25
AN25
AM25
AL25
AK25
AJ25
AH25
AG25
AF25
AE25
AE24
AE23
AE22
AE21
AE20
AE19
AE18
AE17
AE16
AE15
AE14
AP13
AN13
AM13
AL13
AK13
AJ13
AH13
AG13
AF13
AE13
AP12
AN12
AM12
AL12
AK12
AJ12
AH12
AG12
AF12
AE12
AD11
AC11
AB11
AB10
AB9
AP8
AM1
AE1
B28
A28
A27
AF20
AP19
AF19
AF18
AE37
W37
U37
R37
N37
L37
J37
Y29
Y28
Y27
F37
G37
12
C381
C381
0.1U/16V
0.1U/16V
12
C393
C393
10U/6.3V_0805
10U/6.3V_0805
C384 0.1U/16VC384 0.1U/16V
1 2
C377 0.1U/16VC377 0.1U/16V
1 2
C353 0.1U/16VC353 0.1U/16V
1 2
+V1.5S_PCIE
L44
L44
1 2
BLM11A121S
BLM11A121S
C709
C709
0.1U/16V
0.1U/16V
C376 0.1U/16VC376 0.1U/16V
1 2
C362 0.1U/16VC362 0.1U/16V
1 2
C380 0.1U/16VC380 0.1U/16V
1 2
V1.8_DDR_CAP1
V1.8_DDR_CAP2
V1.8_DDR_CAP5
Note: All VCCSM pins shorted
internally.
12
C387
C387
0.1U/16V
0.1U/16V
12
C394
C394
10U/6.3V_0805
10U/6.3V_0805
Note: All VCCSM pins
shorted internally.
V1.8_DDR_CAP6
V1.8_DDR_CAP3
V1.8_DDR_CAP4
+2_5VRUN_ALV
VCC_DDRDLL
+V1.5S_PCIE
VCCA_3GPLL
VCCA_3GBG
12
2
12
12
0.1U/16V
0.1U/16V
12
+
+
C398
C398
220U/6.3V_7343
220U/6.3V_7343
100U/6.3V_7343/100U/10V_7343
100U/6.3V_7343/100U/10V_7343
VCCA_3GPLL
+2_5VRUN_ALV
C386
C386
VCC_DDRDLL
+V1.5S_PCIE
2
12
0.1U/16V
0.1U/16V
12
C399
C399
+V1.5S_PCIE
12
C717
C717
10U/6.3V_0805
10U/6.3V_0805
12
C340
C340
0.1U/16V
0.1U/16V
C680
C680
0.01U/16V
0.01U/16V
C383
C383
C374
C374
0.1U/16V
0.1U/16V
12
+
+
12
C679
C679
0.1U/16V
0.1U/16V
12
C841
C841
10U/6.3V_0805
10U/6.3V_0805
12
12
C713
C713
10U/6.3V_0805
10U/6.3V_0805
12
C341
C341
10U/6.3V_0805
10U/6.3V_0805
1
12
C678
C678
10U/6.3V_0805
10U/6.3V_0805
12
C689
C689
0.1U/16V
0.1U/16V
C370
C370
0.1U/16V
0.1U/16V
12
C351
C351
0.1U/16V
0.1U/16V
12
C688
C688
4.7U/10V_0805
4.7U/10V_0805
12
C724
C724
+
+
220U/6.3V_7343
220U/6.3V_7343
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
Date: Sheet
Date: Sheet
Date: Sheet
+1_5VRUN
12
C691
C691
0.1U/16V
0.1U/16V
+2_5VRUN_ALV
12
C718
C718
NC_4.7U/10V_0805
NC_4.7U/10V_0805
+2_5VRUN_ALV
12
C273
C273
0.1U/16V
0.1U/16V
+1_8VSUS_DDR2
C363
C363
L17
L17
L46
L46
12
C367
C367
0.1U/16V
0.1U/16V
+1_5VRUN
+2_5VRUN_ALV
+1_5VRUN
L47
L47
1 2
1UH
1UH
+1_5VRUN
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
1
12
0.1U/16V
0.1U/16V
HCB2012K-121T30
HCB2012K-121T30
HCB2012K-121T30
HCB2012K-121T30
Alviso (POWER) 4/5
Alviso (POWER) 4/5
Alviso (POWER) 4/5
MS04-1-01
MS04-1-01
MS04-1-01
12
0.1U/16V
0.1U/16V
C366
C366
12
C343
C343
0.1U/16V
0.1U/16V
1.00
1.00
1.00
of
942Wednesday, November 23, 2005
of
942Wednesday, November 23, 2005
of
942Wednesday, November 23, 2005
5
4
3
2
1
D D
AF23
H23
AL22
AH22
J22
E22
D22
A22
AN21
AF21
F21
C21
AK20
V20
G20
F20
E20
D20
A20
AN19
AG19
W19
T19
J19
H19
C19
AL18
U18
B18
A18
AN17
AJ17
AF17
G17
C17
AL16
K16
H16
D16
A16
K15
C15
AN14
AL14
AJ14
AG14
K14
J14
F14
B14
A14
J12
D12
B12
AN11
AL11
AJ11
AG11
AF11
AA11
Y11
H11
F11
AA10
Y10
L10
D10
AN9
AH9
AE9
AC9
AA9
AL8
E8
AN7
AK7
AG7
AA7
V7
AJ6
AE6
AC6
AA6
J6
B6
AP5
AL5
AN4
AF4
U4
C4
AJ3
AC3
AB3
AA3
AN2
AL2
AH2
AE2
AD2
B27
J26
G26
E26
A26
AN24
AL24
Y1
B36
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
VSS161
VSS162
VSS163
VSS164
VSS165
VSS166
VSS167
VSS168
VSS169
VSS170
VSS171
VSS172
VSS173
VSS174
VSS175
VSS176
VSS177
VSS178
VSS179
VSS180
VSS181
VSS182
VSS183
VSS184
VSS185
VSS186
VSS187
VSS188
VSS189
VSS190
VSS191
VSS192
VSS193
VSS194
VSS195
VSS196
VSS197
VSS198
VSS199
VSS200
VSS201
VSS202
VSS203
VSS204
VSS205
VSS206
VSS207
VSS208V9VSS209T9VSS210K9VSS211H9VSS212A9VSS213
VSS214Y8VSS215P8VSS216L8VSS217
VSS218C8VSS219
VSS220
VSS221
VSS222
VSS223
VSS224G7VSS225
VSS226
VSS227
VSS228
VSS229T6VSS230P6VSS231L6VSS232
VSS233
VSS234
VSS235
VSS236W5VSS237E5VSS238
VSS239
VSS240Y4VSS241
VSS242P4VSS243L4VSS244H4VSS245
VSS246
VSS247
VSS248
VSS249
VSS250C3VSS251A3VSS252
VSS253
VSS254
VSS255
VSS256
VSS257V2VSS258T2VSS259P2VSS260L2VSS261
VSS262
VSS263
VSS264
VSS265
VSS266
VSS267
VSS268J2VSS269G2VSS270D2VSS271
VSSALVDS
U34E
U34E
ALVISO
ALVISO
VSS
VSS
VSS0
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65
VSS66
VSS67
VSS68
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74
VSS75
VSS76
VSS77
VSS78
VSS79
VSS80
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
VSS95
VSS96
VSS97
VSS98
VSS99
VSS100
VSS101
VSS102
VSS103
VSS104
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
J24
F24
E27
B24
D24
G27
W27
AJ24
AA27
C C
B B
AG24
Y12
VSS_NCTF68
AJ27
AF27
AB27
AG27
L14
AA13
Y13
AA12
VSS_NCTF64
VSS_NCTF65
VSS_NCTF66
VSS_NCTF67
E28
W28
AL27
AN27
R14
P14
N14
M14
VSS_NCTF60
VSS_NCTF61
VSS_NCTF62
VSS_NCTF63
AB28
AA28
AC28
V14
U14
T14
VSS_NCTF57
VSS_NCTF58
VSS_NCTF59
F29
E29
A29
D29
AB14
AA14
Y14
W14
VSS_NCTF53
VSS_NCTF54
VSS_NCTF55
VSS_NCTF56
L29
P29
H29
G29
P15
N15
M15
L15
VSS_NCTF49
VSS_NCTF50
VSS_NCTF51
VSS_NCTF52
V29
U29
W29
AA29
V15
U15
T15
R15
VSS_NCTF45
VSS_NCTF46
VSS_NCTF47
VSS_NCTF48
AJ29
AD29
AG29
AM29
AB15
AA15
Y15
W15
VSS_NCTF41
VSS_NCTF42
VSS_NCTF43
VSS_NCTF44
Y30
C30
AB30
AA30
P16
N16
M16
L16
VSS_NCTF37
VSS_NCTF38
VSS_NCTF39
VSS_NCTF40
AE30
AC30
T16
R16
VSS_NCTF35
VSS_NCTF36
F31
E31
D31
AP30
Y16
W16
V16
U16
VSS_NCTF31
VSS_NCTF32
VSS_NCTF33
VSS_NCTF34
J31
K31
H31
G31
Y17
R17
AB16
AA16
VSS_NCTF27
VSS_NCTF28
VSS_NCTF29
VSS_NCTF30
U34D
U34D
ALVISO
ALVISO
L31
P31
N31
M31
AB18
AA18
AB17
AA17
VSS_NCTF23
VSS_NCTF24
VSS_NCTF25
VSS_NCTF26
NCTF
NCTF
T31
V31
U31
R31
AB20
AA20
AB19
AA19
VSS_NCTF20
VSS_NCTF21
VSS_NCTF22
W31
AL31
AD31
AG31
AB21
AA21
Y21
R21
VSS_NCTF15
VSS_NCTF16
VSS_NCTF17
VSS_NCTF18
VSS_NCTF19
Y32
A32
C32
AA32
Y23
AB22
AA22
Y22
VSS_NCTF11
VSS_NCTF12
VSS_NCTF13
VSS_NCTF14
AJ32
AB32
AD32
AC32
AA23
AA24
Y24
AB23
VSS_NCTF8
VSS_NCTF9
VSS_NCTF10
E33
D33
AN32
AA25
Y25
AB24
VSS_NCTF4
VSS_NCTF5
VSS_NCTF6
VSS_NCTF7
F33
H33
G33
AA26
Y26
AB25
VSS_NCTF1
VSS_NCTF2
VSS_NCTF3
J33
L33
K33
AB26
VSS_NCTF0
M33
P33
N33
T33
V33
U33
R33
P12
N12
M12
L12
VTT_NCTF15
VTT_NCTF16
VTT_NCTF17
W33
AL33
AF33
AD33
V12
U12
T12
R12
VTT_NCTF11
VTT_NCTF12
VTT_NCTF13
VTT_NCTF14
C34
AB34
AA34
AC34
N13
M13
L13
W12
VTT_NCTF7
VTT_NCTF8
VTT_NCTF9
VTT_NCTF10
AN34
AH34
AD34
+VCCP
T13
R13
P13
VTT_NCTF3
VTT_NCTF4
VTT_NCTF5
VTT_NCTF6
E35
B35
D35
W13
V13
U13
VTT_NCTF0
VTT_NCTF1
VTT_NCTF2
J35
L35
F35
H35
G35
T35
Y35
V35
P35
K35
R35
N35
M35
C36
U35
W35
AE35
AA36
AB36
AC36
AD36
AE36
AF36
AJ36
AL36
AN36
T37
Y37
V37
P37
K37
E37
H37
M37
AG37
VCCSM_NCTF0
VCCSM_NCTF1
VCCSM_NCTF2
VCCSM_NCTF3
VCCSM_NCTF4
VCCSM_NCTF5
VCCSM_NCTF6
VCCSM_NCTF7
VCCSM_NCTF8
VCCSM_NCTF9
VCCSM_NCTF10
VCCSM_NCTF11
VCCSM_NCTF12
VCCSM_NCTF13
VCCSM_NCTF14
VCCSM_NCTF15
VCCSM_NCTF16
VCCSM_NCTF17
VCCSM_NCTF18
VCCSM_NCTF19
VCCSM_NCTF20
VCCSM_NCTF21
VCCSM_NCTF22
VCCSM_NCTF23
VCCSM_NCTF24
VCCSM_NCTF25
VCCSM_NCTF26
VCCSM_NCTF27
VCCSM_NCTF28
VCCSM_NCTF29
VCCSM_NCTF30
VCCSM_NCTF31
VCC_NCTF0
VCC_NCTF1
VCC_NCTF2
VCC_NCTF3
VCC_NCTF4
VCC_NCTF5
VCC_NCTF6
VCC_NCTF7
VCC_NCTF8
VCC_NCTF9
VCC_NCTF10
VCC_NCTF11
VCC_NCTF12
VCC_NCTF13
VCC_NCTF14
VCC_NCTF15
VCC_NCTF16
VCC_NCTF17
VCC_NCTF18
VCC_NCTF19
VCC_NCTF20
VCC_NCTF21
VCC_NCTF22
VCC_NCTF23
VCC_NCTF24
VCC_NCTF25
VCC_NCTF26
VCC_NCTF27
VCC_NCTF28
VCC_NCTF29
VCC_NCTF30
VCC_NCTF31
VCC_NCTF32
VCC_NCTF33
VCC_NCTF34
VCC_NCTF35
VCC_NCTF36
VCC_NCTF37
VCC_NCTF38
VCC_NCTF39
VCC_NCTF40
VCC_NCTF41
VCC_NCTF42
VCC_NCTF43
VCC_NCTF44
VCC_NCTF45
VCC_NCTF46
VCC_NCTF47
VCC_NCTF48
VCC_NCTF49
VCC_NCTF50
VCC_NCTF51
VCC_NCTF52
VCC_NCTF53
VCC_NCTF54
VCC_NCTF55
VCC_NCTF56
VCC_NCTF57
VCC_NCTF58
VCC_NCTF59
VCC_NCTF60
VCC_NCTF61
VCC_NCTF62
VCC_NCTF63
VCC_NCTF64
VCC_NCTF65
VCC_NCTF66
VCC_NCTF67
VCC_NCTF68
VCC_NCTF69
VCC_NCTF70
VCC_NCTF71
VCC_NCTF72
VCC_NCTF73
VCC_NCTF74
VCC_NCTF75
VCC_NCTF76
VCC_NCTF77
VCC_NCTF78
L17
M17
A A
5
L18
T17
V17
P17
N17
N18
U17
M18
W17
P19
Y18
P18
R19
N19
R18
M19
Y20
P20
Y19
R20
N20
M21
M20
4
L21
L20
L19
L22
T21
V21
P21
N21
N22
U21
M22
W21
L23
T22
V22
P22
R22
N23
U22
M23
W22
L24
T23
V23
P23
R23
N24
U23
M24
W23
L25
T24
V24
P24
R24
N25
U24
M25
W24
3
L26
W25
T26
V26
P26
U26
R26
N26
M26
W26
MCH_VTT
AB12
AC12
AD12
AB13
AC13
AD13
AC14
AD14
AC15
AD15
AC16
AD16
AC17
AD17
AC18
AD18
AC19
2
AD19
AC20
AD20
AC21
AD21
AC22
AD22
AC23
AD23
AC24
AC26
AD25
AC25
AD24
+1_8VSUS_DDR2
AD26
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
Alviso (VSS,NCTF) 5/5
Alviso (VSS,NCTF) 5/5
Alviso (VSS,NCTF) 5/5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MS04-1-01
MS04-1-01
MS04-1-01
A3
Date: Sheet
Date: Sheet
Date: Sheet
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
10 42Wednesday, November 23, 2005
10 42Wednesday, November 23, 2005
1
10 42Wednesday, November 23, 2005
1.00
1.00
1.00
of
of
of
T25
V25
P25
U25
R25
5
hexainf@hotmail.com
4
3
2
1
MIOBD015
MIOBD115
MIOBD215
MIOBD315
MIOBD415
MIOBD515
MIOBD615
MIOBD815
U29A
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
AF13
AF14
AE10
AD10
AC10
AE12
AE13
AD13
AC13
AC15
AD15
AE15
AE16
AC18
AD18
AE18
AE19
AC21
AD21
AE21
AE22
AD22
AD23
AF25
AE25
AE24
AD24
AG10
AF10
AF11
AG12
AG13
AG15
AG16
AF16
AF17
AG18
AG19
AF19
AF20
AG21
AG22
AF22
AF23
AG24
AG25
AG26
AF27
U29A
AC6
PEX_RST_N
PEX_TSTCLK_OUT
PEX_TSTCLK_OUT_N
AE3
PEX_REFCLK
AE4
PEX_REFCLK_N
AD5
PEX_TX0
AD6
PEX_TX0_N
AE6
PEX_TX1
AE7
PEX_TX1_N
AD7
PEX_TX2
AC7
PEX_TX2_N
AE9
PEX_TX3
PEX_TX3_N
PEX_TX4
PEX_TX4_N
PEX_TX5
PEX_TX5_N
PEX_TX6
PEX_TX6_N
PEX_TX7
PEX_TX7_N
PEX_TX8
PEX_TX8_N
PEX_TX9
PEX_TX9_N
PEX_TX10
PEX_TX10_N
PEX_TX11
PEX_TX11_N
PEX_TX12
PEX_TX12_N
PEX_TX13
PEX_TX13_N
PEX_TX14
PEX_TX14_N
PEX_TX15
PEX_TX15_N
AF1
PEX_RX0
AG2
PEX_RX0_N
AG3
PEX_RX1
AG4
PEX_RX1_N
AF4
PEX_RX2
AF5
PEX_RX2_N
AG6
PEX_RX3
AG7
PEX_RX3_N
AF7
PEX_RX4
AF8
PEX_RX4_N
AG9
PEX_RX5
PEX_RX5_N
PEX_RX6
PEX_RX6_N
PEX_RX7
PEX_RX7_N
PEX_RX8
PEX_RX8_N
PEX_RX9
PEX_RX9_N
PEX_RX10
PEX_RX10_N
PEX_RX11
PEX_RX11_N
PEX_RX12
PEX_RX12_N
PEX_RX13
PEX_RX13_N
PEX_RX14
PEX_RX14_N
PEX_RX15
PEX_RX15_N
NV_GF-GO6250SQ-N-AX
NV_GF-GO6250SQ-N-AX
TXP0PEG_RXP0
TXP1
TXP2
TXP3
TXP4
TXP5
TXP6
TXP7
TXP8
TXP9
TXP10
TXP11
TXP13
TXP14
TXP15
PEX_IOVDD0
PEX_IOVDD1
PEX_IOVDD2
PEX_IOVDD3
PEX_IOVDD4
PEX_IOVDD5
PEX_IOVDD6
PEX_IOVDD7
PEX_IOVDDQ0
PEX_IOVDDQ1
PEX_IOVDDQ2
PEX_IOVDDQ3
PEX_IOVDDQ4
PEX_IOVDDQ5
PEX_IOVDDQ6
PEX_IOVDDQ7
PEX_IOVDDQ8
PEX_IOVDDQ9
PEX_IOVDDQ10
PEX_IOVDDQ11
PEX_IOVDDQ12
PEX_IOVDDQ13
PEX_IOVDDQ14
PEX_IOVDDQ15
PEX_IOVDDQ16
PEX_IOVDDQ17
PEX_IOVDDQ18
VDD0
VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
VDD17
VDD18
VDD19
VDD20
VDD21
VDD22
VDD23
VDD24
VDD25
VDD26
VDD27
VDD28
VDD29
VDD30
VDD31
VDD32
VDD33
VDD34
VDD35
VDD_LP1
VDD_LP2
VDD_LP3
VDD_LP4
VDD33_0
VDD33_1
VDD33_2
VDD33_3
VDD33_4
VDD33_5
PEX_PLLAVDD
PEX_PLLDVDD
PEX_PLLGND
4
W17
W18
AB10
AB11
AB14
AB15
AB20
AB21
AA4
AB5
AB6
AB7
AB8
AB9
AB12
AB13
AB16
AB17
AB18
AB19
AC9
AC11
AC12
AC16
AC17
AC19
AC20
J9
J10
J11
L12
L13
L15
L16
M9
M11
M12
M13
M14
M15
M16
M17
N9
N11
N17
R9
R11
R17
T9
T11
T12
T13
T14
T15
T16
T17
U12
U13
U15
U16
W13
W15
W16
W9
W10
W11
W12
F13
F14
J12
J13
J15
J16
Y6
AA5
AA6
288mA
12
C158
C158
NV_0.022U/16V
NV_0.022U/16V
12
C166
C166
NV_0.022U/16V
NV_0.022U/16V
12
C167
C167
NV_0.022U/16V
NV_0.022U/16V
L_PEX_VDD
NV_4.7U/10V_0805
NV_4.7U/10V_0805
C653
C653
12
Place near balls Place near GPU
1520mA
12
C134
C134
NV_0.022U/16V
NV_0.022U/16V
12
C146
C146
NV_0.022U/16V
NV_0.022U/16V
12
C133
C133
NV_0.1U/16V
NV_0.1U/16V
12
C159
C159
NV_0.1U/16V
NV_0.1U/16V
Place near balls
3000mA
12
C86
C86
NV_100P
NV_100P
12
C80
C80
NV_220P
NV_220P
12
C108
C108
NV_0.01U/16V
NV_0.01U/16V
12
C99
C99
NV_100P
NV_100P
12
C129
C129
NV_100P
NV_100P
12
C93
C93
NV_0.01U/16V
NV_0.01U/16V
12
C98
C98
NV_220P
NV_220P
12
C81
C81
NV_0.01U/16V
NV_0.01U/16V
C26
C26
NV_22U/10V_1206
NV_22U/10V_1206
12
C130
C130
NV_0.01U/16V
NV_0.01U/16V
Place near balls
C35
C91
C91
12
C83
C83
NV_220P
NV_220P
NV_220P
NV_220P
12
C97
C97
12
NV_220P
NV_220P
12
C95
C95
NV_100P
NV_100P
12
C147
C147
NV_0.1U/16V
NV_0.1U/16V
C75
C75
C131
C131
12
12
NV_220P
NV_220P
NV_0.01U/16V
NV_0.01U/16V
L_NV_VDD
12
12
C109
C109
NV_220P
NV_220P
12
C82
C82
NV_0.022U/16V
NV_0.022U/16V
C563
C563
NV_22U/10V_1206
NV_22U/10V_1206
C89
C89
NV_0.01U/16V
NV_0.01U/16V
12
C35
C891
C891
For EMI ,
NV_22U/10V_1206
NV_22U/10V_1206
near C35
C115
C115
NV_10U/10V_1206
NV_10U/10V_1206
C74
C74
NV_1U/10V_0603
NV_1U/10V_0603
NV_0.01U/16V
NV_0.01U/16V
+3VRUN
Place near GPU
PEX_VDD
12
C670
C670
NV_4.7U/10V_0805
NV_4.7U/10V_0805
180mA
20mA
12
C161
C161
NV_4700P/50V
NV_4700P/50V
12
C168
C168
NV_0.1U/16V
NV_0.1U/16V
PEX_PLL_AVDD
PEX_PLL_DVDD
12
C148
C148
NV_0.01U/16V
NV_0.01U/16V
12
C160
C160
NV_0.01U/16V
NV_0.01U/16V
1 2
NV_BLM11A121S
NV_BLM11A121S
12
C652
C652
NV_4.7U/10V_0805
NV_4.7U/10V_0805
Place near GPUPlace near balls
12
C651
C651
NV_4.7U/10V_0805
NV_4.7U/10V_0805
L37
L37
L38
L38
1 2
NV_BLM11A121S
NV_BLM11A121S
Place near GPUPlace near balls
PEG_RXN[0..15]7
3
12
12
C145
C145
NV_0.1U/16V
NV_0.1U/16V
Place near GPU
12
+
+
D D
PEG_TXP_C[0..15]7
PEG_TXN_C[0..15]7
C C
B B
PEG_RXP[0..15]7
PEG_RXP1
A A
PEG_RXP2
PEG_RXP3
PEG_RXP4
PEG_RXP5
PEG_RXP6
PEG_RXP7
PEG_RXP8
PEG_RXP9
PEG_RXP10
PEG_RXP11
PEG_RXP12 TXP12
PEG_RXP13
PEG_RXP14
PEG_RXP15
CLK_PCIE_PEG5
CLK_PCIE_PEG#5
PEG_TXP_C0
PEG_TXP_C1
PEG_TXP_C2
PEG_TXP_C3
PEG_TXP_C4
PEG_TXP_C5
PEG_TXP_C6
PEG_TXP_C7
PEG_TXP_C8
PEG_TXP_C9
PEG_TXP_C10
PEG_TXP_C11
PEG_TXP_C12
PEG_TXP_C13
PEG_TXP_C14
PEG_TXP_C15
PEG_TXN_C0
PEG_TXN_C1
PEG_TXN_C2
PEG_TXN_C3
PEG_TXN_C4
PEG_TXN_C5
PEG_TXN_C6
PEG_TXN_C7
PEG_TXN_C8
PEG_TXN_C9
PEG_TXN_C10
PEG_TXN_C11
PEG_TXN_C12
PEG_TXN_C13
PEG_TXN_C14
PEG_TXN_C15
C211 NV_0.1U/16VC211 NV_0.1U/16V
1 2
C209 NV_0.1U/16VC209 NV_0.1U/16V
1 2
C207 NV_0.1U/16VC207 NV_0.1U/16V
1 2
C204 NV_0.1U/16VC204 NV_0.1U/16V
1 2
C203 NV_0.1U/16VC203 NV_0.1U/16V
1 2
C201 NV_0.1U/16VC201 NV_0.1U/16V
1 2
C199 NV_0.1U/16VC199 NV_0.1U/16V
1 2
C197 NV_0.1U/16VC197 NV_0.1U/16V
1 2
5
PLT_RST#3,7,19,22,30
T4PAD T4PAD
T6PAD T6PAD
TXP0
TXN0
TXP1
TXN1
TXP2
TXN2
TXP3
TXN3
TXP4
TXN4
TXP5
TXN5
TXP6
TXN6
TXP7
TXN7
TXP8
TXN8
TXP9
TXN9
TXP10
TXN10
TXP11
TXN11
TXP12
TXN12
TXP13
TXN13
TXP14
TXN14
TXP15
TXN15
PEG_TXP_C0
PEG_TXN_C0
PEG_TXP_C1
PEG_TXN_C1
PEG_TXP_C2
PEG_TXN_C2
PEG_TXP_C3
PEG_TXN_C3
PEG_TXP_C4
PEG_TXN_C4
PEG_TXP_C5
PEG_TXN_C5
PEG_TXP_C6
PEG_TXN_C6
PEG_TXP_C7
PEG_TXN_C7
PEG_TXP_C8
PEG_TXN_C8
PEG_TXP_C9
PEG_TXN_C9
PEG_TXP_C10
PEG_TXN_C10
PEG_TXP_C11
PEG_TXN_C11
PEG_TXP_C12
PEG_TXN_C12
PEG_TXP_C13
PEG_TXN_C13
PEG_TXP_C14
PEG_TXN_C14
PEG_TXP_C15
PEG_TXN_C15
C237 NV_0.1U/16VC237 NV_0.1U/16V
C236 NV_0.1U/16VC236 NV_0.1U/16V
C234 NV_0.1U/16VC234 NV_0.1U/16V
C232 NV_0.1U/16VC232 NV_0.1U/16V
C230 NV_0.1U/16VC230 NV_0.1U/16V
C228 NV_0.1U/16VC228 NV_0.1U/16V
C226 NV_0.1U/16VC226 NV_0.1U/16V
C224 NV_0.1U/16VC224 NV_0.1U/16V
PEX_VDD
NV_4.7U/10V_0805
NV_4.7U/10V_0805
C648
C648
PEX_VDD
C656
C656
NV_10U/10V_1206
NV_10U/10V_1206
NV_VDD
12
C110
C110
NV_0.01U/16V
NV_0.01U/16V
NV_VDD
C874
C874
NV_470U/2V_7343 NV_470U/2.5V_7343
NV_470U/2V_7343 NV_470U/2.5V_7343
C210 NV_0.1U/16VC210 NV_0.1U/16V
PEG_RXN0
PEG_RXN1
C208 NV_0.1U/16VC208 NV_0.1U/16V
PEG_RXN2
PEG_RXN3
C206 NV_0.1U/16VC206 NV_0.1U/16V
PEG_RXN4
PEG_RXN5
C205 NV_0.1U/16VC205 NV_0.1U/16V
PEG_RXN6
PEG_RXN7
C202 NV_0.1U/16VC202 NV_0.1U/16V
PEG_RXN8
PEG_RXN9
C200 NV_0.1U/16VC200 NV_0.1U/16V
PEG_RXN10
PEG_RXN11
C198 NV_0.1U/16VC198 NV_0.1U/16V
PEG_RXN12
PEG_RXN13
C196 NV_0.1U/16VC196 NV_0.1U/16V
PEG_RXN14
PEG_RXN15
MIOBD915
MIOBD1015
MIOBD1115
MIOB_VSYNC15
RAM_CFG(NV44M)
4M X 32bit 2
pcs (64bit)
PCI_DEVID(NV44M)
NV44M-V [0111]
NV44M [1000]
CRYSTAL(NV44M)
10 (27M Hz)
ROM_TYPE(NV44M)
01
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
MIOBD0
MIOBD1
MIOBD2
MIOBD3
MIOBD4
MIOBD5
MIOBD6
MIOBD8
MIOBD9
MIOBD10
MIOBD11
MIOB_VSYNC
RAM_CFG0(A02)
RAM_CFG1(A02)
RAM_CFG2(A02)
RAM_CFG3(A02)
PCI_DEVID 0
PCI_DEVID 1
PCI_DEVID 2
PCI_DEVID 3(A02)
CRYSTAL 0
CRYSTAL 1
ROM_TYPE 0
ROM_TYPE 1(A01)
ROM_TYPE 1(A02)
STRAP PIN for NV44M
C238 NV_0.1U/16VC238 NV_0.1U/16V
1 2
C235 NV_0.1U/16VC235 NV_0.1U/16V
1 2
C233 NV_0.1U/16VC233 NV_0.1U/16V
1 2
C231 NV_0.1U/16VC231 NV_0.1U/16V
1 2
C229 NV_0.1U/16VC229 NV_0.1U/16V
1 2
C227 NV_0.1U/16VC227 NV_0.1U/16V
1 2
C225 NV_0.1U/16VC225 NV_0.1U/16V
1 2
C223 NV_0.1U/16VC223 NV_0.1U/16V
1 2
2
SUBVENDOR
SYSTEM BIOS
MIOAD1
MIOAD113
1 2
R417 S_NV_2KR417 S_NV_2K
1 2
R425 H_NV_2KR425 H_NV_2K
1 2
R413 NC_2KR413 NC_2K
1 2
R78 NV_2KR78 NV_2K
1 2
R433 NV_2KR433 NV_2K
1 2
R431 NV_2KR431 NV_2K
1 2
R435 NV_2KR435 NV_2K
1 2
R89 NC_2KR89 NC_2K
1 2
R136 NV_2KR136 NV_2K
1 2
R132 NC_2KR132 NC_2K
1 2
R129 NC_2KR129 NC_2K
1 2
R93 NC_10KR93 NC_10K
1 2
R125 NV_2KR125 NV_2K
TXN0
TXN1
TXN2
TXN3
TXN4
TXN5
TXN6
TXN7
TXN8
FOXCONN
FOXCONN
FOXCONN
TXN9
Title
Title
Title
TXN10
TXN11
TXN12
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
TXN13
TXN14
A3
TXN15
Date: Sheet
Date: Sheet
Date: Sheet
MIOBD0
MIOBD1
MIOBD8
MIOBD9
MIOBD4
MIOBD5
MIOBD3
MIOBD11
MIOBD2
MIOBD6
MIOBD10
MIOBD11
MIOB_VSYNC
VGA(nVIDIA NV44M) 1/5
VGA(nVIDIA NV44M) 1/5
VGA(nVIDIA NV44M) 1/5
MS04-1-01
MS04-1-01
MS04-1-01
1 2
R421 NV_2KR421 NV_2K
1 2
R416 H_NV_2KR416 H_NV_2K
1 2
R426 S_NV_2KR426 S_NV_2K
1 2
R412 NV_2KR412 NV_2K
1 2
R79 NC_2KR79 NC_2K
1 2
R432 NC_2KR432 NC_2K
1 2
R430 NC_2KR430 NC_2K
1 2
R434 NC_2KR434 NC_2K
1 2
R90 NV_2KR90 NV_2K
1 2
R137 NC_2KR137 NC_2K
1 2
R133 NV_2KR133 NV_2K
1 2
R130 NV_2KR130 NV_2K
1 2
R94 NC_10KR94 NC_10K
1 2
R126 NC_2KR126 NC_2K
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
11 42Wednesday, November 23, 2005
11 42Wednesday, November 23, 2005
1
11 42Wednesday, November 23, 2005
+3VRUN
1.00
1.00
1.00
of
of
of
1
A A
U29D
U29D
B2
GND1
B5
GND2
B8
GND3
B11
GND4
B14
GND5
B17
GND6
B20
GND7
B23
GND8
B26
GND9
E2
GND10
E5
GND11
E8
GND12
E11
GND13
E14
GND14
E17
GND15
E20
GND16
E23
GND17
E26
GND18
F11
GND19
H2
GND20
H6
GND21
H23
GND22
H26
B B
C C
D D
GND23
J14
GND24
K9
GND25
K19
GND26
L2
GND27
L5
GND28
L11
GND29
L14
GND30
L17
GND31
L23
GND32
L26
GND33
N12
GND34
N13
GND35
N14
GND36
N15
GND37
N16
GND38
P2
GND39
P5
GND40
P9
GND41
P11
GND42
P12
GND43
P13
GND44
P14
GND45
P15
GND46
P16
GND47
P17
GND48
P19
GND49
P23
GND50
NV_GF-GO6250SQ-N-AX
NV_GF-GO6250SQ-N-AX
1
GND51
GND52
GND53
GND54
GND55
GND56
GND57
GND58
GND59
GND60
GND61
GND62
GND63
GND64
GND65
GND66
GND67
GND68
GND69
GND70
GND71
GND72
GND73
GND74
GND75
GND76
GND77
GND78
GND79
GND80
GND81
GND82
GND83
GND84
GND85
GND86
GND87
GND88
GND89
GND90
GND91
GND92
GND93
GND94
GND95
P26
R12
R13
R14
R15
R16
U2
U5
U11
U14
U17
U23
U26
V9
V19
W14
Y2
Y5
Y23
Y26
AC2
AC5
AC8
AC14
AC23
AC26
AD8
AD9
AD11
AD12
AD14
AD16
AD17
AD19
AD20
AF2
AF3
AF6
AF9
AF12
AF15
AF18
AF21
AF24
AF26
2
2
FBAD[0:63]16
FBADQM[7..0]16
FBADQS[7..0]16
VRAMVDD
12
R63
R63
NV_1K/F
NV_1K/F
12
R59
R59
NV_1K/F
NV_1K/F
Place U6.E32
C60
C60
NV_0.1U/16V
NV_0.1U/16V
3
TP3 PADTP3 PAD
TP2 PADTP2 PAD
TP1 PADTP1 PAD
TP8 PADTP8 PAD
TP7 PADTP7 PAD
TP5 PADTP5 PAD
3
FBAD0
FBAD1
FBAD2
FBAD3
FBAD4
FBAD5
FBAD6
FBAD7
FBAD8
FBAD9
FBAD10
FBAD11
FBAD12
FBAD13
FBAD14
FBAD15
FBAD16
FBAD17
FBAD18
FBAD19
FBAD20
FBAD21
FBAD22
FBAD23
FBAD24
FBAD25
FBAD26
FBAD27
FBAD28
FBAD29
FBAD30
FBAD31
FBAD32
FBAD33
FBAD34
FBAD35
FBAD36
FBAD37
FBAD38
FBAD39
FBAD40
FBAD41
FBAD42
FBAD43
FBAD44
FBAD45
FBAD46
FBAD47
FBAD48
FBAD49
FBAD50
FBAD51
FBAD52
FBAD53
FBAD54
FBAD55
FBAD56
FBAD57
FBAD58
FBAD59
FBAD60
FBAD61
FBAD62
FBAD63
FBADQM0
FBADQM1
FBADQM2
FBADQM3
FBADQM4
FBADQM5
FBADQM6
FBADQM7
FBADQS0
FBADQS1
FBADQS2
FBADQS3
FBADQS4
FBADQS5
FBADQS6
FBADQS7
FB_VREF1
U29B
U29B
A26
FBAD0
C24
FBAD1
B24
FBAD2
A24
FBAD3
C22
FBAD4
A25
FBAD5
B25
FBAD6
D23
FBAD7
G22
FBAD8
J23
FBAD9
E24
FBAD10
F23
FBAD11
J24
FBAD12
F24
FBAD13
G23
FBAD14
H24
FBAD15
D16
FBAD16
E16
FBAD17
D17
FBAD18
F18
FBAD19
E19
FBAD20
E18
FBAD21
D20
FBAD22
D19
FBAD23
A18
FBAD24
B18
FBAD25
A19
FBAD26
B19
FBAD27
D18
FBAD28
C19
FBAD29
C16
FBAD30
C18
FBAD31
N26
FBAD32
N25
FBAD33
R25
FBAD34
R26
FBAD35
R27
FBAD36
T25
FBAD37
T27
FBAD38
T26
FBAD39
AB23
FBAD40
Y24
FBAD41
AB24
FBAD42
AB22
FBAD43
AC24
FBAD44
AC22
FBAD45
AA23
FBAD46
AA22
FBAD47
T24
FBAD48
T23
FBAD49
R24
FBAD50
R23
FBAD51
R22
FBAD52
T22
FBAD53
N23
FBAD54
P24
FBAD55
AA24
FBAD56
AA27
FBAD57
AA26
FBAD58
AB25
FBAD59
AB26
FBAD60
AB27
FBAD61
AA25
FBAD62
W25
FBAD63
D21
FBADQM0
F22
FBADQM1
F20
FBADQM2
A21
FBADQM3
V27
FBADQM4
W22
FBADQM5
V22
FBADQM6
V24
FBADQM7
B22
FBADQS_WP0
D22
FBADQS_WP1
E21
FBADQS_WP2
C21
FBADQS_WP3
V25
FBADQS_WP4
W24
FBADQS_WP5
U24
FBADQS_WP6
W26
FBADQS_WP7
A22
FBADQS_RN0
E22
FBADQS_RN1
F21
FBADQS_RN2
B21
FBADQS_RN3
V26
FBADQS_RN4
W23
FBADQS_RN5
V23
FBADQS_RN6
W27
FBADQS_RN7
A16
FB_VREF1
NV_GF-GO6250SQ-N-AX
NV_GF-GO6250SQ-N-AX
4
FBVDDQ0
FBVDDQ1
FBVDDQ2
FBVDDQ3
FBVDDQ4
FBVDDQ5
FBVDDQ6
FBVDDQ7
FBVDDQ8
FBVDDQ9
FBA_CMD0
FBA_CMD1
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CLK0
FBA_CLK0_N
FBA_CLK1
FBA_CLK1_N
FBA_DEBUG
FBA_REFCLK
FBA_REFCLK_N
FBA_PLLVDD
FBA_PLLAVDD
FBA_PLLGND
4
F17
F19
J19
J22
L22
M19
P22
T19
U22
Y22
G27
D25
F26
F25
G25
J25
J27
M26
C27
C25
D24
N27
G24
J26
M27
C26
M25
D26
D27
K26
K25
K24
F27
K27
G26
B27
N24
L24
K23
M22
N22
K22
M23
M24
D14
D13
C15
FBA_A3
FBA_A0
FBA_A2
FBA_A1
FBB_A3
FBB_A4
FBB_A5
FBA_CS1#
FBA_CS0#
FBA_WE#
FBA_BA0
FBA_CKE
FBB_A2
FBA_A12
FBA_RAS#
FBA_A11
FBA_A10
FBA_BA1
FBA_A8
FBA_A9
FBA_A6
FBA_A5
FBA_A7
FBA_A4
FBA_CAS#
FBA_A13
FBACLK0
FBACLK1
C67
C67
NV_0.022U/16V
NV_0.022U/16V
C118
C118
NV_0.022U/16V
NV_0.022U/16V
T195 PADT195 PAD
T163 PADT163 PAD
T164 PADT164 PAD
C61
C61
NV_470P
NV_470P
C52
C52
NV_470P
NV_470P
5
C132
C132
NV_0.1U/16V
NV_0.1U/16V
C69
C69
NV_0.1U/16V
NV_0.1U/16V
Place near balls
FBA_A[0..12] 16
FBB_A[2..5] 16
FBA_CS1# 16
FBA_CS0# 16
FBA_WE# 16
FBA_BA0 16
FBA_CKE 16
FBA_RAS# 16
FBA_BA1 16
FBA_CAS# 16
T156 PADT156 PAD
FBACLK0 16
FBACLK0# 16
FBACLK1 16
FBACLK1# 16
C57
C57
NV_4700P/50V
NV_4700P/50V
C56
C56
NV_4700P/50V
NV_4700P/50V
5
C94
C94
NV_0.022U/16V
NV_0.022U/16V
C84
C84
NV_0.1U/16V
NV_0.1U/16V
FBA_PLLVDD
C36
C36
NV_4.7U/10V_0805
NV_4.7U/10V_0805
FBA_PLLAVDD
C49
C49
NV_4.7U/10V_0805
NV_4.7U/10V_0805
6
C58
C58
NV_0.1U/16V
NV_0.1U/16V
6
C70
C70
NV_0.1U/16V
NV_0.1U/16V
C38
C38
NV_4.7U/10V_0805
NV_4.7U/10V_0805
L5
L5
1 2
NV_BLM11A121S
NV_BLM11A121S
L7
L7
1 2
NV_BLM11A121S
NV_BLM11A121S
7
VRAMVDD
12
+
+
C870
C870
NV_220U/6.3V_7343
NV_220U/6.3V_7343
+3VRUN
NV_VDD
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
VGA(nVIDIA NV44M) 2/5
VGA(nVIDIA NV44M) 2/5
VGA(nVIDIA NV44M) 2/5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MS04-1-01
MS04-1-01
MS04-1-01
A3
Date: Sheet
Date: Sheet
Date: Sheet
7
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
8
of
12 42Wednesday, November 23, 2005
of
12 42Wednesday, November 23, 2005
of
12 42Wednesday, November 23, 2005
8
1.00
1.00
1.00
A
hexainf@hotmail.com
B
C
D
E
4 4
3 3
1 2
R684 NV_2KR684 NV_2K
1 2
R686 NC_2KR686 NC_2K
1 2
R688 NV_2KR688 NV_2K
1 2
R690 NV_2KR690 NV_2K
1 2
R692 NV_2KR692 NV_2K
MIOAD0
MIOAD111
MIOAD0
1 2
R685 NC_2KR685 NC_2K
MIOAD6
1 2
MIOBD7
R687 NV_2KR687 NV_2K
1 2
MIOAD8
R689 NC_2KR689 NC_2K
1 2
MIOAD9
R691 NC_2KR691 NC_2K
1 2
R693 NC_2KR693 NC_2K
MIOBD715
MIOBD7
MIOAD1
MIOAD6
MIOAD8
MIOAD9
+3VRUN
U29C
U29C
A2
NC0
A3
NC1
A4
NC2
B3
NC3
B4
NC4
B6
NC5
C4
NC6
C6
NC7
C13
NC8
D4
NC9
D12
NC10
E12
NC11
F6
NC12
F12
NC13
G5
NC14
G6
NC15
J6
NC16
P4
NC17
V4
NC18
NV_GF-GO6250SQ-N-AX
NV_GF-GO6250SQ-N-AX
FBVTT0
FBVTT1
FBVTT2
FBVTT3
FBVTT4
FBVTT5
FBVTT6
FBVTT7
FBVTT8
FBVTT9
FBCAL_PD_VDDQ
FBCAL_PU_GND
FBCAL_TERM_GND
E15
F15
F16
J17
J18
L19
N19
R19
U19
W19
D15
E13
H22
FBVTT
C107
C107
NV_0.001U
NV_0.001U
FBCAL_PD_VDDQ
FBCAL_PU_GND
FBCAL_TERM_GND
NV37 is NC
NV4x is 50ohm
C76
C76
NV_0.001U
NV_0.001U
R66
R66
NV_49.9/F
NV_49.9/F
C119
C119
NV_0.01U/16V
NV_0.01U/16V
C66
C66
NV_0.01U/16V
NV_0.01U/16V
VRAMVDD
R71
R71
NV_37.5/F
NV_37.5/F
R62
R62
NV_37.5/F
NV_37.5/F
C68
C68
NV_0.01U/16V
NV_0.01U/16V
VRAMVDD
NV_4.7U/10V_0805
NV_4.7U/10V_0805
C37
C37
2 2
U29E
U29E
1 1
NV_GF-GO6250SQ-N-AX
NV_GF-GO6250SQ-N-AX
A
B
ROMCS_N
ROM_SO
ROM_SI
ROM_SCLK
I2CH_SCL
I2CH_SDA
BUFRST_N
STEREO
SWAPRDY
TESTMODE
D1
D3
F3
D2
C7
B7
A6
F7
A7
D7
SWAPRDY
R98 NV_10KR98 NV_10K
R58
R58
NV_10K
NV_10K
T16PAD T16PAD
T15PAD T15PAD
T17PAD T17PAD
T18PAD T18PAD
T19PAD T19PAD
T2PAD T2PAD
T5PAD T5PAD
+3VRUN
C
R119
R119
NV_0
NV_0
HON HAI PRECISION IND. CO., LTD.
HON HAI PRECISION IND. CO., LTD.
FOXCONN
FOXCONN
FOXCONN
Title
Title
Title
VGA(nVIDIA NV44M) 3/5
VGA(nVIDIA NV44M) 3/5
VGA(nVIDIA NV44M) 3/5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MS04-1-01
MS04-1-01
MS04-1-01
A3
Date: Sheet
Date: Sheet
D
Date: Sheet
HON HAI PRECISION IND. CO., LTD.
CPBG - R&D Division
CPBG - R&D Division
CPBG - R&D Division
of
13 42Wednesday, November 23, 2005
of
13 42Wednesday, November 23, 2005
of
E
13 42Wednesday, November 23, 2005
1.00
1.00
1.00
Loading...
