Sony MD-4251TD, LMD-2451TD Specifications
Preliminary

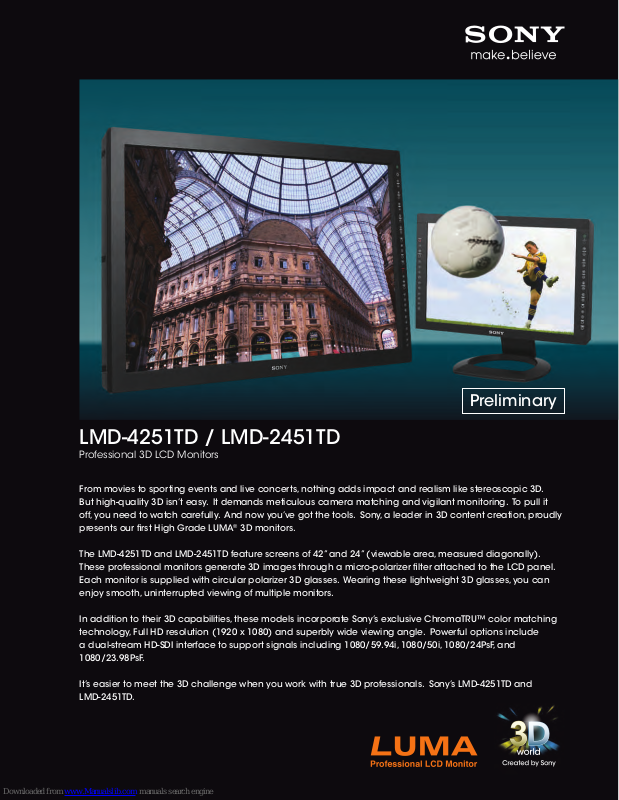

LMD-4251TD / LMD-2451TD
Professional 3D LCD Monitors
From movies to sporting events and live concerts, nothing adds impact and realism like stereoscopic 3D.
But high-quality 3D isn’t easy. It demands meticulous camera matching and vigilant monitoring. To pull it
off, you need to watch carefully. And now you’ve got the tools. Sony, a leader in 3D content creation, proudly
presents our rst High Grade LUMA
The LMD-4251TD and LMD-2451TD feature screens of 42” and 24” (viewable area, measured diagonally).
These professional monitors generate 3D images through a micro-polarizer lter attached to the LCD panel.
Each monitor is supplied with circular polarizer 3D glasses. Wearing these lightweight 3D glasses, you can
enjoy smooth, uninterrupted viewing of multiple monitors.
In addition to their 3D capabilities, these models incorporate Sony’s exclusive ChromaTRU™ color matching
technology, Full HD resolution (1920 x 1080) and superbly wide viewing angle. Powerful options include
a dual-stream HD-SDI interface to support signals including 1080/59.94i, 1080/50i, 1080/24PsF, and
1080/23.98PsF.
It’s easier to meet the 3D challenge when you work with true 3D professionals. Sony’s LMD-4251TD and
LMD-2451TD.
®
3D monitors.
Left eye Right eye
Principle of 3D Circular polarizer 3D Signal processing
R
L
R
L
R
L
LCD panel
Polarizer
Patterned retarder
Circular polarizer
glasses
Left signal
on even lines
Right signal
on odd lines
LMD-4251TD LMD-2451TD
Features (tentative)
• High-resolution full HD professional monitors
LMD-4251TD: 1920 x 1080 pixel resolution
LMD-2451TD: 1920 x 1200 pixel resolution
• Micro-polarizer 3D lter
• Circular polarizer 3D glasses
• Wide viewing angle achieved with an IPS panel
• ChromaTRU color matching technology
• Consistent quality, functionality, and operability –
essential for professional monitors
• Dual stream HD-SDI support*
• Both 3D monitors can be used as 2D monitors,
and their features are compatible with those of
current LMD-50/51W Series monitors
* An optional BKM input adaptor is required.
3D Signal Formats (tentative)
• 3D signals on 3G-SDI (Level B)*
• Dual stream HD-SDI: 1080/60i, 50i, 24PsF, 720/60p,
or 720/50p*
2
• Field sequential HD-SDI: 1080/30PsF, 25PsF, or 24PsF *
• DVI: Line-by-line 1920 x 1080/60p, 50p
*1 All 3D signals are displayed on screen pixel-to-pixel.
*2 An optional BKM input adaptor is required.
2
*
Right-signal on odd lines
(Clockwise)
Left-signal on even lines
(Counter-clockwise)
Left eye Right eye
R
L
Specications (tentative)
Picture Performance
Type a-Si TFT Active Matrix LCD a-Si TFT Active Matrix LCD
Resolution 1920 x 1080 pixels (Full HD) 1920 x 1200 pixels (WUXGA)
Effective Picture Size (H x W)
(Diagonal)
Aspect 16:9 16:10
Colors Approx. 16.7 million colors Approx. 16.7 million colors
Viewing Angle TBA TBA
Input
Composite BNC (x1) BNC (x1)
Y/C Mini DIN 4-pin (x1) Mini DIN 4-pin (x1)
RGB, Component BNC (x3) BNC (x3)
DVI-D DVI-D (x1)
HD15 D-sub 15-pin (x1) D-sub 15-pin (x1)
Audio Phono jack (x2) (L, R) Phono jack (x2) (L, R)
External Sync BNC (x1) BNC (x1)
Option slot 2 slots 2 slots
Parallel remote Modular connector 8-pin (x1)
Seiral remote D-sub 9-pin (RS-232C) (x1),
DC in – DC 24 V
Output
Composite BNC (x1) BNC (x1)
Y/C Mini DIN 4-pin (x1) Mini DIN 4-pin (x1)
RGB, Component BNC (x3) BNC (x3)
External Sync BNC (x1) BNC (x1)
1
Audio monitor out Phono jack x 2 (L, R) Phono jack x 2 (L, R)
Speaker (Built-in) 1.0 W + 1.0 W (stereo) 1.0 W + 1.0 W (stereo)
General
Power Requirement
2
Dimensions
(W x H x D)
Weight TBA TBA
Supplied accessories TBA TBA
36 3/4 x 20 3/4 inches (930 x 523 mm)
Approx. 42 inches (1067 mm)
TMDS single link
(Pin-assignable)
RJ-45 modular connector (Ethernet) (x1)
AC 100 V to 240 V, 50/60 Hz
40 3/8 x 24 1/4 x 5 inches
(1027 x 616 x 130 mm)
LMD-4251TD LMD-2451TD
20 1/2 × 12 7/8 inches (518.4 × 324.0 mm)
24 1/4 inches (613.2 mm)
DVI-D (x1)
TMDS single link
Modular connector 8-pin (x1)
(Pin-assignable)
D-sub 9-pin (RS-232C) (x1),
RJ-45 modular connector (Ethernet) (x1)
AC 100 V to 240 V, 50/60 Hz
DC 24 V
23 3/4 x 19 5/8 x 10 3/4 inches
(602.4 x 497.9 x 269.9 mm)
R
L
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/professional
DI-0197 (MK10682V1)
Reproduction in whole or in part without written permission is prohibited.
©2010 Sony Electronics Inc. All rights reserved.
Features and specications are subject to change without notice.
The values for mass and dimension are approximate.
Sony, ‘make.believe’, LUMA, ChromaTRU and
their respective logos are trademarks of Sony.
All other trademarks are the properties of their respective owners.
Printed in USA (7/10)
