Sony Xperia Z1, C6916, L39t, L39u Component Replacement

1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
Component Replacement
- electrical -
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
2(10)
CONTENTS
1 Replaceable Components ............................................................. 3
2 Component Placing ........................................................................ 5
3 Additional Repair info .................................................................... 6
4 Revision History ........................................................................... 10
For general information about electrical repair related issues, refer to 1220-1336: Generic Repair Manual - electrical
Test after electrical replacement: refer to 1273-1772 Mechanical Test Instruction
Do not remove shield can lids (Heat pasta are added and RF performance will be damaged)
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
3(10)
1 Replaceable Components
EXPLANATION OF ABBREVIATIONS USED IN THE COLUMN ‘COMMENTS’ BELOW
COMPONENT LOCATION
P = Primary side S = Secondary side
REPAIR METHOD
HA = Hot Air (removal & mounting) ST = Soldering Tool (removal & mounting) HA/ST = Hot Air for removal - Soldering Tool for mounting BGA = BGA Station BH = Bottom Heater
ADDITIONAL INFORMATION
1 (2,3,4, etc.) = Proceed to ‘Additional Repair Info’ for further instructions in the indicated section(s).
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
4(10)
Position
Component
Part no.
Comments
L1301
Ferrite B 120.0 Ohm 3.0 A 0603
1200-2944
S HA+BH 1
MC3580
Microphone
1210-7410
S HA+BH or BGA 2
R1301
Resistor 0.0 Ohm +/-50m 63.0 mW K0603
1000-0257
S HA+BH 1
R1304
Resistor 0.01 Ohm +/-1% 200.0 mW (1.6x0.
1238-2147
S HA+BH 3
R1310
Resistor 0.0 Ohm +/-50m 63.0 mW K0603
1000-0257
S HA+BH 1
V7800
LED White 1.63 x 2.03 x 0.75 mm Flash LE
1267-1941
S HA+BH 4
X1300
Conn BtB Plug 4p HIROSE/BM22
1264-8491
S HA+BH 5
X1301
Conn BtB Receptacle 4p HIROSE/BM22
1264-6156
S HA+BH 6
X2200
Conn USB B Receptacle 5p
1268-3388
P HA+BH or BGA 7
X2801
Conn Coax Receptacle 1p
1237-5326
S HA+BH 8
X2804
Conn Coax Receptacle 1p
1237-5326
S HA+BH 9
X2812
Conn Leaf Spring Receptacle 1p Antenna/G
1238-5879
P HA+BH 10
X2900
Conn Leaf Spring Plug 1p Antenna/GND Sp
1239-2123
S HA+BH 11
X2901
Conn Leaf Spring Plug 1p Antenna/GND Sp
1239-2123
S HA+BH 11
X8001
Conn Coax Receptacle 1p
1237-5326
S HA+BH 12
X8003
Conn Coax Receptacle 1p
1261-3591
S HA+BH 13
X8004
Conn Leaf Spring Plug 1p Antenna/GND Sp
1239-2123
S HA+BH 14
X8005
Conn Leaf Spring Plug 1p Antenna/GND Sp
1239-2123
S HA+BH 14
X8650
Conn Leaf Spring Plug 1p Antenna/GND Sp
1239-2123
S HA+BH 15
X8651
Conn Leaf Spring Plug 1p Antenna/GND Sp
1239-2123
S HA+BH 15
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
5(10)

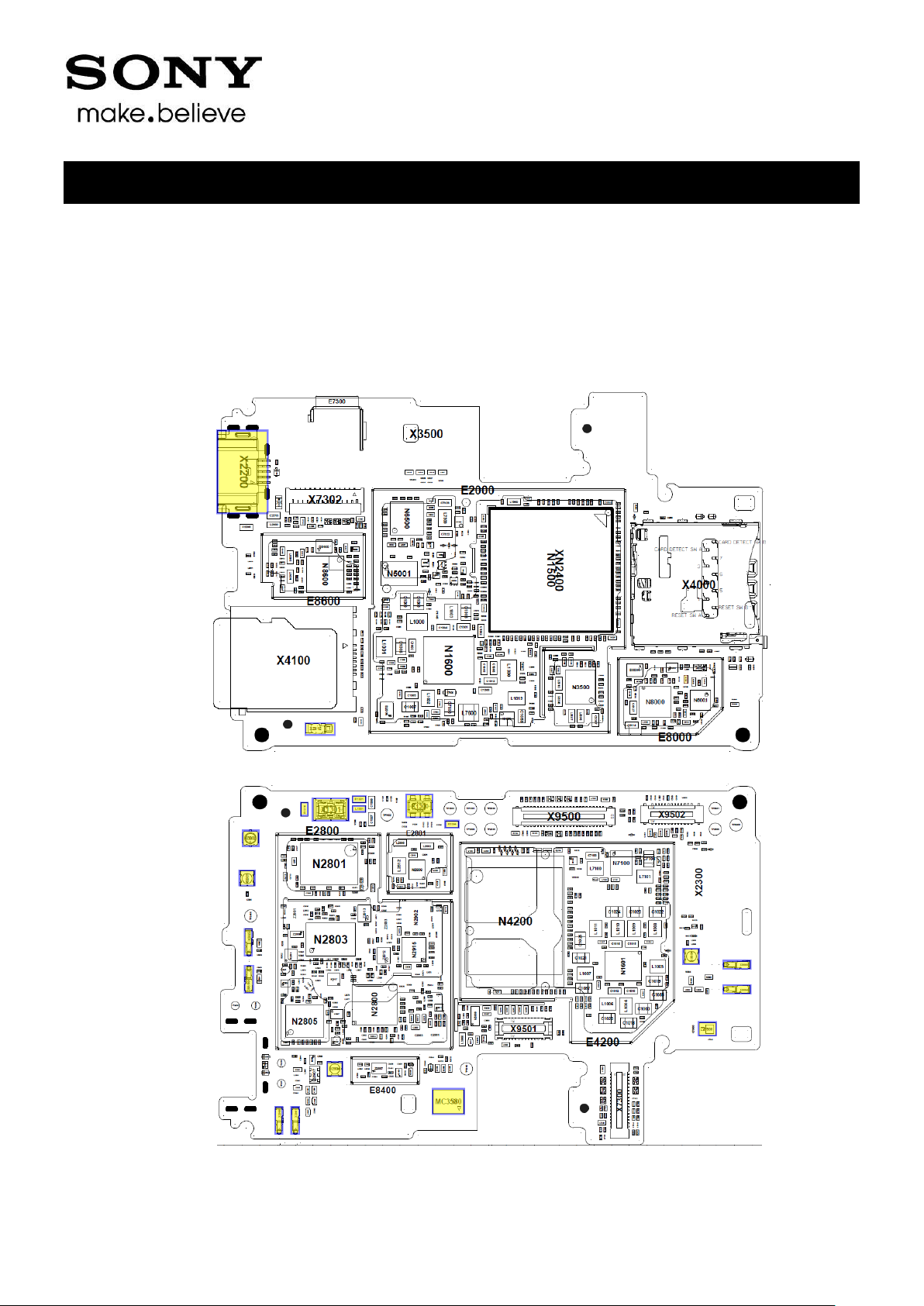

2 Component Placing
To access the Component Placing document, double-click the icon below.
Applicable for on-screen viewing only – icon not shown on hard-copies.
Primary side
Secondary side
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
6(10)

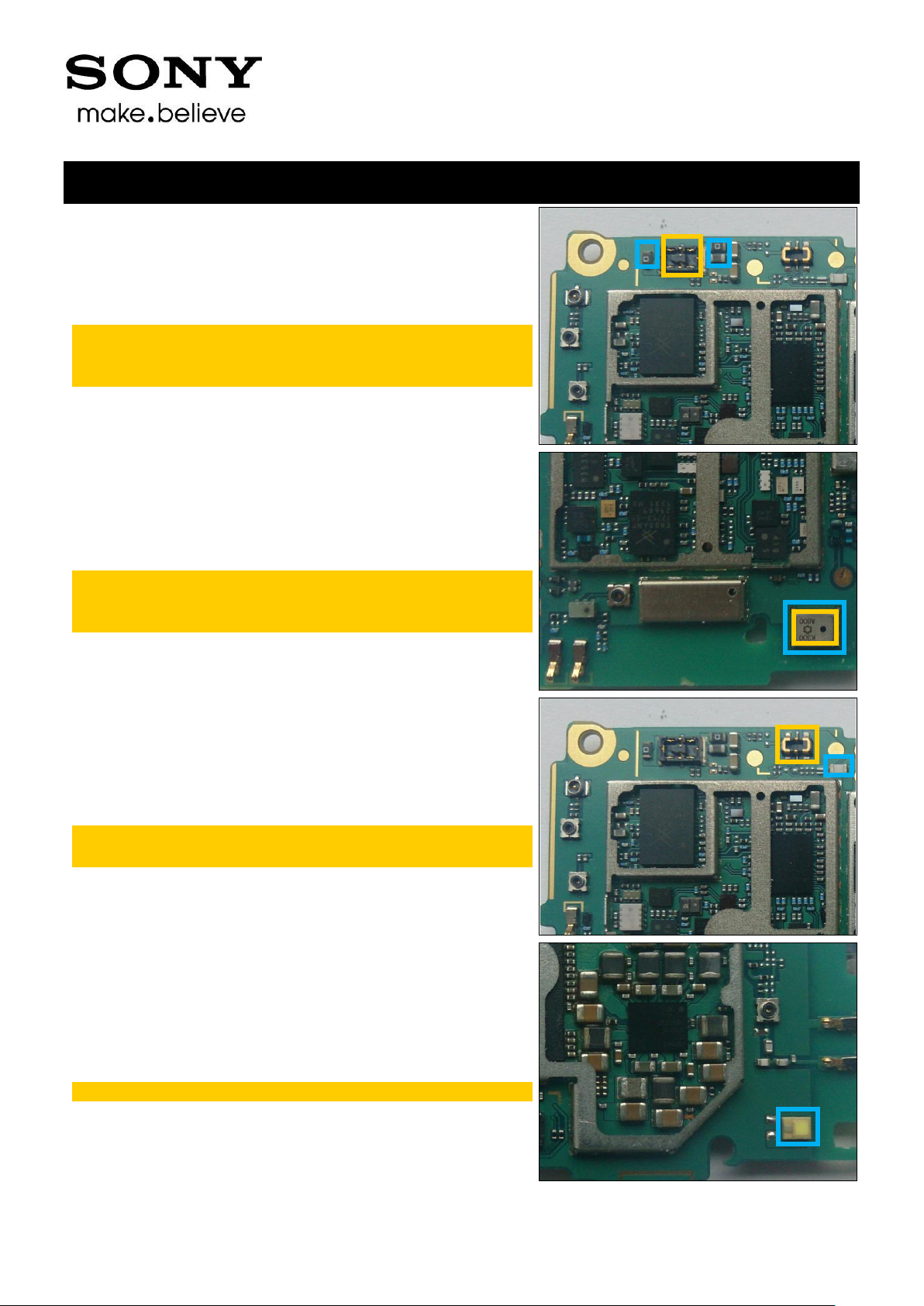

1
L1301, R1301, R1310
Replace if open circuit (Magnet charger / Main charger not working)
Protect the BtB connector with capton tape!
2
MC3580
Replace if no audio from secondary mic When replacing protect secondary mic with capton
tape!
3
R1304
Replace if open circuit (Phone Dead) Protect the BtB connector with capton tape!
4
V7800
Replace if Flash LED not working
3 Additional Repair info
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
7(10)

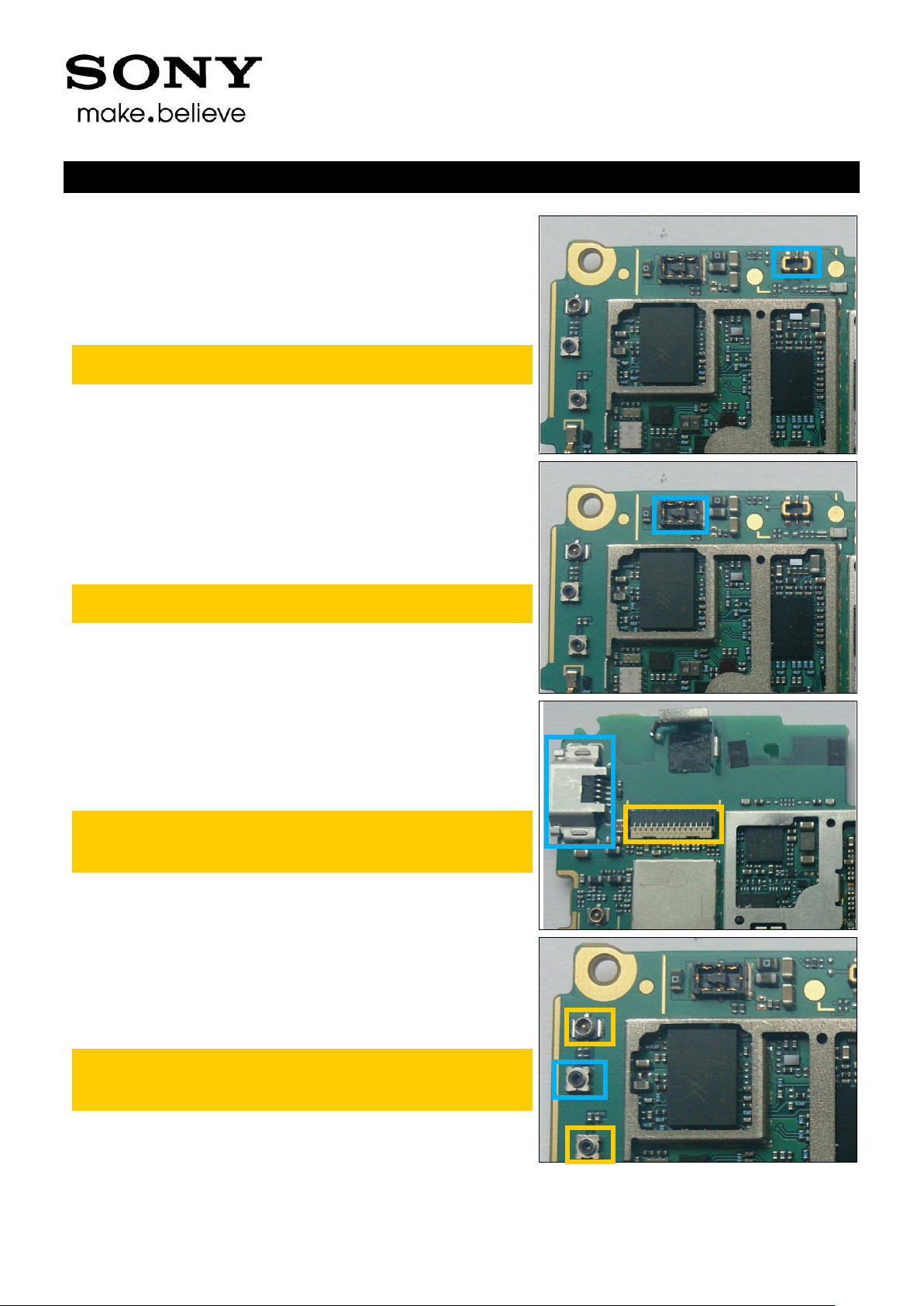

5
X1300
Replace if mechanical damaged. (Phone dead or power off)
6
X1301
Replace if mechanical damaged (Magnet charger / Main charger not working)
7
X2200
Replace if mechanical damaged (USB charger or data transfer not working)
Protect the BtB connector with capton tape!
8
X2801
Replace if open circuit 1-2 (No or bad network, main antenna)
Protect the Coax connectors with capton tape!
Repair Actions: Additional Repair Info
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
8(10)

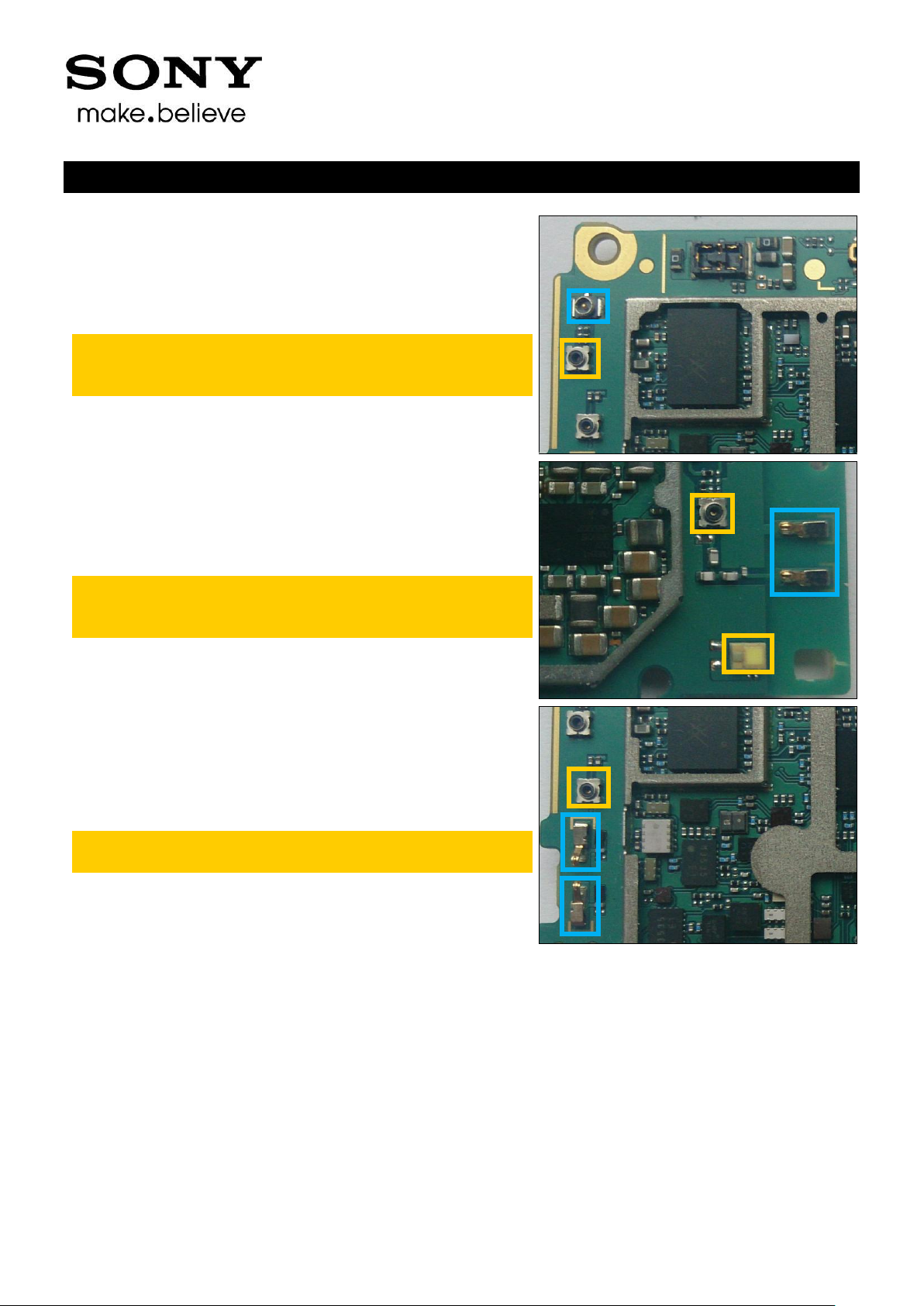

9
X2804
Replace if open circuit 1-2 ( no or bad GPS / secondary antenna)
10
X2812
Replace if mechanical damaged (Bad network, grounding pins)
11
X2900, X2901
Replace if mechanical damaged (no or bad GPS / secondary antenna) (Protect the Coax connector with capton tape!
12
X8001
Replace if open circuit 1-2 ( no or bad WLAN/ BT)
Repair Actions: Additional Repair Info
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
9(10)
13
X8003
Replace if mechanical damaged (No or bad network, main antenna)
Protect the Coax connectors with capton tape!
14
X8004, X8005
Replace if mechanical damaged ( no or bad WLAN/ BT) Protect the Coax connector and Flash LED with capton
tape!
15
X8650, X8651
Replace if mechanical damaged ( no or bad NFC) Protect the Coax connector with capton tape!
Repair Actions: Additional Repair Info
1287-4299 Rev 1
Sony Mobile Communications AB – Company Internal
10(10)
Rev.
Date
Changes / Comments
1
2014-04-20
Initial release
