Sony KV-SP29M53K, KV-SP29M83K, KV-SP29N63K Schematic

REVISION HISTORY

BX1L

CHASSIS

MODEL

KV-SP29M53K KV-SP29M83K KV-SP29N63K

NO. SUFFIX DATE SUPP / CORR DESCRIPTION

1 -01 2006/07 _ _ 1st Issue

PART NO.: 9-872-910-01

SERVICE MANUAL

BX1L

CHASSIS

MODEL COMMANDER DEST. CHASSIS NO.

KV-SP29M53K KV-SP29M83K

KV-SP29N63K

RM-GA002 India SCC-V45V-A

RM-GA002 India SCC-V45U-A

RM-GA002 Philippines SCC-V41W-A

MODEL COMMANDER DEST. CHASSIS NO.

RM-GA002

TRINITRON

®

COLOR TV

KV-SP29M53K/M83K/N63K

RM-GA002

SELF DIAGNOSTIC FUNCTION

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY Indicator will automatically begin to flash. The number of times the STANDBY Indicator flashes translates to a probable source of the problem.If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these problems occur.

1. DIAGNOSTIC TEST INDICATORS

When an error occurs, the STANDBY Indicator will flash a number of times to indicate the possible cause of the problem. If there is more than one error, the Indicator will identify the first of the problem areas.

Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.

RM-GA002

Diagnosis

Item

Description

• No Power

• +B overcurrent

(OCP)

• Vertical NG.

• IK (AKB)

No. of times

STANDBY

Indicator flashes

Does not light

2 times

4 times

5 times

Diagnostic Result

on screen display

—

2 OCP:0

2 OCP:1 ~ 255

4 VSTOP:0

4 VSTOP:1 ~ 255

5 AKB:0

5 AKB:1 ~ 255

Probable

Cause

Location

• Power cord is not plugged in.

• Fuse is burned out (F4601) (H1 Board)

• H.OUT (Q511) is shorted. (A board)

• IC751 is shorted. (CV Board)

• +13V is not supplied. (A Board)

• IC503 voltage list is faulty. (A Board)

• Video OUT (IC751) is faulty. (CV Board)

• IC001 is faulty. (A Board)

• Screen (G2) is improperly

adjusted.

Detected

Symptoms

•Power does not turn on.

•No power is supplied to the

TV.

•AC power supply is faulty.

•Power does not turn on.

•Load on power line is

shorted.

•Has entered standby state after horizontal raster.

•Vertical deflection pulse is stopped.

•Power line is shorted or power supply is stopped.

•No raster is generated.

•CRT cathode current

detection reference pulse output is small.

• Supply Voltage Protection

8 times

8 SUP:0

8 SUP:1 ~ 255

2. STANDBY INDICATOR BLINKING PROCESS

Lamp ON 300ms

Lamp OFF 300ms

The example above represents for 4 times blink

Lamp OFF 3 seconds

• IC604 faulty.

• IC607 faulty.

•No power supply to CRT

ANODE.

•No RASTER is generated.

3. STANDBY INDICATOR ON TV FRONT PANEL

Standby indicator

– 3 –

KV-SP29M53K/M83K/N63K

RM-GA002

4. SELF DIAGNOSTIC SCREEN DISPLAY

SELF DIAGNOSTIC

2 : 0 3 : N/A 4 : 0 5 : 1 8 : 2

101 : N/A

5. HANDLING SELF DIAGNOSTIC SCREEN DISPLAY

No. Description Method

1. Display self diagnostic screen [Display] t [Channel ] t [Volume ] t [Power / TV]

2. Stop standby flash i) Turn off power switch on main.

3. Clear fault result In self diagnostic screen, press [Channel ] t -

4. Quit self diagnostic screen Turn off power switch of remote commander or main unit.

"0" means no fault has been detected.

"1" means a fault has been detected. "2" means two faults has been detected.

"N/A" means not available for this models.

5

Note: The above must be performed while TV is on standby mode.

ii) Unplug power cord from the outlet.

8

Note: Diagnostic results display on screen is not automatically cleared. Therefore, clear result after completion of repair.

6. SELF-DIAGNOSTIC CIRCUIT

FROM

C BOARD

IC751 PIN 5

A BOARD

FROM

Q515

COLLECTOR

A BOARD

IC001

Y/CHROMA JUNGLE

IK

32

EHTO

A BOARD

IC503

V.OUT

F.B-PLS

A BOARD

IC001

SYSTEM

SDA1

3 1384

V.GUARD

RED LED

109

122

DISPLAY

A BOARD

IC003

MEMORY

5

SDA

[+B overcurrent $OCP%] Occurs when an overcurrent on the +B(135V) line is detected by pin 32 of IC001 (A board).

If the voltage of pin 32 of IC001 (A board) is more than 4V, the unit will automatically go to standby.

[V-PROTECT] Occurs when an absence of the vertical deflection pulse is detected by pin 13 of IC001

(A board).

[IK $AKB%] If the RGB levels* do not balance for 15 sec after the power is turned on, this error will be

detected by IC001 (A board). TV will stay on, but there will be 5 times LED blinking.

POWER SUPPLY NG (+5V) for VIDEO PROCESSOR

Occurs when IC001 internal HV protect detects an abnormal H-Pulse (frequency) due to improper power supply to IC001. TV cuts off high voltage power of anode CRT. No picture will be detected. eg: IC602, IC604 go faulty.

* (Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)

– 4 –

SECTION 1

DISASSEMBLY

KV-SP29M53K/M83K/N63K

RM-GA002

1-1. 3D SPEAKER BOX REMOVAL

1 3D Speaker box assy

2 Rear cover

1-2. REAR COVER REMOVAL

2 Rear cover

1 Twelve screws

(+BVTP 4 × 16 Type2 IT-3)

1-3. SPEAKER REMOVAL 1-4. CHASSIS ASSY REMOVAL

1 Two screws (+BVTP 4 x 16)

2 Two screws (Washer Head) (+P4x16)

1-5. SERVICE POSITION

1 One cable tie (should be tied up to 4P Connector Assy during servicing)

1-6. A BOARD REMOVAL

– 5 –

A Board

KV-SP29M53K/M83K/N63K

RM-GA002

1-7. J BOARD REMOVAL

J Board

1-9. K BOARD REMOVAL

2 Two Holders

1-8. H1 BOARD REMOVAL

2 Three Holders

1 H1 Board

1 K board

– 6 –

KV-SP29M53K/M83K/N63K

1-10. PICTURE TUBE REMOVAL

Note:

• Please make sure the TV set is not in standing position before removing necessary CRT support located on bottom right and left.

1) Remove the rear cover.

2) Unplug all interconnecting leads from the Deflection yoke, Neck assy, Degaussing Coil and CRT grounding strap. Remove Chassis Assy.

3) Place the TV set with the CRT face down on a cushion jig.

RM-GA002

qf Screw Tapping 7+ Crown Washer

qa Earth Coating Assy

0 Degaussing Coil

9 Holder, DGC

Removal (x2)

8 Spring Tension (x2) Removal

qs Support, CRT (x2) Removal

qd Loosen the Deflection Yoke fixing screw and remove

• REMOVAL OF ANODE-CAP

4 Anode Cap Removal

7 Band, DGC Removal

6 Loosen the Neck Assembly

fixing screw and remove Neck Assy & VM coil

5 CV Board Removal

Note:

• After removing the anode, short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon paint on the CRT.

• REMOVING PROCEDURES

a

1 Turn up one side of the rubber cap in the direction

indicated by the arrow a.

b

2 Using a thumb pull up the rubber cap firmly in the direc-

tion indicated by the arrow b.

anode button

3 When one side of the rubber cap is separated from the

anode button, the anode-cap can be removed by turning up the rubber cap and pulling it up in the direction of the arrow c.

• HOW TO HANDLE AN ANODE-CAP

1 Do not damage the surface of anode-caps with

sharp shaped objects.

2 Do not press the rubber too hard so as not to

damage the inside of anode-cap. A metal fitting called the shatter-hook terminal is built into the rubber.

3 Do not turn the foot of rubber over too hard.

The shatter-hook terminal will stick out or damage the rubber.

c

– 7 –

KV-SP29M53K/M83K/N63K

RM-GA002

SECTION 2

SET-UP ADJUSTMENTS

The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Beam Landing

2. Convergence

3. Focus The controls and switch should be set as follows unless otherwise noted:

4. G2(SCREEN)

5. White Balance

Picture Control....................................."NORMAL"

Brightness Control..............................."NORMAL"

Note : Test Equipment Required.

1. Pattern Generator 5. Oscilloscope

2. Degausser 6. Landing Checker

3. DC Power Supply 7. XCV Adjuster

4. Digital Multimeter

......................................................................................................................................................................................................................

Preparation :

• Feed in the white pattern signal.

6. Then move the DY forward and adjust so that the entire screen becomes green.

• Before starting, degauss the entire screen with the degausser.

• In order to reduce the geomagnetism on the set's picture tube, face it east or west.

2-1. BEAM LANDING ADJUSTMENT

1. Input a raster signal with the pattern generator.

2. Loose the deflection yoke(DY) mounting screw, and set the purity control to the center as shown below:-

Purity control

3. Position VM coil as shown below:-

VM coil

Align the edge of the VM coil with the edge of the G3 grid.

G2G1 G3

G4

4. Set the raster signal of the pattern generator to green.

5. Move the DY backward and adjust the purity control so that green is in the center and blue and red are at the sides evenly.

7. Now switch over raster signal to red then blue and confirm the condition.

8. When the position of the DY is determined, tighten it with the DY mounting screw.

9. If the beam does not land correctly in all the corners of the screen, use magnet disc to correct it.

Purity control corrects this area.

b

c

Deflection yoke positioning corrects these areas.

a

d

Disc magnets or rotatable disc magnets correct these areas (a-d).

b

c

Red

Blue

Green

– 8 –

KV-SP29M53K/M83K/N63K

Red

Blue

Red

Blue

RM-GA002

2-2. CONVERGENCE ADJUSTMENT

Preparation:

• Before starting, perform FOCUS adjustment.

• Picture Mode "SOFT"

• Receive dot/cross hatch pattern.

a) Vertical Static Convergence

Center dot

R G B

R

G

B

4 pole magnet

RV750 H. STAT

b) Horizontal Static Convergence

If the blue dots does not converge with the red and green dots, use the 6 pole magnet to adjust in the manner described below:-

RG B R G B R GB

RB

G

RG

6 Pole

Magnet

GB

RB

6 Pole Magnet Purity

RV1800 G2 (SCREEN)

1. (Moving vertically), adjust the 4 pole magnet to converge red, green and blue dots in the center of the screen.

2. Tilt the 4 pole magnet and adjust static convergence to open or close the 4 pole magnet.

3. When the 4 pole magnet is moved in the direction of arrow A and B, the red, green and blue dots moves as shown below:-

A

B B

A

B

G

R

B

G

R

DY pocket

4 pole Magnet

4 Pole

Magnet

c) Y Separation axis correction magnet adjustment.

1. Receive cross hatch signal.

2. Set Picture to "MINIMUM", Brightness to "STANDARD".

3. Adjust the Y separation axis correction magnet on the Neck Assembly so that the horizontal lines at the top and bottom of the screen are straight.

RGGRB

Moved RV750 (H.STAT)

B

– 9 –

KV-SP29M53K/M83K/N63K

RM-GA002

d) Convergence Rough Adjustment

Preparation:

• Before starting this adjustment, adjust the horizontal and vertical static convergence.

Input cross hatch pattern. i) TLH

Adjust the horizontal convergence of red and blue dots by inserting TLH Correction Plate to the DY pocket(left or right).

ii) YCH

Adjust YCH to balance Y axis.

iii) TLV

Adjust the vertical convergence of red and blue dots.

iv) XCV

Adjust XCV to balance X-axis

YCH

RB

YCH

B R

ON DY :

(VR1) TLV1 (no need to adjust)

TLV

DY pocket

B

R

TLH

(VR2)

b1

a1

c1

d1

R B

XCV

a1~d1: Piece B(120), Convergence Correct

or

Permaloy Assy Correction

(VR3)

TLH Plate

TLV2

(XCV)

DY pocket

e) Screen Corner Convergence

Affix a Piece B(120), Convergence Correct/Permaloy Assy Correction to the misconverged areas.

ba

a-d : screen-corner misconvergence

cd

– 10 –

KV-SP29M53K/M83K/N63K

RM-GA002

2-3. FOCUS ADJUSTMENT

FOCUS adjustment should be completed before W/B adjustment.

1. Receive digital monoscope pattern.

2. Set Picture Mode to "DYNAMIC".

3. Adjust focus VR to obtain a just focus at the center of the screen.

4. Change the receiving signal to white pattern and blue back.

5. Confirm magenta ring is not noticeable. In case magenta ring is obvious, then adjust FOCUS VR to balance magenta ring and FOCUS.

2-5. WHITE BALANCE ADJUSTMENT

1. Set to Service Mode.

2. Input white raster signal using signal generator.

3. Set the following condition: Picture "DYNAMIC", PICT 006 "WTS" to 00.

4. At Highlight condition, select WHBL 003 "GDRV" and 004 "BDRV" with 1 and 4 button of the remote commander then adjust the data with 3 and 6 button.

5. At Cutoff, select WHBL 000 "BKOR" and 001 "BKOG" and adjust the data.

6. Perform adjustment at Hightlight and Cutoff condition until it reaches its target.

7. Write data into memory by pressing [MUTING]➔-.

8. Finally set PICT 006 "WTS" back to its original data.

FLYBACK TRANSFORMER (T503)

2-4. G2 (SCREEN) ADJUSTMENTS

1. Set the following condition:

- Picture and Brightness to "STANDARD".

- TV to Video mode.

- WHBL 16 "RGBB" to 01.

2. Connect R,G,B of the CV board cathode to oscilloscope.

3. Adjust Brightness to obtain the cathode value to the value stated below.

Cathode setting voltage: 170 V ± 2 (VDC)

4. Adjust SCREEN VR on the FBT until the scanning line disappears.

5. Finally set WHBL 016 "RGBB" back to 00.

– 11 –

KV-SP29M53K/M83K/N63K

RM-GA002

SECTION 3

CIRCUIT ADJUSTMENTS

3-1. ADJUSTMENT WITH COMMANDER

Service adjustments to this model can be performed using the supplied remote commander RM-GA002.

a. ENTERING SERVICE MODE

With the unit on standby

t [DISPLAY] t 5 t [VOL $+% ] t [POWER]

This operation sequence puts the unit into service mode. This screen display is:

Category in decimal Item name in decimal NG Command Frequency Video Input Name GEOM 006 EWPW 031 x SERVICE 60 S VIDEO 1

Release ID Version in binary for factory Color System (decimal) SUS01 3.50M 0001 1111 FF FF NTSC3 65553

Status SID, Lock, SL :not locked (no signal) Status Status BC, Status Status S/N Status Status Display :locked VW, IVWF HBC BCF LEVEL (0-7) GL Area

111 11 11 9 1 7 11 ZZ xy 111 000000 000000

S : for Sony A : for AIWA L : BX1L Full B : BX1L Basic D : DVD Combo N T : Taiwan/Korea/Philippines G A : General Area 01 : Serial no. of the M / P release for each destination

Item no. Service data NVM Service Field Channel no./

Software Service data Reserved Power On Time

NR Table status (SP29 series only)

Status

PTW

ZZ : DCXO Flash Value xy : Value of x : Value of y

0 - unknown 0 - Mono 1 - NICAM 1 - Stereo 2 - A2 2 - Bilingual 3 - KOREAN 4 - SAP/Single 4 - US 5 - Japan 6 - AV Stereo

b. METHOD OF CANCELLATION FROM SERVICE MODE

Set the standby condition (Press [POWER] button on the commander), then press [POWER] button again, hereupon it becomes TV mode.

c. METHOD OF WRITE INTO MEMORY

1. Set to Service Mode.

2. Press

3. Change item by pressing

1 (UP) and 4 (DOWN), to select the adjustment item.

3, 6.

4. Press [MUTING] button to indicate WRITE on the screen.

5. Press

- button to write into memory.

1, 4 Select the adjustment item.

r

3, 6 Raise/lower the data value.

r

[MUTING] Writes.

r

- Executes the writing.

d. MEMORY WRITE CONFIRMATION METHOD

1. After adjustment, pull out the plug from AC outlet, and then plug into AC outlet again.

2. Turn the power switch ON and set to Service Mode.

3. Call the adjusted items again to confirm adjustments were made.

– 12 –

e. OTHER FUNCTION VIA REMOTE COMMANDER

7, - All the data becomes the values in memory. 8, - All user control goes to the standard state. [Display], - Service data initialization (Be sure not to use usually.) 2, 5 Select Device or Category (Up, Down)

3-2. ADJUSTMENT METHOD

Item Number 000 HPOS This explanation uses H POSITION as an example.

1. Select "000 HPOS" with the

2. Raise/lower the data with the

3. Select the optimum state. (The standard is IF for PAL reception.)

4. Write with the [MUTING] button. (The display changes to WRITE.)

5. Execute the writing with the

SERVICE.)

Example on screen display :-

1 and 4 buttons, or 2 and 5.

3 and 6 buttons.

- button. (The WRITE display will be changed to red color while excuting, and back to

KV-SP29M53K/M83K/N63K

RM-GA002

GEOM

SUS01

GEOM

SUS01

GEOM

SUS01

Use the same method for all Items. Use then execute the write with

-.

000

HPOS

3.50M

000

HPOS

3.50M

000

HPOS

3.50M

1 and 4 to select the adjustment item, use 3 and 6 to adjust, write with [MUTING],

031

SERVICE

1111

0001

1111

0001

Write with [MUTING]

1111

0001

Write executed with -

031

FF FF

WRITE

FF FF

WRITE

FF FF

50

NTSC3 65553

50

NTSC3 65553

50

NTSC3 65553

GREEN Adjusted with 3

and 6 buttons.

GREEN

RED The WRITE display then the display returns to green SERVICE.

Note : 1. In [WRITE], the data for all items are written into memory together.

2. For adjustment items that have different standard data between 50Hz or 60Hz, be sure to use the respective input signal after adjustment.

– 13 –

Adjustment Item Table

JVTytilanoitcnuF.tinIegnaRnoitcnuFemaNeciveDnommoC)deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD 05)3:4(06)3:4(05w)3:4(06w)3:4(

MOEG000SOPH130360)SH(tfihSlatnoziroHrossecorP-VT

62630373

100RAPH130360margolellaraPlatnoziroH

34442454

200WOBH130360woBlatnoziroH

03426282

300NILV130360ytiraeniLlacitreV

93939393

400RCSV130360llorcSlacitreV

13131313

500ZISH130360)WE(htdiWWE

24146474

600WPWE130360)WP(htdiW/alobaraPWE

54749453

700POCU710360alobaraPrenroCreppUWE

04839375

800POCL710360alobaraPrenroCrewoLWE

54748551

900ZTWE130360muizeparTWE

72718113

010PLSV130360)SV(epolSlacitreV

13131313

110ZISV510360edutilpmAlacitreV

12128191

210ROCS410360)CS(noitcerroC-S

73737373

310SOPV130360)HSV(tfihSlacitreV

84940444

410MOZV130360)ZV(mooZlacitreV

00000000

510LBH000100edoMgniknalBBGR

10101010

610FBW700510)FBW(gniknalBediWfognimiT

01500150

710RBW700510)RBW(gniknalBediWfognimiT

11111111

810LBS000100gniknalBecivreS00

910YPOC000100aeraMVNzH06/05llaotatadOEGehtypoCX

NOTE

a) In the initial value (detailed) column, the data after the slash mark ("/") refers to NTSC model data.

No ("/") means data is common for Multi and NTSC model. b) Item remarked "*", please refer page 28 for the data. c)

shaded items are no data. d) Standard data listed on the Adjustment Item Table are reference values, therefore it may be different for each model and for each mode. e) Note for the Different Data those are the standard data values written on the microprocessor. Therefore, the data values of the models are stored respectively in the memory.

In the case of a device replacement, adjustment by rewriting the data value is necessary for some items.

f) Multi ver7.4, NTSC 7.43N.

KV-SP29M53K/M83K/N63K

RM-GA002

– 14 –

– 15 –

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD

pmeTloC LOOC( )rehto

pmeTloC MRAW( )rehto

pmeTloC

LARTUEN(

)rehto

pmeTloC

)VUYLOOC(

pmeTloC MRAW( )VUY

pmeTloC

LARTUEN(

)VUY

VUY0edomciP

)diviV(

1edomciP

)dtS(

2edomciP

)motsuC(

VToediV

LBHW000ROKB130360)10=BFO(BtesffO,)00=BFO(RtesffOleveLkcalB )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetlocrossecorP-VT

131313131313

100GOKB130360GtesffOleveLkcalB )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetloc

020202020202

200VRDR730360RtnioPetihW )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetlocrossecorP-VT

737373737373

300VRDG730360GtnioPetihW )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetloc

542473542473

400VRDB730360BtnioPetihW )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetloc

840403840403

500GPL000100teserPniaGBGR enon00

600RGP130721)RGP(RniaGteserP enon45

700GGP130721)GGP(GniaGteserP enon45

800BGP130721)BGP(BniaGteserP enon45

900FONG000510tesffOniaGteserP enonpoolCCC01

010TRBS130360ssenthgirB-buS VUY/BGR/srehtO

23

5333

110ORBS000300)ciPtnegilletnI(tesffOssenthgirB-buS enon00

210LGE000100metsySCCCnipooLniaGelbanE enon00

310LGS000300metsySCCCnitnerruChgiHfonoitceleS enon00

410BKA000100noitazilibatStnerruCkcalB enon00

510SBC000100gnitimiLtnerruCmaeBfoecneuqeSlortnoC enon00

610BBGR000300gniknalBBGR enon

710GBLB000100tuptuOneerG&eulBfogniknalB enon00

810BFO000100eulBtesffOleveLkcalB enon10

910RBSN000510tesffOssenthgirBdradnatSnoN enon00

020PBW000300)woL:3,2,lamroN:1,hgiH:0(gnitteSpmeTroloC edoMerutciP

001010

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD

VUYlap05

)VT(

lap05 )oediV(

maceS05

)VT(

maceS05

)oediV(

cstn06

)VT(

cstn06

)oediV(

VUY05VUY060edomciP1edomciP2edomciPVToediV

ediWVT

)3:4(

ediWoediV

)3:4(

JDAS000XAMP360360mumixaMerutciP >ediW/lamroN</)ediW/lamroN(*)oediV/VT(rossecorP-VT

84842424

100EUHS700510euH-buS oediV/VT

6011

200PHSS510360ssenprahS-buS VUY/oediV/VT

03

3243

300OHSS000700)ciPtnegilletnI(tesffOssenprahS-buS enon40

400LOCS130360roloC-buS /)oediv(maces05/)vt(maces05/)oediv(lap05/)vt(lap05

BGR06/BGR05/VUY06/VUY05/oediv06/VT06

5373921333131443

500OOCS000300)ciPtnegilletnI(tesffOroloC-buS enon20

600CIP130721;)dilavni(001>;)dilav(001~0:AG[lortnoCerutciP

])dilavni(6tiberongi;)dilav(36~0:srehtO

)ataDteseRresU=lanosreP:AG(ledoMerutciP

00117001

700LOC130721;)dilavni(001>;)dilav(001~0:AG[lortnoCroloC

])dilavni(6tiberongi;)dilav(36~0:srehtO

)ataDteseRresU=lanosreP:AG(ledoMerutciP

751405

800TRB130721;)dilavni(001>;)dilav(001~0:AG[lortnoCssenthgirB

])dilavni(6tiberongi;)dilav(36~0:srehtO

)ataDteseRresU=lanosreP:AG(ledoMerutciP

847405

900EUH130721;)dilavni(001>;)dilav(001~0:AG[lortnoCeuH

])dilavni(6tiberongi;)dilav(36~0:srehtO

)ledomSUhtiw)0-5(hE1#TNITotdneS*(

)ataDteseRresU=lanosreP:AG(ledoMerutciP

058405

010PHS130721;)dilavni(001>;)dilav(001~0:AG[lortnoCssenprahS

])dilavni(6tiberongi;)dilav(36~0:srehtO

)ataDteseRresU=lanosreP:AG(ledoMerutciP

850505

KV-SP29M53K/M83K/N63K

RM-GA002

KV-SP29M53K/M83K/N63K

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD 05)3:4(06)3:4(srehtOVUYVToediVtxeteleTpi-VTlangisoN

CNYS000SYS000100tupnICNYSYnonoitazinorhcnyS rossecorPVT00

100OF000300tnatsnoCemiT1esahP )FR(langisoNrogninuTotuA/txeteleT/oediV/FFOPIVT/NOPIVT

3030100000

200DIV000100edoMtnedIoediV 06/05

0000

300LSF000100cnySlacitreVrofleveLgnicilSdecroF 00

400LSS000100rotarapeScnySleveLgnicilS 06/05

0000

500DIVS100700noitacifitnedIoediVrofnoitceleSecruoS srehtO/VUY

0000

600FROF000300ycneuqerFdleiFdecroF 00/30

700KVM000100gniyeKnoisiVorcaM 10

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD srehtOVUY)VT(LAP)VT(CSTN)VT(MACES)oediV(LAP)oediV(CSTN)oediV(MACESTUPNI-SMACESCSTNVT

CY000QRFP000300yaleDdnaycneuqerFretneCgnikaeP rehto/VTrossecorP-VT

00

100APR100300toohSrevO&erPoitaR rehto/VT

20

00

200OPR200300skaePevitageN&evitisoPfooitaR rehto/VT

20

300YLDY210510yaleD-Y TUPNI-S/VUY+)OEDIV/VT(*)MACES/CSTN/LAP(

0111606001116001/-

400TAMC000300xirtaM)ASU/napaJ(CSTNroMACES-LAP 00

500LCA100100gnitimiLroloCcitamotuA 10

600BC000100ycneuqerFretneCssapdnaBamorhC )xif0:oediV*(VThtiwylnodilav00

700OBS100300tesffOkcalBMACES 10

800ESHC100300ytivitisneStnedICSTN/LAP 20

900OLC000100retliF)lleB(ehcolCfoycneuqerFretneC 00

010PRTC000100edoMparTamorhC srehto/MACES

00

10

110TDQ000100parTamorhCdnoceS

00

210SPB000100eniLyaleDdnab-esaBamorhCfossapyB srehto/CSTN

00

10

310OCF000100nOroloCdecroF 00

410TNIT130360lortnoCtniTdnaB-esaB srehto/VUY

2323

23

510VUT000100slangiSVUnolortnoCtniT 10/00

RM-GA002

– 16 –

– 17 –

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD

srehtOeviLVT

)nyD(

VT

)srehtO(

oediV

)nyD(

oediV

)srehtO(

pmeTroloC

)HGIH(

pmeTroloC

)srehtO(

roloC

)WOL(pmeT

pmeTroloC )LAMRON(

TCIP000LDAC700510leveLevirDedohtaC 50

100AFC000300edoMretliFbmoC 00

200COS200300leveLgnippilCtfoS 00

300LWP100100hctiwSgnitimiLetihWkaeP 10

400LTHW600510gnitimiLetihWkaeP 00

500MAG100100ammaG 10

600STW100300hctertSetihWdnalortnoCammaGsrehtO/eviL

1010

700RFT000100langiSecnanimuLfooitaRrefsnarTCDsrehtO/eviL

1010

800ROC300300gniroC )srehto/anyD(*)oediV/VT(

10200010

900OROC000300)ciPtnegilletnI(tesffOgniroC 10

010SKB300300hctertSkcalBsrehto/BGR

20

110SAA100100hctertSkcalBehtffohctiwSotaerAkcalB 10

210KSD000100lortnoCnikScimanyD 00

310SLB000100hctertSeulB )SREHTO/HGIH(pmetloc

0000

410SLBN000100tiucriChctertSeulBnoitarepO 00

510RRN000100noitcudeRdeRnoN )LAMRON/WOL/HGIH(pmetloc

10

1010

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD VUYVToediV

WS0002VC000100noitceleSlangiStupnI2SBVC 00

100OVS10030084@niPISBVC/OVS/OVFIfonoitcnuFVUY/oediV/VT

301010

200LFD000100noitcetorPhsalF 10

KV-SP29M53K/M83K/N63K

RM-GA002

KV-SP29M53K/M83K/N63K

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD

srehtO0edomciP

)diviV(

1edomciP

)dtS(

2edomciP

)motsuC(

VTMACES

MV000DBGR300700tuptuOMVottuptuOBGRfoyaleDenonrossecorP-VT30

100AMV300300tuptuOMVfoedutilpmAenon30

200PAMV200300)FFO:3,2,woL:1,hgiH:0(gnittesMVedoMerutciP

000000

300OMMV300300edoMMV -/30

400AMVF400400)erawtfoSlluF(tuptuOMVfoedutilpmA

30

20

500OARC000100MVSnogniroCsrehto/VT

00

00/10

JVT0ytilanoitcnuF

laitinI

egnaR

noitcnuFetoN&elbaTemaNeciveDnommoC

yrogetaC.oNemaNceDceD

FIV000DFIO630360rotaludomeDFItesffO rossecorP-VT63

100TCGA130360revo-ekaTCGA 81

200MTS000100edoMgninuThcraeS 10

300DG000100langiS1SBVCnoyaleDpuorG 00

400SCGA100300deepSCGAFI 10

500IFF000100LLPFIretliFtsaF 00

600IANL000100eulavlaitinitibANLpmAFR 00

700TANL591522leveLdlohserhTpmAFR 591

800NSNL400700dlohserhTleveLNSpmAFR 40

900DSNL200700dlohserhTporDleveLNSpmAFR 10

010XENL610360gnimiTporDNSkcehcpmAFR 03

110RTHC840721edoMresUpmAFRtesotgrPotuAretfadlohserhTlennahC 52

210OSUT000100desUrenuTynoS *

RM-GA002

– 18 –

– 19 –

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC

yrogetaC.oNemaNceDceD

MEDS000SWMF000300rotaludomeDMFrofnoitceleSwodniW rossecorP-VT20

100SSQ100100 )metsysMitlumAGrofA/N(edoMreifilpmA)SSQ(dnuoStilpSisauQ 10/*

200BPB000100retliFssapdnaBdnuoSfossapyB 00

300OLMA000100dnuoSMAroflangiStuptuOoiduA 00

400CVPH000100lortnoCemuloVenohPdaeH 00

500ACMC000100lenahConoMetavitcA 00

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC

yrogetaC.oNemaNceDceD

TXT000VXT930360spilihProfnoitisoPlacitreVtxeteleT redoceDtxeT00/93

100DHT500721tfihSegdEevitcAcnys-HtxeteleT 00/01

200RBT510130ssenthgirBBGRtxeteleT 00/81

300QCA000100)1-LAP,0-otuA(noitisiuqcAtxeteleT 00/10

400MRBT300130ssenthgirBedoMxiMtxeteleT 00/30

KV-SP29M53K/M83K/N63K

RM-GA002

– 20 –

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD VToediV

ffOdnuorruS

)WOW/SRS(

dnuorruS

)dnuorrusurT(

dnuorruS )oeretsI(

dnuorruS

)onomI(

dnuorruS

rehtO

retneC

rekaepS

buSFRbuSoediVFOVK

rehto

lacoVFOVK

ecudeR

PSDS000LBB000510ruotnoCEBB DSS-/30

01010101

100HBB000510ssecorPEBB -/50

50506060/50

200WLBB000510tesffOruotnoCEBB 40

300FOVS000510tesffOemuloVedoMtceffE/dnuorruS onomI/oeretsI/dnuorrusurT/)WOW/SRS(ffO

30803070/5030

400DAL000130tsujdAleveLredoceD

50

500MAL000130tsujdAleveLonoM 50

600NAL000130tsujdAleveLmaciN 22

700SAL000130tsujdAleveLPAS 50

800AAL000130tsujdAleveLCDA buSoediV/buSFR/kpSretnec/oediV/FR

0000

-/00-/00-/00

900FES300700tceffEoeretS/onoMelbidercnI onomI/oeretsI

7030

010SAB000510tesffOssaBniaM

4040

10/-40

110ERT000510tesffOelberTniaM

9191

12/-81

2101QE000510tesffO)zH001(dnaBlennahCniaMrezilauqE

0000

00/-00

3102QE000510tesffO)zH003(dnaBlennahCniaMrezilauqE

9191

81/-81

4103QE000510tesffO)zH0001(dnaBlennahCniaMrezilauqE

6161

61/-61

5104QE000510tesffO)zH0003(dnaBlennahCniaMrezilauqE

1010

40/-30

6105QE000510tesffO)zH0008(dnaBlennahCniaMrezilauqE

2020

50/-20

710TCFB500700lortnoCEBBdnaBUD,EBD 50

810NECS100510lortnoCretneCD3SRS 40

910APSS000510lortnoCecapSD3SRS 10

020WHBB000510edomWOWnitesffossecorpEBB 10

120ERTS200700edomdnuorrusroftesffOelberT 10

220THBB000510edomVTnitesffOEBB 00

320ERTT200700edomVTnitesffOelberT 30/40

420FOVK600510tesffoemulovretsamekoaraK

1131

520SABV000300emulovresunodnepedtesffOssaB 20

620ERTV000300emulovresunodnepedtesffOelberT 20

720SABT000700VTroftesffOssaB -/01

820OLBB000300emulovresunodnepedtesffOLBB 00

920OHBB000300emulovresunodnepedtesffOHBB 00

KV-SP29M53K/M83K/N63K

RM-GA002

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC

yrogetaC.oNemaN

ceDceD

CEDS000UTPS300510noitcetedreirracPASrofdlohserhTreppU DSS80

100LTPS600510noitcetedreirracPASrofdlohserhTrewoL 51

200HTPS000130PASfoetumotuarofdlohserhTesioN 50/00

300YHPS400510ASfoetumotuarofezissiseretsyH 30

400HTMF000130dradnats2AMFni2CSfoetumotuarofdlohserhTesioN 81

500YHMF400510dradnats2AMFni2CSfoetumotuarofezissiseretsyH 70

600ELIN001552)PEDD(timilrorrerewolMACIN 05

700EUIN002552)PEDD(timilrorrereppuMACIN 002

800DMPE100300)PEDD(gnimmargorPysaECEDMED 0=DMPEfI

=SDTSdna

10/*

900SDTS910130sedomSSSdnaDSArofdexelpitlumstiB 31/*

010AMVO100100noitpadanoitaludomrevoMF 00

110WBLF000300htdiwdnabretlifrotaludomedMA/MF 10/30

210/DMDI000300edomSSSnideepstnediMF 00

310TMVO100200lanimonotevitalerdlohserhtlevelnoitaludomrevO 30

410IXCD000100retrevnIlortnoCgnilacSOXCDMACIN 00/*

510GXCD000700niaGlortnoCgnilacSOXCDMACIN 00/*

610LLCD110510)L(timiLlortnoCgnilacSOXCDMACIN 00

710HLCD000130)H(timiLlortnoCgnilacSOXCDMACIN 00/*

810RKDI100300DTSMnaeroKgnittesDOMDI 00

JVTytilanoitcnuF.tinIegnaRnoitcnuF etoN&elbaTemaNeciveDnommoC

yrogetaC.oNemaNceDceD

CKDS000LLNK000552etyBrewoLdlohserhTrewoLteDesioNnaeroK

=SDTSdna0=DMPEfI

100HLNK210552etyBrehgiHdlohserhTrewoLteDesioNnaeroK

200LHNK000552etyBrewoLdlohserhTreppUteDesioNnaeroK

300HHNK020552etyBrehgiHdlohserhTreppUteDesioNnaeroK

400CILK060552tnuoCgniniatniaMDItoliPtsoLnaeroK

500MILK100721reilpitluMtnuoCgniniatniaMDItoliPtsoLnaeroK

600CDSK600552tnuoCtceteDoeretSnaeroK

– 21 –

(For KOREAN NTSC model only) (not used for these models)

KV-SP29M53K/M83K/N63K

RM-GA002

KV-SP29M53K/M83K/N63K

JVTytilanoitcnuF

.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI

yrogetaC.oNemaN

ceDceD 05)3.4(06)3:4(ZW05)9:61(ZW06)9:61(N05)9:61(N06)9:61(F05)9:61(F06)9:61(Z05)9:61(Z06)9:61(zH05buSzH06buSVToediV

PIP

000SPH

150552noitisoPerutciPlatnoziroH X8829ADS54

100SPV

720552noitisoPerutciPlacitreV 03

200PFV

800510noitisoPeniFlacitreV 00

300PFH

510510noitisoPeniFlatnoziroH

)ciPbuS(zH06/05

0040

400PSV

000100noitcudeResioNesluPcnySlacitreV 10

500LDV

000130yaleDesluPcnySlacitreV 00

600YLD

100510yaleDyaleS 10

700VGA

110510eulaVlortnoCniaGcitamotuA 80

800DPC

000300noitaruDgnipmalC 30

900LLP

000300tnatsnoCemitLLPtresnI

oediV/VT

0000

010DCY

210510yaleDC/Y 40

110LIK

000300dlohserhTrellikroloC 00

210PGB

000100noitisoPetaGtsruB 10

310MED

100300noitcleSesahpmeeD 10

410AMC100300hctiwdnaBamorhC 00

510CFI

200300retliFnoitasnepmoCFI 20

610EUH

230360lortnoCEUH 20

710ACS

600130tnemtsujdAreirracbuSroloC 60

810NOC

000510tnemtsujdAtsartnoC 00

910TRB

000510tnemtsujdAssenthgirb 10

020RKP

331552deRleveLkaeP 552

120GKP

331552neerGleveLkaeP 061

220BKP

331552eulBleveLkaeP 552

320YRF

510510YroloCemarF 70

420TAS

700510tnemtsujdAnoitarutaSroloC 01

520KPY

300700tnemtsujdAgnikaePY 50

620OCY

100100elbanEgniroCY 10

72012P

0007001LDILAPdna2LDILAP 50

820LAP

000100leveLDILAP 10

920VOP

000700lacitreVtesffOnoitisoP 00

030HOP

610130latnoziroHtesffOnoitisoP

2222

130LPC

100300htgneLesluPgnipmalC 30

230LRS

000300leveLnoitcejeRmaceS 30

330LIS

700700leveLnoitakifitnedImaceS 50

430DES

100100redividmaceS 00

530AFB

100100tnemtsujdAretliflleB 10

63021P

0003002dna1tnemercnILAP 00

730SOL

100300deepSgnikcoL

oediV/VT

3030

830LAS

000700leveLecnatpeccAmaceS 30

930AES

000100ecnatpeccAmaceS 10

040RSN

000700LLPlatnoziroHroFnoitcudeResioN

oediV/VT

6060

140HLS

000300HdlohserhTleveLgnicilS 00

240JAI

000300LLPlatnoziroHroFtnemtsujda-I 30

34005V

000721zH05gninepOnoisserppuSesioNwodniWlacitreV 51

44006V

230721zH06gninepOnoisserppuSesioNwodniWlacitreV 04

540SNV

000510zH06gnisolCnoisserppuSesioNwodniWlacitreV 90

640CSV

000510zH05gnisolCnoisserppuSesioNwodniWlacitreV 01

740TVS

510510VTLS&ytiraloPVdlohserhTleveLgnicilS 51

840MFV

000300edoMleehwylFlacitreV 10

940WFV

000100leehwylFlacitreV 10

050SVL

000300noitarapes-cnySlacitreVrofssapwoL 20

150ALC

300300ycnetalgnipmalC 30

250PCS

400130esluPgnipmalCfotratS 62

– 22 –

(For PIP model only)

RM-GA002

JVTytilanoitcnuFtinIegnaRnoitcnuFnommoCLLUFL1XB

yrogetaC.oNemaN

xeHxeH0RN1RN2RN3RN4RN0CSTN1CSTN1RN-FR-FR

1CSTN

-VT

LAP

-VT CSTN

OEDIV

LAP-

-OEDIV

CSTN

RN3000TED3000700TEDD3

707070707070707070

100ROC3000100RROCRND3

100000000010000010

200CFA000300NIAGCFA

303030303030303030

300GEH000300NIAGAHNEH00

400RNC2000510MILRNCD2&KRNC-D2

004050909000004000

500CNY000700MILCN-Y;RELLECNACESIONY

003040405010104030

600RNY2000510NIAGRNYD2;KRNYD2

004020103010102000

700LNY2000300MILRNYD2

002030103020203030

800KLB000300PXEKLB00

900RNC3000700MILRNCD3

000030707000000000

010KNC3000300KRNCD3

000000000000000000

110GNC3000700NIAGRNCD3

002020707000004000

210RNY3000700MILRNYD3

003030607000001000

310KNY3000300KRNYD3

001020000000001030

410GNY3000700NIAGRNYD3

002050607000001000

510YLDY000821YALEDTUPTUOY

30706050

610ACI000100OTUAPMALCTNI10

710MCI000100LAUNAMPMALCTNI00

810HNEC000100AHNEC10

910KCI000100YEKPMALCTUPNI10

020KGB000100YEKETAGTSRUB10

120LSS000100FPLPESCNYS00

220RCEV000300EROCAHNEV

001010000000101010

320GEV000300NIAGAHNEV

001020100000102010

420NEV000300LNAHNEV

001020100000102010

5201PMA0007001PMADH

606060606060606060

– 23 –

KV-SP29M53K/M83K/N63K

RM-GA002

JVTytilanoitcnuFtinIegnaRnoitcnuFnommoCLLUFL1XB

yrogetaC.oNemaN

xeHxeH0RN1RN2RN3RN4RN0CSTN1CSTN1RN-FR-FR

1CSTN

-VT LAP

-VT CSTN

OEDIV

LAP-

-OEDIV

CSTN

RN3620VGDH000130VNIAGDH

818181818181818181

7202PMA0007002PMADH

606060606060606060

8201GDH0001301NIAGDH

313131313131313131

9203PMA0007003PMADH

505050505010105010

0302GDH0001302NIAGDH

404040404010104010

130PLSC000510PLSSCA&PLSMCA

514101515101010101

230PLSY000510PLSSYA&PLSMYA

515101018041414141

330SMCA000510TESFMCA&TESEMCA

510101515151510151

430SSCA000510TESFSCA&TESESCA

510101515101010101

530SMYA000510TESFMYA&TESEMYA

511101510151511151

630SSYA000510TESFSYA&TESESYA

511141010101014101

730LSCB000510PLSSCB&PLSMCB

510101515151510151

830LSYB000510PLSSYBPLSMYB

510101515131310131

930SMCB000510TESFMCB&TESEMCB

510101515101010101

040SSCB000510TESFSCB&TESESCB

510101515101010101

140SMYB000510TESFMYBTESEMYB

515101515151515151

240SSYB000510TESFSYBTESESYB

515101515101015101

340MCEC000700PMCEC

704070404040407040

440MCSC000510PMCSC

510151000000005100

540VH1F000510REV1F&REH1F

508050505050508050

640FERM000510FERM

207040606010607010

740YEDC000300EYEDC

203020202020203020

840YEDY000300EYEDY

203020202020203030

940SAMH000700TUOKSAM-H00

050SAMV000130TUOKSAM-V00

– 24 –

KV-SP29M53K/M83K/N63K

RM-GA002

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC

yrogetaC.oNemaNceDceD

VTH000XAMV000360)XAMV+53=XAM(leveLemuloVmumixaM leveLemuloV00

100INIV520130norewoPtaleveLemuloVlaitinI leveLemuloV00

200YBTS000100 )YBTSsyawla=1,sutatsrewoptsalehtwollof=0(sutatSrewoPtsaL rewoPtsaL00

300GRPI100721)sledoMitluMrofylno(norewoPtarebmuNmargorPlaitinI rebmuNmargorP00

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD 05)3:4(06)3:4(rehtOvuY

MTPO000THSA600700)nim5*atad(remitffotuhsotuA 70/00

100BDSO000510ssenthgirbDSO h06orciM/RMM61

200HDSO800510noitisoPlatnoziroHDSO h06orciM/ATADX80

300VDSO730360noitisoPlacitreVDSO

)06/05(9:61<>06/053:4<

>)lluFlamroN()mooZediW()ediW(

h06orciM/RMM

1693/23

400ETUM000100)delbane=1(hctiwSetuMlangiSoN 10/00

500LUFR510510)hf0nehwelbasiD(dekcolnUretfaretnuoCegnahClangiSFR 10/40

600KLFR510510)hf0nehwelbasiD(dekcoLretfaretnuoCegnahClangiSFR 40/00

700GNAL000300noitidnocgnippihsegaugnalDSO 00

800TXTH000100wsrotarepescnyS rossecorP-VT

0000

900SSMC000100wscnyS rossecorP-VT10

010OXCD060721eulaVOXCD PSD/h06orciM/RFS35/*

110CSID821552cedrolocybtsujdaOXCDrofatadOCSIDtegrat 821

210LBXE000510esioNetihWetanimilEotremiTgniknalBdednetxE 40/80

310SYST000300 )ledoMAG(]M:3,K/D:2,I:1,G/B:0[teseRtseTtaMVNnisySVTeziromeM 00

410WSNL100100)ffO:0,otuA:1(noitidnocteseRtseT/gnippihSretsooBlangiS 00/10

510LBL100100noitidnoclangiSoNtAnoitcudeRssenthgirB 10

610ORPH100100noitatoRerutciProftesffOarapH 30

710LUVA510510)hF0nehwelbasiD(dekcolnUretfaegnahclangisvA 40

810KLVA510510)hF0nehwelbasiD()dekcolretfaegnahclangisvA 00

910MPSC000100)elbane:1,elbasid:0(yromemtsaLrekaepSretneCelbanE 00

020FIN100100)FIN:1,EIN:0(noitceleSorciM111COU 10

120HNES000100)nO:1,ffO:0(m/cdnuosgnilkcarCrecnahnEdnuoS 10/00

– 25 –

KV-SP29M53K/M83K/N63K

RM-GA002

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI/sserddA

yrogetaC.oNemaNceDceD srehtOVUY

SUPO0FFOS01 )noCAhtiwybdnats:1,noCAhtiwyromemtsalwollof:0(ffoyatS 00

1HCPS1721noitidnoCgnippihSretfarebmuNlennahC 70

2ACPS11 )nOelbaC=1(noitidnoCgnippihSretfanoitceleSelbaC 10

3RBCC5113)SUrofylno(ssenthgirBCC 00

4PHCC851)SUrofylno(noitisopHCC 00

5VUO01 )ledomCSTNrofylno(slangiStupnIVUnolortnoCtesffO VUY/srehtO

0000

62AFC01 )ledomCSTNrofylno(nOretliFbmoCdecroF enon00

7CYSH07 SUrofylno)DISroKCOL,LS(gninuTrofnoitceleScnySH 00

8KLC521552SUrofylno)nim51/sm8:pets1(tesffokcolcSU 00

9SKLC

521552

SUrofylno)nim51/sm8:pets1(ybdnatSnitesffokcolcSU

00

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI

yrogetaC.oNemaNceDceD srehtOMACESCSTN

PVPO000SBPB000100)SBPB(edomoeretstaretlifssapdnabdnuosfossapyB rossecorP-VT10

100CYWB000100)CYWB(metsysroloczHM85.3rofedomCYtahtdiwdnaB 00

200BSO000100)BSO(rotaludomedamorhcfoeslupyektsrublanretnifohtdiW 00

300CKB000100noitisoPyeKtsruB )LAP(srehto/MACES/CSTN

001000

(For NTSC model only)

– 26 –

KV-SP29M53K/M83K/N63K

RM-GA002

– 27 –

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC

yrogetaC.oNemaNceDceD

BTPO000LLAI000100)MVNnideziromemton(hctiwSetirWdradnatS x

1001BPO000552)detalermetsyS(1noitpO 92egaprefer

2002BPO000552)detalerlangiSoediV(2noitpO 92egaprefer

3003BPO000552)detalergnidoceDoeretS(3noitpO 03egaprefer

4004BPO000552)suoenallecsiM(4noitpO 03egaprefer

5005BPO000552)suoenallecsiM(5noitpO 13egaprefer

6006BPO000552)detaleregaugnaLDSO(6noitpO 13egaprefer

JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC

yrogetaC.oNemaNceDceD

MFPO000TCMF100300dlohserhTreirraCnacSotuAoidaRMF 02

100TSPR300721teserpoidargnirudpetsycneuqerfhcaerofemitgnitiaW 01

200UTPM300510)OIDARMF(noitcetedtolipXPMrofdlohserhTreppU DSS21

300UOCD331552rotaludomedMFmorftesffoCDrofdlohserhTreppU 241/*

400LOCD711552rotaludomedMFmorftesffoCDrofdlohserhTrewoL 611/*

500AMVO100100)OIDARMF(noitpadanoitaludomrevoMF DSS00

600RBMF000130edoMMFgnirudssenthgirBDSO h06orciM/RMM61/11

700ERTR000700edoMoidaRMFnitesffOelberT DSS20

800SABR200800edoMoidaRMFnitesffOssaB DSS20

900TCGA540360edoMoidaRMFnirevoekatCGA rossecorP-VT*

010WBLF300300htdiwdnabretlifrotaludomedMA/MF DSS10

KV-SP29M53K/M83K/N63K

RM-GA002

KV-SP29M53K/M83K/N63K

RM-GA002

Data Variant depend on models (marked with "*").

Category No Name Thai & India non-PIP Other (Alps Tuner)

VIF 012 TUSO 01 00

Category No Name Stereo India/China AV Stereo SDEM 001 QSS 01 01 00

Category No Name Stereo AV Stereo SDEC 008 EPMD 02 01

009 STDS 31 13 014 DCXI 00 00 015 DCXG 03 00 017 DCLH 06 00

Category No Name Sony Tuner Alps Tuner Pana Tuner OPFM 003 DCOU 140 144 142

004 DCOL 114 118 116 009 AGCT = VIF 01 AGCT (A87 F) + Offset

offset level 15 2 2

(Sony Tuner)

Category No Name NVM Address Stereo AV Stereo OPTM 010 DCXO 0A45 54 53

– 28 –

KV-SP29M53K/M83K/N63K

RM-GA002

ITEM INFORMATION No. OPB1

Item Speed Search Home Visualizer M(GA) B/G I D/K DEC

Theatre

KV-SP29M53K 0 1 01111 195 (India)

KV-SP29M83K 0 1 01111 195 (India)

KV-SP29N63K 1 1 011000216 (Philippines)

SPEED SEARCH (Time of speed search) 00 = disabled (original cycle speed)

01 = 4 time speed from the original 10 = 6 time speed from the original

11 = 8 time speed from the original Home Theatre 1 = Home Theatre mode available Visualizer 0 = disabled, 1 = enabled TV System Selection (M,B/G, I, D/K) 0 = disabled, 1 = enabled

No. OPB2

Item Party FM Component Composite (SCART) SECAM Color Decording DEC

Mode Radio

KV-SP29M53K 1 0 10110 0172 (India)

KV-SP29M83K 1 0 10110 0172 (India)

KV-SP29N63K 1 1 101100236 (Philippines)

Party Mode Party Mode Function 0 = not available, 1 = available FM Radio FM Radio Function 0 = not available, 1 = available Component (Component [YCbCr] Terminals) 0 = not available, 1 = available Composite (No. of Composite Terminals) 00 = 1 composite terminal

01 = 2 composite terminals 10 = 3 composite terminals 11 = 4 composite terminals

(BX1L FULL only) SECAM (SECAM Color System) 0 = disabled, 1 = enabled Color decoding (Color Crystal Selection) 00 = PAL/NTSC (Multi)

01 = NTSC (3.58MHz) 10 = PAL/NTSC (4.43MHz) 11 = PAL/NTSC (Tri-Norma)

– 29 –

KV-SP29M53K/M83K/N63K

RM-GA002

No. OPB3

Item Reserved NICAM NICAM A2 ST Thai US ST Korean MONO DEC

KV-SP29M53K 00 00000 00 (India)

KV-SP29M83K 00 00000 00 (India)

KV-SP29N63K 0 0 00010 04 (Philippines)

Reserved Not used NICAM ST (NICAM Stereo) 0 = disabled, 1 = enabled NICAM BI (NICAM Bilingual) 0 = disabled, 1 = enabled A2 ST/BI (A2 [West German]

Thai Bilingual (A2 [Thai] Bilingual)

US ST (US Stereo) 0 = disabled, 1 = enabled Korean ST (Korean Stereo) 0 = disabled, 1 = enabled MONO (Monaural Model) 0 = Stereo (SSD) Model

ST BI Bilingual ST

Stereo/Bilingual) 0 = disabled, 1 = enabled

or Force SAP if US ST is active 0 = disabled, 1 = enabled

1 = Monaural Model

No. OPB4

Item Sound 1spk VM WSS-RF Surround Top Text DEC

Special Models

KV-SP29M53K 0 0 11000 048 (India)

KV-SP29M83K 0 0 11000 048 (India)

KV-SP29N63K 0 0 11000048 (Philippines)

Sound Special Sound Special Feature 0 = disabled 1 = enabled 1 spk Models 1 Speaker Models 0 = 2 or 3 Speaker Models,

1 = 1 speaker Models VM (Velocity Modulation) 0 = disabled, 1 = enabled WSS-RF WSS detection in RF mode 0 = disabled, 1 = enabled Surround (Surround Selection) 00 = Off/Simulated/Surround

01 = Off/Simulated/SRS (3D) Surround 10 = Off/Simulated/WOW/TruSurround 11 = No Surround 100 = Off/Sports/Movie 101 = Off/Sports/TruSurround 110= Not applicable

111= Not applicable TOP (Forced TOP) 0 = Auto Mode (TOP/FLOF), 1 = Forced TOP TEXT (Teletext Model) 0 = Non-Teletext Model, 1 = Teletext Model

– 30 –

KV-SP29M53K/M83K/N63K

RM-GA002

No. OPB5

Item Signal MSYS COSMIC ASD Tilt Band IP Wide DEC

Booster ASD ASD Edge

KV-SP29M53K 1 0 00101 1139 (India)

KV-SP29M83K 1 0 00101 1139 (India)

KV-SP29N63K 0 0 00101111 (Philippines)

Signal Booster Signal Booster feature 0 = disabled, 1 = enabled MSYS ASD (ASD Improvement for 0 = disabled, 1 = enabled

M System channels) *Only applicable when ASD = 1

COSMIC ASD Automatic Standard Detection 0 = disabled, 1 = enabled

Using COSMIC (Non-Stereo) ASD (Automatic Standard Detection) 0 = disabled, 1 = enabled Tilt (Tilt Correction/PIC Rotation) 0 = disabled, 1 = enabled Band Edge (VHF-H band Limit Position) 0 = 427.25MHz, 1 = 429.25MHz IP Plus (Intelligent Picture & 0 = disabled, 1 = enabled

Intelligent Picture Plus) Wide (Wide Mode/V-Compressed) 0 = disabled, 1 = enabled

No. OPB6

Item AVST Mono 3D OSD 3D Comb PiP OSD Language Selection DEC KV-SP29M53K 0 0 00010 04

(India) KV-SP29M83K 0 0 00010 04

(India) KV-SP29N63K 0 0 00101010

(Philippines)

AVST Mono ( AV Stereo Monochip Model) 0 = Mono model

1 = AV Stereo model (valid only mono option bit OPB3 bit 0 = 1)

3D OSD (BX1L Full version GA Multi 0 = Normal with 3D Intelligent Picture OSD

Destination ONLY) 1 = Disable 3D Intelligent picture OSD

3D Comb 3D comb feature 0 = Comb Not available

1 = Comb available

PiP PiP feature 0 = PiP Not Available

1 = PiP available

OSD Language Selection GA NTSC 1x1x = Complicated Chinese

GA 1xxx = Simplified Chinese

x1xx = Arabic/Russian xx1x = Thai xxx1 = Persian/Vietnamese

US x1xx = Portugese

xx1x = French xxx1 = Spanish

*English is always available

– 31 –

KV-SP29M53K/M83K/N63K

RM-GA002

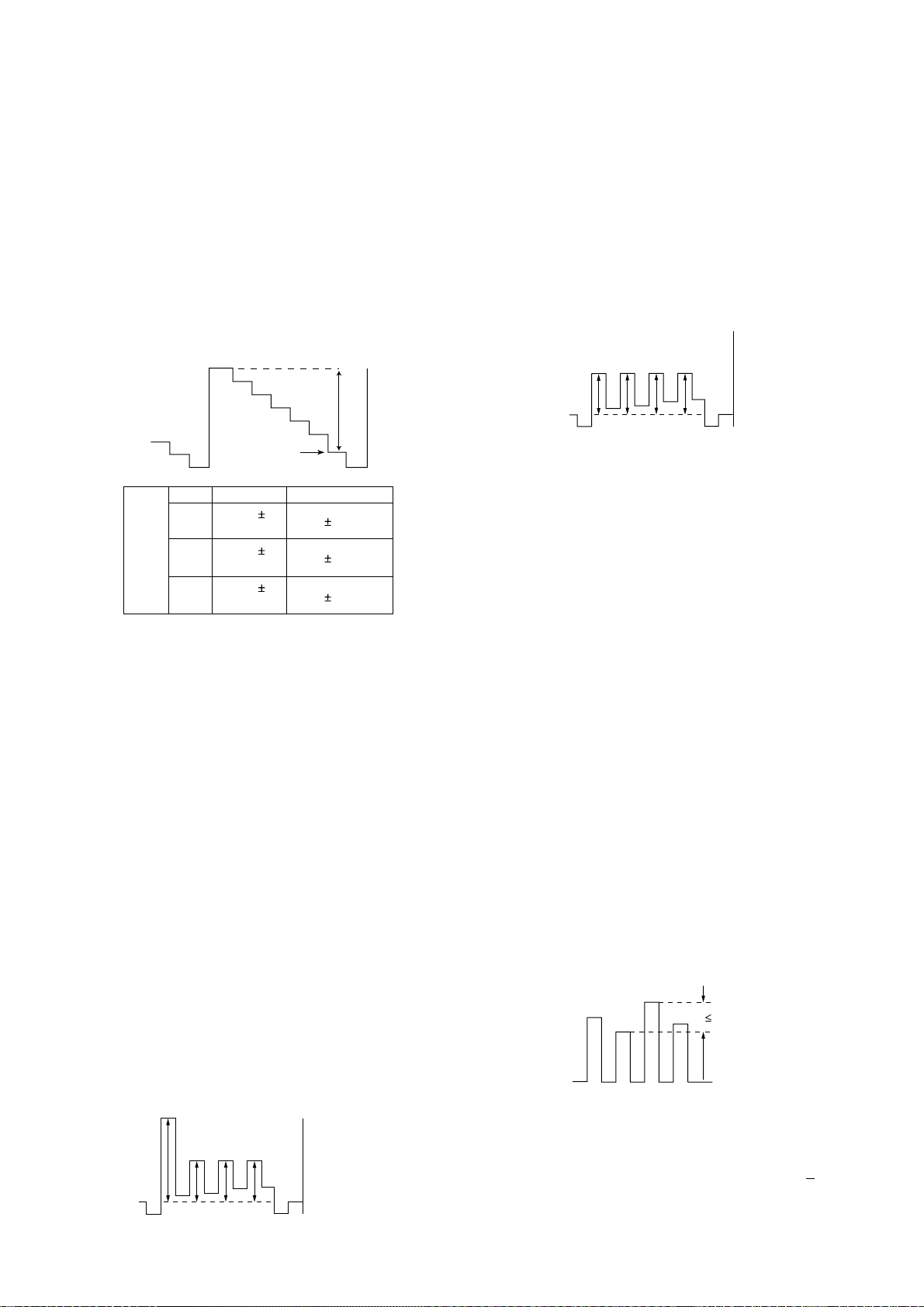

3-3. PICTURE QUALITY ADJUSTMENT 3-3-1. P MAX / CONTRAST ADJUSTMENT

1. Set TV to Video mode.

2. Set Picture mode to “CUSTOM”.

3. Input PAL 100% Color Bar to TV set (OTHER model) and NTSC 75% Color Bar (NTSC model).

4. Set the following condition: Picture 100%, Color 0%, Brightness 50%.

5. Connect an oscilloscope to pin 4 (R output) of CN004.

6. Go to service mode and set PICT 003 “PWL” to 00h and WHBL 017 “BLBG” to 01h and PICT 002 “SOC” to 03.

7. Select SADJ 000 “PMAX” with 1 and 4 button of the commander then adjust VR with spec with 3 and 6 button until reach the spec below:

VR

Black

VR

34"

29"

25"

PAL

2.15

0.03Vpp

2.48

0.03Vpp

2.20

0.03Vpp

NTCS

1.85 0.03Vpp

2.00 0.03Vpp

1.88 0.03Vpp

8. Then copy the adjusted PMAX data to TV mode.

9. Select Wide mode to “ON” in TV and Video mode and write “PMAX” data -6 steps (for models with V-Compression features only).

10. Press [MUTING] t - to write the data.

11. Set “PWL” and “BLBG” back to initial data. (“PWL” : 01h “SOC” : 00 and “BLBG” : 00h).

12. Finally press [MUTING] t - to write the data.

3-3-2. SUB COLOR ADJUSTMENT

1. Set TV to Video mode.

2. Set Picture mode to “CUSTOM”.

3. Input PAL 100% Color Bar to TV.

4. Set the following condition: Picture 100%, Color 50%, Brightness 50%, Hue 50% and Sharpness 50%

5. Set PICT 006 “WTS” to 00h.

6. Connect an oscilloscope to pin 2 (B output) of CN004 A Board.

7. Select SADJ 004 “SCOL” with 1 and 4 button of the commander then adjust with 3 and 6 so that VB2=VB3=VB4 (for PAL) then write in the data as below:

8. Copy “SCOL” 50(PAL) video data to “SCOL” 50 (SECAM) video.

9. Then copy “SCOL” 50(PAL) video data and “SCOL” 50(SECAM) video data to “SCOL” 50(PAL) and “SCOL” 50(SECAM) TV table.

10. For NTSC model input NTSC 75% Color Bar to TV and repeat step no. 4 to 6.

11. Select SADJ 004 “SCOL” with 1 and 4 button of the commander then adjust using 3 and 6 so that VB1=VB4 then write in the data as below:

Add 11 steps to SCOL (NTSC) – 25" Add 11 steps to SCOL (NTSC) – 29" Add 6 steps to SCOL (NTSC) – 34"

VB1 VB2 VB3

VB1 = VB4 (for NTSC)

(Difference is within 70mV)

VB4

12. Copy “SCOL” 60(NTSC) video data to “SCOL” 60(NTSC) TV .

13. Finally copy “SCOL” 50(PAL) and “SCOL” 60(NTSC) data to “SCOL” 50(PAL) and 60(NTSC) in DVD mode.

14. Then press [MUTING] t - to write the data.

15. Set PICT 006 “WTS” back to original data.

3-3-3. SUB HUE ADJUSTMENT

1. Set TV to Video mode.

2. Input NTSC 3.58 Color Bar to TV set.

3. Set the following condition: Picture 100%, Color 50%, Brightness 50%, Hue 50%, Sharpness 50%.

4. Connect oscilloscope to pin 2 (B output) of CN004.

5. Set to service mode and select YC 013 "TINT" with 1 and 4 button then adjust to VB1=VB2=VB3=VB4 using 3 and 6 button.

6. Press [MUTING] t - to write the data.

7. Select TV channel with NTSC 3.58 and perform step 3 to 6.

8. For single system model with NTSC 4.43, select TV channel with NTSC 4.43 and perform step 3 to 6.

9. Once adjustment is completed in Video mode, carry out adjustment in DVD mode. Input NTSC 3.58 Color Bar.

10. Connect oscilloscope to pin 2 (B output) of CN004.

11. Set to service mode and adjust service item YC 013 “TINT” with 1 and 4 button until VB1=VB2=VB3=VB4.

12. Press [MUTING] t - to write the data.

VB3

VB1

VB2

VB4

80mV

Add 11 steps to “SCOL” (PAL) – 25" Add 11 steps to “SCOL” (PAL) – 29" Add 6 steps to “SCOL” (PAL) – 34"

VB1

VB2 VB3 VB4

VB2 = VB3 = VB4 (for PAL)

Illustration 1

The highest level of VB1, VB2, VB3 and VB4 should

be aligned at the same line.

The ideal difference between VB2 and VB3 is within

– 32 –

+ 80mV.

KV-SP29M53K/M83K/N63K

RM-GA002

3-3-4. SUB BRIGHT ADJUSTMENT

1. Set TV to RF mode.

2. Input PAL monoscope to RF mode (OTHER model) and NTSC monoscope (NTSC model).

3. Set Brightness to 50% and Picture to “MINIMUM” in "CUSTOM" mode.

4. Select WHBL 010 “SBRT” with 1 and 4 button and adjust its data using 3 and 6 button so that the Cut Off level and slightly glimmer is as the specification below:-

TV size Cut Off Slightly Glimmer

25" 10 IRE 20 IRE + 2 steps 29" 10 IRE 20 IRE + 2 steps 34" 10 IRE 20 IRE + 2 steps 28" 10 IRE 20 IRE 32" 10 IRE 20 IRE

5. Write into the memory by pressing [MUTING] t -.

6. Copy the adjusted data WHBL 010 “SBRT” to Video mode.

7. Once adjustment is completed in RF and Video mode, carry out adjustment in DVD mode. Repeat step 2 to 3. Select WHBL 010 “SBRT” and adjust its data as the specification below:-

TV size Cut Off Slightly Glimmer

25" 10 IRE 20 IRE + 2 steps 29" 10 IRE 20 IRE + 2 steps 34" 10 IRE 20 IRE + 2 steps 28" 10 IRE 20 IRE 32" 10 IRE 20 IRE

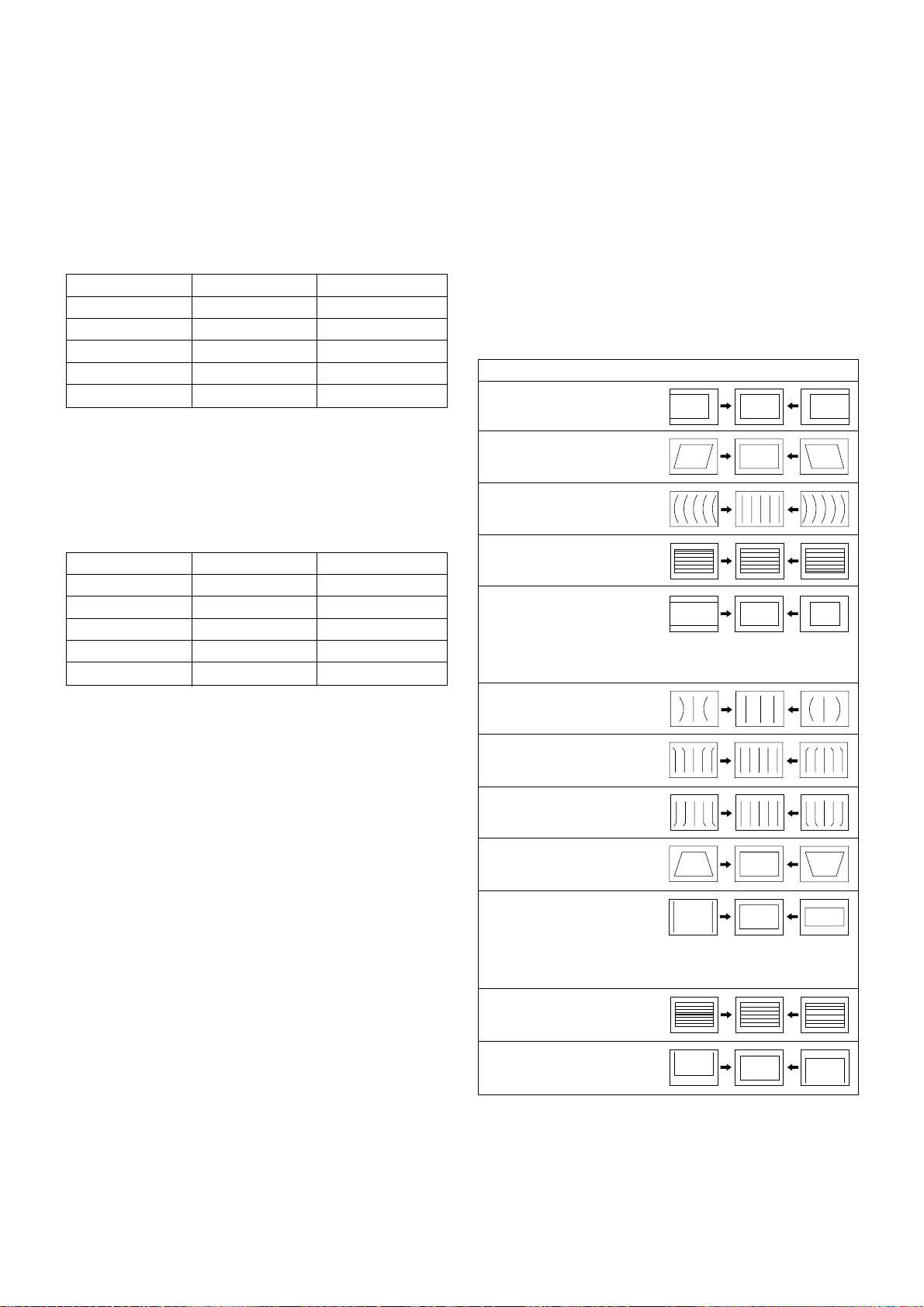

3-4. GEOMETRY ADJUSTMENT 3-4-1. H-TRAPEZOID ADJUSTMENT

1. Receive cross hatch/dot signal.

2. Adjust RV1800 on C Board to make H-Trapezoid distortion best/to obtain the center illustration shown in Table 1.

3-4-2. NORMAL MODE 50Hz / 60Hz

1. Input PAL Special Color Bar (SPCB) or PAL Monoscope (OTHER model) and Video mode or NTSC Monoscope (NTSC model) signal using a pattern generator.

2. Set Wide Mode to “OFF”.

3. Select Category items listed in Table 1.

4. Raise and Lower the data value using 3 and 6 button to obtain the center illustration.

5. Press [MUTING] t - to save the data into the memory.

6. For Korea models, copy adjusted 60Hz to 50Hz. Add 6 steps to 50Hz “HPOS” and 3 steps to 50Hz “HSIZ” and save the data.

3-4-3. WIDE MODE 50Hz / 60Hz (V Compression Adjustment)

1. Input PAL Special Color Bar (SPCB) (OTHER model) or Monoscope NTSC (NTSC model) signal using a pattern generator.

2. Set Wide Mode to “ON”.

3. Copy NORMAL MODE 50Hz/60Hz adjusted data for the following items:GEOM: 011 VSIZ, 010 VSLP, 012 SCOR and 003 VLIN

4. Select Category items listed in Table 1 except GEOM: 003 VLIN, 010 VSLP, 011 VSIZ, and 012 SCOR and adjust the data to obtain the center illustration.

5. Press [MUTING] t - to save the data into the memory.

6. For Korea models, copy adjusted 60Hz to 50Hz. Add 6 steps to 50Hz “HPOS” and save the data.

Category Function Illustration

GEOM 000 H Position (HPOS)

GEOM 001 H Parallelogram (HPAR)

GEOM 002 H Bow (HBOW)

GEOM 003 Linearity (VLIN)

GEOM 005 EW Width (HSIZ)

Note: Adjust HSIZ

16.6 + -(SPCB) _ 50Hz

14.8 + -(PAL Monoscope) _ 50Hz

15.3 + -(NTSC Monoscope) _ 60Hz

GEOM 006 EW Parabola/Width (EWPW)

GEOM 007 EW Upper Corner (UCOP) Parabola

GEOM 008 EW Lower Corner (LCOP) Parabola

GEOM 009 EW Trapezoid (EWTZ)

GEOM 011 V-Amplitude (VSIZ)

Note: Adjust VSIZ

12.6 + -(SPCB) _ 50Hz

11.3 + -(PAL Monoscope) _ 50Hz

11.7 + -(NTSC Monoscope) _ 60Hz

GEOM 012 S-Correction (SCOR)

GEOM 013 V-Shift (VPOS)

– 33 –

Tabl e 1

KV-SP29M53K/M83K/N63K

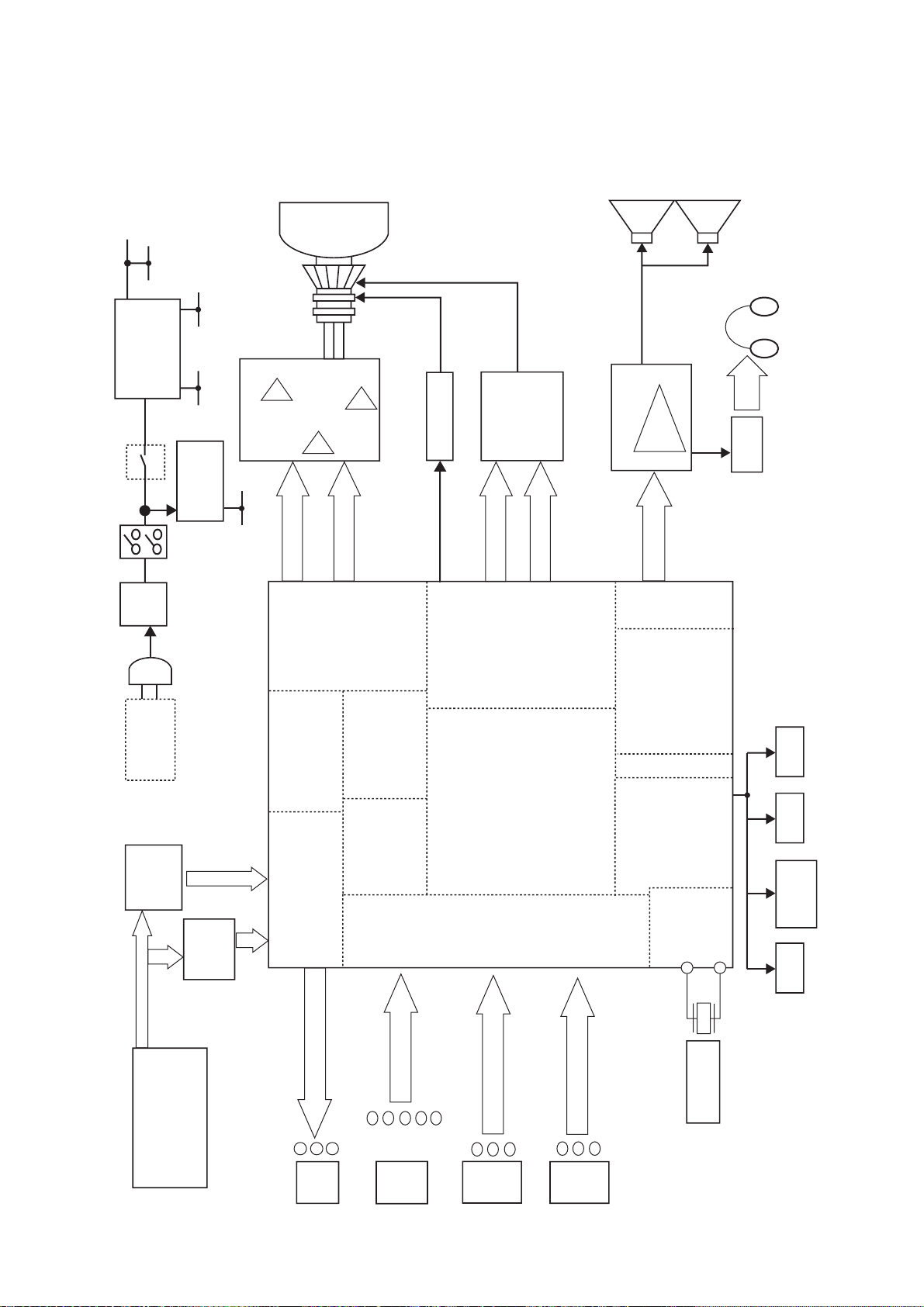

VIF

SAW

SIF

SAW

MAIN

Power

Supply

Stdby

Power

FSS TUNER

Y

U

V

L

R

24.576MHz

DVD in

Rear AV in

Front AV in

Mon out

* FM Radio Function (STEREO model)

Mon

out

AV1

AV3

in

AV2

in

DVD

in

AC in ~

110 ~ 220V

CISPR/

PFC

Relay

LOW B

Stdy 3.3

AUDIO VCC

L

Audio Amp

AT T

NVM

V Def

H Def

DF

DQP

VM

RGB Amp

Rot Amp

LCC Amp

6W

R

6W

L,R

H

P

EW, Hd

L,R

V+, V-

PWM

RGB

SIRCS

KEY

buttons

PLL

I/O Port

VIF & SIF

POWER

Color

Decoder

YUV

Processor

Jungle

RGB

A

D

C

D

A

C

Stereo,

DSP

Micro

Tex t

CC & V-chip

LED

+B

RM-GA002

4-1. BLOCK DIAGRAM

SECTION 4 DIAGRAMS

– 34 –

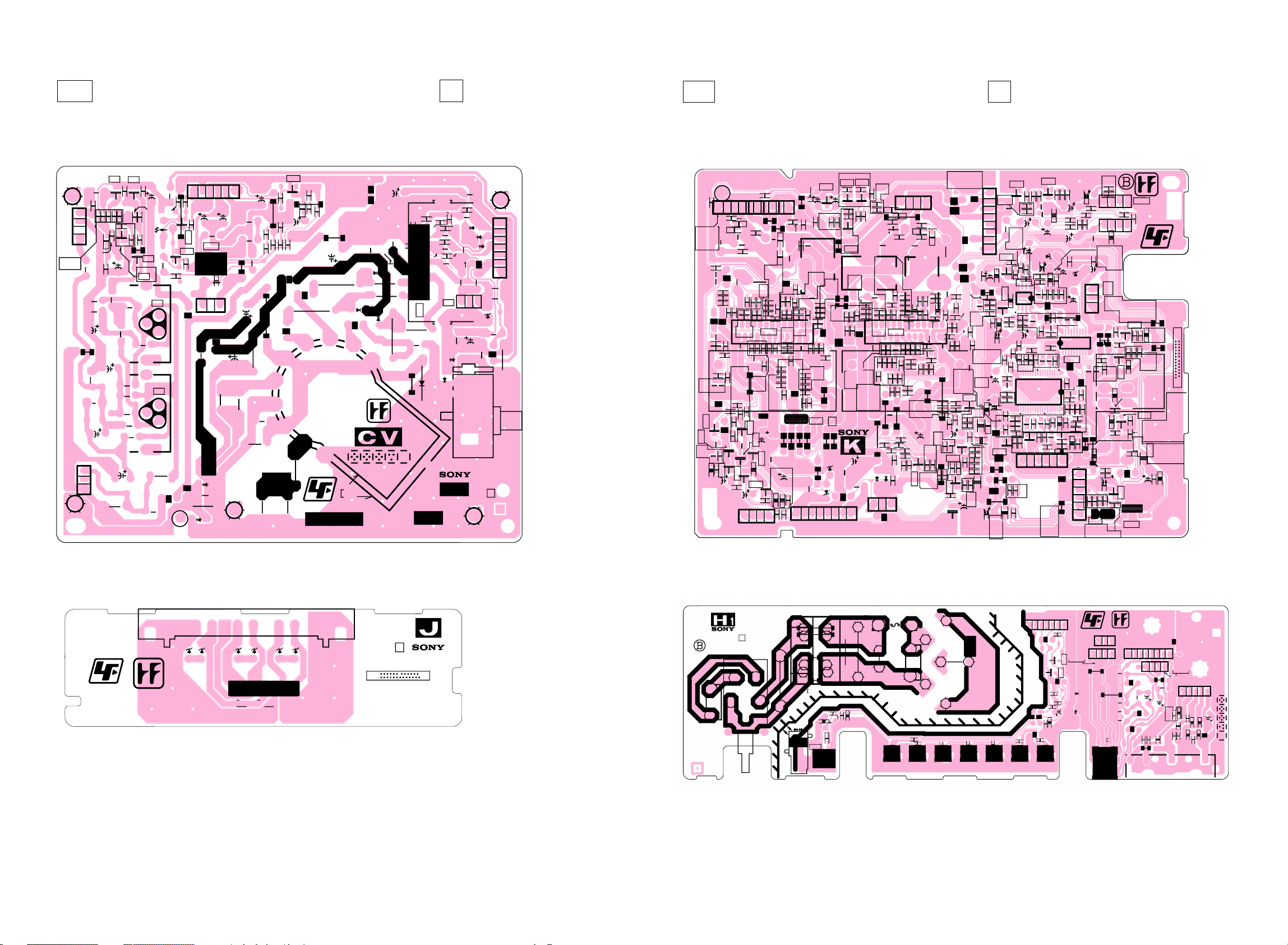

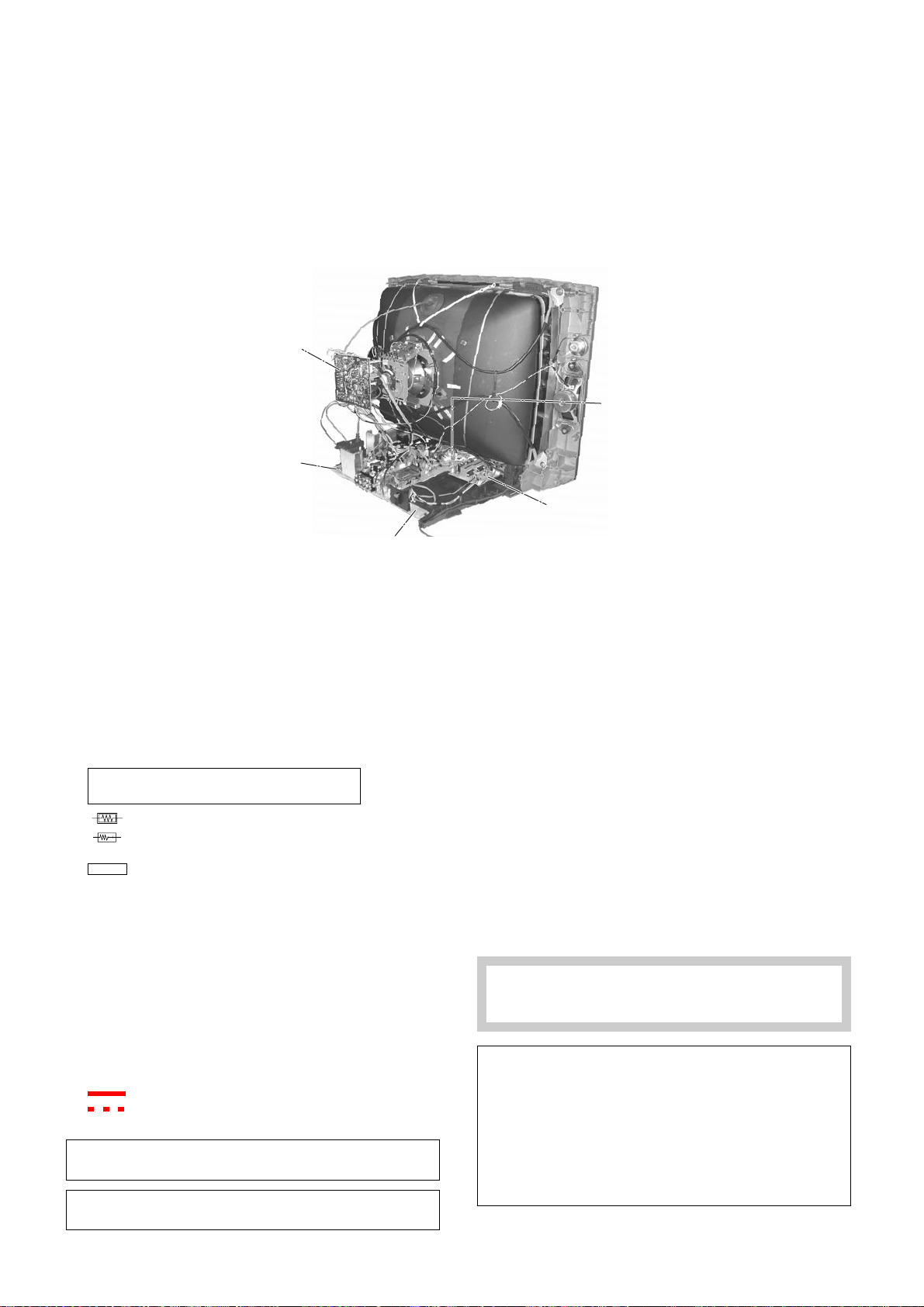

4-2. CIRCUIT BOARDS LOCATION

CV Board

A Board

KV-SP29M53K/M83K/N63K

RM-GA002

H1 Board

J Board

4-3. SCHEMATIC DIAGRAM INFORMATION

Note:

• All capacitors are in µF unless otherwise noted.

• All electrolytic capacitors are rated at 50V unless otherwise noted.

• All resistors are in ohms. kΩ = 1000Ω, MΩ = 1000kΩ

• Indication of resistance which does not have rating electrical power is as follows.

Pitch: 5 mm Rating electrical power 1/4W (CHIP: 1/10W)

• : nonflammable resistor.

• : fusible resistor.

• ¢ : internal component.

• : panel designation or adjustment for repair.

• All variable and adjustable resistors have characteristic curve B unless otherwise noted.

• Readings are taken with a color-bar signal input. no mark : Common (): PAL [ ] : NTSC 3.58

• Readings are taken with a 10MΩ digital multimeter.

• Voltage are dc with respect to ground unless otherwise noted.

• Voltage variations may be noted due to normal production tolerances.

• All voltage are in Volt.

• ✽ : Cannot be measured.

• Circled numbers are waveform references.

• : B +bus.

• : B –bus.

• k : signal path.

Note: The reference number which starts with Wxxx

(eg: W003) indicates a wire to wire connection.

Note: Components marked as XX are not fitted on this

model.

K Board

Reference information

RESISTOR : RN METAL FILM

: RC SOLID : FPRD NONFLAMMABLE CARBON : FUSE NONFLAMMABLE FUSIBLE : RS NONFLAMMABLE METAL OXIDE : RB NONFLAMMABLE CEMENT : RW NONFLAMMABLE WIREWOUND

: ✽ ADJUSTMENT RESISTOR COIL : LF-8L MICRO INDUCTOR CAPACITOR : TA TANTALUM

: PS STYROL

: PP POLYPROPYLENE

: PT MYLAR

: MPS METALIZED POLYESTER

: MPP METALIZED POLYPROPYLENE

: ALB BIPOLAR

: ALT HIGH TEMPERATURE

: ALR HIGH RIPPLE

Note: The component identified by shading and

mark ! are critical for safety. Replace only with part number specified.

Note: "A" board schematic diagram is divided into 3

blocks. Each block is named by its function and block "number". eg: Processor/Audio/Tuner/Jack (Block 001). Joint connection between boards can be identified using the block number followed by the grid's guide.

eg:-<+B

002:16F Meaning: Block 001 joint "+B" is connected to Block 002 joint "+B" located at grid 16F.

– 35 –

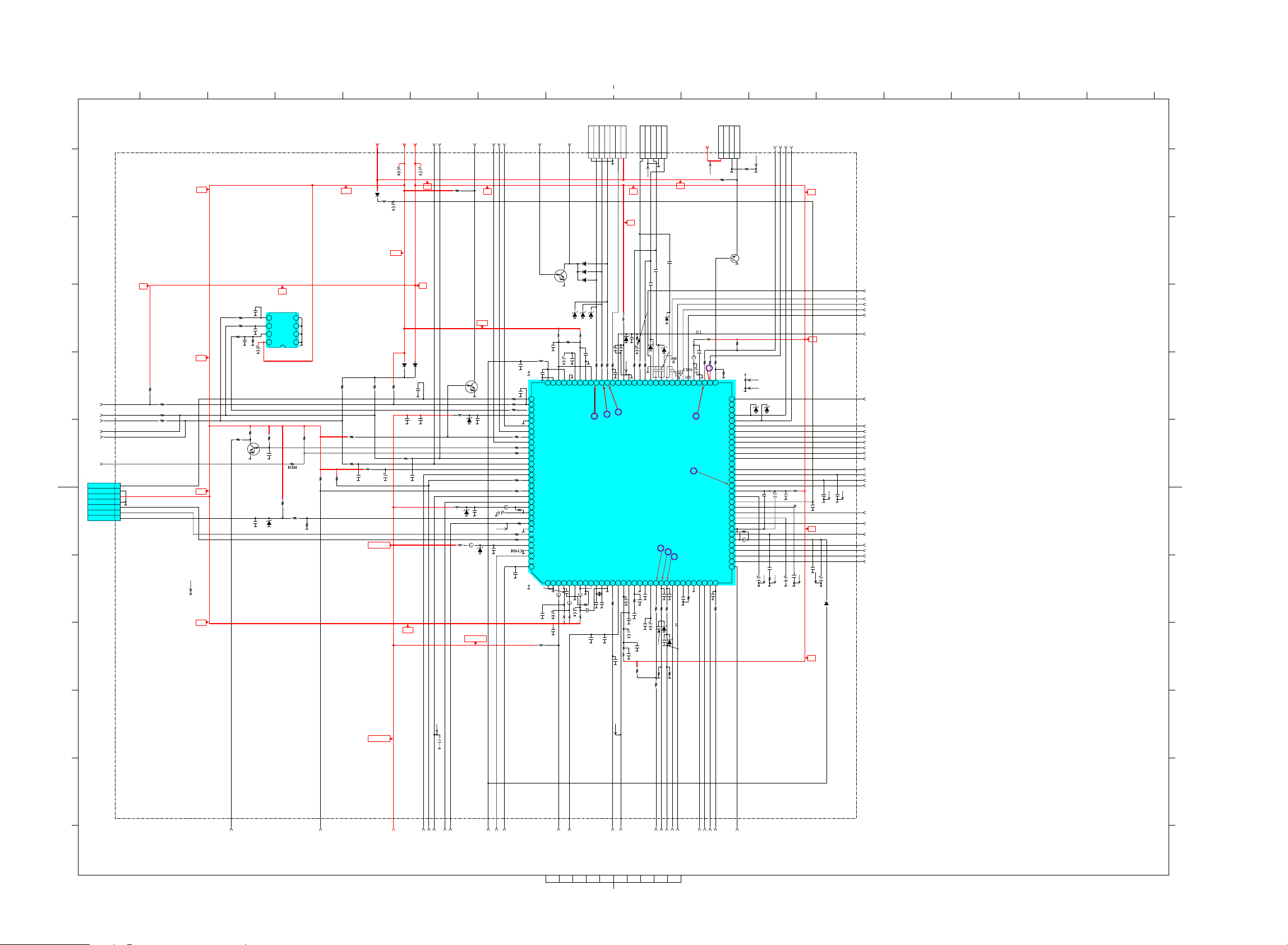

4-3-1. A Board — (Block 001)

00

16V

00

C303

123123

125125

126126

127127

RN-CP

100

R025

C053

RN-C

100

0

R026

25V

1

C018

16V

.1

C092

V

C020

V

16V

0.1

C093

7k

R320

CHIP

0

R324

FB008

W063

25V

0.

BBB

C333

KV-SP29M53K/M83K/N63K

RM-GA002

KV-SP29M53K/M83K/N63K

RM-GA002

A

(Block 001)

PROCESSOR

B

C

D

E

B_INT

006:1A

B_CLK

006:1A B_DAT 006:1A

SCL_CN010

006:1C

SDA_CN010

F

AUDIO-STDBY

002:5G

G

CN3101

7P

WHT

TO H1 BOARD

CN4103

H

I

SIRCS

GND VCC

GND LED G LED R

810

CN004

XX

A

004:7I

GND

B OUT

G OUT

R OUT

1

4

3

D057

*

R MUTE

D058

G MUTE

D059

*

B MUTE

D024

PROTECT

D023

UDZSTE-179.1B

PROTECT

L035

10uH

C030

C028

0.22

0.1

16V

B

8990919293949596

GNDA

VREFAD

VDDA(1.8)

VREFAD_PO

VREFAD_NE

VREF_POS_LSL

VREF_NEG_LSL+LSR

VREF_POS_LSR+HPL

vREF_NEG_HPL+HPR

VDDA3(3.3V)

98

5

7

FB007

0uH

JR099

CHIP

C331

XX

C029

CH

470 10V

L036

L033

10uH

C324

XX

25V

B

2

*

MM3Z9V1ST1

C036

100 16V

RN-CP100R039

RN-CP

RN-CP100R038

100

R041

85868788

UT

O

R OUT

B

G OUT

VDDA(3.3V)

2

1

VREF_POS_HPR

XTALIN

XTALOUT

VSSA1

11

12

10

X001

181331121

0

R011

470

RN-CP

C032

C034

XX

CH

C321

0.22 16V

B

C322 1000p

B

PROTECT

RN-CP2.2kR042

13

Q001

UDZSTE-179.1B

D025

PROTECT

R009

L006

XX

10uH

CHIP

C026

47

35V

B

VDDA2

VSSADC

VDDADC(1.8)

VDDC4(1.8V)

VSSP2

VSSC4

4

1

3

26

FB005

0uH

FB006

0uH

C024

22

L010 10uH

GNDIK9V 5

6

L007 10uH

D075

C301

470p

CH

IK

ABL

3

VGUARD

DECDIG

14

C304

100 16V

C041

4700p

B

C317

220

16V

L008 10uH

C038

W078

TO A BOARD CN905

7

W079

5V

RN-CP

C037

1

470

10V

B

R364

0.1

16V

B

RN-CP100

RN-CP

100

R385

R384

8081828384

VP3

GND3

Y/GIN

B-Y/BIN

VP1

PH2LF

PH1LF

GND1

1615

18

17 R044 12k

RN-CP

C046

C044

2.2

16V

F

C049

0.022 25V

B

C332

1000p

C042

0.22 16V B

R316

6.8k

RN-CP

9

CN007

Y OUT 1

D004

RN-CP 100

R386

R-Y/RIN

SECPLL

19

C048

16V

6800p

25V

B

C050

B

R314

4.7k

RN-CP

R306

12k

XX

GND 2

C302

4.7

XX

PROTECT

0

76777879

SCARTFBL

DECBG

20

21

0.22 B

10

1000p

U OUT / FB

GND

3

4

C098

XX 16V

F

C097

XX 16V

F

D006

XX

D005

XX

PROTECT

VOUT

UOUT

9

EWD

VD-

22

RN-CP 100

RN-CP100R045

R046

C081

B

V OUT

5

YOUT

8

VD+

23

1000p BC052

9V

C099

XX

16V

16

B

72737475

YSYNC

7

VIFIN1

VIFIN2

25

24

C089 1000p

B

RN-CP100R048

250V

RD5.6SB-T1

PROTECT

RD5.6SB-T1

PROTECT

C080 1000p

RN-CP

C054

0.1

16V

0uH

1

VIN

UIN

YIN

VDDCOMB

4

6

IFVO/IF_MON_OUT

VSC

IREF

GNDIF

26

27

28

R051

39k

RN-CP

C055

*

D065

D064

B

R315

4.7k

+B_2

004:16A;005:4F

W075

R377

1.5k

RN-CP

Q010

2SA1235-F

B

L005 10uH

CHIP

RN-CP2.2kR056

0

R059

R058

RN-CP

5

68697071

656667

VM

AFC

HOUT

CVBS0

SCARTHPR

VSSCOMB

SCARTHPL

CVBS1/Y1

INR1 INL1

CVBS3

INR3 INL3

CVBS2/Y2

INR2

MON-OUT

AGC2SIF

VCC8V

INTC0-IF

SIFAGC/SCART

PLLIF

GND2

MONO_OUTL

DECSDEM

OUTR OUTL

KARA RIN

KARA LIN

AVL /2 SI F

SIFIN1

SIFIN2

EHT0

AGCOUT

29

30

32

31

C323

0.01 CH

R060 100

RN-CP

CN003

XX

TO CV BOARD CN711

135VNCGND

VM OUT

1

234

W066

JR801

0

CHIP

R317

4.7k

RN-CP

1k

R395

TP04

100k

W076

RN-CP

W077

64 63

D080

62

XX

LSR

61

LSL

60

C1

59 58 57 56 55 54 53

IC001

C2

52

*

51 50

INL2

49 48

VP2

47

C072

46

XX

45

25V

44 43 42 41

JR1012

40 39

CHIP

38

FB002

37

XX

36 35 34 33

C064

2.2

004:1C

D081

XX

B

0

C316

0.47 10V

W030

W031

R379

68k

RN-CP

HOUT-DEFL

1

B

11

AFC-DEFL

C073

004:1C;006:5A

LSR-AUDIO

002:2A

LSL-AUDIO

002:2A

L004

47uH

1

W032

C334

2.2

XX

B

C063 16V

13

5V

SCARTFBL/A16 006:5G SEL_IN 006:3A SYIN 006:3A SUIN 006:3A SVIN 006:3A

ABL

D074

W034

C320

47p CH

004:10I

CVBS/PIPOUT 006:6A

C1 006:7G

006:6G

CVBS1/Y1

INR1 006:6G

006:6G

INL1

006:6G

CVBS3

INR3 006:5G INL3 006:5G

CVBS2/Y2 006:4G

INR2 006:4G

INL2 006:4G MON-OUT 006:5A

IFVO/IF_MON_OUT

005:7E

PLLIF

005:7E

MONO_OUTL

005:7E

OUTR

006:5A

OUTL

006:5A

KARA_R

006:1B

KARA_L

006:1B

5V

C319

W033 47p CH

C069

0.1

16V

B

5V

W010

0.1 B

C065

3.3

1SS133T-77

5V

14

15

A

B

C

D

E

F

G

H

I

R014

RN-CP

100

R002

R393 100

RN-CP

R004

100

RN-CP

C318

KRC102S

16V

0.1 B

RN-CP

Q018

R399

4.7k

3

C003 100p

BR24L32F-WE2

CH

C001 100p

CH

8765

R006

C002

XX

470

RN-CP

16V

R340

2.2k

RN-CP

0.1

16

D068

RD5.6SB-T1

C308

0.01

25V

B

4 12 16

3.3V

5V

IC003 NVM

4 3 2 1

R003

4.7k

RN-CP

R338

2.2k

RN-CP

4.

RN-CP

R392

XX

RN-CP

R023

4.7k

RN-CP

R030

100

B

R324R324

R015

1.5k

RN-CP

R380

100

RN-CP

D002

3.3V POWER SUPPLY

R001

4.7k

RN-CP

R336

4.7k

RN-CP

C091

L009

100p

10uH

CH

1.8V MAIN

5

9V

L003 10uH

*

RN-CP

002:3D;003:12C;

004:1E;005:3F;

006:6A

C006

470 10V

D066

PG102R

C004

100

16V

3.3V

R010

10k

C312 1000p

B

R029

RN-CP

C311

2.2

3.3V

003:12B;004:7I;

C010 470p

CH

100

C090 100p

CH

3.3V

006:5A

5V

003:12C;004:9F;

005:4G;

006:2G

C005

100 16V

9V

5V

*

D003

C313

1000p

005:3F

SCL-0

SDA-0

5V POWER SUPPLY

B

005:3F

R394

4.7k

RN-CP

Q016

KRC102S

RESET

L011

10uH

MM3Z3V3T1

L012

10uH

L013 10uH

D082

D083

MM3Z3V3T1

FB010

0uH

MM3Z3V3T1

1.8V MAIN

MOMUTE-AUDIO

D084

002:3D

3.3V

C012

XX

16V

C014

XX 16V

B

7

002:7F

IIS_CLOCK

IIS_WS

002:7F

IIS_OUT1

002:7F

5V

R323

RN-CP

R020

100

RN-CP

B

R022

100

FB009

0uH

C013 100

16V

JR1011

CHIP

0.0

100

470

R021 CHIP

R337

RN-CP100R341

0

XX

RN-CPRN-CP

C328

C021 100p CH

R012

RN-CP

RN-CP100R339

RN-CP

P

1000p

0.01 25V

2.2k

R024

C325

B

100

B

L031 10uH

TP03

C023

2.2

16V

F

97

SIRCS

98

B INT SDA1

99

VDDC2

100

VSSC2

101

IIS WS

102

IIS CLOCK

103

MOMUTE-AUDIO

104 105

IIS OUT1 AUDIO MUTE

106

AUDIO STDBY

107

SCL0

108

SDA0

109 110

VDDP(3.3V)

111

S1/VC(GA)

112

ROT CTRL ROT SW

113

DGC RELAY

114

AFT(PIP)

115

MIC SW

116

VDDC1(1.8V)

117

DECV1V8

118

KEY

119

S2

120

VSSC1/P RED LED GREEN LED VDDC3(1.8V) VSSC3

AGC-MUTE M-SYS-IF

128

TP02

C329

XX

C022

0.22 16V

B

L032 10uH

PWR-OFF-MUTE

002:4F

KRC102S

RGB MUTE

UDZSTE-179.1B

C025

0.22 16V

C330 100p

CH

1

2 6

A

3.3V

5V

3.3V

JR1010

XX

R096

CHIP

220

RN-CP

R099

220

RN-CP

R097 220

RN-CP

7 6 5 4 3 2 1

KEY

3.3V

W053

3.3V

J

1.8V MAIN

K

W059

C031

1000p

B

W011

J

K

B-BX1L(06)-13339-ID-..-A(Block 001)-SP29M53K

L

002:4F

AUDIO-MUTE

003:2D

DGC-RELAY

003:12B

1.8V_MAIN

006:6G

006:2G

004:16B

AFT-PIP

ROT_CTRL

006:2G

MIC_SW

006:4G

S2

S1/VC

UTE M

-

003:12D

C G A

1.8V_AUDIO

005:4F

M-SYS-IF

005:5F

005:6E

STBY_SW

VDDC4_CAP

003:12E;005:6E

004:5I

004:9I

PH2LF

VGUARD-DEFL

004:5I

VD--DEFL

EWD-DEFL

004:1H

005:6E

VIFIN2-IF

VIFIN1-IF

VD+-DEFL

004:1F

005:6E

005:8E

SIFIN1-IF

SIFIN2-IF

TUAGC-IF

005:8E

005:5F

OCP-PROTECT

004:9I;004:16C

2SIF

005:8E

L

– 36 – – 37 –

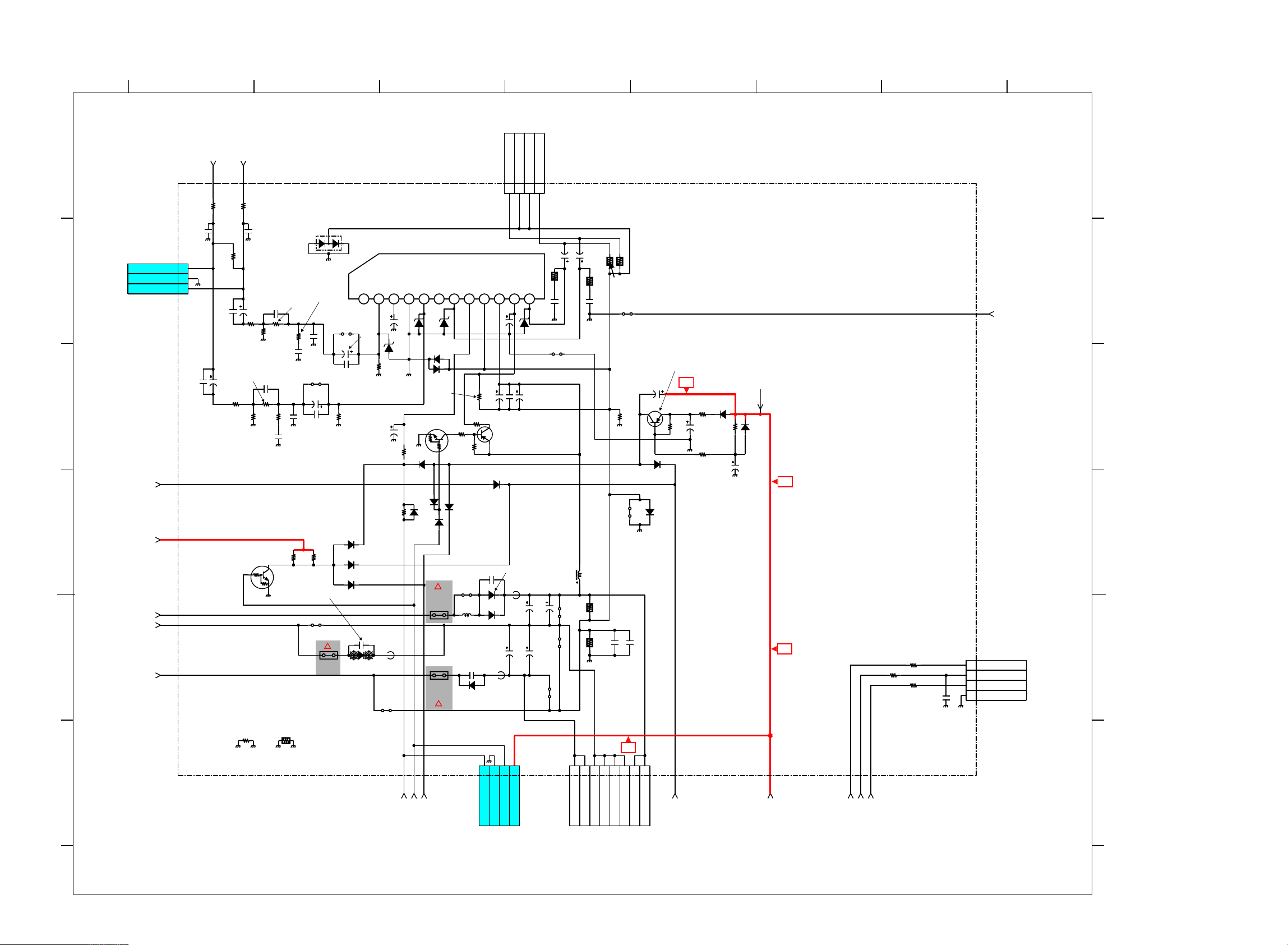

4-3-2. A Board — (Block 002)

GND

2

R238

100

RN-CP

C234

XX

L

S

3

2

SR

1

C247

XX

A

B

C

D

F

1

CN2103

TO K BOARD

CN8206

MOMUTE-AUDIO

001:6

001:5A;003:12C;

004:1E;005:3F;

006:6

003:12C

AUDIO-1

AUDIO-2

003:12C

AUDIO-3

003:12C

3P

A

9V

A

001:11

LSL-AUDIO

JR1256

XX

C248

XX

C200

XX

R203

XX

R205

XX

JR2107

XX

A

LSR-AUDIO

001:11

R237

100

RN-CP

C235

XX

C202

C201

XX

R202

R200

XX XX

R204

C203

XX

R207

XX

C204

XX

RN-CP

R201

C207

XX

C206

XX

R241

2.2k

Q206

KRC102S

R2646

1

FPRD

XX

3

C208

XX

JW2102

XX

C209

XX

C237

XX

P

T

R242

2.2k

RN-CP

C241

JW2105

15

PS203

D200

XX

R208

XX

!

OUTC/NC

12345

XX

T

P

R210

XX

RN-C

MA111-TX

D224

C205

XX

P

D213

XX

D212

XX

D214

XXXX

C210

R21

XX

JW2103

JW2101

C236

IN R/NCRFS_GND

XX

D217

XX

D216

XX

1

Q200

R212

XX

D201

XX

D207

XX

D215

XX

L

001:3

AUDIO-MUTE

AUDIO-STDBY

R236

FB203

5

4

TO H1 BOARD

IC200

XX

IN L

IN C/NC

76

D220

XX

D219

XX

R213

XX

RN-CP

XX

JW2108

5

!

XX

PS201

5A

90

V

PS202

5A

90V

!

CN2104

4P

TO K BOARD

A

CN8204

001:1F

001:7

PWR-OFF-MUTE

CN2101

XX

RED

CN4108

OUTL

MUTE

8

D218

XX

R214

XX

RN-CP

R215

XX

D202

MA111-TX

D208

XX

L201

XX

C240 470

500V

B

D223

FSF05A20

P

KV-SP29M53K/M83K/N63K

5

L

SP GND

R

123

4

PW_GND

VCC

C238

XX

V

Q201

RN-CPR216

*

P

D225

XX

C245

1000

35V

FB202

1.1UH

GND

A-MUTE

STBY

C213

XX

D222 FSF05A20

FB201

1.1UH

C243 1000

35V

4

V 4

A-STBY

9101112

C212

25

D203

C239 470 500V

B

123

C214 C217

XX

OUTR/NC

C231

XX

T

P

D221

XX

JW21

C215

XX

35V

C244 1000

35V

JW2106

5

XX

C246 1000

35V

JW2104

5

CN2102

8P

A TO K

XX

R234

XX

C232

XX

10

5

L2601

XX

JW2107

5

1234567

-

R235

XX

R2645

10K

FPRD

C2602

CENTER +

RM-GA002

R2151

R2152

XX

JW2109

5

R218

XX

CHIP

D211

XX

R2647

10k

FPRD

C2601

CH

XX

B

4V

CENTER +

XX

KV-SP29M53K/M83K/N63K

RM-GA002

7

8

96

A

(Block 002)

AUDIO

B

GND_1 (AUDIO) 003:8B;006:1E; 006:2G

Q202

2SA1235-F

AC MUTE

C220

D204

8

+

XX

*

D228

XX

4V

R206

100

RN-CP

C219 1000

25V

R243

XX

CHIP

R220

0

CHIP

A

006:7

MON-MUTE-AUDIO

D205

*

R221

*

RN-CP

D206

XX

C221

XX

25

V

W074

4V

003:12E

4V_AUDIO_MUTE

R019

XX

R016

XX

RN-CP

R013

XX

RN-CP

C027

XX

4

3

2

1

B-BX1L(06)-13339-ID.-A(Block 002)-SP29M53K

A

001:7

IIS_WS

IIS_OUT1

IIS_CLOCK

CN013

XX

IIS OUT1

IIS CLOCK

IIS WS

GND

C

D

EE

F

G

– 38 – – 39 –

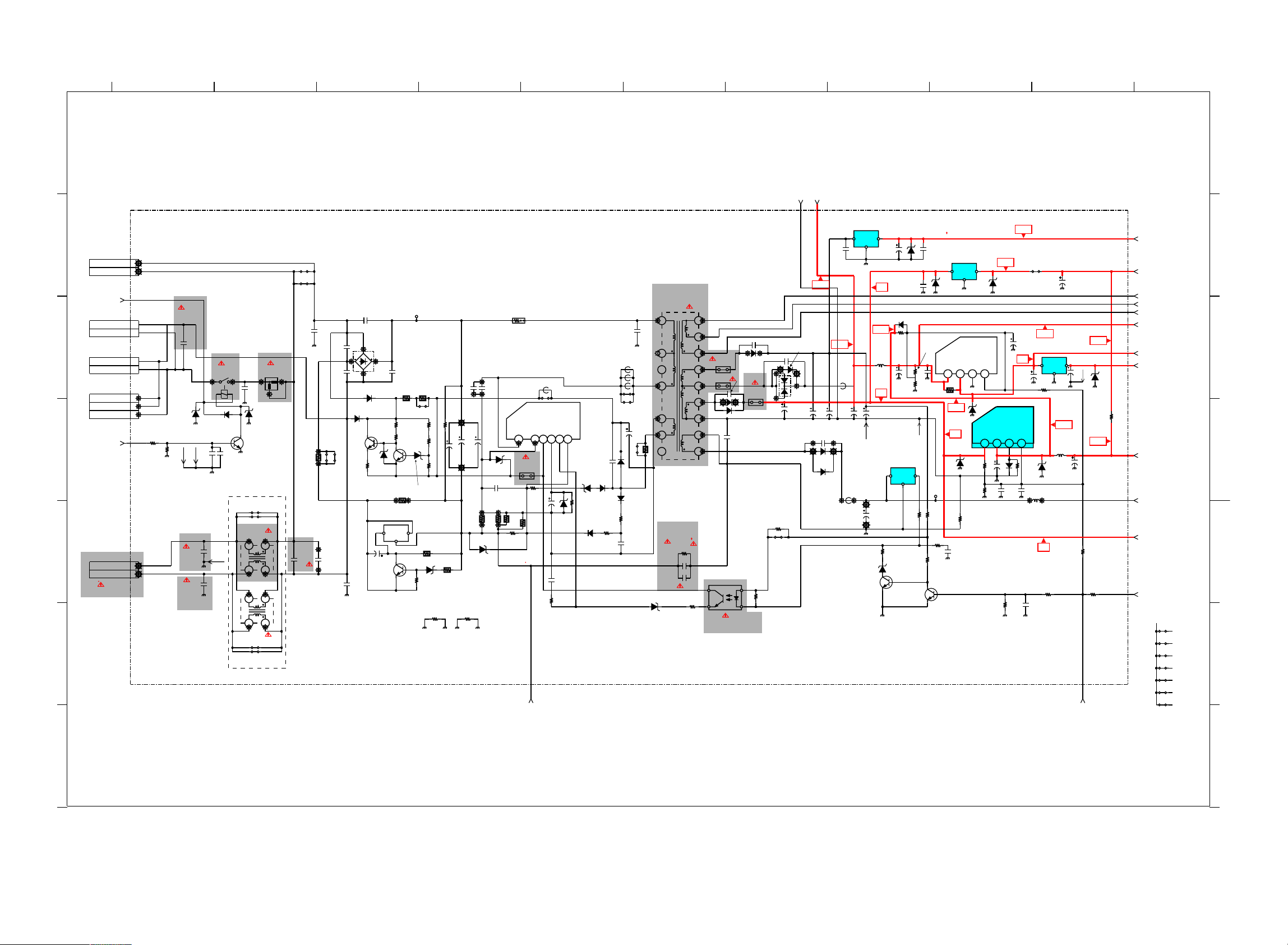

4-3-3. A Board — (Block 003)

1

2

KV-SP29M53K/M83K/N63K

RM-GA002

3

4

5

KV-SP29M53K/M83K/N63K

RM-GA002

7

8

96

10

11

12

A

B

C

D

F

G

CN605

XX

WHT

CHOKE(PFC)

11V

003:12C;006:2G

CN600

CN601

DGC

CN602

3P

DGC-RELAY

L

001:4

CN6101

DGC

DGCT

2P

XX

AC IN

2P

DGC

A

GND_1

ATSC-VCC

006:1E

002:8B;006:1E;

006:2G

IC606

KIA78D33P1

11V

C632 2200

35V

C628

0.0022 1kV

R

D621

XX

D644

D5L60

SWITCH

1.8V REGULATOR

C675

XX

B

11V

FB603

1.1uH

C634 1000

35V

FB608

0uH

D629

MA4039-H(TA)

Q608

2SC1623-L5L6

SWITCH

IO

G

C635

470

W080

C665

330

160V

A

(BLOCK 003)

3

1

2

T

1

2

1

3

NC

2

1

R609

10k

RN-CP

R602

4.7k

RN-CP

2

1

POWER, CISPR

C660

0.22

275V

PP

RY600

175519811

C687

250V

E

D600

*

C686

4.7 10V

F

C643

4.7

10V

CISPR

F

W070

E

D645

MM3Z15VT1

W002

W068

1000p

C657

1000p

250V

TH600

180580811

C670

XX

250V

B

D646

MM3Z15VT1

Q601

2SC1623-L5L6

JW1668

17.5

17.5JW1669

T603

143118211

1

23

4

1

2

3

4

T605

XX

17.5JW1670

JW1671

17.5

C688

XX

250V

R607

C666

0.1

275V

PP

JW1619

7.5

JW1620

7.5

B

JW1621

10

XX

JW1622

EY226

XX

C692

XX

275V

PT

C605

0.0047 500V

C606

0.0047 500V

10

C607

XX

250V

C609

0.0047 500V

E

ë

E

ë

D604

E

D3SB60F3

1A5GD602

1A5GD603

Q605

FN155

R612

2.2K RN

RD5.1ESB2

C689

B

TP602

153635400

C610

0.0047 500V

E

R651

XX

JW1623

R658 220K

RN

R659

220K

RN

Q606

D605

XX

R616

6.8

10W

RD5.1ESB2

RB

TMP

D640

2SC1623-L5L65P6M

G

O

I

10

Q610

2SD2114K

R677 100K

RN-CP

R606

XX

7.5

R660 470K

RN

R618

18K

D608

R676

120

1W RS

D641

RD18ESB2

JR044

XX

RN560KR661

R675

XX

C617

250V

R678

XX

FPRD

1500

XX

JR045

C612

XX

C691

1.5kV

P

MPS

2kV

R

C611

*

25/29_50W_AUTO

C658

450VC611 330

XX

250V

D636

*

RECTIFIER

C616

470p CH

R620

0.22

R619

0.22 3W

RS

D633

1.2K

RECTIFIER

XX

R610

R621

100

R605

1W

XX

0.1

RF

15673

PS604

5A 90V

RN-CP

FPRD

FB601

R623

33K

R653

XX

HS-A007

1.1uH

4

007:1B

JW1611

C604

3.3

XX

C603

0.1

MPS

R604

CHIP

0

D607

XX

D614

R682

XX

RN

D617

1E3-TB

JW1666

*

IC601

C644

0.001

MTZJ-30A

D615

1E3-TB

R608

CHIP

C690

XX

1

FB61

XX

FB610

1.1uH

FB605

1.1uH

XX

JW1667

C624

33

JW1654

5

D618

1E3-TB

D619

1E3-TB

R624

1k

RN

C623

220

0.0022 B

RD6.8ESB2

T602

144505411

TM

P

181

17

C625 330p

C693 330p 250V

16

15

14

D620

13

12

11

10

R650

8.2M 1W RN

B

R603

1k

RN-CP

31

4

5

XX

7

R627

68

FPRD

8

9

250V

D606

XX

PS603

5A 90V

PS602

5A 90V

3

C653

D622

1E3-TB

C654

470p

500V

B

5A 90V

SB360-SD639

C680

470p CH

1

24

PH600

K1010HB01

PS605

500V470p B

R672

XX

RN-CP

C626 470p 500V

C682 2200 25V

R633

XX

JW1653

5

B

D625

S3L20UF4

D624

XX

C630 3300

35V

D635

PDZ3.6B-115

SENSING

*

1k

R669

XX

RN-CP

IC605

G

C662

W018

R636

3.3k

16V

0.1

CO

B

R631

4.7k

C672

0.01 25V

B

D642

MM3Z9V1ST1

R668

33k

RN-CP

C674

R681

XX

B

2W RS

TP601

R655

100

RN-CP

R640

XX

2SC1623-L5L6

SWITCH

IC607

BA18BC0FP-E2

REGULATOR

VCC

OUT

GND

IC602

KIA78R09API

SW REGULATOR

1

23

1.8V

D649

MM3Z15VT1

4V

D648

MM3Z9V1ST1

R665

RN-CP

R666

RN-CP

153635400

R656

1

C646

XX

100V

PT

Q609

1.8V

D643

MM3Z3V3T1

4

PQ018EF01SSH

1

23

16V100C649

XX

R679

XX

CHIP

C678

16V

D637

MA2ZD14001S0

2.2

F

C6

100 16V

4V

RECTIFIER

1.8V

L601 47uH

C647

470 16V

4V

RN-CP

41

D638

R667

RN-CP

SE135N-LF38 REGULATOR

R647

1K

B-BX1L(06)-13339-ID.-A(Block 003)-SP29M53K

3.3V

C637

100 16V

9V

C638

100 16V

IC603

C679

XX

16V

F

C661

JW1665

4

JR1602

XX

25V

B

10

11V

KIA7805API

9V REGULATOR

IO

COM

R654

XX

RN-CP

MM3Z3V3T1

L600 22uH

4V

R634

4.7k

RN-CP

L602 22uH

D647

IC604

1.8V

C685

220 16V

C639

100 16V

R635

10k

RN-CP

1.8V

W024

JR1601

1.8V

C668

100 16V

R680

0

CHIP

006:2G

STBY_SW_KP

XX

CHIP

D650

MM3Z9V1ST1

JW1612

JW1613

JW1614

JW1615

JW1616

JW1617

3.3V 001:5A;004:7I; 006:2G

1.8V_MAIN 001:5

L

002:2E AUDIO-3

AUDIO-2 002:2E AUDIO-1 002:2E

11V 003:2C;006:2G

001:5A;002:2D; 004:1E;005:3F;

A

006:6 9V

5V 001:6A;004:9F;

006:5

A

005:2F;

1.8V_AUDIO 001:7

L

+B

A

004:16

4V_AUDIO_MUTE 002:7F

STBY_SW 001:8L;005:6E

XX

JW1618

XX

B

C

D

EE

F

G

– 40 – – 41 –

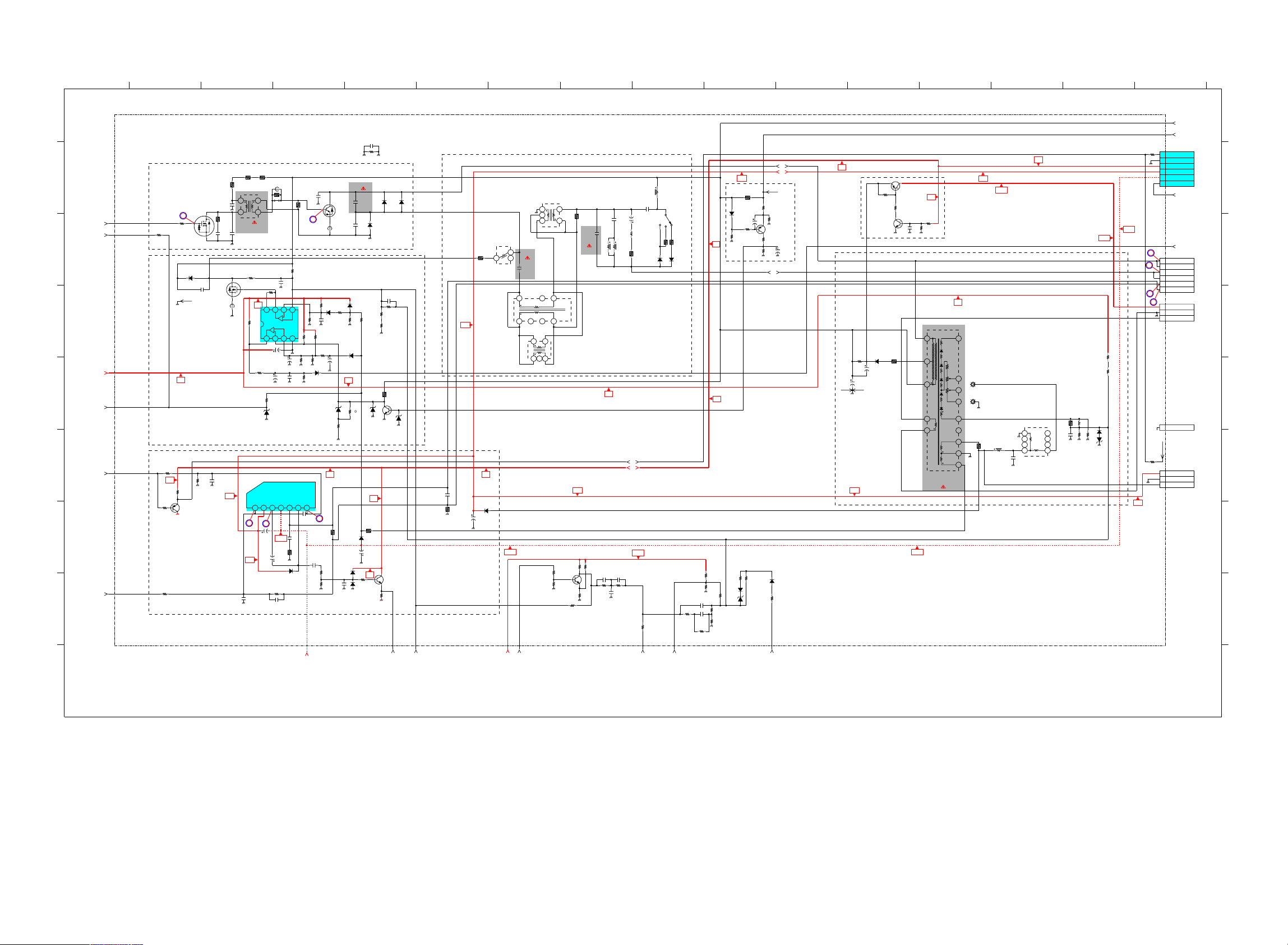

4-3-4. A Board — (Block 004)

1

2 6

KV-SP29M53K/M83K/N63K

RM-GA002

3

4 12 16

5

7

8 10

KV-SP29M53K/M83K/N63K

9

RM-GA002

11

13

14

15

A

B

C

D

E

F

G

H

I

HOUT-DEFL

001:11

AFC-DEFL

001:11A;006:5A

001:5A;002:2D;

003:12C;005:3F;

006:6

006:5A

VD+-DEFL

001:9

VD--DEFL

001:9

CN507

6P

TO CV BOARD

CN1801

DY1

6P

TO DY

A

B

C

D

E

F

G

H

I

+B_2

RN-C

001:10A;005:4F

+B

003:12E

R500

1k

P

1

VD+

2

GND

3

5V

4

15V

5

-15V

L

6

ROT_CTR

ROT_CTRL 001:6

L

OCP-PROTECT 001:10L;004:9I

15

1

H+

16

2

H+

3

H-

4

H-

5

V-

V+

6

17

18

1

200V

3

GND

H1

4

CN505

XX

TO CV BOARD

CN703

CN509

XX

1

GND

W506

R539

XX

CHIP

CN503

XX

3

15

V

2

GND

1

FBP

TO QP BOARD

CN2800

C512 XX 25V

B

R527

XX

6.8k

XX

D521

*

D537

JR501

CHIP

D517 BY228GP DUMPER

C538

0.020

1.2kV P

D506

P

*

R538

18k RN

0

D550

RN-C

*

D518

RU4AM-T3

DUMPER

R580

4.7k P

R528

XX

2W RS

D519

DUMPER

C524

47p CH

R582

1.2M

RN-C

R5036

470

RN-CP

Q503

2SC1623-L5L6

D549

RD5.6SB-T1

XX

P

5V

R591

XX 1/2W FPRD

C557

470

25V

5V

Q512

2SC1623-L5L6

R5002

Buffer

10k

RN-CP

*

R5003

4.7k

RN-CP

L

001:8

VGUARD-DEFL

R5032

H-DRIVE

R579

680 3W

RS

C514

0.047 200V

Q506

PT

2SK3462

H-Drive

Q513

D504 PG104R Pin Out

C507

470p

500V

R526

5.6k

RN-C

S

B

P

R543

5.6k 1W RS

C519 1000p 500V

B

Q505

IRFS614BYDTU

S

FB504

1.1uH

RN-CP

IC502 NJM2903M Pin Control

C513

0.01 25V

B

15V

13

R599

A

9V

A

FBP

L

27k

RN-CP

CORRECTION

V-DRIVE

R522

8.2k

R5005

100

RN-CP

R520

8.2k

RN-C

R535

100

RN-CP

W503

9V

5V

R5006

4.7k

RN-CP

2SA1235-F

BUFFER

P

680 3W RS

134

T501

C523

1000p

500V

B

R525

390k RN

R505

4.7k

RN-CP

D509

KDZ5.6V-Y-RTK/

Clamp

10

15V

C527

0.01 25V

B

R596

680 3W

RS

FB505

XX

R557

R562 XX 2W

RS

JW1557

XX

5

*

C517

R5027

0.01 25V

B

R560

2.2k P

RN-C

9V

8 7 6 5

+

-

4321

C521

100

16V

C508

R506

4.7k

DRV-IN

1 2 3 4 5 6 7

R514

47k

XX

RN-CP

C505

C502

R513

XX

100

220k

16V

RN-CP

R551

27k RN

P

IC503

STV9325

Vcc

F.B.-PLS

Vee

OUT-PUT

11

C540

C531

-15V

0.33

XX

MPS

R568

1.5

C537

FPRD

220

D513

FR104-A5

R571

Rectifier

5.6k

RN-C

P

C598

XX

47

1W

RS

150k

RN

Vcc(OUT)

C578

R518

R516

XX

RN-CP

XX

B

C528

XX

2kV

14

R530

22k

RN-CP

R529

15k

RN-CP

27K

D501

T

REF-VOL

C587

0.1 B

R5001

47k

RN-CP

A

-15V 007:4

FB503

0.45uH

R521

*

Q511

TT2142

H-Out

C539

XX

R536

22k

RN-CP

D505

*

C511

2200p

CH

R537

RN-CP

47K

C509

D503

XX

160V

R517

XX RN

9V

D502

XX

R524

47K

RN-CP

12

R577

220 2W

ER202

RS

D536

Clamp

R5000

22k

RN-CP

C588 1000p

B

Protector

L

001:9

EWD-DEFL

HORIZONTAL DEFLECTION

15V

C550

0.1

100V

PT

R578

1

C556

1W

470

RS

25V

H+

R5024

5.6k P

RN-C

R544

68k

RN-CP

D508

MA111-TX

W505

R5021

680

RN-C

R5022

Q516

KTA1279

Switch

R5023

220k RN

220k

H-

ABL

P

RN

D51

R356

1.5K CHIP

001:12D

15V

C580

100

V

16

1

*

15V

L515

V

VD+

5V

R5035

RN-CP

1k

L513

2.2mH

R510

3.3V

47 3W RS

C577

0.047

200V

T

P

D527

FR104-A5

Rectifier

L

PH2LF

001:9

10mH

S502

157270711

R547

R548

390

470

2W

3W

RS

D528

FR104-A5

Snubber

RN-CP

C518

47P

R531

2.2M

RN-CP

OCP-PROTECT

001:10L;004:16C

T504

143385011

2 4

1

4 7

T508

14376101

R597

C572

1k

0.15 2W RS

C570

0.82 250V

1

C574

2.2

250V

250

P

L511

XX

L512

150UH

9V

3

5

L507 10mH

4

1

R585

2W

3

2.2

RS

C567

*

250V

P

3

1

10

8

9

T505

XX

2 4

1

3

5

5V5V

D522

ER202

Rectifier

-15V -15V

A

3.3V 001:8A

006:2G

001:5A;003:12B;

R5008

100k

RN-CP

R5010

10k

RN-CP

Q515

2SC1623-L5L6

R5009

470k

RN-CP

R5034

1M

RN-CP

R501

RN-CP

R5012

15k

C592

C596

RN-CP

470p

XX CH

CH

R5013

R5014

1M

1.5M

1

RN-CP

3.9k C590 4700p

B

OCP CIRCUIT

R5020

0.47 3W

RS

D548

1SS133T-77

Switch

C597

470 10V

R5025

4.7k

RN-CP

5V

R5026

220k RN

5V

R519

47k

R523

33k

C516

XX

JR503

CHIP

R542

3.3K

R515

470k

RN-CP

R532

D507

1M

DTZ-TT11-6.8B

RN-CP

R533 120k

RN-CP

0

5V

FBT

R590

XX

RN

C565

200V

C558

160V

W502

W504

15V15V

22

33

200V SW

RN-CP

Q502

2SC3209LK

D523

PG104R

5V

Q501

KTA1279

R502 220k 1/2W

C503

5V

R503

47k

RN-CP

R504

47k

RN-CP

XX CH

1

4

2

6

5

T503

NX-4910/M

145347921

R501

6.8k

R594

XX

1/2W

FPRD

15V

200V

-15V

200V

9V

HV

R553

820

RN-C

P

R554

4.7k

RN-C

FV

SV

R555

4.7k 1W

11

10

R593

XX 1/2W FPRD

9

8

7

L502

XX

1

246

3

C501

XX

100V

PT

T502

XX

RS

C5073

5

0.022

200V

7

8

RN-C

P

L514

2.2mH

D529

1SS133T

-77

Protect

R5015

R556

100k

10k

P

RN-C

D530

MTZJ-27

Protect

15V

A

(Block 004)

DEFLECTION

B-BX1L(06)-13339-ID.-A(Block 004)-SP29M53K

– 42 – – 43 –

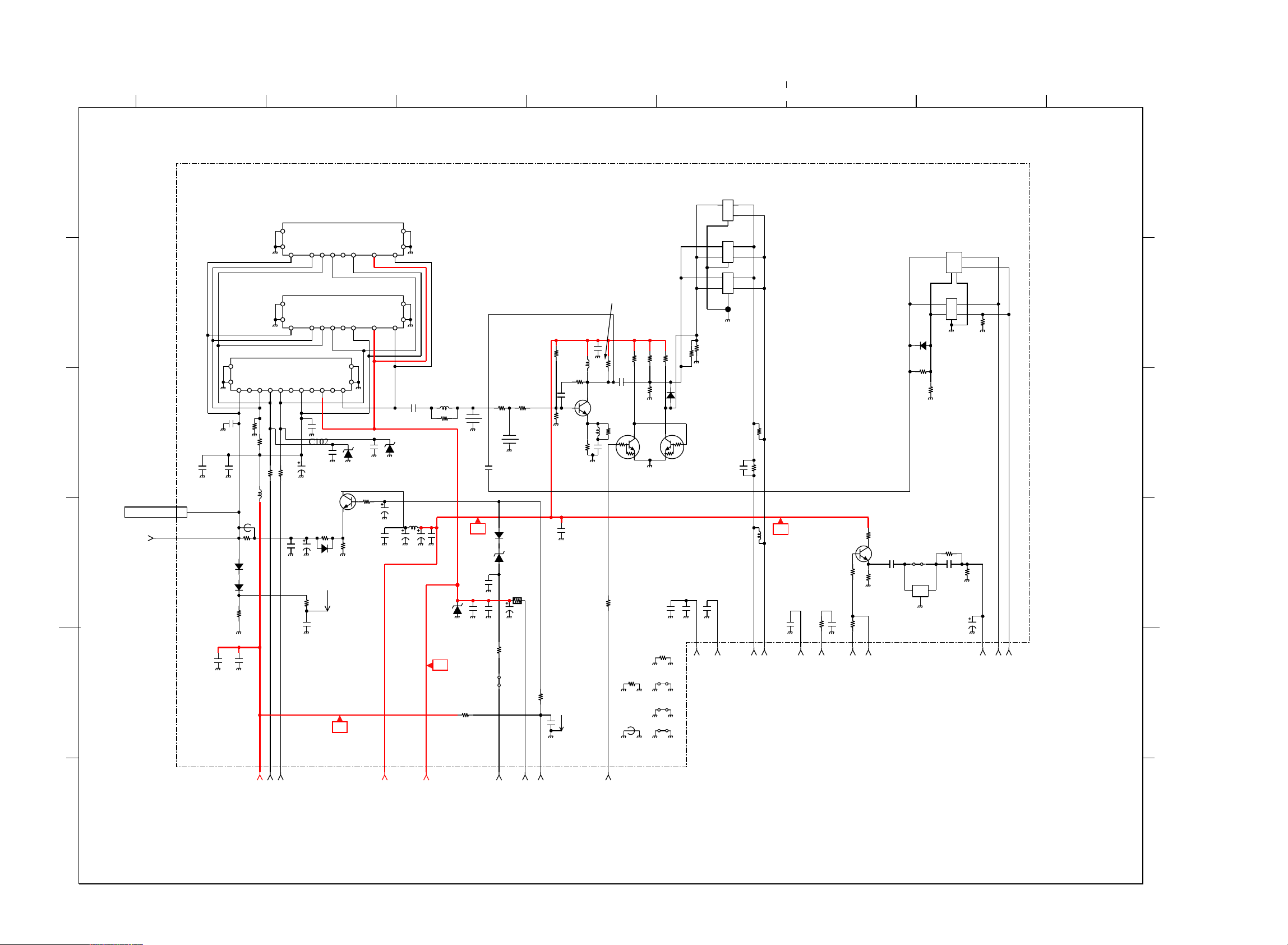

4-3-5. A Board — (Block 005)

KV-SP29M53K/M83K/N63K

RM-GA002

KV-SP29M53K/M83K/N63K

RM-GA002

1

A

2

3

4

A

TU102

*

N.C

SCL

V supply

BIL

NC

C140

1000p

C102

10p

CH

C120

470 16V

R152

CHI

D107

XX

PROTECT

C141

XX

B

TU103

XX

SDAMBMB

SDA

MB

IF1

NC

C104

B

RD5.6SB-T1

PROTECT

2SC1623-L5L6

*

RN-CP

P

R100

1k

RN-CP

W064

5V

TU2

MB

TU2

10p

RD5.6SB-T1

CH

D108

Q100

BUFFER

R1

18

100

C145

XX

B

IF OUT

C111

0.01 25V

B

D109

PROTECT

C106

L100

10

100uH

C108

C107

470

16V

9V

006:6A

001:5A;002:2D;

003:12C;004:1E;

L102

XX

JR1110

0

CHIP

C109

4700p

D103

*

30V

006:2G

B

C146

R355

22k

RN-CP

CT131

C112

*

9V

C133

XX

25V

B

*

B

JW015

7.5MM

XX

C1

0.01

R103

RN-C

19

B

R106

*

RN-C

R119

33

P

RN-C

R107

*

RN-CP

CT139

*

D105

XX

D106

XX

R121

22k 3W

RS

C1

18

22

R149

XX

CHI

P

A

+B_2

001:7L

AGC-MUTE

001:10A;004:16

P

R061

680

RN-CP

L

001:10

TUAGC-IF

(Block 005)

TUNER

AGCASSCL

B

AGC

TU101

*

AGC

ADD

SCL

SDA

TU

C100

C142

47p CH

1

150 CHIP

PROTECT

C147

XX

JR1050

D11

B

C

TP101

XX

TU-AGC

006:1A

D

F

B

D110

*

RN-C

C143

XX

*

1

R155

*

RN-CP

R104

XX

P

R1

100

RN-CP

L106

100uH

FB101

XX

C148

0.1

25V

B

A

006:5

004:9F;004:9F;

001:6A;003:11C;

JR1101

CHI

15

5V

SCL-0

NC

0

P

R1

16

100

RN-CP

C101

C144

XX

B

R154

*

RN-CP

A

001:6

SDA-0

001:6

10

5

C138

0.01 25V

B

L101

1.2UH R108

1K

P

RN-C

Q102

2SC3779C,D-A

AMPLIFIER

L103

C115

* B

R109

*

CHI

P

C117

CH

C137

47p CH

R131

*

RN-C

W058

C057

0.01 25V

B

*

P

R110

RN-C

JR1111

*

P

RN-C

R111

*

P

RN-C

C116

4700p

B

A

R113

RN-CP

*

CHIP

*

Q103

JR042

10

RN-CP

FB001

*

L

001:7

M-SYS-IF

R112

*

P

R114

*

RN-C

*

SWITCH

C1329

XX

16V

B

JR1006

CHI

JW1031

XX

JW007

10

JW018

10

0

P

JR1102

Q104

C1019

0.47 10V

B

P

CHI

*

I

I1I2O1

JR1100

*

CHIP

XX

P

D100

*

BUFFER

C135

SWITCH

C300

L

001:8

VDDC4_CAP

SWF103

XX

O1

SWF

O2

G

SWF

O2

G2

SWF

O2

G2

R126

XX

P

RN-C

0.01 25V

B

L105

XX

0.22 16V

B

L

STBY_SW

001:9

VIFIN1-IF

001:8L;003:12E

SWF104

*

SWF100

*

JR1112

XX

9V

C061

4700p

B

001:9L

VIFIN2-IF

R148

RN-CP

R146

*

RN-CP

R088

C070

*

0.1

RN-C

P

16V

B

PLLIF

001:12G

MONO_OUTL

*

SWF

G2

*

B

C1233

XX

O1 O2

SWF101

R127

XX

RN-C

R153

*

RN-CP

L

001:10

8

*

P

2SIF

001:10L

SIFIN1-IF

SIFIN2-IF

L

001:10

7

*

D102

JR1

XX

CHIP

SWITCH

C131

0.01 25

R147

*

RN-C

R150

*

RN-CP

IFVO

006:8G

001:12G

XX

109

Q111

*

JW1

V

P

SWF102

I

G1 G2

I1 I2O1O2

R128

0

CHIP

R156

CHIP

101

5

C132

XX

25V

IO

BPF

G

CF101

XX

B-BX1L(06)-13339-ID.-A(Block 005)-SP29M53K

IFVO/IF_MON_OUT

96

A

B

C

D

EE

F

– 44 – – 45 –

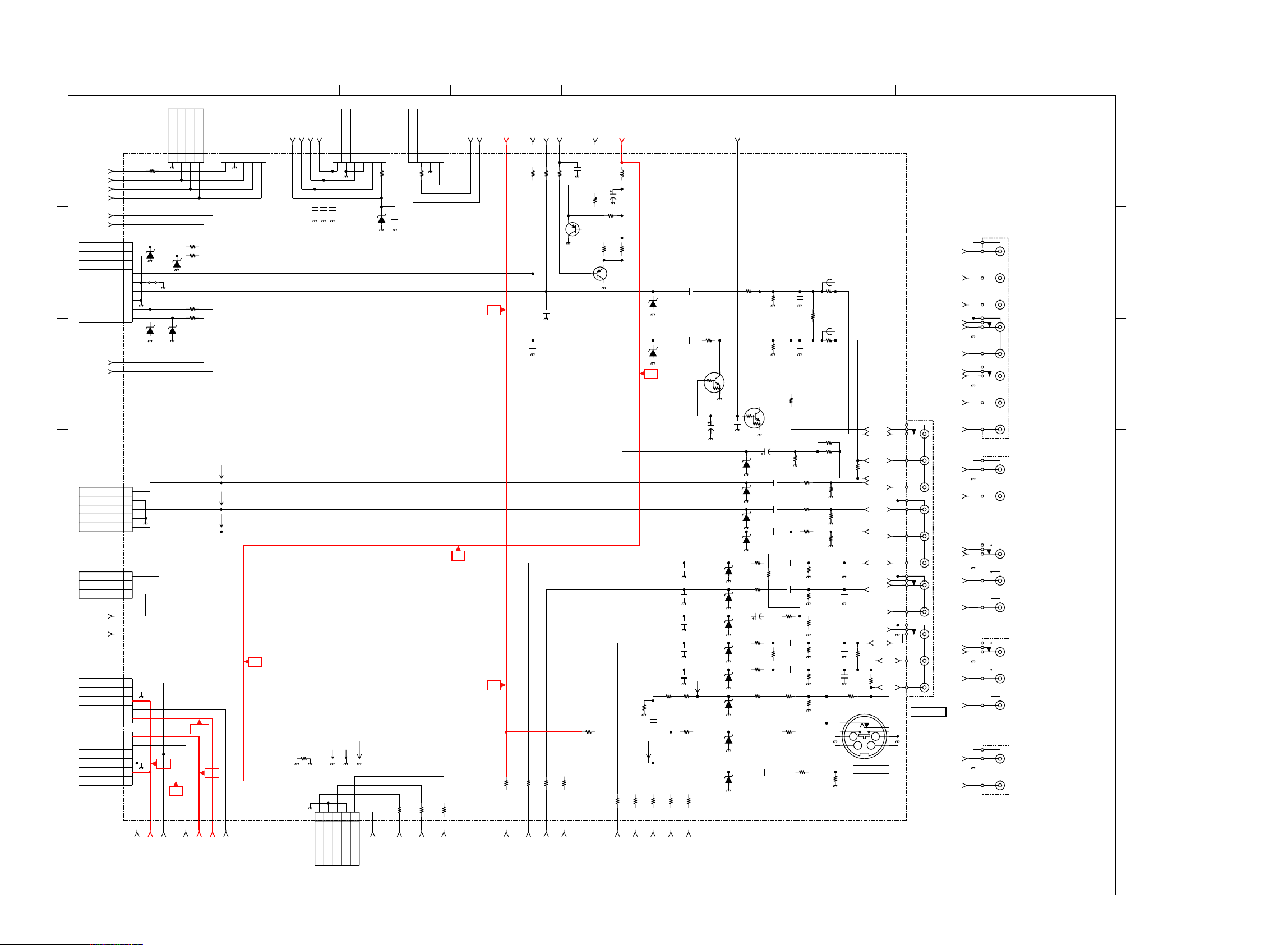

4-3-6. A Board — (Block 006)

1

2

KV-SP29M53K/M83K/N63K

RM-GA002

3

4

5

KV-SP29M53K/M83K/N63K

RM-GA002

7

8

96

10

A

TU-AGC

KARA_R KARA_L

B

SDA_CN010

SCL_CN010

C

D

002:8B;003:8B;

ATSC-VCC

F

G

005:2D

001:1E B_INT

B_DAT

001:1F B_CLK

001:1E

001:12H

KARA

KARA R

MON L

MON R

CN010

XX

WHT

001:1F

CN905

XX

V OU

GND

U OUT / FB

GND

Y OUT

CN604

XX

RED

ATSC-11V

A

TSC-GND

GND_1

006:2G

003:8B

CN606

5P

STBY_SW

GND

MIC_SW

STBY_SW

GND

CN607

XX

GND

SCL

SDA

NC

11V

3.3

30V

AFT

11V

9

L

T

V

CN903

XX

JR1903

0

CHIP

D079

RD5.6SB-T1

9

8

7

6

5

JW1

18

4

5

3

2

1

D007

RD5.6SB-T1

PROTECT

5

4

3

2

1

2

3

1

2

3

4

5

1

2

3

4

5

6

11V

006:1E

002:8B;003:8B;

(AUDIO) GND_1

GND

B INT

123

R1002

100

RN-CP

D078

RD5.6SB-T1

R008

100

RN-CP

D008

RD5.6SB-T1

11V

9V

L

1F

001:6

003:1

STBY_SW_KP

003:12C;003:2C

B DAT

3.3V

AFT-PIP

B CLK

4

R1001

100

RN-CP

R007

100

RN-CP

30V

005:4F

AGC

GND

B INT

B DAT

12345

W005

W006

W007

9V

3.3V 001:6L

MIC_SW

001:5A;003:12B;004:7I

CN904

B CLK

5P

001:12D

CN9201

5P

SEL_IN

SVIN

C096

0.1

16V

B

JR1015

XX

001:12D

SUIN

SYIN

C095

0.1

16V

B

12345

CV IN

001:12D

SY-OUT

12345

C094

0.1

16V

B

W057W054

L IN

GND

SU-OUT

GND

D914

XX

W065

R IN

SV-OUT

R9025

100

RN-CP

L

S2

001:6

T

CN906

XX

SEL_OU

6

R934

XX

CHIP

HP-IN

123

C916

0.1

25V

B

R9027

10k

RN-CP

001:12F

CVBS2/Y2

VP-IN

R935

XX

RN-CP

INL2

001:12F

T

CN907

GND

CVBS/PIPOU

4

R9026

RN-CP

INR2

XX

9V

10k

001:12F

1A;004:1C

FBP

004:1E

AFC-DEFL

001:1

5V

R9063

XX

RN-CP

5V

005:2F

001:6A;003:12C;

004:9F;004:9F;

R9031

100

RN-CP

R9022

100

RN-CP

001:12D

SCARTFBL/A16

OUTL

R9030

100

RN-CP

C925

R9023

100

RN-CP

INR3

001:12F

OUTR

001:12G

470p

CH

INL3

001:12F

MON-OUT

R9028

100

RN-CP

2SA1235-F

C922 470p

CH

CVBS3

001:12F

Q900

R9021

100

RN-CP

001:12F

C966

XX

R937

XX

Q903

XX

R902

1k

RN-CP

R989

10k

RN-CP

CVBS/PIPOUT

001:12E

L902 47uH

C956

100 16V

R938

XX

RN-CP

R9020

100

RN-CP

R9019

100

RN-CP

INR1

9V

001:5A;002:3D;

003:12C;004:1E;

005:3F

1k

R904

RN-CP

9V

DTC143TKA-T146

R9062

75

RN-CP

W016

R9018

0.22 16V

RN-CP

INL1

001:12F

D905

XX

D901

XX

Q901

C968

XX

C969

XX

C982

XX

C970

XX CH

C971

XX CH

JR1905

XX

CHIP

C981

0

16V

B

R9036

100

RN-CP

001:12F

CVBS1/Y1

MON-MUTE-AUDIO

002:6F

A

(Block 006)

JACK

C901

2.2

16V

F

R906

470

RN-CP

C900

2.2

16V

F

C980

22

MM3Z9V1ST1

D902

W017

JR1906

XX

CHIP

D908

RD5.6SB-T1

R990

XX

CHIP

D910

R9017

XX

RN-CP

B-BX1L(06)-13339-ID.-A..(Block 006)-SP29M53K

L

C1

S1/VC

001:6

001:12F

XX

D903

XX

D904

XX

D906

XX

D907

XX

C967

16V

D900

2.2

F

D912

D911

XX

D913

XX

R910

470

RN-CP

R908

RN-CP

R909

39k

RN-CP

D909

XX

R907

39k

C904

XX

RN-CP

C902

R905

39k

0

CHI

R913

470k

RN-CP

R914

470k

RN-CP

Q902

DTC143TKA-T146

C903

470

16V

C060

0

16V

B

C062

0

16V

B

C067

0

16V

B

R936

XX

C908

1

16V

F

R9009

XX

CHIP

C907

C906

16V

P

C905

XX

R926

RN-CP

1

16V

F

1

F

R91

0

CHIP

R944

XX

C910

R9007

CHIP

6

C909

16V

R918

XX

1

RN-CP

470p

CH

XX

C91 470p

CH

R9015

XX

CHIP

RN-CP

1

F

R919

XX

FB903

R932

CHIP

1

R939

120

RN-CP

R924

R931

470k

RN-CP

R925

0

R927

0

R920

220k

RN-CP

R921

220k

RN-CP

R922

XX

R915 220k

RN-CP

R916

220k

RN-CP

R917

XX

TERMINAL, S

XX

0

FB902

XX

R933

CHIP

150

P11

P10

0

P12

R9008

XX

CHIP

R928

XX

RN-CP

R929

RN-CP

R930

XX

RN-CP

C912

470p

CH

R9006

C

R923

XX

RN-CP

0

C914

470p

CH

C915 470p

CH

C913

470p

CH

0

CHIP

VIDEO IN 1

P15

P1

R9061

XX

CHIP

P18 P16

P14 P12

1

P10

P7

P9

P3

R9010

XX

CHIP

J900

XX

1 2

3 4

A

13

P12

12

1

P1

11

P10

10

8

P9

9

P7

7

P9

6

4

P5

5

P3

3

P5

P15

P14

P16

P15

P18 P16

2

P1

1

3

P3

2

P5

1

4

P5

5

P3

3

P5

2

P1

1

4 5 3

2

1

3

2

1

J901

11P

17 18

P18 P16

16

15

P15

14

P14

13

12

P12

11

P1

1

10

P10

8

9

P9 P7

7

6

P9

4 5

P5

3

P3

2

P5

1

P1

Y

R OUT

L OUT

MON OUT

V

U

Y

R(YUV)

L(YUV)

R1

L1

V1

VIDEO IN 1

S IN

J906

XX

J907

XX

J908

XX

V

U

Y

R(YUV)

L(YUV)

R1

L1

V1

L1

V1

R1

L1

V1

R OUT

L OUT

MON OUT

L OUT

MON OUT

B

C

D

EE

F

G

– 46 – – 47 –

4-3-7. A Board — (Block 007)

Mount Mecha

410202201

A017

CLP005

Mount Mecha

410202201

A019

CLP007

EY194

EY200

EY121

EY124

EY207

EY208

XX

EY550

EY551

Mount Mecha

404240802

A013

CLP002

Mount Mecha

404240802

A014

CLP003

XX

Mount Mecha

409312201

A003

IC604

Mount Mecha

410262101

A011

IC001

Mount Mecha

403343751

A020

D624

XX

Mount Mecha

X40360521

A503

IC503

Mount Mecha

404794111

A007

IC601

TM

P

Mount Mecha

406084011

A604

D604

XX

Mount Mecha

409312201

A005

IC602

Mount Mecha

X42006102

A511

Q511

TM

P

Mount Mecha

406846881

A010

IC200 OVERLAP

A200

HS-A007

003:6F

Mount Mecha

408401111

A200

IC200 OVERLAP A010

XX

12 43 5

A

B

6

C

D

Mount Mecha

409358521

A002

IC606

Mount Mecha

407325801

A222

D222

XX

Mount Mecha

407325801

*A223

D223

XX

CHIP

XX

JR1605

CHIP

XX

JR1606

7.5MM

JW1672

-15V

004:4I

A

Heat Sink

(Block 007)

NEW:2-668-941-01

NEW:2-668-942-01

XX

B-BX1L(06)-13339-ID.-A(Block 007)-SP29M53K

KV-SP29M53K/M83K/N63K

– 48 –

RM-GA002

5

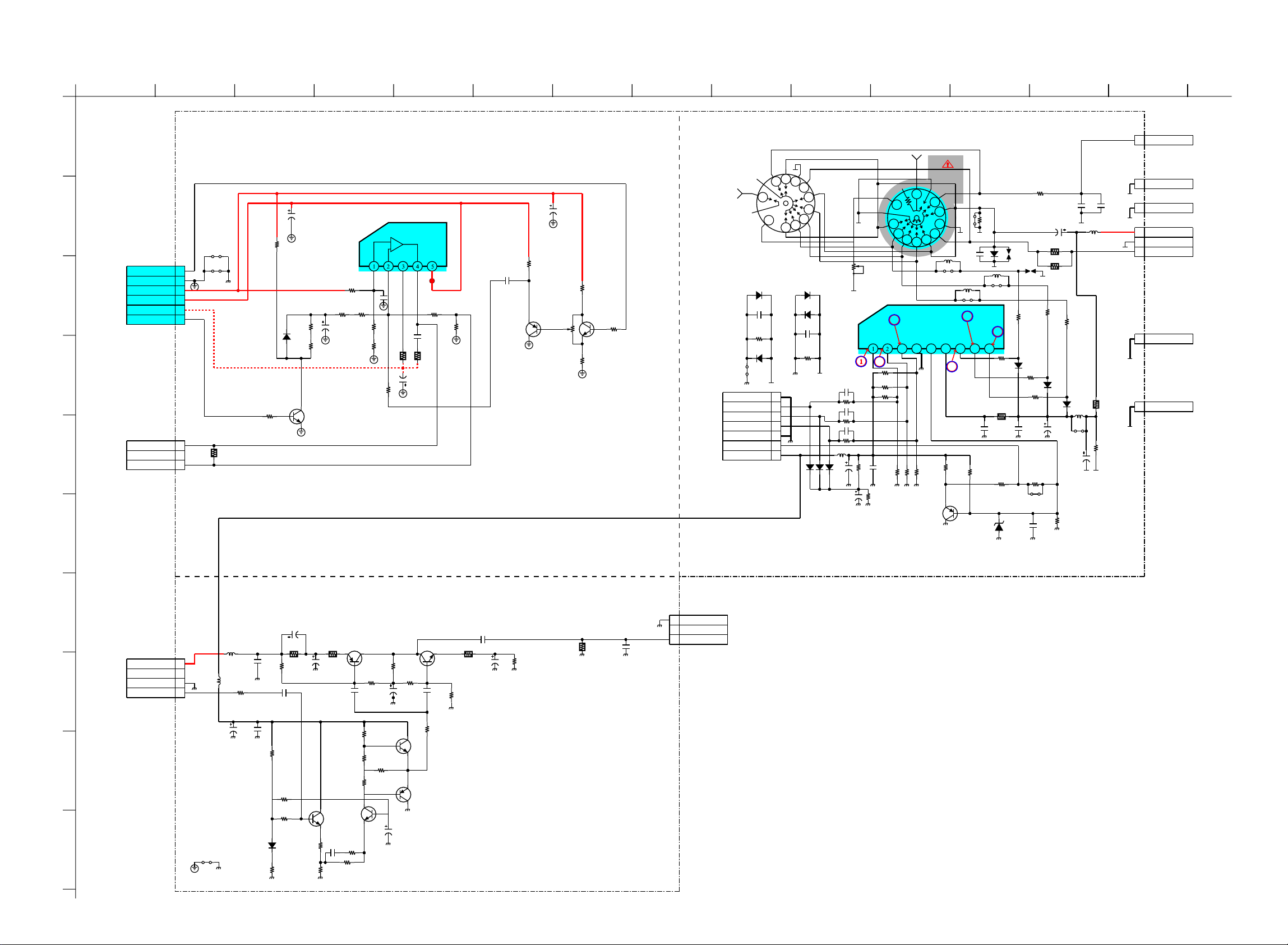

4-3-8. CV Board Schematic Diagram

123456789101112

KV-SP29M53K/M83K/N63K

RM-GA002

KV-SP29M53K/M83K/N63K

RM-GA002

13 14 1

A

B

C

D

E

F

VD+

GND

15V

-15V

ROT_CTR

CN1801

6P

TO A BOARD

CN507

N/S COIL-

N/S COIL+

CN1802

3P

TO ROTATION COIL

CV BOARD

(RGB AMP / ROTATION / LANDING CORRECTION)

C1805

R1800

4.7k

RN-C

22

P

V1800

R

47k

0.1W

R1814

2.2k P

RN-C

C1809

47

35V

R1806

JW1881

5

1

JW1880

2

5V

3

4

5

L

6

1

2

NC

3

5

R1810

470 1W RS

4.7k

RN-C

R1805

RN-C

10k

P

*

D1803

P

R1830

1K

RN-CP

R1808

6.8k

RN-C

R1801

RN-CP

C1804

P

10

Q1802

2SC1623-L5L6

4.7k

R1803

22k

RN-CP

R1802

180

RN-CP

R1804

1k

RN-CP

R1807

0

CHIP

R1809

RN-CP

15k

+

-

C1801

0.1

16V

B

R181

6.8

FPRD

IC1801

LA6500-FA

1

C1802

47

35V

C1803

0.1

MPS

R1812

1.5

FPRD

VCCVEE

R1816

1k

RN-CP

R1817

1

C1800

10

25V

Q1800

2SA1235-F

R1813

2.2k P

RN-C

R1815

220k

RN-C

Q1804

2SC1623-L5L6

G2

1

GND

1

200V

3

GND

H1

4

1

GND

1

GND

CN704

TO FBT

CN706

XX

CN707

XX

CN703

3P

WHT

TO A BOARD

CN505

CN702

CN705

FV

GND

4

35

FV

1

13

J752

XX

D783

XX

JW751

XX

-2

CN701

7P

WHT

TO A BOARD

CN004

C784

XX

R795

XX

D784

XX

GND

B OUT

G OUT

R OUT

GND

1K

9

V

P

6

7

8

9

10

11

D780

XX

D781

XX

C782

XX

R783

XX

1

2

3

4

5

6

7

D785

XX

D786

RCV

RV750

110M

0.1

TDA6108AJF/N2

C790

68p CH

R754

330

C789

68p CH

R753

C788

680

68p CH

680

R752

L750

R796

10uH

XX RN

C756

22

XX

D787

C785

XX

W

IC751

B IN

R766

R767

C759

R797

XX

RN

GND

2

XX

R768

XX

B

R786

1

13

11

10

3

G IN

R IN

XX

R785

XX

J751

145154411

GND

1

3

4

5

6

789

L752 47uH

JW752

L754 47uH

GNDIKVDD

R784

XX

Q701

XX

R760

100k

1/2W

C752

4700p

100

10

XX

0.68

5

C754

250V

R781

2W RS

R787

1/2W

D755

HSS82-TJ

C783

0.001 B

2.2

XX

R757

1k

2kV

E

R758

1/2W

D756

HSS82-TJ

150UH

JW1751

C781

XX

R776

XX

R773

1M

XX

1/2W

JW755

C787

XX

L753 47uH

XX

5

R OUT

G OUT

4

C791

XX

R777

R775

XX

D782

RD5.6ESB2

JW754

XX

9876543

D750

PG102R

JW753

T

6

B OU

R763

100

1/2W

R798

22

FPRD

R778

XX

C753

0.1

250V

P

SG700

T

XX

SG701

XX

R756

1k

1/2W

D754

HSS82-TJ

R764

100

1/2W

C751

250V

R713

JW1713

R765

1/2W

5

1k

L751

L780

XX

C786

4700p

R794

FPRD

R780

XX

2kV

E

1

G

H

I

J

VM OU

CN711

4P

135V

GND

ROTATION CIRCUIT RGB AMPLIFIER

B-BX1L(06)-13339-ID.-CV.-SP29M53K

-2

R729

470

R732

2.2

FPRD

C720

0.1

200V

PT

C725

470

16V

1

GND

-2 2

NC

VM

R724

220

R735

47

-2

-2 -2 2W RS

C710 100P 500V

3

CN712

B

3P

C714

100

200V

1

C71

4700p

1

L71

500V

E

100uH

1

2

NC

3

T

4

-2

JW709

L712 47uH

C722

100

16V

10

-2

R712

RN-C

-2

47

C703

XX

P

RN-C

D788

R790

RN-C

R782

270

R715

470

-2

1k

P

*

P

-2

C712

0.047 PT

R788

1k

RN-C

R789

1k

RN-C

R714

47

1/2W

FPRD

P

C713

22

200V

-2

P

R791

68

RN-C

P

R792

680

RN-C

P

KTA1659A

R737

2.2

FPRD

C718

0.047 200V

PT

R731

RN-C

R728

100

RN-C

R730

100

RN-C

Q712

2SC1623-L5L6

Q719

2SC1623-L5L6

C792

R799

XX 16V

B

CHIP

R793

68

-2 RN-C

Q713

2.7k

XX

P

R722

47k

P

2SC1623-L5L6

P

RN-CP

P

C719

160V

R727

10k

10

Q717

R725

1k

-2

C704

100 16V

-2

R726

47k

2SA1235-F

-2

Q718

Q715

KTC4370A

C723

0.047 PT

R736

22

– 49 – – 50 –

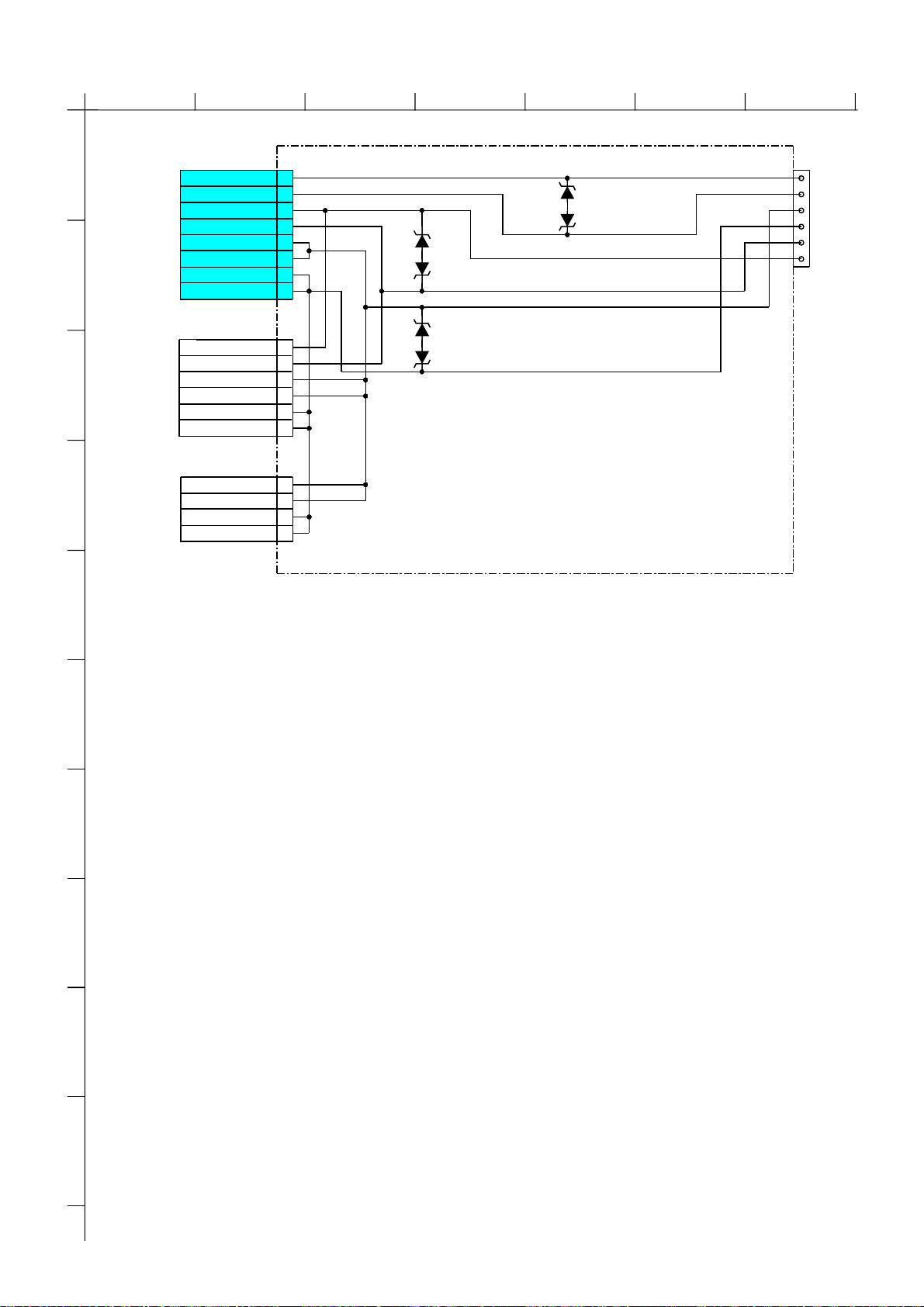

4-3-9. J Board Schematic Diagram

12345 6 7

KV-SP29M53K/M83K/N63K

RM-GA002

A

TO K BOARD

B

C

D

E

CN2401

8P

CN8207

L OU

GND

R OUT/INT L/CTR

GND

3D OUT/INT R

GN

R OUT/INT L/CTR

GND

3D OUT/INT R

CN2402

XX

GN

GND

3D OUT/INT R

CN2403

XX

8

T

7 6 5 4 3 2 1

6

D

5 4 3 2 1

4

D

3 2 1

D2404

XX

D2403

X

D2402

XX

D2401

XX

D2405

XX

D2406

XX

J BOARD

(WOOFER JACK)

B-BX1L(06)-13339-ID.-J..-SP29M53K

J2401

2P

F

G

H

I

J

– 51 –

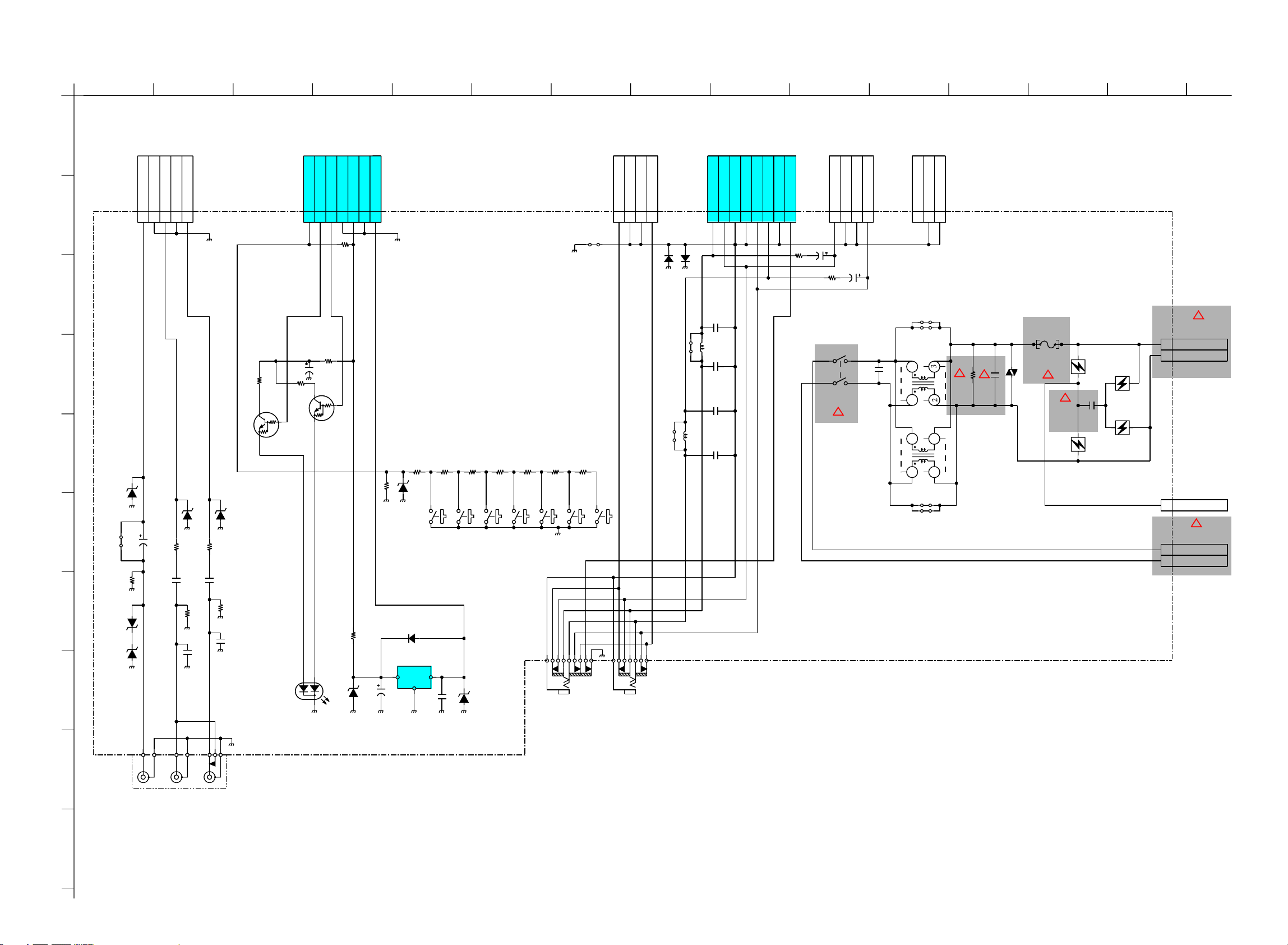

4-3-10. H1 Board Schematic Diagram

5

123456789101112

A

CN4105

5P

CV IN

GND

L IN

GND

R IN

5

4

2

3

B

1

GND_2

C

D

E

D4103

RD5.6SB-T1

CN4103

7P

WHT

TO A BOARD

CN3101

R4108

220

RN-CP

R4109

RN-CP

Q4102

DTC143TKA-T146

C4108

10V

220

470

KEY

1

LED R

2

R4101

R41

10

RN-CP

GND

4

VCC

5

GND

6

SIRCS

7

LED G

3

XX

10

Q4101

DTC143TKA-T146

R4119

XX

R4118

150

RN-C

P

R4117

220

RN-C

P

KV-SP29M53K/M83K/N63K

CN4106

TO SPEAKER

GND_2

R4113

R4114

R4115

R4116

330

RN-C

P

470

RN-C

P

RN-C

680

1k

P

RN-C

P

RN-C

4P

JW4135

XX

1

R4112

1.5k

RM-GA002

P

SP L OUT

SP GND

123

SP GND

10

D41

KV-SP29M53K/M83K/N63K

CN4107

8P

TO K BOARD

CN8202

SP R OUT

4

1SS133T-77

JW4131

5

JW4132

D4111

PH L IN

SP L IN

1234567

12

C41

XX

L4101

XX

C41

13

XX

14

C41

XX

L4102

C41

15

XX

SP GND

SP R IN

PH R IN

RM-GA002

GND

3D IN

8

R4120

330

CN4108

TO A BOARD

CN2101

16

C41

22

R4121

330

1

3

S4101

178664912

XX

RED

SP L IN

SP GND

123

C41

17

22

2

4

!

SP GND

R IN SP

4

C4603

XX

250V

PT

CN4109

XX

GND

NC

1

2

3

JW4661

20

JW4662

T4600

143118211

R4122

14

T4604

XX

4

23

1

20

!

820k

0.5W RN

!

C4602

0.68 PT

FH4102

153322311

VDR460

13 14 1

FH4101

153322311

F4101

5A

250V

!

180499511

!

C4111 4700p

250V

E

CAM004

CAM001

CAM002

CAM003

!

CN4101

2P

AC IN

2

1

AC IN

F

G

H

I

JW4101

XX

R4103

RN-CP

D4101

XX

D4102

J4102

3P

75

XX

GND_2

1

2

1

CN4111

TAB B

!

CN4102

2P AC OU

AC OUT

T

SOUND

S4104

169243121

J4104

181729421

MENUVOL - VIDEOCH - VOL +

S4103

169243121

MODE

2

1

S4102

169243121

J4103

XX

D4104

RD5.6SB-T1

D4105

RD5.6SB-T1

GND_2

C4103

47

35V

RN-CP

C4105

1

16V

F

R4104

220k

RN-CP

GND_2

V

L

R4105

27k

C4104

470p

CH

R

GND_2

R4107

27k

RN-CP

C4107

1

16V

F

GND_2

R4106

220k

RN-CP

C4106

470p

CH

GND_2

D4106

SPB-25MVWF

R

G

R411

100

RN-CP

1

D4107

RD5.6SB-T1

D41

RD5.6SB-T1

D4108

RPM7240-H5

C4109

47

35V

15

*

IC4101

VCC

GND

CH +

S4108

169243121

OUT

C41

XX

10

S4106

S4107

169243121

D4109

RD5.6SB-T1

S4105

169243121

JW4663

7.5

JW4664

7.5

H1 BOARD

(Front Panel / CISPR)

B-BX1L(06)-13339-ID.-H1.-SP29M53K

J

– 52 – – 53 –

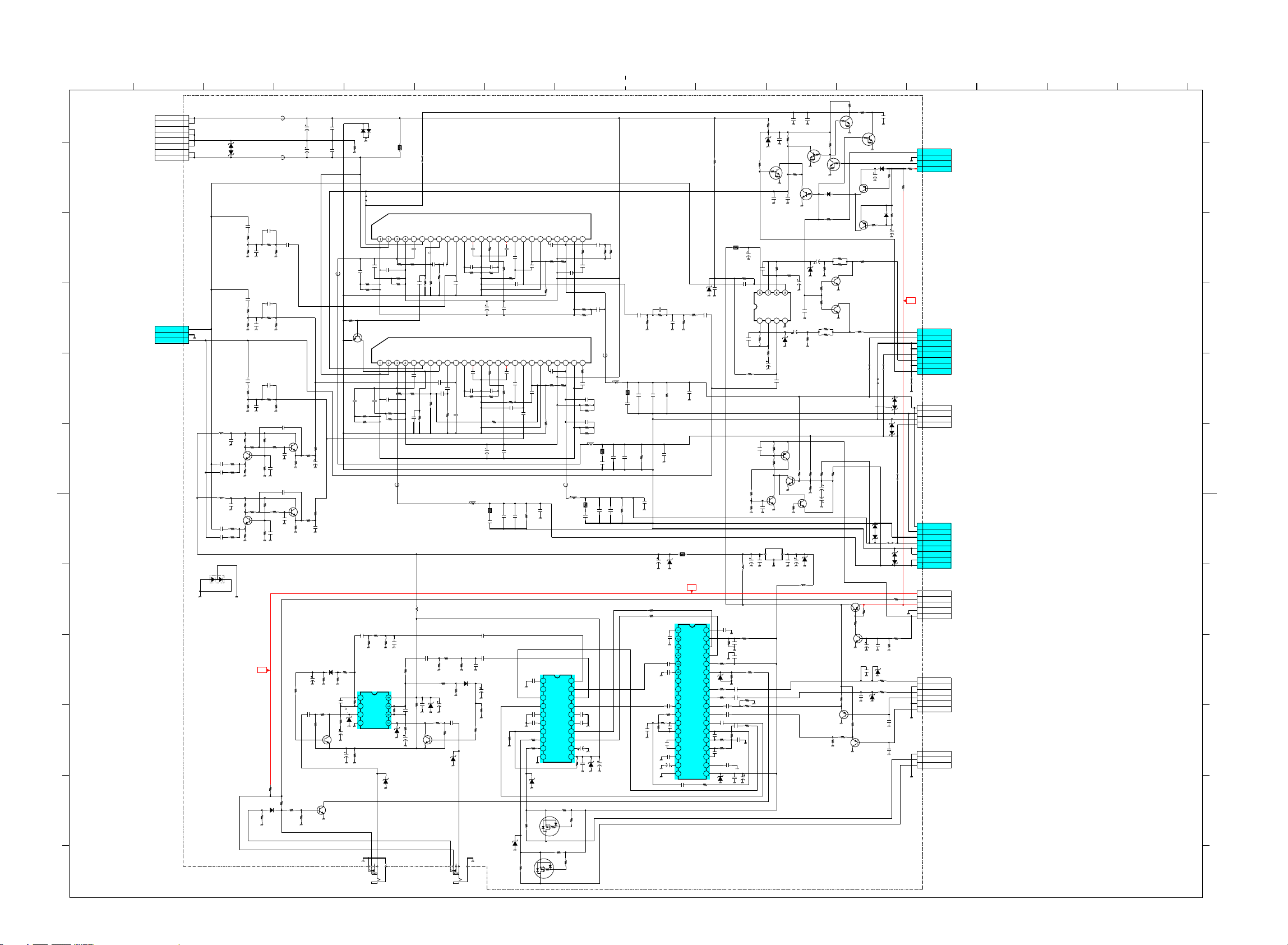

4-3-11. K Board Schematic Diagram

1

K BOARD

A

(KARAOKE)

B

C

D

E

F

G

H

I

J

K

L

2 6

+

8

+

7

GND

6

GND

5

4

GND

3

-

2

1

-

CN8203

8P

SR

1

GND

2

S

L

3

CN8206

3P

WHT

TO A BOARD

CN2103

D8251

MTZJ-T-77-22

L821 10UH

C8302

1

10V

B

C8303

1

10V

B

L8221

XX

C8401

C8402

XX

25V

B

C8403

XX

25V

B

D8249

15

1PS226-1

C8301

25V

3

MTZJ-T-77-22

C8212

0.15 10V

R8203

1.2K

RN-CP

R8204

5.6K

RN-C

C8274

XX 10V

R8292

XX

RN-CP

R8293

XX

RN-CP

C8277

XX

10V

R8296

XX

RN-CP

R8297

XX

RN-CP

1

R8301

2.2

6.8K

16V

RN-CP

F

R8305

8.2K

RN-CP

R8306

8.2K

RN-CP

R8404

XX

RN-CP

B

R8401

XX

RN-CP

R8402

XX

RN-CP

B

R8307

RN-CP

D8252

4.7K

R8403

RN-CP

P

XX

C8213

0.001

C8275

XX

C8278

XX

R8302

0

CHIP

Q821

MSD601-RT1

R8308

RN-CP

R8405

XX

RN-CP

Q8301

XX

R8406

RN-CP

R8105

1K

RN-CP

R8205

B

1

4.7K

XX

3.3V

R8106

1.2K

RN-CP

MMDL914T1

C8272

CHIP

C8276

R8294

C8279

CHIP

R8298

D811

XX

CHIP

XX

R8304

RN-CP

R8407

RN-CP

KV-SP29M53K/M83K/N63K

RM-GA002

4 12 16

FB8201

1.1UH

C8205

C8203

0.1

2200

B

25V

R8201

C8206

C8204

R8309

RN-CP

R8409

RN-CP

2200

470

XX

25V

R8310

RN-CP

R8410

RN-CP

C8156

R8164

680

RN-CP

1.5K

XX

4.7

C8159

1

16V

F

R8166

5.6K

RN-CP

Q8105

2SC1623-L5L6

R8103

22K

RN-CP

R8311

C8306

R8411

RN-CP

R8163

2.2M

RN-CP

CHIP

2.2

C8407

R8165

RN-CP

0

XX

25V

1K

0.1 B

XX

B

D8120

MMDL914T1

R8161

1.5K

RN-CP

C8155

220

CH

R8160

1.5K

RN-CP

2SC1623-L5L6

1.1UH

FB8203

C8160

220

16V

Q8101

CHIP

C8254 470P

R8162

470

RN-CP

R8159

220K

RN-CP

D81

RD5.6SB-T1

C8168

FB8202

1.1UH

B

C8215

1

16V

0

F

R8256

XX

RN-C

P

XX

B

R8295

XX

P

RN-C

B

XX

R8299

XX

RN-C

P

C8305

XX

10V

B

Q8212

10K

MSD601-RT1

R8303

220

RN-CP

C8307

XX

C8304

10V

1

B

10V

B

C8406

XX 25V

B

Q8302

XX

R8408

XX

RN-CP

C8405

XX

25V

B

C8404

XX 25V

B

R8104

3.3K

1

RN-CP

R8102

68K

RN-CP

D8214

1SS133T-77

0

C8214

470P

CH

R8214

R8268

10K

RN-CP

CH

19

10

C8216

470P

R8213

220

RN-CP

2SC3779C,D-AA

C8255

470P

R8269

220

RN-CP

R8270

220

RN-CP

C8117

0.22 16V

B

R8187

RN-CP

UPC4558G2

1

432

R8167

8.2K

RN-CP

J8103

XX

JW8204

CH

RN-CP220

CH

2.2K

IC8015

D8215

1SS133T-77

XX

Q8210

R8169

470

RN-CP

RD5.6SB-T1

5

R8202

10K

FPRD

JW8203

XX

IC8201

TDA7490L

-Vcc

OUT1

+Vcc

BOOT1

STBY-MUTE

FEED1

OSC

FEED2

IN1T1+5V

10

B

TDA7490L

FEED2

10 11 12

C8259

470P CH

R8178

XX

C8173

16V

5.6K

11

C8231

0.1

25V

F

C8229

330P CH

R8234

RN-CP

IC8203

IN1T1+5V

C8285

0.1 25V

F

C8283

330P

R8278

RN-CP

C8281

0.001 B

D8124

MMDL914T1

R8180

1.5K

RN-CP

1

F

22K

CH

L8209

GND

12

13

R8228

10K

RN-CP

C8230

330P CH

R8235

C8248

1000

GND

13

R8280

10K

RN-CP

C8284

330P

CH

R8279

22K

RN-CP

C8295

1000

0UH

C8308

0.1

25V

F

C8116

1

16V

F

C8176

16V

C8170

0.047 16V

B

C8172

R8181

2.2M

RN-CP

R8182

680

RN-CP

C8217

-Vcc

C8253

FB8205

R8170

D8129

1.1UH

XX

0.1

R8272

B

0.1

R8271

RN-CP

B

R8208

-Vcc

220

JR8103

D81

RD5.6SB-T1

R8210

RN-CP

CHIP

RN-CP

R8206

RN-CP

220

R8185

220

C8171

220K

R8273

RN-CP

0.047

0

5

6

987

C8218

0.033 16V

C8222

24P CH

L8102 10UH

R8168

RN-CP

C8174

R8188

C8175

R8207

RN-CP

C8220

+Vcc

R8274

RN-CP

12K

470

1.5K RN-CP

5.6K

24P

5

5.6K

P

CH

10

B

R8215

10K

R8218

RN-CP

BOOT1

STBY-MUTE

6

C8256

0.033

16V

B

R8275

4.7K

RN-CP

R8276

15K

RN-CP

C8169

0.15 10V

B

C8157

0.1

16V

B

MTZJ-T-77-15

Q8106

2SC1623-L5L6

4.7K

R8186

RN-CP

R8184

RN-CP

2.2K

D8121

470P CH

1K

FEED1

C8224

470P

CH

R8233

68K

RN-CP

OSC

C8261

1

16V

F

C8258

470P CH

R8277

68K

RN-CP

R8177

470

RN-CP

R8179

470

RN-CP

C8158

100 16V

D8128

RD5.6SB-T1

J8104

XX

C8225

0.001

987

R8183

RN-CP

47K

OUT1

47K

C8257

16V

B

10

CURREFT2-5V

22K

RN-CP

CURREFT2-5V

22K

R8284

XX

RN-CP

R8312

1

F

4.7

7

FEED3

1817161514 20 21 22 23 24 25

C8232

0.1

25V

C8236

F

470P CH

R8229

120K

RN-CP

R8259

68K

C8241

RN-CP

C8249

0.1 B

FEED3

1817161514 20 21 22 23 24 25

C8286

0.1 25V

F

C8282

470P

CH

R8281

120K

RN-CP

R8282

68K

RN-CP

C8288

0 B

C8296

0.1

B

22

1W

C8309

RS

0.47 MPS

C8310

0.1 B

C8177

C8178

1

16V

F

R8120

0

CHIP

D8113

XX

JR8101

IN2

19

C8237

470P

CH

0.001

IN2

19

CH

470P

C8287

C8290

XX

16V

F

R8313

XX

RN-CP

C8184

0.1

16V

0.15

10V

F

R8189

100

RN-CP

R8190

100

RN-CP

JR8102

0

CHIP

0

CHIP

FEED4NCBOOT2

C8243

XX 16V

B

R8260

5.6K

RN-CP

B

R8262

4.7K

RN-CP

FEED4NCBOOT2

C8291

0.033 16V

B

R8285

5.6

RN-CP

R8283

4.7K

RN-CP

FB8206

1.1UH

C8410

0.022

25V

IC8016

NJW1184M-TE2

IN1

OUT1

B

IN2

OUT2

CVOL1

CVOL2

ADR

SDA

SCL

10987654321

GND V+

D8131

XX

S

Q8107

Q8108

R81

XX

8 10

+Vcc

OUT2

-Vcc

VREG

C8247

XX

CH

R8265

XX

RN-CP

R8266

C8246

R8261

47K

RN-CP

+Vcc

R8286

47K

RN-CP

IN3

OUT3

IN4

OUT4

CVOL3

CVOL4

AUX1

AUX0

Vref

R81

XX

14

XX

C8245

16

0.1

OUT2

R8121

R81

B

L8210 65UH

XX

RN-CP

25V

F

R8263

220

RN-CP

C8250

470

R8264

CH

220

RN-CP

-Vcc

VREG

R8287

6.8

RN-CP

C8292

0.1 25V

B

C8293

470P

CH

R8288

220

RN-CP

R8289

220

RN-CP

C8294

470P

R8290

CH

220 RN-CP R8291

220 RN-CP

L8205 65UH

C8226

0.1 25V

F

R8314

22

1W

C8312

RS

1

C831

0.1 25V

F

20 19 18 17 16 15 14

C8179

1

16V

F

C8180

1

16V

F

13 12 11

C8181

1

XX

C8182

0.1

16V

B

D8130

MTZJ-T-77-15

R81

17

XX

15

XX

KV-SP29M53K/M83K/N63K

9

R8267

XX

RN-CP

D8248

D8122

1

35V

0.1

16V

C8122

0.001

47

C8221

C8408

0.022

B

RN-CP

0.001

R8220

RN-CP

25V

B

XX

B

R8212

RN-CP

R8171

100

FPRD

3.3V

IC8013

M65845AFP-TE2

MIC1IN

ALC1

MIC1NFIN

MIC1OUT

MIC1VOLIN CLOCKCONT

MIC2IN

7

ALC2 MICECHOOUT

8

MIC2NFIN

LLINEOUT

9

MIC2OUT

RLINEOUT

10 11

MIC2VOLIN

MICOUT

12

LPF1IN

ECHOVOLIN

13

LPF1OUT

14 15

ADINTIN

ADINTOUT

DAINTOUT

16 17 18

ADCONT

REF

GND VCC

C8126

10V

B0.15

R8211

1.2K

RN-C

5.6

C8409

0.022 25V

VCFI

VAL C

AUDSW2

AUDSW1

MICSW

LLINEIN

RLINEIN

LPF2OUT

LPF2IN

DAINTIN

DACONT

XX

C8223

0.15 10V

P

B

L

313233343536 30 29 28 27 26

R8132

100

RN-CP

R8131

100

C8134

1

F

2122232425

20 19

D81

RD5.6SB-T1

R8125

27K

RN-CP

0.47 MPS

C8183

R8216

100 16V

FB8204

22 1W RS

1.1UH

L8208 65UH

C8313

C8227

0.1

C8233

MPS

B

C8273

C8219

XX

1

B

16V

F

R8209

R8257

0

XX

CHIP

RN-C

P

R8219

22 1W

C8234

C8235

RS

0.47

0.1

MPS

0.1 25V

F

0.47

R8315

RN-CP

B

R8217

C8228

XX

0.1 B

RN-CP

C841

1

0.022 25V

XX

C8162

100 16V

MM3Z9V1ST1

R8119

100

RN-CP

R8118

100

RN-CP

C8113

0.1

16V

B

C8118

16V

F

C8119

C8120

16V

F

R8122

39K

R8123

22K

RN-CP

C8121

0.0047

R8124

B

22K

RN-CP

C8123

0.047 16V

B

C8124

0.22

16V

B

C8125

16V

C8130

C8320

D8112

C8131

0.001

0.047

R8328

RN-CP

C8136

16V

XX 16V

R8140

RN-CP

R8139

RN-CP

XX

16V

F

C8141

B

B 18

XX

22K

39K

F

R8127

16V

1

RN-CP

R8254

0.1

B

C8135

16V

22K

R8126

22K

RN-CP

C8129

C8127

16V

RM-GA002

R8255

RN-CP

XX

FPRD

C8266

XX 16V

R8238

XX

RN-CP

C8262

XX 16V

B

IC8202

XX

C8264

XX 25V

B

R8237

XX

RN-CP

C8316

XX

R8323

XX

R8324

XX

L8101

10uH

C8143

100 16V

R8141

47K

RN-CP

C8140

0.01 25V

B

C8139

0.001 B

R8138

CHIP

0

R8133

XX

C8138 1

16V F

C8137

R8134

1

16V

F

RN-CP

R8135

1

RN-CP

C8133

1

F

16V

F

R8158

RN-CP

R8128

22K

RN-CP

C8132

0.0047 B

0.22 16V

B

C8128

100 16V

0.1

B

C8265

2.2K

10K

XX

25V

C8317

12K

1K

B

R8240

XX

RN-CP

C8267

XX

Q8215

XX

C8142

R8221

4.7K

C8238

D8203

DTZ5.1B

Q8209 KRC102S

C8239

XX

R8239

XX

RN-CP

R8321

XX

R8322

XX

IC8014

L88M05T-FA-TL

VCC

GND

0.1 16V

B

11

C8318

C8319

2.2

XX

16V

F

R8222

10K

RN-CP

R8223

10K

P

C8240

4321

XX

R8242

16V

RN-CP

F

XX

R8319

1

Q8213

C8145

R8224

RN-CP

XX

C8269

XX

Q8214

16V

KRC102S

10K

C8268

C8271

XX

100

Q8201

XX

XX 16V

F

R8246

RN-CP

D8117

XX

L8100

10UH

RN-C

Q8202

KRC102S

D8205

Q8203

DTC143TKA-T146

D8234

XX

C8270

XX

R8243

XX

RN-CP

R8244

XX

RN-CP

R8248

XX

RN-CP

R8249

RN-CP

XX

R8317

R8318

XX

R8320

Q8216

XX

MSB709-RT1

R8129

2.2K

RN-CP

R8258

RN-CP

XX

R8247

RN-CP

Q8103

*

3.3K

XX

Q8208

XX

R8316

XX

C8314

XX

C8315

R8156

2.2K

RN-CP

OUT

C8144

2.2 16V

R8241

RN-CP

16V

F

C8263

0.1

XX

D8233

16V

B

XX

R8325

XX

B

B-BX1L(06)-13339-ID.-K..-SP29M53K

R8326

10K

RN-CP

Q8217

KRC102S

R8250

XX

RN-CP

R8251

XX

RN-CP

Q8207

XX

R8136

12K

RN-CP

XX

R8143

RN-CP

10k

Q8218

KRC102S

Q8206

MSB709-RT1

R8252

JW8201

Q8109

2SB734-34

C8153

470

P

CH

C8154

R8157

2.2K

RN-CP

MSB709-RT1

R8327

10K

RN-CP

C8242

470 10V

Q8204

MSB709-RT1

R8253

XX

D8241

MA8200-TX

R8142

10k

RN-CP

Q8110

2SC1623-L5L6

C8105

XX

D8115

P

470

CH

Q8104

D8213

*

R8231

1K

RN-CP

D8242

D8243

D8245 MA8200-TX

D8244

MA8200-TX

C8104

0.1 16V

B

R8155

RN-CP

XX

C8999

D8207

R8226

RN-C

0.001

1K

JW8205

100

B

C8412

*

P

JW8233

XX

MA8200-TX

JW8206

XX

D8246

D8247

D8114

XX

R8154

100

RN-CP

2.2 16V

F

JW8202

D8240

R8137

RN-CP

XX

R8144

RN-CP

R8145

RN-CP

C8998

R8232

RN-C

C8244

0.001

13

A-MUTE

1

GND

2

A-STBY

3

4V

4

JR8105

XX

CN8204

4P

TO A BOARD

JR8106

CN2104

0

CHIP

10K

P

220 16V

14

15

A

B

C

11V

D

1

PH L

2

SP L

3

SP GND

4

5

SP R

PH R

6

7

GND

3D IN

8

CN8202

8P

XX

TO H1 BOARD

JW8232

CN4107

L IN

1

2

GND

3

GND

R IN

4

CN8201

XX

1

L OUT

2

GND

3

GND

4

CENTER OUT/R OUT

5

GND

6

GND

7

3D OUT

T

8

3D OU

CN8207

8P

TO J BOARD

1k

22k

B

CN2401

5

3.3V

4

MIC SW

3

11V

2

GND

1

STBY SW

CN8108

5P

6

KARA

L

5

GND

4

KARA R

3

MON L

2

GND

1

MON R

CN8208

6P

3

GND

2

SCL

1

SDA

CN8209

3P

E

F

G

H

I

J

K

L

– 54 – – 55 –

KV-SP29M53K/M83K/N63K

2.160Vp-p

PAL

3

2.800Vp-p

NTSC

3

2.440Vp-p

PAL

2

1.960Vp-p

NTSC

2

2.600Vp-p

PAL

1

3.120Vp-p

NTSC

1

RM-GA002

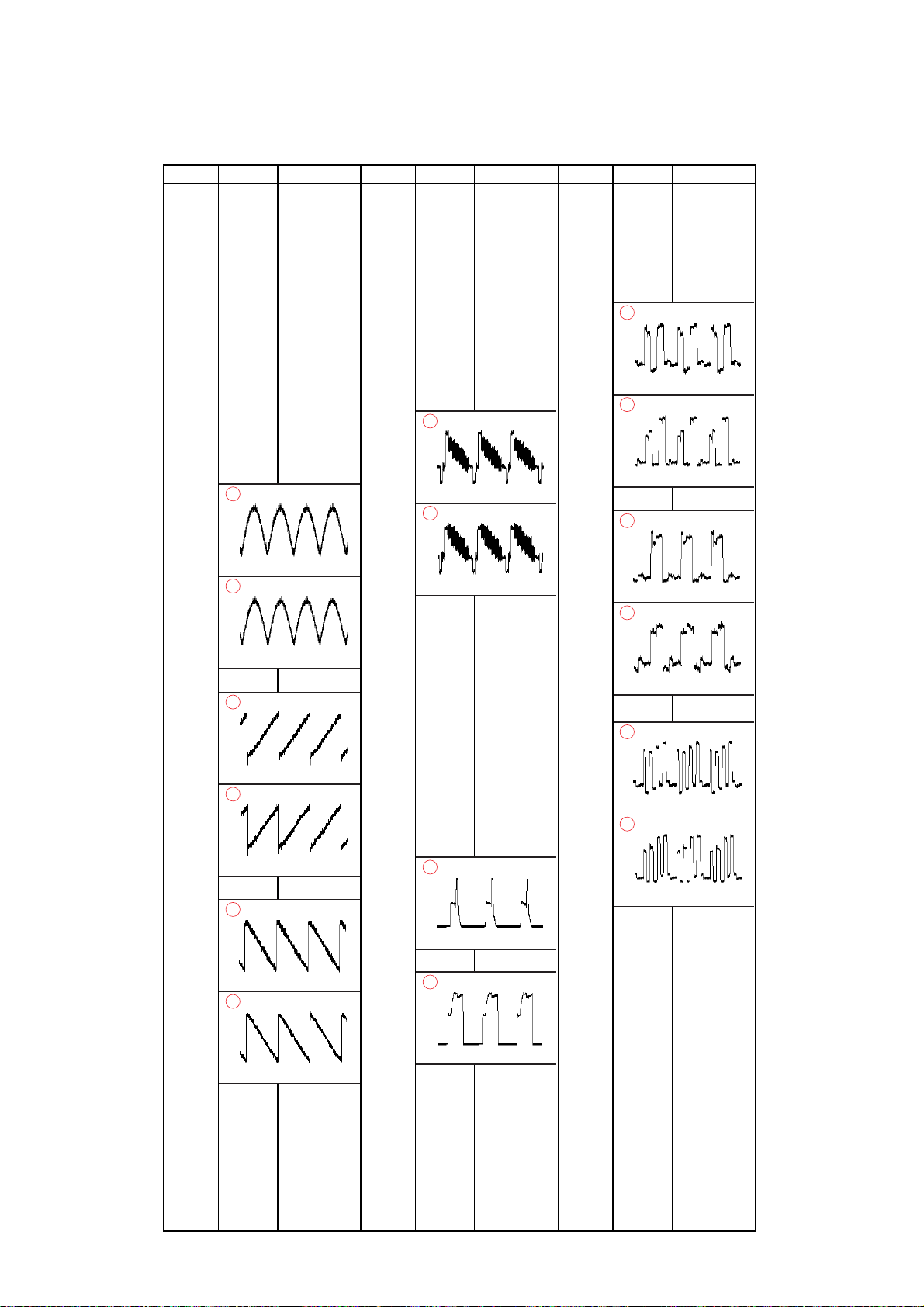

4-4. VOLTAGE MEASUREMENT AND WAVEFORM

A BOARD VOLTAGE LIST AND WAVEFORM

IC001 1 0

20 3* 4 3.2 5 3.2 60 7 3.2 80

9 3.2 10 * 11 * 12 0 13 1.9 14 2.5 15 0 16 2.3 17 2.2 18 0 19 2.2 20 2.2 21 3.0

PAL

9

33 0 34 2.1 35 2.1 36 3.4 37 3.4 38 0 39 2.4 40 0 41 1.9 42 1.9 43 0.1 44 3.9 45 8.3 46 1.9 47 4.7 48 1.3

PAL

6

2.200Vp-p

NTSC

6

Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]Ref Pin No Voltage[v]

78 1.2 79 1.2 80 1.2 81 0 82 4.8 83 2.0 84 3.1 85 1.2

86 1.2

1.140Vp-p

NTSC

9

1.020Vp-p

22 1.2

PAL

8

1.640Vp-p

NTSC

8

1.720Vp-p

23 1.3

PAL

7

2.000Vp-p

NTSC

7

1.880Vp-p

24 1.8 25 1.8 26 * 27 * 28 0 29 1.8 30 1.8 31 2.5 32 1.2

1.880Vp-p

49 2.1 50 2.1 51 1.3 52 1.5 53 2.1 54 2.1 55 1.3 56 2.1 57 2.1 58 1.3 59 1.5 60 3.4 61 3.4 62 3.4 63 3.4 64 0.4 65 2.0 66 0.1

5

4.000Vp-p

67 1.8

4

5.120Vp-p

68 0 69 4.8 70 1.1 71 1.1 72 1.1 73 1.8 74 1.5 75 0 76 0 77 4.8

87 1.4

88 3.2 89 0 90 3.2 91 1.5 92 0 93 1.8 94 3.2 95 0 96 1.8 97 2.8 98 3.1

99 3.2 100 1.7 101 0 102 0.3 103 0 104 2.4 105 0 106 0.1 107 2.4 108 3.5 109 3.6

– 56 –

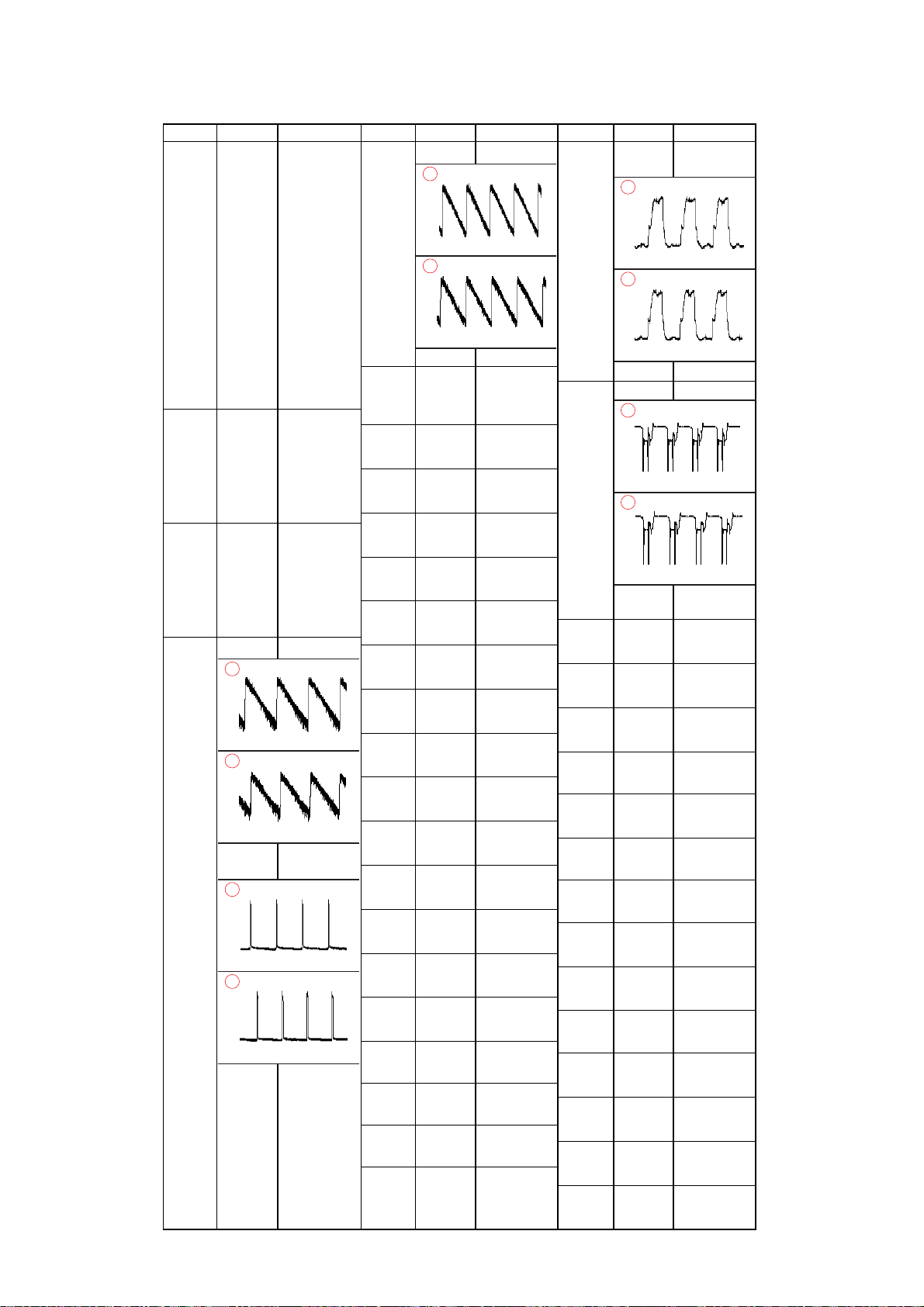

A BOARD VOLTAGE LIST AND WAVEFORM

110 0 111 4.8 112 0.8 113 0 114 0 115 0 116 3.1 117 1.7 118 1.7 119 3.2 120 0.9 121 0 122 0 123 3.2 124 1.7 125 0 126 3.2 127 0.3 128 *

IC003 1 0

20 30 40 5 3.6 6 3.5 7 3.2 8 3.2

IC502 1 0.1

2 5.6 3 4.4 40 5 4.1 6 3.8 7 7.5 8 8.8

IC503 1 0.5

PAL

10

880.0mVp-p

NTSC

10

960.0mVp-p

2 13.3 3 (-12.3)[-12.1]

PAL

11

29.20Vp-p

NTSC

11

29.60Vp-p

4 -14.8 5 0.2 6 13.6

IC603 I 3.5

IC604 I 8.8

IC605 V 134.9

IC606 I 25.7

IC607 I 4.0

Q001 B 0

Q010 B 2.0

Q016 B 2.4

Q100 B 4.3

Q102 B 3.1

Q103 B (0)[3.1]

Q111 B 0

Q200 B 2.0

Q202 B 3.5

Q206 B 2.5

Q502 B 0.4

Q503 B 0.1

Q505 S 0

70.5

PAL

12

860.0mVp-p

NTSC

12

900.0mVp-p

G0 O1.9 V2.3

G0 O4.8

G0 O 21.0

G0 O3.2

G0 O1.7

C (2.2)[2.3] E0

C0 E2.6

C0 E0

C8.8 E3.6

C8.8 E2.4

C (3.2)[0] E0

C8.9 E0

C0 E0

C (1.9)[1.7] E3.5

C0.1 E0

C5.6 E0

G7.5 D (17.5)[18.8]

KV-SP29M53K/M83K/N63K

Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]Ref Pin No. Voltage[v] Q506 S 0

Q511 B *

Q512 B 0.1

Q513 B 1.2

Q515 B 1.5

Q516 B 133.9

Q601 B 0.1

Q605 B 11.9

Q606 B 10.7

Q608 B 0

Q609 B 0.6

Q610 B -0.5

Q900 B 1.4

Q901 B 0.2

Q902 B 0

G2.9

PAL

13

3.760Vp-p

NTSC

13

4.000Vp-p

D 71.3

PAL

14

24.80Vp-p

NTSC

14

24.60Vp-p

C 134.0 E0

C4.9 E0.1

C0 E1.8

C2.0 E1.0

C* E 134.3

C 10.6 E0

C (104.7)[104.3] E 11.5

C (12.0)[11.8] E 11.1

C 19.9 E0

C0 E0

C -0.3 E0

C0 E2.1

C0.1 E0

RM-GA002

– 57 –

KV-SP29M53K/M83K/N63K

2.360Vp-p

PAL

17

2.440Vp-p

NTSC

17

52.00Vp-p

18

RM-GA002

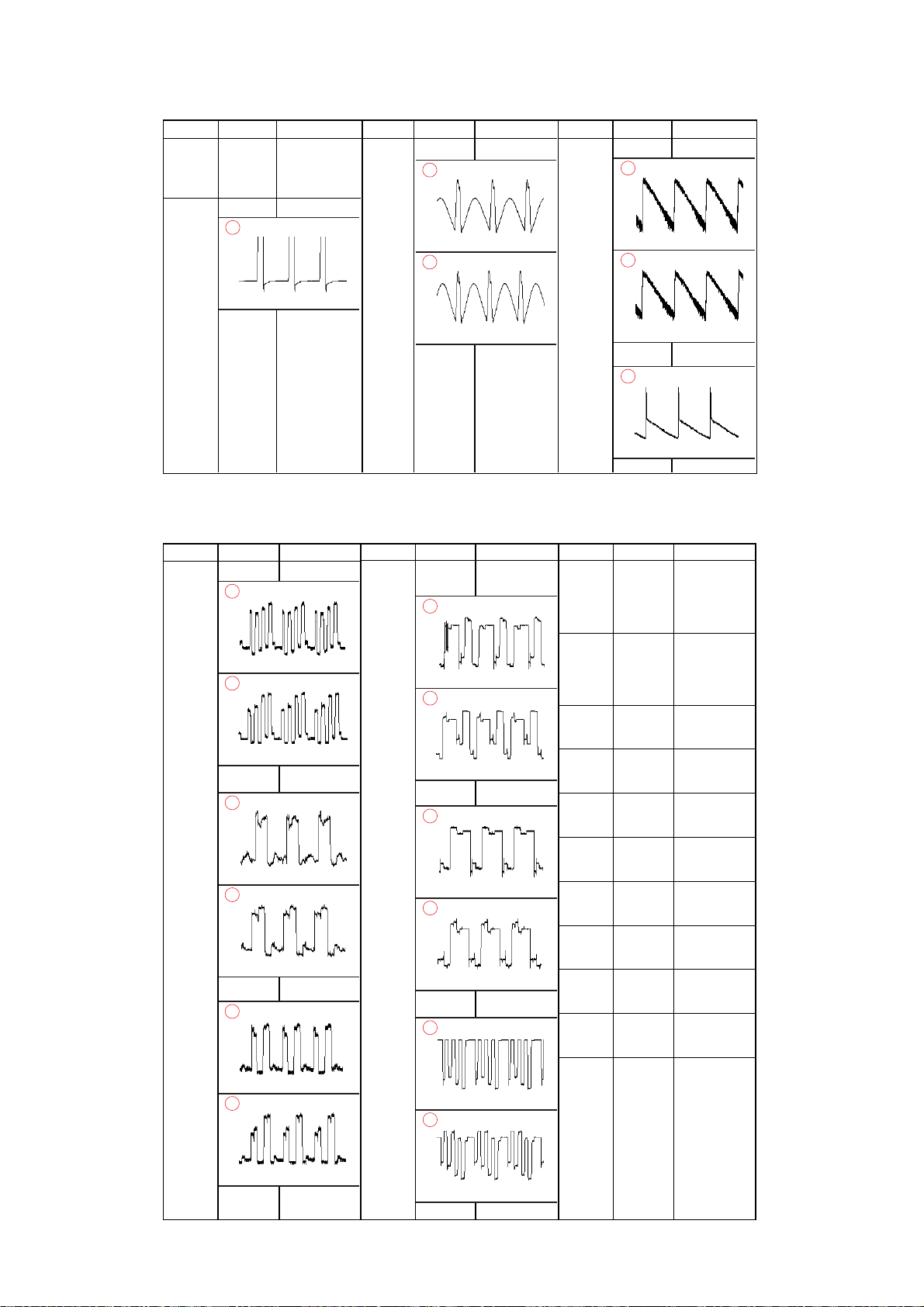

A BOARD VOLTAGE LIST AND WAVEFORM

Ref Pin No. Voltage[v]

Ref Pin No. Voltage[v] PH600 1 22.6

DY1 H+ 138.2

2 21.6

34.5 4 11.0

15

332.0Vp-p

Ref Pin No. Voltage[v]

H- 134.4

PAL

16

174.0Vp-p

NTSC

16

156.0Vp-p

Ref Pin No. Voltage[v]

V- 0

V+ 0.2

CV BOARD VOLTAGE LIST AND WAVEFORM

Ref Pin No. Voltage[v] IC751 1 (1.9)[1.6]

PAL

1

2.160Vp-p

NTSC

1

2.640Vp-p

2 (1.7)[1.5]

PAL

2

1.560Vp-p

NTSC

2

1.600Vp-p

3 (1.8)[1.5]

PAL

3

Ref Pin No. Voltage[v]

6* 7 (138.2)[153.1]

PAL

4

140.0Vp-p

NTSC

4

152.0Vp-p

8 (141.2)[161.0]

PAL

5

128.0Vp-p

NTSC

5

102.0Vp-p

9 (127.1)[148.6]

PAL

6

Ref Pin No. Voltage[v] IC1801 1 0

20.1 3 -14.8

41.4 5 13.3

J751 H1 0

H2 0

KB (130.2)[129.9] KG (144.2)[146.5] KR (141.7)[139.9]

Q712 B 2.3

C5.2 E1.7

Q713 B 133.8

C (67.4)[67.1] E 134.4

Q715 B 0.6

C (67.4)[67.1] E0.1

Q717 B 5.4

C8.8 E (5.1)[5.3]

Q718 B 5.2

C0 E (5.1)[5.3]

Q719 B 2.3

C8.8 E1.7

Q1800 B 2.5

C0 E3.1

Q1802 B 0.3

C0.7 E0

1.840Vp-p

NTSC

3

2.120Vp-p

40 5 4.5

152.0Vp-p

NTSC

6

170.0Vp-p

– 58 –

K BOARD VOLTAGE LIST

KV-SP29M53K/M83K/N63K

RM-GA002

IC8013 1 2.5

24.5

32.5

42.4

52.5

62.5

74.6

82.4

92.4 10 2.5 11 2.5 12 2.5 13 2.5 14 2.5 15 2.5 16 0.4 17 2.5 18 0 19 4.9 20 0 21 2.5 22 2.5 23 2.5 24 2.5 25 2.4 26 2.4 27 2.5 28 2.5 29 2.5 30 2.5 31 0 32 0.9 33 0 34 0 35 1.5 36 2.5

IC8014 I 12.1

G0 O4.9

IC8015 1 3.6

23.6

33.6

40 50 60

73.6

89.1

IC8016 1 4.5

24.6

34.5

44.6

50

63.9

70

Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]

83.6

90 10 0 11 9.1 12 4.4 13 0 14 0 15 5.4 16 5.4 17 4.6 18 4.6 19 4.6 20 4.5

IC8201 1 -17.0

2 -17.0

30.7

4 16.9

58.4

62.5

70

82.4

90.1 10 0 11 0 12 5.1 13 0 14 -15.6 15 0 16 -5.4 17 0 18 0 19 0 20 0 21 8.4 22 16.9 23 0.8 24 -17.0 25 6.7

IC8203 1 -17.0

2 -17.0

30.7

4 16.8

58.6

62.6

70

82.4

90 10 0 11 0 12 5.2 13 0 14 -15.8 15 0 16 -5.4

Ref Pin No. Voltage[v]

17 0 18 0 19 0 20 0 21 8.6 22 17.0 23 0.5 24 -17.0 25 6.6

Q8101 B 0.5

C0 E0

Q8104 B 0.4

C0 E1.0

Q8105 B 2.4

C3.6 E3.6

Q8106 B 2.4

C3.6 E3.6

Q8201 B 0

C2.5 E0

Q8202 B 2.4

C0 E0

Q8203 B 1.3

C0 E0

Q8204 B 12.3

C -0.4 E 12.0

Q8206 B 12.3

C -0.5 E 12.3

Q8210 B 0

C2.7 E0

Q8211 B 2.8

C5.5 E2.2

Q8212 B 5.5

C9.1 E4.9

Q8217 B 0

C2.5 E0

Q8218 B 1.3

C0 E0

H1 BOARD VOLTAGE LIST

IC4101 VCC 3.2

GND 0

OUT 2.8

Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]

Q4101 B 3.2

C1.9 E1.8

– 59 –

Ref Pin No. Voltage[v] Q4102 B 0

C3.2 E0

4-5. PRINTED WIRING BOARDS

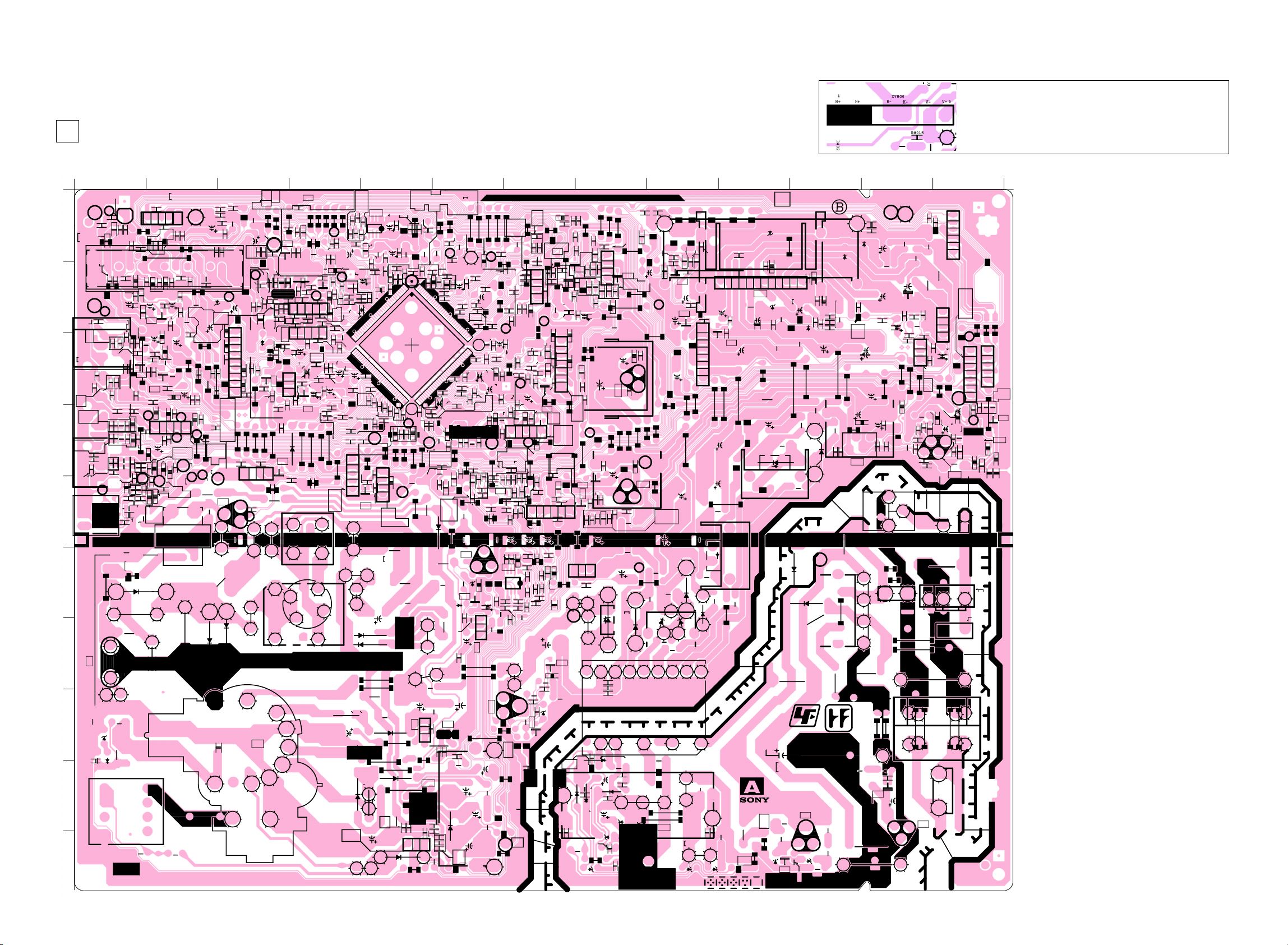

A

[PROCESSOR, AUDIO, POWER, CISPR, DEFLECTION, TUNER, JACK, HEAT SINK]

– A Board –

A

B

C

D

E

F

G

H

I

J

123456789101112

R154

W058

W064

C141

D111

D110

TU101 TU102 TU103

JR1050

FB101

1

C144

W002

J901 J905

R920

J906

J904

R926

FB903 R932

J907 J908

R921

C914

R916 C913

R9061

J900

W502

R9008

R9015

R906

R929

R928

C062

R924

R908

C908

C915

D903

C909

R907

D902

R9010

R915

C912

R9006

W065

A511

B

B DAT

B CLK

B INT

GND

R097

4

5

TP101

C100

R155

JR1101

3

39

JR042

R100

R152

C101

C911

FB902

R933

R939

R931

C060

R925

R9009

C906 C907

R917

R919

C512

R527

JR805

FB505 R557 JW1557

D518

C539

R562

R116

R149

R115

R104

C104

C133

C102

D106

D105

D109

C106

D108

C107

R118

D107

R914

Q100

C057

C980

D901

D905

C900

R9007

C901

Q901

C910

R913

Q902

D900

JR071

R930

R927

D911

D912

W005

C969

5

D904

C968

R922

C904

R918

D906

D909

R944

JR049

D910

R911

R923

C905

C514

C528

CN903

CN904

1

JR1903

C956

R910

W006

D908

W083

AGC

A014

1

C140

C142

7

C148

R989

C145

L100

C115

R113

R061

L902

R355

C967

R904

C903

C067

D913

W007

1

CN905

D907

C971

R905 R909

W017

JR1906

W024

C970

W010

C902

T501

C538

R108

JR1102 D102

W066

R099

R096

JR1010

C147

C120

L106

C143

C109

C137

11

C119

C146

W504

D103

C118

SWF100 SWF103 SWF104

C108

9

D079

JR1100 R128

D078

C925

R007

C922

R008

R379

R902

1

KARA L GND KARA R MON L

R936

GND MON R GND

R990

SCL SDA

W081

GND

U OUT/FB

Y OUT

V OUT

GND

R121

JR801

W075

1

CN003

R579

Q506

C523

R543

L507

D517

D519

JR1111

R110

R112

D100

Q103

SWF102

CF101

I

I1I2

D066

JR800

L101

R114

C138

W032

C324

R003

C080

R315

A011

C

I

G1 G2

R156

C132

C1233

C063

C333

C131

R146

R111

Q104

D003

IH

C065

T508

R126

FB001

IL

JR1006

C004

Q111

T504

D064

R316

G

FB002

JR1012

R938

C089

R048

R314

O2

O1

O2

O1

JR007

C069

R147

C117

R109

L103

Q102

R119

C116

L008

R001

A017

C317

C325

C332

R131

CT139

R106

W033

R107

JR1110

R103

B

C111

L102

C112

CT131

JR072

NC

D074

R9031

R9028 R148

GND

W503

R9030

VM OUT

R1001

JR1109

L004

JR802

R5032

SWF101

R1002

Q900

C966

JR668

Q010

4

R597

CN010

D007

D008

C316

R377

135V

G

R535

S

R585

C519

T505

C567

Q511

H+ H+ H- H- V- V+

E

FB503

L514

D530

C5073

R555

D529

R556

T502

C501

L502

ABL

+B

H+

1

2

T503

R5015

FBT

9

11

10

14

1

200V

3

4

5

GND

6

H1

7

8

GND

13

GND

CN509

JR001

R029

R044

C044

C052 C049

CV IN GND L IN GND R IN

C081

L105

JR1112

C135

R127

R153

JR014

R150

C303

C320

R9027

R9026

DY1

C5001

CN505

C046 C041

C322

C029

D065

C055

33

C073

R088

C072

L003

JR1905

CN9201

R5039

4

C323

C982

FBP

R060

C064

R9018

JR5035

C042

C050

30

32

1

5

C570

H1

D521

GND

JR008

R002

R004

R030

C002

R006

C318

R393

C001

IC003

4

1

5

C330

8

D002

C024

L036

C003

R011

C304

C300

C034

X001

20

C048

C334

R9025

R9022

R9023

R9017

R9019

R9020

R9021

R937

R9062

W016

C981

D081

R237

R238

R599

R058

R935

Q903

R510

L513

D527

D528

R577

R594

200V

GND

R591

15V

R5038

C331

C032

10

D080

1

4

HP IN VP IN GND CVBS/PIPOUT

C574

C550

1

R5037

C598

C557

JR099

L512 L511

D523

R571

CN503

W077

CN907

D509

C577

S502

D503

R578

L033

1

64

TP04

R551

W076

C572

6

1

D522

W031

R046

R045

C321

O

R051

C061

C070

C319

FB007

C565

Q501

7

C527

KV-SP29M53K/M83K/N63K

C1329

C329

FB006

B

JR036

L010

128

R537

R5

FB005

65

R395

R059

020

IC503

R538

C022

W082

L005

R5027

E

C578

2

C1019

TP02

R596

C335

JR037

R021

FB011

FB010

C018

D084

R025

FB009

R022

C054 JR027

C580

C509

C531

CN013

IIS OUT1 IIS CLK

D083

IIS WS

GND

L009

R024

W059

JR052

R019

R016

R013

R323

R337

C311

R020

C091

C012

JR013

R529

JR016

D006

C511

Q515

C026

C093

C592 R5013

R519

R523

S

C301

C038

1

R524

C025

L007

JR031

C099

5

R513

C521

JR501

IC502

C517

R516

C010

W030

L035

R009

R356

R039

W078

R9063

R5010

R531

R532

JR513

R5012

JR503

JR502

C516

R5011

R533

C502

D502

R521

JR512

R560

R580

C587

R5036

L600

C090

R012

C023

D075

C037

C036

FB008

W054

C590

C505

FB504

D549

R5022

IC605

R636

JW1653

R633

R672

C540

R568

PH600

R650

W506 VD+

L032

A019

R026

L012

W063

L013

C014

C013

JR1011

R392

R9036

R380

JR051

IC001

C021

TP03

97 96

C030

C028

R364

C302

JR026

R384

R386

C053

JR030

R385

C056

JR1015

R056

D914

R317

SU OUT

SEL

GND

SV

OUT

R536

D505

D501

D504

R528

L515

R547

R548

R590

R501

R502

C503

6

R520

3

R522

GND

Q502

R504

SY OUT

R5035

R5014 C596

C094

6

CN906

C095

R934

C916

C096

R553

R554

D506

C518

R530

R525

C507

Q505

G

R5026

D550

Q503

D548

R5025

R5024

B

R5023

E

C597

Q516

R5021

C558

EB

A503

R514

R517

C537

D513

C556

C513

R526

JR522

R505

R631

Q608

R339

L006

R5009

R5008

C005

D511

JR509

R518

JR506

R582

R647

R015

R320

D082

R038

6

C

D057

R041

W079

R5034

R542

JR511

D651

62

C693

C098

JR667

1

R010

4

1

D059

Q001

D005

C508

R506

C665

2

5

C524

R544

R336

R341

R515

D629

C308

R340

C027

L011

W053

D058

R042

C097

1

R5006

JR666

34

D068

R394

Q016

L031

D023

1

7

D004

C092

GND

V OUT

CN007

ROT CTRL

CN507

-15V 15V

R306

D536

JR504

D507

D508

R539

Q609

R640

C646

JR1601

U OUT/FB

RM-GA002

C313

C312

R014

R338

R399

D215

D208

R324

JR302

Q018

4

JR203

JR009

C006

C328

D024

R023

D025

D214

CN004

R241

R242

GND B OUT G OUT R OUT

GND

IK 9V

W011

Y OUT

GND

VD+

GND

5V

R5005

Q512

Q513

JR5001

R500

1

R503

C634

ATSC GND

ATSC 11V

NC

CN604

1

3

R655

FB608

C628

TP601

R603

R627

JW1654

D615

C694

C644

D618

C604

JR654

JR655

R604

PS604

D614

KV-SP29M53K/M83K/N63K

RM-GA002

NOTE:

The circuit indicated at left contains high voltage of over 1220 Vp-p. Please pay attention when inspecting or repairing it to prevent an electric shock.

13

W057

JR2107

JR651

D218

C214

R234

C210

R203

C205

C247

C236

C647

C200

R201

C249

C215

C638

C637

R669

C674

R668

TH600

D604

CN605

CHOKE

R5003

R5002

C2602

R218

R210

IC200

C211

R2

A010

A200

D221

D217

R211

D216

1

JR304

R2645

C209

D220

C237

R207

D228

C2601

R681

C243

L201

R2647

L2601

C212

FB203

FB201

C239

D222

D225

A222

PS203

TP602

D602

D219

JR303

R205 C203

C208

R204

C206

C204

JW2101

D649

C241

JR1606

JR1605

D224

A005

IC602

C

688

C609

A604

+

D603

C610

D205

D201

Q202

C221

R212

Q200

C219

C685

A003

C682

R679

C588

D537

R5001

C626

D624

1-868-156-12

R221

JR301

1

D223

PS202

12

C238

R215

+

CENTER+

CENTER+ CENTER+

CENTER+

C246

C245

FB202

R213

C213

R214

R216

Q201

C244

-

A223

C653

PS201

D206

R220

8

CN2102

C240

D625

D622

JR650

C031

D207

R236

1

CN2104

D212

R2646

C641

C632

IC606

C639

A-MUTE

GND A-STBY

Q206

C020

A002

C675

D203

D635

D650

4V

D202

D204

D213

C672

W018

R206 R243

C220

JR003

W074

IO

IC604

O

I

R634

C661

FB603

C635

D644

D621

D639

R5000

L601

C630

PS605

W080

C654

A020

D620

-

PS602

T602

PS603

JR044 JR045

C680

D619

R624

C624

C623

R608

D617

C612

C616

R682

D607

D606

C603

7

R623

FB611

A007

FB605

FB610

R619

C691

IC601

1

R653

JR652

R620 R610

D636

C690

R605

C611 C658

C606

C605

R607

D641

R678

R677

R676

Q610

JW1623

R606

R651

R621

JR653

JW1611 FB601

D633

Q605

R658

R659

B

D605

Q606

R612

R660

R661

E

D608

R618

C689

O

R675

R616

JR602

A013

C231

C217

D200

C234

C202

R208

3

D648

R654

R635

R665

R656

JR601

CHOKE

CN607

1

R680

30V

AFT

STBY SW

GND

C232

C207

C248

D647

C670

C666

T603 T605

11V

9V

6

R2152

CN3101

CN2101

KEY

LED R LED G

1

GND VCC GND

L

SIRCS

W034

SP GND SP GND

R

4

C201

C235

W070

C668

D643

C678

C649

R666

JR1602

G

IC603

RY600

C660

DGC DGC

NC

2

4

3

AC IN

C679

DGCT

1

CN606

STBY SW

GND

11V

MIC SW

3.3V

5

C643

C686

R609

R602

7

W068

Q601

IC607

D642

D637

C692

D646

D600

JR600

D645

JR603

12

CN601

CN602

DGCDGC

1

CN600

1

C607

R235

R2151

R202

R200

1

JR1256

CN2103

SR GND SL

D638

L602

R667

O

I

C662

3

DGCT

1

2

CN6101

AC IN

2

I

D640

C657

C

68

7

–60 – – 61 –

KV-SP29M53K/M83K/N63K

RM-GA002

KV-SP29M53K/M83K/N63K

RM-GA002

CV

[RGB AMB / ROTATION / LANDING CORRECTION]

– CV Board –

Q719

C712

R712

4

A704

VM OUT

GND

NC

CN711

R791

GND

D788

1

R788

C792

R799

R790

L711

C711

R736

C718

C725

C719

R714

C714

3

CN712

1

R724

R729

R735

VM

NC

A705

135V

R782

R789

C713

C704

R726

R725

R722

R731

C723

R715

R737

A713

Q717

R732

R793

Q712

C703

R727

R730

Q718

C722

R728

RV1800

R792

C710

Q715

Q713

C720

A708

C1800

R1809

L712

R1814

CN1801

A715

E

B

BE

1

Q1800

Q1804

R1800

R1815

VD+

5

3

R794

D783

R1813

4

CN703

GND

N/S

COIL+

D784

C784

R795

5V

C1805

R1811

IC1801

R1816

CN1802

NC

L780

R787

15V

COIL-

1

200V

GND

H1

4

J

[WOOFER JACK]

H1

[FRONT PANEL / CISPR]

K

[KARAOKE]

– K Board –

SP GND

PH L

SP L

SP R

PH R

GND

R8219

FB8204

C8250

C8247

R8263

R8264

R8305 R8306

Q8212

Q8301

R8416

R8126

R8328

R8267

C8132

R8310

R8415

C8131 R8128 R8127 R8136

Q8211

C8307

C8162

R8168

R8202

R8404

C8173

R8183 R8184 R8182

R8304 R8301

R8407

C8143

R8167

R8265

C8246

C8123

C8130 C8129

L8102

L8211

3D IN

C8122

D8118

C8160

R8180

R8181

R8123

C8128

L8221

8

1

D8124

C8172

R8122

R8302

C8142

8

C8120

C8125

C8127

D8122

R8171

C8305 R8303 R8308 C8304 C8401

D8119

C8118

Q8104

CN8202

R8250 R8251

R8253

R8252

R8166

Q8105

Q8106

R8179

R8125

C8113

R8158

C8133

L8101

R8159

D8129

R8188

Q8207

C8159 R8165

C8126

R8160

C8124

1

C8155

IC8015

C8121

IC8013

MON R

R8157

JR8106

R8247

C8270

R8156

C8175 R8124

GND

R8243

C8168

R8163

MON L

R8244

C8320

KARA R

1

STBY SW GND

11V

6

Q8208

C8271

D8121

C8156

C8184

GND

MIC SW

3.3V 9V

C8268

KARA L

R8246

R8249

R8248

D8233

C8267

C8269

D8248

C8262

C8266

R8238

C8158

C8182

C8265

D8130

C8181

R8241

C8157

R8239 R8242

R8254

R8164 R8162

C8117

C8183

1

CN8209

3

11

20

R8189

110

IC8016

R8121

C8177

C8119

D8128

J8103

D8110

CN8208

6

R8145

C8104

CN8108

E

Q8109

JR8107

R8137

R8106

R8240 C8264

14

IC8202

R8237

C8263

D8234

58

D8120

R8161

R8187

R8178

C8170

R8186

SDA SCL GND

C8174

R8177

R8169

R8185

C8169

JR8103

JR8102

C8171

C8116 R8170

Q8108

R8190

D8113

Q8107

R8120

C8178

R8105

R8103

D8111

R8142

R8102

R8144

R8143

R8104

C8105

B

Q8110

IC8014

C8998

L8100

JR8104

R8129

C8176

Q8101

C8179

JR8101

C8135

C8145

R8114

R8135

Q8103

C8180

R8116

R8115

C8136

C8999

R8155

C8144

R8117

D8131

J8104

R8131

R8132

R8134

C8137

D8117

D8112

C8138 R8154 C8154 D8115

C8134 R8119

C8141

R8133

D

R8140

R8139

C8139 R8138

M

C8140

D8114

R8118

R8141

C8153

-15V

ROT

CTRL

C1809

2

1

R1810

1

C754

N/S

C781

A707

6

R1812

C1803

R781

1000V

C1802

C787

C786

R1801

R1817

R780

SG700

R1802

R1805

R1807

R1803

CN704

R1804

L754

C752

5

L751

6 H2

H1

Q1802

D1803

C1801

G1-2

C1804

7

G1-1

R1808

R797

R1806

R1830

C751

R757

L753

R758

8

KB

4

3

G2

R760

CN706

R765

D756

L752

9

10

KG

KR

G1-3

13 RCV

J751

J752

GNDGND

CN705

C785

R785

R786

R767

1

A751

C791

C753

R798

D755

R764

D754

R756

11

R784

R753

2

R752

R775

9

8

IC751

R763

SG701

D781

D780

D750

R773

G4

1

GND

CN702

R768

Q701

CN707

C788

C789

R766

R777

C790

D786

D787

R796

E

C759

GND

A706

A703

R754

D785

R713

R778

C783

R776

D782

B

C756

L750

C782

RV750

1-868-157-11

(1-727-217-11)

R1

1

GND

B OUT

G OUT

R OUT

GND

1K

9V

7

R783

CN701

3D OUT/INT R

C8410

(1)

(4)

CN8210

(6)

CN8211

(8)

CN8207

(10)

CN8212

R8412

C8319

C8318

R8417 R8270

R8269

C8261

R8295

C8275

R8293

C8240

C8239

Q8209

Q8217

C8251

C8238

R8326

R8223

D8203

C8244

A8101

GND

1

D8246

C8310 C8311

R8312

FB8205

C8254

C8255

1

C8276

2

C8253

C8290

R8294

JR8204

R8255 R8224

R8292

R8327

Q8202

Q8206

R8231

C8242

/CTR

GND

R8316

4

6

R8313

D8247

R8314

C8309

C8308

R8423 R8278 C8283

L8209

R8275

R8277

C8258

C8259

R8274

R8273

IC8203

C8256

R8299

C8274

C8257

C8281

R8222

R8276

Q8201

R8221

Q8218

C8295

C8412

Q8203

C8206

D8205

Q8204

R8226

14

CN8204

A-

STBY

A-

MUTE

4V

GND

8

D8245

C8284

C8285

C8279 R8298 C8278 R8297

L OUT

D8244

R8280

D8207

D8213

JR8105

GND

R8279

C

C8288 C8286

OUT

CENTER

10

R8296

C8204

R8232

R8258

C8411

R8315

C8312

R8284

R8285 C8291

C8296

JR8206

1

FB8206

--

R8320

L8210

R8290

FB8202

C8409

C8408

C8282

25

24

R8291

B

C8313

R8424

C8287

R8286

R8281 R8289

R8288

R8419

Q8210

GND

C8277

C8314

R8282

R8283

C8293

D8252

GND

CN8203

Q8214

JR8208

C8315

R8317

R8418 R8272 R8271

C8214

C8216

R8414

C8294

R8210

R8287

R8420

C8292

A8203

1-868-879-11

R1

(1-726-880-11)

D8251

C8205

GND

R8325

Q8216

R8208

R8321

C8316

Q8213

R8205

A8201

++

R8214 R8213 R8413

C8215

C8272

FB8201

8

R8324

Q8215

R8322

L8205

C8217

C8225

R8203

R8323

R8228

C8231

R8204

R8229

C8203

1

CN8206

R8216

1

2

C8213

R8211

D8215

C8232

R8256

R8212

C8317

R8206

C8218

C8221

R8410

SR

R8318 R8319

C8227

R8207 C8222

FB8203

C8220

R8411

GND

D8243

C8228

C8224

D8214

R8218

R8233 R8421 R8234 C8229

IC8201

C8249

C8402

SL

4

C8226

R8201

3

CN8201

R OUT

R8217

R8220

C8230

C8208

JR8207

R8405

GND

D8242

R8215

R8268

C8223

C8407

R8408

C8234

L8208

C8207 C8302 C8303

R8311

R8409

C8406

GND

R8235

C8212

Q8302

C8235

R8422

C8241

R8257

R8401

L OUT

R8259

C8248

R8402

C8233

R8260

C8243

C8306

C8405

1

D8240

R8262

C8236

R8406

C8237

C8219

JR8202

R8209

R8307

R8309

R8403

C8404

C8245

C8273

D8241

R8261

25

24

C8301

1

R8266

C8403

D8249

R OUT/INT L

– J Board –

D2404

D2403

CN2401

J2401

3D OUT/INT R

1

3D OUT/INT R

D2401

GND

1

CN2403

1

CN2402

R OUT/INT L/CTR

D2406

D2402

GND

4

6

L OUT

D2405

8

1-869-002-11

(1-726-921-11)

R1

M D

– H1 Board –

1-868-158-12

R2

(1-726-558-12)

1

AC OUT

CN4102

2

AC OUT

LED G

LED R

SIRCS

GND

VCC

KEY

T5A

L/250V

F4101

FH4102

FH4101

S4101

R4122

T4604 T4600

C4603

C4109

IC4101

D4106

A4106

C4602

C4110

R4111

D4109

D4107

D4108

OVCC

VDR460

AC IN

R4118

1

CN4101

2

R4117

CN4111

C4111

R4114

R4115

R4116

GND

7

R4113

1

CN4103

R4101

Q4102

Q4101

R4109

R4108

R4110

C4108

D4115

R4119

R4112

S4102S4103S4104S4105S4106S4107S4108

SP R OUT

SP GND

D4110

CN4109

SP L OUT

4

D4111

NC

CN4106

GND

3D IN

13

8

1

C4112

L4101

R4121

C4113

C4114

C4115

J4104 J4103

GND

L4102

PH R IN

SP R IN

4

C4117

R4106

C4106

SP GND

R4120

C4116

PH L IN

SP L IN

R4107

C4107

J4102

1

CN4108

D4105

C4105

R4104

CN4107

1

SP R IN

SP GND

R IN

D4102

C4104

SP L IN

GND

R4105

L IN

CN4105

D4104

R4103

CV IN

GND

15

C4103

D4103

D4101

–62 – – 63 –

KV-SP29M53K/M83K/N63K

RM-GA002

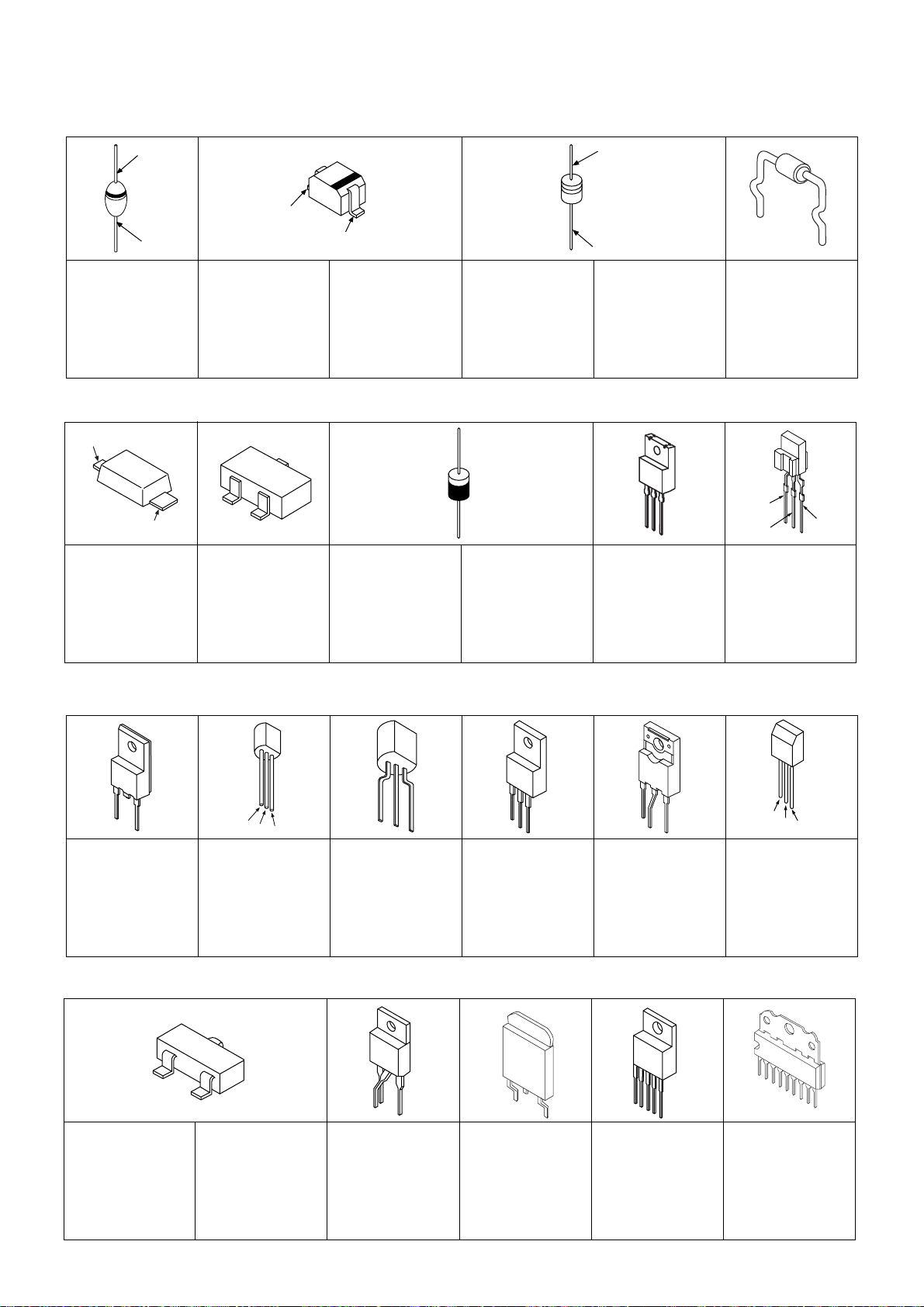

4-6. SEMICONDUCTORS

DIODE

CATHODE

ANODE

BY228GP

ANODE

MMDL914T1 MM3Z15VT1 RD5.6SB-T1 MA111-TX MM3Z3V3T1 KDZ5.6V-Y-RTK/P PDZ3.6B-115

ANODE

3

CATHODE

DTZ5.1B

HSS82-TJ MTZJ-30A MTZJ-33B MTZJ-T-77-15 MTZJ-T-77-22 1SS133T-77 RD5.1ESB2

CATHODE

ANODE

RD5.6ESB2 RD6.8ESB2 RD18ESB2 MTZJ-27 MA4300-H(TA) MA4039-H(TA)

S3L20UF4

CATHODE

MA2ZD14001S0 UDZSTE-179.1B MM3Z9V1ST1 KDS114-RTK DTZ-TT11-6.8B MA8200-TX

D5L60

2

1

1PS226-115

TRANSISTOR

E

C

B

KTA1279

FR104-A5 PG102R PG104R RU4AM-T3 1A5G 1E3-TB SB360-S

2SA1091-0 2SC3779C,D-AA 2SK246-GR

ER202

2SK3561 2SK3462 IRFS614BYDTU

FSF05A20

TT2142

ANODE

(GRN)

CATHODE

SPB-25MVWF

E

C

2SC3209LK 2SB734-34

ANODE

(GRN)

B

MSB709-RT1 MSD601-RT1 MUN2216T1 UN2211 2SC1623-L5L6 2SK2036(TE85L) KRC102S

C

E

2SA1235-F DTC143TKA-T146 2SD2114K KRC102S

FN155

BA18BC0FP-E2 L88M05T-FA-TL

– 64 –

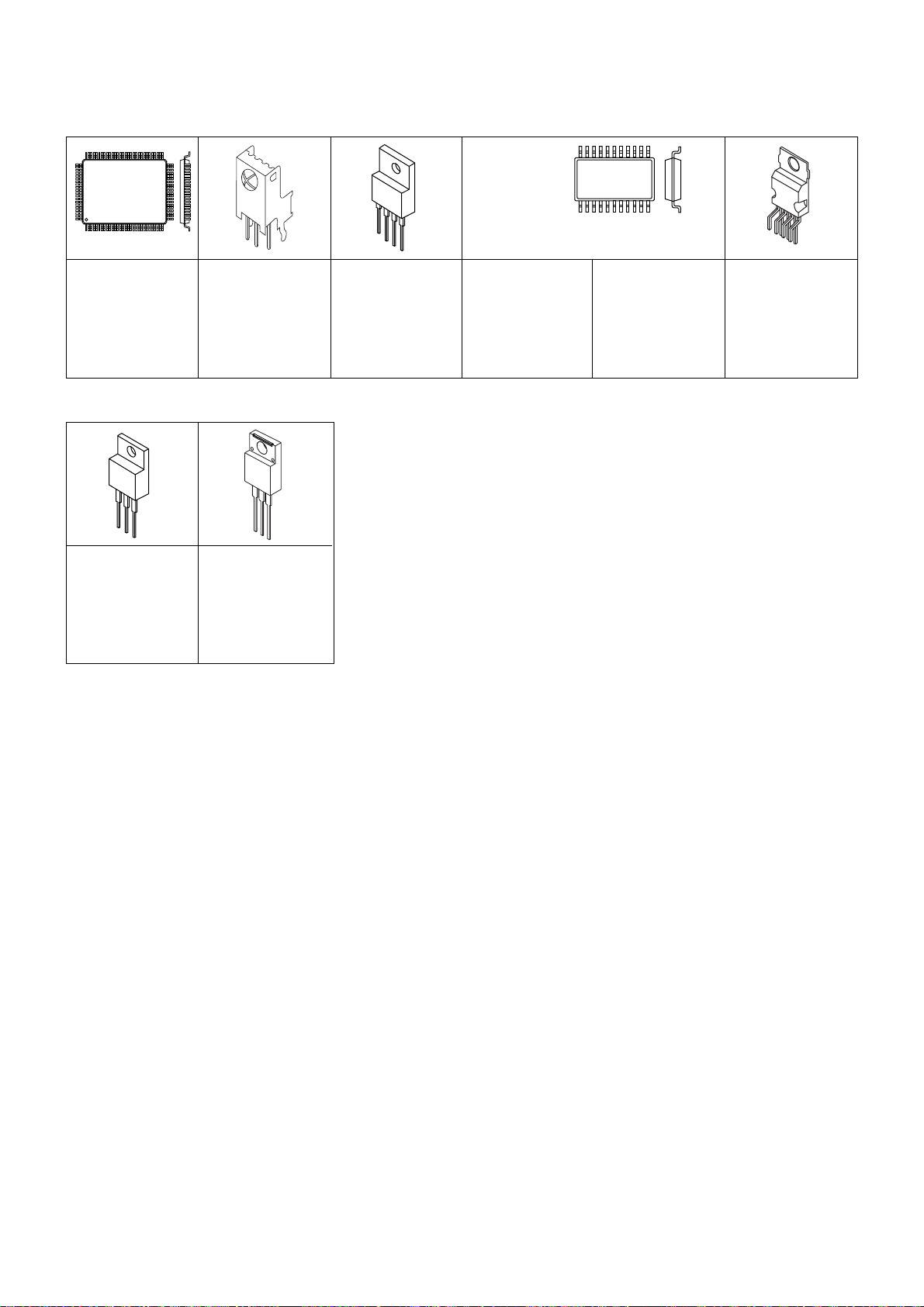

IC

LA6500-FA

1

9

TDA6108AJF/N1

IC

TOP VIEW

TDA12011H/N1F4B TDA12063H/N1F8B STR-W6756-LF2011

KIA7805API PQ018EF01SSH

SOP

BR24L32F-WE2 M65845AFP-TE2 NJM2903M UPC4558G2 NJW1184M-TE2 TDA7490L

1

TOP VIEW

Small Outline L-leaded Package

~

98

Pin 8

KV-SP29M53K/M83K/N63K

RM-GA002

1

7

STV9325RPM7240-H5

KIA78R09API SE135N-LF38

KIA78D33PI BA18BC0FP-E2

– 65 –

KV-SP29M53K/M83K/N63K

RM-GA002

NOTE:

• Items with no part number and no

description are not stocked because they are seldom required for routine service.

• The construction parts of an assembled

part are indicated with a collation number in the remark column.

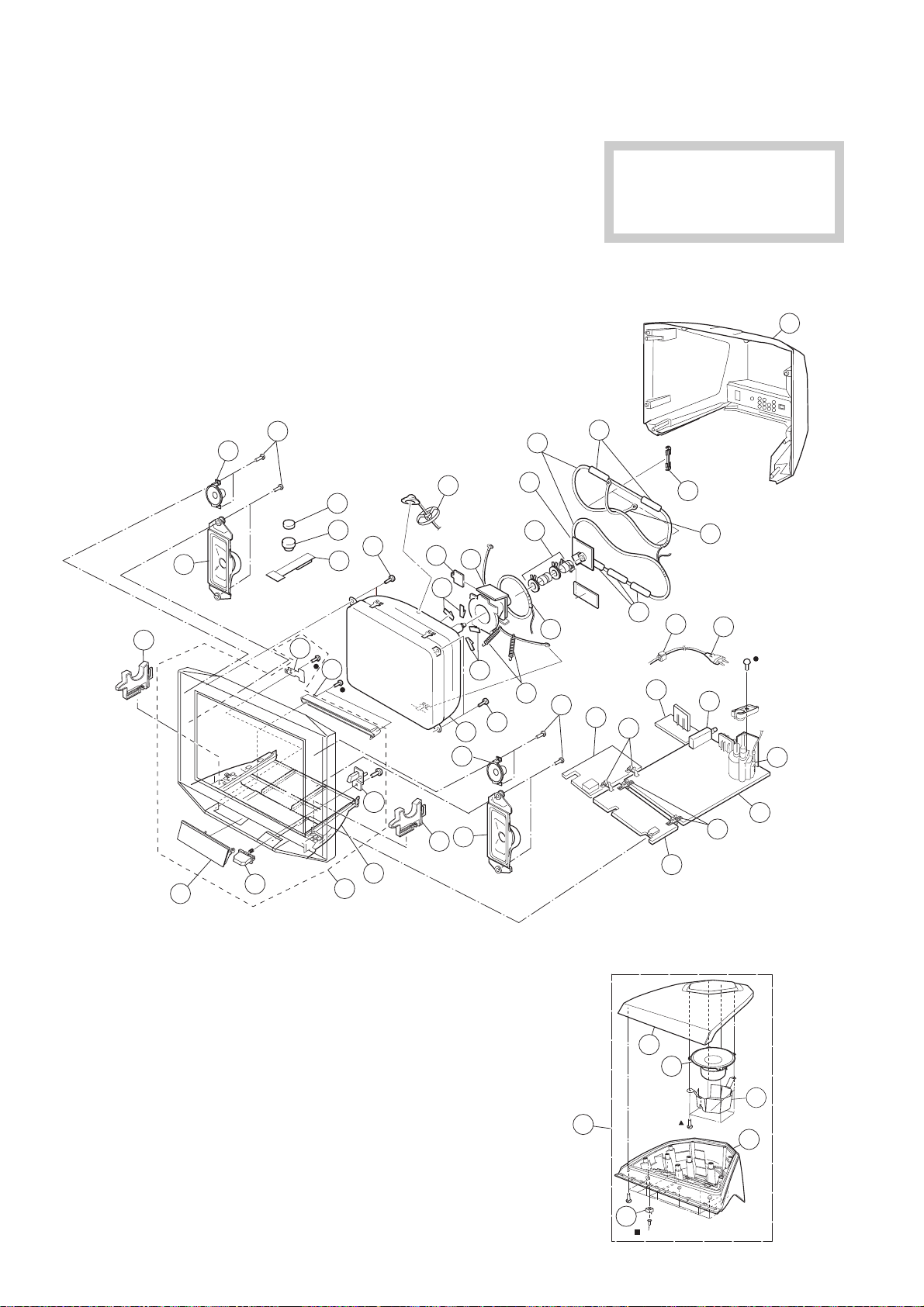

5-1. PICTURE TUBE AND SPEAKER BRACKET

SECTION 5

EXPLODED VIEWS

• Items marked " ∗ " are not stocked since

they are seldom required for routine service. Some delay should be anticipated when ordering these items.

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

r

: 7-685-648-79 SCREW +BVTP 3 × 12

p

: 7-685-663-71 SCREW +BVTP 4 × 16

34

22

29

14

27

16 17

2

24

23

18

6

28

34

26

11

10

9

33

14

19

8

11

13

30

31

6

20

34

36

15

14

23

5

37

21

4

22

29

3

25

1

35

32

7

5-2. 3D SPEAKER

4

: 7-685-661-14 SCREW +BVTP 4 × 12 TYPE IT-3

p

: 7-685-663-71 SCREW +BVTP 4 × 16 TYPE IT-3

102

101

104

106

4 X 12

103

105

4 x 16

– 66 –

KV-SP29M53K/M83K/N63K

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

RM-GA002

1 ! X-2148-910-1 BEZNET ASSY 2~4, 21, 25, 27

(EXCEPT KV-SP29N63K)

X-2148-317-1 BEZNET ASSY (KV-SP29N63K) 2 2-660-433-01 COVER, FRONT PANEL 3 2-660-430-01 BUTTON, POWER 4 * 2-660-431-01 GUIDE, LIGHT

5 ! 8-735-251-05 PICTURE TUBE M68LNH070X(SDS)

(Except KV-SP23N63K)

! 8-735-249-05 PICTURE TUBE M68LNH070X(SDS)

(KV-SP293N63K)

6 4-046-600-11 SPACER, DY 7 * 2-668-944-01 HOLDER, PWB

8 ! 8-451-494-61 DEFLECTION YOKE 9 * A-1182-240-A MOUNTED PWB (VAR), CV

(EXCEPT KV-SP29N63K)

* A-1133-945-A MOUNTED PWB (VAR), CV (KV-SP29N63K)

10 ! 1-457-283-21 DEGAUSSING COIL

11 * 2-664-650-01 CUSHION (60X120), DGC 12 1-825-163-32 SPEAKER (5CM) 13 1-419-363-11 COIL, NA ROTATION (RT-200) 14 4-302-404-03 TAPPING SCREW (+PWH 4X16) 15 4-369-318-61 SPRING, TENSION

16 1-452-032-00 MAGNET,DISC 17 1-452-094-00 CIRCULAR DISC MAGNET B 18 4-077-228-02 PIECE, TLH CONVERGENCE 19 4-064-883-03 HOLDER, DGC 20 2-668-945-01 HOLDER, PWB

21 2-660-432-21 DOOR, CONTROL 22 1-826-364-11 LOUDSPEAKER (6.5X15CM) 23 4-046-765-12 SCREW, TAPPING 7+CROWN WASHER 24 4-051-734-42 PIECE B(120), CONV, CORRECT

(EXxcept KV-SP29N63K)

X-4387-214-3 PERMALOY ASSY, CORRECTION

(KV-SP29N63K)

25 * 2-660-427-02 COVER, BOTTOM

26 ! X-2148-704-1 REAR COVER ASSY (Except KV-SP29N63K)

X-2148-318-1 REAR COVER ASSY (KV-SP29N63K) 27 2-668-661-01 SPRING, DOOR 28 * 2-656-888-01 HOLDER, HV CABLE COMBI 29 * 2-660-434-02 SUPPORT, CRT 30 4-022-115-00 HOLDER, AC CORD (KV-SP29N63K)

! 4-022-115-12 HOLDER, AC CORD (Except KV-SP29N63K)

31 ! 1-824-968-51 POWER CORD (WITH CONNECTOR)

(Except KV-SP29N63K)

! 1-575-023-11 CORD, POWER (WITH CONNECTOR)

(KV-SP29N63K)

32 * A-1204-599-A COMPLETE PWB, A (KV-SP29M53K)

* A-1203-578-A COMPLETE PWB, A (KV-SP29M83K)

* A-1199-708-A COMPLETE PWB, A (KV-SP29N63K) 33 8-453-026-31 NA2921-S3 34 * A-1203-580-A MOUNTED PWB (VAR), J

(Except KV-SP29N63K)

* A-1201-454-A MOUNTED PWB (VAR), J (KV-SP29N63K)

35 * A-1203-577-A MOUNTED PWB (VAR), H1

(Except KV-SP29N63K)

* A-1196-485-A MOUNTED PWB (VAR), H1 (KV-SP29N63K)

36 ! 1-453-479-21 TRANSFORMER ASSY FLYBACK NX-4910//X4B4 37 * A-1203-599-A MOUNTED PWB (VAR), K

(Except KV-SP29N63K)

* A-1196-490-A MOUNTED PWB (VAR), K (KV-SP29N63K)

102 X-2108-424-1 3D BOX, TOP ASSY 103 2-667-646-01 3D BOX, BOTTOM 104 * 2-667-647-01 SPEAKER DUCT 105 * 4-068-528-01 FOOT 106 A-1202-431-A 3D BOX ASSY

– 67 –

KV-SP29M53K/M83K/N63K

RM-GA002

SECTION 6

ELECTRICAL PARTS LIST

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

NOTE:

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

When indicating parts by reference number, please include the board name.

REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK

* A-1204-599-A COMPLETE PWB, A (KV-SP29M53K) * A-1203-578-A COMPLETE PWB, A (KV-SP29M83K) * A-1199-708-A COMPLETE PWB, A (KV-SP29N63K)

******************

4-382-854-01 SCREW (M3X8), P, SW (+)

A013 4-042-408-02 PIN(45), WIRE * A017 4-102-022-01 PIN(30), WIRE * A019 4-102-022-01 PIN(30), WIRE

C001 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V

C002 1-126-935-11 ELECT 470UF 20.00% 16V

C003 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V

C004 1-126-933-11 ELECT 100UF 20.00% 16V

C005 1-126-933-11 ELECT 100UF 20.00% 16V

C006 1-126-925-91 ELECT 470UF 20.00% 10V

C010 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C013 1-126-933-11 ELECT 100UF 20.00% 16V

C018 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V

C020 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C021 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V

C022 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C023 1-164-505-11 CERAMIC CHIP 2.2UF 16V

C024 1-126-965-91 ELECT 22UF 20.00% 50V

C025 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C026 1-126-947-11 ELECT 47UF 20.00% 35V

C028 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C029 1-126-925-91 ELECT 470UF 20.00% 10V

C030 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C031 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

• Items marked " ∗ " are not stocked since

they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• All variable and adjustable resistors have

characteristic curve B, unless otherwise noted.

REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK

C061 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C062 1-216-864-11 SHORT CHIP 0 C063 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C064 1-126-961-11 ELECT 2.2UF 20.00% 50V C065 1-126-962-11 ELECT 3.3UF 20.00% 50V

C067 1-216-864-11 SHORT CHIP 0 C069 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C070 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C073 1-126-961-11 ELECT 2.2UF 20.00% 50V C080 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C081 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C089 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C090 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C091 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C092 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C093 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C094 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C095 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C096 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C101 1-126-964-11 ELECT 10UF 20.00% 50V

C102 1-162-915-11 CERAMIC CHIP 10PF 0.50PF 50V C104 1-162-915-11 CERAMIC CHIP 10PF 0.50PF 50V C106 1-126-964-11 ELECT 10UF 20.00% 50V C107 1-126-935-11 ELECT 470UF 20.00% 16V C108 1-126-935-11 ELECT 470UF 20.00% 16V

C109 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C111 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C112 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C112 (KV-SP29N63K) C112 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C112 (Except KV-SP29N63K)

C036 1-126-933-11 ELECT 100UF 20.00% 16V

C037 1-165-908-11 CERAMIC CHIP 1UF 10% 10V

C038 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C041 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V

C042 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C044 1-164-505-11 CERAMIC CHIP 2.2UF 16V

C046 1-162-969-11 CERAMIC CHIP 0.0068UF 10.00% 25V

C048 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C049 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V

C050 1-126-964-11 ELECT 10UF 20.00% 50V

C052 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C053 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V

C054 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C055 1-100-829-11 FILM 0.15UF 5% 250V

C055 (KV-SP29N63K)

C055 1-100-829-31 FILM 0.15UF 5% 250V

C055 (Except KV-SP29N63K)

C056 1-126-933-11 ELECT 100UF 20.00% 16V

C057 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V

C060 1-216-864-11 SHORT CHIP 0

C115 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C115 (KV-SP29N63K) C115 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C115 (Except KV-SP29N63K) C116 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V

C117 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C117 (KV-SP29N63K) C117 1-164-380-11 CERAMIC CHIP 51PF 5.00% 50V C117 (Except KV-SP29N63K) C118 1-126-965-91 ELECT 22UF 20.00% 50V

C119 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C120 1-126-935-11 ELECT 470UF 20.00% 16V C131 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C135 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C137 1-162-923-11 CERAMIC CHIP 47PF 5.00% 50V

C138 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C140 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C142 1-162-923-11 CERAMIC CHIP 47PF 5.00% 50V C143 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C143 (Except KV-SP29N63K)

– 68 –

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARK

C146 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C146 (Except KV-SP29N63K)

C147 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C147 (Except KV-SP29N63K)

C148 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V

C219 1-126-942-61 ELECT 1000UF 20.00% 25V

C239 1-102-228-00 CERAMIC 470PF 10.00% 500V

C240 1-102-228-00 CERAMIC 470PF 10.00% 500V

C243 1-128-959-31 ELECT 1000UF 20% 35V

C244 1-128-959-31 ELECT 1000UF 20% 35V

C245 1-128-959-31 ELECT 1000UF 20% 35V

C246 1-128-959-31 ELECT 1000UF 20% 35V

C300 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C301 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C302 1-126-963-11 ELECT 4.7UF 20.00% 50V

C303 1-126-933-11 ELECT 100UF 20.00% 16V

C304 1-126-933-11 ELECT 100UF 20.00% 16V

C308 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V

C311 1-126-961-11 ELECT 2.2UF 20.00% 50V

C312 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C313 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C316 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V

C317 1-126-934-11 ELECT 220UF 20.00% 16V

C318 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C319 1-162-923-11 CERAMIC CHIP 47PF 5.00% 50V

C320 1-162-923-11 CERAMIC CHIP 47PF 5.00% 50V

C321 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C322 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C323 1-112-034-91 CERAMIC CHIP 0.01UF 5% 50V

C325 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C328 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V

C330 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V

C332 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C333 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V

C335 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C336 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C337 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C338 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C502 1-126-933-11 ELECT 100UF 20.00% 16V

C507 1-102-228-00 CERAMIC 470PF 10.00% 500V

C511 1-164-690-91 CERAMIC CHIP 0.0022UF 5.00% 50V

C513 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V

C514 1-106-383-00 MYLAR 0.047UF 10.00% 200V

C517 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V

C518 1-162-923-11 CERAMIC CHIP 47PF 5.00% 50V

C519 1-164-645-11 CERAMIC 1000PF 10.00% 500V

C521 1-126-933-11 ELECT 100UF 20.00% 16V

C523 1-164-645-11 CERAMIC 1000PF 10.00% 500V

C524 1-162-923-11 CERAMIC CHIP 47PF 5.00% 50V

C527 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V

C537 1-107-911-11 ELECT 220UF 20% 50V

C538 ! 1-117-651-11 FILM 20000PF 3.00% 1.2KV

C540 1-136-171-00 FILM 0.33UF 5.00% 50V

C550 1-106-220-00 MYLAR 0.1UF 10.00% 100V

C556 1-126-941-11 ELECT 470UF 20.00% 25V

C557 1-126-941-11 ELECT 470UF 20.00% 25V

C558 1-123-024-21 ELECT 33UF 160V

C565 1-107-645-11 ELECT 22UF 20.00% 200V

C567 1-117-813-91 FILM 0.75UF 5% 250V

C567 (KV-SP29N63K)

KV-SP29M53K/M83K/N63K

RM-GA002

A

REF NO. PART NO. DESCRIPTION REMARK

C567 ! 1-117-813-91 FILM 0.75UF 5.00% 400V

C567 (Except KV-SP29N63K) C570 ! 1-117-670-91 FILM 0.82UF 5.00% 250V

C572 1-117-661-71 FILM 0.15UF 5% 250V C574 1-107-683-11 ELECT 2.2UF 250V

C577 1-106-383-00 MYLAR 0.047UF 5.00% 200V C580 1-126-933-11 ELECT 100UF 20.00% 16V C587 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C588 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C590 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V

C592 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C597 1-126-925-91 ELECT 470UF 20.00% 10V C603 1-136-497-81 FILM 0.1UF 5.00% 50V C604 1-126-962-11 ELECT 3.3UF 20.00% 50V C605 1-161-830-00 CERAMIC 0.0047UF 99% 500V

C606 1-161-830-00 CERAMIC 0.0047UF 99% 500V C609 1-161-830-00 CERAMIC 0.0047UF 99% 500V C610 1-161-830-00 CERAMIC 0.0047UF 99% 500V C611 1-114-218-11 CAP, ELECT 560MF C616 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C623 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V C624 1-126-966-11 ELECT 33UF 20.00% 50V

C625 ! 1-127-942-51 CERAMIC 330PF 10% 250V C626 1-102-228-00 CERAMIC 470PF 10.00% 500V C628 1-104-331-11 CERAMIC 0.0022UF 10.00% 1KV

C630 1-128-549-11 ELECT 3300UF 20.00% 35V C632 1-126-953-11 ELECT 2200UF 20.00% 35V C634 1-126-952-11 ELECT 1000UF 20.00% 35V C635 1-126-971-11 ELECT 470UF 20.00% 50V C637 1-107-882-91 ELECT 100UF 20% 16V

C638 1-107-882-91 ELECT 100UF 20% 16V C639 1-126-933-11 ELECT 100UF 20.00% 16V C641 1-126-933-11 ELECT 100UF 20.00% 16V C643 1-117-720-11 CERAMIC CHIP 4.7UF 10V C644 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C647 1-126-935-11 ELECT 470UF 20.00% 16V C649 1-126-933-11 ELECT 100UF 20.00% 16V C653 1-102-228-00 CERAMIC 470PF 10.00% 500V C654 1-102-228-00 CERAMIC 470PF 10.00% 500V

C657 ! 1-119-893-51 CERAMIC 0.001UF 20.00% 250V

C660 ! 1-165-539-31 FILM 0.22UF 10% 275V C662 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C665 1-107-855-12 ELECT(BLOCK) 330UF 160V

C666 ! 1-165-538-31 FILM 0.1UF 10% 275V C668 1-126-933-11 ELECT 100UF 20.00% 16V

C672 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C678 1-164-505-11 CERAMIC CHIP 2.2UF 16V C680 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C682 1-126-943-11 ELECT 2200UF 20.00% 25V C685 1-126-934-11 ELECT 220UF 20.00% 16V

C686 1-117-720-11 CERAMIC CHIP 4.7UF 10V C687 ! 1-119-893-51 CERAMIC 0.001UF 20.00% 250V

C689 1-126-964-11 ELECT 10UF 20.00% 50V C691 1-125-772-91 CERAMIC 1500PF 10.00% 2KV

C693 ! 1-127-942-51 CERAMIC 330PF 10% 250V

C900 1-164-505-11 CERAMIC CHIP 2.2UF 16V C901 1-164-505-11 CERAMIC CHIP 2.2UF 16V C902 1-216-864-11 SHORT CHIP 0 C903 1-126-935-11 ELECT 470UF 20.00% 16V C906 1-164-346-11 CERAMIC CHIP 1UF 16V

– 69 –

KV-SP29M53K/M83K/N63K

RM-GA002

A

C907 1-164-346-11 CERAMIC CHIP 1UF 16V

C908 1-164-346-11 CERAMIC CHIP 1UF 16V

C909 1-164-346-11 CERAMIC CHIP 1UF 16V

C910 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C911 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C912 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C913 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C914 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C915 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C916 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V

C922 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C925 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C956 1-126-933-11 ELECT 100UF 20.00% 16V

C967 1-164-505-11 CERAMIC CHIP 2.2UF 16V

C980 1-126-965-91 ELECT 22UF 20.00% 50V

C981 1-216-864-11 SHORT CHIP 0

C1019 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V

C5001 1-107-957-11 ELECT 1UF 20% 250V

C5002 ! 1-135-998-22 FILM 56000PF 3% 800V

C5073 1-106-375-12 MYLAR 0.022UF 5.00% 200V

* CN507 1-564-509-11 PLUG, CONNECTOR 6P * CN600 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P * CN602 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P * CN606 1-564-508-11 PLUG, CONNECTOR 5P * CN904 1-508-743-00 PIN, CONNECTOR 5P

* CN2102 1-564-511-11 PLUG, CONNECTOR 8P * CN2103 1-564-506-11 PLUG, CONNECTOR 3P * CN2104 1-564-507-11 PLUG, CONNECTOR 4P * CN3101 1-564-510-11 PLUG, CONNECTOR 7P

* CN6101! 1-580-843-11 PIN, CONNECTOR (POWER)

* CN9201 1-564-508-11 PLUG, CONNECTOR 5P

CT139 1-813-754-21 TRAP, CERAMIC (KV-SP29N63K)

CT139 1-813-731-21 TRAP, CERAMIC (Except KV-SP29N63K)

<DIODE>

D002 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D002 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D003 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D003 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D007 8-719-036-94 DIODE RD5.6SB-T1

D008 8-719-036-94 DIODE RD5.6SB-T1

D023 8-719-069-60 DIODE UDZSTE-179.1B

D024 8-719-069-60 DIODE UDZSTE-179.1B

D025 8-719-069-60 DIODE UDZSTE-179.1B

D057 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D057 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D058 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D058 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D059 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D059 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D064 8-719-036-94 DIODE RD5.6SB-T1

D065 8-719-036-94 DIODE RD5.6SB-T1

D066 8-719-083-20 DIODE PG102R

D068 8-719-036-94 DIODE RD5.6SB-T1

D074 8-719-991-33 DIODE 1SS133T-77

D075 6-500-028-01 DIODE MM3Z9V1ST1

D078 8-719-036-94 DIODE RD5.6SB-T1

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK

D079 8-719-036-94 DIODE RD5.6SB-T1 D082 6-500-600-01 DIODE MM3Z3V3T1 D083 6-500-600-01 DIODE MM3Z3V3T1

D084 6-500-600-01 DIODE MM3Z3V3T1 D100 8-719-082-22 DIODE KDS114-RTK (Except KV-SP29N63K) D103 8-719-982-26 DIODE MTZJ-33B (KV-SP29N63K) D103 8-719-036-43 DIODE MA4300-H(TA) (Except KV-SP29N63K) D108 8-719-036-94 DIODE RD5.6SB-T1

D109 8-719-036-94 DIODE RD5.6SB-T1 D110 8-719-404-50 DIODE MA111-TX (Except KV-SP29N63K) D111 8-719-404-50 DIODE MA111-TX (Except KV-SP29N63K) D202 8-719-404-50 DIODE MA111-TX D203 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D203 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D204 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D204 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D205 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D205 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D212 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D212 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D214 8-719-404-50 DIODE MA111-TX D222 8-719-080-57 DIODE FSF05A20 D223 8-719-080-57 DIODE FSF05A20

D501 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D501 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D504 8-719-074-25 DIODE PG104R D505 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D505 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D506 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D506 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D507 8-719-978-33 DIODE DTZ-TT11-6.8B D508 8-719-404-50 DIODE MA111-TX D509 6-501-457-01 DIODE KDZ5.6V-Y-RTK/P

D511 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D511 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D513 8-719-075-05 DIODE FR104-A5 D517 6-501-299-01 DIODE BY228GP D518 8-719-312-10 DIODE RU4AM-T3

D521 8-719-085-57 DIODE ER202 D522 8-719-085-57 DIODE ER202 D523 8-719-074-25 DIODE PG104R D527 8-719-075-05 DIODE FR104-A5 D528 8-719-075-05 DIODE FR104-A5

D529 8-719-991-33 DIODE 1SS133T-77 D530 8-719-982-13 DIODE MTZJ-27 D536 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D536 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D537 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D537 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D548 8-719-991-33 DIODE 1SS133T-77 D549 8-719-036-94 DIODE RD5.6SB-T1 D550 8-719-982-26 DIODE MTZJ-33B (KV-SP29N63K) D550 8-719-036-43 DIODE MA4300-H(TA) (Except KV-SP29N63K)

D600 8-719-404-50 DIODE MA111-TX (KV-SP29N63K) D600 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K) D602 6-501-301-01 DIODE 1A5G D603 6-501-301-01 DIODE 1A5G D604 8-719-077-77 DIODE D3SB60F3

D605 8-719-109-85 DIODE RD5.1ESB2 D606 8-719-109-97 DIODE RD6.8ESB2 D608 8-719-109-85 DIODE RD5.1ESB2

– 70 –

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARK

D614 8-719-982-19 DIODE MTZJ-30A

D615 6-500-175-01 DIODE 1E3-TB

D617 6-500-175-01 DIODE 1E3-TB

D618 6-500-175-01 DIODE 1E3-TB

D619 6-500-175-01 DIODE 1E3-TB

D622 6-500-175-01 DIODE 1E3-TB

D625 8-719-510-73 DIODE S3L20UF4

KV-SP29M53K/M83K/N63K

RM-GA002

A

REF NO. PART NO. DESCRIPTION REMARK

IC601 6-709-358-01 IC STR-W6756-LF2011 (Except KV-SP29N63K) IC602 6-706-789-01 IC KIA78R09API IC603 6-703-478-01 IC PQ018EF01SSH IC604 8-759-646-52 IC KIA7805API IC605 6-705-063-01 IC SE135N-LF38

IC606 6-706-886-01 IC KIA78D33PI IC607 8-759-832-05 IC BA18BC0FP-E2

D629 8-719-035-55 DIODE MA4039-H(TA)

D635 8-719-072-63 DIODE PDZ3.6B-115

D636 8-719-982-26 DIODE MTZJ-33B (KV-SP29N63K)

D636 8-719-036-43 DIODE MA4300-H(TA) (Except KV-SP29N63K)

D637 8-719-072-70 DIODE MA2ZD14001S0

D638 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D638 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D639 6-501-311-01 DIODE SB360-S

D640 8-719-108-18 THYRISTOR 5P6M

D641 8-719-110-49 DIODE RD18ESB2

D642 6-500-028-01 DIODE MM3Z9V1ST1

D643 6-500-600-01 DIODE MM3Z3V3T1

D644 8-719-029-04 DIODE D5L60

D645 8-719-082-03 DIODE MM3Z15VT1

D646 8-719-082-03 DIODE MM3Z15VT1

D647 6-500-600-01 DIODE MM3Z3V3T1

D648 6-500-028-01 DIODE MM3Z9V1ST1

D649 8-719-082-03 DIODE MM3Z15VT1

D650 6-500-028-01 DIODE MM3Z9V1ST1

D651 6-500-028-01 DIODE MM3Z9V1ST1

D900 6-500-028-01 DIODE MM3Z9V1ST1

D908 8-719-036-94 DIODE RD5.6SB-T1

* DY1 1-580-798-11 CONNECTOR PIN (DY) 6P

<JACK>

J901 1-817-299-22 PHONO JACK 11P

JR001 1-216-864-11 SHORT CHIP 0 JR003 1-216-864-11 SHORT CHIP 0 JR007 1-216-864-11 SHORT CHIP 0 JR008 1-216-864-11 SHORT CHIP 0 JR009 1-216-864-11 SHORT CHIP 0

JR013 1-216-864-11 SHORT CHIP 0 JR014 1-216-864-11 SHORT CHIP 0 JR016 1-216-864-11 SHORT CHIP 0 JR026 1-216-864-11 SHORT CHIP 0 JR027 1-216-864-11 SHORT CHIP 0

JR030 1-216-864-11 SHORT CHIP 0 JR031 1-216-864-11 SHORT CHIP 0 (KV-SP29N63K) JR036 1-216-864-11 SHORT CHIP 0 JR037 1-216-864-11 SHORT CHIP 0 JR042 1-216-797-11 METAL CHIP 10 5% 1/10W

JR049 1-216-864-11 SHORT CHIP 0 JR051 1-216-864-11 SHORT CHIP 0 JR052 1-216-864-11 SHORT CHIP 0 JR071 1-216-864-11 SHORT CHIP 0 JR072 1-216-864-11 SHORT CHIP 0

FB001 1-469-578-11 FERRITE 1.1UH (Except KV-SP29N63K)

FB005 1-469-981-21 FERRITE 0UH

FB006 1-469-981-21 FERRITE 0UH

FB007 1-469-981-21 FERRITE 0UH

FB008 1-469-981-21 FERRITE 0UH

FB009 1-414-229-11 FERRITE 0UH

FB010 1-216-864-11 SHORT CHIP 0

FB011 1-414-234-22 FERRITE 0UH

FB201 1-469-578-11 FERRITE 1.1UH

FB202 1-410-397-21 FERRITE 1.1UH

FB503 1-469-579-11 FERRITE 0.45UH

FB504 1-469-578-11 FERRITE 1.1UH

FB601 1-469-578-11 FERRITE 1.1UH

FB603 1-469-578-11 FERRITE 1.1UH

FB605 1-469-578-11 FERRITE 1.1UH

FB608 1-412-911-31 FERRITE 0UH

FB610 1-469-578-11 FERRITE 1.1UH

<IC>

IC001 6-709-202-01 IC TDA12011H/N1F4B (KV-SP29N63K)

IC001 6-709-790-01 IC TDA12063H/N1F8B (Except KV-SP29N63K)

IC003 6-704-005-01 IC BR24L32F-WE2

IC502 8-759-700-07 IC NJM2903M

IC503 6-708-394-01 IC STV9325

JR099 1-216-864-11 SHORT CHIP 0 JR203 1-216-864-11 SHORT CHIP 0 JR301 1-216-864-11 SHORT CHIP 0 JR302 1-216-864-11 SHORT CHIP 0 JR303 1-216-864-11 SHORT CHIP 0

JR304 1-216-864-11 SHORT CHIP 0 JR501 1-216-864-11 SHORT CHIP 0 JR502 1-216-864-11 SHORT CHIP 0 JR503 1-216-864-11 SHORT CHIP 0 JR504 1-216-864-11 SHORT CHIP 0

JR506 1-216-864-11 SHORT CHIP 0 JR509 1-216-864-11 SHORT CHIP 0 JR511 1-216-864-11 SHORT CHIP 0 JR512 1-216-864-11 SHORT CHIP 0 JR513 1-216-864-11 SHORT CHIP 0

JR522 1-216-864-11 SHORT CHIP 0 JR601 1-216-864-11 SHORT CHIP 0 JR602 1-216-864-11 SHORT CHIP 0 JR650 1-216-864-11 SHORT CHIP 0 JR651 1-216-864-11 SHORT CHIP 0

JR652 1-216-864-11 SHORT CHIP 0 JR653 1-216-864-11 SHORT CHIP 0 JR654 1-216-864-11 SHORT CHIP 0 JR655 1-216-864-11 SHORT CHIP 0 JR666 1-216-864-11 SHORT CHIP 0

JR667 1-216-864-11 SHORT CHIP 0 JR668 1-216-864-11 SHORT CHIP 0

– 71 –

KV-SP29M53K/M83K/N63K

RM-GA002

A

JR800 1-216-864-11 SHORT CHIP 0

JR801 1-216-864-11 SHORT CHIP 0

JR805 1-216-864-11 SHORT CHIP 0

JR1006 1-216-864-11 SHORT CHIP 0

JR1011 1-216-864-11 SHORT CHIP 0

JR1012 1-216-864-11 SHORT CHIP 0

JR1050 1-216-811-11 METAL CHIP 150 5% 1/10W

JR1100 1-216-864-11 SHORT CHIP 0 (KV-SP29N63K)

JR1101 1-216-864-11 SHORT CHIP 0

JR1110 1-216-864-11 SHORT CHIP 0

JR1111 1-216-864-11 SHORT CHIP 0 (KV-SP29N63K)

JR1903 1-216-864-11 SHORT CHIP 0

JR5001 1-216-864-11 SHORT CHIP 0

JR5035 1-216-864-11 SHORT CHIP 0

<COIL>

L003 1-414-856-11 INDUCTOR 10UH

L004 1-414-187-11 INDUCTOR 47UH

L005 1-414-856-11 INDUCTOR 10UH

L006 1-414-856-11 INDUCTOR 10UH

L007 1-414-856-11 INDUCTOR 10UH

L008 1-414-856-11 INDUCTOR 10UH

L009 1-414-934-21 INDUCTOR 10UH

L010 1-414-934-21 INDUCTOR 10UH

L011 1-414-934-21 INDUCTOR 10UH

L012 1-414-934-21 INDUCTOR 10UH

L013 1-414-934-21 INDUCTOR 10UH

L031 1-414-856-11 INDUCTOR 10UH

L032 1-414-856-11 INDUCTOR 10UH

L033 1-414-934-21 INDUCTOR 10UH

L035 1-414-856-11 INDUCTOR 10UH

L036 1-414-934-21 INDUCTOR 10UH

L100 1-414-857-11 INDUCTOR 100UH

L101 1-414-138-11 INDUCTOR 0.33UH (KV-SP29N63K)

L101 1-410-498-11 INDUCTOR 1.2UH (Except KV-SP29N63K)

L103 1-410-987-42 INDUCTOR 0.33UH (Except KV-SP29N63K)

L106 1-414-189-31 INDUCTOR 100UH

L507 1-419-633-21 INDUCTOR 10MH

L512 1-406-666-21 INDUCTOR 150UH

L513 1-412-552-11 INDUCTOR 2.2MH

L514 1-408-947-00 INDUCTOR 2.2MH

L515 1-406-677-11 INDUCTOR 10MH

L600 1-412-529-11 INDUCTOR 22UH

L601 1-412-533-21 INDUCTOR 47UH

L602 1-412-529-11 INDUCTOR 22UH

L902 1-414-187-11 INDUCTOR 47UH

PH600 ! 8-749-019-60 IC K1010HB01

PS201 ! 1-533-597-42 IC LINK 5A 90V

PS202 ! 1-533-597-42 IC LINK 5A 90V

PS602 ! 1-533-597-42 IC LINK 5A 90V

PS603 ! 1-533-597-42 IC LINK 5A 90V

PS604 1-533-597-42 IC LINK 5A 90V

(KV-SP29N63K)

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK

PS604 ! 1-533-597-42 IC LINK 5A 90V

(Except KV-SP29N63K)

PS605 ! 1-533-597-42 IC LINK 5A 90V

Q001 8-729-038-67 TRANSISTOR KRC102S Q010 8-729-600-22 TRANSISTOR 2SA1235-F Q016 8-729-038-67 TRANSISTOR KRC102S Q018 8-729-038-67 TRANSISTOR KRC102S Q100 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q102 8-729-022-54 TRANSISTOR 2SC3779C,D-AA Q103 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q103 (Except KV-SP29N63K) Q104 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q104 (Except KV-SP29N63K)

Q111 8-729-120-28 TRANSISTOR 2SC1623-L5L6 (KV-SP29N63K) Q202 8-729-600-22 TRANSISTOR 2SA1235-F Q206 8-729-038-67 TRANSISTOR KRC102S Q501 6-550-362-01 TRANSISTOR KTA1279 Q502 8-729-140-50 TRANSISTOR 2SC3209LK

Q503 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q505 6-551-406-01 TRANSISTOR IRFS614BYDTU Q506 6-551-129-01 TRANSISTOR 2SK3462 Q511 6-550-845-01 TRANSISTOR TT2142 Q512 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q513 8-729-600-22 TRANSISTOR 2SA1235-F Q515 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q516 6-550-362-01 TRANSISTOR KTA1279 Q601 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q605 6-550-572-01 TRANSISTOR FN155

Q606 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q608 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q609 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q610 8-729-023-22 TRANSISTOR 2SD2114K Q900 8-729-600-22 TRANSISTOR 2SA1235-F

Q901 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q902 8-729-027-56 TRANSISTOR DTC143TKA-T146

R001 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R002 1-216-809-11 METAL CHIP 100 5% 1/10W R003 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R004 1-216-809-11 METAL CHIP 100 5% 1/10W R007 1-216-809-11 METAL CHIP 100 5% 1/10W

R008 1-216-809-11 METAL CHIP 100 5% 1/10W R010 1-216-833-11 METAL CHIP 10K 5% 1/10W R011 1-216-817-11 METAL CHIP 470 5% 1/10W R012 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R014 1-216-809-11 METAL CHIP 100 5% 1/10W

R015 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R020 1-216-809-11 METAL CHIP 100 5% 1/10W R022 1-216-809-11 METAL CHIP 100 5% 1/10W R023 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R024 1-216-809-11 METAL CHIP 100 5% 1/10W

R025 1-216-809-11 METAL CHIP 100 5% 1/10W R026 1-216-809-11 METAL CHIP 100 5% 1/10W R029 1-216-809-11 METAL CHIP 100 5% 1/10W R030 1-216-809-11 METAL CHIP 100 5% 1/10W R038 1-216-809-11 METAL CHIP 100 5% 1/10W

– 72 –

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARK

R039 1-216-809-11 METAL CHIP 100 5% 1/10W

R041 1-216-809-11 METAL CHIP 100 5% 1/10W

R042 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R044 1-216-834-11 METAL CHIP 12K 5% 1/10W

R045 1-216-809-11 METAL CHIP 100 5% 1/10W

R046 1-216-809-11 METAL CHIP 100 5% 1/10W

R048 1-216-809-11 METAL CHIP 100 5% 1/10W

R051 1-218-885-11 METAL CHIP 39K 0.50% 1/10W

R056 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R058 1-216-864-11 SHORT CHIP 0

R059 1-216-821-11 METAL CHIP 1K 5% 1/10W

R060 1-216-809-11 METAL CHIP 100 5% 1/10W

R061 1-216-819-11 METAL CHIP 680 5% 1/10W

R088 1-216-816-11 METAL CHIP 390 5% 1/10W

R088 (KV-SP29N63K)

R088 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R088 (Except KV-SP29N63K)

R096 1-216-813-11 METAL CHIP 220 5% 1/10W

R097 1-216-813-11 METAL CHIP 220 5% 1/10W

R099 1-216-813-11 METAL CHIP 220 5% 1/10W

R100 1-216-821-11 METAL CHIP 1K 5% 1/10W

R103 1-211-981-11 METAL CHIP 33 0.50% 1/10W

R106 1-216-832-11 METAL CHIP 8.2K 5% 1/10W

R106 (KV-SP29N63K)

R106 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R106 (Except KV-SP29N63K)

R107 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R107 (KV-SP29N63K)

R107 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

R107 (Except KV-SP29N63K)

R108 1-216-820-11 METAL CHIP 820 5% 1/10W

R108 (KV-SP29N63K)

R108 1-216-821-11 METAL CHIP 1K 5% 1/10W

R108 (Except KV-SP29N63K)

R109 1-216-021-00 RES-CHIP 68 5% 1/10W

R109 (KV-SP29N63K)

R109 1-216-019-00 RES-CHIP 56 5% 1/10W

R109 (Except KV-SP29N63K)

R110 1-216-821-11 METAL CHIP 1K 5% 1/10W

R110 (Except KV-SP29N63K)

R111 1-216-833-11 METAL CHIP 10K 5% 1/10W

R111 (Except KV-SP29N63K)

R112 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W

R112 (Except KV-SP29N63K)

R113 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R113 (Except KV-SP29N63K)

R114 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R114 (Except KV-SP29N63K)

R115 1-216-809-11 METAL CHIP 100 5% 1/10W

R116 1-216-809-11 METAL CHIP 100 5% 1/10W

R118 1-216-809-11 METAL CHIP 100 5% 1/10W

R119 1-211-981-11 METAL CHIP 33 0.50% 1/10W

R121 1-215-925-11 METAL OXIDE 22K 5% 3W

R128 1-216-864-11 SHORT CHIP 0

R131 1-216-809-11 METAL CHIP 100 5% 1/10W

R131 (Except KV-SP29N63K)

R146 1-216-821-11 METAL CHIP 1K 5% 1/10W

R146 (KV-SP29N63K)

R147 1-216-813-11 METAL CHIP 220 5% 1/10W

147 (KV-SP29N63K)

KV-SP29M53K/M83K/N63K

RM-GA002

A

REF NO. PART NO. DESCRIPTION REMARK

R150 1-216-809-11 METAL CHIP 100 5% 1/10W R150 (KV-SP29N63K) R152 1-216-811-11 METAL CHIP 150 5% 1/10W R152 (KV-SP29N63K)

R152 1-216-864-11 SHORT CHIP 0 (Except KV-SP29N63K) R153 1-218-839-11 METAL CHIP 470 0.50% 1/10W R153 (KV-SP29N63K) R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R154 (Except KV-SP29N63K)

R155 1-216-837-11 METAL CHIP 22K 5% 1/10W R155 (Except KV-SP29N63K) R156 1-216-864-11 SHORT CHIP 0 (KV-SP29N63K) R206 1-216-809-11 METAL CHIP 100 5% 1/10W R220 1-216-864-11 SHORT CHIP 0

R221 1-216-809-11 METAL CHIP 100 5% 1/10W R221 (KV-SP29N63K) R221 1-216-821-11 METAL CHIP 1K 5% 1/10W R221 (Except KV-SP29N63K) R237 1-216-809-11 METAL CHIP 100 5% 1/10W

R238 1-216-809-11 METAL CHIP 100 5% 1/10W R241 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R242 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R306 1-218-873-11 METAL CHIP 12K 0.50% 1/10W R314 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R315 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R316 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W R317 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R320 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W R323 1-216-809-11 METAL CHIP 100 5% 1/10W

R324 1-216-864-11 SHORT CHIP 0 R336 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R337 1-216-817-11 METAL CHIP 470 5% 1/10W R338 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R339 1-216-809-11 METAL CHIP 100 5% 1/10W

R340 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R341 1-216-809-11 METAL CHIP 100 5% 1/10W R355 1-216-837-11 METAL CHIP 22K 5% 1/10W R356 1-218-851-11 METAL CHIP 1.5K 0.50% 1/10W R364 1-216-817-11 METAL CHIP 470 5% 1/10W

R377 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R379 1-216-843-11 METAL CHIP 68K 5% 1/10W R380 1-216-809-11 METAL CHIP 100 5% 1/10W R384 1-216-809-11 METAL CHIP 100 5% 1/10W R385 1-216-809-11 METAL CHIP 100 5% 1/10W

R386 1-216-809-11 METAL CHIP 100 5% 1/10W R387 1-218-285-11 METAL CHIP 75 5% 1/10W R388 1-218-285-11 METAL CHIP 75 5% 1/10W R389 1-218-285-11 METAL CHIP 75 5% 1/10W R393 1-216-809-11 METAL CHIP 100 5% 1/10W

R394 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R395 1-216-845-11 METAL CHIP 100K 5% 1/10W R399 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R500 1-216-821-11 METAL CHIP 1K 5% 1/10W R501 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W

R502 1-260-127-11 CARBON 220K 5% 1/2W R503 1-216-841-11 METAL CHIP 47K 5% 1/10W R504 1-216-841-11 METAL CHIP 47K 5% 1/10W R505 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R506 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R148 1-211-969-11 METAL CHIP 10 0.50% 1/10W

R148 (KV-SP29N63K)

– 73 –

R510 1-243-527-71 METAL OXIDE 47 5% 3W R513 1-216-849-11 METAL CHIP 220K 5% 1/10W

KV-SP29M53K/M83K/N63K

RM-GA002

A

R514 1-216-841-11 METAL CHIP 47K 5% 1/10W

R515 1-216-853-11 METAL CHIP 470K 5% 1/10W

R518 1-216-838-11 METAL CHIP 27K 5% 1/10W

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK

R635 1-216-833-11 METAL CHIP 10K 5% 1/10W R636 1-247-843-11 CARBON 3.3K 5% 1/4W R647 1-216-821-11 METAL CHIP 1K 5% 1/10W

R519 1-216-841-11 METAL CHIP 47K 5% 1/10W

R520 1-218-869-11 METAL CHIP 8.2K 0.50% 1/10W

R521 1-216-841-11 METAL CHIP 47K 5% 1/10W

R522 1-249-428-11 CARBON 8.2K 5% 1/4W

R523 1-216-839-11 METAL CHIP 33K 5% 1/10W

R524 1-218-887-11 METAL CHIP 47K 0.50% 1/10W

R525 1-245-476-21 METAL 390K 1% 1/4W

R526 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W

R529 1-218-875-11 METAL CHIP 15K 0.50% 1/10W

R530 1-218-879-11 METAL CHIP 22K 0.50% 1/10W

R531 1-216-861-11 METAL CHIP 2.2M 5% 1/10W

R532 1-216-857-11 METAL CHIP 1M 5% 1/10W

R533 1-216-846-11 METAL CHIP 120K 5% 1/10W

R535 1-216-809-11 METAL CHIP 100 5% 1/10W

R536 1-218-879-11 METAL CHIP 22K 0.50% 1/10W

R537 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W

R538 1-215-451-00 METAL 18K 1% 1/4W

R542 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R543 1-216-437-00 METAL OXIDE 5.6K 5% 1W

R544 1-218-891-11 METAL CHIP 68K 0.50% 1/10W

R547 1-243-571-71 METAL OXIDE 390 5% 2W

R548 1-215-915-21 METAL OXIDE 470 5% 3W

R551 1-215-455-00 METAL 27K 1% 1/4W

R553 1-218-845-11 METAL CHIP 820 0.50% 1/10W

R554 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W

R555 1-215-873-00 METAL OXIDE 4.7K 5% 1W

R556 1-218-871-11 METAL CHIP 10K 0.50% 1/10W

R560 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R562 1-243-683-71 METAL OXIDE 47 5% 1W

R568 1-249-383-11 CARBON 1.5 5% 1/4W

R650 ! 1-240-917-91 METAL 8.2M 5% 1W R655 1-216-809-11 METAL CHIP 100 5% 1/10W R656 1-249-381-11 CARBON 1 5% 1/4W R658 1-245-470-21 METAL 220K 1% 1/4W R659 1-245-470-21 METAL 220K 1% 1/4W

R660 1-245-478-21 METAL 470K 1% 1/4W R661 1-245-480-21 METAL 560K 1% 1/4W R667 1-216-821-11 METAL CHIP 1K 5% 1/10W R668 1-216-839-11 METAL CHIP 33K 5% 1/10W R676 1-243-688-71 METAL OXIDE 120 5% 1W

R677 1-216-845-11 METAL CHIP 100K 5% 1/10W R678 1-249-418-11 CARBON 1.2K 5% 1/4W R680 1-216-864-11 SHORT CHIP 0 R902 1-216-821-11 METAL CHIP 1K 5% 1/10W R904 1-216-821-11 METAL CHIP 1K 5% 1/10W

R905 1-216-840-11 METAL CHIP 39K 5% 1/10W R906 1-216-817-11 METAL CHIP 470 5% 1/10W R907 1-216-840-11 METAL CHIP 39K 5% 1/10W R908 1-216-840-11 METAL CHIP 39K 5% 1/10W R909 1-216-840-11 METAL CHIP 39K 5% 1/10W

R910 1-216-817-11 METAL CHIP 470 5% 1/10W R911 1-216-864-11 SHORT CHIP 0 R913 1-216-853-11 METAL CHIP 470K 5% 1/10W R914 1-216-853-11 METAL CHIP 470K 5% 1/10W R915 1-216-849-11 METAL CHIP 220K 5% 1/10W

R916 1-216-849-11 METAL CHIP 220K 5% 1/10W R920 1-216-849-11 METAL CHIP 220K 5% 1/10W R921 1-216-849-11 METAL CHIP 220K 5% 1/10W R924 1-216-853-11 METAL CHIP 470K 5% 1/10W R925 1-216-864-11 SHORT CHIP 0

R571 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W

R577 1-215-888-00 METAL OXIDE 220 5% 2W

R578 1-243-809-71 METAL OXIDE 1 5% 1W

R579 1-215-916-71 METAL OXIDE 680 5% 3W

R580 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W

R582 1-216-858-11 METAL CHIP 1.2M 5% 1/10W

R585 1-243-544-71 METAL OXIDE 2.2 5% 2W

R596 1-215-916-71 METAL OXIDE 680 5% 3W

R597 1-243-576-71 METAL OXIDE 1K 5% 2W

R599 1-216-838-11 METAL CHIP 27K 5% 1/10W

R602 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R603 1-216-821-11 METAL CHIP 1K 5% 1/10W

R604 1-216-864-11 SHORT CHIP 0

R605 1-242-949-11 FUSIBLE 0.1 10% 1W

R608 1-216-813-11 METAL CHIP 220 5% 1/10W

R609 1-216-833-11 METAL CHIP 10K 5% 1/10W

R612 1-215-429-00 METAL 2.2K 1% 1/4W

R616 1-240-251-11 METAL 6.8 5% 10W

R618 1-249-432-11 CARBON 18K 5% 1/4W

R619 1-243-953-71 METAL OXIDE 0.22 5% 3W

R620 1-243-953-71 METAL OXIDE 0.22 5% 3W

R621 1-247-807-31 CARBON 100 5% 1/4W

R623 1-218-883-11 METAL CHIP 33K 0.50% 1/10W

R624 1-215-421-00 METAL 1K 1% 1/4W

R627 1-249-403-11 CARBON 68 5% 1/4W

R631 1-249-425-11 CARBON 4.7K 5% 1/4W

R634 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R926 1-216-864-11 SHORT CHIP 0 R927 1-216-864-11 SHORT CHIP 0 R931 1-216-811-11 METAL CHIP 150 5% 1/10W R932 1-216-864-11 SHORT CHIP 0 R933 1-216-864-11 SHORT CHIP 0

R939 1-216-810-11 METAL CHIP 120 5% 1/10W R989 1-216-833-11 METAL CHIP 10K 5% 1/10W R1001 1-216-809-11 METAL CHIP 100 5% 1/10W R1002 1-216-809-11 METAL CHIP 100 5% 1/10W R2645 1-249-429-11 CARBON 10K 5% 1/4W

R2646 1-249-381-11 CARBON 1 5% 1/4W R2647 1-249-429-11 CARBON 10K 5% 1/4W R5000 1-216-837-11 METAL CHIP 22K 5% 1/10W R5001 1-216-841-11 METAL CHIP 47K 5% 1/10W R5002 1-216-833-11 METAL CHIP 10K 5% 1/10W

R5003 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R5005 1-216-809-11 METAL CHIP 100 5% 1/10W R5006 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R5008 1-216-845-11 METAL CHIP 100K 5% 1/10W R5009 1-216-853-11 METAL CHIP 470K 5% 1/10W

R5010 1-216-833-11 METAL CHIP 10K 5% 1/10W R5011 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R5012 1-216-835-11 METAL CHIP 15K 5% 1/10W R5013 1-216-857-11 METAL CHIP 1M 5% 1/10W R5014 1-216-859-11 METAL CHIP 1.5M 5% 1/10W

R5015 1-208-830-11 METAL CHIP 100K 0.50% 1/10W R5020 1-243-957-71 METAL OXIDE 0.47 5% 3W

– 74 –

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARK

R5021 1-218-843-11 METAL CHIP 680 0.50% 1/10W

R5022 1-245-470-21 METAL 220K 1% 1/4W

R5023 1-245-470-21 METAL 220K 1% 1/4W

R5024 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W

R5025 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R5026 1-245-470-21 METAL 220K 1% 1/4W

R5027 1-245-466-21 METAL 150K 1% 1/4W

R5032 1-215-916-71 METAL OXIDE 680 5% 3W

R5034 1-216-857-11 METAL CHIP 1M 5% 1/10W

R5035 1-216-821-11 METAL CHIP 1K 5% 1/10W

R5036 1-218-839-11 METAL CHIP 470 0.50% 1/10W

R5037 1-249-377-11 CARBON 0.47 5% 1/4W

R5038 1-249-377-11 CARBON 0.47 5% 1/4W

R5039 1-249-377-11 CARBON 0.47 5% 1/4W

R9006 1-216-864-11 SHORT CHIP 0

R9018 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

R9019 1-216-809-11 METAL CHIP 100 5% 1/10W

R9020 1-216-809-11 METAL CHIP 100 5% 1/10W

R9021 1-216-809-11 METAL CHIP 100 5% 1/10W

R9022 1-216-809-11 METAL CHIP 100 5% 1/10W

R9023 1-216-809-11 METAL CHIP 100 5% 1/10W

R9025 1-216-809-11 METAL CHIP 100 5% 1/10W

R9026 1-216-833-11 METAL CHIP 10K 5% 1/10W

R9027 1-216-833-11 METAL CHIP 10K 5% 1/10W

R9028 1-216-809-11 METAL CHIP 100 5% 1/10W

R9030 1-216-809-11 METAL CHIP 100 5% 1/10W

R9031 1-216-809-11 METAL CHIP 100 5% 1/10W

R9036 1-216-809-11 METAL CHIP 100 5% 1/10W

KV-SP29M53K/M83K/N63K

RM-GA002

CVA

REF NO. PART NO. DESCRIPTION REMARK

TP04 1-536-354-00 POST PIN TP601 1-536-354-00 POST PIN

TP602 1-536-354-00 POST PIN

<TUNER>

TU101 1-693-694-11 TUNER (ENV56K18G3F) TU101 (KV-SP29N63K) TU102 8-597-962-00 TUNER, FSS BTP-AG411 (Except KV-SP29N63K)

X001 1-813-311-21 QUARTS CRYSTAL UNIT

*********************************************************************

* A-1133-945-A MOUNTED PWB (VAR), CV (KV-SP29N63K) * A-1182-240-A MOUNTED PWB (VAR), CV (Except KV-SP29N63K)

*************************

1-900-262-86 LEAD ASSY, FOCUS 4-382-854-01 SCREW (M3X8), P, SW (+) 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

(Except KV-SP29N63K)

* A707 4-042-408-02 PIN(45), WIRE (Except KV-SP29N63K)

R9062 1-218-285-11 METAL CHIP 75 5% 1/10W

<RELAY>

RY600 ! 1-755-198-12 RELAY, AC POWER

S502 1-572-707-11 SWITCH, LEVER

SWF100 1-781-040-11 FILTER, SURFACE WAVE (Except KV-SP29N63K)

SWF101 1-767-302-11 FILTER, SURFACE WAVE (Except KV-SP29N63K)

SWF102 1-813-391-11 FILTER,SURFACE WAVE (41.25MHZ)

SWF102 (KV-SP29N63K)

SWF104 1-795-929-12 SAW FILTER (KV-SP29N63K)

T501 ! 1-437-195-51 TRANSFORMER, HORIZONTAL DRIVE

T501 (KV-SP29N63K)

T501 ! 1-437-195-61 TRANSFORMER, HORIZONTAL DRIVE

T501 (Except KV-SP29N63K)

T503 ! 1-453-479-21 TRANSFORMER ASSY FLYBACK NX-4910//X4B4

T504 1-433-850-11 TRANSFORMER, HORIZONTAL LINEAR

T508 1-437-610-11 TRANSFORMER, FERRITE (PMT)

T602 ! 1-445-055-11 CONVERTER TRANSFORMER (SRT)

T603 ! 1-435-214-11 TRANSFORMER, LINE FILTER

TH600 ! 1-805-808-11 THERMISTOR, PTC

TP02 1-536-354-00 POST PIN

TP03 1-536-354-00 POST PIN

C704 1-126-933-11 ELECT 100UF 20.00% 16V C710 1-162-117-00 CERAMIC 100PF 10.00% 500V C711 1-161-830-00 CERAMIC 0.0047UF 500V C712 1-137-374-11 MYLAR 0.047UF 5.00% 50V C713 1-107-645-11 ELECT 22UF 20.00% 200V

C714 1-107-648-91 ELECT 100UF 20.00% 200V C718 1-106-383-00 MYLAR 0.047UF 10.00% 200V C719 1-107-636-11 ELECT 10UF 20.00% 160V C720 1-104-999-11 MYLAR 0.1UF 5.00% 200V C722 1-126-933-11 ELECT 100UF 20.00% 16V

C723 1-137-374-11 MYLAR 0.047UF 5.00% 50V C725 1-126-935-11 ELECT 470UF 20.00% 16V C751 1-107-652-11 ELECT 10UF 20.00% 250V C752 1-115-350-51 CERAMIC 0.0047UF 2KV C753 1-136-189-00 MYLAR 0.1UF 10.00% 250V

C754 1-107-649-11 ELECT 2.2UF 20.00% 250V C756 1-126-965-91 ELECT 22UF 20.00% 50V C783 1-102-074-00 CERAMIC 0.001UF 10.00% 50V C786 1-115-350-51 CERAMIC 0.0047UF 2KV C788 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V

C789 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C790 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C1800 1-107-698-11 ELECT 10UF 20% 25V C1801 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C1802 1-126-947-11 ELECT 47UF 20.00% 35V

C1803 1-136-497-81 FILM 0.1UF 5.00% 50V C1804 1-126-964-11 ELECT 10UF 20.00% 50V C1805 1-126-965-91 ELECT 22UF 20.00% 50V C1809 1-126-947-11 ELECT 47UF 20.00% 35V

* CN701 1-564-510-11 PLUG, CONNECTOR 7P

CN702 1-695-915-11 TAB (CONTACT)

– 75 –

KV-SP29M53K/M83K/N63K

RM-GA002

CV

CN703 1-691-765-11 PLUG (MICRO CONNECTOR) 3P

CN704 1-695-915-11 TAB (CONTACT)

CN705 1-695-915-11 TAB (CONTACT)

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK

R727 1-216-833-11 METAL CHIP 10K 5% 1/10W R728 1-216-809-11 METAL CHIP 100 5% 1/10W R729 1-249-413-11 CARBON 470 5% 1/4W

* CN711 1-564-507-11 PLUG, CONNECTOR 4P * CN712 1-564-506-11 PLUG, CONNECTOR 3P * CN1801 1-564-509-11 PLUG, CONNECTOR 6P * CN1802 1-564-506-11 PLUG, CONNECTOR 3P

<DIODE>

D750 8-719-083-20 DIODE PG102R

D754 8-719-970-83 DIODE HSS82-TJ

D755 8-719-970-83 DIODE HSS82-TJ

D756 8-719-970-83 DIODE HSS82-TJ

D782 8-719-109-89 DIODE RD5.6ESB2

D788 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D788 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D1803 8-719-081-97 DIODE MMDL914T1 (Except KV-SP29N63K)

D1803 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

<IC>

IC751 6-709-352-01 IC TDA6108AJF/N2

IC1801 8-759-803-42 IC LA6500-FA

<JACK>

J751 ! 1-451-544-21 SOCKET, CRT (KV-SP29N63K)

J751 ! 1-451-544-11 SOCKET, CRT (Except KV-SP29N63K)

<COIL>

L711 1-412-537-31 INDUCTOR 100UH

L712 1-414-187-11 INDUCTOR 47UH

L750 1-414-856-11 INDUCTOR 10UH

L751 1-412-539-11 INDUCTOR 150UH

L752 1-414-187-11 INDUCTOR 47UH

L753 1-414-187-11 INDUCTOR 47UH

L754 1-414-187-11 INDUCTOR 47UH

Q712 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q713 6-550-247-01 TRANSISTOR KTA1659A

Q715 8-729-053-87 TRANSISTOR KTC4370A

Q717 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q718 8-729-600-22 TRANSISTOR 2SA1235-F

Q719 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q1800 8-729-600-22 TRANSISTOR 2SA1235-F

Q1802 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q1804 8-729-120-28 TRANSISTOR 2SC1623-L5L6

R712 1-216-805-11 METAL CHIP 47 5% 1/10W

R714 1-260-312-11 CARBON 47 5% 1/2W

R715 1-249-413-11 CARBON 470 5% 1/4W

R722 1-249-437-11 CARBON 47K 5% 1/4W

R724 1-215-888-00 METAL OXIDE 220 5% 2W

R730 1-216-809-11 METAL CHIP 100 5% 1/10W R731 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R732 1-249-385-11 CARBON 2.2 5% 1/4W R735 1-249-401-11 CARBON 47 5% 1/4W R736 1-247-791-91 CARBON 22 5% 1/4W

R737 1-249-385-11 CARBON 2.2 5% 1/4W R752 1-249-415-11 CARBON 680 5% 1/4W R753 1-249-415-11 CARBON 680 5% 1/4W R754 1-249-411-11 CARBON 330 5% 1/4W R756 1-219-746-11 METAL 1K 5% 1/2W

R757 1-219-746-11 METAL 1K 5% 1/2W R758 1-219-746-11 METAL 1K 5% 1/2W R760 1-260-123-11 CARBON 100K 5% 1/2W R763 1-260-087-11 CARBON 100 5% 1/2W R764 1-260-087-11 CARBON 100 5% 1/2W

R765 1-260-087-11 CARBON 100 5% 1/2W R773 1-260-135-11 CARBON 1M 5% 1/2W R781 1-243-951-71 METAL OXIDE 0.68 5% 2W R782 1-216-821-11 METAL CHIP 1K 5% 1/10W R788 1-216-821-11 METAL CHIP 1K 5% 1/10W

R789 1-216-821-11 METAL CHIP 1K 5% 1/10W R790 1-216-814-11 METAL CHIP 270 5% 1/10W R791 1-216-807-11 METAL CHIP 68 5% 1/10W R792 1-216-819-11 METAL CHIP 680 5% 1/10W R793 1-216-807-11 METAL CHIP 68 5% 1/10W

R794 1-249-381-11 CARBON 1 5% 1/4W R798 1-249-397-11 CARBON 22 5% 1/4W R1800 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1801 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W R1802 1-218-829-11 METAL CHIP 180 0.50% 1/10W

R1803 1-218-879-11 METAL CHIP 22K 0.50% 1/10W R1804 1-218-847-11 METAL CHIP 1K 0.50% 1/10W R1805 1-218-871-11 METAL CHIP 10K 0.50% 1/10W R1806 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1807 1-216-864-11 SHORT CHIP 0

R1808 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W R1809 1-216-835-11 METAL CHIP 15K 5% 1/10W R1810 1-243-696-71 METAL OXIDE 470 5% 1W R1811 1-249-391-11 CARBON 6.8 5% 1/4W R1812 1-249-383-11 CARBON 1.5 5% 1/4W

R1813 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1814 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1815 1-216-849-11 METAL CHIP 220K 5% 1/10W R1816 1-218-847-11 METAL CHIP 1K 0.50% 1/10W R1817 1-249-381-11 CARBON 1 5% 1/4W

R1830 1-218-847-11 METAL CHIP 1K 0.50% 1/10W

RV750 1-241-656-21 RES, ADJ, METAL FILM 110M RV1800 1-238-019-11 RES, ADJ, CARBON 47K

*********************************************************************

R725 1-249-417-11 CARBON 1K 5% 1/4W

R726 1-249-437-11 CARBON 47K 5% 1/4W

– 76 –

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

KV-SP29M53K/M83K/N63K

RM-GA002

H1

REF NO. PART NO. DESCRIPTION REMARK

* A-1196-485-A MOUNTED PWB (VAR), H1 (KV-SP29N63K) * A-1203-577-A MOUNTED PWB (VAR), H1 (Except KV-SP29N63K)

************************

* 4-055-304-11 HOLDER, LED (Except KV-SP29N63K)

A4106 4-055-304-01 HOLDER, LED (KV-SP29N63K)

C4103 1-126-947-11 ELECT 47UF 20.00% 35V

C4104 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C4105 1-164-346-11 CERAMIC CHIP 1UF 16V

C4106 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C4107 1-164-346-11 CERAMIC CHIP 1UF 16V

C4108 1-126-925-91 ELECT 470UF 20.00% 10V

C4109 1-126-947-11 ELECT 47UF 20.00% 35V

C4111 ! 1-119-895-51 CERAMIC 4700PF 20.00% 250V

C4116 1-126-965-91 ELECT 22UF 20.00% 50V

C4117 1-126-965-91 ELECT 22UF 20.00% 50V

C4602 ! 1-165-533-31 MYLAR 0.68UF 10 0V

* CN4101! 1-580-843-11 PIN, CONNECTOR (POWER) * CN4102! 1-580-843-11 PIN, CONNECTOR (POWER)

* CN4103 1-564-510-11 PLUG, CONNECTOR 7P * CN4105 1-564-508-11 PLUG, CONNECTOR 5P * CN4106 1-564-507-11 PLUG, CONNECTOR 4P

* CN4107 1-564-511-11 PLUG, CONNECTOR 8P

CN4111 1-695-915-11 TAB (CONTACT)

<DIODE>

D4103 8-719-036-94 DIODE RD5.6SB-T1

D4104 8-719-036-94 DIODE RD5.6SB-T1

D4105 8-719-036-94 DIODE RD5.6SB-T1

D4106 8-719-083-18 DIODE SPB-25MVWF

D4107 8-719-036-94 DIODE RD5.6SB-T1

REF NO. PART NO. DESCRIPTION REMARK

Q4101 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q4102 8-729-027-56 TRANSISTOR DTC143TKA-T146

R4103 1-218-285-11 METAL CHIP 75 5% 1/10W R4104 1-216-849-11 METAL CHIP 220K 5% 1/10W R4105 1-216-838-11 METAL CHIP 27K 5% 1/10W R4106 1-216-849-11 METAL CHIP 220K 5% 1/10W R4107 1-216-838-11 METAL CHIP 27K 5% 1/10W

R4108 1-216-813-11 METAL CHIP 220 5% 1/10W R4109 1-216-813-11 METAL CHIP 220 5% 1/10W R4110 1-216-797-11 METAL CHIP 10 5% 1/10W R4111 1-216-809-11 METAL CHIP 100 5% 1/10W R4112 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R4113 1-216-821-11 METAL CHIP 1K 5% 1/10W R4114 1-216-819-11 METAL CHIP 680 5% 1/10W R4115 1-216-817-11 METAL CHIP 470 5% 1/10W R4116 1-216-815-11 METAL CHIP 330 5% 1/10W R4117 1-216-813-11 METAL CHIP 220 5% 1/10W

R4118 1-216-811-11 METAL CHIP 150 5% 1/10W R4120 1-249-411-11 CARBON 330 5% 1/4W R4121 1-249-411-11 CARBON 330 5% 1/4W

R4122 ! 1-243-994-91 METAL 820K 5% 0.5W

S4101 ! 1-786-649-12 SWITCH, AC POWER PUSH S4102 1-692-431-21 SWITCH, TACTILE S4103 1-692-431-21 SWITCH, TACTILE S4104 1-692-431-21 SWITCH, TACTILE S4105 1-692-431-21 SWITCH, TACTILE

S4106 1-692-431-21 SWITCH, TACTILE S4107 1-692-431-21 SWITCH, TACTILE S4108 1-692-431-21 SWITCH, TACTILE

D4108 8-719-081-97 DIODE MMDL914T1 (KV-SP29M53K/M83K)

D4108 8-719-404-50 DIODE MA111-TX (KV-SP29N63K)

D4109 8-719-036-94 DIODE RD5.6SB-T1

D4110 8-719-991-33 DIODE 1SS133T-77

D4111 8-719-991-33 DIODE 1SS133T-77

D4115 8-719-036-94 DIODE RD5.6SB-T1

<FUSE>

F4101 ! 1-576-334-41 FUSE 5A 250V

FH4101 1-533-223-11 FUSE HOLDER 0A 0V

FH4102 1-533-223-11 FUSE HOLDER 0A 0V

<IC>

IC4101 6-704-532-01 IC RPM7240-H5

<JACK>

J4102 1-770-329-13 JACK, PIN 3P

J4104 1-817-294-21 JACK

T4600 1-431-182-11 TRANSFORMER, LINE FILTER (KV-SP29N63K) T400 ! 1-431-182-11 TRANSFORMER, LINE FILTER

(Except KV-SP29N63K)

VDR460 1-804-995-11 VARISTOR

*********************************************************************

– 77 –

KV-SP29M53K/M83K/N63K

RM-GA002

J

K

* A-1203-580-A MOUNTED PWB (VAR), J

**********************

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK

C8159 1-164-346-11 CERAMIC CHIP 1UF 16V C8160 1-126-934-11 ELECT 220UF 20.00% 16V

* CN2401 1-564-511-11 PLUG, CONNECTOR 8P

<JACK>

J2401 1-780-395-11 TERMINAL, PUSH (2P)

*********************************************************************

* A-1196-490-A MOUNTED PWB (VAR), K (KV-SP29N63K) * A-1203-599-A MOUNTED PWB (VAR), K (Except KV-SP29N63K)

***********************

4-382-854-01 SCREW (M3X8), P, SW (+)

* A8101 4-102-022-01 PIN(30), WIRE

C8104 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C8113 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C8116 1-164-346-11 CERAMIC CHIP 1UF 16V

C8117 1-164-489-11 CERAMIC CHIP 0.22UF 10.00% 16V

C8118 1-164-346-11 CERAMIC CHIP 1UF 16V

C8119 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C8120 1-164-346-11 CERAMIC CHIP 1UF 16V

C8121 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V

C8122 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C8123 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V

C8162 1-126-933-11 ELECT 100UF 20.00% 16V C8168 1-126-964-11 ELECT 10UF 20.00% 50V C8169 1-131-664-91 CERAMIC CHIP 0.15UF 10% 10V C8170 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V C8171 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V

C8172 1-126-963-11 ELECT 4.7UF 20.00% 50V C8173 1-164-346-11 CERAMIC CHIP 1UF 16V C8174 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C8175 1-126-964-11 ELECT 10UF 20.00% 50V C8176 1-164-346-11 CERAMIC CHIP 1UF 16V

C8177 1-131-664-91 CERAMIC CHIP 0.15UF 10% 10V C8178 1-164-346-11 CERAMIC CHIP 1UF 16V C8179 1-164-346-11 CERAMIC CHIP 1UF 16V C8180 1-164-346-11 CERAMIC CHIP 1UF 16V C8181 1-126-960-11 ELECT 1UF 20.00% 50V

C8182 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C8183 1-126-933-11 ELECT 100UF 20.00% 16V C8184 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C8203 1-126-943-11 ELECT 2200UF 20.00% 25V C8204 1-126-943-11 ELECT 2200UF 20.00% 25V

C8205 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C8206 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C8212 1-131-664-91 CERAMIC CHIP 0.15UF 10% 10V C8213 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C8214 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8215 1-164-346-11 CERAMIC CHIP 1UF 16V C8216 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C8217 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C8218 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V C8219 1-164-346-11 CERAMIC CHIP 1UF 16V

C8124 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C8125 1-126-947-11 ELECT 47UF 20.00% 35V

C8126 1-131-664-91 CERAMIC CHIP 0.15UF 10% 10V

C8127 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C8128 1-126-933-11 ELECT 100UF 20.00% 16V

C8129 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V

C8130 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V

C8131 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C8132 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V

C8133 1-164-346-11 CERAMIC CHIP 1UF 16V

C8134 1-164-346-11 CERAMIC CHIP 1UF 16V

C8135 1-164-346-11 CERAMIC CHIP 1UF 16V

C8136 1-164-346-11 CERAMIC CHIP 1UF 16V

C8137 1-164-346-11 CERAMIC CHIP 1UF 16V

C8138 1-164-346-11 CERAMIC CHIP 1UF 16V

C8139 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C8140 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V

C8141 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C8142 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C8143 1-126-933-11 ELECT 100UF 20.00% 16V

C8144 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C8145 1-126-933-11 ELECT 100UF 20.00% 16V

C8153 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8154 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8155 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V

C8156 1-126-963-11 ELECT 4.7UF 20.00% 50V

C8157 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V

C8158 1-126-933-11 ELECT 100UF 20.00% 16V

C8220 1-162-975-11 CERAMIC CHIP 24PF 5.00% 50V C8221 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C8222 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C8223 1-131-664-91 CERAMIC CHIP 0.15UF 10% 10V C8224 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8225 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C8226 1-164-156-11 CERAMIC CHIP 0.1UF 25V C8227 1-137-194-81 FILM 0.47UF 5.00% 50V C8228 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C8229 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V

C8230 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V C8231 1-164-156-11 CERAMIC CHIP 0.1UF 25V C8232 1-164-156-11 CERAMIC CHIP 0.1UF 25V C8233 1-164-156-11 CERAMIC CHIP 0.1UF 25V C8234 1-137-194-81 FILM 0.47UF 5.00% 50V

C8235 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C8236 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C8237 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C8238 1-164-505-11 CERAMIC CHIP 2.2UF 16V C8240 1-164-346-11 CERAMIC CHIP 1UF 16V

C8241 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C8242 1-126-925-91 ELECT 470UF 20.00% 10V C8243 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V C8244 1-126-934-11 ELECT 220UF 20.00% 16V C8245 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V

C8246 1-164-156-11 CERAMIC CHIP 0.1UF 25V C8247 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C8248 1-126-972-11 ELECT 1000UF 20.00% 50V

– 78 –

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARK

C8249 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V

C8250 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

KV-SP29M53K/M83K/N63K

RM-GA002

K

REF NO. PART NO. DESCRIPTION REMARK

D8118 8-719-036-94 DIODE RD5.6SB-T1 D8119 8-719-036-94 DIODE RD5.6SB-T1

C8253 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V

C8254 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8255 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8256 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V

C8257 1-162-975-11 CERAMIC CHIP 24PF 5.00% 50V

C8258 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8259 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8261 1-164-346-11 CERAMIC CHIP 1UF 16V

C8281 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C8282 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8283 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V

C8284 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V

C8285 1-164-156-11 CERAMIC CHIP 0.1UF 25V

C8286 1-164-156-11 CERAMIC CHIP 0.1UF 25V

C8287 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8288 1-216-864-11 SHORT CHIP 0

C8291 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V

C8292 1-100-597-91 CERAMIC CHIP 0.1UF 10% 25V

C8293 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8294 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V

C8295 1-126-972-11 ELECT 1000UF 20.00% 50V

C8296 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V

C8301 1-164-505-11 CERAMIC CHIP 2.2UF 16V

C8302 1-165-908-11 CERAMIC CHIP 1UF 10% 10V

C8303 1-165-908-11 CERAMIC CHIP 1UF 10% 10V

C8304 1-165-908-11 CERAMIC CHIP 1UF 10% 10V

C8306 1-126-961-11 ELECT 2.2UF 20.00% 50V

C8308 1-164-156-11 CERAMIC CHIP 0.1UF 25V

C8309 1-137-194-81 FILM 0.47UF 5.00% 50V

C8310 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V

D8120 8-719-404-50 DIODE MA111-TX (Except KV-SP29N63K) D8120 8-719-081-97 DIODE MA111-TX (KV-SP29N63K) D8121 8-719-923-86 DIODE MTZJ-T-77-15 D8122 6-500-028-01 DIODE MM3Z9V1ST1 D8124 8-719-404-50 DIODE MA111-TX (Except KV-SP29N63K)

D8124 8-719-081-97 DIODE MA111-TX (KV-SP29N63K) D8128 8-719-036-94 DIODE RD5.6SB-T1 D8129 8-719-036-94 DIODE RD5.6SB-T1 D8130 8-719-923-86 DIODE MTZJ-T-77-15 D8203 8-719-976-99 DIODE DTZ5.1B

D8205 8-719-404-50 DIODE MA111-TX (Except KV-SP29N63K) D8205 8-719-081-97 DIODE MA111-TX (KV-SP29N63K) D8207 8-719-404-50 DIODE MA111-TX (Except KV-SP29N63K) D8207 8-719-081-97 DIODE MA111-TX (KV-SP29N63K) D8213 8-719-404-50 DIODE MA111-TX (Except KV-SP29N63K)

D8213 8-719-081-97 DIODE MA111-TX (KV-SP29N63K) D8214 8-719-991-33 DIODE 1SS133T-77 D8215 8-719-991-33 DIODE 1SS133T-77 D8240 8-719-017-98 DIODE MA8200-TX D8241 8-719-017-98 DIODE MA8200-TX

D8242 8-719-017-98 DIODE MA8200-TX D8243 8-719-017-98 DIODE MA8200-TX D8244 8-719-017-98 DIODE MA8200-TX D8245 8-719-017-98 DIODE MA8200-TX D8246 8-719-017-98 DIODE MA8200-TX

D8247 8-719-017-98 DIODE MA8200-TX D8249 8-719-062-51 DIODE 1PS226-115 D8251 8-719-924-11 DIODE MTZJ-T-77-22 D8252 8-719-924-11 DIODE MTZJ-T-77-22

C8311 1-164-156-11 CERAMIC CHIP 0.1UF 25V

C8312 1-137-194-81 FILM 0.47UF 5.00% 50V

C8313 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V

C8318 1-164-505-11 CERAMIC CHIP 2.2UF 16V

C8408 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V

C8409 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V

C8410 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V

C8411 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V

C8412 1-164-505-11 CERAMIC CHIP 2.2UF 16V

C8998 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

C8999 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V

* CN8108 1-564-508-11 PLUG, CONNECTOR 5P * CN8202 1-564-511-11 PLUG, CONNECTOR 8P * CN8203 1-564-511-11 PLUG, CONNECTOR 8P * CN8204 1-564-507-11 PLUG, CONNECTOR 4P

CN8206 1-564-506-11 PLUG, CONNECTOR 3P

* CN8207 1-564-511-11 PLUG, CONNECTOR 8P * CN8208 1-564-509-11 PLUG, CONNECTOR 6P * CN8209 1-564-506-11 PLUG, CONNECTOR 3P

<DIODE>

D8110 8-719-036-94 DIODE RD5.6SB-T1

D8111 8-719-404-50 DIODE MA111-TX (Except KV-SP29N63K)

D8111 8-719-081-97 DIODE MA111-TX (KV-SP29N63K)

FB8201 1-410-397-21 FERRITE 1.1UH FB8202 1-410-397-21 FERRITE 1.1UH FB8203 1-410-397-21 FERRITE 1.1UH FB8204 1-410-397-21 FERRITE 1.1UH FB8205 1-410-397-21 FERRITE 1.1UH

FB8206 1-410-397-21 FERRITE 1.1UH

<IC>

IC8013 6-707-100-01 IC M65845AFP-TE2 IC8014 8-759-533-85 IC L88M05T-FA-TL IC8015 8-759-100-96 IC UPC4558G2 IC8016 6-708-268-01 IC NJW1184M-TE2 IC8201 6-704-237-01 IC TDA7490L

IC8203 6-704-237-01 IC TDA7490L

JR8101 1-216-864-11 SHORT CHIP 0 JR8102 1-216-864-11 SHORT CHIP 0 JR8103 1-216-864-11 SHORT CHIP 0 JR8104 1-216-864-11 SHORT CHIP 0 JR8106 1-216-864-11 SHORT CHIP 0

JR8201 1-216-864-11 SHORT CHIP 0 JR8202 1-216-864-11 SHORT CHIP 0 JR8204 1-216-864-11 SHORT CHIP 0

– 79 –

KV-SP29M53K/M83K/N63K

RM-GA002

K

JR8205 1-216-864-11 SHORT CHIP 0

JR8206 1-216-864-11 SHORT CHIP 0

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK

R8139 1-216-840-11 METAL CHIP 39K 5% 1/10W R8140 1-216-837-11 METAL CHIP 22K 5% 1/10W

JR8207 1-216-864-11 SHORT CHIP 0

JR8208 1-216-864-11 SHORT CHIP 0

<COIL>

L8100 1-469-525-91 INDUCTOR 10UH

L8101 1-469-525-91 INDUCTOR 10UH

L8102 1-469-525-91 INDUCTOR 10UH

L8205 1-456-451-21 INDUCTOR 65UH

L8208 1-456-451-21 INDUCTOR 65UH

L8209 1-457-290-11 INDUCTOR 0UH

L8210 1-456-451-21 INDUCTOR 65UH

L8211 1-469-525-91 INDUCTOR 10UH

Q8101 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q8103 8-729-010-05 TRANSISTOR MSB709-RT1

Q8104 8-729-010-05 TRANSISTOR MSB709-RT1

Q8105 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q8106 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q8109 8-729-140-97 TRANSISTOR 2SB734-34

Q8110 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q8201 8-729-038-67 TRANSISTOR KRC102S

Q8202 8-729-038-67 TRANSISTOR KRC102S

Q8203 8-729-027-56 TRANSISTOR DTC143TKA-T146

Q8204 8-729-010-05 TRANSISTOR MSB709-RT1

Q8206 8-729-010-05 TRANSISTOR MSB709-RT1

Q8209 8-729-038-67 TRANSISTOR KRC102S

Q8210 8-729-022-54 TRANSISTOR 2SC3779C,D-AA

Q8211 8-729-010-25 TRANSISTOR MSD601-RT1

Q8212 8-729-010-25 TRANSISTOR MSD601-RT1

Q8217 8-729-038-67 TRANSISTOR KRC102S

Q8218 8-729-038-67 TRANSISTOR KRC102S

R8141 1-216-841-11 METAL CHIP 47K 5% 1/10W R8142 1-216-833-11 METAL CHIP 10K 5% 1/10W R8143 1-216-833-11 METAL CHIP 10K 5% 1/10W R8144 1-216-837-11 METAL CHIP 22K 5% 1/10W R8145 1-216-837-11 METAL CHIP 22K 5% 1/10W

R8154 1-216-809-11 METAL CHIP 100 5% 1/10W R8155 1-216-809-11 METAL CHIP 100 5% 1/10W R8156 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R8157 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R8158 1-216-821-11 METAL CHIP 1K 5% 1/10W

R8159 1-216-849-11 METAL CHIP 220K 5% 1/10W R8160 1-218-851-11 METAL CHIP 1.5K 0.50% 1/10W R8161 1-218-851-11 METAL CHIP 1.5K 0.50% 1/10W R8162 1-218-839-11 METAL CHIP 470 0.50% 1/10W R8163 1-216-861-11 METAL CHIP 2.2M 5% 1/10W

R8164 1-216-819-11 METAL CHIP 680 5% 1/10W R8165 1-216-821-11 METAL CHIP 1K 5% 1/10W R8166 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R8167 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R8168 1-216-834-11 METAL CHIP 12K 5% 1/10W

R8169 1-216-817-11 METAL CHIP 470 5% 1/10W R8171 1-249-405-11 CARBON 100 5% 1/4W R8177 1-216-817-11 METAL CHIP 470 5% 1/10W R8179 1-218-839-11 METAL CHIP 470 0.50% 1/10W R8180 1-218-851-11 METAL CHIP 1.5K 0.50% 1/10W

R8181 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R8182 1-216-819-11 METAL CHIP 680 5% 1/10W R8183 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R8184 1-216-821-11 METAL CHIP 1K 5% 1/10W R8185 1-216-849-11 METAL CHIP 220K 5% 1/10W

R8186 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R8187 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R8188 1-218-851-11 METAL CHIP 1.5K 0.50% 1/10W R8189 1-216-809-11 METAL CHIP 100 5% 1/10W R8190 1-216-809-11 METAL CHIP 100 5% 1/10W

R8102 1-216-843-11 METAL CHIP 68K 5% 1/10W

R8103 1-216-837-11 METAL CHIP 22K 5% 1/10W

R8104 1-218-859-11 METAL CHIP 3.3K 0.50% 1/10W

R8105 1-218-847-11 METAL CHIP 1K 0.50% 1/10W

R8106 1-218-849-11 METAL CHIP 1.2K 0.50% 1/10W

R8118 1-216-809-11 METAL CHIP 100 5% 1/10W

R8119 1-216-809-11 METAL CHIP 100 5% 1/10W

R8120 1-216-864-11 SHORT CHIP 0

R8122 1-216-840-11 METAL CHIP 39K 5% 1/10W

R8123 1-216-837-11 METAL CHIP 22K 5% 1/10W

R8124 1-216-837-11 METAL CHIP 22K 5% 1/10W

R8125 1-216-838-11 METAL CHIP 27K 5% 1/10W

R8126 1-216-837-11 METAL CHIP 22K 5% 1/10W

R8127 1-216-837-11 METAL CHIP 22K 5% 1/10W

R8128 1-216-837-11 METAL CHIP 22K 5% 1/10W

R8129 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R8131 1-216-809-11 METAL CHIP 100 5% 1/10W

R8132 1-216-809-11 METAL CHIP 100 5% 1/10W

R8134 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R8135 1-218-873-11 METAL CHIP 12K 0.50% 1/10W

R8136 1-218-873-11 METAL CHIP 12K 0.50% 1/10W

R8137 1-216-821-11 METAL CHIP 1K 5% 1/10W

R8138 1-216-864-11 SHORT CHIP 0

R8201 1-216-864-11 SHORT CHIP 0 R8202 1-249-429-11 CARBON 10K 5% 1/4W R8203 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R8204 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R8205 1-216-864-11 SHORT CHIP 0

R8206 1-216-841-11 METAL CHIP 47K 5% 1/10W R8207 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R8208 1-216-813-11 METAL CHIP 220 5% 1/10W R8209 1-216-864-11 SHORT CHIP 0 R8210 1-216-813-11 METAL CHIP 220 5% 1/10W

R8211 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R8212 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R8213 1-216-813-11 METAL CHIP 220 5% 1/10W R8214 1-216-813-11 METAL CHIP 220 5% 1/10W R8215 1-216-833-11 METAL CHIP 10K 5% 1/10W

R8216 1-215-859-00 METAL OXIDE 22 5% 1W R8218 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R8219 1-215-859-00 METAL OXIDE 22 5% 1W R8221 1-249-425-11 CARBON 4.7K 5% 1/4W R8222 1-216-833-11 METAL CHIP 10K 5% 1/10W

R8223 1-216-833-11 METAL CHIP 10K 5% 1/10W R8224 1-216-833-11 METAL CHIP 10K 5% 1/10W R8226 1-216-821-11 METAL CHIP 1K 5% 1/10W

– 80 –

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF NO. PART NO. DESCRIPTION REMARK

R8228 1-216-833-11 METAL CHIP 10K 5% 1/10W

R8229 1-216-846-11 METAL CHIP 120K 5% 1/10W

R8231 1-216-821-11 METAL CHIP 1K 5% 1/10W

R8232 1-216-833-11 METAL CHIP 10K 5% 1/10W

R8233 1-216-843-11 METAL CHIP 68K 5% 1/10W

R8234 1-218-879-11 METAL CHIP 22K 0.50% 1/10W

R8235 1-218-879-11 METAL CHIP 22K 0.50% 1/10W

R8255 1-216-833-11 METAL CHIP 10K 5% 1/10W

R8258 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R8259 1-216-843-11 METAL CHIP 68K 5% 1/10W

R8260 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R8261 1-216-841-11 METAL CHIP 47K 5% 1/10W

KV-SP29M53K/M83K/N63K

RM-GA002

K

REF NO. PART NO. DESCRIPTION REMARK

R8307 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R8308 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R8309 1-216-817-11 METAL CHIP 470 5% 1/10W R8310 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R8311 1-216-864-11 SHORT CHIP 0

R8312 1-215-859-00 METAL OXIDE 22 5% 1W R8314 1-215-859-00 METAL OXIDE 22 5% 1W R8326 1-216-833-11 METAL CHIP 10K 5% 1/10W R8327 1-216-833-11 METAL CHIP 10K 5% 1/10W

*********************************************************************

R8262 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R8263 1-216-813-11 METAL CHIP 220 5% 1/10W

R8264 1-216-813-11 METAL CHIP 220 5% 1/10W

R8265 1-216-795-11 METAL CHIP 6.8 5% 1/10W

R8266 1-216-813-11 METAL CHIP 220 5% 1/10W

R8267 1-216-813-11 METAL CHIP 220 5% 1/10W

R8268 1-216-833-11 METAL CHIP 10K 5% 1/10W

R8269 1-216-813-11 METAL CHIP 220 5% 1/10W

R8270 1-216-813-11 METAL CHIP 220 5% 1/10W

R8271 1-216-813-11 METAL CHIP 220 5% 1/10W

R8272 1-216-813-11 METAL CHIP 220 5% 1/10W

R8273 1-216-841-11 METAL CHIP 47K 5% 1/10W

R8274 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R8275 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R8276 1-216-835-11 METAL CHIP 15K 5% 1/10W

R8277 1-216-843-11 METAL CHIP 68K 5% 1/10W

R8278 1-218-879-11 METAL CHIP 22K 0.50% 1/10W

R8279 1-218-879-11 METAL CHIP 22K 0.50% 1/10W

R8280 1-216-833-11 METAL CHIP 10K 5% 1/10W

R8281 1-216-846-11 METAL CHIP 120K 5% 1/10W

R8282 1-216-843-11 METAL CHIP 68K 5% 1/10W

R8283 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R8285 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R8286 1-216-841-11 METAL CHIP 47K 5% 1/10W

R8287 1-216-795-11 METAL CHIP 6.8 5% 1/10W

R8288 1-216-813-11 METAL CHIP 220 5% 1/10W

R8289 1-216-813-11 METAL CHIP 220 5% 1/10W

R8290 1-216-813-11 METAL CHIP 220 5% 1/10W

R8291 1-216-813-11 METAL CHIP 220 5% 1/10W

R8301 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W

< ACCESSORIES AND PACKING MATERIALS>

****************************************

* 2-886-192-01 BAG, PROTECTION (Except KV-SP29N63K)

* 2-067-522-21 BAG, PROTECTION (KV-SP29N63K)

* 4-029-168-21 BAG, PROTECTION

4-079-376-01 BAND, DGC 4-392-003-21 BAND, HOLDING (Except KV-SP29N63K)

2-637-162-01 BAND, HOLD (KV-SP29N63K) 4-059-705-01 CLIP(Except KV-SP29N63K)

2-635-703-01 CLIP (Except KV-SP29N63K) * 2-672-506-01 CUSHION, LOWER * 2-672-505-01 CUSHION, UPPER

* 2-697-065-01 INDIVIDUAL CARTON (Except KV-SP29N63K)

* 2-672-507-01 INDIVIDUAL CARTON (KV-SP29N63K)

2-697-066-11 MANUAL, INSTRUCTION

(Except KV-SP29N63K)

2-695-791-11 MANUAL, INSTRUCTION (KV-SP29N63K)

3-701-910-00 SCREW, SPECIAL (DIA. 3.8X20)

(Except KV-SP29N63K)

2-651-491-01 SCREW, SPECIAL (KV-SP29N63K)

*********************************************************************

<REMOTE COMMANDER> ************************

1-479-379-11 REMOTE COMMANDER (RM-GA002)

4-084-290-01 REMOTE COMMANDER BATTERY COVER

R8302 1-216-864-11 SHORT CHIP 0 R8303 1-216-813-11 METAL CHIP 220 5% 1/10W R8304 1-216-833-11 METAL CHIP 10K 5% 1/10W R8305 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R8306 1-216-832-11 METAL CHIP 8.2K 5% 1/10W

Sony Corporation

Sony EMCS (Malaysia) Sdn. Bhd.

9-872-910-01

TV Operations of Pan Asia

English

 2006.7

– 81 –

2-697-066-11 (1)

Tr initron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

GB

KV-SP29

M83K M53K

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

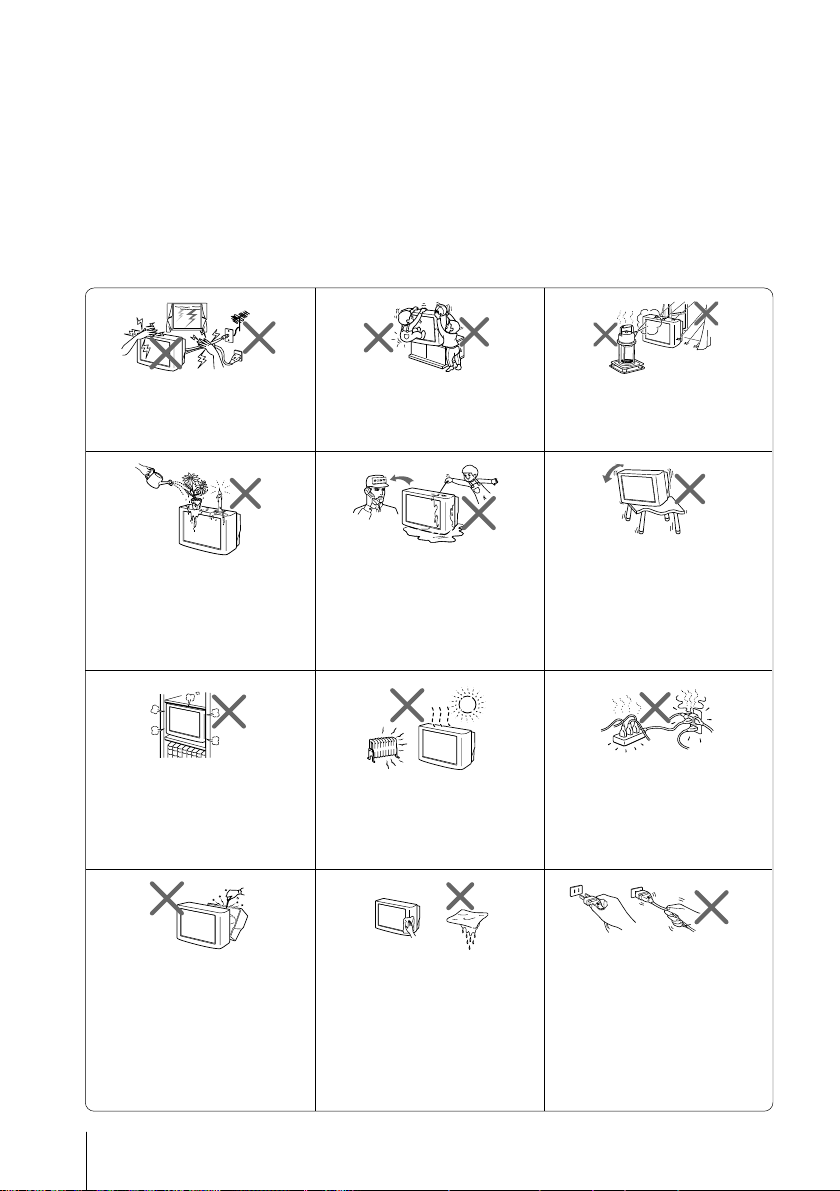

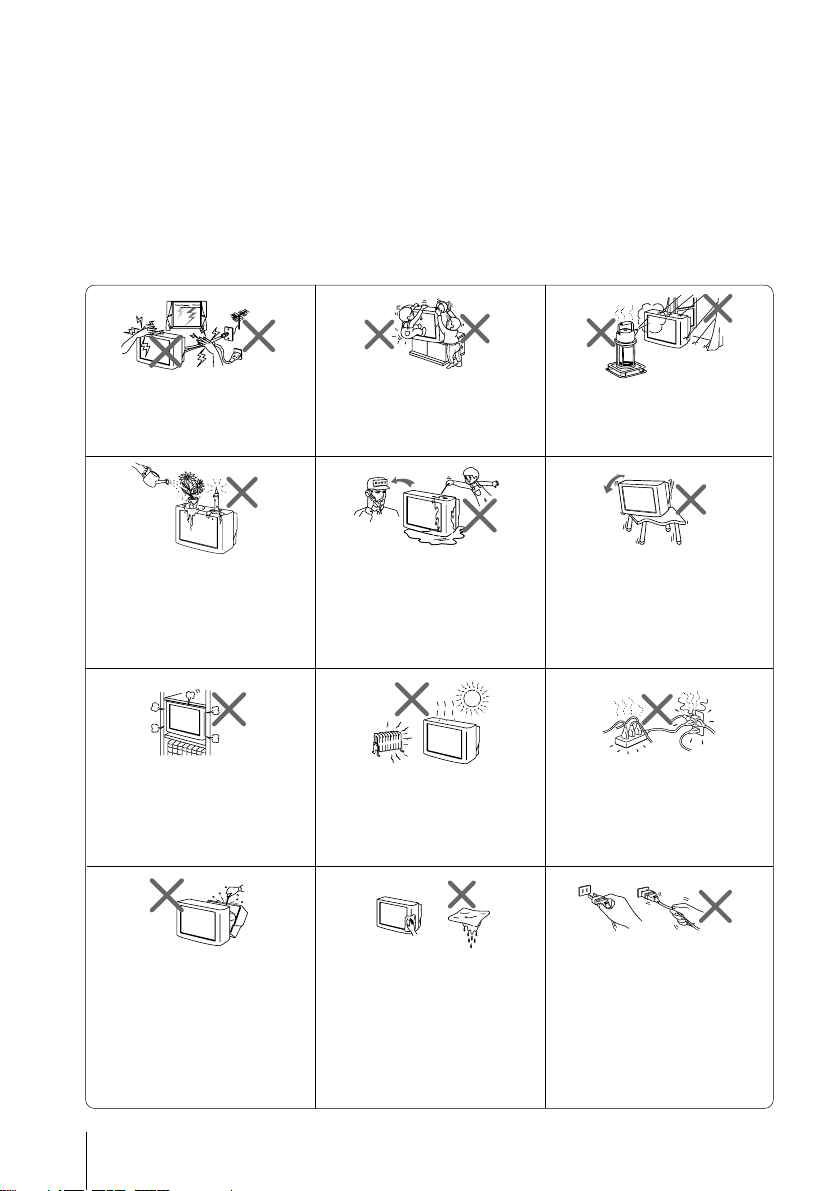

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

Do not place any objects on the TV. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

2

Table of Contents

Installation

Securing the TV .................................... 4

Getting Started ..................................... 5

Setting up your TV

(“Initial Setup”) .................................... 6

Overview of Controls

TV front and rear panels ..................... 8

Using the remote control and basic

functions................................................ 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Enjoying the Dynamic 5-Band

Visualizer ............................................ 12

Enjoying the Party Mode .................. 13

Menu Adjustment

Introducing the WEGA GATE

navigator ............................................. 14

“Settings” Adjustment ...................... 15

Changing the “Picture” setting ........ 16

Changing the “Sound” setting ......... 18

Changing the “Channel Setup”

setting .................................................. 19

Changing the “Setup” setting .......... 21

Additional Information

Connecting the 3D WOOFER .......... 22

Connecting optional components ... 22

Troubleshooting ................................. 25

Specifications ...................... Back cover

GB

3

Installation

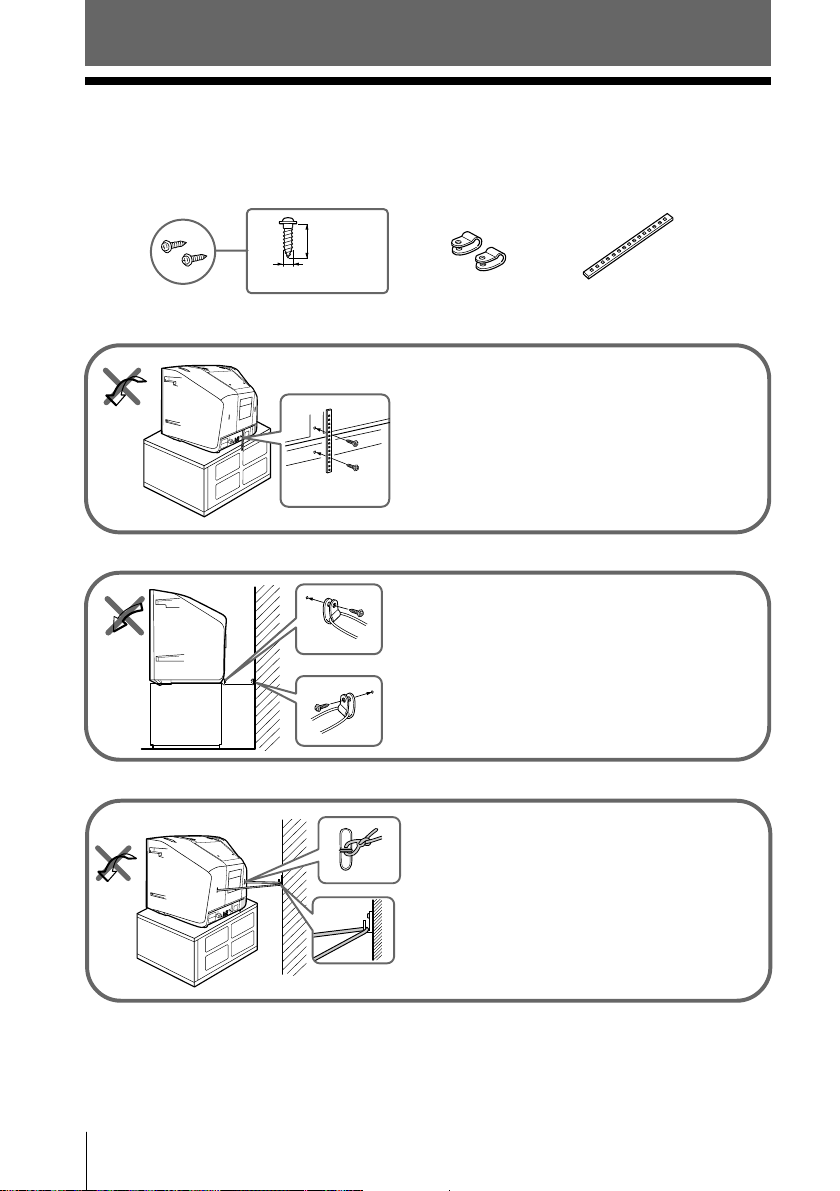

x Securing the TV

To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the provided hole at the rear of your TV.

or

(1) Put a cord or chain through the clamps. (2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at the rear of your TV.

or

(1) Attach each end of a cord or chain to

the provided holders at the rear of your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

4 Installation

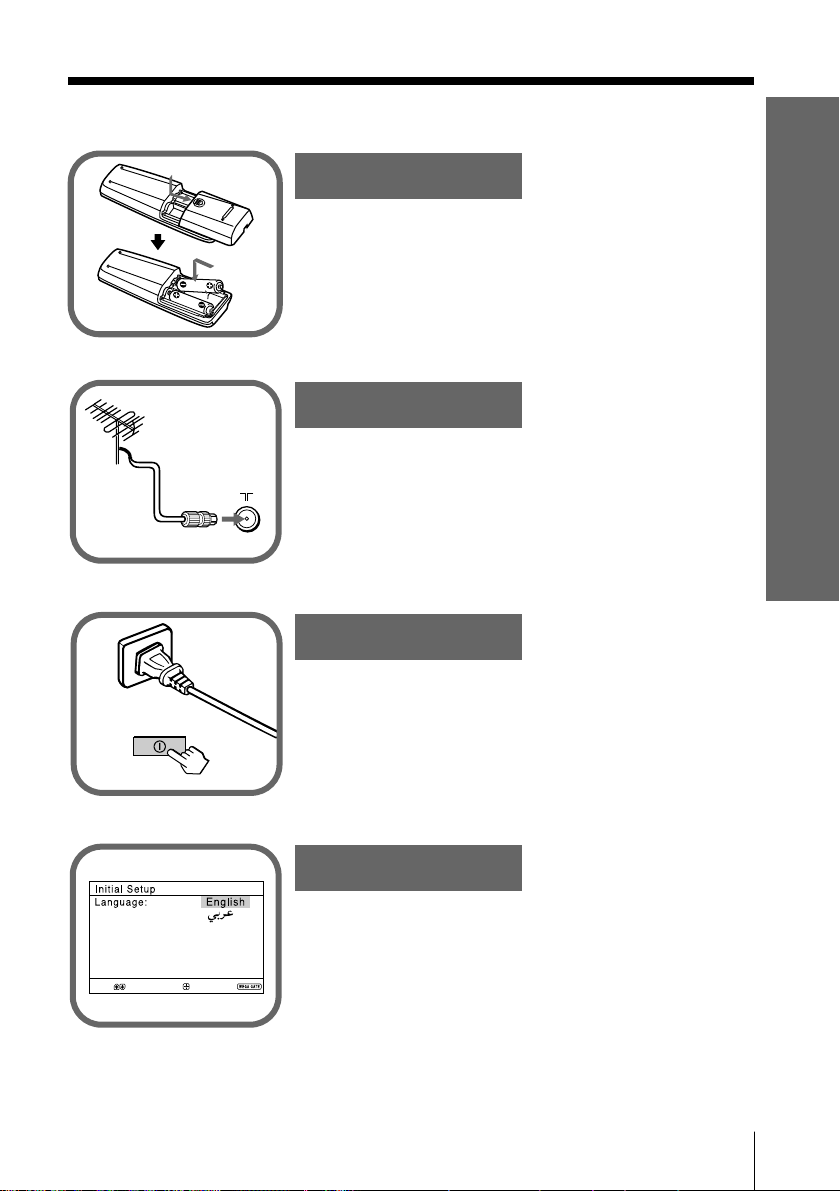

x Getting Started

1

Step 1

b

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Installation

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components (see page 22).

Step 3

Plug in the power cord, then press ! on the TV to turn it on.

Note

• The 1 (standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Select

Confirm

Step 4

Set up the TV by following the instructions of the “Initial Setup” menu (see page 6).

End

Installation

5

x

End

Select

Confirm

Program Sorting/Edit

01 02

03

04

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select

Confirm

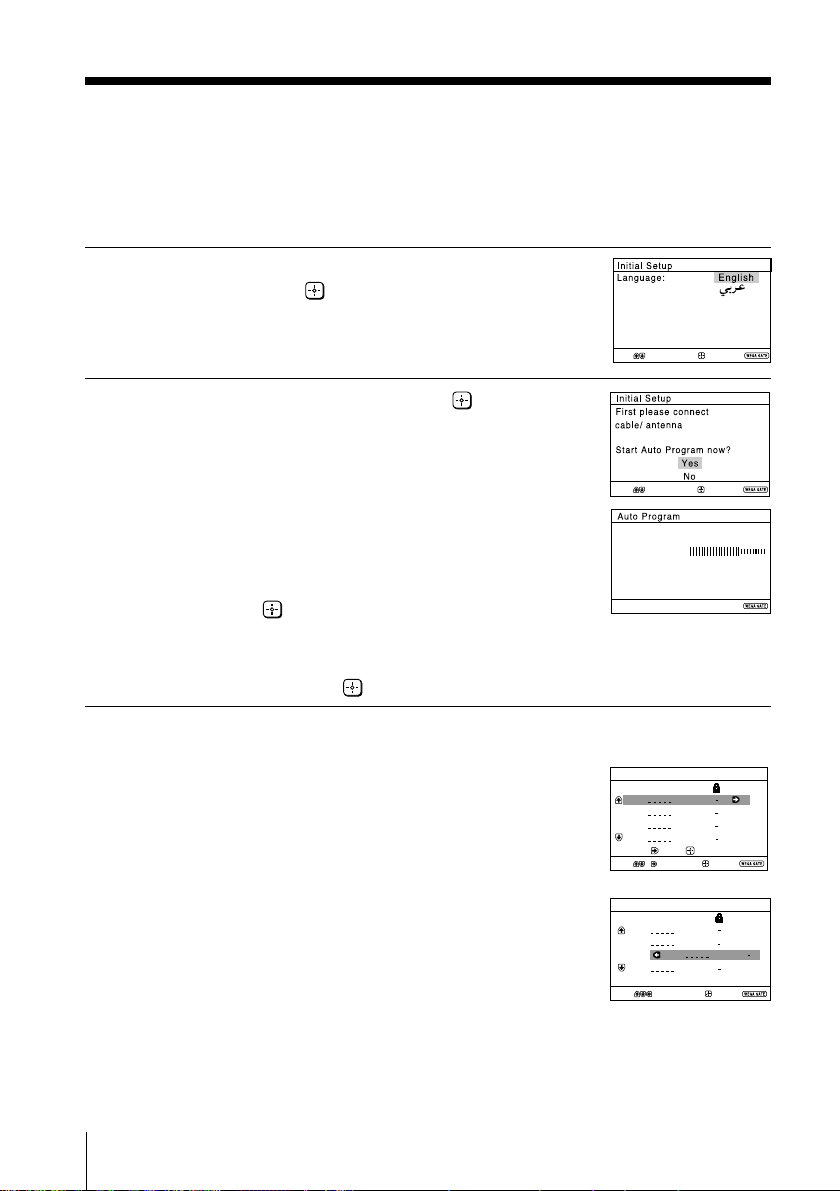

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear. You may change the menu language, preset the TV channels automatically, sort or edit the channels and adjust the picture position using the buttons on the remote control or TV front panel.

Press V or v to select the desired menu

1

language, then press

.

The selected menu language appears.

Press V or v to select “Yes”, then press to

2

preset the channels automatically.

The screen will indicate automatic presetting is in progress.

Select

After all available channels have been tuned and stored, the “Program Sorting/Edit” menu appears automatically on the screen.

Program:

TV System: B/G VHF Low

To skip automatic channel presetting, select “No”, then press

.

If the message “No channel found. Please connect cable/antenna” appears, check your TV connections, then press

.

Confirm

End

01

End

3

6 Installation

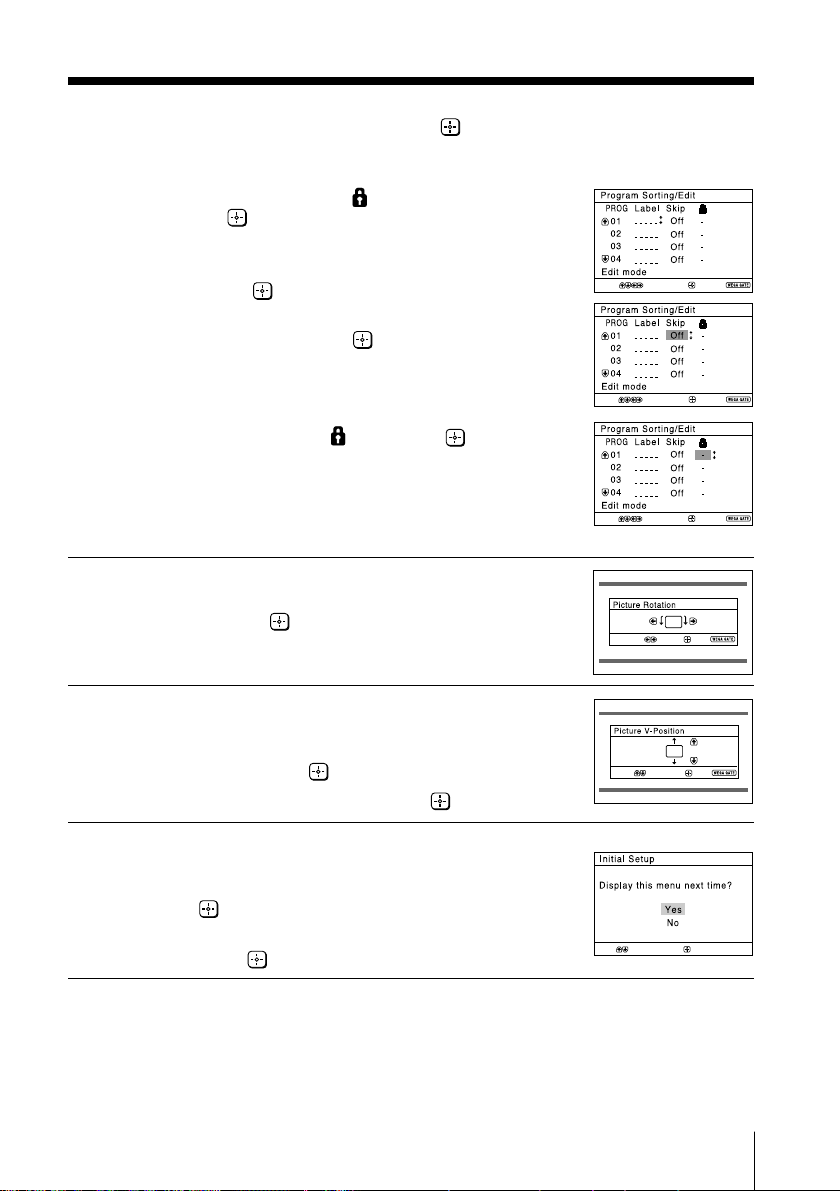

The “Program Sorting/Edit” menu enables you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press V or v to select the program

number with the channel you wish to change. The selected channel will appear on the screen.

c) If you wish to store the channels in a

different order:

1) Press b to enter sorting mode.

2) Press V or v to select the new program number position for your selected channel, then press B.

Program Sorting/Edit

PROG

SkipLabel

01

Off

02

Off

03

Off

04

Off

Edit:

Sorting:

Select

Confirm

Exit

Select

Confirm

d) If you wish to edit the channels, press

to change to edit mode.

Press b until the mode that you wish to edit is highlighted: Label, Skip, Then press

.

(block symbol).

1) To label, press V or v to select the alphanumeric characters for the label. Then press

.

2) To skip the program number, press V or v to select “On”. Then press .

You can skip this program number when using PROG +/–.

3) To block unwanted program number, press V or v to select

. Then press .

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

Press B or b to adjust the bars on the top

4

and bottom of the menu if they are slanted, then press

.

“Picture V-Position” menu appears.

Select

Confirm

Exit

End

Installation

If the upper and lower bars are not

5

equally positioned to the top and bottom of the screen, press V or v to adjust them, then press

.

Select

Confirm

End

If no adjustment is necessary, then press .

To prevent this “Initial Setup” menu from

6

appearing again when you turn on the TV by pressing !, press V or v to select “No”, then press

.

To allow this menu to appear again, select “Yes”, then press

Tip

•You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

.

Installation

7

Overview of Controls

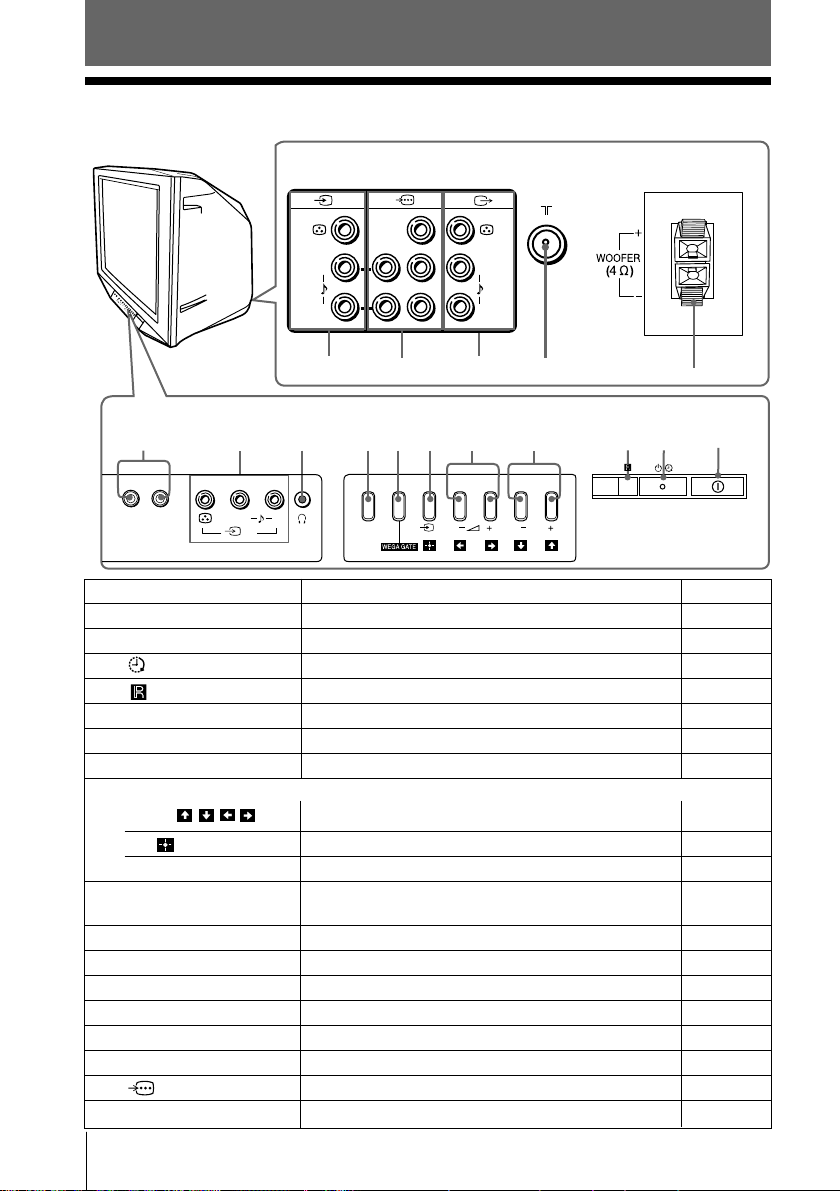

x TV front and rear panels

TV rear panel

1

(MONO) (MONO)

L

MIC 1

M IC 2

L ( M O N O )

2

R

F M

P R O G

R

Y

C

B

L

C

R

qh qfqg qd

TV front panel

qa

MIC 1 MIC 2

0

L(MONO) R

2

9

SOUND

MODE

678

45

PROG

Button/Terminal Function Page

1 ! Turn off or turn on the TV. 5 2 1 Standby indicator. 5 2 Wake Up indicator. 10 3 Remote control sensor. – 4 PROG +/– Select program number. – 5 2 +/– Adjust volume. – 6 t Select TV or video input. 22

WEGA GATE menu operations

4,5

, , ,

Confirm selected items. 14

6

Select and adjust items. 14

7 WEGA GATE Display or cancel WEGA GATE menu. 14

8 SOUND MODE Select sound mode options with a 5-Band Graphic 11

Equalizer display.

9 i Headphone jack. – 0 t2Video input terminal 2. 22 qa MIC 1, MIC 2 Microphone input terminal 1, 2. 13 qs WOOFER 3D WOOFER terminal. 22 qd 8 Antenna input terminal. 23 qf T Monitor output terminal. 23 qg Component video input terminal. 24 qh t1Video input terminal 1. 23

8 Overview of Controls

3

2

qs

1

x Using the remote control and basic

functions

w;

0

qa qs

qd

qf

qg

qh

qj

qk ql

A/B

RETURN

Button Description Page

1 ?/1 Turn off temporarily or turn on –

1

2 a Display the TV program. –

2

1

4

7

3

2

6

5

9

8

0

PROG

3 Jump to last program number –

4 PROG +/– Select program number. To –

3

5 2 +/– Adjust volume. –

4 5

8 Change the picture size: –

the TV.

that has been watched for at least five seconds.

select quickly, press and hold until the desired program number appears.

“On” (16:9 wide mode), “Off”.

Overview of Controls

9 Select surround mode options. 18 0

WEGA

WEGA GATE

GATE

TV

6

qa Mute the sound.

7

qd t Select TV or video input. 22

8

qf 0 – 9 Input numbers. For program –

9

Display on-screen information or 12 Dynamic 5-Band Visualizer.

–

number 10 and above, enter the second digit within two seconds.

ql Select sound mode options 11

with a 5-Band Graphic Equalizer display.

w; Select picture mode options. 11

WEGA GATE menu operations

6 Confirm selected items. 14 7 WEGA Display or cancel the WEGA

GATE GATE menu.

qj V,v,B,b Select and adjust items.

qk RETURN Return to the previous level.

continue

Overview of Controls

9

continued

Button Description Page Timer operations

qg Set TV to turn on automatically according to the –

(Wake up timer)

qh

(Sleep timer)

Teletext operations (green label)

, , , ,

(red, green,

yellow, blue)

PIP operations

, , V, v, B, b Not function for your TV. –

Stereo/bilingual operations

qs A/B Not function for your TV. –

desired period of time (max. of 12 hours).

The indicator on TV lights up amber once you set the wake up timer. If no buttons or controls are pressed for more than one hour after the TV is turned on using the wake up timer, the TV automatically goes into standby mode.

Set TV to turn off automatically according to the – desired period of time (max. of one hour and

30 min.).

Not function for your TV. –

Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752,

5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

10 Overview of Controls

Advanced Operations

x Selecting the picture and sound

modes

You can select picture and sound modes and adjust the setting to your preference in the “Custom” option.

Selecting the picture mode

A/B

1

2

4

5

7

8

0

RETURN

TV

Selecting the sound mode

Press (or SOUND MODE on the front panel) to select the desired sound mode. 5-Band Graphic Equalizer display will appear.

Press to select the desired picture mode.

Select To view

3

“Vivid” bright, contrast and sharp

6

9

“Standard” normal pictures.

PROG

“Custom” the last adjusted picture setting

WEGA

WEGA GATE

GATE

pictures.

from the “Picture Adjustment” option in the menu (see page 17).

Select To listen to

“Dynamic” dynamic and clear sound that emphasizes both the low

Dynamic

and high tones.

100 300 1k 3k 8k

“Standard” sound that emphasizes voice and high tones.

“Custom” the last adjusted sound setting from the

Standard

100 300 1k 3k 8k

Custom

“Sound Adjustment” option in the menu (see page 18).

100 300 1k 3k 8k

Advanced Operations

11

x Enjoying the Dynamic 5-Band

Visualizer

The Dynamic 5-Band Visualizer enables you to visually enjoy the sound rhythm effect of the music and other sound from the TV.

Press

repeatedly until the Dynamic 5-Band Visualizer display appears on the

screen.

A/B

3

1

2

6

4

5

9

7

8

0

PROG

WEGA

WEGA GATE

RETURN

GATE

TV

Notes

• This feature is available for all TV channels, external inputs and Party Mode.

•To enjoy the visualization effect, you must set the volume level above 0 and make sure the TV is not in mute condition.

• Dynamic 5-Band Visualizer only represents the original sound and it is not affected by user adjustment (e.g., “Sound Mode”, “Sound Adjustment”).

• The visualization effect may vary depending on the original sound.

•You cannot change the position of the Dynamic 5-Band Visualizer display.

On-screen Display information Off

Dynamic 5-Band Visualizer display

12 Advanced Operations

x Enjoying the Party Mode

You can sing duet along with any music program of TV broadcast or with any audio/video equipment or create visual presentations (e.g., photos or video stories) with narration and favorite background music by using the Party Mode feature.

TV front panel

N

O

N

O

F F

O

F F

O

MIC 1 MIC 2

Select the input connected to your audio/video equipment.

1

Connect the microphone (not supplied) to the microphone input terminal

2

and switch it on.

L(MONO) R

2

You can begin singing or speaking from the microphone at the last TV volume setting. You can press A/B button on remote control to switch between left (“L”) or right (“R”) channel sound for VCD karaoke source only (either music or vocal) when video input is selected and “Audio Input Fix” is set to “Off”.

Press WEGA GATE and select “Party Mode”.

3

Select “MIC 1 Level”, “MIC 2 Level” or “Echo Level”, then press . Press V, v,

4

B or b to adjust the microphone volume and echo level of the microphone sound, then press

If you want to reduce the vocal of the singer or speaker, select “On” from

5

“Vocal Reducer” and press

.

(effective for non-karaoke stereo source and

when “Audio Input Fix” is “Off” only).

Select “Audio Input Fix” and press , then press V or v to select the input

6

connected to the audio equipment from which you want to hear the sound: “Video 1”, “Video 2” or “DVD”.

To revert to the original sound source, select “Off”, then press

Selecting “Reset” will set your TV to the factory settings (except for “Audio

7

Input Fix”).

Party Mode Setup MIC 1 Level MIC 2 Level Echo Level Vocal Reducer: Off Audio Input Fix: Off Reset

Select

Confirm

End

.

Notes

• Be sure to adjust the microphone and echo level to the minimum level before plugging in and disconnecting the microphone.

• For your own safety, do not use or plug in the microphone during lightning storms.

• Keep microphone away from the speakers and adjust its volume to avoid acoustic feedback

(howling) and distortion.

• Microphone volume will be affected by TV volume.

• “Vocal Reducer” will be set to “Off” if you select “L” or “R” channel sound.

Advanced Operations

13

Menu Adjustment

x Introducing the WEGA GATE

navigator

WEGA GATE is a gateway that allows you access to preset TV channels, connected external inputs, Party Mode and “Settings” menu.

WEGA GATE

TV

External Inputs

Party Mode

Settings

Select

Confirm

“TV”

“External Inputs”

“Party Mode”

“Settings”

How to use WEGA GATE

WEGA GATE TV External Inputs

Party Mode

Settings

Select

(1) Press WEGA GATE to display or cancel

the WEGA GATE menu.

TV

01 02 03 04 05

Select

End

(2) Press (or b) to confirm your selection

or go to the next level.

Tip

• The WEGA GATE, and operations above.

14 Menu Adjustment

Confirm

, , ,

TV

01

02 03

04

05

Select

End

External Inputs

1

2

Select End

MIC 1 Level MIC 2 Level Echo Level Vocal Reducer: Off Audio Input Fix: Off Reset

Select

Picture Mode: Vivid

Picture Adjustment Color Temperature: VM: Intelligent Picture: Signal Level Indicator:

Select

Confirm

Video 1

Video 2

DVD

Confirm

Party Mode Setup

Confirm


Confirm

Select

End

(3) Press V or v to select the desired item.

Select

(4) Press RETURN to move to the previous

level.

buttons on the front panel can also be used for the

watch the preset TV channels (see pages 6)

select the inputs for the connected equipment (see page 22)

adjust your TV for Party Mode (see page 13)

End

change the settings

On

WEGA GATE TV External Inputs

Party Mode

Settings

of your TV (see page 15)

Confirm

Cool High

TV

On

End

01 02 03 04 05

x “Settings” Adjustment

You are able to change the settings of your TV from “Settings” in WEGA GATE menu. Press WEGA GATE button to display WEGA GATE menu. Press V or v to select “Settings” and press

The following is an overview of the items that can be adjusted.

.


Picture Mode: Vivid

Picture Adjustment Color Temperature: Cool VM: High Intelligent Picture: On Signal Level Indicator: On

Select

Confirm

Sound

Sound Mode: Dynamic

Sound Adjustment

Balance

Intelligent Volume:

Surround: Off

Confirm

Channel Setup

Auto Program Manual Program Program Sorting/Edit

Confirm

Setup

Language:

Picture Position

Video Label

Color System: Auto

Factory Settings

Confirm

End

Off

End

English

End

“Picture” (see page 16)

“Picture Mode”: “Vivid” “Standard” “Custom” “Picture Adjustment”: “Picture”, “Brightness”, “Color”, “Hue”,

“Sharpness”, “Reset” “Color Temperature”: “Cool” “Neutral” “Warm” “VM”: “High” “Low” “Off” “Intelligent Picture”: “On” “Off” “Signal Level Indicator”: “On” “Off”

“Sound” (see page 18)

“Sound Mode”: “Dynamic” “Standard” “Custom” “Sound Adjustment”: “Adjust”, “Reset” “Balance” “Intelligent Volume”: “On” “Off” “Surround”: “Movie” “Sports” “Off”

“Channel Setup” (see page 19)

“Auto Program” “Manual Program”

“Program”: “00” - “99” “TV System”: “B/G” “I” “D/K” “M” “VHF Low”/”VHF High”/”UHF” “Fine”: “Auto” “Manual” “Signal Booster”: “Auto” “Off”

“Program Sorting/Edit”

“Setup” (see page 21)

“Language”: “English” “ ” (Arabic) “Picture Position”: “Picture Rotation”, “Picture V-Position” “Video Label”: “Video Input”, “Label” “Color System”: “Auto” “PAL” “SECAM” “NTSC3.58”

“NTSC4.43”

“Factory Settings”: “Yes” “No”

Note

• When a feature is dimmed in the menu, it is not selectable.

Menu Adjustment

15

x Changing the “Picture” setting

The “Picture” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

1

Make sure the “Picture” icon ( ) is

2

selected, then press

Press V or v to select the desired item (e.g., “Picture Mode”), then press .

3

Select To

“Picture Mode” choose either “Vivid”, “Standard” or “Custom”* (see page 11).

“Color Temperature” adjust white color tint.

“VM” sharpen the edges of each object. (Velocity Modulation) Choose either “High”, “Low” or “Off”.

“Intelligent Picture” optimize picture quality.

“Signal Level Indicator” display the signal level when the “Intelligent Picture” is

.

Choose either “Cool” (blue tint), “Neutral” (neutral tint) or “Warm” (red tint).

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

functioning. “Intelligent Picture Signal Level” indicator will be displayed, followed by picture improvement when you change the program number or the input mode.


Picture Mode: Vivid

Picture Adjustment Color Temperature: Cool VM: High Intelligent Picture: On Signal Level Indicator: On

Select

Confirm

End

*You can adjust the setting to your personal preference in the “Picture Adjustment”,

“Color Temperature” and “VM” options only when the “Custom” mode is selected (see page 17).

16 Menu Adjustment

red amber green (weak) (average) (good)

Press V or v to select “On”, then press .

To cancel, select “Off”, then press . “Intelligent Picture” is still functioning.

Adjusting the “Picture Adjustment” items under “Custom” mode

Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,

1

“Hue” (color tones) or “Sharpness”, then press .

Selecting “Reset” will set your TV to the factory settings.

Press V,v,B or b to adjust the setting of your selected item, then press .

2

Repeat the above steps to adjust other items.

3

The adjusted settings will be received when you select “Custom”.

Notes

• “Hue” can be adjusted for the NTSC color system only.

• Reducing “Sharpness” can also reduce picture noise.

Menu Adjustment

17

x Changing the “Sound” setting

The “Sound” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

1

Press V or v to select the “Sound”

2

icon (

Press V or v to select the desired item (e.g., “Sound Mode”), then press .

3

Select To

“Sound Mode”

“Balance” Press v or B to emphasize the left speaker.

“Intelligent Volume” adjust the volume of all program numbers and video inputs

“Surround”

*You can adjust the setting to your personal preference in the “Sound Adjustment”

Note

• “Intelligent Volume” is not selectable when the microphone input terminal is connected.

), then press .

choose either “Dynamic”, “Standard” or “Custom”* (see page 11).

Press V or b to emphasize the right speaker.

automatically. Press V or v to select “On”, then press . To cancel, select “Off”, then press .

choose either “Movie” (cinema surround effect for stereo sound), “Sports” (simulated stadium effect for monaural sound) or “Off”.

option only when the “Custom” mode is selected.

Sound

Sound Mode:

Sound Adjustment

Balance

Intelligent Volume:

Surround:

Select

Dynamic

Off

Confirm

Off

End

Adjusting the “Sound Adjustment” items under “Custom” mode

The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings of “Custom” mode in the menu.

Make sure that “Adjust” is selected, then press .

1

Selecting “Reset” will set your TV to the factory settings.

Press B or b to select the desired sound frequency, then press V or v to

2

adjust the setting and press

The adjusted settings will be received when you select “Custom”.

Notes

• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency will affect lower pitched sound.

•You may display the settings directly using the SOUND MODE button on the TV front panel (see page 8) or button on the remote control (see page 9).

18 Menu Adjustment

.

x

Changing the “Channel Setup” setting

The “Channel Setup” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

1

Press V or v to select the “Channel Setup”

2

icon (

Press V or v to select the desired item (e.g., “Auto Program”), then press .

3

Select To

“Auto Program” preset channels automatically.

“Manual Program” manually preset desired channels and channels that cannot be

“Program Sorting/Edit”

Notes

• If you preset a blocked program number, that program number will be unblocked automatically.

• If you sort a blocked program, that program will remain blocked.

), then press .

preset automatically (see Presetting channels manually in page 20).

change the order in which the channels appear on the screen, label the program number, skip the program number and block unwanted programs (see step 3 of the section “Initial Setup” in page 6).

Channel Setup Auto Program Manual Program Program Sorting/Edit

Select

Confirm

End

continue

Menu Adjustment

19

Presetting channels manually

VHF Low Fine:

TV System:

B/G

01

Auto

Signal Booster:

Auto

After selecting “Manual Program”, select the program

1

number to which you want to preset a channel.

(1) Make sure “Program” is selected, then press

(2) Press V or v

until the program number you want

to preset appears on the menu, then press

Select the desired channel.

2

.

(1) Make sure either “VHF Low”, “VHF High” or “UHF” is selected, then press

.

(2) Press V or v until the desired channel’s broadcast appears on the TV screen,

then press

If the sound of the desired channel is abnormal, select the appropriate TV

3

system.

(1) Press V or v

.

to select “TV System”, then press .

(2) Press V or v until the sound becomes normal, then press .

If you are not satisfied with the picture and sound quality, you may be able

4

to improve them by using the “Fine” tuning feature.

(1) Press V or v

(2) Press V or v

(3)

Press V,v,B or b until the picture and sound quality are optimal, then press .

to select “Fine”, then press .

to select “Manual”, then press .

The + or – icon on the menu flashes while tuning.

Select

Manual Program

Program:

Confirm

End

If the TV signal is too strong (picture distorted; picture with lines; signal

5

interference) or weak (snowy picture), you may be able to improve the picture quality by setting the “Signal Booster” feature.

(1) Press V or v

(2) Press V or v

signal interference) or “Auto” (for snowy picture), then press

20 Menu Adjustment

to select “Signal Booster”, then press .

to select either “Off”(for picture distorted; picture with lines;

.

x Changing the “Setup” setting

The “Setup” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

1

Press V or v to select the “Setup” icon ( ),

2

then press .

Press V or v to select the desired item (e.g., “Language”), then press .

3

Select To

“Language” change the menu language.

Press V or v to select either “English” or “ ” (Arabic), then press

.

“Picture Position”

“Video Label” label the connected equipment.

adjust the picture position when it is not aligned with the TV screen.

Press V or v to select “Picture Rotation” or “Picture V-Position”, then press .

Press V, v, B or b to adjust picture position, then press .

(1) Select “Video Input” and press . Press V or v to select

the input you want to label, then press .

(2) Select “Label” and press , then press V or v to select the

label options: “Video 1”/ “Video 2”/ “DVD”, “VCR”, “SAT”, “Game” or “Edit”*.

*You may edit the video label to your favorite name.

Press V or v to select alphanumeric characters for the label, then press .

Setup Language: English Picture Position Video Label Color System: Auto Factory Settings

Select

Confirm

End

“Color System” select the color system.

Press V or v to select “Auto”, “PAL”, “SECAM”, “NTSC3.58” or “NTSC4.43”, then press . Normally, set this to “Auto”.

“Factory Settings” reset your TV to factory settings.

Press and press V or v to select “Yes”, then press . To cancel, select “No”, then press .

Menu Adjustment

21

Additional Information

x Connecting the 3D WOOFER

You can enjoy high quality sound by connecting the 3D WOOFER as follows:

Step 1

Notes

• Connect only the supplied 3D WOOFER; otherwise your TV may malfunction.

• Unplug your TV from the wall outlet when connecting the 3D WOOFER.

•To prevent a malfunction caused by a short circuit of the terminals, make sure that none of the 3D WOOFER wire strands stick out, making contact with the neighbouring 3D WOOFER terminal.

3D WOOFER

Step 2

Red wire

Black

wire

x Connecting optional components

Connecting to the video input terminal ( t )

TV front panel

MIC 1 MIC 2

L(MONO) R

2

Audio/Video cable

(not supplied)

L

R

Camcorder

22 Additional Information

Audio cable

(not supplied)

CD player

TV rear panel

1

(MONO) (MONO)

L

R

Y

C

B

L

C

R

Antenna cable

(not supplied)

Audio/Video

cable

(not supplied)

L

R

VCR

DVD player

Note

• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see page 20).

Connecting to the monitor output terminal ( T )

TV rear panel

1

(MONO) (MONO)

L

R

Y

C

B

L

C

R

Audio/Video

cable

(not supplied)

L

Audio system

R

VCR

continue

Additional Information

23

continued

Connecting to the component video input terminal ( )

TV rear panel

1

(MONO) (MONO)

L

R

Y

C

B

L

C

R

Component

video cable

(not supplied)

Y

C

B

C

R

L

R

DVD player

Audio cable

(not supplied)

Notes

• If your DVD player can output interlace and progressive mode signals, select the interlace output when connecting to (component video input) on your TV. Your TV can receive either 525i/60Hz or 625i/50Hz interlace signals.

• The component video terminals on your DVD player are sometimes labeled Y/CB/CR, Y/PB/ PR, Y/Cb/Cr or Y/B-Y/R-Y.

• If you select “DVD” on your TV screen, the signal from the T (monitor output) jacks will not be output properly. This does not indicate a malfunction.

24 Additional Information

x Troubleshooting

If you find any problem while viewing your TV, you can either use the “Factory Settings” function or check the Troubleshooting guide below. If the problem persists, contact your Sony dealer.

“Factory Settings” function

Press the WEGA GATE button. Choose “Settings” and go to “Setup” ( ) menu. From “Setup” menu, select “Factory Settings”. Then select “Yes” and press Your TV will go blank for a few seconds, then the “Initial Setup” menu will appear. Your TV will be set to factory settings, but certain problems may be solved.

Symptom Solutions

Snowy picture, noisy sound

Distorted picture, noisy sound

Good picture, noisy sound

No picture, no sound

Good picture, no sound

No sound or inappropriate sound

Dotted lines or stripes

Double images or “ghosts”

• Check the antenna cable and connection on the TV, VCR and at the wall (see page 23).

• Check the antenna setup. Contact a Sony dealer for advice.

• Display the “Channel Setup” menu and select “Manual Program” to preset the channel again (see page 20).

• Display the “Channel Setup” menu and set the “Signal Booster” to “Auto” from “Manual Program” (see page 20).

•Try using an external booster.

•Turn off or disconnect the external booster if it is in use.

• Display the “Channel Setup” menu and set the “Signal Booster” to “Off” from “Manual Program”(see page 20).

• Display the “Channel Setup” menu and select the appropriate “TV System” from “Manual Program” (see page 20).

• Check the power cord, antenna and VCR connections (see page 23).

•Press ?/1 (power) to turn on the TV (see page 9).

•Press ! (main power) on the TV to turn off the TV for about five seconds, then turn it on again (see page 8).

•Press 2 + to increase the volume level (see page 9).

•Press to cancel the muting (see page 9).

• Display the WEGA GATE menu and set the “Audio Input Fix” to “Off” from “Party Mode Setup” (see page 13).

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup. Contact a Sony dealer for advice.

• Use a highly directional antenna.

• Use the fine tuning (“Fine”) function (see page 20).

• Check the antenna setup. Contact a Sony dealer for advice.

•Turn off or disconnect the external booster if it is in use.

.

continue

Additional Information

25

continued

Symptom Solutions

No color

Picture slant

Abnormal color patches

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

The TV screen sometimes goes blank for slightly longer than usual during channel change.

TV cabinet creaks.

A small “boom” sound is heard when the TV is turned on.

• Display the “Picture” menu and select “Custom” from “Picture Mode”, then adjust the “Color” level from “Picture Adjustment” (see page 17).

• Display the “Setup” menu and check the “Color System” setting (usually set this to “Auto”) (see page 21).

• Check the antenna setup. Contact a Sony dealer for advice.

• Keep external speakers or other electrical equipment away from the TV.

• Display the “Picture Position” under “Setup” menu, then adjust “Picture Rotation” and “Picture V-Position” so that the picture is aligned to the TV screen (see page 21).

• Keep external speakers or other equipment away from the TV. Do not move the TV while the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15 minutes, then turn it on again to demagnetize the TV.

• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to turn off your TV. Contact your nearest Sony service center.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a malfunction.

• Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

• The TV’s demagnetizing function is working. This does not indicate a malfunction.

26 Additional Information

x Specifications

Power requirements

Power consumption (W)

Television system

Color system

Channel coverage

B/G

I

D/K

M

8 (Antenna)

Audio output (Speaker)

3D Woofer

Number of terminal

(Video)

(Audio)

(Component

Video)

MIC (Microphone)

i (Headphone)

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

KV-SP29M83K KV-SP29M53K

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G, I, D/K, M

PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43

VHF : E2 to E12 /UHF : E21 to E69 / CATV : S01 to S03, S1 to S41

UHF : B21 to B68 /CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 / UHF : C13 to C57, R21 to R60 / CATV : S01 to S03, S1 to S41, Z1 to Z39

VHF : A2 to A13 /UHF : A14 to A79 / CATV : A-8 to A-2, A to W+4, W+6 to W+84

75-ohm external terminal

8 W + 8 W

20 W

Input: 2 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 3 Output: 1 Phono jacks; 500 mVrms

Input: 1 Phono jacks;

Input: 2 Large jack

Output: 1 Stereo minijack

29 in.

72

68

774 × 713 × 506

50

Y: 1 Vp-p, 75 ohms, sync negative C

B: 0.7 Vp-p, 75 ohms

C

R: 0.7 Vp-p, 75 ohms

Note

Measured diagonally

Design and specifications are subject to change without notice.

2-695-791-11 (1)

Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

GB

KV-SP29

N63K

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.
