SONY KV-HR32M31 Service Manual

HISTORY

When clicking an item, it’s detail is displayed.

Model Name: KV-HR32M31 SERVICE MANUAL Part No. : 9-872-733-01

Date SUPP./CORR. Description of SUP/COR

2004.07 NEW (Malaysia Products) –

Change of

main text

SERVICE MANUAL

AX-1

CHASSIS

MODEL COMMANDER DEST. CHASSIS NO. –––––– –––––––––––– ––––– –––––––––––

KV-HR32M31 RM-1007 OCE SCC-M13B-A

VIDEO

A/B

MODE

DRC-MF

V CENTERPALETTE

INDEX

PROG

123

456

7809

HD/DVD

–

JUMP

PROG

MODEL COMMANDER DEST. CHASSIS NO. –––––– –––––––––––– ––––– –––––––––––

OPTION RESET

KV-HR32M31RM-1007

TRINITRON COLOR TV

KV-HR32M31

RM-1007

Specifications

Power requirements 220–240 V AC, 50/60 Hz

Power consumption (W) Indicated on the rear of the TV.

Television system B/G, I, D/K, M

Color system PAL, PAL 60, SECAM, NTSC4.43, NTSC3.58

Available language for English, Farsi, French

Teletext

Stereo/Bilingual system NICAM Stereo/Bilingual D/K, I, B/G; A2 Stereo/Bilingual (German) B/G

Channel coverage VHF : E2 to E12 / UHF : E21 to E69 / CATV : S01 to S03, S1 to S41

B/G

I UHF : B21 to B68 / CATV : S01 to S03, S1 to S41

D/K VHF : C1 to C12, R1 to R12 / UHF : C13 to C57, R21 to R60 / CATV : S01 to S03, S1 to S41, Z1

M VHF : A2 to A13 / UHF : A14 to A79/

8(Antenna) 75-ohm external terminal Audio output (Speaker) 7.5W + 7.5W

3D Woofer 15W

Number of terminal

(Video) Input: 4 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

(Audio) Input: 6 Output: 1 Phono jacks; 500 mVrms

(S Video) Input: 2 Y: 1 Vp-p, 75 ohms, unbalanced, sync negative

(Component Input: 2 Phono jacks

Video) Y: 1 Vp-p, 75 ohms, sync negative

(G/B/R/HD/ Input: 1 Phono jacks

VD Video) G: 0.7 Vp-p, 75 ohms, B: 0.7 Vp-p, 75 ohms,

(Center Input:1 120 W max., 8 ohms

Speaker)

i (Headphones) Output: 1 Stereo minijack

Picture tube 32in.

Tube size (cm) 82

(measured diagonally)

Screen size (cm) 76

(measured diagonally)

Dimensions (w/h/d, mm) 898 x 607 x 563

Mass (kg)

VHF : 0 to 12, 5A, 19A/ UHF : 28 to 69 / CATV : S01 to S03, S1 to S41 (Australia only)

VHF : 1 to 11 / UHF : 21 to 69 / CATV : S01 to S03, S1 to S41 (New Zealand only)

to Z39

CATV : A-8 to A-2, A to W+4, W+6 to W+84

C: 0.286 Vp-p, 75 ohms

: 0.7 Vp-p, 75 ohms

B/CB

: 0.7 Vp-p, 75 ohms

R/CR

Audio: 500 mVrms

R: 0.7 Vp-p, 75 ohms

HD: 0.7 Vp-p, 75 ohms, VD: 0.7 Vp-p, 75 ohms

Design and specifications are subject to change without notice.

– 2 –

KV-HR32M31

RM-1007

Section Title Page –––––– –––– ––––

1. SELF DIAGNOSIS FUNCTION .................................... 5

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE

(CAUTION)

ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR CARBON PAINTED ON THE CRT, AFTER REMOVING THE ANODE.

WARNING!! AN ISOLATION TRANSFORMER SHOULD BE USED DURING ANY SERVICE TO AVOID POSSIBLE SHOCK HAZARD, BECAUSE OF LIVE CHASSIS. THE CHASSIS OF THIS RECElVER IS DIRECTLY CONNECTED TO THE AC POWER LINE.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE

PAR TS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESECOMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE CRITICAL TO SAFEOPERATION ARE IDENTIFIED IN THIS MANUAL. FOLLOW THESE PROCEDURES WHENEVER CRITICAL COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS SUSPECTED.

2. DISASSEMBLY

2-1. REAR COVER ASSEMBLY ...................................... 9

2-2. CHASSIS ASSEMBLY ............................................... 9

2-3. SERVICE POSITION ................................................. 9

2-4. SPEAKER BOX ASSEMBLY .................................... 9

2-5. T AND UG BOARDS ............................................... 10

2-6. BH AND MG BOARDS ........................................... 10

2-7. A BOARD ................................................................. 10

2-8. D BOARD ................................................................. 11

2-9. SF BOARD ............................................................... 11

2-10. H3, H4, H5 AND HMG BOARD ............................. 11

2-11. HARNESS ARRANGEMENT ................................. 12

2-12. REMOVAL OF ANODE-CAP .................................. 13

2-13. CRT ........................................................................... 14

3. SERVICE MODE

3-1. METHOD OF SETTING THE SERVICE

ADJUSTMENT MODE ............................................ 15

3-2. SERVICE MODE ADJUSTMENT ........................... 15

3-3. MEMORY WRITE CONFIRMATION METHOD .. 15

3-4. ADJUSTING BUTTONS AND INDICATOR ......... 15

3-5. SERVICE MODE LIST ............................................ 16

4. SET-UP ADJUSTMENTS

4-1. INTIALIZING SFC DATA ....................................... 47

4-2. BEAM LANDING .................................................... 47

4-3. CONVERGENCE ADJUSTMENT .......................... 48

4-4. G2 (SCREEN) ADJUSTMENT ................................ 50

4-5. FOCUS ADJUSTMENT 1 ........................................ 50

4-6. NECK ASSY TWIST ADJUSTMENT ..................... 51

4-7. PICTURE DISTORTION ADJUSTMENT .............. 51

4-8. SFC COARSE ADJUSTMENT ................................ 51

4-9. SFC FINE ADJUSTMENT ....................................... 53

4-10. P&P SUB CONTRAST ADJUSTMENT (VIDEO).. 54 4-11. P&P SUB-HUE AND SUB-COLOR

ADJUSTMENT (VIDEO) ......................................... 54

4-12. WHITE BALANCE ADJUSTMENT ....................... 55

4-13. FOCUS ADJUSTMENT 2 ........................................ 55

– 3 –

KV-HR32M31

RM-1007

Section Title Page –––––– –––– ––––

5. SAFETY RELATED ADJUSTMENTS

5-1. +B MAX VOLTAGE CONFIRMATION ................. 56

5-2. HV REGULATION CIRCUIT ADJUSTMENT ....... 56

5-3. HV PROTECTOR CIRCUIT ADJUSTMENT ......... 56

5-4. IK PROTECTOR CIRCUIT CHECK (D BOARD) . 56

6. DIAGRAMS

6-1. BLOCK DIAGRAM (1) ........................................... 57

BLOCK DIAGRAM (2) ........................................... 59

BLOCK DIAGRAM (3) ........................................... 61

BLOCK DIAGRAM (4) ........................................... 63

BLOCK DIAGRAM (5) ........................................... 65

BLOCK DIAGRAM (6) ........................................... 67

BLOCK DIAGRAM (7) ........................................... 69

BLOCK DIAGRAM (8) ........................................... 71

BLOCK DIAGRAM (9) ........................................... 73

BLOCK DIAGRAM (10) ......................................... 74

BLOCK DIAGRAM (11).......................................... 75

6-2. CIRCUIT BOARDS LOCATION ................................. 77

6-3. SCHEMATIC DIAGRAMS .......................................... 77

Schematic Diagram of A (1/3) Board ........................ 79

Schematic Diagram of A (2/3) Board ....................... 81

Schematic Diagram of A (3/3) Board ....................... 83

Schematic Diagram of BH (1/3) Board .................... 85

Schematic Diagram of BH (2/3) Board .................... 87

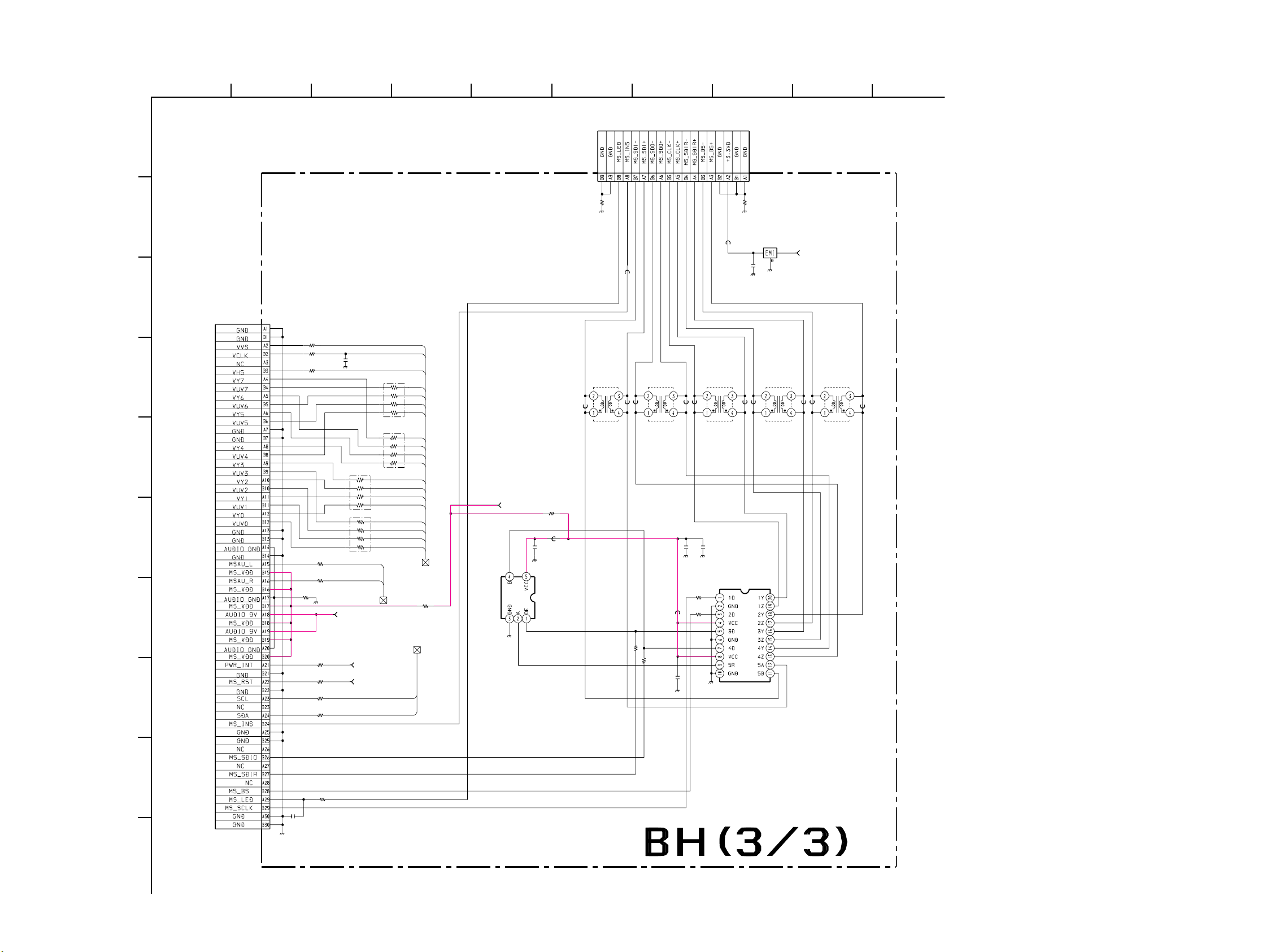

Schematic Diagram of BH (33) Board ..................... 89

Schematic Diagram of C Board ................................ 91

Schematic Diagram of D (1/3) Board ...................... 93

Schematic Diagram of D (2/3) Board ...................... 95

Schematic Diagram of D (3/3) Board ...................... 97

Schematic Diagram of HMG,H3 Boards .................. 99

Schematic Diagram of H4, H5 Boards .................... 101

Schematic Diagram of MG (1/3) Board .................. 103

Schematic Diagram of MG (2/3) Board .................. 105

Schematic Diagram of MG (3/3) Board .................. 107

Schematic Diagram of MS2 (1/3) Board ................ 109

Schematic Diagram of MS2 (2/3) Board ................ 111

Schematic Diagram of MS2 (3/3) Board ................ 113

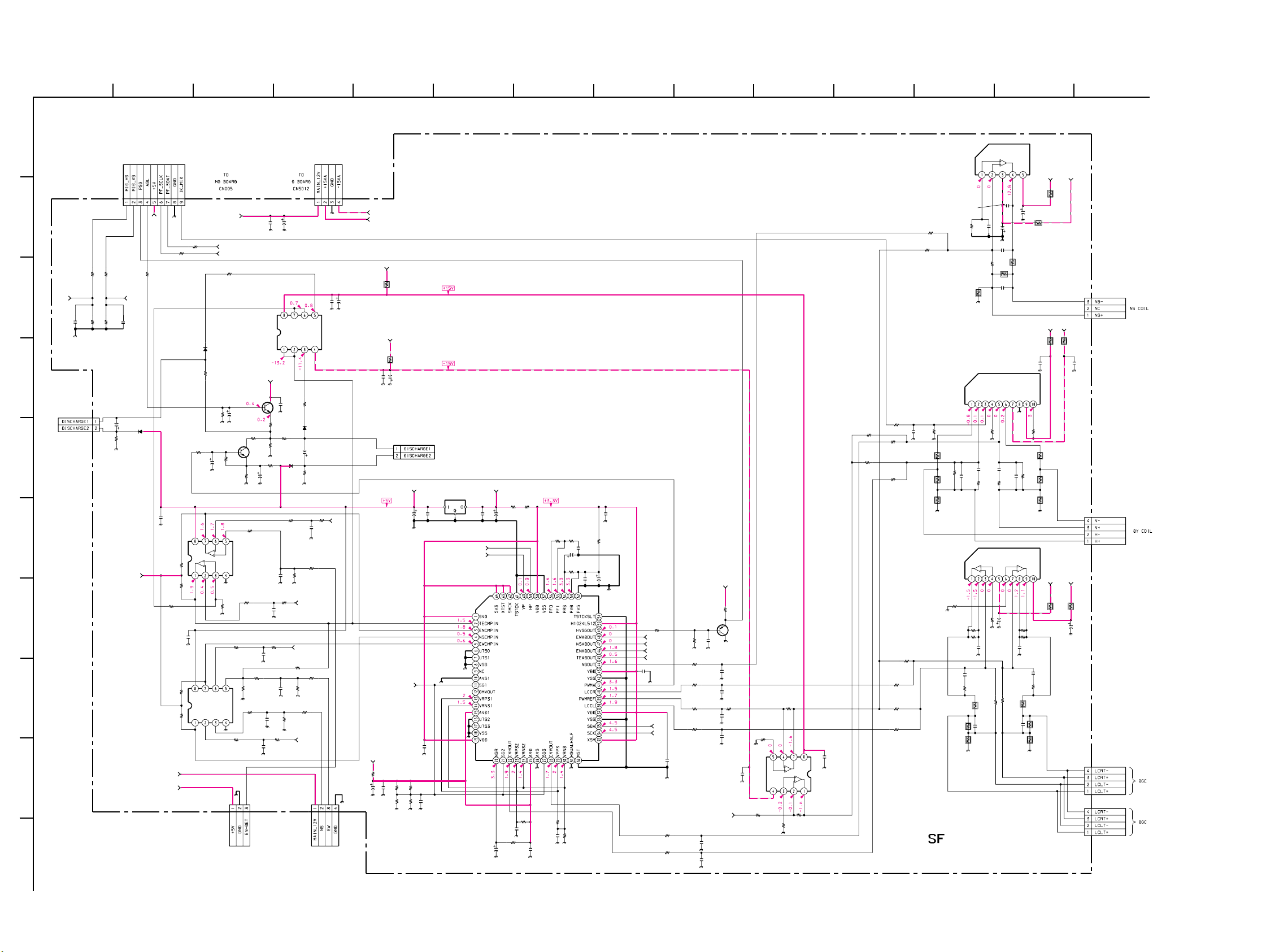

Schematic Diagram of SF Board ............................. 115

Schematic Diagram of T Board ............................... 117

Schematic Diagram of UG (1/2) Board .................. 119

Schematic Diagram of UG (2/2) Board .................. 121

Schematic Diagram of W Board ............................. 123

Section Title Page –––––– –––– ––––

6-4. PRINTED WIRING BOARDS AND SCHEMATIC

DIAGRAMS ................................................................ 125

• A Board ................................................................. 125

• BH Board .............................................................. 127

• C Board ................................................................. 129

• D Board ................................................................. 131

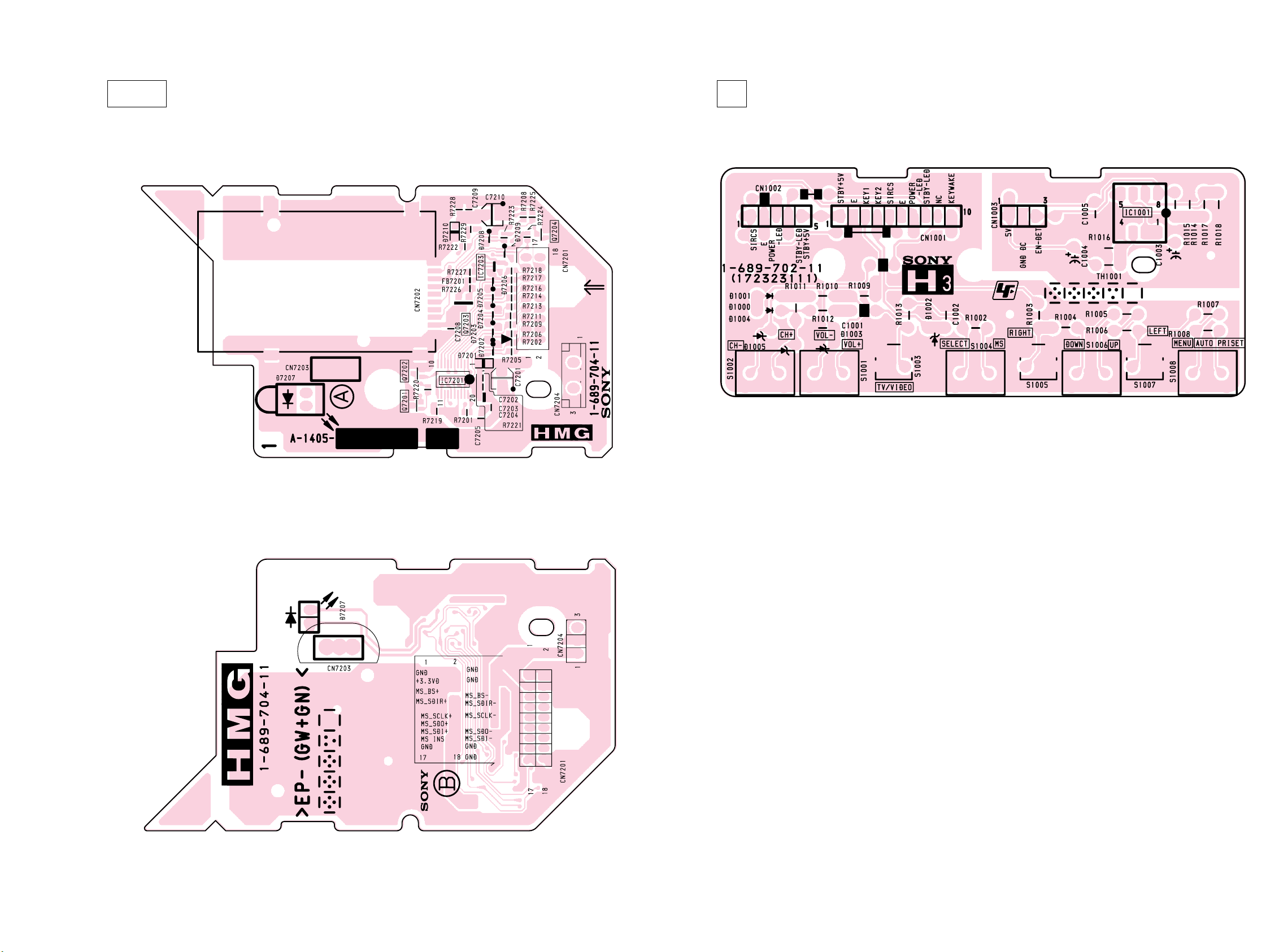

• HMG, H3 Boards .................................................. 133

• H4, H5 Boards ...................................................... 135

• MG Board (Component side) ............................... 137

• MG Board (Conductor side) ................................. 139

• MS2 Board ............................................................ 141

• SF Board ............................................................... 143

• T Board ................................................................. 145

• UG Board (Component side) ................................ 147

• UG Board (Conductor side) .................................. 149

• W Board ................................................................ 151

6-5. WAVEFORMS ............................................................. 152

6-6. SEMICONDUCTORS ................................................. 153

7. EXPLODED VIEWS

7-1. CHASSIS SECTION .............................................. 155

7-2. SUPER WOOFER BLOCK .................................... 156

7-3. CRT SECTION ....................................................... 157

7-4. BEZEL SECTION ................................................... 158

8. ELECTRICAL PARTS LIST.

• A Board ............................................................................. 159

• BH Board .......................................................................... 163

• C Board ............................................................................. 166

• D Board ............................................................................. 167

• H3 Board ........................................................................... 173

• H4 Board ........................................................................... 174

• H5 Board ........................................................................... 174

• HMG Board ...................................................................... 174

• MG Board ......................................................................... 175

• MS2 Board ........................................................................ 180

• SF Board ........................................................................... 183

• T Board ............................................................................. 185

• UG Board .......................................................................... 185

• W Board ............................................................................ 189

– 4 –

KV-HR32M31

SECTION 1

SELF DIAGNOSIS FUNCTION

1. Summary of Self-Diagnosis Function

• This device includes a self-diagnosis function.

• In case of abnormalities, the 1 indicator automatically blinks. It is possible to predict the abnormality location by the number of blinks. The Instruction Manual describes blinking of the 1 indicator.

• If the symptom is not reproduced sometimes in case of a malfunction, there is recording of whether a malfunction was gener-

ated or not. Operate the remote command to confirm the matter on the screen and to predict the location of the abnormality.

2. Diagnosis Items and Prediction of Malfunction Location

• When a malfunction occurs the 1 indicator only blinks for one of the following diagnosis items. In case of two or more

malfunctions, the item which first occurred blinks. If the malfunctions occurred simultaneously, the item with the lower blink

count blinks first.

• The screen display displays the results regarding all the diagnosis items listed below. The display “ 0 ” means that no malfunc-

tions occurred.

Number of times

Diagnosis Item

+B overcurrent (OCP)

+B overvoltage (OVP)

Vertical deflection stopped (V-STOP)

indicator blinks

2 times

3 times

4 times

Probable Cause Location

T8001 (FBT) Rare short-circuit etc. (D board) Q5001 (H-OUT), Q5006 (D board)

+B load open (D board) R6570 Open PH8003, control system malfunction L2603 Open

IC5101 (V. OUT) (D board) IC401 (CXA2170Q) (MG board)

Detected Symptoms

Has entered standby mode. (Relay is off when the power turns on.)

Has entered standby mode.

RM-1007

IK error (AKB ERROR)

Low-B error

Horizontal deflection stopped (H-STOP)

Audio Protector

Zero Cross DET error 9 times

High-Voltage stopped

(HV-PROT)

5 times

6 times

7 times

8 times

10 times

VIDEO OUT IC malfunction IC9001, 9002, 9003 (C board) IC401 (CXA2170Q) (MG board)

Sub power supply system load shorted etc. (A board)

IC401 (CXA2170Q) (MG board) Q5404 (S-COR-OUT), Q5001 (H-OUT), Q5006

IC2000, 2001 malfunction (A board)

RY6000 Power relay melting down (A board)

T8001 (FBT) rare short-circuit (D board) IC8002, Q8013, 8014, R8051 (D board)

Has not entered standby mode.

Has entered standby mode.

Has not entered standby mode.

Has entered standby mode.

– 5 –

KV-HR32M31

RM-1007

3. Blinking count display of 1 indicator

< FRONT PANEL >

* One blink is not used for self-diagnosis.

¥EXAMPLE

L(MONO) R

AUTO PROG

PROG

¥ +B overcurrent 2 times

¥ +B overvoltage 3 times

¥ Vertical deflection stop 4 times

1 indicator

Lamp ON : 0.3 seconds

Lamp OFF : 0.3 seconds

Lamp OFF :

3.0 seconds

Release of 1 indicator blinking.

•The STAND BY indicator blinking display is released by turning OFF the power switch

on the TV main unit or removing the plug from the power.

But in the RLY ERR (10 times blinking), do not release by tuning power off.

For details, refer to the item 1-6.

4. Self-diagnosis screen displays

• In cases of malfunctions where it is not possible to determine the symptom such as when the power goes off occasionally or when

the screen disappears occasionally, there is a screen display on whether the malfunction occurred or not in the past (and whether

the detection circuit operated or not) in order to allow confirmation.

• Quickly press the remote command button in the following order from the standby state.

b b b

–

=/1

Be aware that this differs from the method of

entering the service mode ( + ).

Self-diagnosis screen display

• "G" : OK, "NG" : DETECTS ONCE OR MORE

• THE 10 DIGITS OF NUMERALS ARE FOR CHECKING,

NO RELATION TO DIAGNOSIS.

• 101 : NO LED BLINKING FOR WDT.

"0" : NUMBER OF DETECTION.

– 6 –

KV-HR32M31

5. After the self-diagnosis operation

• The results display is not automatically cleared. In case of repairs and after repairs, check the self-diagnosis screen and be sure

to return the results display to “ 0 ”.

• If the results display is not returned to “ 0 ” it will not be possible to judge a new malfunction after completing repairs.

1. Power off (Set to the standby mode)

RM-1007

2. b 5 b + b (Service Mode)

=/1

3. Channel 8 b 0 (Test reset = Factory preset condition)

• When ending the self-diagnosis screen completely, turn the power switch OFF on the remote commander or the main unit.

AUDIO PROT

(FROM A BOARD)

LOW-B ERR

(FROM A BOARD)

HV-PROT

(FROM D BOARD)

OVP

(FROM A, D BOARD)

AC-RLY

(TO A BOARD)

OCP

(FROM A, D BOARD)

HV PROT

OVP

MAIN MICRO-

COMPUTER

IC0001

OCP

12C BUS

YCJ IC0401

CXA-2170Q

MG BOARD

12C BUS

MICRO-

COMPUTER

IC0002

LED

BLINKING

TIMES

2 3 4 5 6 7 8 9

• I2C YCJ RETURN DATA

11111111

SYMPTOM

+B OCP +B OVP V-STOP AKB LOW-B ERROR H-STOP AUDIO PROT Z DET HV PRT

AKB

H-STOP

V-S TOP

– 7 –

KV-HR32M31

RM-1007

+B OCP If the IC701 Pin 44 (+B OCP DET) is high 2 seconds, turn AC-RELAY low (P-OFF) and make STANDBY

LED blinks twice.

+B OVP If the IC701 Pin 45 (+B OVP DET) is high 2 seconds, turn AC-RELAY low (P-OFF) and make STANDBY

LED blinks three times.

V-STOP If the return data Bit0 (VNG) from CXA2150Q is “1” while 2 seconds, turn AC-RELAY low (P-OFF) and

make STANDBY LED blinks four times.

AKB If the return data Bit2 (IKREF) from CXA2150Q is “0” and there is no change for 20 seconds, make

STANDBY LED blinks five times.

At this time, AC-RELAY continues to high.

LOW-B ERROR If the IC701 Pin 69 (AC-RELAY) is high and the Pin 43 (LOW-B ERROR DET) is low while 5 seconds,

turn AC-RELAY low (P-OFF) and make STANDBY LED blinks six times.

H-STOP If the return data Bit1 (HNG) from CXA2170 is “1” while 2 seconds, turn AC-RELAY low (P-OFF) and

make STANDBY LED blinks seven times.

W. D. T. Observes the watch dock timer (BUS COMMUNICATION ERROR DET) bus communication. If errors are

detected, counts up and reform the bus communication and displays the number of time.

(No LED blinking).

AUDIO PROT In case of Pin 85 of IC101 (AUDIO PROT DET) turns high 60msec twice at a time, makes AC-RELAY

turns low (Power off) and STANDBY-LED blinks 8 times.

HV-PROT In case of Pin 33 of IC101 (HV-PROT DET) turns high 10 seconds continuously in normal operation or in

BS fixed Stand-by, makes AC-RELAY turns low (Power off) and STANDBY-LED blinks 10 times.

Z DET There are two causes for Zero Cross Error.

Normally the pulse doubled AC power supply frequeny is fed to Pin 8 of IC101. But in case of the

abnormal pulse is fed, it makes AC-RELAY turns low (Power off) and STANDBY-LED blinks 9

times.

In this case, “1” is not displayed in ’9. Z DET’ column in the self-diagnosis mode.

– 8 –

SECTION 2

DISASSEMBLY

2-1. REAR COVER ASSEMBLY 2-3. SERVICE POSITION

1 Four screws (+BVTP 4x16)

2 Rear cover assembly

KV-HR32M31

RM-1007

1 Three screws (+BVTP 4x16)

2-2. CHASSIS ASSEMBLY

1 Three screws (+BVTP 4x16)

1 Screw (+BVTP 4x16)

Tu rn the chassis assembly in the arrow direction, and stand it its right side on the bottom.

A support

2-4. SPEAKER BOX ASSEMBLY

2 Two screws (+ TWHTP 4x25)

1 Claw

1 Connector

1 Claw

3 Speaker box dssenbly

Chassis assembly

– 9 –

KV-HR32M31

RM-1007

2-5. T AND UG BOARDS

8 Screw (+BVTP 3x12)

9 Two connectors (CN5802, 5803)

8 Screw (+BVTP 3x12)

2-6. BH AND MG BOARDS

0 T board

6 Connectors

(CN1501)

7 UG board

5 U bracket

1 Screw

(+BVTP 3x12)

4 Power cord

2 Screw

(+PSW 3x8)

1 Five screws (+BVTP 3x12)

3 BM bracket

2-7. A BOARD

1 Screw (+PSW3x8)

CN0004

2 Two screws (+BVTP3x12)

CN0050

CN0301

CN0006

CN0406

CN0405

CN0401

CN6006

CN2001

4 Screw (+BVTP 3x12 with washer)

MG board

CN0402

2 Connectors

CN6100 CN6101

CN0301

BH board (with MS2 board)

CN6010

CN6005

CN6001

CN2017

4 Screw (+BVTP 3x12)

A board

3 Connectors CN2006, 2007, 2011, 2012

– 10 –

4 Four screws

(+BVTP 3x12)

RF splitter

1 Connector

KV-HR32M31

RM-1007

2-9. SF BOARD2-8. D BOARD

2 Screw (+BVTP 3x12 with washer)

2 Five screws (+BVTP 3x12)

CN5017

CN6400

2 Screw (+BVTP 3x12)

CN5012

CN5003

CN5019

1 Connectors

CN5010

D board

CN3805

2 Three screws (+BVTP 3x12)

1 Connectors

CN3803CN3804

CN3807

CN3806

CN3808

CN3809

SF board

2-10. H3, H4, H5 AND HMG BOARDS

5 Screw (+BVTP 3x12)

6 HMG board

1 Connectors

CN1502 2 Screw (+BVTP 3x12)

3 H4 board 1 Connectors

CN1054, 1055

9 H3 board

4 Connectors

CN7204

7 Connectors CN1001, to 1003

8 Screw (+BVTP 3x12)

0 Connectors CN9302, 9303

qs H5 board

qa Screw

(+BVTP 3x12)

– 11 –

KV-HR32M31

RM-1007

2-11. HARNESS ARRANGEMENT

CN9001

CN6013

CN6005

CN6000

CN6006

COIL,NA ROTATION

CN6100

CN6101

CN0301

CN9009

CN9002

CN9001

CN3806-3809

CN9104, 9101

CN5010

– 12 –

2-12. REMOVAL OF ANODE-CAP

KV-HR32M31

RM-1007

NOTE : After removing the anode, short circuit the anode of the picture tube

the anode cap to the metal chassis, CRT shield or carbon paint on the CRT.

• REMOVING

1 Turn up one side of the rubber

2 Using a thumb pull up the rubber

PROCEDURES

cap in the

cap

direction indicated

firmly in the direction indicated by the arrow

by the arrow a.

and

3 When one side of the rubber cap is separated

can be removed by turning up the rubber cap and pulling it up in the direction of the arrow

from the anode b

utton, the anode-cap

• HOW TO HANDLE AN ANODE-CAP

1 Do not dama 2 Do not press

A metal fitting called

3 Do not turn

The shatter-hook

ge the surface

the rubber too hard

the foot of rubber over too hard.

terminal will stick out

of anode-caps with

so as not to damage the inside of

the shatter-hook terminal is built into

or damage the rubber

sharp shaped objects.

anode-cap.

the rubber.

– 13 –

KV-HR32M31

RM-1007

2-13. CRT

NOTE: After removing the anode, short circuit the anode of the picture tube

and the anode cap to the metal chassis, CRT shield or carbon paint on the CRT.

9 DGC holder

2 Speaker box assembly

0 Degauss coil

1 Screws (+PWH 4x16)

0 Degauss coil

qa Extension springs

4 Chassis assembly

5 C board

6 Neck assembly

qd CRT

7 Deflection

yoke

qs Screws (Crown washer +TP 7x40)

3 Anode cap

8 CRT supporter

CUSHON

– 14 –

SECTION 3

SERVICE MODE

KV-HR32M31

RM-1007

3-1. METHOD OF SETTING THE SERVICE ADJUSTMENT

MODE

SERVICE MODE PROCEDURE

1. Standby mode. (Power off)

2. n 5 n (+) n =/1

on the Remote Commander.

(Press each button within a second.)

3-2. SERVICE MODE ADJUSTMENT

Item NO.(register name)

3-4. ADJUSTING BUTTONS AND INDICATOR

=/1

DRC-MF

Category up

Category down

Read

(+)

OPTION RESET

VIDEO

MODE

INDEX

PROG

HD/DVD

A/B

V CENTERPALETTE

–

123

456

7809

JUMP

PROG

Adjustment item up

Data up

Data down

Adjustment item down

RM-1007

3-3. MEMORY WRITE CONFIRMATION METHOD

1. After adjustment, turn power off with the remote commander.

2. Turn power on and set to Service Mode.

3. Call the adjusted items again and confirm they were adjusted.

– 15 –

KV-HR32M31

RM-1007

3-5.SERVICE MODE LIST

OSD

Functiona lity

No. Name

00 OSV 01 OSH 02 FW1 03 FW2 04 VO

Standards *1

Functiona lity

No. Name

04 VO

Range Standard s Func tion

FULL50 FULL60 FULL100

32 32 32 32 32 32 32

OSD V Position

OSD H Position

OSD ODD/EVEN Field Window Setup #1

OSD ODD/EVEN Field Window Setup #2

20 *1

OSD V Position (Offset) Wide/50/60/100/120/HD/Twin/Favorite/Index

FULL120 WDZM50 WDZM60 WDZM100

Remarks

Functiona lity

No. Name

04 VO

Functiona lity

No. Name

04 VO

Functiona lity

No. Name

04 VO

MSP

Functiona lity

No. Name

00 WST 01 WBT 02 WL 03 WAC 04 WDL 05 ND 06 SD 07 AGC 08 RE 09 CR 10 ACO 11 FP 12 FPM 13 FH 14 FHM 15 WG 16 NI 17 ERR 18 VO

WDZM120 ZOOM50 ZOOM60 ZOOM100

32 32 32 32 32 32 32

FAVORITE50 FAVORITE60 TWIN50 TWIN60 HD50 HD60

32 32 32 32 32 32 32

VCOMP VCOMP60 VCOMP100

32 32 32 32

Range St andards Function

21 W/G Ster eo Threshold

236W/G Bilingua l Thre shold

05 W/G Monaur al Threshold 01 W/G Agreement Count 48 W/GSearch Delay 32 NI CAMSear ch Delay 16 St ereo status Read Delay 01 AGC Switch Auto/Constant 40 AG C Gain at Co nsta nt Mode 00 C arrier muting on/o ff 01 Aud io Clock out on/off 27 FM Prescale for non-M s ystem 50 FM Prescale for M system 54 FM Prescale for HDE V

101 FM Pr escale for HDE V and M

28 W/G Prescale

127 NICAM Pr escale

80 Aut o FM switch Threshold 48 Lo ud Speaker gain 0700 h to 07FFh

VCOMP120

ZOOM120 INDEX50 INDE X60

Remark s

– 16 –

TEXT

Functiona lity

No. Name

00 TXH 01 TXV 02 THD 03 TVD 04 HP 05 VP 06 FP 07 FMD 08 TBR 09 NOP 10 TCH

PIC

Functiona lity

No. Name

00 PIC * 1 Picture Mod 01 COL * 1 Picture Mod 02 BRI * 1 Picture Mod 03 HUE *1 Picture Mod 04 SHP * 1 Picture Mod 05 PIO

Range St andards F unction

35 T eletext Hor izont al Display Position 63 T eletext Vert ical Display Position 56 Teletext H- sync Active Edge Shift 00 Teletext V- sync Active Edge Shift 00 T eletext H-sync P olarity Configuration 00 T eletext V-sync P olarity Configuration 01 T eletext Field Po larity Configurat ion 02 T eletext Fast ext/TOP Force Mode 15 T eletext RGB Brightness 02 T eletext National Op tion Table Configurat ion 02 Teletext TwistedCharacter Set Configuration

Range S tandards Rem arksFunctio n

User Picture User Color User Bright User Hue User Sharp

*2 MS/NOR MAL/MULTI/OTHER

Picture Offset (Picture * (20-data)/20*Eco(75%)

KV-HR32M31

RM-1007

Remarks

Standards *1

No. Name Dynamic St andard Hi-Fine Personal

00 PIC 100 80 60 50 01 COL 60 605050 02 BRI 43 505050 03 HUE 50 50 50 50 04 SHP 50 505050

Standards *2

No. Name MS Normal(4:4) HD Twin/Index/Pap Ot her

PIO

SOU

Functiona lity

No. Name

00 BAS *1 S ound Mod 01 TRE *1 S ound Mod

Standards *1

No. Name Dynamic Drama Soft Personal

00 BAS 50 505050 01 TRE

31350

Range St andards

50 50 50 50

Sound ModeFunctiona lity

PictureModeFunctiona lity

User Bass User Treble

Picture OffsetFunctiona lity

Remark sFunct ion

DRC

Functiona lity

No. Name

00 CLAR *1 01 REA

Standards *1

Functionality DRC Palette (TV Custom1) DRC Palette (TV Custom2) DRC Palette (TV Custom3) DRC Palette (Video Custom1)

No. Name Dynamic Std/HiFine/Per Dynamic Std/HiFine/Per Dynamic Std/HiFine/Per Dynamic Std/HiFine/Per Dynamic Std/HiFine/Per

00 CLAR 01 REA

Functiona lity DRC Pa lette ( Video Cust om3) DR C Pale tte ( Comp Cu stom1) DR C Palette (Comp Custom2) DRC Palette (Comp Custom3)

No. Name Dynamic Std/HiFine/Per Dynamic Std/HiFine/Per Dynamic Std/HiFine/Per Dynamic Std/HiFine/Per

00 CLAR 01 REA

Range St andards

User DRC Palette Initial number Clarity

User DRC Palette Initial Number Reality

01 01 50 50 80 80 01 01 50 50 25 25 55 55 90 90 25 25 55 55

80 80 01 01 50 50 80 80 90 90 25 25 55 55 90 90

Funct ion

Remark s

DRC Palette (Video Custo m2)

– 17 –

KV-HR32M31

RM-1007

LUMA

Functiona lity

No. Name

0BROF0-7 *1 1GAMM0-7 *1 2GAMS0-15 *2 3RGAM0-15 *2 4 GGAM 0-15 *2 5BGAM0-15 *2 6BLK0-7 *1 7APED0-3 *3 8DCTR0-15 *3 9ABLM0-3 *3

Standards *1 RF / CV / YC / COM P

No. Name

0BROF 0 1GAMM 6BLK

No. Name

0BROF 1GAMM 6BLK

No. Name

0BROF 1GAMM 6BLK

No. Name

0BROF 1GAMM 6BLK

Range S tandards

480_60 I 48 0_60I 576_50 I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

480_60 I 48 0_60I 576_50 I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

555

480_60 I 48 0_60I 576_50 I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

0 0 0

480_60 I 48 0_60I 576_50 I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

555 333

RF CV/YC Com p

66666777777 77

RF CV/YC Co mp

RF CV/YC Com p

333 333333 4

333 333 4

0 0 0

Dynamic

480_60 I 57 6_50I 480_60P 576_50P

4 444444 4 4444444

Standard

480_60 I 57 6_50I 480_60P 576_50P

Hi-fine

480_60 I 576_50I

Personal

480_60 I 57 6_50I 480_60P 576_50P

720_60P 720_50P 1080_60I 1080_50I

4 5555

720_60P 720_50P480_60P 576_50P 1080_60I 1080_50I

720_60P 720_50P 1080_60I 1080_50I

4 5555

1111 4

RGB / MS / Twin

No. Name

0BROF 1GAMM 6BLK

No. Name

0BROF 1GAMM 6BLK

No. Name

0BROF 1GAMM 6BLK

No. Name

0BROF 1GAMM 6BLK

Standards *2

No. Name GAMMA0 GAMMA1 GAMMA2 GAMMA3 GAMMA4 GAMMA5 GAMMA6 GAMMA7

2GAMS13 13131313131313 3RGAM 045678910 4 GGAM 045678910 5BGAM 045678910

Standards *3

No. Name BLK0BLK1BLK2BLK3BLK4BLK5BLK6BLK7

7APED 8DCTR 0581510 5 10 10 9ABLM

480_60 I 57 6_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I Index Full Popup Player Movie All Format

77777777

480_60 I 57 6_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I Index Full Popup Player Movie All Format

4 4

0 0 0

4 4444 4444

000 0 0

133 3221

RGB MS

4 4

4 55555555554444

RGB MS

4 5555555555

1111111111

0 0 0

Dynamic

44444

Standard

Hi-Fine

0 0 0

Personal

11 111111

111

44 5555

0 0 0

Twin

111111111

Twin

– 18 –

KV-HR32M31

RM-1007

COLR

Funct ionalit y

No. Name

0CLOF0-7 *1 1 HUOF 0-7 2RDRV0-63 41 3 GDRV 0-63 30 4BDRV0-63 35 5RCUT0-63 41 6GCUT0-63 31 7BCUT0-63 24 8SBRT0-63 25

9DCOL0-3 1 10 WBSW 0-1 11 SBOF 0-7 12 RDOF 0-63 *2 13 GDOF 0-63 *2 14 BDOF 0-63 *2 15 RC OF 0-63 *2 16 GCOF 0-63 *2 17 BC OF 0-63 *2 18 AXI S 0 -3 19 R-YR 0-15 *3 20 R-YB 0-15 *3 21 G-YR 0-15 *3 22 G-YB 0-15 *3

Standards *1 RF / CV / YC / COMP

No. Name

0CLOF 66655566665555

1 HUOF 33133132333333 18 AX IS 33133131313131

Range Stand ards

*2 *2

480_60I 480_60I 576_50I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

RF CV/YC Com p

480_60I

Dynamic

576_50I 480_60P 576_50P 720_60P

720_50 P 1 080_60I 1080_50I

480_60I

Standard

576_50I 480_60P 576_50P 720_60P

Hi-Fine

576_50I 480_60P

Personal

576_50I 480_60P 576_50P 720_60P

Dynamic

Standard

720_50 P 1 080_60I 1080_50I

720_50 P 1 080_60I576_50 P 72 0_60P

720_50 P 1 080_60I

1080_50I

Twin

No. Name

0CLOF 11311313444444

1 HUOF 33133132333333 18 AX IS 33133131313131

No. Name

0CLOF 33333333333333

1 HUOF 33333333333333 18 AX IS 33133131313131

No. Name

0CLOF 11311313444444

1 HUOF 33133132333333 18 AX IS 33133131313131

RGB / MS / Twin

No. Name

0CLOF 66665555777776

1 HUOF 33333333333333 18 AX IS 31313131111111

No. Name

0CLOF 11444444444444

1 HUOF 33333333333333 18 AX IS 31313131111111

480_60I 480_60I 576_50I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

480_60I 480_60I 576_50I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

480_60I 480_60I 576_50I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I Index Full Popup Player Movie All Format

RF CV/YC Com p

RGB MS

No. Name

0CLOF 33333333333333

1 HUOF 33333333333333 18 AX IS 31313131111111

No. Name

0CLOF 11444444444444

1 HUOF 33333333333333 18 AX IS 31313131111111

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I Index Full Popup Player Movie All Format

RGB MS

Hi-Fine

Personal

Twin

– 19 –

KV-HR32M31

RM-1007

Standards *2

No. Name COOL WARM MIDCOOL

10 WBSW 11 SBOF 12 RDOF 13 GDOF 14 BDOF 15 RC OF 16 GCOF 17 BC OF

Standards *3

No. Name AXIS0 AXIS1 AXIS2 AXIS3

19 R-YR 8149 9 20 R-YB 915159 21 G-YR 9899 22 G-YB 6477

010

333 31 31 31 31 34 31 34 43 31 31 19 31 35 34 31 38 63 31

– 20 –

CLTY

No. Name

0SYSM0-3 *1 1 UVML 0-3 *1 2VMCR0-3 *1 3VMLM0-3 *1 4VMF00-3 *1 5VMDL0-15 *1 6SHOF 0-3 * 1 7SHF00-1 *1 8PROV0-3 *1

9F1LV0-3 *1 10 LT LV 0-3 *1 11 LTMD 0-1 *1 12 CTLV 0-3 *1 13 MIDE 0 -63 *1 14 VMLV 0-1 5 * 2

Standards *1

480_60 I 480 _60I 576_50 I 480 _60I 480_60 I 576 _50I

NTSC PAL PAL NTSC PAL PAL 0SYSM1 1 1 111222 23333 1 UVML 3 3 3 333333 33333 2VMCR0 0 0 2220 0000000 3VMLM 3 3 3 333000 00000 4VMF00 0 0 1 1 11 1111111 5VMDL8 8 8 3333 355551010 6SHOF 3 3 333300001100 7SHF01 1 1 1 1 111111 111 8PROV3 3 3 33333333 333 9F1LV 0 0 0 0000022330 0

10 LT LV 3 3 333333333333 11 LTMD 1 1 1 1111 1111111 12 CTLV 3 3 333300000000 13 MIDE 3 3 3 7 7 7 11 11 27 2 7 19 19 19 19

Twin

480_60 I 576 _50I 480_ 60P 576_5 0P 720_60P 720_5 0P 1080_60I 1080_50I Index Full Popup Player Movie All Fo rmat 0SYSM2 2 2 233333 33332 1 UVML 3 3 3 33333222 223 2VMCR0 0 0 0000 0000000 3VMLM 0 0 0 000000 00000 4VMF01 1 1 1 1 11 1111111 5VMDL3 3 5 55510101010101010 5 6SHOF 0 0 001100000001 7SHF01 1 1 1 1 111111 111 8PROV3 3 3 33333333 333 9F1LV 0 0 2 2330000000 0

10 LT LV 3 3 333333000003 11 LTMD 1 1 1 1111 1111111 12 CTLV 0 0 000000000000 13 MIDE 11 11 27 27 19 19 19 1 9 23 2 3 23 23 23 27

480_60 I 480 _60I 576_50 I 480 _60I 480_60 I 576 _50I

NTSC PAL PAL NTSC PAL PAL 0SYSM1 1 1 111222 23333 1 UVML 3 3 3 33333333 333 2VMCR0 0 0 2220 0000000 3VMLM 3 3 3 333000 00000 4VMF00 0 0 1 1 11 1111111 5VMDL8 8 8 3333 355551010 6SHOF 1 1 111100000000 7SHF01 1 1 1 1 111111 111 8PROV3 3 3 33333333 333 9F1LV 0 0 0 0000011000 0

10 LT LV 0 0 000000000011 11 LTMD 1 1 1 1111 1111111 12 CTLV 1 1 111100000000 13 MIDE 2 2 2 6 6 6 10 10 26 2 6 18 18 18 18

Twin

480_60 I 576 _50I 480_ 60P 576_5 0P 720_60P 720_5 0P 1080_60I 1080_50I Index Full Popup Player Movie All Fo rmat 0SYSM2 2 2 233333 33332 1 UVML 3 3 3 33333222 223 2VMCR0 0 0 0000 0000000 3VMLM 0 0 0 000000 00000 4VMF01 1 1 1 1 11 1111111 5VMDL3 3 5 55510101010101010 5 6SHOF 0 0 000000000000 7SHF01 1 1 1 1 111111 111 8PROV3 3 3 33333333 333 9F1LV 0 0 1 1000000000 0

10 LT LV 0 0 000011000000 11 LTMD 1 1 1 1111 1111111 12 CTLV 0 0 000000000000 13 MIDE 10 10 26 26 18 18 18 1 8 22 2 2 22 22 22 26

Comp

480_60 I 5 76_5 0P 720_ 60P 1 080_50I576_50I 480_60P

Functiona lity

Range St andards

No. Name

Dynamic

RF CV/ YC

720_50P 1080_60I

No. Name

Dynamic

RGB MS

No. Name

Standard

RF CV/ YC Com p

480_60 I 576 _50I 480_ 60P 576_5 0P 720_60P 720_5 0P 1080_60I 1080_50I

No. Name

Standard

RGB MS

KV-HR32M31

RM-1007

– 21 –

KV-HR32M31

RM-1007

No. Name

0SYSM1 1 1 111222 23333 1 UVML 3 3 3 33333333 333 2VMCR0 0 0 2220 0000000 3VMLM 3 3 3 333000 00000 4VMF00 0 0 1 1 11 1111111 5VMDL8 8 8 3333 355551010 6SHOF 0 0 000000000000 7SHF01 1 1 1 1 111111 111 8PROV3 3 3 33333333 333

9F1LV 0 0 0 0000000000 0 10 LT LV 0 0 000000000000 11 LTMD 1 1 1 1111 1111111 12 CTLV 0 0 000000000000 13 MIDE 0 0 0 4 4 4 8 8 24 24 16 1 6 16 16

No. Name

0SYSM2 2 2 233333 33332

1 UVML 3 3 3 33333222 223

2VMCR0 0 0 0000 0000000

3VMLM 0 0 0 000000 00000

4VMF01 1 1 1 1 11 1111111

5VMDL3 3 5 55510101010101010 5

6SHOF 0 0 000000000000

7SHF01 1 1 1 1 111111 111

8PROV3 3 3 33333333 333

9F1LV 0 0 0 0000000000 0 10 LT LV 0 0 000000000000 11 LTMD 1 1 1 1111 1111111 12 CTLV 0 0 000000000000 13 MIDE 8 8 24 24 16 16 16 16 20 2 0 20 2 0 20 2 4

480_60 I 480 _60I 576_50 I 480 _60I 480_60 I 576 _50I

NTSC PAL PAL NTSC PAL PAL

480_60 I 576 _50I 480_ 60P 576_5 0P 720_ 60P 720_5 0P 1080_60I 1080_50I Index Full Popup Player Movie All Fo rmat

RF CV/ YC C omp

RGB MS

Hi-Fine

480_60 I 576 _50I 480_ 60P 576_5 0P 720_ 60P 720_5 0P 1080_60I 1080_50I

Hi-Fine

Twin

No. Name

0SYSM1 1 1 111222 23333

1 UVML 3 3 3 33333333 333

2VMCR0 0 0 2220 0000000

3VMLM 3 3 3 333000 00000

4VMF00 0 0 1 1 11 1111111

5VMDL8 8 8 3333 355551010

6SHOF 1 1 111100000000

7SHF01 1 1 1 1 111111 111

8PROV3 3 3 33333333 333

9F1LV 0 0 0 0000011000 0 10 LT LV 0 0 000000000011 11 LTMD 1 1 1 1111 1111111 12 CTLV 1 1 111100000000 13 MIDE 2 2 2 6 6 6 10 10 26 2 6 18 18 18 18

No. Name

0SYSM2 2 2 233333 33332

1 UVML 3 3 3 33333222 223

2VMCR0 0 0 0000 0000000

3VMLM 0 0 0 000000 00000

4VMF01 1 1 1 1 11 1111111

5VMDL3 3 5 55510101010101010 5

6SHOF 0 0 000000000000

7SHF01 1 1 1 1 111111 111

8PROV3 3 3 33333333 333

9F1LV 0 0 1 1000000000 0 10 LT LV 0 0 000011000000 11 LTMD 1 1 1 1111 1111111 12 CTLV 0 0 000000000000 13 MIDE 10 10 26 26 18 18 18 1 8 22 2 2 22 22 22 26

480_60 I 480 _60I 576_50 I 480 _60I 480_60 I 576 _50I

NTSC PAL PAL NTSC PAL PAL

480_60 I 576 _50I 480_ 60P 576_5 0P 720_ 60P 720_5 0P 1080_60I 1080_50I Index Full Popup Player Movie All Fo rmat

RF CV/ YC Co mp

RGB MS

Personal

480_60 I 576 _50I 480_ 60P 576_5 0P 720_ 60P 720_5 0P 1080_60I 1080_50I

Personal

Twin

Standards *2

No. Name

14 VMLV 15 10 15 6 5 1 0 4 5 5 4 5 10

Dynamic Sta ndard

LOW MID HIGH LOW MI D HIGH LOW MID HIGH LOW MID HIGH

Hi-Fine Personal

– 22 –

KV-HR32M31

RM-1007

MIDE

Functionality

No. Name

0 1MHLY 2MHLC 3MVLY 4MVLC 5MHYR 6MHY 7MHY 8MHYO

9MHCR 10 M HCL 11 M HCE 12 MHCO 13 MVYR 14 M VY 15 M VY 16 M VCR 17 M VCL 18

Standa rds *1

No. Name 0 1 2 3456789101112131415

1MHLY3 3 3 31111111 10121

2MHLC3 3 3 333333 3330333

3MVLY0 0 0 00000000 00000

4MVLC0 0 0 000000 0000000

5MHYR0 0 0 10 0010001101 1

6MHY

7MHY

8MHYO1 1 1 1111 111111111

9MHCR2 2 2 22222222 21111 10 M HCL 1 1 11111111111111 11 M HCE 0 2 35000500007777 12 MHCO 1 1 11111111110111 13 MVYR 0 0 02111211111111 14 M VY 15 M VY 16 M VCR 2 2 22222222221111 17 M VCL 1 1 11111111110000 18 M VCE 0 0 03000300000023

Range Standards

POP 0 -63 *1

0-3 *1 0-3 *1 0-3 *1 0-3 *1 0-3 *1 0-3 *1 0-7 *1 0-1 *1 0-3 *1 0-3 *1 0-7 *1 0-1 *1 0-3 *1 0-3 *1 0-7 *1 0-3 *1

MVCE

0-3 *1 0-7 *1

1111111111111111 2227002700274666

1111111111110000 0025023502340034

No. Name 16 171819202122232425262728293031

1MHLY2 2 2 20000111 11111

2MHLC0 0 0 000000 0003333

3MVLY0 0 0 00000000 00000

4MVLC0 0 0 000000 0000000

5MHYR0 0 1 10 0001111111 1

6MHY

7MHY

8MHYO0 1 1 1111 100001111

9MHCR1 1 1 11111222 21111 10 M HCL 1 1 11000011111111 11 M HCE 0 2 24000000250025 12 MHCO 1 1 11111111111111 13 MVYR 2 2 02111111121111 14 M VY 15 M VY 16 M VCR 1 1 12222222221111 17 M VCL 0 0 11111111110000 18 M VCE 0 0 23001201230013

No. Name 32 333435363738394041424344454647

1MHLY1 1 1 10000110 00000

2MHLC3 3 3 300003 3000000

3MVLY0 0 0 00000000 00000

4MVLC0 0 0 000000 0000000

5MHYR1 1 1 10 0001100000 0

6MHY

7MHY

8MHYO1 1 1 1000 011000000

9MHCR0 0 0 00011220 10000 10 M HCL 0 0 00001111110000 11 M HCE 0 0 00004400440000 12 MHCO 0 0 00001111110000 13 MVYR 0 0 11000011000000 14 M VY 15 M VY 16 M VCR 0 0 00001122110000 17 M VCL 0 0 00001111110000 18 M VCE 0 0 00004400440000

1111000011111111 2224000002470025

1111111111110000 0124001202240000

1122111111110000 4727247725770000

0111001111110000 0375004403440000

– 23 –

KV-HR32M31

RM-1007

No. Name 48 495051525354555657585960616263

1MHLY0 0 0 00000000 00000 2MHLC0 0 0 000000 0000000 3MVLY0 0 0 00000000 00000 4MVLC0 0 0 000000 0000000 5MHYR0 0 0 00 0000000000 0 6MHY 7MHY 8MHYO0 0 0 0000 000000000

9MHCR0 0 0 11000000 00000 10 M HCL 0 0 01100000000000 11 M HCE 0 0 04400000000000 12 MHCO 0 0 01100000000000 13 MVYR 0 0 00000000000000 14 M VY 15 M VY 16 M VCR 0 0 01100000000000 17 M VCL 0 0 01100000000000 18 M VCE 0 0 04400000000000

0111100000000000 0247700000000000

0001100000000000 0004400000000000

– 24 –

CCPM

Functiona lity

No. Name

0REFC 1YLEV0-255 *1 2CLEV0-255 *1 3SHUE 0-15 *1 4SHUO 0-7 3 5YCDL0-15 *2 6FUP20-3 *3 7SHF00-1 *3 8PROV0-7 *3

9SHPC0-3 *3 10 SSHP 0-15 *3 11 CBPF 0-3 *4 12 CBPA 0-3 *4 13 CEQ 0-3 *4 14 SFIL 0-1 *5 15 SST C 0-1 *5 16 AFCG 0-3 *10 17 AFLG 0-3 *6 18 AFCM 0-1 *6 19 AFLC 0-1 *6 20 AFHC 0-1 *6 21 CDM1 0-3 *6 22 CDM2 0-1 *6 23 CDM3 0-1 *6 24 CLPP 0-63 28 25 BGPS 0-15 *7 26 APED 0-3 *8 27 DCTR 0-3 *8 28 YTRP 0-1 *9 29 CTRP 0-1 *9 30 STUP 0-15 *10 31 VINT 0-15 *10 32 CLAD 0-1 *10 33 SSAD 0-1 *10 34 CLPG 0-3 *10 35 HSSL 0-3 *10 36 VSSL 0-3 *10 37 STTC 0-3 *10 38 VAFC 0-1 *10 39 SLPF 0-1 *11 40 1774 0-15 0 41 NCOM 0-1 *12 42 SDLP 0-1 *13 43 ROM2 0-1 *13 44 VECR 0-1 *14 45 VECL 0-1 *14 46 VECN 0-3 *14 47 VEGA 0-7 *14 48 BPT1 0-255 *15 49 BPT2 0-255 *15 50 KLEV 0-3 *16 51 APCG 0-3 *16 52 BLKM 0-3 1 53 HSPO 0-15 7 54 VBIS 0-31 5 55 ID1W 0-1 1 56 30H 0-255 0 57 3410 0-3 0 58 4CNT 0-1 1 59 SDOF 0-1 0 60 APAT 0-3 2 61 APHL 0-3 2 62 APAR 0-3 1 63 APHY 0-3 0 64 DTTC 0-3 2 65 DTLT 0-3 2 66 E656 0-1 0 67 DCLP 0-1 0 *Available for MS mode only. 68 MVSW 0-3 *10 69 MVCT 0-15 7

Range Stand ards

0-3

KV-HR32M31

RM-1007

Standards *1

No. Name

1YLEV169 171 184 188 187 187 185 1 85 115

2CLEV105 102 102 103 105 105 194 194 113

3SHUE 076767777

Standards *2

No.

Name

5YCDL 857887788

RF CV YC Comp

60Hz 50Hz 60Hz 50Hz 50Hz 60Hz 50Hz 60Hz

RF CV

NTSC PAL_DKI

PAL_OTH

NTSC

PAL NTSC PAL

Comp

– 25 –

KV-HR32M31

RM-1007

Standards *3

No. Name

6FUP2 00000000000000 7SHF0 00011111111111 8PROV 33333377777777 9SHPC 33322222222222

10 SSHP 10 1010 9991010 10 10 10 10 10 10

No. Name

6FUP2 00000000000001 7SHF0 11111111111111 8PROV 77777777333333 9SHPC 22222222222222

10 SSHP 10 10101010101010101010101010

No. Name

6FUP2 00000000000000 7SHF0 00011111111111 8PROV 33333333333333 9SHPC 22222222222200

10 SSHP 88877788888877

No. Name

6FUP2 00000000000000 7SHF0 11111111111111 8PROV 33333333333333 9SHPC 22222200222222

10 SSHP 88888877888888

480_60I 480_60I 576_50I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I Index Full Popup Player

480_60I 480_60I 576_50I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I Index Full Popup Player

RF CV/YC Comp

RGB MS

RF CV/YC Comp

RGB MS

Dynamic

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I

Dynamic

Movie(Hi-

Standard

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I

Standard

Movie(Hi-

Fine)

Twin

All Format

Twin

All Format

No. Name

6FUP2 00000000000000 7SHF0 00011111111111 8PROV 33333333333333 9SHPC 22222222222200

10 SSHP 77777777777777

No. Name

6FUP2 00000000000000 7SHF0 11111111111111 8PROV 33333333333333 9SHPC 22222200222222

10 SSHP 77777777777777

No. Name

6FUP2 00000000000000 7SHF0 00011111111111 8PROV 33333333333333 9SHPC 22222222222200

10 SSHP 88877788888877

No. Name

6FUP2 00000000000000 7SHF0 11111111111111 8PROV 33333333333333 9SHPC 22222200222222

10 SSHP 88888877888888

480_60I 480_60I 576_50I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I Index Full Popup Player

480_60I 480_60I 576_50I 480_60I 480_60I 576_50I

NTSC PAL PAL NTSC PAL PAL

480_60I 576_50I Player

RF CV/YC Comp

RGB MS

RF CV/YC Comp

RGB MS

Hi-Fine

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I

Hi-Fine

Movie(Hi-

Fine)

Personal

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I

Personal

Movie(Hi-

Fine)

Twin

All Format

Twin

All Format1080_60I 1080_50I Index Full Popup480_60 P 576_50P 720_60 P 720_50 P

– 26 –

Standards *4

No. NameRFNTSC

11 CBPF 2220000 12 CBPA 1110000 13 CEQ 1110000

Standards *5

No. Name RF CV YCCompDigit al

14 SFIL 11111 15 SST C 00000

Standards *6

No. Name R F C V/YC Other

17 AFLG 000 18 AFCM 000 19 AFLC 000 20 AFHC 000 21 CDM1 222 22 CDM2 000 23 CDM3 000

Standards *7

No. Name RF VIDEO1

25 BGPS 10 9999

(GR: OFF)

PAL_DKI

PAL_OTHERCV

VIDEO2 VIDEO3

NTSC

PAL

VIDEO4/O

ther

NTSC

PAL

KV-HR32M31

RM-1007

Standards *8

No. Name Single Black0 Black1 Black2 Black3 Black4 Black5 Black6 B lack7

26 APED 000000000 27 DCTR 000000000

Standards *9

No. Name SD Other

28 YTRP 1 0 29 CTRP 1 0

Standards *10

No. Name RF CV/YC

16 AFCG 1011111111 30 STUP 0000000000 31 VI NT 7777777733 32 CLAD 0000000000 33 SSAD 0000001111 34 CLPG 2222222222 35 HSSL 3333333333 36 VSSL 2222223333 37 STTC 2222222222 38 VAFC 1111111111 68 MVSW 2222222222

Standards *11

No. Name RF CV YC/Other

39 SLPF 000

Standards *12

No. Name

41 NC OM 000000

RF BS/CV/YC Other RF CV/YC Other

480_60I 576_50I 480_60P 576_50P 720_60P 720_50P 1080_60I 1080_50I

60Hz 50Hz

Other

Standards *13

No. Name SD Other

42 SDLP 1 0 43 ROM2 0 0

Standards *14

No. Name

44 VECR 00000000 45 VECL 00000000 46 VE CN 22222222 47 VEGA 00000000

RF Other RF Other RF Other RF Other

Dynamic Standard

60Hz 50Hz 60Hz 50Hz

– 27 –

KV-HR32M31

RM-1007

No. Name 60Hz 50Hz 60Hz 50Hz

44 VECR 00000000 45 VECL 00000000 46 VE CN 22222222 47 VEGA 00000000

Standards *15

No. Name RF Other

48 BPT1 40 40 Only At Auto Color System Mode 49 BPT2 30 30 Only At Auto Color System Mode

Standards *16

No. Name RF CV YC/Other

50 KLEV 2 2 2 51 APCG 000

RF Other RF Other RF Other RF Other

Hi-Fine Per sonal

– 28 –

COMB

Functiona lity

No. Name

0NSS 0-31 *1

1TESS 0-7 0

2NSC 0-31 *1

3NSV 0-1 *1

4SCTP 0-3 *1

5CYBP 0-3 *1

6Y2BP 0-3 *1

7C2LE 0-3 *1

8DTCN 0-3 *1

9VEDL 0-7 *1 10 HP 0-7 *1 11 PNR 0-1 *1 12 NCDT 0-1 *1 13 MC1 0-15 *1 14 MC2 0-15 *1 15 CR1 0-3 *1 16 CR2 0-15 *1 17 CR3 0-3 *1 18 CR4 0-3 *1 19 CCR 0-3 *1 20 CHED 0-3 *1 21 CVED 0-3 *1 22 CR5 0-7 *1 23 YFLT 0-7 *1 24 C3LE 0-3 *1 25 YMFH 0-15 *1 26 YMFV 0-7 *1 27 F2SW 0-1 *1 28 MO1 0-15 *1 29 MO2 0-7 *1 30 MNNR 0-1 *1 31 DTH 0-7 *1 32 DTV 0-7 *1 33 DT2D 0-3 *1 34 DTHP 0-7 *1 35 DTCR 0-7 *1 36 D2FC 0-3 *1 37 D2F 0-15 *1 38 D2F2 0-3 *1 39 D2FL 0-3 *1 40 DC 0-3 *1 41 CVFL 0-7 *1 42 H2DD 0-3 *1 43 HC2F 0-1 *1 44 THRU 0-1 45 MCH 0-31 *1 46 MCV 0-3 *1 47 PEDS 0-1 *1 48 MMK 0-7 *1 49 MKAM 0-1 *1 50 GHLT 0-1 *1 51 T ESL 0-7 52 MNSW 0-1 *1 53 MDYB 0-3 *1 54 LCBP 0-7 *1 55 BPSE 0-1 *1 56 CR2H 0-1 *1 57 IMPR 0-3 *1 58 IMPS 0-1 *1 59 IMPL 0-1 *1 60 PLPL 0-3 * 1 61 MDYE 0-3 *1 62 PLCL 0-1 *1 63 BPL2 0-7 *1 64 HPL 0-7 *1 65 CVFP 0-1 *1 66 STDH 0-3 *1 67 SHH 0-3 *1 68 BPOF 0-1 *1 69 C1L 0-1 *1 70 BPL3 0-7 *1 71 D2F3 0-7 *1 72 LPSW 0-1 *1 73 LCR 0-1 *1 74 F2CR 0-1 *1 75 YIR 0-1 *1 76 MOMO 0-1 *1 77 CYV 0-1 *1 78 PAL3 0-1 *1

Range Standa rds

KV-HR32M31

RM-1007

Standards *1

No. Name

0NSS 8888 2NSC 15 15 15 15 3NSV 1111 4SCTP 0 2 0 0 5CYBP 0 1 1 1 6Y2BP 0 1 0 1 7C2LE 1 0 1 0 8DTCN 1 0 1 0

9VEDL 3 3 3 3 10 HP 2222 11 PNR 0 0 0 0 12 NCDT 0 0 00 13 MC1 4 4 15 15 14 MC2 3 3 15 15 15 CR1 1 1 1 1 16 CR2 1 1 1 1 17 CR3 0 0 0 0 18 CR4 1 1 1 1 19 CCR 2 2 2 2 20 CHED 2222 21 CVED 3322 22 CR5 4 3 0 0 23 YFLT 4 4 4 4 24 C3LE 1111 25 YMFH 3333 26 YMFV 1111 27 F2SW 0000 28 MO1 15 15 6 6 29 MO2 3 3 3 3 30 MNNR 1 1 11 31 DTH 2 2 2 2 32 DTV 2 2 2 2 33 DT2D 2222 34 DTHP 3 3 2 2 35 DTCR 4444 36 D2FC 3333 37 D2F 9 9 8 8 38 D2F2 1111 39 D2FL 0000 40 DC 0000 41 CVFL 3030 42 H2DD 0 0 11

43 HC2F 1111 45 MCH 15 152222 46 MCV 1 1 0 0 47 PEDS 0000 48 MMK 7 7 77 49 MKAM 0000 50 GHLT 0 0 0 0 52 MNSW 0000 53 MDYB 0 0 00 54 LCBP 2222 55 BPSE 1 1 11 56 CR2H 0000 57 IMPR 3333 58 IMPS 1111 59 IMPL 0000 60 PLPL 1 1 11 61 MDYE 3 3 33 62 PLCL 1111 63 BPL2 1111 64 HPL 1 1 1 1 65 CVFP 0000 66 STDH 2211 67 SHH 1 1 1 1 68 BPOF 1100 69 C1L 1 1 1 1 70 BPL3 7777 71 D2F3 2222 72 LPSW 1 1 11 73 LCR 1 1 1 1 74 F2CR 1111 75 YIR 1 1 1 1 76 MOMO 0 0 00 77 CYV 0 0 0 0 78 PAL3 1111

NTSC

Standard NonStandard Standard NonStandard

PAL

– 29 –

+ 117 hidden pages

SONY KV-HR32M31 Service Manual

HISTORY

TABLE OF CONTENTS

DISASSEMBLY

2-1. REAR COVER ASSEMBLY 2-3. SERVICE POSITION

2-2. CHASSIS ASSEMBLY

2-4. SPEAKER BOX ASSEMBLY

2-5. T AND UG BOARDS

2-6. BH AND MG BOARDS

2-7. A BOARD

2-9. SF BOARD2-8. D BOARD

SF board

2-10. H3, H4, H5 AND HMG BOARDS

2-11. HARNESS ARRANGEMENT

2-12. REMOVAL OF ANODE-CAP

2-13. CRT

SERVICE MODE

3-2. SERVICE MODE ADJUSTMENT

3-4. ADJUSTING BUTTONS AND INDICATOR

3-3. MEMORY WRITE CONFIRMATION METHOD

3-5.SERVICE MODE LIST
