SONY KV-36FS13, KV 36FS17 Operating Instructions

Download

4-081-776-21

Operating Instructions

KV-36FS13 KV-36FS17

WARNING

To reduce the risk of fire or shock hazard, do not expose the TV to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important o perating and maintenance (servicing) instructions in the literature accompanying the appliance.

NO ABRIR

CAUTION

TO PREVENT EL ECTRIC SHOC K, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

NOTIFICATION

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However , t here is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

❑ Reorient or relocate the receiving antennas. ❑ Increase the separation between the equipment and receiver. ❑ Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

❑ Consult the dealer or an experienced radio/TV techni cian for

help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Safety

Operate the TV only on 120 V AC.

❑ ❑ The plug is designed, for safety purposes, to fit into the wall

outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.

❑ If any liquid or solid object should fall inside the cabinet,

unplug the TV i m mediately and ha v e i t checked by qual i fied service personnel before operating it further.

Installing

❑

T o pr event internal heat buildup, do not block the ventilation openings.

❑ Do not install the TV in a hot or humid place, or in a place

subject to excessive dust or mechanical vibration.

❑ The AC power cord is attached to the rear of the TV with

hooks. Do not attempt to remove the cord from these hooks. Doing so could cause damage t o the TV

CAUTION

When using TV games, computers, and similar products with your TV, keep the brightness and contrast functio ns at low setting s. If a fixed (non-moving) pattern is left on the screen for long periods of time at a high brightness or contrast setting, the image can be permanently imprinted onto the screen. Continuously watching the same program can cause the imprint of station logos onto the TV screen. These types of imprints are not covered by your warranty because they are the result of misuse.

Note on Caption Vision

This television receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules.

Note on Cleaning the TV

Clean the TV with a soft dry cloth. Never use strong solvents such as thinner or benzine, which might damage the finish of the cabinet.

Note to CATV System Installer

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular , specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Use of this television receiver for other than private viewing of programs broadcast on UHF or VHF or transmitted by cable companies for the use of the general public may require authorization from the broadcaster/cable company and/or program owner.

As an ENERGY STAR Partner, Sony has determined that this product or product models meets

NERGY STAR guidelines

the E for energy efficiency.

ENERGY STAR is a U.S. registered mark.

Owner’s Record

The model and serial numbers are provided on the front of this instruction manual and at the rear of the TV. Refer to them whenever you call upon your Sony dealer regarding this product.

About this Manual

This manual is for models KV-36FS13 and KV-36FS17. The menu and illustrations shown are for model KV-36FS17 to show the maximum features available. Differences in operation will be indicated in the text, for example, “For KV-36FS13 only.”

Important Safeguards

For your protection, please read these instructions completely, and keep th is manu al for fu ture reference.

Carefully observe and comply with all warnings, cautions and instructions placed on the set or described in the operating instructions or service manual.

WARNING

To guard against injury, the following basic safety precautions should be observed in the installation, use and servicing of the set.

Use

Power Sources

This set should be operated only from the type of power source indicated on the serial/model plate. If you are not sur e of the type of elec trical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, refer to the operating instructions.

Grounding or Polarization

This set is equipped with a polarized AC power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding).Follow the instructions below:

For the set with a polarized AC power cord plug

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

Alternate Warning

For the set with a three-wire grounding type AC plug

This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the grounding plug.

Overloading

Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

Always turn the set off when it is not being used. When the set is left unattended and unused for long periods of time, unplug it from the wall outlet as a precaution against the possibility of an internal malfunction that could create a fire hazard.

If a snapping or popping sound from a TV set is continuous or frequent while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being turned on or off.

Cleaning

Unplug the set from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the set.

Installation

Attachments

Do not use attachments not recommended by the manufacturer, as they may cause hazards.

Water and Moisture

Do not use power-line operated sets near water — for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Accessories

Do not place the set on an unstable cart, stand, table or shelf. The set may fall, causing serious injury to a child or an adult and serious damage to the set. Use only a cart or stand recommended by the manufacturer for the specific model of TV. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Ventilation

The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of the set, and to protect it from overheating, thes e slots and openings must neve r b e blocked or covered.

❑ Never cover the slots and openings with a

cloth or other materials.

❑ Never block the slots and openings by

placing the set on a bed, sofa, rug or other similar surface.

❑ Never place the set in a confined space , s uch

as a bookcase or built-in cabinet, unless proper ventilation is provided.

❑ Do not place the set near or over a radiator

or heat register, or where it is exposed to direct sunlight.

Object and Liquid Entry

Never push objects of any kind into the set through the cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the set.

Power-Cord Protection

Do not allow anything to rest on or roll over the power cord, and do not place the set where the power cord is subject to wear or abuse.

Antennas

Outdoor Antenna Grounding

If an outdoor antenna is installed, follow the pr ecautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANT E NNA SYSTEM, EXTREME CARE SH O U L D BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in USA and Section 54 of the Canadian Electrical Code in Canada provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the NEC

Refer to section 54-300 of Canadian Electrical Code for Antenna Grounding.

Service

Damage Requiring Se rvic e

Unplug the set from the wall outlet and refer servicing to qualified service personnel under the following conditions:

❑ When the power cord or plug

is damaged or frayed.

❑ If liquid has been spilled into

the set.

❑ If the set has been exposed to

rain or water.

❑ If the set has been subject to

excessive shock by being dropped, or the cabinet has been damaged.

❑ If the set does not operate

normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the set to normal operation.

Antenna lead-in wire

Ground clamp

Antenna discharge unit (NEC Section 810-20)

Electrical wire equipment

NEC: National Electrical Code

Ground clamps

Antenna lead-in wire

Power service grounding electrode system (NEC Art 250 Part H)

Lightning

For added protection for this television receiver during a lightning storm, or when it is left unattended and unused f or long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the receiver due to lightning and power-line su rges.

❑ When the set exhibits a distinct change in performance, it

indicates a need for service.

Servicing

Do not attempt to service the set yourself since opening the cabinet may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Replacement Parts

When replacement parts are required, be sure the service technician certifies in writing that he has used replacement parts specified by the manufacturer that have the same characteristics as the original parts.

Unauthorized substitutions may result in fire, electric shock or other hazards.

Safety Check

Upon completion of any service or repairs to the set, ask the service technician to perform routine safety checks (as specif ied by the manufacturer) to determine that the set is in safe operating condition, and to so certify. When the set reaches the end of its useful life, improper disposal could result in a picture tube implosion. Ask a qualified service technician to dispose of the set.

Contents

Introducing the FD Trinitr on Wega

Overview................................................................1

Presenting the FD Trinitron Wega......................2

Package Contents..................................................3

Using the Remote Control...................................3

Installing the TV

Overview................................................................9

TV Controls and Connectors.............................10

Basic Connections (Connecting a Cable

or Antenna)..................................................12

Connecting a VCR and Cable.................... ... .....16

Connecting a VCR and Cable Box

(KV-36FS17 only)........................................17

Connecting Two VCRs for Tape Editing.........20

Connecting a Satellit e Receiver........................ .21

Connecting a Satellite Receiver with a VCR ...22

Connecting an Audio Receiver.........................24

Connecting a DVD Player with

Component Video Connectors..................25

Connecting a DVD Player with A/V

Connectors...................................................26

Connecting a Camcorde r.............................. .... .27

Setting Up the TV Automatically.....................28

Using the Features

Overview..............................................................29

Using Favorite Channels ...................................30

Using Picture in Picture (PIP)

(KV-36FS17 only)........................................31

Using the Menus

Overview..............................................................35

Using the Video Menu......................................36

Using the Audio Menu .....................................38

Using the Channel Menu..................................40

Using the Parent Menu .....................................42

Using the Timer Menu......................................45

Using the Setup Menu.......................................46

Using the Basic Menu........................................48

Other Information

Overview..............................................................49

Programming the Remote Control...................50

Operating Other Components with Your

TV Remote Control..................................... 52

Troubleshooting..................................................54

Specifications.......................................................56

Index.....................................................................59

Introducing the FD Trinitron Wega

Overview

This chapter defines the contents of your Weg a TV and provides an overview of how to set up and use basic features.

Topic Page

Presenting the FD Trinitron Wega 2 Package Contents 3 Using the Remote Control 3

Introducing the FD Trinitron Wega

Presenting the FD Trinitron Wega

The FD Trinitron Wega (pronounced VAY-GAH) is characterized by outstanding contrast, uncompromising accuracy, and corner-tocorner detail.

You will recognize the superiority of Wega technology almost immediately. The first thing you will probably notice is minimal glare from the flat picture tube. This flat-screen technology improves picture detail without distortion, unlike conventional curved screens. The FD Trinitron delivers outstanding image detail not only at the screen center, but also at the corners — so you can enjoy a bright, clear picture from any location in a room.

Features Some of the features that you will enjoy with your new TV include:

❑ 16:9 Enhancement: Vertical Compression technology that

maximizes picture resolution on “anamorphic” or “enhanced for widescreen” sources, including selected DVDs.

❑ Velocity Modulation: Vertical line enhancement that sharpens

picture definition.

❑ Parental Control: V-Chip technology allows parents to block

unsuitable programming for younger viewers.

❑ Component V i deo Input: Offers the best video quality for DV D

player connections.

❑ S-VIDEO Input: Provides a high-quality image for connected

equipment.

Also, on the KV-36FS17 model:

❑ Dual Tuner Picture in Picture (PIP): Allows you to wat ch two

programs at once.

❑ Favorite Channel Preview: Preview up to eight favorite channels

without leaving the current channel.

Package Contents

Along with your new Trinitron TV, the packing box contains a remote control and two AA batteries. These items are all you need to set it up and operate the TV in its basic configuration.

Most peripherals come with the necessary cables to connect them. If you want to set up special configurations, you may need to buy extra cables or connectors. It is best to ensure that you have all needed materials on hand before beginning a special-connection project.

Using the Remote Control

The remote control is the primary mechanism for controlling your TV. Handle the remote control with care. avoid dropping it, getting it wet, placing it in direct sunlight, near a heater, or where the humidity is high.

Introducing the FD Trinitron Wega

Inserting Batteries Insert two size AA (R6) batteries (supplied) by matching the + and –

on the batteries to the diagram inside the battery compartmen t.

✍ Remove the batteries to avoid damage from possible battery leakage whenever

you anticipate that the remote control will not be used for an extended period.

Introducing the FD Trinitron Wega

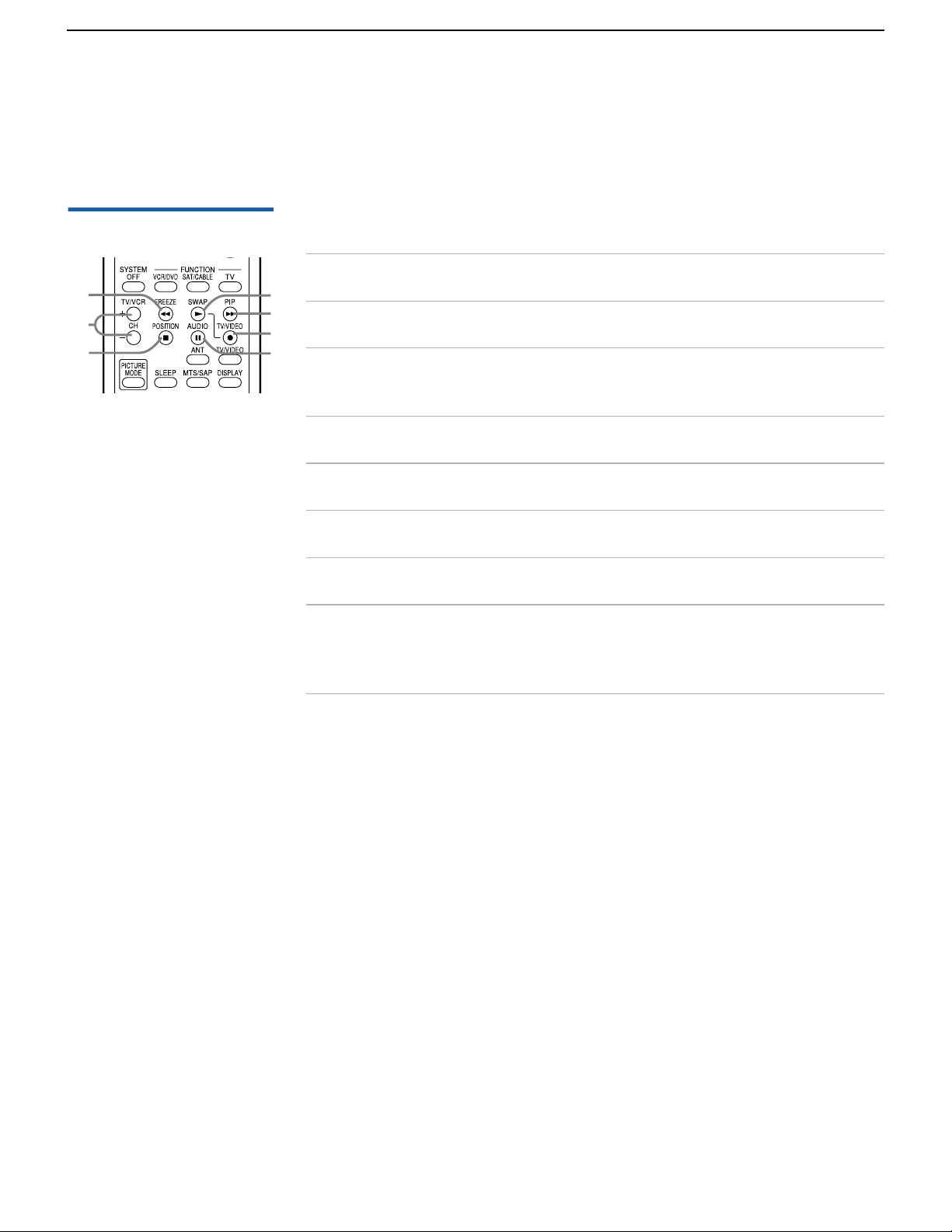

Button Descriptions The POWER button on the remote control (no. 11 in the illustration

below) activates both the remote control and the TV.

Button Description

1 MUTING Mutes the sound. Press again or press VOL + to restore

2 SYSTEM OFF Powers off all Sony equipment at once. (This feature

the sound.

may not work with older Sony equipment.)

3 TV/VCR Switch between TV and VCR mode. If you have a

non-Sony VCR, you will need to program the remote

qd qf qg

control to recognize your VCR. For details, see “Programming the Remote Control” on page 50

m Rewind

M Fast-forward N Play x Stop

X Pause (Press again to resume playback or recording) RECORD To record, press N and a simultaneously.

RM-Y180

Model Remote

KV-36FS13 KV-36FS17

RM-Y180 RM-Y181

(See page 6 )

4 SLEEP Press repeatedly until the TV displays the time in

minutes (15, 30, 45, 60, or 90) tha t you want the TV to

remain on before shutting off automatically . Cancel by pressing until SLEEP OFF appears.

5 PICTURE MODE Cycles through the available video picture modes:

Vivid, Standard, Movie, Sports. Also available in the Video

menu. For details, see “Selecting Video Options” on page 36.

6 JUMP Press to jump back and forth between two channels.

The TV alternates between t he curr ent channel and the last channel that was selected.

7 TV/SAT Switches between the TV and SAT (satellite) inputs

when in SAT FUNCTION mode. Provides quick access for changing available audio

settings. For detail s, see “Sel ecting Aud io Options” on page 38.

8 RESET Press when in a menu to reset the settings to the

factory defaults.

9 VOL +/- Adjusts the volume. q; CODE SET Used for programming the remote control to operate

non-Sony video equipment. For details, see “Programming the Remote Control” on page 50.

qa POWER buttons

(GREEN)

Turn on and off the TV and other audio/video equipment.

Introducing the FD Trinitron Wega

Button Description

qs FUNCTION buttons

(WHITE)

qd TV/VIDEO Cycles through the video equipment connected to your

qf DISPLA Y Press once to display the current time and channel

qg MTS/SAP Cycles through the Multi-channel TV Sound (MTS)

qh 0 - 9 and ENTER Press 0 - 9 to select a channel, the channel changes after

qj GUIDE Displays the program guide of your satellite antenna.

Select the equipment (TV, VCR/DVD, SAT/CABLE) that you want to operate. The indicator lights up momentarily when pressed to show which device the remote control is operating.

TV’s video inputs.

label (if set) and channel number. Press again to turn Display off. For details on setting the time, see “To set the Current Time” on page 45.

options: Stereo, Auto-SAP (Second Audio Pr ogra m) , a nd Mono. For details, see “Using the Audio Menu” on page 38.

2 seconds. Press ENTER to select immediatel y.

qk Arrows and Select. Pressing down on the center

button selects the item.

ql MENU Press to display the TV menu. Press again to exit from

the menus.

w; CH +/- Scan through channels.

Introducing the FD Trinitron Wega

The POWER button on the remote control (no. 11 in the illustration below) activates both the remote control and the TV.

1 MUTING Mutes the sound. Press again or press VOL + to restore

2 SYSTEM OFF Powers off all Sony equipment at once. (This feature

3 TV/VCR CONTROLS and PIP CONTROLS

qd qf qg qh

4 SLEEP Press repeatedly until the TV displays the time in

Button Description

the sound.

may not work with older Sony equipment.)

AUDIO Alternates sound between the main picture and the

window picture.

CH+/- Changes the channel in the window picture. FREEZE Freezes the window picture. Press again to restore the

picture.

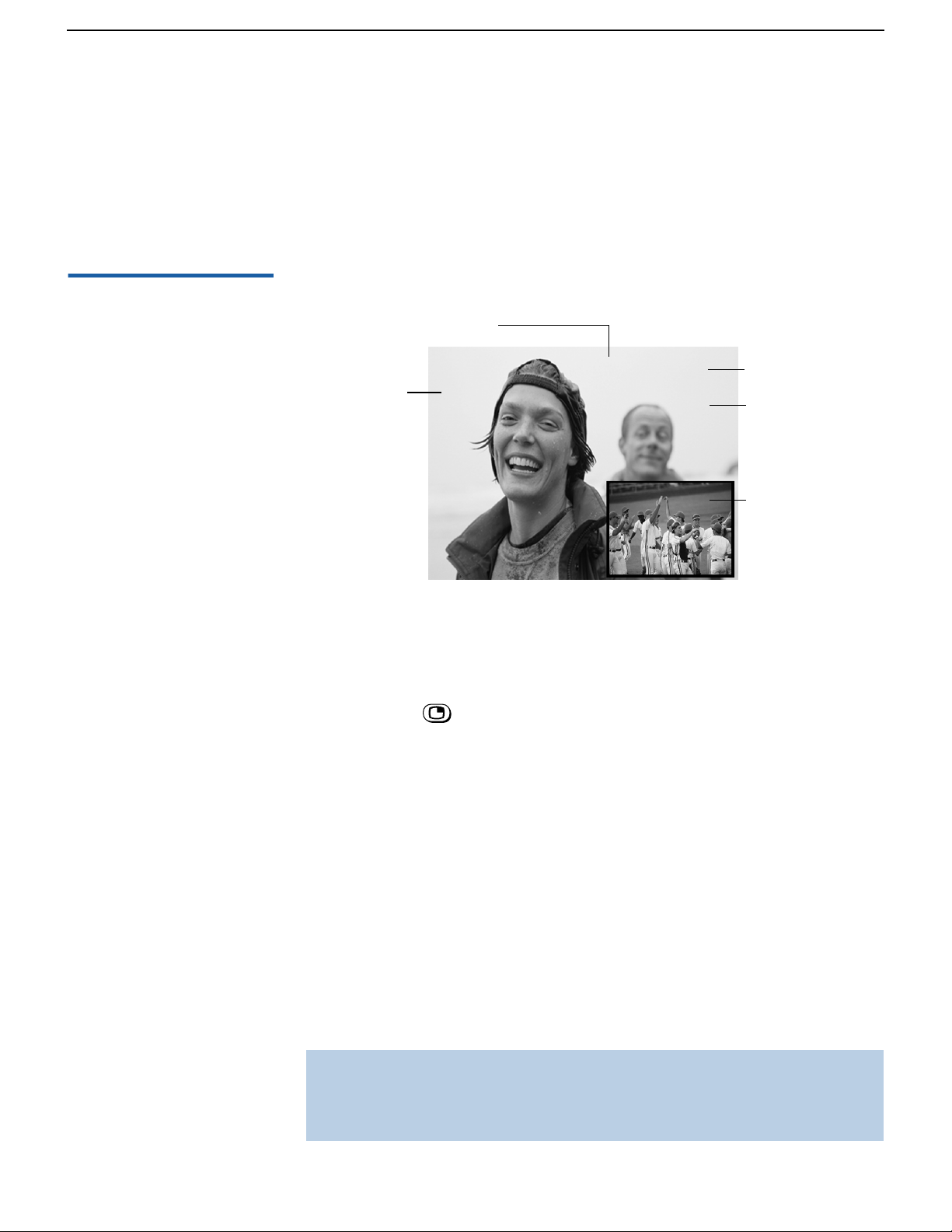

PIP Turns on/off PIP. For details, see “Using Picture in

Picture (PIP)” on page 31.

POSITION Moves the location of the window picture. SWAP Switches the position of the main picture with the

window picture.

TV/VCR Changes the VHF/UHF output of the VCR. TV/VIDEO In the window picture, cycles through the video

equipment connected to your TV’s video inputs: TV, VIDEO 1, VIDEO 2, VIDEO 3, VIDEO 4.

minutes (15, 30, 45, 60, or 90) tha t you want the TV to remain on before shutting off automatically . Cancel by pressing until SLEEP OFF appears.

RM-Y181

5 PICTURE MODE Cycles through the available video picture modes:

Vivid, Standard, Movie, Sports. Also available in the Video

menu. For details, see “Selecting Video Options” on page 36.

6 JUMP Press to jump back and forth between two channels.

The TV alternates between t he curr ent channel and the last channel that was selected.

TV/SAT Switches between the TV and SAT (satellite) inputs

when in SAT FUNCTION mode. Provides quick access for changing available audio

settings. For detail s, see “Sel ecting Aud io Options” on page 38.

8 RESET Press when in a menu to reset the settings to the

factory defaults.

9 VOL +/- Adjusts the volume. q; CODE SET Used for programming the remote control to operate

non-Sony video equipment. For details, see “Programming the Remote Control” on page 50.

Button Description

qa POWER buttons

(GREEN)

Turn on and off the TV and other audio/video equipment.

Introducing the FD Trinitron Wega

qs FUNCTION buttons

(WHITE)

qd TV/VIDEO Cycles through the video equipment connected to your

qf ANT Changes the VHF/UHF input to the AUX input. qg DISPLA Y Press once to display the current time and channel

qh MTS/SAP Cycles through the Multi-channel TV Sound (MTS)

qj 0 - 9 and ENTER Press 0 - 9 to select a channel, the channel changes after

qk GUIDE Displays the program guide of your satellite antenna. ql Arrows and Select. Pressing down on the center

Select the equipment (TV, VCR/DVD, SAT/CABLE) that you want to operate. The indicator lights up momentarily when pressed to show which device the remote control is operating.

TV’s video inputs.

label (if set) and channel number. Press again to turn Display off. For details on setting the time, see “To set the Current Time” on page 45.

options: Stereo, Auto-SAP (Second Audio Pr ogra m) , a nd Mono. For details, see “Using the Audio Menu” on page 38.

2 seconds. Press ENTER to select immediatel y.

button selects the item.

w; MENU Press to display the TV menu. Press again to exit from

the menus.

wa CH+/- Changes the channel in the main picture.

Installing the TV

Overview

This chapter includes illustrated instructions for setting up your TV.

Topic Page

TV Controls and Connectors 10 Basic Connections (Connecting a Cable or Antenna) 12 Connecting a VCR and Cable 16 Connecting a VCR and Cable Box (KV-36FS17 only) 17 Connecting Two VCRs for Tape Editing 20 Connecting a Satellite Receiver 21 Connecting a Satellite Receiver with a VCR 22 Connecting an Audio Receiver 24

Note About the AC Power Cord

Connecting a DVD Player with Component Video Connectors

Connecting a DVD Player with A/V Connectors 26 Connecting a Camcorder 27 Setting Up the TV Automatically 28

The AC power cord is attached to the rear of the TV with hooks. Use caution when removing the AC plug from its holder. Gently slide the cord in the upward direction without removing the cord from the two lower hooks.

You can detach the cord from this hook

Do not remove the cord from the hook

AC Power cord

Installing the TV

TV Controls and Connectors

Front Panel Menu Controls

TV Rear Panel

The front panel menu controls allow access to the on-screen menus without the use of a remote control. Pressing the up the on-screen menus. The arrow buttons (Vv) move the on-screen cursor in the menus and the ( ) button selects the menu item.

Model KV-36FS13

MENU button brings

Model KV-36FS17

Back Panel Descriptions

Connection Description

1AUX

(KV-36FS17)

Allows you to view local and cable channels i f your ca ble provider does not feature local channels. You can switch between local and cable channels easily by pressing ANT on the remote control. Devices connected to the AUX input cannot be viewed in PIP.

Installing the TV

2TO CONVERTER

(KV-36FS17)

This is a VHF/UHF out jack that lets you set up your TV to switch between scrambled channels (through a cable box) and normal cable channel s (CATV). Use this jack instead of a splitter to get better picture quality when needing to switch between scrambled and unscrambled cable channels.

3VHF/UHF Connects to your VHF/UHF antenna or cable. 4S VIDEO Connects to the S VIDEO OUT jack of your VCR or other

S VIDEO-equipped video component. Provides better picture quality than the VHF/UHF jacks or the V ideo IN jack.

5AUDIO (L/R)/

VIDEO

Connects to the audio and vide o OUT jacks on y our VCR or other video component. A third video input (VIDEO

2) is located on the front panel of the TV. The Audio and Video IN jacks provide better picture quality than the VHF/UHF jack.

B, PR, L, R Connects to your DVD player’s or Digital Set-top box’s

6Y, P

B, PR) and audio (L/R) jacks.

7AUDIO OUT

(VAR/FIX) L (MONO)/R

component video (Y, P Connects to the left a nd ri ght a u dio input s of your audio

or video component. You can use these outputs to listen to your TV’s audio through your stereo system.

Installing the TV

Basic Connections (Connecting a Cable or Antenna)

Connecting Directly to Cable or an Antenna

The connection you choose depends on the cable found in your home.

Newer homes usually have standard coaxial cable: VHF Only or VHF/UHF or Cable

75-ohm coaxial cable

Older homes may have 300-ohm, twin-lead cable: VHF Only or UHF Only or VHF/UHF

300-ohm twin lead cable

Antenna connector

VHF/UHF

Rear of TV

VHF/UHF

Rear of TV

Other homes may have both: VHF and UHF

75-ohm coaxial cable

300-ohm twin lead cable

VHF/UHF

Rear of TV

U/V Mixer

(not supplied)

Installing the TV

Cable and Antenna (KV- 36FS17 only)

If your cable provider does not feature local channels, you may find this set-up convenient.

CATV cable

(No connection to TO CONVERTER)

Antenna cable

To receive channels us in g an antenna, in stead of usin g the CAT V c able

AUX

Rear of TV

TO CONVERTER

VHF/UHF

Rear of TV

1 Select antenna mode by pressing the ANT button on the remote

control. (This is a toggle: pressing the button once selects antenna mode; pressing the button again selects cable mode.)

2 Turn the Cable to OFF (see page 42). 3 Perform the Auto Program function (see page 42).

Basic Cable Box Connections

Cable Box and Cable

This is the preferred basic cable TV hookup to use if your cable TV company scrambles some channels, but not all of them (pay channels vs. regular cable channels), and you need to use a cable box.

With this setup you can:

❑ Use the TV remote control to change channels on your cable box

when the signal is scrambled.

❑ Use the TV remote control to change channels using your TV

when the signal is not scrambled. (Your TV’s tuner provides a better signal than the cable box.)

❑ Use the PIP feature normally with the CATV input. ❑ Use the PIP feature partially with the cable box. (When you

switch the TV input to AUX — to use the cable box — the scrambled picture will display only in the main window. If you turn on the PIP, you will be able to see any of the regular channels in the PIP window, but you cannot SWAP the pictures between the main and PIP windows.)

(Continued on the next page)

Installing the TV

(Continued from the previous page)

1 Connect the Cable TV cable to the TV’s VHF/UHF jack. 2 Using a coaxial cable, connect the TV’s TO CONVERTER jack to

the cable box’s IN jack. The TV’s internal converter allows you to switch between unscrambled signals coming straight into the TV and scrambled signals coming in through the cable box, eliminating the need for an external splitter.

3 Using a coaxial cable, connect the cable box’s OUT jack to the

TV’s AUX jack.

Cable box

75-ohm coaxial cable (not supplied)

CATV cable (unscrambled channels)

75-ohm coaxial cable (not supplied)

OUT

TO CONVERTER

AUX

Rear of TV

VHF/UHF

Rear of TV

To switch between chan n els from cab le box and chan n els from regular cabl e

❑

Press the ANT button on the TV remote control. (This is a toggle: pressing the button once selects the cable box; pressing the button again selects regular cable.)

To use the cable box

Have your TV tuner set to channel 3 or 4 (as appropriate) and

❑

then use the cable box to switch channels.

To use the TV remote control to switch channels on the cable box

❑

Program the remote control as necessary. (See “Programming the Remote Control” on page 50.) Then use the remote control to switch cable box channels.

To prevent the accidental switching of TV channels

❑

When using the cable box, you need your TV to stay on a required channel (usually channel 3 or 4). You can use the TV’s Channel Fix feature to lock in a specific channel. The Channel Fix feature is under the Channel menu. For details, see “Using the Channel Menu” on page 40.

Installing the TV

Cable Box only

Use this hookup if:

❑ You subscribe to a cable TV system that scrambles or encodes all

signals, requiring a cable box to view all channels, and

❑ You do not intend to hook up any other audio or video

equipment to your TV.

When all channels are routed through your cable box, only one unscrambled signal is sent to the TV, so you cannot use the PIP feature. If some of your channels are scrambled, but others are not, consider using the hookup “Cable Box and Cable” on page 13 instead.

1 Connect the coaxial connector from your cable service to the

cable box’s IN jack.

2 Using a coaxial cable, connect the cable box’s OUT jack to the

TV’s VHF/UHF jack.

Cable

VHF/UHF

Rear of TV

Cable box

OUT

Installing the TV

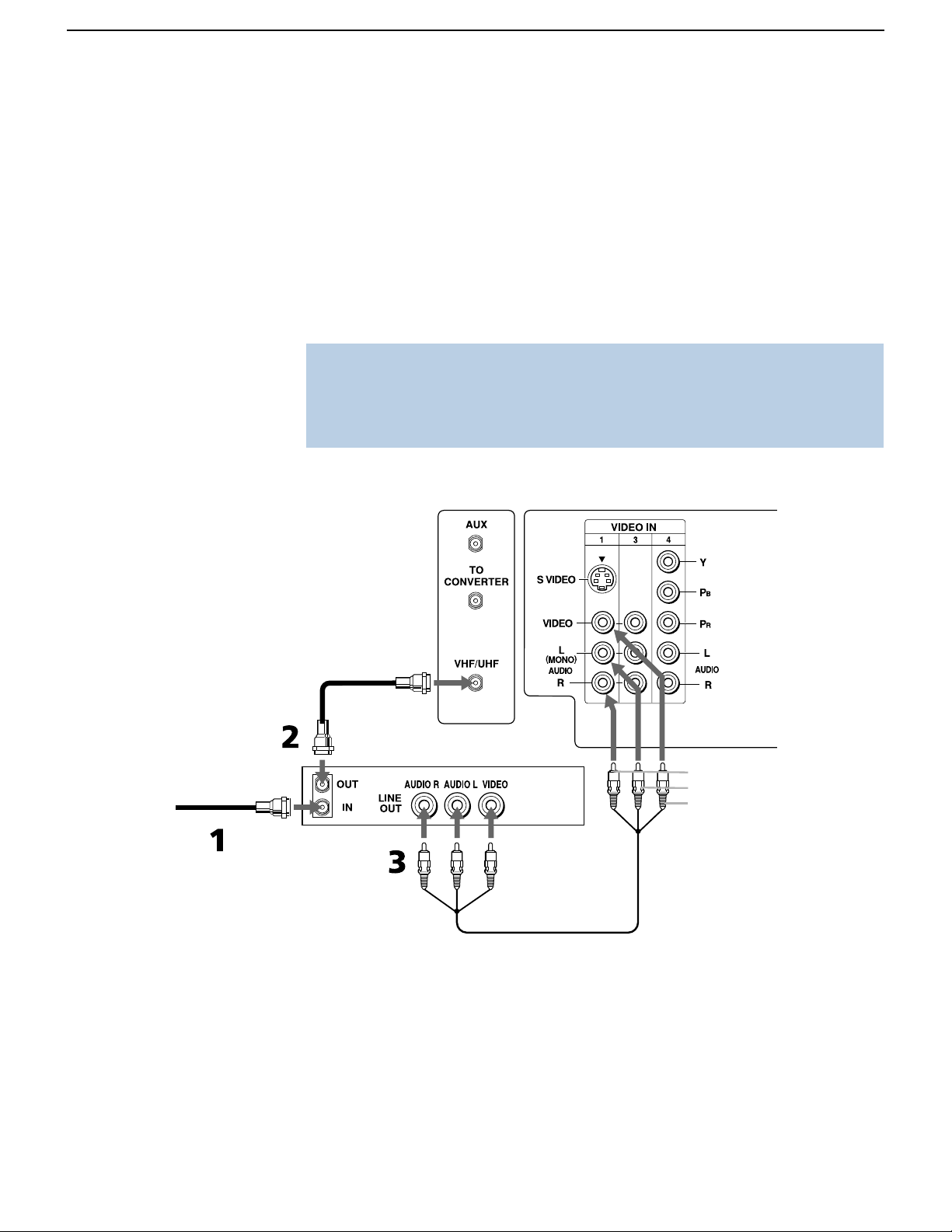

Connecting a VCR and Cable

Use this hookup if you subscribe to a cable TV (CATV) system that does not require a cable box.

1 Connect the CATV cable to the VCR’s IN jack. 2 Using a coaxial cable, connect the VCR’s OUT jack to the TV’s

VHF/UHF jack.

3 Using an A/V cable, connect the VCR’s Audio and Video OUT

jacks to the TV’s Audio and Video IN jacks.

✍ If the VCR you are connecting has an S VIDEO jack, you can use an S VIDEO

cable for improved picture quality (compared to a combination audio/video cable). Because S VIDEO cables carry only the video signal, you will need audio cables for sound.

CATV

Coaxial cable

VCR

AUDIO-R (red) AUDIO-L (white) VIDEO (yellow)

A/V cable

Connecting a VCR and Cable Box (KV-36FS17 only)

Use this hookup if:

❑ Your cable TV company scrambles some channels, but not a ll of

them (pay channels vs. regular cable channels) and you therefore need to use a cable box, and

❑ You want to use the PIP feature.

With this setup you can:

❑ Use the TV remote control to change cable box channels when the

signal is scrambled.

❑ Use the TV remote control to change TV channels when the

signal is not scrambled. (Your TV’s tuner provides a better signal than the cable box.)

❑ Use the PIP feature. ❑ Record both regular CATV and scrambled cha nnels.

To connect a cable box and a VCR, you will need:

❑ A small, inexpensive device known as a splitter. ❑ Three coaxial cables. ❑ Either a combination audio/video cable, or an S VIDEO cable

and audi o cables.

Installing the TV

1 Connect the CATV cable to the single (input) jack of the splitter. 2 Use a coaxial cable to connect one of the two output jacks of the

splitter to the TV’s VHF/UHF jack.

3 Use a coaxial cable to connect the other output jack of the splitter

to the input jack of the cable box.

4 Use a coaxial cable to connect the output jack of the cable box to

the input jack of the VCR.

5 Use the video line (yellow) of a combinatio n a udio/video (A/V)

cable to connect the video output jack of the VCR to the video input jack of the TV.

✍ If the VCR has an S VIDEO jack, you can use an S VIDEO cable to improve

picture quality, replace the yellow video cable of the combination A/V cable with the S VIDEO cable. (Do not connect both types of cable at the same time.) You will still need audio cables for sound.

Connect the left (white) and right (red) audio output channels of the VCR to the respective input channels on the TV.

(Continued on the next page)

Installing the TV

CATV cable

(Continued from the previous page)

Coaxial

cable

Splitter

(not supplied)

Cable box

Coaxial

cable

VCR

A/V cable

AUDIO-R (red) AUDIO- L ( white) VIDEO (yell ow)

To view cable box channels

❑

Turn on the VCR and set it to the channel the cable box uses (channel 3 or 4). Set the TV to VIDEO 1. Use the cable box to switch channels.

To use the TV remote control to switch channels on the cable box

❑

Program the remote control as necessary. (See “Programming the Remote Control” on page 50.) Then use the remote control to switch cable box channels.

To use the TV remote control to switch channels on the VCR

Program the remote control as necessary. (By default, the remote

❑

control is set for a Sony VCR; to change to another brand see “Programming the Remote Control” on page 50.) Then use the VCR buttons on the remote control to switch VCR channels.

Installing the TV

To use PIP with the Cable Box

❑

Turn on the cable box and VCR. Use the remote control’s TV/VIDEO (yellow) button to set the PIP output to VIDEO 1. Change the PIP channel via the cable box. (The cable box’s tuner is used as the PIP video source; if you do not turn on the cable box, the PIP will not work.)

✍ This system is needed because the cable box unscrambles only one channel at

a time (unlike regular cable, which makes all channels available concurrently).

Installing the TV

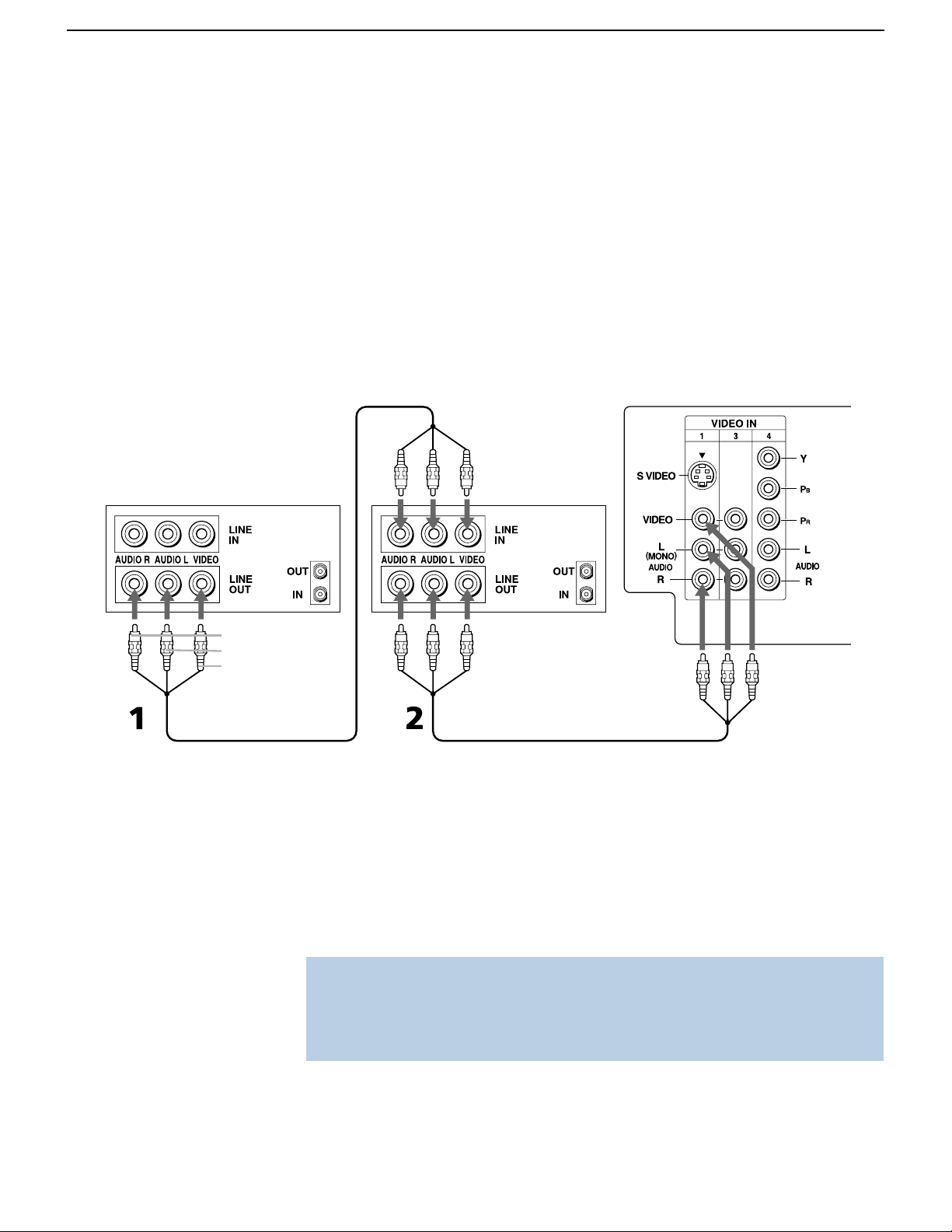

Connecting Two VCRs for Tape Editing

If you connect two VCR’s together, so you can record from one to the other, you may want to monitor the recording process. You can connect the recording VCR into your TV and then view what is being recorded. The procedure below shows you how to do this.

1 Using an A/V cable, connect the playback VCR’s Audio and

Video OUT jacks to the recording VCR’s Audio and Video IN jacks.

2 Using an A/V cable, connect the recording VCR’s Audio and

Video OUT jacks to the TV’s Audio and Video IN jacks.

VCR (playback)

AUDIO-R (red) AUDIO- L ( white) VIDEO (yell ow)

A/V cable

VCR (recording)

A/V cable

To change the video input of the VCR .

❑

See your VCR’s user’s guide for instructions.

To view what is being recorded

Use the remote control to set the TV to the video input to which

❑

the recording VCR is connected. (VIDEO 1 in the illustration above.)

✍ If the VCRs you are connecting have S VIDEO jacks, you can use S VIDEO

cables to improve picture quality, replace the yellow video cable of the combination A/V cable with the S VIDEO cable. (Do not connect both types of cable at the same time.) You will still need audio cables for sound.

Connecting a Satellite Receiver

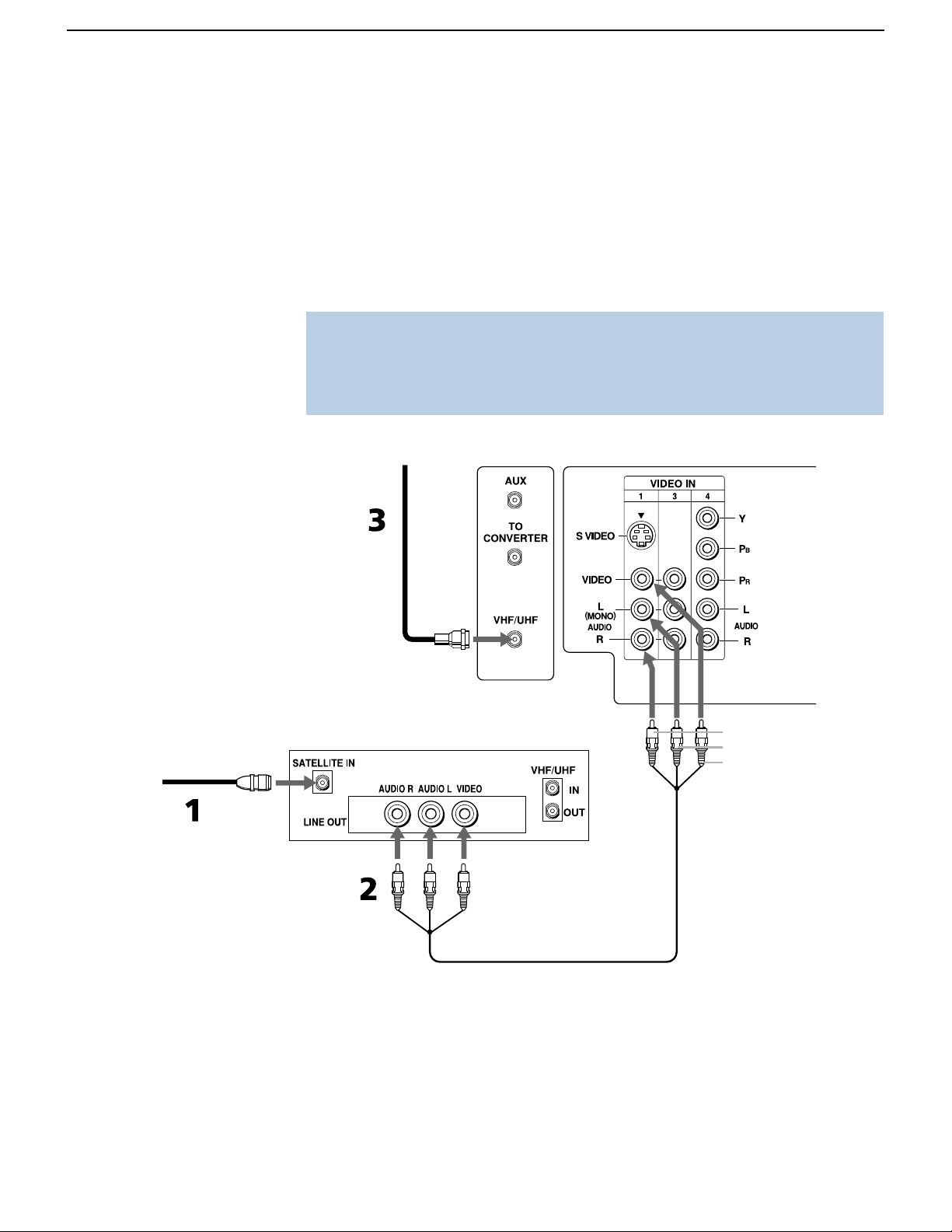

1 Connect the satellite antenna cable to the satellite receiver’s

SATELLITE IN jack.

2 Using an A/V cable, connect the satellite receiver’s Audio and

Video OUT jacks to the TV’s Audio and Video IN jacks.

3 Connect a coaxial cable from your cable or antenna to the TV’s

VHF/UHF jack.

✍ If the satellite receiver has an S VIDEO jack, you can use an S VIDEO cable to

improve picture quality, replace the yellow video cable of the combination A/V cable with the S VIDEO cable. (Do not connect both types of cable at the same time.) You will still need audio cables for sound.

Coaxial

cable

Installing the TV

Satellite antenna cable

Satellite receiver

AUDIO-R (red) AUDIO-L (white) VIDEO (yellow)

A/V cable

Installing the TV

Connecting a Satellite Receiver with a VCR

1 Connect the satellite antenna cable to the satellite receiver’s

SATELLITE IN jack.

2 Connect the CATV cable to the VCR’s VHF/UHF IN jack. 3 Using a coaxial cable, connect the VCR’s OUT jack to the TV’s

VHF/UHF jack.

4 Using an A/V cable, connect the satellite receiver’s Audio and

Video OUT jacks to the VCR’s Audio and Video IN jacks.

5 Using an A/V cable, connect the VCR’s Audio and Video OUT

jacks to the TV’s Audio and Video IN jacks.

Satellite antenna cable

VCR

Satellite receiver

CATV

Coaxial

cable

AUDIO-R (red) AUDIO- L ( white) VIDEO (yell ow)

Coaxial

cable

A/V cable

✍ If the satellite receiver and VCR have S VIDEO jacks, you can use an S VIDEO

cable to improve picture quality, replace the yellow video cable of eac h combination A/V cable with the S VIDEO cable. (Do not connect both types of cable at the same time.) You will still need audio cables for sound.

Installing the TV

To change VCR video input

❑

See your VCR’s user’s guide for instructions.

To watch satellite TV, or the VCR

❑

Use the TV/VIDEO on the remote control to select VIDEO 1. (The TV must be turned on.)

To watch cable TV

❑

Use the TV/VIDEO on the remote control to select VHF/UHF. (The TV must be turned on.)

Installing the TV

Connecting an Audio Receiver

For improved sound quality, you may want to send the TV’s audio signals to your stereo system. The procedure below tells you how.

1 Using audio cables, connect the TV’s Audio OUT jacks to the

audio receiver’s Audio LINE IN jacks.

AUDIO-L (white)

AUDIO-R (red)

Line input

Connecting a DVD Player with Component Video Connectors

This is the preferred hookup to use if your DVD player has component video (Y, P

B, PR) jacks.

1 Using three separate component video cables, connect the DVD

player’s Y, P the VIDEO 4 connections.

B and PR jacks to the Y, PB and PR jacks on the TV. Use

✍ The Y , PB and PR jacks on your DVD player are sometimes labeled Y , CB and

R, or Y, B-Y and R-Y. If so, connect the cables to like colors.

Using an audio cable, connect the DVD player’s Audio OUT jacks to the TV’s Audio IN jacks. Be sure to use the same column (VIDEO 4) of inputs that you used for the video co nnec tion.

Installing the TV

DVD player

Component video cables

AUDIO-R (red) AUDIO-L (white)

Audio cable

✍ You cannot record the signal from any equipment connected into the Y, PB, PR

jacks.

Installing the TV

Connecting a DVD Player with A/V Connectors

Use this hookup if your DVD player does not have component video

B, PR) jacks.

(Y, P

✍ An S VIDEO connection will give a good quality video signal, but if your DVD

player has com pon en t vi de o, that conn ect io n (d es cr ibe d o n t he pr ev i ou s pa ge ) will give an even better video signal.

1 Using audio cables, connect the DVD player’s Audio OUT jacks

to the TV’s Audio IN jacks.

2 Using an S VIDEO cable, connect the DVD player’s S VIDEO jack

to the TV’s S VIDEO jack.

DVD player

S VIDEO

cable

AUDIO-R (red) AUDIO- L ( white)

Audio cable

To switch between your TV and DVD

❑

Use the TV/VIDEO button on the remote control to switch from one input device to another.

Connecting a Camcorder

For easy connection of a camcorder, the TV has front Audio and Video inputs (shown below). If you prefer, however, you can connect the camcorder to the TV’s rear Audio and Video IN jacks.

1 Using A/V cables, connect the camcorder’s Audio and Video

OUT jacks to the TV’s Audio and Video IN jacks.

AUDIO-R (red)

AUDIO-L (white)

VIDEO (yellow)

Installing the TV

A/V output

If you have a mono camcorder, connect its audio output to the TV’s AUDIO L jack.

✍ If the camcorder has an S VIDEO jack, you can use an S VIDEO cable to

To view the camera’s output

❑

Use the TV’s remote control to set the appropriate input on the TV (VIDEO 2, in the illustration).

Installing the TV

Setting Up the TV Automa t ically

After you finish connecting your TV, you need to run Auto Setup to set up your channels. The Auto Setup screen appears when you turn your TV on for the first time after installing it. If you do not want to set up the channels at this time, you can do it later by using the Auto Program feature in the Channel menu (see page 40).

✍ The Auto Setup feature does not apply for installations that use a cable box for

all channel selection.

Using Auto Setup 1 Press POWER to turn on the TV.

2 Press the TV function button on the remote control. 3 Press CH+ on the front of your TV to run the Auto Setup or press

CH– to exit. If you use the channel buttons on your remote control,

be sure to use the main set of buttons.

To reset the TV to factory settings

1 Turn the TV on. 2 Hold down the RESET button on the remote control. 3 Press and release the POWER button on the TV. (The TV will turn

itself off, then back on.)

4 Release the RESET button.

Using the Features

Overview

This chapter describes how to use special features of your TV.

Topic Page

Using Favorite Channels 30 Using Picture in Picture (PIP) (KV - 36FS17 only) 31

Using the Features

Using Favorite Channels

The Favorite Channel feature lets you select programs from a list of favorite channels that you specify.

To display a list of your favo rite channels

1 If you have not already done so, create a list of favorite channels.

(See the Favorite Channels section of “Selecting Channel Options” on page 40.)

2 If any menus are open, close them. 3 Press . (The Favorite Channels options appear.)

4 Press V or v to highlight the channel you want to watch. (If you

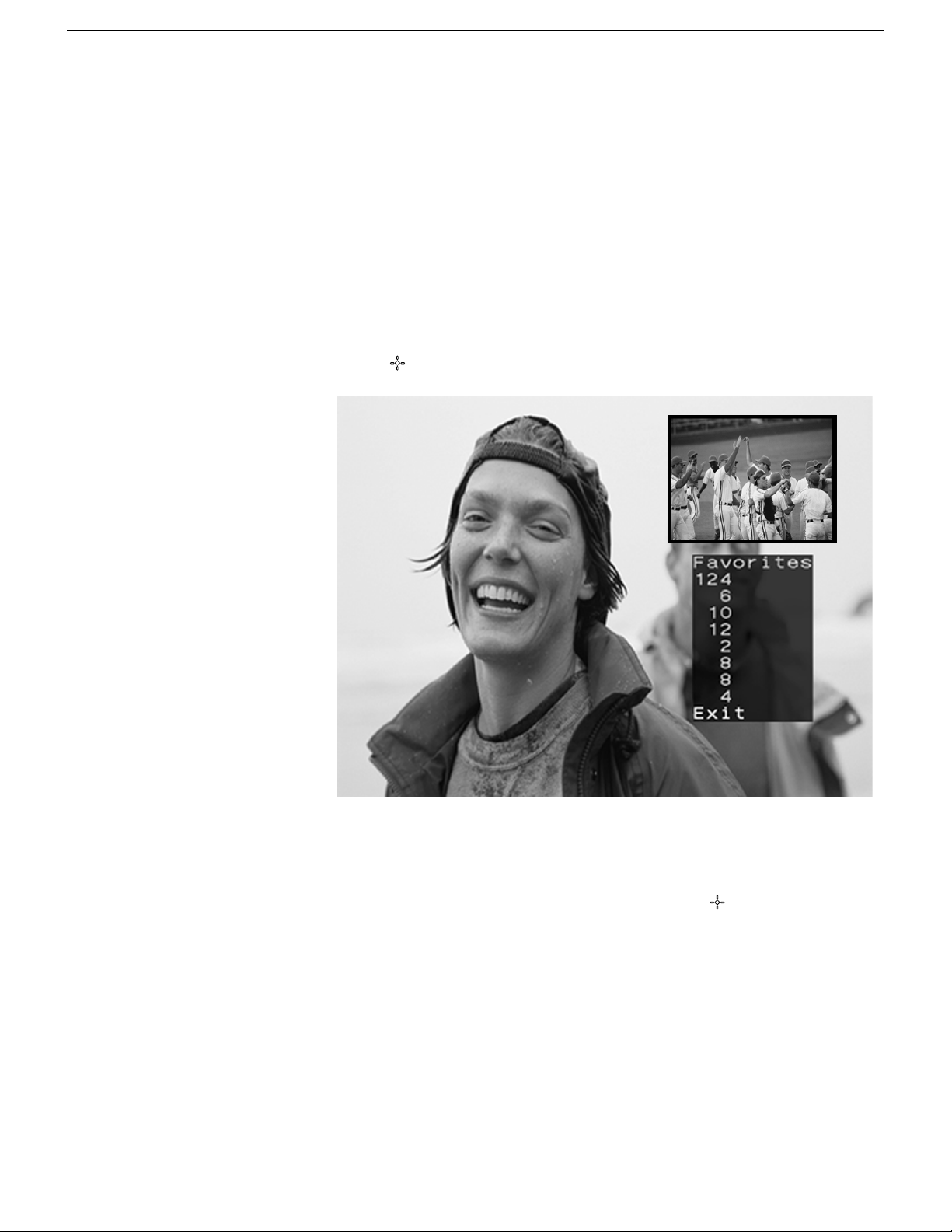

have a KV-36FS17 model, the PIP window w ill open, showing a preview of the highlighted Favorite Channel.)

5 When you find the channel you want, press to select it.

Using Picture in Picture (PIP) (KV-36FS17 only)

Picture in Picture (PIP) allows you to watch two channels simultaneously — one in the ma in window and another in a secondary (PIP) window.

Displaying Picture in Picture

Indicates which picture is currently receiving sound

Using the Features

Main picture channel number in green

Window picture channel number in white

Window picture


To use PIP:

Main

6 2

1 Make sure your TV is tuned to a channel that you know is airing

programming.

2 Press the button (or the button labeled PIP). The window

picture appears.

3 Use the yellow-labeled buttons on your remote control (see

diagram) to control the PIP features (which are listed on the next page).

To check your PIP:

1 Tune your TV to a channel that you know is airing programming. 2 Press SWAP and select that same channel as the main window.

You should now have the same program playin g in both your main window and your picture window.

3 Use the PIP (yellow) CH+/- buttons to change the channel in the

picture window.

✍ You must press TV (FUNCTION) before you can control PIP with the yellow-

labeled buttons. The AUX input cannot be viewed in the PIP window.

(Continued on the next page)

Using the Features

PIP Functions

(Continued from the previous page)

4 Now use the main CH+/- buttons of your remote control to

change the channel in the main window. If this does not work, check “Troubleshooting” on page 54 for potential solutions.

RM-Y181 remote control

4 5

6 7

Yellow-labeled PIP Button

FREEZE Freezes the window picture. Press again to restore the

CH +/- Changes the channel in the window picture. T o change

POSITION Moves the location of the window picture among the

SWAP Switches the main picture with the window picture.

PIP Turns the PIP feature on and off. Press repeatedly to

TV/VIDEO Cycles through available video equipment you have

AUDIO Alternates sound between the main picture and the

Description

picture. The main window continues to play as usual.

the channel in the main window, use the main CH+/buttons at the bottom of the remote control.

four corners of the screen.

Press again to change them back.

change the window size (1/9, 1/16, OFF).

connected to the TV.

window picture. The sound symbol ( seconds, indicating whether you are hearing sound from the main picture or the window picture.

9) appears for 3

Be sure to label your video so urces to make them easier to find in the Display easier. See “Video Label” on page 47 for labeling instructio ns.

Using the Features

To change channels/programs in the PIP window

❑

Use the yellow PIP CH+/- button to scroll through the TV channels.

❑ Use the yellow TV/VIDEO button to cycle through your other video

equipment connected to the TV, such as your VCR, DVD player or Satellite Receiver.

Setups that affect your ability to use PIP

❑

Any video equipment you have connected to the AUX input cannot be viewed in the PIP window.

❑ If you are viewing all channels through a cable box, the PIP

feature will not work. The cable box only unscrambles one signal at a time, so the window picture will be the same as the main picture.

❑ You can use PIP to see pictures from differ ent sources on your TV.

For example, you can have a regular (CATV) channel and the output from a VCR or DVD player or satellite receiver on screen at the same time using PIP. To do this:

1 Connect the CATV cable to the UHF/VHF input on the back

of the TV.

2 Connect the peripheral (VCR or DVD player or satellite

receiver) to any of the VIDEO IN inputs on the the back of the TV.

3 Tune to one image in the main picture. 4 Tune to a second image in the PIP window.

You can then SWAP the images on the TV screen.

✍ You cannot use a signal from the AUX connection with PIP.

Using the Menus

Overview

Opening and choosing a menu:

1 Press MENU to display the Menu screen.

TV/SAT

RESET MENU

Arrow buttons

To end a menu session:

Press MENU agai n

To end one menu session and move to another:

Press F to return to the menu icons.

GUIDE

Move

Select

2 Use the arrow buttons to move to the desired menu icon. Press

to select it.

3 Use the arrow buttons to scroll up and down through the

features.

4 See the specific menu page for instructions on moving through

the menu.

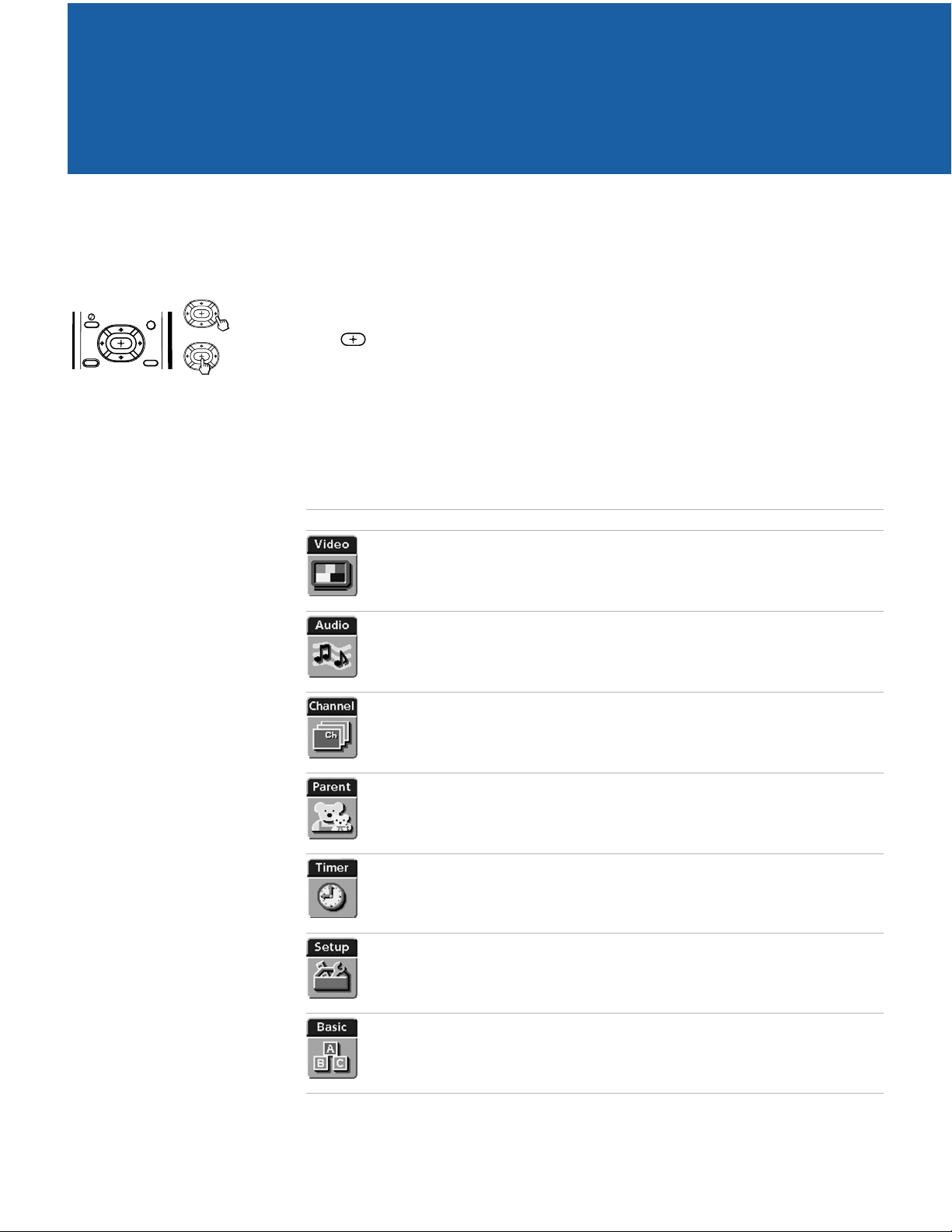

The Menu gives you access to the following features:

Menu Icon Description Page

Allows you to make adjustments to your picture settings. It also allows you to customize the Picture Mode based on the type of program you are viewing.

Offers enhanced audio options such as listening to second audio programming (SAP) or customizing the Effect of the sound on your TV.

Allows you to set up a Favorite Channel list, run the Auto Program function, and more.

Lets you control the viewing of programs based on their rati ngs.

Lets you set the clock on your TV and allows you to program your TV for scheduled viewing using the Timers.

Provides several options for setting up your channels, labeling your video inputs, and selecting the language of the on-screen menus.

Provides quick access to frequently used settings. 48

Using the Menus

Using the Video Menu

To select the Video Menu

1 Press MENU. 2 Use the arrow buttons to move

to the Video icon and press .

3 Use the arrow buttons to scroll

up and down through the options.

4 Press to select a feature.

That feature’s adjustment appears.

5 Use the arrow buttons to make the desired adjustments. 6 Press to select/set. 7 Press MENU to exit the menu screen.

Selecting Video Options

To change from one Video Mode to another, use the PICTURE MODE button on the remote control.

To restore the factory default settings for Picture, Brightness, Color, Hue, Sharpne ss, Colo r Temp and VM.

Press RESET on the remote control when in the Video menu.

❑

The Video Menu includes the following options.

Option Description

Mode

Customized picture viewing

Vivid Select for enhanced picture contrast and

sharpness.

Standard Select for standard picture settings. Movie Select to display a softer picture. Sports

Select to display a brigh ter, more intense picture.

✍ You can alter the Video Menu settings (Picture, Brightness,

Color, etc.) for each Mode.

Picture Adjust to increase picture contrast and deepen the color, or

decrease picture contrast and soften the color.

Brightness Adjust to brighten or darken the picture. Color Adjust to increase or decrease color intensity. Hue Adjust to increase or decrease the green tones. Sharpness Adjust to sharpen or soften the pictur e.

Option Description

Color Temp

White intensity adjustment

Velocity Modulation

Choose from three color temperatures:

Cool Select to give the white colors a blue tint. Neutral Select to give th e white color s a neutral tint. Warm Select to give the white colors a red tint

Sharpens picture definition to give every object a sha rp, clean edge. Select from High, Low, OFF.

Using the Menus

(NTSC-Standard).

Using the Menus

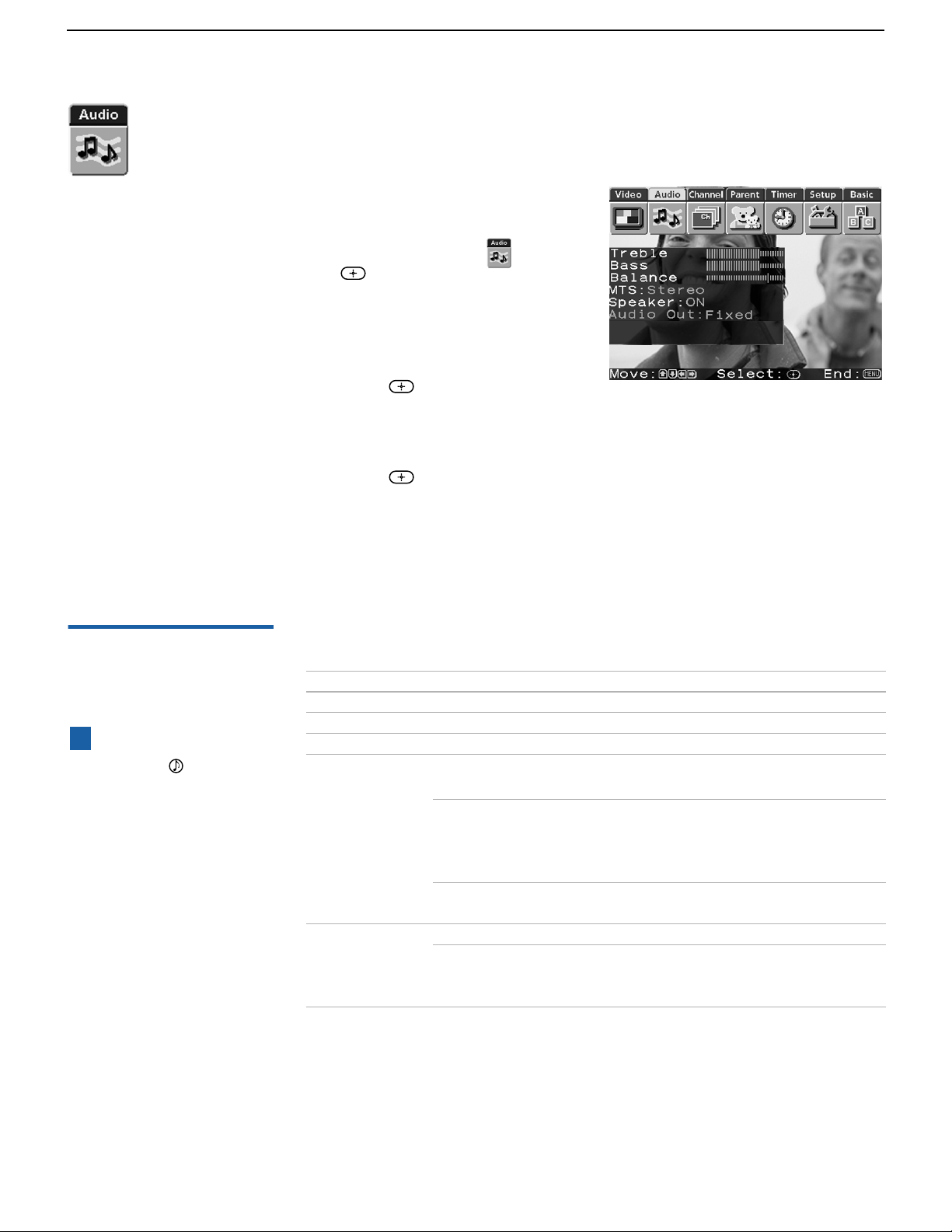

Using the Audio Menu

To select the Audio Menu

1 Press MENU. 2 Use the arrow buttons to move

to the Audio icon and press

3 Use the arrow buttons to scroll

up and down through the options.

4 Press to select an option.

That option’s settings appear.

5 Use the arrow buttons to scroll through the settings. 6 Press to select the desired setting. 7 Press MENU to exit the menu screen.

Selecting Audio Options

As a shortcut to using the menus, use the button on the remote control to cycle through available audio settings.

To restore the factory defau lt settings for Treble, Bass, and Balance

❑

Press RESET on the remote control when in the Audio menu.

The Audio Menu includes the following options:

Option Description

Treble Adjust to decrease or increase higher-pitched sounds. Bass Adjust to decrease or increas e lower-pitched sounds. Balance Adjust to emphasize left or right speaker balance. MTS

Enjoy ste reo, bilingual and mono programs

Speaker ON Select to turn on the TV speakers.

Stereo Select for stereo r e ception when viewi ng a

program broadcast in stereo.

Auto-SAP Select to automatically switch the TV to second

audio programs when a signa l is receiv ed. (If no SAP signal is present, the TV remains in Stereo mode.)

Mono Select for mono reception. (Use to reduce noise

during weak stereo broa dcas ts.)

OFF Select to turn off the TV speakers and listen to

the TV's sound only through your external audio system speakers.

Option Description

Audio Out

Easy control of volume adjustments

This option can be set only when the Speaker option is set to OFF.

Variable The TV’s speakers are turned off, but the

Fixed The TV’s speakers are turned off and the

Using the Menus

volume output from your audio system can still be controlled by the TV’s remote control.

volume output of the TV is fixed. Use your audio receiver’s remote control to adjust the volume through your audio system.

Using the Menus

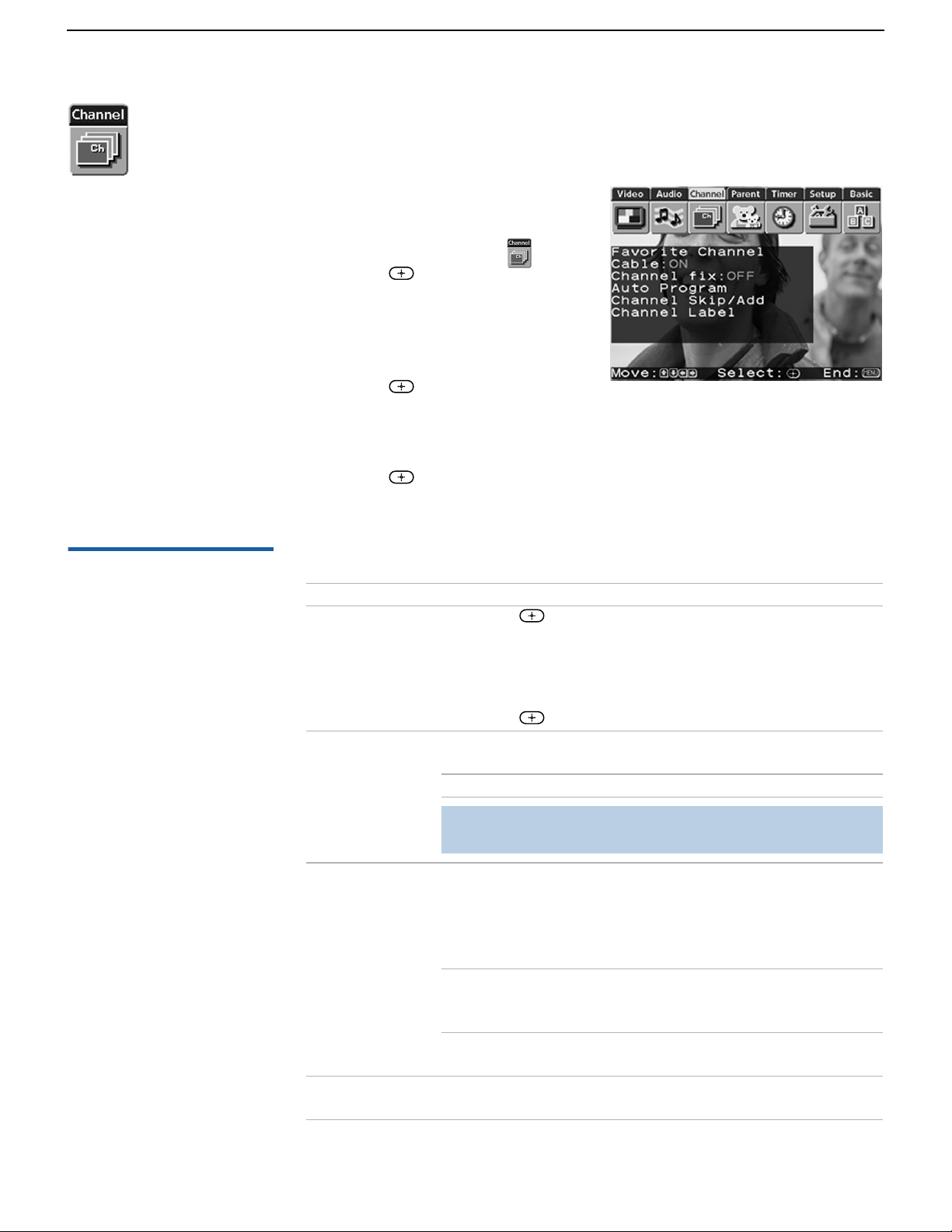

Using the Channel Menu

To select the Channel Menu

1 Press MENU. 2 Use the arrow buttons to move

to the Channel icon and press .

3 Use the arrow buttons to scroll

up and down through the options.

4 Press to select a feature.

That feature’s options appear.

5 Use the arrow buttons to scroll through the options. 6 Press to select the desired option. 7 Press MENU to exit the menu screen.

Selecting Channel Options

The Channel Menu includes the following options:

Option Description

Favorite Channel

1 Press to select a favorite channel number. 2 Use the arrow buttons to scroll through the channels

until you find the channel you want to ad d t o your favorites.

3 Press to select it.

Cable ON S e lect if you are receiving cable channels

with a CATV cable.

OFF Select if you are u sing an antenna.

✍ You should run Auto Program after changing the cable

setting.

Channel Fix

Useful when you have a cable box or satellite receiver connected

Auto Program Automatically prog ra m s the TV for all rec eiv ab le

2-6 “Fix” your TV’s channel setting to 3 or 4

and use the cable box or Sate llite r eceiver to change channels. Select one of these settings if you h ave con necte d the dev ice to the VHF/UHF jack.

AUX 2-6 Same as 2-6, except you select one of these

settings if you h ave con necte d the dev ice to the AUX jack (see page 11).

VIDEO 1 Use this setting if you have connected the

device to the Audio and Video IN jacks.

channels.

Channels that you set to be skipped can be accessed only with the 0-9 buttons.

Using the Menus

Option Description

Channel Skip/Add

Removes and adds viewable channels.

1 Use the arrow buttons to scroll through the channels

until you find the channel you want to skip/add.

2 Press to select it. 3 Press the arrow buttons to toggle between “Add” or

“Skip.”

4 Press to select.

Channel Label Label up to 40 channels with their station call letters.

Using the Menus

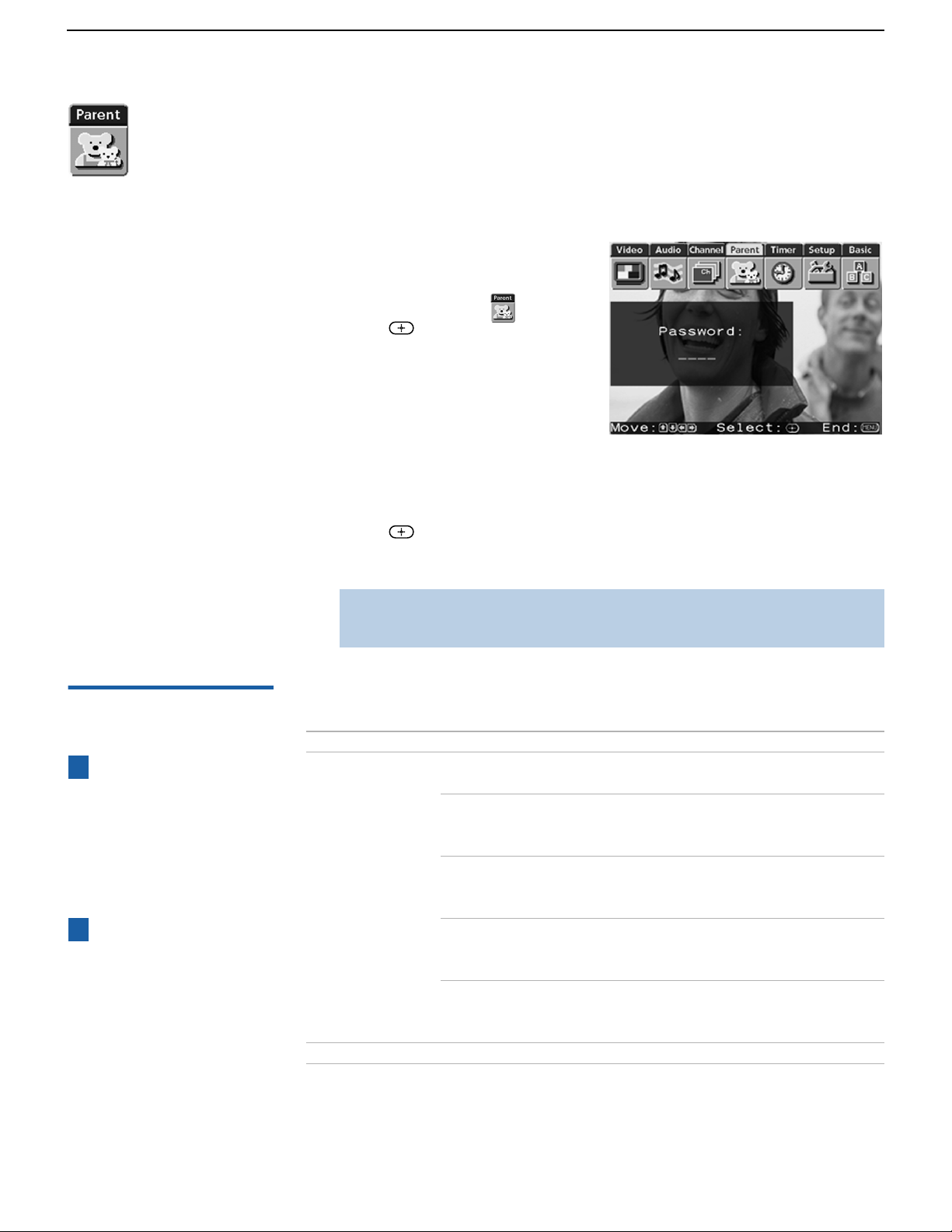

Using the Parent Menu

The Parent menu allows you to set up the TV to block programs according to their content and rating levels.

To select the Parent Menu

1 Press MENU. 2 Use the arrow buttons to move

to the Parent icon and press .

3 Use the 0-9 buttons on the

remote control to enter your four-digit password.

4 Confirm your password by

entering it again. (The Parent menu options appear.)

5 Use the arrow buttons to scroll through the settings.

Using the Parent Menu

If you are not familiar with the Parental Guideline rating system, you should select Child, Youth, or Young Adult to help simplify the rating selection. To set more restrictive ratings, select Custom.

For descriptions of Child, Youth, and Young Adult ratings, see page 43.

6 Press to select the desired setting. 7 Press MENU to exit the menu screen.

✍ Y ou need your password for any future access into the Parent menu. If you

lose your password, see “Lost password” on page 55.

The Parent menu includes the following options.

Option Description

Parental Lock

T urn ratings on/off and select a rating system

Change Password For changing your password.

OFF Parental lock is off. No programs are

blocked from viewing.

Child Maximum ratings permitted are:

❏ US: TV-Y, TV-G, G ❏ Canada: C, G

Youth Maximum ratings permitted are:

❏ US: TV -PG, PG ❏ Canada: 8 ans+

Young Adult Maximum ratings permitted are:

❏ US: TV -1 4, PG-13 ❏ Canada: 14+, 13 ans+

Custom Select to set ratings manually.

❏ US: See page 43 for details. ❏ Canada: See page 44 for details.

Using the Menus

US Models: Selecting Custom Rating Options

The content ratings will increase depending on the lev el of the age-based rating. For example, a program with a TVPG V (Violence) rating may contain moderate violence, while a TV-14 V (Violence) rating may co ntain more intense violence.

To ensure maximum blocking capability, the agebased ratings should be blocked.

If you block unrated TV programs, be aware that the following types of programs may be blocked: emergency broadcasts, political programs, sports, news, public service announcements, religious programs and weather.

For US models, the Custom Rating Menu includes the followin g options. (For C anadian models, see page 44.

Option Description

Movie Rating G All children and General Audience.

PG Parental Guidance suggested. PG-13 Parental Guidance for children under 13. R Restricted viewing, parental guidance is

suggested for children under 17.

TV Rating

Block programs by their rating, content or both

Unrated

Block programs or movies that are broadcast without a rating

NC-17 and X Age-Based Options TV-Y All children. TV-Y7 Directed to older children. TV-G General Audience. TV-PG Parental Guidance suggested. TV-14 Parents Strongly cautioned. TV-MA Mature Audience only.

Content-Based Options FV Fantasy Violence. D Suggestive Dialogue. L Strong Language. S Sexual situations. V Violence. Block Blocks all programs and movies that are

Allow Allows pr ograms and m ovies t hat ar e b r oadca st

No one 17 or under allowed.

broadcast without a rating.

without a rating.

)

Viewing Blocked Programs

You can view blocked programs by entering the password. Press the

ENTER button when tuned to a blocked program, then enter the

password. This temporarily switches off the Parental Lock. To reactivate the Parental Lock settings, turn off the TV. When the TV is turned on again, your Parental Controls settings are reactivated.

(Continued on the next page)

Using the Menus

(Continued from the previous page)

Canadian Models: Selecting Custom Rating Options

Viewing Blocked Programs

For Canadian models, the Custom Rating Men u includes the following options. (For US models, see page 43

Option Description

English Rating C All children.

C8 Children 8 years and older. G General programming. PG Parental Guidance. 14+ View ers 14 and older. 18+ Adult programming.

French Rating G General programming.

8 ans+ N ot recommended for young children. 13 ans+ Not recommended for ages under 13. 16 ans+ Not recommended for ages under 16. 18 ans+ Programming restricted to adul ts.

USA Rating See “US Models” on page 43 for details.

You can view blocked programs by entering the password. Press the

ENTER button when tuned to a blocked program, then enter the

password. This temporarily switches off the Parental Lock. To reactivate the Parental Lock settings, turn off the TV. When the TV is turned on again, your Parental Controls settings are reactivated.

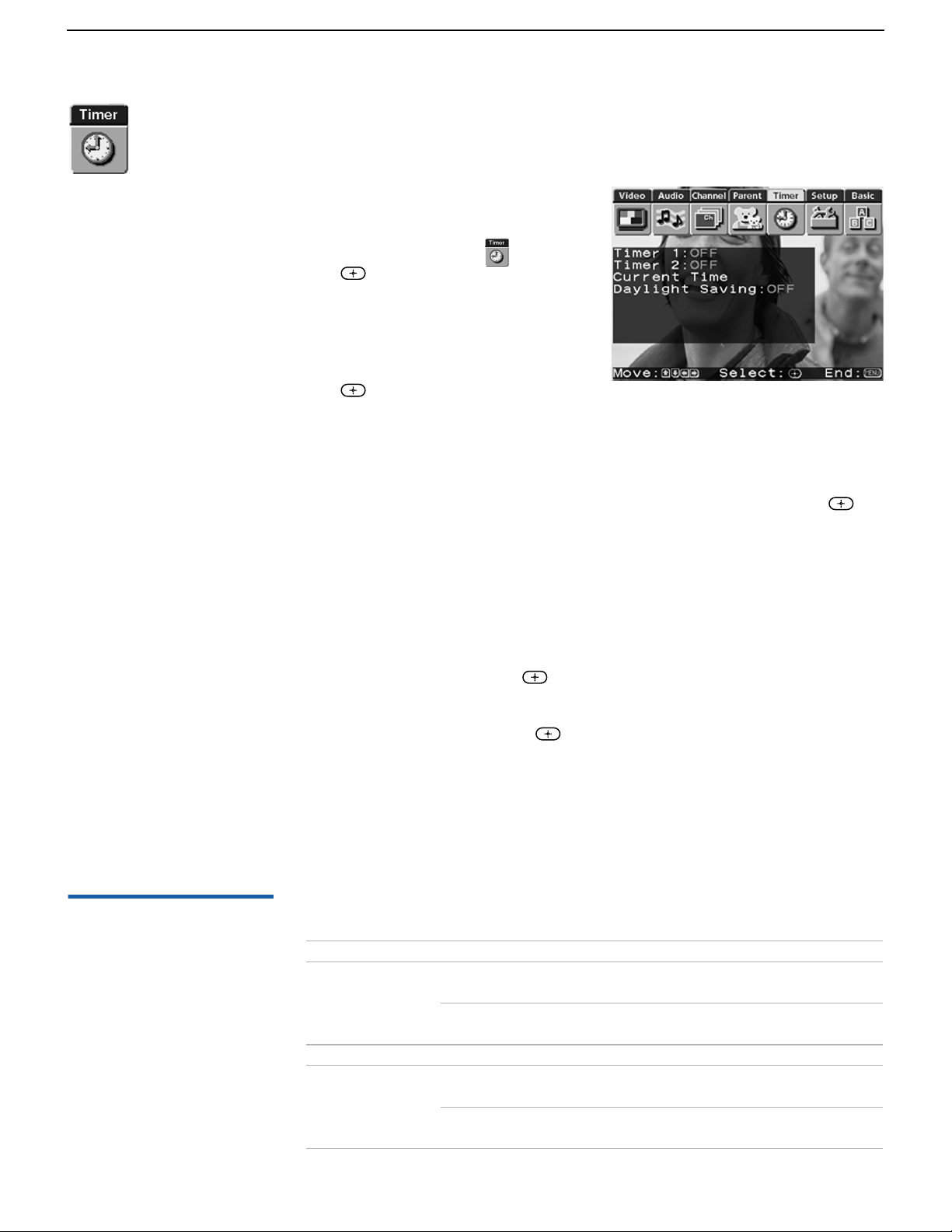

Using the Timer Menu

To select the Timer Menu

1 Press MENU. 2 Use the arrow buttons to move

to the Timer icon and press

To set the Current Time

1 Use the arrow buttons to select

“Current Time”, then press

2 If it is currently Daylight Savings Time, be sure to set the mode to

“ON” first. (Daylight Savings Time starts in the Spring, and ends in the Fall.)

3 Use the arrow buttons to enter the correct time, then press .

Using the Menus

Selecting Timer Options

4 Press MENU to exit the menu screen.

To set the Timer

Before setting the timer, be sure to set your TV’s clock to the current time (and, if appropriate, to Daylight Savings Mode).

1 Use the arrow buttons to move to “Timer 1” or

“Timer 2”, then press .

2 Use the arrow buttons to enter your date, time and channel

preferences, then press to select each one.

3 Press MENU to exit the menu screen.

To reset the Clock or Timers

❑

Press RESET on the remote control, when in the Timer menu, to reset to the factory defaults.

The Timer Menu includes the following options:

Option Description

Timer 1 Timer 2

Current Time Set the current time. Daylight Savings ON Select in the spring to turn on this mode

Program Select to set the Timer by day , time, duratio n,

and channel.

OFF Select to turn off the Timer. (Your previous

settings will be saved.)

during Daylight Saving Time.

OFF Select in the fall to turn off this mode at the

end of Daylight Saving Time.

Using the Menus

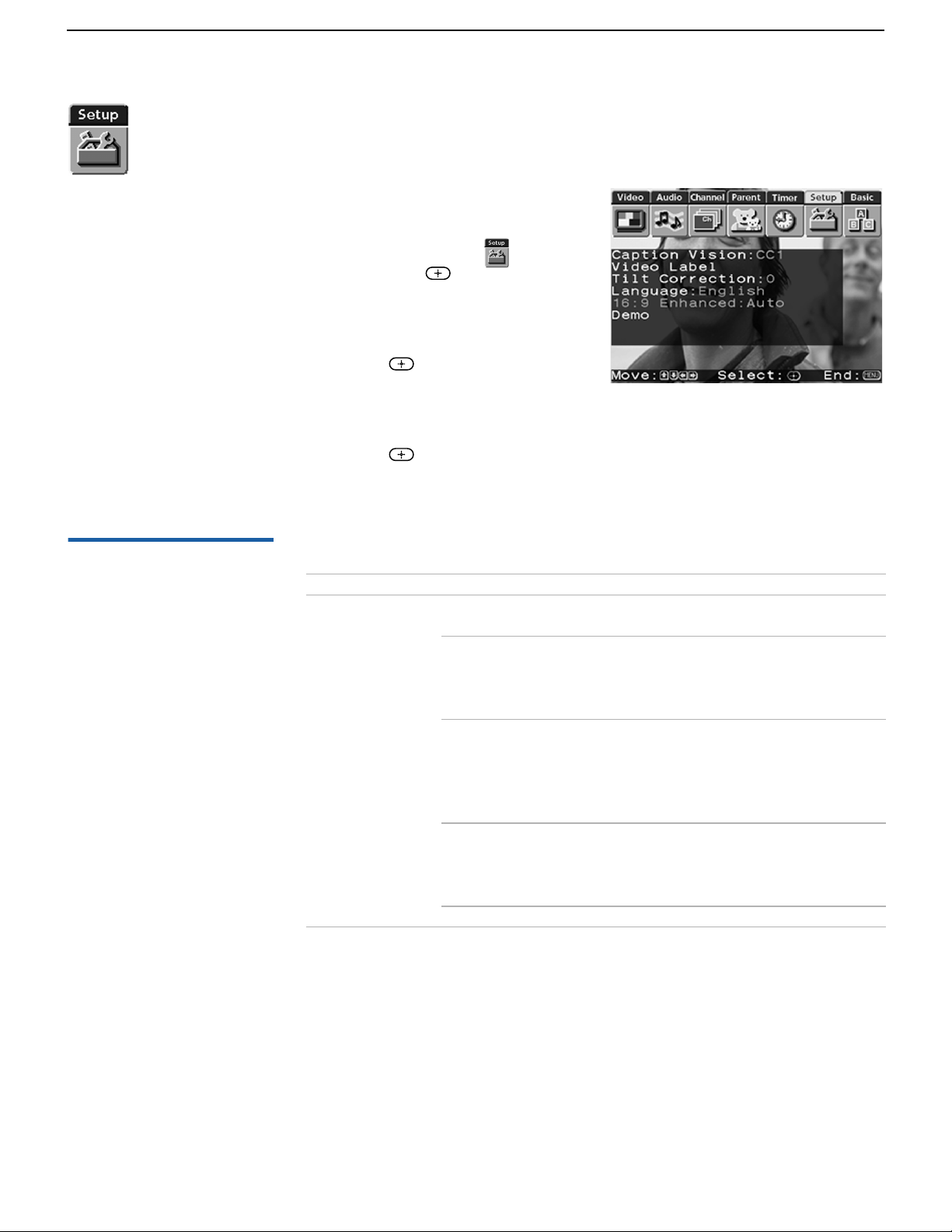

Using the Setup Menu

To select the Setup Menu

1 Press MENU. 2 Use the arrow buttons to move

to the Setup icon and press .

3 Use the arrow buttons to scroll

through the features.

4 Press to select a feature.

(That featur e’s op tion s ap pear.)

5 Use the arrow buttons to scroll through the options. 6 Press to select the desired option. 7 Press MENU to exit the menu screen.

Selecting Setup Options

The Setup Menu includes the following options:

Option Description

Caption Vision Allows you to select from three closed-caption modes (for

programs that are broadcast with closed caption).

CC1, CC2, CC3, CC4

TEXT1, TEXT2, TEXT3, TEXT4

XDS

(Extended Data Service)

OFF Turns off Caption Vision.

Displays a printed version of the dialog or sound effects of a program. (Should be set to CC1 for most pr o grams.) Displays network/station information presented us ing either half or the whole screen (if available). For closed captioning, set to CC1. Displays a network name, program name, program length, and time of the show (if the broadcaster offers this service).

To use this feature with widescreen DVDs, set your DVD player to 16:9 aspect ratio.

Using the Menus

Option Description

Video Label Allows you to label the audio/video components you

connected to the TV, so you can identify them when using the TV/VIDEO button. When in the Setup menu’s Video Label feature, use the arrow buttons to highlight an input to label, then press to select it. Use the arrow buttons to scroll through the labels. Press to select the component you connected to each of the input jacks on the back of your TV. Select “Skip” if you do not have a component conn ected to a particular set of input jacks. VIDEO 1/2/3 Choose VHS, 8mm, Beta , LD,

Game, SAT, DVD, Web, Receiver, DTV, Skip

VIDEO 4 Choose DVD, DTV, Skip

✍ If you select “Skip”, your TV skips this connection when

you press the TV/VIDEO button.

Tilt Correction Allows you to correct any tilt of the picture. Language Select to display all on-screen menus in your language of

choice.

16:9 Enhanced Provides enhanced picture resolution for widescreen

(anamorphic) sources, such as selected DVD titles (only available when the TV is in VIDEO mode). Press TV/VIDEO and select from one of the following options:

ON To activate. OFF To turn off 16:9.

Demo Runs a demonstration of on-screen menus.

Using the Menus

Using the Basic Menu

To select the Basic Menu

1 Press MENU. 2 Use the arrow buttons to move

to the Basic icon and press

3 Use the arrow buttons to scroll

through the features.

4 Press to select a feature.

(That feature’s options appear.)

5 Use the arrow buttons to scroll through the options. 6 Press to select the desired option. 7 Press MENU to exit the menu screen.

Selecting Basic Options

As a shortcut to using the menus, use the button on the remote control to cycle through available audio settings.

The Basic Menu includes the following options:

Option Description

Picture Adjust the picture contrast. Caption Vision Displays your current advanced-menu setting:

(CC1–4, TEXT 1–4, or XDS) and OFF.

Advanced Menu Select to return to the ad vanced menus.

Other Information

Overview

This chapter includes the following topics:

Topic Page

Programming the Remote Control 50 Operating Other Components with

Your TV Remote Control Troubleshooting 54 Specifications 56 Index 59

Other Information

Programming the Remote Control

The remote control is preset to operate Sony-brand video equipment. If you ha ve video equip m e nt o t he r th an Sony brand that you want to

control with the TV’s remote control, use the following procedure to program the remote control.

✍ The equipment must have infrared (IR) remote capability in order to be used

with the remote control.

1 Check the list of “Manufacturer’s Codes” on page 51, and find

❑ If more than one code

number is listed, try entering them one by one until you come to the correct code for your component.

❑ If you enter a new code

number, the code number you previously entered at that setting is erased.

❑ In some cases, you may

not be able to operate your component with the supplied remote control. In such cases, use the component’s own remote control unit.

❑ Whenever you remove

the batteries to replace them, the code numbers may revert to the factory setting and must be res e t.

the three-digit code number for the manufacturer of your component. (If more than one code number is listed, use the number listed first.

✍ You must do step 4 within 10 seconds of step 3, or you must redo

steps 2 and 3.

2 Press CODE SET. 3 Press the function button for the type of component you want to

control with the TV’s remote control (VCR/DVD or SAT/ CABLE).

4 Enter the three-digit manufacturer’s code number. 5 Press ENTER. 6 To check if the code number works, aim the TV’s remote control

at the component and press the green POWER button that corresponds with that component. If it responds, you are done. If not, try using another code listed for that manufacturer.

Other Information

Manufacturer’s Codes

VCRs

Manufacturer Code

Sony 301 Admiral

327 (M. Ward) Aiwa 338, 344 Audio

314, 337 Dynamic Broksonic 319, 317 Canon 309, 308 Citizen 332 Craig 302, 332 Criterion 315 Curtis Mathes 304, 338, 309 Daewoo 341, 312, 309 DBX 314, 336, 337 Dimensia 304 Emerson 319, 320, 316,

317, 318, 341 Fisher 330, 335 Funai 338 General

329, 304, 309 Electric Go Video 322, 339, 340 Goldstar 332 Hitachi 306, 304,

305,338 Instant Replay 309, 308 JC Penney 309, 305, 304,

330, 314, 336,

337 JVC 314, 336, 337,

345, 346, 347 Kenwood 314, 336, 332 ,

337 LXI (Sears) 332, 305, 330,

335, 338 Magnavox 308, 309, 310 Marantz 314, 336, 337 Marta 332 Memorex 309, 335 Minolta 305, 304 Mitsubishi/ MGA

323, 324, 325,

326 Multitech 325, 338, 321 NEC 314, 336, 337

Manufacturer Code

Olympic 309, 308 Optimus 327 Panasonic 308, 309, 306,

307 Pentax 305, 304 Philco 308, 309 Philips 308, 309, 310 Pioneer 308 Quasar 308, 309, 306 RCA/ PROSCAN

304, 305, 308,

309, 311, 312,

313, 310, 329 Realistic 309, 330, 328,

335, 324, 338 Sansui 314 Samsung 322, 313, 321 Sanyo 330, 335 Scott 312, 313, 321,

335, 323, 324,

325, 326 Sharp 327, 328 Shintom 315 Signature

338, 327 2000 (M. Ward) SV2000 338 Sylvania 308, 309, 338,

310 Symphonic 338 Tashiro 332 Tatung 314, 336, 337 Teac 314. 336, 338 ,

337 Technics 309, 308 Toshiba 312, 311 Wards 327, 328, 335,

331, 332 Yamaha 314, 330, 336,

337 Zenith 331

Laserdisc Players

Manufacturer Code

Sony 701 Panasonic 704, 710 Pioneer 702

DVD Players

Manufacturer Code

Sony 751 Hitachi 758 JVC 756 Magnavox 757 Mitsubishi 761 Oritron 759 Panasonic 753 Philips 757 Pioneer 752 RCA 755 Samsung 758 Toshiba 754 Zenith 760

Cable Boxes

Manufacturer Code

Sony 230 Hamlin/Regal 2 22, 223, 224,

225, 226

Jerrold/G. I. 201, 202, 203,

204, 205, 206,

207, 208, 218 Oak 227, 228, 229 Panasonic 219, 220, 221 Pioneer 214, 215 Scientific

209, 210, 211 Atlanta Tocom 216, 21 7 Zenith 212, 213

Satellite Receivers

Manufacturer Code

Sony 801 Dish Network 810 Echostar 810 General

802 Electric Hitachi 805 Hughes 804 Mitsubishi 809 Panasonic 803 RCA/

802, 808 PROSCAN Toshiba 806, 807

Other Information

Operating Other Components with Your TV Remote Control

Operating a VCR

To Do This ... Press

Turn on/off VCR/DVD (green POWER button) Select VCR VCR/DVD (FUNCTION button) Change channels CH +/- Record N and z simultaneously. Play N Stop x Fast forward M Rewind the tape m Pause X (press again to resume normal playback)

Operating a DVD Player

Search the picture forward or backward

Change input mode TV/VCR

To Do This ... Press

Turn on/off VCR/DVD (green POWER button) Select DVD VCR/DVD (FUNCTION button) Play N Stop x Pause X (press again to resume normal playback) Step through different

tracks of an audio disc Step through different

chapters of a video disc Select tracks directly 0-9 buttons Display the menu

(Setup)

M or m during playback (release to resume normal playback)

M to step forward, or m to step backward

CH+ to step forward, or CH- to step backward

Operating a Cable Box

Operating a Satellite Receiver

Other Information

To Do This ... Press

Turn on/off SAT/CABLE (green POWER button) Select Cable Box SAT/CABLE (FUNCTION button) Select a channel 0-9 buttons, ENTER Change channels CH +/- Back to previous channel JUMP

To Do This ... Press

Turn on/off SAT/CABLE (green POWER button) Select Satellite Receiver SAT/CABLE (FUNCTION button) Select a channel 0-9 buttons, ENTER Change channels CH +/-

Operating an MDP (Laserdisc Player)

Back to previous channel JUMP Change input mode TV/SAT Display channel number DISPLAY Display DBS guide GUIDE Display DBS menu MENU Move highlight (cursor) arrows Select item button

To Do This ... Press

Turn on/off VCR/DVD (green POWER button) Select MDP VCR/DVD (FUNCTION button) Play N Stop x Pause X (press again to resume normal playback) Search the picture forward

or backward

M or m during playback (release to resume normal playback)

Search a ch ap t e r fo rw ard or backward

CH +/-

Other Information

Troubleshooting

Problem Possible Remedi es

Reset TV to factory settings

No picture (screen not lit), no sound

Remote control does not operate

Dark, poor or no picture (screen lit), good sound

Good picture, no sound

Cannot receive upper channels (UHF) when using an antenna

No color ❏ Adjust the Color settings in th e Video menu (see page 36). Only snow and noise

appear on the screen

Dotted lines or stripes

TV is fixed to one channel ❏ Use Auto Program in the Channel menu to add receivable channels that are

Double images or ghosts ❏ Using a highly directional outdoor antenna or a cable may solve the

Cannot operate menu ❏ If the item you want to choose appears in gray, you cannot select it. Cannot receive any

channels when using cable TV

Cannot gain enough volume when using a cable box

❏ Turn on the TV. While holding down the RESET button on the re m ote

control, press the POWER button on the TV. (The TV will turn itself off, then back on again.) Release the RESET button.

❏ If your TV does not turn on, and a red light keeps flashing, your TV may

need service. Call your local Sony Service Center.

❏ Make sure the power cord is plugged in. ❏ Push the power button on the front of the TV. ❏ Check to see if th e TV/VIDEO setti ng is correct: when watching TV, set to

TV. When watching connected equipment, set to VIDEO 1, 2, 3, or 4, as appropriate.

❏ Try another channel, it could be station trouble. ❏ Batteries could be weak. Replace the batteries.

❏ Press TV (FUNCTION) when operating your TV. ❏ Make sure the TV’s power cord is connected securely to the wall outlet. ❏ Locate the TV at least 3-4 feet away from fluorescent lights. ❏ Check the orientation of the batteries.

❏ Adjust the Picture setting in the Video menu (see page 36). ❏ Adjust the Brightness setting in the Video menu (see page 36). ❏ Check antenna/cable connections.

❏ Press MUTING so that “MUTING” disappears from the screen (see page 4). ❏ Make sure Speaker is set to ON in the Audio menu (see page 38).

❏ Change Cable to OFF (see page 40). ❏ Use Auto Program in the Channel menu to add receivable channels that are

not presently in the TV’s memory (see page 40).

❏ Check the antenna/cable connections. ❏ Try another channel; it could be station trouble. ❏ Press ANT to change the input mode (see page 7).

❏ Adjust the antenna . ❏ Move the TV away from noise sources such as cars, neon signs, or hair-

dryers.

not presently in the TV’s memory (see page 40).

❏ Check your Channel Fix settings (see page 40).

problem.

❏ Use Auto Program in the Channel menu to add receivable channels that are

not presently in the TV’s memory (see page 40).

❏ Check your cable settings. ❏ Make sure Cable is set to ON in the Channel menu (see page 40).

❏ Increase the volume of the cable box using the cable box’s remote control.

Then press TV (FUNCTION) and adjust the TV’s volu me.

Other Information

Problem Possible Remedi es

Cannot receive channels ❏ Use Auto Program in the Channel menu to add receivable TV channels that

are not presently in TV memory (see page40).

Unable to select a channel ❏ Use Auto Program in the Channel menu to add receivable TV channels that

are not presently in TV memory (see page40).

Lost password ❏ In the password scr een (see page42), enter the following mas ter passwor d:

4357. The master password clears your previous password; it cannot be used to temporarily unblock channels.

Cannot change channels with the remote control

Cannot cycle through the other video equipment connected to the TV

There is a black box on the screen

The remote control will not work in PIP mode

There is no window picture, or it is just static

I get the same program in the window picture as in the main picture

I cannot get anything but TV in my window picture

❏ If you are using the TV to change channels, be sure the TV FUNCTION

button is selected.

❏ If you are using another device to change channels, be sure you have not

inadverten tly switched yo ur TV from the channel 3 or 4 setting. Use the Channel Fix feature to “fix” the chann el based on the h ookup you used (s ee page 40).

❏

If you ar e using an other device to chang e chann els, be sur e to p ress the green “FUNCTION” button for that device. For example, if you are using your VCR to change cha nnels, be sure to press the

❏ Be sure the Video Label feature has not been set to “Skip” (see page 47).

❏ You have selected a text option in the Setup menu and no text is available.

(See page 46 to reset Setup selections. ) To turn off this featur e, select OF F in the Caption Vision option. If you were trying to select closed captioning, select CC1 instead of TEXT 1-4.

❏ Press the TV FUNCTION button. You may have inadvertently pressed the

VCR/DVD FUNCTION button, which changes the PIP buttons to VCR mode.

❏ Be sure your window picture is set to a video source/channel that has a

program airing.

❏ You may be tuned to a video input with nothing connected to it. Try

cycling through your video inputs using the PIP TV/VIDEO button.

❏ PIP is not set to receive a signal from the AUX input. If you connected a

VCR, DVD player or Satellite Receiver to the AUX input on the TV, it will not show in the small window picture.

❏ Both may be set to the same channel. Try changing channels in either the

main picture or the window picture.

❏ You may using a cable box for all your channels. If you must have a cable

box to unscramble all channels, then you are limited to only one picture (because that is all that the cable box allows - one channel at a time). But if you need the cable box only part time (to unscramble premium channels), then you can use PIP when you are not using the cable box (when you use the CATV cable without going through the b ox).

❏ Be sure the video label has not been set to skip your video inputs. (See the

Setup menu on page 47.)

VCR/DVD

FUNCTION butto n .

If, after reading these operating instructions, you have additional questions related to the use of your Sony television, please call our Direct Response Center at 1-800-222-SONY (7669) (U.S. residents only) or (416) 499-SO NY (7669) (Can adian resident s only).

Other Information

Specifications

All Models (General)

Picture Tube FD Trinitron® tube Antenna 75 ohm external term in al f or VHF/UHF Television System NTSC, American TV Standard Channel Coverage

VHF 2-13 UHF 14-69

CATV 1-125 Power Requirements 120V, 60 Hz Number of Inputs/Outputs

Video (IN) 3 1 Vp-p, 75 ohms unbalanced, sync negative

S Video (IN) 1 Y: 1 Vp-p, 75 ohms unbalanced, sync negative

C: 0.286 Vp-p (Burst signal), 75 ohms

Audio (IN) 4 500 mVrms (100% modulation)

Impedance: 47 kilohm

Variable/Fixed Audio (OUT) 1 More than 408 mVrms at the maximum

volume setting (Variable) More than 408 mVrms (Fixed) Impedance (output): 2 kilohms

Component Video Input 1 (Y, P

, PR) Y: 1.0 Vp-p, 75 ohms unbalanced, sync

negative; P

: 0.7 Vp-p, 75 ohms

KV-36FS13, 36FS17

Supplied Accessories Supplied Accessories

Remote Control

KV-36FS13 RM-Y180

KV-36FS17 RM-Y181 AA (R6) Batteries 2 supplied for remote con t rol Optional Accesso rie s

AV Cable VMC-810/820/83 0 HG

Audio Cable RKC-515HG

Component Video Cable VMC-1 0/3 0 HG

TV Stand SU-36FD4

Visible Screen Size 36 in (911 mm) picture measured diagonally Actual CRT Size 38 in (965.2 m m) picture measured diagonally Speaker Output 10 W x 2

Dimensions (W x H x D) 910 x 791 x 650 mm (35 7/8 x 31 1/8 x 25 5/8 in) Mass 100 kg (220 lbs) Power Consumption

In Use 200 W

In Standby 2 W

Index

16:9 (anamorphic or widescreen) 2, 48

Activating a PIP screen 31 Adding channels to the channel list 40 Adjusting the picture definition 37 ANT button 7 Aspect ratio, 16:9 47 Audio menu 35, 38 audio receiver, connecting 23 Auto Program (channel setup) 27, 40 Auto-SAP 35, 38 Auto setup 28

balance, adjusting 38 Basic menu 35, 48 bass, adjusting 38 batteries

inserting in remote 3

bilingual audio 38 blocking programs. See ratings. brightness, adjusting

cable

box, connecting with VCR 17 connecting 12

setting ON/OFF with VCR, connecti ng

cable box, using with TV remote control 53 camcorder, connecting 26 Caption Vision 46, 48 CATV. see cable Channel List

Adding channel s to 40 Removing chan nels from 40

Channel menu 35 Channel Setup menu 40 Channel Skip/Add 41 channels

creating labels 41

-15 40

setting up

closed caption modes 46 Code Set Button 4, 6, 50 color temperature, adjusting 36 color, adjusting 36 Connecting:

Audio Receiver 24 Cable or antenna 12 Cable box 13 Camcorder DVD player 25 Satellite receiver 21 VCR VCR with satellite receiver 22

Contents of box 3 Controls and connections 10-11 Converter 14

-15

, 26

16-20

Demo, menus 47 Display button 5, 7 Display, turning off 5, 7 DVD player

using with TV remote control 52

with A/V connectors, connecting with component video connectors,

connecting

Enhanced picture re so l uti on 47 Extended Data Service 46

Favorite Channel

setting up 40

using

Favorites button 30 features 2 Front Panel controls 10

(Continued on the next page)

Index

(Continued from the previous page)

Guide button 5, 7

Hookups 12-27 hue, adjusting 36

inputs, labeling 47

Jump button 4, 6

label

channels 41

video inputs

Languages, setting for closed captioning 46, 48 Locking programs 42

Manufacturer’s Codes 49 MDP, using with TV remote control 53 Menu button 5, 7 menus

Audio 35, 38

35, 48

Basic Channel Channel Setup Parent Parental Control Setup Timer Video

MTS 5, 38 Muting 4, 6

35, 40

35, 42

35, 46

35, 45 35, 36

Parent menu 35, 42 parental control, described 2 password

changing 42

picture contrast, adjusting 36 picture definition, adjusting 37 Picture in Picture (PIP), using 31 picture, adjusting 48 Picture Mode 4, 6

Picture size, adjusting in PIP 32 power cord, removing from holder 9 presetting channels 40 problems, troubleshooting 54-55

ratings, setting 42-43 ratings, viewing blocked programs 43, 44 Rear panel controls and connections 10-11 remote control

described 4-7

inserting batteries programming

Remote control, operating other compo nents

wtih

VCR 52

MDP Satellite receiver 53

DVD Cable box 53

Removing channels from the channel list 40 Reset button 4, 6 resetting

Audio options 38

Timer options Video options

50-51

45 36

Safety ii, iii, iv SAT/CABLE power button 4, 7 SAT/CABLE function button 5, 7 satellite receiver, using with TV remote control

Setting favorite channels 40 setting up channels 27 Setup menu 35, 46 sharpness, adjusting 36 Sleep timer/button 4, 6 speakers

turning on/off 38

using external speakers

specifications 56 surround sound 39

tape-to-tape editing 19 tilt, correcting 47 Time,

set current 45 set daylight savings 45

Timer menu 35, 45 Timer setting 45 treble, adjusting 38 troubleshooting 54-55 TV function button 5, 7 TV power button 4, 7 TV/VIDEO button 5, 7

VCR

connecting two, for tape editing 19

using with TV remote control with cable box, connecting with cable, connecting with satellite receiver, connecting

VCR/DVD power button 4, 7 VCR/DVD function button 5, 7 Velocity Modulation 2, 37 video inputs, labeling 47 Video menu 35, 36 Video Modes, selecting 36

Index

Wega, described 2 widescreen 47 widescreen, described 2

Printed in U.S.A.

SONY KV-36FS13, KV 36FS17 Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

Presenting the FD Trinitron Wega

Package Contents

Using the Remote Control

TV Controls and Connectors

Basic Connections (Connecting a Cable or Antenna)

Connecting a VCR and Cable

Connecting a VCR and Cable Box (KV-36FS17 only)

Connecting Two VCRs for Tape Editing

Connecting a Satellite Receiver

Connecting a Satellite Receiver with a VCR

Connecting an Audio Receiver

Connecting a DVD Player with Component Video Connectors

Connecting a DVD Player with A/V Connectors

Connecting a Camcorder

Using Favorite Channels

Using Picture in Picture (PIP) (KV-36FS17 only)

Using the Video Menu

Using the Audio Menu

Using the Channel Menu

Using the Parent Menu

Using the Timer Menu

Using the Setup Menu

Using the Basic Menu

Programming the Remote Control

Operating Other Components with Your TV Remote Control

Troubleshooting

Specifications

Index
