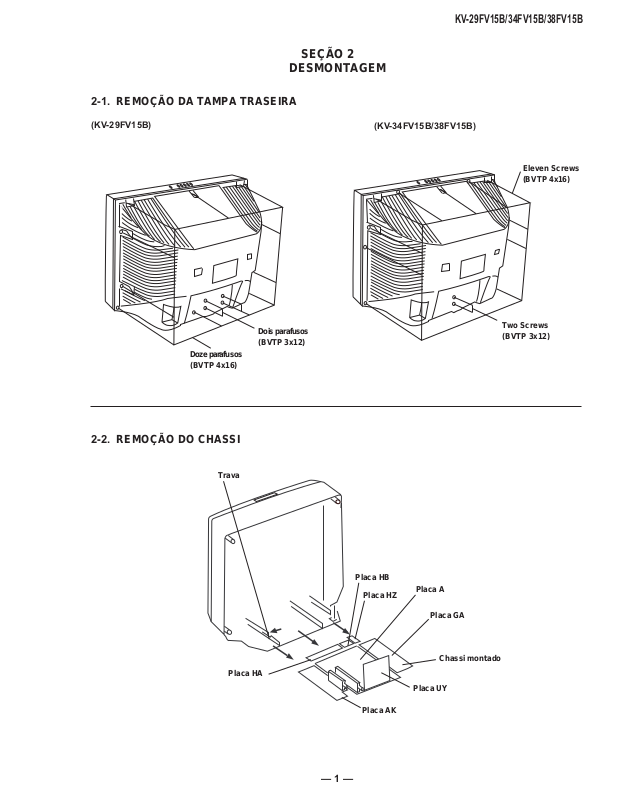

2-1. REMOÇÃO DA TAMPA TRASEIRA
KV-29FV15B/34FV15B/38FV15B
SEÇÃO 2
DESMONTAGEM
(KV-29FV15B)
Dois parafusos
(BVTP 3x12)
Doze parafusos
(BVTP 4x16)
(KV-34FV15B/38FV15B)
Eleven Screws
(BVTP 4x16)
Two Screws
(BVTP 3x12)
2-2. REMOÇÃO DO CHASSI
Trava
Placa HA
Placa HB
Placa HZ
Placa AK
Placa A
Placa GA
Chassi montado
Placa UY
— 1 —
Page 2
KV-29FV15B/34FV15B/38FV15B
2-3. POSOÇÃO DE SERVIÇO
3 3
3 Placa GA
3 3
2-4. REMOÇÃO DOS TECLADOS
2 2
2 Placa AK
2 2
1 1
1 Placa A
1 1
1 1
1 Teclado Superior
1 1
2 2
2 Dois Parafusos
2 2
(+BVTP 4x16)
— 2 —
3 3
3 Teclado Inferior
3 3
Page 3
2-5. REMOÇÃO DO TUBO DE IMAGEM
CUIDADO:
ANTES DE REMOVER A
CHUPETA DO ANODO:
Pode restar Alta Tensão no CRT após desligar
a alimentação. Para evitar risco de choque elétri-
co, descarregue o CRT antes de tentar remover a chupeta. Aterre o anodo na malha de terra
em torno do CRT.
Yoke de Deflexão
Quatro Parafusos
(Tapping screw 7)
Neck
Placa GC
Placa C
KV-29FV15B/34FV15B/38FV15B
Placa UY
Chassi
Placa AK
Placa A
Tubo de Imagem
Malha de Terra
Chupeta do Anode
Almofada
REMOÇÃO DA CHUPETA DO ANODO DO CRT
CUIDADO:Pode restar alta tensão no CRT após desligar a alimentação. Para evitar risco de choque elétrico, descarregue o CRT antes
NOTE: Após removido o anodo, curto-circuite o anodo do tubo e a chupeta com a blindagem metálica do tubo.
tentar remover a chupeta. Aterre o anodo na malha de terra em torno do CRT.
/
PROCEDIMENTO DE REMOÇÃO
Levante um lado da capa de borracha
na direção indicada pela seta .
Use seu polegar puxe a capa de borracha
firmemente na direção indicada pela
seta .
COMO MANUSEAR A CHUPETA DO ANODO
não use objetos pontudos que possam causar danos a super-
fície da chupeta.
Não comprima a cobertura de borracha com muita força para
colocar a chupeta, pois pode causar danos a mesma durante
esta operação.
Não gire a chupeta com força, a´pos colocada, para não causar
danos a mesma.
— 3 —
Quando um lado do anodo estiver sepa-
rado do botão do anodo, basta puxar parra o outro lado que o anoda se solta complatamente.
.
Page 4
KV-29FV15B/34FV15B/38FV15B
SEÇÃO 6 DIAGRAMASS6-1 DIAGRAMA DE BLOCOS (1/2 )
FOLDOUT 1/2 39-44 7/26/99, 3:29 PM1
— 01 — — 02 — — 03 —
Page 5
KV-29FV15B/34FV15B/38FV15B
6-2 DIAGRAMA DE BLOCOS (2/2)
6-3. LOCALIZAÇÃO DAS PLASCAS DE CIRCUITO IMPRESSO
Para todos os Modelos
HX
C
HB
HZ
HA
WA
GA
A
AK
UY
6-4. PLACAS DE CIRCUITO IMPRESSO E ESQUEMAS
•Todos os capacitores estão em µF menos os indicados. pF : µµF . 50V ou me-
nos não são indicaddos, exceto para eletrolíticos e tantalums.
•Todos os eletrolíticos são de 50V, exceto se indicado diferente.
•Todos os resistores estão em ohms.
KW=1000Ω, MW=1000kW
•Para as indicações de resistência, que não tiverem o valor da potência segue
que: Pitch : 5mm
Valor da potência:
•1/
W em resistências.
4
•
•
•
•
•Todos os variáveis e resistores ajustáveis tem curva característica B, exceto
•Os componentes indicados por
•Quando da troca de peças com a marca , faça os ajustes necessários
•Quando trocar uma peça da tabela indicada abaixo, tenha cuidado na hora de
•Faça as leituras com o sinal de color-bar
•Faça as leituras comum multímetro digital de 10MW.
•As tensões estão em DC, e são com relação ao terra, exceto se indicado diferente.
•As tensões podem variar, desde que dentro dos limites indicados.
: resistor anti-chama.
: fusível resistor.
: componente interno.
: painel de designação e ajustes para reparos.
os indicados que não.
dos com atenção para que o aparelho satisfaça normalmente as regulamentações para radiação de raios-X.
Se necessária a troca, certifique-se de usar somente o componente indicado.
indicados.Se os resultados não atingirem a especificação, troque o peça com
a identificação e repita os ajustes até o valor especificado ser obtido.
(Referência ao R530 e ao R531).
executar o ajuste.
1
/
W e
10
1
/
W
4
1
/
Wem resistores chip.
8
neste esquema básico, precisam ser cuida-
Peça Trocada ( ) Ajuste ( )
•Todas as tensões estão em Volts
S : Medida Impossibilitada
• : Linha do B+
•
(O valor atual pode ser diferente).
• : Linha do sinal. (RF)
•Os número dentro de circulos referem-se a formas de onda
Informação de Referência
RESISTOR : RN FILME METÁLICO
BOBINA : LF-8LMICRO INDUCTOR
CAPACITOR: TA TANTALUM
v
: Linha do B-
: RC SÓLIDO
: FPRDCARBONO ANTI-CHAMA
: FUSEFUSÍVEL ANTI-CHAMA
: RW IREWOUND ANTI-CHAMA
: RS OXIDO METÁLICO ANTI-CHAMA
: RB CEMENT ANTI-CHAMA
:
RESISTOR AJUSTÁVEL
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
O símbolo mostra o lado o lado do componente.
Os componentes identificados com a marca são críticos para a segurança. Só os substitua pela indicada
O símbolo indica fusível de operação rápida. Troque-o
somente por outro de mesmo valor, como indicado.
FOLDOUT 1/2 39-44 7/26/99, 3:29 PM2
IC355, IC501, D302, D519, D520, D521,C531, C532,
R530,R531
Q301, R356, R359, R361, R387, R529, R530, R531,
R532, R533, R550,T503 .............................PLACA A
IC6003, R6088...........................................PLACA GA
— 04 — — 05 — — 06 —
Page 6
KV-29FV15B/34FV15B/38FV15B
ESQUEMA ELÉTRICO PLACA AK
AK BOARD
IC VOLTAGE LIST
IC1401 16 4.6
pin volt 17 4.6
1 GND 18 4.6
2 0 19 4.6
3 0 20 4.6
4 4.6 21 9.2
5 4.6 22 4.6
6 4.6 23 4.6
7 4.6 24 4.6
8 4.6 25 4.6
9 4.6 26 4.6
10 4.6 27 4.6
11 4.6 28 3.9
12 4.6 IC1461
13 0.8 1 1.5
14 2.0 2 0
15 9.2 3 NC
16 9.2 4 0
17 4.6 5 1.5
18 4.6 6 6.9
19 2.0 7 9.6
20 0.8 8 0.8
21 4.6 9 34.5
22 4.6 10 0
23 4.6 11 0
24 4.6 12 9.4
25 4.6 IC1901
26 4.6 1 0
27 4.6 2 0
28 4.6 3 NC
29 4.6 4 NC
30 4.6 5 NC
31 2.9 6 NC
32 4.6 7 0.3
IC1402 8
pin volt 9
1 4.6 10
2 4.6 11
3 4.6 12
4 GND 13
5 4.6 14
6 4.6 15
7 4.6 16
8 9.2 IC1902
IC1403 1 5.0
pin volt 2 3.7
1 4.0 3 5.0
2 4.6 4 0.1
3 4.6 5 GND
4 GND 6 0
5 4.6 7 0
6NC80
7 4.6 9 0.7
8 GND 10 0.7
9 4.6 11 0.7
10 4.6 12 NC
11 4.6 13 0
12 4.6 14 0.2
13 4.6 15 0.3
14 4.6 16 GND
15 4.6
All voltages are in V
GND
0
NC
9.4
GND
GND
4.5
4.5
9.4
A
[ MICON, Y/C/J, TUNER, PIN-MOD, V-DEF, H-DEF ]
1
23456789101112
A
B
C
D
E
F
G
H
AK
A
B
C
D
E
[ AUDIO AMP, TRUSURROUND, 2ND TUNER, S-LINK ]
1
23456789
AK BOARD LOCATOR LIST
DIODE PHOTOSENSOR
D101 A-2 PS1461 B-4
D103 A-6
D104 A-6 Q101 A-2
D105 B-8 Q105 A-6
D106 B-8 Q106 A-4
D107 C-8 Q1461 C-3
D108 A-1 Q1462 C-2
D109 B-1 Q1463 C-2
D1461 B-3 Q1464 C-2
D1463 B-2 Q1902 D-8
D1466 B-2 Q1903 D-8
D1467 C-4 Q1918 D-9
D1468 C-4
D1469 C-4
IC
IC1401 D-6
IC1402 B-6
IC1403 E-8
IC1461 D-3
IC1901 B-8
IC1902 C-8
TRANSISTOR
AK BOARD WAVEFORMS
AK BOARD TRANSISTOR
VOLTAGE LIST
Q101 5.7 9.4 5.1
Q105 5.1 0.7 4.9
Q106 4.6 9.1 3.9
Q1461 0 4.1 GND
Q1462 0 11.5 GND
Q1463 0 0 GND
Q1464 0 0 GND
Q1902 4.9 0.7 0
Q1903 4.9 0.7 0
Q1918 4.9 0.7 0
1 2
1.9 Vp-p (H) 4.8 Vp-p (H)
NOTE:
Portions of this circuit marked as shown are high
voltage areas. Use care to prevent electric shocks
during inspection or repair.
BCE
All voltages are in V
I
A BOARD LOCATOR LIST
DIODE
D001 A-5 D515 G-4
D002 D-2 D516 H-2
D003 A-5 D518 H-3
D004 C-2 D519 G-9
D011 A-5 D520 F-2
D012 C-1 D521 F-2
D013 C-4 D522 G-2
D014 D-3 D523 H-2
D015 C-3 D524 H-2
D016 D-4 D530 G-8
D018 C-4 D531 G-8
D019 C-8 D534 G-8
D301 E-3 D535 G-8
D302 E-3 D536 G-8
D303 D-4 D561 G-6
D368 C-7 D1003 E-9
D384 D-5 D1004 E-9
D388 D-6 D1101 A-7
D501 H-2 D1102 B-11
D502 I-8 D1103 A-12
D503 I-8 D1104 A-7
D504 I-7 D1301 D-12
D505 H-5 D1302 D-12
D506 H-5 D1303 D-11
D507 H-2 D1304 D-11
D510 F-8 D1305 D-12
D511 F-8 D1306 D-12
D512 F-8
D513 F-8
IC
IC001 B-2 Q016 D-2 Q369 D-9
IC002 C-2 Q017 D-2 Q370 D-12
IC351 C-9 Q103 B-8 Q501 I-2
IC352 D-10 Q104 B-8 Q502 I-9
IC353 D-11 Q301 E-3 Q503 F-3
IC354 C-10 Q302 E-7 Q504 G-3
IC355 D-5 Q303 E-7 Q507 F-8
IC501 G-2 Q304 E-5 Q511 G-2
IC561 G-6 Q305 E-5 Q512 F-3
IC1001 D-8 Q306 D-4 Q561 G-6
TRANSISTOR
Q001 A-5 Q310 E-4 Q1102 A-12
Q002 C-4 Q311 E-4 Q1103 A-10
Q003 H-1 Q313 E-10 Q1301 D-11
Q004 H-1 Q314 E-10 Q1302 D-12
Q005 B-5 Q315 E-10 Q1303 E-12
Q006 H-1 Q351 D-10 Q1352 D-12
Q007 H-1 Q352 D-10 Q1353 D-12
Q010 D-3 Q359 D-12 Q1354 D-12
Q011 D-3 Q361 D-11
Q012 D-3 Q362 D-11
Q013 D-3
Q014 D-3
Q015 D-3 Q364 D-12
Q307 C-6 Q562 F-5
A BOARD: IC 355 CXA2131S
A BOARD: IC 561 STV9379
OUTPUT
STAGE
SUPPLY
POWER
AMPLIFIER
GND
INVERTING
INPUT
NON-INVERTING
INPUT
SUPPLY
VOLTAGE
FLYBACK
GENERATOR
FLYBACK
GENERATOR
THERMAL
PROTECTION
OUTPUT
FOLDOUT 3 45-48 7/27/99, 8:55 AM1
— 07 — — 08 — — 09 — — 10 —
Page 7
ESQUEMA ELÉTRICO PLACA A
A BOARD IC VOLTAGE LIST
IC001 49 GND 13 0.1 15 NC 35 4.7
pin volt 50 5.0 14 GND 16 3.9 36 7.3
1 0 51 0 15 2.4 17 3.9 37 4.8
2 5.0 52 0 16 4.4 18 3.9 38 5.5
3 0 53 4.7 17 4.7 19 GND 39 5.5
4 0 54 4.7 18 GND 20 0 40 GND
5 NC 55 4.7 19 6.0 21 0 41 NC
6 3.9 56 4.7 20 GND 22 NC 42 7.3
7 0.1 57 5.0 21 5.8 23 9.0 43 NC
8 0 58 0 22 5.8 24 NC 44 9.3
9 NC 59 3.8 23 5.8 25 NC 45 5.5
10 NC 60 3.8 24 9.0 26 NC 46 5.1
11 NC 61 0 IC353 27 NC 47 1.9
12 5.0 62 4.7 pin volt 28 NC 48 NC
13 4.0 63 NC 1 4.5 IC355 IC501
14 5.0 64 0 2 3.7 pin volt pin volt
15 5.0 IC002 3 4.9 1 3.5 1 -3.5
16 GND pin volt 4 4.5 2 NC 2 8.2
17 2.5 1 GND 5 GND 3 1.5 3 8.0
18 2.5 2 GND 6 NC 4 NC 4 -13.8
19 5.0 3 GND 7 4.5 5 5.0 5 2.3
20 5.0 4 GND 8 NC 6 NC 6 2.9
21 2.0 5 4.7 9 NC 7 4.5 7 13.6
22 2.5 6 4.7 10 1.3 8 4.8 8 14.0
23 0 7 GND 11 4.7 9 5.3 IC561
24 0 8 5.0 12 4.7 10 GND pin volt
25 GND IC351 13 GND 11 3.4 1 1.4
26 0 pin volt 14 11.4 12 2.4 2 14.0
27 0 1 5.8 15 5.6 13 3.5 3 -11.9
28 2.3 2 0.3 16 11.7 14 3.5 4 -13.8
29 5.0 3 5.3 17 7.6 15 5.8 5 0.4
30 0 4 GND 18 1.3 16 7.6 6 14.4
31 0 5 NC 19 3.6 17 1.2 7 1.4
32 0 6 9.4 20 2.0 18 3.5 IC1001
33 0 7 5.0 IC354 19 1.9 pin volt
34 NC 8 GND pin volt 20 2.5 1 NC
35 NC IC352 1 4.0 21 2.0 2 0.1
36 0 pin volt 2 4.0 22 1.3 3 0.3
37 0 1 5.8 3 4.0 23 1.2 4 NC
38 0 2 5.8 4 0.3 24 1.2 5 4.4
39 0 3 5.8 5 4.0 25 0 6 4.7
40 0 4 GND 6 4.0 26 4.7 7 4.7
41 0 5 NC 7 4.0 27 4.7 8 GND
42 0 6 0.1 8 2.2 28 4.7 9 9.3
4307GND9NC29NC10NC
44 4.7 8 NC 10 NC 30 4.3 11 9.3
45 4.7 9 3.9 11NC314.3129.3
46 4.9 10 3.9 12 NC 32 3.7 13 GND
47 4.9 11 9.0 13 NC 33 9.1 14 4.7
48 GND 12 3.1 14 NC 34 4.7 15 4.7
16 9.3
All voltages are in V
A BOARD (*) MARK LIST
A BOARD WAVEFORMS
1 2
1.9 Vp-p (H)
4.9 Vp-p (H)
5 6
3.9 Vp-p (8 MHz)
0.9 Vp-p (H)
9 10
2.9 Vp-p (H)
2.8 Vp-p (H)
13 14
51.6 Vp-p (H)
1.08 KVp-p (H)
17 18
5.7 Vp-p (V)
178.7 Vp-p (H)
A BOARD TRANSISTOR VOLTAGE LIST
Q001 5.0 0.7 5.0 Q314 4.3 9.0 3.7
Q002 4.7 9.3 4.1 Q315 5.7 9.4 5.1
Q003 -0.4 4.0 GND Q351 6.6 9.0 5.9
Q004 5.0 GND 5.0 Q352 5.0 9.4 4.3
Q005 0 5.0 0 Q359 1.6 GND 2.3
Q006 0 5.0 GND Q361 7.6 11.7 6.9
Q007 5.0 0 5.0 Q362 5.7 11.7 6.3
Q010 0 9.4 0 Q364 10.1 4.9 10.7
Q011 0 9.4 0 Q369 3.1 9.0 2.5
Q012 0 9.4 0 Q370 2.3 11.8 1.8
Q013 0 0 GND Q501 -0.8 107.4 GND
Q014 0 0 GND Q502 -0.2 135.0 GND
Q015 0 0 GND Q503 0 8.2 GND
Q016 5.8 9.4 5.1 Q504 -1.1 0 GND
Q017 4.4 5.0 5.0 Q507 0.3 0.3 GND
Q103 4.3 4.9 5.0 Q511 -13.6 -11.1 -13.9
Q104 5.0 0 5.0 Q512 -14.1 27.4 -13.9
Q301 -0.7 3.5 GND Q561 0 5.8 GND
Q302 5.6 9.4 4.9 Q562 -0.2 0 GND
Q303 4.3 10.5 3.7 Q1102 5.8 8.9 5.1
Q304 1.3 GND 1.9 Q1103 0 5.0 GND
Q305 1.2 GND 1.9 Q1301 1.2 GND 1.9
Q306 1.1 GND 1.8 Q1302 0.2 11.7 0.7
Q307 5.1 9.4 4.4 Q1303 4.9 11.7 4.3
Q310 3.7 2.0 4.3 Q1352 -2.2 10.6 GND
Q311 3.7 GND 4.3 Q1353 11.9 0.5 11.7
Q312 0.1 0.1 GND Q1354 -0.1 0 GND
Q313 4.3 9.0 3.7
BCE BCE
3
5.6 Vp-p (H)
7
1.7 Vp-p (H)
11
2.6 Vp-p (H)
15
8.7 Vp-p (V)
19
52.2 Vp-p (V)
All voltages are in V
4
5.2 Vp-p (V)
8
3.6 Vp-p (H)
12
192 Vp-p (H)
16
53.7 Vp-p (V)
Schematic diagrams
AK
A
boards
boardA
REF. NO. LOCATION KV-29FV15B KV-34FV15B KV-38FV15B REF. NO. LOCATION KV-29FV15B KV-34FV15B KV-38FV15B REF. NO. LOCATION KV-29FV15B KV-34FV15B KV-38FV15B
C301 D-20 # 0.1MF 0.1MF D1301 J-9 # MA111-(K8).S0 MA111-(K8).S0 R378 K-7 # 27K 27K
C321 F-17 # 0.01MF 0.01MF D1302 K-9 # 1SS133T-77 1SS133T-77 R386 J-2 1K 10K 10K
C322 F-17 # 0.01MF 0.01MF D1303 L-9 # MA111-(K8).S0 MA111-(K8).S0 R398 K-7 # 82K 82K
C323 F-17 # 0.01MF 0.01MF D1304 L-9 # MA111-(K8).S0 MA111-(K8).S0 R509 J-15 470 1K 1K
C338 F-18 # 0.1MF 0.1MF D1305 I-9 # MA111-(K8).S0 MA111-(K8).S0 R523 L-12 22K 12K 12K
C339 F-19 # 0.1MF 0.1MF D1306 J-10 # MA111-(K8).S0 MA111-(K8).S0 R531 M-12 180K 56K 56K
C340 F-19 # 0.1MF 0.1MF IC351 C-19 # NJM2233BM NJM2233BM R540 K-11 120K 68K 68K
C343 E-19 # 0.1MF 0.1MF IC352 K-3 # CXA2039M-T6 CXA2039M-T6 R541 I-19 4.7K 6.8K 2.2K
C344 F-19 # 0.1MF 0.1MF IC353 J-7 # TA1226N TA1226N R542 I-19 3.3K 4.7K 4.7K
C345 F-19 # 0.1MF 0.1MF IC354 E-19 # CXA2119M CXA2119M R546 J-16 33K 22K 22K
C346 E-17 0.01MF # # JR003 F-12 # 0 0 R548 I-19 # 4.7K 4.7K
C347 F-17 0.01MF # # JR004 F-18 # 1K 1K R554 I-19 15K 2.2K 2.2K
C348 E-17 0.01MF # # JR051 K-3 # 0 0 R560 I-19 # 6.8K 2.2K
C351 J-2 # 0.01MF 0.01MF JR053 H-3 # 0 0 R576 H-15 22 10 10
C352 K-3 # 0.1MF 0.1MF JR055 D-18 0 # # R1003 H-3 # 10K 10K
C355 F-20 # 0.01MF 0.01MF JR056 D-18 0 # # R1006 H-3 # 100 100
C359 C-19 # 0.1MF 0.1MF JR057 D-19 0 # # R1007 I-3 # 100 100
C361 C-20 # 0.1MF 0.1MF L351 I-8 # 33UH 33UH R1301 J-8 # 47 47
C374 L-5 # 0.1MF 0.1MF L505 J-15 150UH 68UH 68UH R1302 J-8 # 47 47
C375 K-4 # 0.1MF 0.1MF L1351 J-7 # 10UH 10UH R1303 I-7 # 4.7K 4.7K
C382 K-3 # 0.1MF 0.1MF L1352 H-9 # 56UH 56UH R1304 I-9 # 1.2K 1.2K
C384 J-4 # 0.1MF 0.1MF Q302 F-16 2SD601A-Q # # R1305 I-10 # 1.2K 1.2K
C393 J-4 # 0.1MF 0.1MF Q313 J-5 # 2SD601A-Q 2SD601A-Q R1306 I-10 # 1K 1K
C394 J-3 # 0.1MF 0.1MF Q314 J-4 # 2SD601A-Q 2SD601A-Q R1313 J-5 # 0 0
C397 K-6 # 47MF 47MF Q351 K-7 # 2SD601A-Q 2SD601A-Q R1314 J-5 # 1K 1K
C398 K-8 # 2.2MF 2.2MF Q352 D-20 # 2SD601A-Q 2SD601A-Q R1315 J-9 # 100 100
C511 J-13 0.017MF 22000PF 22000PF Q359 I-9 # 2SA1162-G 2SA1162-G R1316 J-9 # 56K 56K
C512 I-19 0.0039MF 0.0027MF 0.0027MF Q361 H-8 # 2SD601A-Q 2SD601A-Q R1317 J-10 # 220K 220K
C513 J-14 0.047MF 0.051MF 0.051MF Q362 I-9 # 2SD601A-Q 2SD601A-Q R1318 K-10 # 4.7K 4.7K
C514 J-14 0.68MF 0.82MF 0.82MF Q364 I-10 # 2SA1162-G 2SA1162-G R1320 L-10 # 10K 10K
C516 J-15 1MF 0.82MF 0.82MF Q369 J-5 # 2SD601A-Q 2SD601A-Q R1321 L-10 # 4.7K 4.7K
C540 J-17 22MF 100MF 100MF Q370 I-9 # 2SD601A-Q 2SD601A-Q R1322 L-10 # 820 820
C550 I-19 0.0015MF 680PF 680PF Q1301 L-8 # 2SA1162-G 2SA1162-G R1323 L-9 # 1K 1K
C553 J-15 0.1MF 0.33MF 0.47MF Q1302 L-10 # 2SD601A-Q 2SD601A-Q R1324 L-8 # 0 0
C554 J-13 0.0027MF 0.0047MF 0.0047MF Q1303 I-10 # 2SD601A-Q 2SD601A-Q R1325 L-9 # 2.2K 2.2K
C599 J-6 # 470MF 470MF Q1352 J-9 # 2SD601A-Q 2SD601A-Q R1330 K-9 # 4.7K 4.7K
C1351 I-9 # 27PF 27PF Q1353 J-10 # 2SA1162-G 2SA1162-G R1333 J-9 # 4.7K 4.7K
C1355 K-8 # 0.001MF 0.001MF Q1354 K-9 # 2SD601A-Q 2SD601A-Q R1337 K-10 # 1K 1K
C1356 K-8 # 10MF 10MF R304 F-20 # 220 220 R1360 I-8 # 1K 1K
C1357 J-7 # 0.47MF 0.47MF R313 D-18 # 4.7K 4.7K R1361 J-9 # 1K 1K
C1358 J-7 # 330MF 330MF R314 E-18 # 10K 10K R1362 K-10 # 470K 470K
C1359 J-8 # 0.1MF 0.1MF R315 E-18 # 10K 10K R1363 K-7 # 2.2K 2.2K
C1360 J-8 # 0.01MF 0.01MF R316 E-18 # 10K 10K R1364 K-7 # 100K 100K
C1361 I-8 # 39PF 39PF R338 F-15 1K # # R1365 K-7 # 47K 47K
C1362 J-9 # 0.0047MF 0.0047MF R339 G-16 1K # # R1366 K-8 # 270K 270K
C1363 J-9 # 0.01MF 0.01MF R345 F-17 1K # # R1369 K-8 # 68K 68K
C1367 I-8 # 0.1MF 0.1MF R346 J-5 # 82 82 R1373 K-8 # 100 100
C1369 K-7 # 0.1MF 0.1MF R347 J-5 # 470 470 R1374 K-9 # 47K 47K
C1370 J-7 # 10MF 10MF R348 J-4 # 220 220 R1385 I-9 # 1K 1K
C1371 J-9 # 0.0047MF 0.0047MF R349 J-4 # 470 470 R1387 I-10 # 10K 10K
C1372 J-9 # 0.0047MF 0.0047MF R350 J-3 # 100 100 R1389 I-8 # 100 100
C1373 J-10 # 470PF 470PF R352 K-3 # 10K 10K R1390 I-8 # 1K 1K
C1501 J-14 # 0.1MF 0.1MF R357 F-17 220 # # R1391 H-8 # 22K 22K
D016 F-11 # 1SS133T-77 1SS133T-77 R358 F-16 # 0 0 R1392 I-8 # 22K 22K
D017 E-12 MA111-(K8).S0 # # R360 G-17 # 220 220 R1395 I-9 # 1K 1K
D018 F-11 # MA111-(K8).S0MA111-(K8).S0 R362 G-19 # 10K 10K R1397 I-9 # 100 100
D019 F-12 # MA111-(K8).S0MA111-(K8).S0 R374 C-19 # 470 470 R1398 H-10 # 220 220
D301 G-19 # MA111-(K8).S0MA111-(K8).S0 R375 D-20 # 1K 1K T503 I-18 8-598-834-20 8-598-824-10 8-598-824-10
D536 L-12 MA111-(K8).S0 0 0 R376 D-20 # 100 100 T505 H-14 1-431-693-11 1-429-188-11 1-429-188-11
— 11 — — 12 — — 13 — — 14 —
#: NOT MOUNTED
FOLDOUT 4 49-52 7/26/99, 3:36 PM2
Page 8
ESQUEMA ELÉTRICO PLACA GA
GA
KV-29FV15B/34FV15B/38FV15B
[ AC-RECT, DC-DC CONV., LOW B REG ]
ESQUEMA ELÉTRICO PLACA C
1
2345678
A
B
C
D
C BOARD (*) MARK LIST
REF. NO. LOCATION KV-29FV15B KV-34FV15B KV-38FV15B
J1761 B-4 1-251-797-11 1-540-071-22 1-540-071-22
R1796 B-6 2.2 2.7 2.7
#: NOT MOUNTED
C BOARD WAVEFORMS
1 2 3
139.0 Vp-p (H) 116.2 Vp-p (H) 126.1 Vp-p (H)
C BOARD IC
VOLTAGE LIST
IC1701
pin volt
1 1.8
2 1.9
3 2.0
4 GND
5 4.8
6 208.0
7 149.2
8 150.3
9 153.9
All voltages are in V
E
F
G
H
I
C
A
B
C
D
[ RGB DRIVE, CRT DRIVE ]
1
234
C BOARD TRANSISTOR
VOLTAGE LIST
BCE
Q1790 4.8 GND 4.4
All voltages are in V
HA
GA BOARD TRANSISTOR
VOLTAGE LIST
BCE
Q6000 0 11.9 GND
Q6001 0.7 0.1 GND
Q6002 11.9 0 11.9
Q6003 16.9 17.6 17.8
Q6004 0.7 0 GND
Q6005 0.6 0 GND
Q6007 0.3 1.5 GND
Q6008 3.6 -0.1 3.6
Q6009 134.3 -0.1 134.7
Q6010 -0.1 3.6 GND
Q6011 17.1 17.5 17.7
Q6012 17.9 0.7 17.9
All voltages are in V
GA BOARD TRANSISTOR
VOLTAGE LIST
DGS
Q6006 150.0 1.5 GND
All voltages are in V
[ FRONT A/V - MENU KEY ]
GA BOARD IC VOLTAGE LIST
IC6000 IC6002 IC6003
pin volt pin volt pin volt
REF
ANODE
CATHODE
pin volt 5 4.5 5 GND
2.5 1 307.1 1 134.0
GND 2 168.5 2 NC
5.0 3 3.9 3 2.4
IC6001 4 NC 4 9.6
1 17.9 6 2.1 IC6004
2 17.9 7 3.8 pin volt
3 17.9 8 GND IN 13.4
4 3.2 9 GND OUT 11.9
5 4.9 10 GND GND GND
6 3.3 11 GND IC6005
7 4.9 12 0 pin volt
8 3.2 13 0 IN 11.4
9 4.9 14 17.3 OUT 9.5
10 3.4 15 10.4 GND GND
11 4.8 16 4.7 IC6007
12 GND 17 0 pin volt
13 17.9 18 173.5 1 7.2
14 17.9 19 163.5 2 5.0
3 GND
All voltages are in V
HA BOARD SCHEMATIC DIAGRAM
HB
[ IR DETECTOR ]
J
HB BOARD SCHEMATIC DIAGRAM
GA BOARD LOCATOR LIST
DIODE
D6000 I-5 D6025 G-4 IC6000 C-4
D6001 C-4 D6028 H-2 IC6001 B-3
D6002 C-4 D6029 H-2 IC6002 D-1
D6003 B-4 D6030 G-2 IC6003 F-1
D6004 B-4 D6031 I-6 IC6004 I-3
D6005 C-5 D6032 J-6 IC6005 H-2
D6006 C-5 D6034 H-5 IC6007 J-5
D6008 B-7 D6035 H-2
D6009 H-2 D6036 I-5 PH6001 E-1
D6010 D-4 D6037 H-1 PH6002 F-3
D6011 P-4 D6038 E-4
D6012 E-3 D6040 J-6 Q6000 I-5
D6013 D-3 D6041 J-4 Q6001 D-4
D6014 D-3 D6042 J-4 Q6002 E-4
D6015 C-2 D6043 C-4 Q6003 H-3
D6016 I-2 D6044 G-4 Q6004 E-3
D6017 H-5 D6045 B-4 Q6005 F-3
D6018 J-5 D6046 B-5 Q6006 H-6
D6019 H-5 D6047 C-5 Q6007 H-6
D6020 G-2 D6048 E-4 Q6008 H-3
D6021 I-6 D6049 E-4 Q6009 H-2
D6022 G-3 D6050 C-3 Q6010 H-2
D6023 G-3 D6051 J-6 Q6011 D-3
D6024 G-3
D6052 I-4 Q6012 C-4
IC
PHOTOCOUPLER
TRANSISTOR
E
FOLDOUT 5 53-56 7/26/99, 3:39 PM1
— 15 —
— 16 — — 17 — — 18 —
Page 9
KV-29FV15B/34FV15B/38FV15B
ESQUEMA ELÉTRICO PLACA HZ
ESQUEMA ELÉTRICO PLACA PRINCIPAL UY
UY (MAIN) BOARD
TRANSISTOR VOLTAGE LIST
BCE
Q202 2.6 7.7 2.0
Q203 2.6 7.7 2.0
Q205 7.7 3.8 8.4
Q206 7.7 3.8 8.4
Q208 3.8 8.7 3.2
Q209 3.8 8.7 3.2
Q210 2.6 8.7 2.0
Q211 2.6 8.7 2.0
Q212 4.4 8.7 3.7
Q231 0 5.1 GND
Q233 -0.1 0 GND
Q234 -0.1 0 GND
Q235 -0.1 0 GND
Q236 -0.1 0 GND
Q237 4.3 GND 5.0
Q238 4.5 GND 5.1
Q239 4.5 GND 5.1
Q246 0.3 5.1 GND
Q262 4.4 GND 5.1
Q263 4.3 GND 5.0
Q264 4.1 GND 4.8
Q265 4.8 8.7 4.2
Q267 0.2 GND 0.9
Q1051 8.7 -0.1 8.7
Q1201 8.2 0 8.7
Q1202 0 4.4 GND
Q1203 0 4.4 GND
Q1204 8.2 0 8.7
Q1205 4.4 8.7 3.8
Q1206 4.4 8.7 3.8
Q1207 3.8 3.8 9.0
Q1208 8.7 3.8 9.0
Q2003 1.0 GND 1.7
Q2004 1.0 GND 1.7
Q2005 2.2 8.5 1.6
Q2006 4.3 8.7 3.7
Q2007 2.2 4.4 1.6
Q2008 2.2 4.4 1.6
Q2009 4.4 8.7 3.7
Q2010 4.4 8.5 3.8
Q2014 4.1 8.5 3.5
Q2018 3.1 GND 3.8
Q2019 4.1 8.5 3.5
All voltages are in V
UY (MAIN) BOARD IC VOLTAGE LIST
IC261 27 4.4 55 4.4 IC2006 22 5.0
pin volt 28 4.4 56 4.4 pin volt 23 0
1 4.4 29 4.4 57 GND IN 8.7 24 0
2 4.4 30 0 58 4.4 OUT 5.1 25 0
3 4.4 31 4.4 59 4.5 GND GND 26 0
4 4.4 32 4.4 60 4.4 IC3504 27 5.0
5 4.4 33 GND 61 4.5 pin volt 28 GND
6 4.4 34 4.4 62 4.4 1 1.6 29 GND
7 4.4 35 4.1 63 4.4 2 1.6 30 GND
8 4.4 36 4.5 64 4.4 3 0.5 31 5.0
9 NC 37 GND IC1051 4 GND 32 GND
10 4.4 38 NC pin volt 5 5.0 33 GND
11 NC 39 8.7 1 2.3 6 2.6 34 5.0
12 0 40 NC 2 2.3 7 1.0 35 GND
13 4.4 41 4.5 3 0.3 8 5.0 36 GND
14 4.4 42 4.3 4 NC 9 1.0 37 2.3
15 4.4 43 4.5 5 7.8 10 GND 38 5.0
16 4.4 44 NC 6 NC 11 2.6 39 GND
17 4.4 45 NC 7 NC 12 2.0 40 2.1
18 0 46 GND 8 GND 13 2.0 41 2.1
19 4.4 47 NC 9 0 14 1.0 42 2.3
20 4.4 48 GND 10 NC 15 GND 43 GND
21 4.4 49 4.4 11 GND 16 5.0 44 2.3
22 4.4 50 4.4 12 8.7 17 0 45 5.0
23 4.4 51 4.4 13 GND 18 GND 46 5.0
24 NC 52 4.5 14 4.4 19 0 47 GND
25 NC 53 4.5 15 4.4 20 0 48 GND
26 NC 54 4.6 16 8.7 21 5.0
All voltages are in V
UY (MAIN) BOARD WAVEFORMS
1 2
1.0 Vp-p (H) 1.2 Vp-p (H)
4
1.9 Vp-p (H)
5
1.1 Vp-p (H) 2.0 Vp-p (H)
3
1.8 Vp-p (H)
6
HZ
[ POWER SWITCH ]
7
1.5 Vp-p (H)
8
0.9 Vp-p (H)
9
1.4 Vp-p (H)
UY (MAIN) BOARD (*) LIST
REF. NO.LOCATIONKV-29FV15B KV-34FV15B KV-38FV15B REF. NO. LOCATION KV-29FV15BKV-34FV15BKV-38FV15B
C201 E-2 # 22MF 22MF R209 D-3 # 47K 47K
C202 E-2 # 22MF 22MF R210 E-3 # 22K 22K
C203 E-2 # 22MF 22MF R211 D-3 # 47K 47K
C204 F-2 # 1MF 1MF R212 E-3 # 22K 22K
C205 F-3 # 1MF 1MF R213 D-3 # 47K 47K
C277 H-7 # 22MF 22MF R214 E-3 # 22K 22K
C1262 D-11 # 22K 22K R218 E-4 # 470 470
C2168 J-15 # 120PF 120PF R219 D-4 # 1K 1K
D201 E-2 # MTZJ-T-9110 MTZJ-T-9110 R220 F-4 # 560 560
D202 E-2 # MTZJ-T-9110 MTZJ-T-9110 R221 F-4 # 470 470
D203 E-2 # MTZJ-T-9110 MTZJ-T-9110 R222 D-4 # 1K 1K
D204 F-3 # MTZJ-T-9110 MTZJ-T-9110 R223 E-4 # 560 560
D205 F-3 # MTZJ-T-9110 MTZJ-T-9110 R225 D-4 # 100 100
J236 E-2 # 1-774-358-11 1-774-358-11 R226 D-4 # 100 100
Q202 E-4 # 2SD601A-Q 2SD601A-Q R228 F-5 # 1K 1K
Q203 E-4 # 2SD601A-Q 2SD601A-Q R229 E-5 # 1K 1K
Q205 E-5 # 2SA1162-G 2SA1162-G R271 H-7 # 5.6K 5.6K
Q206 E-4 # 2SA1162-G 2SA1162-G R272 H-7 # 100 100
Q208 E-5 # 2SD601A-Q 2SD601A-Q R273 H-7 # 5.6K 5.6K
Q209 F-5 # 2SD601A-Q 2SD601A-Q R276 H-6 # 0 0
Q210 F-4 # 2SD601A-Q 2SD601A-Q R301 F-4 # 1K 1K
Q211 F-4 # 2SD601A-Q 2SD601A-Q R1266 E-5 # 470 470
R201 E-2 # 75 75 R1269 F-5 # 470 470
R202 E-2 # 75 75 R1272 D-11 470 1.5K #
R203 E-2 # 75 75 R1273 D-10 620 1.8K #
R204 F-2 # 470K 470K R1276 F-4 # 1K 1K
R205 F-2 # 470K 470K R1277 G-10 100 100 #
R206 E-3 # 0 0 R1291 F-2 # 0 0
R207 E-3 # 0 0 R1292 F-2 # 0 0
R208 E-3 # 0 0 R2036 J-17 510 1.2K 1.2K
#: NOT MOUNTED
Schematic diagrams
HA
HZ main boardUY
HB
boards
GA
C
HX
FOLDOUT 6 57-60 7/26/99, 3:47 PM2
ESQUEMA ELÉTRICO PLACA HX
HX
[ KEY ]
— 20 — — 21 — — 22 —— 19 —
Page 10
KV-29FV15B/34FV15B/38FX250B
UY
[ 3D LINE COMB FILTER, AV SW, AUDIO CONTROL, SRS ]
[ COMPONENT SIDE ]
1
A
B
C
D
E
F
[ CONDUCTOR SIDE ]
234567
A
B
C
D
E
F
UY BOARD LOCATOR LIST
DIODE A B
D201 G-4 Q211 C-3
D202 G-4 Q212 B-6
D203 G-3 Q231 B-4
1
234567
D204 G-3 Q233 B-4
D205 G-2 Q234 B-3
D231 E-5 Q235 A-4
D232 E-5 Q236 A-4
D233 E-5 Q237 I-4
D234 E-6 Q238 C-3
D235 F-5 Q239 B-4
D236 F-5 Q246 B-4
D237 G-5 Q262 B-6
D238 G-5 Q263 B-6
D239 G-5 Q264 I-6
D245 B-4 Q265 B-6
D246 A-3 Q267 H-2
D247 B-3 Q1051 B-2
D248 A-3 Q1201 C-6
D250 B-2 Q1202 C-6
D261 J-5 Q1203 H-2
D902 H-2 Q1204 G-1
D910 E-2 Q1205 G-6
D911 F-2 Q1206 C-1
D912 F-2 Q1207 H-6
D1051 F-2 B-2 Q1208 C-1
D1052 A-2 Q2003 F-6
D2201 G-2 Q2004 F-7
D2202 G-2 Q2005 E-7
D2203 G-2 Q2006 F-6
IC261 I-5 Q2009 D-6
IC1051 I-2 Q2010 D-7
IC2006 E-6 Q2014 F-5
IC3302 A-2 Q2018 F-4
IC3303 C-2 Q2019 F-4
IC3304 C-3 Q3301 I-3
IC3305 D-2 Q3302 B-1
IC3308 B-3 Q3305 A-1
IC3504 C-5 Q3306 H-1
Q202 C-4 Q3312 I-1
Q203 D-3 Q3314 B-3
Q205 C-4
Q206 C-3
Q208 D-4
Q209 C-3
AB
IC
AB
TRANSISTOR
AB
Q210 D-4
Q2007 D-5
Q2008 D-7
Q3307 B-1
Q3310 I-3
ESQUEMA ELÉTRICO PLACA UY PIP
G
H
G
UY (PIP) BOARD
TRANSISTOR VOLTAGE LIST
Q3301 5.1 8.5 4.4
Q3302 0 GND 0.7
H
I
J
I
J
Q3305 0.1 GND 0.7
Q3306 0.6 0 1.2
Q3307 0.1 GND 0.7
Q3310 0 4.9 GND
Q3312 0 0 0.6
Q3314 3.7 GND 4.3
UY (PIP) BOARD IC VOLTAGE LIST
IC3302 25 GND 22 5.2 8 GND
pin volt 26 NC 23 5.2 9 5.1
UY (PIP) BOARD WAVEFORMS
1
2.0 Vp-p (H)
4
4.5 Vp-p (H)
7
3.7 Vp-p (H)
10
3.4 Vp-p (V)
2
1.7 Vp-p (8MHz)
5
1.4 Vp-p (H)
8
3.6 Vp-p (V)
3
6
9
1.7 Vp-p (H)
3.6 Vp-p (V)
4.6 Vp-p (H)
UY (PIP) BOARD (*) LIST
REF. NO. LOCATION KV-29FV15B KV-34FV15B KV-38FV15B
C3311 C-3 12PF 12PF #
IC3308 C-7 # BU4053BCF-T2 BU4053BCF-T2
R3305 F-8 2.2K 2.2K 560
R3315 C-6 0 # #
R3316 C-6 0 # #
R3317 C-6 0 # #
R3326 B-6 # 0 #
R3362 E-8 470 240 240
R3363 E-8 430 220 220
R3364 E-9 620 300 300
#: NOT MOUNTED
IN 8.5 27 0 24 5.2 10 GND
OUT 5.1 28 2.0 25 8.3 11 3.0
GND GND 29 5.0 26 2.5 12 3.0
IC3303 30 2.3 27 2.5 13 NC
pin volt 31 4.0 28 2.5 14 1.4
1 GND 32 2.3 29 4.5 15 NC
2 3.0 IC3304 30 NC 16 1.4
3 2.3 pin volt 31 GND IC3308
4 2.0 1 2.1 32 GND pin volt
5 4.8 2 3.8 33 3.6 1 3.4
6 GND 3 8.3 34 3.4 2 2.5
7 0.1 4 1.6 35 GND 3 3.2
8 0 5 GND 36 4.6 4 2.7
9 0.1 6 2.7 37 4.6 5 2.7
10 5.0 7 2.7 38 4.3 6 GND
11 1.9 8 2.6 39 3.3 7 GND
12 0 9 8.3 40 0.6 8 GND
13 NC 10 0.7 IC3305 9 0.4
14 -2.9 11 3.6 pin volt 10 0.4
15 GND 12 4.2 1 5.1 11 0.4
16 GND 13 4.2 2 NC 12 2.7
17 3.6 14 0.1 3 GND 13 3.2
18 0.2 15 0.6 4 GND 14 2.7
19 0.1 16 0.7 5 0.6 15 2.5
20 0.4 17 GND 6 NC 16 8.3
21 4.5 18 2.5 7 NC
22 4.5 19 2.7
23 NC 20 2.7
24 NC 21 5.2
BCE
All voltages are in V
All voltages are in V
FOLDOUT 7 61-64 7/26/99, 3:50 PM1
— 26 —— 25 —— 24 —— 23 —
Page 11
KV-29FV15B/34FV15B/38FV15B
ESQUEMA ELÉTRICO PLACA PRINCIPAL WA
WA BOARD (*) MARK LIST
REF. NO. LOCATION KV-29FV15B KV-34FV15B KV-38FV15B
C1961 C-11 0.047MF 0.082MF 0.082MF
C1965 D-10 0.033MF 0.01MF 0.022MF
L941 B-5 100UH 5.0MM 5.0MM
Q941 B-3 # 2SD601A-QRS-TX 2SD601A-QRS-TX
Q942 B-4 # 2SB709A-QRS-TX 2SB709A-QRS-TX
Q949 B-3 # 2SB709A-QRS-TX 2SB709A-QRS-TX
R943 A-2 # 220 220
R944 A-4 # 1K 1K
R945 B-3 # 1K 1K
R947 B-4 # 100 100
R961 A-2 # 56K 56K
R962 A-2 # 22K 22K
R968 H-9 5.6K 3.3K 6.8K
R970 H-9 33K 47K 39K
R992 B-3 # 3.3K 3.3K
R993 A-3 # 1K 1K
R994 A-4 # 100 100
R995 B-4 # 1.2K 1.2K
R1954 G-9 # 47K 47K
R1961 F-6 47K 56K 39K
R1975 F-6 6.8K 12K 3.9K
R1976 E-9 2.2K 3.3K 3.3K
R1987 G-9 18K 100K 33K
R1989 E-9 18K 33K 33K
R2963 D-10 68 68
R2968 F-9 4.7K 4.7K 3.9K
R2971 E-10 33K 47K 68K
#: NOT MOUNTED
WA BOARD TRANSISTOR
VOLTAGE LIST
BCE
Q941 3.2 10.9 2.6
Q942 5.0 GND 5.6
Q943 3.5 8.7 2.9
Q944 2.5 11.7 1.9
Q945 2.5 7.9 1.9
Q946 134.5 67.6 135.0
Q947 0.9 67.6 0.3
Q948 0 1.6 GND
Q949 10.8 5.0 11.5
Q961 0.4 0.3 GND
Q962 0.4 GND 1.1
Q963 6.5 GND 6.6
Q966 7.9 GND 8.3
Q967 4.3 1.4 4.9
Q968 8.6 11.7 8.3
Q969 4.9 8.5 4.3
Q1961 11.4 3.2 11.7
Q1963 7.3 6.4 7.9
Q1964 6.4 4.4 6.9
Q1966 -2.1 2.8 GND
Q1967 4.4 GND 5.0
All voltages are in V
WA BOARD TRANSISTOR
VOLTAGE LIST
Q965 6.6 -0.2 GND
DGS
All voltages are in V
WA BOARD IC VOLTAGE LIST
IC961 IC962 IC963 IC964 IC965
pin volt 1 8.5 1 2.0 1 4.9 pin volt
1 0.2 2 5.8 2 4.2 2 4.0 1 11.6
2 0.2 3 6.8 3 4.6 3 4.0 2 9.0
3 -13.9 4 GND 4 GND 4 GND 3 GND
4 0.5 5 7.2 5 7.5 5 4.4
5 11.7 6 6.8 6 6.8 6 4.4
7 3.8 7 6.5 7 4.4
8 8.9 8 8.9 8 11.7
All voltages are in V
WA
A
B
C
D
Schematic diagrams
PIP
board
UY
WA
board
[ VELOCITY MOD., QUAD POLE ROT. ]
1
23456789
WA BOARD LOCATOR LIST
DIODE TRANSISTOR
D941 A-2 Q941 B-1
D943 C-8 Q942 A-1
D944 B-8 Q943 C-2
D945 B-9 Q944 B-2
D946 B-4 Q945 B-2
D947 B-4 Q946 C-4
D962 C-6 Q947 B-3
D963 B-6 Q948 C-1
D964 B-6 Q949 B-1
D966 B-6 Q961 C-9
D1961 B-6 Q962 C-5
D1962 B-6 Q963 C-7
IC
IC961 C-2 Q966 B-2
IC962 C-8 Q967 A-7
IC963 C-6 Q968 B-3
IC964 C-7 Q969 B-8
IC965 D-7 Q1961 B-5
Q965 B-7
Q1963 B-9
Q1964 B-8
Q1966 B-9
Q1967 B-8
6-5. SEMICONDUCTORS
TDA2009A
TDA7262
TOP VIEW
40 pin
CATHODE
ANODE
2SA1175-HFE
2SA933AS-QRT
2SC2785-HFE
LETTER SIDE
E
C
B
µPD64081BGF-3BA - 100 pin
1
TOP VIEW
20 pin SOP
NJM2150M
24 pin SOP
CXA2039M-T6
28 pin SOP
MN47V76ST1
MN47V77ST1
36 pin SOP
µPC1862GS-E2
D1NS4
MTZJ-XXA
MTZJ-XXB
MTZJ-XXC
RDXXESB1
RDXXESB2
RDXXESB3
1SS119-25
1SS133T-77
(XX = VALUE)
NJM78M05FA
PQ09RF21
TA7805S
BA05T
52
64
D1NL20U
D2L20U
EL1Z
EGP20G
EGP30G
ERA22-08
ERC06-15S
ERD29-08J
EZ0150AV1
GP08D
MTZJ-33A
1SS83
SBX1981
TSC5148
(LE SONY)
B
C
E
1
CXA2019Q
8 pin SOP
NJM2903D
NJM2903M
NJM2904D
ST24C02FM6TR
µPC4558G2
X24C04SB
16 pin SOP
BU4053BCF-T2
CXA1315M
MC14052BF
MC14538B
NJM2145M-TE2
CXD2064Q-T6
D10SBS4F
D6SB60L
D4SB60L
{
‘
51 33
1
TOP VIEW
CXA1845Q - 64 pin
LC27016 - 80 pin
µPD6488GF-33A
{
19
SAB9076AH
CATHODE
ANODE
‘
|
32
20
U05G
CATHODE
2SA1837
2SC4159-E
2SC4793
2SD2012
ANODE
IC LINK
D10SC4M
2A/90V
1
2
3
S-80748AL
1
TOP VIEW
32 pin DIP
BH3868FS-E2
V53C16258SHK -
40 pin DIP
DM-58
1
N
MARKING SIDE VIEW
Epin 1 ‘ N
EMt (one side, both sides)
SEÇÃO 7
VISTA EXPLODIDA
• Itens sem número de identificação e sem descrição não são mantidos
em estoque por serem raramente solicitados para serviços de rotina.
2SC4834M
B
C
E
B
C
E
TDA8172
1
7
• Os componentes que fazem parte de peças mais complexas tem
o número de referência na com uma observação.
• Itens marcados com um arteríco " * " não são mantidos em estoque
por serem raramente solicitados para serviços de rotina. Algum atraso
pode ser evitado antecipando os pedidos para estas peças.
7-1. CHASSI
4-041-182-01 SCREW (+BVTP) (3X12), TAPPING
7-685-663-91 SCREW (+BVTP) (4X16, TYPE 2)
•
•
18
21
2SC3209LK
2SK2845-LB102
24
22
20
E
C
MA111
RD3.3SB
1SS355
B
G
D
S
MX0842B-F
16
3
17
7
4
1
6
5
ANODE
CATHODE
1
14 pin DIP
NJM2902M
16 pin DIP
MM1093N
20 pin DIP
TA1226N
22 pin DIP
CXA2021S
28 pin DIP
TDA7467
30 pin DIP
CXD2073S
B1
E1C1
2SA1037K-T146-R
2SA1162-G
2SA1330-06
2SB709A
B
2SC1623-L5L6
2SD601A-Q
TOP VIEW
40 pin DIP
SDA9288XE
42 pin DIP
MM1311AD
MM1313AD
48 pin DIP
CXA2131S
64 pin DIP
CXP85856A-029S
C2 B2
E2
C
E
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
1 *Y-8283-988-A HA BOARD, COMPLETE
2 *Y-8283-990-A HB BOARD, COMPLETE
3 *Y-8283-992-A HX BOARD, COMPLETE
4 *Y-8273-001-A HZ BOARD, COMPLETE
5 *Y-8283-982-A A BOARD, COMPLETE (KV-29FV15B Only)
5 *Y-8373-005-A A BOARD, COMPLETE (KV-34FV15B Only)
5 *Y-8373-039-A A BOARD, COMPLETE (KV-38FV15BOnly)
6 ! 8-598-431-00 TUNER, FSS BTF-WA411
!
7
8-598-834-20 FBT ASSY, NX4521//X (KV-29FV15B Only)
!
7
8-598-824-10 FBT ASSY, NX4600
(KV-34FV15B/38FV15B Only)
8 *Y-8283-984-A AK BOARD, COMPLETE
10 ! 8-598-430-00 TUNER, FSS BTF-FA401
11 *1-557-056-21 CABLE, P-P
12 *1-551-382-31 CABLE, P-P
13 8-598-414-20 ANTENNA CHANGER AS-2F
14 *Y-8373-003-A UY BOARD, COMPLETE (KV-29FV15B Only)
14 *Y-8373-013-A UY BOARD, COMPLETE
(KV-34FV15B/38FV15B Only)
2
19
8
Os componentes identificados com a marca são críticos
para a segurança. Somente os substitua pela peça indicada.
25
•
•
14
•
13
11
12
15
10
•
23
22
21
20
18
15 *3-696-606-02 HINGE, VI
16 *Y-8283-996-A GA BOARD, COMPLETE (KV-29FV15B Only)
16 *Y-8373-011-A GA BOARD, COMPLETE
(KV-34FV15B/38FV15B Only)
17 !1-791-225-11 CORD, POWER (WITH CONNECTOR)
18 4-070-414-01 BAFFLE, SPEAKER
19 *4-071-209-02 FELT, SPEAKER (KV-29FV15B Only)
20 1-505-947-21 SPEAKER, BOX (5CM)
21 1-529-132-11 SPEAKER , BOX (10CM)
22 4-070-413-01 COVER, SPEAKER
23 4-070-457-01 ABSORBER, SPEAKER SOUND
24 *4-374-745-41 CUSHION (A)
25 4-070-405-02 COVER, REAR (KV-29FV15B Only)
25 4-069-000-31 COVER, REAR (KV-34FV15B Only)
25 4-068-998-11 COVER, REAR (KV-38FV15B Only)
— 30 —— 29 —— 28 —— 27 —
FOLDOUT 8 65-68 7/26/99, 2:23 PM2
Page 12
Os componentes identificados com a marca são críticos
para a segurança. Somente os substitua pela peça indicada.
7-2. TUBO DE IMAGEM (KV-29FV15B)
KV-29FV15B/34FV15B/38FV15B
56
58
59
51
76
63
77
75
68
70
57
67
61
69
62
64
74
72
66
65
71
53
52
50
54
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
50 X-4036-852-1 BEZNET ASSY 51-53
51 3-704-179-31 EMBLEM (NO. 9), SONY
52 4-068-985-04 DOOR
53 3-703-574-01 RETAINER, DOOR
54 4-068-984-01 MULTI-BUTTON (BOTTOM)
56 4-068-982-02 MULTI-BUTTON (TOP)
57 4-068-986-01 GUIDE, LED
58 4-068-995-01 BUTTON, MAIN POWER
59 4-052-635-01 MAIN POWER BRACKET
!
61
8-735-052-07 CRT 29RSN
62 ! 8-451-494-31 DY Y29RSA-S
63 2-163-920-01 PLATE, TLH CORRECTION
64 ! 8-453-011-11 NA299-M
65 *Y-8283-994-A WA BOARD, MOUNTED
66 *Y-8283-986-A C BOARD, COMPLETE
67 4-031-319-01 SPACER, DY
68 *4-062-970-01 CLIP (29RSN), DGC
69 1-452-896-11 COIL, NA ROTATION (RT200)
70 4-041-203-01 HOLDER, HV CABLE
71 4-036-329-11 SPRING (B), TENSION
!
72
1-419-291-11 COIL, DEGAUSSING
74 4-046-765-12 SCREW, TAPPING (7) +CROWN WASHER
75 1-452-014-11 CIRCULAR DISC MAGNET B
76 1-452-032-11 MAGNET, DISC
77 4-062-047-01 PIECE A (110), CONV CORRECT
— 31 —
Page 13
KV-29FV15B/34FV15B/38FV15VB
Os componentes identificados com a marca são críticos
para a segurança. Somente os substitua pela peça indicada.
7-3. TUBO DE IMAGEM (KV-34FV15B/38FV15B)
69
58
57
56
51
52
53
50
65
59
61
62
63
67
64
68
66
54
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
50 4-068-999-21 BEZNET (KV-34FV15B Only)
50 4-068-997-51 BEZNET (KV-38FV15B Only)
51 3-704-179-31 EMBLEM (NO. 9), SONY
52 4-068-985-04 DOOR
53 3-703-574-01 RETAINER, DOOR
54 4-068-984-01 MULTI-BUTTON (BOTTOM)
56 4-068-995-01 BUTTON, MAIN POWER
57 4-052-635-01 MAIN POWER BRACKET
58 4-068-982-01 MULTI-BUTTON (TOP)
59 4-068-986-01 GUIDE, LED
61 ! 8-735-050-61 ITC 34RSN-A1E
(KV-34FV15B Only)
61 ! 8-735-080-61 ITC 38RSN-A1E
(KV-38FV15B Only)
62 *Y-8373-009-A WA BOARD, MOUNTED (KV-34FV15B Only)
62 *Y-8373-041-A WA BOARD, MOUNTED (KV-38FV15B Only)
63 *Y-8373-007-A C BOARD, COMPLETE
64 *4-067-050-01 CUSHION (40MM), CRT
65 4-041-203-01 HOLDER, HV CABLE
66 4-036-329-11 SPRING (B), TENSION
67 ! 1-419-292-11 COIL, DEGAUSSING (KV-34FV15B Only)
!
67
1-419-313-11 COIL, DEGAUSSING (KV-38FV15B Only)
68 4-065-895-02 HOLDER, DGC
69 4-046-765-12 SCREW, TAPPING (7) +CROWN WASHER
— 32 —
Page 14
KV-29FV15B/34FV15B/38FV15B
LISTA DE COMPONENTES ELÉTRICOS
Nota:
Os componentes identificados
com uma marca ! são críticos
para a segurança. Só os substitua
pelas peças indicadas.
REF.NO. PART NO. DESCRIPTION REMARK
As peças identificadas por [ neste manual
foram cuidadosamente selecionadas para
cada aparelho, de forma a atender as regulamentações para radiação de raios-X. Se
necessária a troca, certifique-se de substituir a peça pela indicada neste manual.
• Itens marcados com um asterisco " * " não são
mantidos em estoque por serem muito pouco solicitados para serviços de rotina. Algum atraso pode
ser evitado antecipando-se o pedido.
A
*
* Y-8273-005-A A BOARD, COMPLETE (KV-34FV15B only)
* Y-8273-039-A A BOARD, COMPLETE (KV-38FV15B only)
Y-8283-982-A A BOARD, COMPLETE (KV-29FV15B only)
4-382-854-11 SCREW (M3X10),P,SW (+)
CAPACITOR
SEÇÃO 8
A
• Todos os resistores ajustáveis tem curva
característica B, exceto se informado o contrário.
RESISTORES
• Todos os resistores estão em ohms.
• F : antichama.
Quando solicitar peça pelo código da mesma, por favor, indique o modelo da placa.
REF.NO. PART NO. DESCRIPTION REMARK
C309 1-117-530-91 ELECT 0.22µF 20% 100V
C310 1-117-493-91 ELECT 47µF 20% 25V
C311 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C312 1-117-537-91 ELECT 4.7µF 20% 100V
C314 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C316 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C318 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C319 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C320 1-117-487-91 ELECT 470µF 20% 16V
C321 VARIANT (SEE VARIANT PARTS LIST)
C001 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C003 1-163-809-11 CERAMIC CHIP 0.047µF 10% 25V
C005 1-117-534-91 ELECT 1µF 20% 100V
C009 1-117-493-91 ELECT 47µF 20% 25V
C010 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C012 1-163-010-11 CERAMIC CHIP 0.0012µF10% 50V
C013 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C014 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C023 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C028 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C029 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C035 1-163-237-11 CERAMIC CHIP 27pF 5% 50V
C036 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C037 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C038 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C039 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C040 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C051 1-164-161-11 CERAMIC CHIP 0.0022µF10% 50V
C053 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C056 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C061 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C062 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C063 1-117-506-91 ELECT 470µF 20% 35V
C068 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C071 1-117-512-91 ELECT 22µF 20% 50V
C322 VARIANT (SEE VARIANT PARTS LIST)
C323 VARIANT (SEE VARIANT PARTS LIST)
C326 1-165-319-11 CERAMIC CHIP 0.1µF 50V
C327 1-117-537-91 ELECT 4.7µF 20% 100V
C329 1-165-319-11 CERAMIC CHIP 0.1µF 50V
C331 1-117-511-91 ELECT 10µF 20% 50V
C332 1-117-534-91 ELECT 1µF 20% 100V
C333 1-102-129-00 CERAMIC 0.01µF 10% 50V
C334 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C335 1-164-005-11 CERAMIC CHIP 0.47µF 25V
C336 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C338 VARIANT (SEE VARIANT PARTS LIST)
C339 VARIANT (SEE VARIANT PARTS LIST)
C340 VARIANT (SEE VARIANT PARTS LIST)
C343 VARIANT (SEE VARIANT PARTS LIST)
C344 VARIANT (SEE VARIANT PARTS LIST)
C345 VARIANT (SEE VARIANT PARTS LIST)
C346 VARIANT (SEE VARIANT PARTS LIST)
C347 VARIANT (SEE VARIANT PARTS LIST)
C348 VARIANT (SEE VARIANT PARTS LIST)
C351 VARIANT (SEE VARIANT PARTS LIST)
C352 VARIANT (SEE VARIANT PARTS LIST)
C355 VARIANT (SEE VARIANT PARTS LIST)
C357 1-117-513-91 ELECT 47µF 20% 50V
C359 VARIANT (SEE VARIANT PARTS LIST)
C072 1-164-161-11 CERAMIC CHIP 0.0022µF10% 50V
C075 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C301 VARIANT (SEE VARIANT PARTS LIST)
C305 1-163-233-11 CERAMIC CHIP 18pF 5% 50V
C306 1-163-233-11 CERAMIC CHIP 18pF 5% 50V
C307 1-163-233-11 CERAMIC CHIP 18pF 5% 50V
C308 1-163-001-11 CERAMIC CHIP 220pF 10% 50V
C361 VARIANT (SEE VARIANT PARTS LIST)
C374 VARIANT (SEE VARIANT PARTS LIST)
C375 VARIANT (SEE VARIANT PARTS LIST)
C382 VARIANT (SEE VARIANT PARTS LIST)
C384 VARIANT (SEE VARIANT PARTS LIST)
C393 VARIANT (SEE VARIANT PARTS LIST)
C394 VARIANT (SEE VARIANT PARTS LIST)
——
35
Page 15
KV-29FV15B/34FV15B/38FV15B
A
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
C395 1-117-493-91 ELECT 47µF 20% 25V
C396 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C397 VARIANT (SEE VARIANT PARTS LIST)
C398 VARIANT (SEE VARIANT PARTS LIST)
C501 1-102-110-00 CERAMIC 220pF 10% 50V
C502 1-117-532-91 ELECT 0.47µF 20% 100V
C503 1-163-133-00 CERAMIC CHIP 470pF 5% 50V
C504 1-102-228-00 CERAMIC 470pF 10% 500V
C505 1-102-228-00 CERAMIC 470pF 10% 500V
C506 1-106-383-00 MYLAR 0.047µF 10% 200V
C507! 1-162-116-00 CERAMIC 680pF 10% 2KV
C508 1-102-228-00 CERAMIC 470pF 10% 500V
C509 1-162-116-00 CERAMIC 680pF 10% 2KV
C510 1-137-150-11 MYLAR 0.01µF 10% 100V
C511 VARIANT (SEE VARIANT PARTS LIST)
C512 VARIANT (SEE VARIANT PARTS LIST)
C513 VARIANT (SEE VARIANT PARTS LIST)
C514 VARIANT (SEE VARIANT PARTS LIST)
C515 1-106-343-00 MYLAR 0.001µF 10% 100V
C516 VARIANT (SEE VARIANT PARTS LIST)
C517 1-117-559-91 ELECT 2.2µF 20% 250V
C518 1-106-387-00 MYLAR 0.068µF 10% 200V
C519 1-107-612-11 CERAMIC 100pF 5% 500V
C520 1-164-646-11 CERAMIC 2200pF 10% 500V
C521 1-163-010-11 CERAMIC CHIP 0.0012µF10% 50V
C522 1-117-534-91 ELECT 1µF 20% 100V
C525 1-102-244-00 CERAMIC 220pF 10% 500V
C526 1-117-563-91 ELECT 22µF 20% 250V
C527 1-162-116-00 CERAMIC 680pF 10% 2KV
C528 1-164-161-11 CERAMIC CHIP 0.0022µF10% 50V
C529 1-117-512-91 ELECT 22µF 20% 50V
C530 1-115-266-91 FILM 0.0022µF5% 63V
C531 1-117-512-91 ELECT 22µF 20% 50V
C532 1-117-512-91 ELECT 22µF 20% 50V
C534 1-117-513-91 ELECT 47µF 20% 50V
C537 1-117-506-91 ELECT 470µF 20% 35V
C539 1-117-506-91 ELECT 470µF 20% 35V
C540 VARIANT (SEE VARIANT PARTS LIST)
C541 1-117-539-91 ELECT 22µF 20% 100V
C543 1-117-504-91 ELECT 220µF 20% 35V
C544 1-129-718-00 FILM 0.022µF 5% 630V
C545 1-106-387-00 MYLAR 0.068µF 10% 200V
C546 1-106-343-00 MYLAR 0.001µF 10% 100V
C547 1-106-343-00 MYLAR 0.001µF 10% 100V
C548 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C549 1-106-375-12 MYLAR 0.022µF 20% 200V
C550 VARIANT (SEE VARIANT PARTS LIST)
C551 1-117-557-91 ELECT 0.47µF 20% 250V
C552 1-102-244-00 CERAMIC 220pF 10% 500V
C553 VARIANT (SEE VARIANT PARTS LIST)
C554 VARIANT (SEE VARIANT PARTS LIST)
C561 1-117-513-91 ELECT 47µF 20% 50V
C563 1-117-504-91 ELECT 220µF 20% 35V
REF.NO. PART NO. DESCRIPTION REMARK
C564 1-117-534-91 ELECT 1µF 20% 100V
C565 1-117-516-91 ELECT 220µF 20% 50V
C568 1-136-191-11 FILM 0.22µF 5% 63V
C571 1-117-498-91 ELECT 1000µF 20% 25V
C572 1-117-498-91 ELECT 1000µF 20% 25V
C599 VARIANT (SEE VARIANT PARTS LIST)
C1002 1-117-511-91 ELECT 10µF 20% 50V
C1003 1-117-535-91 ELECT 2.2µF 20% 100V
C1004 1-117-534-91 ELECT 1µF 20% 100V
C1101 1-117-500-51 ELECT 2200µF 20% 25V
C1103 1-117-512-91 ELECT 22µF 20% 50V
C1104 1-117-493-91 ELECT 47µF 20% 25V
C1105 1-117-493-91 ELECT 47µF 20% 25V
C1106 1-117-511-91 ELECT 10µF 20% 50V
C1107 1-163-037-11 CERAMIC CHIP 0.022µF 10␣% 50V
C1108 1-117-512-91 ELECT 22µF 20% 50V
C1109 1-117-511-91 ELECT 10µF 20% 50V
C1110 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C1111 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C1112 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C1117 1-117-534-91 ELECT 1µF 20% 100V
C1118 1-117-534-91 ELECT 1µF 20% 100V
/
C1355 VARIANT (SEE VARIANT PARTS LIST)
C1356 VARIANT (SEE VARIANT PARTS LIST)
C1357 VARIANT (SEE VARIANT PARTS LIST)
C1358 VARIANT (SEE VARIANT PARTS LIST)
C1359 VARIANT (SEE VARIANT PARTS LIST)
C1360 VARIANT (SEE VARIANT PARTS LIST)
C1361 VARIANT (SEE VARIANT PARTS LIST)
C1362 VARIANT (SEE VARIANT PARTS LIST)
C1363 VARIANT (SEE VARIANT PARTS LIST)
C1367 VARIANT (SEE VARIANT PARTS LIST)
C1369 VARIANT (SEE VARIANT PARTS LIST)
C1370 VARIANT (SEE VARIANT PARTS LIST)
C1371 VARIANT (SEE VARIANT PARTS LIST)
C1372 VARIANT (SEE VARIANT PARTS LIST)
C1373 VARIANT (SEE VARIANT PARTS LIST)
C1501 VARIANT (SEE VARIANT PARTS LIST)
CONNECTOR
CN270 *1-691-616-21 CONNECTOR, BOARD TO BOARD 15P
CN271 *1-691-616-21 CONNECTOR, BOARD TO BOARD 15P
CN272 *1-691-616-21 CONNECTOR, BOARD TO BOARD 15P
CN301 *1-508-784-00 PIN, CONNECTOR(5MM PITCH) 1P
CN351 *1-564-509-11 PLUG, CONNECTOR 6P
CN501 *1-580-798-11 CONNECTOR PIN(DY) 6P
CN503 *1-564-508-11 PLUG, CONNECTOR 5P
CN1001 *1-564-508-11 PLUG, CONNECTOR 5P
CN1002 *1-564-506-11 PLUG, CONNECTOR 3P
CN1101 *1-900-804-32 PLUG, CONNECTOR 12P
— 36 —
Page 16
KV-29FV15B/34FV15B/38FV15B
A
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
CN1102 *1-564-507-11 PLUG, CONNECTOR 4P
CN1231 *1-564-512-11 PLUG, CONNECTOR 9P
CN1641 *1-900-804-36 PLUG, CONNECTOR 12P
CN1643 1-695-915-11 TAB (CONTACT)
CN1941 *1-564-511-11 PLUG, CONNECTOR 8P
CN1942 *1-564-508-11 PLUG, CONNECTOR 5P
DIODE
D001 8-719-991-33 DIODE 1SS133T-77
D002 8-719-923-39 DIODE MTZJ-T-77-5.6C
D003 8-719-991-33 DIODE 1SS133T-77
D004 8-719-048-57 DIODE MTZJ-T-77-10C
D011 8-719-983-16 DIODE MTZJ-T-77-3.9C
D012 8-719-991-33 DIODE 1SS133T-77
D013 8-719-991-33 DIODE 1SS133T-77
D014 8-719-991-33 DIODE 1SS133T-77
D015 8-719-991-33 DIODE 1SS133T-77
D016 VARIANT (SEE VARIANT PARTS LIST)
D017 VARIANT (SEE VARIANT PARTS LIST)
D018 VARIANT (SEE VARIANT PARTS LIST)
D019 VARIANT (SEE VARIANT PARTS LIST)
D301 VARIANT (SEE VARIANT PARTS LIST)
D302 8-719-991-33 DIODE 1SS133T-77
D303 8-719-923-35 DIODE MTZJ-T-77-5.1C
D368 8-719-991-33 DIODE 1SS133T-77
D384 8-719-923-75 DIODE MTZJ-T-77-11B
D388 8-719-923-75 DIODE MTZJ-T-77-11B
D501 8-719-923-39 DIODE MTZJ-T-77-5.6C
D502 8-719-945-80 DIODE ERC06-15S
D503 ! 8-719-945-80 DIODE ERC06-15S
D504 8-719-900-26 DIODE ERD29-08J
D505 8-719-936-83 DIODE GP08DPKG23
D506 8-719-936-83 DIODE GP08DPKG23
REF.NO. PART NO. DESCRIPTION REMARK
D1003 8-719-048-57 DIODE MTZJ-T-77-10B
D1004 8-719-048-57 DIODE MTZJ-T-77-10B
D1101 8-719-048-57 DIODE MTZJ-T-77-10B
D1102 8-719-983-32 DIODE MTZJ-T-77-33A
D1103 8-719-923-39 DIODE MTZJ-T-77-5.6C
D1104 8-719-110-17 DIODE RD10ESB2
D1301 VARIANT (SEE VARIANT PARTS LIST)
D1302 VARIANT (SEE VARIANT PARTS LIST)
D1303 VARIANT (SEE VARIANT PARTS LIST)
D1304 VARIANT (SEE VARIANT PARTS LIST)
D1305 VARIANT (SEE VARIANT PARTS LIST)
D1306 VARIANT (SEE VARIANT PARTS LIST)
FERRITE BEAD
FB501 1-410-397-21 FERRITE 1.1µH
FB502 1-410-397-21 FERRITE 1.1µH
FB503 1-410-397-21 FERRITE 1.1µH
IC
IC001 8-752-907-69 IC CXP85856A-030S
IC002 8-759-527-76 IC M24C08-MN6T
IC351 VARIANT (SEE VARIANT PARTS LIST)
IC352 VARIANT (SEE VARIANT PARTS LIST)
IC353 VARIANT (SEE VARIANT PARTS LIST)
IC354 VARIANT (SEE VARIANT PARTS LIST)
IC355 8-752-090-40 ICCXA2135S
IC501 8-759-256-43 IC NJM2903M-TE2
IC561! 8-759-192-71 IC STV9379
IC1001 8-752-059-23 IC CXA1315M-T4
CHIP CONDUCTOR
D507 8-719-991-33 DIODE 1SS133T-77
D510 8-719-986-78 DIODE ERB44-06TP1
D511 8-719-981-47 DIODE ERA38-06TPI
D512 8-719-981-47 DIODE ERA38-06TPI
D513 8-719-923-88 DIODE MTZJ-T-77-15B
D515! 8-719-936-85 DIODE RGP-10GPKG23
D516 8-719-991-33 DIODE 1SS133T-77
D518 8-719-991-33 DIODE 1SS133T-77
!
D519
D520 8-719-991-33 DIODE 1SS133T-77
D521 8-719-059-78 DIODE MTZJ-T-77-7.5X
D522 8-719-991-33 DIODE 1SS133T-77
D523 8-719-983-13 DIODE MTZJ-T-77-3.6B
D524 8-719-923-46 DIODE MTZJ-6.8B-RT
D530
D531 8-719-940-94 DIODE RGP-15GPKG23
D534 8-719-936-85 DIODE RGP-10GPKG23
D535 8-719-404-50 DIODE MA111-TX
D536 VARIANT (SEE VARIANT PARTS LIST)
D561 8-719-936-83 DIODE GP08DPKG23
8-719-302-44 DIODE EL1Z-V1
!
8-719-940-94 DIODE RGP-15GPKG23
JR001 1-216-295-91 SHORT
JR002 1-216-295-91 SHORT
JR003 VARIANT (SEE VARIANT PARTS LIST)
JR004 VARIANT (SEE VARIANT PARTS LIST)
JR051 VARIANT (SEE VARIANT PARTS LIST)
JR053 VARIANT (SEE VARIANT PARTS LIST)
JR054 1-216-295-91 SHORT
JR055 VARIANT (SEE VARIANT PARTS LIST)
JR056 VARIANT (SEE VARIANT PARTS LIST)
JR057 VARIANT (SEE VARIANT PARTS LIST)
JR4120 1-216-295-91 SHORT
COIL
L001 1-414-857-11 INDUCTOR 100µH
L002 1-414-857-11 INDUCTOR 100µH
L003 1-414-856-11 INDUCTOR 10µH
L004 1-414-856-11 INDUCTOR 10µH
L301 1-414-857-11 INDUCTOR 100µH
L302 1-414-856-11 INDUCTOR 10µH
L351 VARIANT (SEE VARIANT PARTS LIST)
— 37 —
Page 17
KV-29FV15B/34FV15B/38FV15B
The components identified by
A
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
L501 1-406-677-11 INDUCTOR 10MH
L502 1-412-552-11 INDUCTOR 2.2MH
L503 1-406-677-11 INDUCTOR 10MH
L504 1-406-677-11 INDUCTOR 10MH
L505 VARIANT (SEE VARIANT PARTS LIST)
L511 1-411-189-11 INDUCTOR 15MH
L517 1-412-552-11 INDUCTOR 2.2MH
L1101 1-414-857-11 INDUCTOR 100µH
L1102 1-414-856-11 INDUCTOR 10µH
L1351 VARIANT (SEE VARIANT PARTS LIST)
L1352 VARIANT (SEE VARIANT PARTS LIST)
shading and mark ! are
critical for safety. Replace only
with part number specified.
TRANSISTOR
Q001 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q002 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q003 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q004 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q005 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q006 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q007 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q010 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q011 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q012 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q013 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q014 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q015 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q016 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q017 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q103 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q104 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q301 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q302 VARIANT (SEE VARIANT PARTS LIST)
Q303 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q304 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q305 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q306 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q307 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q310 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q311 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q313 VARIANT (SEE VARIANT PARTS LIST)
Q314 VARIANT (SEE VARIANT PARTS LIST)
Q315 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q351 VARIANT (SEE VARIANT PARTS LIST)
Q352 VARIANT (SEE VARIANT PARTS LIST)
Q359 VARIANT (SEE VARIANT PARTS LIST)
Q361 VARIANT (SEE VARIANT PARTS LIST)
Q362 VARIANT (SEE VARIANT PARTS LIST)
Q364 VARIANT (SEE VARIANT PARTS LIST)
Q369 VARIANT (SEE VARIANT PARTS LIST)
Q370 VARIANT (SEE VARIANT PARTS LIST)
Q501 8-729-140-51 TRANSISTOR 2SC3209LK-TP
!
Q502
Q503 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
8-729-046-17 TRANSISTOR 2SD2580-YB
Les composants identifies per un trame
et une marque ! sont critiques pour
la securite. Ne les remplacer que par
une piece portant le numero specifie.
REF.NO. PART NO. DESCRIPTION REMARK
Q504 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q507 8-729-043-95 TRANSISTOR 2SC3840(3)
!
Q511
Q512 ! 8-729-809-29 TRANSISTOR 2SC4159-E
Q561 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q562 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1102 8-729-920-69 TRANSISTOR 2SC1740S-QRT
Q1103 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1301 VARIANT (SEE VARIANT PARTS LIST)
Q1302 VARIANT (SEE VARIANT PARTS LIST)
Q1303 VARIANT (SEE VARIANT PARTS LIST)
Q1352 VARIANT (SEE VARIANT PARTS LIST)
Q1353 VARIANT (SEE VARIANT PARTS LIST)
Q1354 VARIANT (SEE VARIANT PARTS LIST)
8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
RESISTOR
R001 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R002 1-216-049-91 RES, CHIP 1K 5% 1/10W
R003 1-216-097-91 RES, CHIP 100K 5% 1/10W
R004 1-216-121-91 RES, CHIP 1M 5% 1/10W
R006 1-247-815-91 CARBON 220 5% 1/4W
R007 1-216-073-00 RES, CHIP 10K 5% 1/10W
R008 1-247-815-91 CARBON 220 5% 1/4W
R009 1-216-073-00 RES, CHIP 10K 5% 1/10W
R010 1-216-041-00 RES, CHIP 470 5% 1/10W
R011 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R012 1-216-033-00 RES, CHIP 220 5% 1/10W
R013 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R014 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R015 1-216-073-00 RES, CHIP 10K 5% 1/10W
R016 1-216-073-00 RES, CHIP 10K 5% 1/10W
R019 1-249-425-11 CARBON 4.7K 5% 1/4W
R020 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R022 1-249-429-11 CARBON 10K 5% 1/4W
R023 1-216-089-91 RES, CHIP 47K 5% 1/10W
R025 1-216-033-00 RES, CHIP 220 5% 1/10W
R026 1-216-121-91 RES, CHIP 1M 5% 1/10W
R027 1-216-049-91 RES, CHIP 1K 5% 1/10W
R028 1-249-429-11 CARBON 10K 5% 1/4W
R029 1-216-025-91 RES, CHIP 100 5% 1/10W
R030 1-249-425-11 CARBON 4.7K 5% 1/4W
R031 1-247-815-91 CARBON 220 5% 1/4W
R032 1-216-033-00 RES, CHIP 220 5% 1/10W
R036 1-216-049-91 RES, CHIP 1K 5% 1/10W
R037 1-216-049-91 RES, CHIP 1K 5% 1/10W
R038 1-216-049-91 RES, CHIP 1K 5% 1/10W
R039 1-247-807-31 CARBON 100 5% 1/4W
R040 1-247-815-91 CARBON 220 5% 1/4W
R041 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R042 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R043 1-216-033-00 RES, CHIP 220 5% 1/10W
R044 1-216-049-91 RES, CHIP 1K 5% 1/10W
R045 1-247-815-91 CARBON 220 5% 1/4W
— 38 —
Page 18
KV-29FV15B/34FV15B/38FV15B
A
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
R046 1-247-815-91 CARBON 220 5% 1/4W
R047 1-249-417-11 CARBON 1K 5% 1/4W
R048 1-249-417-11 CARBON 1K 5% 1/4W
R049 1-249-417-11 CARBON 1K 5% 1/4W
R050 1-247-815-91 CARBON 220 5% 1/4W
R051 1-247-815-91 CARBON 220 5% 1/4W
R052 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R053 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R054 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R055 1-216-097-91 RES, CHIP 100K 5% 1/10W
R056 1-216-033-00 RES, CHIP 220 5% 1/10W
R057 1-249-417-11 CARBON 1K 5% 1/4W
R058 1-216-041-00 RES, CHIP 470 5% 1/10W
R060 1-216-073-00 RES, CHIP 10K 5% 1/10W
R061 1-216-073-00 RES, CHIP 10K 5% 1/10W
R062 1-216-073-00 RES, CHIP 10K 5% 1/10W
R063 1-216-073-00 RES, CHIP 10K 5% 1/10W
R064 1-247-815-91 CARBON 220 5% 1/4W
R065 1-247-815-91 CARBON 220 5% 1/4W
R066 1-247-815-91 CARBON 220 5% 1/4W
R067 1-249-413-11 CARBON 470 5% 1/4W
R068 1-247-815-91 CARBON 220 5% 1/4W
R069 1-247-815-91 CARBON 220 5% 1/4W
R070 1-249-421-11 CARBON 2.2K 5% 1/4W
R071 1-247-815-91 CARBON 220 5% 1/4W
REF.NO. PART NO. DESCRIPTION REMARK
R133 1-216-037-00 RES, CHIP 330 5% 1/10W
R135 1-216-073-00 RES, CHIP 10K 5% 1/10W
R136 1-216-073-00 RES, CHIP 10K 5% 1/10W
R137 1-216-049-91 RES, CHIP 1K 5% 1/10W
R304 VARIANT (SEE VARIANT PARTS LIST)
R305 1-247-815-91 CARBON 220 5% 1/4W
R306 1-247-815-91 CARBON 220 5% 1/4W
R308 1-216-049-91 RES, CHIP 1K 5% 1/10W
R309 1-216-295-91 SHORT
R310 1-216-049-91 RES, CHIP 1K 5% 1/10W
R311 1-216-073-00 RES, CHIP 10K 5% 1/10W
R312 1-216-295-91 SHORT
R313 VARIANT (SEE VARIANT PARTS LIST)
R314 VARIANT (SEE VARIANT PARTS LIST)
R315 VARIANT (SEE VARIANT PARTS LIST)
R316 VARIANT (SEE VARIANT PARTS LIST)
R317 1-216-041-00 RES, CHIP 470 5% 1/10W
R319 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R320 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R321 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R324 1-216-073-00 RES, CHIP 10K 5% 1/10W
R325 1-216-033-00 RES, CHIP 220 5% 1/10W
R326 1-216-085-00 RES, CHIP 33K 5% 1/10W
R327 1-216-033-00 RES, CHIP 220 5% 1/10W
R330 1-208-806-11 RES, CHIP 10K 0.50%1/10W
R072 1-216-033-00 RES, CHIP 220 5% 1/10W
R073 1-216-033-00 RES, CHIP 220 5% 1/10W
R074 1-216-033-00 RES, CHIP 220 5% 1/10W
R075 1-216-033-00 RES, CHIP 220 5% 1/10W
R076 1-216-033-00 RES, CHIP 220 5% 1/10W
R077 1-216-033-00 RES, CHIP 220 5% 1/10W
R078 1-249-417-11 CARBON 1K 5% 1/4W
R079 1-216-033-00 RES, CHIP 220 5% 1/10W
R080 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R081 1-216-025-91 RES, CHIP 100 5% 1/10W
R082 1-216-025-91 RES, CHIP 100 5% 1/10W
R083 1-249-429-11 CARBON 10K 5% 1/4W
R084 1-216-049-91 RES, CHIP 1K 5% 1/10W
R085 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R086 1-216-073-00 RES, CHIP 10K 5% 1/10W
R087 1-247-815-91 CARBON 220 5% 1/4W
R089 1-216-073-00 RES, CHIP 10K 5% 1/10W
R090 1-216-033-00 RES, CHIP 220 5% 1/10W
R092 1-249-429-11 CARBON 10K 5% 1/4W
R093 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R096 1-216-033-00 RES, CHIP 220 5% 1/10W
R097 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R099 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R106 1-216-081-00 RES, CHIP 22K 5% 1/10W
R107 1-216-081-00 RES, CHIP 22K 5% 1/10W
R331 1-216-075-00 RES, CHIP 12K 5% 1/10W
R332 1-216-033-00 RES, CHIP 220 5% 1/10W
R333 1-216-041-00 RES, CHIP 470 5% 1/10W
R334 1-216-033-00 RES, CHIP 220 5% 1/10W
R335 1-216-033-00 RES, CHIP 220 5% 1/10W
R336 1-216-049-91 RES, CHIP 1K 5% 1/10W
R337 1-216-347-11 METAL OXIDE 0.68 5% 1WF
R338 VARIANT (SEE VARIANT PARTS LIST)
R339 VARIANT (SEE VARIANT PARTS LIST)
R340 1-216-105-91 RES, CHIP 220K 5% 1/10W
R341 1-216-073-00 RES, CHIP 10K 5% 1/10W
R342 1-216-097-91 RES, CHIP 100K 5% 1/10W
R343 1-216-093-91 RES, CHIP 68K 5% 1/10W
R344 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R345 VARIANT (SEE VARIANT PARTS LIST)
R346 VARIANT (SEE VARIANT PARTS LIST)
R347 VARIANT (SEE VARIANT PARTS LIST)
R348 VARIANT (SEE VARIANT PARTS LIST)
R349 VARIANT (SEE VARIANT PARTS LIST)
R350 VARIANT (SEE VARIANT PARTS LIST)
R352 VARIANT (SEE VARIANT PARTS LIST)
R353 1-216-295-91 SHORT
R354 1-216-073-00 RES, CHIP 10K 5% 1/10W
R355 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R356 1-216-025-91 RES, CHIP 100 5% 1/10W
R108 1-216-081-00 RES, CHIP 22K 5% 1/10W
R109 1-216-081-00 RES, CHIP 22K 5% 1/10W
R131 1-216-037-00 RES, CHIP 330 5% 1/10W
R132 1-216-113-00 RES, CHIP 470K 5% 1/10W
R357 VARIANT (SEE VARIANT PARTS LIST)
R358 VARIANT (SEE VARIANT PARTS LIST)
R359 1-216-073-00 RES, CHIP 10K 5% 1/10W
R360 VARIANT (SEE VARIANT PARTS LIST)
— 39 —
Page 19
KV-29FV15B/34FV15B/38FV15B
A
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
R361 1-216-049-91 RES, CHIP 1K 5% 1/10W
R362 VARIANT (SEE VARIANT PARTS LIST)
R370 1-216-049-91 RES, CHIP 1K 5% 1/10W
R372 1-216-097-91 RES, CHIP 100K 5% 1/10W
R373 1-216-121-91 RES, CHIP 1M 5% 1/10W
R374 VARIANT (SEE VARIANT PARTS LIST)
R375 VARIANT (SEE VARIANT PARTS LIST)
R376 VARIANT (SEE VARIANT PARTS LIST)
R378 VARIANT (SEE VARIANT PARTS LIST)
R383 1-216-025-91 RES, CHIP 100 5% 1/10W
R384 1-216-037-00 RES, CHIP 330 5% 1/10W
R385 1-249-425-11 CARBON 4.7K 5% 1/4W
R386 VARIANT (SEE VARIANT PARTS LIST)
R387 1-216-037-00 RES, CHIP 330 5% 1/10W
R398 VARIANT (SEE VARIANT PARTS LIST)
R501 1-216-041-00 RES, CHIP 470 5% 1/10W
R502 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R503 1-249-425-11 CARBON 4.7K 5% 1/4WF
R504 1-216-455-21 METAL OXIDE 560 5% 2WF
R505 1-247-863-91 CARBON 22K 5% 1/4W
R506 1-215-861-00 METAL OXIDE 47 5% 1WF
R507 1-249-401-11 CARBON 47 5% 1/4W
R508 1-249-425-11 CARBON 4.7K 5% 1/4W
R509 VARIANT (SEE VARIANT PARTS LIST)
R510 ! 1-215-860-11 METAL OXIDE 33 5% 1WF
REF.NO. PART NO. DESCRIPTION REMARK
R545 ! 1-249-387-11 CARBON 3.3 5% 1/4WF
R546 VARIANT (SEE VARIANT PARTS LIST)
R547 1-215-457-00 METAL 33K 1% 1/4W
R548 VARIANT (SEE VARIANT PARTS LIST)
R549 1-215-437-00 METAL 4.7K 1% 1/4W
R550 ! 1-249-377-11 CARBON 0.47 5% 1/4WF
R551 1-215-873-00 METAL OXIDE 4.7K 5% 1WF
R552 1-216-455-21 METAL OXIDE 560 5% 2WF
R553 ! 1-260-288-11 CARBON 0.47 5% 1/2W
R554 VARIANT (SEE VARIANT PARTS LIST)
R555 1-249-441-11 CARBON 100K 5% 1/4W
R556 1-249-441-11 CARBON 100K 5% 1/4W
R557 1-249-441-11 CARBON 100K 5% 1/4W
R559 1-216-017-91 RES, CHIP 47 5% 1/10W
R560 VARIANT (SEE VARIANT PARTS LIST)
R561 1-208-806-11 RES, CHIP 10K 0.50%1/10W
R563 1-214-798-21 METAL 1.8 1% 1/2W
R565 1-215-889-00 METAL OXIDE 330 5% 2WF
R566 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R567! 1-249-385-11 CARBON 2.2 5% 1/4WF
R568 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R569 1-208-806-11 RES, CHIP 10K 0.50%1/10W
R570 1-216-097-91 RES, CHIP 100K 5% 1/10W
R571 1-216-081-00 RES, CHIP 22K 5% 1/10W
R572 1-216-081-00 RES, CHIP 22K 5% 1/10W
R512 1-215-910-00 METAL OXIDE 68 5% 3WF
R514 1-216-081-00 RES, CHIP 22K 5% 1/10W
R515 1-208-812-11 RES, CHIP 18K 0.50%1/10W
R516 1-208-790-11 RES, CHIP 2.2K 0.50%1/10W
R517 1-249-417-11 CARBON 1K 5% 1/4W
R518 1-216-073-00 RES, CHIP 10K 5% 1/10W
R519 1-249-413-11 CARBON 470 5% 1/4W
R520 1-215-907-11 METAL OXIDE 22 5% 3WF
R521 1-216-081-00 RES, CHIP 22K 5% 1/10W
R523 VARIANT (SEE VARIANT PARTS LIST)
R524 1-249-429-11 CARBON 10K 5% 1/4W
R525 1-208-804-11 RES, CHIP 8.2K 0.50%1/10W
R526 1-215-880-00 METAL OXIDE 10 5% 2WF
R527 1-216-097-91 RES, CHIP 100K 5% 1/10W
R528 1-208-814-91 RES, CHIP 22K 0.50%1/10W
R529 1-208-814-91 RES, CHIP 22K 0.50%1/10W
R530 ! 1-208-808-11 RES, CHIP 12K 0.50%1/10W
[
R531 VARIANT (SEE VARIANT PARTS LIST)
R532 1-208-760-11 RES, CHIP 120 0.50%1/10W
R533 1-215-902-11 METAL OXIDE 47K 5% 1WF
R536 ! 1-260-288-11 CARBON 0.47 5% 1/2W
R537 ! 1-260-288-11 CARBON 0.47 5% 1/2W
R538 1-247-887-00 CARBON 220K 5% 1/4W
R539 1-215-891-11 METAL OXIDE 680 5% 2WF
R540 VARIANT (SEE VARIANT PARTS LIST)
R573 1-216-097-91 RES, CHIP 100K 5% 1/10W
R574 1-214-798-21 METAL 1.8 1% 1/2W
R576 VARIANT (SEE VARIANT PARTS LIST)
R577 1-216-049-91 RES, CHIP 1K 5% 1/10W
R578 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R580 1-249-441-11 CARBON 100K 5% 1/4W
R581 1-247-887-00 CARBON 220K 5% 1/4W
R582 1-249-421-11 CARBON 2.2K 5% 1/4W
R1001 1-247-807-31 CARBON 100 5% 1/4W
R1002 1-247-807-31 CARBON 100 5% 1/4W
R1003 VARIANT (SEE VARIANT PARTS LIST)
R1005 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1006 VARIANT (SEE VARIANT PARTS LIST)
R1007 VARIANT (SEE VARIANT PARTS LIST)
R1011 1-249-387-11 CARBON 3.3 5% 1/4WF
R1012 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1030 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1031 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1101 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1102 1-215-900-11 METAL OXIDE 22K 5% 2WF
R1103 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1104 1-216-083-00 RES, CHIP 27K 5% 1/10W
R1105 1-216-689-11 RES, CHIP 39K 5% 1/10W
R1106 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1107 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R541 VARIANT (SEE VARIANT PARTS LIST)
R542 VARIANT (SEE VARIANT PARTS LIST)
R543 ! 1-249-377-11 CARBON 0.47 5% 1/4WF
R544 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1108 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1109 1-216-017-91 RES, CHIP 47 5% 1/10W
R1110 1-216-017-91 RES, CHIP 47 5% 1/10W
R1111 1-216-017-91 RES, CHIP 47 5% 1/10W
— 40 —
Page 20
KV-29FV15B/34FV15B/38FV15B
A
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
R1113 1-249-417-11 CARBON 1K 5% 1/4W
R1114 1-249-417-11 CARBON 1K 5% 1/4W
R1115 1-216-041-00 RES, CHIP 470 5% 1/10W
R1117 1-249-425-11 CARBON 4.7K 5% 1/4W
R1118 1-249-425-11 CARBON 4.7K 5% 1/4W
R1120 1-216-059-00 RES, CHIP 2.7K 5% 1/10W
R1121 1-216-037-00 RES, CHIP 330 5% 1/10W
R1122 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1123 1-216-037-00 RES, CHIP 330 5% 1/10W
R1125 1-216-059-00 RES, CHIP 2.7K 5% 1/10W
R1126 1-216-037-00 RES, CHIP 330 5% 1/10W
R1127 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1128 1-216-037-00 RES, CHIP 330 5% 1/10W
R1129 1-216-295-91 SHORT
R1130 1-216-059-00 RES, CHIP 2.7K 5% 1/10W
R1301 VARIANT (SEE VARIANT PARTS LIST)
R1302 VARIANT (SEE VARIANT PARTS LIST)
R1303 VARIANT (SEE VARIANT PARTS LIST)
R1304 VARIANT (SEE VARIANT PARTS LIST)
R1305 VARIANT (SEE VARIANT PARTS LIST)
R1306 VARIANT (SEE VARIANT PARTS LIST)
R1313 VARIANT (SEE VARIANT PARTS LIST)
R1314 VARIANT (SEE VARIANT PARTS LIST)
R1315 VARIANT (SEE VARIANT PARTS LIST)
R1316 VARIANT (SEE VARIANT PARTS LIST)
REF.NO. PART NO. DESCRIPTION REMARK
R1391 VARIANT (SEE VARIANT PARTS LIST)
R1392 VARIANT (SEE VARIANT PARTS LIST)
R1395 VARIANT (SEE VARIANT PARTS LIST)
R1397 VARIANT (SEE VARIANT PARTS LIST)
R1398 VARIANT (SEE VARIANT PARTS LIST)
SWITCH
S501 1-572-707-11 SWITCH, LEVER
S502 1-572-707-11 SWITCH, LEVER
TRANSFORMER
T501 1-437-195-11 TRANSFORMER, HORIZONTAL DRIVE
T502 ! 1-426-981-11 TRANSFORMER, FERRITE (PMT)
T503 VARIANT (SEE VARIANT PARTS LIST)
T504 ! 1-424-584-11 TRANSFORMER, DYNAMIC FOCUS
T505 VARIANT (SEE VARIANT PARTS LIST)
THERMISTOR
TH501 1-810-035-21 THERMISTOR
TUNER
R1317 VARIANT (SEE VARIANT PARTS LIST)
R1318 VARIANT (SEE VARIANT PARTS LIST)
R1319 1-260-290-71 CARBON 0.68 5% 1/2W
R1320 VARIANT (SEE VARIANT PARTS LIST)
R1321 VARIANT (SEE VARIANT PARTS LIST)
R1322 VARIANT (SEE VARIANT PARTS LIST)
R1323 VARIANT (SEE VARIANT PARTS LIST)
R1324 VARIANT (SEE VARIANT PARTS LIST)
R1325 VARIANT (SEE VARIANT PARTS LIST)
R1330 VARIANT (SEE VARIANT PARTS LIST)
R1333 VARIANT (SEE VARIANT PARTS LIST)
R1337 VARIANT (SEE VARIANT PARTS LIST)
R1358 1-216-025-91 RES, CHIP 100 5% 1/10W
R1359 1-216-025-91 RES, CHIP 100 5% 1/10W
R1360 VARIANT (SEE VARIANT PARTS LIST)
R1361 VARIANT (SEE VARIANT PARTS LIST)
R1362 VARIANT (SEE VARIANT PARTS LIST)
R1363 VARIANT (SEE VARIANT PARTS LIST)
R1364 VARIANT (SEE VARIANT PARTS LIST)
R1365 VARIANT (SEE VARIANT PARTS LIST)
R1366 VARIANT (SEE VARIANT PARTS LIST)
R1369 VARIANT (SEE VARIANT PARTS LIST)
R1371 1-216-295-91 SHORT
R1373 VARIANT (SEE VARIANT PARTS LIST)
R1374 VARIANT (SEE VARIANT PARTS LIST)
TU102! 8-598-431-00 TUNER, FSS BTF-WA411
CRYSTAL
X001 1-578-774-11 VIBRATOR, CRYSTAL
X301 1-579-973-11 VIBRATOR, CRYSTAL
X302 1-567-505-11 OSCILLATOR, CRYSTAL
X303 1-579-972-11 VIBRATOR, CRYSTAL
R1385 VARIANT (SEE VARIANT PARTS LIST)
R1387 VARIANT (SEE VARIANT PARTS LIST)
R1389 VARIANT (SEE VARIANT PARTS LIST)
R1390 VARIANT (SEE VARIANT PARTS LIST)
— 41 —
Page 21
KV-29FV15B/34FV15B/38FV15B
A
Esta lista de peças é somente para os modelos:
LISTA DE PEÇAS VARIÁVEL
KV-34FV15B/38FV15B
REF.NO. PART NO. DESCRIPTION REMARK
Lista de peças variáveis da Placa A para: KV-34FV15B/38FV15B
CAPACITOR
C301 1-136-189-00 FILM 0.1µF 5% 63V
C321 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C322 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C323 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C338 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C339 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C340 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C343 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C344 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C345 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C351 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C352 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C355 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C359 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C361 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C374 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C375 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C382 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C384 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C393 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C394 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C397 1-117-493-91 ELECT 47µF 20% 25V
C398 1-117-535-91 ELECT 2.2µF 20% 100V
C511 ! 1-117-652-11 FILM 22000pF 3% 1.2KV
C512 1-129-928-00 FILM 0.0027µF10% 630V
!
C513
C514
C516 1-136-540-11 FILM 0.82µF 5% 200V
C540 1-107-995-11 ELECT 100µF 0 160V
C550 1-102-002-00 CERAMIC 680pF 10% 500V
1-130-118-91 FILM 0.051µF 5% 400V
!
1-115-521-11 FILM 0.82µF 5% 250V
REF.NO. PART NO. DESCRIPTION REMARK
DIODE
D016 8-719-991-33 DIODE 1SS133T-77
D018 8-719-404-50 DIODE MA111-TX
D019 8-719-404-50 DIODE MA111-TX
D301 8-719-404-50 DIODE MA111-TX
D536 1-216-295-91 SHORT
D1301 8-719-404-50 DIODE MA111-TX
D1302 8-719-991-33 DIODE 1SS133T-77
D1303 8-719-404-50 DIODE MA111-TX
D1304 8-719-404-50 DIODE MA111-TX
D1305 8-719-404-50 DIODE MA111-TX
D1306 8-719-404-50 DIODE MA111-TX
IC
IC351 8-759-266-03 IC NJM2233BM (TE2)
IC352 8-752-080-75 IC CXA2039M-T6
IC353 8-759-462-91 IC TA1226N
IC354 8-752-083-29 IC CXA2119M-T6
CHIP CONDUCTOR
JR003 1-216-295-91 SHORT
JR004 1-216-049-91 RES, CHIP 1K 5% 1/10W
JR051 1-216-295-91 SHORT
JR053 1-216-295-91 SHORT
COIL
L351 1-414-186-31 INDUCTOR 33µH
L505 1-406-976-11 INDUCTOR 68µH
L1351 1-414-856-11 INDUCTOR 10µH
L1352 1-412-756-21 INDUCTOR 56µH
C553 1-117-665-71 FILM 0.33mF 5% 250V
!
C554
C599 1-117-487-91 ELECT 470µF 20% 16V
C1351 1-163-237-11 CERAMIC CHIP 27pF 5% 50V
C1355 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C1356 1-117-511-91 ELECT 10µF 20% 50V
C1357 1-164-005-11 CERAMIC CHIP 0.47µF 16V
C1358 1-117-496-91 ELECT 330µF 20% 25V
C1359 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C1360 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C1361 1-163-241-11 CERAMIC CHIP 39pF 5% 50V
C1362 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C1363 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C1367 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C1369 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C1370 1-117-511-91 ELECT 10µF 20% 50V
C1371 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C1372 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C1373 1-163-133-00 CERAMIC CHIP 470pF 5% 50V
C1501
1-104-491-11 FILM 0.0047µF3% 2KV
!
1-107-846-11 FILM 0.1µF 5% 250V
—
TRANSISTOR
Q313 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q314 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q351 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q352 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q359 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q361 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q362 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q364 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q369 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q370 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1301 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1302 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1303 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1352 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1353 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1354 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
—
42
Page 22
Les composants identifies
per un trame et une marque
!
sont critiques pour la
securite. Ne les remplacer
que par une piece portant
le numero specifie.
KV-29FV15B/34FV15B/38FV15B
A
Esta lista de peças é somente para os modelos:
LISTA DE PEÇAS VARIÁVEIS
KV-34FV15B/38FV15B
REF.NO. PART NO. DESCRIPTION REMARK
RESISTOR
R304 1-216-033-00 RES, CHIP 220 5% 1/10W
R313 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R314 1-216-073-00 RES, CHIP 10K 5% 1/10W
R315 1-216-073-00 RES, CHIP 10K 5% 1/10W
R316 1-216-073-00 RES, CHIP 10K 5% 1/10W
R346 1-216-023-00 RES, CHIP 82 5% 1/10W
R347 1-216-041-00 RES, CHIP 470 5% 1/10W
R348 1-216-033-00 RES, CHIP 220 5% 1/10W
R349 1-216-041-00 RES, CHIP 470 5% 1/10W
R350 1-247-807-31 CARBON 100 5% 1/4W
R352 1-208-806-11 RES, CHIP 10K 0.50%1/10W
R358 1-216-295-91 SHORT
R360 1-247-815-91 CARBON 220 5% 1/4W
R362 1-216-073-00 RES, CHIP 10K 5% 1/10W
R374 1-216-041-00 RES, CHIP 470 5% 1/10W
R375 1-216-049-91 RES, CHIP 1K 5% 1/10W
R376 1-216-025-91 RES, CHIP 100 5% 1/10W
R378 1-216-083-00 RES, CHIP 27K 5% 1/10W
R386 1-216-073-00 RES, CHIP 10K 5% 1/10W
R398 1-216-095-00 RES, CHIP 82K 5% 1/10W
R509 1-260-328-11 CARBON 1K 5% 1/2W
R523 1-208-808-11 RES, CHIP 12K 0.50%1/10W
R531 ! 1-216-091-00 RES, CHIP 56K 5% 1/10W
[
R540 1-216-093-91 RES, CHIP 68K 5% 1/10W
R541 1-215-919-11 METAL OXIDE 2.2K 5% 3W F
R541 1-215-922-11 METAL OXIDE 6.8K 5% 3W F
R542 1-215-921-11 METAL OXIDE 4.7K 5% 3W F
R546 1-215-453-00 METAL 22K 1% 1/4W
R548 1-215-921-11 METAL OXIDE 4.7K 5% 3W F
R554 1-215-894-11 METAL OXIDE 2.2K 5% 2W F
R560 1-215-919-11 METAL OXIDE 2.2K 5% 3W F
R560 1-215-922-11 METAL OXIDE 6.8K 5% 3W F
R576 1-215-905-11 METAL OXIDE 10 5% 3W F
R1003 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1006 1-216-025-91 RES, CHIP 100 5% 1/10W
(KV-38FV15B only)
(KV-34FV15B only)
(KV-38FX250B only)
(KV-34FV15B only)
REF.NO. PART NO. DESCRIPTION REMARK
R1320 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1321 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1322 1-216-047-91 RES, CHIP 820 5% 1/10W
R1323 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1324 1-216-295-91 SHORT
R1325 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1330 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1333 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1337 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1360 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1361 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1362 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1363 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1364 1-216-097-91 RES, CHIP 100K 5% 1/10W
R1365 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1366 1-216-107-00 RES, CHIP 270K 5% 1/10W
R1369 1-216-093-91 RES, CHIP 68K 5% 1/10W
R1373 1-216-025-91 RES, CHIP 100 5% 1/10W
R1374 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1385 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1387 1-249-429-11 CARBON 10K 5% 1/4W
R1389 1-216-025-91 RES, CHIP 100 5% 1/10W
R1390 1-249-417-11 CARBON 1K 5% 1/4W
R1391 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1392 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1395 1-216-055-91 RES, CHIP 1.8K 5% 1/10W
R1397 1-216-025-91 RES, CHIP 100 5% 1/10W
R1398 1-216-033-00 RES, CHIP 220 5% 1/10W
TRANSFORMER
!
T503
8-598-824-10 FBT ASSY, NX-4600
T505 !1-429-188-11TRANSFORMER, HORIZONTAL LINEAR
R1007 1-216-025-91 RES, CHIP 100 5% 1/10W
R1301 1-249-401-11 CARBON 47 5% 1/4W
R1302 1-249-401-11 CARBON 47 5% 1/4W
R1303 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1304 1-216-051-00 RES, CHIP 1.2K 5% 1/10W
R1305 1-216-051-00 RES, CHIP 1.2K 5% 1/10W
R1306 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1313 1-216-295-91 SHORT
R1314 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1315 1-216-025-91 RES, CHIP 100 5% 1/10W
R1316 1-216-091-00 RES, CHIP 56K 5% 1/10W
R1317 1-216-105-91 RES, CHIP 220K 5% 1/10W
R1318 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
—
43
—
Page 23
KV-29FV15B/34FV15B/38FV15B
A
Esta lista de peças é somente para os modelos:
LISTA DE PEÇAS VARIÁVEIS
KV-29FV15B
REF.NO. PART NO. DESCRIPTION REMARK
Lista de peças variáveis da Placa A para: KV-29FV15B
CAPACITOR
C346 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C347 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C348 1-163-031-11 CERAMIC CHIP 0.01µF 50V
!
C511
C512 1-129-709-91 FILM 0.0039µF5% 630V
C513
C514
C516 1-115-522-11 FILM 1µF 5% 250V
C540 1-104-710-11 ELECT 22µF 0 160V
C550 1-130-061-91 FILM 0.0015µF5% 630V
C553 1-107-846-11 FILM 0.1µF 5% 250V
C554
1-113-582-11 FILM 0.017µF 3% 2KV
!
1-129-722-00 FILM 0.047µF 5% 630V
!
1-109-844-11 FILM 0.68µF 5% 250V
!
1-136-065-00 FILM 0.0027µF3% 2KV
DIODE
que par une piece portant
le numero specifie.
REF.NO. PART NO. DESCRIPTION REMARK
TRANSFORMER
T503 ! 8-598-834-20 FBT ASSY, NX-4521//X
!
T505
1-433-850-11 TRANSFORMER, HORIZONTAL LINEAR
D017 8-719-073-01 DIODE MA111-(K8).S0
D536 8-719-073-01 DIODE MA111-(K8).S0
CHIP CONDUCTOR
JR055 1-216-295-91 SHORT
JR056 1-216-295-91 SHORT
JR057 1-216-295-91 SHORT
COIL
L505 1-406-978-11 INDUCTOR 150µH
TRANSISTOR
Q302 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
RESISTOR
R338 1-249-417-11 CARBON 1K 5% 1/4W
R339 1-216-049-91 RES, CHIP 1K 5% 1/10W
R345 1-249-417-11 CARBON 1K 5% 1/4W
R357 1-216-033-00 RES, CHIP 220 5% 1/10W
R386 1-216-049-91 RES, CHIP 1K 5% 1/10W
R509 1-260-324-11 CARBON 470 5% 1/2W
R523 1-208-814-91 RES, CHIP 22K 0.50%1/10W
[
R531 ! 1-208-836-11 RES, CHIP 180K 0.50%1/10W
R540 1-216-099-00 RES, CHIP 120K 5% 1/10W
R541 1-215-921-11 METAL OXIDE 4.7K 5% 3W F
R542 1-215-920-11 METAL OXIDE 3.3K 5% 3W F
R546 1-215-457-00 METAL 33K 1% 1/4W
R554 1-215-876-00 METAL OXIDE 15K 5% 1W F
R576 1-215-907-11 METAL OXIDE 22 5% 3W F
—
44
—
Page 24
KV-29FV15B/34FV15B/38FV15B
AK
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
AK
* Y-8283-984-A AK BOARD, COMPLETE
4-382-854-11 SCREW (M3X10), P, SW (+)
CAPACITOR
C101 1-117-534-91 ELECT 1µF 20% 100V
C102 1-164-161-11 CERAMIC CHIP 0.0022µF10% 50V
C104 1-117-511-91 ELECT 10µF 20% 50V
C106 1-117-493-91 ELECT 47µF 20% 25V
C108 1-117-498-91 ELECT 1000µF 20% 25V
C109 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C110 1-163-809-11 CERAMIC CHIP 0.047µF 10% 25V
C111 1-117-534-91 ELECT 1µF 20% 100V
C113 1-117-504-91 ELECT 220µF 20% 35V
C115 1-117-534-91 ELECT 1µF 20% 100V
C175 1-117-506-91 ELECT 470µF 20% 35V
C440 1-117-512-91 ELECT 22µF 20% 50V
C441 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C442 1-117-534-91 ELECT 1µF 20% 100V
C443 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C444 1-164-346-11 CERAMIC CHIP 1µF 16V
C445 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C446 1-164-346-11 CERAMIC CHIP 1µF 16V
C447 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C448 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C449 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C453 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C454 1-163-133-00 CERAMIC CHIP 470pF 5% 50V
C455 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C456 1-163-023-00 CERAMIC CHIP 0.015µF 10% 50V
REF.NO. PART NO. DESCRIPTION REMARK
C1421 1-117-537-91 ELECT 4.7µF 20% 100V
C1422 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1423 1-117-506-91 ELECT 470µF 20% 35V
C1428 1-117-537-91 ELECT 4.7µF 20% 100V
C1429 1-117-537-91 ELECT 4.7µF 20% 100V
C1450 1-117-537-91 ELECT 4.7µF 20% 100V
C1451 1-117-537-91 ELECT 4.7µF 20% 100V
C1452 1-163-986-00 CERAMIC CHIP 0.027µF 10% 25V
C1461 1-117-534-91 ELECT 1µF 20% 100V
C1462 1-117-534-91 ELECT 1µF 20% 100V
C1464 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C1465 1-117-534-91 ELECT 1µF 20% 100V
C1467 1-117-504-91 ELECT 220µF 20% 35V
C1468 1-117-534-91 ELECT 1µF 20% 100V
C1470 1-117-534-91 ELECT 1µF 20% 100V
C1471 1-136-189-00 FILM 0.1µF 5% 63V
C1472 1-136-193-11 FILM 0.47µF 5% 63V
C1473 1-128-550-11 ELECT 2200µF 20% 50V
C1474 1-136-189-00 FILM 0.1µF 5% 63V
C1475 1-128-550-11 ELECT 2200µF 20% 50V
C1476 1-128-550-11 ELECT 2200µF 20% 50V
C1477 1-117-527-91 ELECT 470µF 20% 63V
C1478 1-117-527-91 ELECT 470µF 20% 63V
C1904 1-102-129-00 CERAMIC 0.01µF 10% 50V
C1905 1-117-511-91 ELECT 10µF 20% 50V
C1906 1-102-129-00 CERAMIC 0.01µF 10% 50V
C1907 1-117-511-91 ELECT 10µF 20% 50V
C1908 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C1909 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C1910 1-163-009 -11 CERAMIC CHIP 0.001µF 10% 50V
C1911 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C1912 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C457 1-164-161-11 CERAMIC CHIP 0.0022µF10% 50V
C1401 1-117-537-91 ELECT 4.7µF 20% 100V
C1402 1-117-524-91 ELECT 100µF 20% 63V
C1403 1-117-537-91 ELECT 4.7µF 20% 100V
C1404 1-117-534-91 ELECT 1µF 20% 100V
C1405 1-117-534-91 ELECT 1µF 20% 100V
C1406 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1407 1-163-989-11 CERAMIC CHIP 0.033µF 10% 25V
C1408 1-163-989-11 CERAMIC CHIP 0.033µF 10% 25V
C1409 1-164-182-11 CERAMIC CHIP 0.0033µF10% 50V
C1410 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C1411 1-164-182-11 CERAMIC CHIP 0.0033µF10% 50V
C1412 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C1413 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C1414 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C1415 1-117-537-91 ELECT 4.7µF 20% 100V
C1416 1-117-537-91 ELECT 4.7µF 20% 100V
C1417 1-117-537-91 ELECT 4.7µF 20% 100V
C1420 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
—
CONNECTOR
CN1462* 1-564-507-11 PLUG, CONNECTOR 4P
CN1463* 1-564-509-11 PLUG, CONNECTOR 6P
CN1464* 1-564-513-11 PLUG, CONNECTOR 10P
CN1466* 1-564-515-11 PLUG, CONNECTOR 12P
CN1467* 1-564-510-11 PLUG, CONNECTOR 7P
CN1468 1-695-915-11 TAB (CONTACT)
DIODE
D101 8-719-923-39 DIODE MTZJ-T-77-5.6C
D103 8-719-991-33 DIODE 1SS133T-77
D104 8-719-991-33 DIODE 1SS133T-77
D105 8-719-991-33 DIODE 1SS133T-77
D106 8-719-991-33 DIODE 1SS133T-77
D107 8-719-991-33 DIODE 1SS133T-77
D108 8-719-048-57 DIODE MTZJ-T-77-10B
D109 8-719-048-57 DIODE MTZJ-T-77-10B
D1461 8-719-991-33 DIODE 1SS133T-77
—
45
Page 25
KV-29FV15B/34FV15B/38FV15B
AK
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
D1463 8-719-991-33 DIODE 1SS133T-77
D1466 8-719-991-33 DIODE 1SS133T-77
D1467 8-719-924-13 DIODE MTZJ-T-77-22B
D1468 8-719-924-13 DIODE MTZJ-T-77-22B
D1469 8-719-991-33 DIODE 1SS133T-77
IC
IC1401 8-759-578-88 IC BH3868FS-E2
IC1402 8-759-249-16 IC NJM4558M-TE2
IC1403 8-759-537-26 IC TDA7467D013TR
!
IC1461
IC1901 8-752-059-23 IC CXA1315M-T4
IC1902 8-759-470-63 IC NJM2145M-TE2
8-759-246-70 IC TA8216H
CHIP CONDUCTOR
JR1901 1-216-295-91 SHORT
JR1902 1-216-295-91 SHORT
COIL
L102 1-414-856-11 INDUCTOR 10µH
L105 1-414-857-11 INDUCTOR 100µH
L1401 1-414-857-11 INDUCTOR 100µH
REF.NO. PART NO. DESCRIPTION REMARK
R118 1-208-774-11 RES, CHIP 470 0.50%1/10W
R119 1-208-776-11 RES, CHIP 560 0.50%1/10W
R440 1-216-049-91 RES, CHIP 1K 5% 1/10W
R441 1-216-100-00 RES, CHIP 130K 5% 1/10W
R442 1-216-088-00 RES, CHIP 43K 5% 1/10W
R443 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R444 1-216-089-91 RES, CHIP 47K 5% 1/10W
R445 1-216-085-00 RES, CHIP 33K 5% 1/10W
R446 1-216-063-91 RES, CHIP 3.9K 5% 1/10W
R1403 1-216-121-91 RES, CHIP 1M 5% 1/10W
R1404 1-216-295-91 SHORT
R1406 1-216-121-91 RES, CHIP 1M 5% 1/10W
R1407 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1408 1-216-295-91 SHORT
R1409 1-216-295-91 SHORT
R1410 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1411 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1412 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1413 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1415 1-216-025-91 RES, CHIP 100 5% 1/10W
R1416 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1417 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1418 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1421 1-216-025-91 RES, CHIP 100 5% 1/10W
R1422 1-216-033-00 RES, CHIP 220 5% 1/10W
IC LINK
PS1461!1-532-984-11 LINK, IC 2A/90V
TRANSISTOR
Q101 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q105 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q106 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1461 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1462 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1463 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q1464 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q1902 8-729-026-50 TRANSISTOR 2SA1037AK-Y146-QR
Q1903 8-729-026-50 TRANSISTOR 2SA1037AK-Y146-QR
Q1918 8-729-026-50 TRANSISTOR 2SA1037AK-Y146-QR
RESISTOR
R101 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R102 1-216-083-00 RES, CHIP 27K 5% 1/10W
R103 1-216-689-11 RES, CHIP 39K 5% 1/10W
R104 1-216-049-91 RES, CHIP 1K 5% 1/10W
R112 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R113 1-216-097-91 RES, CHIP 100K 5% 1/10W
R114 1-216-121-91 RES, CHIP 1M 5% 1/10W
R115 1-216-073-00 RES, CHIP 10K 5% 1/10W
R116 1-216-073-00 RES, CHIP 10K 5% 1/10W
R117 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1423 1-216-033-00 RES, CHIP 220 5% 1/10W
R1424 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1425 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1427 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1458 1-216-033-00 RES, CHIP 220 5% 1/10W
R1459 1-216-033-00 RES, CHIP 220 5% 1/10W
R1461 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1462 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1464 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1465 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1466 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1467 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1469 1-249-389-11 CARBON 4.7 5% 1/4WF
R1470 1-249-389-11 CARBON 4.7 5% 1/4WF
R1471 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1472 1-216-077-91 RES, CHIP 15K 5% 1/10W
R1473 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1474 1-216-033-00 RES, CHIP 220 5% 1/10W
R1475 1-216-033-00 RES, CHIP 220 5% 1/10W
R1480 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1481 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1482 1-216-295-91 SHORT
R1483 1-216-295-91 SHORT
R1486 1-216-033-00 RES, CHIP 220 5% 1/10W
R1487 1-216-033-00 RES, CHIP 220 5% 1/10W
R1902 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1904 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1906 1-216-073-00 RES, CHIP 10K 5% 1/10W
— 46 —
Page 26
KV-29FV15B/34FV15B/38FV15B
REF.NO. PART NO. DESCRIPTION REMARK
R1907 1-216-033-00 RES, CHIP 220 5% 1/10W
R2904 1-216-033-00 RES, CHIP 220 5% 1/10W
R2905 1-216-033-00 RES, CHIP 220 5% 1/10W
R2909 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2910 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2912 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R2913 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2914 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2915 1-216-073-00 RES, CHIP 10K 5% 1/10W
R2916 1-216-073-00 RES, CHIP 10K 5% 1/10W
TUNER
TU101! 8-598-430-00 TUNER, FSS BTF-FA401
C
* Y-8283-986-A C BOARD, COMPLETE (KV-29FV15B only)
* Y-8373-007-A C BOARD, COMPLETE
(KV-34FV15B/38FV15B only)
4-382-854-11 SCREW (M3X10), P, SW (+)
CAPACITOR
C1750 1-137-528-11 FILM 0.1µF 10% 250V
C1751 1-117-565-51 ELECT 47µF 20% 250V
C1790 1-102-129-00 CERAMIC 0.01µF 10% 50V
C1791 1-117-524-91 ELECT 100µF 20% 63V
C1792 1-102-116-91 CERAMIC 680pF 10% 50V
C1794 1-117-561-91 ELECT 4.7µF 20% 250V
C1795 1-102-074-00 CERAMIC 0.001µF 10% 50V
C1799 1-162-114-00 CERAMIC 0.0047µF 2KV
CONNECTOR
AK
C
GA
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
COIL
L1790 1-412-537-31 INDUCTOR 100µH
TRANSISTOR
Q1790 8-729-026-41 TRANSISTOR 2SA933AS-QRT
RESISTOR
R1750 1-247-870-11 CARBON 43K 5% 1/4W
R1751 1-247-815-91 CARBON 220 5% 1/4W
R1752 1-247-815-91 CARBON 220 5% 1/4W
!
R1753
R1763 1-260-099-11 CARBON 1K 5% 1/2W
R1764 1-247-807-31 CARBON 100 5% 1/4W
R1773 1-260-099-11 CARBON 1K 5% 1/2W
R1774 1-247-807-31 CARBON 100 5% 1/4W
R1783 1-260-099-11 CARBON 1K 5% 1/2W
R1784 1-247-807-31 CARBON 100 5% 1/4W
R1788 1-216-349-00 METAL OXIDE 1 5% 1WF
R1789 1-249-437-11 CARBON 47K 5% 1/4W
R1792 1-247-815-91 CARBON 220 5% 1/4W
R1793 1-247-866-11 CARBON 30K 5% 1/4W
R1794 1-260-132-11 CARBON 560K 5% 1/2W
R1795 1-260-087-11 CARBON 100 5% 1/2W
R1796
R1796 ! 1-216-373-11 METAL OXIDE 2.2 5% 2WF
R1797 1-260-123-11 CARBON 100K 5% 1/2W
1-247-815-91 CARBON 220 5% 1/4W
!
1-216-373-51 METAL OXIDE 2.2 5% 2WF
(KV-34FV15B/38FV15B only)
(KV-29FV15B only)
VARIABLE RESISTOR
RV1761 1-241-714-11 RES, ADJ, METAL FILM 110M
CN1761 *1-564-509-11 PLUG, CONNECTOR 6P
CN1764 *1-564-508-11 PLUG, CONNECTOR 5P
CN1766 1-695-915-11 TAB (CONTACT)
DIODE
D1790 8-719-991-33 DIODE 1SS133T-77
D1791 8-719-936-83 DIODE GP08DPKG23
D1792 8-719-936-83 DIODE GP08DPKG23
D1793 8-719-936-83 DIODE GP08DPKG23
D1794 8-719-936-83 DIODE GP08DPKG23
IC
IC1701! 8-759-562-43 IC TDA6108JF/N1B
JACK
J1761 ! 1-540-071-22 SOCKET, CRT (KV-34FV15B/38FV15B only)
J1761 ! 1-251-797-11 SOCKET, CRT (KV-29FV15B only)
— 47 —
GA
*Y-8283-996-A GA BOARD, COMPLETE (KV-29FV15B only)
*Y-8373-011-A GA BOARD, COMPLETE
(KV-34FV15B/38FV15B only)
1-533-399-21 HOLDER, FUSE
*4-374-846-01 COVER, CAPACITOR, CAP TYPE
C6001 1-117-494-91 ELECT 100µF 20% 25V
C6002
C6003 1-136-346-21 FILM 0.22µF 20% 300V
/
C6008 1-117-534-91 ELECT 1µF 20% 100V
C6009 1-117-535-91 ELECT 2.2µF 20% 100V
C6010 1-130-711-00 FILM 0.22µF 20% 250V
C6016 1-104-330-91 CERAMIC 470pF 10% 1KV
4-382-854-11 SCREW (M3X10), P, SW (+)
CAPACITOR
!
1-130-711-00 FILM 0.22µF 20% 250V
! /
Page 27
KV-29FV15B/34FV15B/38FV15B
GA
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
C6017 ! 1-130-029-00 FILM 8200pF 2% 50V
C6018 1-102-050-00 CERAMIC 0.01µF 20% 500V
!
C6019
C6020
C6021 1-117-511-91 ELECT 10µF 20% 50V
C6022
C6024 1-117-511-91 ELECT 10µF 20% 50V
C6025 1-119-769-11 FILM 0.018µF 3% 1KV
C6026 1-117-511-91 ELECT 10µF 20% 50V
C6027 1-130-471-00 MYLAR 0.001µF 5% 50V
C6028 1-130-471-00 MYLAR 0.001µF 5% 50V
C6029
C6030 1-119-769-11 FILM 0.018µF 3% 1KV
C6031 1-104-330-91 CERAMIC 470pF 10% 1KV
C6032 1-117-534-91 ELECT 1µF 20% 100V
C6035 1-127-794-51 CERAMIC 2200pF 20% 250V
C6036 1-127-794-51 CERAMIC 2200pF 20% 250V
C6037
C6038 1-137-509-11 FILM 0.01µF 5% 63V
C6039 1-164-645-11 CERAMIC 1000pF 10% 500V
C6040 1-130-467-00 MYLAR 470pF 5% 50V
C6042 1-130-467-00 MYLAR 470pF 5% 50V
C6043 1-130-471-00 MYLAR 0.001µF 5% 50V
C6044 1-117-491-51 ELECT 3300µF 20% 16V
C6045 1-117-498-91 ELECT 1000µF 20% 25V
C6046 1-117-545-51 ELECT 470µF 20% 100V
C6047 1-117-545-51 ELECT 470µF 20% 100V
C6048 1-164-645-11 CERAMIC 1000pF 10% 500V
C6049 1-128-550-11 ELECT 2200µF 20% 50V
C6050 1-117-493-91 ELECT 47µF 20% 25V
C6051 1-117-493-91 ELECT 47µF 20% 25V
C6052 1-117-527-91 ELECT 470µF 20% 63V
C6053 1-136-189-00 FILM 0.1µF 5% 63V
C6054 1-137-605-11 FILM 0.01µF 10% 250V
C6056 1-130-471-00 MYLAR 0.001µF 5% 50V
C6057 1-117-551-91 ELECT 10µF 20% 160V
C6058 1-117-534-91 ELECT 1µF 20% 100V
C6059 1-117-493-91 ELECT 47µF 20% 25V
C6060 1-117-493-91 ELECT 47µF 20% 25V
C6062 1-117-511-91 ELECT 10µF 20% 50V
C6063 1-117-496-91 ELECT 330µF 20% 25V
C6064 1-117-493-91 ELECT 47µF 20% 25V
C6066 1-117-512-91 ELECT 22µF 20% 50V
C6067 1-102-121-00 CERAMIC 0.0022µF10% 50V
C6068 1-102-106-00 CERAMIC 100pF 10% 50V
C6069 1-102-106-00 CERAMIC 100pF 10% 50V
C6070 1-102-074-00 CERAMIC 0.001µF 10% 50V
C6071 1-102-106-00 CERAMIC 100pF 10% 50V
C6072 1-102-106-00 CERAMIC 100pF 10% 50V
C6073 1-102-129-00 CERAMIC 0.01µF 10% 50V
C6074 1-102-106-00 CERAMIC 100pF 10% 50V
C6075 1-107-824-11 CERAMIC 220pF 5% 1KV
C6078 1-117-511-91 ELECT 10µF 20% 50V
1-113-611-11 ELECT(BLOCK) 820µF 20% 250V
!
1-113-611-11 ELECT(BLOCK) 820µF 20% 250V
!
1-117-537-91 ELECT 4.7µF 20% 100V
!
1-136-189-00 FILM 0.1µF 5% 63V
!
1-107-679-91 ELECT 10µF 20% 450V
REF.NO. PART NO. DESCRIPTION REMARK
CONNECTOR
CN6000 *1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P
/
CN6001 *1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P
/
CN6002 1-695-915-11 TAB (CONTACT)
CN6003 *1-580-843-11 PIN, CONNECTOR (POWER)
CN6004 *1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P
CN6005 *1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P
CN6006 *1-564-509-11 PLUG, CONNECTOR 6P
CN6007 *1-564-515-11 PLUG, CONNECTOR 12P
CN6008 *1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P
CN6009 1-695-915-11 TAB (CONTACT)
DIODE
D6000 8-719-991-33 DIODE 1SS133T-77
D6001 8-719-991-33 DIODE 1SS133T-77
D6002 8-719-991-33 DIODE 1SS133T-77
D6003 8-719-991-33 DIODE 1SS133T-77
D6004 8-719-991-33 DIODE 1SS133T-77
D6005 8-719-991-33 DIODE 1SS133T-77
D6006 8-719-991-33 DIODE 1SS133T-77
!
D6008
D6009 8-719-991-33 DIODE 1SS133T-77
D6010 8-719-991-33 DIODE 1SS133T-77
D6011 8-719-991-33 DIODE 1SS133T-77
D6012 8-719-991-33 DIODE 1SS133T-77
D6013
D6014
D6015 8-719-979-64 DIODE UF4005PKG23
D6016 8-719-924-13 DIODE MTZJ-T-77-22B
D6017 8-719-904-06 DIODE ERC04-06S
D6018 8-719-924-13 DIODE MTZJ-T-77-22B
D6019 8-719-904-06 DIODE ERC04-06S
D6020 ! 8-719-062-40 DIODE D4SBL20UF3
D6021 8-719-923-88 DIODE MTZJ-T77-15B
D6022 8-719-510-12 DIODE D10SC4M
D6023
D6024
D6025 ! 8-719-060-89 DIODE D4SBS6-F
D6028 8-719-923-96 DIODE MTZJ-T77-18B
D6029 8-719-991-33 DIODE 1SS133T-77
D6030 ! 8-719-924-18 DIODE MTZJ-T77-24B
D6031 8-719-991-33 DIODE 1SS133T-77
D6032 8-719-510-49 DIODE D1N20R-TA
D6034 8-719-055-18 DIODE ERA22-08-TP3
D6035 8-719-063-72 DIODE D1NL20U-TA2
D6036 8-719-032-13 DIODE D1NS6-TA2
D6037 8-719-991-33 DIODE 1SS133T-77
D6038 8-719-991-33 DIODE 1SS133T-77
D6040 8-719-063-72 DIODE D1NL20U-TA2
D6041 8-719-991-33 DIODE 1SS133T-77
8-719-510-63 DIODE D4SB60L-F
!
8-719-510-59 DIODE D1NS4TA2
!
8-719-923-84 DIODE MTZJ-T77-13B
!
8-719-022-98 DIODE D2S4MTA1
!
8-719-022-98 DIODE D2S4MTA1
— 48 —
Page 28
KV-29FV15B/34FV15B/38FV15B
GA
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
D6042 8-719-048-57 DIODE MTZJ-T-77-10B
D6043 8-719-991-33 DIODE 1SS133T-77
D6044 8-719-991-33 DIODE 1SS133T-77
D6045 8-719-904-06 DIODE ERC04-06S
D6046 8-719-904-06 DIODE ERC04-06S
D6047 8-719-923-80 DIODE MTZJ-T77-12B
D6048 8-719-923-80 DIODE MTZJ-T77-12B
D6049 8-719-991-33 DIODE 1SS133T-77
D6050 ! 8-719-979-64 DIODE UF4005PKG23
D6051 8-719-063-72 DIODE D1NL20U-TA2
D6052 8-719-923-80 DIODE MTZJ-T77-12B
FUSE
F6001! 1-532-506-51 FUSE 6.3A/250V
FERRITE BEAD
FB6000 *1-535-274-21 LEAD, JUMPER (22.5MM)
FB6001 1-412-911-11 FERRITE
FB6002 1-412-911-11 FERRITE
FB6003 1-412-911-11 FERRITE
FB6004 1-412-911-11 FERRITE
REF.NO. PART NO. DESCRIPTION REMARK
Q6003 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q6004 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q6005 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q6006 ! 8-729-046-40 TRANSISTOR 2SK2663
Q6007 8-729-922-43 TRANSISTOR 2SD2144S-TP-V
Q6008 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q6009 8-729-048-82 TRANSISTOR 2SA821STPQ
Q6010 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
!
Q6011
Q6012 8-729-026-41 TRANSISTOR 2SA933AS-QRT
8-729-114-92 TRANSISTOR 2SB734-T-4
RESISTOR
R6000 1-215-445-00 METAL 10K 1% 1/4W
R6001 1-215-445-00 METAL 10K 1% 1/4W
R6002 1-202-727-00 SOLID 4.7M 20% 1/2W
R6003 1-249-425-11 CARBON 4.7K 5% 1/4W
R6004 1-247-843-11 CARBON 3.3K 5% 1/4W
R6005 1-215-469-00 METAL 100K 1% 1/4W
R6006 1-215-471-00 METAL 120K 1% 1/4W
R6007 1-247-843-11 CARBON 3.3K 5% 1/4W
R6008 1-215-469-00 METAL 100K 1% 1/4W
R6009 1-215-483-00 METAL 390K 1% 1/4W
FB6005 1-412-911-11 FERRITE
FB6006 1-412-911-11 FERRITE
FB6007 1-412-911-11 FERRITE
IC
IC6000 8-759-198-31 IC UPC1093J-1-T
IC6001 ! 8-759-133-90 IC UPC339C
IC6002 ! 8-749-013-78 IC MCR5102
IC6003 8-749-012-13 IC DM-58
IC6004 8-759-394-35 IC BA12T
IC6005 8-759-198-03 IC PQ09RF21
IC6007 8-759-450-47 IC BA05T
COIL
L6000 1-412-519-11 INDUCTOR 3.3µH
L6001 1-412-519-11 INDUCTOR 3.3µH
L6002 1-412-527-11 INDUCTOR 15µH
L6003 1-412-527-11 INDUCTOR 15µH
L6004 1-412-529-11 INDUCTOR 22µH
PHOTO COUPLER
PH6001! 8-749-924-35 PHOTO COUPLERON3171-R
PH6002! 8-749-924-35 PHOTO COUPLERON3171-R
TRANSISTOR
Q6000 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q6001 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q6002 8-729-026-41 TRANSISTOR 2SA933AS-QRT
R6010 1-249-393-11 CARBON 10 5% 1/4WF
R6011 1-215-466-00 METAL 75K 1% 1/4W
R6012 1-215-489-00 METAL 680K 1% 1/4W
R6013 1-215-489-00 METAL 680K 1% 1/4W
R6014 1-215-489-00 METAL 680K 1% 1/4W
R6015 1-215-485-00 METAL 470K 1% 1/4W
R6016 1-215-471-00 METAL 120K 1% 1/4W
R6017 1-215-489-00 METAL 680K 1% 1/4W
R6018 1-215-489-00 METAL 680K 1% 1/4W
R6019 1-215-489-00 METAL 680K 1% 1/4W
R6020 ! 1-218-265-11 METAL 8.2M 5% 1W
R6021 1-215-466-00 METAL 75K 1% 1/4W
R6022 1-215-469-00 METAL 100K 1% 1/4W
R6023 1-215-465-00 METAL 68K 1% 1/4W
R6024 1-215-457-00 METAL 33K 1% 1/4W
R6025 1-215-473-00 METAL 150K 1% 1/4W
R6026 1-215-466-00 METAL 75K 1% 1/4W
R6027 1-215-489-00 METAL 680K 1% 1/4W
R6028 1-215-489-00 METAL 680K 1% 1/4W
R6029 1-215-489-00 METAL 680K 1% 1/4W
R6030 1-215-458-00 METAL 36K 1% 1/4W
R6031 1-215-489-00 METAL 680K 1% 1/4W
R6032 1-215-489-00 METAL 680K 1% 1/4W
R6033 1-215-489-00 METAL 680K 1% 1/4W
R6034 1-215-463-00 METAL 56K 1% 1/4W
R6035 1-249-429-11 CARBON 10K 5% 1/4W
R6036 1-215-481-00 METAL 330K 1% 1/4W
R6037 1-249-439-11 CARBON 68K 5% 1/4W
R6038 1-215-481-00 METAL 330K 1% 1/4W
R6039 ! 1-240-876-11 CEMENTED 1 5% 15W
— 49 —
Page 29
KV-29FV15B/34FV15B/38FV15B
GA
HA
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
R6040 ! 1-240-876-11 CEMENTED 1 5% 15W
R6041 1-219-512-11 CARBON 2.2M 5% 1/2W
R6042 1-247-863-91 CARBON 22K 5% 1/4W
R6044 ! 1-215-430-00 METAL 2.4K 1% 1/4W
R6045 1-215-448-00 METAL 13K 1% 1/4W
R6046 1-247-863-91 CARBON 22K 5% 1/4W
R6047 1-215-481-00 METAL 330K 1% 1/4W
R6048 ! 1-260-131-11 CARBON 470K 5% 1/2W
R6049 ! 1-260-131-11 CARBON 470K 5% 1/2W
R6050 1-249-425-11 CARBON 4.7K 5% 1/4W
!
R6051
R6052 1-249-429-11 CARBON 10K 5% 1/4W
R6053 1-249-425-11 CARBON 4.7K 5% 1/4W
R6054 1-249-437-11 CARBON 47K 5% 1/4W
R6055 1-249-429-11 CARBON 10K 5% 1/4W
R6056 1-215-421-00 METAL 1K 1% 1/4W
R6057 1-249-429-11 CARBON 10K 5% 1/4W
R6058 ! 1-216-381-11 METAL OXIDE 0.22 5% 3WF
R6059 ! 1-215-864-00 METAL OXIDE 150 5% 1WF
R6060 ! 1-216-381-11 METAL OXIDE 0.22 5% 3WF
1-220-778-11 FUSIBLE 0.1 10% 1/2WF
REF.NO. PART NO. DESCRIPTION REMARK
R6097 1-215-485-00 METAL 470K 1% 1/4W
R6098 1-215-445-00 METAL 10K 1% 1/4W
R6099 1-215-469-00 METAL 100K 1% 1/4W
R6100 1-249-429-11 CARBON 10K 5% 1/4W
R6101 1-249-417-11 CARBON 1K 5% 1/4W
R6102 1-247-895-91 CARBON 470K 5% 1/4W
R6103 1-205-998-11 CEMENTED 1 5% 10W
R6104 1-249-429-11 CARBON 10K 5% 1/4W
R6105 1-249-429-11 CARBON 10K 5% 1/4W
R6106 1-202-962-11 CEMENTED 3.3 5% 10W
R6107 1-202-962-11 CEMENTED 3.3 5% 10W
R6109 1-249-437-11 CARBON 47K 5% 1/4W
R6111 1-215-857-11 METAL OXIDE 10 5% 1WF
R6112 1-215-857-11 METAL OXIDE 10 5% 1WF
RELAY
RY6000! 1-755-146-11RELAY, AC POWER
RY6001! 1-755-330-11RELAY, AC POWER
RY6002! 1-755-330-11RELAY, AC POWER
R6062 1-219-512-11 CARBON 2.2M 5% 1/2W
R6063 1-215-421-00 METAL 1K 1% 1/4W
R6064 ! 1-247-815-91 CARBON 220 5% 1/4W
R6065 1-247-815-91 CARBON 220 5% 1/4W
R6066 1-249-389-11 CARBON 4.7 5% 1/4WF
R6067 1-249-421-11 CARBON 2.2K 5% 1/4W
R6068 1-249-417-11 CARBON 1K 5% 1/4W
R6069 1-249-437-11 CARBON 47K 5% 1/4W
R6071 1-249-425-11 CARBON 4.7K 5% 1/4W
R6072 1-247-815-91 CARBON 220 5% 1/4W
R6073 1-260-298-51 CARBON 3.3 5% 1/2W
R6074 1-249-415-11 CARBON 680 5% 1/4W
R6075 1-260-312-11 CARBON 47 5% 1/2W
R6076 1-260-312-11 CARBON 47 5% 1/2W
R6077 1-247-791-91 CARBON 22 5% 1/4W
R6078 ! 1-249-389-11 CARBON 4.7 5% 1/4WF
R6079 1-247-815-91 CARBON 220 5% 1/4W
R6080 1-249-421-11 CARBON 2.2K 5% 1/4W
R6081 ! 1-260-298-51 CARBON 3.3 5% 1/2W
R6082 1-215-461-00 METAL 47K 1% 1/4W
R6083 1-249-441-11 CARBON 100K 5% 1/4W
R6084 1-249-413-11 CARBON 470 5% 1/4W
R6085 1-215-462-00 METAL 51K 1% 1/4W
R6086 1-215-479-00 METAL 270K 1% 1/4W
R6087 1-240-205-91 CARBON 22M 5% 1/2W
TRANSFORMER
T6000 ! 1-433-900-11 TRANSFORMER, LINE FILTER
T6001 ! 1-433-900-11 TRANSFORMER, LINE FILTER
T6002 ! 1-433-846-11 TRANSFORMER, CONVERTER (PIT)
T6003 ! 1-433-844-11 TRANSFORMER, CONVERTER
THERMISTOR
TH6000! 1-803-540-11 THERMISTOR
TH6001! 1-803-629-11 THERMISTOR, POSITIVE
TH6002 1-803-586-11 THERMISTOR, NTC
VARISTOR
VD6000! 1-803-587-11VARISTOR
VD6002! 1-803-614-11VARISTOR
HA
*Y-8283-988-A HA BOARD, COMPLETE (All Models)
CAPACITOR
R6088 ! 1-249-417-11 CARBON 1K 5% 1/4WF
R6089 1-215-493-00 METAL 1M 1% 1/4W
R6091 1-215-469-00 METAL 100K 1% 1/4W
R6092 1-215-481-00 METAL 330K 1% 1/4W
R6093 1-249-427-11 CARBON 6.8K 5% 1/4W
R6094 1-215-423-00 METAL 1.2K 1% 1/4W
R6095 ! 1-216-363-00 METAL OXIDE 0.33 5% 2WF
R6096 1-249-421-11 CARBON 2.2K 5% 1/4W
C1234 1-117-534-91 ELECT 1µF 20% 100V
C1235 1-117-534-91 ELECT 1µF 20% 100V
C1239 1-216-295-91 SHORT
CONNECTOR
CN1232 *1-564-512-11 PLUG, CONNECTOR 9P
— 50 —
Page 30
Les composants identifies per un trame
et une marque ! sont critiques pour la
securite. Ne les remplacer que par une
piece portant le numero specifie.
KV-29FV15B/34FV15B/38FV15B
HBHXHZHA
COMPLETE PARTS LISTING
UY
REF.NO. PART NO. DESCRIPTION REMARK
DIODE
D1233 8-719-048-57 DIODE MTZJ-T77-10-B
JACK
J1231 1-770-361-11 TERMINAL BLOCK, S
RESISTOR
R201 1-216-049-91 RES, CHIP 1K 5% 1/10W
R202 1-216-055-00 RES, CHIP 1.8K 5% 1/10W
R203 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1233 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1235 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1236 1-216-113-00 RES, CHIP 470K 5% 1/10W
R1237 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1238 1-216-113-00 RES, CHIP 470K 5% 1/10W
SWITCH
S2007 1-572-198-11 SWITCH, KEYBOARD
S2008 1-572-198-11 SWITCH, KEYBOARD
S2009 1-572-198-11 SWITCH, KEYBOARD
S2010 1-572-198-11 SWITCH, KEYBOARD
REF.NO. PART NO. DESCRIPTION REMARK
HX
CN2002 *1-564-518-11 PLUG, CONNECTOR 3P
R2010 1-216-047-91 RES, CHIP 820 5% 1/10W
R2011 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2012 1-216-055-00 RES, CHIP 1.8K 5% 1/10W
R2013 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R2014 1-216-025-91 RES, CHIP 100 5% 1/10W
S2001 1-572-198-11 SWITCH, KEYBOARD
S2002 1-572-198-11 SWITCH, KEYBOARD
S2003 1-572-198-11 SWITCH, KEYBOARD
S2004 1-572-198-11 SWITCH, KEYBOARD
S2005 1-572-198-11 SWITCH, KEYBOARD
S2006 1-572-198-11 SWITCH, KEYBOARD
*
Y-8283-992-A HX BOARD, COMPLETE (All Models)
CONNECTOR
RESISTOR
SWITCH
HB
*Y-8283-990-A HB BOARD, COMPLETE (All Models)
CAPACITOR
C2001 1-117-494-91 ELECT 100µF 20% 25V
CONNECTOR
CN2001 *1-564-520-11 PLUG, CONNECTOR 5P
DIODE
D2002 8-719-057-09 DIODE LNJ801LPDJA
D2003 8-719-057-09 DIODE LNJ801LPDJA
IC
IC2001 8-742-129-00 HYB IC SBX1971-51P
RESISTOR
R2001 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2002 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2003 1-216-017-91 RES, CHIP 47 5% 1/10W
HZ
*Y-8373-001-A HZ BOARD, COMPLETE (All Models)
CONNECTOR
CN901 *1-573-963-11 PIN, CONNECTOR(PC BOARD) 3P
CN902 *1-573-963-11 PIN, CONNECTOR(PC BOARD) 3P
SWITCH
S601 ! 1-571-433-21 SWITCH, PUSH (AC POWER)
UY
- MAIN SCHEMATIC (FOR UY PIP COMPONENTS SEE PAGE 58) -
* Y-8373-003-A UY BOARD, COMPLETE (KV-29FV15B only)
* Y-8373-013-A UY BOARD, COMPLETE
(KV-34FV15B/38FV15B only)
CAPACITOR
C201 VARIANT (SEE VARIANT PARTS LIST)
C202 VARIANT (SEE VARIANT PARTS LIST)
C203 VARIANT (SEE VARIANT PARTS LIST)
C204 VARIANT (SEE VARIANT PARTS LIST)
C205 VARIANT (SEE VARIANT PARTS LIST)
— 51 —
Page 31
KV-29FV15B/34FV15B/38FV15B
The components identified by
UY
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
C231 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C232 1-117-512-91 ELECT 22mF 20% 50V
C233 1-117-512-91 ELECT 22µF 20% 50V
C234 1-117-534-91 ELECT 1µF 20% 100V
C235 1-117-534-91 ELECT 1µF 20% 100V
C236 1-117-512-91 ELECT 22µF 20% 50V
C237 1-117-534-91 ELECT 1µF 20% 100V
C238 1-117-534-91 ELECT 1µF 20% 100V
C241 1-117-506-91 ELECT 470µF 20% 35V
C242 1-117-532-91 ELECT 0.47µF 20% 100V
C243 1-117-532-91 ELECT 0.47µF 20% 100V
C244 1-117-532-91 ELECT 0.47µF 20% 100V
C245 1-117-532-91 ELECT 0.47µF 20% 100V
C264 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C268 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C269 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C272 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C273 1-117-512-91 ELECT 22µF 20% 50V
C277 VARIANT (SEE VARIANT PARTS LIST)
C278 1-117-512-91 ELECT 22µF 20% 50V
shading and mark ! are
critical for safety. Replace only
with part number specified.
Les composants identifies per un trame
et une marque ! sont critiques pour
la securite. Ne les remplacer que par
une piece portant le numero specifie.
REF.NO. PART NO. DESCRIPTION REMARK
C2201 1-117-512-91 ELECT 22µF 20% 50V
C2202 1-117-512-91 ELECT 22µF 20% 50V
C2203 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C3556 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3557 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C3558 1-117-511-91 ELECT 10µF 20% 50V
C3559 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3560 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3561 1-117-511-91 ELECT 10µF 20% 50V
C3562 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3563 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3564 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3565 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3566 1-117-511-91 ELECT 10µF 20% 50V
C3567 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C3568 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C3569 1-117-511-91 ELECT 10µF 20% 50V
C3570 1-117-511-91 ELECT 10µF 20% 50V
C3571 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C3573 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C279 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C281 1-117-512-91 ELECT 22µF 20% 50V
C284 1-117-506-91 ELECT 470µF 20% 35V
C286 1-164-161-11 CERAMIC CHIP 0.0022µF10% 50V
C287 1-164-161-11 CERAMIC CHIP 0.0022µF10% 50V
C1051 1-117-511-91 ELECT 10µF 20% 50V
C1053 1-117-486-91 ELECT 220µF 20% 16V
C1201 1-163-809-11 CERAMIC CHIP 0.047µF 10% 25V
C1202 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C1203 1-117-534-91 ELECT 1µF 20% 100V
C1204 1-163-809-11 CERAMIC CHIP 0.047µF 10% 25V
C1209 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C1210 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C1211 1-117-512-91 ELECT 22µF 20% 50V
C1212 1-117-512-91 ELECT 22µF 20% 50V
C1213 1-117-506-91 ELECT 470µF 20% 35V
C1214 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C1215 1-117-534-91 ELECT 1µF 20% 100V
C1262 VARIANT (SEE VARIANT PARTS LIST)
C2000 1-117-506-91 ELECT 470µF 20% 35V
C2002 1-117-512-91 ELECT 22µF 20% 50V
C2012 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C2015 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C2045 1-163-237-11 CERAMIC CHIP 27pF 5% 50V
C2047 1-117-535-91 ELECT 2.2µF 20% 100V
C2048 1-117-511-91 ELECT 10µF 20% 50V
C2049 1-117-493-91 ELECT 47µF 20% 25V
C2056 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C2060 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C2062 1-117-493-91 ELECT 47µF 20% 25V
C2096 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C2097 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C2168 VARIANT (SEE VARIANT PARTS LIST)
C3574 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C3575 1-117-511-91 ELECT 10µF 20% 50V
C3576 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C3577 1-117-511-91 ELECT 10µF 20% 50V
C3578 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C3579 1-117-493-91 ELECT 47µF 20% 25V
CONNECTOR
CN261 *1-564-510-11 PLUG, CONNECTOR 7P
CN262 *1-691-632-21 CONNECTOR, BOARD TO BOARD 15P
CN263 *1-691-632-21 CONNECTOR, BOARD TO BOARD 15P
CN264 *1-691-632-21 CONNECTOR, BOARD TO BOARD 15P
CN265 *1-564-513-11 PLUG, CONNECTOR 10P
DIODE
D201 VARIANT (SEE VARIANT PARTS LIST)
D202 VARIANT (SEE VARIANT PARTS LIST)
D203 VARIANT (SEE VARIANT PARTS LIST)
D204 VARIANT (SEE VARIANT PARTS LIST)
D205 VARIANT (SEE VARIANT PARTS LIST)
D231 8-719-032-47 DIODE MTZJ-T-9110
D232 8-719-032-47 DIODE MTZJ-T-9110
D233 8-719-032-47 DIODE MTZJ-T-9110
D234 8-719-032-47 DIODE MTZJ-T-9110
D235 8-719-032-47 DIODE MTZJ-T-9110
D236 8-719-032-47 DIODE MTZJ-T-9110
D237 8-719-032-47 DIODE MTZJ-T-9110
D238 8-719-032-47 DIODE MTZJ-T-9110
D239 8-719-032-47 DIODE MTZJ-T-9110
D245 8-719-038-74 DIODE RD3.3SB-T1
D246 8-719-038-74 DIODE RD3.3SB-T1
— 52 —
Page 32
KV-29FV15B/34FV15B/38FV15B
The components identified by
shading and mark ! are
critical for safety. Replace only
with part number specified.
REF.NO. PART NO. DESCRIPTION REMARK
D247 8-719-036-74 DIODE RD3.3SB-T1
D248 8-719-036-74 DIODE RD3.3SB-T1
D250 8-719-036-74 DIODE RD3.3SB-T1
D261 8-719-032-47 DIODE MTZJ-T-9110
D902 8-719-032-47 DIODE MTZJ-T-9110
D910 8-719-032-47 DIODE MTZJ-T-9110
D911 8-719-032-47 DIODE MTZJ-T-9110
D912 8-719-032-47 DIODE MTZJ-T-9110
D1051 8-719-404-50 DIODE MA111-TX
D1052 8-719-404-50 DIODE MA111-TX
D2201 8-719-032-47 DIODE MTZJ-T-9110
D2202 8-719-032-47 DIODE MTZJ-T-9110
D2203 8-719-032-47 DIODE MTZJ-T-9110
Les composants identifies per un trame
et une marque ! sont critiques pour la
securite. Ne les remplacer que par une
piece portant le numero specifie.
FILTER
FL2001 1-239-847-11 FILTER, LOW PASS
FL2002 1-239-847-11 FILTER, LOW PASS
FL2004 1-239-847-11 FILTER, LOW PASS
UY
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
COIL
L261 1-414-857-11 INDUCTOR 100µH
L1201 1-408-397-00 INDUCTOR 1µH
L1202 1-408-397-00 INDUCTOR 1µH
L2004 1-414-856-11 INDUCTOR 10µH
L2005 1-410-494-11 INDUCTOR 1MH
L2009 1-414-856-11 INDUCTOR 10µH
/
/
L3581 1-408-397-00 INDUCTOR 1µH
L3582 1-408-397-00 INDUCTOR 1µH
TRANSISTOR
Q202 VARIANT (SEE VARIANT PARTS LIST)
Q203 VARIANT (SEE VARIANT PARTS LIST)
Q205 VARIANT (SEE VARIANT PARTS LIST)
Q206 VARIANT (SEE VARIANT PARTS LIST)
Q208 VARIANT (SEE VARIANT PARTS LIST)
IC
IC261 8-752-066-69 IC CXA1845Q
IC1051 8-752-059-23 IC CXA1315M-T4
IC2006 8-759-358-38 IC NJM78M05DLA(TE1)
IC3504 8-752-390-37 IC CXD2064Q-T6
JACK
J231 1-750-515-11 TERMINAL BLOCK,S 3P
J232 1-750-517-11 JACK BLOCK, PIN 3P
J233 1-750-516-11 JACK BLOCK, PIN 2P
J234 1-750-517-11 JACK BLOCK, PIN 3P
J236 VARIANT (SEE VARIANT PARTS LIST)
J902 1-764-143-11 JACK 3P
J903 1-764-143-11 JACK 3P
J904 1-764-143-11 JACK 3P
J905 1-764-143-11 JACK 3P
CHIP CONDUCTOR
JR1001 1-216-295-91 SHORT
JR1002 1-216-295-91 SHORT
JR1003 1-216-295-91 SHORT
JR1004 1-216-295-91 SHORT
JR1014 1-216-295-91 SHORT
JR1015 1-216-295-91 SHORT
JR1016 1-216-295-91 SHORT
JR1017 1-216-295-91 SHORT
JR1018 1-216-295-91 SHORT
JR1019 1-216-295-91 SHORT
JR1020 1-216-295-91 SHORT
JR1021 1-216-295-91 SHORT
JR1022 1-216-295-91 SHORT
JR1023 1-216-295-91 SHORT
Q209 VARIANT (SEE VARIANT PARTS LIST)
Q210 VARIANT (SEE VARIANT PARTS LIST)
Q211 VARIANT (SEE VARIANT PARTS LIST)
Q212 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q231 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q233 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q234 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q235 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q236 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q237 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q238 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q239 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q246 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q262 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q263 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q264 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q265 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q267 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1051 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1201 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1202 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1203 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1204 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1205 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1206 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1207 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1208 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q2003 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q2004 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q2005 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q2006 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q2007 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q2008 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q2009 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q2010 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
— 53 —
Page 33
KV-29FV15B/34FV15B/38FV15B
The components identified by
UY
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
Q2014 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q2018 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q2019 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
shading and mark ! are
critical for safety. Replace only
with part number specified.
RESISTOR
R201 VARIANT (SEE VARIANT PARTS LIST)
R202 VARIANT (SEE VARIANT PARTS LIST)
R203 VARIANT (SEE VARIANT PARTS LIST)
R204 VARIANT (SEE VARIANT PARTS LIST)
R205 VARIANT (SEE VARIANT PARTS LIST)
R206 VARIANT (SEE VARIANT PARTS LIST)
R207 VARIANT (SEE VARIANT PARTS LIST)
R208 VARIANT (SEE VARIANT PARTS LIST)
R209 VARIANT (SEE VARIANT PARTS LIST)
R210 VARIANT (SEE VARIANT PARTS LIST)
R211 VARIANT (SEE VARIANT PARTS LIST)
R212 VARIANT (SEE VARIANT PARTS LIST)
R213 VARIANT (SEE VARIANT PARTS LIST)
R214 VARIANT (SEE VARIANT PARTS LIST)
R218 VARIANT (SEE VARIANT PARTS LIST)
R219 VARIANT (SEE VARIANT PARTS LIST)
R220 VARIANT (SEE VARIANT PARTS LIST)
R221 VARIANT (SEE VARIANT PARTS LIST)
R222 VARIANT (SEE VARIANT PARTS LIST)
R223 VARIANT (SEE VARIANT PARTS LIST)
R225 VARIANT (SEE VARIANT PARTS LIST)
R226 VARIANT (SEE VARIANT PARTS LIST)
R228 VARIANT (SEE VARIANT PARTS LIST)
R229 VARIANT (SEE VARIANT PARTS LIST)
R230 1-216-089-91 RES, CHIP 47K 5% 1/10W
R231 1-216-022-00 RES, CHIP 75 5% 1/10W
R232 1-216-022-00 RES, CHIP 75 5% 1/10W
R233 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R234 1-216-022-00 RES, CHIP 75 5% 1/10W
R235 1-216-113-00 RES, CHIP 470K 5% 1/10W
R236 1-216-113-00 RES, CHIP 470K 5% 1/10W
R237 1-216-022-00 RES, CHIP 75 5% 1/10W
R238 1-216-113-00 RES, CHIP 470K 5% 1/10W
R239 1-216-113-00 RES, CHIP 470K 5% 1/10W
R241 1-216-113-00 RES, CHIP 470K 5% 1/10W
R242 1-216-049-91 RES, CHIP 1K 5% 1/10W
R243 1-216-113-00 RES, CHIP 470K 5% 1/10W
R244 1-216-049-91 RES, CHIP 1K 5% 1/10W
R245 1-216-022-00 RES, CHIP 75 5% 1/10W
R246 1-216-113-00 RES, CHIP 470K 5% 1/10W
R247 1-216-113-00 RES, CHIP 470K 5% 1/10W
R248 1-216-113-00 RES, CHIP 470K 5% 1/10W
R249 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R250 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R251 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R252 1-216-049-91 RES, CHIP 1K 5% 1/10W
R254 1-216-049-91 RES, CHIP 1K 5% 1/10W
R256 1-216-295-91 SHORT
Les composants identifies per un trame
et une marque ! sont critiques pour
la securite. Ne les remplacer que par
une piece portant le numero specifie.
REF.NO. PART NO. DESCRIPTION REMARK
R257 1-216-049-91 RES, CHIP 1K 5% 1/10W
R258 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R259 1-216-049-91 RES, CHIP 1K 5% 1/10W
R260 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R261 1-216-025-91 RES, CHIP 100 5% 1/10W
R262 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R263 1-216-025-91 RES, CHIP 100 5% 1/10W
R264 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R265 1-216-025-91 RES, CHIP 100 5% 1/10W
R266 1-216-025-91 RES, CHIP 100 5% 1/10W
R267 1-216-025-91 RES, CHIP 100 5% 1/10W
R268 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R269 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R270 1-216-049-91 RES, CHIP 1K 5% 1/10W
R271 VARIANT (SEE VARIANT PARTS LIST)
R272 VARIANT (SEE VARIANT PARTS LIST)
R273 VARIANT (SEE VARIANT PARTS LIST)
R274 1-216-049-91 RES, CHIP 1K 5% 1/10W
R275 1-216-025-91 RES, CHIP 100 5% 1/10W
R276 VARIANT (SEE VARIANT PARTS LIST)
R278 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R279 1-216-025-91 RES, CHIP 100 5% 1/10W
R280 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R281 1-216-025-91 RES, CHIP 100 5% 1/10W
R282 1-216-025-91 RES, CHIP 100 5% 1/10W
R283 1-216-049-91 RES, CHIP 1K 5% 1/10W
R284 1-216-033-00 RES, CHIP 220 5% 1/10W
R285 1-216-033-00 RES, CHIP 220 5% 1/10W
R286 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R287 1-216-025-91 RES, CHIP 100 5% 1/10W
R288 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R289 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R290 1-216-025-91 RES, CHIP 100 5% 1/10W
R291 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R292 1-216-295-91 SHORT
R293 1-216-025-91 RES, CHIP 100 5% 1/10W
R294 1-216-077-91 RES, CHIP 15K 5% 1/10W
R295 1-216-025-91 RES, CHIP 100 5% 1/10W
R296 1-216-025-91 RES, CHIP 100 5% 1/10W
R297 1-216-025-91 RES, CHIP 100 5% 1/10W
R298 1-216-295-91 SHORT
R300 1-216-025-91 RES, CHIP 100 5% 1/10W
R301 VARIANT (SEE VARIANT PARTS LIST)
R302 1-216-295-91 SHORT
R902 1-249-405-11 CARBON 100 5% 1/4WF
R921 1-249-405-11 CARBON 100 5% 1/4WF
R923 1-249-405-11 CARBON 100 5% 1/4WF
R925 1-249-405-11 CARBON 100 5% 1/4WF
R926 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1055 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1056 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1057 1-216-025-91 RES, CHIP 100 5% 1/10W
R1058 1-216-025-91 RES, CHIP 100 5% 1/10W
— 54 —
Page 34
KV-29FV15B/34FV15B/38FV15B
The components identified by
shading and mark ! are
critical for safety. Replace only
with part number specified.
REF.NO. PART NO. DESCRIPTION REMARK
R1059 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1060 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1062 1-216-033-00 RES, CHIP 220 5% 1/10W
R1063 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1064 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1065 1-216-025-91 RES, CHIP 100 5% 1/10W
R1070 1-216-025-91 RES, CHIP 100 5% 1/10W
R1205 1-216-295-91 SHORT
R1207 1-208-774-11 RES, CHIP 470 0.50%1/10W
R1209 1-216-295-91 SHORT
R1210 1-216-295-91 SHORT
R1215 1-208-774-11 RES, CHIP 470 0.50%1/10W
R1216 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1217 1-216-091-00 RES, CHIP 56K 5% 1/10W
R1219 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1220 1-216-013-00 RES, CHIP 33 5% 1/10W
R1221 1-216-121-91 RES, CHIP 1M 5% 1/10W
R1222 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1223 1-216-097-91 RES, CHIP 100K 5% 1/10W
R1224 1-216-089-91 RES, CHIP 47K 5% 1/10W
Les composants identifies per un trame
et une marque ! sont critiques pour la
securite. Ne les remplacer que par une
piece portant le numero specifie.
UY
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
R1287 1-216-295-91 SHORT
R1288 1-216-295-91 SHORT
R1289 1-216-295-91 SHORT
R1290 1-216-295-91 SHORT
R1291 VARIANT (SEE VARIANT PARTS LIST)
R1292 VARIANT (SEE VARIANT PARTS LIST)
R1293 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1294 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1295 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1300 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1304 1-216-041-00 RES, CHIP 470 5% 1/10W
R1305 1-208-776-11 RES, CHIP 560 0.50%1/10W
R1306 1-216-025-91 RES, CHIP 100 5% 1/10W
R1307 1-216-041-00 RES, CHIP 470 5% 1/10W
R1308 1-208-776-11 RES, CHIP 560 0.50%1/10W
R1309 1-216-025-91 RES, CHIP 100 5% 1/10W
R2015 1-216-081-00 RES, CHIP 22K 5% 1/10W
R2016 1-216-081-00 RES, CHIP 22K 5% 1/10W
R2017 1-216-295-91 SHORT
R2018 1-216-295-91 SHORT
R1225 1-216-097-91 RES, CHIP 100K 5% 1/10W
R1227 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1228 1-208-774-11 RES, CHIP 470 0.50%1/10W
R1229 1-216-121-91 RES, CHIP 1M 5% 1/10W
R1230 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1231 1-216-295-91 SHORT
R1233 1-216-097-91 RES, CHIP 100K 5% 1/10W
R1234 1-216-091-00 RES, CHIP 56K 5% 1/10W
R1235 1-216-013-00 RES, CHIP 33 5% 1/10W
R1236 1-216-097-91 RES, CHIP 100K 5% 1/10W
R1237 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1238 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1239 1-208-774-11 RES, CHIP 470 0.50%1/10W
R1242 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1243 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1244 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1245 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1260 1-216-295-91 SHORT
R1263 1-216-295-91 SHORT
R1264 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1265 1-216-001-00 RES, CHIP 10 5% 1/10W
R1266 VARIANT (SEE VARIANT PARTS LIST)
R1267 1-216-025-91 RES, CHIP 100 5% 1/10W
R1268 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1269 VARIANT (SEE VARIANT PARTS LIST)
R2021 1-216-081-00 RES, CHIP 22K 5% 1/10W
R2027 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2028 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2029 1-216-043-91 RES, CHIP 560 5% 1/10W
R2030 1-216-043-91 RES, CHIP 560 5% 1/10W
R2031 1-216-081-00 RES, CHIP 22K 5% 1/10W
R2032 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R2033 1-208-790-11 RES, CHIP 2.2K 0.50%1/10W
R2034 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R2035 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2036 VARIANT (SEE VARIANT PARTS LIST)
R2037 1-208-784-11 RES, CHIP 1.2K 0.50%1/10W
R2038 1-208-762-11 RES, CHIP 150 0.50%1/10W
R2039 1-216-047-91 RES, CHIP 820 5% 1/10W
R2040 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R2041 1-216-047-91 RES, CHIP 820 5% 1/10W
R2042 1-216-075-00 RES, CHIP 12K 5% 1/10W
R2043 1-216-085-00 RES, CHIP 33K 5% 1/10W
R2044 1-208-790-11 RES, CHIP 2.2K 0.50%1/10W
R2046 1-216-075-00 RES, CHIP 12K 5% 1/10W
R2047 1-216-085-00 RES, CHIP 33K 5% 1/10W
R2048 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2050 1-216-017-91 RES, CHIP 47 5% 1/10W
R2051 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2055 1-216-017-91 RES, CHIP 47 5% 1/10W
R1270 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1271 1-216-001-00 RES, CHIP 10 5% 1/10W
R1272 VARIANT (SEE VARIANT PARTS LIST)
R1273 VARIANT (SEE VARIANT PARTS LIST)
R1274 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1276 VARIANT (SEE VARIANT PARTS LIST)
R1277 1-216-025-91 RES, CHIP 100 5% 1/10W
R1279 1-216-025-91 RES, CHIP 100 5% 1/10W
R1284 1-216-295-91 SHORT
R2057 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2060 1-216-025-91 RES, CHIP 100 5% 1/10W
R2069 1-208-774-11 RES, CHIP 470 0.50%1/10W
R2070 1-216-615-91 METAL CHIP 33 0.50%1/10W
R2071 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R2072 1-216-043-91 RES, CHIP 560 5% 1/10W
R2073 1-216-049-91 RES, CHIP 1K 5% 1/10W
R2074 1-216-025-91 RES, CHIP 100 5% 1/10W
— 55 —
Page 35
KV-29FV15B/34FV15B/38FV15B
The components identified by
UY
LISTA DE PEÇAS COMUNS
REF.NO. PART NO. DESCRIPTION REMARK
R2081 1-216-075-00 RES, CHIP 12K 5% 1/10W
R2201 1-216-022-00 RES, CHIP 75 5% 1/10W
R2202 1-216-022-00 RES, CHIP 75 5% 1/10W
R2203 1-216-022-00 RES, CHIP 75 5% 1/10W
R3511 1-216-295-91 SHORT
R3512 1-216-025-91 RES, CHIP 100 5% 1/10W
R3513 1-216-025-91 RES, CHIP 100 5% 1/10W
R3527 1-216-033-00 RES, CHIP 220 5% 1/10W
R3582 1-216-033-00 RES, CHIP 220 5% 1/10W
R3583 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R3584 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3585 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R3586 1-216-295-91 SHORT
R3590 1-216-295-91 SHORT
R3591 1-216-295-91 SHORT
R3592 1-216-091-00 RES, CHIP 56K 5% 1/10W
R3593 1-216-043-91 RES, CHIP 560 5% 1/10W
R3599 1-216-295-91 SHORT
shading and mark ! are
critical for safety. Replace only
with part number specified.
Les composants identifies per un trame
et une marque ! sont critiques pour
la securite. Ne les remplacer que par
une piece portant le numero specifie.
REF.NO. PART NO. DESCRIPTION REMARK
— 56 —
Page 36
The components identified
by shading and mark
critical for safety. Replace
only with part number
specified.
REF.NO. PART NO. DESCRIPTION REMARK
!
are
Les composants identifies
per un trame et une marque
!
sont critiques pour la
securite. Ne les remplacer
que par une piece portant
le numero specifie.
KV-29FV15B/34FV15B/38FV15B
UY
Esta lista de peças é somente para o modelo:
LISTA DE PEÇAS VARIÁVEIS
KV-38V15B
REF.NO. PART NO. DESCRIPTION REMARK
Lista de peças da Placa UY para: KV-38FV15B
CAPACITOR
C201 1-117-512-91 ELECT 22µF 20% 50V
C202 1-117-512-91 ELECT 22µF 20% 50V
C203 1-117-512-91 ELECT 22µF 20% 50V
C204 1-117-534-91 ELECT 1µF 20% 100V
C205 1-117-534-91 ELECT 1µF 20% 100V
C277 1-117-512-91 ELECT 22µF 20% 50V
C1262 1-216-081-00 RES, CHIP 22K 5% 1/10W
C2168 1-163-253-11 CERAMIC CHIP 120pF 5% 50V
DIODE
D201 8-719-032-47 DIODE MTZJ-T-9110
D202 8-719-032-47 DIODE MTZJ-T-9110
D203 8-719-032-47 DIODE MTZJ-T-9110
D204 8-719-032-47 DIODE MTZJ-T-9110
D205 8-719-032-47 DIODE MTZJ-T-9110
JACK
J236 1-774-358-11 JACK BLOCK, PIN
R211 1-216-089-91 RES, CHIP 47K 5% 1/10W
R212 1-216-081-00 RES, CHIP 22K 5% 1/10W
R213 1-216-089-91 RES, CHIP 47K 5% 1/10W
R214 1-216-081-00 RES, CHIP 22K 5% 1/10W
R218 1-208-774-11 RES, CHIP 470 0.50%1/10W
R219 1-216-049-91 RES, CHIP 1K 5% 1/10W
R220 1-208-776-11 RES, CHIP 560 0.50%1/10W
R221 1-208-774-11 RES, CHIP 470 0.50%1/10W
R222 1-216-049-91 RES, CHIP 1K 5% 1/10W
R223 1-208-776-11 RES, CHIP 560 0.50%1/10W
R225 1-216-025-91 RES, CHIP 100 5% 1/10W
R226 1-216-025-91 RES, CHIP 100 5% 1/10W
R228 1-216-049-91 RES, CHIP 1K 5% 1/10W
R229 1-216-049-91 RES, CHIP 1K 5% 1/10W
R271 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R272 1-216-025-91 RES, CHIP 100 5% 1/10W
R273 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R276 1-216-295-91 SHORT
R301 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1266 1-216-041-00 RES, CHIP 470 5% 1/10W
R1269 1-216-041-00 RES, CHIP 470 5% 1/10W
R1276 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1291 1-216-295-91 SHORT
R1292 1-216-295-91 SHORT
R2036 1-216-051-00 RES, CHIP 1.2K 5% 1/10W
COIL
L2011 1-410-116-11 INDUCTOR 560µH
L2012 1-410-116-11 INDUCTOR 560µH
TRANSISTOR
Q202 8-729-422-27 TRANSISTOR 2SD601A-Q
Q203 8-729-422-27 TRANSISTOR 2SD601A-Q
Q205 8-729-216-22 TRANSISTOR 2SA1162-G
Q206 8-729-216-22 TRANSISTOR 2SA1162-G
Q208 8-729-422-27 TRANSISTOR 2SD601A-Q
Q209 8-729-422-27 TRANSISTOR 2SD601A-Q
Q210 8-729-422-27 TRANSISTOR 2SD601A-Q
Q211 8-729-422-27 TRANSISTOR 2SD601A-Q
RESISTOR
R201 1-216-022-00 RES, CHIP 75 5% 1/10W
R202 1-216-022-00 RES, CHIP 75 5% 1/10W
R203 1-216-022-00 RES, CHIP 75 5% 1/10W
R204 1-216-113-00 RES, CHIP 470K 5% 1/10W
R205 1-216-113-00 RES, CHIP 470K 5% 1/10W
R206 1-216-295-91 SHORT
R207 1-216-295-91 SHORT
R208 1-216-295-91 SHORT
R209 1-216-089-91 RES, CHIP 47K 5% 1/10W
R210 1-216-081-00 RES, CHIP 22K 5% 1/10W
— 57 —
Page 37
KV-29FV15B/34FV15B/38FV15B
UY
Esta lista de peças é somente para o modelo:
LISTA DE PEÇAS VARIÁVEIS
KV-34FV15B
REF.NO. PART NO. DESCRIPTION REMARK
Lista de peças variáveis da Placa UY para: KV-34FV15B
CAPACITOR
C201 1-128-551-11 ELECT 22µF 20% 25V
C202 1-128-551-11 ELECT 22µF 20% 25V
C203 1-128-551-11 ELECT 22µF 20% 25V
C204 1-126-960-11 ELECT 1µF 20% 50V
C205 1-126-960-11 ELECT 1µF 20% 50V
C277 1-128-551-11 ELECT 22µF 20% 25V
/
C2168 1-163-253-11 CERAMIC CHIP 120pF 5% 50V
DIODE
D201 8-719-032-47 DIODE MTZJ-T-9110
D202 8-719-032-47 DIODE MTZJ-T-9110
D203 8-719-032-47 DIODE MTZJ-T-9110
D204 8-719-032-47 DIODE MTZJ-T-9110
D205 8-719-032-47 DIODE MTZJ-T-9110
The components identified
by shading and mark
critical for safety. Replace
only with part number
specified.
REF.NO. PART NO. DESCRIPTION REMARK
R218 1-208-774-11 RES, CHIP 470 0.50%1/10W
R219 1-216-049-91 RES, CHIP 1K 5% 1/10W
R220 1-208-776-11 RES, CHIP 560 0.50%1/10W
R221 1-208-774-11 RES, CHIP 470 0.50%1/10W
R222 1-216-049-91 RES, CHIP 1K 5% 1/10W
R223 1-208-776-11 RES, CHIP 560 0.50%1/10W
R225 1-216-025-91 RES, CHIP 100 5% 1/10W
R226 1-216-025-91 RES, CHIP 100 5% 1/10W
R228 1-216-049-91 RES, CHIP 1K 5% 1/10W
R229 1-216-049-91 RES, CHIP 1K 5% 1/10W
R271 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R272 1-216-025-91 RES, CHIP 100 5% 1/10W
R273 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R276 1-216-295-91 SHORT
R301 1-216-049-91 RES, CHIP 1K 5% 1/10W
R1266 1-216-041-00 RES, CHIP 470 5% 1/10W
R1269 1-216-041-00 RES, CHIP 470 5% 1/10W
R1272 1-216-655-11 RES, CHIP 1.5K 0.50%1/10W
R1273 1-208-788-11 RES, CHIP 1.8K 0.50%1/10W
R1276 1-216-049-91 RES, CHIP 1K 5% 1/10W
!
are
Les composants identifies
per un trame et une marque
!
sont critiques pour la
securite. Ne les remplacer
que par une piece portant
le numero specifie.
JACK
J236 1-774-358-11 JACK BLOCK, PIN
TRANSISTOR
Q202 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q203 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q205 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q206 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q208 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q209 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q210 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q211 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
RESISTOR
R201 1-216-022-00 RES, CHIP 75 5% 1/10W
R202 1-216-022-00 RES, CHIP 75 5% 1/10W
R203 1-216-022-00 RES, CHIP 75 5% 1/10W
R204 1-216-113-00 RES, CHIP 470K 5% 1/10W
R205 1-216-113-00 RES, CHIP 470K 5% 1/10W
R206 1-216-295-91 SHORT
R207 1-216-295-91 SHORT
R208 1-216-295-91 SHORT
R209 1-216-089-91 RES, CHIP 47K 5% 1/10W
R210 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1291 1-216-295-91 SHORT
R1292 1-216-295-91 SHORT
/
/
R2036 1-216-051-00 RES, CHIP 1.2K 5% 1/10W
R211 1-216-089-91 RES, CHIP 47K 5% 1/10W
R212 1-216-081-00 RES, CHIP 22K 5% 1/10W
R213 1-216-089-91 RES, CHIP 47K 5% 1/10W
R214 1-216-081-00 RES, CHIP 22K 5% 1/10W
—
58
—
Page 38
KV-29FV15B/34FV15B/38FV15B
The components identified by
shading and mark ! are
critical for safety. Replace only
with part number specified.
REF.NO. PART NO. DESCRIPTION REMARK
Lista de peças variáveis da Placa UY para: KV-29FV15B
Les composants identifies per un trame
et une marque ! sont critiques pour la
securite. Ne les remplacer que par une
piece portant le numero specifie.
RESISTOR
R1272 1-208-774-11 RES, CHIP 470 0.50%1/10W
R1273 1-208-777-11 RES, CHIP 620 0.50%1/10W
R2036 1-208-775-11 RES, CHIP 510 0.50%1/10W
LISTA DE PEÇAS VARIÁVEIS
Esta lista de peças é somente para o modelo:
UY
KV-29FV15B
REF.NO. PART NO. DESCRIPTION REMARK
—
59
—
Page 39
KV-29FV15B/34FV15B/38FV15B
UY
The parts on this paLISTA COMPLETA DE PEÇAS
PLACA PIP - LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
BOARD VARIANT PARTS LIST
UY
- PIP SCHEMATIC (FOR UY MAIN COMPONENTS SEE PAGE 49) -
* Y-8373-003-A UY BOARD, COMPLETE (KV-29FV15B only)
* Y-8373-013-A UY BOARD, COMPLETE
CAPACITOR
C3301 1-117-493-91 ELECT 47µF 20% 25V
C3302 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3310 1-163-229-11 CERAMIC CHIP 12pF 5% 50V
C3311 1-163-229-11 CERAMIC CHIP 12pF 5% 50V
(KV-29FV15B/34FV15B only)
C3312 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3313 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3314 1-164-005-11 CERAMIC CHIP 0.47µF 25V
C3315 1-164-005-11 CERAMIC CHIP 0.47µF 25V
C3319 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3320 1-117-534-91 ELECT 1µF 20% 100V
C3321 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C3322 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C3323 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3324 1-117-483-91 ELECT 1000µF 20% 10V
C3325 1-117-483-91 ELECT 1000µF 20% 10V
C3328 1-117-482-91 ELECT 470µF 20% 10V
C3329 1-117-493-91 ELECT 47µF 20% 25V
C3330 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3331 1-117-493-91 ELECT 47µF 20% 25V
C3332 1-117-493-91 ELECT 47µF 20% 25V
C3334 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3340 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3342 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C3346 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C3347 1-117-534-91 ELECT 1µF 20% 100V
C3348 1-117-493-91 ELECT 47µF 20% 25V
C3349 1-163-249-11 CERAMIC CHIP 82pF 5% 50V
C3350 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C3352 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3353 1-117-534-91 ELECT 1µF 20% 100V
C3354 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3355 1-117-513-91 ELECT 47µF 20% 50V
C3356 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3357 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3358 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3359 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3360 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3361 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3362 1-117-513-91 ELECT 47µF 20% 50V
C3363 1-163-031-11 CERAMIC CHIP 0.01µF 50V
C3364 1-163-229-11 CERAMIC CHIP 12pF 5% 50V
C3365 1-163-133-00 CERAMIC CHIP 470pF 5% 50V
(KV-34FV15B/38FV15B only)
—
The components identified
by shading and mark
critical for safety. Replace
only with part number
specified.
REF.NO. PART NO. DESCRIPTION REMARK
C3366 1-117-532-91 ELECT 0.47µF 20% 100V
C3367 1-117-537-91 ELECT 4.7µF 20% 100V
C3368 1-164-005-11 CERAMIC CHIP 0.47µF 25V
C3369 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C3370 1-117-534-91 ELECT 1µF 20% 100V
C3371 1-163-017-00 CERAMIC CHIP 0.0047µF10% 50V
C3372 1-164-005-11 CERAMIC CHIP 0.47µF 25V
C3385 1-126-941-91 ELECT 470mF 20% 25V
!
are
Les composants identifies
per un trame et une marque
!
sont critiques pour la
securite. Ne les remplacer
que par une piece portant
le numero specifie.
FERRITE BEAD
FB3301 1-414-234-22 INDUCTOR CHIP
FB3302 1-414-234-22 INDUCTOR CHIP
IC
IC3302 8-759-358-38 IC NJM78M05DLA(TE1)
IC3303 8-759-655-57 IC SDA9288XE-B121-GEG
IC3304 8-752-086-80 IC CXA2019AQ-T4
IC3305 8-759-593-03 IC TDA4662T-V3
IC3308 8-759-932-69 IC BU4053BCF-T2
(KV-34FV15B/38FV15B only)
COIL
L3301 1-414-856-11 INDUCTOR 10µH
L3302 1-410-473-11 INDUCTOR 18µH
L3303 1-410-473-11 INDUCTOR 18µH
L3305 1-408-619-31 INDUCTOR 220µH
L3306 1-414-857-11 INDUCTOR 100µH
L3307 1-414-856-11 INDUCTOR 10µH
TRANSISTOR
Q3301 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q3302 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q3305 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q3306 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q3307 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q3310 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q3312 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q3314 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
RESISTOR
R3301 1-216-295-91 SHORT
R3303 1-216-295-91 SHORT
R3304 1-216-295-91 SHORT
/
R3305 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
—
60
/
(KV-29FV15B/34FV15B only)
Page 40
KV-29FV15B/34FV15B/38FV15B
The components identified by
shading and mark ! are
critical for safety. Replace only
with part number specified.
REF.NO. PART NO. DESCRIPTION REMARK
R3306 1-216-295-91 SHORT
R3309 1-216-041-00 RES, CHIP 470 5% 1/10W
R3310 1-216-055-00 RES, CHIP 1.8K 5% 1/10W
R3311 1-216-055-00 RES, CHIP 1.8K 5% 1/10W
R3312 1-216-037-00 RES, CHIP 330 5% 1/10W
R3313 1-216-295-91 SHORT
R3314 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3315 1-216-295-91 SHORT
(KV-29FV15B only)
R3316 1-216-295-91 SHORT
(KV-29FV15B only)
R3317 1-216-295-91 SHORT
(KV-29FV15B only)
R3320 1-216-295-91 SHORT
R3322 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R3323 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R3324 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R3326 1-216-295-91 SHORT
(KV-34FV15B only)
R3329 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R3332 1-216-033-00 RES, CHIP 220 5% 1/10W
R3337 1-216-033-00 RES, CHIP 220 5% 1/10W
R3338 1-216-033-00 RES, CHIP 220 5% 1/10W
R3339 1-216-025-91 RES, CHIP 100 5% 1/10W
R3340 1-216-041-00 RES, CHIP 470 5% 1/10W
R3341 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
Les composants identifies per un trame
et une marque ! sont critiques pour la
securite. Ne les remplacer que par une
piece portant le numero specifie.
UY
PLACA PIP LISTA - COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
R3370 1-216-295-91 SHORT
R3375 1-216-041-00 RES, CHIP 470 5% 1/10W
R3376 1-216-071-00 RES, CHIP 8.2K 5% 1/10W
R3377 1-216-073-00 RES, CHIP 10K 5% 1/10W
R3378 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R3379 1-216-077-91 RES, CHIP 15K 5% 1/10W
R3380 1-216-295-91 SHORT
R3381 1-216-295-91 SHORT
R3382 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3383 1-216-025-91 RES, CHIP 100 5% 1/10W
R3384 1-216-033-00 RES, CHIP 220 5% 1/10W
R3385 1-216-109-00 RES, CHIP 330K 5% 1/10W
R3387 1-216-295-91 SHORT
R3388 1-216-295-91 SHORT
R3395 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
CRYSTAL
X3302 1-760-095-21 VIBRATOR, CRYSTAL
X3303 1-577-611-11 OSCILLATOR, CERAMIC
X3304 1-567-505-11 OSCILLATOR, CRYSTAL
X3305 1-579-973-11 VIBRATOR, CRYSTAL
X3306 1-579-972-11 VIBRATOR, CRYSTAL
R3342 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3343 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3346 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3347 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R3348 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R3350 1-216-295-91 SHORT
R3351 1-216-295-91 SHORT
R3352 1-216-049-91 RES, CHIP 1K 5% 1/10W
R3355 1-216-295-91 SHORT
R3357 1-216-295-91 SHORT
R3358 1-216-047-91 RES, CHIP 820 5% 1/10W
R3359 1-216-047-91 RES, CHIP 820 5% 1/10W
R3360 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R3361 1-216-045-00 RES, CHIP 680 5% 1/10W
R3362 1-208-767-11 RES, CHIP 240 0.50%1/10W
R3362 1-208-774-11 RES, CHIP 470 0.50%1/10W
R3363 1-208-766-11 RES, CHIP 220 0.50%1/10W
R3363 1-208-773-11 RES, CHIP 430 0.50%1/10W
R3364 1-208-769-11 RES, CHIP 300 0.50%1/10W
R3364 1-208-777-11 RES, CHIP 620 0.50%1/10W
(KV-34FV15B/38FV15B only)
(KV-29FV15B only)
(KV-34FV15B/38FV15B only)
(KV-29FV15B only)
(KV-34FV15B/38FV15B only)
(KV-29FV15B only)
— 61 —
Page 41
KV-29FV15B/34FV15B/38FV15B
The components identified by
WA
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
shading and mark ! are
critical for safety. Replace only
with part number specified.
WA
*Y-8373-009-A WA BOARD, COMPLETE (KV-34FV15B only)
*Y-8283-994-A WA BOARD, COMPLETE (KV-29FV15B only)
*Y-8373-041-A WA BOARD, COMPLETE (KV-38FV15B only)
4-382-854-11 SCREW (M3X10), P, SW (+)
CAPACITOR
C941 1-117-498-91 ELECT 1000µF 20% 25V
C944 1-117-511-91 ELECT 10µF 20% 50V
C946 1-117-494-91 ELECT 100µF 20% 25V
C947 1-117-493-91 ELECT 47µF 20% 25V
C949 1-161-830-00 CERAMIC 0.0047µF 500V
C950 1-117-506-91 ELECT 470µF 20% 35V
C951 1-117-552-91 ELECT 22µF 20% 160V
C952 1-104-999-11 MYLAR 0.1µF 10% 200V
C953 1-106-383-00 MYLAR 0.047µF 10% 200V
C954 1-115-202-91 FILM 0.001µF 5% 63V
Les composants identifies per un trame
et une marque ! sont critiques pour
la securite. Ne les remplacer que par
une piece portant le numero specifie.
REF.NO. PART NO. DESCRIPTION REMARK
C1965 1-129-763-00 FILM 0.033µF 5% 200V
(KV-29FV15B only)
C1966 1-136-191-11 FILM 0.22µF 5% 63V
C1968 1-136-191-11 FILM 0.22µF 5% 63V
C1972 1-117-493-91 ELECT 47µF 20% 25V
C1974 1-117-493-91 ELECT 47µF 20% 25V
CONNECTOR
CN941 *1-564-511-11 PLUG, CONNECTOR 8P
CN942 *1-564-508-11 PLUG, CONNECTOR 5P
CN961 *1-770-723-11 CONNECTOR, BOARD TO BOARD 8P
CN981 *1-564-506-11 PLUG, CONNECTOR 3P
DIODE
D941 8-719-991-33 DIODE 1SS133T-77
D943 8-719-991-33 DIODE 1SS133T-77
D944 8-719-991-33 DIODE 1SS133T-77
D945 8-719-923-39 DIODE MTZJ-T77-5.6C
D946 8-719-983-41 DIODE MTZJ-T77-39
C955 1-117-548-91 ELECT 2.2µF 20% 160V
C956 1-115-202-91 FILM 0.001µF 5% 63V
C957 1-106-383-00 MYLAR 0.047µF 10% 200V
C958 1-117-506-91 ELECT 470µF 20% 35V
C960 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C961 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C962 1-117-511-91 ELECT 10µF 20% 50V
C963 1-117-537-91 ELECT 4.7µF 20% 100V
C964 1-110-501-11 CERAMIC CHIP 0.33µF 10% 16V
C965 1-117-493-91 ELECT 47µF 20% 25V
C966 1-117-534-91 ELECT 1µF 20% 100V
C967 1-117-511-91 ELECT 10µF 20% 50V
C968 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C970 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C971 1-117-493-91 ELECT 47µF 20% 25V
C972 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C973 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C974 1-137-509-11 FILM 0.01µF 5% 63V
C976 1-130-967-00 FILM 0.0027µF5% 50V
C977 1-104-760-11 CERAMIC CHIP 0.047µF 10% 50V
C1941 1-117-506-91 ELECT 470µF 20% 35V
C1946 1-136-189-00 FILM 0.1µF 5% 63V
C1947 1-136-189-00 FILM 0.1µF 5% 63V
C1948 1-164-161-11 CERAMIC CHIP 0.0022µF10% 50V
C1949 1-117-486-91 ELECT 220µF 20% 16V
D947 8-719-983-41 DIODE MTZJ-T77-39
D962 8-719-991-33 DIODE 1SS133T-77
D963 8-719-404-50 DIODE MA111-TX
D964 8-719-950-83 DIODE ERA82-004-TP5
D966 8-719-936-85 DIODE RGP10GPKG23
D1961 8-719-991-33 DIODE 1SS133T-77
D1962 8-719-991-33 DIODE 1SS133T-77
IC
IC961 8-759-803-42 IC LA6500-FA
IC962 8-759-729-03 IC NJM2903D
IC963 8-759-729-03 IC NJM2903D
IC964 8-759-700-42 IC NJM2904D
IC965 8-759-701-59 IC NJM78M09FA
COIL
L941 1-414-857-11 INDUCTOR 100µH
(KV-29FV15B only)
L961 1-459-111-00 INDUCTOR 10MH
L964 1-406-989-21 INDUCTOR 10MH
TRANSISTOR
C1961 1-129-725-00 FILM 0.082µF 5% 400V
(KV-34FV15B/38FV15B only)
C1961 1-129-765-00 FILM 0.047µF 5% 200V
(KV-29FV15B only
C1962 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C1965 1-129-718-00 FILM 0.022µF 5% 630V
(KV-38FV15B only)
C1965 1-136-601-11 FILM 0.01µF 5% 630V
(KV-34FV15B only)
Q941 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
(KV-34FV15B/38FV15B only)
Q942 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
(KV-34FV15B/38FV15B only)
Q943 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q944 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q945 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q946 8-729-045-05 TRANSISTOR 2SA2005
Q947 8-729-045-04 TRANSISTOR 2SC5511
— 62 —
Page 42
KV-29FV15B/34FV15B/38FV15B
The components identified by
shading and mark ! are
critical for safety. Replace only
with part number specified.
REF.NO. PART NO. DESCRIPTION REMARK
Q948 8-729-422-27 TRANSISTOR 2SD601A-Q
Q949 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
(KV-34FV15B/38FV15B only)
Q961 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q962 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q963 8-729-026-41 TRANSISTOR 2SA933AS-QRT
Q965 8-729-931-45 TRANSISTOR IRF614
Q966 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q967 8-729-140-99 TRANSISTOR 2SB734-T-34
Q968 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q969 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1961 8-729-140-99 TRANSISTOR 2SB734-T-34
Q1963 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1964 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Q1966 8-729-422-26 TRANSISTOR 2SD601A-QRS-TX
Q1967 8-729-026-50 TRANSISTOR 2SA1037AK-T146-QR
Les composants identifies per un trame
et une marque ! sont critiques pour la
securite. Ne les remplacer que par une
piece portant le numero specifie.
RESISTOR
WA
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
R968 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
(KV-29FV15B only)
R969 1-216-025-91 RES, CHIP 100 5% 1/10W
R970 1-208-820-11 RES, CHIP 39K 0.50%1/10W
(KV-38FV15B only)
R970 1-208-822-11 RES, CHIP 47K 0.50%1/10W
(KV-34FV15B only)
R970 1-208-818-11 RES, CHIP 33K 0.50%1/10W
(KV-29FV15B only)
R971 1-216-049-91 RES, CHIP 1K 5% 1/10W
R972 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R973 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R974 1-208-808-11 RES, CHIP 12K 0.50%1/10W
R975 1-216-073-00 RES, CHIP 10K 5% 1/10W
R976 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R977 1-249-401-11 CARBON 47 5% 1/4WF
R978 1-216-073-00 RES, CHIP 10K 5% 1/10W
R979 1-216-033-00 RES, CHIP 220 5% 1/10W
R980 1-216-073-00 RES, CHIP 10K 5% 1/10W
R943 1-216-033-00 RES, CHIP 220 5% 1/10W
(KV-34FV15B/38FV15B only)
R944 1-216-049-91 RES, CHIP 1K 5% 1/10W
(KV-34FV15B/38FV15B only)
R945 1-216-049-91 RES, CHIP 1K 5% 1/10W
(KV-34FV15B/38FV15Bonly)
R946 1-215-888-00 METAL OXIDE 220 5% 2WF
R947 1-216-025-91 RES, CHIP 100 5% 1/10W
(KV-34FV15B/38FV15B only)
R948 1-216-025-91 RES, CHIP 100 5% 1/10W
(KV-29FV15B only)
R949 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R950 1-216-049-91 RES, CHIP 1K 5% 1/10W
R951 1-216-049-91 RES, CHIP 1K 5% 1/10W
R952 1-216-041-00 RES, CHIP 470 5% 1/10W
R953 1-216-021-00 RES, CHIP 68 5% 1/10W
R954 1-216-033-00 RES, CHIP 220 5% 1/10W
R955 1-216-047-91 RES, CHIP 820 5% 1/10W
R956 1-216-025-91 RES, CHIP 100 5% 1/10W
R957 1-216-073-00 RES, CHIP 10K 5% 1/10W
R958 1-216-025-91 RES, CHIP 100 5% 1/10W
R959 1-216-021-00 RES, CHIP 68 5% 1/10W
R960 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R961 1-216-091-00 RES, CHIP 56K 5% 1/10W
(KV-34FV15B/38FV15B only)
R962 1-216-081-00 RES, CHIP 22K 5% 1/10W
(KV-34FV15B/38FV15B only)
R963 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R964 1-216-073-00 RES, CHIP 10K 5% 1/10W
R965 1-216-073-00 RES, CHIP 10K 5% 1/10W
R966 1-216-073-00 RES, CHIP 10K 5% 1/10W
R967 1-216-073-00 RES, CHIP 10K 5% 1/10W
/
/
R968 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
(KV-34FV15B only)
R981 1-216-081-00 RES, CHIP 22K 5% 1/10W
R982 1-216-057-91 RES, CHIP 2.2K 5% 1/10W
R983 1-249-381-11 CARBON 1 5% 1/4WF
R984 1-249-383-11 CARBON 1.5 5% 1/4WF
R985 1-215-421-00 METAL 1K 1% 1/4W
R986 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R988 1-215-429-00 METAL 2.2K 1% 1/4W
R990 1-216-025-91 RES, CHIP 100 5% 1/10W
R991 1-208-800-11 RES, CHIP 5.6K 0.50%1/10W
R992 1-208-794-11 RES, CHIP 3.3K 0.50%1/10W
(KV-34FV15B/38FV15B only)
R993 1-216-049-91 RES, CHIP 1K 5% 1/10W
(KV-34FV15B/38FV15B only)
R994 1-216-025-91 RES, CHIP 100 5% 1/10W
(KV-34FV15B/38FV15B only)
R995 1-216-051-00 RES, CHIP 1.2K 5% 1/10W
(KV-34FV15B/38FV15B only)
R1941 1-260-312-11 CARBON 47 5% 1/2W
R1942 1-249-387-11 CARBON 3.3 5% 1/4WF
R1943 1-249-414-11 CARBON 560 5% 1/4WF
R1944 1-249-432-11 CARBON 18K 5% 1/4W
R1945 1-215-914-11 METAL OXIDE 330 5% 3WF
R1946 1-249-417-11 CARBON 1K 5% 1/4WF
R1947 1-249-432-11 CARBON 18K 5% 1/4W
R1948 1-249-414-11 CARBON 560 5% 1/4W
R1949 1-249-387-11 CARBON 3.3 5% 1/4WF
R1950 1-249-401-11 CARBON 47 5% 1/4WF
R1951 1-216-097-91 RES, CHIP 100K 5% 1/10W
R1952 1-216-097-91 RES, CHIP 100K 5% 1/10W
R1953 1-216-085-00 RES, CHIP 33K 5% 1/10W
R1954 1-208-822-11 RES, CHIP 47K 0.50%1/10W
(KV-38FV15B only)
R1954 1-216-089-91 RES, CHIP 47K 5% 1/10W
(KV-34FV15B only)
R1955 1-208-808-11 RES, CHIP 12K 0.50%1/10W
R1956 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1957 1-216-295-91 SHORT
— 63 —
Page 43
KV-29FV15B/34FV15B/38FV15B
WA
LISTA COMPLETA DE PEÇAS
REF.NO. PART NO. DESCRIPTION REMARK
R1958 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R1959 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1960 1-216-037-00 RES, CHIP 330 5% 1/10W
R1961 1-208-820-11 RES, CHIP 39K 0.50%1/10W
(KV-38FV15B only)
R1961 1-208-824-11 RES, CHIP 56K 0.50%1/10W
(KV-34FV15B only)
R1961 1-208-822-11 RES, CHIP 47K 0.50%1/10W
(KV-29FV15B only)
R1962 1-208-806-11 RES, CHIP 10K 0.50%1/10W
R1963 ! 1-216-033-00 RES, CHIP 220 5% 1/10W
R1964 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R1967 1-215-489-00 METAL 680K 1% 1/4W
R1969 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1970 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R1971 1-216-121-91 RES, CHIP 1M 5% 1/10W
R1972 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1973 1-216-035-00 RES, CHIP 270 5% 1/10W
R1975 1-208-796-11 RES, CHIP 3.9K 0.50%1/10W
(KV-38FV15B only)
R1975 1-208-808-11 RES, CHIP 12K 0.50%1/10W
(KV-34FV15B only)
R1975 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
(KV-29FV15B only)
R1976 1-208-794-11 RES, CHIP 3.3K 0.50%1/10W
(KV-38FV15B only)
R1976 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
(KV-34FV15B only)
R1976 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
(KV-29FV15B only)
R1978 1-216-025-91 RES, CHIP 100 5% 1/10W
R1980 1-216-041-00 RES, CHIP 470 5% 1/10W
R1981 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1982 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1983 1-216-073-00 RES, CHIP 10K 5% 1/10W
R1984 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1987 1-208-818-11 RES, CHIP 33K 0.50%1/10W
(KV-38FV15B only)
R1987 1-216-097-91 RES, CHIP 100K 5% 1/10W
(KV-34FV15B only)
R1987 1-216-079-00 RES, CHIP 18K 5% 1/10W
(KV-29FV15B only)
REF.NO. PART NO. DESCRIPTION REMARK
R2969 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R2971 1-208-826-11 RES, CHIP 68K 0.50%1/10W
(KV-38FV15B only)
R2971 1-216-089-91 RES, CHIP 47K 5% 1/10W
(KV-34FV15A only)
R2971 1-216-085-00 RES, CHIP 33K 5% 1/10W
(KV-29FV15A only)
R2972 1-216-113-00 RES, CHIP 470K 5% 1/10W
R2973 1-216-025-91 RES, CHIP 100 5% 1/10W
R2975 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R2976 1-216-025-91 RES, CHIP 100 5% 1/10W
R2979 1-216-097-91 RES, CHIP 100K 5% 1/10W
R2980 1-216-097-91 RES, CHIP 100K 5% 1/10W
VARIABLE RESISTOR
RV941 1-241-632-21 RES, ADJ, CARBON
ACCESSORIES AND PACKING MATERIAL
3-866-653-51 MANUAL, INSTRUCTION
/
/
/
/
/
/
/
/
/
/
/
/
REMOTE COMMANDER
R1989 1-208-818-11 RES, CHIP 33K 0.50%1/10W
(KV-34FV15B/38FV15B only)
R1989 1-216-079-00 RES, CHIP 18K 5% 1/10W
(KV-29FV15B only)
R1990 1-216-089-91 RES, CHIP 47K 5% 1/10W
R1991 1-216-081-00 RES, CHIP 22K 5% 1/10W
R1992 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R2962 1-215-885-00 METAL OXIDE 68 5% 2WF
R2963 1-215-885-00 METAL OXIDE 68 5% 2W
(KV-29FV15B/34FV15B only)
R2965 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R2968 1-208-796-11 RES, CHIP 3.9K 0.50%1/10W
(KV-38FV15B only)
R2968 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
(KV-29FV15B/34FV15B only)
Y-8373-069-A REMOTE COMMANDER (RM-Y171)
3-004-526-01 BATTERY COVER (for remote) (RM-Y171)
— 64 —
Loading...
