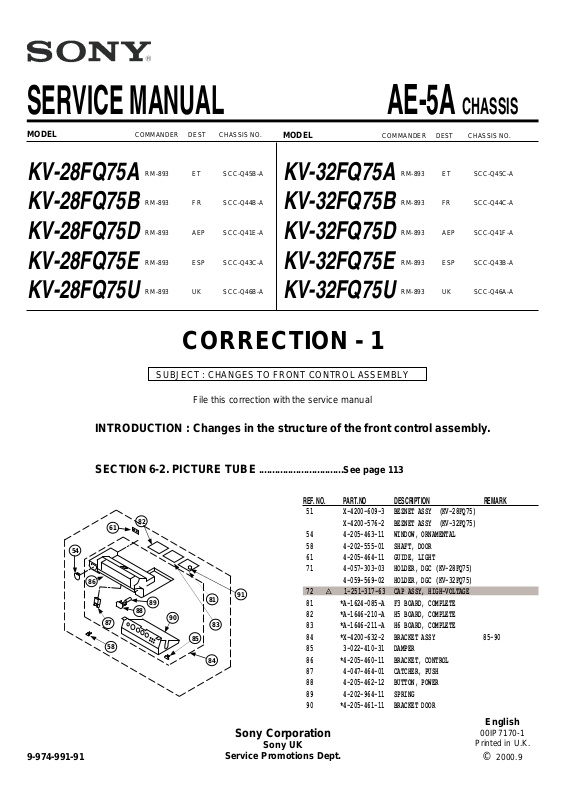

SERVICE MANUAL AE-5A CHASSIS

MODEL COMMANDER DEST CHASSIS NO.

KV-28FQ75A KV-28FQ75B KV-28FQ75D KV-28FQ75E KV-28FQ75U

RM-893 ET SCC-Q45B-A

RM-893 FR SCC-Q44B-A

RM-893 AEP SCC-Q41E-A

RM-893 ESP SCC-Q43C-A

RM-893 UK SCC-Q46B-A

CORRECTION - 1

SUBJECT : CHANGES TO FRONT CONTROL ASSEMBLY

File this correction with the service manual

MODEL COMMANDER DEST CHASSIS NO.

KV-32FQ75A KV-32FQ75B KV-32FQ75D KV-32FQ75E KV-32FQ75U

RM-893 ET SCC-Q45C-A

RM-893 FR SCC-Q44C-A

RM-893 AEP SCC-Q41F-A

RM-893 ESP SCC-Q43B-A

RM-893 UK SCC-Q46A-A

INTRODUCTION : Changes in the structure of the front control assembly.

SECTION 6-2. PICTURE TUBE ................................See page 113

REF. NO. PART.NO DESCRIPTION REMARK

51 X-4200-609-3 BEZNET ASSY (KV-28FQ75) X-4200-576-2 BEZNET ASSY (KV-32FQ75) 54 4-205-463-11 WINDOW, ORNAMENTAL 58 4-202-555-01 SHAFT, DOOR 61 4-205-464-11 GUIDE, LIGHT 71 4-057-303-03 HOLDER, DGC (KV-28FQ75) 4-059-569-02 HOLDER, DGC (KV-32FQ75) 72 £ 1-251-317-63 CAP ASSY, HIGH-VOLTAGE 81 *A-1624-085-A F3 BOARD, COMPLETE 82 *A-1646-210-A H5 BOARD, COMPLETE 83 *A-1646-211-A H6 BOARD, COMPLETE 84 *X-4200-632-2 BRACKET ASSY 85-90 85 3-022-410-31 DAMPER 86 *4-205-460-11 BRACKET, CONTROL 87 4-047-464-01 CATCHER, PUSH 88 4-205-462-12 BUTTON, POWER 89 4-202-964-11 SPRING 90 *4-205-461-11 BRACKET DOOR

9-974-991-91

Sony Corporation

Sony UK

Service Promotions Dept.

English

00IP7170-1

Printed in U.K.
