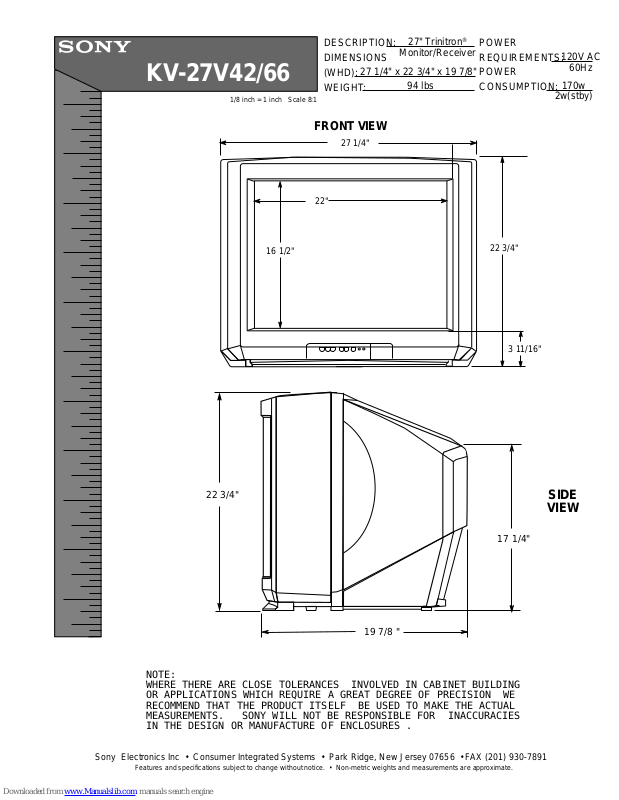

Sony KV-27V42 - 27"" Fd Trinitron Tv, KV-27V66 Dimensions

KV-27V42/66

1/8 inch = 1 inch Scale 8:1

DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:

27 1/4" x 22 3/4" x 19 7/8"

FRONT VIEW

27 1/4"

22"

27" Trinitron

Monitor/Receiver

94 lbs

®

POWER
REQUIREMENTS:
POWER
CONSUMPTION:

2w(stby)

120V AC

60Hz

170w

22 3/4"

16 1/2"

22 3/4"

3 11/16"

SIDE

VIEW

17 1/4"

NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .

Sony Electronics Inc • Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX [phone]

Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.

19 7/8 "
