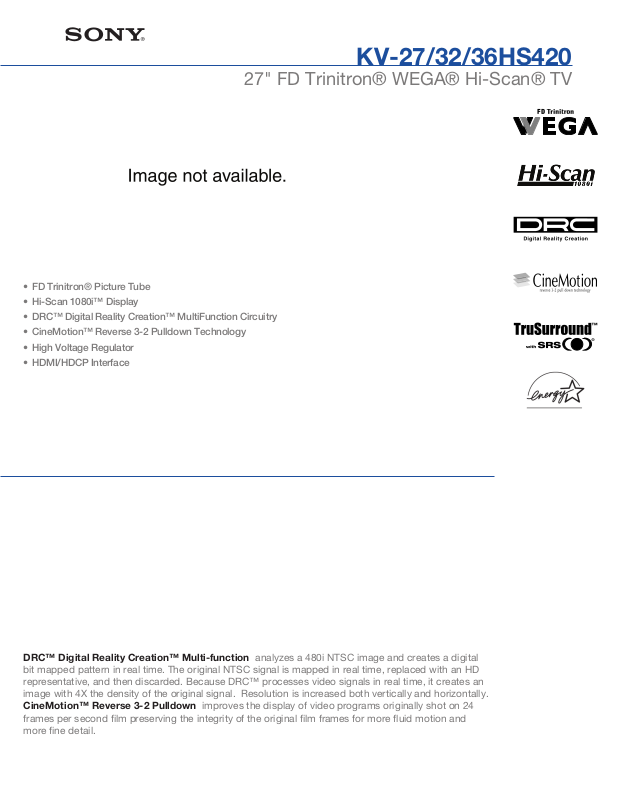

Sony KV-27, KV-32 User Manual
27" FD Trinitron® WEGA® Hi-Scan® TV
• FD Trinitron® Picture Tube
• Hi-Scan 1080i™ Display
• DRC™ Digital Reality Creation™ MultiFunction Circuitry
• CineMotion™ Reverse 3-2 Pulldown Technology
• High Voltage Regulator
• HDMI/HDCP Interface
KV-27/32/36HS420
DRC™ Digital Reality Creation™ Multi-function analyzes a 480i NTSC image and creates a digital
bit mapped pattern in real time. The original NTSC signal is mapped in real time, replaced with an HD
representative, and then discarded. Because DRC™ processes video signals in real time, it creates an
image with 4X the density of the original signal. Resolution is increased both vertically and horizontally.
CineMotion™ Reverse 3-2 Pulldown improves the display of video programs originally shot on 24
frames per second film preserving the integrity of the original film frames for more fluid motion and
more fine detail.
KV-27/32/36HS420
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
27" FD Trinitron® WEGA® Hi-Scan® TV
Features
Video
• Dynamic Focus™ Circuitry
• Dynamic Picture™ Circuitry
• Trinitone® Color Temperature
• ClearEdge VM™ (Wideband
Velocity Modulation Scanning)
• Vertical Aperture Compensation
• Vertical Center Adjustment
• 3D Digital Comb Filter
• Auto Pedestal Clamp
• Auto White Balance
Audio
• TruSurround® SRS® Audio 10W x
2
• Steady Sound® Automatic Volume
Control With BBE® Audio Effect
• Auto Mute Tuner
• Auto SAP
• Audio Output (Fixed/Variable)
Convenience
• Auto Program
• Caption Vision (CC)
• Channel Fix
• Channel Label
• Channel Skip/Add
• Clock/Timer Two Event
• Energy Star® Compliant
• Favorite Channel With Preview
• Front Button Menu Control
• Picture Freeze
• Channel Jump
• On Screen Display
(English/Spanish/French)
• Program Palette™
(Vivid/Movie/Standard/Sports)
presets
• Tilt Correction
• Scrolling Channel Index™ System
• Sleep Timer Function
• Speed Surf™ Channel Selection
• V Chip Parental Control
• Video Label
• Instruction Manual
• Remote Control
• AA Battery (2)
Weights & Measures
• TBD
• KV-36HS420: 30 7/8" x 23 5/8" x
20 1/2" (784 x 601.5 x 520mm)
• KV-32HS420: 35 3/8" x 27 1/2" x
23 1/2" (898 x 698 x 598mm)
• KV-27HS420: 30 7/8" x 23 5/8" x
20 1/2" (784 x 601.5 x 520mm)
UPC Codes
• KV-36HS420: 0272426450590
• KV-32HS420: 0272426452710
• KV-27HS420: 0272426450590
©2004 Sony Electronics Inc. All rights
reserved. Features and specifications are
subject to change without notice. All
trademarks referenced herein are trademarks
of Sony or their respective owners.
For more information:
http://www.sony.com/dn
Specifications
Inputs and Outputs
• Component Video Input (Y/PB/PR)
2 Rear
• Composite Input: 1 Front/3 Rear
• HDMI Interface: 1 Rear
• S Video (With Detection): 1 Front/2
Rear
• Control S: 1 Rear
• Audio Out: 1 Rear
• Monitor: 1 Rear
Supplied Accessories
