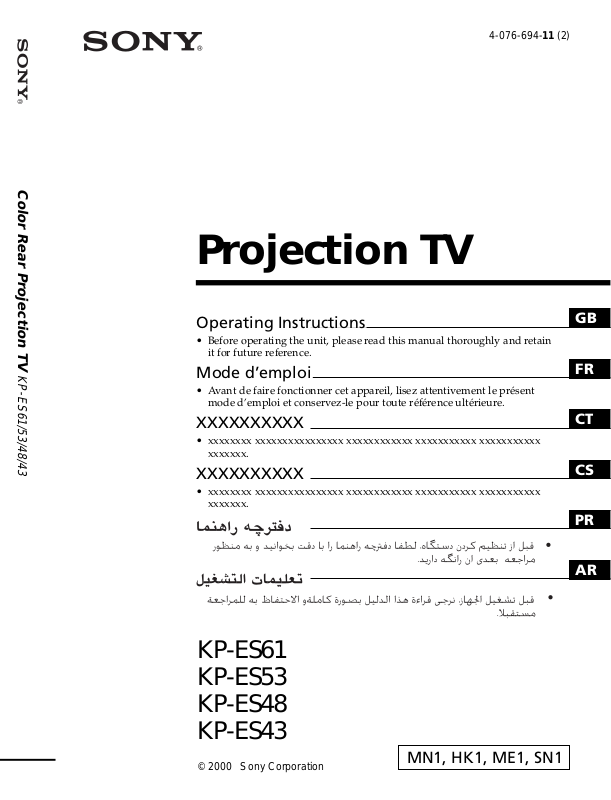

Sony KP-ES48, KP-ES53 User Manual
Color Rear Projection TV
4-076-694-11 (2)
Projection TV
KP-ES61/53/48/43
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain
it for future reference.
Mode d’emploi
• Avant de faire fonctionner cet appareil, lisez attentivement le présent
mode d’emploi et conservez-le pour toute référence ultérieure.
XXXXXXXXXX
• xxxxxxxx xxxxxxxxxxxxxxxx xxxxxxxxxxxx xxxxxxxxxxx xxxxxxxxxxx
xxxxxxx.
XXXXXXXXXX
• xxxxxxxx xxxxxxxxxxxxxxxx xxxxxxxxxxxx xxxxxxxxxxx xxxxxxxxxxx
xxxxxxx.
• xxxxxxxx xxxxxxxxxxxxxxxx xxxxxxxxxxxx xxxxxxxxxxx xxxxxxxxxxx
xxxxxxx.
• xxxxxxxx xxxxxxxxxxxxxxxx xxxxxxxxxxxx xxxxxxxxxxx xxxxxxxxxxx
xxxxxxx.
KP-ES61
KP-ES53
KP-ES48
GB
FR
CT
CS
PR
AR
KP-ES43
© 2000 Sony Corporation
MN1, HK1, ME1, SN1
2
Table of Contents
WARNING
Using Your New Projection TV
Getting Started ............................................................................................. 5
Step 1: Connect the antenna .................................................................. 5
Step 2: Insert the batteries into the remote.......................................... 6
Step 3: Preset the channels automatically ........................................... 6
Step 4: Adjusting the convergence automatically ..............................7
Connecting optional components ............................................................. 8
Installing the projection TV ...................................................................... 12
Watching the TV ........................................................................................13
Advanced Operations
Selecting the picture and sound
modes .................................................. 17
Viewing higher quality pictures ...... 18
Viewing your favorite channels.......19
Watching two programs at the same
time ...................................................... 20
Displaying multiple programs ........22
Enjoying stereo or bilingual
programs .............................................24
Viewing Teletext ................................. 26
Operating optional components ...... 28
Changing the “A/V CONTROL”
setting
............................................33
Changing the “MULTI PICTURE”
setting
.............................................36
Changing the “FEATURE”
setting ............................................38
Changing the “SET UP” setting ...
Changing the “CH PRESET”
setting
............................................43
Additional Information
Troubleshooting .................................46
Self-diagnosis function......................49
Adjusting Your Setup (MENU)
Introducing the menu system ..........30
Identifying parts and controls ......... 50
Specifications ...................... Back cover
Using Your New Projection TV
GB
40
The features you will enjoy include:
• “DRC-MF” for viewing higher quality
pictures (page 18)
• “FAVORITE CH” for quick and easy
program selection (page 19)
• “PIP” & “TWIN” for viewing two
programs (page 20)
• “PROGRAM INDEX“ for displaying
multiple programs (page 22)
• “PICTURE MODE”/“SOUND MODE”
for customizing your projection TV (page
17)
• “WIDE MODE” to view 16:9 pictures
(page 39)
Your projection TV also offers the following
features:
• Digital Quick Focus function for automatic
convergence adjustment (page 7)
• Menu language options
— English/Chinese/Arabic (page 15)
• “CHILD LOCK” for locking out specific
channels (page 41)
• “INTELLIGENT VOL” for automatic
volume adjustment (page 40)
• “FINE” tuning feature (page 45)
• Button Joystick on the remote control
for easier operation (page 15)
•
“ECO MODE” to save energy (page 39)
•
“GAME MODE” for video games (page 39)
3
WARNING
To prevent fire or shock hazard, do not expose the projection TV to rain or moisture.
Dangerously high voltages are present inside the projection TV. Do not open the
cabinet. Refer servicing to qualified personnel only.
For general safety:
• Do not expose the projection TV to rain or moisture.
• Do not open the rear cover.
For safe installation:
• Do not block the ventilation openings.
• Do not install the projection TV in hot, humid or excessively dusty places.
• Do not install the projection TV where it may be exposed to mechanical vibrations.
• Avoid operating the projection TV at temperatures below 5°C (41°F).
• If the projection TV is transported directly from a cold to a warm location, or if the
room temperature has changed suddenly, the picture may be blurred or show poor
color. This is because moisture has condensed on the mirror or lenses inside. If this
happens, let the moisture evaporate before using the projection TV.
• To obtain the best picture, do not expose the screen to direct illumination or direct
sunlight. It is recommended to use spot lighting directed down from the ceiling or
to cover the windows that face the screen with opaque drapery. It is desirable to
install the projection TV in a room where the floor and walls are not of reflecting
material. If necessary, cover them with dark carpeting or wall paper.
• Do not install the appliance in a confined space, such as a bookcase or built-in
cabinet.
For safe operations:
• Do not operate the projection TV on anything but 110–240/220-240 V AC, 50/60
Hz.
• Do not operate the projection TV if any liquid or solid object falls in it—have it
checked immediately.
• Do not keep the projection TV plugged in if you are not going to use it for several
days.
• Do not pull the power cord to disconnect the projection TV. Pull it out by the plug.
Caution
• When using TV games, computers, and similar products with your projection TV,
keep the brightness and contrast functions at low settings. If a fixed (non-moving)
pattern is left on the screen for long periods of time at a high brightness or contrast
setting, the image can be permanently imprinted onto the screen. These types of
imprints are not covered by your warranty because they are the result of misuse.
Cleaning the Screen
• To clean the screen with a cloth, please use a soft cloth lightly moistened with a
mild detergent solution or water. Do not use any type of abrasive pad, alkaline
cleaner, scouring powder or solvent, such as alcohol or benzine. As a safety
precaution, unplug the TV before cleaning it.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items, like
a ball point pen or a screw driver. Otherwise, this type or contact may result in a
scratched screen.
4
Using Your New Projection TV
Getting Started
Step 1
Connect the antenna
If you wish to connect a VCR, see the “Connecting a VCR” diagram below.
Rear of
projection TV
or
Antenna cable (not supplied)
IEC connector
(not supplied)
Antenna cable (not supplied)
: Signal flow
Connecting a VCR
To play a video tape, press t (see page 14).
CAUTION
Do not connect the power cord until all other connections are
complete; otherwise, a minimal current leakage through the antenna
and/or other terminals to the ground could occur.
To 8 (antenna)
Antenna cable (not supplied)
Rear of
projection TV
Using Your New Projection TV
VIDEO IN
VIDEO OUT
To video and
audio outputs
: Signal flow
To antenna
output
VIDEO
AUDIO
R L
VCR
S video cable
(not supplied)
To S video
output
Audio/Video cable
(not supplied)
To
(S video input)
1 2 3
C –
Y
3
C
B
/
B-Y
#
R
/
C
R-Y
30W MAX 16
L
L
R
R
To t 1, 2 or 3 (video input)
(yellow)
-L (MONO) (white)
-R (red)
continued
Using Your New Projection TV
5
Getting Started (continued)
Notes
• If you connect a monaural VCR, connect the yellow plug to (the yellow
jack) and the black plug to -L (MONO) (the white jack).
• If you connect a VCR to the 8 (antenna) terminal, preset the signal
output from the VCR to the program number 0 on the projection TV.
• When both the (S video input) and t 1 (video input) are connected,
the ␣ (S video input) is automatically selected. To view the video input
to t 1 (video input), disconnect the S video cable.
Step 2
Insert the batteries into
the remote
Notes
• Do not use old batteries or different types of batteries together.
• To operate some of the functions of your projection TV, you may have to
open the remote control cover.
Step 3
Preset the channels automatically
Inside the lower
KP-ES61/53/48
1
6
Using Your New Projection TV
KP-ES43
right side panel
Inside the
lower panel
4
L
(MONO)
MENU
ENTER
2
AUTO PROGRAM
01
:
PR
TV SYS : AUTO
VHF LOW
1
MENU
ENTER
R
Notes
• To stop the automatic channel presetting, press MENU twice.
• If your projection TV has preset an unwanted channel or cannot preset a
particular channel, then preset your projection TV manually (see page 44).
• To open the lower panel of your projection TV, push on it, then it will
open.
KP-ES61/53/48
KP-ES43
Step 4
Adjusting the convergence automatically
Inside the lower
KP-ES61/53/48
right side panel
MENU
ENTER
Using Your New Projection TV
MENU
4
ENTER
L
(MONO)
R
KP-ES43
Inside the
lower panel
MENU
4
ENTER
L
(MONO)
R
Note
• Adjust convergence about 20 – 30 minutes after the projection TV is first
turned on.
The Digital Quick Focus feature allows you to adjust the convergence
automatically.
Using Your New Projection TV
7
Connecting optional components
You can connect optional audio/video components, such as a VCR, multi disc player,
camcorder, video game, or stereo system. To watch and operate the connected
equipment, see pages 14 and 28.
Connecting a camcorder/video game equipment
using the t (video input) jacks
Video game equipment
To
(S video input)
To t 4
(video input)
or
Camcorder
To S video output
To video and
audio outputs
S video cable
(not supplied)
Audio/Video cable
(not supplied)
Rear of
projection TV
Inside the lower
left side panel
4
L
(MONO)
R
KP-ES61/53/48
: Signal flow
Video game equipment
To S video output
or
Camcorder
To video and
audio outputs
Notes
• When connecting video game equipment, display the “FEATURE” menu
• You can also connect video equipment to the t 1, 2, or 3 (video input)
• When both the (S video input) and t 4 (video input) are connected,
8
Using Your New Projection TV
KP-ES43
Inside the
Rear of
projection TV
lower panel
To
(S video input)
4
S video cable
(not supplied)
Audio/Video cable
(not supplied)
To t 4
(video input)
(MONO)
R
L
MENU
4
ENTER
R
(MONO)
L
: Signal flow
and select “ON” for “GAME MODE” to adjust the picture setting that is
suitable for video games (see page 39).
jacks at the rear of your projection TV.
the ␣ (S video input) is automatically selected. To view the video input
to t 4 (video input), disconnect the S video cable.
Connecting audio/video equipment using the T
(monitor output) jacks
Rear of projection TV
1 2 3
(yellow)
-L (MONO)
(white)
-R (red)
Notes
• If you select “DVD” on your TV screen, no signal will be output at the T
• When connecting the audio cable to the , you can adjust the volume
C –
Y
3
C
B
/
B-Y
#
C
R
/
R-Y
30W MAX 16
L
L
R
R
To T
(monitor
output)
Audio/Video cable (not supplied)
(monitor output) jacks (see page 14).
with 2 +/–.
Antenna cable (not supplied)
To
antenna
output
VCR
To video
and audio
inputs
or
Audio cable
(not supplied)
Using Your New Projection TV
Audio system
To
audio
inputs
: Signal flow
continued
Using Your New Projection TV
9
Connecting optional components (continued)
Connecting a DVD player to (component video input)
1 Using an audio cable, connect R and L under (component video input) on your
projection TV to the LINE OUT, AUDIO R and L output connectors on your DVD
player.
2 Using a component video cable, connect Y, CB/B-Y, and CR/R-Y under
(component video input) on your projection TV to the COMPONENT VIDEO OUT
Y, CB, and CR output connectors on your DVD player.
3 Press t on the remote or the projection TV until “DVD” appears on the screen.
Rear of
projection TV
Component video cable
(not supplied)
To component
video output
To audio
output
Y
CB CR
COMPONENT VIDEO OUT
S VIDEO OUT
R-AUDIO-L
LINE OUT
DVD
player
VIDEO
To
(component video input)
Audio cable
(not supplied)
COAXIAL
OPTICAL
DIGITAL OUT
To -L (white)
-R (red)
Y
B
/
C
B-Y
R
/
C
R-Y
L
R
: Signal flow
10
Using Your New Projection TV
Notes
• Some DVD player terminals may be labeled differently:
Connect To (on the DVD player)
Y (green) Y
CB/B-Y (blue) Cb, B-Y or PB
CR/R-Y (red) Cr, R-Y or PR
• When connecting to (component video input) on your projection TV,
you must connect Y, CB, and CR to receive the video signals, and at least
connect L and R to receive analog audio signals.
Connecting a DVD player to t (video input)
Connect t 1, 2, or 3 (video input) / (audio/video) connectors on your projection
TV to LINE OUT on your DVD player.
Using Your New Projection TV
To audio/video
output
R-AUDIO-L
VIDEO
LINE OUT
Audio/Video cable
(not supplied)
DVD
player
To t 1, 2, or 3
(video input)
(yellow)
-L (MONO)
(white)
-R (red)
Rear of
projection TV
1 2 3
: Signal flow
Notes
• Since the high quality pictures on a DVD disc contain a lot of information,
picture noise may appear. In this case, adjust the sharpness (“SHARP”)
under “PERSONAL ADJUST” in the “PICTURE MODE” menu (see
page 34).
• Connect your DVD player directly to your projection TV. Connecting the
DVD player through other video equipment will cause unwanted picture
noise.
Connecting an amplifier with Dolby* Pro Logic
decoder to
Connect the speaker terminals on your amplifier to C– on your projection TV.
Rear of
projection TV
C
C– (center speaker input)
Amplifier with Dolby
Pro Logic decoder
Rear
speaker
(L)
to C– (center speaker
inputs)
Front
speaker
(L)
Front
speaker
(R)
Rear
speaker
(R)
Note
• When making connection to C– on your projection TV set
“SPEAKER: CENTER IN” in the “A/V CONTROL” menu. (see page 33)
* Manufactured under license from Dolby Laboratories Licensing
Corporation.
DOLBY, the double-D symbol ; and ”PRO LOGIC” are trademarks of
Dolby Laboratories Licensing Corporation.
Using Your New Projection TV
11
Installing the projection TV
For the best picture quality, install the projection TV within the areas below.
Optimum viewing area
(Horizontal)
KP-ES43
min. 1.9 m
(6 ft.) 43”
60°
60°
KP-ES61/53/48
min. 2.4 m (8 ft.) 53”
min. 2.1 m (7 ft.) 48”
60°
60°
Optimum viewing area
(Vertical)
KP-ES43
KP-ES61/53/48
min. 2.7 m (9 ft.) 61”
min. 1.9 m
(6 ft.) 43”
20°
20°
min. 2.7 m (9 ft.) 61”
min. 2.4 m (8 ft.) 53”
min. 2.1 m (7 ft.) 48”
20°
12
Using Your New Projection TV
20°
TV
123
456
7809
MENU PROGR
ENTER
PRESET
VTR 1 2 3 DVD
JUMP
A/B
DRC-MF
PROGR
INDEX
PIC
MODE
SOUND
MODE
PIP
PROGR
+
PIP
PROGR
–
Watching the TV
This section explains various functions
and operations used while watching the
TV. Most operations can be done using
the remote.
PROGR
1
KP-ES61/53/48 KP-ES43
R
R
1 indicator
PROGR
Press ! to turn on the
projection TV.
1 indicator
When the projection TV is in
standby mode (the 1 indicator on
the projection TV is lit red), press
!/1 on the remote.
Press PROGR +/– or the number
2
buttons to select the TV
channel.
For double digit numbers, press
-, then the number (e.g., for 25,
press -, then 2 and 5).
Note
• When you turn on the projection TV, either the program number or video
mode is displayed for approximately 40 seconds. The ECO MODE ( )
icon will also appear if “ECO MODE “ in the “FEATURE” menu is set
“ON” (see page 39).
PROGR
To select a TV program quickly
(1) Press and hold PROGR +/–.
(2) Release PROGR +/– when the desired program number appears.
Note
• When you select a TV program quickly, the picture may be disrupted.
This does not indicate a malfunction.
Number
buttons
PROGR
+/–
123
456
or
7809
Using Your New Projection TV
JUMP
continued
Using Your New Projection TV
13
TV
123
456
7809
MENU PROGR
ENTER
PRESET
VTR 1 2 3 DVD
JUMP
A/B
DRC-MF
PROGR
INDEX
PIC
MODE
SOUND
MODE
PIP
PROGR
+
PIP
PROGR
–
Watching the TV (continued)
KP-ES61/53/48 KP-ES43
Additional tasks
To
Turn off temporarily
Turn off completely
Adjust the volume
Mute the sound
Watch the video input
(VCR, camcorder, etc.)
Jump back to the previous channel
Display the on-screen information*
R
PROGR
1 indicator
DRC-MF
VIDEO
R
1 indicator
PROGR
JUMP
MENU
ENTER
2 +/–
TITLE
Press
@/1.
The 1 indicator on the projection TV lights up red.
! on the projection TV.
2 +/–.
%.
t (or t on the projection TV) to select “VIDEO 1”,
“VIDEO 2”, “VIDEO 3”, “VIDEO 4” or “DVD”.
To return to the TV screen, press a (or t on the
projection TV).
JUMP.
.
14
Using Your New Projection TV
* Some picture/sound settings, and either the program number or video
mode are displayed. The on-screen display for the picture/sound settings
disappears after about 3 seconds.
456
SET UP
:
ENGL I SH
CH I LD L OCK
FAVOR I TE C
INTELLIGEN
LANGUAGE/
Using the Remote Control Button Joystick ( )
You can select the menu item on the
screen by moving up, down, left or
right (see page 32).
To confirm a selected item, press
.
You can also press ENTER on the remote
to confirm a selected item.
To move
To confirm
7809
PIC
MODE
PROGR
INDEX
.
PRESET
VTR 1 2 3 DVD
JUMP
SOUND
PROGR
MODE
PROGR
MENU PROGR
ENTER
Changing the menu language
You can change the menu language as well as the on-screen language. For details on
how to use the menu, see “Introducing the menu system” on page 30.
Press MENU.
1
MENU
A/V CONTROL
DRC-MF: DRC1250
PICTURE MODE: DYNAMIC
SOUND MODE: DYNAMIC
SPEAKER:MAIN
TV
Using Your New Projection TV
PIP
+
PIP
–
Move up or down to
2
select , then press .
Make sure “LANGUAGE”
3
is selected then press
Move up or down to
4
select the desired
language (e.g.,“ ”),
then press
.
The selected menu
language appears.
To return to the normal screen
Press MENU.
SET UP
LANGUAGE
HILD LOCK:PR0 1 OF F
C
FAVOR I TE CH
INTELLIGE
:
ENGL I SH
NT VOL:O
F
F
.
/ LANGUAGE
continued
Using Your New Projection TV
15
Watching the TV (continued)
Setting the Wake Up timer
Press until the desired
1
period of time appears.
The Wake Up timer starts
immediately after you
have set it.
Select the TV channel or video mode you want to wake up to.
2
Press !/1, or set the Sleep timer if you want the projection TV to turn off
3
automatically.
indicator on the projection TV lights up orange.
The
To cancel the Wake Up timer
Press until “WAKE UP TIMER: OFF” appears, or turn the
projection TV off.
Note
• If no buttons or controls are pressed for more than two hours after the
projection TV is turned on using the Wake Up timer, the projection TV
automatically goes into standby mode. To resume watching the TV, press
any button or control on the projection TV or the remote.
WAKE UP TIMER:10M
After 10 minutes
WAKE UP TIMER:OFF
No Wake Up Timer After 12 hours
WAKE UP TIMER:12H00M
Setting the Sleep timer
Press until the desired
period of time appears.
The Sleep timer starts
immediately after you
have set it.
To cancel the Sleep timer
Press until “SLEEP TIMER: OFF” appears, or turn the projection
TV off.
16
Using Your New Projection TV
SLEEP TIMER:30M SLEEP TIMER:60M
After 30 minutes
SLEEP TIMER:OFF SLEEP TIMER:90M
No Sleep Timer
After 60 minutes
After 90 minutes
Advanced Operations
Selecting the picture and sound modes
You can select picture and sound modes
and adjust the setting to your preference
in the “PERSONAL” option.
Selecting the picture mode
Press PIC MODE
repeatedly until the
desired picture mode is
selected.
Select
“DYNAMIC”
“STANDARD”
“HI-FINE”
“PERSONAL”
To
receive high contrast pictures.
receive normal pictures.
receive higher resolution pictures with mild contrast.
receive the last adjusted picture setting from the “ADJUST” option in the
“A/V CONTROL” menu (see page 34).
Selecting the sound mode
MODE
PIC
PROGR
INDEX
PRESET
PIC
SOUND
MODE
MODE
MENU PROGR
ENTER
VTR 1 2 3 DVD
PIP
+
PROGR
PIP
–
PROGR
DYNAMIC
PERSONAL
SOUND MODE
PIC MODE
STANDARD
HI-FINE
Advanced Operations
Press SOUND MODE
repeatedly until the
desired sound mode is
selected.
Select
“DYNAMIC”
“DRAMA”
“SOFT”
“PERSONAL”
To
listen to dynamic and clear sound that emphasizes both the low and high
tones.
listen to sound that emphasizes voice and high tones.
receive soft sound.
receive the last adjusted sound setting from the “ADJUST” option in the
“A/V CONTROL” menu (see page 34).
Tip
• You can also set the picture and sound modes using the menu (see
“Changing the “A/V CONTROL” setting” on page 33).
SOUND
MODE
9
DYNAMIC
9
PERSONAL
Advanced Operations
9
DRAMA
9
SOFT
17
Viewing higher quality pictures
— “DRC-MF”
DRC-MF
A/B
DRC-MF
The Digital Reality Creation-Multi
Function (DRC-MF) feature allows you
to enjoy higher quality pictures on your
projection TV. You can select
“DRC1250” to watch super real (higher
resolution) pictures, or “DRC100” to
reduce flicker if necessary.
Press DRC-MF repeatedly
until you receive the
DRC-MF
desired picture quality.
Select
“DRC1250”
“DRC100”
Tip
• When the broadcast signal is weak, you may see some dots or noise on the
Note
• The DRC-MF mode is not selectable when using the “PROGRAM INDEX”
To
select higher resolution pictures.
reduce flicker on the screen.
TV screen. To reduce this interference, display the “A/V CONTROL”
menu and select “ADJUST” in “PICTURE MODE”, then adjust “SHARP”
to reduce the sharpness (see page 34).
or “FAVORITE CH” feature, or when the “GAME MODE”, Picture-InPicture (“PIP”), or “TWIN” mode is turned “ON”.
123
456
7809
PROGR
INDEX
JUMP
SOUND
PROGR
MODE
PROGR
MENU PROGR
ENTER
PIP
+
PIP
–
PIC
MODE
DRC-MF: DRC1250 DRC-MF: DRC100
18
Advanced Operations
The DRC-MF logo ( ) and “DRC-MF” are trademarks of
Sony Corporation.
Viewing your favorite channels
— “FAVORITE CH”
DRC-MF
You can display seven favorite channels
for quick and easy selection.
The last seven channels selected with
the number buttons are displayed in
“AUTO” mode. You can set up your
own favorite channels in “MANUAL”
mode under the “FAVORITE CH” menu
(see “Changing the favorite channel
setting” on page 42).
Selecting a favorite channel
Press FAVORITE.
1
Move up, down, left or
2
right to select the desired
channel (e.g. PR 8), then
press
.
PROGR
INDEX
PRESET
FAVORITE
PIC
MODE
VTR 1 2 3 DVD
TV
MENU
ENTER
SOUND
MODE
VIDEO
FAVORITE
PROGR
TITLE
PROGR
PROGR
PIP
+
PIP
–
FAVORITE
ENTER
FAVORITE CH
12 10 8 6
FAVORITE CH
12 10 8 6
1
3
4
1
3
4
Press again.
3
FAVORITE CH
7.PR 12 6.PR 10 5.PR 08 4.PR 06
1.PR 01
8
2.PR 03
3.PR 04
Note
• When you use your projection TV for the first time, seven preset channels
appear.
Advanced Operations
19
Watching two programs at the same time
— “PIP”, “TWIN”
With the Picture-in-Picture (PIP) or
TWIN pictures features, you can display
a different TV program or video within
or beside the main picture.
Displaying the PIP screen
Press .
Displaying TWIN pictures
PROGR
INDEX
MODE
DRC-MF
VIDEO
TITLE
FAVORITE
PIC
SOUND
PIP
MODE
+
PROGR
–
PIP PROGR +/
PIP PROGR –
MENU
ENTER
PROGR
PROGR
PIP
12
Press .
To return to the normal screen
Press (when in the PIP screen) or (when in the TWIN picture
screen).
Tip
• You can also display the PIP screen or TWIN pictures using the menu (see
“Changing the MULTI PICTURE setting” on page 36).
20
Advanced Operations
10 12
Additional PIP/TWIN pictures tasks
To
change a TV program in the PIP
screen or in the right TWIN picture
swap pictures between the main
and PIP screens
freeze the PIP screen
change the position of the PIP screen
swap the right and left pictures of
the TWIN pictures
change the screen size of the TWIN
pictures
Press/Move
Press PIP PROGR + or PIP PROGR –. For a video input,
press .
Press .
Press .
To unfreeze the screen, press the button again.
Press D.
Press .
Move left to increase the left screen size.
Move right to increase the right screen size.
Notes
• The button does not function in the TWIN pictures mode.
• When you display a video input on the PIP screen at a faster/slower
speed, the picture may be disrupted depending on the VCR type.
• If you display different color systems on the main screen and the PIP
screen, the size of the PIP screen may be different and the PIP picture may
be disrupted. This does not indicate a malfunction of the projection TV.
• In the TWIN picture screen, you can only operate and hear the sound of
the main left screen ( appears on the screen).
• When the button is pressed, the TV screen flickers or goes blank for
about one second before the TWIN pictures appear. This does not indicate
a malfunction of the projection TV.
Advanced Operations
21
Displaying
0
multiple
programs
— “PROGRAM INDEX”
The PROGRAM INDEX feature displays
all of the preset TV programs on twelve
or seven sub screens for direct selection.
PROGR
INDEX
PRESET
PIC
SOUND
MODE
MODE
MENU PROGR
ENTER
VTR 1 2 3 DVD
PIP
PROGR
PIP
PROGR
+
–
PROGR INDEX
PROGR +/–
Press PROGR INDEX.
The first twelve preset
programs appear one by
one, clockwise from the
PROGR
INDEX
b
Main screen
upper left corner.
When the number of the
preset TV programs is less
than eight, the first seven
Main screen
16
preset programs appear
one by one, clockwise from
the upper right corner.
Tip
• When you press the PROGR INDEX button in the TWIN pictures mode,
the left picture appears as the main screen of the PROGRAM INDEX
mode.
7654
To view the next or the previous twelve preset programs
This works only when the number of the preset TV programs is
more than twelve.
Press PROGR +/– on the remote or the projection TV.
1 234
12 5
11 6
10987
16
Sub screens
1 234
12 5
11 6
10987
16
1
2
3
13 14 15 16
Sub
screens
16
17
18
22
Advanced Operations
To select the desired program directly from the sub screens
1 Move up, down, left or right to move the frame to the screen
of the program you want to watch.
1 234
12 5
11 6
10987
16
2 Press
3 Press
.
again.
Tip
• Pressing the number buttons directly displays the program.
To return to the normal screen
Press PROGR INDEX again, or:
1 Select “PROGRAM INDEX” from the “MULTI PICTURE” menu.
2 Press .
Tip
• You can also display multiple programs using the menu (see “Changing
the MULTI PICTURE setting” on page 36).
1 234
12 5
11 6
10987
8
8
Note
• When displaying multiple programs, only the sound of the main screen is
heard.
Advanced Operations
23
Enjoying stereo or bilingual programs
You can enjoy stereo sound or bilingual
programs of NICAM and A2 (German)
stereo systems.
DRC-MF
A/B
123
456
7809
JUMP
A/B
Press A/B repeatedly until
you receive the sound you
want.
The on-screen display
changes to show the
selected sound and the
indicator on the
projection TV lights up red.
When receiving a NICAM program
Broadcasting On-screen display (Selected sound)
NICAM stereo
NICAM bilingual
MODE
PROGR
INDEX
A/B
NICAM
(Stereo sound)
NICAM
MAIN
(Main sound)
PIC
SOUND
PROGR
MODE
PROGR
NICAM
(Sub sound)
PIP
PIP
SUB
+
–
NICAM
MONO
(Regular sound)
MONO
(Regular sound)
24
Advanced Operations
NICAM monaural
NICAM
MAIN
(Main sound)
MONO
(Regular sound)
When receiving an A2 (German) program
Broadcasting On-screen display (Selected sound)
A2 (German) stereo
MONO
(Regular sound)
STEREO
(Stereo sound)
A2 (German) bilingual
MAIN
(Main sound)
Receiving area for NICAM and A2 (German) programs
System
NICAM
A2 (German)
Notes
• If the signal is very weak, the sound becomes monaural automatically.
• If the stereo sound is noisy when receiving a NICAM program, select
“MONO”. The sound becomes monaural, but the noise is reduced.
• Before receiving a NICAM stereo program in China, please check the
NICAM broadcast condition at your area. When receiving a NICAM
stereo program, the receiving conditions might vary depending on area. In
addition, different strength of the NICAM broadcast signal might affect
the receiving quality.
Receiving area
Hong Kong, Singapore, New Zealand, Malaysia,
Thailand, etc.
Australia, Malaysia, Thailand, etc.
If the sound is distorted or noisy when receiving a monaural
program through the 8 (antenna) terminal
Press A/B repeatedly until “MONO” appears on the screen.
To cancel the monaural sound setting, press A/B again until
“AUTO” appears on the screen.
SUB
(Sub sound)
MONO
AUTO
Notes
• The “MONO” or “AUTO” setting is memorized for each program
position.
• You cannot receive a stereo broadcast signal when the projection TV is in
the “MONO” setting. Normally, set the projection TV to “AUTO”.
Advanced Operations
25
Viewing Teletext
Some TV stations broadcast an
information service called Teletext
which allows you to receive various
information, such as stock market
reports and news.
FAVORITE
Displaying Teletext
Select a TV channel that carries the Teletext broadcast you want to watch.
1
FAVORITE
DRC-MF
PIC
SOUND
MODE
MODE
DRC-MF
MENU
A/B
ENTER
123
PRESET
VTR 1 2 3 DVD
456
7809
PIC
SOUND
MODE
MODE
TV
MENU PROGR
FAVORITE
SURROUND
JUMP
VIDEO
TITLE
PROGR
INDEX
PROGR
SURROUND
PROGR
INDEX
A/B
(red, green,
yellow, blue)
Press to display the
2
text.
A Teletext page (normally
the index page) is
displayed. If there is no
Teletext broadcast, “100?”
is displayed at the top left
corner of the screen after
approximately 10 seconds.
To turn off Teletext
26
Advanced Operations
Press a.
PRESET
ENTER
VTR 1 2 3 DVD
TV
P166 SECTEXT 166 FR1 MAR 03:59:09
From Singapore
Day Dep/Arr Flight Alrcraft
1.6 220/0588 SQ28 747
To PARIS
2 2130/1225 PA115 L15
3 2115/1330 SQ26 747
2.5 1000/1715 SQ6 747
To OSAKA
4.6 0930/2015 CX522 L10
2.7 2130/0745 SQ24
To ROMA
4 2300/0915 AZ487 747
1 2210/0610 SQ21A 747
To SYDNEY
2 2100/0835 SQ21A 747
747
Additional Teletext tasks
To
display a Teletext page on the TV
check the contents of a Teletext service
select a Teletext page
hold (pause) a Teletext page
(stop the page from scrolling)
reveal concealed information
(e.g., an answer to a quiz)
enlarge the Teletext display
stand by for a Teletext page while watching
a TV program
* You can also select a Teletext page of any page number that appears in the
colored column at the bottom of the screen using the corresponding colorcoded button on the remote.
Do this
Press .
Each time you press , the screen changes as
follows: Teletext t Teletext and TV t TV.
Press .
An overview of the Teletext contents, including
page numbers, appears on the screen.
Press the number buttons to enter the three-digit
page number of the desired Teletext page.* If you
make a mistake, reenter the correct page number. To
access the next or previous page, press PROGR␣ +/–.
Press to display the symbol “z” at the top left
corner of the screen. To resume normal Teletext
viewing, press or .
Press .
To conceal the information, press the button again.
Press .
Each time you press , the Teletext display
changes as follows: Enlarge upper half t Enlarge
lower half t Normal size.
1 Enter the Teletext page number that you want to
refer to, then press .
2 When the page number is displayed, press to
show the text.
Using FASTEXT
This feature allows you to quickly access a Teletext page that uses
FASTEXT. When a FASTEXT program is broadcast, colored menus
appear at the bottom of the screen. The color of each menu
corresponds to the color-coded buttons on the remote (red ,
green , yellow , and blue ).
To access a FASTEXT menu
Press the color-coded button on the remote corresponding to the
menu you want. The menu page appears on the screen after a few
seconds.
Advanced Operations
27
Operating optional components
DRC-MF
You can use the supplied remote to
operate Sony video equipment such as
Beta, 8 mm, VHS or DVD.
PIC
SOUND
MODE
MODE
PROGR
INDEX
MENU
ENTER
PRESET
VTR 1 2 3 DVD
Setting up the remote to work with other
connected equipment
Switch VTR to select the
desired equipment type
(see the chart below).
For example, to operate a
Sony 8 mm VCR:
VTR 1 2 3 DVD
FAVORITE
VIDEO
TITLE
PROGR
PROGR
PROGR
VIDEO I/1
Video equipment
operation buttons
PIP
+
PIP
–
MENU
VTR
To control
DVD
VTR1 (Beta)
VTR2 (8 mm)
VTR3 (VHS)
28
Advanced Operations
Select
DVD
1
2
3
Notes
• If your video equipment is furnished with a COMMAND MODE selector,
set this selector to the same position as the VTR switch.
• If the equipment does not have a certain function, the corresponding
button on the remote will not operate.
Operating a VCR using the remote
To
turn on/off
record
play
stop
fast forward (M)
rewind the tape (m)
pause
search the picture forward (M)
or backward (m)
Operating a DVD player using the remote
To
turn on/off
play
stop
pause
step through different tracks of an
audio disc
display the title menu
display the menu
select the menu item
Press
VIDEO I /1
N while pressing z.
N
x
>
.
X
Press again to resume normal playback.
> or .during playback.
Release to resume normal playback.
Press
VIDEO I /1
N
x
X
Press again to resume normal playback.
> to step forward or . to step backward.
TITLE
MENU while holding down z.
Move
up, down, left or right while holding
down z.
Advanced Operations
29
Adjusting Your Setup (MENU)
Introducing the menu system
The MENU button lets you open a menu and change the settings of your projection
TV. The following is an overview of the menu system.
A/V CONTROL icon
MULTI PICTURE icon
FEATURE icon
SET UP icon
CH PRESET icon
Menu level 1
SET UP
LANGUAGE/
CH I L D LOCK
FAVOR I TE C
INTELLIGEN
:
ENGL I SH
Return icon
Name of the current
menu
Guide mark icon
Menu level 3
Menu level 2
Level 1
“A/V
CONTROL”
“MULTI
PICTURE”
“FEATURE”
Level 2
“DRC-MF”
“PICTURE MODE”
“ADJUST”
“SOUND MODE”
“ADJUST”
“SPEAKER”
“PIP”
“PIP POSITION”
“SWAP”
“TWIN”
“PROGRAM INDEX”
“WIDE MODE”
“ECO MODE”
“GAME MODE”
Level 3/Function
Select the “DRC-MF” mode:
“DRC1250” t “DRC100”
Select the picture mode:
“DYNAMIC” t “STANDARD” t “HI-FINE” t
“PERSONAL” t “ADJUST”
Adjust the “PERSONAL” option:
“PICTURE” t “COLOR” t “BRIGHT” t “HUE” t
“SHARP”
Select the sound mode:
“DYNAMIC” t “DRAMA” t “SOFT” t
“PERSONAL” t “ADJUST”
Adjust the “PERSONAL” option:
“BASS” t “TREBLE” t “BALANCE”
Select the “SPEAKER” mode:
“MAIN” t “CENTER IN”
Activate or deactivate the PIP feature.
Change the position of the sub screen.
Swap the pictures between the main and sub screens.
Display a TV program or video beside the main screen.
Display all the preset TV programs at the same time.
Activate or deactivate WIDE MODE feature.
Activate or deactivate ECO MODE feature.
Activate or deactivate GAME MODE feature.
30
Adjusting Your Setup (MENU)
Loading...
