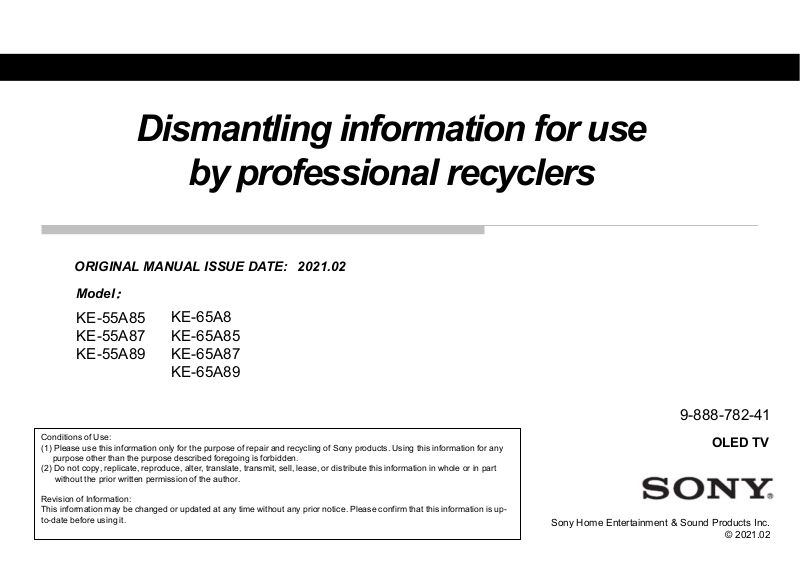

Page 1
Dismantling information for use
by professional recyclers
ORIGINAL MANUAL ISSUE DATE:
Model
KE-55A85
KE-55A87
KE-55A89
：
KE-65A8
KE-65A85
KE-65A87
2021.02
KE-65A89
Conditions of Use:
(1) Please use this information only for the purpose of repair and recycling of Sony products. Using this information for any
purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part
without the prior written permission of the author.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is upto-date before using it.
9-888-782-41
OLED TV
Sony Home Entertainment & Sound Products Inc.
© 2021.02
Page 2
MODEL LISTS
MODEL REMOTE DESTINATION
KE-55A8 RMF-TX500E CEI, UKA
KE-55A85 RMF-TX600E CEI, UKA
KE-55A87 RMF-TX611E CEI
KE-55A89 RMF-TX611E CEI
KE-65A8 RMF-TX500E CEI, UKA
KE-65A85 RMF-TX600E CEI, UKA
KE-65A87 RMF-TX611E CEI
KE-65A89 RMF-TX611E CEI
REMOTE
Page 3
1 LIST OF ITEMS TO BRING
1. Screwdriver (e.g. #2 Phillips Screwdriver)
2. Multimeter
3. ESD Wrist Straps
4. Metal Washer (Flat) or Coin (for remove Rear Cover)
5. Ruler (for remove Rear Cover)
2 OPTIONAL EQUIPMENT
TOOLS & EQUIPMENTS
1. Screwdriver (e.g. #0 Phillips Screwdriver)
2. Parts Tray for loose screws and small items
3. Flashlight
For Surface Mounted Parts/Connectors;
Hot-Air Type soldering Iron is needed.
Thickness: approx. 1.5mm
Diameter: 20~25mm
(wrap in tape (L=50mm))
Plastic or Metal Ruler
(In case of Metal ruler, wrap
in tape (L=50mm) for prevent
scratches)
3
Page 4
DISSASSEMBLY AND REMOVAL CAUTION 55”
Page 5

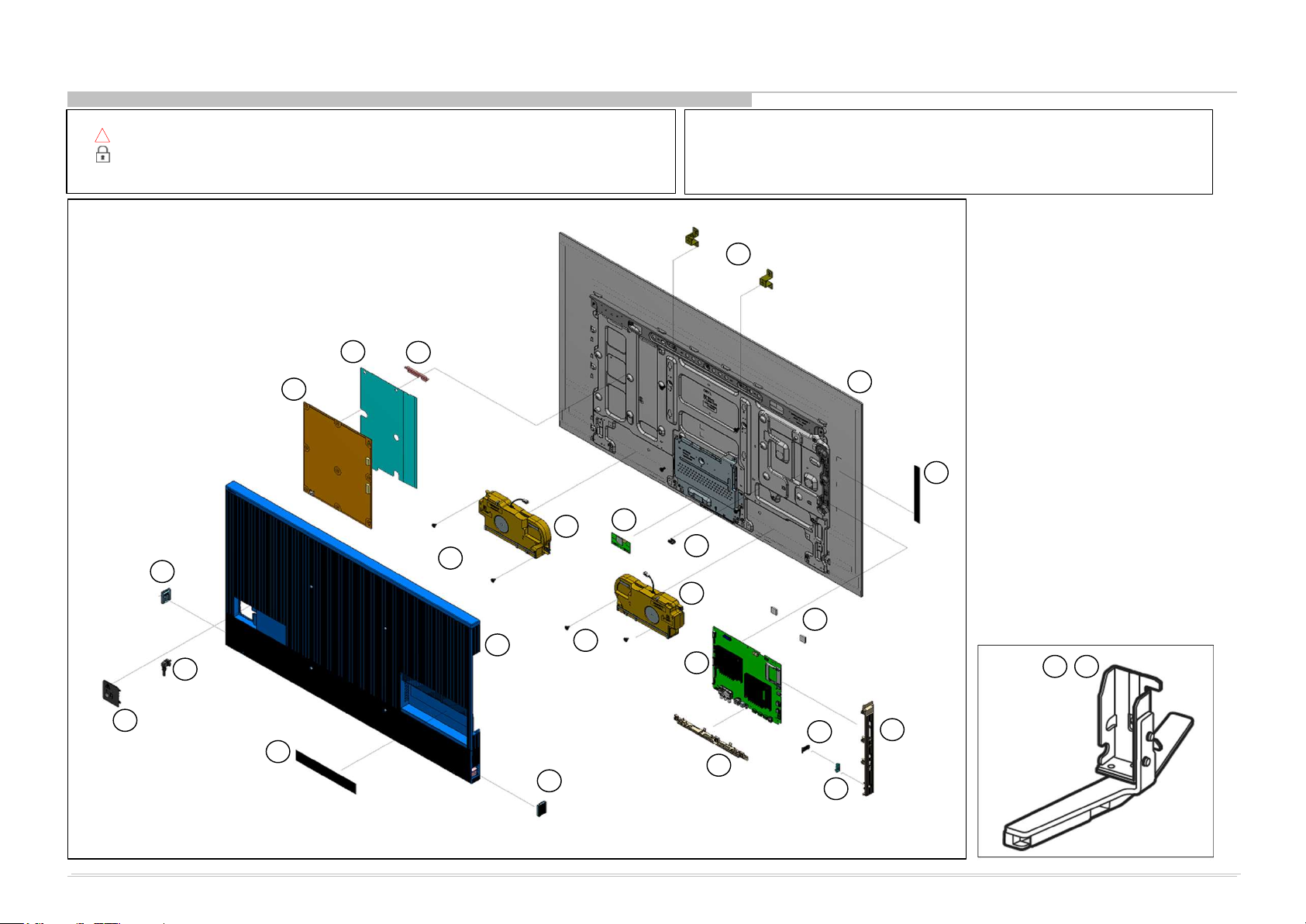

EXPLODED VIEW 55”
•Place the TV set facing downwards on a stable, level surface before disassemblyand assembly of parts.
!
• and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
1-4 EXPLODED VIEW AND
PART LIST
16
15
5
4
17
11
13
6
11
14
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference numberbeside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
21
22
1
20
12
19
18
Stand
23 24
3
2
7
5
10
9
8
5
Page 6
KEY(1)
CN6(TCON)(1)
CN800(B)(1)
BT(1)
H(1)
SP(1)

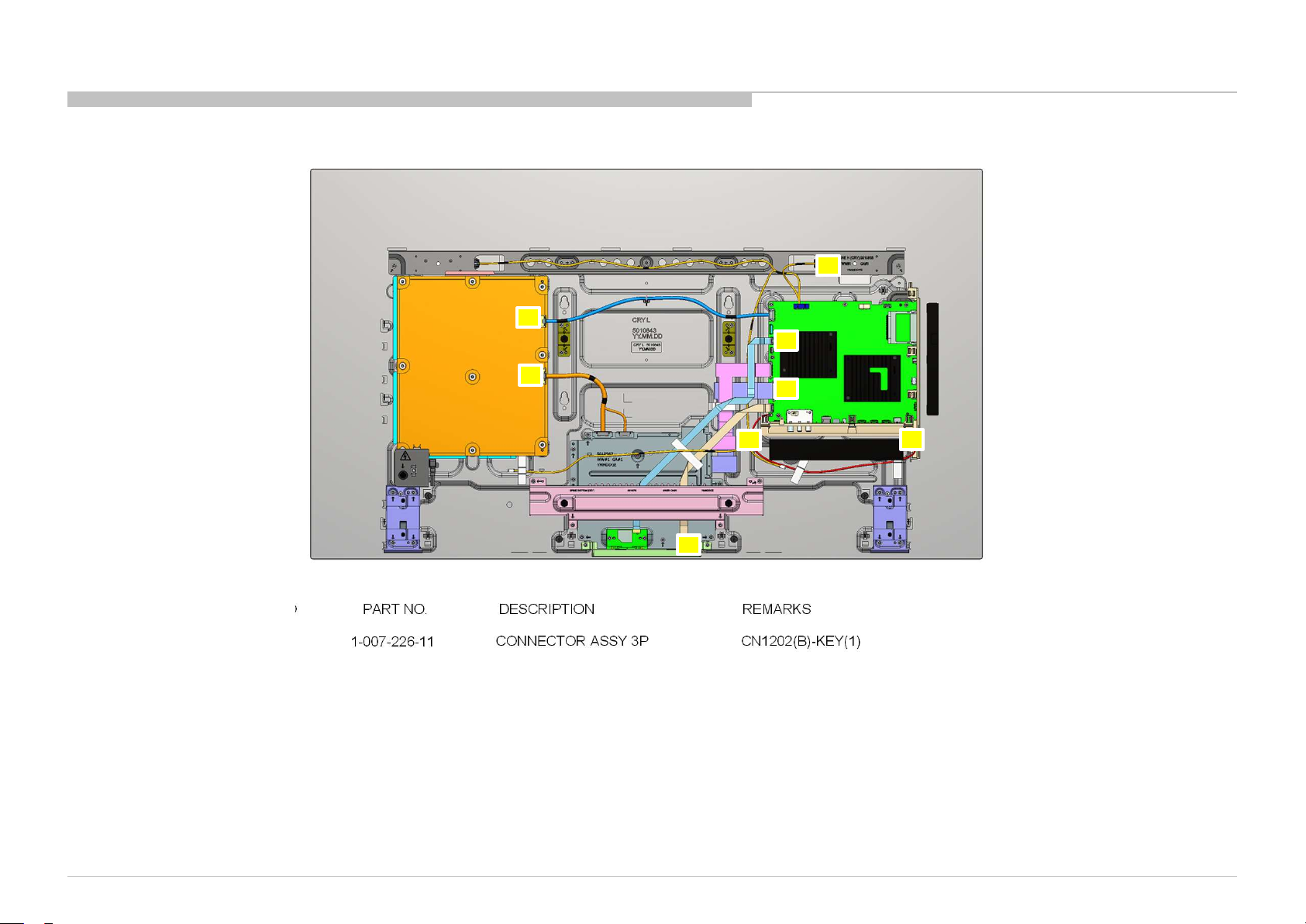

CONNECTOR
HARNESS/CABLES 55”
8
3
4
2
7
6
5
REF. NO PART NO. DESCRIPTION REMARKS
1
2
3
4
5
6
7
8
1-007-226-11
1-972-658-11
1-007-227-11
1-007-195-11
1-007-197-11
1-007-198-11 FLEXIBLE FLAT CABLE 41P CN9200(B)-CN7(TCON)(1)
1-007-200-11 FLEXIBLE FLAT CABLE 51P CN9201(B)-CN5(TCON)(1)
1-007-228-11
CONNECTOR ASSY 3P CN1202(B)-
CONNECTOR ASSY 28P CN6601(PSU)-CN8(TCON)-
CONNECTOR ASSY 20P CN6401(PSU)-
FLEXIBLE FLAT CABLE 20P CN4801(B)-
FLEXIBLE FLAT CABLE 25P CN1201(B)-
CONNECTOR ASSY 8P CN9001(B)-
1
6
Page 7

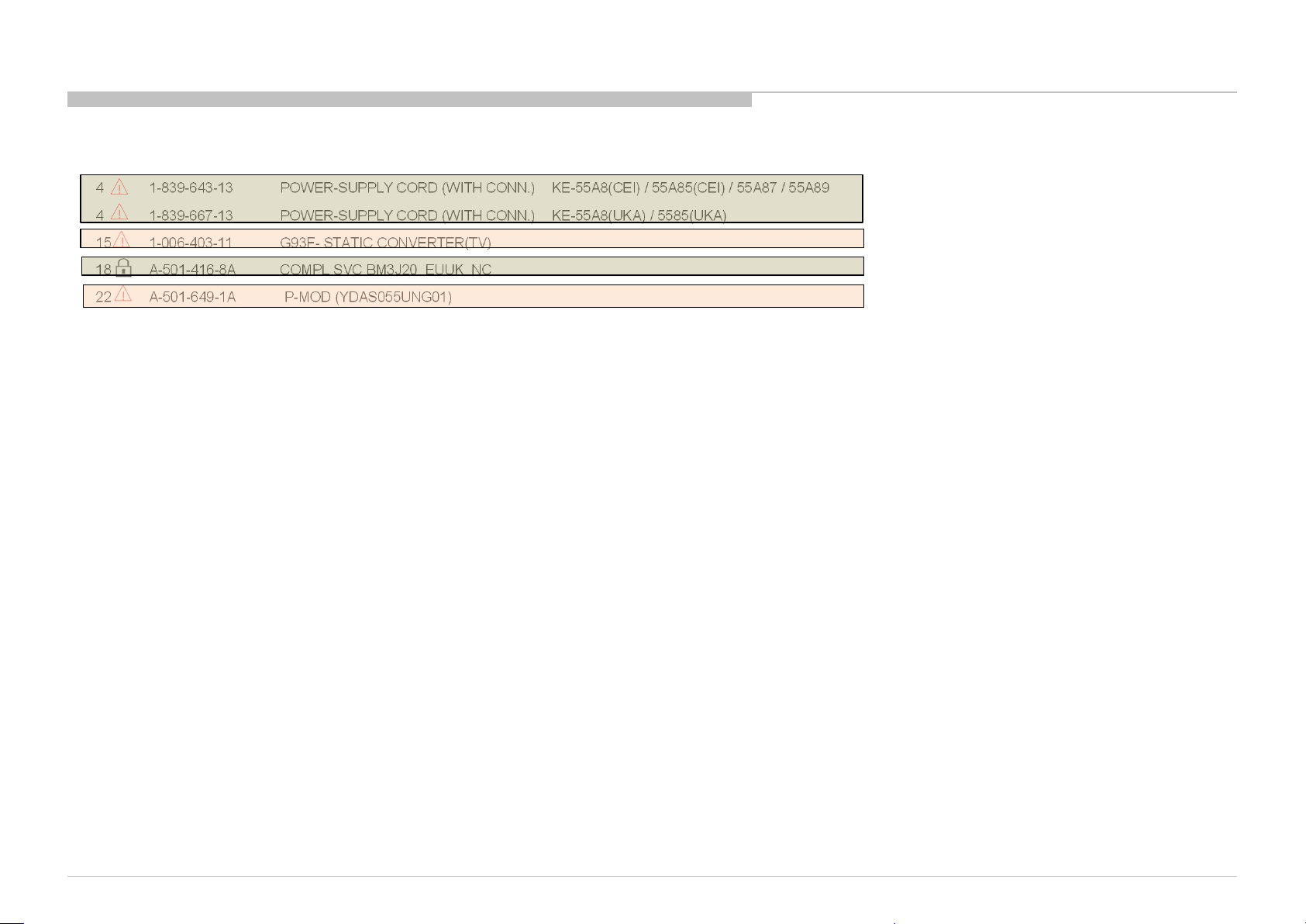

SET PART LIST
PARTS LIST 55”
NO. PART NO. DESCRIPTION
4 1-839-643-13 POWER-SUPPLY CORD (WITH CONN.) KE-55A8(CEI) / 55A85(CEI) / 55A87 / 55A89
!
!
4 1-839-667-13 POWER-SUPPLY CORD (WITH CONN.) KE-55A8(UKA) / 5585(UKA)
!
15 1-006-403-11 G93F- STATIC CONVERTER(TV)
18 A-501-416-8A COMPL SVC BM3J20_EUUK_NC
!
22 A-501-649-1A P-MOD (YDAS055UNG01)
REMARKS
Cable
Internal Power Supply
Printed Circuit Board, incl. capacitors
OLED Panel
7
Page 8

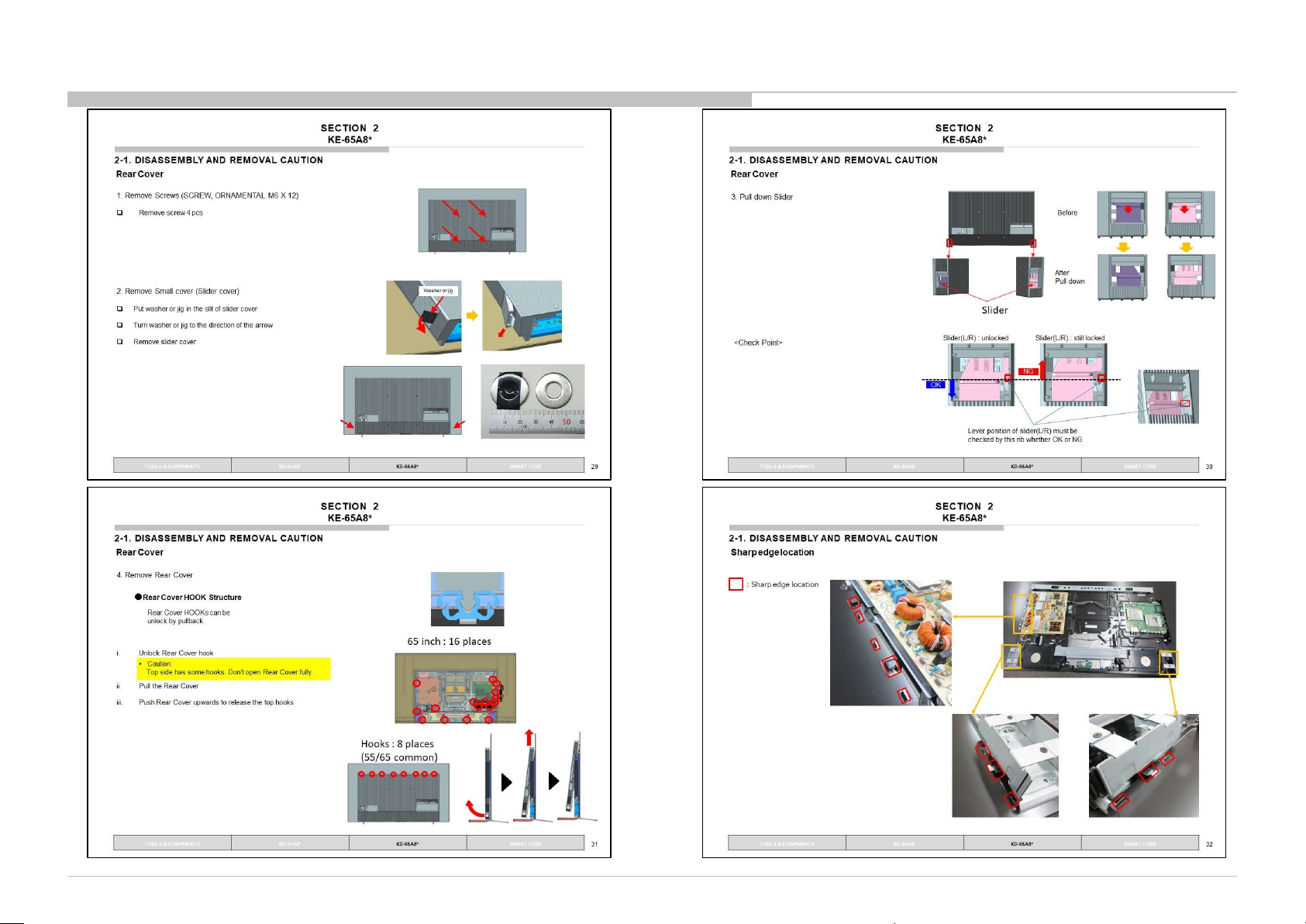

DISSASSEMBLY AND REMOVAL CAUTION 65”
Page 9

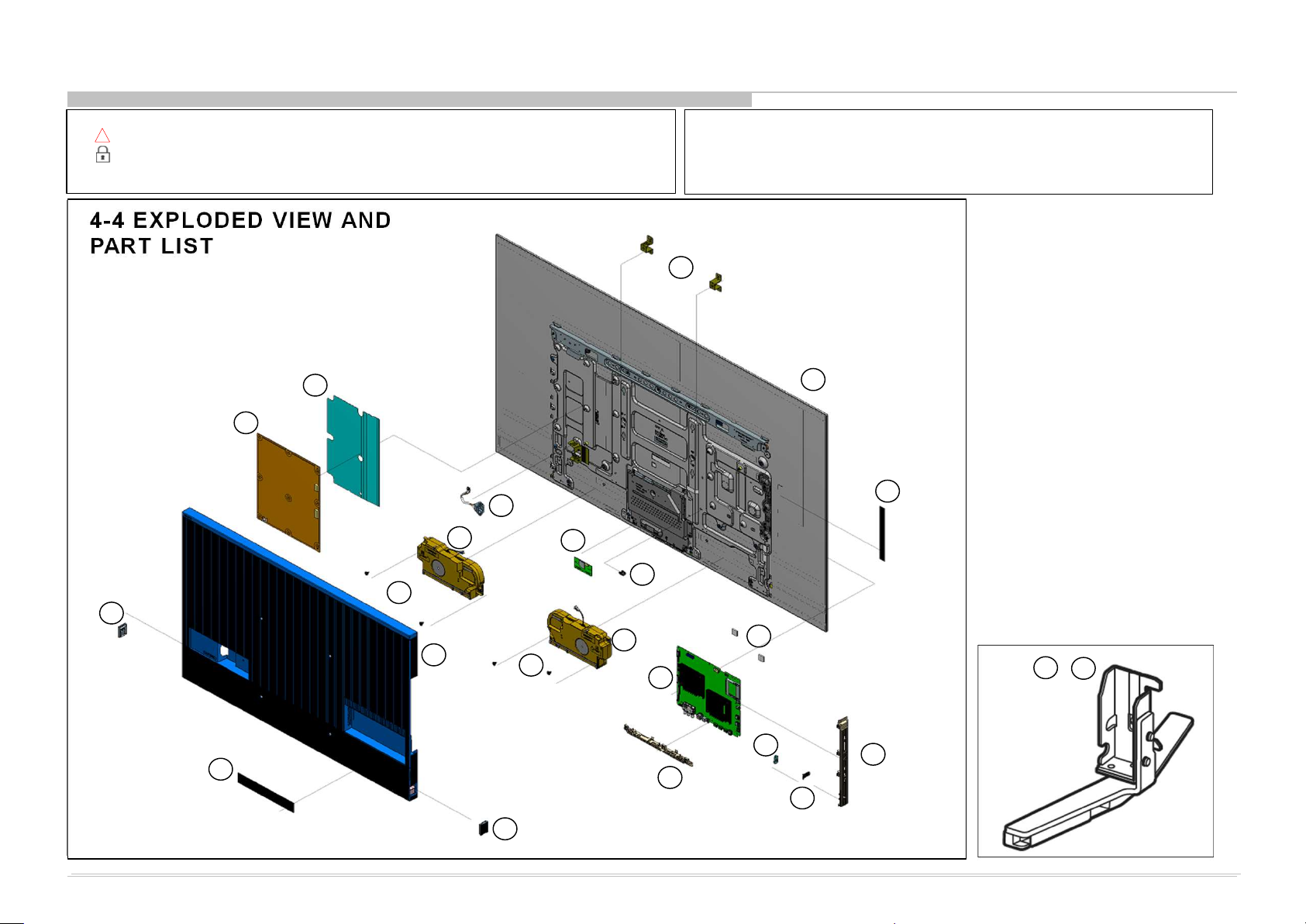

EXPLODED VIEW 65”
•Place the TV set facing downwards on a stable, level surface before disassemblyand assembly of parts.
!
• and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
4-4 EXPLODED VIEW AND
PART LIST
15
14
12
11
13
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference numberbeside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
19
20
1
18
9
3
4
2
9
3
10
16
5
17
7
8
6
Stand
21
22
9
Page 10

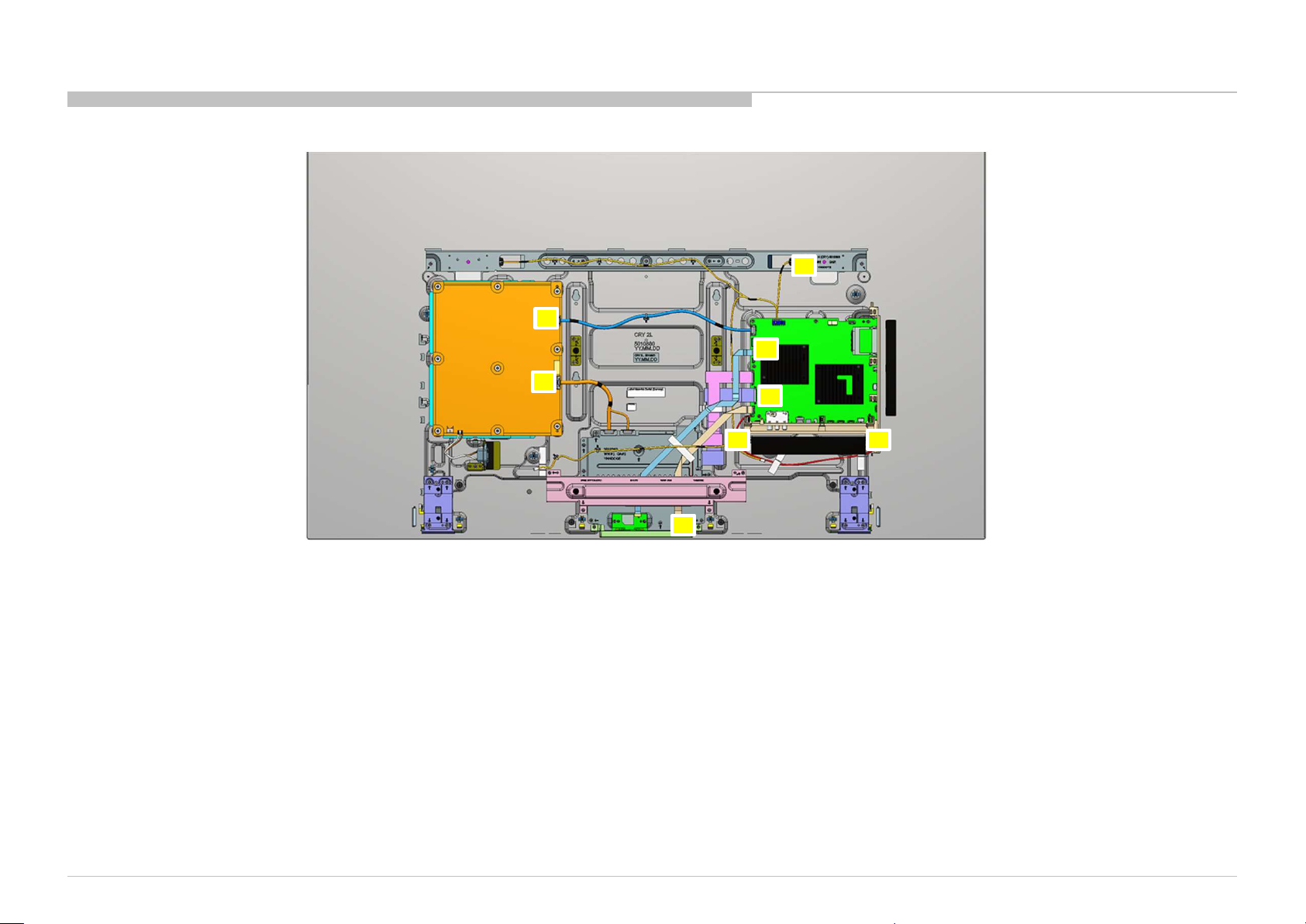

CONNECTOR
KEY(1)
CN6(TCON)(1)
CN800(B)(1)
BT(1)
H(1)
SP(1)
HARNESS/CABLES 65”
8
3
4
2
7
6
5
REF. NO PART NO. DESCRIPTION REMARKS
1
2
3
4
5
6
7
8
1-007-226-11
1-972-658-11
1-007-227-11
1-007-195-11
1-007-197-11
1-007-198-11 FLEXIBLE FLAT CABLE 41P CN9200(B)-CN7(TCON)(1)
1-007-200-11 FLEXIBLE FLAT CABLE 51P CN9201(B)-CN5(TCON)(1)
1-007-228-11
CONNECTOR ASSY 3P CN1202(B)-
CONNECTOR ASSY 28P CN6601(PSU)-CN8(TCON)-
CONNECTOR ASSY 20P CN6401(PSU)-
FLEXIBLE FLAT CABLE 20P CN4801(B)-
FLEXIBLE FLAT CABLE 25P CN1201(B)-
CONNECTOR ASSY 8P CN9001(B)-
1
10
Page 11

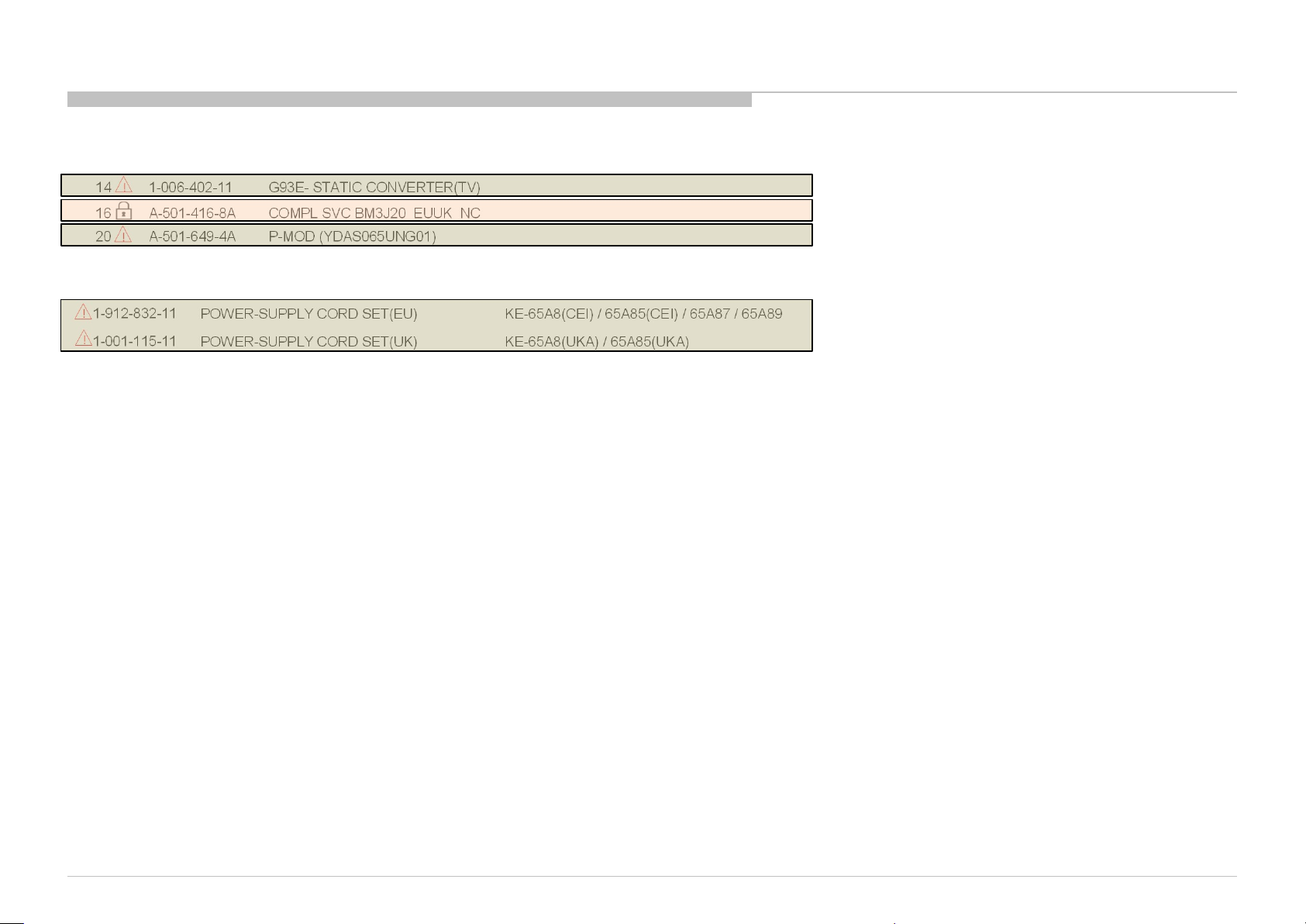

SET PART LIST
PARTS LIST 65”
NO. PART NO. DESCRIPTION
!
14 1-006-402-11 G93E- STATIC CONVERTER(TV)
16 A-501-416-8A COMPL SVC BM3J20_EUUK_NC
20 A-501-649-4A P-MOD (YDAS065UNG01)
!
PART NO. DESCRIPTION
!
1-912-832-11
!
1-001-115-11
POWER-SUPPLY CORD SET(EU) KE-65A8(CEI) / 65A85(CEI) / 65A87 / 65A89
POWER-SUPPLY CORD SET(UK) KE-65A8(UKA) / 65A85(UKA)
REMARKS
Internal Power Supply
Printed Circuit Board, incl. capacitors
OLED Panel
REMARKS
Cable
11
Page 12

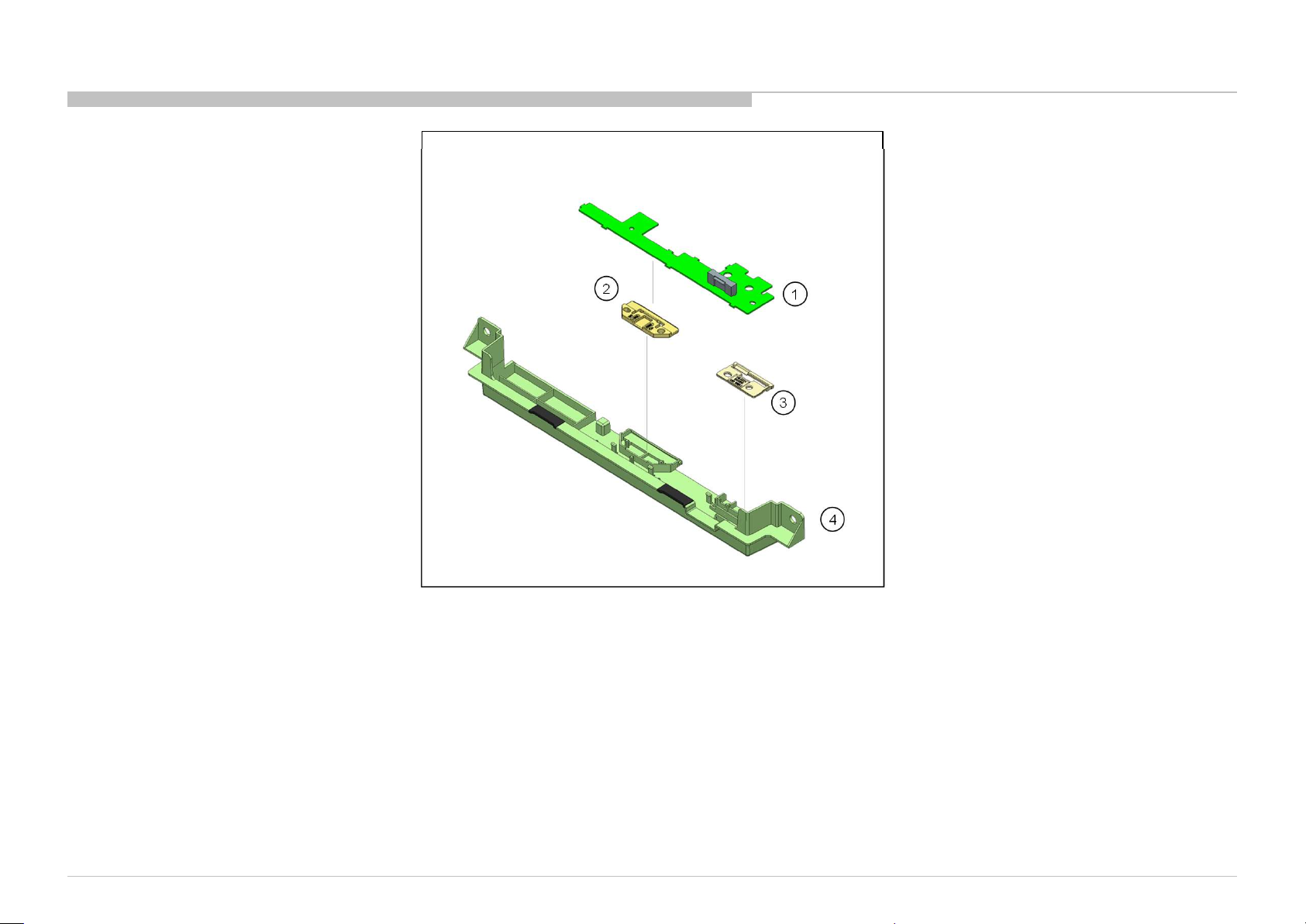

PART LIST (55”, 65”)
SMART CORE
2
REF. NO PART NO. DESCRIPTION
1
2
A-5015-242-A
5-009-264-11
HL1_4K_WW MOUNT
LIGHT, GUIDE ILM(BNN)
1
3
4
3
4
5-009-265-11
5-011-533-01
LIGHT, GUIDE OPT(BNN)
COVER, BTM(CRY)
12
Page 13
9-888-782-41
English
Sony Home Entertainment & Sound Products Inc.
© 2021.02
13
