SONY KDL-V32XBR2 Service Manual

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:

SERVICE MANUAL

MODEL NAME REMOTE COMMANDER DESTINATION

KDL-V32XBR2
KDL-V32XBR2

RM-YD012 CANADA

RM-YD012 US

WAX2

CHASSIS

ORIGINAL MANUAL ISSUE DATE: 8/2006

REVISION DATE SUBJECT

8/2006 No revisions or updates are applicable at this time.

LCD DIGITAL COLOR TELEVISION

9-883-720-01

Self Diagnosis

Supported model

SERVICE MANUAL

MODEL NAME REMOTE COMMANDER DESTINATION

KDL-V32XBR2
KDL-V32XBR2

RM-YD012 CANADA

RM-YD012 US

WAX2

CHASSIS

9-883-720-01

KDL-V32XBR2 RM-YD012

LCD DIGITAL COLOR TELEVISION

KDL-V32XBR2

TABLE OF CONTENTS

SECTION TITLE PAGE SECTION TITLE PAGE

Specifi cations ................................................................................. 4

Warnings and Cautions .................................................................. 6

Safety-Related Component Warning .............................................. 7

Safety Check-Out ........................................................................... 9

Self-Diagnostic Function ............................................................... 10

SECTION 1: DISASSEMBLY ............................................................... 12

1-1. Rear Cover Removal ............................................... 12

1-2. Vesa Bracket Assembly Removal ............................ 12

1-3. H1U Board Removal ................................................ 13

1-4. G1 Board (Power Unit) and H2U Board Removal ... 13

1-5. AU Board Removal .................................................. 14

1-6. QT Board Removal .................................................. 14

1-7. QS board and BU Board Removal ........................... 15

1-8. H4U Board and Speaker Removal .......................... 15

1-9. LCD Panel Removal ................................................ 16

SECTION 2: SERVICE ADJUSTMENTS ............................................. 17

2-1. Remote Adjustment Buttons and Indicators ......................... 17

2-2. Accessing Service Adjustments ........................................... 17

2-2-1. Accessing the Digital Service Adjustment Menus .... 17

2-2-2. Viewing the Digital Module Box

(Q-Box) Service Items ............................................. 18

2-2-3. Accessing the Analog Service Adjustment Menus ... 18

2-3. Resetting the User Menu - Factory Reset ............................ 19

2-4. Aging Mode .......................................................................... 19

2-5. White Balance Adjustment. .................................................. 20

SECTION 3: DIAGRAMS ..................................................................... 21

3-1. Circuit Boards Location ........................................................ 21

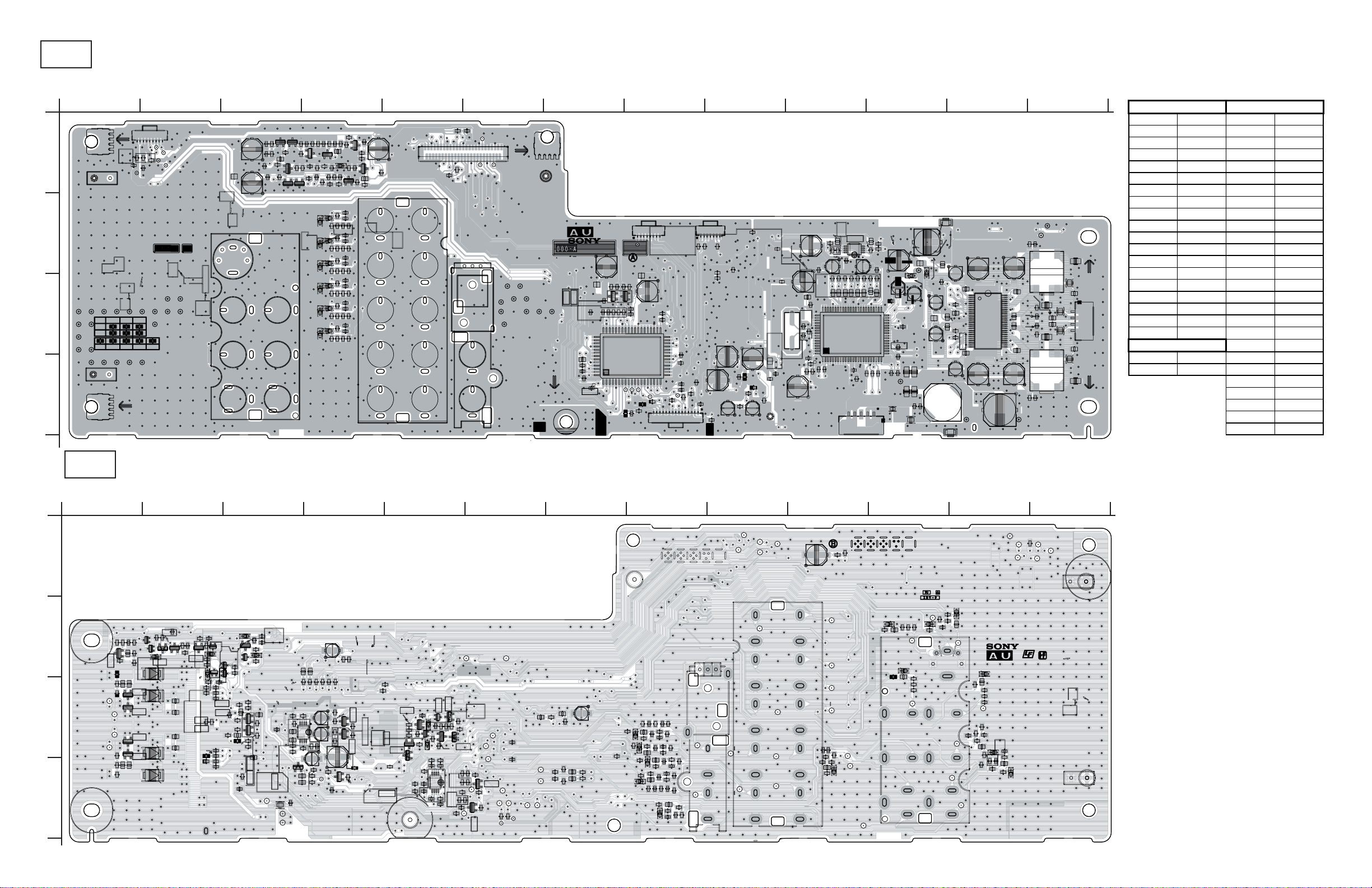

3-2. Printed Wiring Boards and

Schematic Diagrams Information ......................................... 21

3-3. Block Diagram ...................................................................... 23

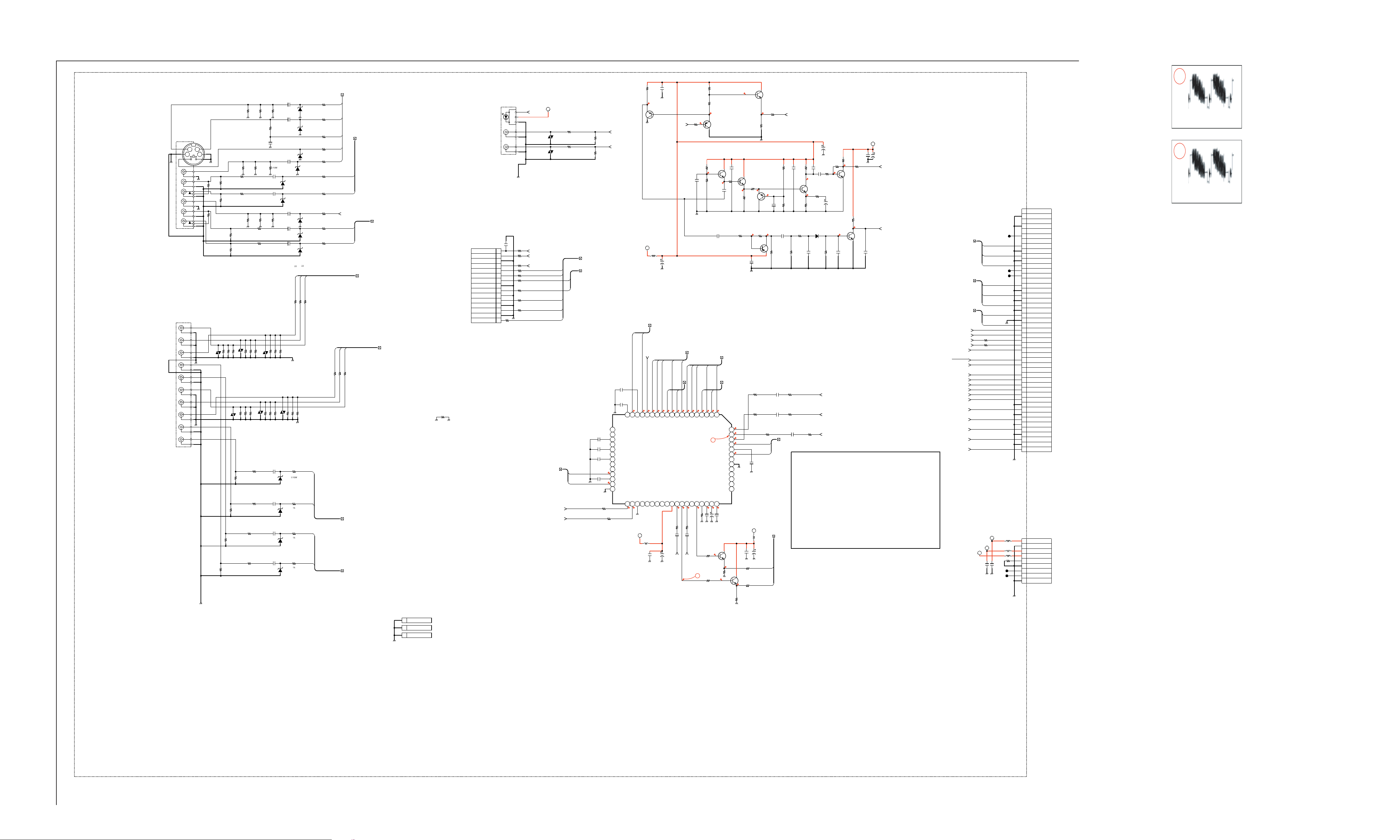

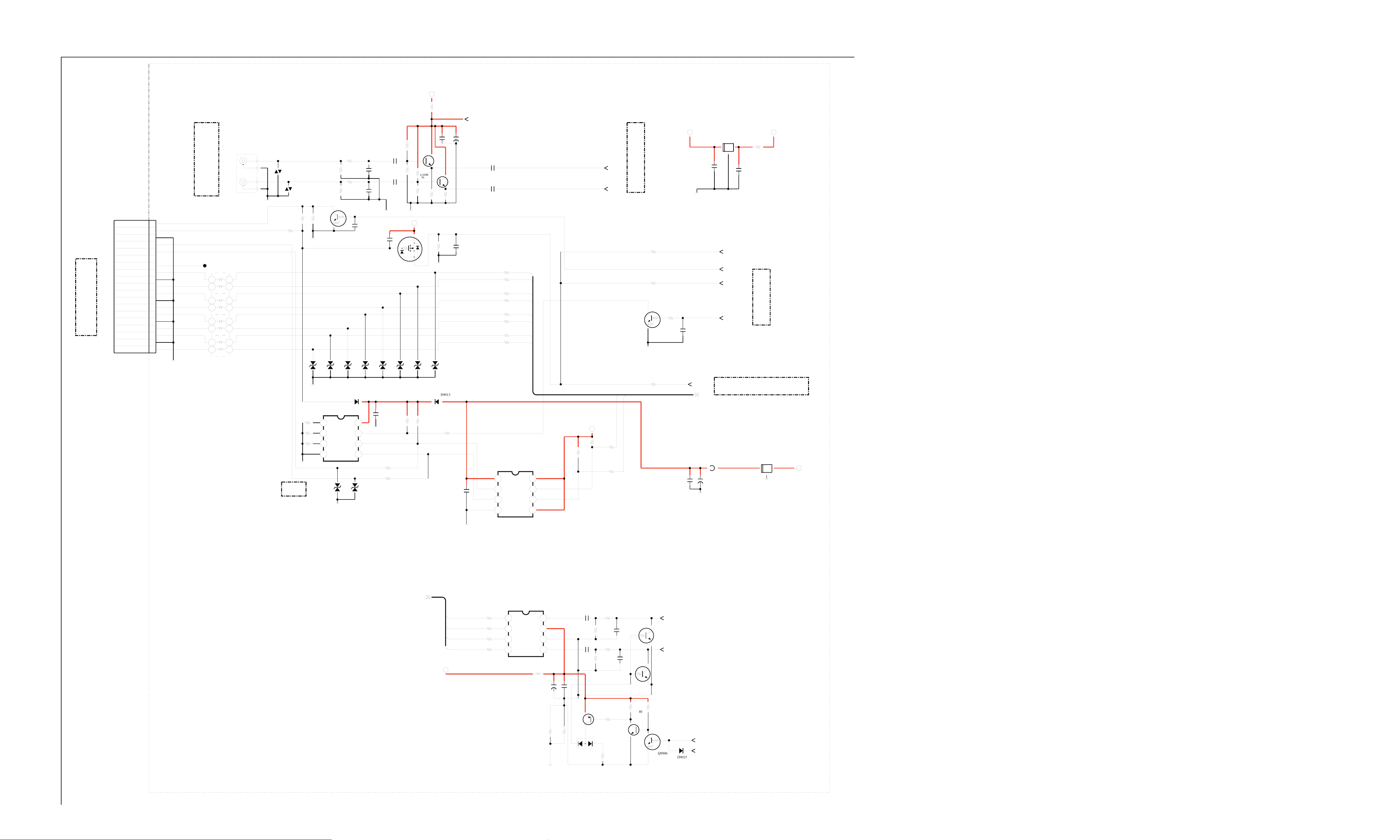

3-4. Schematics and Supporting Information .............................. 24

AU Board Schematic Diagram (1 of 2) ................................. 24

AU Board Schematic Diagram (2 of 2) ................................. 25

BU Board Schematic Diagram (1 of 8) ................................. 27

BU Board Schematic Diagram (2 of 8) ................................. 28

BU Board Schematic Diagram (3 of 8) ................................. 29

BU Board Schematic Diagram (4 of 8) ................................. 30

BU Board Schematic Diagram (5 of 8) ................................. 31

BU Board Schematic Diagram (6 of 8) ................................. 32

BU Board Schematic Diagram (7 of 8) ................................. 33

BU Board Schematic Diagram (8 of 8) ................................. 34

G1 Board, Power Unit .......................................................... 36

H1U Board Schematic Diagram ........................................... 38

H2U Board Schematic Diagram ........................................... 39

H4U Board Schematic Diagram ........................................... 41

QS Board Schematic Diagram (1 of 5) ................................. 43

QS Board Schematic Diagram (2 of 5) ................................. 44

QS Board Schematic Diagram (3 of 5) ................................. 45

QS Board Schematic Diagram (4 of 5) ................................. 46

QS Board Schematic Diagram (5 of 5) ................................. 47

QT Board Schematic Diagram ............................................. 49

3-5. Semiconductors ................................................................... 51

SECTION 4: EXPLODED VIEWS ........................................................ 52

4-1. Rear Cabinet and Stand Assembly ..................................... 52

4-2. Chassis ............................................................................... 53

4-3. Speakers .............................................................................. 54

4-4. LCD Panel ............................................................................ 55

SECTION 5: ELECTRICAL PARTS LIST ............................................ 56

KDL-V32XBR2

3

SPECIFICATIONS

g

KDL-V32XBR2

Power Requirements

Power Consumption (W)

In Use (Max)

In Standby

120V-240V AC, 50/60Hz

180W

Less than 0.1W

Video (IN) 1/2/3
S Video (4-Pin Mini DIN (VIDEO 1/2 Only)
Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative

C: 0.286 Vp-p (Burst signal), 75 ohms

Video

1.0 Vp-p, 75ohms unbalanced, sync negative

Audio

500 mVrms (100% modulation)
Impedance:47 kilohms

HD/DVD IN 4/5
YP

(Component Video)

BPR

Y:1.0 Vp-p, 75 ohms unbalanced, sync negative
PB:0.7 Vp-p, 75 ohms
PR:0.7 Vp-p, 75 ohms
Signal format: 480i, 480p, 720p, 1080i

AUDIO

500 mVrms (100% modulation)
Impedance: 47 kilohms

HDMI IN 6:
HDMI: Video:480i, 480p, 720p, 1080i

Audio: Two channel linear PCM 32, 44.1 and
48 kHz, 16, 20 and 24 bits
AUDIO: 500 mVrms (100% modulation)
Impedance: 47 kilohms

AUDIO OUT:
500 mVrms (100% modulation)
More than 1 Vrms at the maximum volume setting (Variable)
More than 500 mVrms (Fixed)

PC IN 7:
D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive

PC AUDIO INPUT:
Stereo mini jack, 0.5 Vrms, 1 kilohm
Headphones:
Stereo mini jack
Impedance: 16 ohms
Speaker:
Full range: 4.2 × 15 cm (1

11/16

× 6 inches) (2)

Trademark Information

TruSurround XT, SRS and ( ) symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs ,
Inc.

Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under one or more of the following US
patents: 5510752, 5736897. BBE and BBE symbol are registered
trademarks of BBE Sound, Inc.

Macintosh is a trademark licensed to Apple Computer, Inc., registered in
the U.S.A and other countries.

“BRAVIA” and are trademarks of Sony Corporation.

HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or re

KDL-V32XBR2

®

As an ENERGY STAR
determined that this product meets the E NERGY STAR
guidelines for energy efficiency.

ENERGY STAR

This TV incorporates High-Definition
Multimedia Interface (HDMI™) technology.

istered trademarks of HDMI Licensing, LLC.

Partner, Sony Corporation has

®

is a U.S. registered mark.

®

Design and specifi cations are subject to change without notice.

4



























 















 













 

 

 

 

KDL-V32XBR2



Television system

NTSC American TV Standard
ATSC ATSC Compliant 8VSB
QAM on cable ANSI/SCTE 07 2000
(This model does not include CableCARD
functionality)

Channel coverage

Analog Digital
Terrestrial 2-69 2-69
Cable 1-125 1-135

Antenna

75-ohm external terminal for VHF/UHF

Panel System

LCD (Liquid Crystal Display) Panel

Display Resolution (horizontal x vertical):

1,366 dots x 768 lines

Screen Size (measured diagonally)

32 inches

Supplied Accessories

Remote Commander RM-YD012
Two Size AA (R6) Batteries
75-ohm coaxial cable
AC Power Cord
HD15-HD15 Cable
Suport Belt, Securing Screw, and Wood Screw
Cable Holder
Operating Instructions
Quick Setup Guide
Warranty Card

Optional Accessories

Headphones Plug Adaptor
Connecting Cables
Wall-Mount Bracket
SU-WL31

KDL-V32XBR2

5

KDL-V32XBR2

WARNINGS AND CAUTIONS

CAUTION

These servicing instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you are qualifi ed to do so.

WARNING!!

An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis. The chassis of
this receiver is directly connected to the ac power line.

!

SAFETY-RELATED COMPONENT WARNING!!

Components identifi ed by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for
safe operation. Replace these components with Sony parts whose part numbers appear as shown in this manual or in supplements
published by Sony. Circuit adjustments that are critical for safe operation are identifi ed in this manual. Follow these procedures
whenever critical components are replaced or improper operation is suspected.

ATTENTION!!

Ces instructions de service sont à l’usage du personnel de service qualifi é seulement. Pour prévenir le risque de choc électrique, ne
pas faire l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualifi é faire ainsi.

Afi n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout
dépannage. Le chássis de ce récepteur est directement raccordé à l’alimentation du secteur.

!

ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!

Les composants identifi es par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de
pieces sont d’une importance critique pour la securite du fonctionnement. Ne les remplacer que par des composants Sony dont
le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages de circuit dont
l’importance est critique pour la securite du fonctionnement sont identifi es dans le present manuel. Suivre ces procedures lors de
chaque remplacement de composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.

KDL-V32XBR2

6

KDL-V32XBR2

SAFETY-RELATED COMPONENT WARNING

!

There are critical components used in LCD color TVs that are important for safety. These components are identifi ed with shading and

mark on the schematic diagrams and the electrical parts list. It is essential that these critical parts be replaced only with the part number
specifi ed in the electrical parts list to prevent electric shock, fi re, or other hazard.

NOTE: Do not modify the original design without obtaining written permission from the manufacturer or you will void the original parts and
labor guarantee.

USE CAUTION WHEN HANDLING THE LCD PANEL

When repairing the LCD panel, be sure you are grounded by using a wrist band.

When installing the LCD panel on a wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.

To avoid damaging the LCD panel:

 do not press on the panel or frame edge to avoid the risk of electric shock.
 do not scratch or press on the panel with any sharp objects.
 do not leave the module in high temperatures or in areas of high humidity for an extended period of time.
 do not expose the LCD panel to direct sunlight.
 avoid contact with water. It may cause a short circuit within the module.
 disconnect the AC adapter when replacing the backlight (CCFL) or inverter circuit.

(High voltage occurs at the inverter circuit at 650Vrms.)

 always clean the LCD panel with a soft cloth material.
 use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.
 protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).

LEAKAGE CURRENT HOT CHECK CIRCUIT

KDL-V32XBR2

7

The circuit boards used in these models have been processed using
Lead Free Solder. The boards are identified by the LF logo located
close to the board designation e.g. H1 etc [ see example ]. The
servicing of these boards requires special precautions to be taken as
outlined below.

KDL-V32XBR2

example 1

It is strongly recommended to use Lead Free Solder material in order to guarantee optimal quality of new solder joints.
Lead Free Solder is available under the following part numbers :

rebmuntraP retemaiD skrameR

91-500-046-7mm3.0gK52.0

02-500-046-7mm4.0gK05.0

12-500-046-7mm5.0gK05.0

22-500-046-7mm6.0gK52.0

32-500-046-7mm8.0gK00.1

42-500-046-7mm0.1gK00.1

52-500-046-7mm2.1gK00.1

62-500-046-7mm6.1gK00.1

Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade.
This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics.

For more information on the use of Lead Free Solder, please refer to

http://www.sony-training.com

KDL-V32XBR2

8

SAFETY CHECK-OUT

KDL-V32XBR2

After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly soldered
connections. Check the entire board surface for solder splashes and
bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or
touching high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and
mounting hardware have been replaced. Be absolutely certain that
you have replaced all the insulators.

4. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to the
customer and recommend their replacement.

5. Look for parts which, though functioning, show obvious signs of
deterioration. Point them out to the customer and recommend their
replacement.

6. Check the line cords for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.

7. Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instructions.

2. A battery-operated AC milliampmeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM
or battery-operated AC voltmeter. The “limit” indication is 0.75
V, so analog meters must have an accurate low voltage scale.
The Simpson’s 250 and Sanwa SH-63TRD are examples of
passive VOMs that are suitable. Nearly all battery-operated digital
multimeters that have a 2 VAC range are suitable (see Figure A).

How to Find a Good Earth Ground

A cold-water pipe is a guaranteed earth ground; the cover-plate
retaining screw on most AC outlet boxes is also at earth ground. If the
retaining screw is to be used as your earth ground, verify that it is at
ground by measuring the resistance between it and a cold-water pipe
with an ohmmeter. The reading should be zero ohms.

If a cold-water pipe is not accessible, connect a 60- to 100-watt
trouble- light (not a neon lamp) between the hot side of the receptacle
and the retaining screw. Try both slots, if necessary, to locate the hot
side on the line; the lamp should light at normal brilliance if the screw
is at ground potential (see Figure B).

Leakage Test

0.15 µF

Figure A. Using an AC voltmeter to check AC leakage. Figure B. Checking for earth ground.

To Exposed Metal
Parts on Set

Earth Ground

AC
Voltmeter
(0.75V)

Trouble Light

AC Outlet Box

Ohmmeter

Cold-water Pipe

KDL-V32XBR2

9

KDL-V32XBR2

Control Buttons

MENU

TV/VIDEO

SELF-DIAGNOSTIC FUNCTION

VOLUME

PIC OFF/TIMER STANDBY POWER

CHANNEL

Self Diagnosis

Supported model

POWER

Description of LED Indictors

LED LED Type Description

POWER LED Red/Green LED

TIMER LED Red LED Lights when timer is set

PIC OFF LED Green LED

* Light is green when the TV set is on
* Functions as failure indicator
* Blinks green in aging mode

Lights when power saving setting is set to
picture off (See Instruction Manual)

KDL-V32XBR2

10

LED Control



KDL-V32XBR2

 









   






    

   

   








    





  

  











  

  



  



   




  

The units in this manual contain a self-diagnostic function. If an error occurs, the POWER LED will automatically begin to fl ash. The number of times
the LED fl ashes translates to a probable source of the problem. A defi nition of the POWER LED fl ash indicators is listed in the instruction manual for
the user’s knowledge and reference. If an error symptom is diffi cult to reproduced use the Remote Commander to display the record that is stored at
the internal NVM to specify the cause of the failure.

Diagnostic Test Indicators

When an error occurs, the POWER LED will fl ash a set number of times to indicate the possible cause of the problem. If there is more than one error,
the LED will identify the fi rst of the problem areas. If the errors occur simultaneously, the one that corresponds to the fewest fl ashes is identifi ed fi rst.
Results for all of the following diagnostic items are displayed on screen. No error has occurred if the screen displays a “0”.







 
 
 
 
 
 
 
 

KDL-V32XBR2

11

1-1. REAR COVER REMOVAL

12 Screws,

+BVTP2 4X16

2 Screws,

+PSW M6X16

1

2

SECTION 1: DISASSEMBLY

2 Screws,

3

+BVPT 3X12 TYPE2 IT-3

Rear Cover

KDL-V32XBR2

1-2. VESA BRACKET ASSEMBLY REMOVAL

2 Screws,

+PSW M4X16

VESA Bracket Assembly

1

3 Screws,

2

+PSW M5X16

Stand Assembly

KDL-V32XBR2

12

1-3. H1U BOARD REMOVAL

2 Screws,

1

+BVTP2 4X12

KDL-V32XBR2

Disconnect CN101

Multi Button Assy

H1U Board

1-4. G1 BOARD (POWER UNIT) AND H2U BOARD REMOVAL

2 Screws,

+BVTP 3X12 TYPE2 IT-3

One Connector CN201

H2U Board

Side Jack Holder

1

2 Screws,

2

+PSW M3X5

3 Connectors
CN6102, CN6202, and CN6203

2 Screws,

3

+BVTP 3X12 TYPE2 IT-3

G1 board (Power Unit)

2 Screws,

4

+PSW M3X5

KDL-V32XBR2

G1 Bracket

13

1-5. AU BOARD REMOVAL

2 Screws,

1

+BVTP 3X12 TYPE2 IT-3

7 Connectors CN9502, CN9501, CN7502, CN7501,
CN9001, CN7503, CN7000

4 Screws,

2

+PSW 3SG

AU Board

KDL-V32XBR2

1-6. QT BOARD REMOVAL

CN7803 and CN7800

2 Connectors

One Screw,

1

+PSW 3SG

3 Screws,

2

+BVTP 3X12 TYPE2 IT-3

QT Board

KDL-V32XBR2

14

1-7. QS BOARD AND BU BOARD REMOVAL

KDL-V32XBR2

4 Connectors,

CN7306, CN7314,

CN7317 and CN7802

QS Board

3 Screws,

+PSW M3X5

One Screw,

+PSW M3X5

DTT Bottom Shield

3 Screws,

1

+PSW 3SG

3

One Screw,
+BVST 3X8

2 Screws,

+BVST 3X8

6

One Screw,

4

+PSW M3X5

Hearness with Connector (LVDS)

2 Screws,

5

+PSW 3SG

BU Board

2

10 Connectors
CN1007, CN7009, CN1002, CN4701,

8

One Screw,

7

+PSW M3X5

CN4702, CN1700, CN5000,
CN1001, CN7008, CN1008
NOTE: CN1004 & CN1003 are not used.

1-8. H4U BOARD AND SPEAKER REMOVAL

Speaker

KDL-V32XBR2

H4U board

One Screw,

1

(+BVTP 3X10)

Speaker

15

1-9. LCD PANEL REMOVAL

Top Frame Assembly

2 Screws,

1

+PSW M4X8

One Screw,

2

+PVTP2 4X16

One Screw,

3

+PSW M3X5

4

KDL-V32XBR2

One Screw,
+PSW M3X5

G Support

Harness with Connector (LVSD)

LCD Panel

KDL-V32XBR2

Bezel Assembly

16

SECTION 2: SERVICE ADJUSTMENTS

KDL-V32XBR2

2-1. REMOTE ADJUSTMENT BUTTONS AND

INDICATORS

POWER

DISPLAY

Onscreen cursor
and select button

DIGITAL/
ANALOG

5

VOLUME+

2-2. ACCESSING SERVICE ADJUSTMENTS

To adjust various set features, use the Remote Commander to put the set
into service mode to display the service menus. The Remote Commander
displays the service menu associated with the Digital or Analog format
depending on which format is on the TV when you enter service mode.

2-2-1. ACCESSING THE DIGITAL SERVICE

ADJUSTMENT MENUS

1. Turn the TV on and view a Digital channel.

2. Put the TV in standby mode. (Power off).

3. Press the following buttons on the Remote Commander within a
second:

DISPLAY

Channel

The Digital service menu displays.

5

Volume +

MAIN VER. 1009

H PACK VER. 1008

S PACK VER. 1008

CHECK SUM E20E

NVM VER. 1006

ATI VER. 01.06

ATI UD NVM VER. 02

ATI SD NVM VER. 02

ETI 46h 39m

Video 1

POWER

On.

4. Use the button to view the next category listing the white balance
adjustment items.

Video 1

R_DRIVE 256

B_DRIVE 256

R_BKG 512

G_BKG 512

RM-YD012

B_BKG 512

COLOR SAVE

5. Use the or button to select the item you want to adjust.

a. To increase the data value of the category, press the

b. To decrease the data value of the category, press the

6. To save the data value changes, press the
Save and then press the

button.

button to select Color

button.

button.

a. To save the data value changes, select Save by pressing the

button and then press the

button.

b. To cancel the data value changes, select Cancel by pressing

the

button and then pressing the button.

KDL-V32XBR2

17

KDL-V32XBR2

2-2-2. VIEWING THE DIGITAL MODULE BOX

2-2-3. ACCESSING THE ANALOG SERVICE

(Q-BOX) SERVICE ITEMS

Use the following instructions to display the Digital menu items you want
to adjust.

1. Turn the TV on and view a Digital channel.

2. Put the TV in standby mode. (Power off).

3. Press the following buttons on the Remote Commander within a
second:

DISPLAY

Channel

5

Volume +

POWER

On.

The Digital service menu displays.

Video 1

MAIN VER. 1009

H PACK VER. 1008

S PACK VER. 1008

CHECK SUM E20E

NVM VER. 1006

ATI VER. 01.06

ATI UD NVM VER. 02

ATI SD NVM VER. 02

ETI 46h 39m

4. To display the Digital Module (Q Box) service adjustment menus,

JUMP

press

.

The QM category displays.

Category

Data Value

Item #

1. Turn the TV on and view an Analog channel.

2. Put the TV in standby mode. (Power off).

3. Press the following buttons on the Remote Commander within a

The Analog service menu displays.

4. Use the button to view the next category listing the white balance

ADJUSTMENT MENUS

second:

DISPLAY

Channel

adjustment items.

5

MAIN VER. 1008

H PACK VER. 1005

S PACK VER. 1008

CHECK SUM F99F

NVM VER. 1006

ATI VER.

ATI UD NVM VER.

ATI SD NVM VER. 02

ETI 2h 16m

R_DRIVE 256

B_DRIVE 256

R_BKG 512

G_BKG 512

B_BKG 512

COLOR SAVE

Volume +

Video 1

Video 1

POWER

On.

QM

0

0

SERVICE

DTVINFO

Item

Sample DMB (Q Box) Service Menu

5. To change the category, press 2 or 5 on the Remote Commander.

Note: Pressing 2 or 5 only changes the categories within the service

menu displayed. To return to the Digital Service Menu, press the
JUMP

button.

6. To change the adjustment item, press 1 or 4 on the Remote
Commander.

7. To change the data value, press 3 or 6 on the Remote Commander.

Note: To go back to the last saved data value, press 0 then

ENTER

on the Remote Commander to read the memory.

8. To write into memory, press

MUTING

then

ENT

on the Remote

Commander.

9. To exit service mode, turn the power off.

5. Use the or button to select the item you want to adjust.

a. To increase the data value of the category, press the

b. To decrease the data value of the category, press the

button.

button.

6. To save the data value changes, press the
Save and then press the

button.

button to select Color

a. To save the data value changes, select Save by pressing the

button and then press the button.

b. To cancel the data value changes, select Cancel by pressing

the

button and then pressing the button.

KDL-V32XBR2

18

KDL-V32XBR2

2-3. RESETTING THE USER MENU -

FACTORY RESET

The TEST RESET option resets all the customer adjustable data back to
the factory defaults.

1. Put the TV in standby mode. (Power off).

2. Press the following buttons on the Remote Commander within a
second:

DISPLAY

Channel

The service menu displays.

3. Use the button to view the next category listing the white balance
adjustment items.

5

Volume +

MAIN VER. 1009

H PACK VER. 1008

S PACK VER. 1008

CHECK SUM E20E

NVM VER. 1006

ATI VER. 01.06

ATI UD NVM VER. 02

ATI SD NVM VER. 02

ETI 46h 39m

R_DRIVE 256

B_DRIVE 256

R_BKG 512

G_BKG 512

B_BKG 512

COLOR SAVE

Video 1

Video 1

POWER

On.

2-4. AGING MODE

Aging mode is designed to remove image retention from the screen.

NOTE: Once you enter into Aging Mode the Remote Commander no
longer functions with the set. To turn off the set, push the Power Button
on the set.

1. Put the TV in standby mode. (Power off).

2. Press the following buttons on the Remote Commander within a
second:

DISPLAY

Channel

The service menu displays.

3. Use the button to view the next category listing the white balance
adjustment items.

5

Volume +

MAIN VER. 1009

H PACK VER. 1008

S PACK VER. 1008

CHECK SUM E20E

NVM VER. 1006

ATI VER. 01.06

ATI UD NVM VER. 02

ATI SD NVM VER. 02

ETI 46h 39m

R_DRIVE 256

B_DRIVE 256

R_BKG 512

G_BKG 512

B_BKG 512

COLOR SAVE

Video 1

Video 1

POWER

On.

4. Continue pressing the button until the next category list displays.

Video 1

TEST RESET

AGING MODE Off

AUTO SHUT-OFF On

ETI CLEAR

INFORMATION RESET

SOUND MUTE On

5. Press the button to select TEST RESET options.

6. Press the

7. Press the

button to select OK.

button to reset the TV.

KDL-V32XBR2

4. Continue pressing the button until the next category list displays.

Video 1

TEST RESET

AGING MODE Off

AUTO SHUT-OFF On

ETI CLEAR

INFORMATION RESET

SOUND MUTE On

5. Press the button to select AGING MODE.

6. Press the

7. Press the

8. Press the

button to display the Aging Mode options.

button to select ON.

button to start the aging process.

19

KDL-V32XBR2

2-5. WHITE BALANCE ADJUSTMENT

.

The White Balance only needs to be adjusted when you replace the BU
Board.

1. Through the Video 1 input, step Gray Scale with Setup.

2. Press MENU on the Remote Commander.

The User Menu displays.

MENU

External Inputs

Analog Favorites

Digital Favorites

Analog

Digital

Settings

Select from connected equipment

Select:

MENU

Exit:Set:

3. Press the button until Settings is selected, then press the button.

4. From the Picture menu, press the

button to display the picture mode

options.

a. Press the

5. From the Picture menu, press the

button to select Custom, then press the button.

button to select Color

Temperature.

a. Press the

b. Press the

6. From the Picture menu, press the
Settings.

button to display the Color Temperature options.

button to select Cool, then press the button.

button to select Advanced

Picture Video 1

Target Inputs All Inputs

Picture Mode Custom

Reset

Backlight Max

Picture Max

Brightness 50

Color 50

Hue 0

Color Temperature Cool

Sharpness 15

Noise Reduction Low

Advanced Settings

A

A

D

D

MENU

Select:

RETURN

Back: Exit:Set:

7. Using the arrow keys set all the registers in the Advanced Setting
menu to Off.

9. Access the Service Menu by pressing the following buttons on the
Remote Commander within a second:

DISPLAY

Channel

5

Volume +

POWER

On.

The Digital service menu displays.

Video 1

MAIN VER. 1009

H PACK VER. 1008

S PACK VER. 1008

CHECK SUM E20E

NVM VER. 1006

ATI VER. 01.06

ATI UD NVM VER. 02

ATI SD NVM VER. 02

ETI 46h 39m

10. Press the button to display the white balance adjustment menu
items.

R_DRIVE 256

B_DRIVE 256

R_BKG 512

G_BKG 512

B_BKG 512

COLOR SAVE

Video 1

11. Using 10 step NTSC Gray Scale with Setup adjust the White Balance
of the 60% shade with R_Drive and B_Drive.

12. Using the same pattern, adjust the white balance 20% with R_BKG
and B_BKG.

13. 20IRE and 60IRE shades should have the same color.

Picture Video 1

Advanced Settings

Reset

Black Corrector Off

Contrast Enhancer Off

Gamma Off

Clear White Off

Live Color Off

MPEG Noise Reduction Off

A

A

D

D

Select:

Back: Exit:Set:

8. Put the TV in standby mode. (Power off).

KDL-V32XBR2

RETURN

MENU

SET-UP

56mv

20%

188mv

20 IRE Level

60%

451mv

60 IRE Level

10 STEP
GRAY SCALE

20

3-1. CIRCUIT BOARDS LOCATION

KDL-V32XBR2

SECTION 3: DIAGRAMS

H1U Board

QS Board

H2U Board

QT Board

AU Board

3-2. PRINTED WIRING BOARDS AND

SCHEMATIC DIAGRAMS INFORMATION

All capacitors are in µF unless otherwise noted. pF : µµF 50WV or
less are not indicated except for electrolytics and tantalums.

All electrolytics are in 50V unless otherwise specifi ed.

All resistors are in ohms. kΩ=1000Ω, MΩ=1000kΩ

Indication of resistance, which does not have one for rating
electrical power, is as follows: Pitch : 5mm
Rating electrical power :

1

/

W in resistance, 1/

4

: nonfl ammable resistor

: fusible resistor

: internal component

: panel designation and adjustment for repair

: earth ground

: earth-chassis

All variable and adjustable resistors have characteristic curve B,
unless otherwise noted.

Readings are taken with a color-bar signal input.

Readings are taken with a 10MΩ digital multimeter.

Voltages are DC with respect to ground unless otherwise noted.

Voltage variations may be noted due to normal production
tolerances.

W and 1/

10

W in chip resistance.

16

1

/

W

4

BU Board

G1 Board (Power Unit)

H4U Board

All voltages are in V.

S : Measurement impossibility.

: B+line.

: B-line. (Actual measured value may be different).

: signal path. (RF)

Circled numbers are waveform references.

!

The components identifi ed by shading and

only with part number specifi ed.

The symbol indicates a fast operating fuse and is displayed on the component
side of the board. Replace only with fuse of the same rating as marked.

Les composants identifi es per un trame et une marque
securite. Ne les remplacer que par une piece portant le numero specifi e.

Le symbole indique une fusible a action rapide. Doit etre remplace par une
fusible de meme yaleur, comme maque.

symbol are critical for safety. Replace

!

sont critiques pour la

KDL-V32XBR2

21

KDL-V32XBR2

REFERENCE INFORMATION

RESISTOR
: RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: ADJUSTMENT RESISTOR

COIL
: LF-8L MICRO INDUCTOR

CAPACITOR
: TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE

Terminal name of semiconductors in silk screen
printed circuit ( )

Device Printed symbol Terminal name

Transistor

1

Transistor

2

3

Diode

4

Diode

Diode

5

Diode

6

Diode

7

8

Diode

Diode

9

Diode

0

!¡

Diode

Diode

!™

Transistor

!£

(FET)

Transistor

!¢

(FET)

Transistor

!?

(FET)

Transistor

!§

Transistor

!¶

Transistor

!•

Transistor

!ª

Transistor

@º

Transistor

@¡

Transistor

@™

Transistor

@£

Discrete semiconductot

–

(Chip semiconductors that are not actually used are included.)

*

Collector

Base

Collector

Base

Cathode

Cathode

Anode

Cathode

Anode

Common

Anode

Common

Anode Cathode

Common

Anode

Common

Anode Anode

Common

Cathode

Common

Cathode

Anode
Anode

Cathode

Drain

Drain

B1 E1

C2

B2 C1

E2

B2 E2

C1

B1 C2

E1

B2 E2

C1

B1 C2

E1

B2 E2

C1

B1 C2

E1

E2

B1 E1

C2

(B2)

E1

B1

C1

(B2)

E1

E2

C2

Emitter

Emitter

Anode

(NC)

(NC)

Cathode

Anode

Cathode

Cathode

Cathode
Anode
Anode

Source

Gate

Source

Gate

Source
Drain
Gate

Emitter
Collector
Base

C1(B2)

E2

C2

B1

C1

Circuit

D

G

D

S

B1

B1

B1

B1

B1

B1

D

G

S

S

D

G

C1

E1

C1

E1

E1

C1

E2

C1

C1

G

S

C2

B2

E2

C2

B2

E2

E2

B2

C2

C2C1(B2)

E2
E2E1(B2)

C2
C2E1(B2)

C2

Ver.1.6

KDL-V32XBR2

22

3-3. BLOCK DIAGRAM

KDL-V32XBR2

Digital F/E BU

RF/Cable

UFE

UFE

Comp1

Comp2

QT QS

MPEG DEC.

IF

MPEG DEC.

CPU

CPU

ATi

x240H

ATi

x240H

I2S

SW

SW

SPDIF

CLK/Hs/Vs

I2C-B

UART

D-Comp[15:0]

Main Micro

MB91305

I2C-C

I2C-A

8bit Multiplex BUS

16bit

1MByte

BUS

EEP

Flash

MAP4400A

PC

Hs/Vs

AV mo use

Audio
for PC

TMDS

DDRSDRAM

4M x 32bit

Chroma Dec/IP

/Scalar

Trident SVP-PXs

HDMI

Audio Amp.

HP Amp.

HP Amp.

D/A

I2S

Audio

for DVI

ECSUART

Backlight

Inverter

Panel䋨WXGA䋩

(S)Video1

(S)Video2

Video3

Optical Audio

Out

Audio out

(Fix/Var.)

KDL-V32XBR2

AV SW

CXA2069Q

AU

CVBS
Y/C

CVBS+Y/C
Analog-Component/RGB
Digital-Component

PC-RGB

Audio (Analog)
Audio (Digital)

23
