KDL-52W47xx/KDL-52W4500 KDL-46W47xx/KDL-46W4500 KDL-40W47xx/KDL-40W4500

LCD Digital Colour TV

Operating Instructions

Instrukcja obsługi

Инструкция по эксплуатации

LCD Digital Colour TV

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 10 AMP fuse approved by ASTA or BSI to BS 1362 (i.e., marked with or ) must be used.

When an alternative type of plug is used it should be fitted with a 10 AMP FUSE otherwise the circuit should be protected by a 10 AMP FUSE at the distribution board.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

FUSE

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Please refer to the illustration that actually equipped with the product.

Introduction

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Trademark information

s is a registered trademark of the DVB Project s DLNA and DLNA CERTIFIED are trademarks and/or service

marks of Digital Living Network Alliance.

s GUIDE Plus+ is (1) a registered trademark or trademark of, (2)

manufactured under license from and (3) subject of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International, Inc. and/or its related affiliates.

s GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR

ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND /OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING L OSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.

s Manufactured under license from Dolby Laboratories. Dolby

and the double-D symbol are trademarks of Dolby Laboratories.

s HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI Licensing LLC.

s “BRAVIA” and are trademarks of Sony

Corporation.

s “XMB” and “xross media bar” are the trademarks of Sony

Corporation and Sony Computer Entertainment Inc.

s The “xx” that appears on the model name, corresponds to two

numeric digits related to design or colour variation.

Notice for Digital TV function

s Any functions related to Digital TV ( ) will only work in

countries or areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG2 and MPEG4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this TV.

s The cable provider may charge an additional fee for such a

service and you may be required to agree to their terms and conditions of business.

s Although this TV set follows DVB-T and DVB-C

specifications, compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

s Some Digital TV functions may not be available in some

countries/regions and DVB-C cable may not operate correctly with all providers.

s For more information about DVB-C functionality please see

our cable support site: http://support.sony-europe.com/TV/DVBC/

Table of Contents

Start-up Guide 4

Safety Information............................................................................................................................ 9

Precautions..................................................................................................................................... 11

Remote and TV Controls/Indicators ............................................................................................. 12

Watching TV

Watching TV.................................................................................................................................... 15

Using GUIDE Plus+™ System and the Digital Electronic Programme Guide (EPG) ..... 17

Using the Digital Favourite List .......................................................................................... 21

Using Optional Equipment

Connecting Chart ........................................................................................................................... 22

Viewing Pictures from Connected Equipment............................................................................. 25

Playing Back Photo/Music via USB .............................................................................................. 26

Using BRAVIA Sync with Control for HDMI ................................................................................. 29

Using Network Features

Connecting the TV to the Network................................................................................................30

Enjoying Photo/Music Files via the Network ............................................................................... 30

Checking the Network Connection............................................................................................... 32

Adjusting the Server Display Settings ......................................................................................... 33

Using MENU Functions

Navigating through TV Home Menu (XMB™)............................................................................... 34

Settings ........................................................................................................................................... 35

Additional Information

Installing the Accessories (Wall-Mount Bracket) ........................................................................ 47

Specifications ................................................................................................................................. 49

Troubleshooting ............................................................................................................................. 51

: for digital channels only

Before operating the TV, please read the “Safety Information” section of this manual. Retain this manual for future reference.

Start-up Guide

Before Use

To check the accessories

Mains lead (Type C) (1)

• Use this mains lead if you use the set outside the United Kingdom.

Mains lead (Type BF) (1) (KDL-52W47xx/KDL-46W47xx/ KDL-40W47xx only)

• Use this mains lead if you use the TV in the United Kingdom.

• See “NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM” on page 2 when using this mains lead.

Remote RM-ED011 (1)

Size AA batteries (R6 type) (2)

Stand (1) and screws for stand (4) (KDL-46W47xx/KDL-40W47xx/ KDL-46W4500/KDL-40W4500 only)

To insert batteries into the remote

Push and lift the cover to open.

1: Attaching the stand (for KDL-46W47xx/KDL40W47xx/KDL-46W4500/ KDL-40W4500)

1 Open the carton box and take out the stand

and the screws.

2 Place the TV set on the stand. Take care

not to interfere with cables.

3 Fix the TV to the stand according to the

arrow marks that guide the screw holes using the supplied screws.

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and new batteries.

• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.

• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.

• If using an electric screwdriver, set the tightening torque at approximately 1.5 N·m {15 kgf·cm}.

2: Connecting an aerial/Set Top Box/recorder (e.g. DVD recorder)

Connecting a Set Top Box/recorder (e.g. DVD recorder) with SCART

A V

( SMARTLINK )

Scart lead

3: Preventing the TV from toppling over

Start-up Guide

Set Top Box/recorder (e.g. DVD recorder)

Connecting a Set Top Box/recorder (e.g. DVD recorder) with HDMI

Set Top Box/recorder (e.g. DVD recorder)

1 Install a wood screw (4 mm in diameter,

not supplied) in the TV stand.

2 Install a machine screw (M6 x 12, not

supplied) into the screw hole of the TV.

3 Tie the wood screw and the machine

screw with a strong cord.

4: Bundling the cables

432

• Do not bundle the mains lead together with other cables.

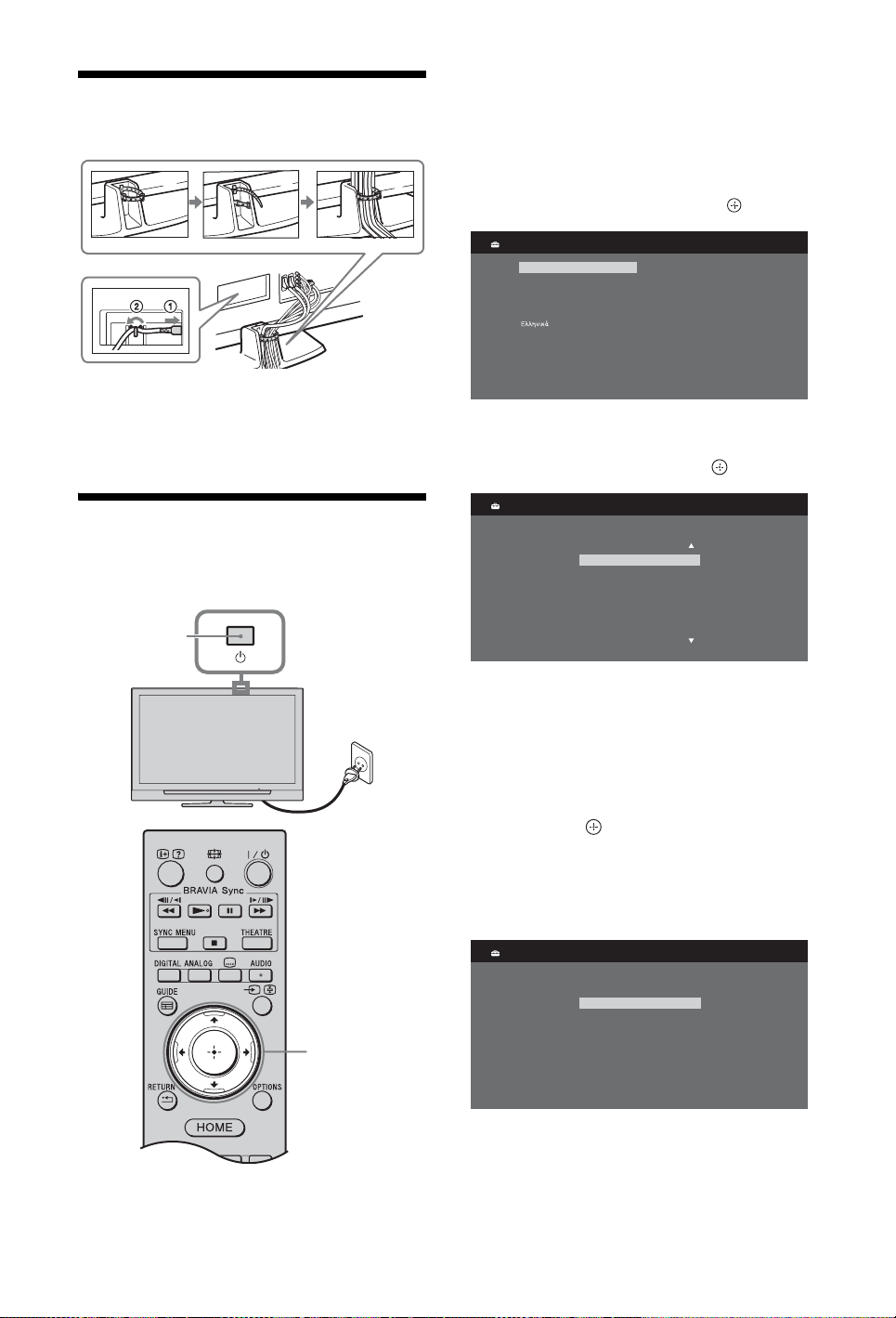

5: Performing the initial setup

3-11

4 Press F/f to select the country in which

you will operate the TV, then press .

Country

Select country.

United Kingdom

Ireland

Nederland

België/Belgique

Luxembourg

France

Italia

If the country in which you want to use the TV does not appear in the list, select “-” instead of a country.

5 Press F/f to select the location type in

which you will operate the TV, then press

• Select “Home” for the best TV settings to use the TV in the home.

Location

Select location.

Home

Shop

1 Connect the TV to your mains socket

(220-240V AC, 50Hz).

2 Press 1 on the TV.

When you switch on the TV for the first time, the language menu appears on the screen.

3 Press F/f/G/g to select the language

displayed on the menu screens, then press

Language

English

Nederlands

Français

Italiano

Deutsch

Türkçe

Español

Català

Português

Polski

Česky

Magyar

Русский

ББлгар

Suomi

Dansk

Svenska

Norsk

Slovenčina

Română

ски

6 Select “Yes” then press .

Auto Tuning

Do you want to start Auto Tuning?

Yes No

7 Press F/f to select “Antenna” or “Cable”,

then press .

If you select “Cable”, the screen for selecting the scan type appears. See “To tune the TV for Cable connection” (page 7). The TV starts searching for all available digital channels, followed by all available analogue channels. This may take some time, so do not press any buttons on the TV or remote while proceeding.

If a message appears for you to confirm the aerial connection

No digital or analogue channels were found. Check all the aerial/cable connection and then press to start autotuning again.

8 When the “Programme Sorting” menu

appears on the screen, follow the steps of “Programme Sorting” (page 42).

If you do not change the order in which the analogue channels are stored on the TV, press RETURN to go to step 9.

Quick Start

TV turns on more quickly but standby power consumption is increased.

Do you want to enable Quick Start?

Yes No

For details, see page 37.

Control for HDMI

Do you want to enable control for compatible

HDMI devices?

Choosing "Yes" will increase

standby power consumption.

Yes No

For details, see page 29. Following this step, GUIDE Plus+ setting screen appears only when GUIDE Plus+ is available.

11 Press .

The TV has now tuned in all the available channels.

• When a digital broadcast channel cannot be received, or when selecting a country in which there are no digital broadcasts in step 4, the time must be set after performing step 8.

To tune the TV for Cable connection

1 Press . 2 Press F/f to select “Quick Scan” or “Full

Scan”, then press .

“Quick Scan”: channels are tuned according to the cable operator information within the broadcast signal. Recommended setting for “Frequency”, “Network ID” and “Symbol Rate” is “Auto.” This option is recommended for fast tuning when supported by your cable operator. If the “Quick Scan” does not tune, please use the “Full Scan” method below. “Full Scan”: All available channels are tuned and stored. This procedure may take some time. This option is recommended when “Quick Scan” is not supported by your cable provider. For further information about supported cable providers, refer to support web site: http://support.sony-europe.com/TV/ DVBC/

3 Press f to select “Start”, then press .

The TV starts searching for channels. Do not press any buttons on the TV or remote.

• Some cable providers do not support “Quick Scan.” If no channels are detected using “Quick Scan”, perform “Full Scan.”

To set-up GUIDE Plus+ system (only when GUIDE Plus+ system is available)*

* Condition you can set-up this feature:

– in UK, Italy, Germany or Spain. – you can receive digital broadcasting. – when “Antenna” is selected in step 7 of “ 5:

Performing the initial set-up.”

1 Enter postal code of region you live using

F/f/G/g/+.

• Enter from the left, when the postal code is fewer than seven digits.

Start-up Guide

(Continued)

2 Select language for GUIDE Plus+.

This step will be skipped if any one of the following languages is selected in step 3 of “5: Performing the initial set-up”: “English”, “Deutsch”, “Español”, “Italiano”, “Français” or “Nederlands.”

3 GUIDE Plus+ Data Download.

The initial download may take some time, so do not press any buttons on the TV or remote while proceeding. Once you have received the first download of TV listings data, all future downloads will be done automatically.

Adjusting the Viewing Angle of the TV

This TV can be adjusted within the angles shown below.

Adjust the angle left and right (swivel)

Top view

20°

Front

20°

• When adjusting the angle, hold the Table-Top Stand with one hand to avoid slipping or tipping the TV.

Detaching the Table-Top Stand from the TV

• Remove the screws guided by the arrow marks of the TV.

• Do not remove the Table-Top Stand for any reason other than listed below. – To wall-mount the TV. – To put the TV in the carton at time of purchase

(KDL-46W47xx/KDL-40W47xx/ KDL-46W4500/KDL-40W4500 only).

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

s The TV set should be installed near an easily accessible mains

socket.

s Place the TV set on a stable, level surface. s Only qualified service personnel should carry out wall

installations.

s For safety reasons, it is strongly recommended that you use

Sony accessories, including: – Wall-Mount Bracket SU-WL500

s Be sure to use the screws supplied with the Wall-mount bracket

when attaching the mounting hooks to the TV set. The supplied screws are designed so that they are 8 mm to 12 mm in length when measured from the attaching surface of the mounting hook. The diameter and length of the screws differ depending on the Wall-mount bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8mm – 12mm

Ventilation

s Never cover the ventilation holes or insert anything in the

cabinet.

s Leave space around the TV set as shown below. s It is strongly recommended that you use a Sony wall-mount

bracket in order to provide adequate air-circulation.

Installed on the wall

30 cm

10 cm

Leave at least this space around the set.

Installed with stand

30 cm

10 cm10 cm

Leave at least this space around the set.

6 cm

Screw (supplied with the Wallmount bracket)

Mounting Hook Hook attachment on rear

of TV set

Transporting

s Before transporting the TV set,

disconnect all cables.

s Two or three people are needed to

transport a large TV set.

s When transporting the TV set by

hand, hold it as shown on the right. Do not put stress on the LCD panel and the frame around the screen.

s When lifting or moving the TV set,

hold it firmly from the bottom.

s When transporting the TV set, do n ot

subject it to jolts or excessive vibration.

s When transporting the TV set for

repairs or when moving, pack it using the original carton and packing material.

Be sure to hold the bottom of the panel, not the front part.

s To ensure proper ventilation and prevent the collection of dirt

or dust: – Do not lay the TV set flat, install upside down, backwards,

or sideways. – Do not place the TV set on a shelf, rug, bed or in a closet. – Do not cover the TV set with a cloth, such as curtains, or

items such as newspapers, etc. – Do not install the TV set as shown below.

Air circulation is blocked.

Wall

Air circulation is blocked.

Wall

(Continued)

Mains lead

Handle the mains lead and socket as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

– Use only mains leads supplied by Sony, not other suppliers. – Insert the plug fully into the mains socket. – Operate the TV set on a 220-240 V AC supply only. – When wiring cables, be sure to unplug the mains lead for your

safety and take care not to catch your feet on the cables.

– Disconnect the mains lead from the mains socket before

working on or moving the TV set. – Keep the mains lead away from heat sources. – Unplug the mains plug and clean it regularly. If the plug is

covered with dust and it picks up moisture, its insulation may

deteriorate, which could result in a fire.

Notes

s Do not use the supplied mains lead on any other equipment. s Do not pinch, bend, or twist the mains lead excessively. The

core conductors may be exposed or broken.

s Do not modify the mains lead. s Do not put anything heavy on the mains lead. s Do not pull on the mains lead itself when disconnecting the

mains lead.

s Do not connect too many appliances to the same mains socket. s Do not use a poor fitting mains socket.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV s et may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environment:

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situation:

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms.

If the following problems occur...

Turn off the TV set and unplug the mains lead immediately if any

of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

– Mains lead is damaged. – Poor fitting of mains socket. – TV set is damaged by being dropped, hit or having something

thrown at it.

– Any liquid or solid object falls through openings in the cabinet.

Broken pieces:

s Do not throw anything at the TV set. The screen glass may

break by the impact and cause serious injury. s If the surface of the TV set cracks, do not touch it until you have

unplugged the mains lead. Otherwise electric shock may result.

When not in use

s If you will not be using the TV set for several days, the TV set

should be disconnected from the mains for environmental and

safety reasons. s As the TV set is not disconnected from the mains when the TV

set is just turned off, pull the plug from the mains to disconnect

the TV set completely. s However, some TV sets may have features that require the TV

set to be left in standby to work correctly.

For children

s Do not allow children to climb on the TV set. s Keep small accessories out of the reach of children, so that they

are not mistakenly swallowed.

Precautions

Viewing the TV

s View the TV in moderate light, as viewing the TV in poor light

or during long period of time, strains your eyes. s When using headphones, adjust the volume so as to avoid

excessive levels, as hearing damage may result.

LCD Screen

s Although the LCD screen is made with high-precision

technology and 99.99% or more of the pixels are effective,

black dots may appear or bright points of light (red, blue, or

green) may appear constantly on the LCD screen. This is a

structural property of the LCD screen and is not a malfunction. s Do not push or scratch the front filter, or place objects on top of

this TV set. The image may be uneven or the LCD screen may

be damaged. s If this TV set is used in a cold place, a smear may occur in the

picture or the picture may become dark. This does not indicate

a failure. These phenomena disappear as the temperature rises. s Ghosting may occur when still pictures are displayed

continuously. It may disappear after a few moments. s The screen and cabinet get warm when this TV set is in use.

This is not a malfunction. s The LCD screen contains a small amount of liquid crystal.

Some fluorescent tubes used in this TV set also contain

mercury. Follow your local ordinances and regulations for

disposal.

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

s To remove dust from the screen surface/cabinet, wipe gently

with a soft cloth. If d ust is persistent, wipe with a soft cloth

slightly moistened with a diluted mild detergent solution. s Never use any type of abrasive pad, alkaline/acid cleaner,

scouring powder, or volatile solvent, such as alcohol, benzene,

thinner or insecticide. Using such materials or maintaining

prolonged contact with rubber or vinyl materials may result in

damage to the screen surface and cabinet material. s Periodic vacuuming of the ventila tion opening is recommended

to ensure to proper ventilation. s When adjusting the angle of the TV set, move it slowly so as to

prevent the TV set from moving or slipping off from its table

stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging

as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the pr oduct safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

indicates that this product shall not be treated

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. By ensuring these batteries are disposed

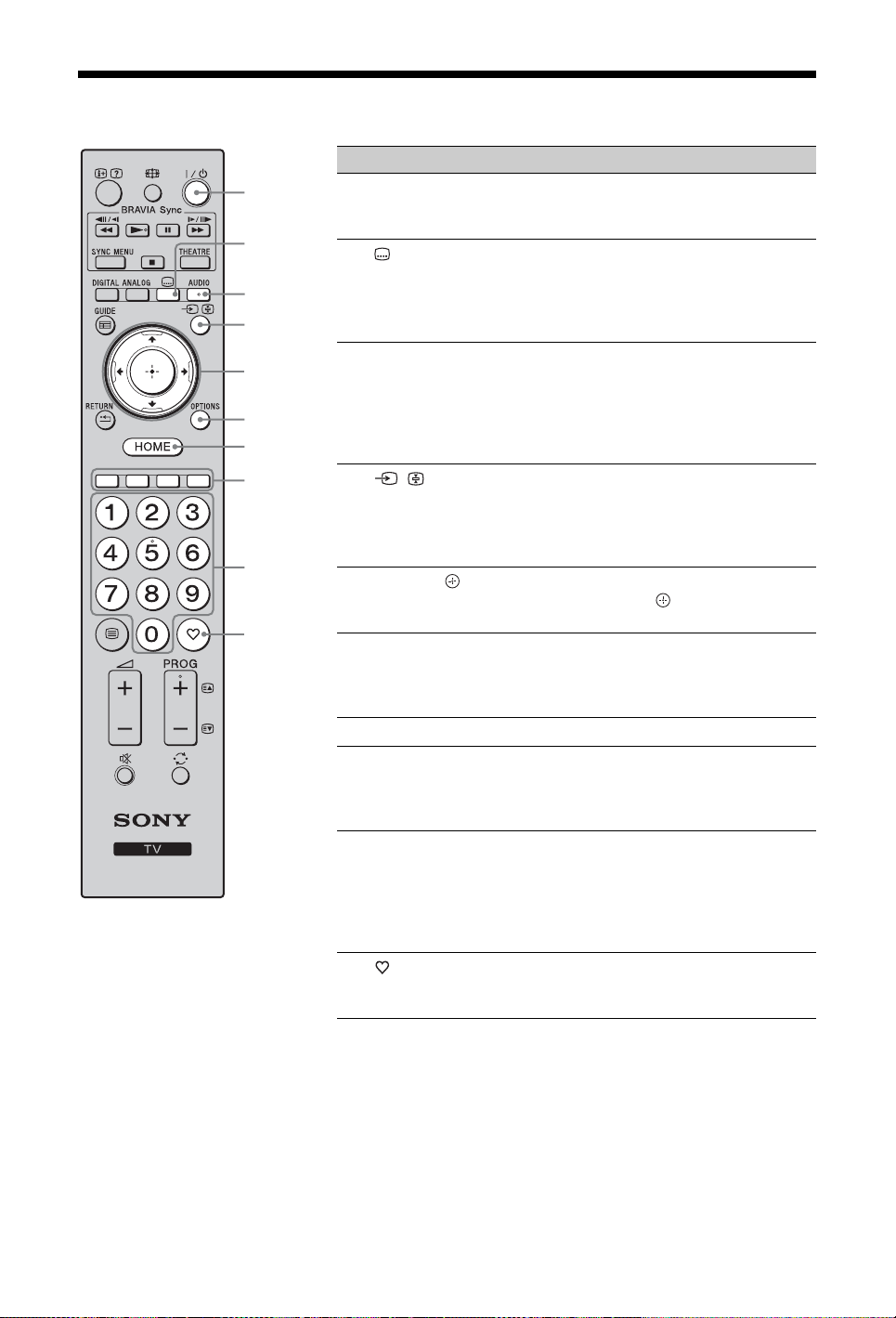

Remote and TV Controls/Indicators

Button Description

3 4

6 7

1 "/1 (TV

standby)

2 (Subtitles) Press to display the subtitles on current

3 AUDIO In analogue mode: Press to change the dual

4 / (Input

select/Text hold)

5 F/f/G/g/ Press F/f/G/g to move the on-screen cursor.

6 OPTIONS Enables you to access various viewing

7 HOME Displays the TV Home menu. 8 Coloured

buttons

9 Number

buttons

0 (Favourite) Press to display the digital favourite list that

Turns the TV on and off from standby mode.

programme if TV channels broadcast such information (in digital mode only) (page 44).

sound mode (page 36). In digital mode: Press to select the audio language (page 44).

In TV mode: Selects the input source from equipment connected to the TV sockets (page 25). In Text mode (page 16): Holds the current page.

Press to select/confirm the highlighted item.

options and change/make adjustments according to the source and screen format.

When the coloured buttons are available, an operation guide appears on the screen. Follow the operation guide to perform a selected operation.

In TV mode: Selects channels. For channel numbers 10 and above, enter the second and third digit quickly. In Text mode: Press to enter a page number.

you have specified (page 21).

ws wa

w; ql

qk qj

Button Description

qa PROG +/–/

qs (Previous

channel)

qd % (Mute the

sound)

In TV mode: Selects the next (+) or previous (–) channel. In Text mode (page 16): Selects the next ( ) or previous ( ) page.

Returns to the previous channel watched (for more than five seconds).

Press to mute the sound. Press again to restore the sound.

• In standby mode, if you want to turn on the TV without sound, press this button.

qf 2 +/–

(Volume)

qg / (Text) Press to display text information (page 16). qh /RETURN Returns to the previous screen of any

qj /GUIDE

(EPG)

qk ANALOG Press to display the analogue channel that

ql DIGITAL Press to display the digital channel that was

w; BRAVIA Sync You can operate the equipment connected to

wa / (Info/

qsqd

Text reveal)

ws (Screen

mode)

• The number 5, PROG +, AUDIO and buttons have tactile dots.

Use the tactile dots as references when operating the TV.

Press to adjust the volume.

displayed menu.

Press to display the Digital Electronic Programme Guide (EPG) (page 17, 20).

was last viewed.

last viewed.

the TV (page 29).

In digital mode: Displays details of the programme currently being watched. In analogue mode: Each time you press /

, the information on the screen changes as follows: Displays information such as current channel number and screen format t Time is displayed t Information is hidden. In Text mode (page 16): Reveals hidden information (e.g. answers to a quiz).

Press to change the screen format (page 16).

(Continued)

6790

12 3 4 5

HOME

Button Description

HOME

1 (HOME) Displays the TV Home menu. 2 / (Input select/OK) In TV mode: Selects the input source from equipment connected to the

3 2 +/–/ / In TV mode: Increases (+) or decreases (–) the volume.

4 PROG +/–/ / In TV mode: Selects the next (+) or previous (–) channel.

5 1 (Power) Turns the TV on or off.

TV sockets (page 25). In TV menu: Selects the menu or option, and confirms the setting.

In TV menu: Moves through the options right ( ) or left ( ).

In TV menu: Moves through the options up ( ) or down ( ).

• To disconnect the TV completely, pull the plug from the mains.

6 Light Sensor Do not put anything over the sensor, as its function may be affected. 7 (Picture Off/Timer

indicator)

8 Remote control sensor Receives IR signals from the remote.

9 1 (Standby indicator) Lights up in red when the TV is in standby mode. 0 " (Power indicator) Lights up in green when the TV is turned on.

Lights up in green when the picture is switched off (page 37). Lights up in orange when the reminder is set (page 18, 20) or the timer is set (page 38).

Do not put anything over the sensor, as its function may be affected.

Lights up in red when recording a current programme by SmartLink.

• Make sure that the TV is completely turned off before unplugging the mains lead. Unplugging the mains lead while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

• Do not put anything over the indicators as their functions may be affected.

Watching TV

1 Press 1 on the TV to switch on the TV.

When the TV is in standby mode (the 1 (standby) indicator on the TV (front) is red), press "/1 on the remote to switch on the TV.

2 Press DIGITAL to switch to digital mode

or ANALOG to switch to analogue mode.

The channels available vary depending on the mode.

Watching TV

3 Press the number buttons or PROG +/– to

select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the second and third digits within two seconds. To select a digital channel using the Guide, see page 17 or 20.

In digital mode

An information banner appears briefly. The following icons may be indicated on the banner.

*: Interactive service (MHEG Digital Text)

is available

*: Interactive service (MHEG Digital Text)

is currently disabled : Radio service : Scrambled/Subscription service : Multiple audio languages available : Subtitles available : Subtitles available for the hearing

impaired : Recommended minimum age for current

programme (from 4 to 18 years) : Parental Lock

* Only for the United Kingdom.

Additional operations

To Do this

Turn on the TV from standby mode without sound

Adjust the volume Press 2 + (increase)/

Press %. Press 2 +/– to set the volume level.

– (decrease).

(Continued)

To access Digital Text (Only for the United Kingdom)

Many broadcasters provide a Digital Text service. Digital Text offers graphically rich contents, compared to Analogue Text. Select a digital channel which provides Digital Text, then press /. When a broadcaster provides a dedicated Digital Text channel, select this channel to access Digital Text. To navigate through Digital Text, follow the instructions on the screen. To exit Digital Text, press RETURN. To move around, press F/f/G/g. To select items, press and the number buttons. To access shortcuts, press the coloured buttons.

To access Text

Press /. Each time you press /, the display changes cyclically as follows: Text t Text over the TV picture (mix mode) t No Text (exit the Text service) To select a page, press the number buttons or

/. To hold a page, press / . To reveal hidden information, press / .

• When four coloured items appear at the bottom of

the Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.

Wide

Displays wide screen (16:9) broadcasts in the correct proportions.

Zoom*

Displays cinemascopic (letter box format) broadcasts in the correct proportions.

14:9*

Displays 14:9 broadcasts in the correct proportions. As a result, black border areas are visible on the screen.

* Parts of the top and bottom of the picture may be cut off.

• Some characters and/or letters at the top and the bottom of the picture may not be visible in Smart mode. In such a case, you can select “Vertical Size” using the “Screen Settings” (page 39) menu and adjust vertical size to make it visible.

• When “Auto Format” is set to “On”, the TV will automatically select the best mode to suit the broadcast (page 39).

• You can adjust the position of the picture when selecting “Smart”, “14:9” or “Zoom.” Press F/f to move up or down (e.g. to read subtitles).

To change the screen format manually

Press repeatedly to select the desired screen format.

Smart*

Displays conventional 4:3 broadcasts with an imitation wide screen effect. The 4:3 picture is stretched to fill the screen.

4:3

Displays conventional 4:3 broadcasts (e.g. non-wide screen TV) in the correct proportions.

Using the Options menu

Press OPTIONS to display the following options when viewing a TV programme.

Option Description

Picture Mode See page 35.

Sound Mode See page 36.

Surround See page 36.

Speaker See page 41.

Motionflow See page 37.

Subtitle Setting (in digital mode only)

Sleep Timer See page 38.

Power Saving See page 37.

System Information (in digital mode only)

See page 44.

See page 45.

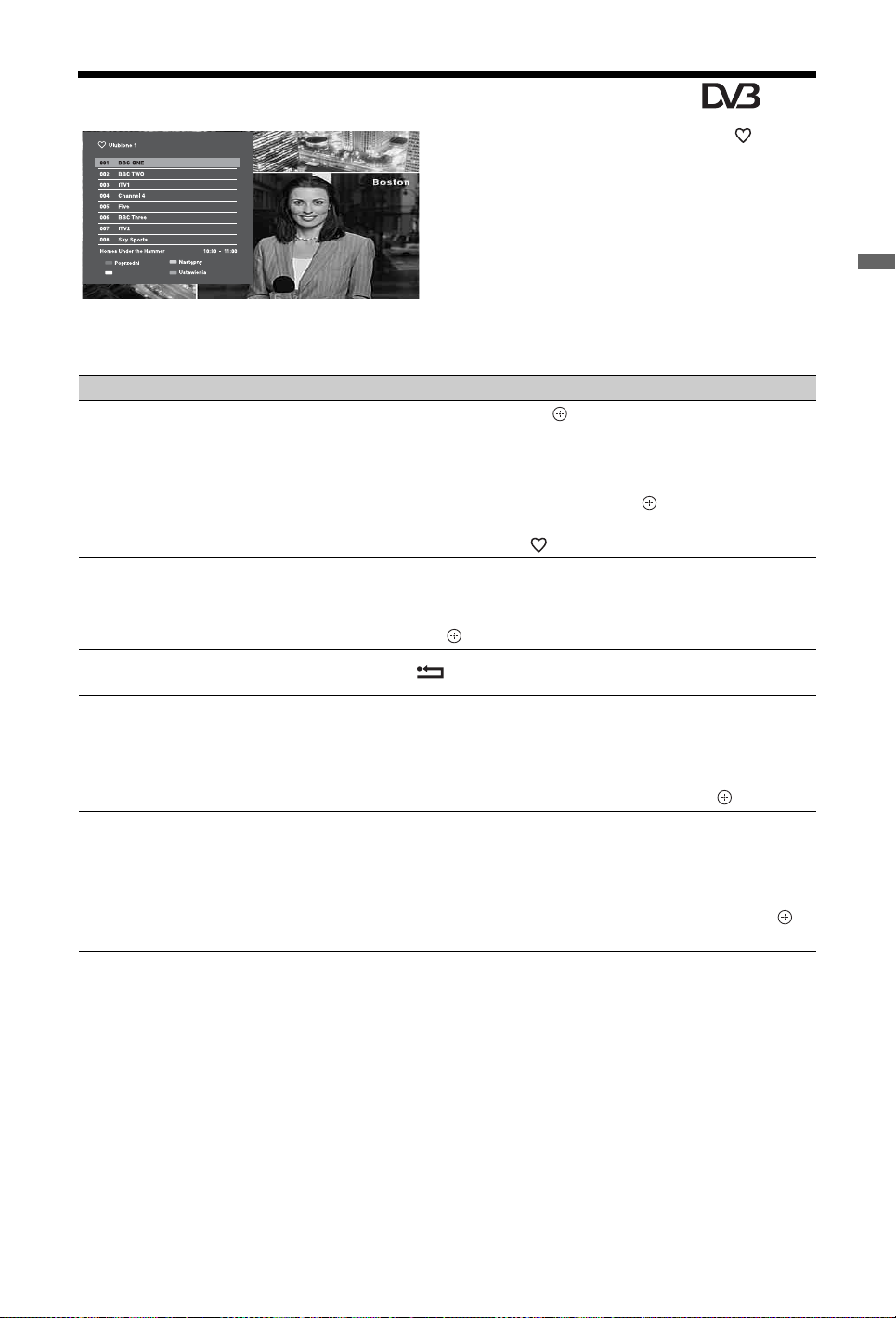

Using GUIDE Plus+™ System* and the Digital Electronic Programme Guide (EPG)

* Condition you can set-up this feature:

– in UK, Italy, France, Germany or Spain. – you can receive digital broadcasting. – when “Antenna” is selected in step 7 of “ 5: Performing the initial set-up.”

** This function may not be available in some countries/regions.

GUIDE Plus+ works with full functionality only if GUIDE Plus+ data is available by digital feed. Please check the GUIDE Plus+ website whether or not DTT Guide Plus+ is already available in your country.

• When you use GUIDE Plus+, it is recommended that you turn off your TV by using the standby button on the remote, not the power button on your TV, in order to update the programme information.

Using GUIDE Plus+

Use GUIDE Plus+ system to find the show that you want to watch. The feature allows you to search for shows by programme categories and by keyword. The GUIDE Plus+ programme provides up to eight days of TV programming information. Be sure to complete the initial set-up on page 6 to use this service.

GUIDE Plus+ System Components

Video window

Information panels

GUIDE Plus+ logo

Sky

29-May 07:15

Arthur : Animation following the adventures of a young aardvark and his friends. Buster discovers the joy of growing your own vegetables.

BBC2 8:00-8:30

Grid

Thu, 29 7:00 7:30 8:00

Search My TV Schedule Set-up

Breakfast

In the Night Garden Cbeebies Springwatch Arthur

GMTV Today

Freshly Squeezed Everybody loves Ray... Just Shoot Me

The Adve...

Rupert B...

Spendaholics Greek

Emmerd... The Montel Williams Show

Anything Goes

Roary th... Make Wa... Fifi and t... Tomas ...

Branding partner logo

Go to AdRemind Top

Sally Jessy Raphael

Action bar

Information box Menu bar

8:30

Channel logo and programme title

Watching TV

• Image shown above varies depending on country/region.

• Information panels is not Sony provided, adverts from Branding Partner.

• The function of action bar varies with cursor location and when in settings.

1 Press GUIDE.

2 Perform the desired operation as shown in the following table or displayed on the screen.

(Continued)

To Do this

View a programme Press F/f/G/g to select a programme, then press .

• The programme information will appear in the information box.

• Press / to access the extended information box for a long synopsis.

• You can use PROG +/– to page up/down through the listings.

Press BRAVIA sync m/M to go to the next day or one day back.

Turn off the TV Guide Press GUIDE to exit TV Guide.

Set a programme to be displayed automatically on the screen when it starts – Reminder

Menu bar Press F repeatedly to access the menu bar.

Search a programme – Search

Search your own keyword – My Choice

Press F/f/G/g to select a future programme you want to watch, then press the green button.

• To cancel a reminder, press the red button when “Reminder” is highlighted or use “Schedule” on the menu bar.

• If you switch the TV to standby mode, it will automatically turn itself on when the programme is about to start.

Press G/g to select area. (“Grid”, “Search”, “My TV”, “Schedule” and “Set-up”) You can view a programme or set a reminder in “Grid” area.

You can quickly and easily find something of interest to watch or to set a reminder by category (e.g. Sport) or subcategory (e.g. Football) of a programme.

1 Highlight “Search” on the menu bar, then, press f only one

time.

2 Press F/f/G/g to select a category or subcategory, then press

In addition to the standard categories and sub-categories, you can set your own search keywords.

1 Highlight “My Choice” in the “Search” area on the menu bar. 2 Press yellow button to add a keyword, then the virtual keyboard

appears.

3 Use the virtual keyboard to enter your keyword. 4 Confirm with the green button. 5 Your personal keyword appears in the “My Choice.” 6 Select your keyword and press to start a search according to

your personal keyword.

To Do this

Set a Profile and receive recommendations according to your preferences – My TV

The “My TV” area allows you to set up a personal profile. You can define a personal profile by channels, categories and/or by keywords. The “My TV” area is making recommendations to you to quickly and easily find something of interest to watch or to set a reminder. How to set your profile:

1 Highlight “My TV” on the menu bar, press the green button to

set your profile.

2 Press F/f to select channels, categories or keywords. 3 Press the yellow button to add a channel, a category or a

keyword to your profile.

4 Press F/f/G/g to select a channel, a category or a keyword, then

press .

5 Repeat step 2 to 4 to add more items. 6 Press to activate your profile.

• You can delete or edit with the red and green buttons.

Delete and edit reminder – Schedule

Configure the GUIDE Plus+ system according to your personal situation – Set-up

1 Highlight “Schedule” on the menu bar. 2 Press F/f to delete or edit with the red and green buttons.

• When no reminder is set, “No programmes” is displayed. Press g to highlight “Frequency” (e.g.weekly) or “Timing” (e.g.reminder timing:10 min early), you can change this settings by pressing colour buttons.

1 Highlight “Set-up” on menu bar. 2 Press F/f for you to select below items you want to configure.

“Personal Preferences”: You can change the on screen language, change reminder timing and set overnight download. “Start Installation Sequence”: This feature provides an easy way to restart your installation from scratch. This will delete all your current TV listing data. “Manual Data Download”: Update your TV listings immediately. If the TV is switched off during several days, TV listings will not be updated automatically. In this case, use this feature to update TV listings. “GUIDE Plus+ System Information” screen: Display GUIDE Plus+ system information. This screen is providing several values that are helpful for troubleshooting.

Watching TV

Using the Digital Electronic Programme Guide (EPG) **

All Categories

Tod ay

001 BBC ONE

002 BBC TWO

003 ITV1

004 Channel 4

005 Five

006 ITV2

007 BBC THREE

008 BBC FOUR

009 ITV3

010 SKY THREE

Fri 16 Mar 11:35

Homes Under the Hammer Neighbours Afterlife

Ready Steady Cook Extraordinary People: Britains Iden... CSI: Crime Scene Inv...

Dancing On Ice Exclusive Cracker

Sign Zone: Ancient Rome: The Rise a... The Jeremy Kyle... Homes Under th...

House Law and Order: Special Victims U... PartyPoker.com Worl...

Crime Hour: Midsomer Murders Vodafone TBA: L...

BBC Learning Zone: Schools: World P... A Picture of Brit... Eastenders

ER Real Crime: The Truth About the... This is BBC FOUR

body Loves Raymond The Sharon Osb...

Past Every

Racing from Chepstow and Ascot B aseball Wedne... Trans World Sport

13: 0012: 3012: 0011: 30

Category30 min ViewNextPrevious

1 In digital mode, press GUIDE. 2 Perform the desired operation as shown in

the following table or displayed on the screen.

** This function may not be available in some countries/regions.

To switch the GUIDE (Sony Guide or GUIDE Plus+), see page 45.

To Do this

Watch a programme Press F/f/G/g to select the programme, then press .

Turn off the Guide Press GUIDE.

Sort the programme information by category – Category list

Set a programme to be displayed automatically on the screen when it starts – Reminder

1 Press the blue button. 2 Press F/f to select a category, then press .

1 Press F/f/G/g to select the future programme you want to

display, then press / .

2 Press F/f to select “Reminder”, then press .

A c symbol appears by that programme’s information. The

indicator on the TV front panel lights up in orange.

• If you switch the TV to standby mode, it will automatically turn itself on when the programme is about to start.

Cancel reminder – Cancel Timer

1 Press / . 2 Press F/f to select “Timer list”, then press . 3 Press F/f to select the programme you want to cancel, then

press .

4 Press F/f to select “Cancel Timer”, then press .

A display appears to confirm that you want to cancel the programme.

5 Press G/g to select “Yes”, then press to confirm.

Using the Digital Favourite List *

1 In digital mode, press . 2 Perform the desired operation as shown in

the following table or displayed on the screen.

Homes Under the Hammer 10:30 - 11:00

Digital Favourite List

* This function may not be available in some countries/regions.

To Do this

Create your Favourite list for the first time

Watch a channel

Turn off the Favourite list Press RETURN.

Add or remove channels in the currently edited Favourite list

Remove all channels from the current Favourite list

1 Press to select “Yes.” 2 Press the yellow button to select the favourite list. 3 Press F/f to select the channel you want to add, then press .

A symbol appears next to channels that you have stored in

the favourite list.

1 Press yellow key to navigate through favourite lists. 2 Press F/f to select the channel, then press .

1 Press the blue button. 2 Press the yellow button to choose the list you want to edit. 3 Press F/f/G/g to select the channel you want to add or remove,

then press .

1 Press the blue button. 2 Press the yellow button to select the favourite list you want to

edit.

3 Press the blue button. 4 Press G/g to select “Yes”, then press to confirm.

Watching TV

Using Optional Equipment

Connecting Chart

You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.

123 4 5 6

A V

( SMARTLINK )

COMPONENT IN

DMPORT

DC 5V

0.7A MAX

PC IN

IN3

Connect to Input symbol on

screen

1 /AV1 AV1 When you connect a decoder, the TV tuner outputs scrambled

2 //

AV2

(SMARTLINK)

3 /

COMPONENT IN

4 DMPORT DMPORT You can play audio or video (optional cable required) of a

AV2 SmartLink is a direct link between the TV and a VCR/DVD

Component The component video sockets support the following video

Description

signals to the decoder, and the decoder unscrambles the signals before outputting them.

recorder.

inputs only: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p.

portable audio player that is connected to the TV using a DIGITAL MEDIA PORT (DMPORT) adaptor. Depending on the connected DIGITAL MEDIA PORT adaptor, you can operate the connected equipment using the TV as follows;

– Using the remote of the TV: N/x/X/m/M/F/f/G/

g// RETURN.

– Using the Options menu function: Press OPTIONS, and

select “Control Panel” or “Device Control (Menu).”

• Do not connect or disconnect a DIGITAL MEDIA PORT adapter while the TV is turned on.

• The connected equipment is not charged when the TV is turned off or in standby mode.

5 HDMI IN 1 or 2 HDMI 1 or

HDMI 2

qs HDMI 3 HDMI 3

Digital video and audio signals are input from the connected equipment. In addition, when you connect the equipment that is compatible with control for HDMI, communication with the connected equipment is supported. Refer to page 41 to set up this communication. If the equipment has a DVI socket, connect the DVI socket to the HDMI IN socket through a DVI-HDMI adaptor interface (not supplied), and connect the equipment’s audio out socket to the audio in HDMI IN socket.

• The HDMI sockets support the following video inputs only: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 1080/24p. For PC video inputs, see page 50.

• Be sure to use only an authorised HDMI cable bearing the HDMI logo. We recommend that you use a Sony HDMI cable (high speed type).

• When connecting an audio system that is compatible with control for HDMI, be sure to also connect it to the DIGITAL AUDIO OUT (OPTICAL) socket.

6 LAN You can enjoy contents stored on DLNA-compatible devices

7 /PC IN PC It is recommended to use a PC cable with ferrites, such as the

L- -R

DIGITAL AUDIO OUT (OPTICAL)

via a network (page 30).

“Connector, D-sub 15” (ref. 1-793-504-11, available in Sony Service Centre) or equivalent.

Connect to the audio output sockets to listen to the sound from the TV on Hi-Fi audio equipment.

Use an optical audio cable.

Using Optional Equipment

(Continued)

Connect to Input symbol on

screen

0 CAM

(Conditional Access Module)

Description

To use Pay Per View services. For details, refer to the instruction manual supplied with your CAM. To use the CAM, remove the “dummy” card from the CAM slot, then turn off the TV and insert your CAM card into the slot. When you are not using the CAM, we recommend that you keep the “dummy” card in the CAM slot.

• CAM is not supported in all countries. Please check with your authorised dealer.

qa USB You can enjoy photo/music files stored in a Sony digital still

qd /L- -R

AV3

qf i Headphones You can listen to TV sound through headphones.

AV3 When connecting mono equipment, connect to the AV3

camera or camcorder through a USB cable or USB storage device on your TV (page 26).

L socket.

Viewing Pictures from Connected Equipment

Switch on the connected equipment, then perform one of the following operation.

For equipment connected to the scart sockets using a fully-wired 21-pin scart lead

Start playback on the connected equipment. The picture from the connected equipment appears on the screen.

For an auto-tuned VCR/ DVD recorder

In analogue mode, press PROG +/–, or the number buttons, to select the video channel.

For a USB device

See page 26.

For a Network device

See page 30.

For other connected equipment

Press / to display a list of connected equipment. Press F/f to select the desired input source, then press . The highlighted item is automatically selected if you do not perform any operation for two seconds after pressing F/f. If you have set an input source to “Skip” in the “AV Preset” menu (page 40), that input source does not appear in the list.

• To return to normal TV mode, press DIGITAL or ANALOG.

Using the Options menu

Press OPTIONS to display the following options when viewing pictures from connected equipment.

Option Description

Picture Mode (except PC input mode)

Display Mode (in PC input mode only)

Sound Mode See page 36.

Surround See page 36.

Speaker See page 41.

Motionflow See page 37.

See page 35.

Option Description

PIP (in PC input mode only)

PAP (except PC input mode and DIGITAL MEDIA PORT mode)

Auto Adjustment (in PC input mode only)

Horizontal Shift (in PC input mode only)

Sleep Timer (except PC input mode)

Power Saving See page 37.

Device Control (Menu) (in DIGITAL MEDIA PORT mode only)

Control Panel (in DIGITAL MEDIA PORT mode only)

Device Control (in HDMI mode only)

See page 26.

See page 25.

See page 39.

See page 38.

See page 23.

See page 29.

To view two pictures simultaneously – PAP (Picture and Picture)

You can view two pictures (external input and TV programme) on the screen simultaneously. Connect an optional equipment (page 22), and make sure that images from the equipment appear on the screen (page 25).

• This function is not available for a PC input and DIGITAL MEDIA PORT input.

• You cannot change the size of the pictures.

• You cannot display analogue TV video in the TV programme picture while displaying AV1, AV2 or AV3 video in the external inputs picture.

1 Press OPTIONS. 2 Press F/f to select “PAP”, then press .

The picture from the connected equipment is displayed on the left, and the TV programme is displayed on the right.

3 Press the number buttons or PROG +/– to

select the TV channel.

To return to single picture mode

Press RETURN.

• The highlighted picture is audible. You can switch the audible picture by pressing G/g.

Using Optional Equipment

(Continued)

To view two pictures simultaneously – PIP (Picture in Picture)

You can view two pictures (PC input and TV programme) on the screen simultaneously. Connect a PC (page 22), and make sure that image from a PC appears on the screen.

1 Press OPTIONS to display the Options

menu.

2 Press F/f to select “PIP”, then press .

The picture from the connected PC is displayed in full size, and the TV programme is displayed in the small screen. You can use F/f/G/g to move the TV programme screen position.

3 Press number buttons or PROG +/– to

select the TV channel.

To return to single picture mode

Press RETURN.

• You can switch the audible picture by selecting “Audio Swap” from the Options menu.

Playing Back Photo/Music via USB

You can enjoy photo/music files stored in a Sony digital still camera or camcorder through a USB cable or USB storage media on your TV.

1 Connect a supported USB device to the

TV.

2 Press HOME. 3 Press G/g to select “Photo” or “Music.” 4 Press F/f to select a USB device, then

press .

In “Music”, “List View” appears. In “Photo”, “Thumbnail View” appears. Press the yellow button to switch between “List View” and “Thumbnail View.”

5 Press F/f/G/g to select a file or folder,

then press .

When you select a folder, select a file, then press . Playback starts.

Photo Playback Auto Start

The TV automatically starts photo playback when the TV is turned on and a digital still camera or other device storing photo files is connected to the USB port and then turned on (page 37).

(Photo) Available Options

Option Description

Picture Mode See page 35.

Sound Mode See page 36.

Surround See page 36.

Cropping Crops a photograph.

Display map Displays a map of the

location where a photo was shot along with the photo itself.

Show Options Allows you to set repeat/

shuffle for photo playback.

Photo Set-up Sets how playback should

be performed and what effects to use during slideshows.

Rotate and Save Rotates and saves

unprotected files.

Option Description

Speaker See page 41.

Picture Frame Image Allows you to select a

photograph to be displayed as picture frame.

Information Displays information

about the device, folders, and files.

(Music) Available Options

Option Description

Sound Mode See page 36.

Surround See page 36.

Add to Slideshow Registers the background

music to be played during a slideshow using (Photo).

Omit from Slideshow Cancels the registered

background music.

Playback Options Allows music options to

be set for repeat, shuffle, or regular playback.

Speaker See page 41.

Information Displays information

about the device, folders, and files.

• Picture quality may appear coarse when using (Photo) because images may be enlarged depending on the file. Also, images may not fill the entire screen depending on the image size and aspect ratio.

• Some photo files may take some time to be displayed when using (Photo).

• The file name and folder name support only English.

• While the TV is accessing the data on the USB device, observe the following: – Do not turn off the TV or connected USB

device. – Do not disconnect the USB cable. – Do not remove the USB device. The data on the USB device may be damaged.

• Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction of any connected devices or the TV.

• Playback does not start automatically if the TV is turned on after connecting the digital still camera or other device to the USB port.

• USB playback is supported for the following photo file formats: – JPEG (JPEG format files with the extension

“.jpg” and conforming to DCF or Exif)

– RAW (ARW/ARW 2.0 format files with this

extension “.arw.”) For preview only.

• When you connect a Sony digital still camera, set the camera’s USB connection mode to Auto or Mass Storage. For more information about USB connection mode, refer to the instructions supplied with your digital camera.

• USB playback is supported for the following music file formats: – MP3 (files with the extension “.mp3” that have

not been copyrighted)

• USB Photo Viewer supports FAT12, FAT16 and FAT32 file systems.

• Depending on the exact file specifications, some files, including those modified on a PC, cannot be played even if the file format is supported.

• Check the website below for updated information about compatible USB devices. http://support.sony-europe.com/TV/compatibility/

To display a photograph — Picture Frame

You can display a photograph on the screen for a selected period of time. After that period, the TV automatically switches itself into standby mode.

1 Select a photograph.

You can select a photograph from the connected USB device or preset picture folder. For details on selecting a photograph, see page 26.

2 Press OPTIONS while the selected

photograph is displayed, then press F/f to select “Picture Frame Image” and press

3 Press RETURN repeatedly to return

to the Home menu.

4 Press G/g to select “Photo”, then select

“Picture Frame” and press .

The TV is switched to Picture Frame mode, and the selected photograph is displayed on the screen.

To set the duration of displaying a photograph

Press OPTIONS, then select “Duration” and press . Then, select the duration, and press . The counter appears on the screen.

To return to the XMB™

Press RETURN.

Using Optional Equipment

(Continued)

• If the photograph is selected from a USB device, it must remain connected to the TV.

• If “Sleep Timer” is activated, the TV automatically will switch into standby mode.

To display a photograph with the location on the map

When using an image capture device with GPS function (digital still camera, etc.), it is possible to display a photograph with a map of the location where the photograph was taken using a function of GPS for recording longitude and latitude. Because map information is downloaded from the Internet online map service, the network connection must be required and the TV has to be connected to the network (page 30).

1 Select a photograph (page 26). 2 Press the green/red buttons to zoom in/out

on the map.

To change the display position of the map on the TV screen, press the blue button repeatedly.

5 Select “Load GPS log files”, then press

6 Select the following items using F/f and

press , then press F/f to set.

–Time Zone –DST

7 Select “OK”, then press .

The GPS log files are loaded.

8 Disconnect the GPS unit and connect the

device on which the photograph is stored.

9 Select a photograph (page 26). 10 Press the green/red buttons to zoom in/out

on the map.

• Because the Internet online map service is provided by a third party, service may be changed or terminated without prior notification to the user.

• The position indicated on the map may differ depending on the image capture device.

• Only a large-scale map that cannot be zoomed in or out is displayed if the TV is not connected to the Internet or the Internet online map service is terminated.

• You can also display a slideshow with the location on the map. Set “Photo Set-up” to “Simple with map” (page 26).

• A map can be displayed in the case of photograph’s EXIF data includes a date information, and the associated longitude and latitude information (“Log files”) has been recorded using a Sony GPS unit. Follow the procedure described below.

1 Connect the GPS unit to the USB port. 2 Press HOME. 3 Press G/g to select “Photo.” 4 Press F/f to select the GPS unit, then

press .

Using BRAVIA Sync with Control for HDMI

The control for HDMI function enables the TV to communicate with the connected equipment that is compatible with the function, using HDMI CEC (Consumer Electronics Control). For example, by connecting Sony equipment that is compatible with control for HDMI (with HDMI cables), you can control them together. Be sure to connect the equipment correctly, and make the necessary settings.

Control for HDMI

• Automatically turns the connected

equipment off when you switch the TV to standby mode using the remote.

• Automatically turns the TV on and

switches the input to the connected equipment when the equipment starts to play.

• If you turn on a connected audio system

while the TV is on, the sound output switches from the TV speaker to the audio system.

• Adjusts the volume (2 +/–) and mutes the

sound (%) of a connected audio system.

• You can operate the connected Sony

equipment that has the BRAVIA Sync logo by the TV remote by pressing:

– N/x/X/m/M to operate the connected

equipment directly.

– SYNC MENU to display the menu of the connected

HDMI equipment on the screen. After displaying the menu, you can operate the menu screen by using F/f/G/g and .

– OPTIONS to display “Device Control”, then select

options from “Menu”, “Options”, and “Content List” to operate the equipment.

– Refer to the instruction manual of the equipment for

available control.

To connect the equipment that is compatible with control for HDMI

Connect the compatible equipment and the TV with an HDMI cable. When connecting an audio system, be sure to also connect the DIGITAL AUDIO OUT (OPTICAL) socket of the TV and the audio system using an optical audio cable. For details, see page 23.

To make the control for HDMI settings

The control for HDMI settings must be set on both the TV side and connected equipment side. See “HDMI Set-up” on page 41 for the TV side settings. For settings on the connected equipment, refer to the operating instructions for that equipment.

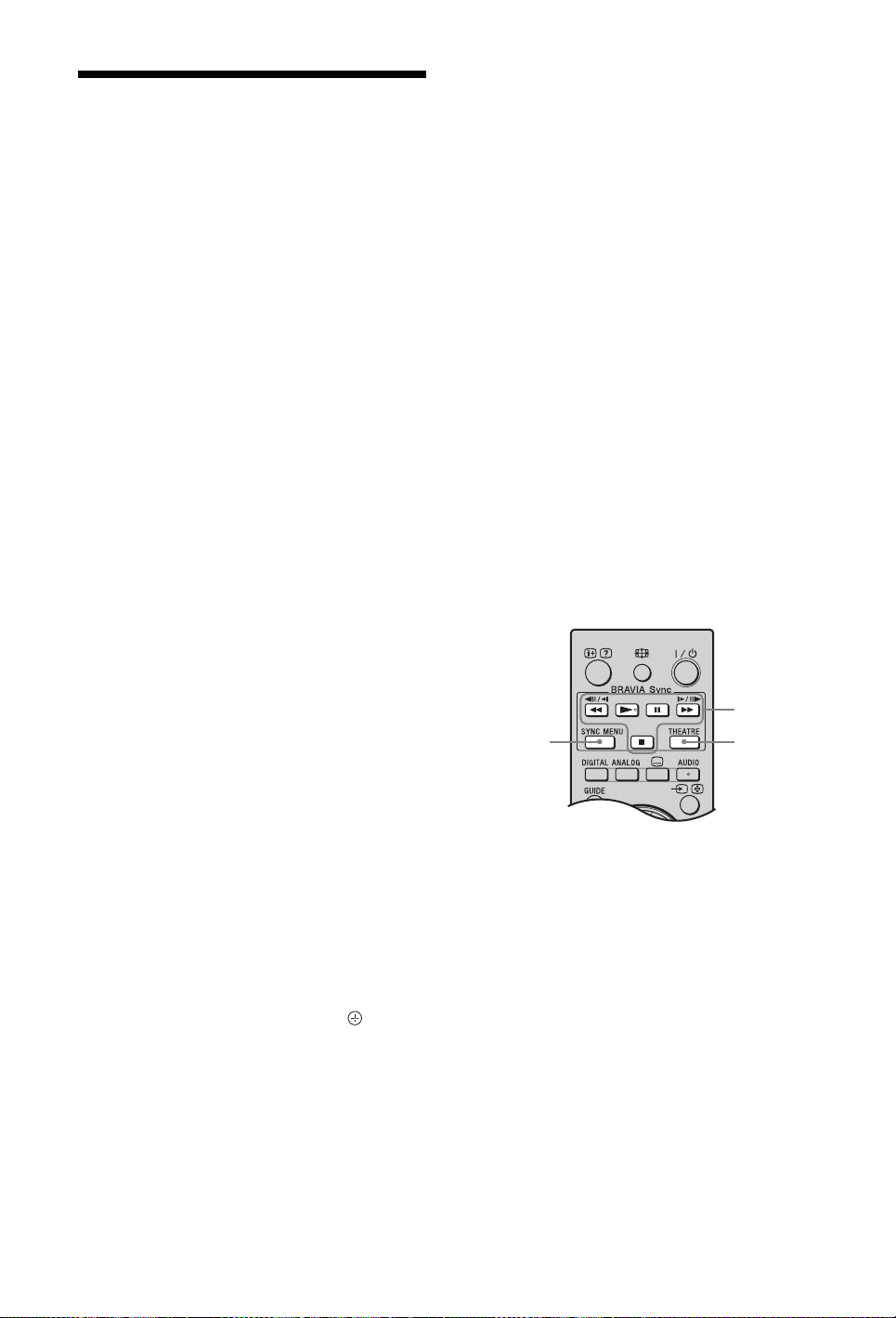

Buttons for using optional equipment

1 m/N/X/M/x: You can operate the

BRAVIA Sync-compatible equipment that is connected to the TV.

2 THEATRE

You can set Theatre Mode on or off. When Theatre Mode is set to on, the optimum audio output (if the TV is connected with an audio system using an HDMI cable) and picture quality for filmbased contents are automatically set.

• If you turn the TV off, Theatre Mode is also turned off.

3 SYNC MENU: Displays the menu of

connected HDMI equipment. While viewing other input screens or TV programmes, “HDMI Device Selection” is displayed when the button is pressed.

• Control for HDMI (BRAVIA Sync) is only available with the connected Sony equipment that has the BRAVIA Sync logo or is compatible with control for HDMI.

Using Optional Equipment

Using Network Features

With this TV, you can enjoy contents stored on DLNA-compatible devices on the home network. Devices that store and provide contents, such as photo/music files, is called “server.” The TV receives the photo/music files from the server via the network, and you can enjoy them on the TV even in other rooms. To enjoy the home network, a DLNAcompatible device (VAIO, Cyber-shot, etc.) is necessary as a server.

Connecting the TV to the Network

Network cable (not supplied)

Broadband router

To network device

Network cable (not supplied)

DSL modem/ Cable modem

Internet

Enjoying Photo/Music Files via the Network

You can enjoy photo/music files on the server easily by selecting an icon on the Home menu of the TV.

1 Press HOME. 2 Press G/g to select “Photo” or “Music.” 3 Press F/f to select a server, then press .

In “Music”, “List View” appears. In “Photo”, “Thumbnail View” appears. Press the yellow button to switch between “List View” and “Thumbnail View.”

If network devices do not appear, follow the steps on page 32.

4 Press F/f/G/g to select a file or folder,

then press .

When you select a folder, select a file, then press . Playback starts.

• A map can be displayed with a photograph in the case of longitude and latitude information has been recorded to photograph’s EXIF data (page 28).

• Depending on the network device, it may be necessary to register the TV with the network device.

• Some photo files may take some time to be displayed when using (Photo).

• The file name and folder name support only English.

• To play the files which are received from a network device, they need to have one of the following file formats. – Still images: JPEG format – Music: MP3 format or linear PCM format Depending on the network device, the file format may be converted before transfer. In such cases, the file format resulting after conversion is used for playback. For details, see the instruction

+ 149 hidden pages
