Page 1

Television

Reference Guide

KDL-55W800D / 50W800D / 43W800D

Page 2

Table of Contents

Safety Information . . . . . . . . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Parts and Controls . . . . . . . . . . . . . . . . . . . 7

Controls and Indicators . . . . . . . . . . . . . . . . . 7

Inputs and Outputs . . . . . . . . . . . . . . . . . . . .8

Using Remote Control . . . . . . . . . . . . . . . . 9

Remote Control Parts Description. . . . . . . . . 9

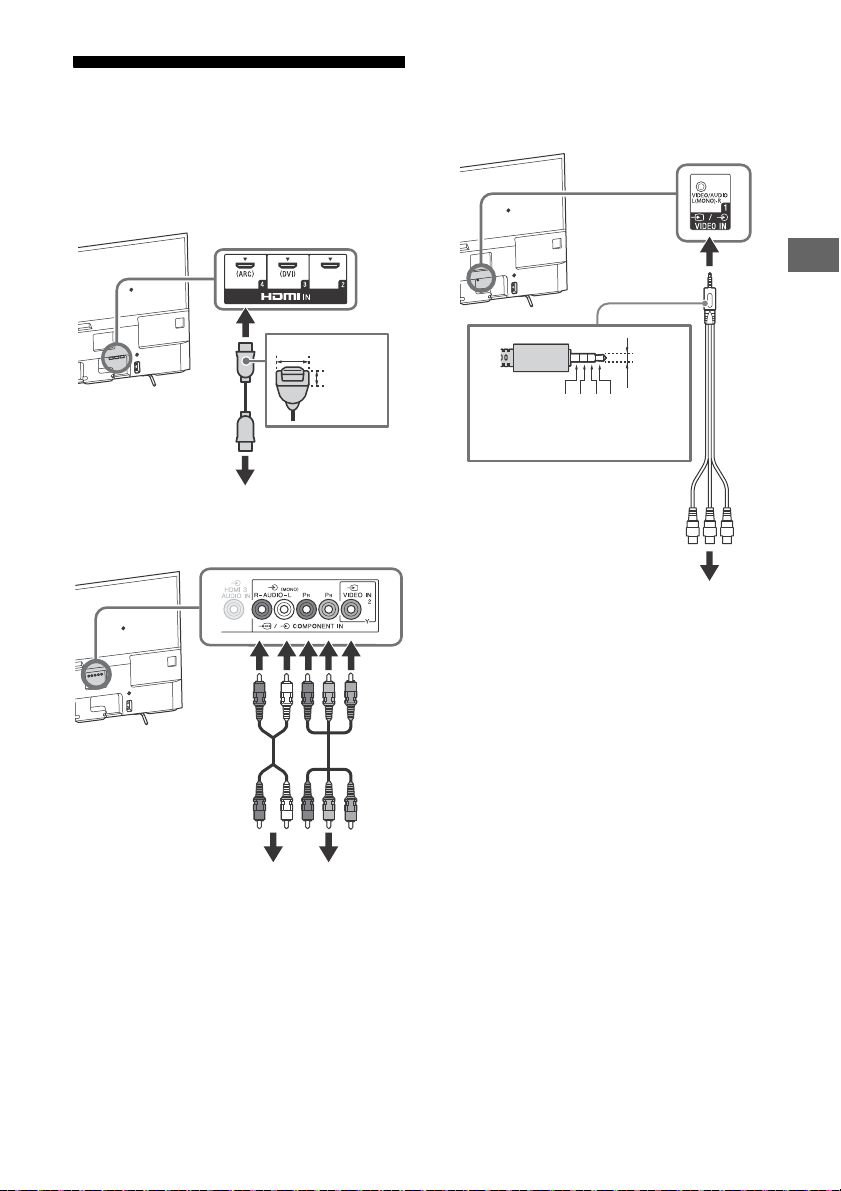

Connecting the TV . . . . . . . . . . . . . . . . . . .11

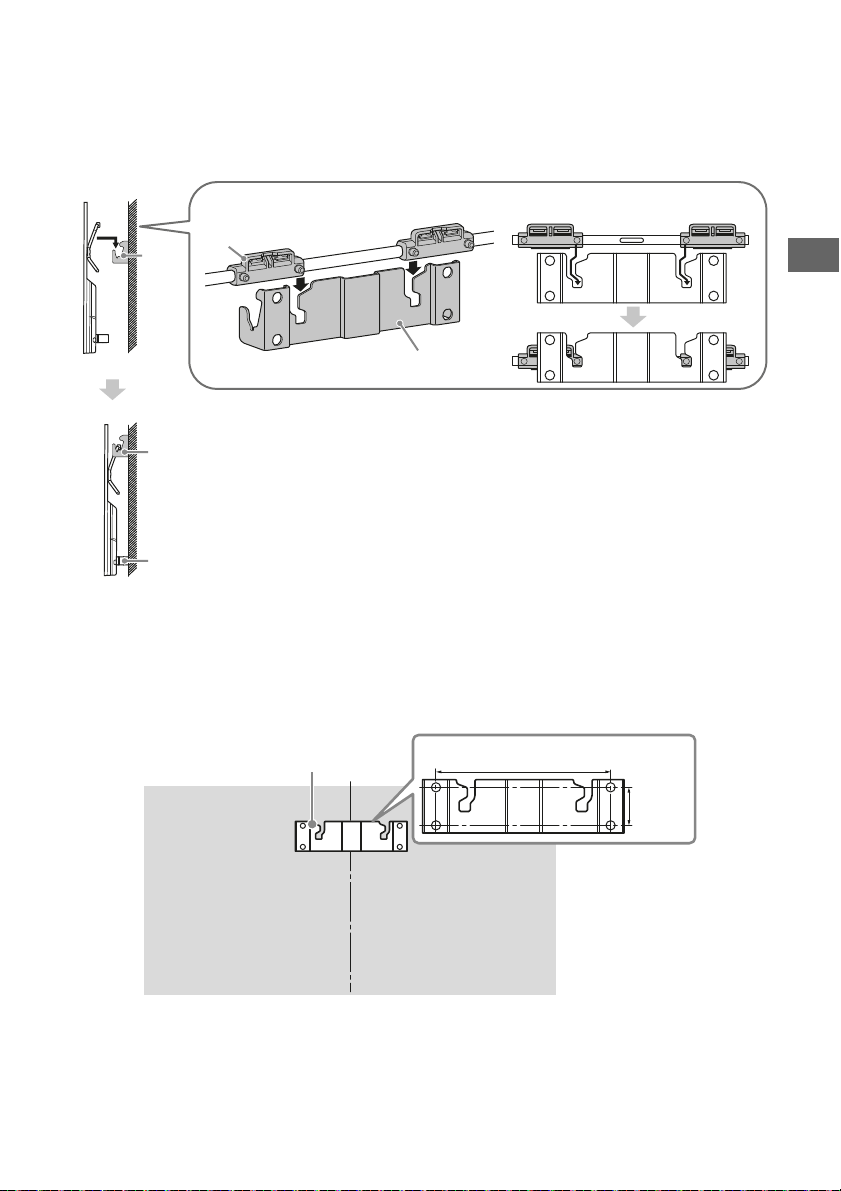

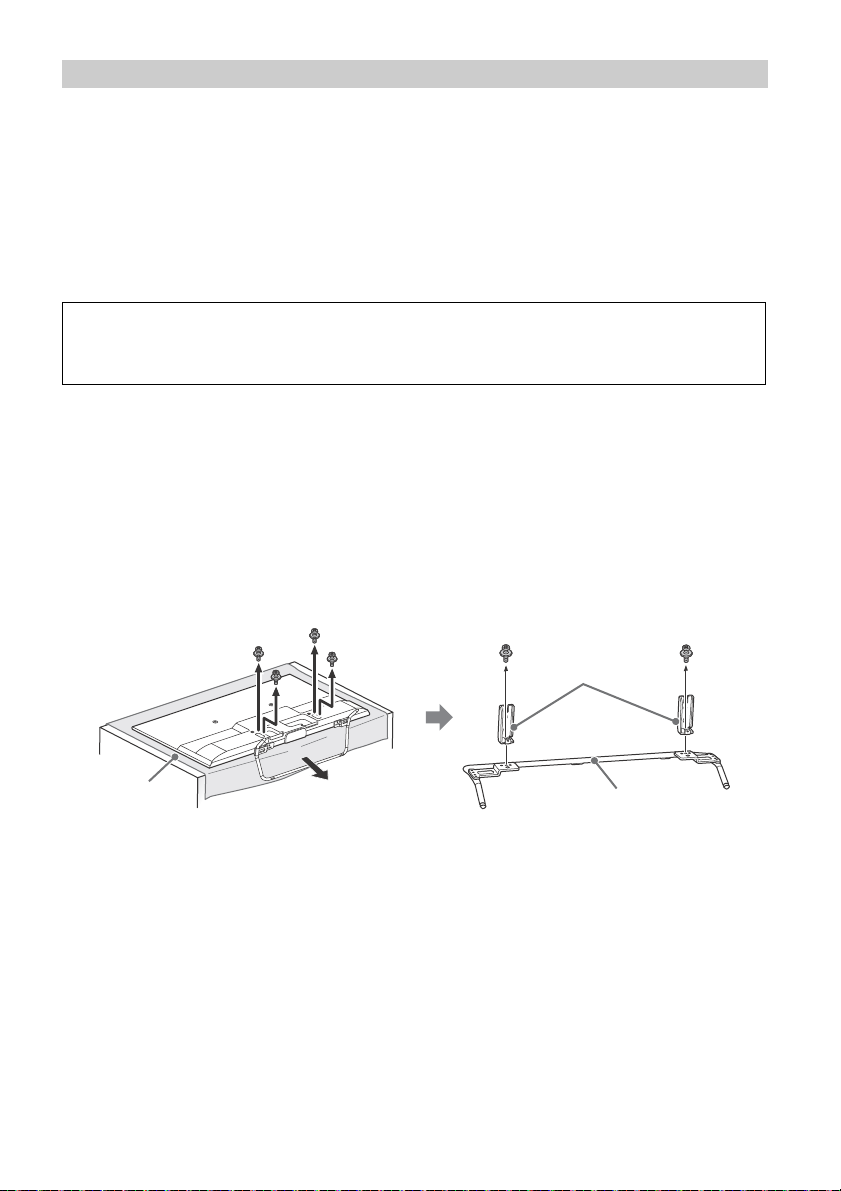

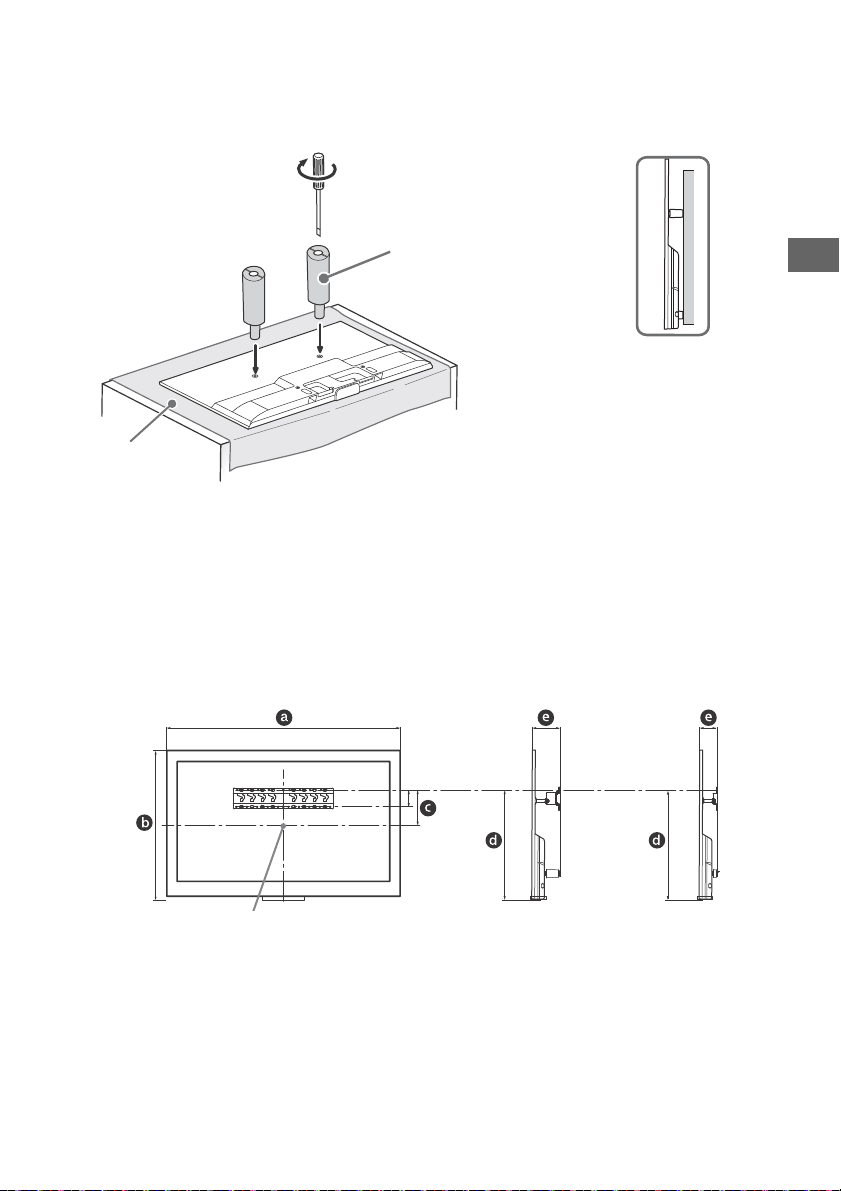

Installing the TV to the Wall . . . . . . . . . . 13

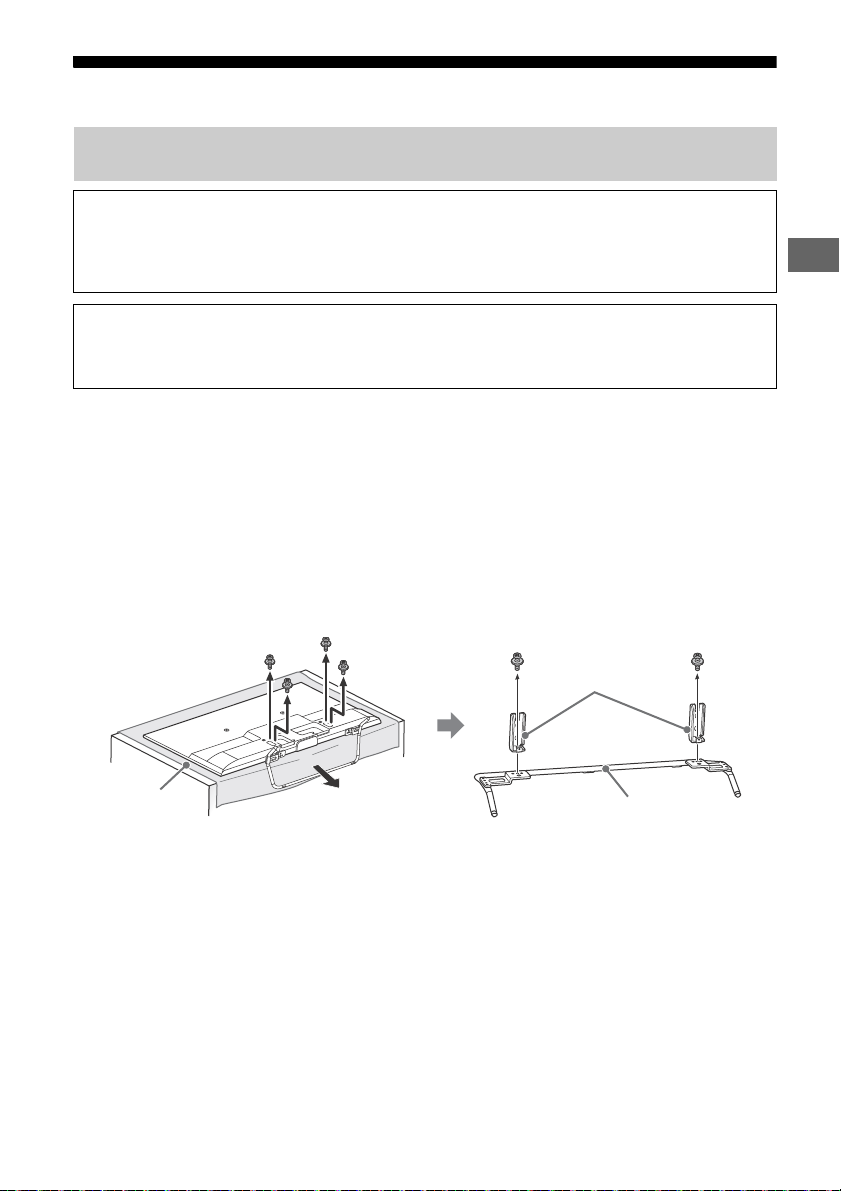

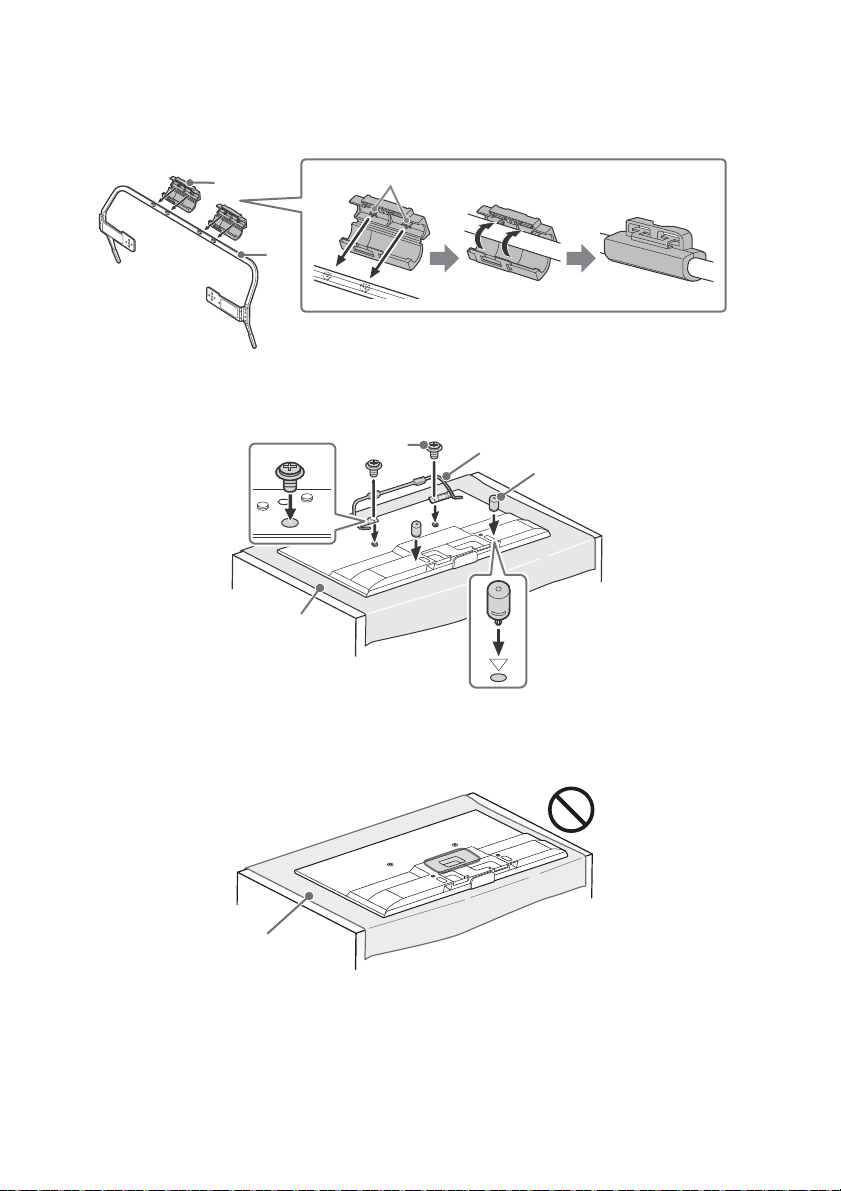

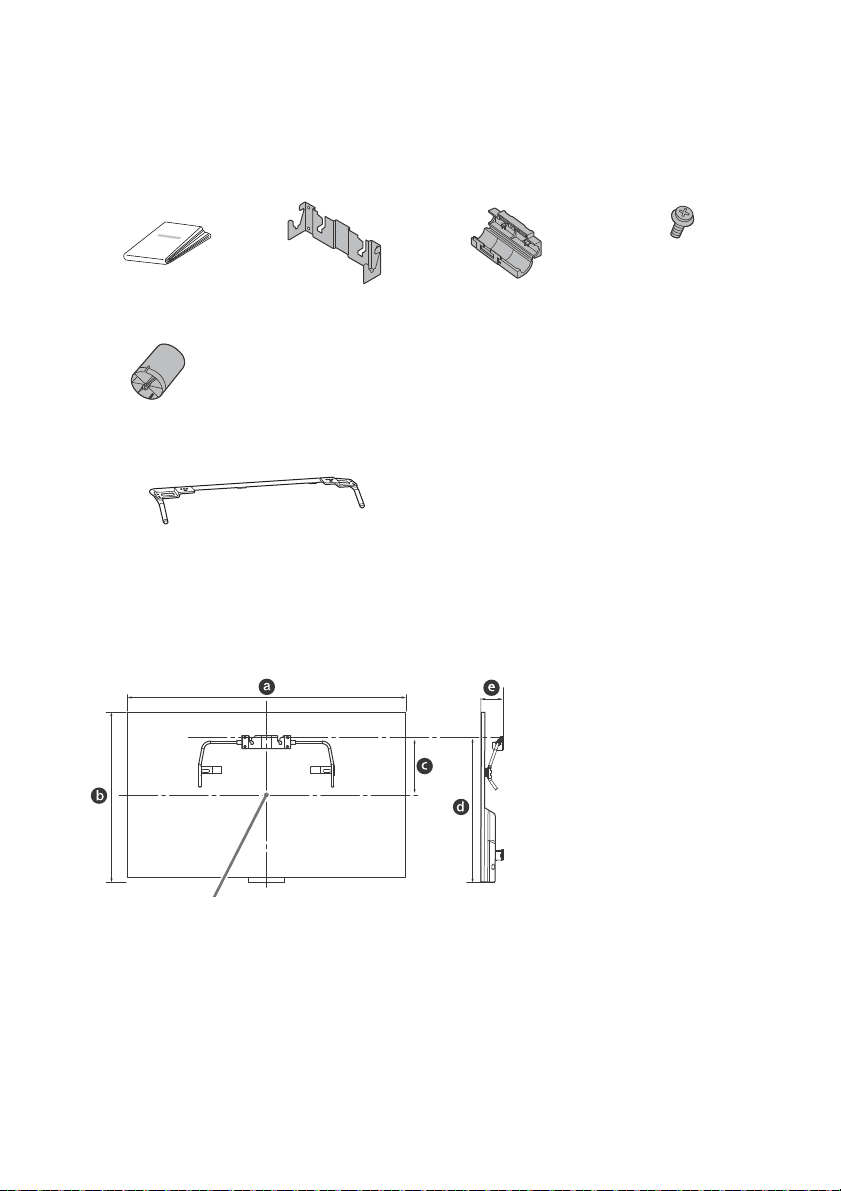

Using your TV's Table-Top Stand as a Wall-Mount Bracket (except Australia and

New Zealand model) . . . . . . . . . . . . . . . . . . 13

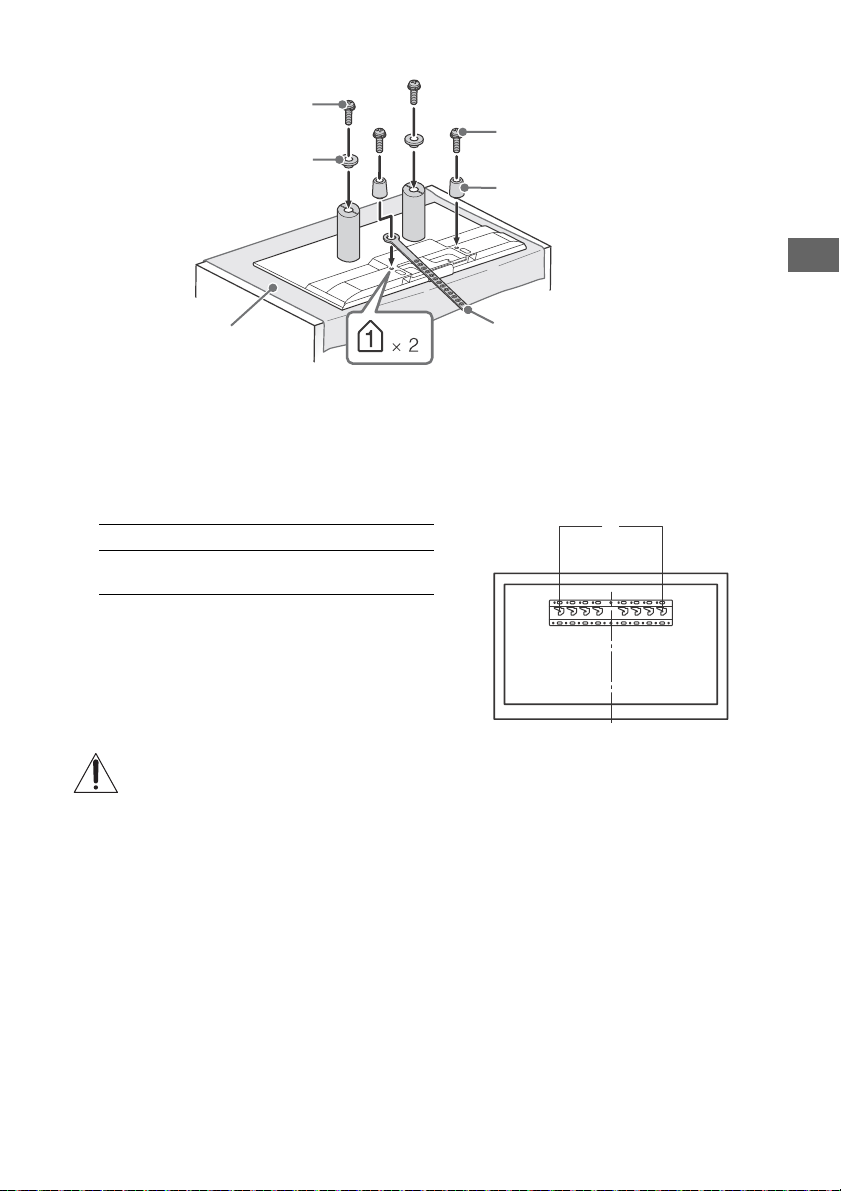

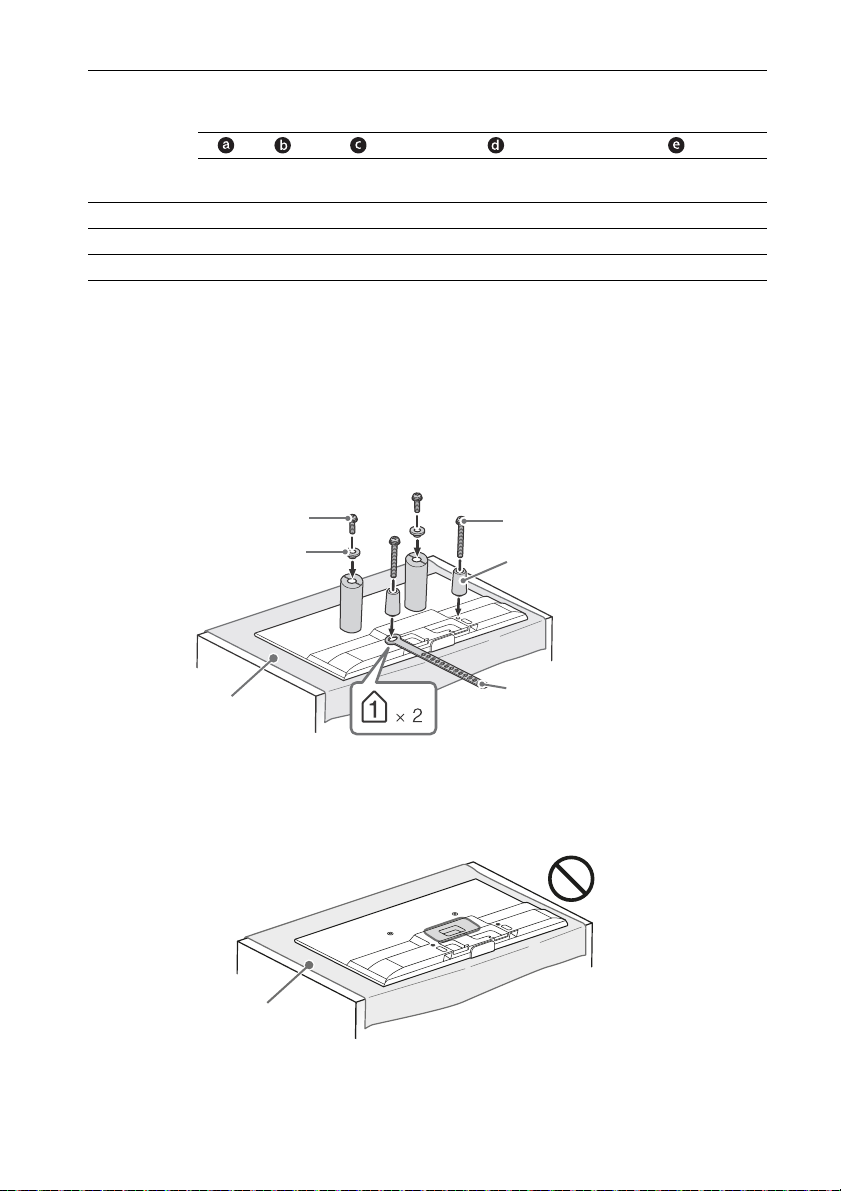

Using an Optional Wall-Mount Bracket . . . 18

Troubleshooting . . . . . . . . . . . . . . . . . . . . 22

Troubles and Solutions . . . . . . . . . . . . . . . . 22

Specifications . . . . . . . . . . . . . . . . . . . . . . 23

Introduction

Thank you for choosi ng this Sony product. Before operating the TV, please read this manual thoroughly and retain it for fu ture ref erence.

Note

• Before operating the TV, please read “Safety Information” (page 3).

• Instructio ns about “Installing the TV to the Wall” are included within this TV’s instructions manual.

• Images an d illustrations used in Startup G uide and this manual are for reference only and ma y differ from actual p roduct appearance.

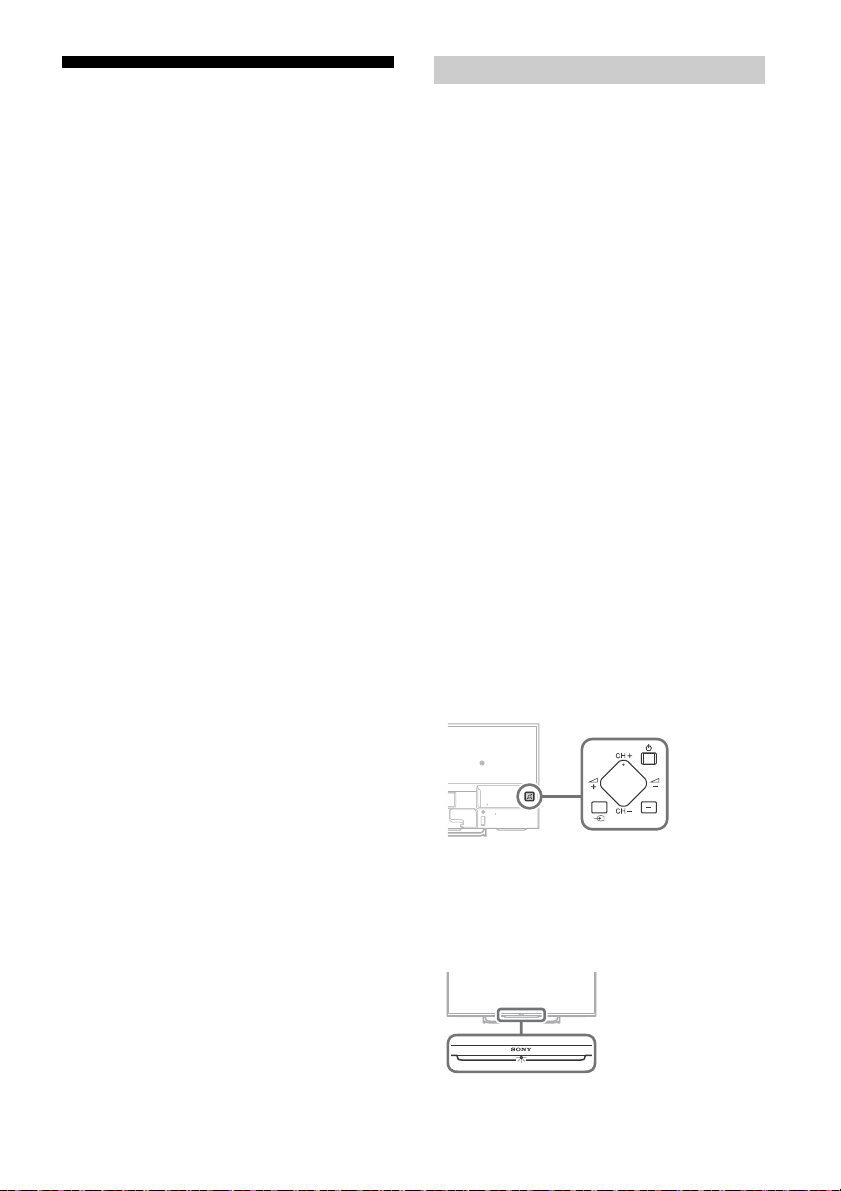

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV. Labels for the AC ada pter Model No. an d Serial No. are located on the bottom of the AC adapter.

Notice for customers in Thailand

This telecommunication equi pment conforms to NTC technical requirement.

Notes for Australia and New Zealand model

This product is ENERGY RATING qualified in the default mode. ENERGY RATING is a programme designed to promote energy efficient products and p ractices.

• When the TV is initially set up, it is designed to meet ENERGY RATING requirement s while main taining optim um picture quality.

• Changes to cer tain features, settings and functi onalities of this TV (e.g. TV Guide, Picture/Sound, Eco setting) can slightly change the power consumption.

Depending upon suc h changed settings (e.g. S hop mode), the power consumption may vary which possibly could exceed the stated energy rating. To reset the TV to ENERGY RATING qualified settings, compl ete the initial set-up procedure in [Initial se tup] under the settings menu.

Page 3

Safety Information

Screw (supplied with the Wall-Mount Bracket) Mounting Hook (Stand)

5 mm

Screw (supplied with the Wall-Mount Bracket) Wall-Mount Bracket

10-12 mm

30 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm

Leave at least this space around the set.

6 cm

Air circulation is blocked.

Wall Wall

WARN ING

Batteries must not be expose d to excessive heat such as sunshine, fire or the like. Never place a television set in an unstable locati on. A television set may fall, causing ser ious personal injur y or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:  Using cabi nets or stands recommended by the manufacturer of

the television set.

 Only using furn iture that can sa fely support the television set.  Ensuri ng the television set is not over hanging the edge of the

supporting furniture.

 Not plac ing the television set on tall furniture (for example,

cupboards or bookcases) w ithout anchoring both the furniture and the television set to a suitable support.

 Not plac ing the television set on cloth or other materials that

may be located between the television set and supporting furniture.

 Educating c hildren about the dangers of climbing on furniture

to reach the television se t or its controls. If your existing television set is b eing retained and relocated, the same considerations as above should be app lied.

Installation/Set-up

Install and use the TV s et in accordance with the instruction s below in order to avoid any risk of fire, electric shock or damage and/or in juries.

Installation

• The TV se t should be insta lled near an easily accessible AC

power outlet (mains socket).

• Pla ce the TV set on a stable, leve l surface to avoid it from falling

down and cause pe rsonal injury or dam age to the TV.

• Only qualified service personnel should carry out Wall-Mount

Bracket installations.

• For safety reasons, it is strongly recommended that yo u use

Sony accessories, includ ing:  Wall-Mou nt Bracket (Supplied) (except Australia and New

Zealand)

 Wall-Mou nt Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket

when attaching the Mo unting Hooks (Stand)/Wall-Mo unt Bracket to the TV set. The sup plied screws are designed as indicated by illustration wh en measured from the attaching surface of the Mounting Hooks (Stand)/Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than t hose supplied may result in internal damage to the TV se t or cause it to fall, etc.

 Wall-Mount Bracket (Supplied)

Tran spo rti ng

• Before transpor ting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set.

• When transpo rting the TV set by hand , hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

• When transpo rting the TV set, do not s ubject it to jolts or excessive vibration.

• When transpo rting the TV set for repairs o r when moving, pa ck it using the original carton and packing material.

Ventilation

• Never cover the ventilation holes or insert anything in the cabin et.

• Leave space around the TV set as shown below.

• It is strongly recomme nded that you use a Sony Wall-Mo unt Bracket in order to provide adequate air circulation.

Installed on the wall

Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust:  Do not la y the TV set flat, install up side down, backwards, or

sideways.

 Do not pla ce the TV set on a shelf, rug, bed or in a closet.  Do not cover the TV set with a cloth , such as curtains, or items

such as newspapers, etc.

 Do n ot install the T V set as shown below.

 Wall-Mou nt Bracket SU-WL450

Page 4

AC power cord (mains lead)

Handle the AC power cord (mai ns lead) and outlet (main s socket) as follows in order to avoi d any risk of fire, electric shoc k or damage and/or injuries:  The shape of AC power plug (mains plug), which is supplied

with the TV set, varies depending on the regions. Be sure to connect the appropriate suppli ed AC power cord (mains lead) with the plug that fits into th e AC power outlet (mains so cket).

 Use only Sony supplied AC power cords (mains lead), not those

of other brands.

 Insert the plug fully into the AC power outlet (mains socket).  Operate the TV set on a 100 V-240 V AC supply only.  When wiring cables, be sure to unplug the AC power cord

(mains lead) for yo ur safety and take care not to catch your feet on the cables.

 Disconnect the AC power cord (mains lead) from the AC power

outlet (mains socket) before working on or moving the TV set.

 Keep the AC po wer cord (mains lead) away from heat sources.  Unplug the AC power plug (mains plug) and clean it regularly. If

the plug is covered with dust and it picks up moisture, its insulation may deterio rate, which could result in a fire.

Note

• Do not use the s upplied AC power cord (mai ns lead) on any other equipment.

• Do not pinch, bend, or twist the AC power cord (m ains lead) excessively. The core conductors may be exposed or broken.

• Do not modify the AC power cord (mains lead).

• Do not put anythi ng heavy on the AC power cord (mains lead).

• Do not pull on th e AC power cord (mains lead) itse lf when disconnecting the AC power cord (mains lead).

• Do not connect to o many appliances to the sam e AC power outlet (m ains so cket).

• Do not use a po or fitting AC power outlet (mains socket).

NOTE ON AC ADAPTER

Warning

To reduce the risk of fire or electric shock, do not expose this apparat us to rain or m oistu re. To prevent fire or shock hazard, do not place objects filled with liquids, such as vas es, on the apparatus. Do not install this equipm ent in a confined space, suc h as a bookshelf or similar unit.

• Please ensu re that the AC power outlet (mai ns socket) is installed near the equipment and shall be easily accessible.

• Be sure to use the supplied AC adapter and AC power cord (mains lead). Other wise it may cause a mal function.

• Connect the AC ad apter to an easily accessible AC pow er outlet (mains socket).

• Do not coil the AC power cord (m ains lead) around the AC adapter. The core wire may be cut and/or it ma y cause a malfunction of the TV.

• Do not touch the AC adapter with wet hands.

• If you notice an ab normality in the AC adapte r, disconnect it from the AC power outlet (m ains socket) immediately.

• The set is not dis connected from the AC source as long as it is connected to the AC power outl et (mains socket), ev en if the set itself has been turned off.

• As the AC adapter w ill become warm when it is used for a long time, you may feel hot when touching it by hand.

Prohibited Usage

Do not install/use the TV s et in locations, environments or situations such as t hose listed below, or the TV set ma y malfunction and cau se a fire, electric shock, dama ge and/or injuries.

Locations:

• Outdoors (in d irect sunlight), at the seashore, on a sh ip or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or s moke.

Environments:

• Places that are hot, hu mid, or excessively dusty; where insects may enter; where it mig ht be exposed to mechani cal vibration, near flammable objects (candles, etc.). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as va ses, shall be placed on th e TV.

Situations:

• Use when yo ur hands are wet, with the cabinet removed, or with attachments no t recommended by the manufac turer. Disconnect the TV set from AC power outlet (mains socket) and antenna (aerial) during lightning storms.

• Install the TV s o that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

• Pla ce the TV in a humid or dusty spa ce, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

• Install the TV in places subject to extreme temperature, such as in direct sunlight, near a radiator or a he ating vent. The TV may overheat in such condition s which can cause deformation of the enclosure and/or TV malfunction.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulphur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes ma y cause moisture condensation . This may cause the TV to show poor picture and/or poor colour. Should this occur, allow mo isture to evaporate completely before powering the TV on.

Broken pieces:

• Do n ot throw anything at the TV set. T he screen glass may break by the impact and cause serious injury.

• If the surface of th e TV set cracks, do not touch it until yo u have unplugged the AC power cord (mains lead). Otherwise electric shock may result.

When not in use

• If you will not be using the TV set for seve ral days, the TV set should be disconnected from the AC power (mains) for environmental and safety reasons.

• As the TV s et is not disconnected from the AC powe r (mains) when the TV set is just turned off, pull the plug from the AC power outlet (mains socket) to disconnect the TV set completely.

• However, some T V sets may have features that requi re the TV set to be left in standby to w ork correctly.

For children

• Do not allow children to climb on the T V set.

• Keep small accessorie s out of the reach of children, so that they are not mistakenly swallowe d.

If the following problems occur...

Turn off the T V set and unplug the AC pow er cord (mains lead) immediately if any of the following pro blems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.

Page 5

When:

Stand Stand

 AC power cord (mains lead) is damaged.  Poor fitting o f AC power outlet (mains socket).  TV set is damaged by being dropped, hit or having something

thrown at it.

 Any liquid or solid object falls through openings in the cabinet.

About LCD Monitor Temperature

When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot wh en touching there by the hand.

WALL-MOUNT BRACKET

Below information show s the correct handling of the Wall-Mount Bracket. Be sure to read this information thoroughl y and use the Wall-Mount Bracket correctly.

To C u sto mer s:

Be sure to observe the following precautions for safety to prevent a serious injury through fire, electric shock, the product toppling over, or the product dropping.

• Be sure to subcontract th e installation to licensed contractors and keep small children aw ay during installation.

• Be sure to subcontract m oving or dismounting of the TV to licensed contractors.

• Do not remove screw s, etc., after mounting the TV.

• Do not make alterations to the parts of the Wall-Mount Bracket.

• Do not mount any equipment other th an the specified product.

• Do not apply any load other than the TV on the Wall-Mount Bracket.

• Do not lean on or hang from the TV.

• Do not hand le the TV with excessive force during cleaning or maintenance.

To Sony Dealers and Contractors:

The following instructions are for Sony dealers and contractors only. Be sure to read safety precautions described below and pay special attention to safety duri ng the installation, mainte nance and checking of this prod uct.

• When handli ng or mounting the TV set, hold it on the sides. Do not lift the TV by the Stand .

• Do not install the Wall- Mount Bracket on wall surfaces where the corners or the sides of the TV are protruding away from the wall surface.

• Do not install the TV over or under an air conditione r.

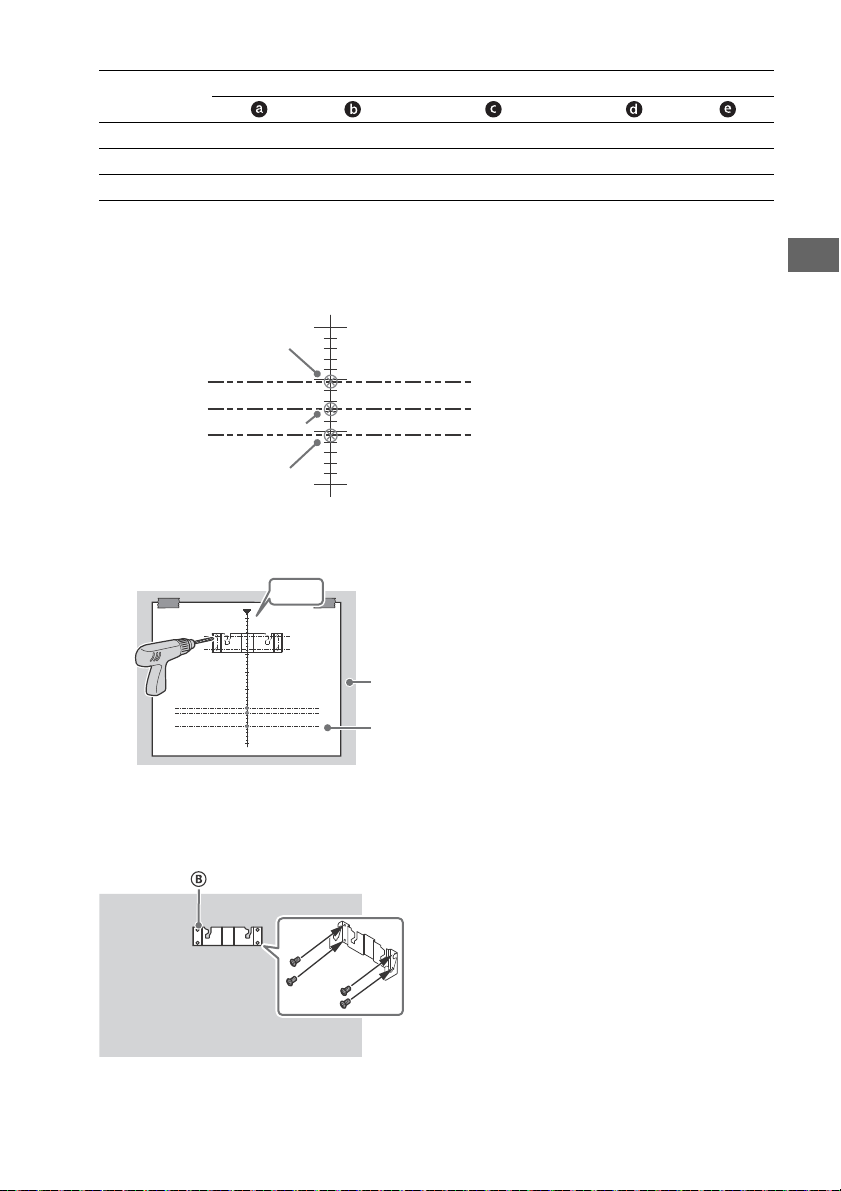

• Be sure to install th e Wall-Mount Bracket securely to the wall following the instructio ns in this instruction manual. If any of the screws are loose or fall out, the WallMount Bracket may fall and cause i njury or property damage.

• Be sure to use the supplied screws and attachment par ts properly following the instructio ns given in th is instruction m anual. If you use substitute ite ms, the TV may fall and cause bodily injury to someone or damage to the TV.

• Be sure to assemble the bracket properly following the instructed procedure explain ed in this in struction m anual.

• Be sure to tighte n the screws securely in the desi gnated position.

• Be careful not to s ubject the TV to shock du ring installation.

• Be su re to install the TV on a wall that is both perpendicular and flat.

• After proper installation of the TV, secure the cables properly.

• Do not allow th e AC power cord (mains lead) or the connecting cables to be pinched as the internal conductors m ay become exposed and cause a short circuit or an electrical break.

Precautions

Viewing the TV

• Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D vi deo images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscopic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction m anual of any other device or media u sed with this television an d (ii) our website (http://www.sony-asia.com/support) for the latest information. The vision of young children (especially those under six years old) is still unde r development. Consult your doctor (such as a paediatrician or eye doctor) before allowing young children to watch 3D vid eo images or play stereoscopic 3D games. A dults should superv ise young children to en sure they follow th e recommendations listed above.

• Do not use, store, or l eave the 3D Glasses o r battery near a fire, or in places with a high temperature, e.g., in direct sunlight, or in sun-heated cars.

• View the TV in mode rate light, as viewing the TV in poor light or during long period of tim e, strains your eyes.

• When usin g headphones, adj ust the volume so as to a void excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is used in a cold place, a smear m ay occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

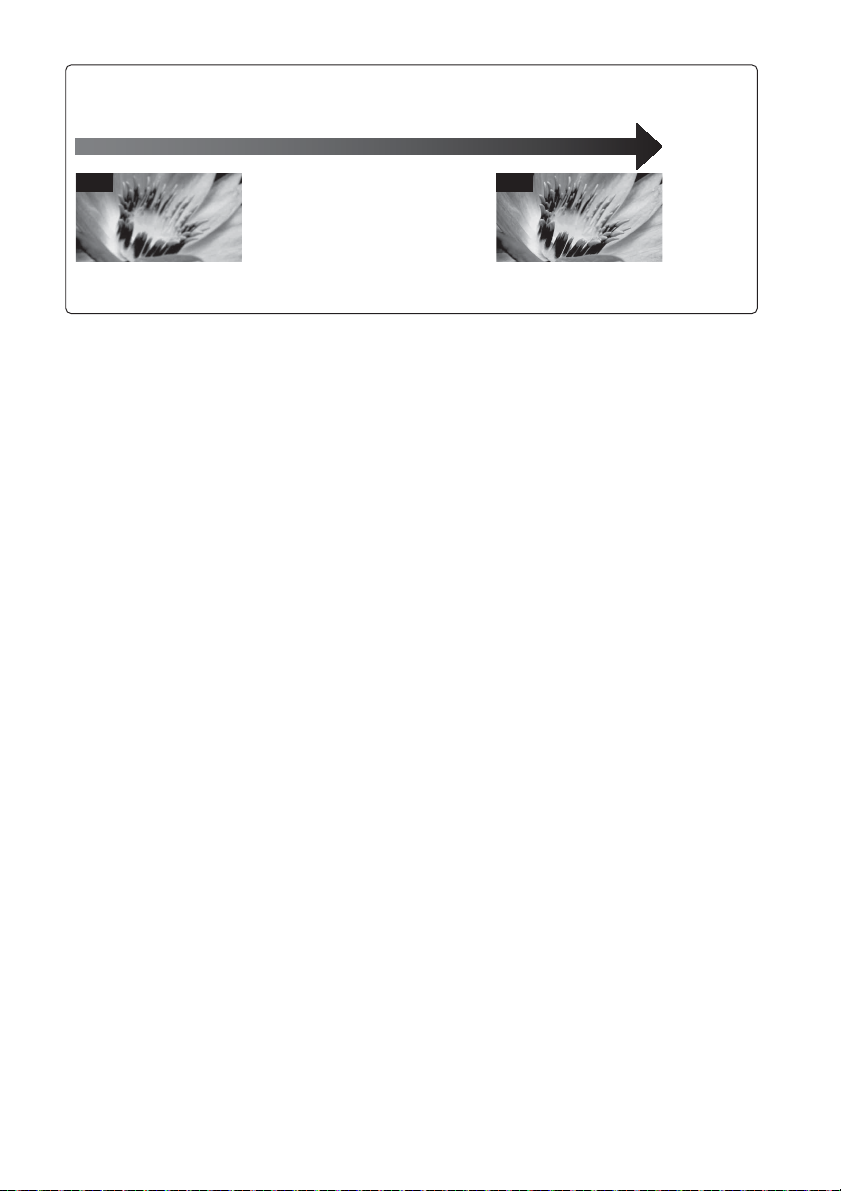

• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few m oments.

• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

• The LCD screen contai ns a small amount of liquid crys tal. Follow your local ordinances and regulatio ns for disposal.

Page 6

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the AC powe r cord (mains lead) connected to the TV set from AC power ou tlet (mains socket) before clean ing. To avoid material degradation or screen coatin g degradation, observe the following precautions.

• To remove dust from the sc reen surface/cabinet, wipe gently with a soft cloth. If dus t is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

• Never spray water or de tergent directly on the TV set. It may drip to th e bottom of the screen or exterior parts and enter the TV set, and may cause dama ge to the TV set.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile so lvent, such as alcohol , benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rub ber or vinyl materials may result in damage to the screen sur face and cabinet material.

• Periodic vacuuming of the ventilation openings is recommended to ensure to p roper ventilation.

• When adju sting the angle of the TV s et, move it slowly so as to prevent the TV set from m oving or slipping off f rom its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation awa y from the TV set. Other wise picture distortion and/or noisy sound may occur.

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as malfunction of the medical equipment may result.

• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.

Caution about handling the remote control

• Observe th e correct polarity when inserting batteri es.

• Do not use different ty pes of batteries together o r mix old and new batteries.

• Dispose o f batteries in an environmentall y friendly way. Certain regions may regulate the d isposal of batteries. Pleas e consult your local autho rity.

• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do no t place the remote control in a location n ear a heat source, a place subject to direct sun light, or a damp room.

WALL-MOUNT BRACKET

• If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behin d or above the T V may become discolo ured or the wallpaper m ay come unglued, depending on the m aterial of the wall.

• If the Wall-Mount Bracket is remov ed after installing it on the wall, the screw hol es remain.

• Do not use the Wall-Mount Bracket in a place where it is subjected to mechanical vibration.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with sepa rate collection systems)

Disposal of Old Electrical & Electronic Equipment (Applicable in Republic of India)

This symbol and it s variations indicate that this product and its components, consumables, parts or spares the reof shall not be treated as household waste and may not be dropped in garbage bins. Product ow ners are advised to

point for the recycling of electrical and electronic equipment. Your co-operation shall facilitate proper disposal and help prevent potential negative consequence s/hazards to the environment and human health, whi ch could otherwise be caused by inappropria te waste disposa l including improper handling, accidental breakage, damage and/or improper recycling of ewaste. The recycling of material s will help to conserve natural resources. For more detailed information ab out recycling of this product, please contact your local civic office, your ho usehold waste disposal service provider or the store where you made the purchase. You may contact our company’s toll free number in India for assistance.

Toll Free: 1800-103-7799 Visit: www.sony.co.in for product recyclin g

deposit their product at th e nearest collection

Reduction in the Use of Hazardous Substances in Electrical & Electronic Equipment (Applicable in Republic of India)

This product and its com ponents, consumabl es, parts or spares comply with the haz ardous substances restriction o f India’s E-Waste (Management) Rules. The maximum allowable concentrations of the rest ricted substances are 0.1% by weight in homogenous materials for Lead, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ethers (PBDE), and 0.01% by weight in homogenous materials for Cadmium, except for the exemptions specified in Schedule II of the aforesaid Rules.

ATTENTION:

This product is qualified for the BEE Star rating in the ‘Home’ Mode. The Objec tives of Star La beling Program is designed to promote energy efficient products and practices. When the te levision is in itially set u p, it is design ed to meet the BEE Star Labeling requirements while maintaining optimum picture quality.

• Changes to certain functionalities of this television (TV Guide, Picture/sound etc) may change the power consumption.

• Depending upon such changed setti ng (eg., Retail mode), the power consumpti on may vary which p ossibly could exceed the stated energy consumption.

To reset the television to Star rating qualified settin gs, select ‘Home’ mode from the initial set-up procedure in ‘factory settings’ under the ‘Set-up’ me nu.

* Attention statement is subject matter of BEE, and

applicable if functions is available. For “Factory Settings”, go to “Customer Support” menu.

** ”Home mode” conditions are as per BEE guideline

only.

Page 7

Parts and Controls



Ȫ ȫ

Controls and Indicators

 Remote Control sensor*1 /

Light sensor* 3D Sync Transmitter*

The Illumination LED lights up or blinks according to the status of the TV.

•White When turning on the TV/picture off mode/software update, etc.

•Cyan When connecting with a mobile device wirelessly.

•Pink* Recording mode.

•Amber Timer is set.

/ Illumination LED /

 (Power)

 CH +/- (Channel)

 +/- (Volume)

 TV

Switch to a TV channel or input from other applications.

 (Input select)

Display and select the input source.

*1 Do not place anything near the sensor.

*2 Only on limited region/country/TV model.

Page 8

Inputs and Outputs

Ȫ ȫ

ȭ Ȯ

 VIDEO IN 2, / COMPONENT IN

• For a composite connection:

Use VIDEO IN 2, and  (L/R) of / COMPONENT IN*

• For a component connection: Use Y, P

B, PR, and  (L/R).

HDMI 3 AUDIO IN 

For HDMI 3 analogue audio connection.

 DIGITAL AUDIO OUT (OPTICAL)

 LAN

 CABLE/ANTENNA

Connect to your cable or antenna (aerial).

/ VIDEO IN 1

For a composite connection, use the supplied analogue extension cable*

1*2

 USB 1/2

• Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 socket.

 HDMI IN 2/3/4

•If the device has a DVI jack (socket), connect it to HDMI IN 3 through a DVI HDMI adaptor interface (not supplied), and connect the device's audio out jacks (sockets) to HDMI 3 AUDIO IN.

• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 4. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

 AUDIO OUT /

To listen to the TV's sound through the connected equipment, press HOME. Select [Settings]  [Sound]  [Headphone/ Audio out] and then select the desired item.

 HDMI IN 1/MHL

You can connect your MHL (Mobile Highdefinition Link) device using an HD quality MHL cable.

*1 When connecting mono equipment, connect to the

L(MONO) audio jack.

*2 Only on limited region/country/TV model.

Page 9

Using Remote Control

Remote Control Parts Description

/ (Input select/Text hold)

In TV mode: Display and select the input source. In Text mode: Hold the current page.

SYNC MENU*1

Display the BRAVIA Sync Menu.

 (TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

FOOTBALL*1

Turn Live Football Mode on or off (when the feature is available).

 Number buttons

 (Text)

Display text information.

 Colour buttons

Execute corresponding function at that time.

/ (Info/Text reveal)*1

Display information.

NETFLIX

Access the “NETFLIX” online service.

HELP

Display Help Menu.

Page 10

 ACTION MENU

Display a list of contextual functions.

Switch to a TV channel or input from other applications.

GUIDE/

Display the digital programme guide.

BACK

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for content.

//// (Item select/Enter)

 +/– (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

 (Muting)

Mute the sound. Press again to restore the sound.

PROG +/–//

In TV mode: Select the channel. In Text mode: Select the next ( previous (

) page.

) or

 AUDIO

Change the language for the programme currently being viewed.

(Subtitle setting)*1

Turn subtitles on or off (when the feature is available).

(Wide mode)*1

Change the screen format.

//////

Operate media contents on TV and connected BRAVIA Sync compatible device.

 REC

Record the current programme with the USB HDD recording function.

TITLE LIST*1

Display the Title list.

*1 The location, availability and function of remote

control button may vary depending on your country/ region/T V model.

Page 11

Connecting the TV

To H D MI O U T

< 21 mm

< 12 mm

To AUDIO OUT To COMPONENT

OUT (P

R/PB/Y)

To V I DEO OUT

3.5 mm

234

1: L 2: Video 3: Ground 4: R

Note

• When connecting the cable to the Cable/Antenna, input finger tighten only, over-tightening the connection can damage the TV.

To connect with an HDMI cable

To connect with component cables

To connect with analogue extension cable

Availability depends on countries/regions/TV models.

Page 12

SD HD

Picture Quality

• AV composite cable

• Antenna (aerial) cable

• Component cable • HDMI cable

Standard definition (SD) videos have picture signal s with a vertical resolution of 480 (NTSC) or 576 (PAL/SECAM) lines.

High definition (H D) videos have picture si gnals with a vertical resolution of 720 or 1,080 lines.

Page 13

Installing the TV to the Wall

Soft cloth

Stand Necks

Stand

Using your TV's Table-Top Stand as a Wall-Mount Bracket (except Australia and New Zealand model)

To C u s tome r s

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.

To Sony Dealers and Contractors

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation.

Your TV’s Table-Top Stand will be used as a part of the Wall-Mount Bracket.

Note

• See page 3 (Safety Information) and page 5 (Precautions) on WALL-MOUNT BRACKET before carrying out Wall-Mount Bracket installation.

• If the Table-Top Stand is attached to the TV, detach the Table-Top Stand beforehand.

• Place the TV with its screen facing down on a flat and stable surface covered with a thick and soft cloth that is larger than the TV, when securing the Stand or when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display.

• Once the Stand Necks are detached from the Stand, be sure to keep the Stand Necks and screws in a safe place.

• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.

To detach the Table-Top Stand from the TV

Page 14

Installing the Brackets on the wall

A Paper Template B Wall- Mount Base (1) C Stand Protector (2) D Screw (+PSW M8 × 12)

(2)

E Spacers (2)

Screen centre point

1 Prepare necessary items.

Wall-Mount Bracket accessories H

Stand B

Screws for Wall-Mount Base (8 mm in diameter, not supplied)

2 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 23-26 (Specifications) for the TV’s weight.

Page 15

Unit: mm

150

200

250

300

Scale on Paper Template A

Mark for KDL-55W800D

Mark for KDL-43W800D

Mark for KDL-50W800D

100

150

200

250

300

1, 2, 3, 4

Wall

Model Name

Display dimensions Screen centre dimension Length for mounting

KDL-

55W800D 1,230 715 201 566 89

50W800D 1,116 654 229 566 87

43W800D 962 565 253 544 87

Note

• Figures in the table may differ slightly depending on the installation.

3 Make a mark on the Paper Template A that indicates the centre of the screen for your TV.

4 Tape the Paper Template A to the wall and drill holes according to the numbering on the

Paper Temp late A using an electric drill.

5 Remove the Paper Template A off from the wall. 6 Attach the Wall-Mount Base B to the wall correctly using the screws (8 mm in diameter,

not supplied).

Page 16

Preparing for the installation of the TV

Soft cloth

1 Insert the pin (on the Stand Protector C) into the hole on the Stand B, then fold up the

Stand Protector C. Confirm the Stand Protector C is firmly latched to the Stand B.

2 Attach the Stand B to the TV using the supplied screws D. Attach the Spacers E to the

holes indicated by the triangle marks

Note

• You cannot use some of the terminals on the rear of the TV when using this mounting style.

• Connect the analogue extension cable (Availability depends on countries/regions/TV models) if you need to us e

/ VIDEO IN 1 socket.

Page 17

Installing the TV on the wall

Wall

170 mm

37 mm

1 Make sure to connect and bundle the cables before installing the TV on the wall. 2 Install the TV on the wall. Then, confirm the Stand Protector C is firmly latched into the

Wall-Mount Base B and the Spacers E touch the wall.

Dimensions of the hole positions on the wall

Provide the following information to the licensed contractors if necessary. Use screws (8 mm in diameter, not supplied) to install the Wall-Mount Base B on the wall. Be sure to use the supplied Paper Template A that shows the actual position of Wall-Mount Base B for easy installation.

Page 18

Using an Optional Wall-Mount Bracket

Soft cloth

Stand Necks

Stand

This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To Custo m er s :

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.

• See page 3 (Safety Information) and page 5 (Precautions) on WALL-MOUNT BRACKET before carrying out WallMount Bracket installation.

• If the Table-Top Stand is attached to the TV, detach the Table-Top Stand beforehand.

• Place the TV with its screen facing down on a flat and stable surface covered with a thick and soft cloth that is larger than th e TV, when securing the Stand or when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display.

• When attaching the Table-Top Stand again, please refer Startup Guide to fasten the screws (previously removed) to the original holes on the rear of the TV.

Page 19

SU-WL450

Soft cloth

1.5 N∙m {15 kgf∙cm}

Screen centre point

Standard mounting Slim mounting

1 Attach Wall-Mount Attachment I (supplied with the TV) to the rear of the TV (to make it

parallel with the wall).

Note

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV.

Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV.

2 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 23-26 (Specifications) for the TV’s weight.

Page 20

Unit: mm

Pulley 

Screw (+PSW 6 x 20) 

Spacer (60 mm) 

Screw (+PSW 6 x 50) 

Belt 

Soft cloth

Display

Model Name

KDL-

55W800D 1,230 715 99 464 463 123 81

50W800D 1,116 654 127 464 464 122 80

43W800D 962 565 173 464 464 122 80

Note

• Figures in the table may differ slightly depending on the installation.

• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

dimensions

Screen

centre

dimension

Standard

mounting

Length for mounting

Slim

mounting

Standard

mounting

Slim

mounting

3 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by

referring to “1” of the Wall-Mount Bracket Installation Guide.

Note

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to store the unused parts in a safe place for future use. Retain this manual for future re ference.

Standard mounting

Slim mounting

Note

• You cannot use some of the terminals on the rear of the TV when using this mounting style.

• Connect the analogue extension cable (Availability depends on countries/regions/TV models.) if you need to

/ VIDEO IN 1 socket.

use the

Page 21

4 Connect necessary cables to the TV.

Screw (+PSW 6 x 20) 

Pulley 

Screw (+PSW 6 x 20) 

Belt 

Spacer (20mm) 

Soft cloth

Note

• You cannot access to any terminal after installing the TV to the wall.

5 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the

Wall” of Operating Instructions supplied with the Wall-Mount Bracket.

Model Name KDL- Hook location

55W800D / 50W800D /

43W800D

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Page 22

Troubleshooting

Rear of TV

In order to keep your TV software up-to-date, it is necessary to download the latest software information via the digital broadcasting system or internet and to update the software. Select [Update Now] to start a software update. The illumination LED flashes white while the software is updating. Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 30 minutes. If you do not wish to update the software automatically, press HOME and select [Help]  [System software update]  [Automatic software download]  [Off].

When you unplug the TV and plug it in again, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV because it takes time to initialize the system. Wait for about 10 to 20 seconds, then operate it again.

When the illumination LED is flashing red, count how many times it flashes (interval time is three seconds).

If the illumination LED flashes red, reset the TV by disconnecting the AC power cord (mains lead) for two minutes, then turn on the TV. If the problem persists, contact your dealer or Sony service centre with the number of times the illumination LED flashes red (interval time is three seconds). Disconnect the AC power cord (mains lead), and inform your dealer or Sony service centre.

When the illumination LED is not flashing, check the items as follows.

You can also refer to [Troubleshooting] in the Help Guide or perform self-diagnosis by selecting [Help]  [Self diagnostics]. If the problem persists, have your TV serviced by qualified service personnel.

Troubles and Solutions

There is no picture (screen is dark) and no sound.

 Check the antenna (aerial)/cable connection.  Connect the TV to the AC power (mains), and

press  on the TV or remote control.

Some programmes cannot be tuned.

 Check the antenna (aerial)/cable connection.

The remote control does not function.

 Replace the batteries.

The [Parental lock] password has been forgotten.

 Enter 9999 for the PIN code. (PIN code 9999 is

always accepted.)

The TV surrounds become warm.

 Whe n the TV is used for an extended period, the

TV surrounds become warm. You may feel hot when touching there by the hand.

Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.

 Perform a simple reset of the TV by unplugging

the AC power cord (mains lead) for two minutes, then plug it in again.

The , CH+/–,  +/–,  and TV buttons cannot be located on the TV.

 See below illustration for location of the buttons

on the TV.

The illumination LED is turned on.

 If you do not wish to light up the illumination LED,

you can turn it off. Press HOME, then select [Settings] t [Illumination LED] t [Off].

Page 23

Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup).

 If you use WEP security, select [Easy] t [Wi-Fi] t

[Connect by scan list]. Then, select the network name (SSID) you want to connect.

Cannot find the required network name in network setup.

 Select [[Manual entry]] and press to enter

network name.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Depending on your country/area selection Analogue: B/G, I, D/K, M or M/N Digital: DVB-T/DVB-T2 or SBTVD

Colour/video system

Analogue: PAL, SECAM, NTSC3.58, NTSC4.43 Digital: Refer to the Help Guide

Channel coverage

Analogue: UHF/VHF/Cable, Depending on your country/area selection. Digital: UHF/VHF, Depending on your country/ area selection.

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE802.11a/b/g/n Bluetooth Version 4.1

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

/ VIDEO IN 1

Video/Audio input (mini jack)

/ COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i Audio input (phono pin jack)

VIDEO IN 2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4

Video (2D): 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats Video (3D):

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p Side-by-Side: 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) Over-Under: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz) Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS ARC (Audio Return Channel) (HDMI IN 4 only)

Page 24

MHL (common with HDMI IN 1)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i Video (3D):

Side-by-Side: 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) Over-Under: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz) Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital, DTS)

HDMI 3 AUDIO IN

Analogue audio input (Stereo mini jack)

AUDIO OUT /  (Stereo mini jack)

Headphone, Audio Output, Subwoofer

1, 2 USB port

DC IN 19.5 V

AC adapter input

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASETX communication rate and communication quality are not guaranteed for this TV.)

Others

Optional accessories

Touchpad Remote Control: RMF-TX100E Wall-Mount Bracket: SU-WL450 Wireless Subwoofer: SWF-BR100 MHL Cable: DLC-MC10/DLC-MC20/DLC-MC30 Camera and Microphone Unit: CMU-BR300 Active 3D Glasses: TDG-BT500A

Power and others

Power requirements

19.5 V DC with AC adapter Rating: Input 100 V - 240 V AC, 50/60 Hz

Screen size (measured diagonally) (Approx.)

KDL-55W800D: 55 inches / 138.8 cm KDL-50W800D: 50 inches / 125.7 cm KDL-43W800D: 43 inches / 108.0 cm

Display resolution

1,920 dots (horizontal) × 1,080 lines (vertical)

Power consumption

KDL-55W800D: 104W KDL-50W800D: 94W KDL-43W800D: 82W

Dimensions (Approx.) (w × h × d)

wi t h Tabl e-Top S tan d

KDL-55W800D: 1,230 × 753 × 207 mm KDL-50W800D: 1,116 × 691 × 207 mm KDL-43W800D: 962 × 602 × 180 mm

without Table-Top Stand

KDL-55W800D: 1,230 × 715 × 61 mm KDL-50W800D: 1,116 × 654 × 59 mm KDL-43W800D: 962 × 565 × 59 mm

Mass (Approx.)

wi t h Tabl e-Top S tan d

KDL-55W800D: 18.2 kg KDL-50W800D: 14.9 kg KDL-43W800D: 11.9 kg

without Table-Top Stand

KDL-55W800D: 17.0 kg KDL-50W800D: 13.7 kg KDL-43W800D: 10.9 kg

Note

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.

•This TV set incorporates MHL 2.

Operating temperature

0 ºC – 40 ºC

Page 25

Notes on Digital TV function

• Any functions related to Digital TV () will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG4 AVC) digital terrestrial signals are broadcast. Please confirm with your local dealer if you can receive a DVB-T/DVB-T2 signal where you live.

• This TV set complies with DVB-T/DVB-T2 specifications, but compatibility with future DVB-T/DVB-T2 digital terrestrial broadcasts are not guaranteed.

• Some Digital TV functions may not be available in some countries/areas.

Trademark information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of Sony Corporation.

• Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered trademarks of Wi-Fi Alliance.

• MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

•For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

Page 26

Page 27

Page 28

Customer Support and Contact:
